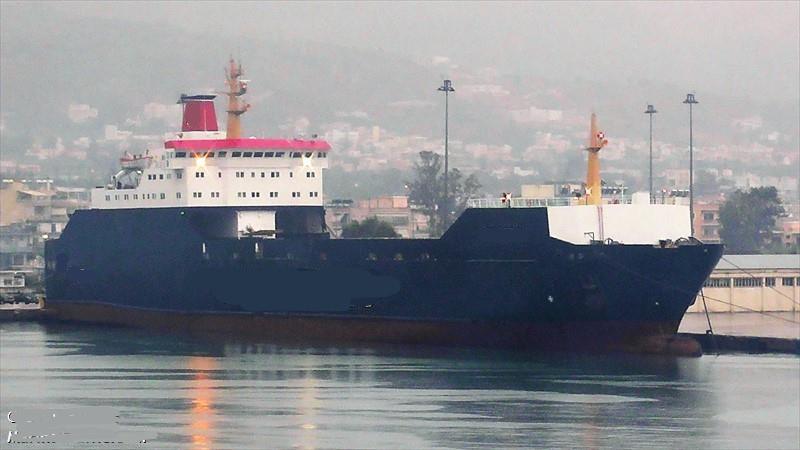

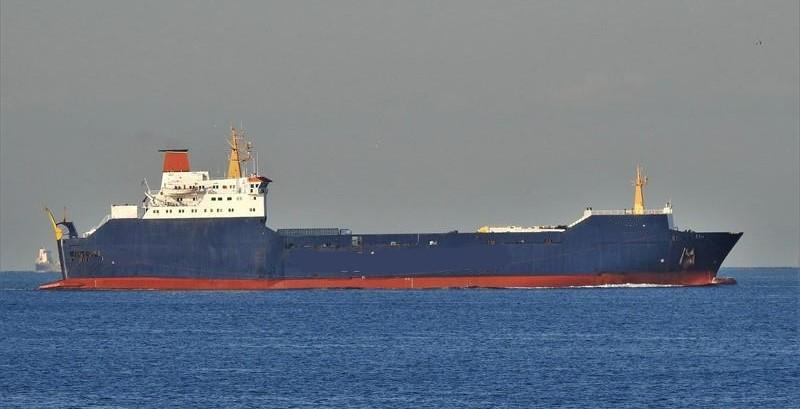

This is a 496’ 8,616 ton Deadweight RoRo Vessel built in 1978 in Japan. It is INSB Class. There is a large stern ramp and an interior vehicle elevator. There are about 1,400 lane meters for trucks, containers and vehicles. The ship has a service speed of 15 knots.
GENERAL INFORMATION
Built: Hyundai Shipbuilding Co Ltd
Year Built: 1977
Delivered: 1978
Type: Ro-Ro
Class: INSB
Length B.P.: 137 M
L.O.A.: 151 M
Breadth: 19.90 M
Depth To Main Deck: 7.75 M
Freeboard: 462 mm
Draft Fully Loaded: 7.32 M
Displacement Tons: 14,744 T
Net Tons (Itc): 3995 Tons
Reg. Tons (Itc) (Gross): 13,117 Tons
Deadweight Tons: 8,616 Tons
Ton/Cm Immersion: 27.4
Speed: 15 Knots
Number Of Decks: 3
VEHICLE CARGO DECKS

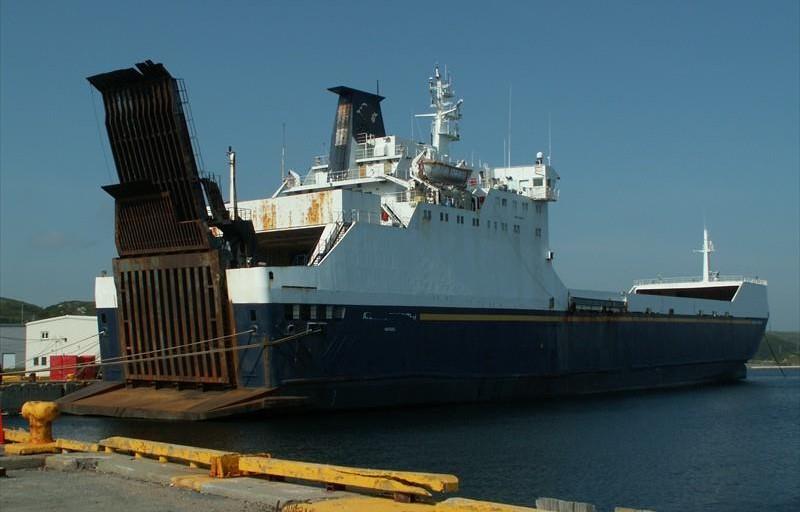

Stern Doors: 12.6 M Wide X 15.6 M High
Lift Elevator: 19 M (Main Deck To Tank Top)
Lane Meters/Deck: Upper 625 LM; Main 587.5 LM; Tank Top 187.5 LM
Rump Clearing Height: 5 M
Height of Main Deck: 6.5 M
Height of Lower Deck: (Tank Top) to Car Deck Abt 5.40 Mtrs (With Car Deck Up). With Car Deck Down, Height From Tank Top To Car Deck Abt 3.90 Mtrs
Height Car Dk/Main Deck: Abt 1.70 Mtrs.
MACHINERY
Main Engines: 2 X Pielsticks 12 Cyl 12 Pc 25v, 2 X 7,800= 15,600 Bhp
M.E. Fuel Consumption: 36 Tons/day
Generators: 2 X Daihatsu 650 Kva Model BHPHS To- 26d 840 HP Each
Shaft Generators: 2 X Taito Electric Mfc 950 Kva BPK 8054348 HP 950 Kva
Emergency Generator: 1 x Yanmar 120 Kva 6KFL BHP 145@1200 Rpm
Mt / Day. No Mdo When Shaft Is Engaged.
Aux Engines: (X2) MDO Consumption: 2.5 Mt / Day Each
Propellers: 2
Bow Thruster: 1
Shaft: 2
Rudders: 2
