An elegant classic. Ananda has been undergoing upgrades. New battery system, AC and DC wiring, all exterior wood re-done.

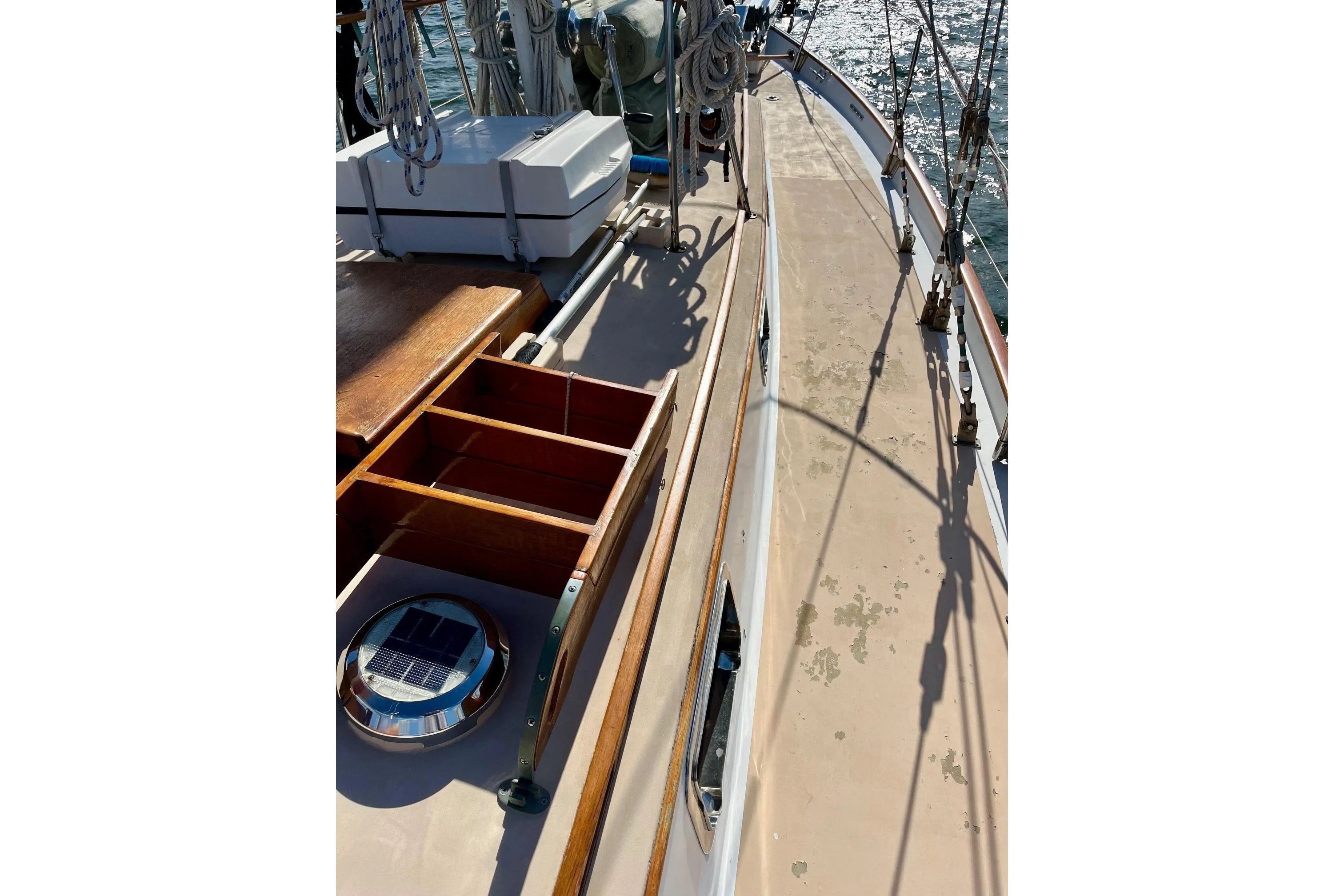

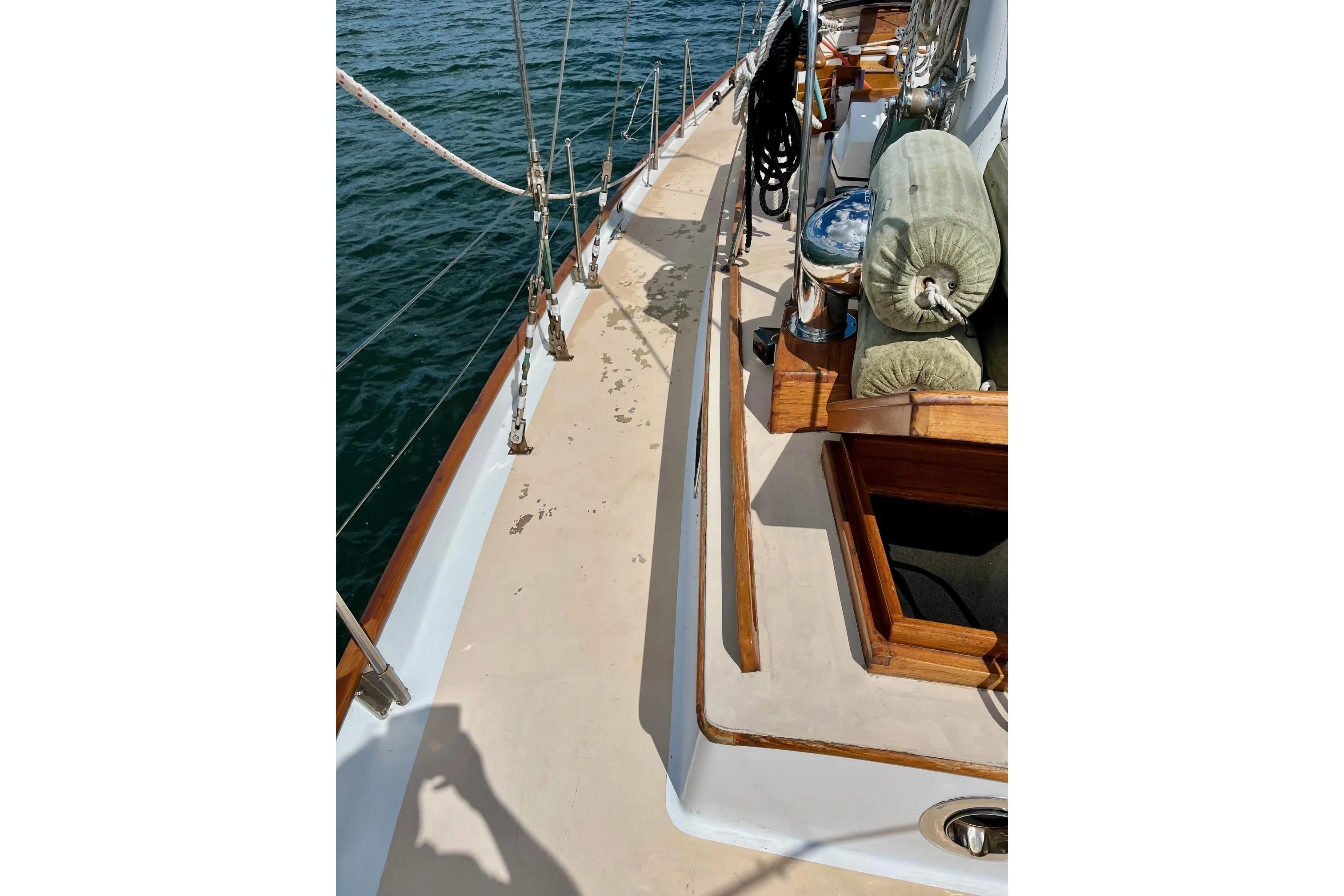

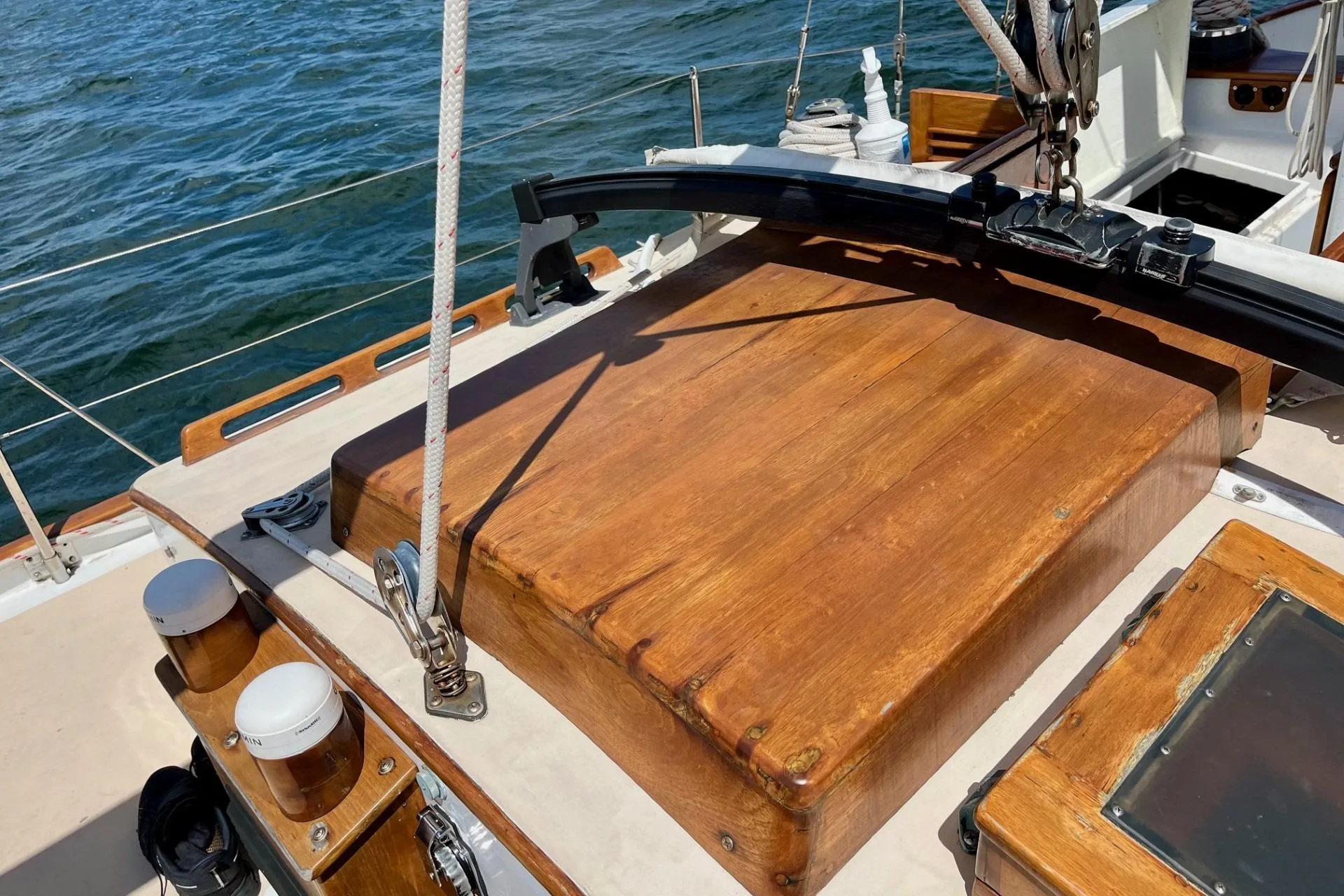

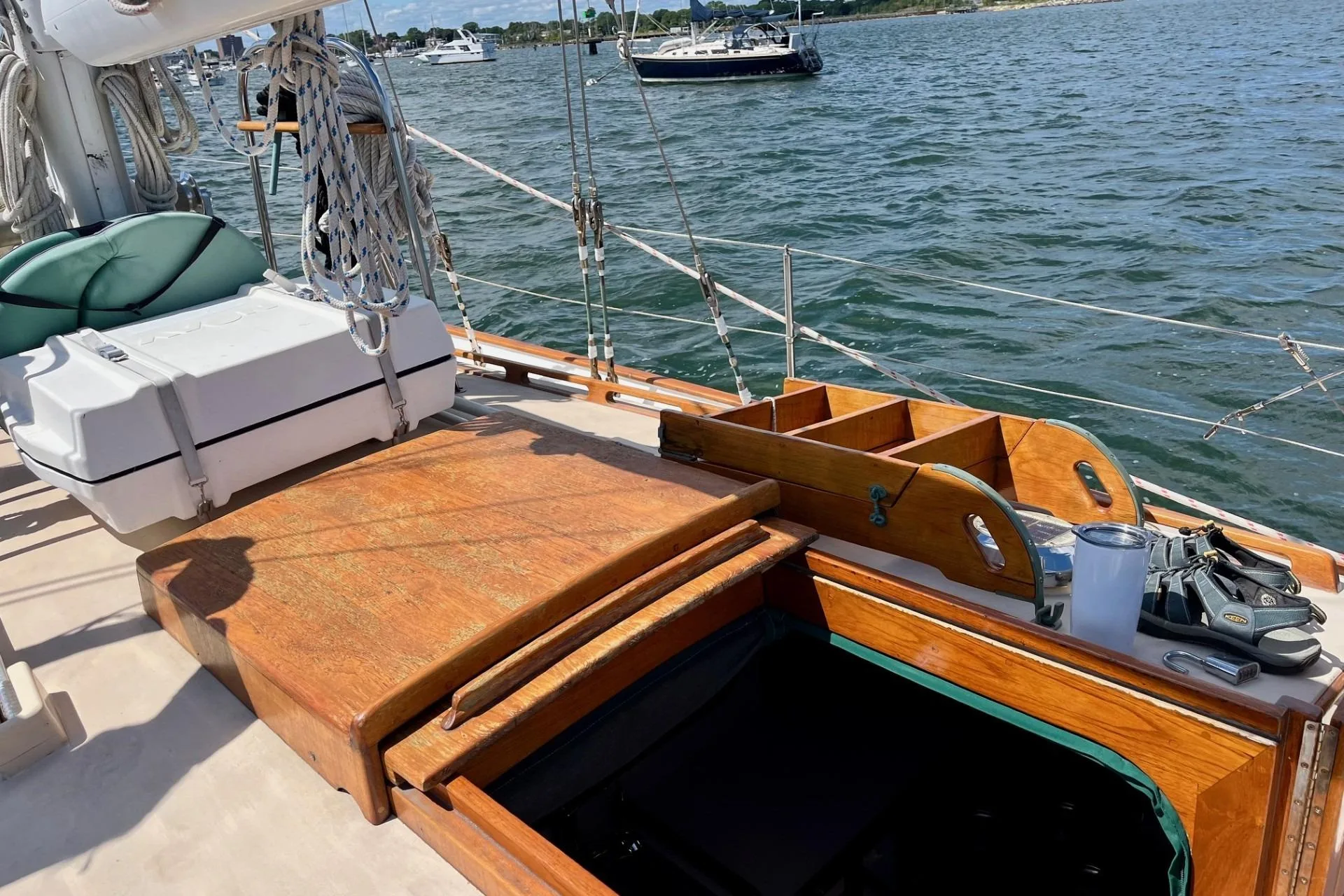

As you can see from the photos, the deck is peeling. The previous owner had painted them, but the paint didn't bond well in some places.
This winter, the wood was sanded, and Cetol was used.
The bottom was painted in 2024, and she was not launched last year, only last month, so it's basically newly painted.
Construction
Hull, Deck & Superstructure Construction:
Solid, no-core, laminated high-strength, vinyl ester-impregnated fiberglass.
All bronze thru-hull fittings and valves.

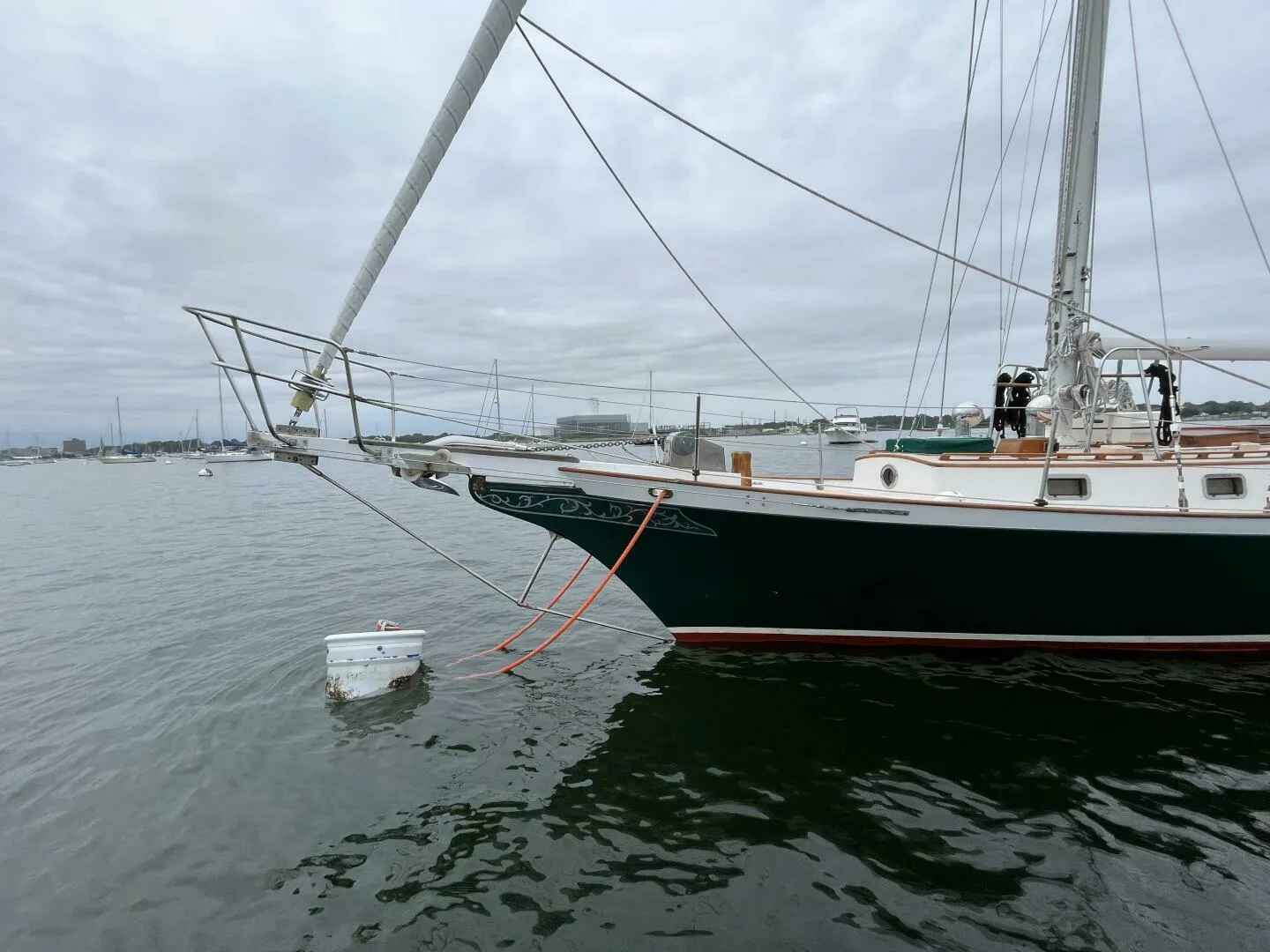

Solid mahogany bowsprit
Stainless-steel stern rails, stanchions, and lifelines.
Machinery

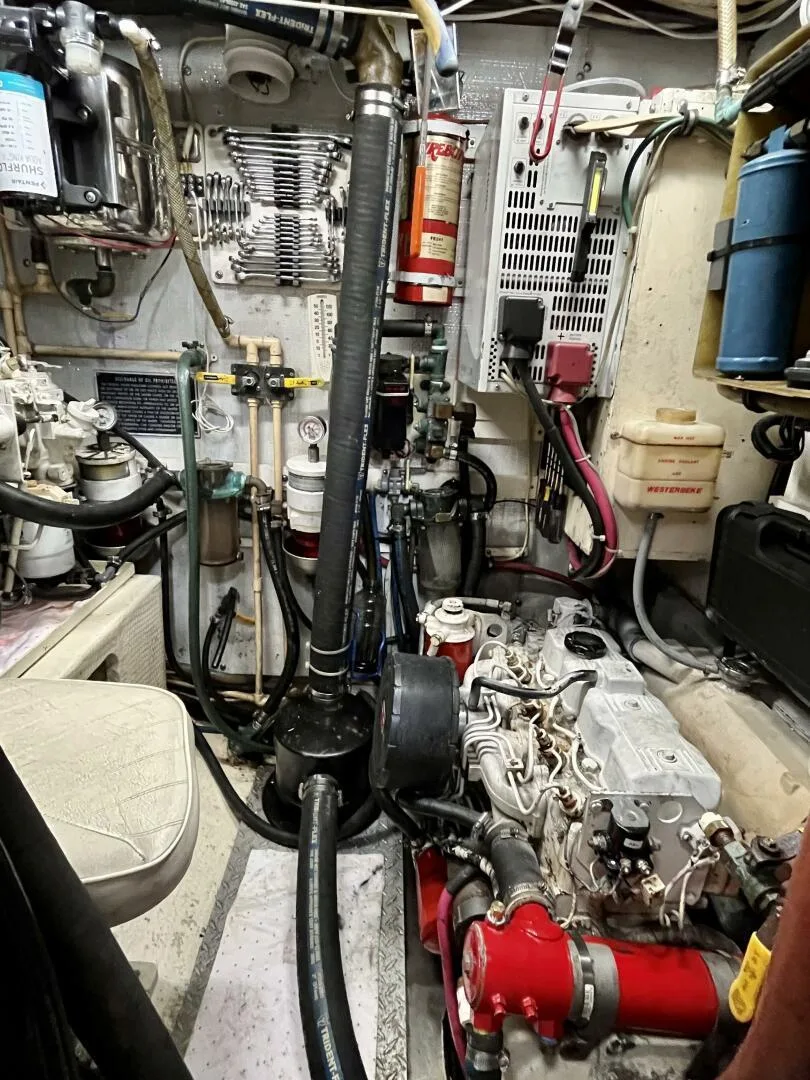

Engine

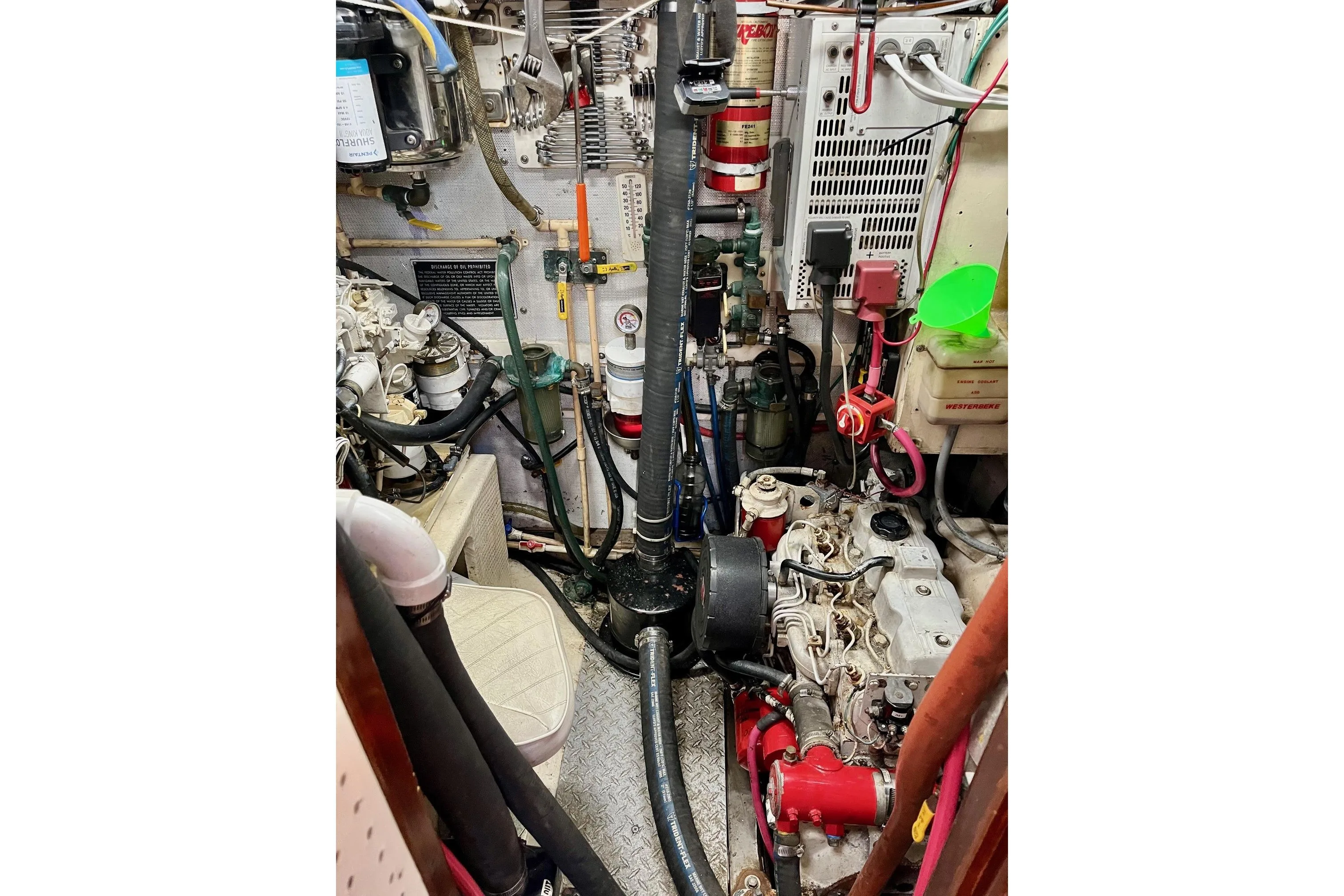

Westerbeke 63 HP. 7,450 hours. Major rebuild at 2177 hours in 2005. It's 6865 hours since then,
Propulsion & Steering:
3-blade bronze
1 ¼” stainless prop shaft.
Rope Cutter.
Side Power bow thruster

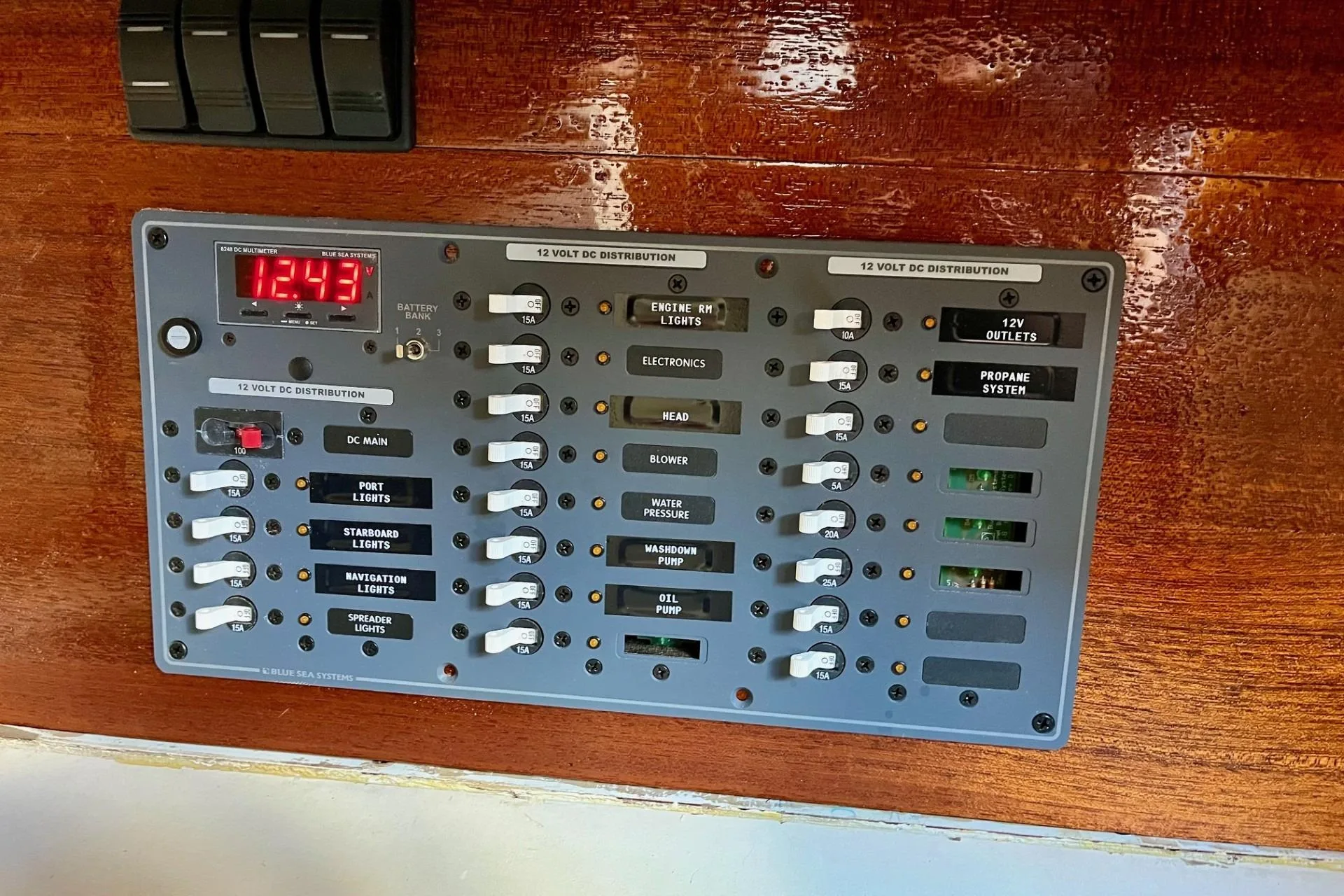

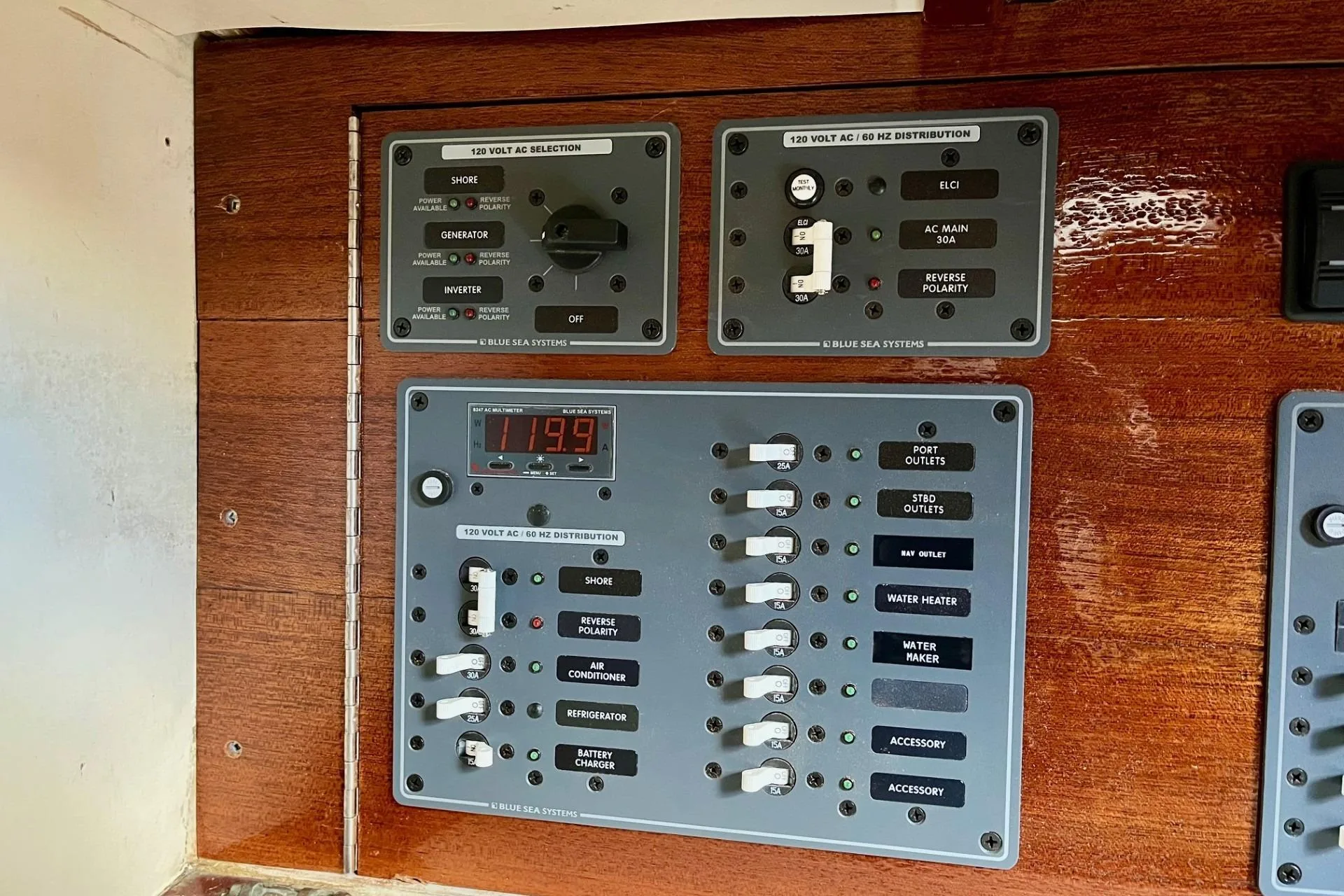

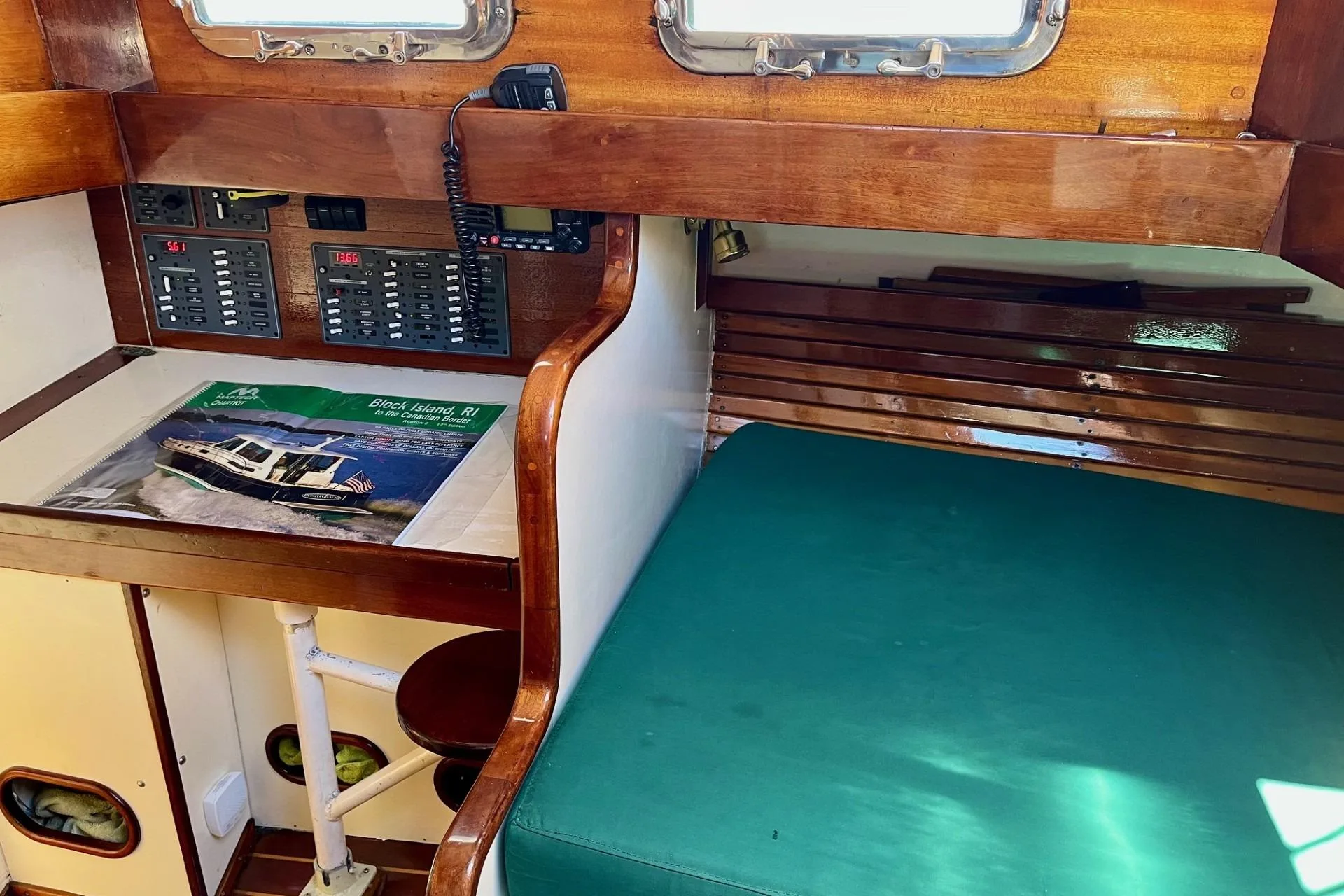

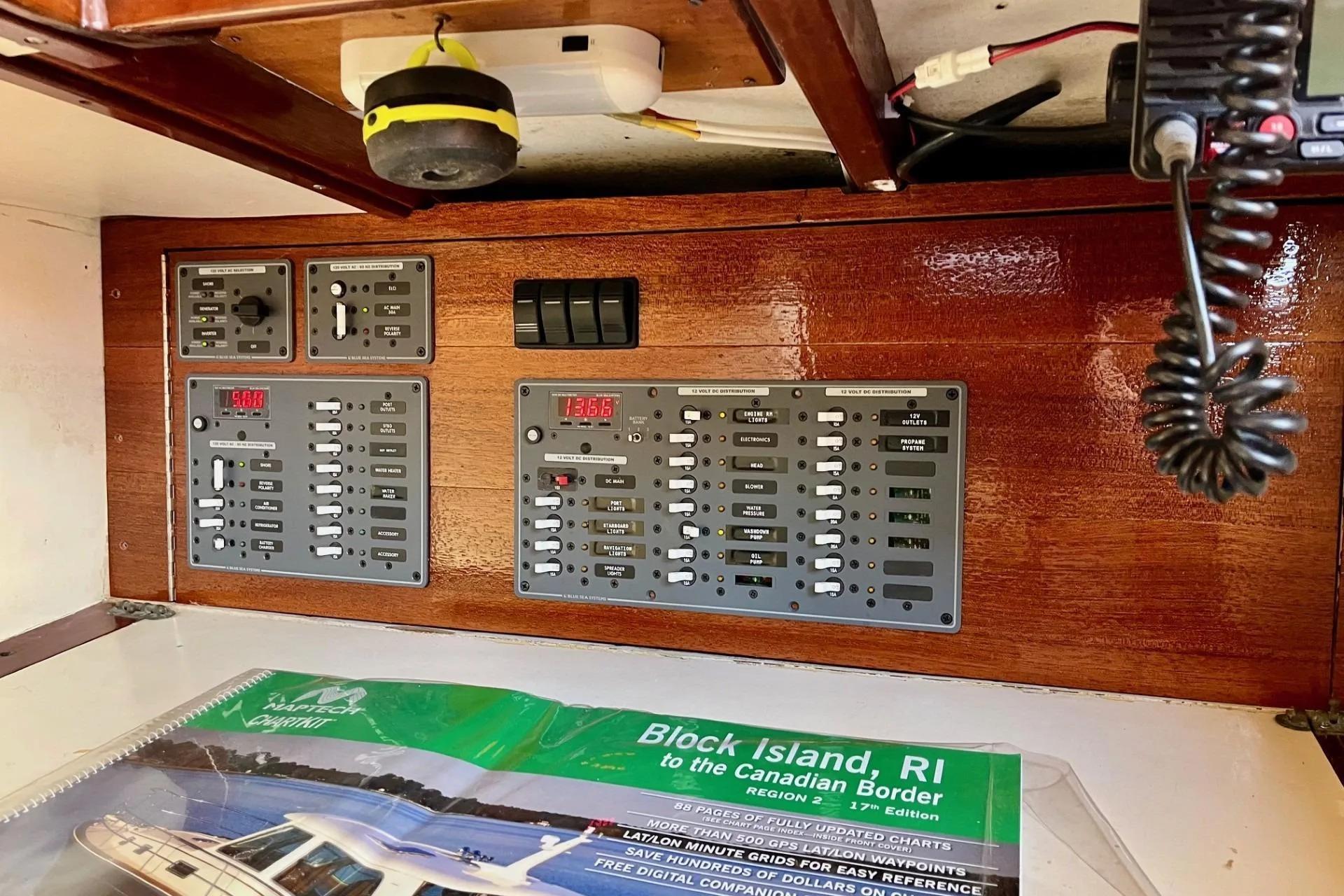

Electrical Systems
Voltage Systems:
12V/24V systems with 220v 50 Hz from shore power and generator.
Battery Banks:
Starting battery one(1) 8G4D, 183 AH House battery bank two (2) (635 AH): Forward one (1) 8G27, 86 AH. The cables are properly sized and
Selector switch to isolate.
Battery Chargers:
Xantrex Link 2000 Battery monitor
Generator:
Onan Model MDKC 4 KW # D650785867. 2,480 hours.
Inverter:
Xantrex FREEDOM SW 2000.
Plumbing Systems
Fresh Water & Water Heating System:
12V pressurized hot and cold water system.
220V hot water – from generator or shore power.
Toilets

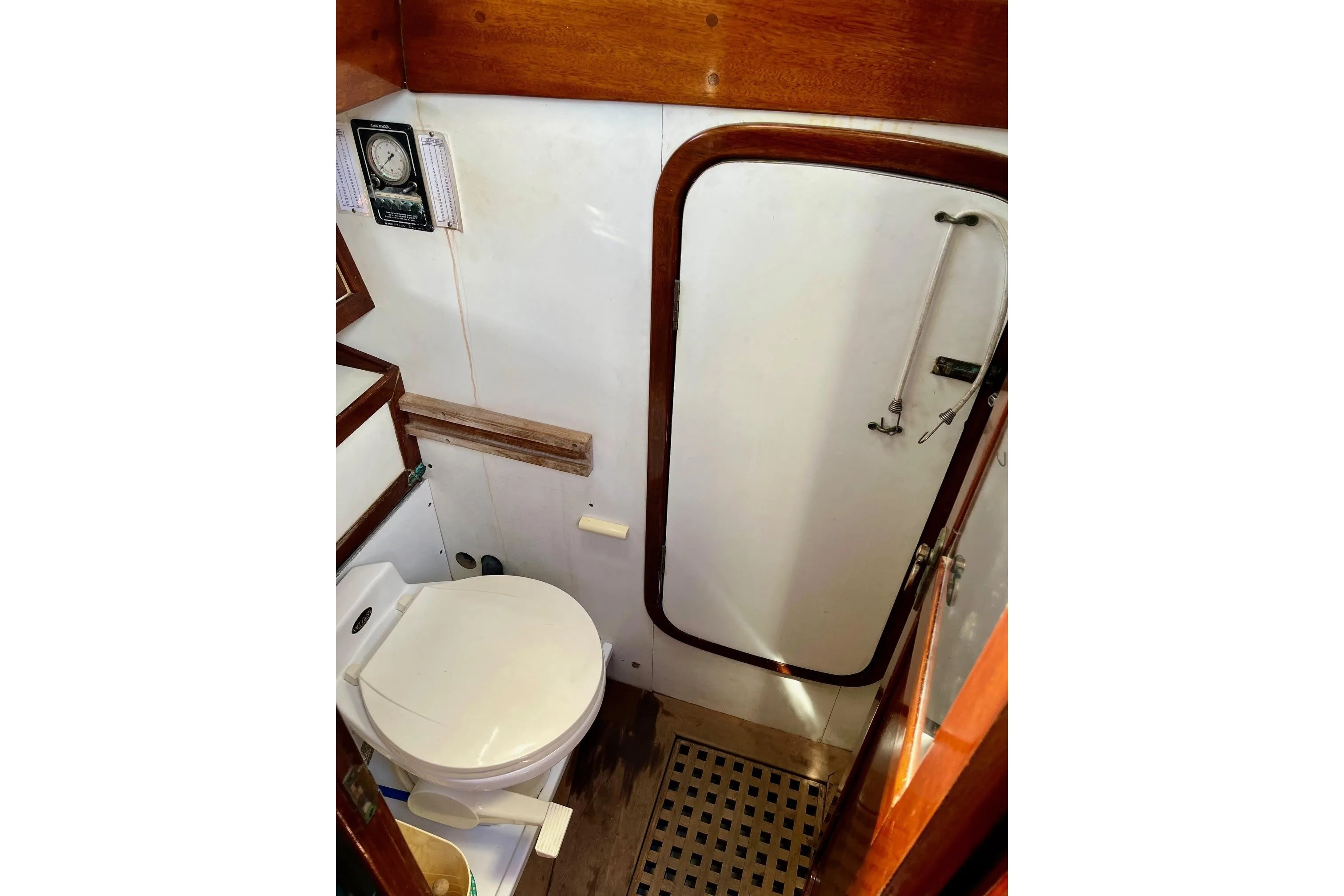

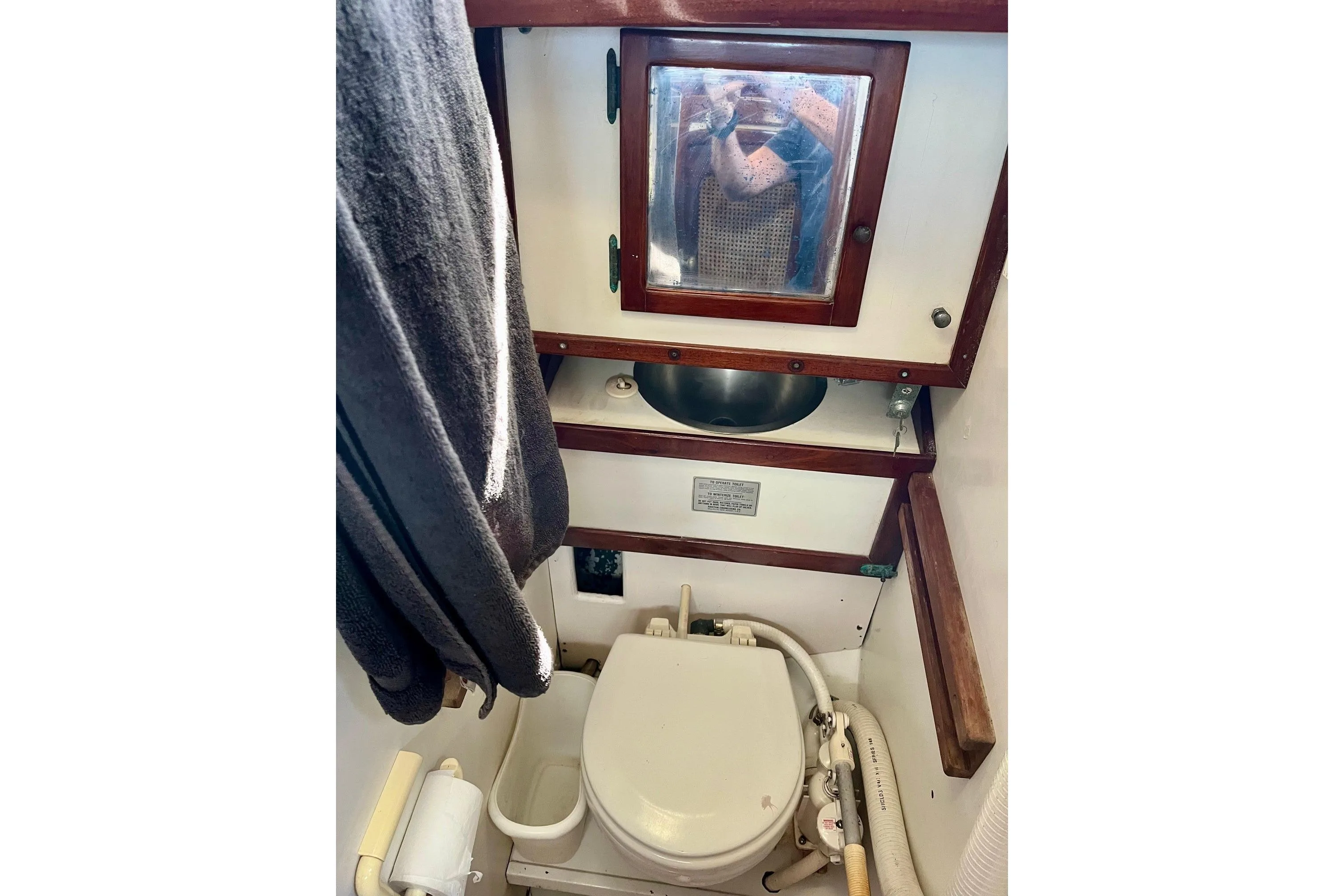

Sealand 808 Vacuflush head with a holding tank (aft). SN # 8083007522, operational Lockable Raritan manual pump head direct overboard discharge with no holding tank connections (fwd),
Tankage
Fresh water: Aluminum tanks. Forward tank reported capacity 45 US gallons Aft tank capacity 55 US gallons.
Fuel:
Marine-grade plastic. Forward tank capacity: 50 US gallons Aft tank capacity: 47 US gallons.
Grey/Blackwater Holding Tanks:
The tank is constructed of cross-linked polyplastic. The tank's total capacity is 8.5 US gallons.
Navigation Equipment

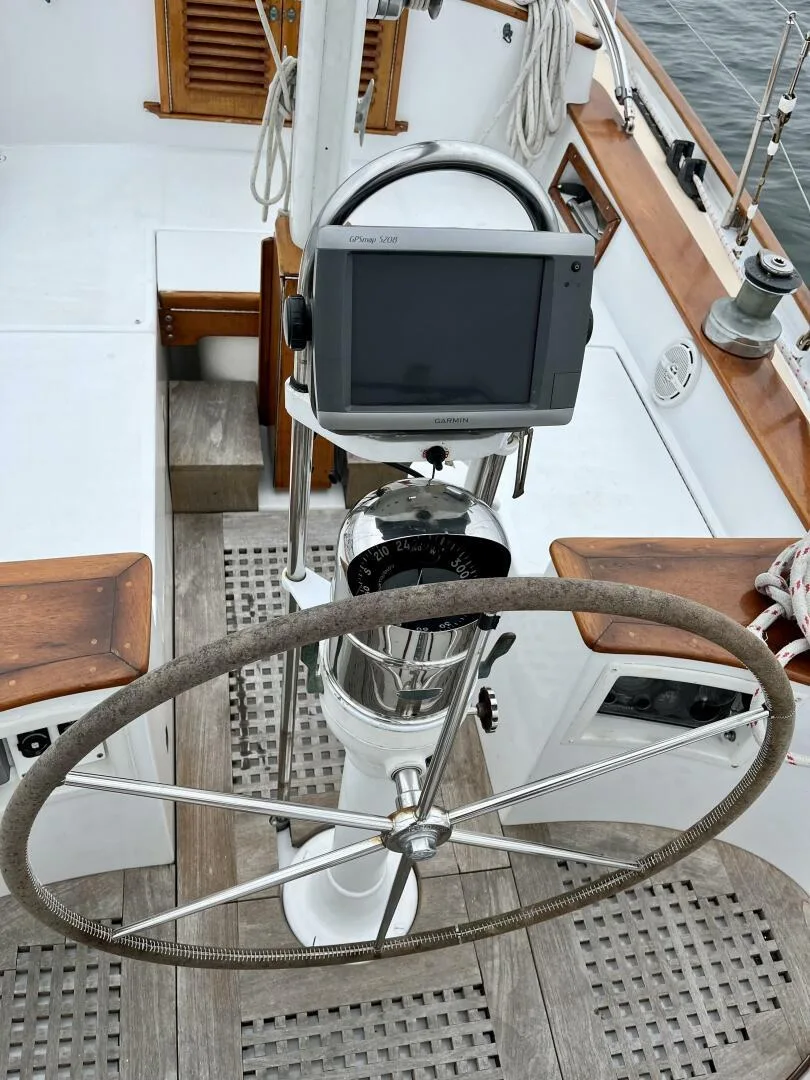

Garmin GPSmap 5208

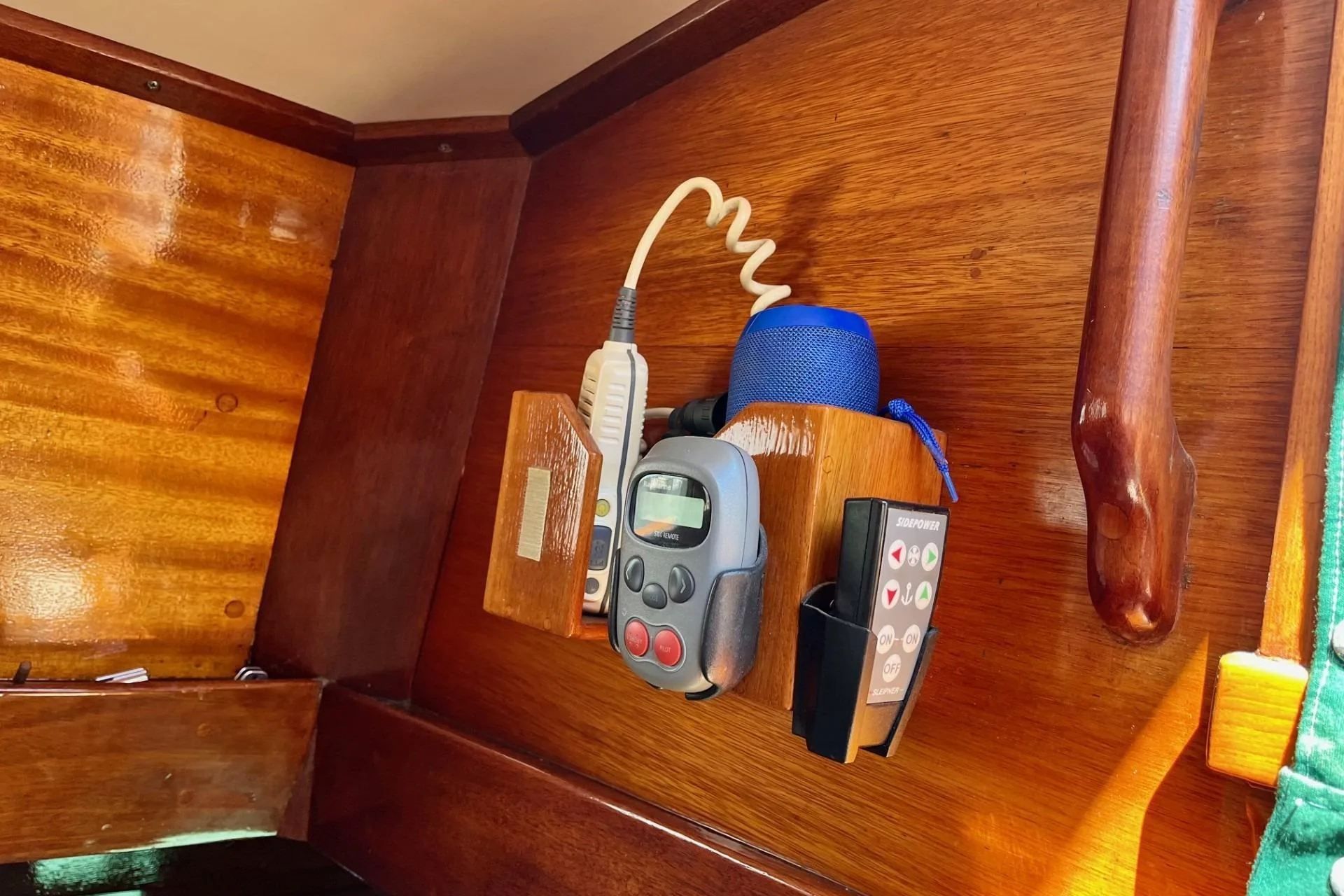

Raymarine ST 8002+ SmartPilot Auto Helm
Raymarine ST60 Tridata Depth
Raymarine Radar
VHF Standard Horizon Matrix AIS / GPS GX2100
6” Danforth Constellation Compass
Domestic Equipment

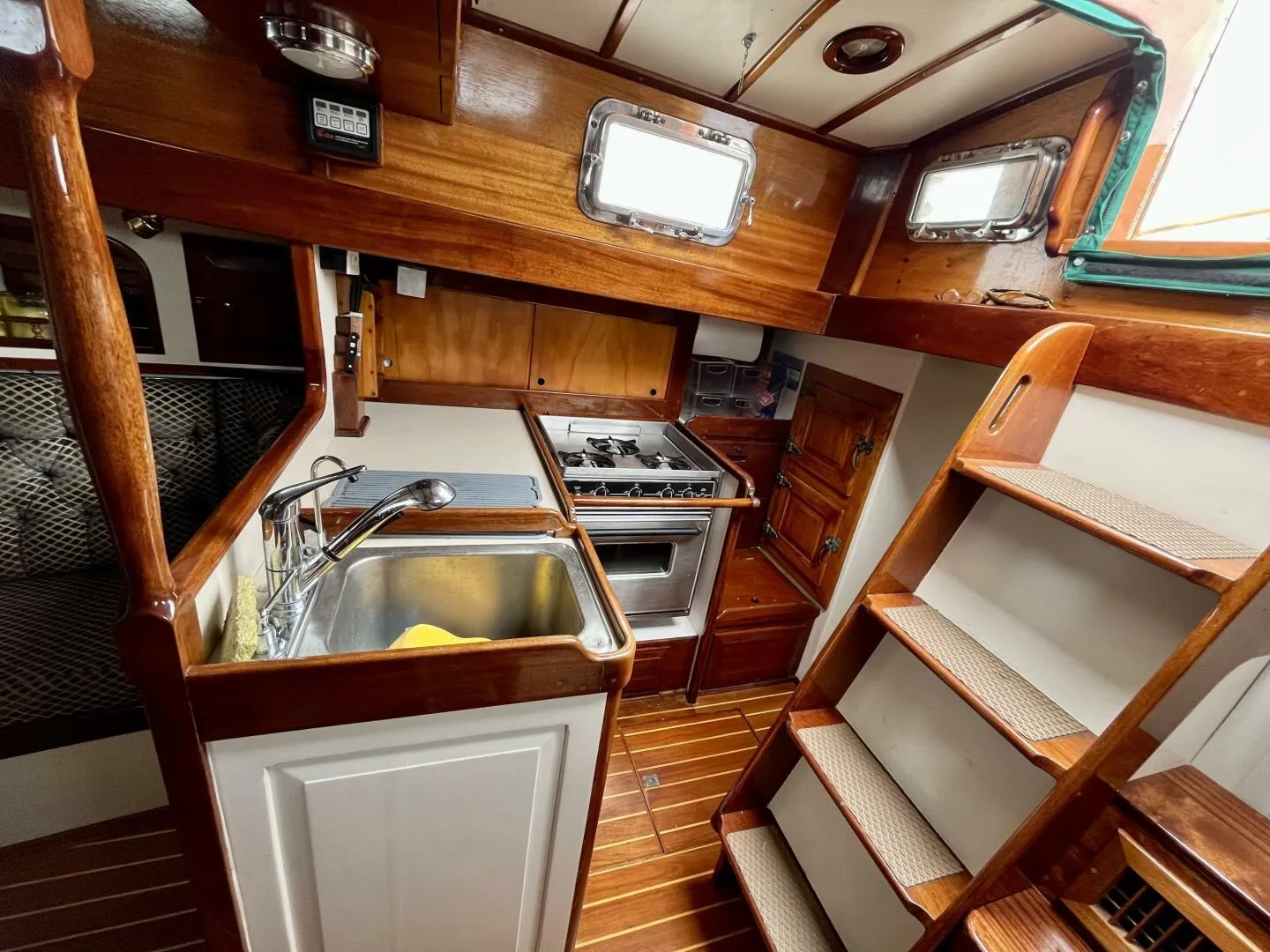

Galley:

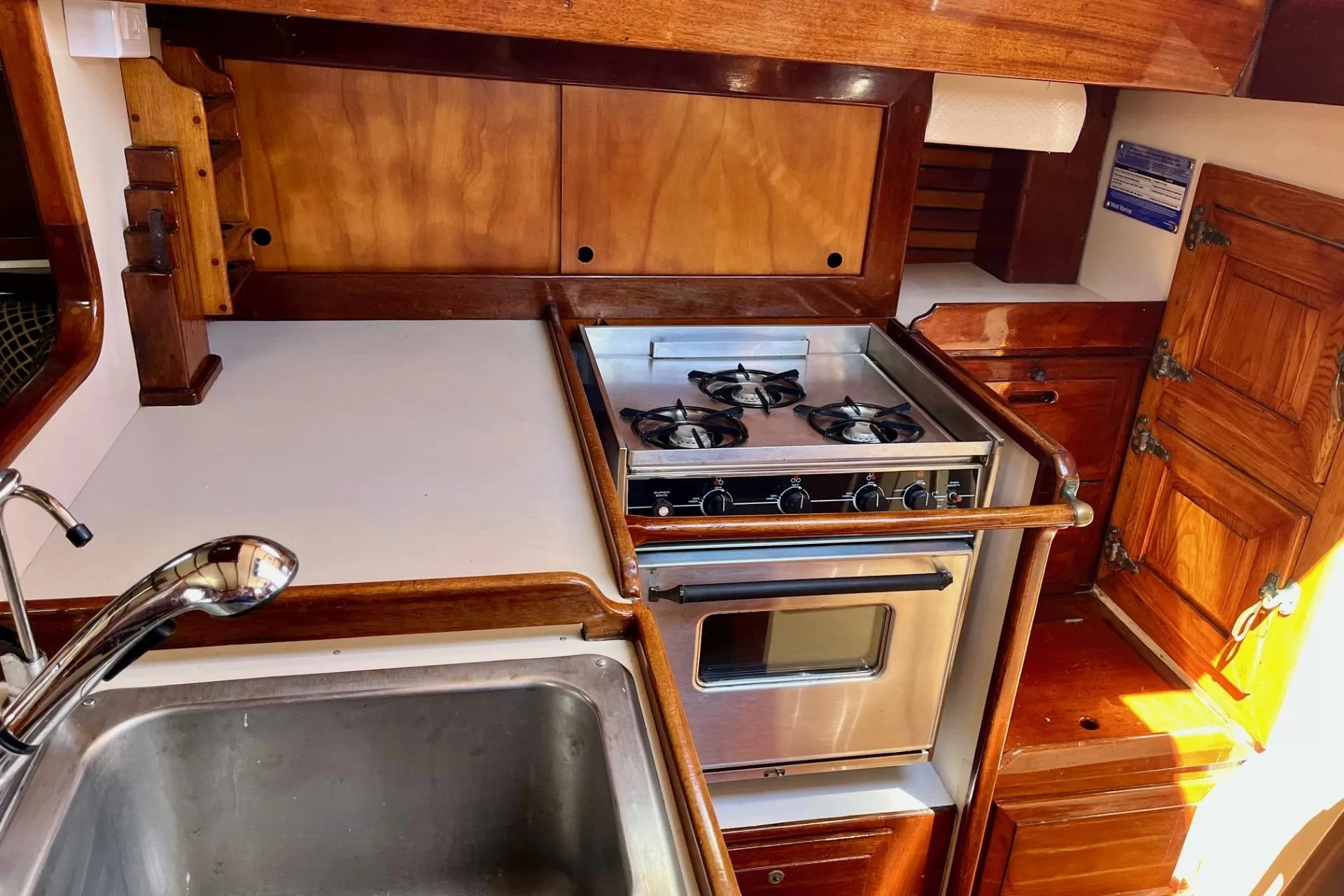

Princess 3 burner LPG stove/oven
Seafrost Model 134A BG 100

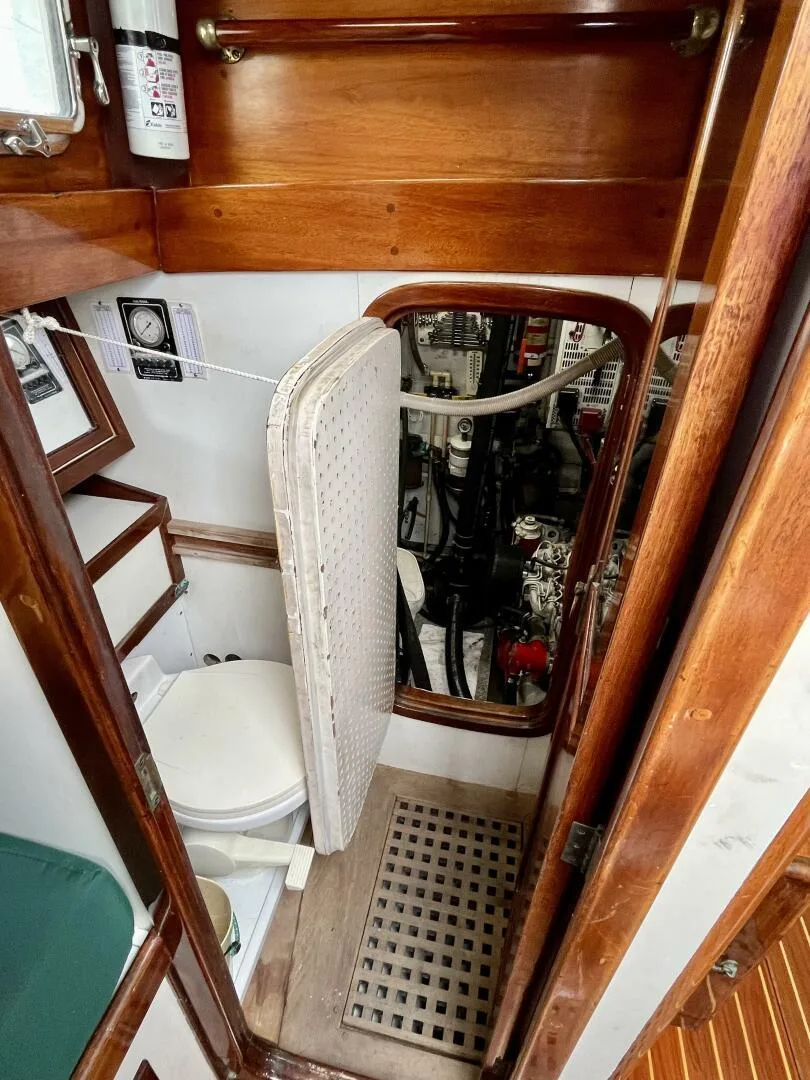

Heads/Showers:

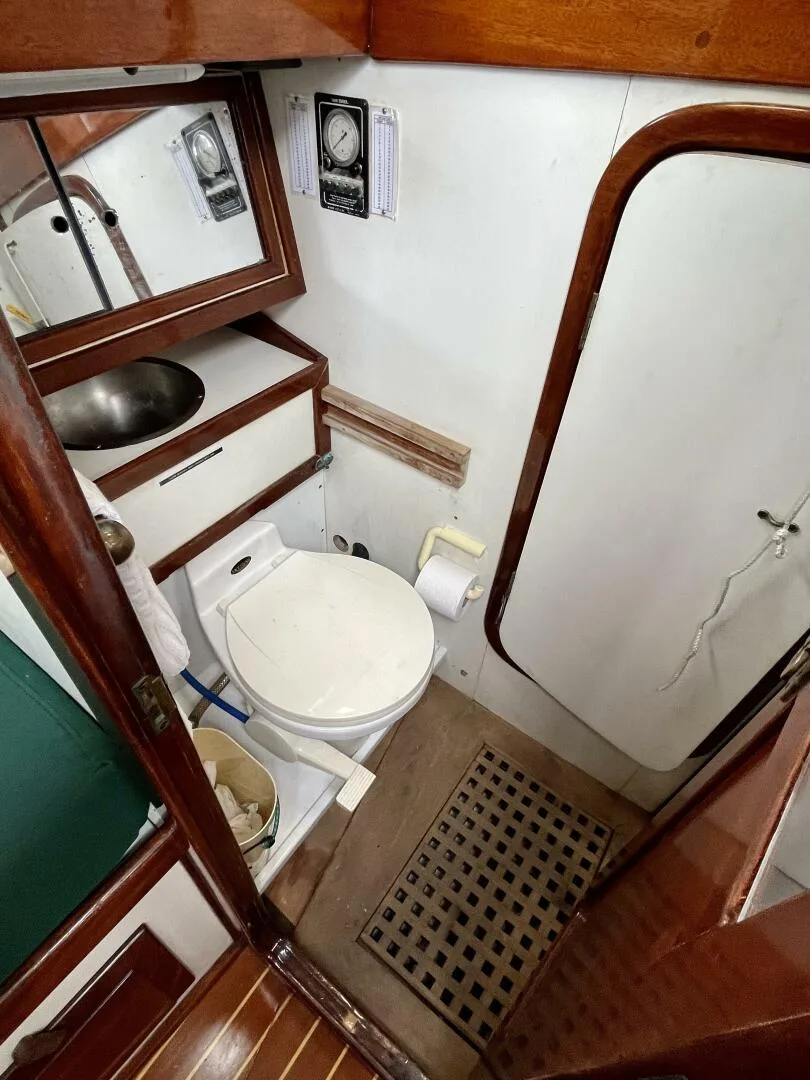

Aft Electric vacu flush toilet with Jabsco macerator pump.
Pressurized hot and cold-water sink and shower with float switch overboard discharge.
Heating & Ventilation:
Marine Air Systems Air conditioner Main Salon 16,000 BTU

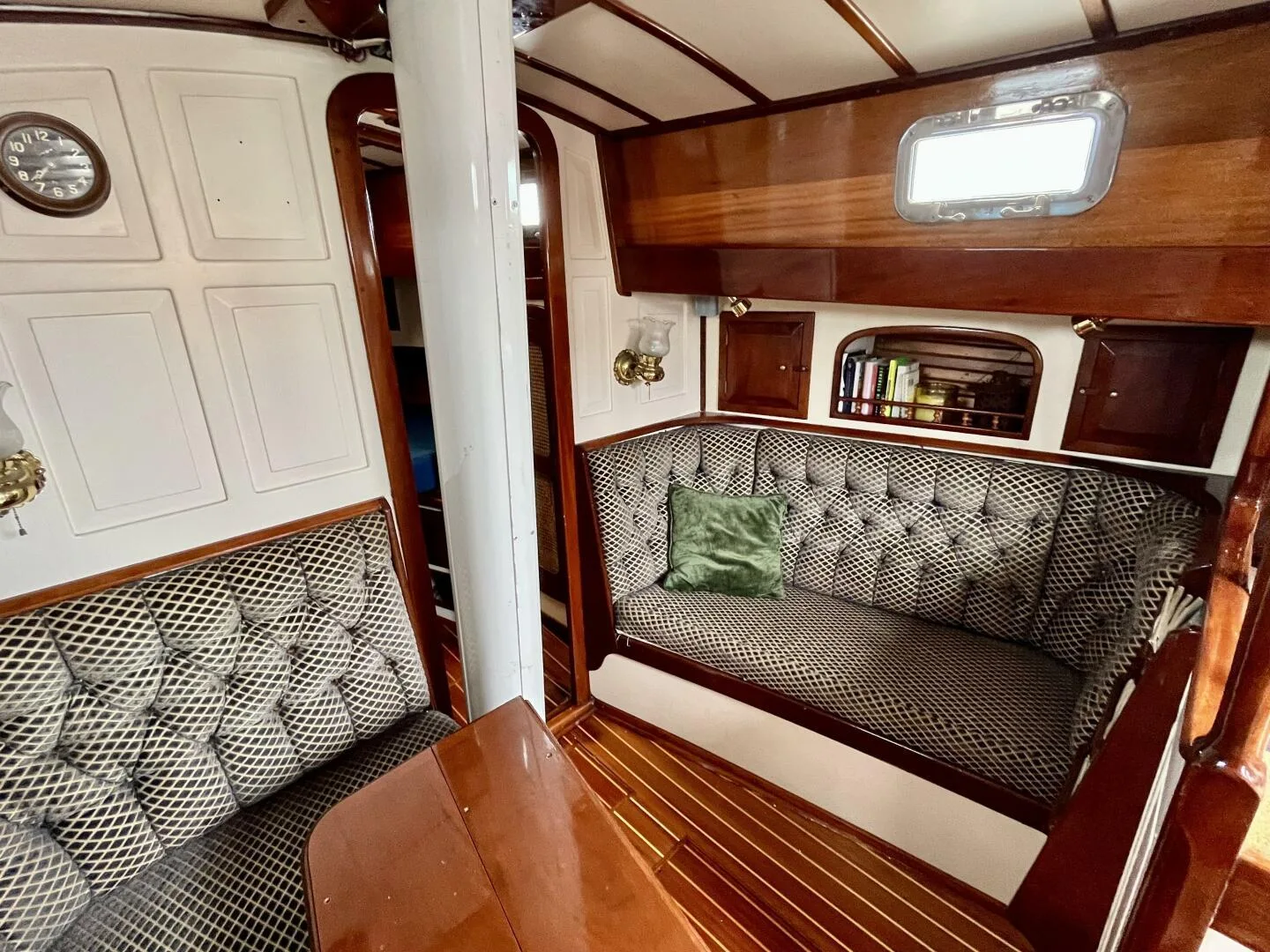

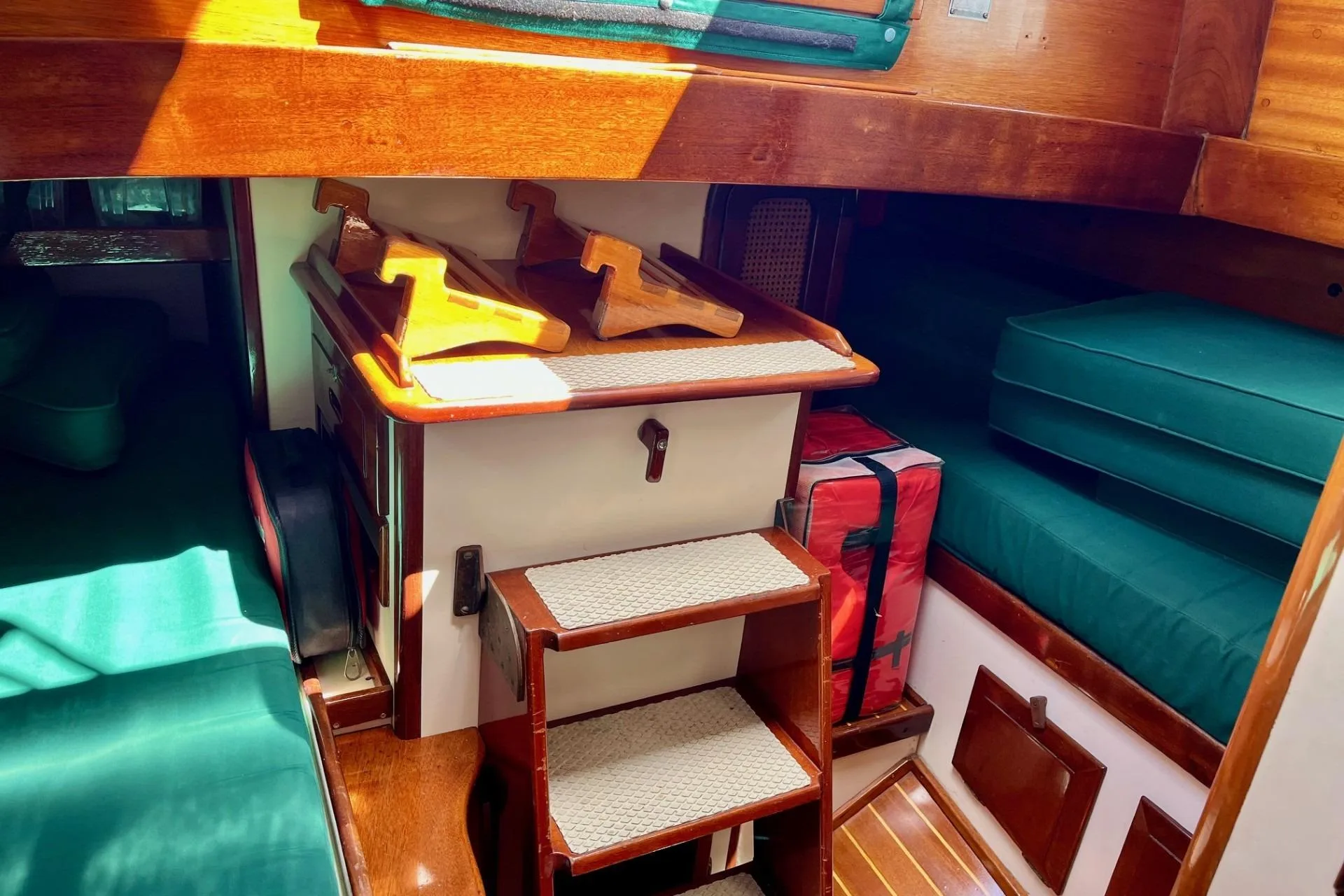

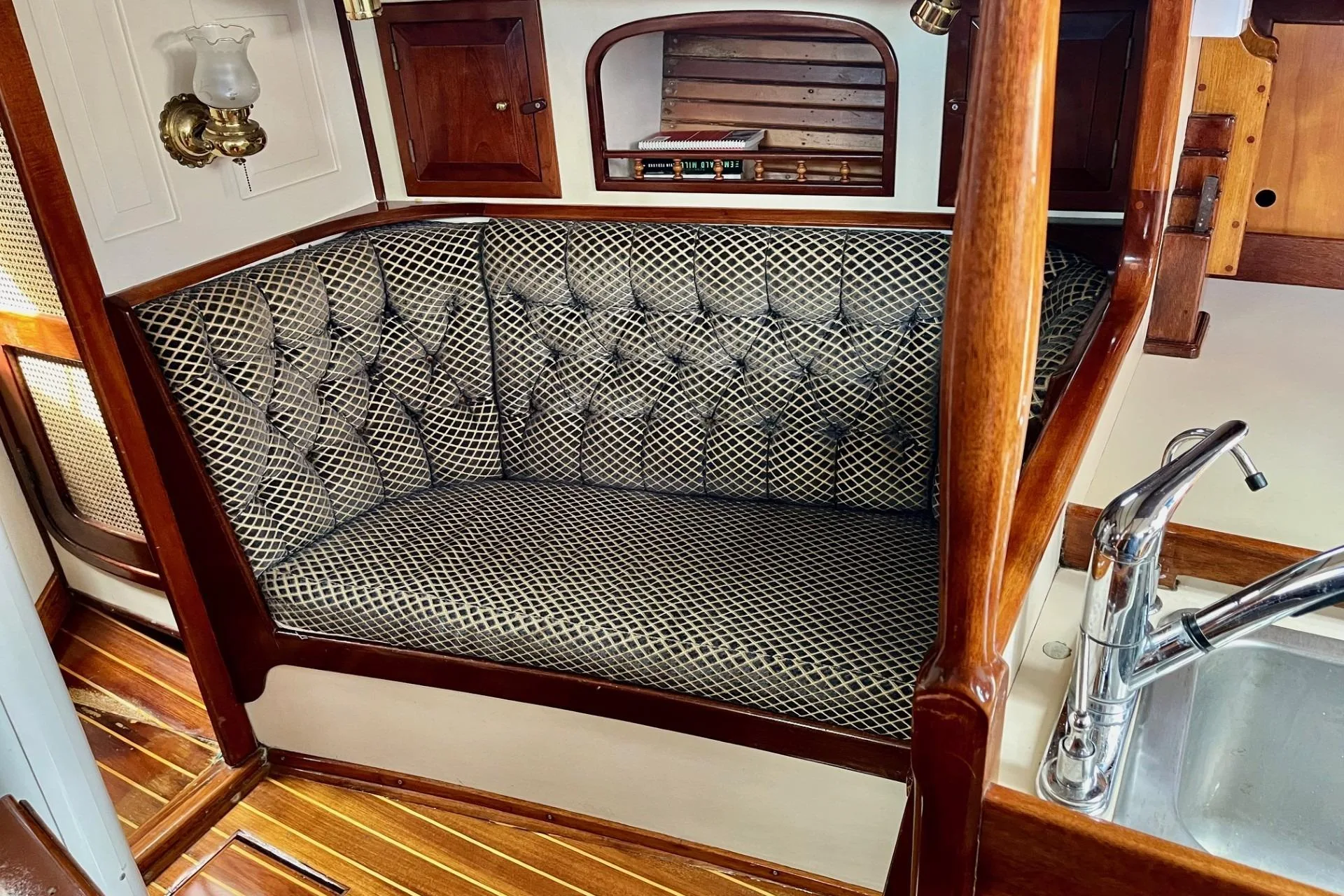

Accommodation

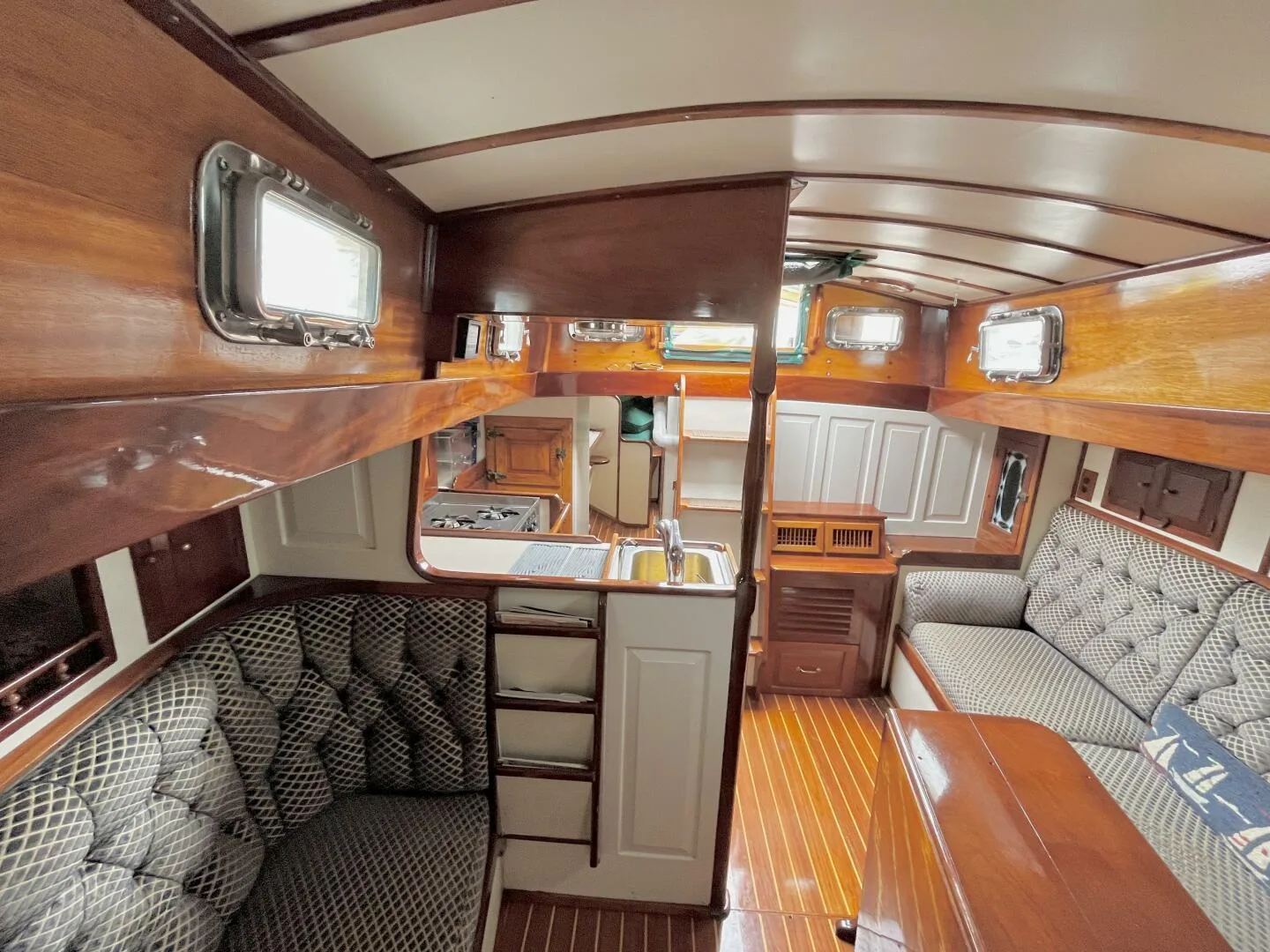

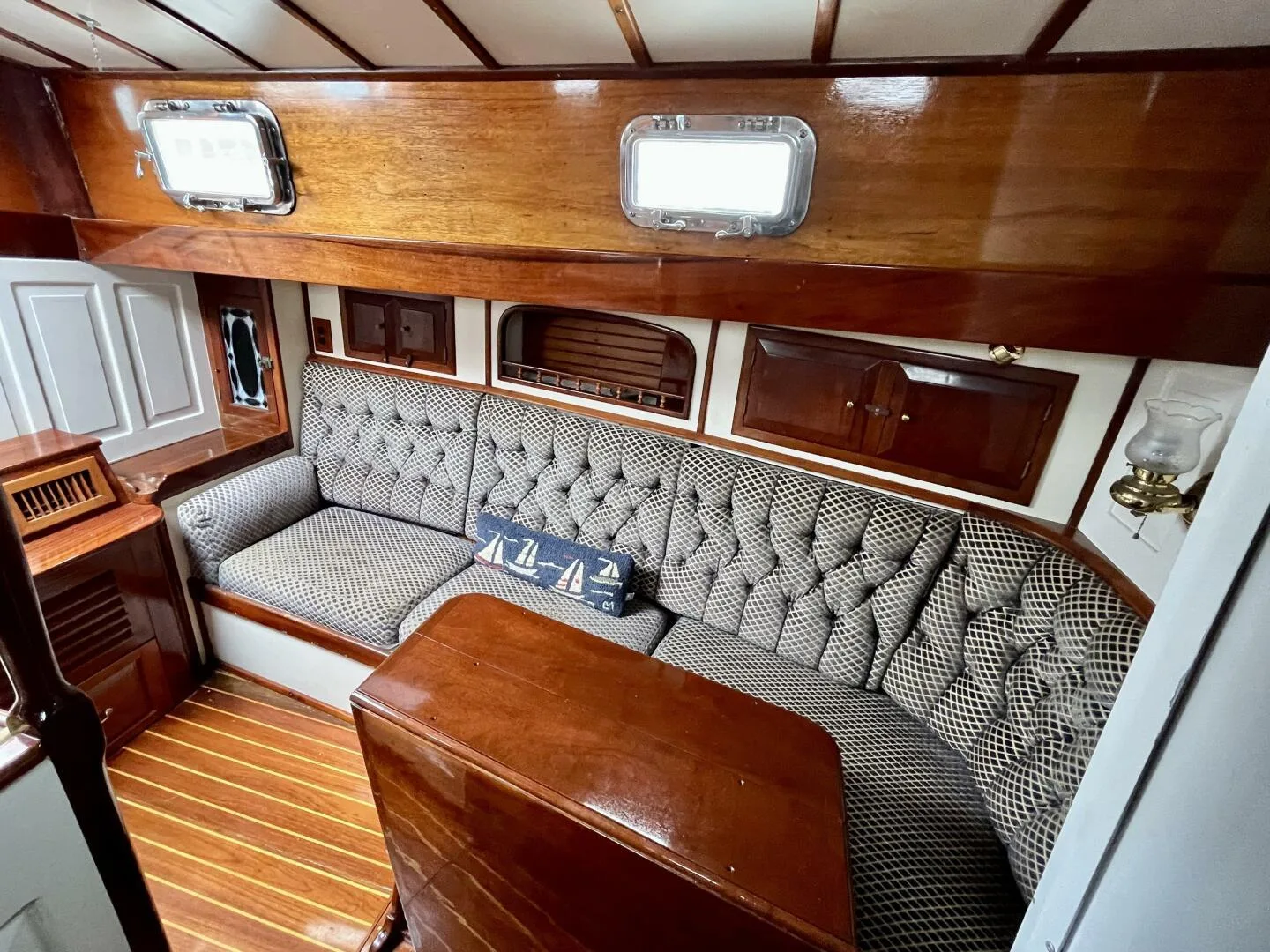

Summary of Accommodation:

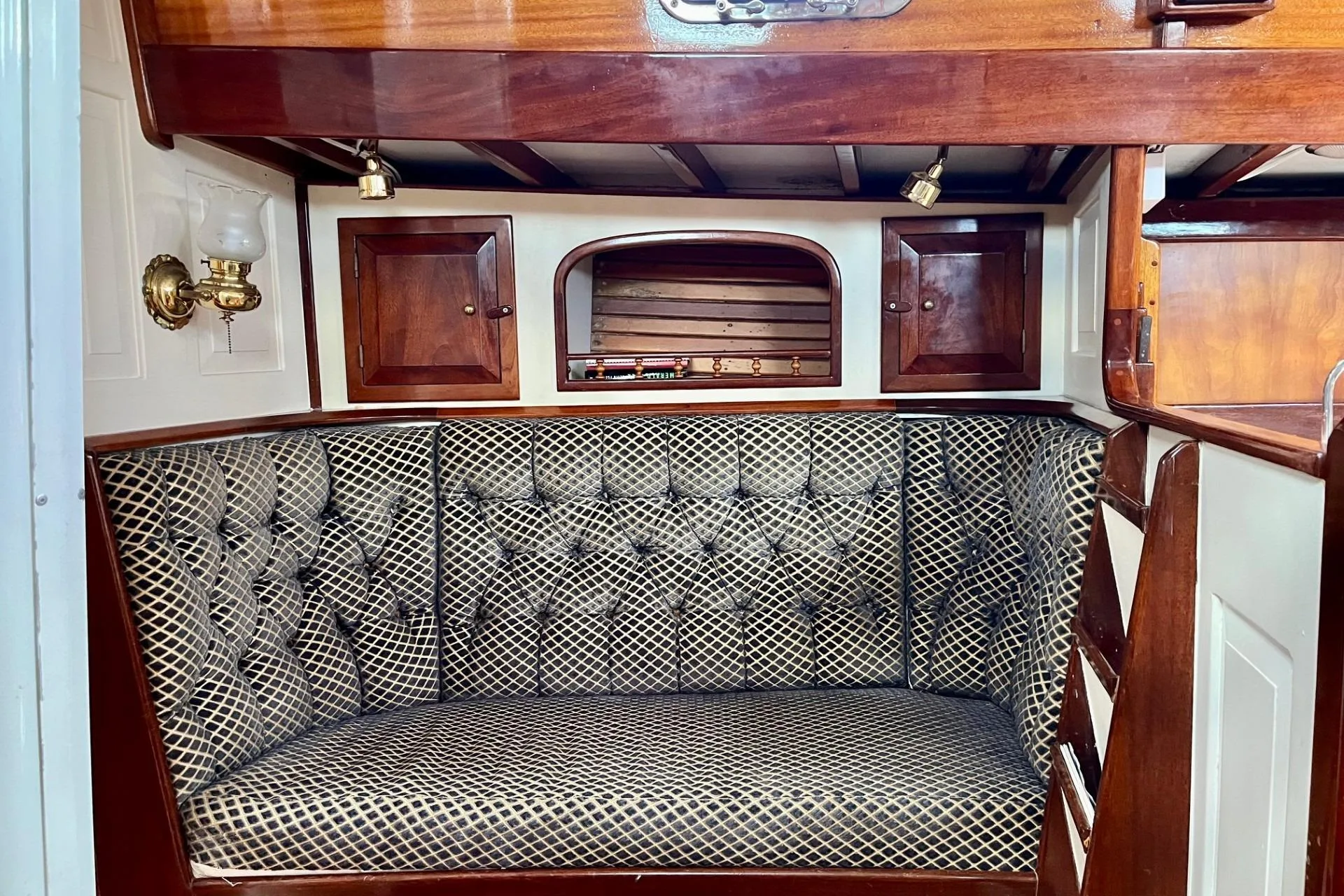

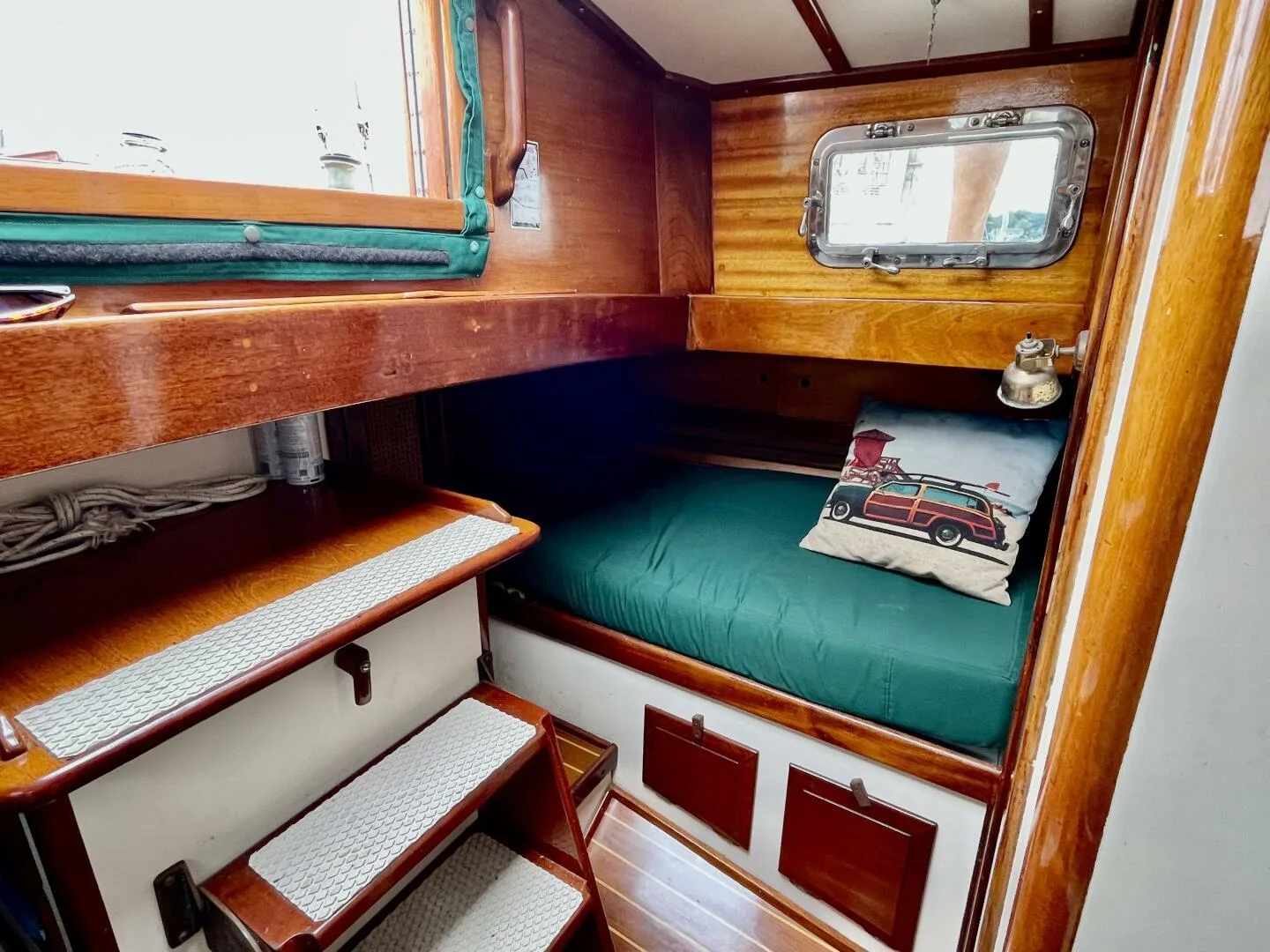

5 berths in 2 cabins & Saloon.

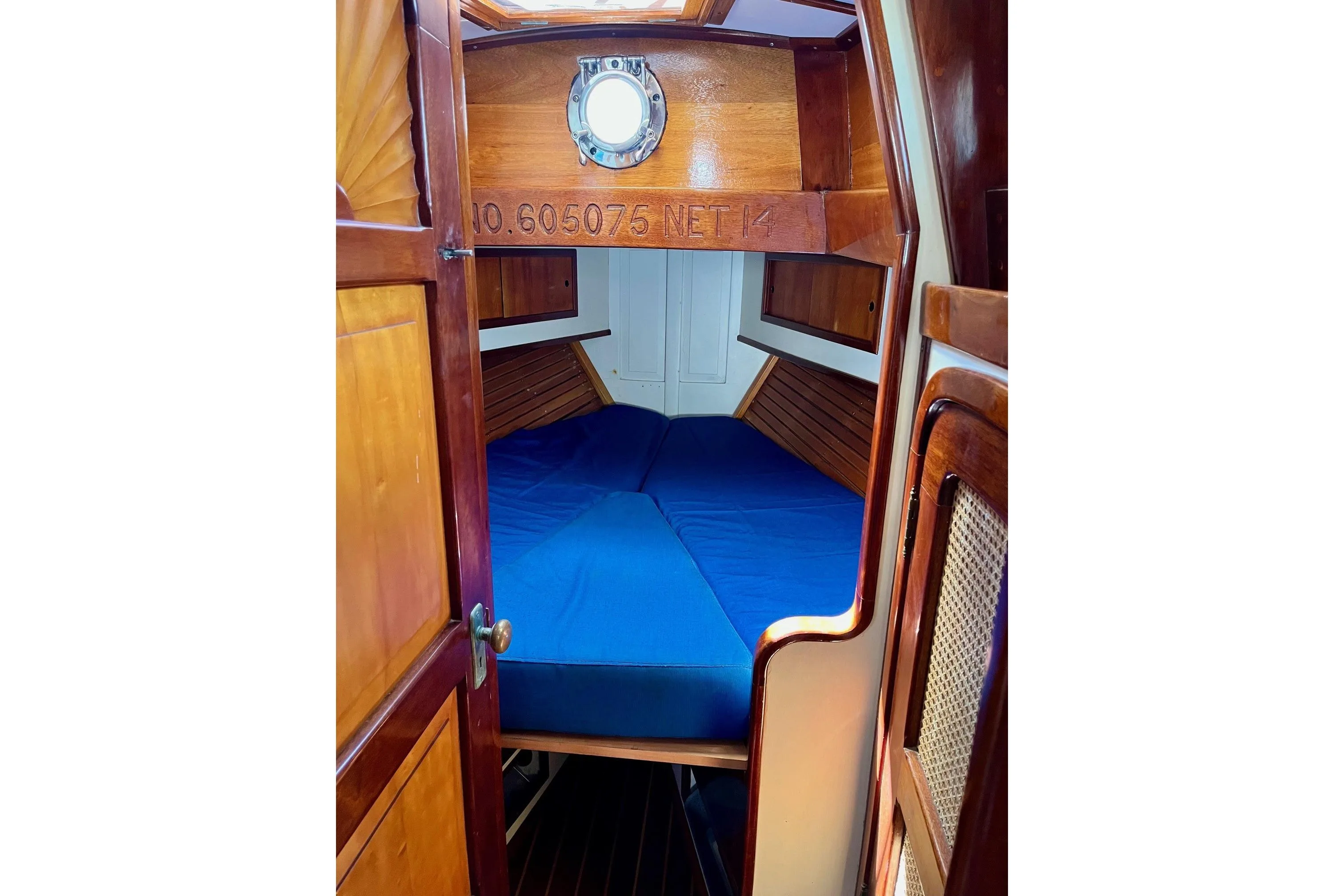

5 x berths – 2 x pilot berths - main cabin, 1 x settee – main cabin, 2 x double berth – aft cabin.

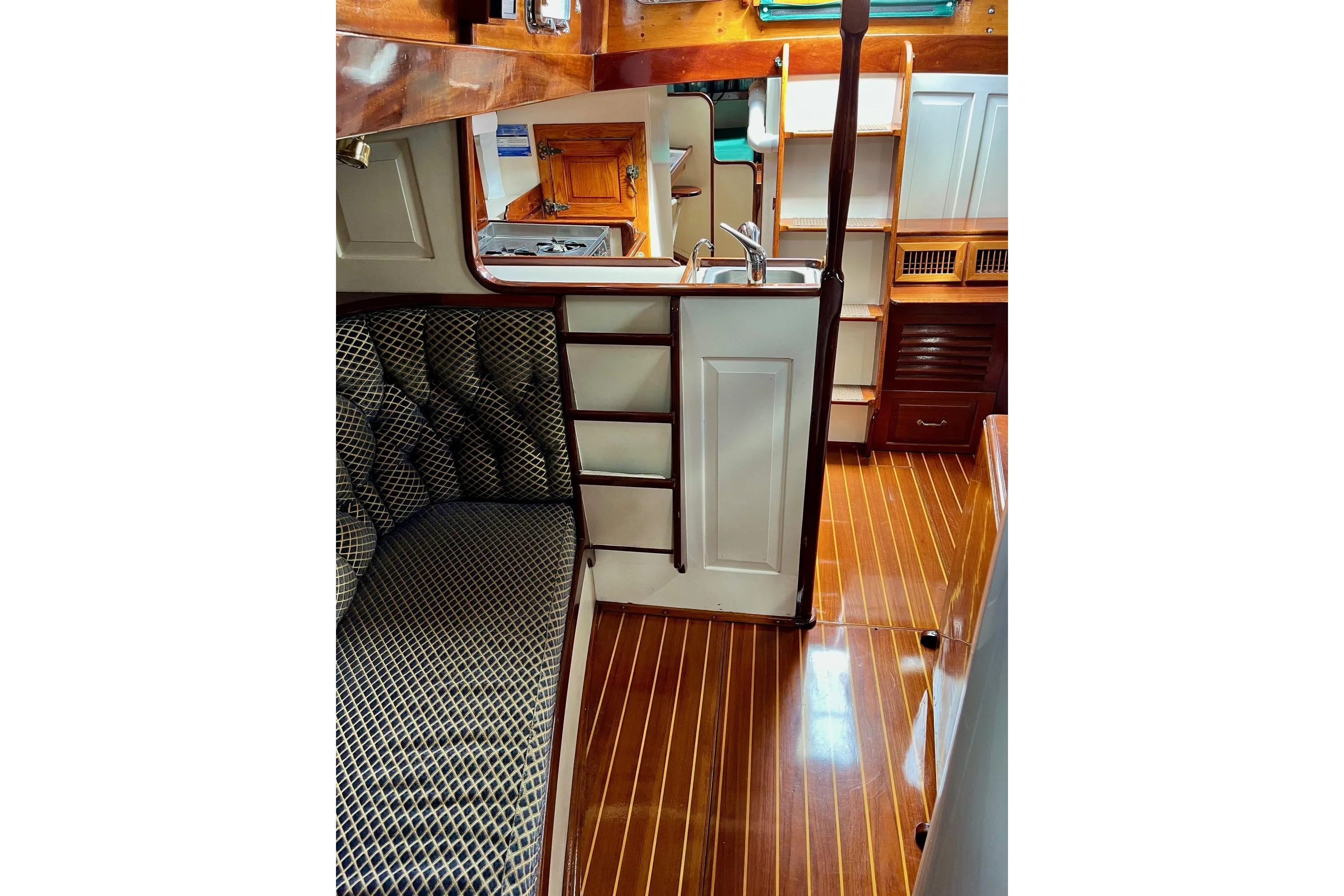

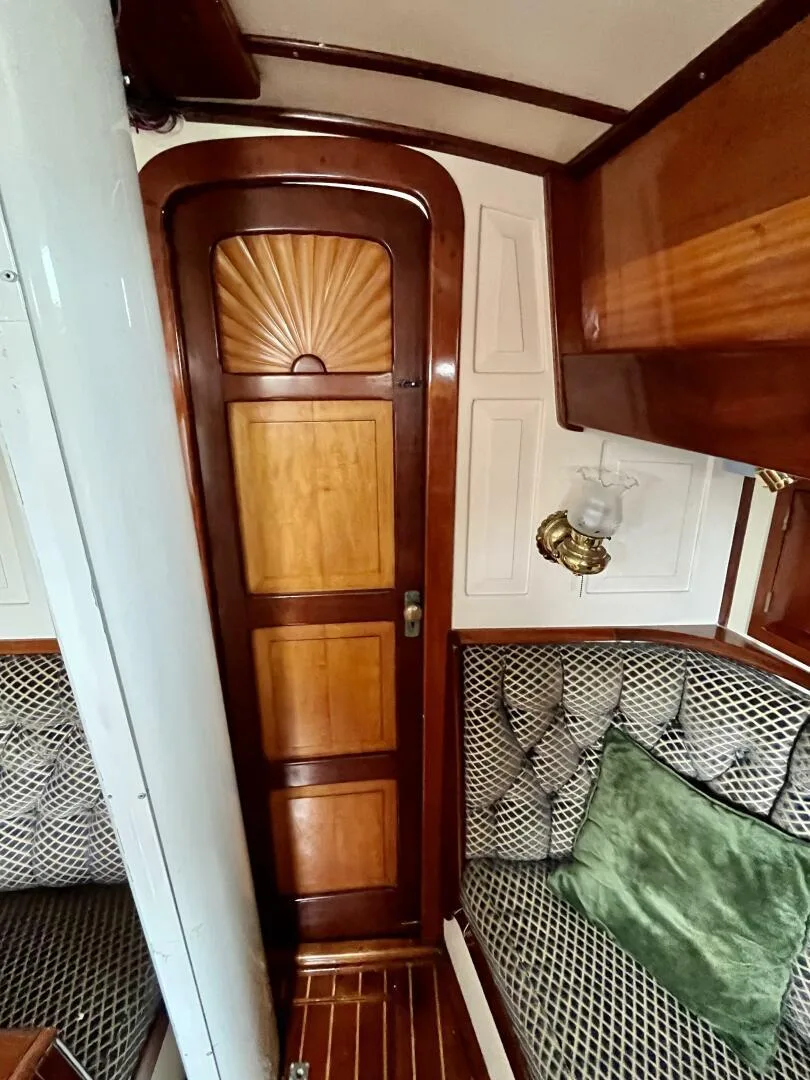

Teak and holly cabin sole
Deck Equipment
Rig:
Fractional cutter rig.
Keel-stepped mast.
In mast furling main and mizzen
New Genoa, Main Sail, new 4 years ago,
Anchoring & Mooring Equipment:
Ideal Windlass Model CHWSO, 12 V DC
Ultra anchor 60 ⅜” chain
Safety Equipment:
Jackstays.
2 x fire extinguishers.
Fire blanket.
CO2 gas detector.
Smoke detector.
1 x manual bilge pump.
1 x Rule-Mate 2000 gph / 7570 lph automatic bilge pump.
VHF DSC capable with assigned MMSI.
Grounding plate.

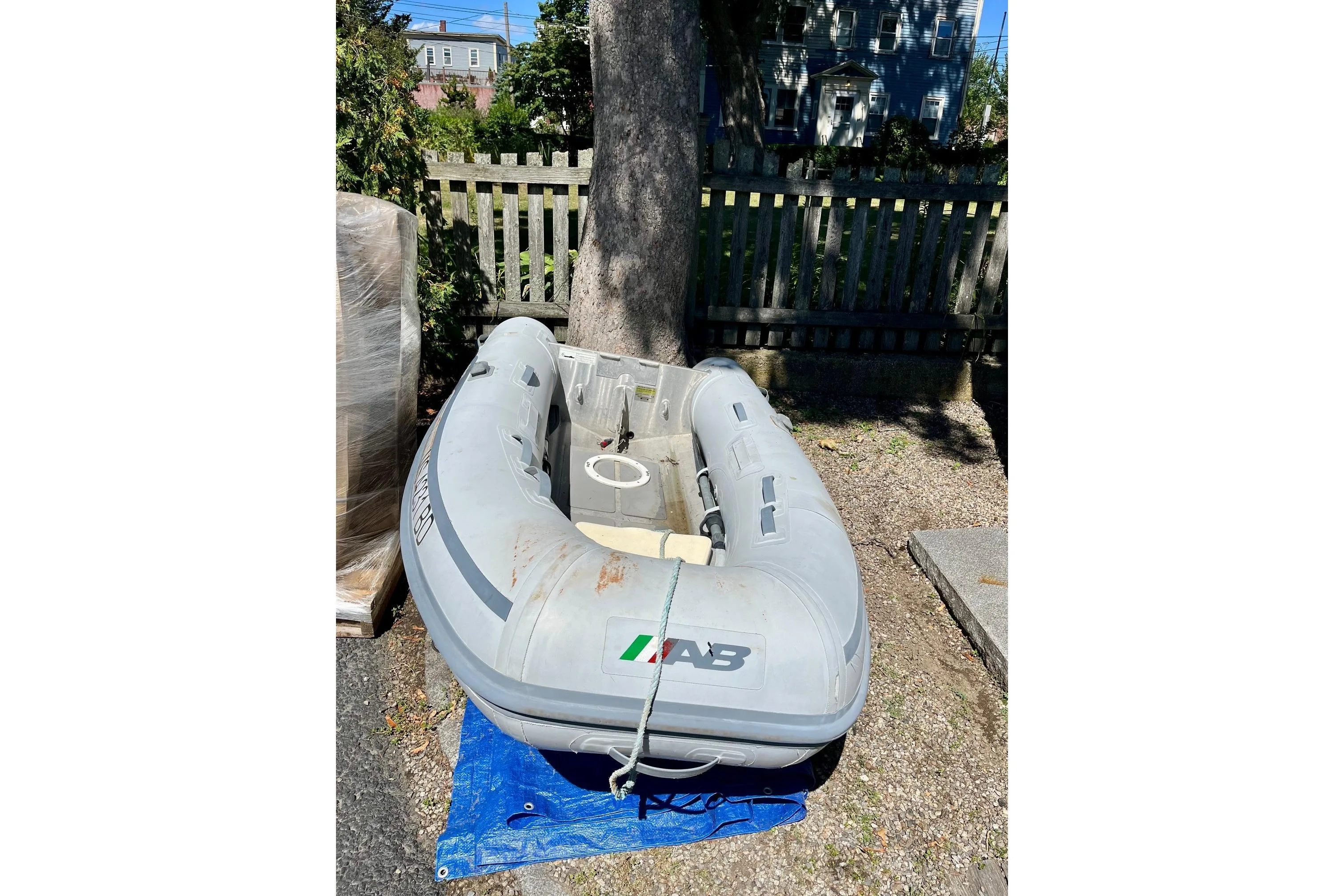

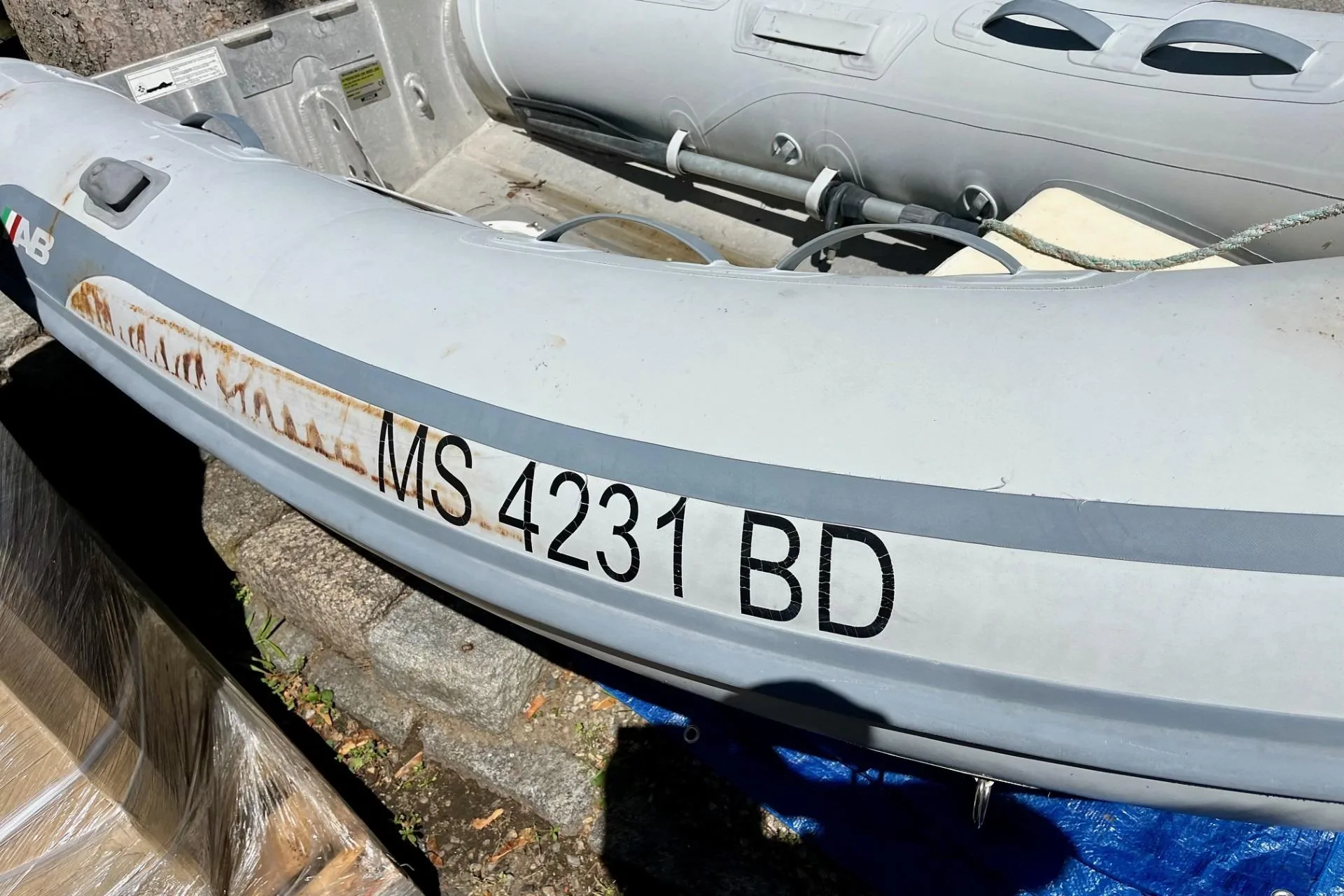

AB Dinghy w/Aluminum bottom.
