GENERAL INFORMATION
Type: Racer/Cruiser Auxiliary Sailing yacht
Year Built: 1990
Builder: Carroll Marine, Bristol, RI, USA
Model: Frers 45 Racing Version (deck and engine position differ from
cruising version)
LOA: 45’ 0”
Beam: 13’ 9”
Designed Draft:8’ 6”
Displacement: 21,000 lb
Ballast: 9,600 lb
Engine: Yanmar 4JH2E 46 HP at 3400 rpm
Construction: Fiberglass Composite
RACING RATINGS
PHRF Rating/Chesapeake: 39
PHRF Rating/Narragansett Bay: 40
PHRF Rating: Non-Spinnaker: 52
ORC Rating: 570
CABIN LAYOUT

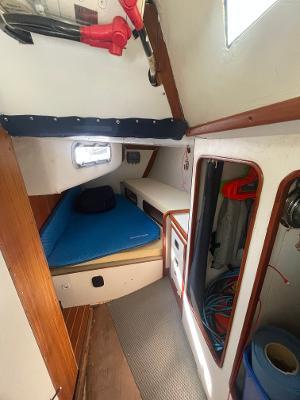

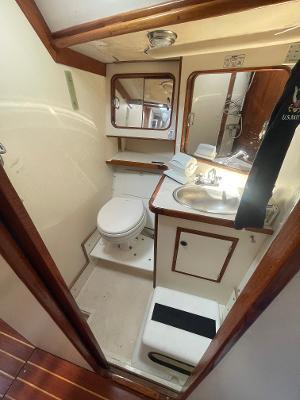

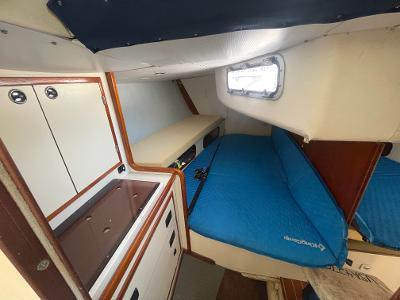

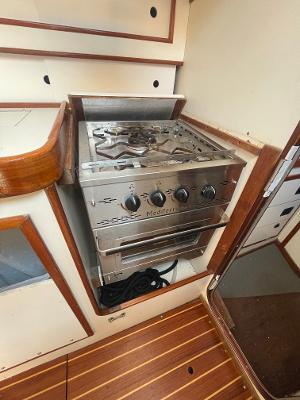

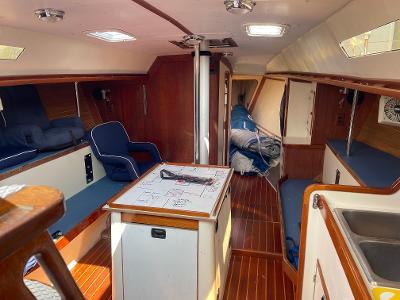

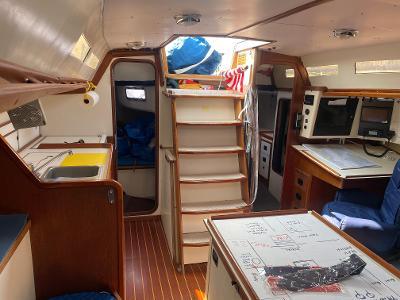

There is a large main salon with upholstered settees and pilot berths on each side. The engine is located in the middle of the salon with a sound proofed engine box with access hatches and is covered by a tabletop. The Navigation station is located in the aft side of the salon to port. The galley is located to starboard. There is a CNG 3- burner stove with oven (new 2019). CNG is lighter than air and therefore much safer than propane. There is a deep sink and icebox. Going aft there are two aft cabins with a queen-sized bunk in addition to single bunk. There is storage, a port hole for ventilation and a hanging locker in each cabin. There is an enclosed head compartment forward to port. The Toilet is a fresh water VacuFlush, full size and there is a handheld shower. The main holding tank under the port salon sette and the secondary 6 gallon holding tank is forward in the forepeak. Forward holding tank is a ‘canister’ that can be
removed and emptied on shore similar to a port-a-potty without the need to organize a pump out and is very convenient for day sailing.
CONSTRUCTION
Hull: Composite Fiberglass
Deck: Composite Fiberglass
Hull/Deck Joint: Mechanically fastened/bonded and sealed
Keel: Elliptical, lead, removed, re-bedded and race faired 2019
Rudder: Elliptical, high density foam/FRP, race faired and rudder bearings upgraded 2019
Bottom: Race faired and re-painted 2022
SPARS & RIGGING
Mast: Triple spreader aluminum

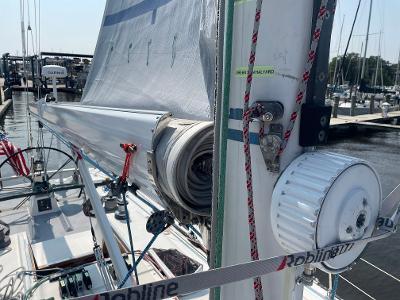

Boom: Leisure Furl Reef System. Serviced & repainted 2022
Standing Rigging: Navtec Rod All standing within past 5 years
Running Rigging: All replaced within 5 years. Spinnaker halyards replace (including
Tylaskas in 2022), running backstays replace 2022
Masthead Light: Replaced with LED 2021
Roller Furler: Harken RF new 2018. 135% #2 and 120% Reacher cut for Furler
Spinnaker Pole: Carbon Spinnaker 2018
Running Rigging: All running rigging is in excellent condition and is always replaced
as needed
SAILS & CANVAS.
Mainsail: North 2016
#1 Genoa: North 2021
#2 Genoa: North 2019
#3 North 2025
#3: North 2018
110% Jib Top Reacher: 2021
A3 Spinnaker: North 2019
.6 Spinnaker: Quantum
Spare mainsail: Quantum (delivery)
1.5 oz. Spinnaker: Ulmer, practice
.75 oz Spinnaker: Ulmer, practice
.5 oz Spinnaker: Practice
Spinnaker Staysail: North 2022
#4 Jib: Ulmer,old Dacron, date unknown
Storm Tri-sail: Orange 2018
Storm Jib: Orange 2022
Sail Covers: Yes
Boom Tent: Yes
Roller Furl Sail Cover: Yes
Lifeline Mounted Sail Numbers: Yes for Ocean Racing
DECK EQUIPMENT

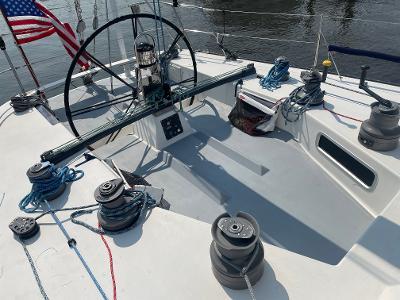

Winches: Replaced/Lewmars except primary Barient 3 speed 727s
Electric Halyard Winch: One electric halyard winch
Genoa Cars: Replaced 2022
Traveller: Windward sheeting traveler car
Halyard Line Clutches: Replaced 2021
Hatches:` Replaced within past 2 years
Misc. Deck Gear: Assortment of which handles and blocks Rail Mounted Fishing Pole Holders: Yes
ELECTRONICS AND ELECTRICAL

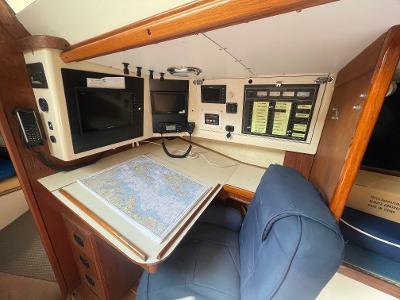

Chart Plotter: Nav station, 12 inch Garmin 1220/Radar 2018 Nav station backup, 7 in Garmin 2018
AIS: Vesper2018
Radar: Garmin color radar 2018
INMARSAT: Terminal 2018
VHF: Icom IC M424G/GPS 2018
Racing Electronics: All transducers, sensors and programs /B& G 2019 5 x B& G Multifunction Deck Displays
Auto Pilot: Raymarine Autopilot New 2020, Linear control arm replaced 2022
Satellite Phones: Handheld and Inmarsat
Compass: Yes
High Output Alternator: New 2018
Batteries: 3 Group 27 AGM house batteries replaced 2019
1 Group 24 AGM starting battery replaced 2019
Inverter/Charger: Magnum
Cabin Lights: All converted to LED
Running Lights: Converted to LED
Shore Power: 110 volt system/breakers, GFI outlets
PROPULSION
Engine: Yanmar 4JH2E 50 hp service records available
Hours: Hours: 2,440 hours currently on meter are 926
Control panel with original hour meter has been replaced
Cooling: Fresh water cooled
Transmission: Kanzaki Model: KM4A RATIO: 2.14:1
Engine Mounts: Resilient rubber
Water Pump: New 2022
Regulator: High Output 2018
Starter: New starter 2019
Shaft: Stainless steel, replaced 2018
Propeller: Maxi-prop 3 blade feathering prop 2018
Shaft Seal: Replaced 2018
Fuel Tank: Aluminum
Water Tanks: 2
SAFETY GEAR
Life Rafts: 2 x 6 man, inspected 2022
Man Overboard Pole: with all required gear
Life jackets: 7 inflatable life jackets/whistles/crotch straps/strobes/tethers, and personal AIS beacons
Additional Safety Gear: All the gear necessary to pass the inspection for 2022 Newport to
Bermuda Race
USCG Safety Gear: All required items
MOB Button: B& ;G integrated Man Overboard emergency button
Jack Lines: Yes
Offshore First Aid Kits: Yes
Required Spot Lights: Yes
Regular Life Jackets: (about 12 of them) for inshore sailing which meets USCG
requirements
Horseshoe Buoy: Yes
Throwing Line: Yes
Flares: yes
Radar Reflector: Yes
Emergency Grab Bags: 2, (one for each life raft) each including EPIRB, GPS VHF hand
held radio, first aid, kit, flares (purchased 2022)
Life Sling: Yes
Fire Extinguisher: 4 Handheld dry
