1990 Irwin 54 | 57ft

Irwin 54 LAZY BONES exclusively for sale with DBY Boat Sales.

REDUCED!!   MOTIVATED SELLER!!  MAKE AN OFFER!!

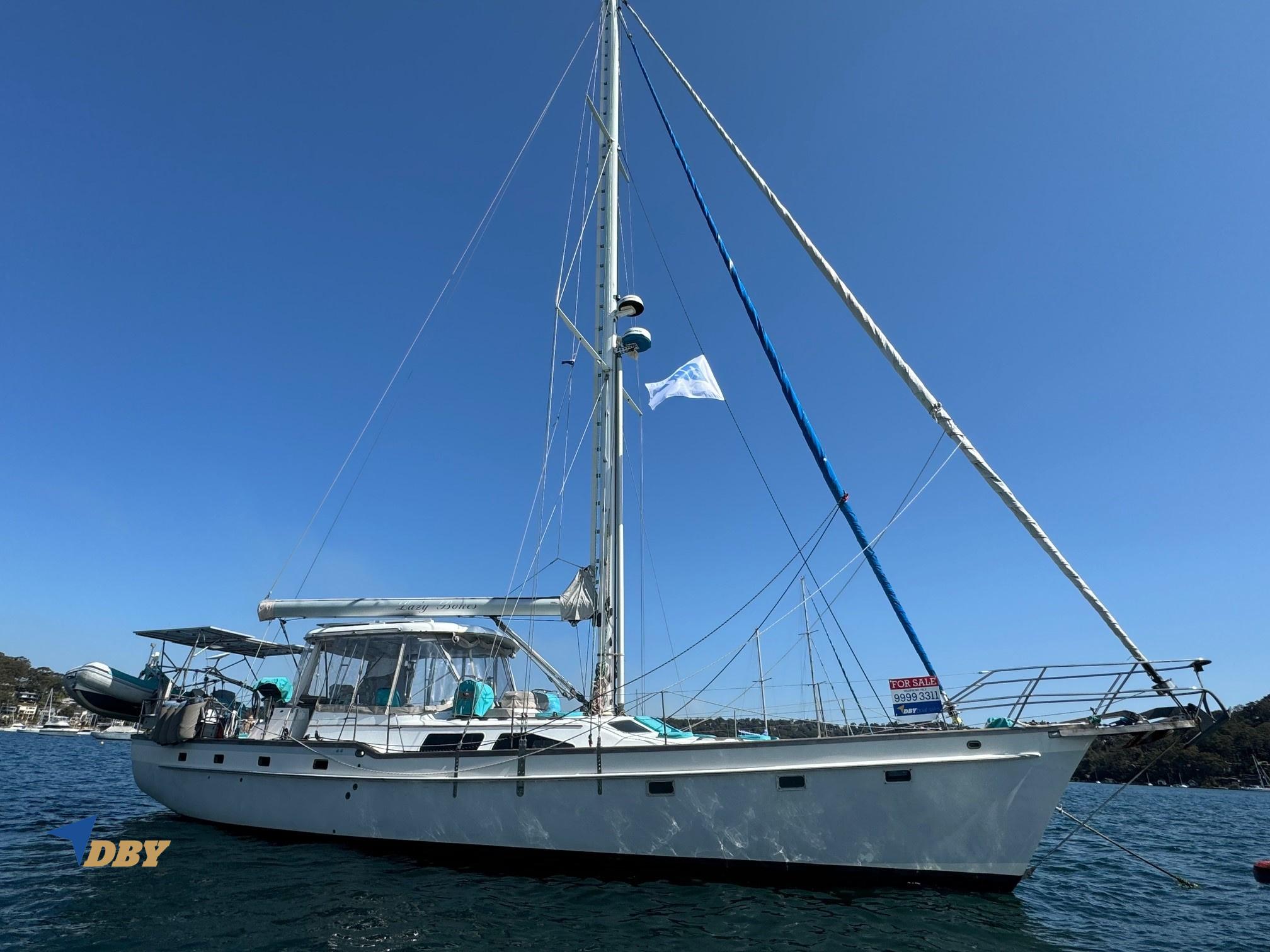

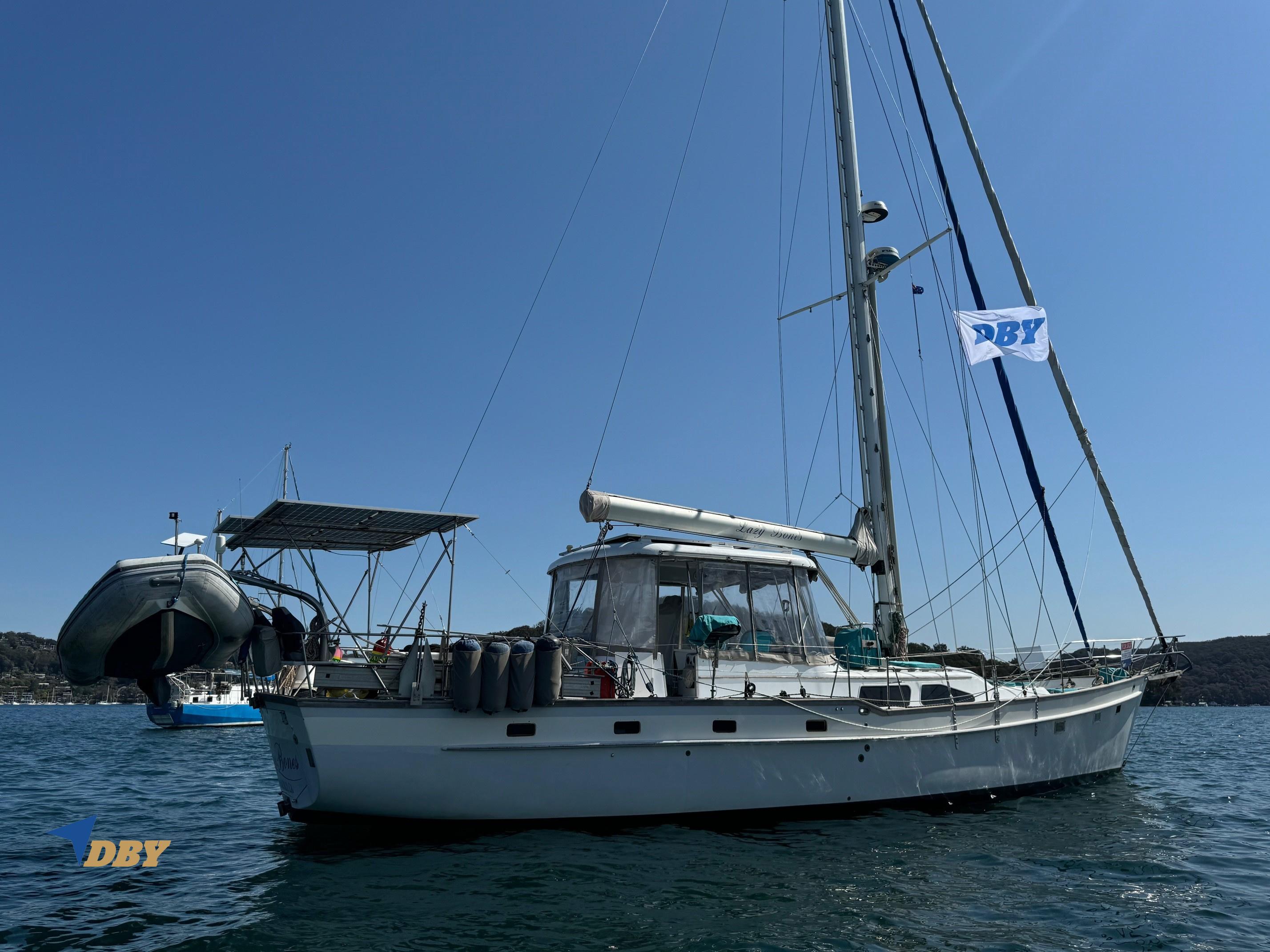

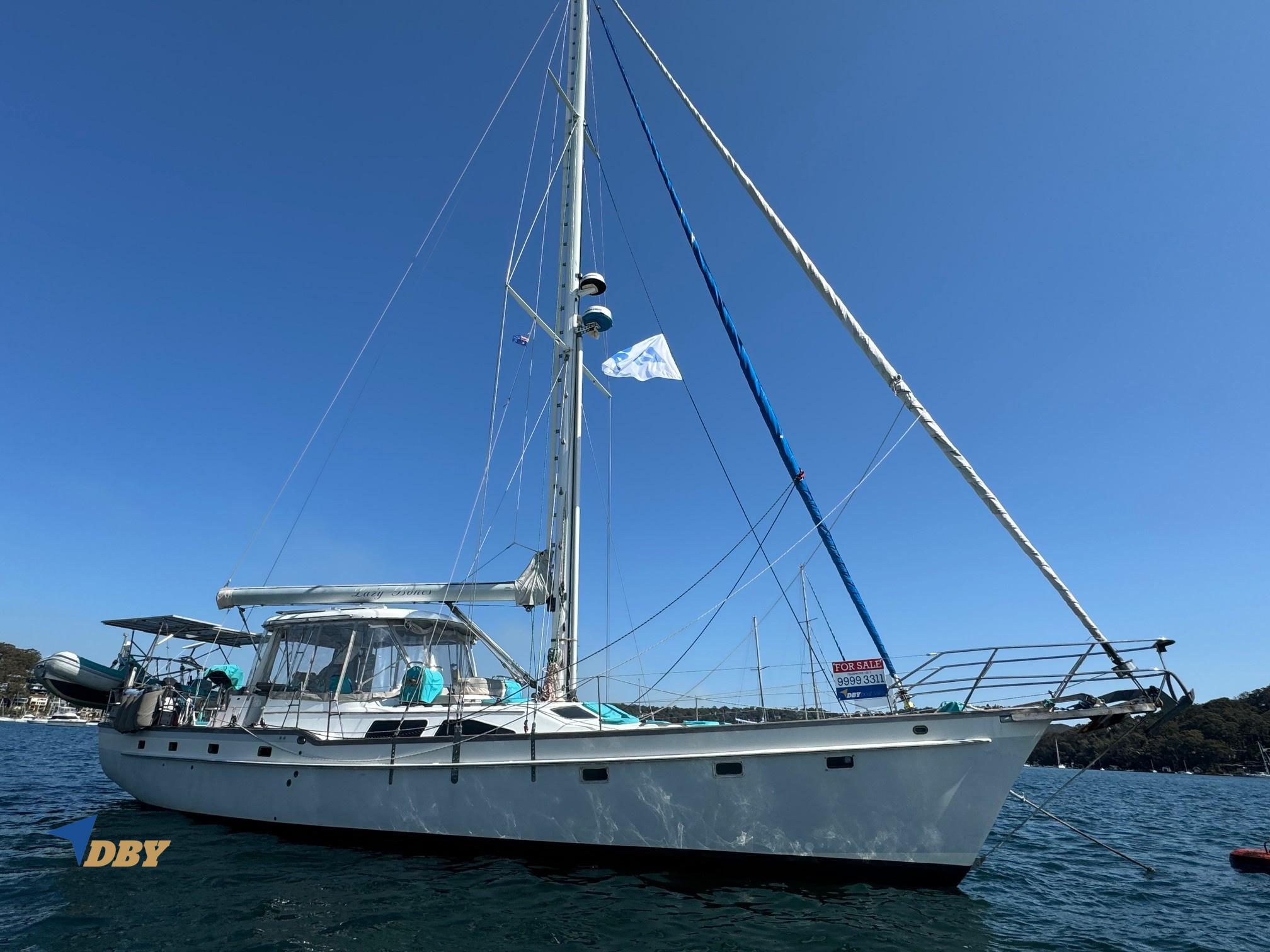

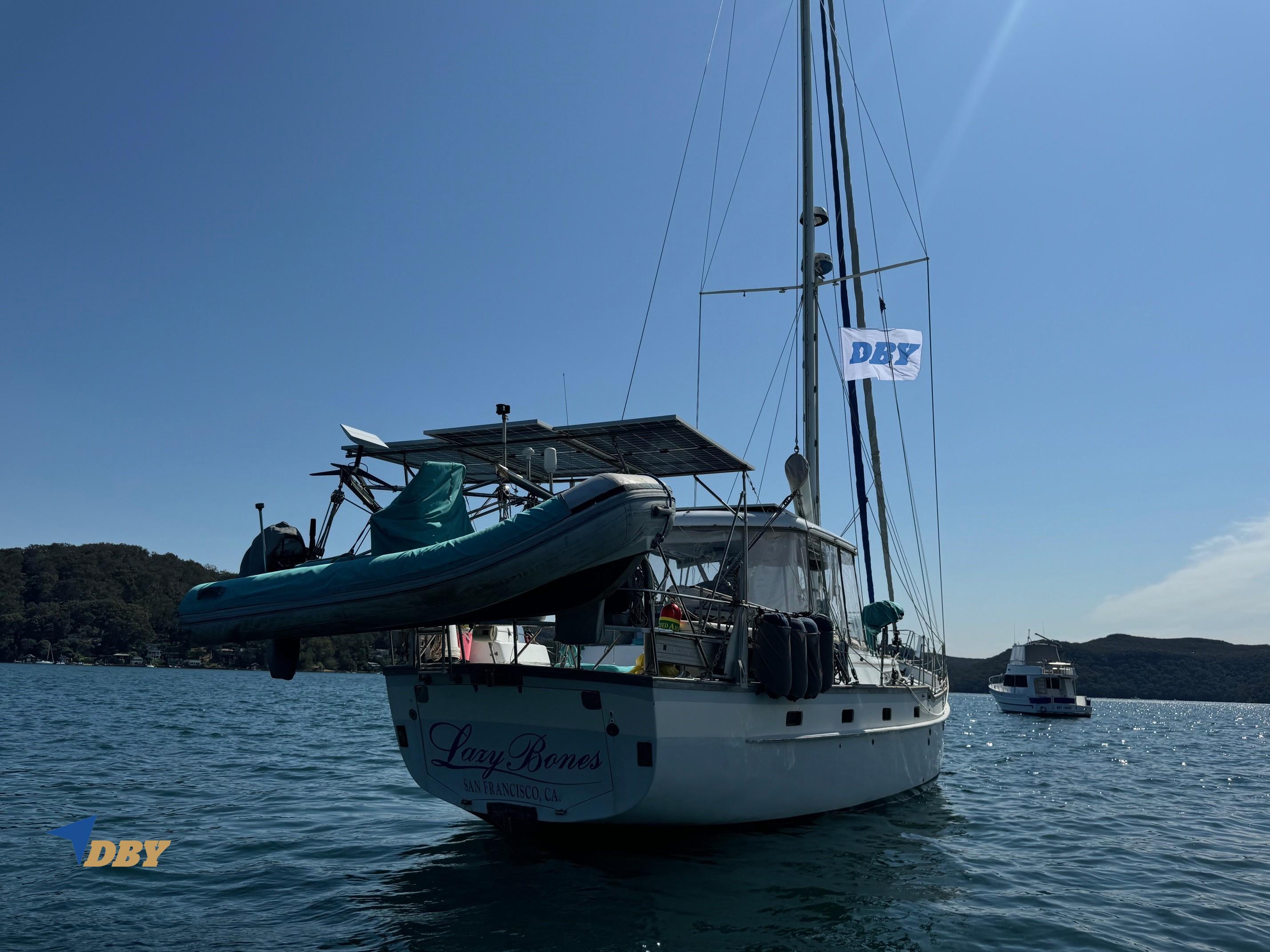

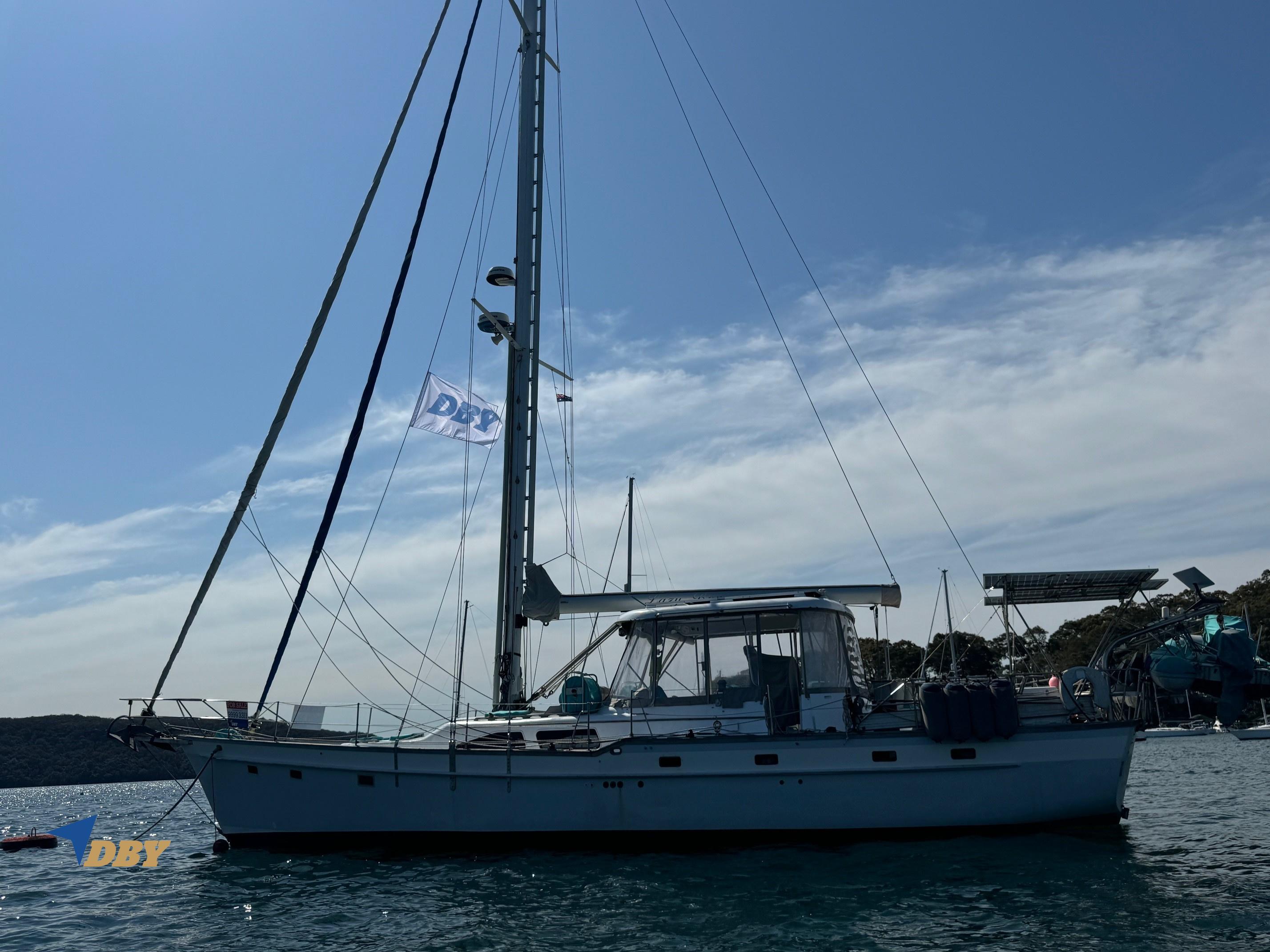

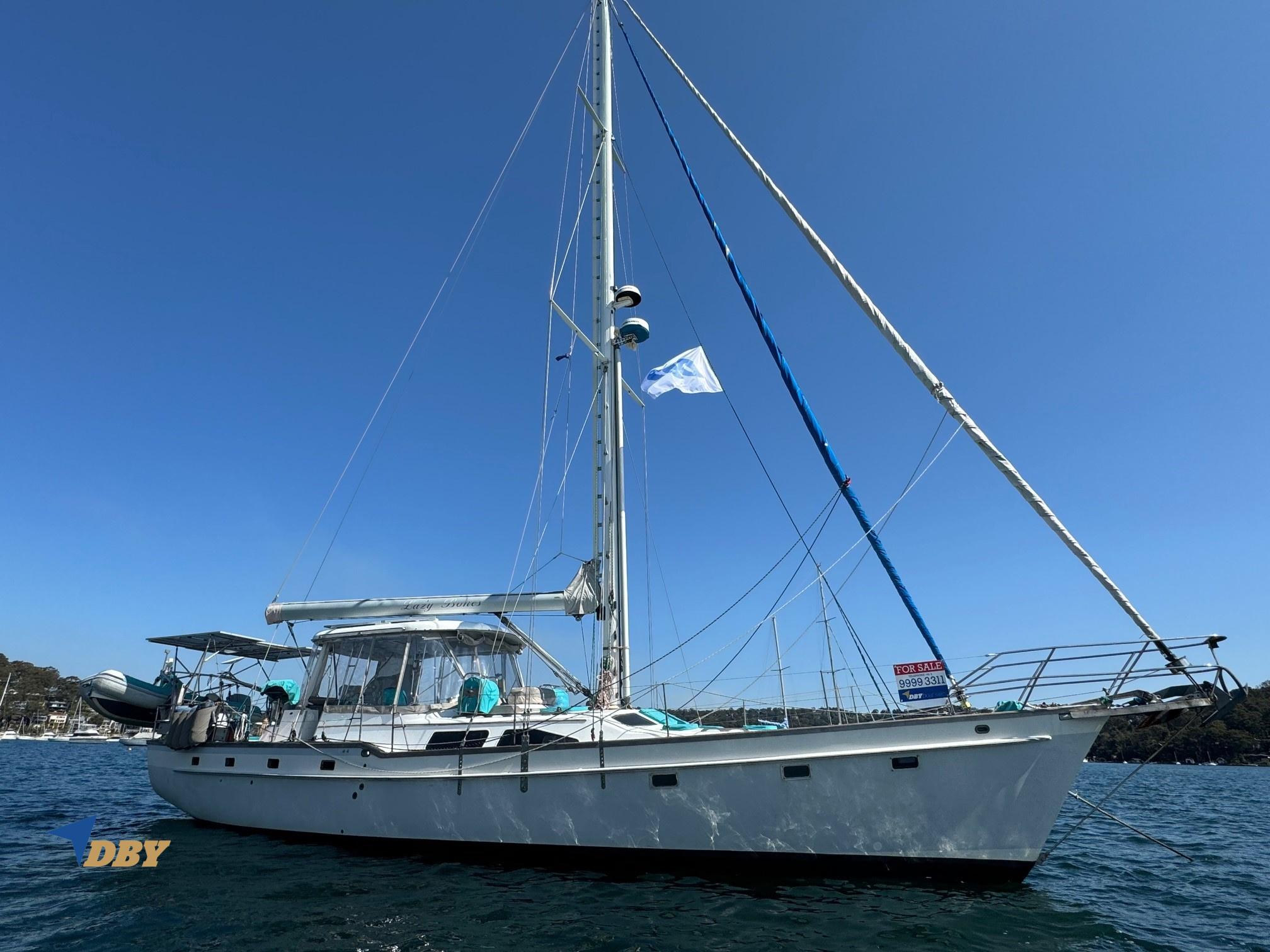

 LAZY BONES is a fiberglass cutter rigged sailing vessel. She has a raked bow with bow platform and electric bow thruster, shoal draft fin keel, skeg rudder, and wine glass shaped transom with electrically controlled flush stowed fold-down stern swim platform. The mainsail furls in the boom. Auxiliary propulsion is provided by a 140 HP Yanmar marine turbo diesel and she carries 550 gallons (2080 litres) of fuel and 230 gallons (870 litres) of fresh water.

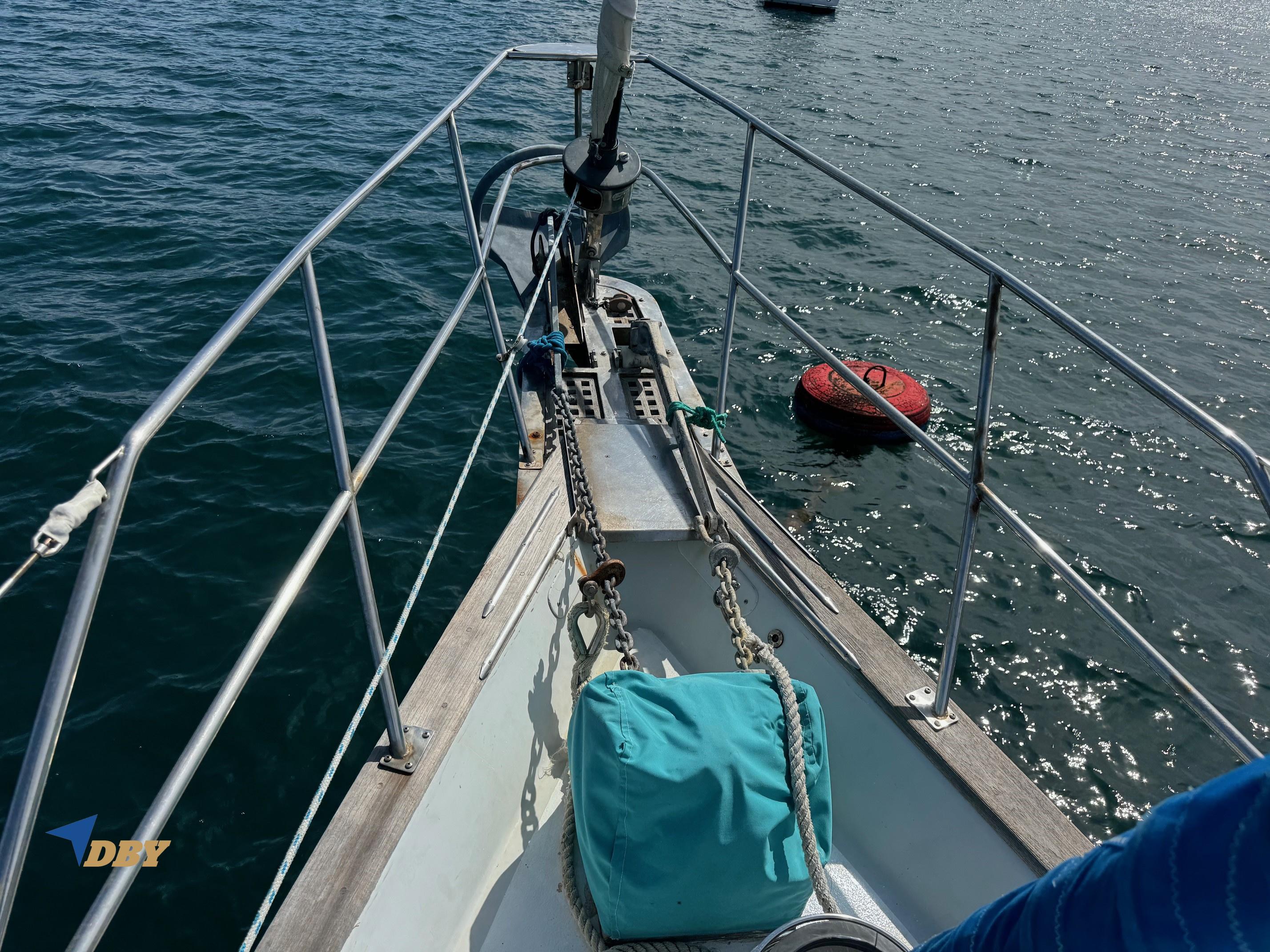

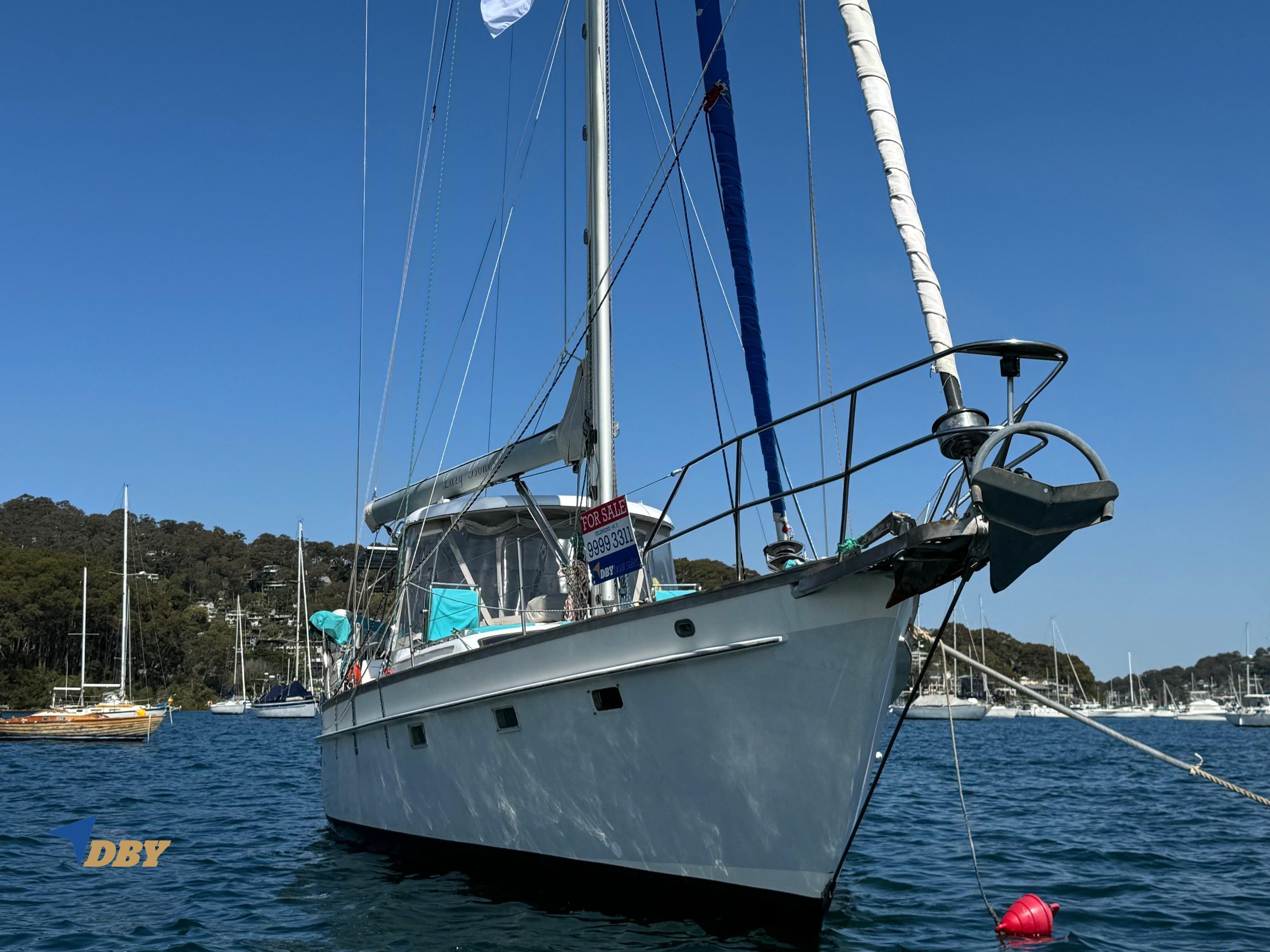

On deck, starting forward, is the bow platform, with double anchor bow rollers and Harken furling unit for the forestay, followed by a Profurl furling unit for the staysail, electric anchor windlass, and foredeck hatch.

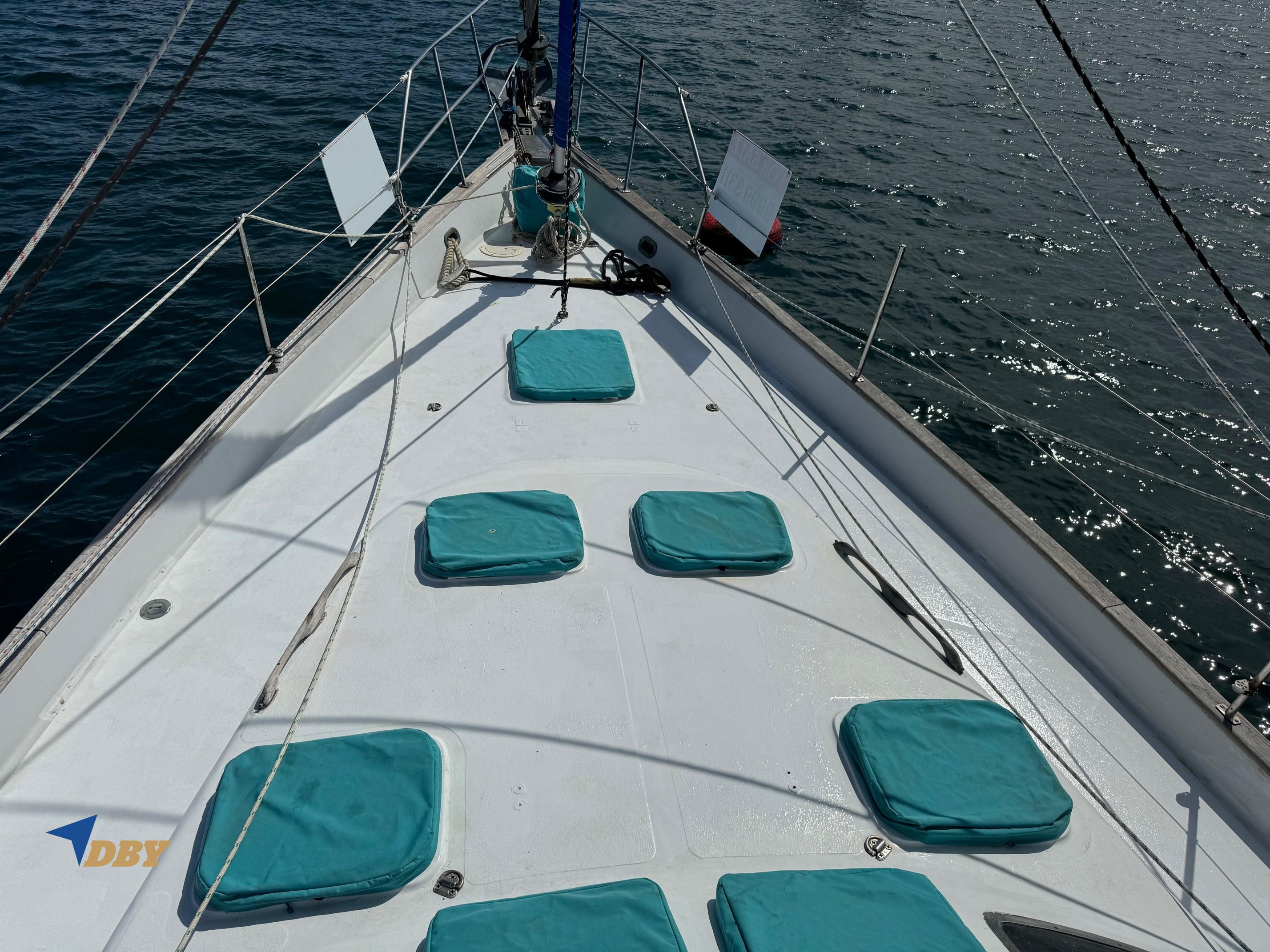

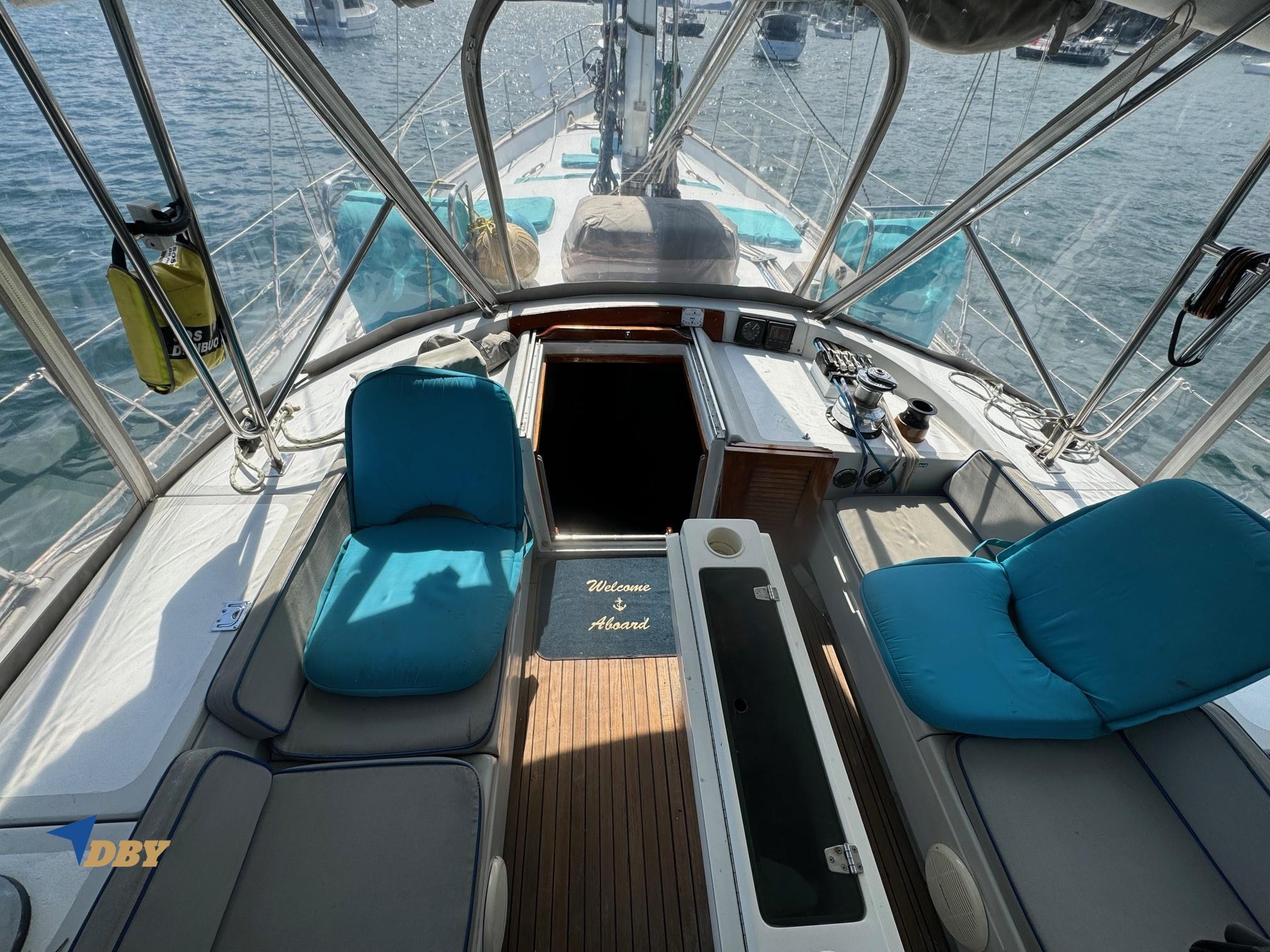

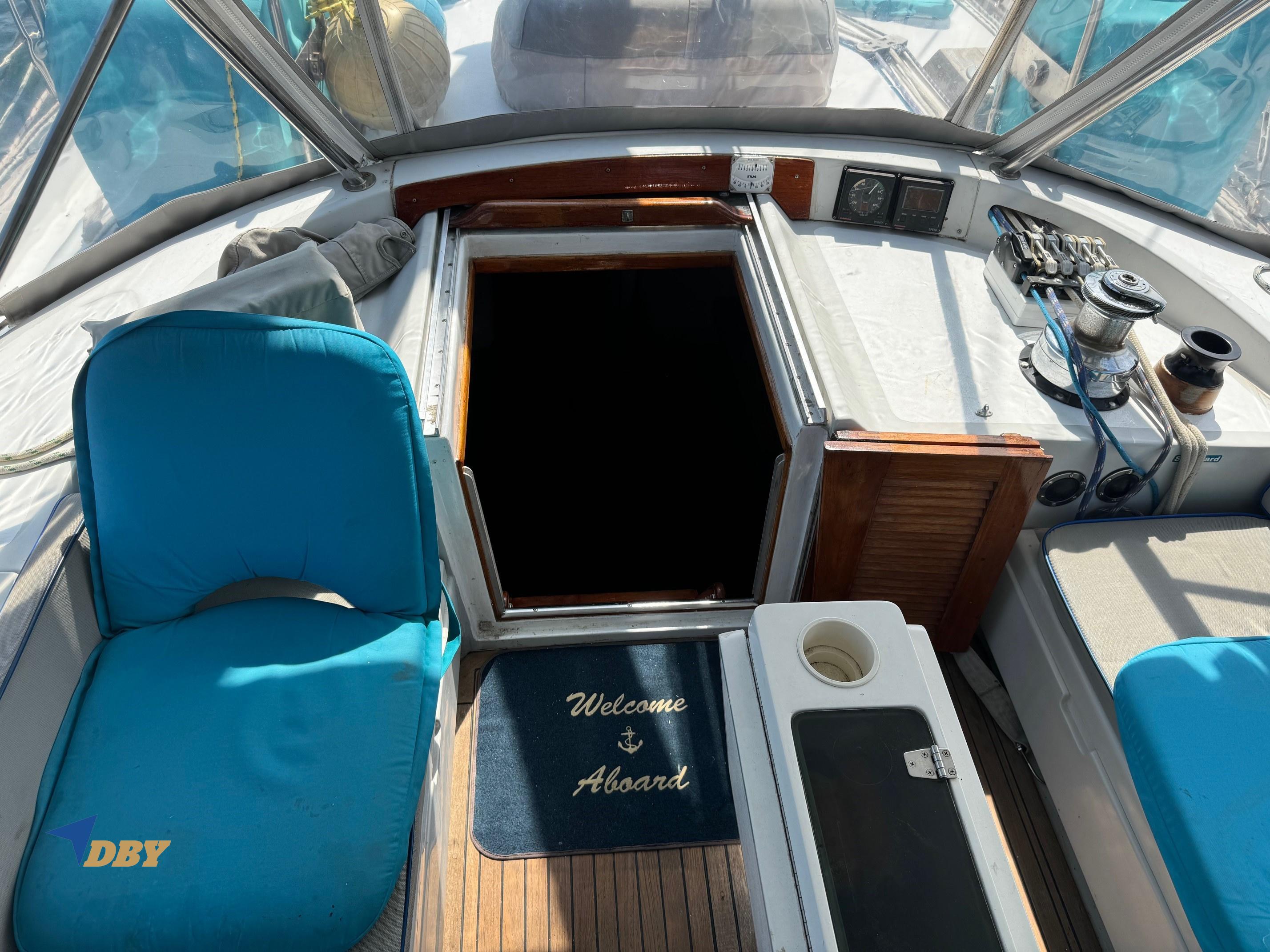

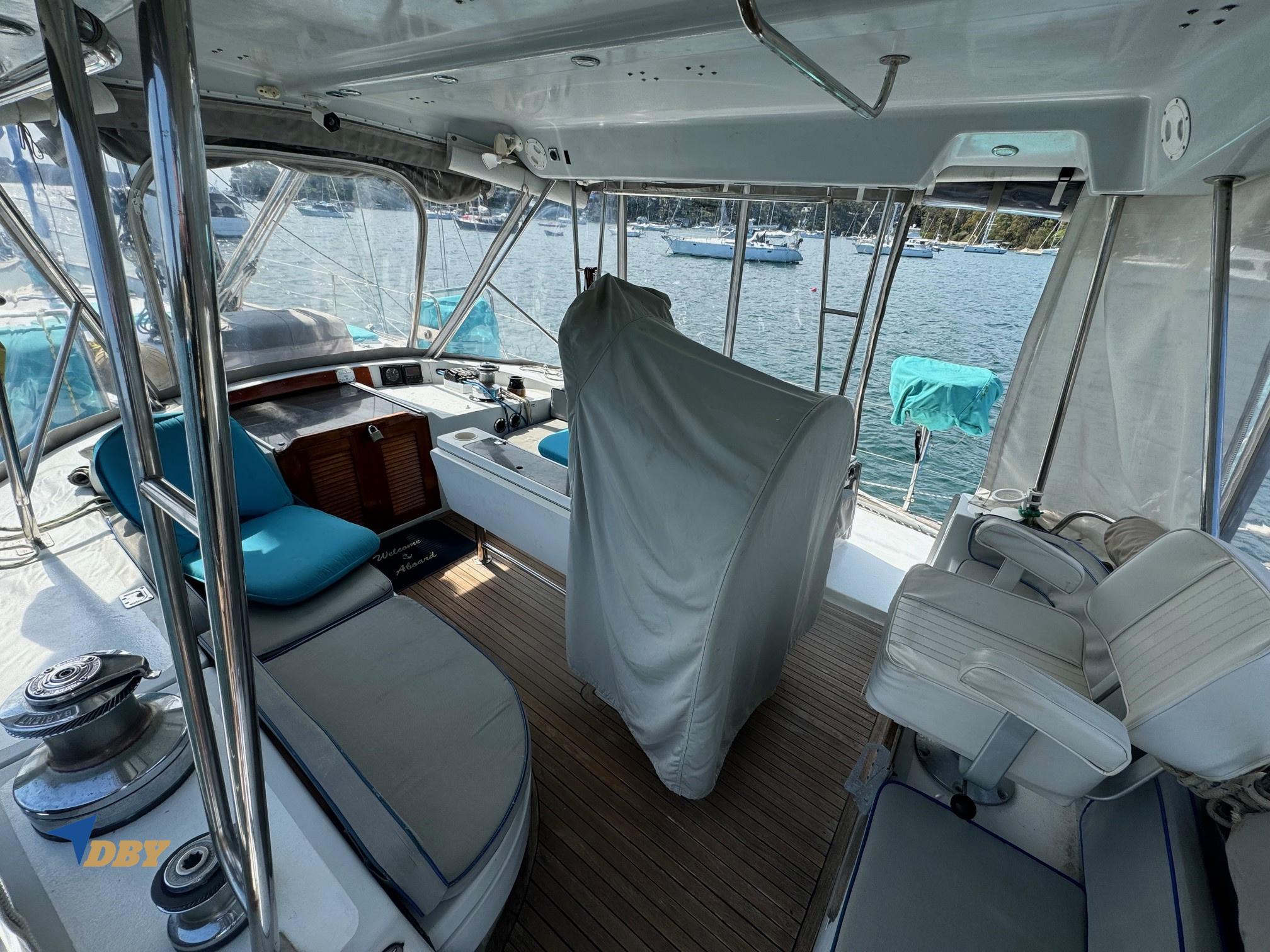

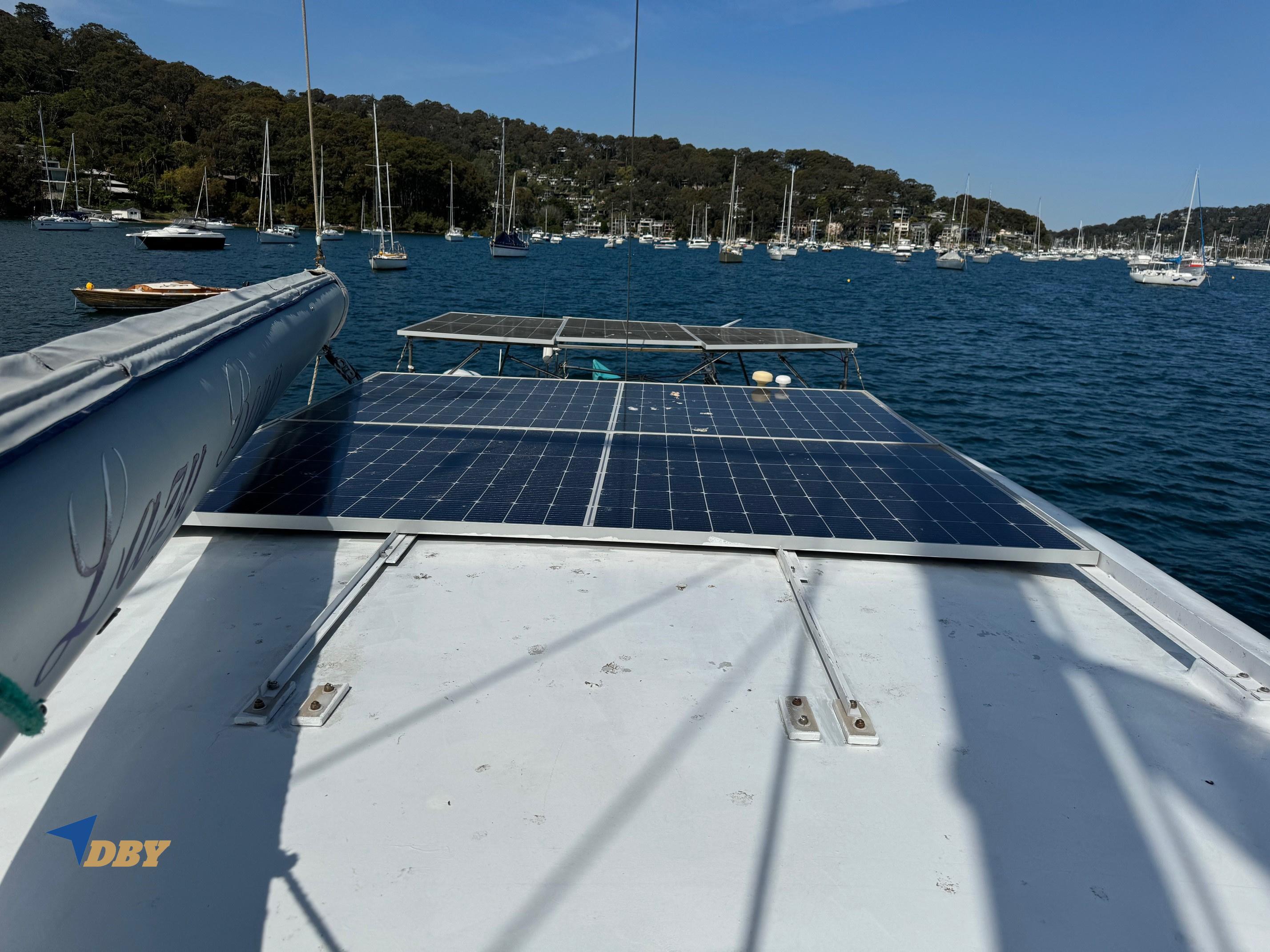

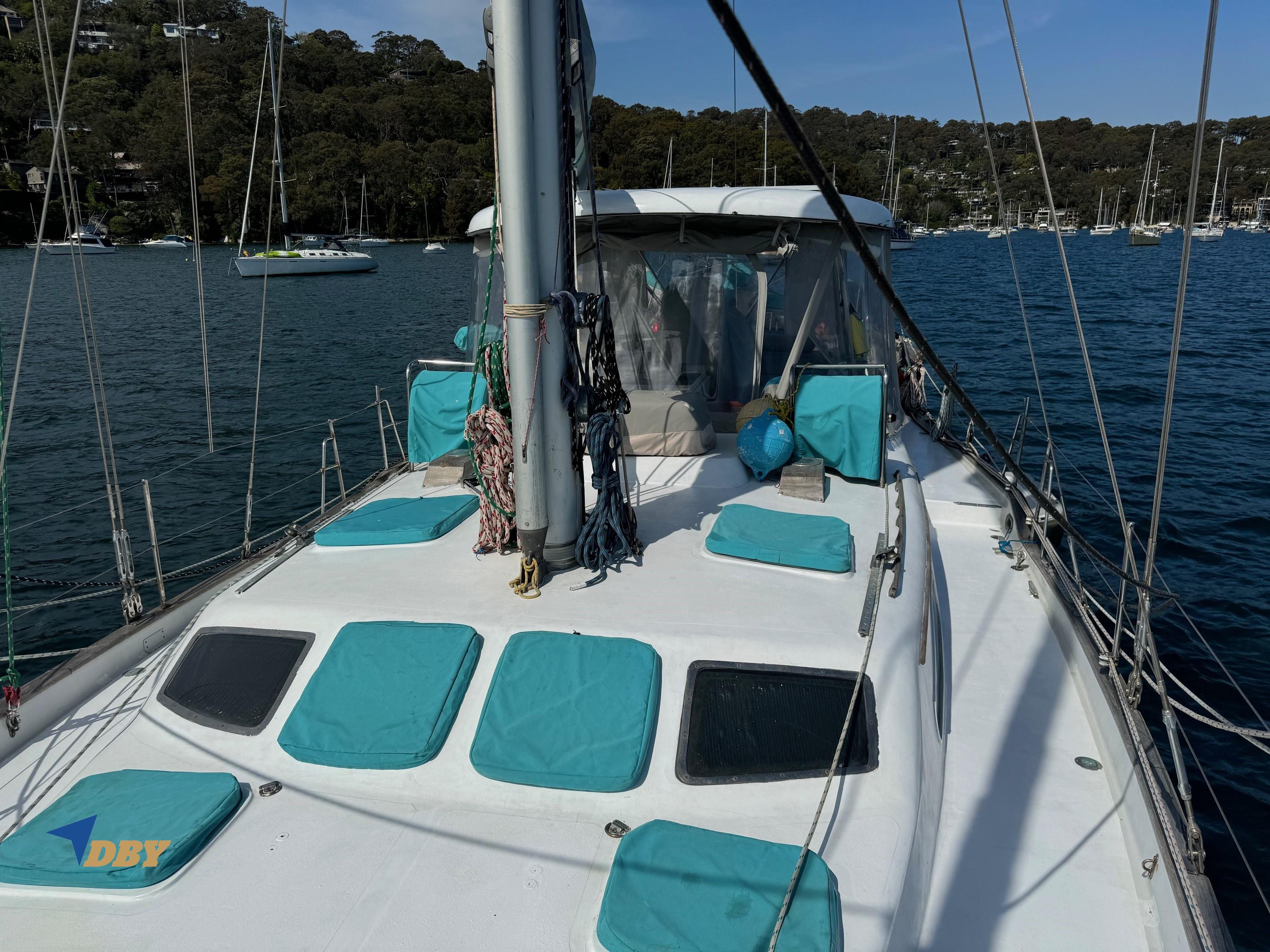

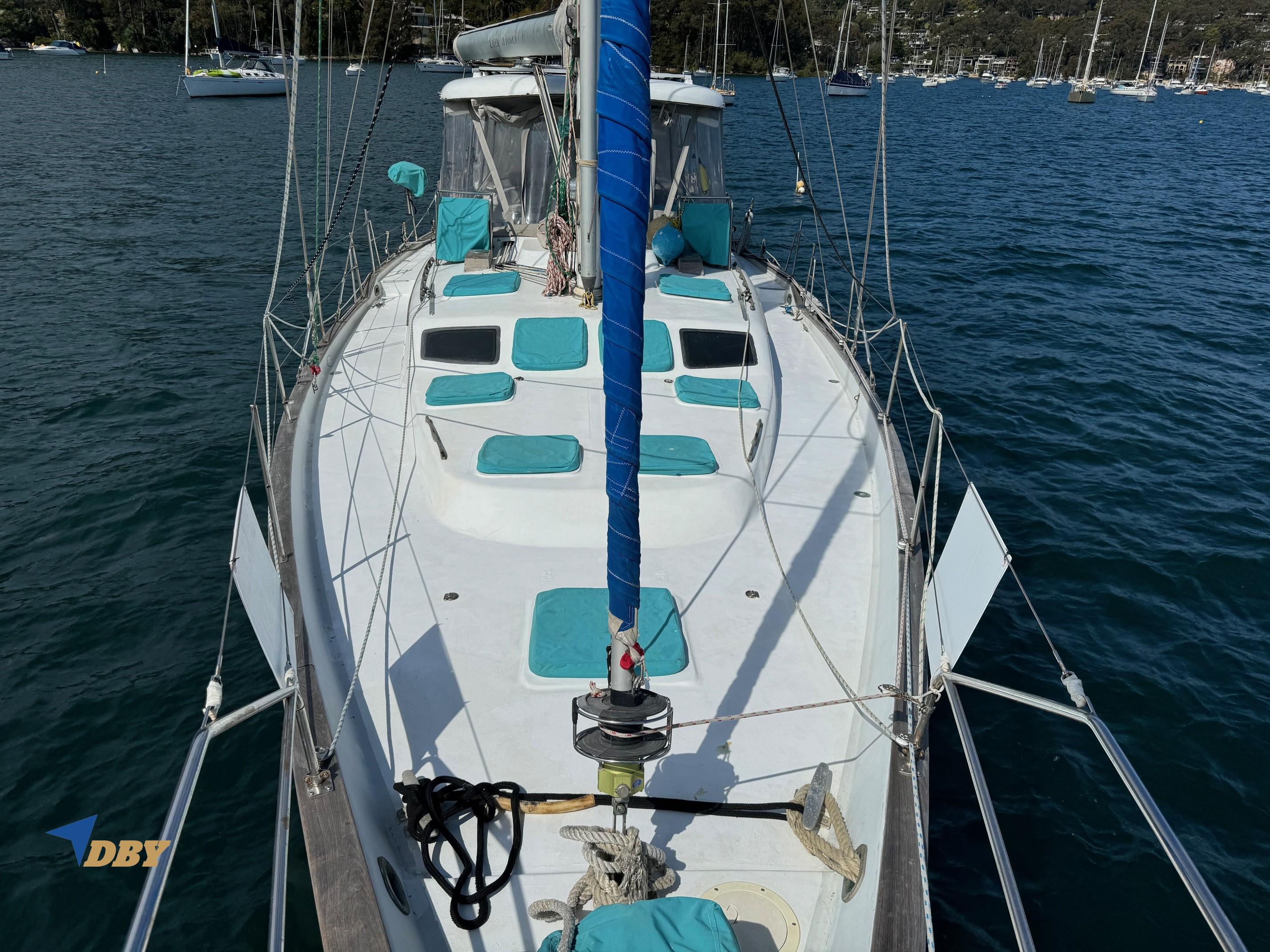

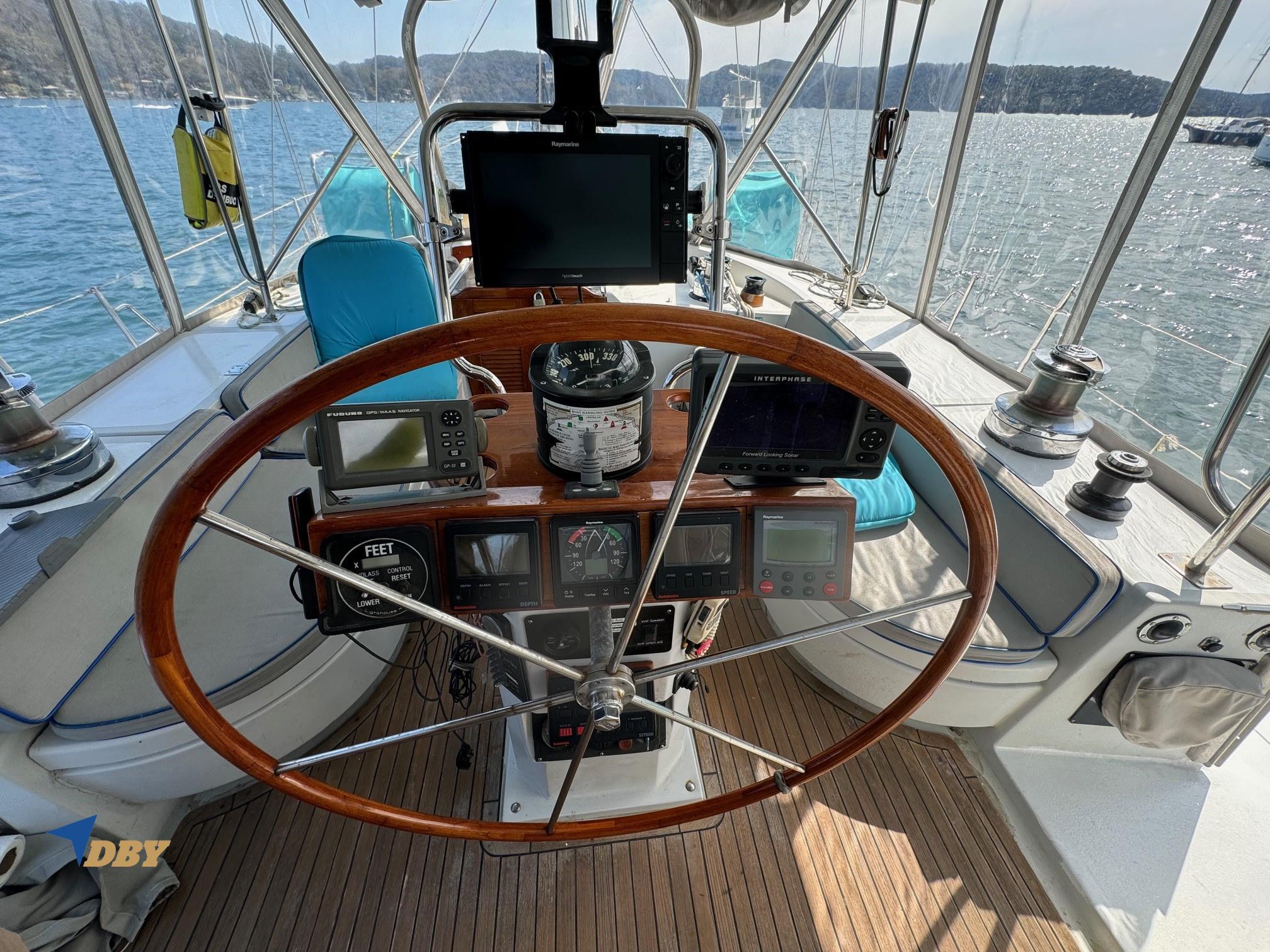

The cabin trunk forward of the cockpit has 8 Lewmar deck hatches, 2 dorade boxes, 2 600 ft (183 m) reels of line, and a six-person inflatable life raft secured in a cradle. The cabin trunk sides have fixed windows. The cockpit has port and starboard weather deck entryways and built-in bench seating aft on each side. The moulded helm pedestal has a teak and stainless steel wheel helm and a full array of navigation and communication electronics. The helm pedestal also includes remote anchor windlass control, bow thruster controls, and propulsion engine controls. The folding leaf table extends forward of the helm console. The cockpit is covered with a custom fiberglass hardtop with a Strataglass enclosure. On top of the hardtop is a 12V 2 panel solar array.

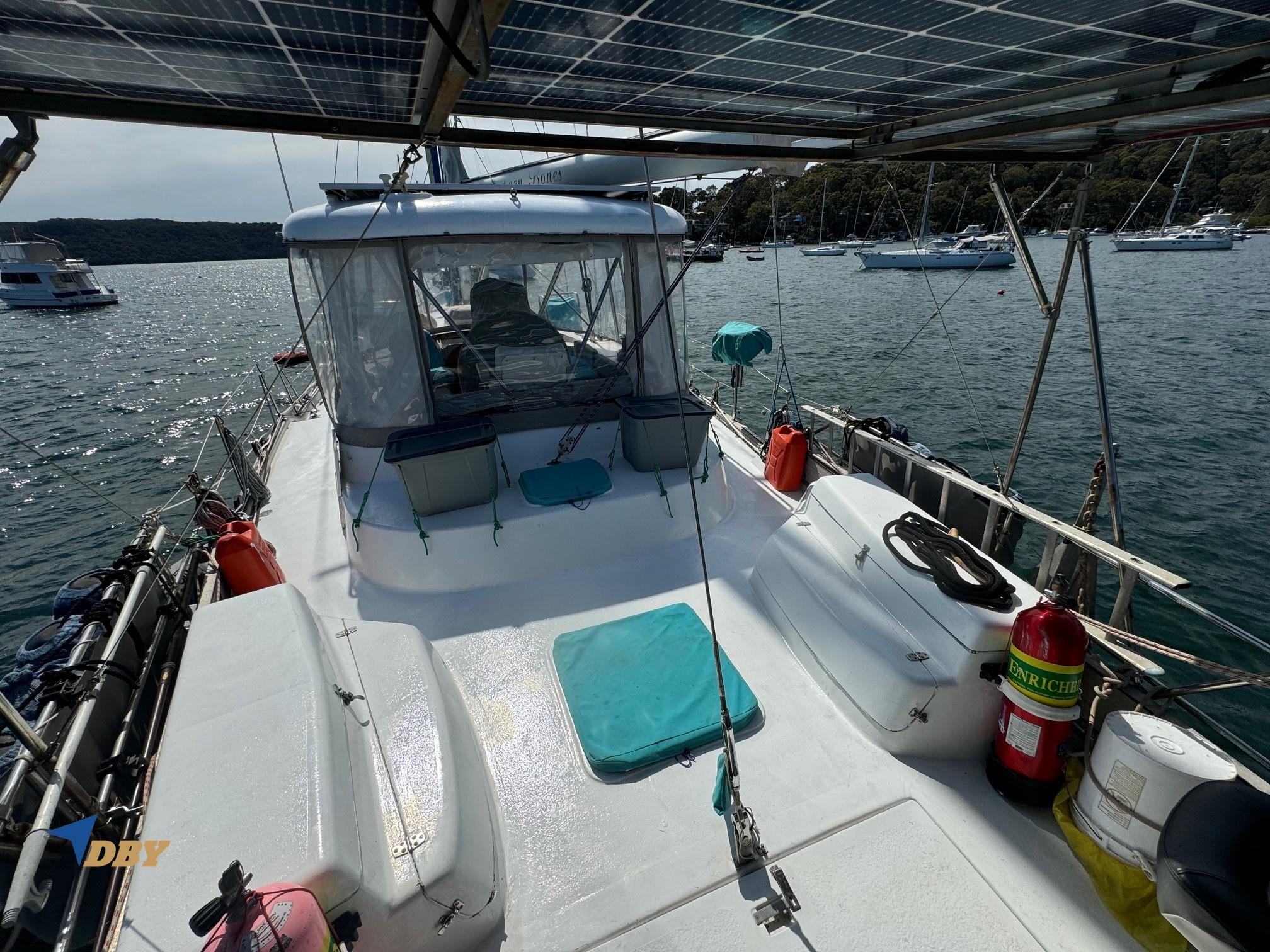

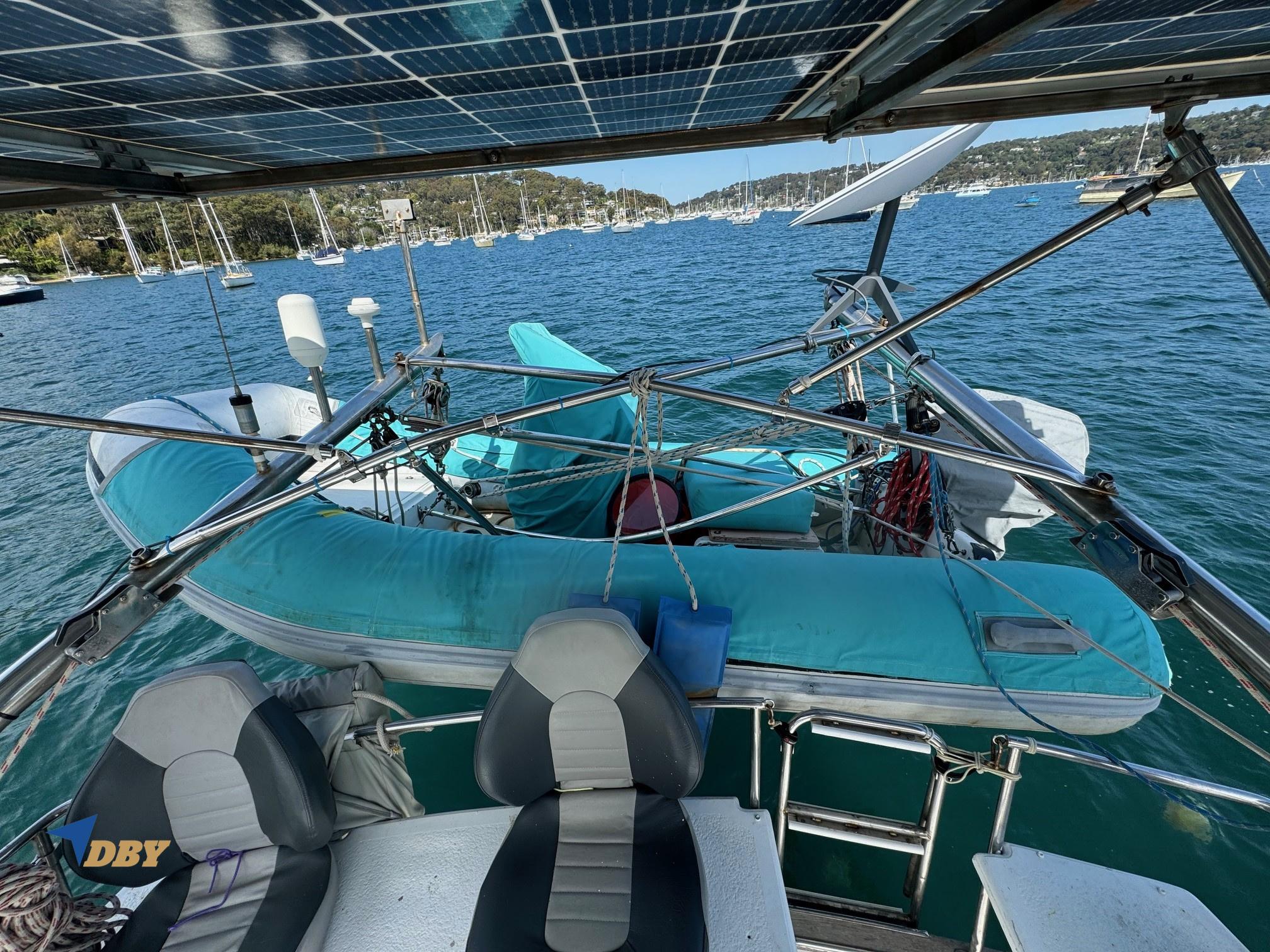

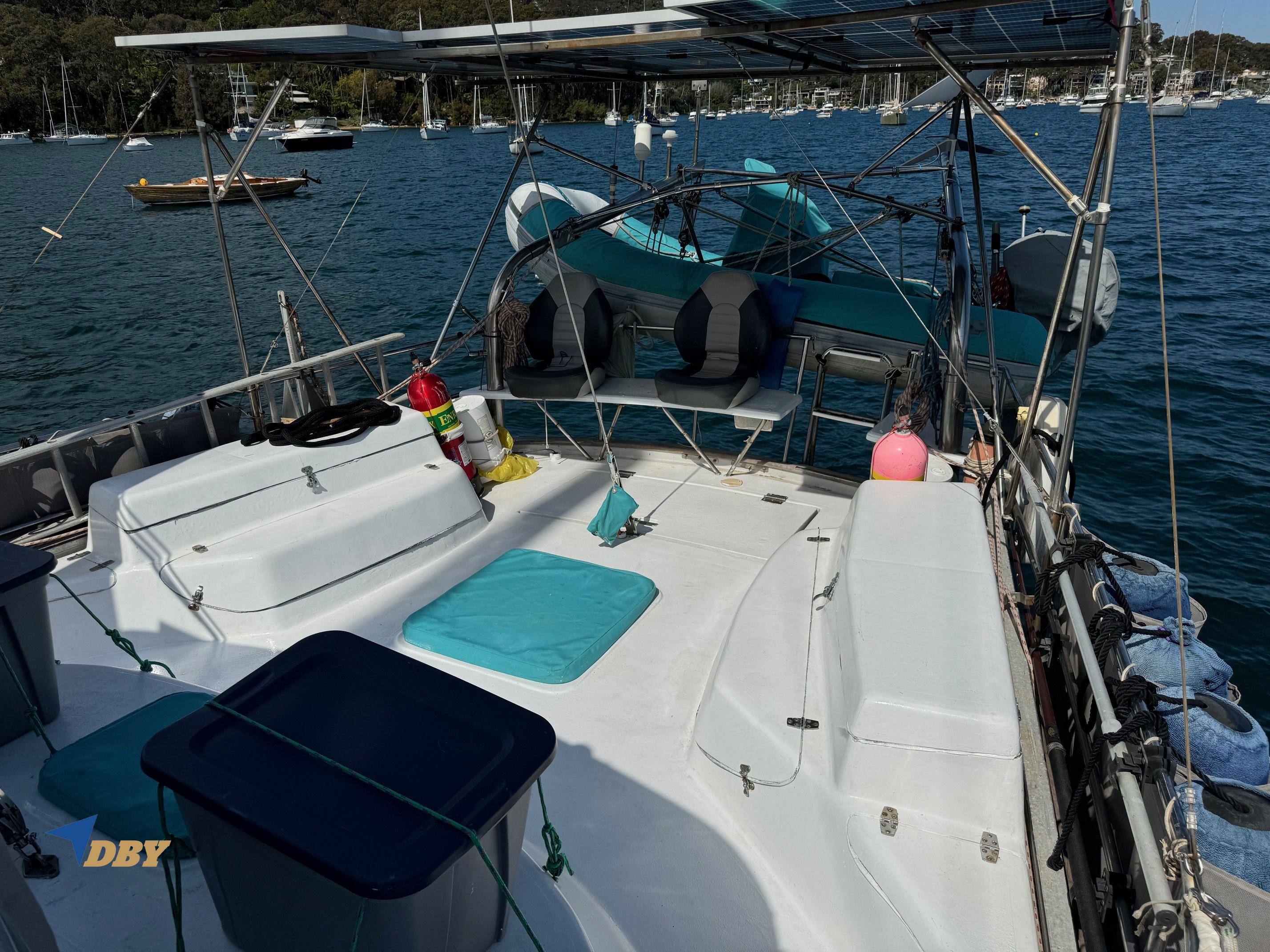

Walking toward the stern, the aft deck is arranged with custom built-in fiberglass storage benches on each side, rail-mounted transom bench seat, 2 Lewmar deck hatches, below-deck lazarette, 48V 3 panel solar array and stainless steel small boat davits.

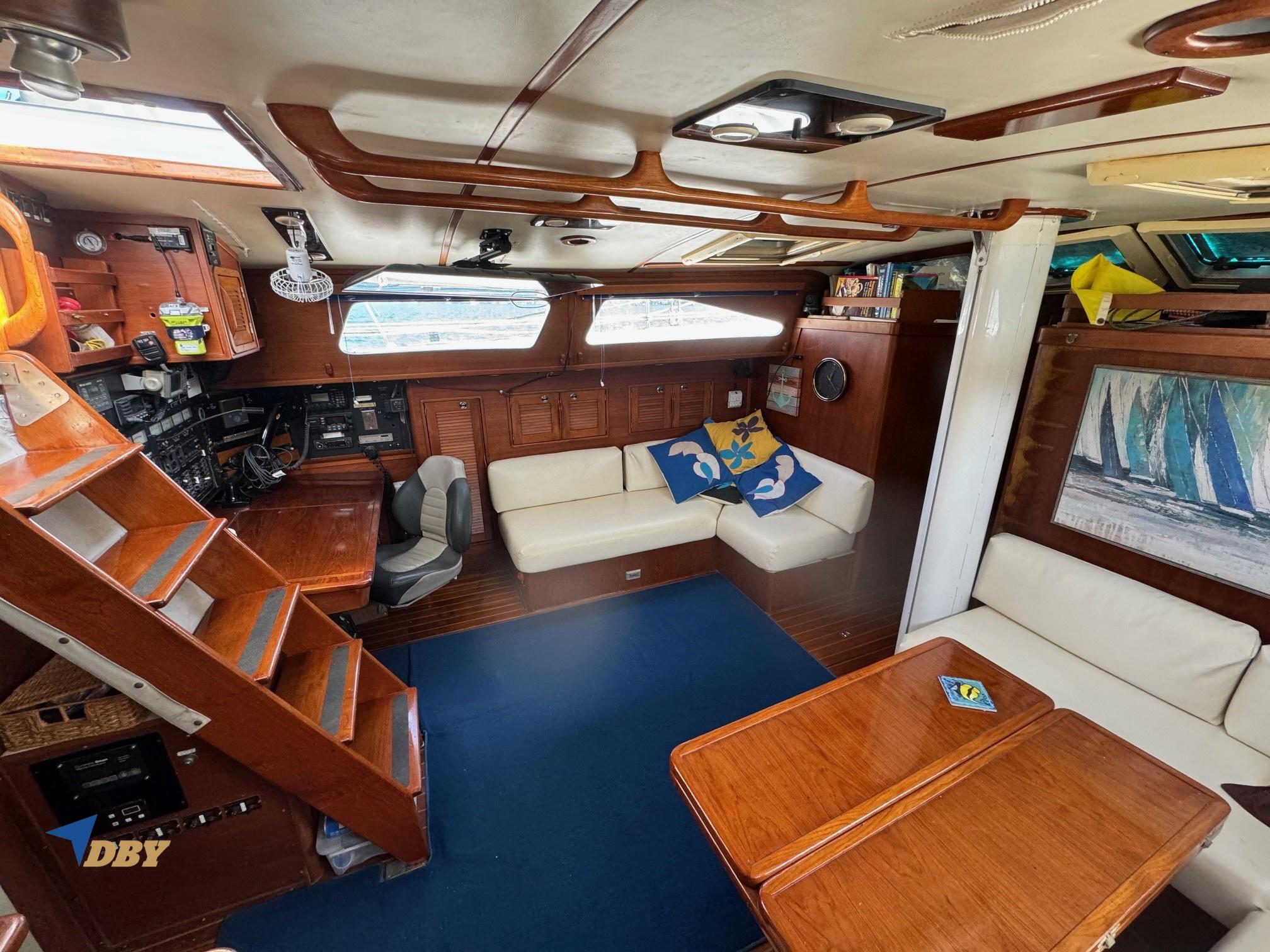

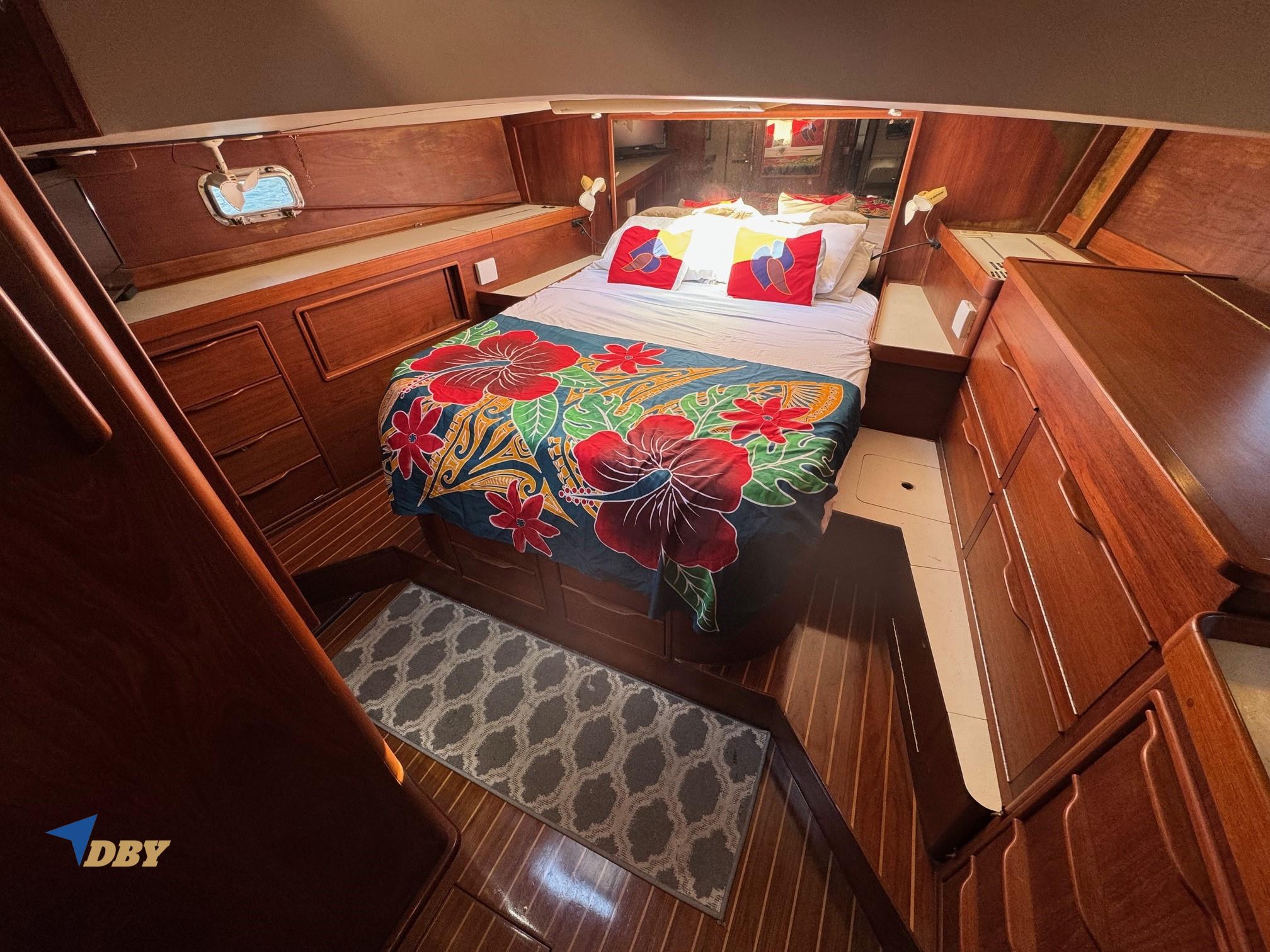

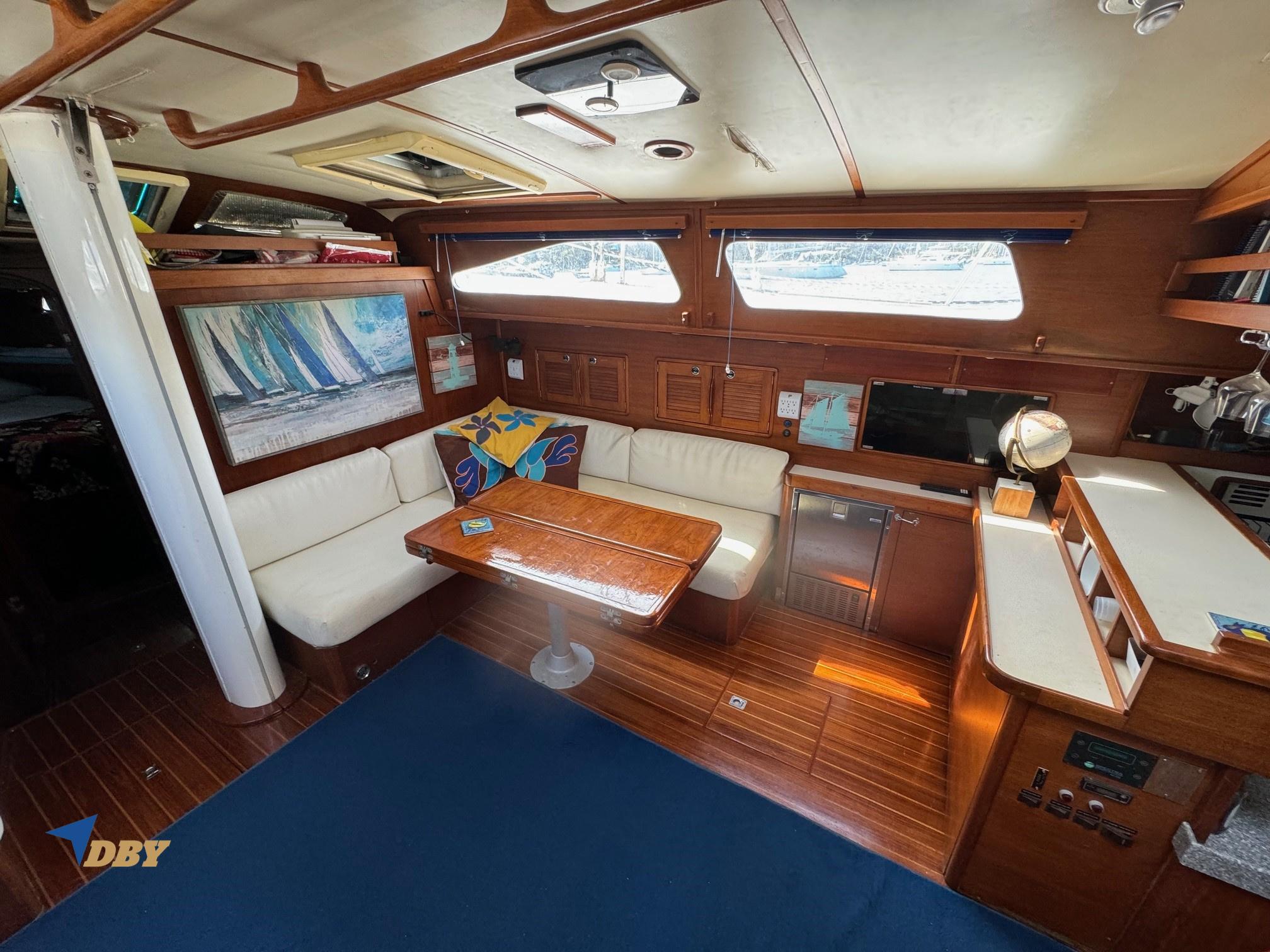

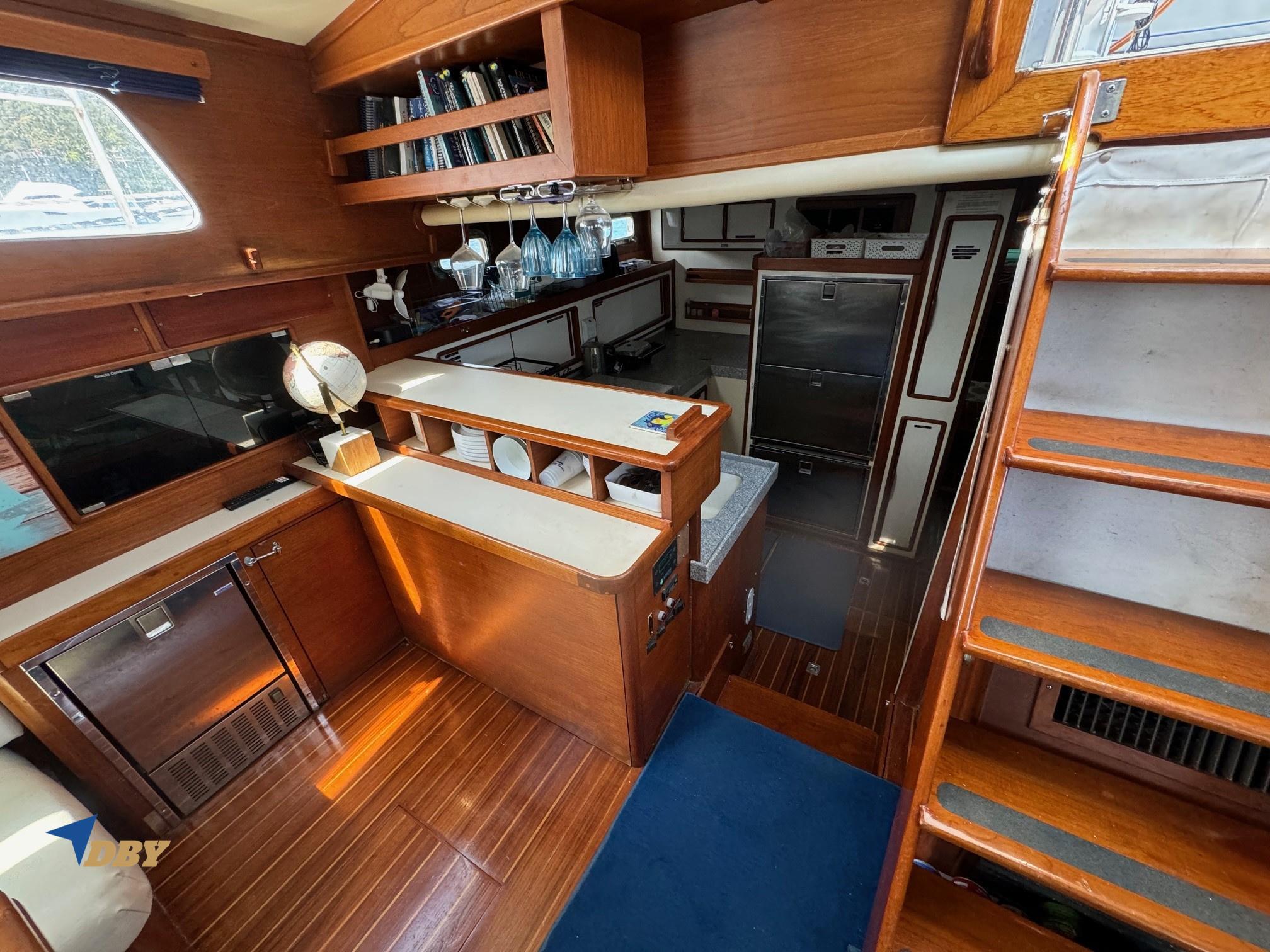

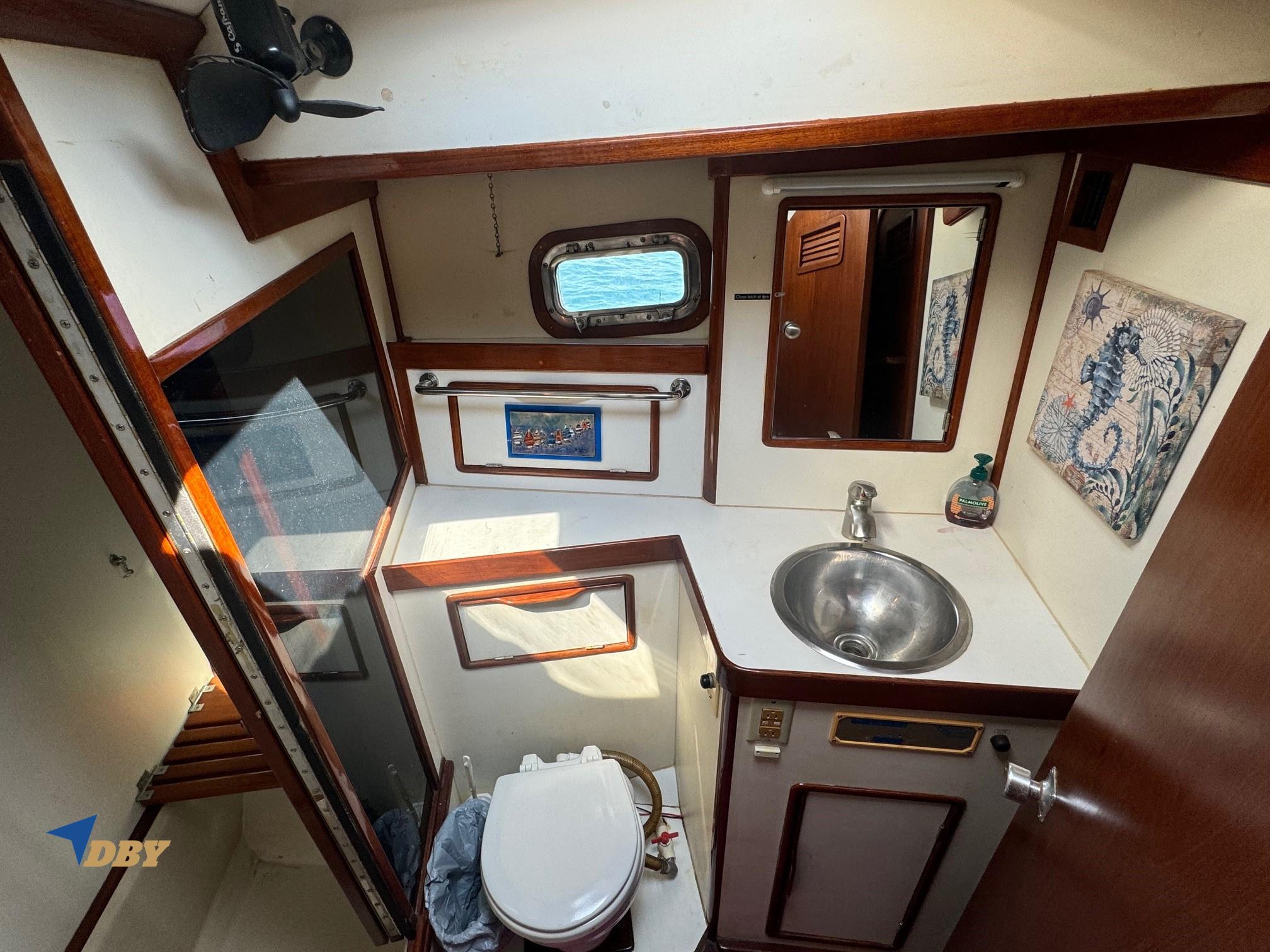

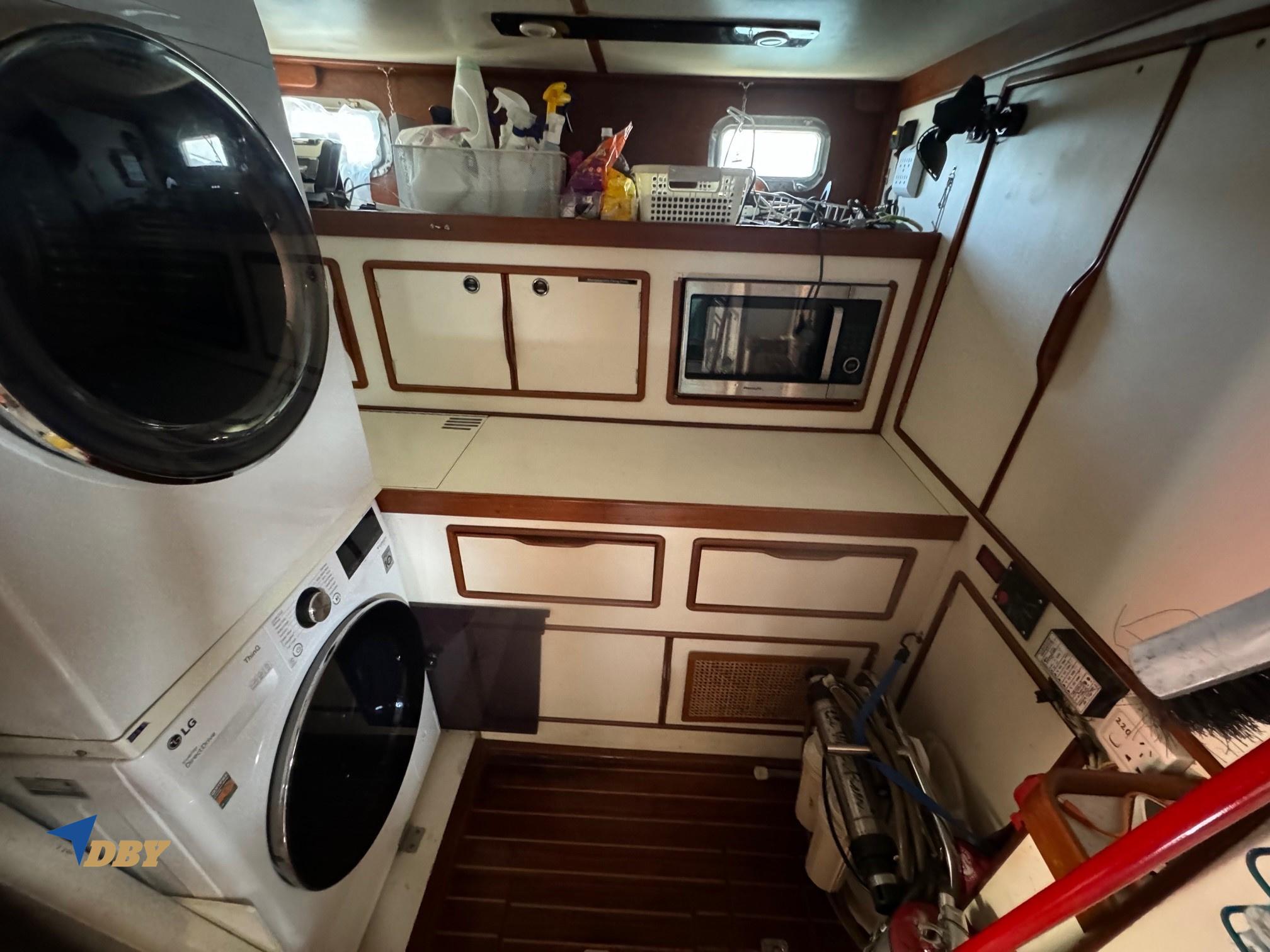

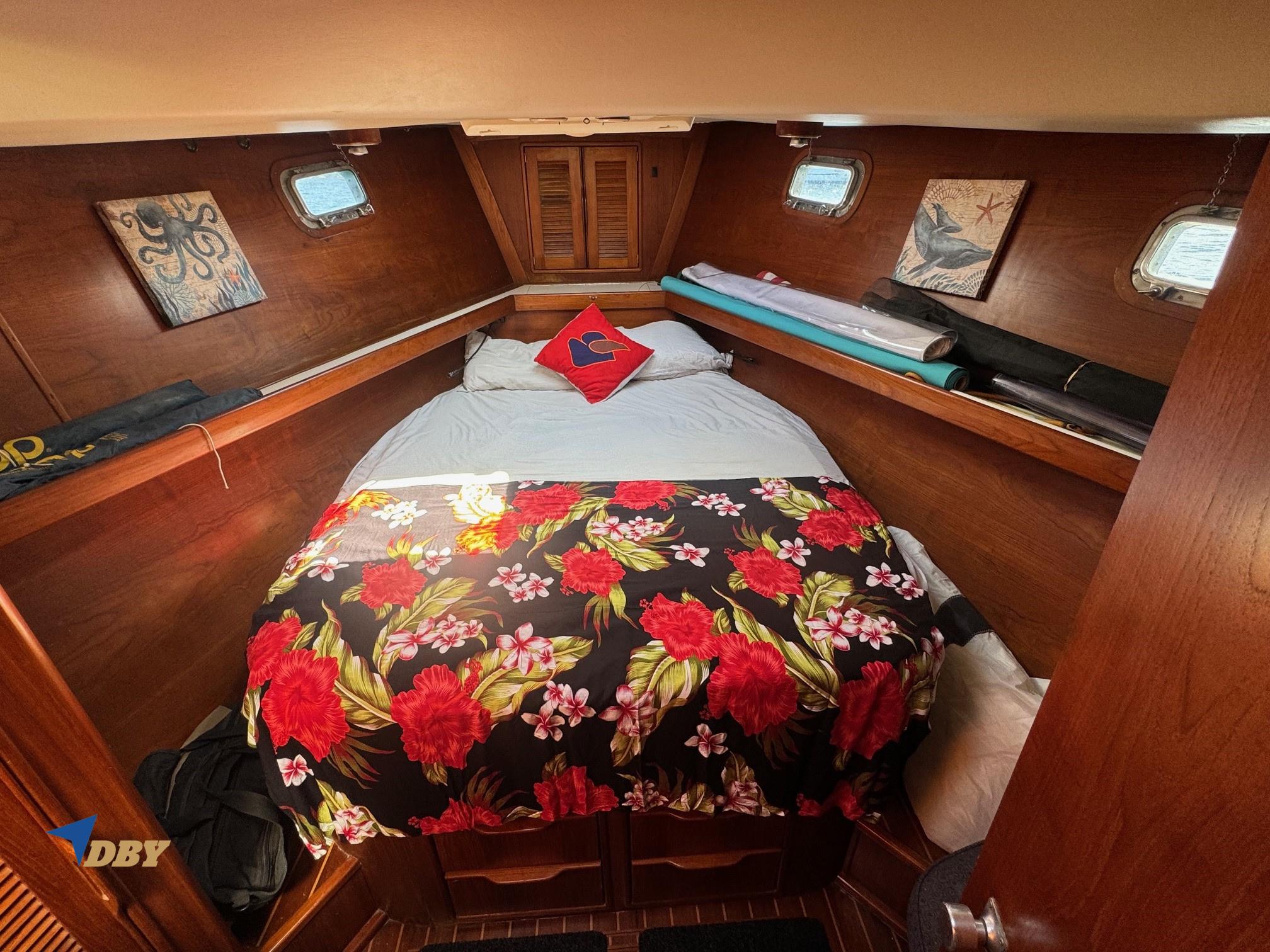

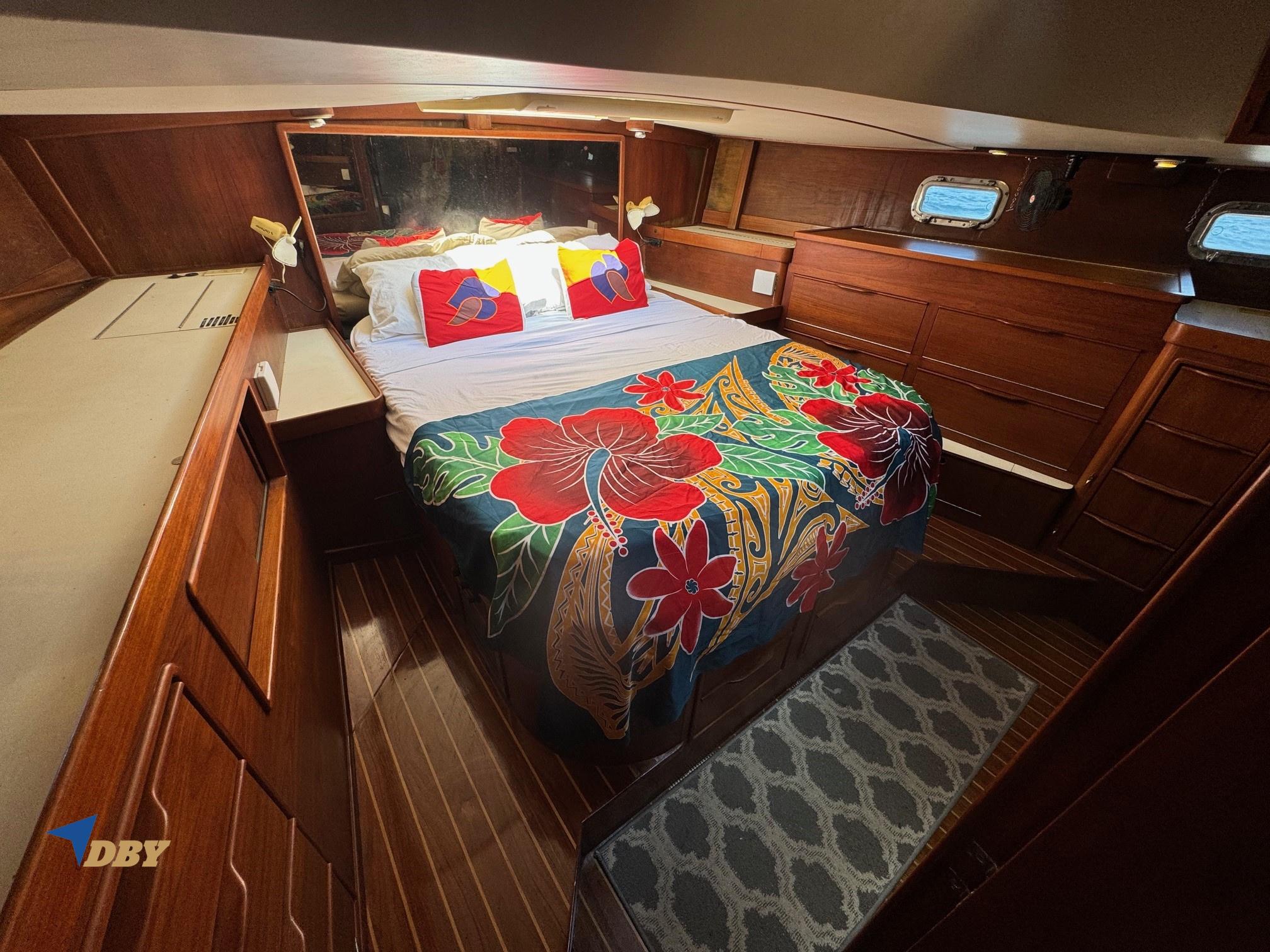

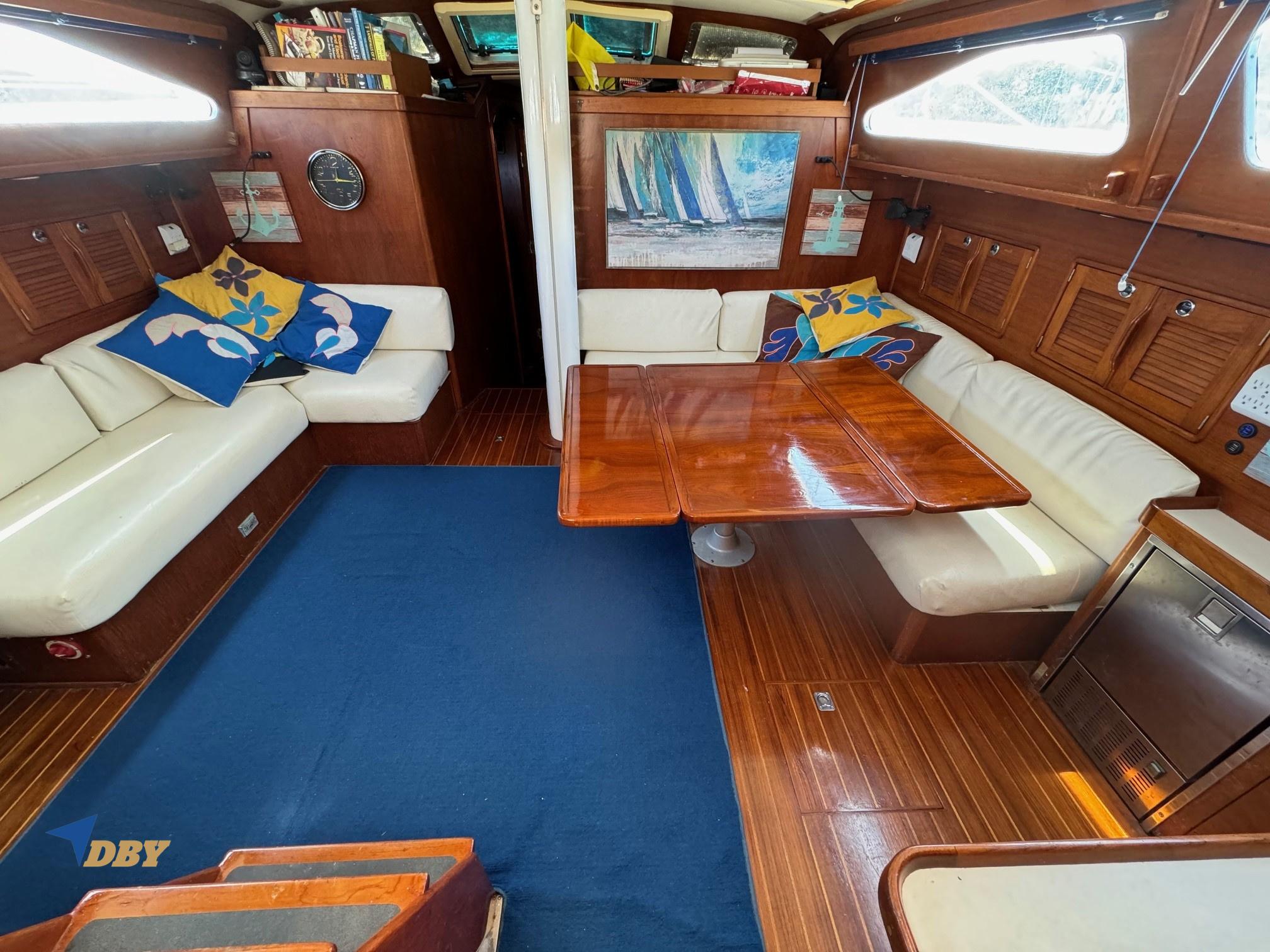

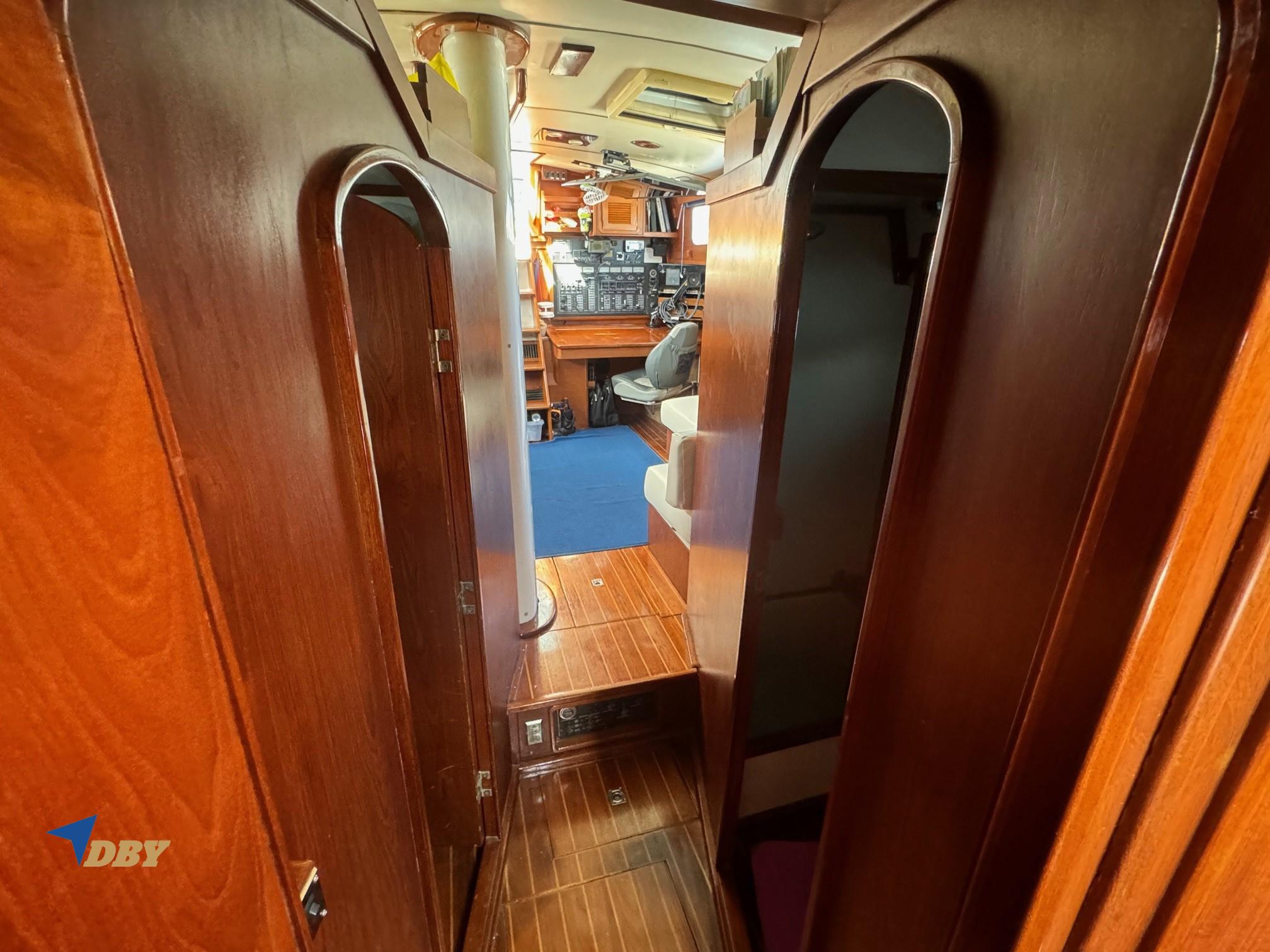

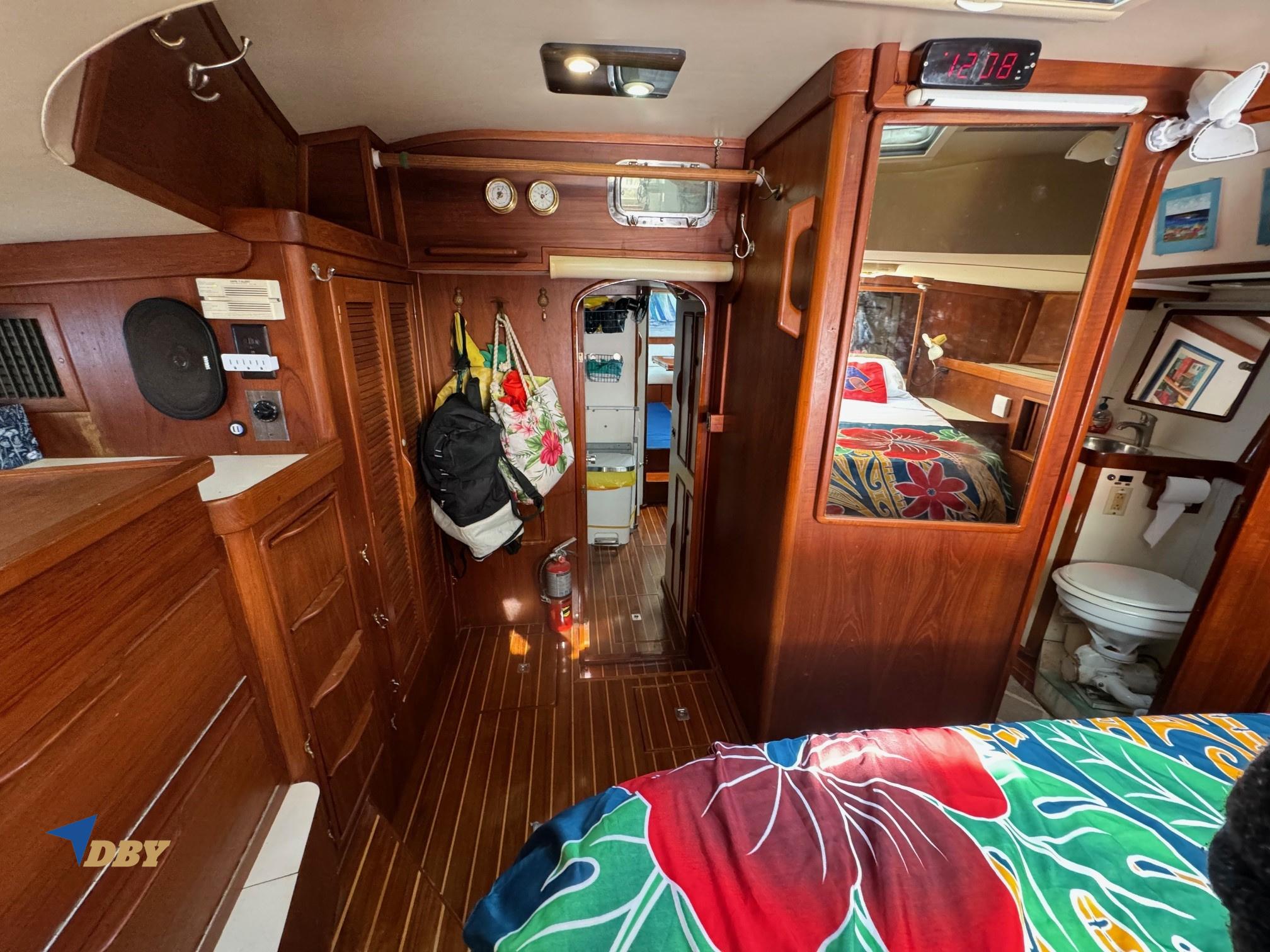

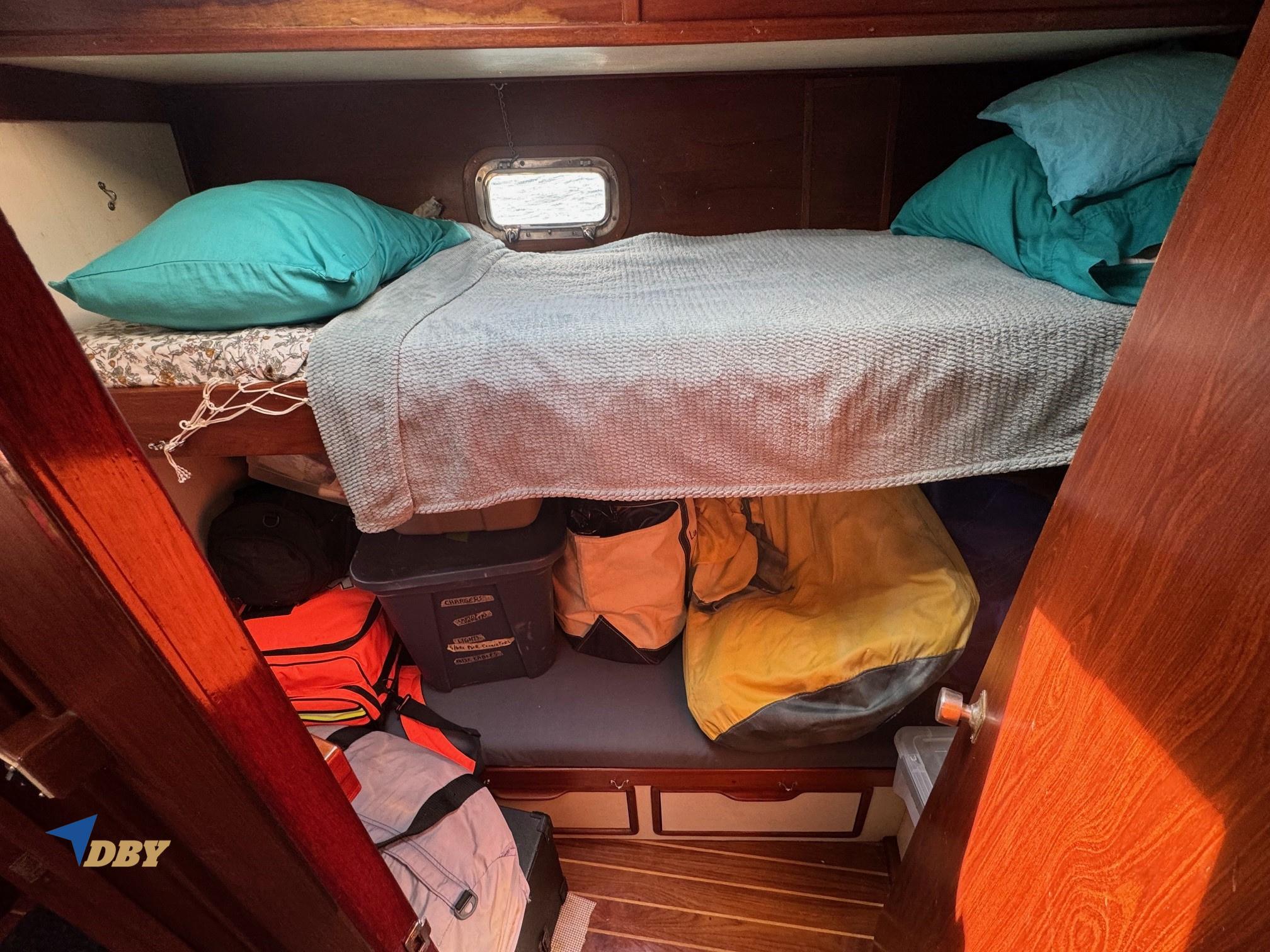

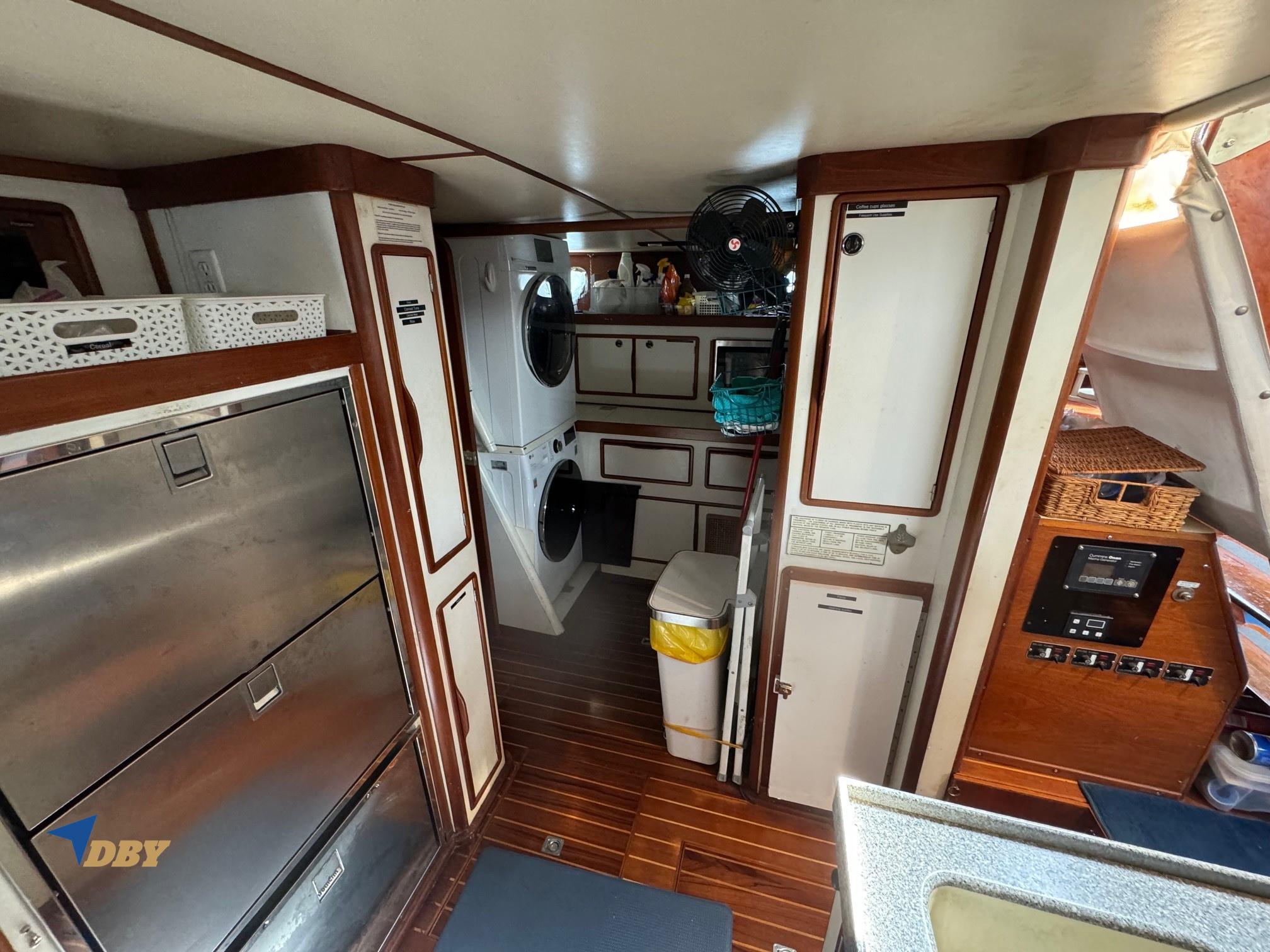

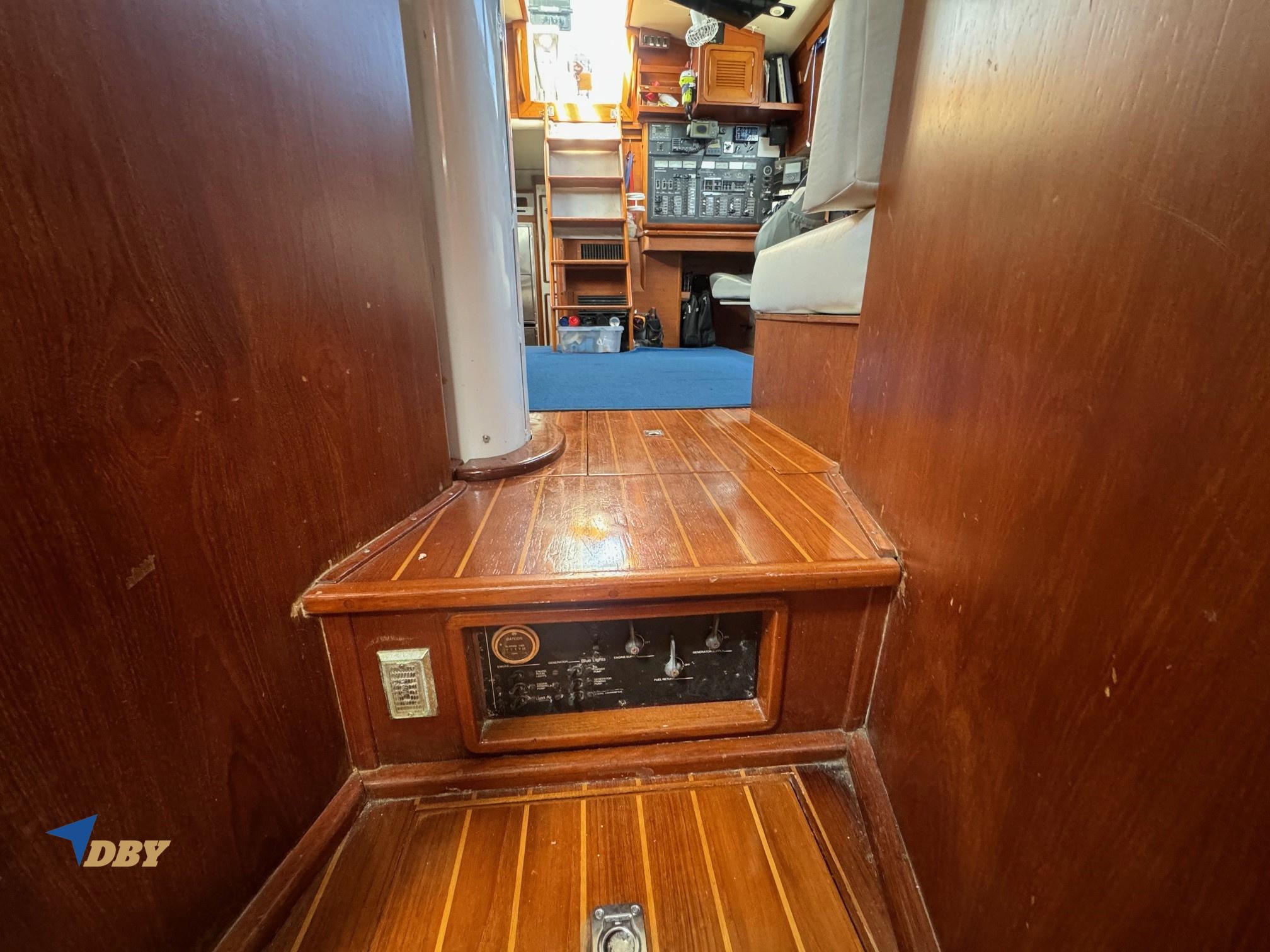

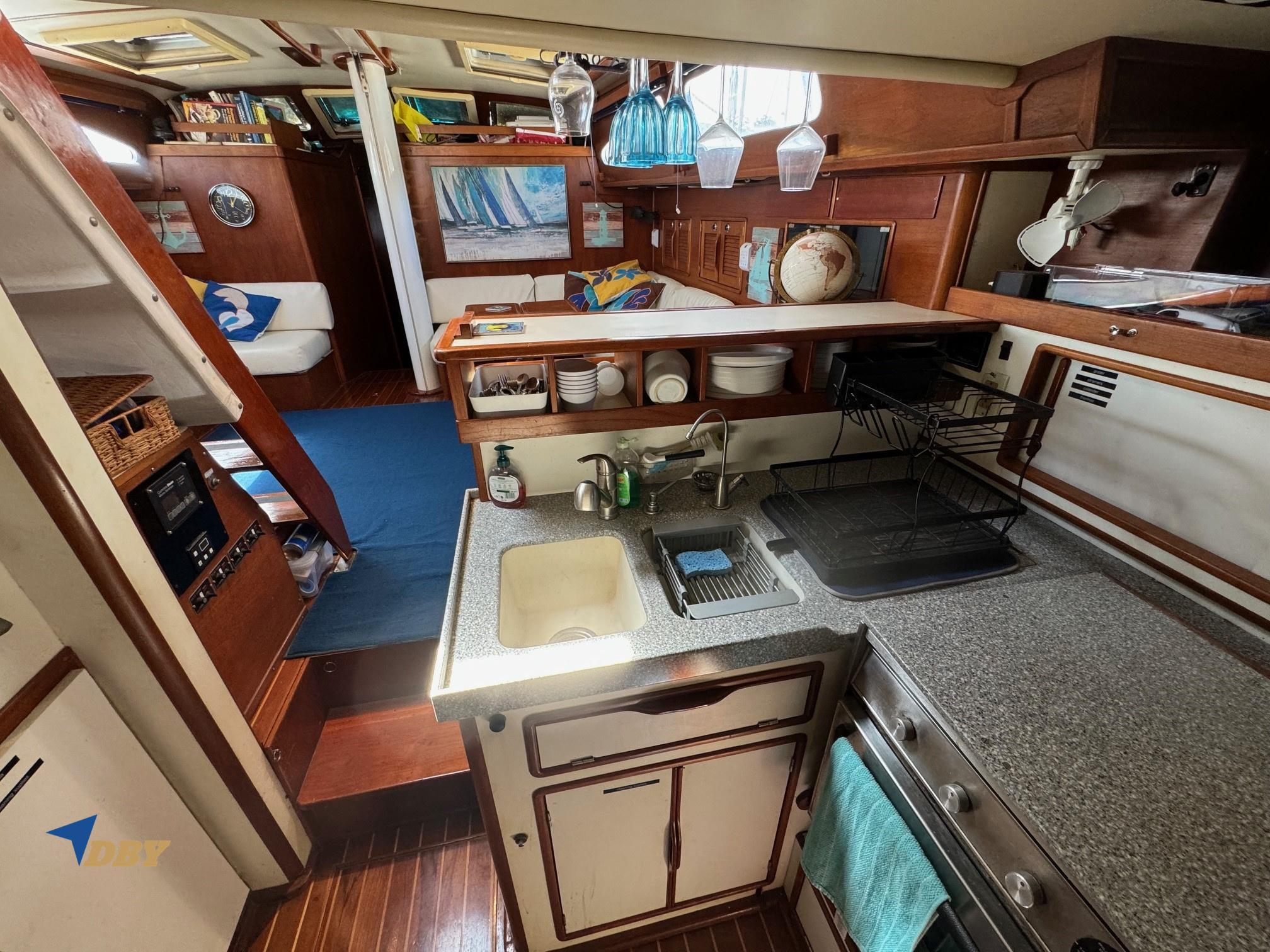

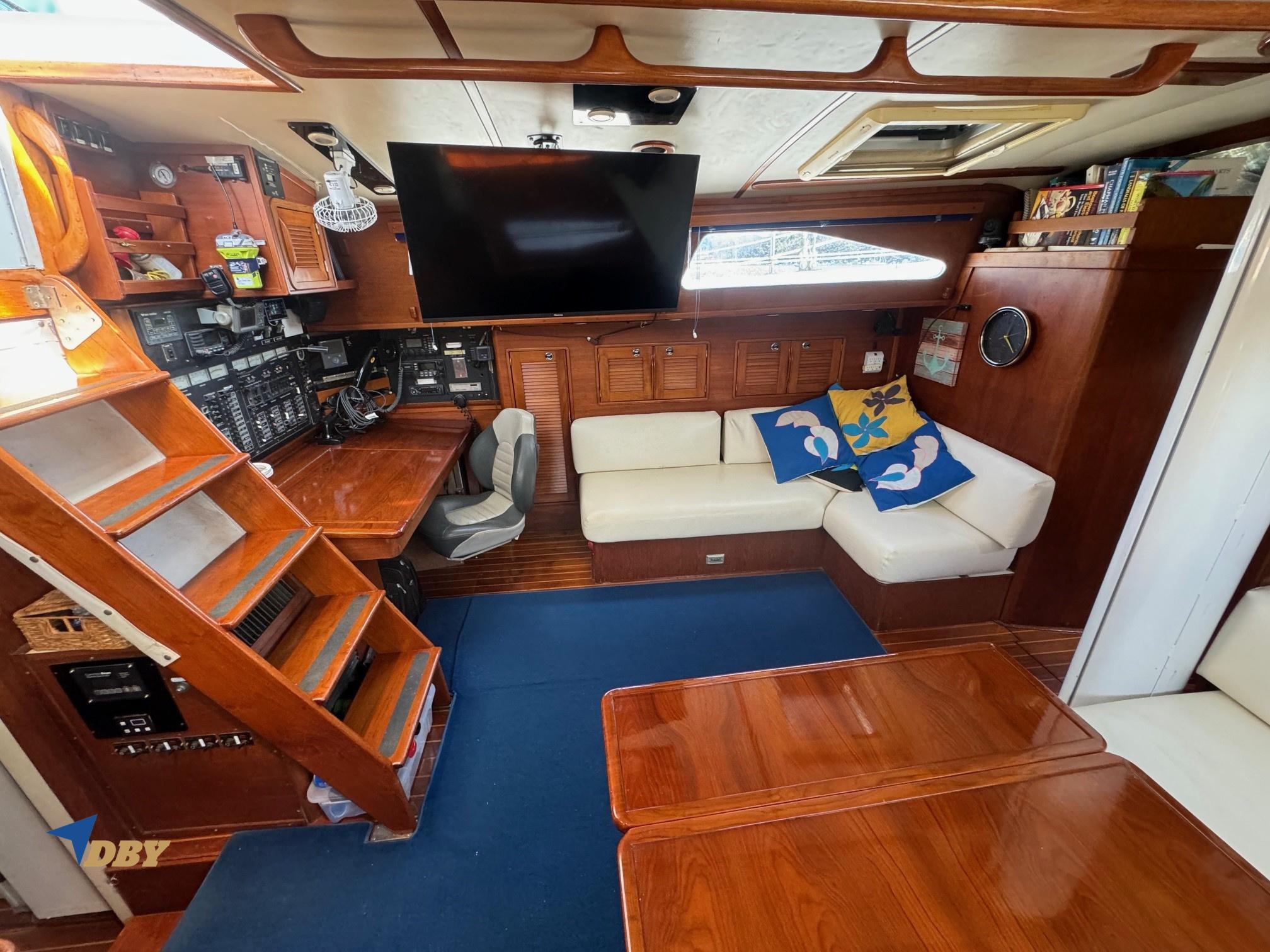

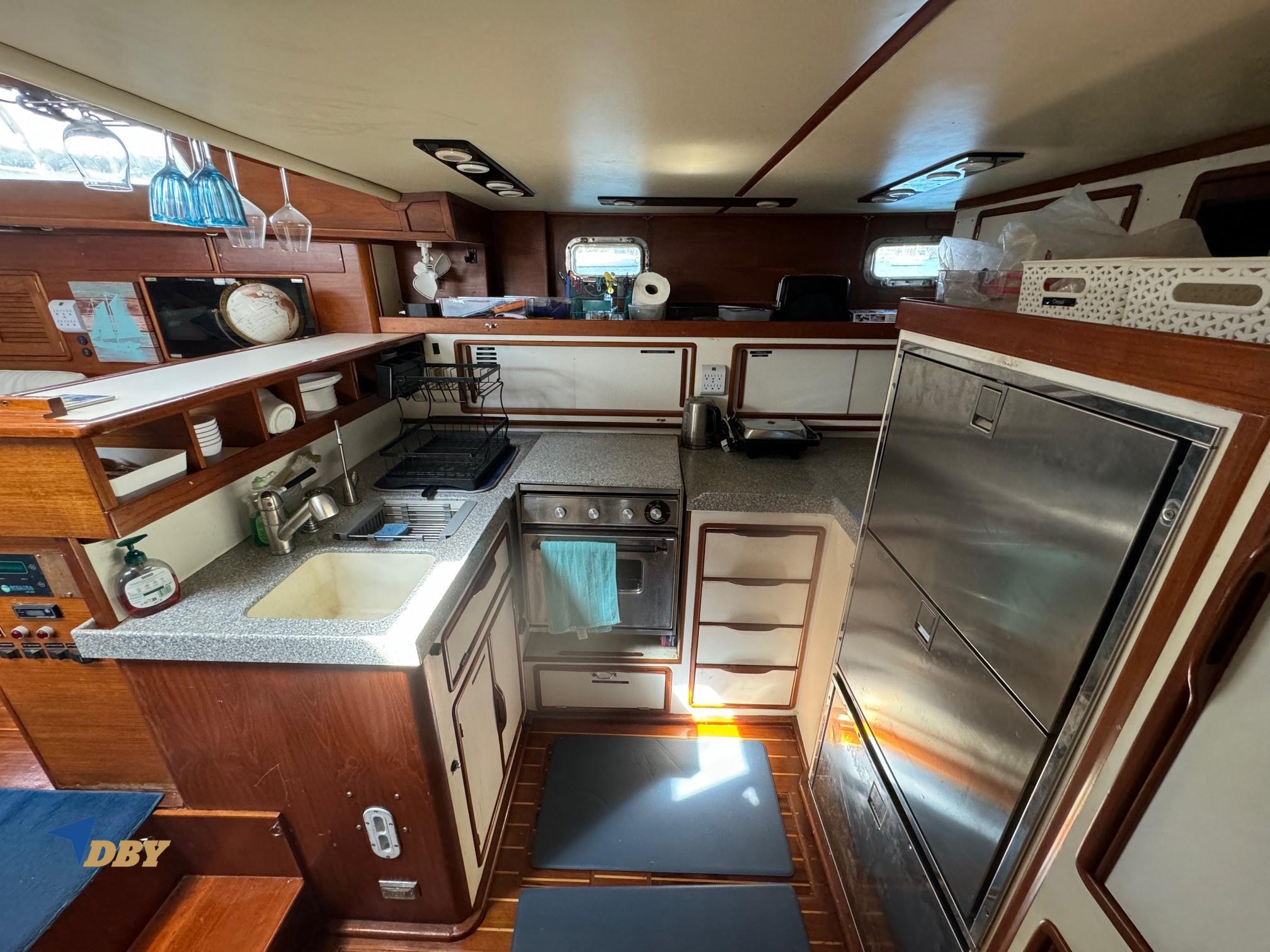

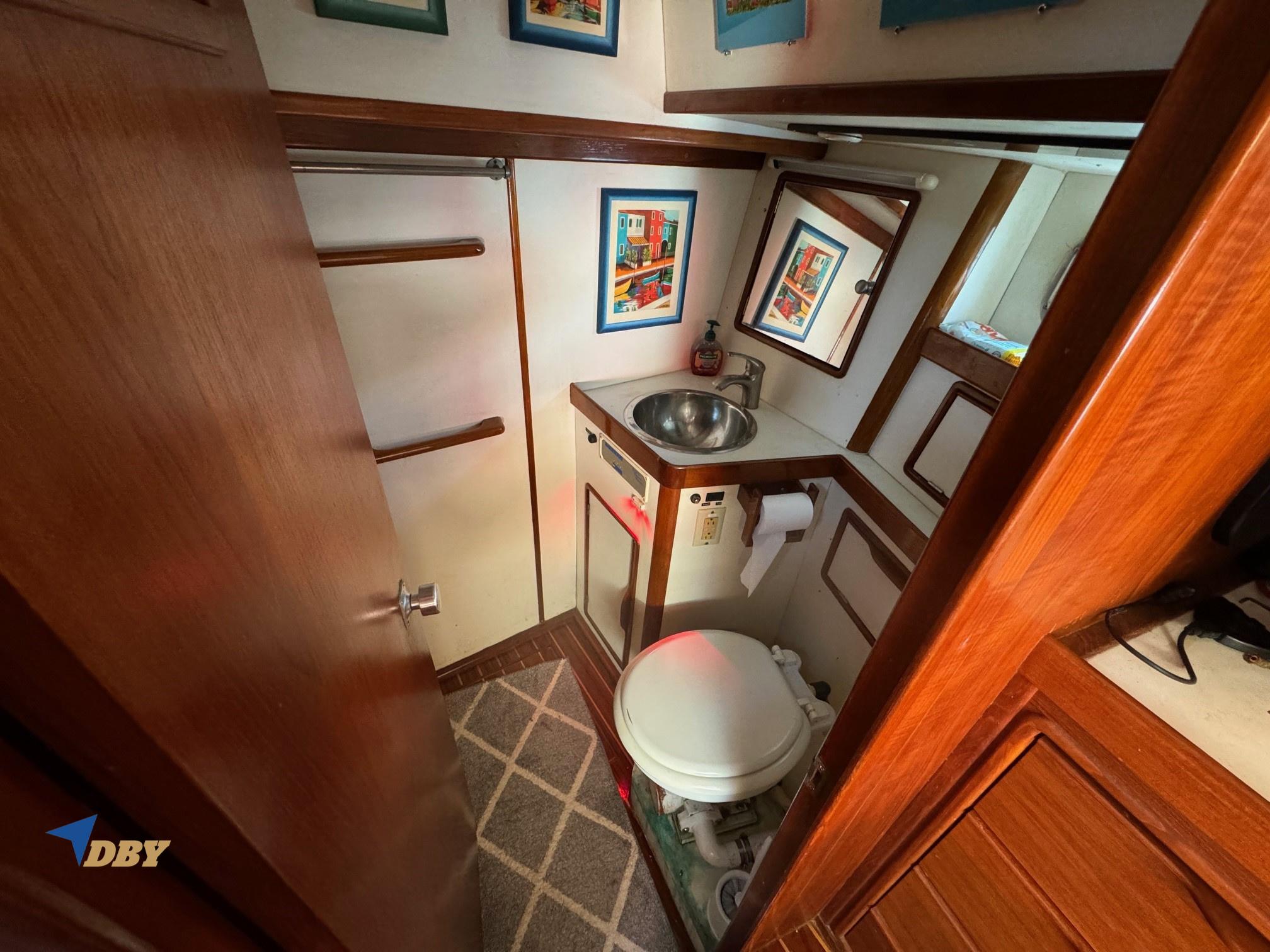

Down below, starting forward, is a V-berth cabin, followed by enclosed head with separate stall shower to port, and crew cabin with stacked longitudinal berths to starboard. Walking aft and up the steps is the main saloon area, which is arranged with L-shaped settees to port and starboard. The starboard settee is larger and has a leafed teak pedestal table. The navigation desk is in the aft port corner and has navigation and communication electronics and the main AC and DC electrical panels. Opposite, on the starboard side, is the aft facing breakfast bar that looks over the galley. The companionway ladder lands just inboard of the nav desk. Just to starboard of the ladder, steps lead down into the large galley. To starboard is the U-shaped food preparation area with dual drawer refrigerator and single drawer freezer, three-burner LPG stove with oven, and Corian counters with double porcelain undercounter sink. Opposite, on the port side, is a U-shaped pantry area with microwave/air fryer/bake oven in nook and stacked washer and dryer. Walking aft from the galley, the master cabin is arranged with centreline fore and aft queen berth and built-in teak cabinets and drawers on each side. The aft cabin has an ensuite head and separate stall shower tub.

The hull, decks, and superstructures are constructed of solid and/or cored fiberglass reinforced plastic (FRP), using multiple layers of fiberglass matt, woven roving, and polyester resin. The internal structure is comprised of fiberglass skinned wood and/or foam-cored bulkheads, frames, and stringers.

SPECIFICATIONS:

Designer    : Irwin
Builder    : Irwin Yachts
Water (Potable) Capacity (l)    : 871
Hull Construction Material    : GRP
Hull Type    : Monohull
Deck Construction Material    : GRP
Country Origin    : USA

Length (feet)    : 62 feet
Length (m)    : 18.9 m
Beam/Width (feet)    : 15.33 feet
Beam/Width (m)    : 4.6 m
Draft (m)    : 1.7 m
Draft (feet)    : 5.5 feet
Keel/Ballast    : Lead
Dry Weight (kgs)    : 26,865 kgs
Number of Helms    : 1
Displacement    : 46000
Colour    : White

Engine Notes    : Yanmar Steel Fuel Tank
Number Of Engines    : 1
Engine Hours    : 7691
Horse Power (hp)    : 140

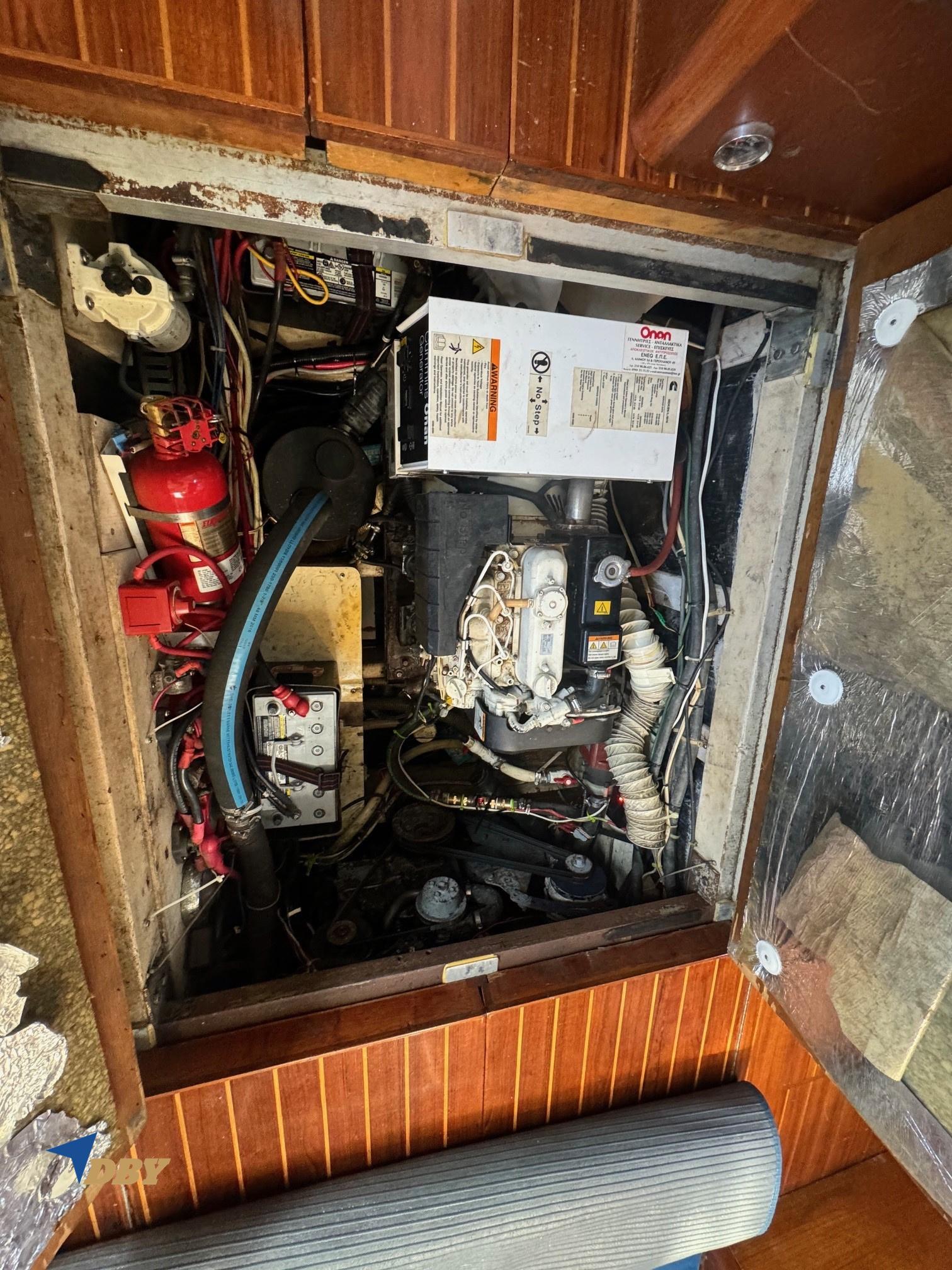

Generator    : Onan
Number of Batteries    : 21
Fuel Type    : Diesel
Number of Fuel Tanks    : 3
Fuel Tank Capacity (L)    : 2080
Propeller    : Maxprop
Steering System    : Cable
Bow Thruster    : Bow

Accommodation Notes    : 6' approximate head room
Number of Berths    : 4
Number of Showers    : 2
Number of Toilets    : 2
Number of TVs    : 3
Holding Tank (L)    : 60

Galley Notes    : Washer/Dryer
Stove    : Yes
Refrigeration    : 3 Dual drawer ice maker. Cockpit cooler
Number of Freezers    : 1
Number of Sinks    : 3

Entertainment and Appliances Notes    : Stereo

Anchor / Winch    : Yes
Mast/Rigging    : Rig Last inspected August 2024

Electrics    : Raymarine
Electronics Navigation    : Raymarine

Dinghy    : Yes - 11.5

Covers    : Yes
Ground Tackle    : 3 - Rockna 61kg
Ice Maker    : Yes

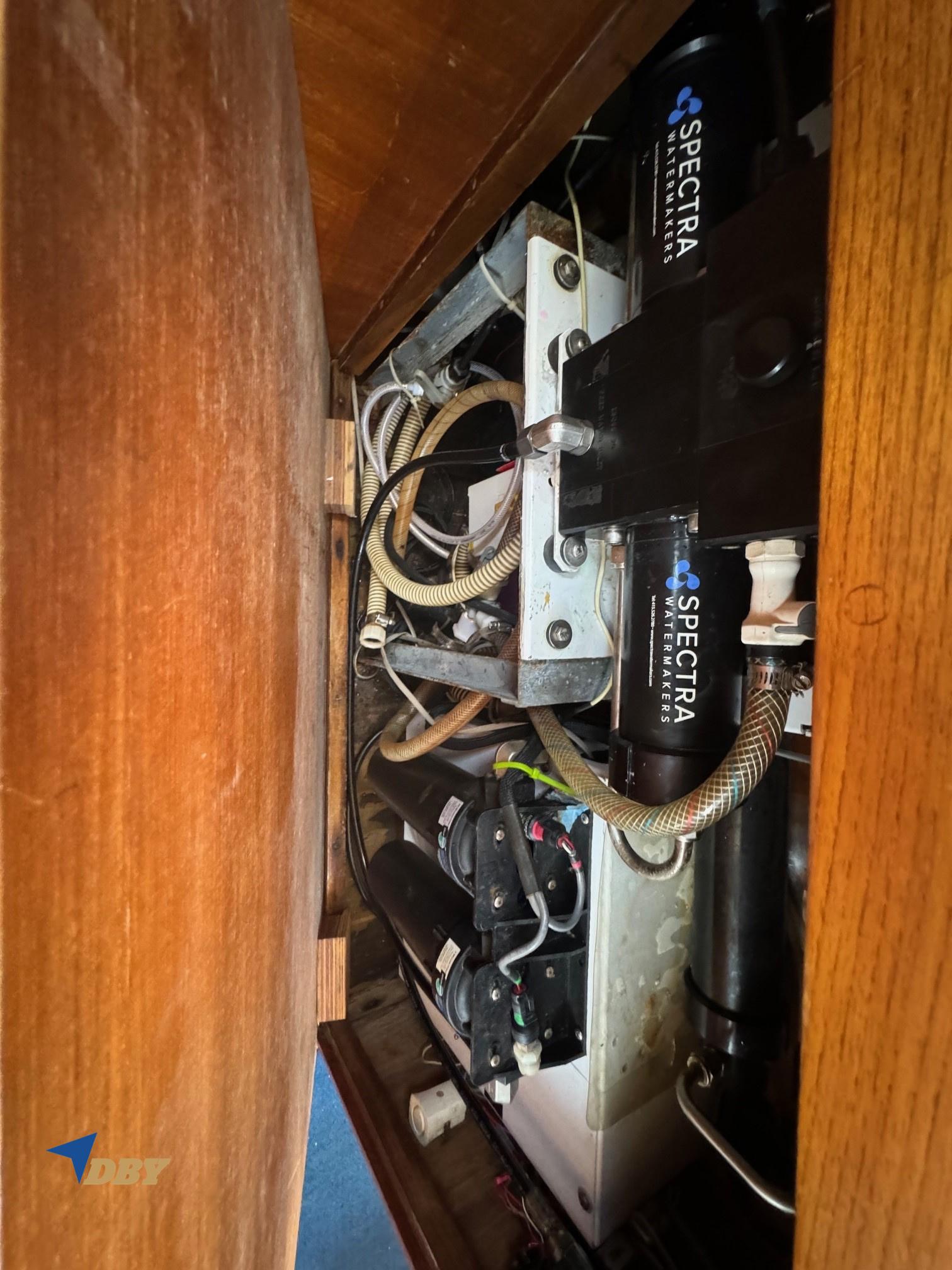

Watermaker / De-Sal    : Yes

GPS    : Yes
Number of Fish Finders    : Yes
Has Navigation Lights    : Yes
Radio    : Yes
Number of Life Jackets    : 10

Remarks    : 8 Fenders Boat hook

Vessel Name    : LAZY BONES

Maximum speed    : 10kts
