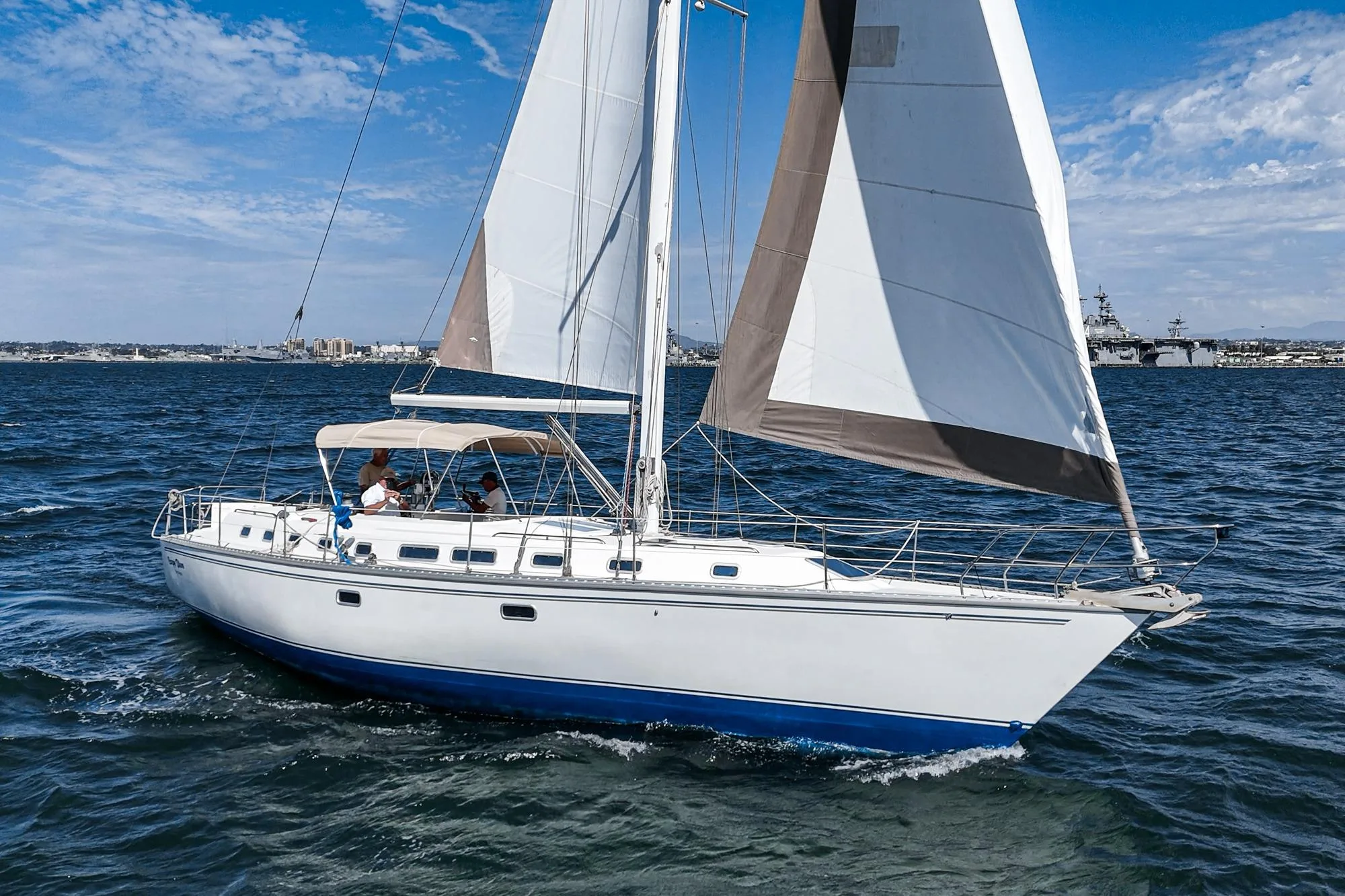

1992 Morgan Catalina | 45ft

Specifications International:

• Designer: Nelson-Marek
• Length Overall (LOA): 44 feet (13.41 meters)
• Length at Waterline (LWL): 35.33 feet (10.77 meters)
• Beam: 13.5 feet (4.11 meters)
• Draft: 5 feet (1.52 meters)
• Displacement: 23,500 pounds (10,659 kilograms)
• Ballast: 8,200 pounds (3,719 kilograms)
• Sail Area: 797 square feet (74.04 square meters)
• Hull Type: Fin keel with rudder on skeg
• Rigging Type: Masthead fuerling sloop

Engine:

The Catalina Morgan 44 is equipped with a Yanmar diesel engine, known for its reliability and efficiency.

Sail Information:

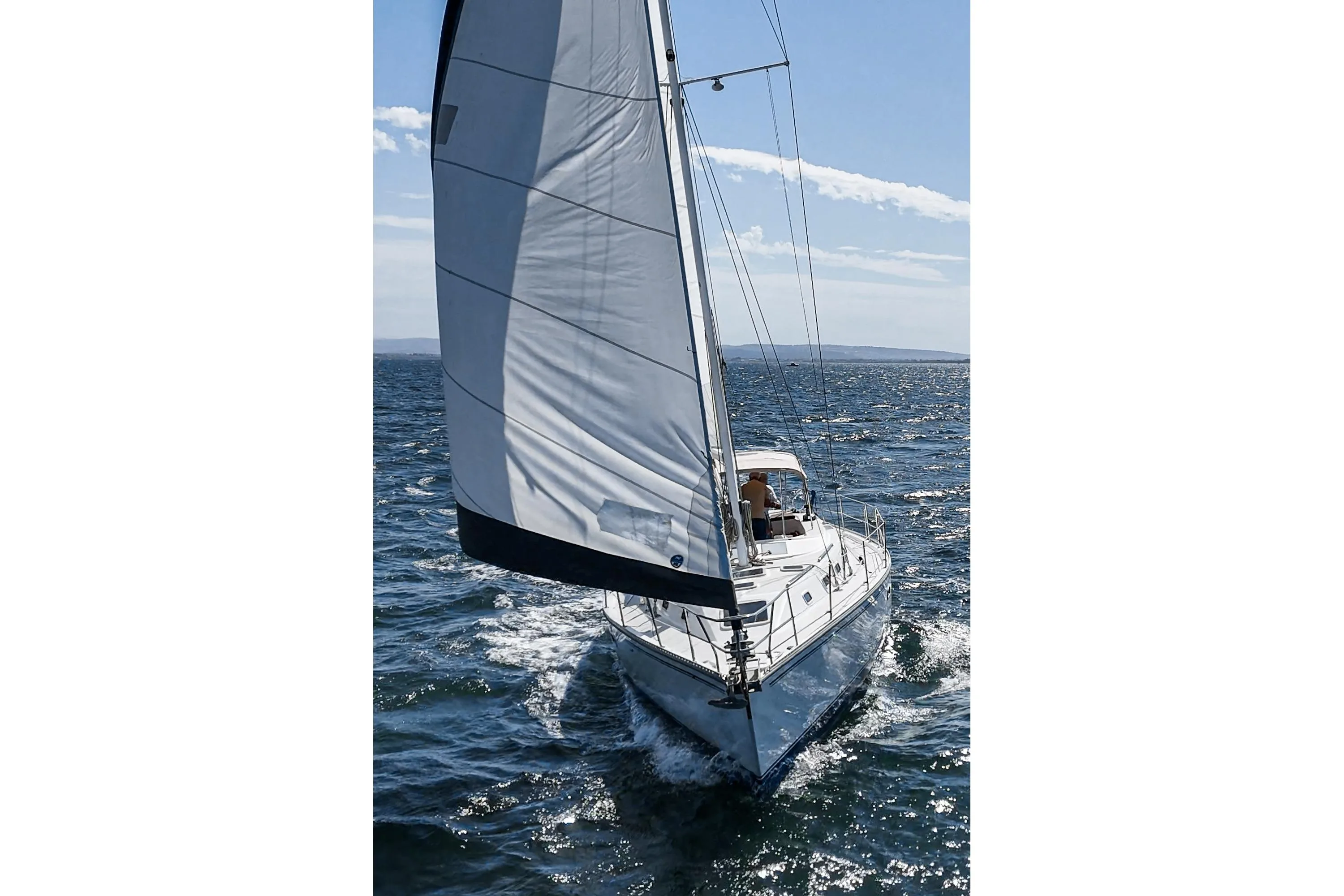

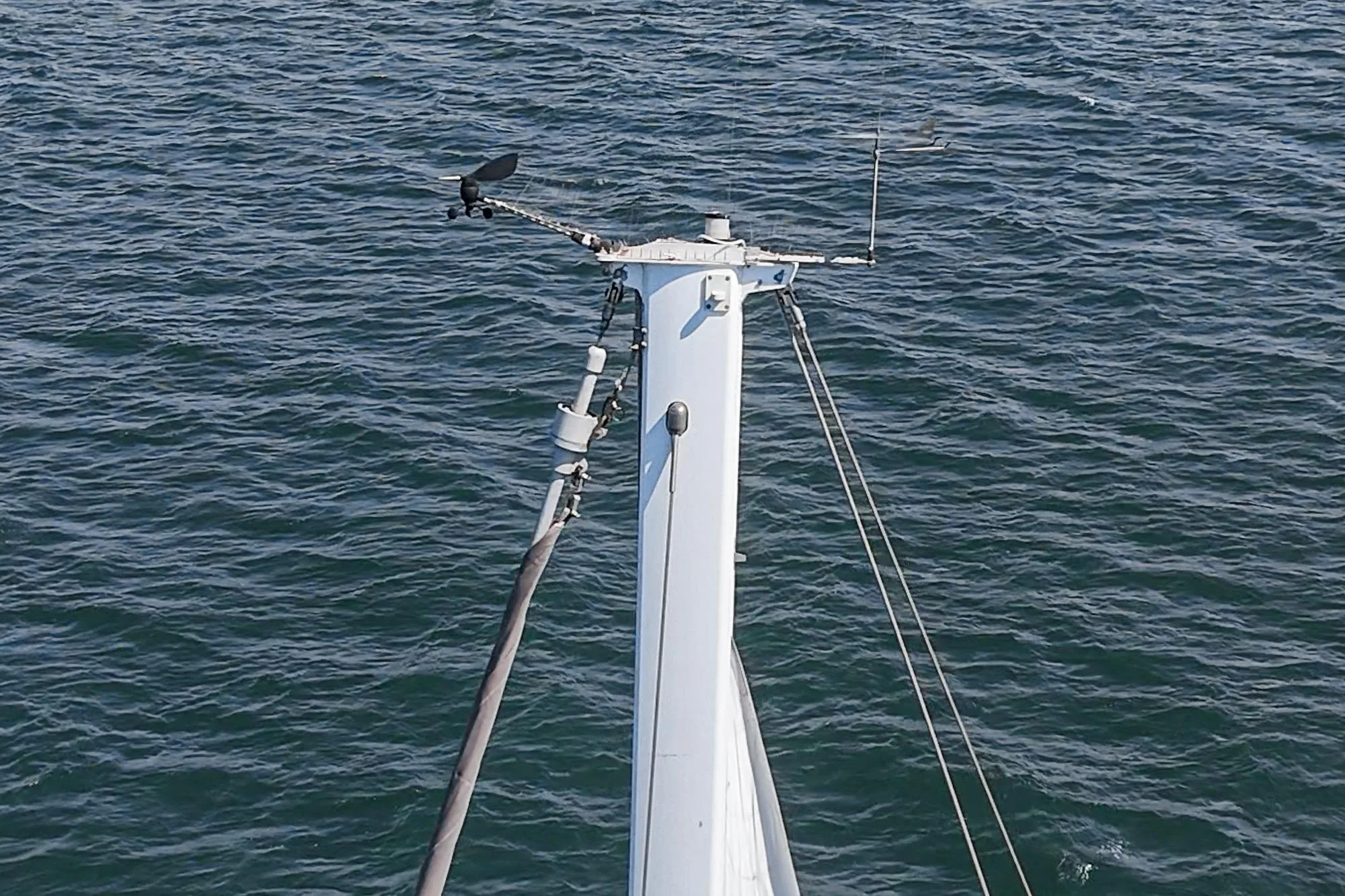

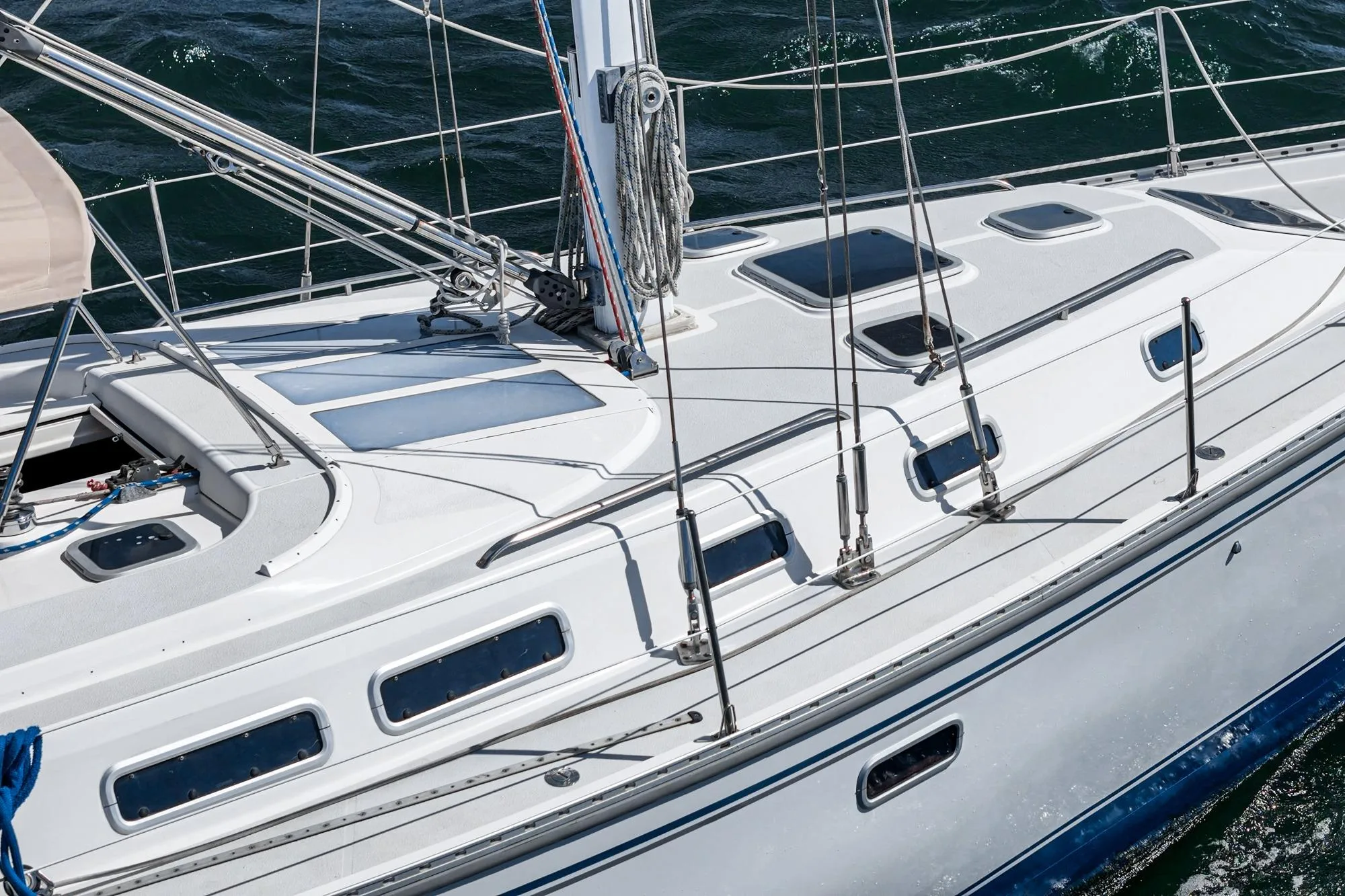

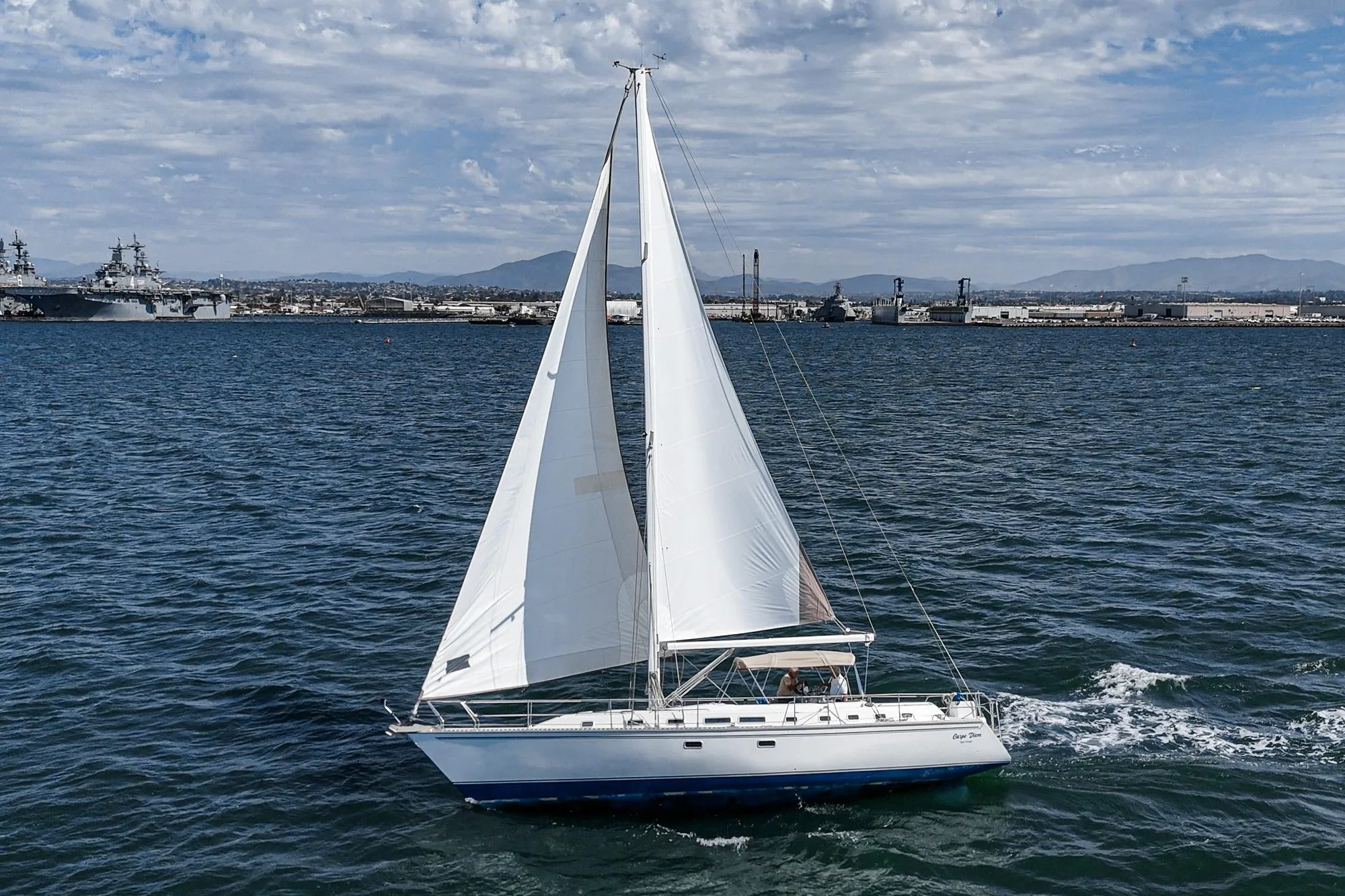

The masthead sloop rig features a double-spreader, deck-stepped mast with forward and aft lower shrouds. The mainsheet traveler is conveniently located just aft of the cockpit. The sail area-to-displacement (SA/D) ratio is 15.6, indicating a balance between performance and ease of handling.

Performance:

The design of the Catalina Morgan 44 allows for comfortable cruising with respectable performance. The displacement-to-length (D/L) ratio is 237.9, suggesting a moderate displacement vessel suitable for extended cruising. The hull speed is calculated at approximately 7.96 knots.

Additional Features:

• Fuel Capacity: 35 gallon
• Water Capacity: Information around 170 gallon total.

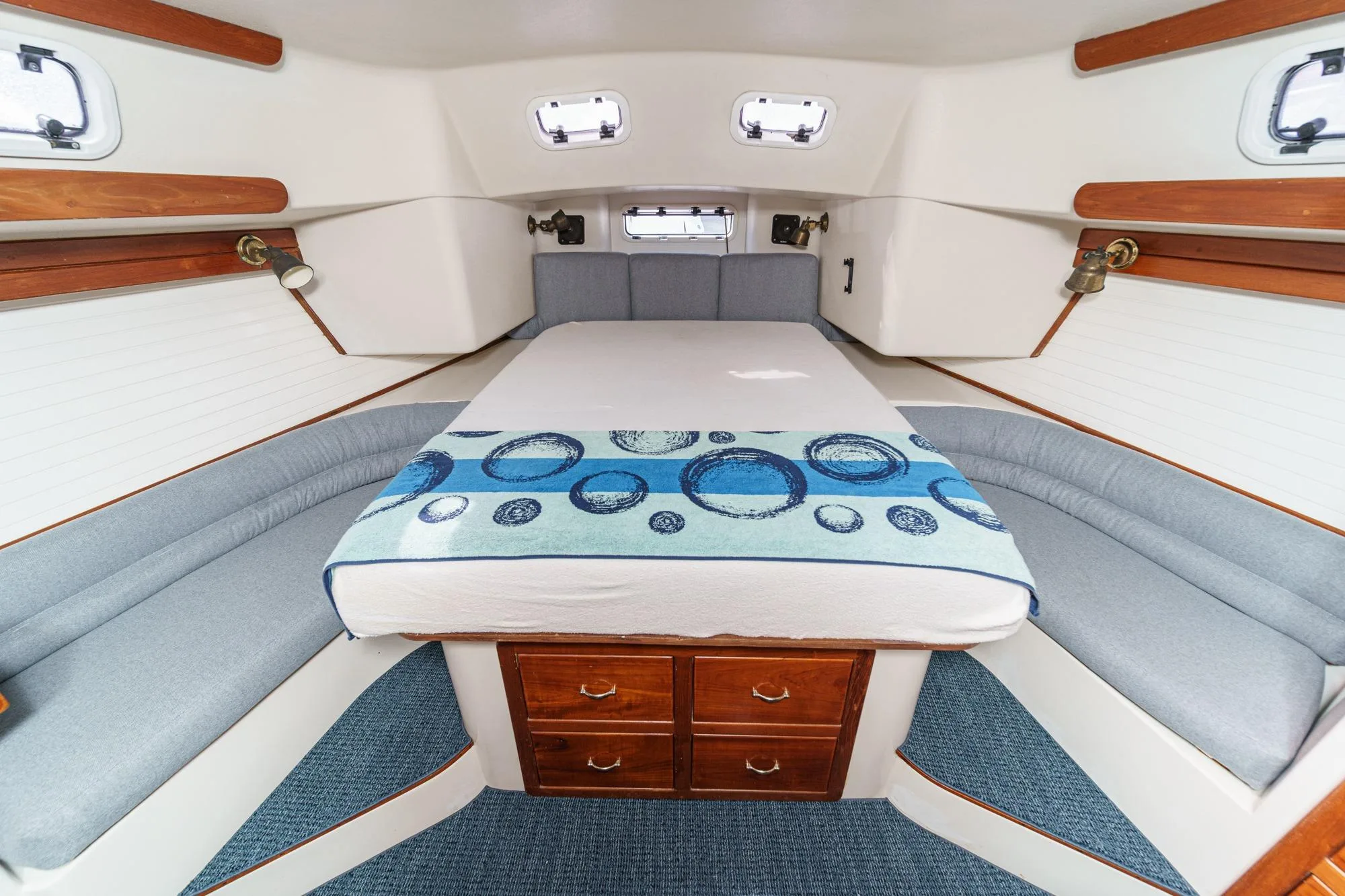

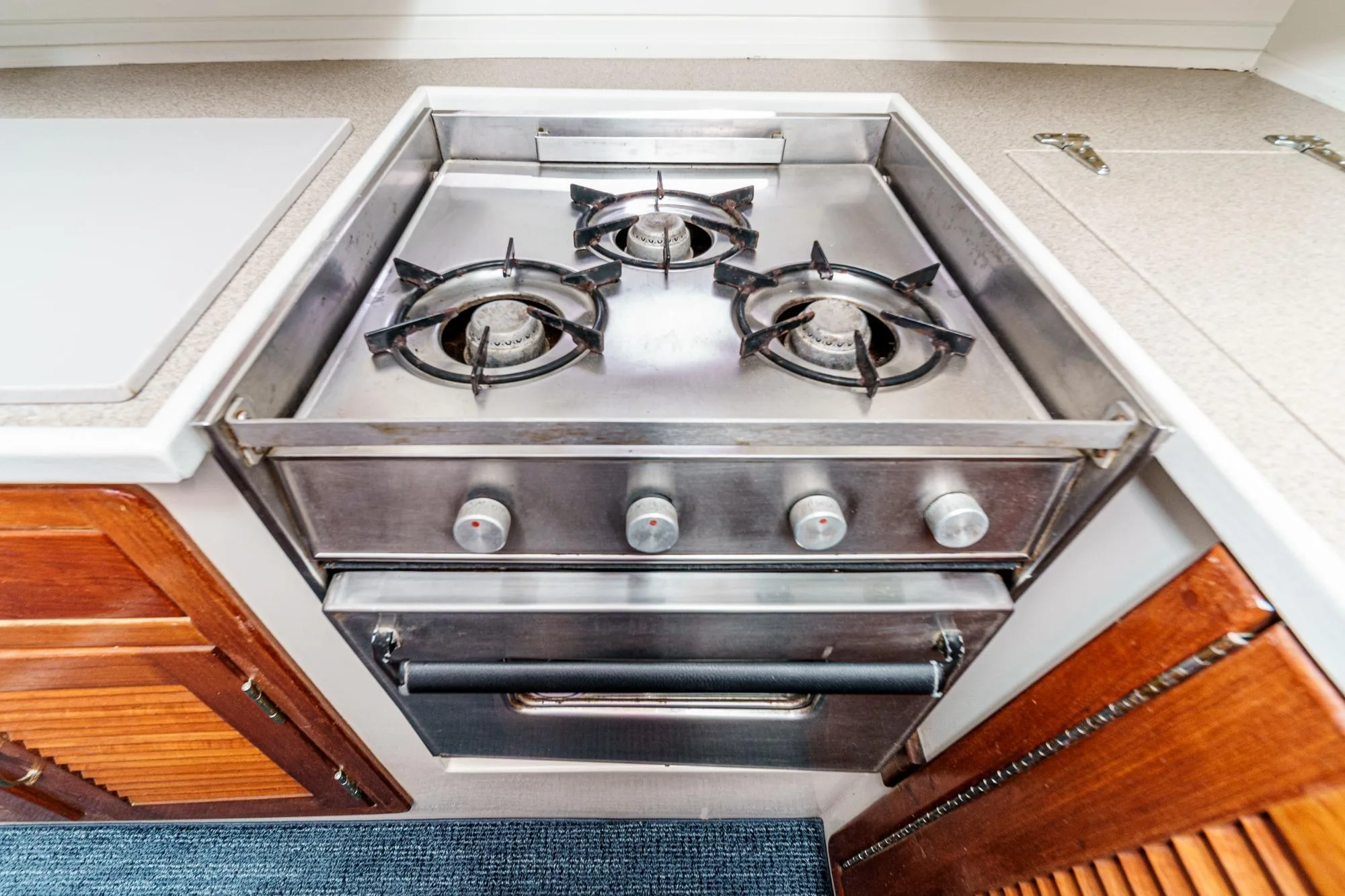

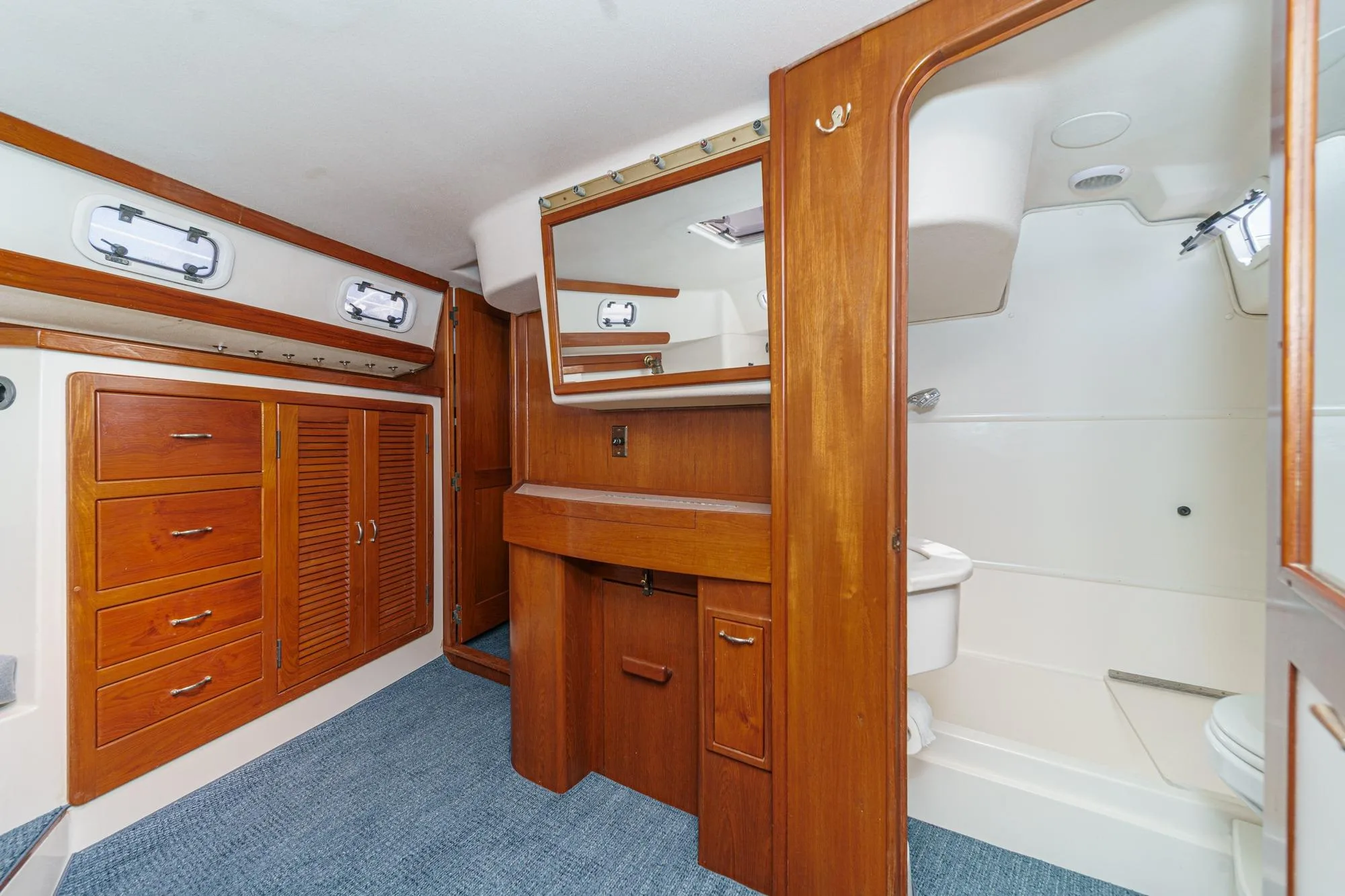

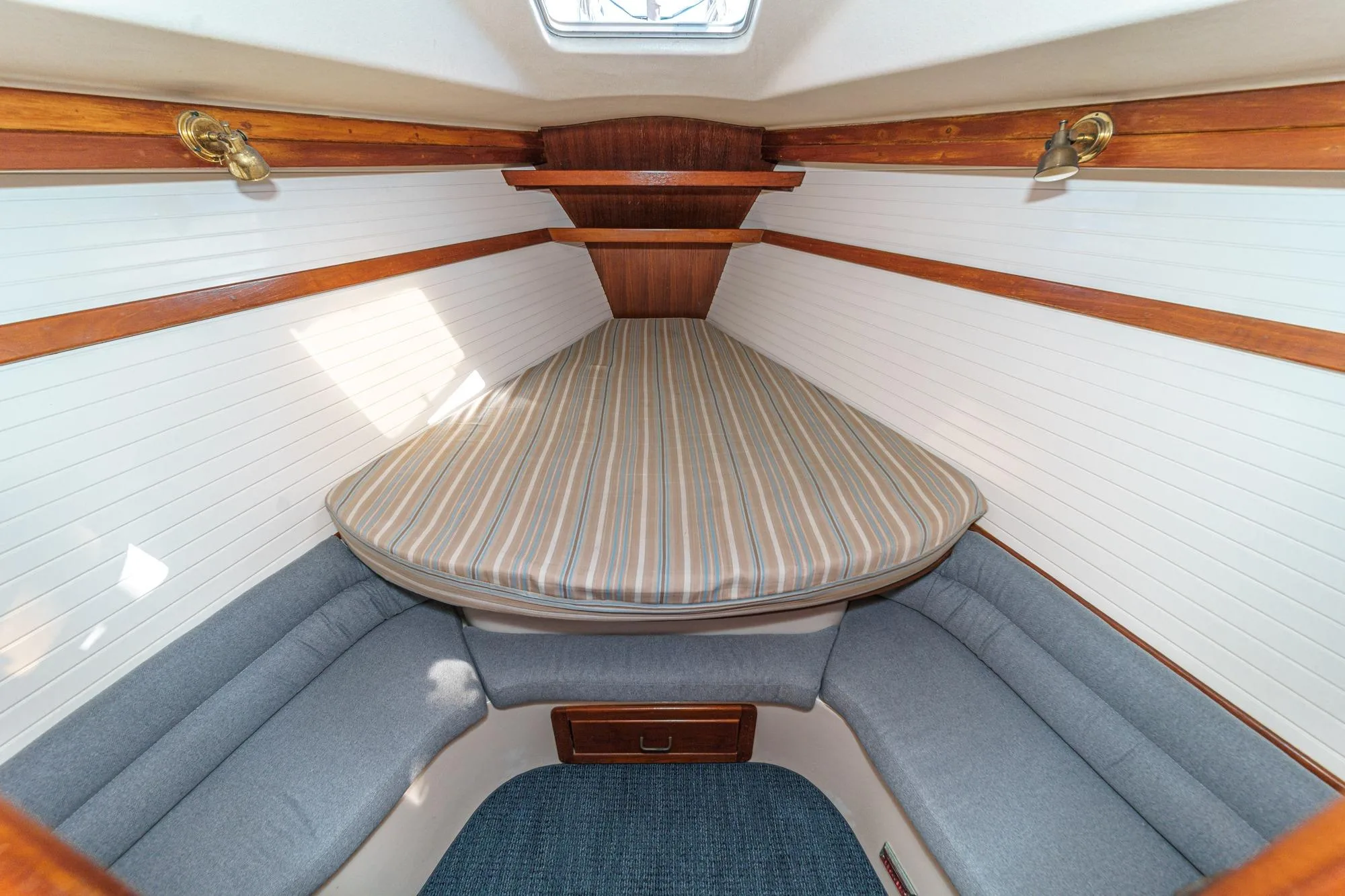

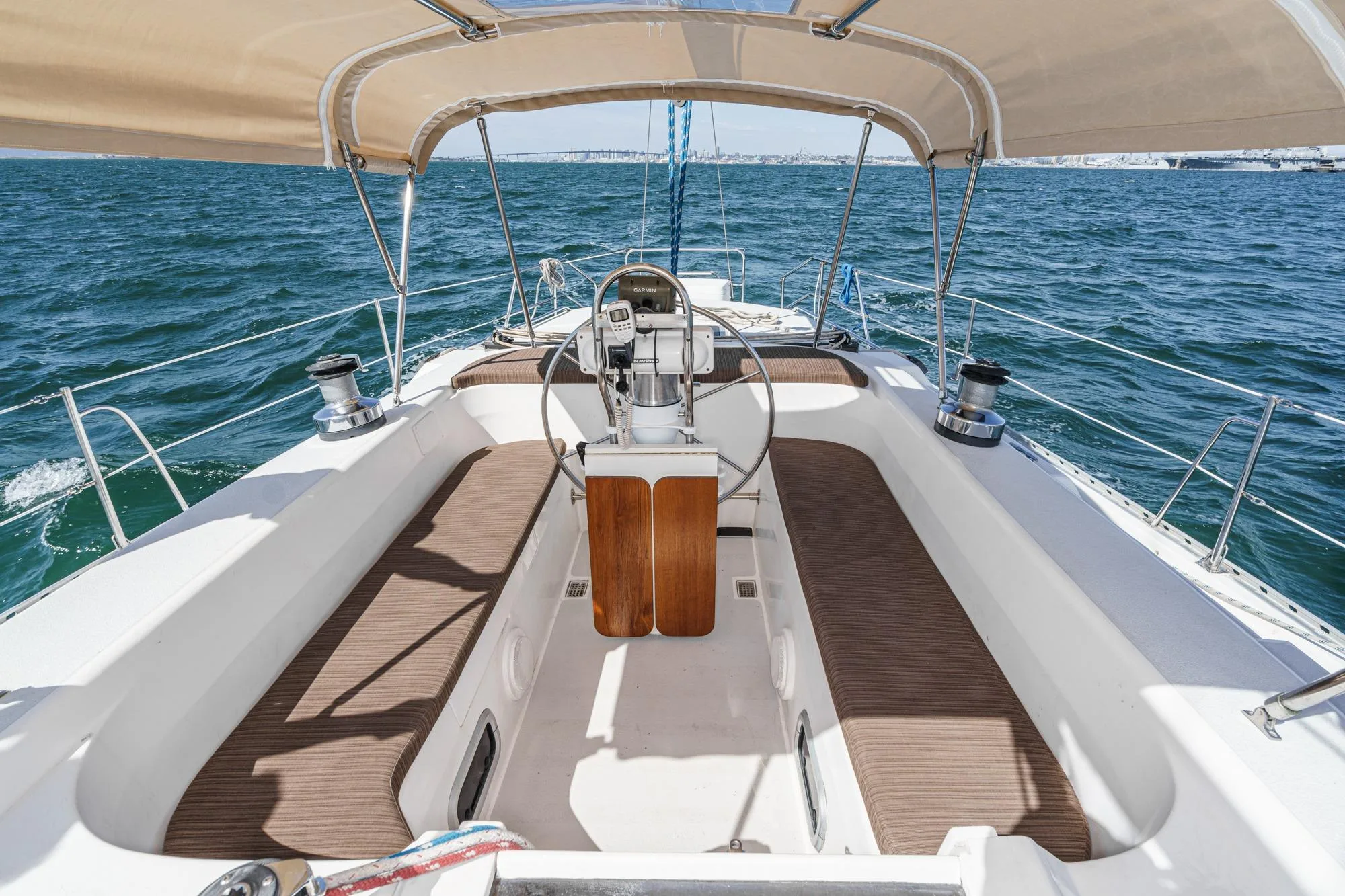

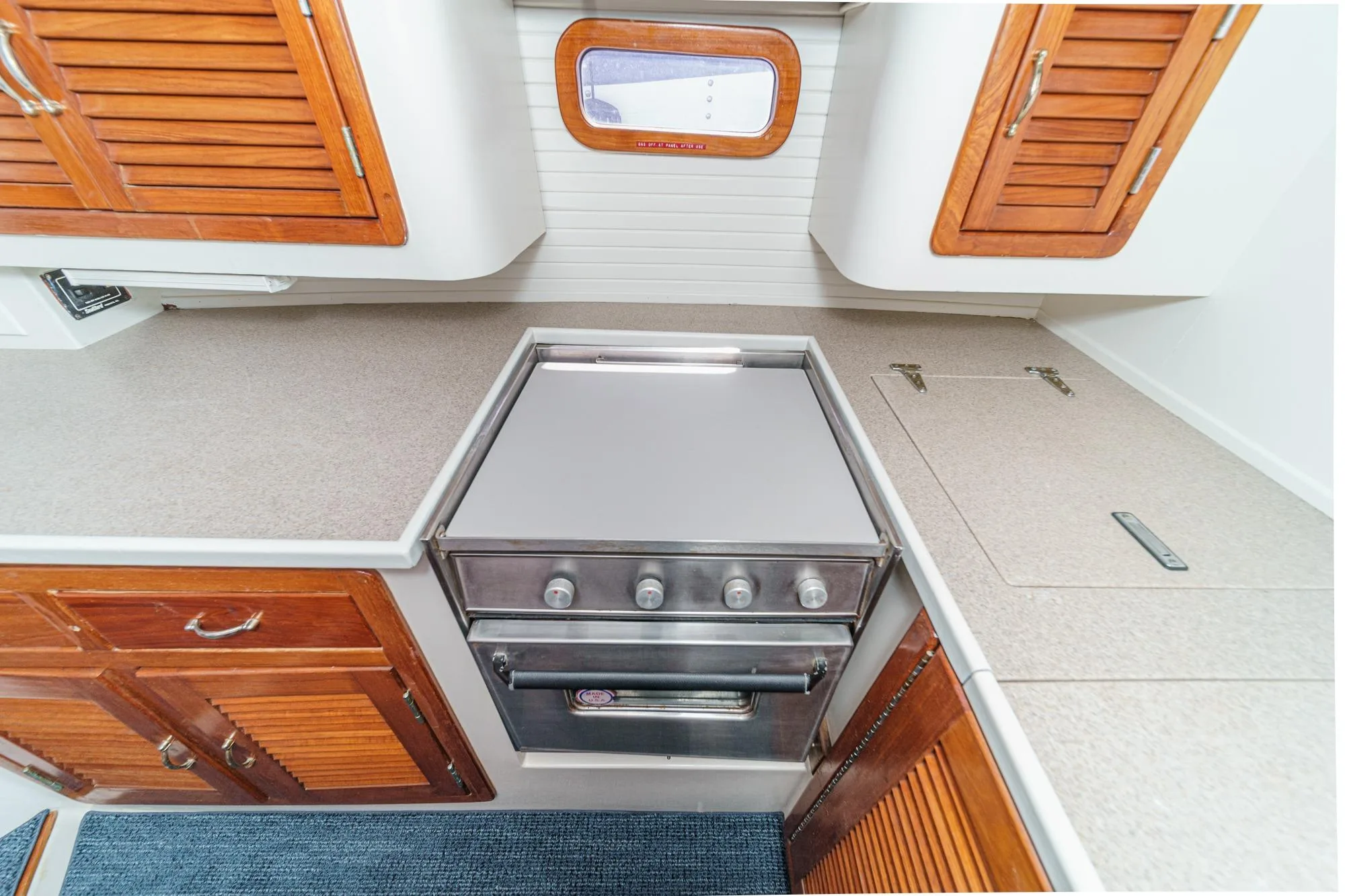

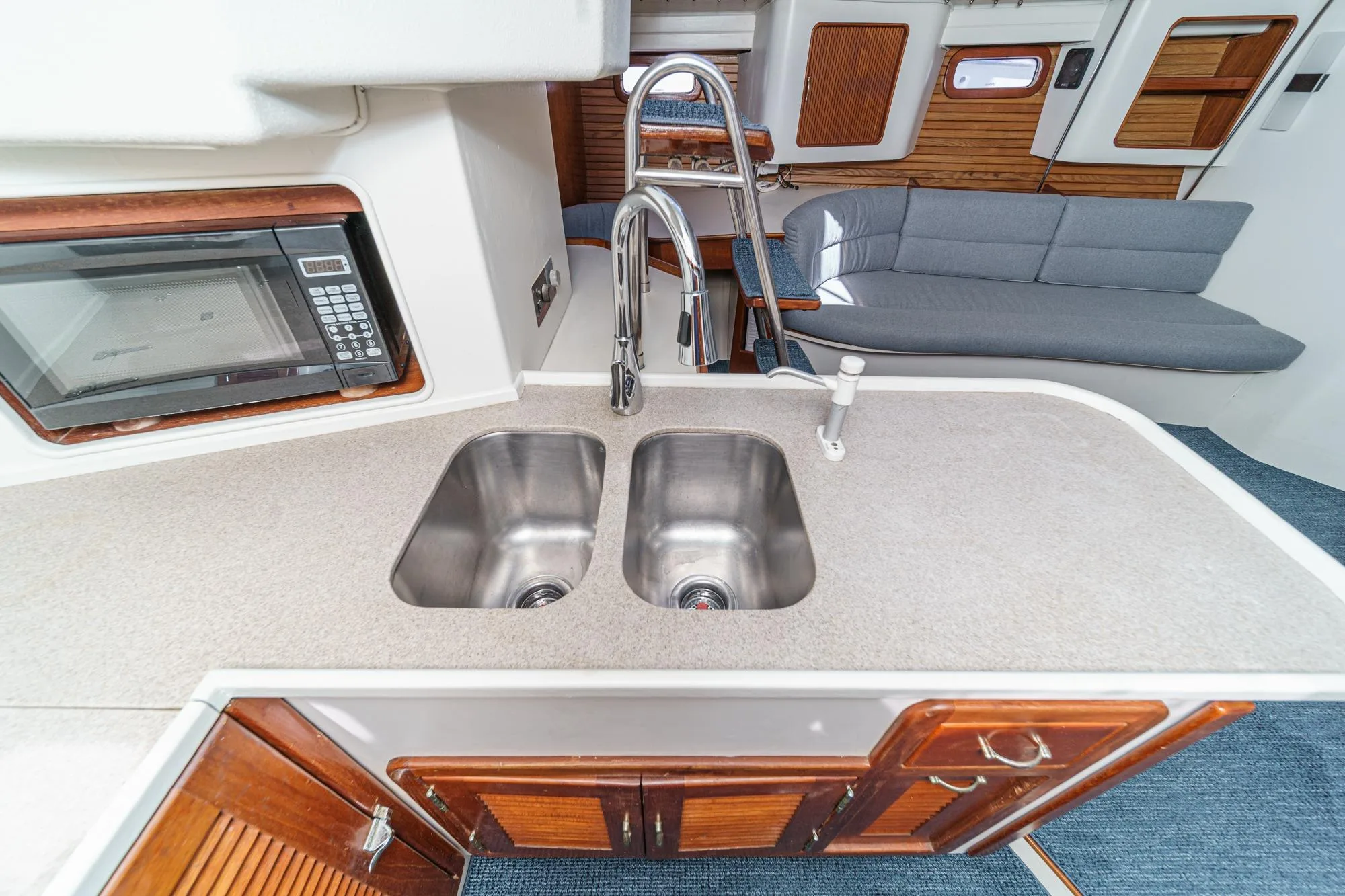

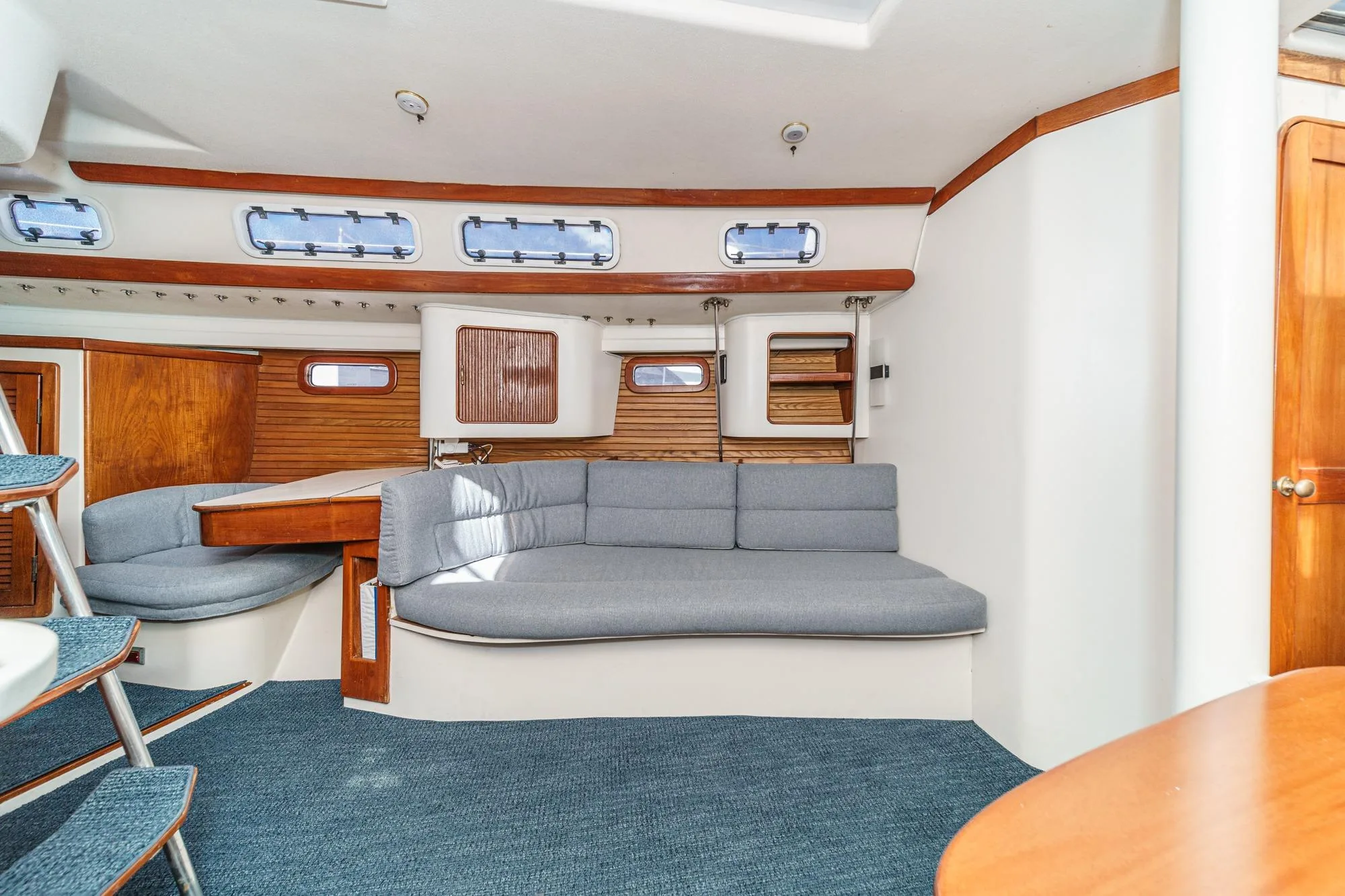

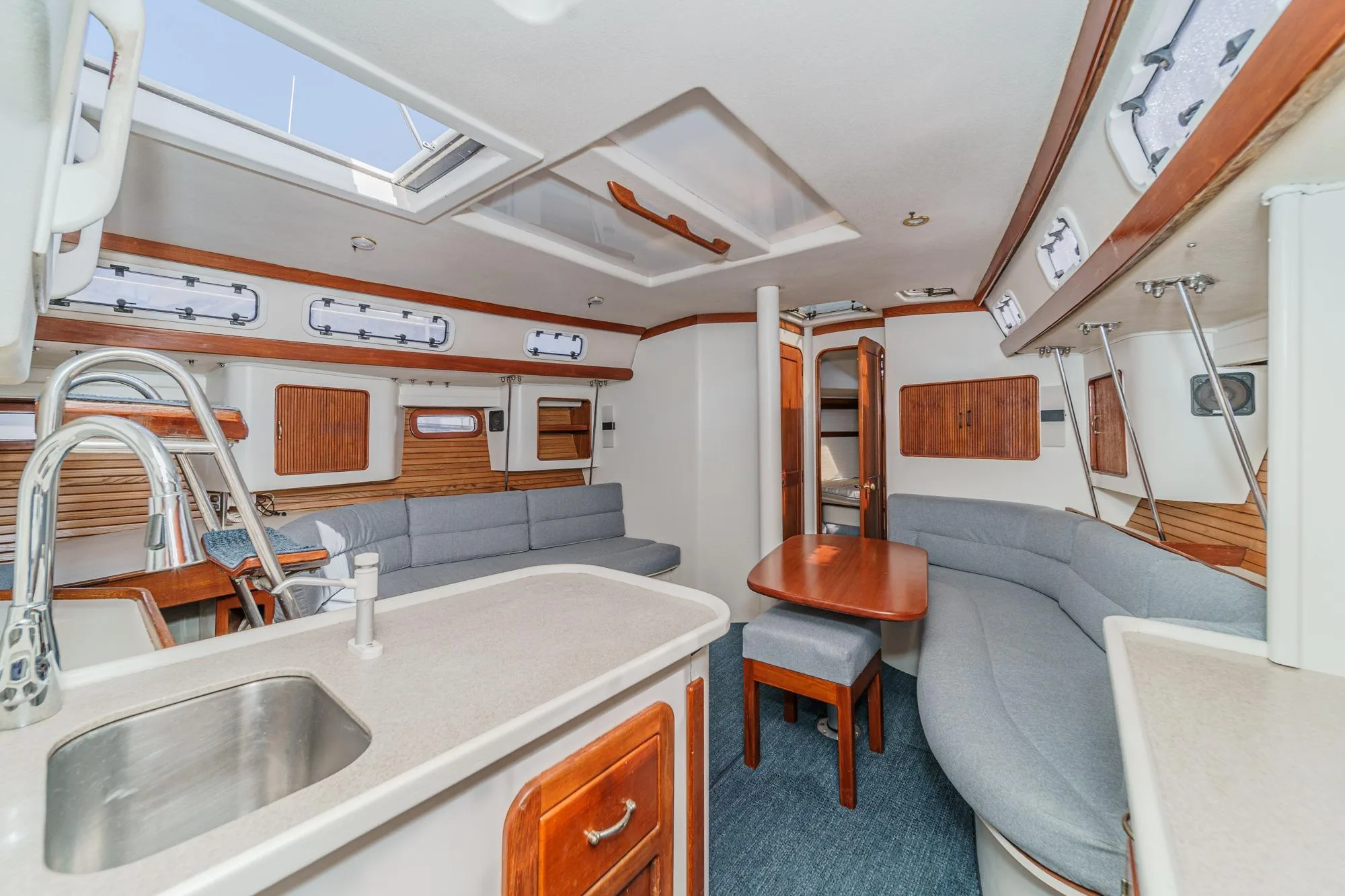

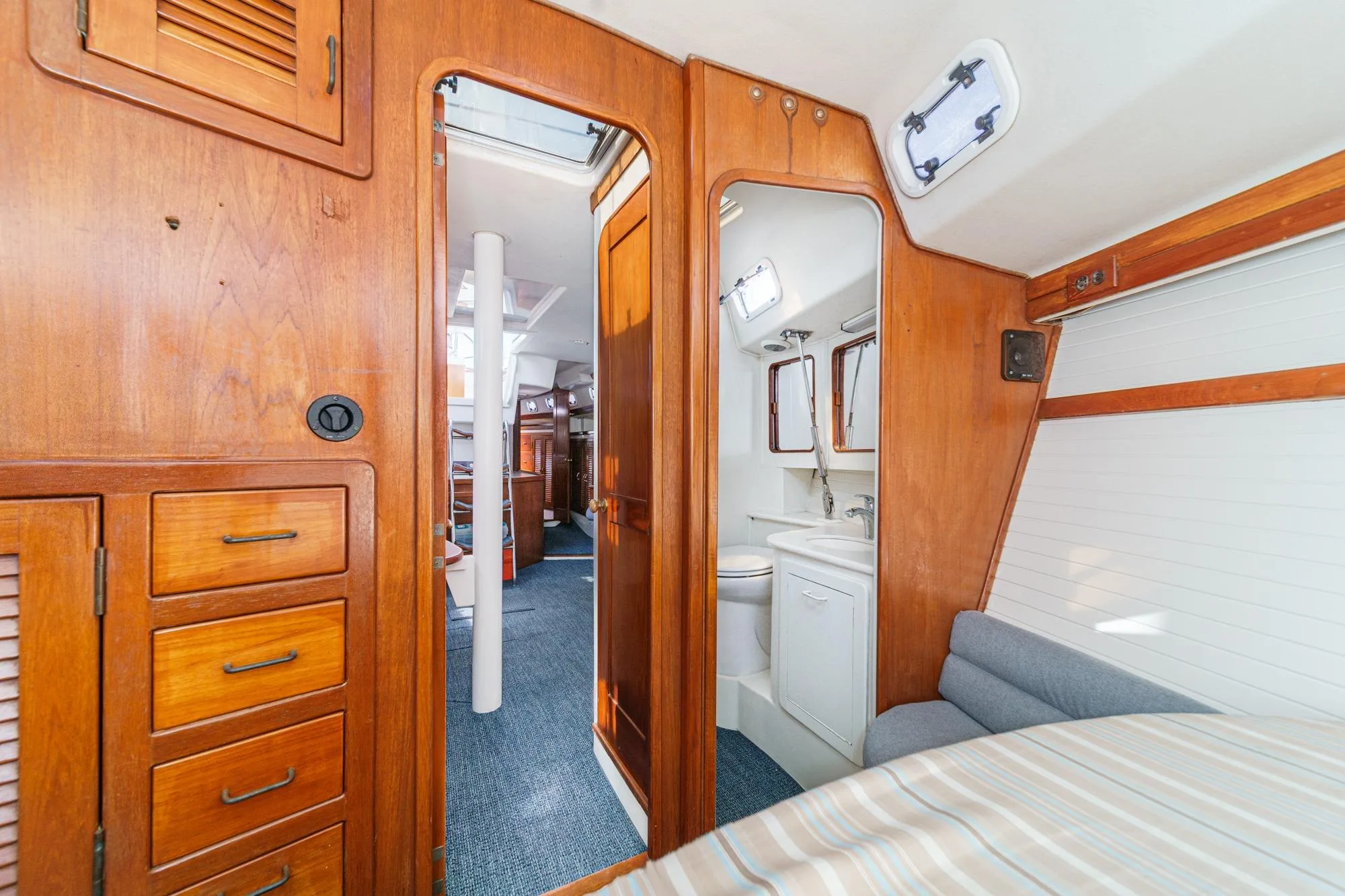

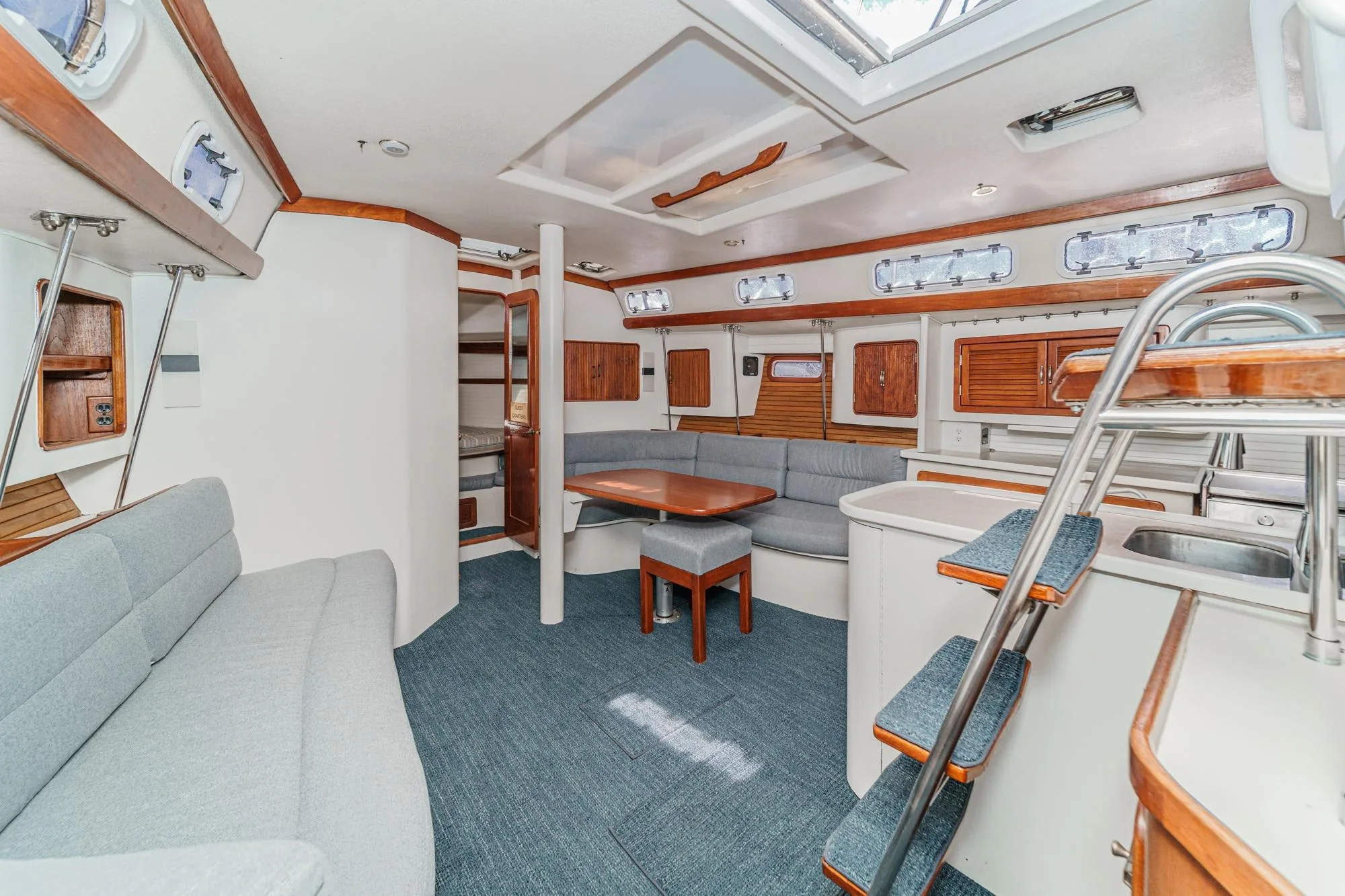

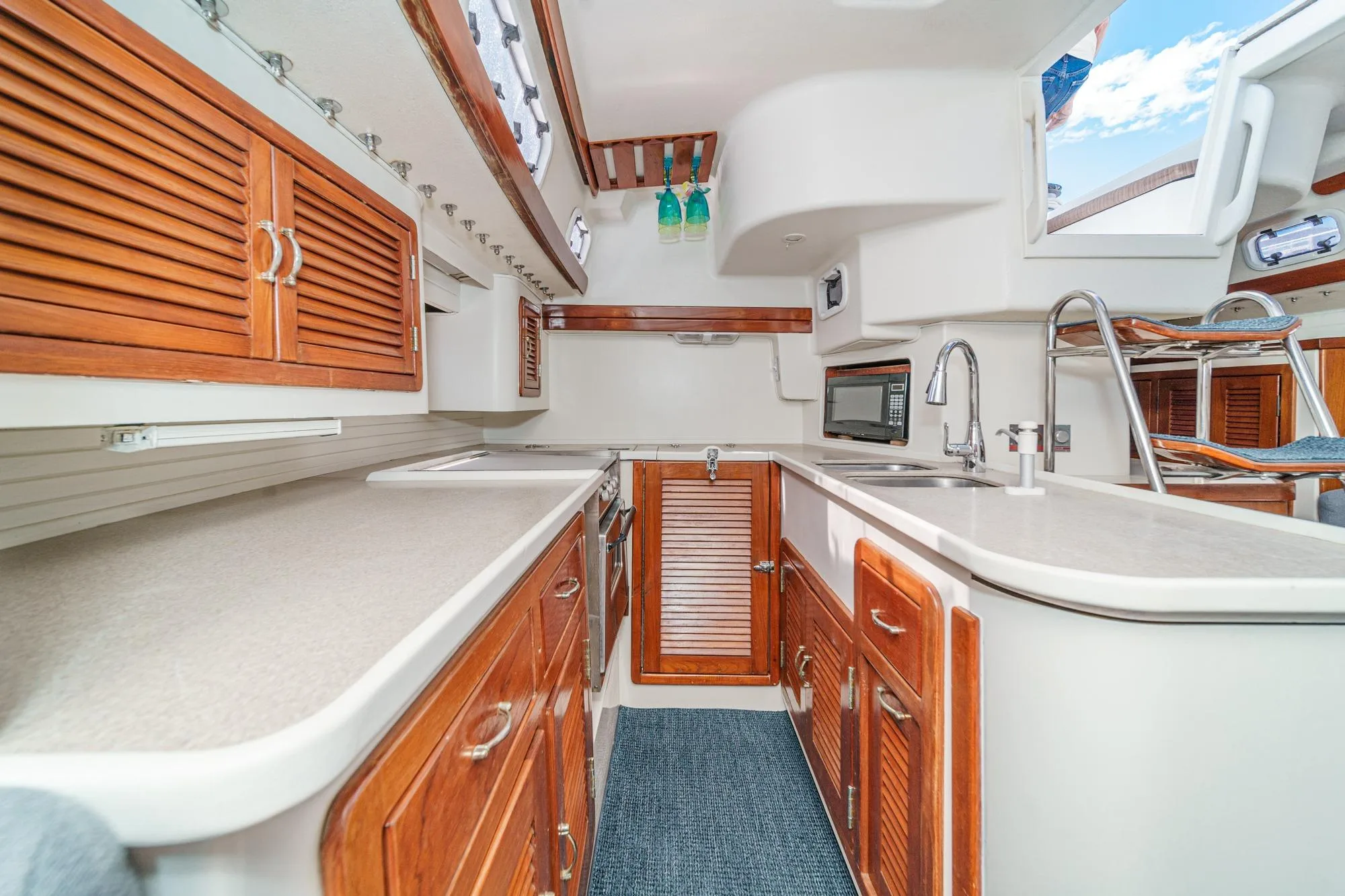

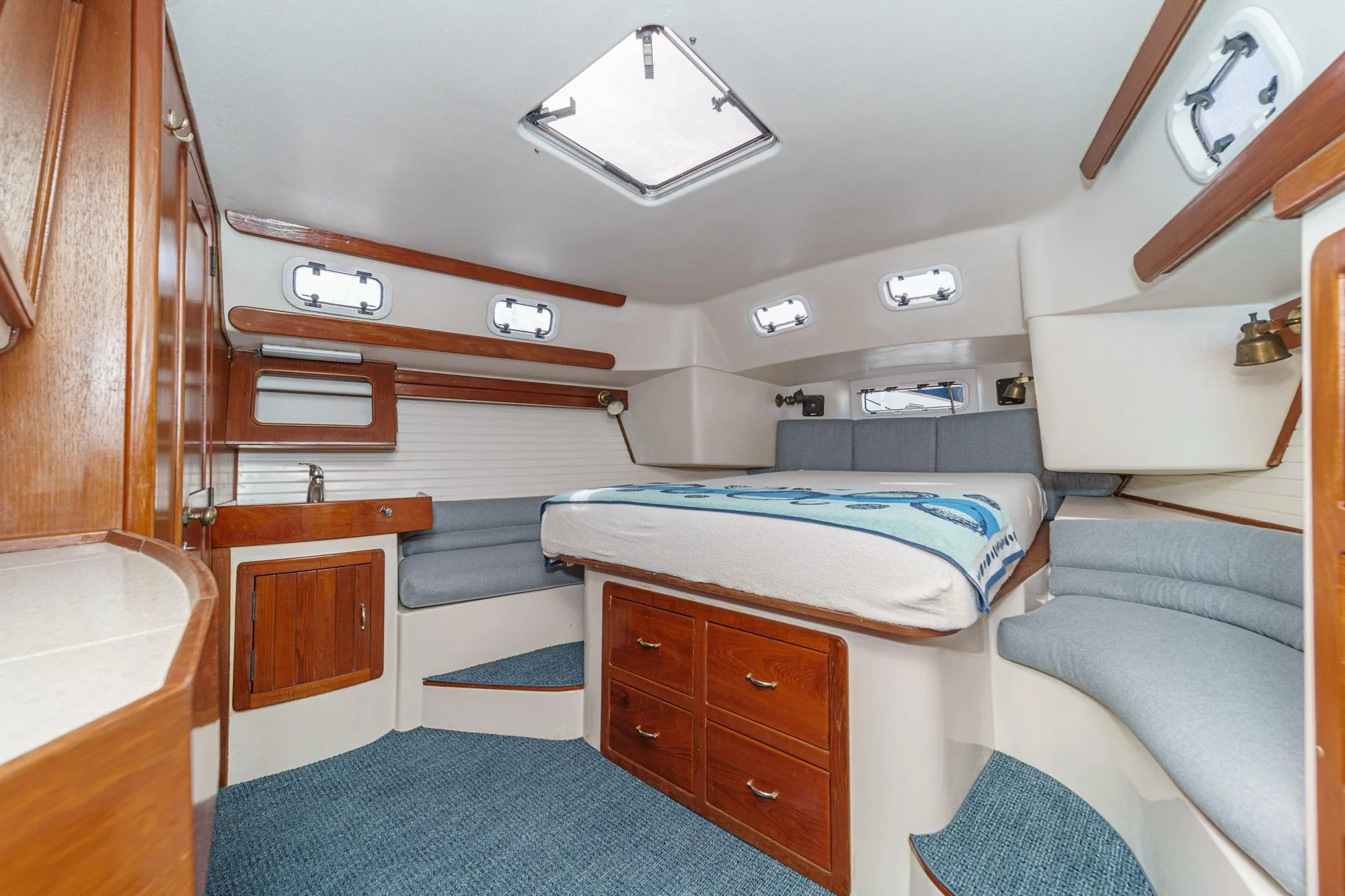

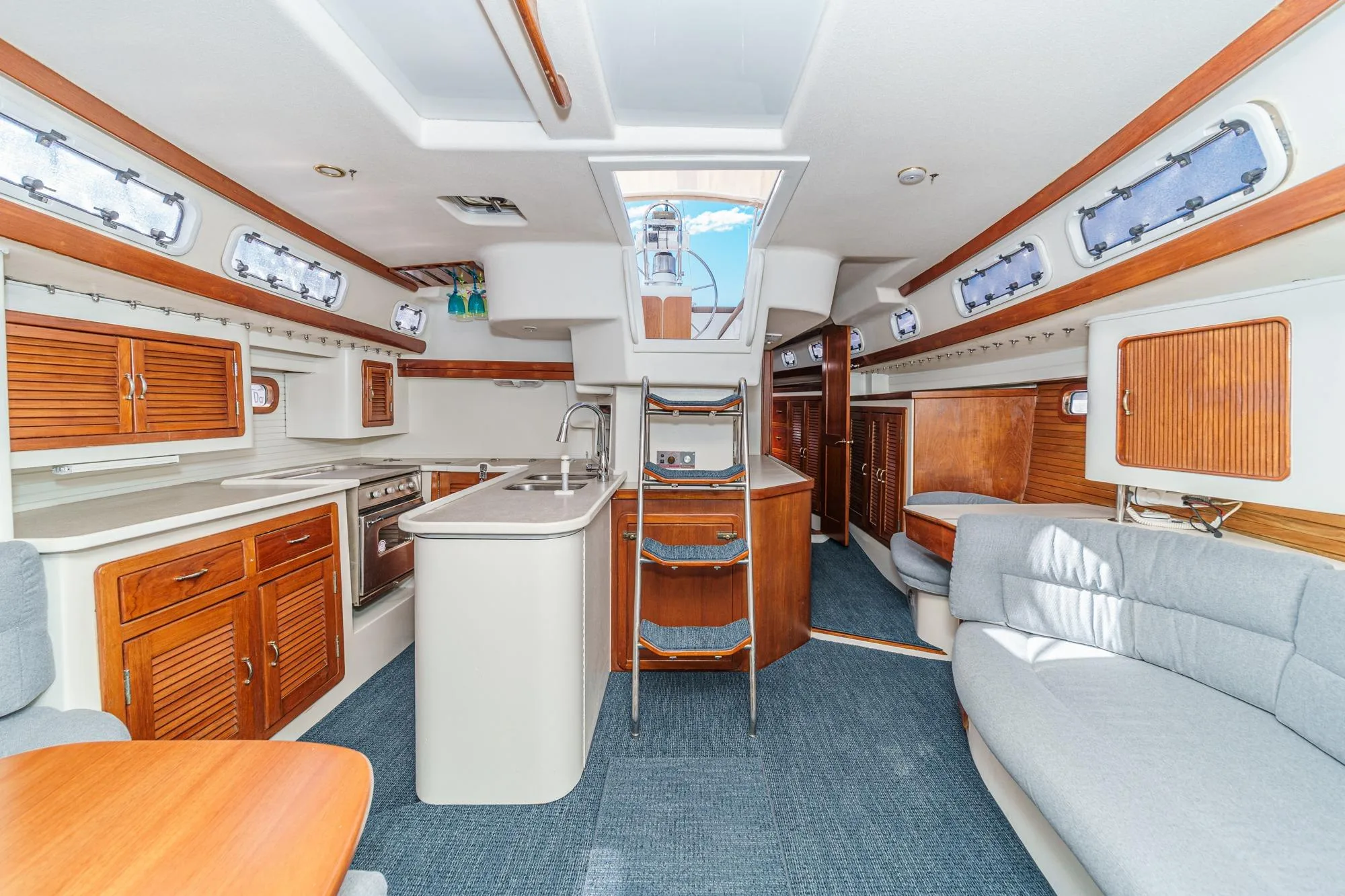

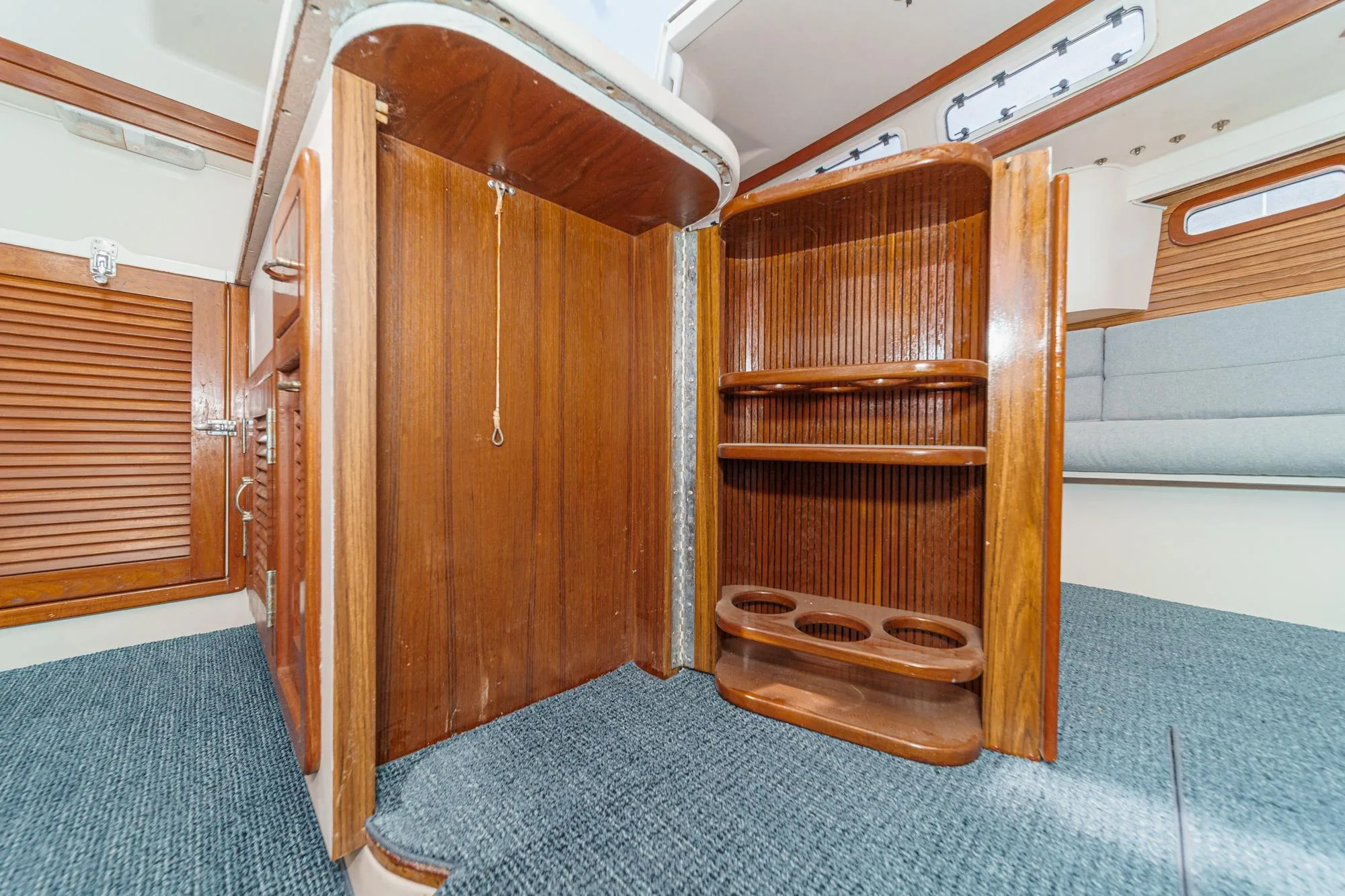

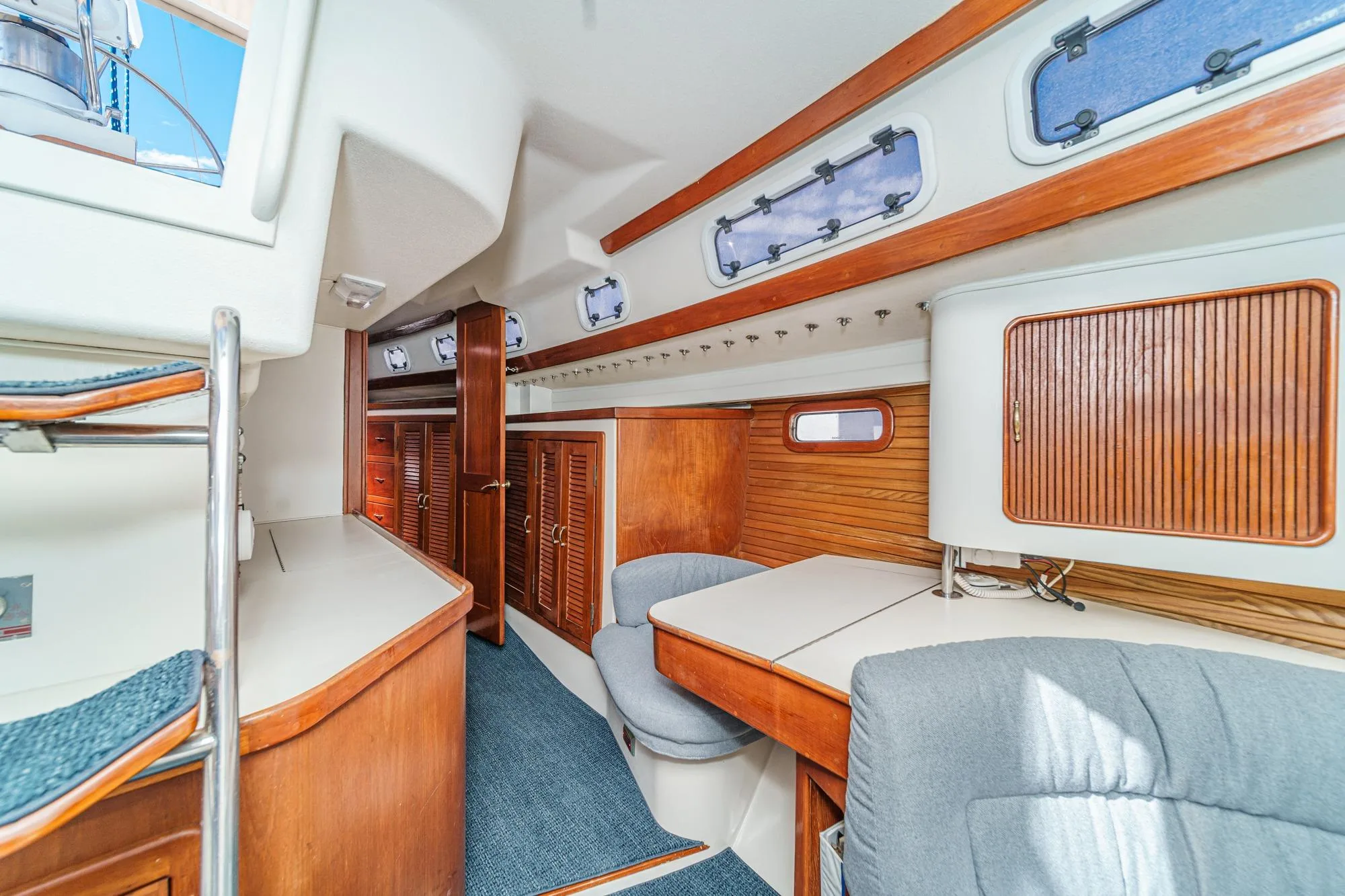

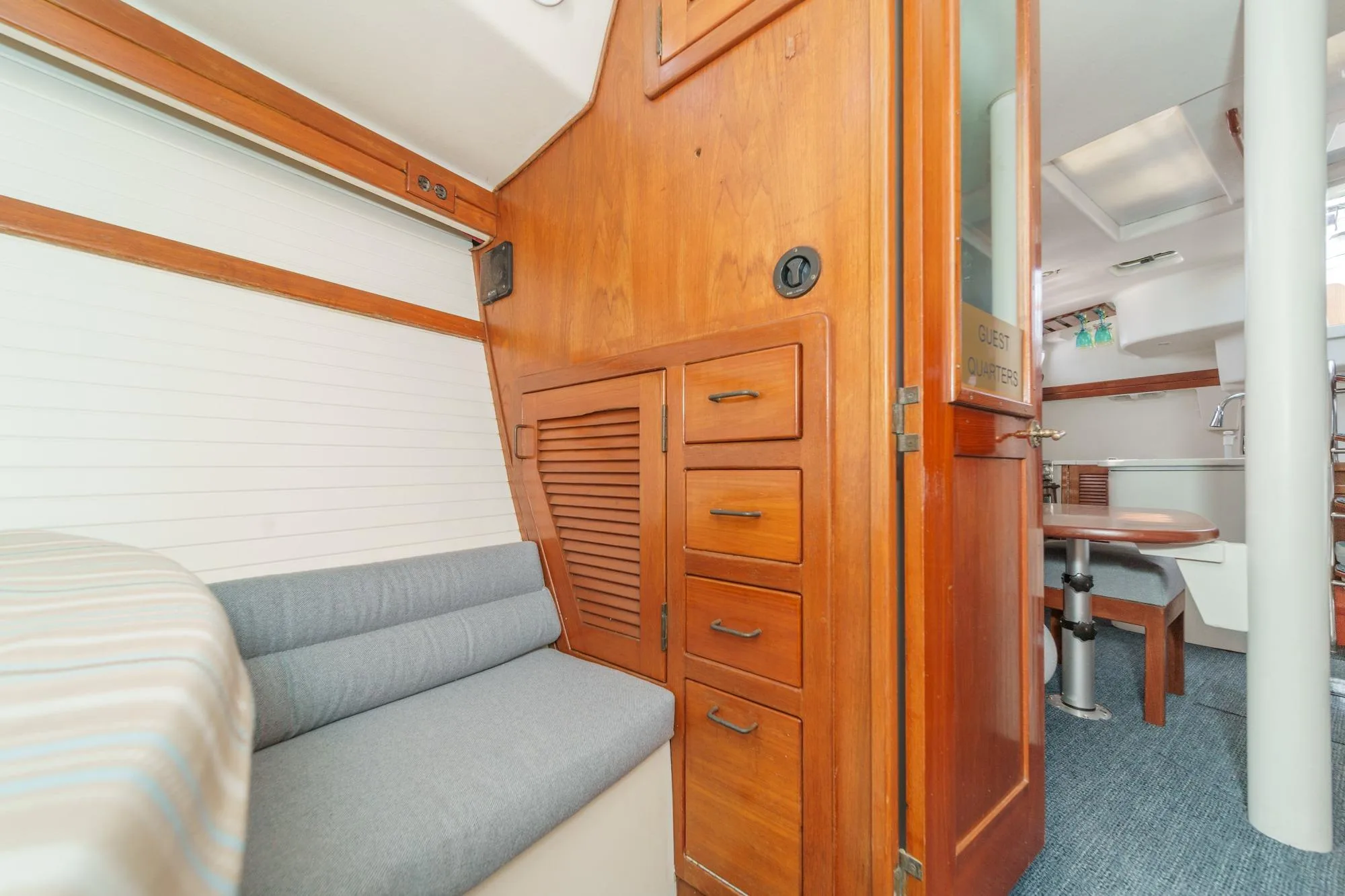

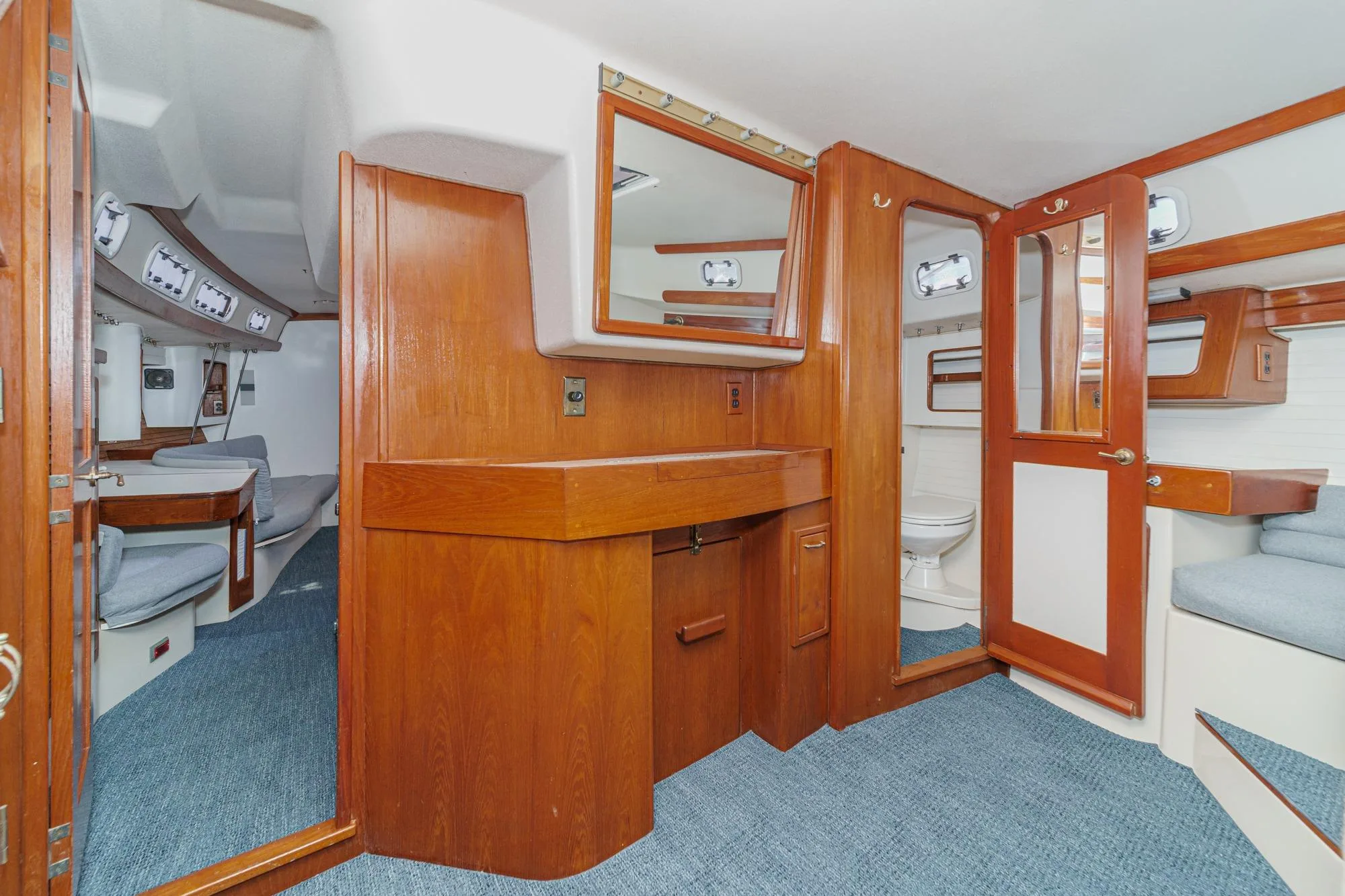

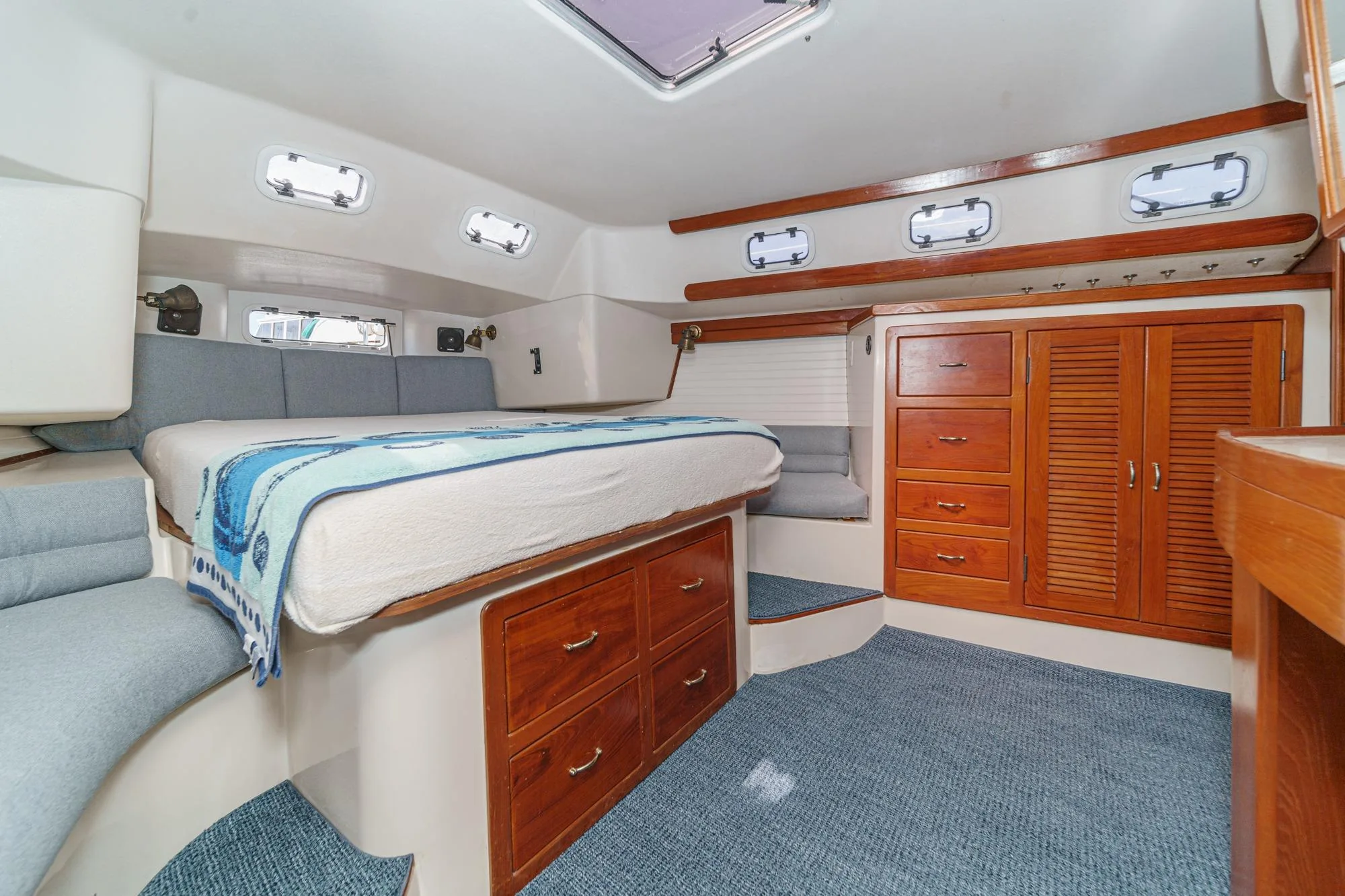

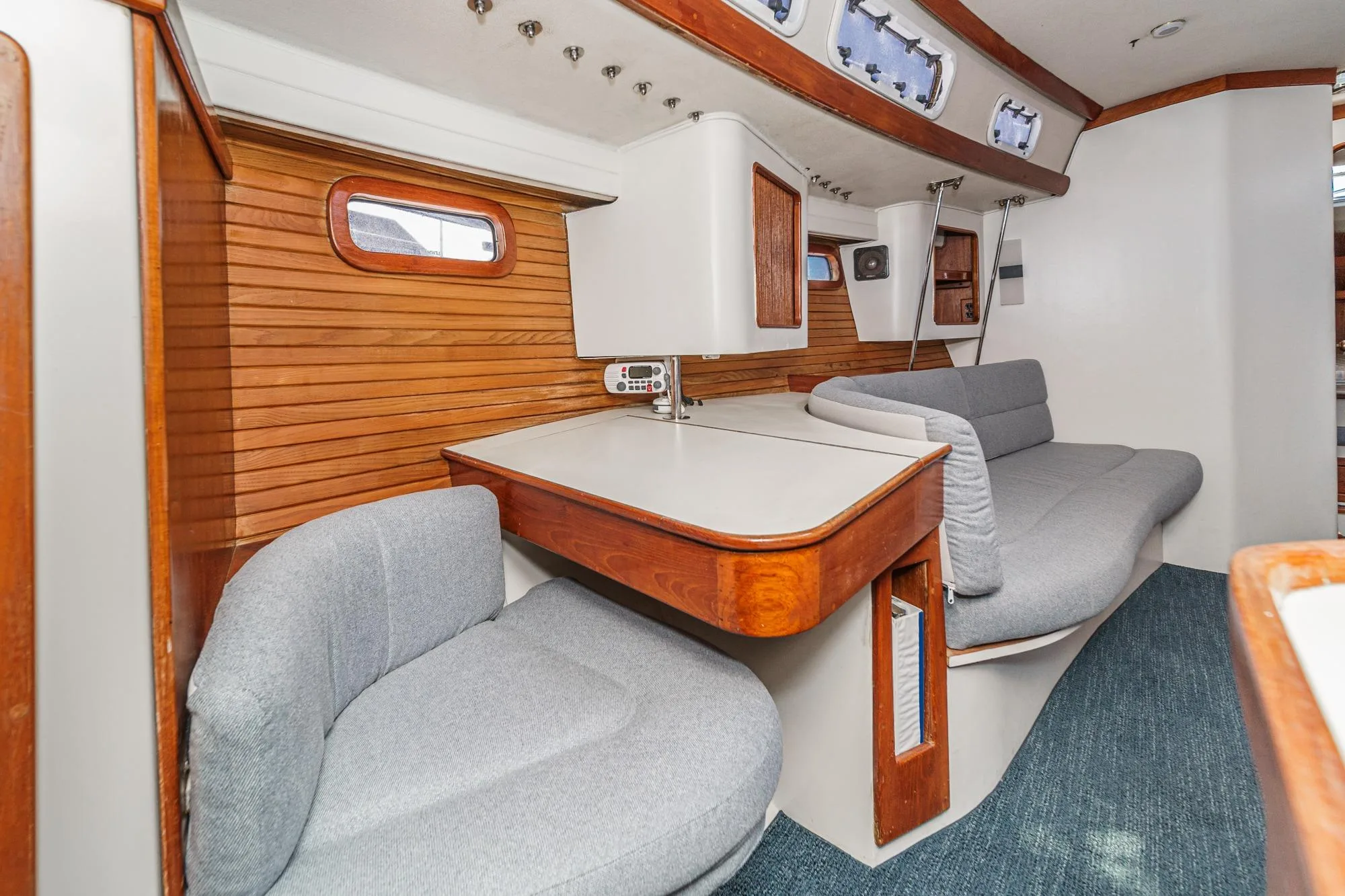

• Interior Layout: The center cockpit design provides a spacious aft cabin, a sizable galley along the starboard side, and a comfortable main salon. The forward cabin includes a V-berth with a dressing area and storage.    The Catalina Morgan 44 is recognized for its robust construction, thoughtful design, and suitability for both coastal and offshore cruising. Its spacious interior and reliable Yanmar engine make it a popular choice among sailing enthusiasts.

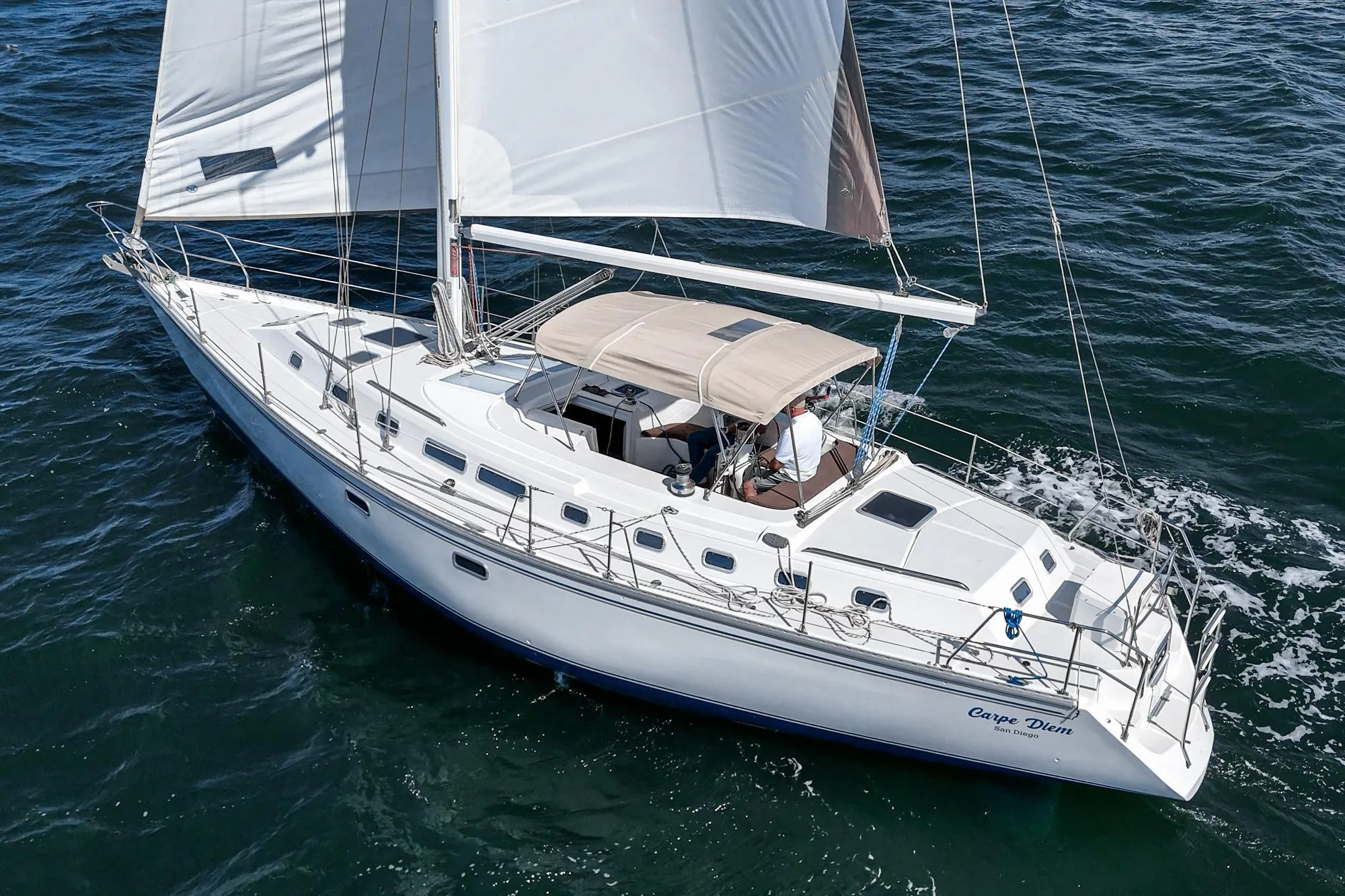

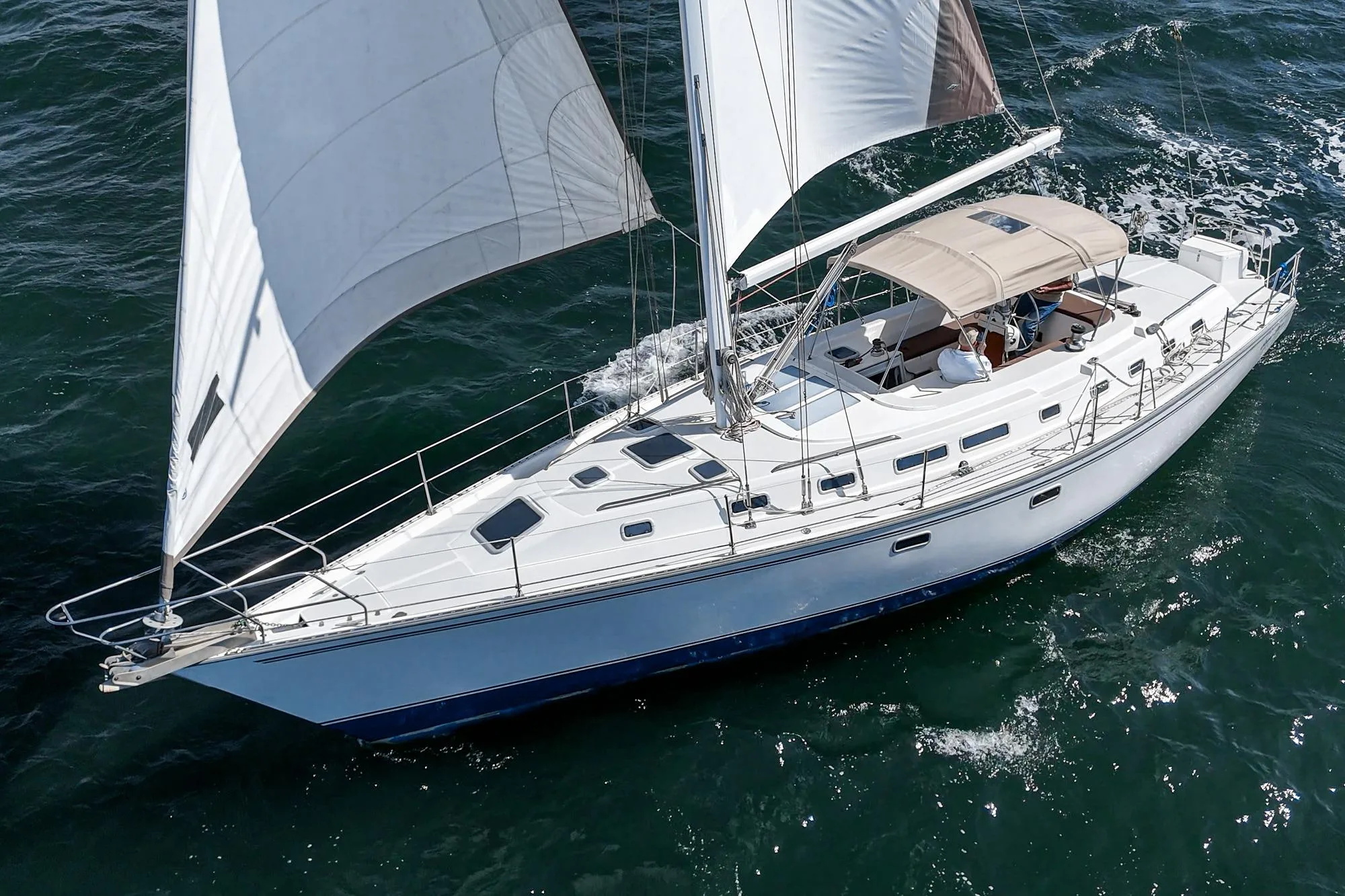

The 1992 Morgan Catalina 45, designed by Nelson Marek and built by Catalina Yachts, is a 45.25-foot masthead sloop. It features a beam of 13.75 feet and a draft of 5.33 feet.

The sail area totals 816 square feet, contributing to a sail area-to-displacement ratio of approximately 15.3. This ratio indicates the vessel is moderately powered, suitable for coastal cruising.

The displacement is around 25,000 pounds, with ballast accounting for 8,300 pounds, resulting in a ballast-to-displacement ratio of 33.2%. This suggests reasonable stability and stiffness under sail.

With a waterline length of 37.83 feet, the theoretical hull speed is approximately 8.24 knots.

Overall, the Morgan Catalina 45 from 1992 is recognized for its sturdy construction and balanced sailing characteristics, making it a reliable choice for both coastal and extended cruising.

The  1992 Morgan Catalina 45 has a total sail area of approximately  816 square feet. This typically breaks down into:

• Mainsail: Around 350-370 sq ft
• Genoa (135% headsail): About 450-470 sq ft

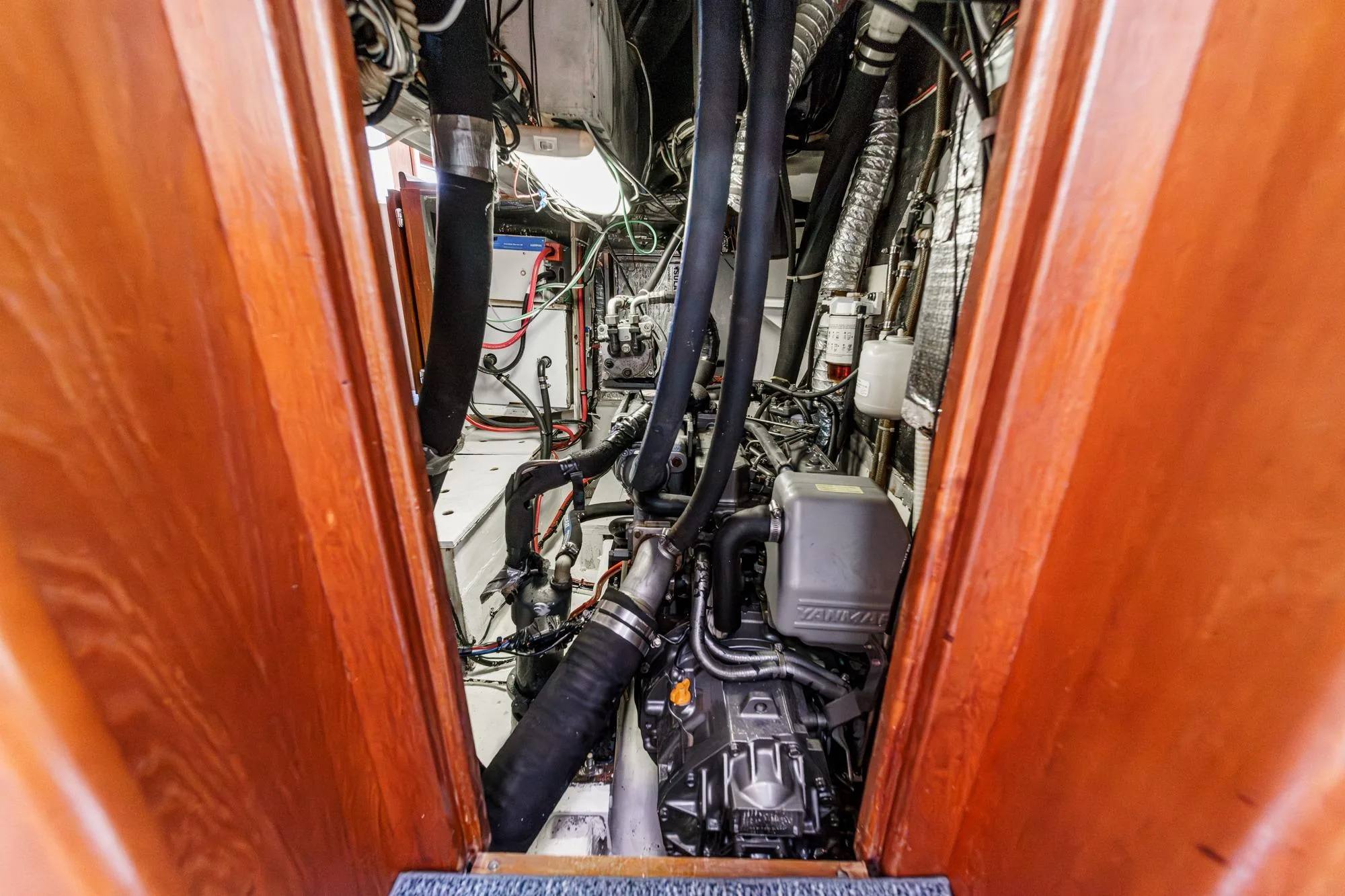

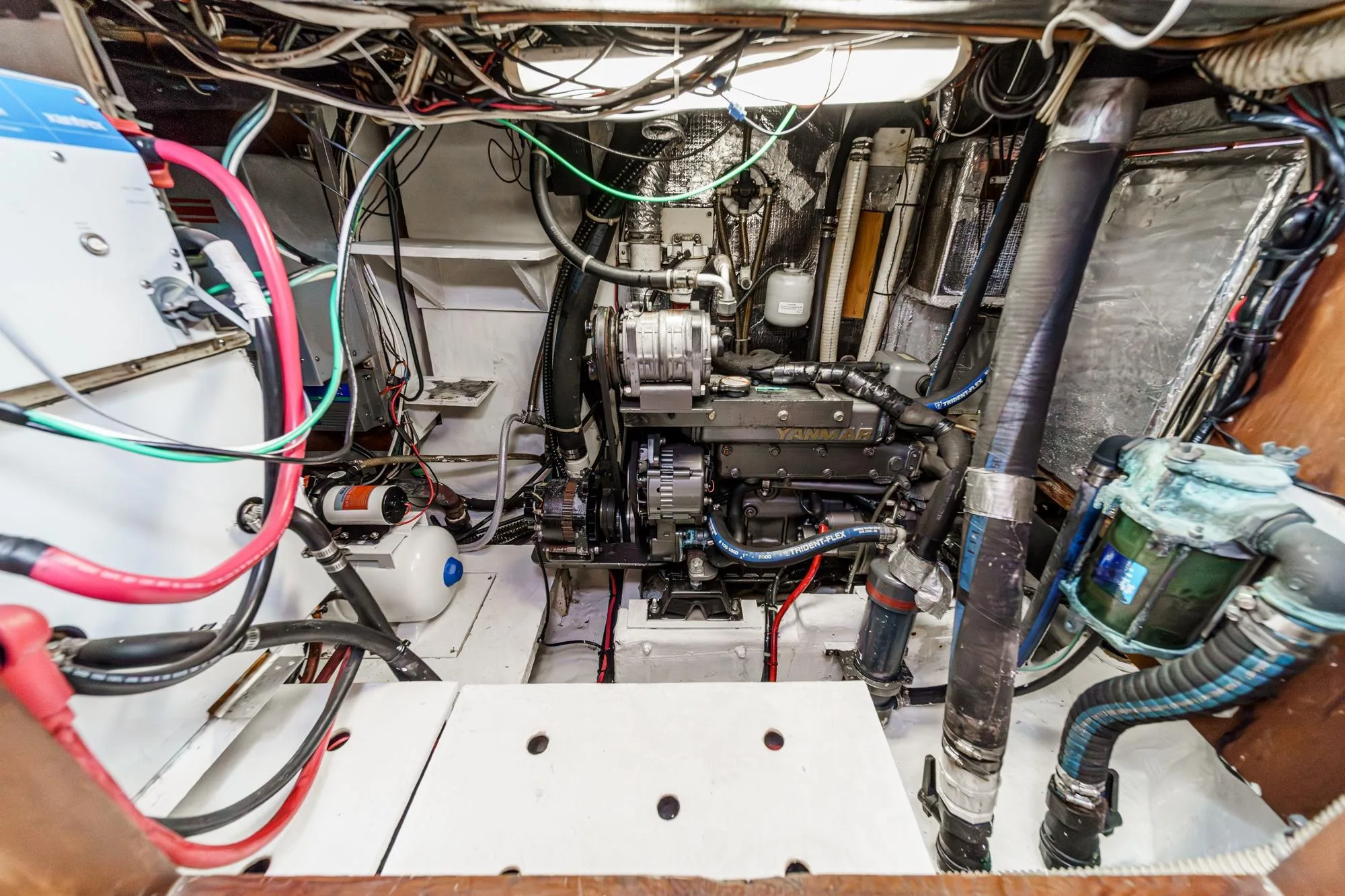

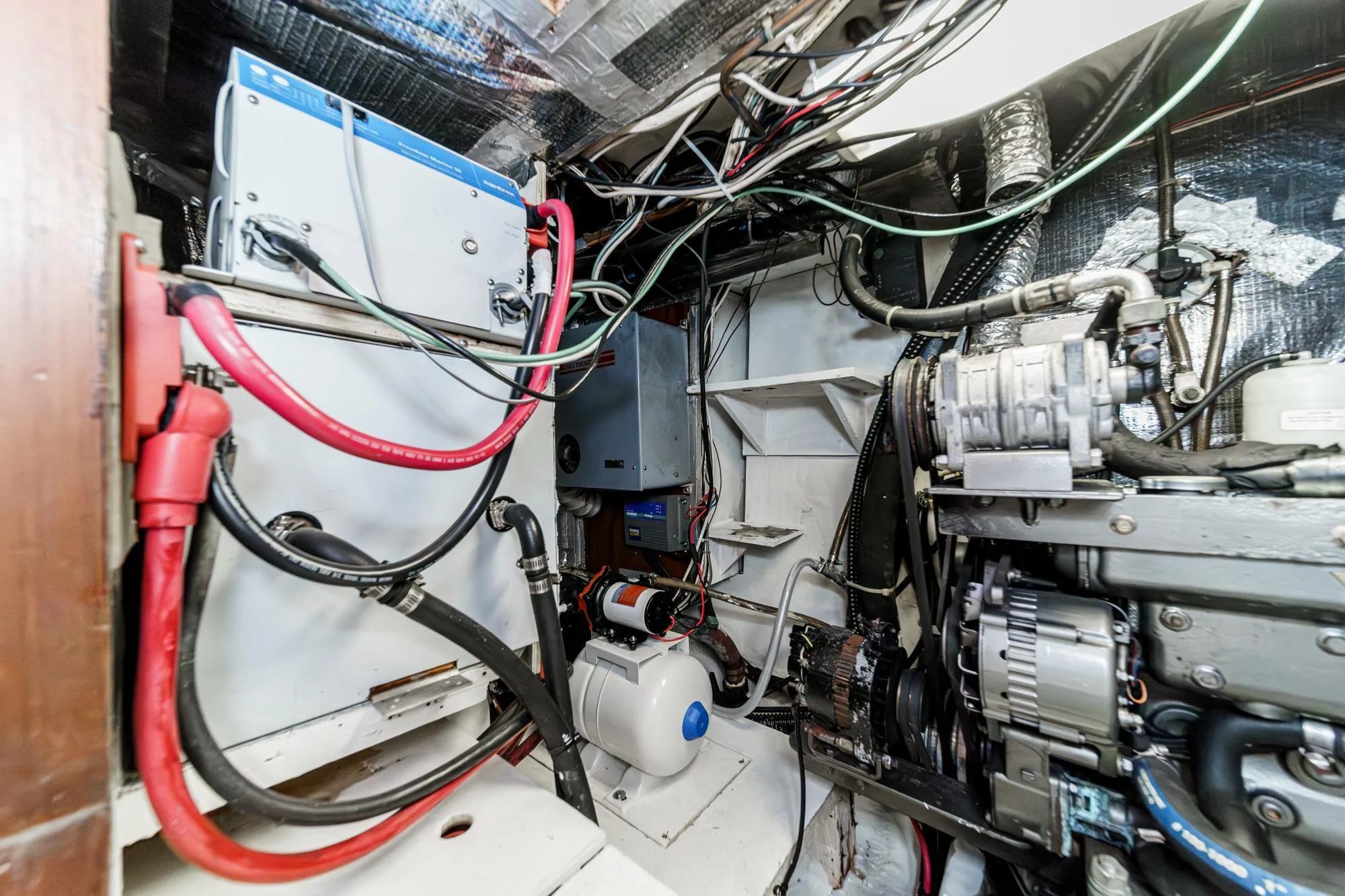

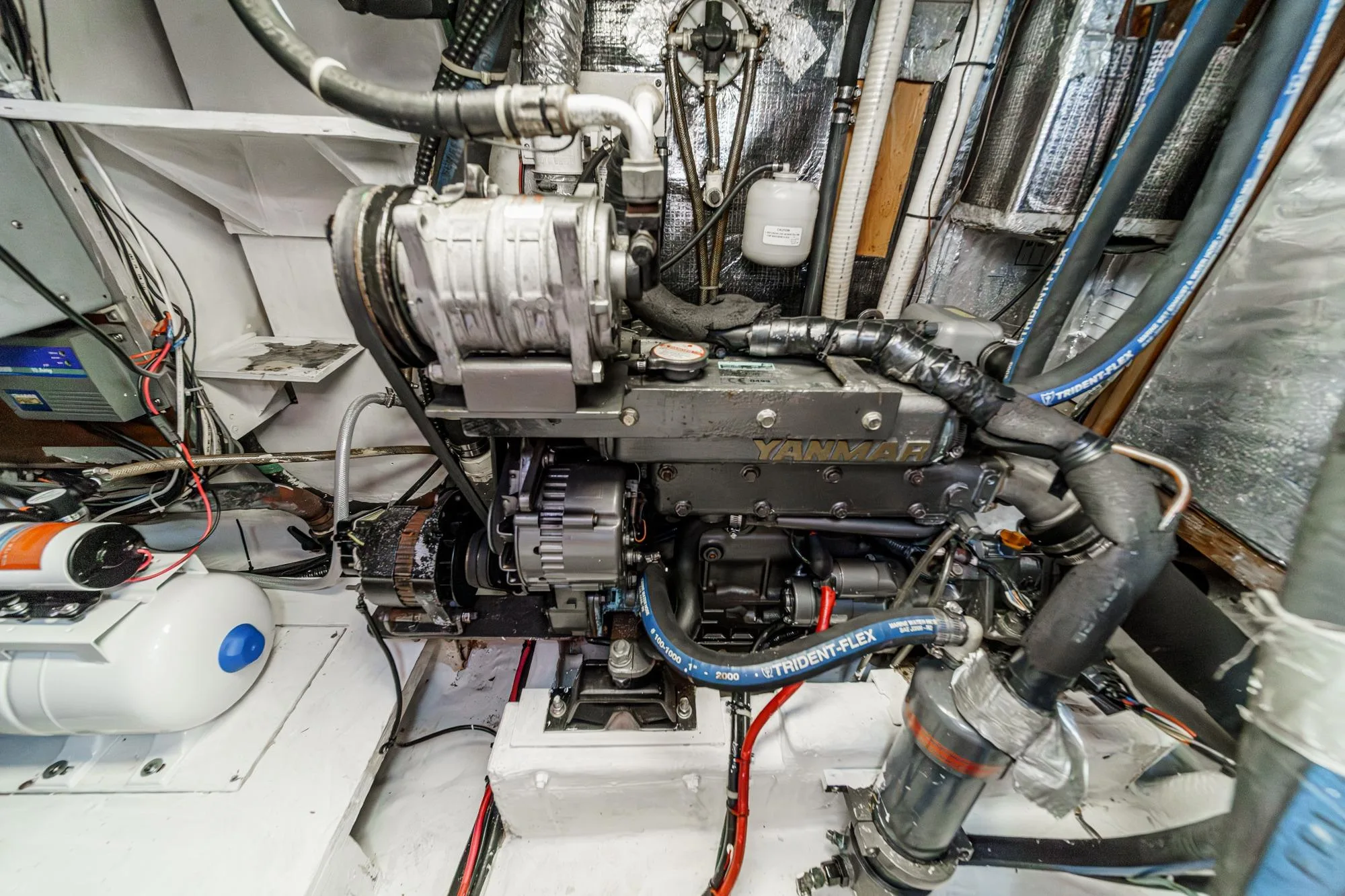

The 1992 Morgan Catalina 45 is typically equipped with a Yanmar 4JH2E diesel engine. This engine is a four-cylinder, naturally aspirated model with a displacement of 2.19 liters (131 cubic inches). It operates at a rated speed of 3,000 rpm, producing approximately 50 horsepower.

Overall, the Yanmar 4JH2E is known for its reliability and efficiency, making it a suitable choice for the Morgan Catalina 45.
