COMMENTS

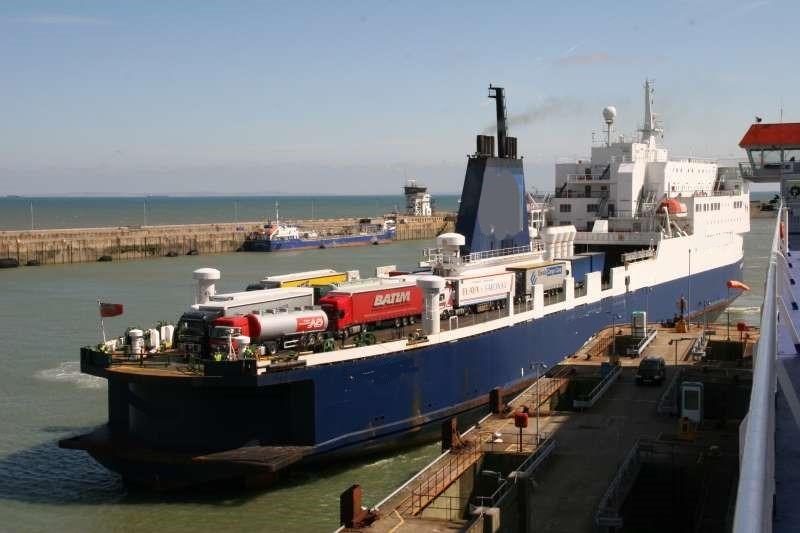

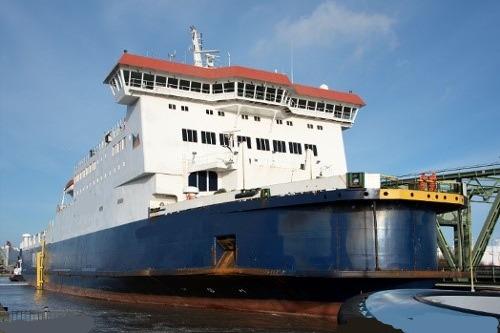

This is a 594’ 7,432 mt DWT RoRo cargo Ship built in 1997. It has 1,925 LM for trucks and trailers. The ship is RINA Class and fully operational. It has 4 x 7,075 HP diesels for total power of 28,300 hp. The ship can operate on 2, 3 or 4 main engines subject to load and required speed for fuel efficient operation. Top service speed is 21.0 knots. The ship is currently in the Mediterranean. Dry dock is due in 2026. The ship is also available for charter.
GENERAL
Year Built 1997
Shipyard Shichau Seebeckwerft AG, Germany
Classification Germany
Flag: Panama
Passenger Safety Certificate for 200 passengers
DIMENSIONS
LOA 180.72 m/593 ft 5 in
LBP 170.0 m/557 ft 9 in
Beam 27.8 m/91 ft 3 in
Draft 6.419 m/21 ft 1 in
Air Draft 44.65 m/145 ft 6 in
Gross Tonnage: 22,986 mt
Net Tonnage: 6,895 mt
Deadweight: 7,432 mt
Lightweight: 9,972.75 mt
MACHINERY
Main Engines 4 x Sulzer Diesel 8ZA40S 5,280 kw/7,075 HP
Total Power 20,120 kw/ 28,300 HP
Auxiliary Engines 3 x Sulzer 6ATL25H (1200kw/1000rpm)
Rudders 2 x Stern Hi Lift Rudders
Bow Thrusters 2 x LIPS CT 16H-2P, 1200kW (2400 kW total),
Stabilizers: Blohm & Voss stabilizer system Type. SK 50 (2 x
Fins - one Port and one Stbd) 14.4 m2.
Emergency Gen Caterpillar 3412 DI-TA (500kw/1500rpm)
Emergency Alternator Siemens IFC 6454 (500kw)
Diesel Alternator Siemens IFC 6566-6SA93-2 (1150kw)
Shaft Alternator Siemens IFC 6566-6SA92-2 (1450kw)
Main Voltage Electrical Power System: 415V, 3ph, 50Hz with 230V
for lighting and smaller consumers.
Cruising Range 10 days @ 21 knots = 5,040 nautical miles
PERFORMANCE/CONSUMPTION
See our detailed listing for fuel consumption figures
TANK CAPACITIES & SYSTEMS
See our detailed listing for Tankage capacities
BWTS Yes, 1,000 m3/hr capacity
CARGO CAPACITIES
Lane Meter Total: 1,925 LM
Main Deck: 975 LM (about 3.0 m wide)
Upper Deck: 950 LM (about 3.8 m wide)
Freight Trailers About 125 (15 m)
Deck 3 MVD: 63 units
Deck 5 UVD: 62 units
Height of Vehicle Decks 4.8-5.0 m
Deck Load: Deck 3: 4.0 mt/m2 axle load of 18 mt, bogle load 35
mt and road trailer load of 45 mt on Deck 3
Deck 5: 2.0 mt/m2, axle load of 18 mt, bogle load of
35 mt and road trailer load of 45 mt
Ramps:
Stern: L 13.4 m + 2 flaps X 8.9 m, 90 mt load capacity
Internal: L 43.6 m X 3.2 m, 90 mt load capacity
Doors: Bow: Clam Door: 8.5 m wide X 5.0 m height
Stern: Clam Door: 8.5 m wide X 5.0 m height
Reefer Plug-ins: 33 x 380 V, 32 A on both decks
ACCOMMODATIONS
Passengers: Self-Serve Restaurant: 142 seats
Lounge/Bar/TV Area: 106 Seats
Retail Shop: Yes
Passenger Cabins: 10 x 4 Berth
30 x 3 Berth
33 x 2 Berth
4 x 1 Berth
Total Cabins/Berths: 77/200
Crew Cabins/Berths: 33/50
Crew Mess: 1
Officer Mess: 1
PO Mess: 1
Recreation Room: 1
Fitness Room: 1
COMM/NAV EQUIPMENT
Fully equipped, see our detailed listing for complete specifications
LIFE SAVING EQUIPMENT
Fully equipped, see our detailed listing for complete specifications
MOORING AND OTHER EQUIPMENT
Fully Equipped, see our detailed listing for complete specifications
