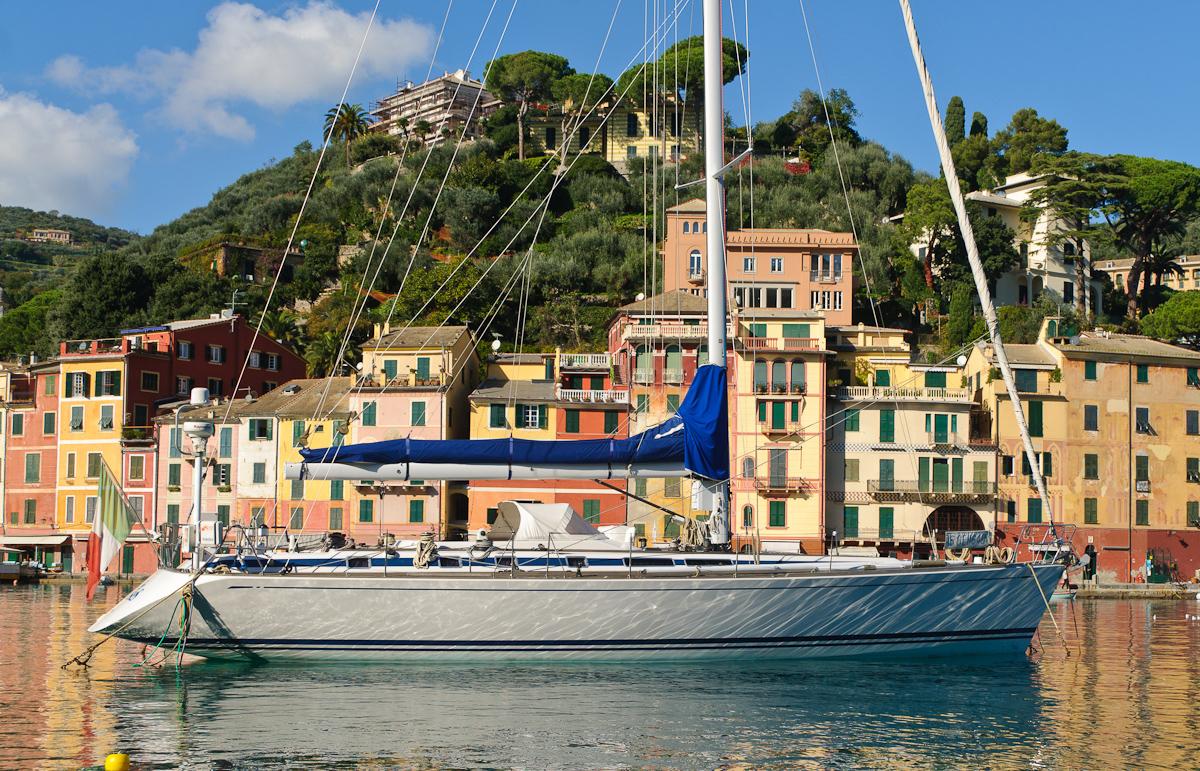

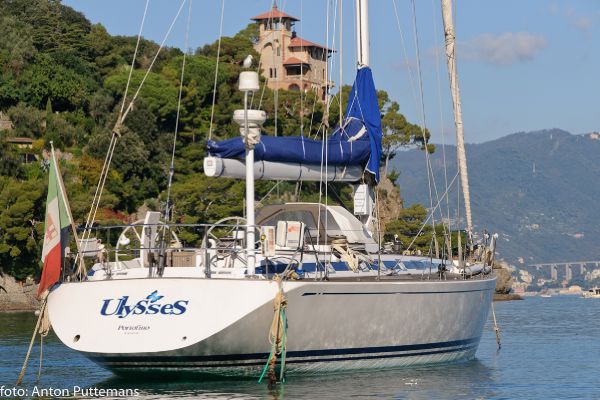

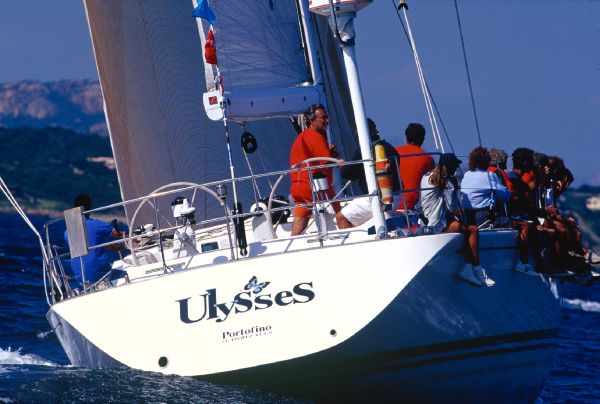

Ulysses is a high performance Swan 60-012 that has been optimised for racing while still carrying all the amenities that one would expect aboard a yacht of this calibre.
Regatta hull laminate is 5,000Kg lighter that standard hull.
Deep keel gives better upwind performance, carbon fibre mast and boom from Hall Spars are just a few of her many features.
HULL & APPENDAGES
Hull is of single skin construction using glass/aramid hybrid fibre reinforced polyester laminate
Regatta hull laminate, five tons lighter than standard Swan 60 hull
Engine beds in GRP - Mast stepped through deck onto composite mast step
Hull colour: white gelcoat with dark blue boot, cove and coaming stripes
Regatta Keel, 3.5m antimony lead casting
Storz endoscope thru-hull in front of keel and between keel and rudder
Hull below waterline finished in uncoulred gel coat and epoxy primer
Antifouling VC Offshore extra - white
Steering System
Foam filled rudder blade, skins in composite
Rudder stock in E-glass composite (Rudder Service on 2012)
Supported by two self aligning bearings

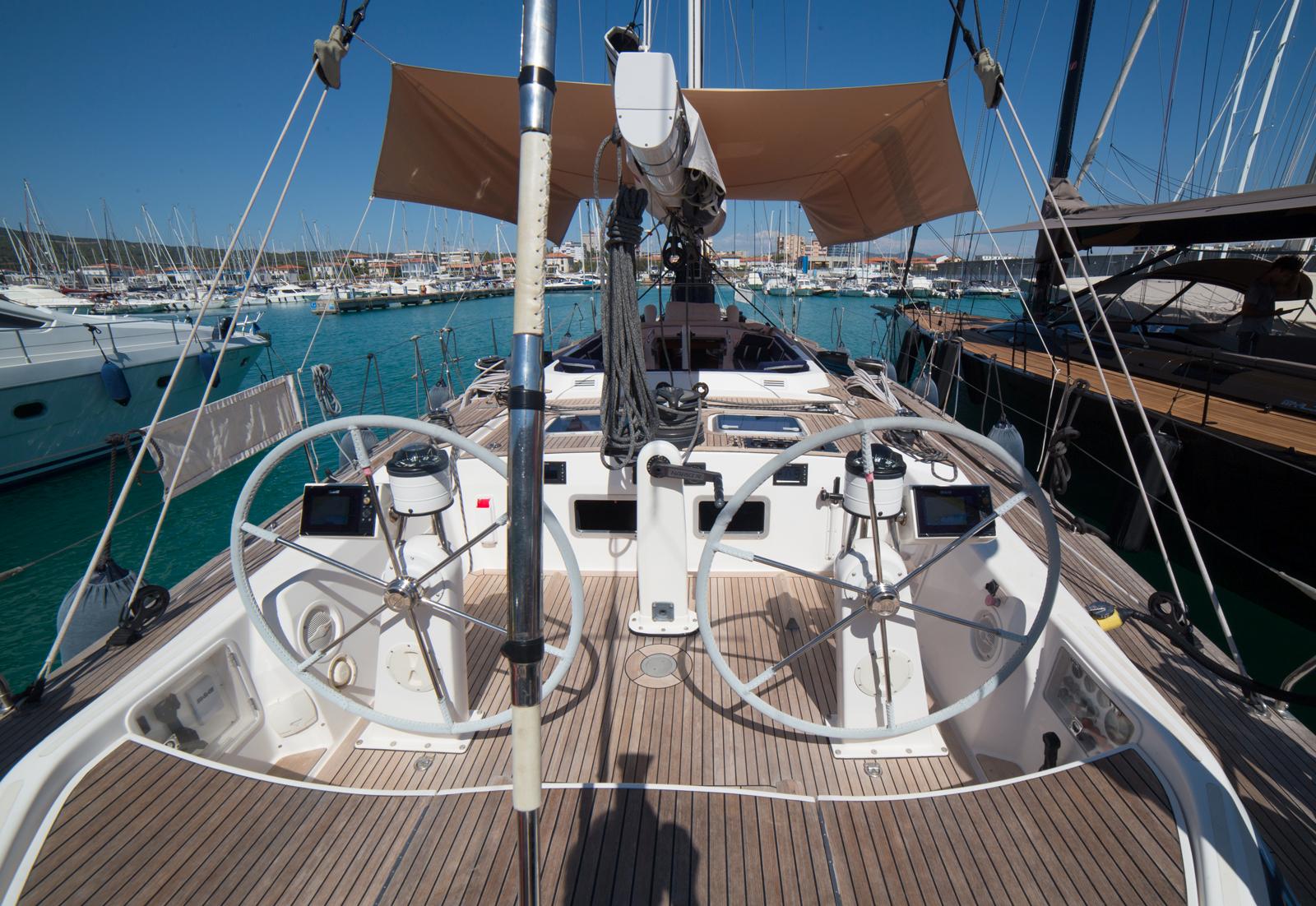

Dual destroyer type steering wheels – 105cm (41”) stainless steel and covered in elk hide
Emergency steering system
DECK
Regatta deck laminate of sandwich construction
Teak on side decks, cockpits, coaming & coach roof
Teak toe rail
Opening bow pulpit with teak seat
Stern pushpit in stainless steel with opening gate
Radar post on stern

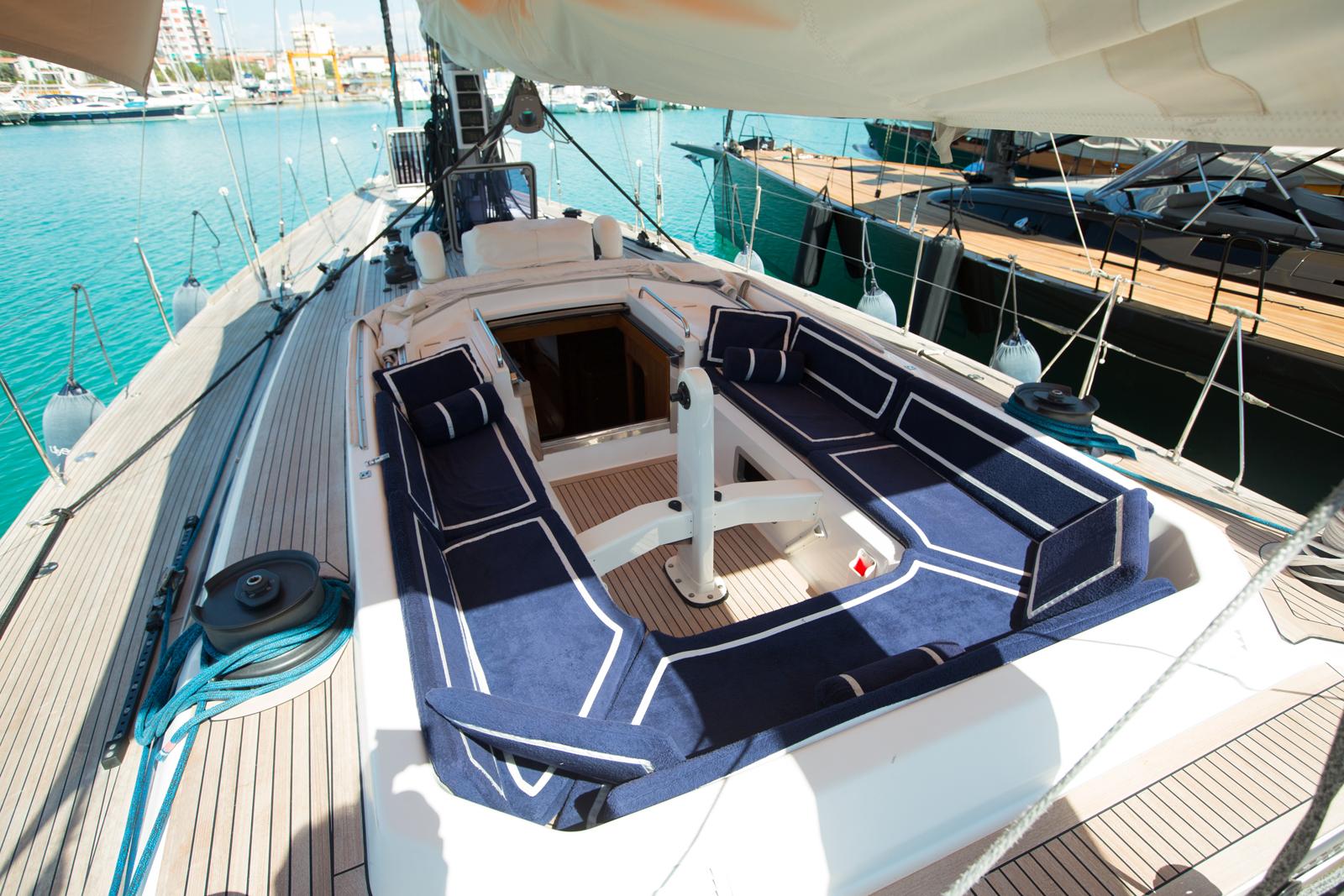

Deck Equipment
Removable teak foot rest for helmsman

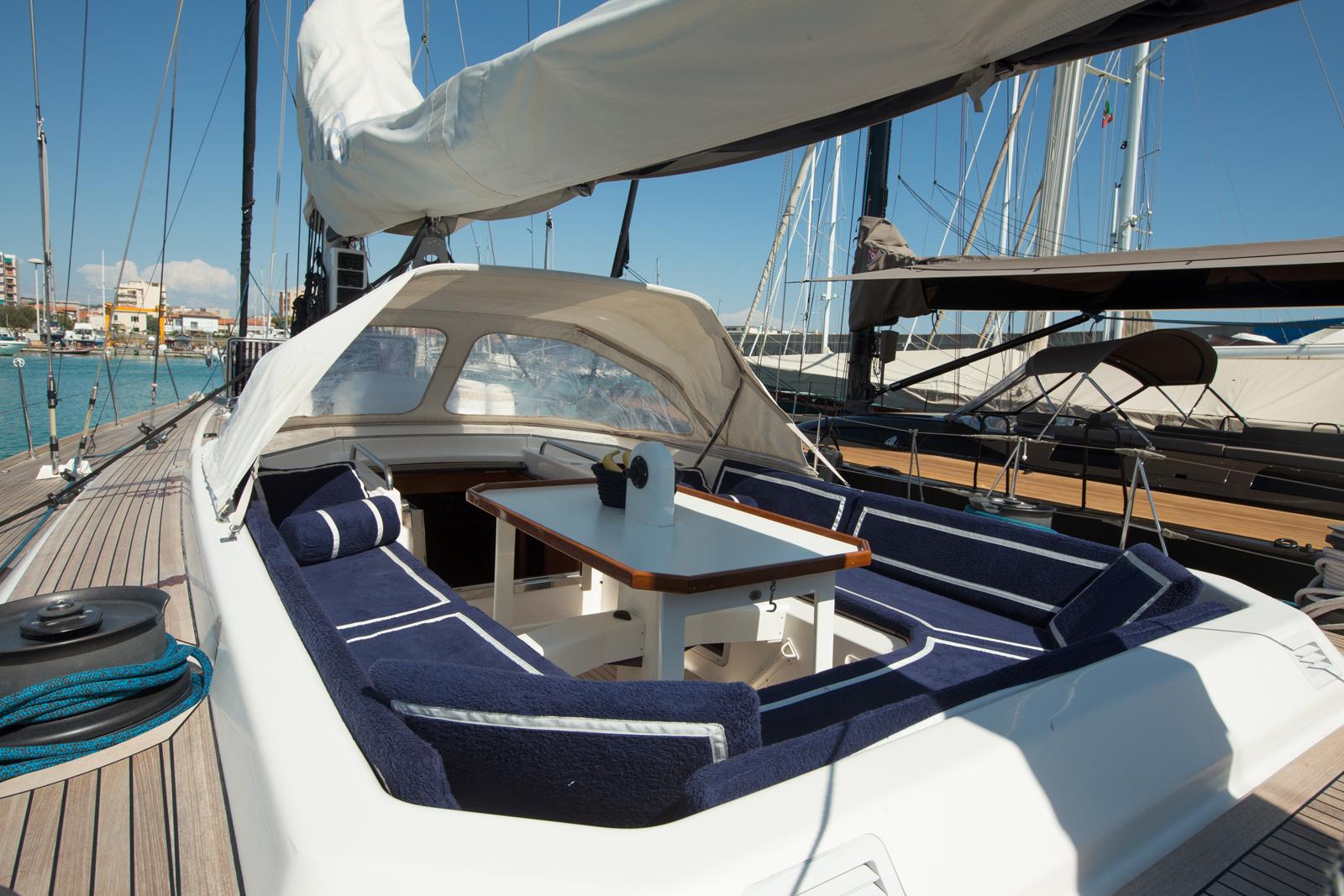

Removable cockpit table
Outboard bracket on pushpit
Deck fittings for sip & jockey pole
Hydraulic opening transom swim platform
Additional lightweight transom door for racing
Cold/hot deck shower on starboard side of cockpit
Sea water deck wash fitting
CQR 60lbs on stem head fitting
Danforth 60H mounted below decks
Anchor windlass Lewmar Concept 3
Winches by Harken
Primary 2x B1110.3 SST TCA
Secondary 2x B980.3 STA
Main Sheet B1110.3 SST TCA
Traveler 2x B40.2 STA
Main Halyard B53.2 STAE
Halyards B53.2 STA
Topping Lift B48.2 STA
One removable kevlar coffe grinder to power the main sheet winch
One removable kevlar coffegrinder to power primary winches
Sailing Hardware
Deck hardware by Harken
INTERIOR
General
The interior is finihsed in hand-rubbed satin varnished teak
Removable floorboards are finished in teak
Any exposed hull areas are covered with teak battens
Overhead panels re finished in vinyl and easily removable
Mosqito screens and blinds for hatches
Hella 12 fans in all cabins
Foward Cabin – Crew
2 x pipe berths
Side lockers above berths
Sails storage beneath berths
Work bench on starboard side
Goiot 79.79 overhead hatch
Guest Cabin - Port
One single berth, plus one Pullman berth
Lockers, drawers and shelves.
En-suite head with shower, sink, mirror and storage lockers
Vacu-flush toilet in head
Guest Cabin - Starboard
One single berth, plus one Pullman berth
Lockers, drawers and shelves.
Large storage locker
En-suite head with shower, sink, mirror and storage
Vacu-flush toilet in head

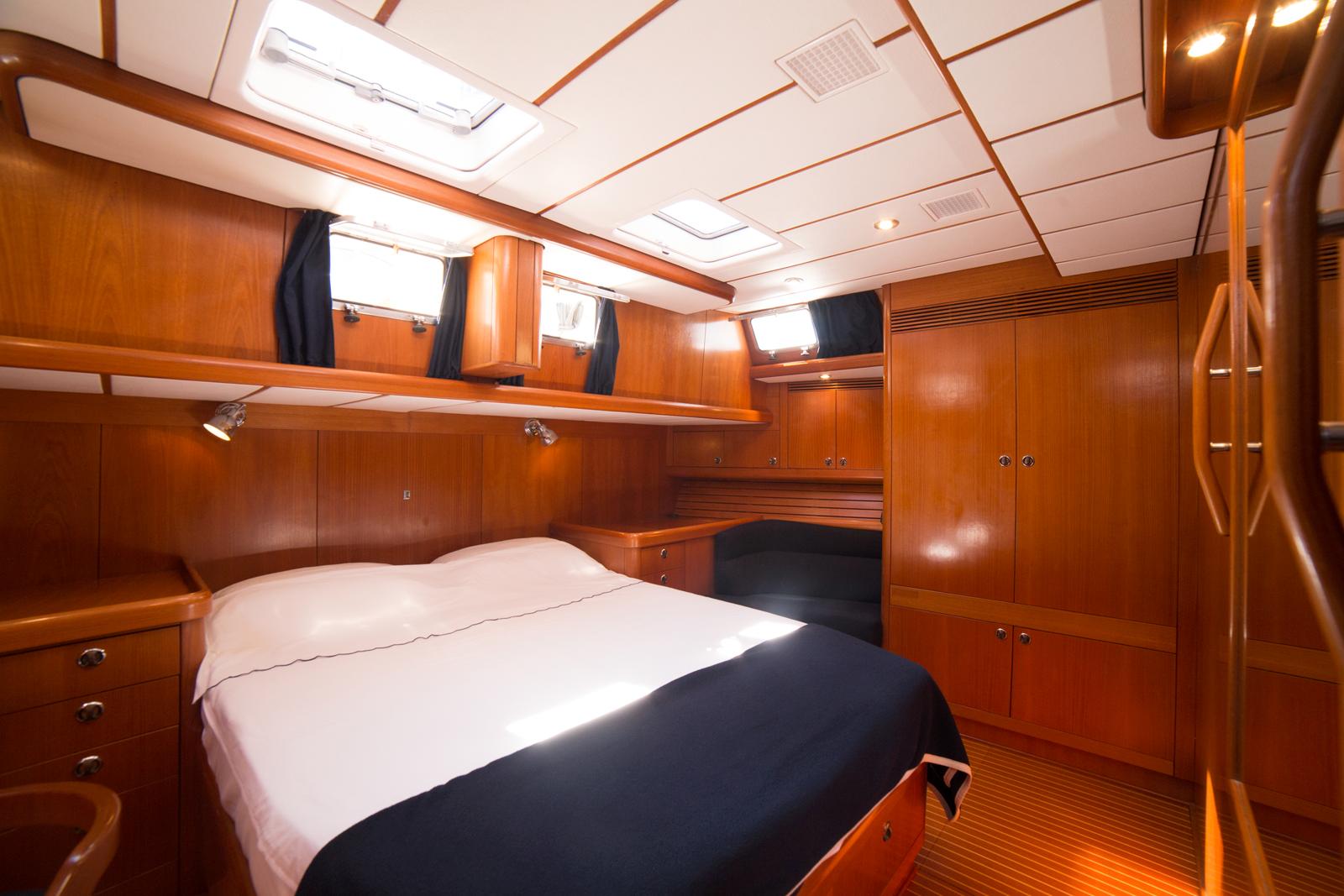

Aft Cabin - Owner
Centerline double berth
Settee to port
Vanity desk with seat to Starboard
Goiot 61.61 hatch overhead

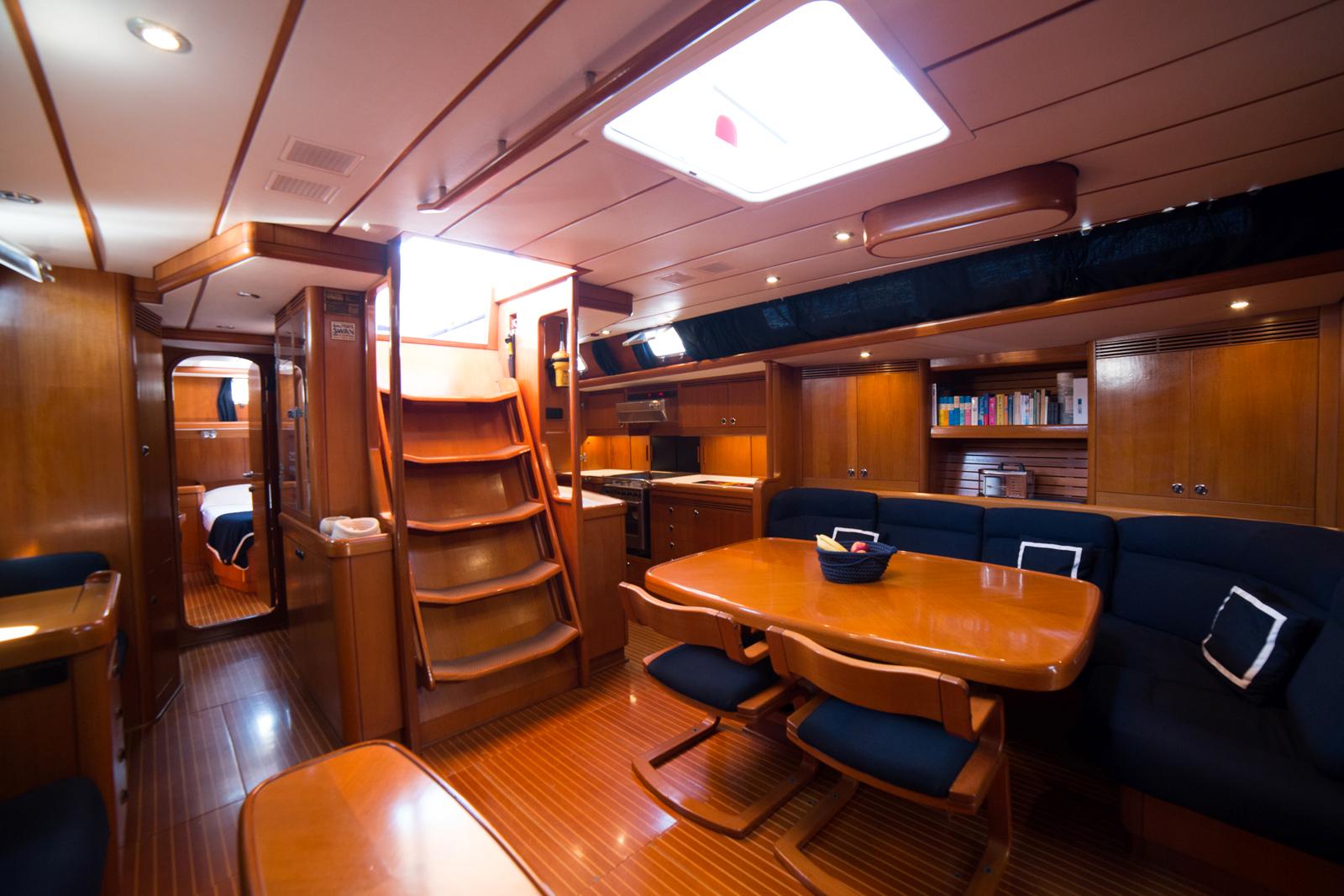

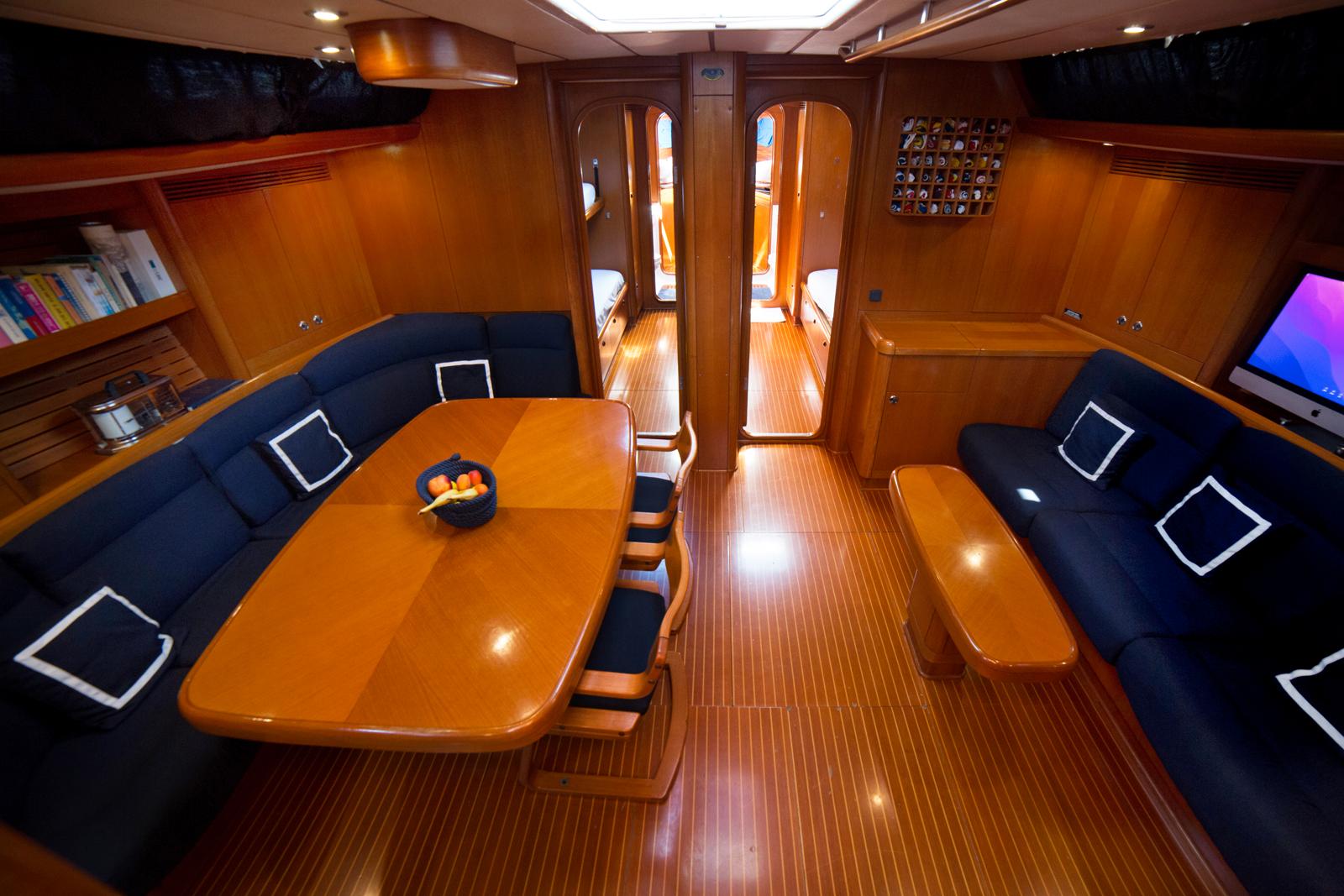

Saloon
L-shaped settee to port with bookshelves outboard
Large teak table with seating for six guests
Settee to starboard with bookshelves and television outboard
Coffee table inboard of settee on starboard
Fresh and sea water outlets in sink

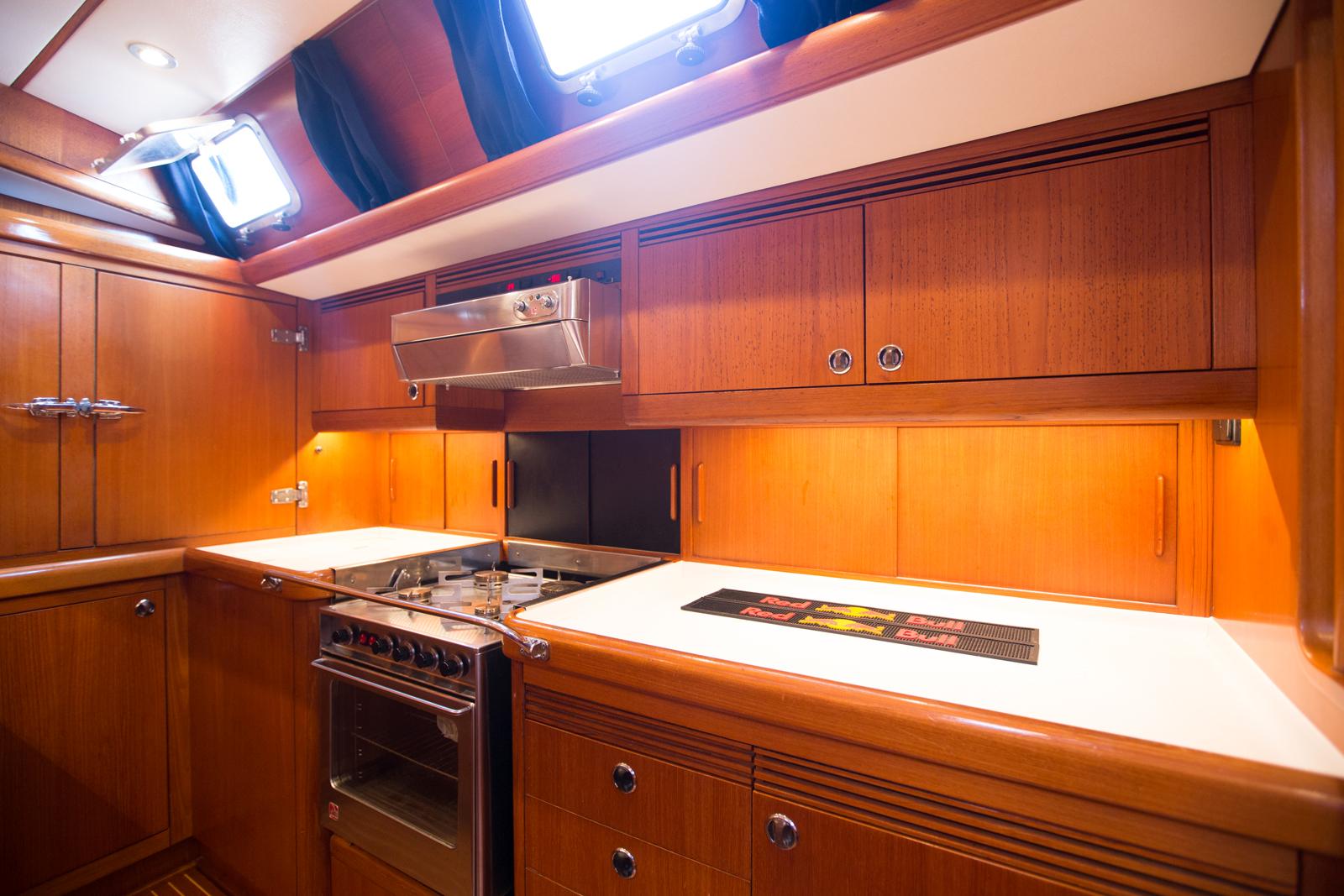

Galley
Galley is located on the port side aft of saloon
Work surfaces finished in Corian
Double stainless stell sinks
Storage lockers and drawers for galley items
Galley Equipment
Gimballed Force 10 oven with four burner stove
240L refrigerator
150L Freezer
Nav Station
Forward facing chart table on starboard side aft of saloon
Instruments recessed in teak panels
Teak chart table with chart storage below
ENGINE & SYSTEMS
Yanmar Marine diesel 110KW/180HP at 3300 RPM
Hurth gearbox HSW 450 AR 2.43:1 (1999)
Gori 3-blade propeller 590mm and a spare two blade racing propeller
Fuel capacity 600 L (158 USg) in two stainless stel tanks
Fuel level gauges at chart table
Plumbing Systems
Hot and cold pressurized water system with back up foot pedal system
Total water capacity 1140L (301 USg) in four stainless stel tanks
Water level gauges at chart table
230v hot water heater
Ventilation System
Hella 12v fans in all cabins, galley and saloon
Drainage System
2x Manual bilge pumps, Whale Titan, one in cockpit, one near nav station
Electric bilge pump in main bilge,. Automatic or manual operation
ELECTRICAL SYSTEM
DC System
24v DC electrical system
Service battery bank 480 AH
Engine start batteries 12v 135AH
Generator start batteries 12v 8090AH
All batteries stored in ventilated GRP boxes
12v outlets (via converter) at chart table, galley and in cabins
AC System
230V AC system powered b shore power inlet, generator or inverter
50A shore power system with polarity alarm
Whisper Power 5,7 KVA 50Hz generator 2010
230v outlets in all cabins
Chargers/Inverters
Victron 24/2500 watt inverter for general usage
Victron 24/300 watt inverter for TV and video
Service batteries charged by 100A alternator on engine
Enging and generator start batteries charged by alternators on each engine
ELECTRONIC SYSTEMS
Navigation Instruments
B&G Hercules 2000 sailing instruments
One FFD-NMEA display at nav station
Two FFD in aft cockpit

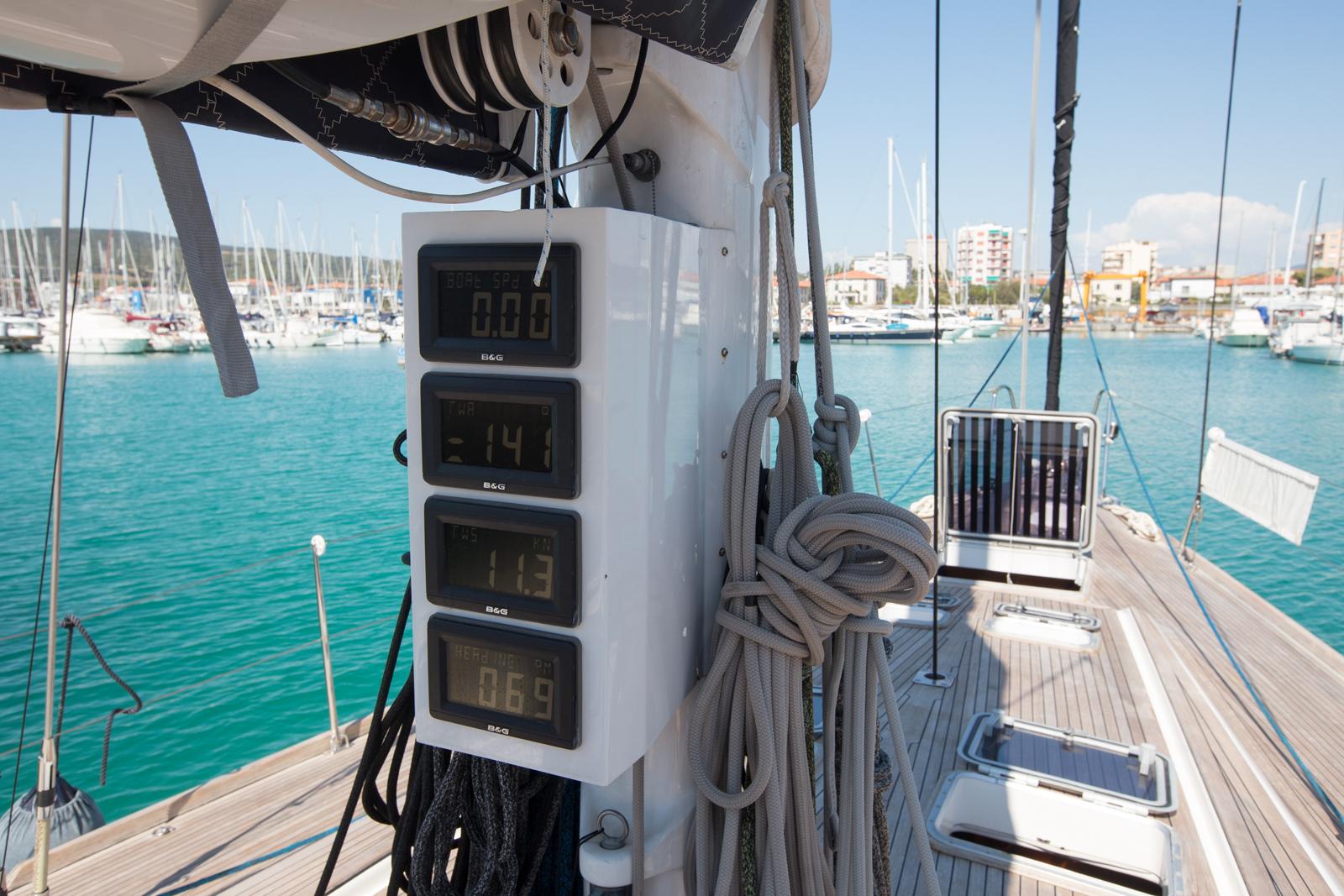

Four 20/20 displays on mast below gooseneck
Vertical masthead unit for wind speed/direction
Super Halcyon gyro compass
Suunto 5” steering compasses on each pedestel
Vetus barograph
Quartz ships clock at Nav station
Raytheon Rasytar GPS 112
Raytheon Raystar GPS 390
Raytheon Raychart 600XX chart plotter installed at nav station, interfaced with radar
Raytheon 20XX Radar, one screen at nav station, one scree in cockpit
Autopilot Robertson
Communications Systems
VHF Sailor 2047 with loudspeaker in cockpit
Mini M – Nera
GSM – Nokia
MAST & RIGGING

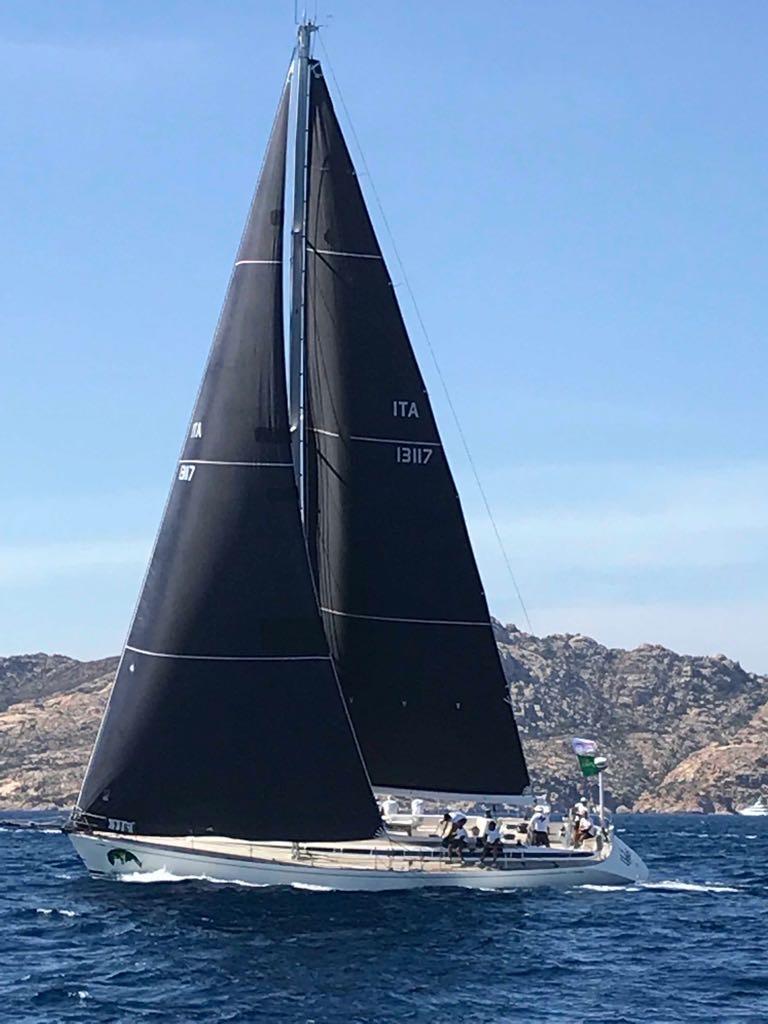

Carbon fibre three spreader mast from Hall Spars
Conventional boom in carbon fibre from Hall Spars
Backstays and innerforestay in Aramid fibre
Profurl manual genoa furler
Tuff luff for racing
Load sensor at mast head
Navtec four function hydraulic system – backstay, vang, outhaul and inner forestay
Quick release for vang
Hydraulic ram for genoa halyard
EQUIPMENT
General Equipment
Sprayhood
Cockpit table
Cockpit cushions
Safety Equipment
Fixed fire extinguisher system in engine room
Two portable fire extinguishers
Fire blanket in galley
Jackstay
Vessel Name
Ulysses
Length
63 ft
Beam
17.52 ft
Manufacturer
Nautor Swan
Model
60
Year Of Vessel
1998
Boat Type
sail-racercruiser
Fuel Type
Diesel
No. of Fuel Tanks
0
This 1998 Nautor Swan 60 is a premium sail category boat currently located in Lavagna, LO, Italy. This vessel is designed for efficient sailing. With a beam of 17.52 ft, it's an ideal choice for buyers seeking Diesel powered boats with efficient layouts.
