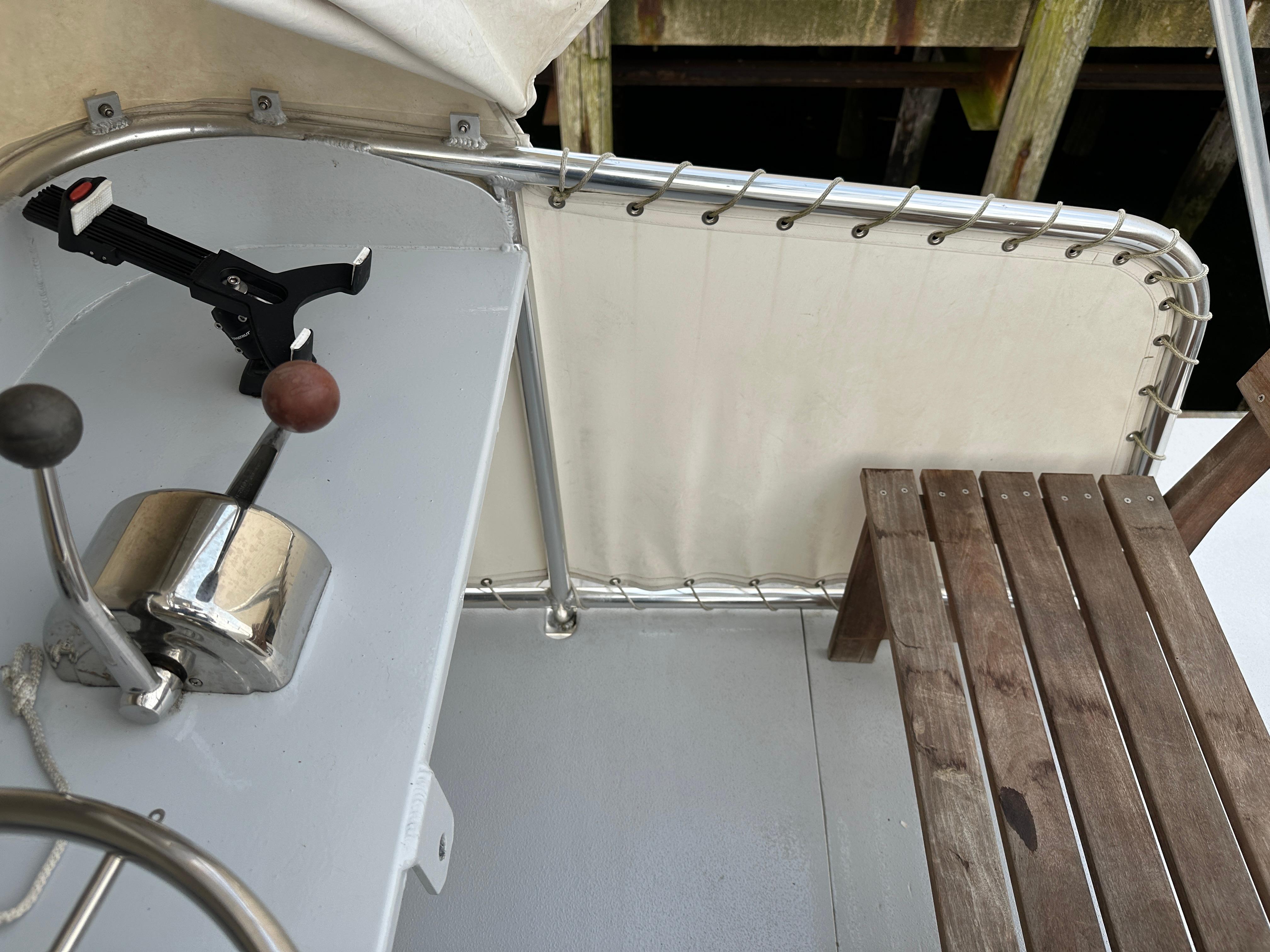

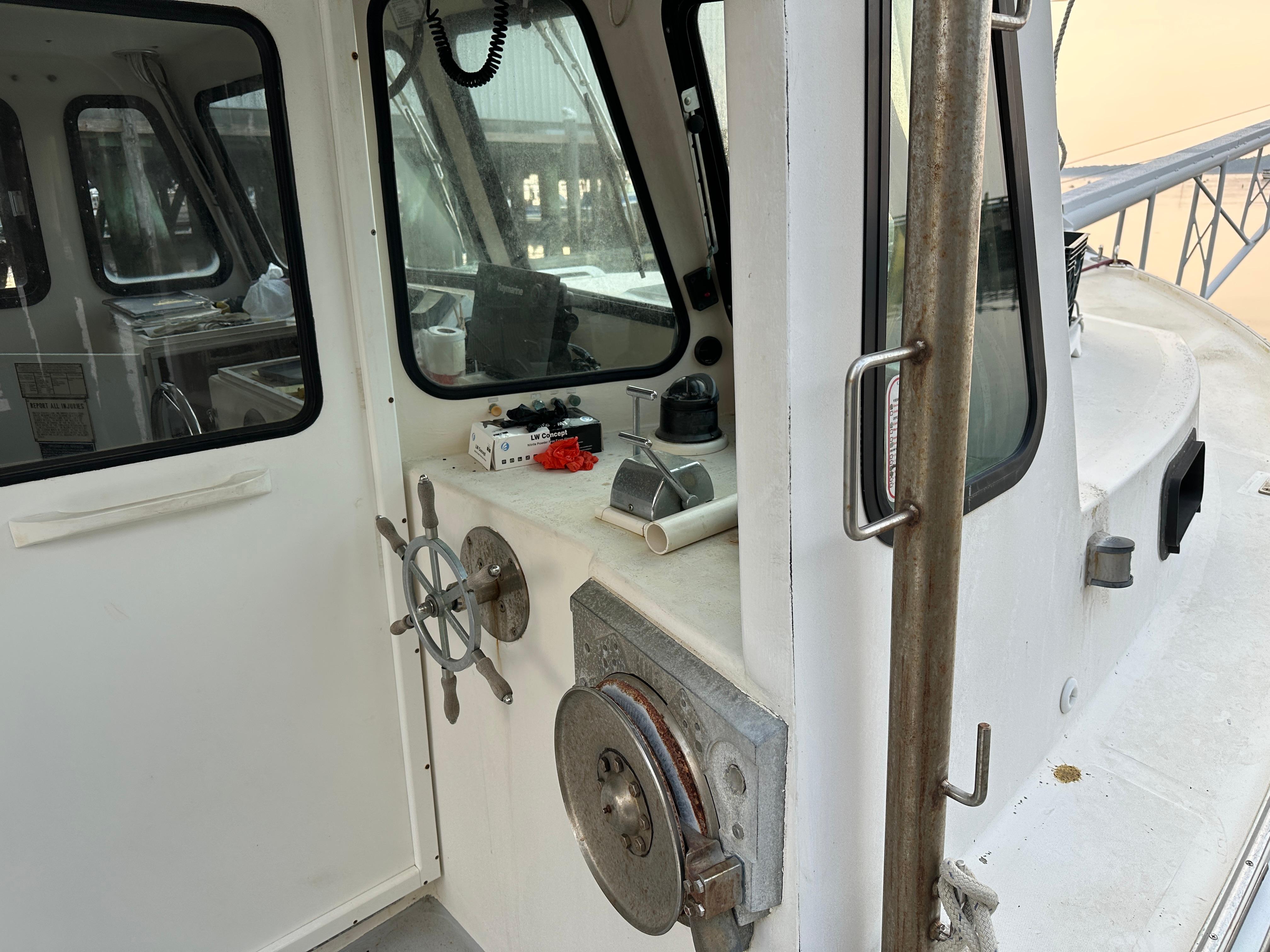

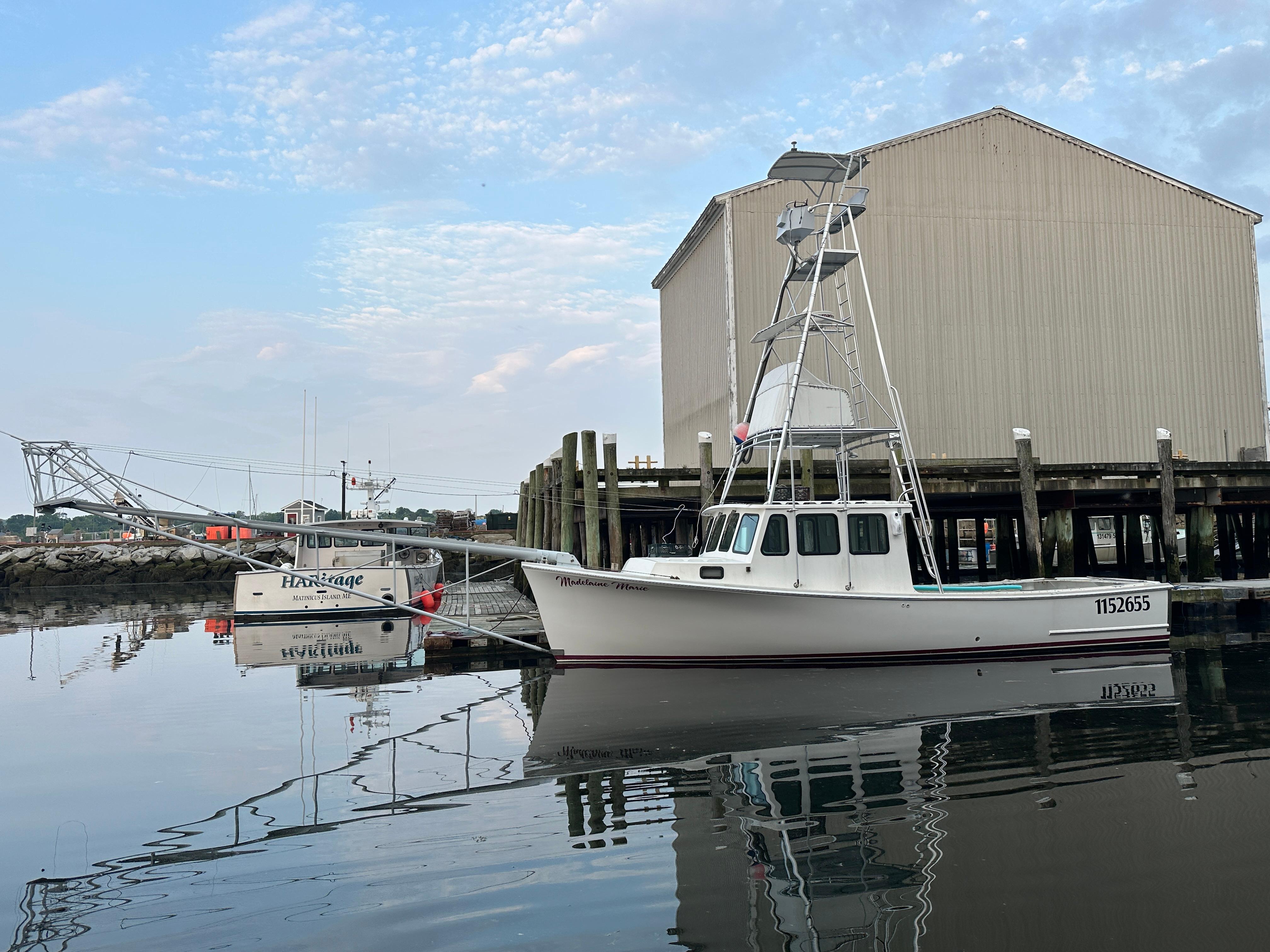

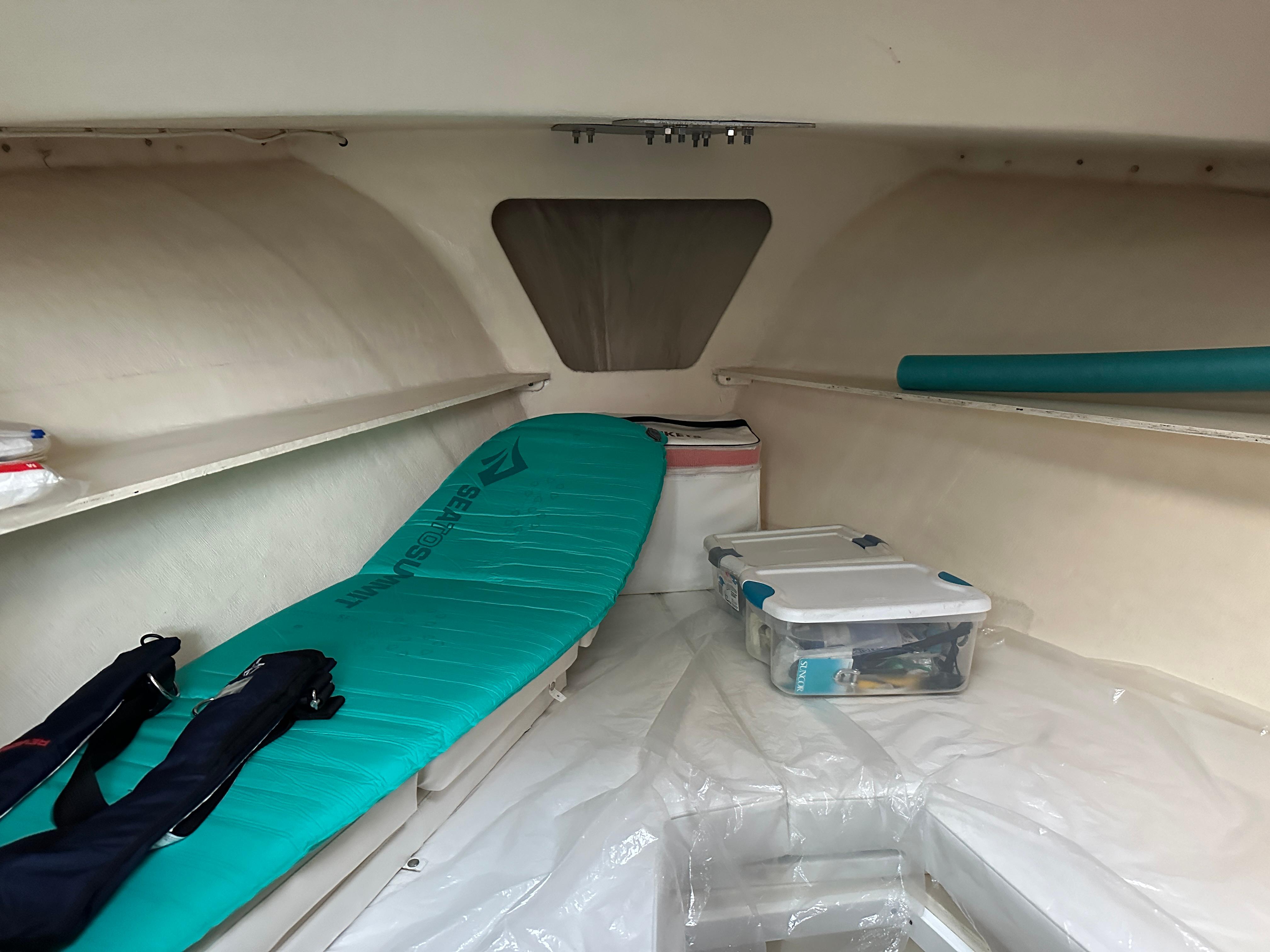

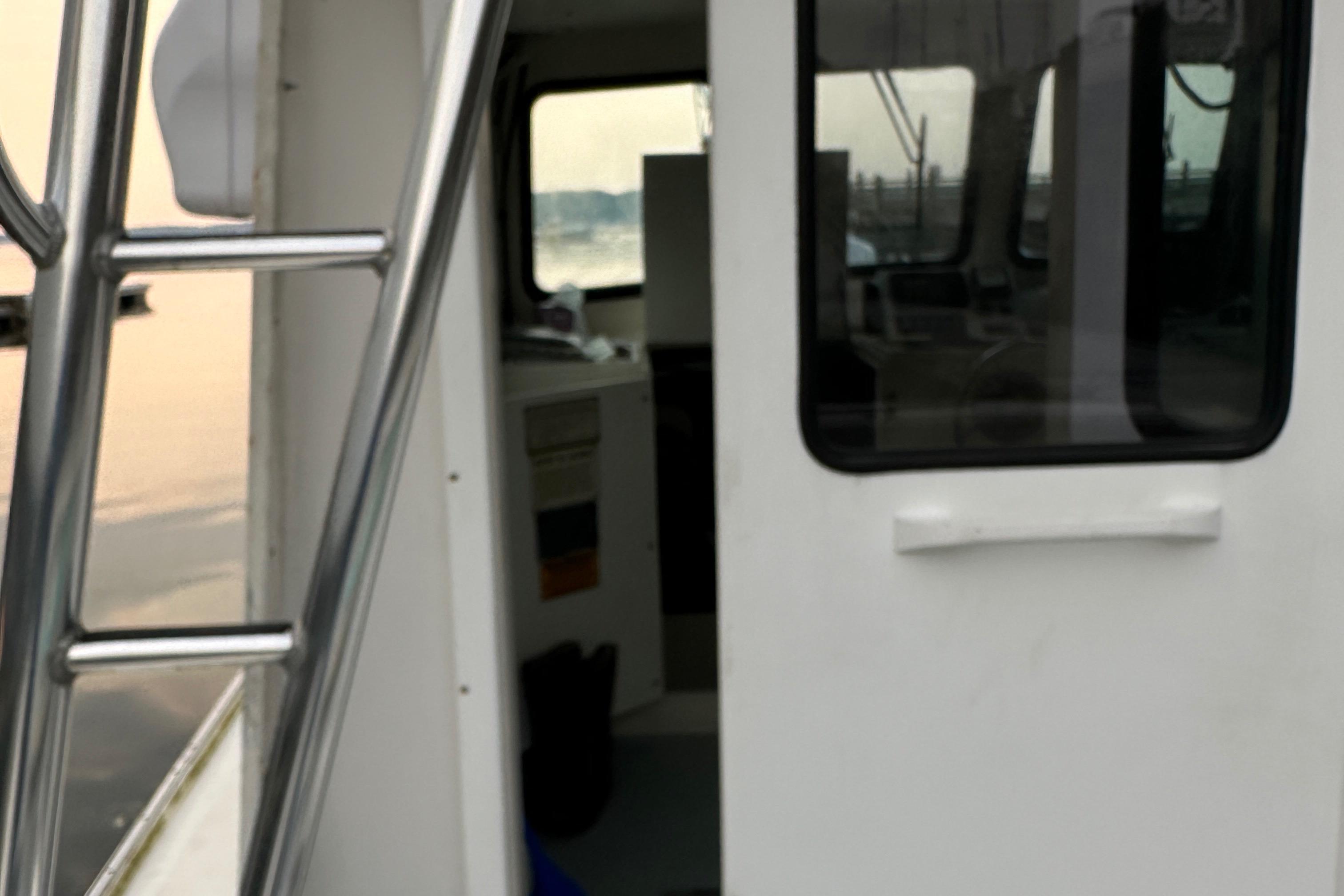

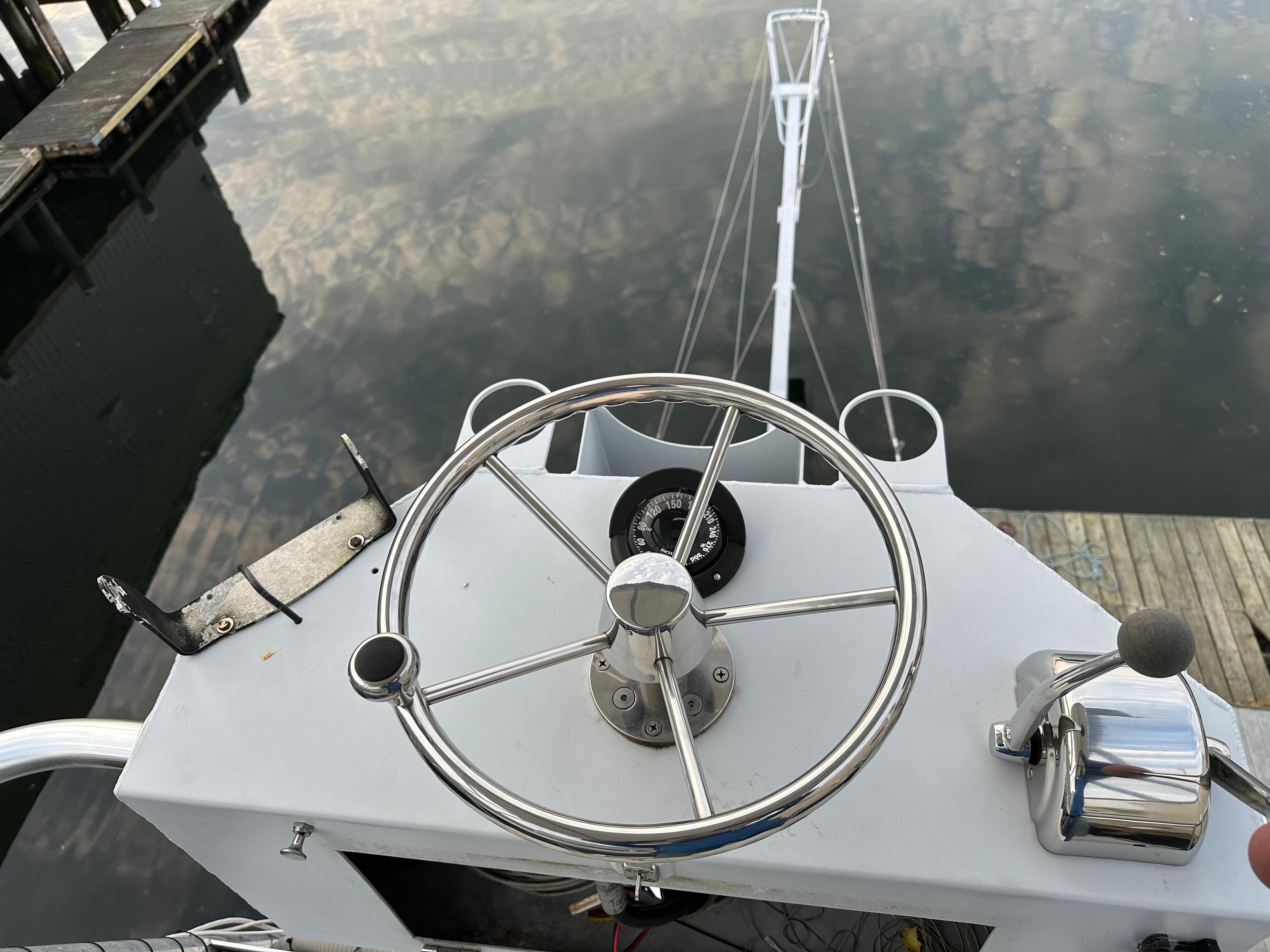

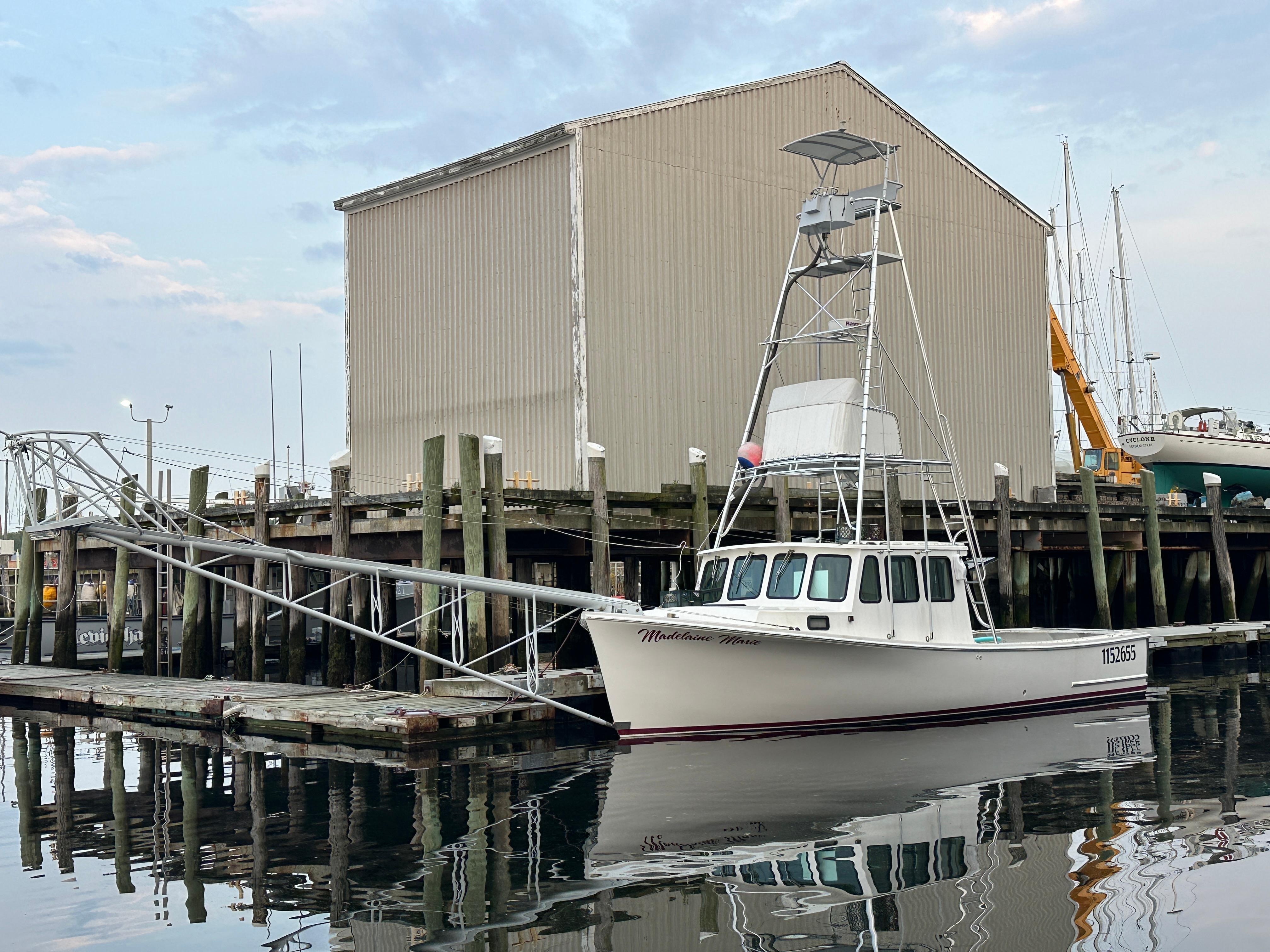

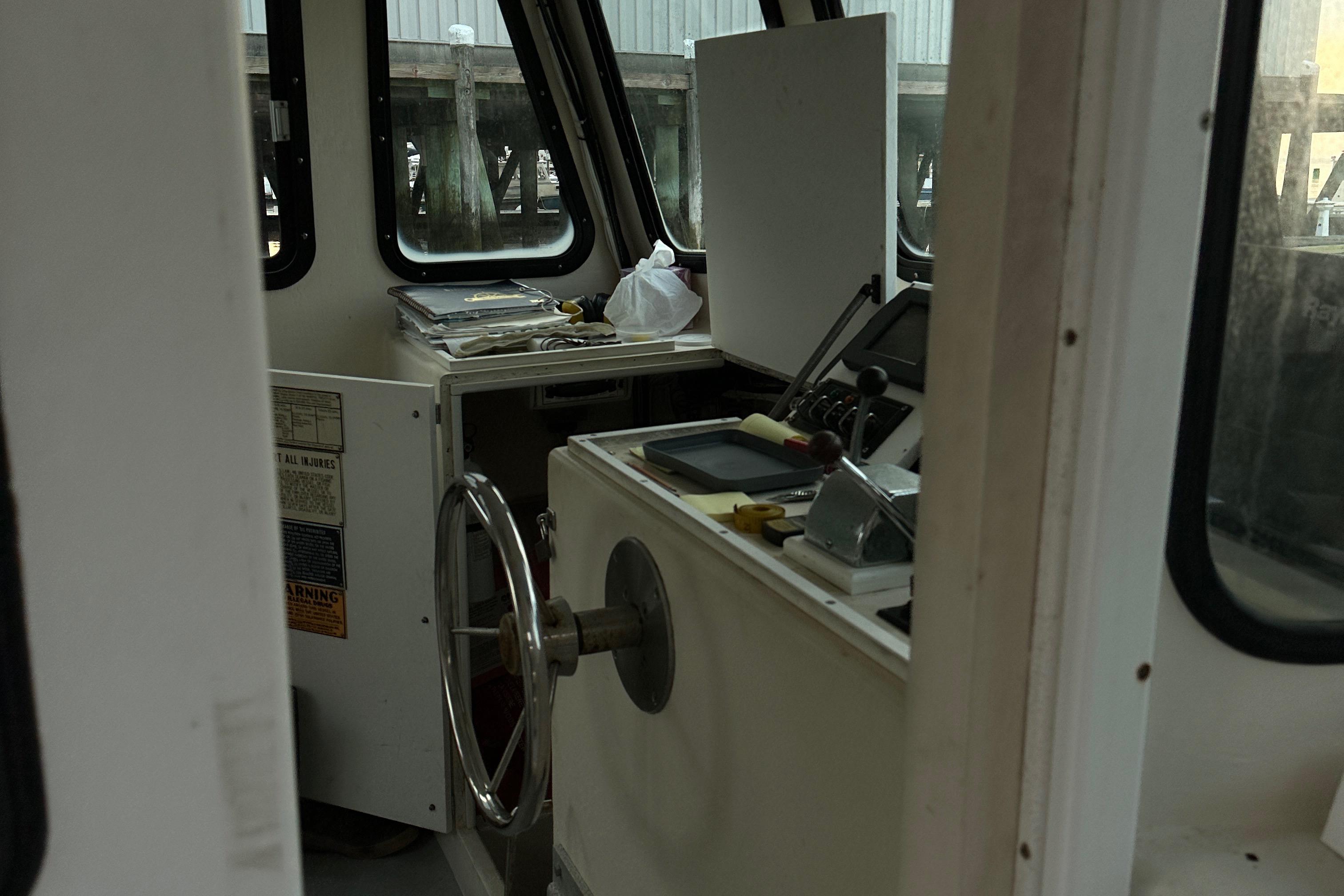

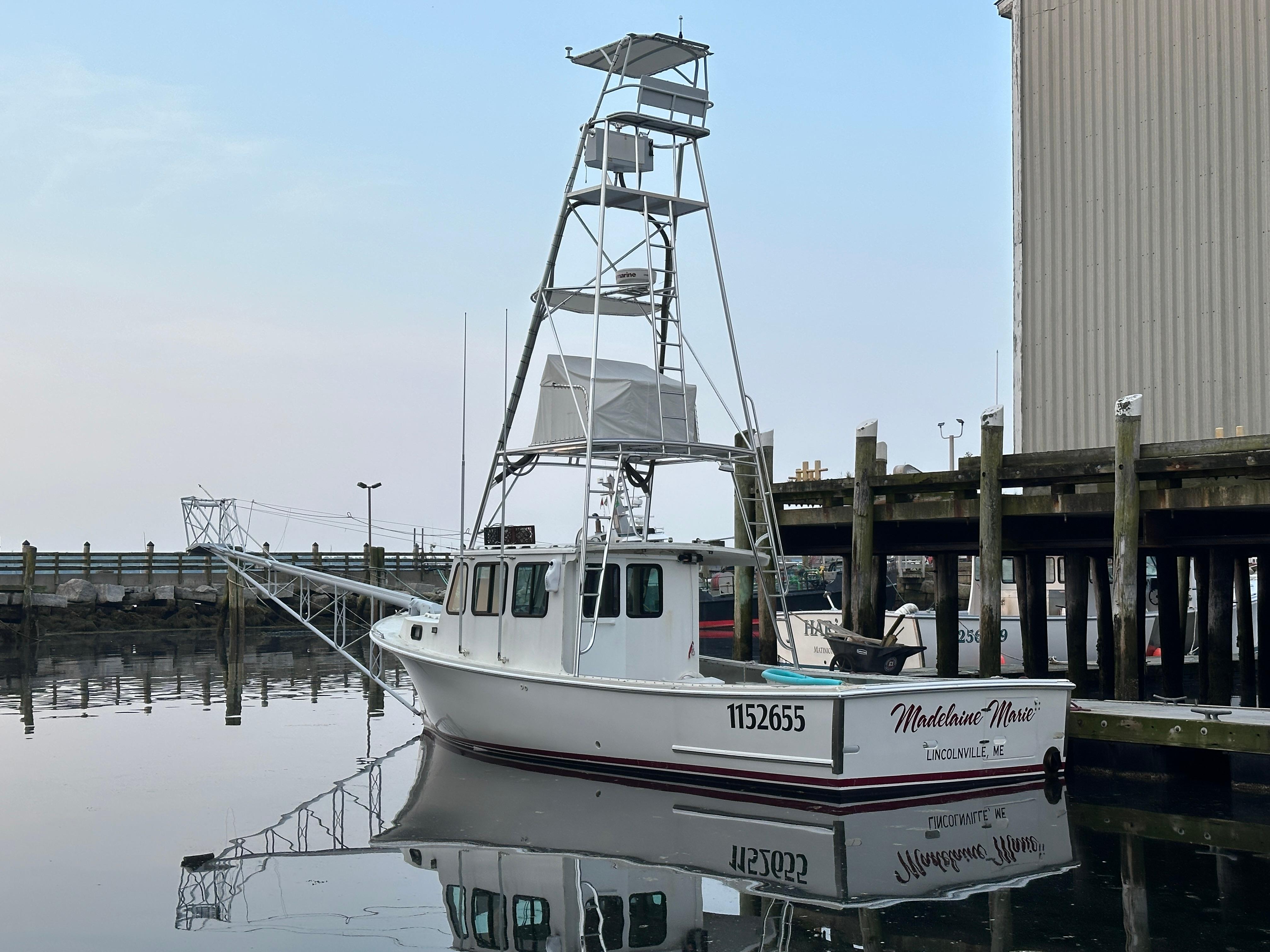

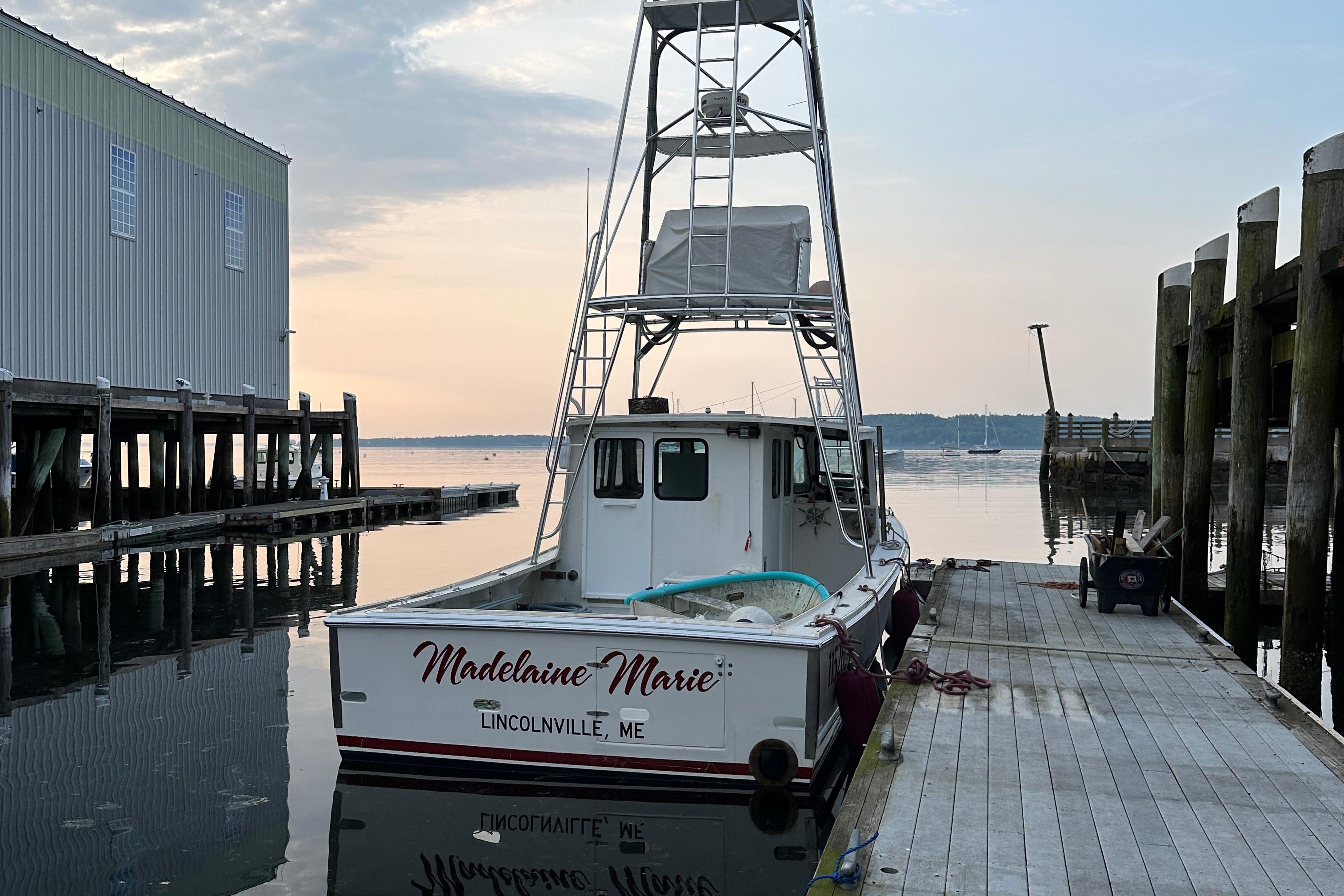

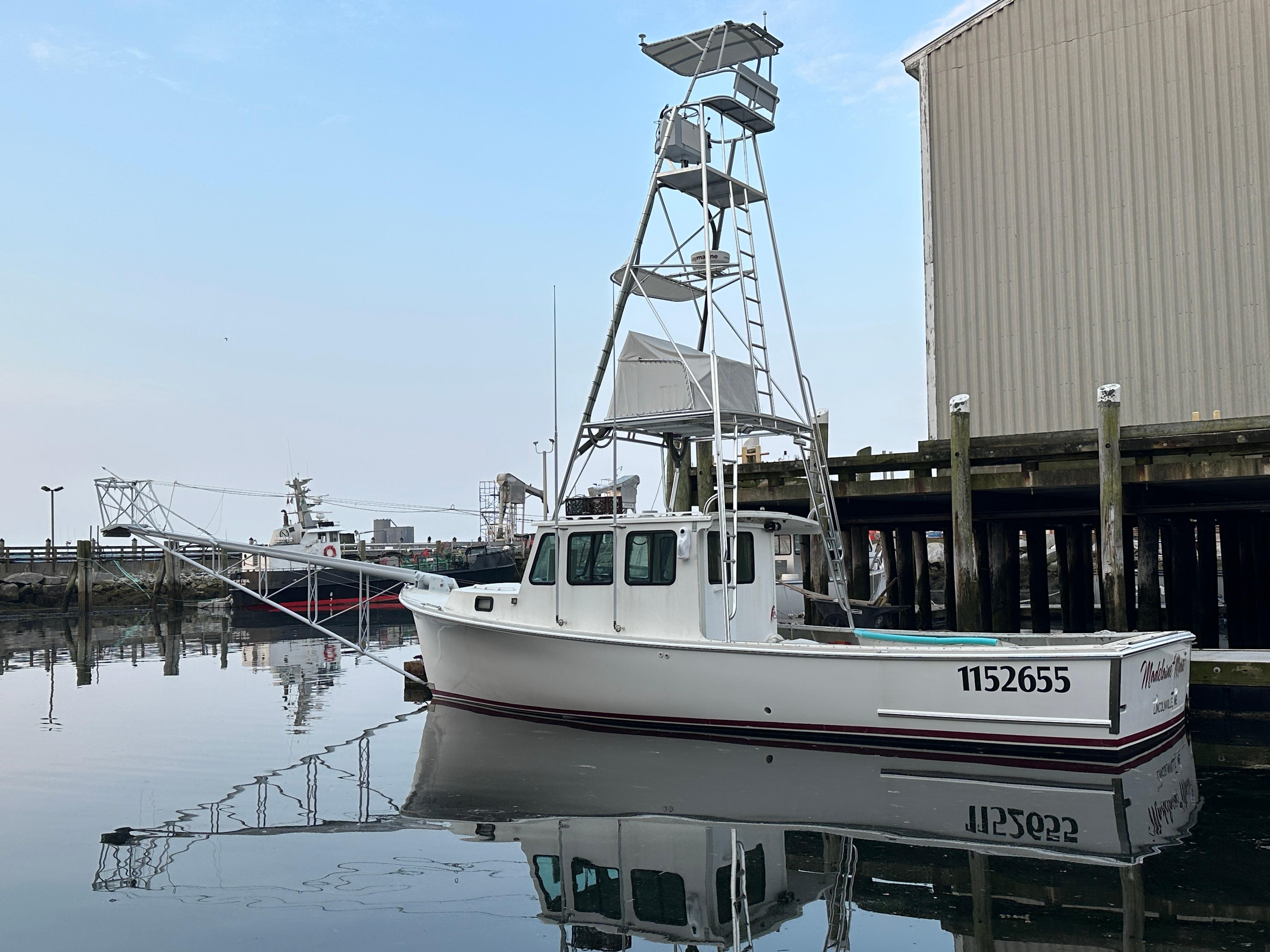

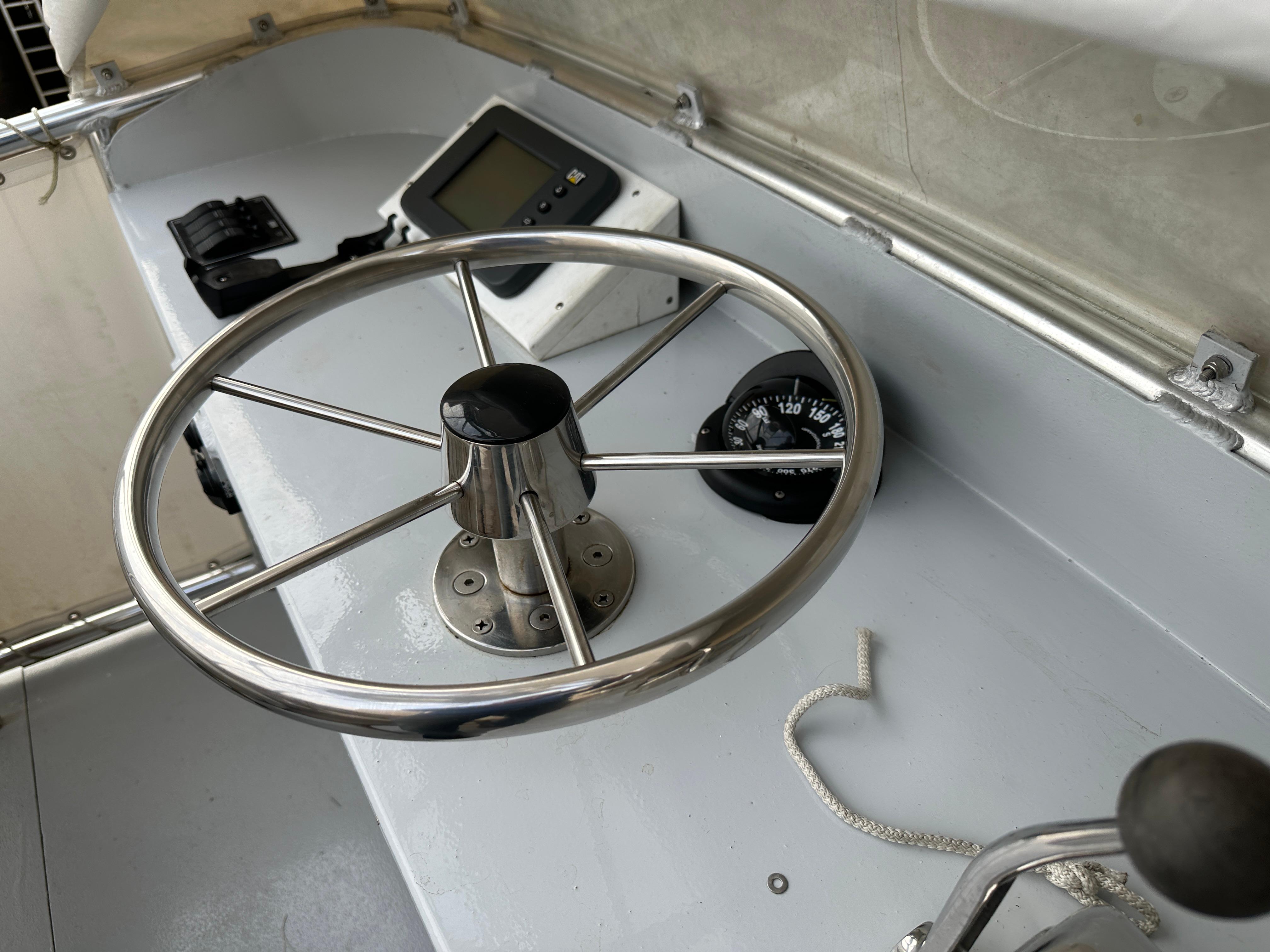

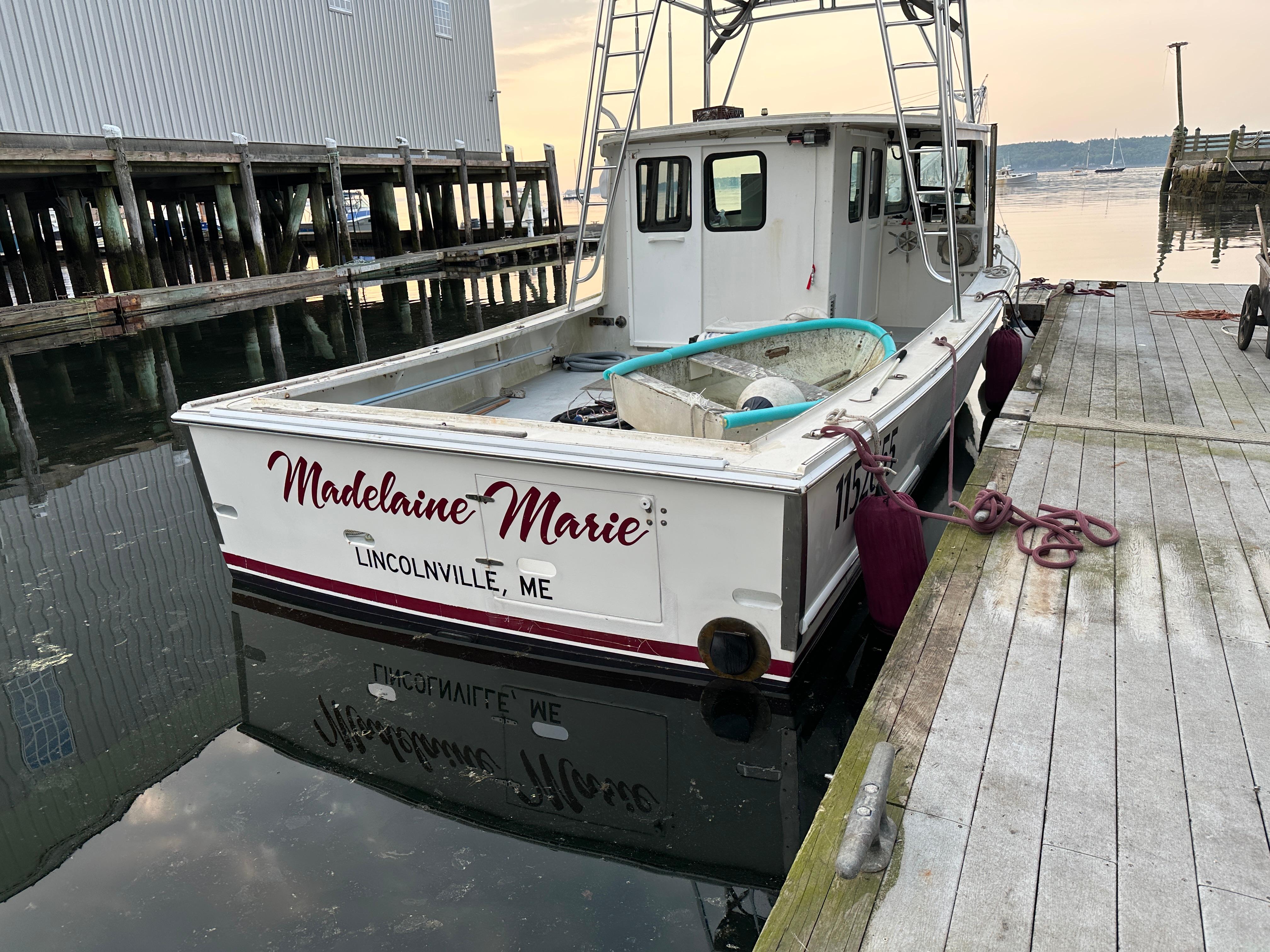

The house and deck are white. The work deck is gray. The vessel has a starboard side hauling/steering station and a fully enclosed (split) wheel house to port. The cuddy cabin has a portside entry door, tabbed sole, and a V-berth. The hull is fitted with PVC rub rails, PVC running rails, and a tuna door in the transom.
Construction Details
Hull: Molded, laminated fiberglass with a flared bow, round bilges, and a
full keel. The hull is stiffened with four longitudinal stringers one major
bulkhead, partitions under the work deck, and tabbed components in the
cuddy.
Deck and House: Molded fiberglass top deck with Balsa coring. The deck is
joined to the hull with a shoe-box flange, stainless bolt and a chemical
sealant. The side decks are supported with knees. The wheelhouse has
Wynne windows and two sliding doors of King Starboard. There is a WYNNE
tip-out window at outside helm. The cuddy cabin has a BOMAR deck hatch
and (2) plastic BECKSON portholes.

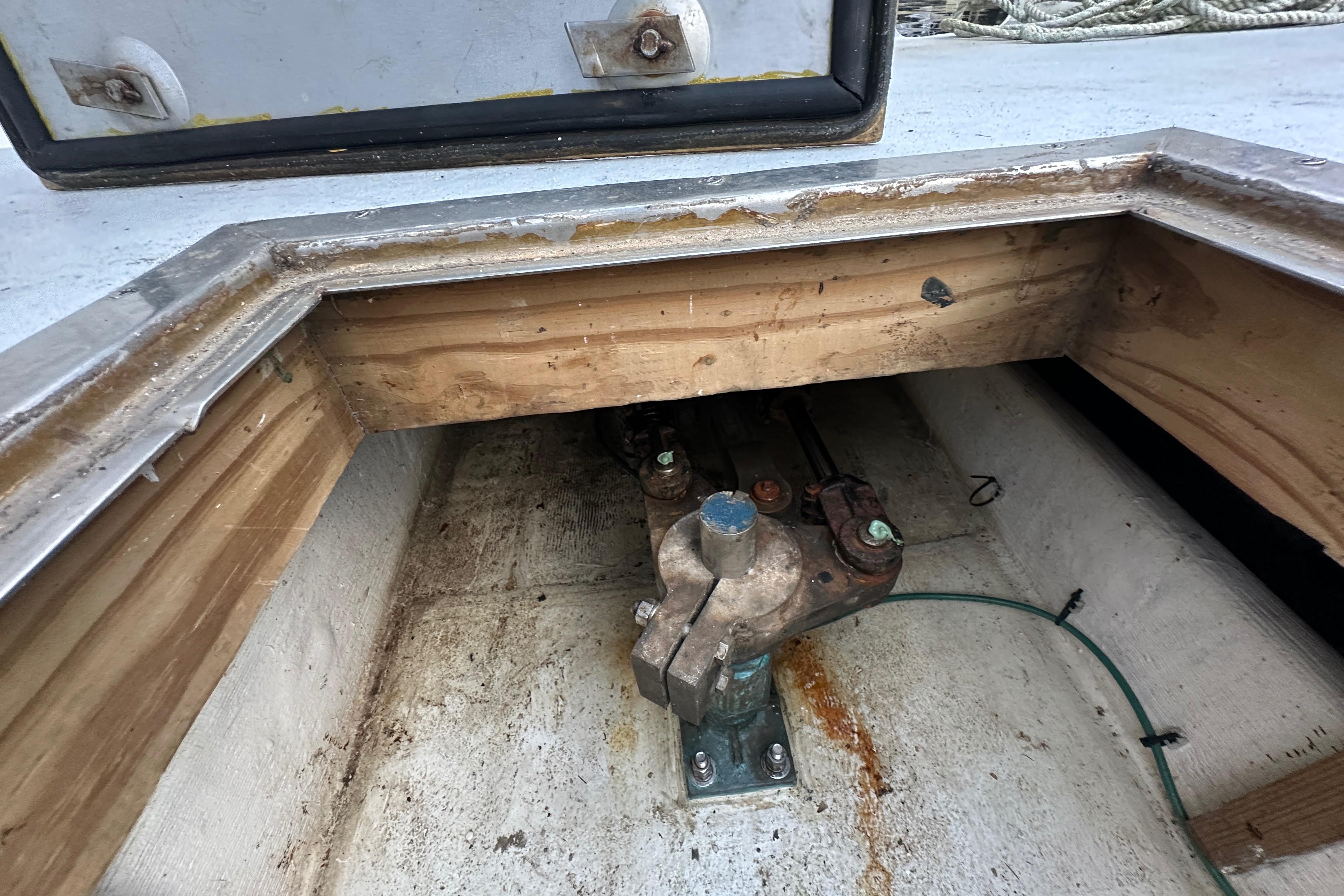

Work Deck: Fiberglass skin over plywood and 2”x 4” pressure treated
beams. The beams are posted to the stringers and bolted to a fiberglass hull
flange. The surface is painted with non-skid and is pitched to the tuna door
and three additional scuppers. There are (4) ANCHOR MARINE aluminum
deck hatches with stainless frames and (2) bronze 6” deck plates. One below deck fish hold. There are four large scuppers built under the wash rails.
