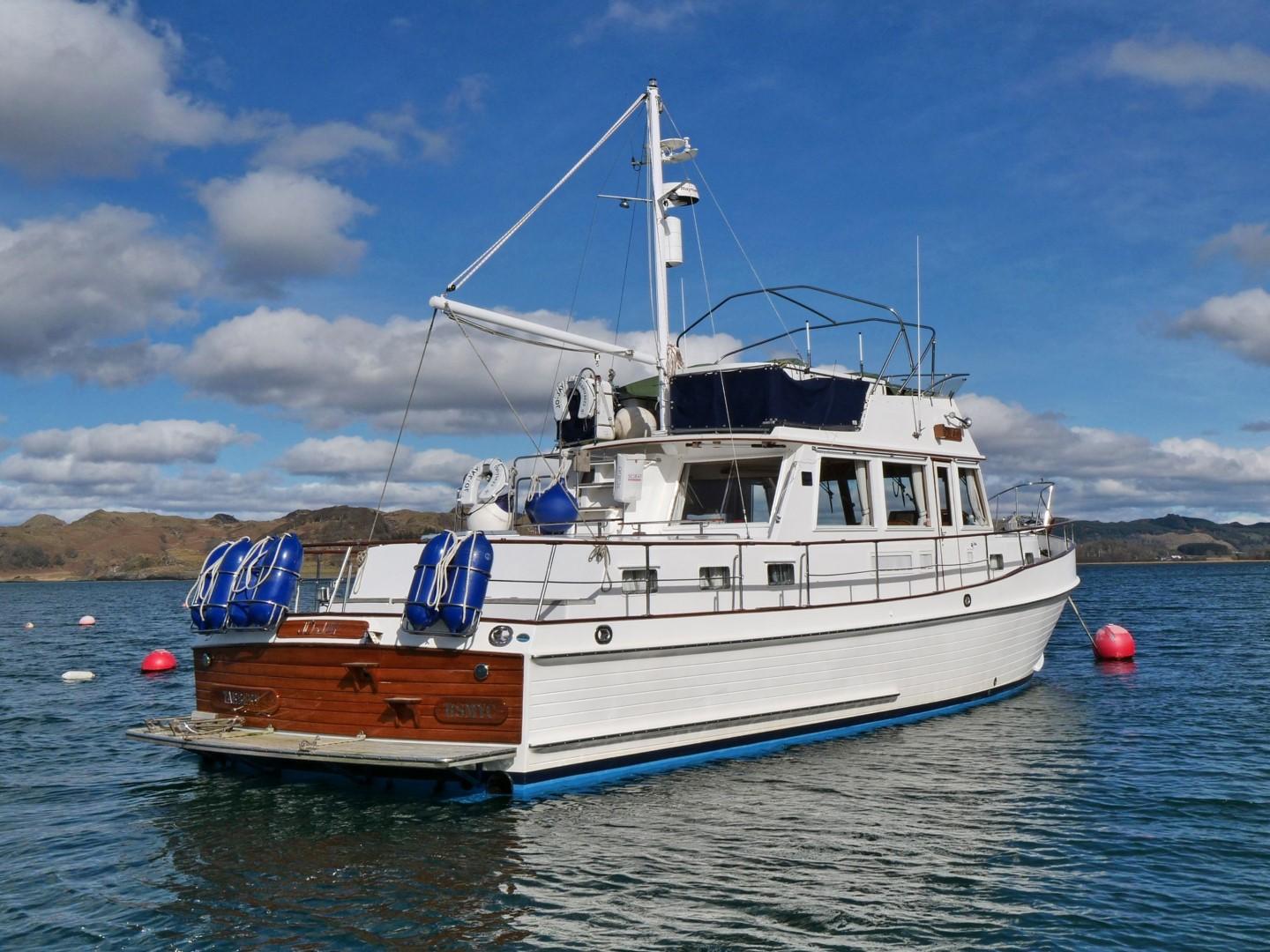

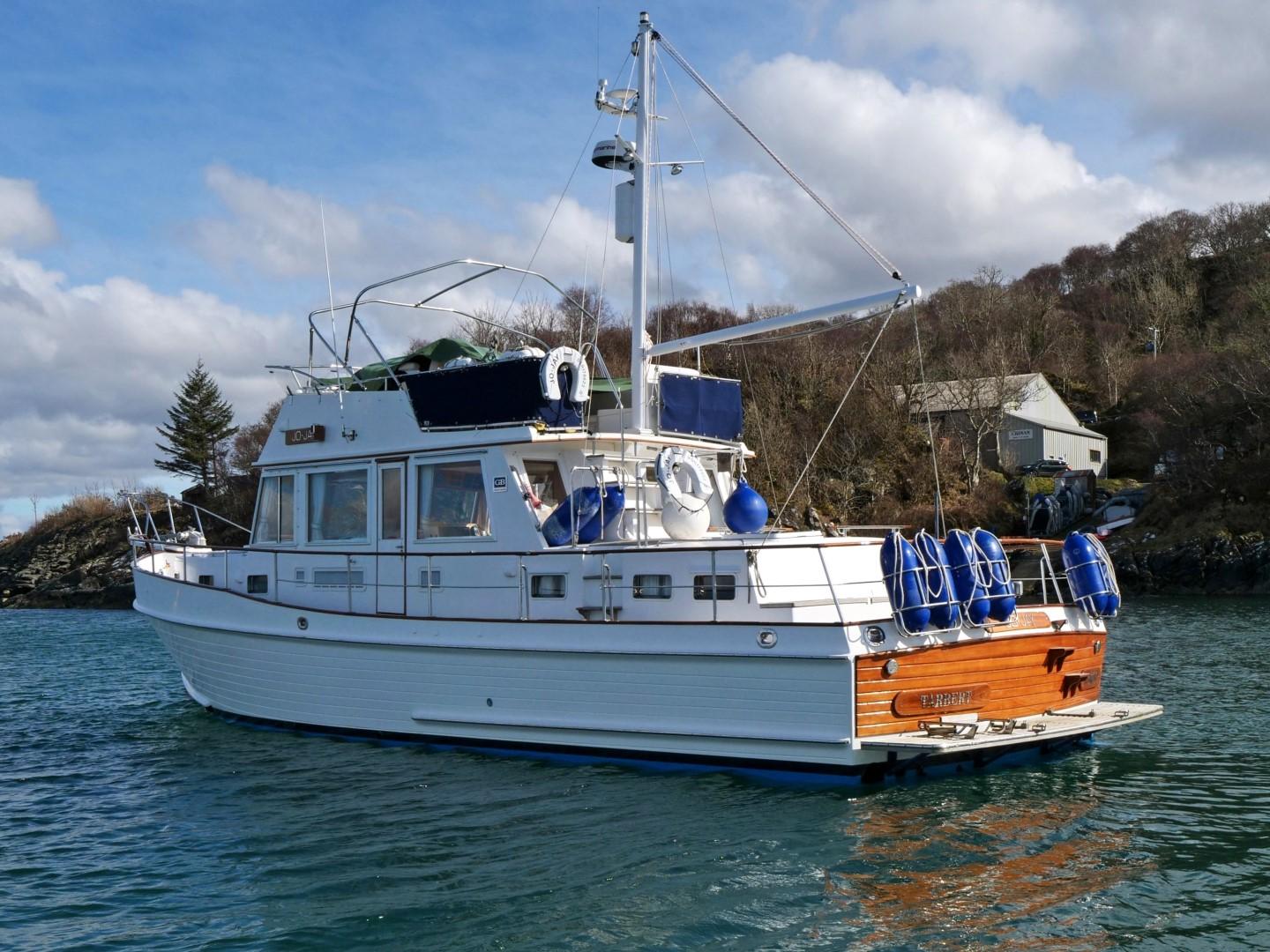

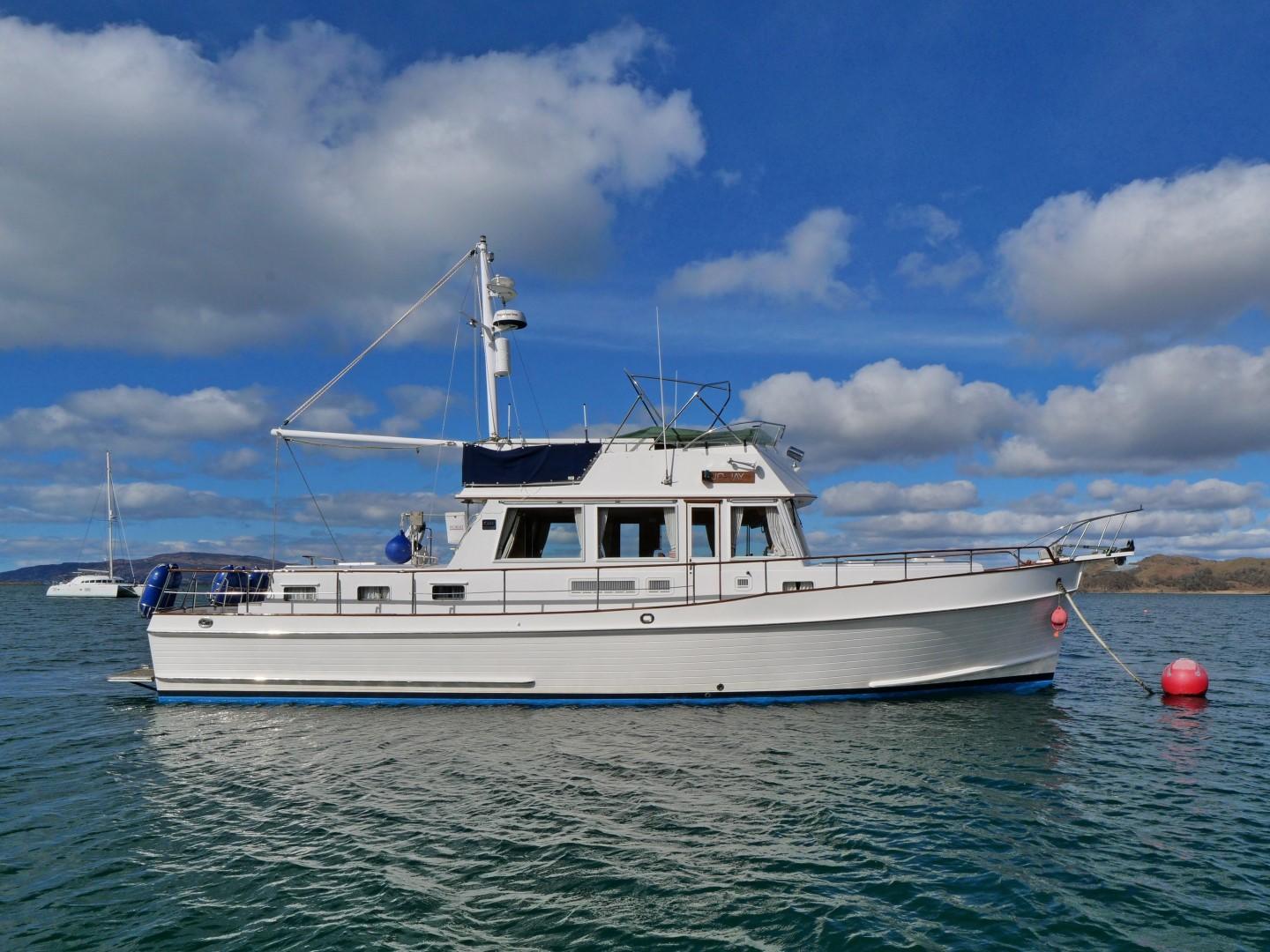

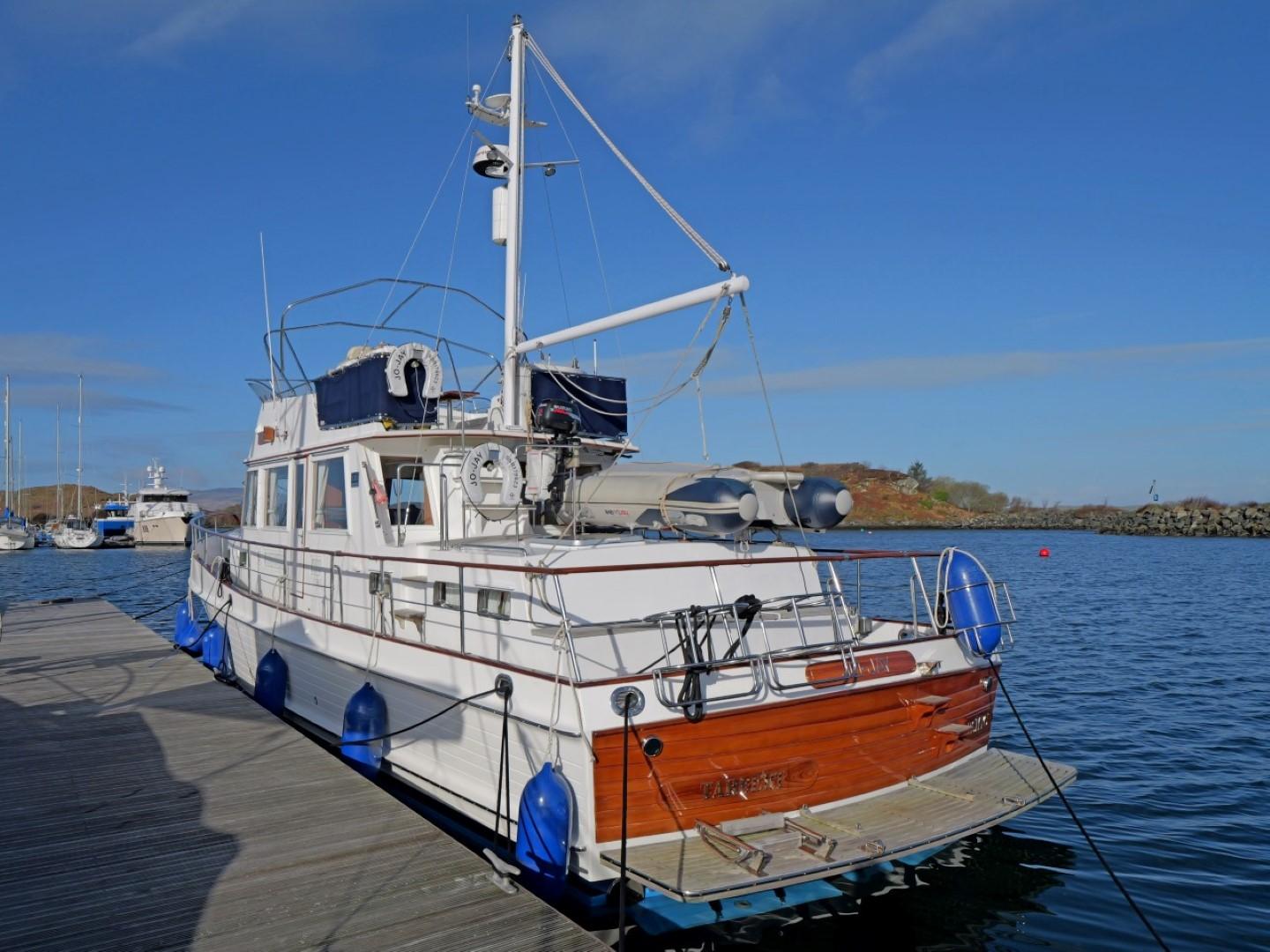

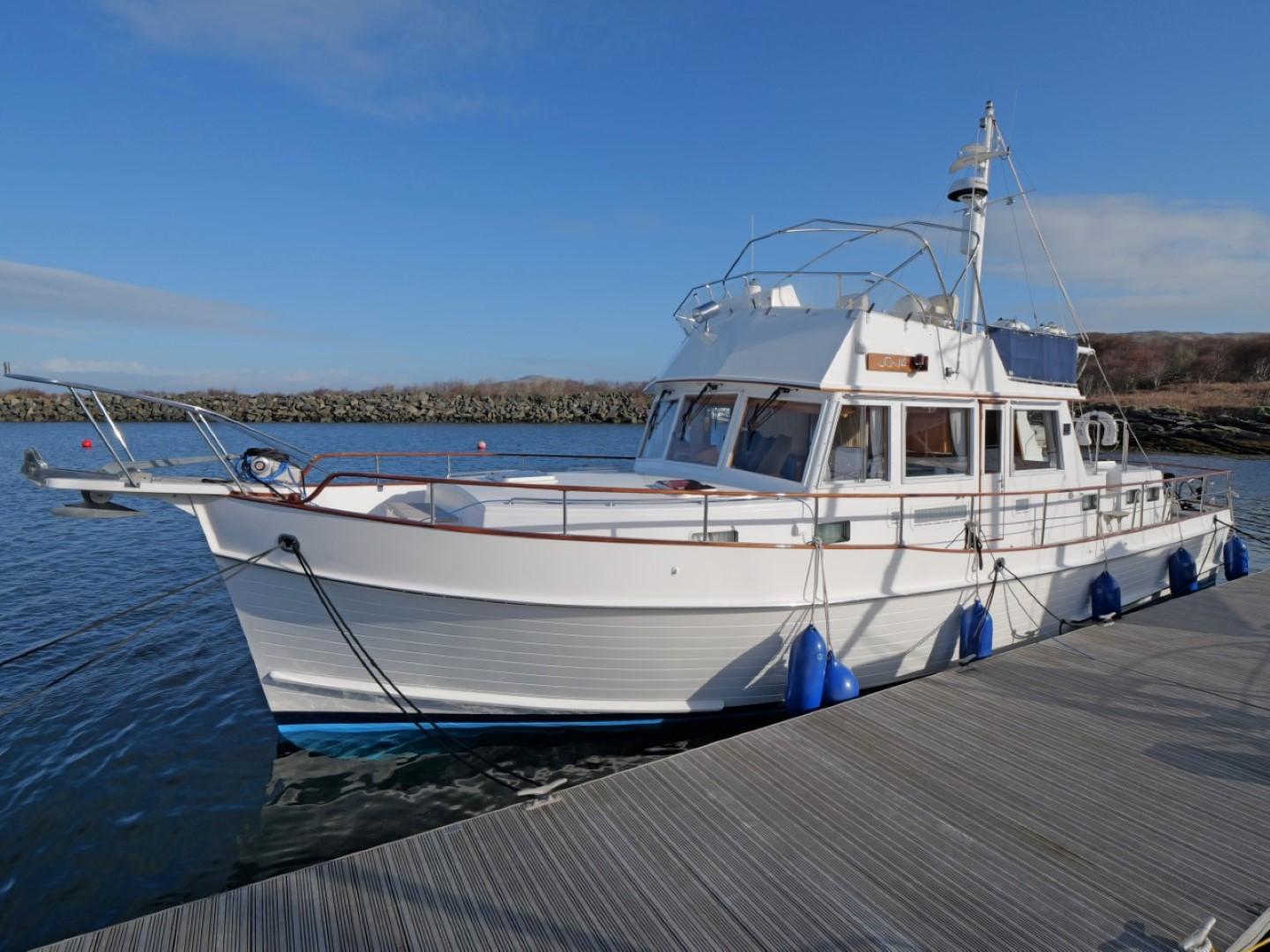

2004 Grand Banks 46 Classic for Sale – 47 ft – Largs, S06, United Kingdom

Originally displayed at the 2005 London International Boat Show. JO JAY is a very smartly presented example of the Ray Hunt-designed Grand Banks 46 Classic semi-displacement trawler yacht with a versatile three-cabin, twin heads interior layout.

FURTHER BROKER’S COMMENTS:

First launched as a model in 1984 the Grand Banks 46 has proven to be an ideal long distance cruiser, available in the Classic or Europa styles. A true semi-displacement hull it strikes the perfect balance between the extremes of full planning and displacement hulls; comfortable cruising between 8-10kts and capable of nearing 20kts if pushed hard. Designed for longer distance cruising the Classic layout boasts two spacious double cabins with a third crew cabin and elevated saloon. With over 300 hulls leaving the factory the Grand Banks 46 has built a loyal following.

Displayed at the 2005 London boat show JO JAY has been UK-based since new; now with her fourth owners, based in Scotland during the current and previous ownerships. Internally she has the more modern layout with a linear galley in the deck house and a spacious third single cabin forward. Wintered ashore undercover with her current owners she has benefitted from recent upgrading. Her inventory highlights feature:
•    Underwater hull finish in blue International Paints antifouling, applied spring 2025
•    Topsides and coachroof superstructure polished Spring 2025
•    2x Caterpillar 3126 (450hp) marine diesel engine
•    NMEA 2000 engine gateway, engine information displaying on Raymarine Axiom displays (2022)
•    Engine space CCTV system with 3 cameras (2021)
•    Onan 7kw marine diesel generator
•    Vetus bow and stern thrusters
•    Bennett trim tabs
•    All batteries replaced for the 2022 season
•    Victron charger / Inverter
•    Raymarine EVO autopilot system (2021)
•    2x Raymarine Axiom Pro12 RVX MFD’s (2021)
•    Raymarine Quantum 2 Doppler radar scanner (2021)
•    Raymarine RV200 fishfinder transducer (2021)
•    Raymarine AIS700 (2021)
•    Raymarine Ray90 Black Box DSC VHF with CommandMics at both helm stations (2021)
•    4G onboard wifi router (2023)
•    Gaggenau electric 4 ring halogen hob
•    Panasonic Combination oven 230VAC (2022)
•    Tecma 'silence plus' electric heads units x2
•    Eberspacher blown air heating system

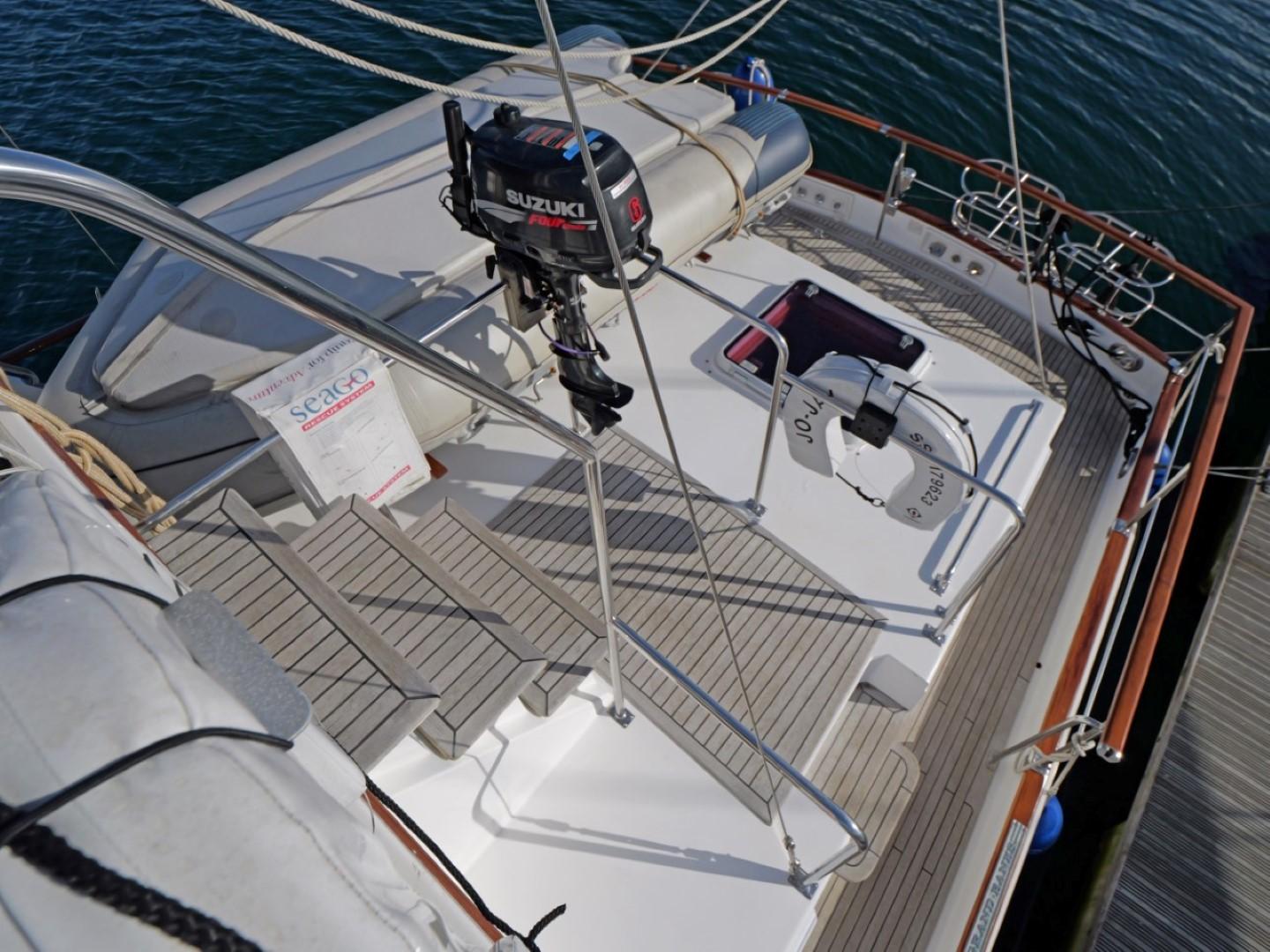

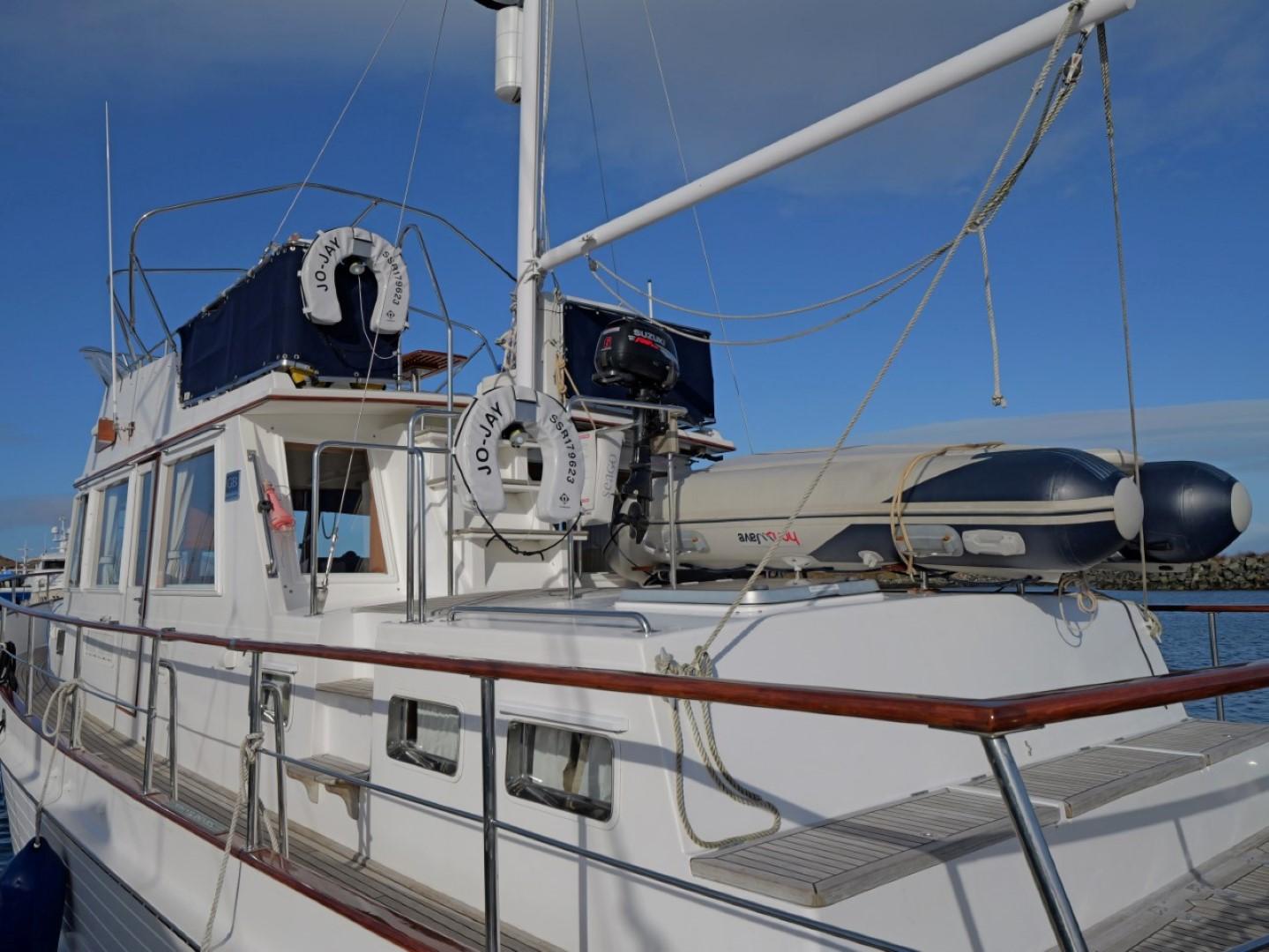

•    Honwave inflatable dinghy with outboard
•    EPIRB (2022)

CONSTRUCTION

RCD Status:
•    We understand the vessel is compliant with the EU’s Recreational Craft Directive.

CONSTRUCTION

Hull Construction:
•    Heavy weight, hand consolidated, GRP moulding
•    GRP formed internal structural members, laminated to hull internally
•    Simulated planking finish moulded into topsides.
•    Moulded rub rail along the line of the deck edge, capped with a stainless steel capping rail.
•    Transom is finished with a varnished solid teak planking effect panel finished in varnish
•    Topsides finished in original white gelcoat
•    Underwater hull finish in blue International Paints antifouling, applied spring 2024

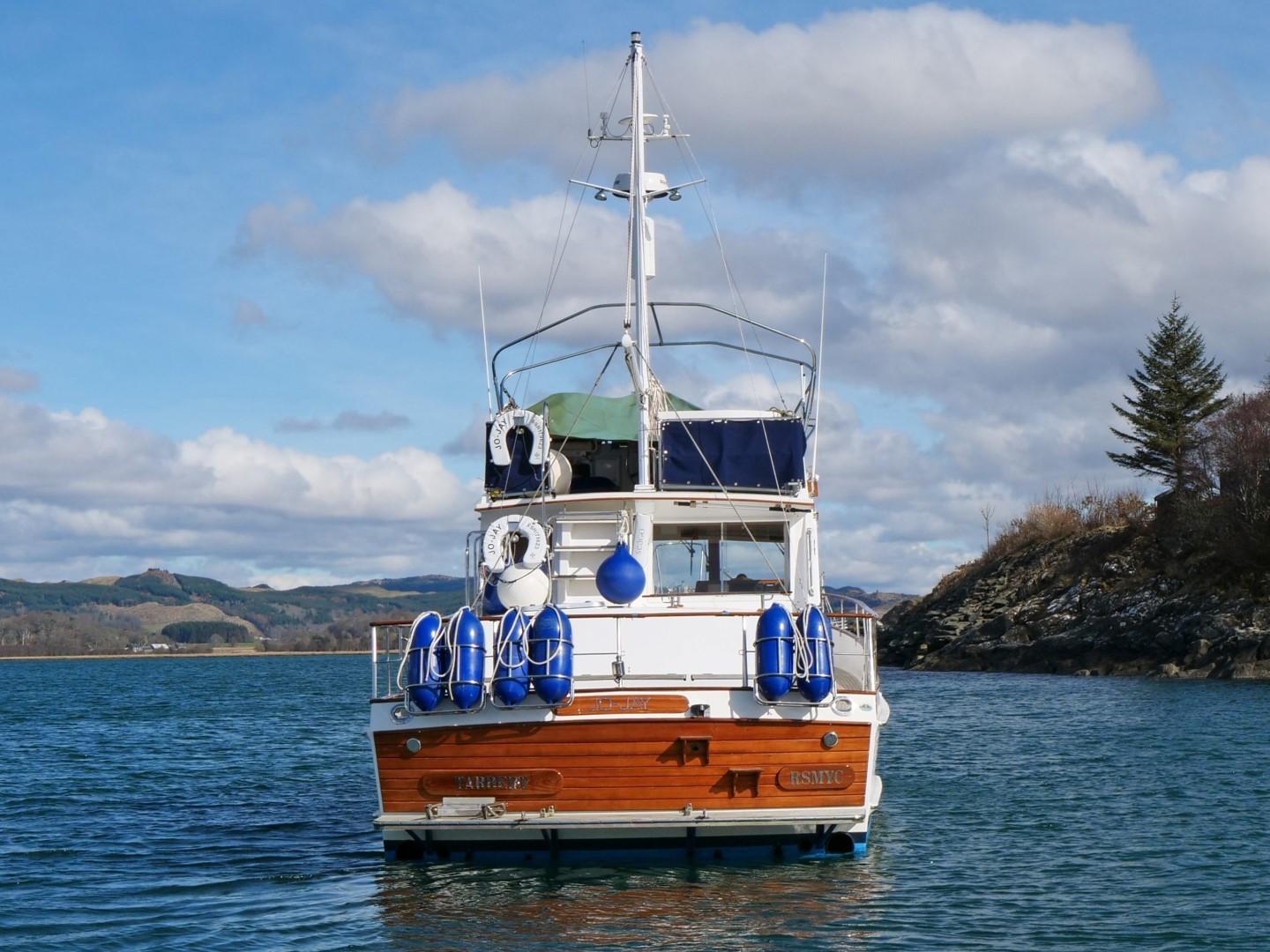

•    Transom finished in varnished solid teak veneer panel
•    Bathing platform mounted on transom
•    Boat wintered ashore, undercover annually during current ownership

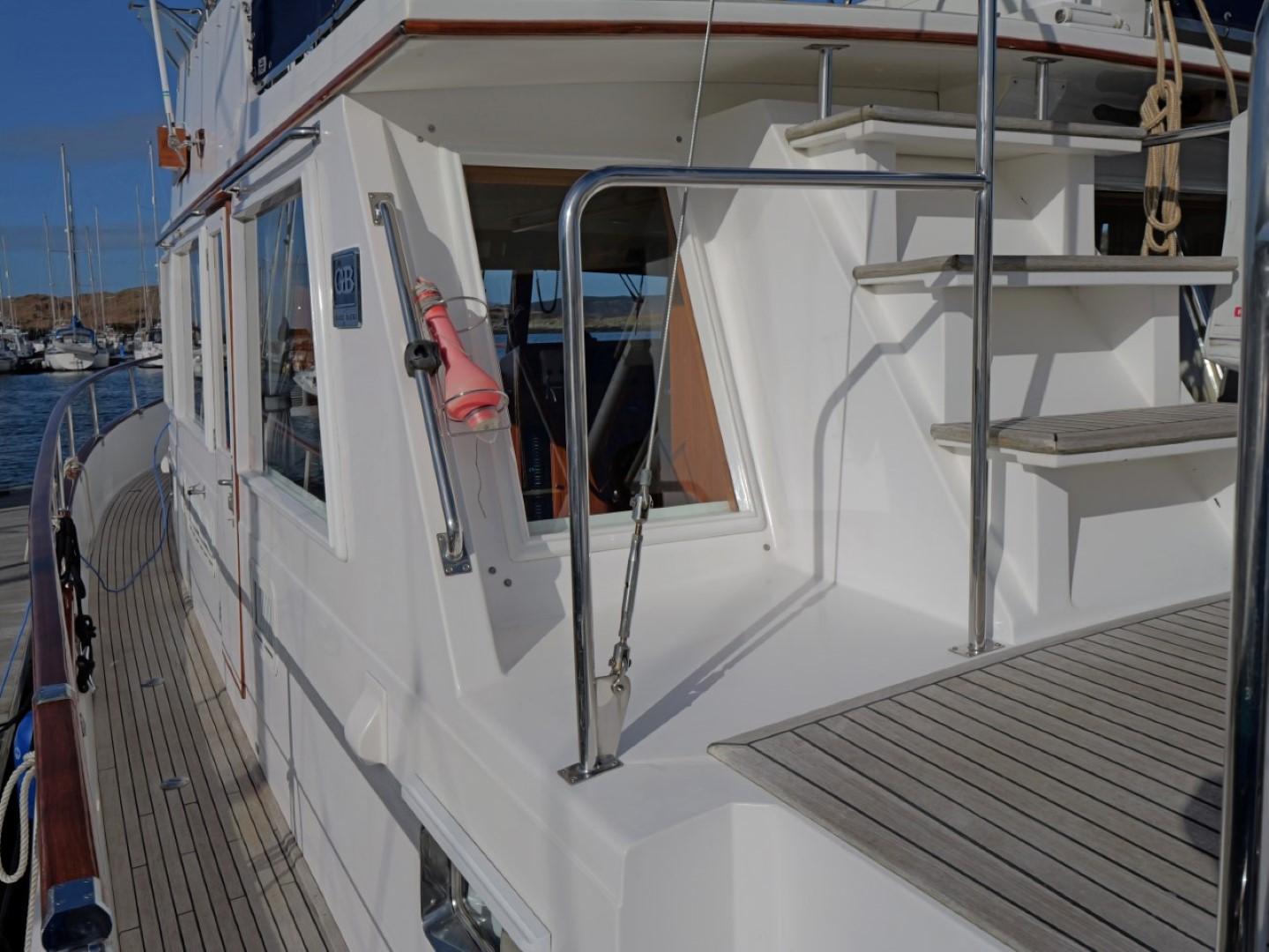

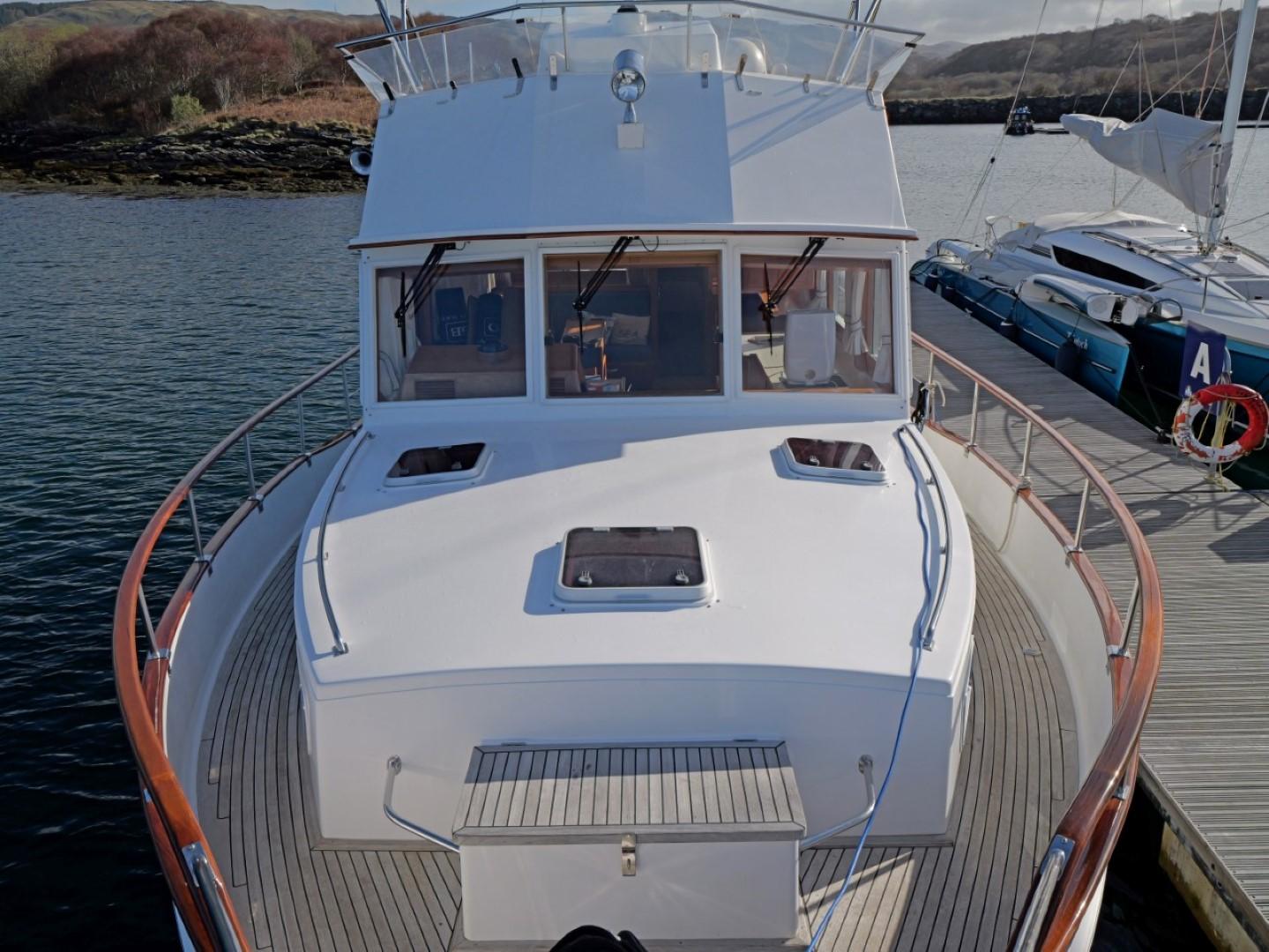

Deck & Superstructure Construction:
•    Heavy weight, hand consolidated, GRP moulding incorporating decks and superstructure.

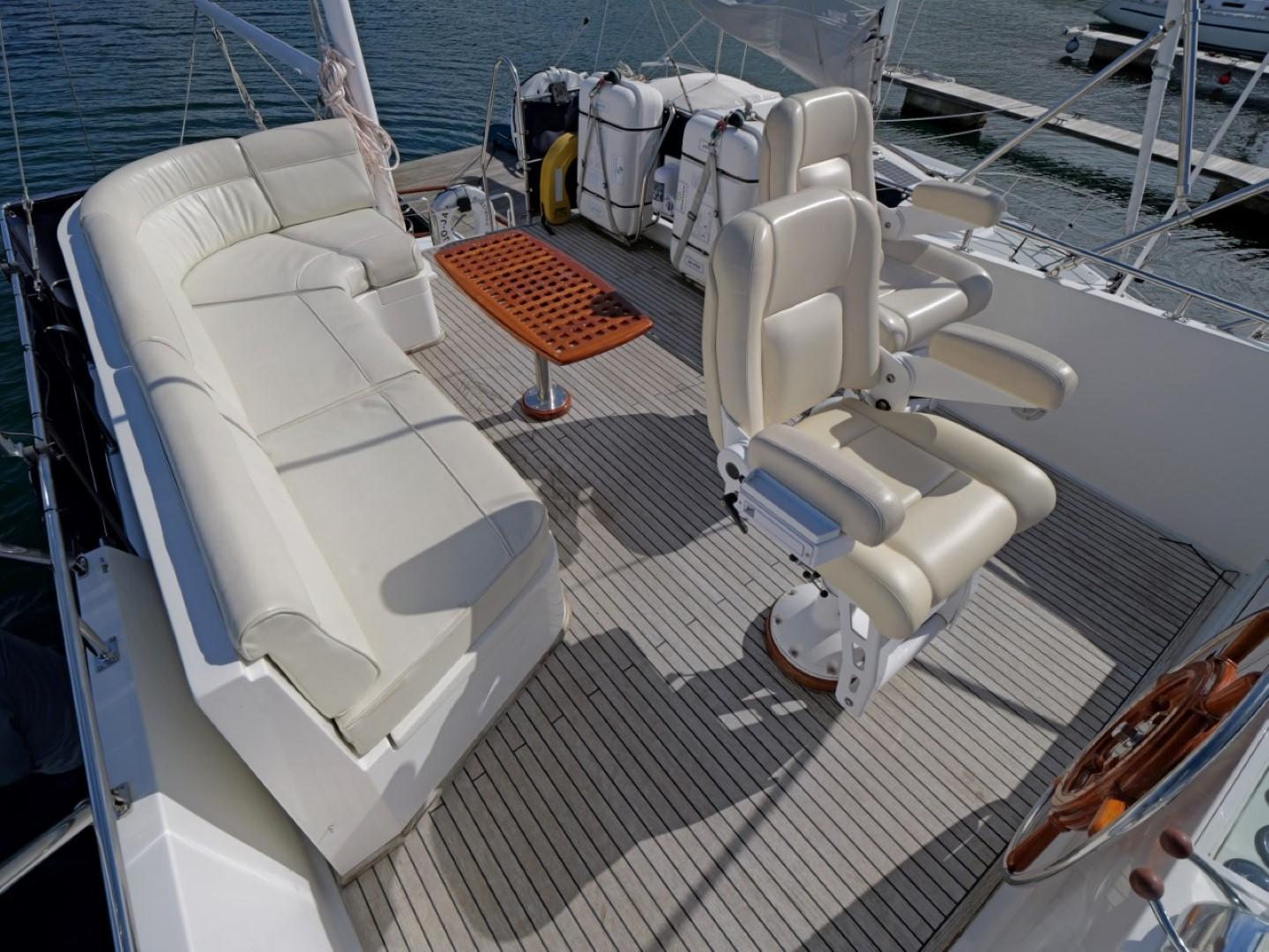

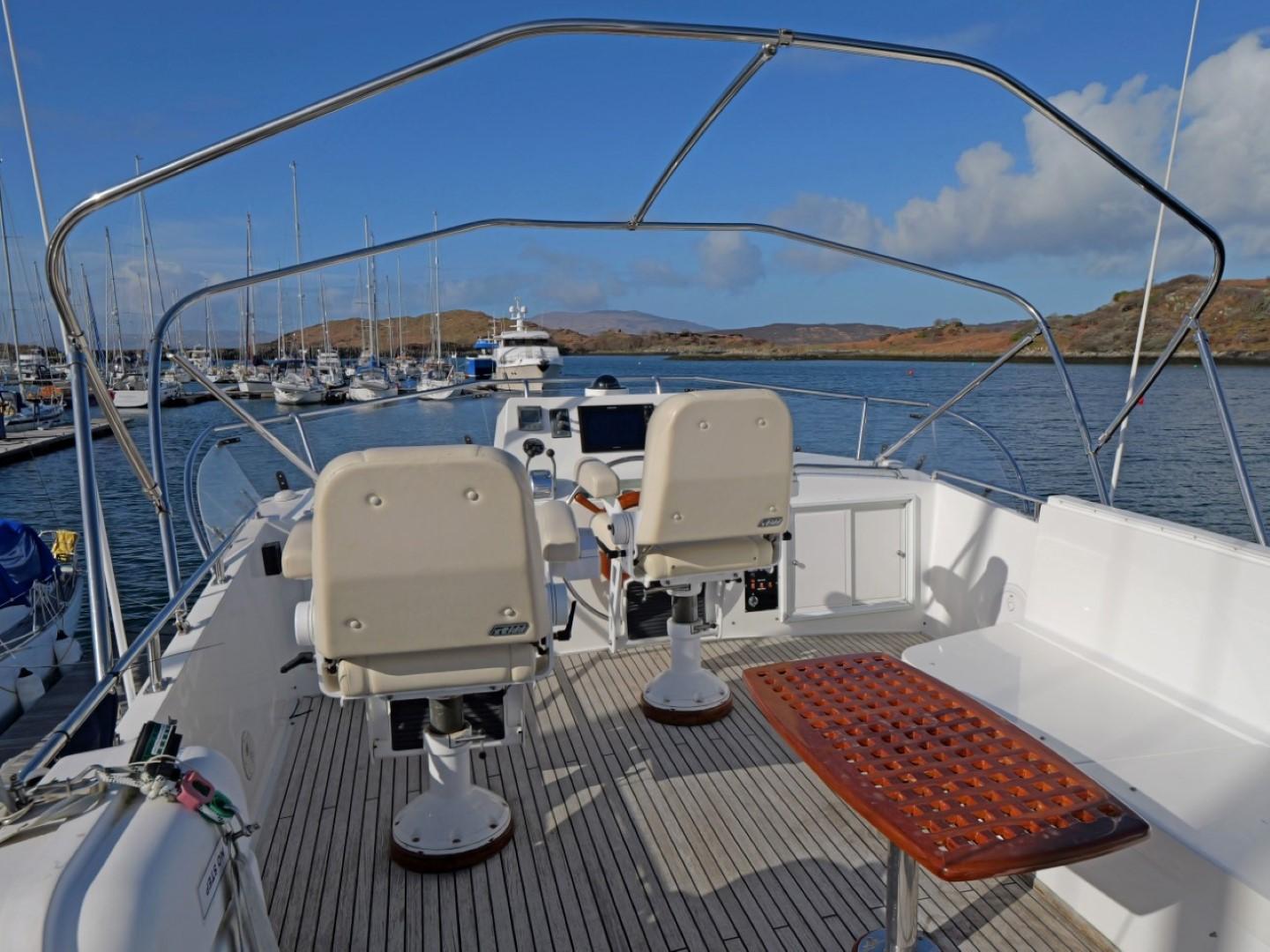

•    Heavy weight, hand consolidated, GRP moulded flybridge
•    GRP mouldings finished in white gelcoat.

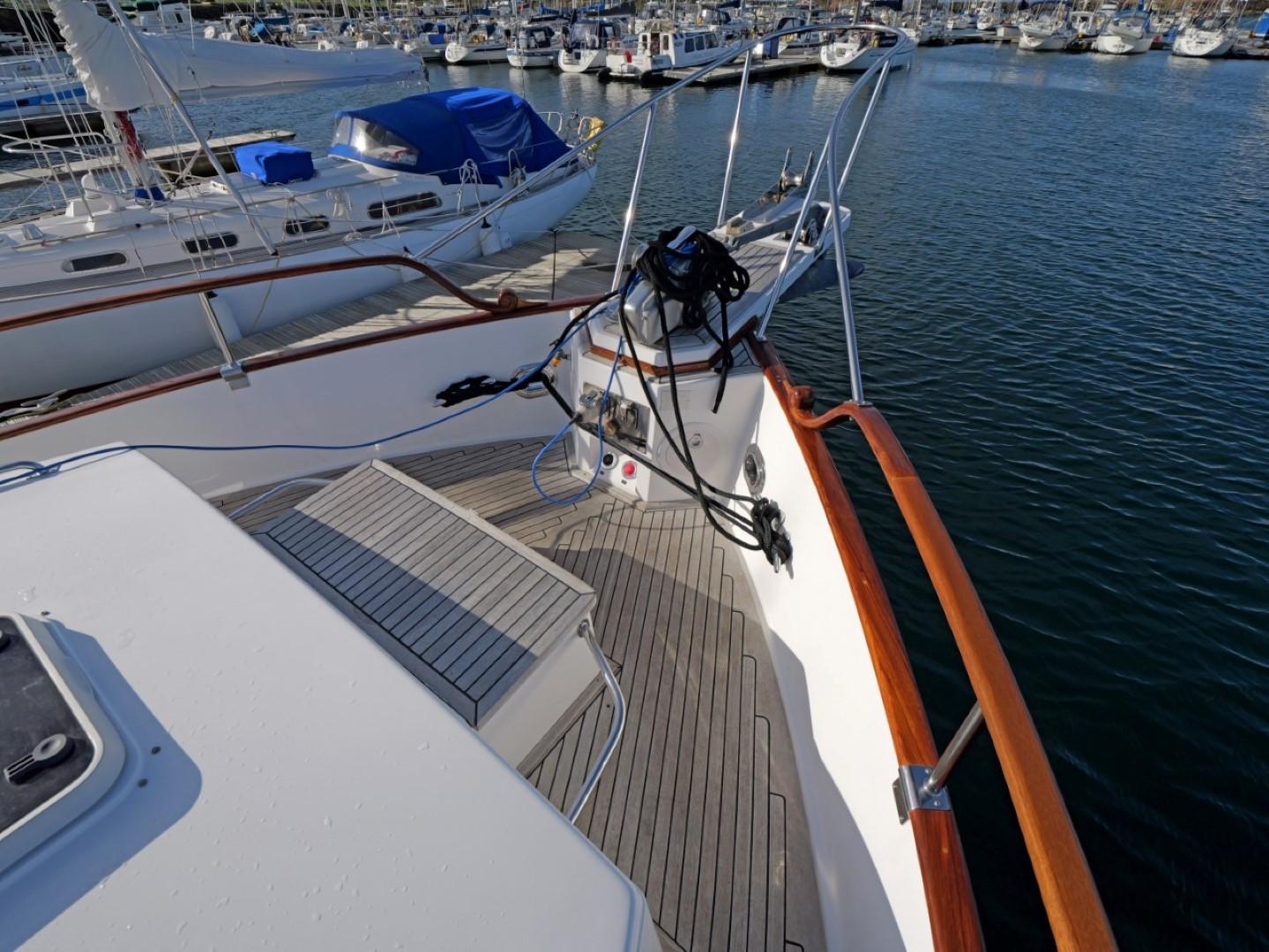

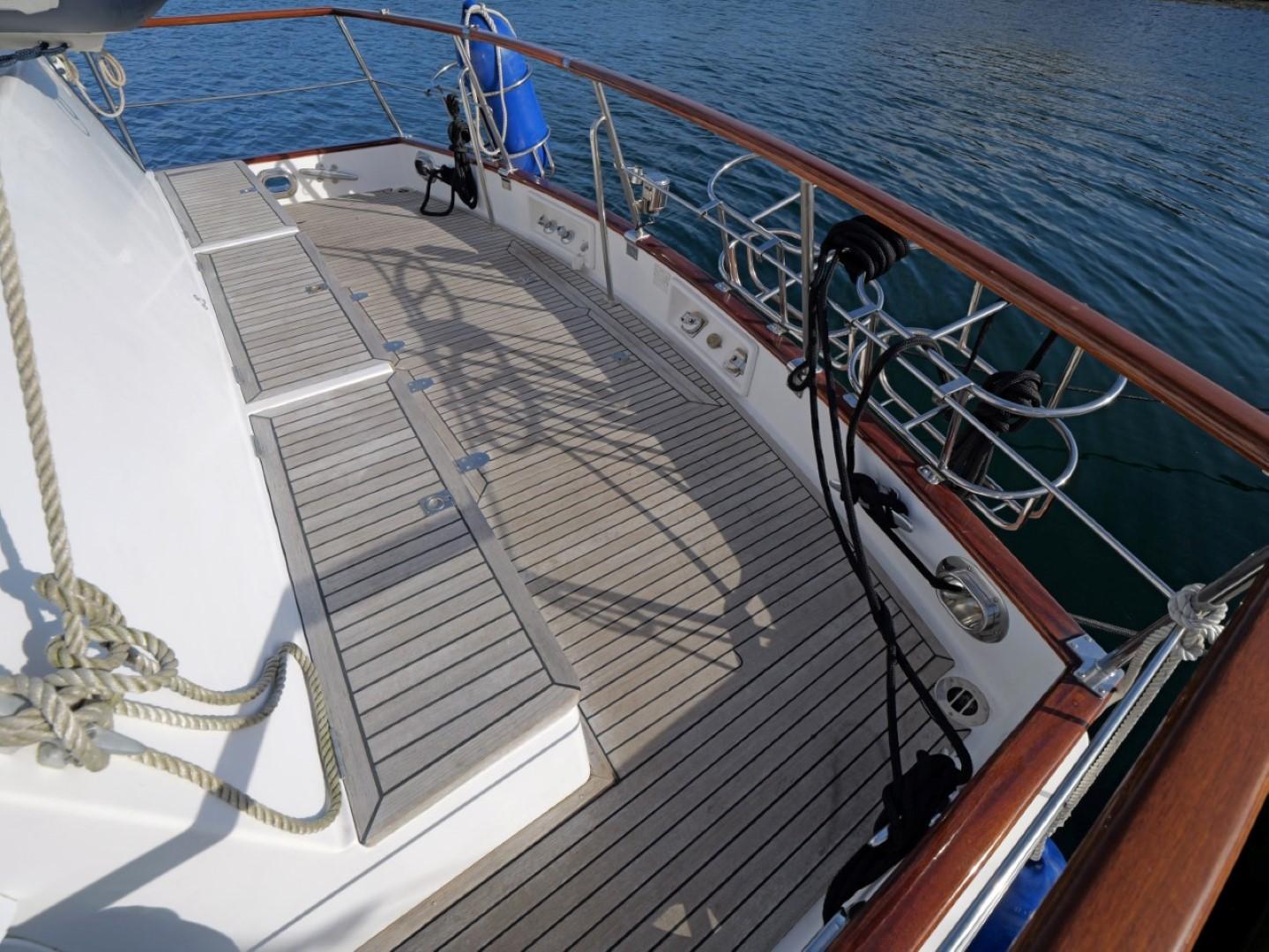

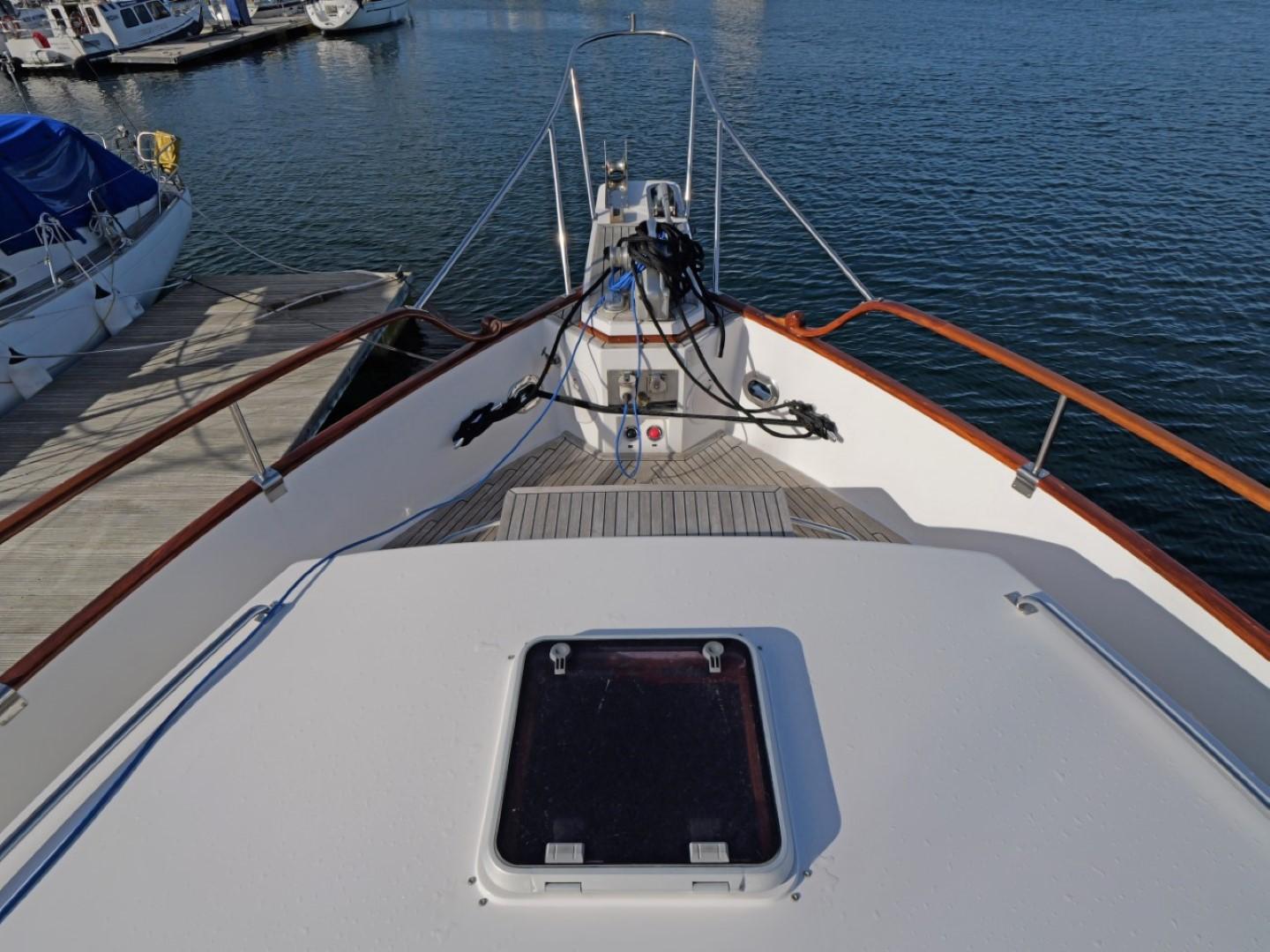

•    Laid teak decks to finish flybridge sole, foredeck, side decks and aft deck
•    Solid teak capping rail
•    Stainless steel stanchions with tubular stainless steel guard rail running the length of the side deck.
•    Solid teak grabrail to top stanchions with gates port, starboard and aft
•    All brightwork professionally maintained on an annual basis
•    Stainless steel guard rail around access steps to flybridge

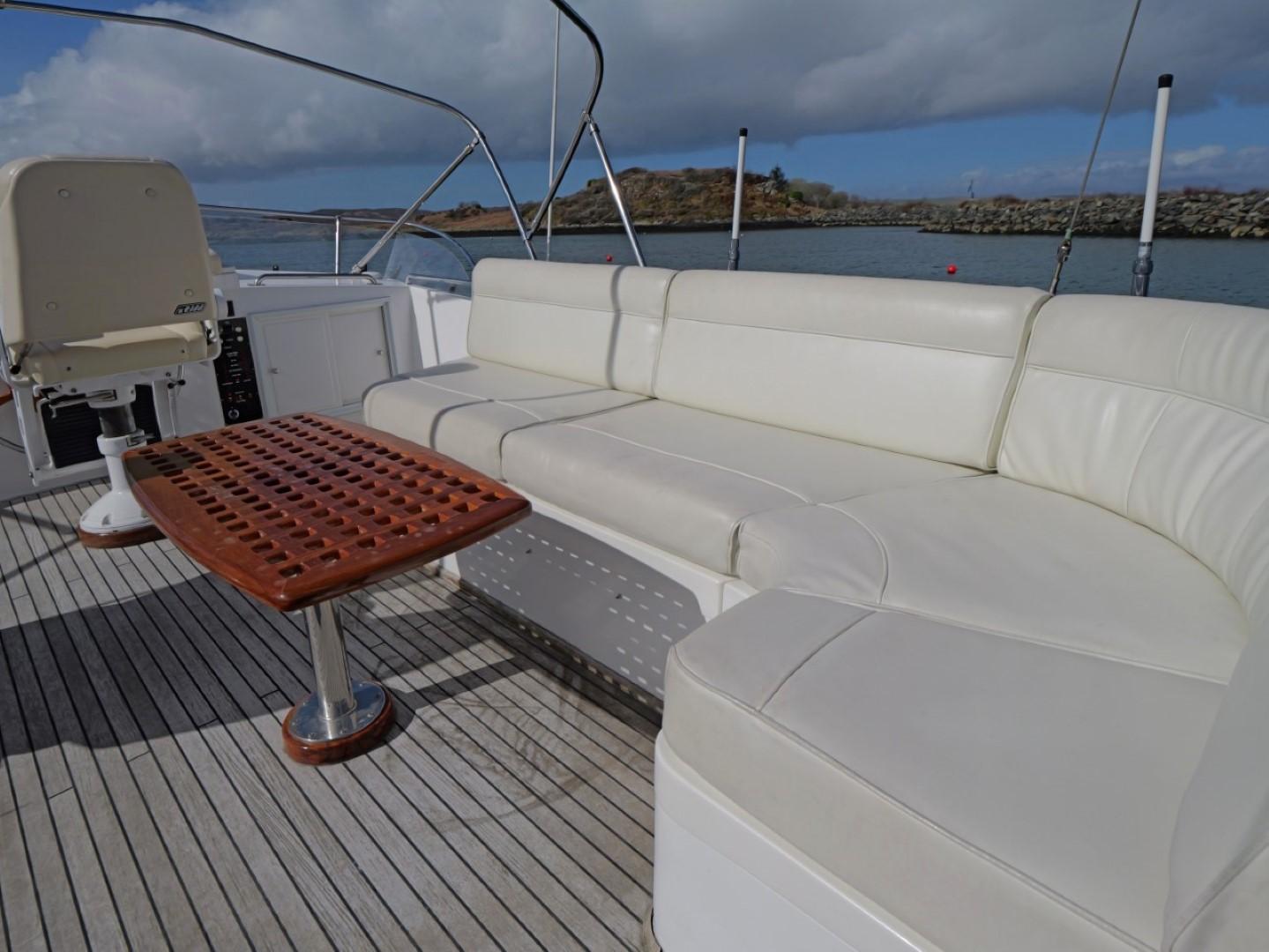

•    GRP moulded seating units on the flybridge
•    Stainless steel guard rail around aft end of the flybridge
•    Alloy mast and derrick boom
•    Perspex forward raked windscreen around flybridge

Keel & Rudder:
•    GRP moulded skeg keel as part of hull moulding
•    Twin bronze plate rudders

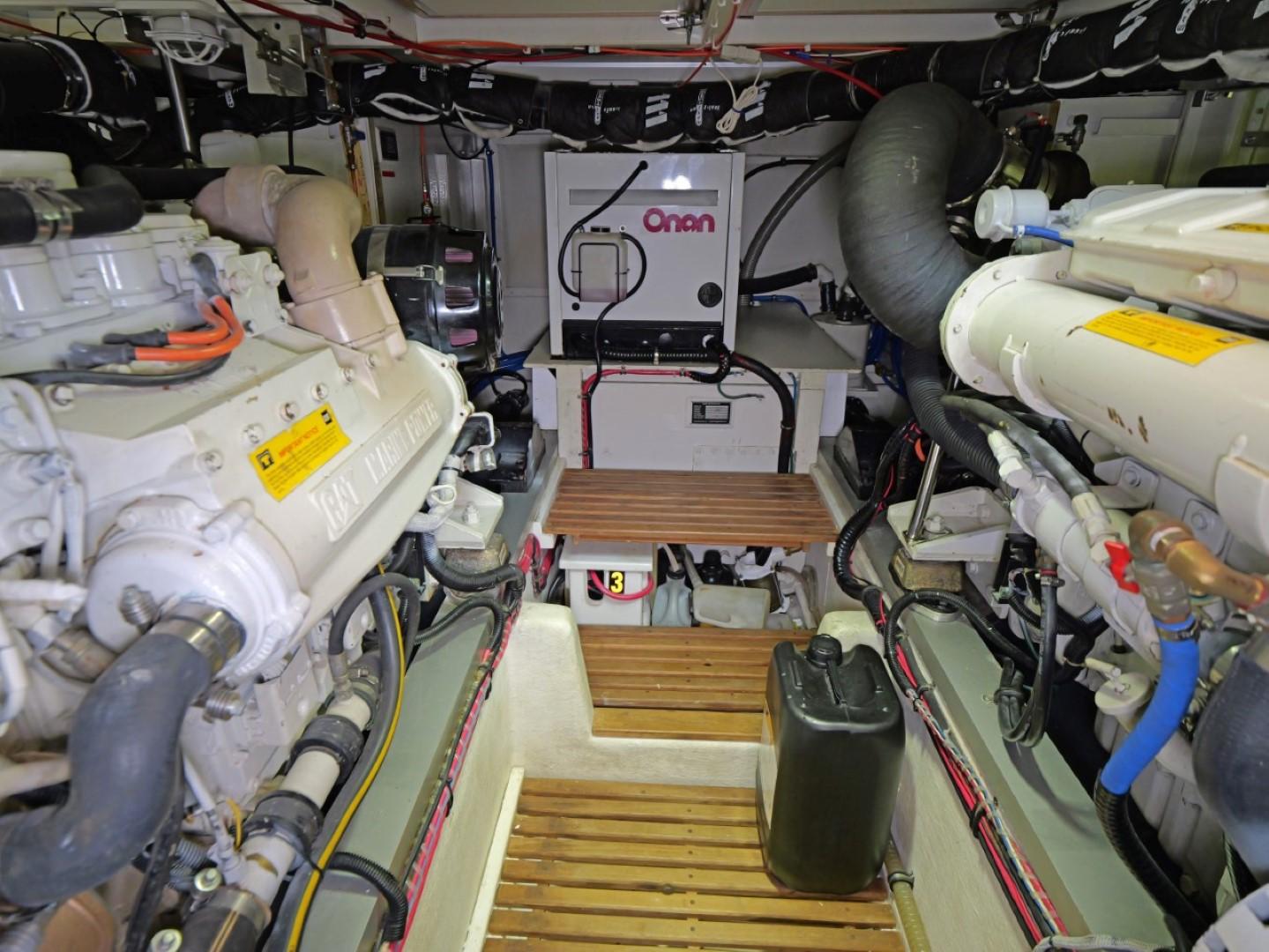

MACHINERY

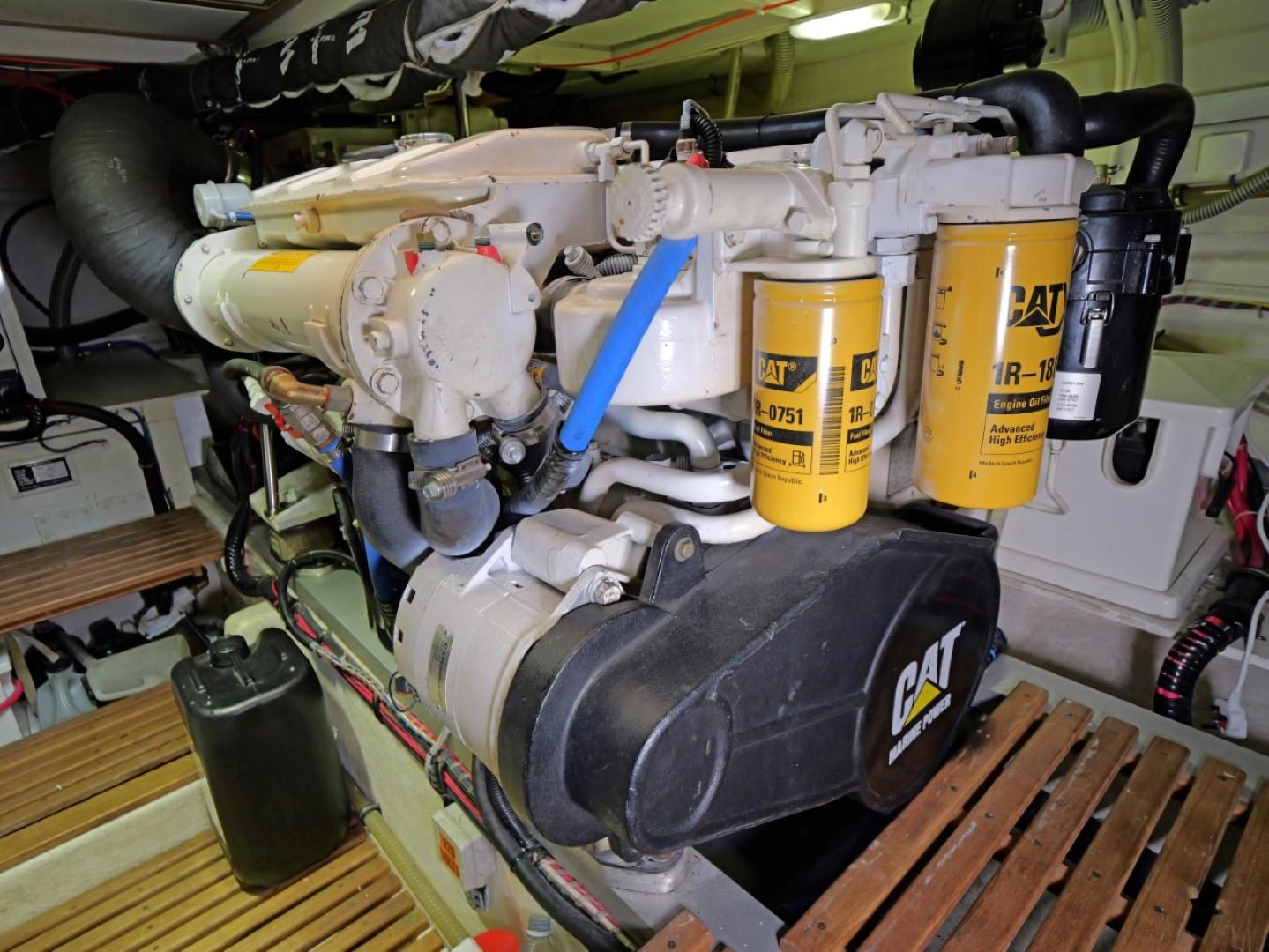

Port Engine:

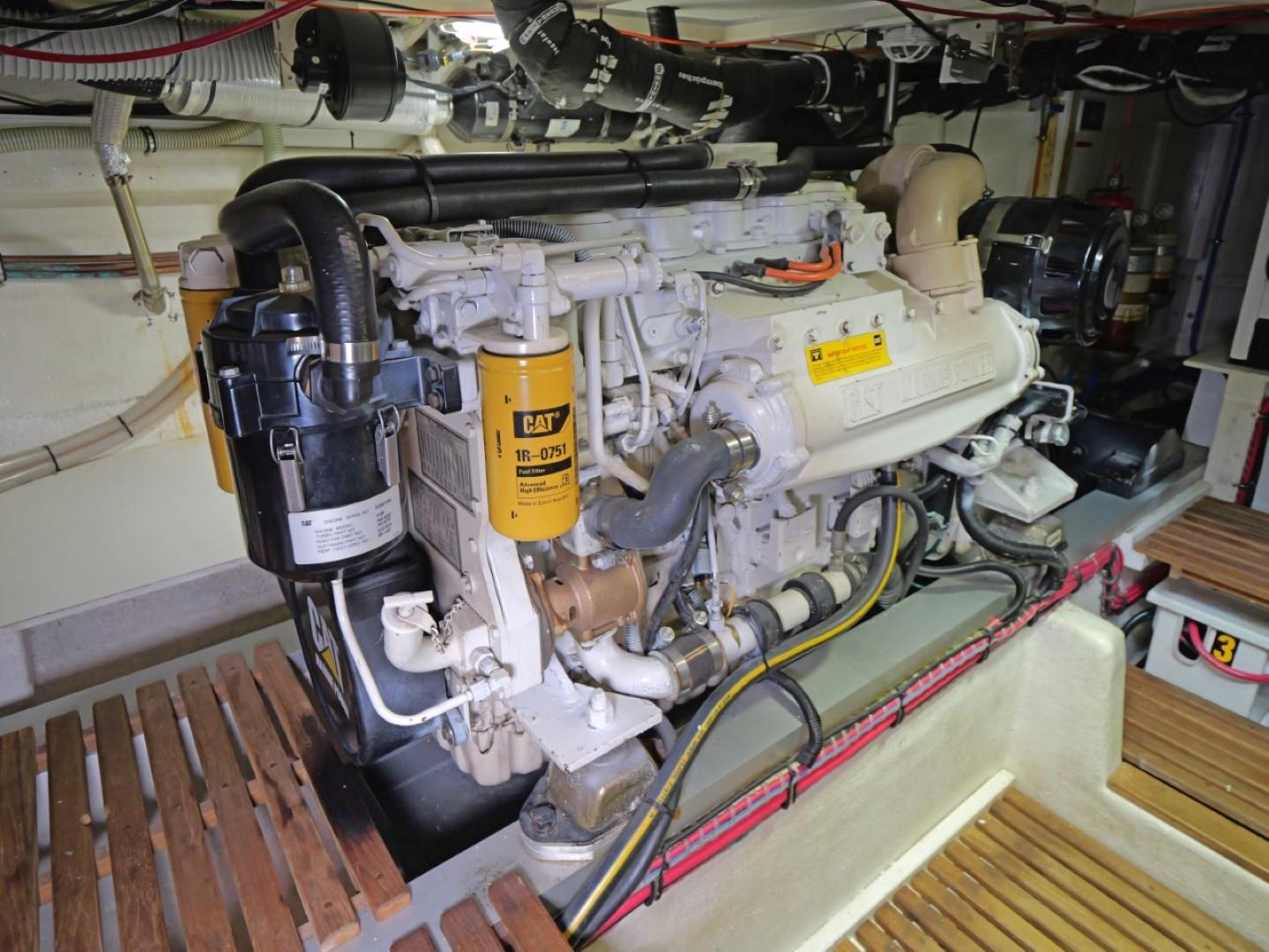

•    Caterpillar 3126 marine diesel engine
•    Full rebuild by Finnings Caterpillar in 2022
•    450HP @2900rpm
•    Inline 6 cylinder, turbocharged, electronic fuel injection.
•    ZF Marine 280 1-A hydraulic marine gearbox
•    Aquadrive engine mounts and coupling
•    Racor duplex fuel filtration system.
•    Two-stage exhaust muffler system
•    Analogue gauges to show RPM, Water Temp, Charge, Oil pressure
•    NMEA 2000 engine databus gateway, engine information displaying on Raymarine Axiom displays (2022)

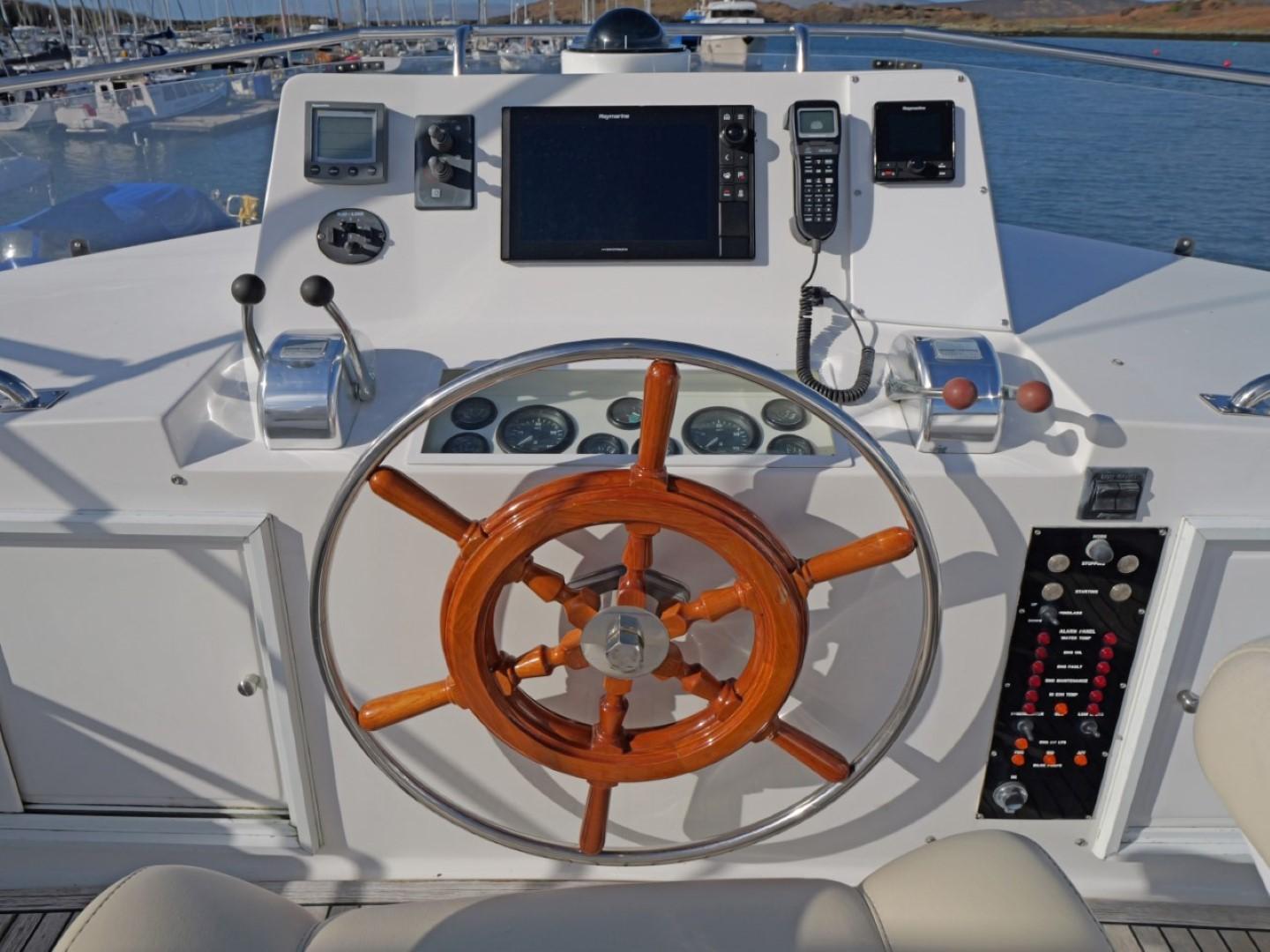

•    Dual station, twin lever morse engine controls

Starboard Engine:
•    Caterpillar 3126 marine diesel engine
•    450HP @2900rpm
•    Inline 6 cylinder, turbocharged, electronic fuel injection.
•    ZF Marine 280 1-A hydraulic marine gearbox
•    Aquadrive engine mounts and coupling
•    Racor fuel filtration system.
•    Two-stage exhaust muffler system
•    Analogue gauges to show RPM, Water Temp, Charge, Oil pressure
•    NMEA 2000 engine databus gateway, engine information displaying on Raymarine Axiom displays (2022)
•    Dual station, twin lever, morse controls

Maintenance & Performance:
•    Engines last serviced November 2025 by Finnings Caterpillar
•    Engine hours – approx. 1,535 as of Spring 2024
•    Port engine stripped and fully rebuilt by Finnings Caterpillar 2022
•    Engine speed actuators upgraded to latest configuration 2022
•    High-pressure fuel pump relief valves upgraded to latest configuration 2022
•    Intercoolers stripped, cleaned and rebuilt 2022
•    Cruising speed 10kts @ 1800rpm
•    Max speed 15kts
•    General set of engine cruising spares aboard

Propulsion & Steering:
•    Stainless steel prop shafts
•    Tides Marine Sure Seal shaft seal
•    Spurs rope cutters
•    4 Blade bronze foil series high-speed propellors
•    Propellors overhauled and re-balanced 2023/24
•    Dual station hydraulic steering system
•    Rudder Angle Gauge - VDO Gauge and Sender System

Bow Thruster:
•    Vetus tunnel-mounted electric thruster
•    Dual joystick control stations.
•    New motor and solenoids fitted 2023/24

Stern Thruster:
•    Vetus pod-type thruster mounted on transom
•    Dual prop
•    Dual joystick control stations.
•    New motor and solenoids fitted 2023/24

Autopilot:
•    Raymarine p70Rs control head x2 (one at each helm station) (2021)
•    Raymarine EV-1 course computer (2021)
•    Raymarine ACU400 Actuator unit (2021)
•    Raymarine hydraulic drive pump (2021)

Trim Tabs:
•    Bennet Trim Tabs
•    Dual control station

ELECTRICAL SYSTEMS

Voltage systems:
•    12VDC onboard power system
•    230VAC shore power system

Shore Power:
•    Factory installed, hardwired system
•    Extension lead to connect to shore supply
•    Connection sockets at the forward and aft ends of boat
•    Zinc Saver II Galvanic Isolator
•    RCD protected system with polarity indicator
•    3 Pin UK sockets, battery charger, water heater

Battery Banks:
•    Engine Battery
•    Domestic Battery
•    Generator Battery
•    Banks for forward and aft thrusters Battery
•    All new 2022

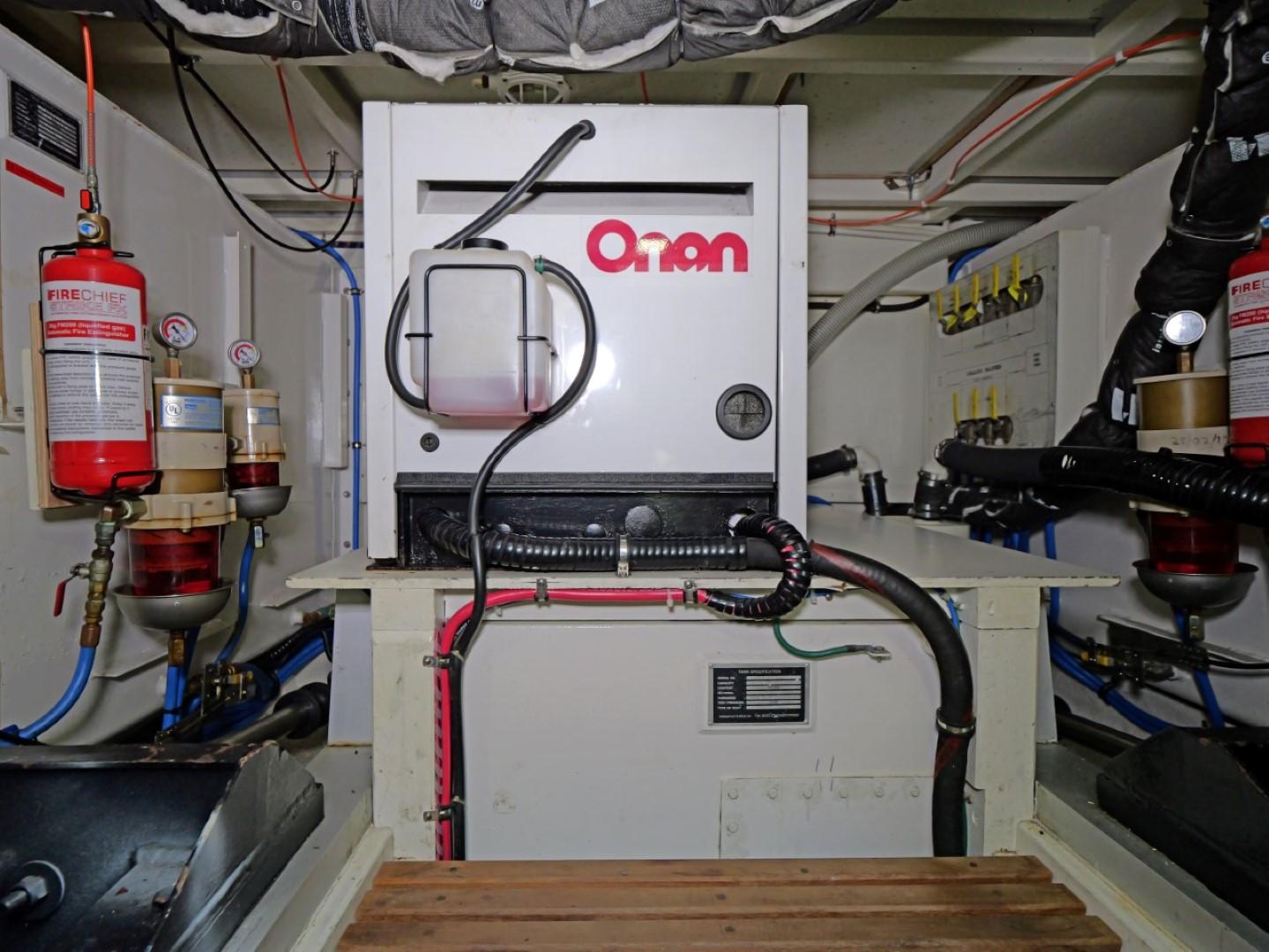

Generator
•    Onan 7kw marine diesel generator
•    1500RPM, 50Hz
•    Dedicated battery for starting
•    Dedicated Racor fuel filter
•    Centek Marine water separator, silent running exhaust
•    Recorded running hours March 2024 – 642hrs
•    Generator serviced - November 2025

Alternator:
•    Independent Alternators on each engine
•    12VDC, 110amp each

Battery Charger:
•    Promatic Alltech Series charger/conditioner
•    230VAC – 12VDC, 50amp
•    3 output

Inverter / Charger:
•    Victron Energy Phoenix Multiplus Charger/Inverter
•    Remote control panel at lower helm station (2023)
•    Charger – 230VAC – 12VDC, 120amp
•    Invertor – 12VDC – 230VAC, 1200w

Battery Monitoring:
•    Analogue voltmeter display showing all 4 battery banks at the lower helm station

Search Light:
•    Ray-line remote control searchlight
•    Joystick control panel at flybridge helm station

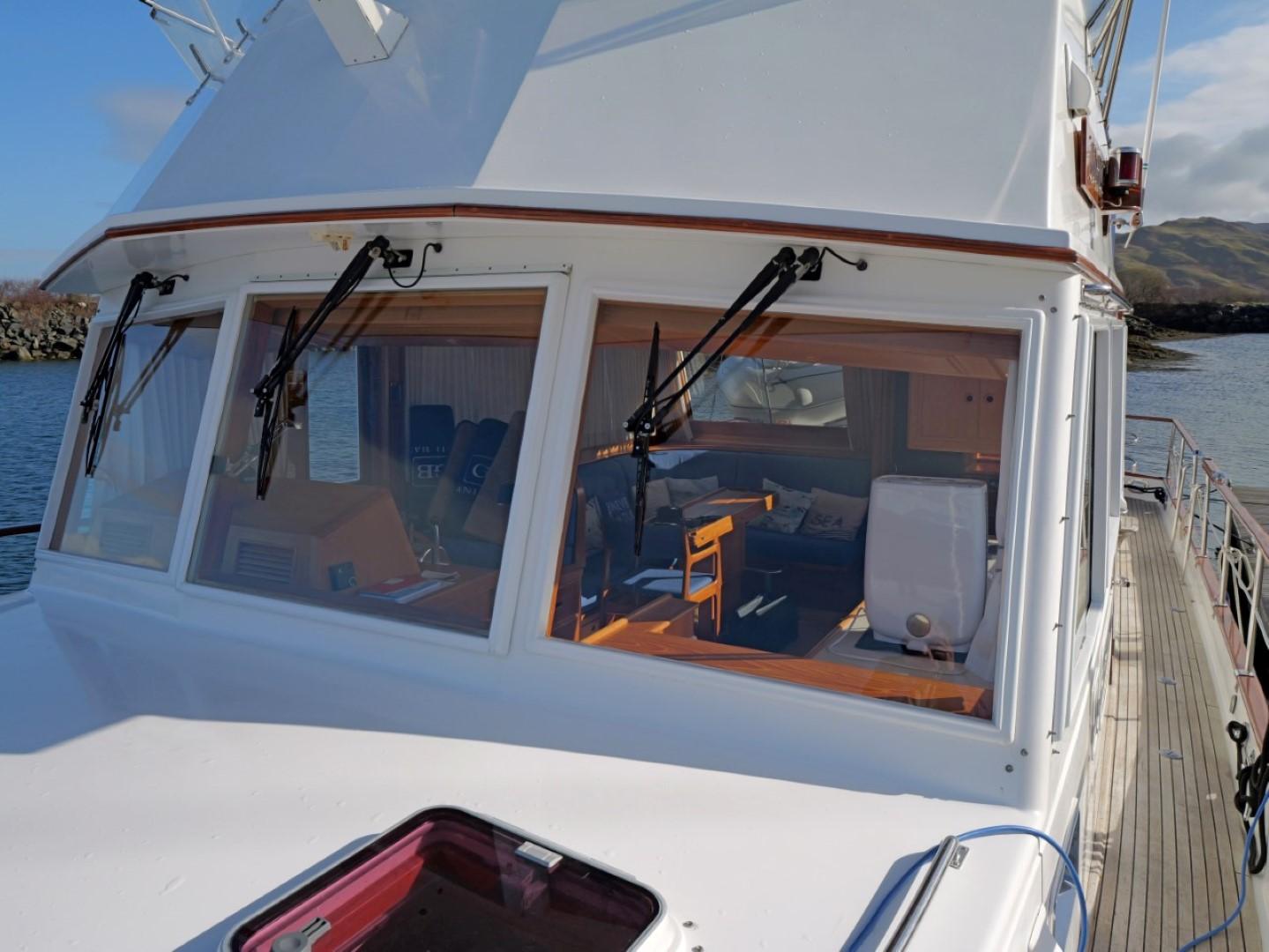

Windscreen Wipers:
•    Wipers for 3 forward-facing windscreens
•    Pantograph arm wipers with variable speed
•    Freshwater screen wash system for all screens fitted with wipers

General:
•    CCTV – 3x engine room CCTV cameras (Raymarine RayCam220), displaying on Raymarine Axiom MFD’s (2021)
•    12VDC horn

PLUMBING

Fresh Water:
•    Pressurised hot and cold water system
•    Mixer tap in galley
•    Mixer tap in forward and aft heads

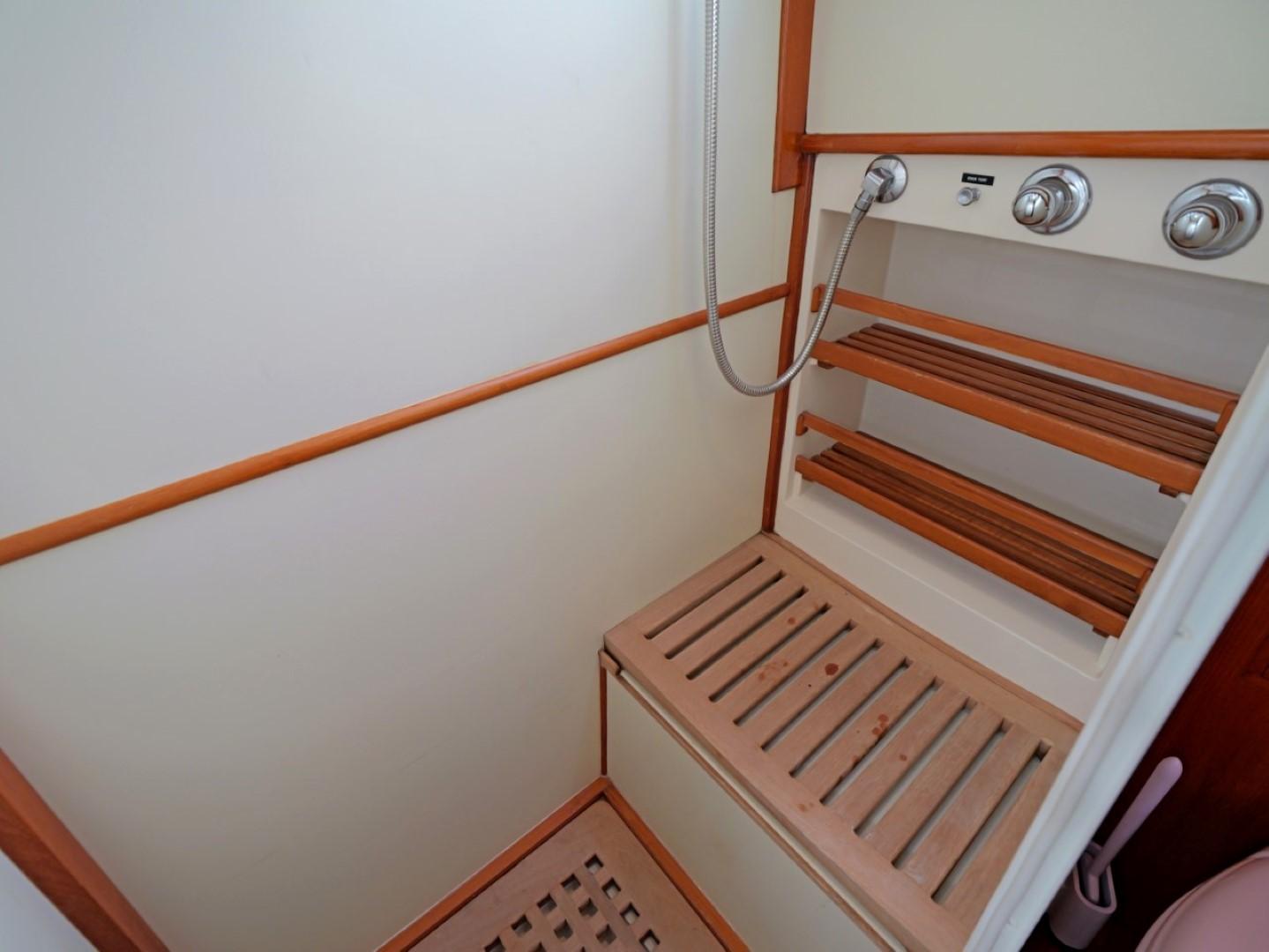

•    Dedicated shower fittings in forward and aft heads
•    Hot and cold water deck shower
•    Hot water from engine fed calorifier with 240V immersion heater.

Black Water:
•    Single holding tank
•    Plumbed for use from both heads.
•    Macerator pump to discharge overboard
•    Deck suction outlet from tank
•    Tank level indicators in both heads

Bilge Pumps:
•    Manual bilge pump
•    Electric Bilge Pump x3 RuleMatic 2000 with manual and auto switching.
•    Indicator lights to show when electric pumps are in operation

Deck Wash:
•    Salt water system
•    Outlet on foredeck

TANKAGE

Fuel:
•    Extended capacity fuel tanks over standard specifications
•    Two tanks of approximately 1135ltr capacity
•    Total approximate capacity 2270ltr

Fresh Water:
•    Stainless steel Fresh water tank.
•    Approximate total capacity 548ltr

Calorifier:
•    Seaward insulated tank
•    Heated by engine cooling water and 230VAC immersion heater
•    Approximate capacity 75ltr

Black Water:
•    Single holding tank.
•    Approximate capacity 300ltrs

Tank Monitoring:
•    Analogue gauges at helm station for all four tanks
•    Water tank gauges replaced 2023, spares aboard

NAVIGATION & COMMUNICATION EQUIPMENT

On Deck:
•    Plotter/Radar/Fishfinder - Raymarine Axiom Pro12 RVX (2021)
•    Depth/Speed/Log – Raymarine ST60 Tri-Data display
���    Radar Scanner – Raymarine Quantum 2 Doppler scanner, mounted on mast (2021)
•    GPS Antenna – Raymarine RS150 antenna (2021)

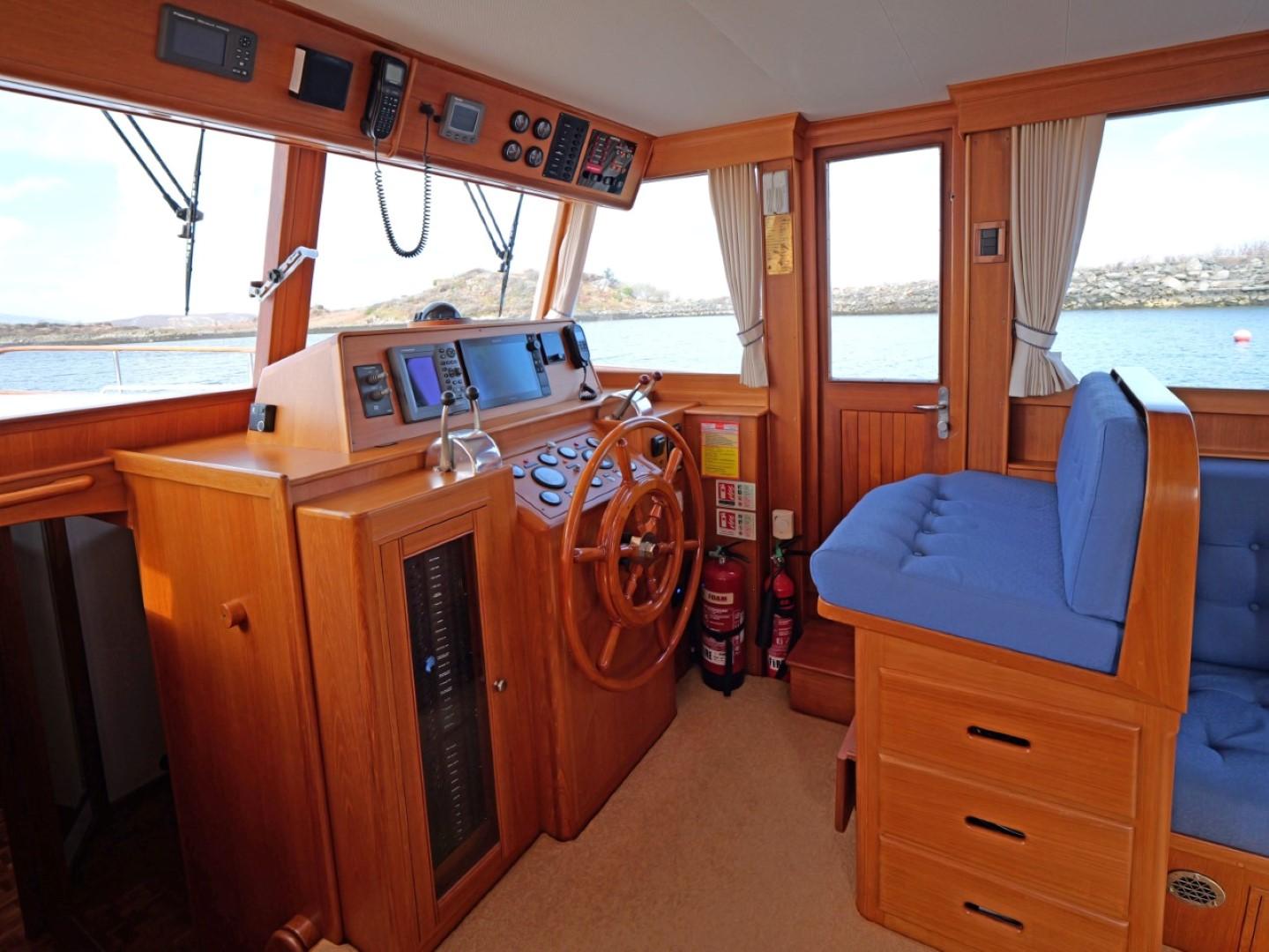

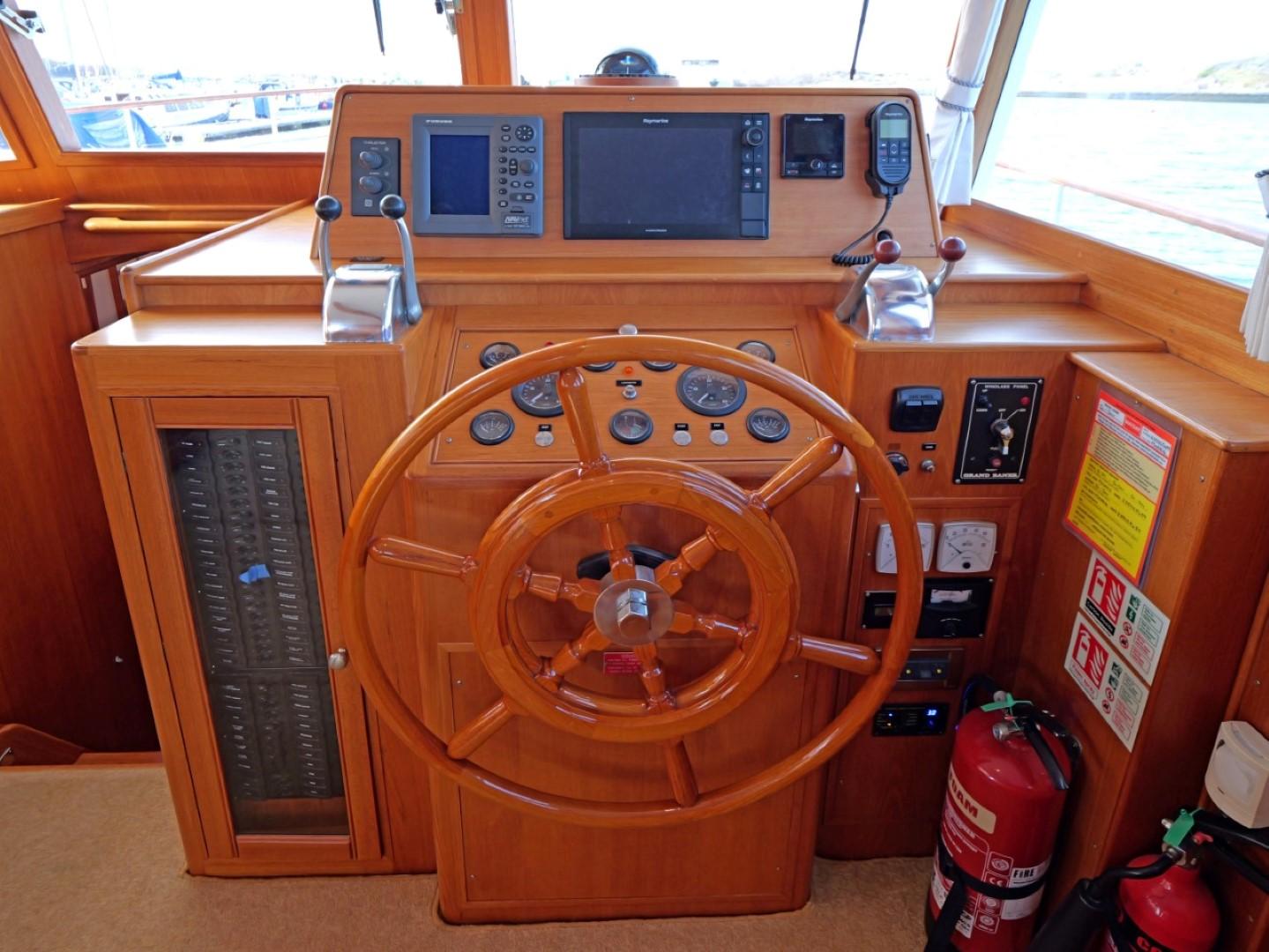

Wheelhouse:
•    Depth/Speed/Log – Raymarine ST60 Tri-Data display
•    Plotter/Radar/Fishfinder – Raymarine Axiom Pro12 RVX (2021)
•    Plotter – Furuno NAVnet vx2
•    GPS – Furuno GP32
•    Fishfinder Transducer – Raymarine RV200 transducer (2021)

Communications Equipment:
•    DSC VHF #1 – Raymarine Ray90 Black Box DSC VHF with CommandMics at both helm stations (2021)
•    DSC VHF #2 – Simard RS87
•    AIS – Raymarine AIS700 (2021)
•    4G onboard wifi router – SIM card not included (2023)

DOMESTIC EQUIPMENT

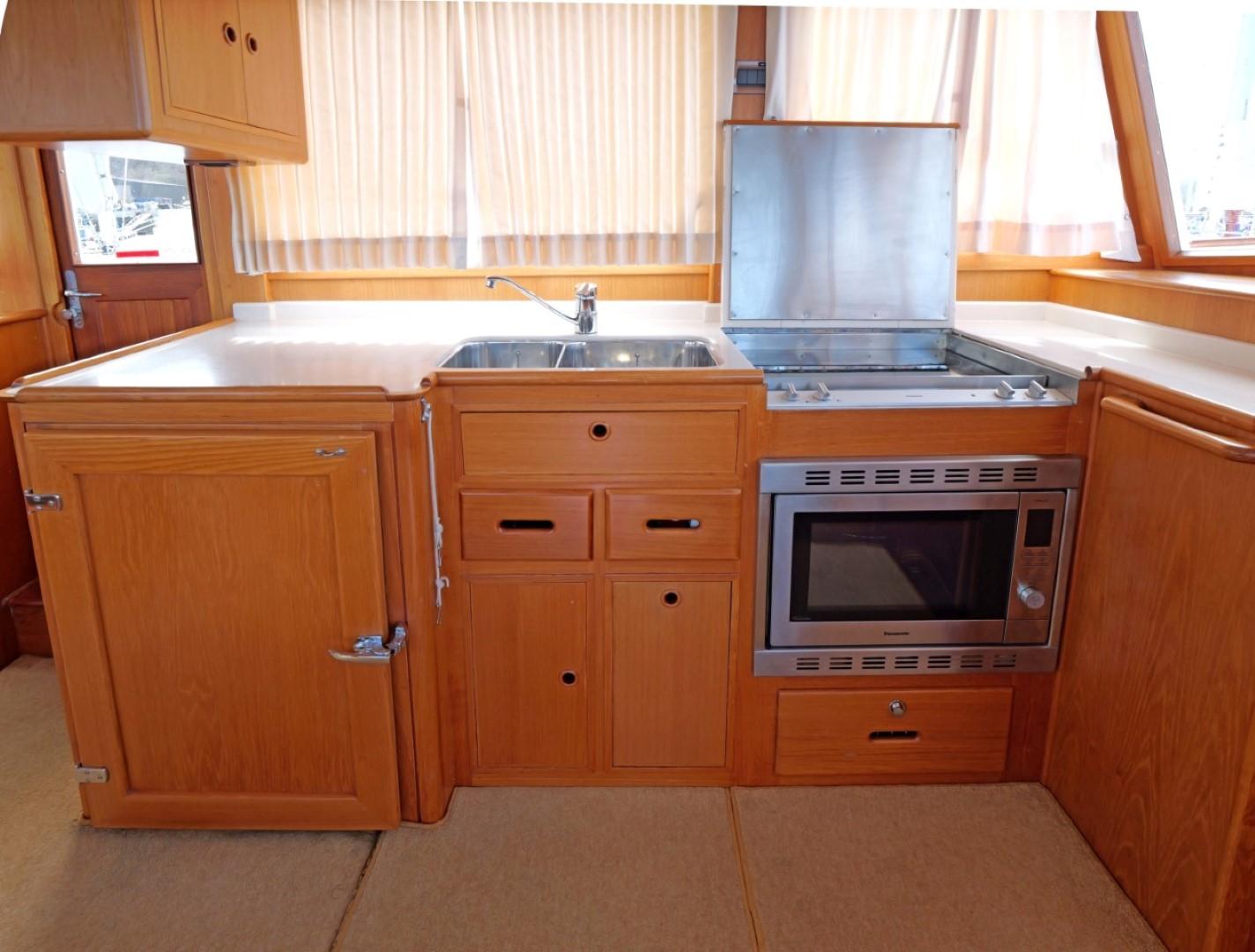

Galley:
•    Cooker – Gaggenau electric 4 ring halogen hob
•    Oven – Panasonic Combination oven 230VAC (2022)
•    Fridge/Freezer – Built-in front-loading fridge with icebox/freezer compartment
•    Twin stainless steel sinks
•    Hot and cold water mixer tap
•    Galley extractor fan
•    Crockery and cutlery

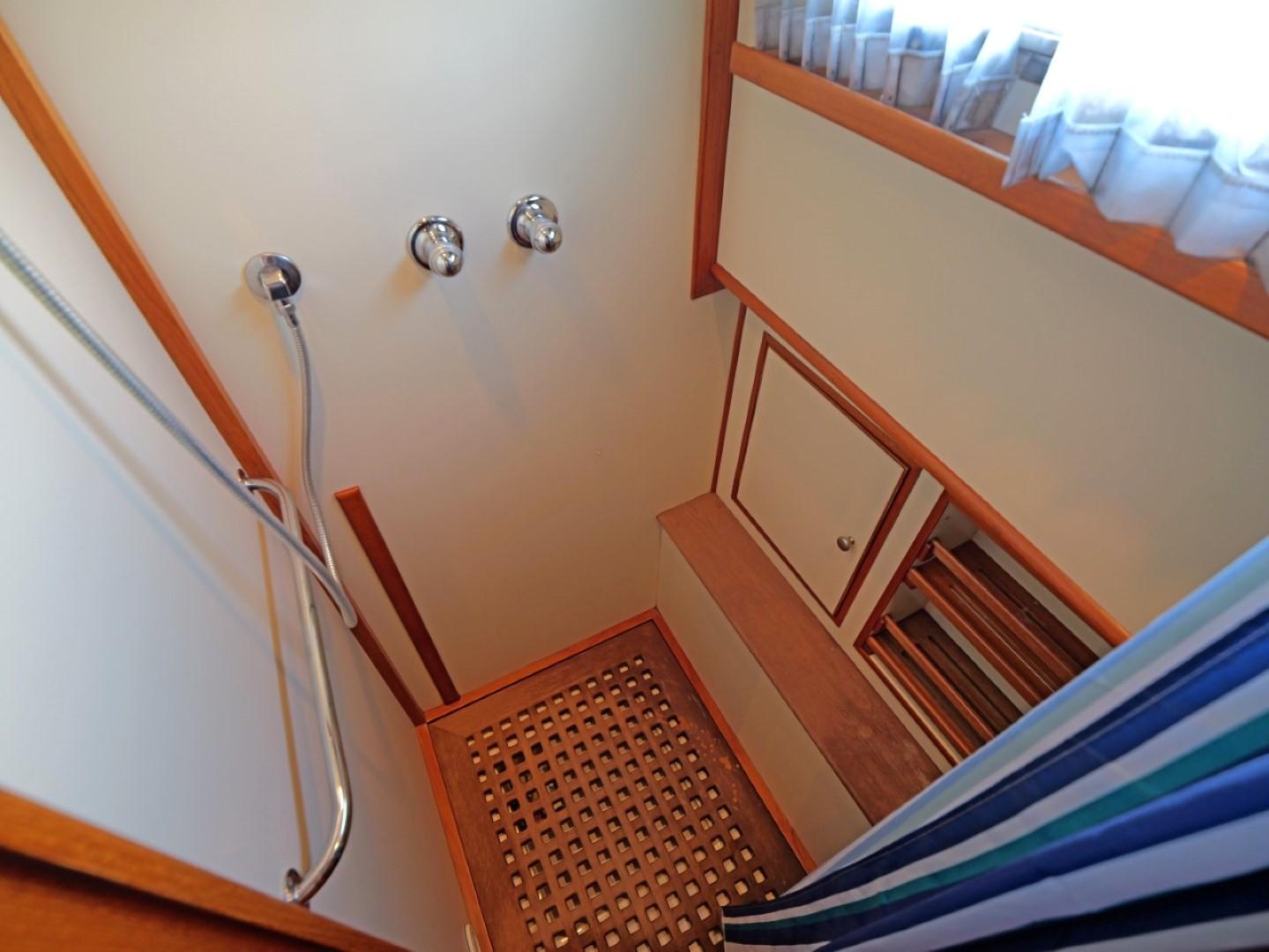

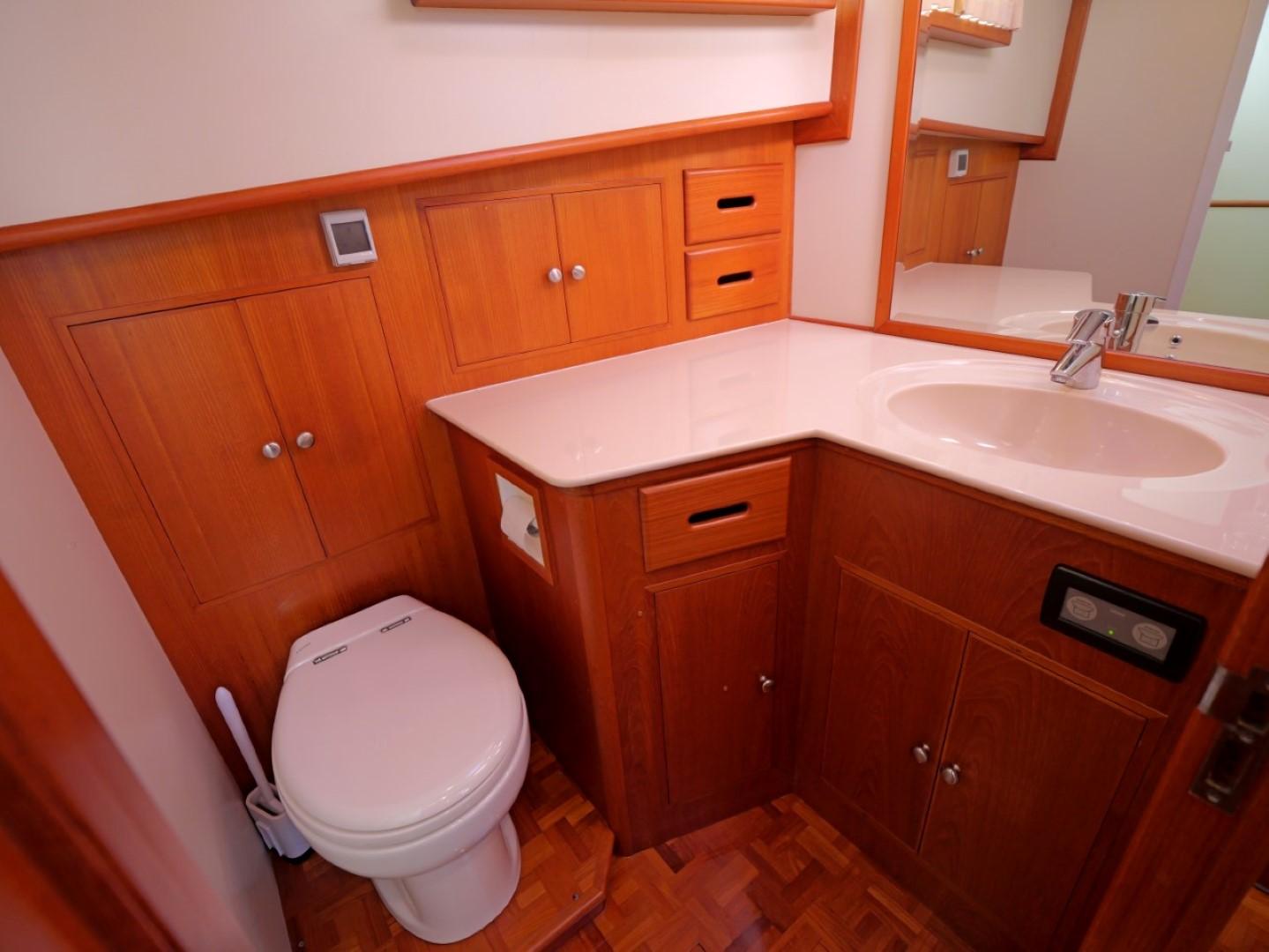

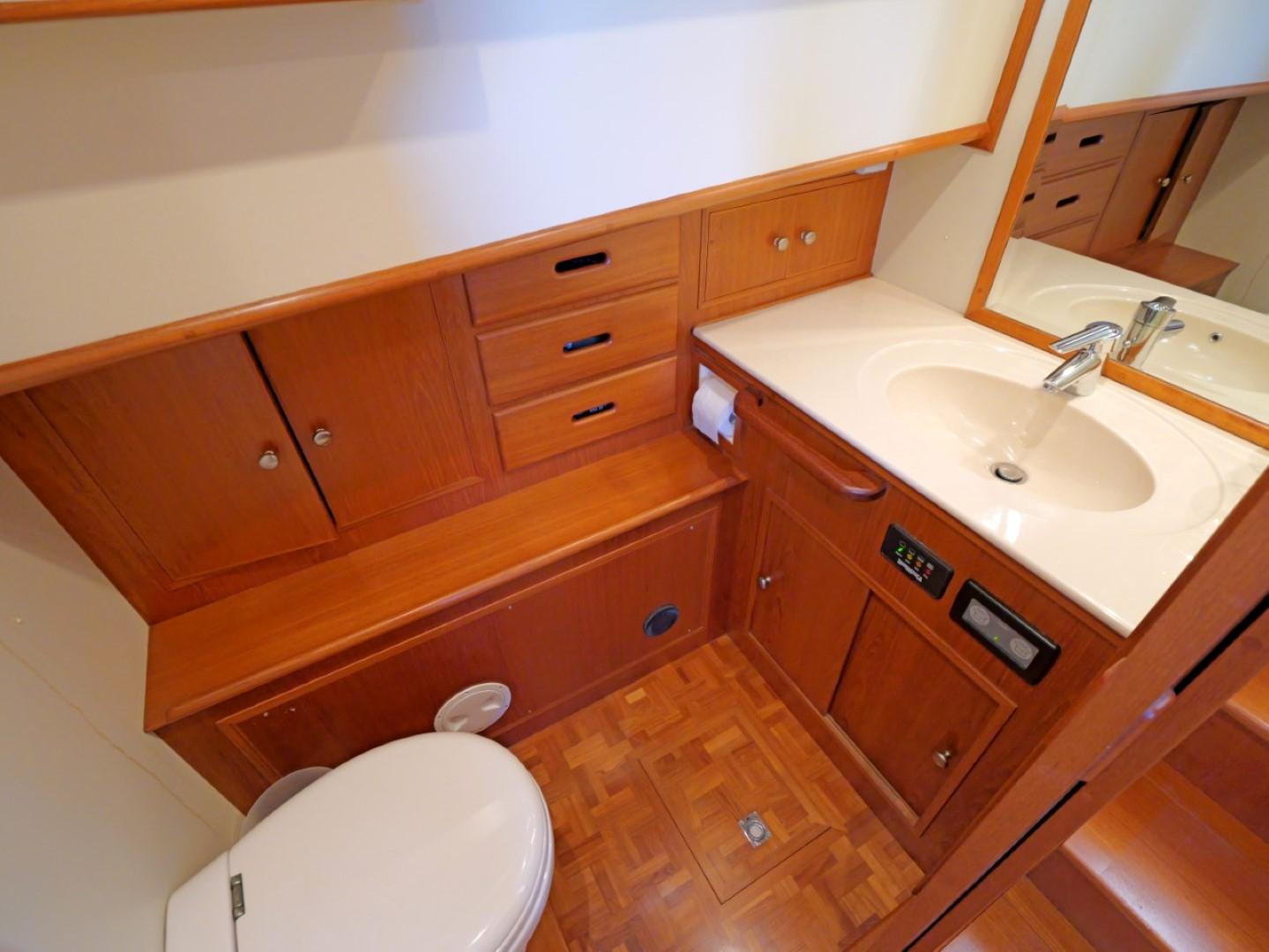

Heads:
•    Electric marine toilets - Tecma 'silence plus' electric heads units x2
•    Dedicated shower fittings x2
•    Wash hand basin x 2
•    Mixer tap x2

Heating:
•    Eberspacher D8L-C diesel-fired blown air heating system
•    Heater overhauled 2022
•    Insulated ducting through the boat
•    Thermostatic cabin controller
•    Outlets – Forward cabin, Starboard cabin, Saloon and Aft Cabin
•    230VAC tube heaters mounted in engine space x2

Entertainment:
•    Alpine CD/Radio/MP3/WPA head unit
•    Speakers in saloon and aft cabin
•    Sony Bravia LCD TV

Lighting:
•    Overhead lighting throughout the interior
•    Reading lights in saloon
•    Reading lights in way of bunks in cabins
•    Pelmet-mounted LED downlighters (2023)
•    Engine space lighting, 12VDC and 230VAC
•    On-deck courtesy lighting

ACCOMMODATION

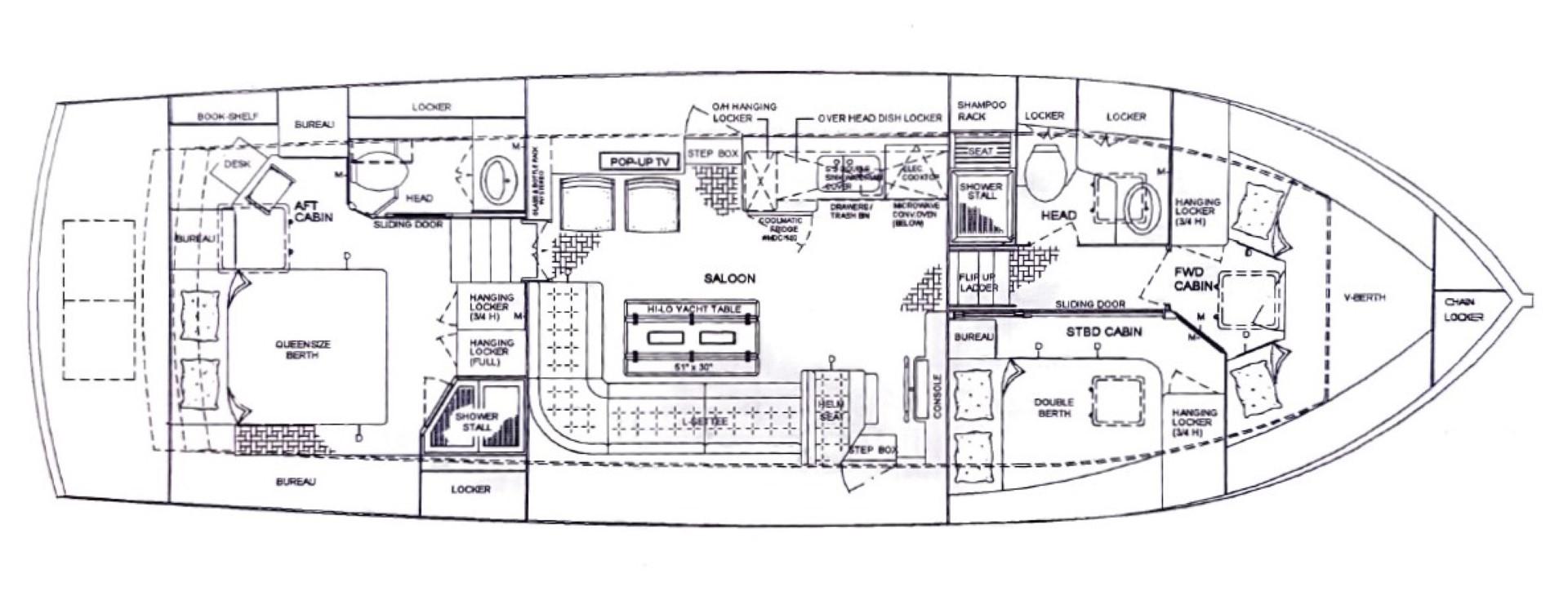

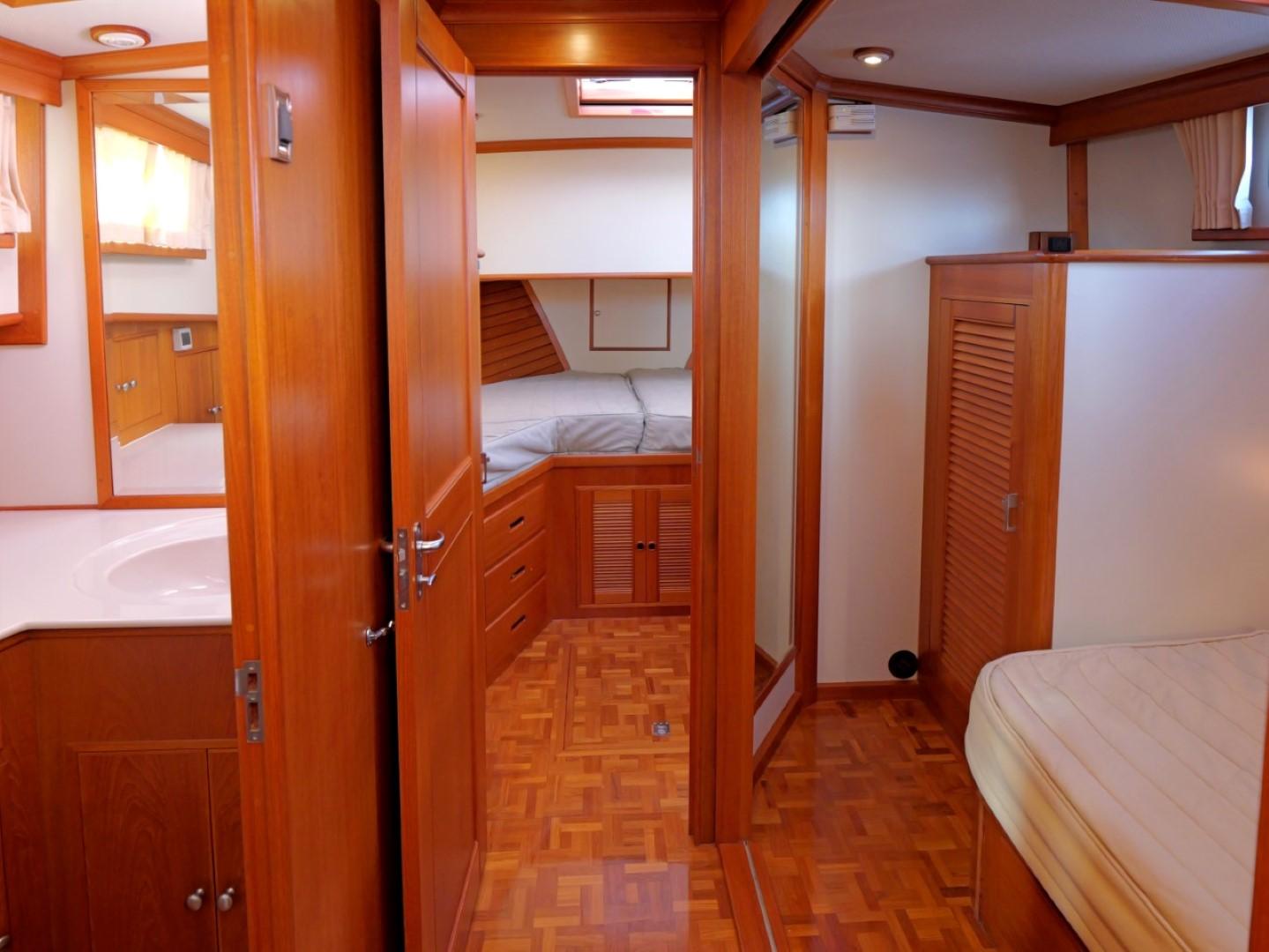

Summary of Accommodation:

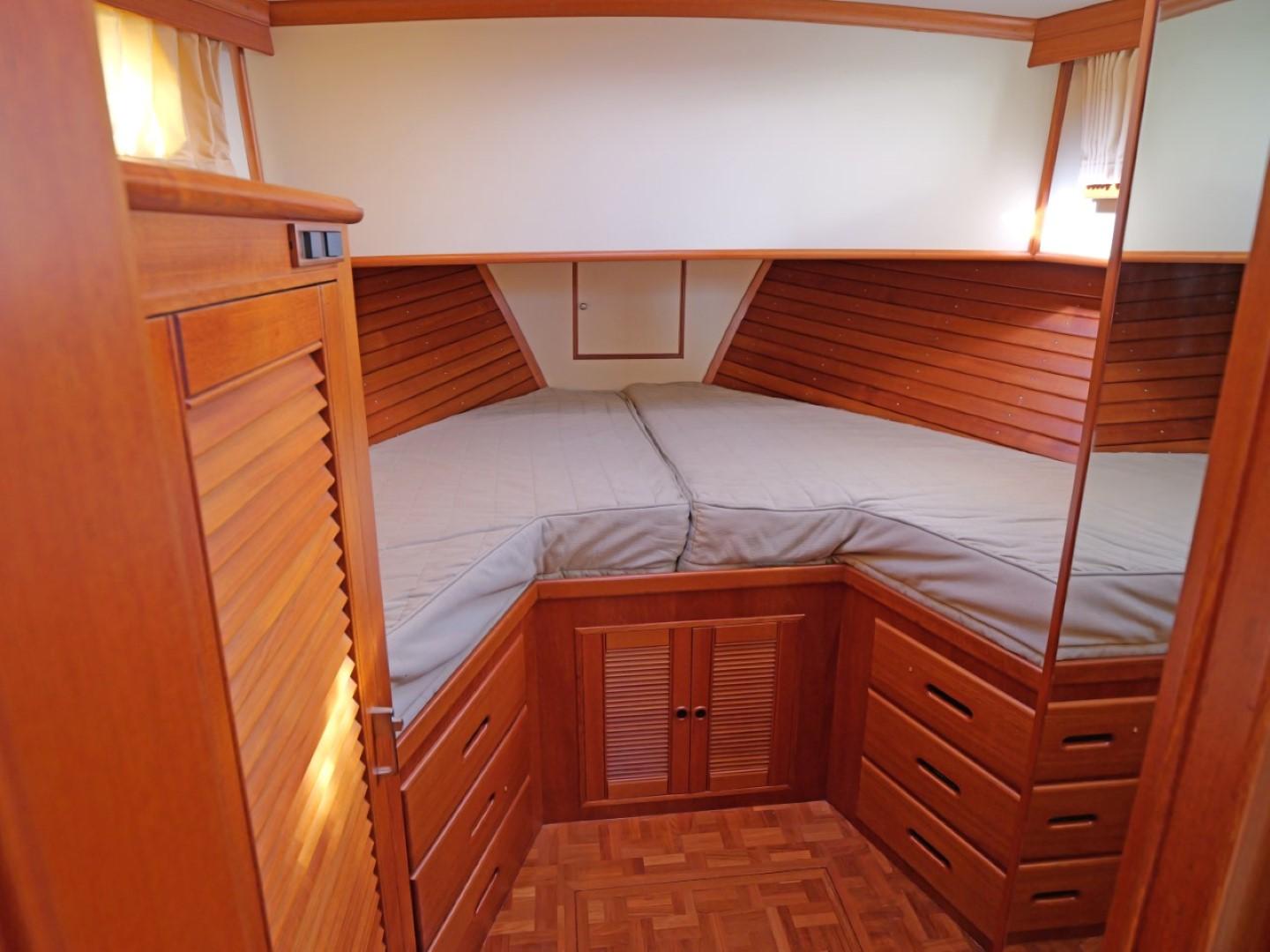

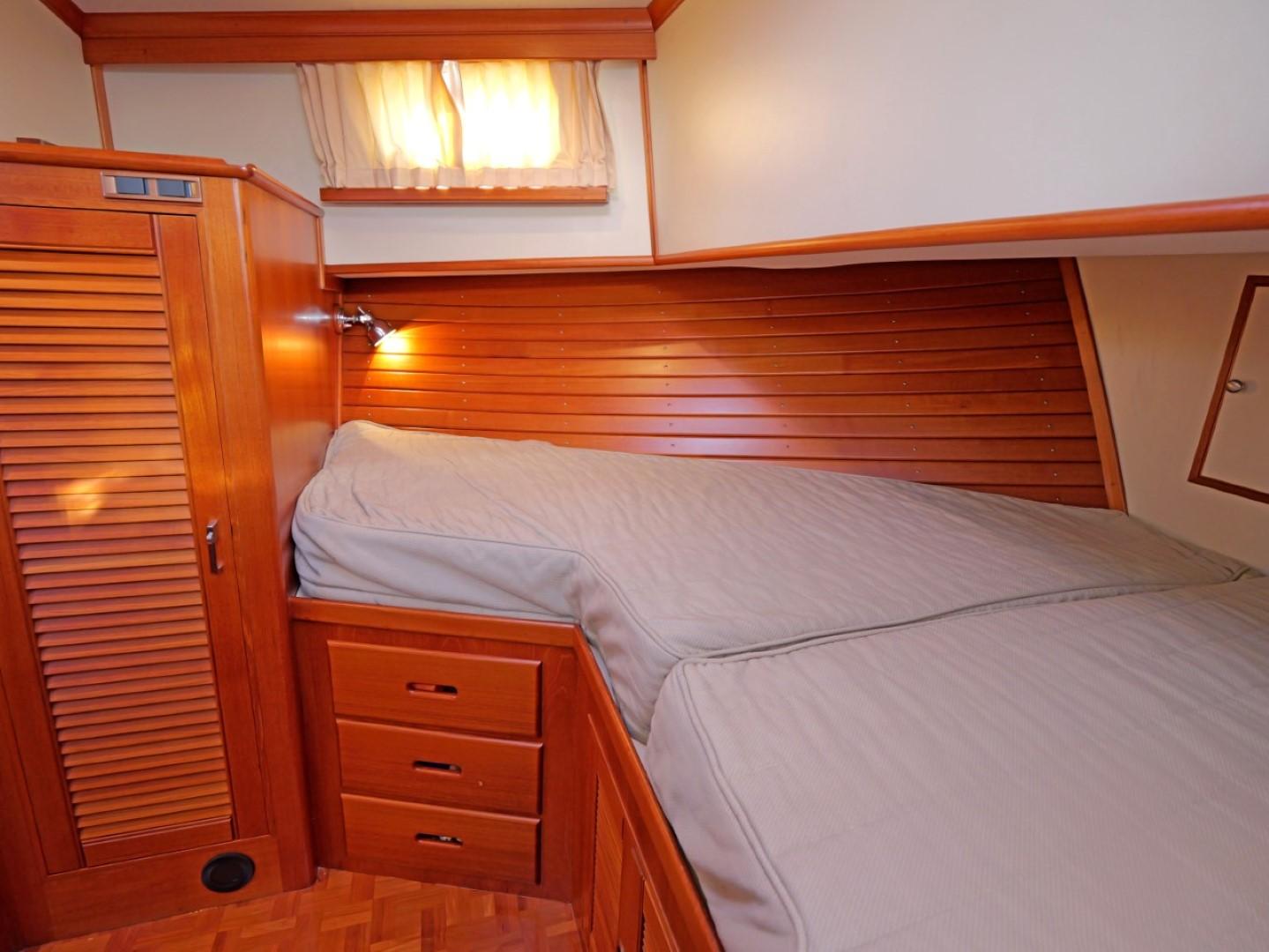

•    Twin cabin forward

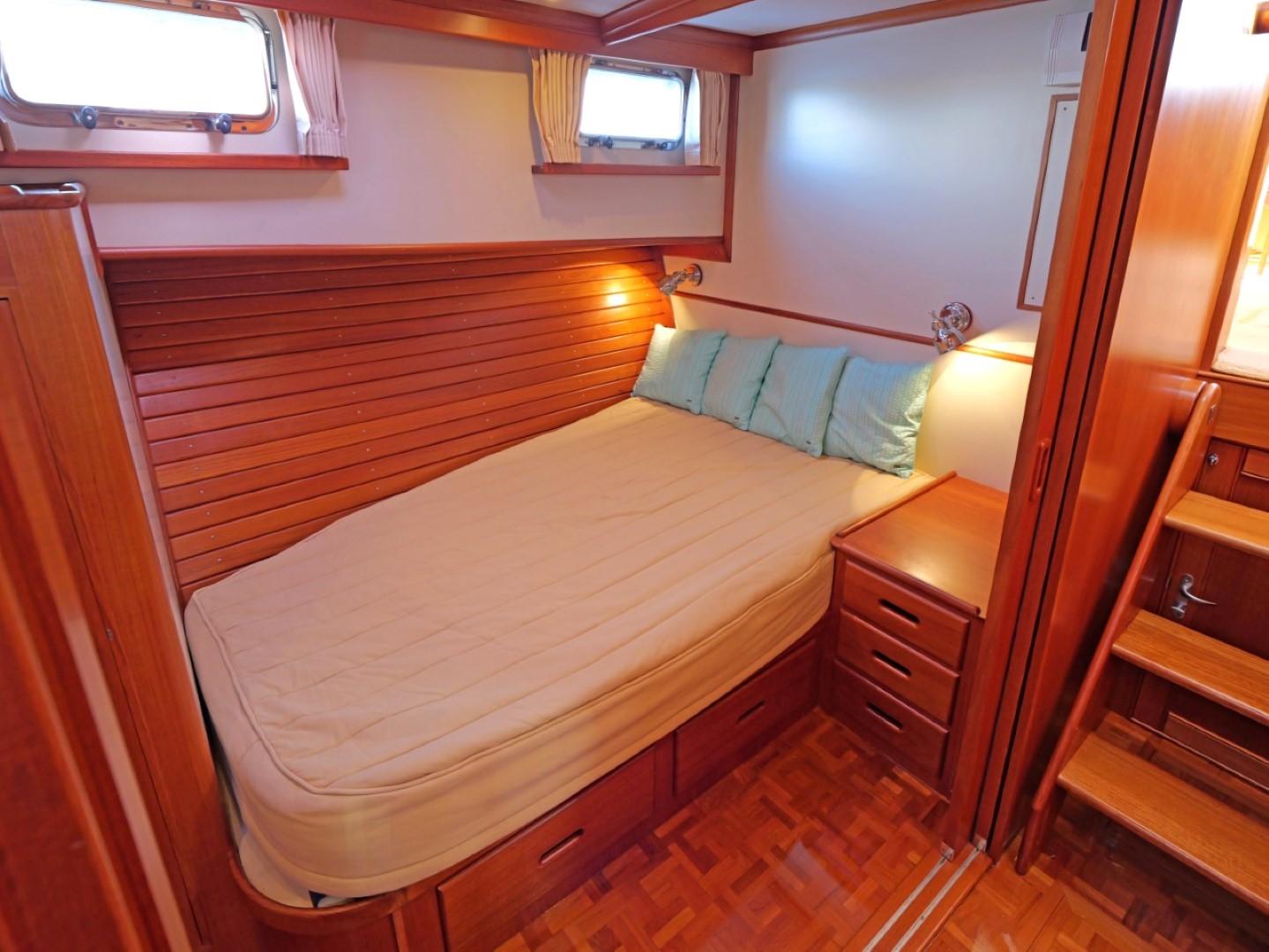

•    Single cabin to starboard
•    Forward heads
•    Galley

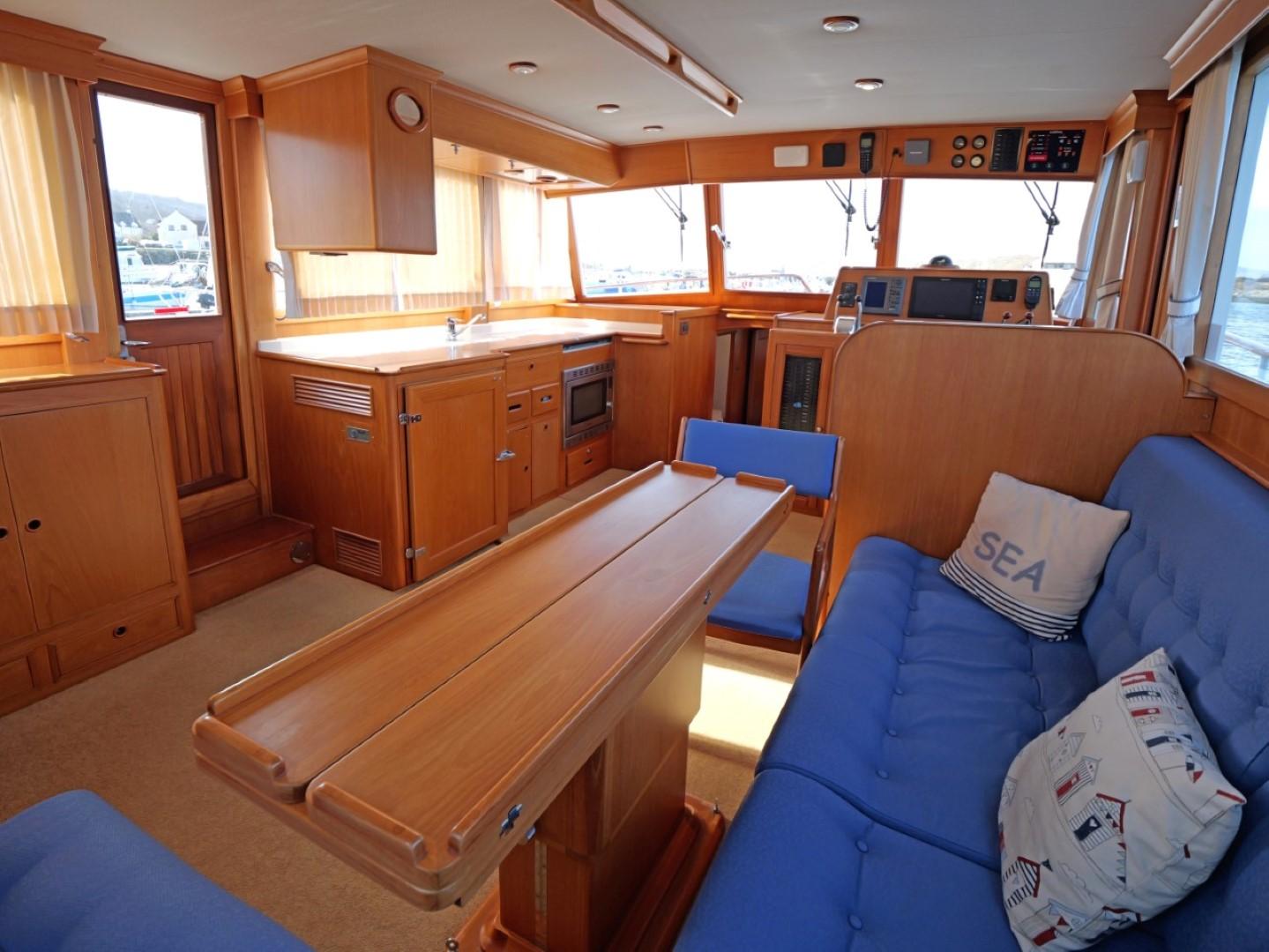

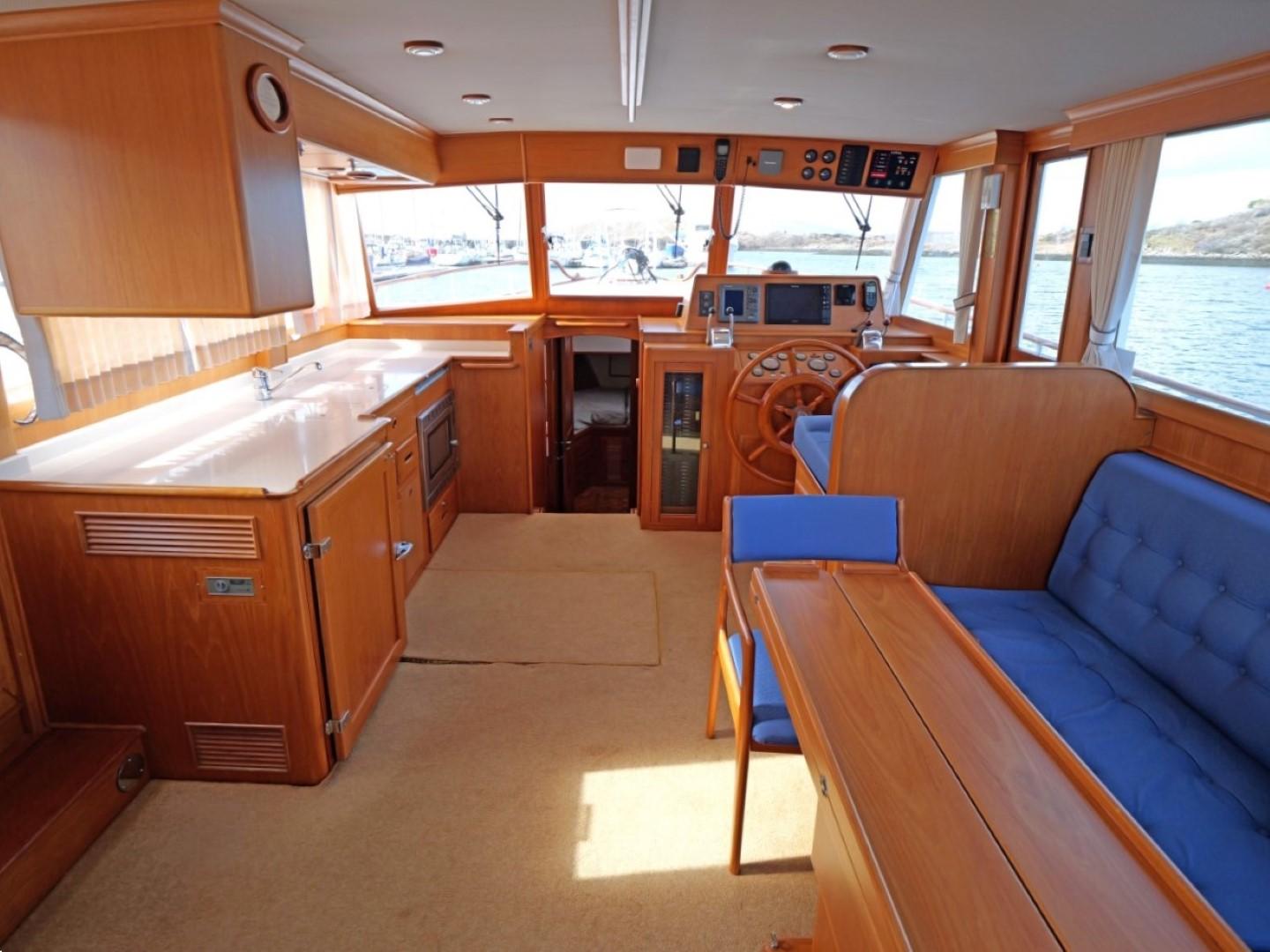

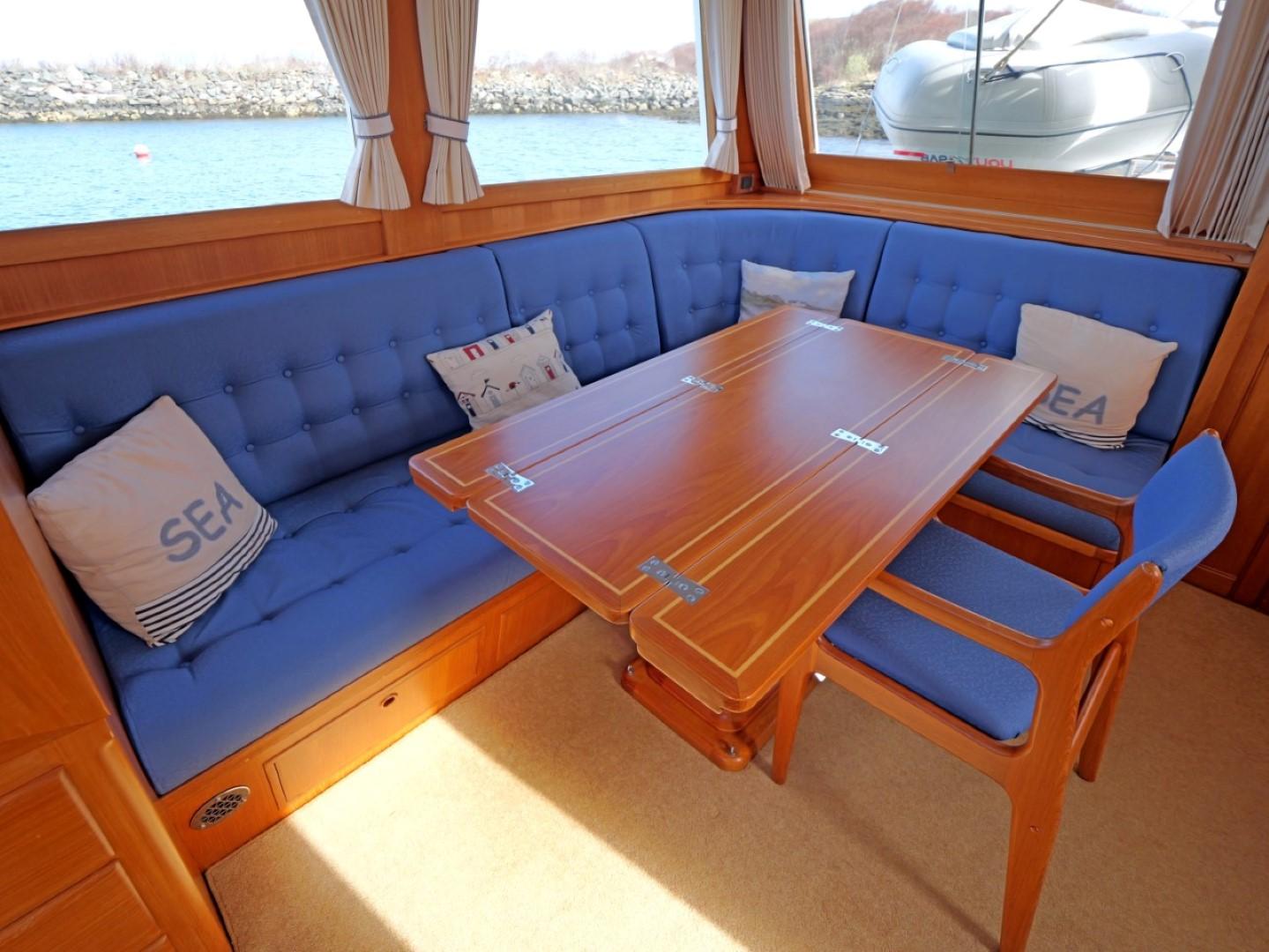

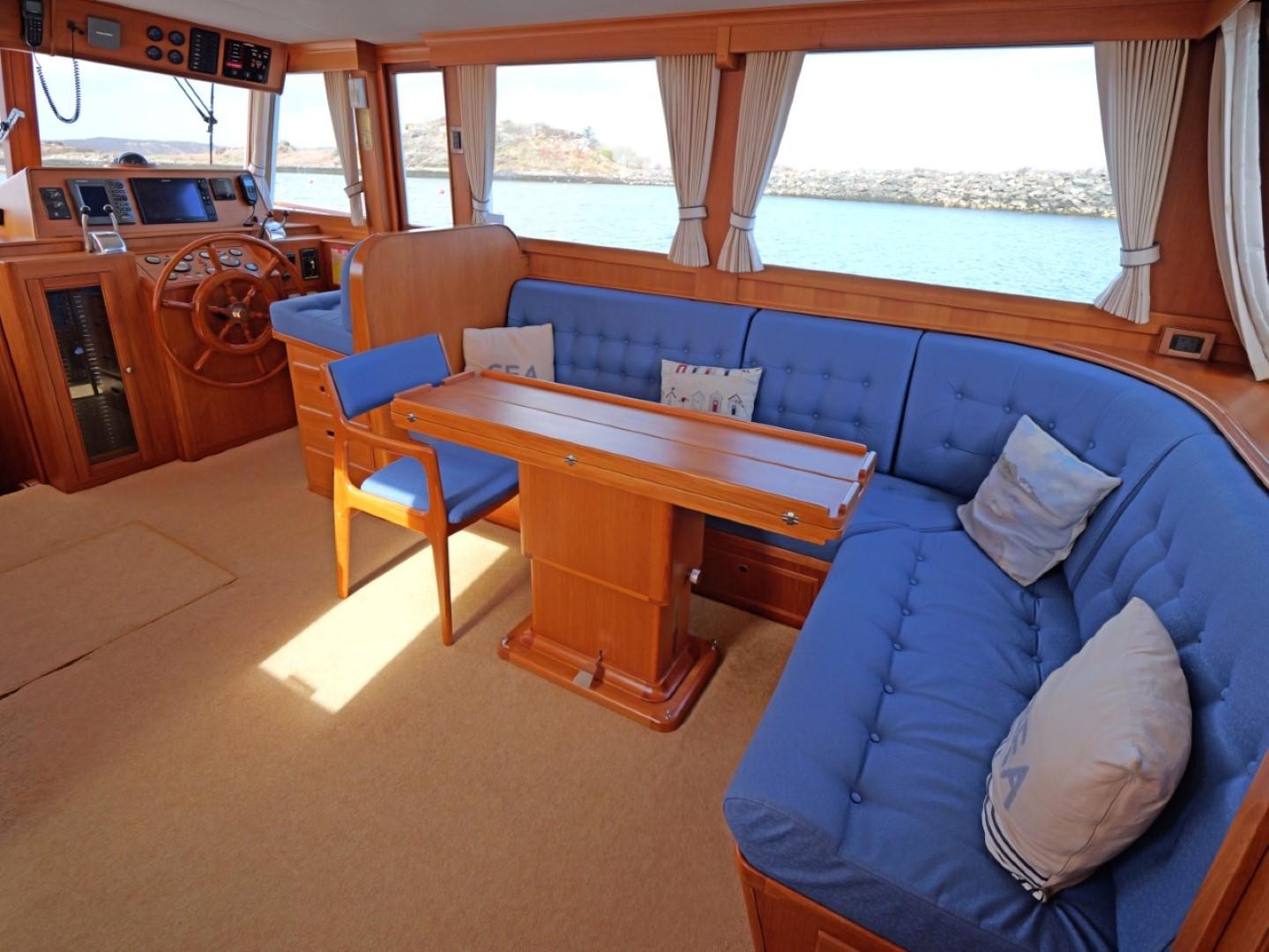

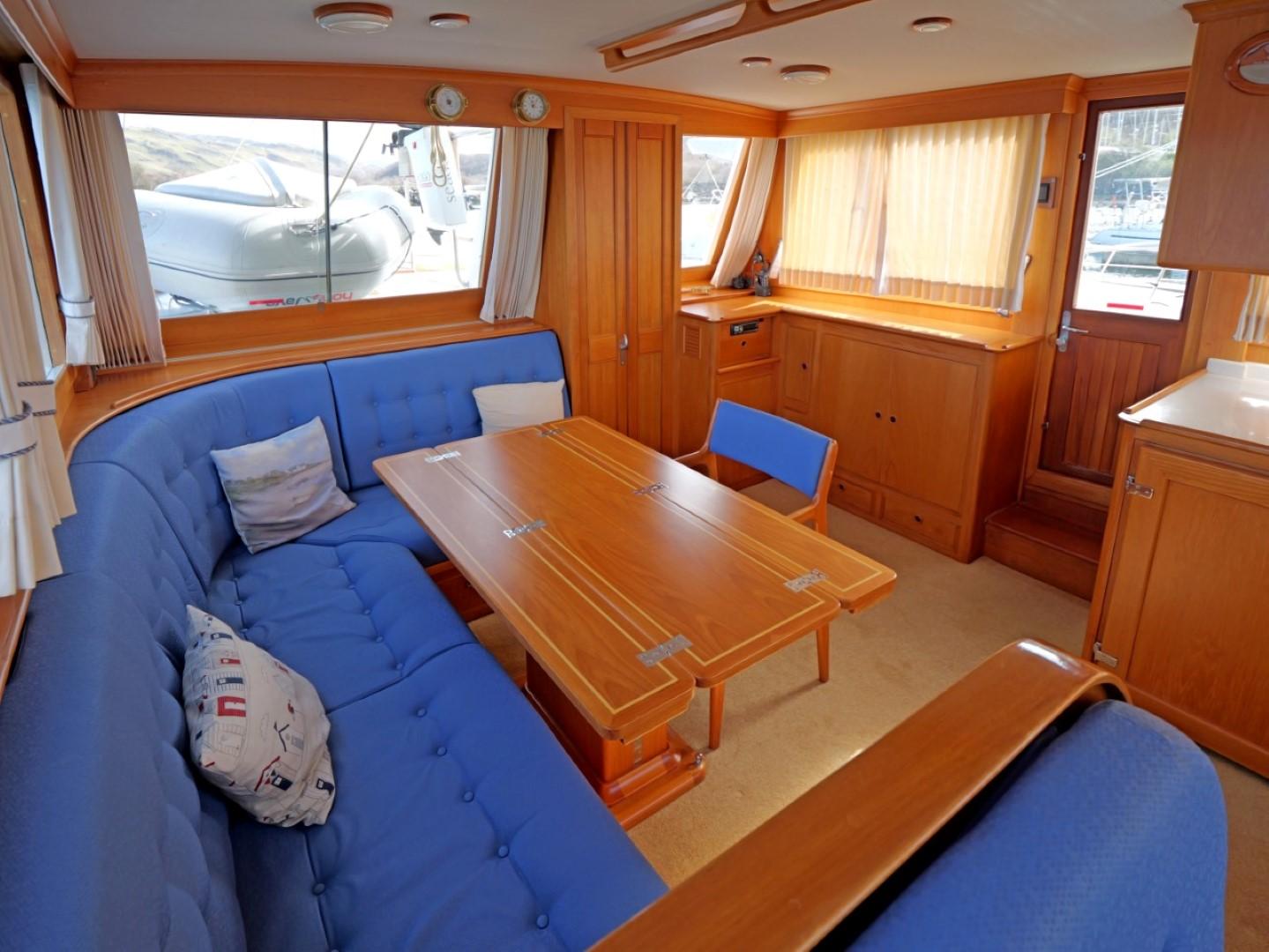

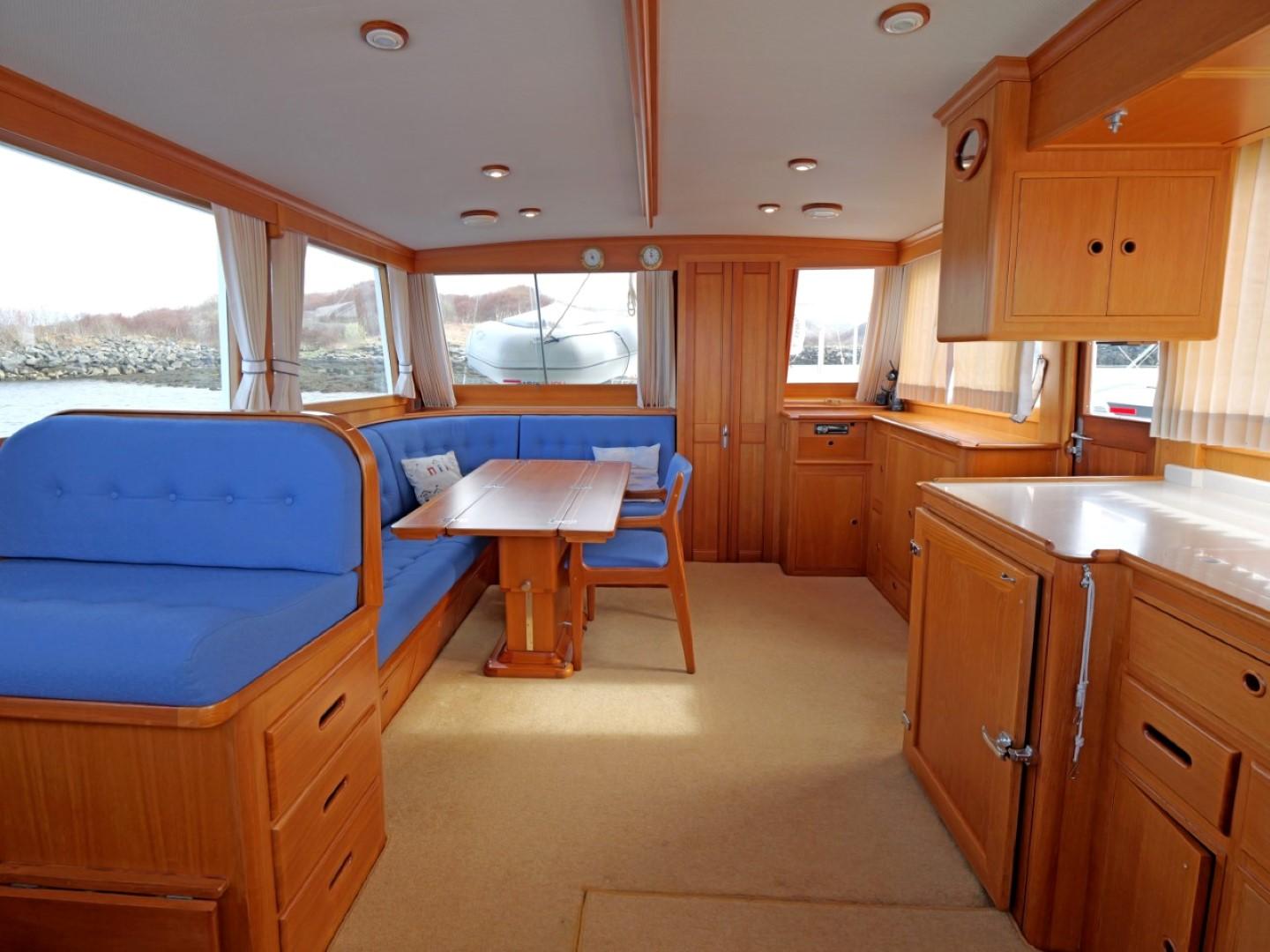

•    Deck Saloon

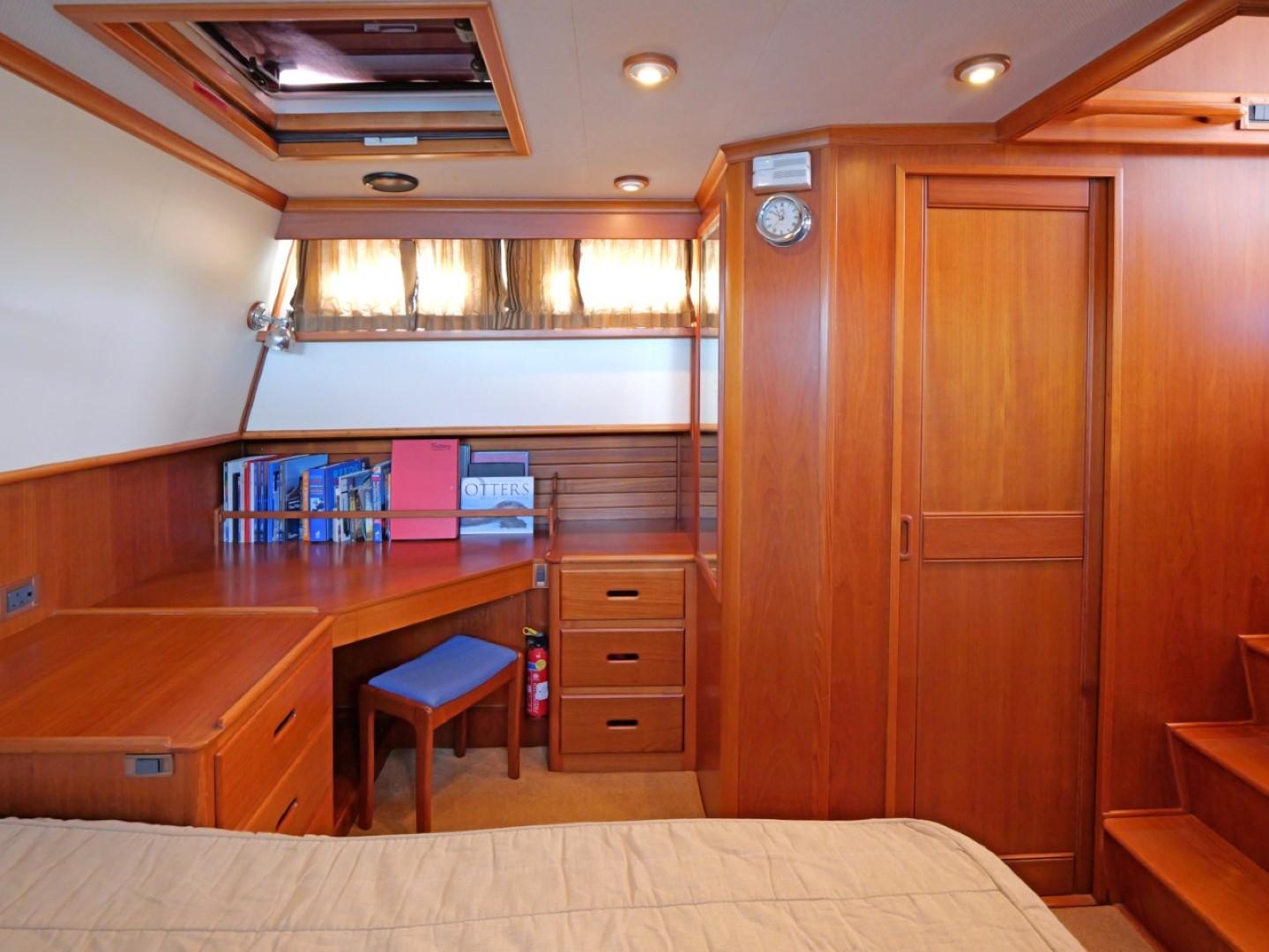

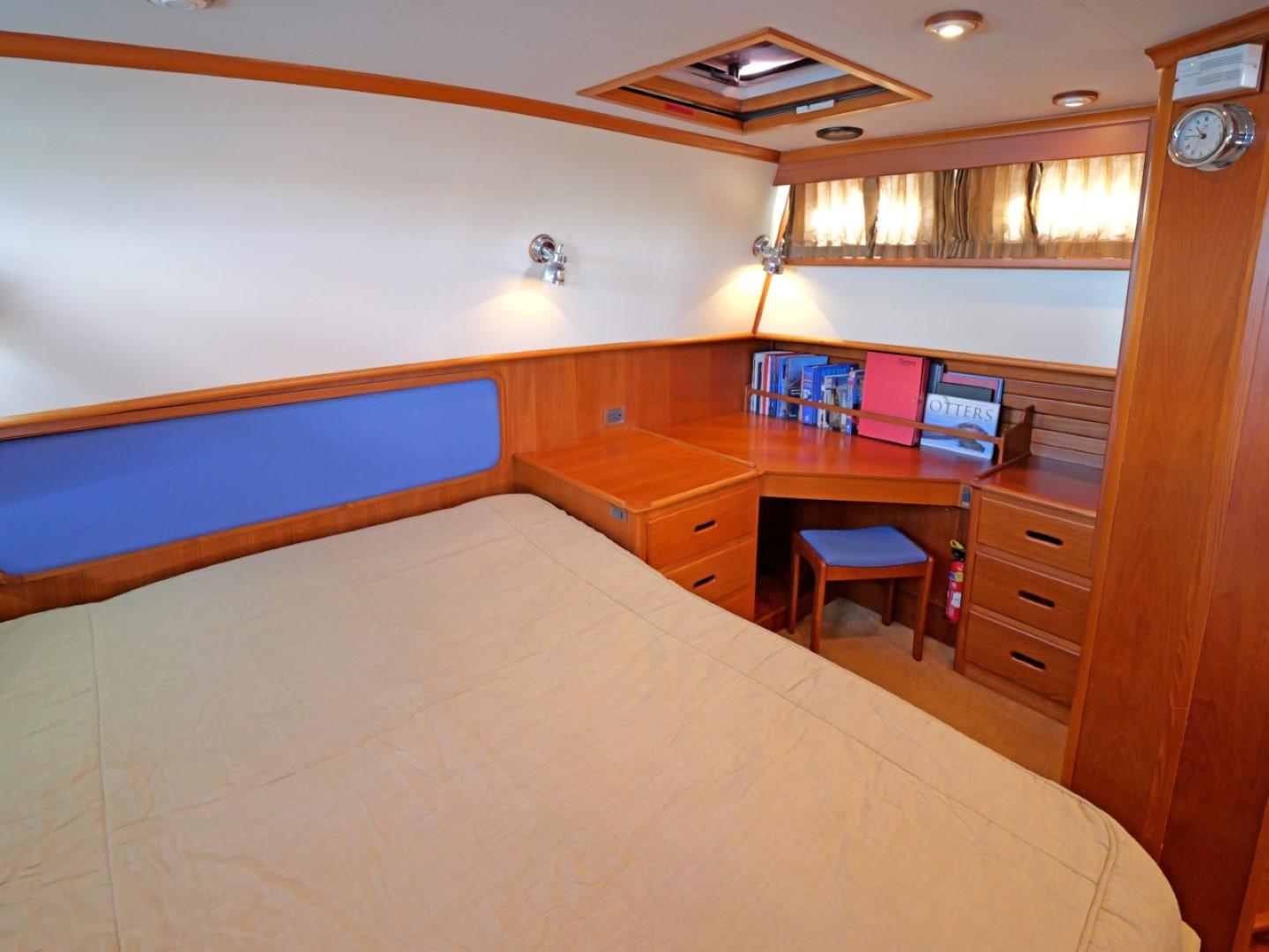

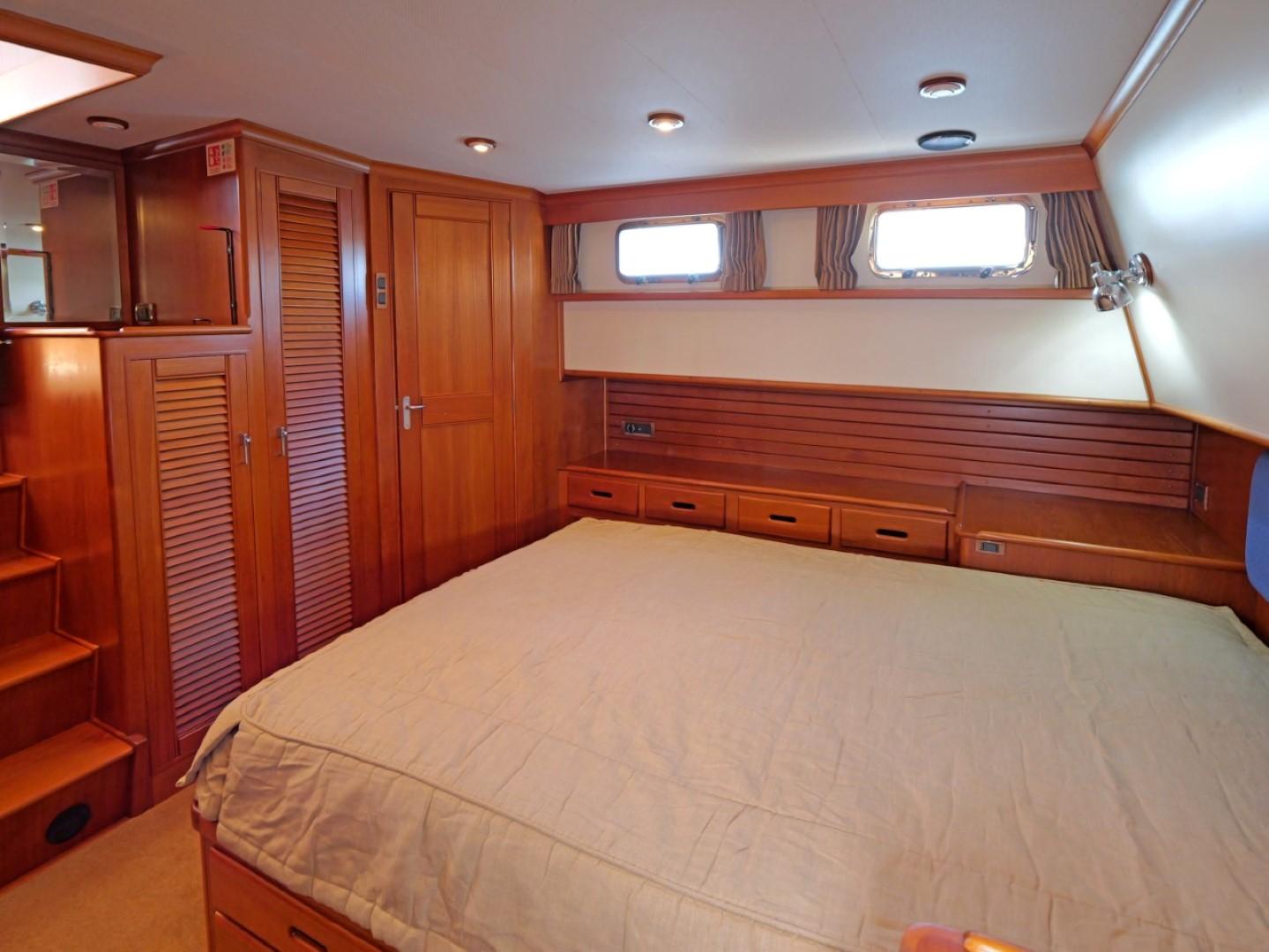

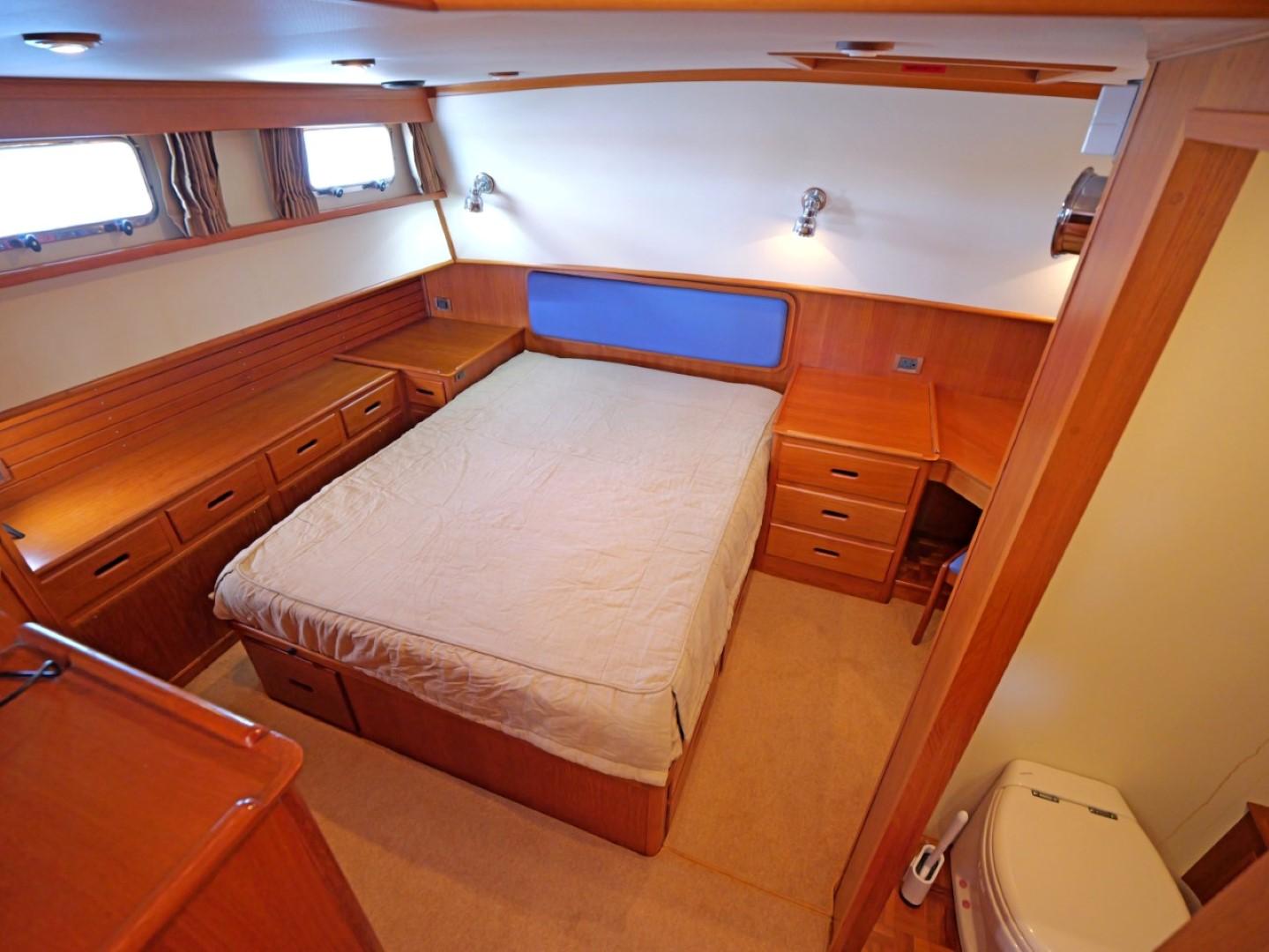

•    Master double cabin aft with en-suite heads

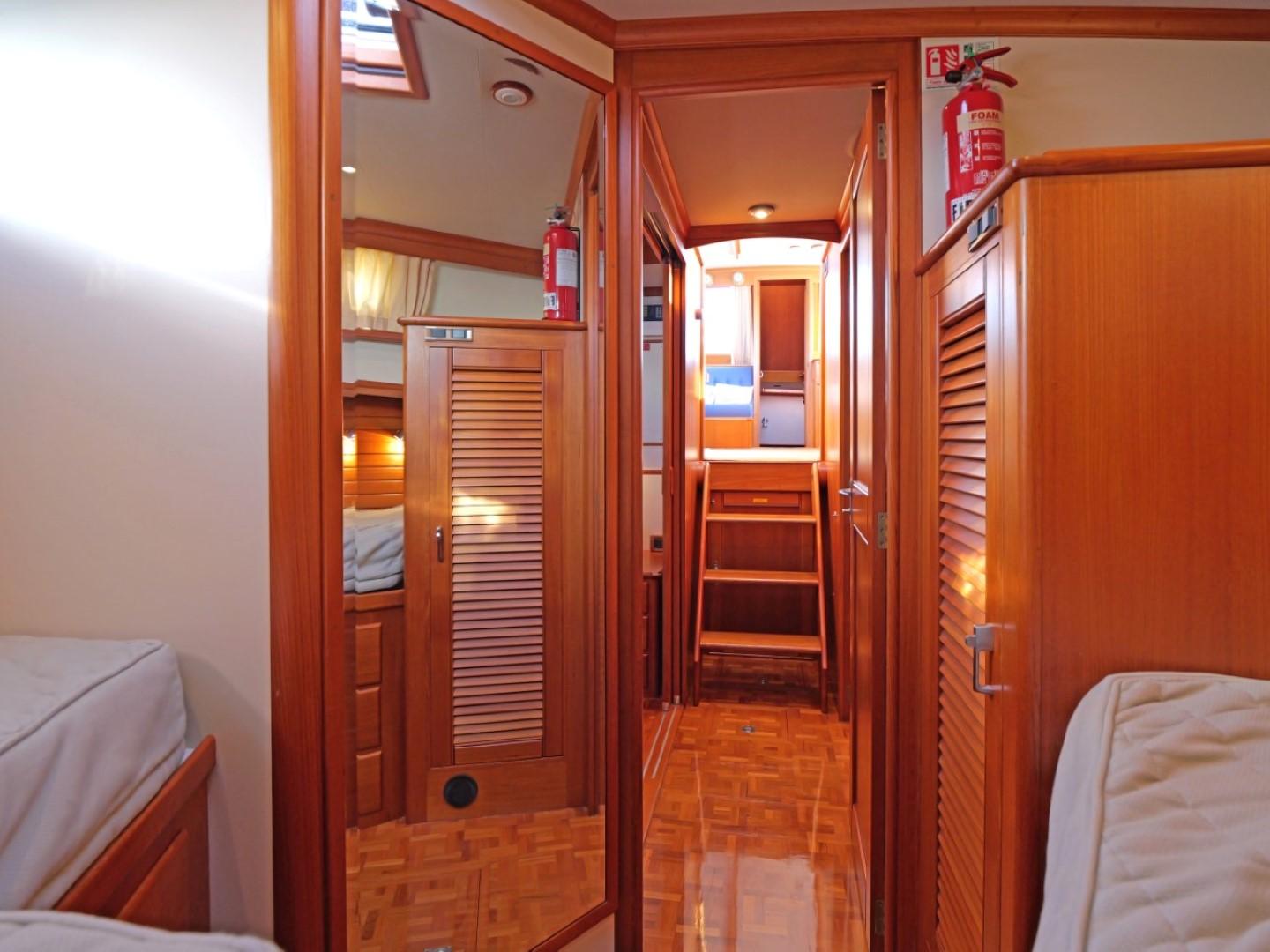

Accommodation Finish:
•    Joinery work of teak veneered plywood with solid teak trims and fittings
•    All joinery work finished in a satin varnish.
•    Teak strip planking to finish hull sides where visible
•    Teak parquet-style flooring throughout
•    Parquet flooring forward of saloon striped, re-furbished and re-varnished 2022/23
•    Corian worktop surface in galley
•    Corian countertop surfaces in heads
•    Cloth headlining with varnished teak trims
•    Upholstery throughout replaced 2021
•    Curtains or blinds fitted for all portlights and windows
•    Blinds and insect screens fitted to all deck hatches

Description of Accommodation from Forward:

Forward Cabin:
•    Twin V-berth forward
•    Access to chain locker via hatch forward of berth
•    Storage drawers below both berths at aft end with storage locker centrally
•    Bin-type storage lockers beneath bunks forward, accessed by lifting bunk cushions with access to bow thruster and batteries forward
•    Large space aft of bunks with full standing room
•    Hanging locker outboard to port side aft with countertop above
•    Full-length mirror mounted on aft bulkhead to starboard
•    Large storage locker beneath cabin sole

Forward Passageway:
•    Providing access from wheelhouse forward.
•    4 steps down from saloon level
•    Access to the forward cabin, starboard cabin and forward heads

Forward Heads:
•    Accessed from the port side of the forward passageway
•    Inboard facing, electric flush marine toilet located centrally outboard
•    L-shaped Corian countertop wrapping around the forward end of the compartment with inset wash hand basin
•    Vanity lockers below countertop and outboard
•    Dedicated shower stall space aft with folding plastic screen and teak grating seat outboard

Starboard Cabin:
•    Accessed to starboard side of the forward passageway
•    Large two-part sliding door opening cabin up to walkway if desired
•    Pilot/Skippers cabin with generous single, fore and aft bunk located outboard
•    New bespoke mattress fitted 2023
•    Storage drawers beneath the bunk
•    Hanging locker forward of bunk with countertop above
•    Bedside cabinet outboard with countertop and drawers beneath

Galley:
•    Linear galley to the port side of the deck house
•    Corian worktop with in-fill covers to conceal hob and sinks
•    Inset electric hob forward with built-in combination oven beneath
•    Double stainless steel sink inset to worktop centrally
•    Worktop area aft with built-in fridge/freezer beneath
•    Storage unit overhead with drop-down storage racks for crockery above sinks, storage locker aft
•    Selection of drawers and lockers beneath worktop

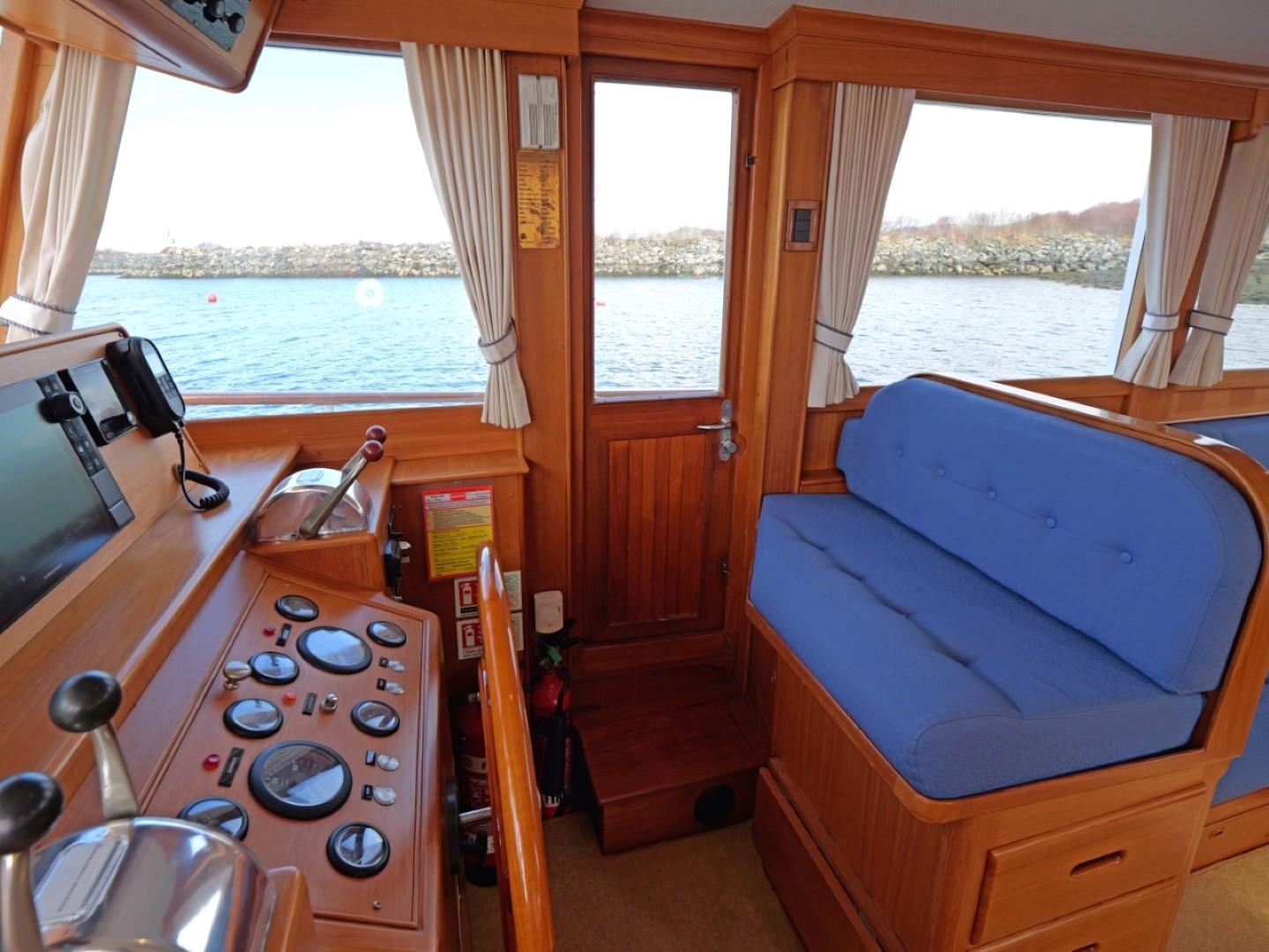

Internal Helm Station:
•    Located opposite galley to starboard.
•    Starboard door to access side decks immediately outboard
•    Large diameter teak wheel
•    Dedicated helmsman seat with backrest
•    Selection of storage drawers beneath the helm station
•    Engine displays immediate forward of the wheel with controls outboard to port and starboard
•    Raymarine/Furuno navigation instruments mounted within the instrument cluster forward
•    Switch panel above helm station overhead
•    Main switch panel inboard of the helm station

Saloon:
•    Spanning the full width of the wheelhouse aft end
•    Port door to access port side deck outboard forward to port.
•    L-shaped settee to starboard
•    Storage lockers beneath settee bases, all accessible without lifting base cushions
•    Fixed saloon table with double folding leaves positioned inboard of starboard settee.

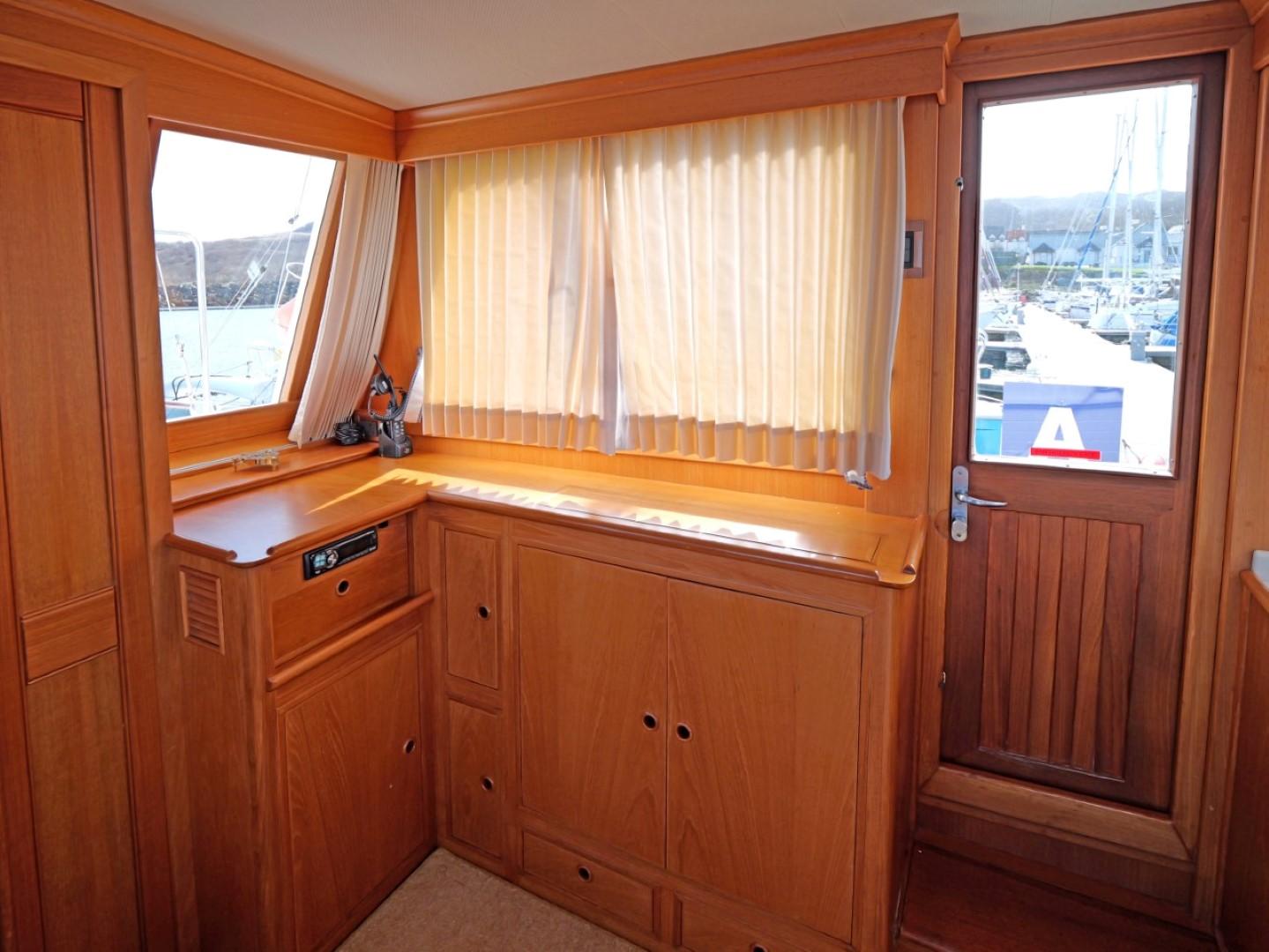

•    L-shaped countertop storage unit to port, aft of door.
•    TV built into the unit, rising up out of countertop when in use.
•    Selection of drawers and lockers within the storage unit

Stateroom Aft Cabin:
•    Accessed from saloon via companionway steps.
•    Folding doors to isolate the cabin from the saloon
•    Full-size double berth offset to starboard aft
•    Beside counters outboard of bunk to port and starboard with drawer storage beneath
•    Countertop running length of bunk forward to starboard with storage drawers beneath
•    Dressing table outboard to port with drawer beneath table top
•    Storage drawers beneath countertop forward to port

Aft Heads:
•    Ensuite for aft cabin, located to the port side of the cabin
•    Forward facing, electric flush marine toilet located inboard at the aft end of the compartment
•    Corrian countertop spanning the width of compartment forward with inset wash hand basin
•    Selection of storage lockers below the countertop and outboard

Aft Shower Room
•    Located to the starboard side of the aft cabin, forward.
•    Full standing room shower
•    Storage lockers outboard

DECK EQUIPMENT

General:

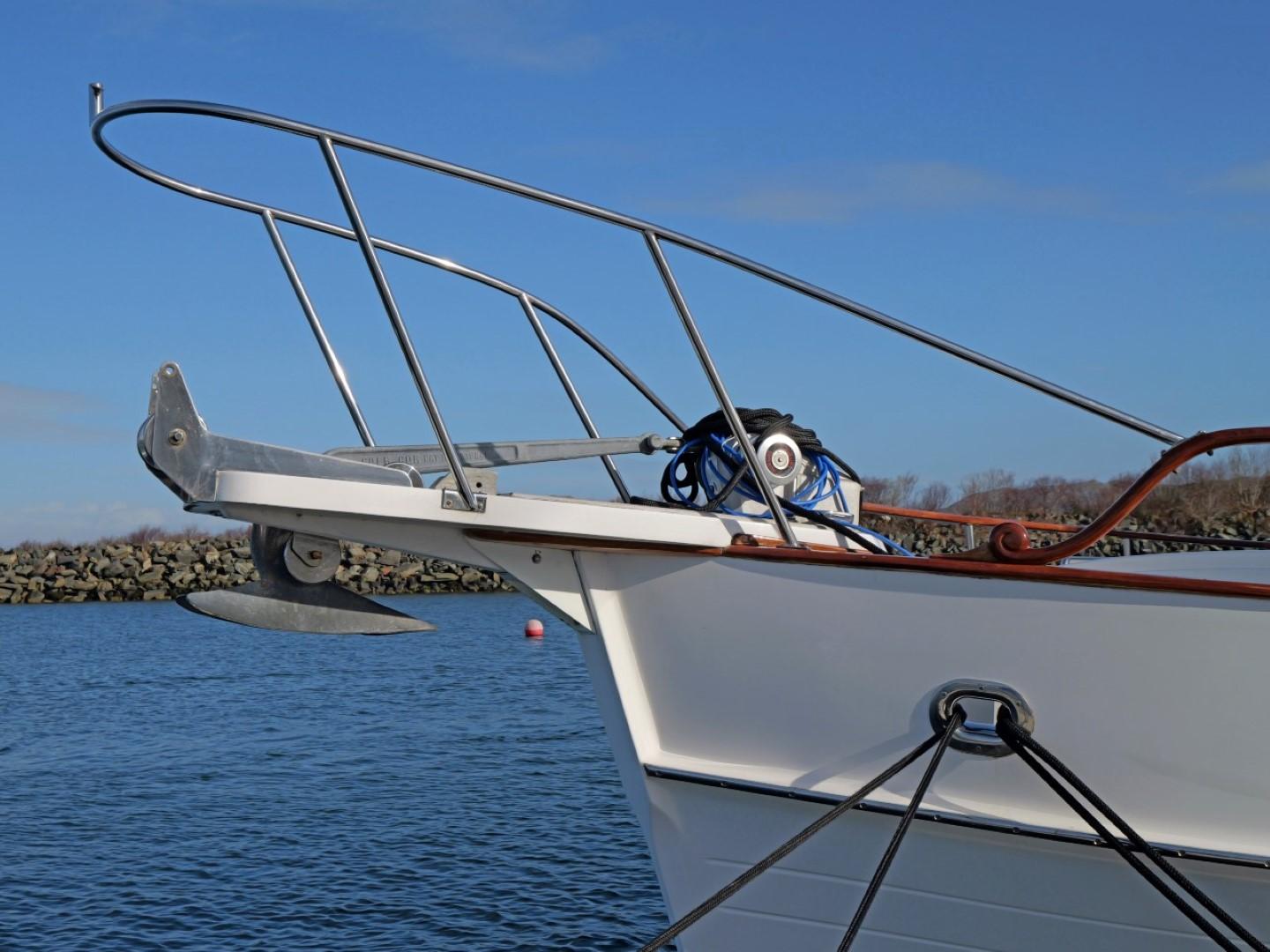

•    Double bow roller on short bowsprit, anchor self-stowing in starboard roller
•    Anchor windlass mounted at the aft section of bow sprit raised above deck level with foot buttons below.
•    Stainless steel ‘Panama’ style fairleads fitted through bulwark forward, midships and aft
•    Stainless steel mooring cleats mounted on bulwarks forward, midships and aft, 10 mooring cleats in total
•    Walk around decks running the full length of the boat with a short section of the foredeck and aft deck.
•    Stainless steel grabrails running along outboard edges of coachroof superstructure forward and aft
•    GRP moulded deck storage boxes running along the aft end of the aft coachroof superstructure, 3 independently opening teak lids
•    Hardwood deck chocks to the port side of aft coachroof for storing tender on.
•    Lazzarette locker beneath the aft deck with two opening deck hatches providing access.
•    Teak grating floor to locker space which also provides access to steering gear
•    Stainless steel tubular fender baskets mounted outboard of transom grabrail to port and starboard sides
•    Teak grating to form a transom-mounted bathing platform
•    Fold down swimming ladder
•    Access to the flying bridge via steps to the port side of aft coachroof
•    Stidd Admiral seats for helm and navigator at the forward end of the flybridge, new cushions and covers 2021
•    Moulded GRP seating unit to the starboard aft side of the flybridge with teak grating type table
•    Removable alloy gangway, with grabrail

Rig:
•    Alloy mast and boom derrick
•    Spars finished in white paint
•    Stainless steel standing rigging to support
•    Steadying sail, brand new, never used

Canvas Work:
•    Spray Dodgers - On flying bridge and around after end (2022)
•    Seating Covers - For all seating on the flybridge
•    Flybridge Cover – Bimini style cover with zip in from screen and side panels, set on stainless steel frame
•    Flybridge table cover
•    Windscreen cover
•    All canvas work washed and serviced in winter 2023/24

Anchoring & Mooring:
•    Main Anchor – CQR anchor on chain rode
•    Kedge Anchor – CQR chain and warp
•    Anchor Windlass - Lofrans Tigress 12VDC, 1500w. With chain gypsy and warping drum. Foot button switch controls on foredeck
•    Warps – Selection, all new 2021
•    Fenders – Selection, all new 2021

Tender:
•    Tender – 3.3m Honwave inflatable dinghy with hard transom
•    Outboard – 6hp Suzuki

SAFETY EQUIPMENT:

General note on safety equipment: Any safety equipment such as life rafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.

Navigation Lights:
•    Masthead anchor light
•    Steaming light
•    Navigation lights

Life saving:

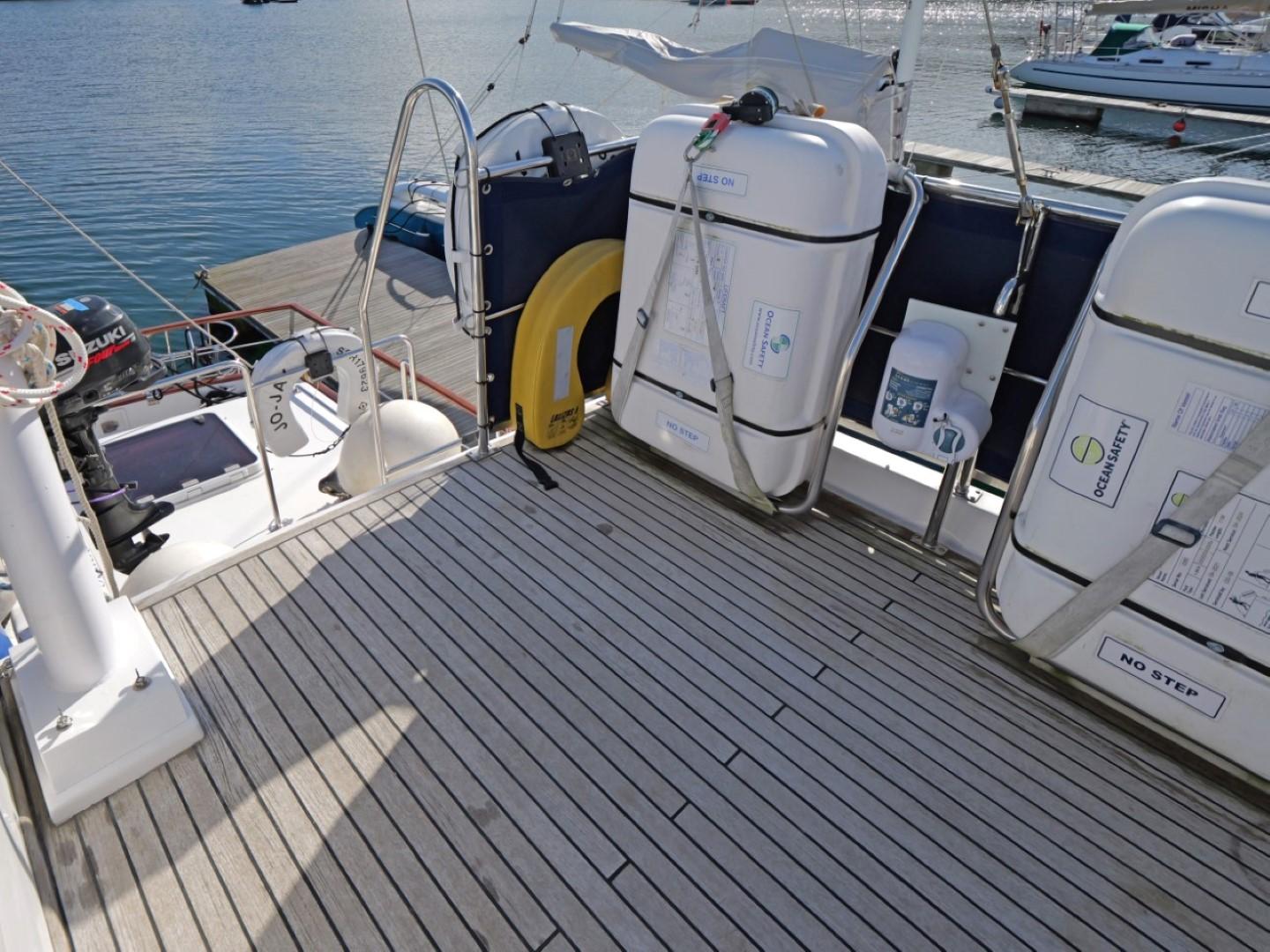

•    Liferaft – 2x Ocean Safety 8 person cannister liferafts. Mounted in self-release cradles on flybridge. Both now due servicing
•    EPIRB – (2022)
•    Seago MOB rescue system
•    Horseshoe lifebuoy x3
•    SeaFire carbon monoxide alarm system with units in all cabins and saloon
