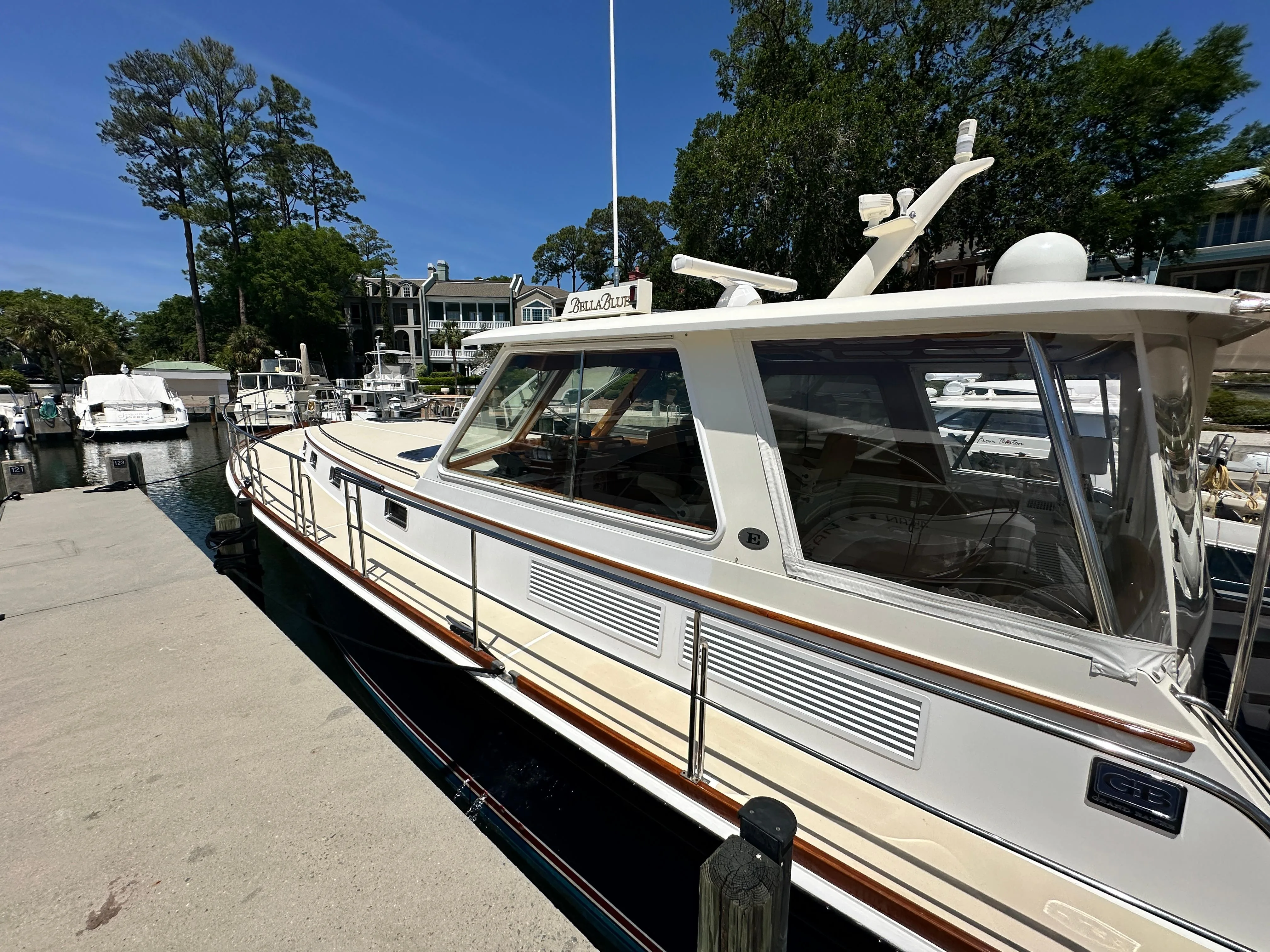

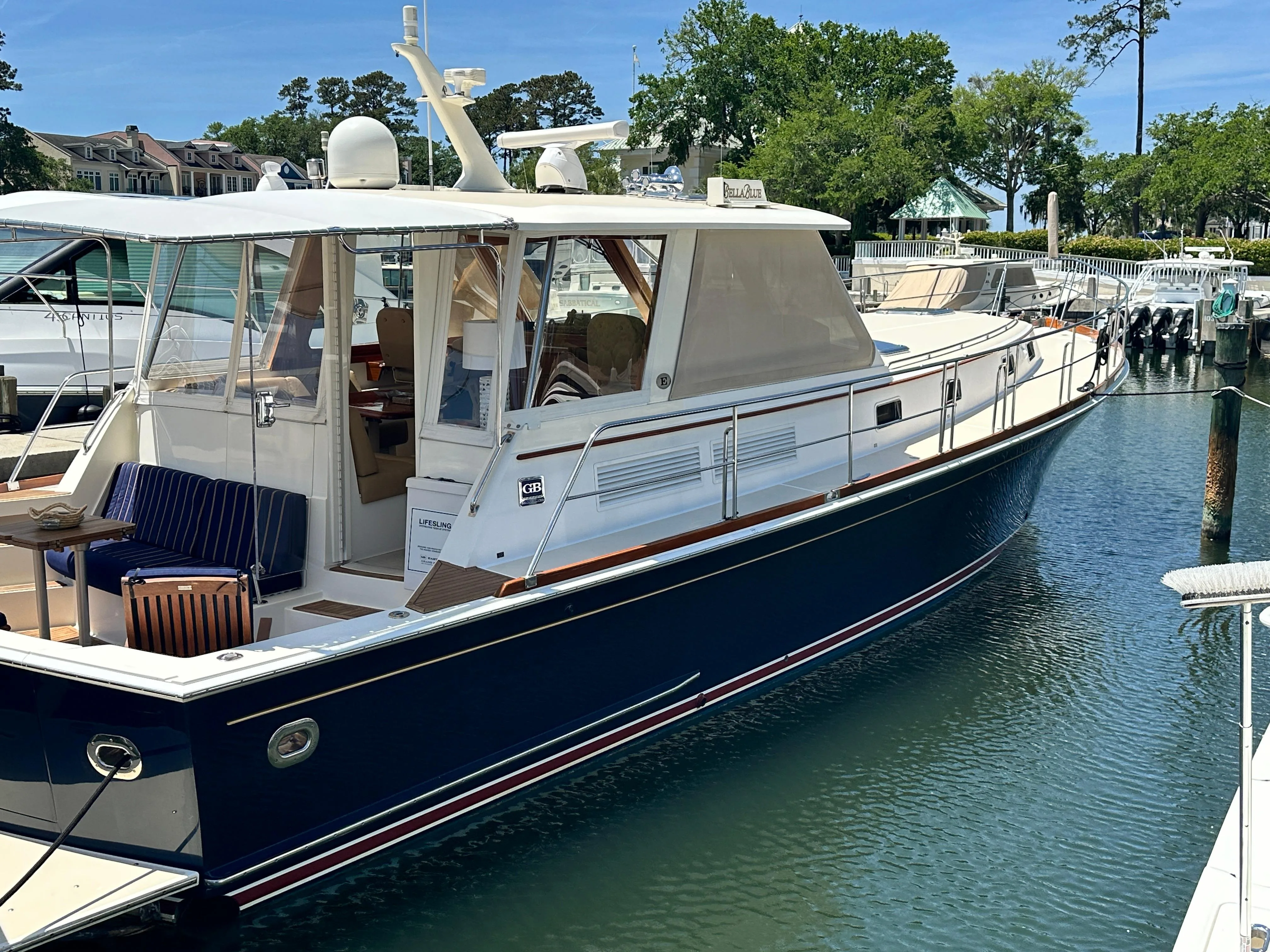

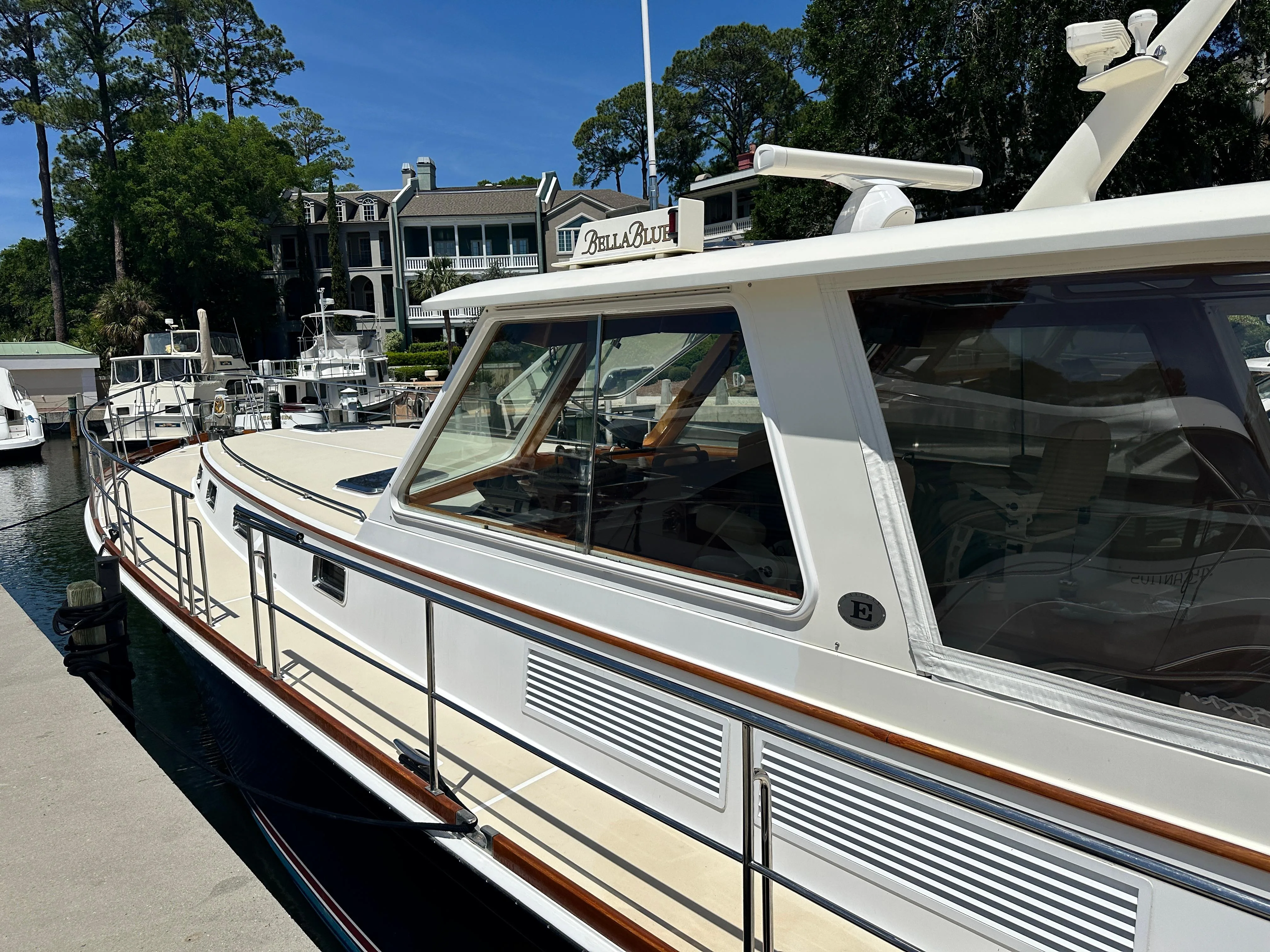

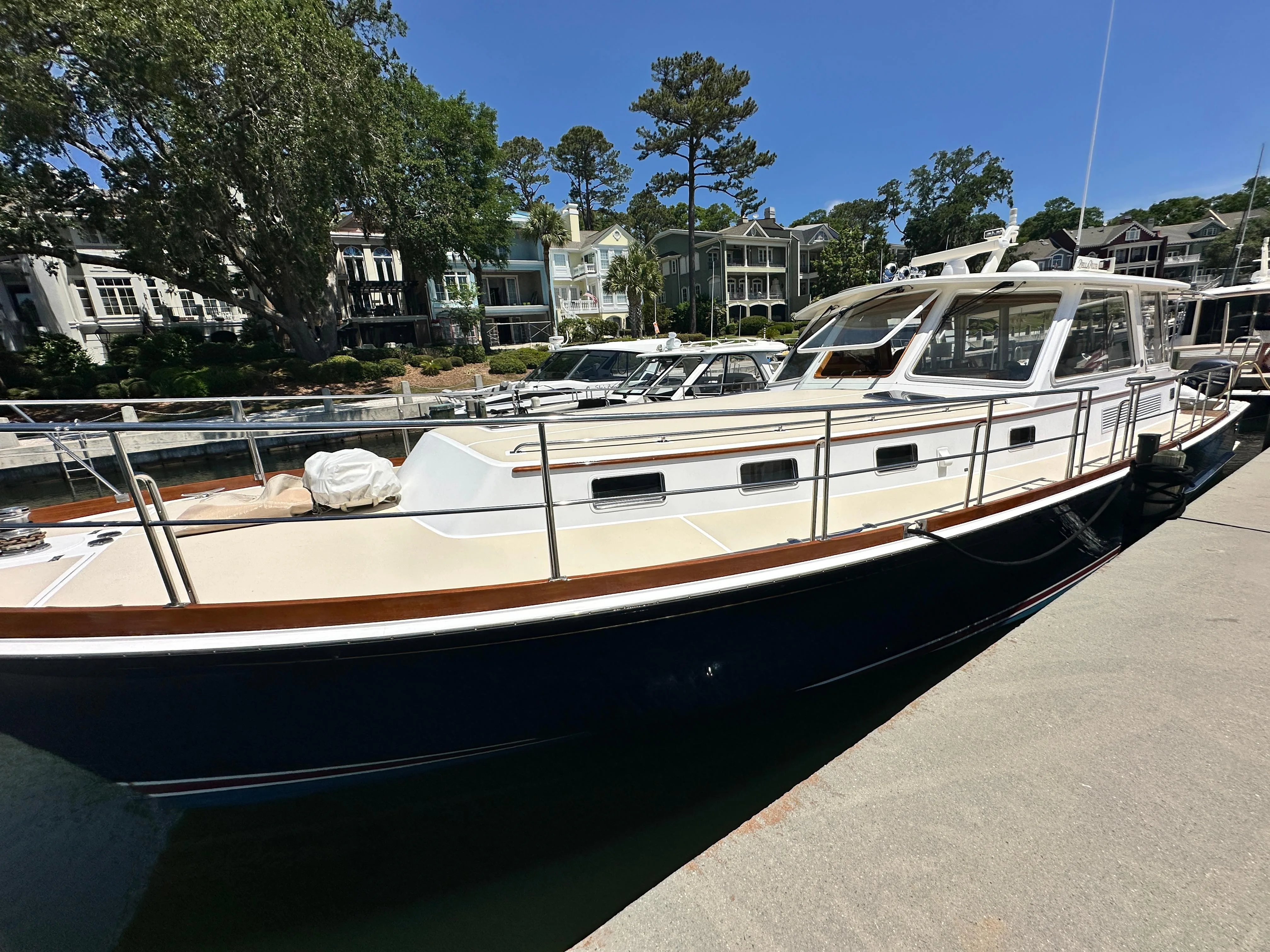

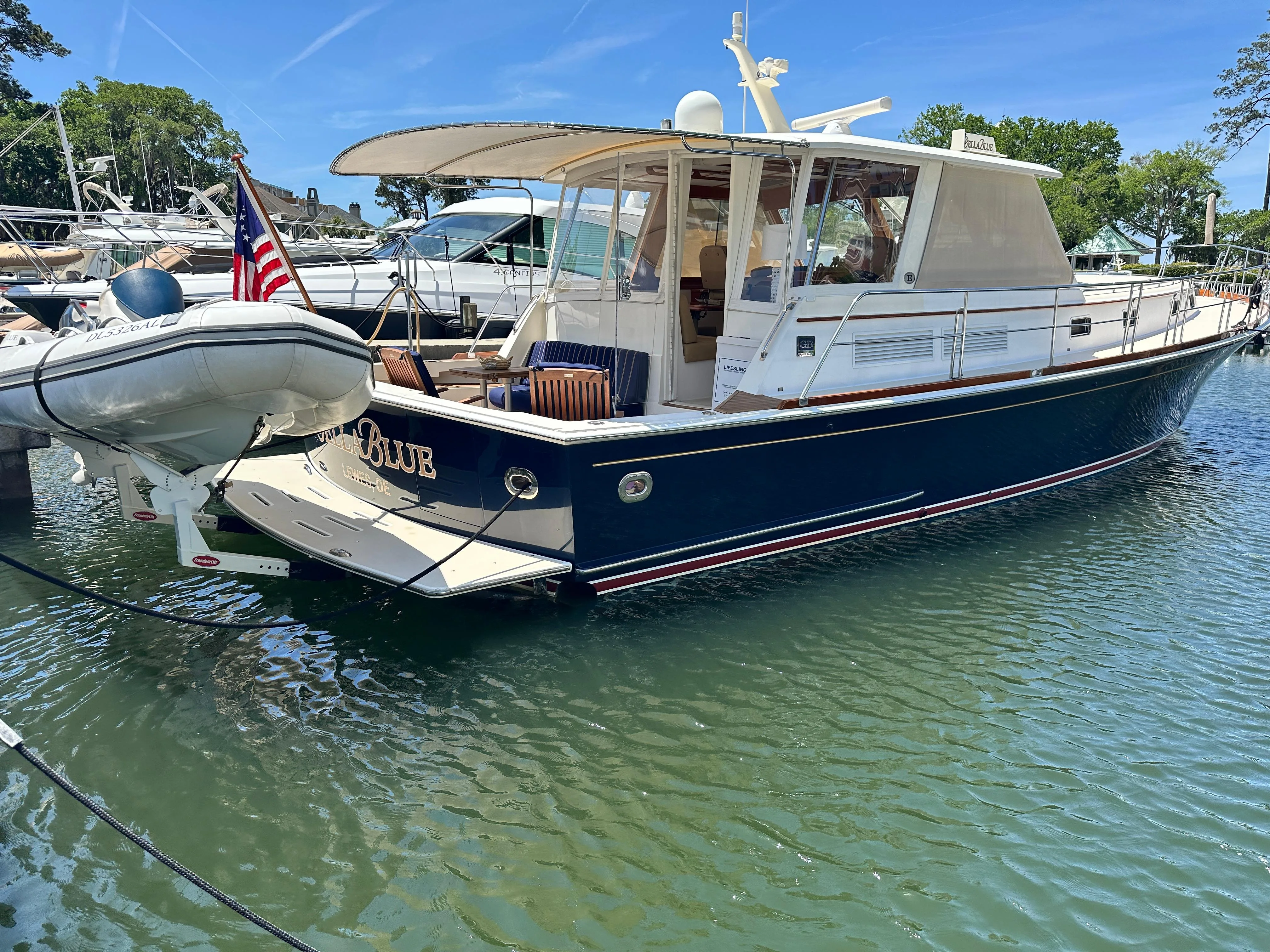

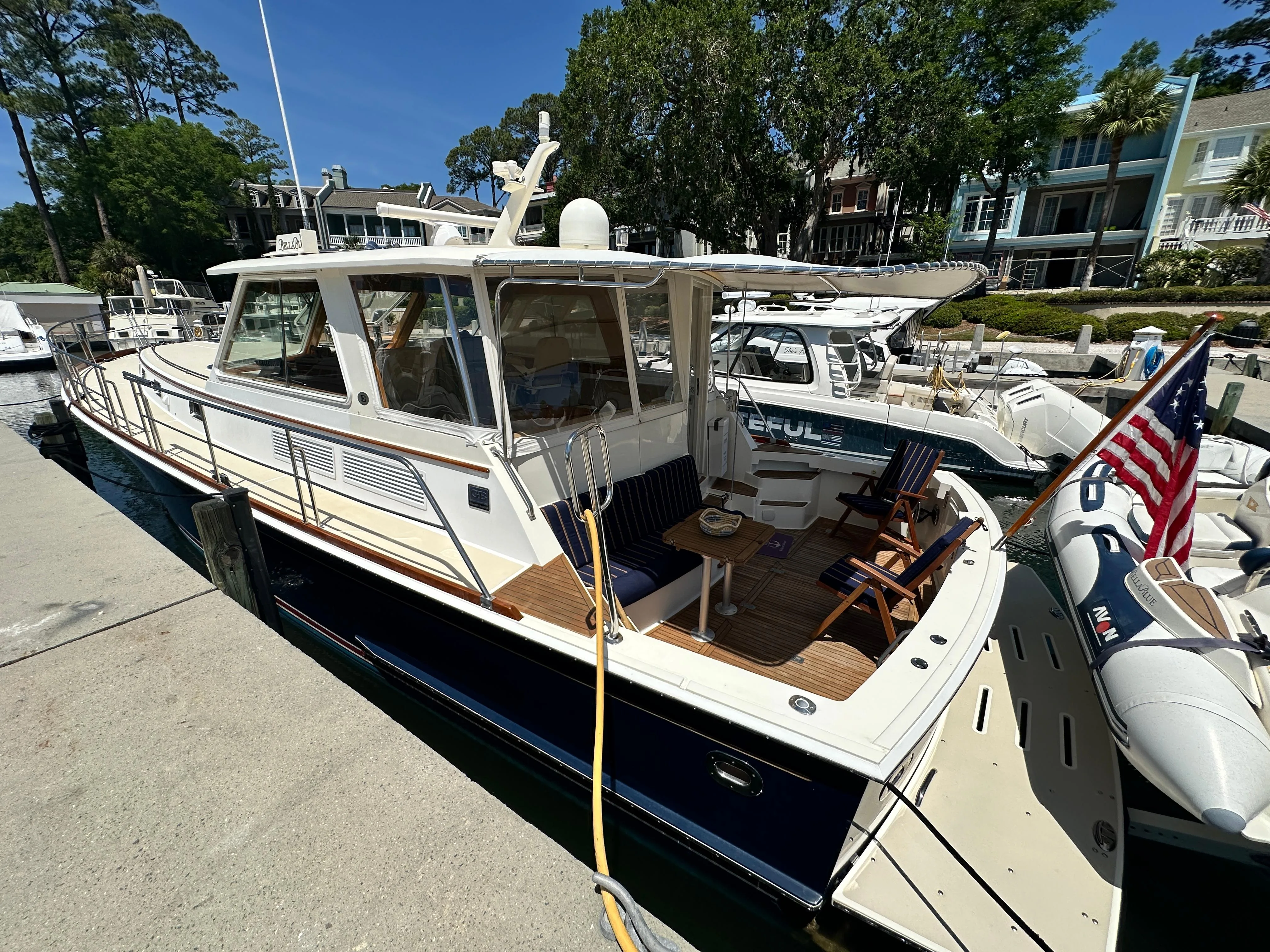

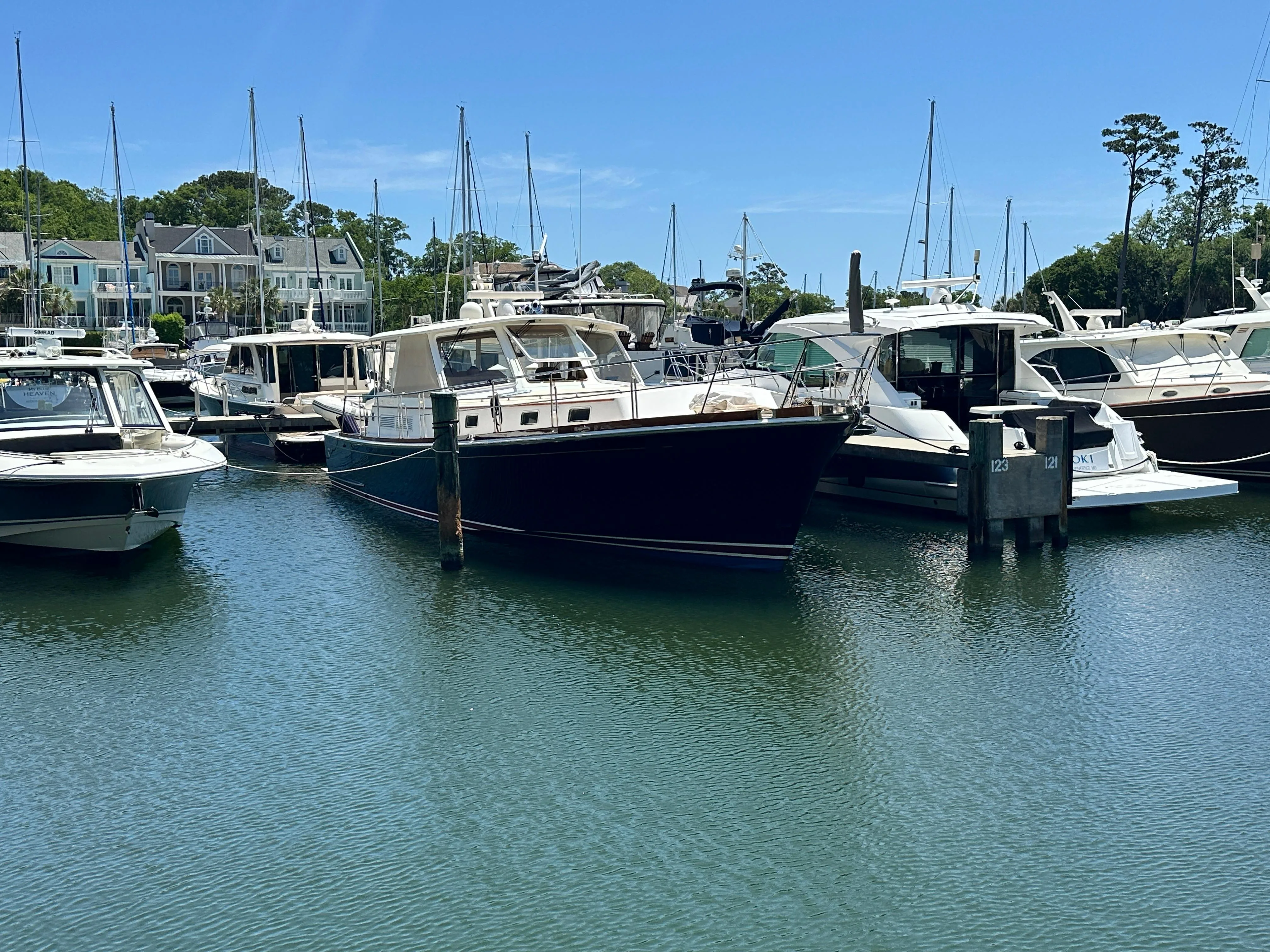

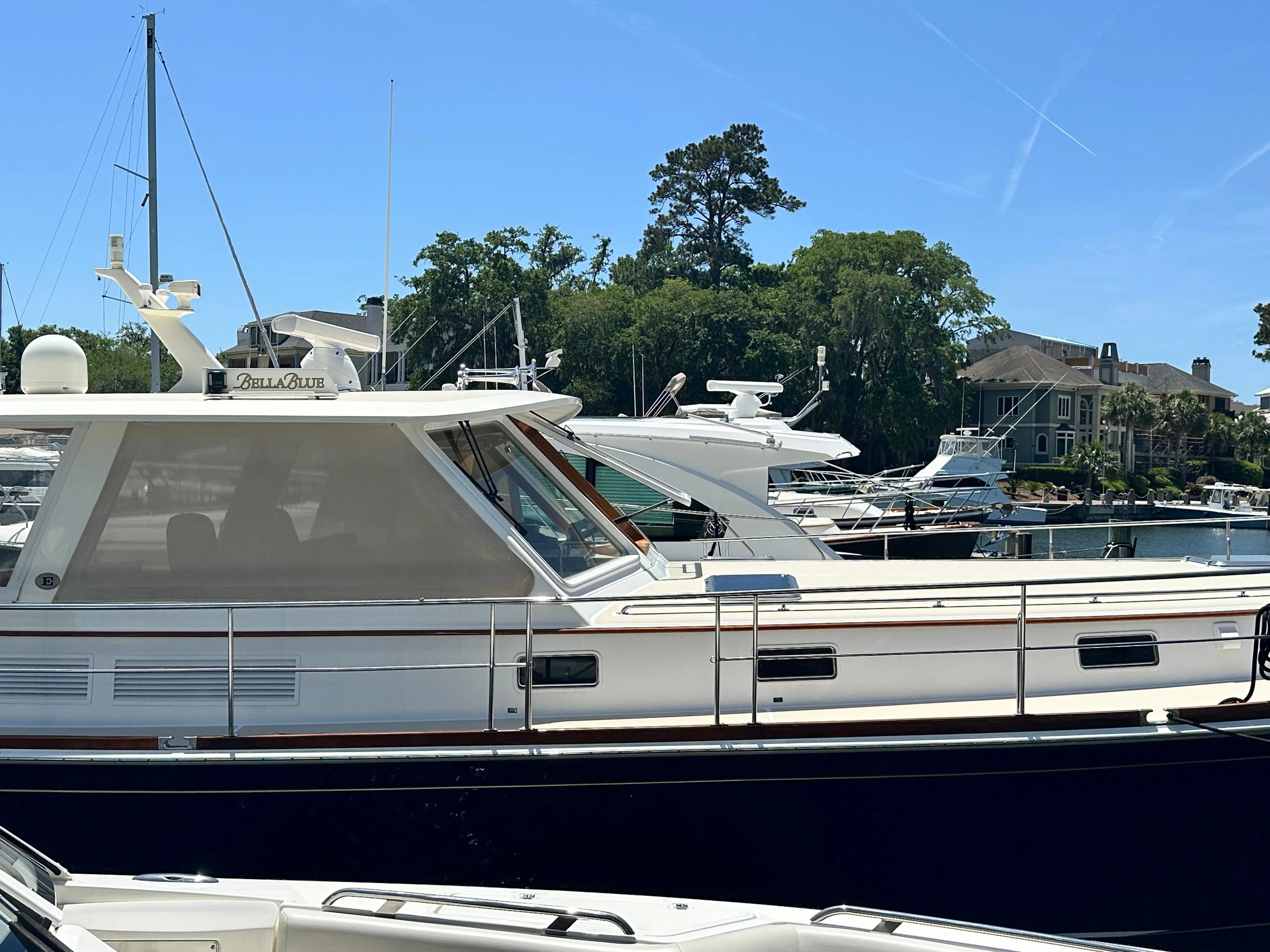

2004 Grand Banks 49 Eastbay HX | 54ft

Hull & Deck

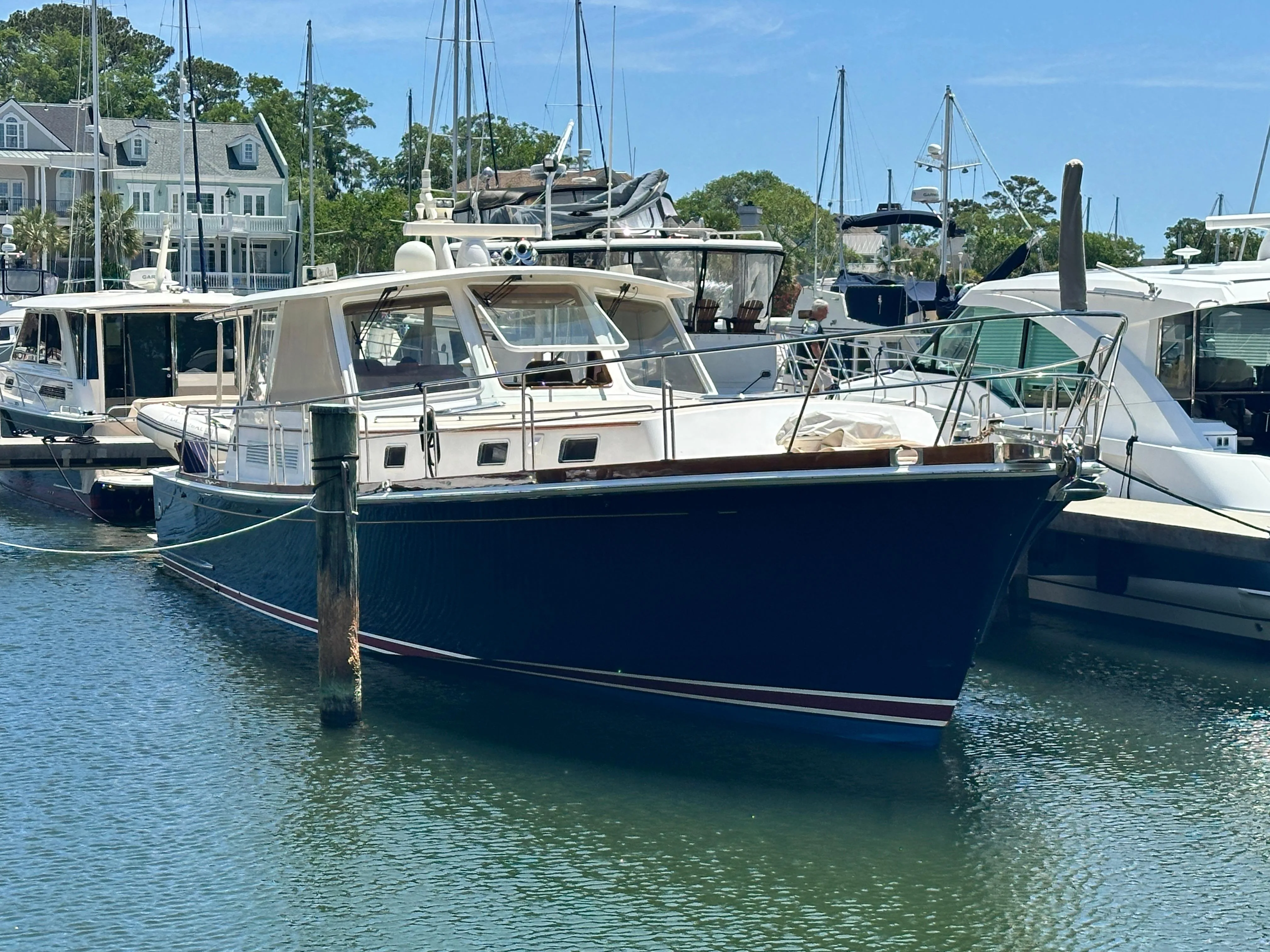

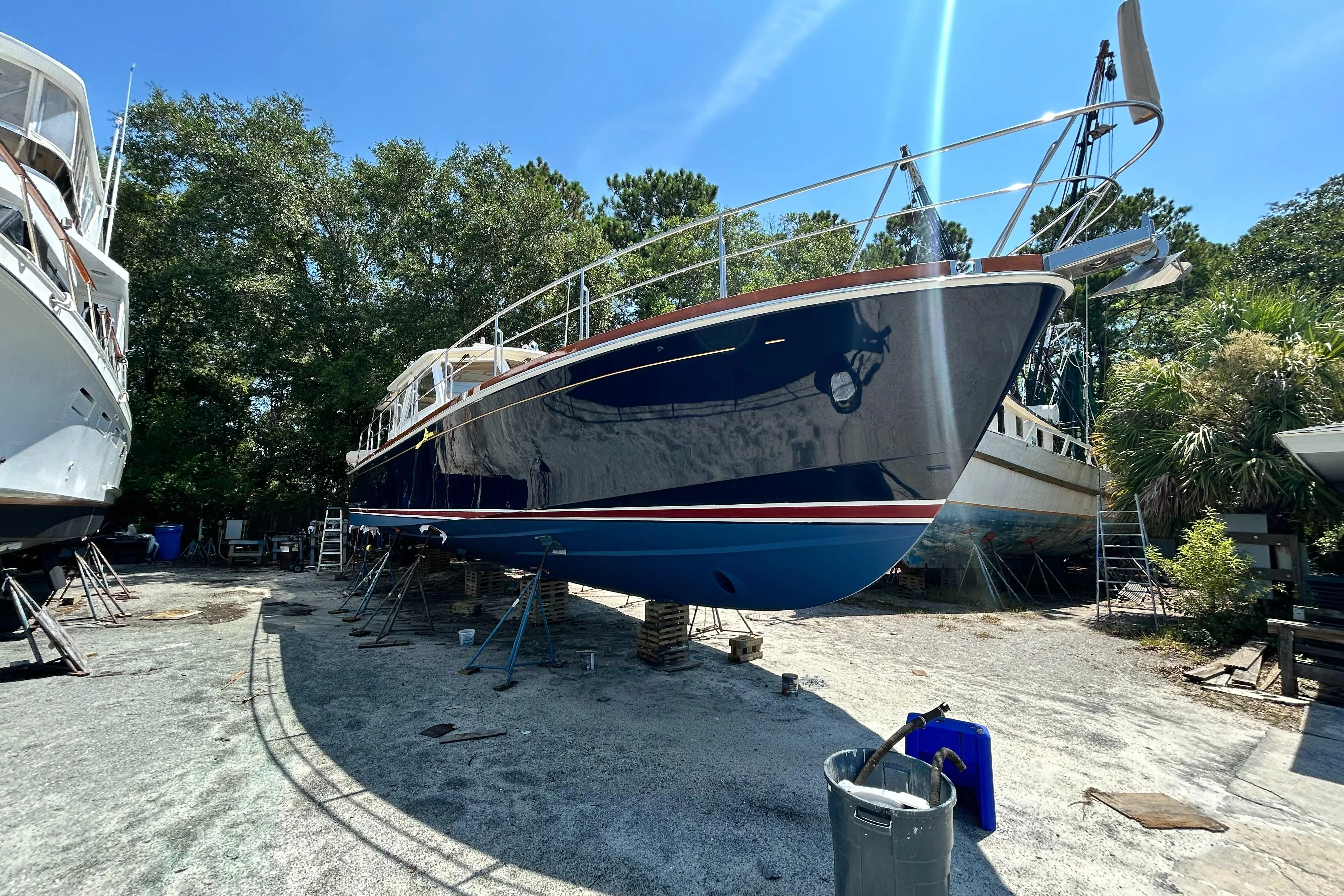

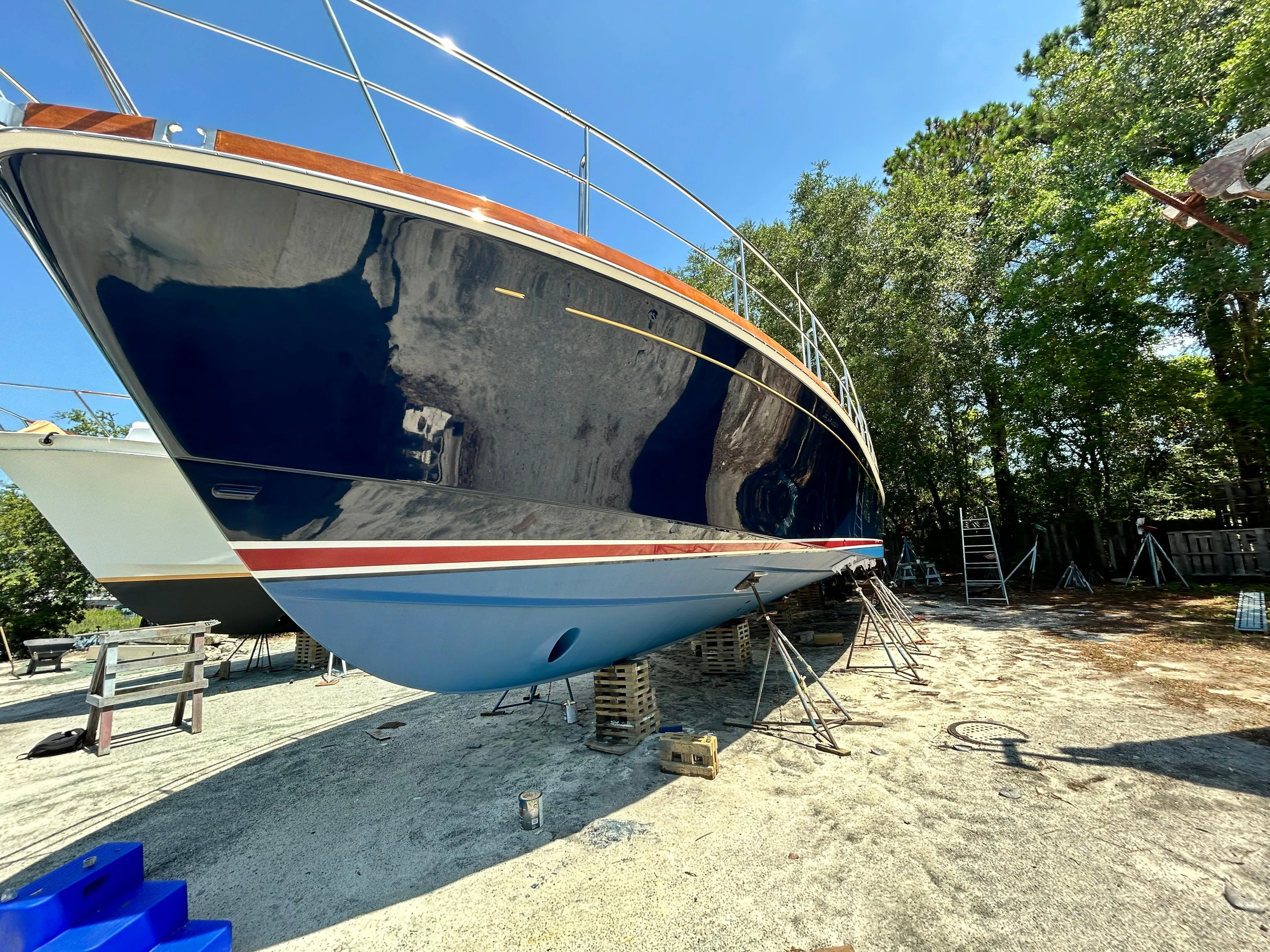

• Imron Painted Hull, with white/red boot stripe and blue antifouling paint.

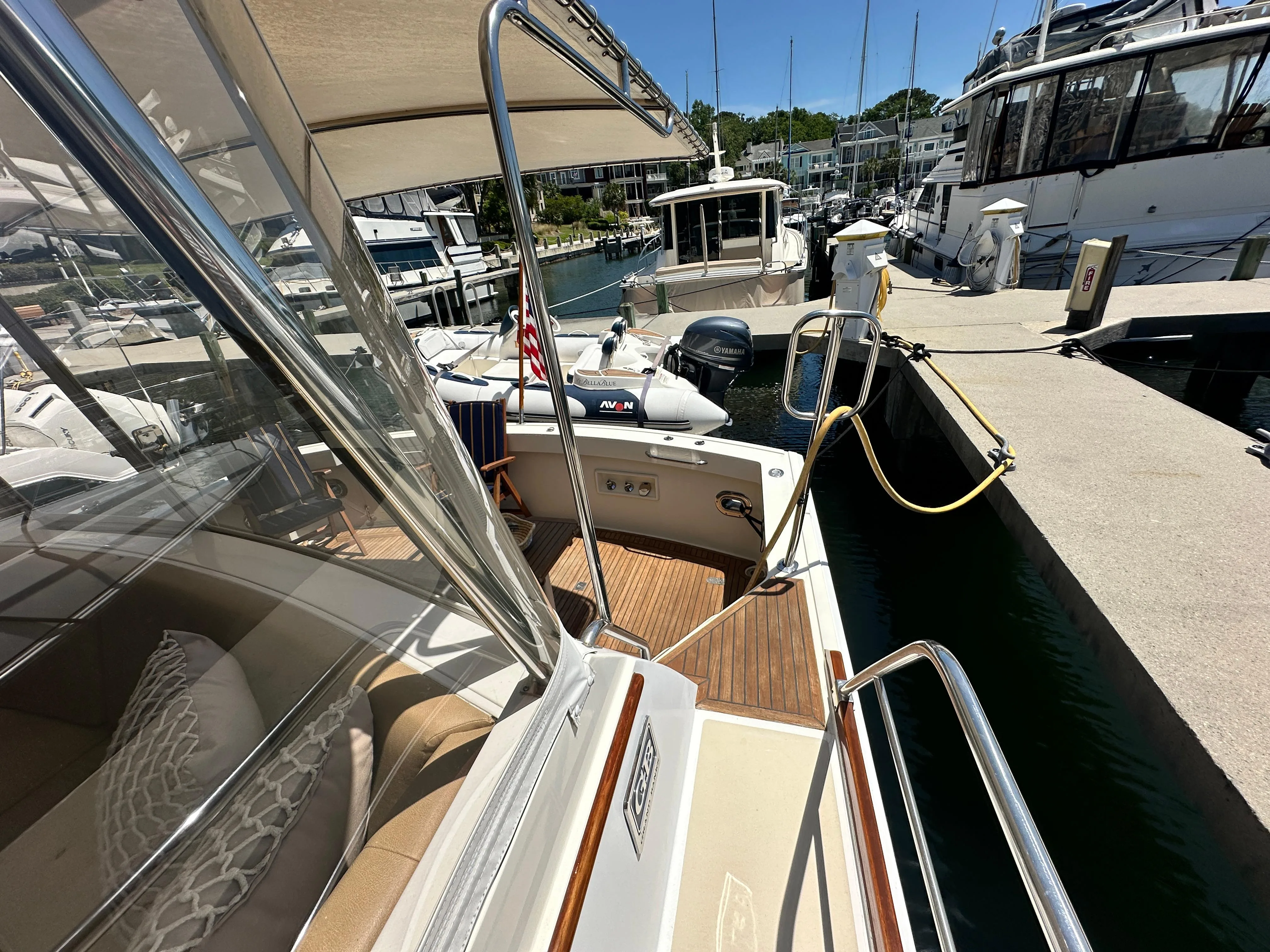

• Teak Swim Platform

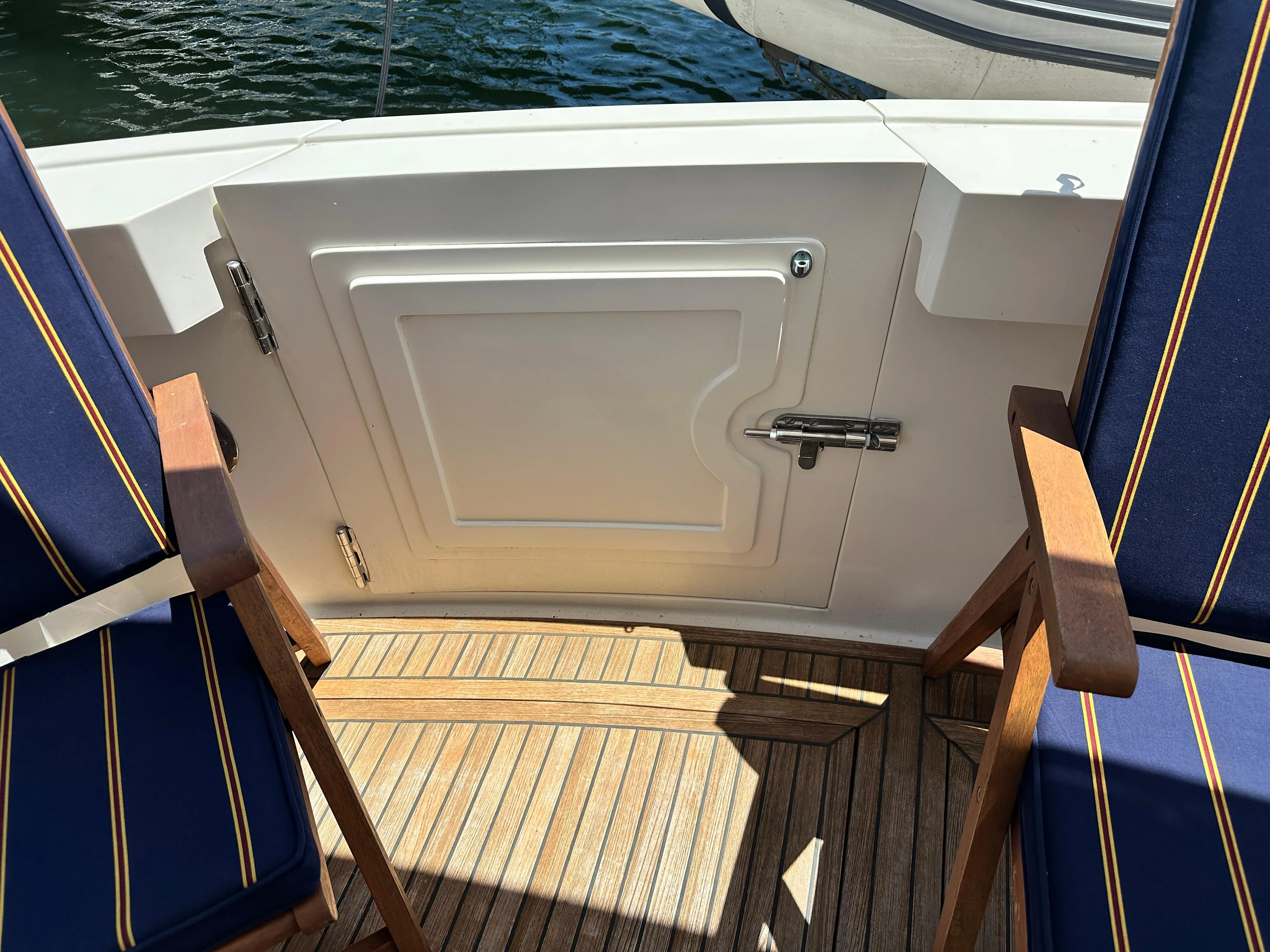

• Starboard transom door

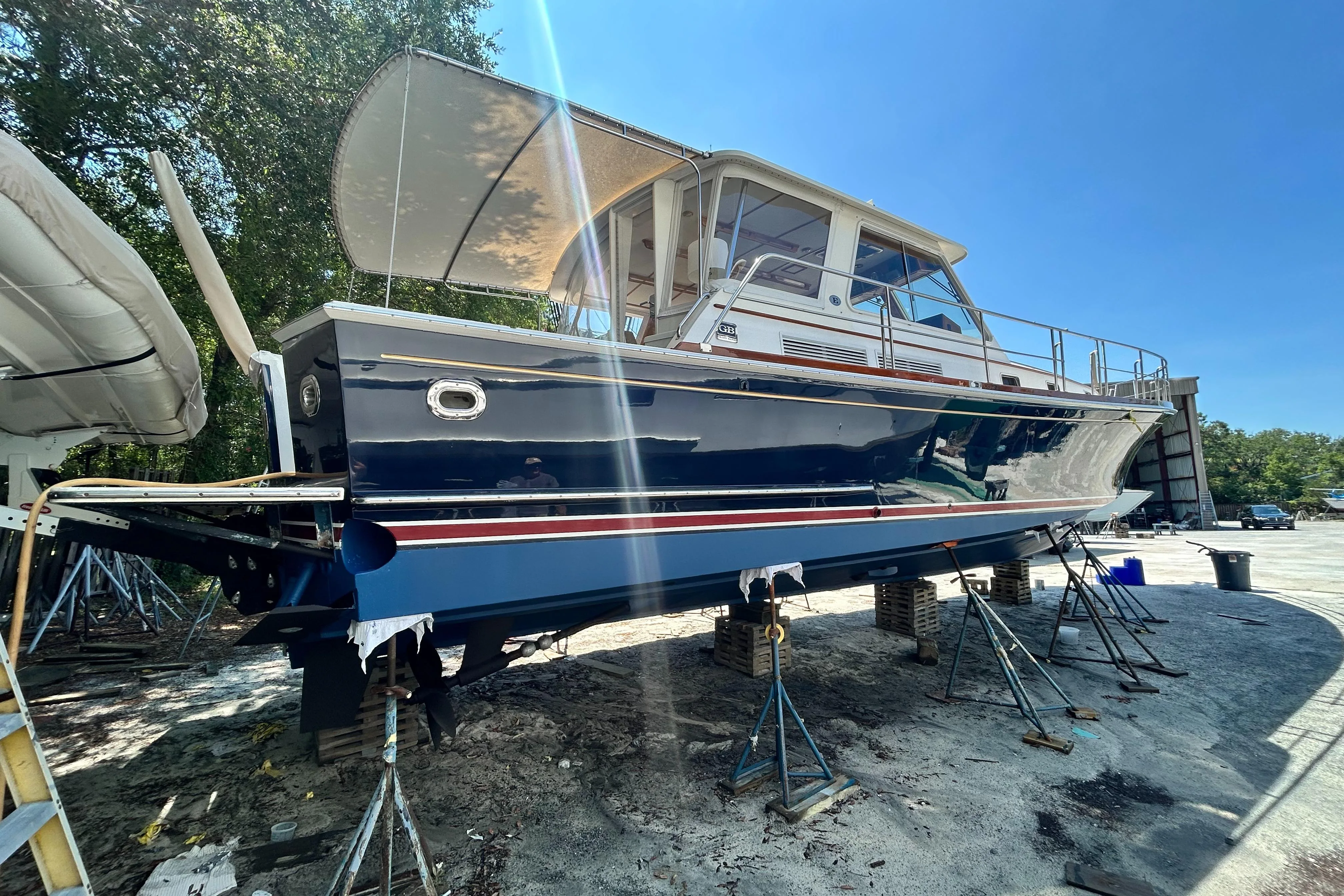

• Hull is a Modified-V, planing type, with rising sheer-line, flared bow, hard chines and partial keel
• Deck is white gelcoat and textured non-skid

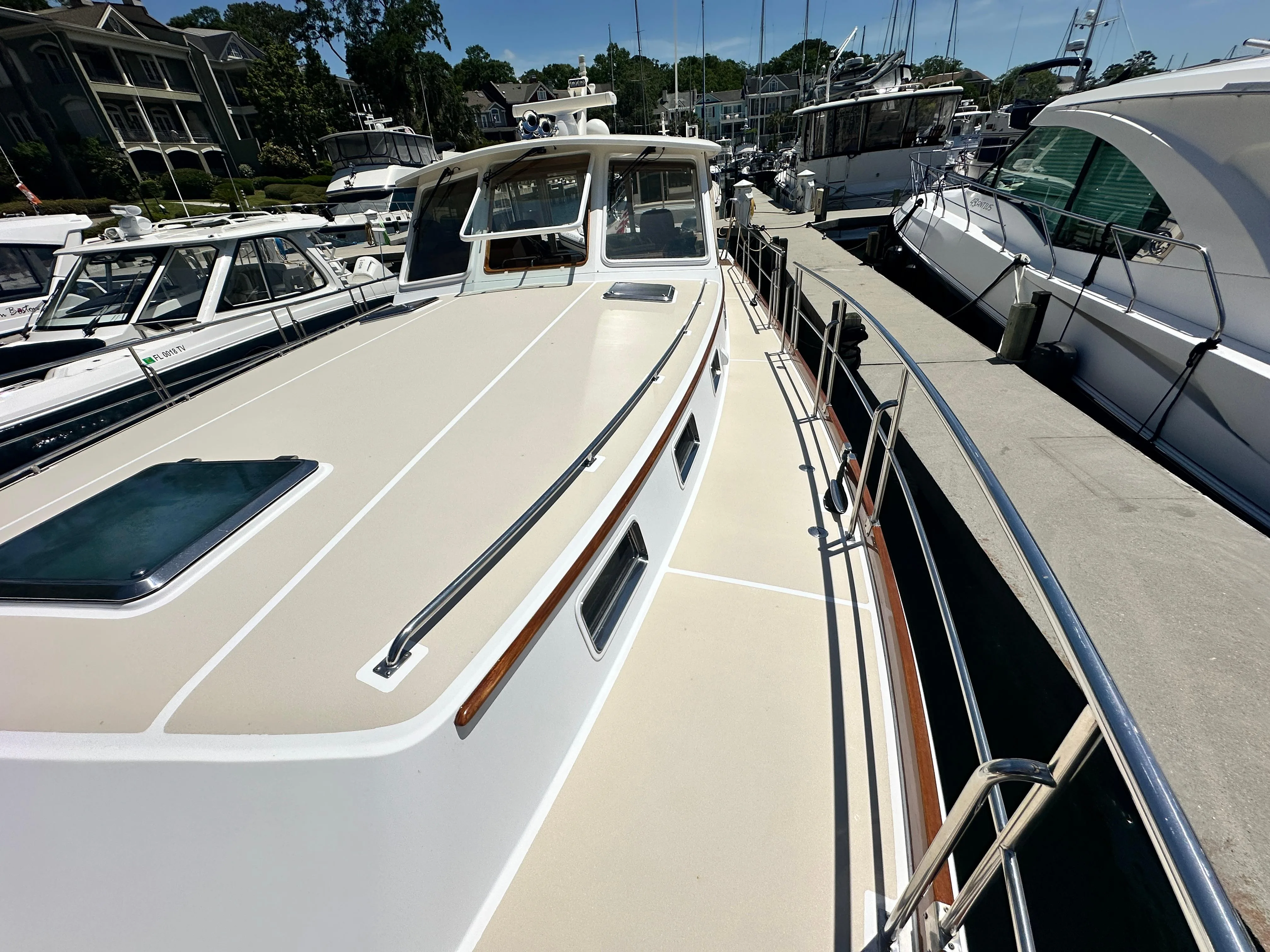

• Varnished Teak toe-rails
• Stainless steel compression striker rub-rails

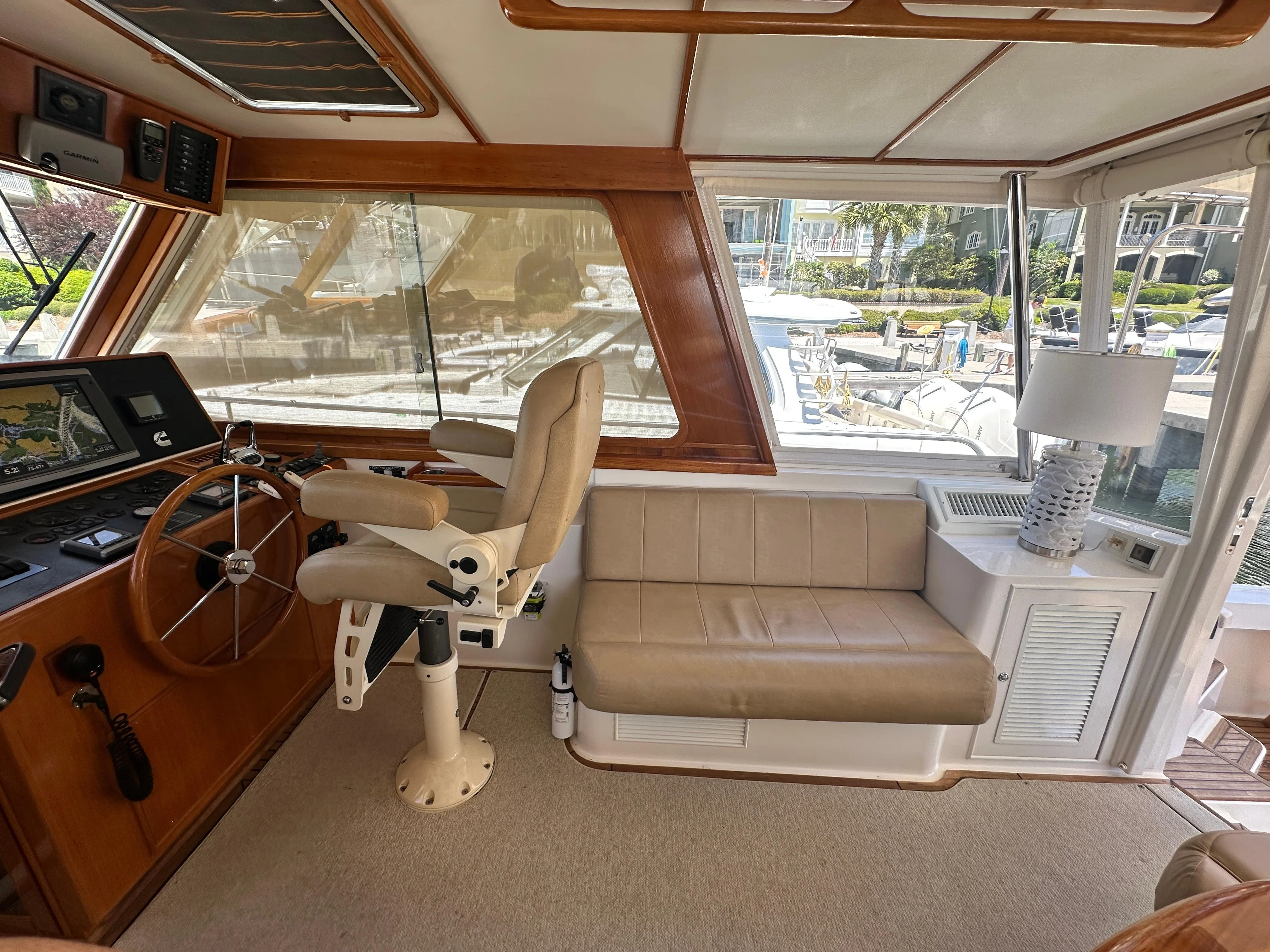

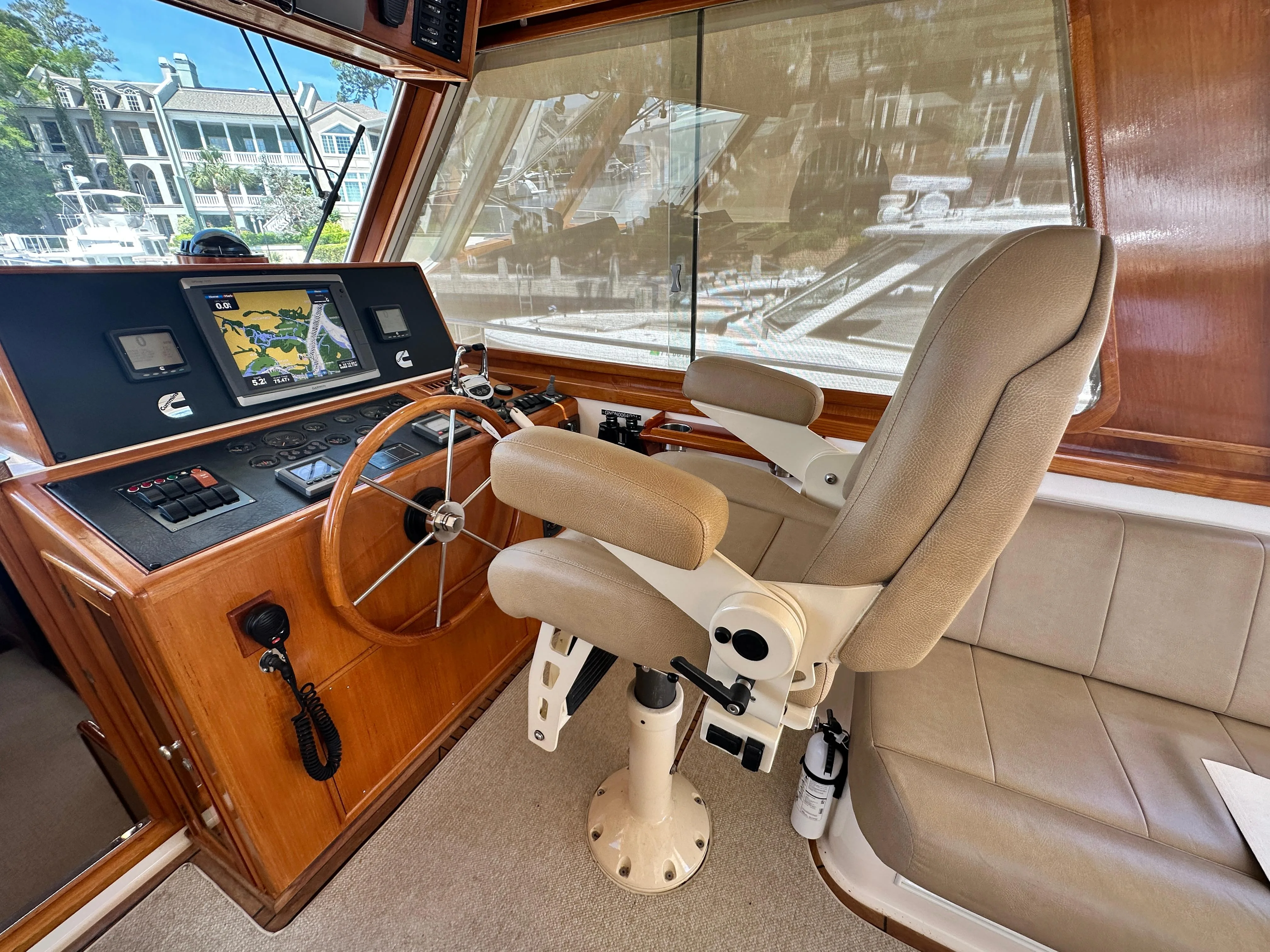

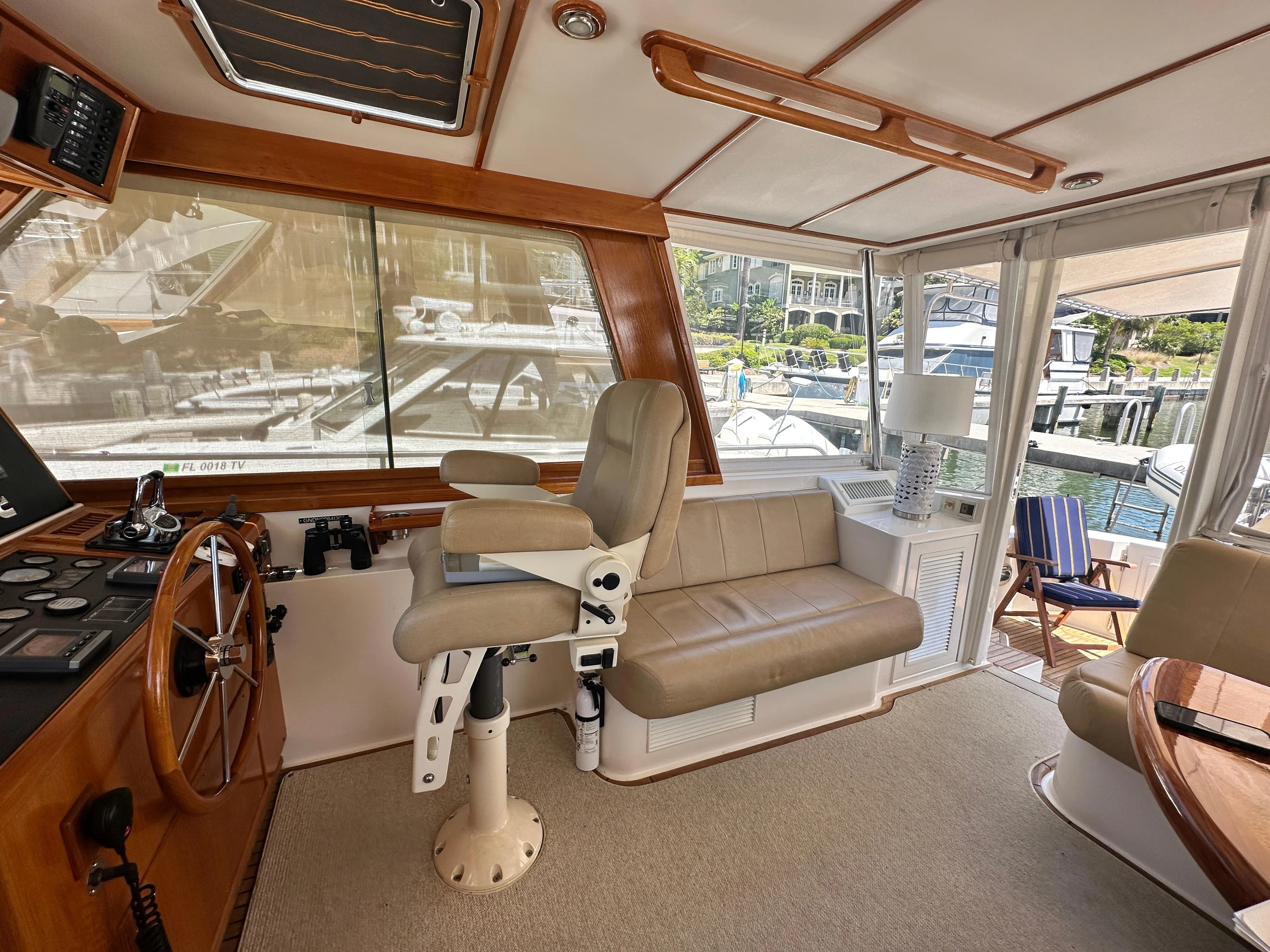

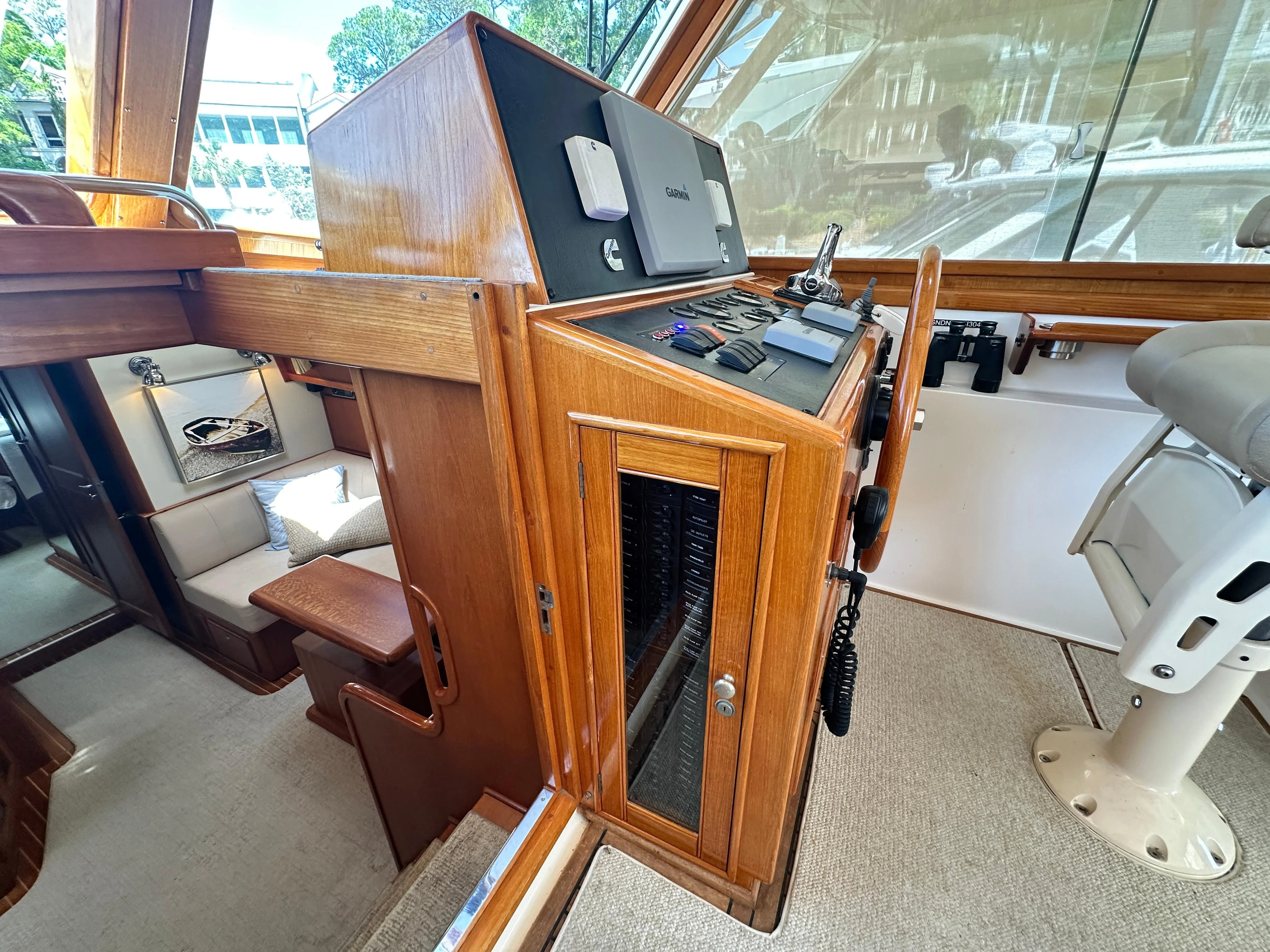

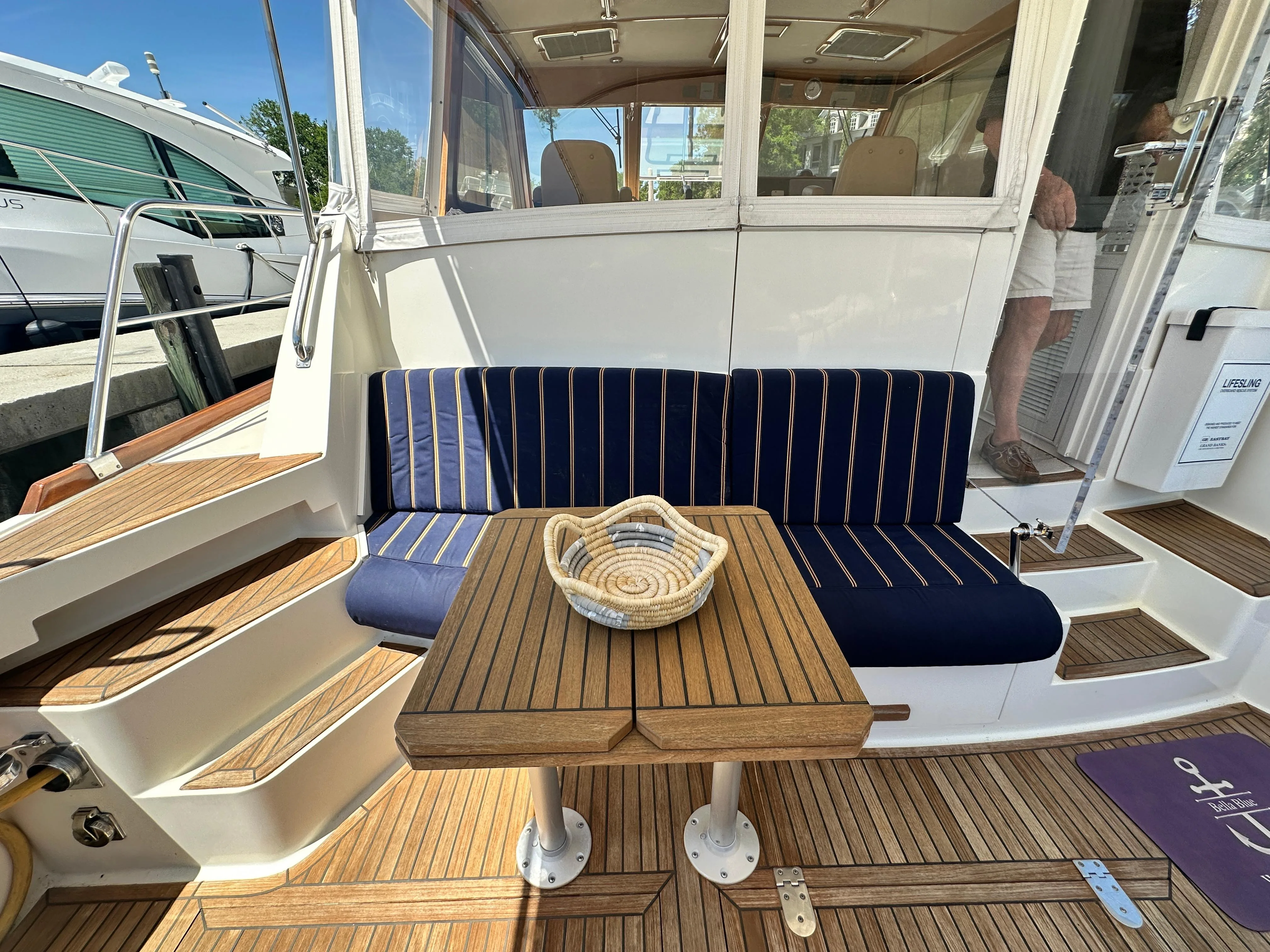

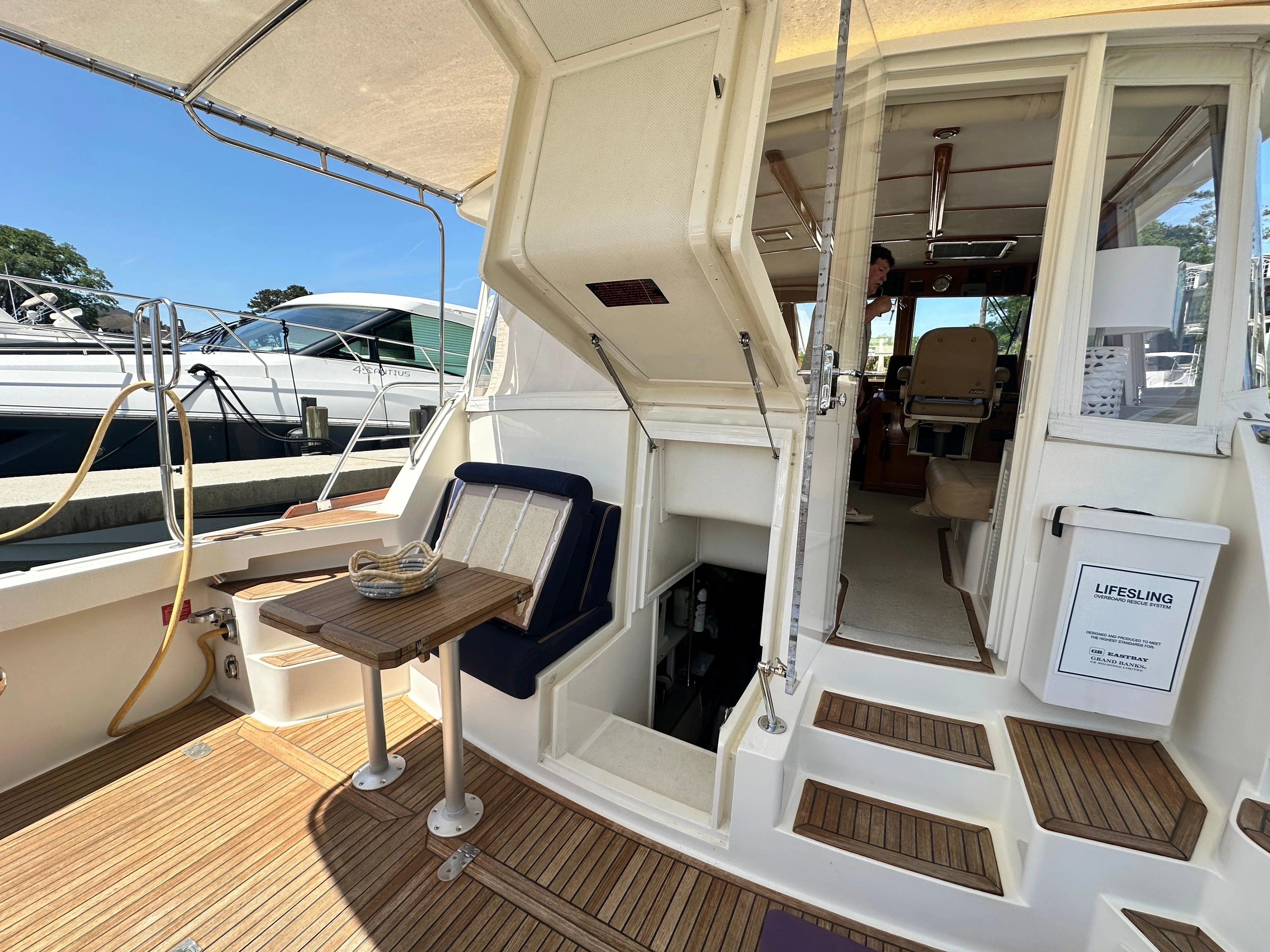

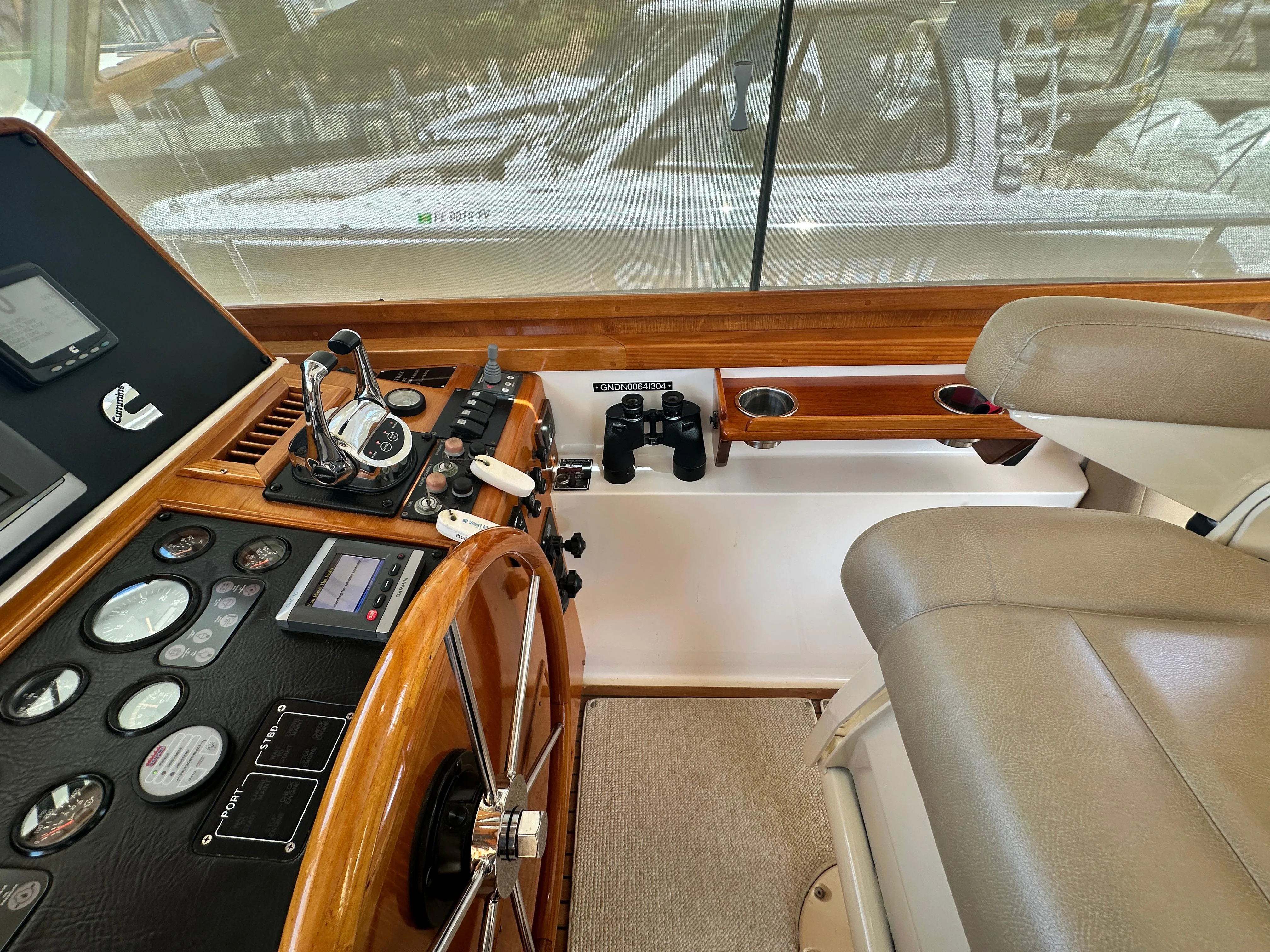

• (2) Stidd helm chairs with simulated leather cushions and bridge bench seating with vinyl cushions

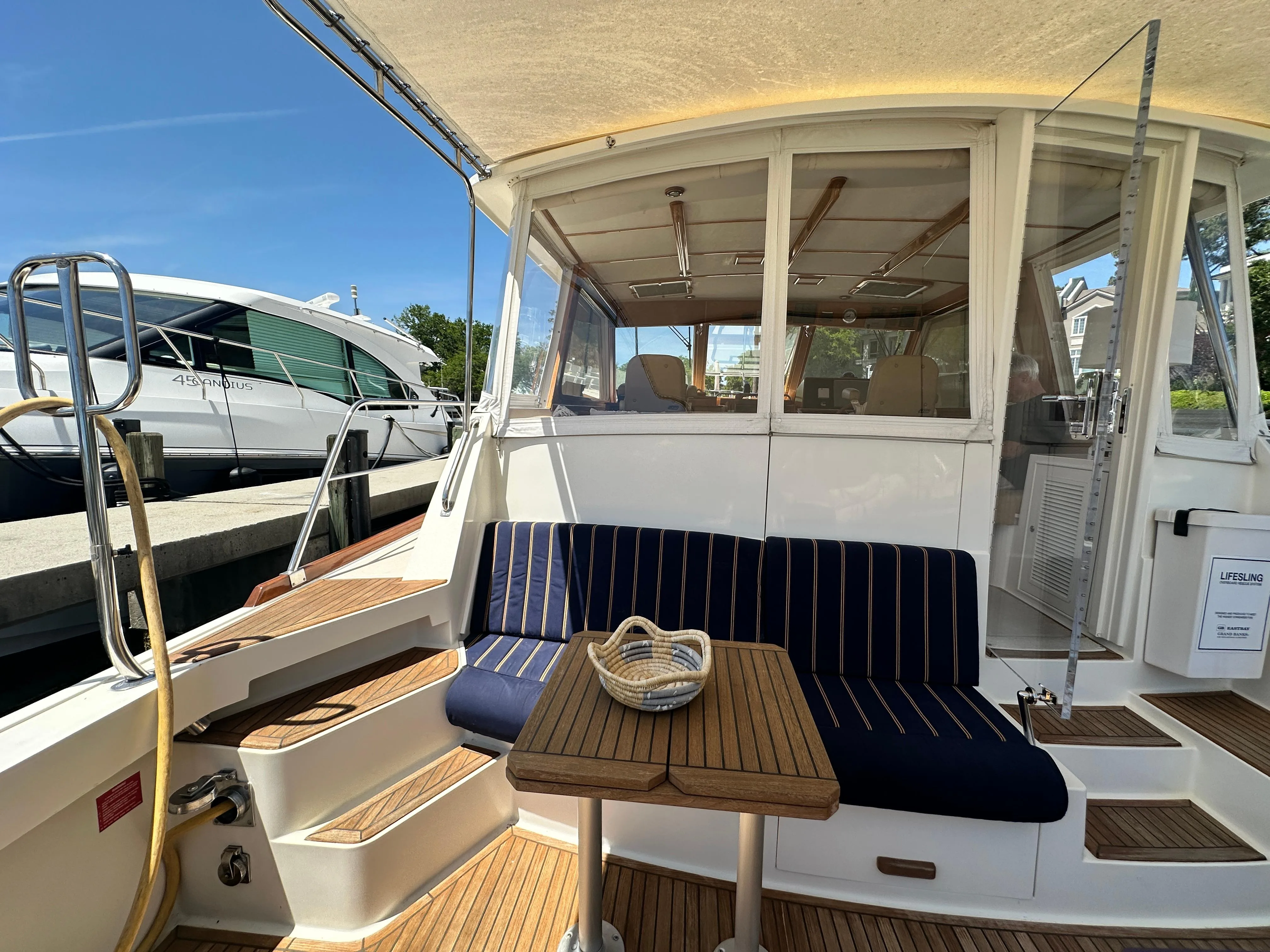

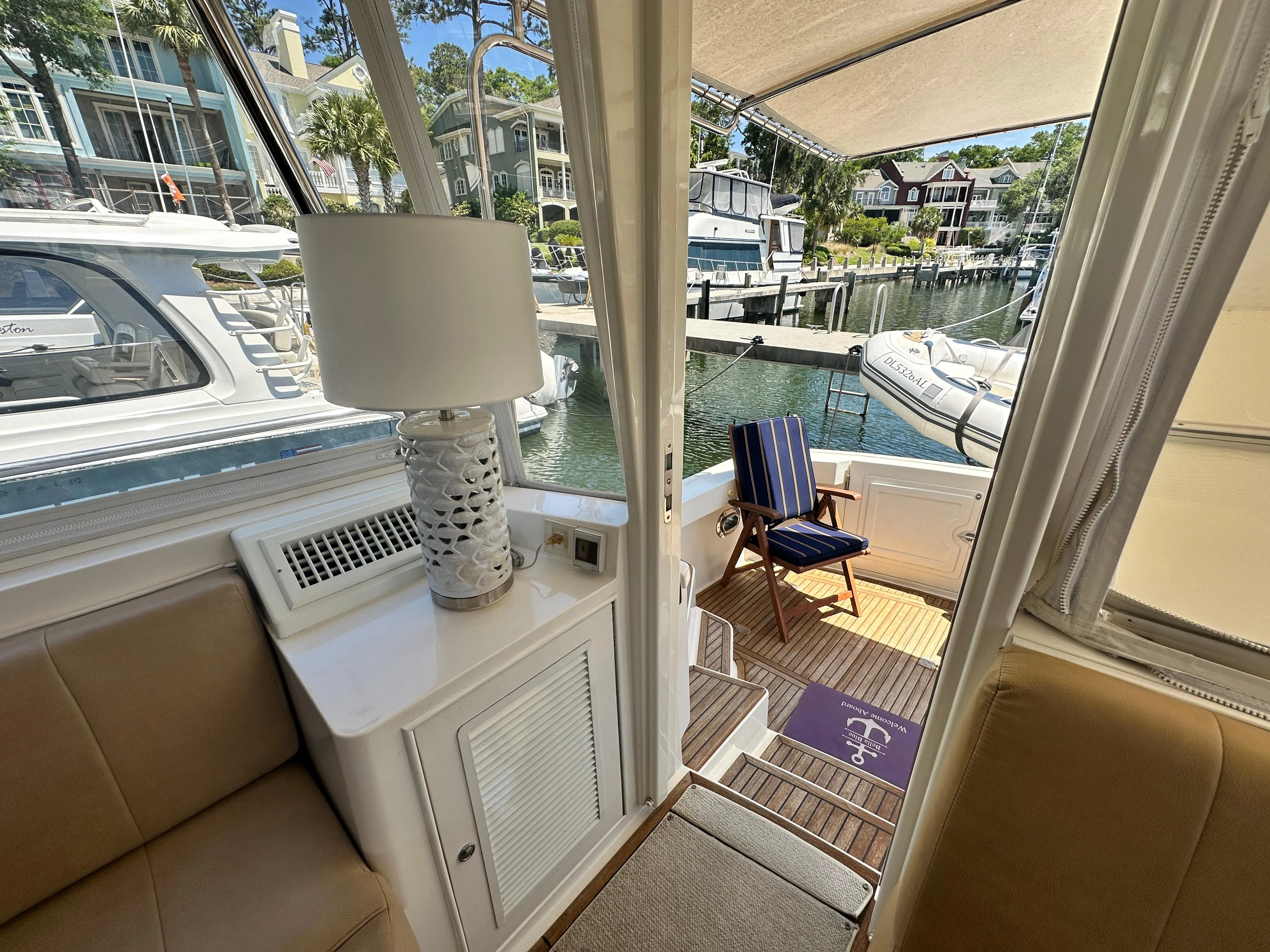

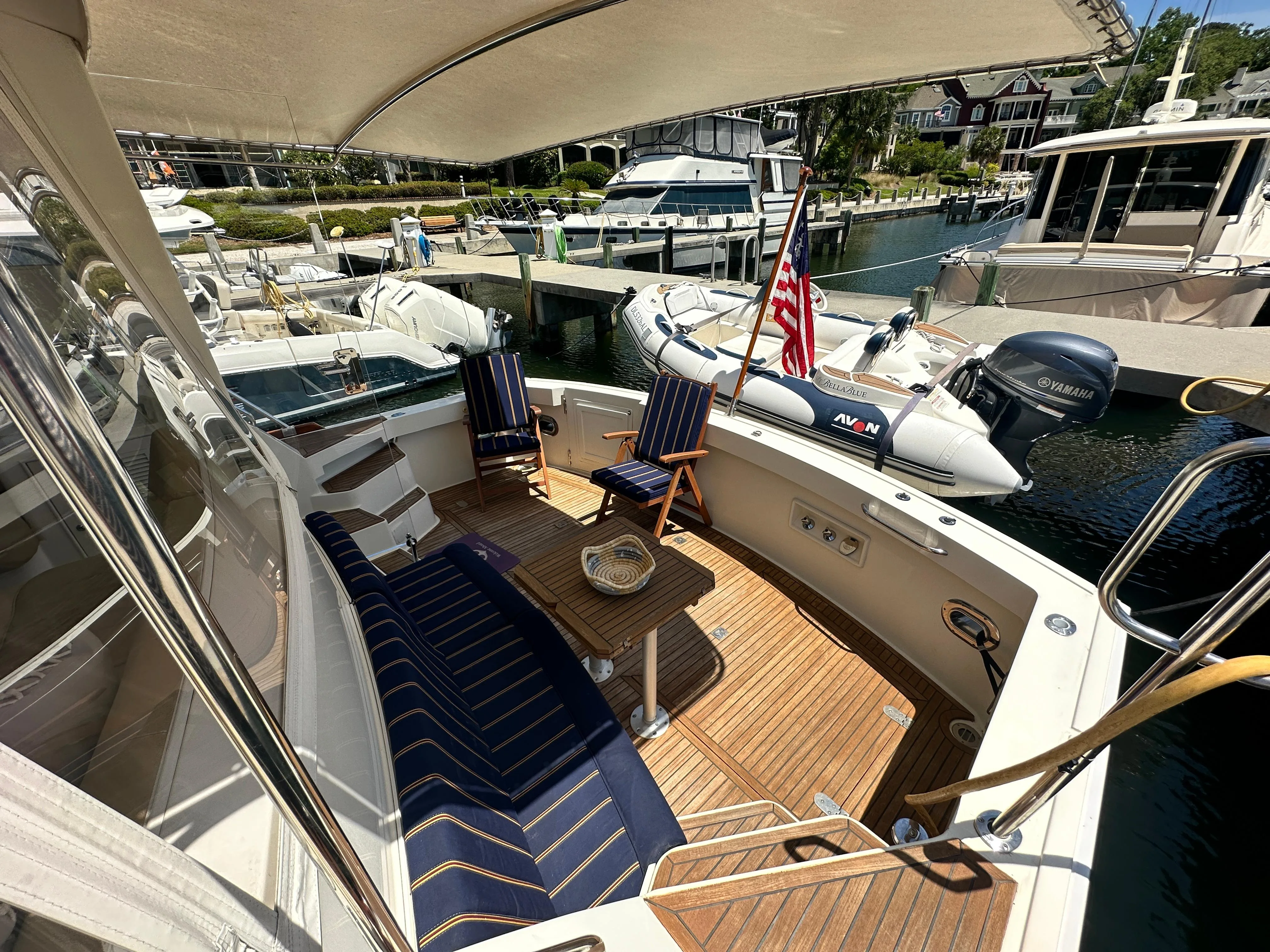

• LED lighting in the aft seating area
• A freshwater washdown in the port outboard transom and engine room
• Freshwater shower in the port transom

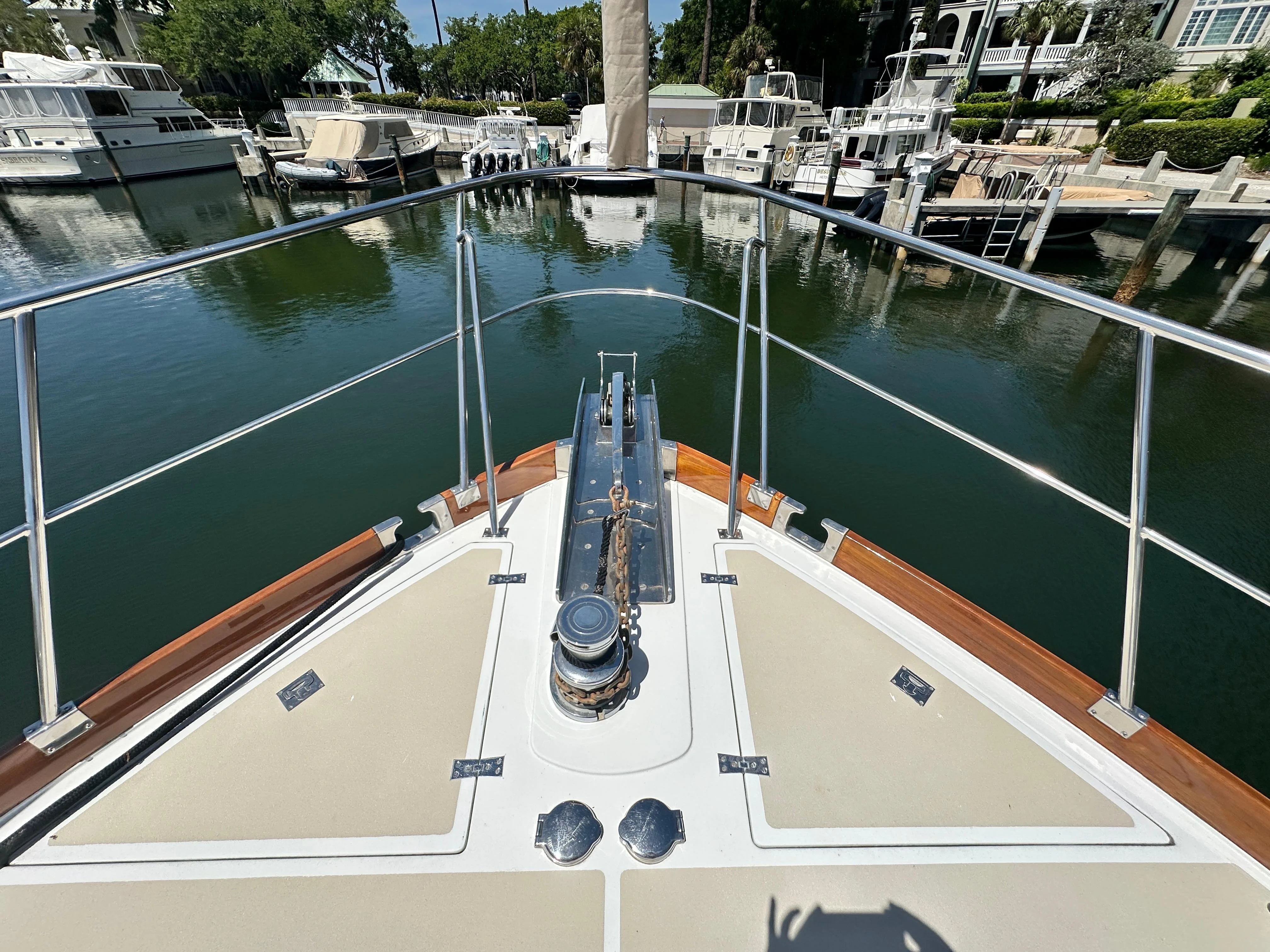

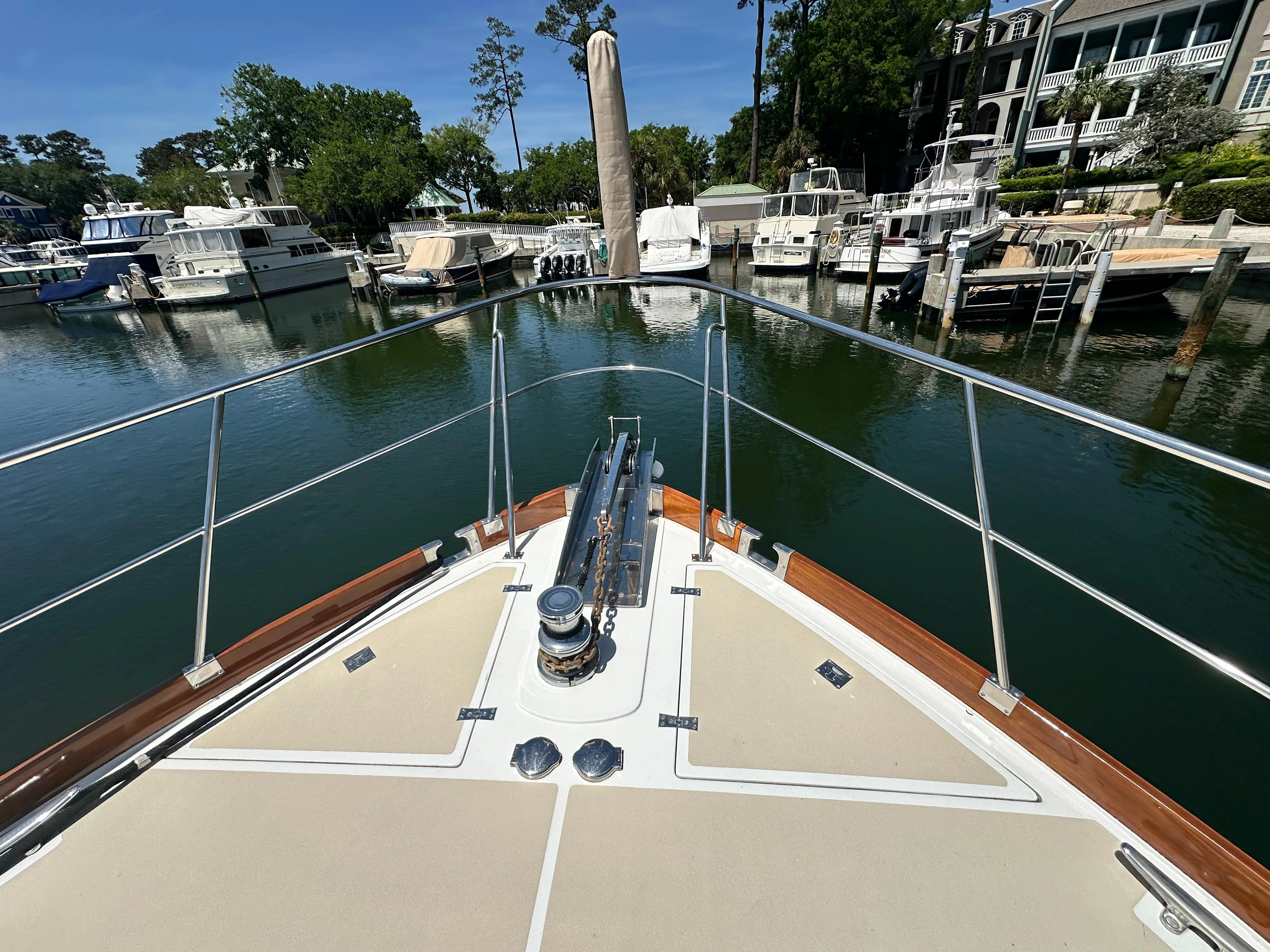

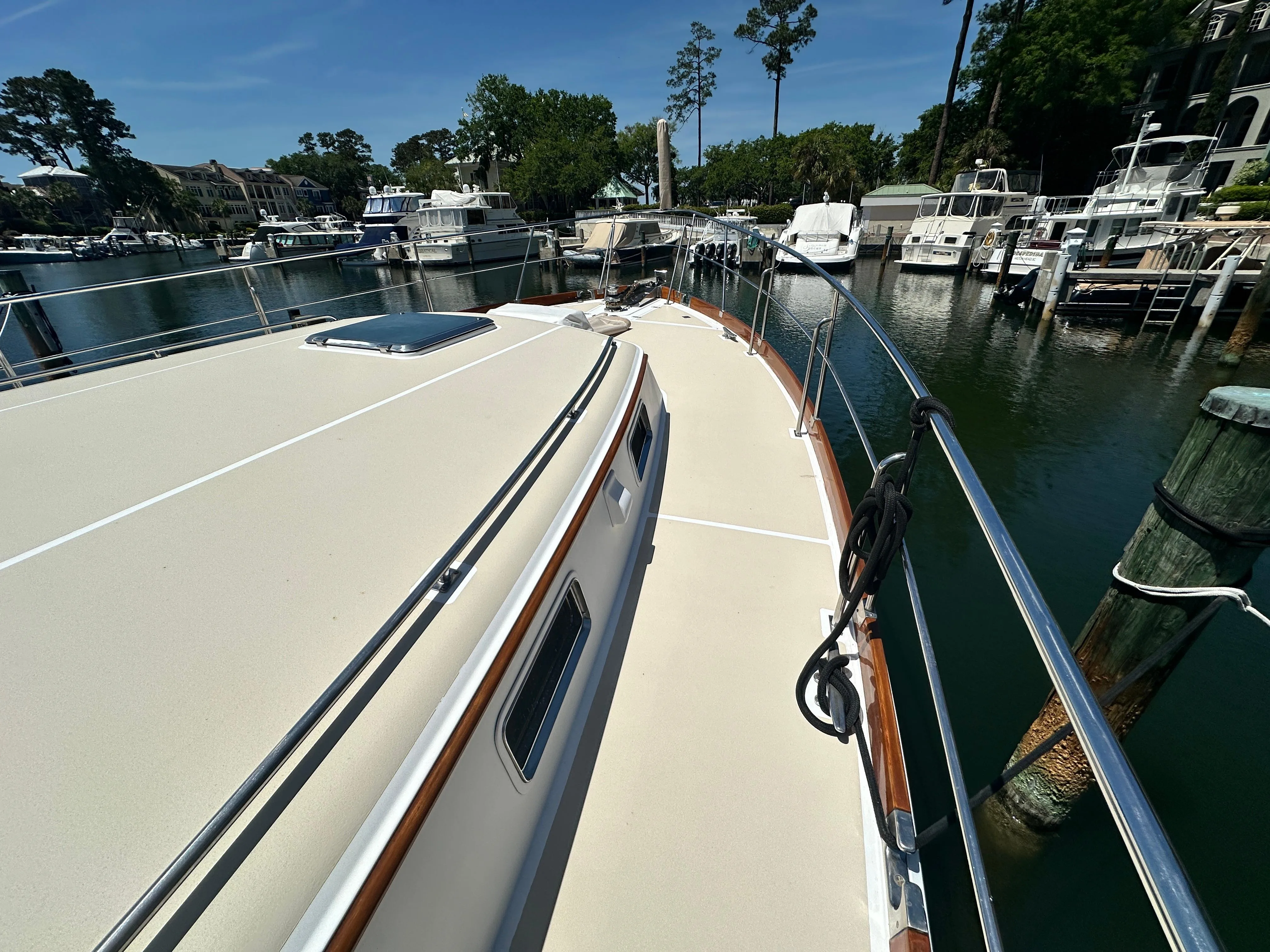

• Stainless-steel bow & deck railings

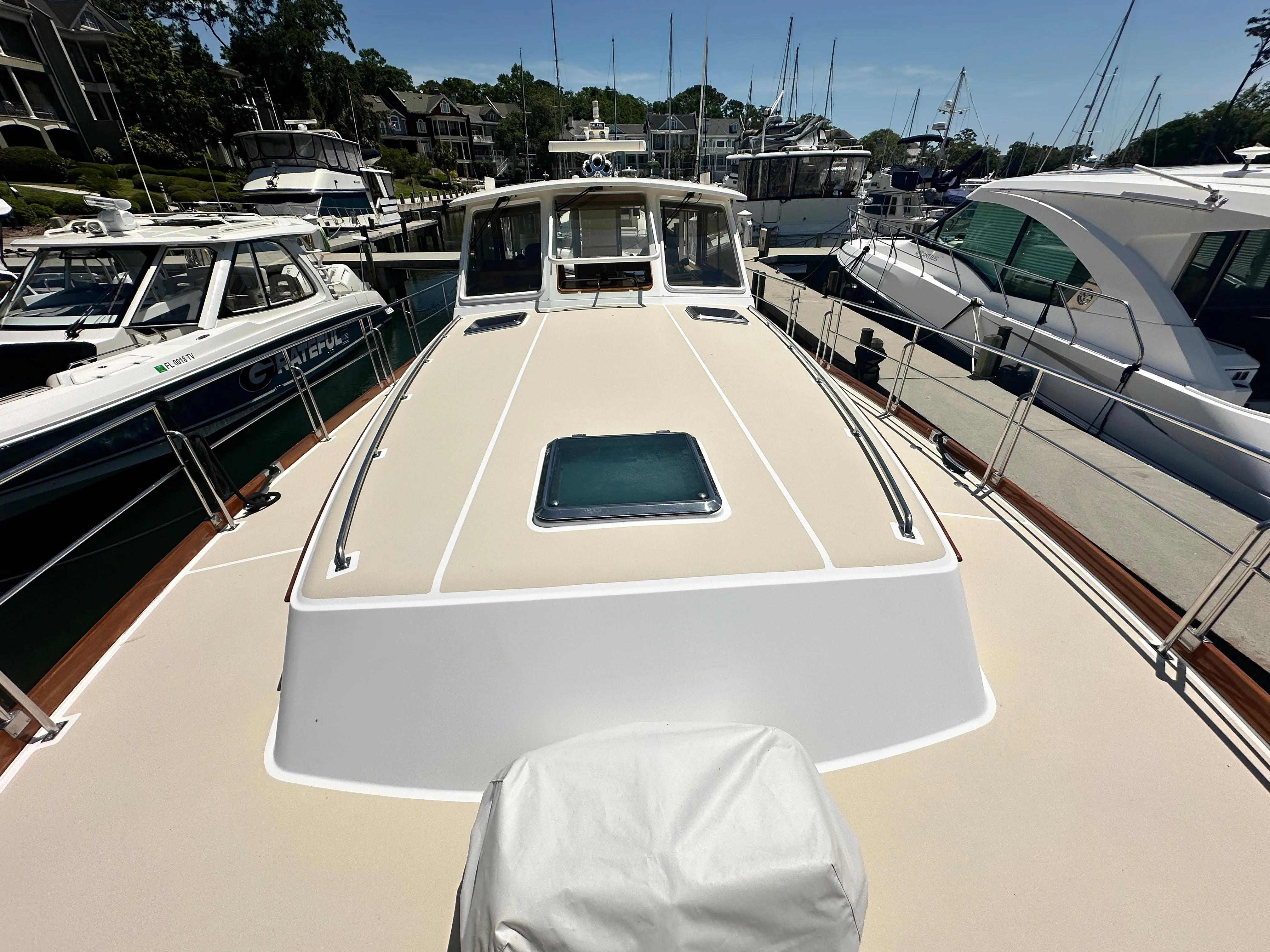

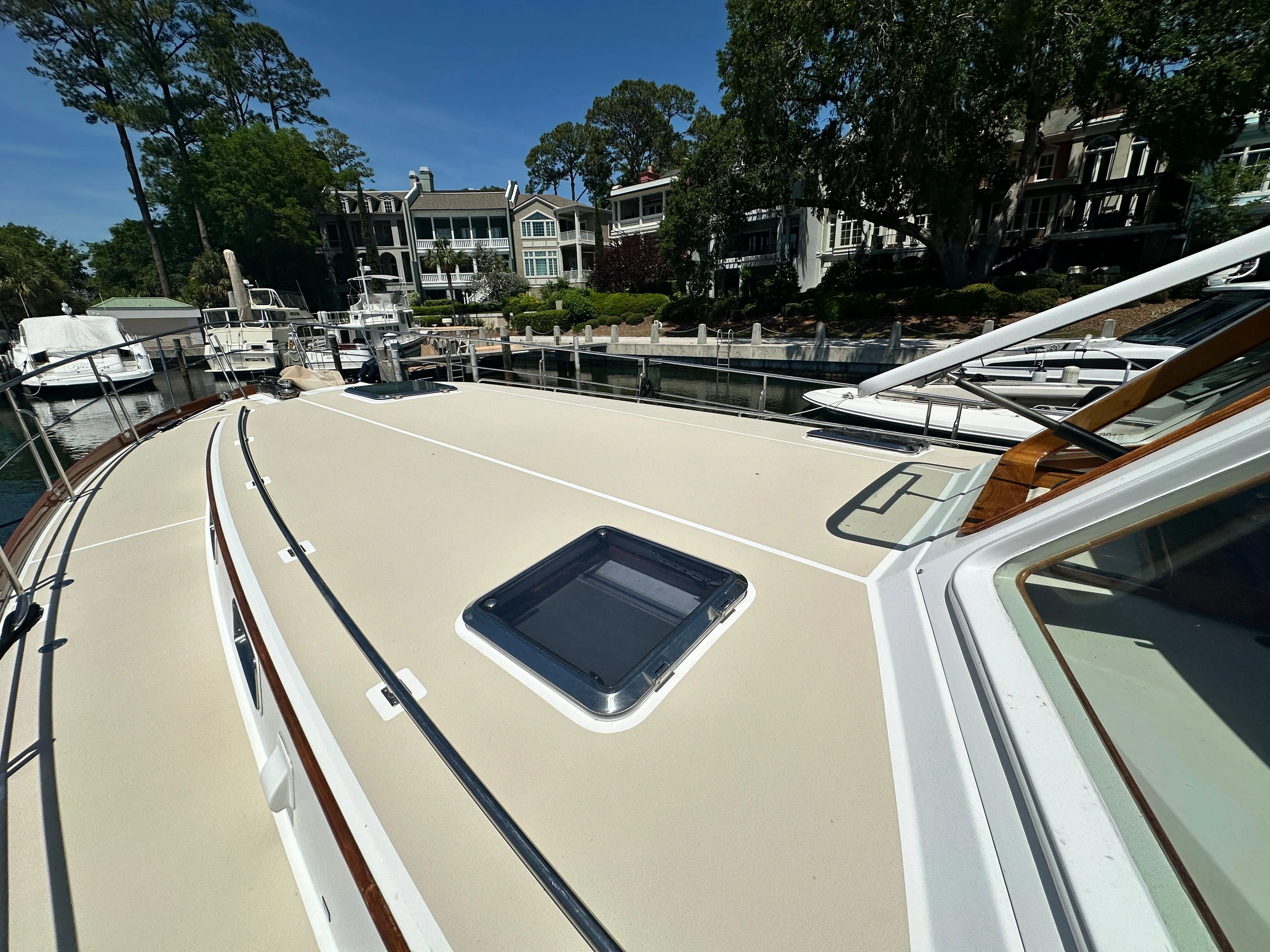

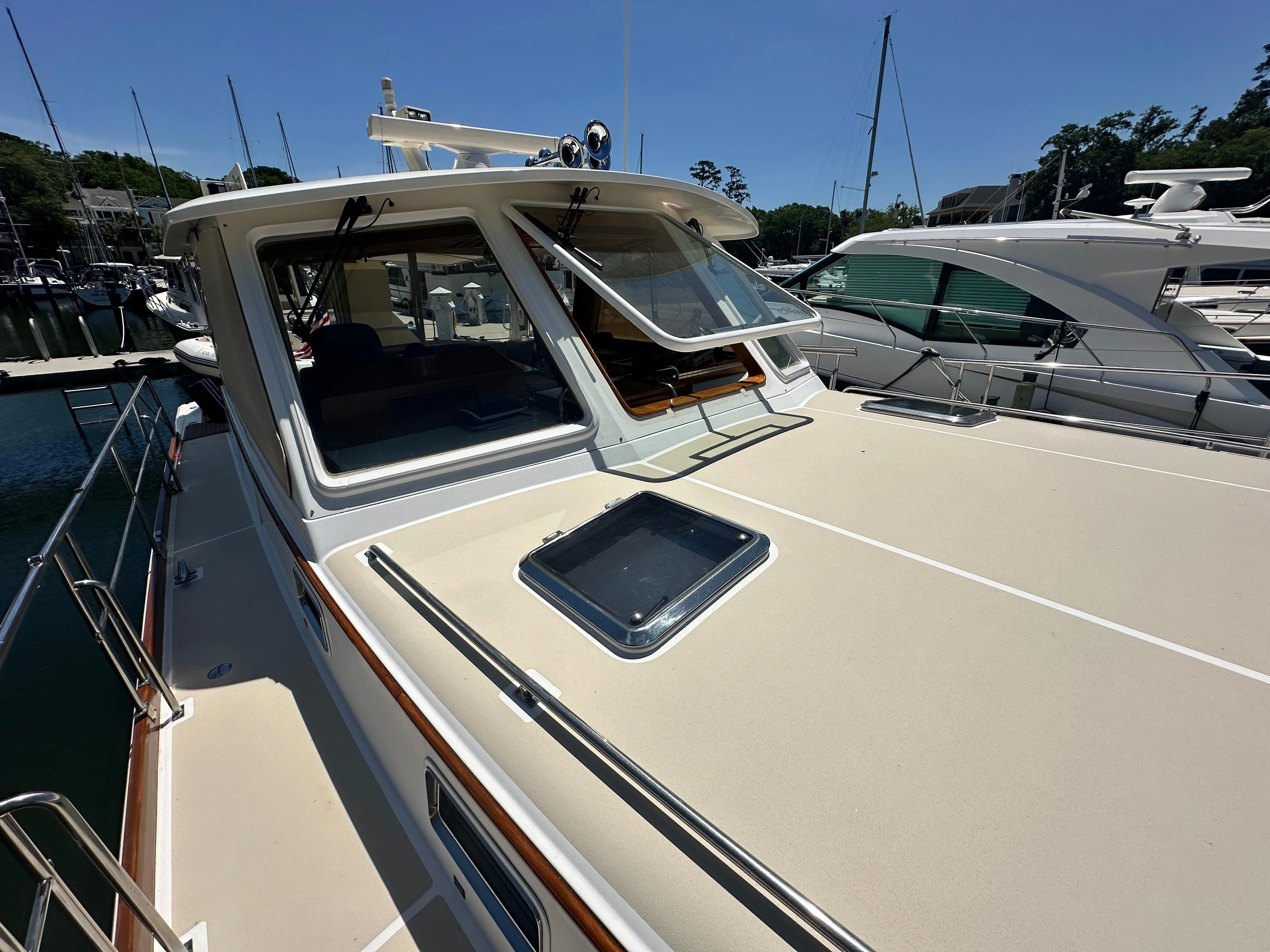

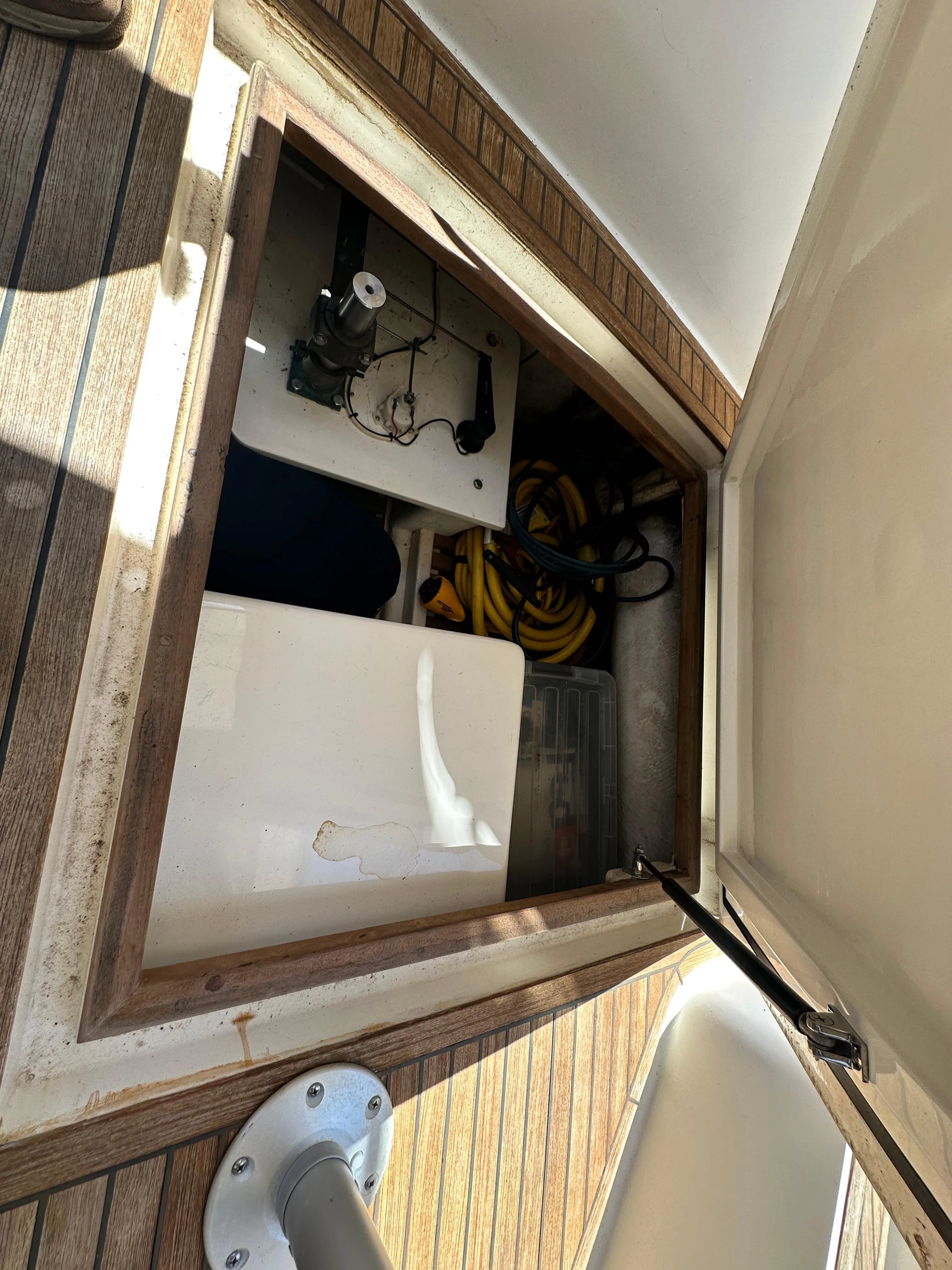

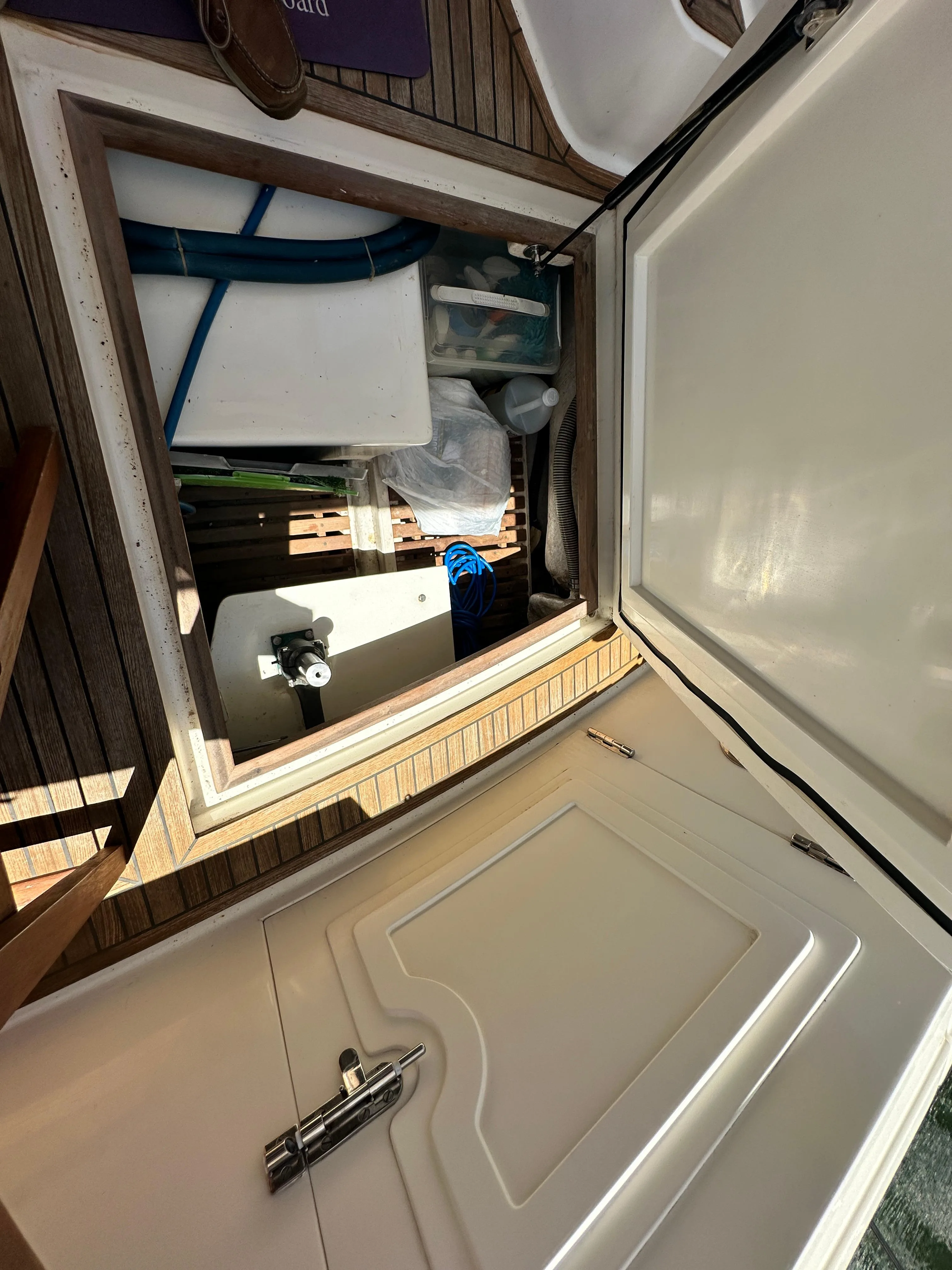

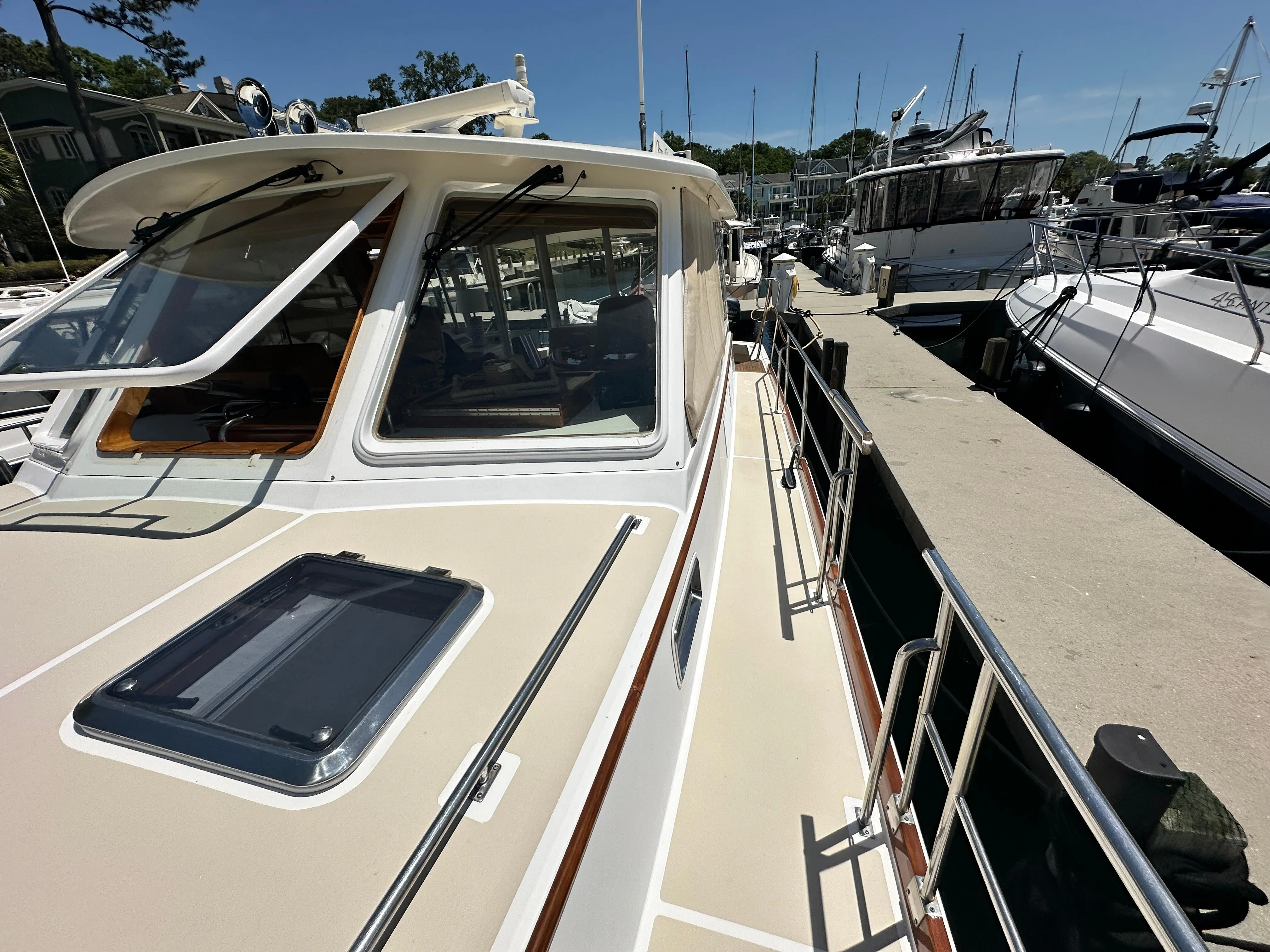

• Deck hatches on the foredeck, the forward cabin trunk and above the two helm seats

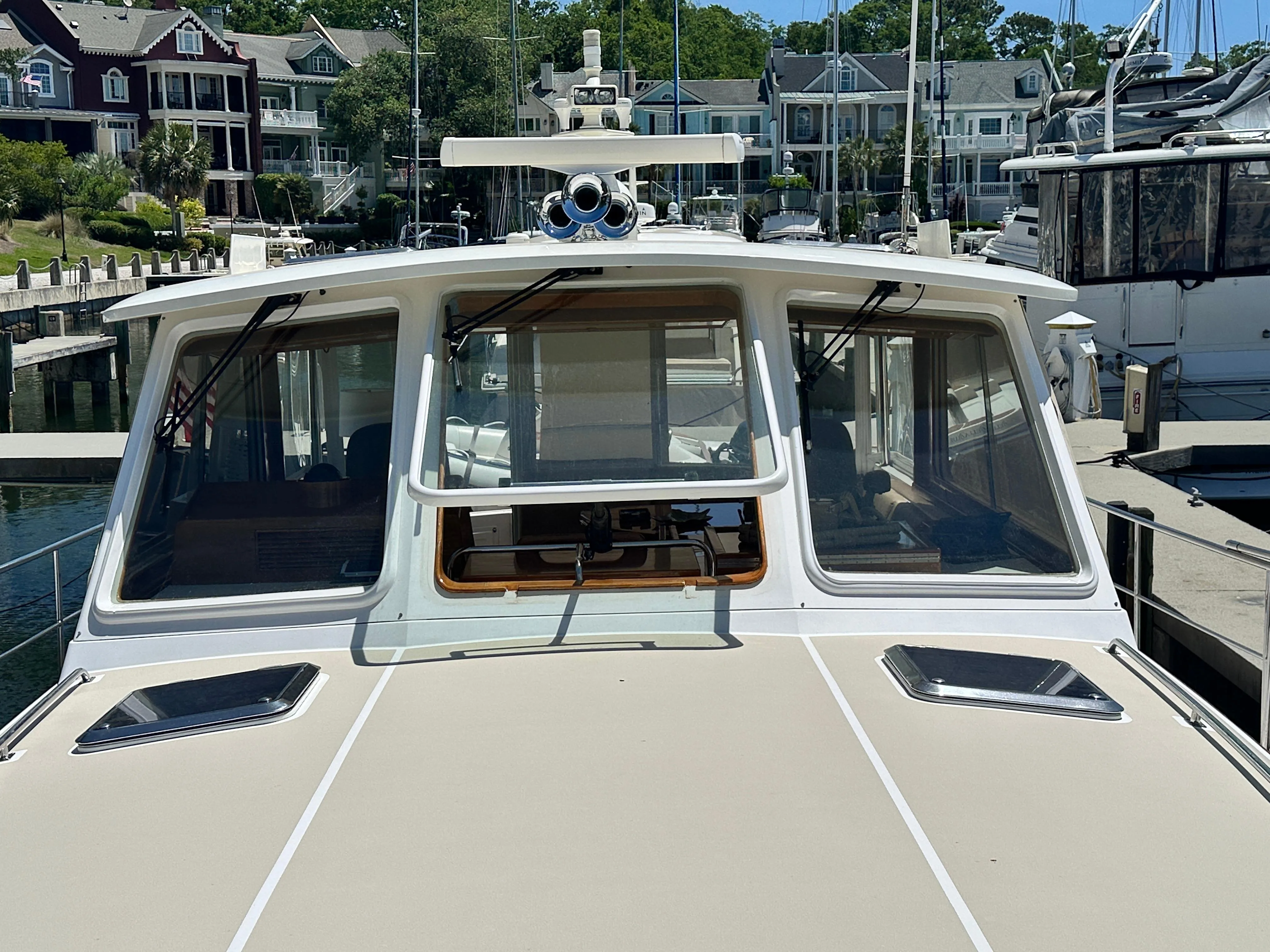

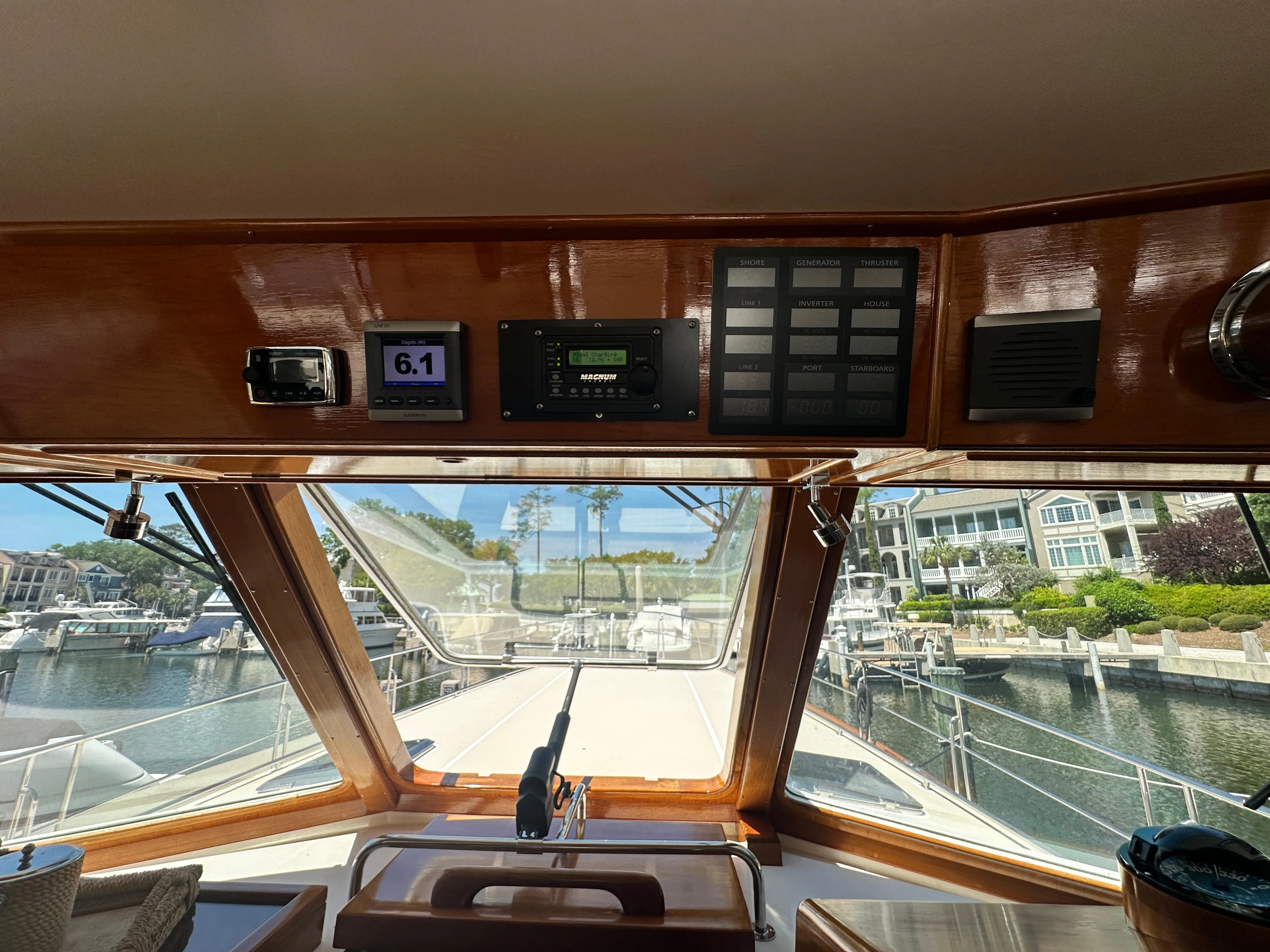

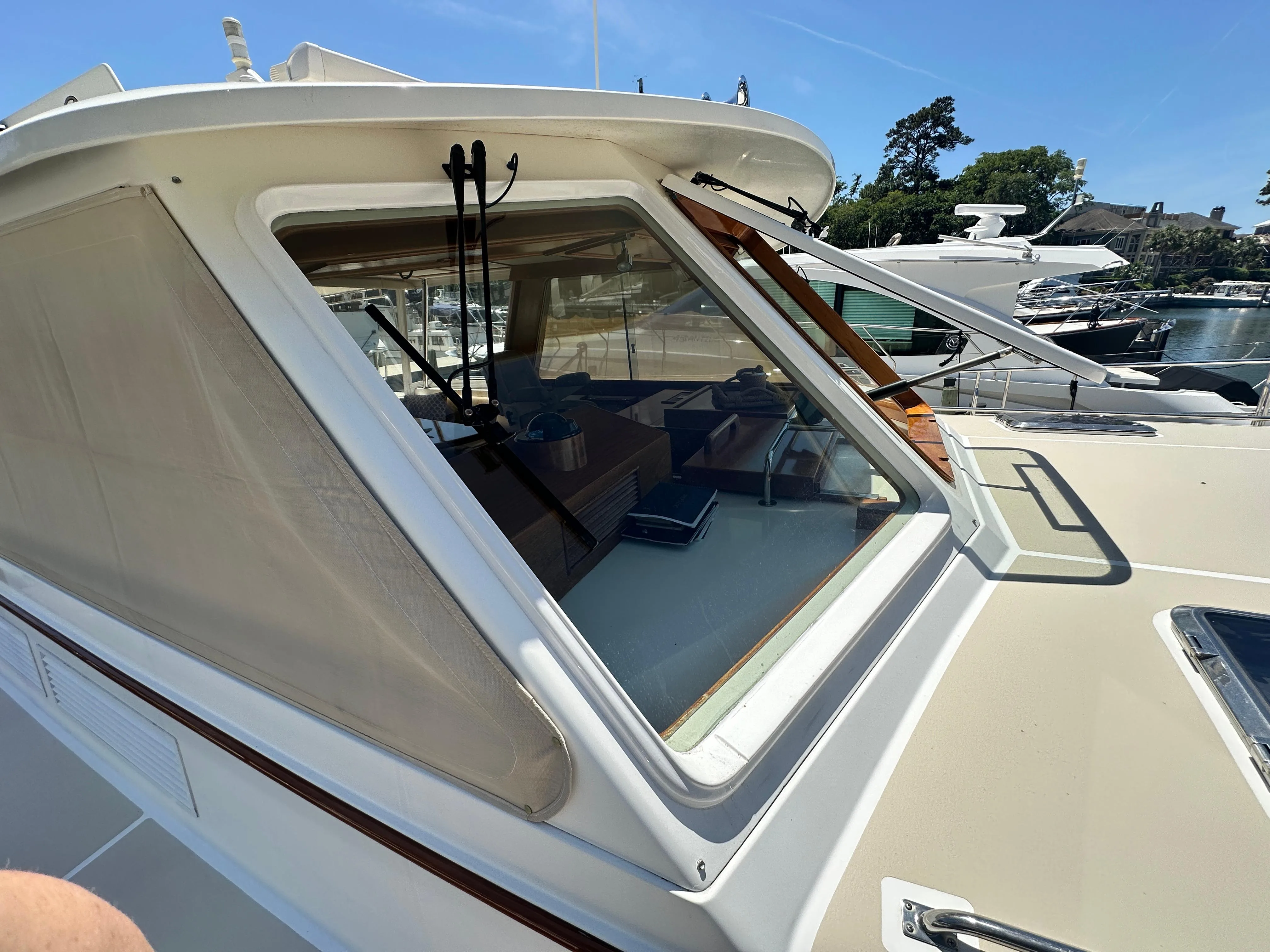

• Tempered glass windshield with (1) opening windscreen and three (3) windshield wipers/washers

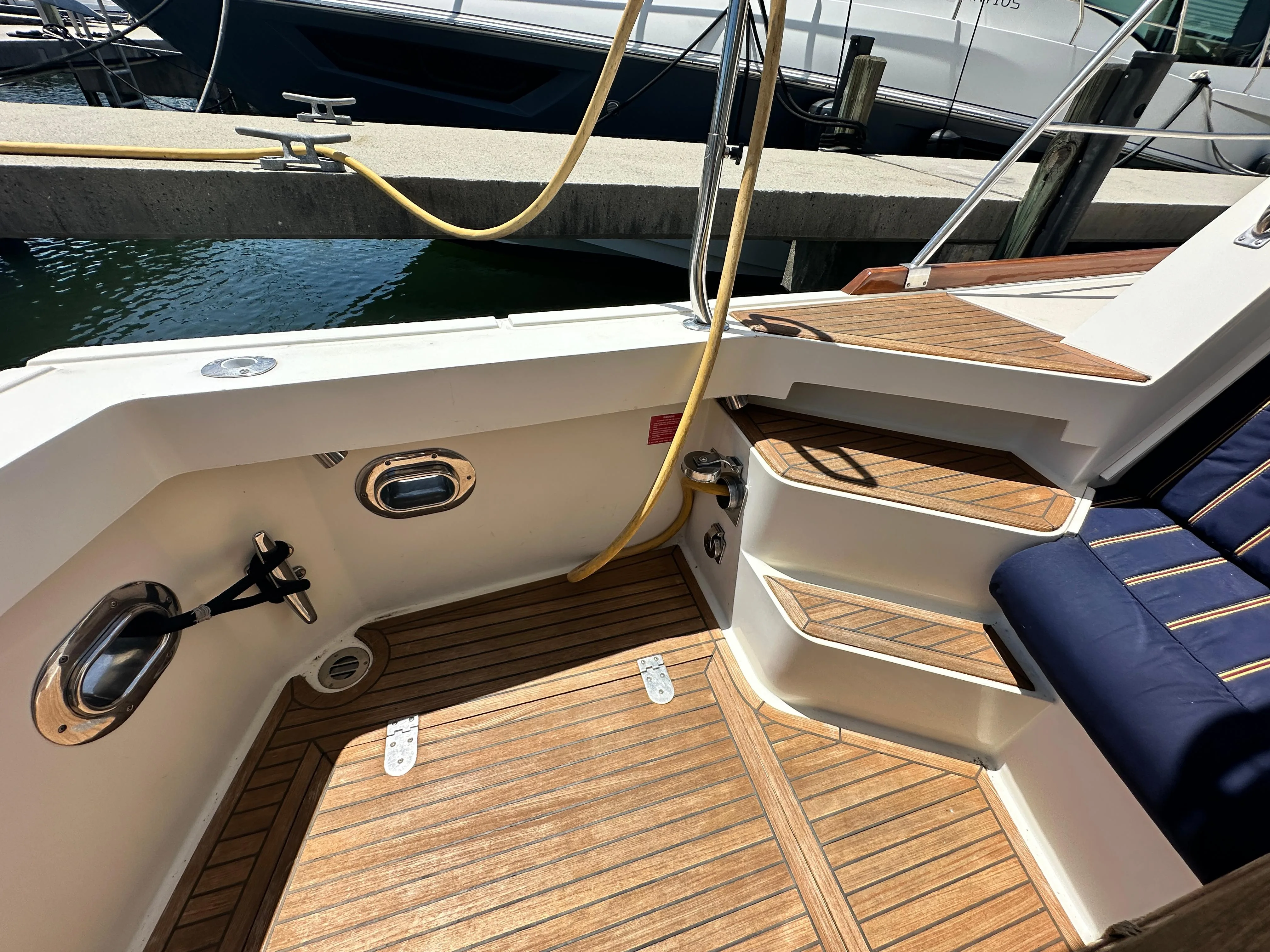

• Self bailing deck drains at the port & starboard aft cockpit corners

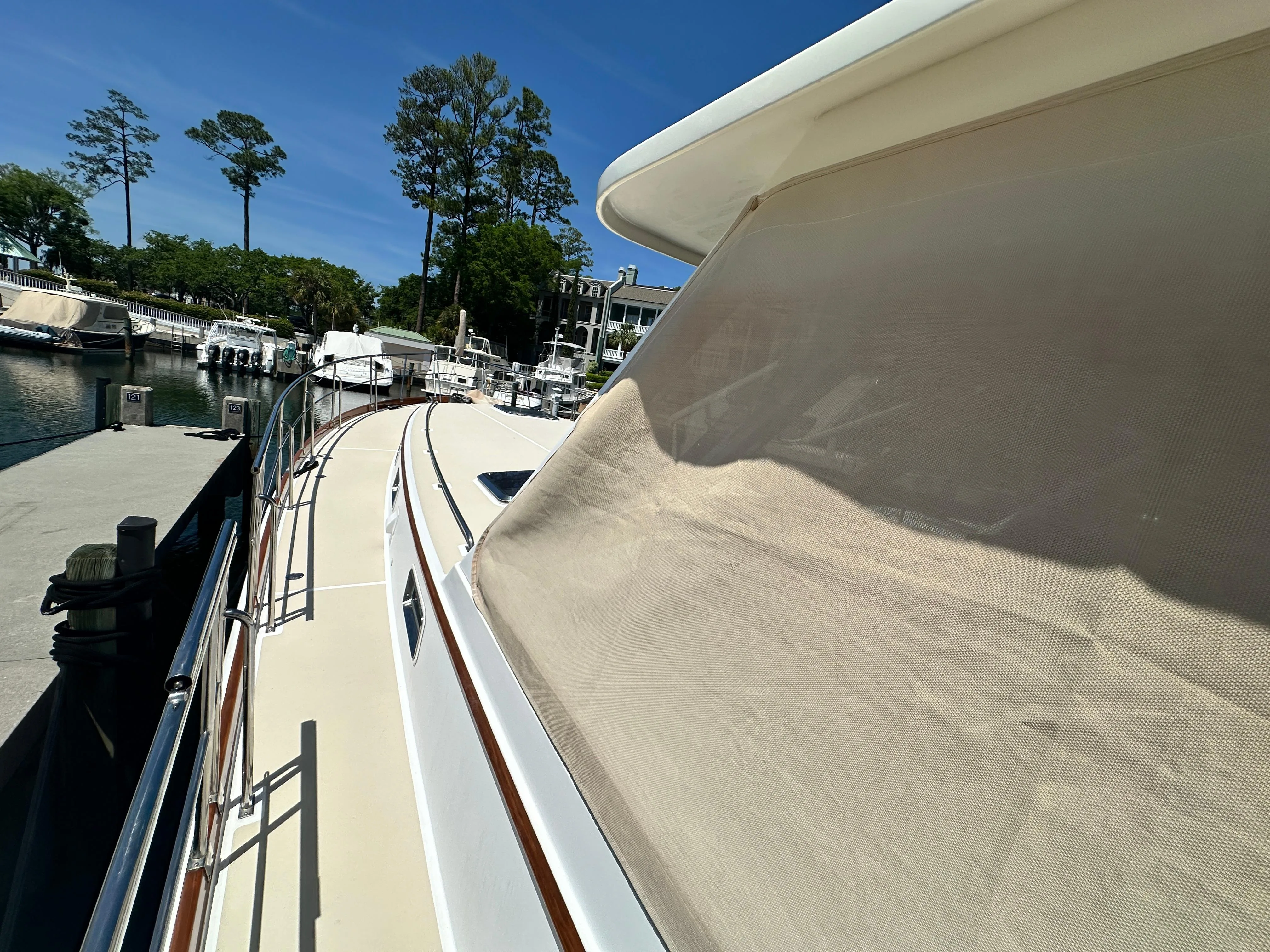

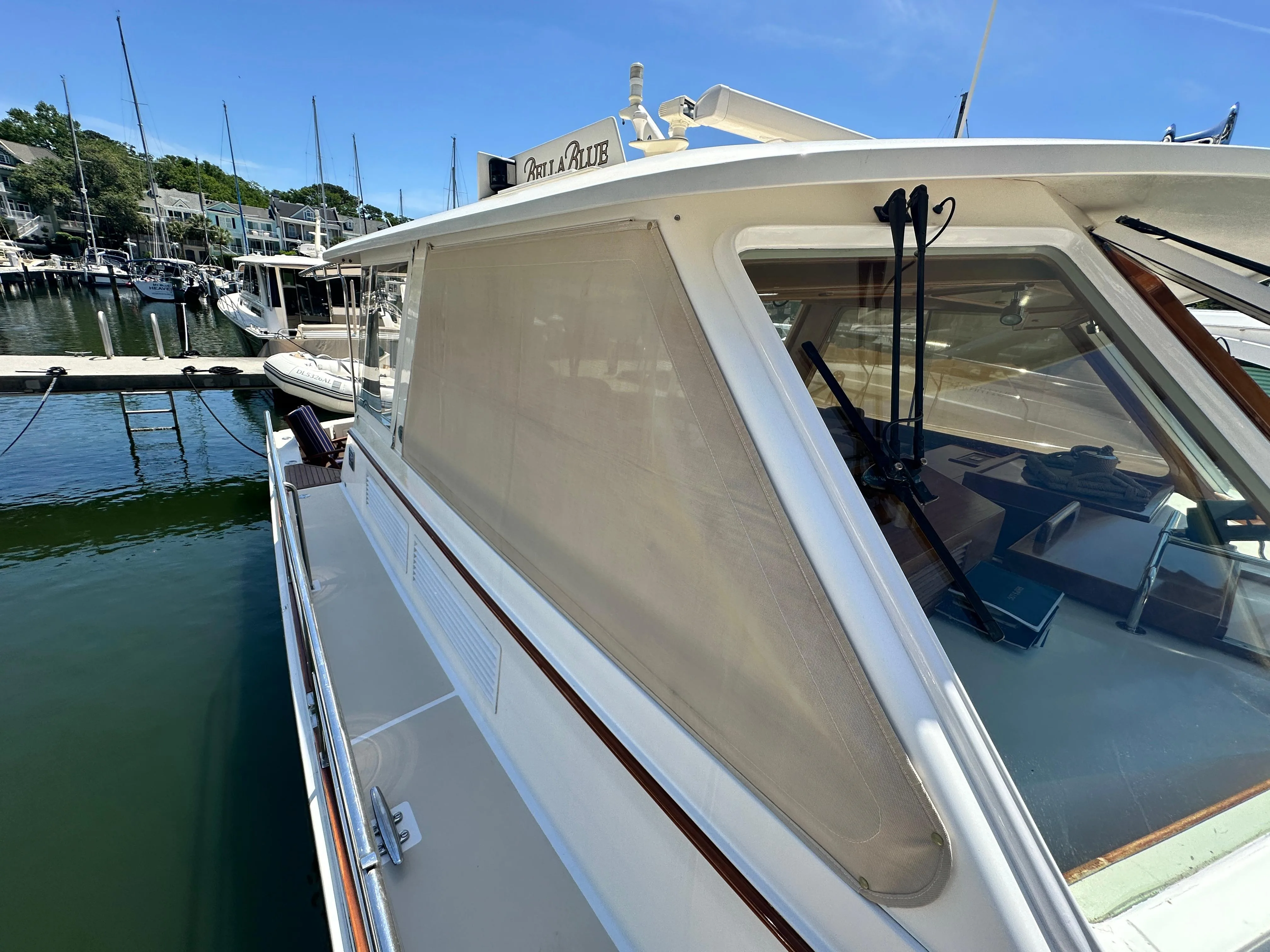

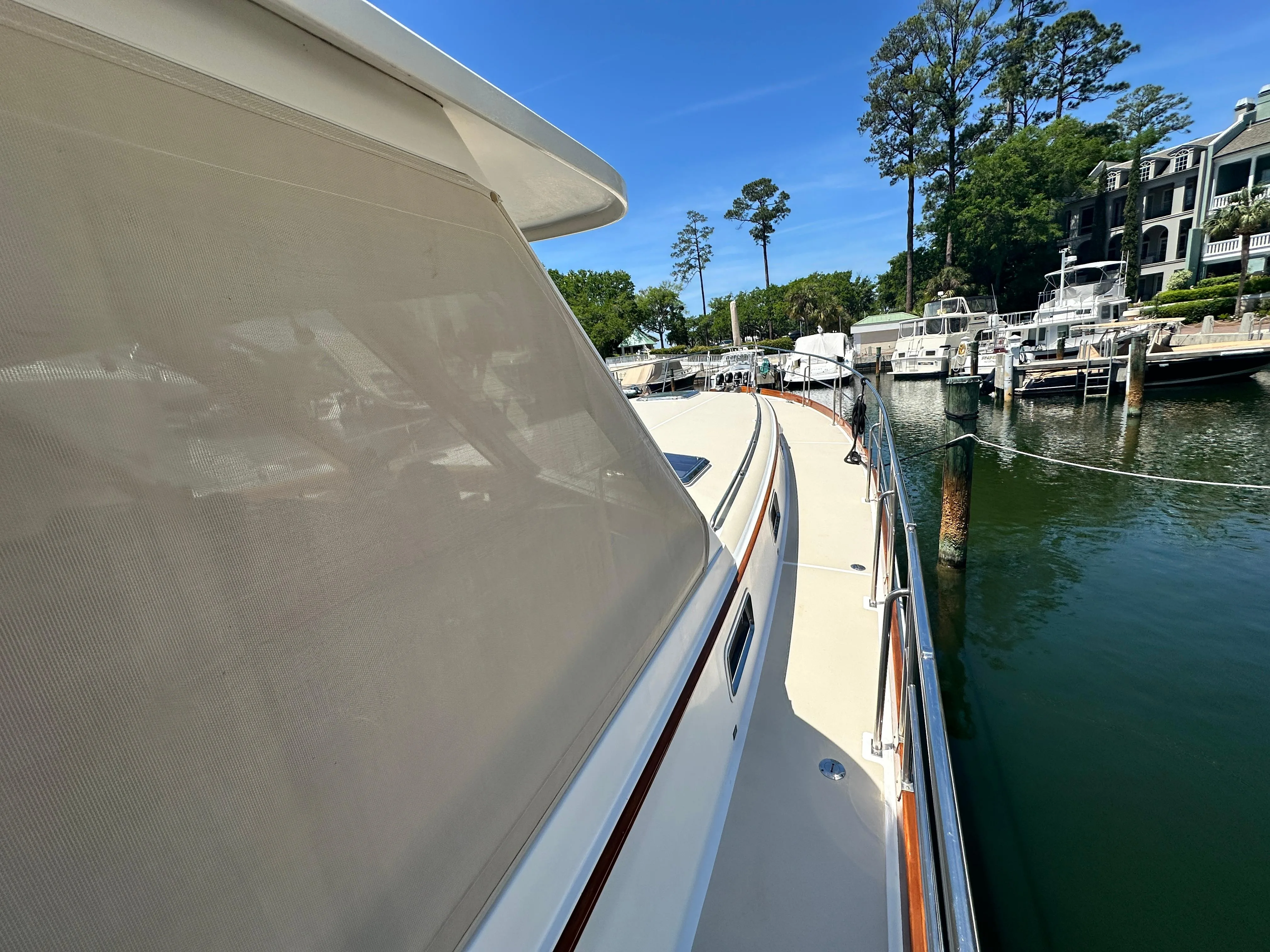

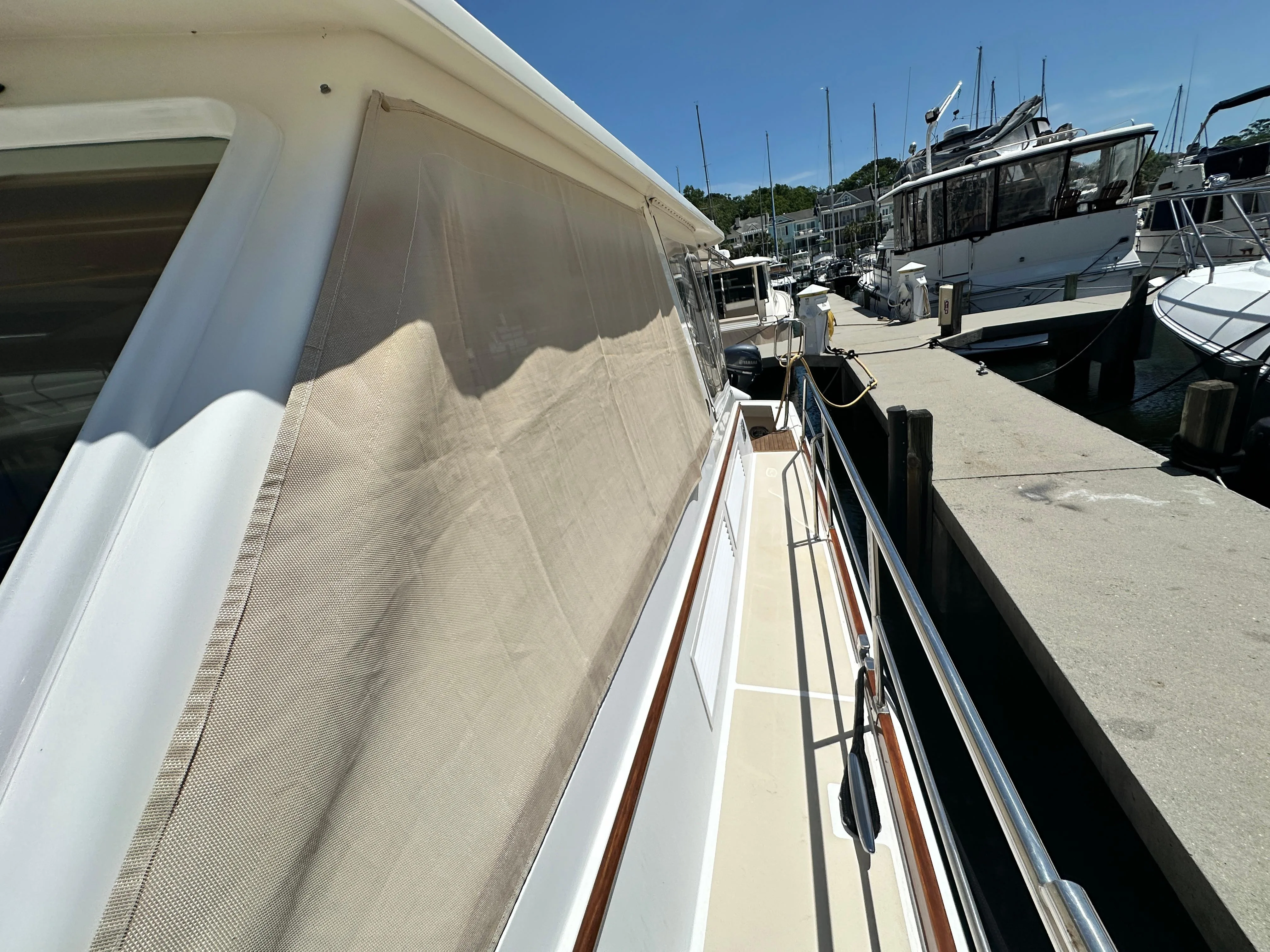

• Exterior sun shades for windows

Interior

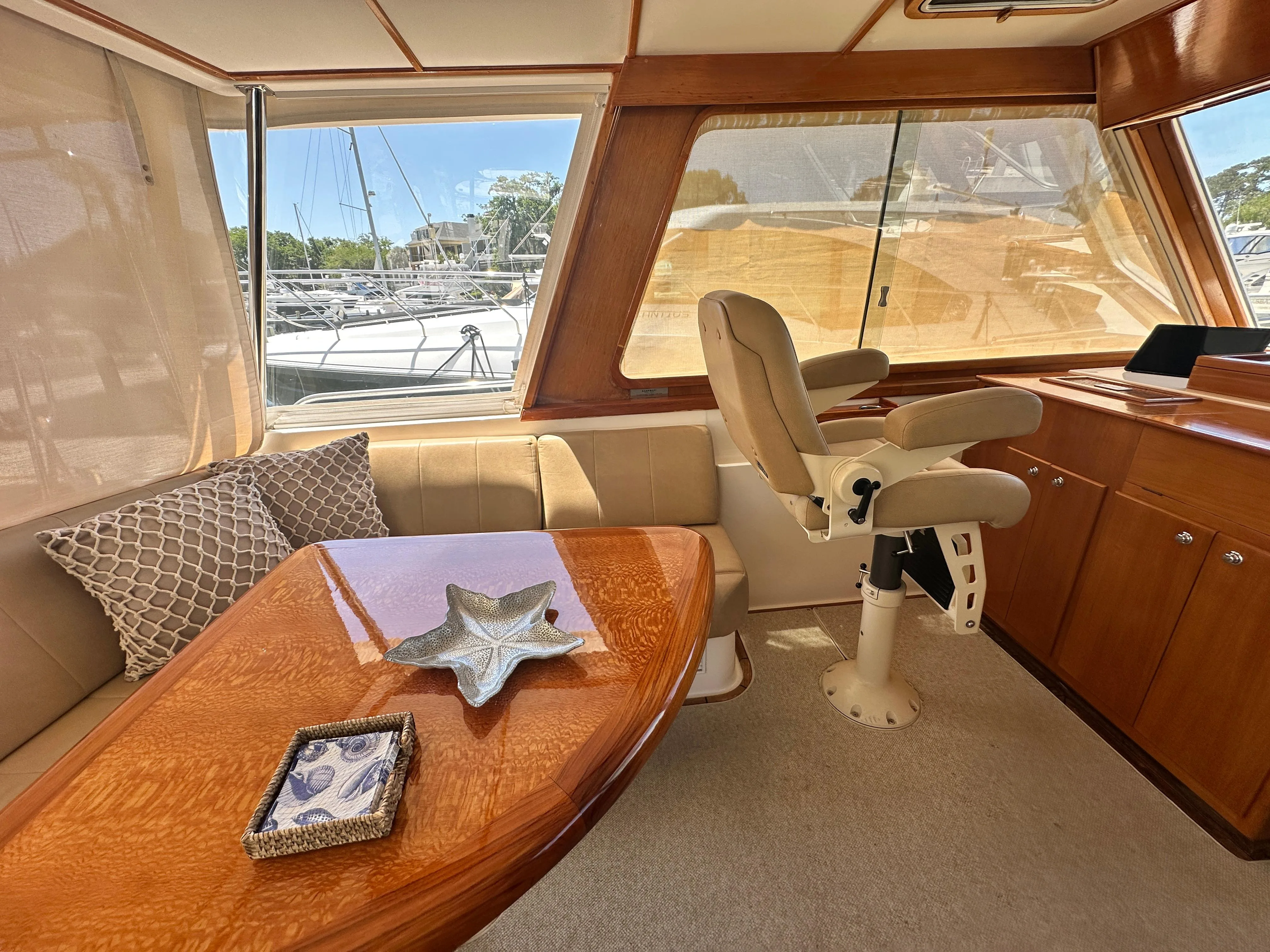

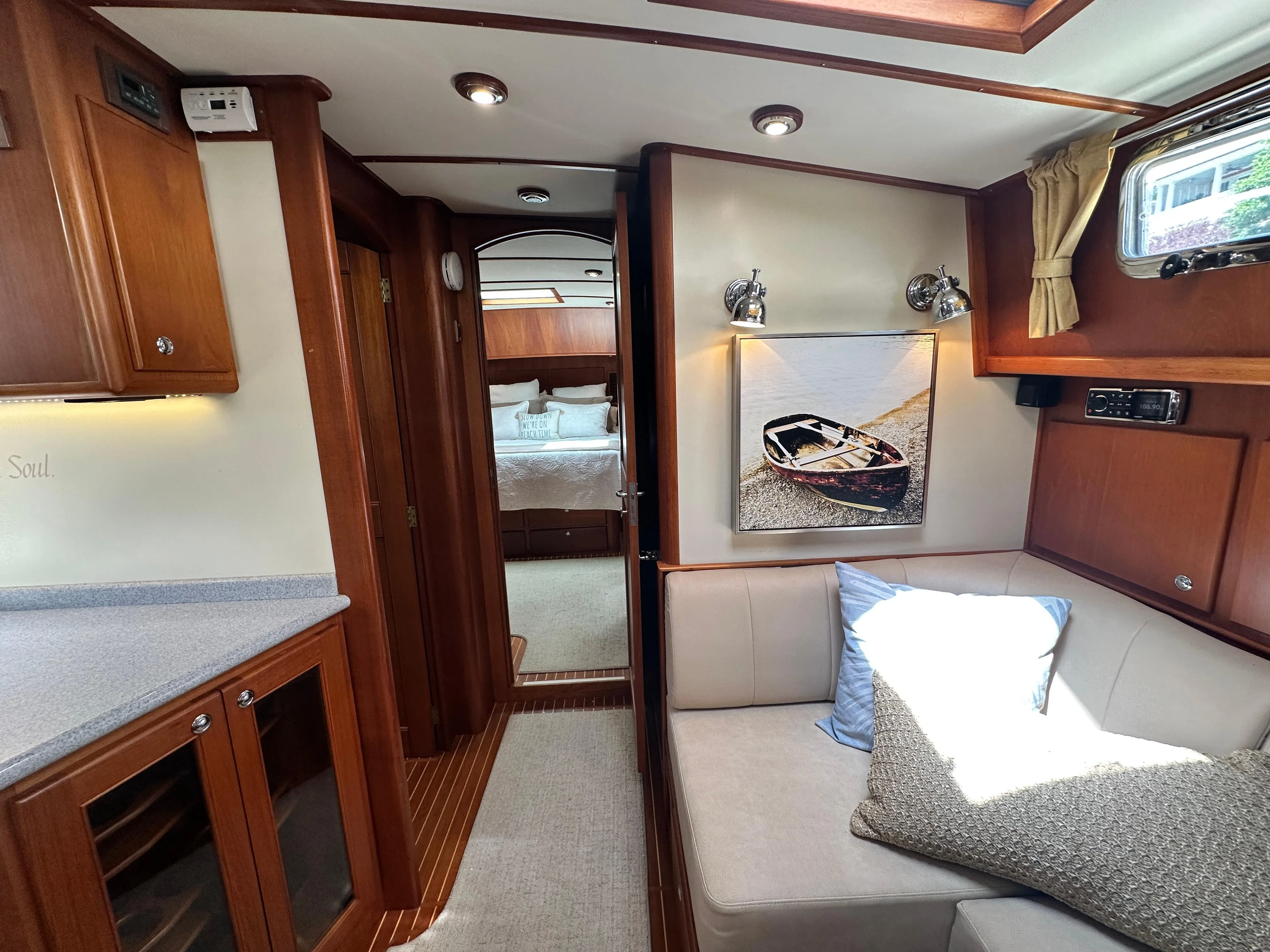

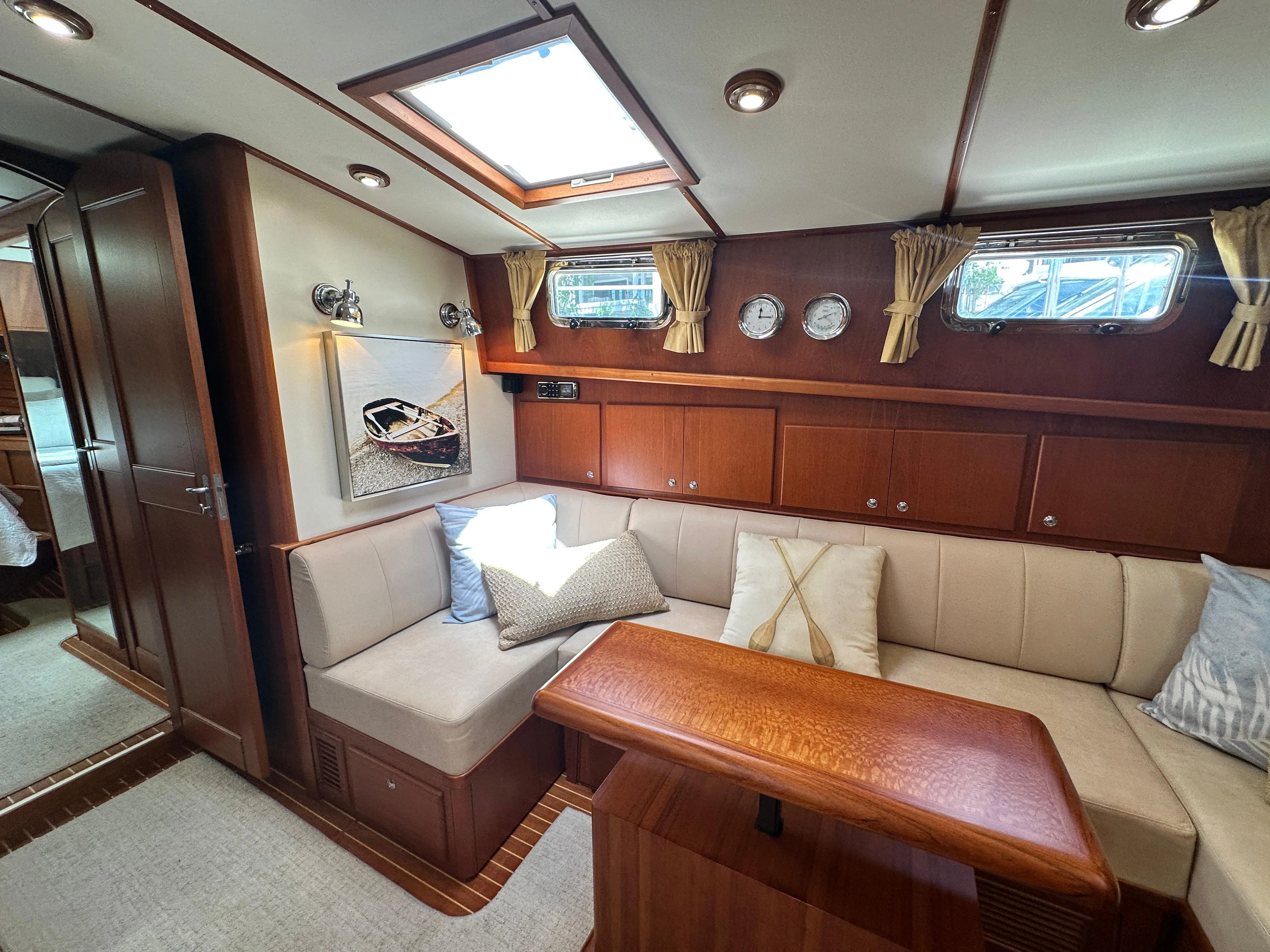

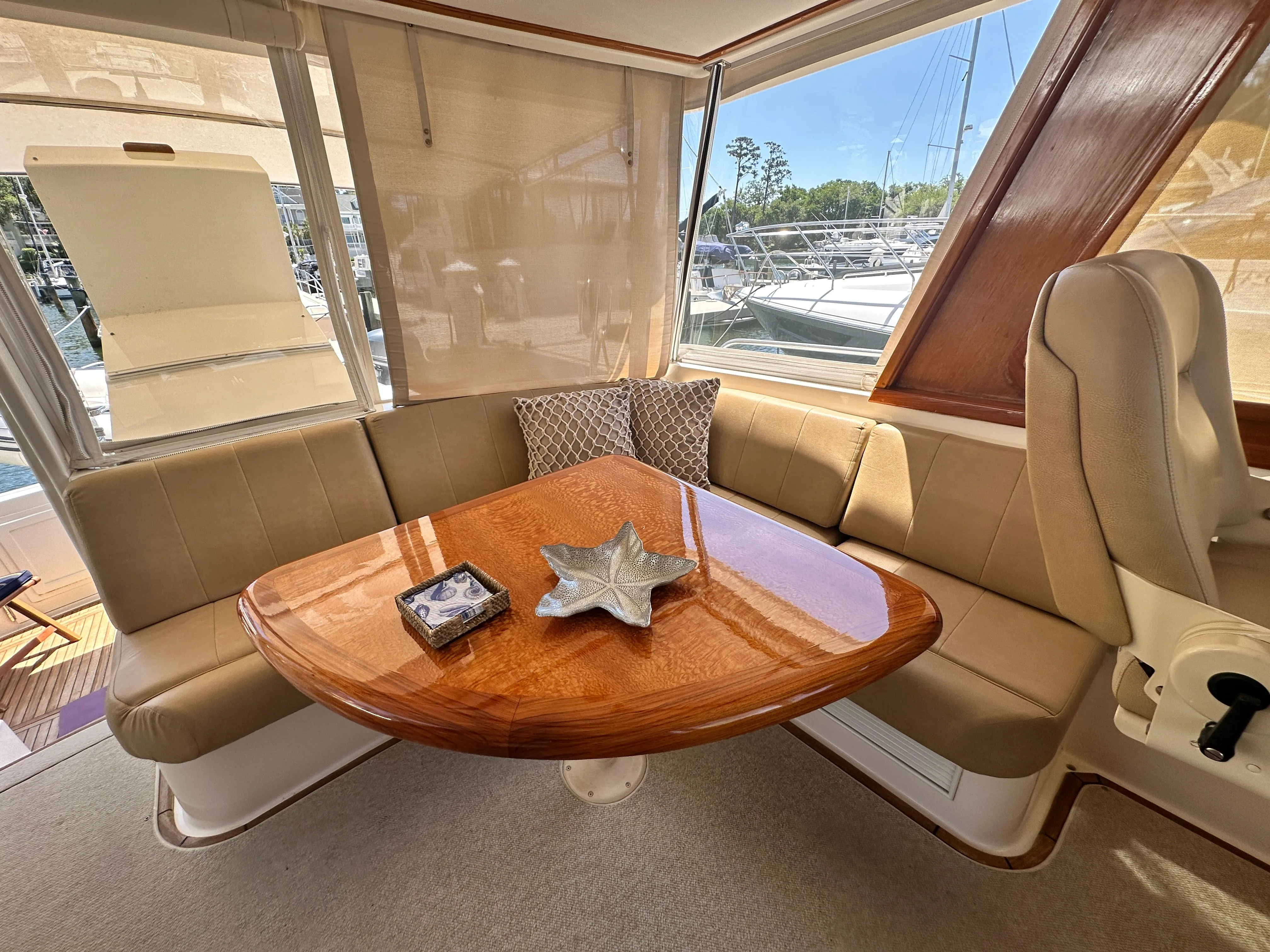

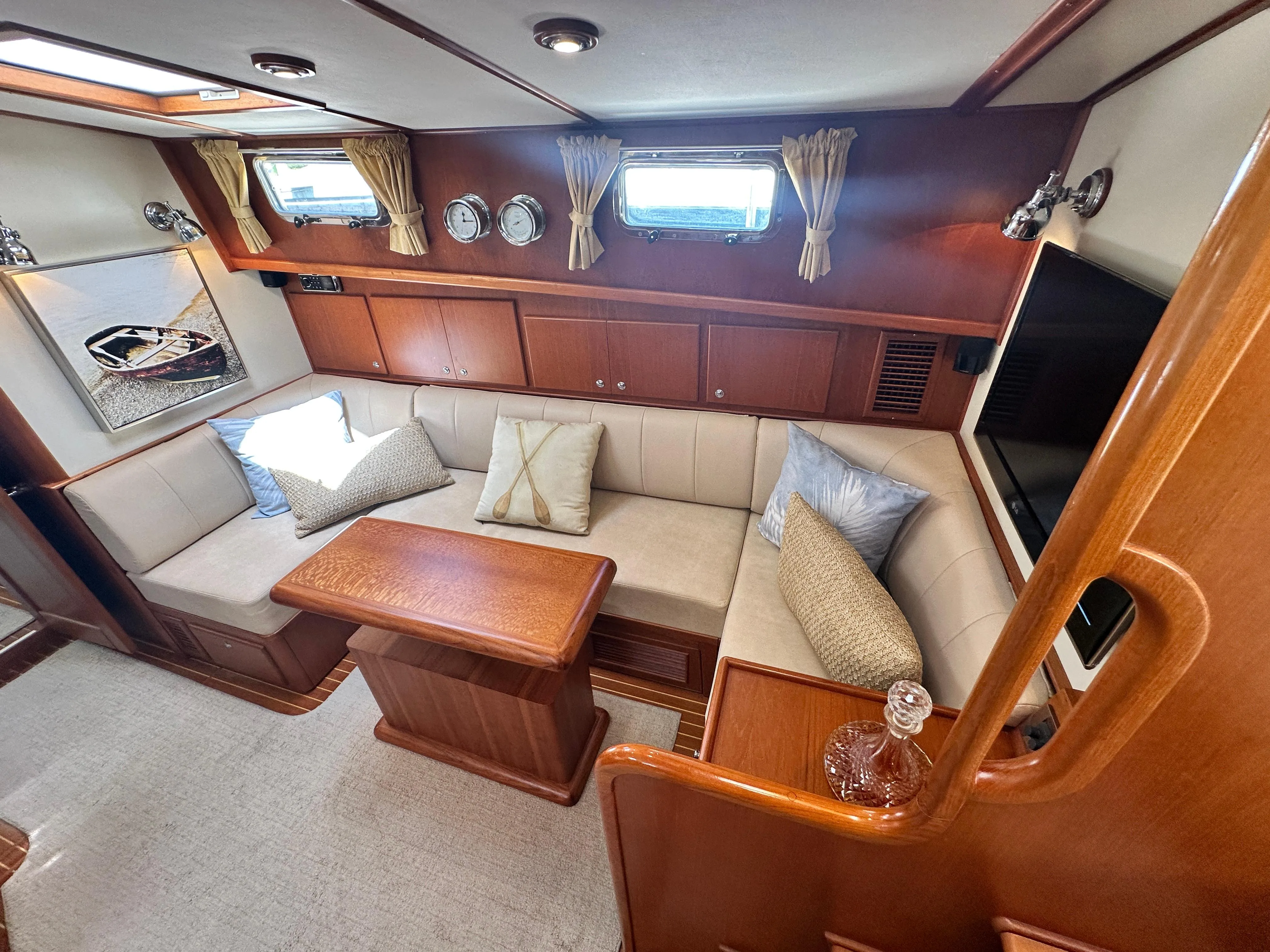

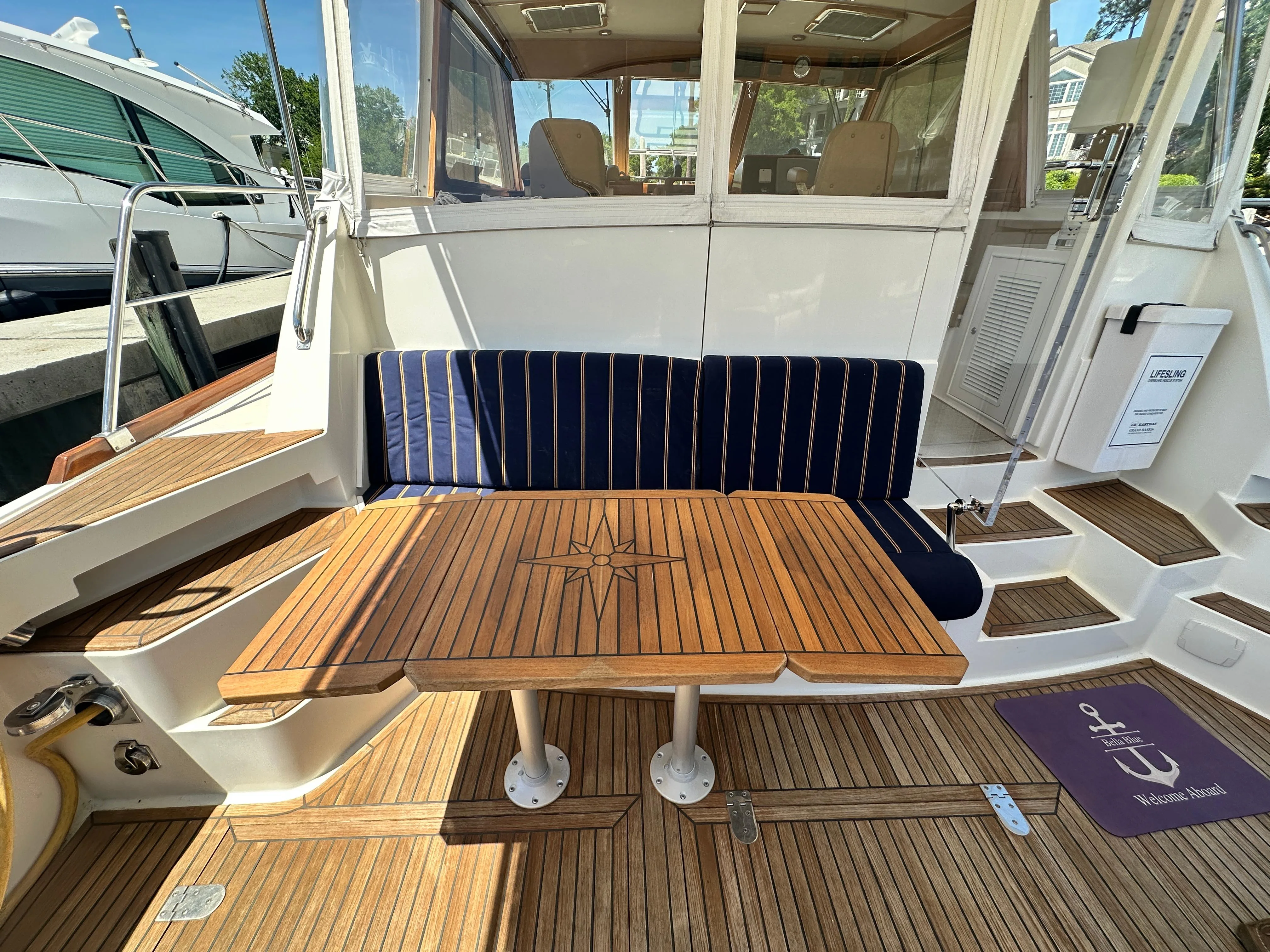

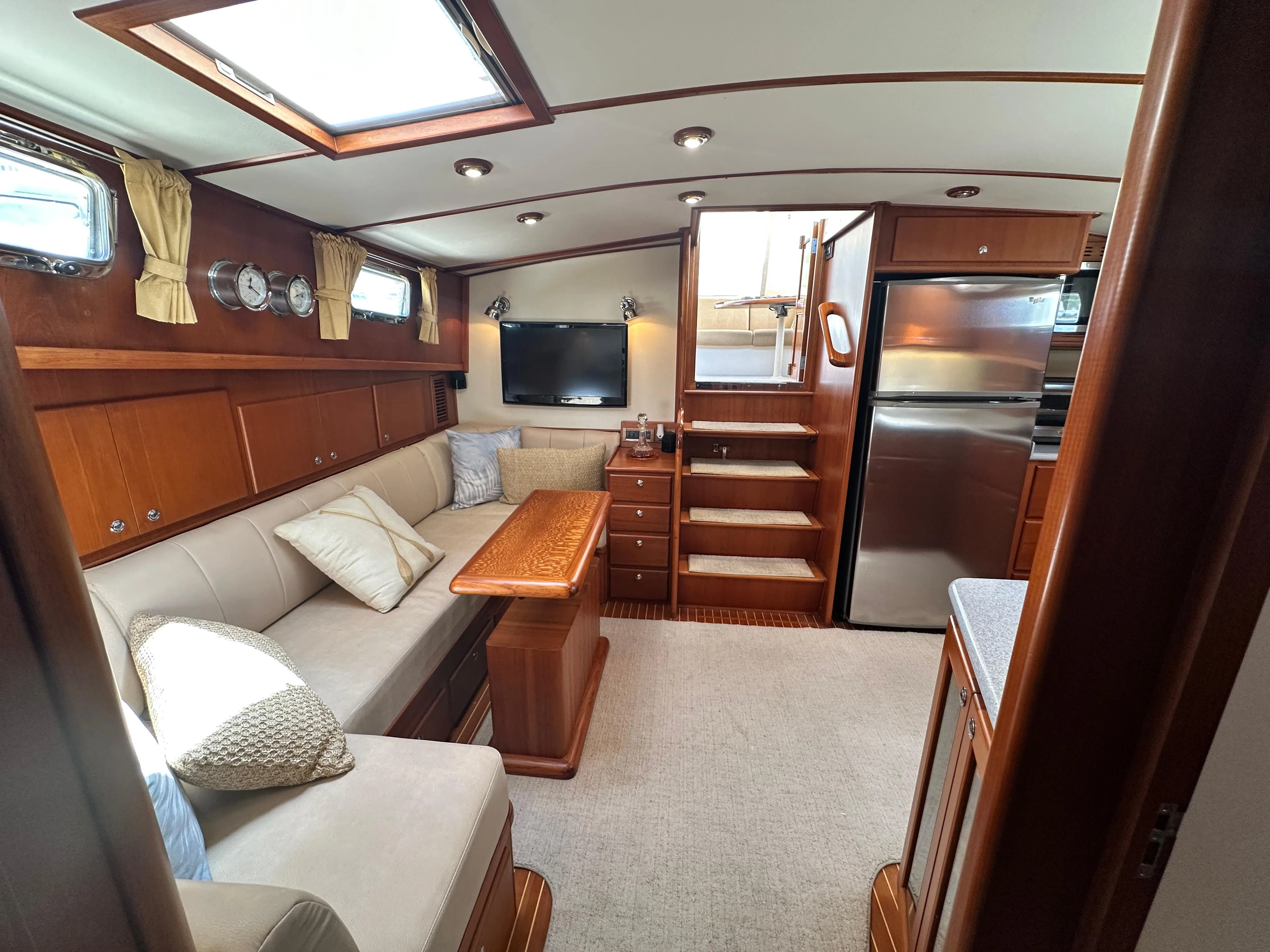

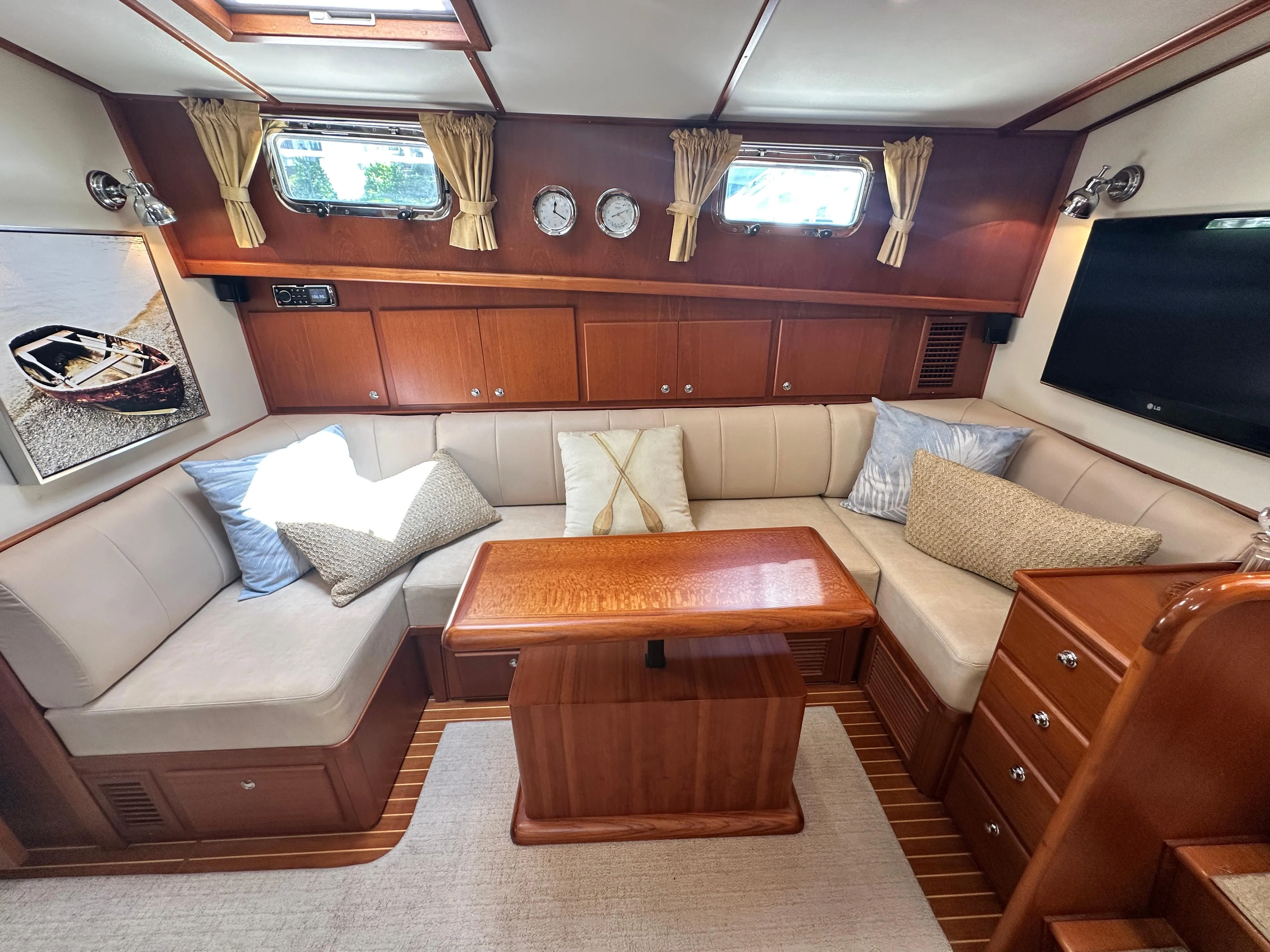

• Main salon sofa/dinette table arranged in the starboard side of the salon and the port side of the pilothouse seating area

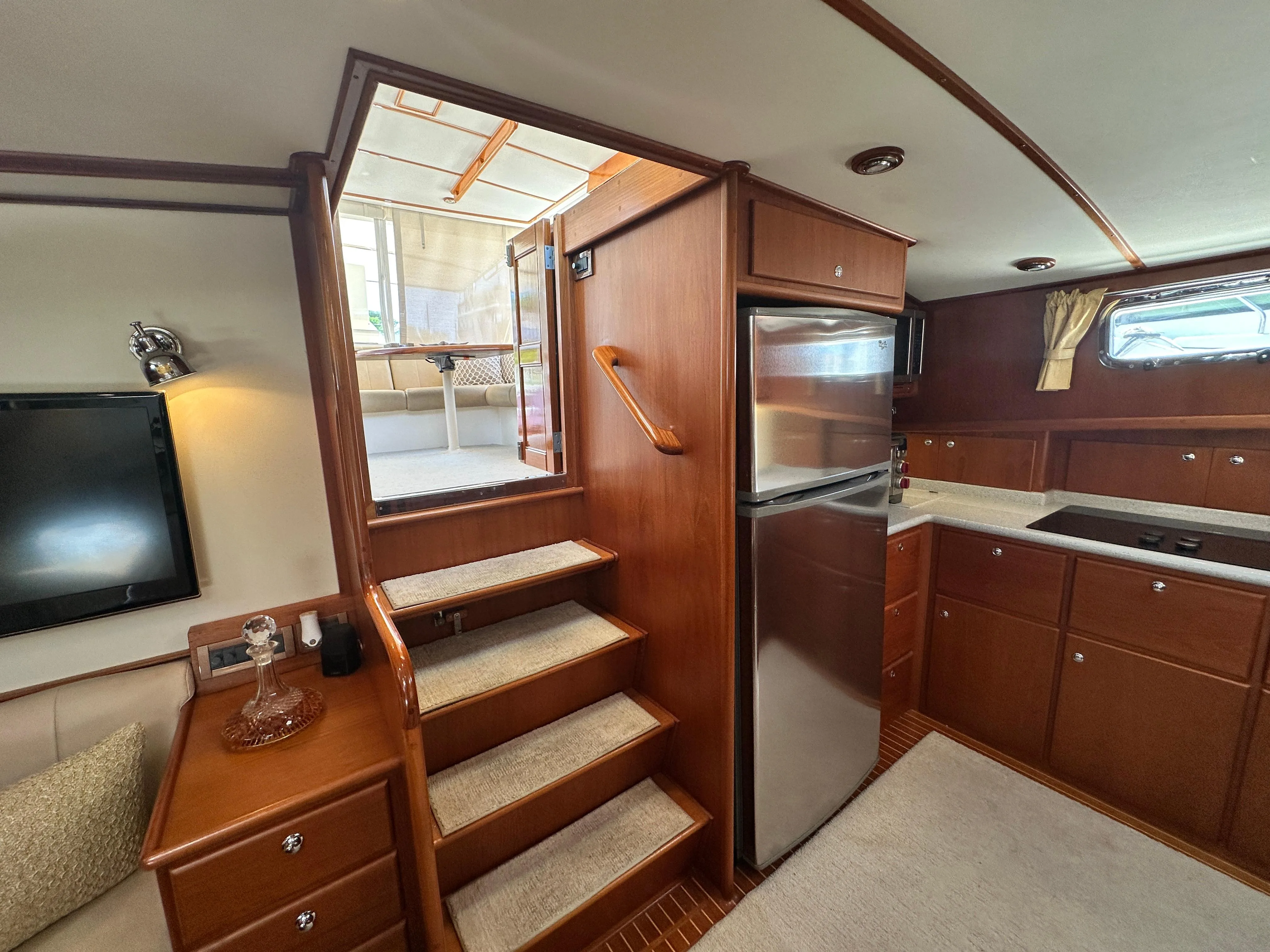

• The Galley located down four stairs, to port

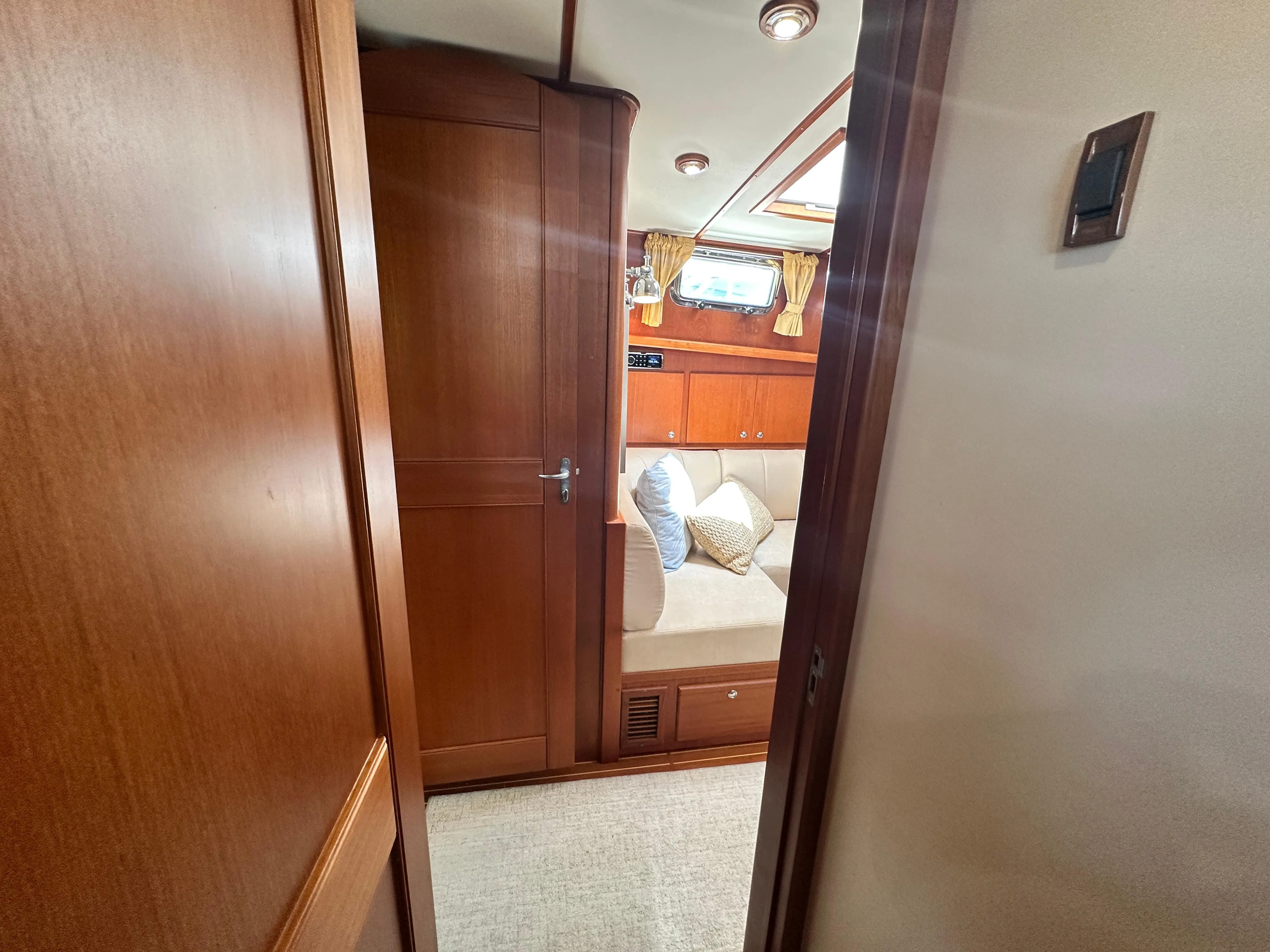

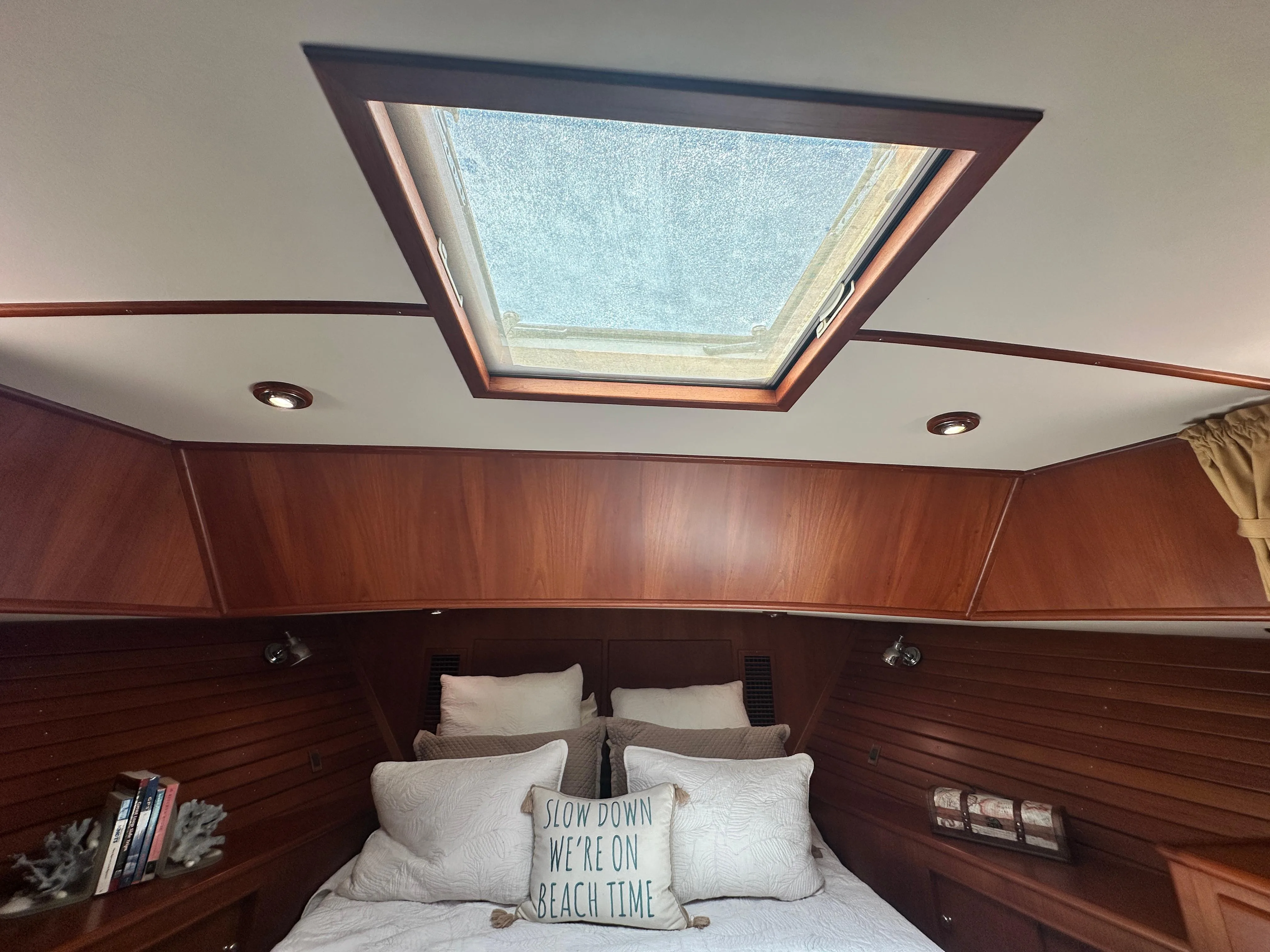

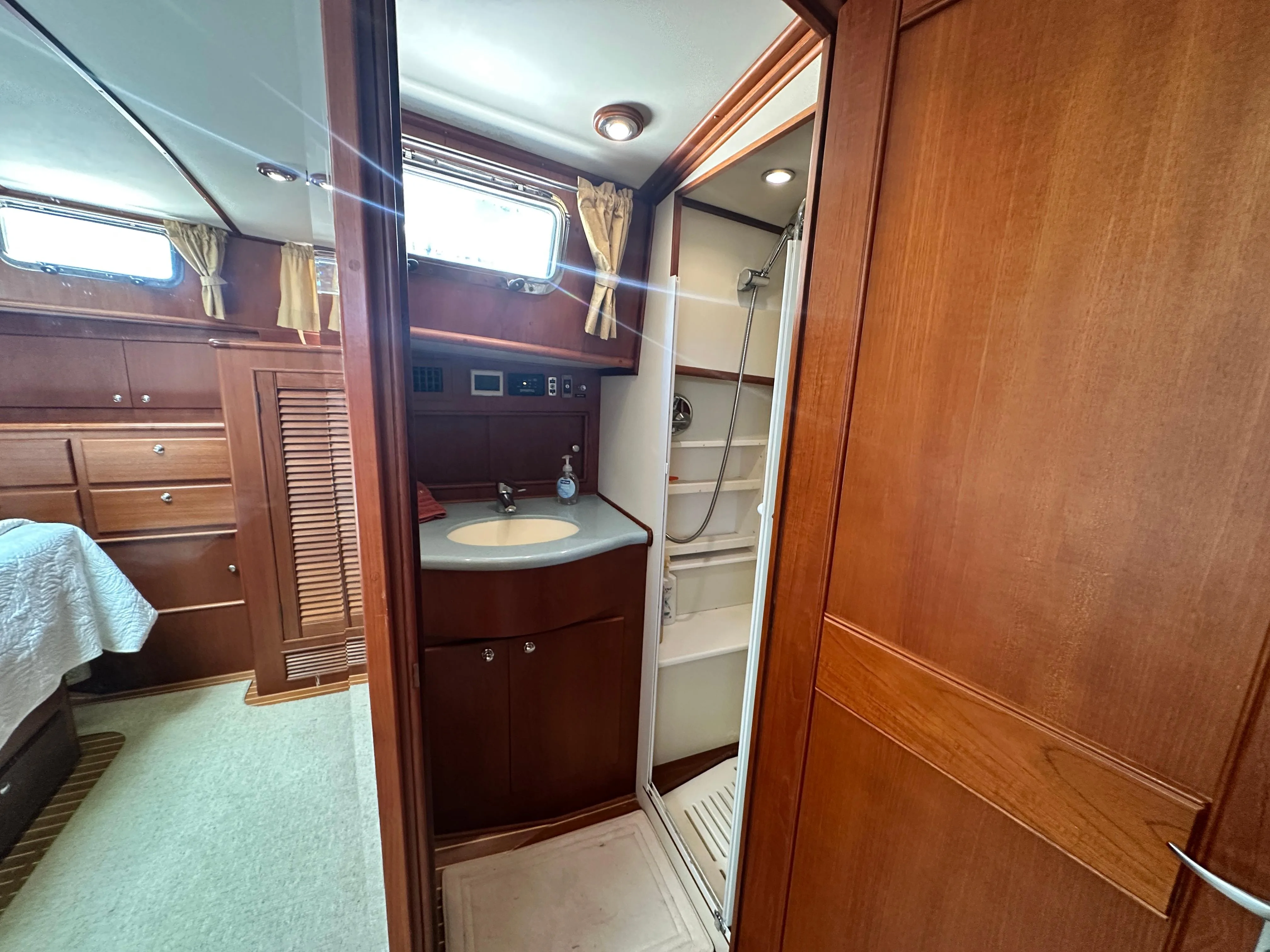

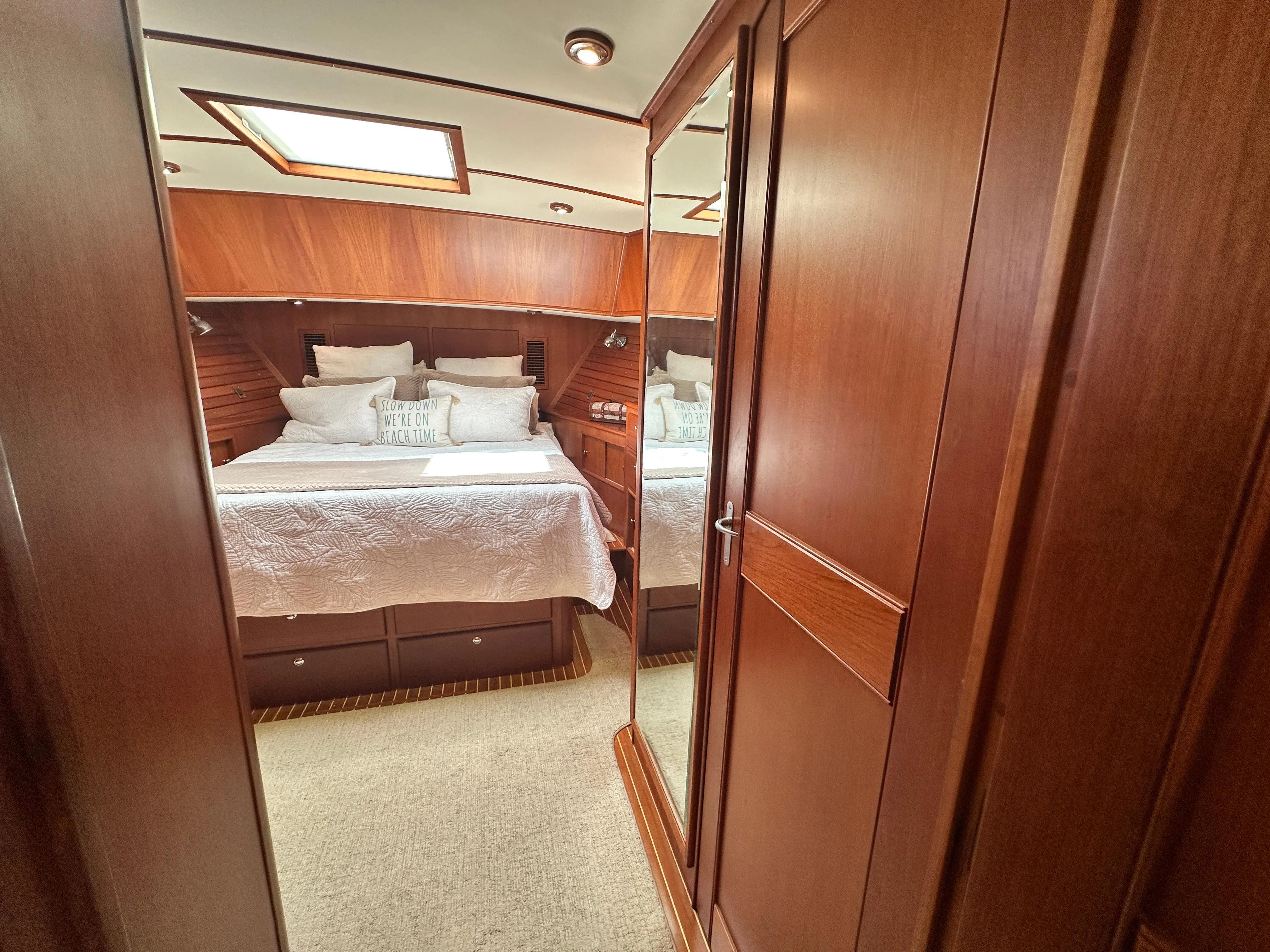

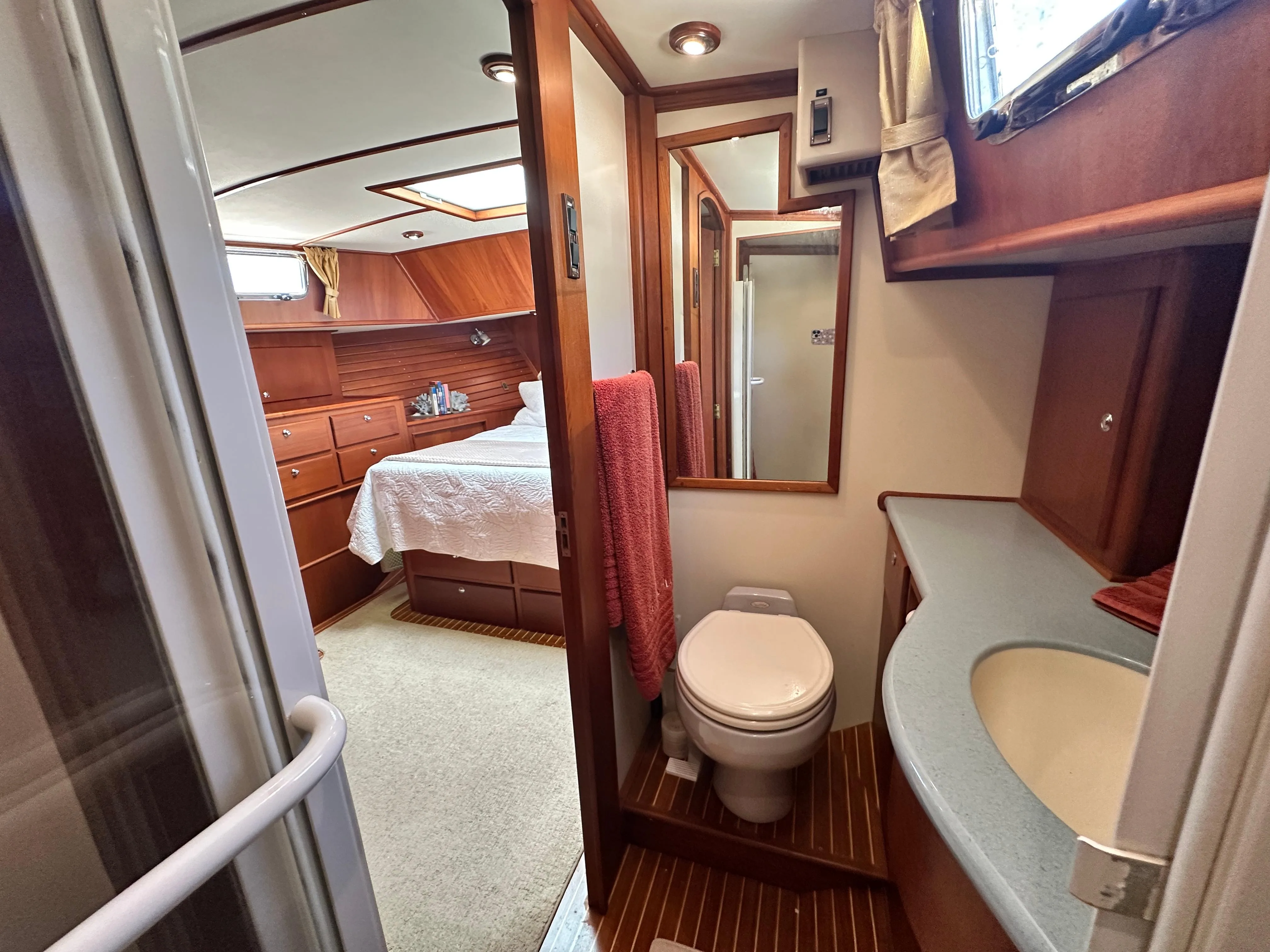

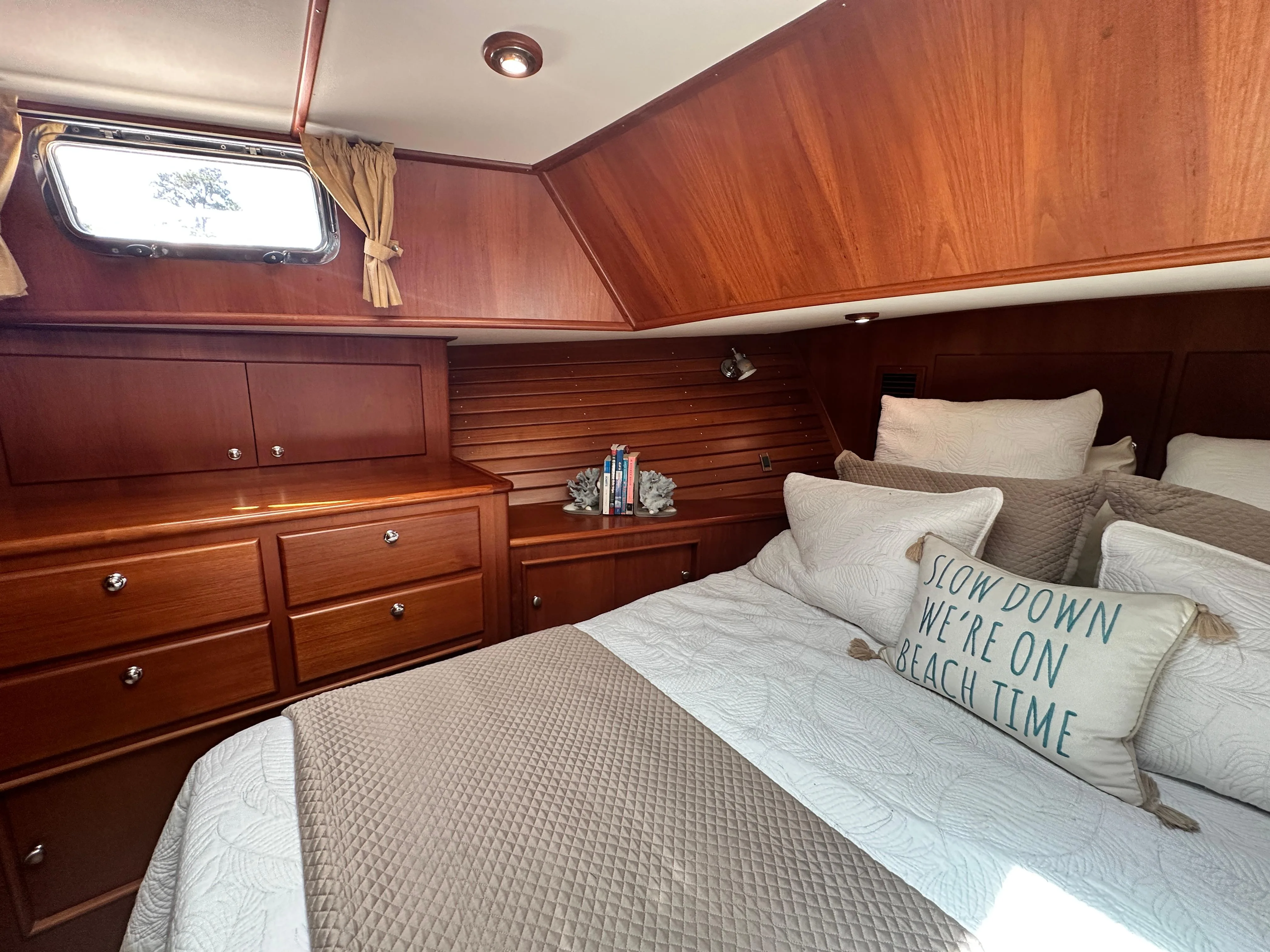

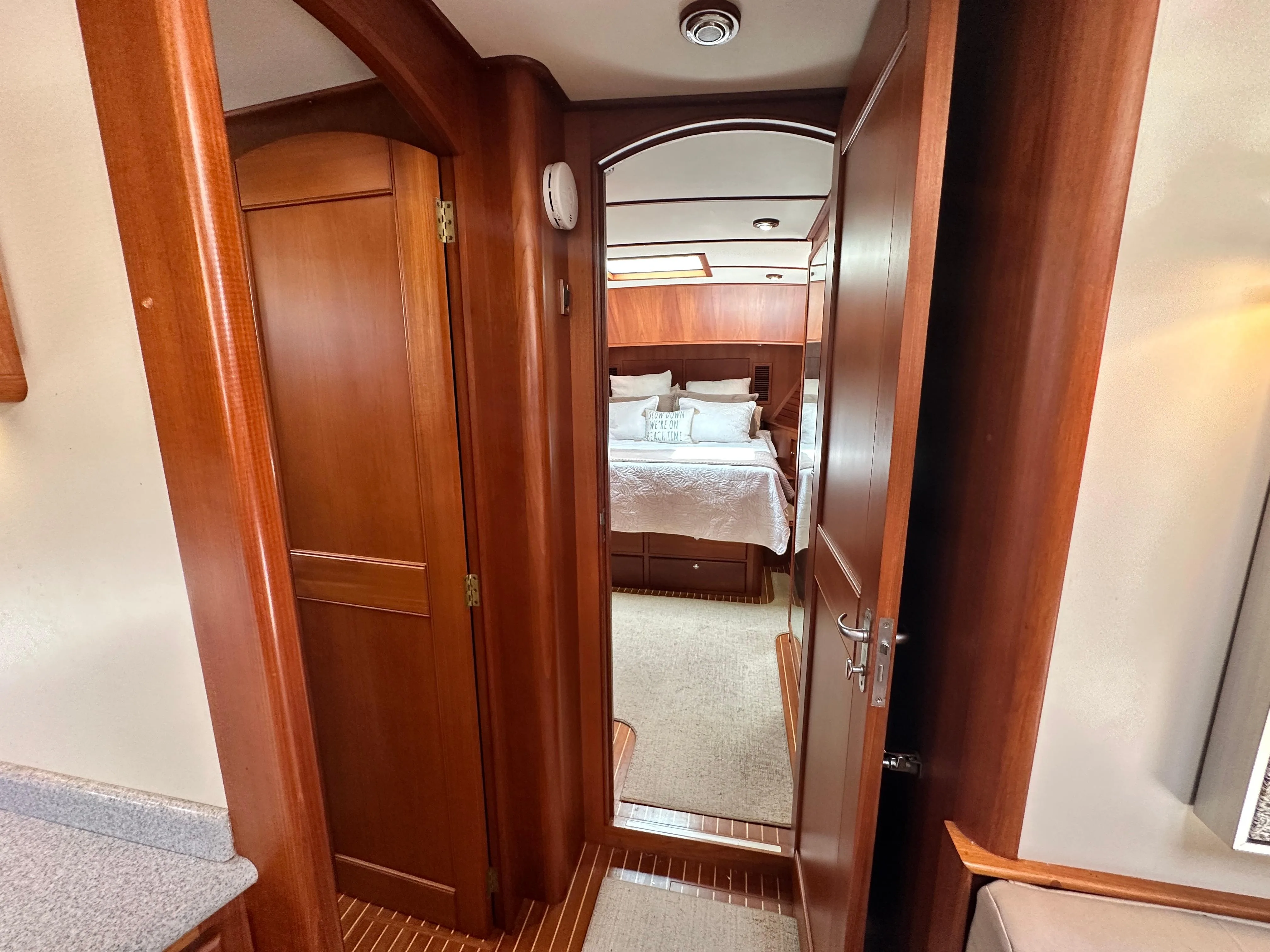

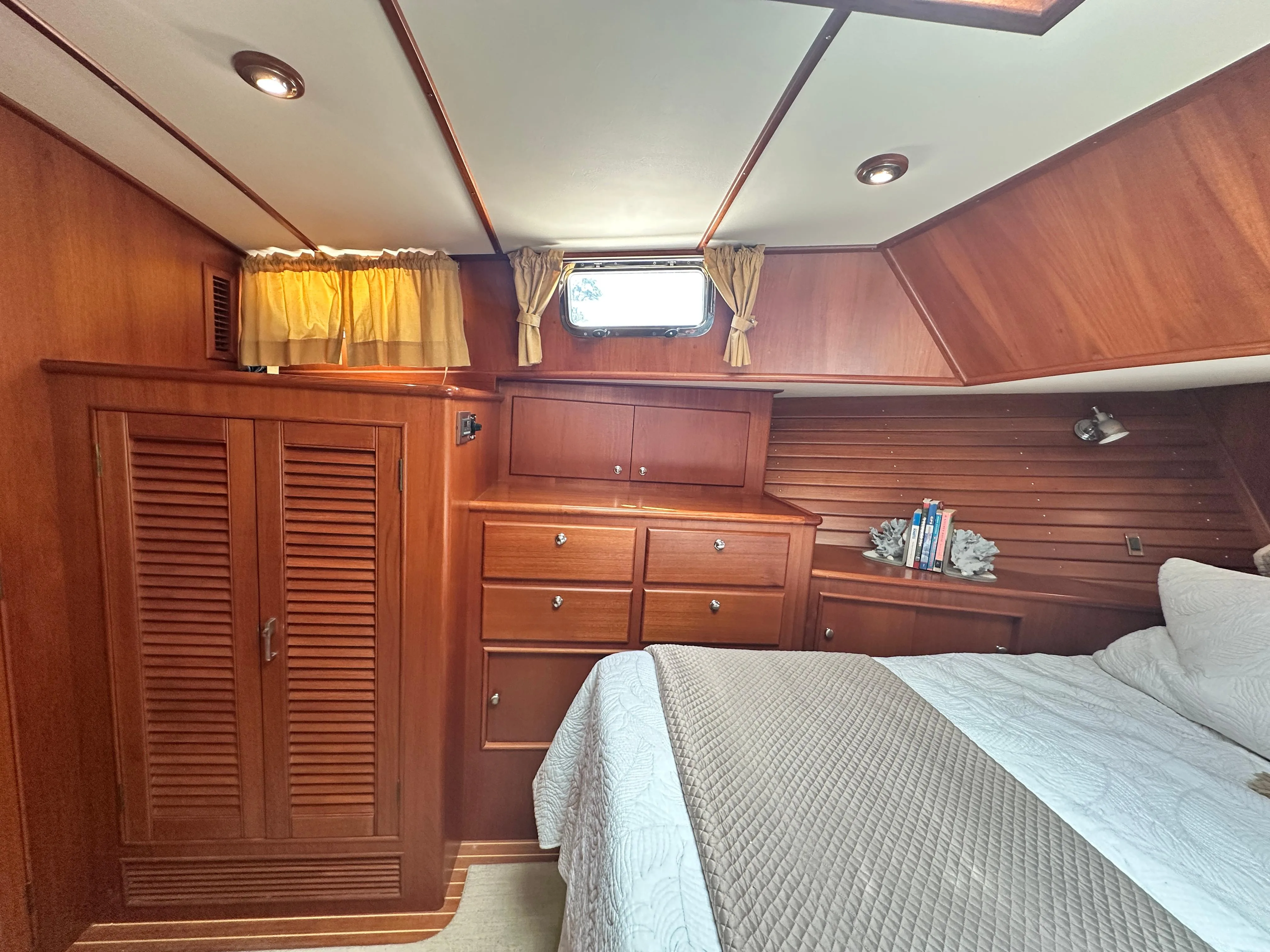

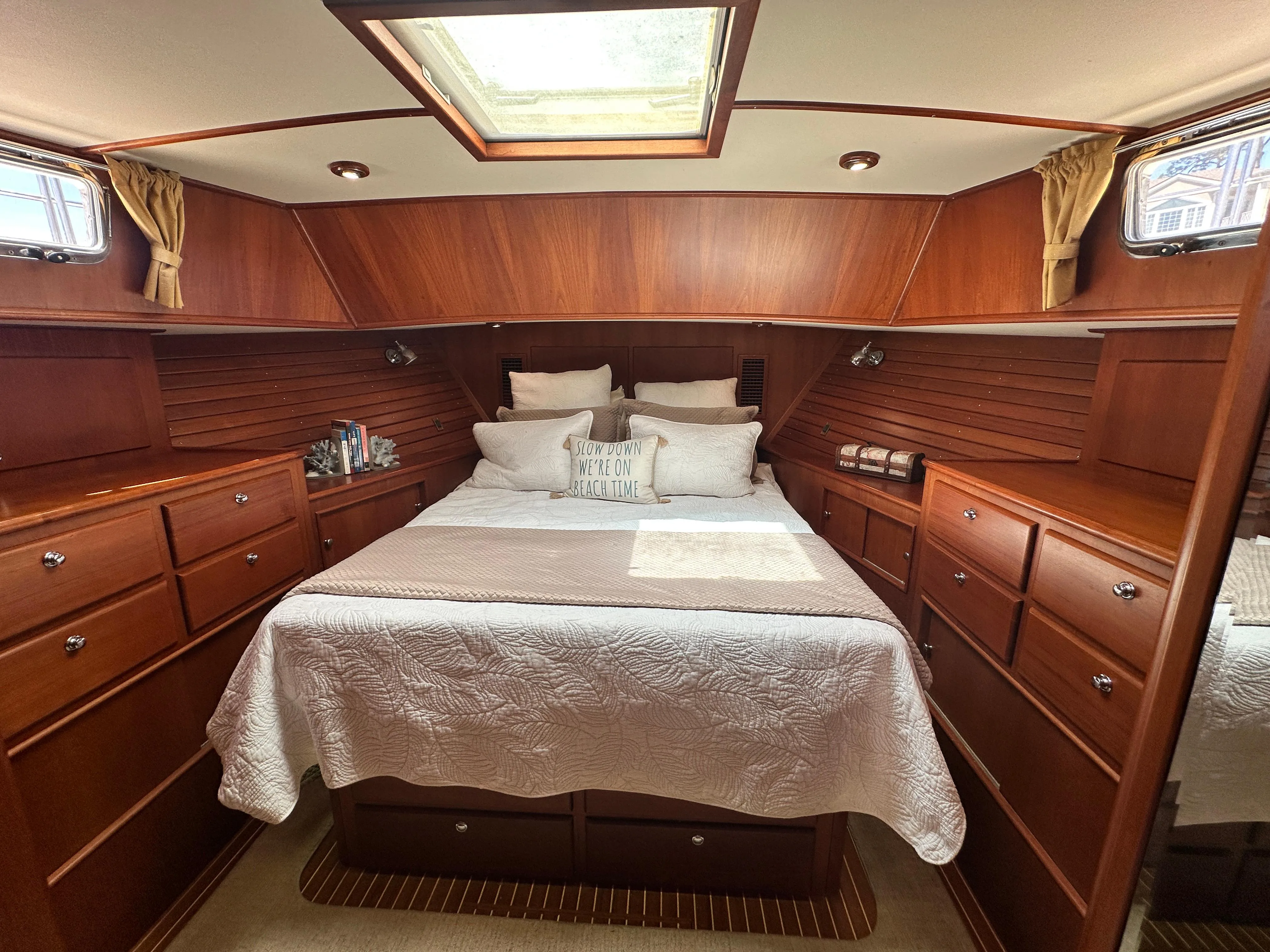

• Master Stateroom Berth, forward, with Ensuite Head w/ Sea land Vacuflush 12-volt
• Stall type showers

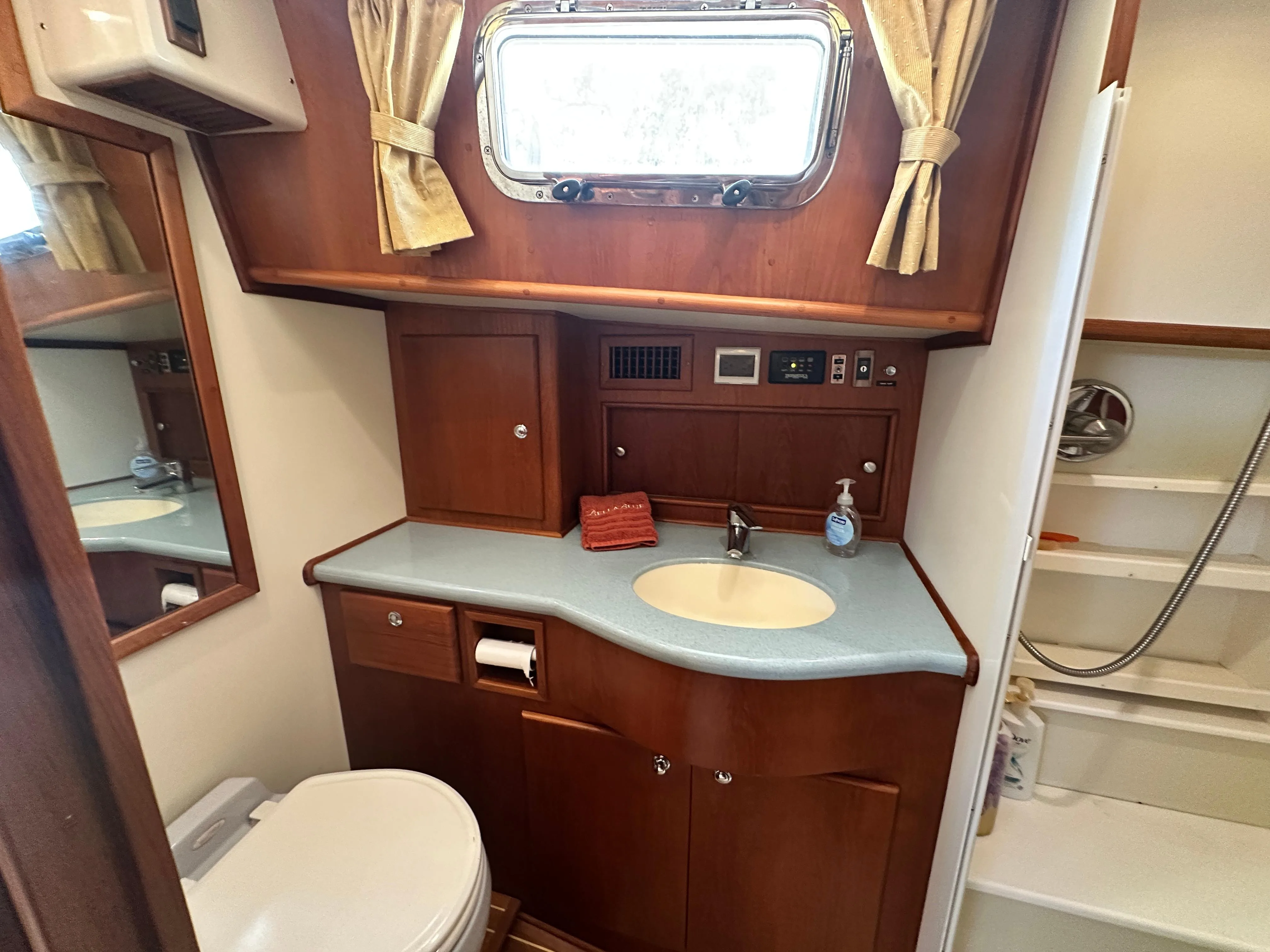

• Porcelain sinks in the Heads

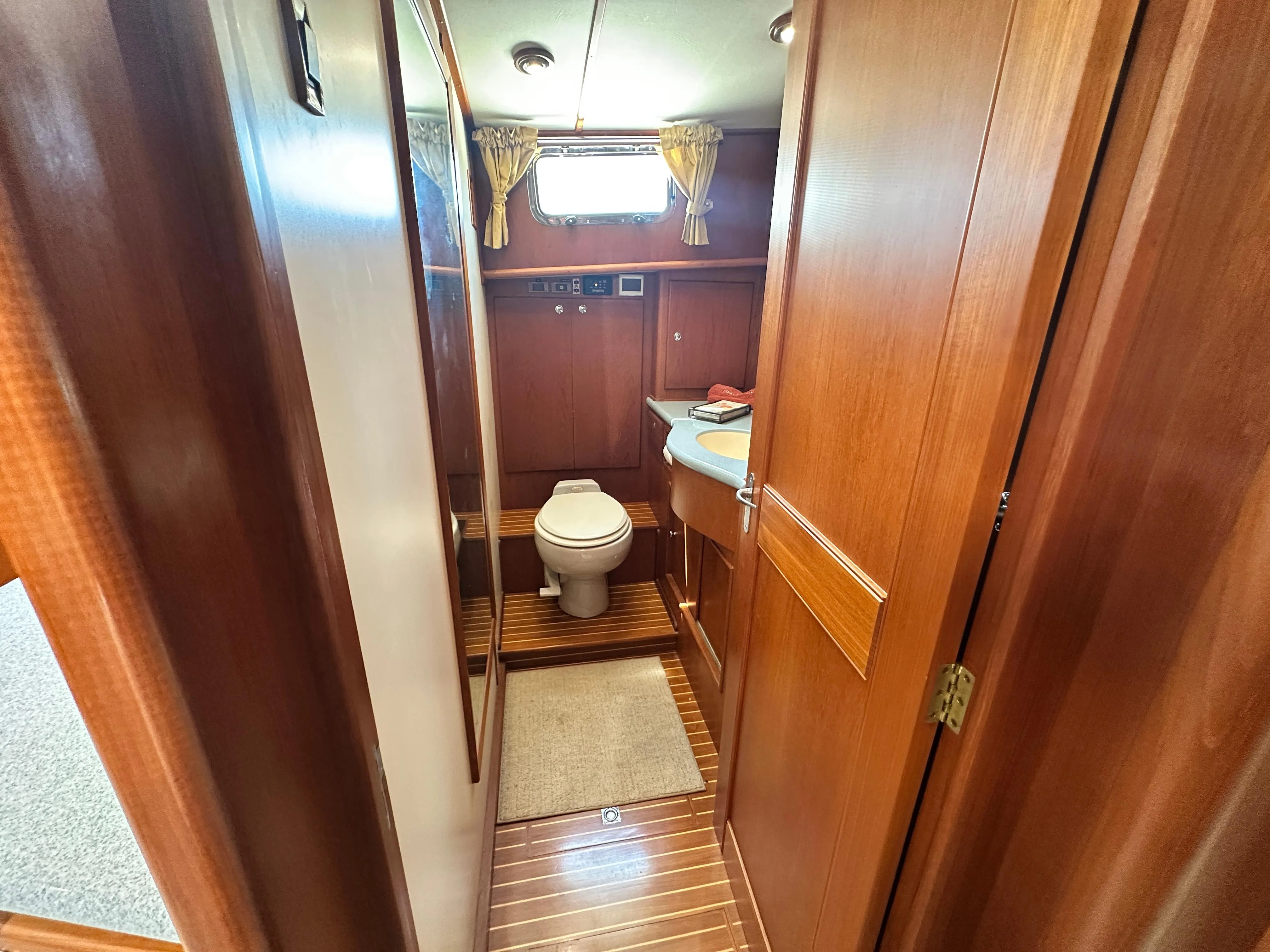

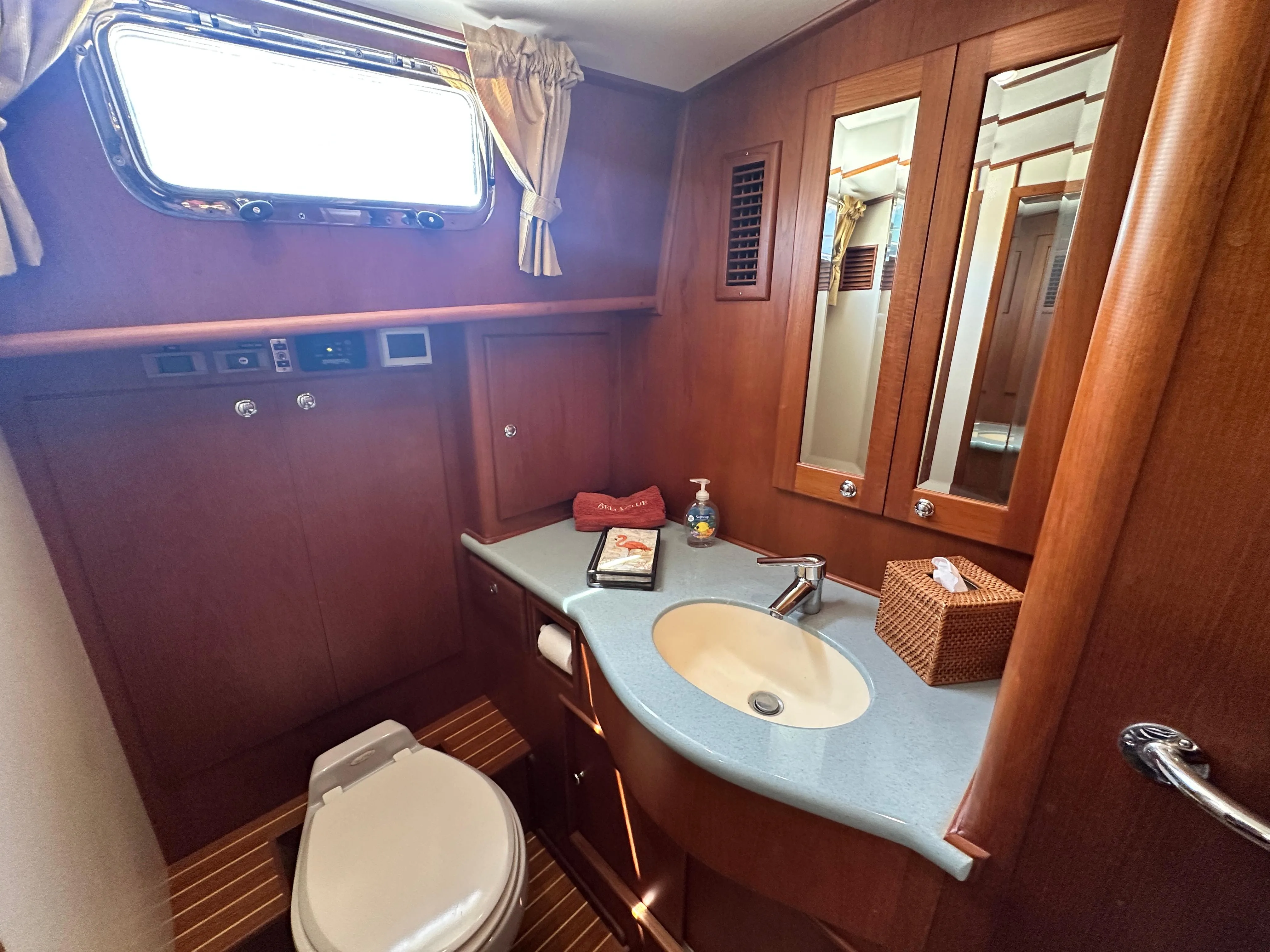

• Guest Head with Sea land Vacuflush 12-volt
• Teak & Holly cabin sole with removeable carpet runners

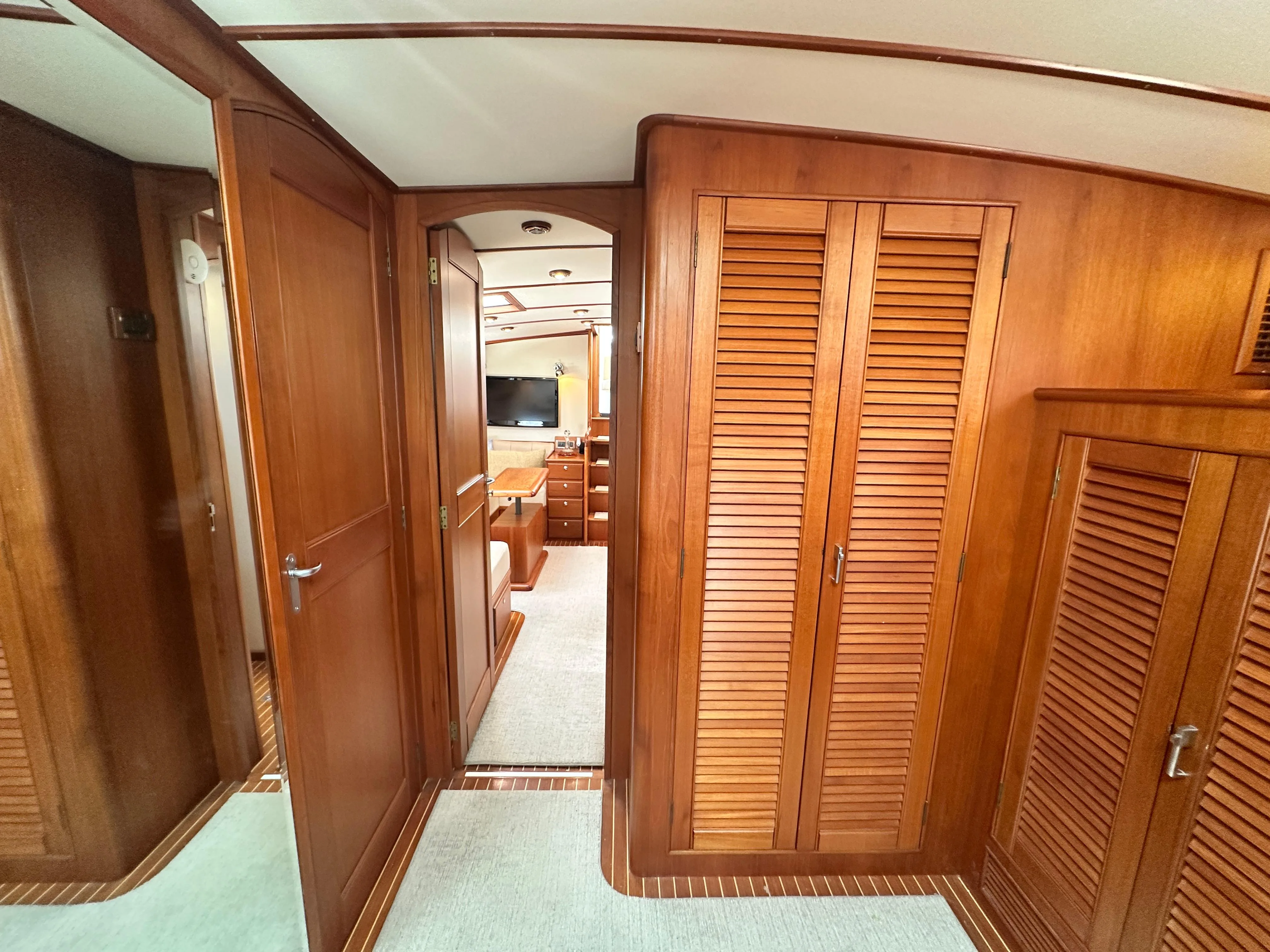

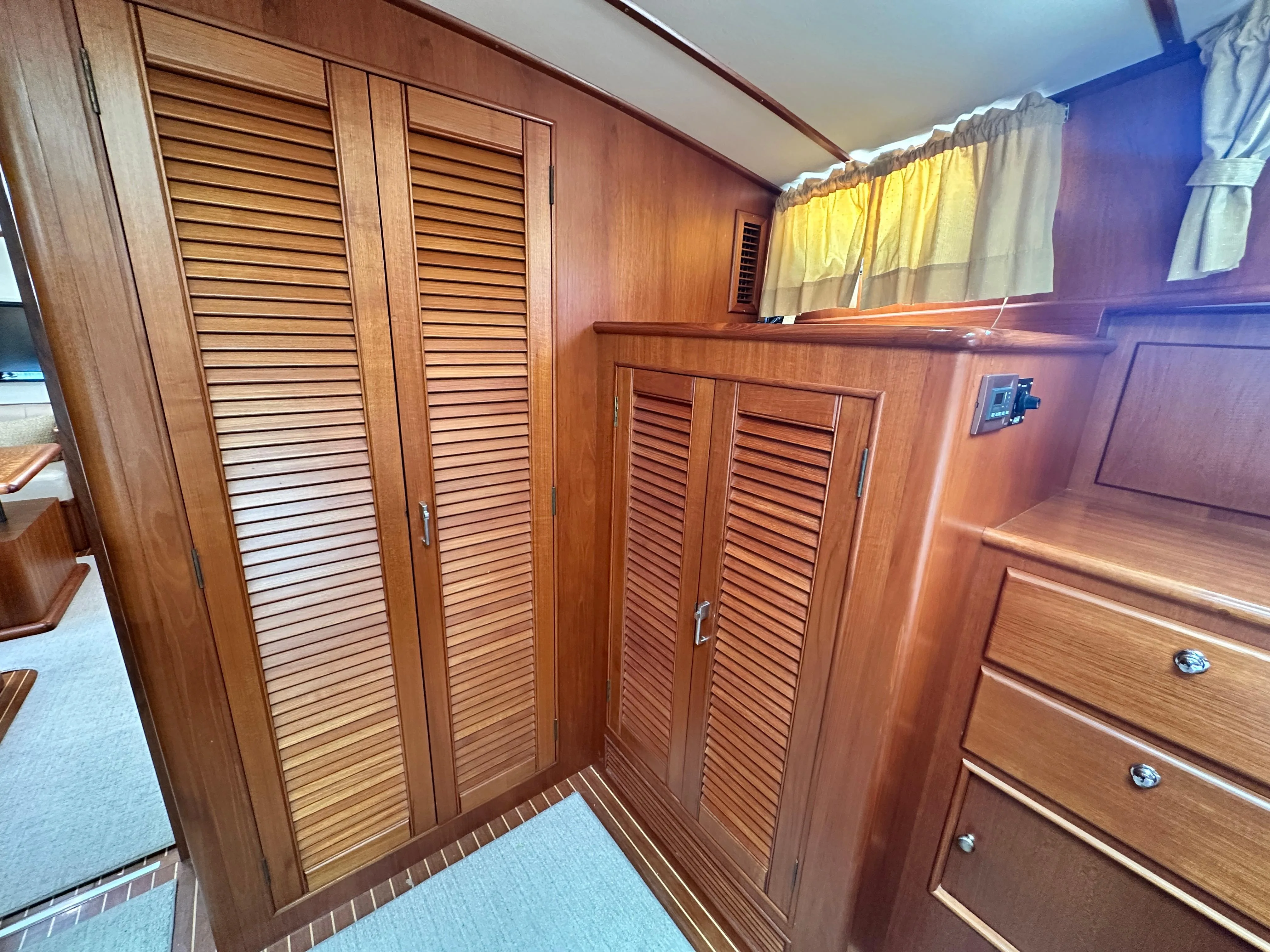

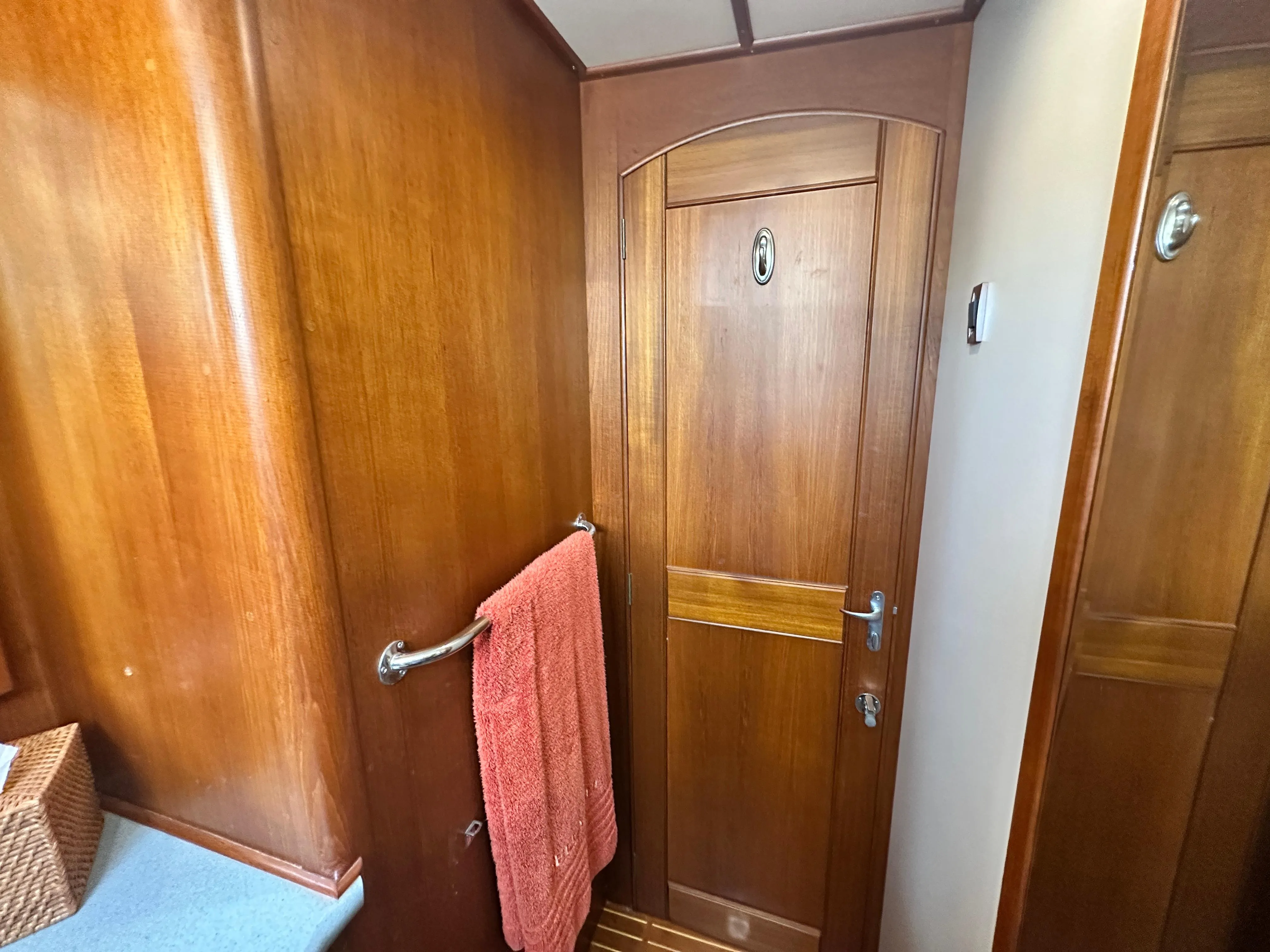

• Interior Satin finished Teak cabinetry
• LG Television in the Salon
• Fusion stereo with Mirage speakers

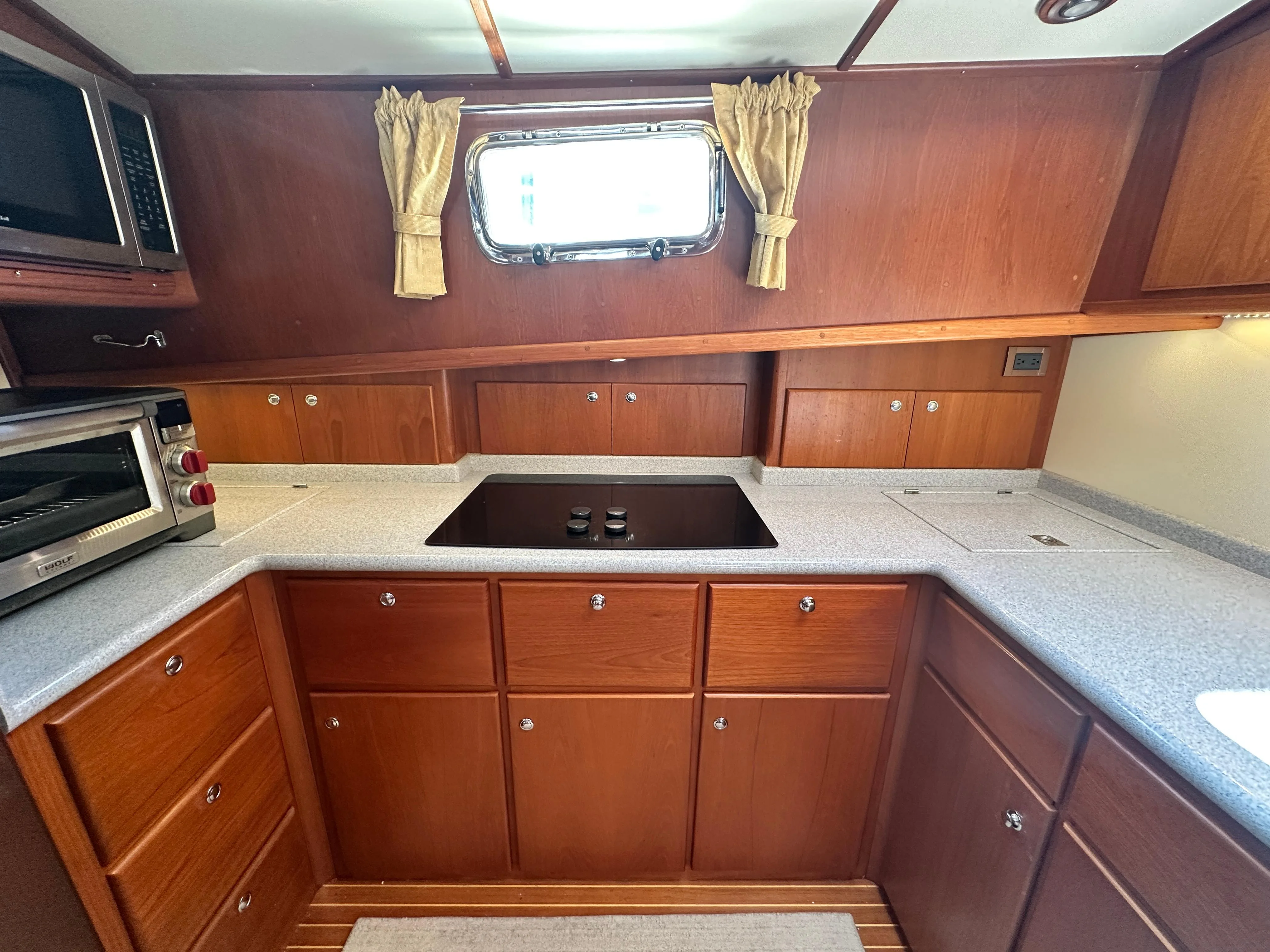

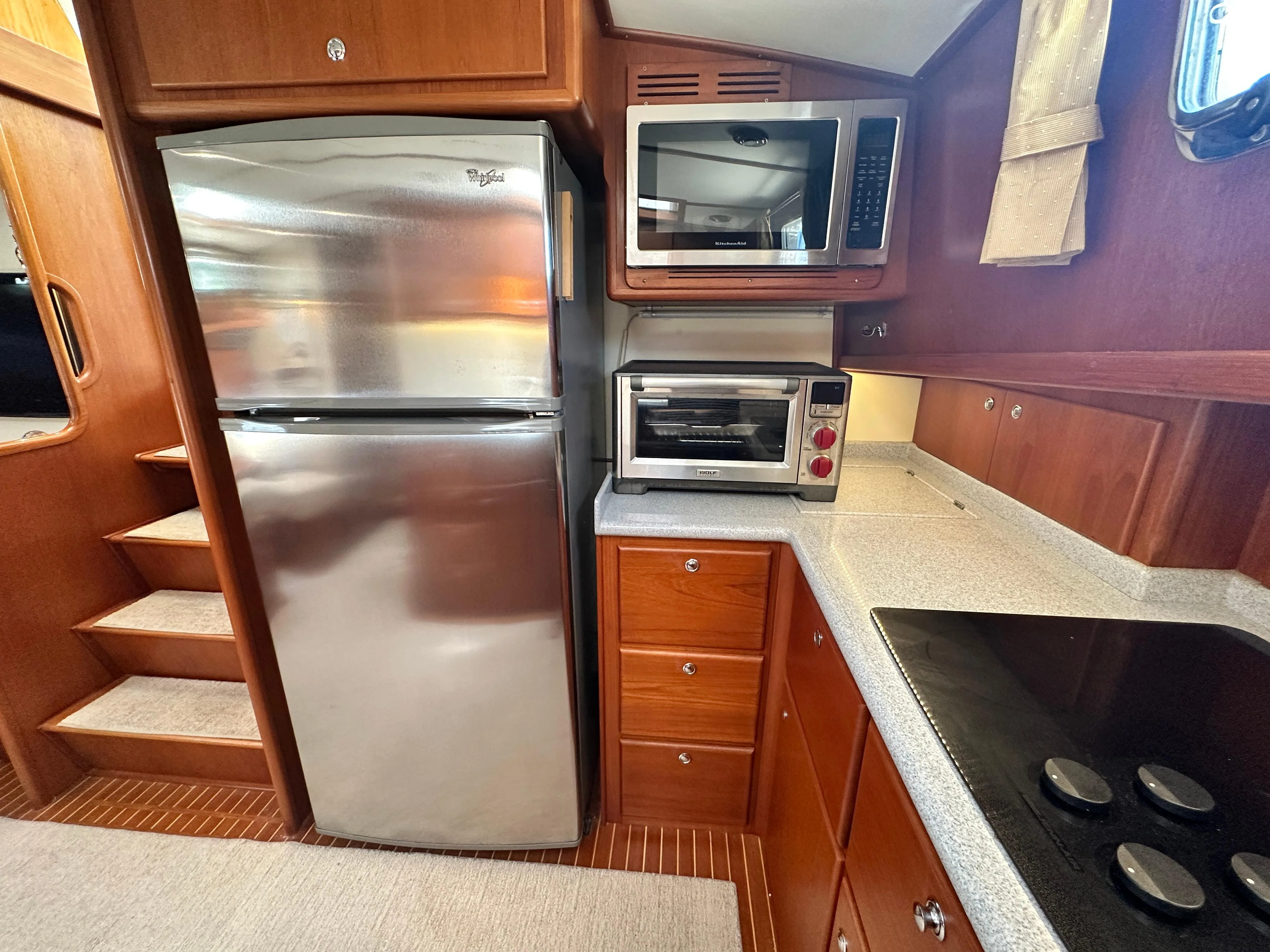

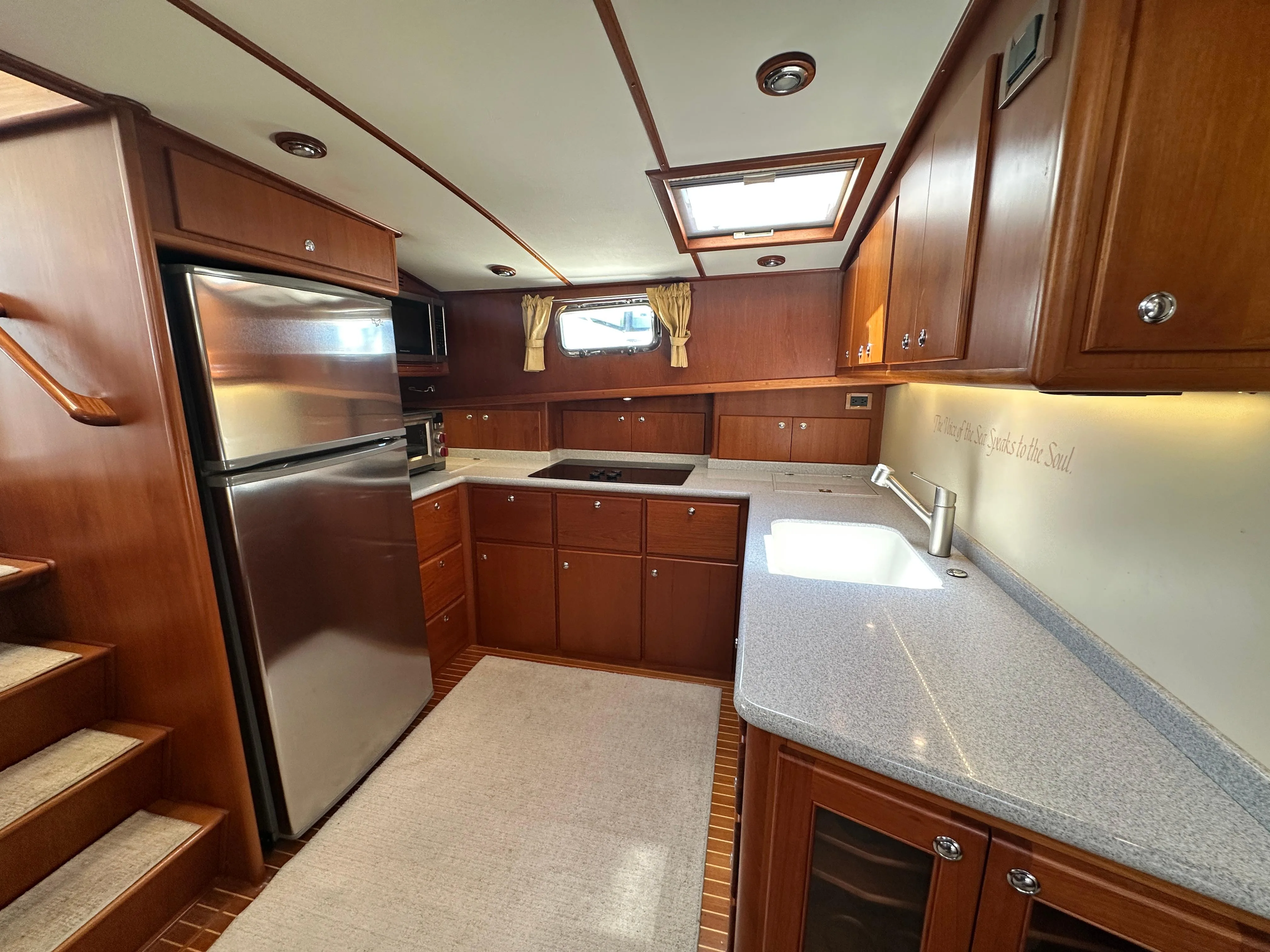

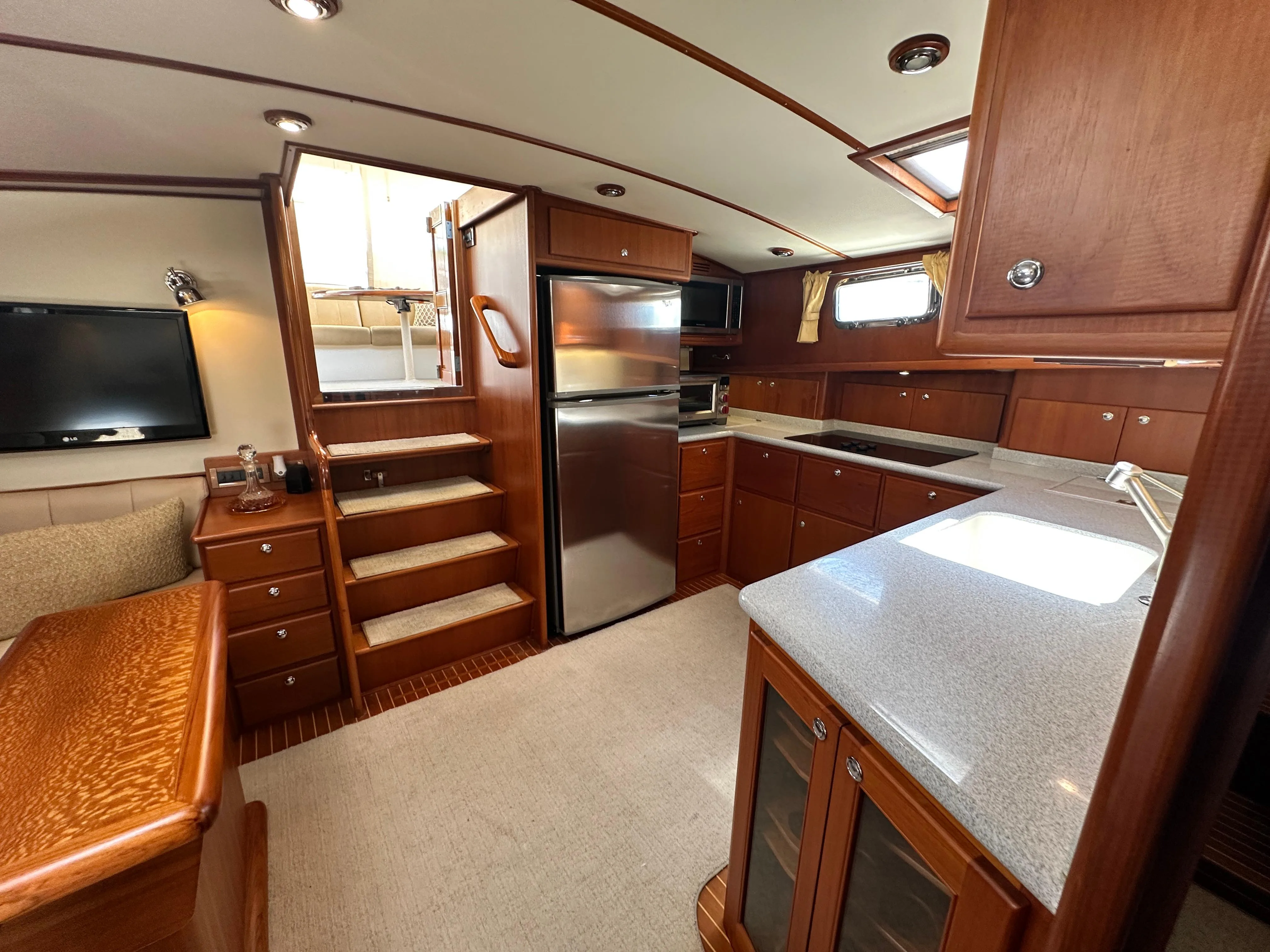

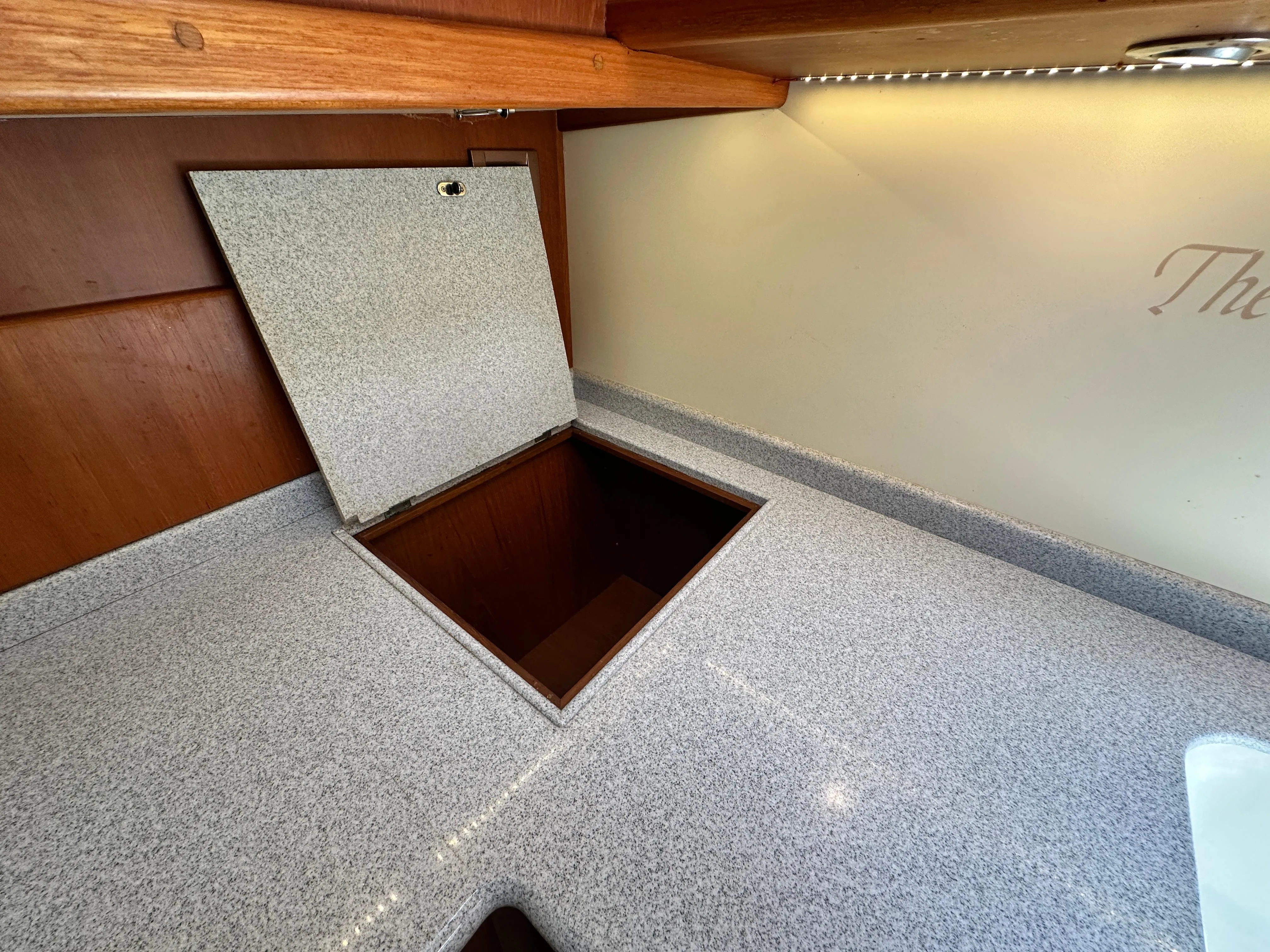

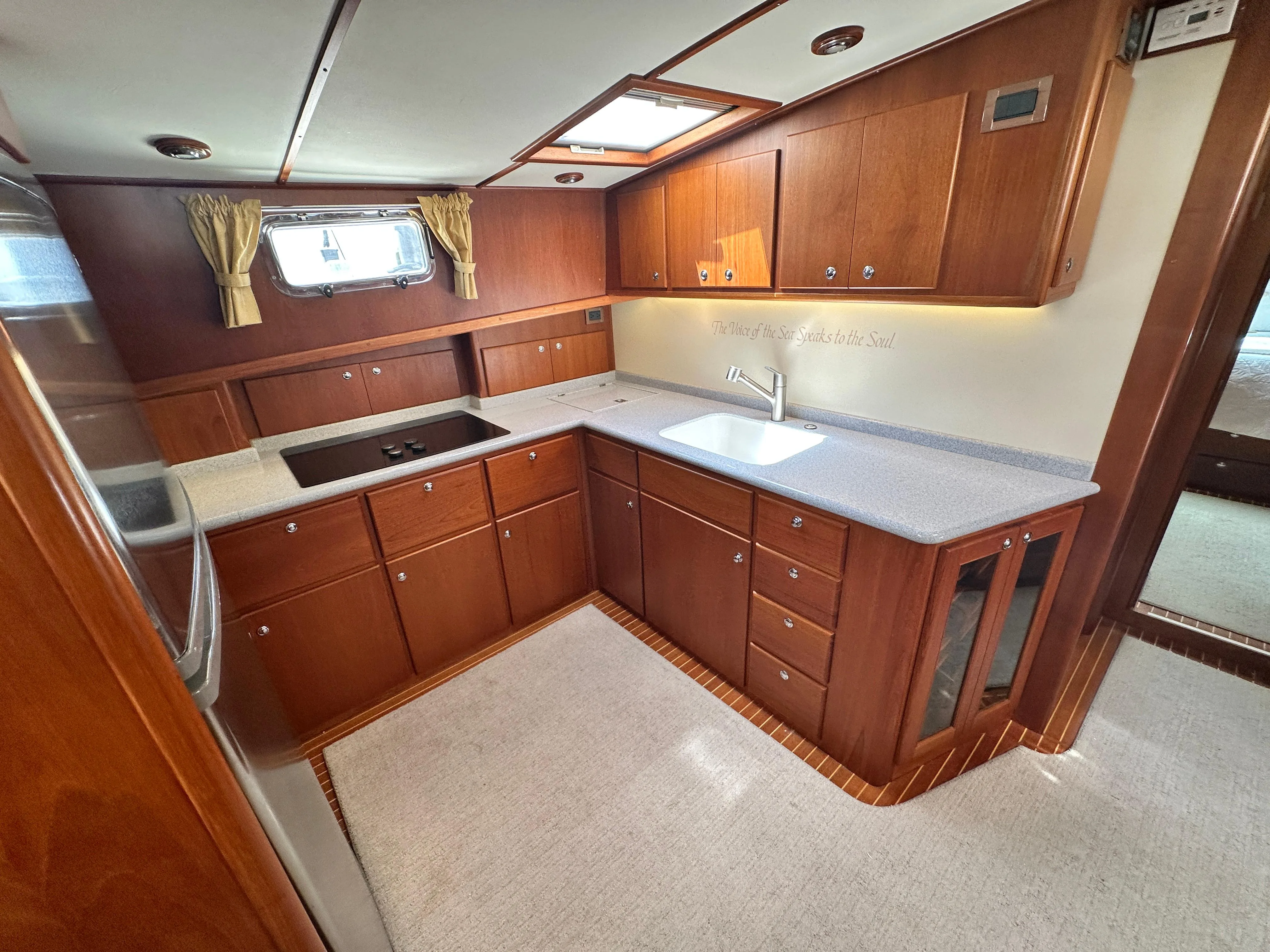

Galley

• FREEZER: Whirlpool

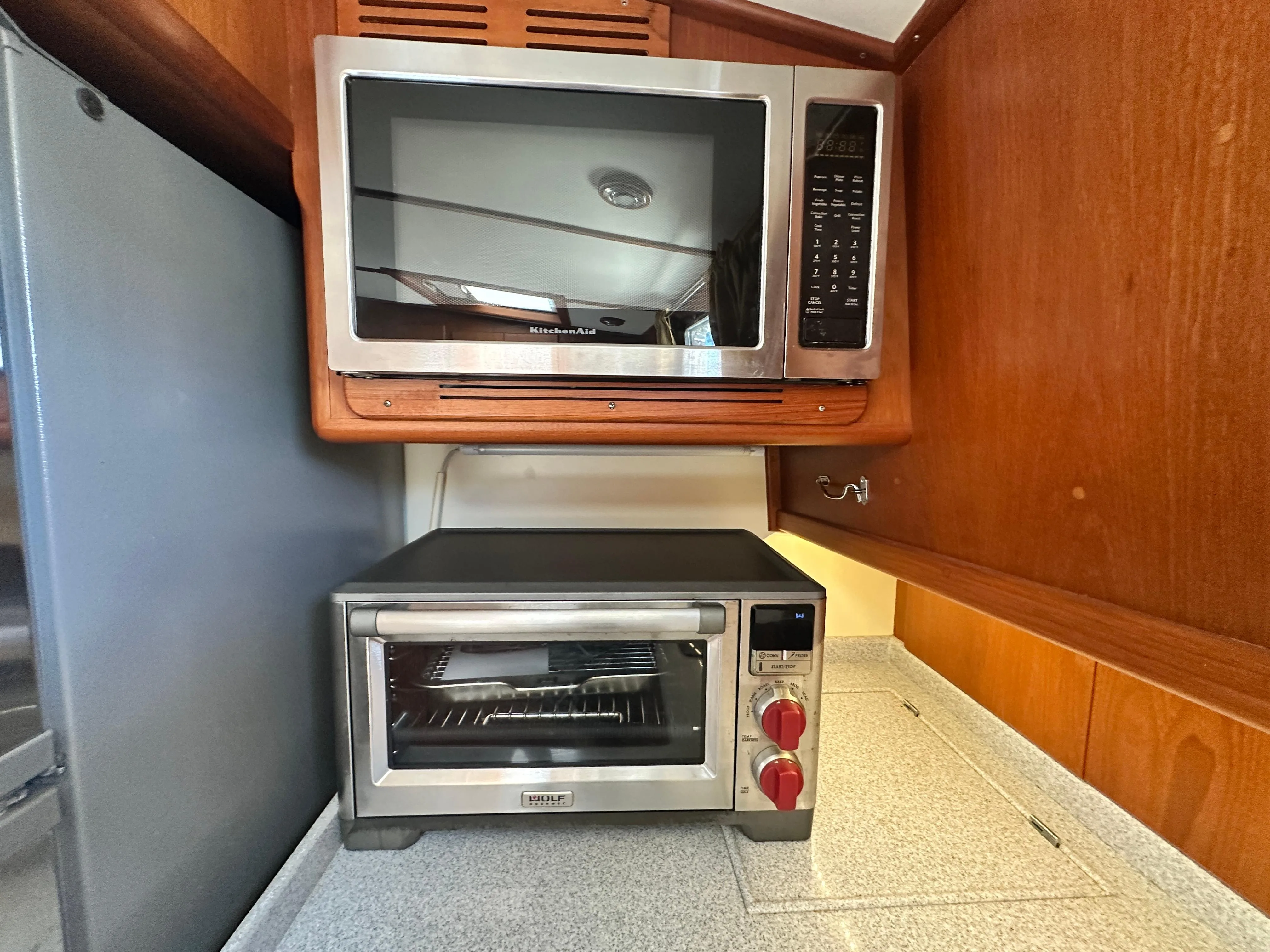

• OVEN:  Wolf Gourmet Benchtop.
• STOVE:  Jenn-Air Ceramic Glass Cooktop
• MICROWAVE OVEN: KitchenAid Stainless Steel Microwave Oven

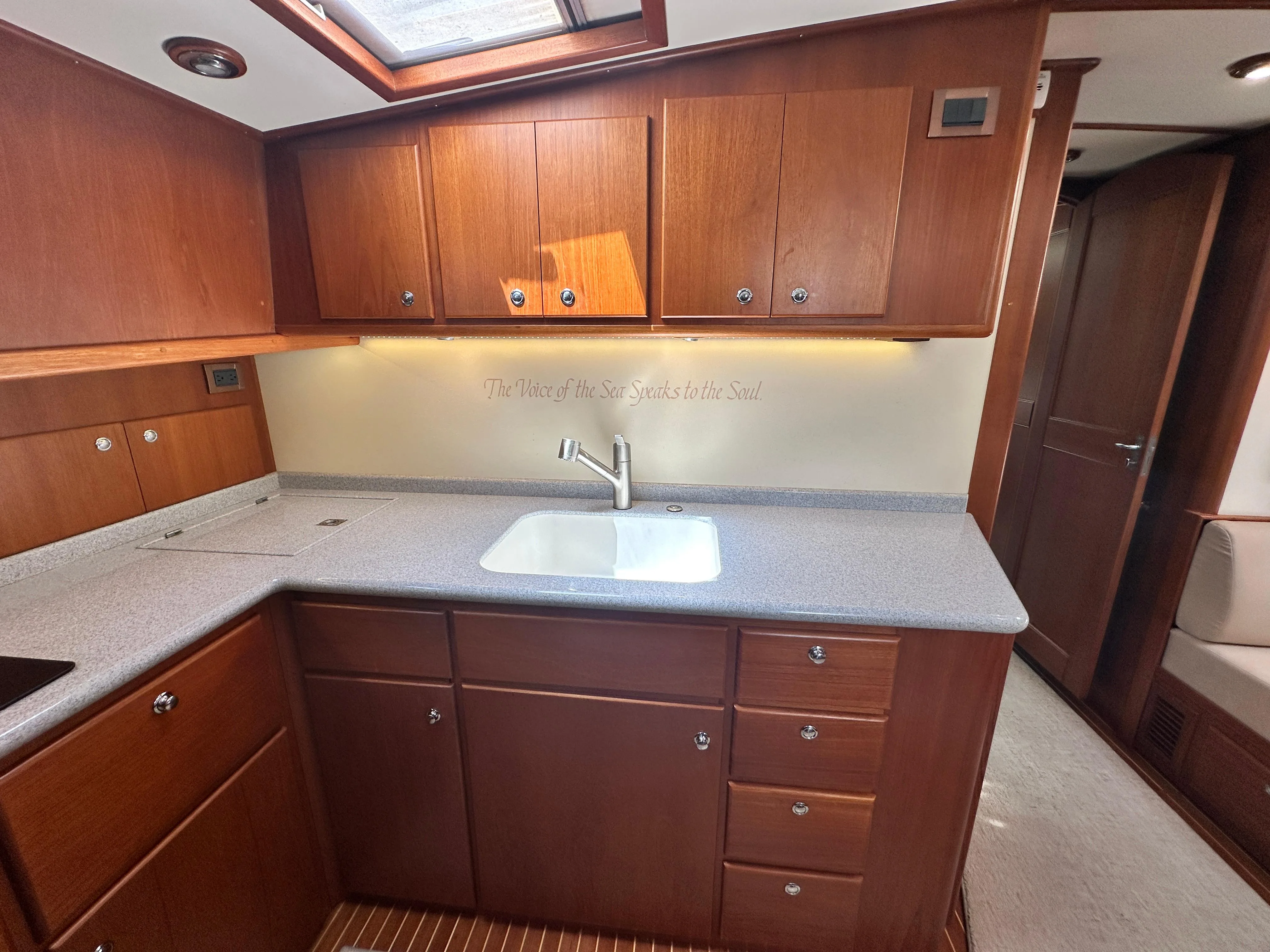

• GALLEY SINK: White Corian sink molded into the counter top.
• GARBAGE DISPOSAL: lnsinkerator Garbage Disposal.

Mechanical

• LIGHTING:  12-Volt DC and 110-volt AC lighting fixtures.
• HVAC/ A IR CONDITIONING:  Three (3) Cruisair Marine Air units. 16,000 BTU each. Salon, V-berth, and master cabin with digital controls.
• CABIN HEATING SYSTEM:  The Marine Air units were reverse cycle for heat.

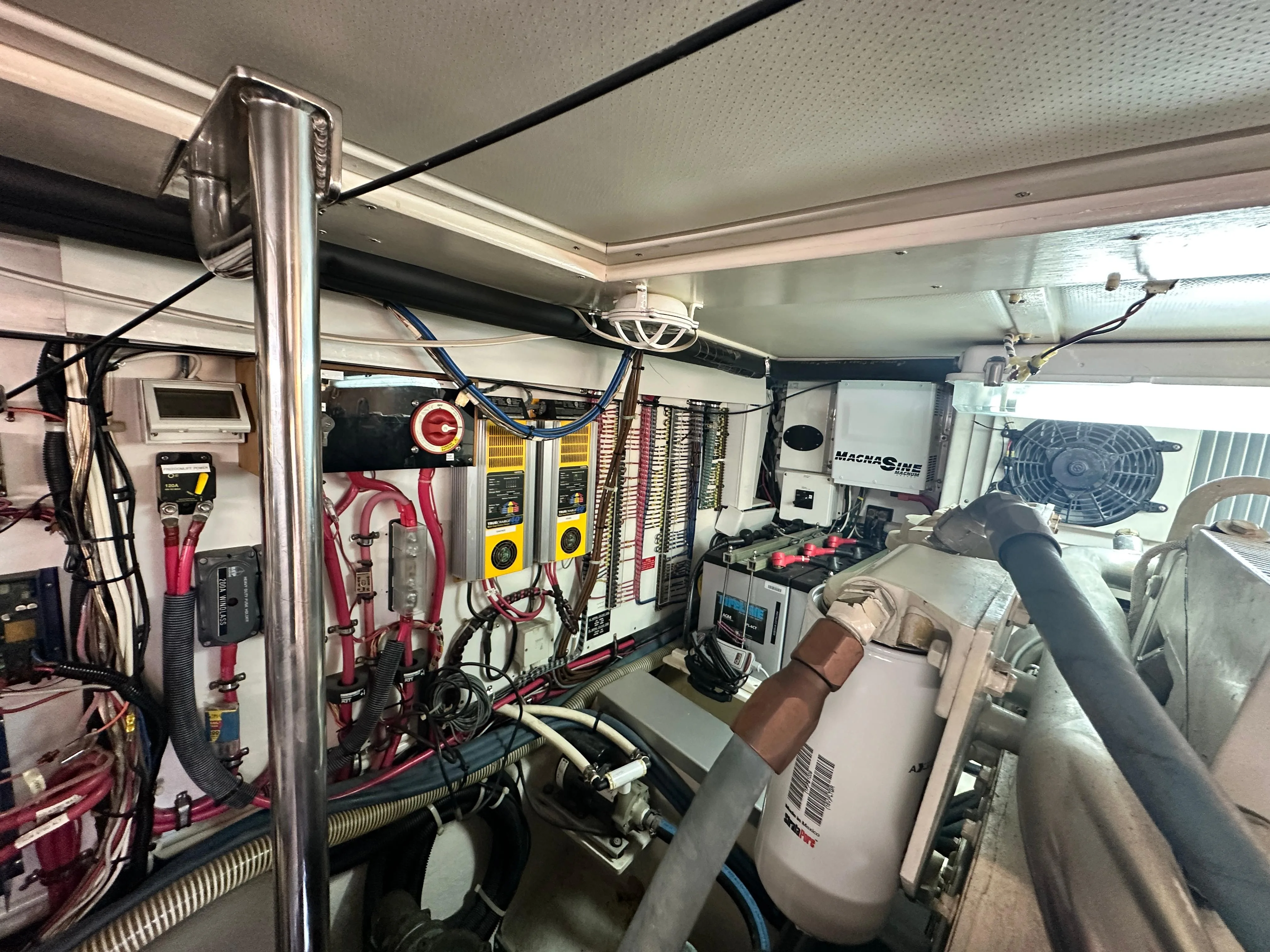

• INVERTER SYSTEMS (ABYC E-11, A-31):  Magnum Energy Magna-Sine, Pure Sine Wave Inverter
• WATER HEATER: Whale Water Heater. Model: H F2200, 20-gallons, 12-volt.
• Hydraulic Power Steering
• Sea-Star Power-Assist Steering
• ELECTRIC BILGE PUMPING SYSTEMS:  Three (3) Rule 2000, 12 volt Bilge Pumps with float switches
• MANUAL BILGE PUMPING SYSTEM: Manual hand bilge pump

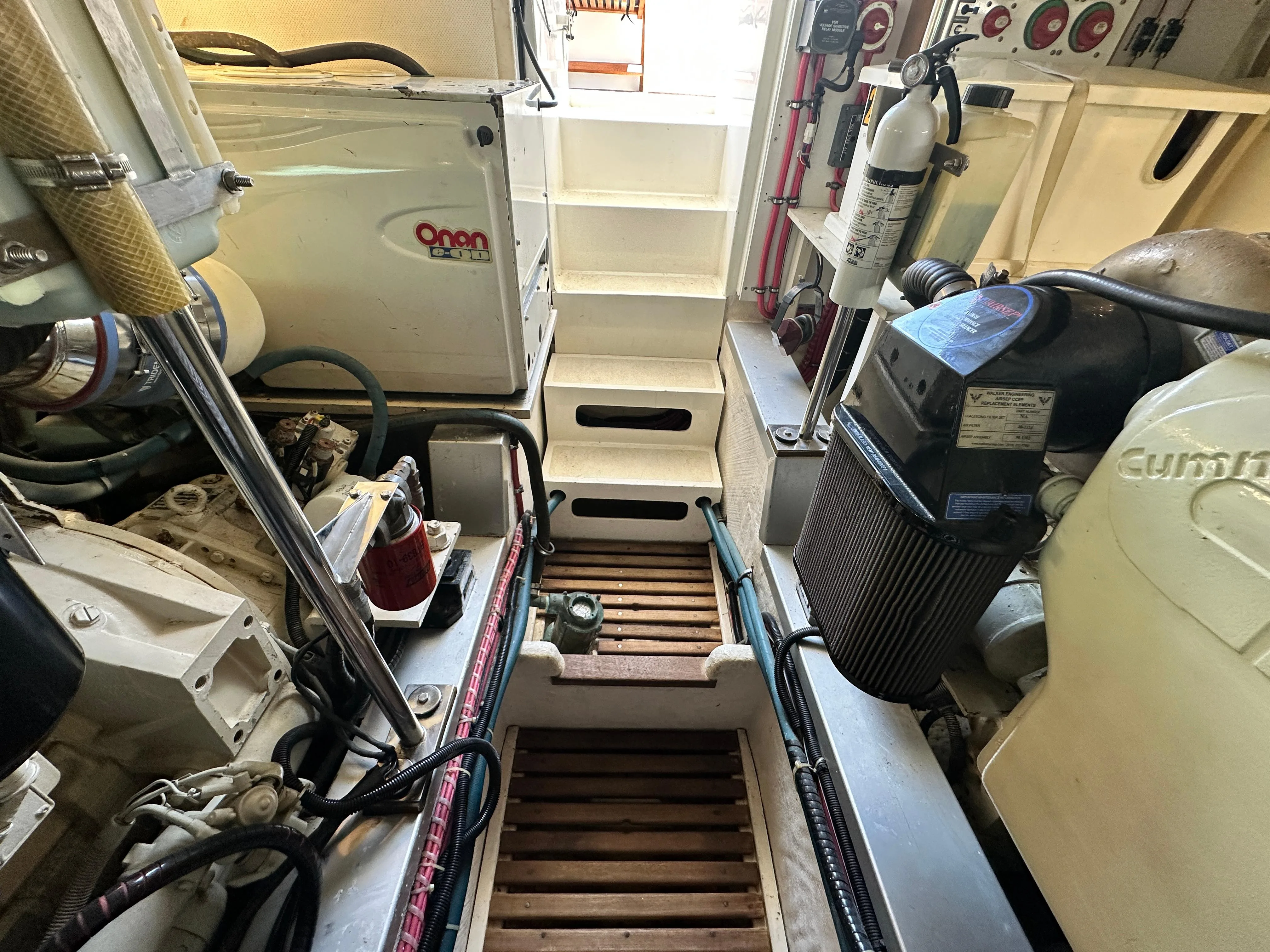

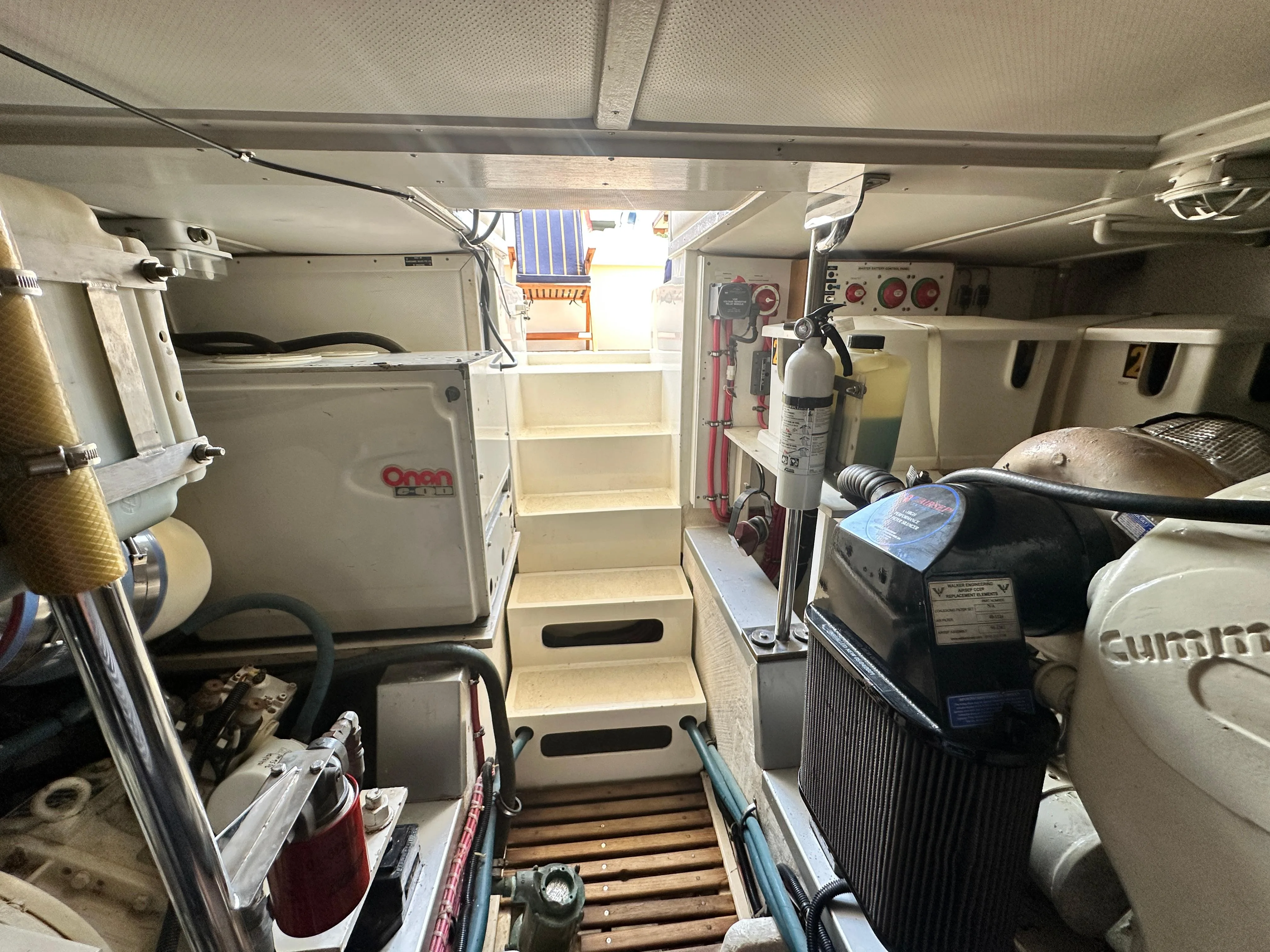

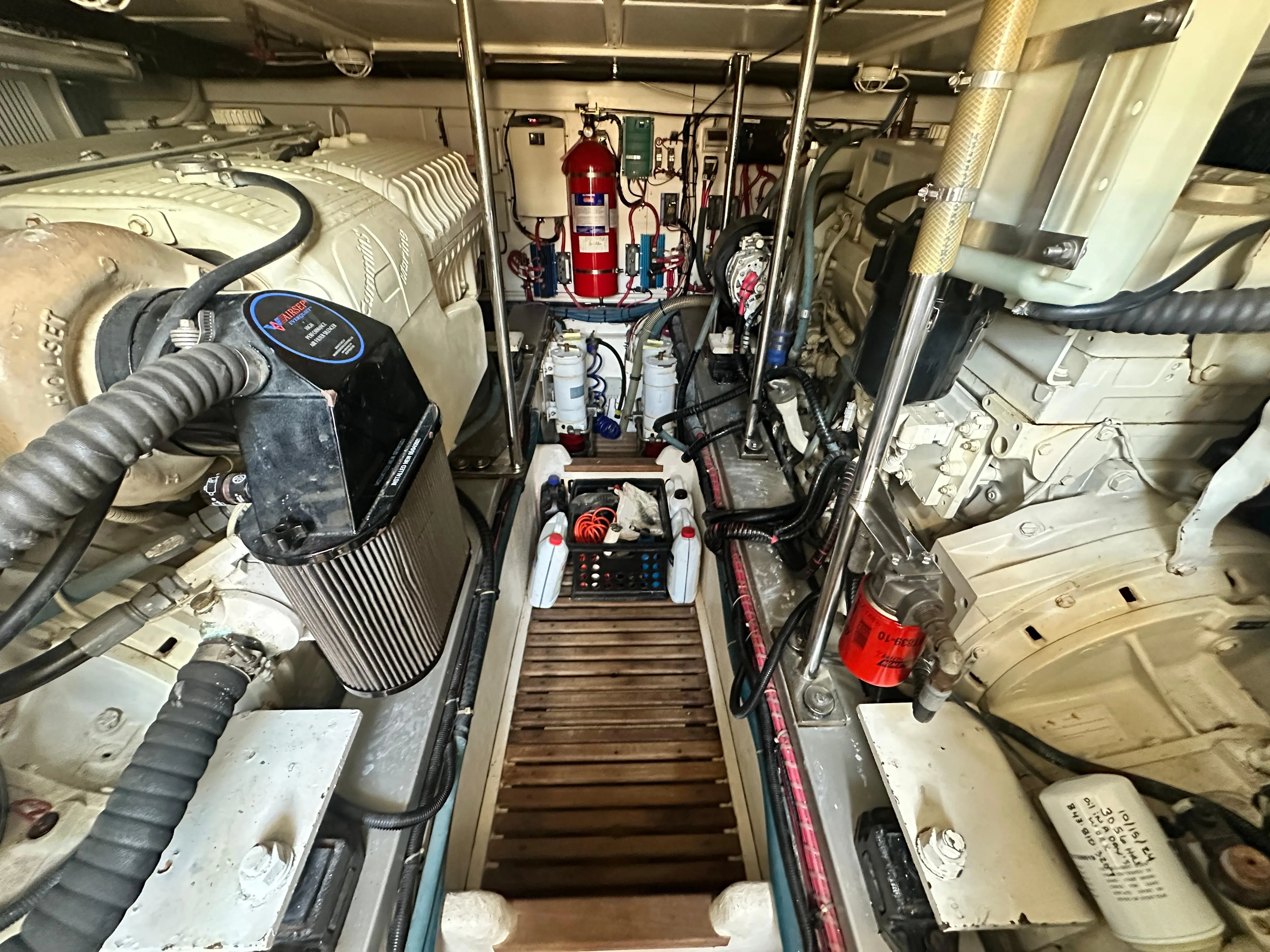

Propulsion System

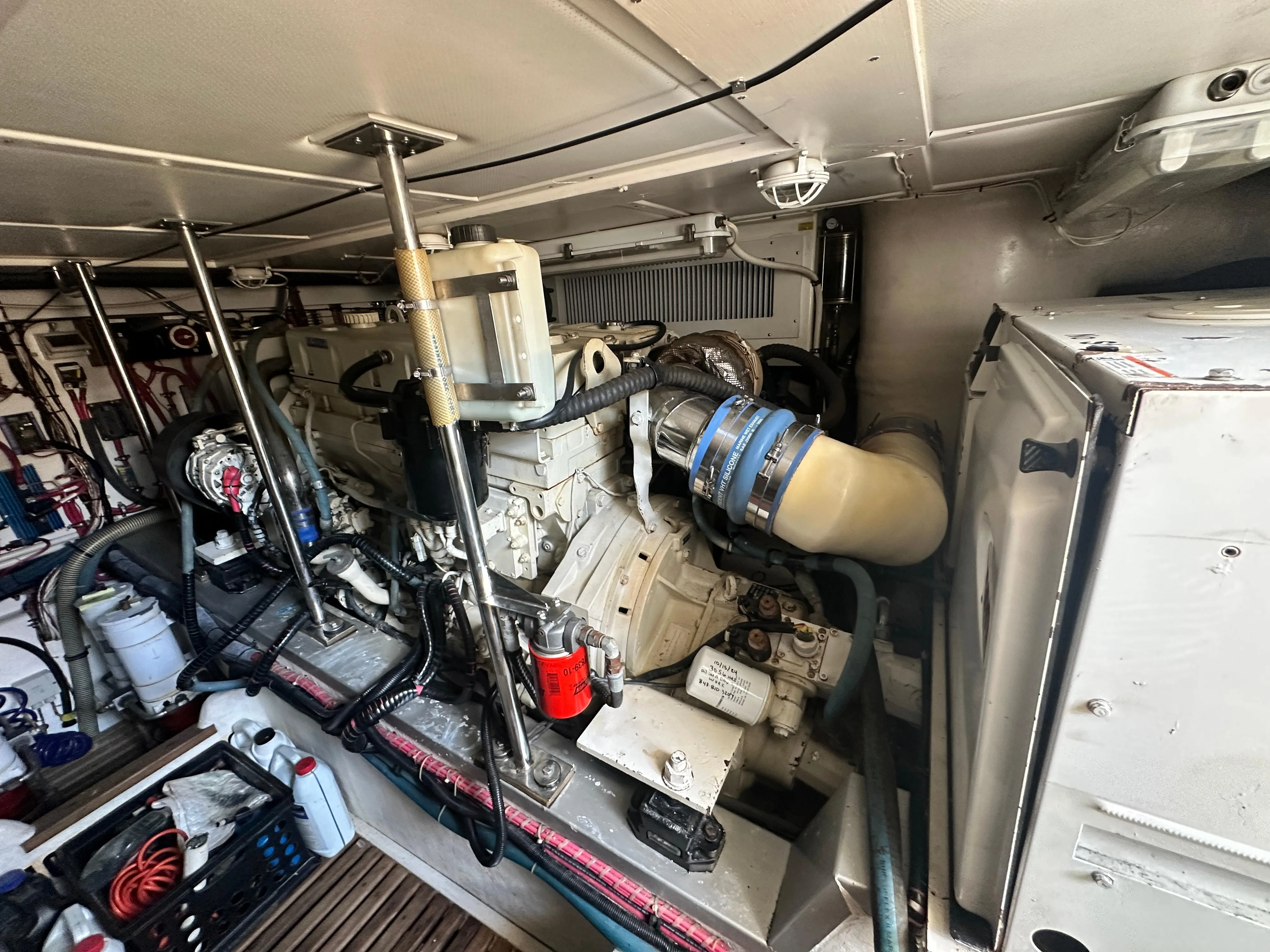

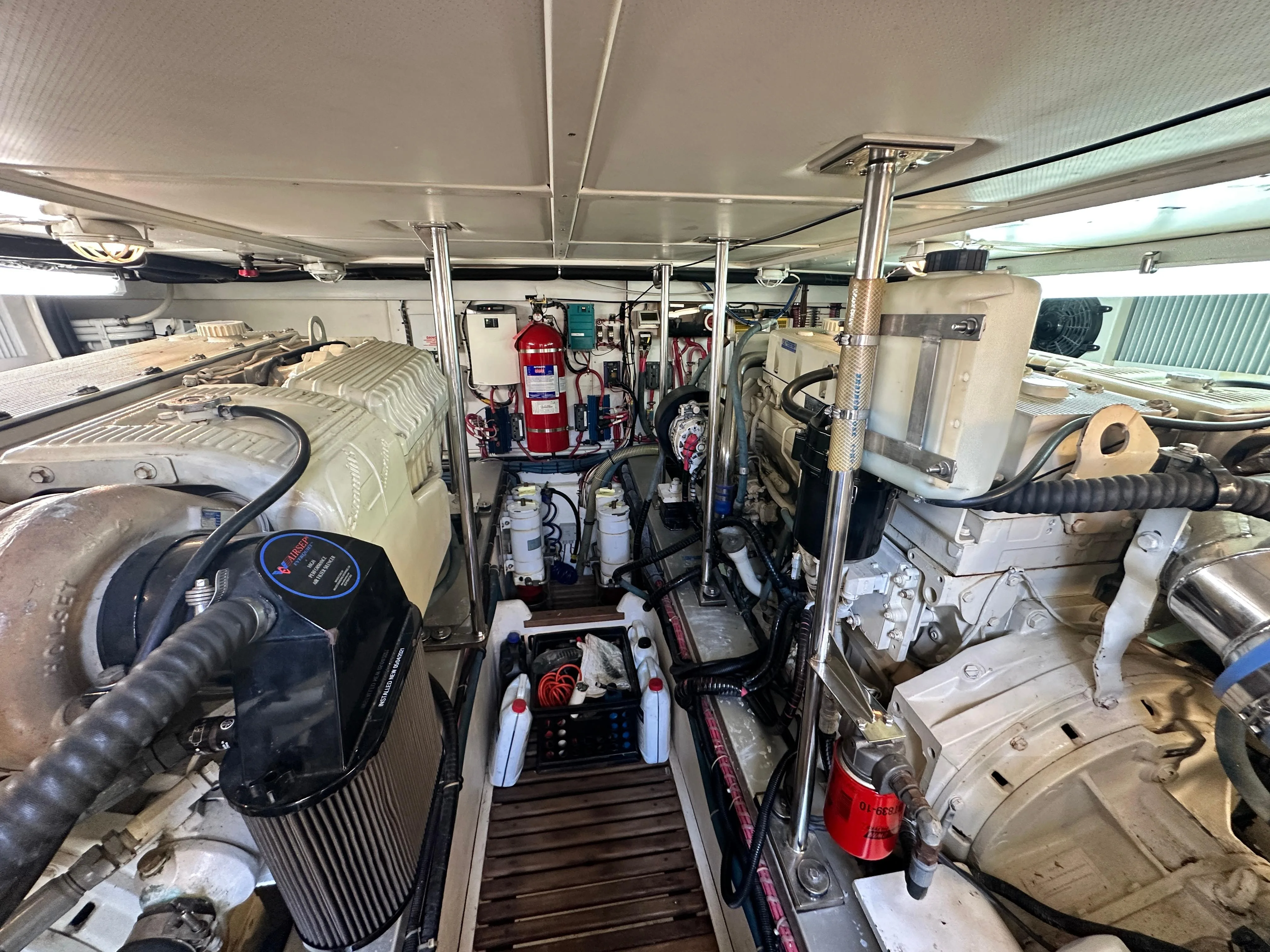

• Twin, Cummins Marine QSM 11, 10. 8 Liter, 660HP. Turbocharged & Aftercooled with Airseps.
• Six (6) cylinders in-line configuration
• Engine Starter Voltage:  12-Volts
• Cummins Marine SmartCraft Vessel View Digital Monitoring Displays
• VDO engine gauges
• Raw water cooled exhaust
• Reverso 12-volt Lubrication Transfer Pump System
• ZF Marine Transmission Gear
• Racor Primary Fuel Filter/Water Separator
• Engine Synchronizer
• Engine Room Sound Insulation, 2" Thick, 1.6LB/sq.ft. Density
• Sea Star Hydraulic Steering

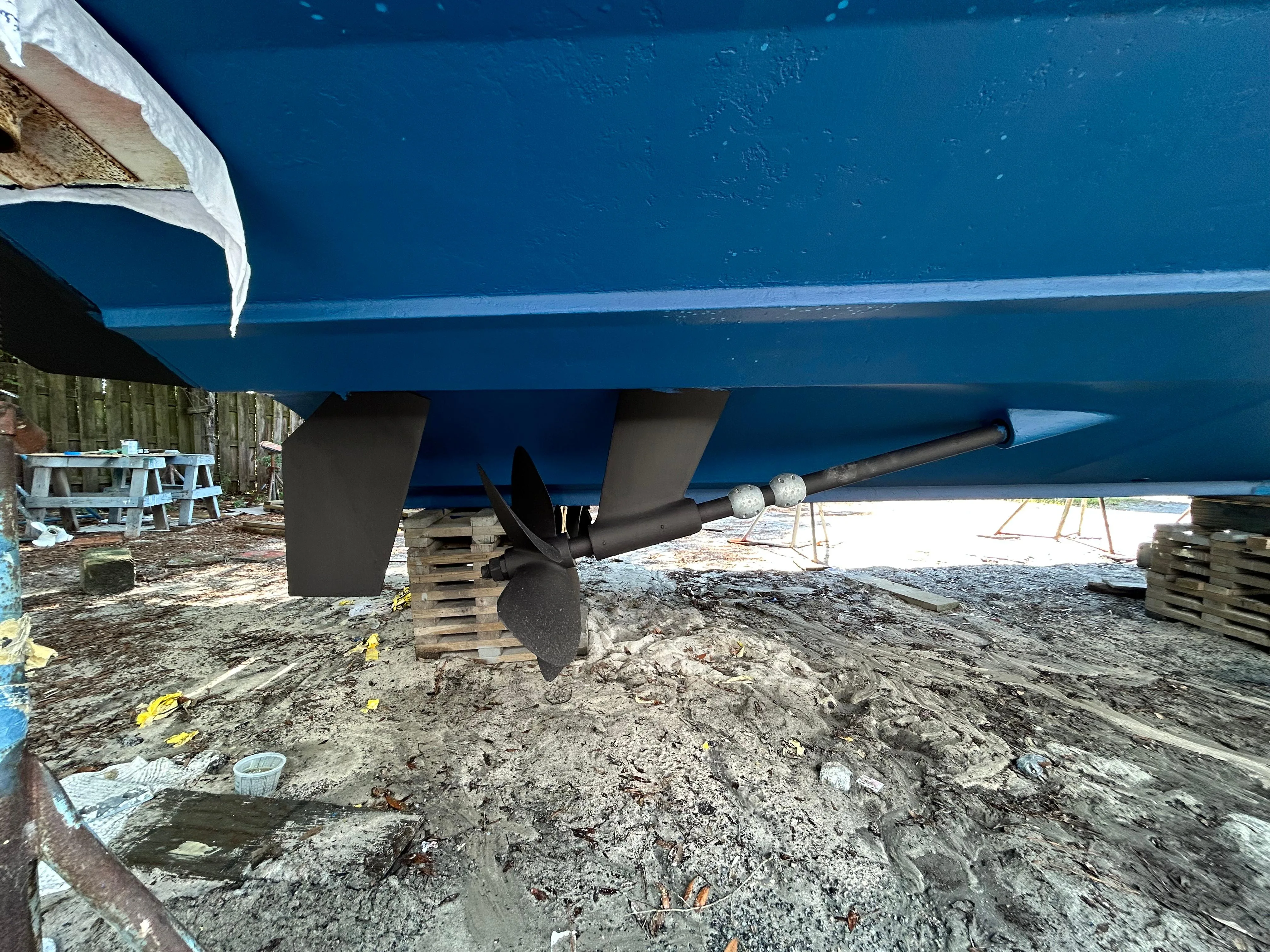

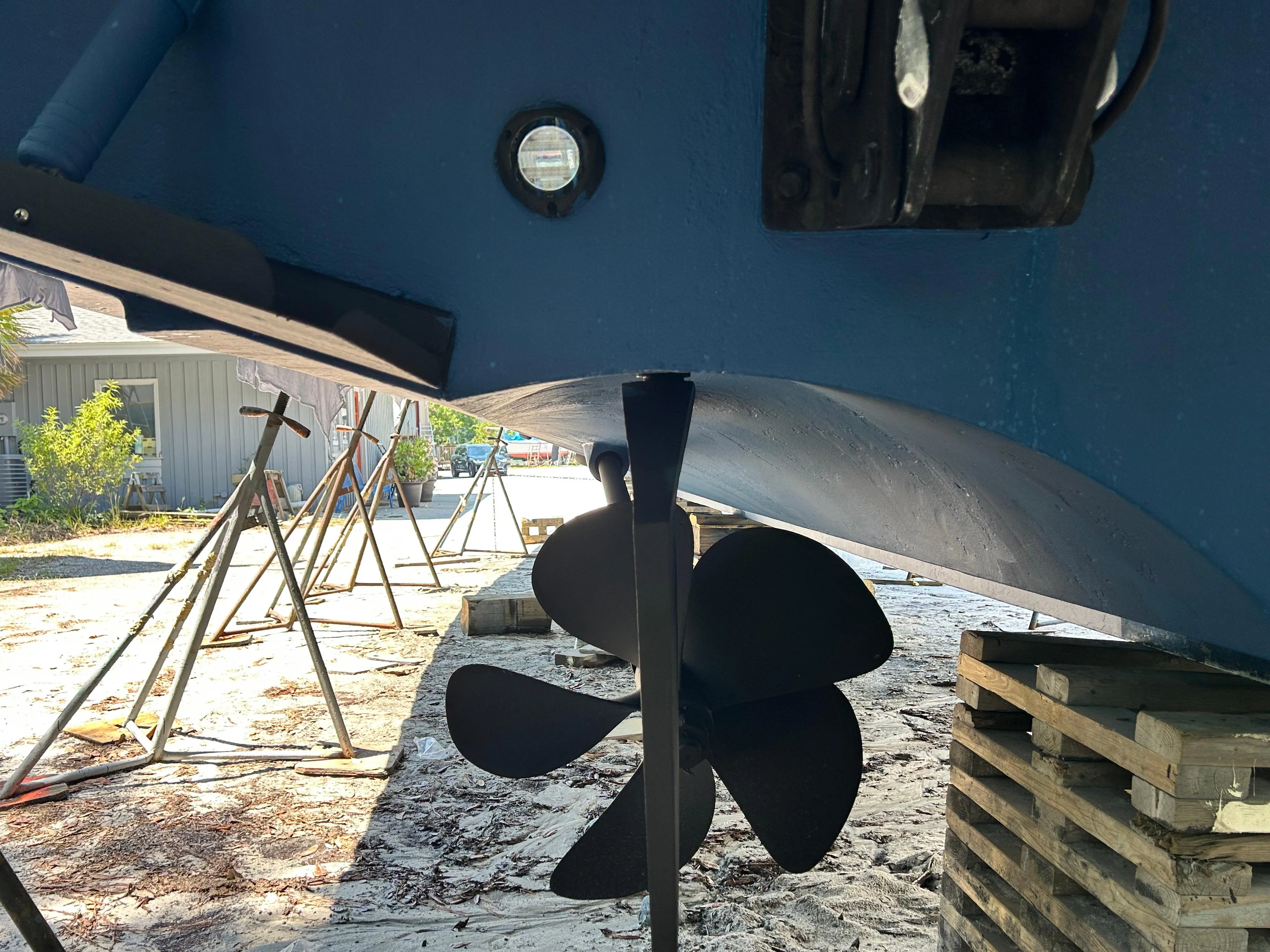

• Teignbridge 29X36 5 Blade Propellers
• Aquamet 22 Stainless Steel Shafts, 2.5" diameter
• Tides Marine Strong Sure-Seal Shaft Seals

Electrical

• DC SYSTEM VOLTAGE:  12 Volt system
• BATTERIES:
  • Two (2) Lifeline G PL-8D LAG M Deep Cycle batteries (House)
  • One (1) Precision Commercial Batteries - 4D-12 Deep Cycle batteries (Generator)
  • Two (2) West Marine, 8D Sealed Lead Acid batteries - (Main Engine)

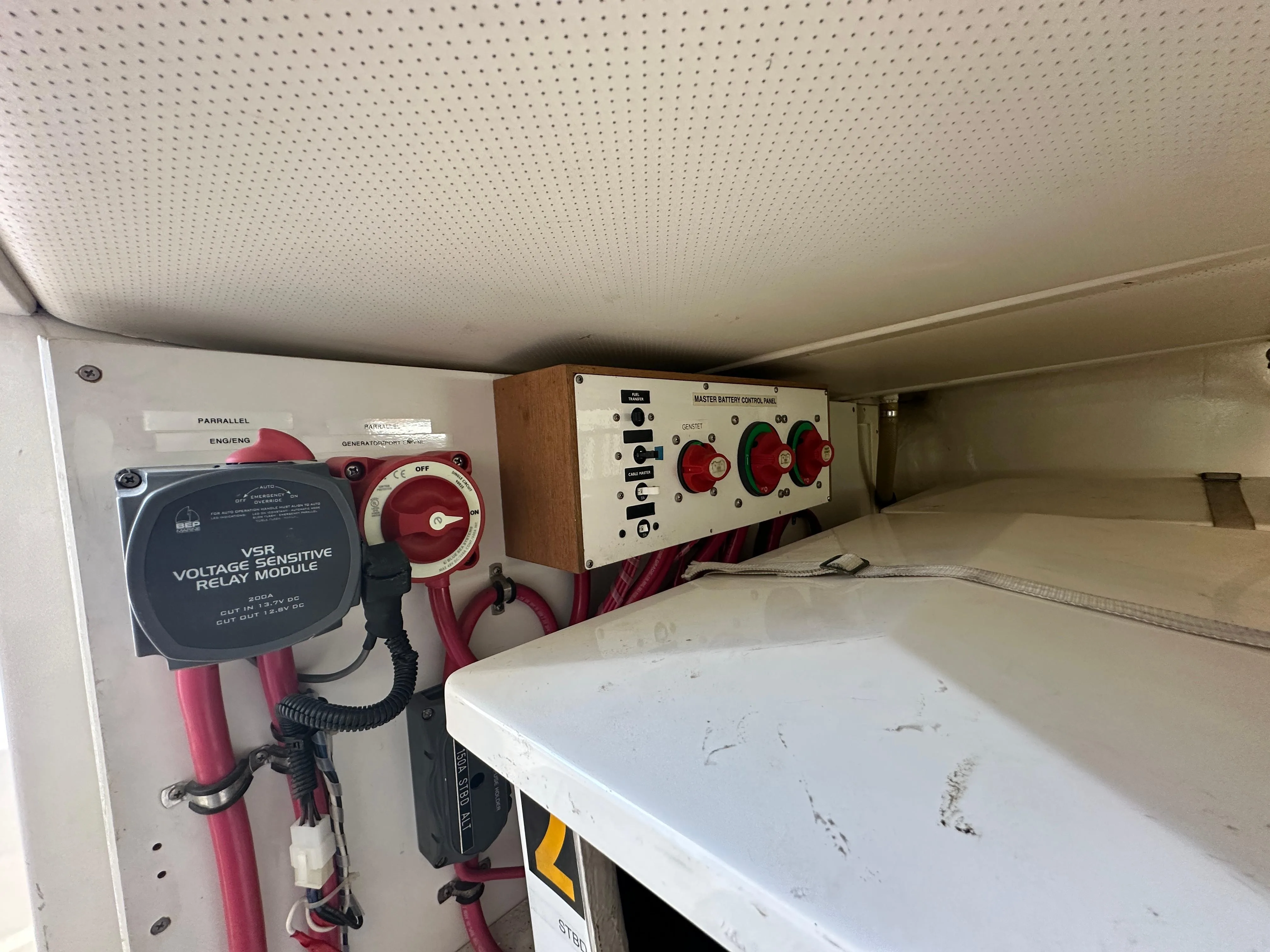

• BATTERY SWITCHES:  Four (4) Blue Sea Systems rotary switches.
• MAIN DC BREAKERS:  The main DC breakers are in the DC breaker panels at the helm.
• DC ELECTRICAL PANEL BREAKERS/FUSES: DC breakers are at the helm.

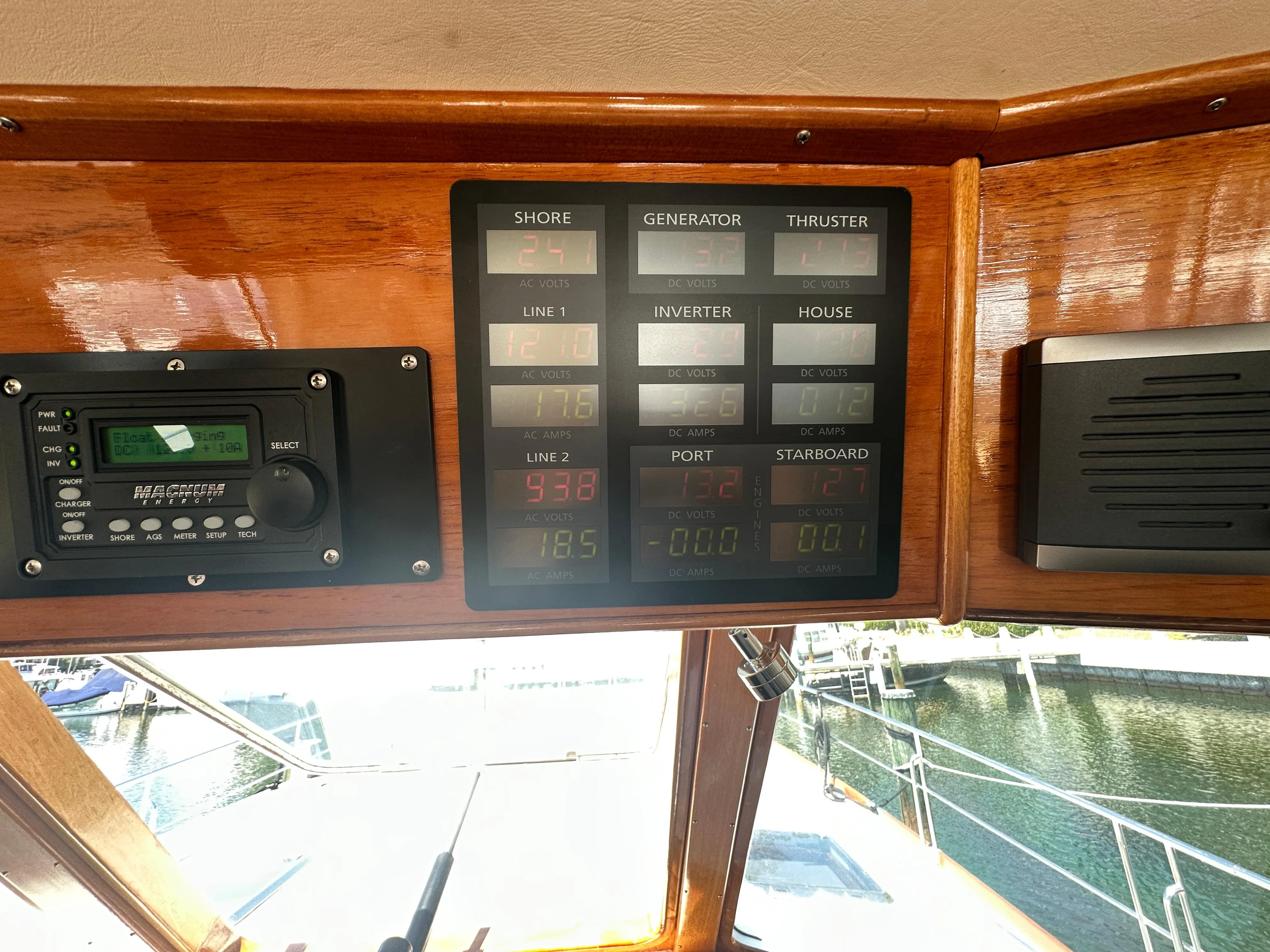

• DC ELECTRICAL SYSTEM MONITORS:  Digital DC voltage & amperage gauges in the pilothouse.
• BATTERY CHARGERS:  Two (2) True Charge 40 amp battery chargers.
• MAIN ENGINE ALTERNATORS:  Two (2) 12-volt, engine mounted and belt driven.
• AC SHORE POWER SYSTEM VOLTAGE:  120/240 Volt @ 60H z.
• AC SHORE POWER INLETS: 50 Amp. 120/240 volt shore power inlet with Glendinning Cable
• AC SHORE POWER CORDS:  50 Amp. vinyl shore power cord.
• MAIN AC SHORE POWER BREAKERS:  The main AC breakers were installed in the main electrical panel at the helm
• AC ELECTRICAL PANEL BREAKERS:  AC branch breakers in the pilothouse's main AC electrical panel.
• AC ELECTRICAL SYSTEM MONITORS: Digital AC voltage, amperage, and hertz gauges in the pilothouse.
• GALVANIC ISOLATION SYSTEM (ABYC A-28):  Professional Mariner Zinc Saver 11 50-amp.

Ground Tackle

• ANCHORS:  Suncor PlowMaster 45 lb. Stainless Steel Plow Anchor
• ANCHOR RODE:  3/8" Galvanized chain.
• ANCHOR WINDLASS:  Maxwell, 12-volt Windlass

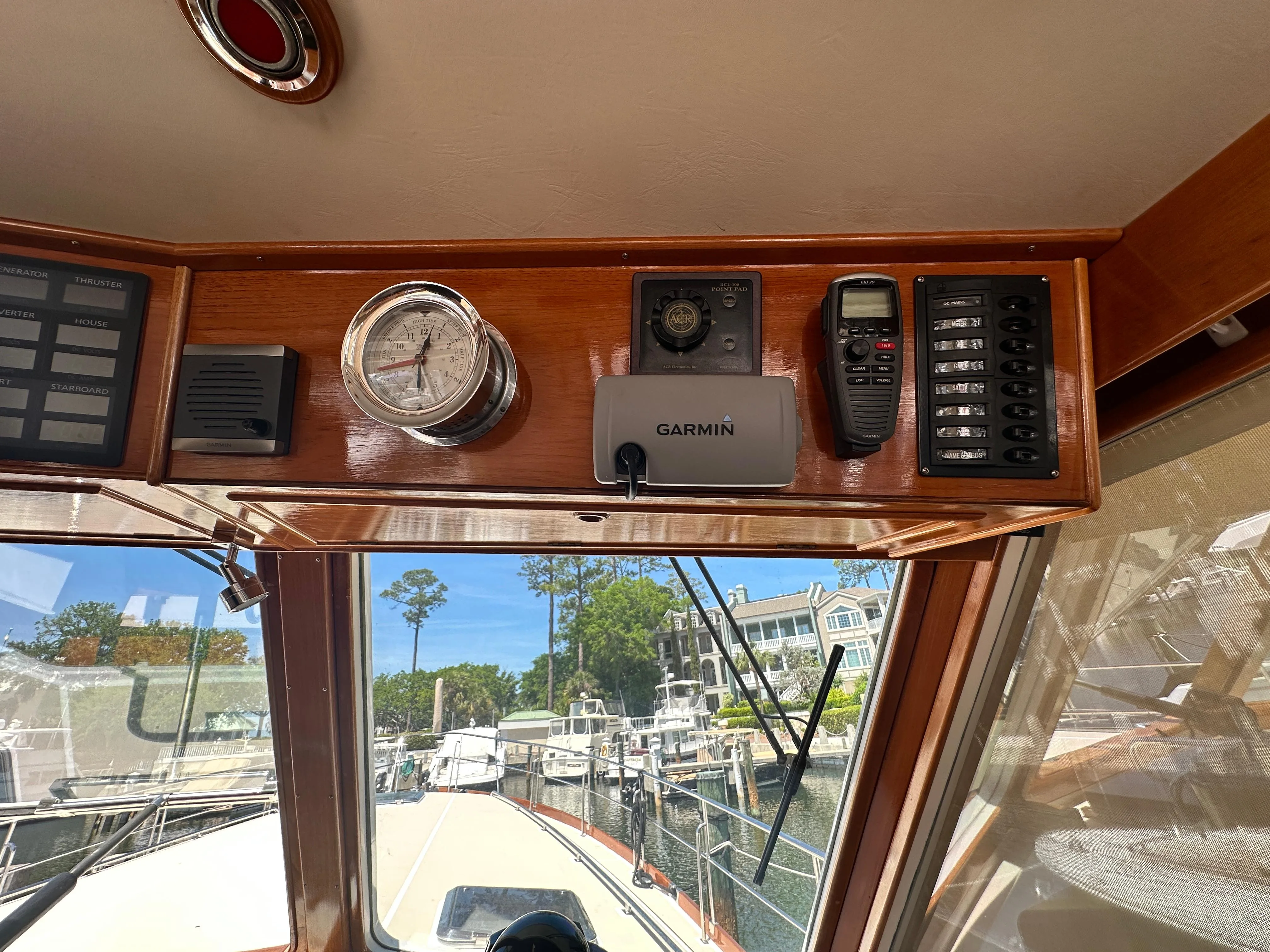

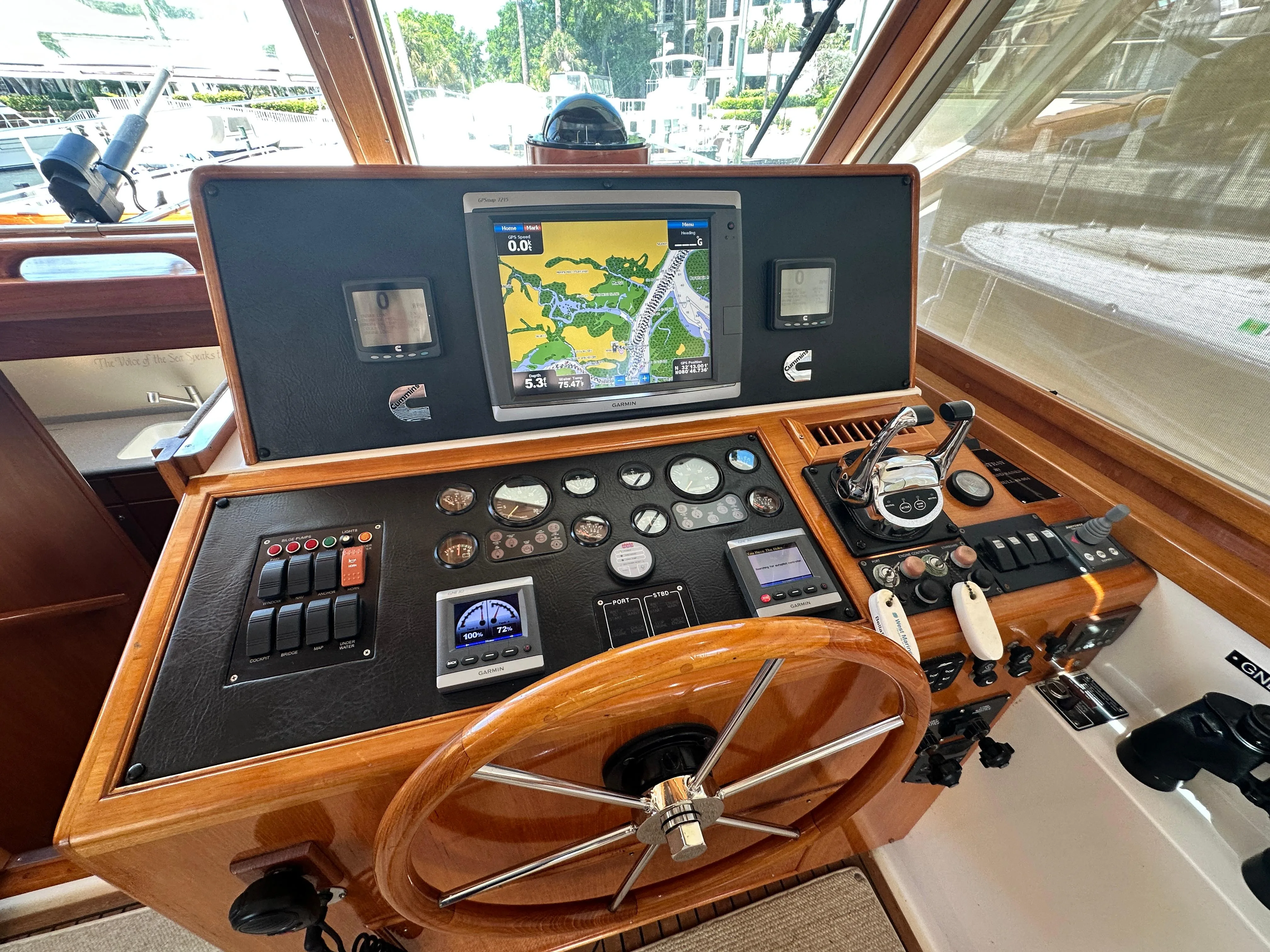

Electronics & Navigation

• VHF RADIO:  GarminVHF-200VHF Radio
• COMPASS:  Ritchie 4" Compass
• AIS (AUTO IDENTIFICATION SYSTEM)
• Garmin AIS, interfaced with the Multi-Function Navigation Displays
• AUTOPILOT: Garmin GHC 10 Autopilot.
• MARINE RADAR: Garmin
• GPS (GLOBAL POSITIONING SYSTEM):  Garmin

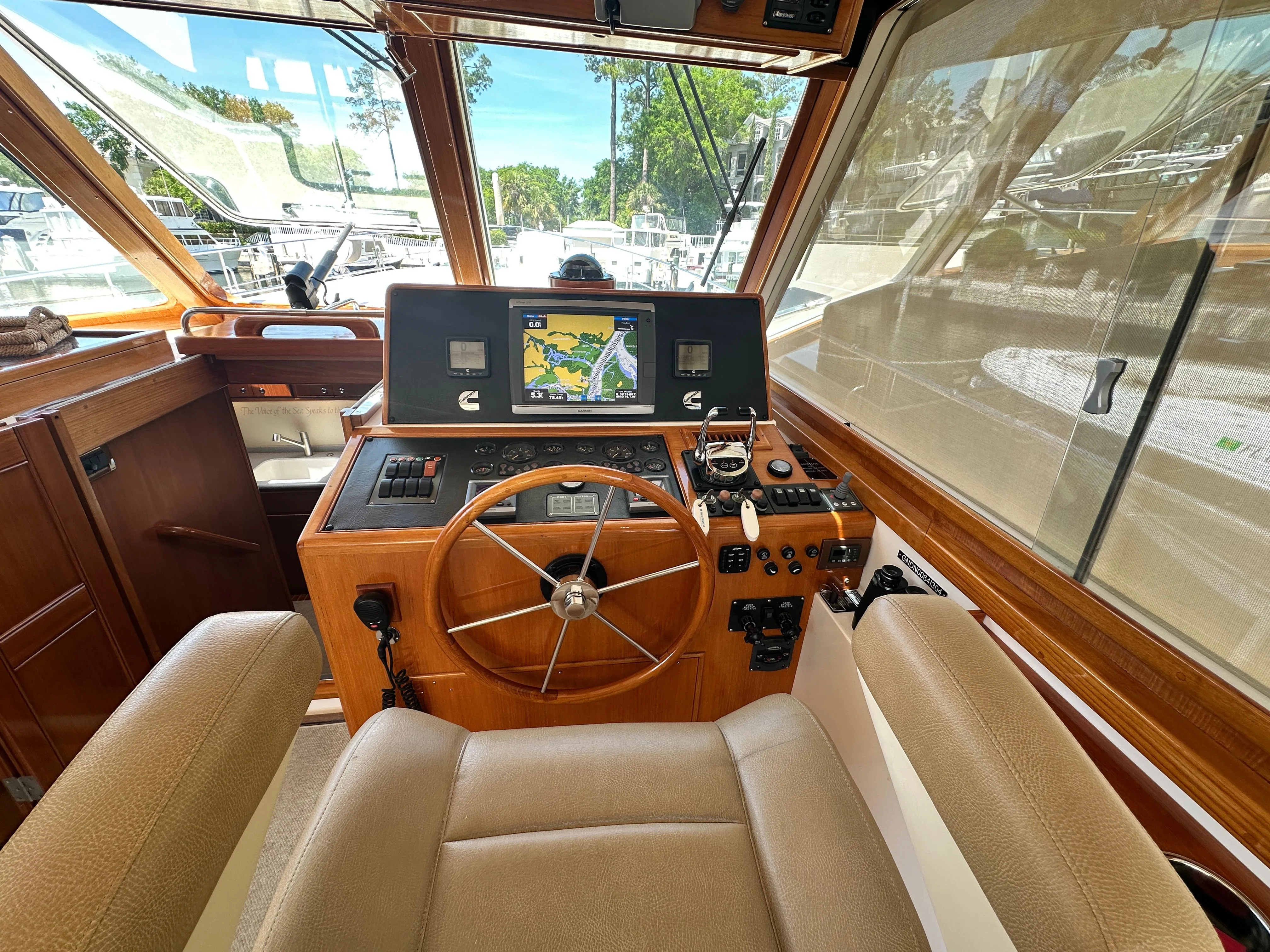

• GPS CHARTPLOTTER:  Garmin GPSmap 1215 GPS/Chartplotter
• DEPTH DISPLAY:  Garmin GMl-10 Digital Depth Display.
• SPEED DISPLAY:  Garmin GMI l0 Speed Display.
• BAROMETER:  Weems & Plath Barometer.
• THERMOMETER:  Weems & Plath Thermometer.
• SHIP'S CLOCK:  Weems & Plath Clock.

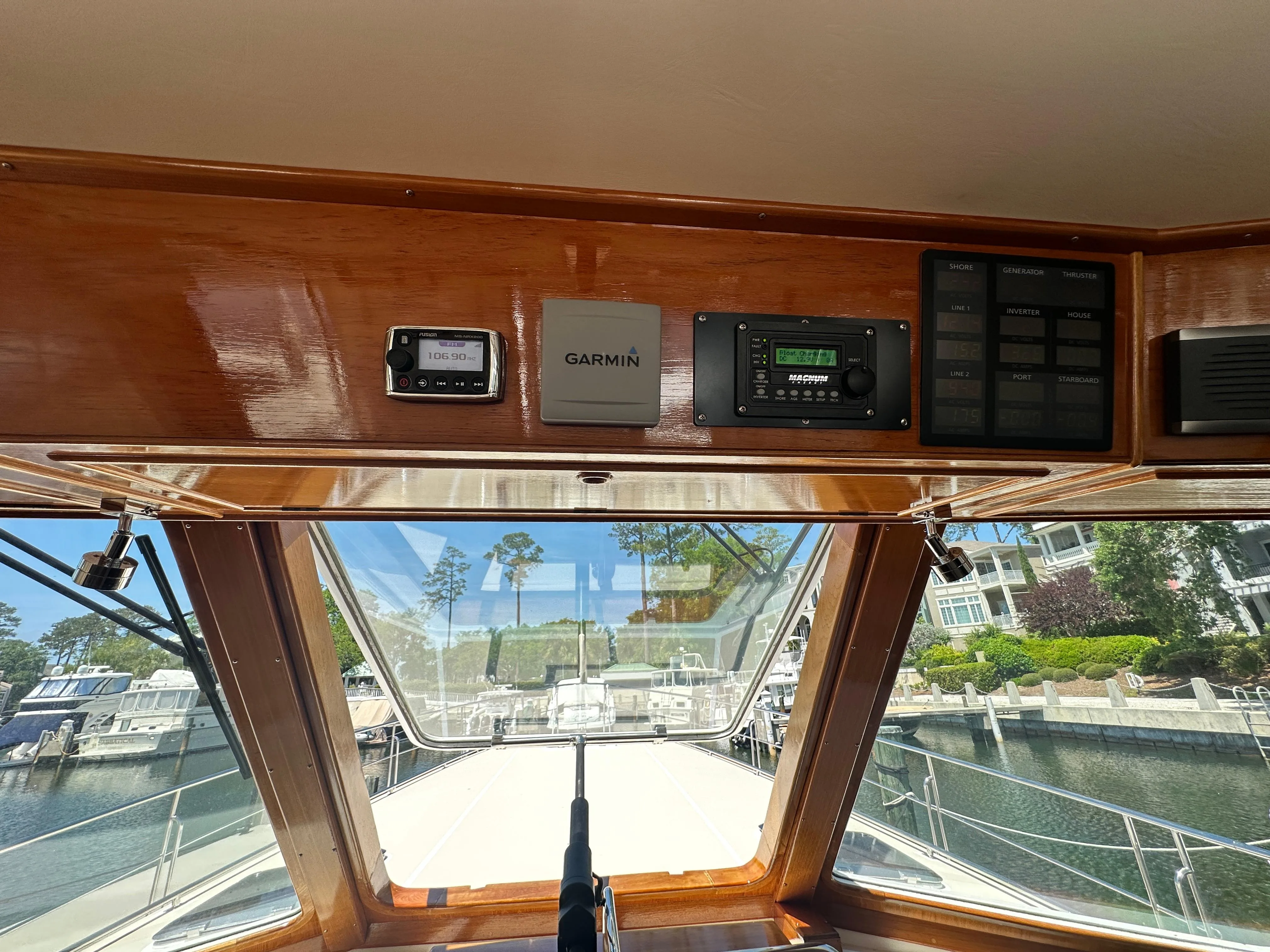

• STEREO SYSTEM:  Fusion MS-1P700 Stereo and Mirage Speakers.

Safety Equipment

• SOUND PRODUCING DEVICES {33 CFR 83):  Kahlenberg Triple Trumpet Air Horn, with Compressor. Powered up and a Handheld loud hailer.
• NAVIGATION LIGHTS (33 CFR 83)

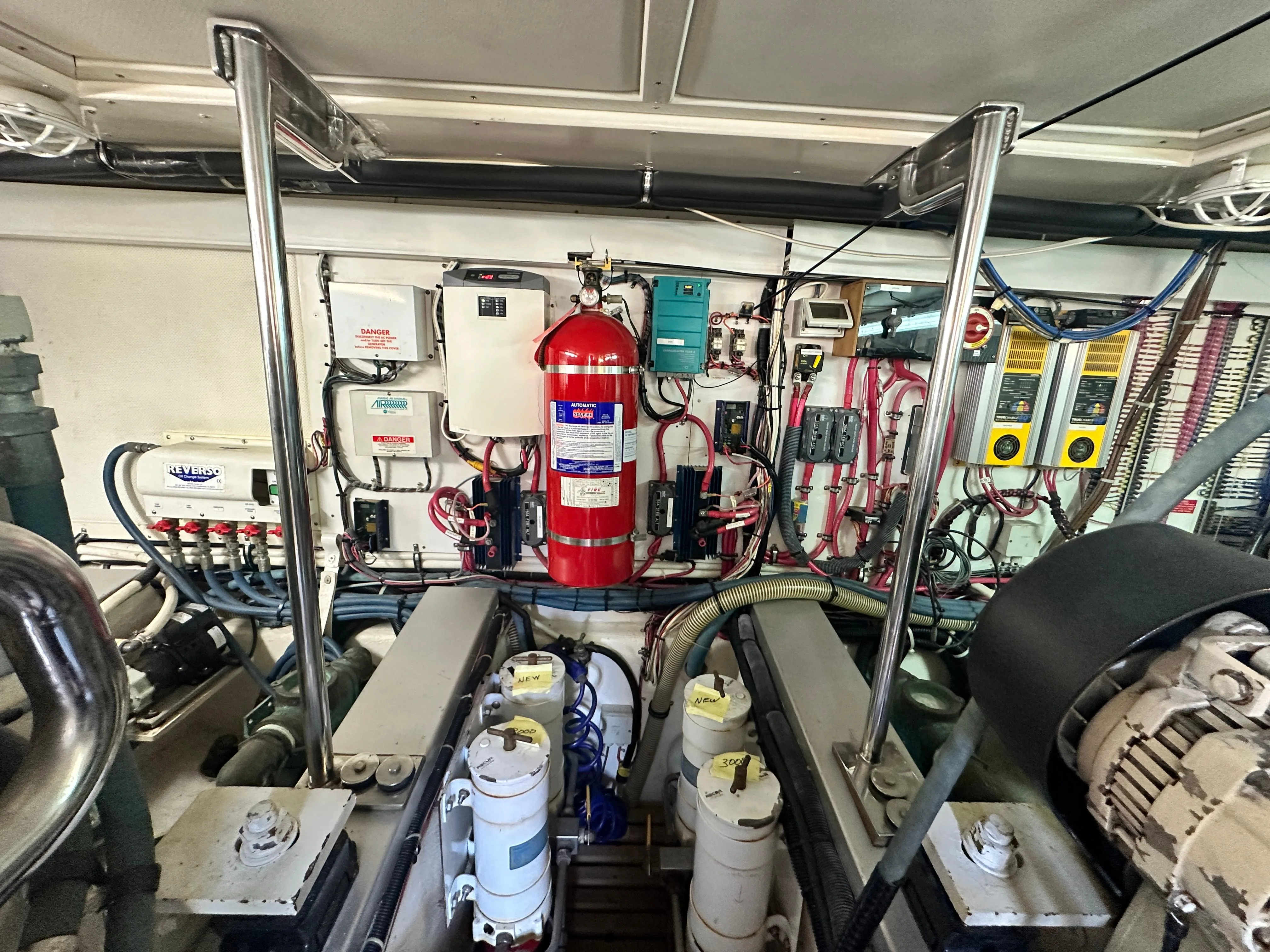

• FIXED FIRE SUPPRESSION SYSTEM:  FD-700 M Fixed Fire Suppression Tank in the engine compartment. Automatic thermal activation, with override switch.
