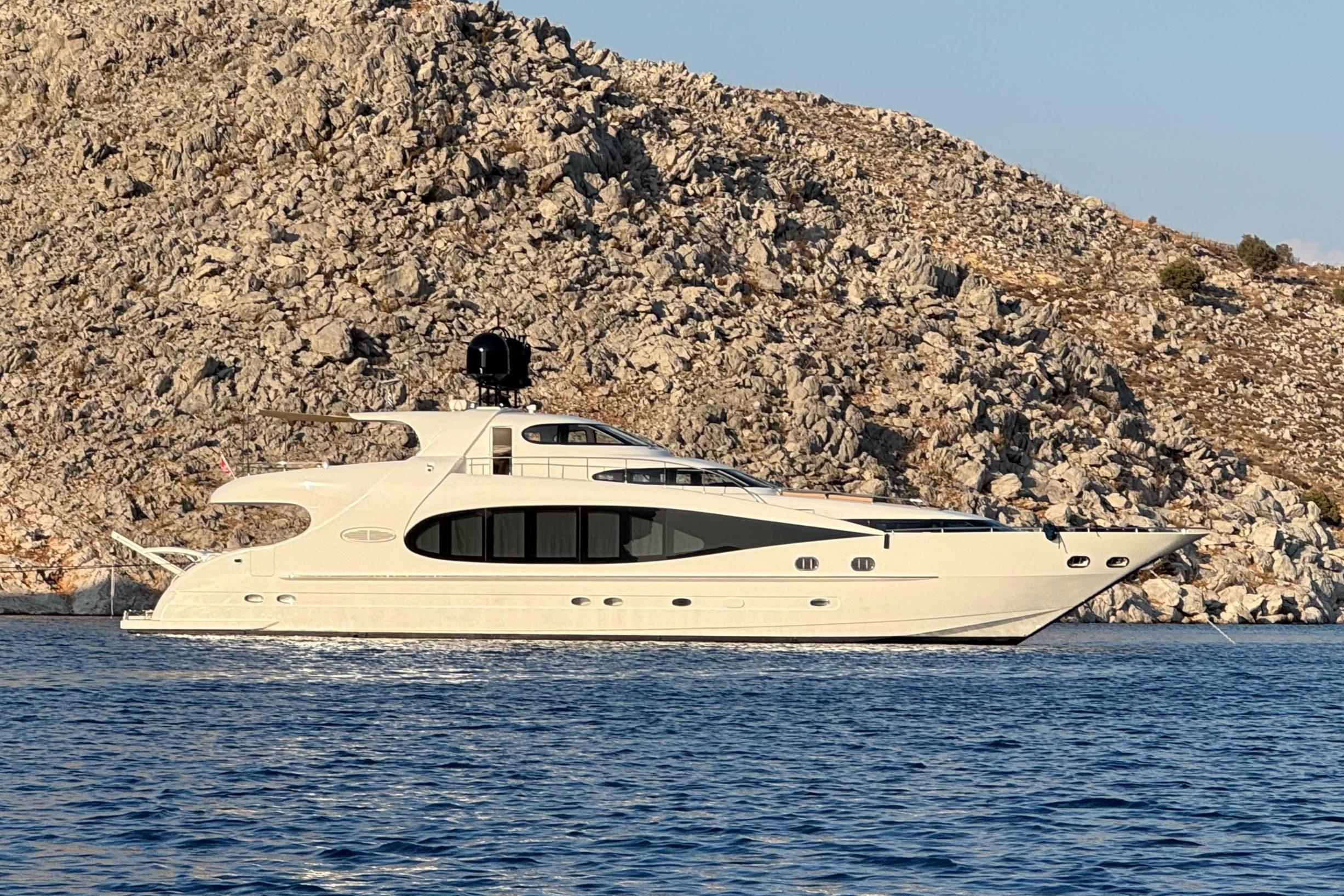

2004 Kaiserwerft Baron 102 for Sale – 102 ft – Barcelona, B, Spain

EUROPEAN VAT PAID VESSEL

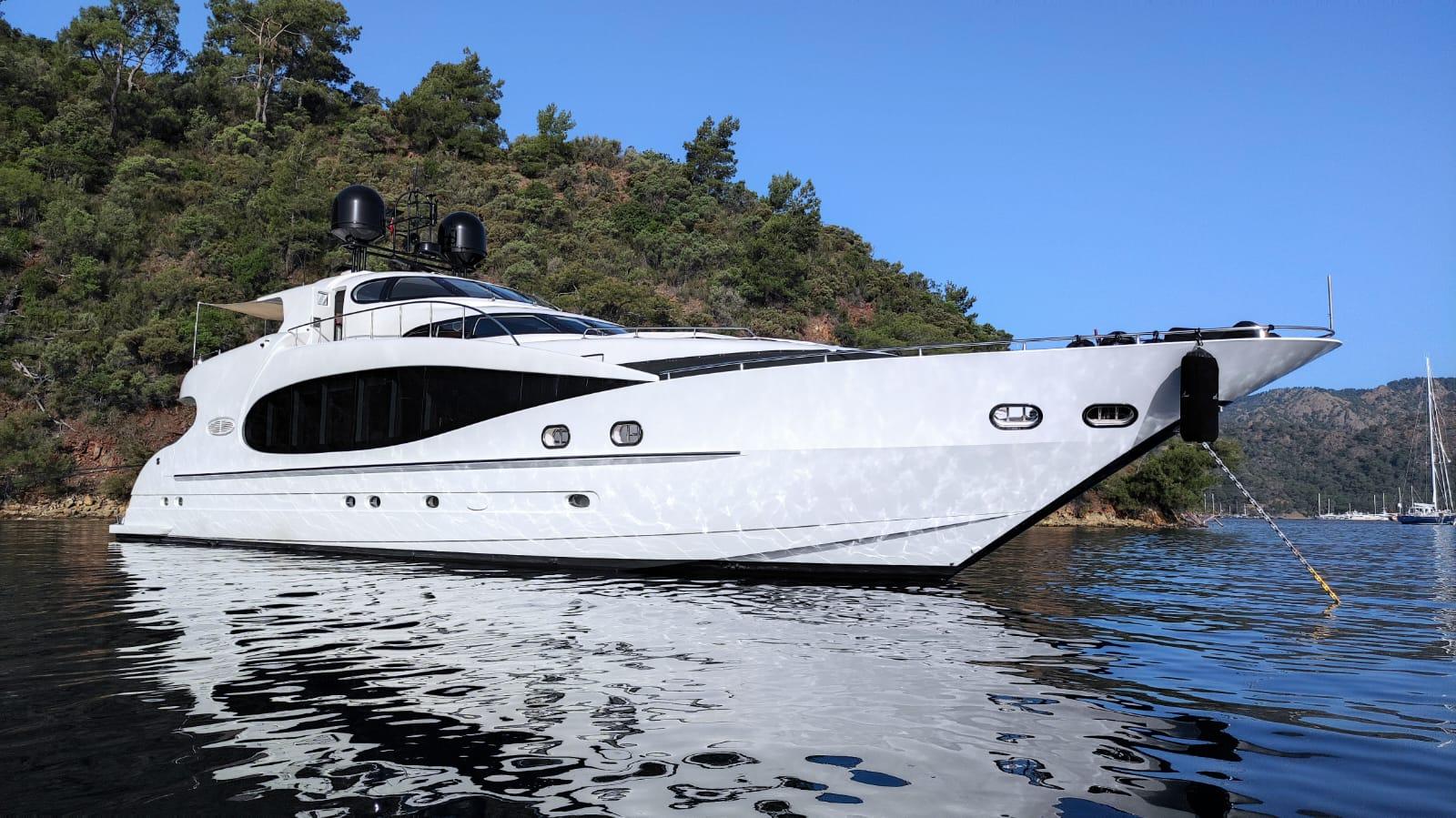

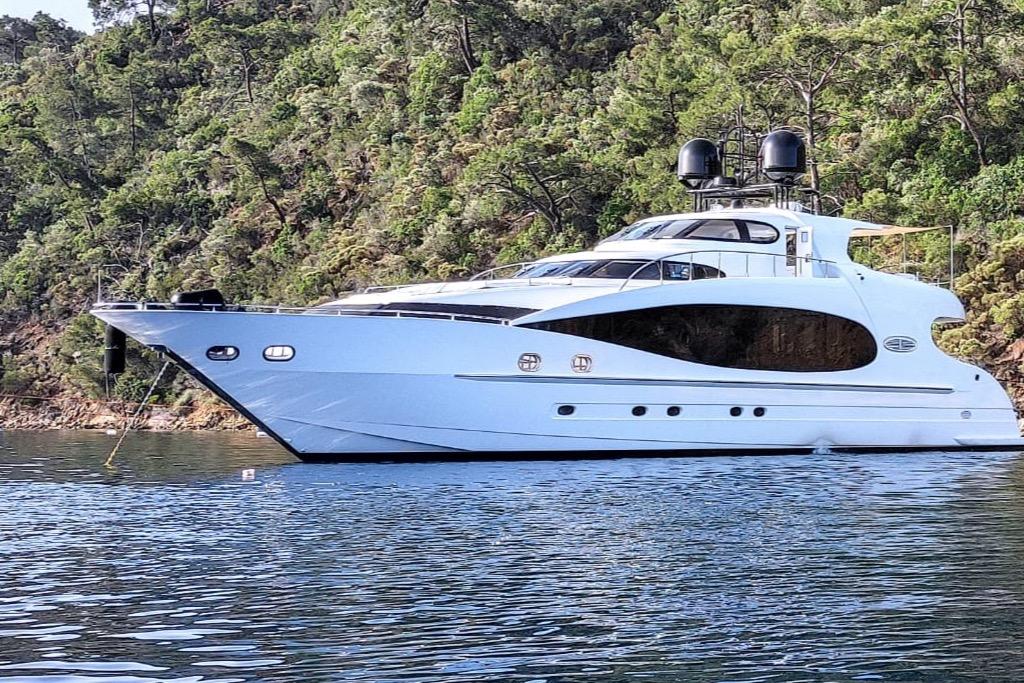

KAISERWERFT BARON 102 – LUXURY REDEFINED

Originally commissioned by one of the world’s most prestigious ultra-luxury watchmakers, the Kaiserwerft Baron 102was crafted with uncompromising attention to detail and a no-expense-spared philosophy. Every element of this vessel—from the fine joinery to the bespoke finishes—reflects the standard of excellence synonymous with its original owner’s brand.

Now in the hands of her second discerning owner, the yacht has recently undergone a comprehensive technical and cosmetic refit, elevating her to modern standards while preserving the timeless elegance of her design. These upgrades, detailed below, include cutting-edge systems and refined aesthetic enhancements that make her truly turn-key.

This is a rare opportunity to acquire a fully refitted, pedigree yacht at a fraction of the cost of a new build—ready to cruise immediately with no compromise in luxury, performance, or style.

Overview

    •    Name: SARAH SEA

    •    Builder: KaiserWerft GmbH, Germany

    •    Model: Baron 102

    •    Year launched: 2004

    •    Length Overall: 31.0 meters (101’8”)

    •    Beam: 6.8 meters (22’4”)

    •    Draft: 1.85 meters (6’1”)

    •    Gross Tonnage: 155 GT

    •    Hull Material: GRP (Epoxy/Fiberglass) Solid fiberglass bottom, cored topsides

    •    Superstructure Material: GRP (Epoxy/Fiberglass)

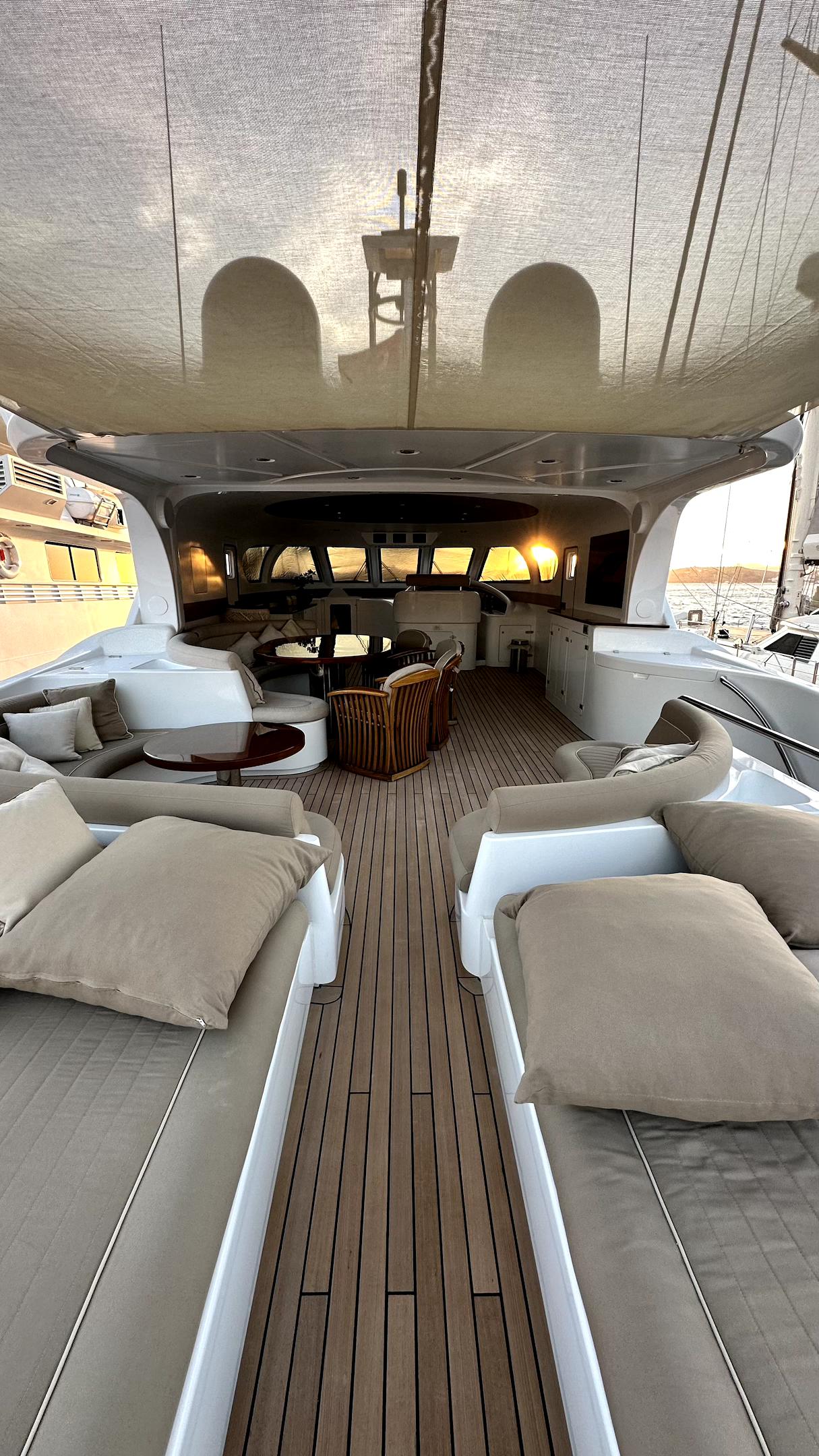

    •    Decking: Teak

    •    Classification: RINA

Performance

    •    Engines: 2 × MTU 16V 2000 M91, 2,000 HP each

    •    ZF 2550 V Drive Reduction Gears

    •    Total Power Output: 4,000 HP

    •    Maximum Speed: 22 knots

    •    Cruising Speed: 15 knots

    •    Range: Approx. 550 nautical miles at cruising speed

Tank Capacities

    •    Fuel: 14,000 liters / 3,698 US gal

    •    Fresh Water: 2,100 liters / 555 US gal

    •    Grey Water: 850 liters

    •    Black Water: 850 liters

Accommodation

    •    Guest Cabins: 4

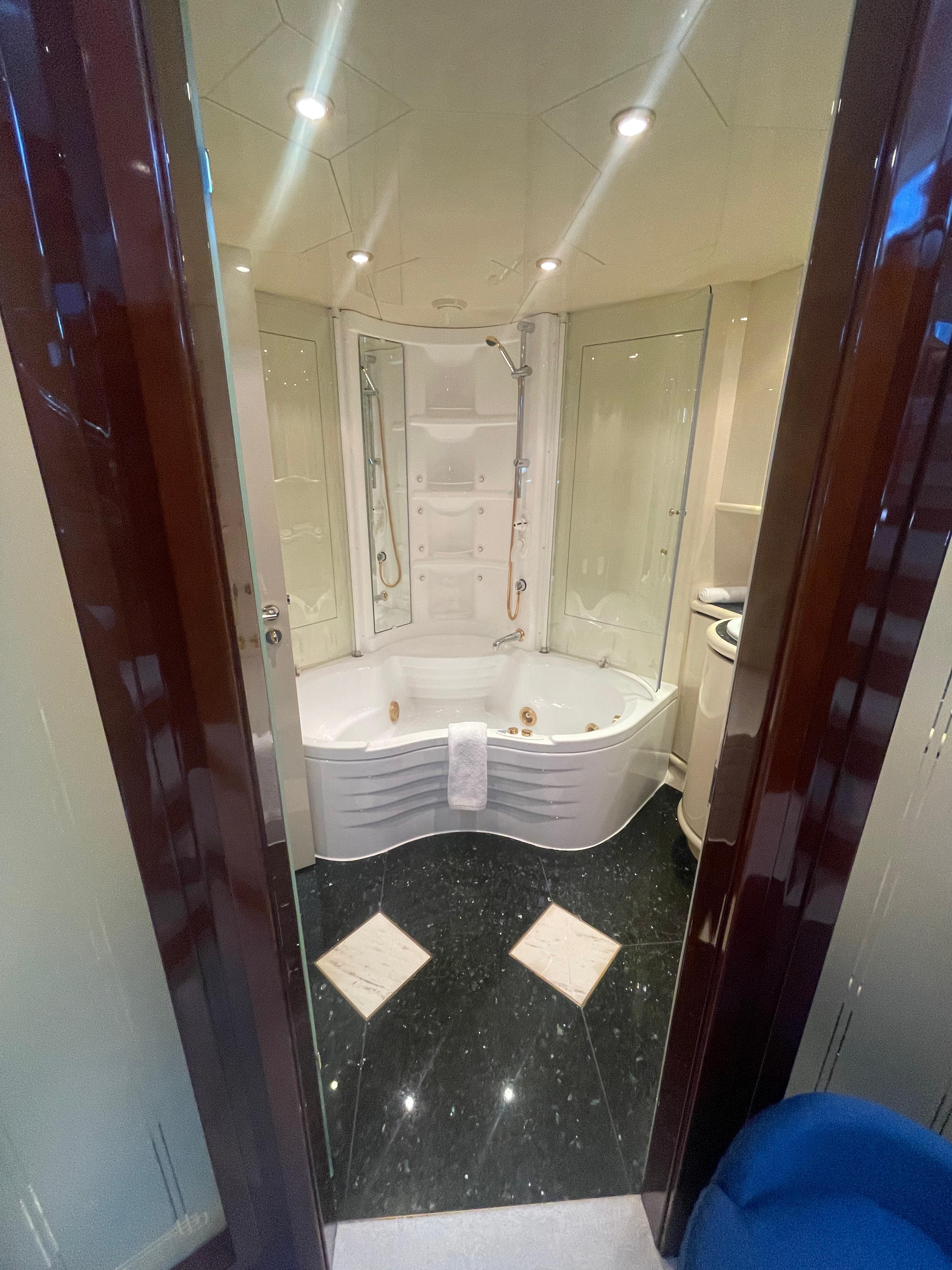

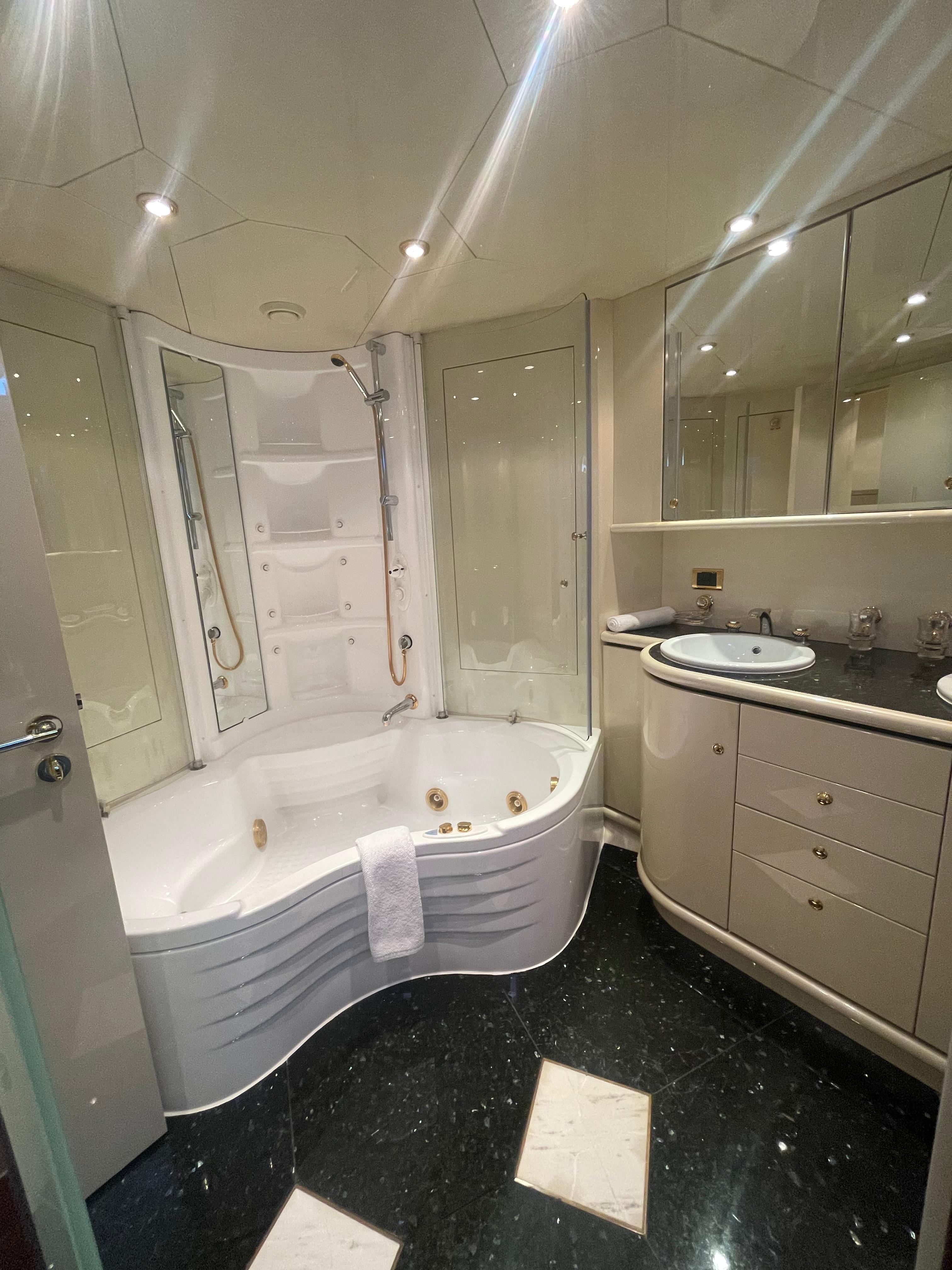

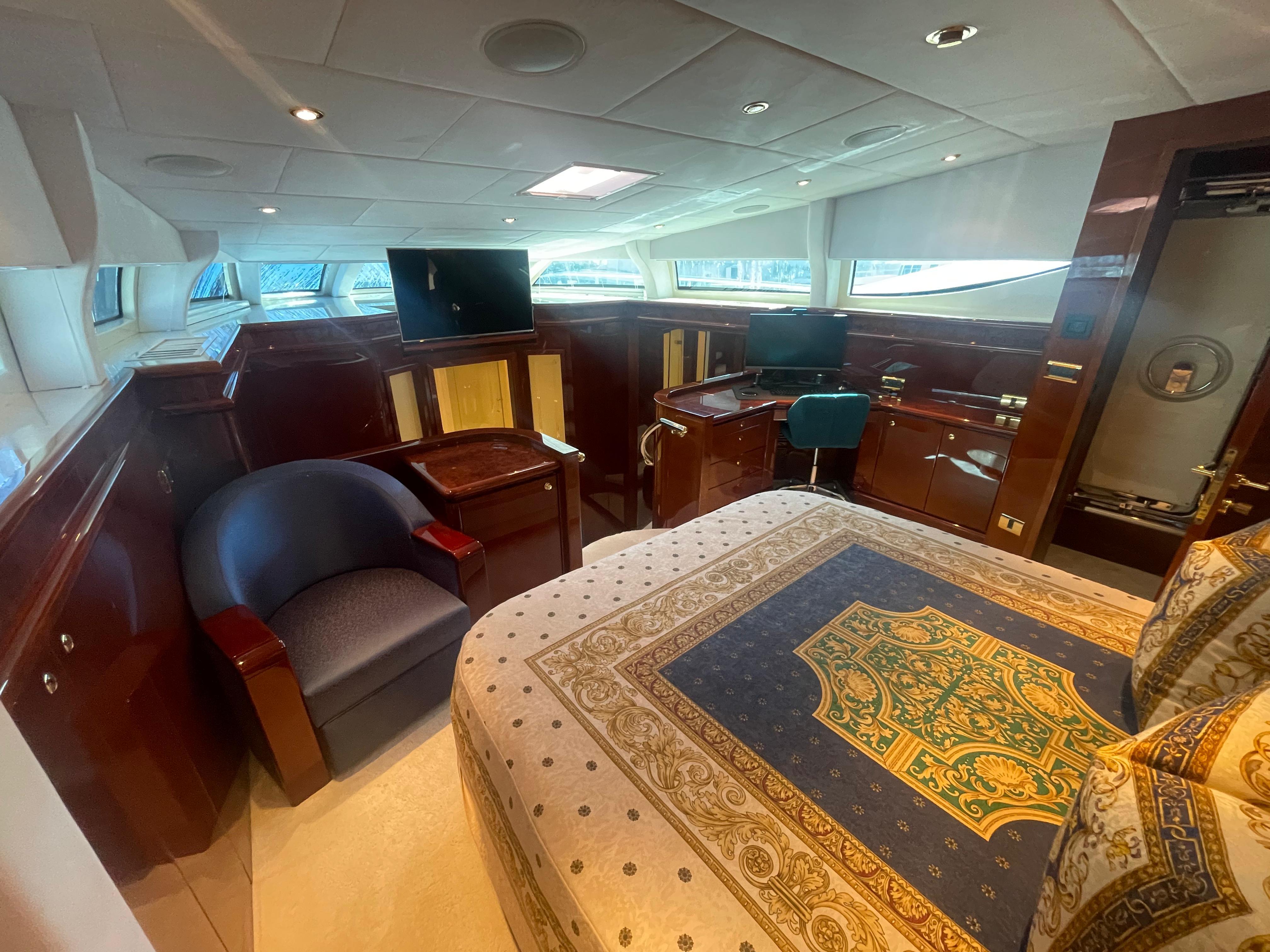

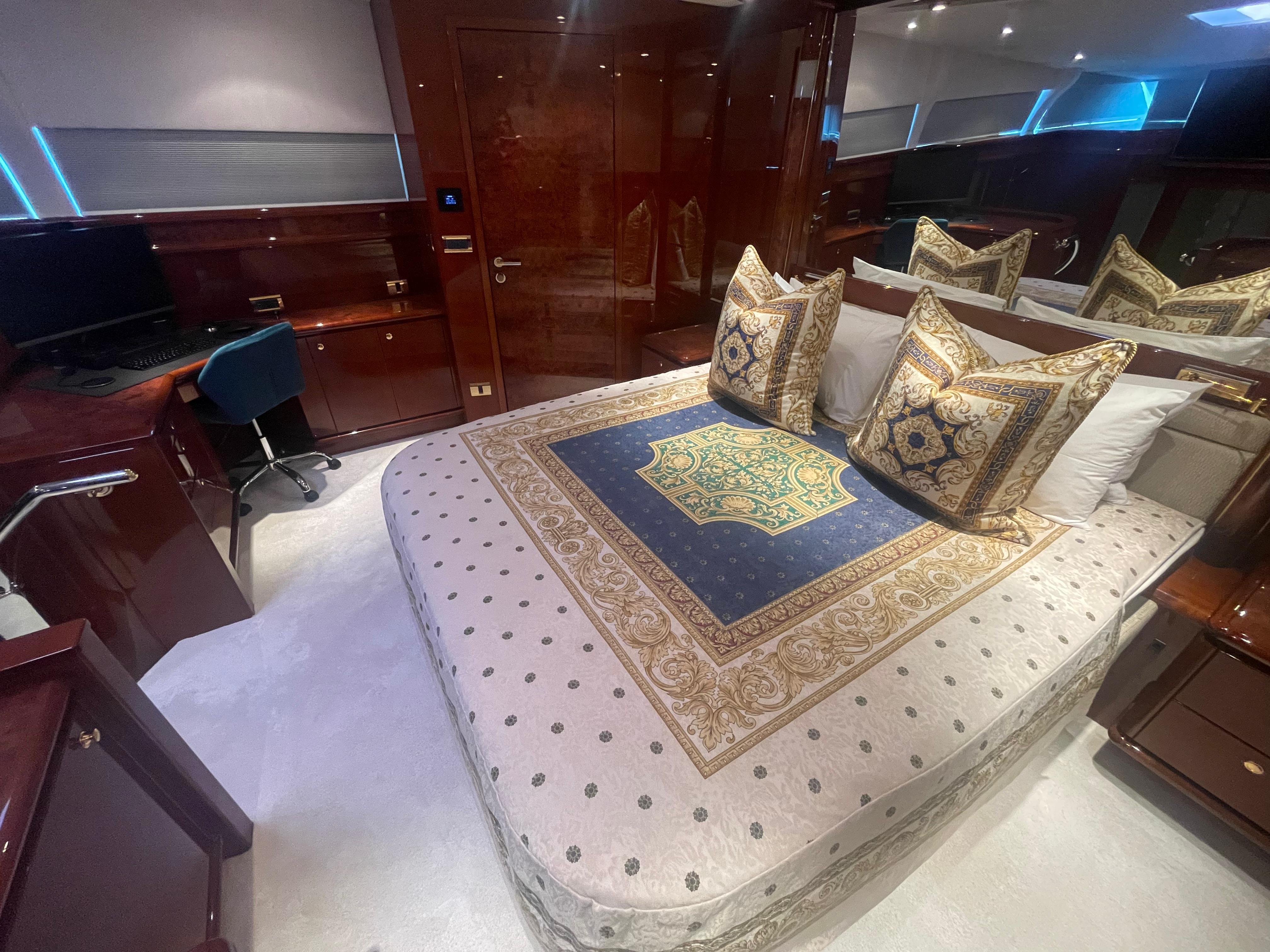

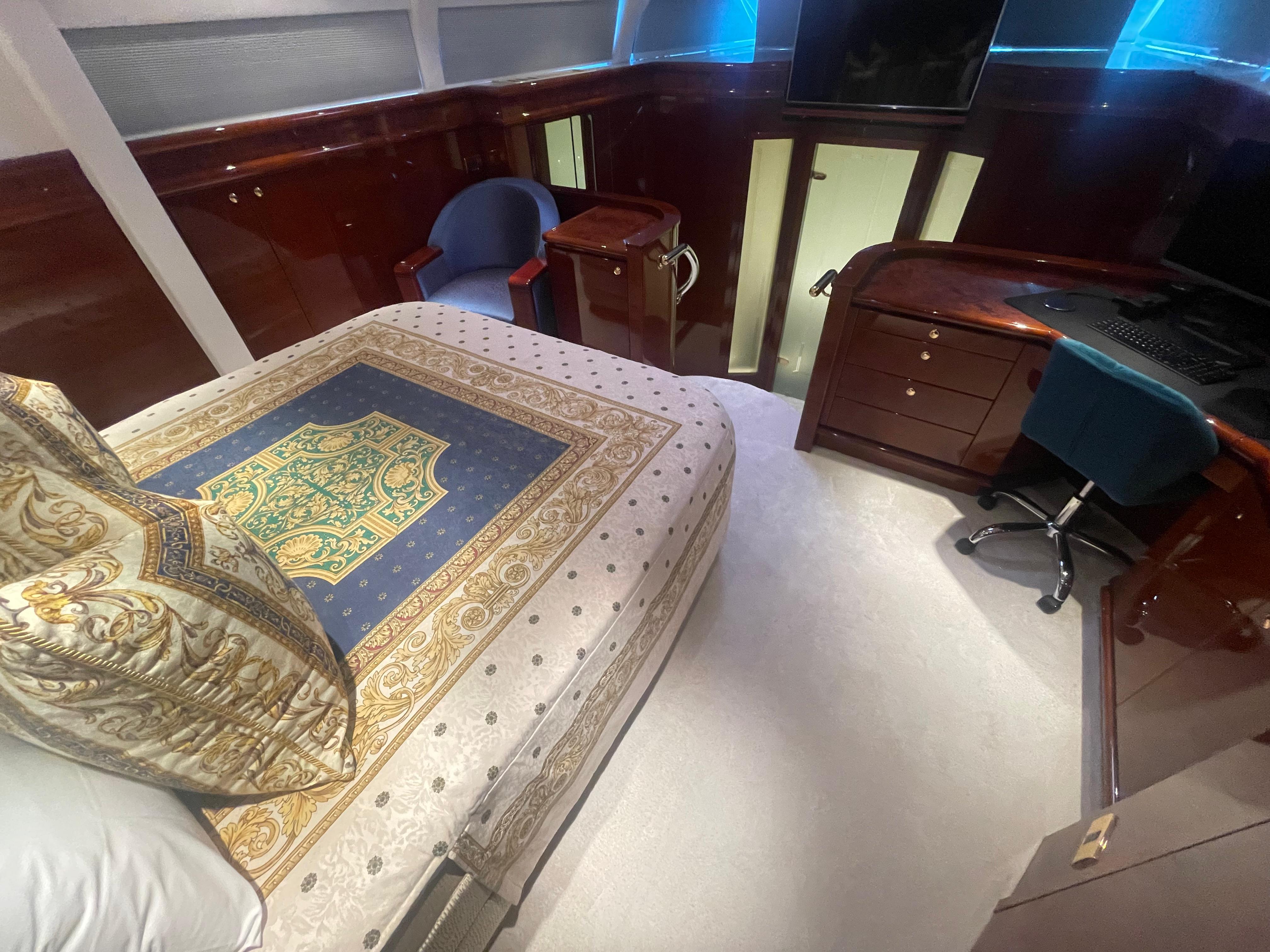

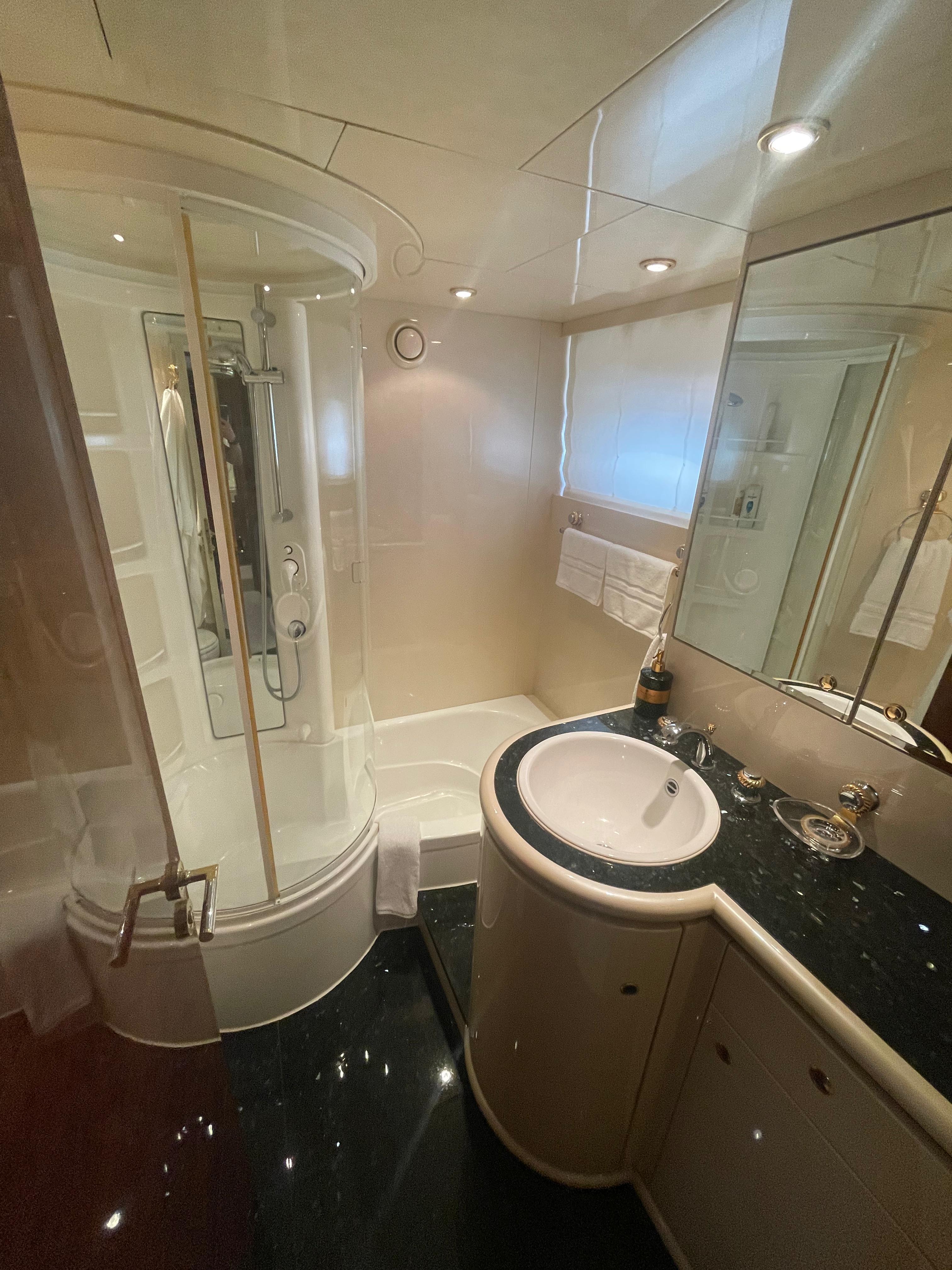

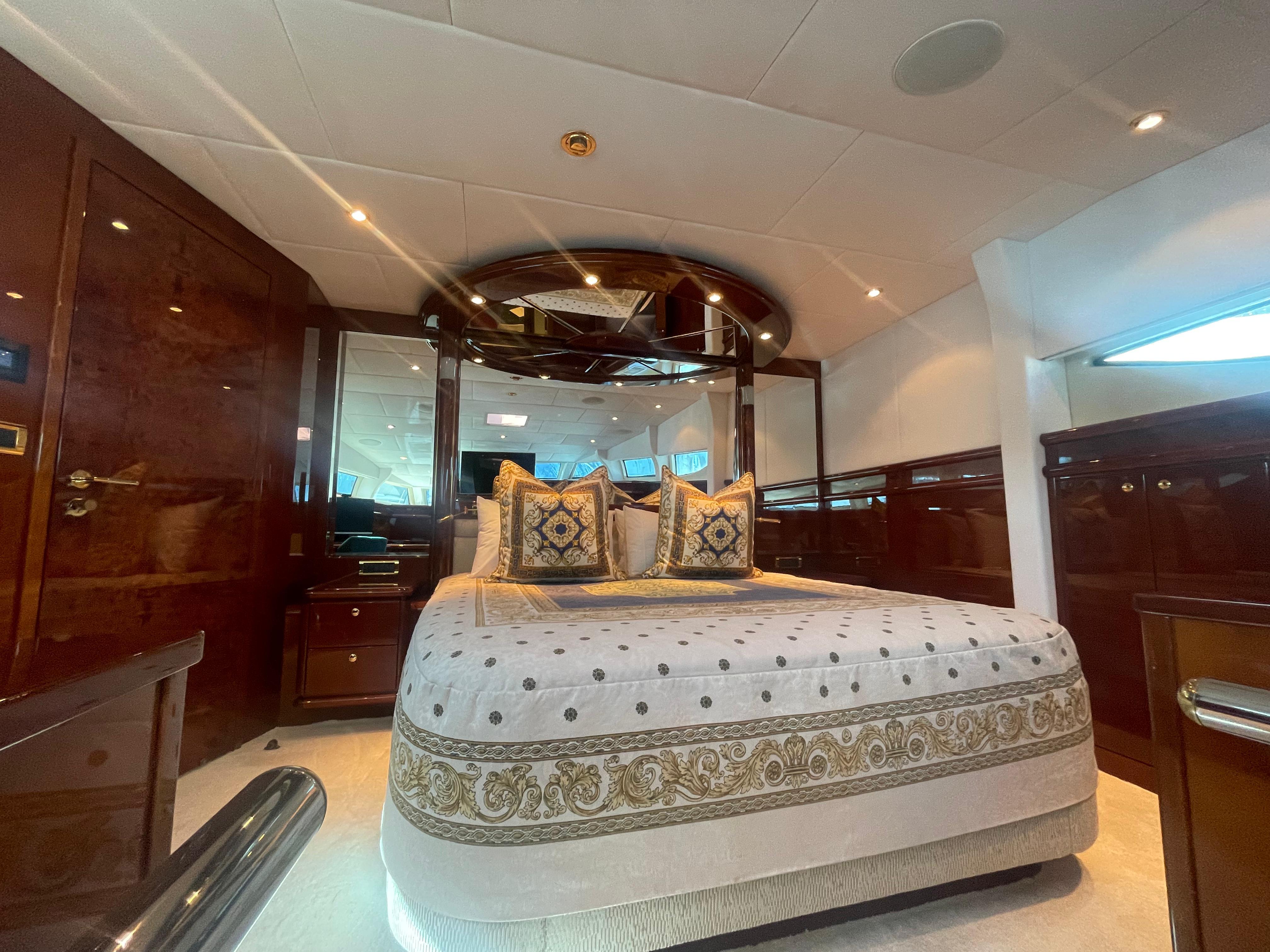

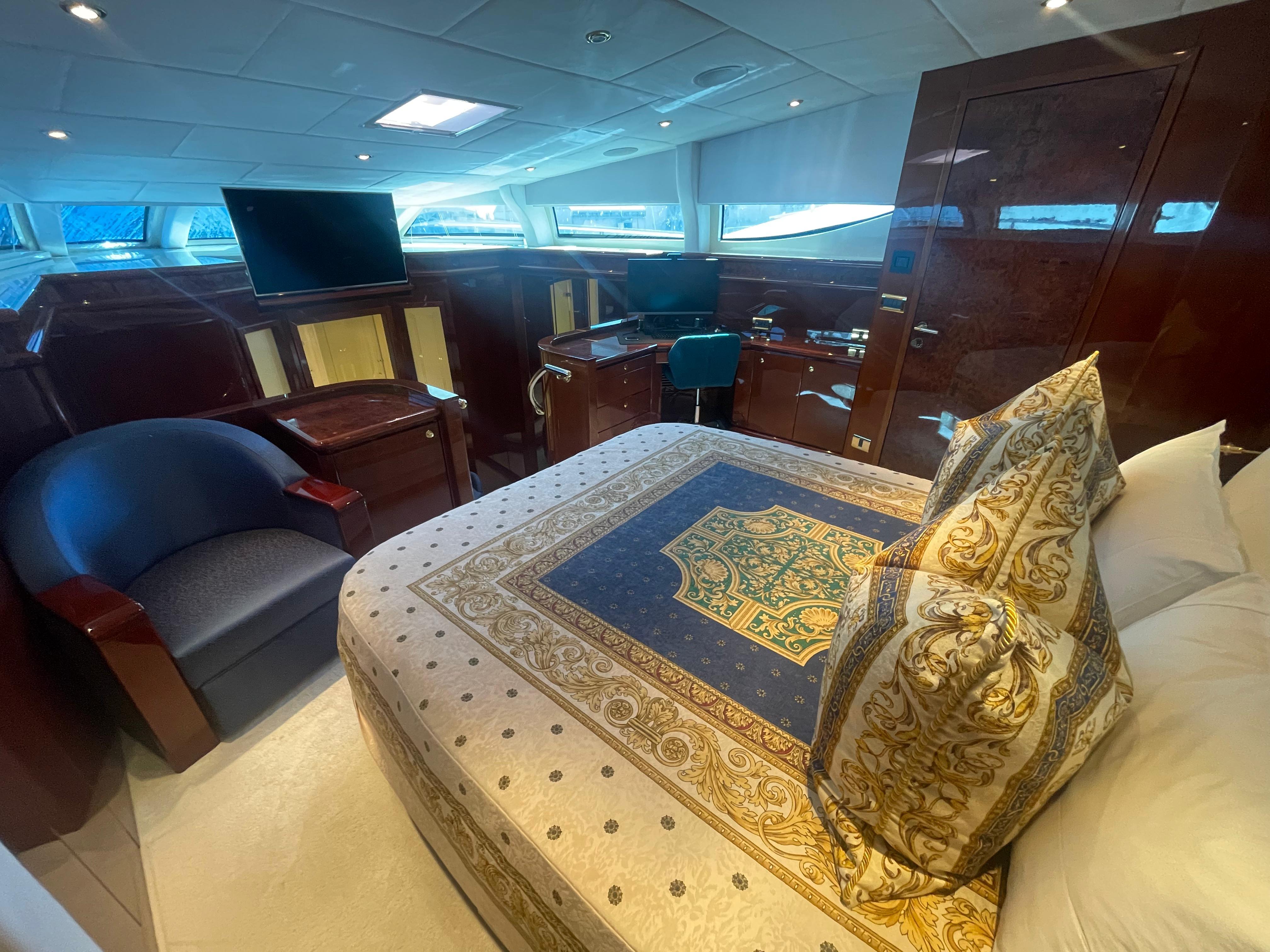

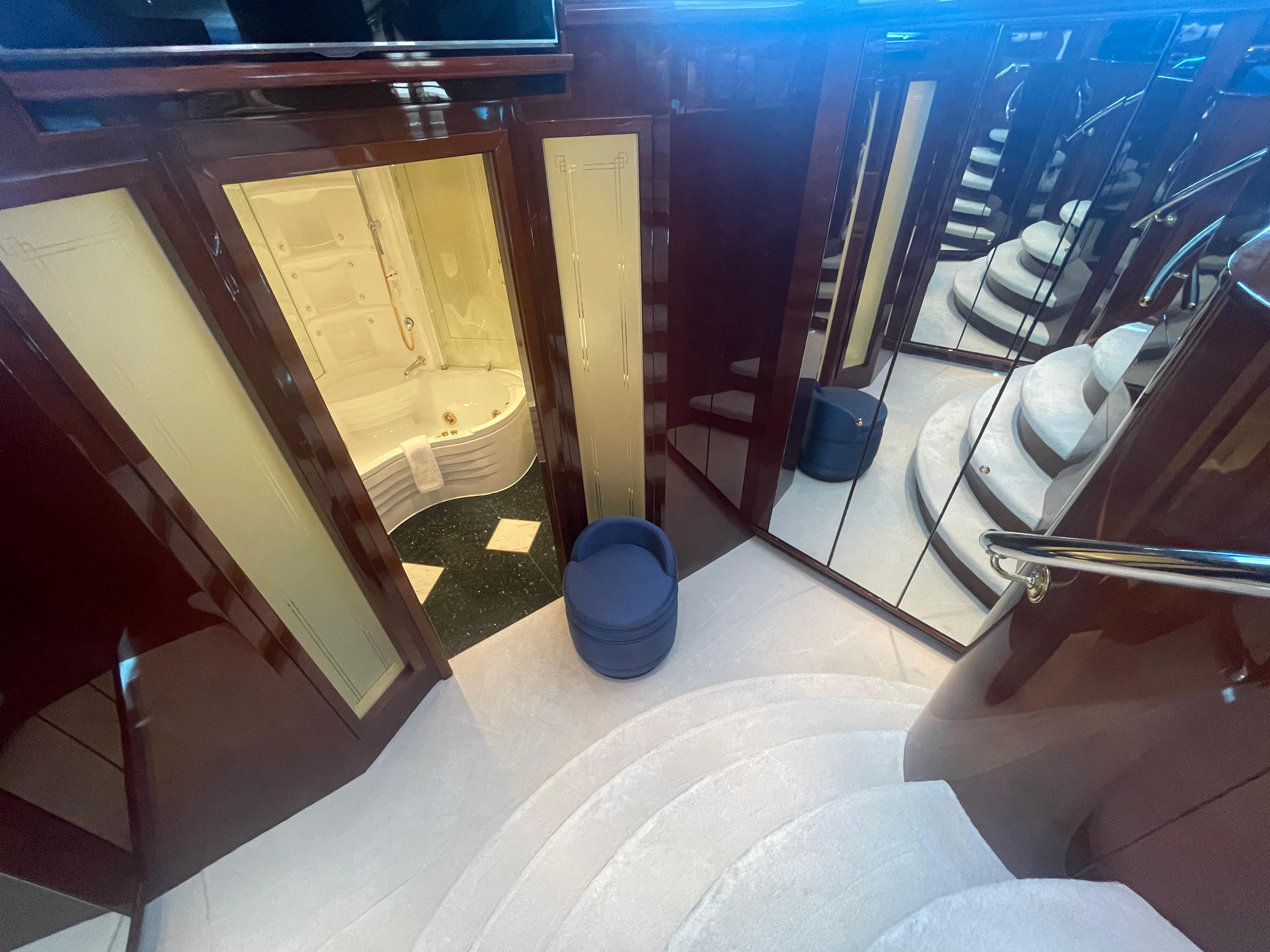

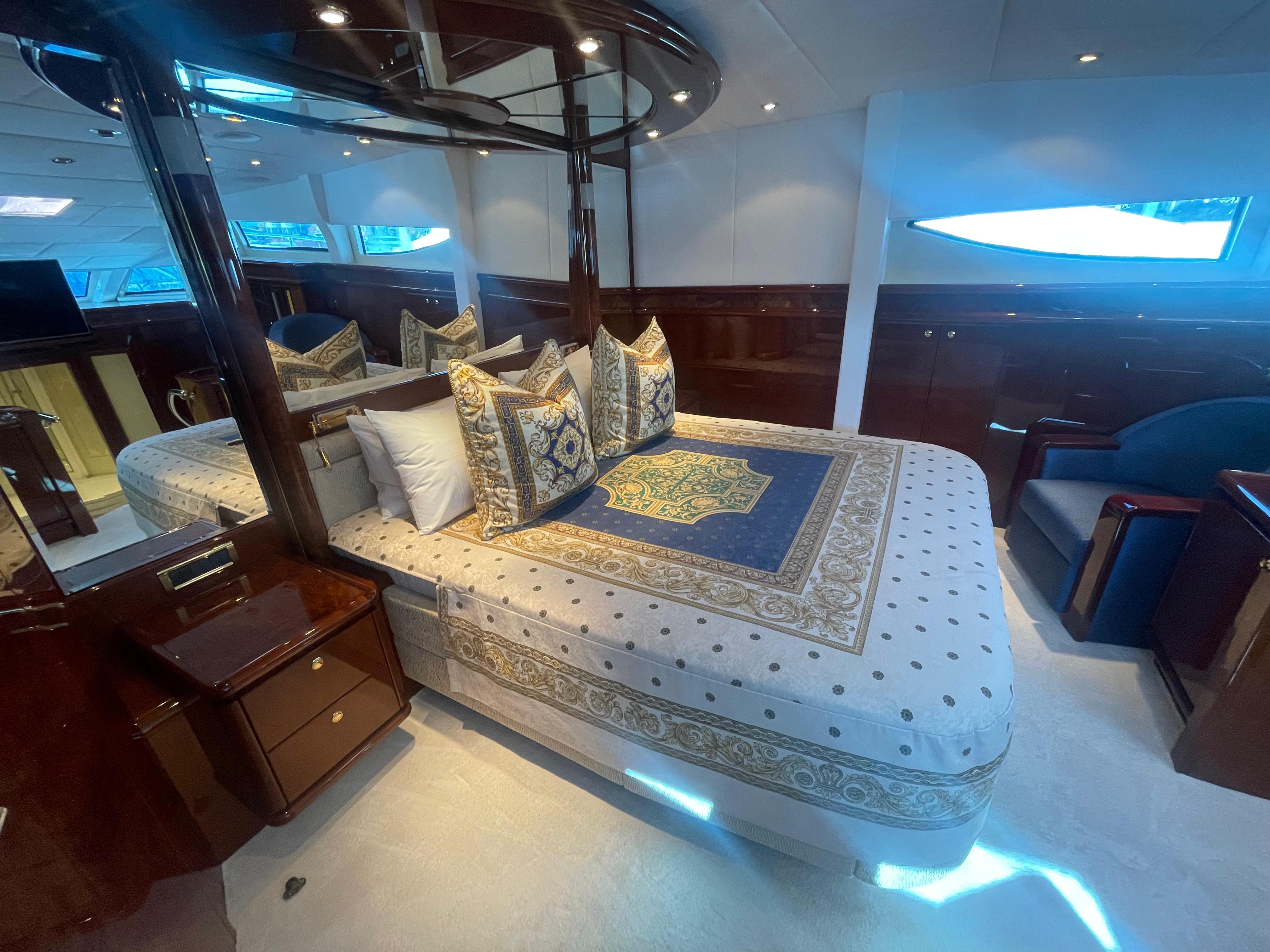

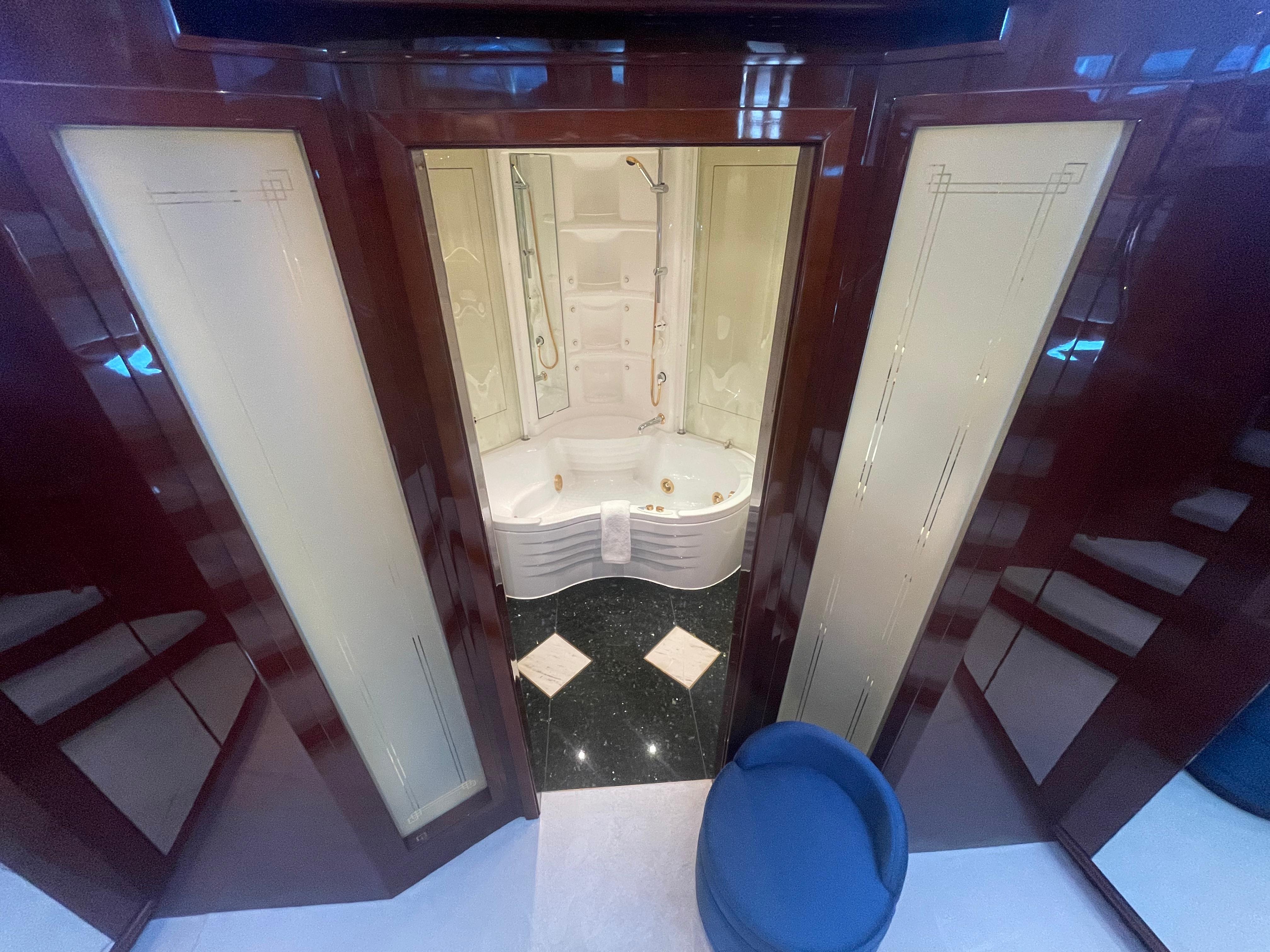

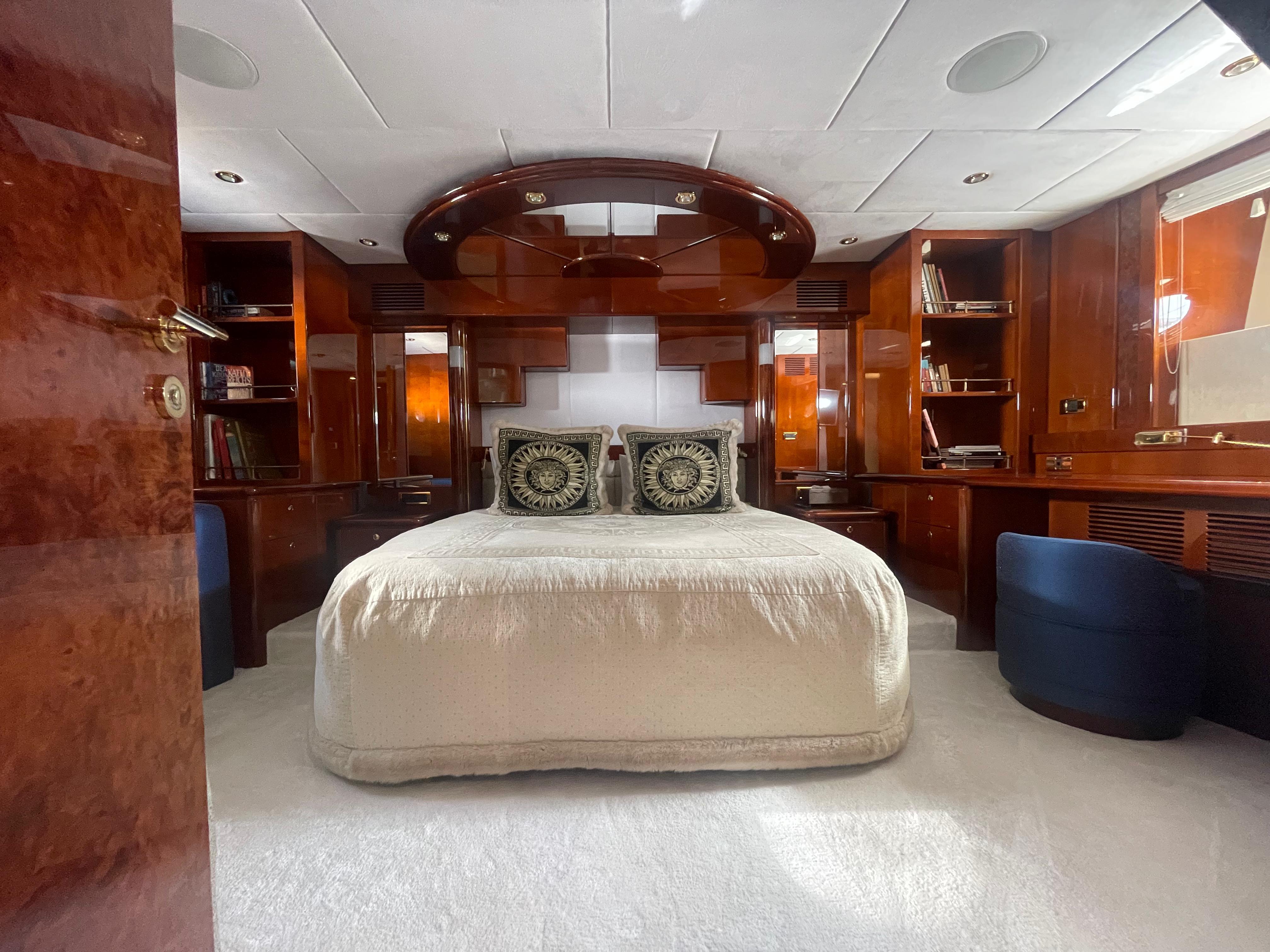

    •    Full-beam Owner’s Suite on main deck with king bed, en-suite bath with jacuzzi

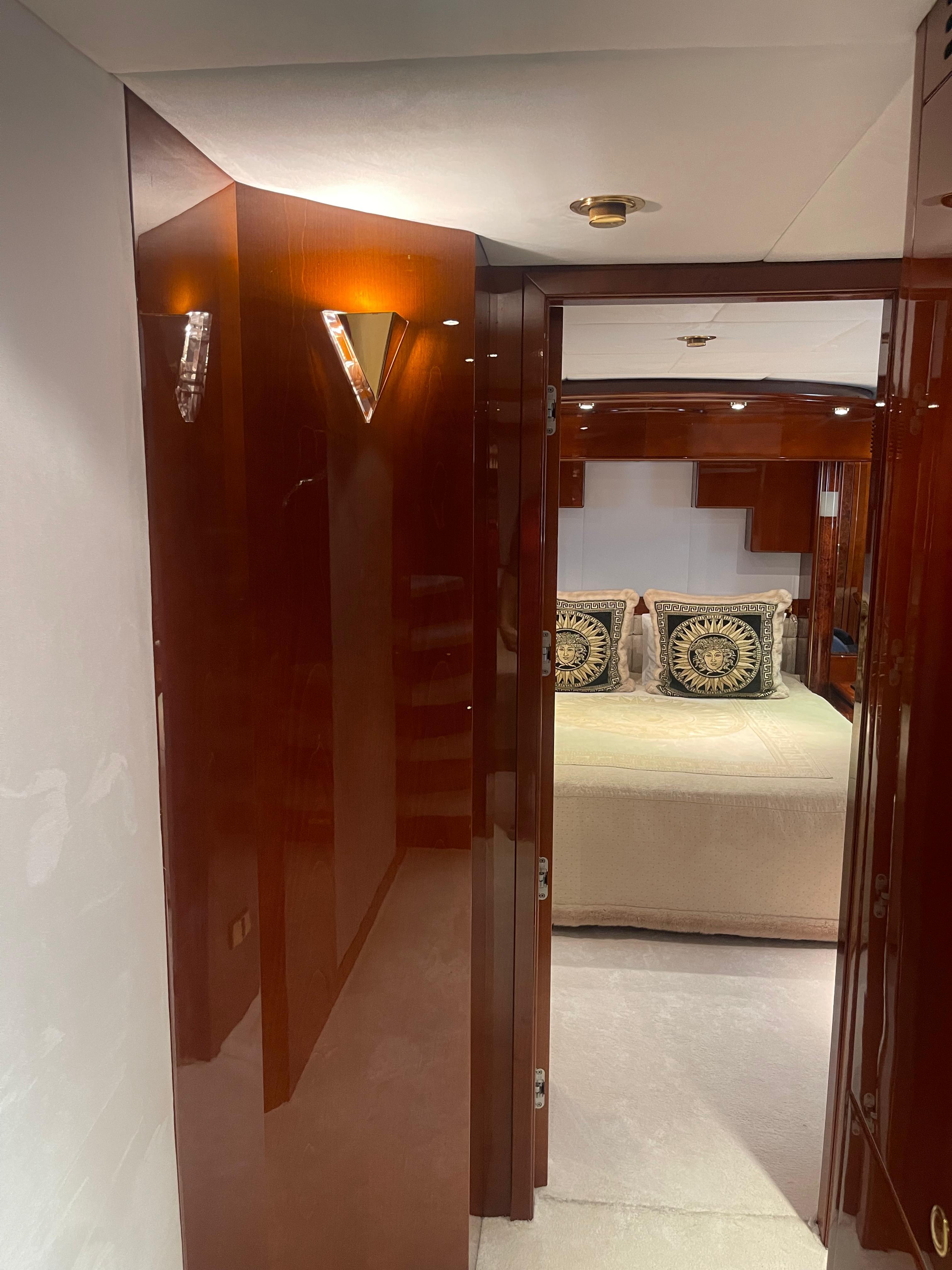

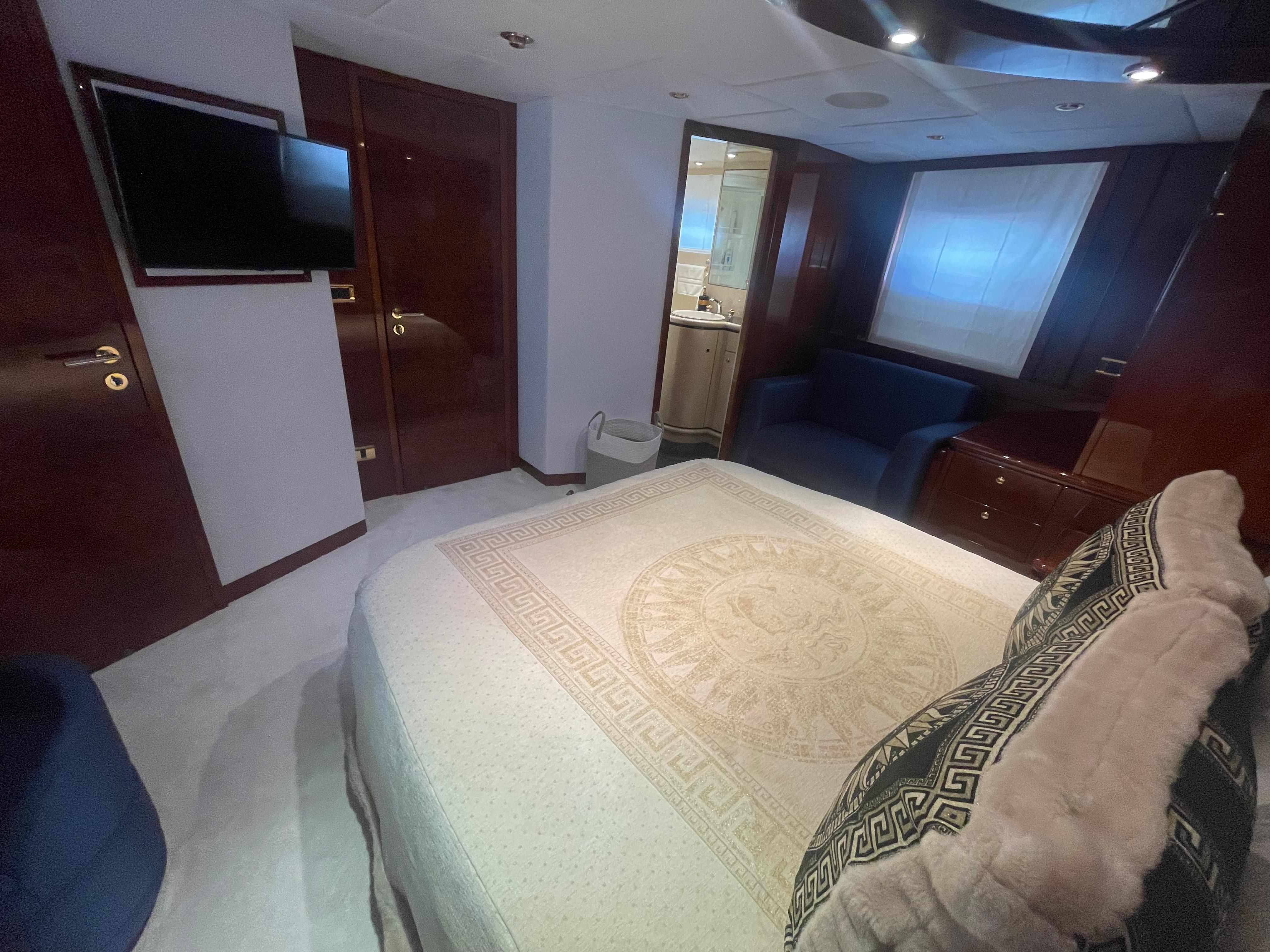

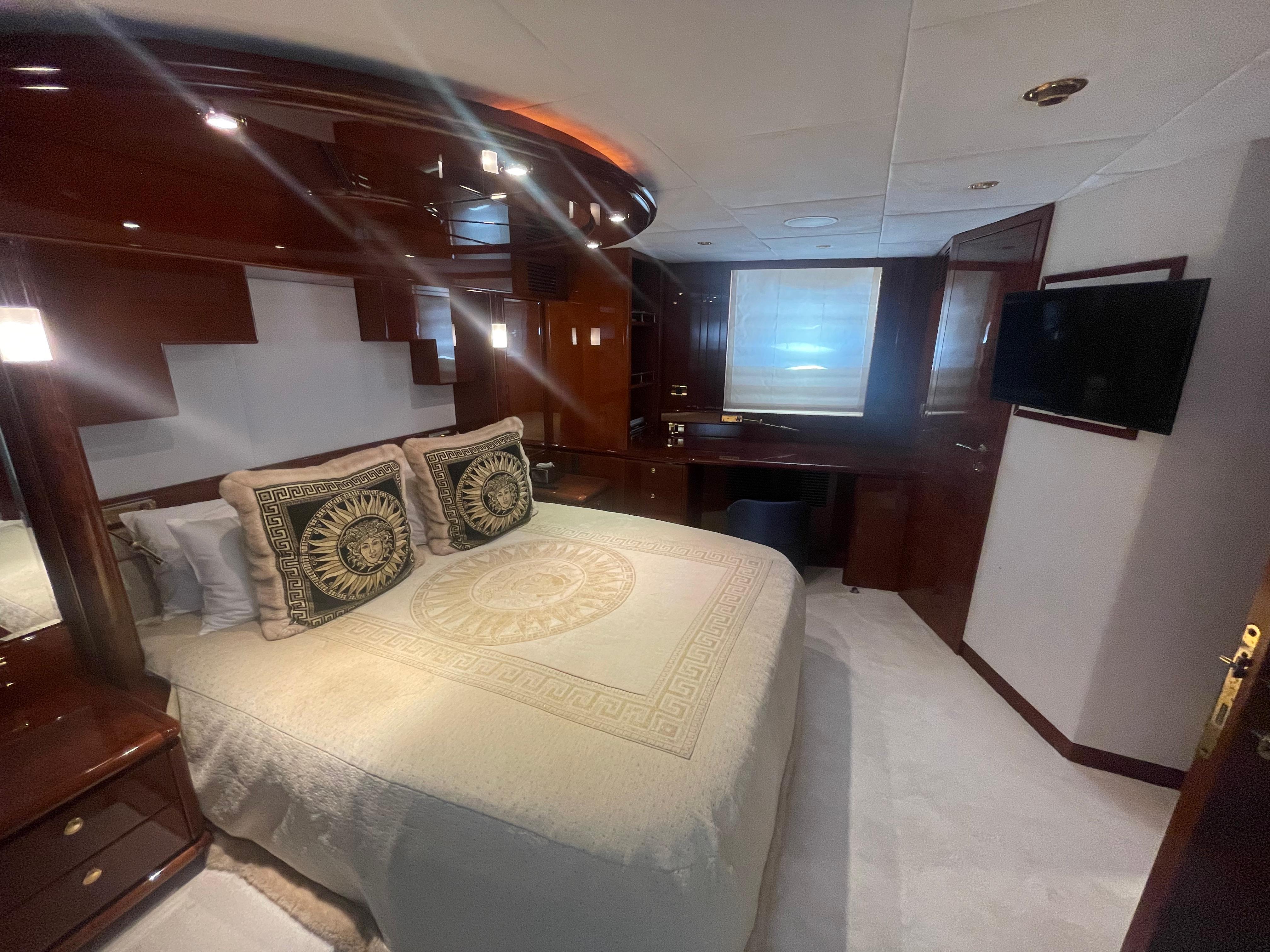

    •    VIP double with queen bed

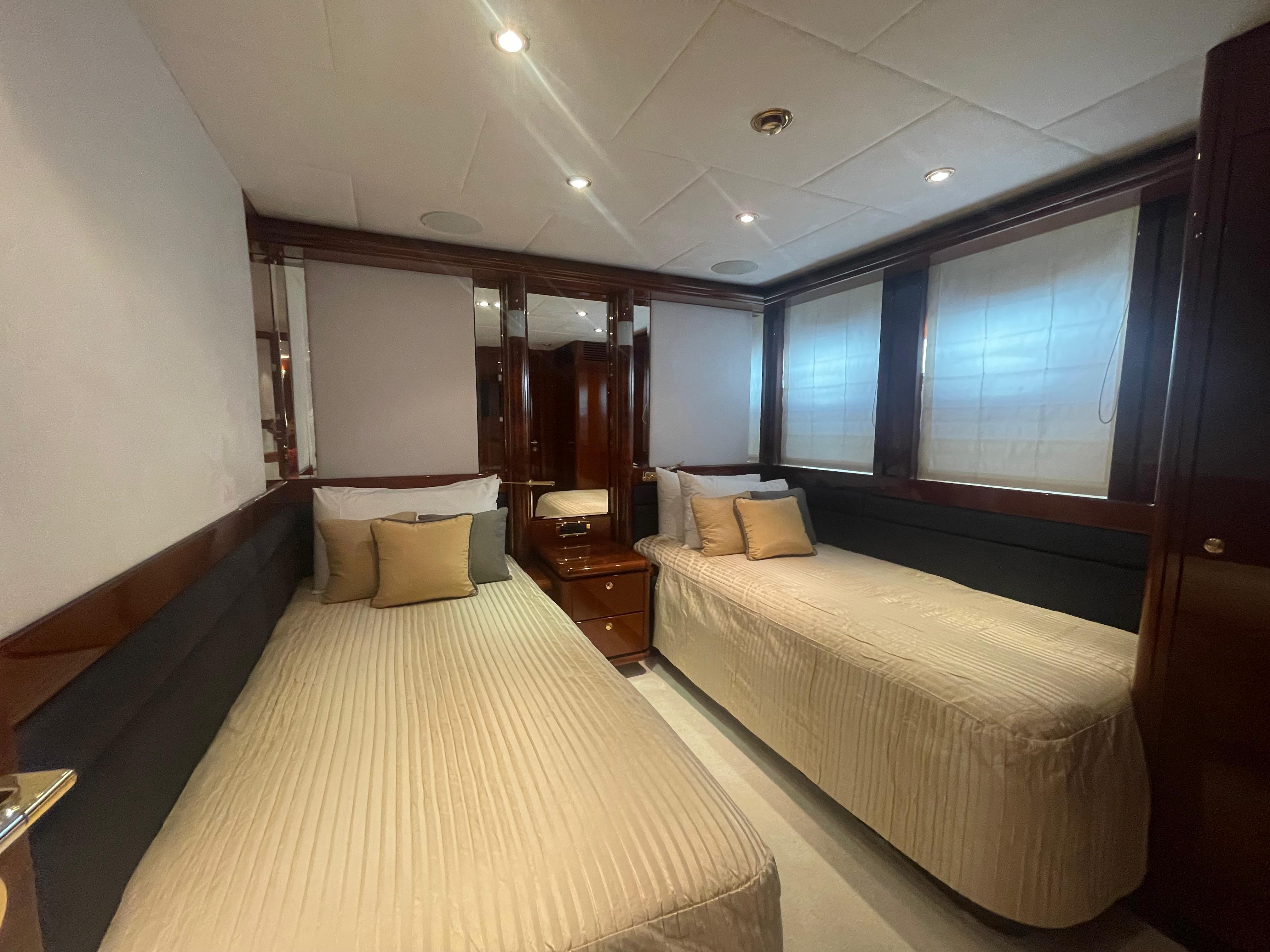

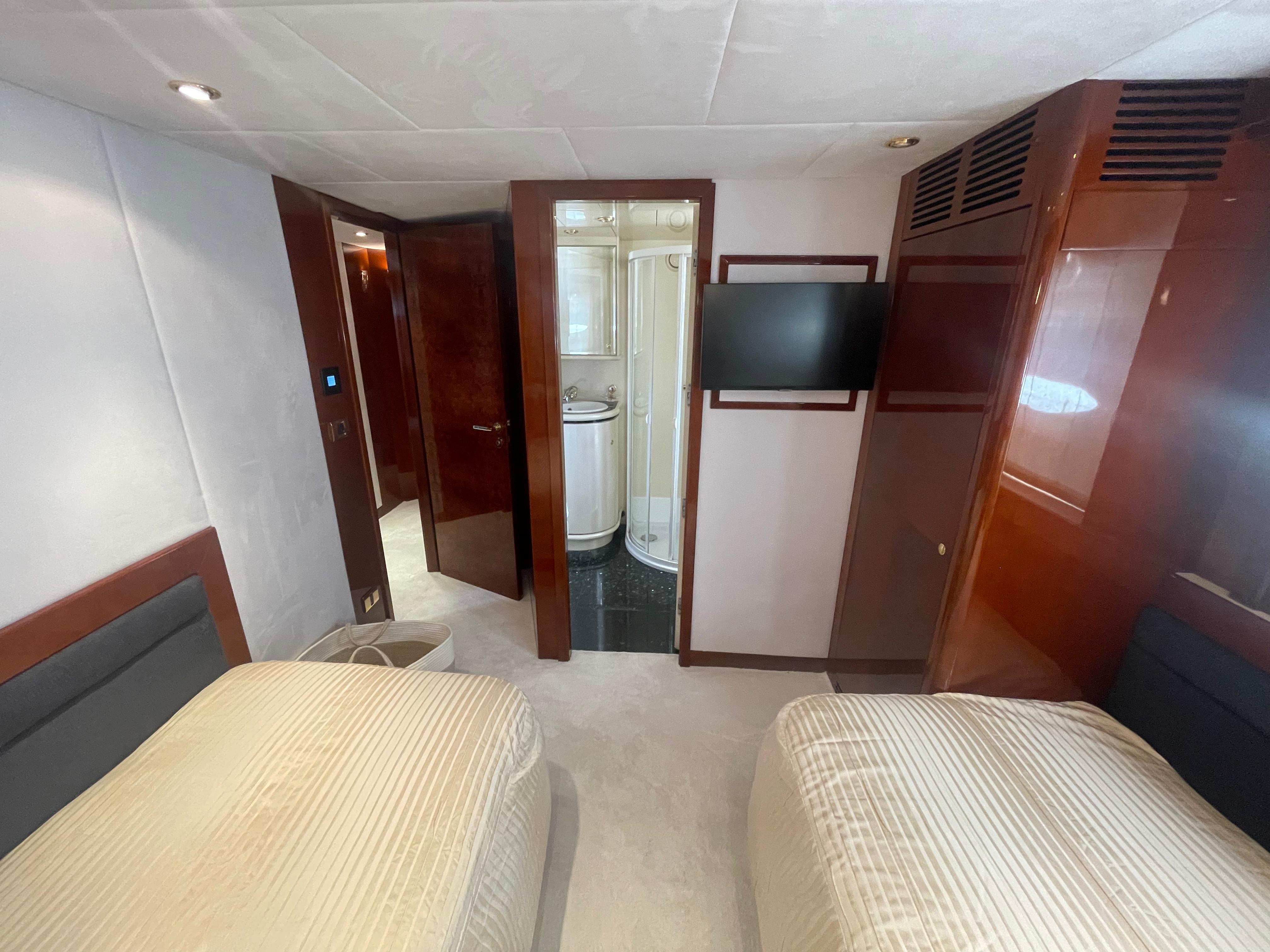

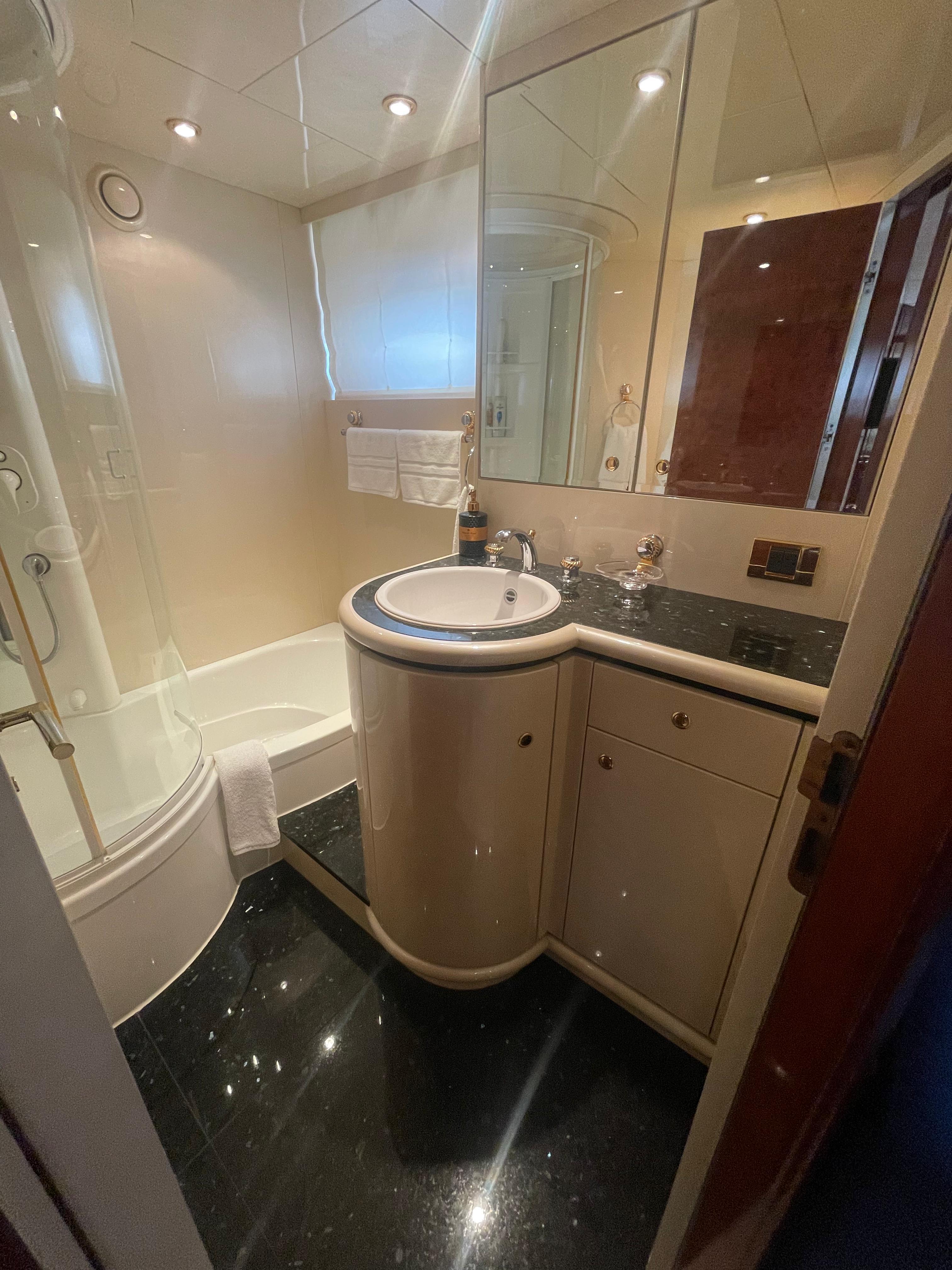

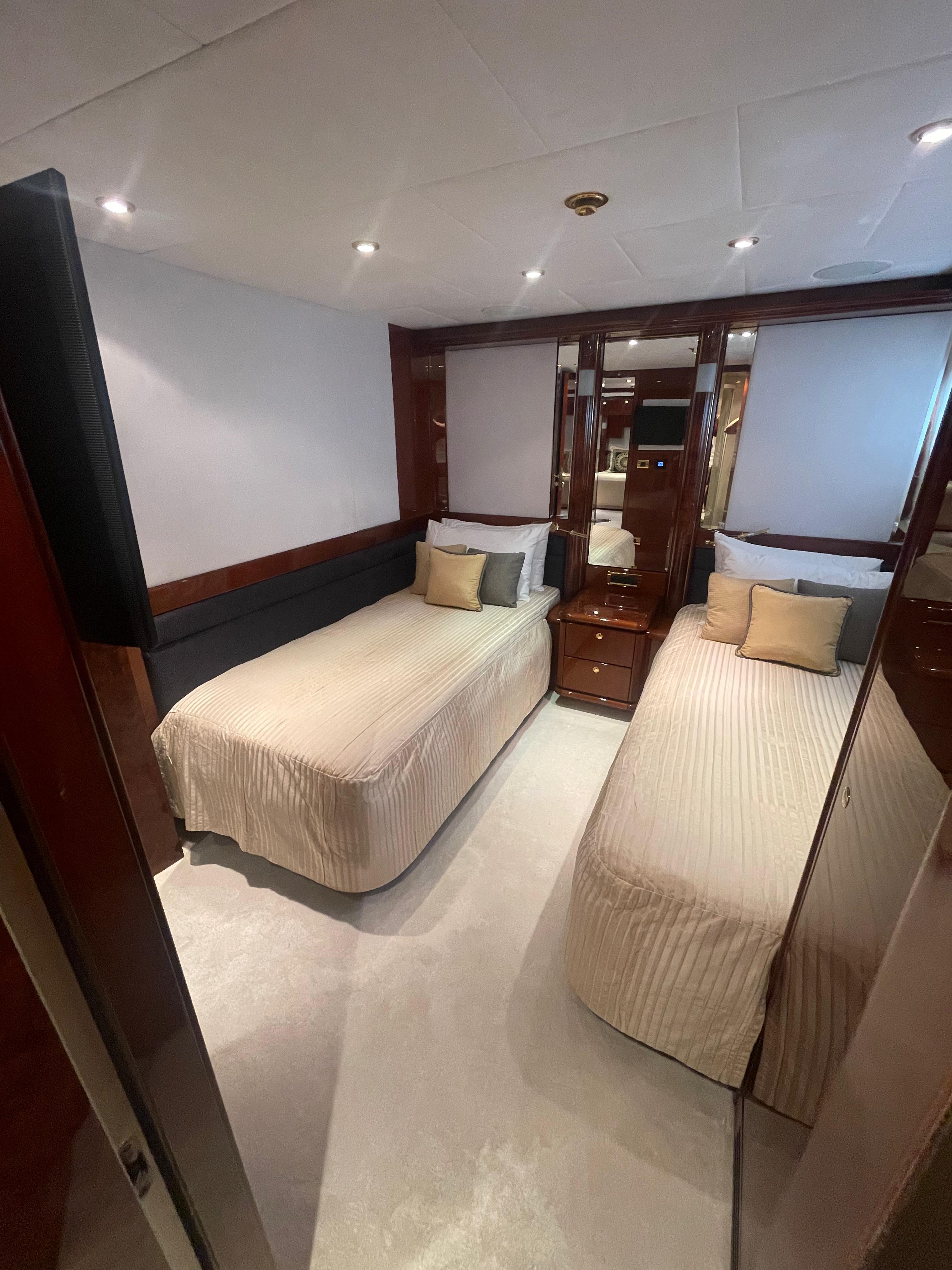

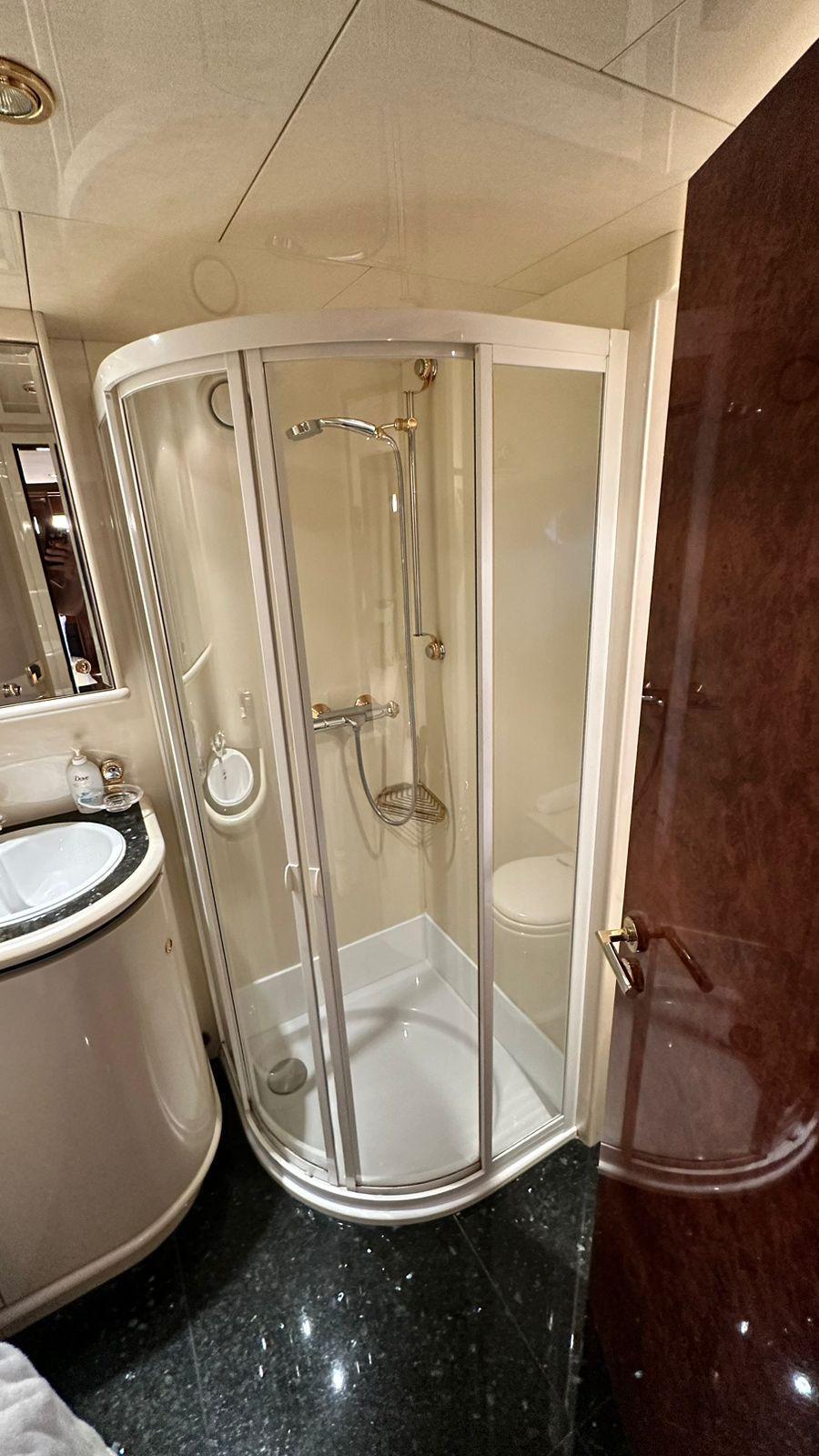

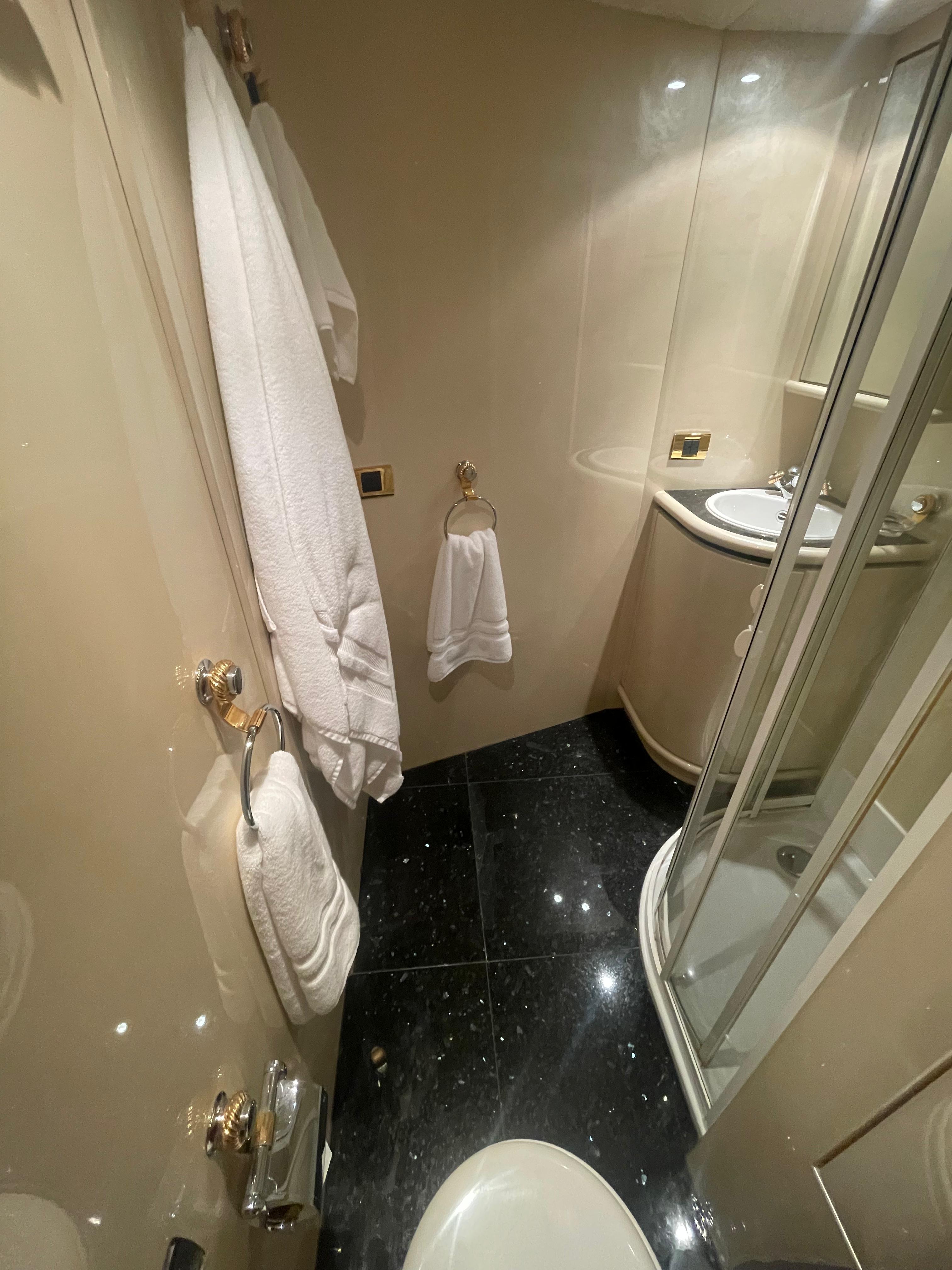

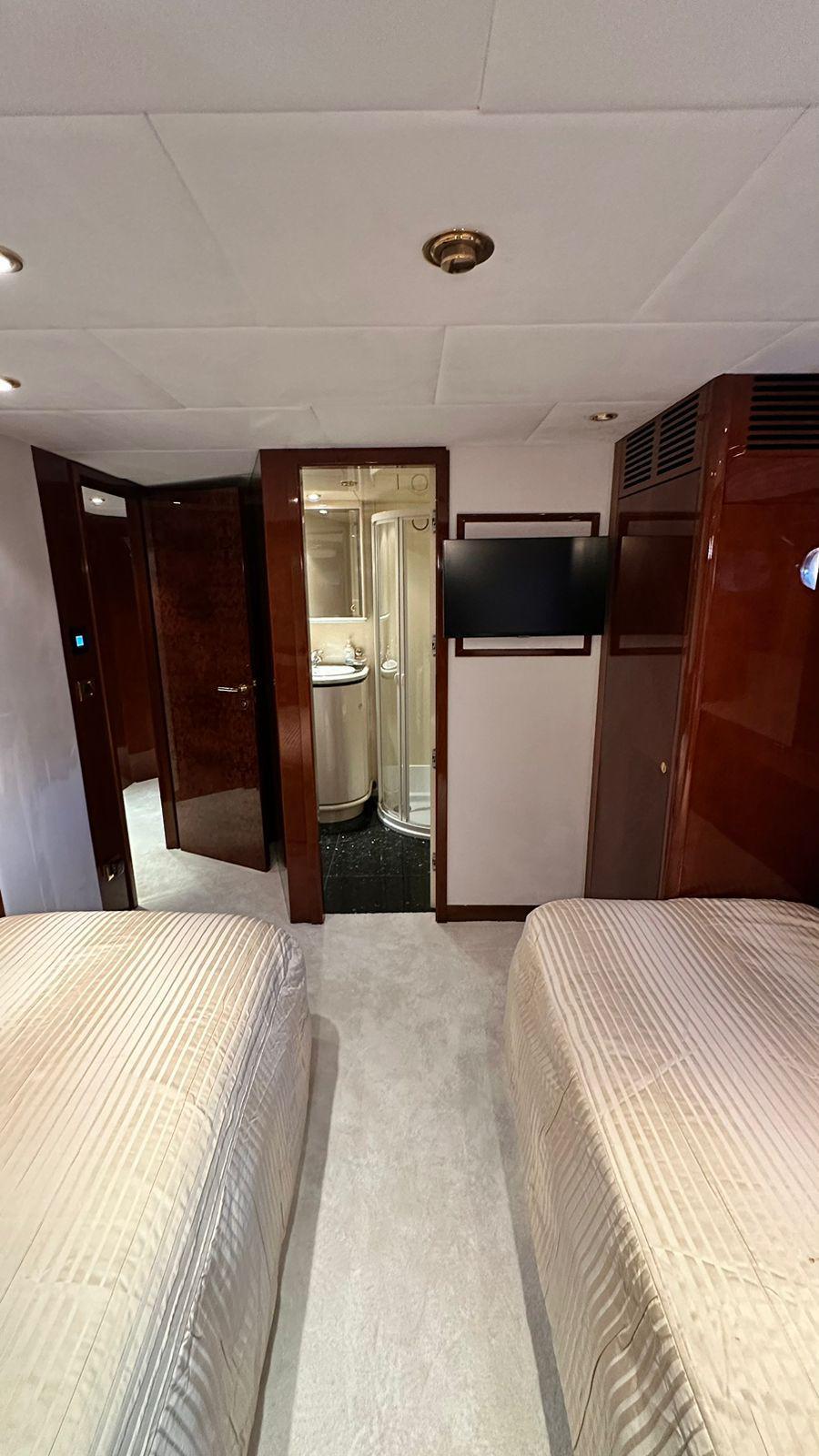

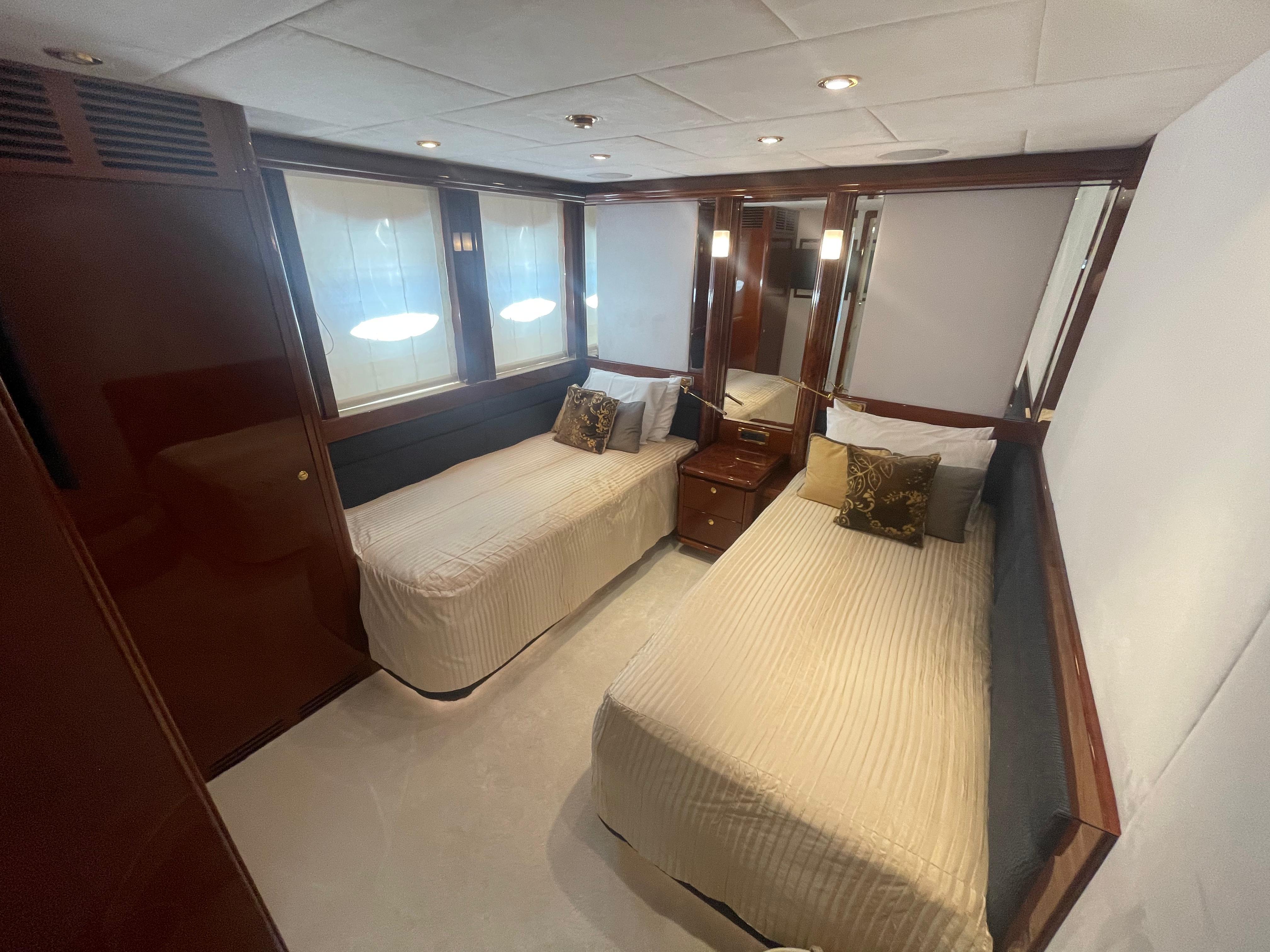

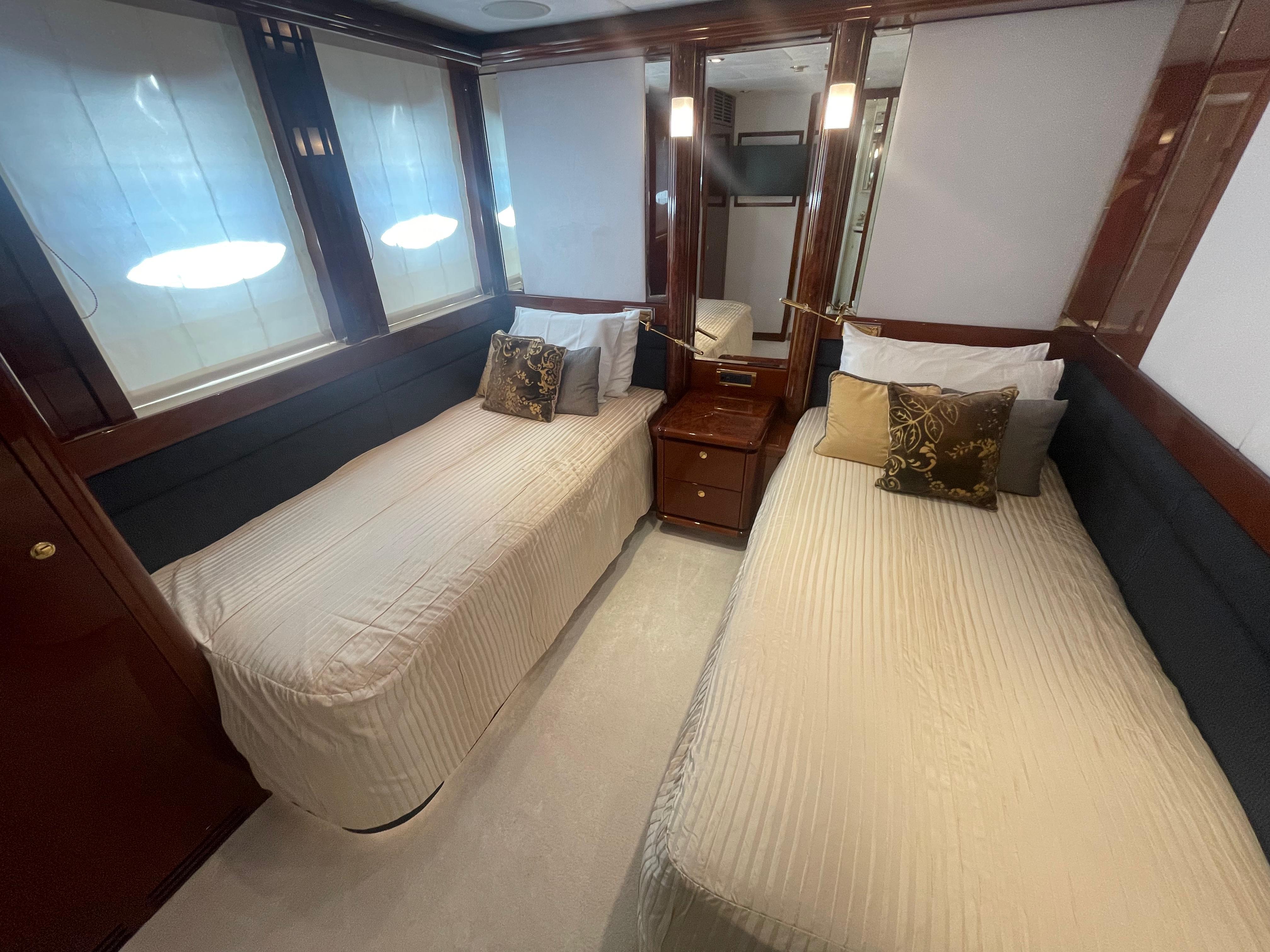

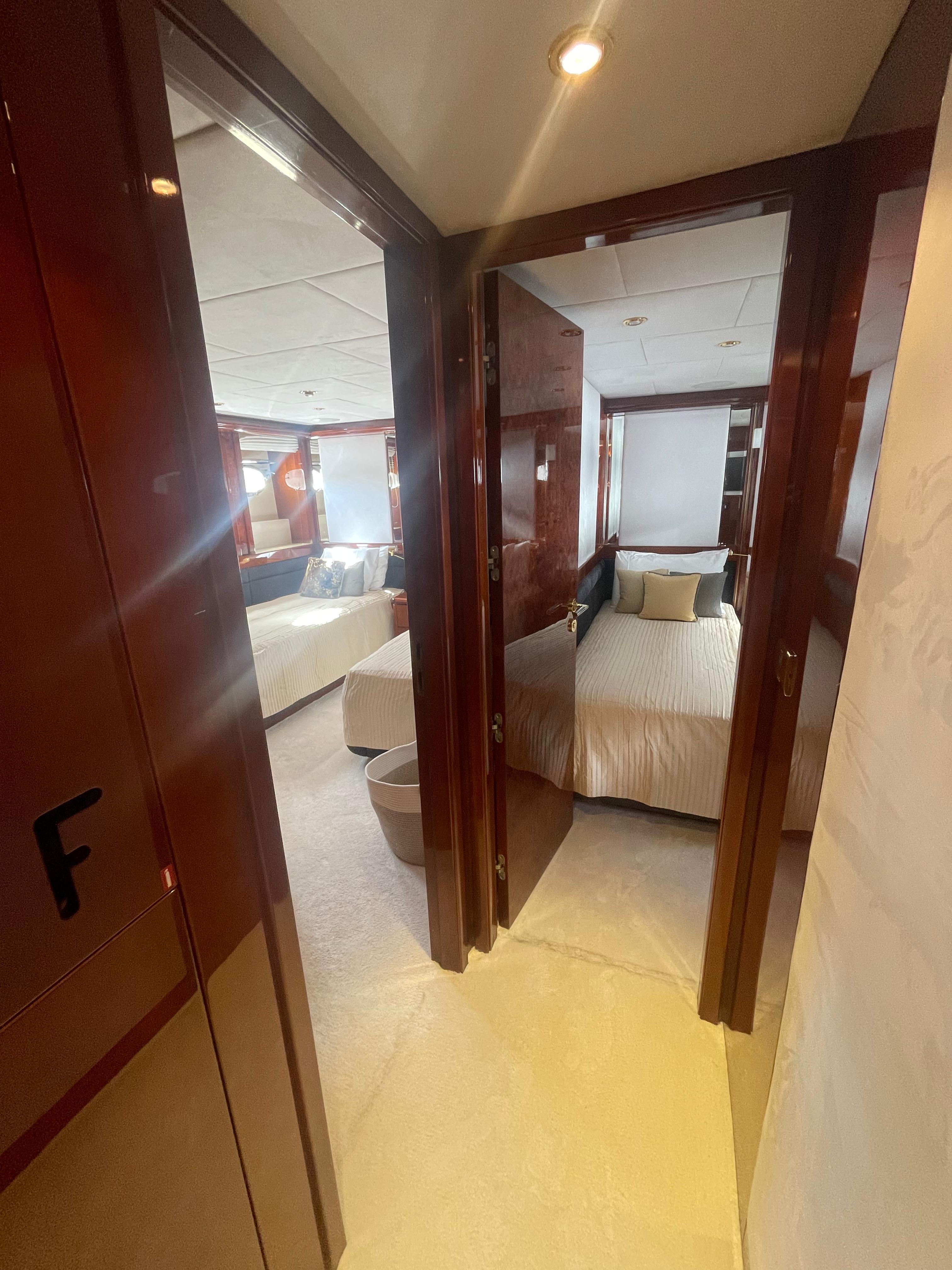

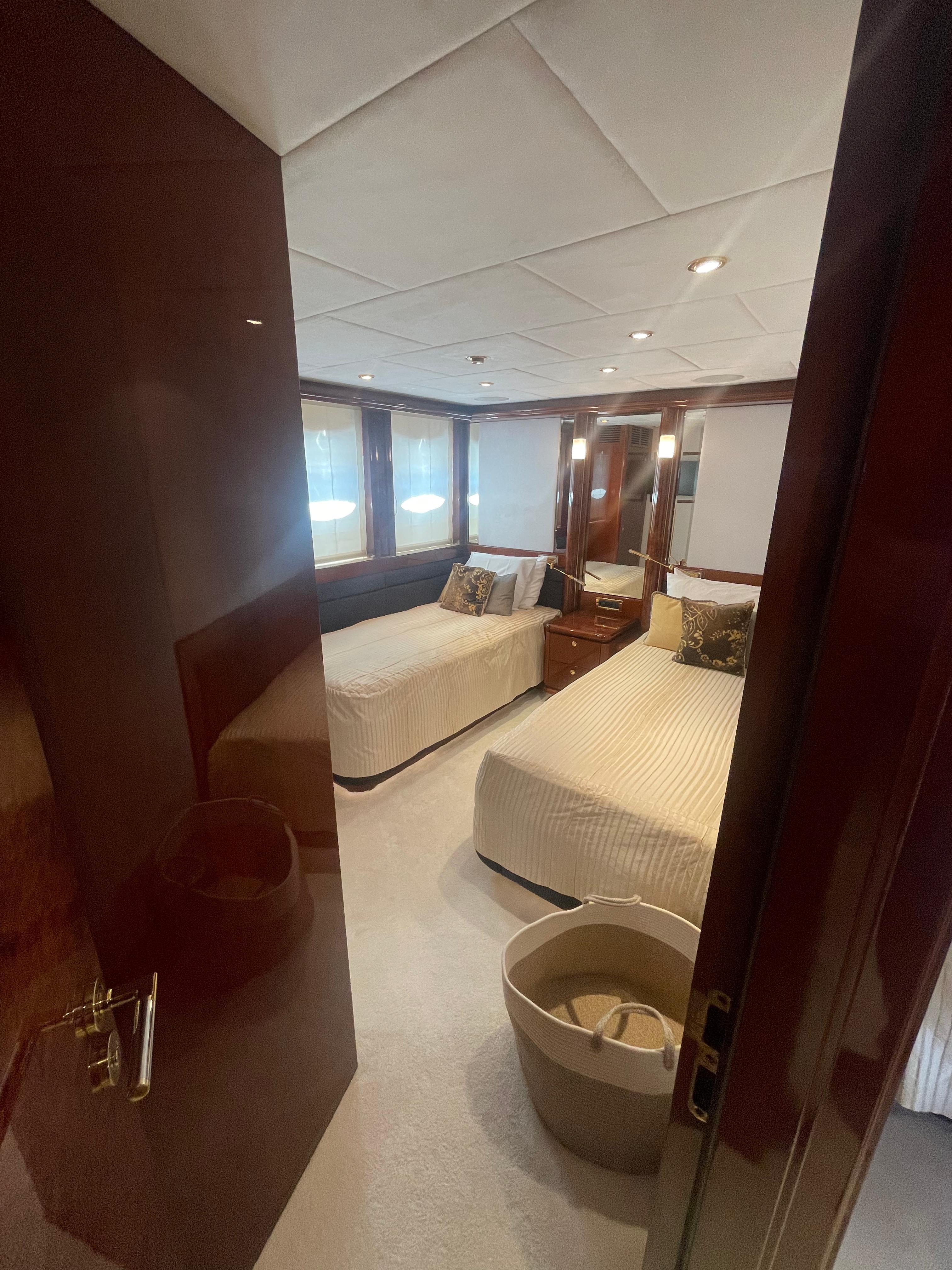

    •    2 x Twin guest cabins, each with en-suite

    •    Total Guests: Sleeps 8 in 4 cabins

    •    Crew Cabins: 2

    •    Crew Capacity: 4

Design

    •    Exterior Designer: Mulder Design

    •    Interior Designer:Michael Kirschstein

    •    Naval Architect: Mulder Design

Notable Highlights

    •    Classic European styling with timeless interior finish by Kirschstein Designs

    •    Semi-displacement hull allowing high-speed cruising with stability and comfort

    •    Shallow 1.85m draft ideal for coastal cruising and accessing shallow areas.

Sara Sea Refit Specification Sheet

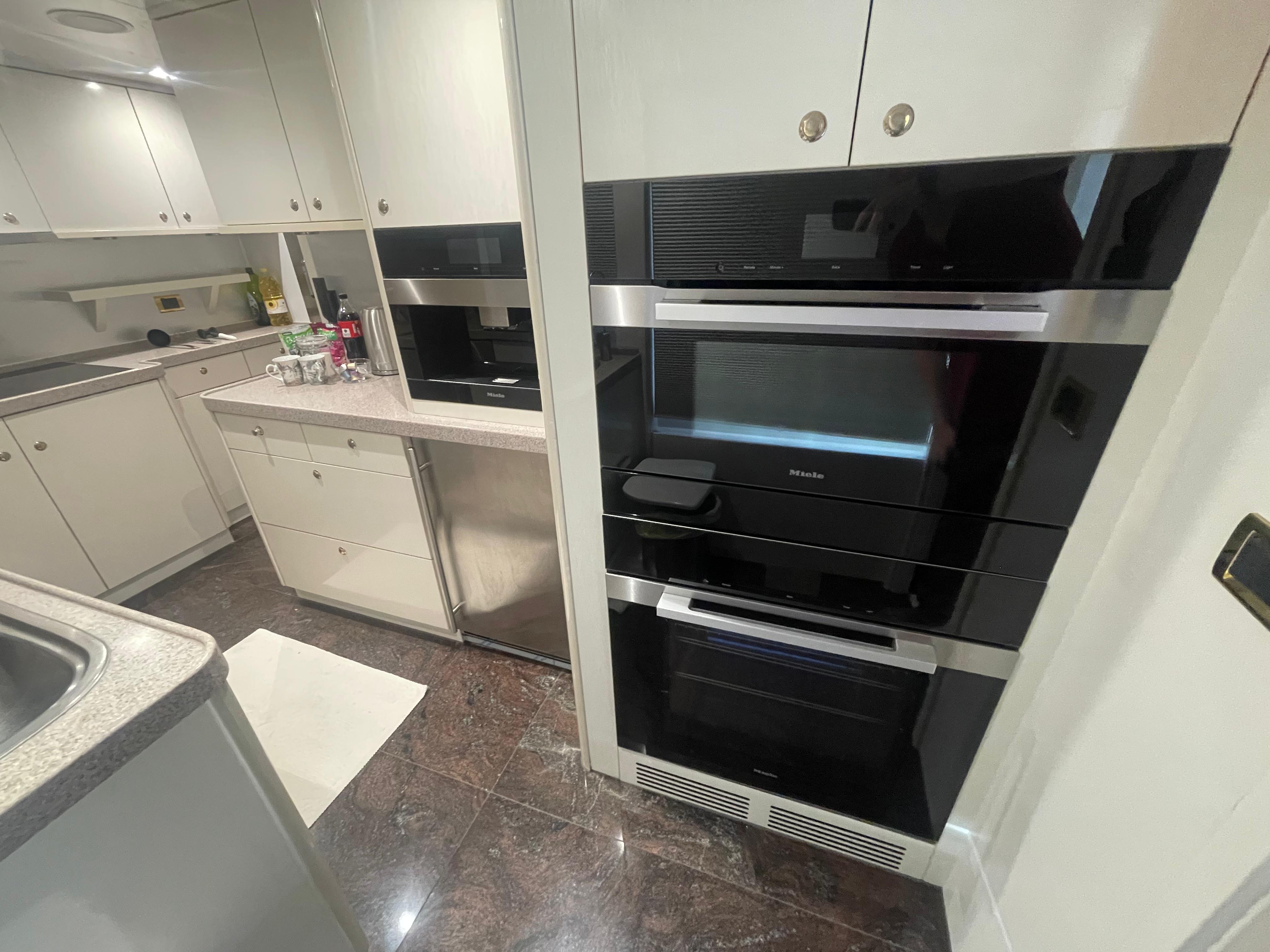

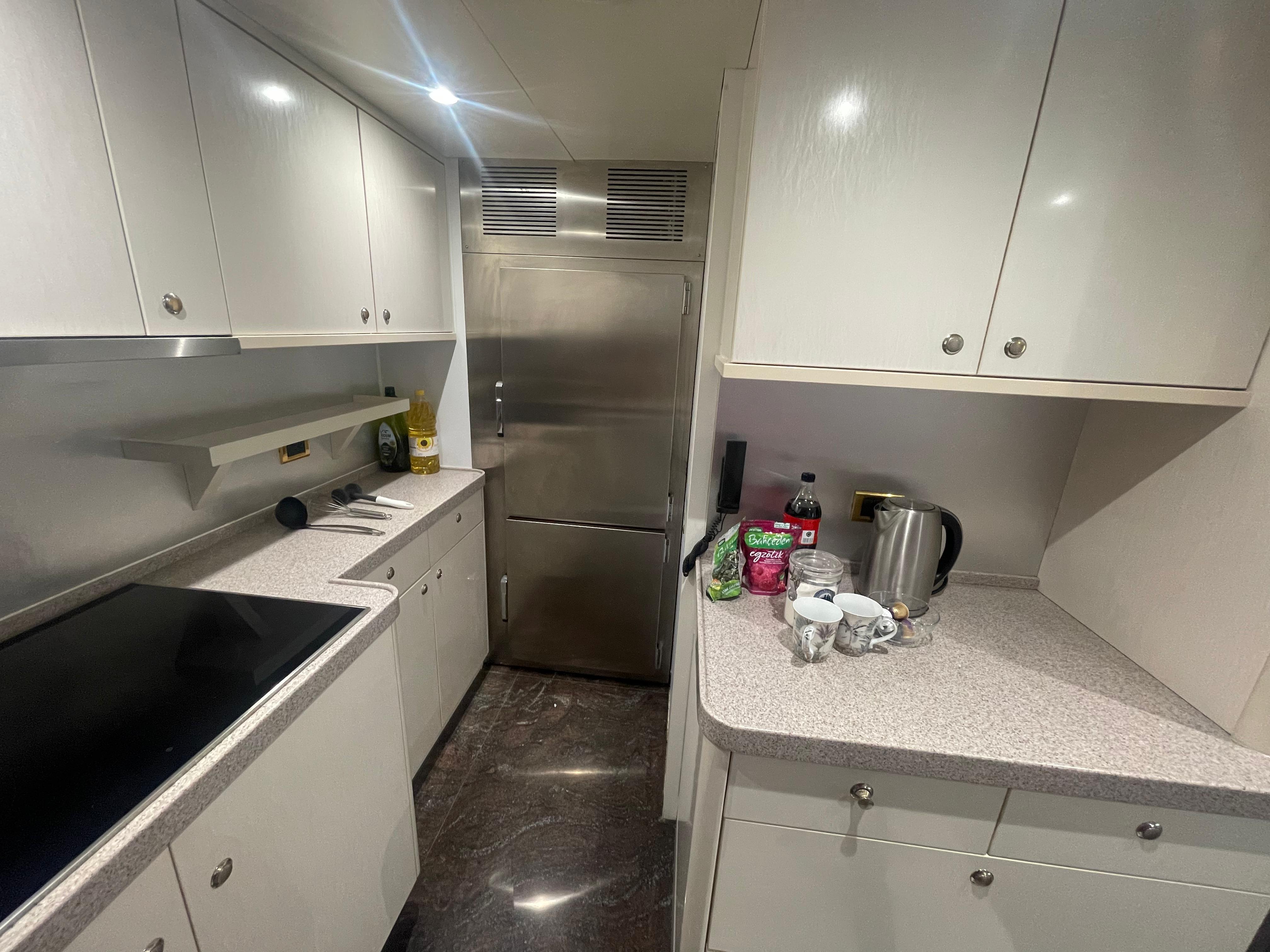

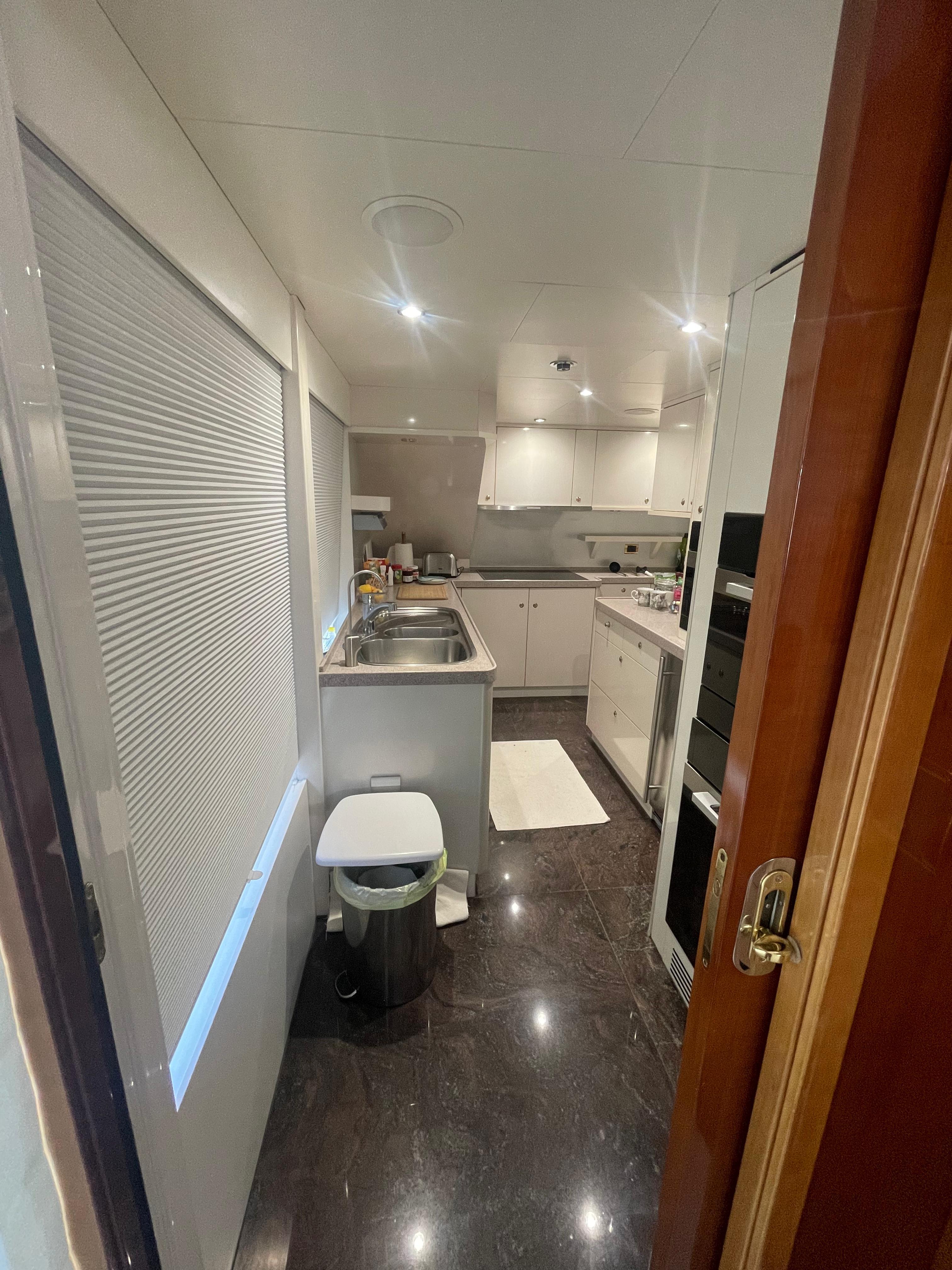

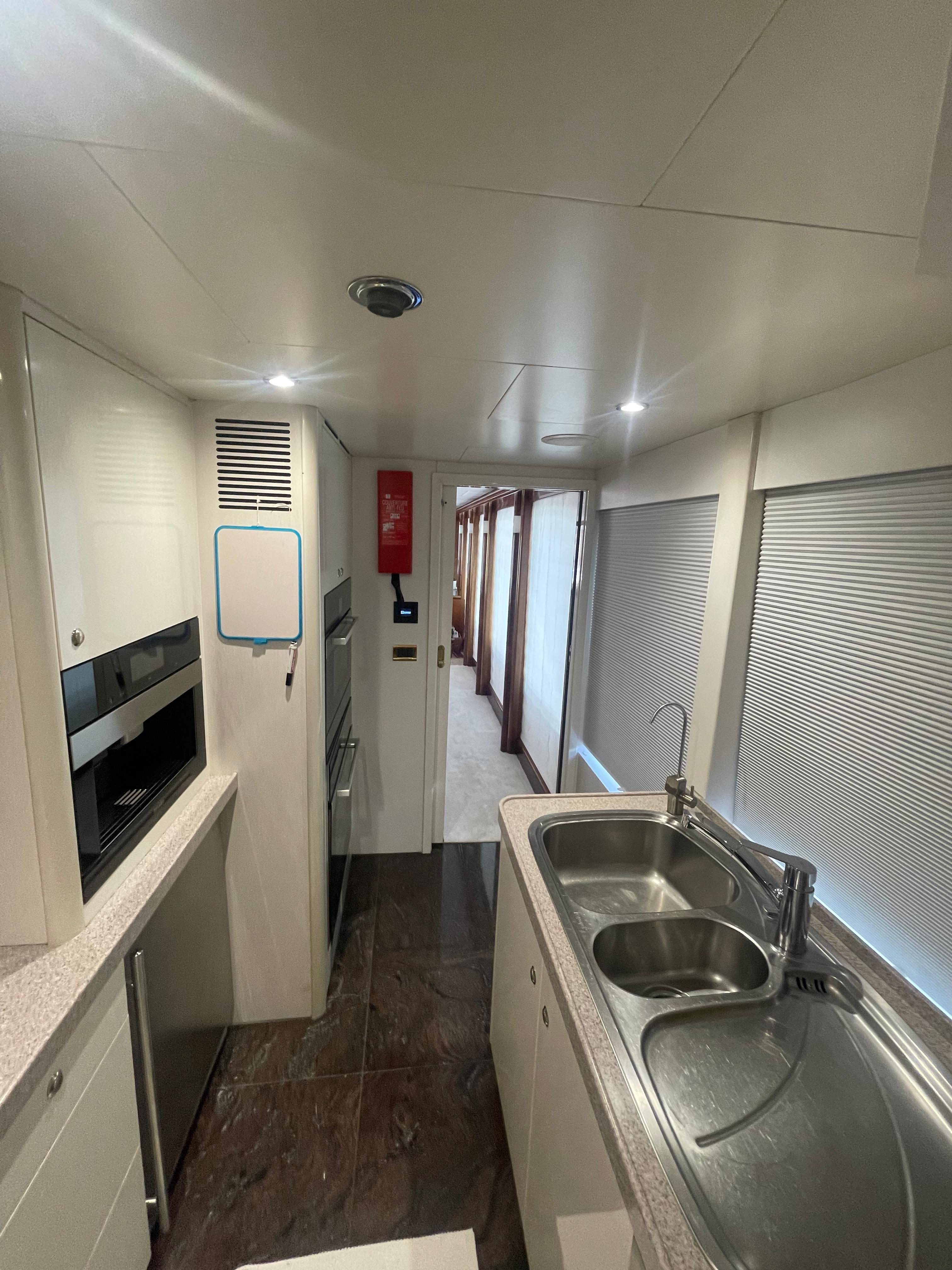

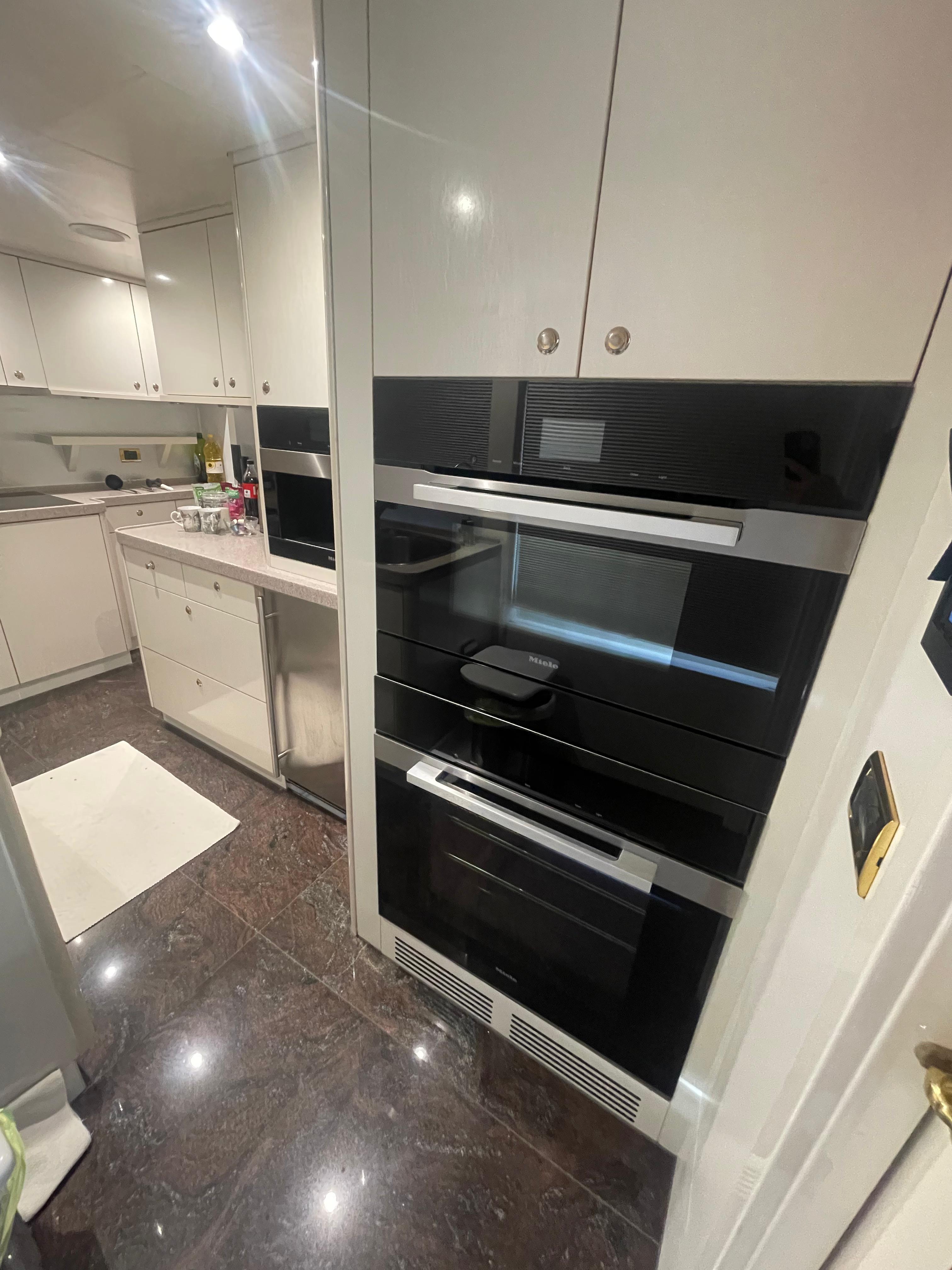

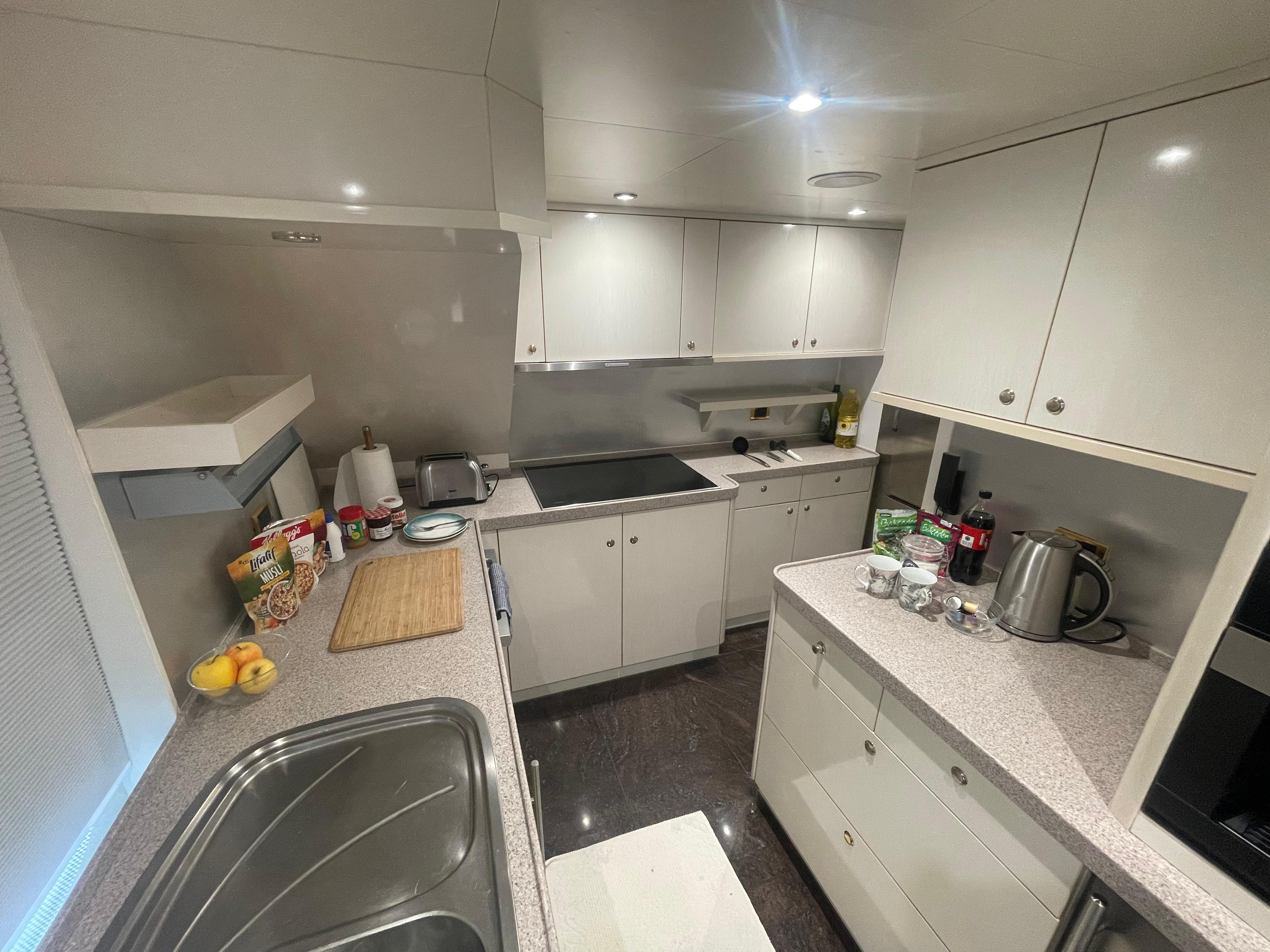

Miele Appliance Package

The following premium-grade Miele appliances are installed onboard, offering cutting-edge technology, refined aesthetics, and the reliability expected from one of the world’s most respected appliance manufacturers. Finishes are coordinated in stainless steel or CleanSteel to complement the yacht’s interior design.

Installed Appliances:

•    KM 7730 FR (12074200) – Induction Cooktop – Stainless Steel

•    DAS 2920 (11878500) – Downdraft Ventilation System – Stainless Steel

•    TXR860WP Eco & Steam (11620030) – Heat Pump Dryer with SteamCare – White

•    H 7670 BM (11804610) – Combi Oven (Convection + Microwave) – CleanSteel

•    G 7156 SCVi SF (12055090) – Fully Integrated Dishwasher – Stainless Steel

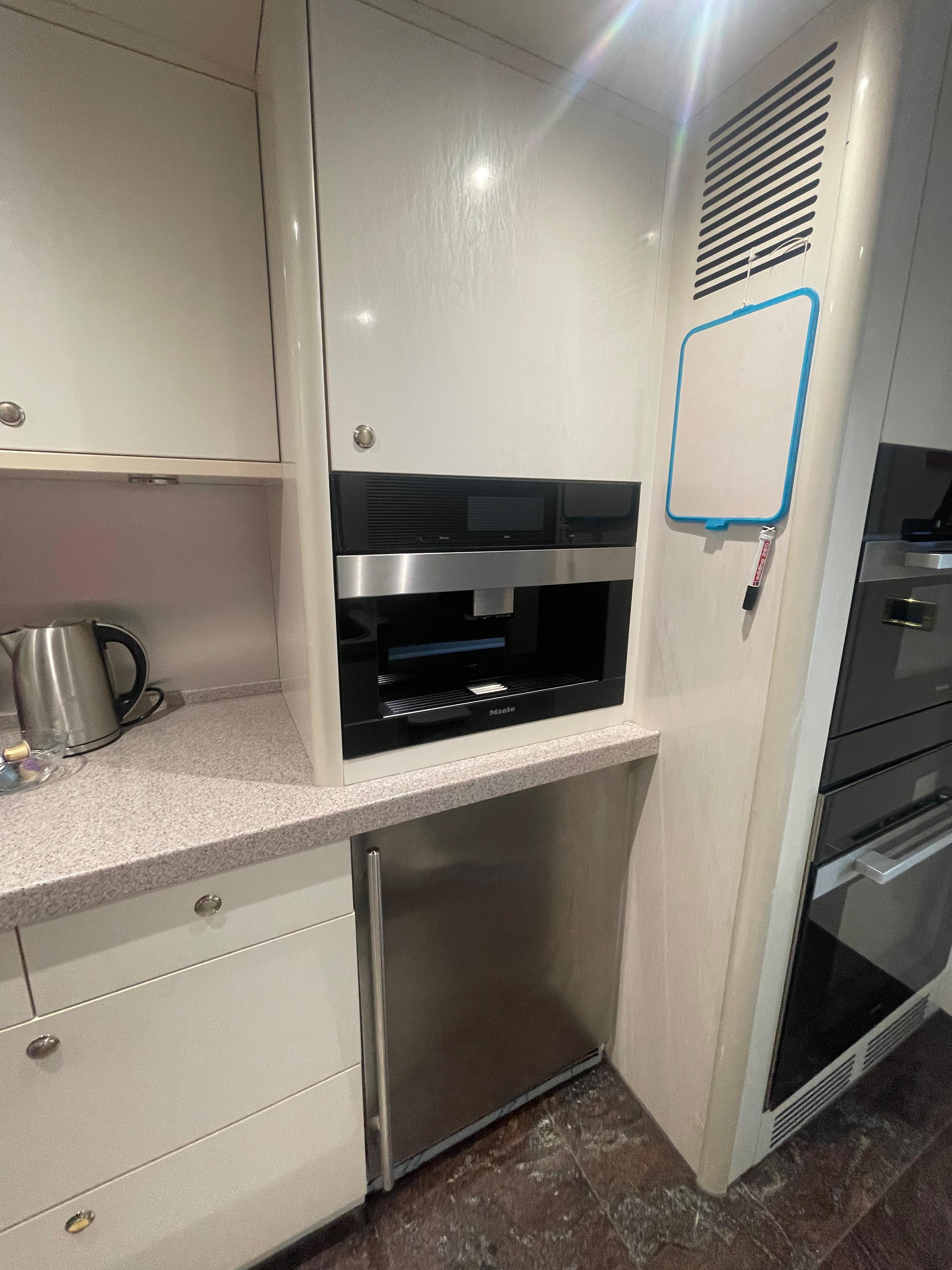

•    CVA 7845 (11733840) – Built-In Coffee System – CleanSteel

•    WXR860 WCS (11613700) – Front-Load Washing Machine with TwinDos® – White

Other domestic appliances:

• U line fridges (2)
• Kenyon grill
• Scotsman Ice-makers (2)

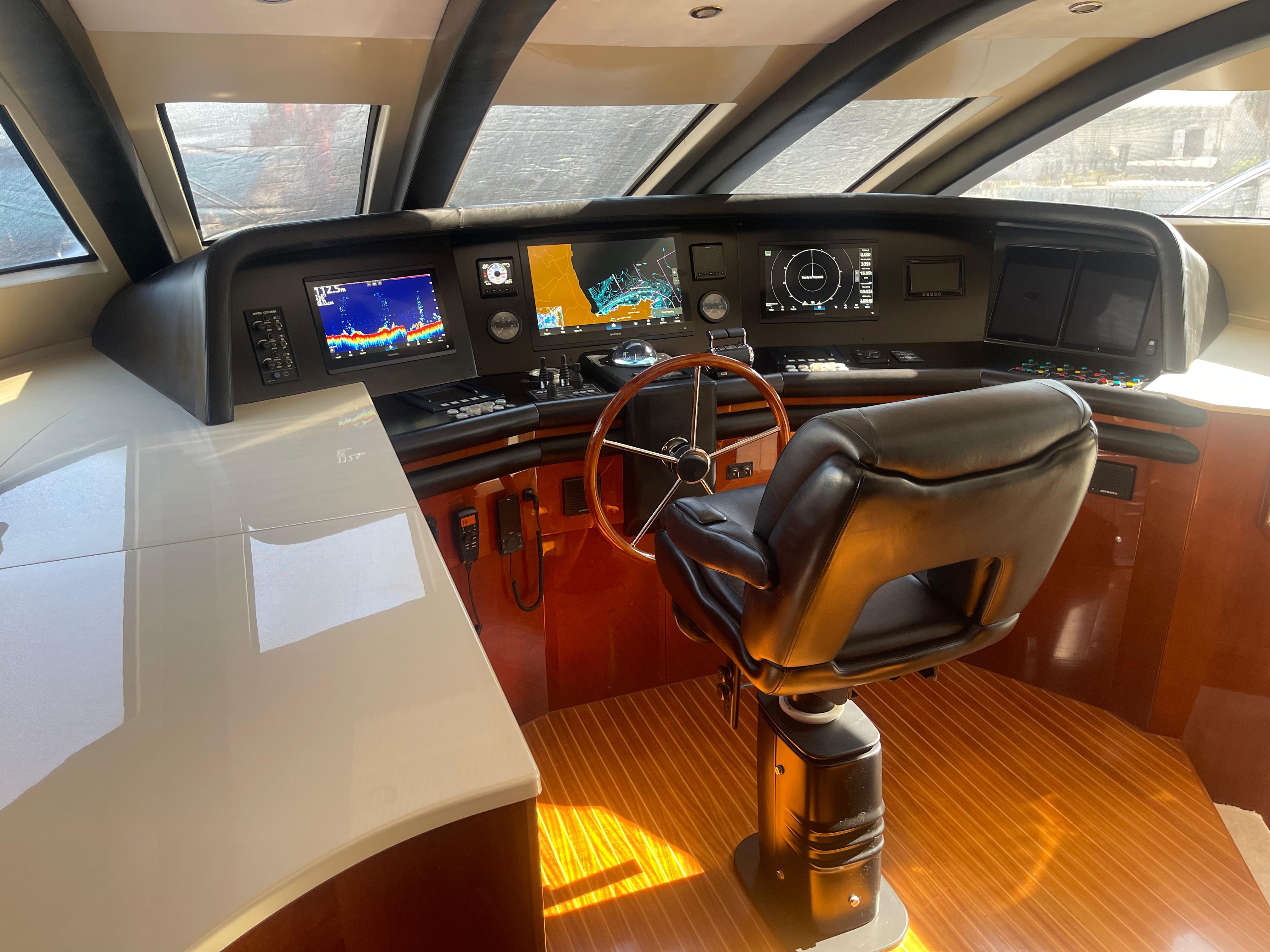

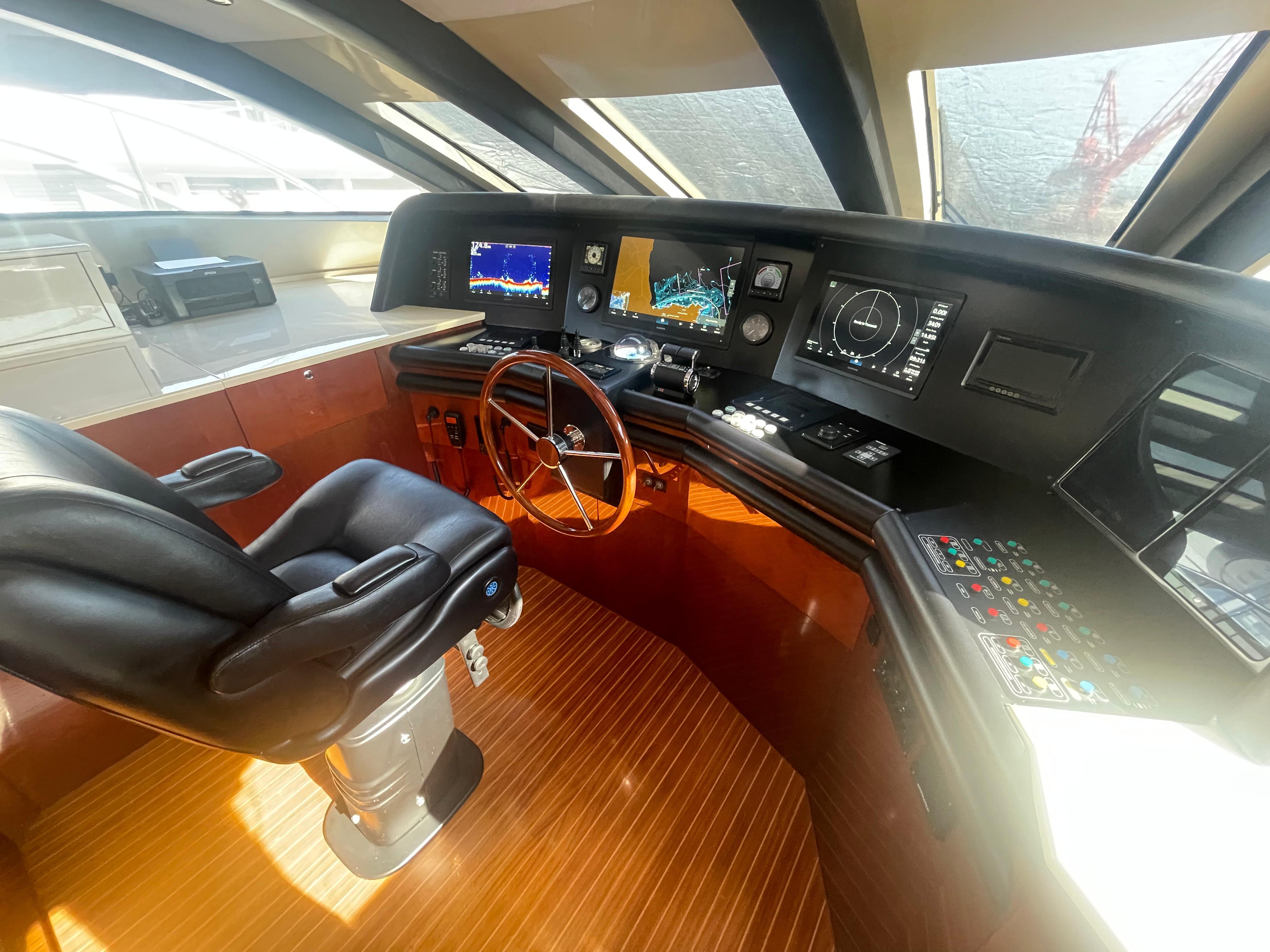

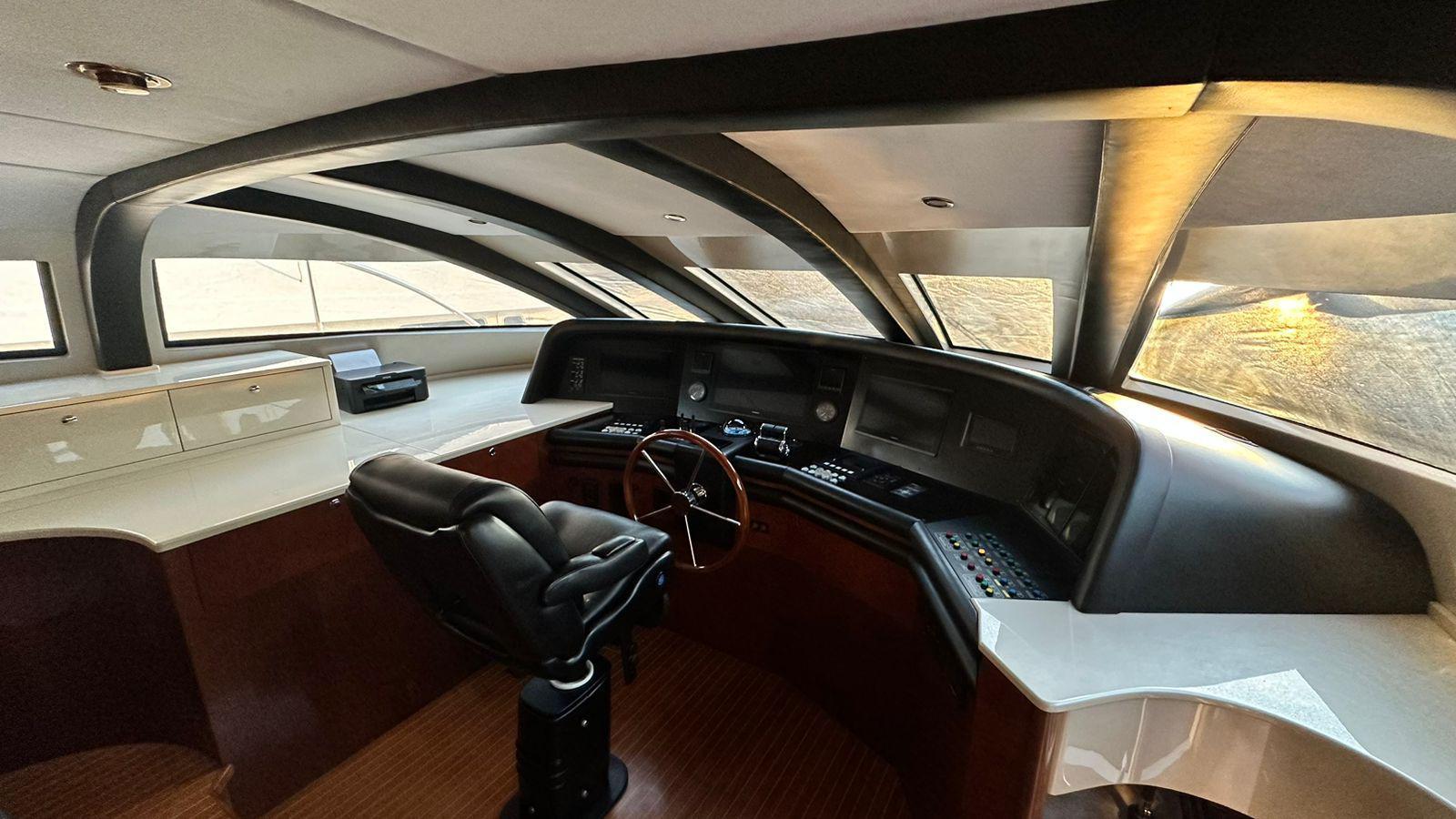

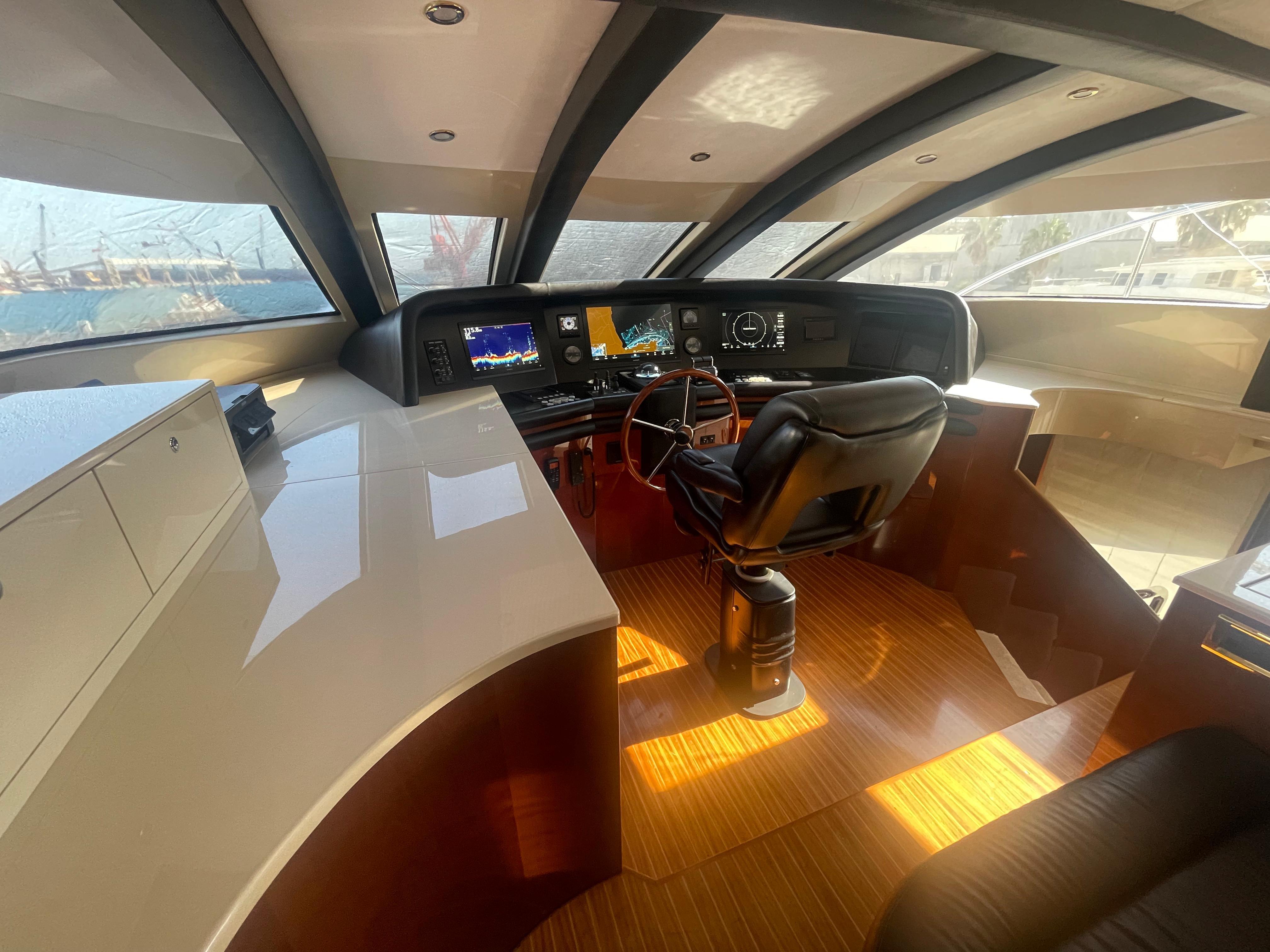

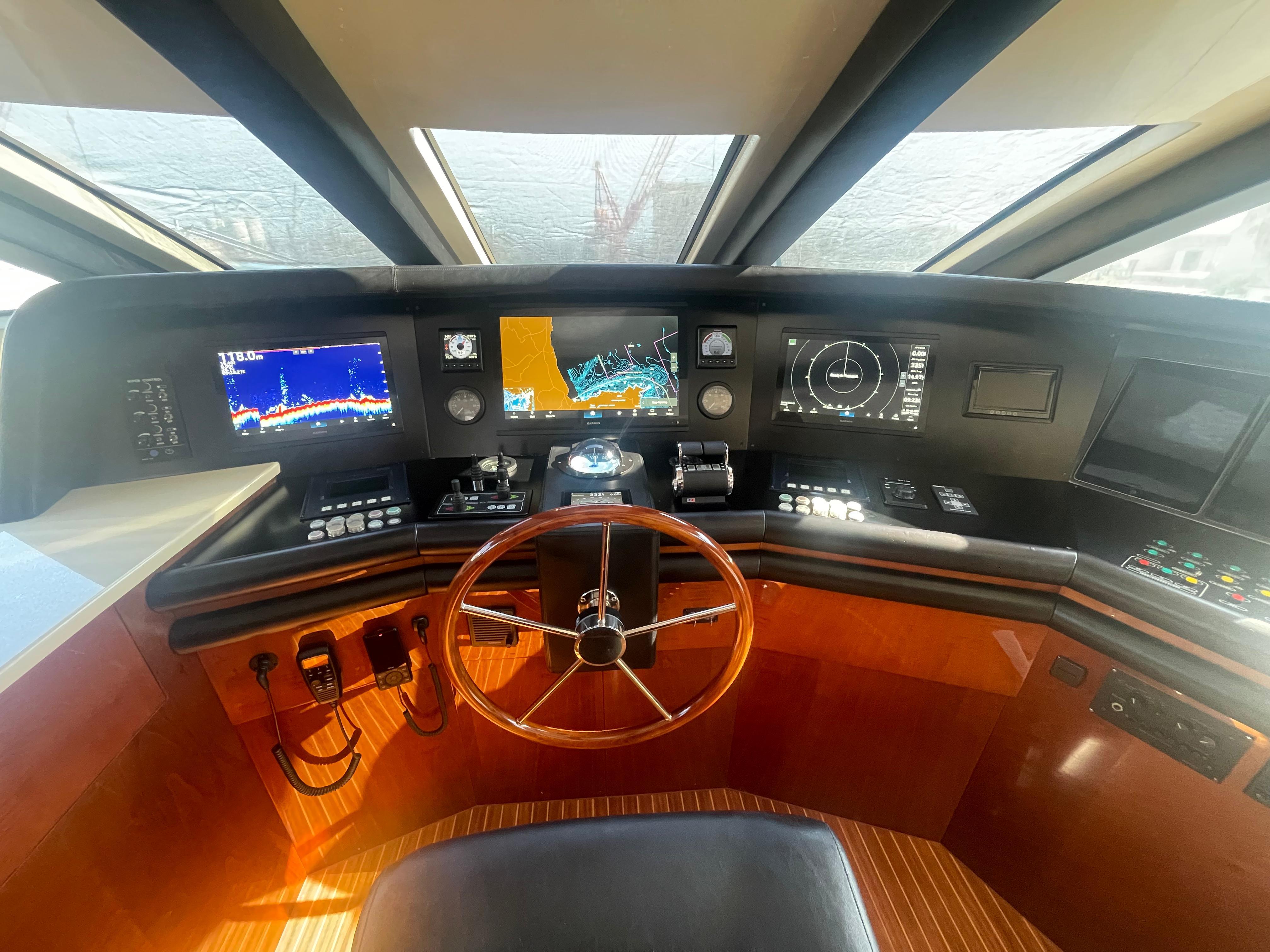

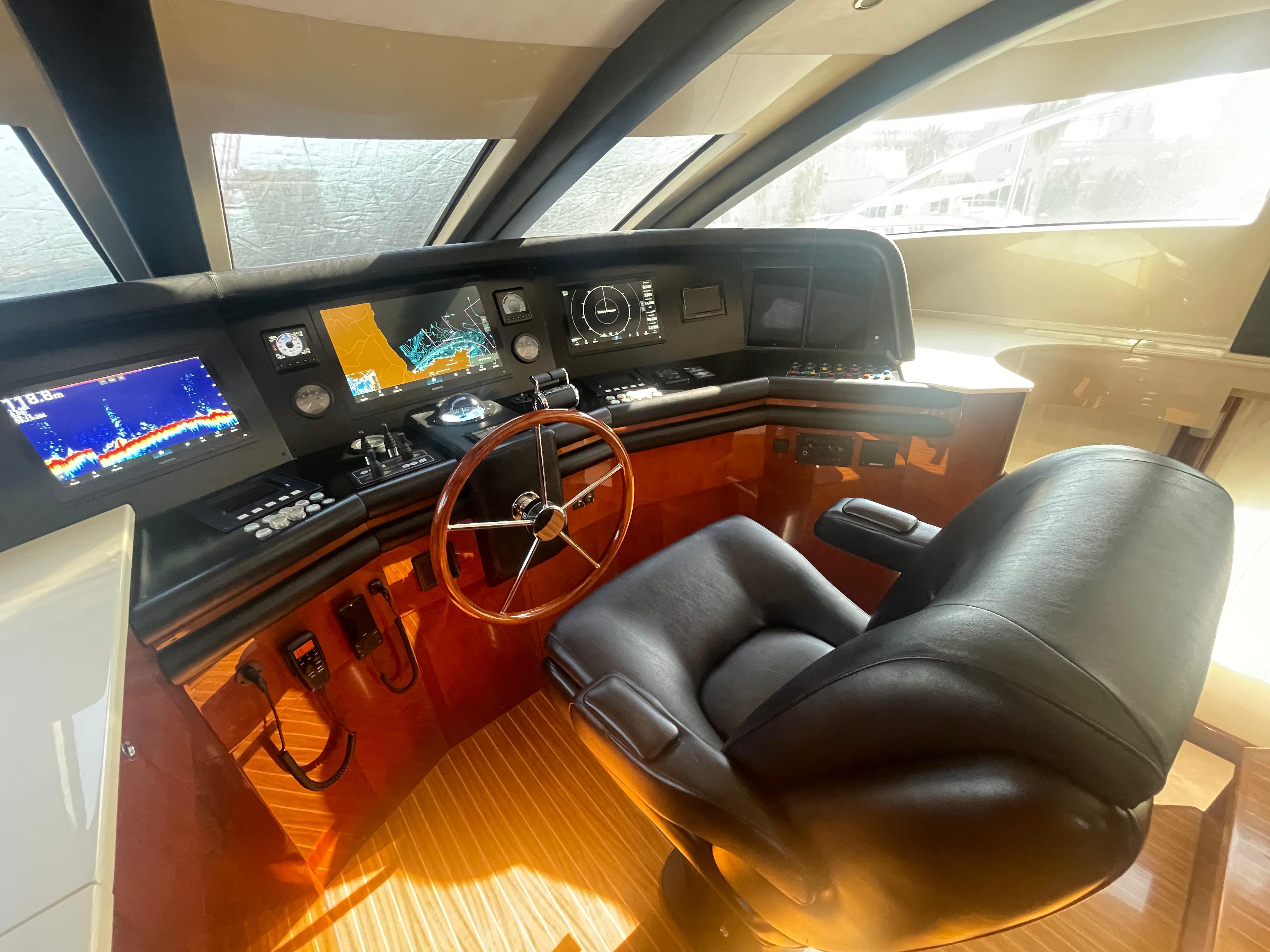

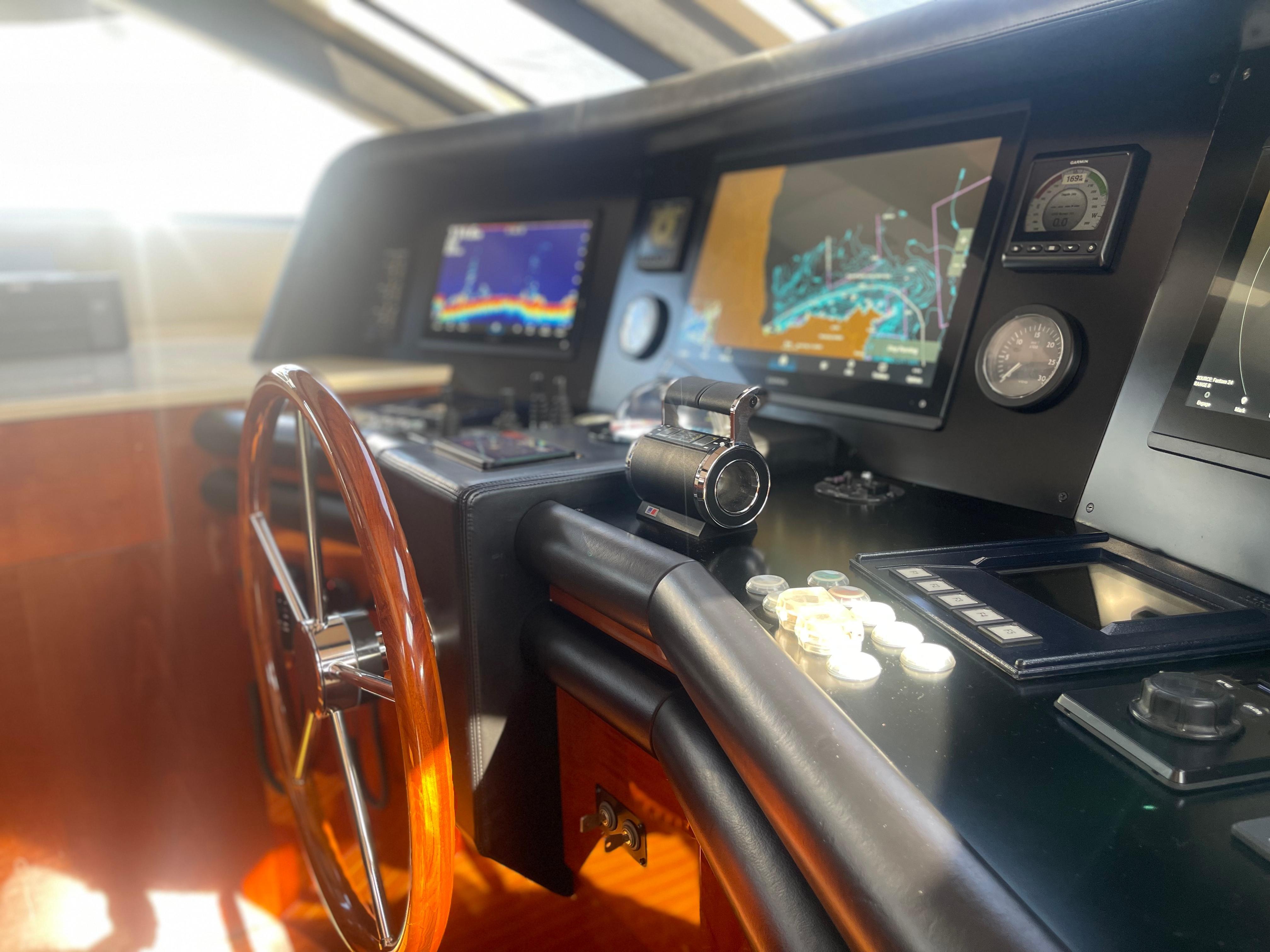

Garmin Electronics Package

The vessel is equipped with an advanced Garmin marine electronics suite, ensuring state-of-the-art navigation, communication, and vessel monitoring. All components are NMEA 2000® compatible and IPX7 waterproof rated unless otherwise noted.

Included Electronics:

•    MSC 10 (010-02407-10) – Marine Satellite Compass

•    GHC 50 (010-02731-00) – 5” Touchscreen Autopilot Control Display

•    Reactor 40 (010-02794-02) – Autopilot System with CCU, ECU, GHC 50,

•    Cortex V1 (010-02814-20) – VHF Radio with SmartAIS, GPS, Handset, Sensors

•    Cortex H1 (010-02816-00) – Tethered VHF Handset with Cradle

•    GMS 10 (010-00351-00) – 5-Port Marine Network Expander

•    GSD 24 (010-00957-00) – Sonar Sounder Module, 50 kHz

•    GMI 20 (010-01140-00) – 4” Color Multifunction Displays (3 Units)

•    gWind Standard (010-01227-00) – Masthead Wind Transducer System

•    GHS 11 (010-01759-00) – Wired VHF Handset with LCD Display

•    GRID 20 (010-02011-01) – Remote Joystick Control for Garmin Chart-plotters

•    VHF 315 (010-02047-00) – Class D DSC Marine Radio with GHS 11 Handset

•    GPSMAP 8612 (010-02092-50) – 12” Touchscreen Chart-plotter

•    GPSMAP 8616 (010-02093-50) – 16” Touchscreen Chart-plotters (2 Units)

•    GC 200 (010-02164-00) – Marine Surveillance Camera with IR Night Vision (7 Units)

•    GPS 24xd (010-02316-10) – Multi-GNSS Positioning Antennas (2 Units)

•    AIRMAR B164 (010-11010-20) – Thru-Hull Transducer, 50/200 kHz, Bronze

•    NMEA 2000® Cables & Connectors – Includes drop cables, T-connectors, terminators.

•    GRF 10 (010-11829-00) – Autopilot Rudder Feedback Sensor

•    GRF 10 Extension Cable (010-11829-02) – 49’ Extension Cable for GRF 10

•    GXM 53 Cable (010-12527-00) – Power/Data/Audio Cable for Weather Receiver

Lopolight Navigation Lighting Package

This vessel is equipped with Lopolight LED navigation lights, engineered and manufactured in Denmark to meet the highest marine standards. All lights are black anodized for a sleek appearance and built for rugged reliability in harsh marine environments.

Included Lights:

•    300-036 + 200-012G2-B – 5nm Masthead Light + 2nm 360° White All-Round Light – Black Anodized Combined unit for masthead and anchor lighting.

•    301-005-B – 2nm Stern Light – Black Anodized Horizontally mounted.

•    301-009-B – 2nm Port Light – Black Anodized Horizontally mounted.

•    301-008-B – 2nm Starboard Light – Black Anodized Horizontally mounted.

CEM Fresh water System

A high-capacity double pump water pressure system is installed onboard, designed for reliability and consistent freshwater delivery throughout the vessel. The unit is built to marine standards and engineered in Italy for long-lasting performance, made in Italy.

•    GDE-MG/2 – Double Water Pressure System

    Delivery: Max. 90 + 90 liters per minute Pressure: Max. 5 bar

    Includes Electronic Pressure Control (EPC)

Tecnicomar Macerating & Disinfecting System

An advanced wastewater treatment unit from Tecnicomar is installed onboard to ensure hygienic and eco-compliant management of blackwater and grey-water. Designed and built in Italy, this system is compact, efficient, and ideal for luxury marine environments.

Installed Equipment:

•    Macerating & Disinfecting System 2.0 Capacity: 2.0 m³/day Configuration: Includes 2             stainless steel tanks

•    BCM20E Low Pressure Pump Model: 211PBBCM202061

•    AT25EM4M Macerator Pumps (Qty: 2) Model: 221PMAT0252061

•    Level Probe Control Box (Qty: 2)Model: A24CE00000SOLV

•    Conductive Level Sensors (Qty: 2) Model: 221SO253X10000

•    Touchscreen Control Panel 7”Model: A14TS000072351

•    Remote Control Panel (CDMAR-2) Model: 012CE02015000T

    Backlit display,

•    Pump S42 BC31M (for grey-water) Model: 221PM00S422351

Climma Air Conditioning System (Air Handlers)

The onboard climate control system supplied by Climma for air handlers and Dometic/Condaria for chillers, engineered specifically for marine environments. It includes high-performance fan coil units and digital control interfaces for efficient cooling and optimal comfort.

Installed Equipment:

    •    FAN COIL EVA 24 SLIM DRY PAN with Valve (Qty: 2) Model: NRMEVA24SJV

    •    FAN COIL EVA 17 DRY PAN with Valve (Qty: 7) Model: NRMEVA17JV

    •    FAN COIL EVA 13 DRY PAN with Valve (Qty: 4) Model: NRMEVA13JV

    •    FAN COIL EV 7 DRY PAN with Valve (Qty: 4) Model: NRMEVA7JV

    •    Fan Coil Control V8 (Qty: 4) Model: NRMV8EV45

    •    Fan Coil Control V8 (Qty: 4) Model: NRMV8EV913

    •    Fan Coil Control V8 (Qty: 7) Model: NRMV8EV17

    •    Fan Coil Control V8 (Qty: 2) Model: NRMV8EV17S24S

    •    Climma C-Touch 2.4” Display (Qty: 17) Model: NRMPACT001

OceanLED Underwater Lighting and Camera

To enhance both aesthetics and situational awareness, the vessel is fitted with advanced underwater LED lighting and high-definition underwater camera systems from OceanLED (UK), a leader in marine lighting technology.

Included Equipment:

    •    OceanLED Sport S3124s Dual Color Underwater Lights

        Model: 012103BW Dual color (typically blue and white); compact and powerful                 lighting for hull illumination

    •    OceanLED Eyes HD Gen2 Underwater Cameras – NTSC with Steel Bezel

        Model: 011811 High-definition video feed for underwater visibility; durable                 marine-grade steel construction

Mastervolt Power Management System

The electrical system features a fully integrated Mastervolt solution, providing reliable power generation, battery charging, and energy monitoring for marine applications. All components are engineered in compliance with the highest safety and performance standards.

Included Equipment:

    •    MVG 12/200 Ah Gel Battery (Qty: 7) Model: 64002000

        Deep-cycle 12V gel battery for house or auxiliary power bank

    •    MV 12/225 Ah AGM Battery (Qty: 6) Model: 62002250

        High-capacity 12V AGM battery, maintenance-free

    •    ChargeMaster Plus 24/110-2 (Qty: 2) Model: 44321105

        Advanced multi-output battery charger for 24V systems (110A total)

    •    ChargeMaster Plus 12/35-3 (Qty: 3)    Model: 44310355

        Triple-output battery charger for 12V systems (35A total)

    •    EasyView 5 Display (Qty: 2) Model: 77010310

        Intuitive monitoring display for battery status and power flow

    •    Mass Charger 24/50-2 (230V) (Qty: 2) Model: 42020506

        Heavy-duty charger for 24V systems (50A output)
