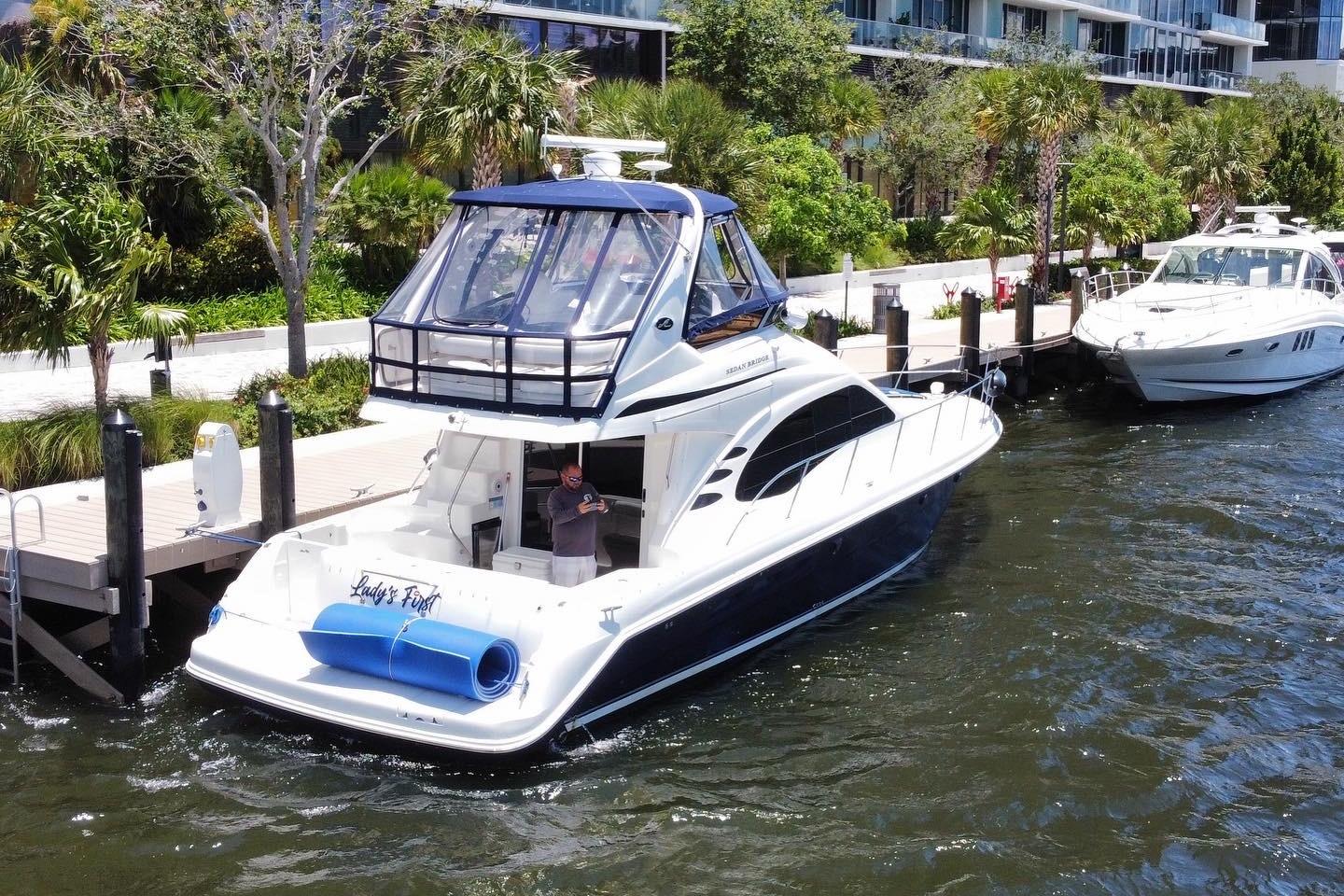

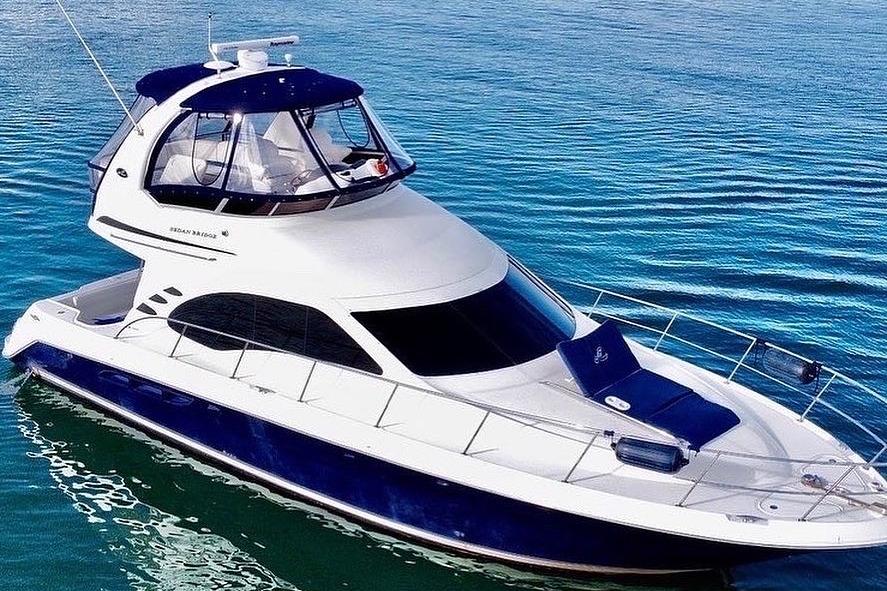

2005 Sea Ray 420 Sedan Bridge —
At-a-Glance Specs
• Overall Length (w/ std swim platform): 45’5” (13.84 m)
• Beam: 14’3” (4.27 m)
• Draft (inboards): 44” (1.12 m)
• Dry Weight: 28,500 lb (12,927 kg)
• Fuel Capacity: 350 gal (1,325
• Fresh Water: 120 gal (454 L)
• Holding Tank: 42 gal (159 L)
• Deadrise: 18°
• Hull Color Option: Navy Blue with white boot stripes.
Power & Systems

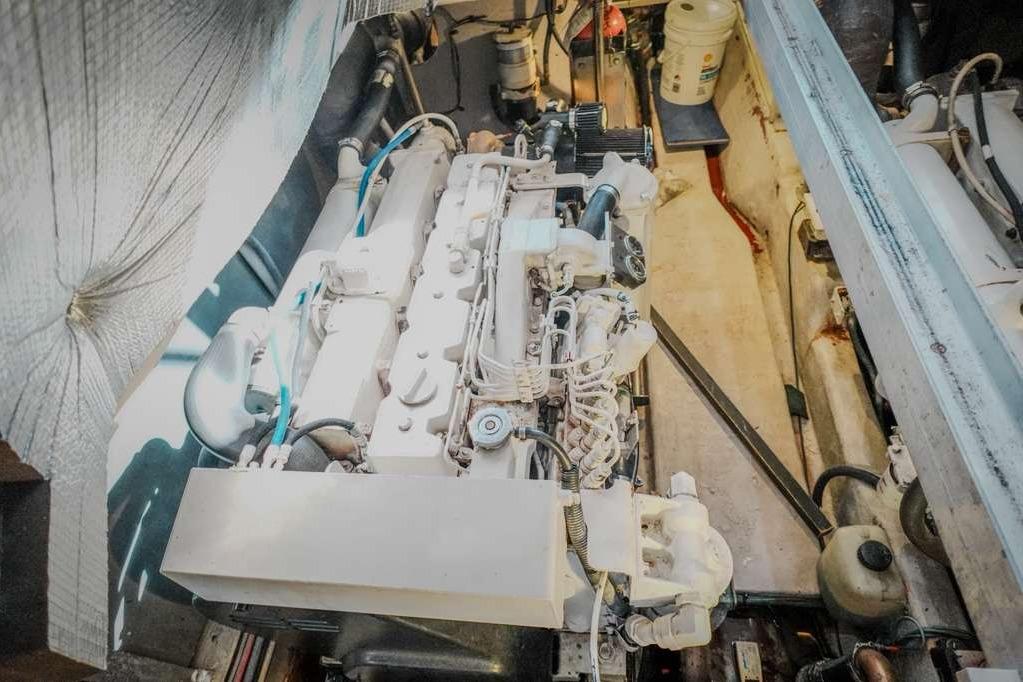

• Standard Engines: Twin Cummins MerCruiser 6CTA 8.3M diesel inboards (T-430 hp)
• instrumentation
• Generator (options):
Onan 9.0 kW diesel
• Running Gear: 2” stainless shafts, 4-blade Nibral props, dripless shaft logs (w/ extra seal carrier), manganese-bronze struts & rudders, hydraulic trim tabs
• Electrical/Plumbing Highlights: VacuFlush® heads w/ 42-gal holding tank and level indicators, dockside water inlet, seawater strainers, bonding system with zinc plate.
⸻
Areas & Features

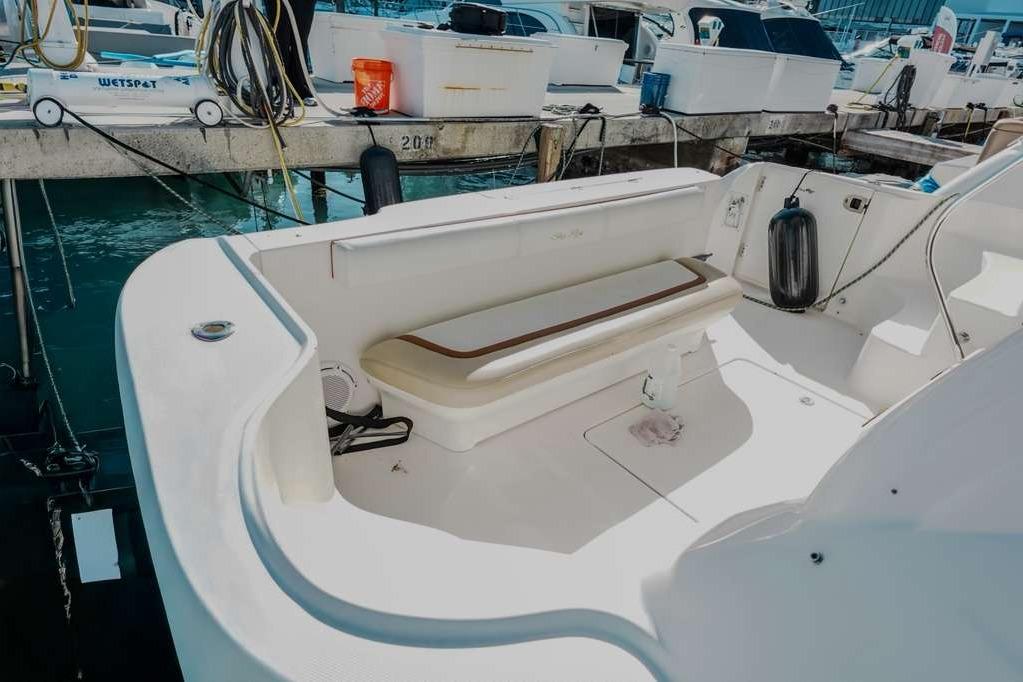

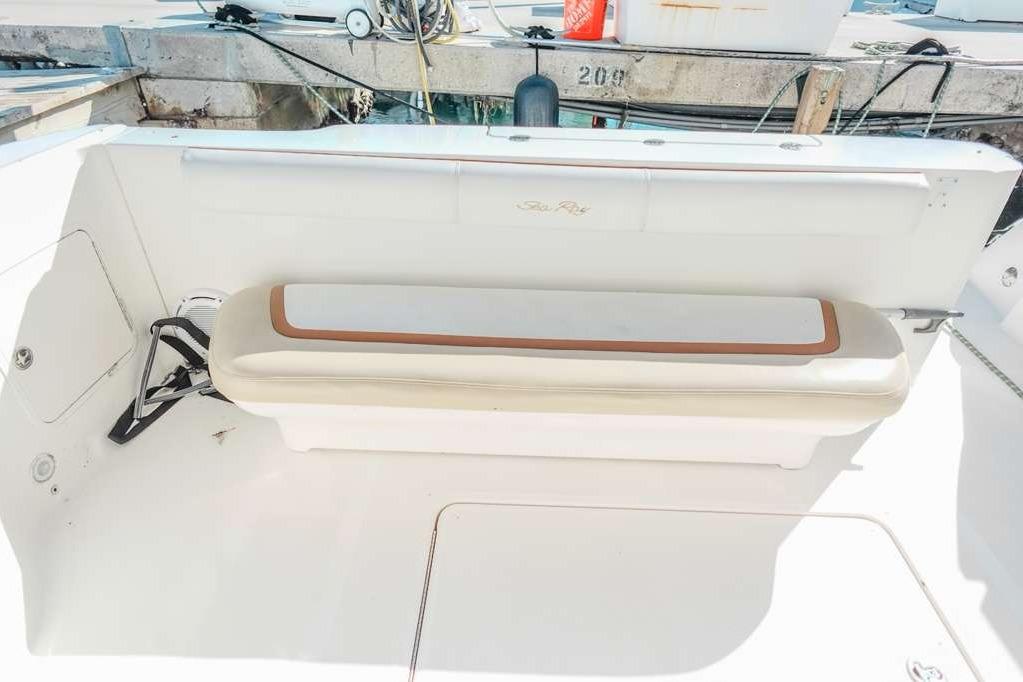

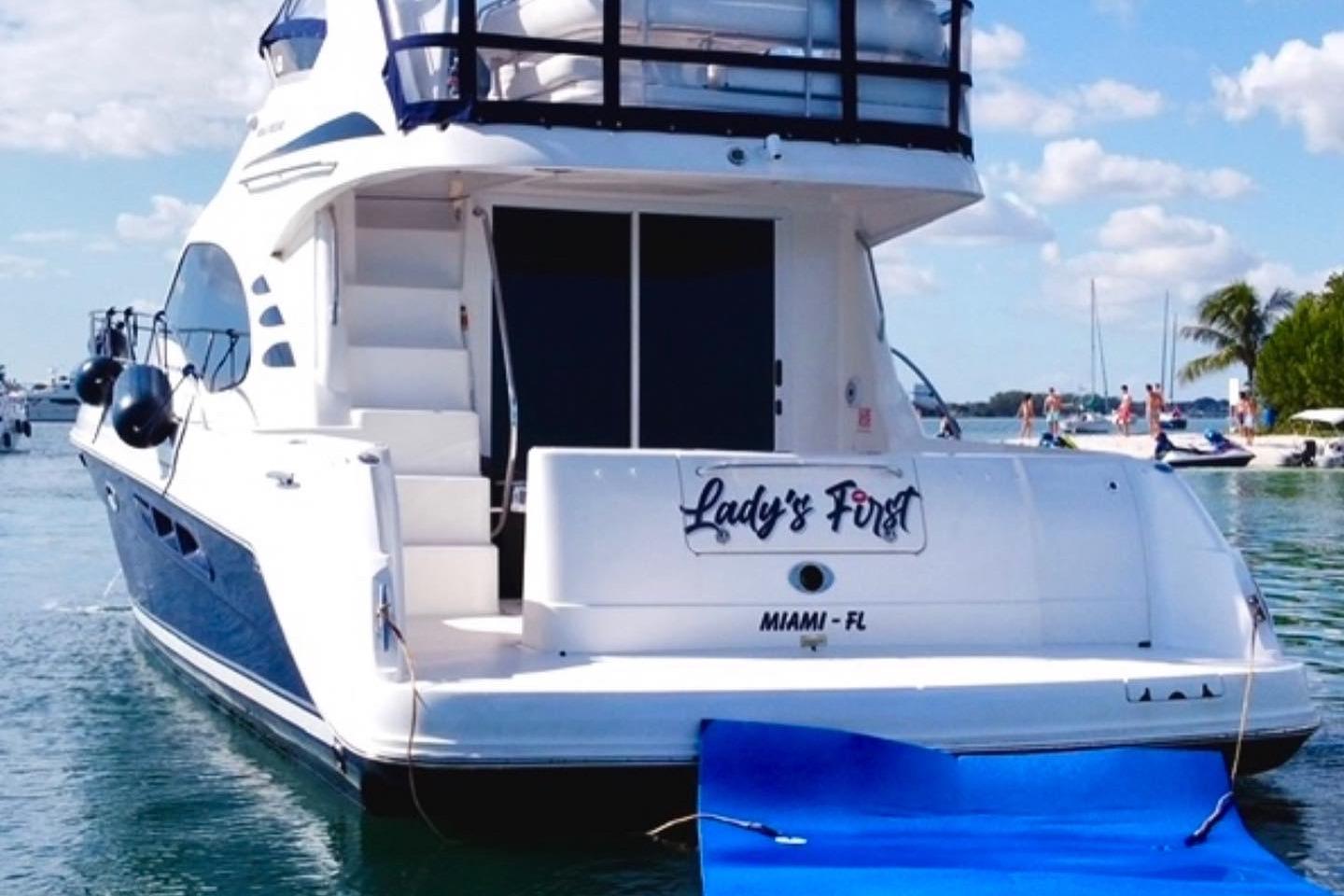

Cockpit
• Self-bailing fiberglass liner; gas-assisted engine service hatch
• Icemaker (120V) (refrigerator optional)
• Indirect lighting, GFCI outlet, molded steps to bridge, transom door
• Snap-in carpet liner; transom storage for fenders/gear
• Optional teak cockpit sole; optional cockpit table; optional removable aft bench w/ storage.

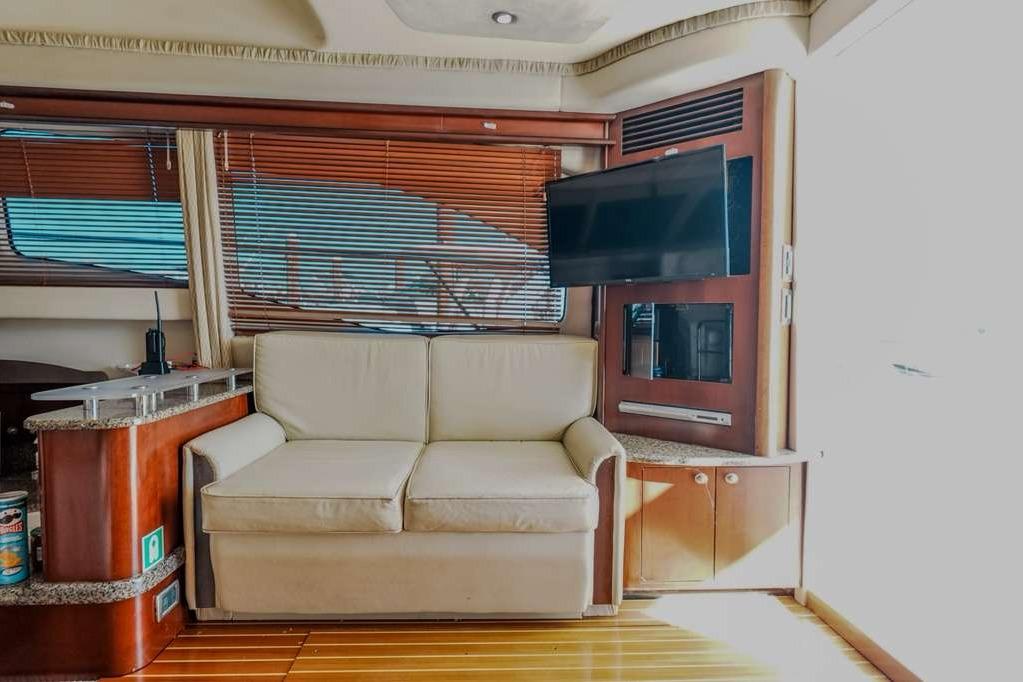

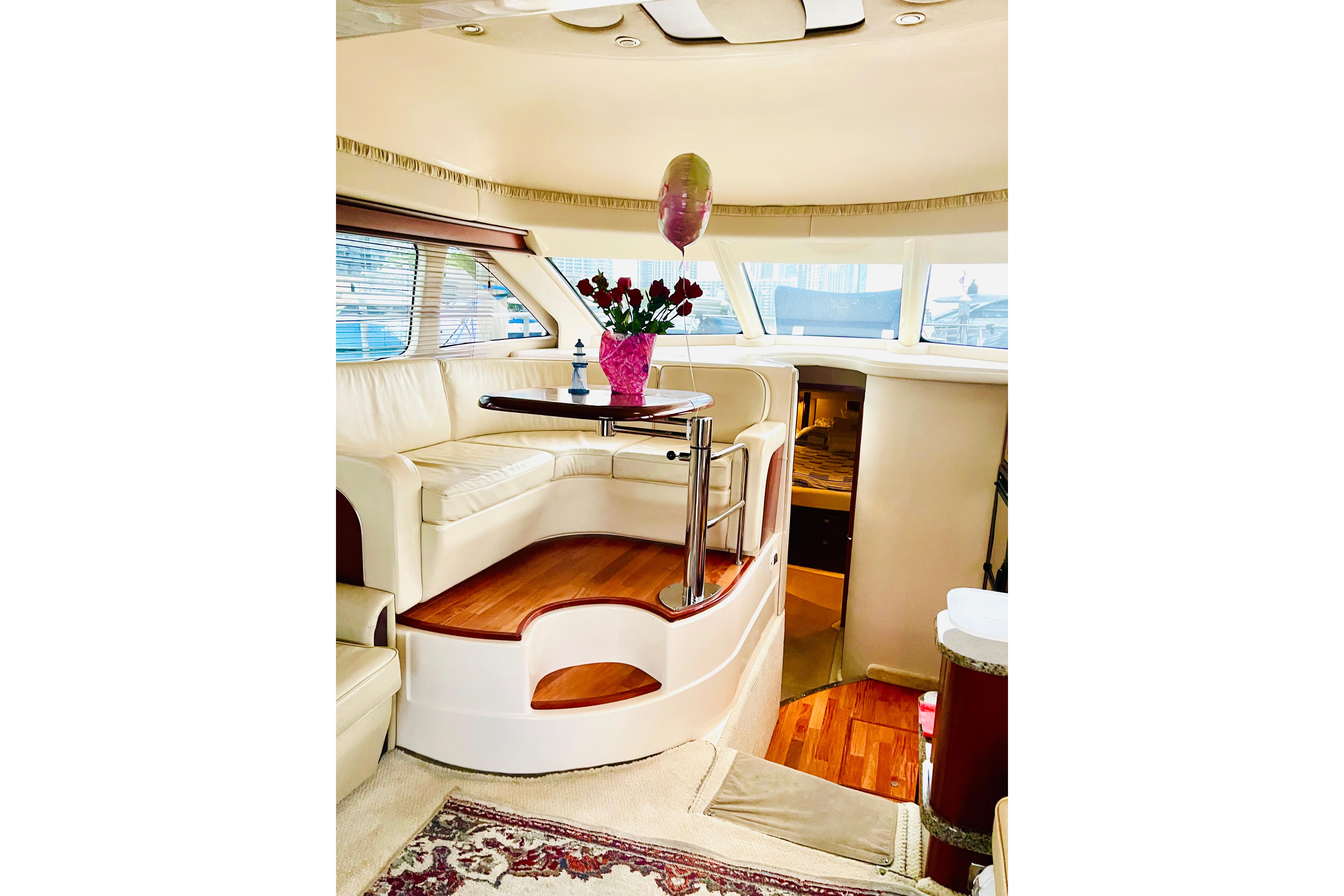

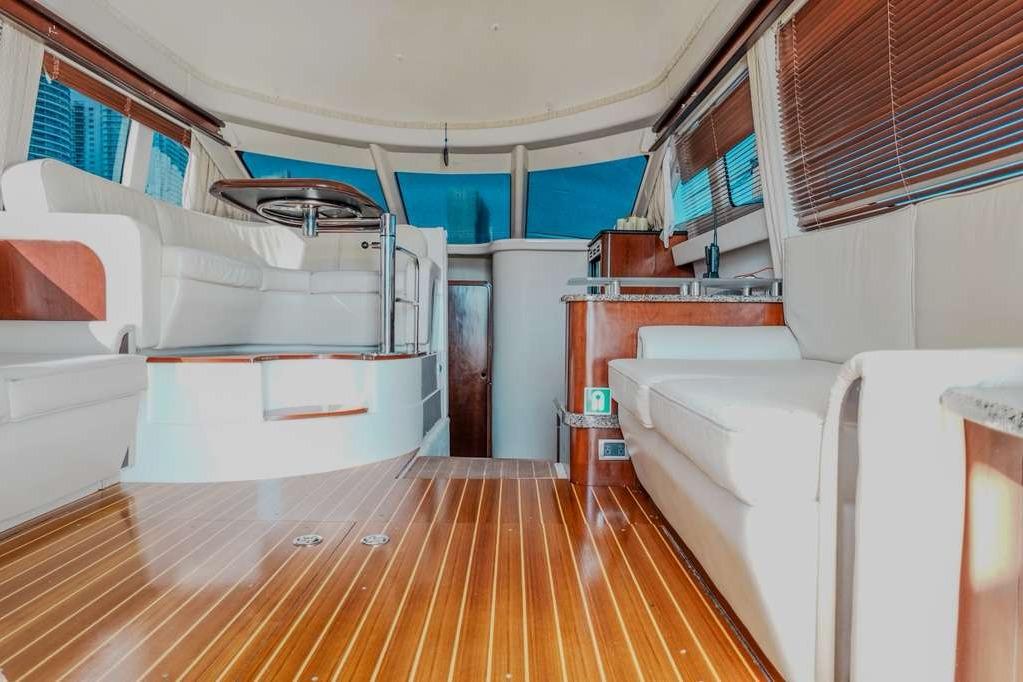

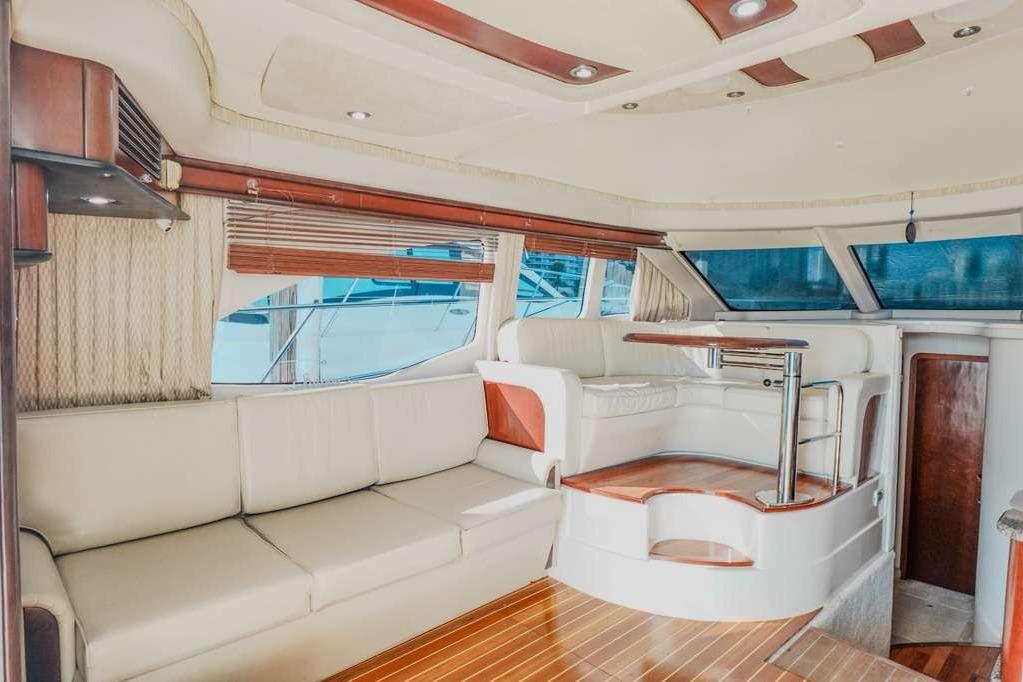

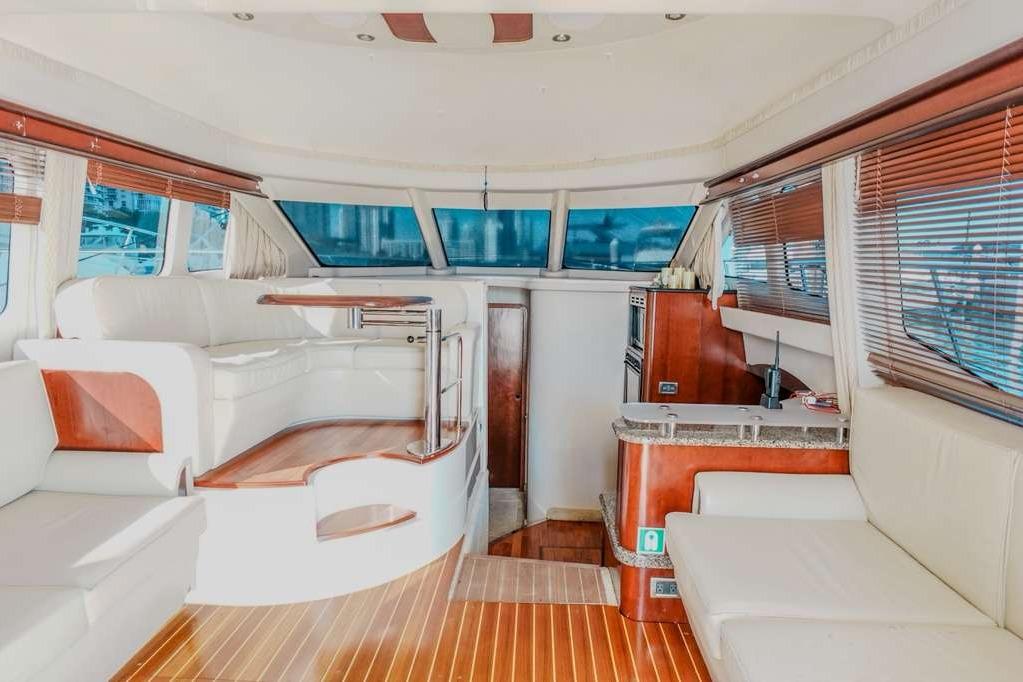

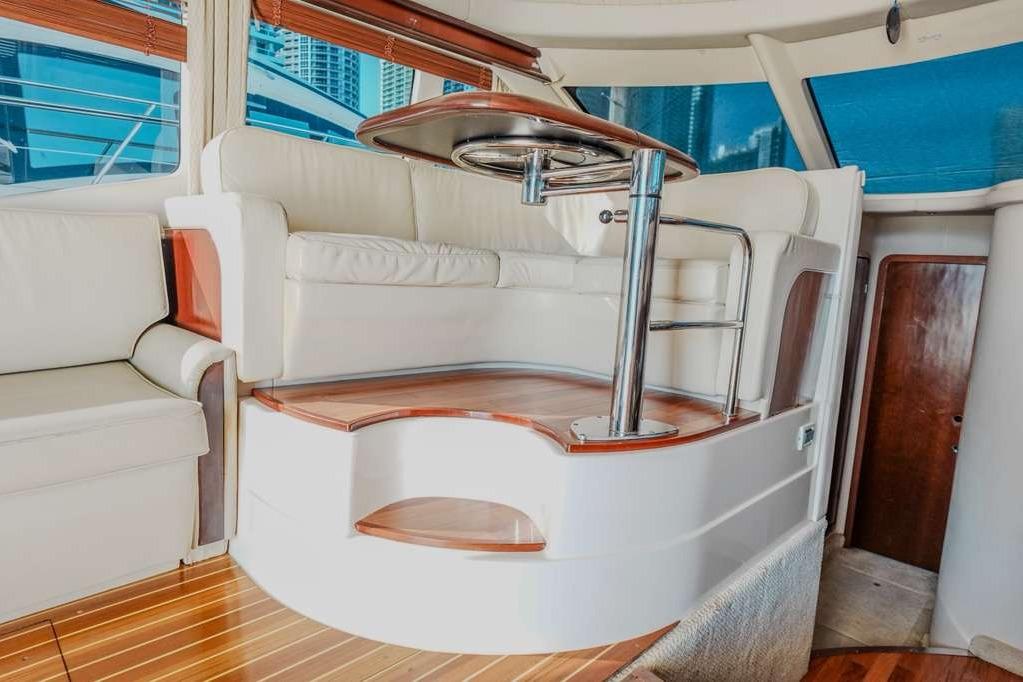

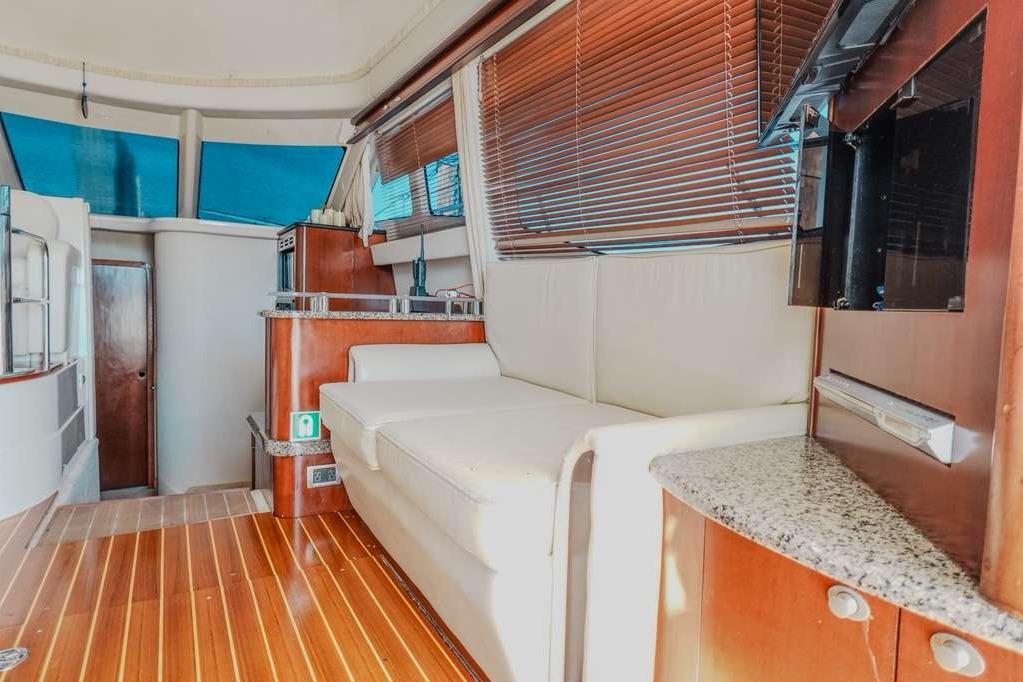

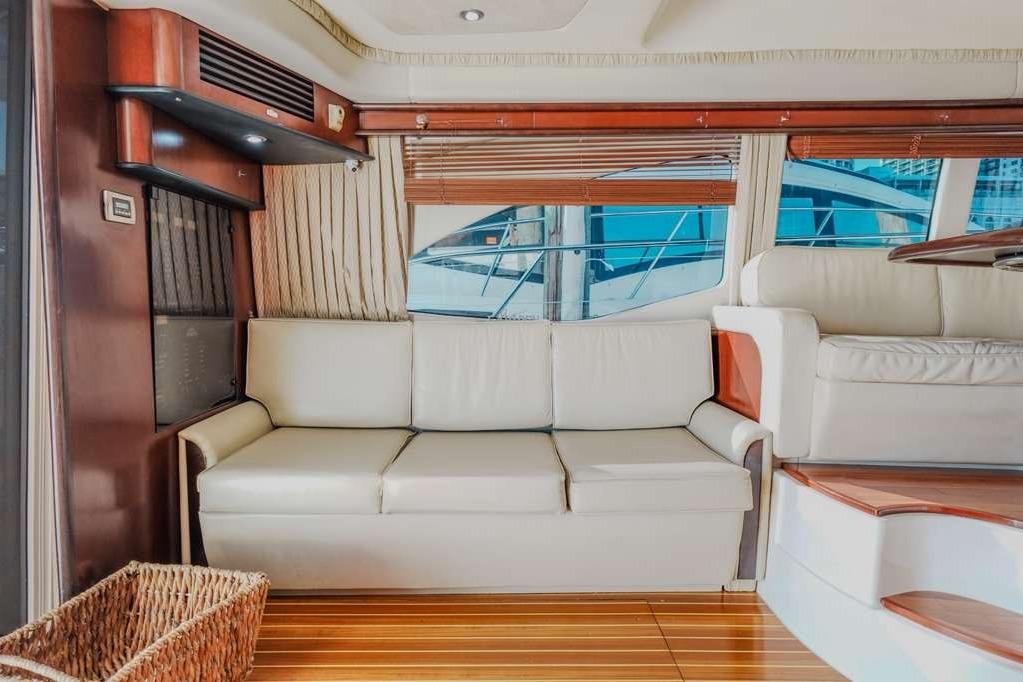

Salon
• Ultraleather HP™ seating; blossom-cherry cabinetry; wood blinds
• LCD flatscreen TV w/ DVD (standard) and Clarion® stereo (satellite-ready)
• Optional hi-lo gloss wood salon table (stools available)
• Deep-pile carpet with Sunbrella® runners; 120V GFCI outlets; carbon-monoxide monitors
• Optional sofa w/ pullout berth (port).

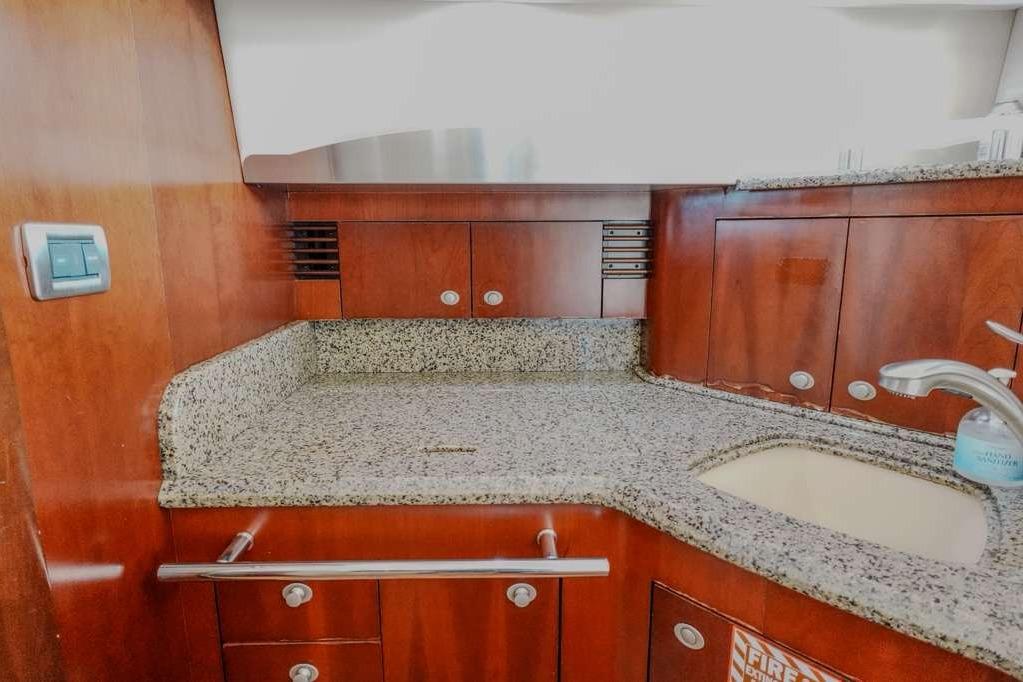

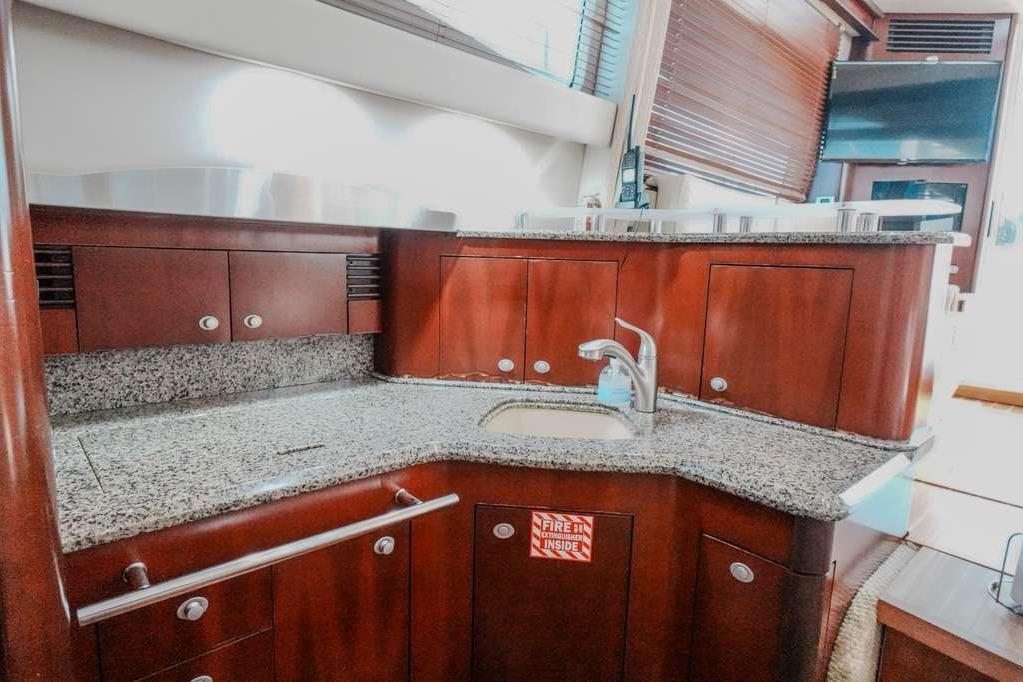

Galley (open to salon)
• Solid-surface breakfast bar, wood-finished galley, stainless handrail
• Recessed two-burner cooktop, microwave/convection oven, refrigerator/freezer, coffeemaker
• Ample drawer & locker storage, dedicated lighting.
Helm (Bridge Control Station)
• Center/forward helm with dual custom Euro-style seats (flip-up bolsters, armrests, slide/swivel, pneumatic height adjust)
• Hydraulic steering with wood-accent wheel; backlit Sea Ray instrumentation
• SmartCraft® diagnostics & System View available with 480 CE engines (fuel flow/range, temps, synch, alarms, maintenance records)
• Raymarine® VHF & GPS standard; options included C120 radar/chartplotter, autopilot, fishfinder, and Sea Ray Navigator™ II 12.1” touch PC with radar overlay.

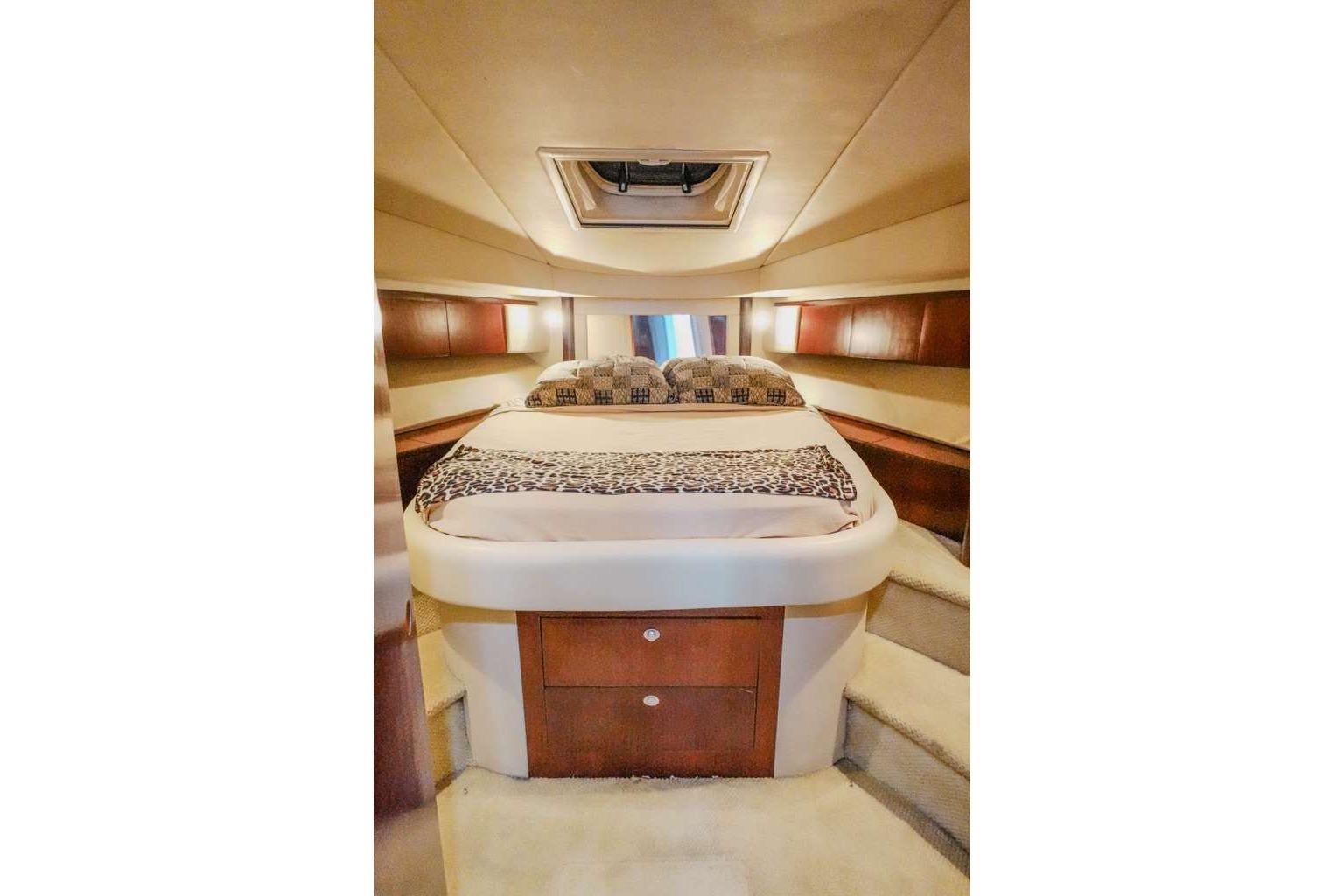

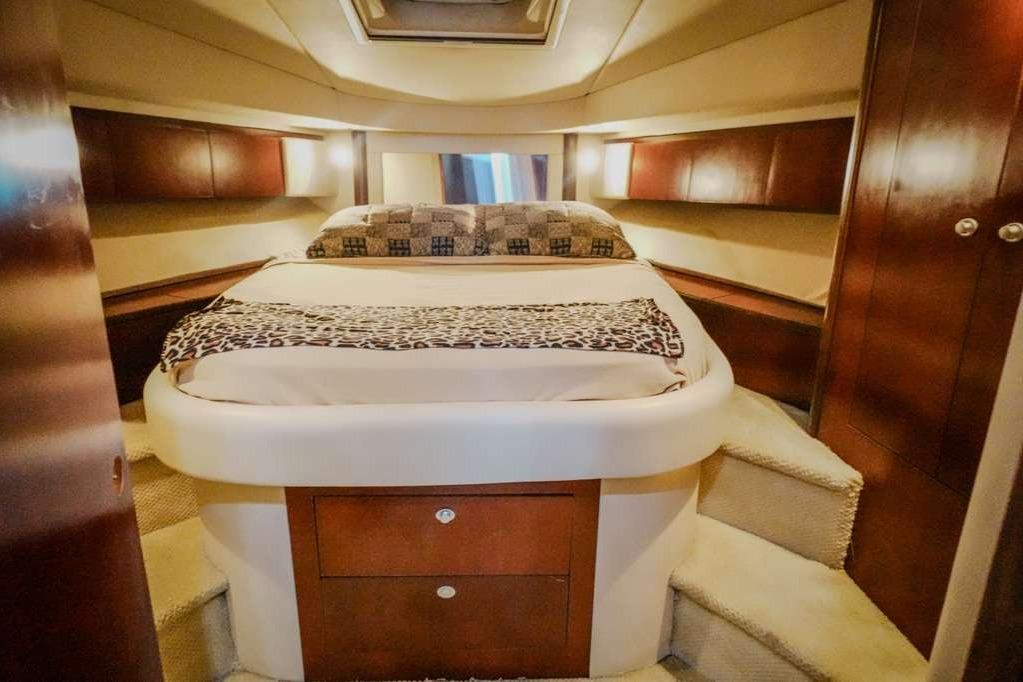

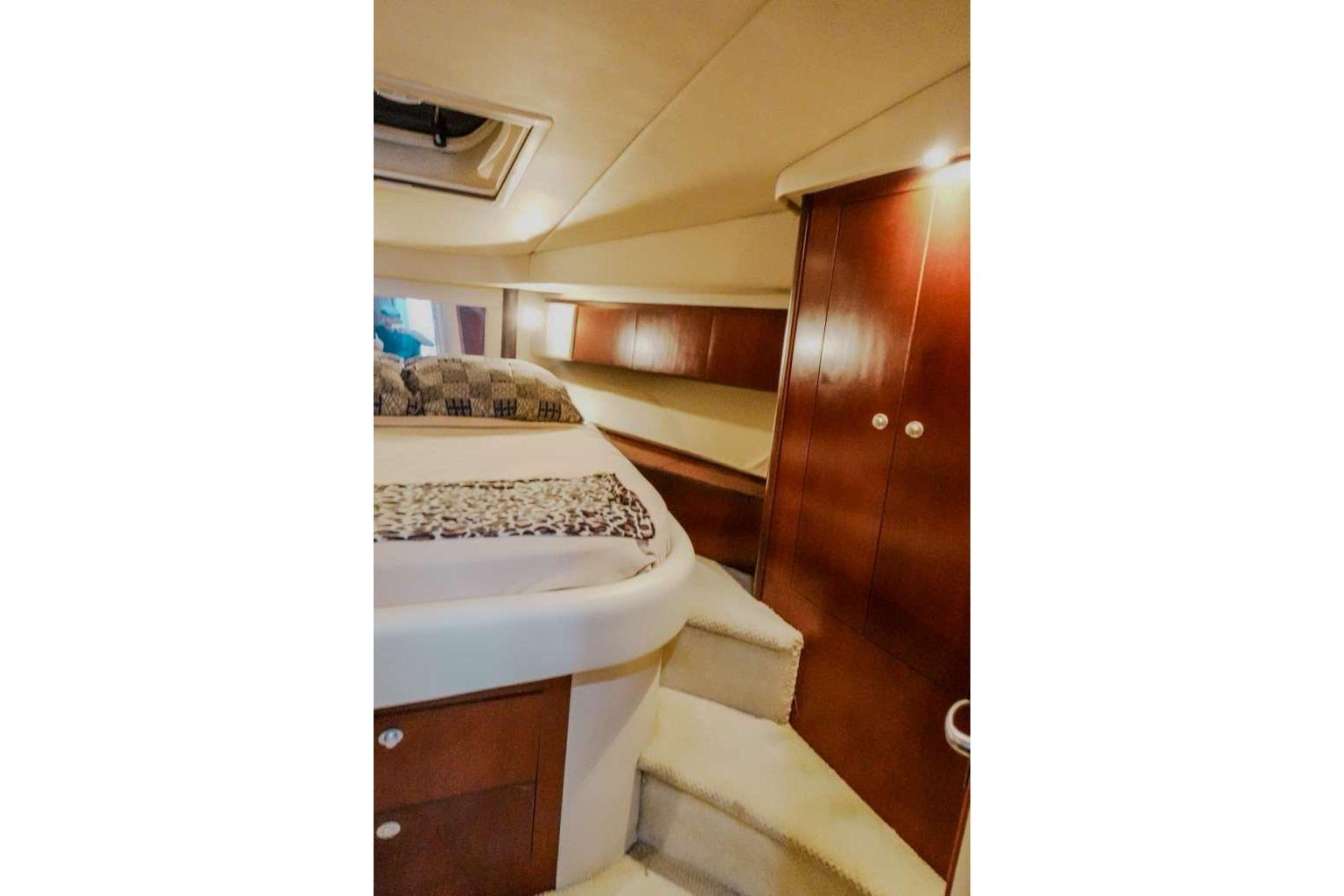

Master Stateroom (Forward)
• Full-size island berth with innerspring mattress; hanging lockers & drawer storage
• 13” TV/DVD (factory brochure), reading lights, overhead hatch with screen/shade
• Ensuite access to head (layout varies by hull).
VIP Stateroom (Port)
• Twin berths convertible to king with filler cushions
• Hanging locker, storage, reading lights; adjacent/day head access.

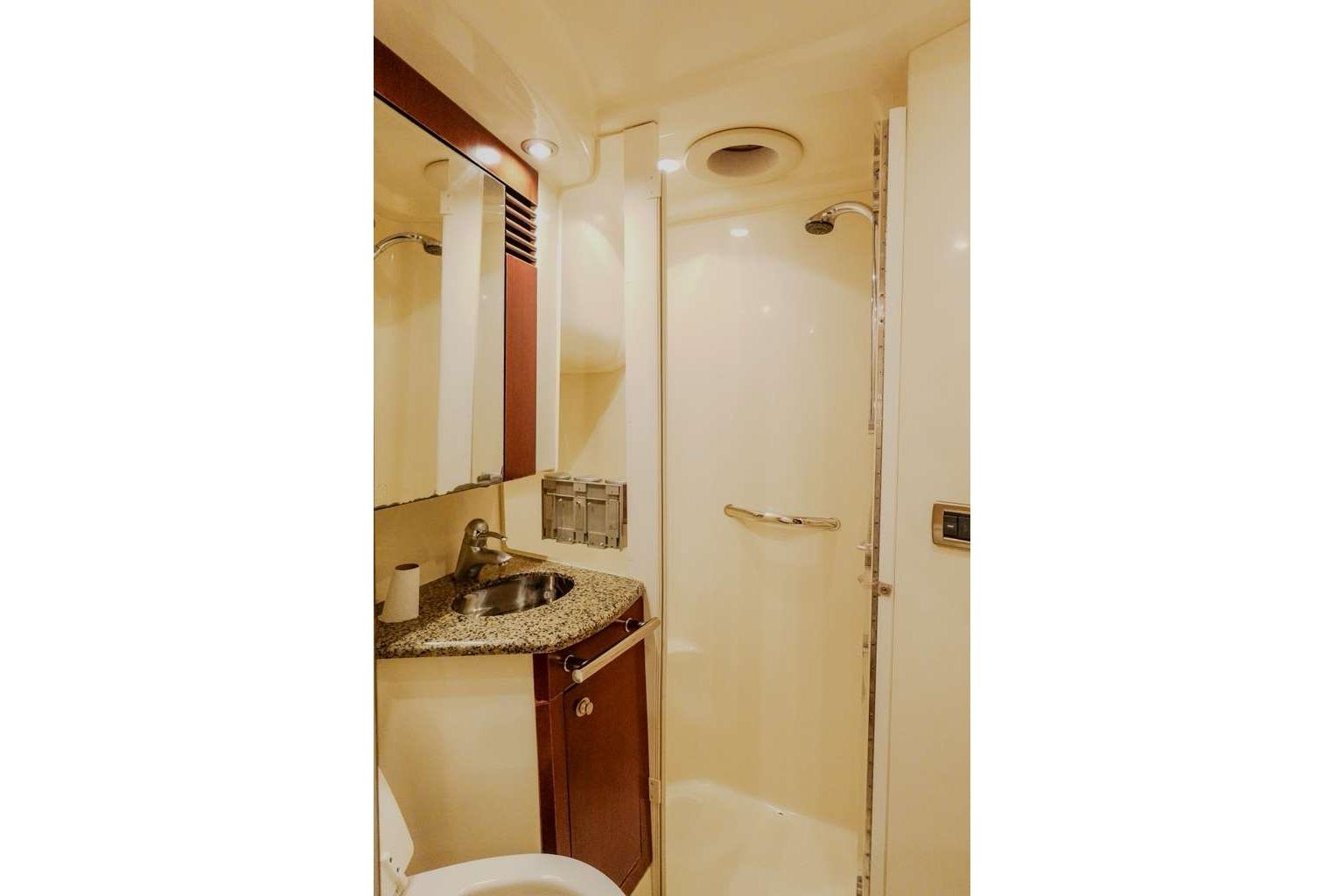

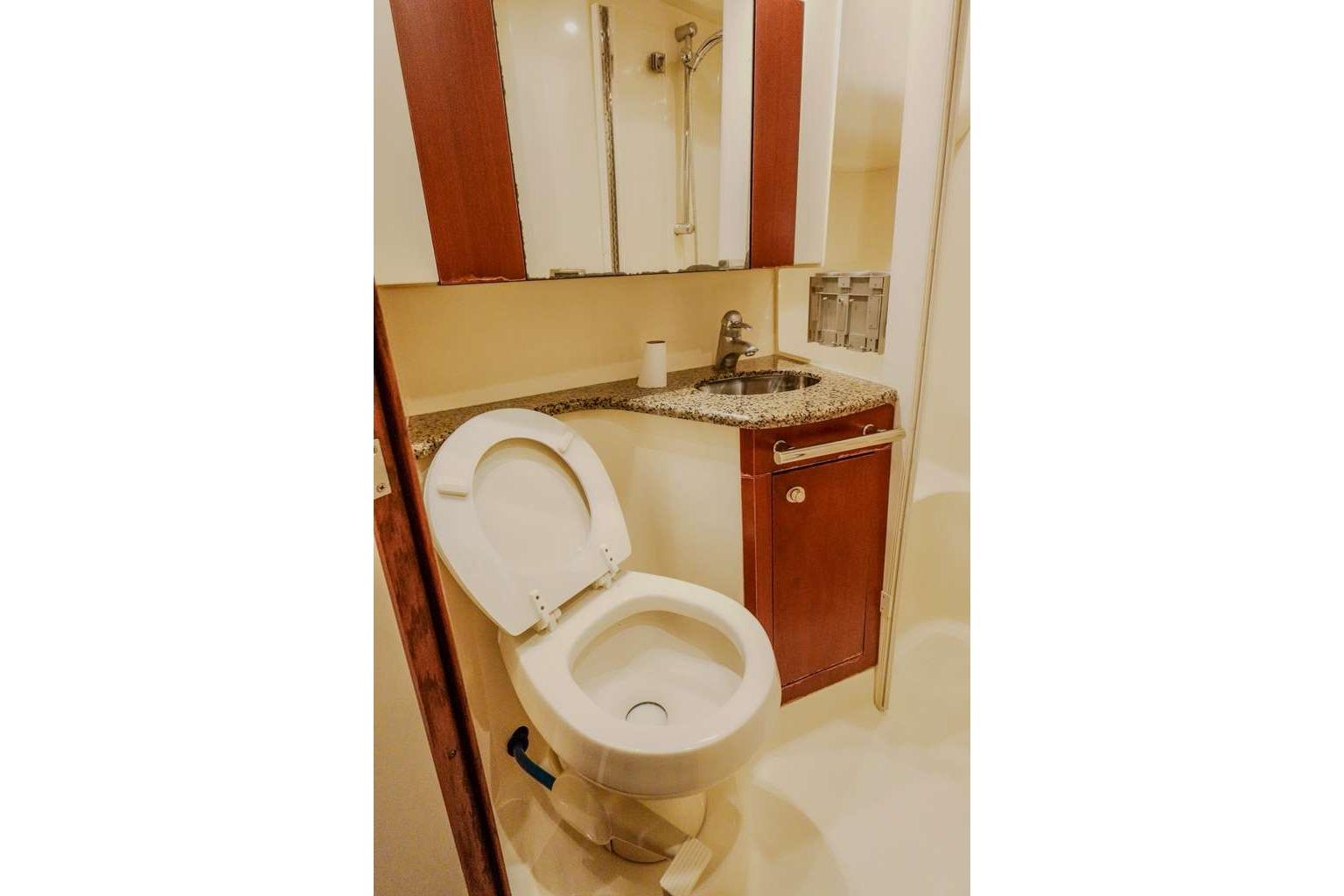

Heads (Master & Guest)
• VacuFlush® toilets, molded fiberglass shower areas, solid-surface counters, mirrored medicine cabinets, storage, opening portlights; sump box w/ automatic pump.

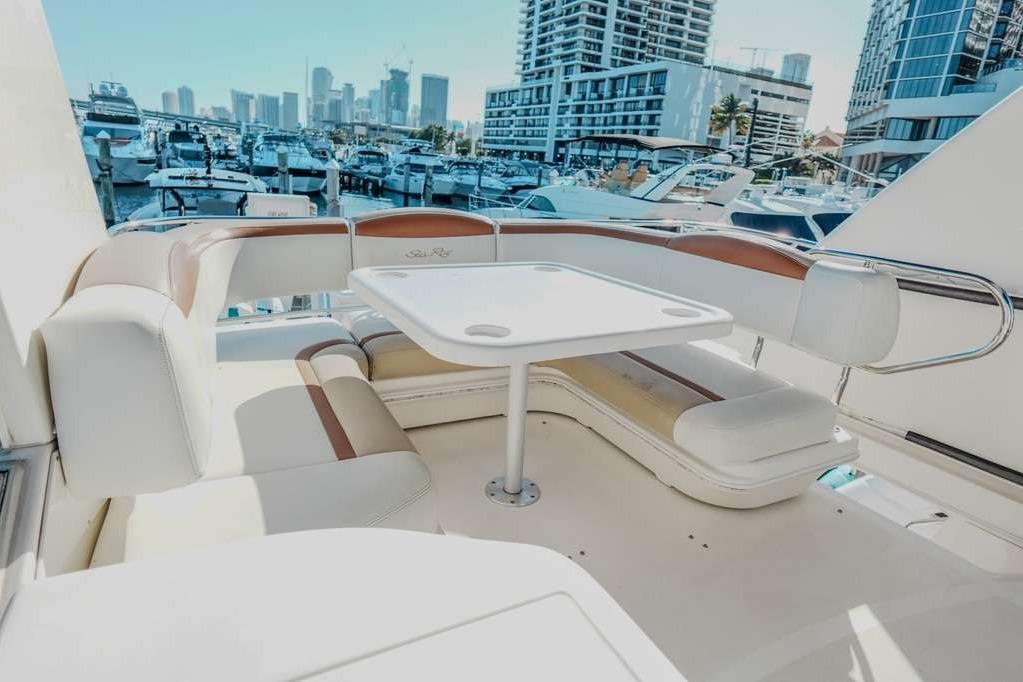

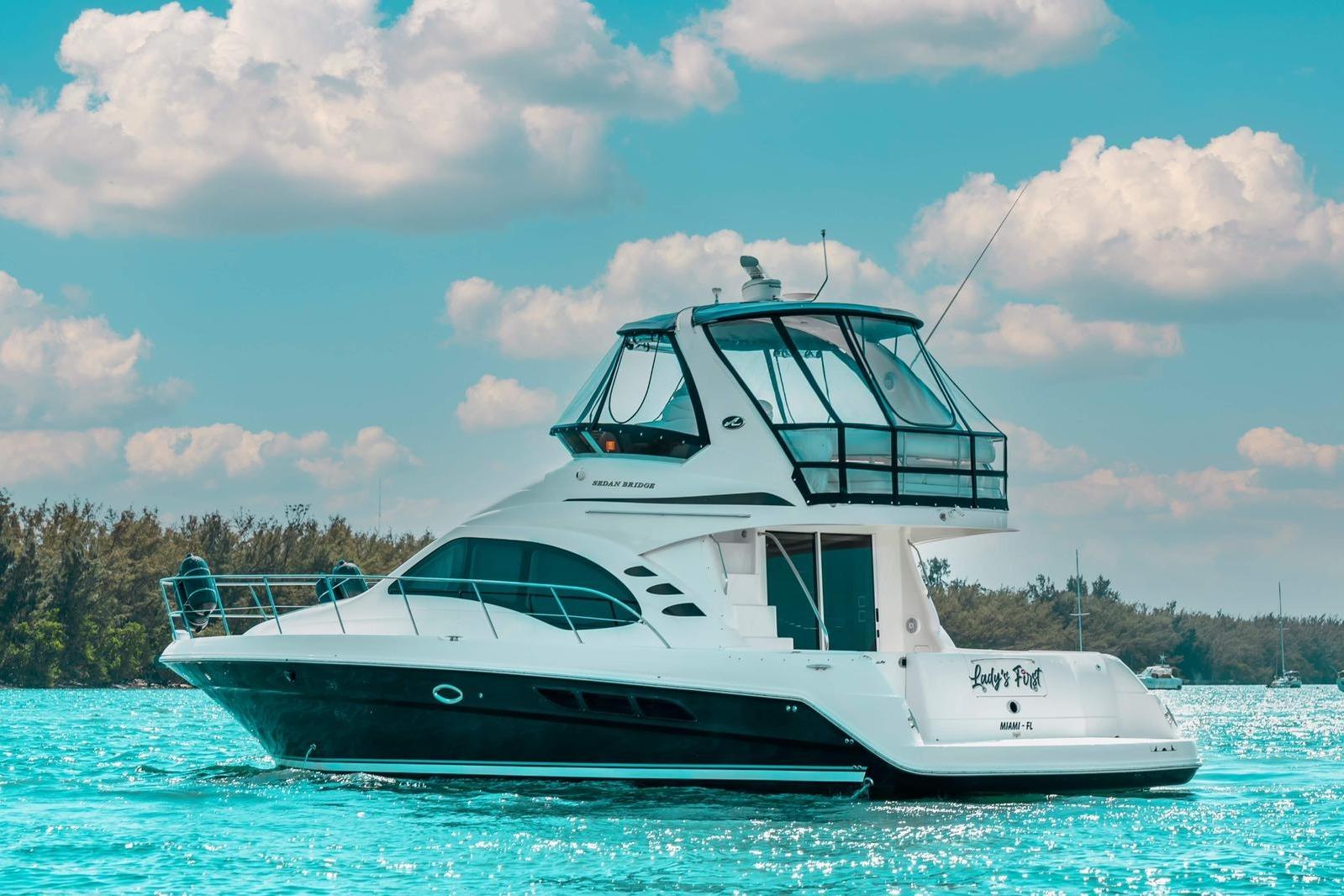

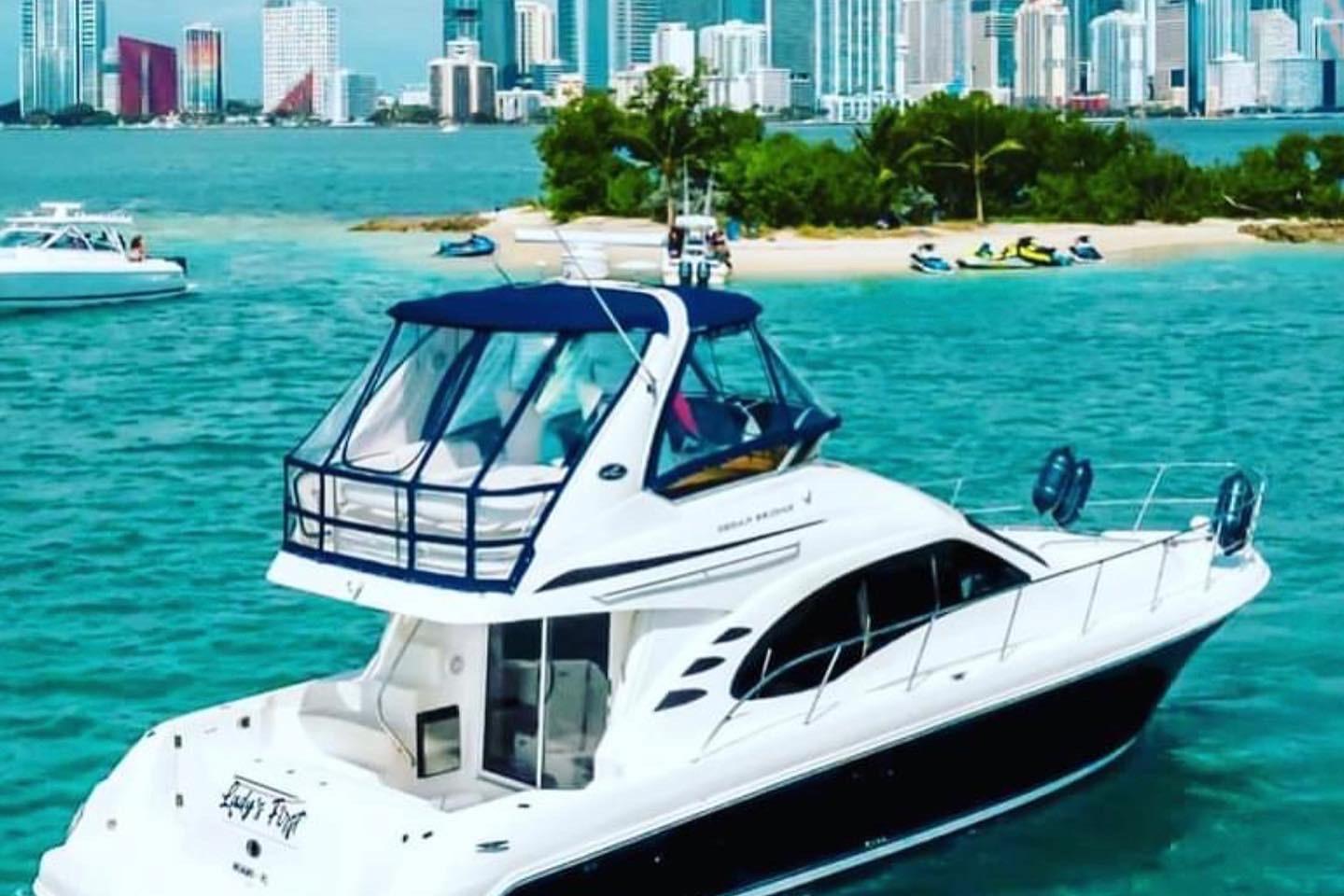

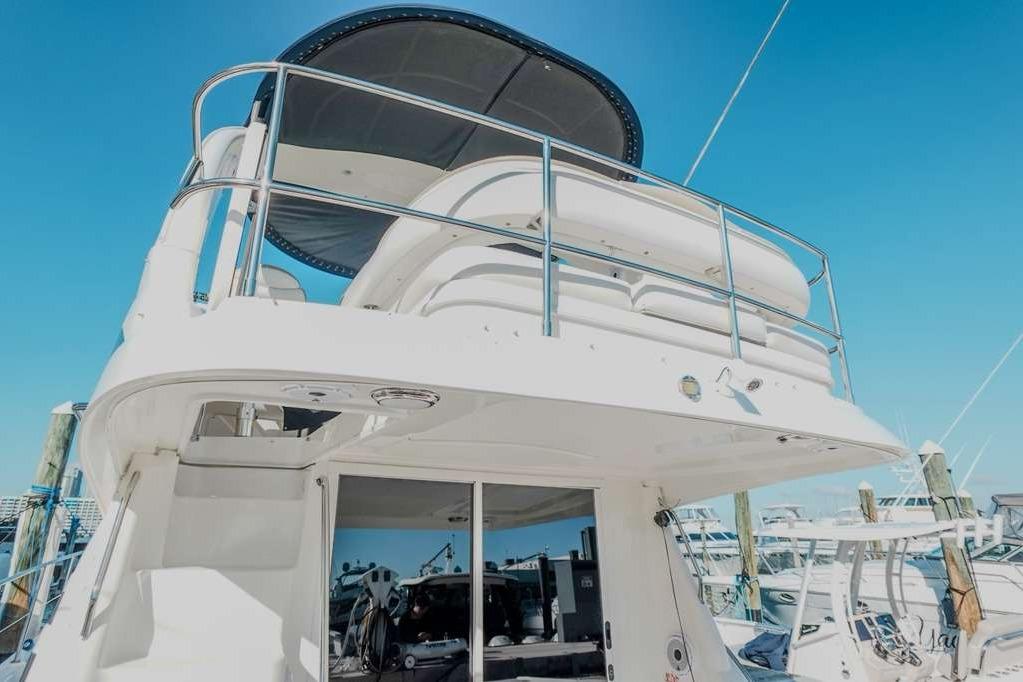

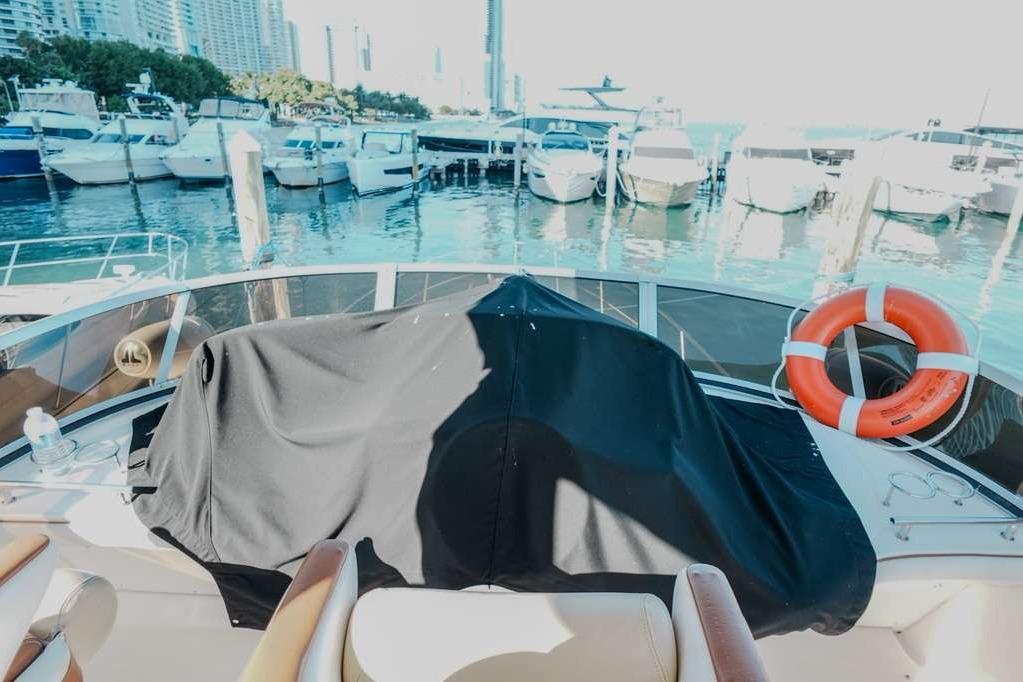

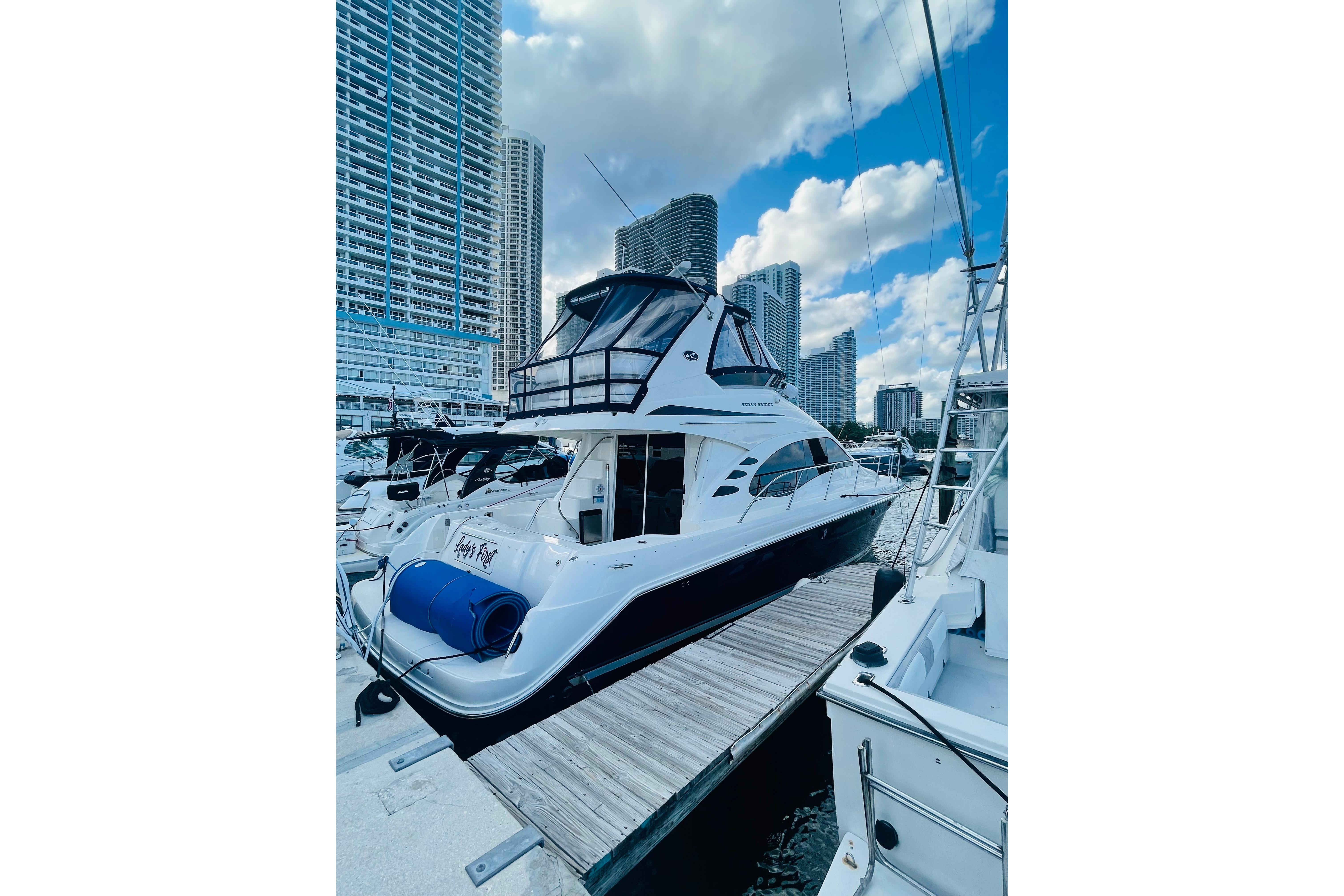

Flybridge
• Molded staircase from cockpit with stainless handrail
• U-shaped aft lounge with bridge table (sun-pad filler option)
• Sport spoiler with overhead lighting; full enclosure (Sunbrella®) options: soft top, bridge enclosure, covers
• Beverage holders, snap-in carpet, 12V accessory outlet, storage cabinet.
Bow
• 316 stainless bow rail with life lines; molded toe rail
• Windlass (Lofrans® Project 1000 rope/chain; all-chain option) with foot switches, stainless anchor chute, anchor washdown spigot, rope/chain lockers under hatches.

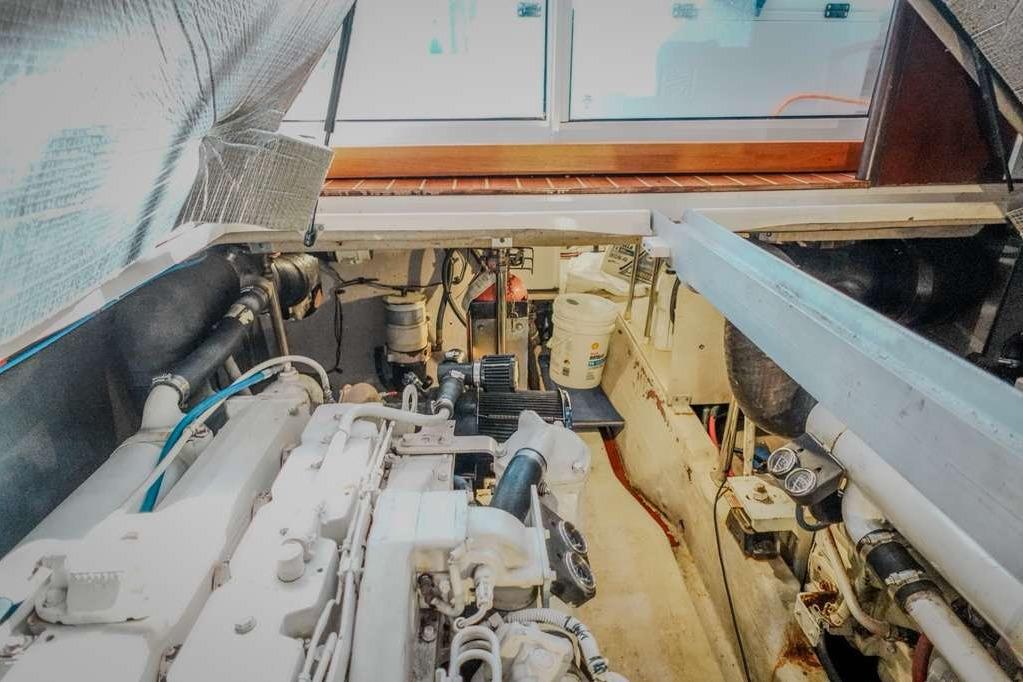

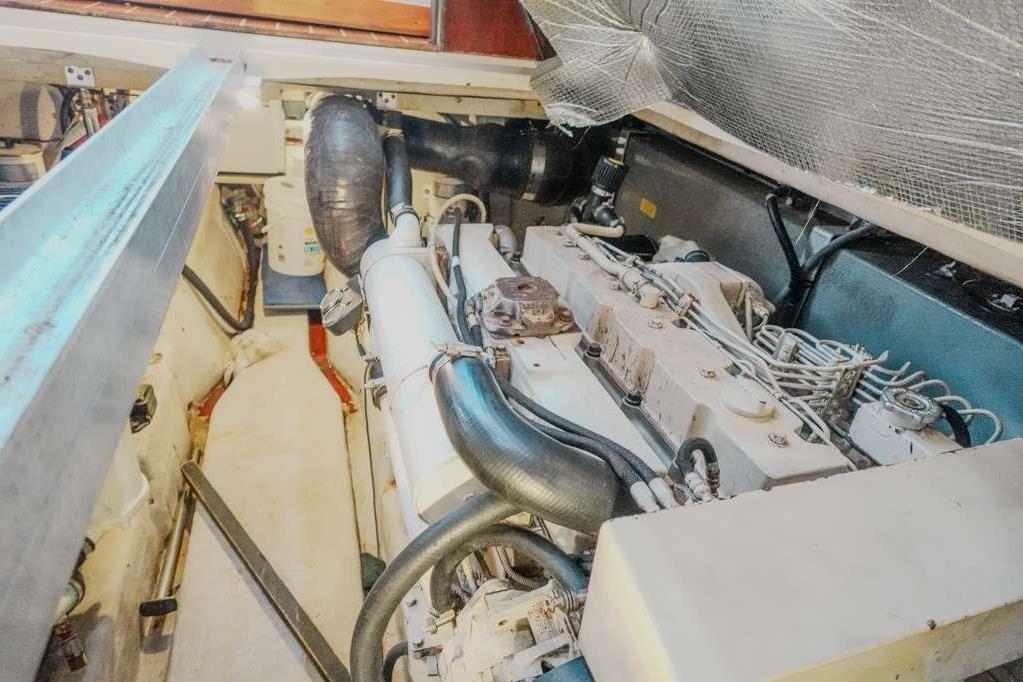

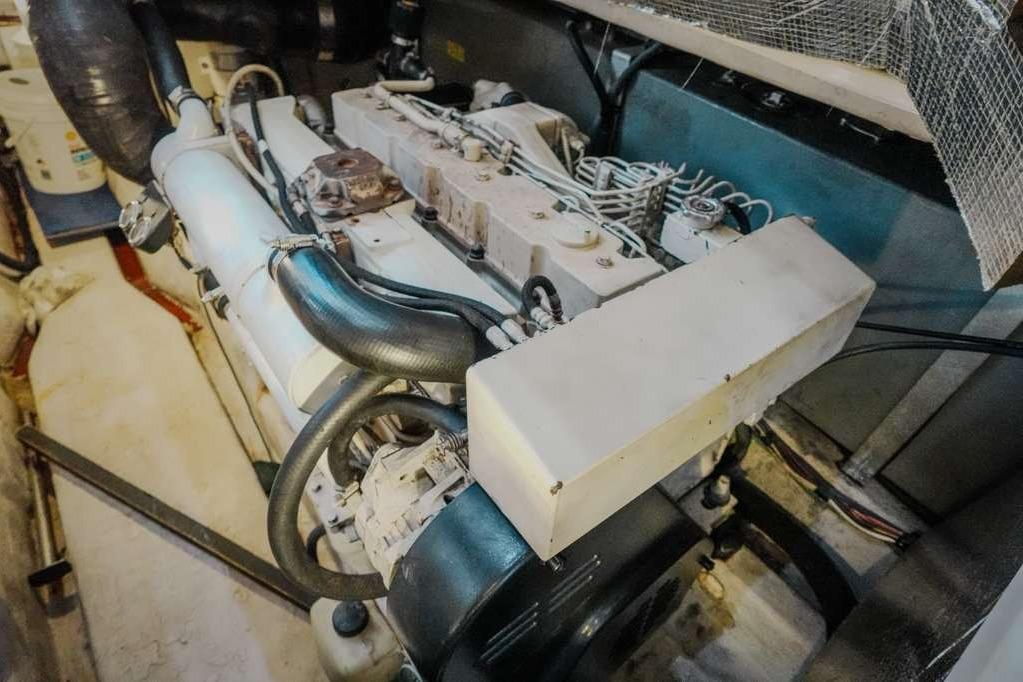

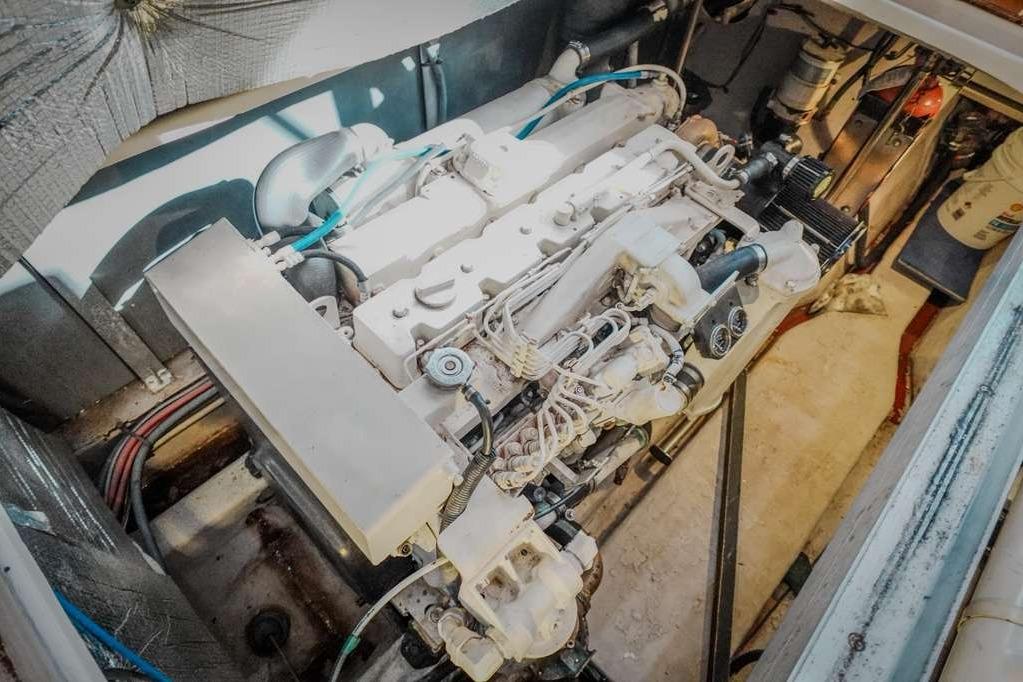

Engine Room
• Integral ventilation system; seawater strainers; stainless fuel fill & deck plates
• (Typical equipment lists include multiple auto bilge pumps, high-water alarms, and blowers; spec and parts references confirm 480CE integration with SmartCraft panels.)

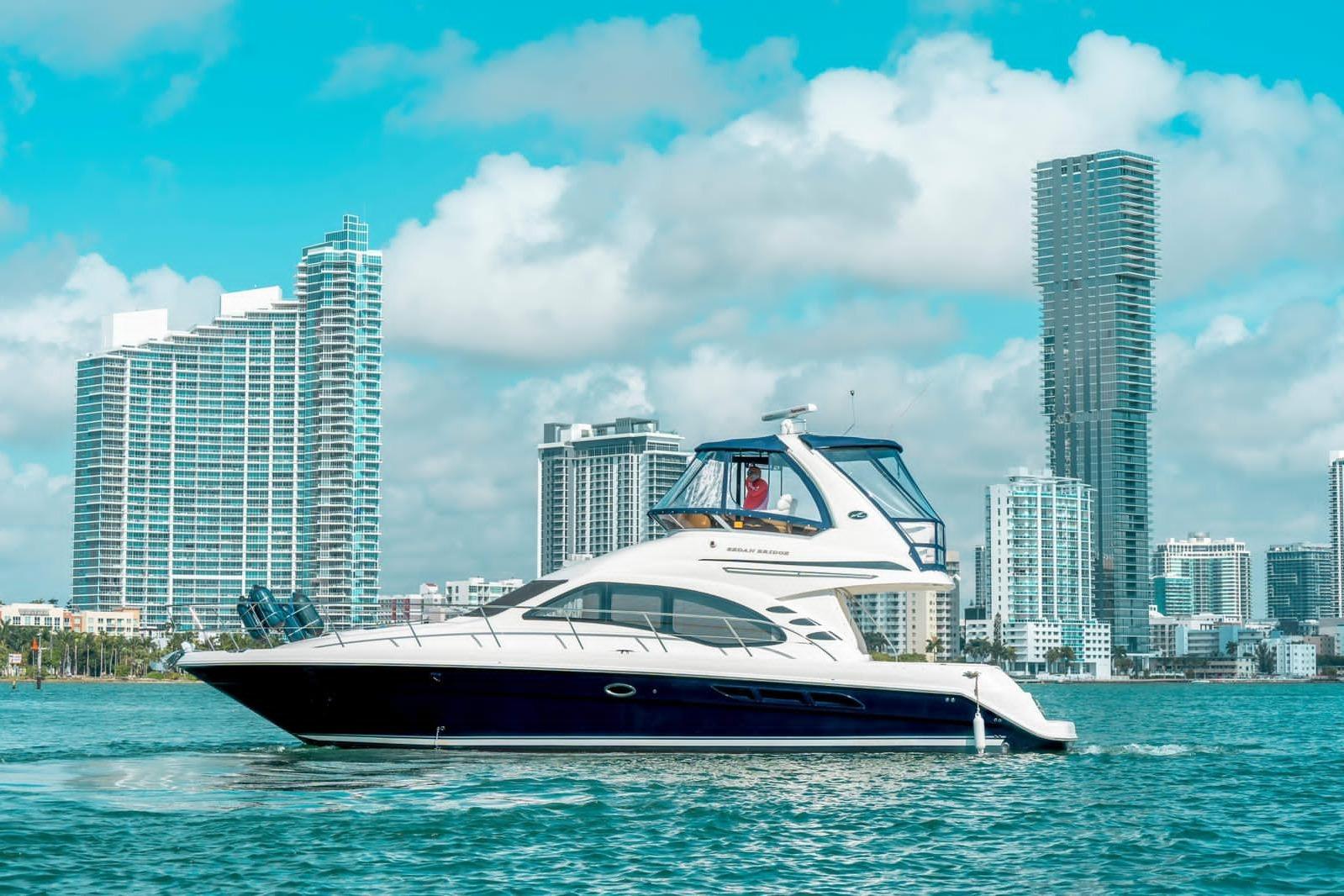

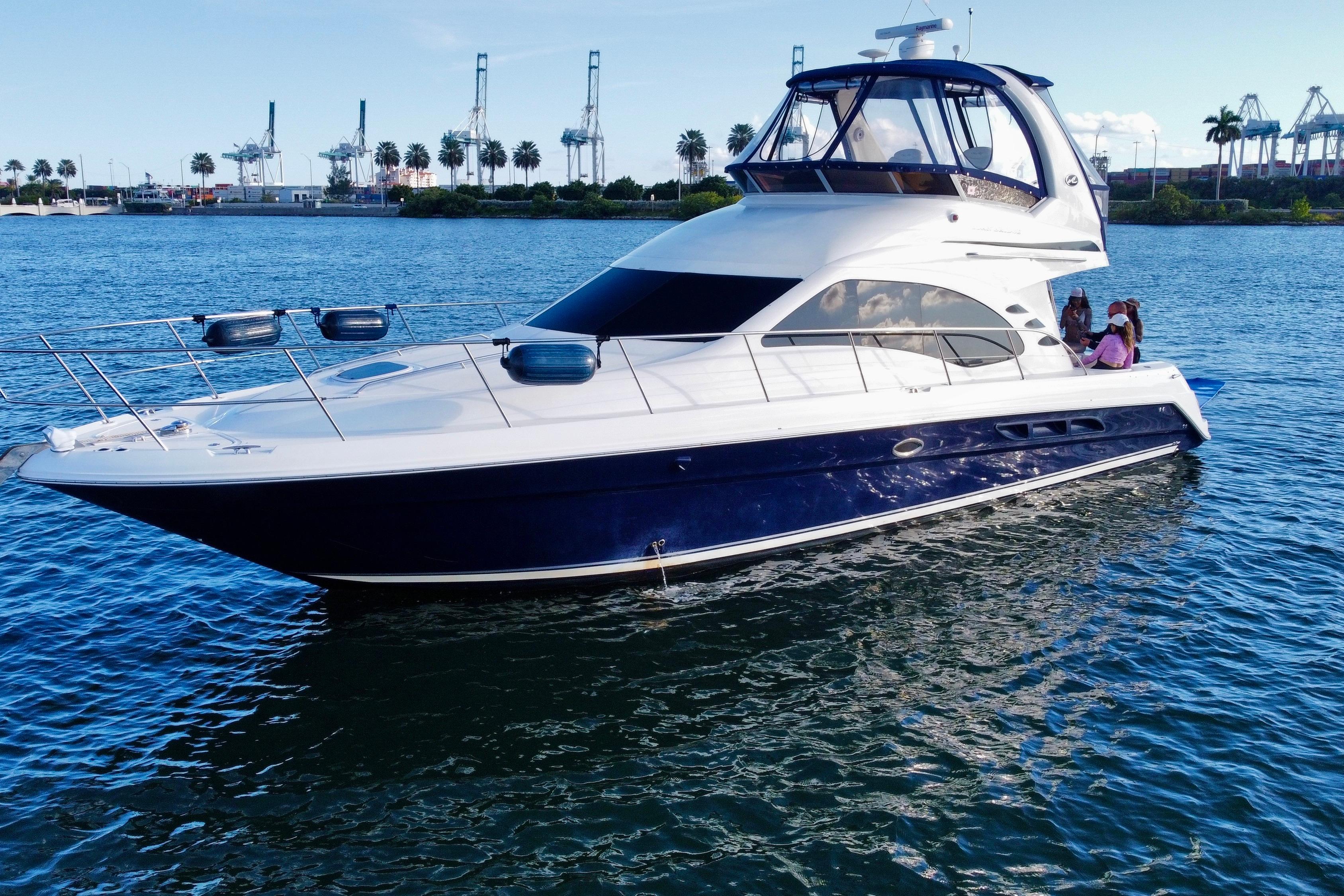

Hull & Deck
• Arctic White gelcoat with Navy Blue hull color option, high-performance vinylester resin, fiberglass hat-section stringers
• Thru-bolted stainless cleats (8), handrails, navigation lights
• Integral swim platform with concealed stainless 3-step ladder & grab handle
