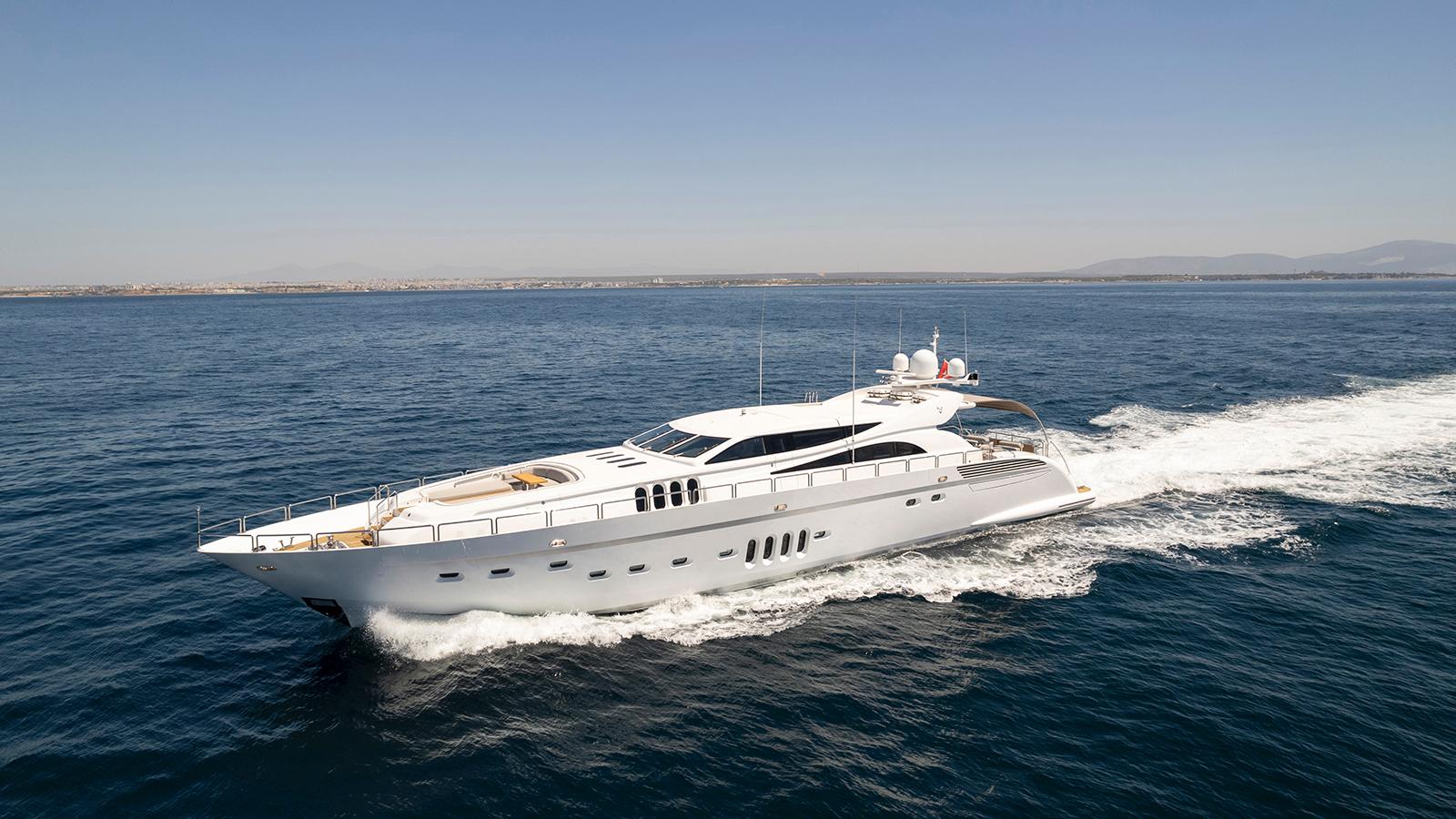

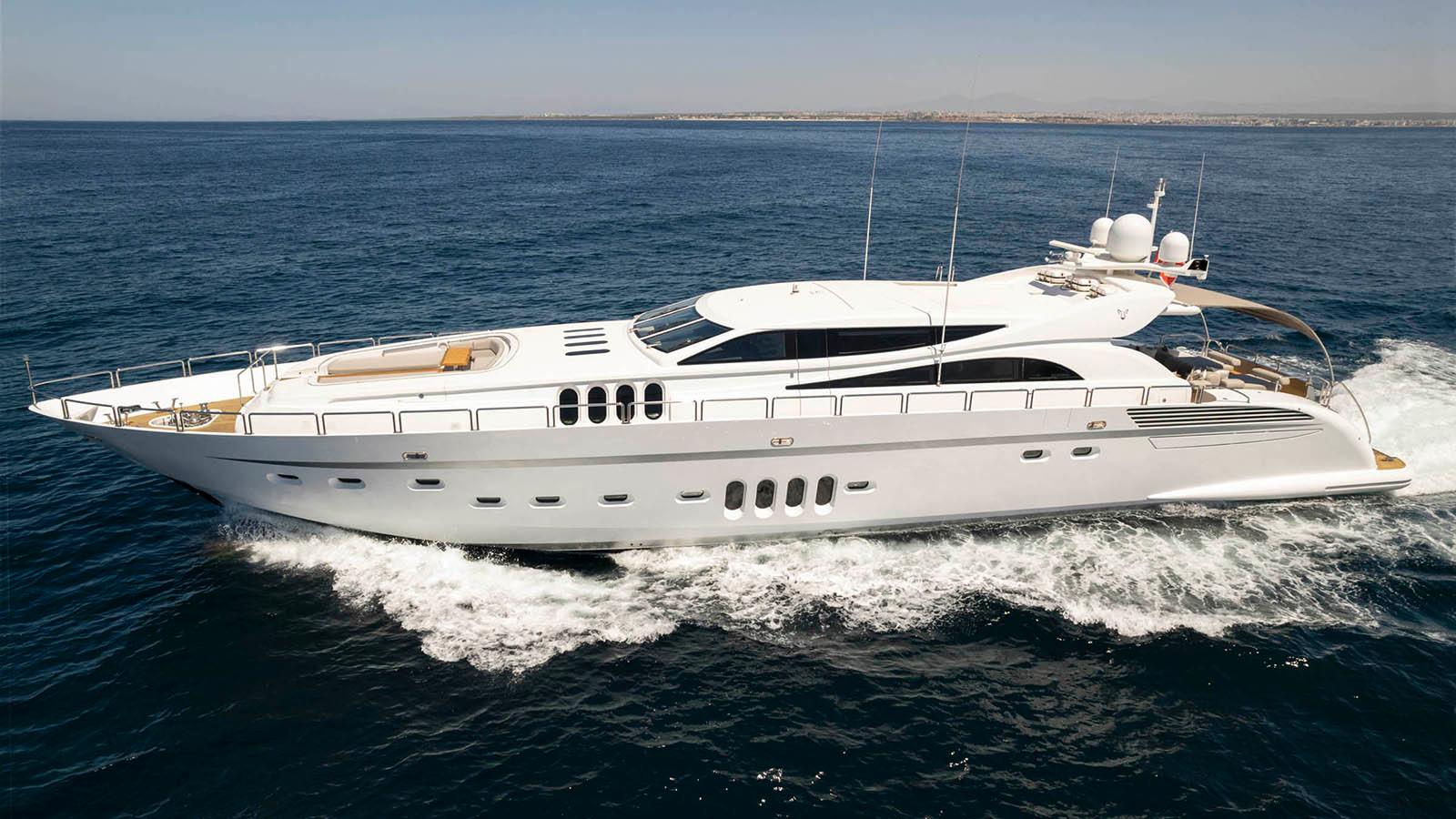

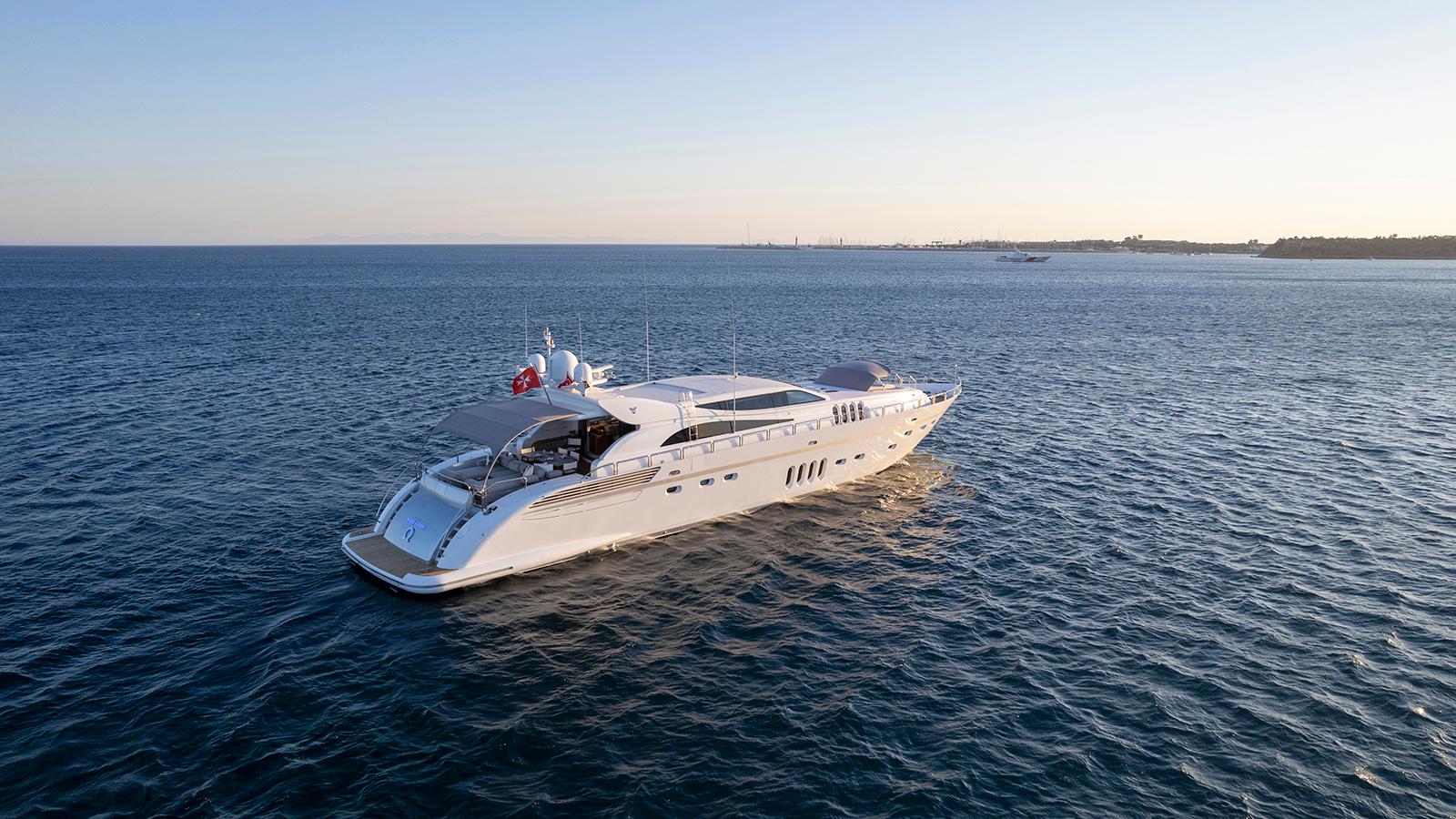

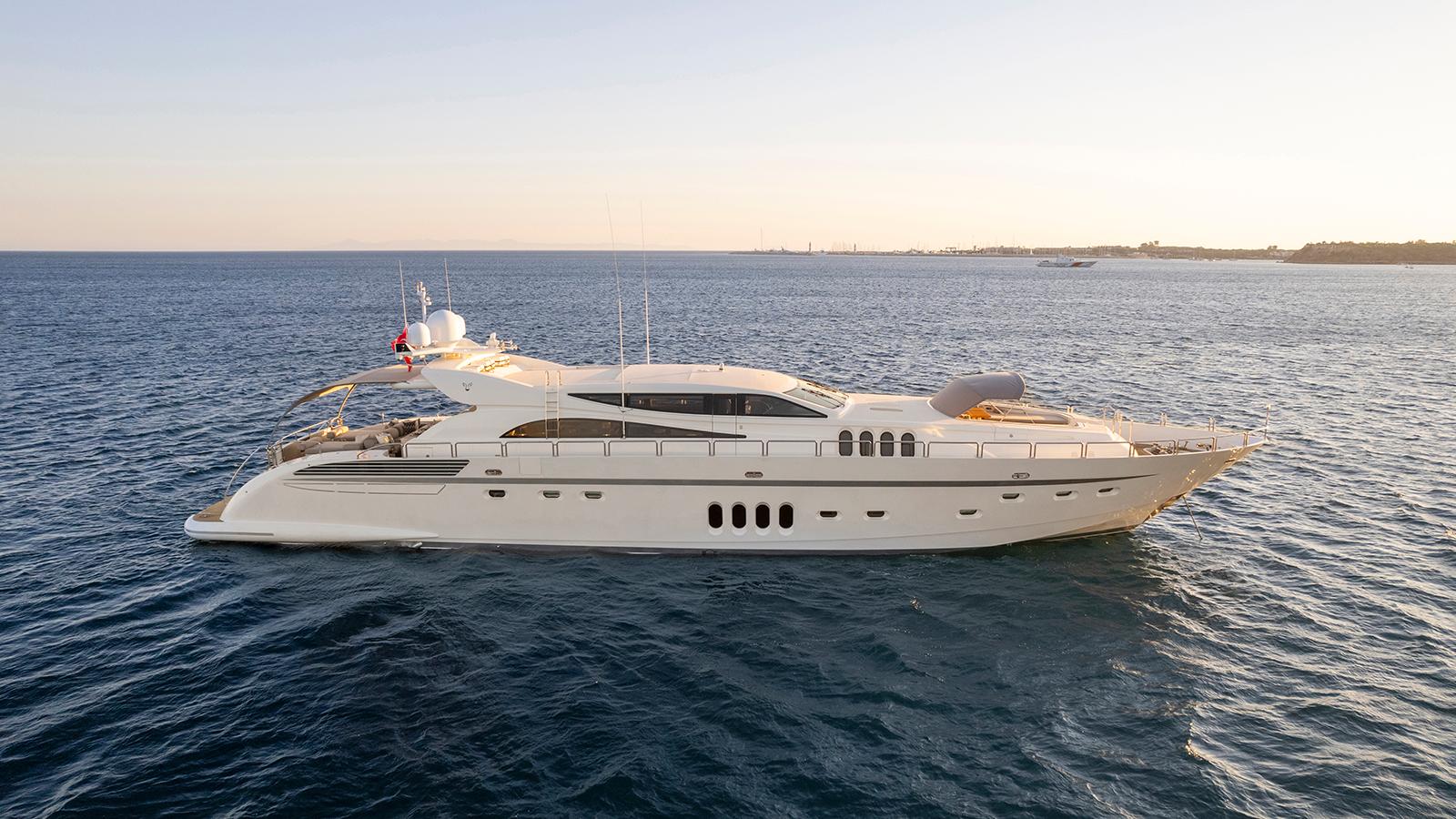

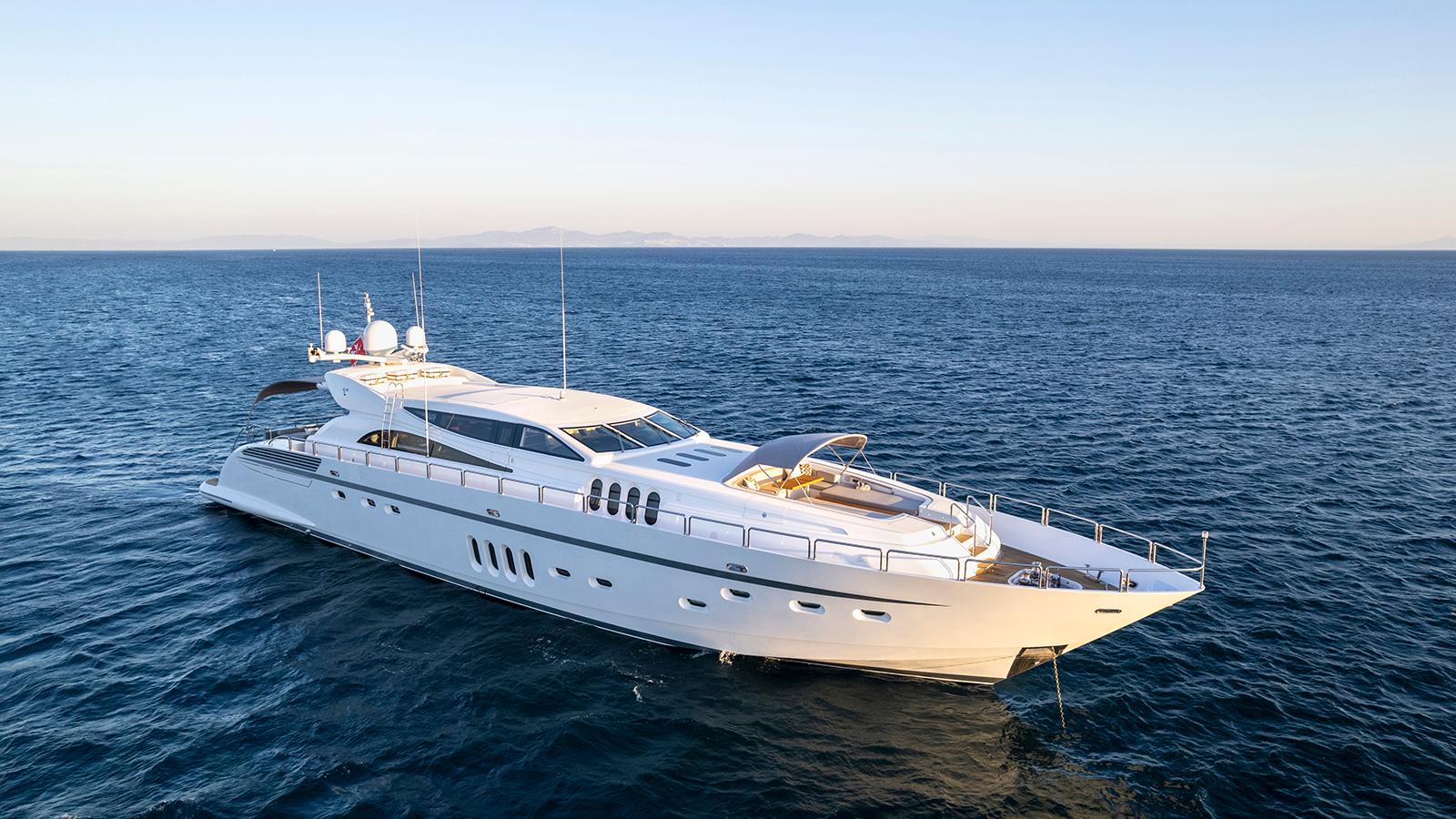

2007 Leopard Leopard 34 | 112ft

Yatco_Template - BOSS

OWNER

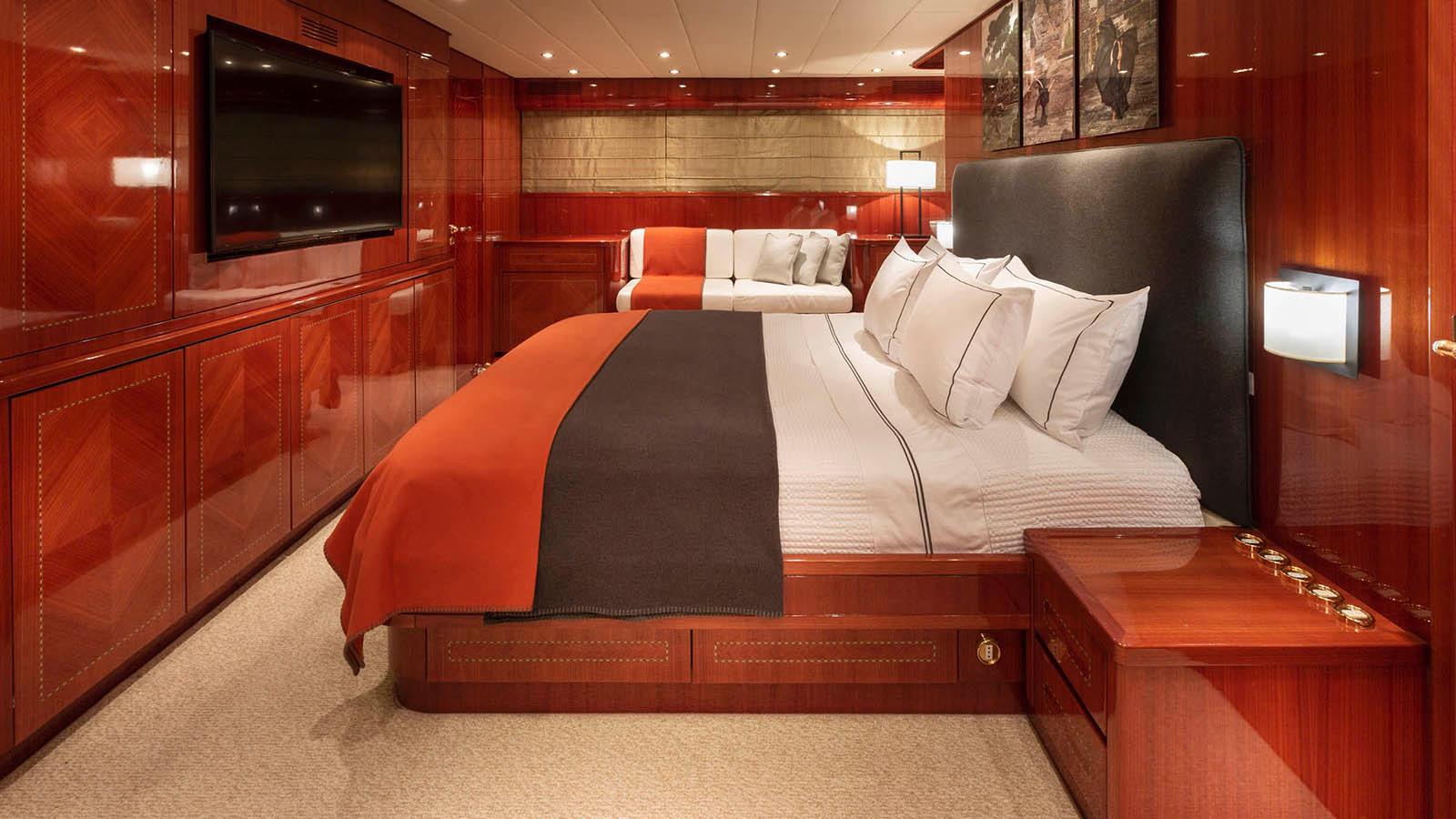

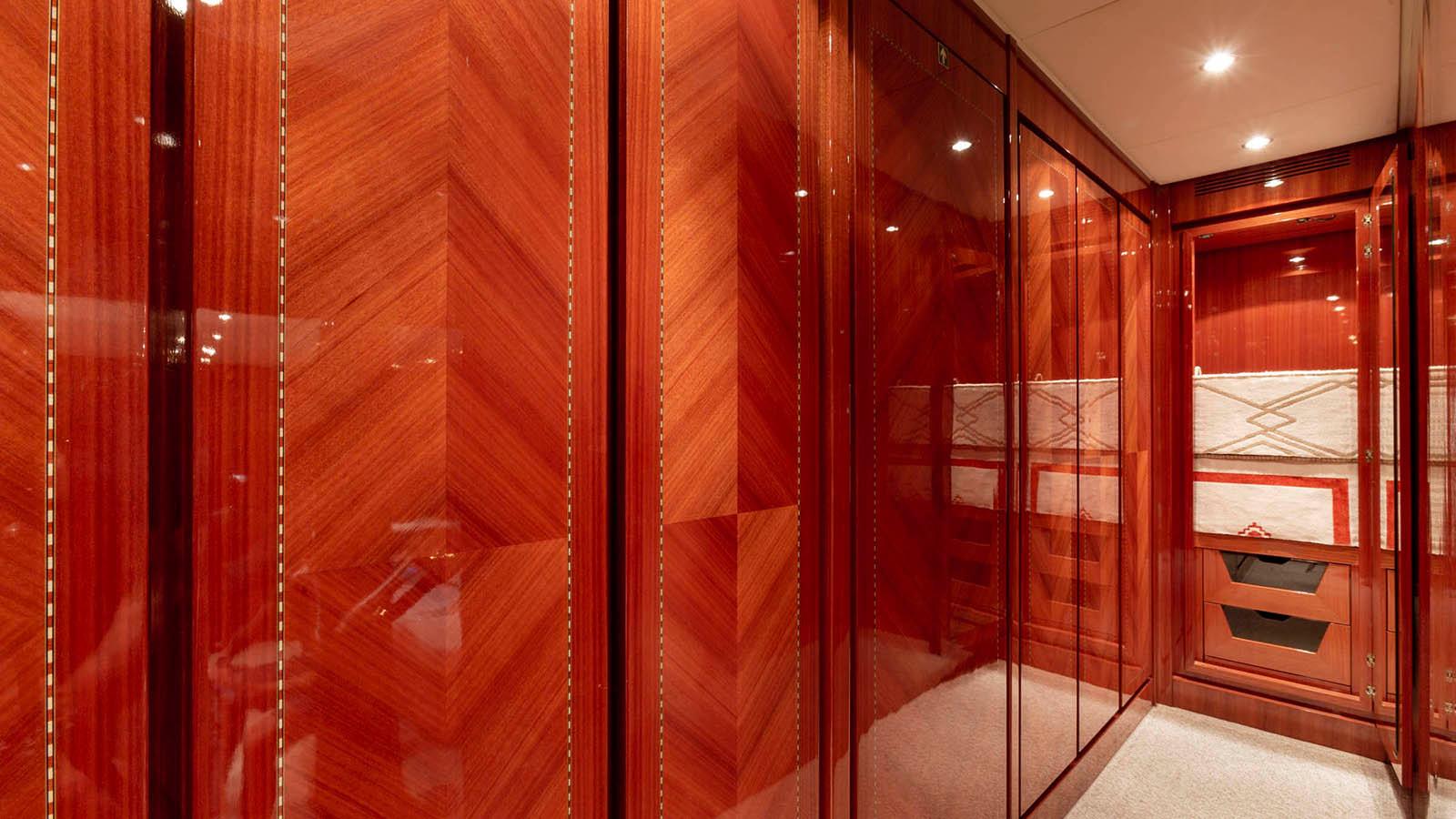

1 x full beam Owners cabin located in the centre of the Boat with large dressing GUESTS

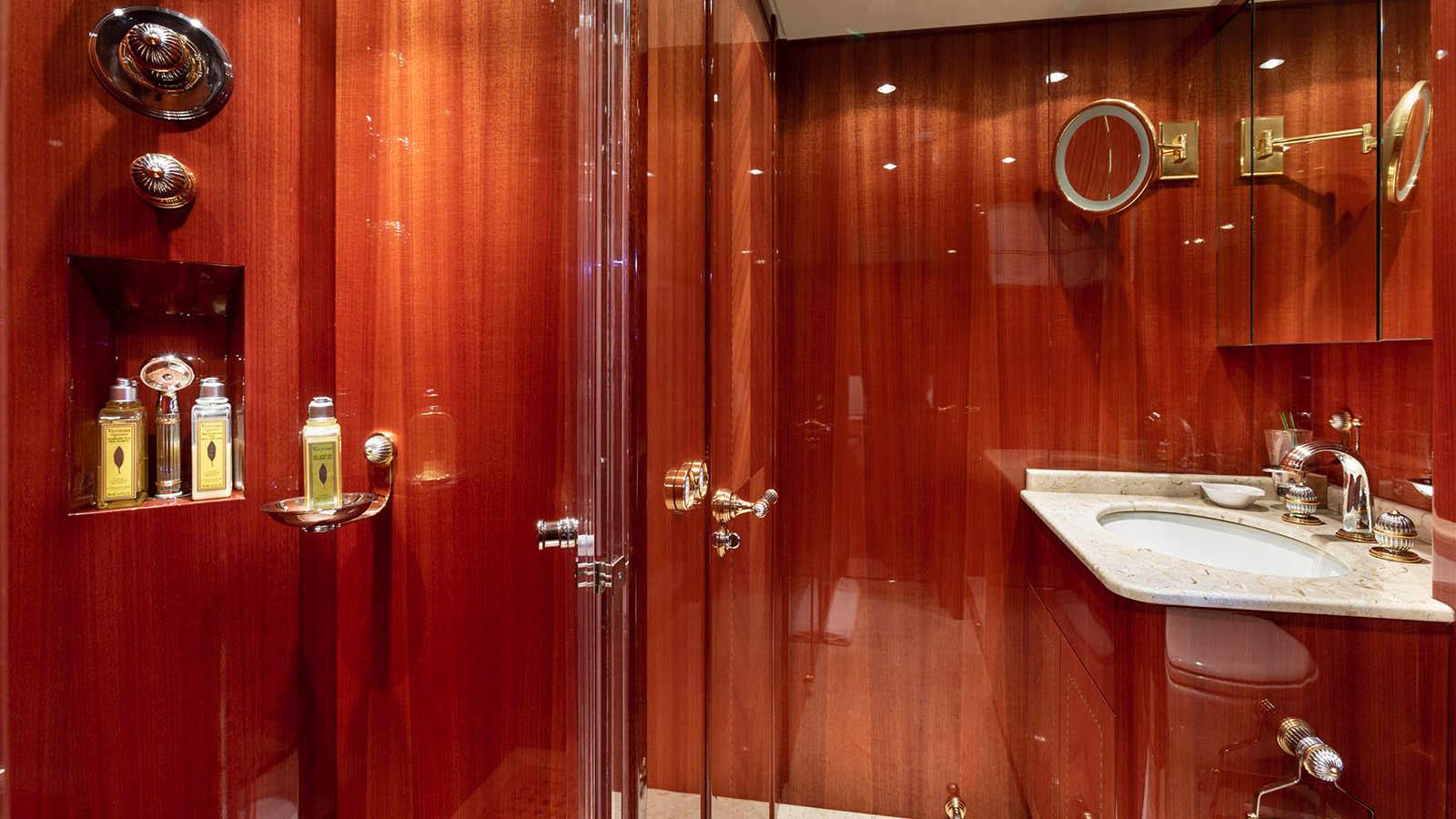

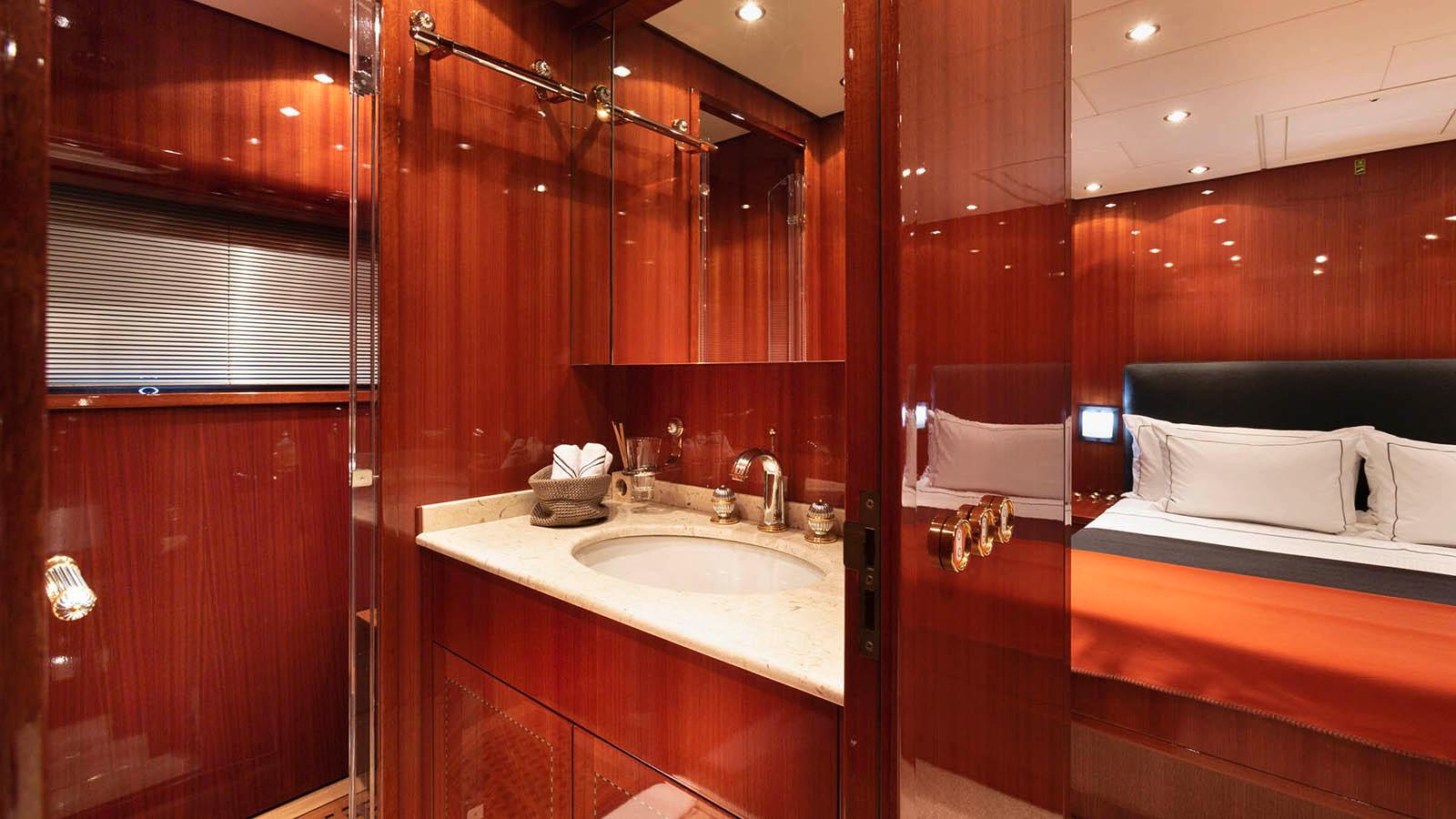

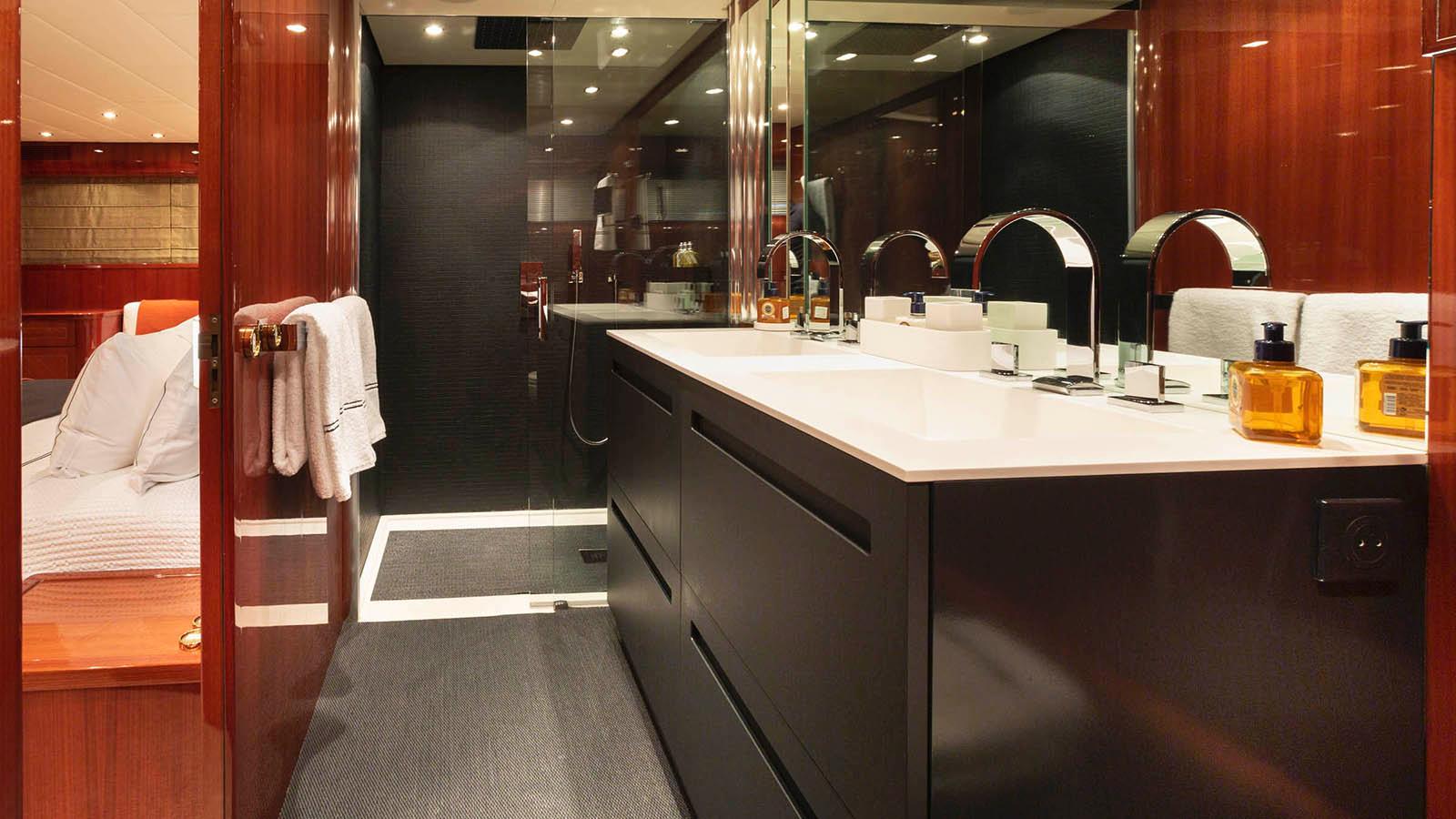

1 x Vip double guest cabin including en suite bathroom
1 x double guest cabin located to starboard

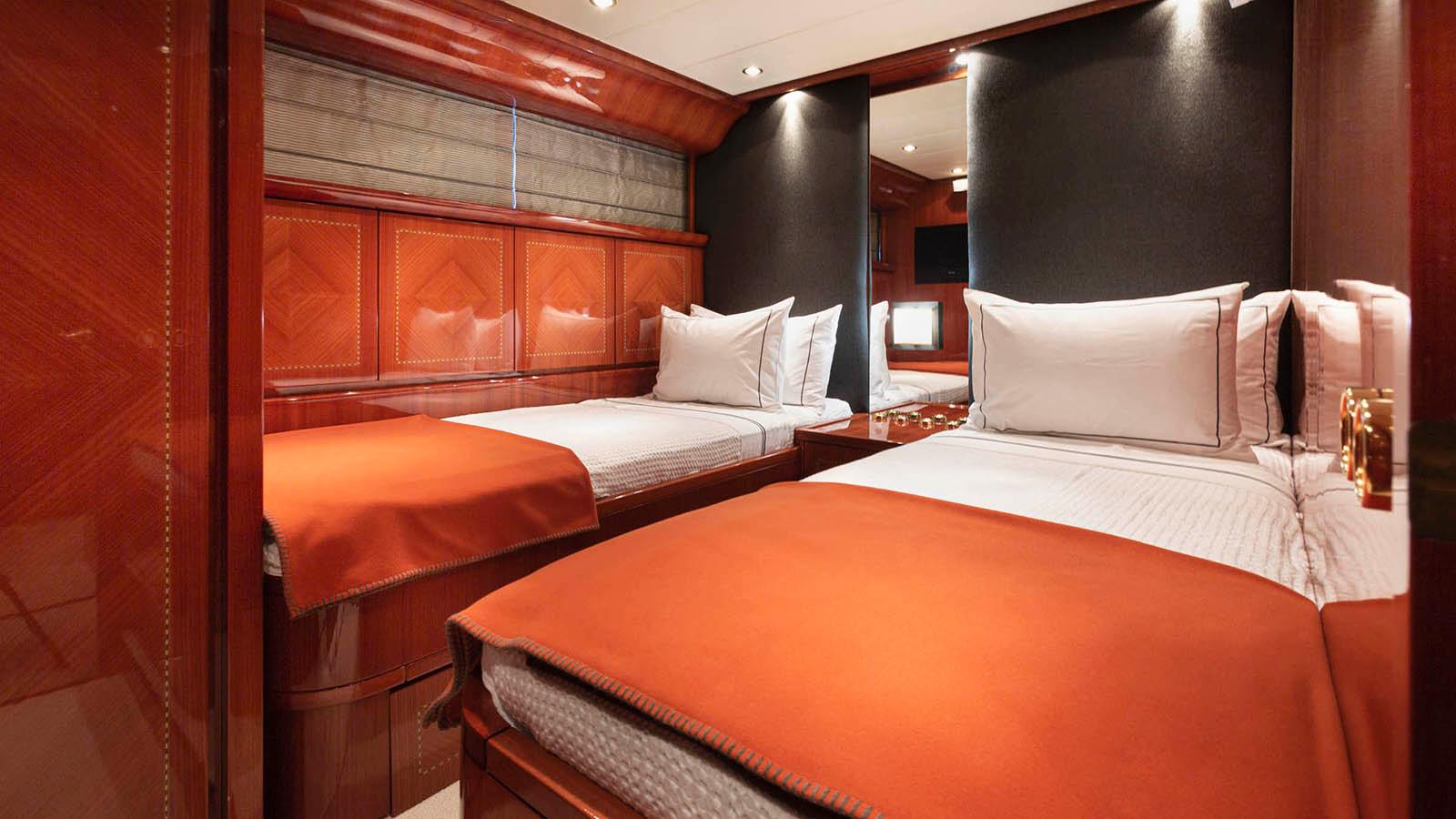

1 x twin guest cabin located port side

CREW
1 x captain’s cabin
2 x twin cabins with en suite shower facilities
Crew mess with direct access to galley, engine room and other service areas located aft

MECHANICAL EQUIPMENT

MAIN ENGINES 3 x 2,400hp (1,800kW) MTU 16V2000M93 ENGINE HOURS
Port: 1750 hrs
Stbd: 1750 hrs

Central: 1350 hrs

SPEEDS Maximum speed 42 knots
Cruising speed 33 knots
FUEL CONSUMPTIONS 1,200 Ltrs/hr at 33 knots 1400 Litres/hour at 40 knots RANGE 550 NM at 33 knots (3 engines)

GENERATORS 2 x 40kW Kohler GENERATOR HOURS Port: 3915 hrs Stbd: 3785 hrs

ELECTRICITY 380/220V, 3 phase
SHORE POWER 2 x 150kVA Exendis MarPower® SPC‐II

BATTERIES A 24V battery group for the radio communication system Two 24V lead battery group, for the main engine starting
A 24V battery group for MTU electronic system
A 12V battery group for the generators starting

A 24V battery group for the services

Tank Capacities

FUEL 16,000 Litres (4226 Gallons)

4,000lt Day tank +12,000lt

Yatco_Template - BOSS

WATER 2000 Litres (528 Gallons)
WATERMAKER 1 x Idromar water maker (240 L/hr) GREY WATER 600 litres (158 Gallons)
BLACK WATER 1050 litres (277 Gallons)

ANCILLARY EQUIPMENT

STEERING SYSTEM Rolls Royce Hydraulic steering system KAMEWA BOW THRUSTER ABT ‐ TRAC
FUEL FILTERS NFV‐Racor
FUEL SEPARATOR NFV‐Racor

SEWAGE TREATMENT Hammam AIRCONDITIONING Frigomar VENTILATION Frigomar

SAFETY & FIRE FIGHTING EQUIPMENT

FIRE FIGHTING CO2 System in engine room Fire extinguishers throughout ALARMS Fire & bilge pump alarms
SECURITY CCTV cameras + 2 x additional wing station cameras

Communication Equipment

SATCOM Fleet 33
VHF RADIOTELEPHONES Furuno VHF + SSB ICOM x5 Digital radios + Charging Station

Navigation Equipment

MAGNETIC COMPASS 1 x Magnetic compass GYRO COMPASS 1 x Simrad Gyro compass AUTOMATIC PILOT 1 x Simrad auto pilot ECHO SOUNDER 1 x Simrad

RADAR 1 x Simrad radar
CHART PLOTTER 1 x Simrad GB 65, 1x Simard CP31 backup
GPS Simrad GPS navigator
WIND INSTRUMENTS Simrad

Deck Equipment

ANCHOR WINDLASS Sangietti

ANCHOR CHAINS 130 meters 16mm

PASSERELLE 1 x Besenzoni passerelle
SIDE BOARDING LADDERS Teak laid platform with hydraulic ladder

Deck Equipment

4 LOCKERS FORREDECK

Immersion suits
Firefighting suits
4 x Firefighting Breathing Apparatus
Diesel Motor Pump (Fire & Bilge)
Diving Tank
12 Life Vests
All fenders
Stern ropes, Mooring Ropes+200 meters of extra lines Fire Hoses
2 x MOB Units and life buoys
Side boarding ladder
Cleaning equipment

4 LOCKERS AFT DECK

Passerelle Rails Shoe Boxes
12 Life Vests
Line Throwing Unit Fire Hoses

Axe
Plenty room for drinks storage

Audio & Visual Equipment

SALON 46” Samsung curve, Blue Ray DVD + Bose Lifestyle system, I‐Pod RELAX ROOM 46” Samsung, Blue ray DVD + Bose lifestyle system, I‐Pod + Kaleidescape
OWNER CABIN 46” Samsung curve, Blue ray DVD + Bose lifestyle system, I‐Pod GUEST CABINS 32” Sony, Blue ray DVD + Bose System, I‐Pod Kaleidescape Bose Wiring for Sky

FOREDECK Fusion Bluetooth Sound System (Sunbathing Area)

Domestic Equipment

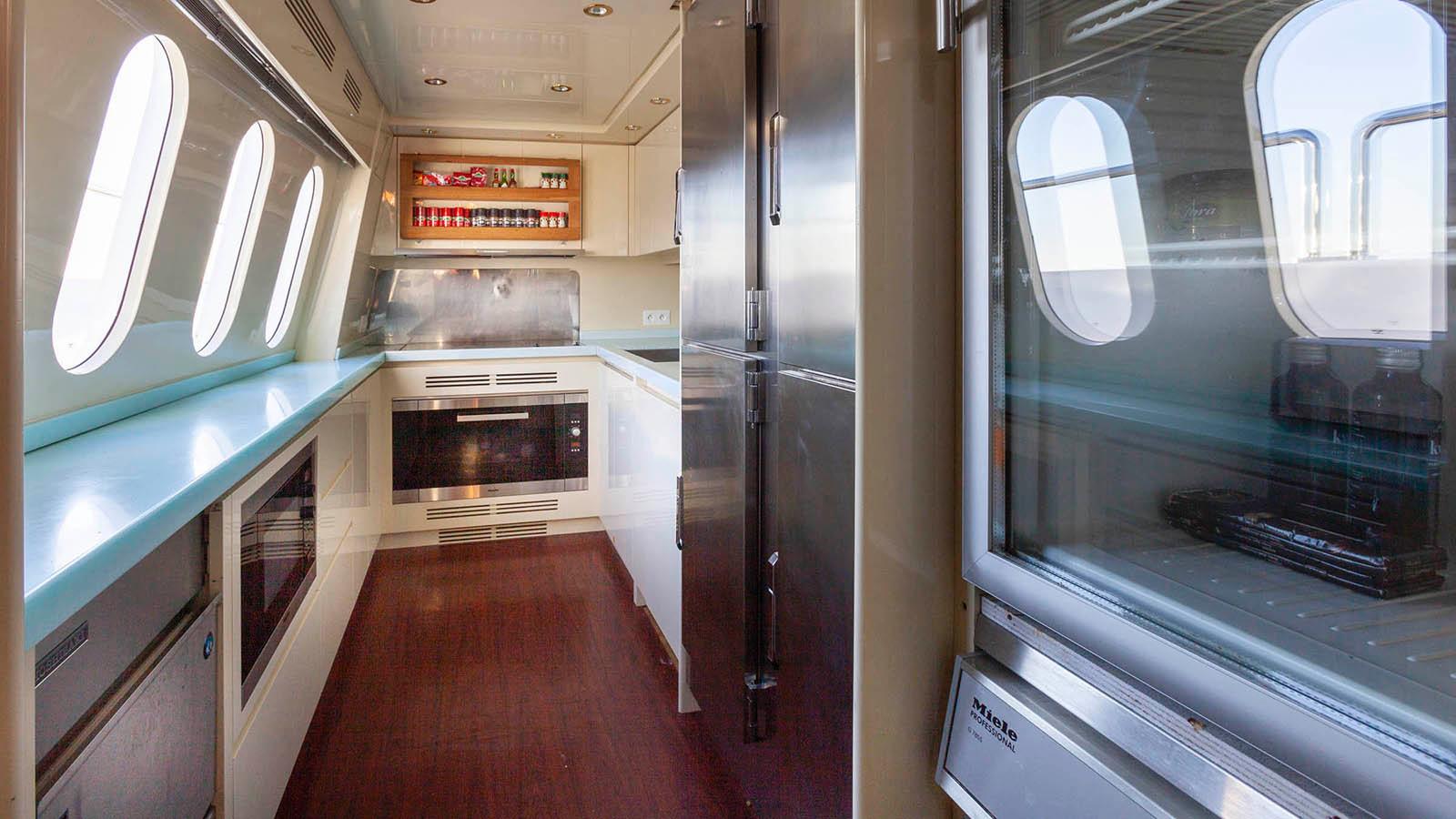

MAIN GALLEY

1 x Miele Oven

1 x Miele grill & plate

1 x Miele Professional G7855 dishwasher

1 x Miele Microwave

LAUNDRY

1 x Miele Professional PW6065 washing machine

1 x Miele Professional PT7136 dryer



TENDER & TOYS

1x 445 Williams 120HP from 2016

1x Seabob F5S (new batteries 06/2022)

1x Paddleboard

1x Hobie Mirage Stand Up Pedalboard

Water Skis

Buoyancy Aids for Water Sports





REFIT 2022

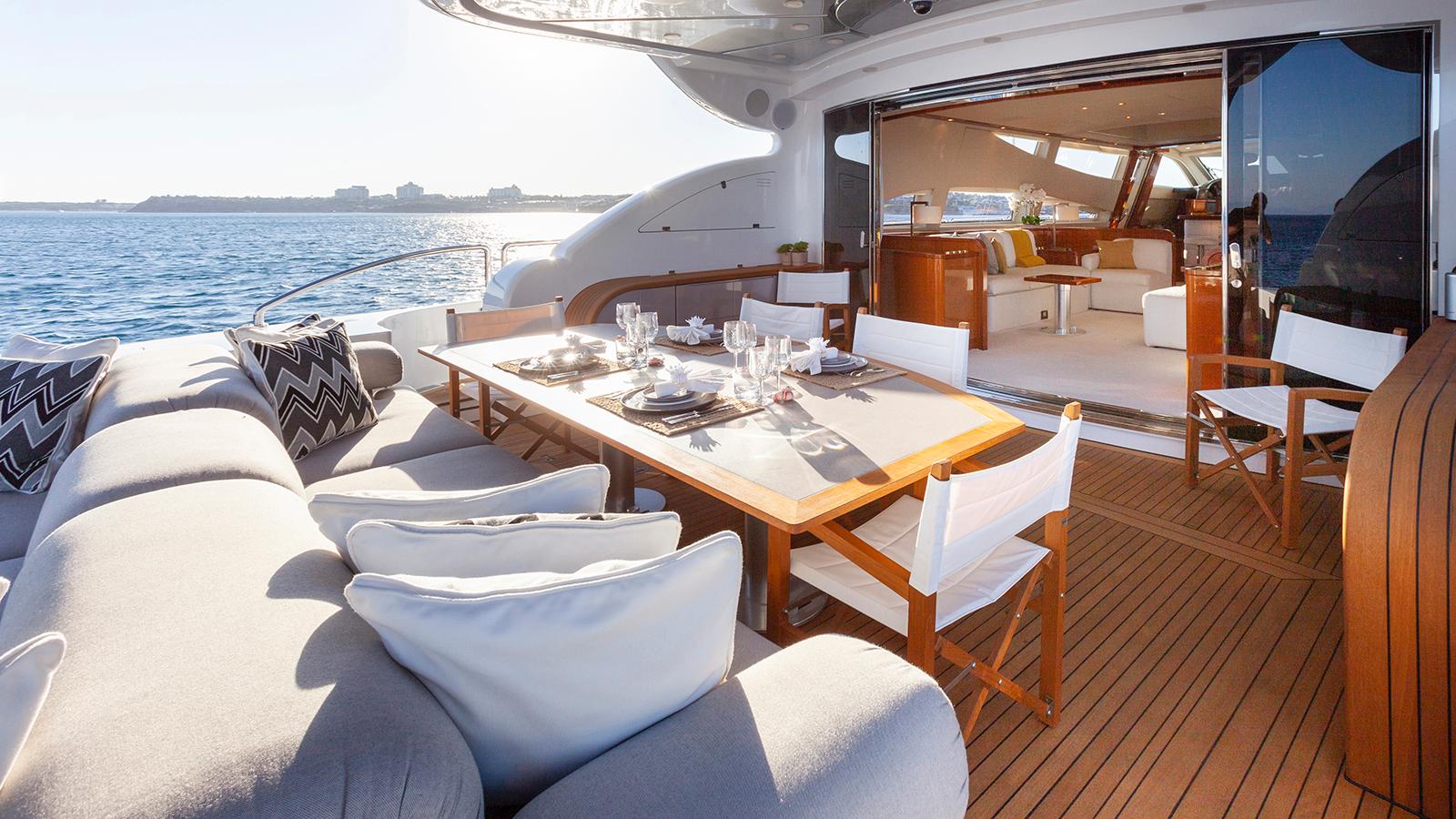

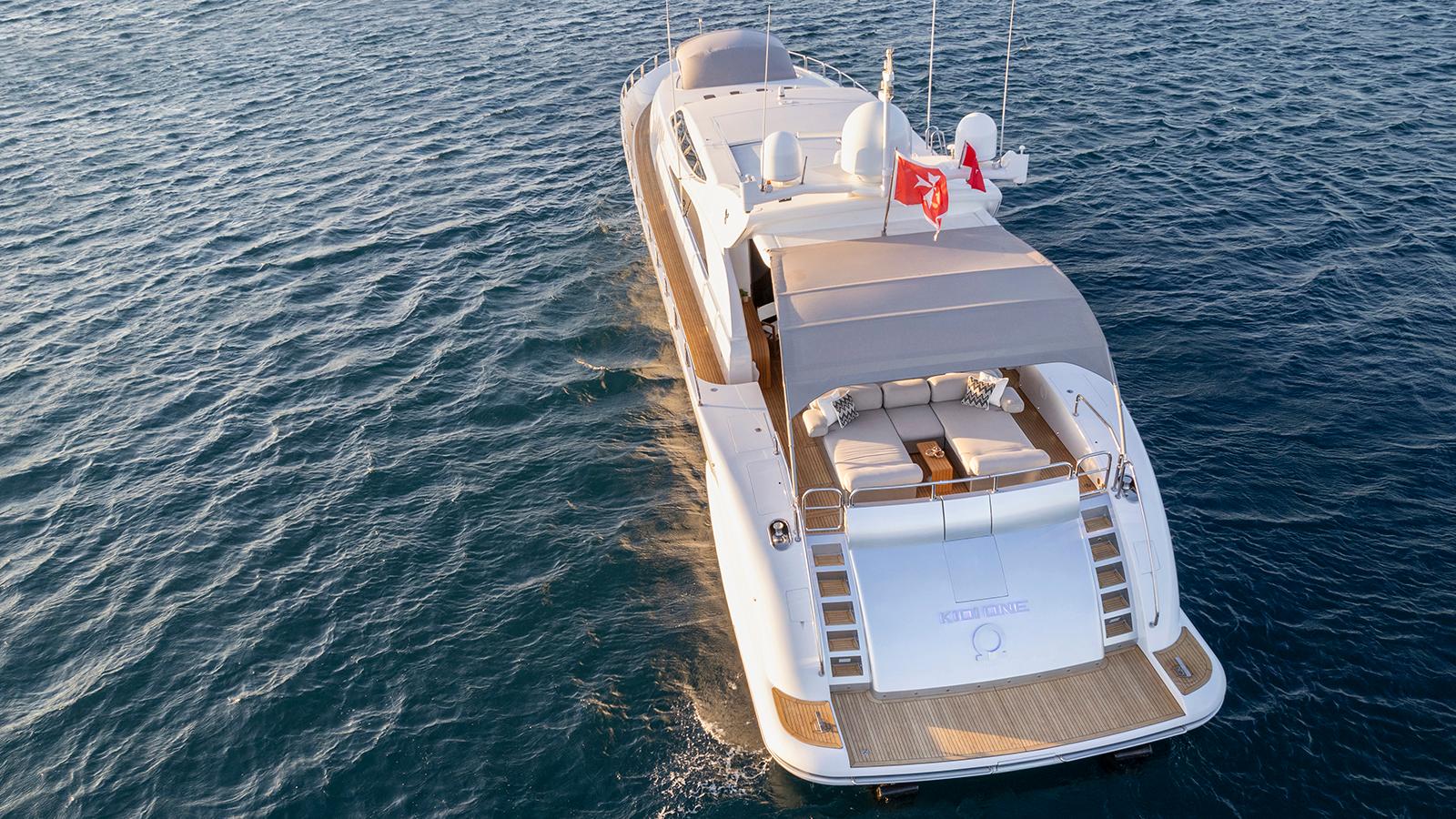

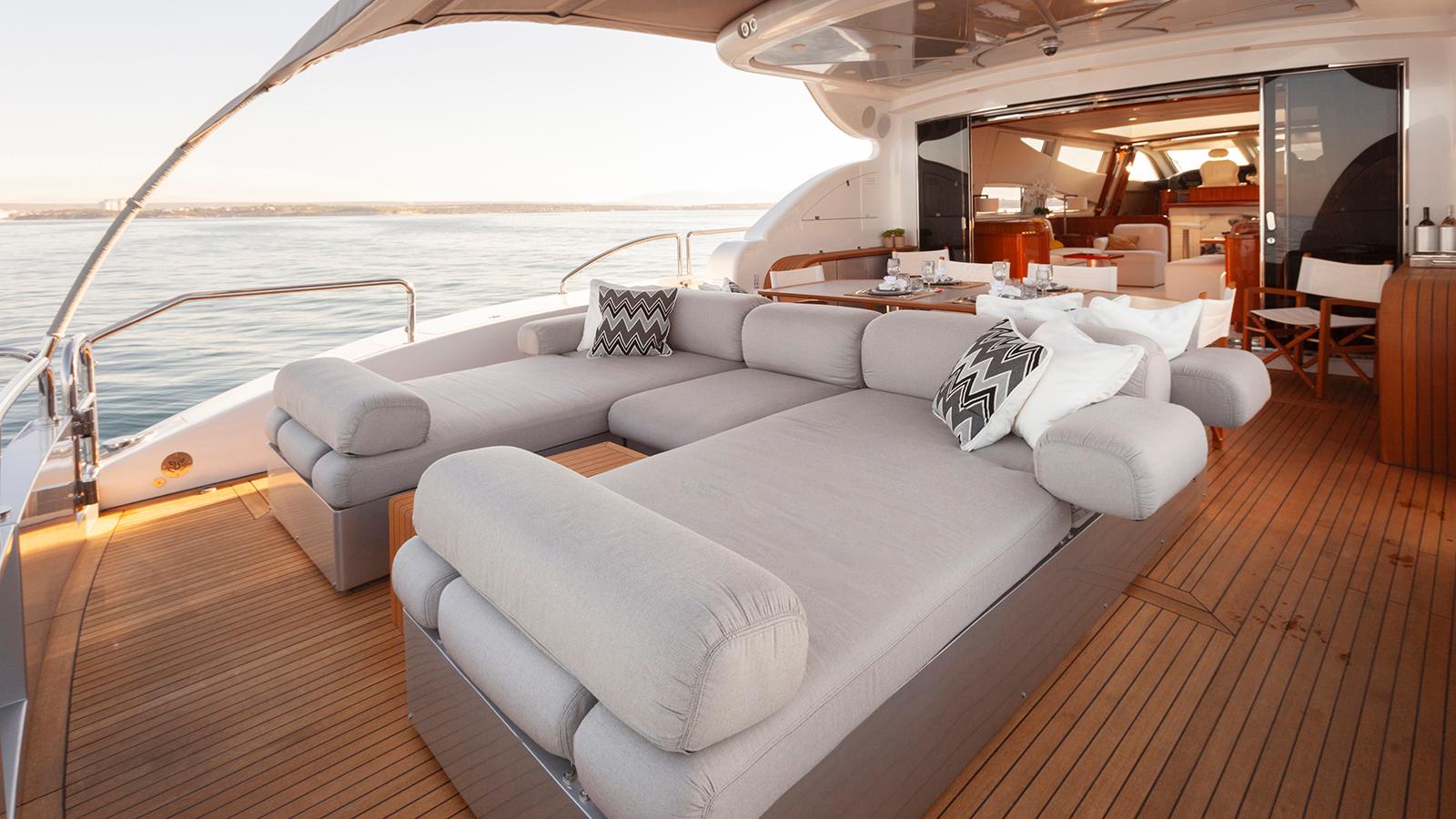

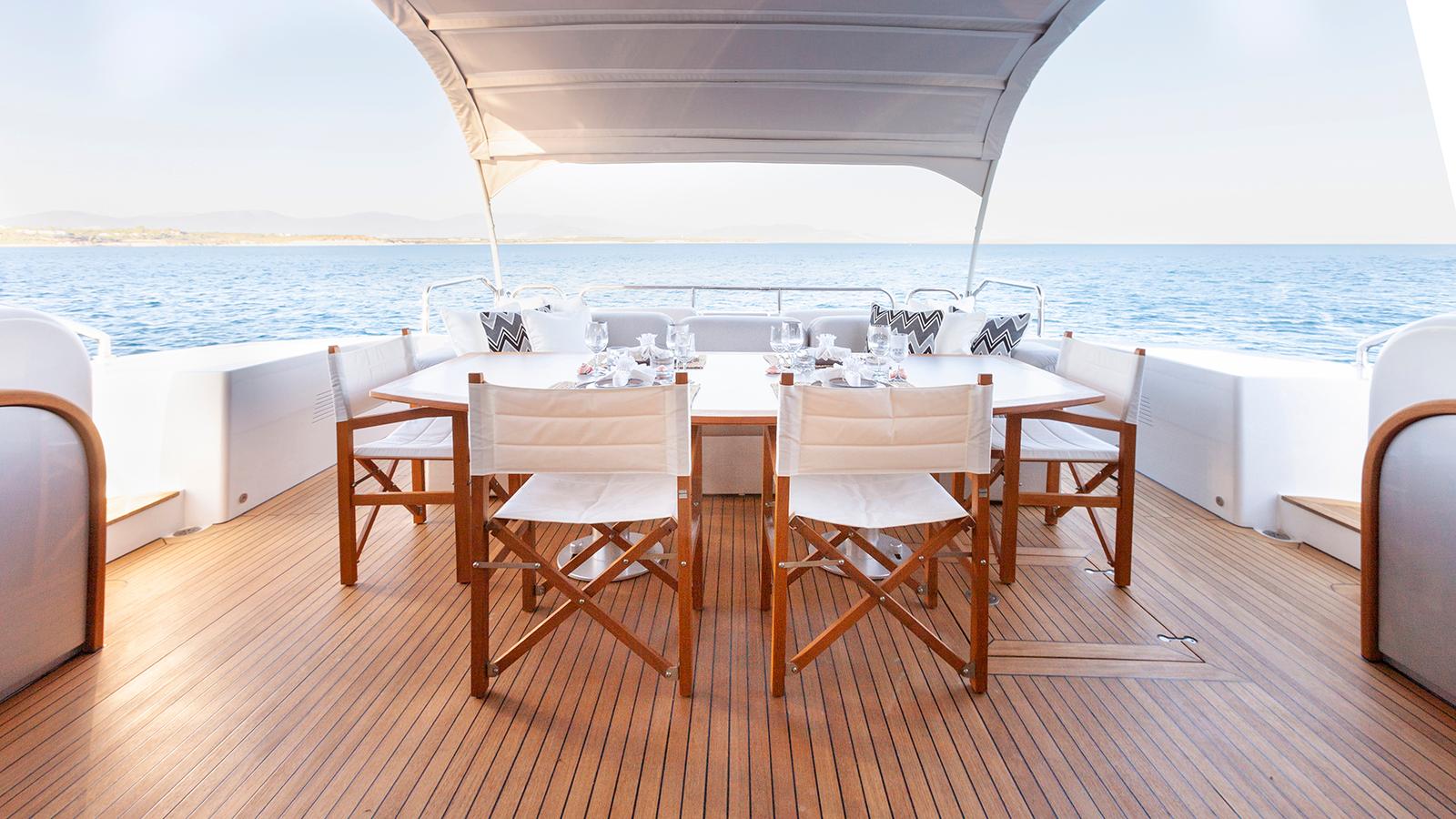

AFT DECK (2022)

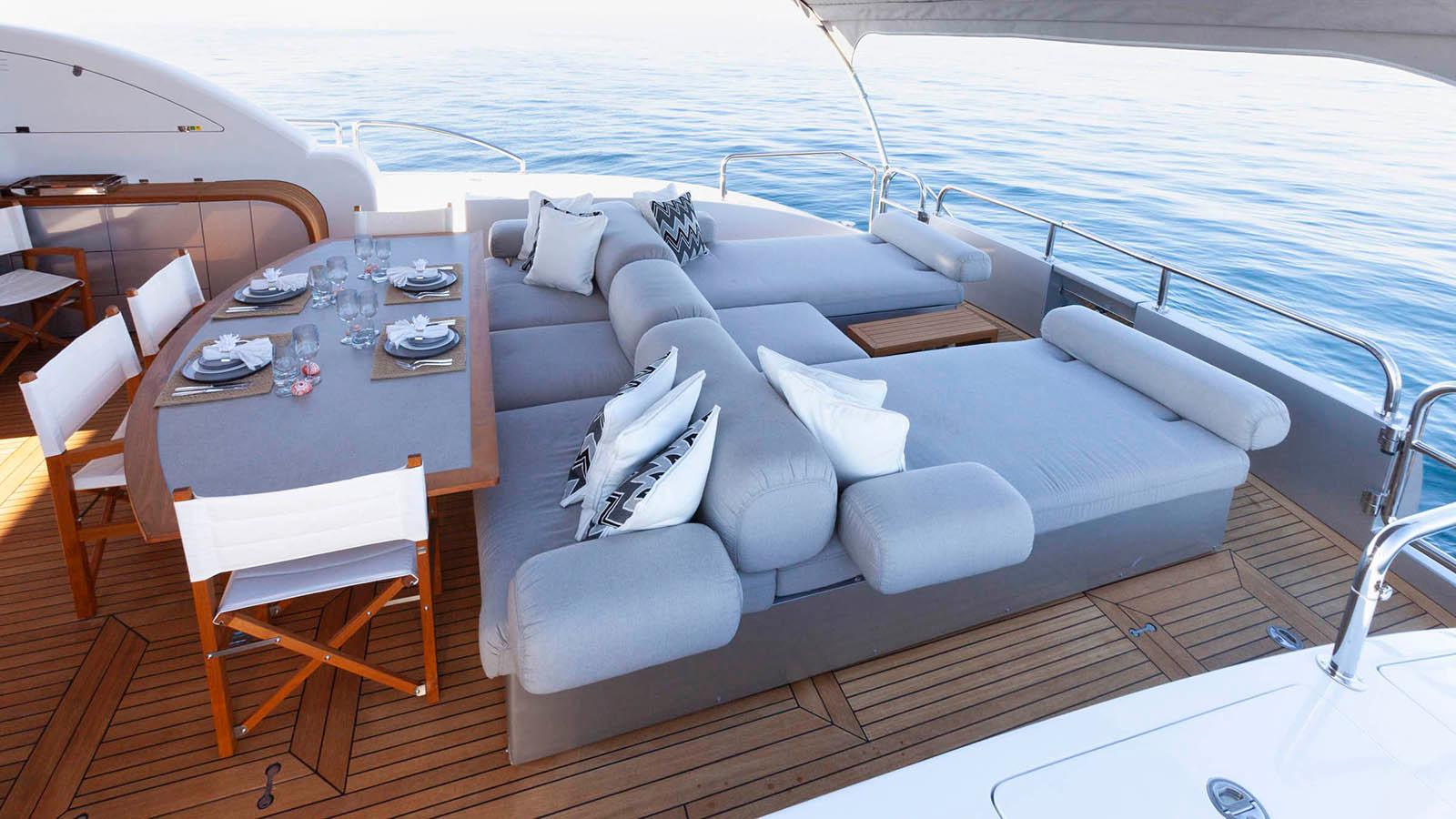

• Complete new sunbathing beds and cushions with arm extensions and storage underneath

• New Dining table and sitting sofa with arm extensions

• 6 New Valdenassi Teak Chairs

• 2 new cabinets on either side with freezer/cooler and ice maker

• New bluetooth sound system

• New teak decking on aft deck and swim platform

• New teak on passerelle

• New paint job on garage door

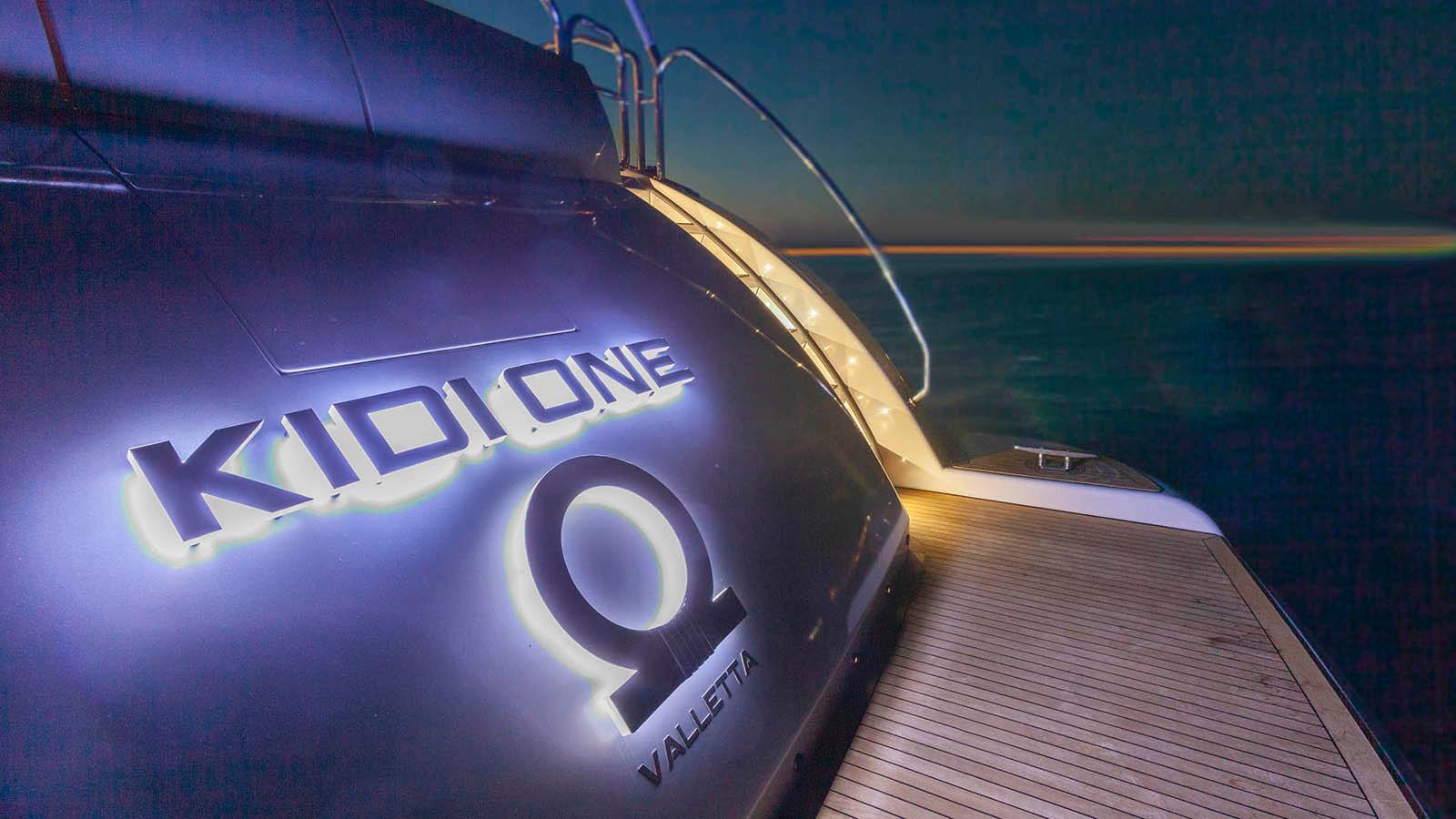

• New chrome name plate with LED

• Fixed Chrome structure holding full length sunshade

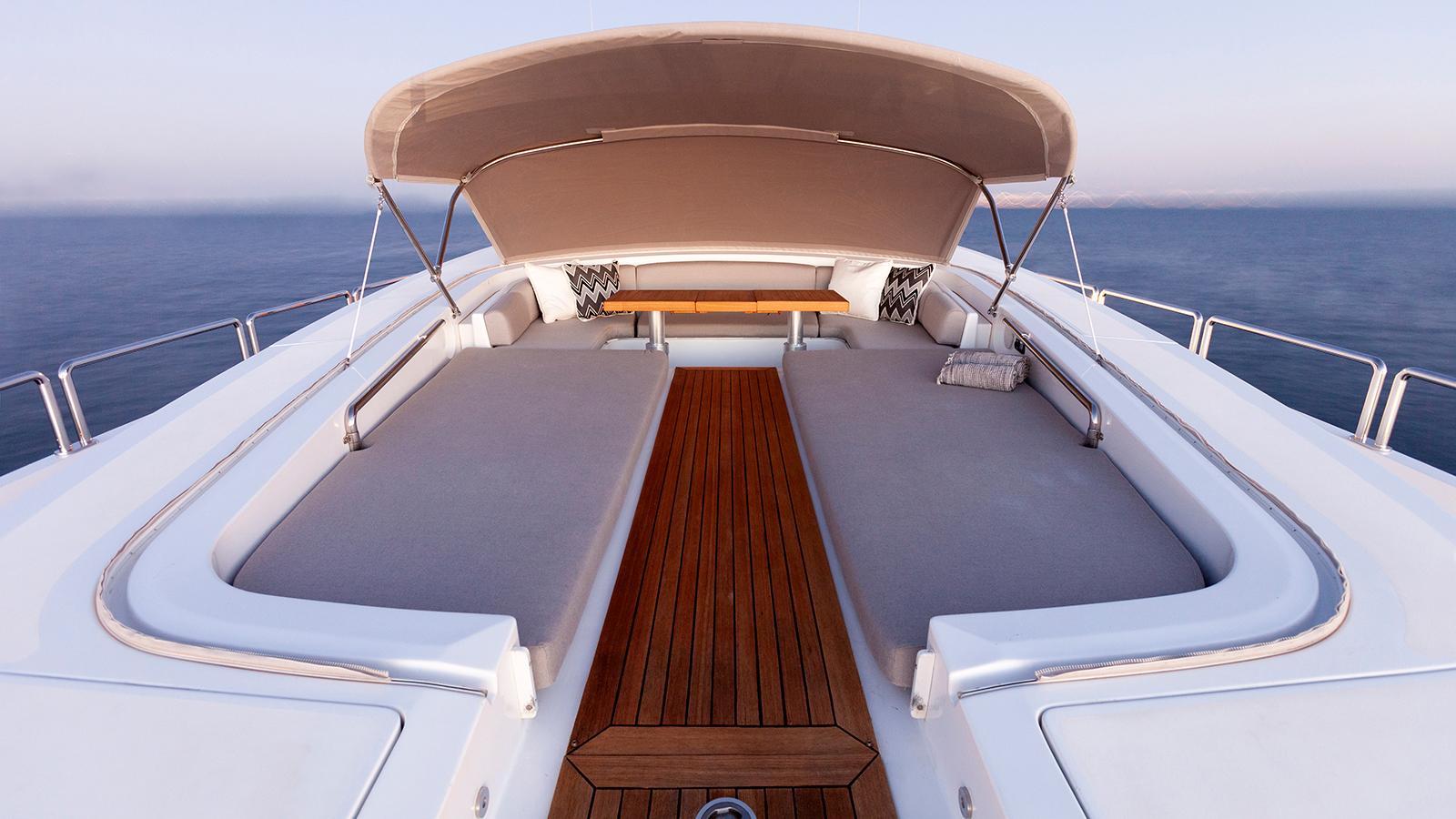

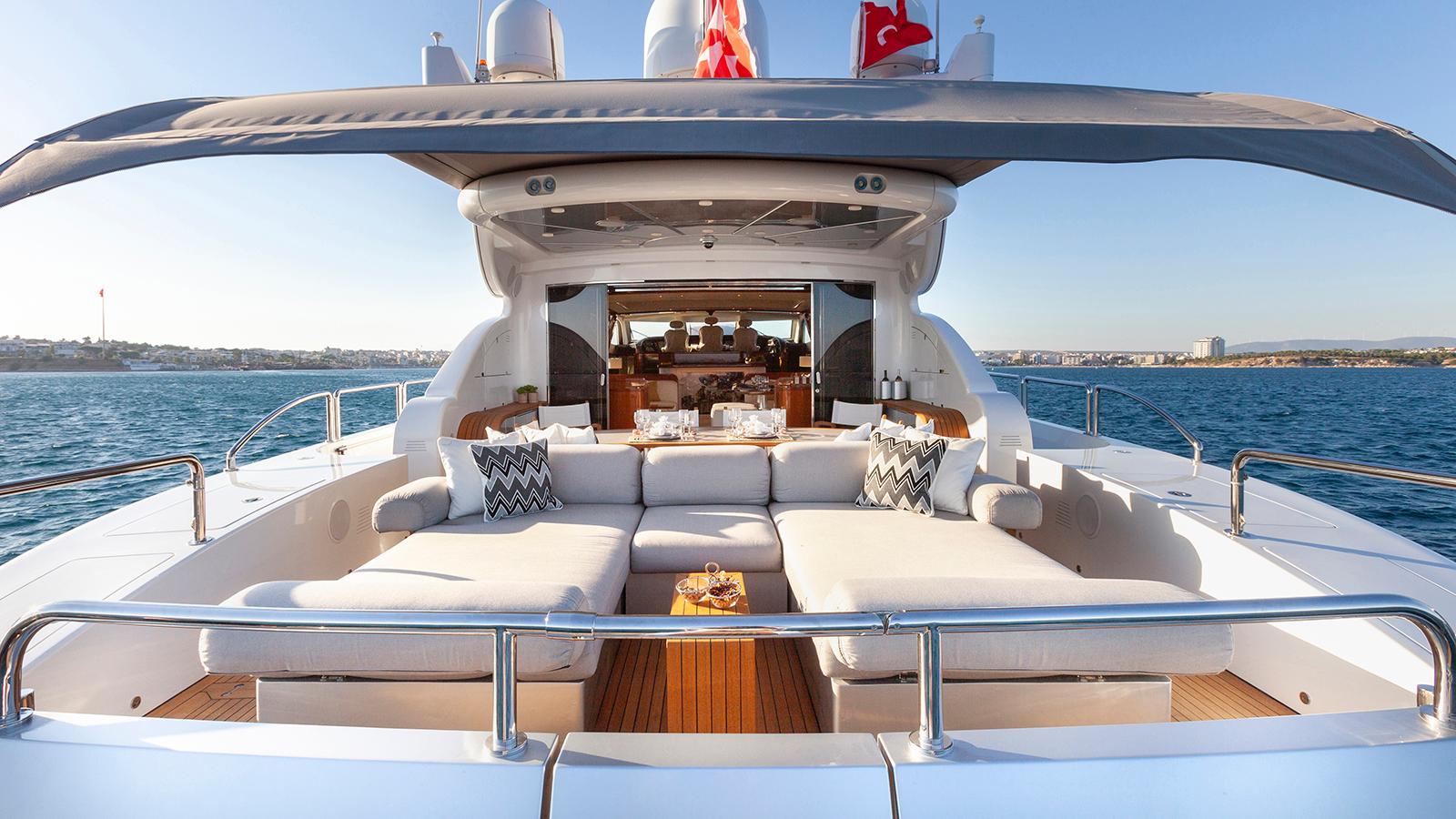

FOREDECK (2022)

• New Sunbrella covers on Sun beds

• Teak Table

• New Sunbrella Bimini

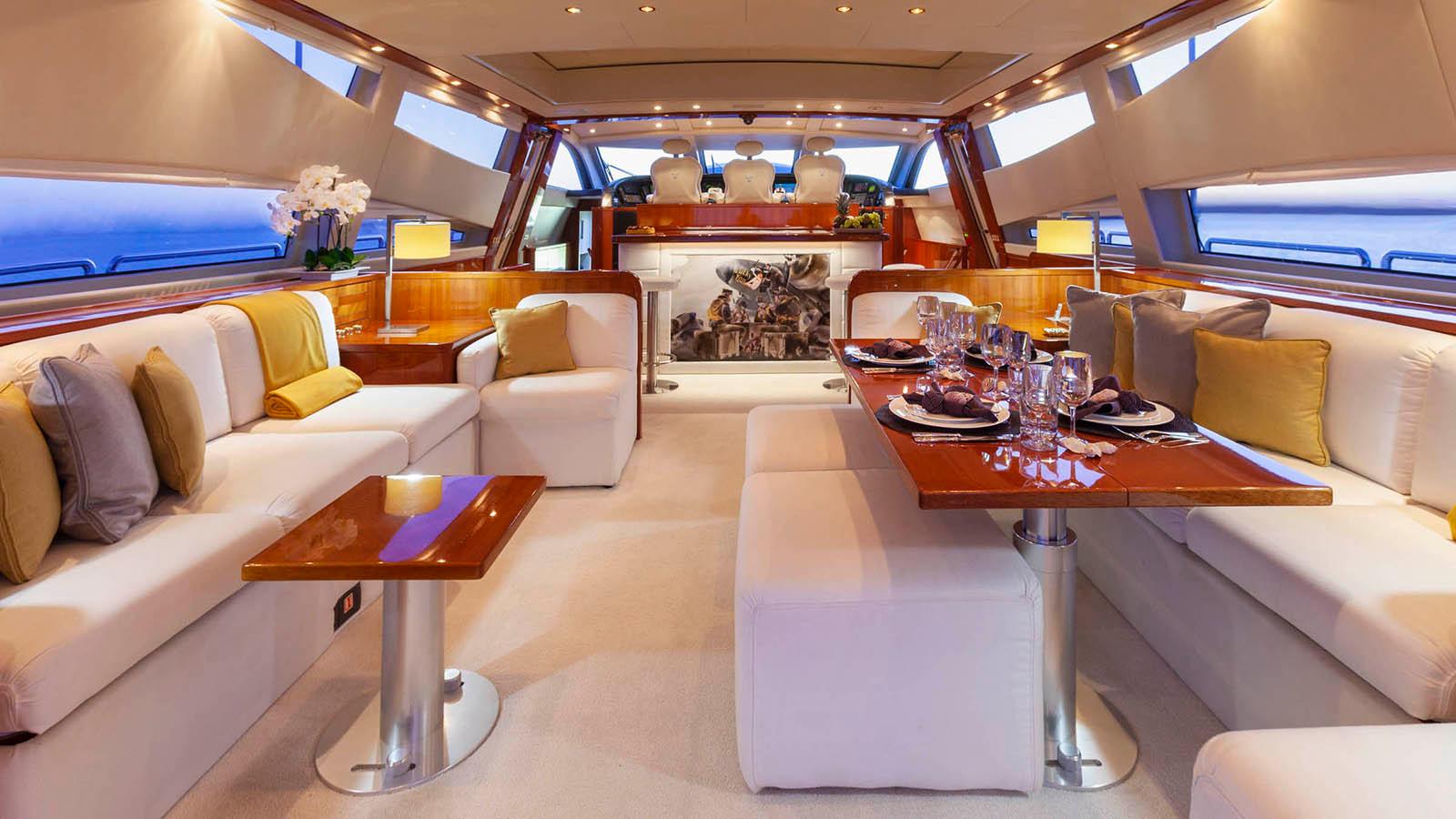

SALON (2022)

• Complete new upholstery

• 2 new armchairs

• 3 new Chaise de bouffée

• New Wet bar with fitted fridge, wine cooler, 3 types of coffee makers, tea maker and drawers

• New Curtains

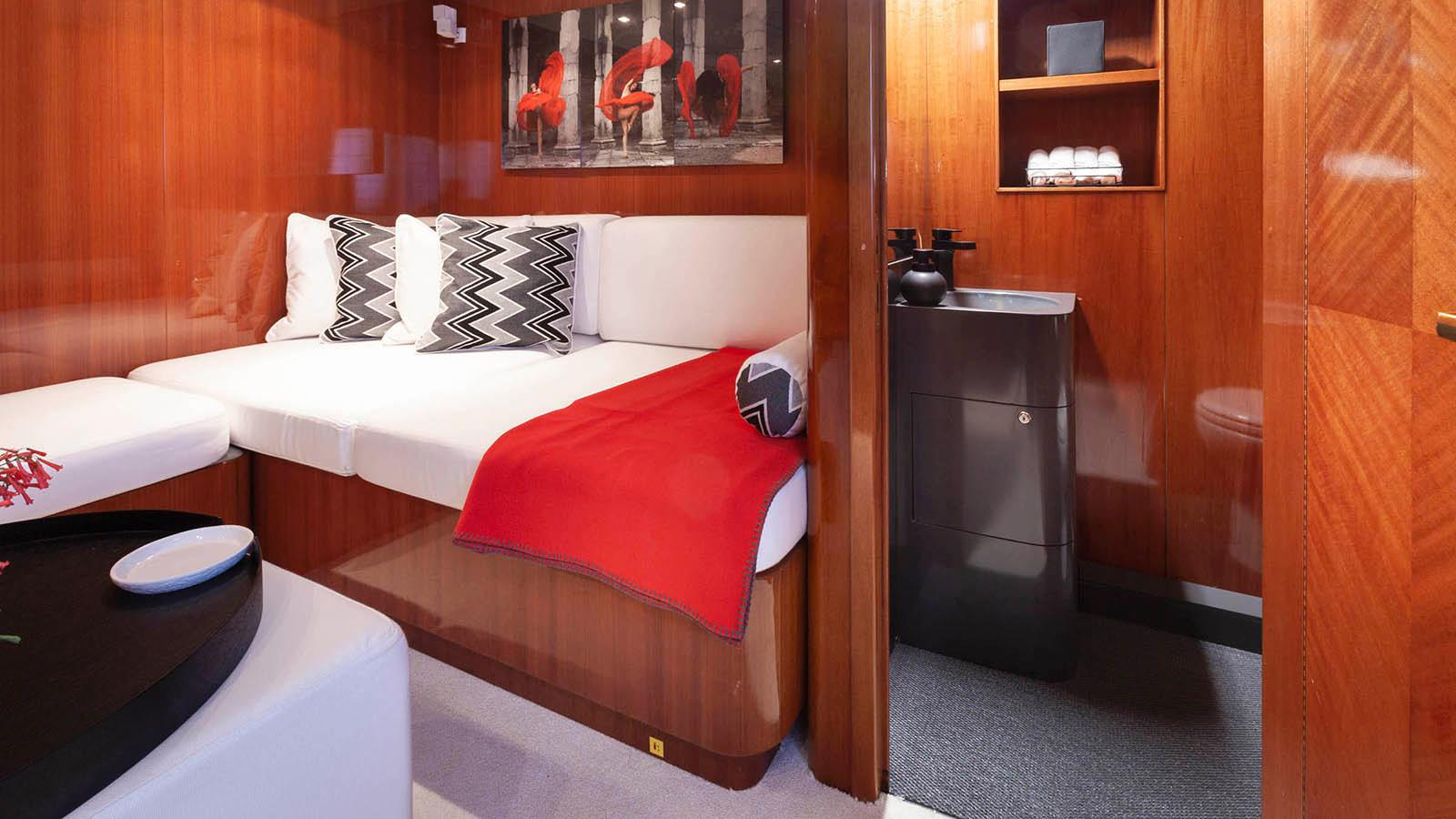

TV ROOM (2022)

• Day-head in TV room installed

• New Upholstery



STARBOARD CABIN (2022)

• Full conversion from double to twin

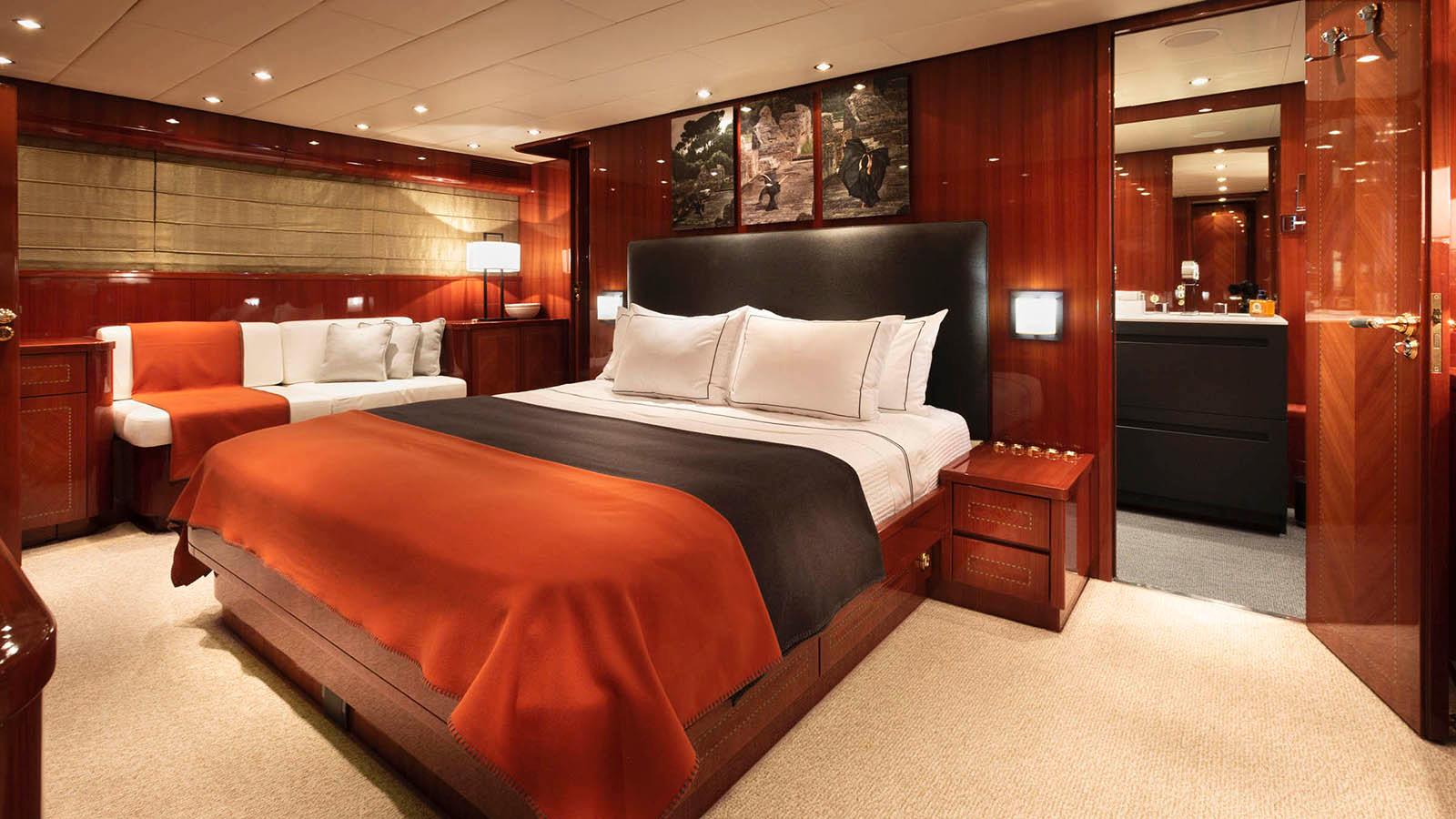

MASTER CABIN (2022)

• Fresh Air exchange system

• New upholstery



ENGINE ROOM (2022-2021)

• All MTU engines QL3 maintenance Dec 2021

• Full service of the two gensets Dec 2021

• New Emergency, Service and Generator batteries (Mar 2022)

• Full service of Hamann System (Mar 2022)

• New batteries Banks (Service, Generators, Emergency Mach 2022)

REFIT 2021

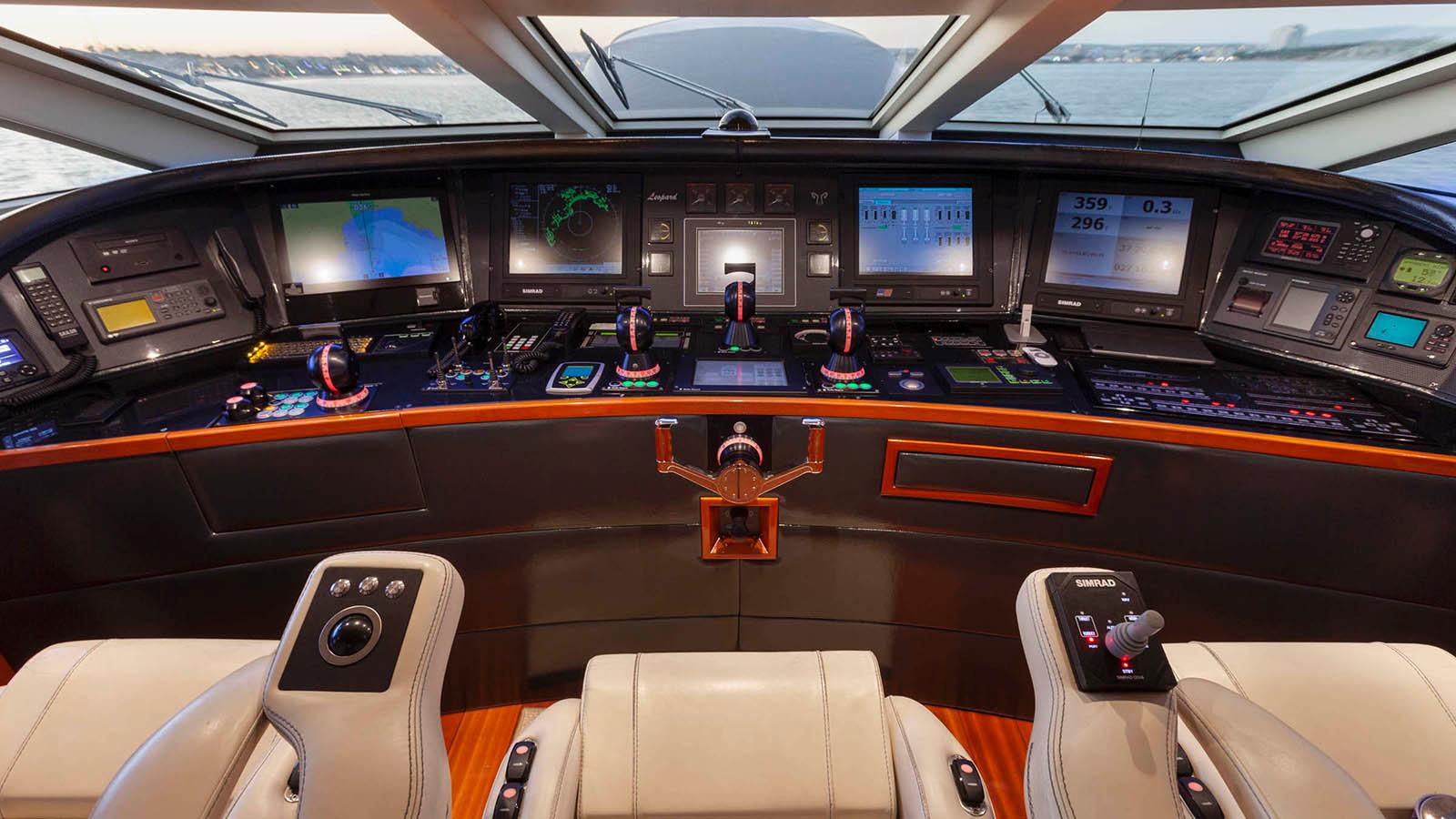

BRIDGE (DEC 2021)

• New Raymarine Axiom Chart Plotter

• New Raymarine FLIR
