CONSTRUCTION
RCD Status:
• CE Certification class A Ocean for 12 people on board.
Hull, Deck & Superstructure Construction:
• Carbon-reinforced mahogany cold-moulded construction with stainless steel structures
• White painted topsides

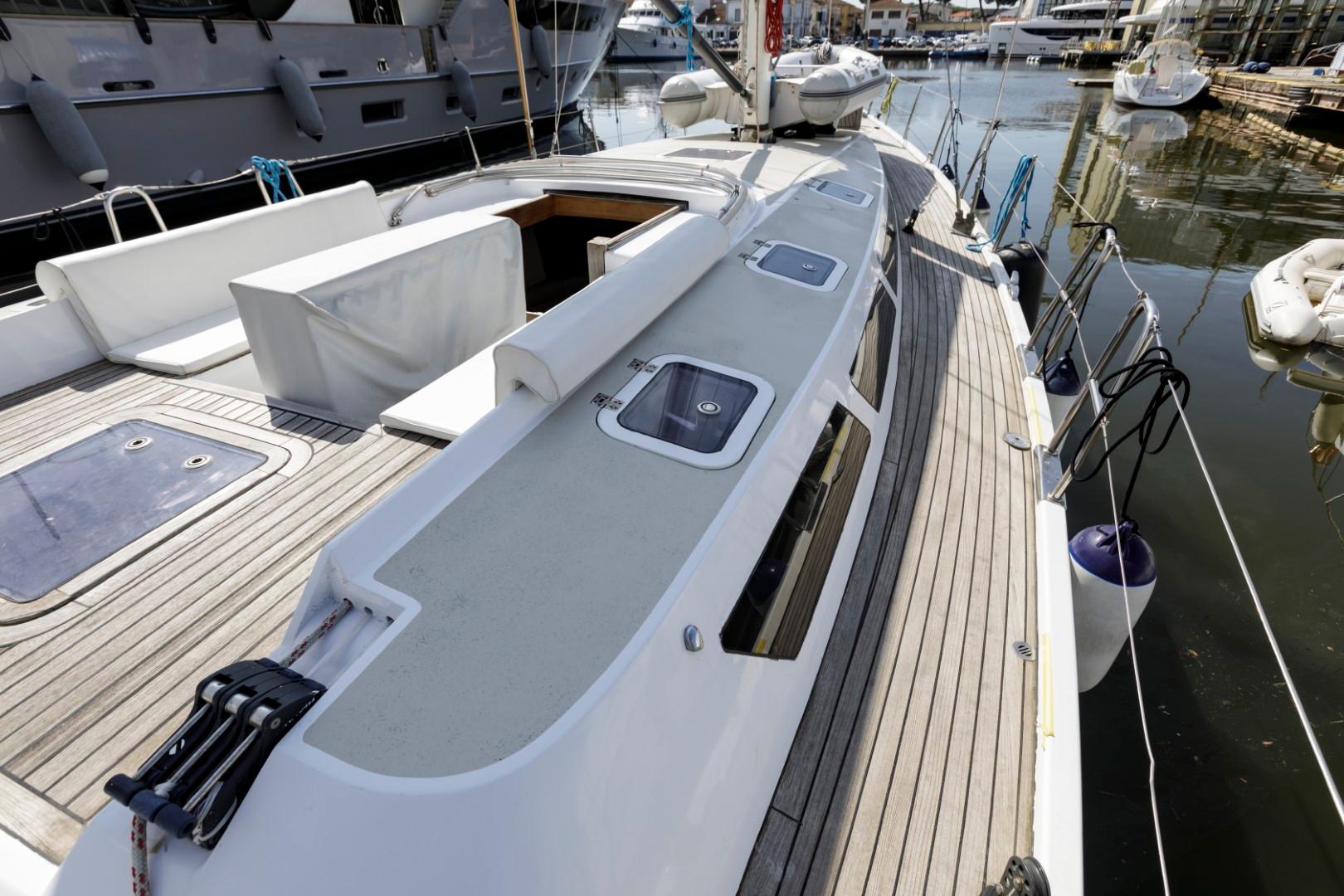

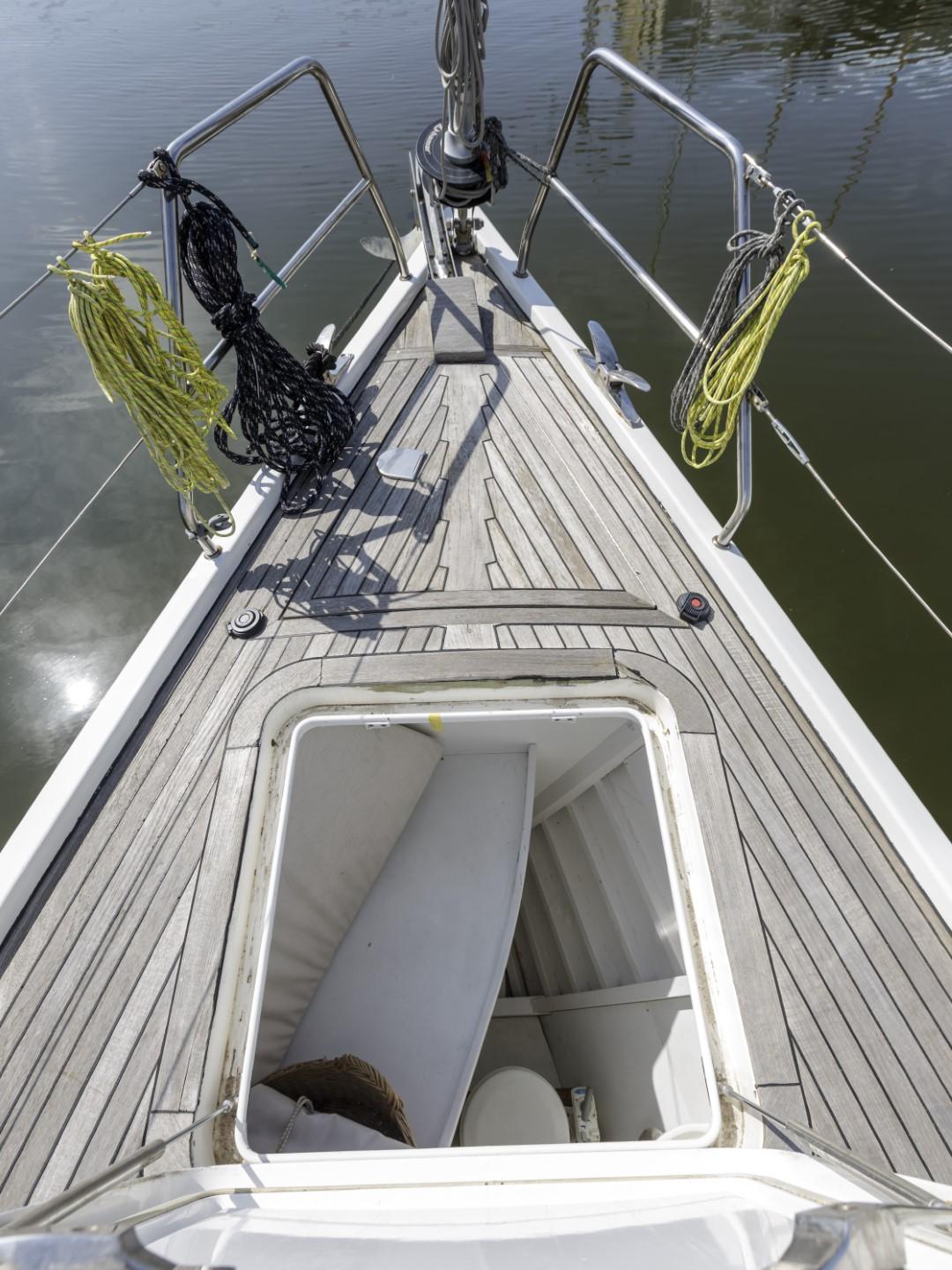

• Teak laid side decks and cockpit
• Antiskid - 2023

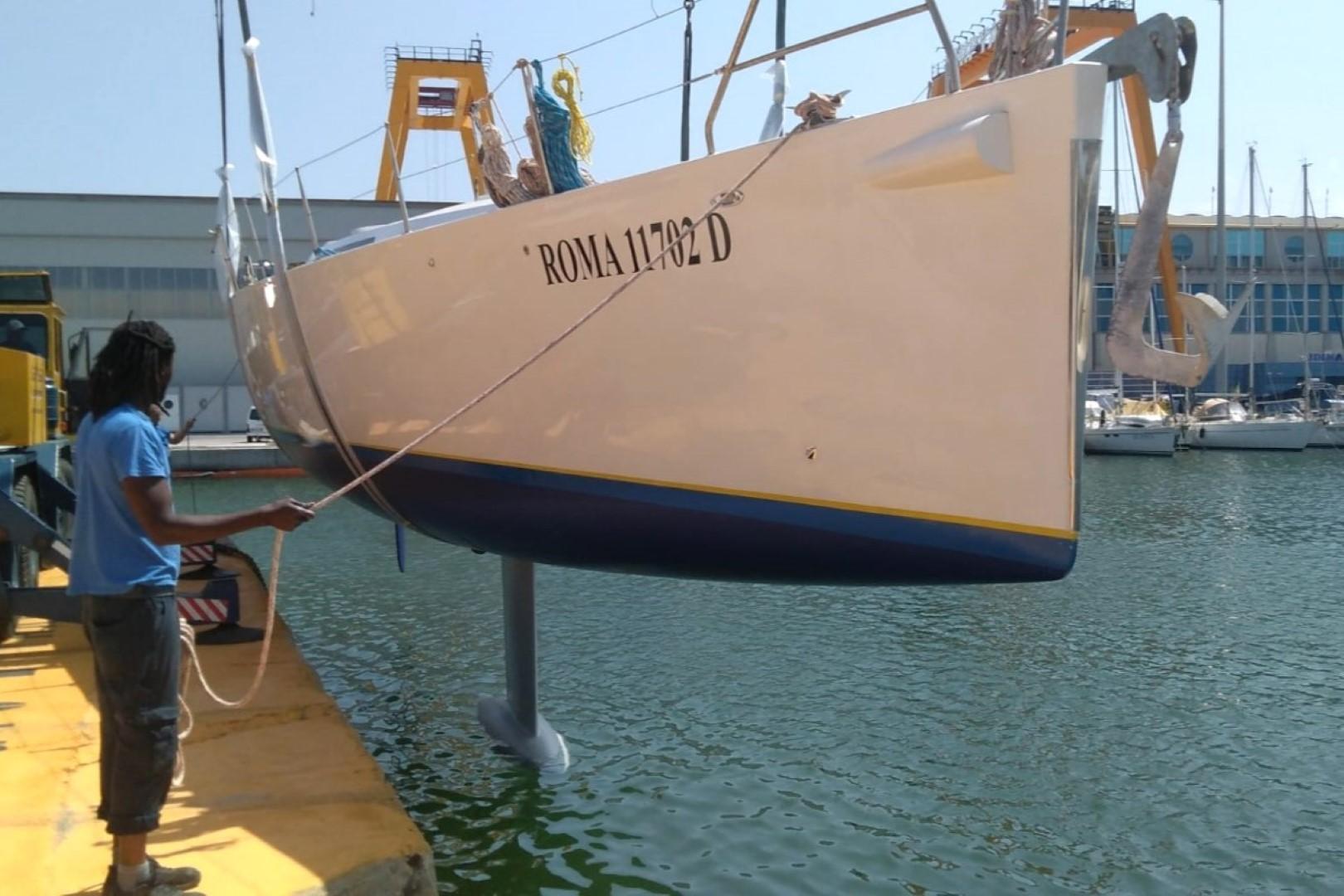

Keel & Rudder:
• Cast Iron Keel.
• Balanced carbon fibre rudder.
• Steel keel with lead bulb
MACHINERY
Engine & gearbox:
• Yanmar 4JH4-TE 4-cylinder turbocharged diesel engine producing 75hp @ 3,200rpm
• Freshwater cooled engine.
• Single lever engine control.
• Engine hours – approx. 320 as of 2024.
• Date of last engine service: summer 2024.
Propulsion & Steering:
• 3-blades propeller
• Wheel steering with hide covered stainless steel
• Emergency tiller.
• Carbon fibre rudder blade.
ELECTRICAL SYSTEMS
Voltage systems:
• 24vDC domestic systems with 220vAC via shore-power, generator.
Battery Banks:
• 1x 12vDC 105Ah engine and generator start battery – 2024
• 6x 12vDC 105Ah AGM service battery bank – 2022
• 2x 12vDC 105Ah providing 24vDC power to the hydraulic Bamar PTO.
Generator:
• Whisper Power 3.5Kw diesel generator.
• Generator hours: approx. 100 as of 2024.
• Date of last generator service: 2024.
Charger/Inverter:
• 1x 12/35-3 Mastervolt Automatic battery charger for engine battery bank
• 1x 24vDC 60Amp Quick automatic battery charger for service battery bank
Alternator:
• 12vDC 125Amp engine alternator
• 150A 24vDC alternator for service battery bank
Other Electrical:
• 220vAC shore power with isolator and circuit breaker
• Electric panel with circuit breakers at chart table
PLUMBING & GAS SYSTEMS
Fresh Water:
• The hot freshwater circuit is led into a well-insulated 80 litre hot water tank, heated by engine or 230v AC immersion heater element.
Watermaker:
• Reverse osmosis Horizon watermaker 70litres/hour
Bilge Pumps:
• 3x Electric bilge pumps: 1x forepeak; 1x engine room; 1x with pipe
• Manual bilge pumps
TANKAGE
Fuel:
• Fuel capacity approx. 250 litres in 2 GRP tanks.
• All of them connected and with one boarding cap
Fresh Water:
• Fresh water capacity approx. 450 litres in 2 grp tanks (200 + 250 litres)
Holding Tanks:
• 125litres black water holding tank for the two heads
• Grey water tank with automatic discharge pumps (galley sink discharge overseas)
NAVIGATION & COMMUNICATION EQUIPMENT
• Humminbird chartoplotter at the steering column
• Raymarine C90W chartplotter at the chart table
• Raymarine 400G AST autopilot with Raymarine ACU 400 control unit- 2023
• Windex
Communications Equipment:
• Raymarine RAY 49E VHF Radio with DSC
DOMESTIC EQUIPMENT

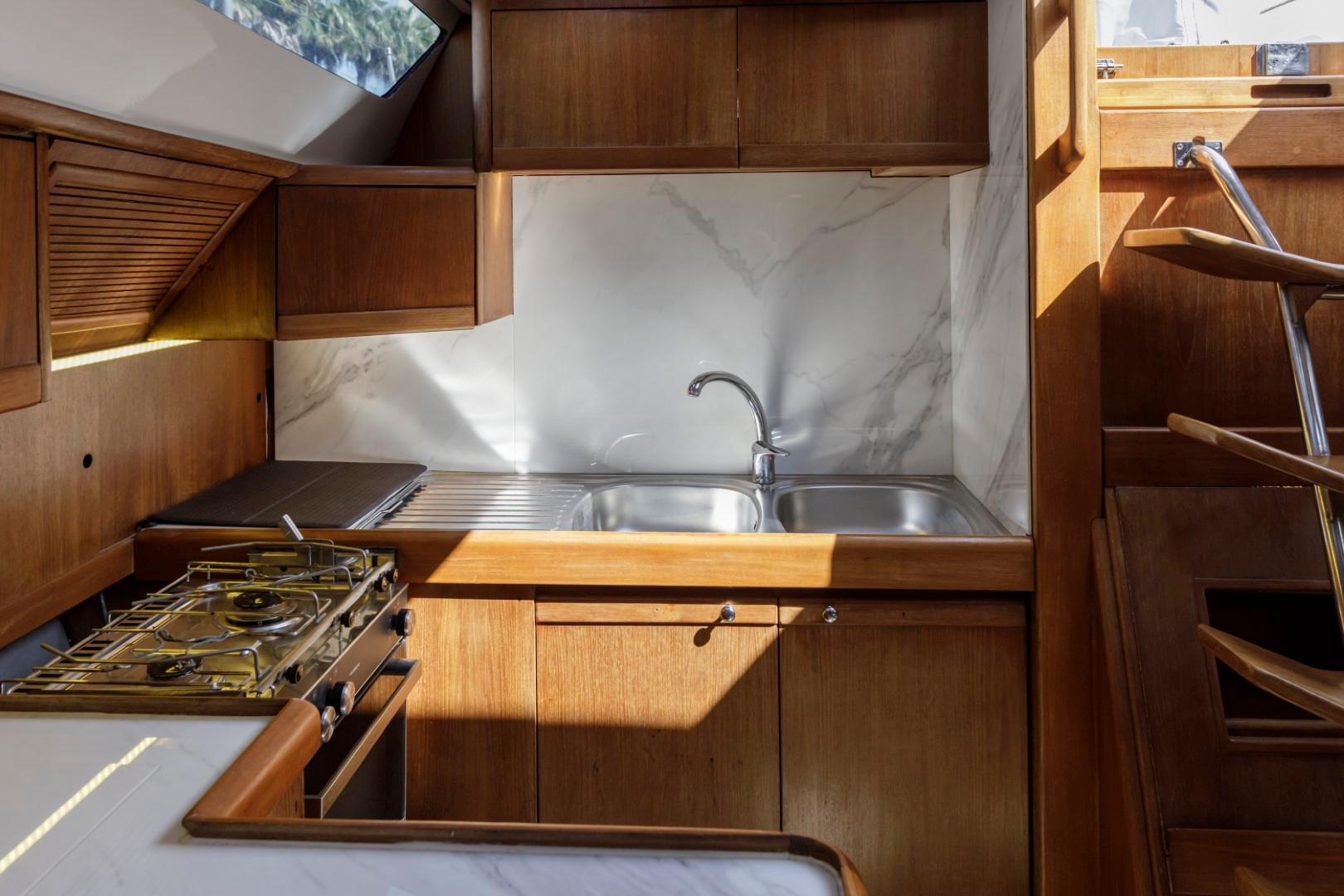

Galley:
• Gimballed Dometic Inox gas stove with 2-burners and oven - 2023
• Twin stainless steel sinks with fresh water supply
• Front opening WAECO 24vDC refrigerator
• Top opening WAECO 24vDC freezer/refrigerator
• Salt water feet pump

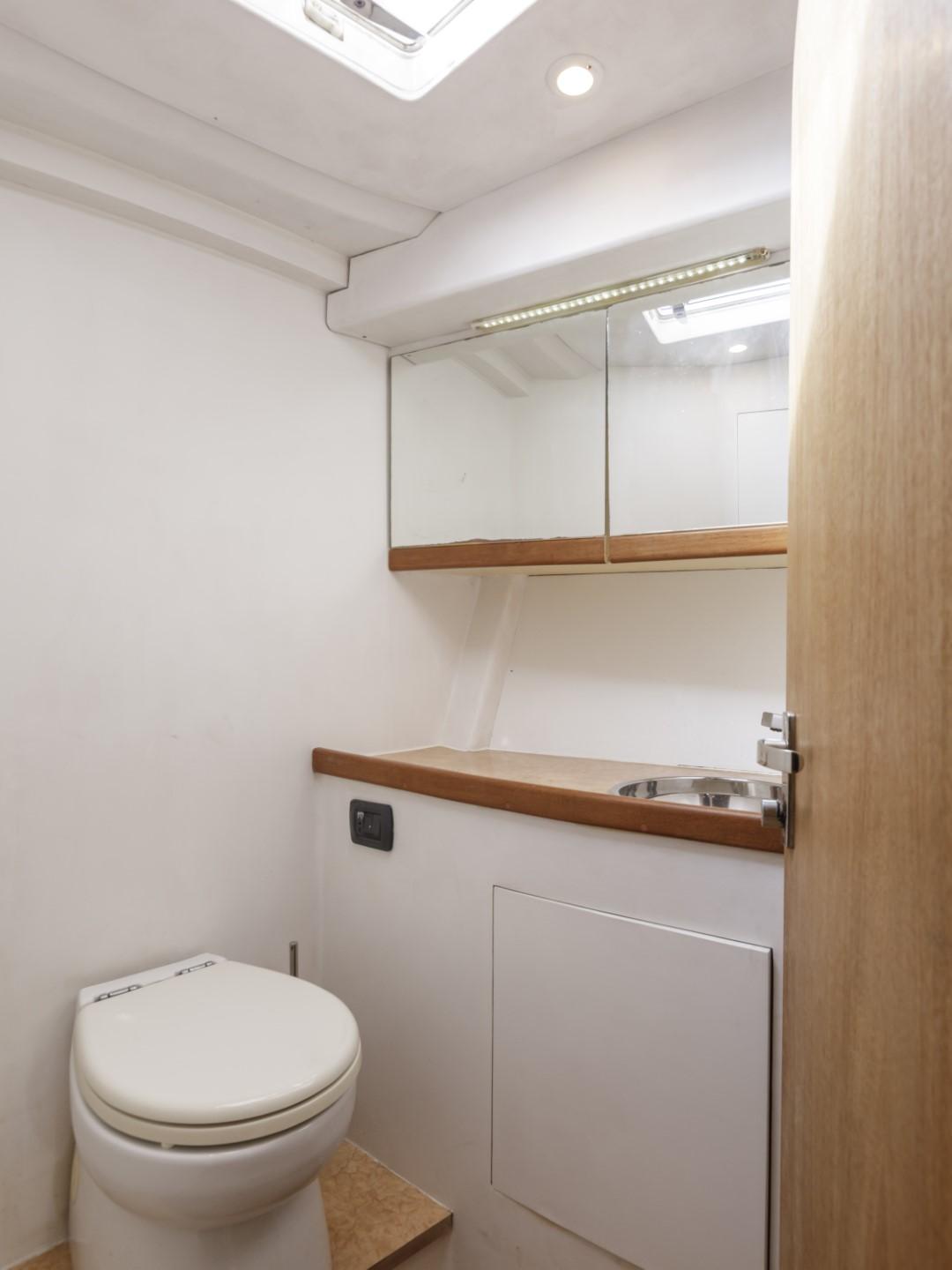

Heads:
• 2x 24vDC electric marine heads
• Hot & cold pressurised showers
Airconditioning system:
• Dometic Airconditioning system with inverter.
• Two separated systems: one for the aft owner’s cabin and another for the saloon and forward twin cabins
Lighting:
• LED lighting
Entertainment:
• Flat screen Philipps LCD TV in saloon
ACCOMMODATION
Summary of Accommodation:
• 7 guest berths in owner’s double cabin aft with three beds, twin guest cabins forward, further crew bunk cabin in the forepeak. Two heads plus further head in the crew cabin.
• Electric heads
• Grey water tanks for shower with automatic pumps to discharge directly overboard
Accommodation Finish:
• Teak wood veneered joinery
• White painted wood ceiling – painted 2023
• Lightweight sandwich construction soleboards – painted 2023
• White leatherette upholstery
• White cloth curtain
• Porcelain stoneware in the galley

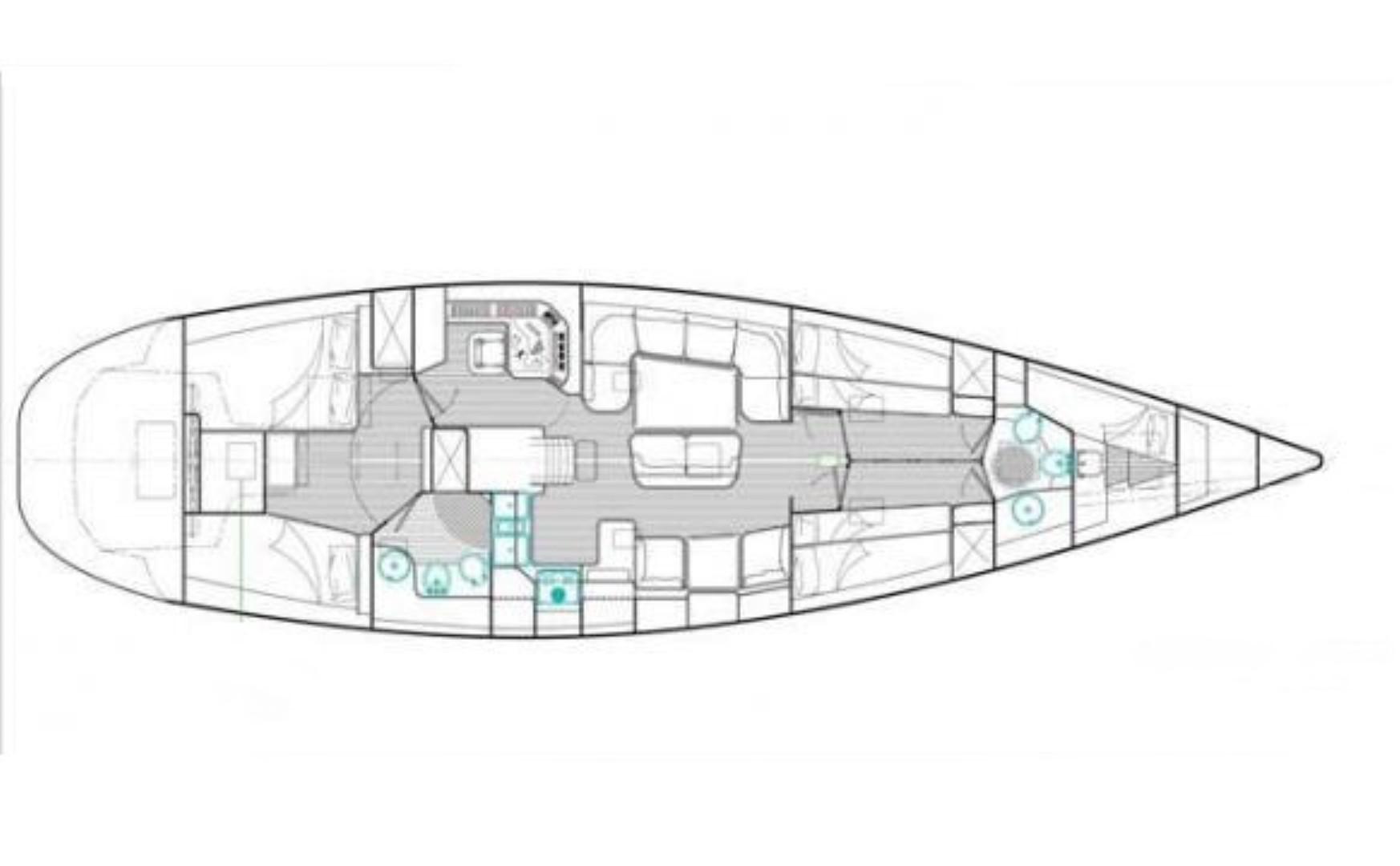

Summary of Accommodation From Forward:

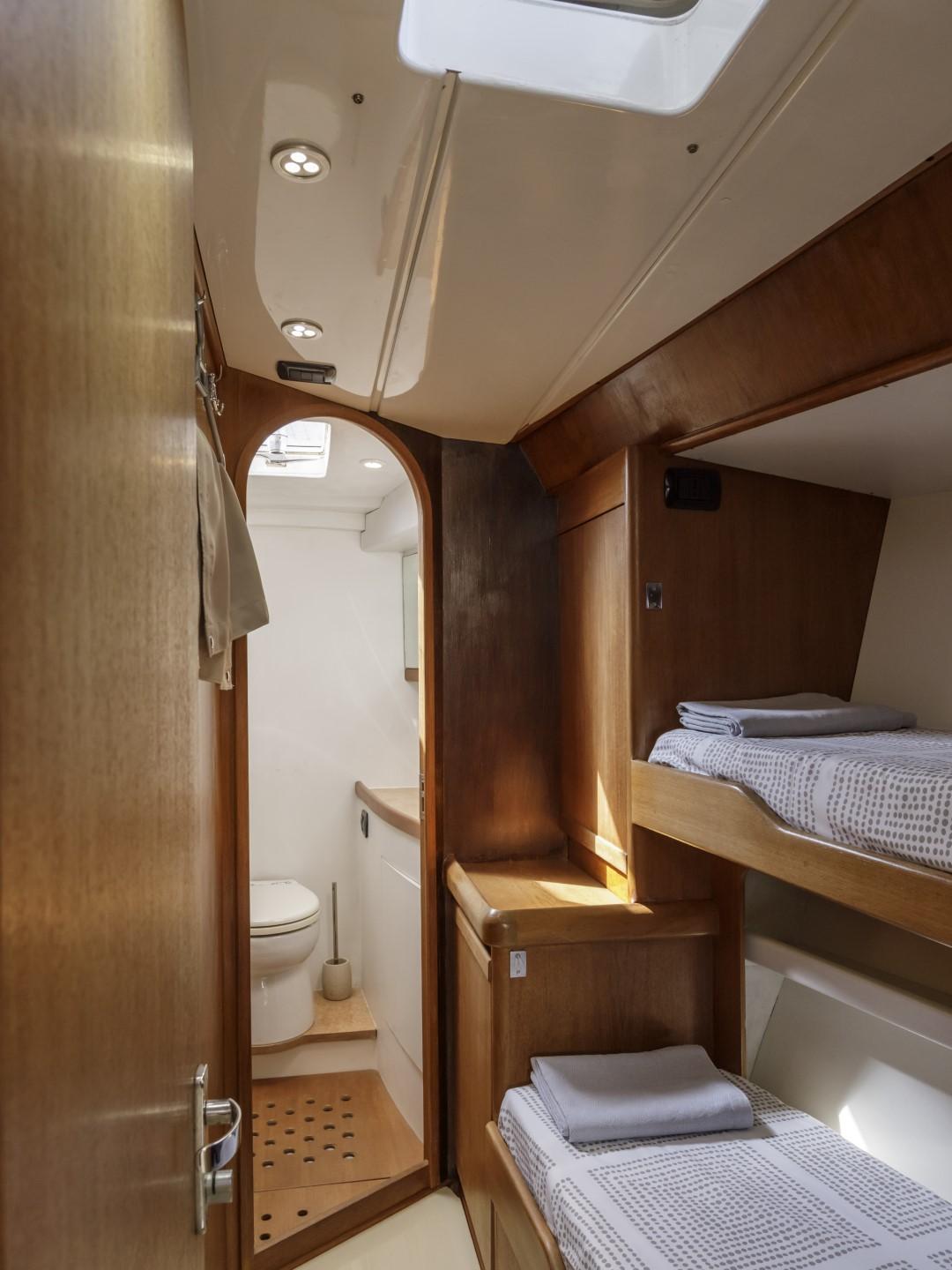

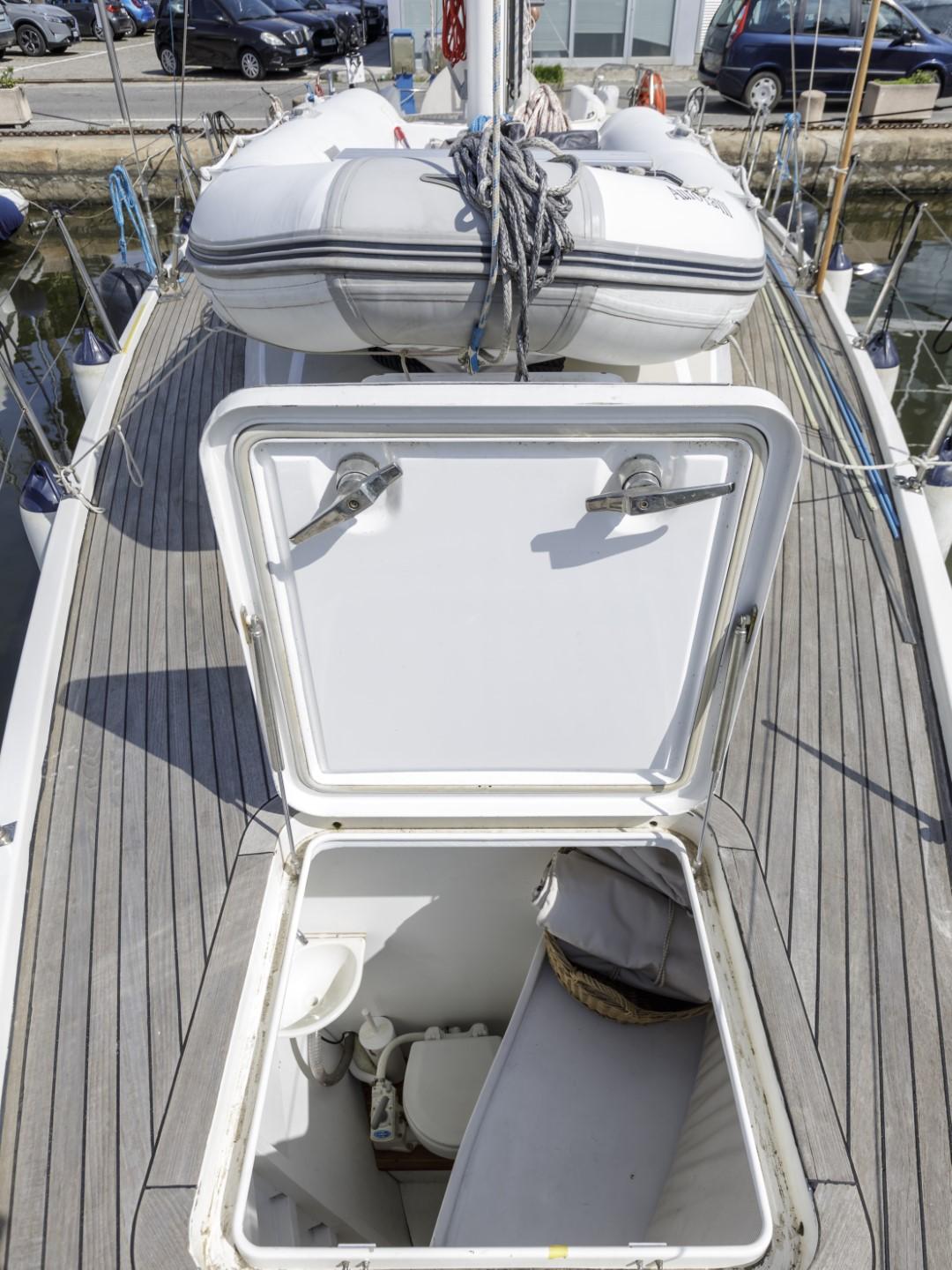

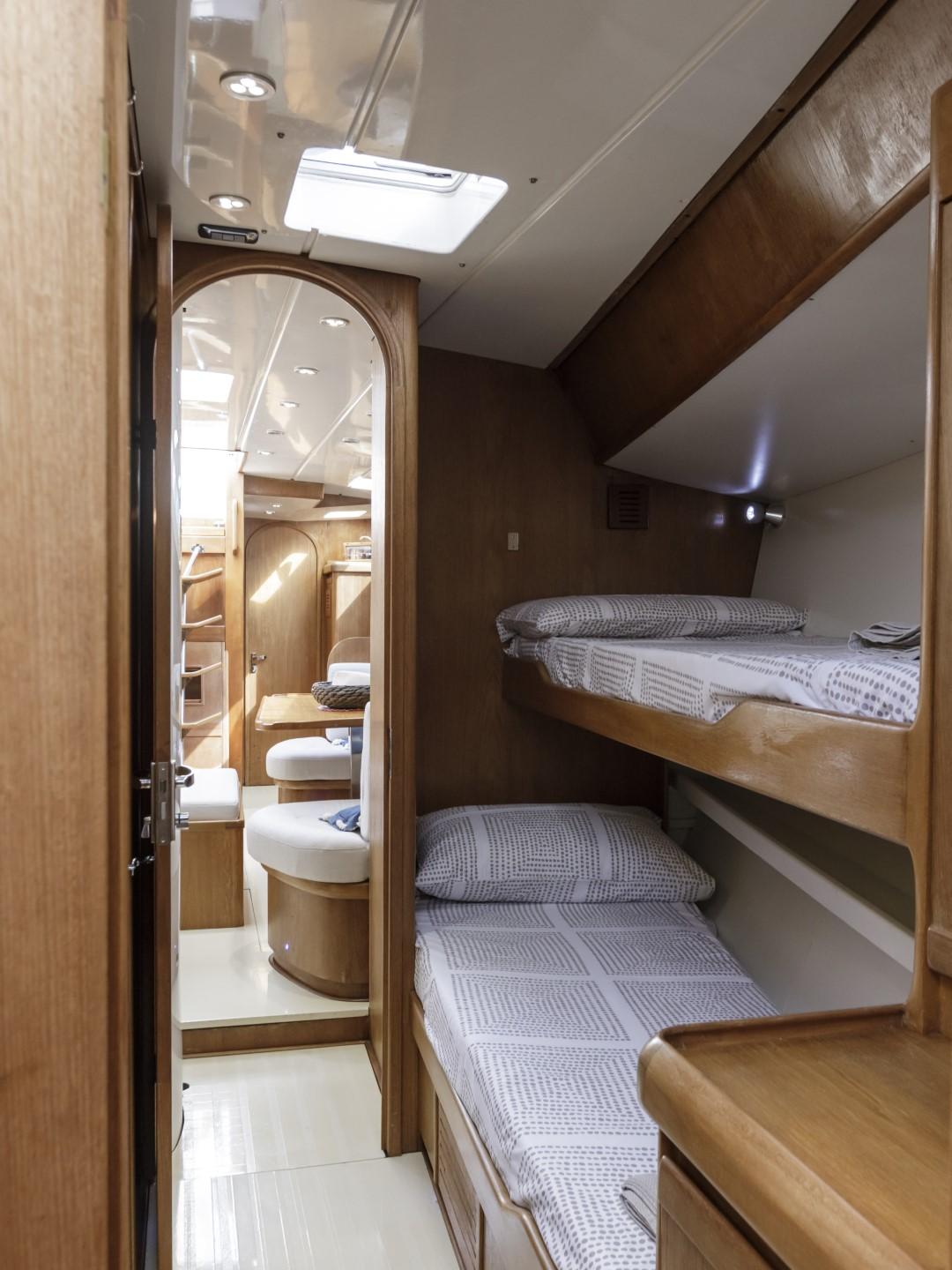

• Forepeak crew cabin with ensuite manual heads.

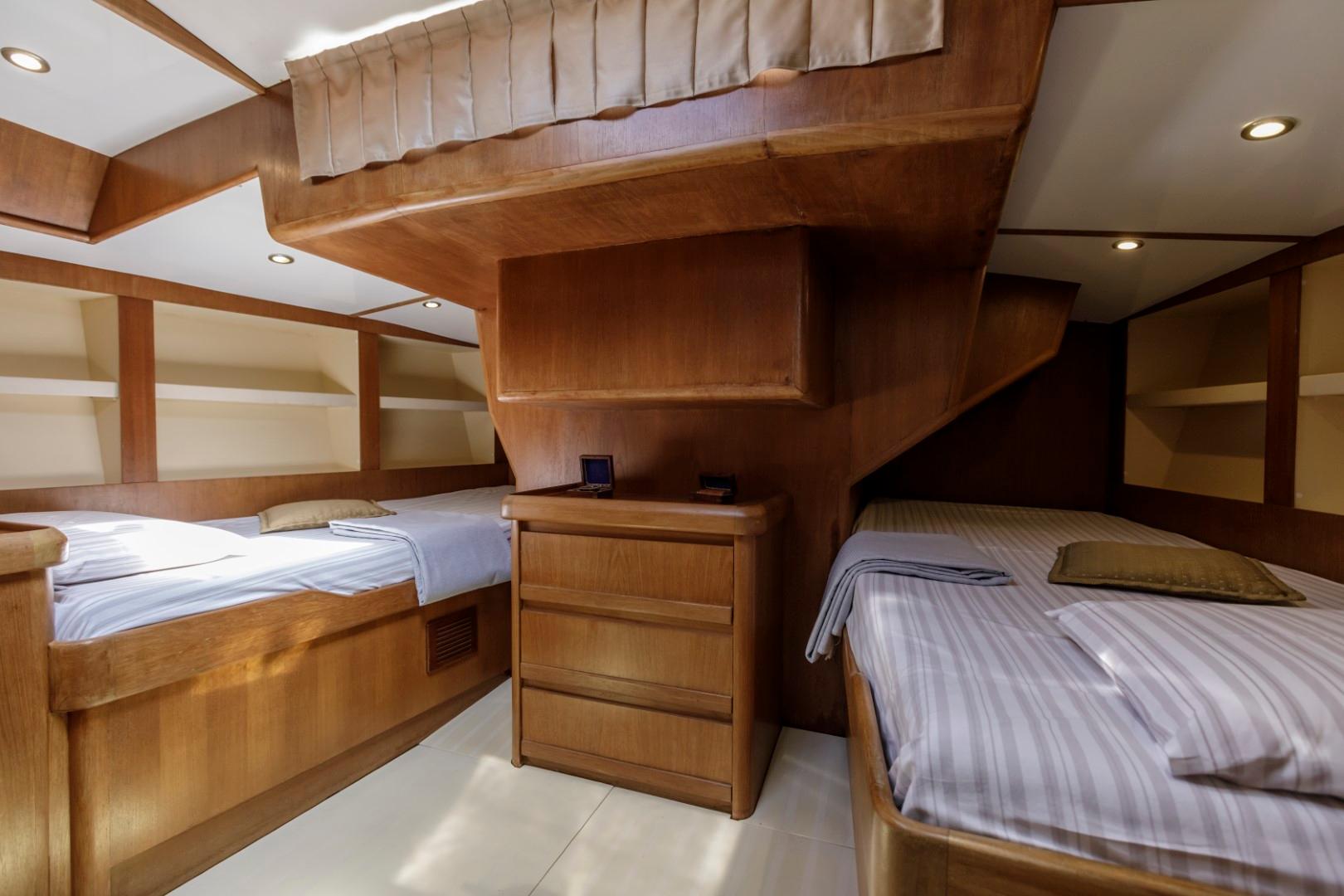

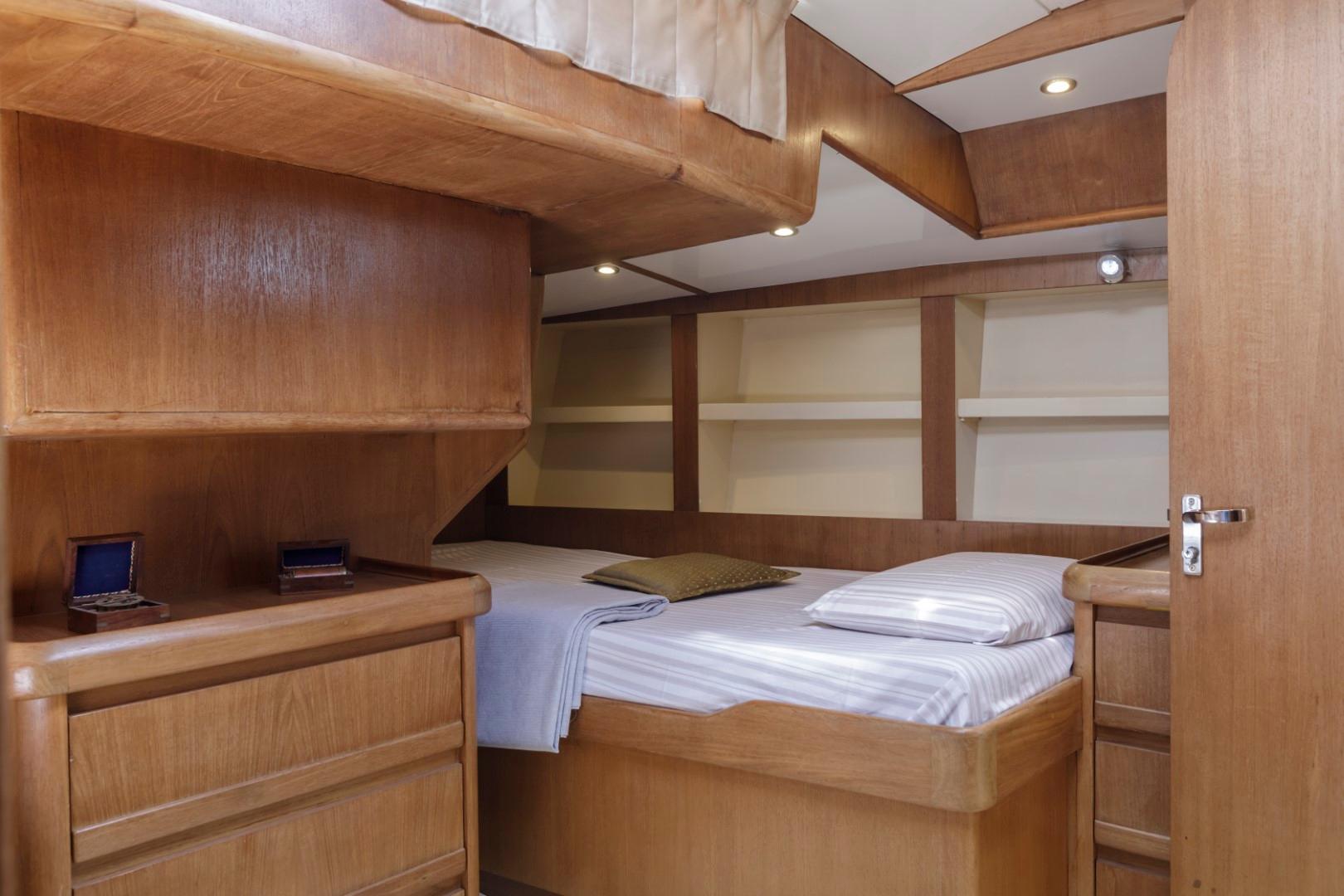

• Twin guests forward cabins with hanging lockers.

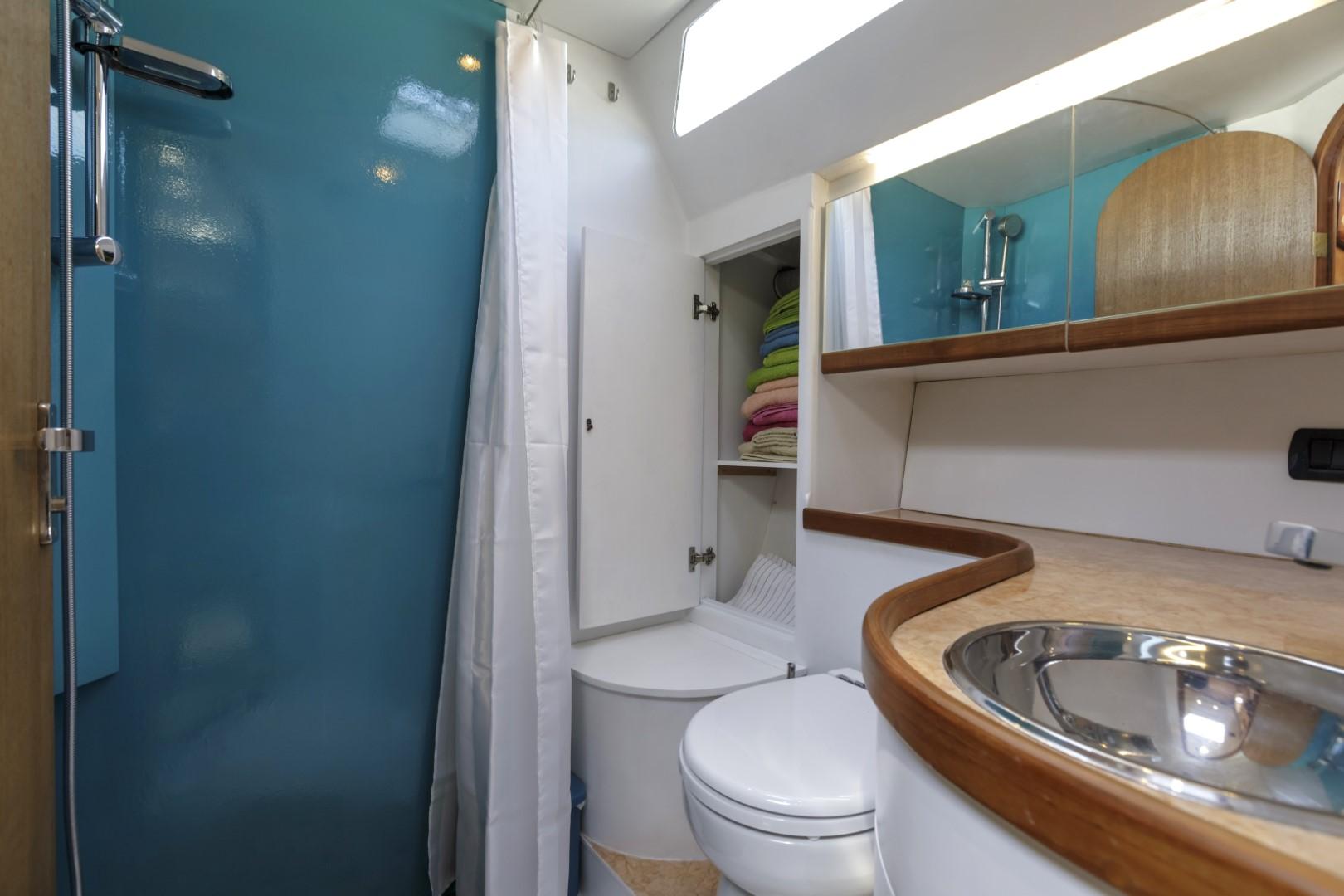

• Shared ensuite head with shower.

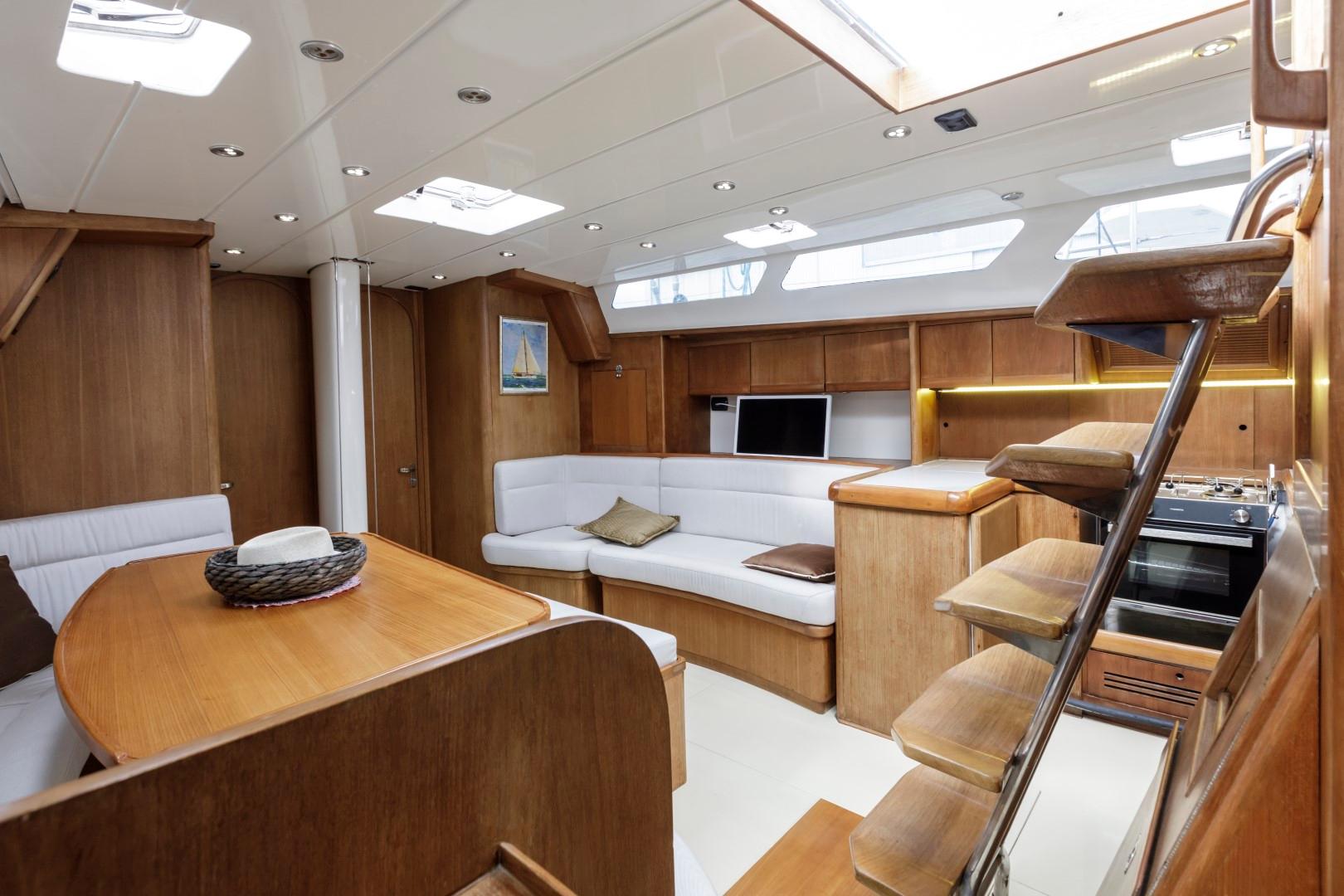

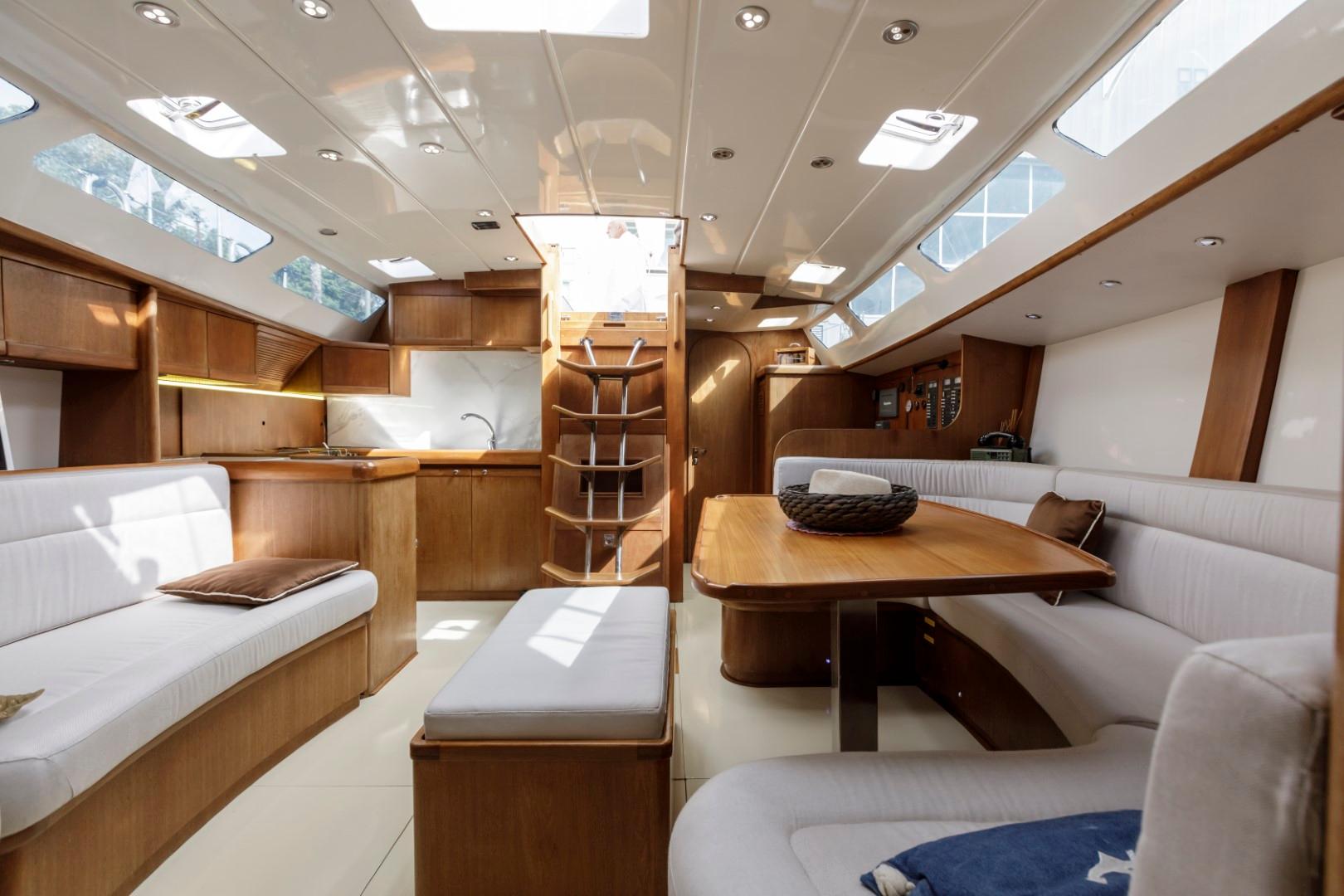

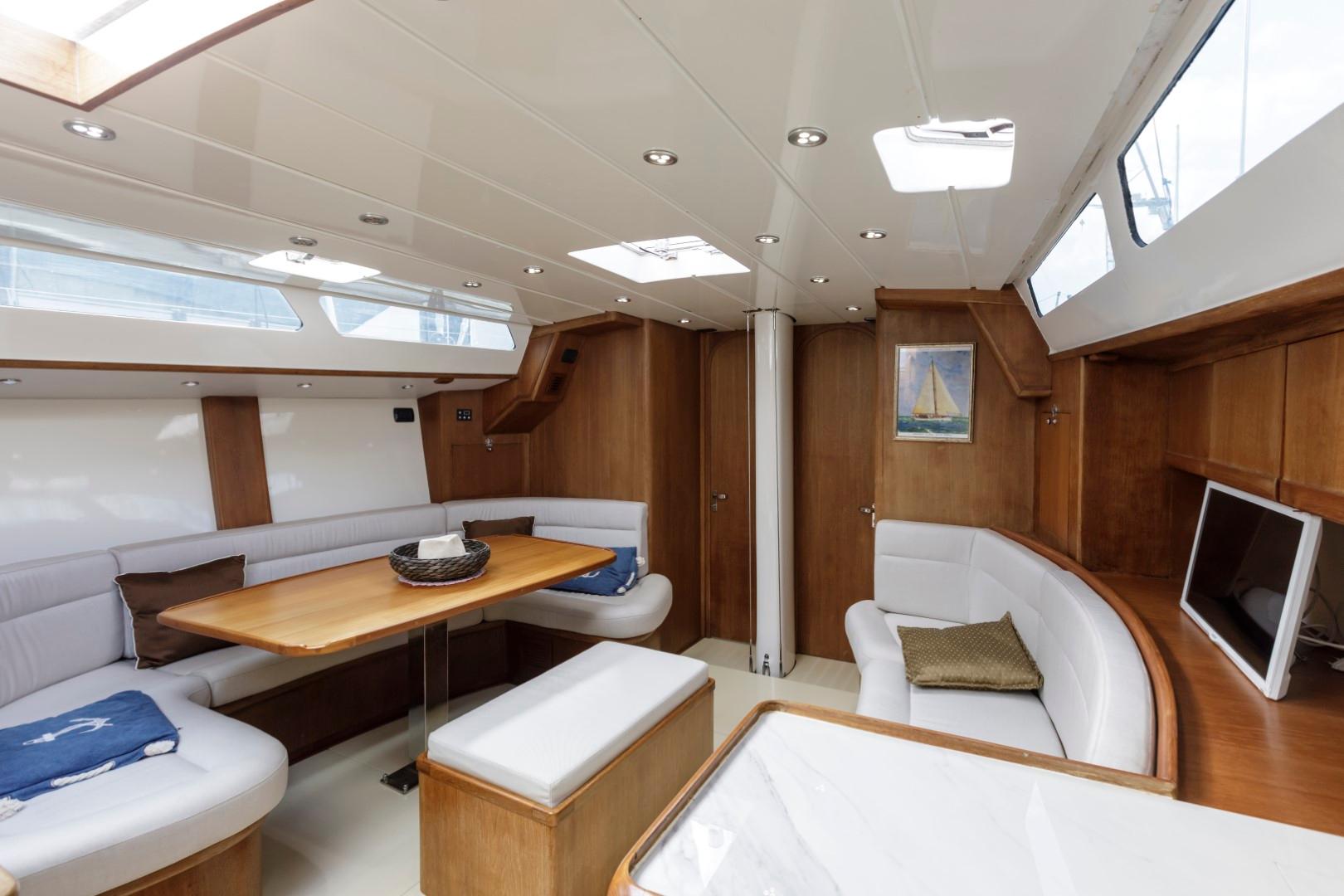

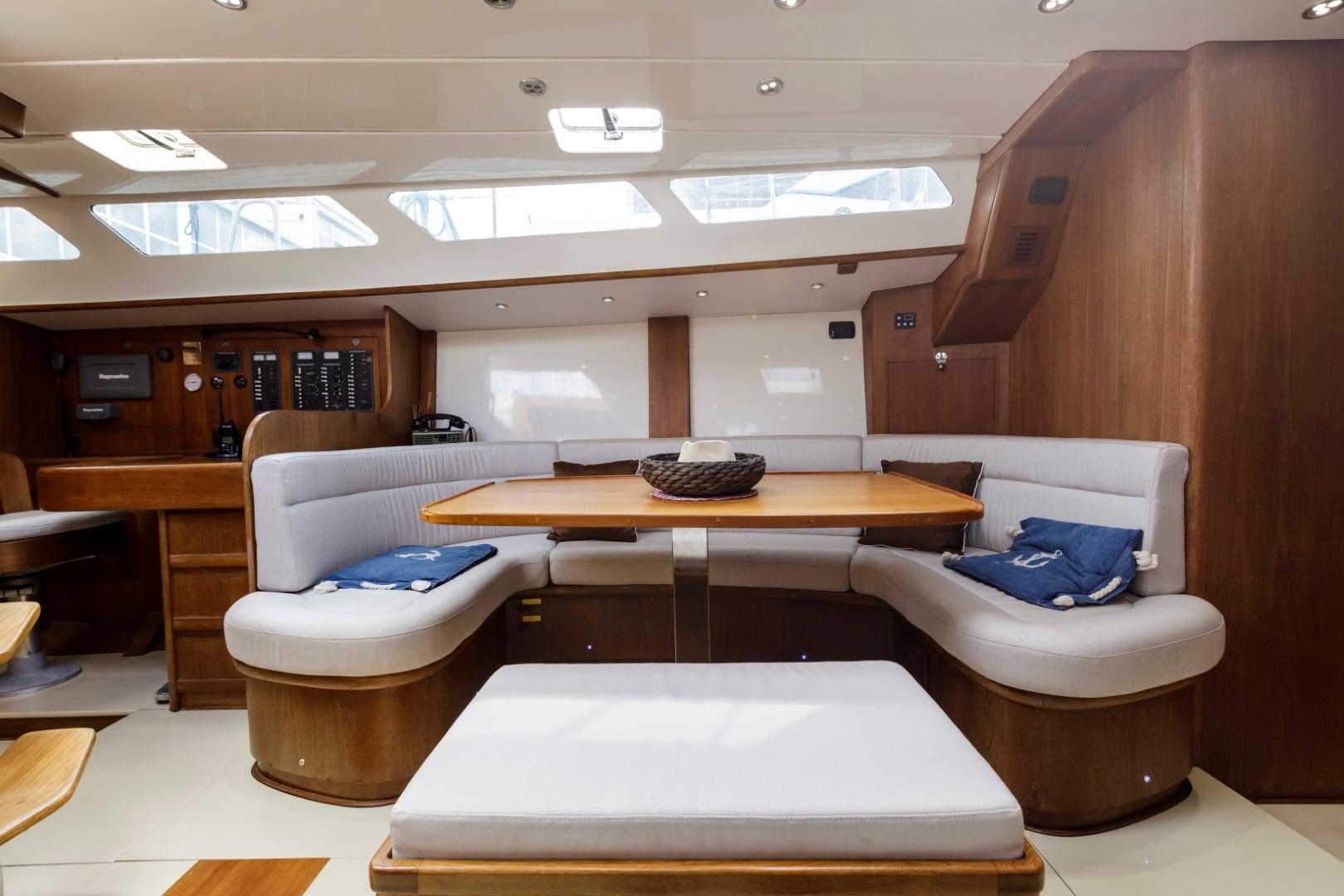

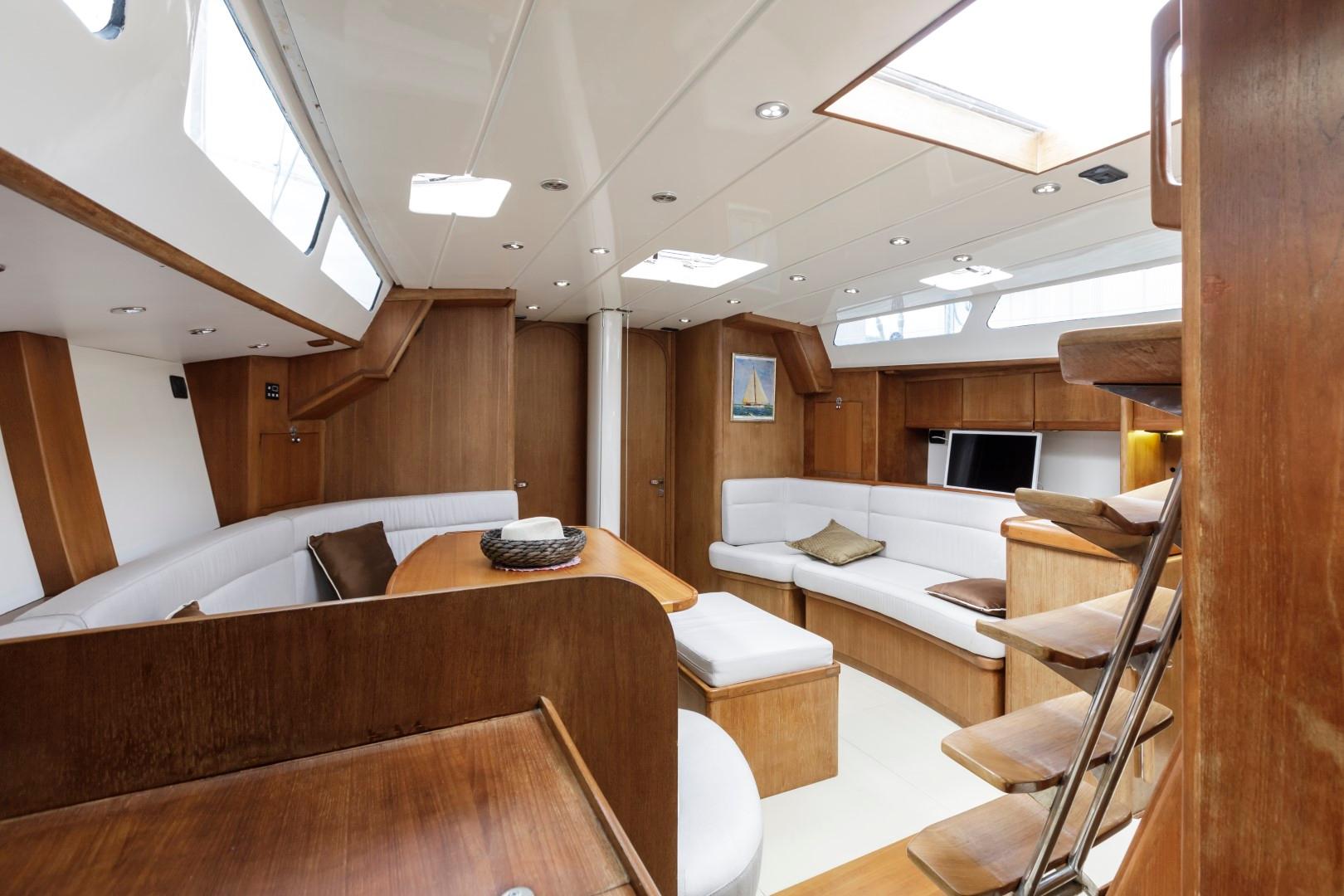

• Large saloon with U-shaped settee to portside and centre settee in the saloon

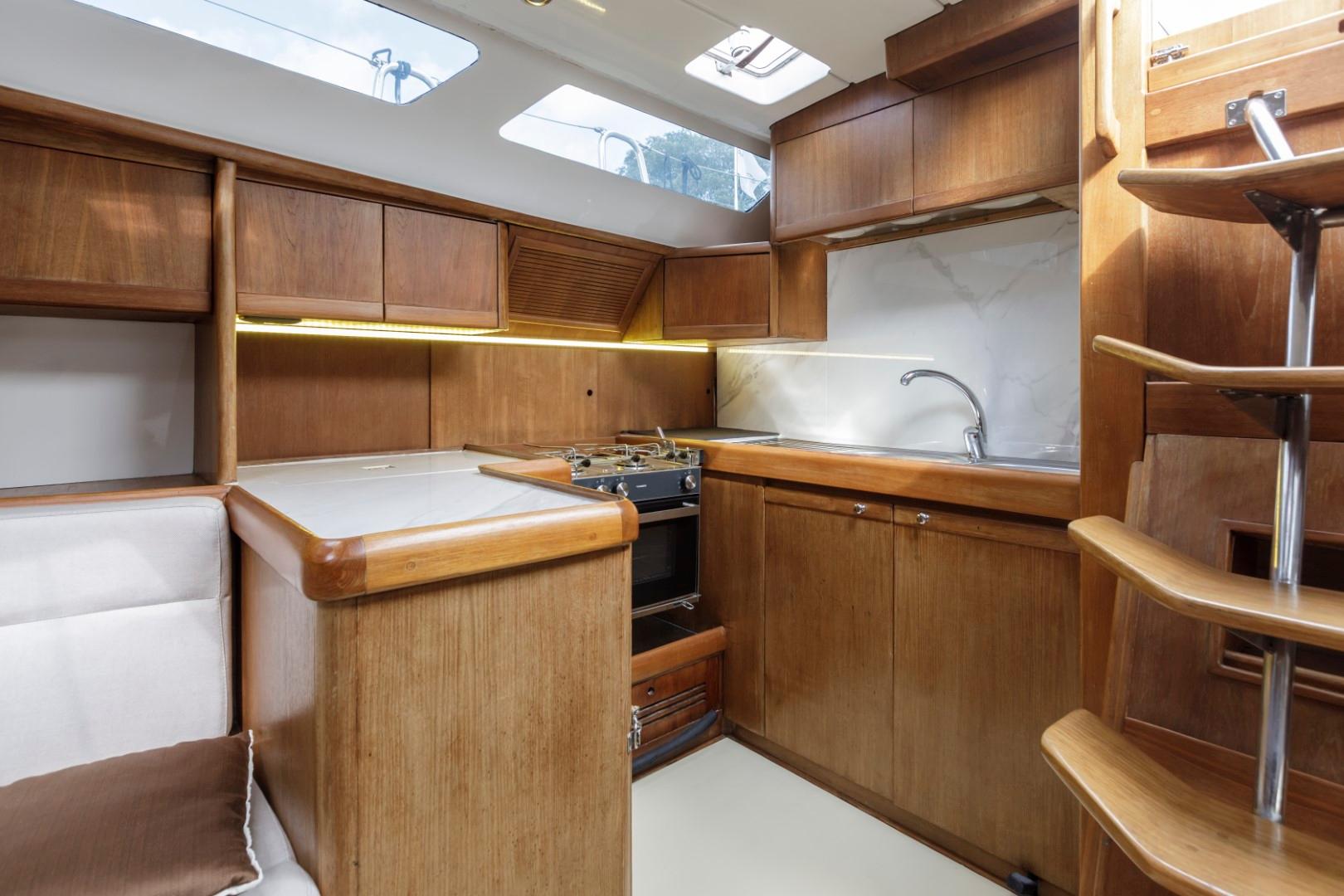

• Galley aft of saloon area to starboard with L counter.

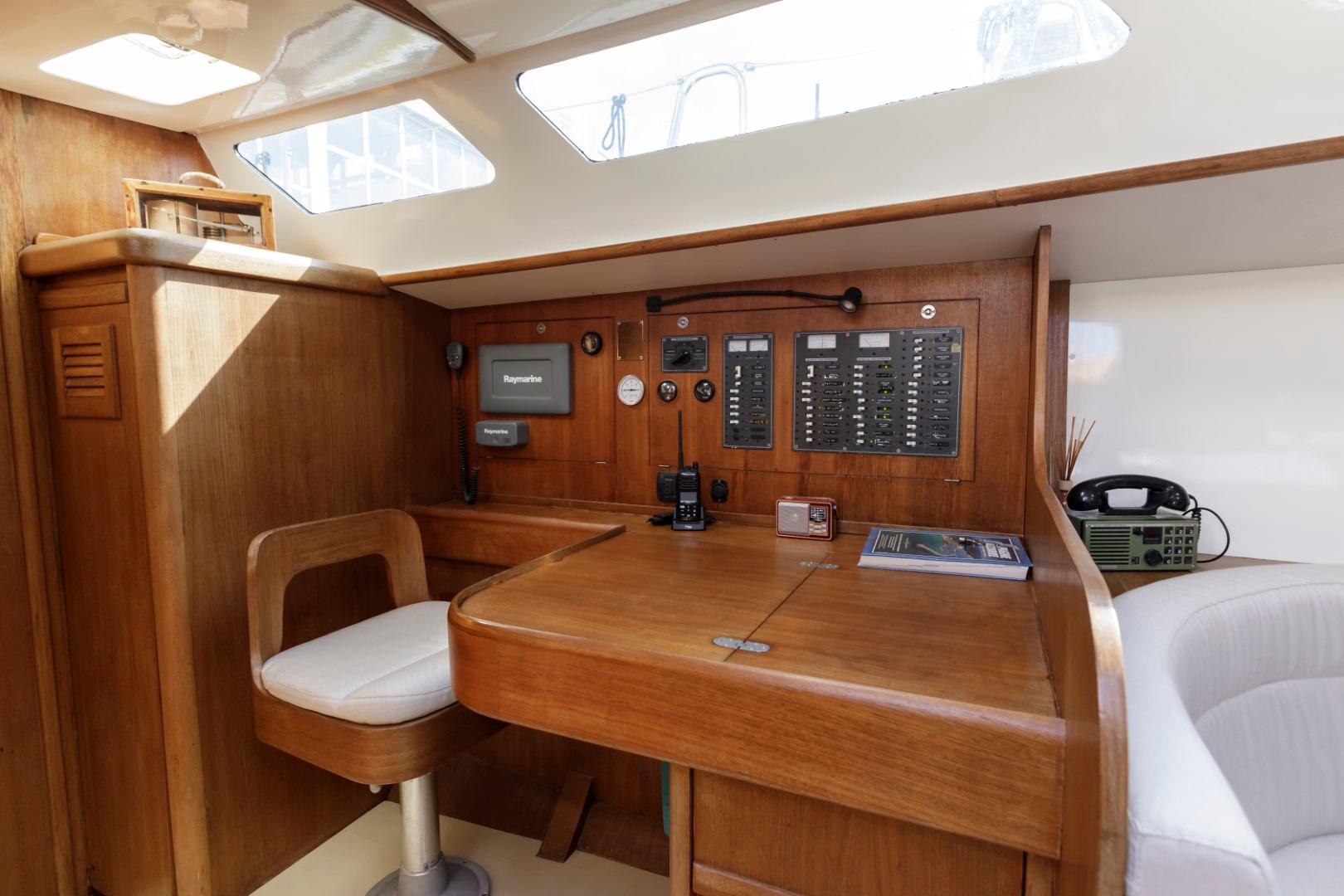

• Chart table area aft of saloon area to portside.

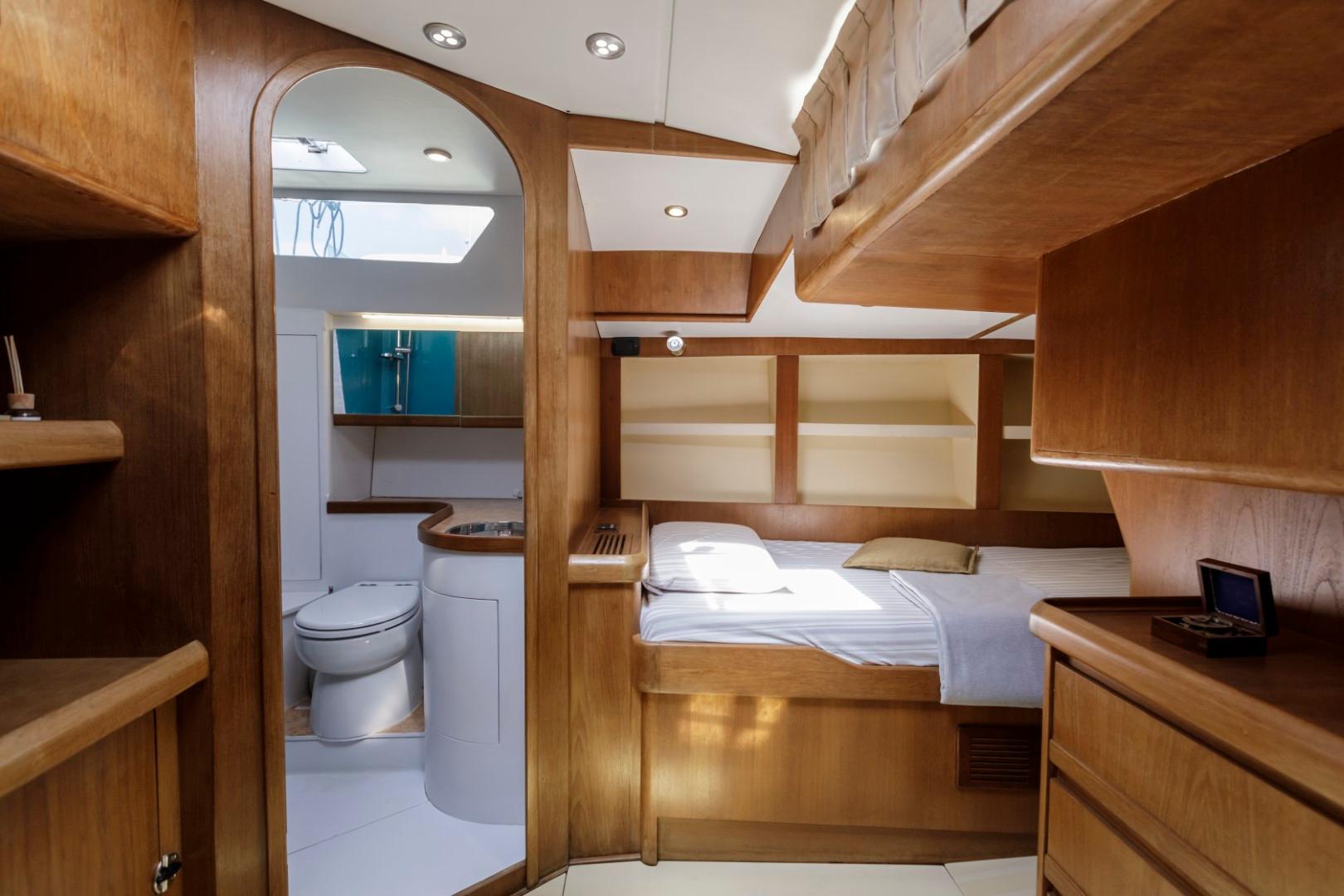

• Owner’s aft cabin with 2 beds (portside bigger) and ensuite heads with shower. Hanging lockers.
DECK EQUIPMENT
Rig:

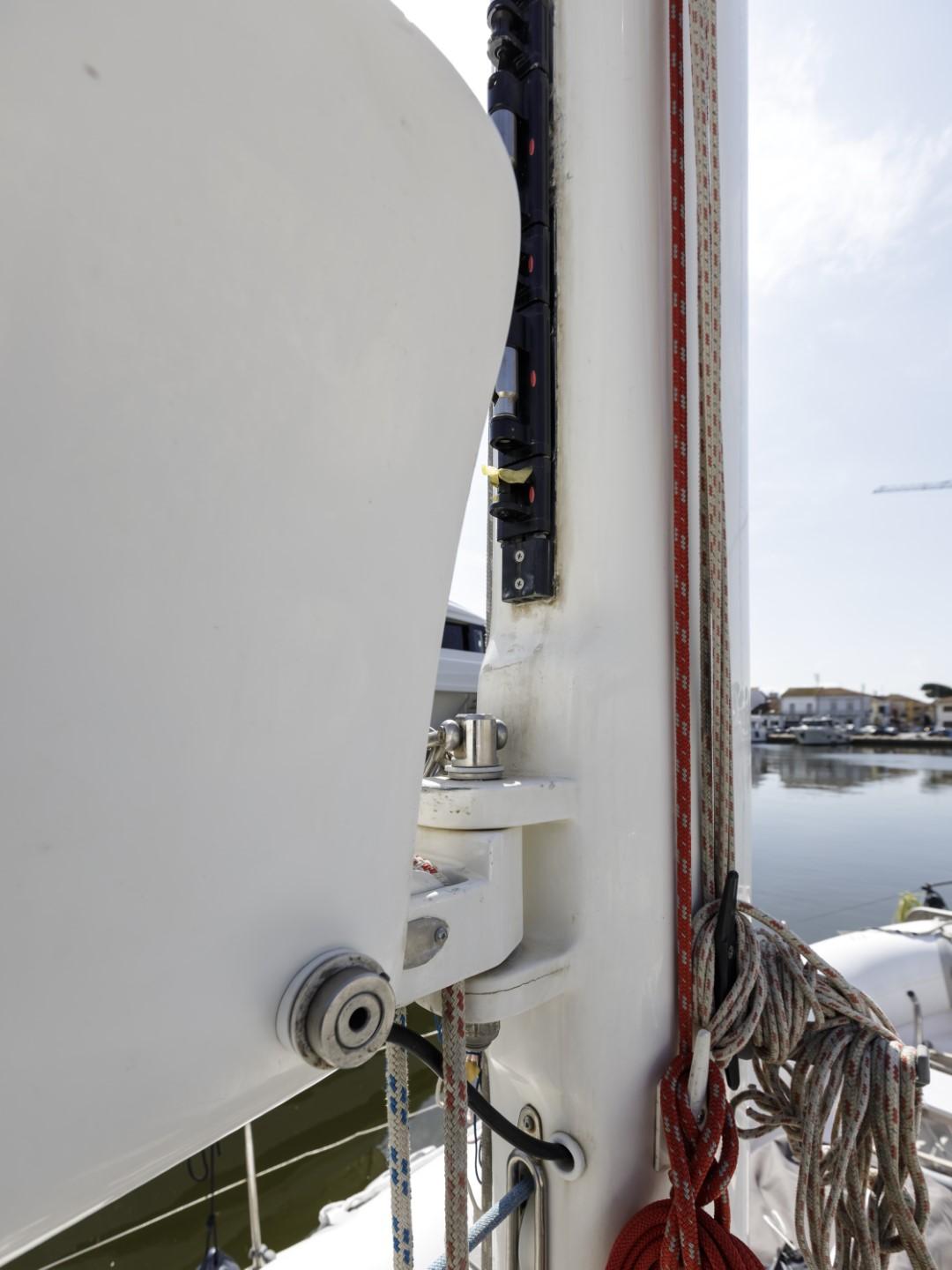

• MaxSpar carbon fibre keel stepped mast
• MaxSpar carbon fibre Park Avenue boom
• 3-sets of swept-back spreaders
• Stainless steel rod standing rigging – original
• Ronstan mainsail battencar system
• Carbon fibre removable bowsprit for gennaker – not installed.
• Adjustable Harken jib tracks on the deck
• Stainless steel steering wheel with steering colum.

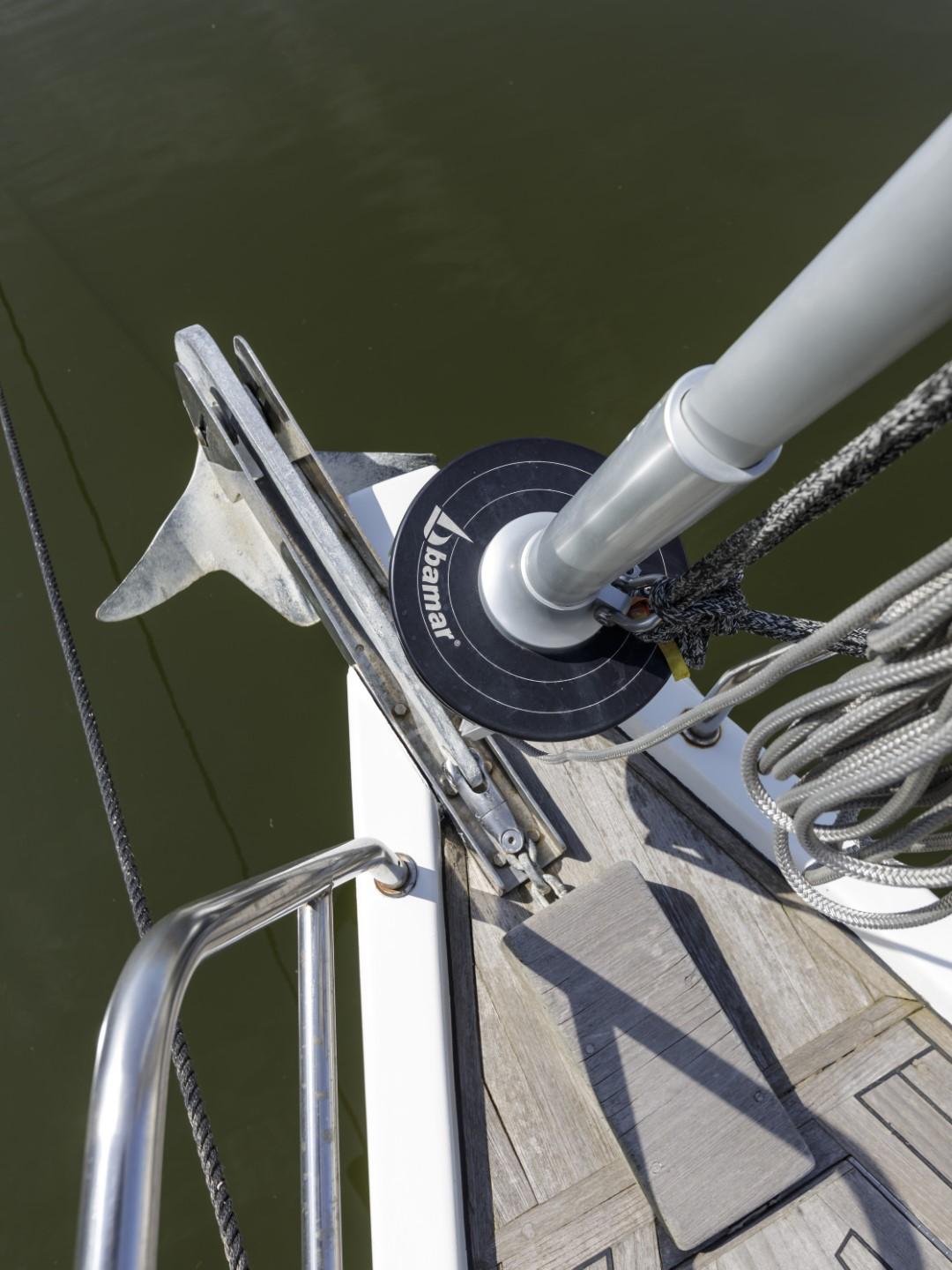

• BamarC4 jib furler - 2023
• Lazy bag and lazy jack – 2023
Electro hydraulic system
• Bamar twin pumps that run out of 24vDC battery pack for: magic trim main sail system running under the floorboard, winches, backstay, vang, outhaul. Vang, backstay and outhaul can run also manually with the Bamar manual pump in the cockpit.
• The mainsheet can be also operated from with winches.
• Safety push bottom system at the steering wheel.
• Jib halyards on piston at the base of the mast.
Winches:
• 2x 980 2 speed self-tailing hydraulic powered winches
• 2x 560 2 speed self-tailing hydraulic winches
Sails:
• Millennium Sails full batten main sail – 2023
• Millennium Sails furling genoa – 2023
General:
• Guardwire stanchions and twin guardwires
• Side boarding gates

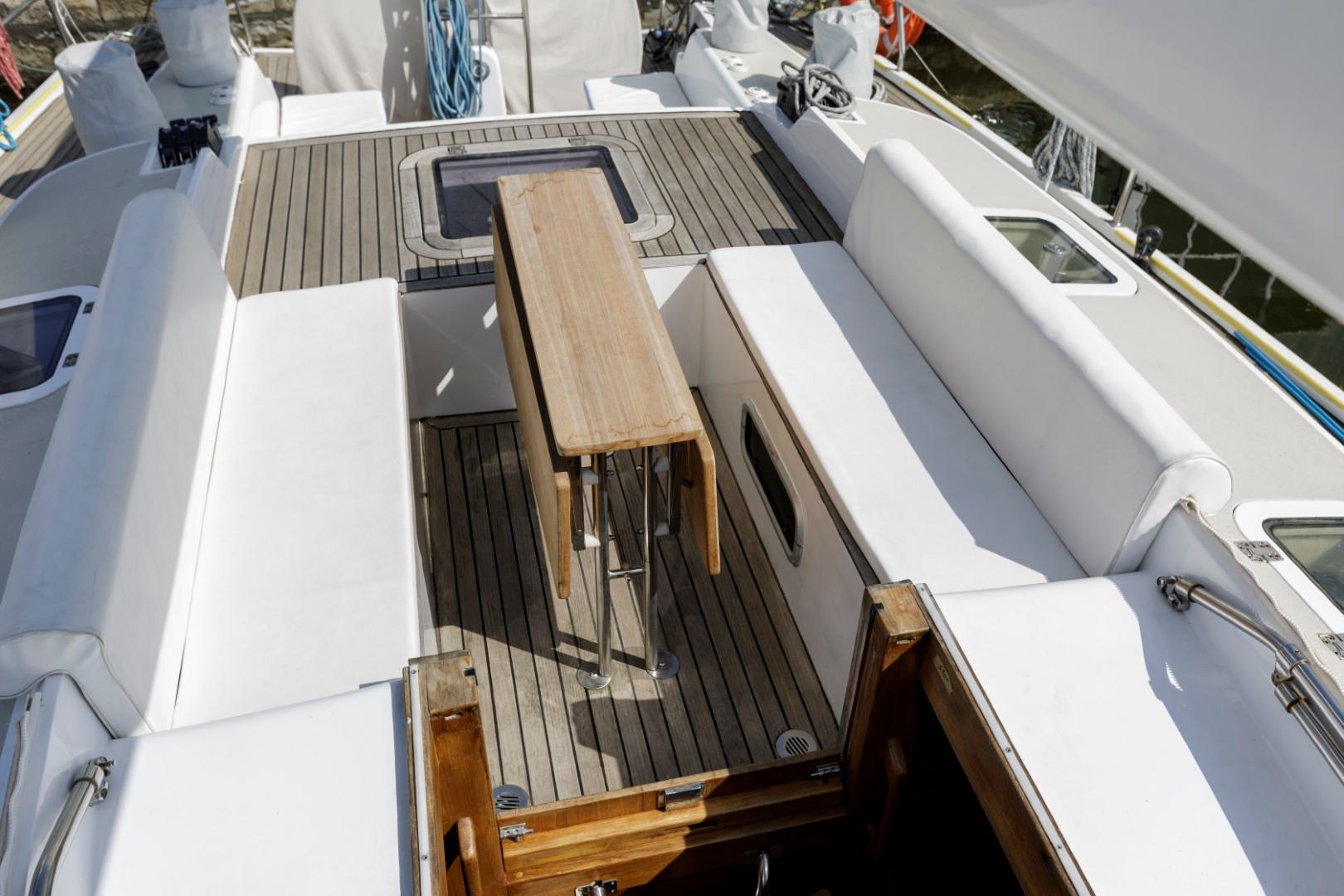

• Cockpit table
Anchoring & Mooring:
• 24vDC anchor windlass with remote control
• Bruce 20kgs Anchor
• 10mm approx. 80m anchor chain
Tender & Outboard:

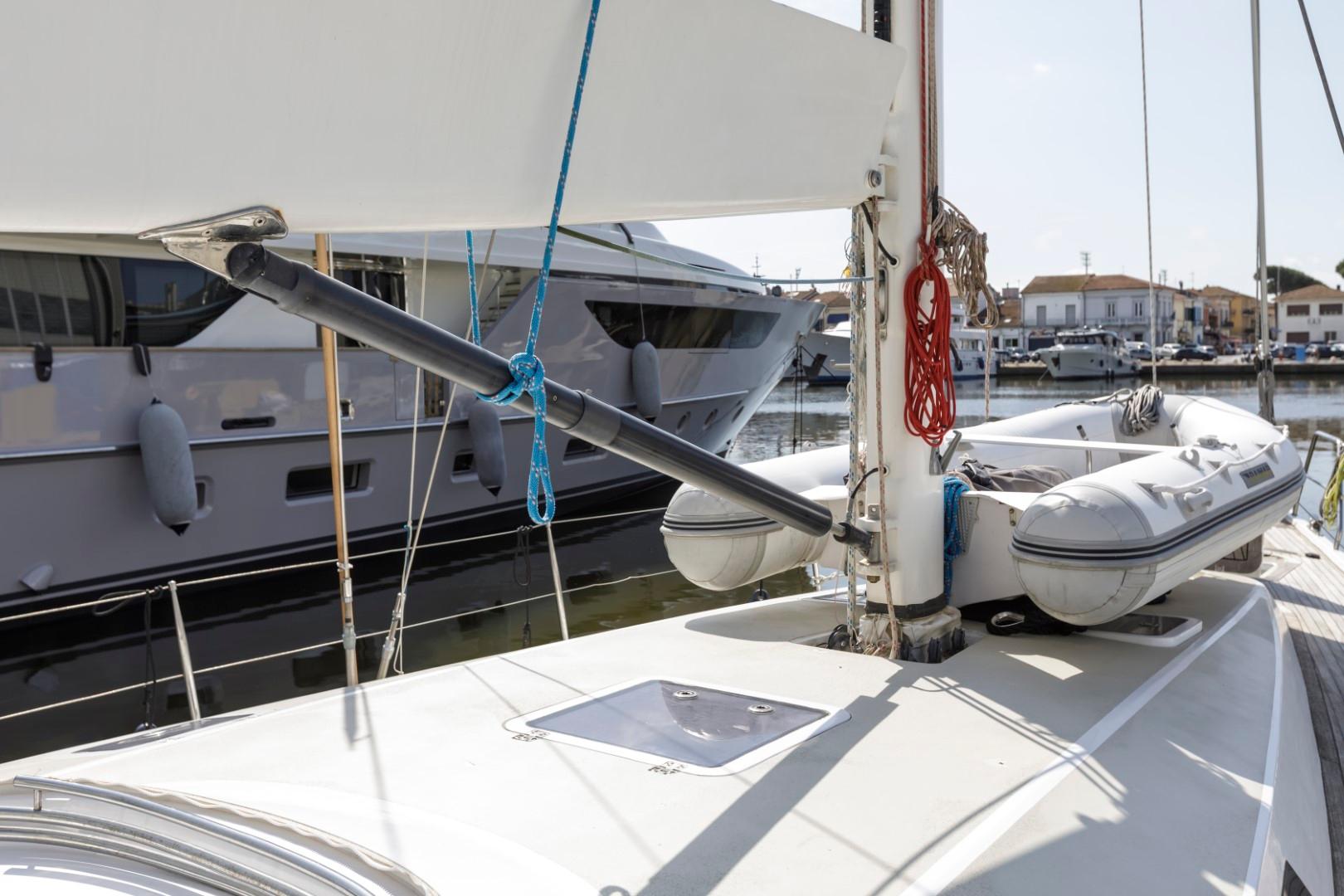

• Rimar inflatable tender 320cm with rigid bottom - 2023
• Yamaha 2,5Hp outboard engine
Covers, Cushions & Canvas:

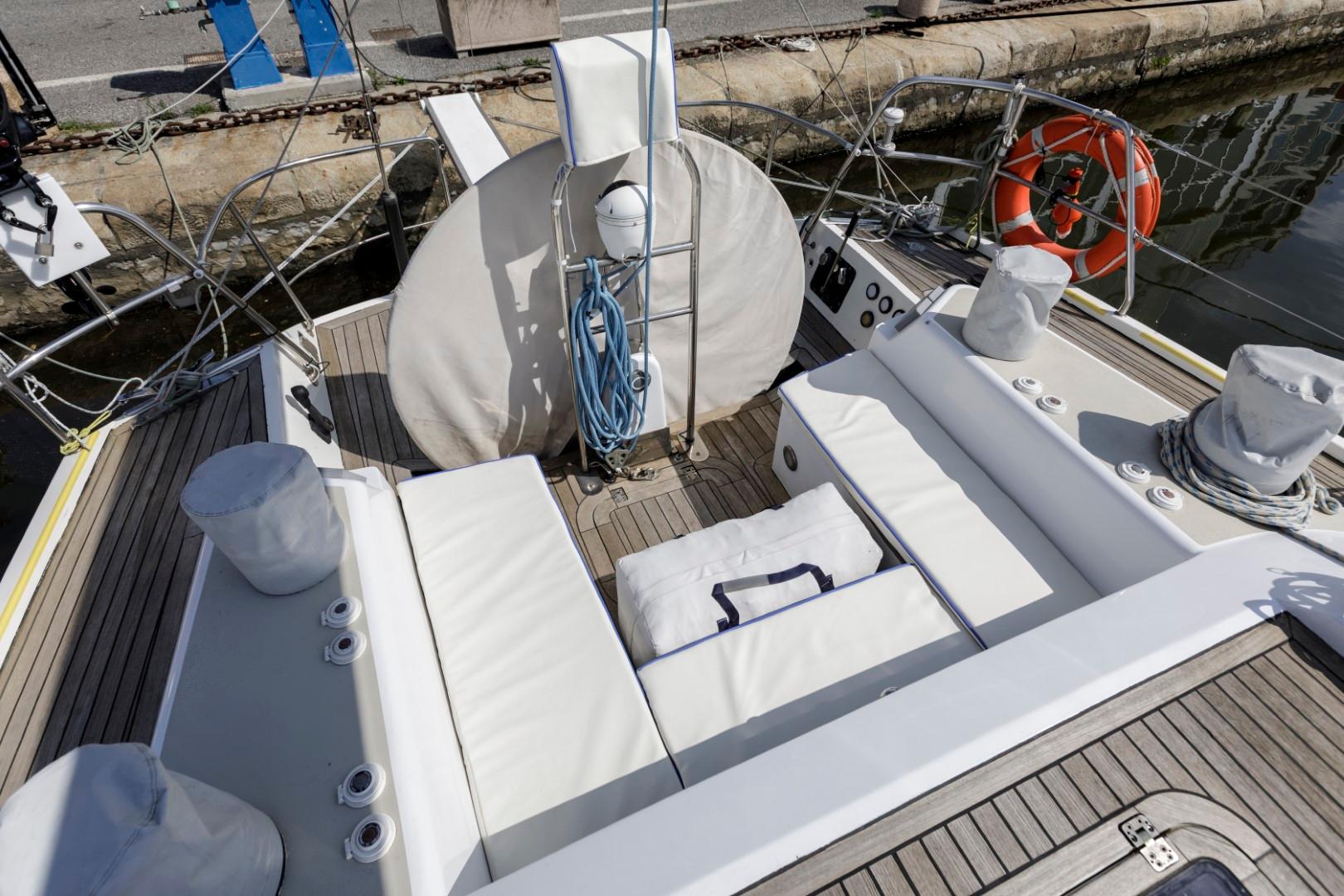

• Cockpit cushions
• Winch covers
• Steering wheel cover
• Sprayhood
SAFETY EQUIPMENT:
General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.
Life saving:
• Liferaft for 12pp
• Lifejackets for 12pp
• Safety equipment over 60miles
• Safety certificate valid until 2027.
