Description

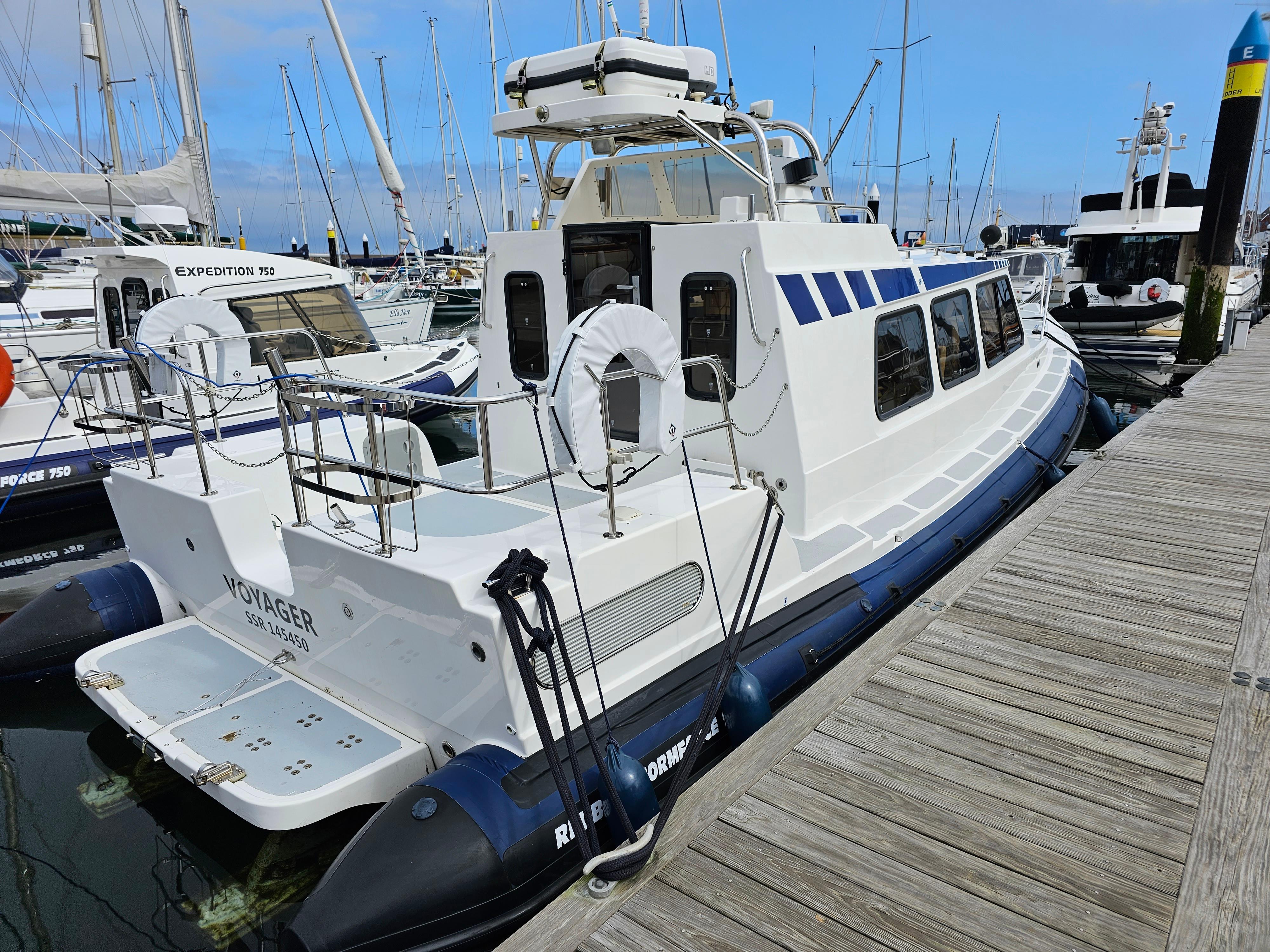

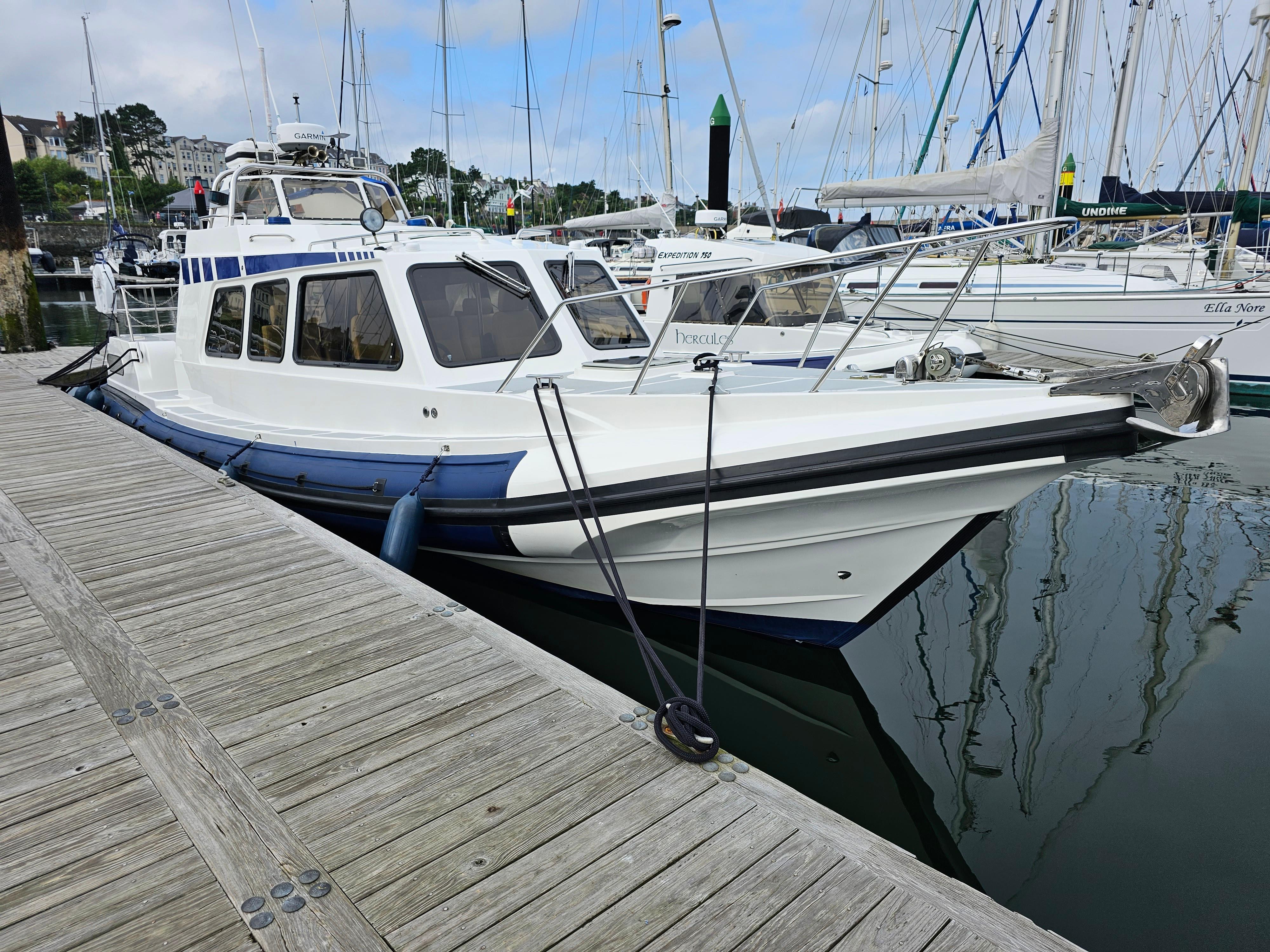

Redbay Boats STORMFORCE 11m; was for a few years the flagship in the Redbay range. This example was built in 2010 (hull # 065) - and is unique because she is the only one with Volvo engines.
The Stormforce 11 offers the best that RIBs can offer. The 11 was a natural development from the 9.1, due to customer demand for a larger RIB.
Since the first one the 11 has developed and continued to grow in its popularity; every 11m RIB is unique and customised according to the customer’s requirements.
The Stormforce 11 is a deep V hull form, which is one of the reasons that this RIB has such fantastic abilities in rough offshore conditions.
The Deep-V hull is combined with sprayrails to produce additional lift and improve the hydrodynamics of the hull. The tube is designed to sit firmly in contact with the water surface while at rest; this ensures that the RIB has maximum stability.
One of the major design features is the Hard Nose. The Hard Nose is primarily a safety feature. When a RIB such as this is driven hard in a large sea-state, there is a real risk that detubing could occur. Thus, the nose is designed to offer complete protection to the tubes when operating in these conditions. Furthermore, there are actually two independent tubes on each side of the hull, offering even greater safety.
Dimensions
Length Overall: 11.11m / 36'5"
Length at Waterline: 9.42m / 31'
Beam: 3.30m / 10'10"
Min Draft: 0.5m / 1'7"
Displacement: 5,500 kg
Cabin Headroom:1.9m / 6'32 approx.

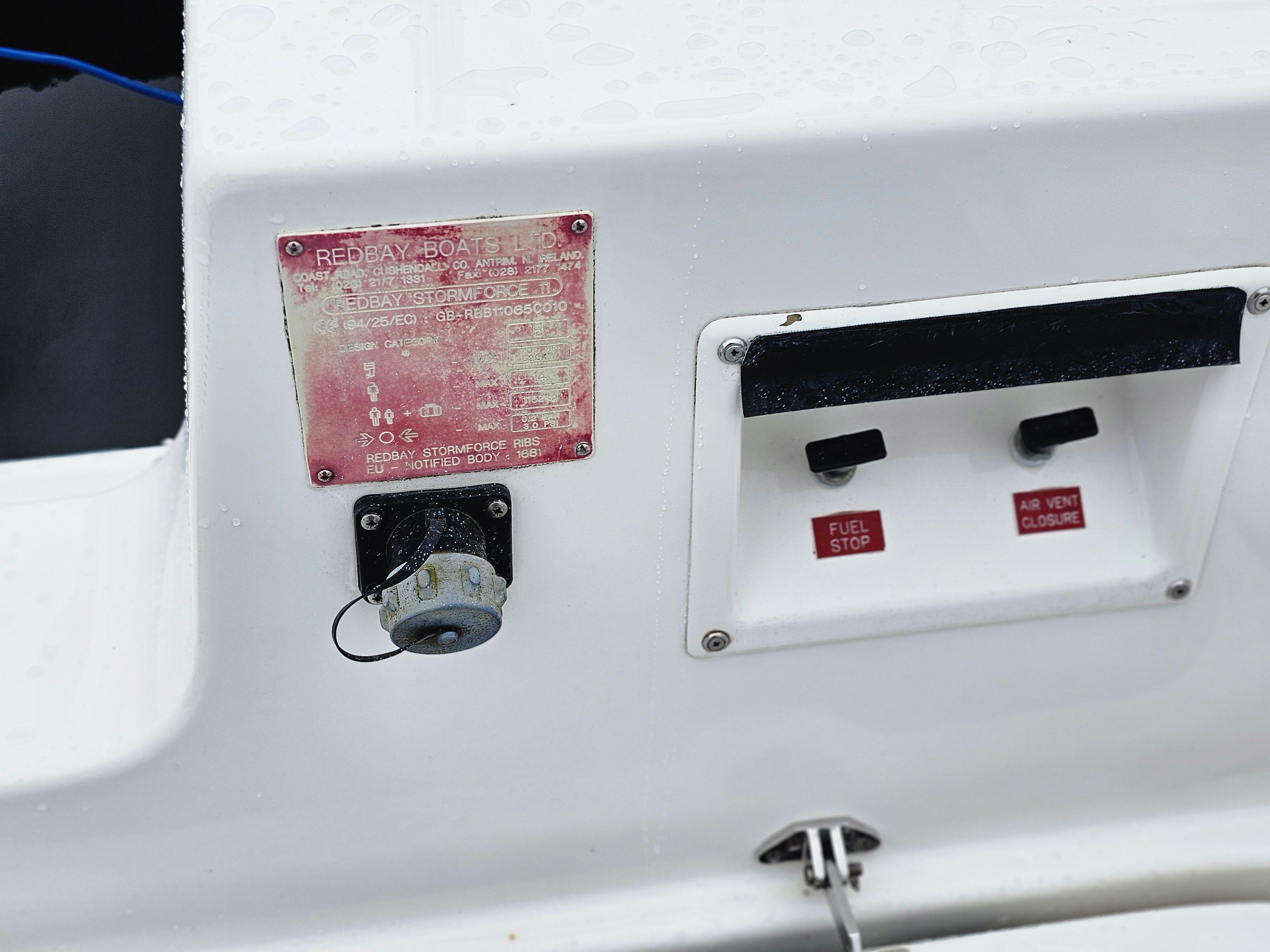

HIN: GB-RBB1065C010
Cat B
Engines

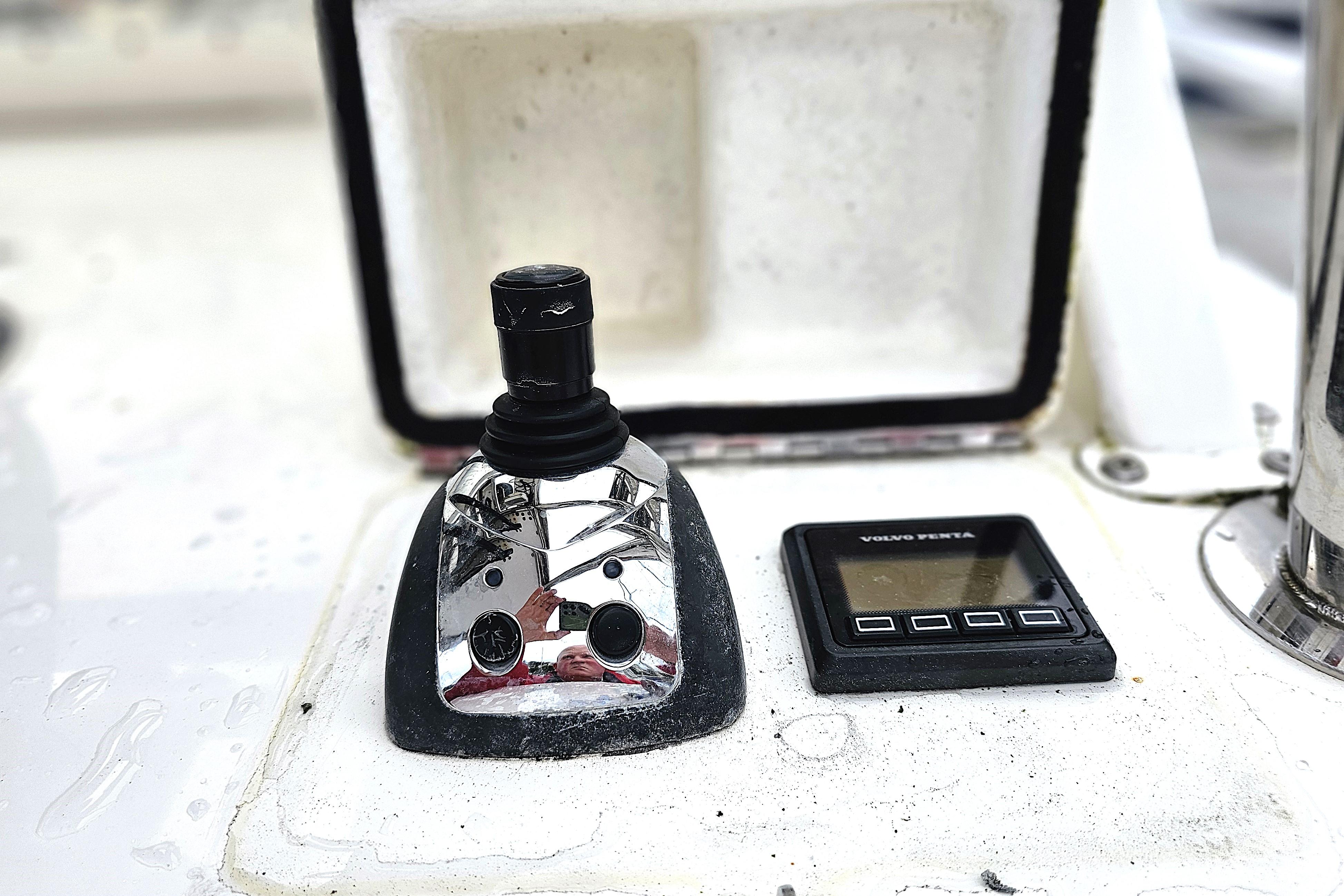

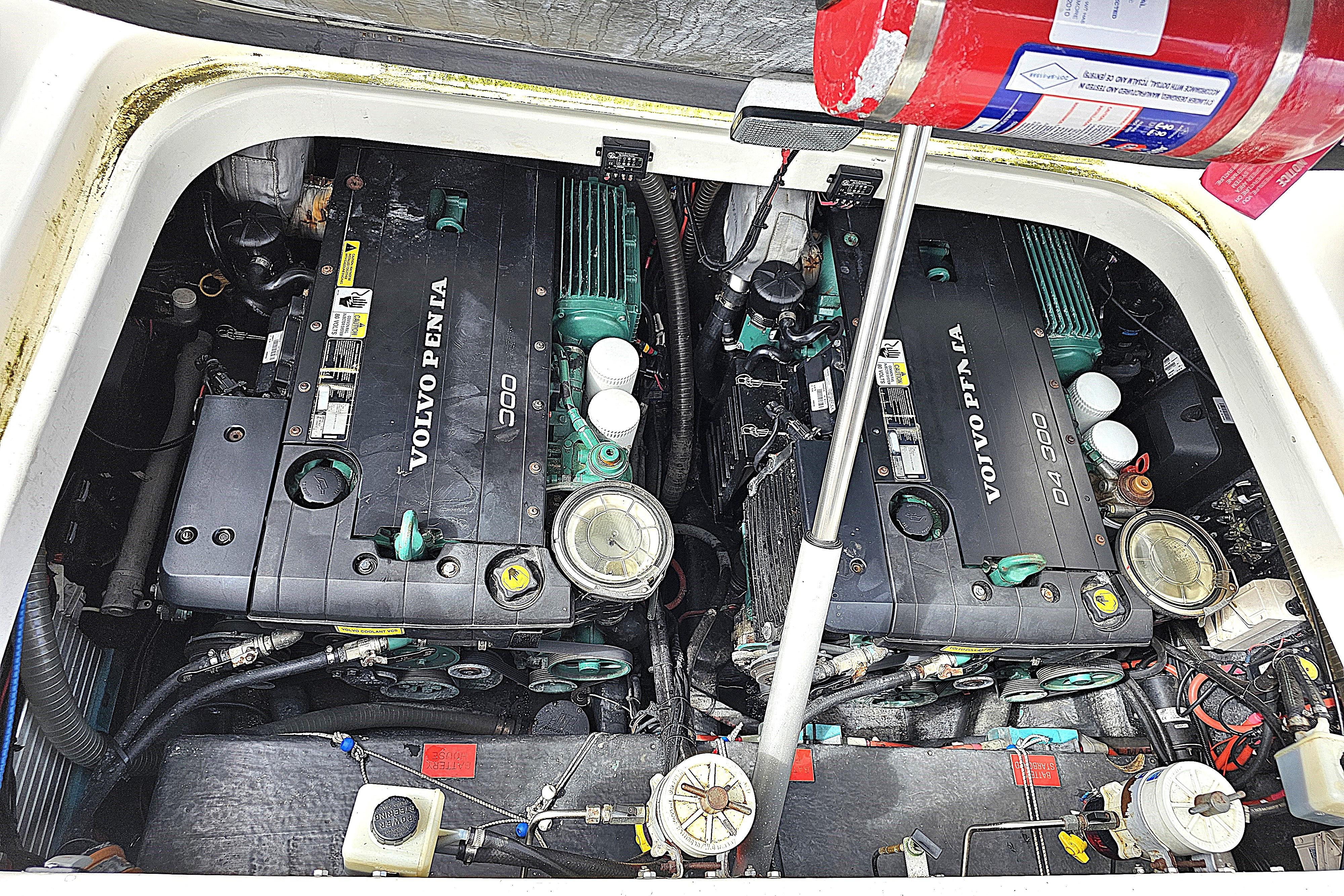

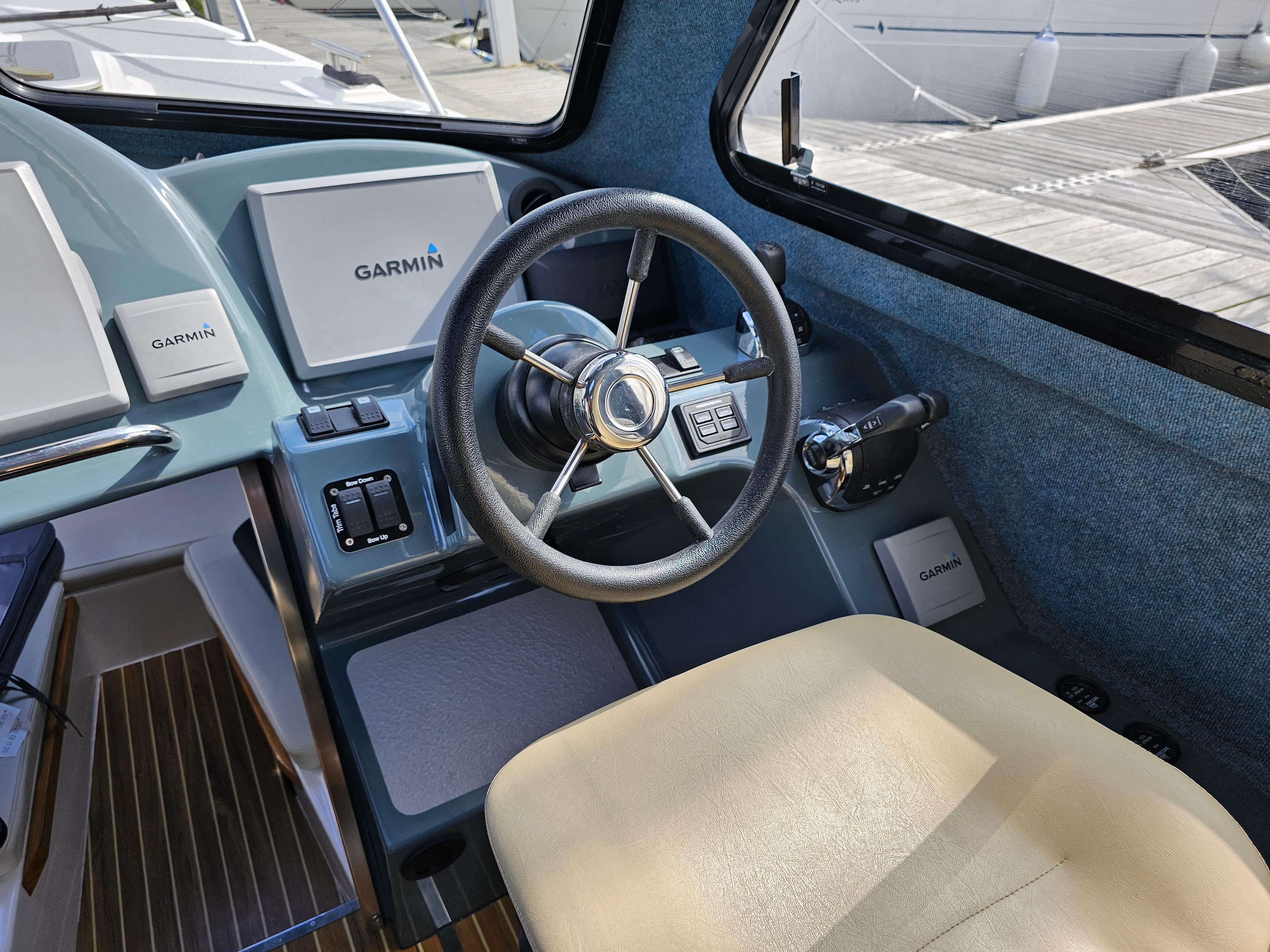

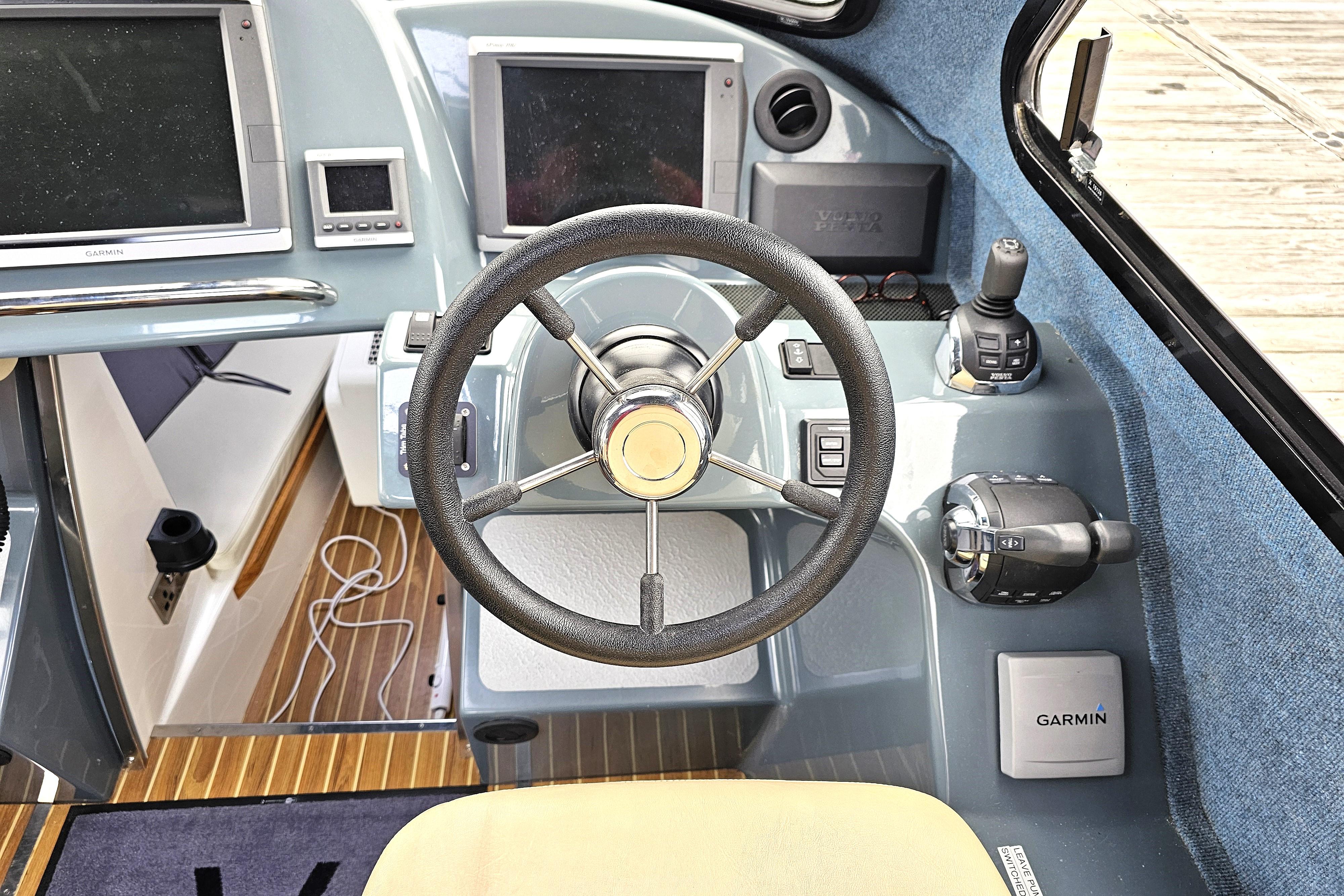

2 x Volvo Penta D4's 300 hp with Volvo sterndrives with duo props - and Joystick control at the interior main helm and also on the aft deck.

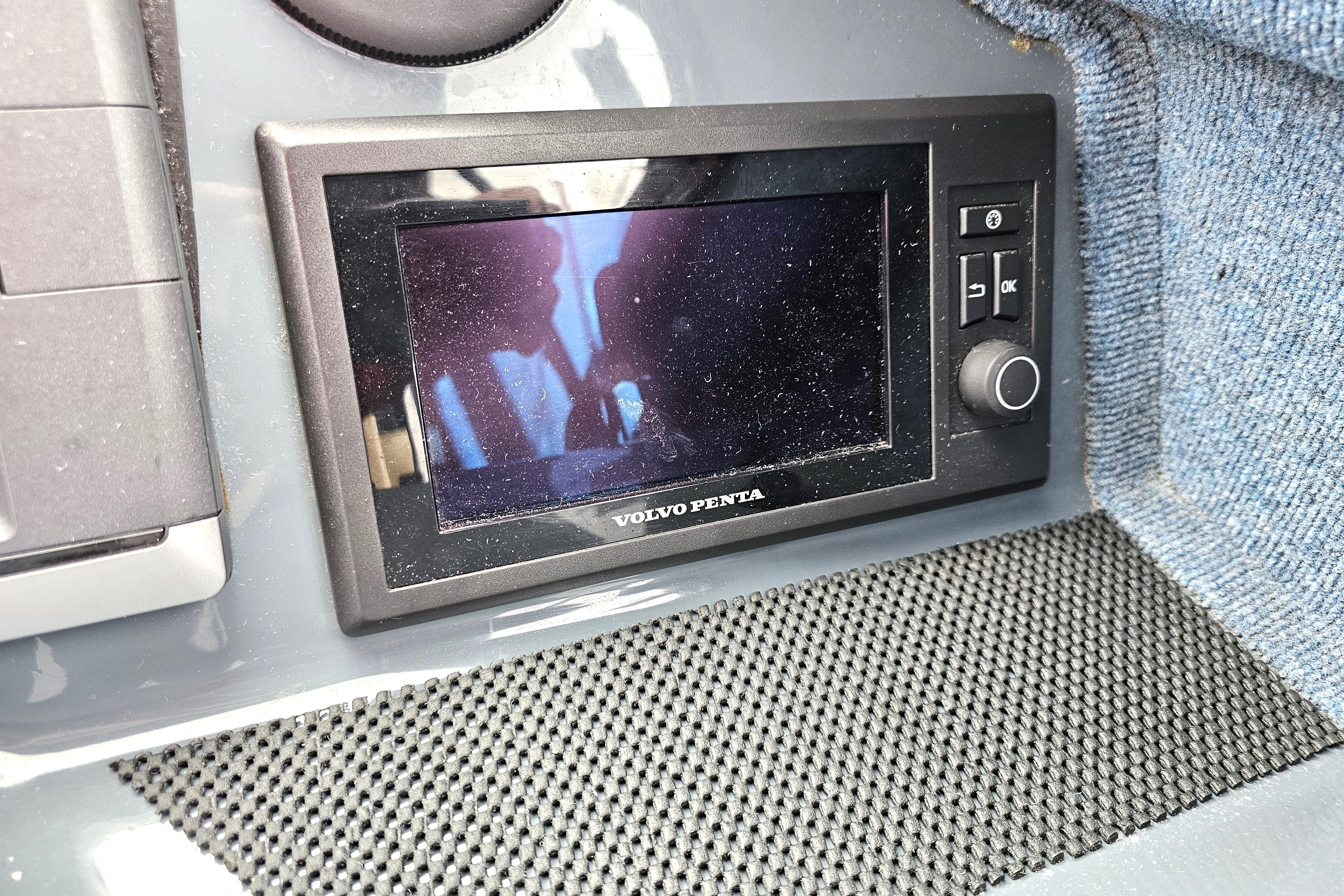

Volvo Penta engine management system

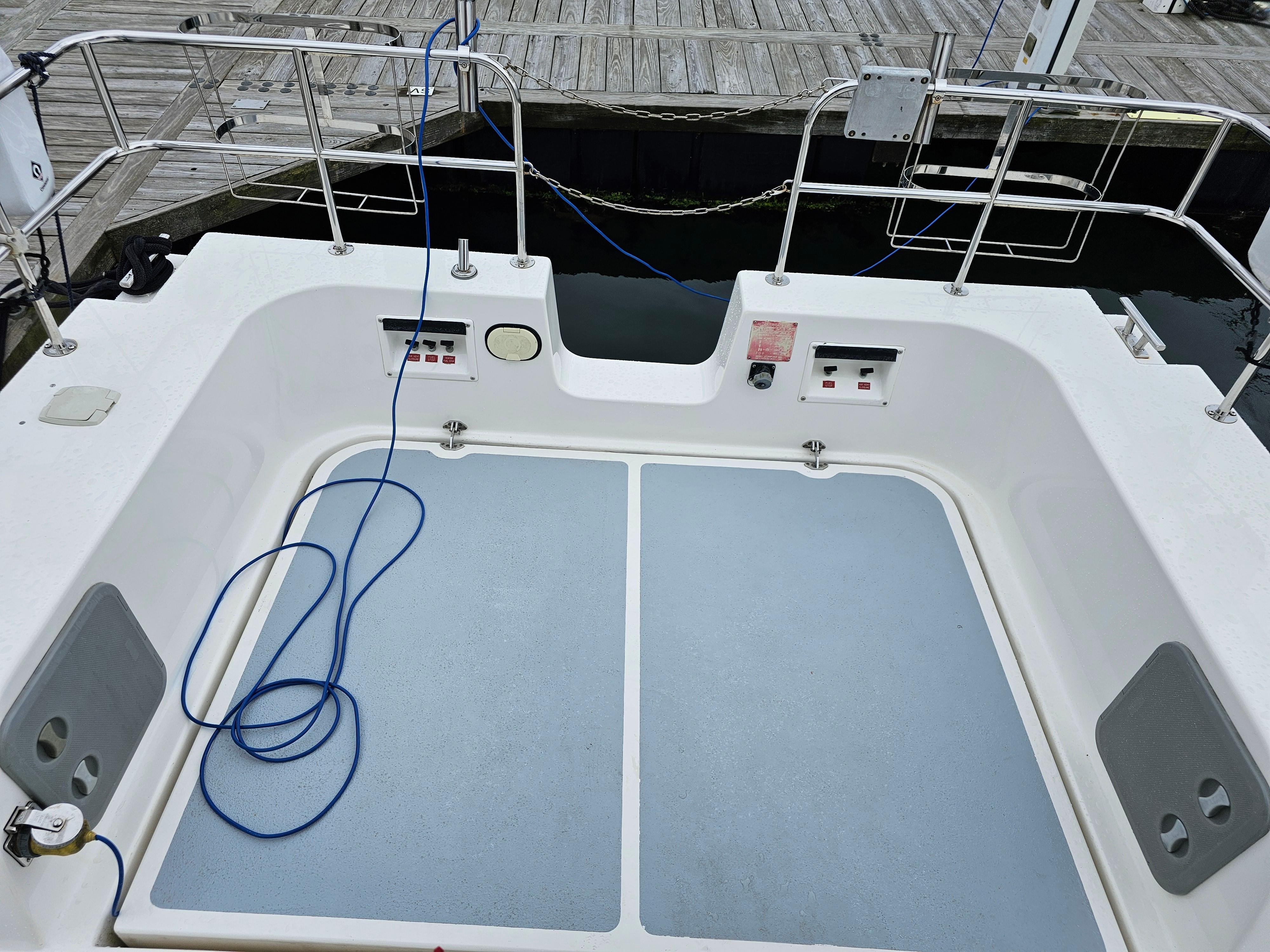

Access to engine space is by aft deck single lid, operated by electric hydraulic rams. Giving easy access.
Top speed is claimed at 38 knots with a comfortable and reasonably economical cruising speed of 25 knots.
Lenco electric trim tab system
Sea-Fire fire suppression system
Engine hours: 900 each
She has recently been out with legs off and serviced - as have the engines just been serviced.
Tankage
Fuel: 2 x 450 l
Water: 1 x 250 l
Holding tank: yes
Accommodation
The interior cabin is all upholstered.

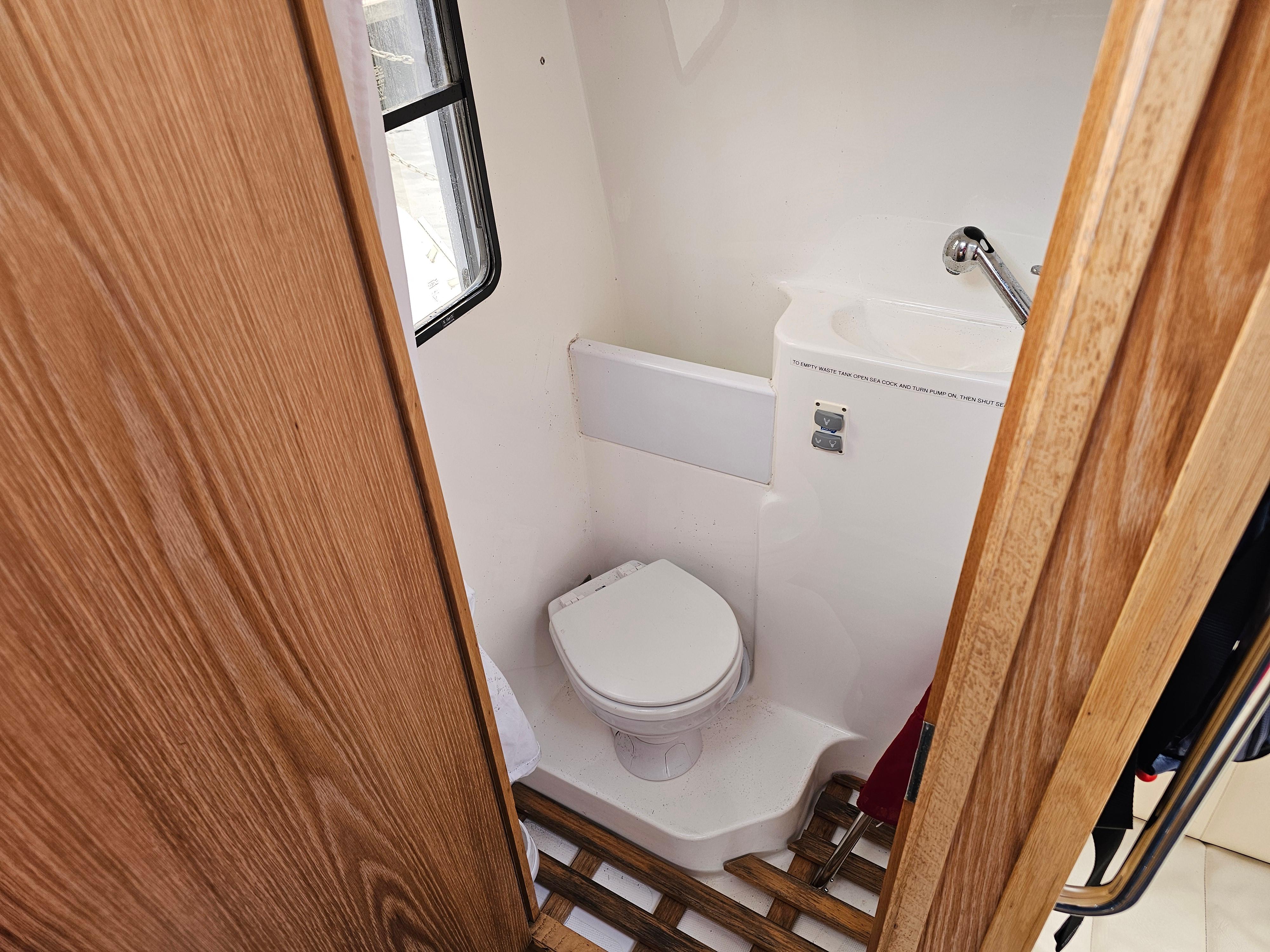

Heads - port aft 12v electric toilet, hand basin with hot and cold water. Shower

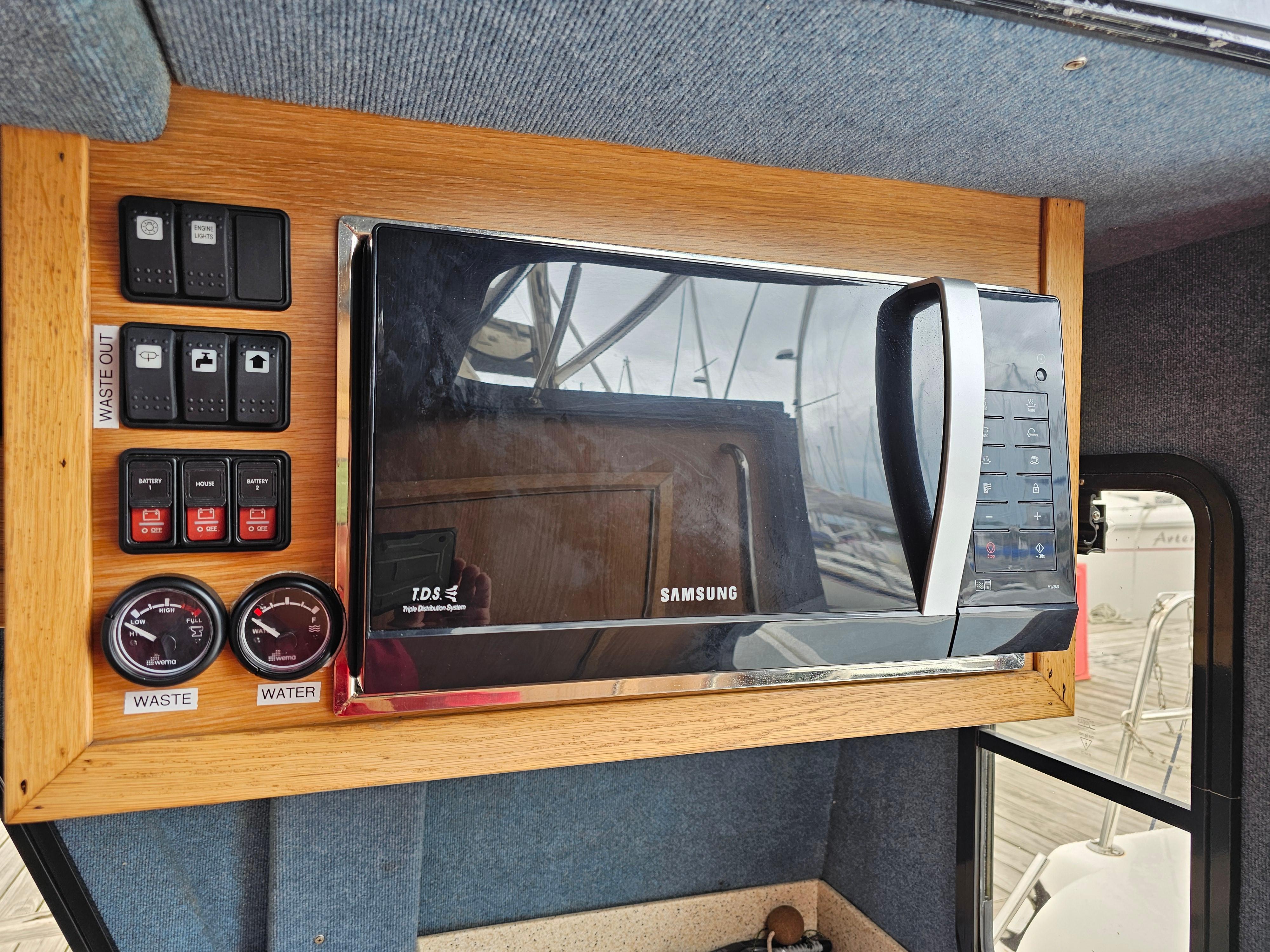

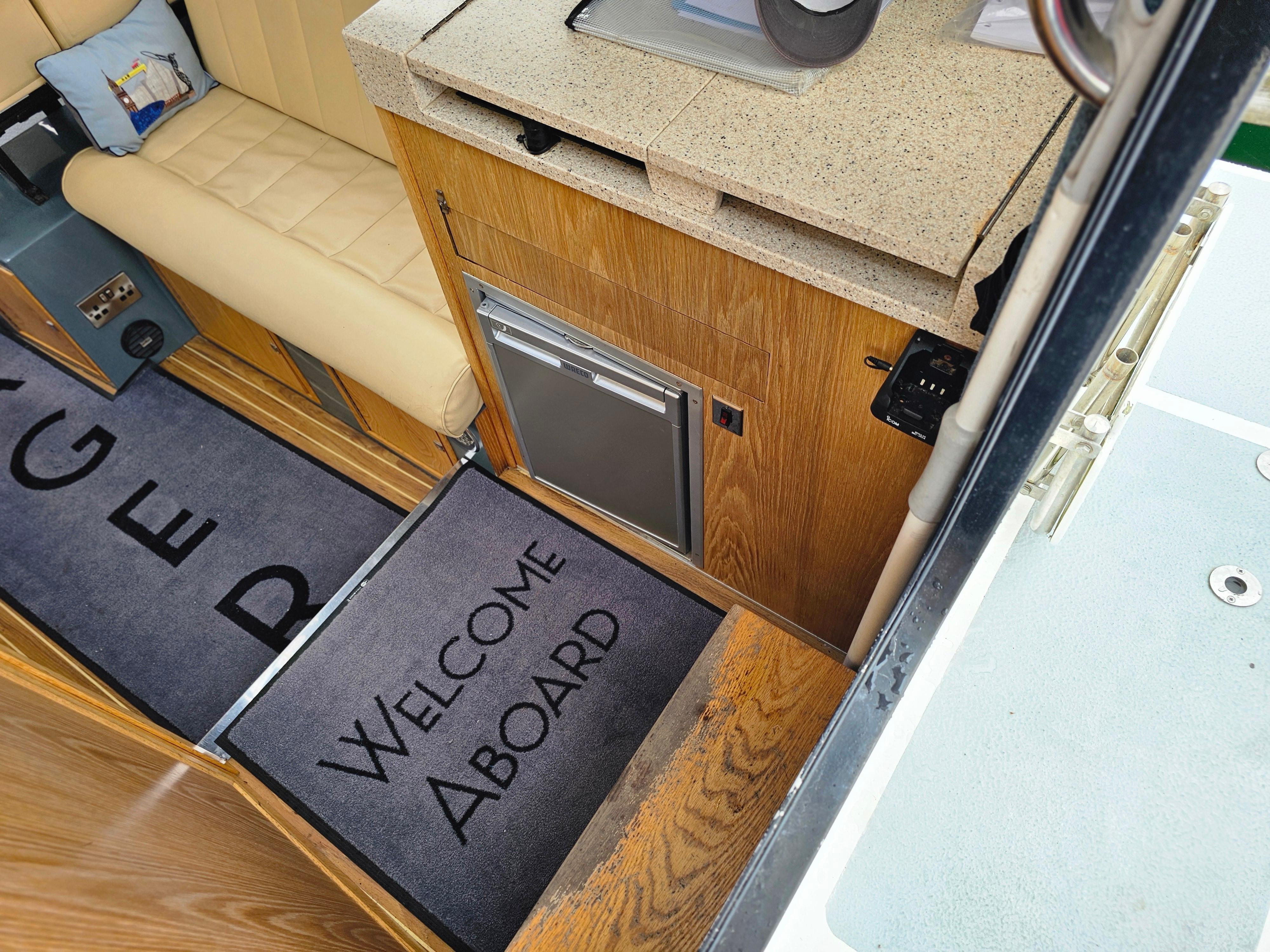

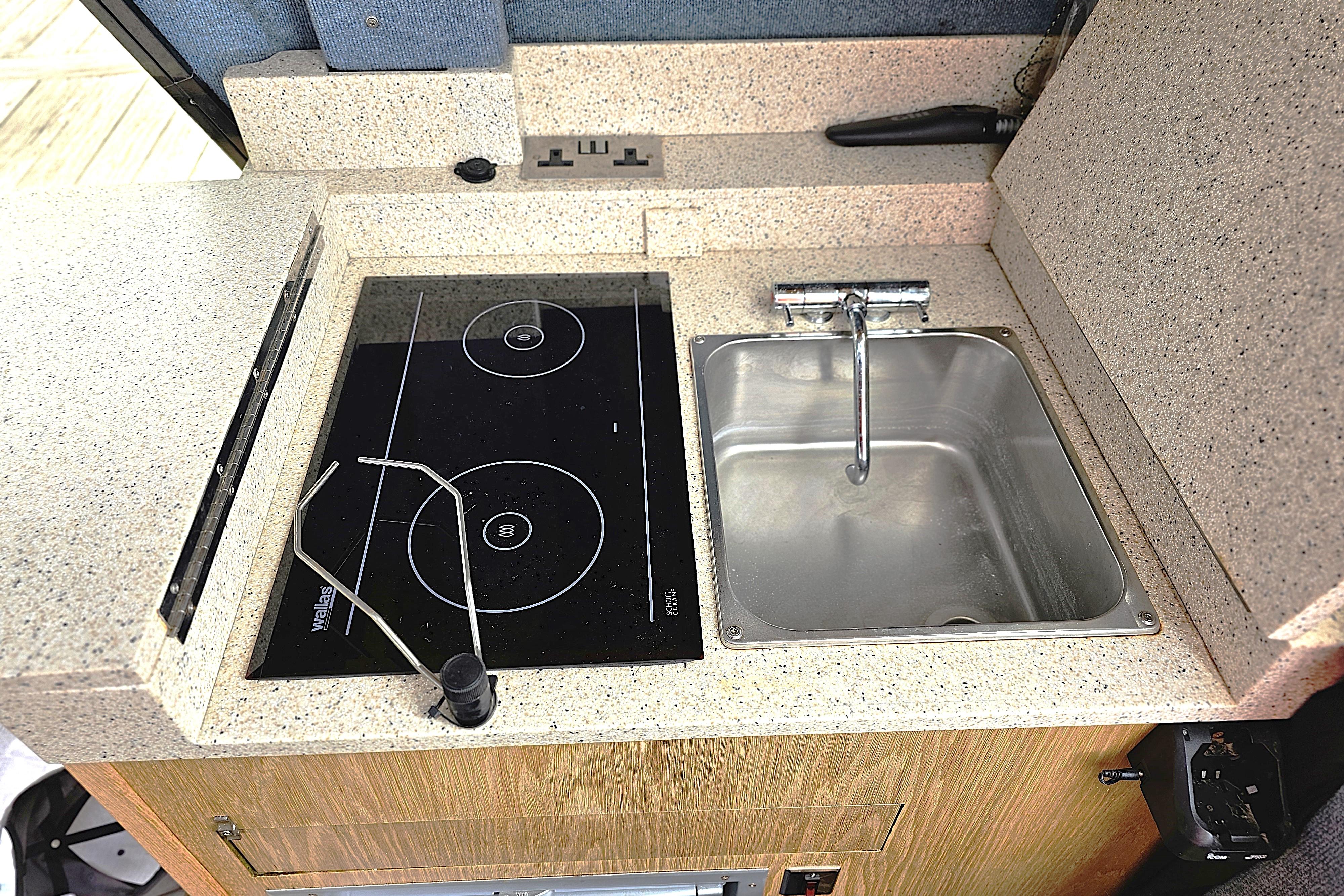

Galley area - starboard aft in a neat tidy format with stainless steel sink, hot and cold water; Wallas electric 2 hob cooker top; Samsung microwave oven (MW86N); WAECO fridge

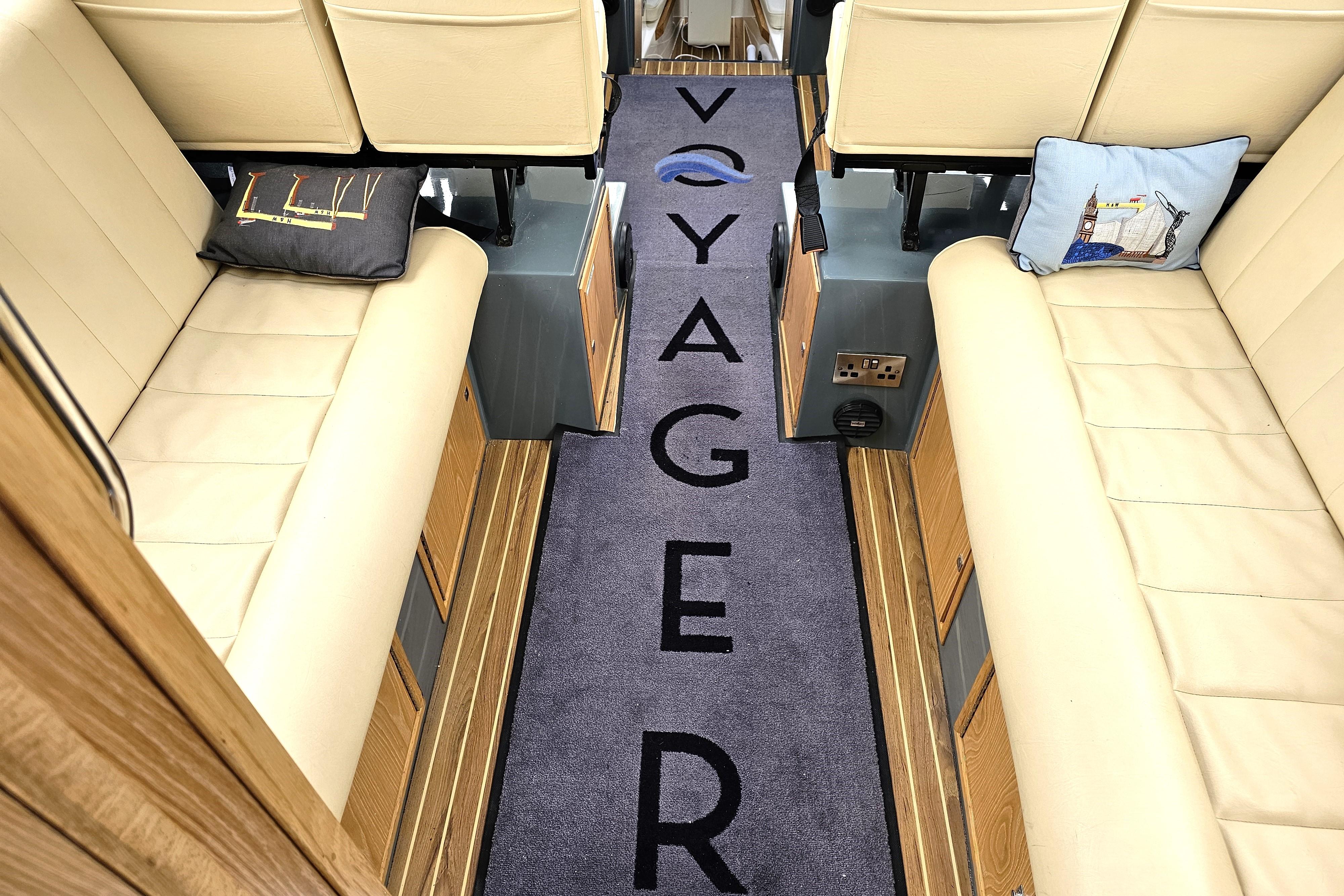

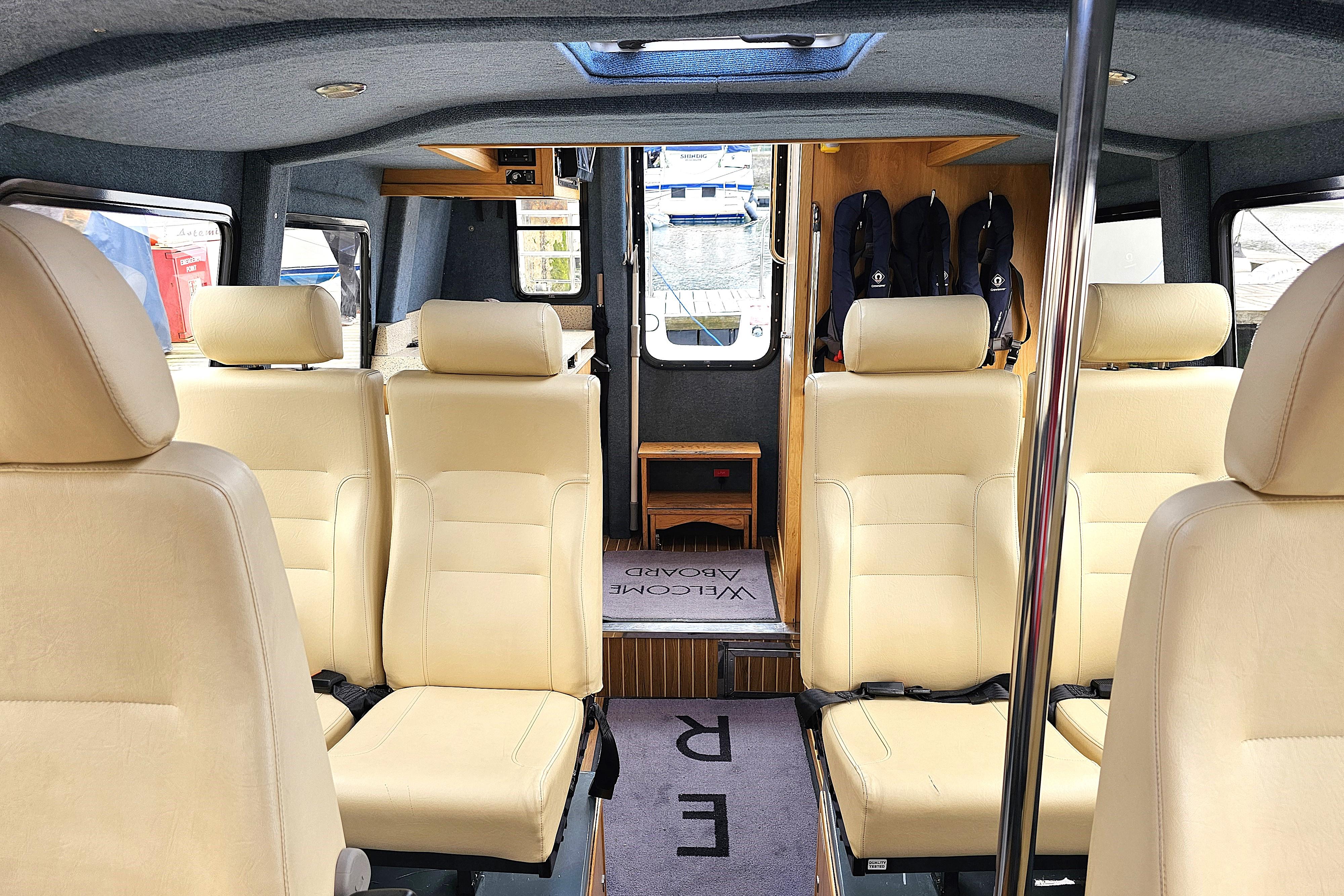

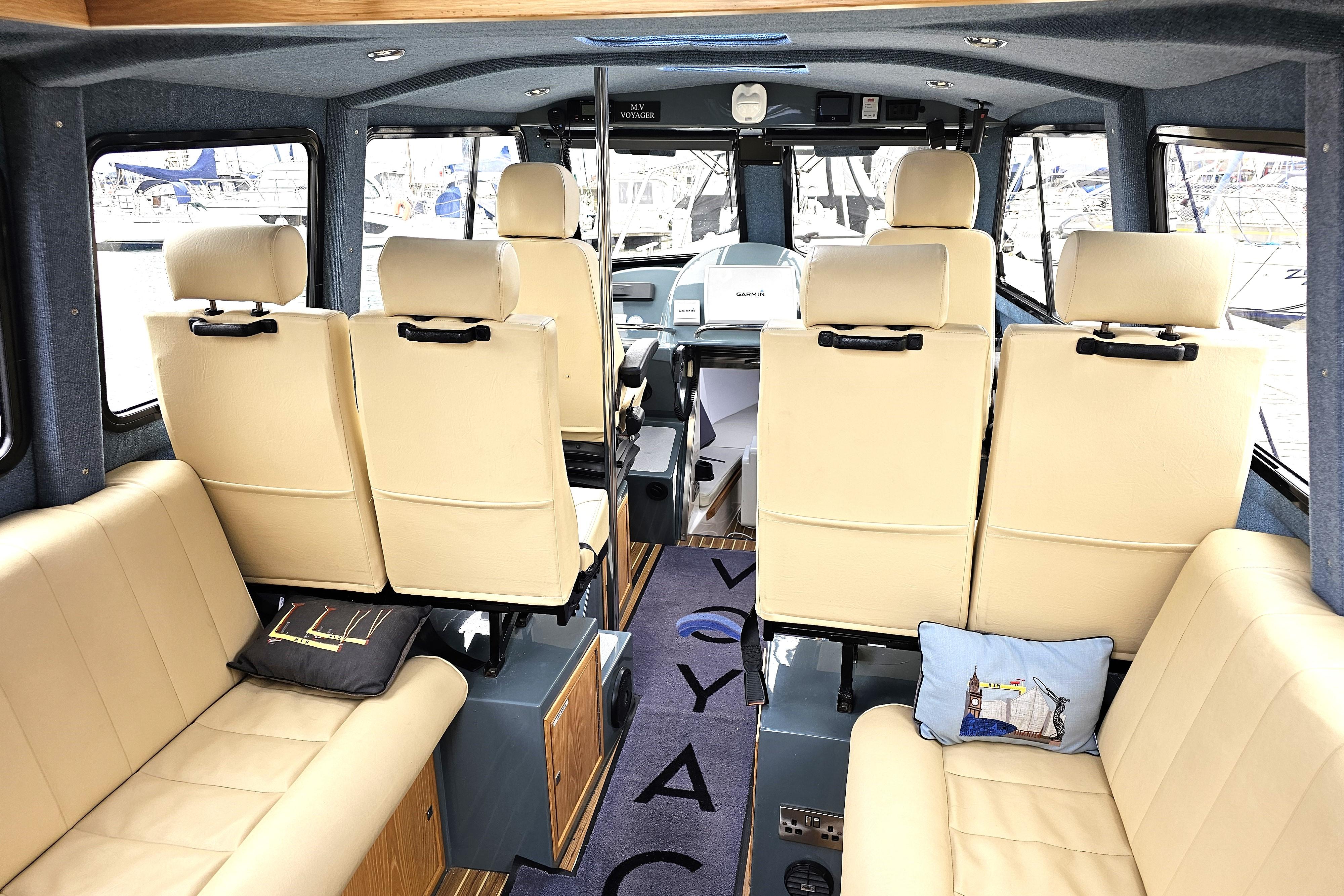

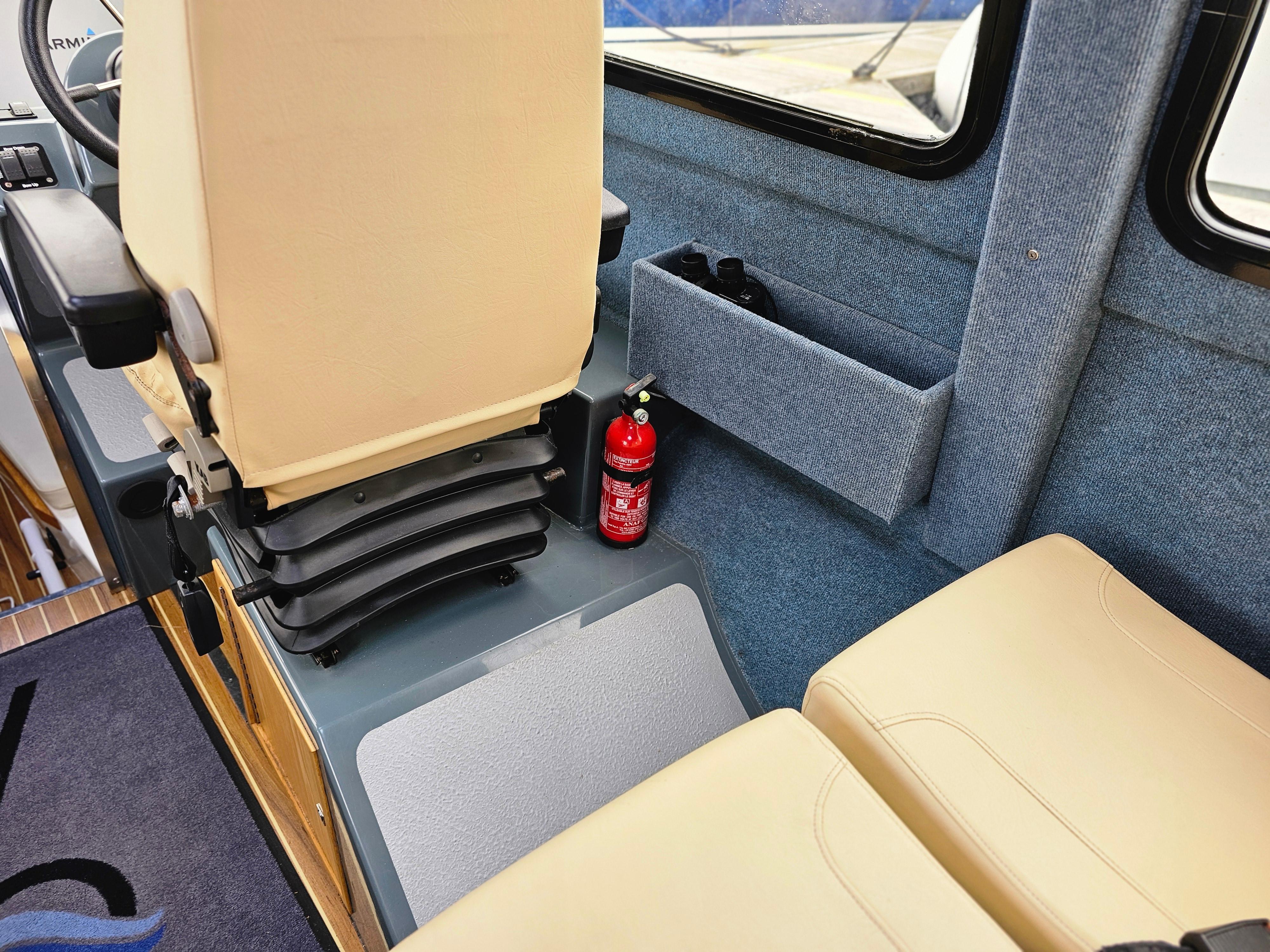

Inside there are 6 Air Seats fitted in the helm and navigator position and passenger areas plus two bench seats.

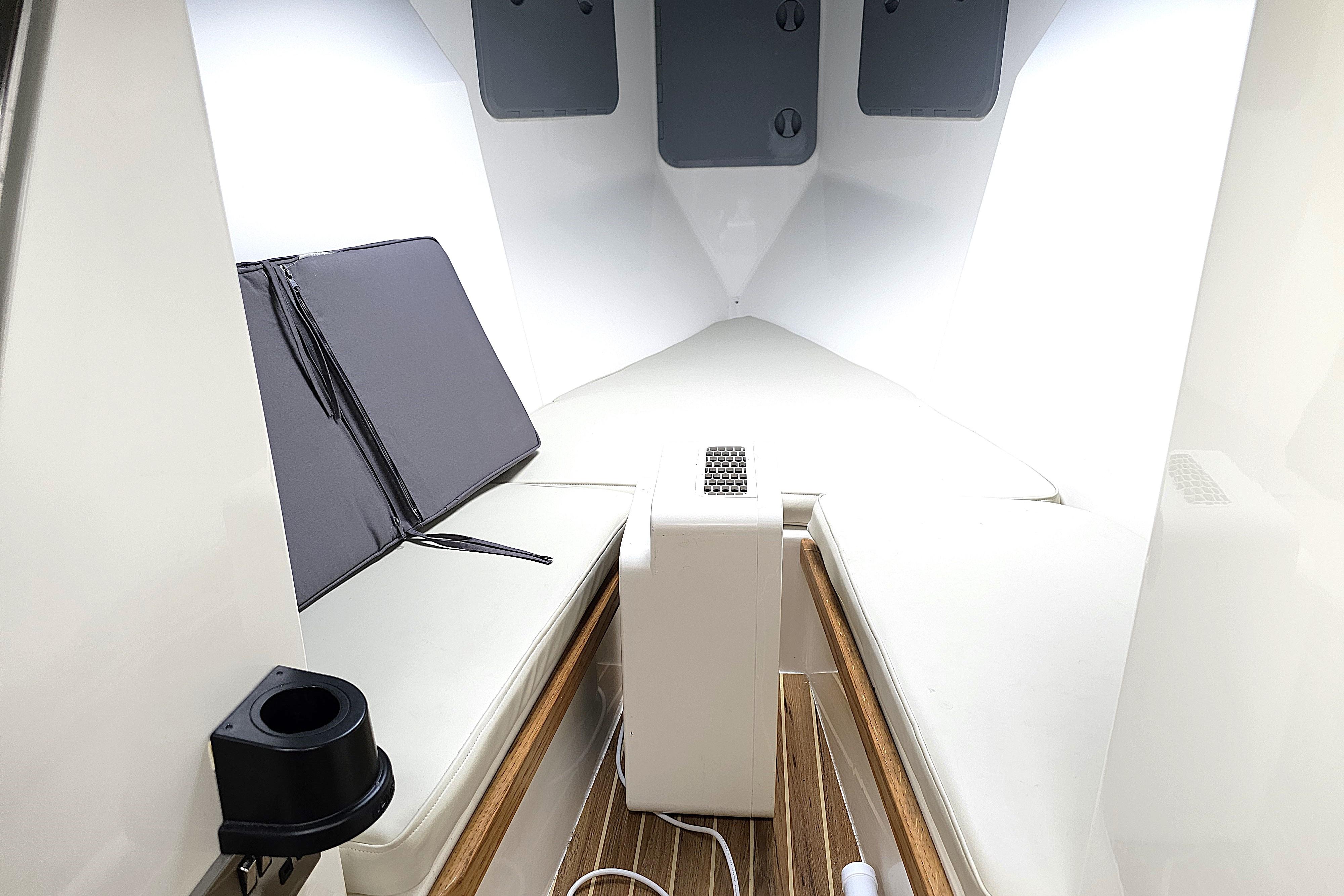

Up forward is the forepeak cabin - with two good-sized single berths.

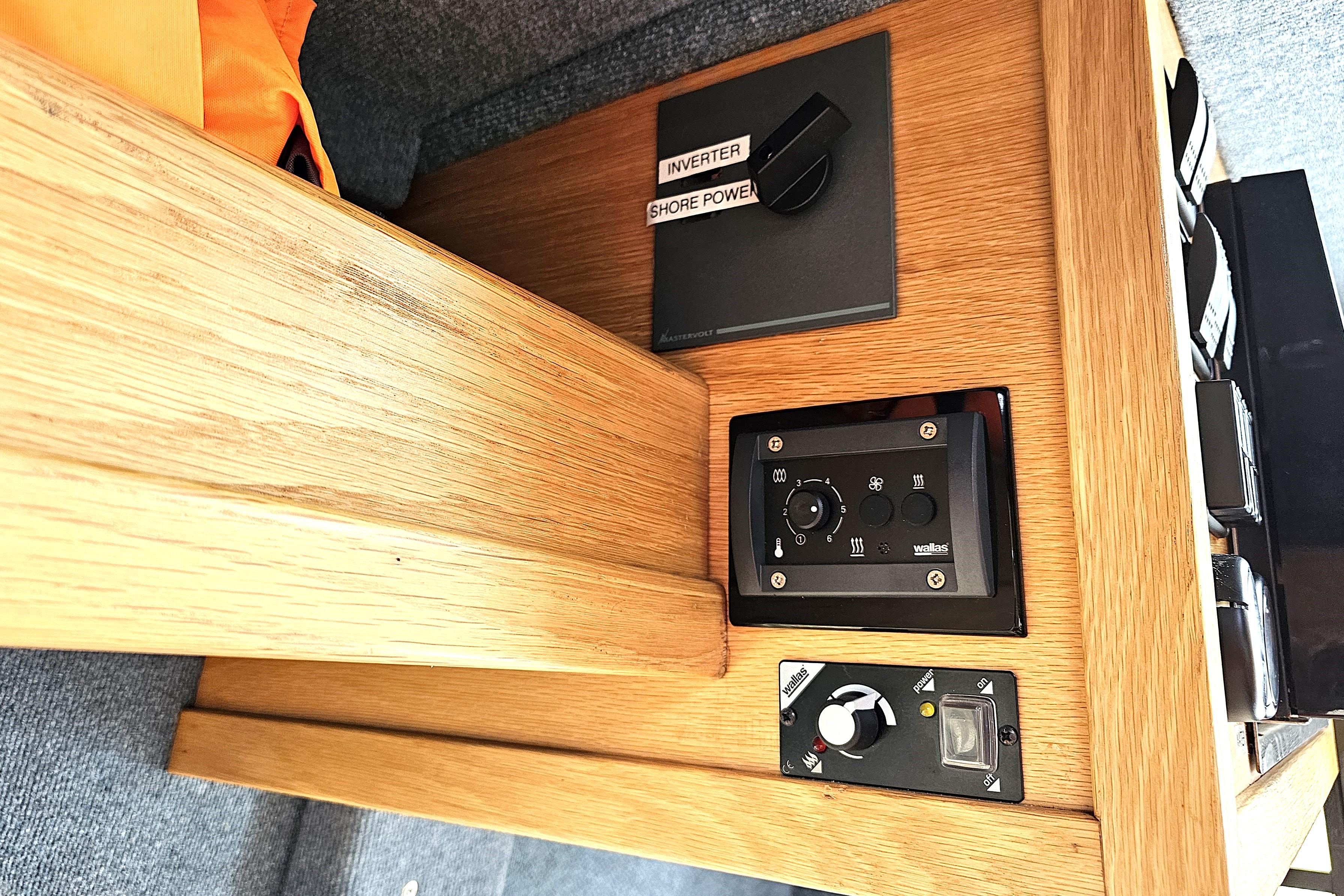

Wallas warm-air heating
Windows are Sea-Glaze toughened glass
Electrical
12v/240v
3 x 110 Ah AGM Gel batteries with crossover facility & diode splitting
Battery charger
Inverter
All connections terminated to ISO10022 including waterproof junction boxes
Lenco electric trim tabs system
All necessary internal and external lighting - including fore and aft spots
Fusion Marine stereo system with remote and internal/external speakers
Wallas warm-air heating
Wallas cooker double hobs
Navigation Instruments

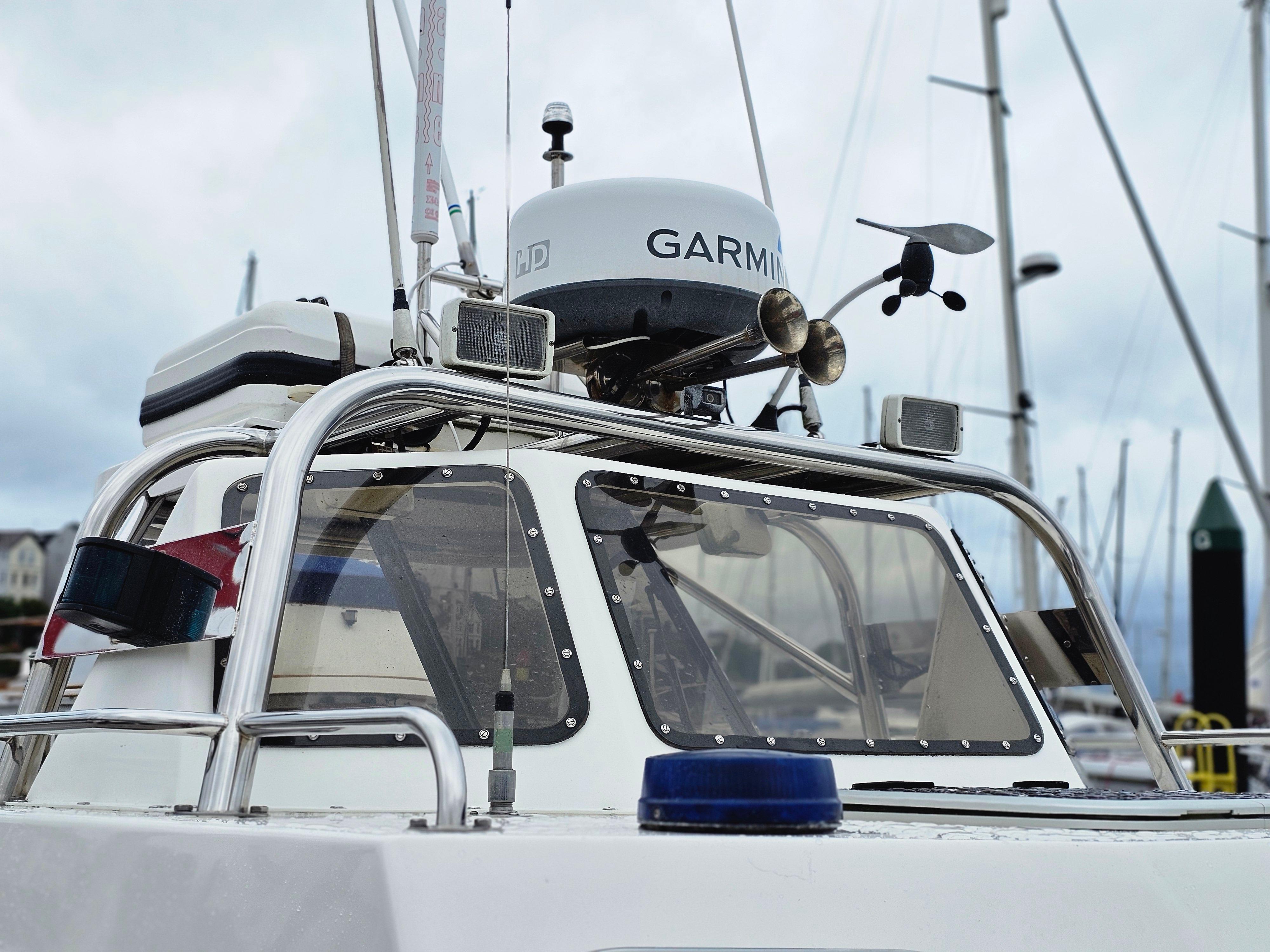

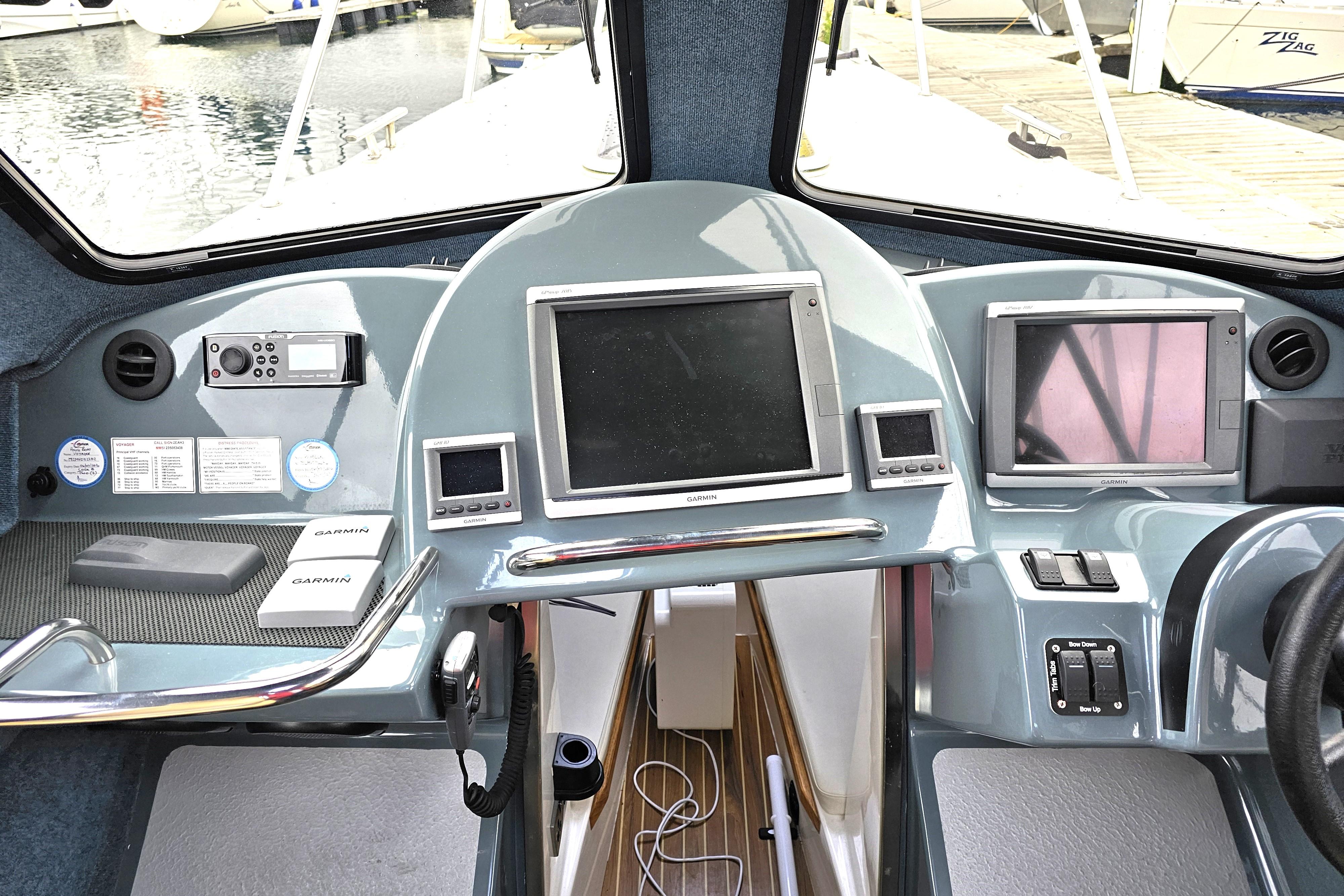

Garmin GPS/ plotter/radar
Garmin depth sounder with P79 in-hull transducer

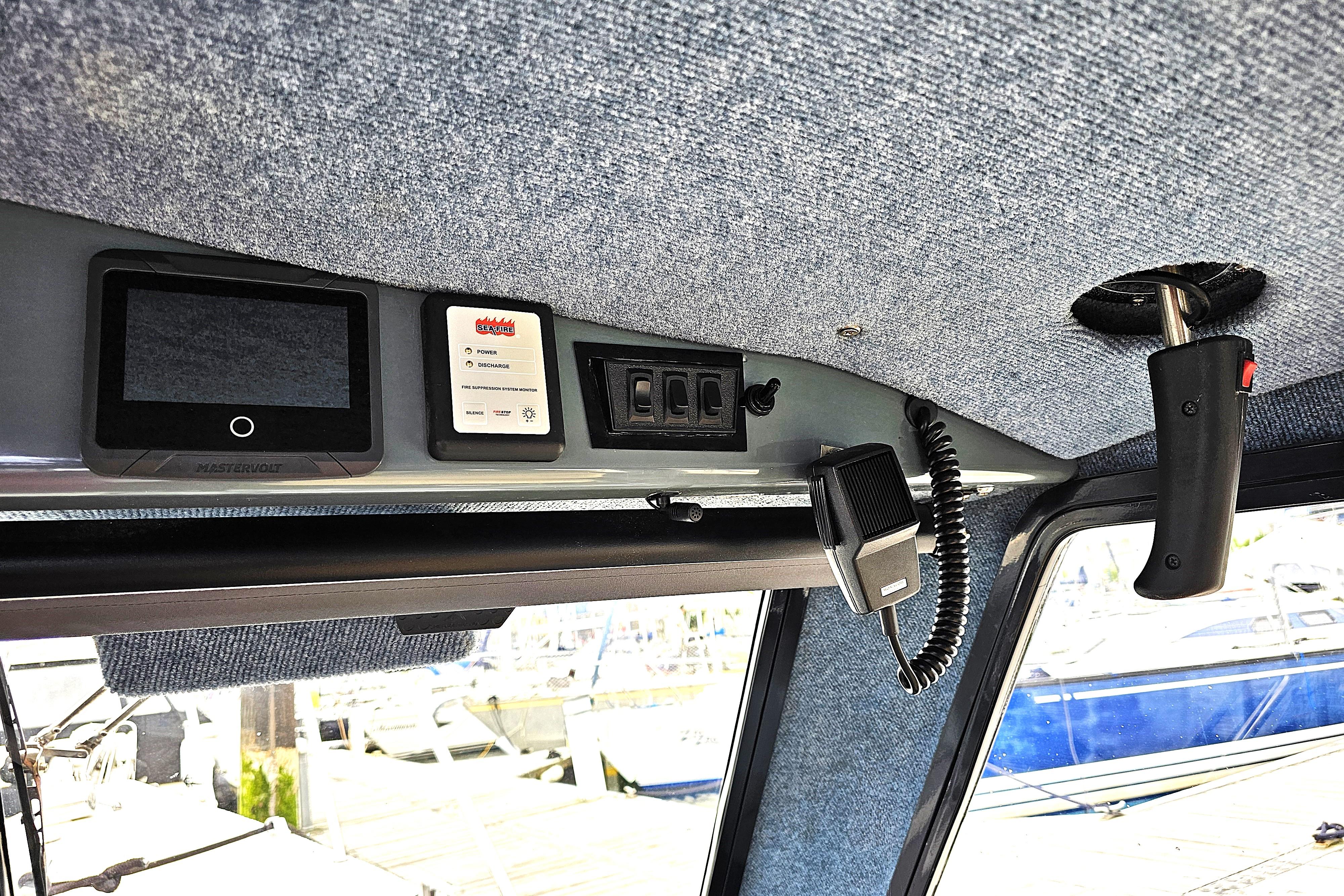

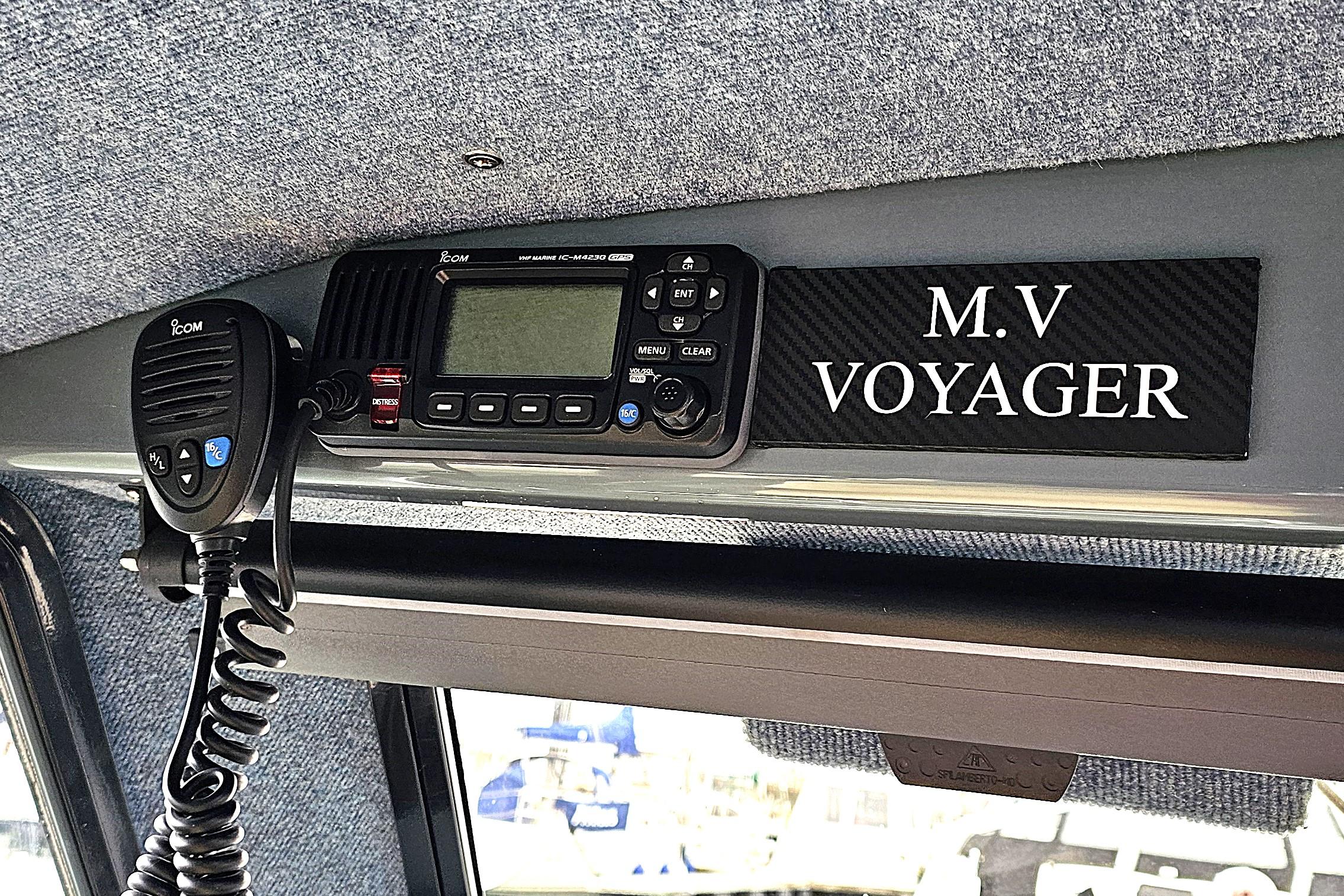

Garmin VHF100i VHF with DSC

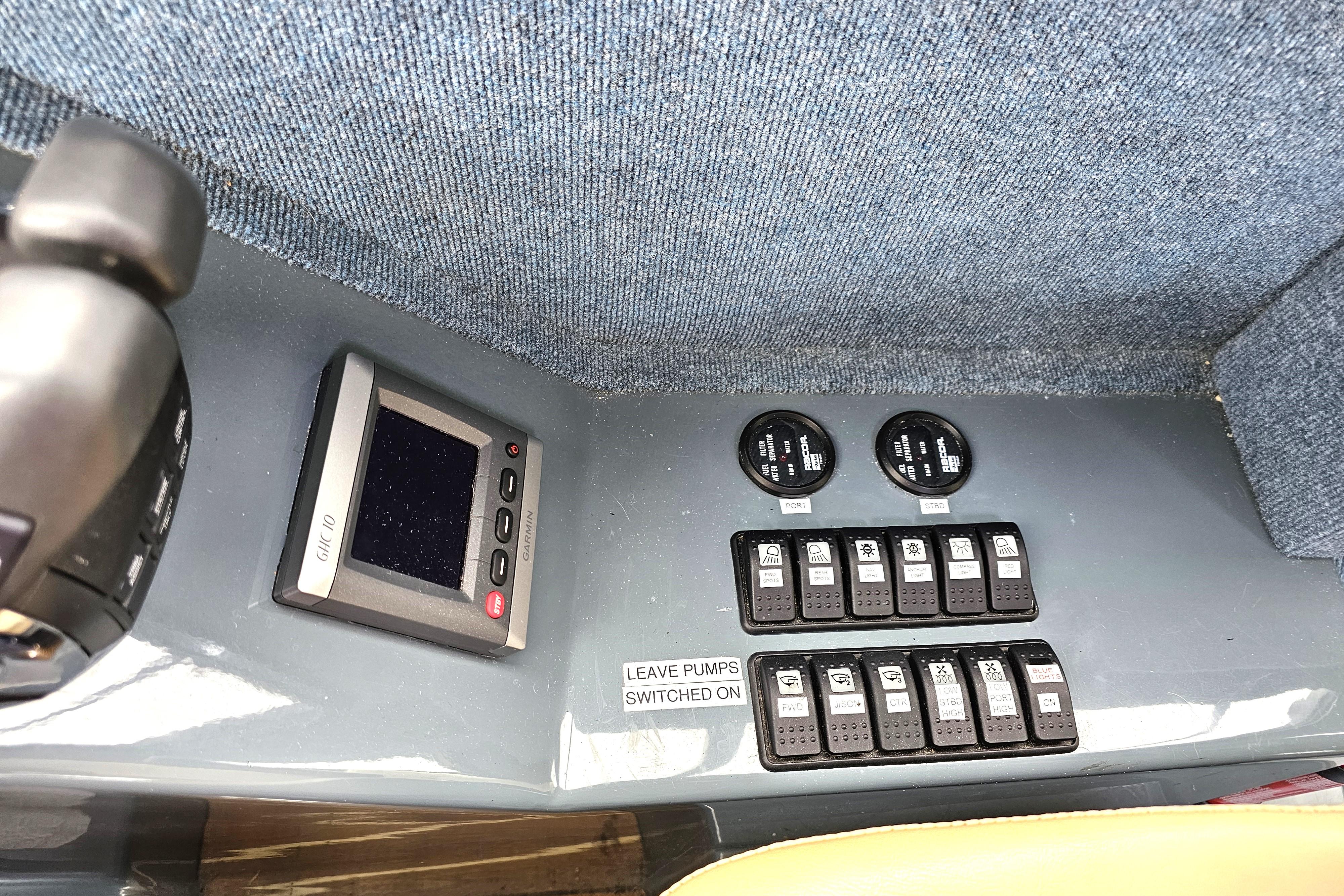

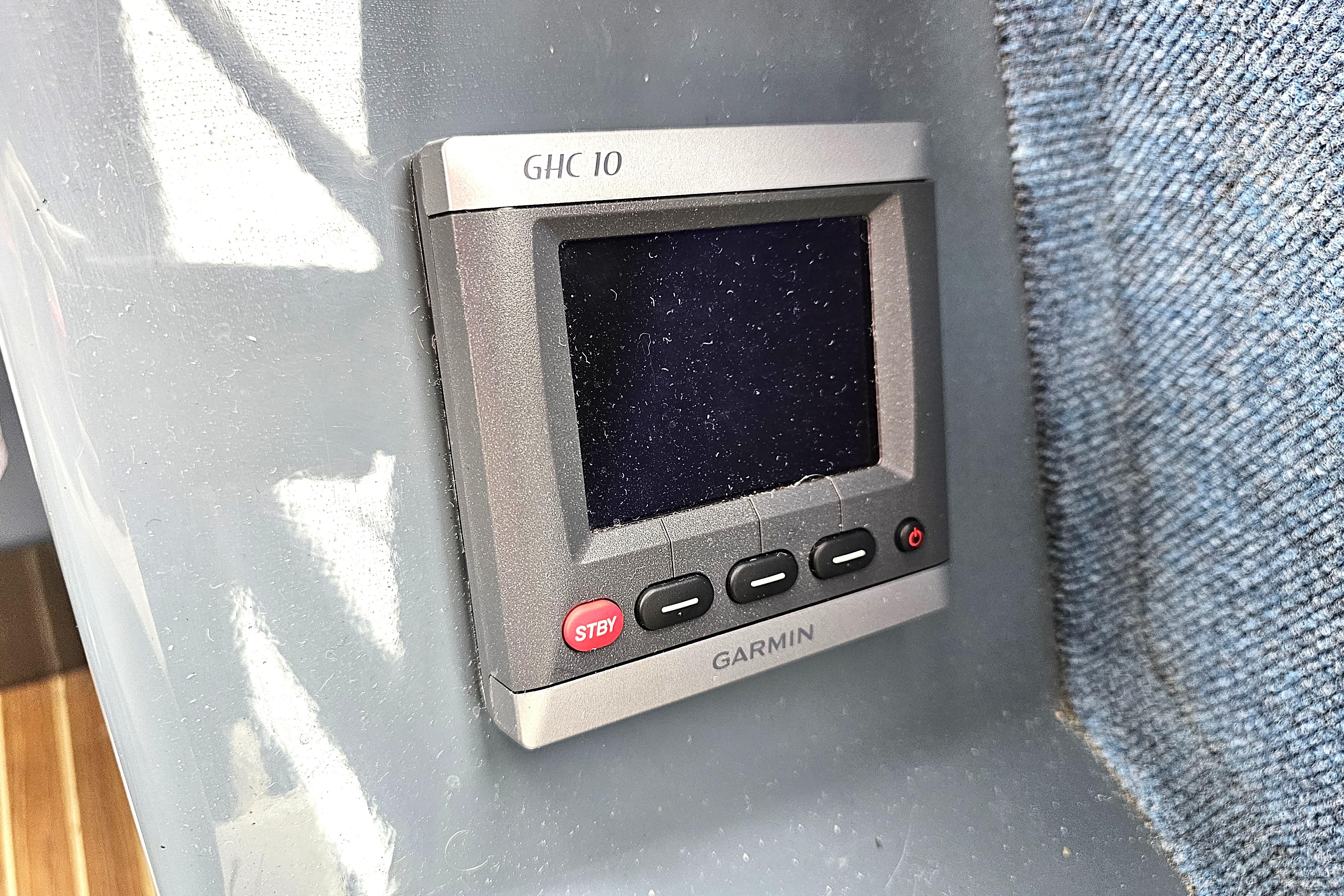

Garmin GHC10 Autopilot system with fluxgate Gyro compass & universal I/O Drive
Garmin AIS300 receive only system

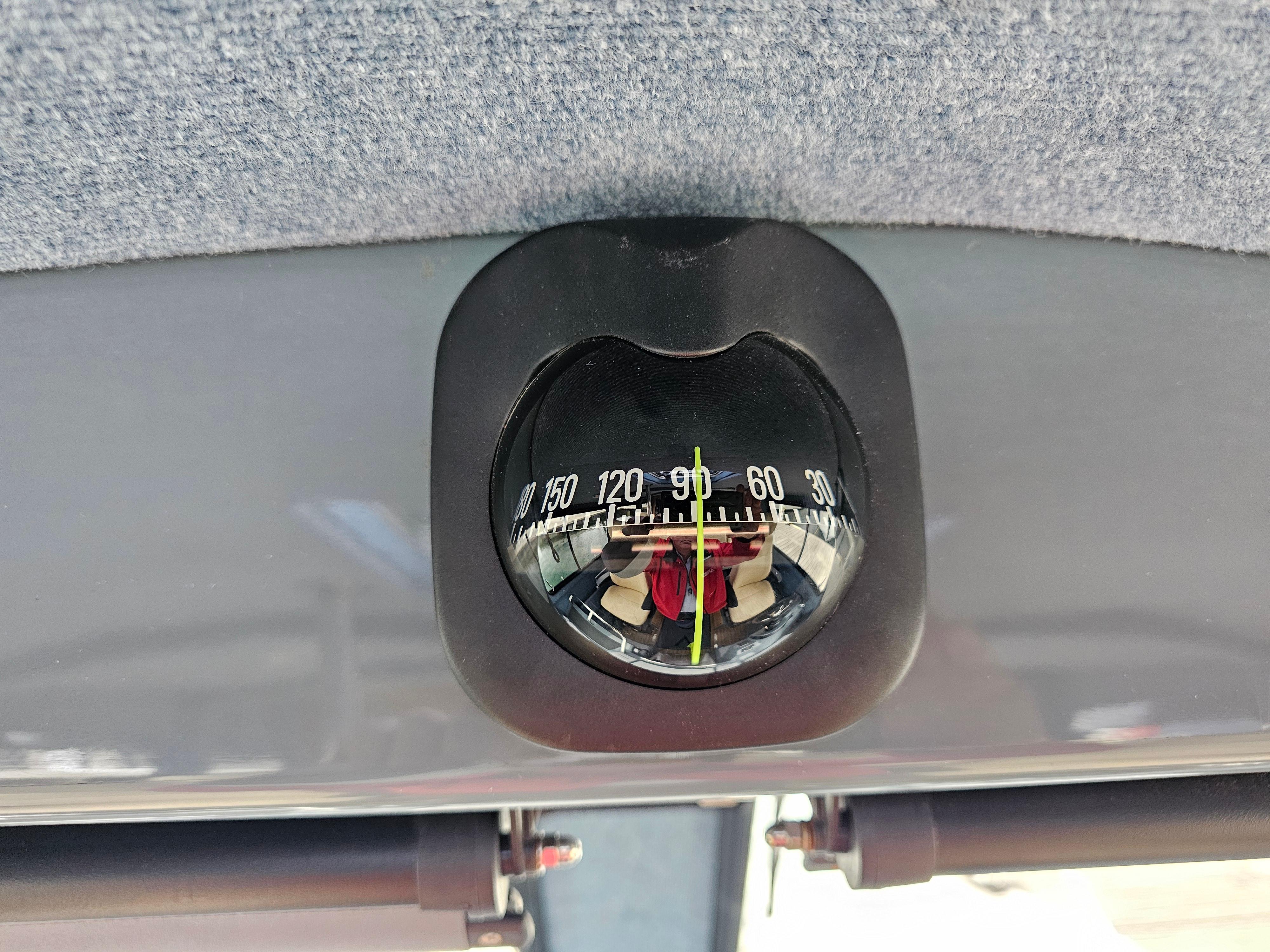

Suunto compass w/backlight
Horn
Search light
Navigation lights
Red LED cabin lights for night work
Electric anchor windlass system
Windscreen wipers x 2
Inventory

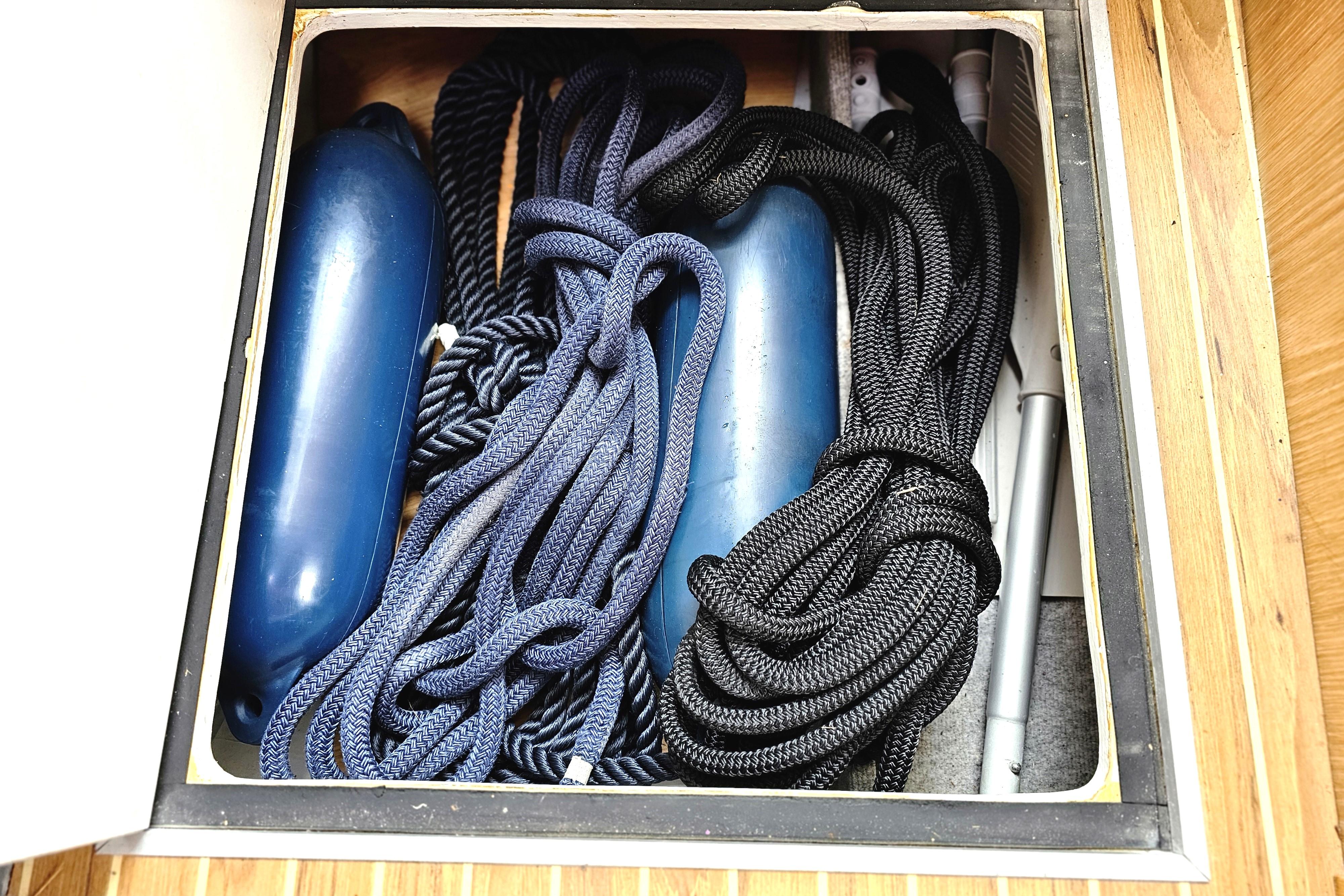

Warps and fenders
Boathook
Deck brush
Carbonmonoxide alarm
Fire extinguishers and Fire blanket

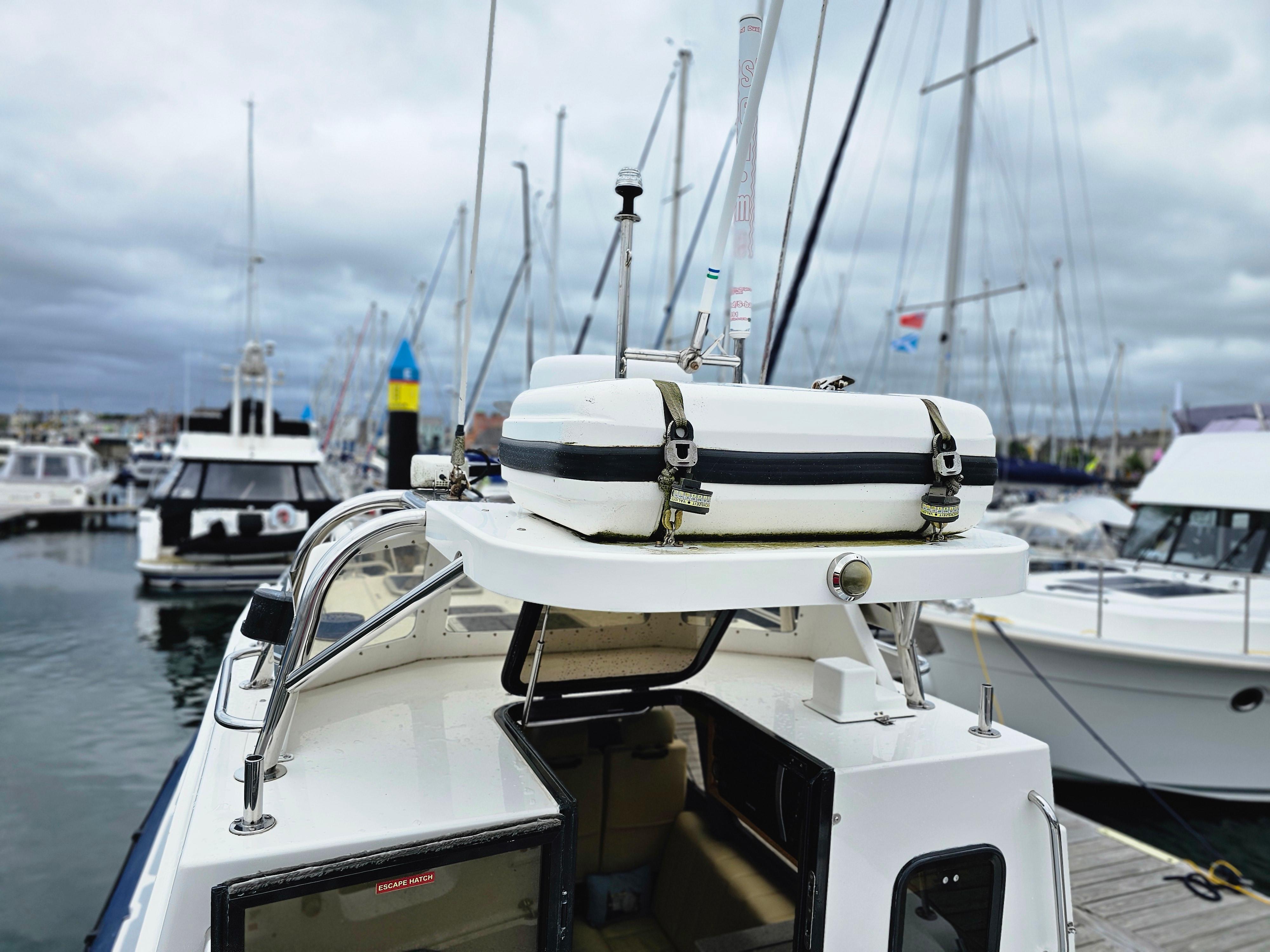

Life raft

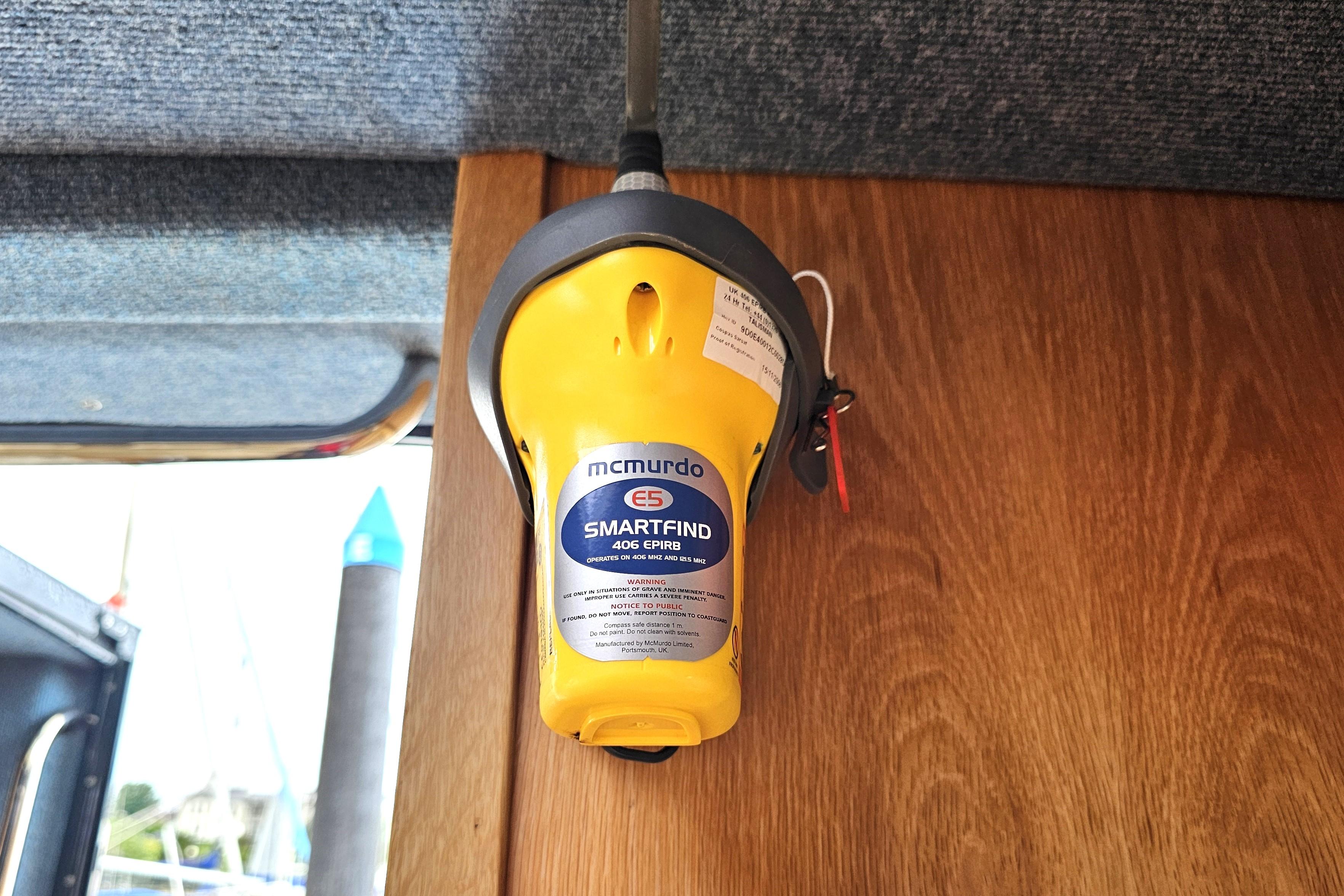

EPIRB (406) McMurdo smartfind

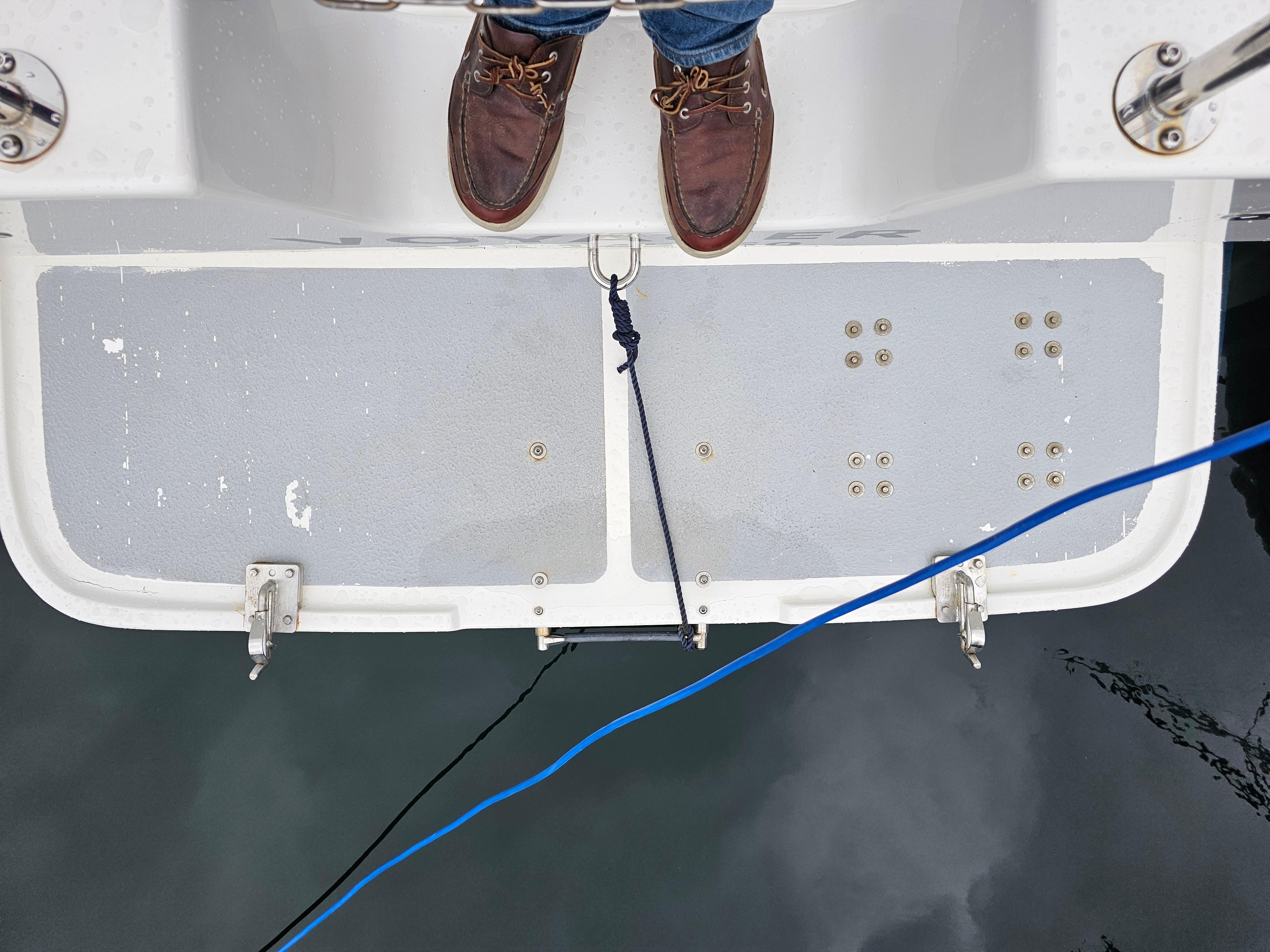

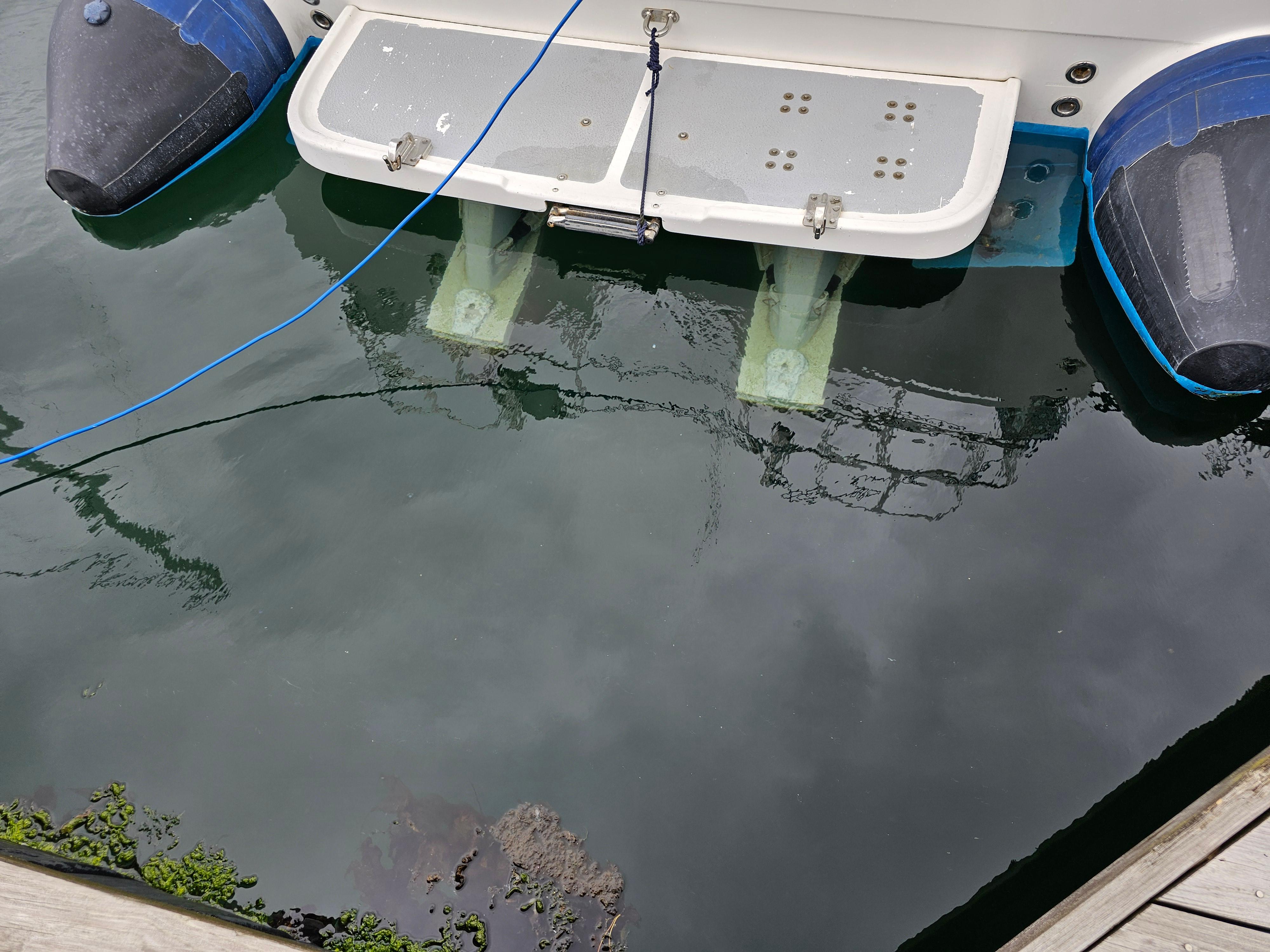

Swim platform with pull-out ladder
Snap davits for tender
