Forseti - Completed Works
- Engine maintenance was done. Oil, oil filter, fuel filter, and belt were replaced.
- Generator maintenance was done. Oil filter, fuel filter, and impeller were replaced; condenser repair was done.
- Turbos were disassembled, all maintenance was done, and smoke leaks were fixed.
- Maintenance was performed on the starter and charging dynamos.
- Outboard motor maintenance was done. Oil, oil filter, spark plug, impeller, tail oil, and steering cable were replaced.
- Propeller balancing and alignment were done, and the housing was repaired.
- Refrigerators were serviced, and the seawater pump was repaired and installed.
- Air conditioning maintenance was done, and gas control was adjusted.
- The gangway was serviced, and the card was replaced.
- The toilet was serviced, and the 24V clean water valve block and clean water tank level float were replaced.
- Water leaks in the shower line at the stern were fixed.
- The windshield washer system was repaired.
- The broken propellers of the bow thruster were replaced using original Sidepower spare parts. In addition, the roller, carbon brush holder, and carbon brushes were replaced.
- Hydraulic sealing work was performed on the stern platform lock pistons, and the grease fittings were renewed.
- The collector was repaired with a lathe.
- All anodes were replaced.
- The stern flap electromechanical pistons were removed and replaced with new ones, the broken feet were renewed, leak-proofing was ensured, and the electronic system of the flaps was disabled and fixed.
- The charger electronics were repaired.
- The air conditioning seawater chrome pump was replaced.
___________________
Length overall: 15.94m
Beam overall: 4.35 m
Beam: 4.30 m
Draft: 1.18m
Height Above Waterline: 3.35m
Keel: V-shaped with deadrise angle at transom 15°
Displacement: 18.23 t
Engine(s): 2 x 600 HP (442 Kw) Cummins QSC 8.3, Working Hour(s): 1476/1478 (23.12.2022)
Max Speed: 35.00 knot
Cruising Speed: 32.00 knot
Fuel Capacity: 1700 lt
Water Capacity: 420 lt
Holding Tank Capacity: 150 lt
Cabins: 2
Berths: 4+2
Heads: 2
Hull Material: VTR/GRP
Interior Designer: Neo Design & Azimut Yachts
Exterior Styling & Concept: Neo Design
Builder: Azimut Yachts (Italy)

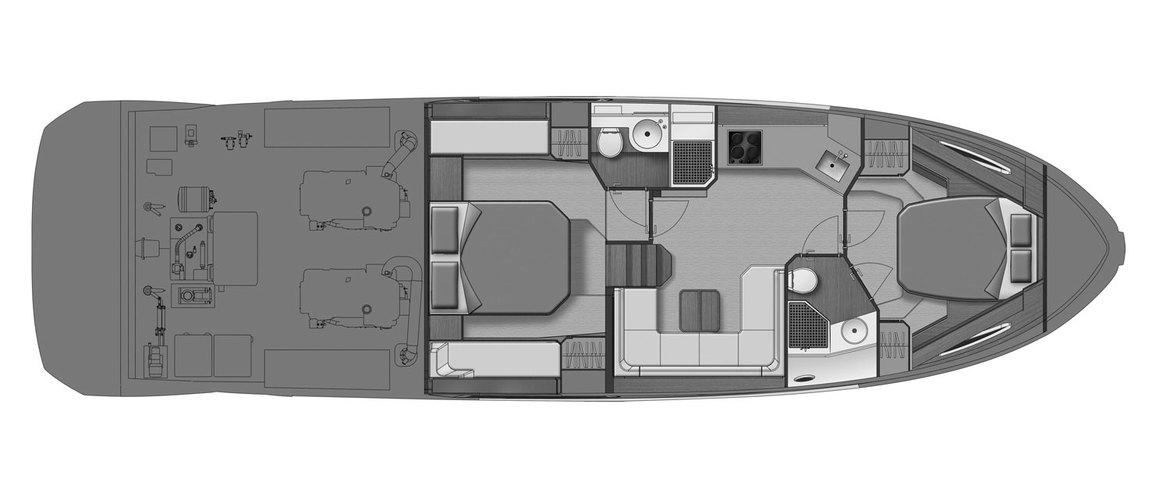

INTERIOR
- Owner's cabin with bathroom
- VIP cabin
- VIP cabin bathroom / day bathroom
- Dining area/kitchen

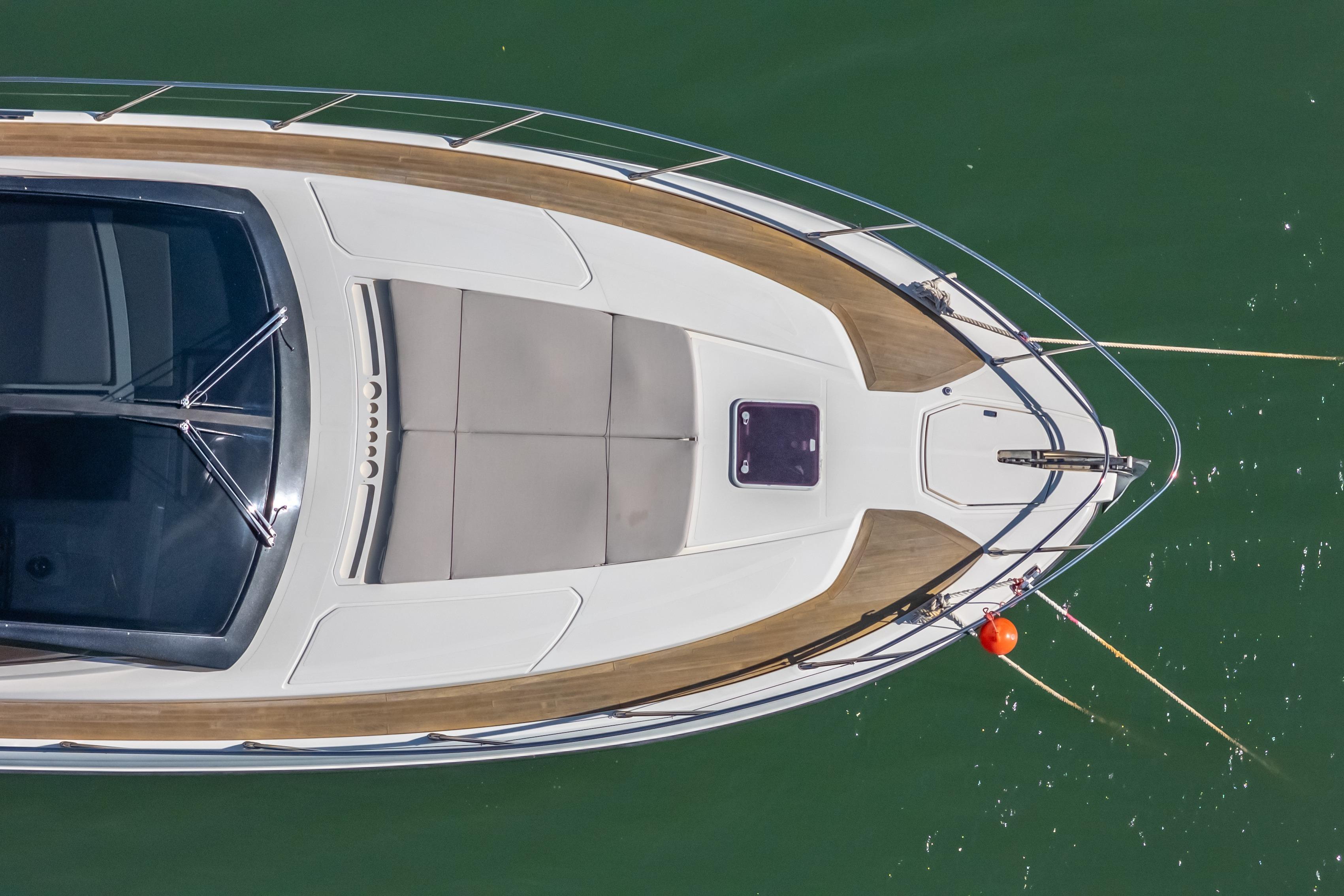

HULL AND DECK
- Anchor 30 kg and anchor chain made of galvanized steel (length 120m, galvanized was renewed in 2021)
- VHF antenna
- Horn
- Stainless steel bollards amidships (2 pcs.)
- Stern bollards made of stainless steel (2 pcs.)
- Stainless steel bow cleats (2 pcs.)

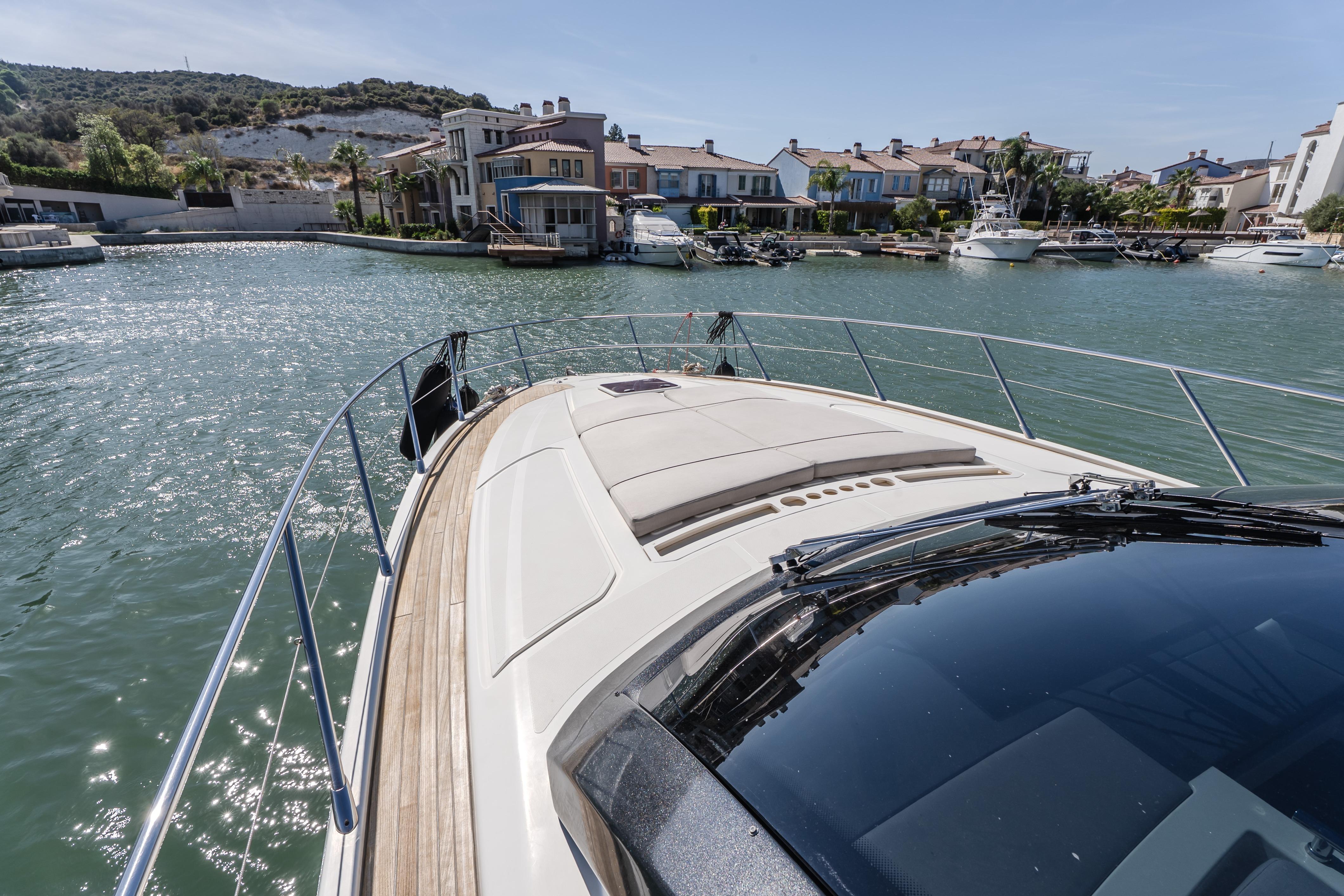

- Foredeck hatch with mosquito net and sun shade
- Nasal pads for sunbathing
- Fixed panoramic windows in the owner's cabin and VIP cabin
- Plexiglass side windows
- Anchor compartment with drainage system
- Rigid automatic sliding roof made of fiberglass, with fabric surface
- Navigation lights
- Anchor rollers made of stainless steel
- Portholes with steel edging and mosquito nets
- Tempered glass windshield
- Stern cleats made of stainless steel (2 pcs.)
- Nasal cleats made of stainless steel (2 pcs.)
- Teak surface in the bow and side aisles
- Cup holders and storage compartments
- Stainless steel handrails
- Fiberglass radar arch with steel supports for lights, flagpole, VHF antenna and horn
- Fuel filler neck with flame and splash protection system
- Steel fuel tank caps (2pcs)
- Steel water tank caps
- Windshield wipers with glass washer
- Steel handles
- Anchor winch 1500kW with chain washer system and control buttons in the deck

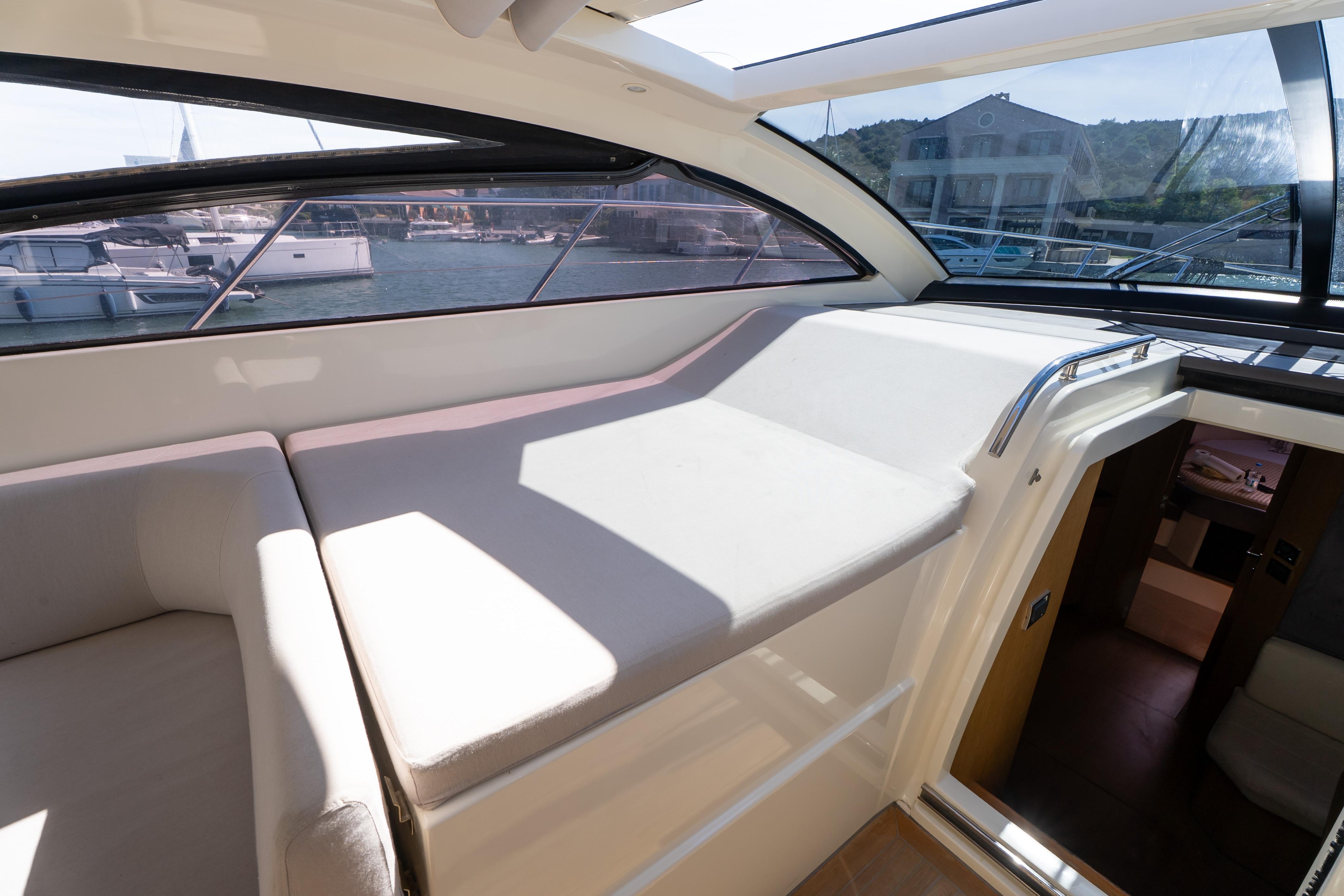

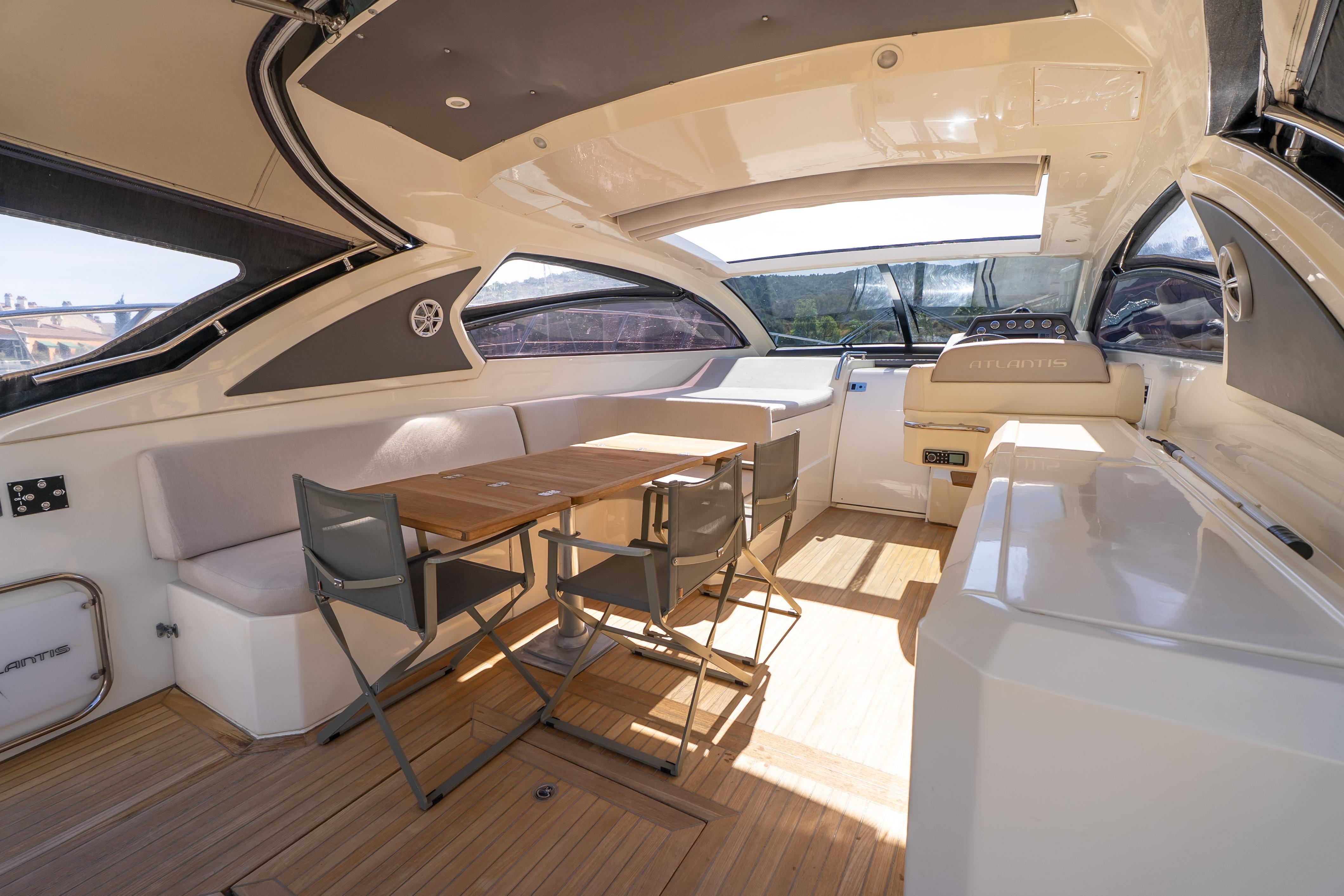

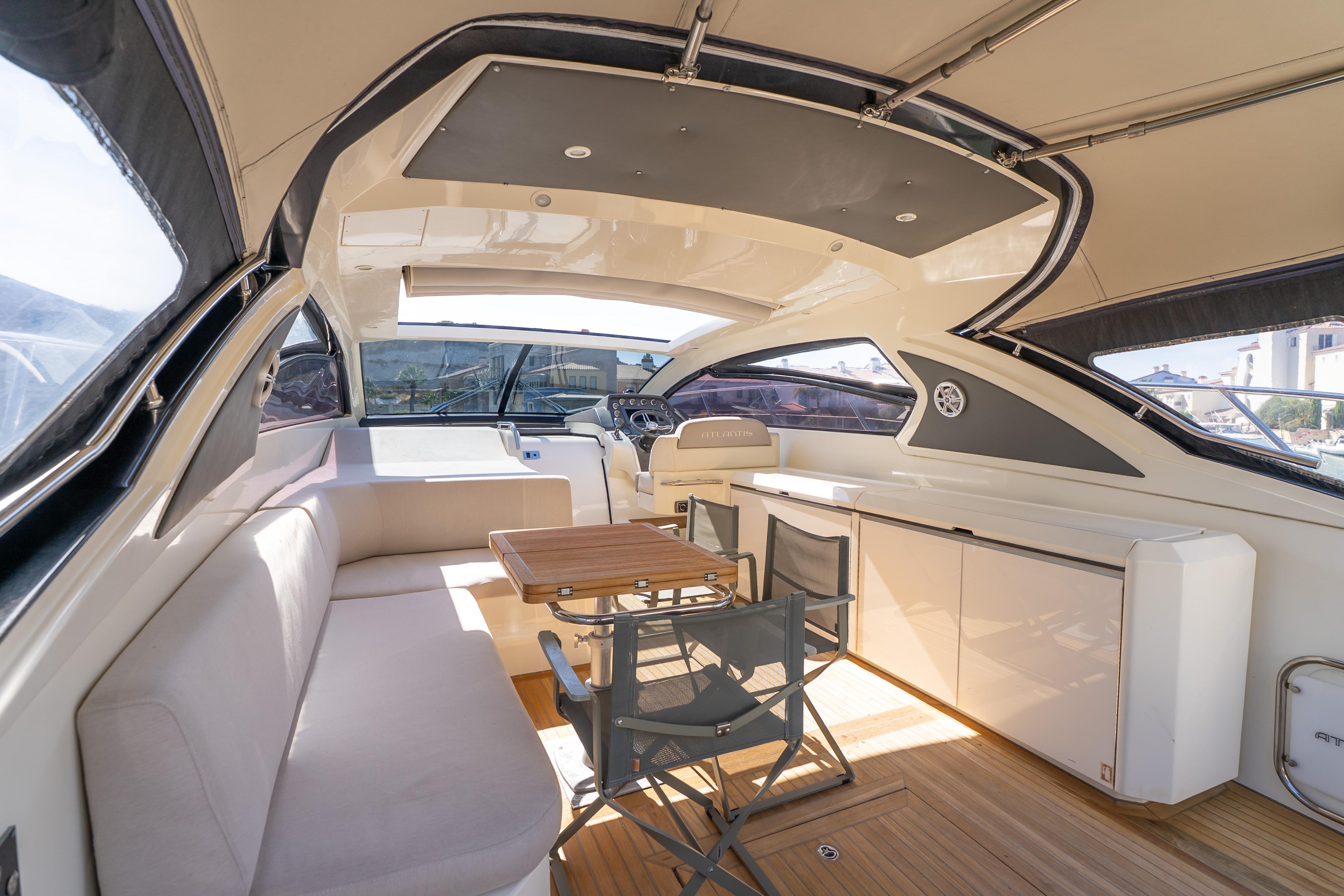

COCKPIT
- Access to the engine compartment through the hatch
- Plexiglas steel framed aft access doors with Atlantis logos (2 pcs.)
- L-shaped sofa with a storage compartment for a life raft
- Shower on the swim platform
- Refrigerator with a capacity of 75 l
- Waterproof storage compartments
- LED lights
- Main illumination - halogen lamps
- Cockpit kitchen with steel sink and faucet
- Teak floor in cockpit and swim platform

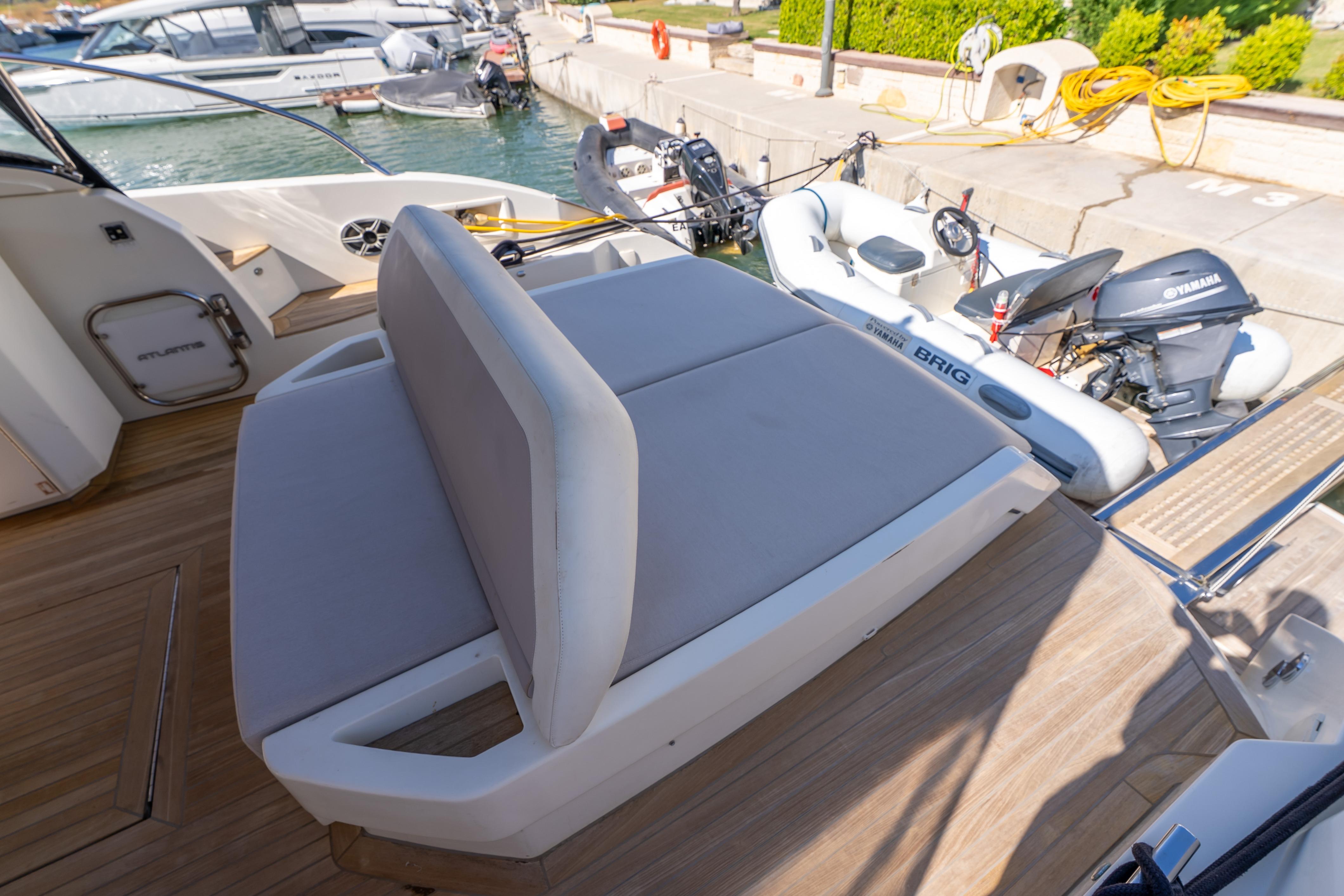

- Aft sunbathing area with adjustable backrest and cup holders
- Socket, 220V
- Water intakes in the body
- USB/Bluetooth System with waterproof speakers (x2)
- Manually retractable swim platform ladder
- Sliding transparent door in white Plexiglass, for access to the lower deck
- Table on a steel fixed support
- Steel handles
- Shore power connector 220V - 50A

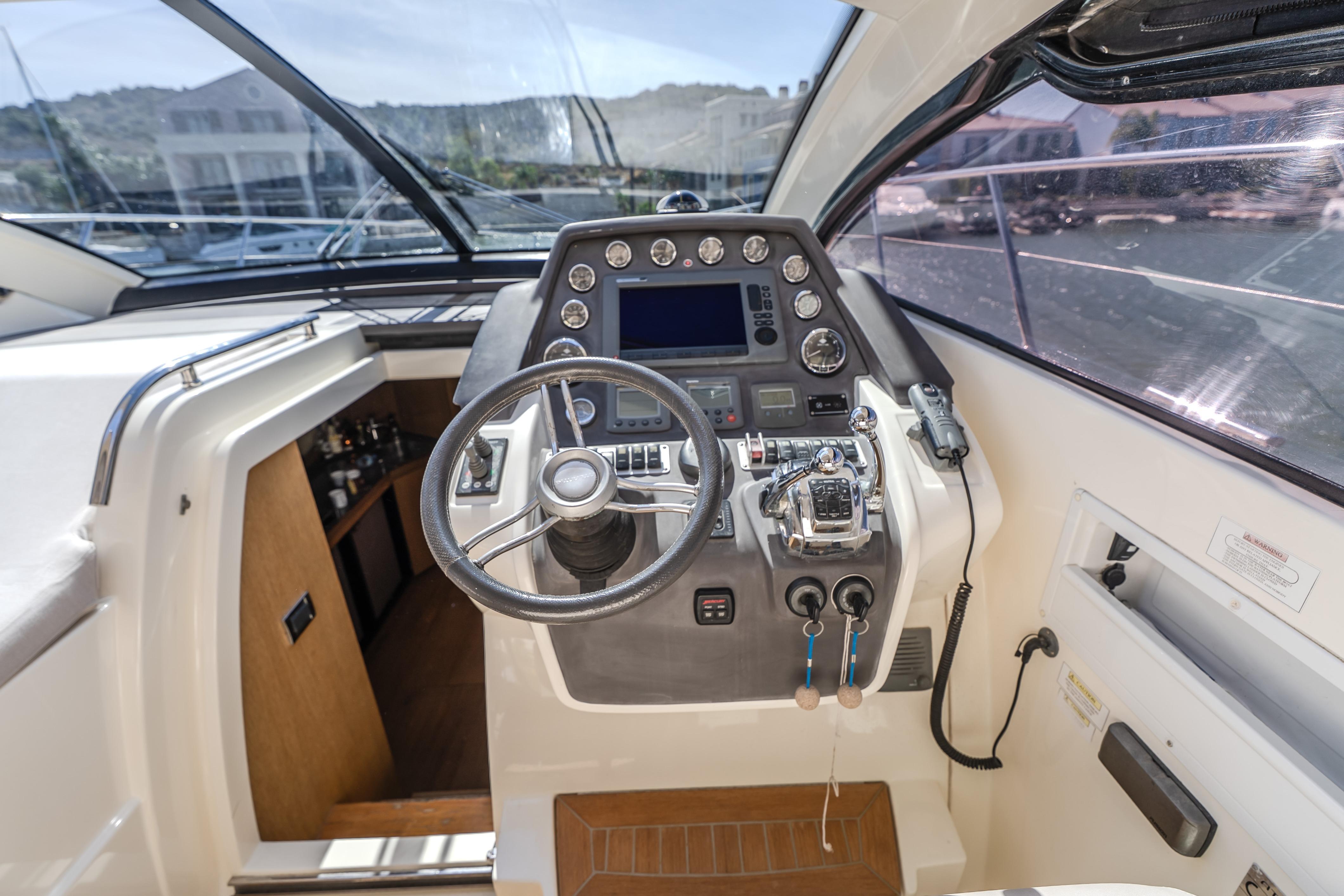

NAVIGATION TOOLS
- Emergency bilge pump
- Rudder position indicator
- magnetic compass
- Electronic engine control knobs
- Tachometer
- Fire safety system status indicator
- Trim tab indicator
- Waterproof switches
- Water level indicator in the tank
- Fuel gauge
- Oil pressure gauge
- Engine emergency stop button
- Shore power indicator
- Coolant temperature sensor
- Display: echo sounder with alert system, trip odometer, water temperature
- Voltmeter
- Radio unit with speaker
- Hydraulic steering system, with adjustable steering wheel made of stainless stell, trimmed with genuine leather
DECOR
- Exterior cushions in fast-drying, closed-cell foam with stain-resistant synthetic fabric upholstery
- Interior cushions with removable covers made of natural fabric
- Upholstered headboard in microfiber
- Furniture, doors and walls in lacquered wood
- Wall upholstery with microfiber
- Carpeted floor
- Microfibre ceiling upholstery
- Aluminum Venetian Blinds

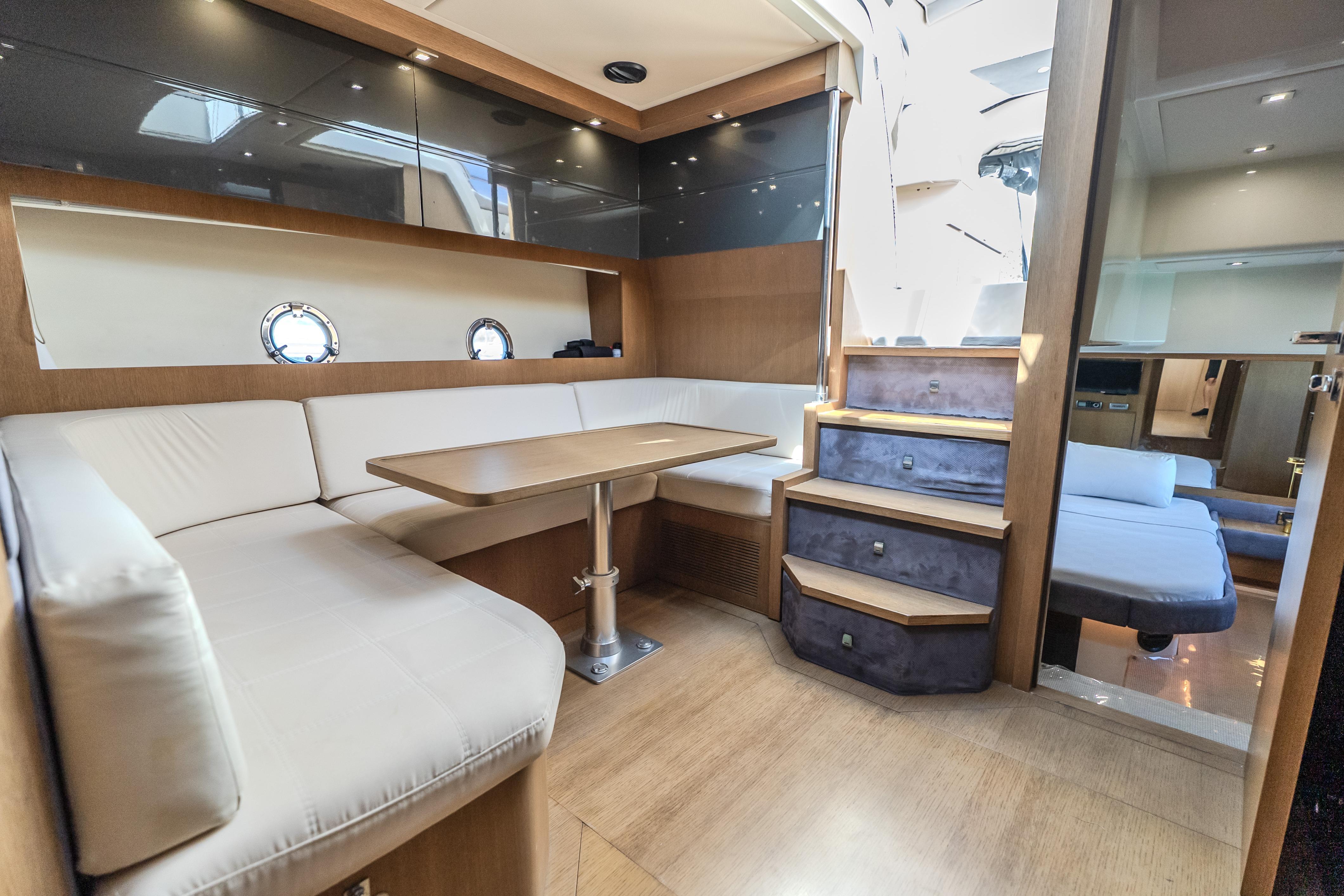

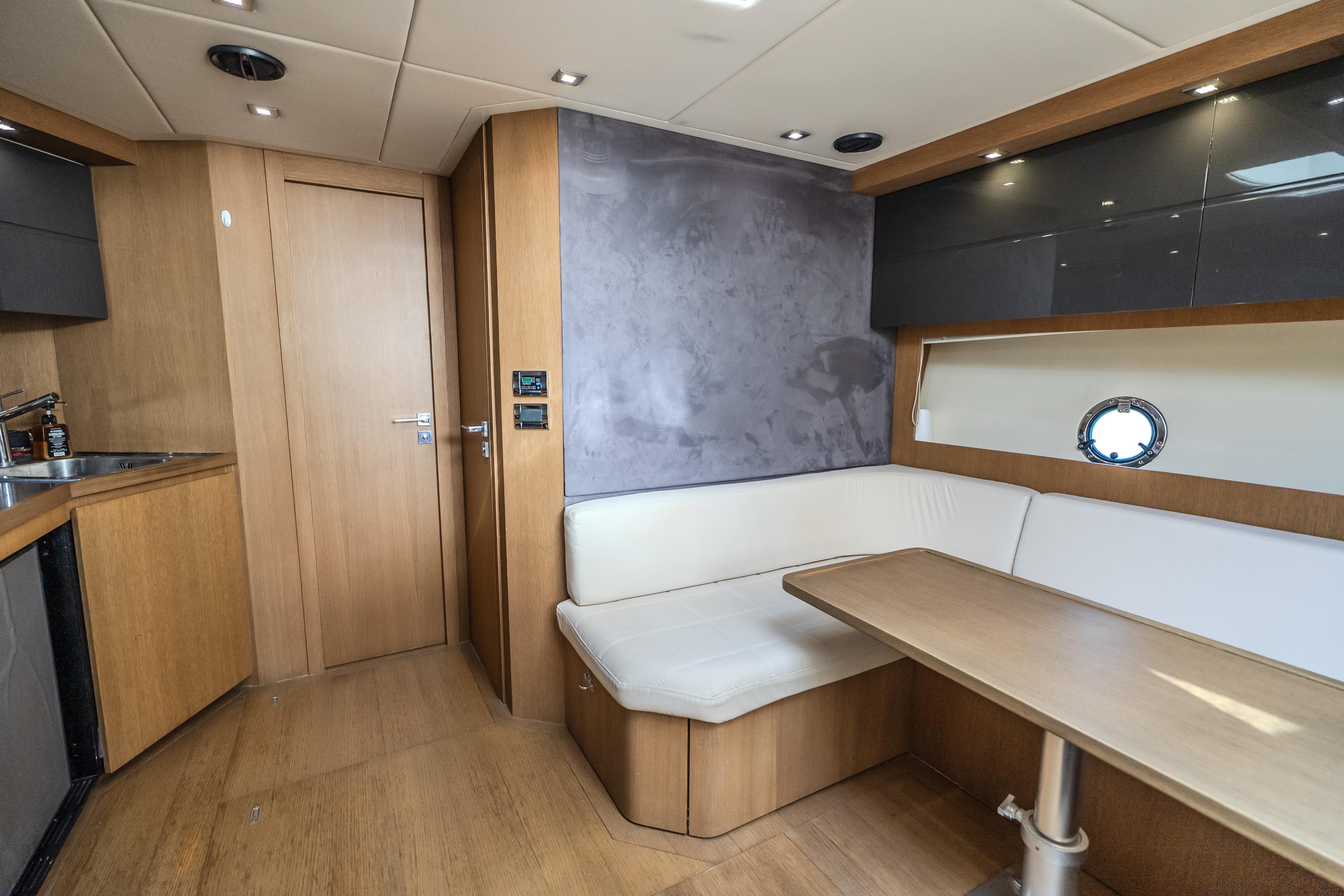

DINNER ZONE
- Door to the VIP / day bathroom
- Wooden sofa base with drawers and storage compartments
- Sofa upholstered in natural fabric
- Fire extinguisher, 1 kg
- Natural wood steps (oak)
- LED and halogen lighting
- Light switches
- Portholes in stainless steel edging, with mosquito nets (2 pcs.)
- Cupboards for dishes
- Table in oak wood with folding top and fixed steel base
- AC/DC electrical panel with thermal magnetic breakers
- Stainless steel handrails near steps

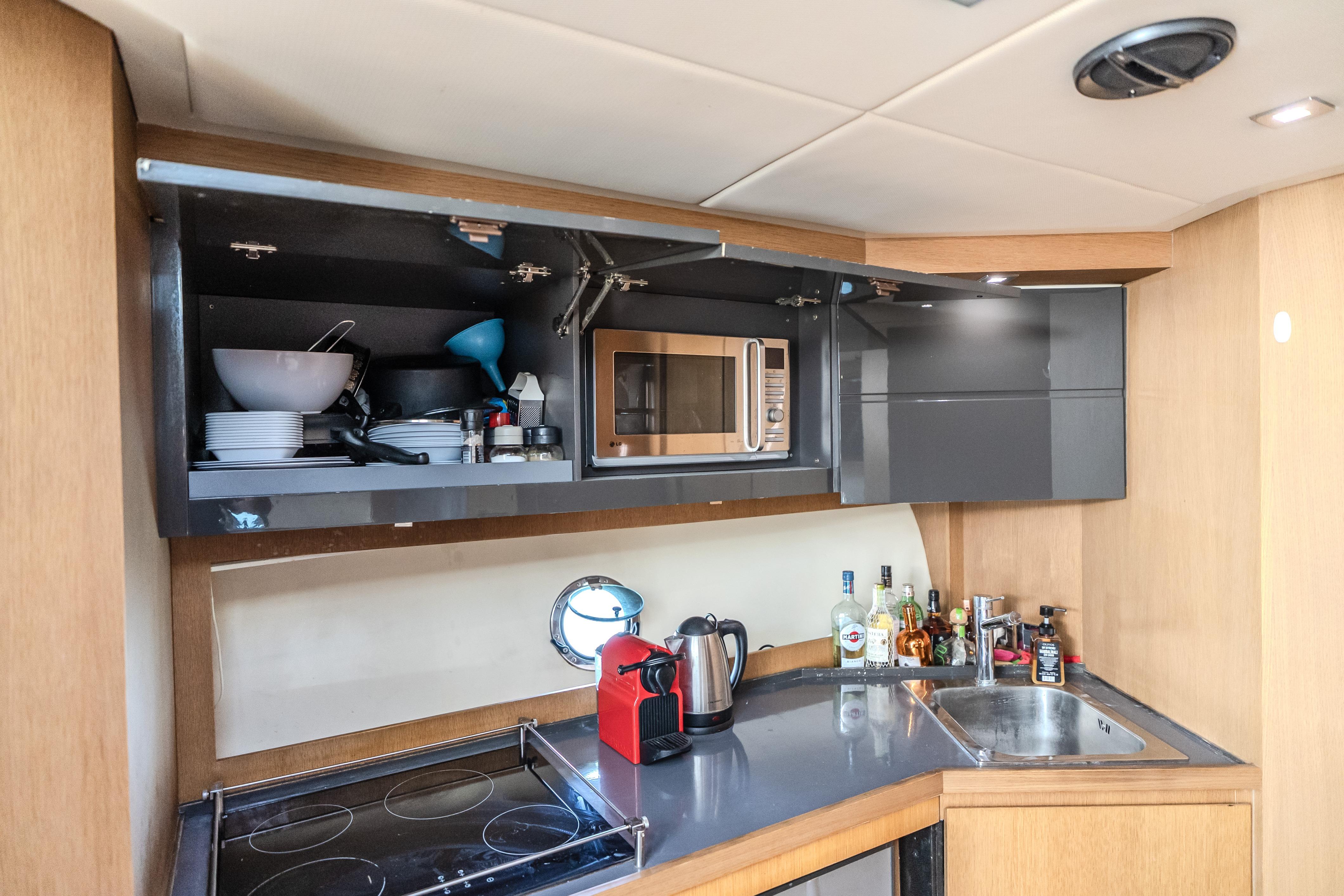

GALLEY (KITCHEN)
- Fire extinguisher, 1 kg
- Exhaust fan
- Combined microwave oven / grill, 220V
- Built-in refrigerator with a volume of 100 l, 24V
- LED lightening
- switches
- Steel sink with faucet
- Portholes with mosquito nets and stainless steel edging (2 pcs.)
- Cupboards, under-worktop storage and pantry
- Glass ceramic hob with 4 burners
- Laminated work surface
- Socket,S220V

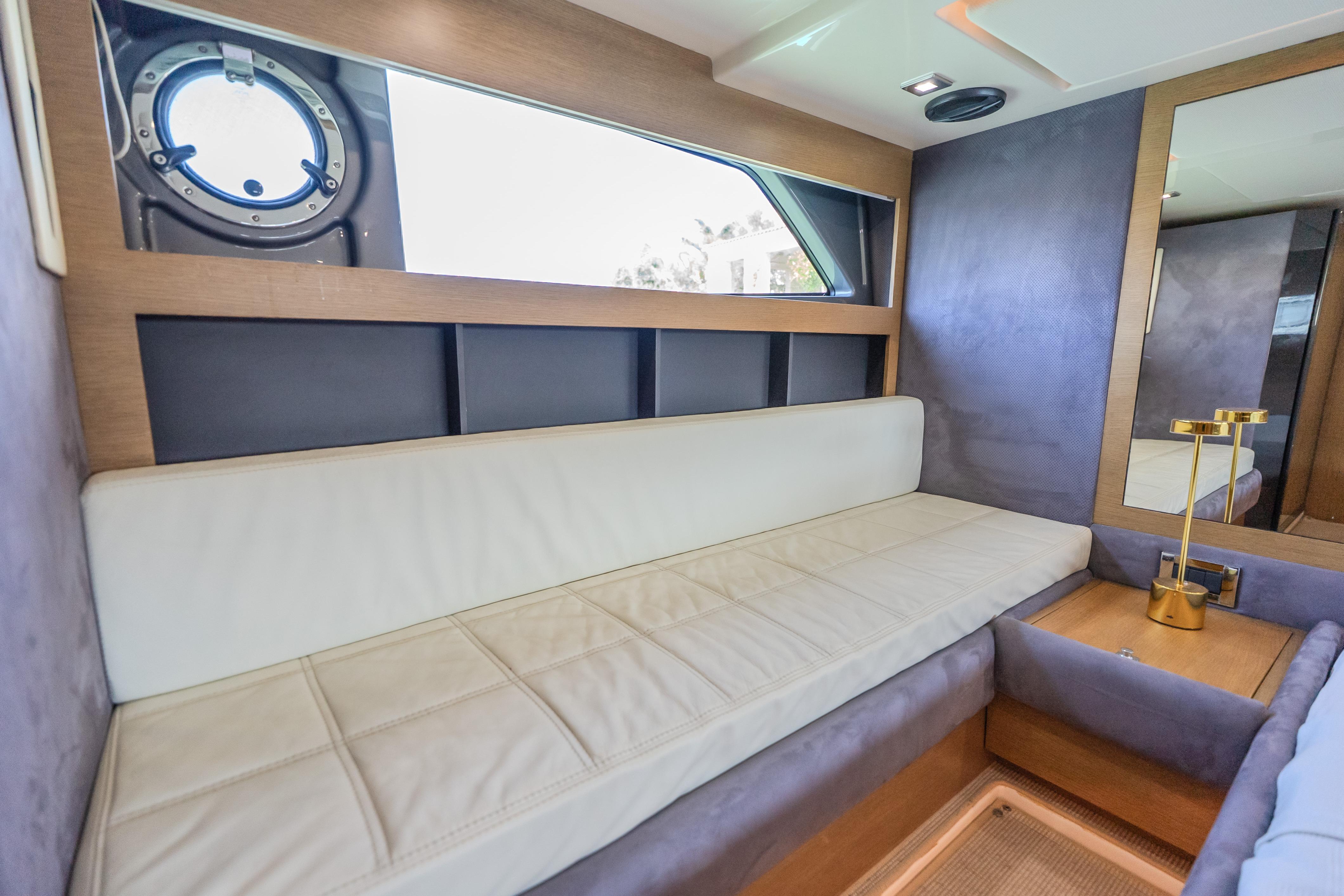

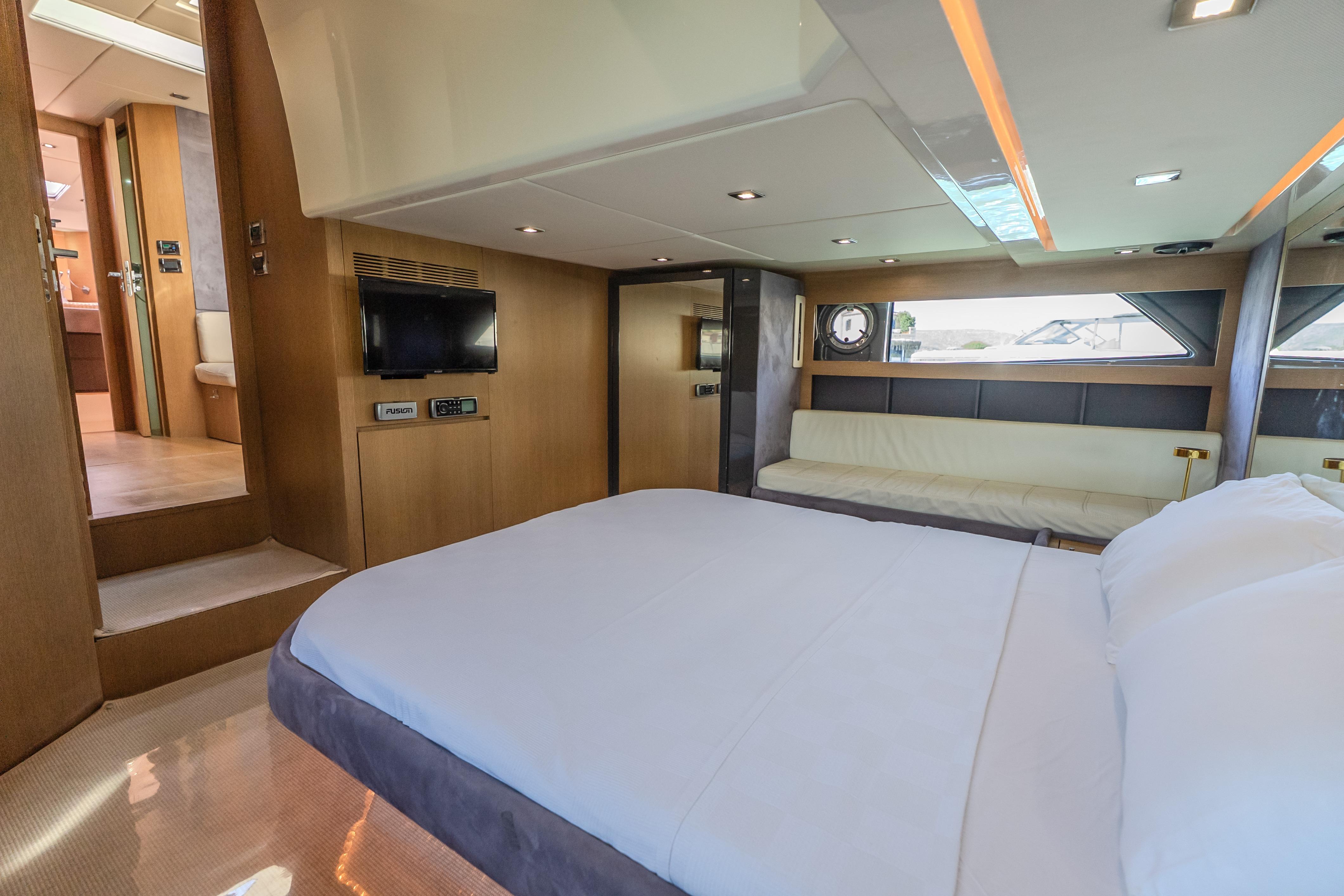

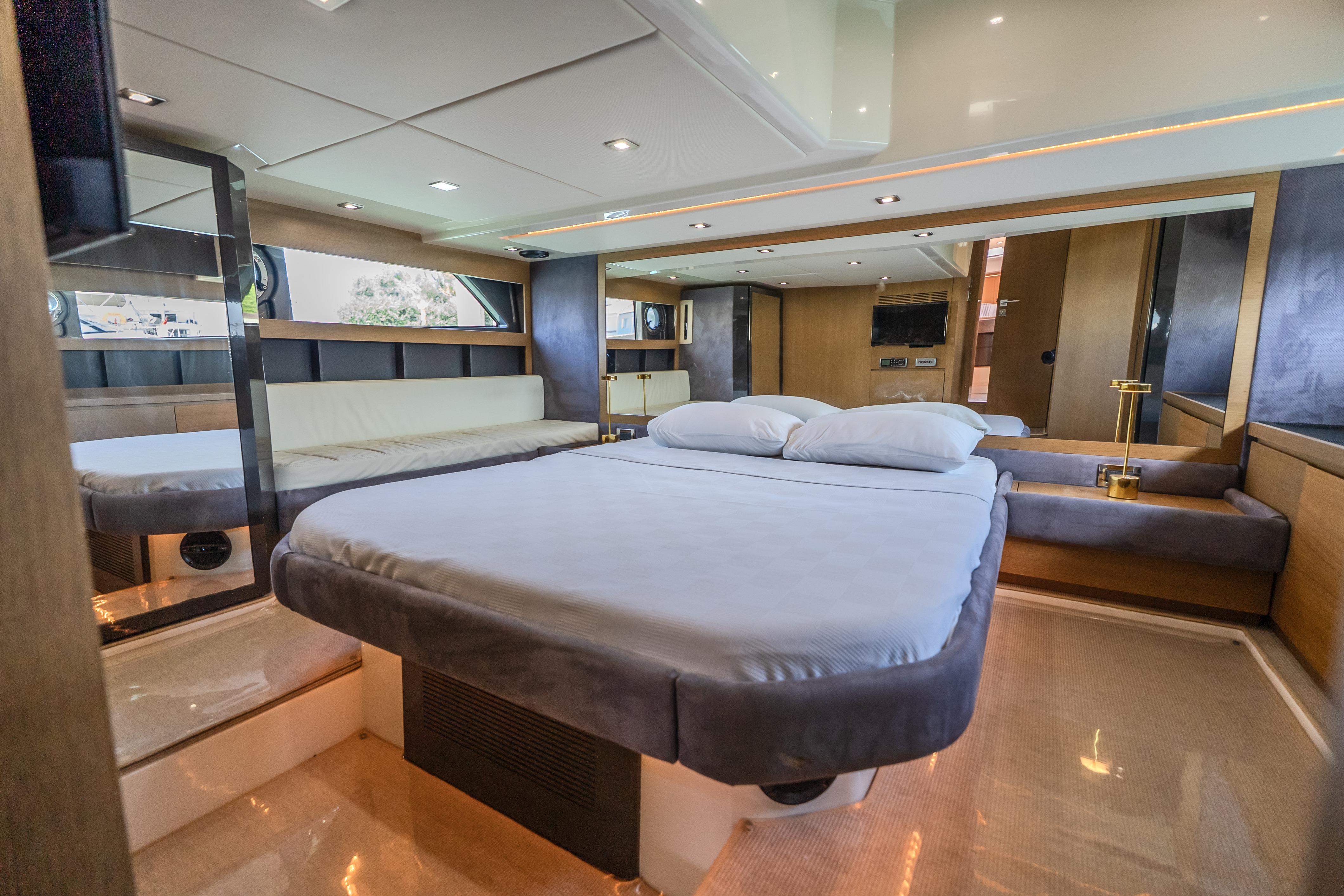

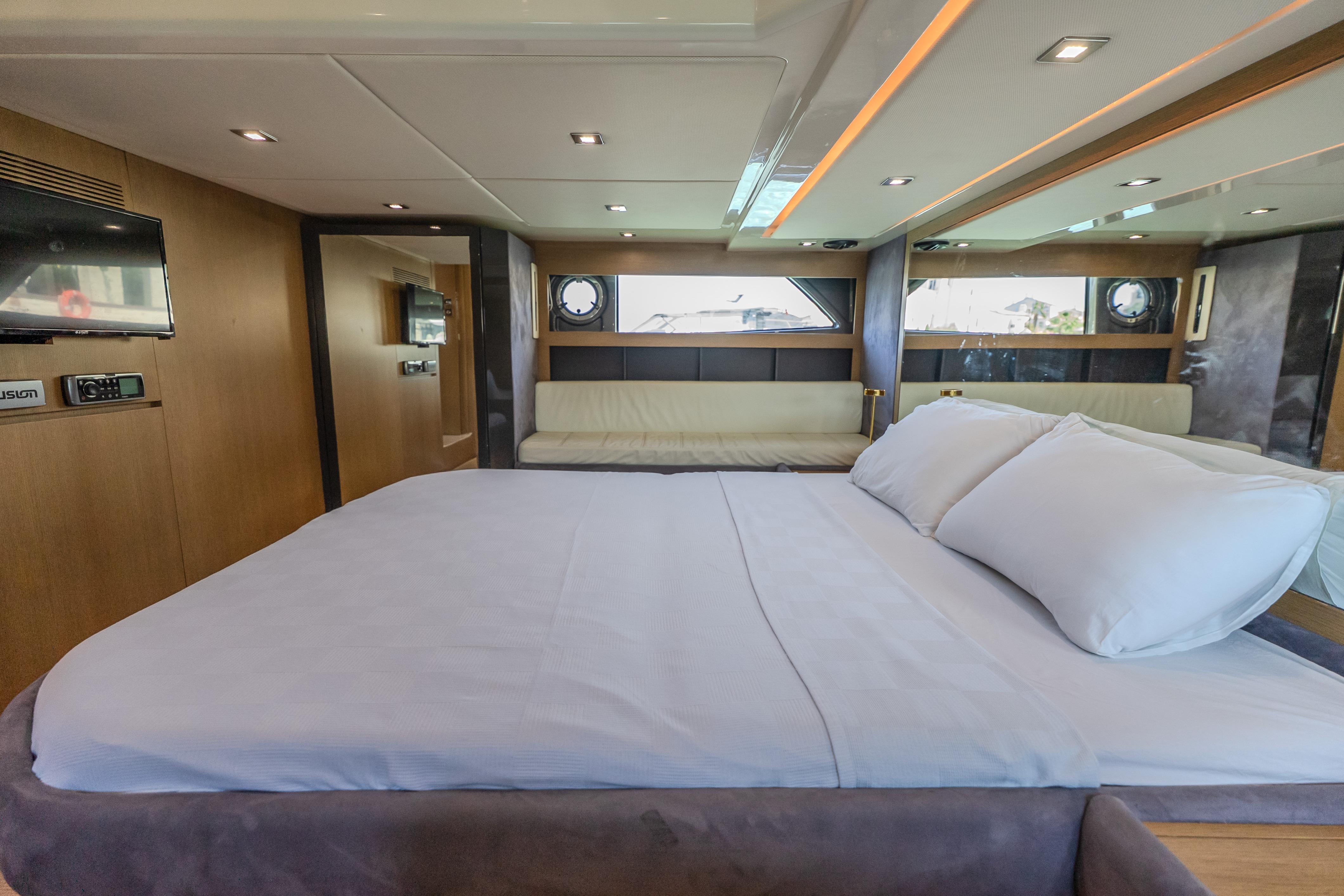

OWNER'S CABIN
- Built-in wardrobe with internal lighting and mirrors on the doors (2 pcs.)
- Study / TV space in front of the bed
- Sofa to starboard
- Night table with opening top (2 pcs.)
- Fire extinguisher, 1 kg
- Fixed side window
- Halogen lighting
- Switches
- Double bed with mattress, duvet and pillows
- 2 x reading lamps
- Night illumination
- Lockers on the port side
- Portholes in steel edging, with mosquito nets (2 pcs.)
- Socket, 220V
- Mirror at the head of the bed
- Bed base with storage drawers
- Microfiber headboard upholstery
- Open shelves
OWNER'S BATHROOM
- Separate tempered glass shower with seat and shelves
- Teak grating on the floor
- Halogen lighting
- Switches
- Faucet and shower in the shower cabin
- Cabinet with sink and faucet
- Porthole in steel edging, with mosquito net
- Wall cabinet with mirror
- Socket, 220V
- Set of bathroom accessories
- Electrical flushing system for fresh water in the toilet

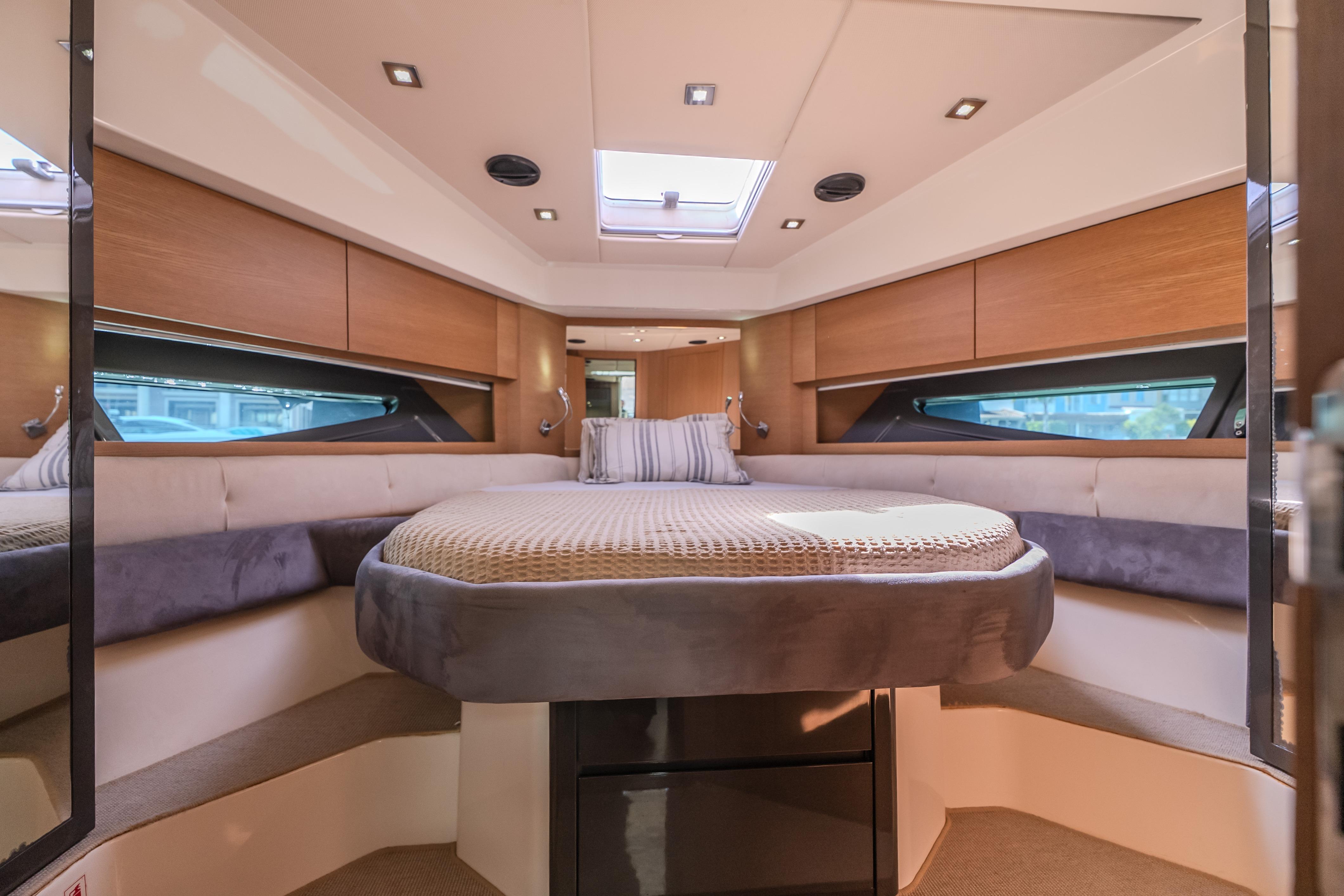

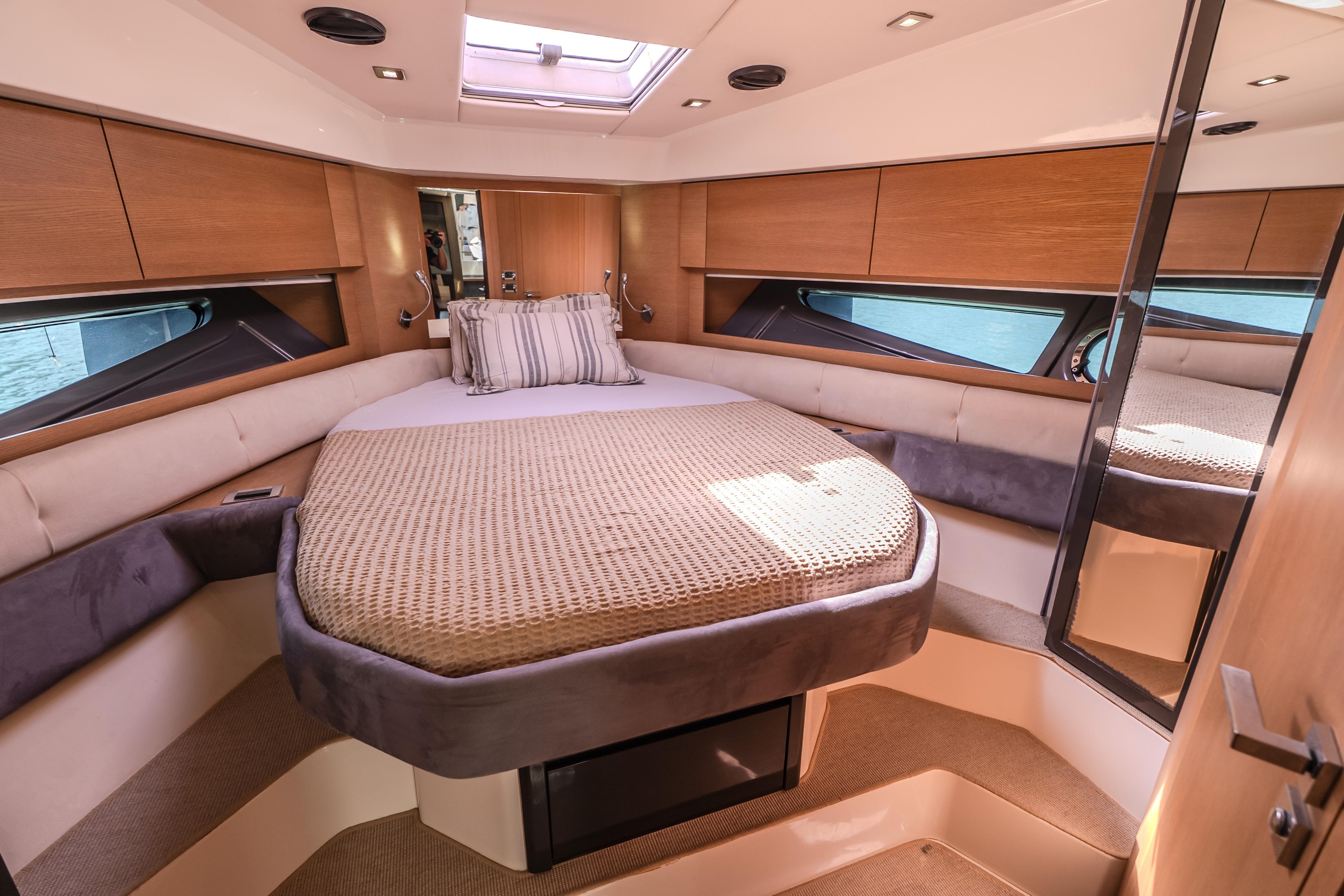

VIP CABIN
- Door to VIP / day WC
- Built-in wardrobe with internal lighting and mirrors on the doors (2 pcs.)
- Fire extinguisher, 1 kg
- Side windows, 2 pcs.
- Halogen lighting
- Light switches
- Double bed with mattress, duvet and pillows
- Reading lamps (2 pcs.)
- Night illumination
- Lockers and shelves on the port side
- Portholes in steel edging, with mosquito nets (2 pcs.)
- Socket 220V
- Mirror in the bow, at the head of the bed
- Fiberglass bed base with storage drawers
- Microfiber headboard upholstery
VIP BATHROOM
- Separate tempered glass shower cubicle
- Teak grating on the floor
- Halogen lighting
- Light switches
- Shower faucet with hose
- Cabinet with sink and faucet
- Porthole with steel frame and mosquito net
- Wall cabinet with mirror
- Socket, 220V
- Set of bathroom accessories
- Electrical flushing system for fresh water in the toilet
ELECTRICAL SYSTEMS
- Battery for generator 12V - 100Ah (1 pc.)
- Batteries for engines 12V - 100A / h (2 pcs.)
- Service batteries 12V-100A/h (2 pcs.)
- Automatic charger 24V-80A/h
- Charger for generator 12V-12A/h
- Ventilated battery compartment
- The battery disconnect is located on the electrical panel in the dining area
- Battery parallel operation is in the control room
- Switches for power supply from the generator / shore power (2 pcs.)
- Digital voltage / electricity consumption indicator for AC and DC systems
- Incoming electricity polarity sensor
- Inverter 24V/13V for 12V devices (walkie-talkie, audio system, cigarette lighter socket, etc.)
- Generator 11.5kW, Köhler
- Separate circuit breakers and switches for shore power/generator
WATER SYSTEM AND PUMP
- Bilge alarm for cabins and engine compartment with light and sound signal at the helm station
- Boiler, 30 l
- Shore fresh water connection system
- Automatic fresh water pump in the engine compartment with filter and cold/hot water cut-off valves
- Automatic electric pump for indoors (1 pc.)
- Manual bilge pump for interior spaces (1 pc.)
- Manual bilge pump for engine compartment
- Separate bilge pump for pumping excess oil and fuel (1 pc.)
- Electric bilge pump in the engine compartment with automatic and/or manual control (2 pcs.)
- Fresh water tank 420 l
- Gray water tank (capacity 2 x 9 l) with electric drain pump
- Emergency bilge pump in the engine compartment
FUEL SYSTEM
- Electric valves on the fuel system, for emergency shutdown of the fuel supply
- Fuel filters-sumps (2 pcs.)
- Fuel tanks made of stainless steel, with fuel level sensors (capacity 2 x 850 l, total 1700 l)
ENGINE COMPARTMENT
- Access through hatch in cockpit
- Ceiling lighting with portable lamps
- Fire fighting system (automatic and manual)
- Exhaust and ventilation system, thermostatically activated
- Removable panels in the aft cockpit area for easy engine maintenance
- Socket, 220V
- Anti-corrosion (cathodic) protection of fuel tanks, hoses, etc.
- Stainless steel ladder
- Underwater exhaust system
- Care valve fuses
PROPULSION SYSTEM / MECHANICAL EQUIPMENT
- Steel shafts for screws (diameter 60 mm), 2 pcs.
- 5-bladed propellers (2 pcs.)
- Hydraulic trim tabs (2 pcs.)
- Propeller shaft bracket, diameter 60 mm (2 pcs.)
- Steel rudders (2 pcs.)
- Shaft sleeve, diameter 60 mm, (2 pcs.)
- Gray and black water tanks with level sensors and electronic drain system (capacity 150 l.)
- Bow thruster (8.4 hp, diameter 185 mm)
- Hydraulic swim platform (max. load capacity 350 kg)
- Nose sun pads with cover
- Cockpit cover with side passage and removable transparent “windows”
- Electric spotlight
- Teak cockpit table
- Teak side walkways
- FUSION AUDIO/VIDEO multimedia system (in cockpit, dinette and master cabin), includes Hi-Lo retractable TV system
- Air conditioning 30.000 BTU in cabins
- Air conditioning 46.000 BTU in saloon
- Stern thruster (8.4 hp, diameter 185 mm)
- Cockpit chair
- Cockpit cover with side passage and removable transparent “windows”
- Cover for helm seat and dashboard
- Cushion covers for sunbathing aft
- Electric spotlight
- Teak cockpit table
- Teak side walkways
- Electro-hydraulic boarding ladder
- 4 pieces underwater lights (blue - white two colors, Seablaze)
- Wooden stands for the tender on the platform
- A set of cutlery, dishes and glasses for 6 persons
- Folding sofa / bed in saloon
- Wooden floor in the dining area on the lower deck (walnut)
- Additional fridge in galley (100 liters)
- BBQ in cockpit
- Raymarine E125 Hybrid Touch Chartplotter, Raymarine p70R Autopilot, Raymarine RD418D 18” 4kW Radar
- Anchor chain counter at helm station
- Hi-Lo retractable system for TV in cockpit
- FUSION AUDIO/VIDEO multimedia system (includes 4 stereo speakers, LCD TV)
- TV system with receiver in dining area
- TV system with receiver in dinette and owner's cabin
