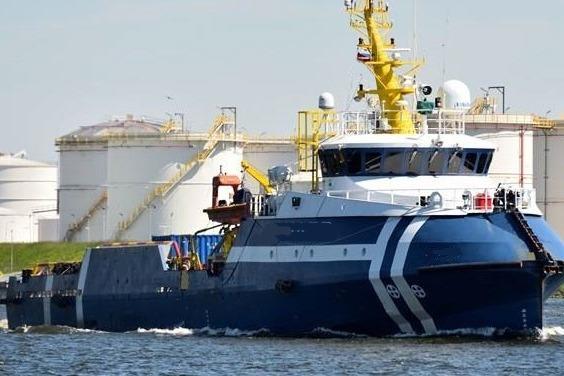

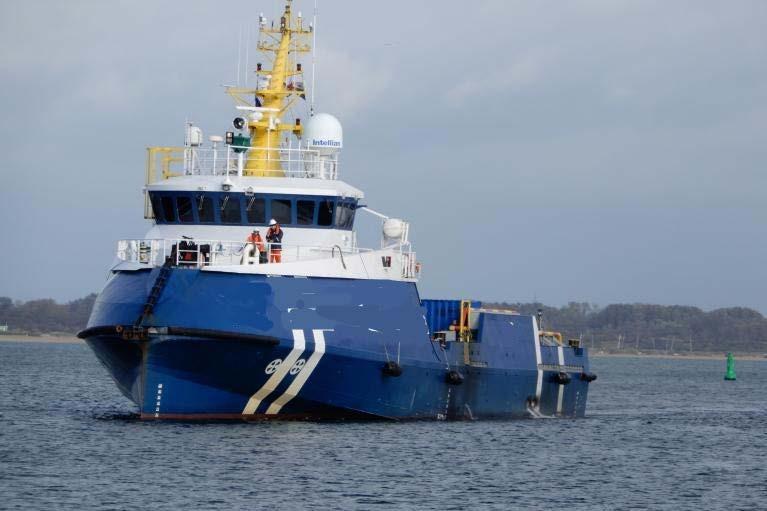

This is a 164’ Multipurpose Offshore Guard Supply Vessel built in 2012 and refurbished in 2018. It is RINA Class. Next Dry Dock is 2027. Max speed is 20 kts. Endurance is 70 days. There are 17 berths and seats for 30 passengers. The ship is well priced for quick sale.
Type Offshore Guard, Supply, Crew
Year Built 2012, refurbished 2018
Flag Panama
Safe Manning 6
Class RINA
Class Note *C AUT-UMS
DIMENSIONS
LOA 50.0 m/164 ft 1 in
Beam 10.0 m/32 ft 10 in
Draft 2.32 m-2.38 m/7 ft 7 in -7 ft 11 in
Gross Tonnage 492 mt
Net Tonnage 147 mt
PERFORMANCE
Max Speed 20.0 kts @ 1.0 m3/hr
Transit Service Spd High 15.0 kts @ .4 m3/hr
Transit Service Spd Med. 10.0 kts @ .25 m3/hr
Stand By Mode .08 m3/hr
Fuel Type Low Sulpher MGO
Endurance up to 70 days
MACHINERY
Main Engines 4 x KTA50-M2 Cummins @1,342 KW
Total Power 7,193 HP
Generators 2 x 175 KVA 440V, 60 hz
Bow Thruster 2 x 200 HP
Propellers/Rudders 4 x Fixed Pitch
DECK EQUIPMENT
Windlass 1 x 4,500 KG
Deck Crane 2.0 mt @4-11.0 m
COMMUNICATION EQUIPMENT
See our detailed listing for full Communication Equipment specifications
NAVIGATION EQUIPMENT
See our detailed listing for full Navigation Equipment specifications
BUNKER/STORAGE CAPACITY
Fuel Oil 177.66 m3
Fuel Transfer 4” Camlock
Fresh Water 74.9 m3
F.W. Maker 5.3 m3
STORAGE CAPACITY
Deck Cargo Capacity 250.0 mt
Cargo Deck Area 154.0 m3
Deck Area 20.0 m x 7.7 m
Cool Store 3 x standing Fridge 0.1 m3
Freezer Store 5 x 0.3 m3
ACCOMMODATIONS
Single Cabins 3
Double Cabins 7
Seats 30 for Passengers
Lockers 4
Mess 1
Galley 1
SAFETY EQUIPMENT
Life Rafts 4 x 25 man
FRC 1
