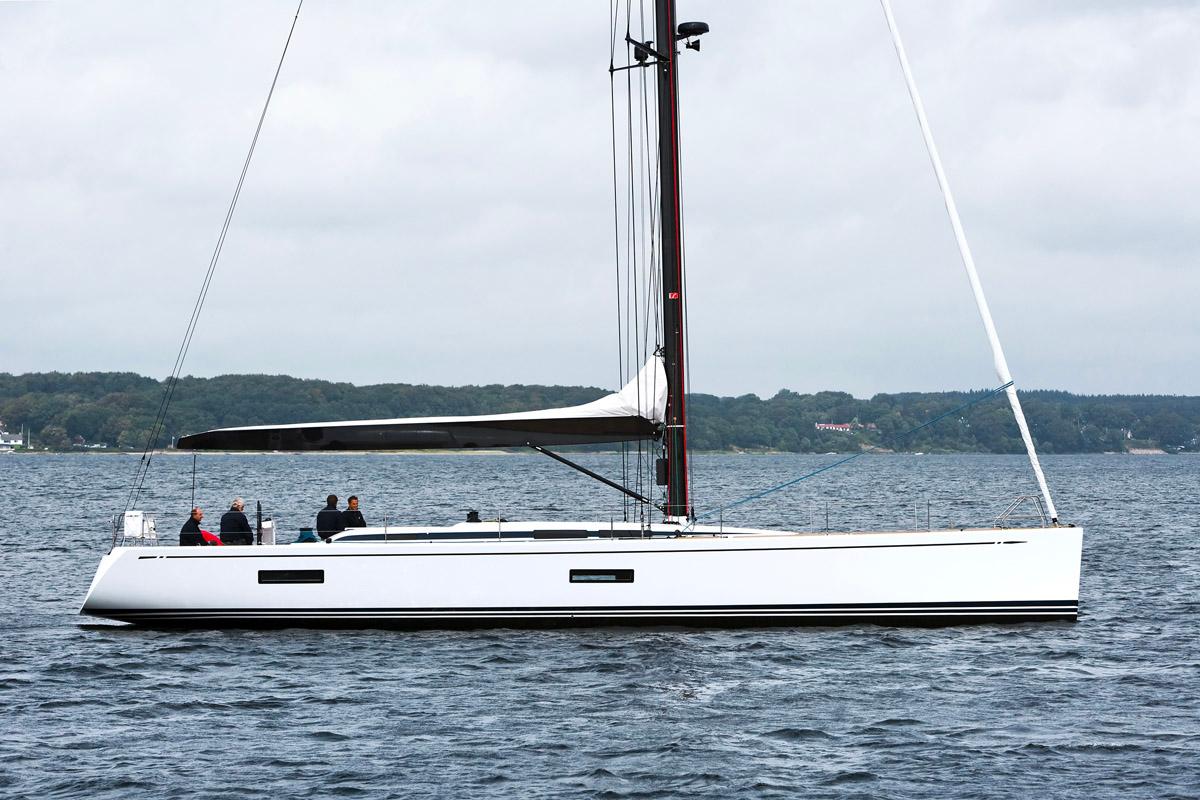

The Swan 60 offers high-volume interiors, a spacious and well-protected cockpit, and racing performance levels. Built with advanced SPRINT/pre-preg carbon fiber and epoxy resin, the hull is designed to reduce aerodynamic drag and provide greater stability. The high-strength keel, carbon rudder, and twin steering wheels offer precise maneuverability and efficient performance across a wide range of speeds. On deck, the flush-deck layout features a large cockpit with 2.5-meter-long seats, a folding table that also serves as a sunbathing area, and twin steering wheels positioned for clear visibility of the sails and water. Practical details, such as a retractable sprayhood, retractable cleats, and a hydraulically operated transom that transforms into a bathing platform, enhance both functionality and versatility. Below deck, the interior is carefully designed to be bright and open. The forward owner's cabin offers a queen-size berth and provides privacy, while the two aft cabins are equipped with convertible double berths into matrimonials, each with its own private bathroom. The salon, which seamlessly connects to the kitchen, offers a comfortable and inviting space for relaxation or navigation. The Swan 60 is ideal for both competitive racing and leisurely cruising, offering a perfect combination of performance and comfort.
Built with advanced SPRINT/pre-preg carbon fiber and epoxy resin, the hull is designed to reduce aerodynamic drag and provide greater stability. The high-strength keel, carbon rudder, and twin steering wheels offer precise maneuverability and efficient performance across a wide range of speeds.
Hull: Hull and reinforcements in carbon fiber, epoxy resin
Deck: Carbon fiber platform with foam core
Keel: Steel construction with a cast lead bulb
Steering type: twin wheels
On deck, the flush-deck layout features a large cockpit with 2.5-meter-long seats, a folding table that also serves as a sunbathing area, and twin steering wheels positioned for clear visibility of the sails and water. Practical details, such as a retractable sprayhood, retractable cleats, and a hydraulically operated transom that transforms into a bathing platform, enhance both functionality and versatility.

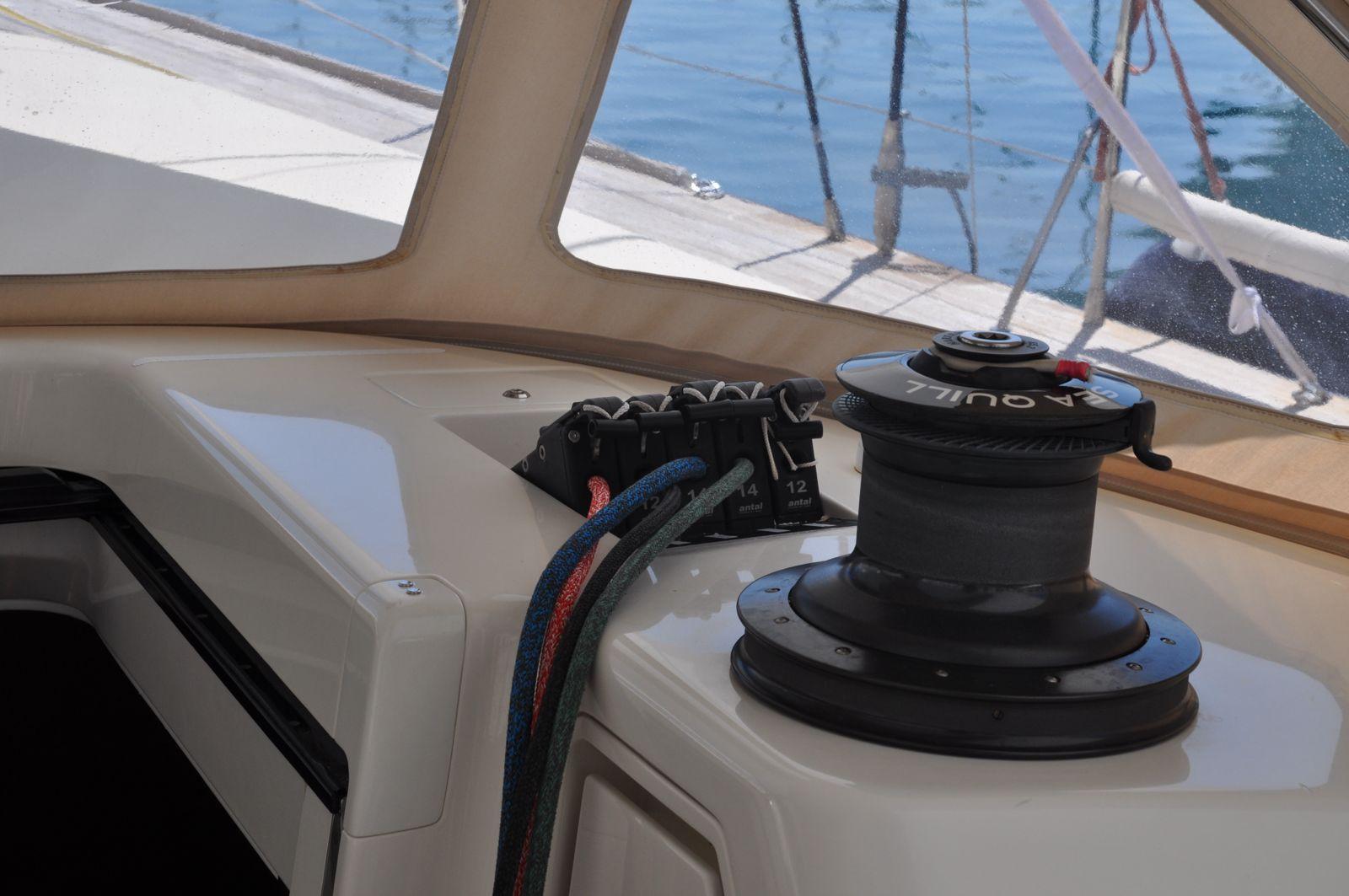

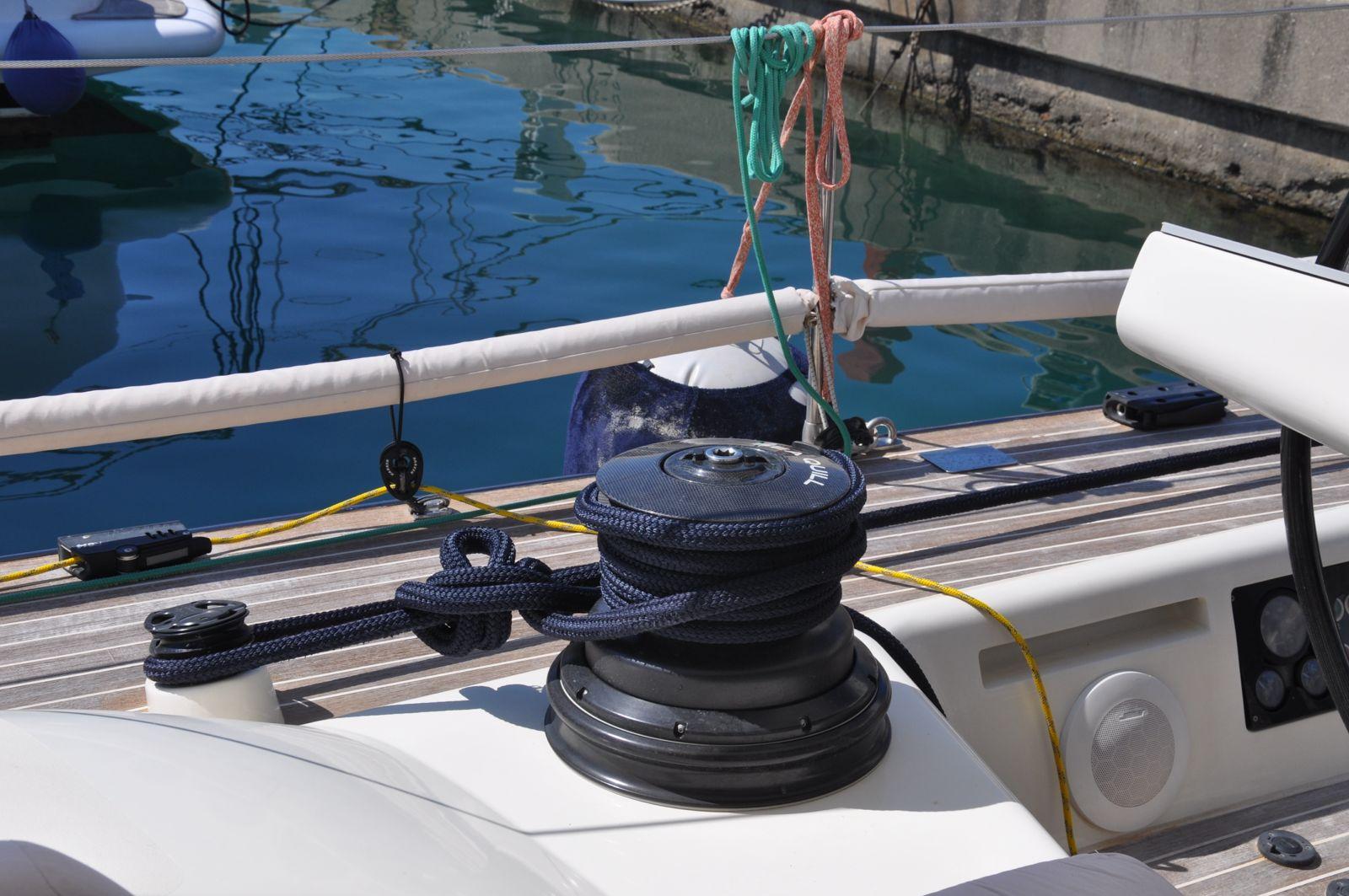

Winches with reverse ring: Harken 2 x 990.3 STR EH
Winches with reverse ring: Harken 2 x 65.3 STR EH
Winches: Antal 2 x XT 62.3 R
Clutches: DV Jammers Antal 4 x 14mm & 6 x 12mm
Carbon fiber gangway 2850mm
Bow thruster: Maximum power R200/8
Electro-hydraulic control unit: maximum power

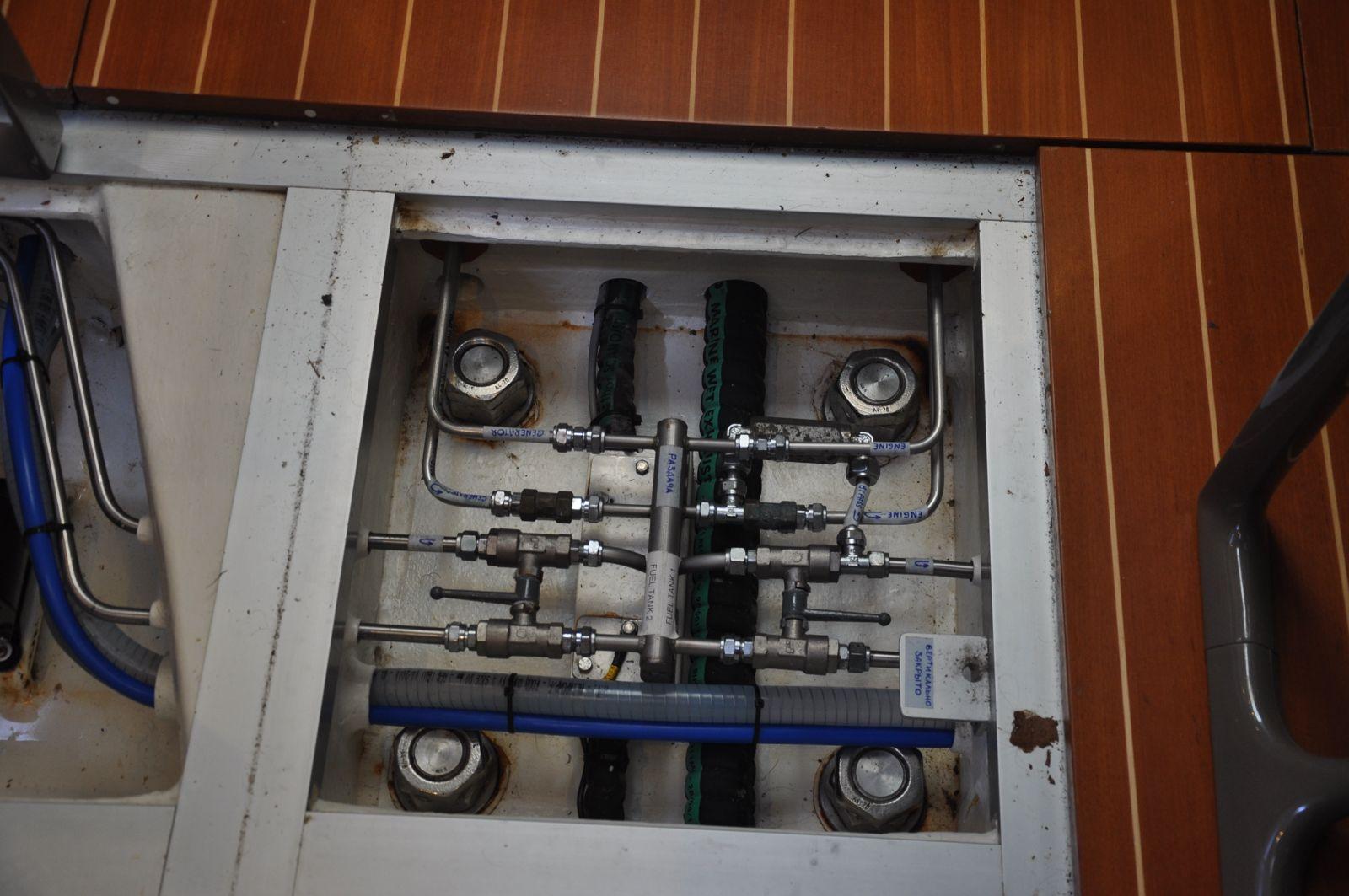

Hydraulic unit: Bosch Rexroth
Hydraulic cylinders: Holmatro
Wind load V6 Lewmar
Electric furler UDse - 3
Below deck, the interior is carefully designed to be bright and open.
The heating/air conditioning system consists of two AT6 machines and three AT9 Airhandlers from the Dometic group, the boiler is an Indel Webasto 50L
Living area:

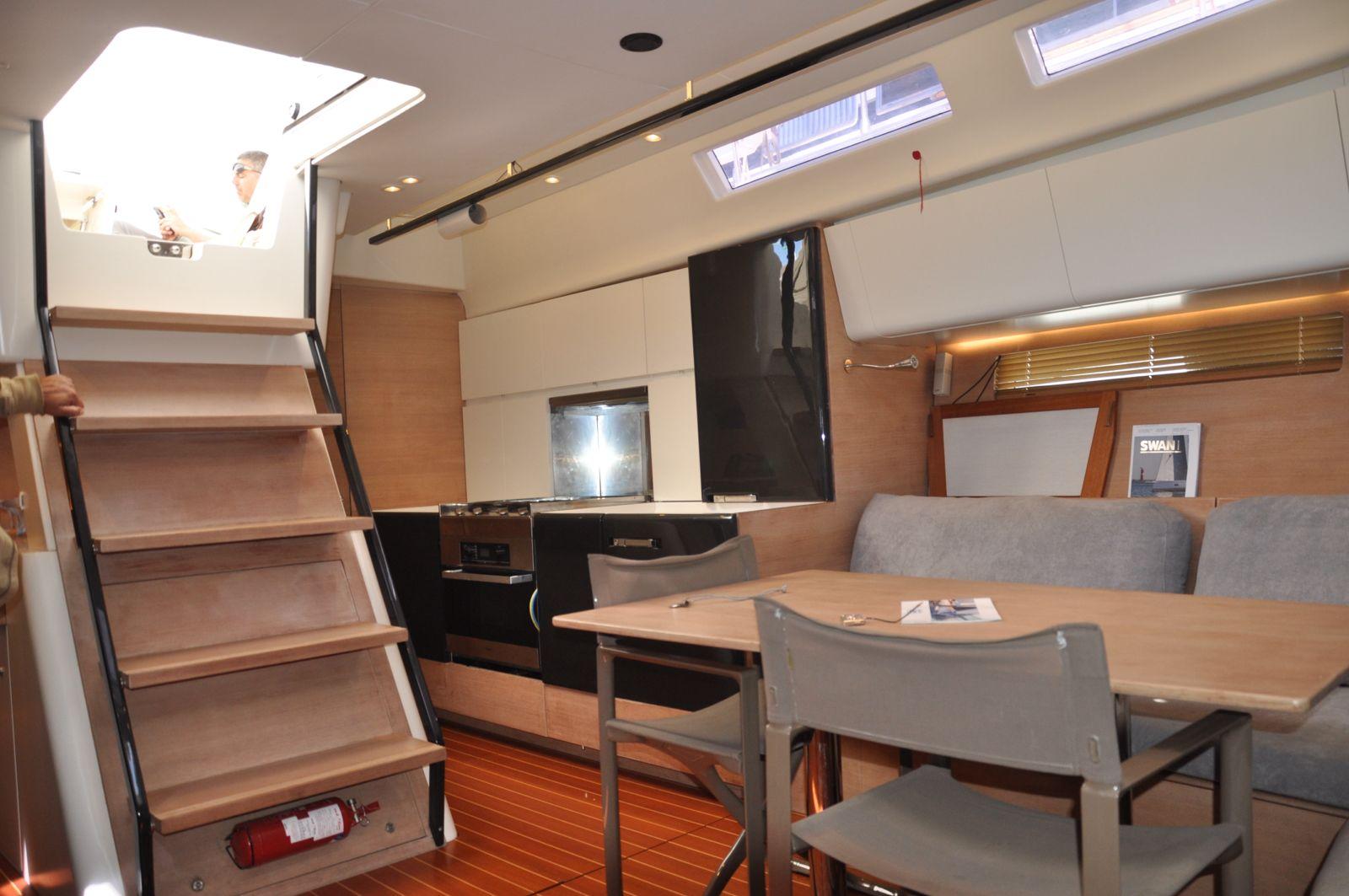

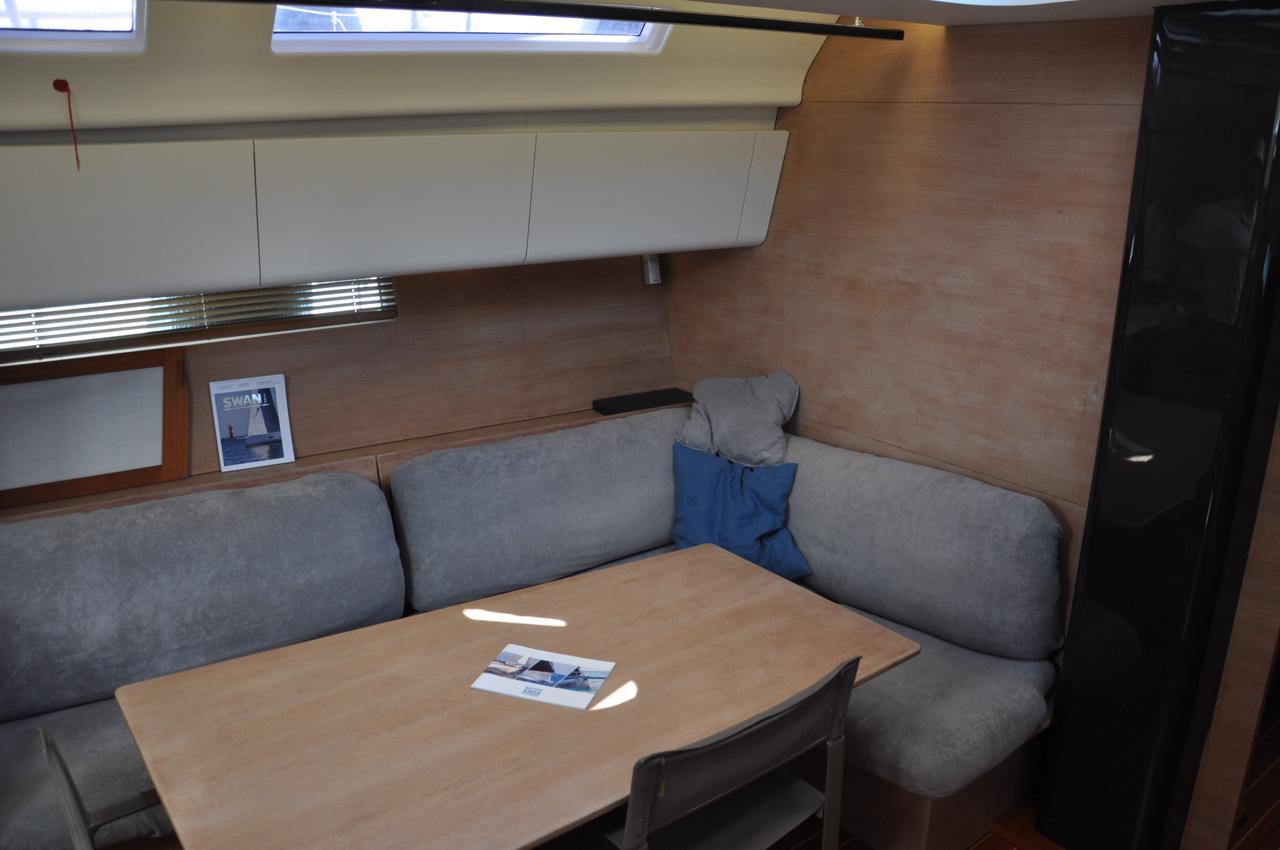

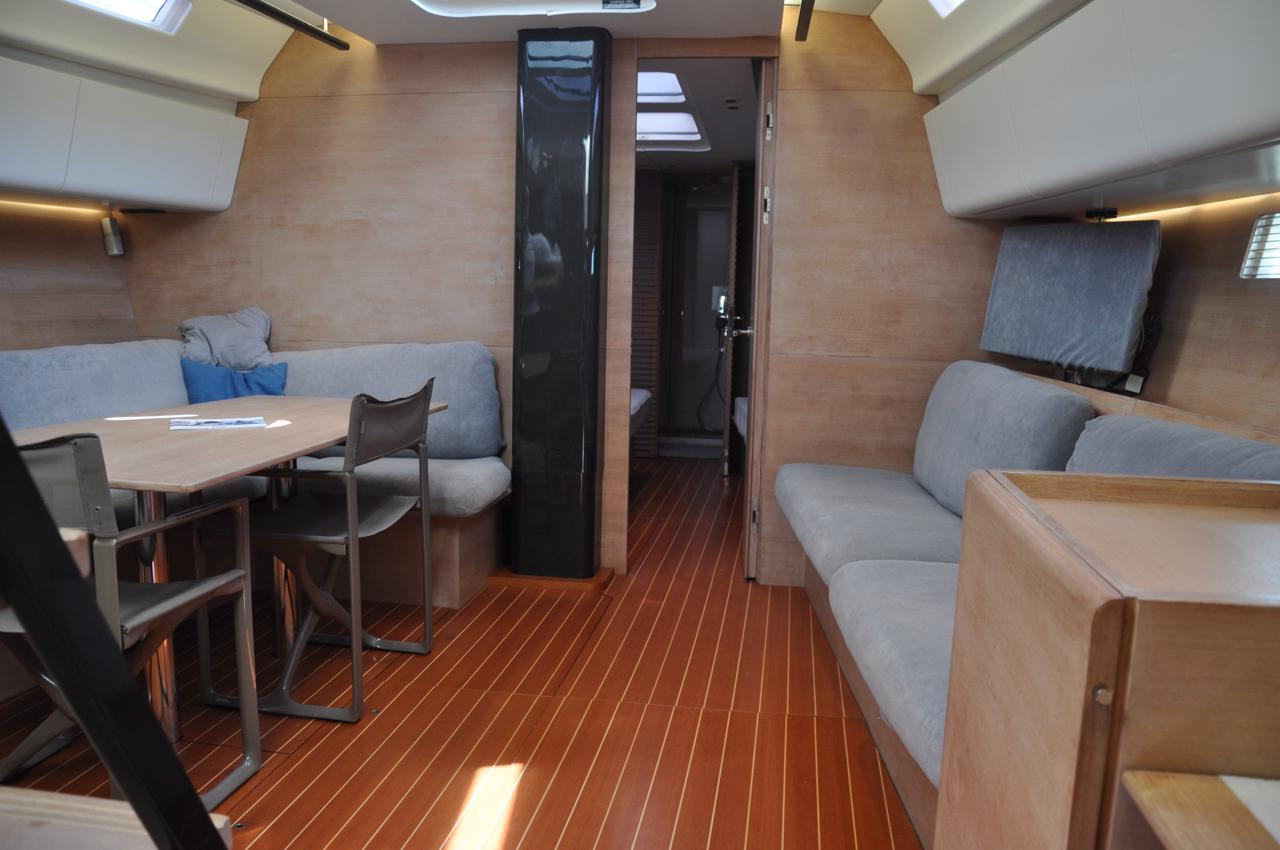

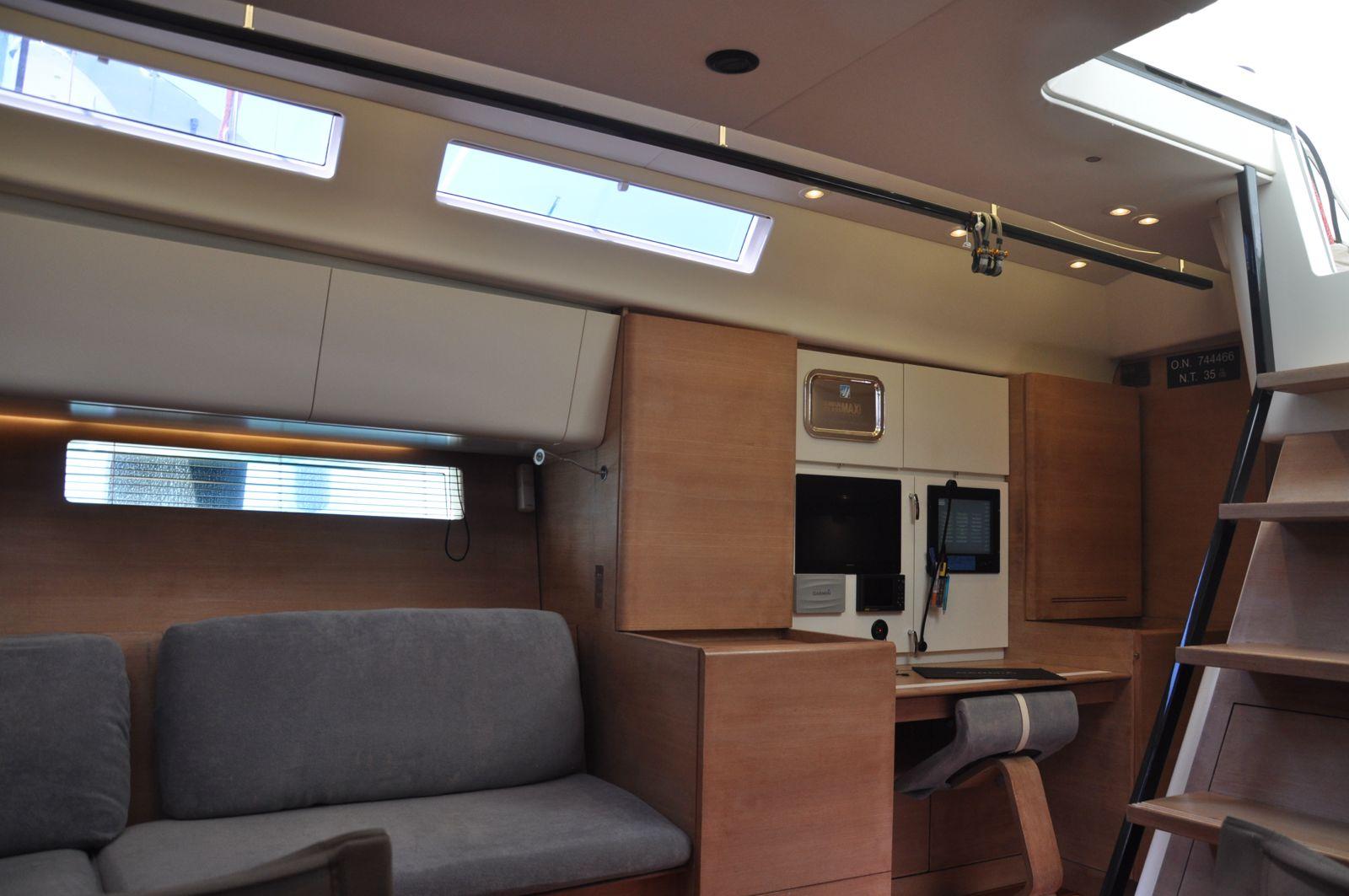

The salon, which seamlessly connects to the kitchen, offers a comfortable and inviting space for relaxation or navigation.

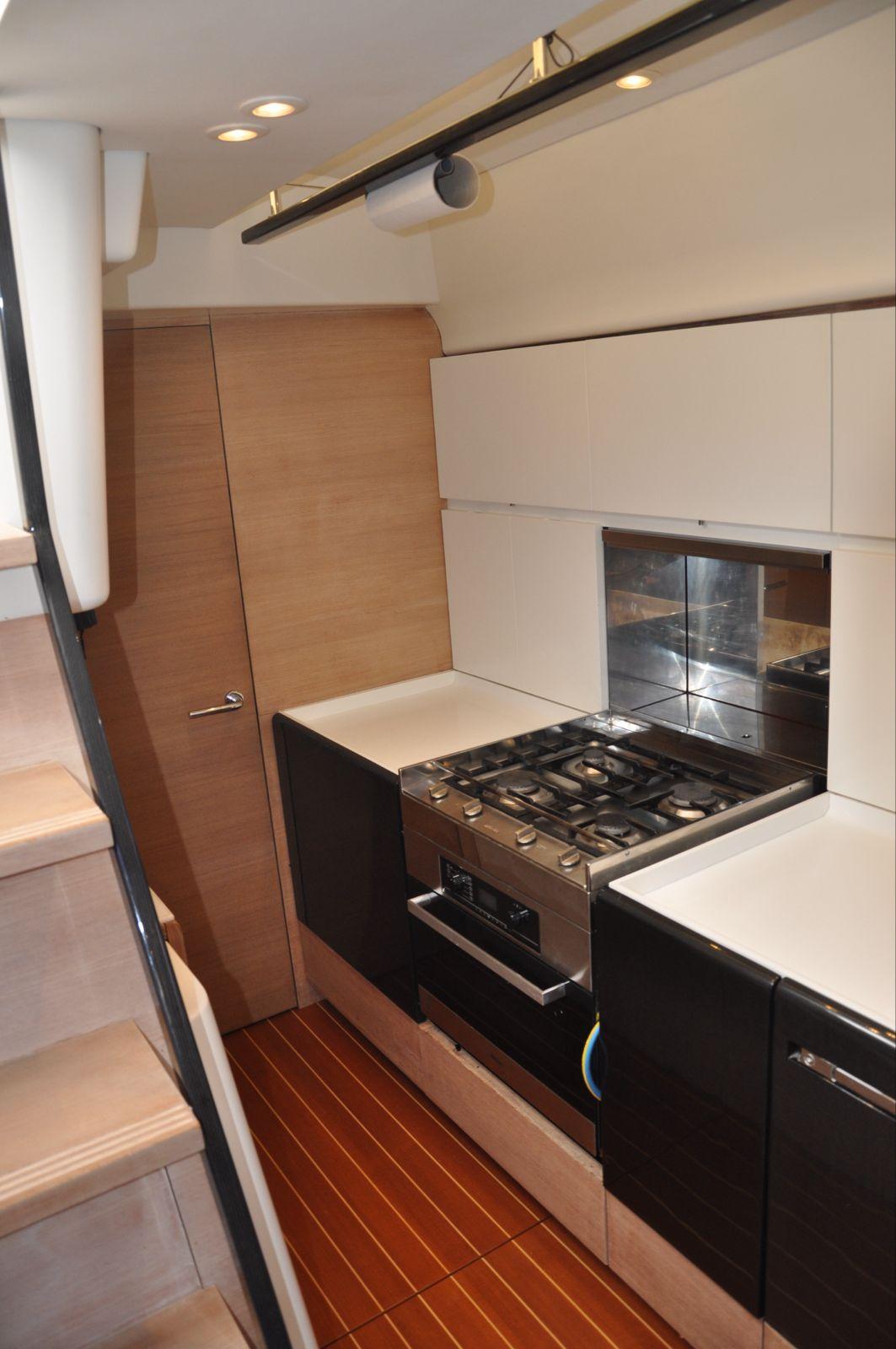

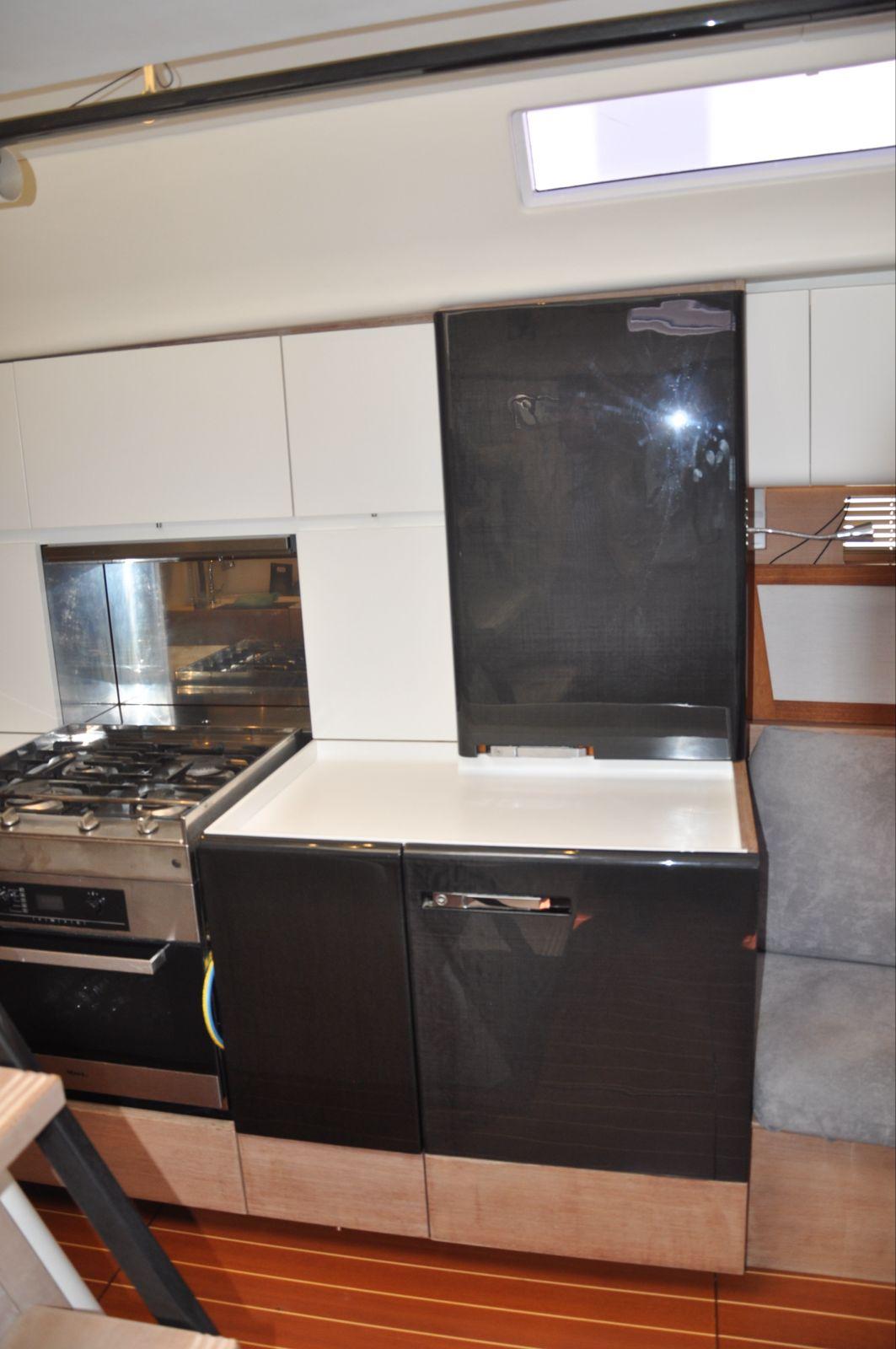

The kitchen is equipped with a 60L Frigonautica C80C Isotherm freezer, a 115L Frigonautica FR115RC Isotherm refrigerator, a compact H5040B oven from Miele,
a gas cooktop CS1034 from Miele, and a microwave M8161-2 from Miele
Owner's cabin:
The forward owner's cabin offers a queen-size berth and provides privacy, with its own private bathroom.

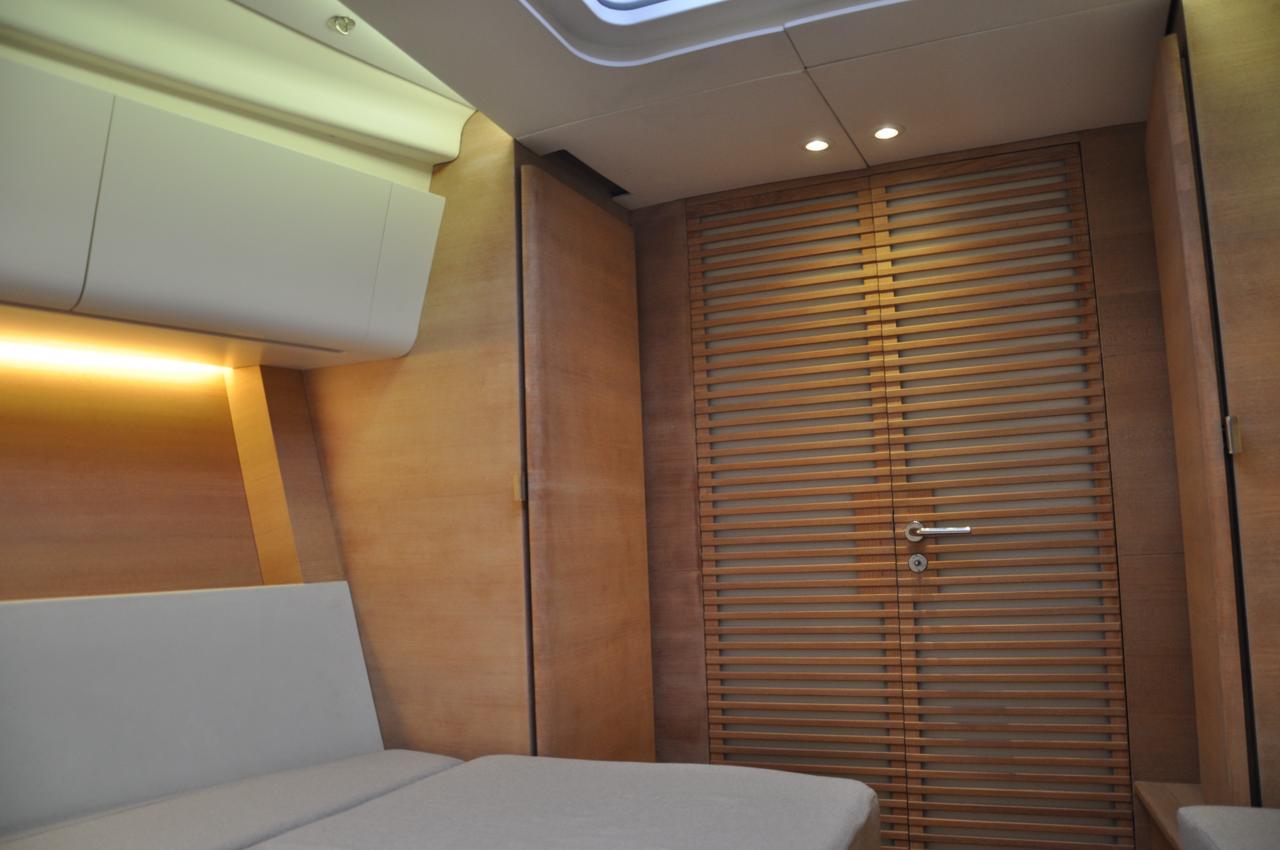

Aft cabins:
The two aft cabins are equipped with convertible double berths into matrimonials, each with its own private bathroom.

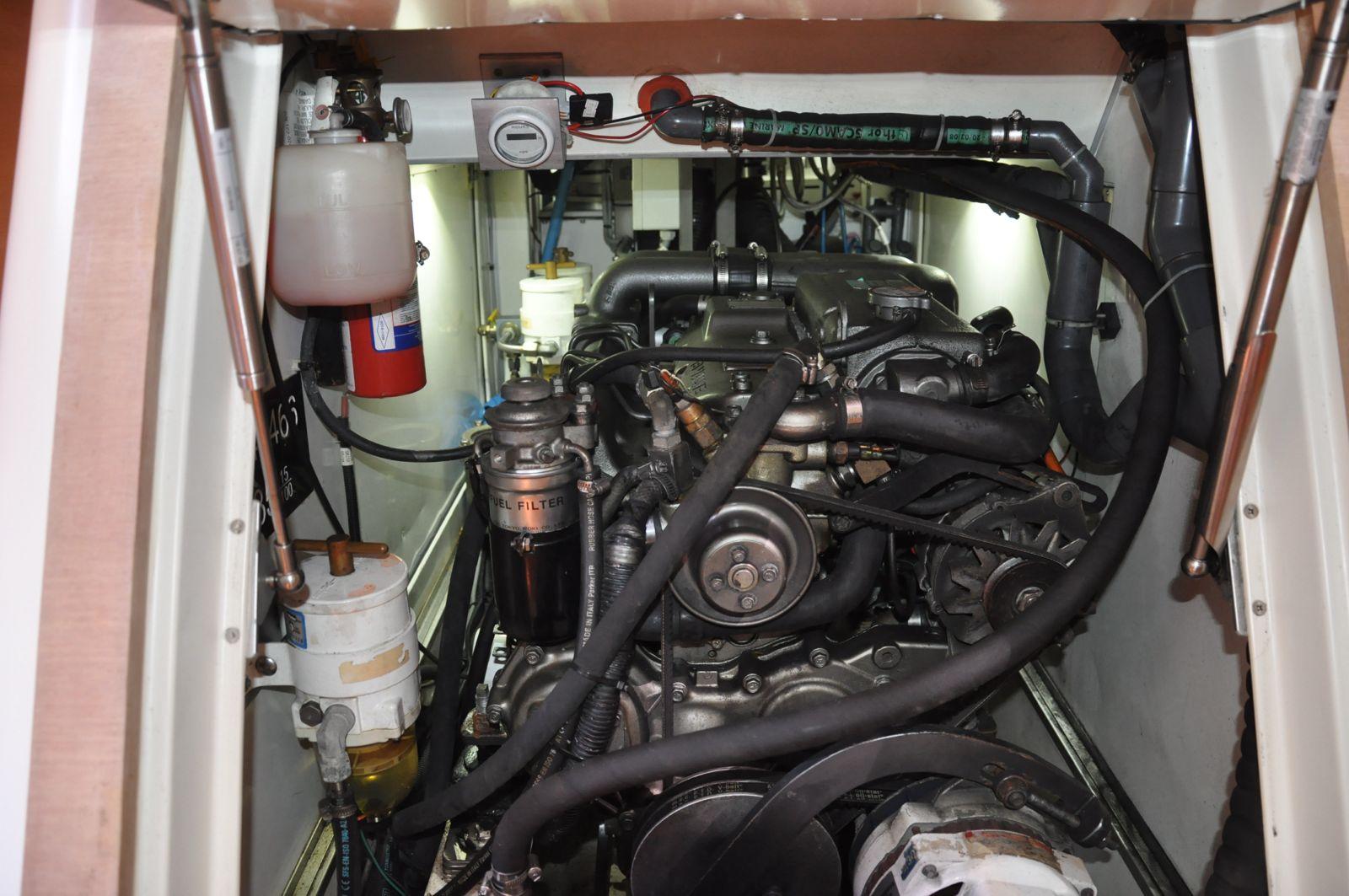

This vessel is equipped with an inboard engine from Yanmar model 4JH4-HTE, with ZF25A transmission, a power of 81kw and 1100 hours of operation.

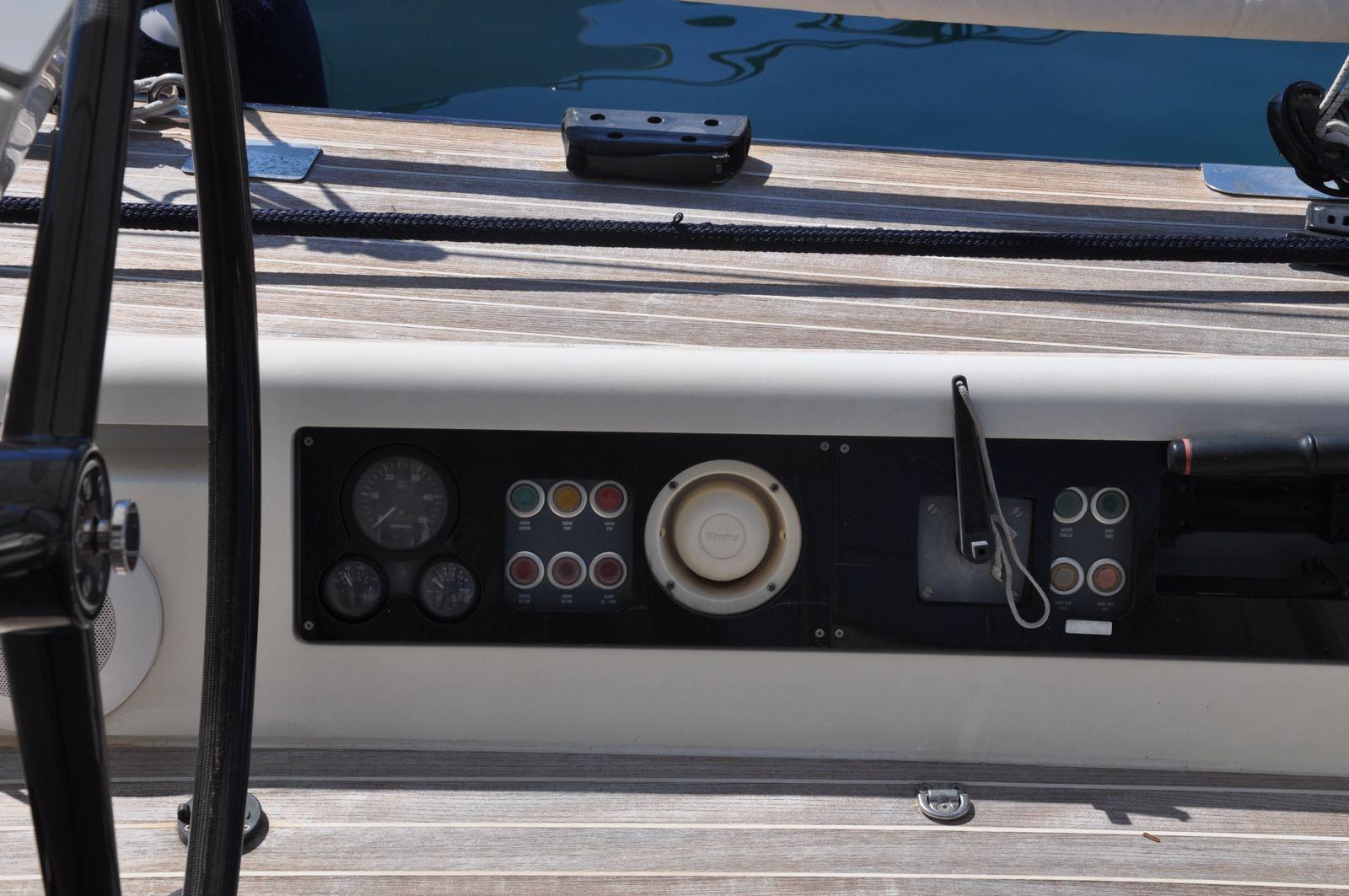

The throttle control unit ATCU is Spinlock, while the anti-vibration system Aquadrive is served by the GKN B10 transmission.
The propeller is a Brunton Varifold 23 "×16"
Generator: Whisper Power M-SC10 9.4kW
Digital diesel control for generator: Whisper Power
Shaft material: Hall carbon beams
Year of fixed rigging: PBO 2024
Year of running rigging: 2024
Type and condition of the mainsail: N/S Full battens Mainsail 3DI Endurance 780L 2018
Main N/S produced in 2012, in gray taffeta
Square top main N/S 2024
Headsails: Jib N/S 3DI Endurance 760SY 2018
Quantum Tri-Radial 2600 spectra/polyester, Hydra - Net Radial 433 HNR 2019
Furling jib N/S J-1 light 2012
Furling jib N/S J-2 medium 2012
Jib, soft shackles T-bone N/S J-3 heavy 2012
Jib, soft shackles T-bone N/S J-1 light 2024
Jib, soft shackles T-bone N/S J-2 medium 2024
Jib, soft shackles T-bone N/S J-3 heavy 2024
Furling staysail UVI Mayor N/S 2025
Gennaker N/S A-1,5 2012
Gennaker N/S A-2 2012
Gennaker N/S A-5 2012
Yellow gennaker N/S A-3 2020
Gennaker N/S A-1,5 2024
Gennaker N/S A-2 2024
Code zero N/S furler Ubi Major under halyard 2:1 2024
Liferaft: Zodiac Eversafe 2 x 8 persons
Life jackets: Baltic Race 150 16 numbers
Spinlock Deckvest 150N 2 numbers
EPIRB: McMurdo G5 Smartfind + V2 Auto
Jon Buoy Ocean Safety 2024
Inflatable watercraft: Zodiac Cadet 325 Fastroler > model 18 - S0012
Electric outboard motor: Torqeedo model 1103 CS 2020
Fire extinguishers: Dry Powder 2kg x 5 pieces
Flares: Standard set
Bilge pumps: 4 automatic pumps and 2 manual pumps
