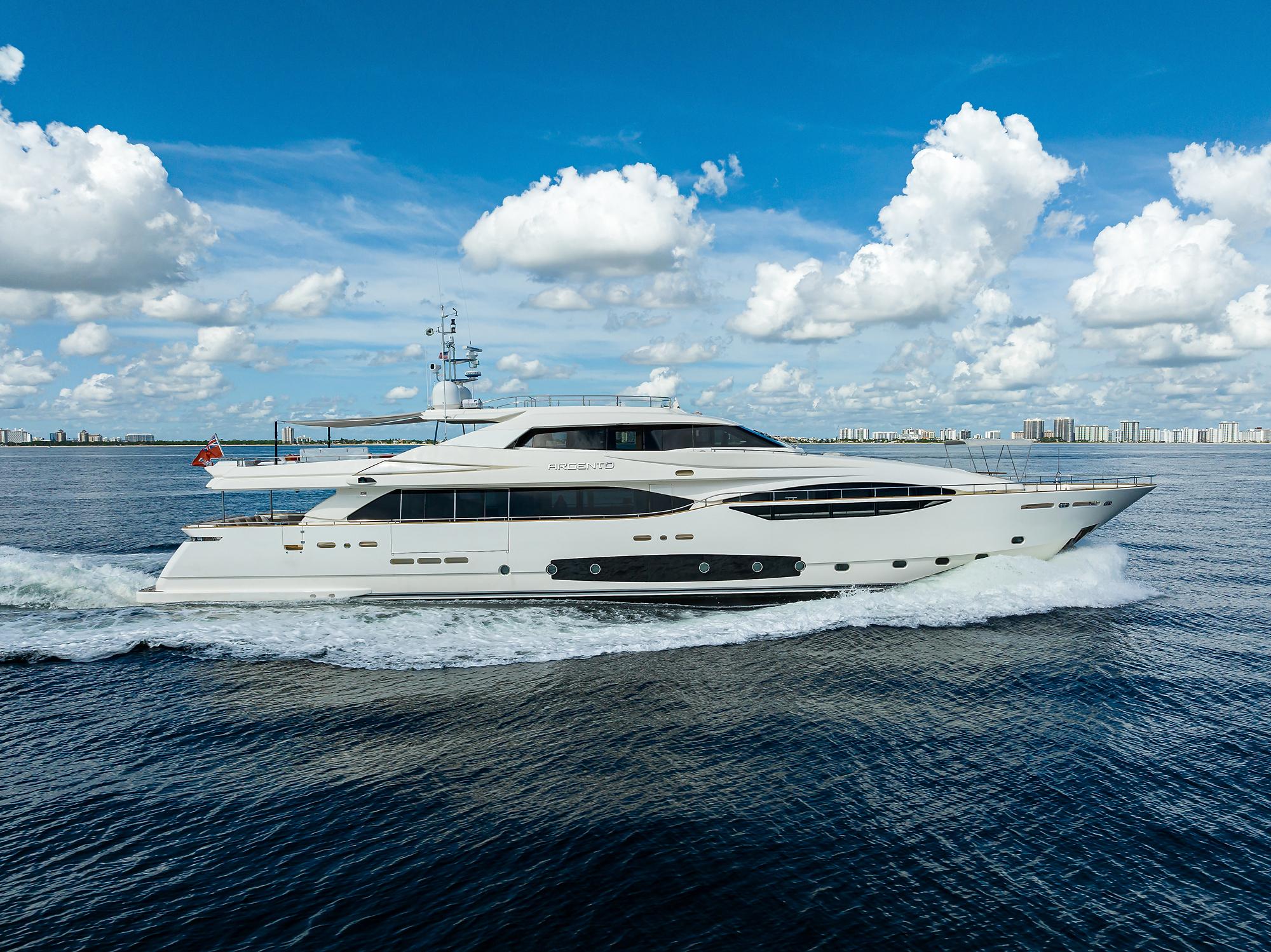

2013 Custom Line Custom Line 124 for Sale – 124 ft – Fort Lauderdale, FL, United States

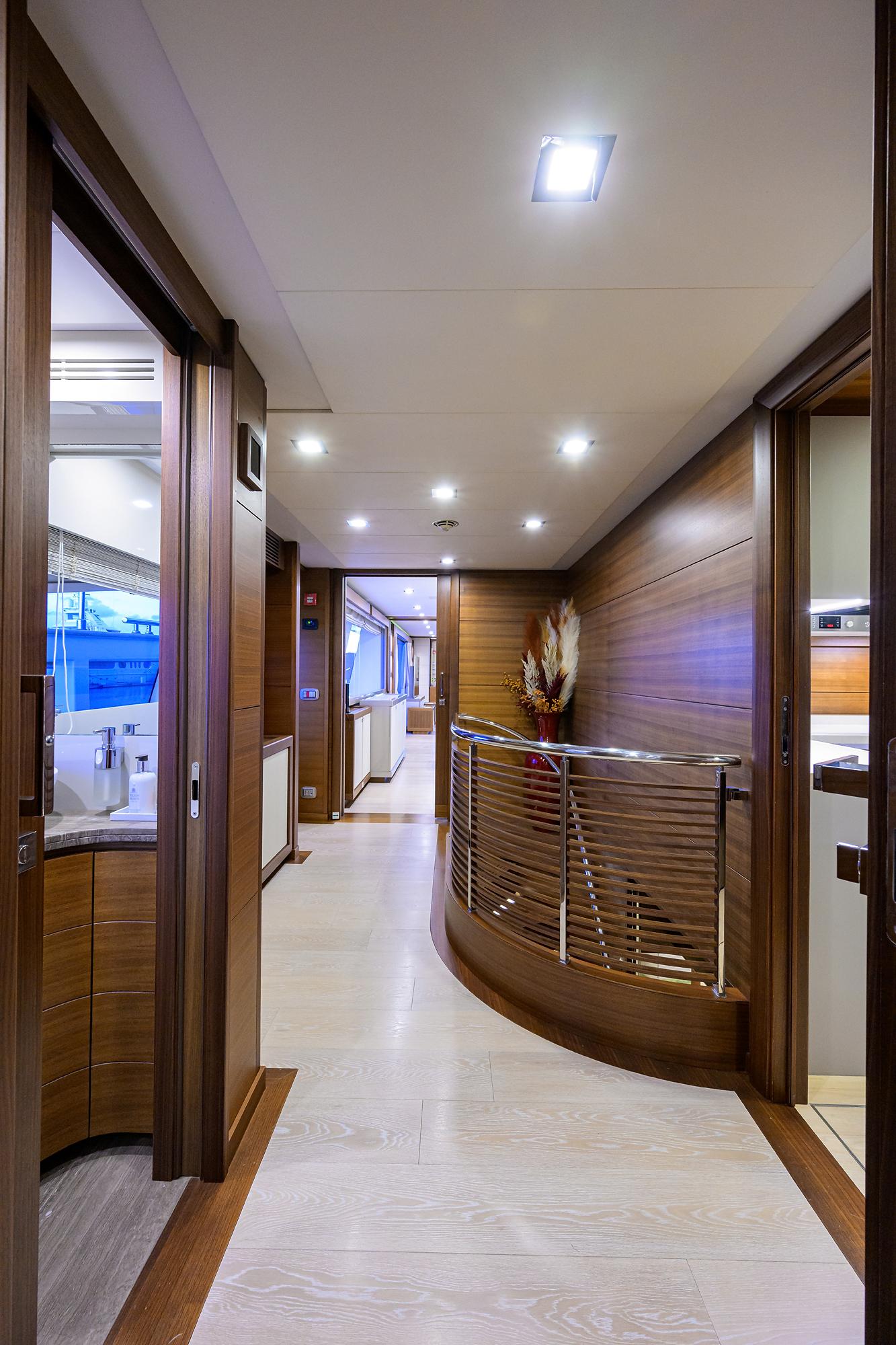

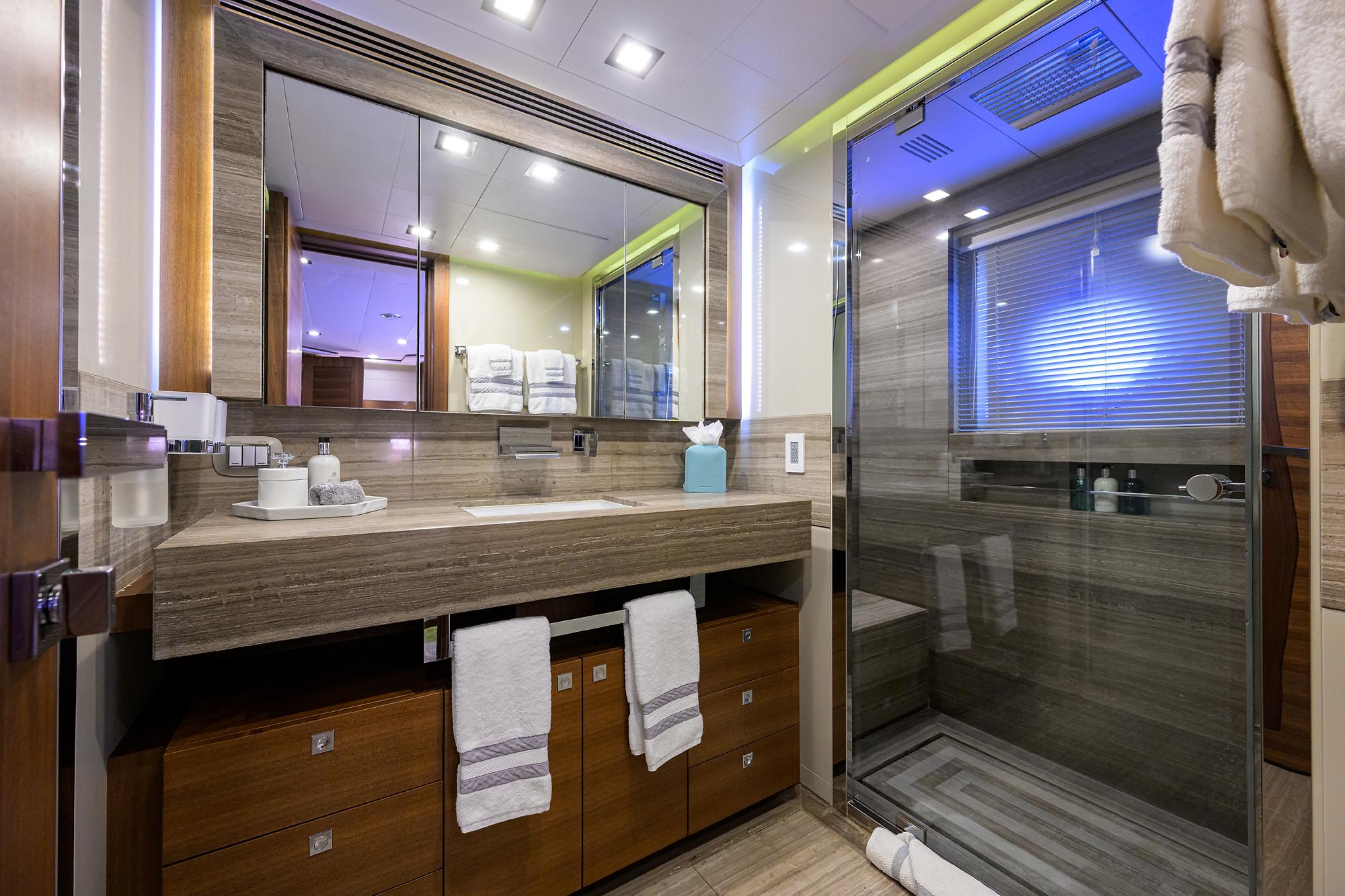

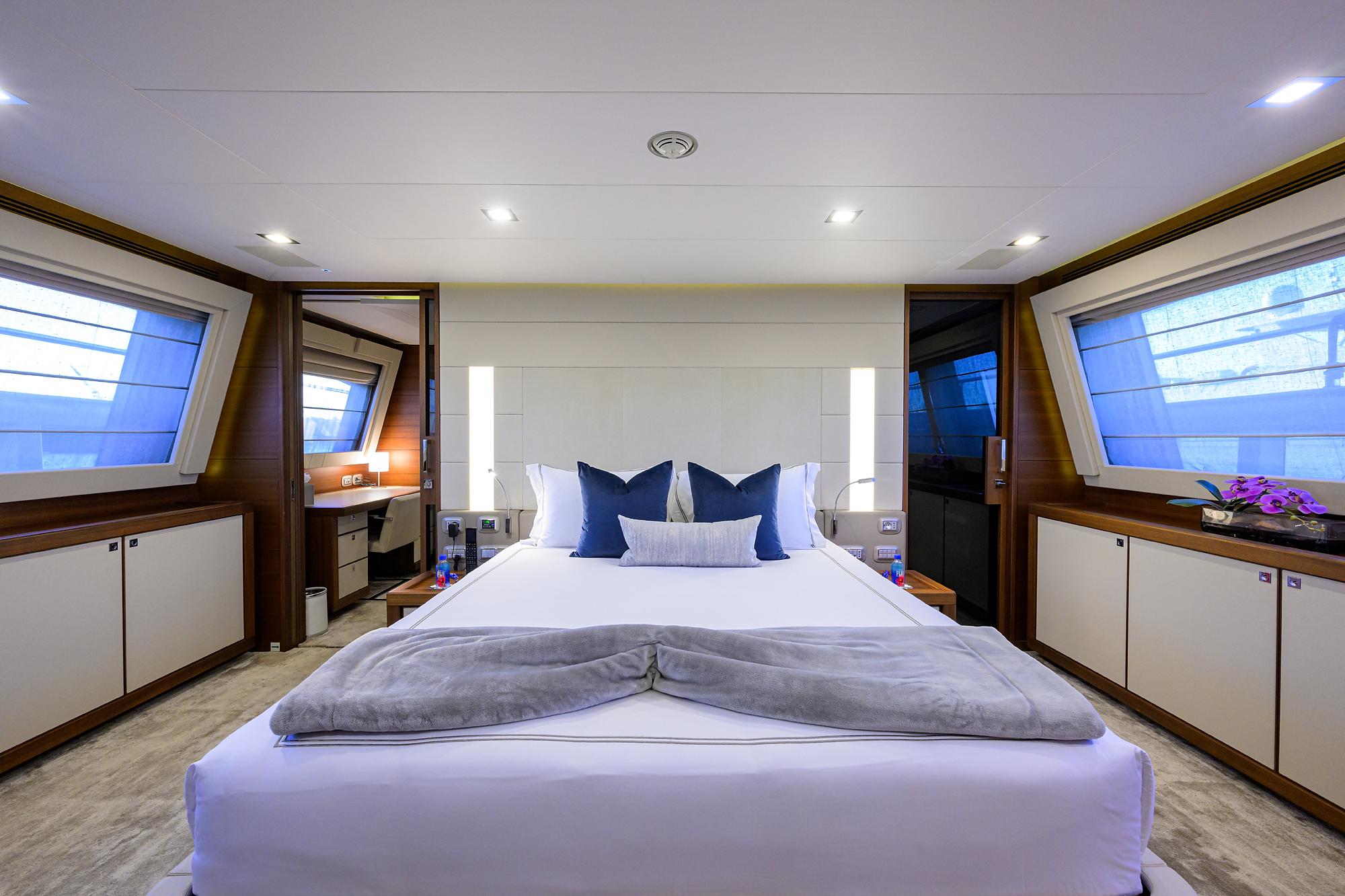

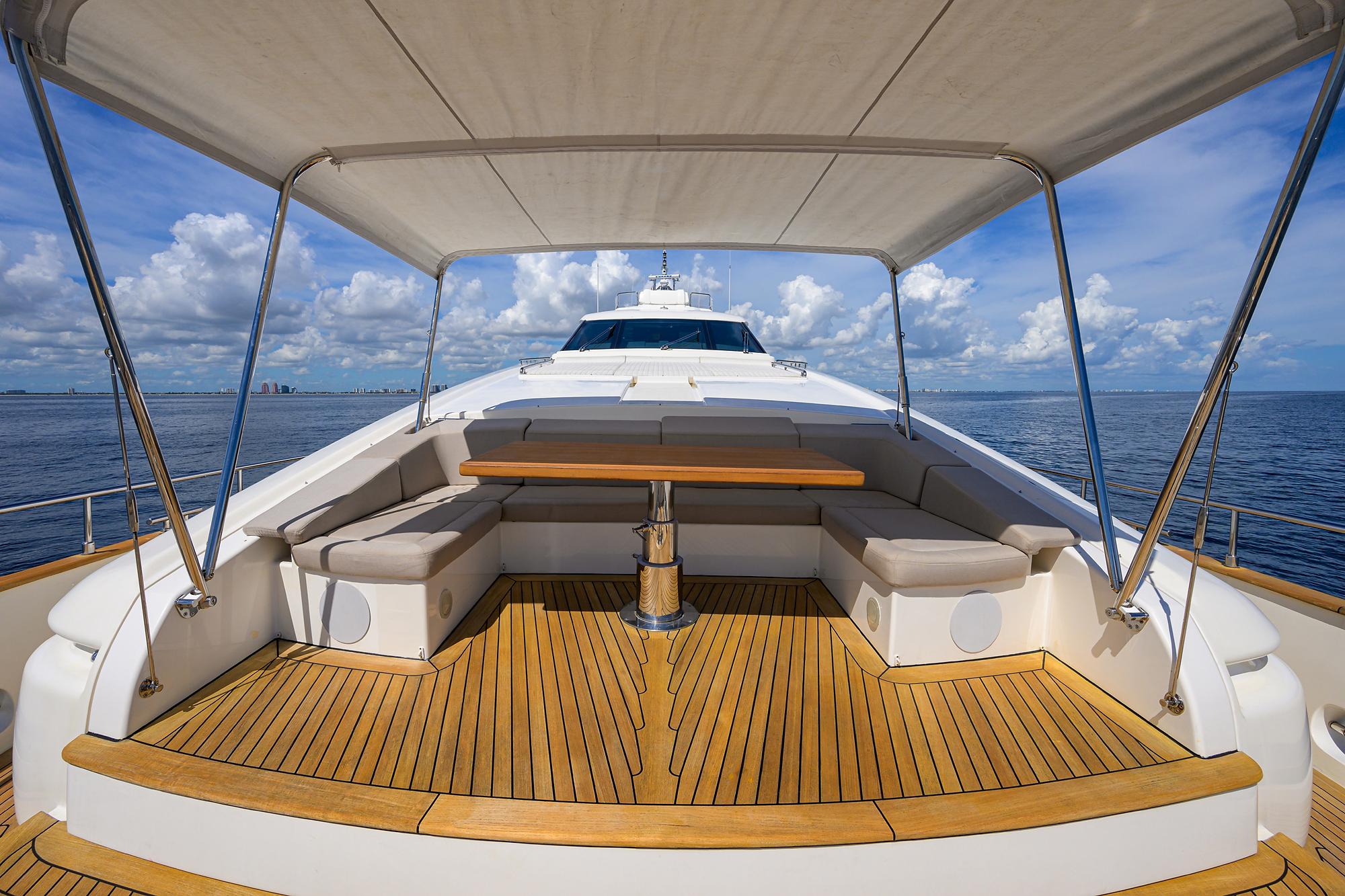

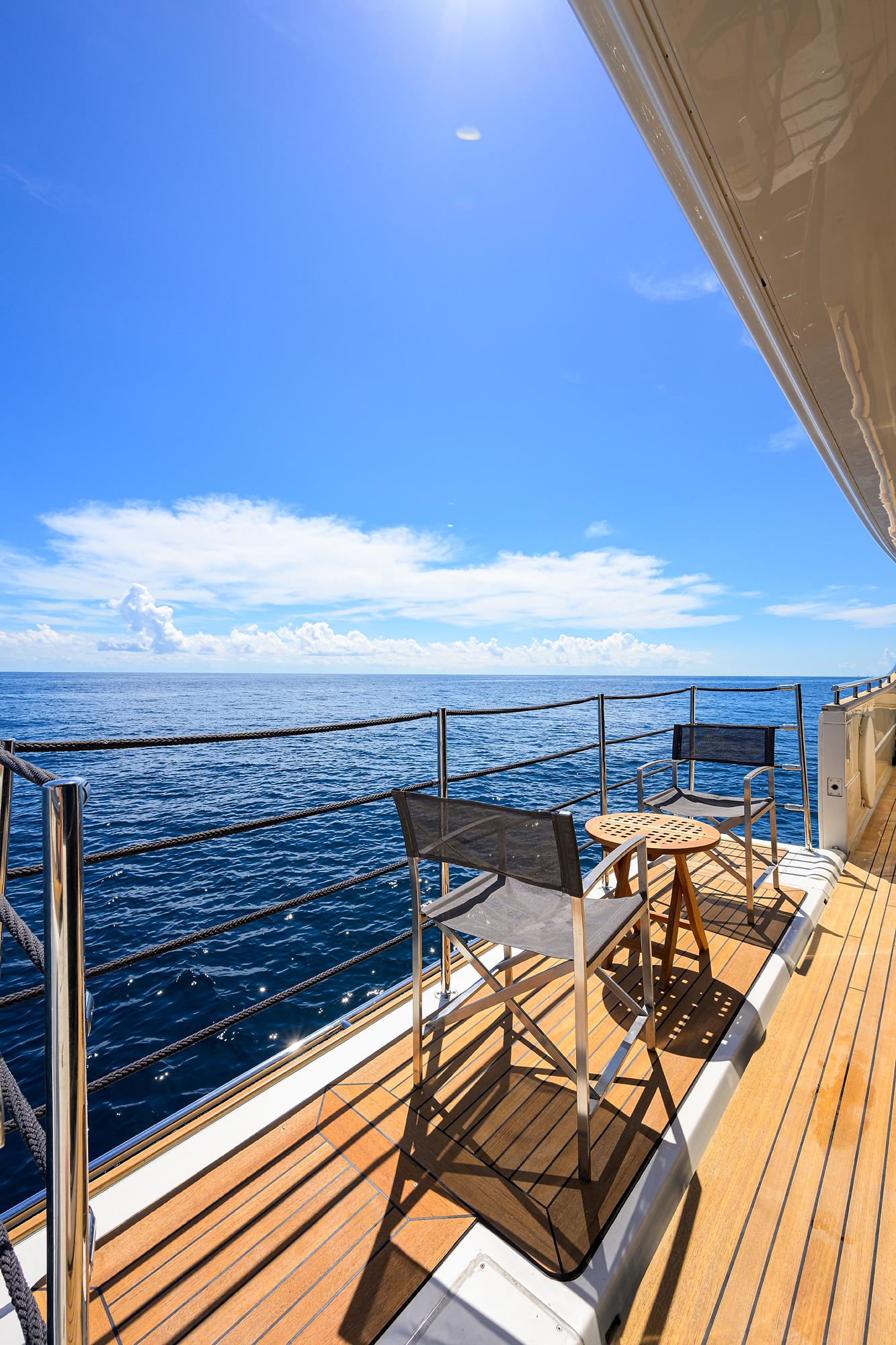

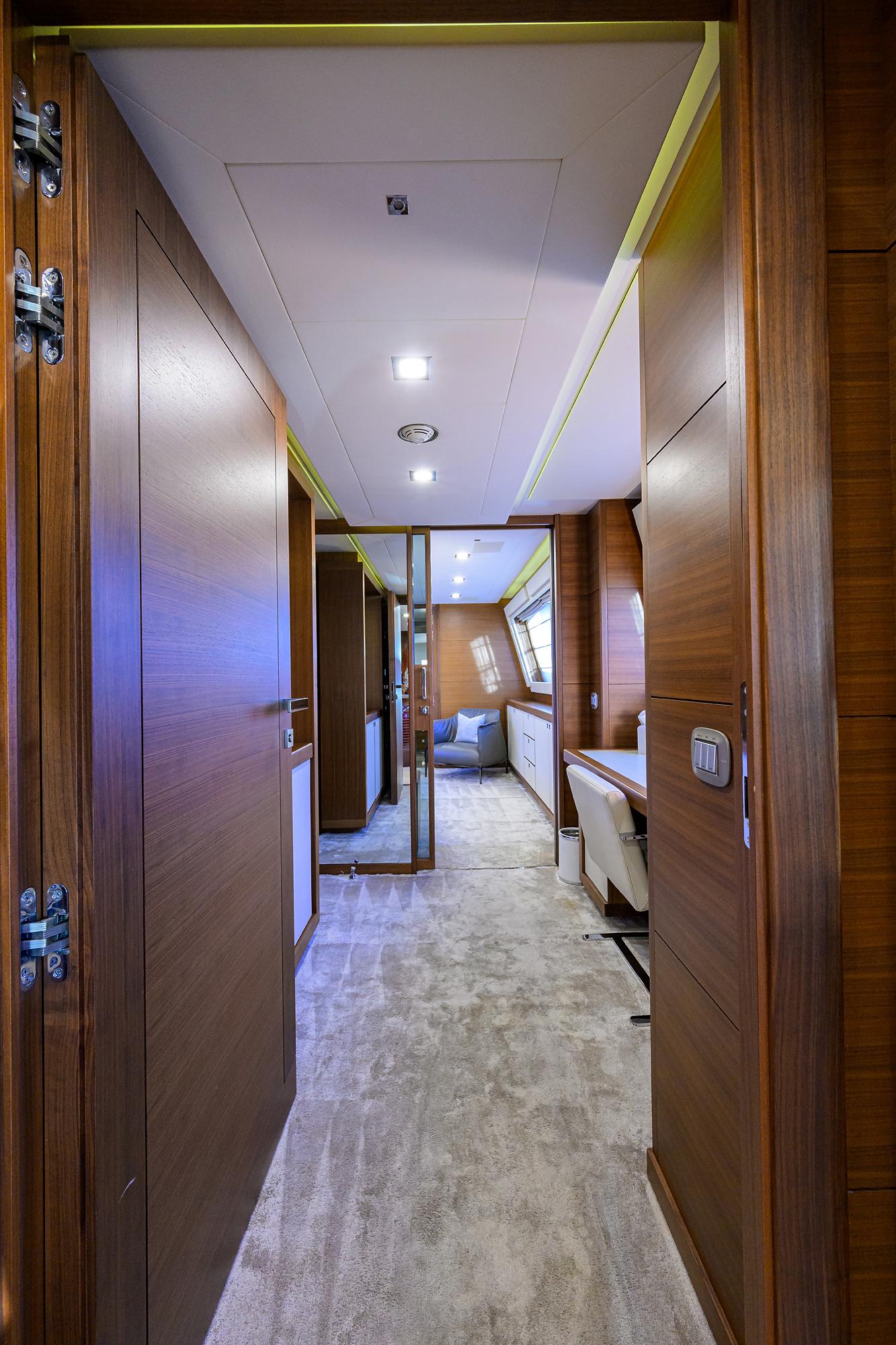

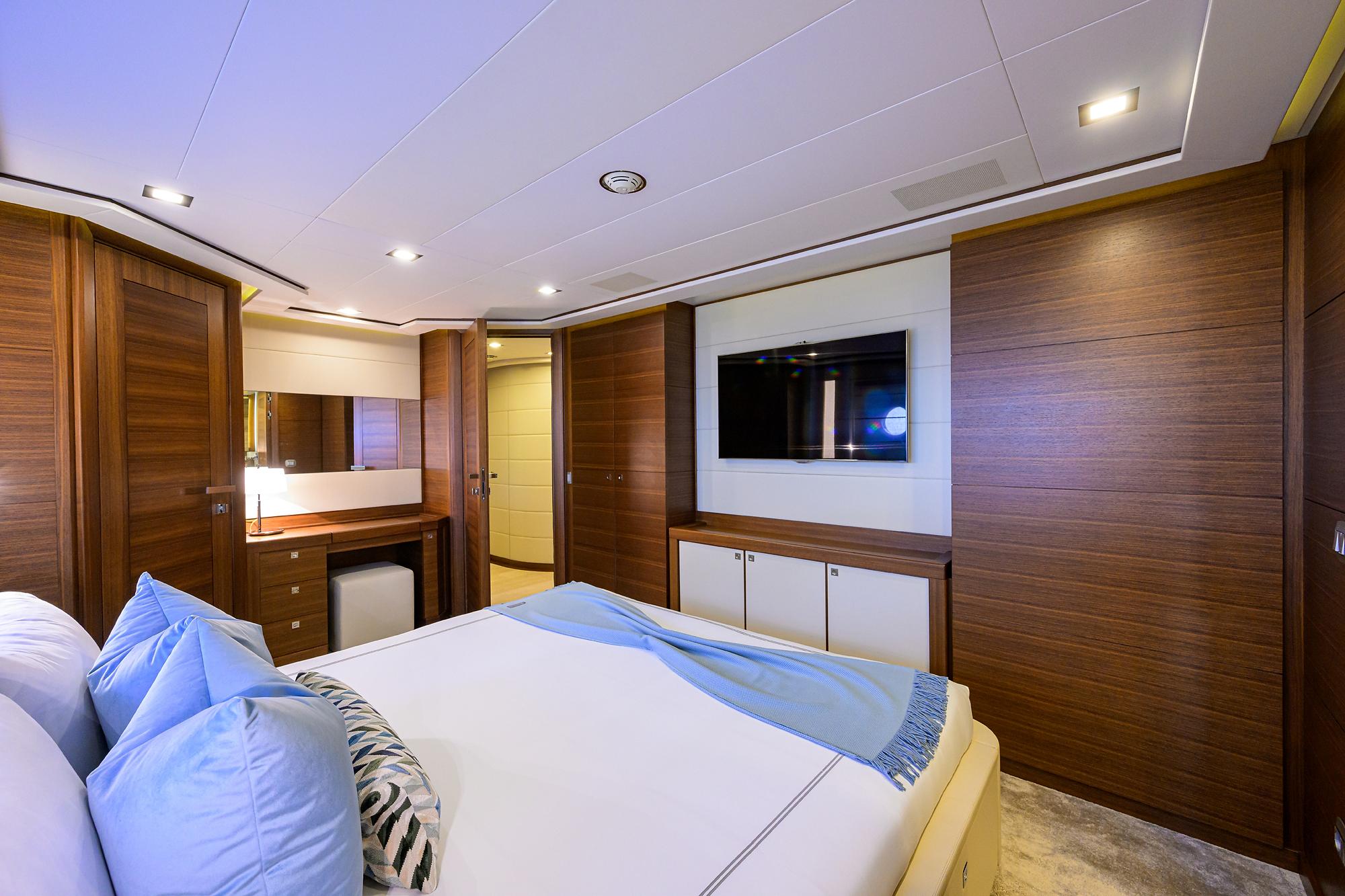

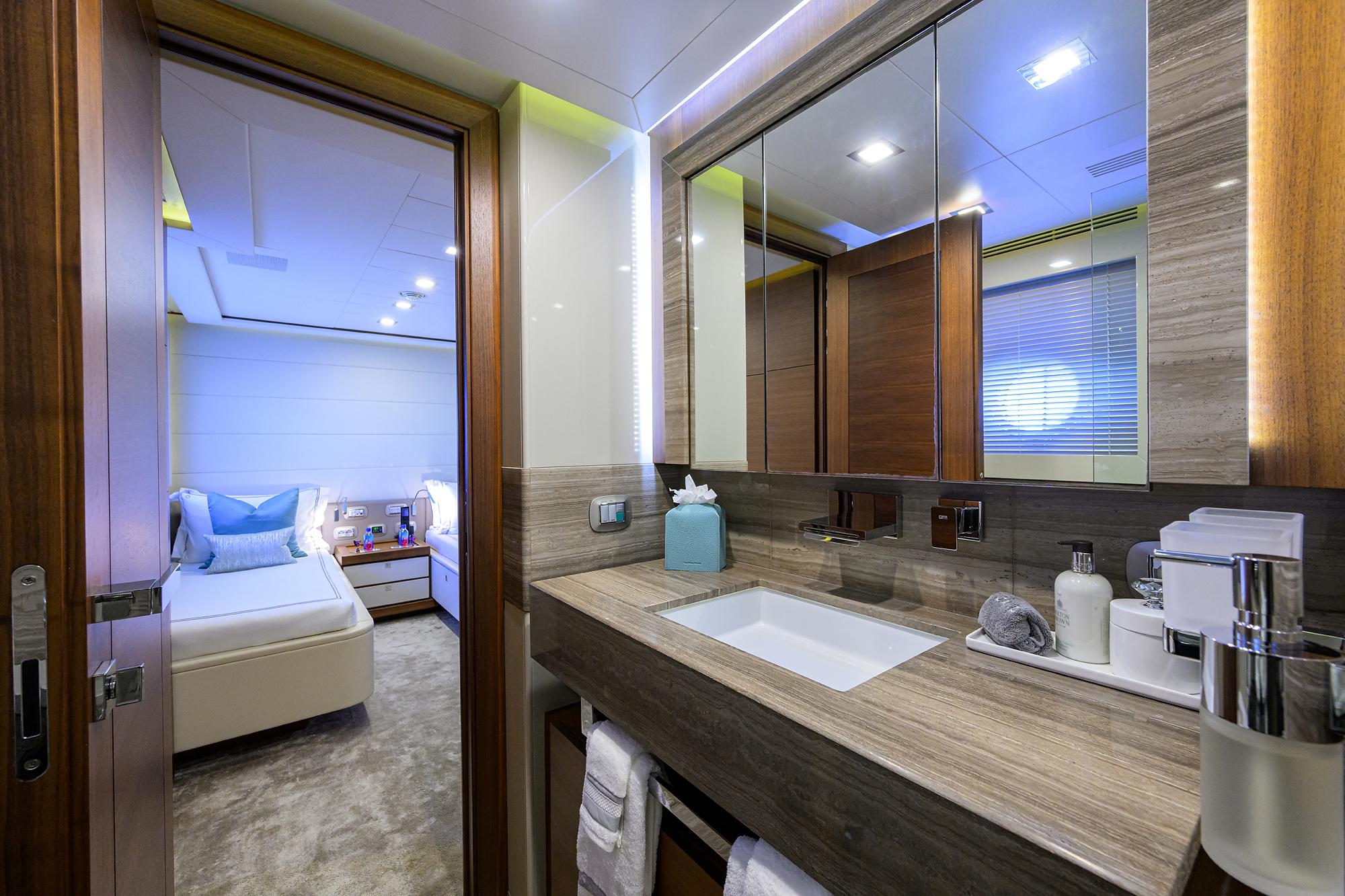

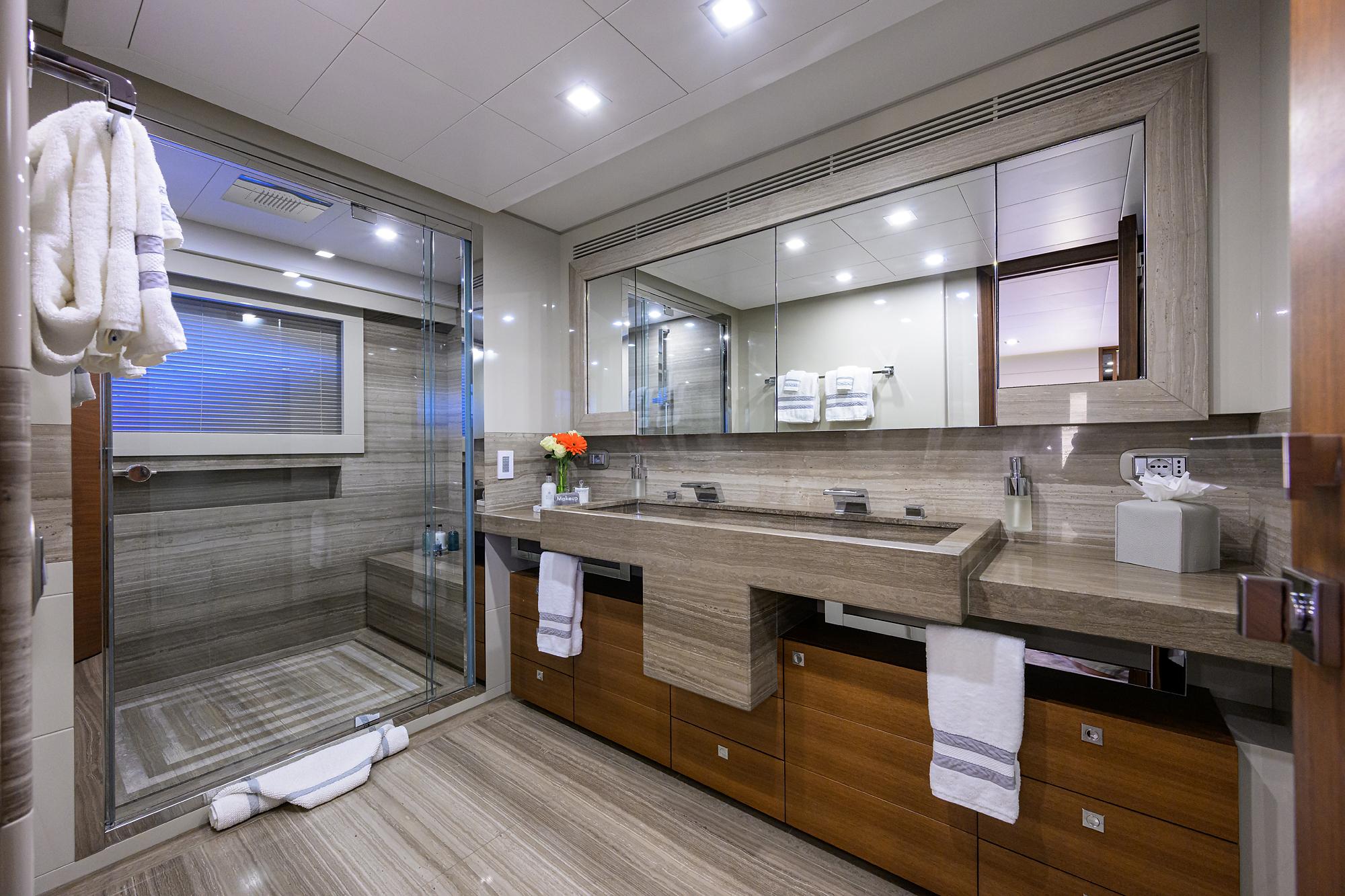

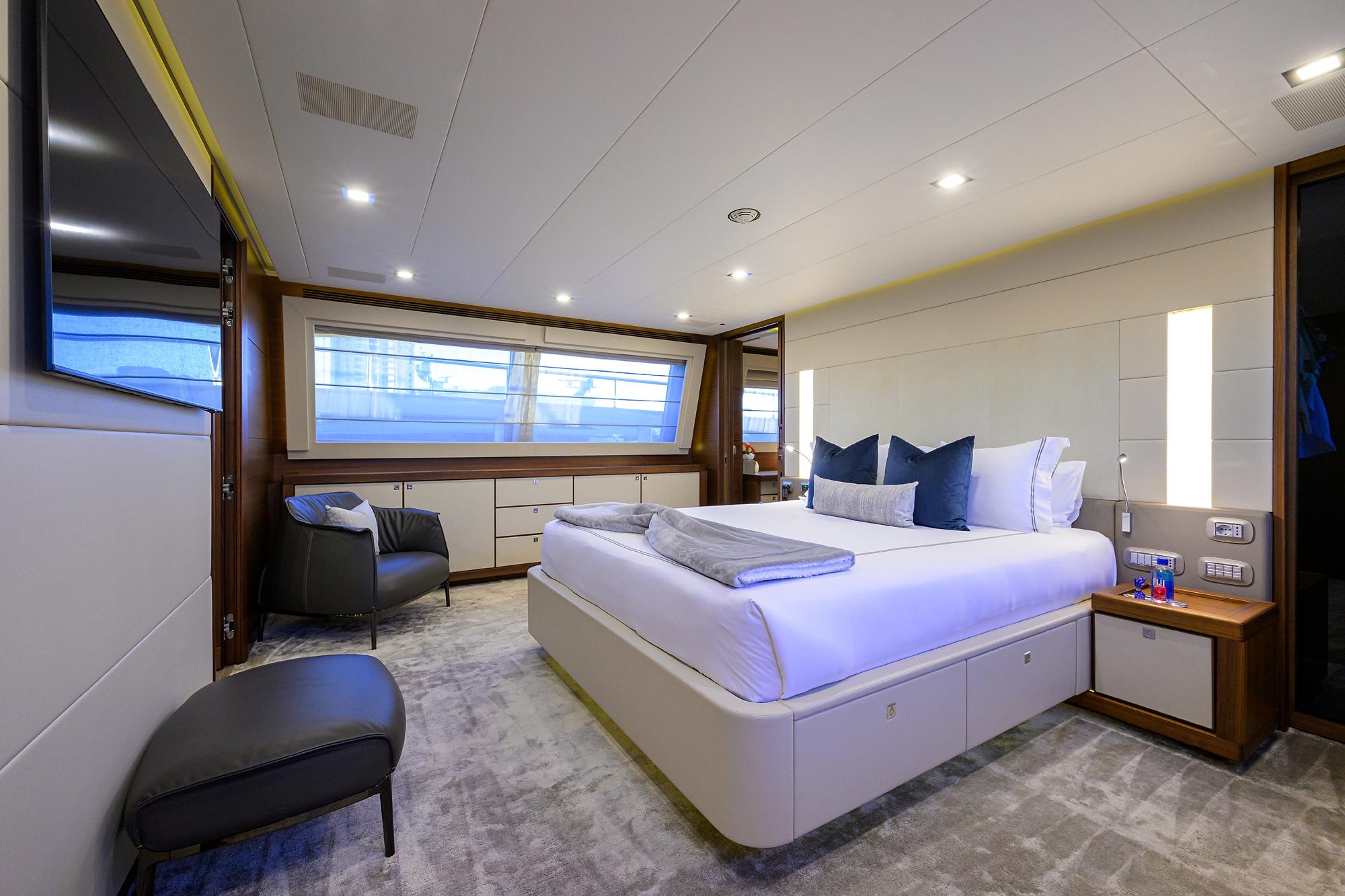

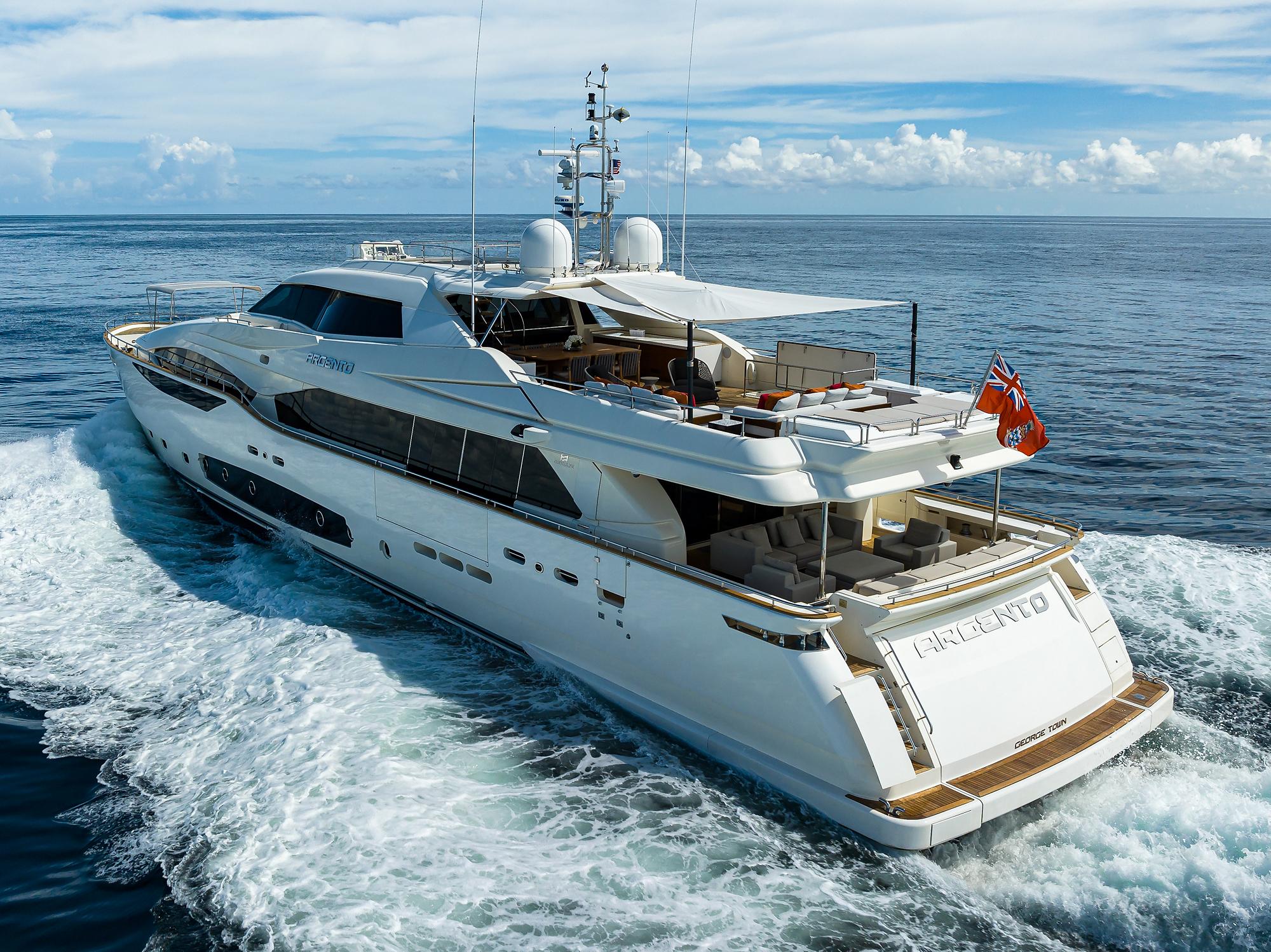

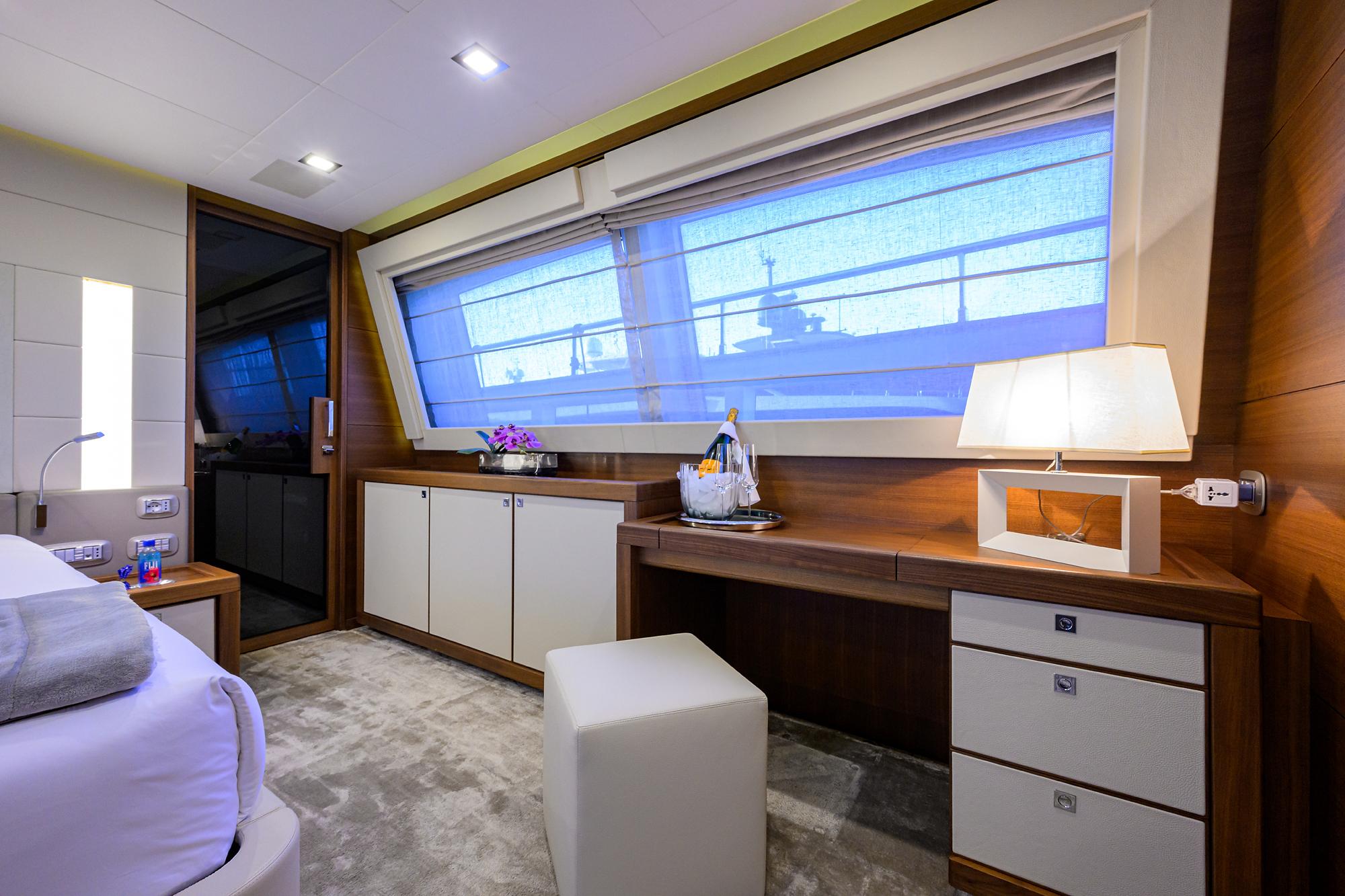

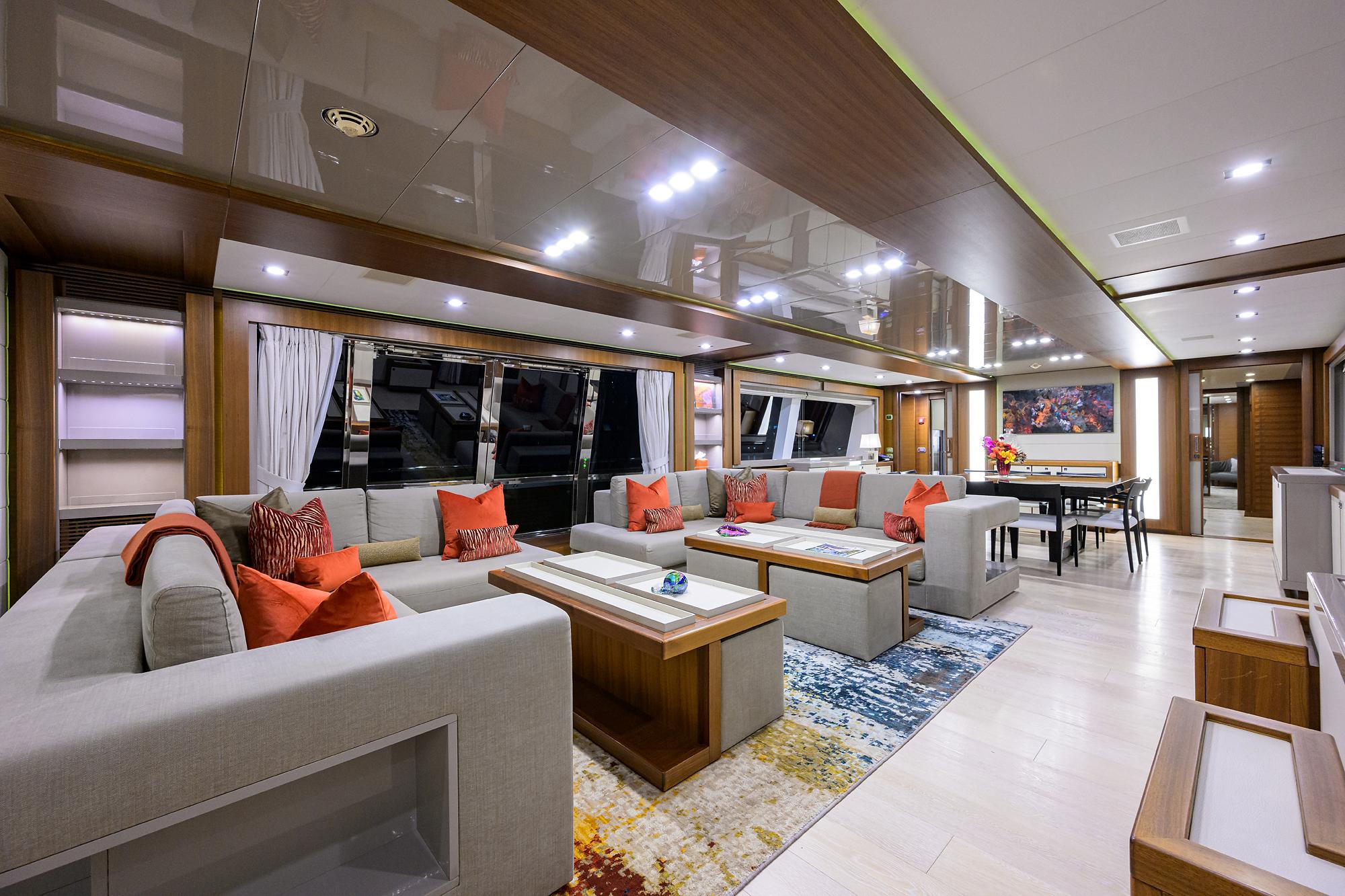

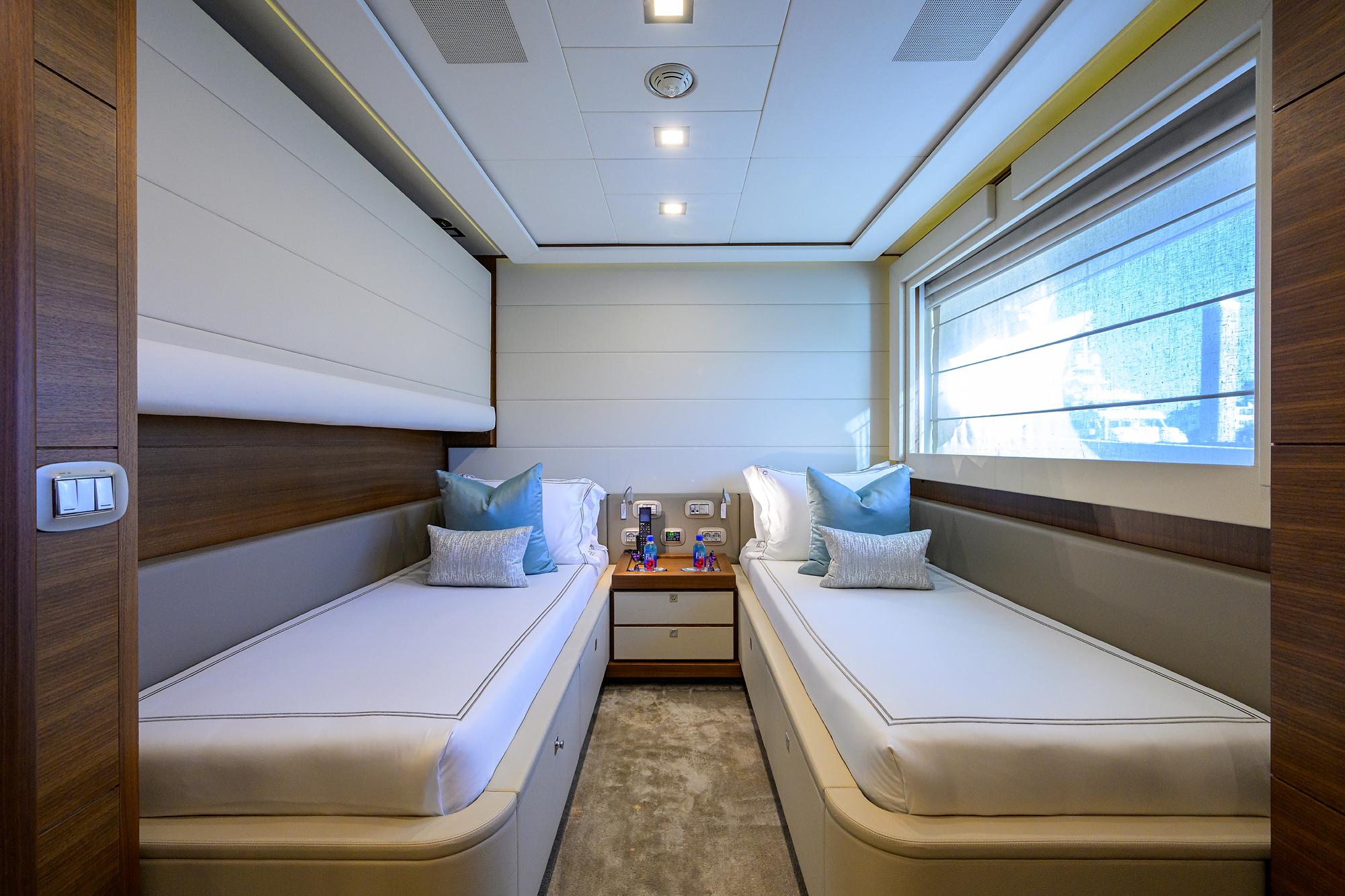

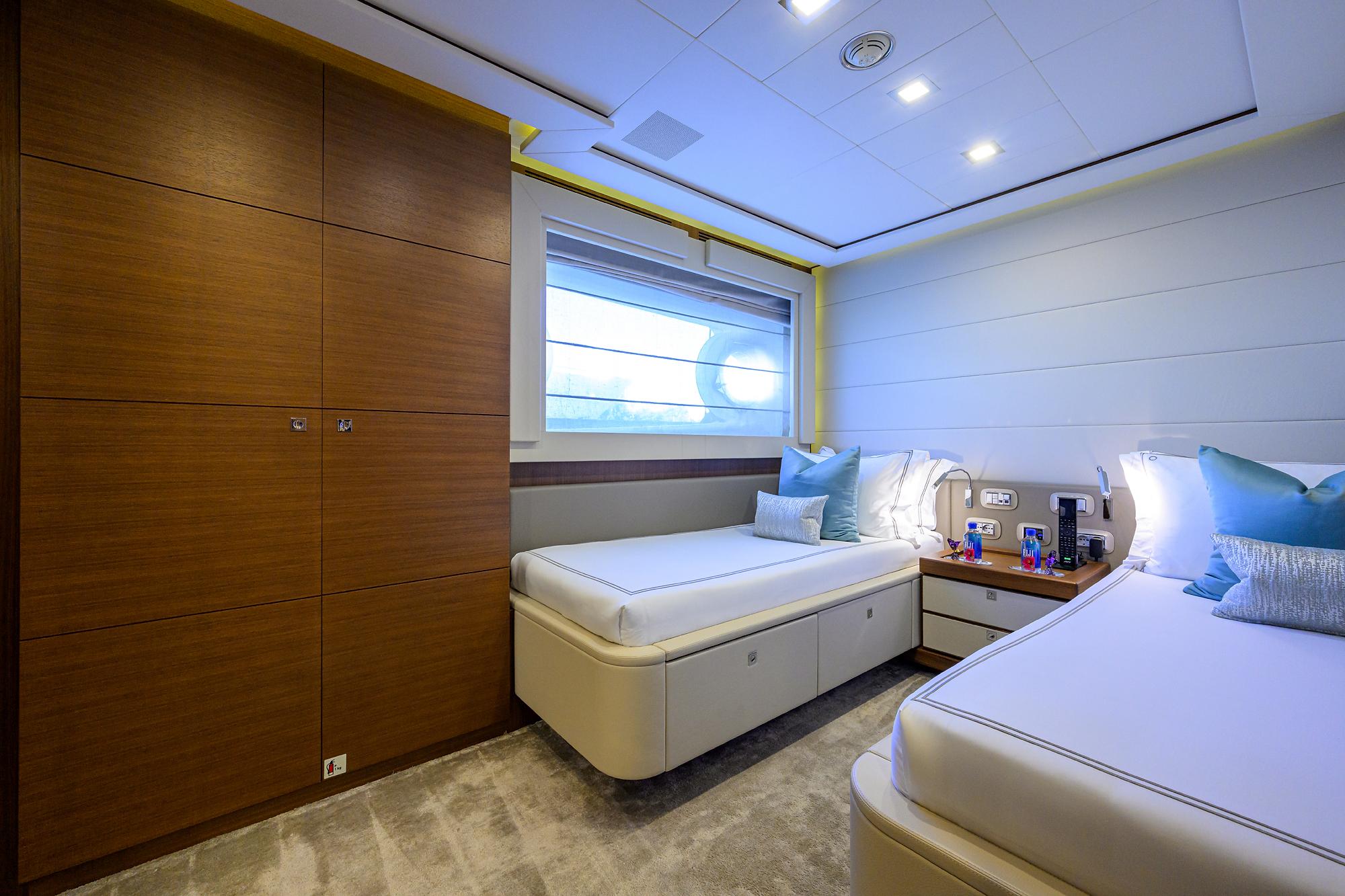

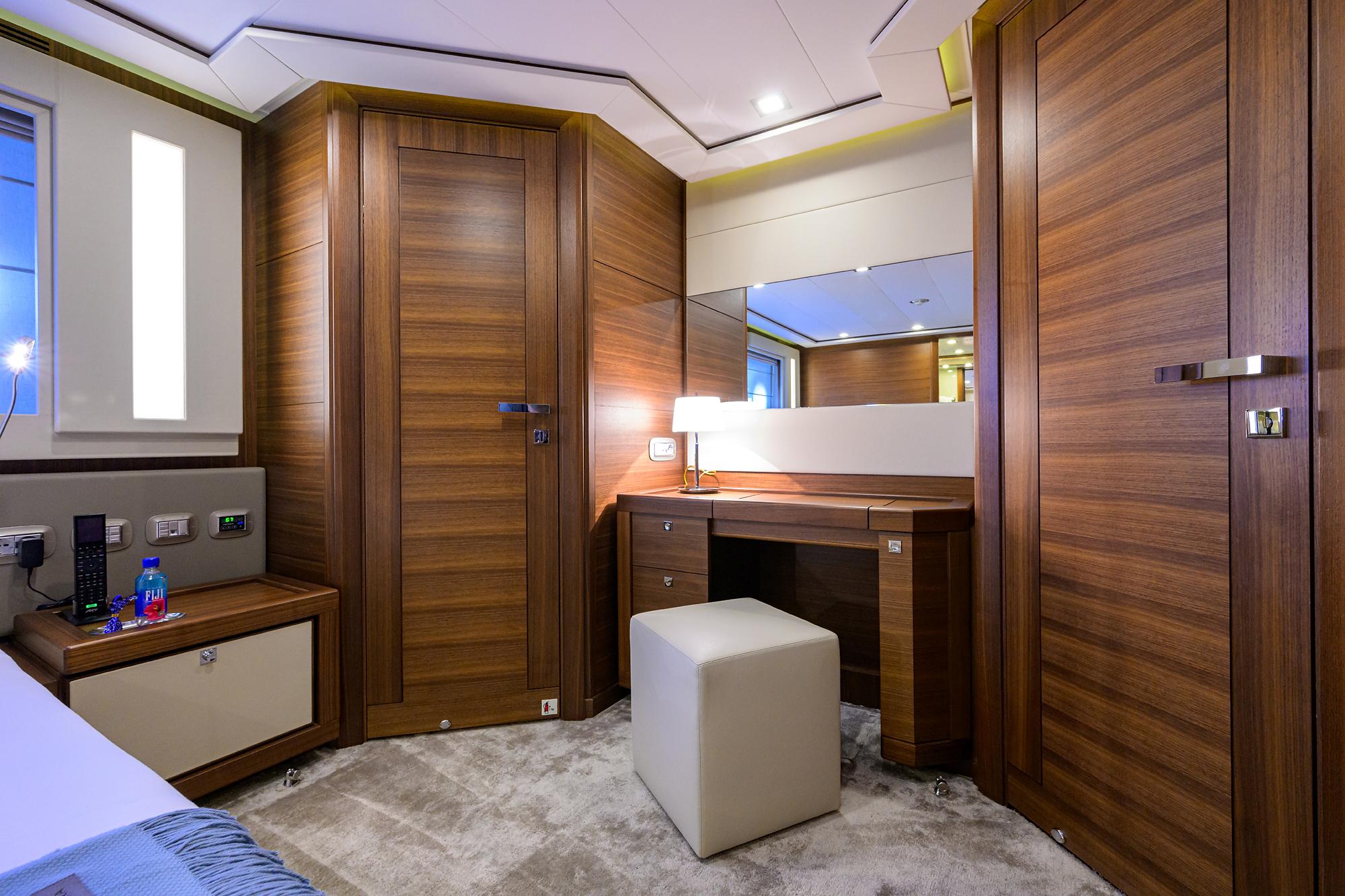

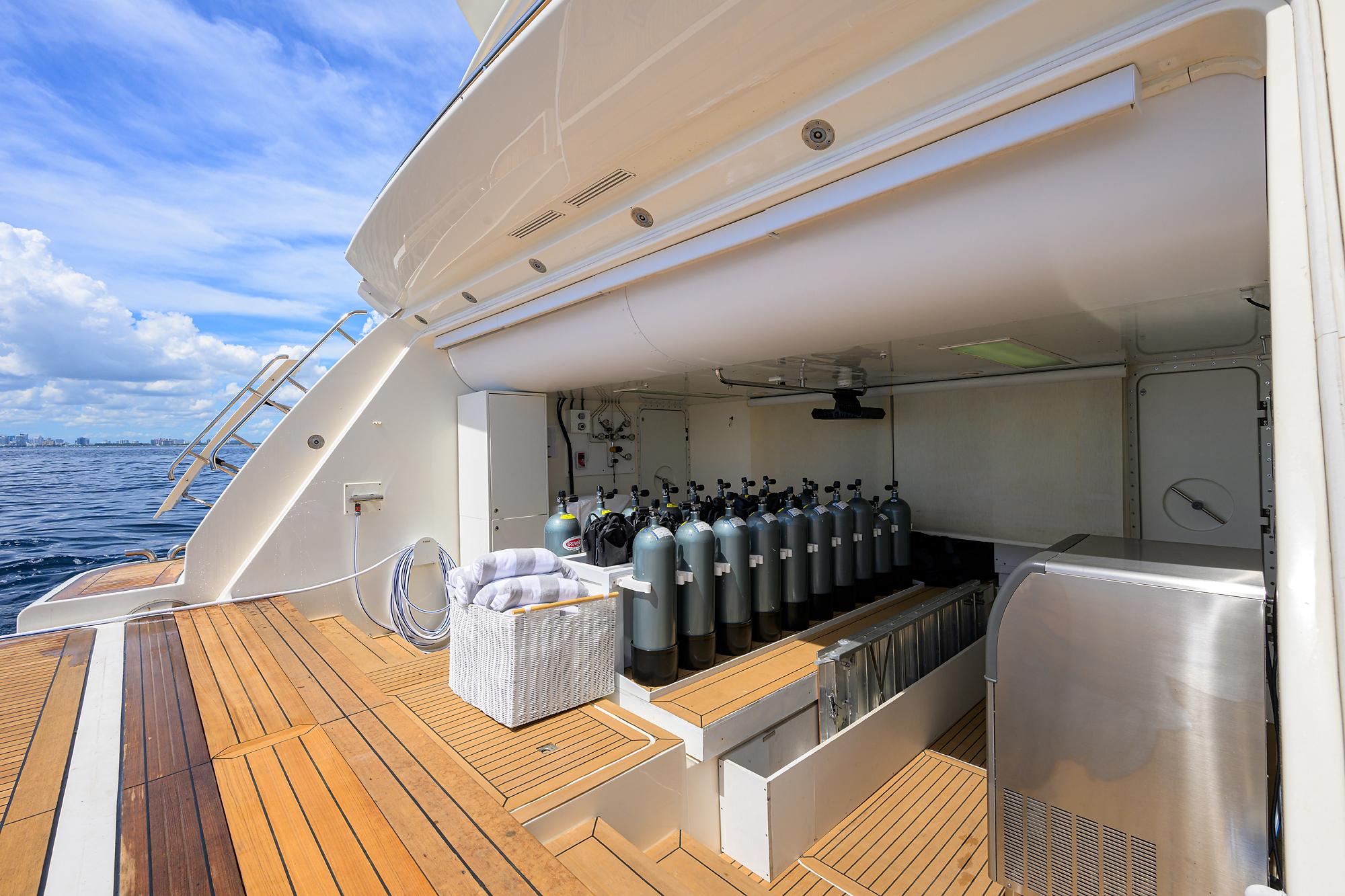

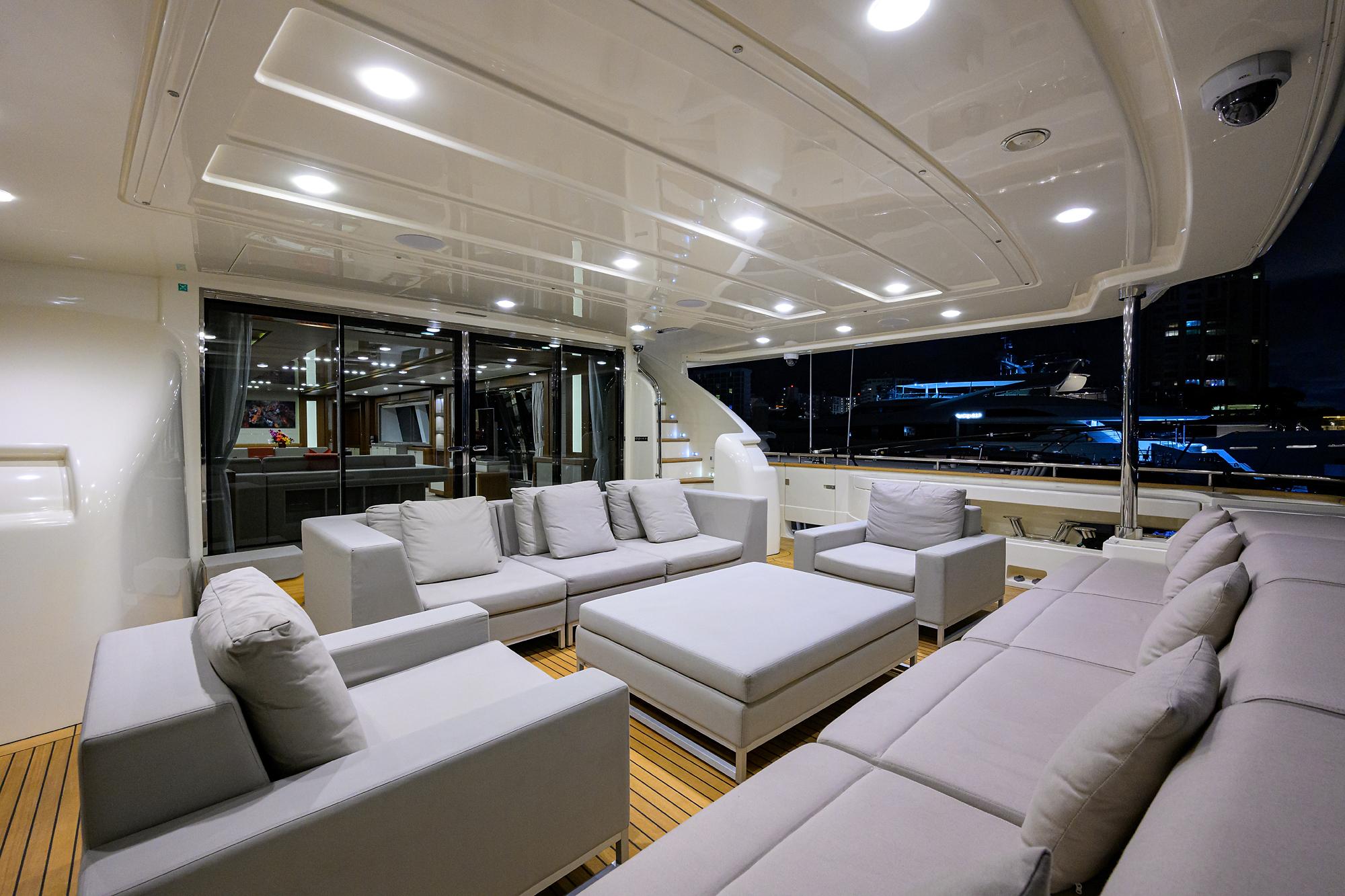

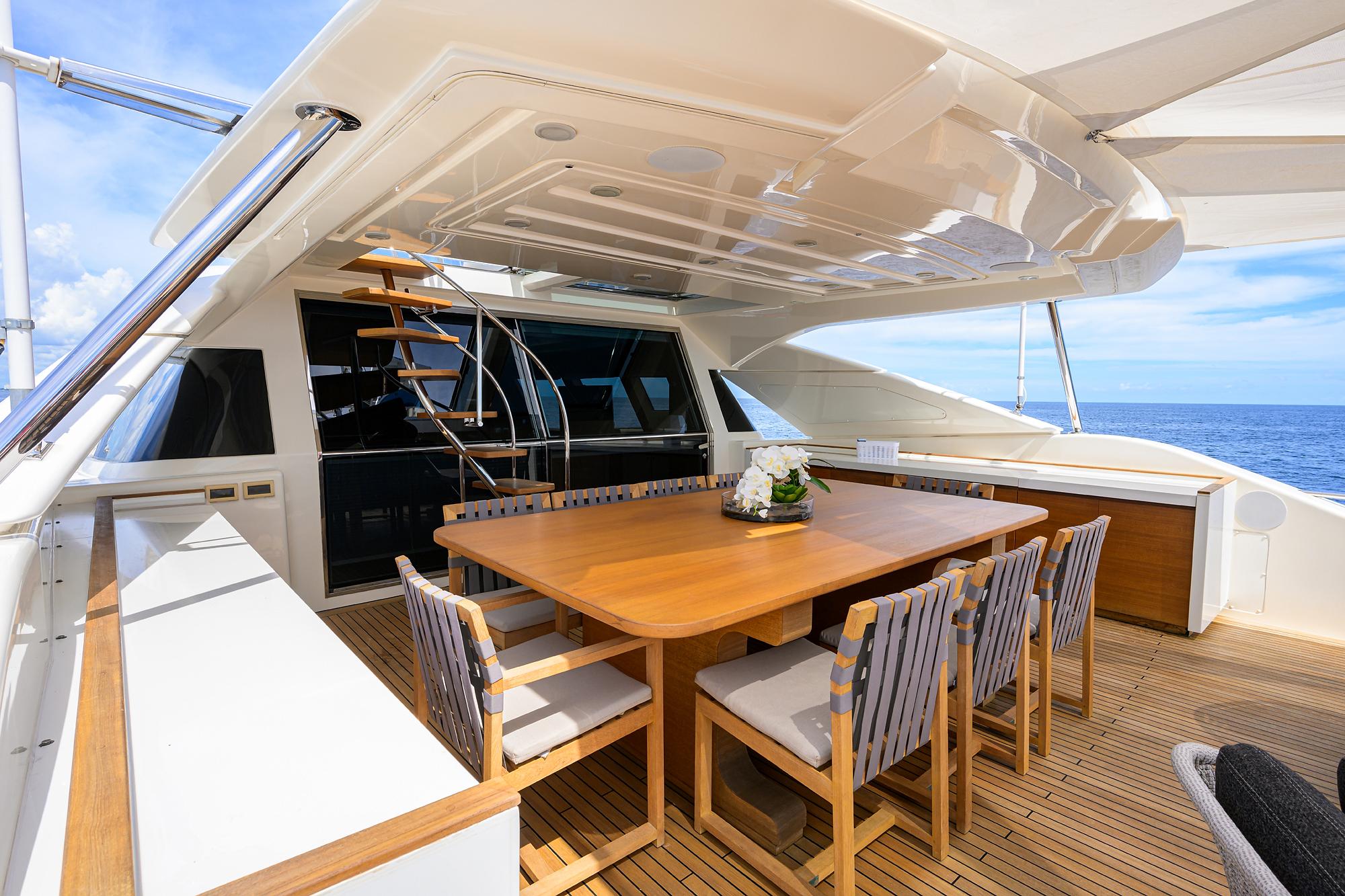

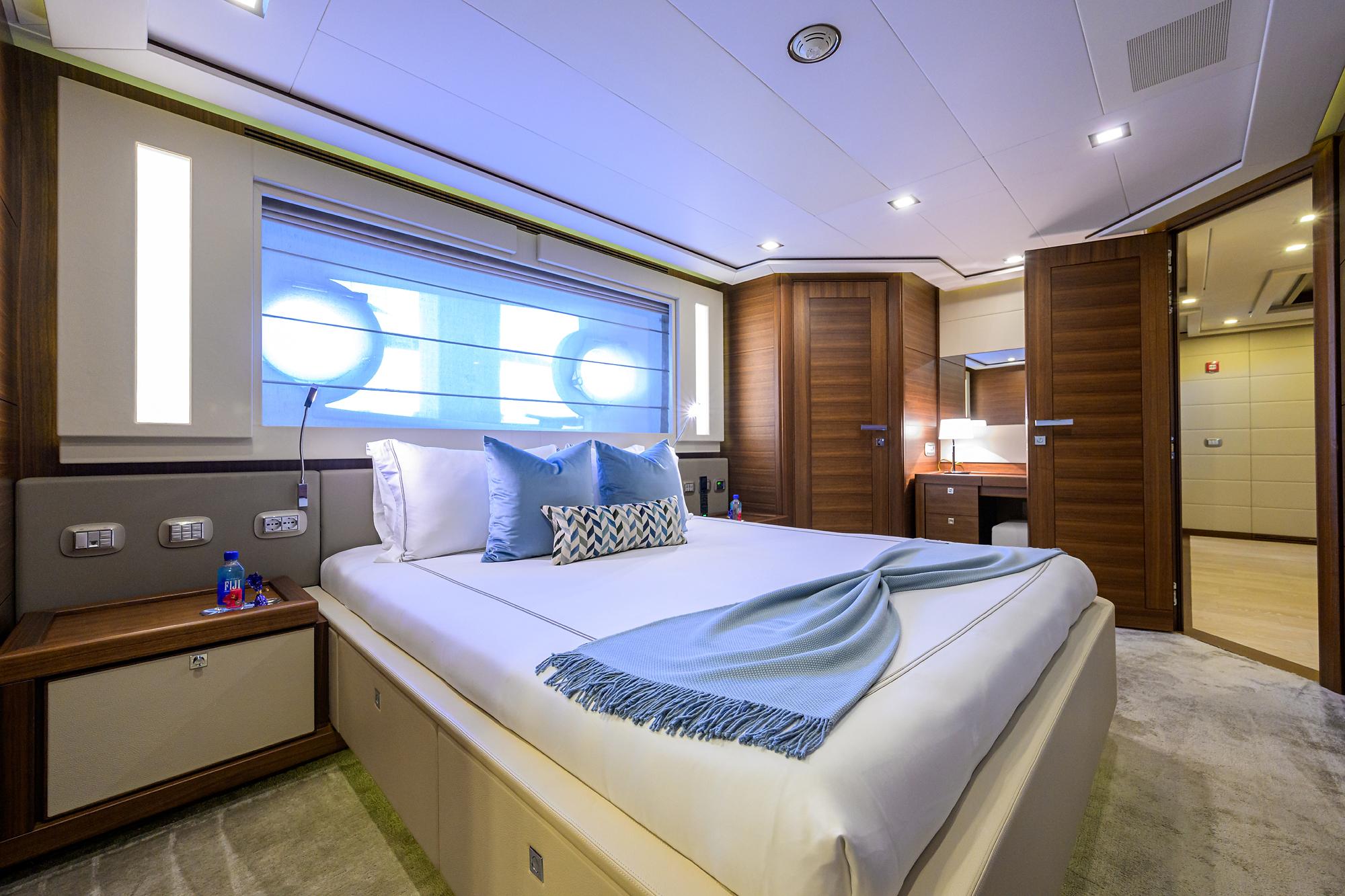

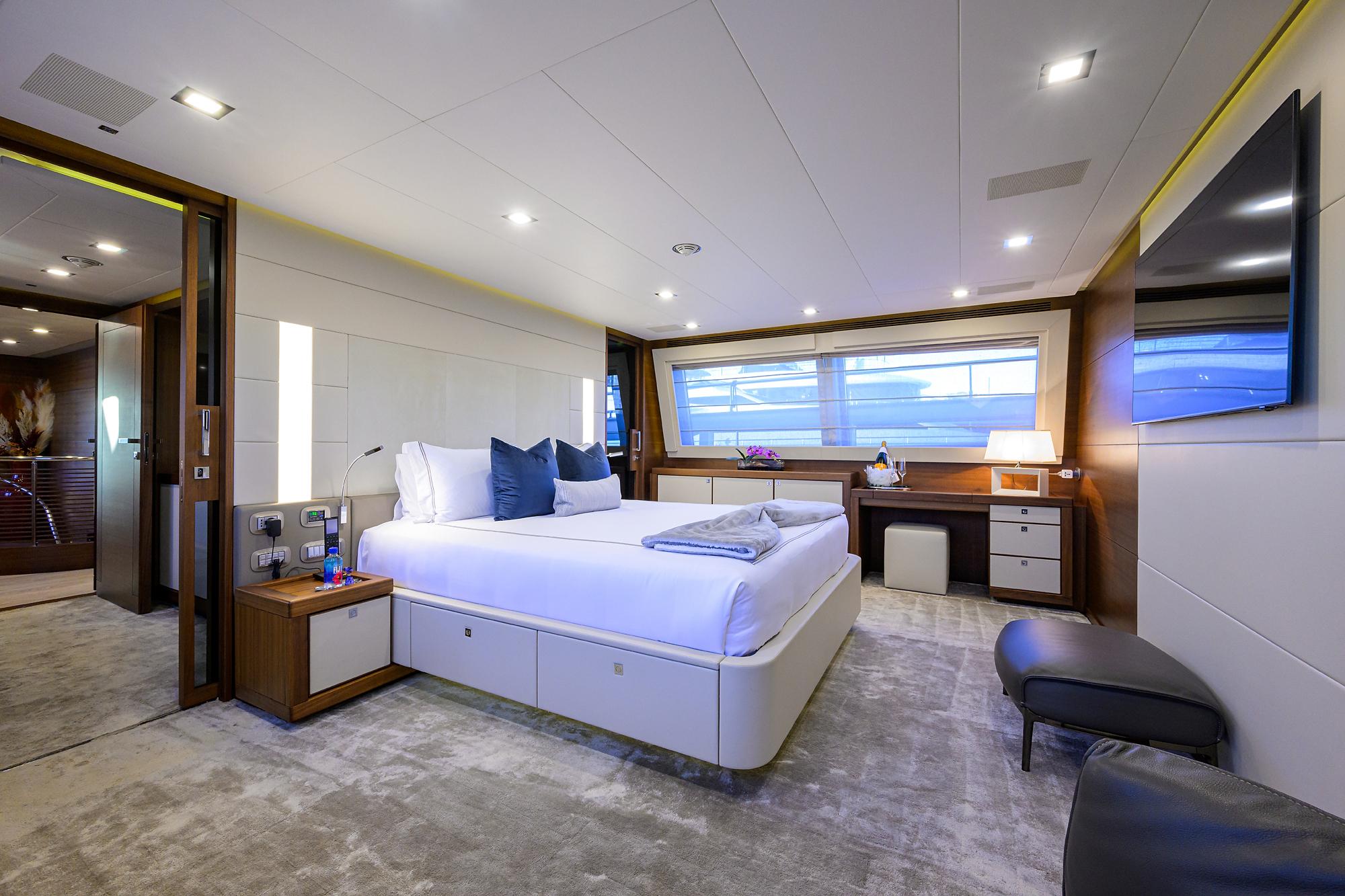

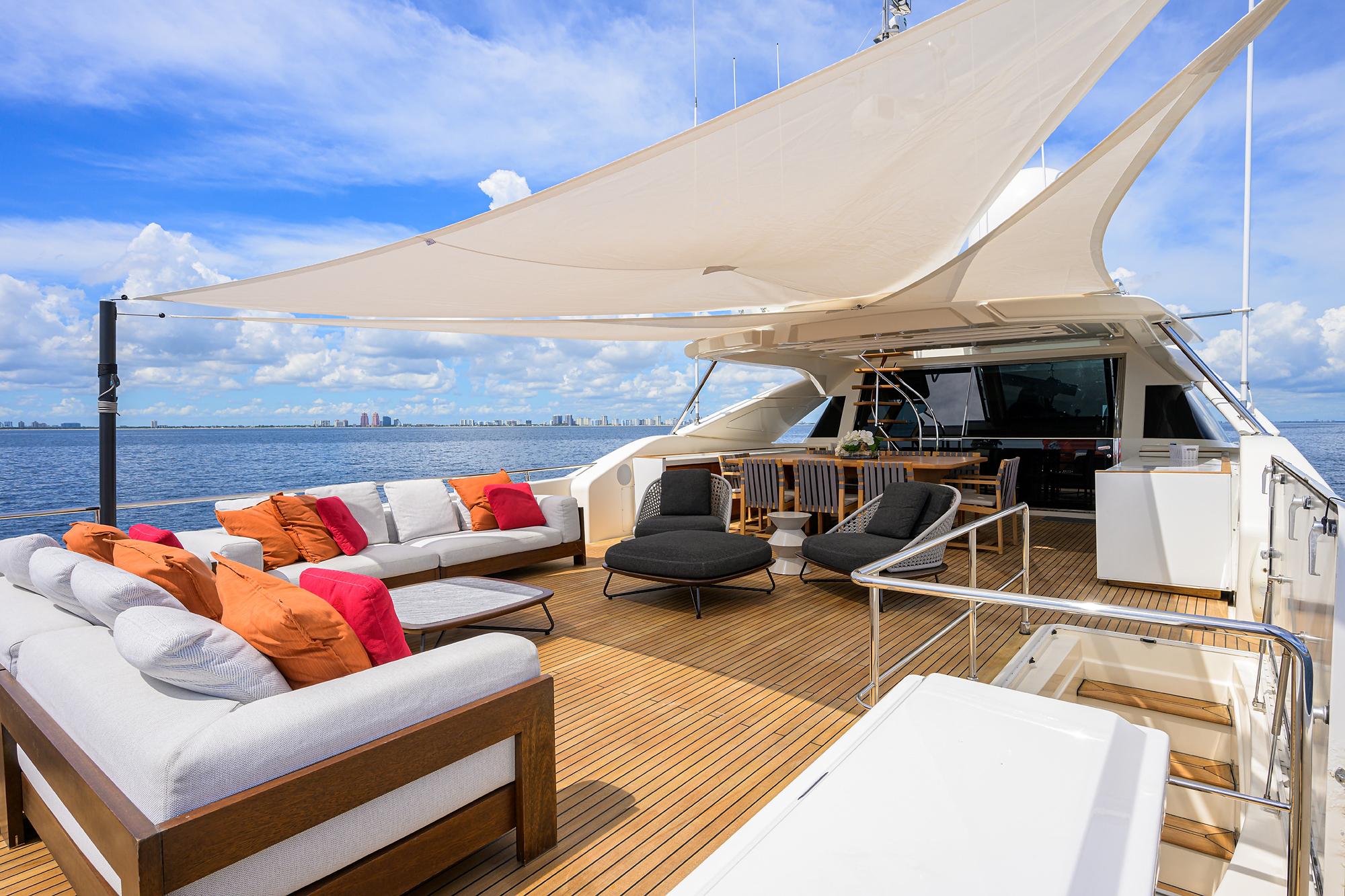

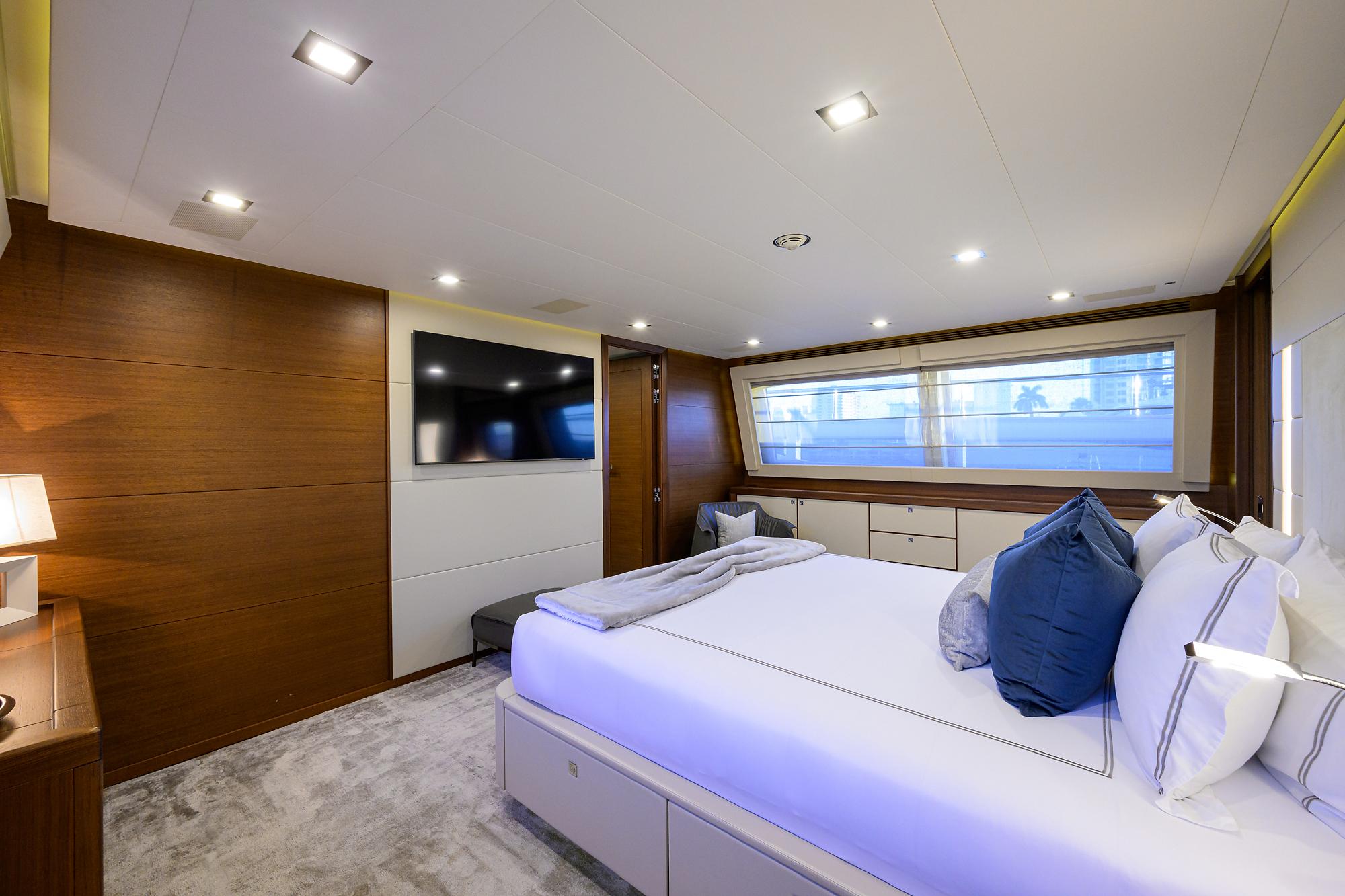

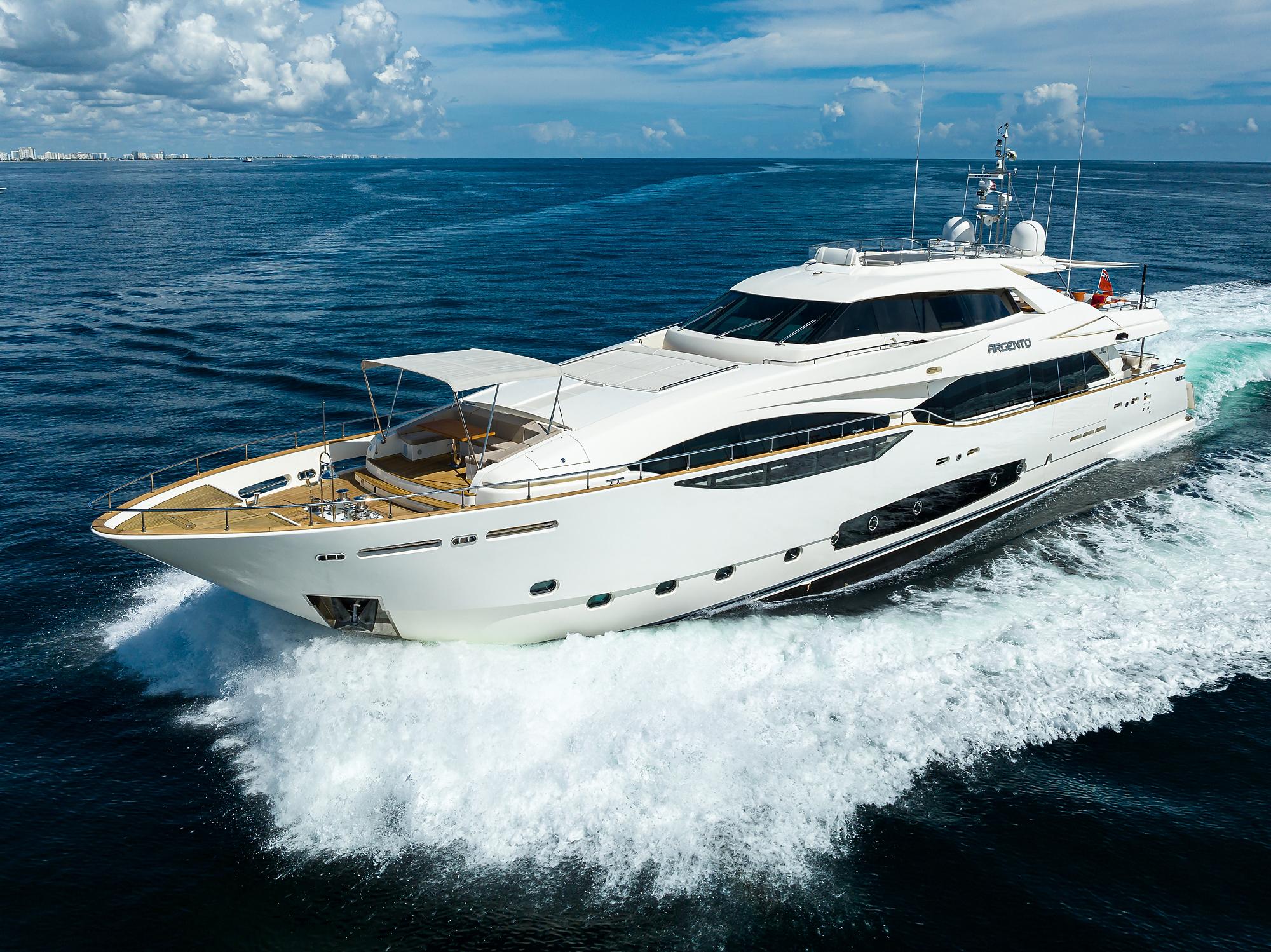

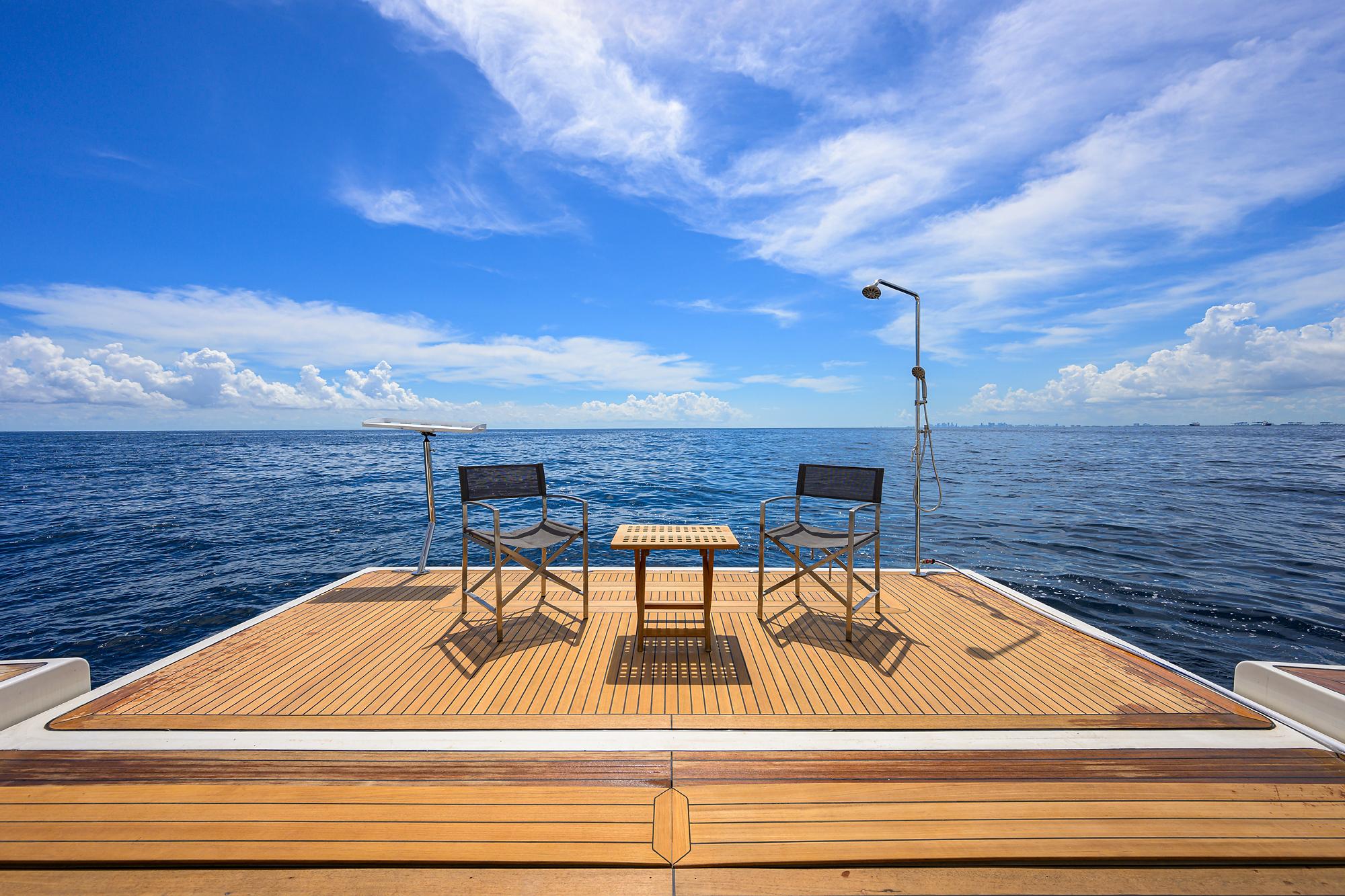

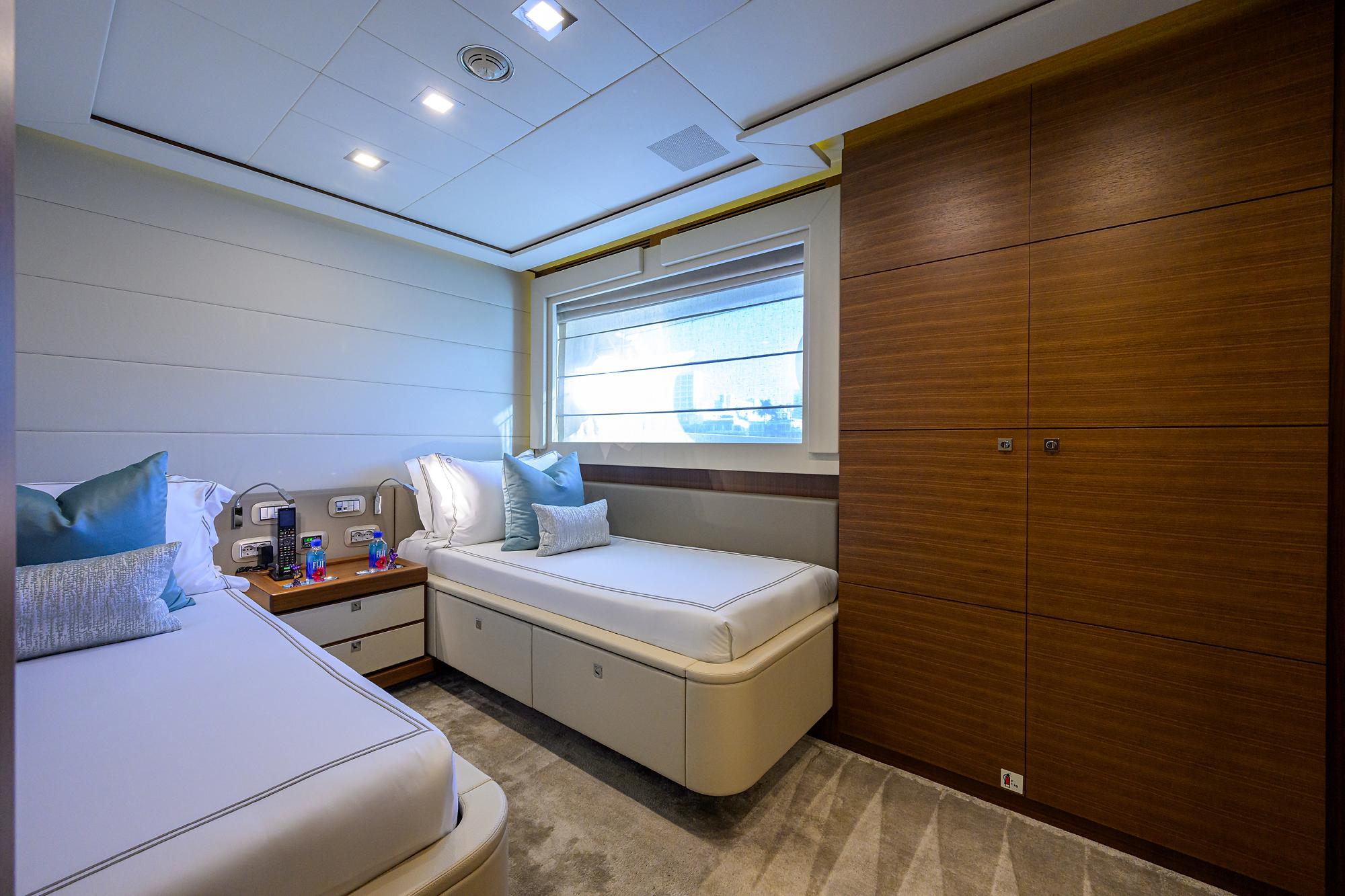

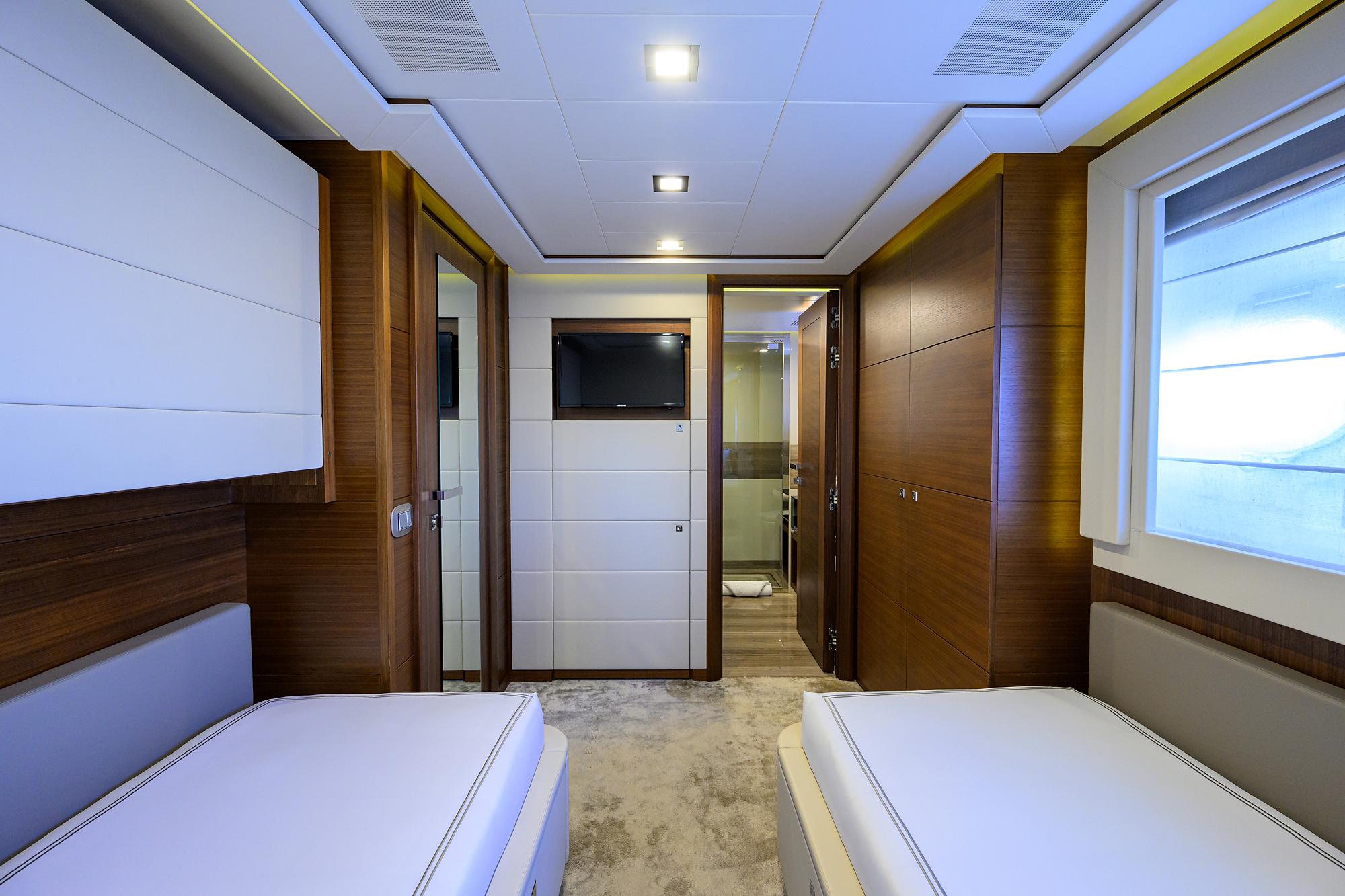

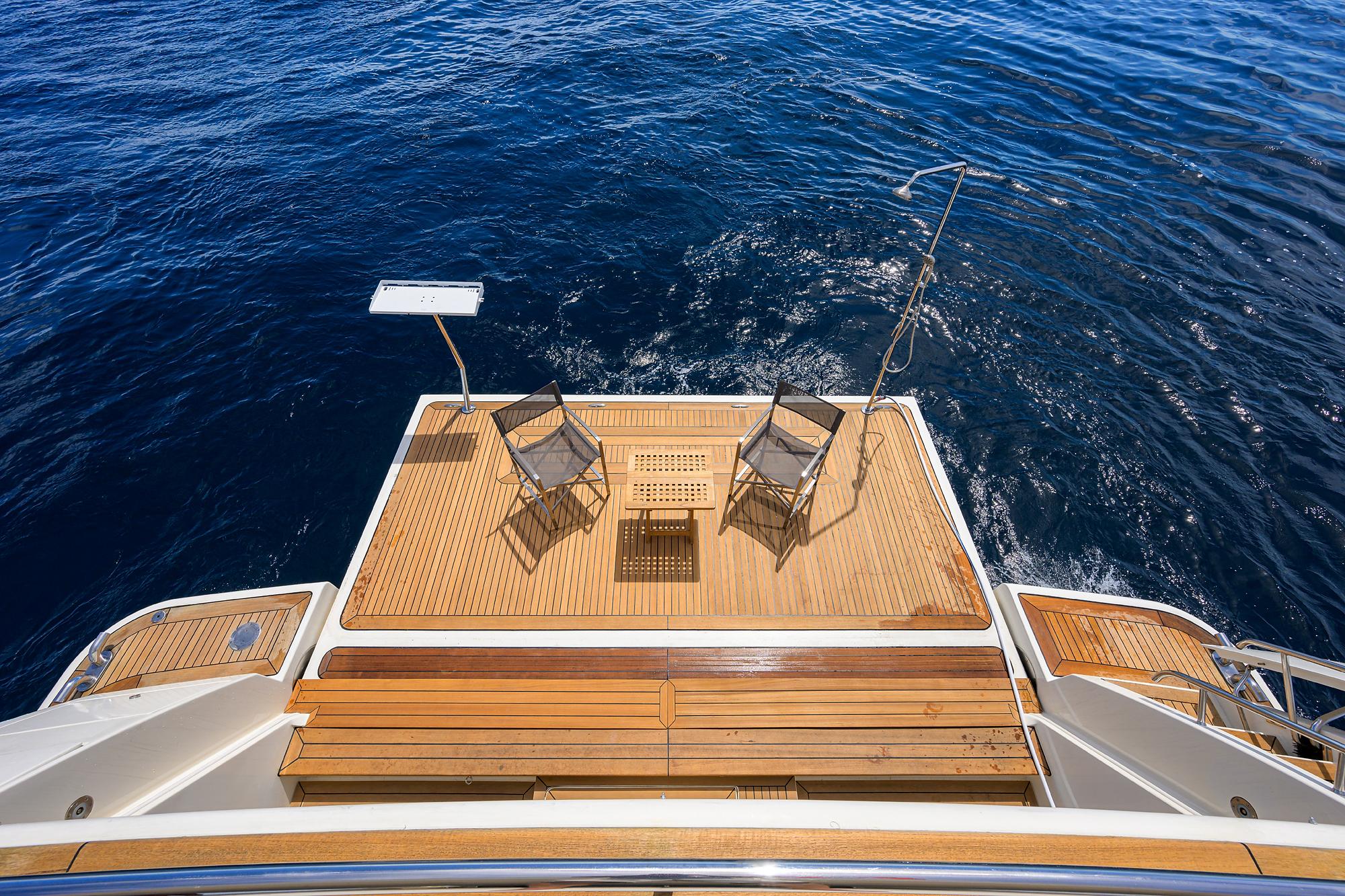

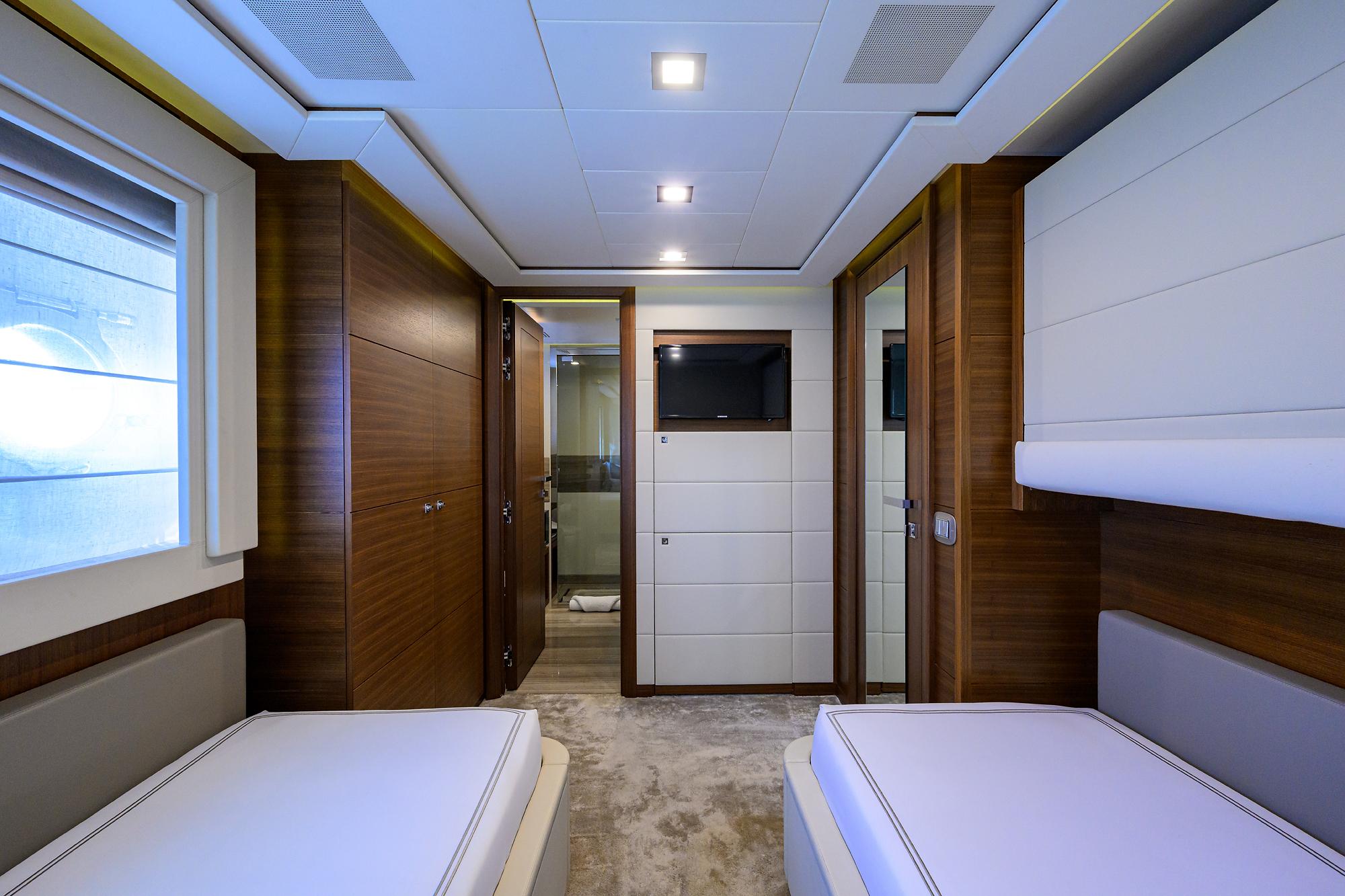

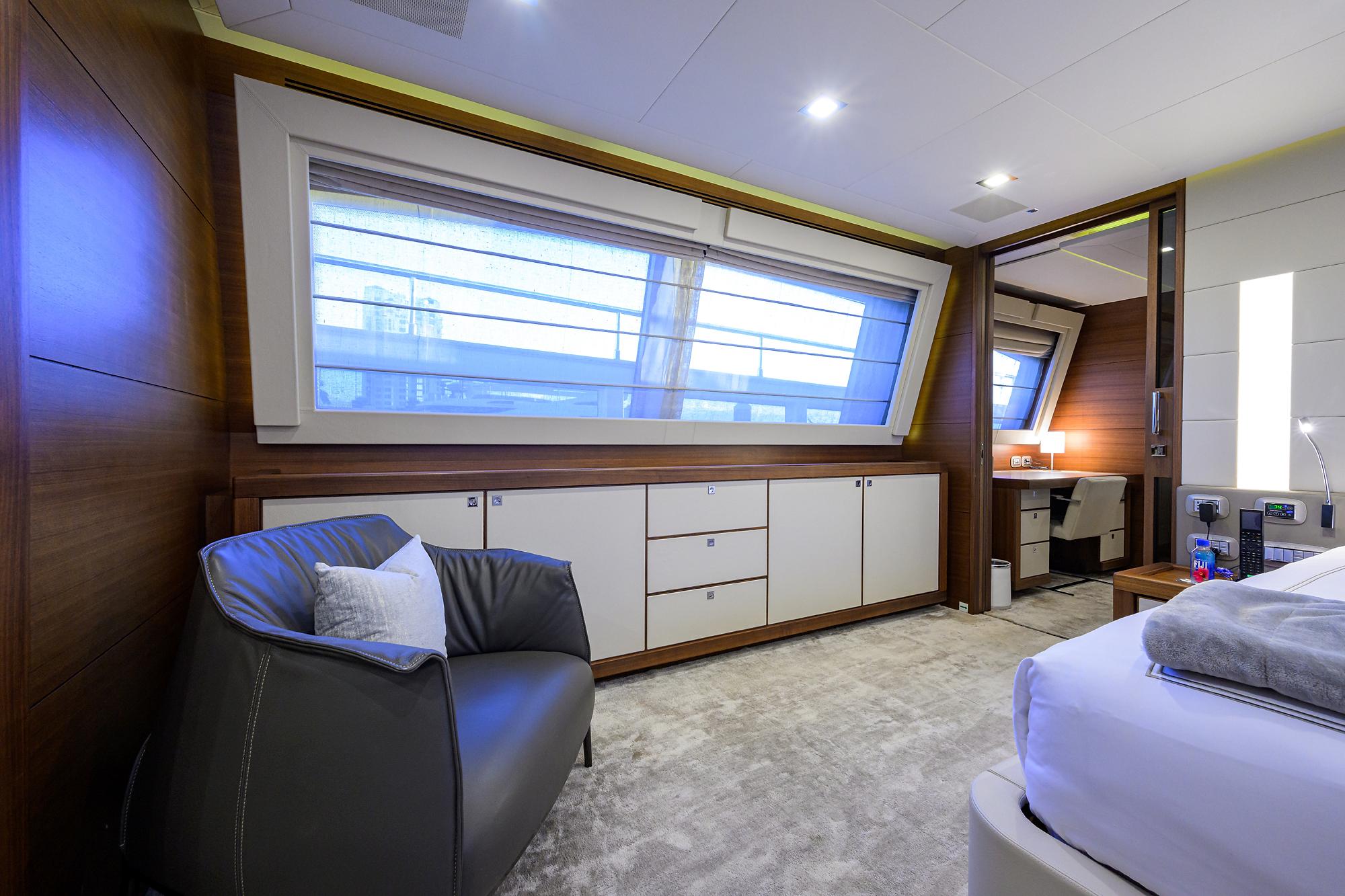

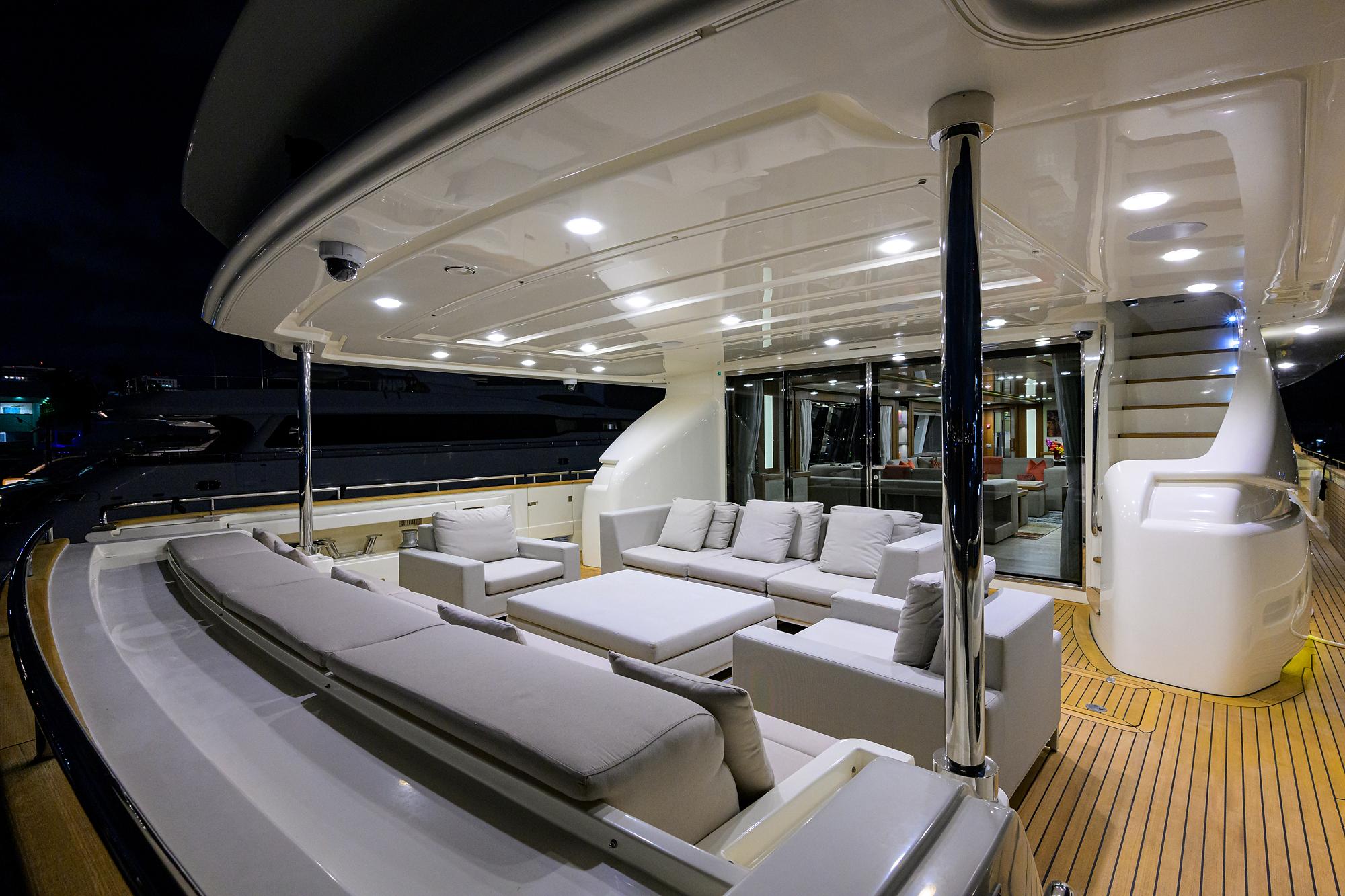

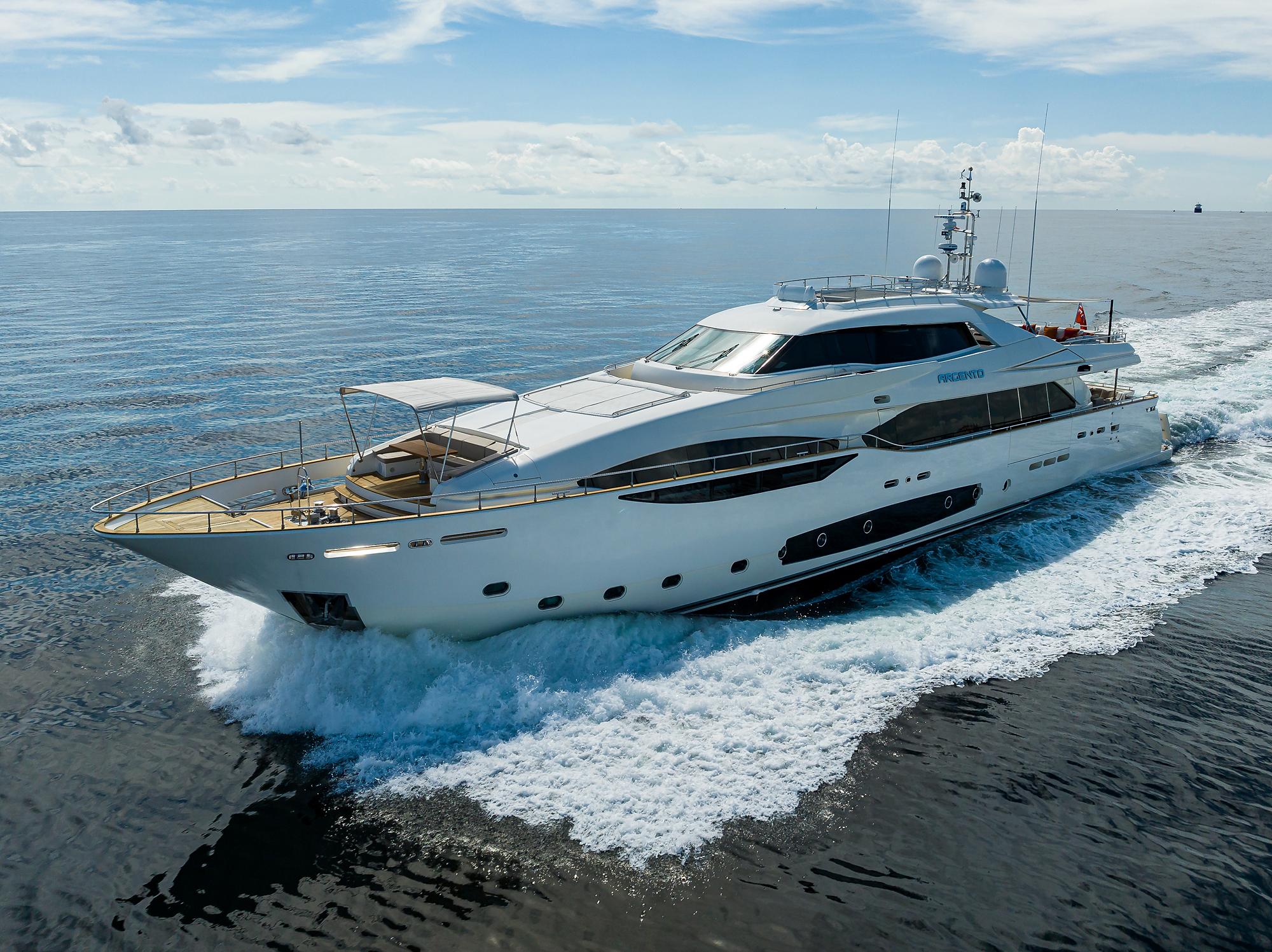

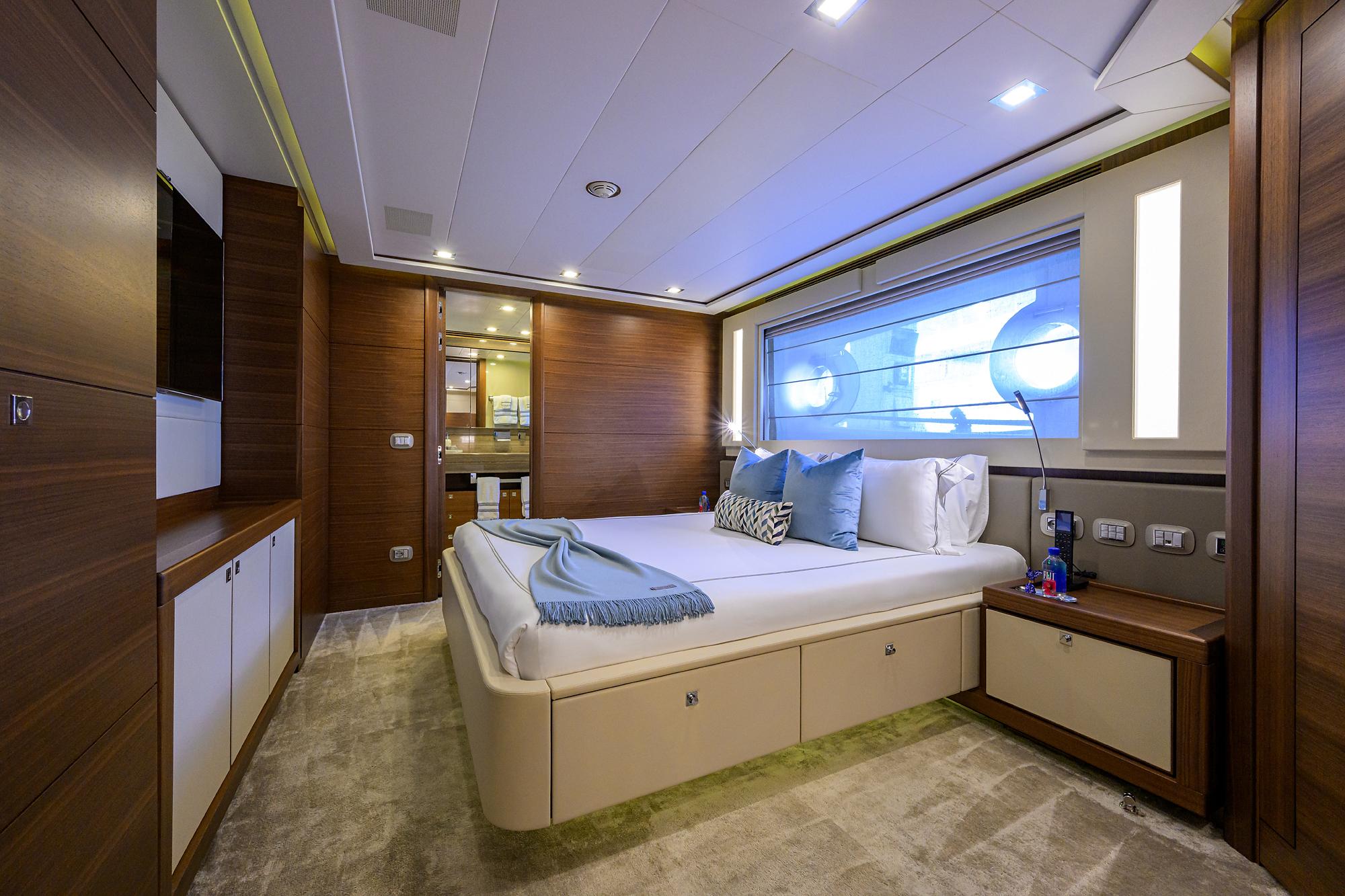

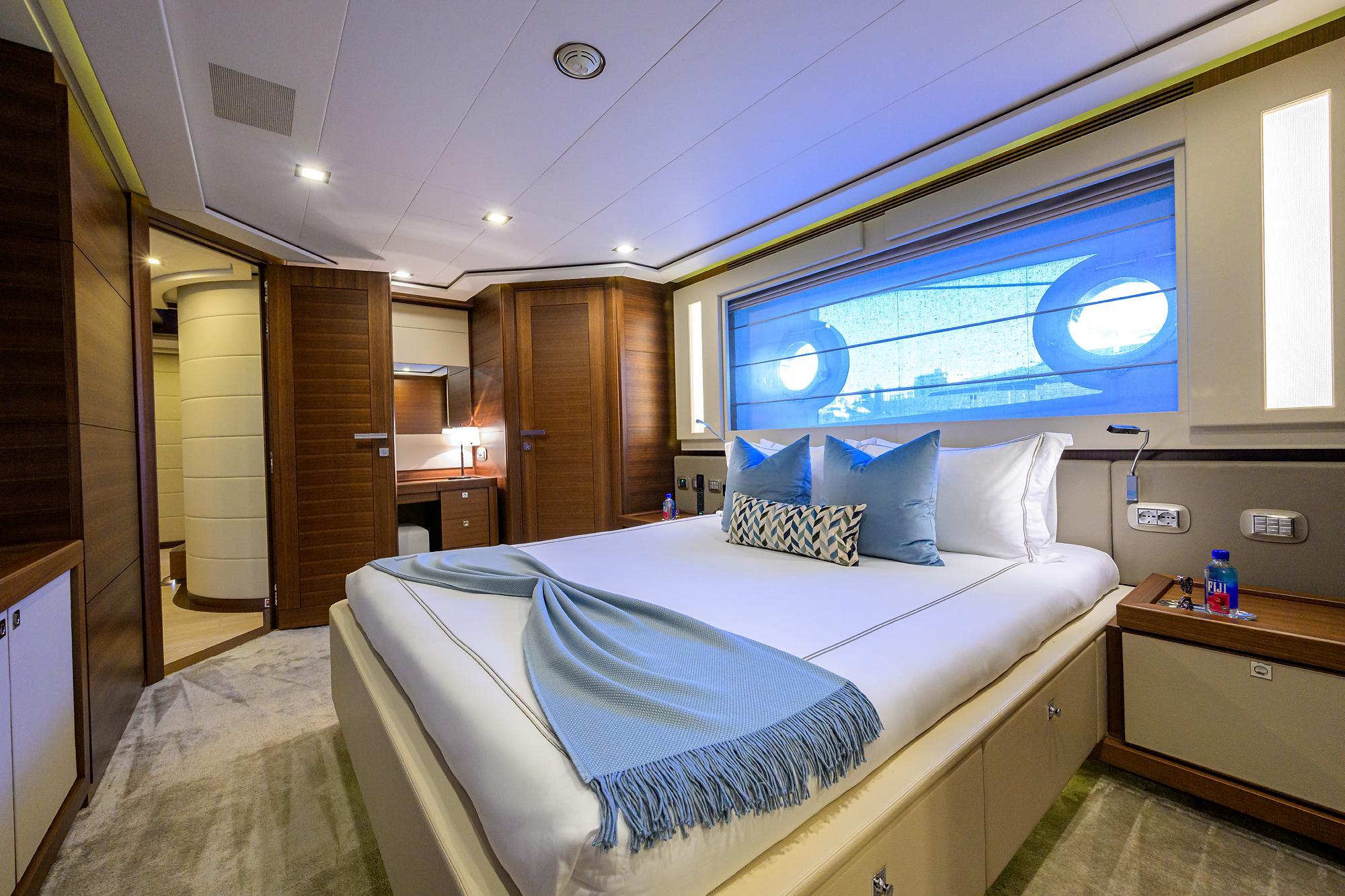

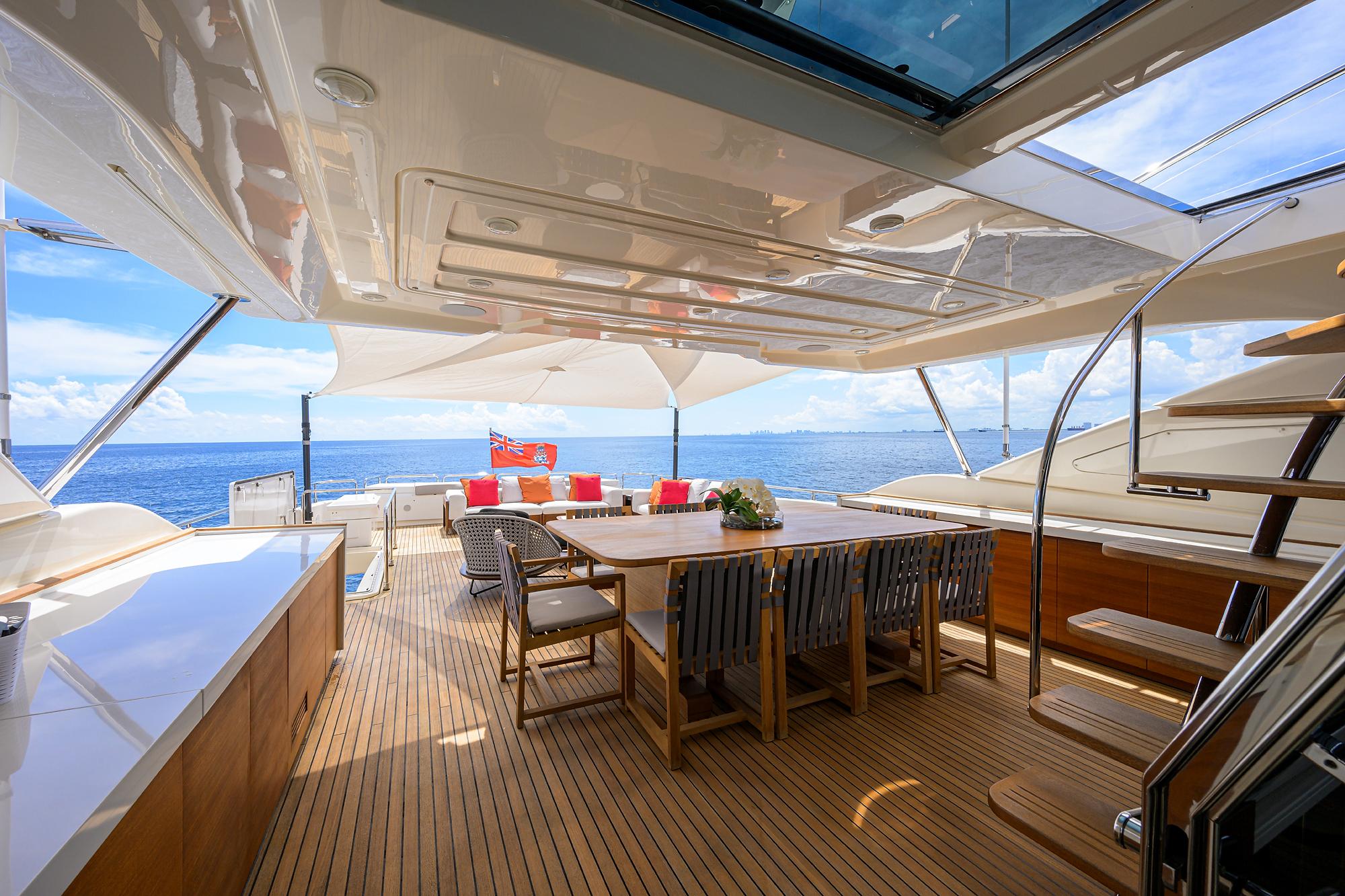

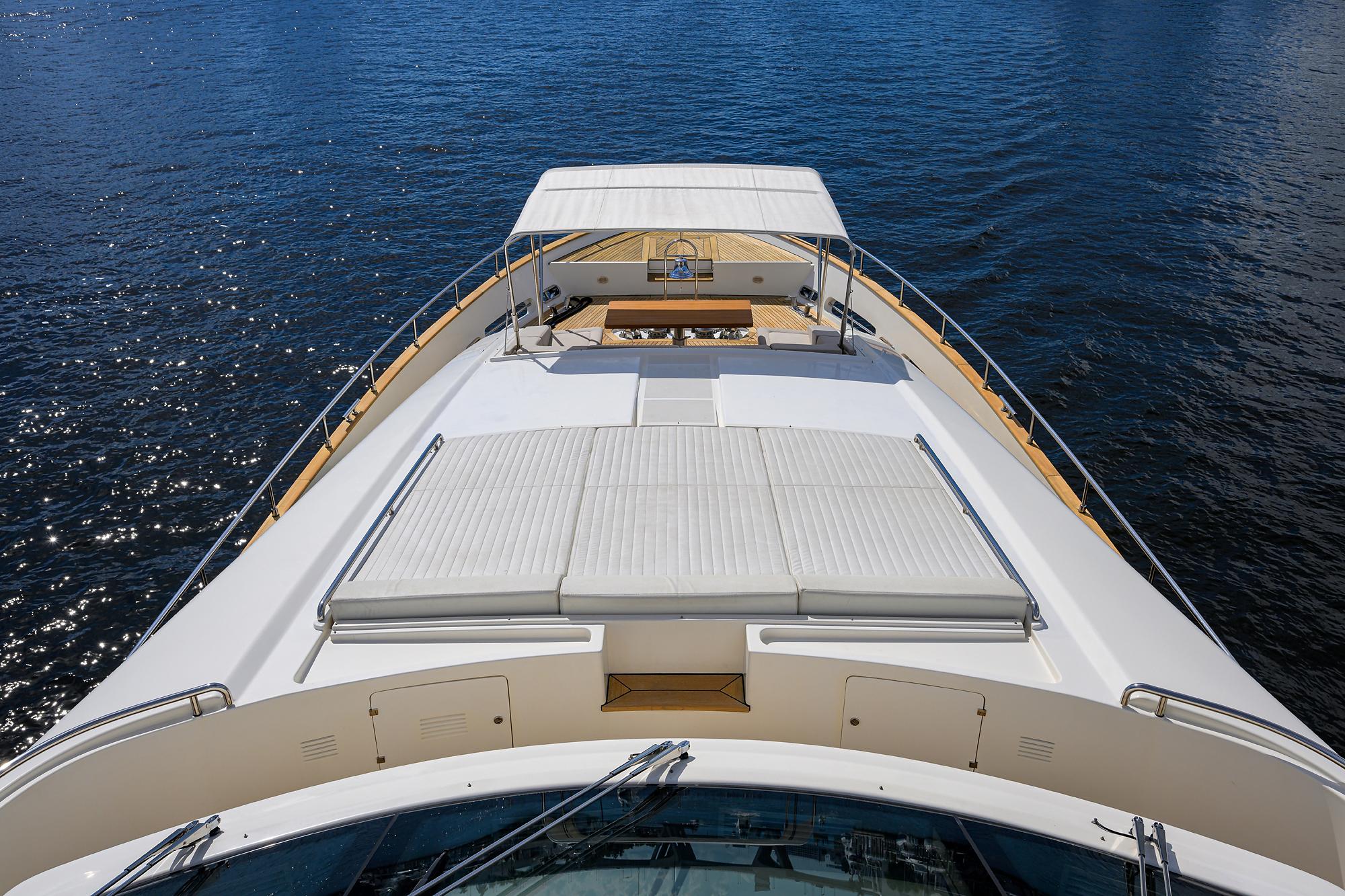

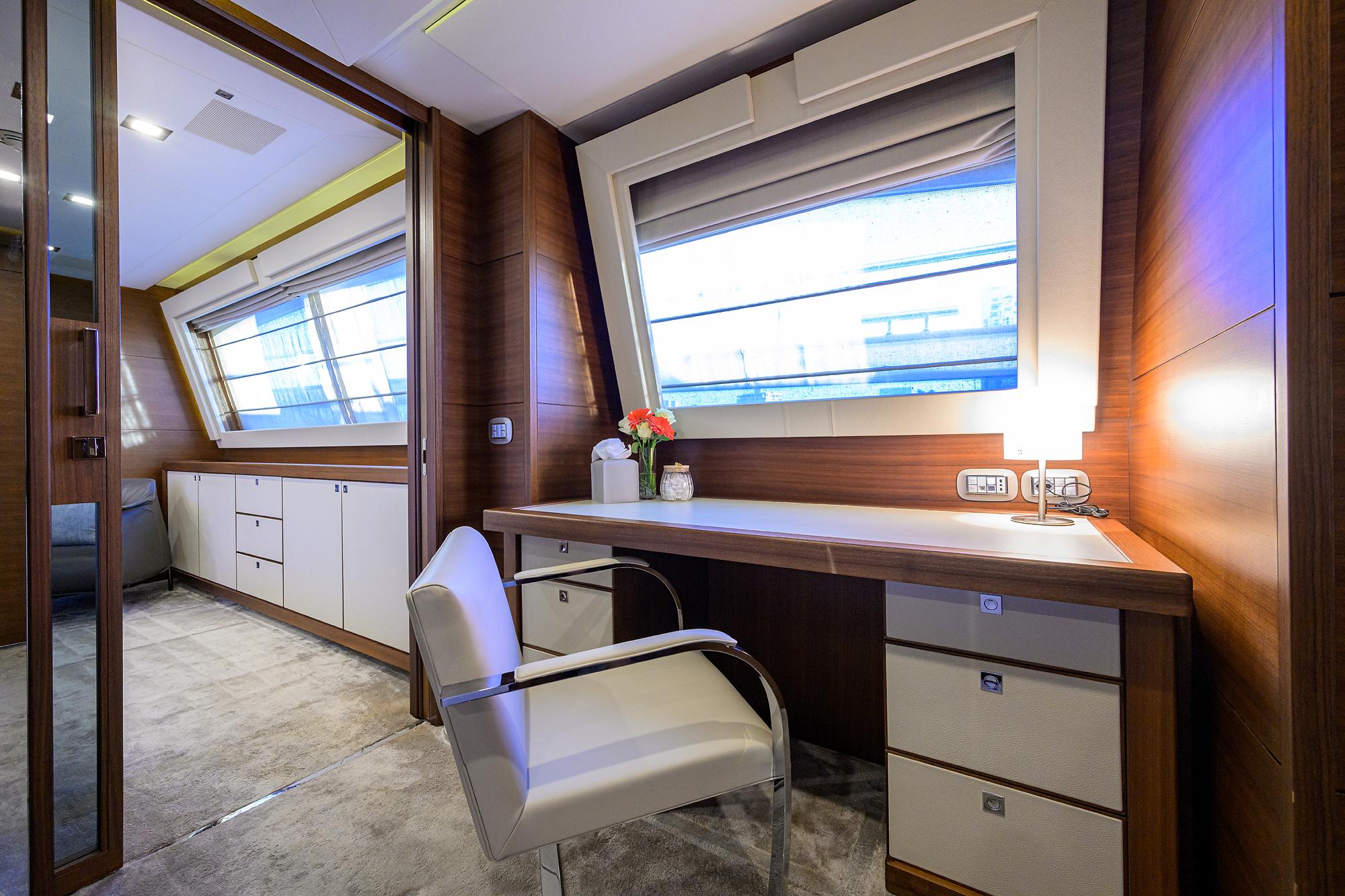

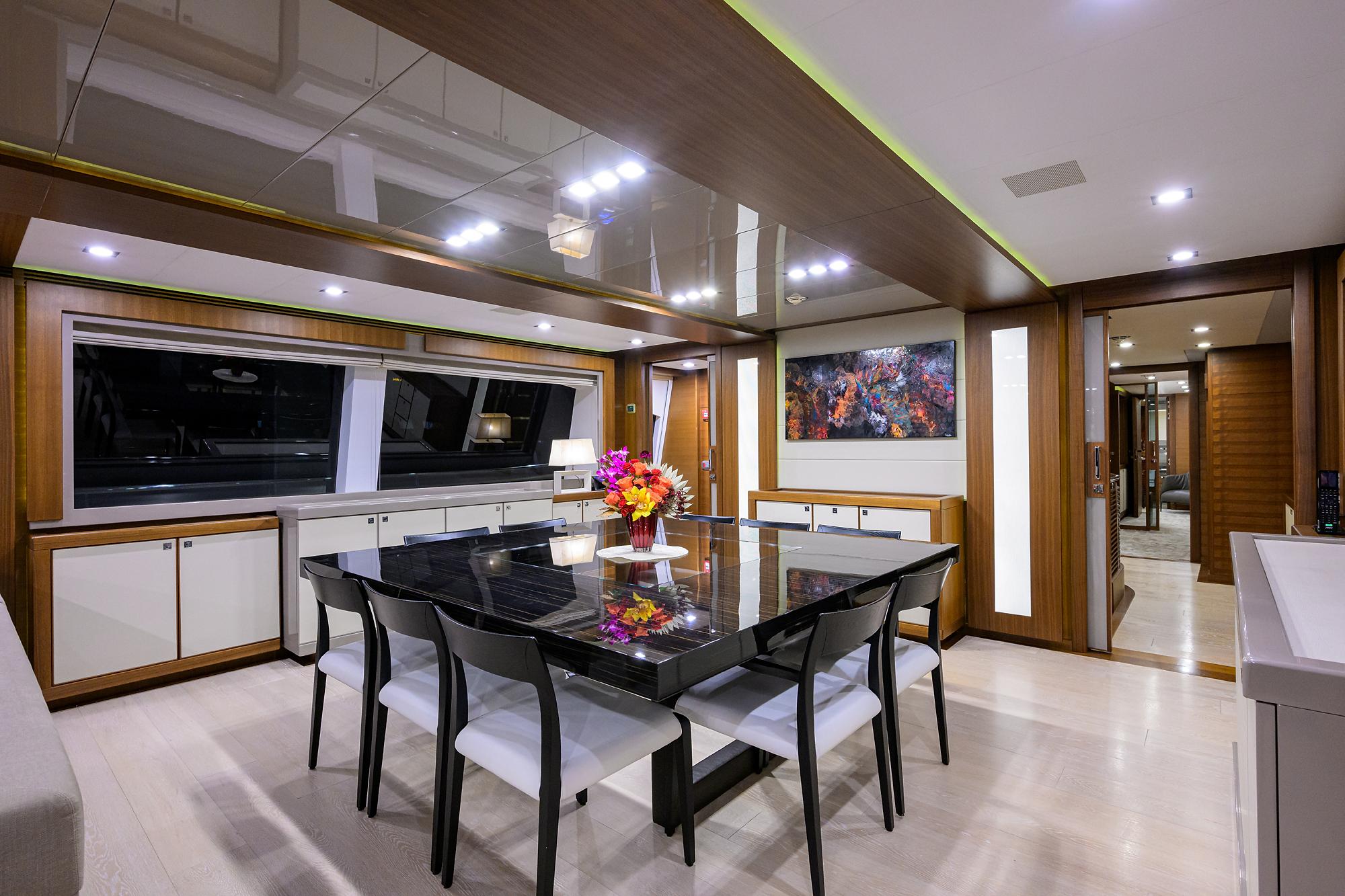

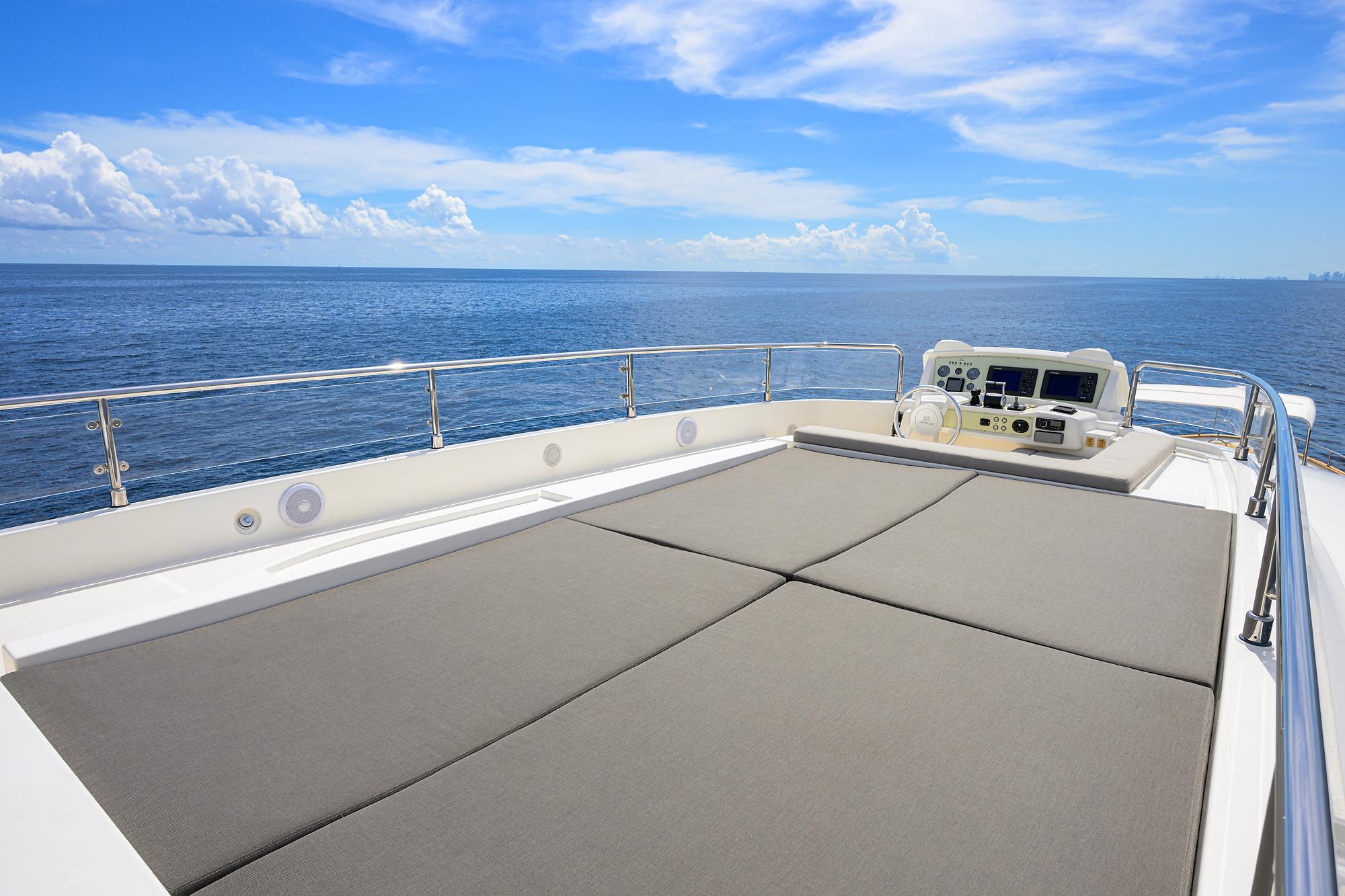

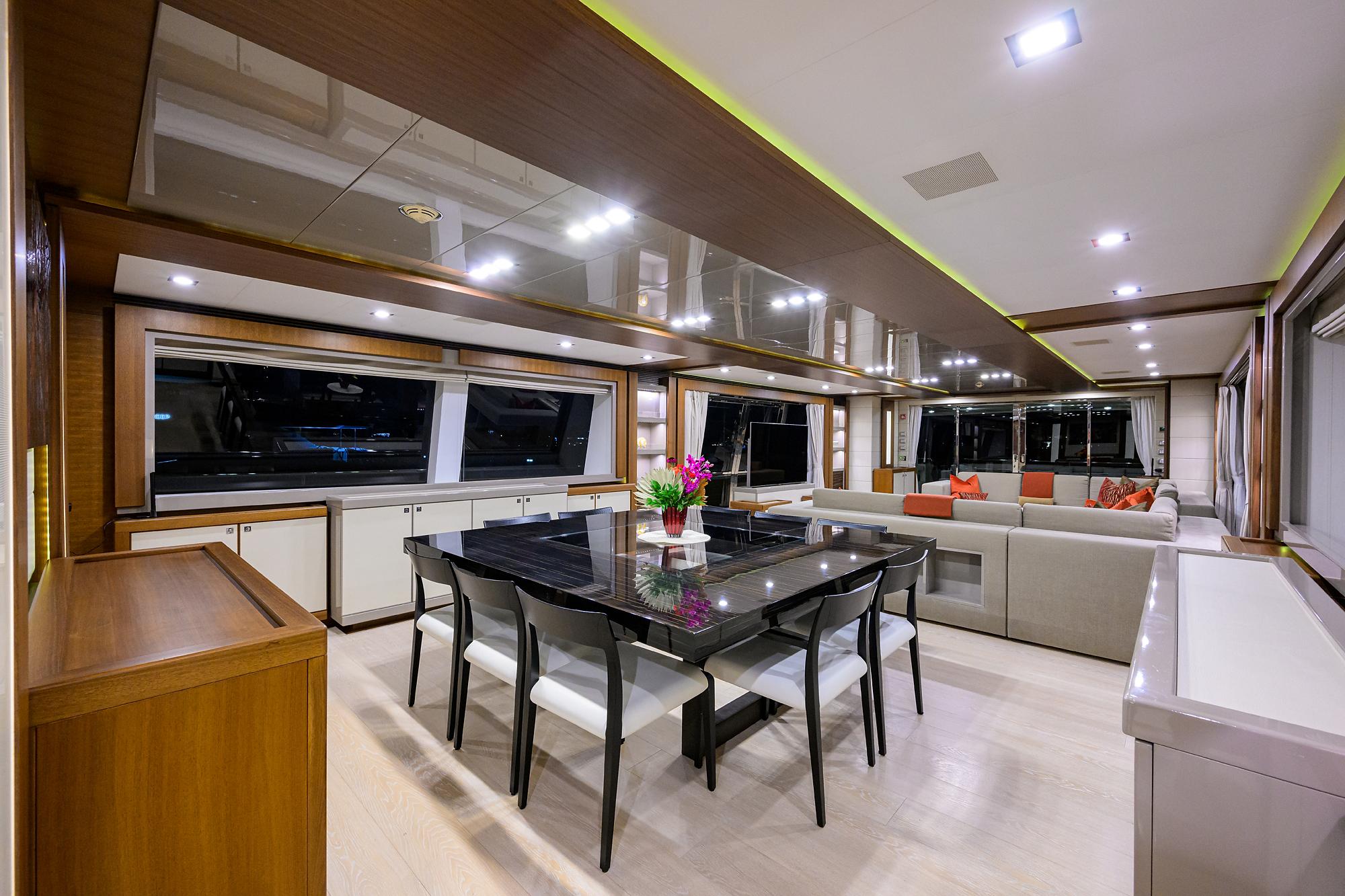

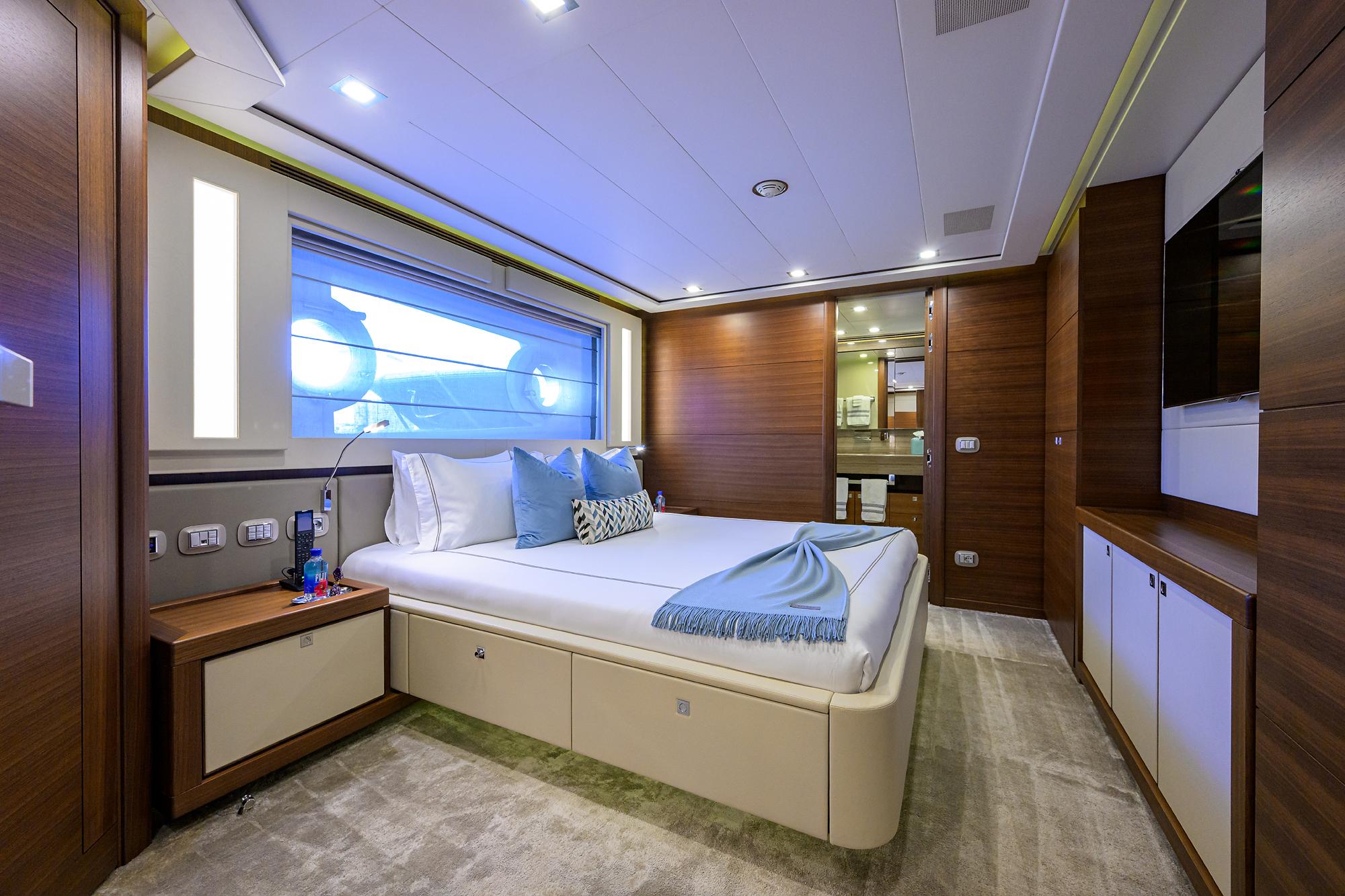

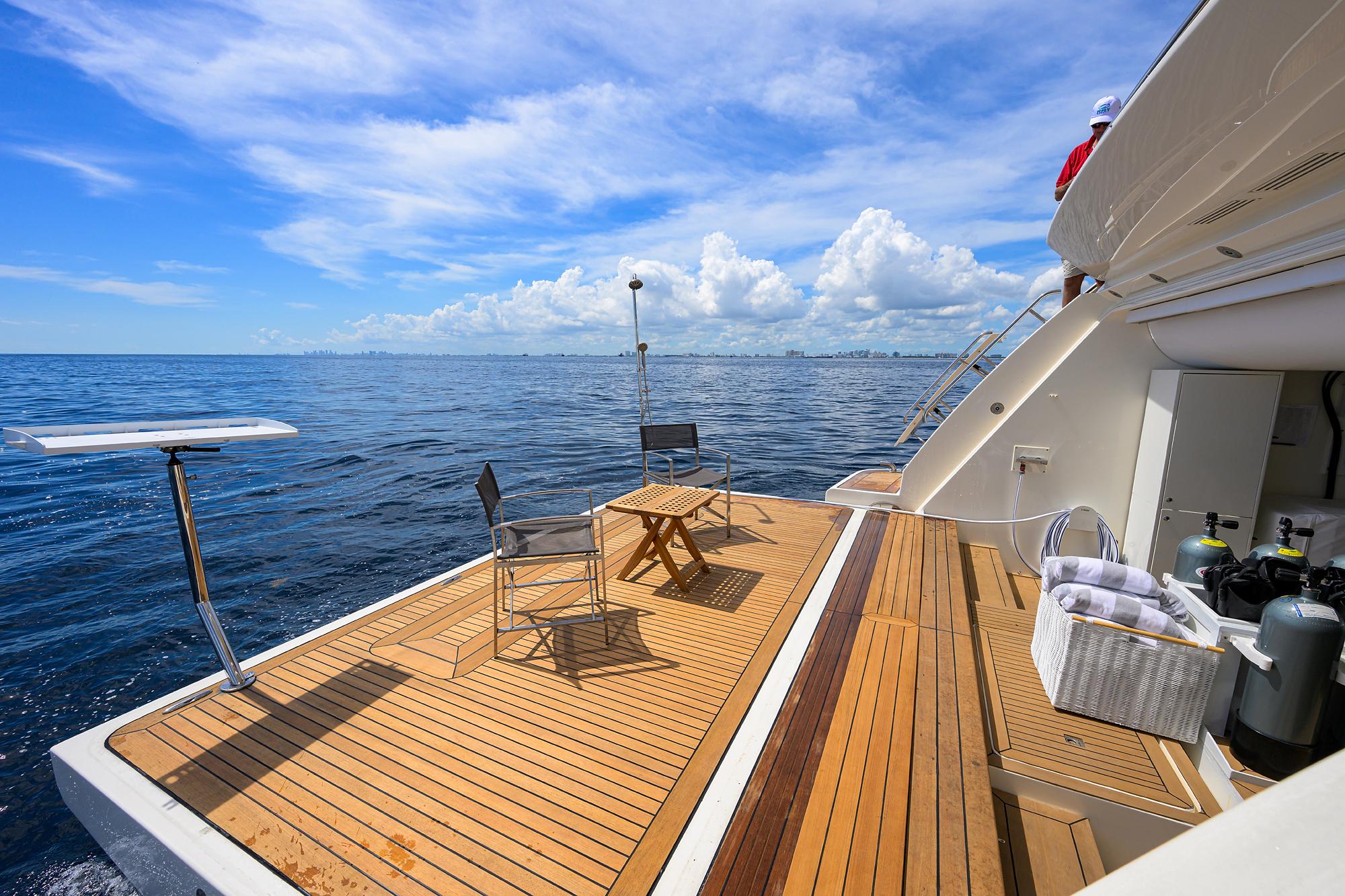

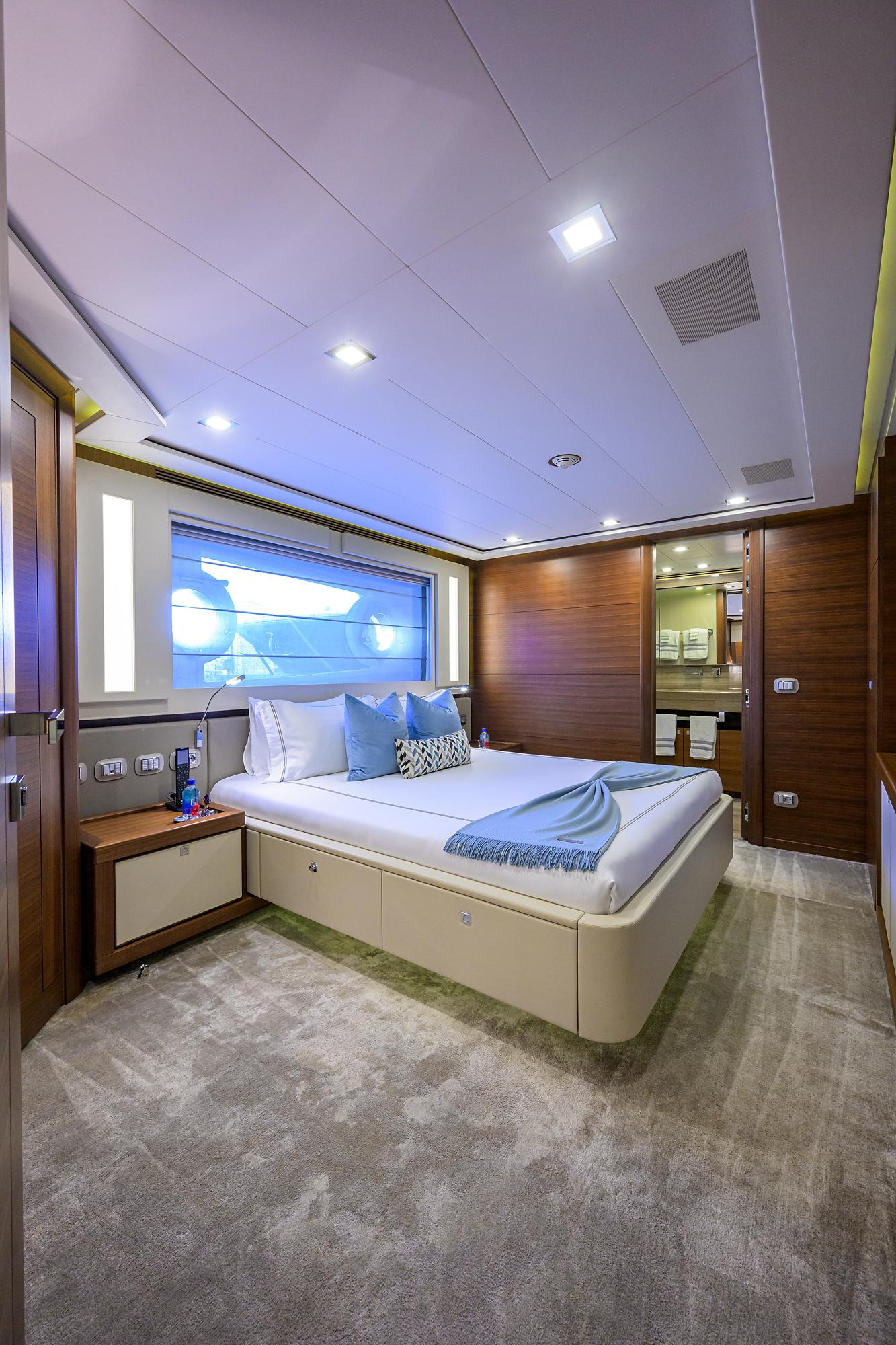

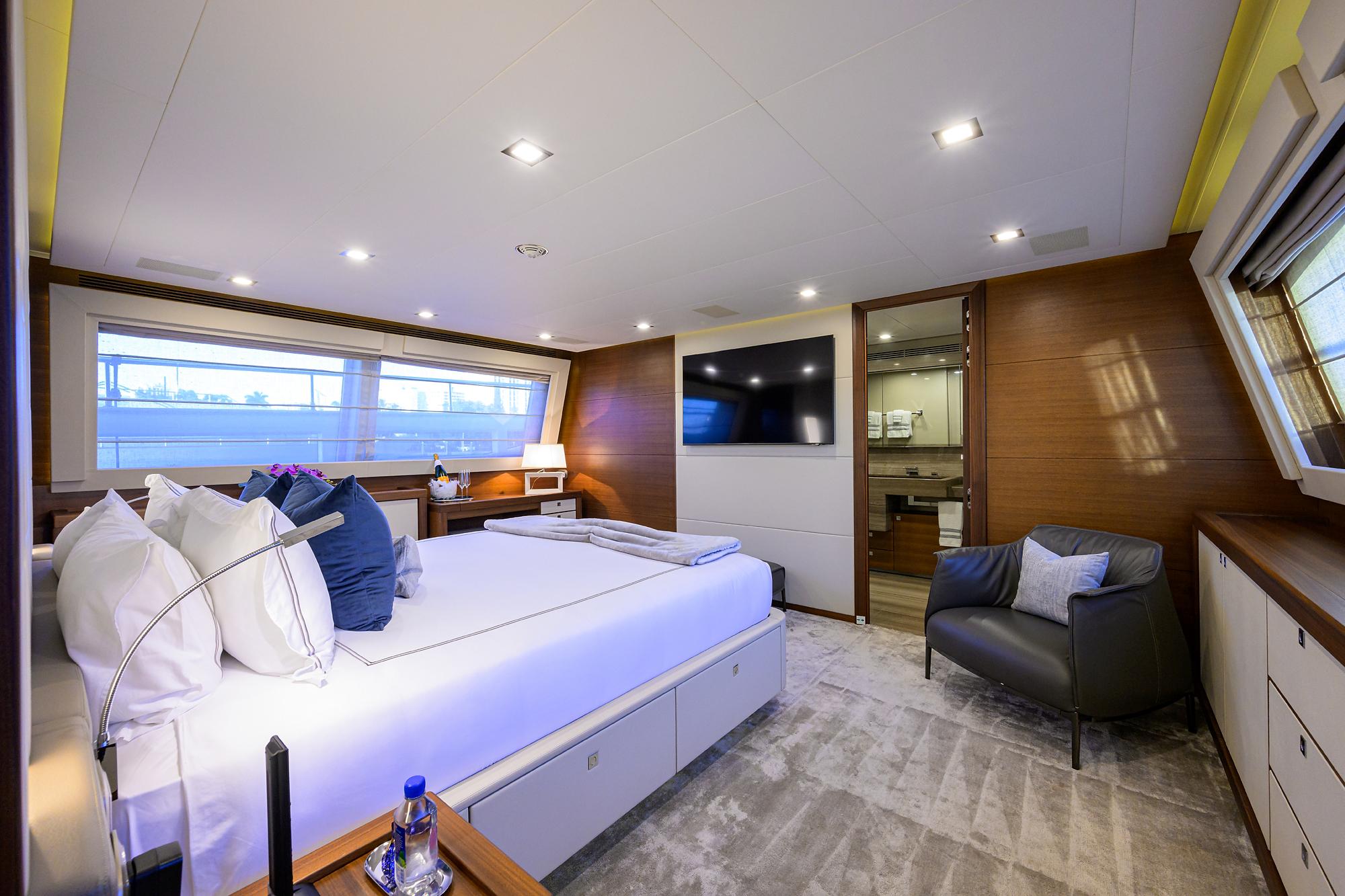

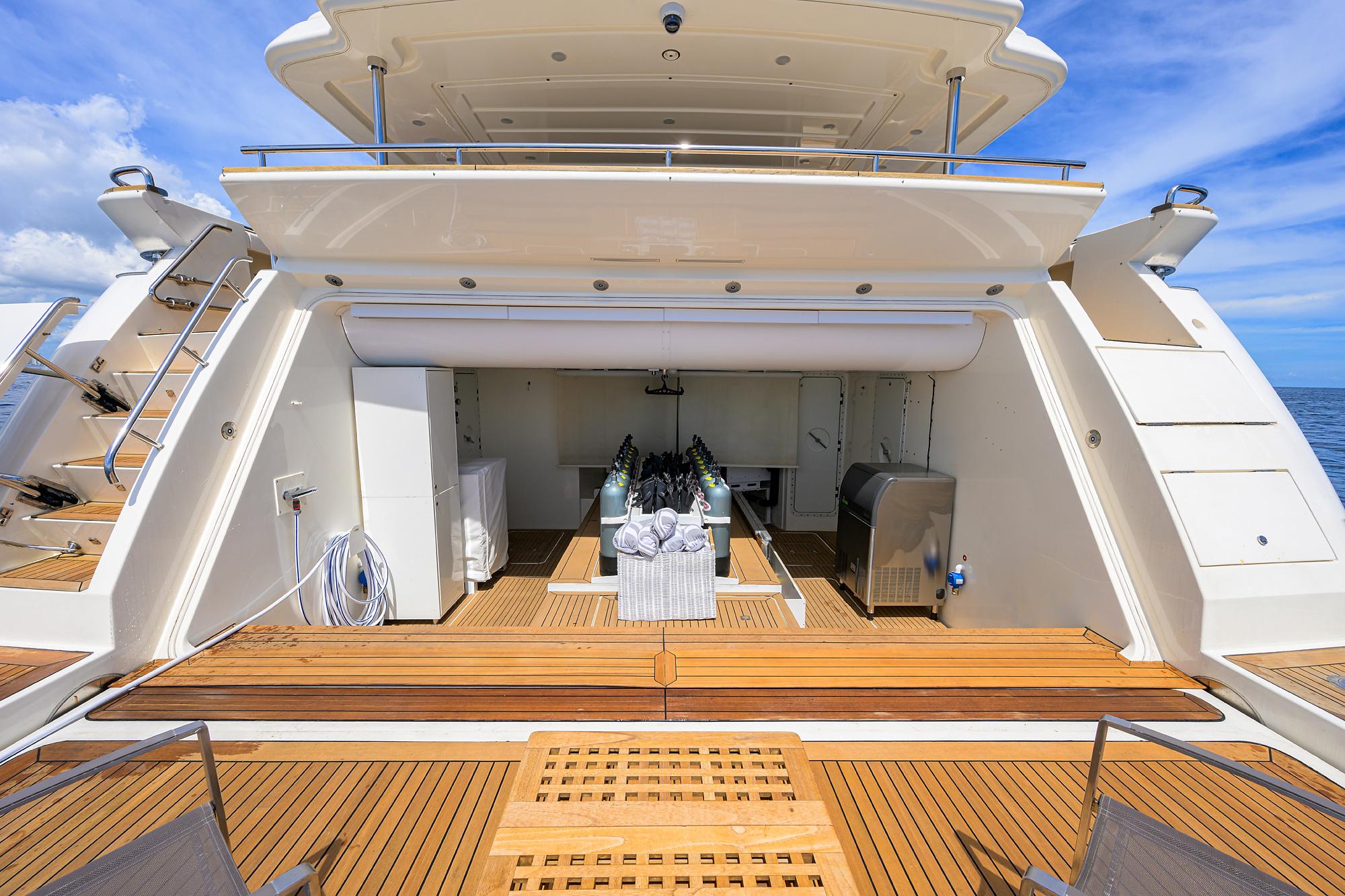

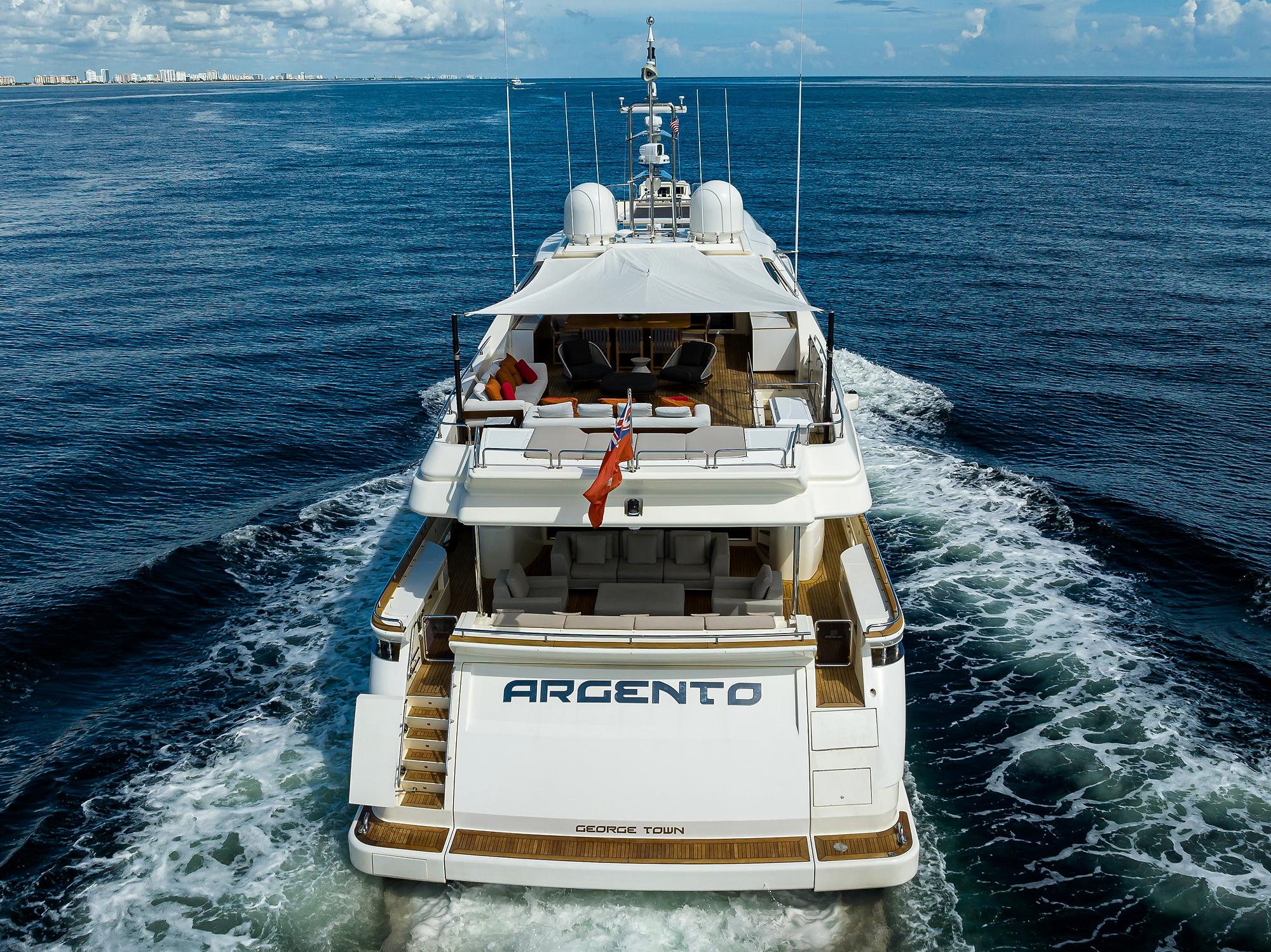

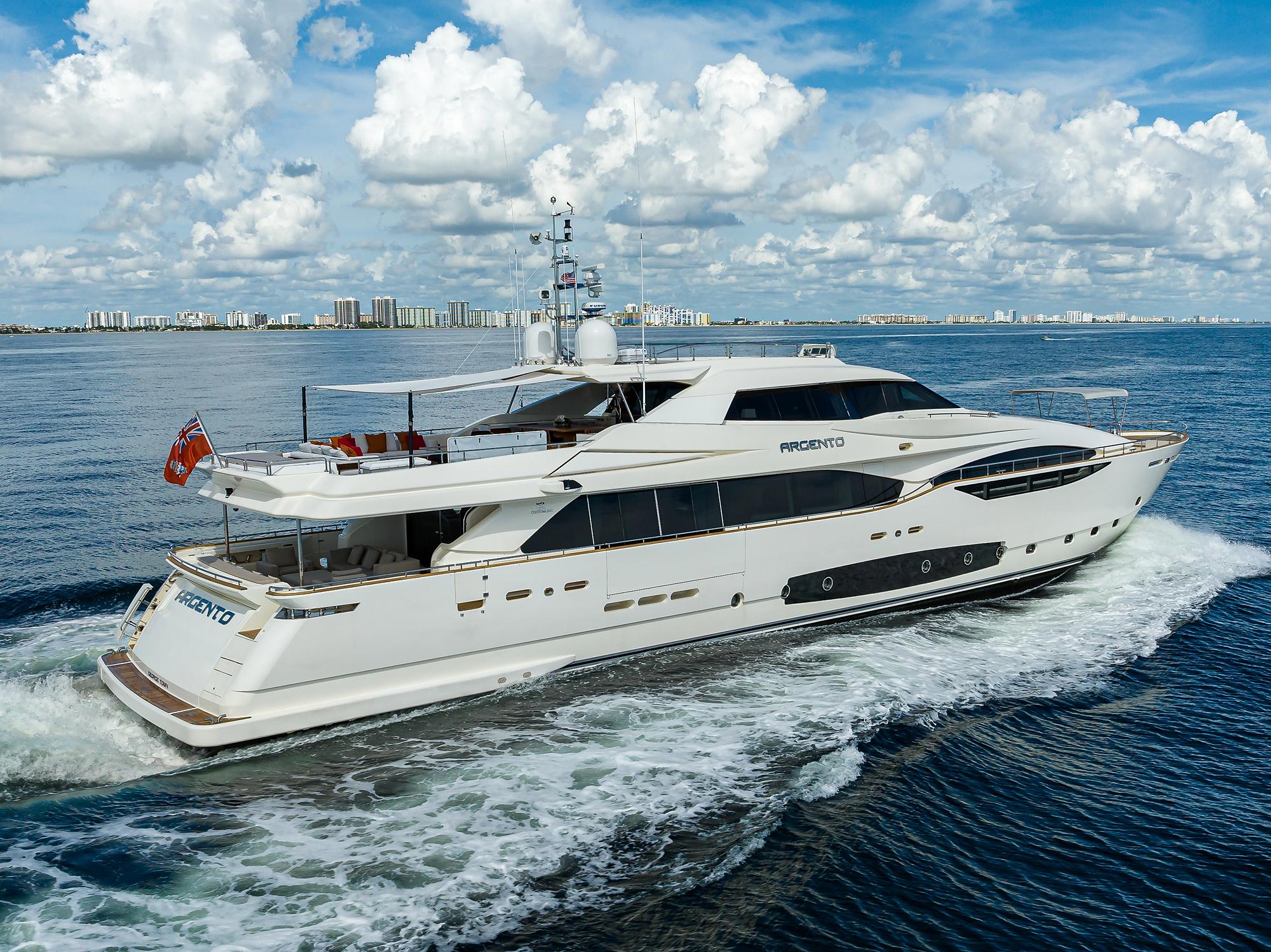

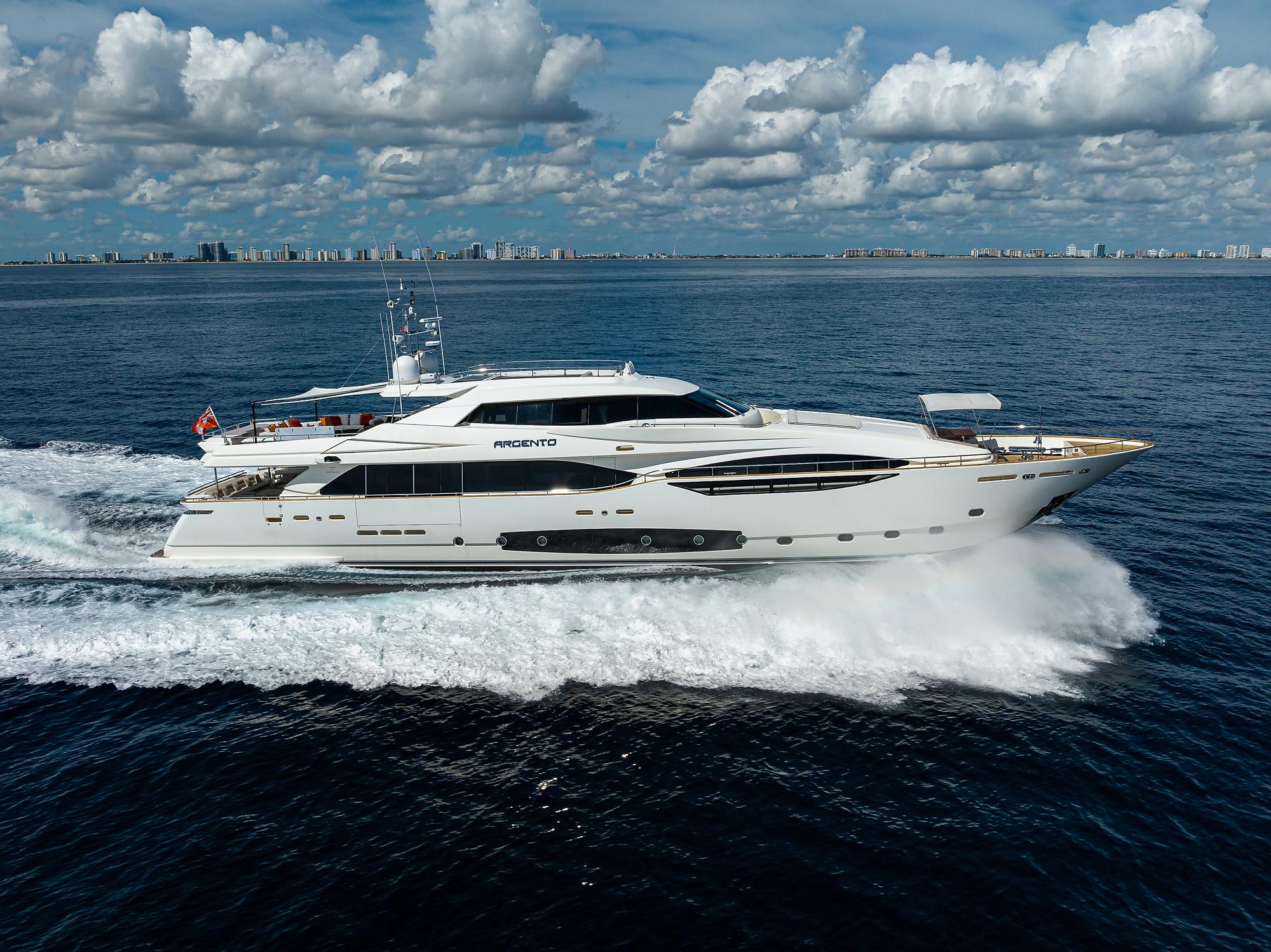

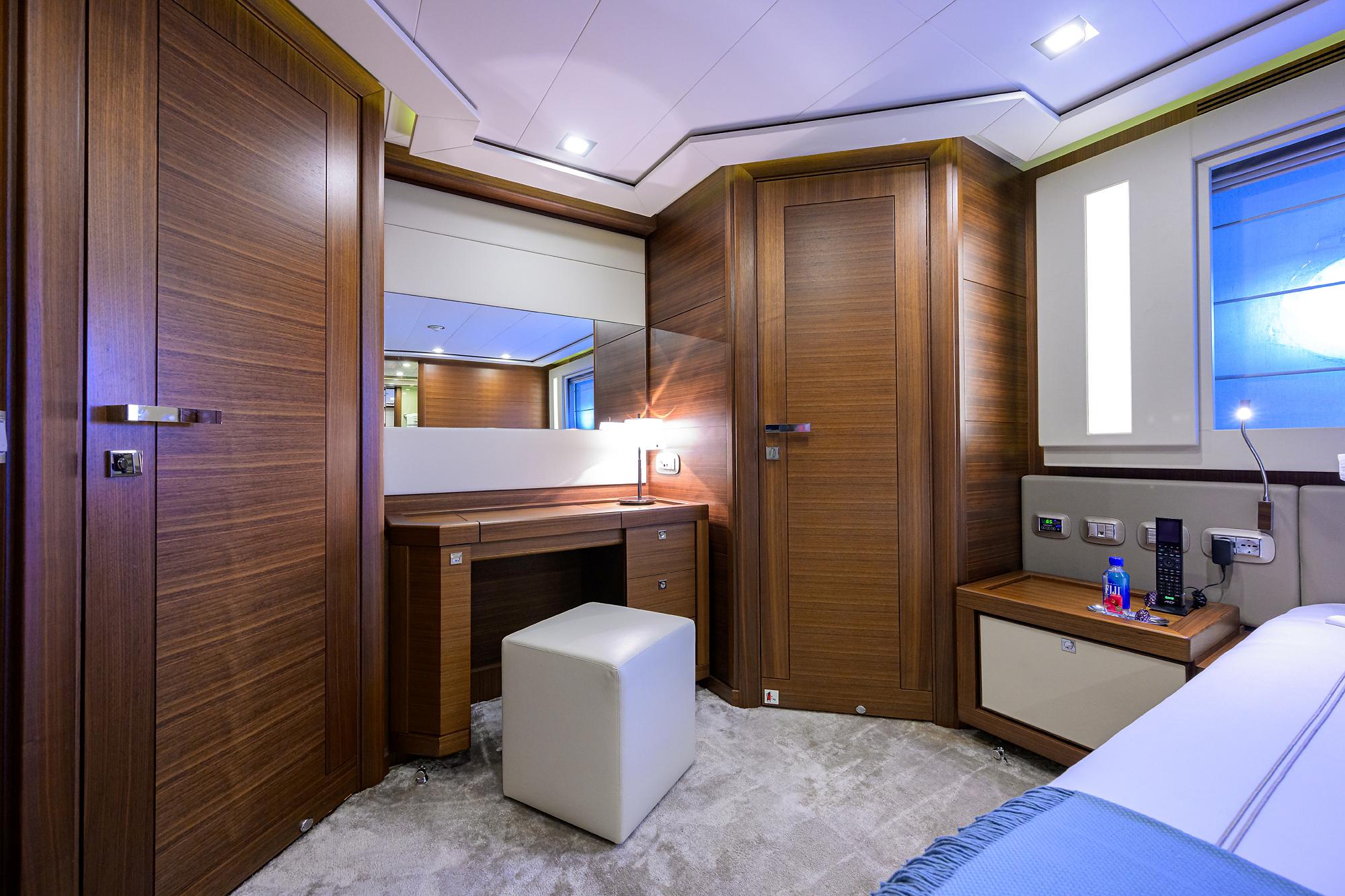

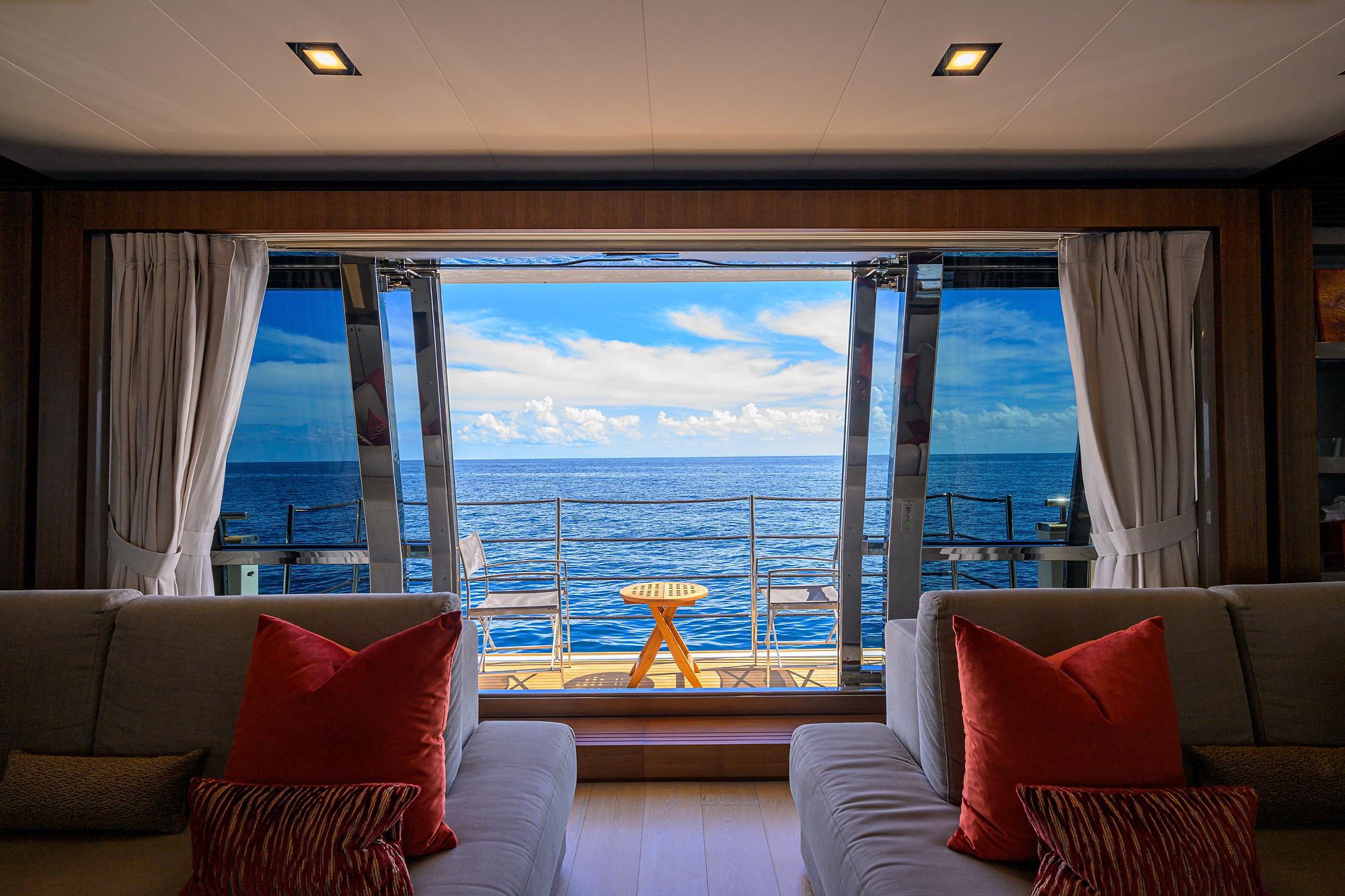

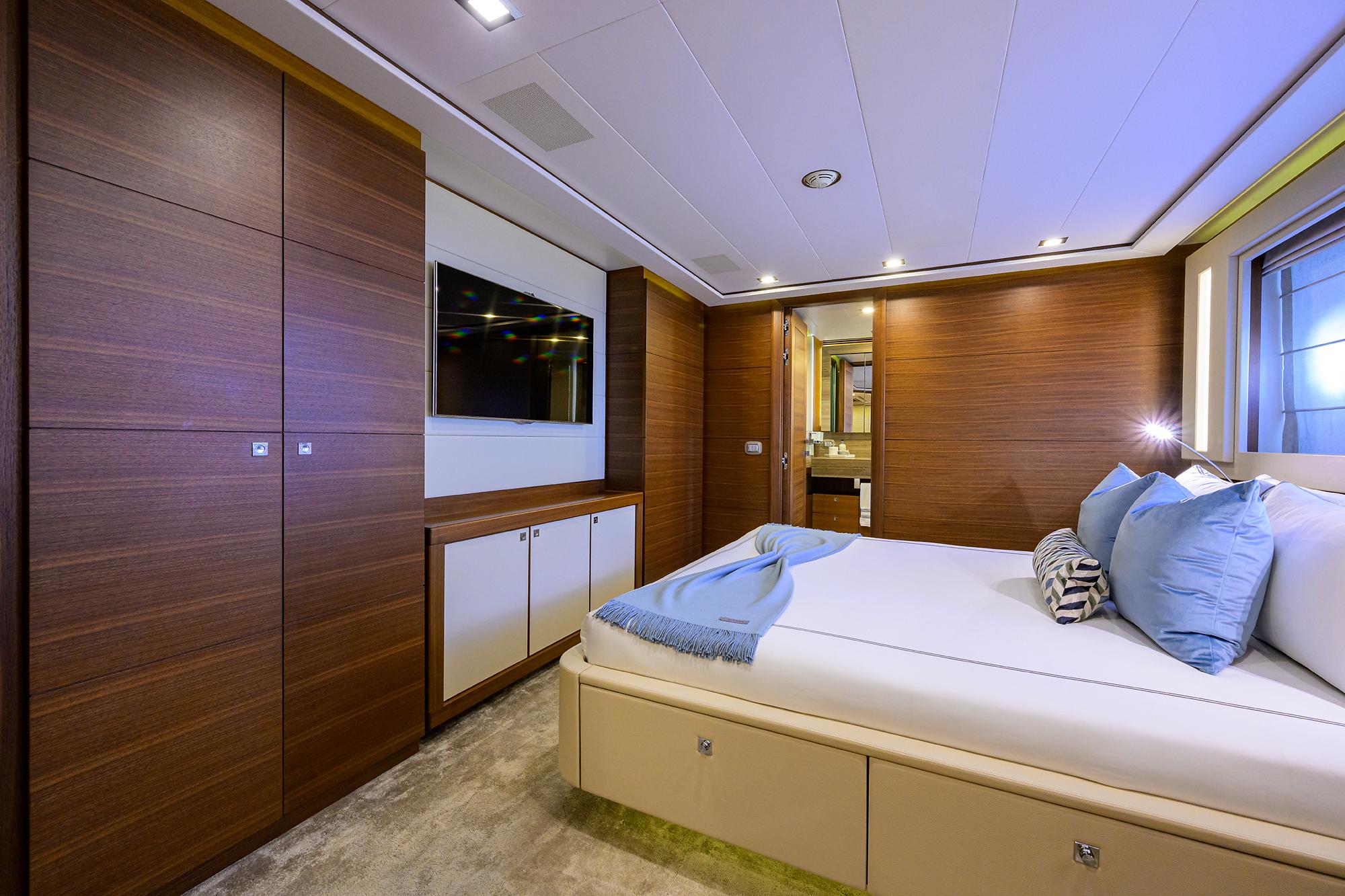

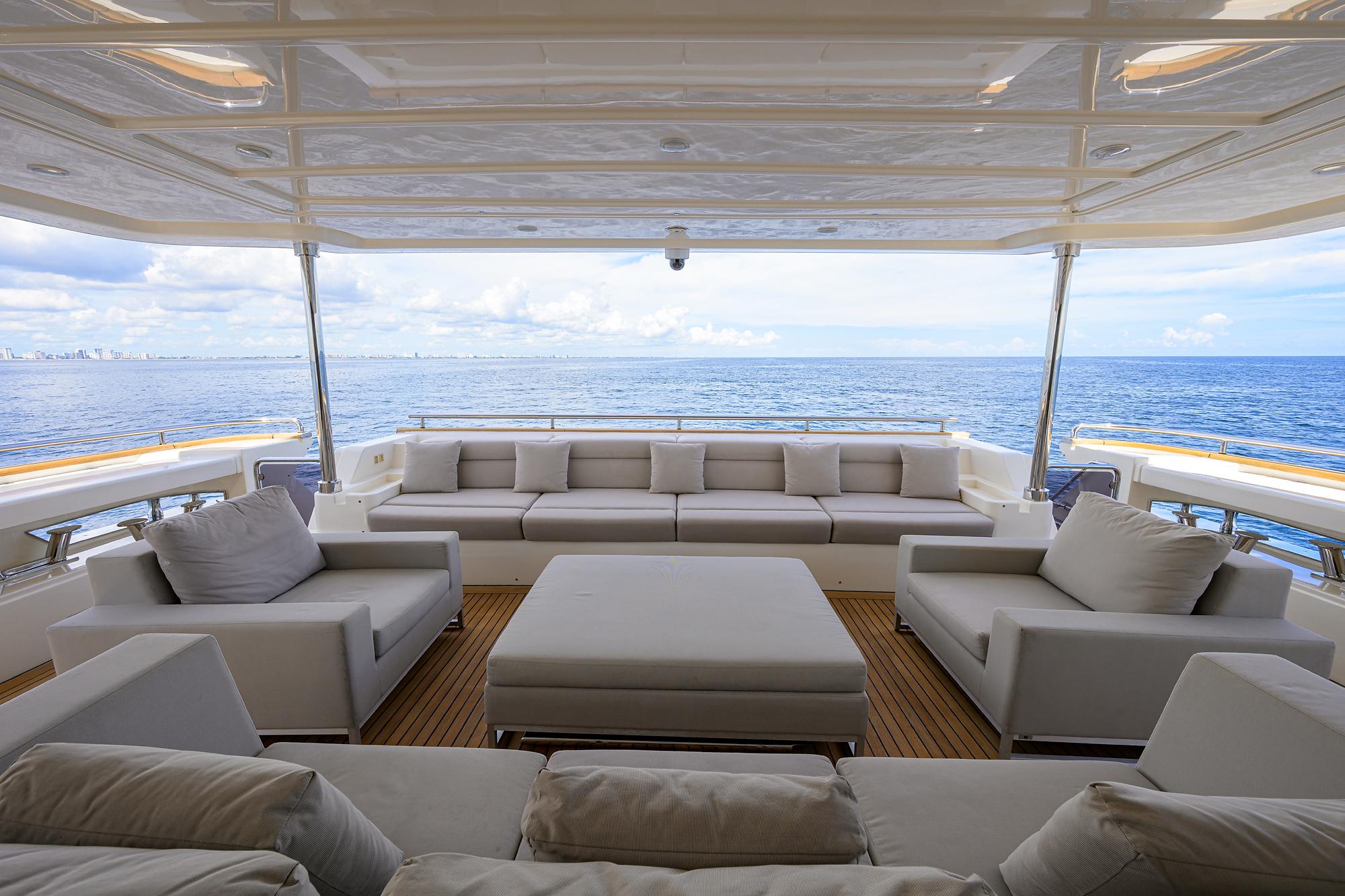

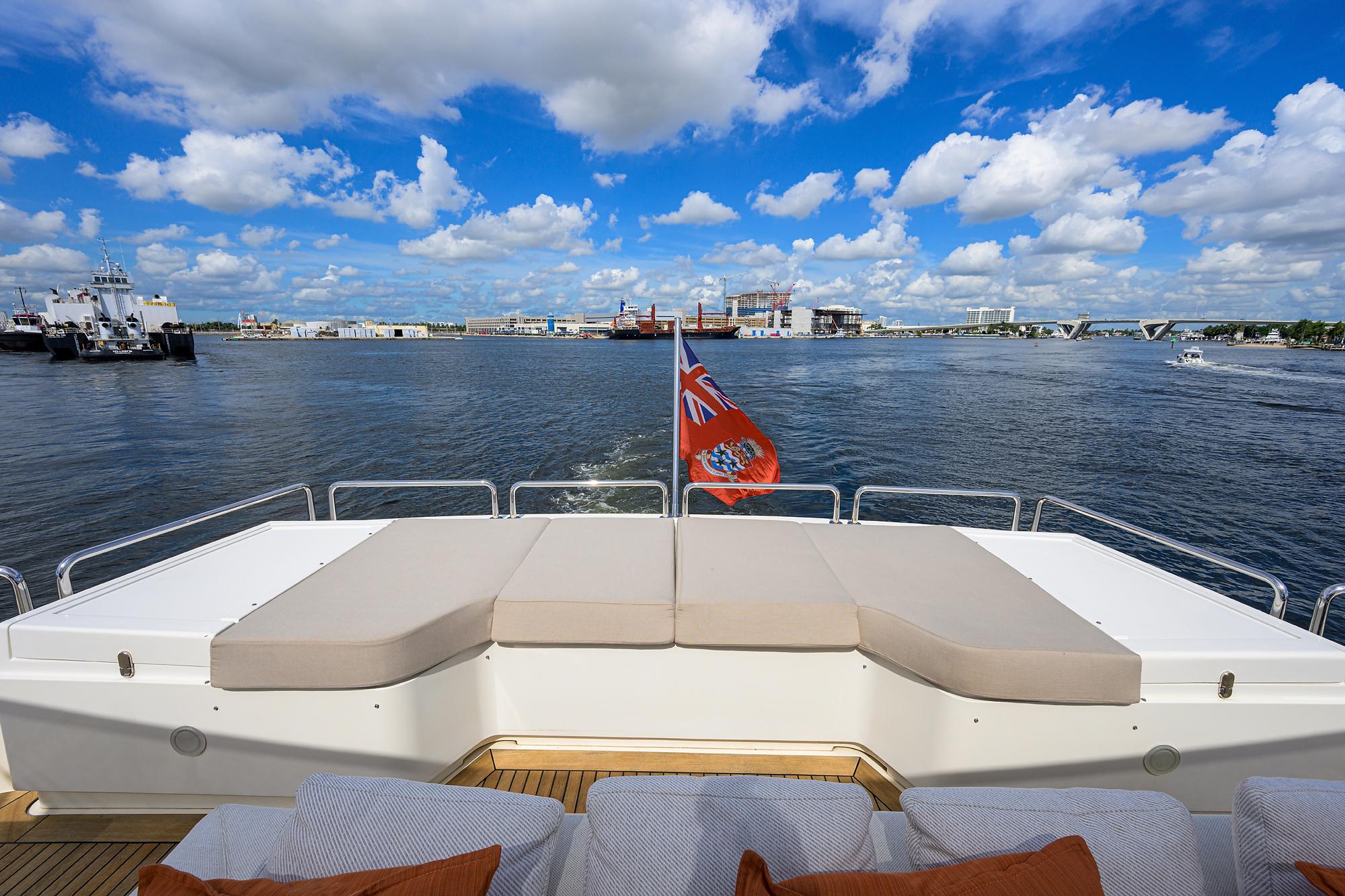

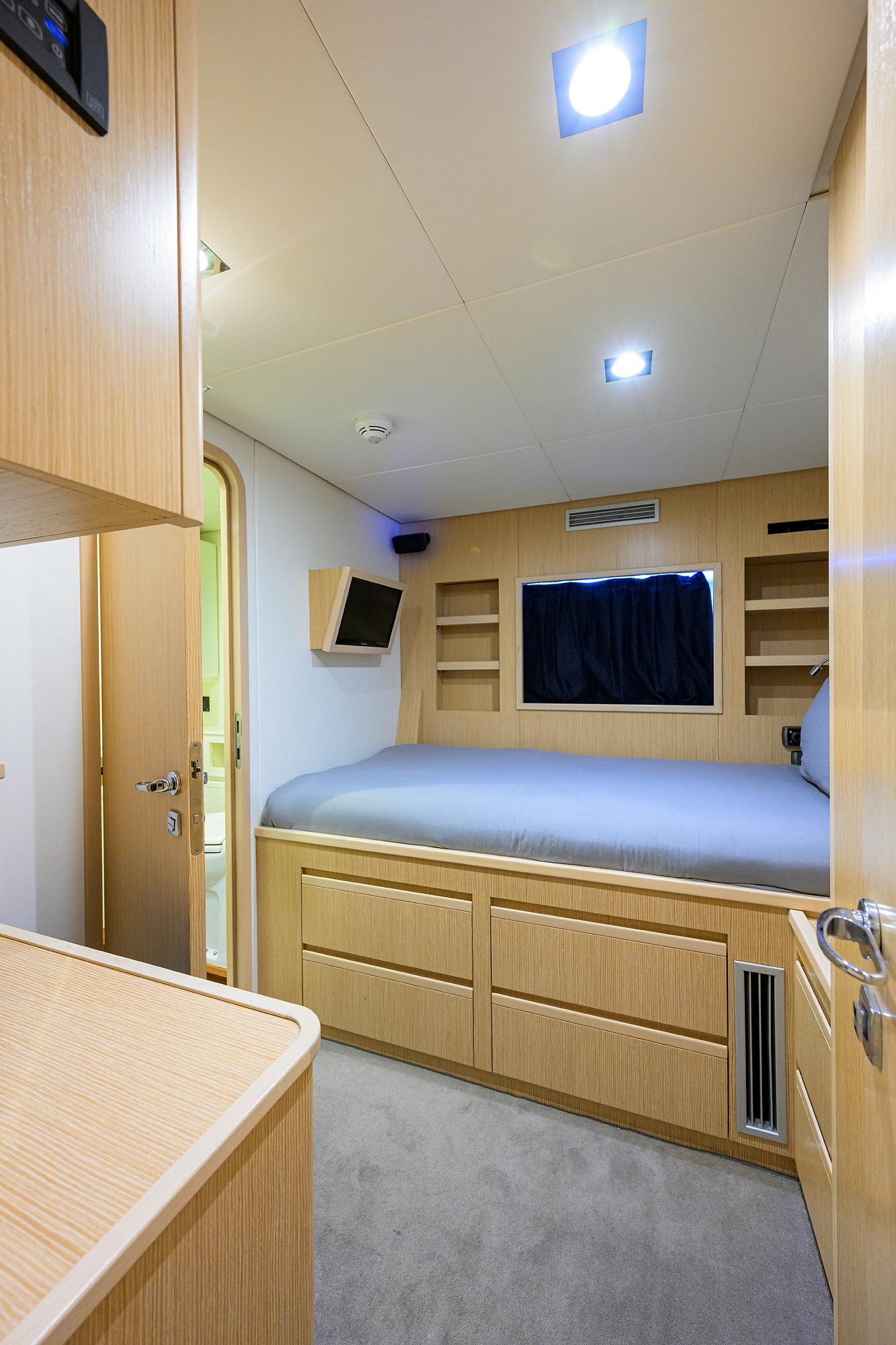

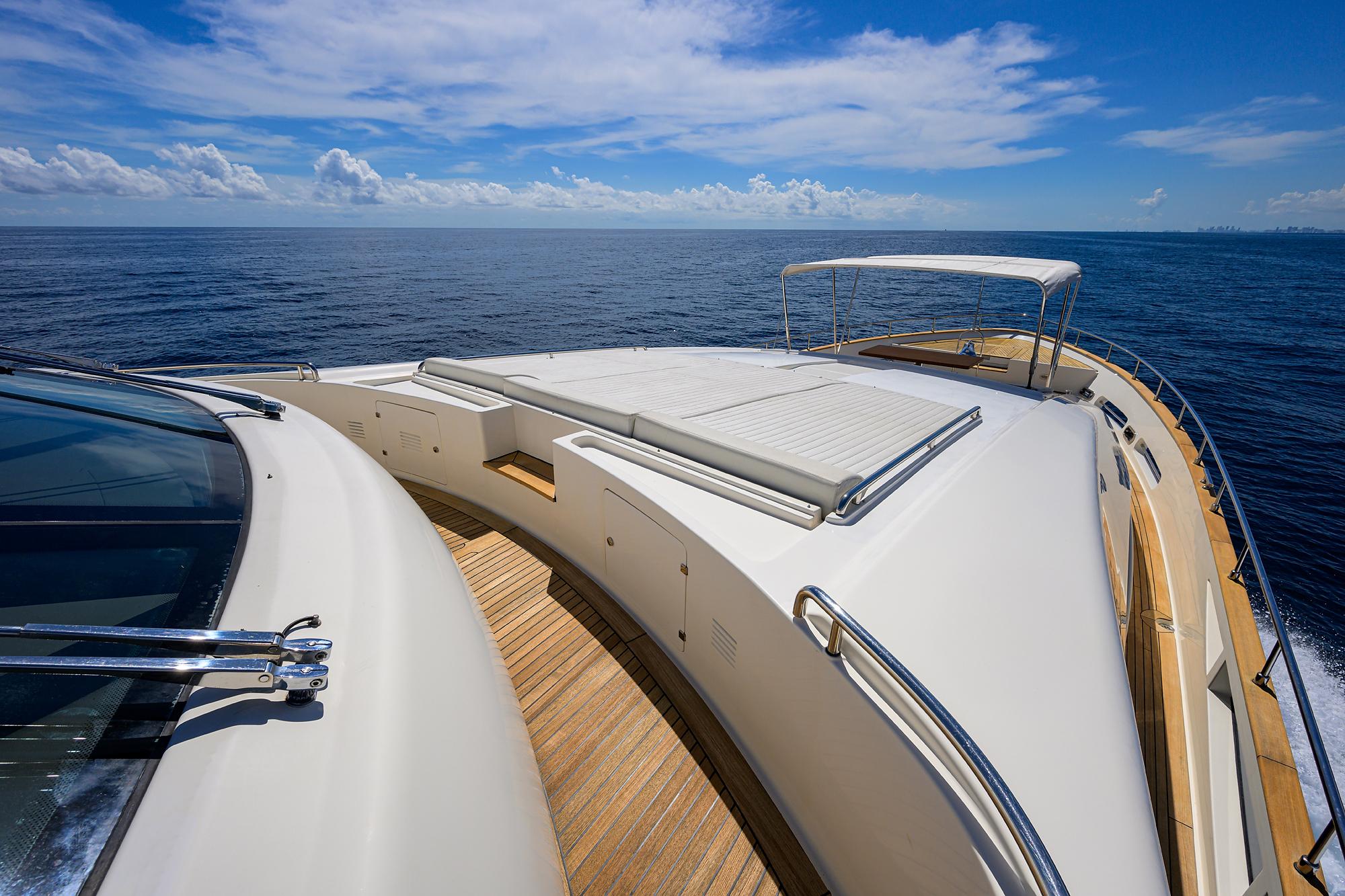

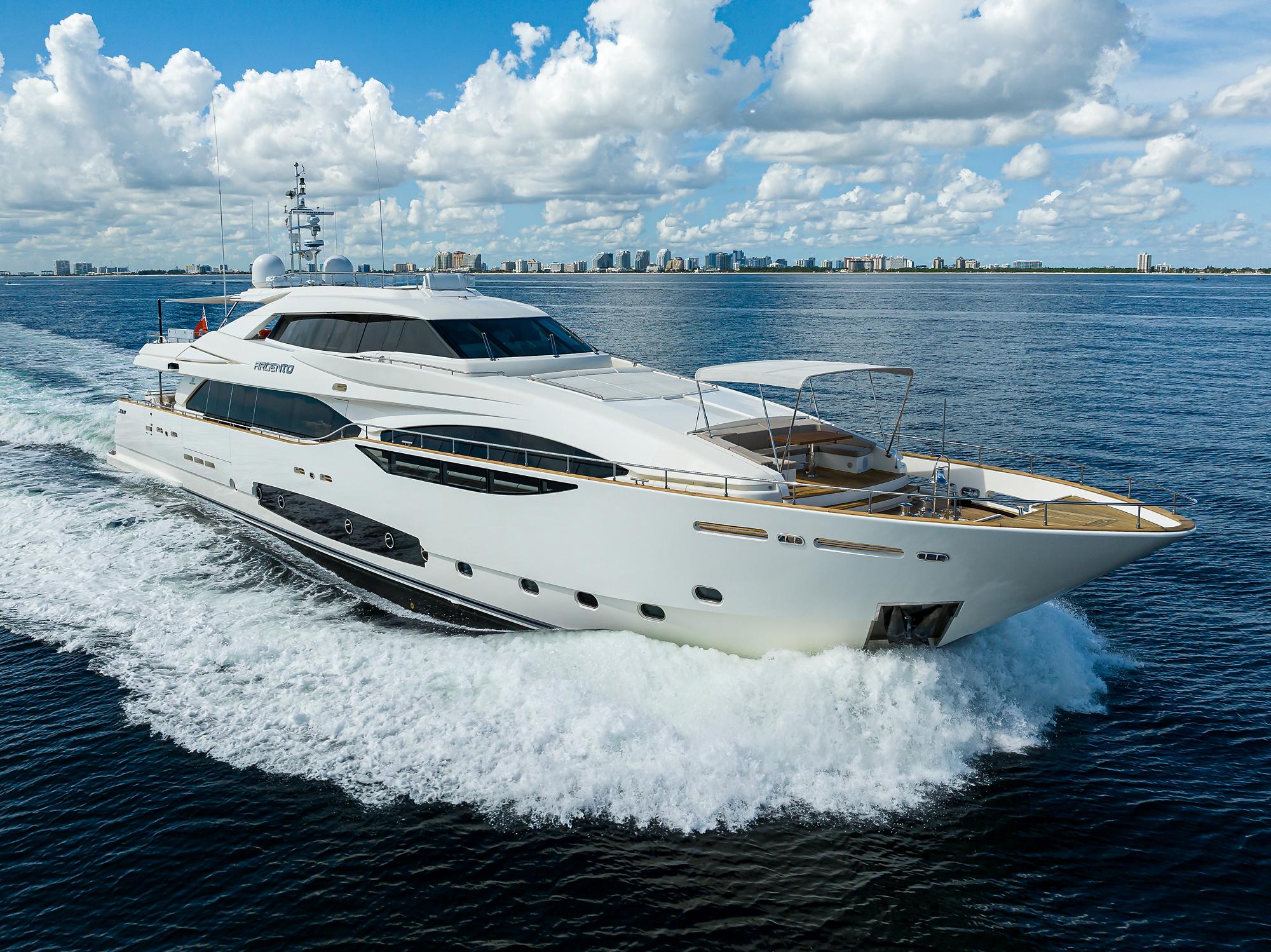

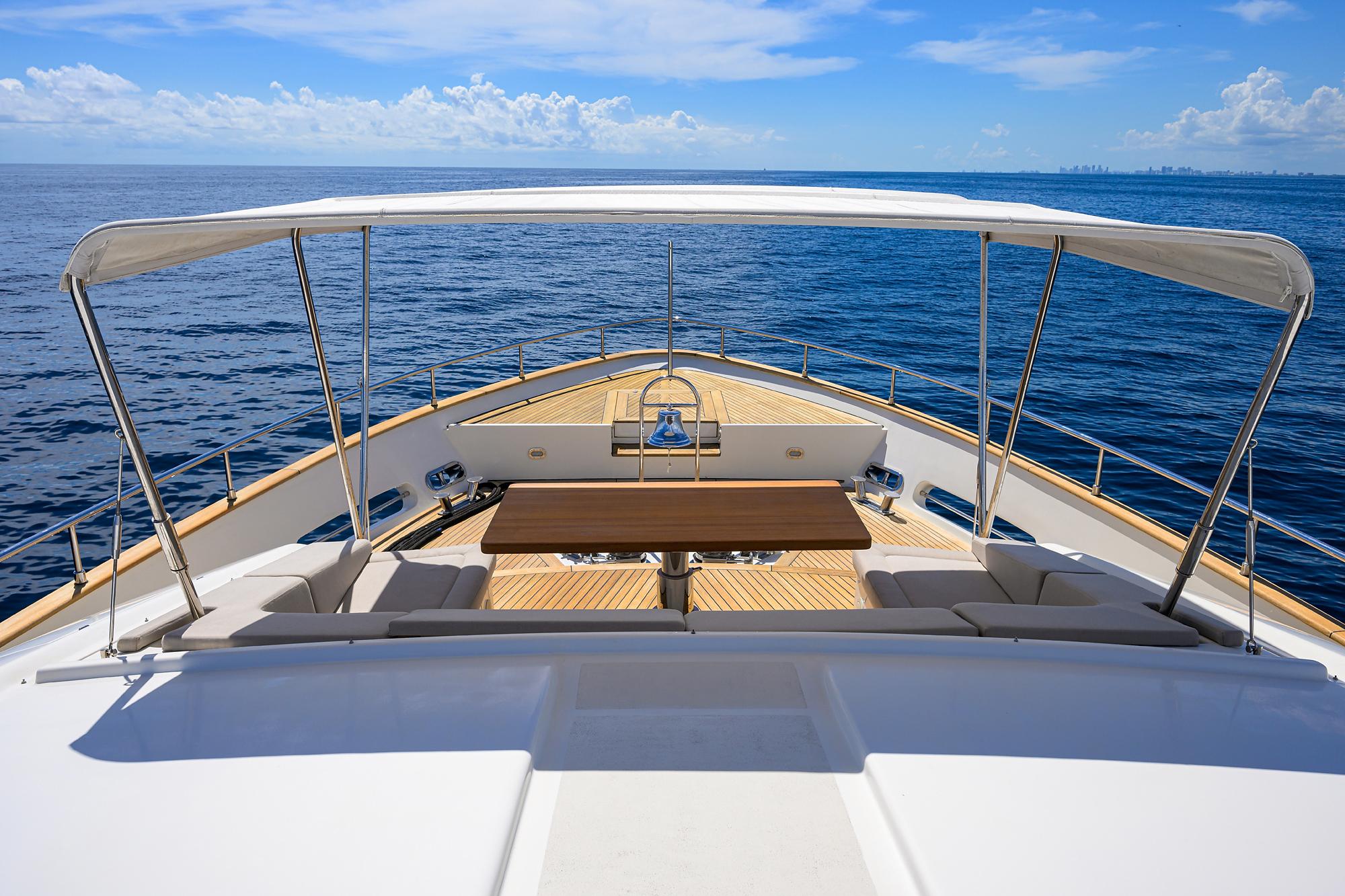

ARGENTO is a rare tri-deck semi displacement yacht under 40m.  She combines striking lines, large deck spaces, a comfortable and tasteful interior, fold out balconies and a large swim platform. Master stateroom on the main deck and four spacious suites on the lower deck, all featuring large windows and ample natural light.

Not Available For Sale to U.S. Residents While In U.S. Waters

MAIN DIMENSIONS

Length Overall:           124'

Length Hull:                124'

Length Waterline:        102'11"

Maximum Width:           24'1"

Draft Under Propellers:   7'8"

Displacement:     418.878 lbs

Max Height:                    27'9"



FEATURES

Fuel Tanks Total Capacity      5,716 gallons

Fresh Water Tanks Capacity     803 gallons

Grey Water Tanks Capacity       500 gallons

Holding Tanks Capacity             500 gallons

Sludge Tanks Capacity              130 gallons

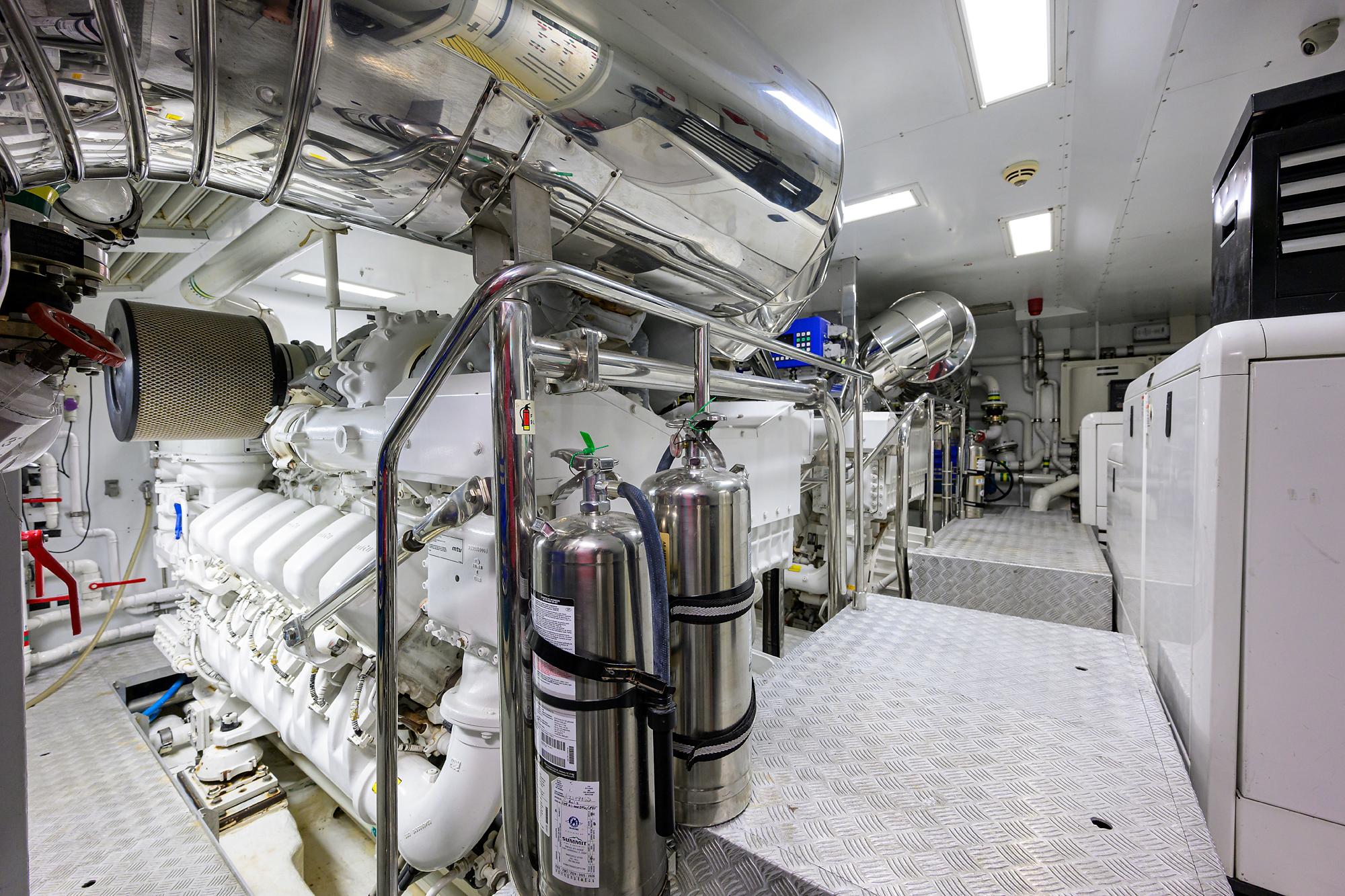

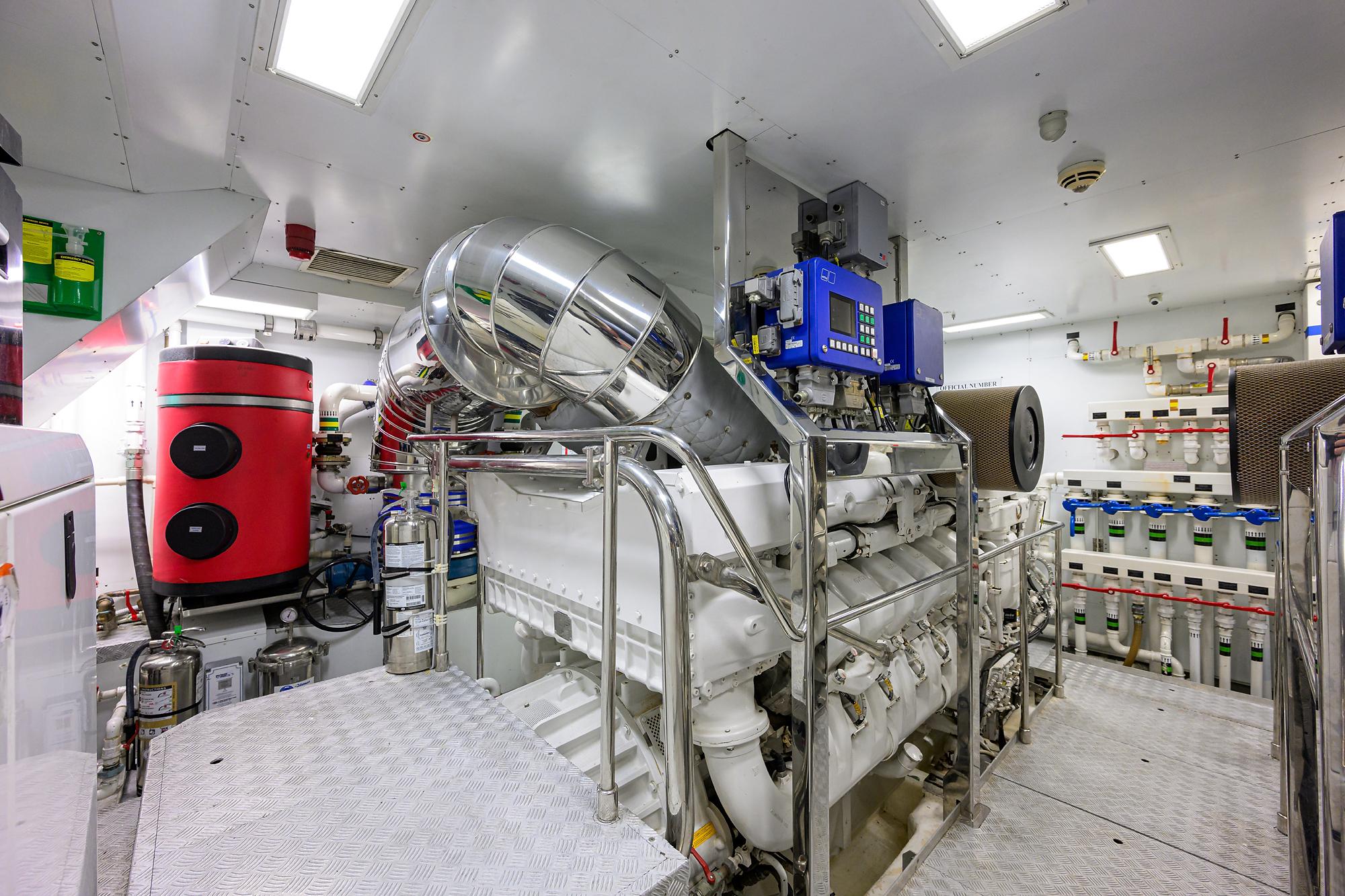

ENGINES

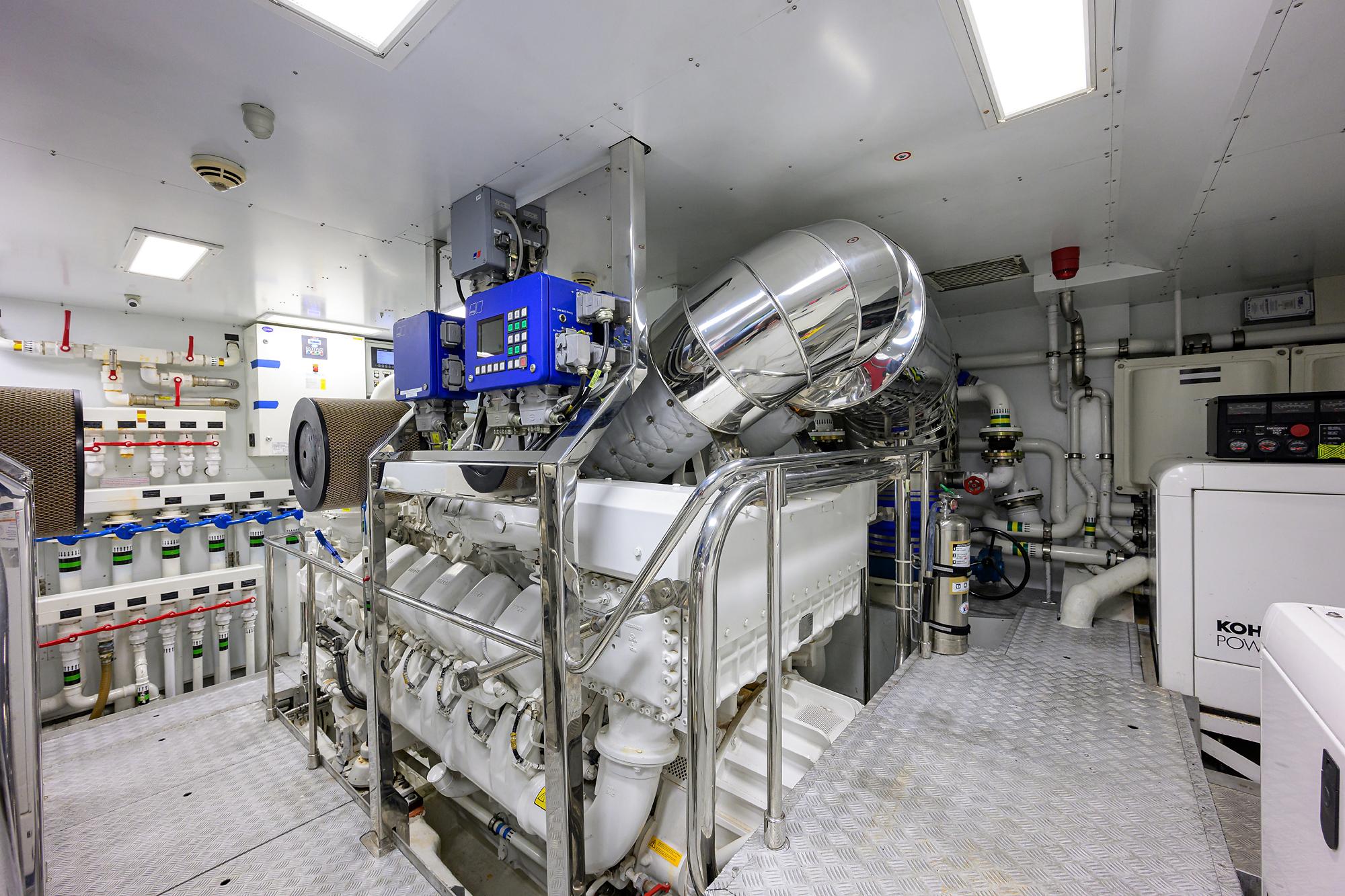

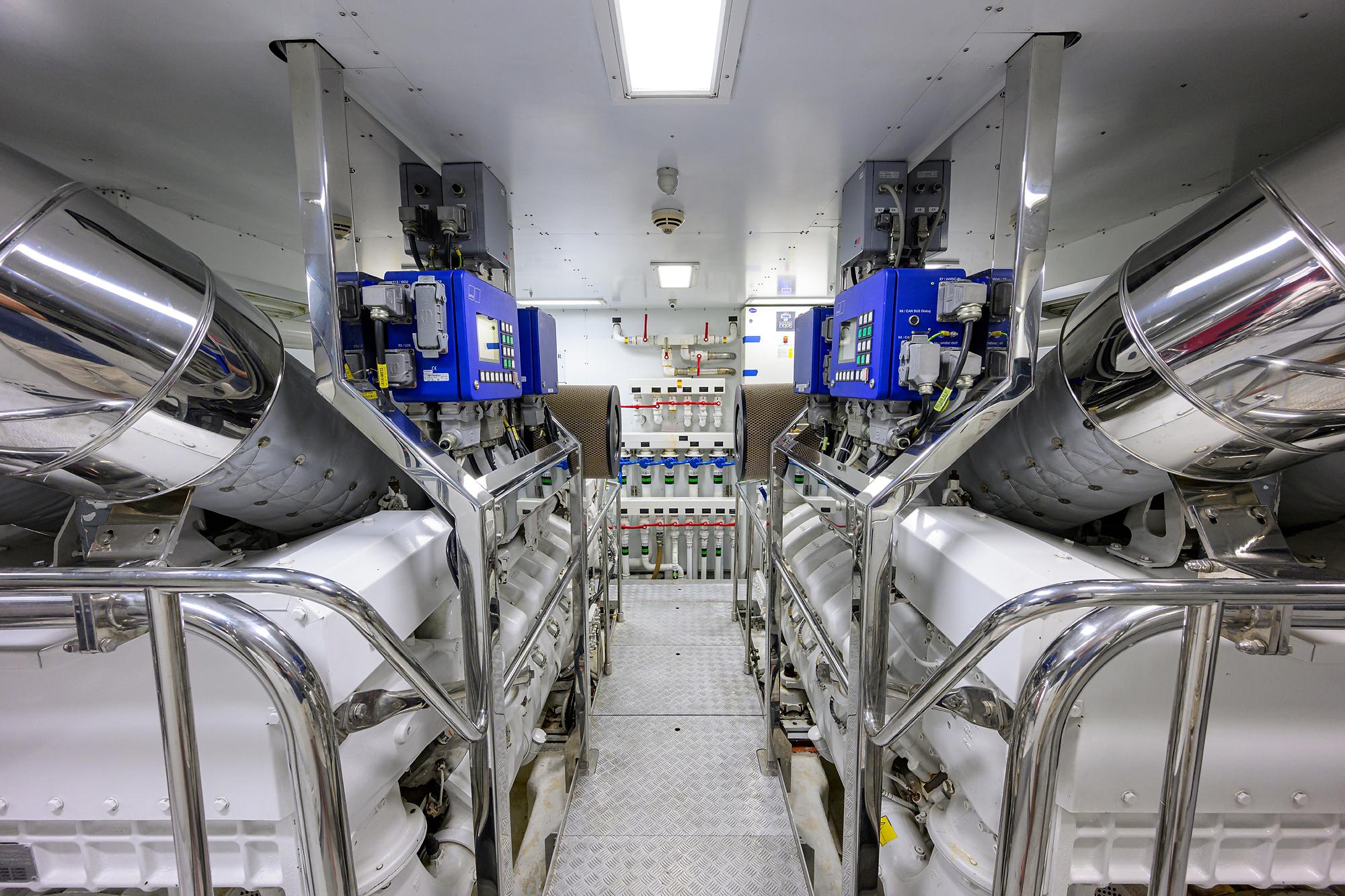

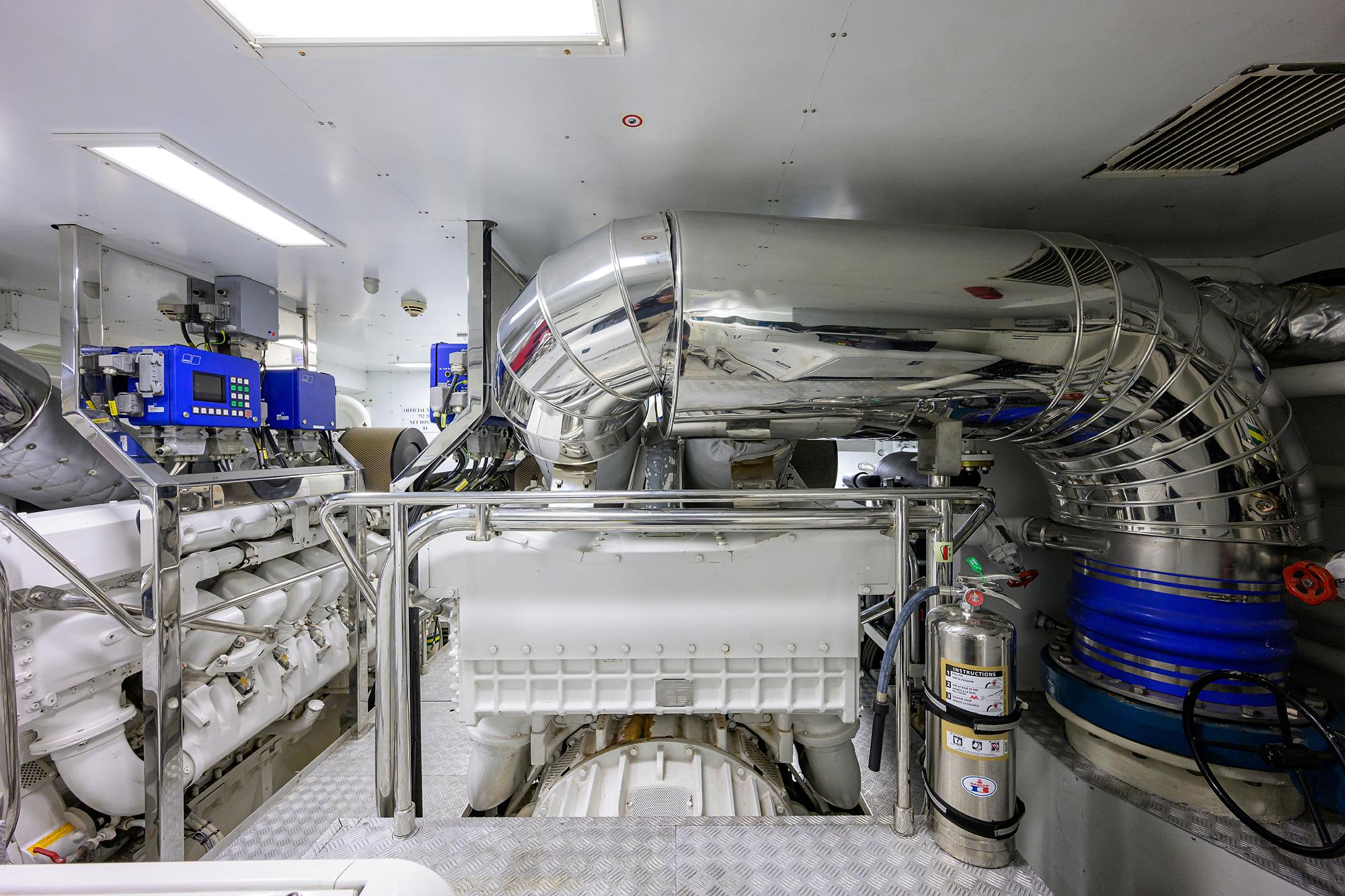

2 X MTU 12 V 4000 M 93 L-2580KW /3510 HP at 2100 rpm with (STBD ENG: 1610 HRS, PORT ENG: 1610 HRS as of 1/2025)

SHAFTS DIAMETER
135 mm, LENGHT: 5660 mm

GEARBOXES
2 X ZF 7600 A , REDUCTION RATIO: 2,957/1

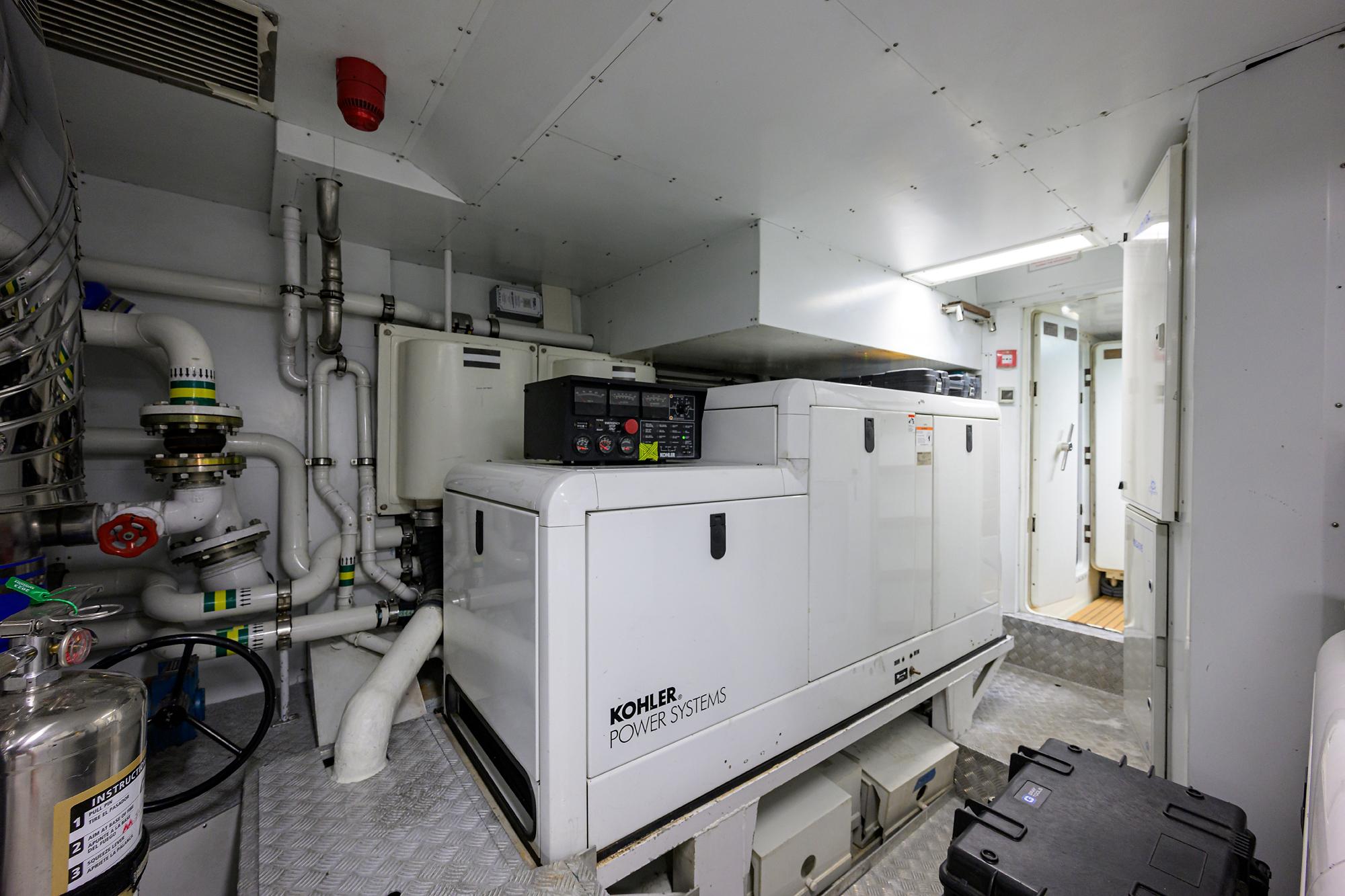

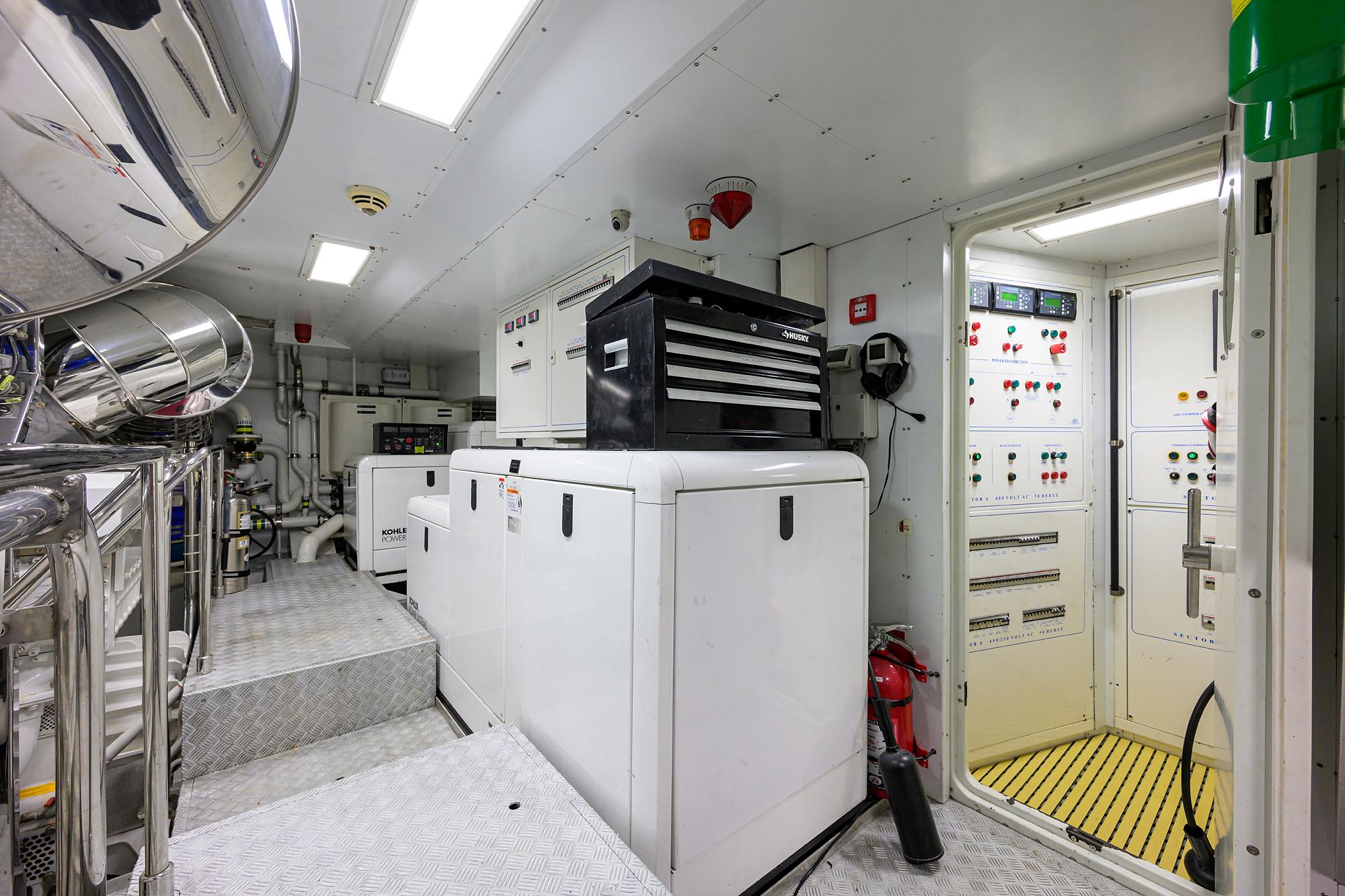

GENERATORS

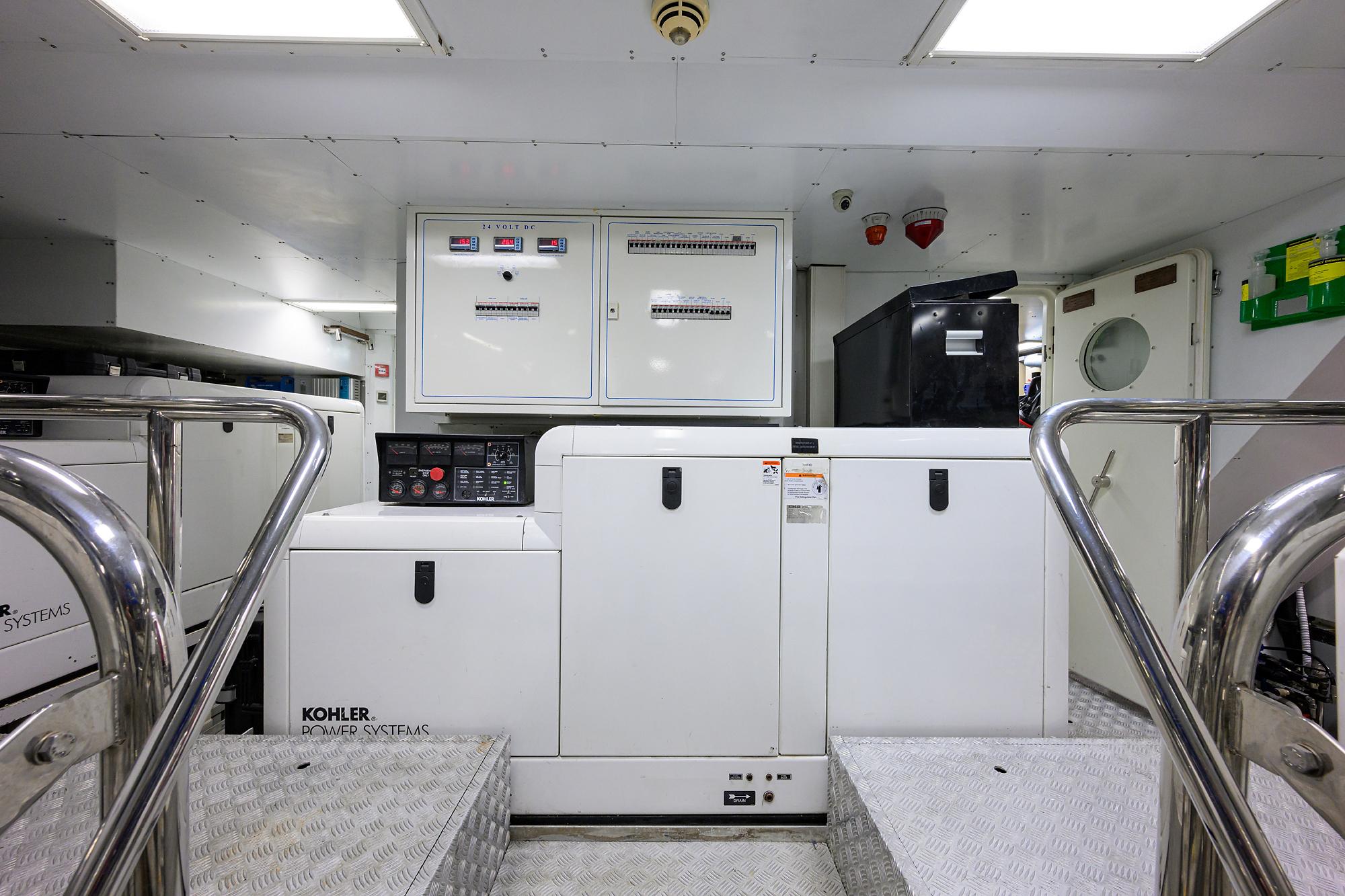

1 X KOHLER EFOZ 70D 70KWe, 400 VAC,50 hz, (12014 HRS as of 1/2025)
1X KOHLER EFOZ 70D 70KWe, 400 VAC, 50hz, (10000 HRS as of 1/2025)

FRESH WATER PUMPS
2 X GIANNESCHI UP 20-30 N 220VAC/50hz

FIRE FIGHTING PUMP
1 X ACM 501 BT 380VAC/50hz. 3Ph

BILGE PUMP
1 X ACM 501 BT 380VAC/50hz. 3Ph

SUBMERGED BILGE PUMPS
12 X RULE 3700 GPH 24VDC

EMERGENCY FUEL TRANSFER PUMP
1 X CP 40 1000 LT/HR 24VDC REVERSIBLE

EMERGENCY DIESEL MOTOR PUMP
1 X M-BMA 40 3.7 kw

GREY WATER PUMP
1 X GIANNESCHI R MV 44

BLACK WATER PUMP
1 X GIANNESCHI R MV 44

BOILERS
1 X QUICK 100 LT 230VAC (2021)
1 X QUICK 80 LT (230VAC -2021)
1 X ANAGES 150 LT 230VAC (2020)

AIR CONDITIONING
1 X CONDARIA TROPICAL 324.000BTU/HR- Kcal 27520
25 X FANCOILS WITH DIFFERENT CAPACITY

BATTERY CHARGERS
1 X MASTERVOLT MASS 100 AMP
1 X MASTERVOLT MASS 75 AMP
1 X MASTERVOLT MASS 50 AMPINVERTER
1 X MASTERVOLT 24VDC, 70AMP, 1500VA

ENGINE STARTER BATTERIES
4 X MASTERVOLT AGM 12VDC 230 AMP/H

SERVICE BATTERIES
4 X MASTERVOLT DEEP CYCLE GEL 12VDC 230 AMP/H

GENERATOR BATTERIES
2 X MASTERVOLT AGM 12VDC 230 AMP/H

EMERGENCY BATTERIES
2 X MASTERVOLT DEEP CYCLE GEL 12VDC 165 AMP/H

MTU BLUEBOX BATTERIES
2 X MASTERVOLT DEEP CYCLE GEL 12VDC 165 AMP/H

ISOLATION TRANSFORMER
2 X ASEA 45KVA WATER COOLED 8/23

ANCHOR
2 X 175 KG

ANCHOR CHAIN
2 X 160 METERS, DIAMETER 14.5 MM

ANCHOR WINCH
2 X LOFRANS 380VAC/3500 WATT

WARPING
2 X LOFRANS 380VAC/2500 WATT

ENGINE ROOM EXTRACTORS
2 X ELL 355/2

FUEL SEPERATORS
2 X RACOR 73/1000 HAMP

DIESEL FUEL CLEANING
2 X MAHLE KFWA 2.000 LT/HRS

FUEL WATER SEPERATORS
2 X RACOR 500 HAM (Generators)

HUMPHREE INTERCEPTOR
2 X H1050 PLATE

BOW THRUSTER
1 X AMERICAN BOW THRUSTER, HYDRAULIC, 20 İNCH

STERN THRUSTER
1 X AMERICAN BOW THRUSTER, HYDRAULIC, 16 İNCH

FINS
2 X TRAC 370

GYRO STABILIZERS
4 X MITSIBUSHI MSM 37500 ARG 375 T

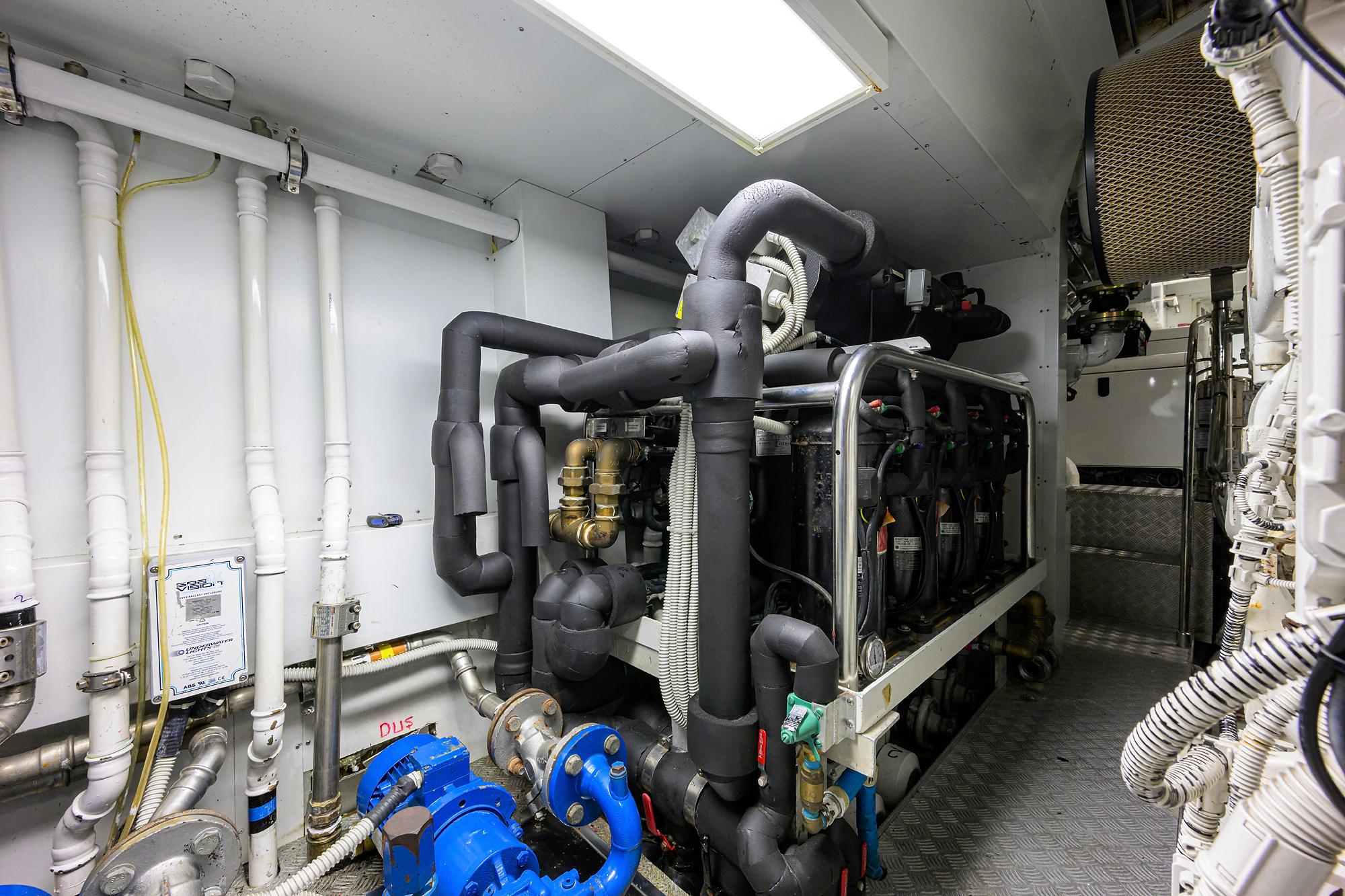

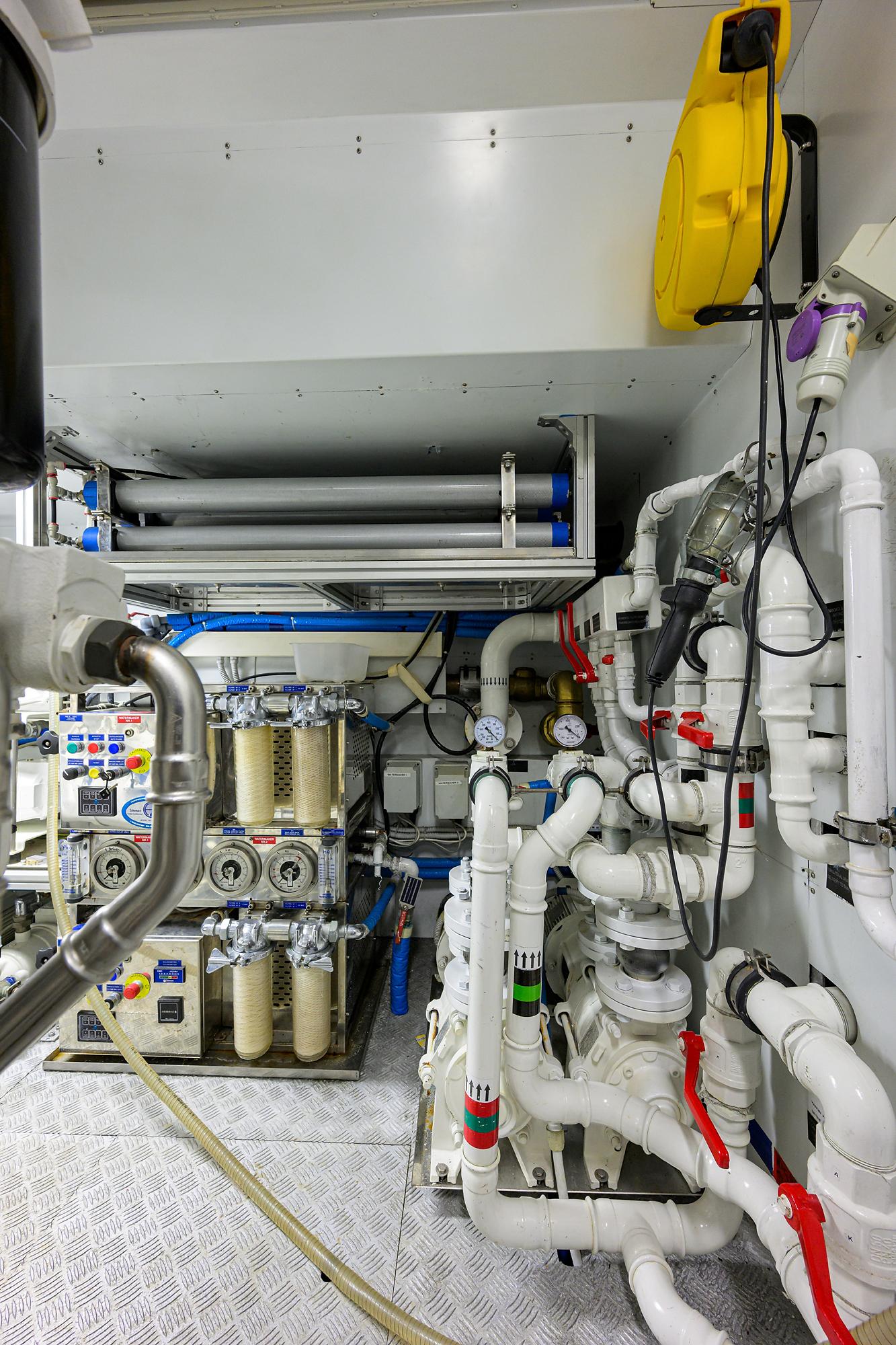

WATERMAKER
2 X IDROMAR MC5 DUPLEX 250LT+250LT, CARBON FİBER TUBES
