CONSTRUCTION
RCD Status:
• Our understanding is that the yacht complies with the EU’s Recreational Craft Directive and is categorised CE certification A – Ocean for up to 16 crew.
Hull, Deck & Superstructure Construction:
• Semi-displacement hull form
• Hand laminated GRP hull, deck and superstructure
• Polyurethane core sandwich to deck and superstructure
• Underwater sections treated with epoxy barrier
• Hull reinforcement via full length cored FRP longitudinal galvanised steel girders in the hull bottom with local transverse floors
• GRP long keel profile
• Anodised aluminum window frames with safety glass
• Port lights in moulded stainless steel
• All exterior stainless steel fittings polished stainless steel 316

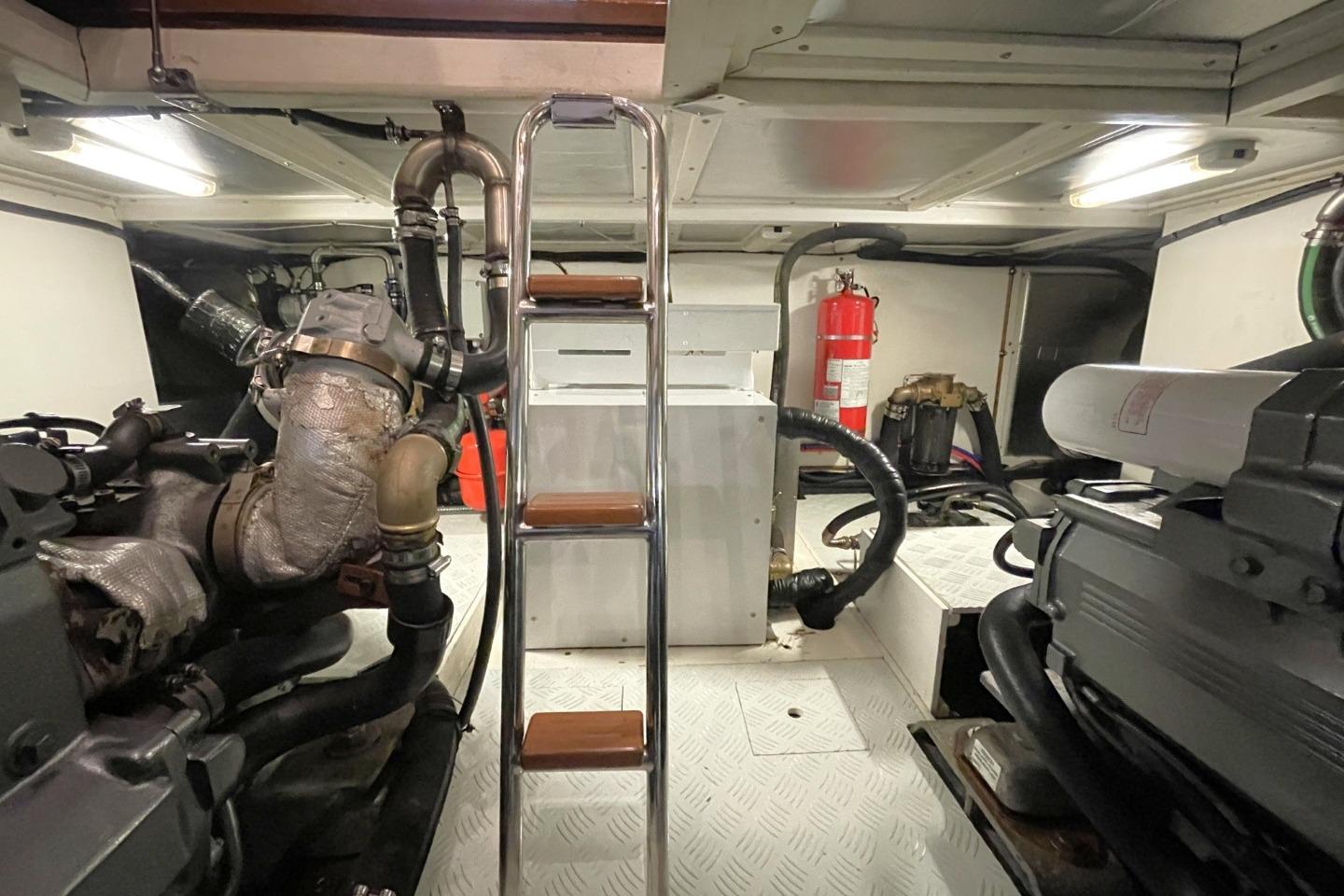

MACHINERY

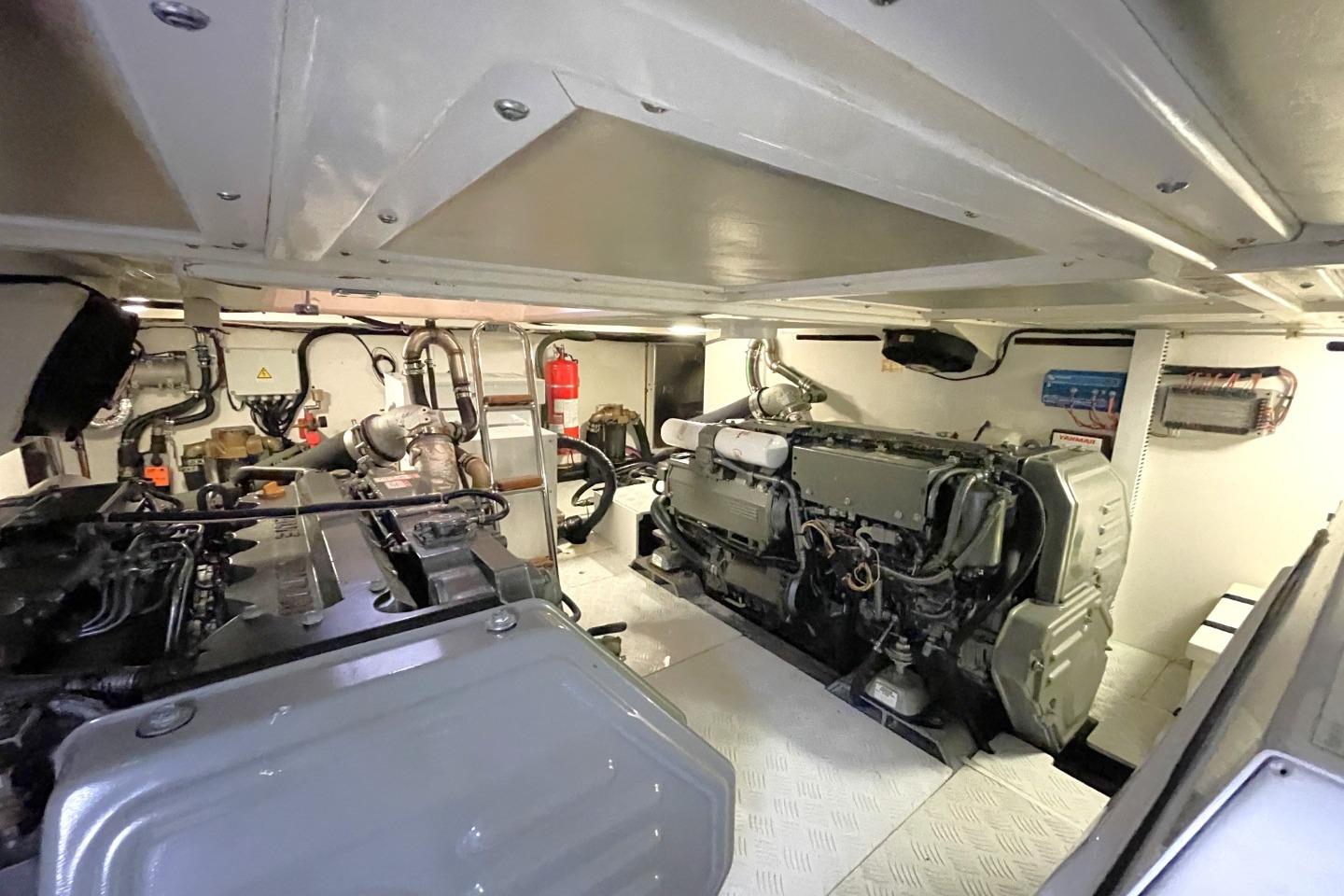

Engine & gearbox:
• 2x Yanmar 6LY3A-STP, 6-cylinder, direct injection, common rail, turbo intercooled marine diesel engines producing approx. 440hp (324kw) @ 3,300rpm
• Fresh water engine cooling via raw water intake and heat exchangers
• ZF reduction gearboxes – 2023
• Electronic gear/throttle controls at both helms and third station in aft cockpit for mooring
• I5601E digital engine control monitoring system
• Custom intake/exhaust system with intake vent on hull side CE norm
Service & Maintenance:
• Engine hours – approx. 2,200 each engine at the time of the listing
• Date of last engine service – 2025 with new shaft seals
Performance (Approximate):
• Cruising speed – approx. 9 knots
• Maximum speed – approx. 14 knots
• Fuel consumption at cruising speed – approx. 11 litres per hour
Propulsion & Steering:

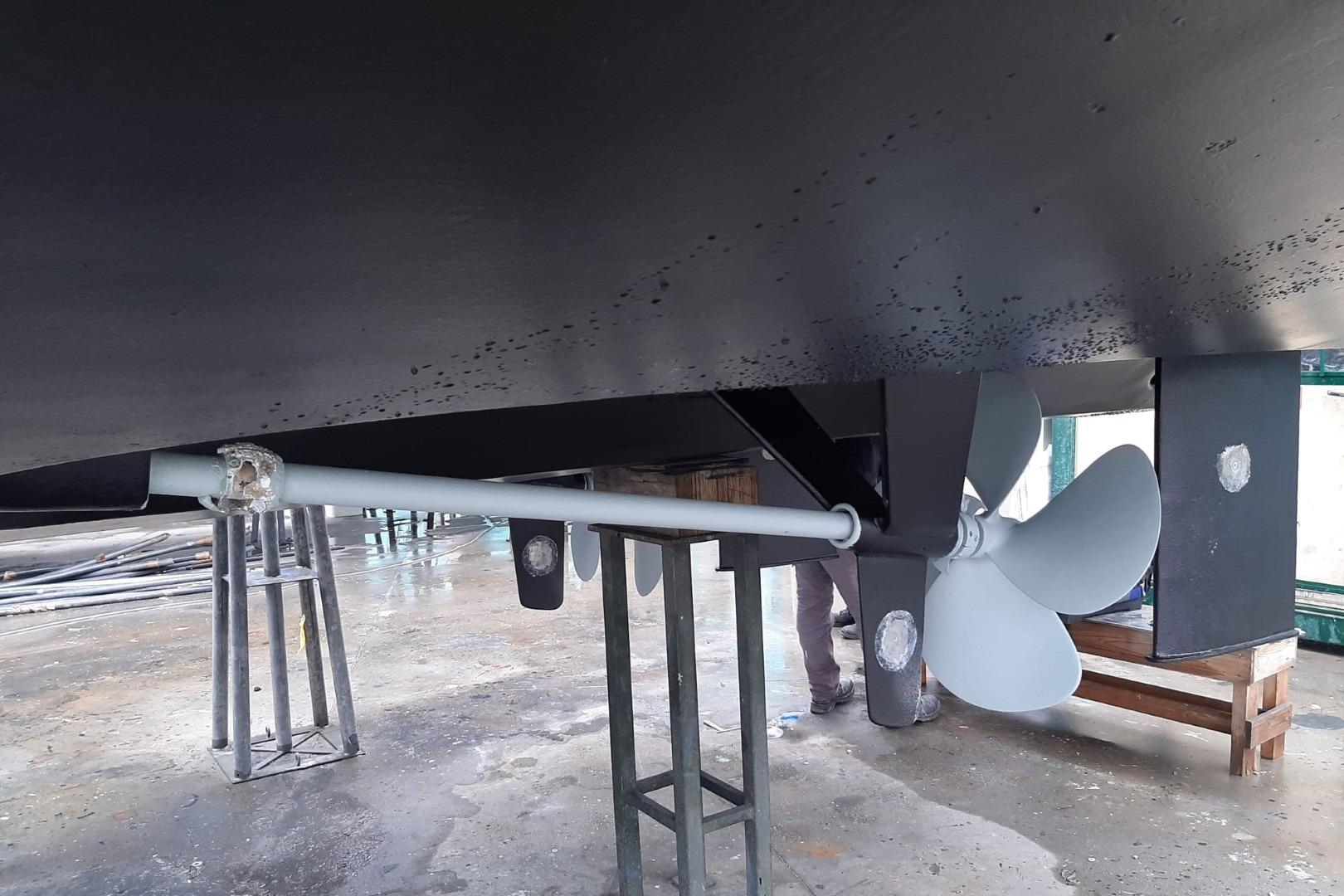

• Stainless steel shafts with bronze p-brackets driving 2x 4-bladed propellers
• Sleipner SidePower 24vDC 210kgf proportional speed bow and stern thrusters with joystick controls
• Sleipner SidePower 24vDC 210kgf stern thruster with proportional speed control
• Twin GRP rudder blades with 2’’ stainless steel rudder stocks and hydraulic steering
Stabilisers:
• Sleipner SidePower stabiliser fins
• 220vAC PTO with dedicated pump system
ELECTRIAL SYSTEMS
Voltage systems:
• 24vDC primary domestic system with 12vDC starting circuit and 220v AC via generator, inverter and shorepower.
Battery Banks:
• 10x 12vDC 225Ah AGM service batteries connected in parallel and series to supply 1,125Ah @ 24vDC – replaced 2025
• 2x 12vDC AGM engine start batteries
• 1x 12vDC AGM generator start battery

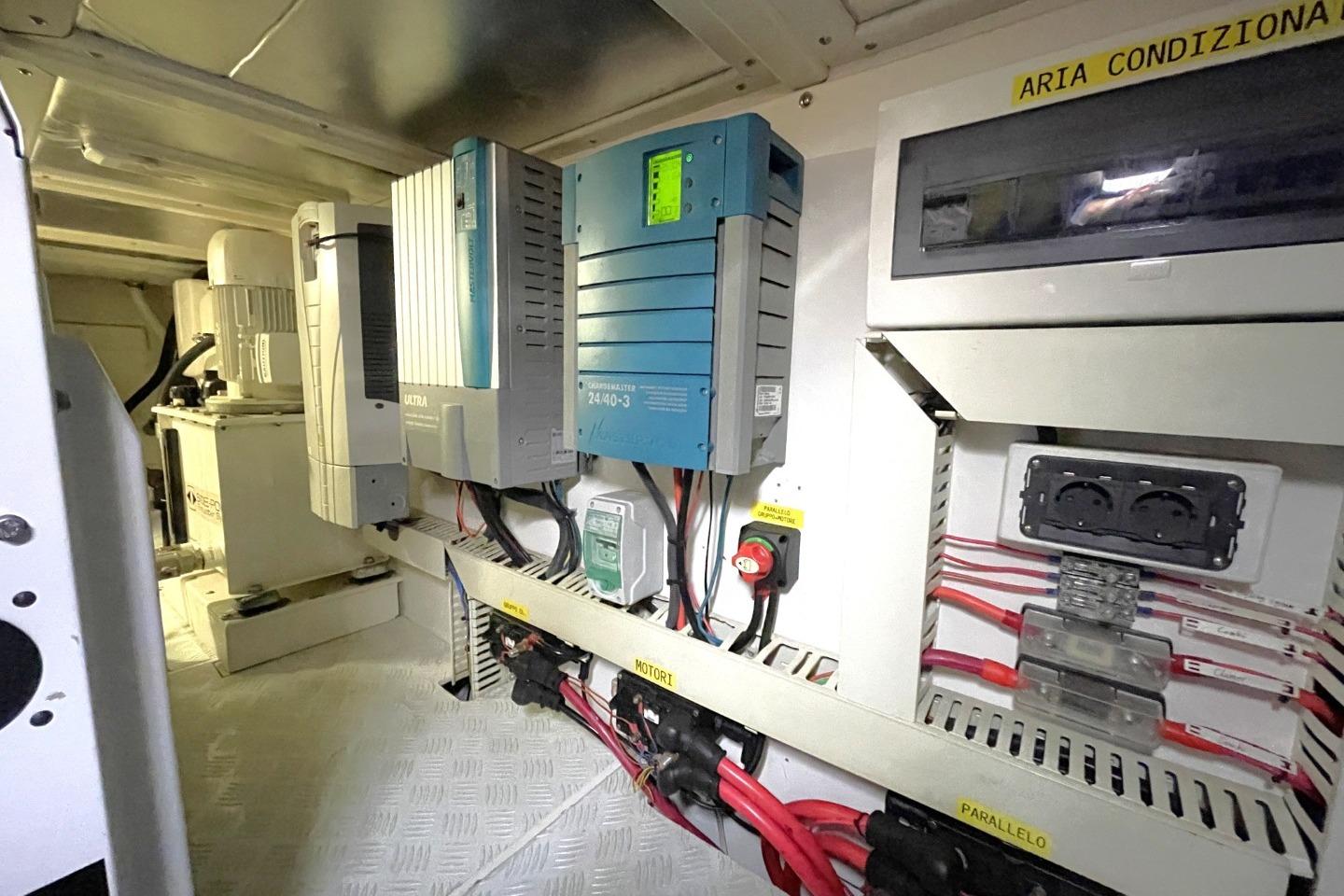

Charging / Inverter:
• Mastervolt Mass Combi Ultra 24/3500-100 220vAC 100Amp automatic battery charger with integrated 3,500w inverter
• Mastervolt Chargermaster 24/40-3 220vAC 40Amp secondary battery charger
• Mastervolt EasyView 5 Touch Screen Monitoring and Control Panel
Generator:

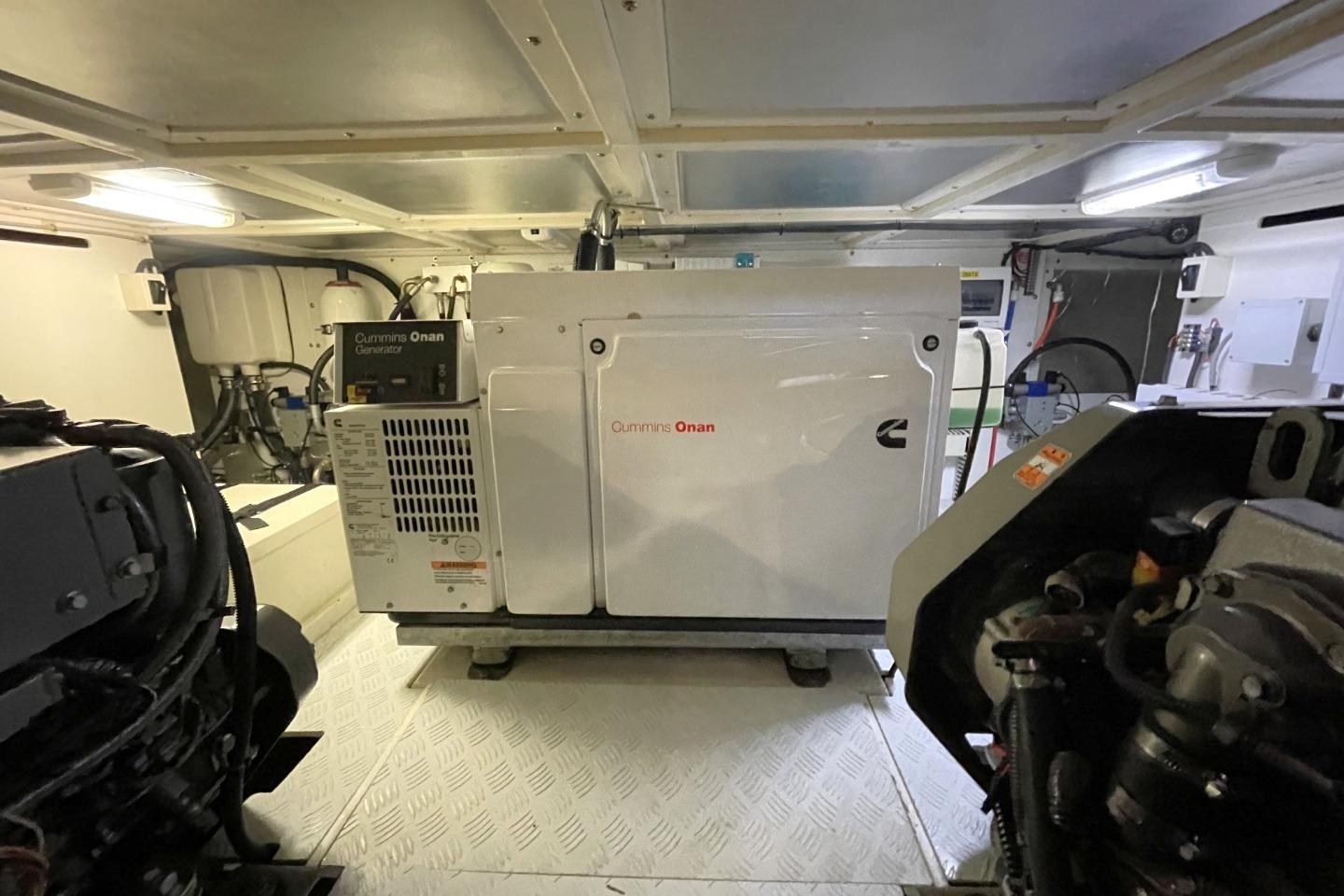

• Cummins Onan 13kw 220vAC 50Hz diesel generator
• Generator hours – approx. 3,200 at the time of the listing
Alternators:
• 2x engine mounted alternators
Solar:
• 4x 120w solar panels with Victron MPPT charge controller
Shore Power:
• Twin 220vAC 50Hz shore power system with internal ring main and 220vAC sockets
PLUMBING & GAS SYSTEMS
Fresh Water:
• Pressurised fresh water system with 2x 24vDC high pressure water pumps
• Hot water supplied via engine-driven calorifier or 220vAC/110vAC immersion heater element in well-insulated 80 litres stainless steel tank
• Hot & cold pressurised fresh water transom shower

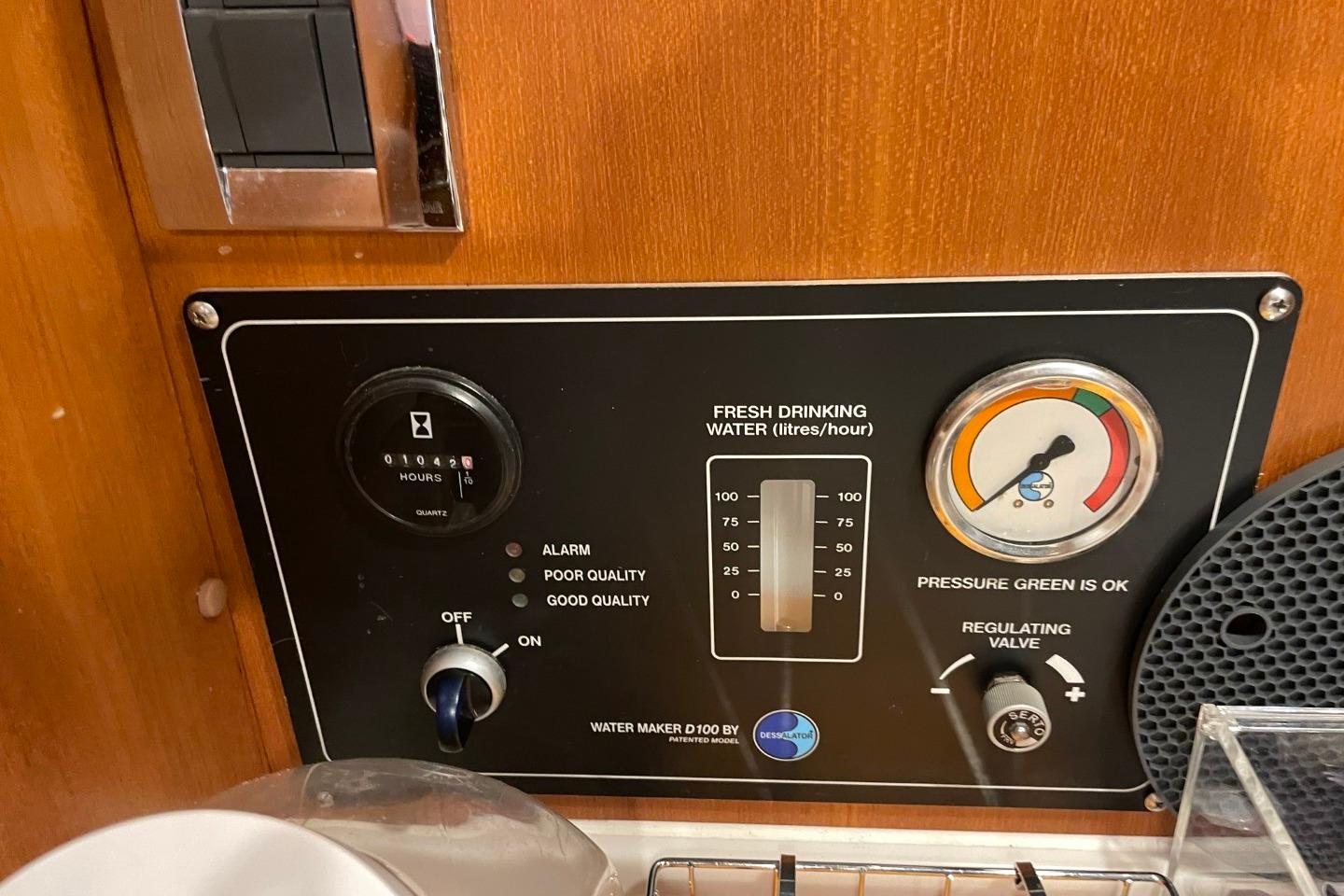

Watermaker:
• Dessalator D100 24vDC reverse osmosis watermaker producing approx. 100 litres per hour with remote control
Bilge Pumps:
• 3x automatic bilge pumps
• 1x manaul bilge pump
Other Plumbing:
• Deck wash pump switchable between fresh and salt water
TANKAGE
Fuel:
• Approx 3,600 litre fuel capacity in 2x FRP fuel tanks with visual gauges and cleaning access
Fresh Water:
• Approx 1,000 litres fresh water capacity in stainless steel tanks with level gauges
Holding Tanks:
• Approx 450 litre capacity black water holding tanks with electric level gauge (tank unused)
• Macerator pump and discharge from deck of overboard
NAVIGATION & COMMUNICATION EQUIPMENT

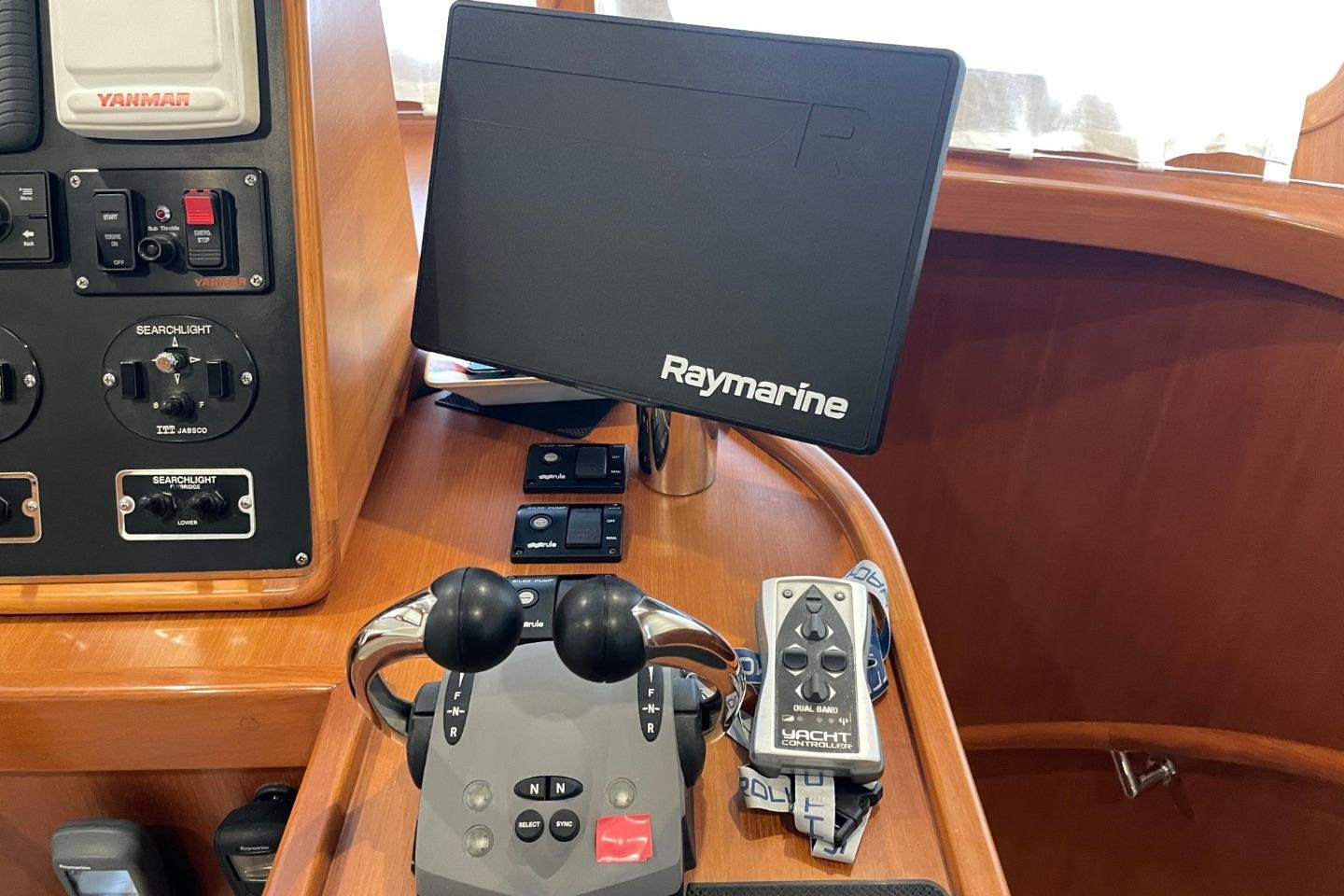

Main (lower) Helm Station:
• Raymarine Axiom 16’’ glass bridge primary GPS chartplotter display with remote keypad
• Raymarine Axiom 6’’ secondary GPS chartplotter display
• Raymarine 48” 4kw open-array HD radar scanner
• Raymarine i60 wind display with transducer
• Raymarine speed and depth transducers
• Raymarine P70 rotary autopilot control head with remote control handset
• Backlit steering compass

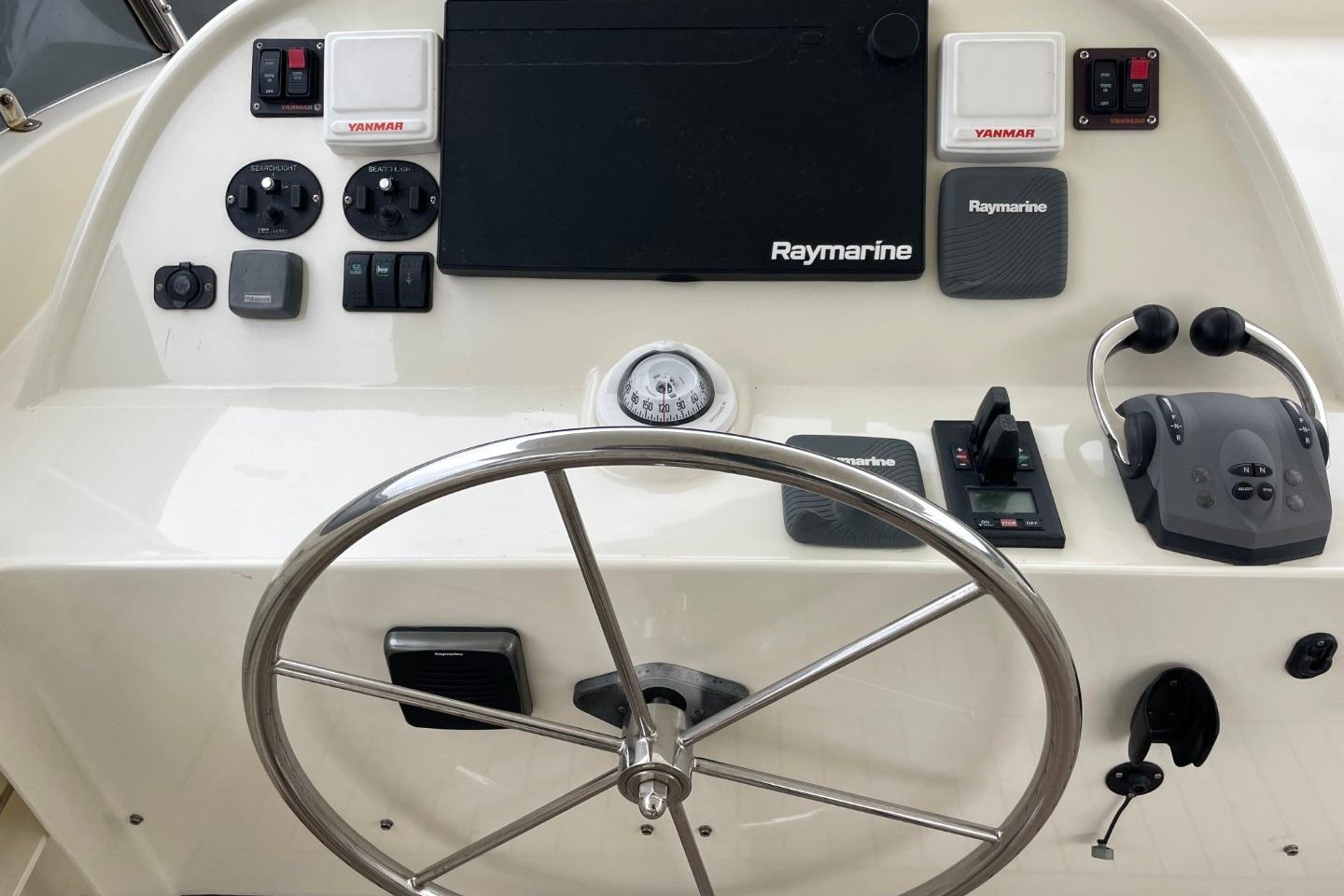

Flybridge Helm:
• Raymarine Axiom 12’’ GPS chartplotter display
• Raymarine i60 wind display
• Raymarine P70 rotary autopilot control head with remote control handset
• Plastimo Compass
Communications Equipment:
• Raymarine Ray260 VHF with DSC with second station at flybridge helm
• Icom handheld VHF with charge cradle
• AIS transceiver
DOMESTIC EQUIPMENT
Galley:

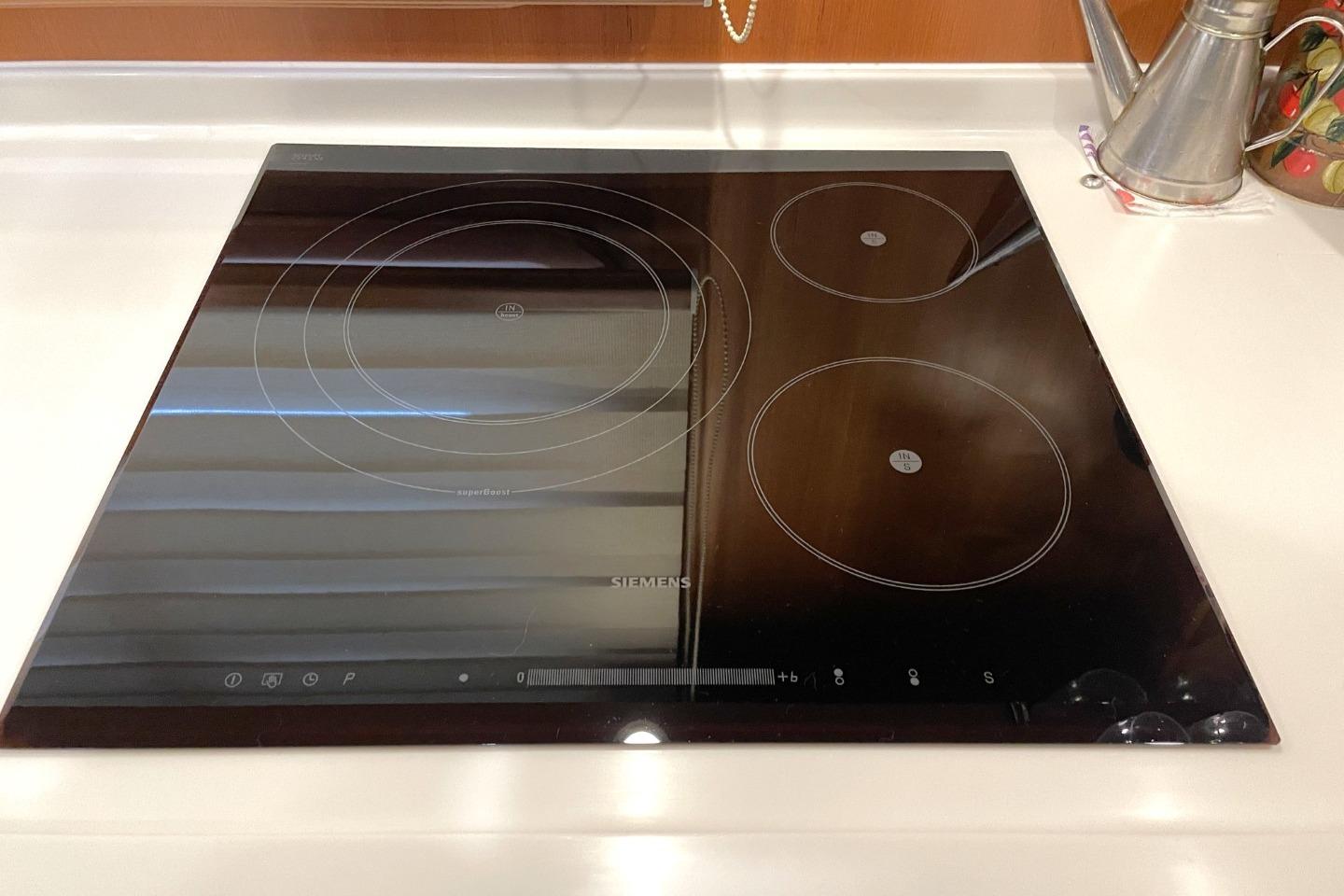

• Siemens 220vAC induction hob

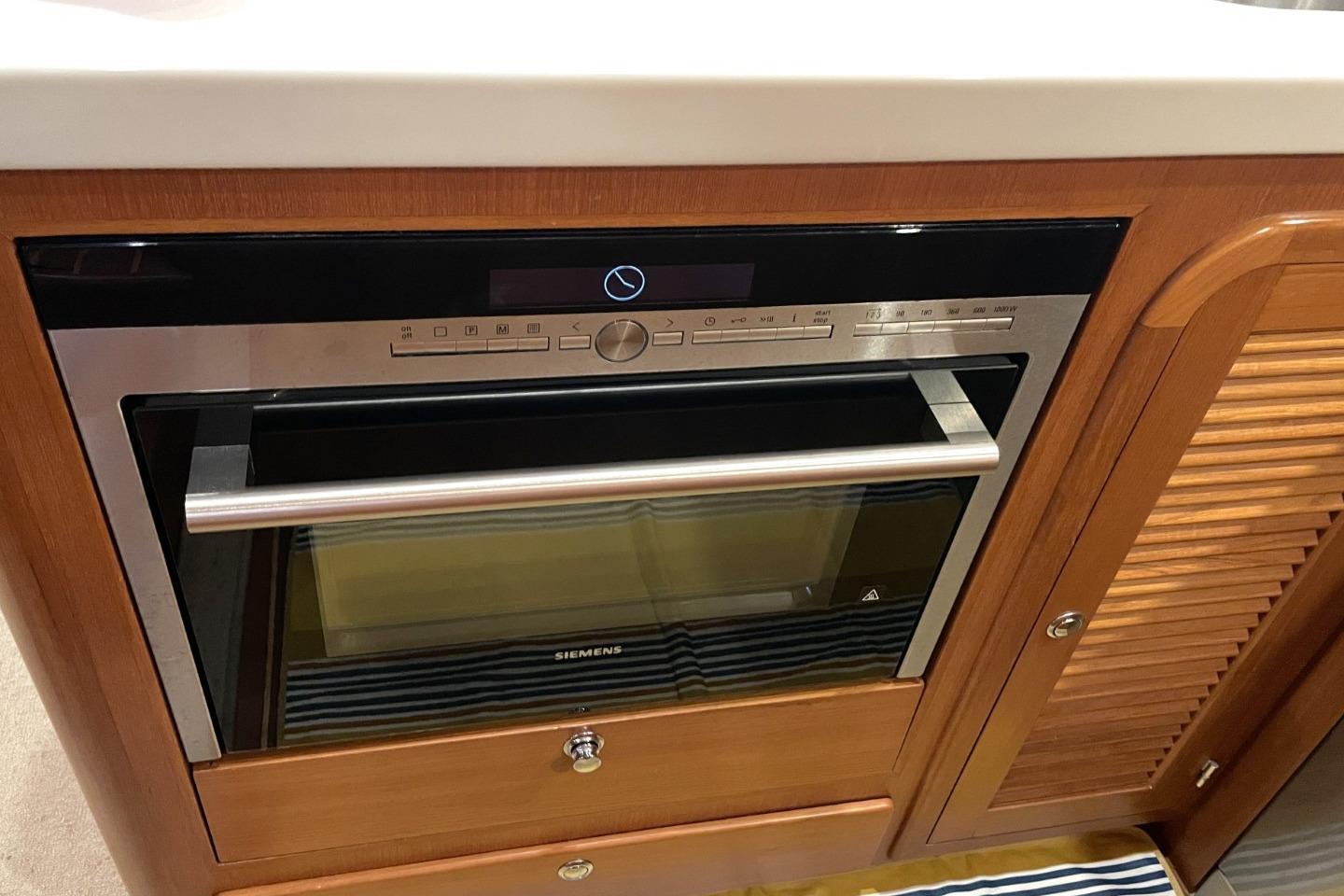

• Siemens 220vAC combination oven
• Siemens 220vAC domestic-sized dishwasher

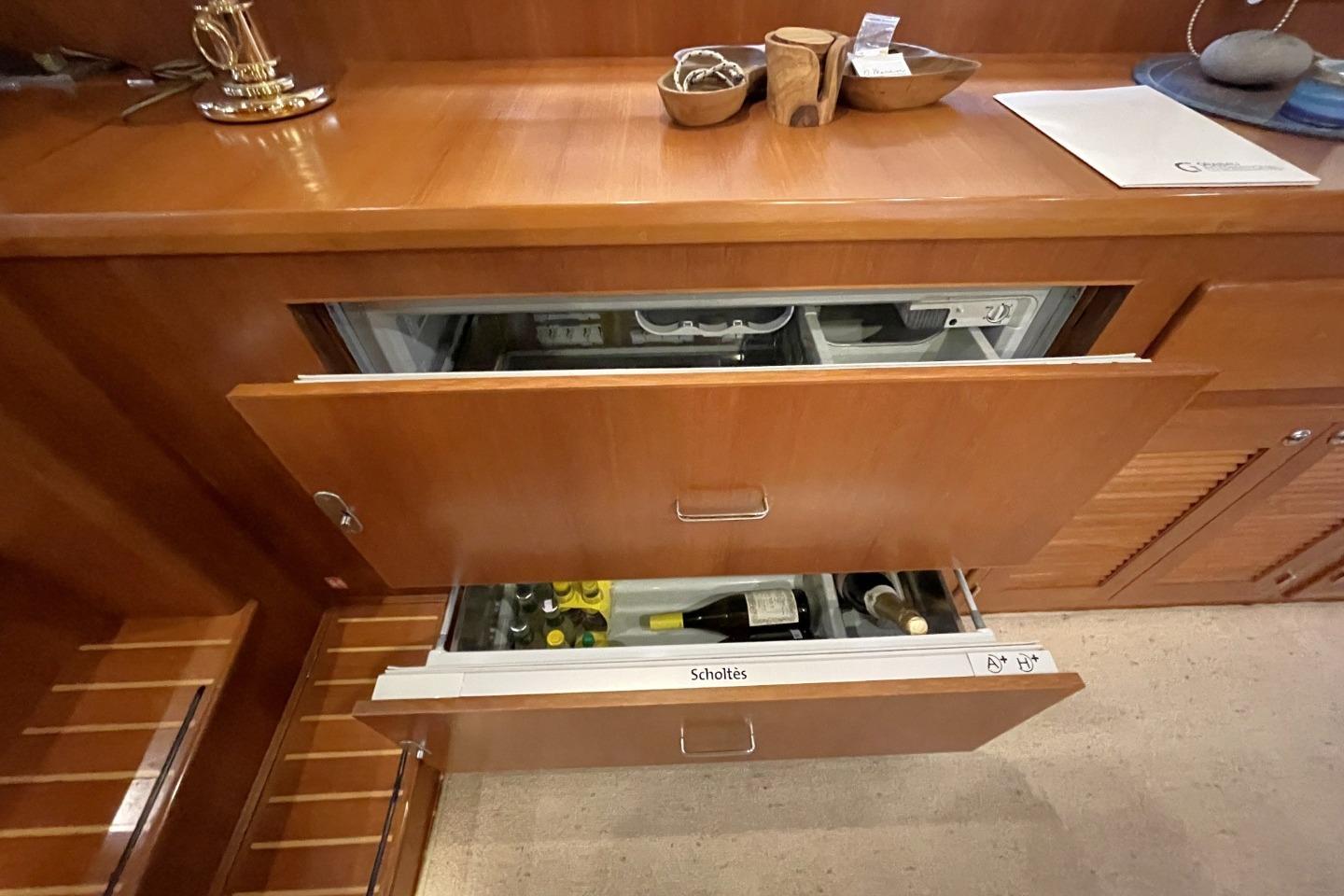

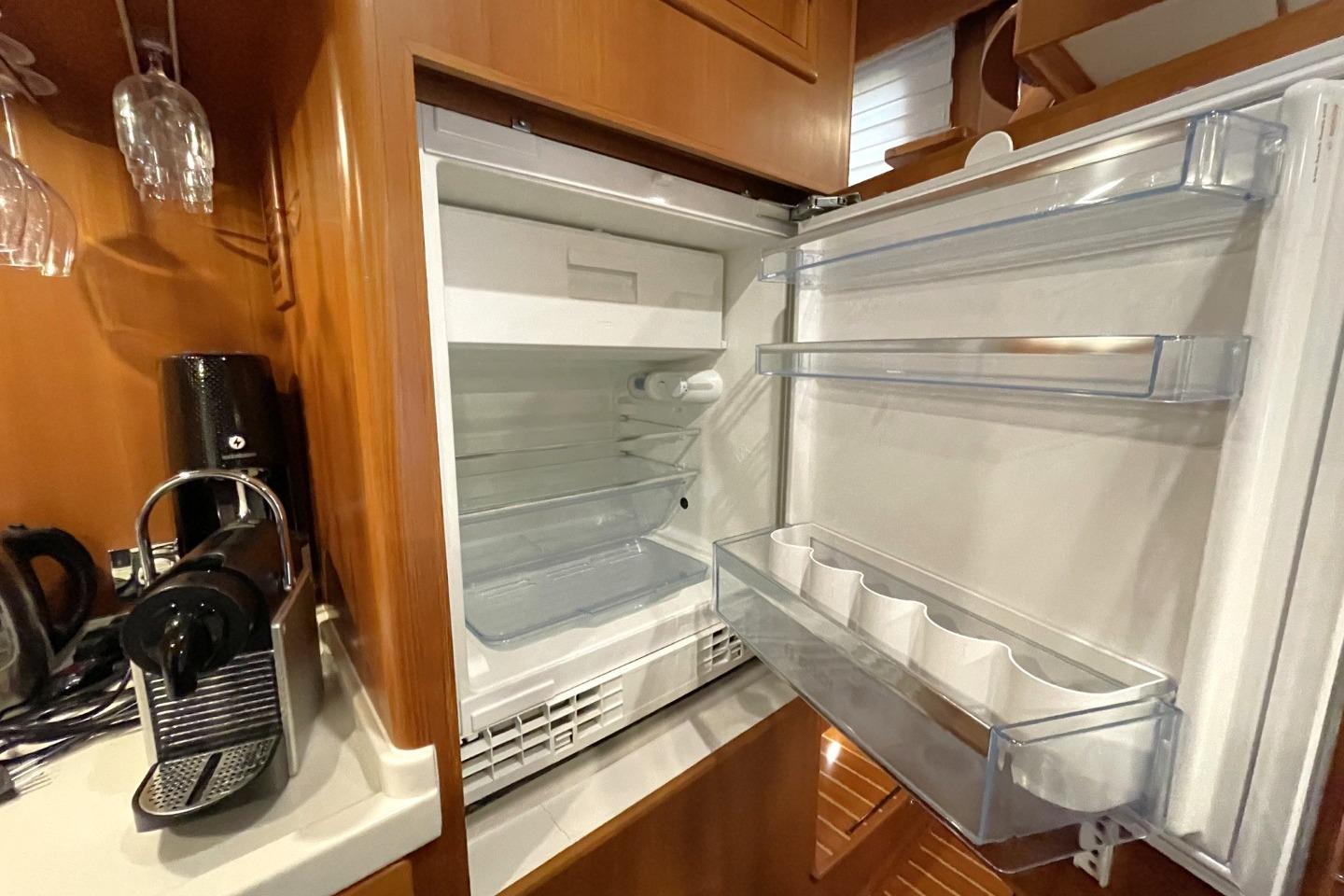

• Front and top-opening fridge and freezers
• Twin inset stainless steel sinks with pressurised hot & cold fresh water supply

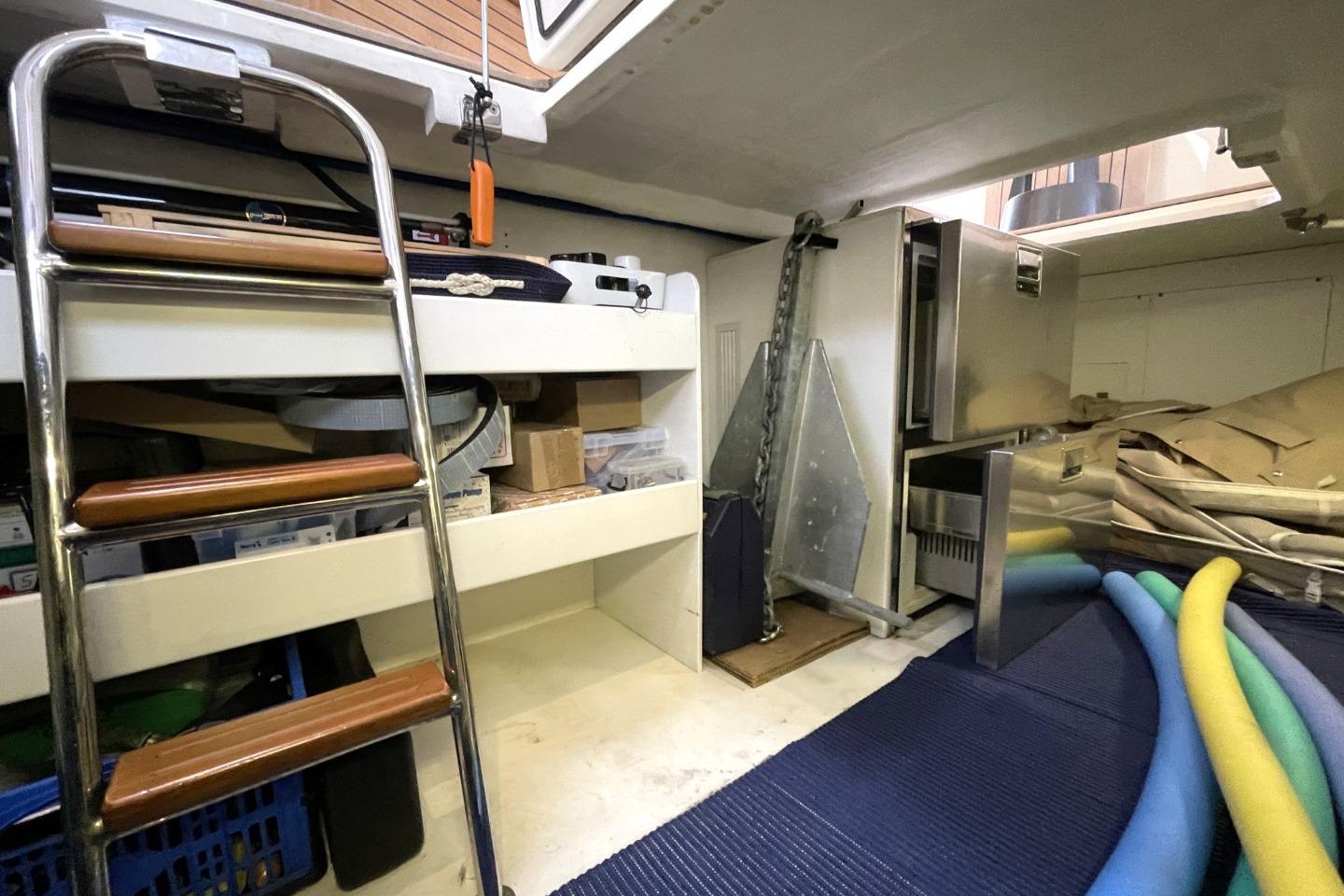

• 2x additional Vitifrigo fridges located in aft lazarette
• 220vAC Icemaker located in aft lazarette
Laundry:
• Miele 220vAC washer/dryer
Heads:
• Tecma Silence Short 24vDC freshwater flush electric toilets
• Hot & cold pressurised fresh water supplied to sinks and showers
Heating & Ventilation:
• Webasto BlueCool V-PRO 220vAC reverse-cycle air-conditioning system with variable speed control and units serving pilot house, saloon, owner’s cabin and guest cabins – 2023
• Webasto Air Top diesel-fired hot air cabin heating system
Entertainment:
• Samsung 40’ LCD TV in the saloon with electric lift system
• Bose surround sound speaker system
• Raymarine 45STV satellite TV antenna system with 2-axis step motors and integral GPS system
ACCOMMODATION
Summary of Accommodation:
• Twin stateroom layout with owner’s double cabin amidships and VIP double cabin forward.
Accommodation Finish:
• Hand crafted teak interior joinery with teak veneers and solid teak surrounds
• Teak flooring with holly inlay
• Corian counters in galley and bathrooms
• Cream leather upholstery
• Off-white vinyl headlinings with teak strips
• Fitted carpeting throughout
• Blinds and curtains
• Manship stainless steel hatches and opening portholes

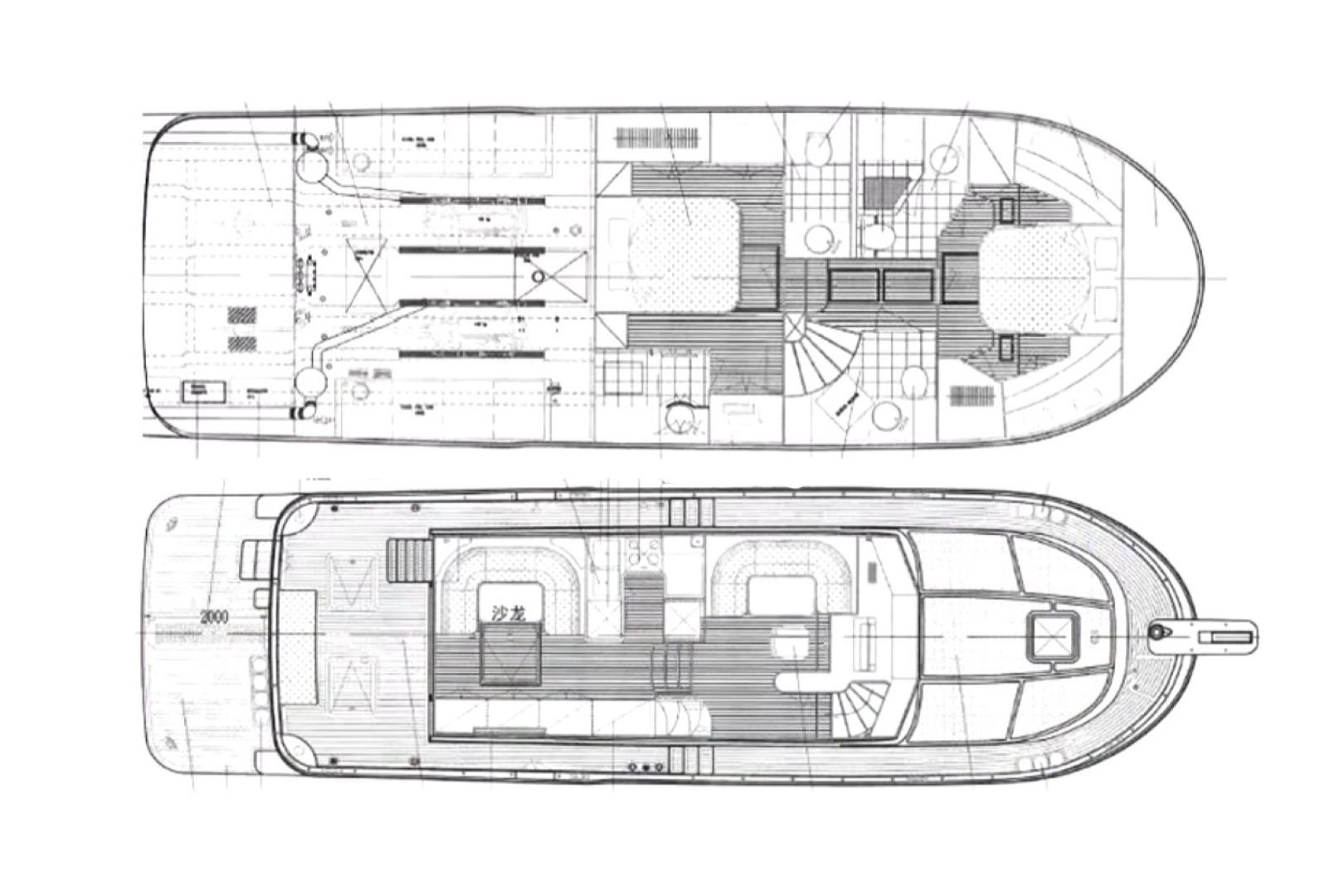

Accommodation layout from Forward:
Main Deck Level Accommodation:

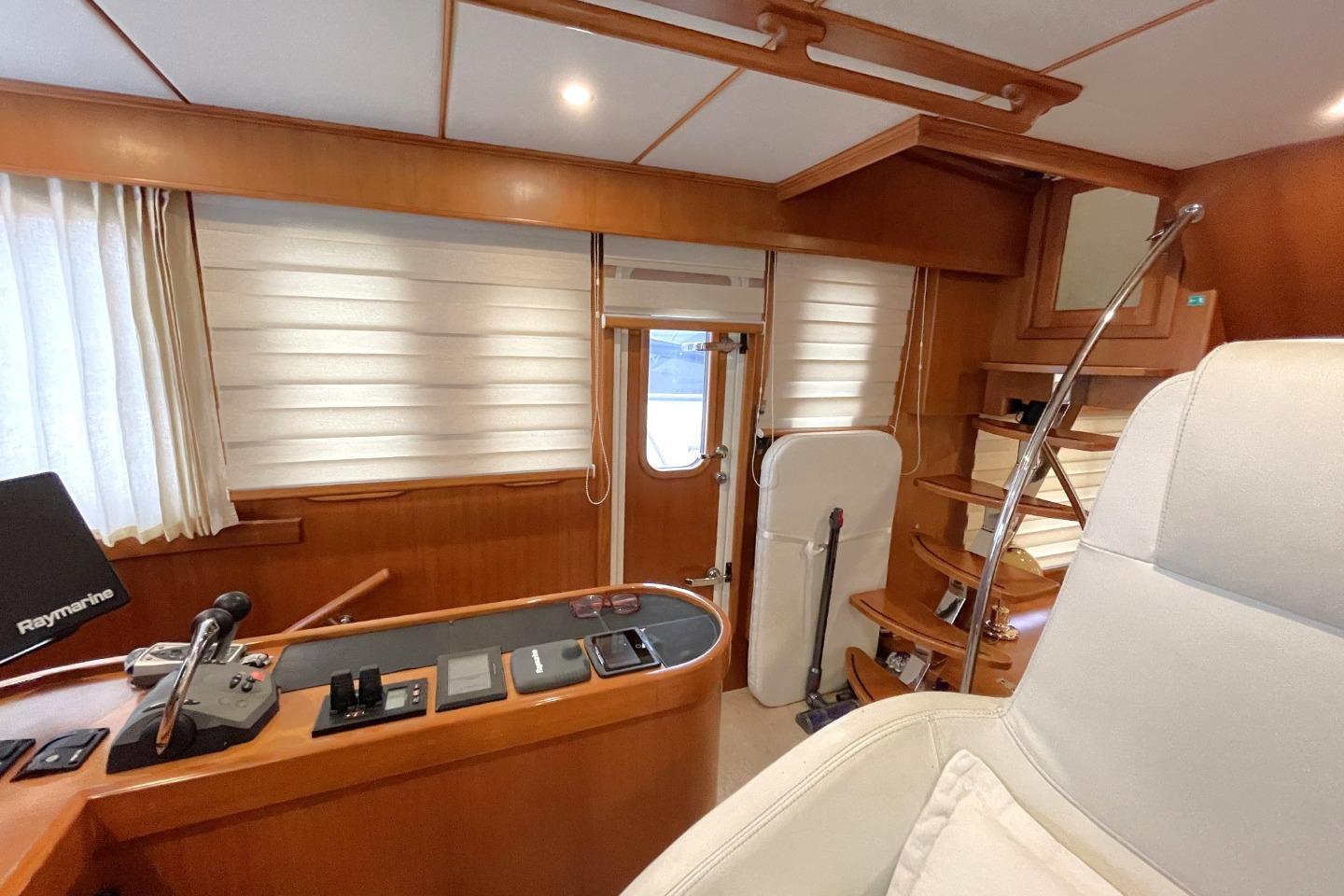

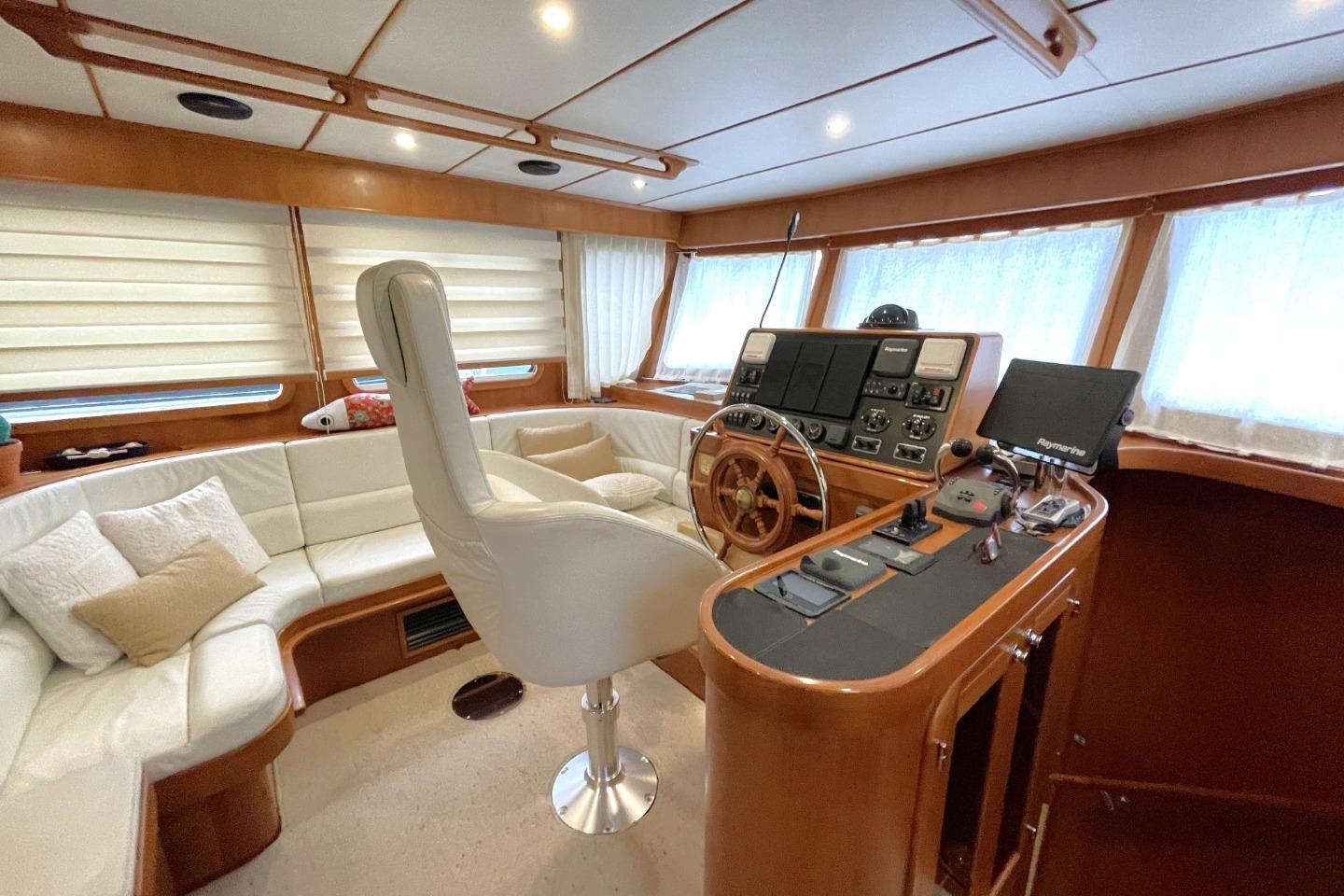

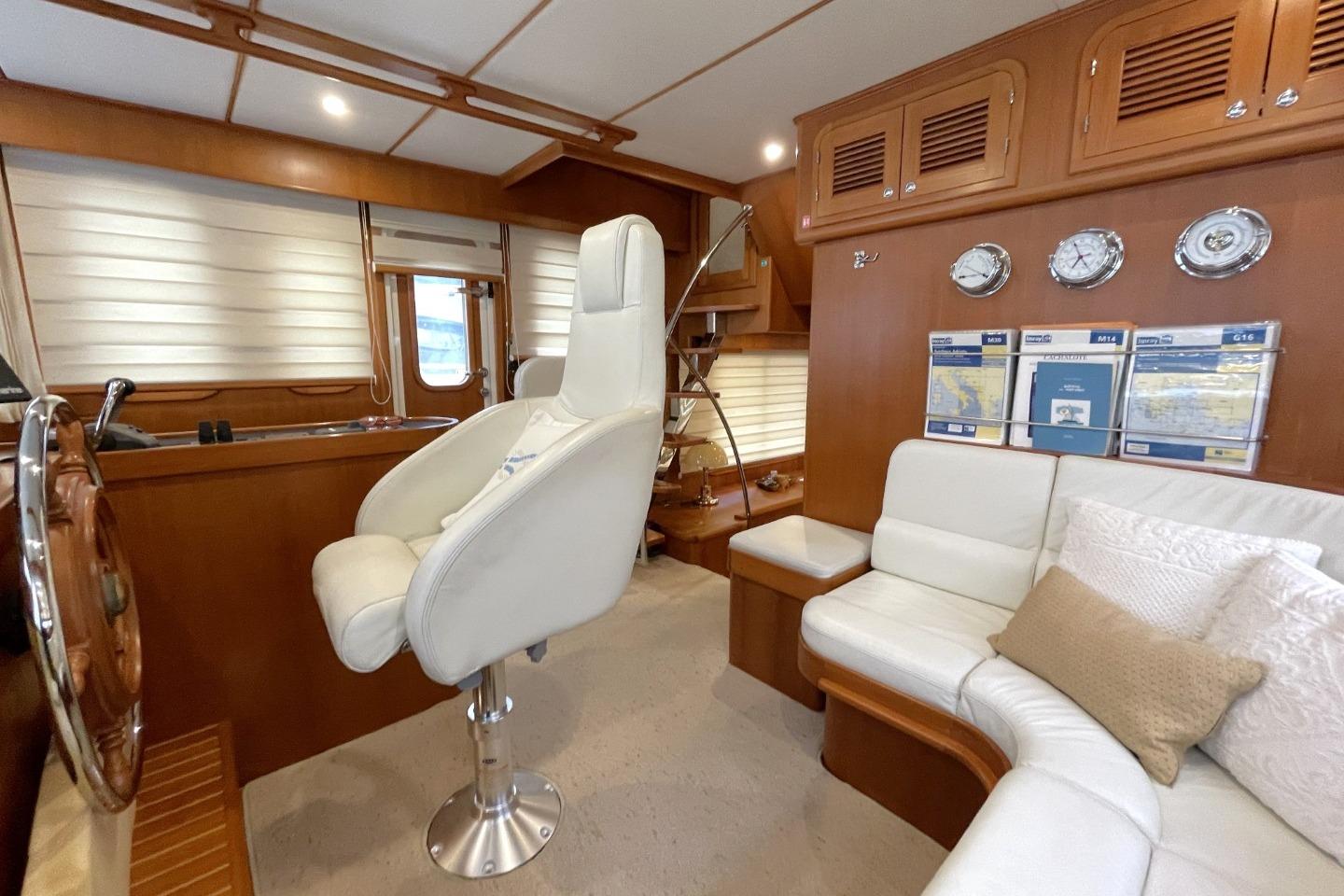

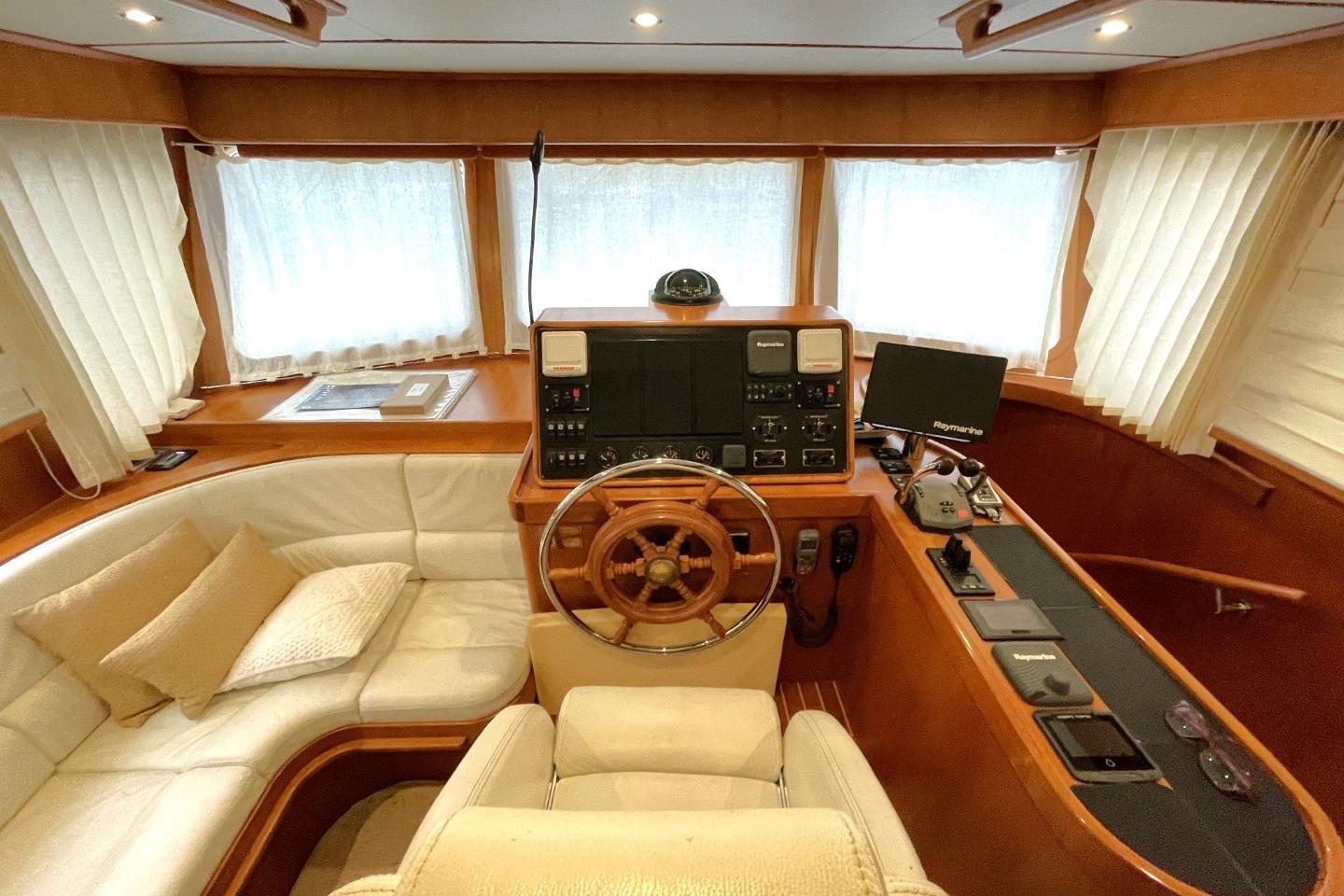

Pilot House:
• Side deck access door to starboard
• Helm station with twin leather-upholstered pilot seats
• Stair access to lower deck forward accommodation
• Stair access to the fly bridge on starboard
• U-shape sofa portside the raised seat

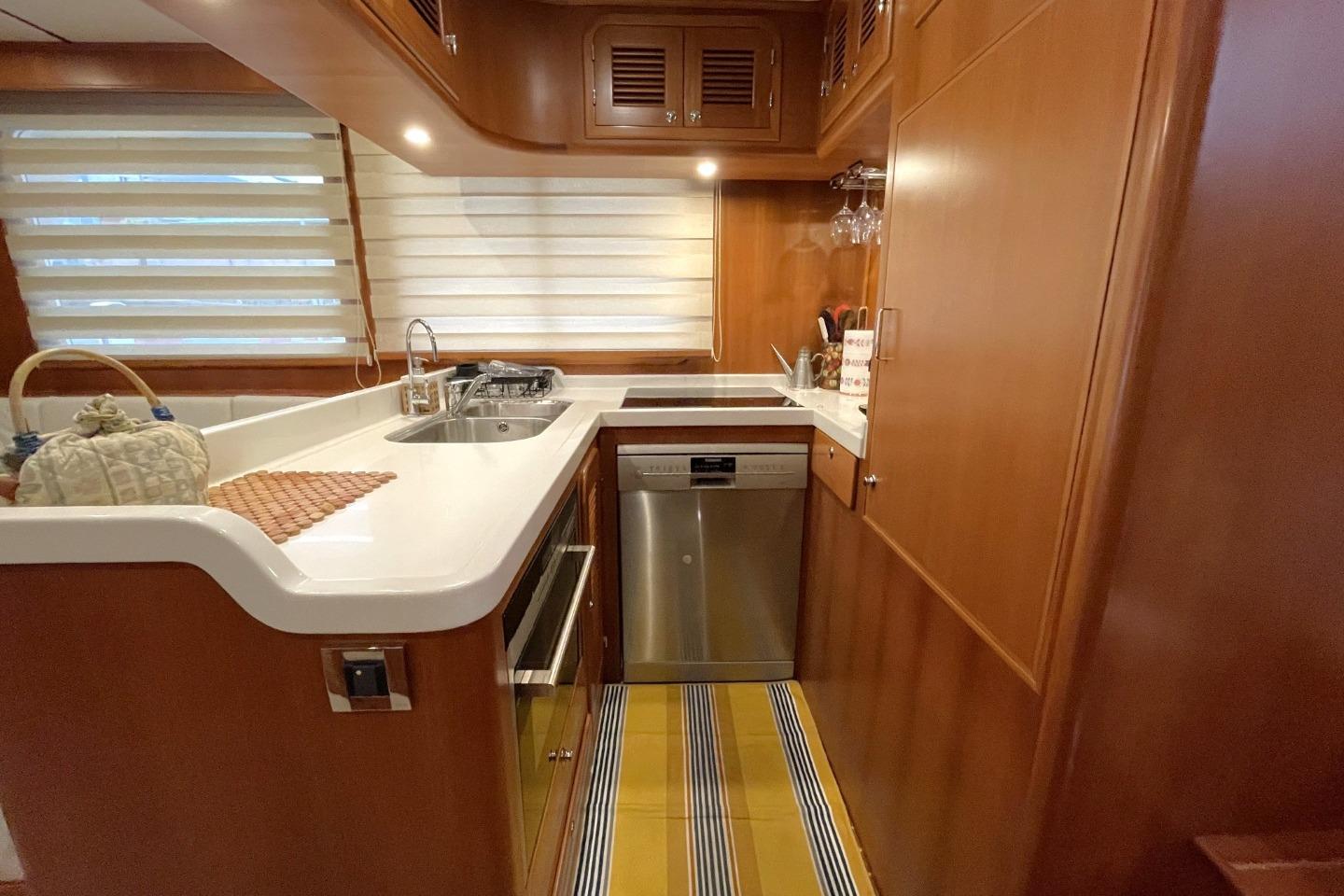

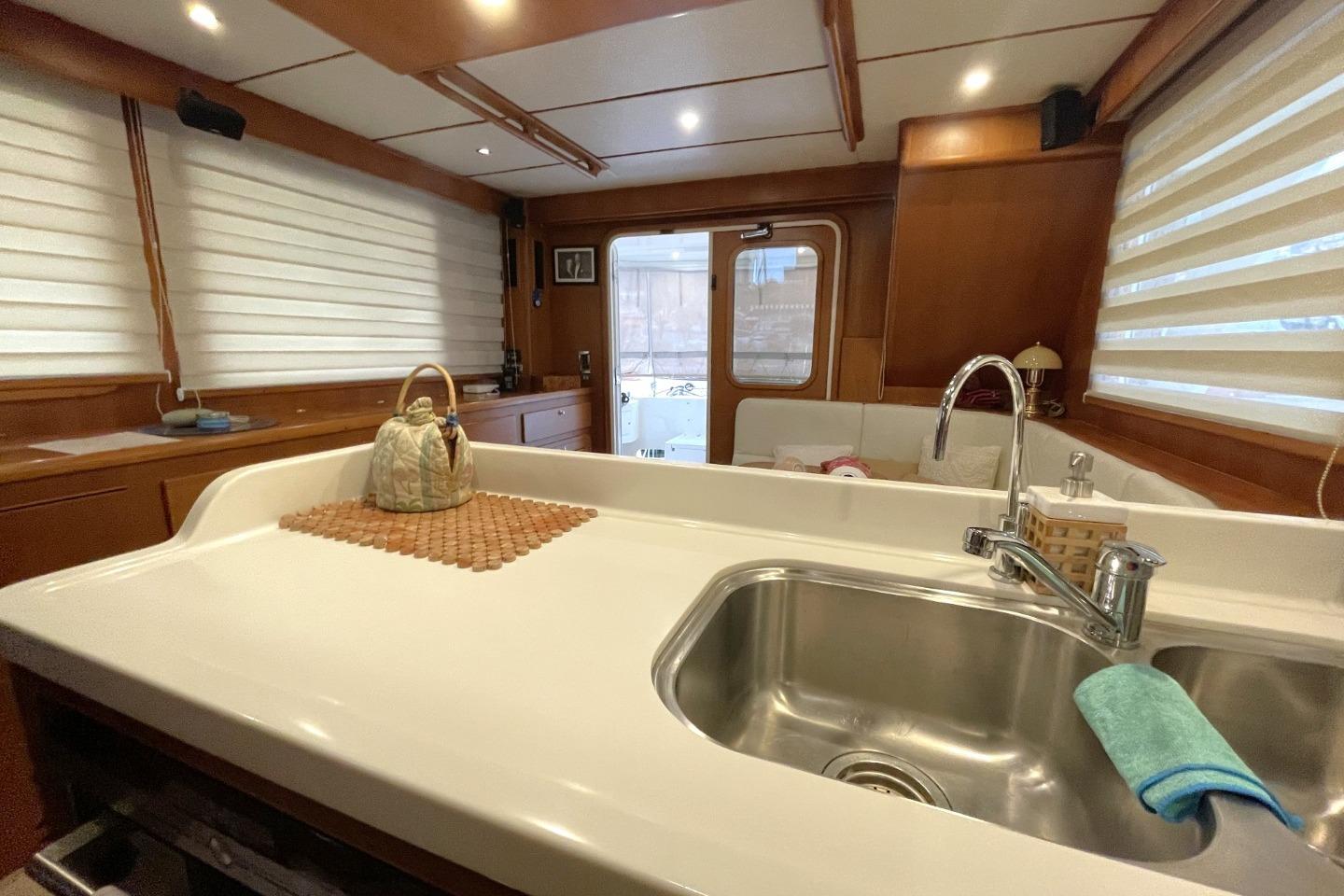

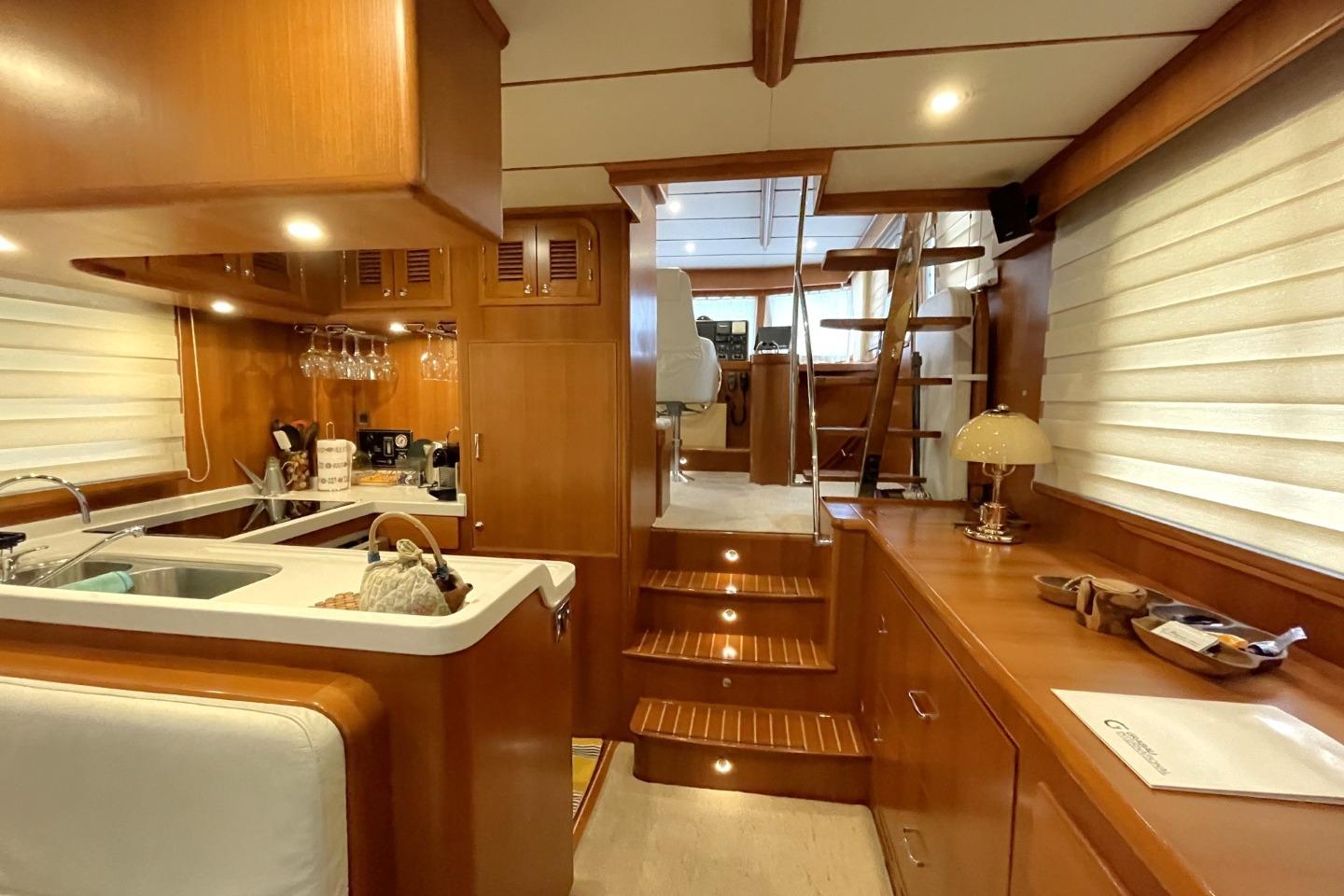

Galley:
• Galley area aft lower of helm station to port
• U-shaped counter surfaces
• Stainless steel sink with single lever swivel type faucet
• Drawers & lockers w/ shelves under counter
• Trash bin w/ lid
• Dishwasher
• Oven and induction hob

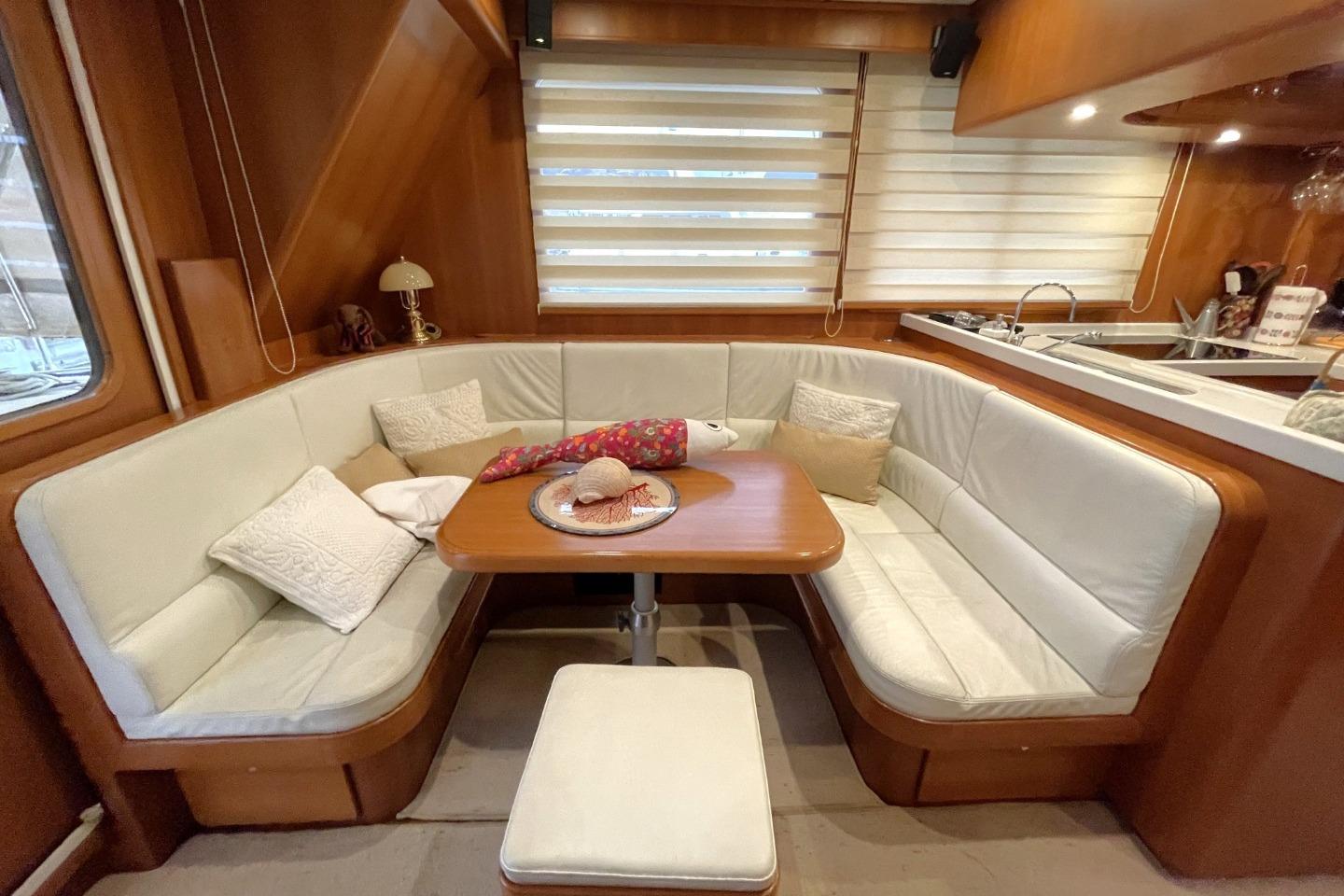

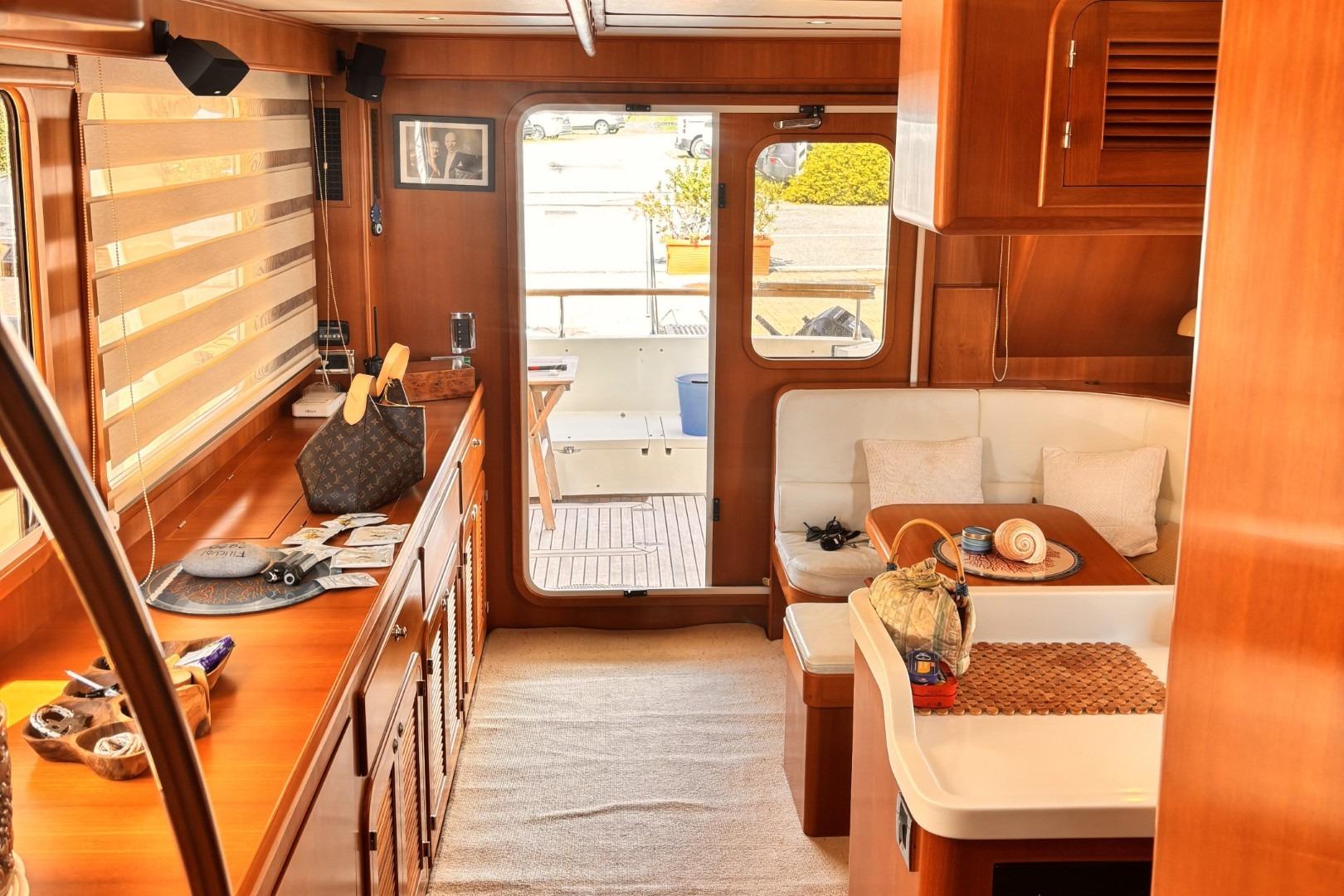

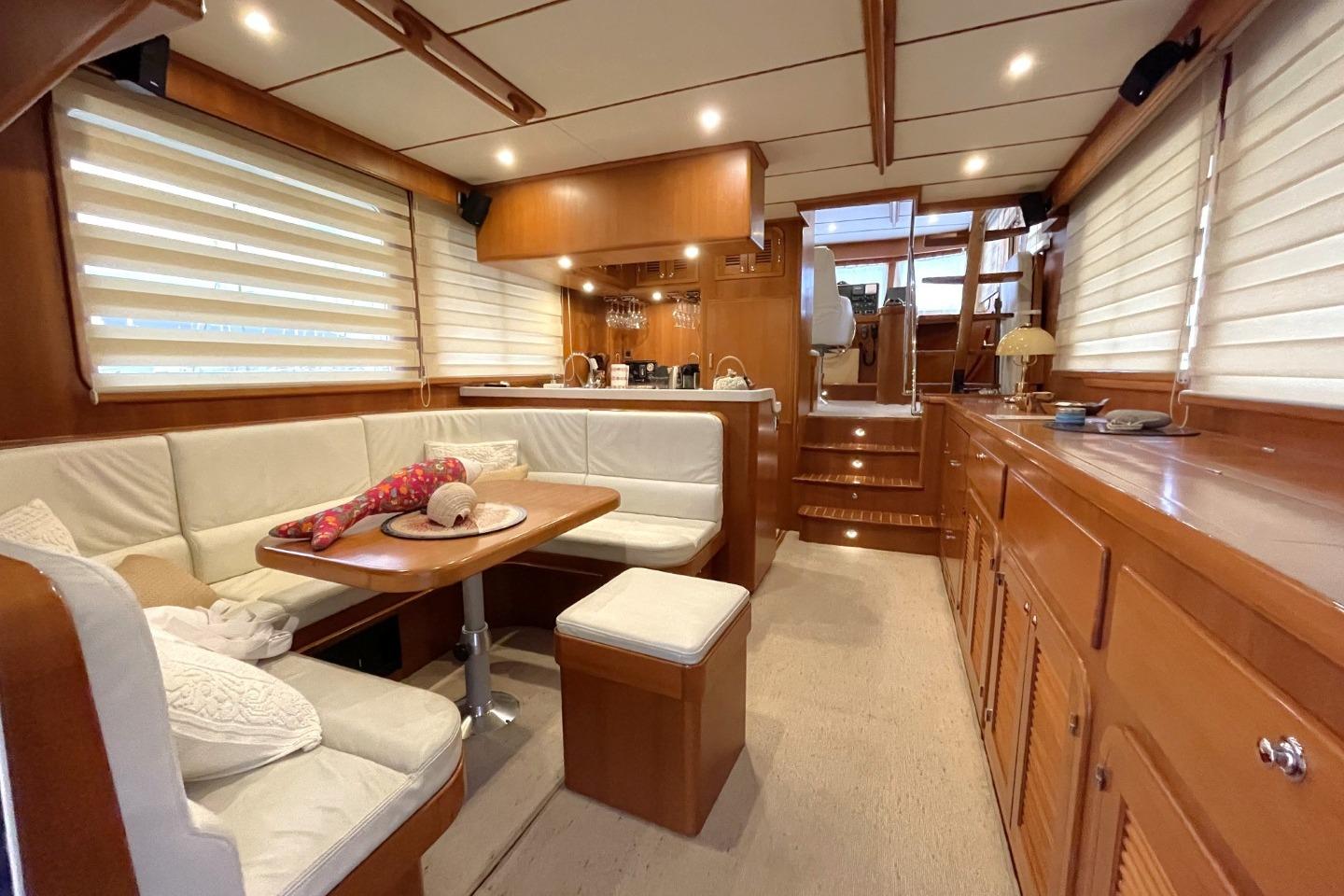

Saloon:
• Accessed from pilot house via steps or from aft cockpit area
• U-shaped sofa aft to portside with stowage beneath

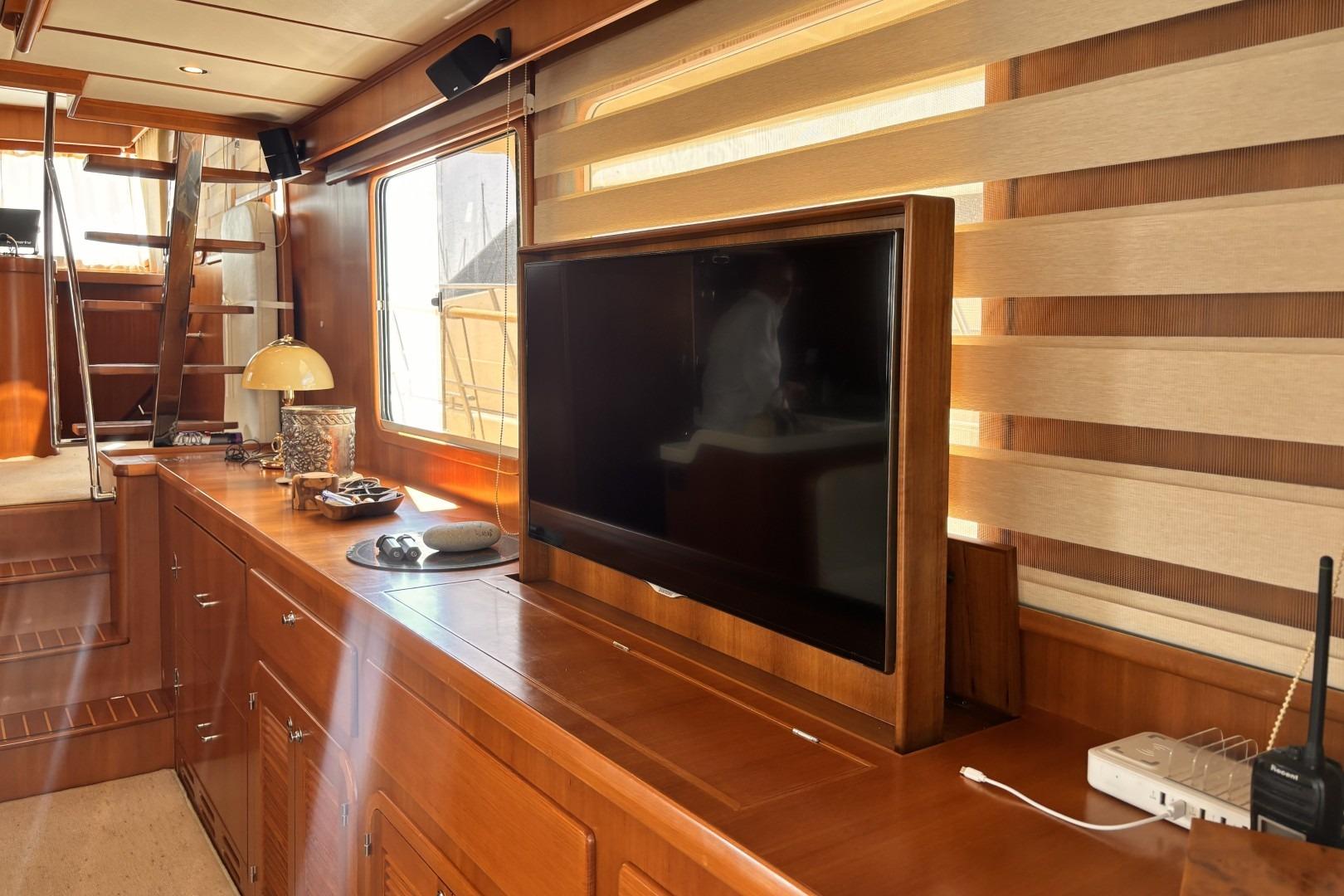

• Entertainment and centre console with folding TV cabinet

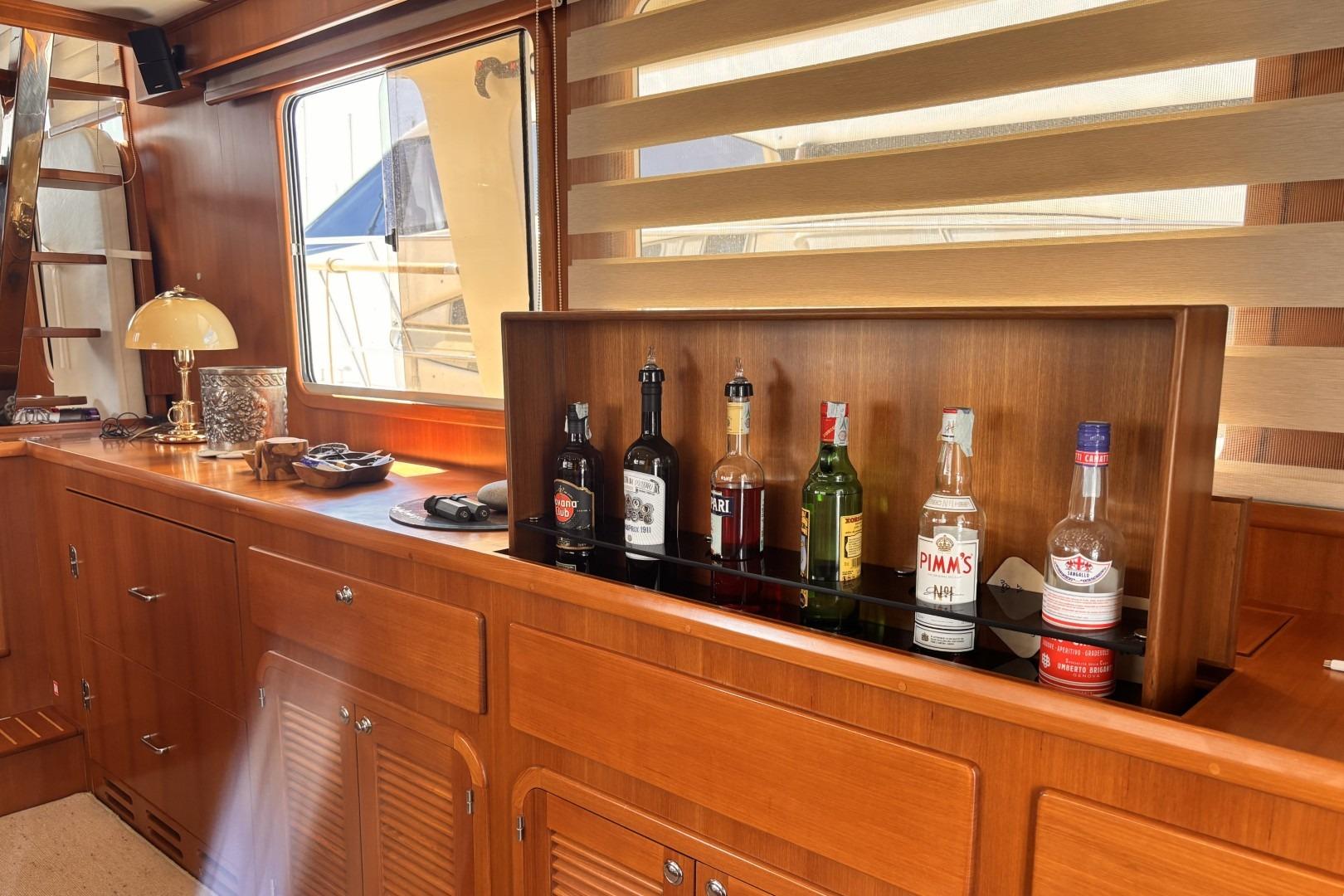

• Folding cocktail bar in starboard in the saloon
Lower Accommodation Deck:
VIP Guest Cabin:
• Queen-size centreline double berth foam mattress
• Side cabinets & drawer bureaus
• Wardrobe
• Teak veneer countertops

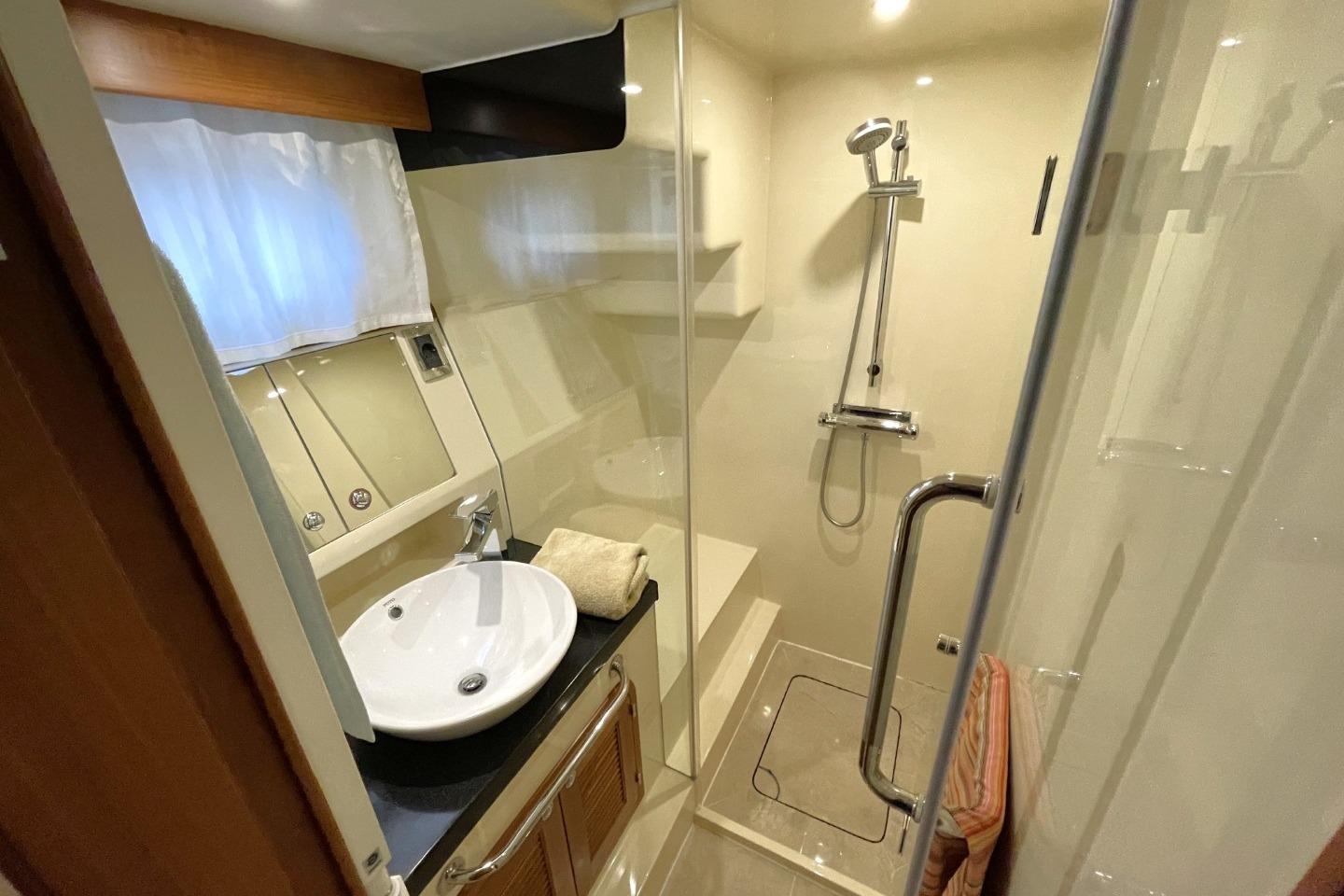

VIP Guest Cabin Ensuite Bathroom:
• Vanity unit with mirror
• Wash basin with single lever cold/hot water faucet
• Corian finish counter top
• Granite floor and glass sliding shower door
• Tecma electric fresh water flush toilet
• 220vDC socket

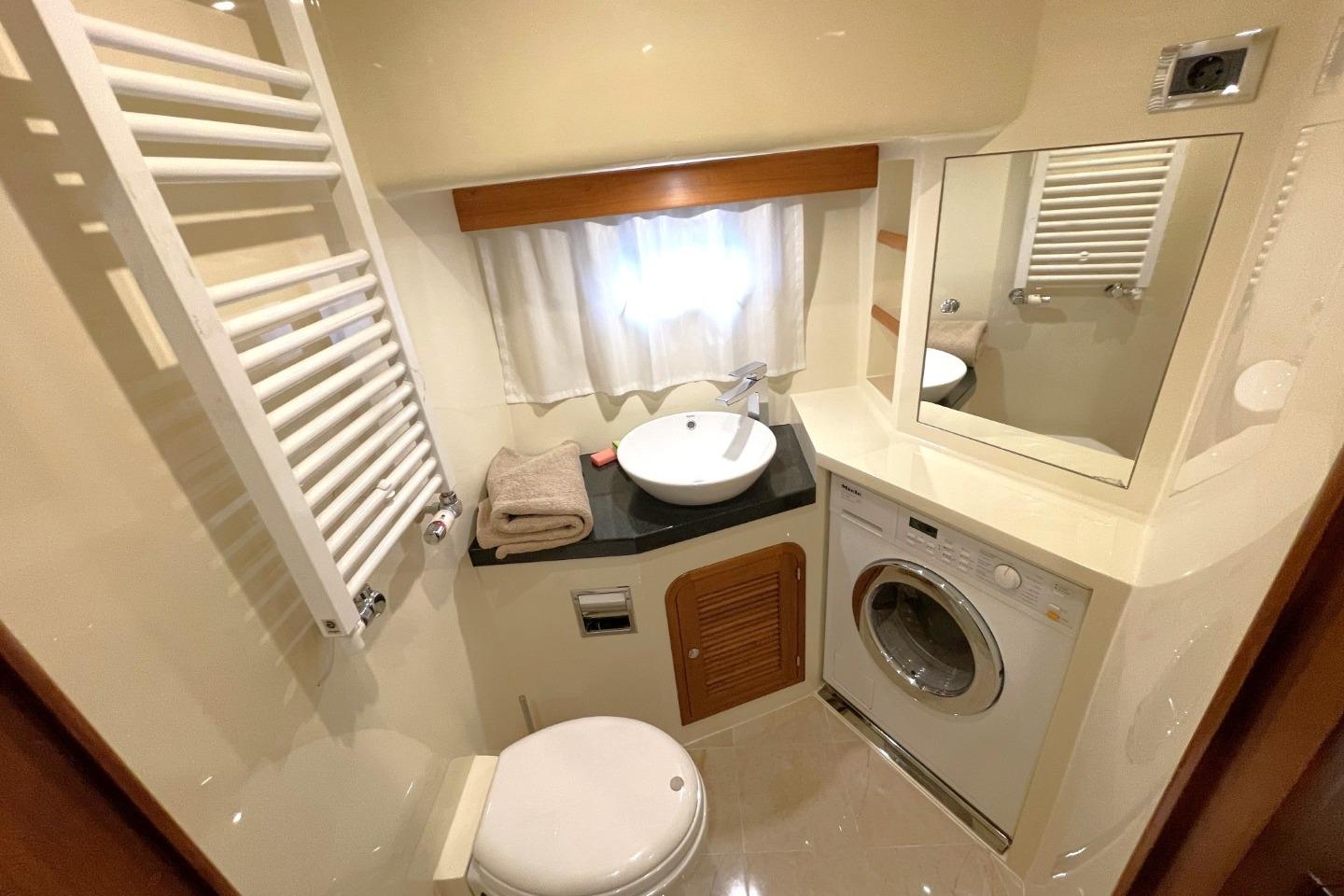

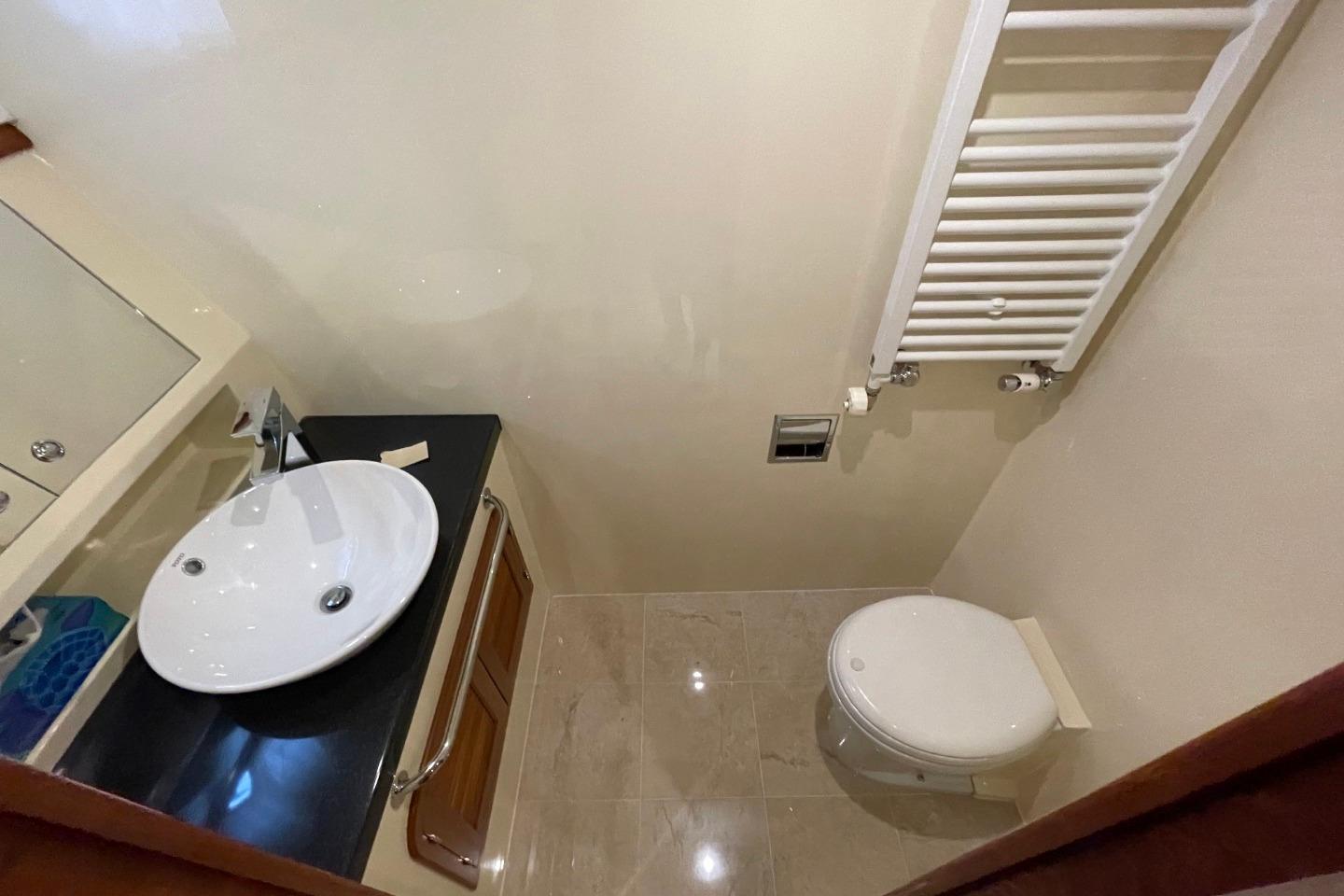

Day Heads:
• Vanity unit with mirror
• Wash basin with single lever cold/hot water faucet
• Corian finish counter top
• Tecma electric fresh water flush toilet
• Miele washing machine
• 220vDC socket

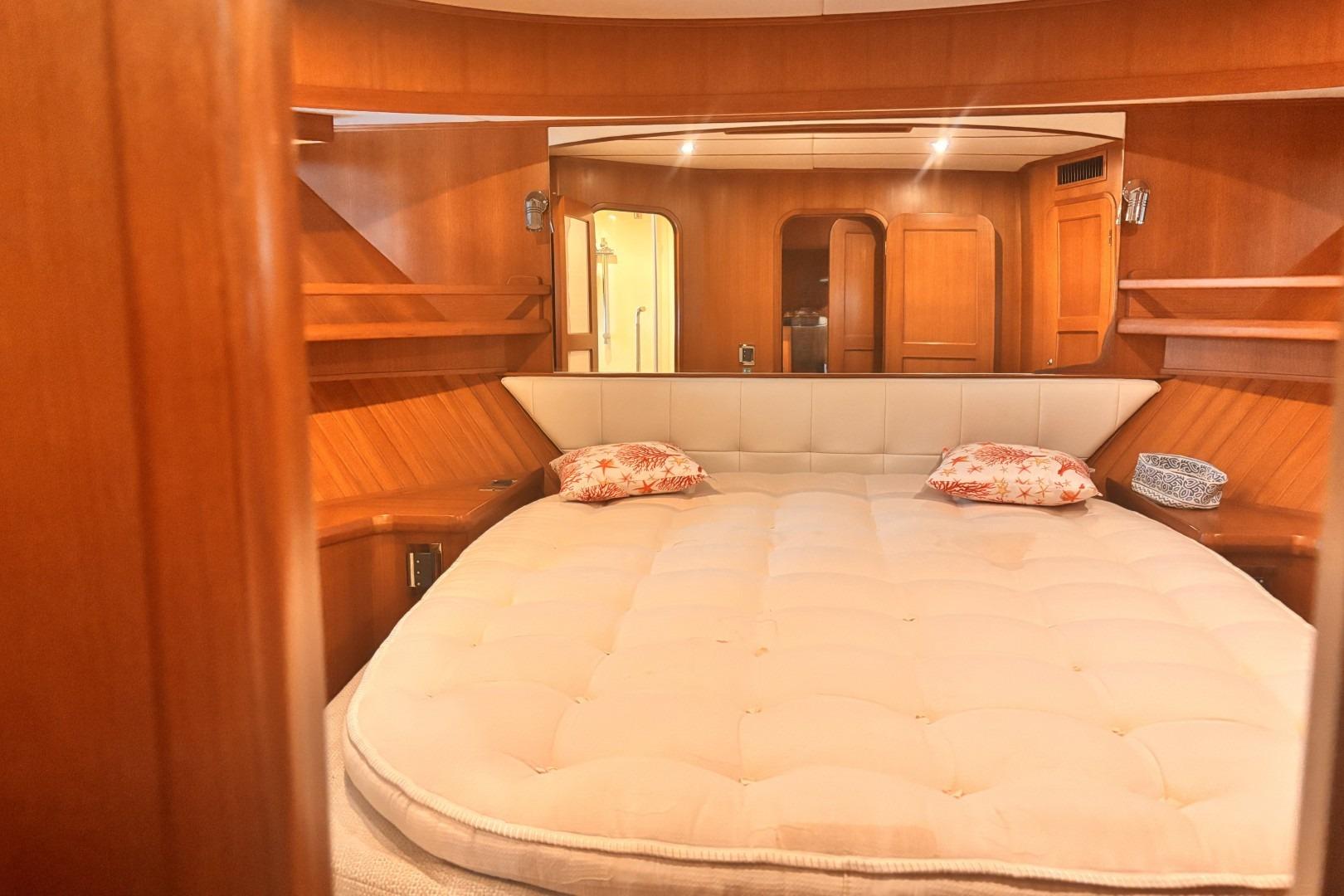

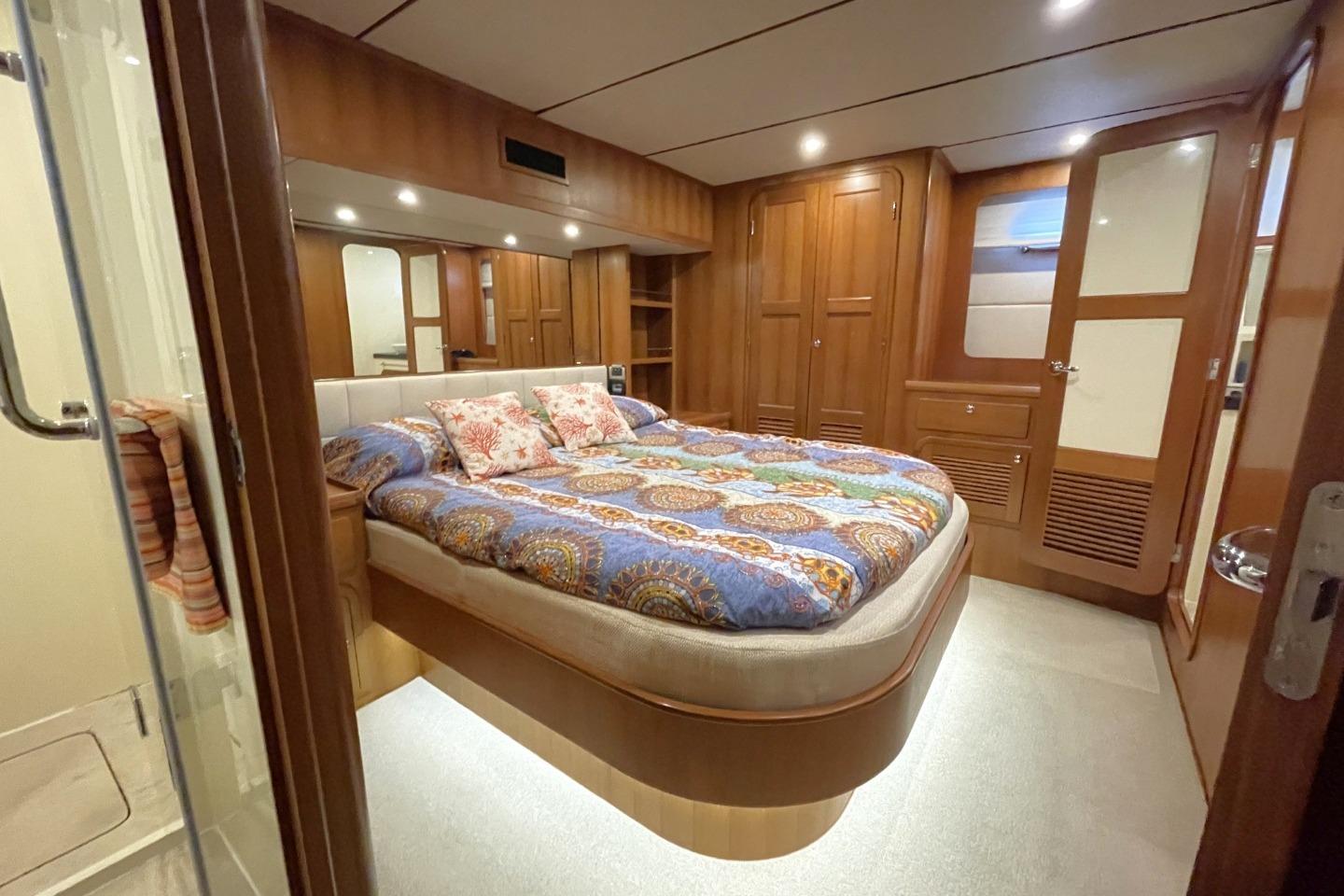

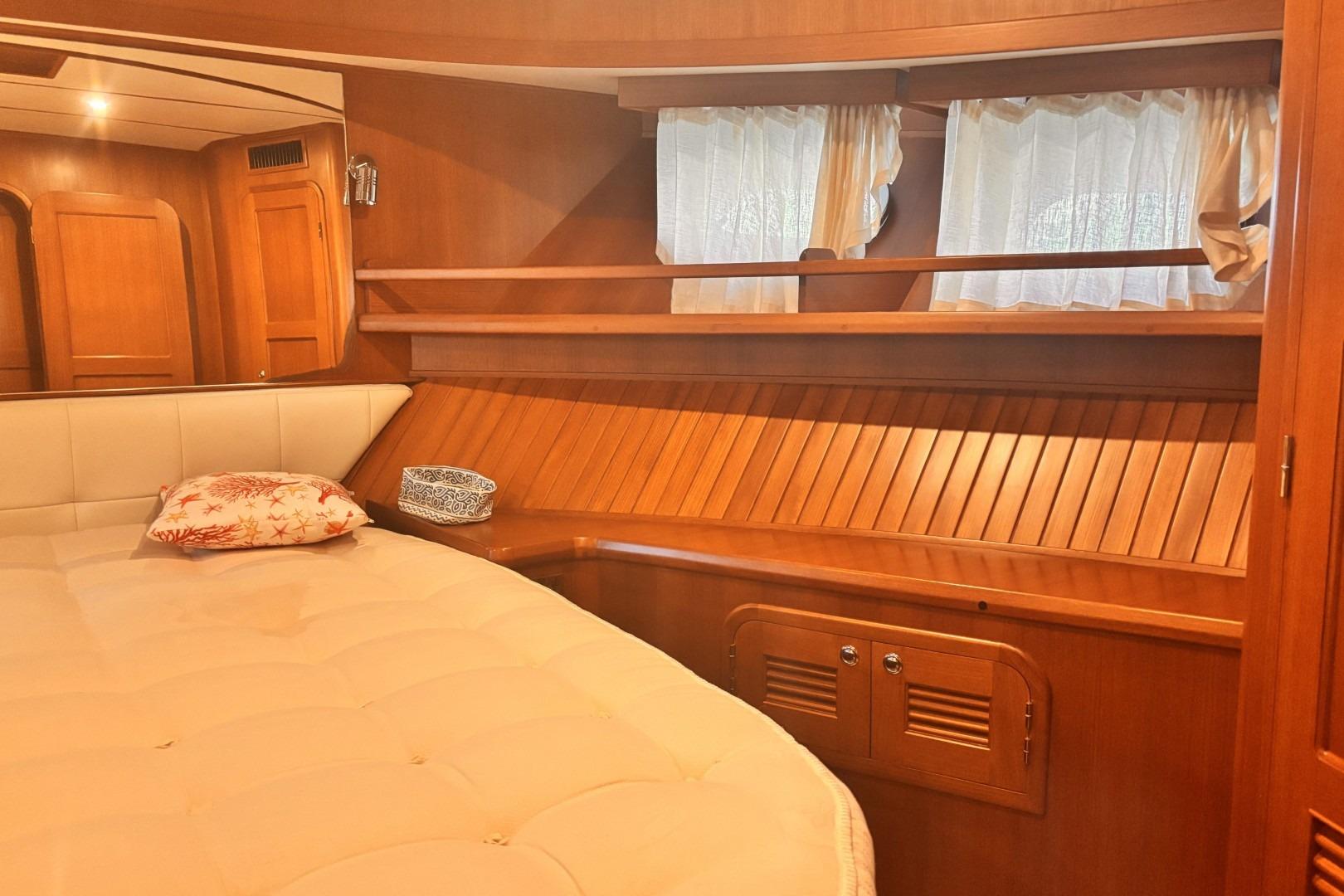

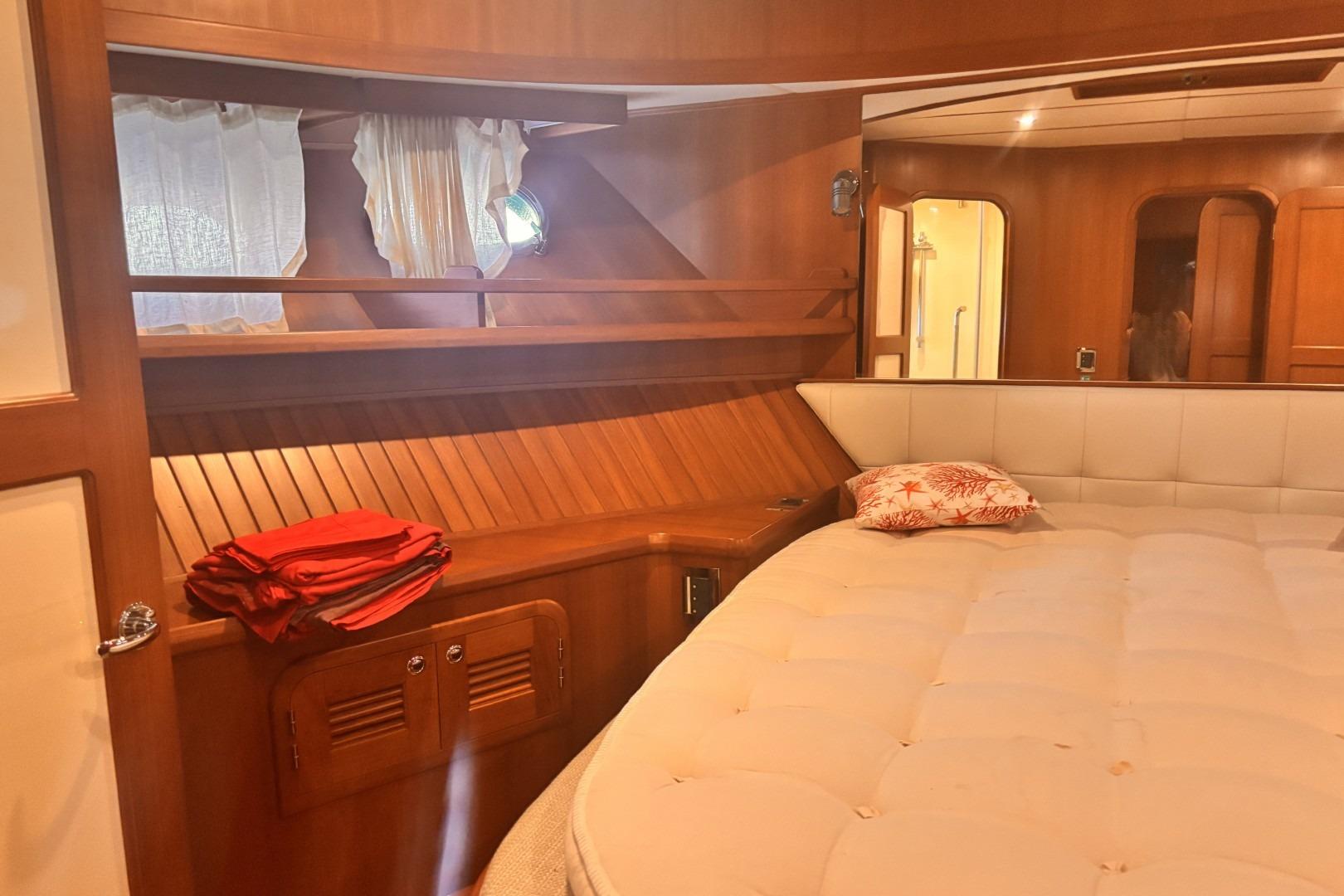

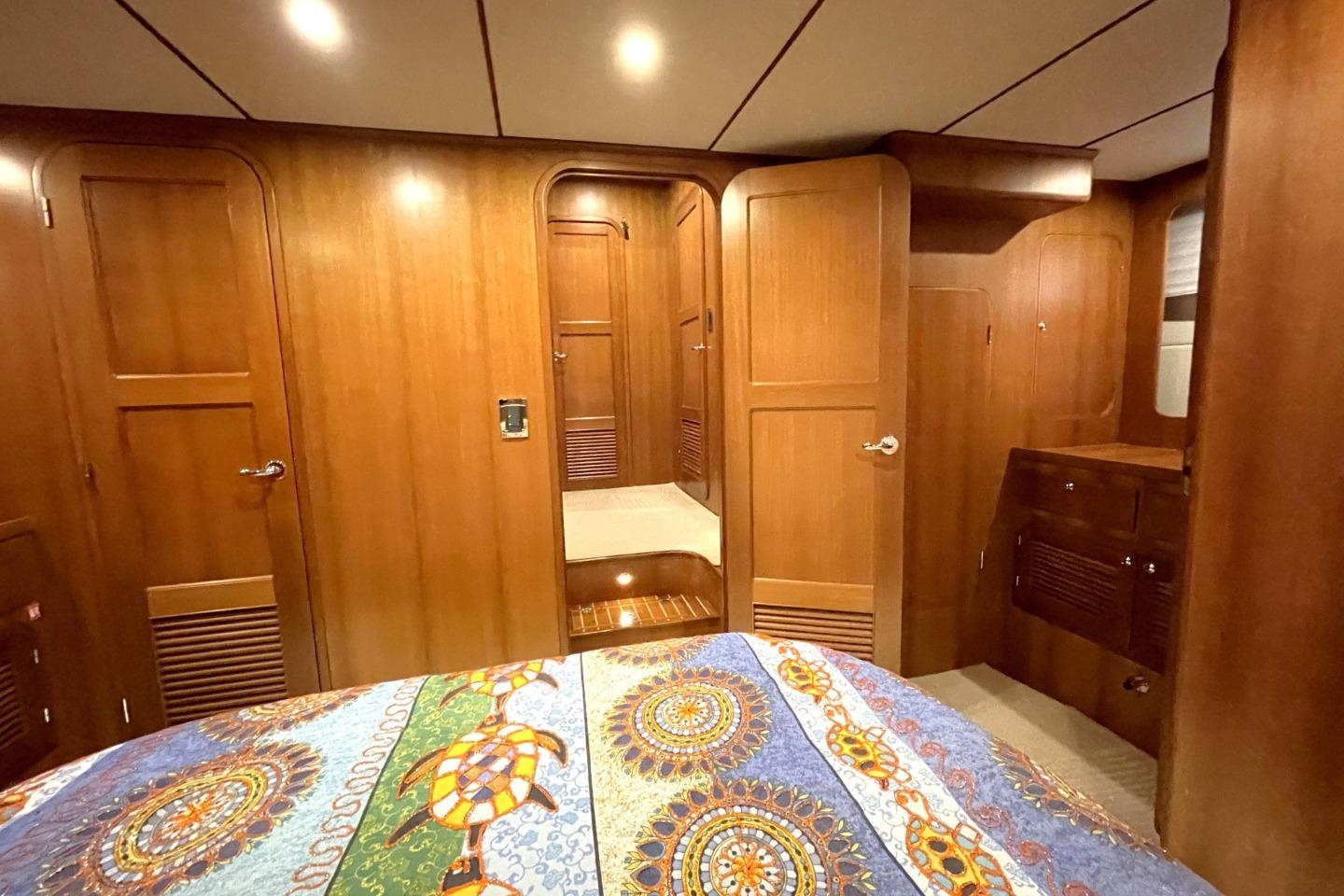

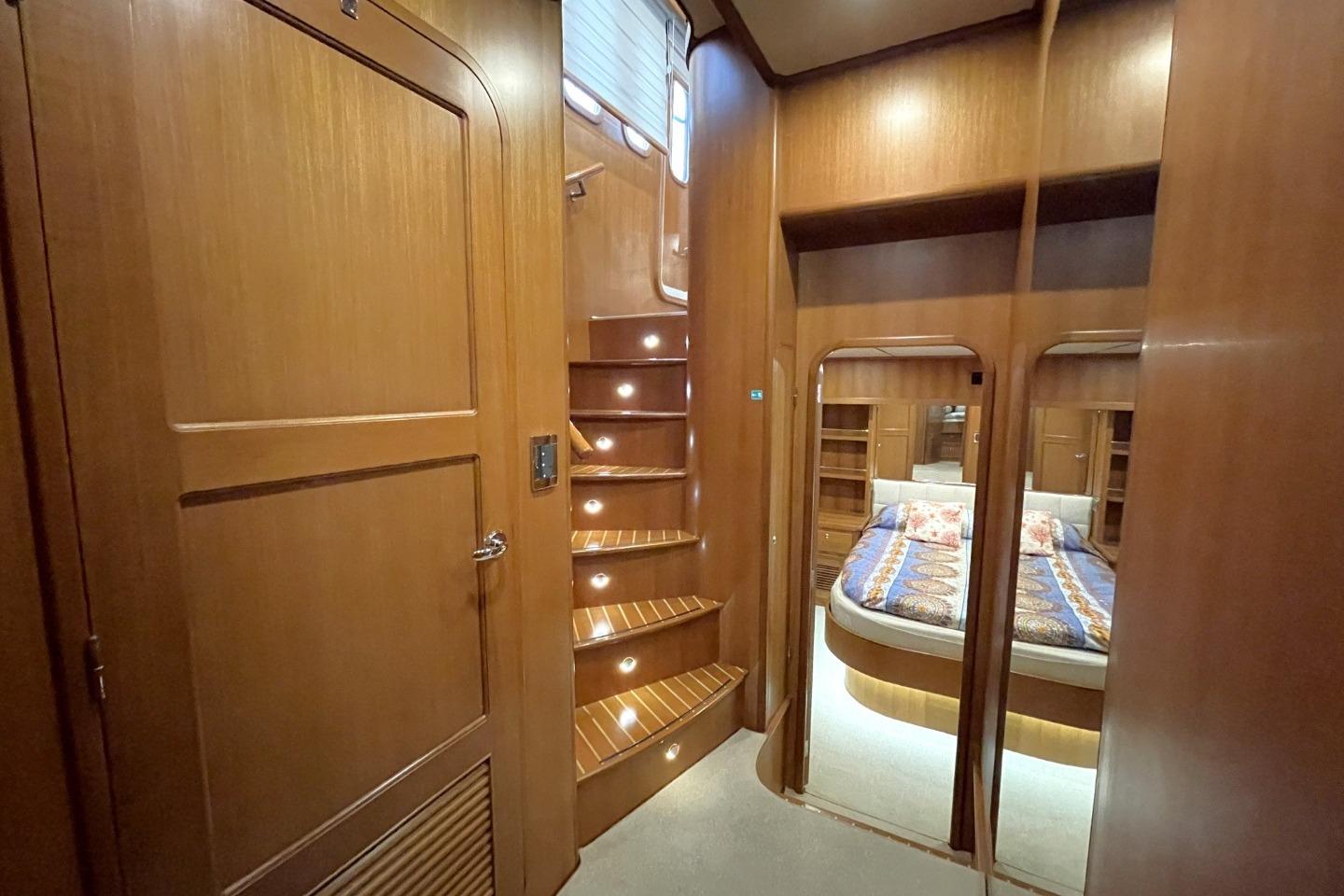

Owner’s Cabin:
• Queen-size walkaround double berth full beam cabin
• Drawer bureau
• Wardrobe with auto-light & aromatic cedar liner
• Aft mirror

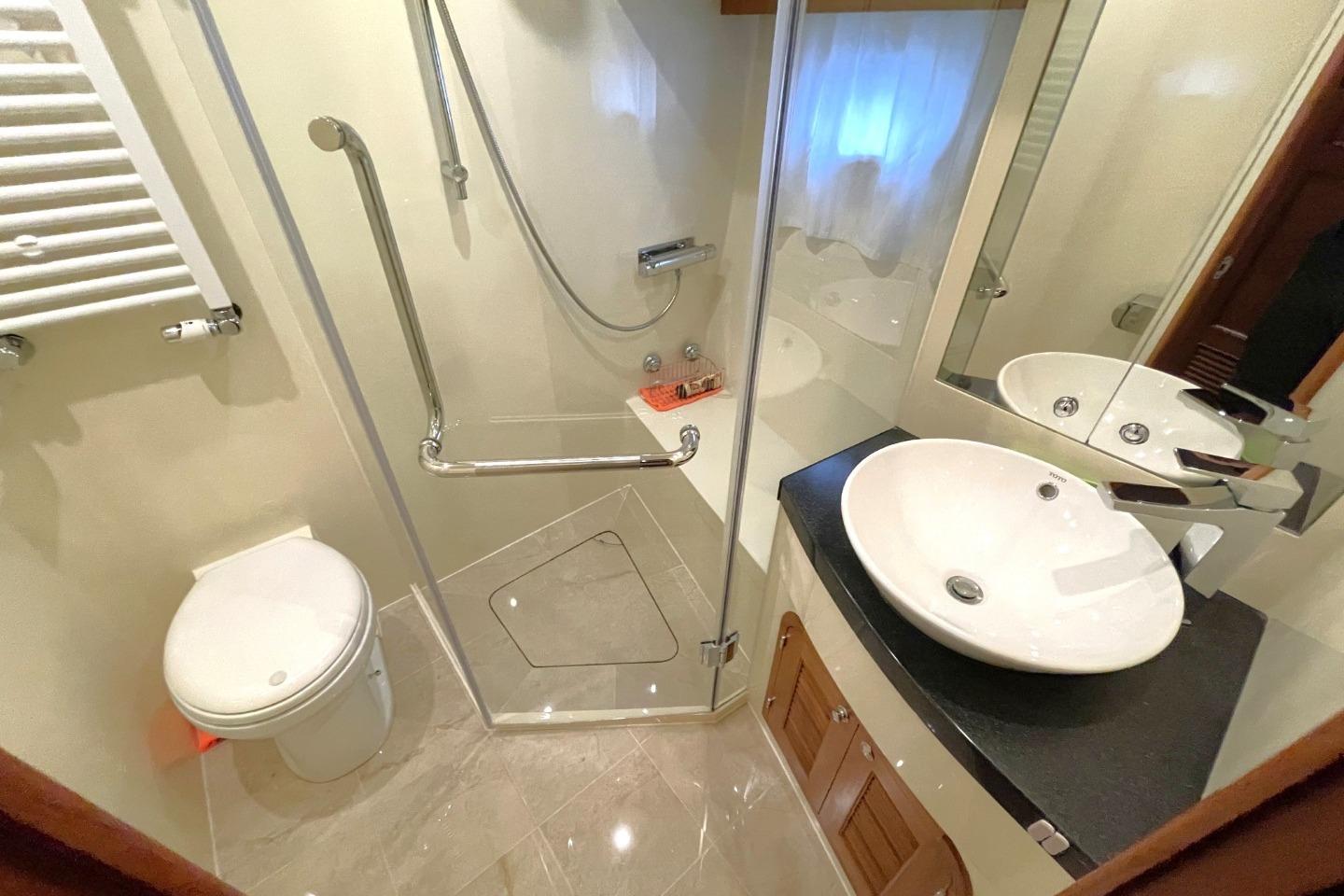

Owner’s Cabin Ensuite Bathroom:
• Separate shower and WC cabins
• Vanity unit with mirror
• Wash basins with single lever cold/hot water faucet in both cabins
• Corian finish counter top
• Granite floor base with glass sliding shower door
• Tecma electric fresh water flush toilet
• Granite floor with stainless steel divider
• 220vDC socket
DECK EQUIPMENT
Exterior Layout:

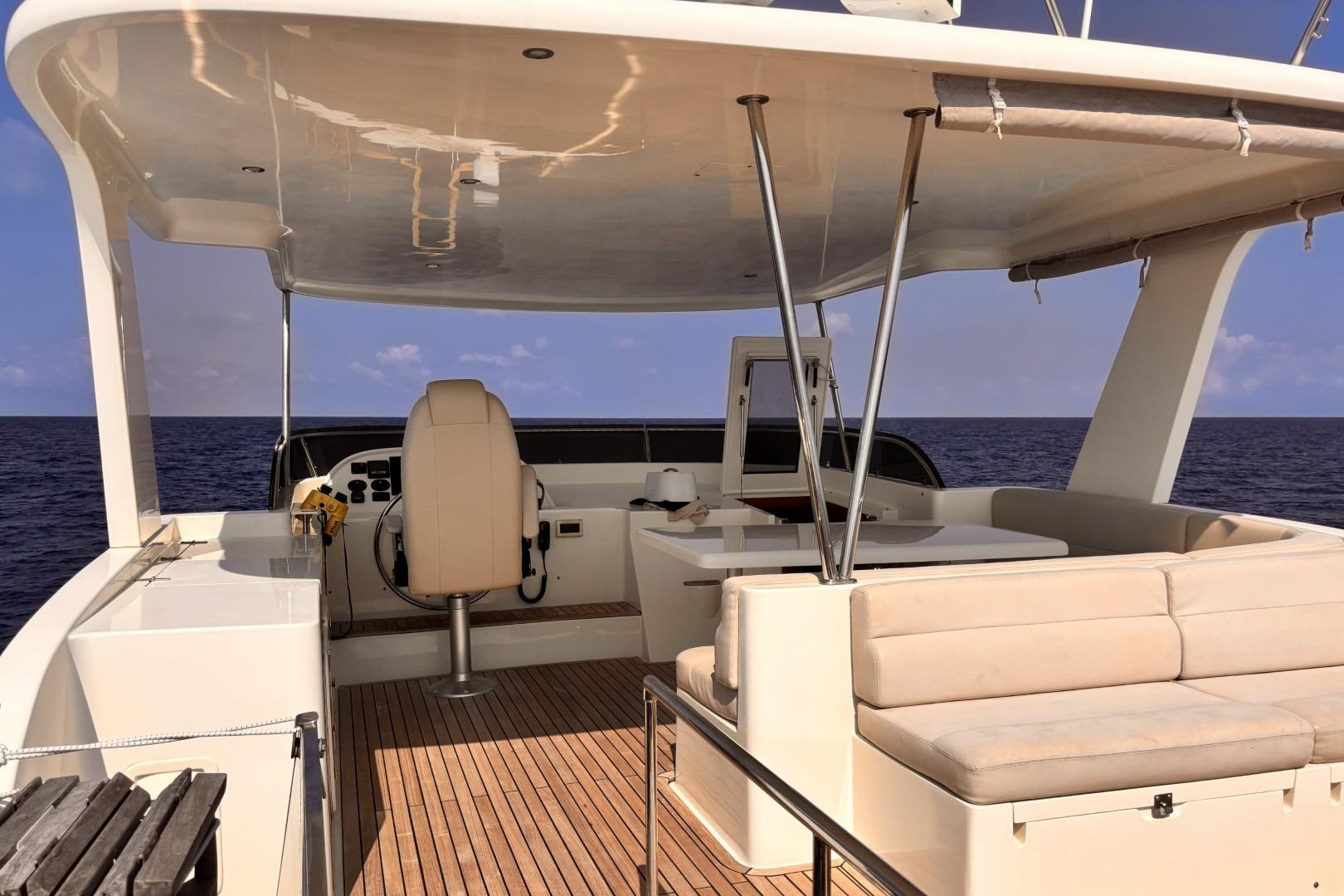

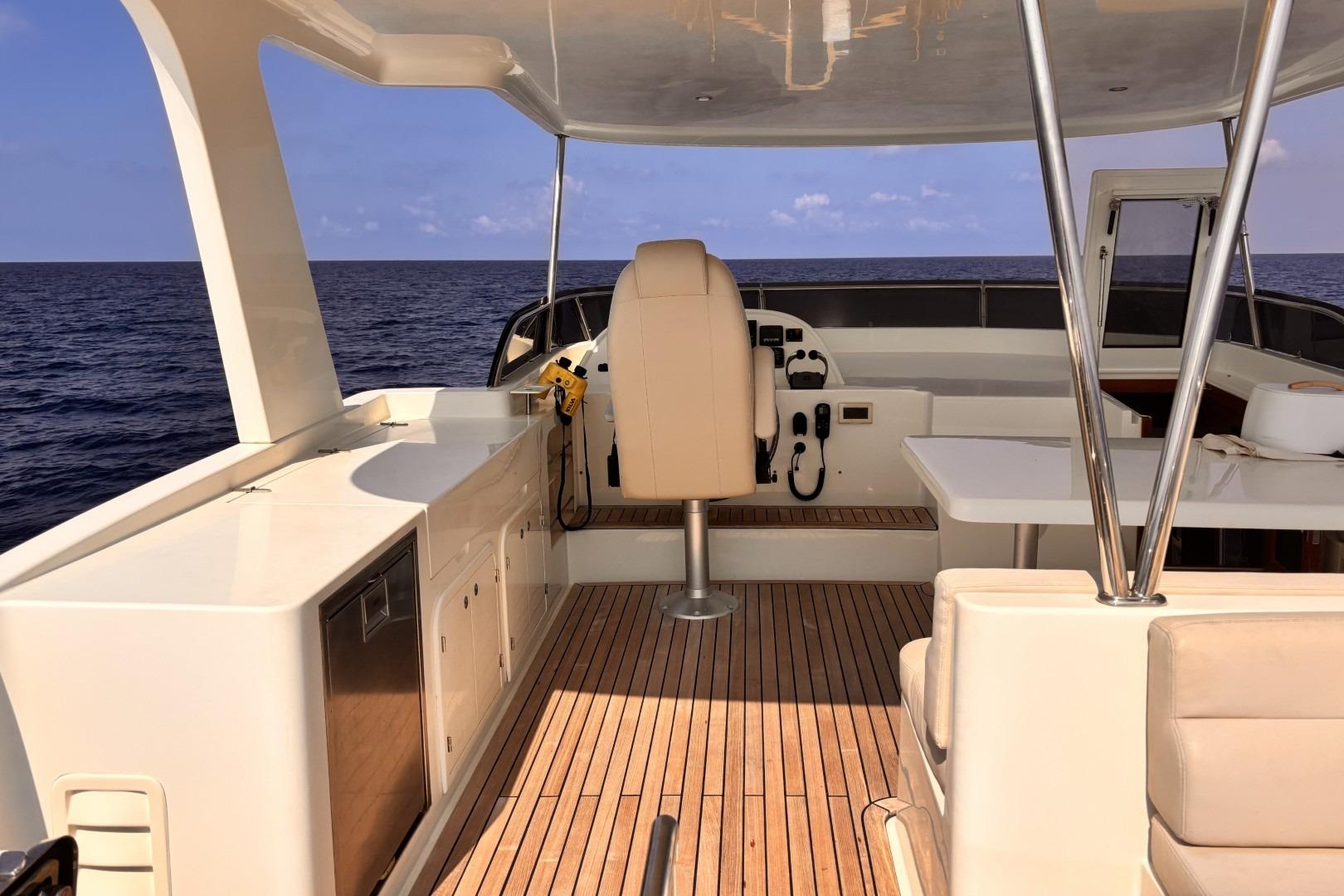

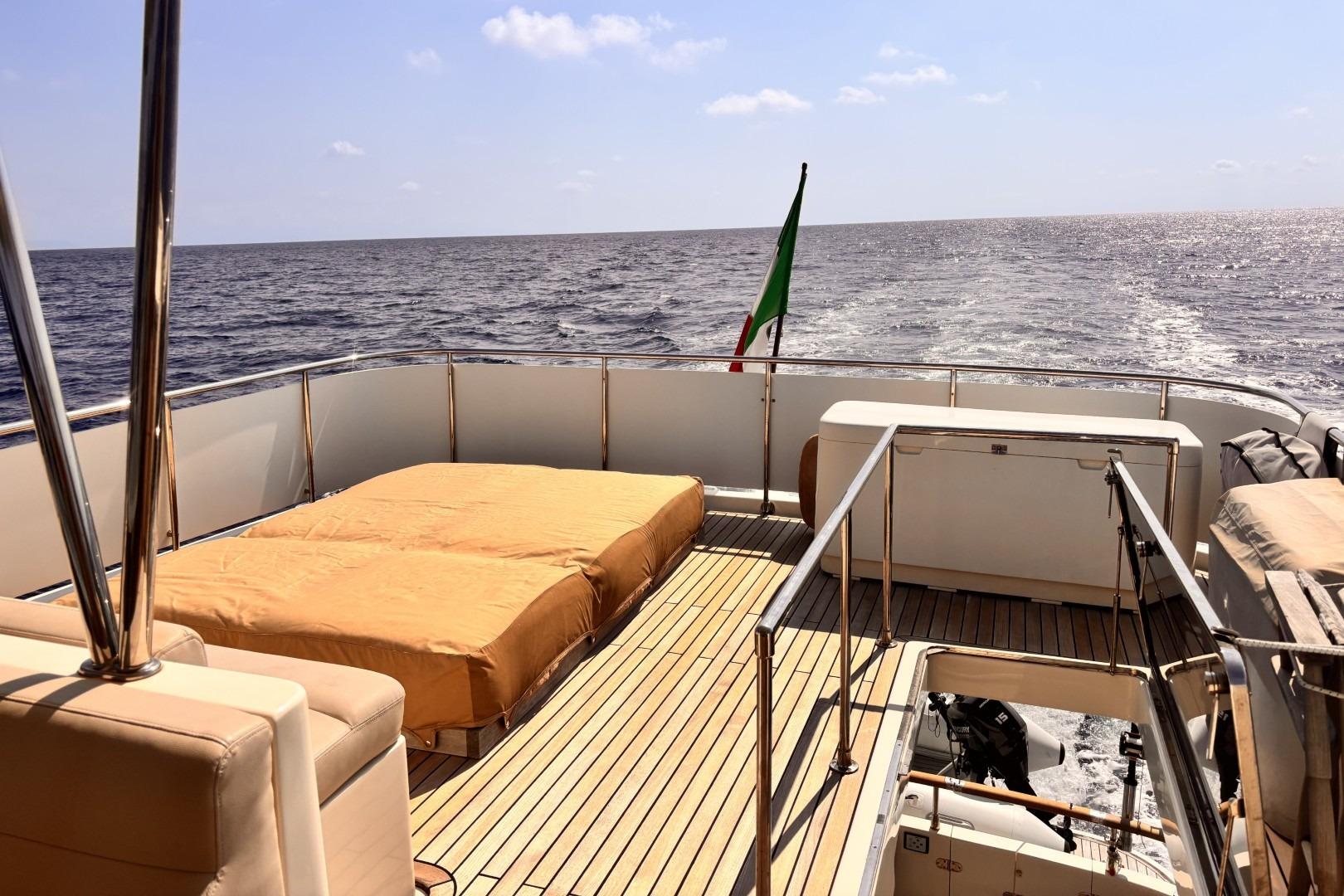

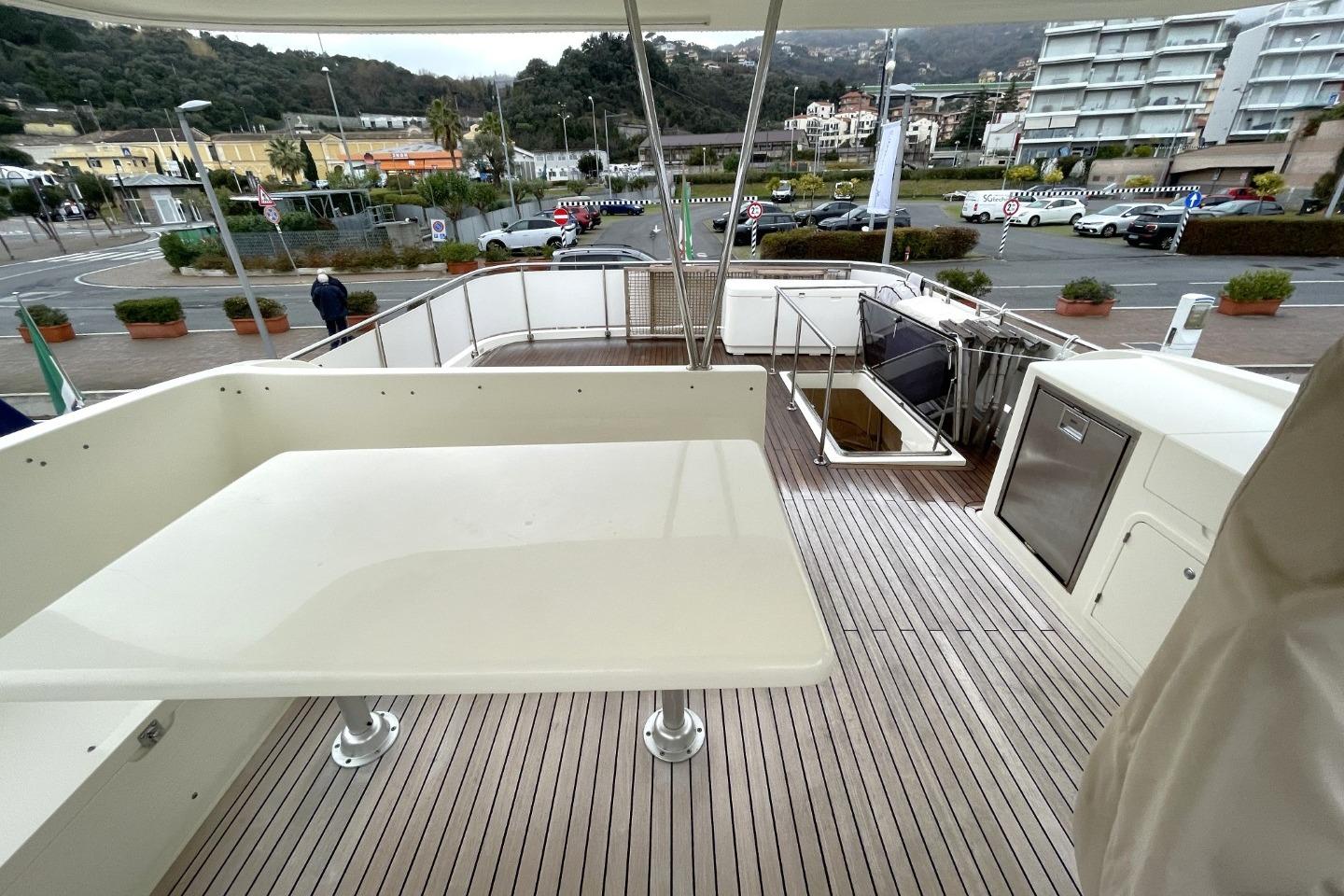

Flybridge:

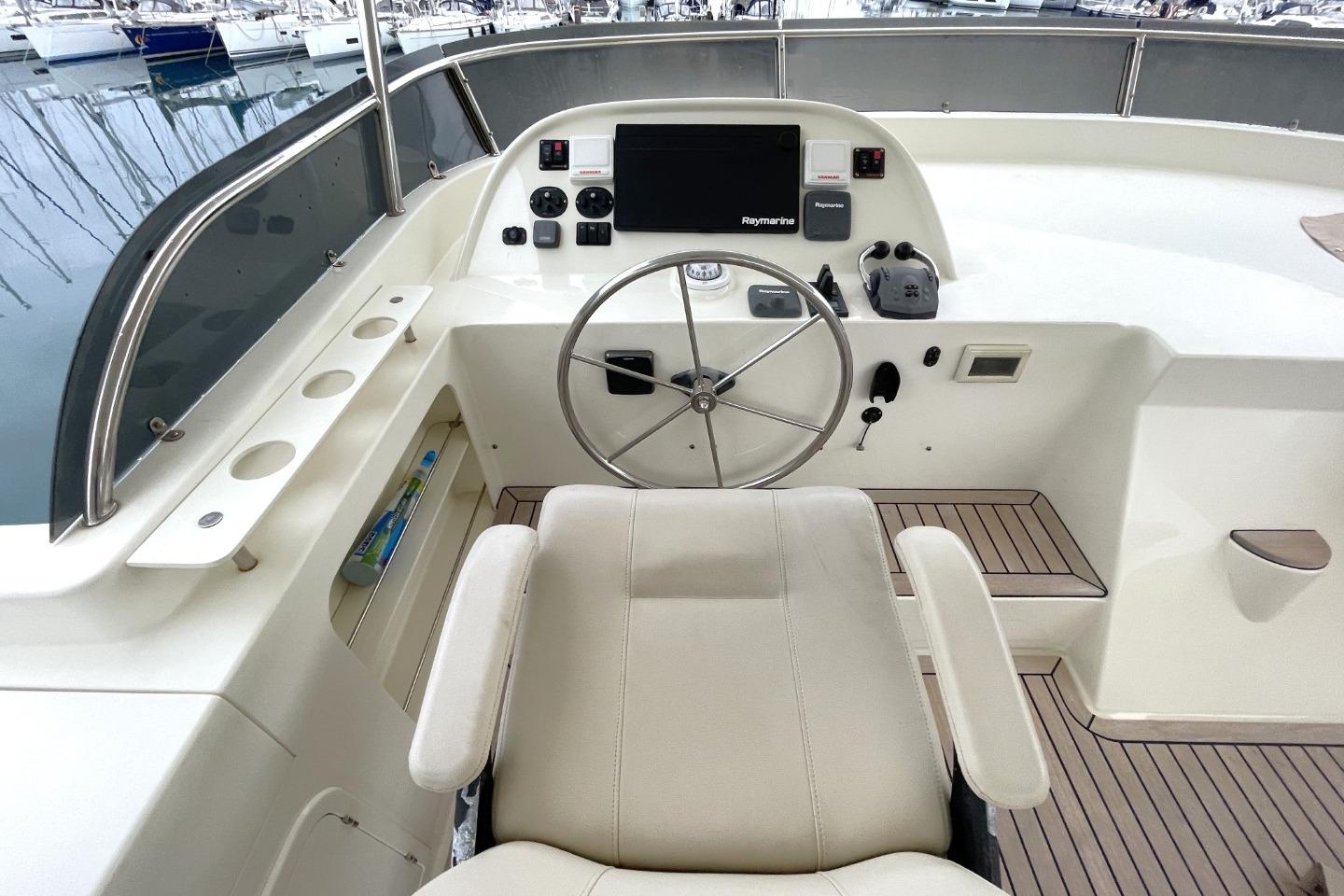

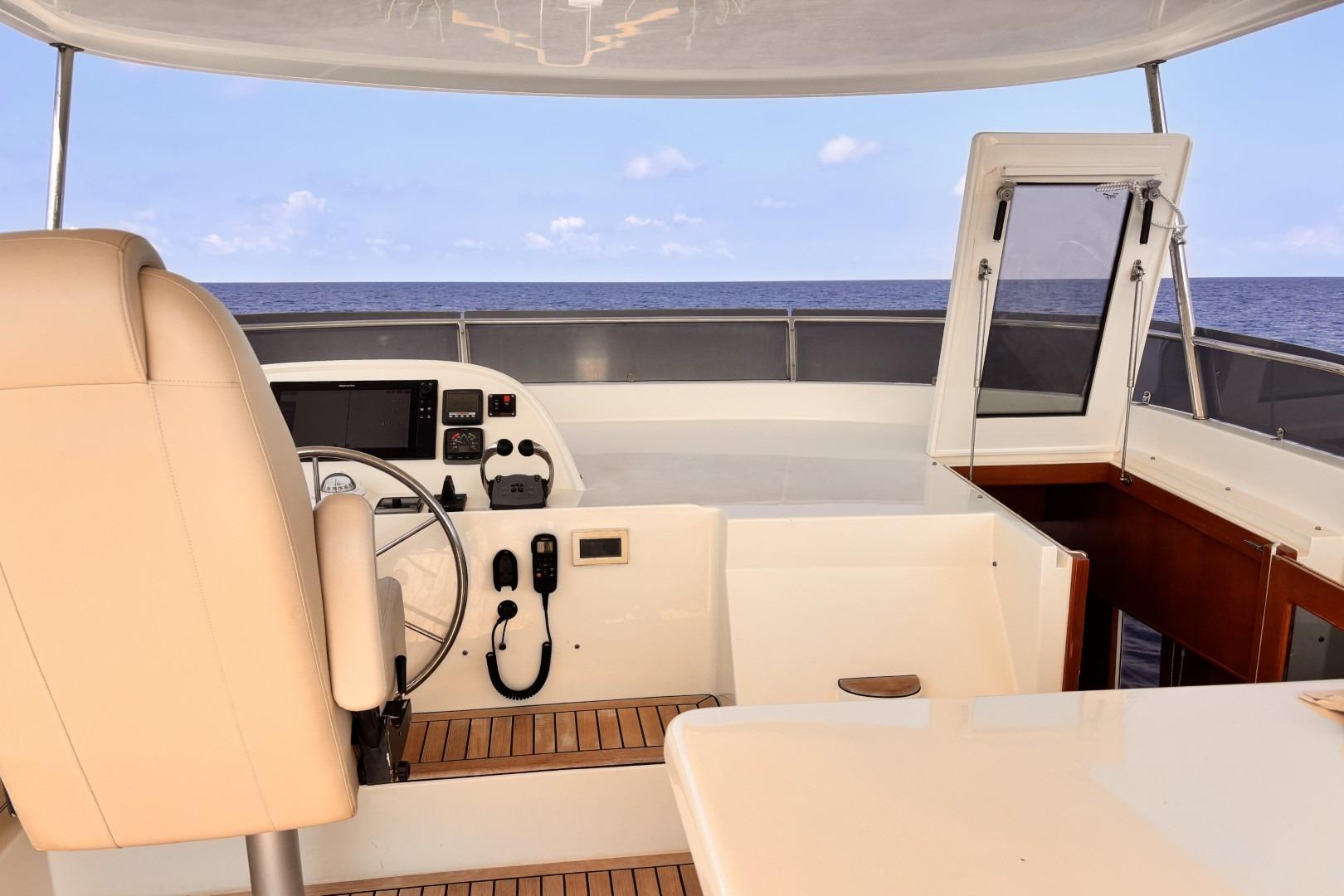

• Helm station with twin leather-upholstered pilot seats
• GRP hardtop with sunshade covers
• L-shape settee with leather cushions with dining table
• 3x chairs

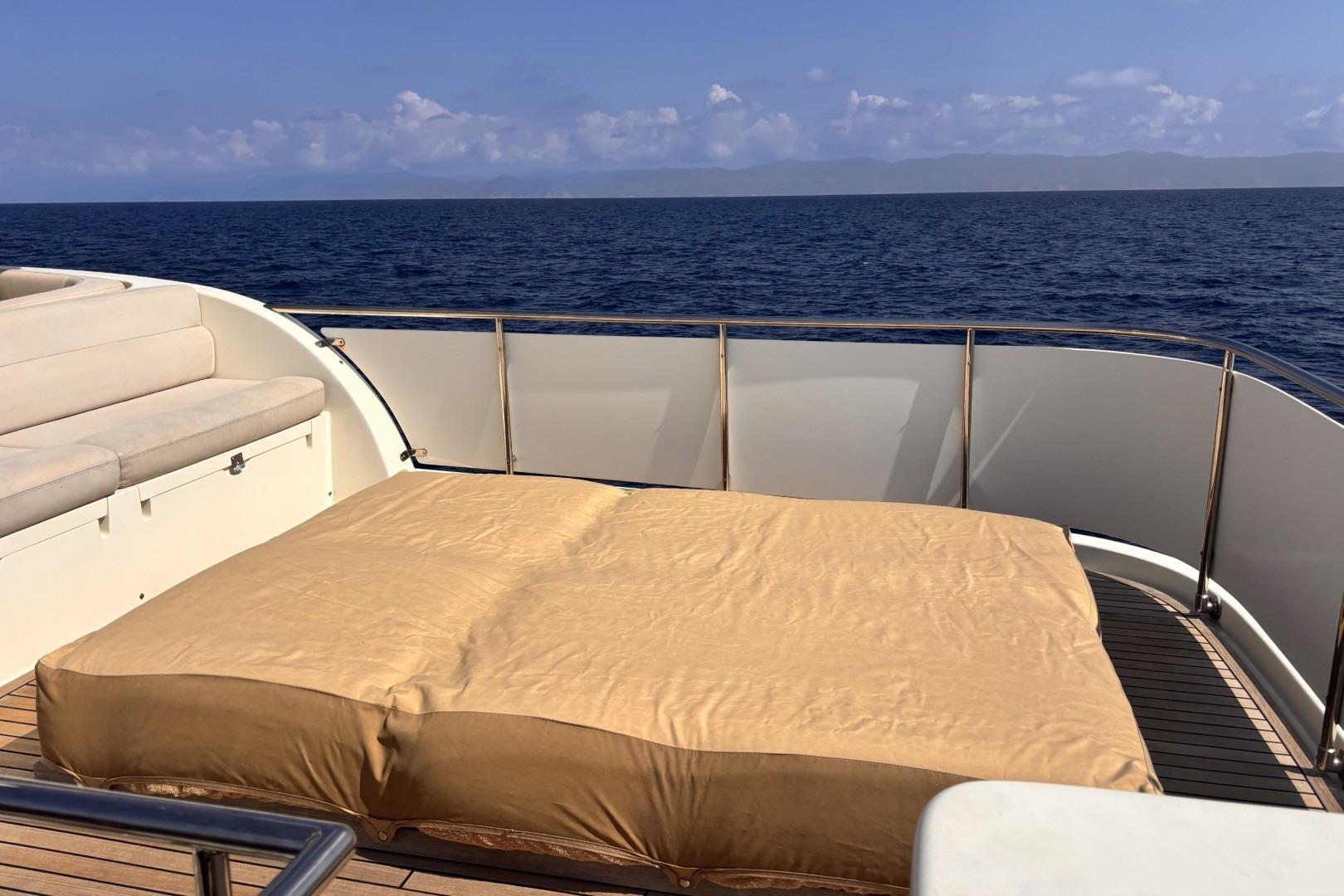

• Aft sunbathing area sofa

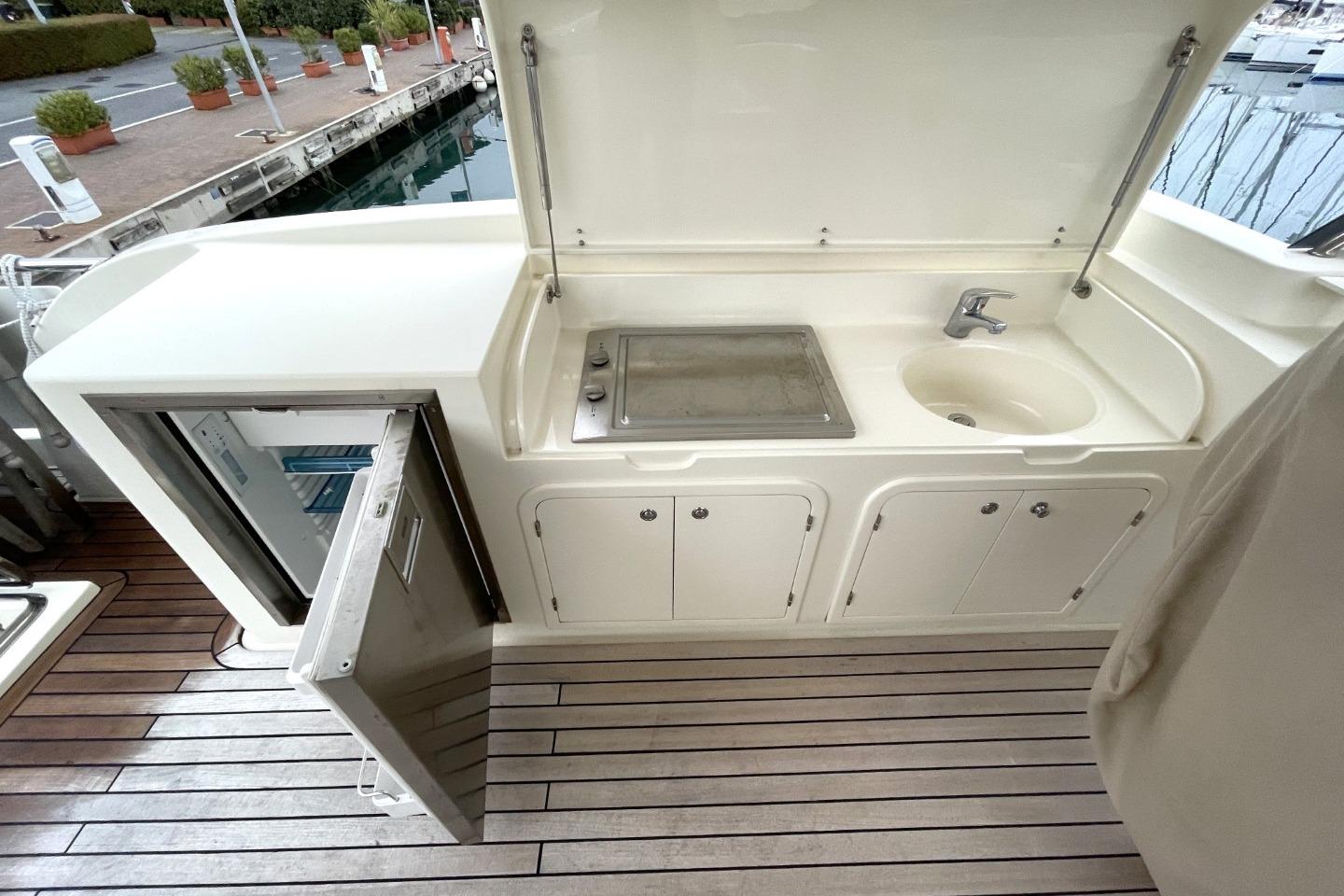

• Portside BBQ wet bar with sink, Coolmatic 60 litres wetbar fridge and Miele 220vAC BBQ grill
Lower Deck Areas:-
• Aft cockpit are with walk-through access to bathing platform to port

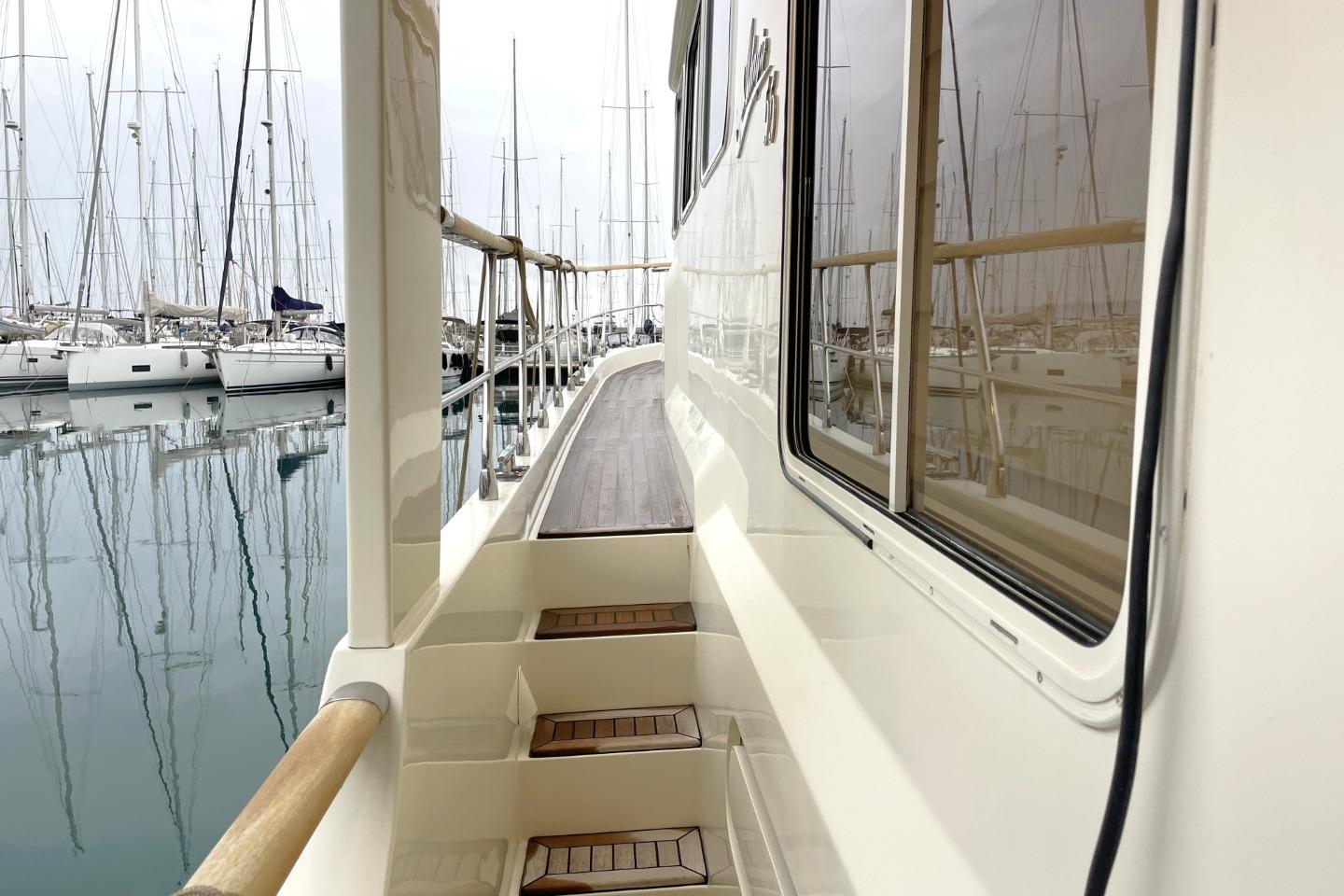

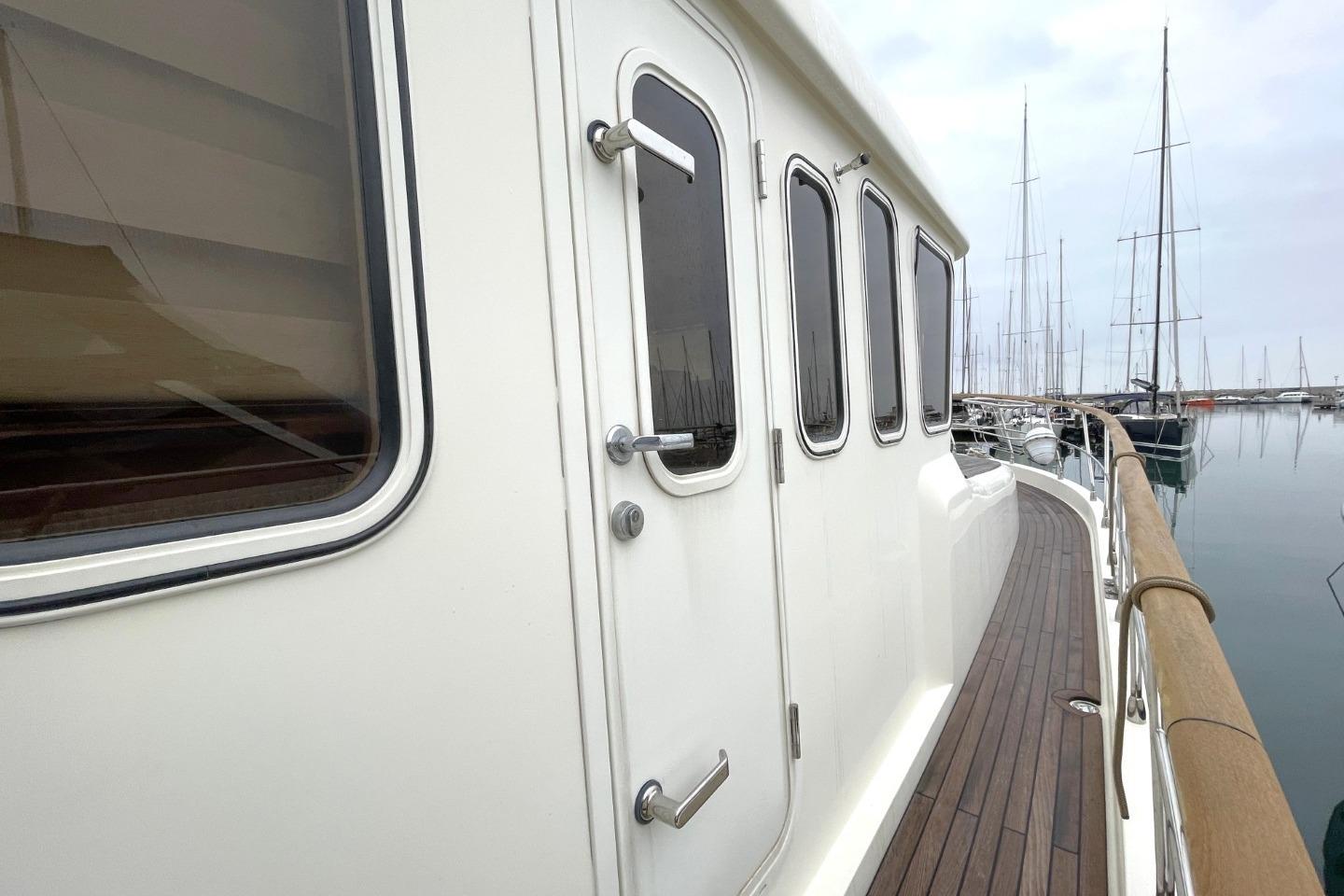

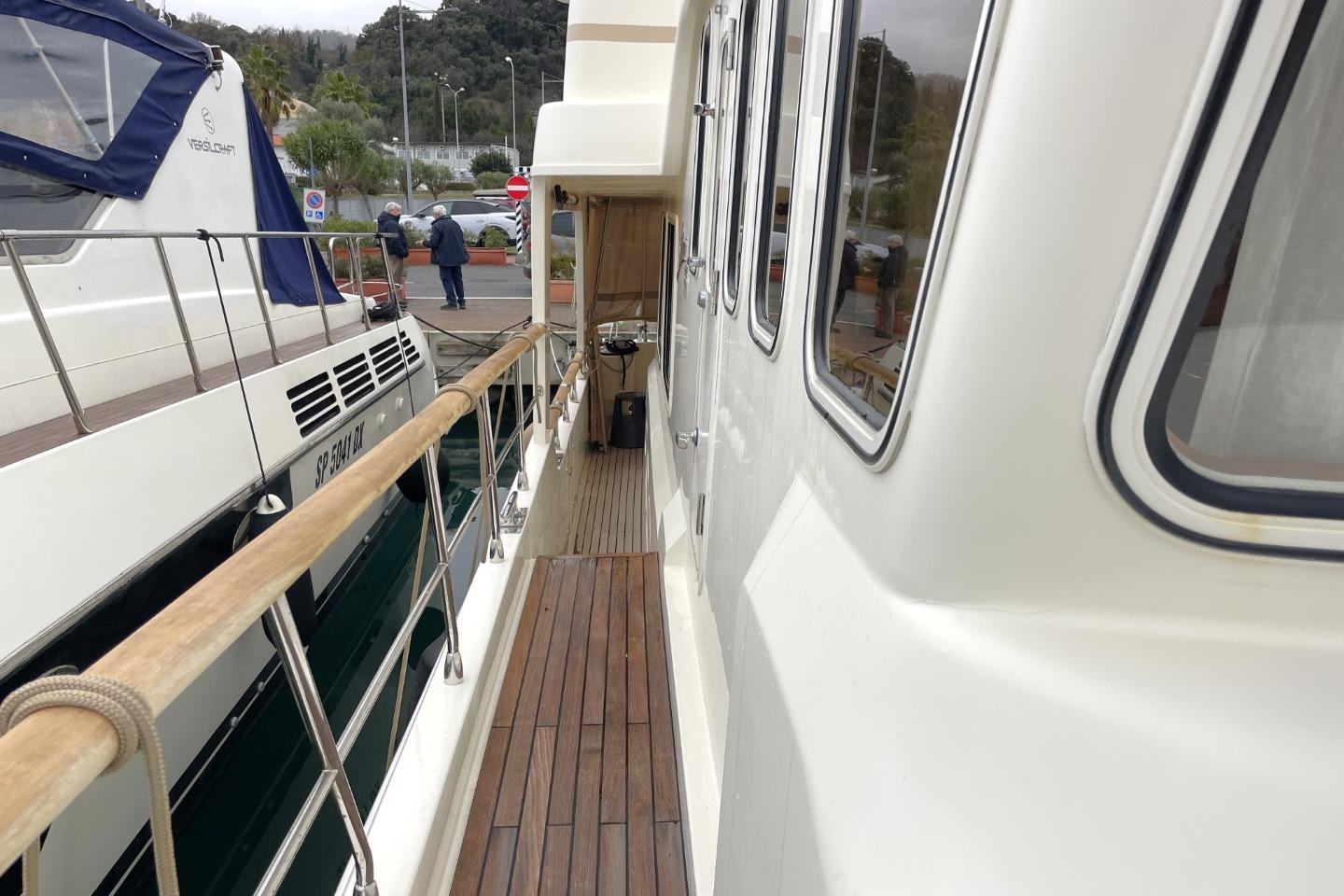

• Covered walkthrough to walkaround side decks

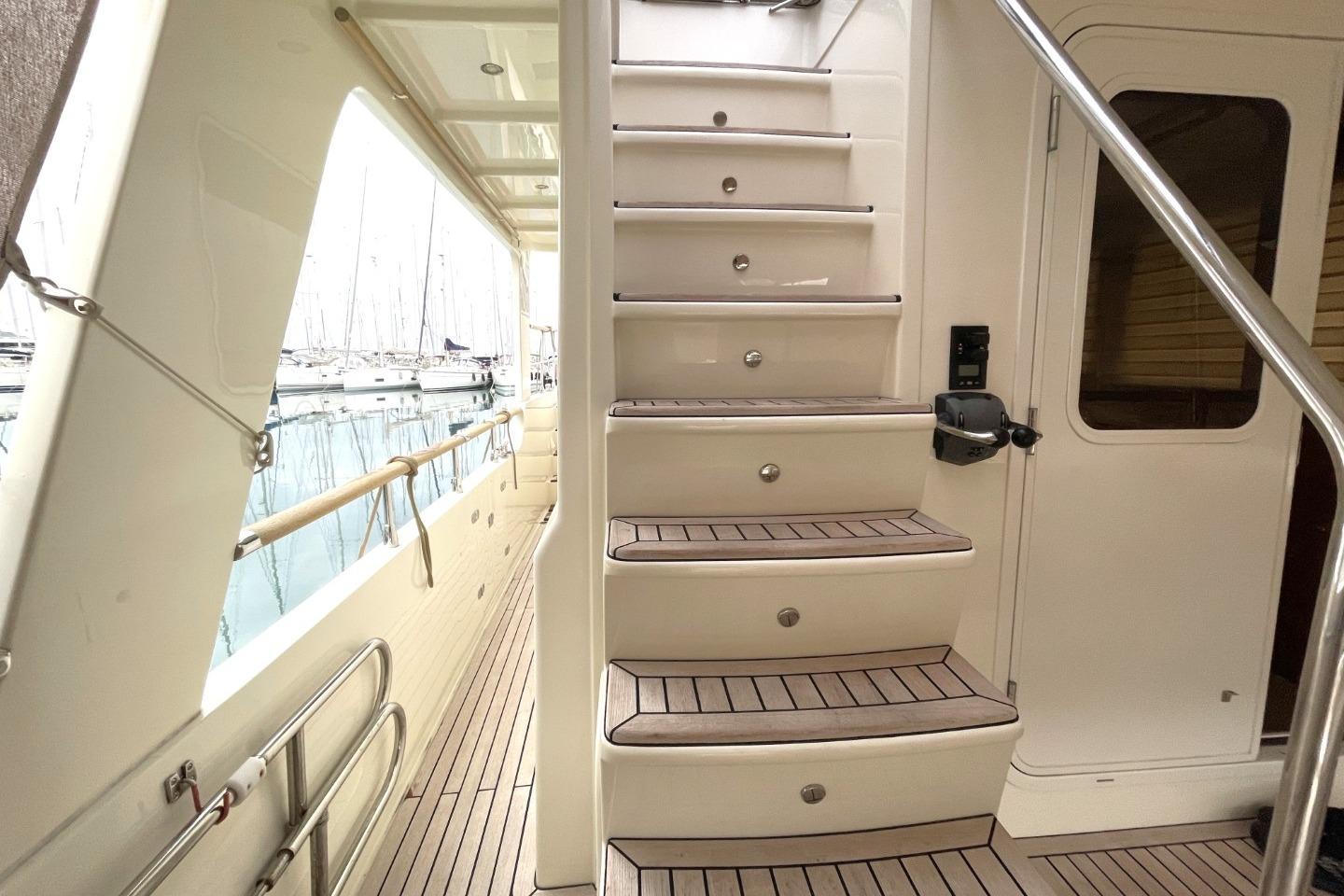

• Stair access to flybridge
• Third station throttle/gear controls for mooring
• Twin opening doors to aft saloon
• Side door access to lower helm station to starboard
• Opening access in side bulwarks
General Deck Equipment:
• Stainless steel guardrails and flybridge supports

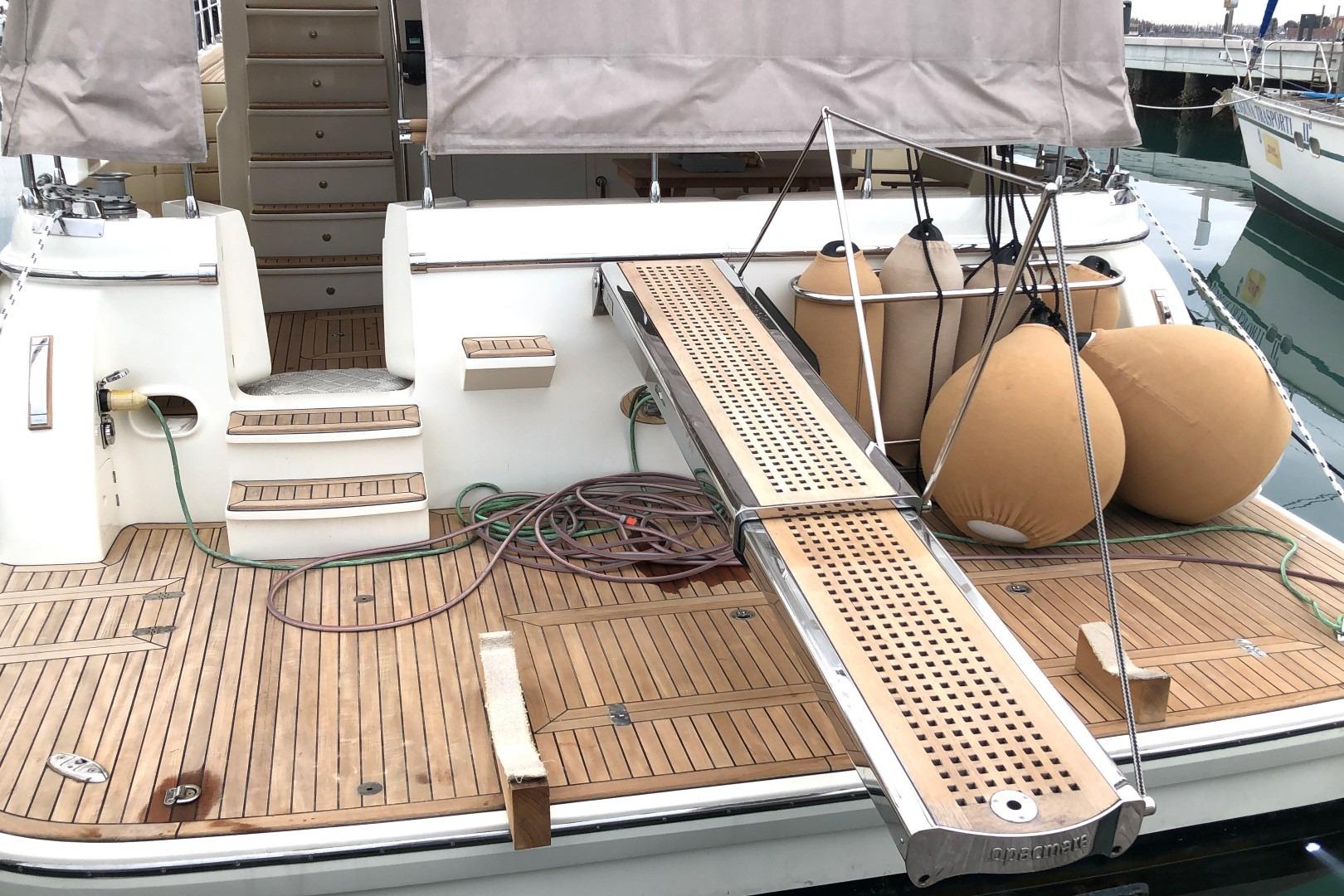

• Opacmare electro-hydraulic high-low 8998/33 folding 3280mm aft gangway with 850kgs load capacity for tender launch/stowage with remote control
• Covers for external furniture, tables and upper helm station
• Port and starboard boarding gates and removable stainless steel boarding ladders
• Engine room and cockpit camera
• Flir night vision camera
• Horn and radar reflector
• Cold and hot shower on the aft bathing platform
• Underwater LED lights

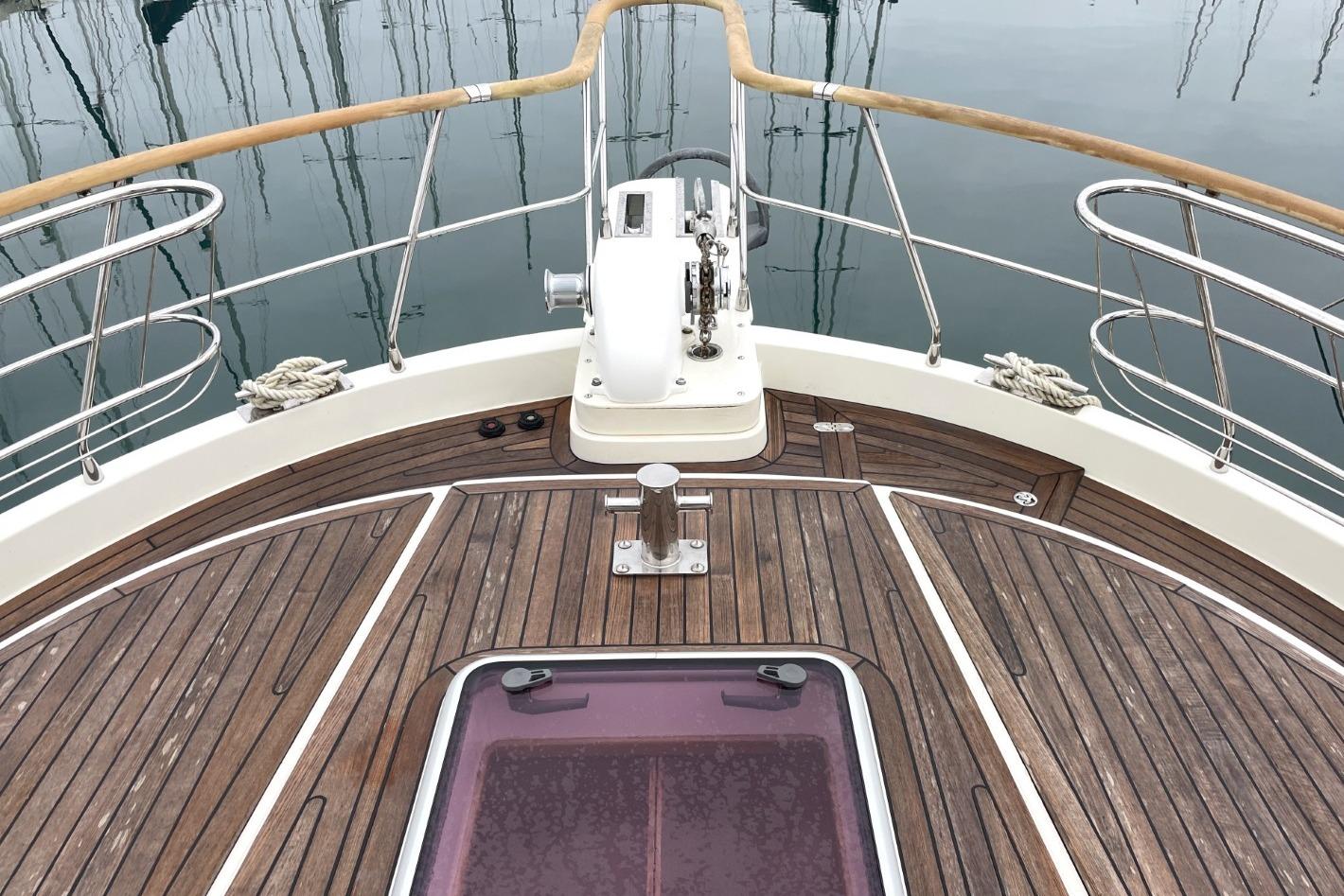

Anchoring & Mooring:
• Bow pulpit with twin rollers
• 24vDC 1,500w reversing twin-gypsie anchor windlass with remote control and chain counter
• 40kgs ROCNA anchor with galvanised chain
• 2x 24vDC 1,000w aft mooring capstan winches
Covers, Cushions & Canvas:
• Canvas enclosures for aft cockpit
• Cockpit cushions
• 4x chairs on the flybridge
• Covers for flybridge furniture and seating/sunbathing areas
• Tender cover

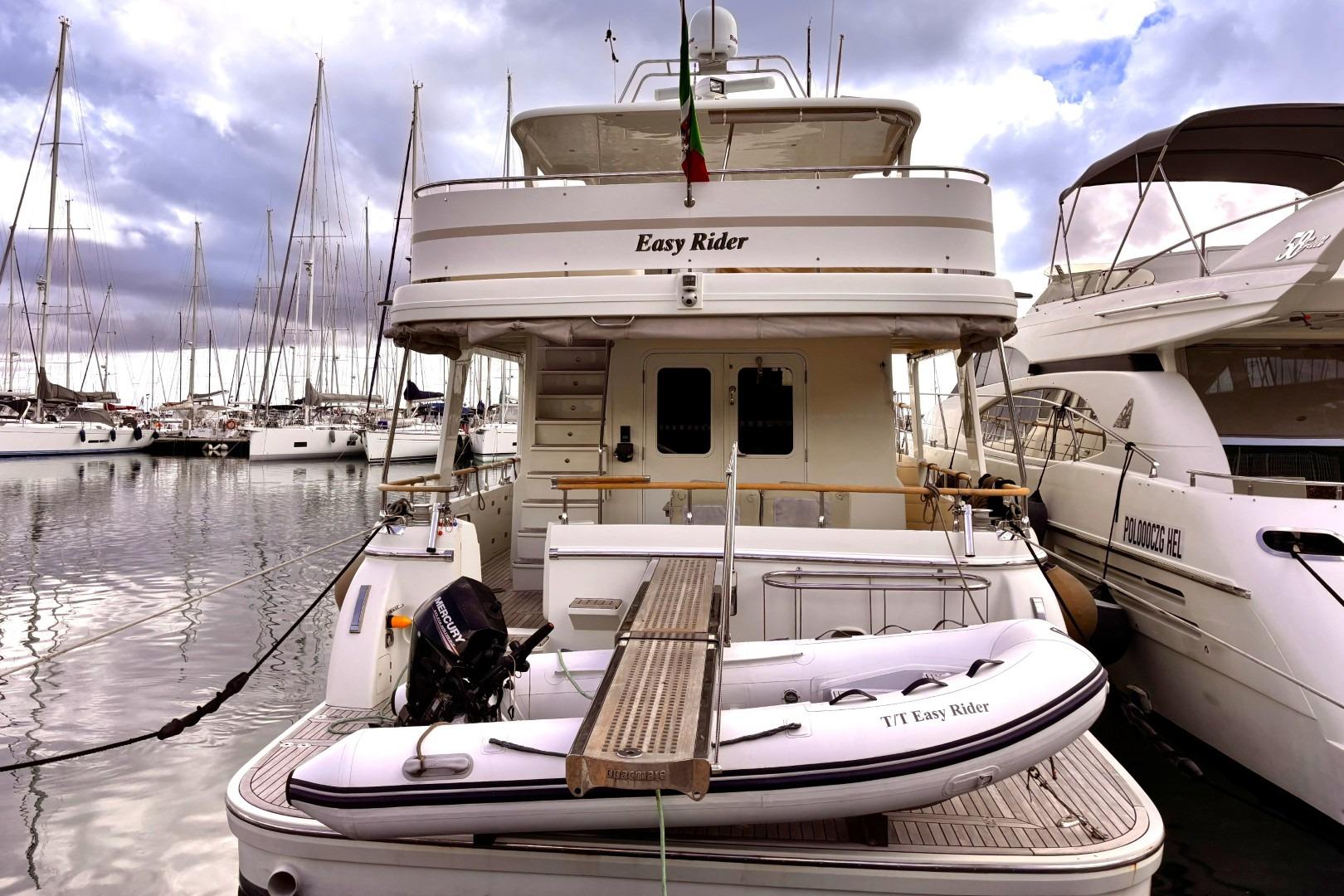

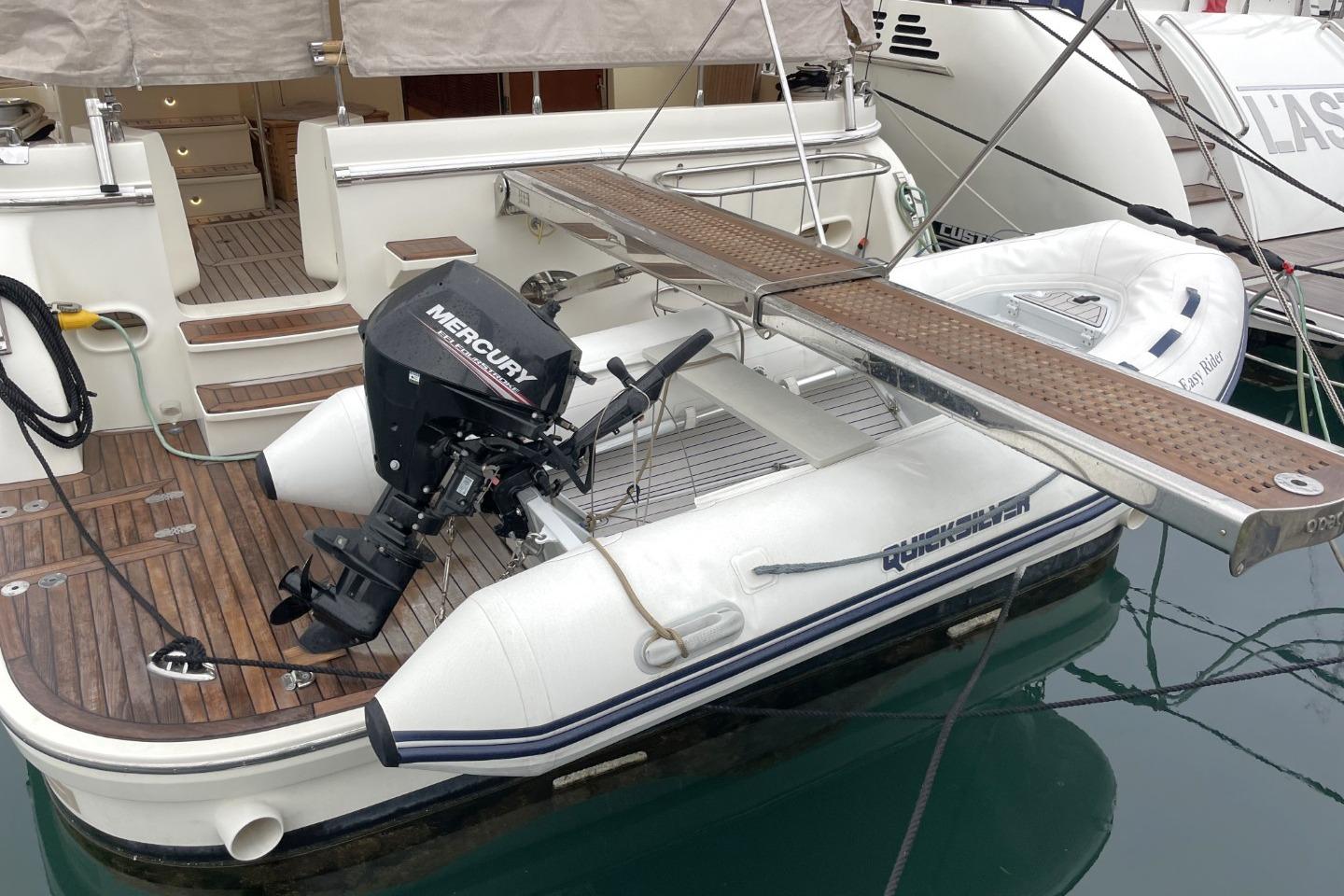

Tender & Outboard:
• Quicksilver 330 tender – 2025
• Mercury 15hp 4-stroke outboard engine
SAFETY EQUIPMENT:
General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.
• 2x ITT Jabsco remote control searchlights with controls at main and flybridge helms
• Flir night vision camera
• Horn and radar reflector
Lifesaving:
• Italian ‘Certificato di Sicurezza’ valid until March 2027
• Liferaft
• Lifejackets
• Flares
• First Aid kit
