2015 American Tug 435 | 44ft

Name: 2015 American Tug 435
Brand: American Tug
SKU: 11823
Price: 899000 USD
Availability: InStock

Firefly

Chester, MD, United States

$899,000USD

Co-brokerage

Broker Info

Bayport Yachts

jrm@bayportyachts.com

http://www.bayportyacht.com/

410-212-5264

Boat Highlights:

Year of Vessel

2015

Fuel Type

DIESEL

Length

44 ft

Manufacturer

American Tug

Condition

Pre-owned

Boat Type

Power

Description
Specifications

Description

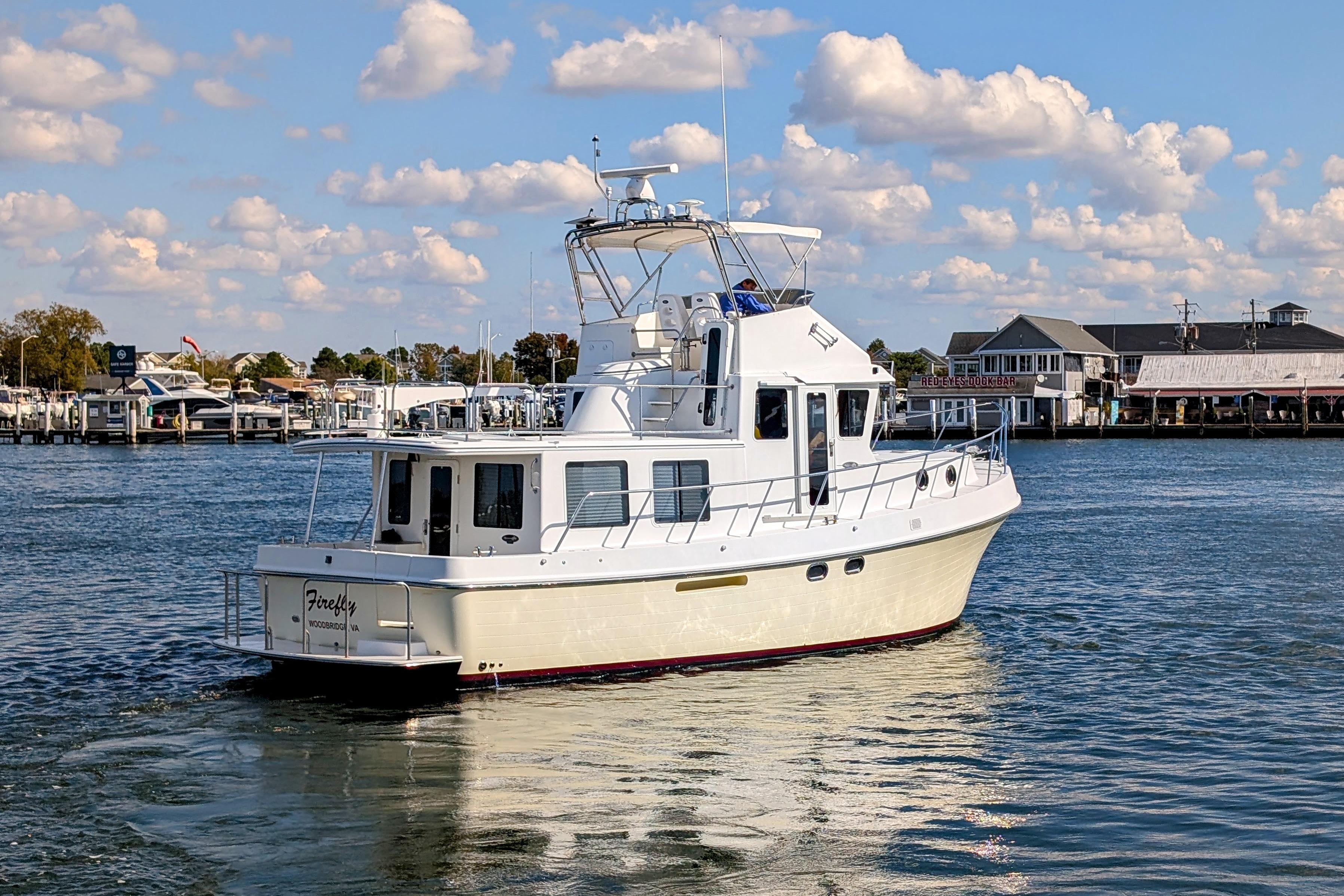

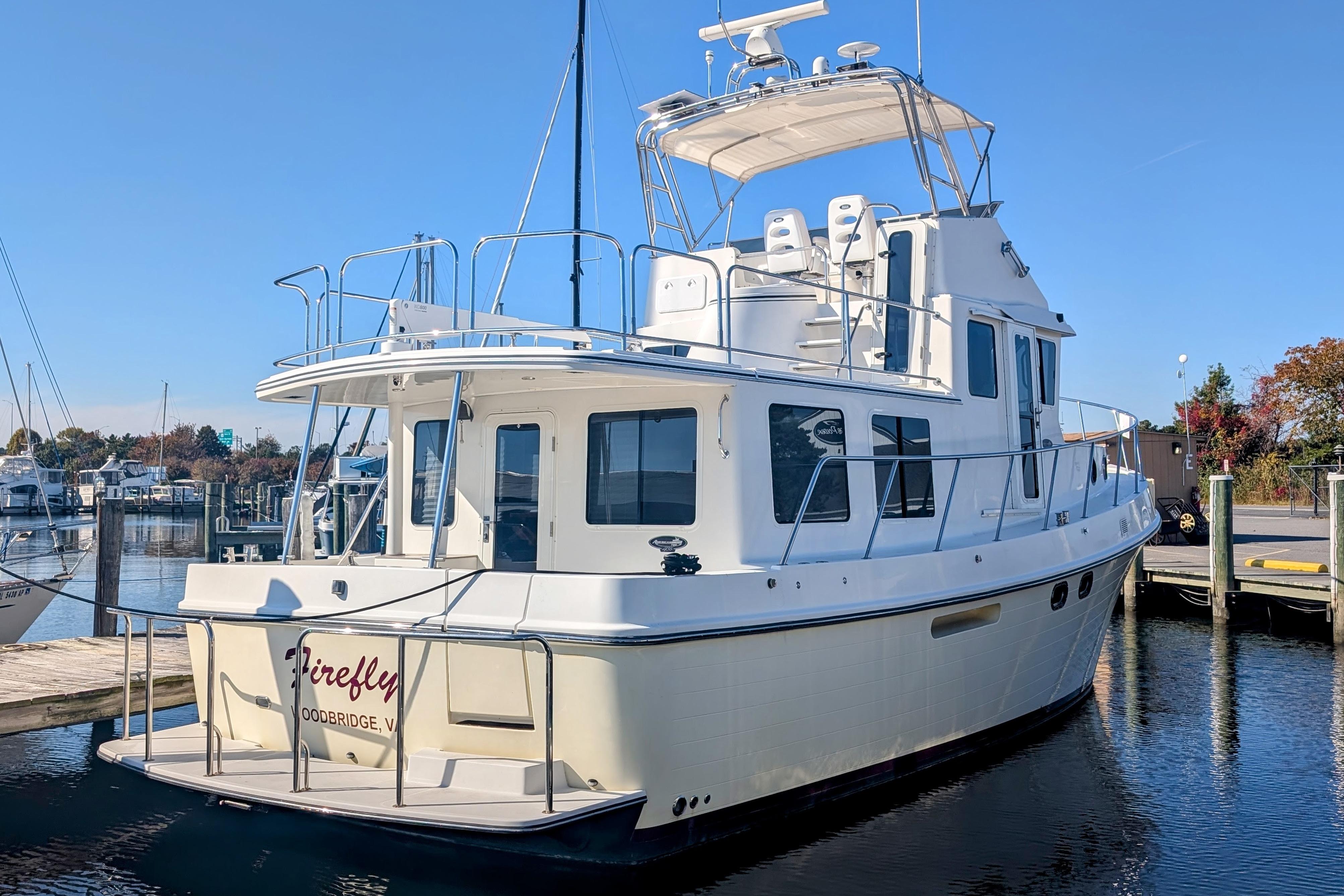

"Firefly" is a One Owner, Lightly Used, Chesapeake Bay boat in LIKE NEW Condition PRICE REDUCED!

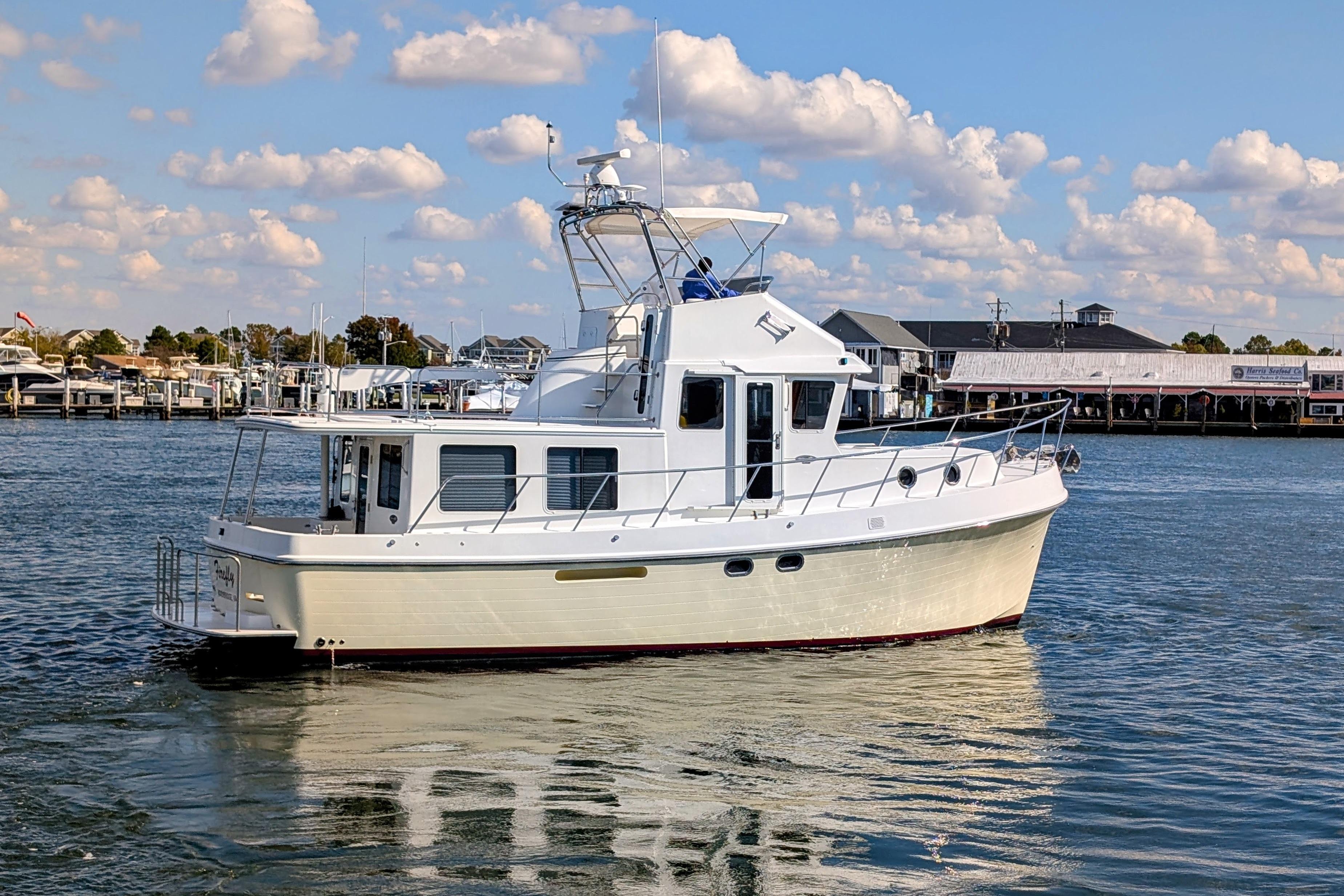

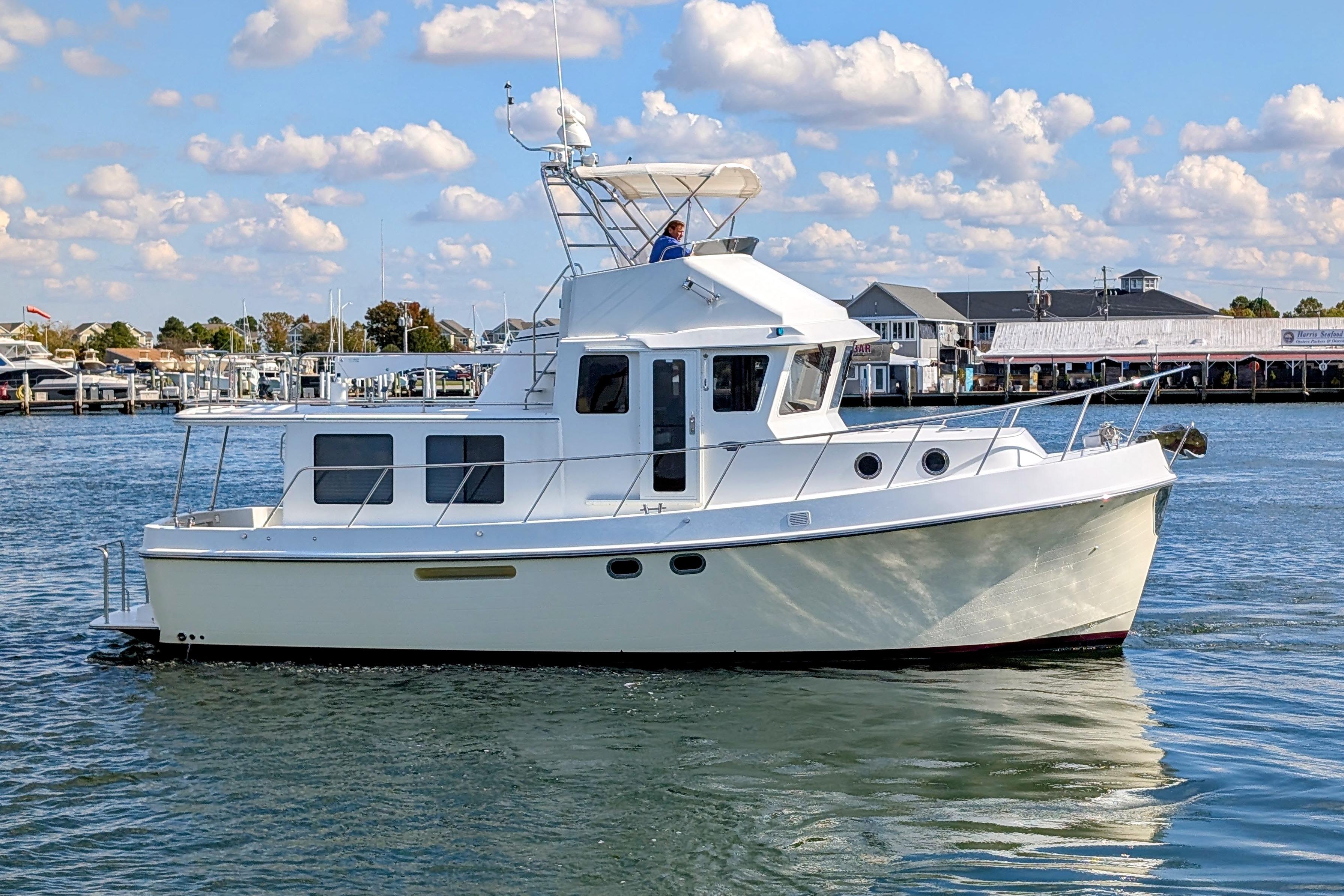

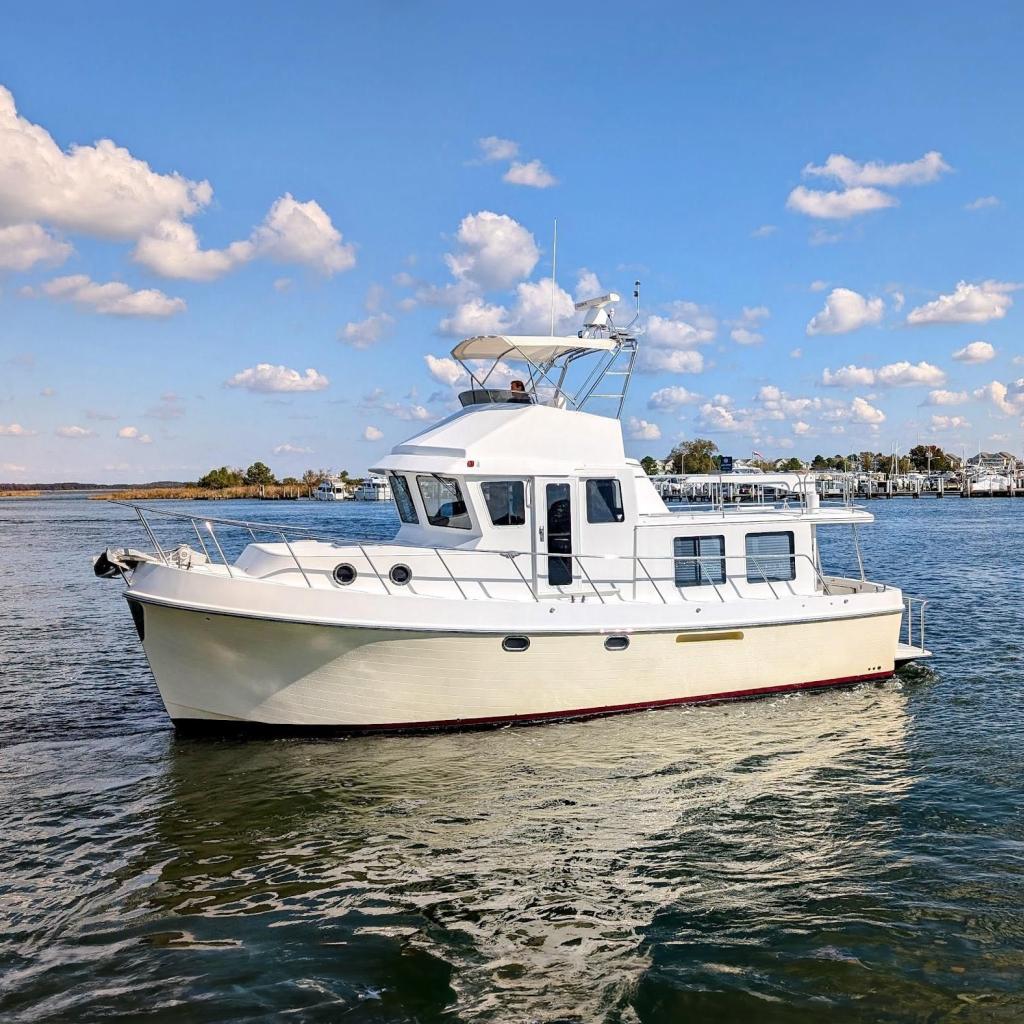

The American Tug 435 is a popular coastal semi-displacement recreational yacht, known for its distinctive tugboat styling, raised pilothouse, and capable cruising features.

Here is a summary of its key specifications and features:

General Specifications

Length Overall (LOA): 43' 7" (13.28 m)
Beam: 15' 10" (4.82 m)
Draft: 4' 10" (1.47 m)
Displacement (Dry): Approx. 29,200 lb (13,244 kg)
Designer: Lynn Senour
Builder: Tomco Marine Group (American Tugs)
Hull Material: Solid fiberglass below the waterline, cored hull sides above the waterline for strength and insulation.
CE Certification: Class (A) - Ocean, meaning it's designed to navigate the open ocean.

Performance and Mechanical

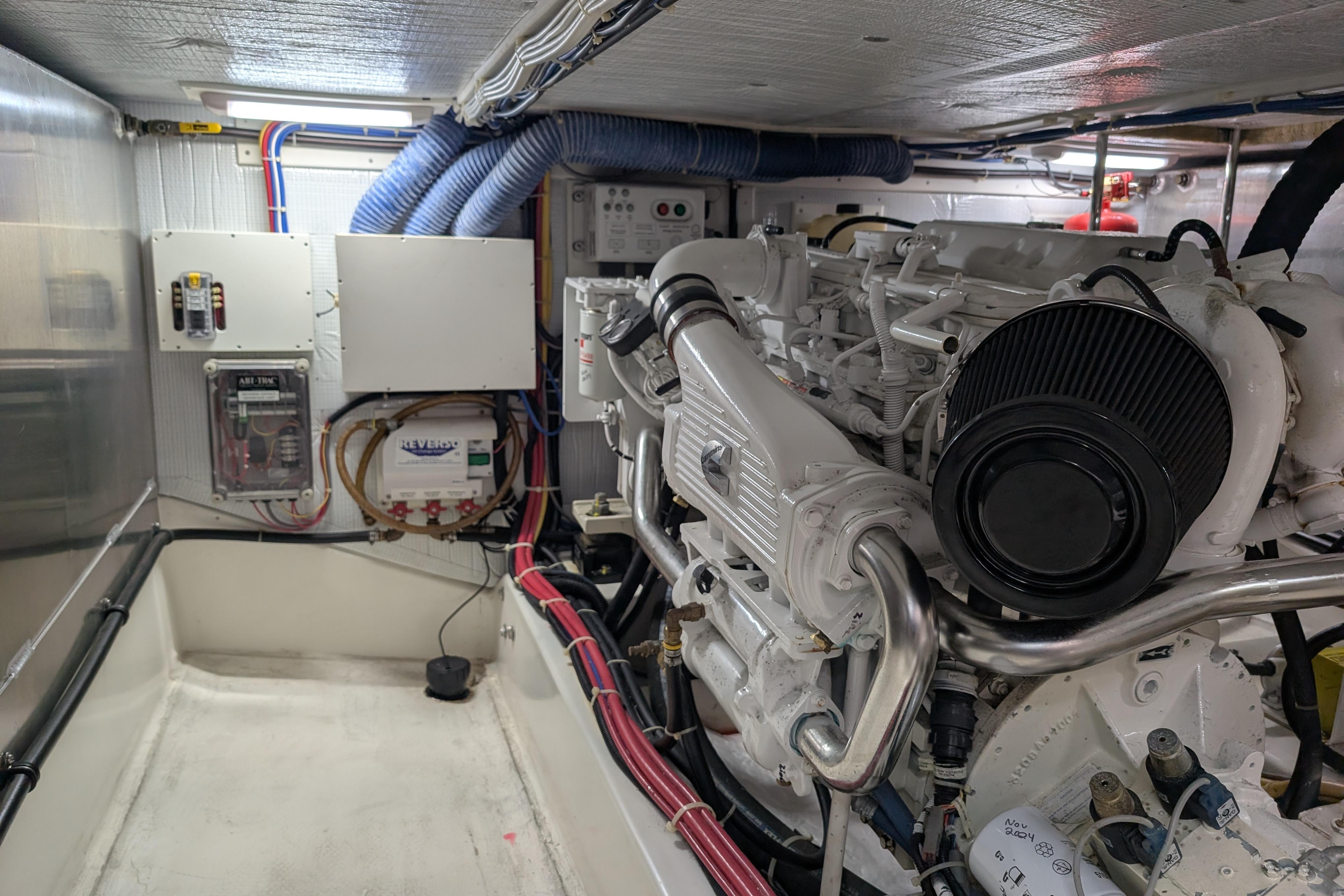

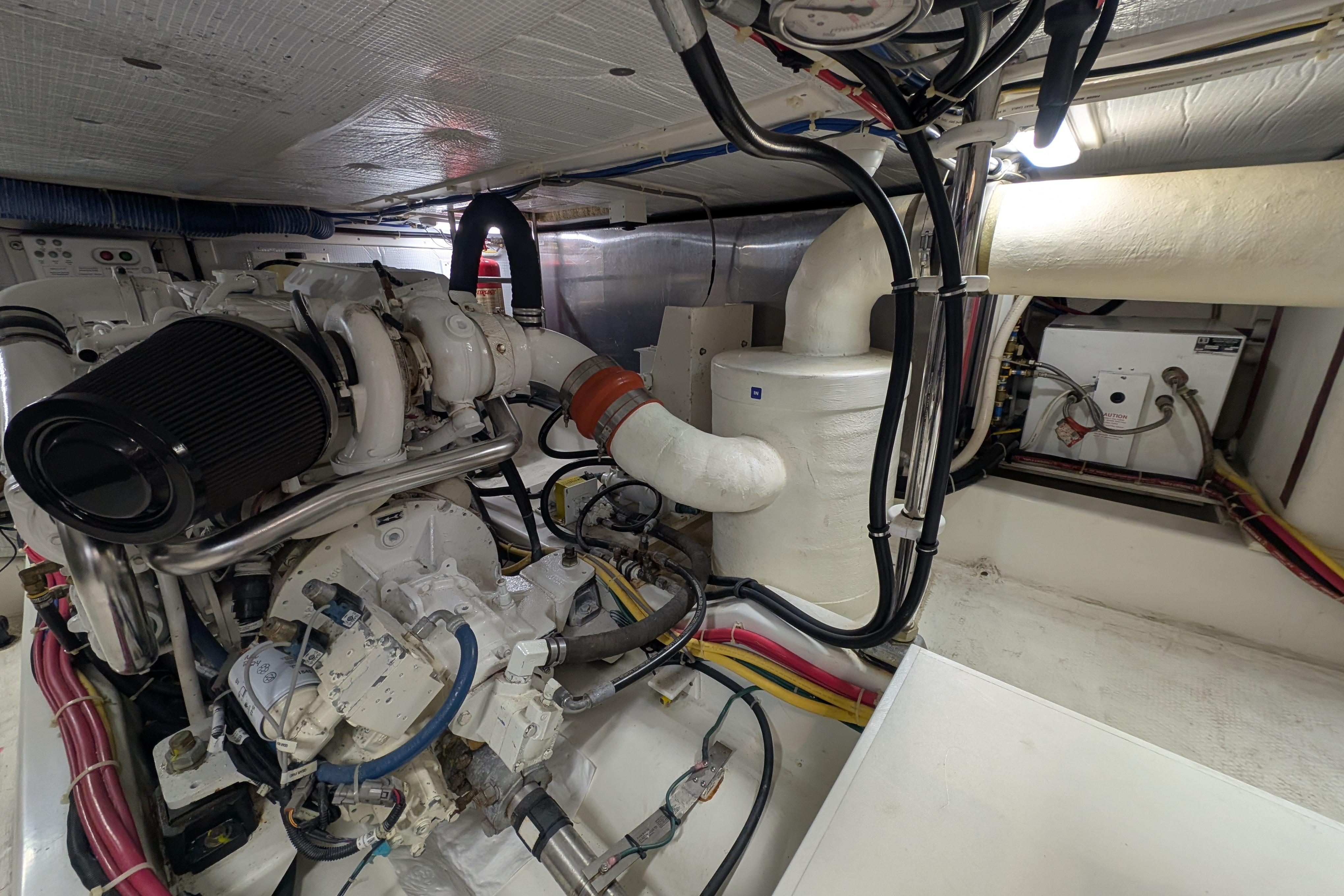

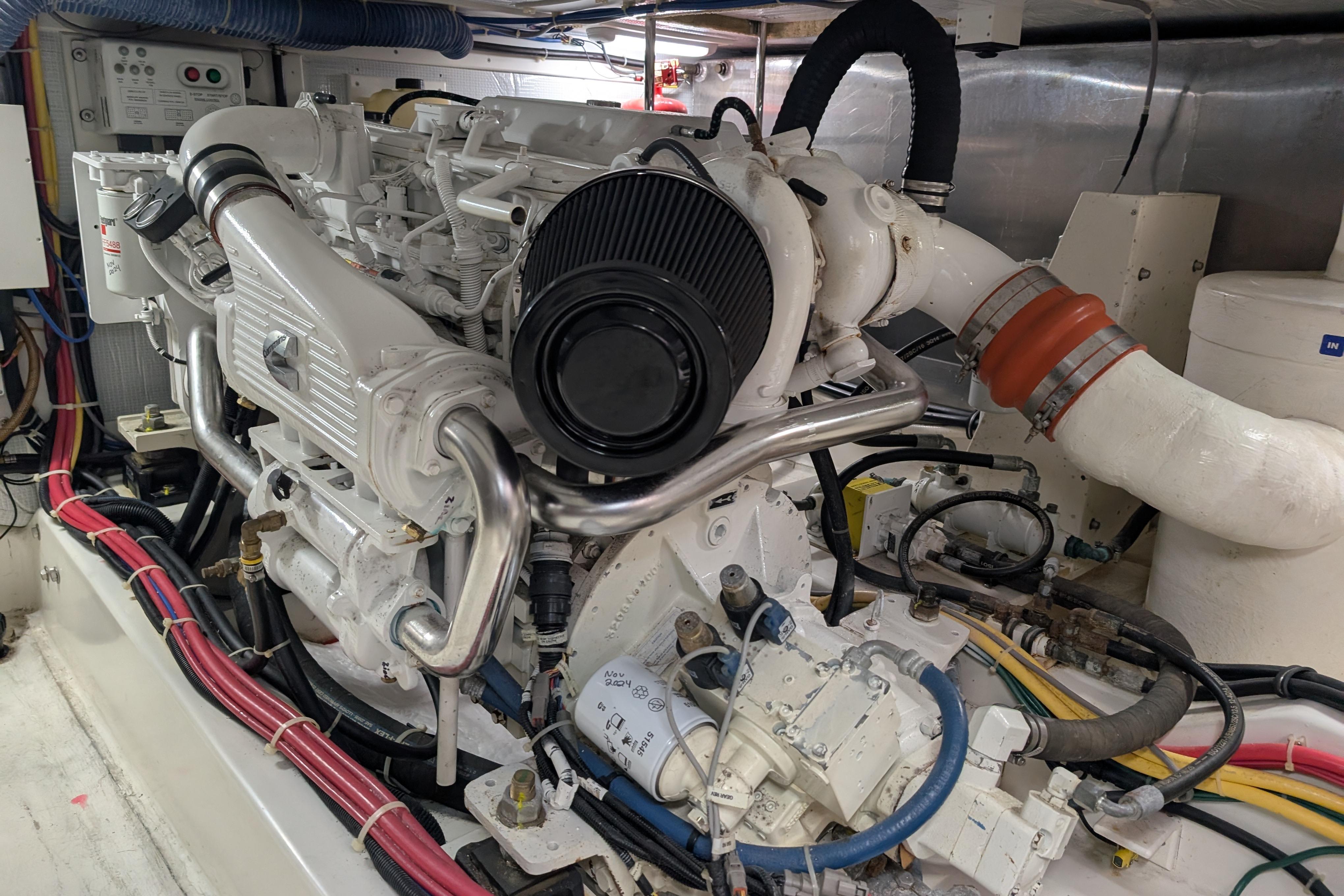

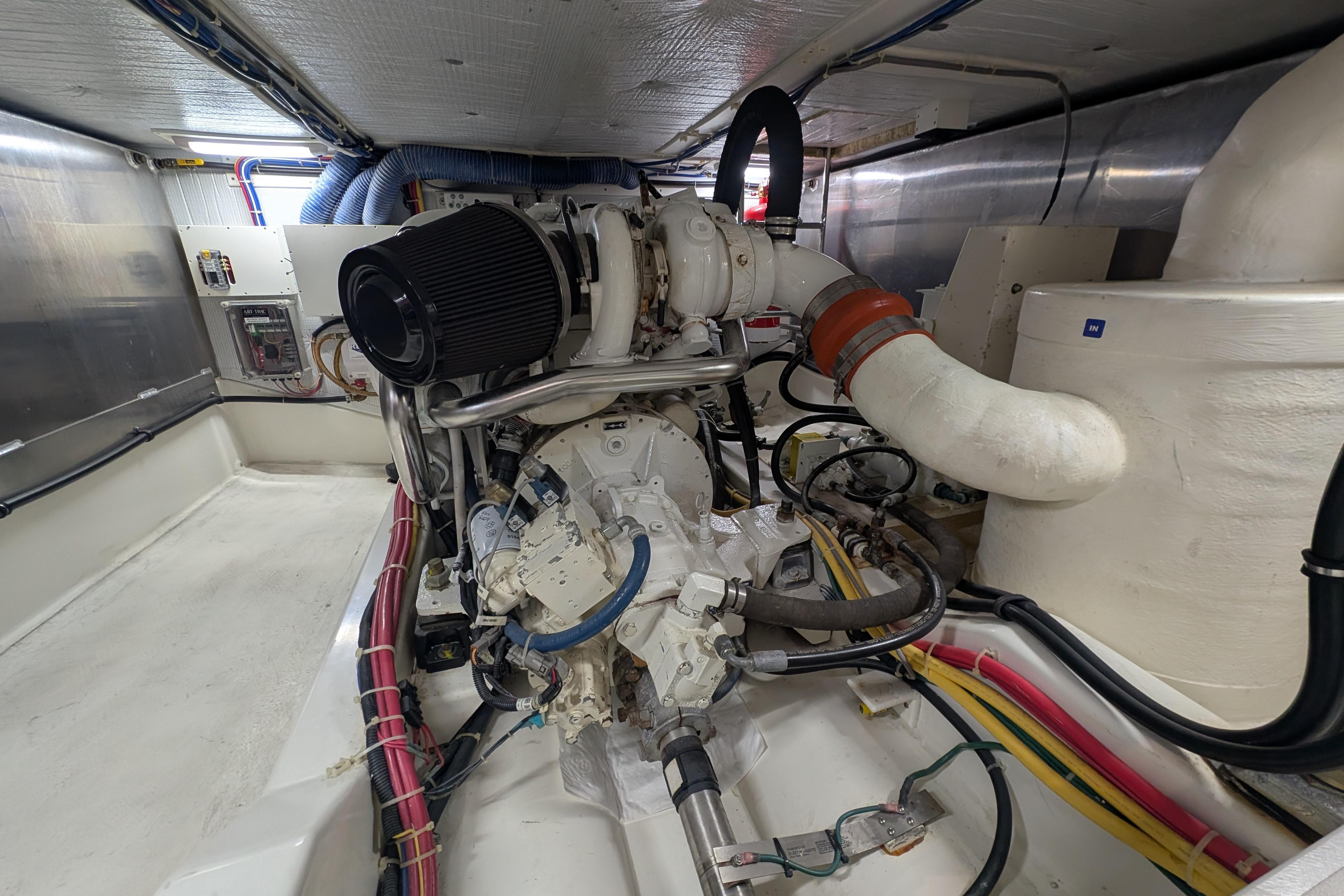

Engine: Powered by a single Cummins diesel engine, 500 hp (e.g., Cummins QSC8.3-500) with 450 hours.
Cruising Speed: Around 8-10 knots for long-range cruising.
Maximum Speed: Up to about 16-17 knots.
Range: Significant, with a reported range of 1,500-1,800 nautical miles at lower, economical speeds.
Fuel Capacity: 640 US gallons (approx. 2,423 L).
Maneuverability: Equipped with electric bow and stern thrusters.

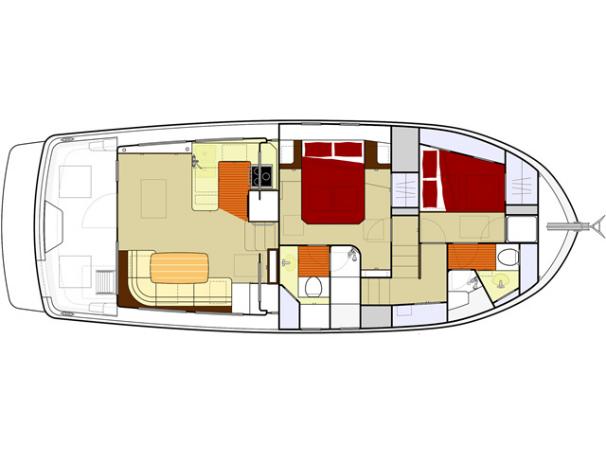

Accommodations and Layout

Layout: Two-stateroom, two-head configuration, ideal for cruising couples or a family.
- Master Stateroom: Located amidships and utilizes the full beam, featuring a walkaround queen berth and an ensuite head with a separate shower stall.
- Guest Stateroom: Located forward, Special ordered with a single berth and an ensuite/day head.

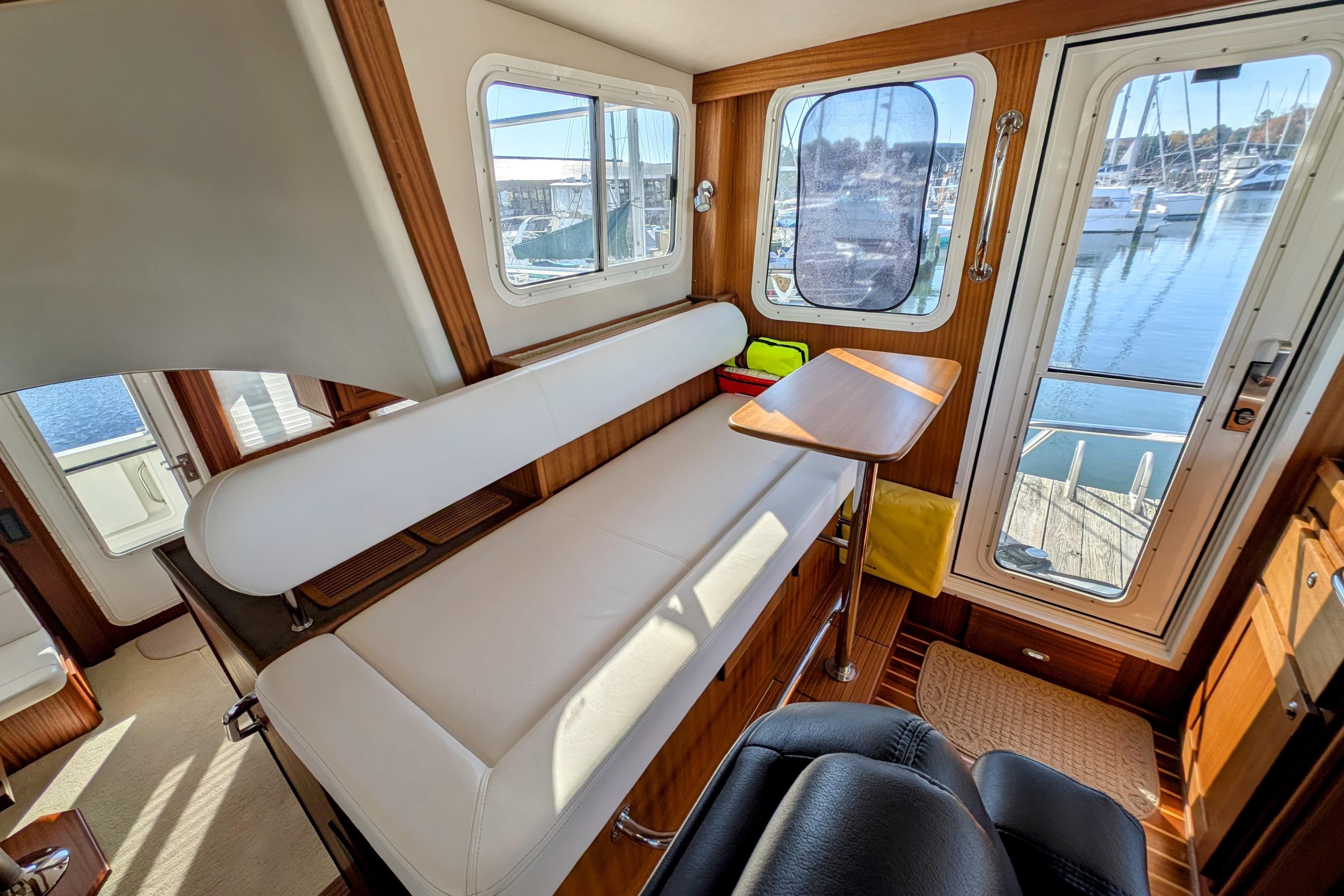

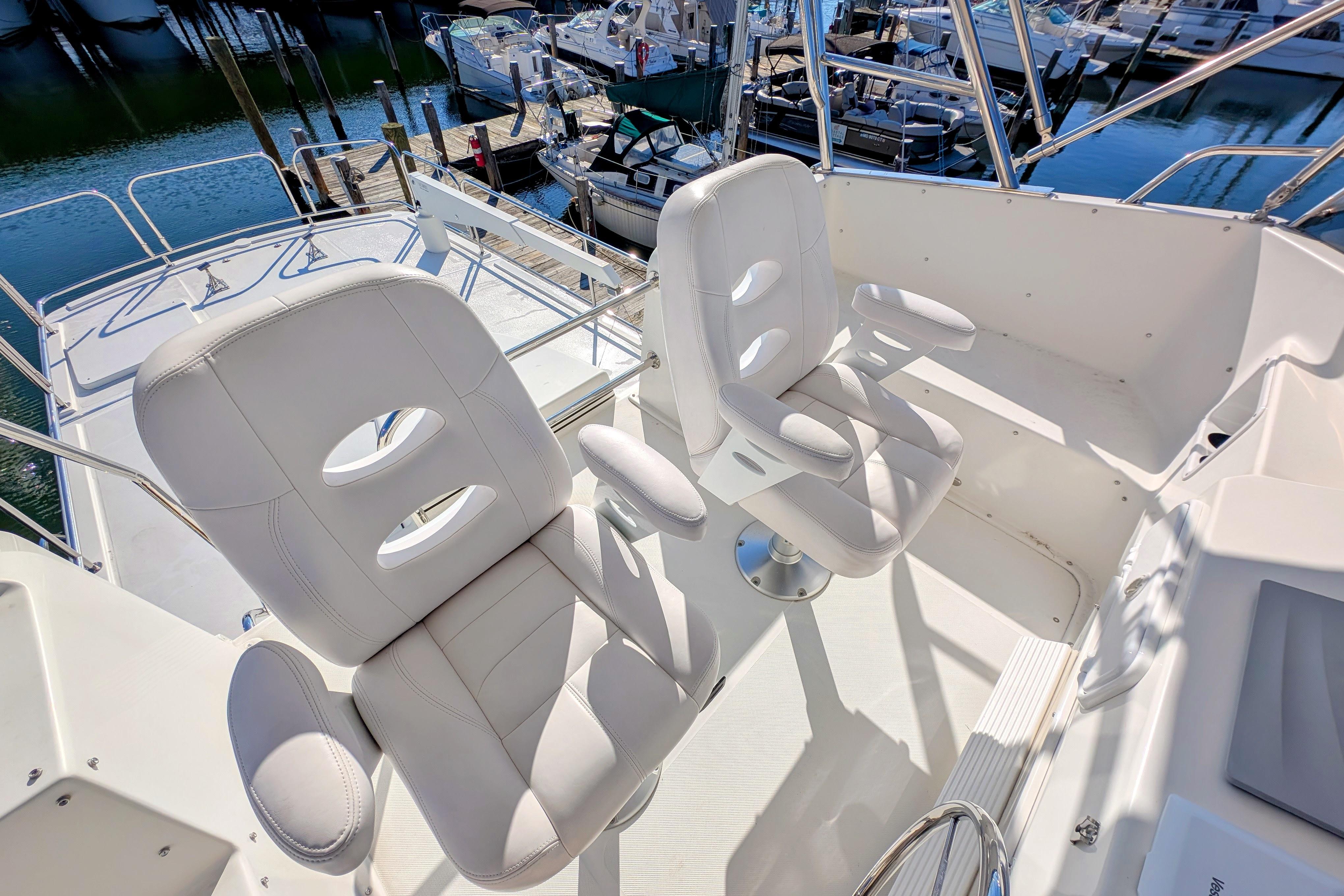

Raised Pilothouse: A key feature, offering excellent sight lines, a helm seat on centerline, and a large settee to port (which can double as a watch berth). It includes port and starboard access doors and access to the flybridge/boat deck.

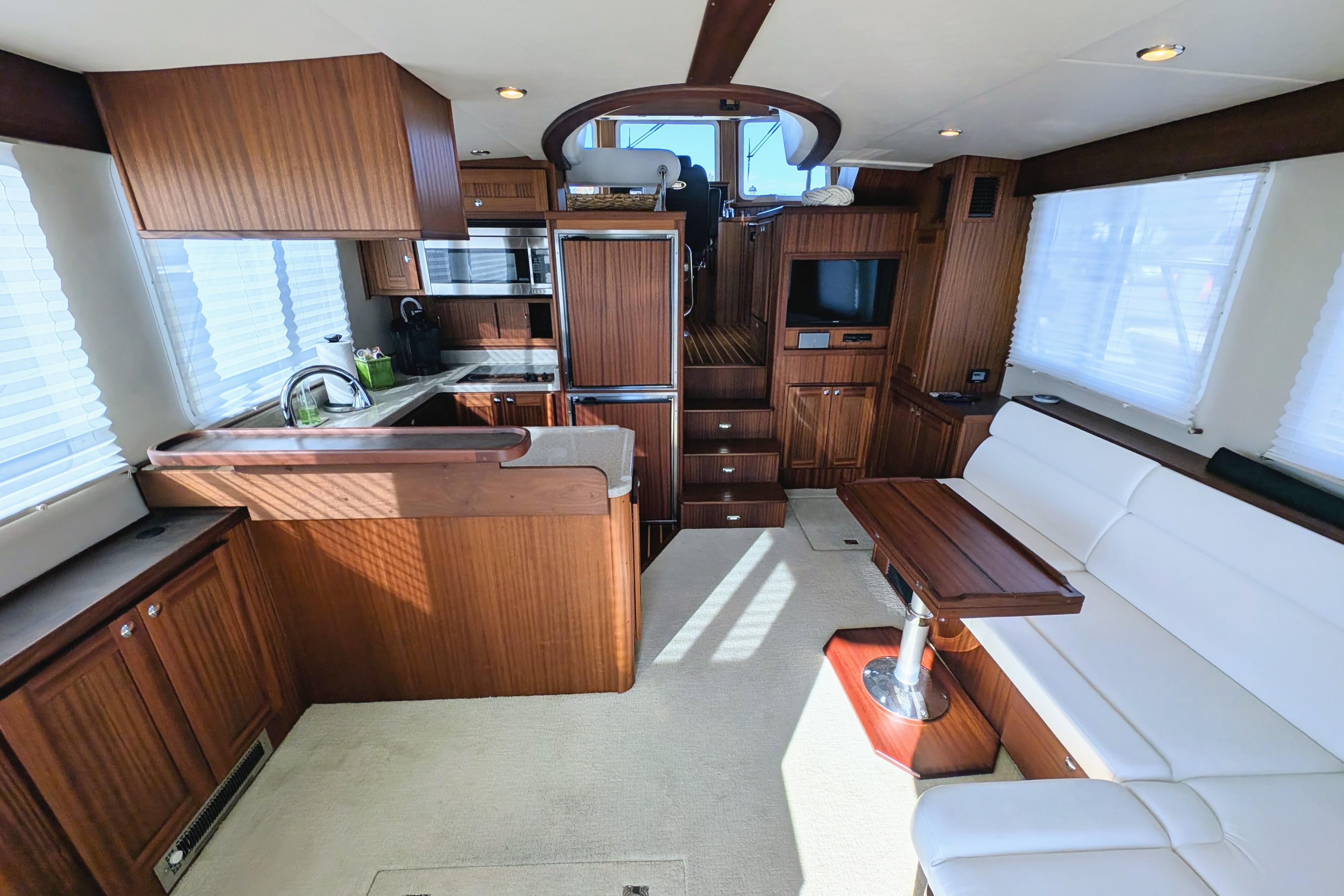

Saloon/Galley: Located aft of the pilothouse.
- Galley: U-shaped to port with a stovetop, refrigerator/freezer, convection microwave and ample counter space/storage.
- Saloon: L-shaped settee with a table and space for additional seating.

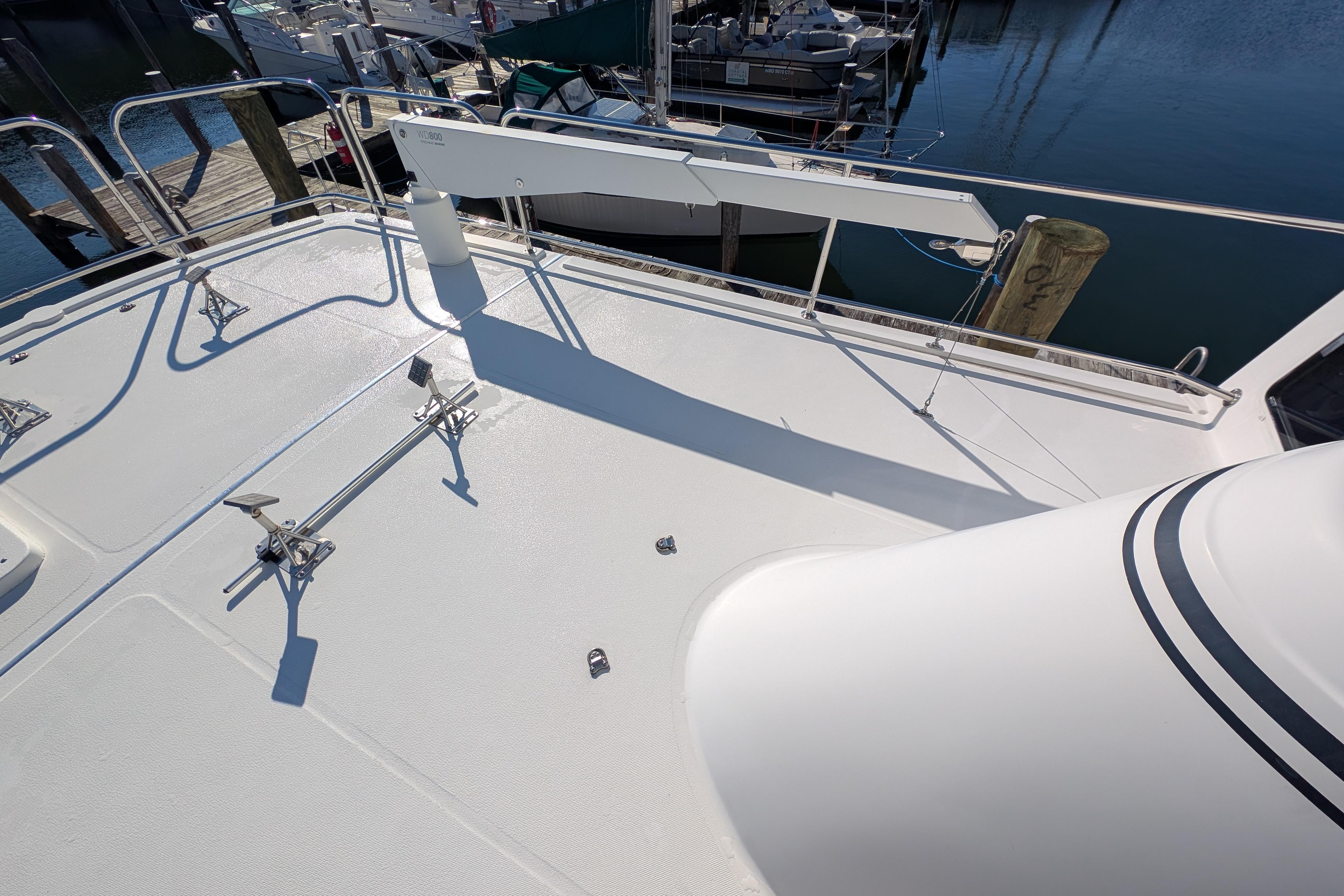

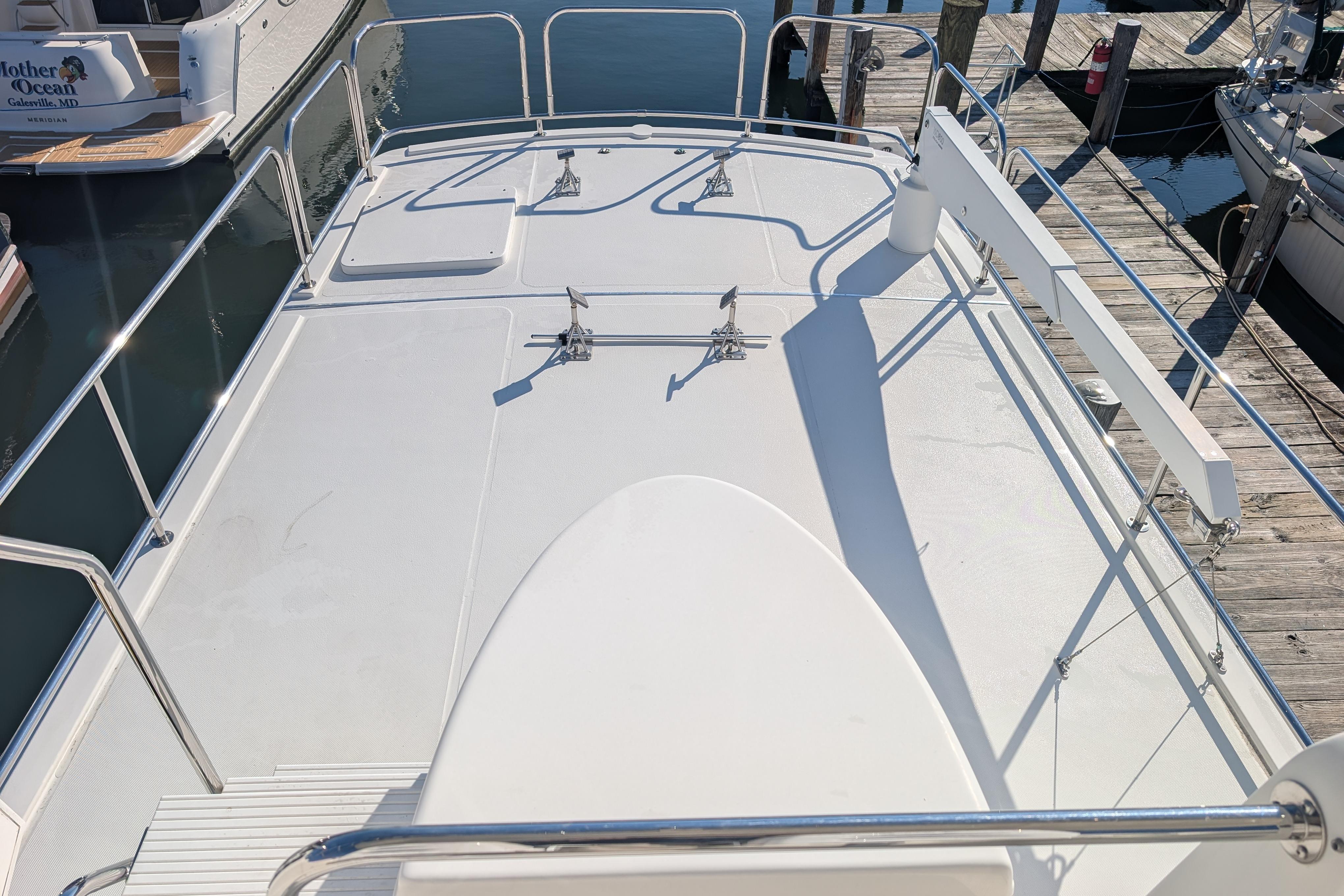

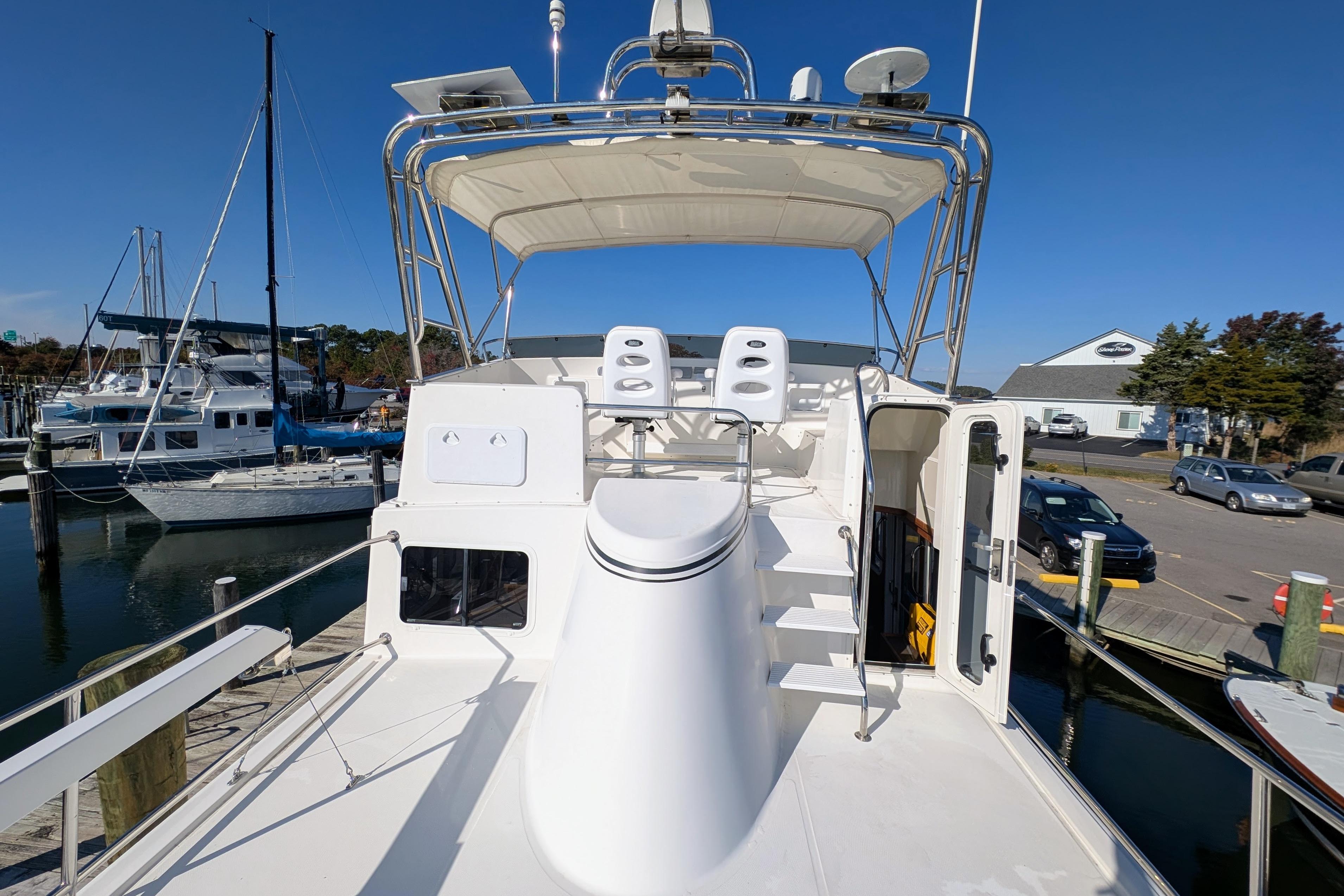

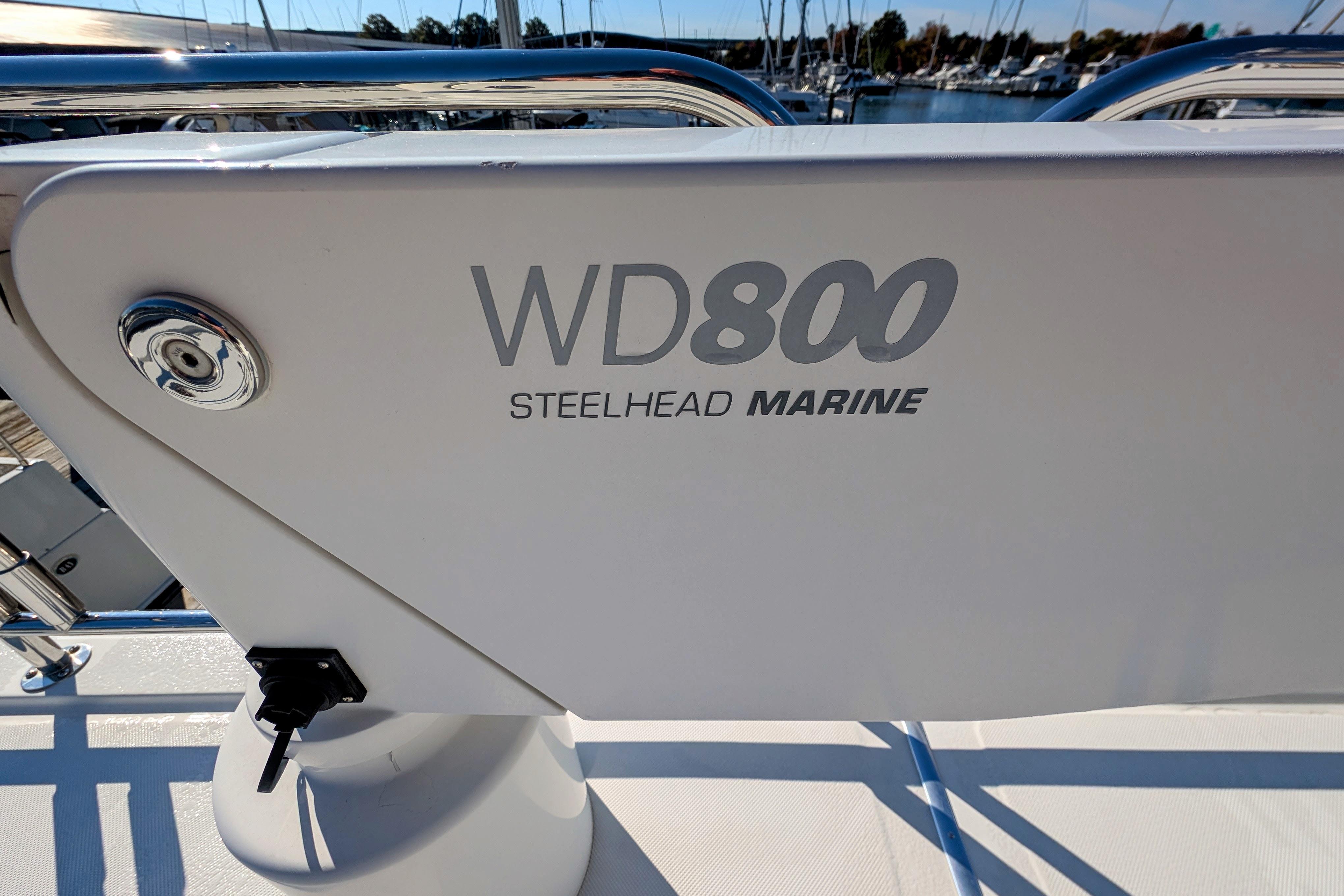

Other Features: "Firefly" includes a dedicated upper deck with a 800# davit and "chocks" for a tender, a Northern Lights 9kW generator with 469 hours, an inverter/charger, and extensive storage.

The American Tug 435 is highly regarded as a comfortable, robust, and seaworthy vessel, well-suited for extended coastal and long-distance cruising, such as the Great Loop or the Inside Passage to Alaska

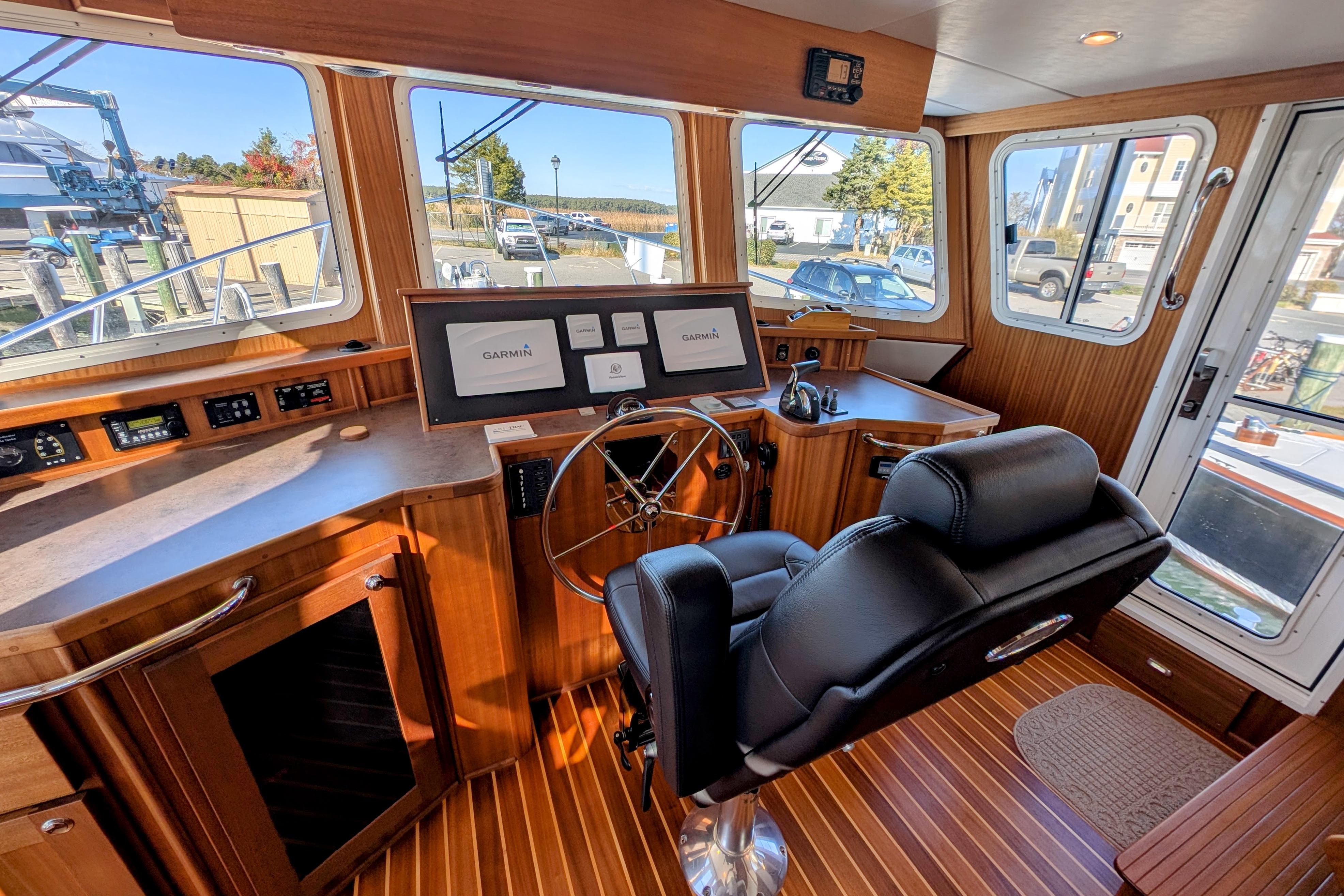

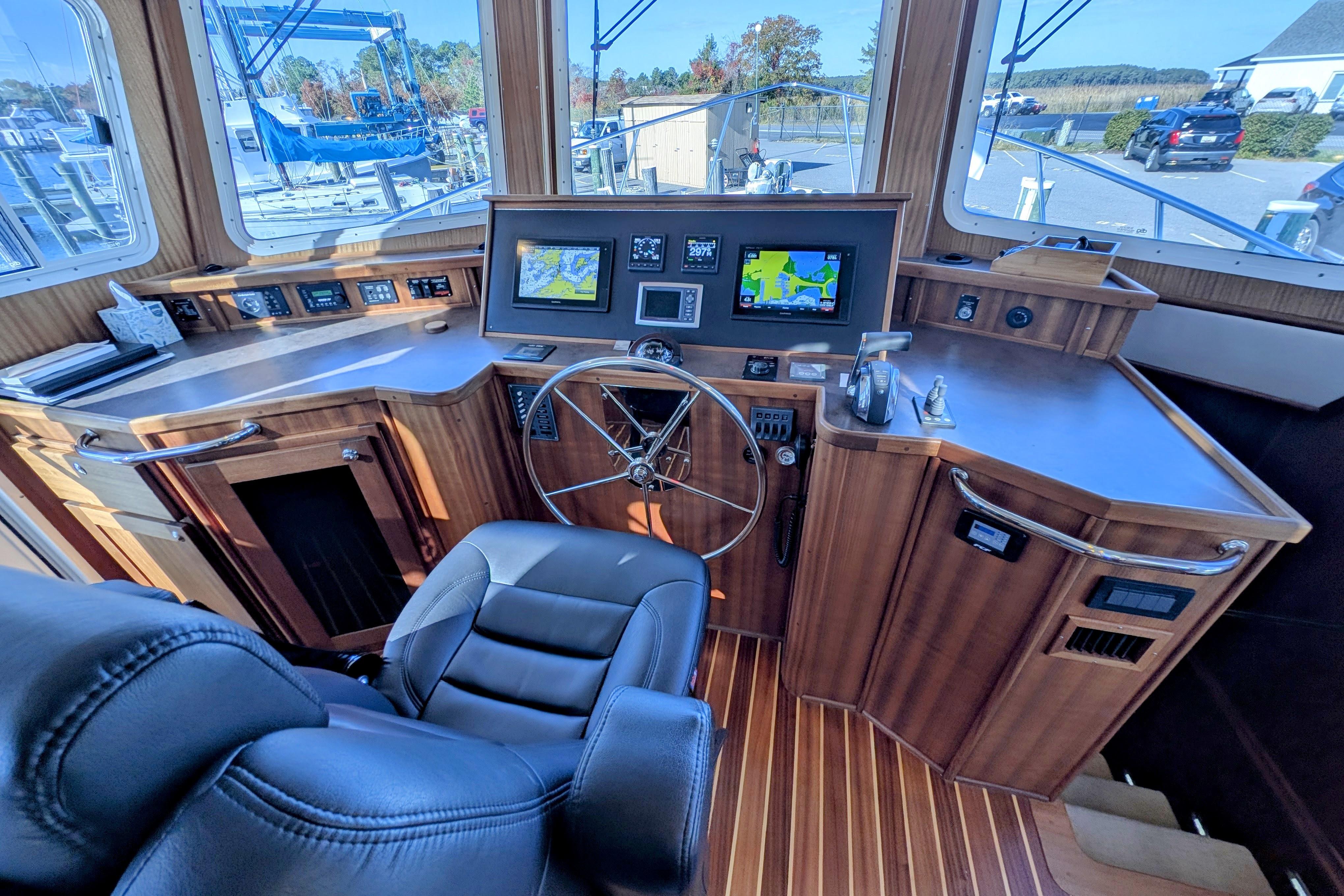

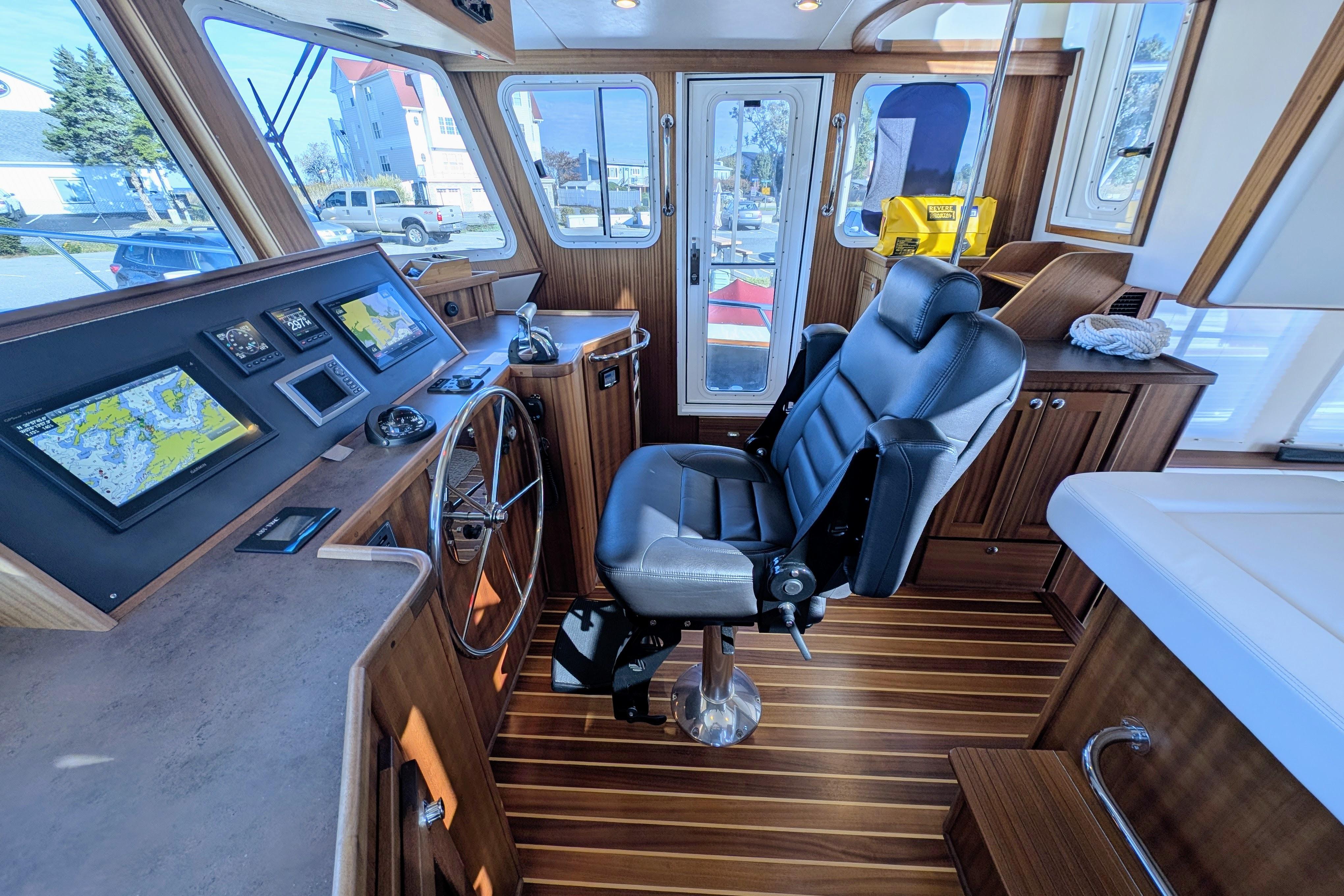

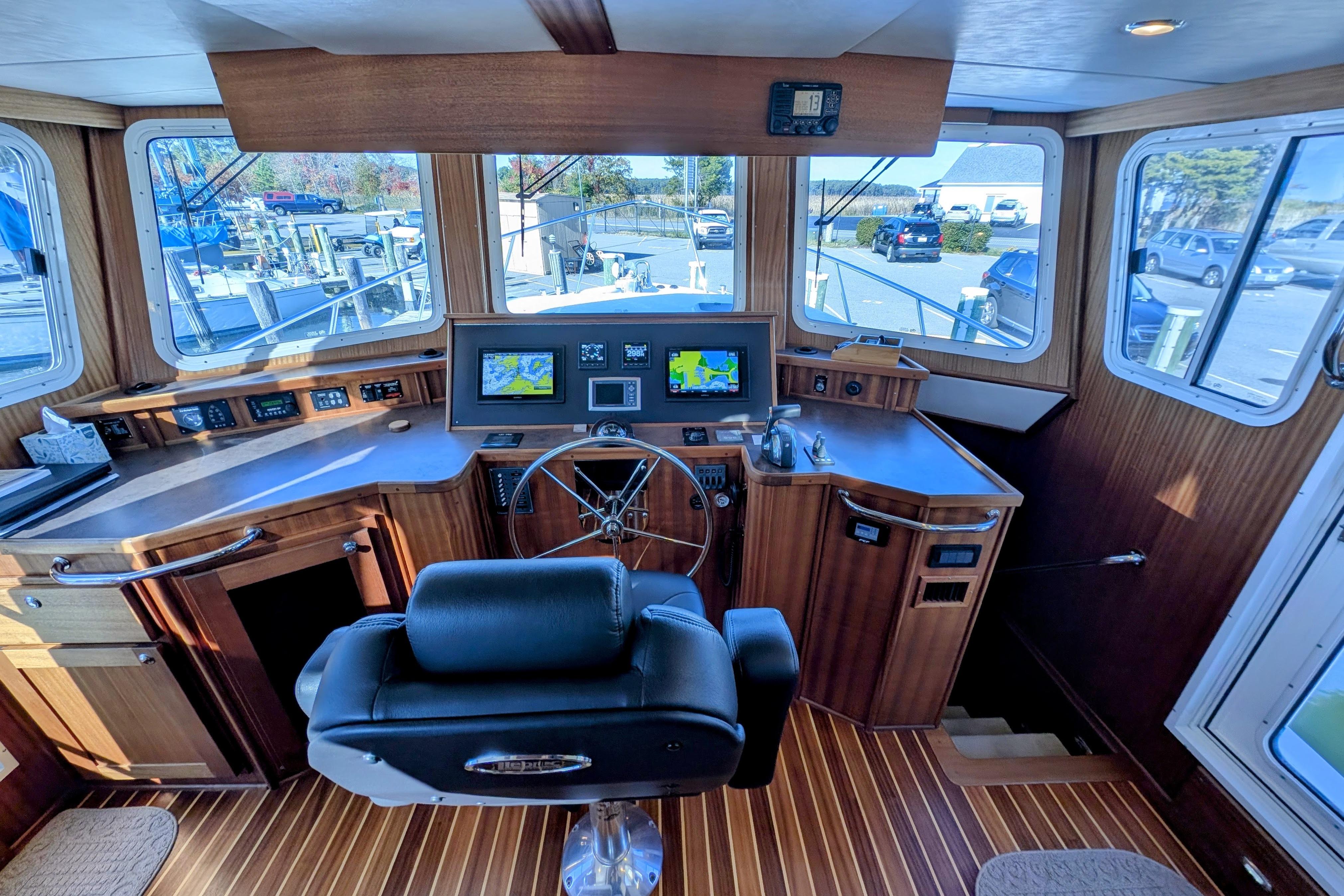

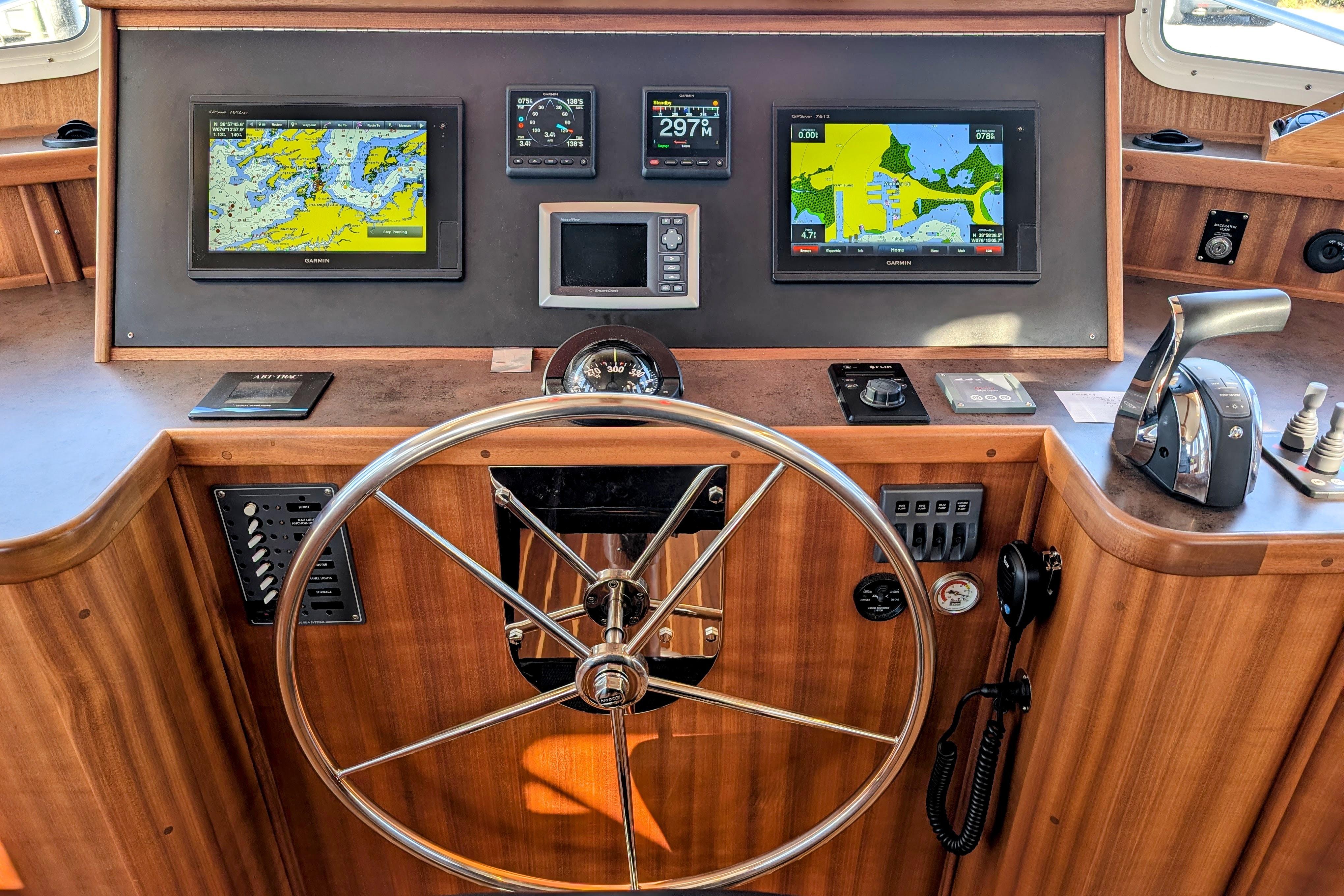

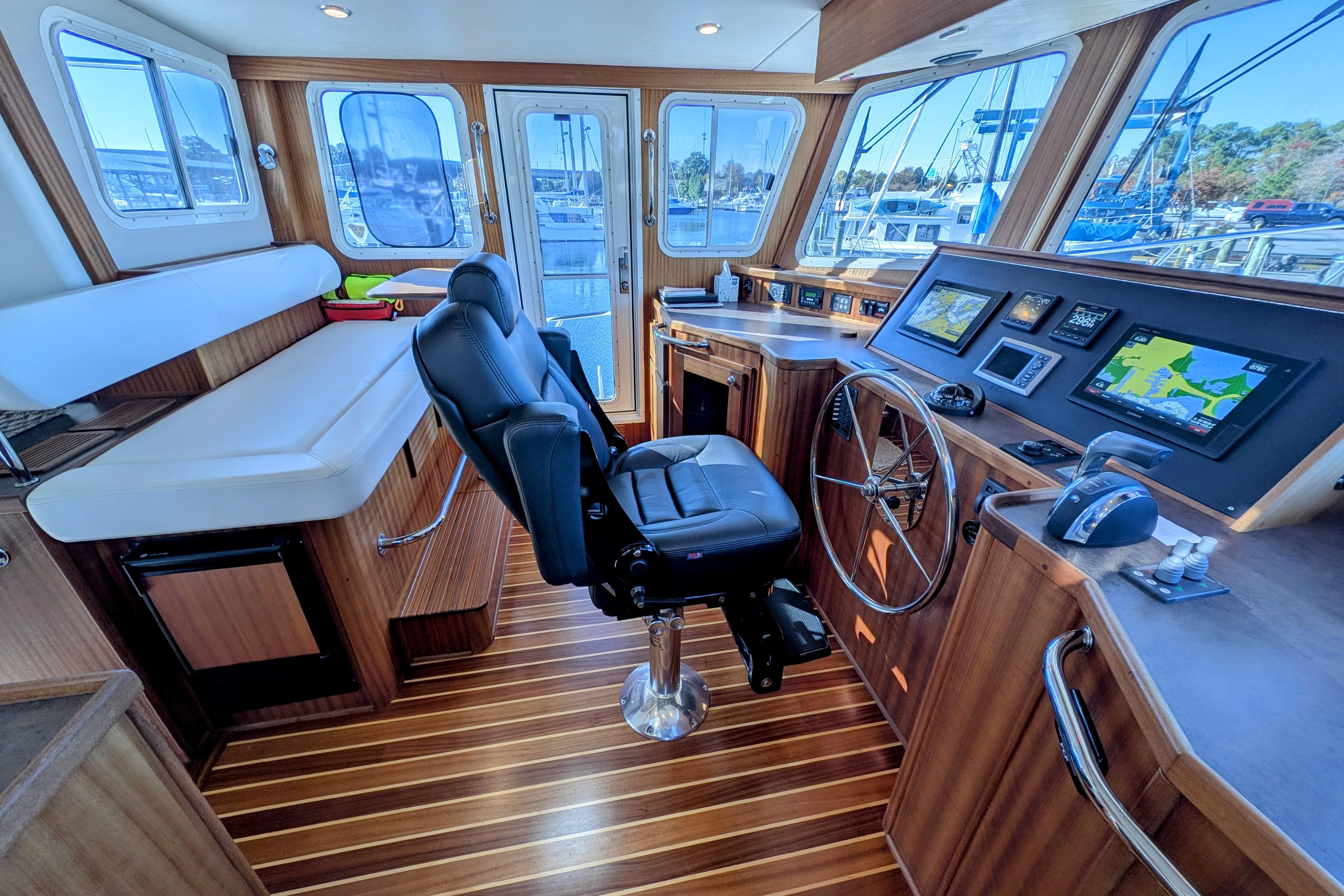

Pilot House

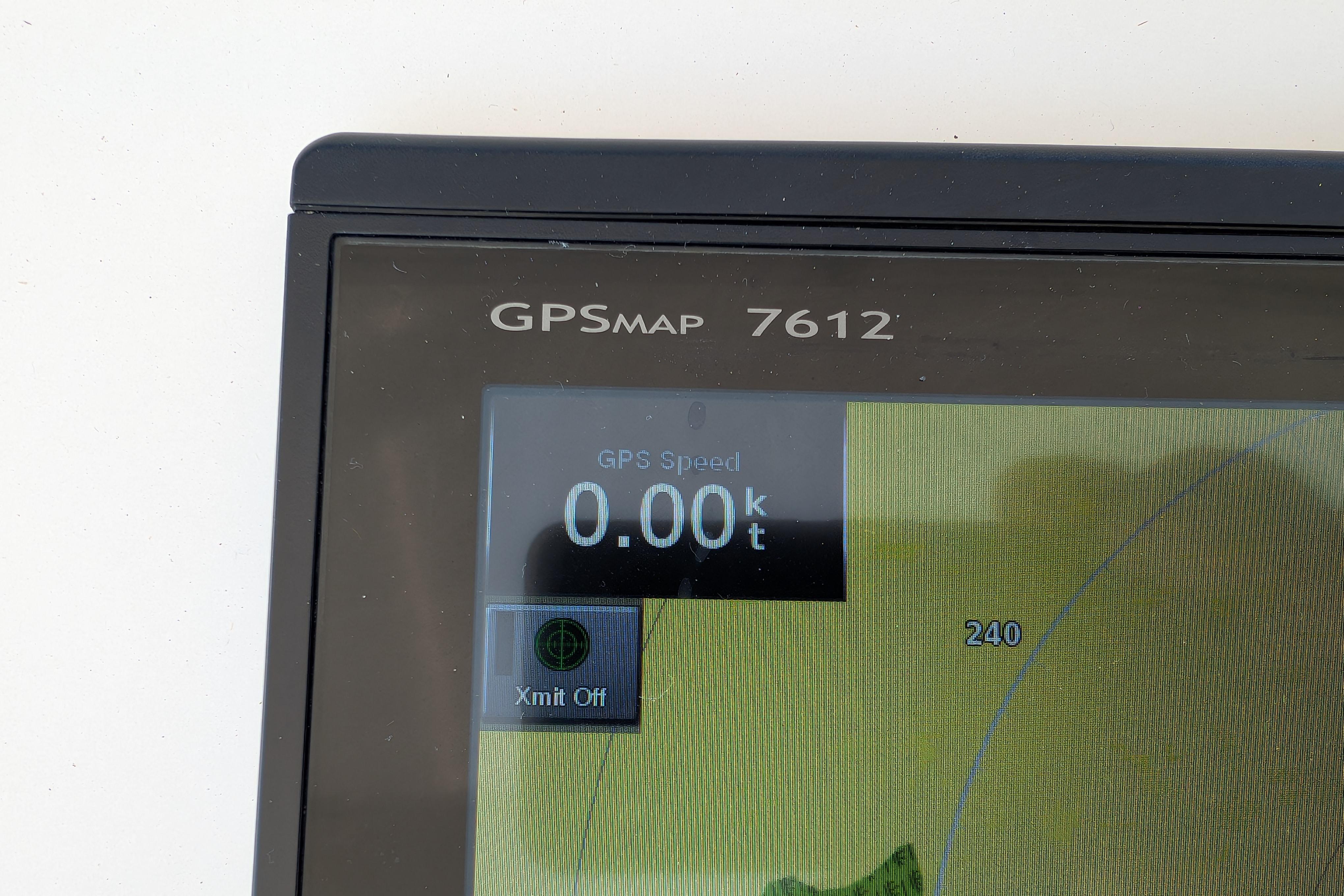

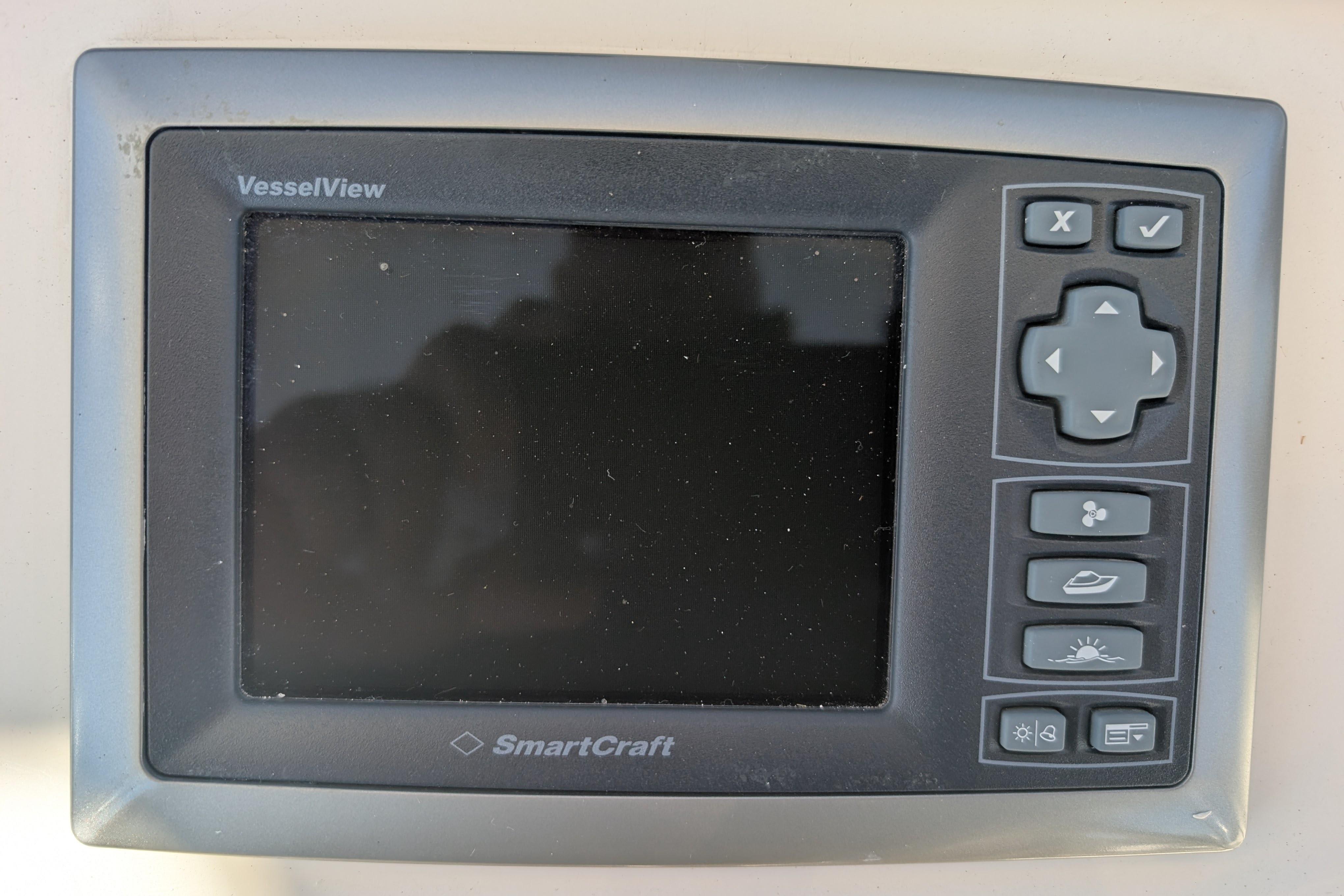

Large console for custom electronics installation, plus overhead console

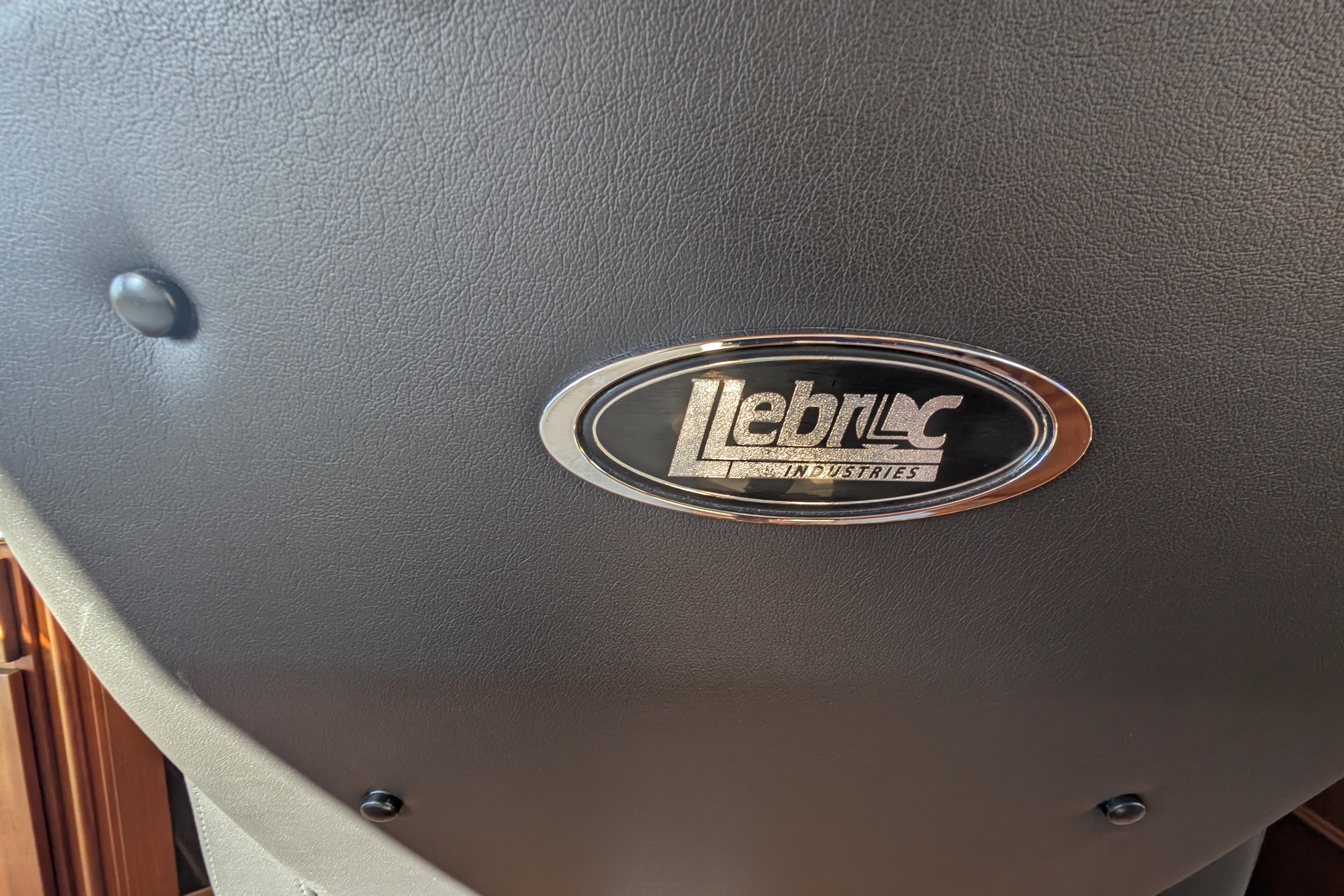

Center mounted LX Series Llebroc helmseat
Ultraleather covered companion seating behind the helm with table

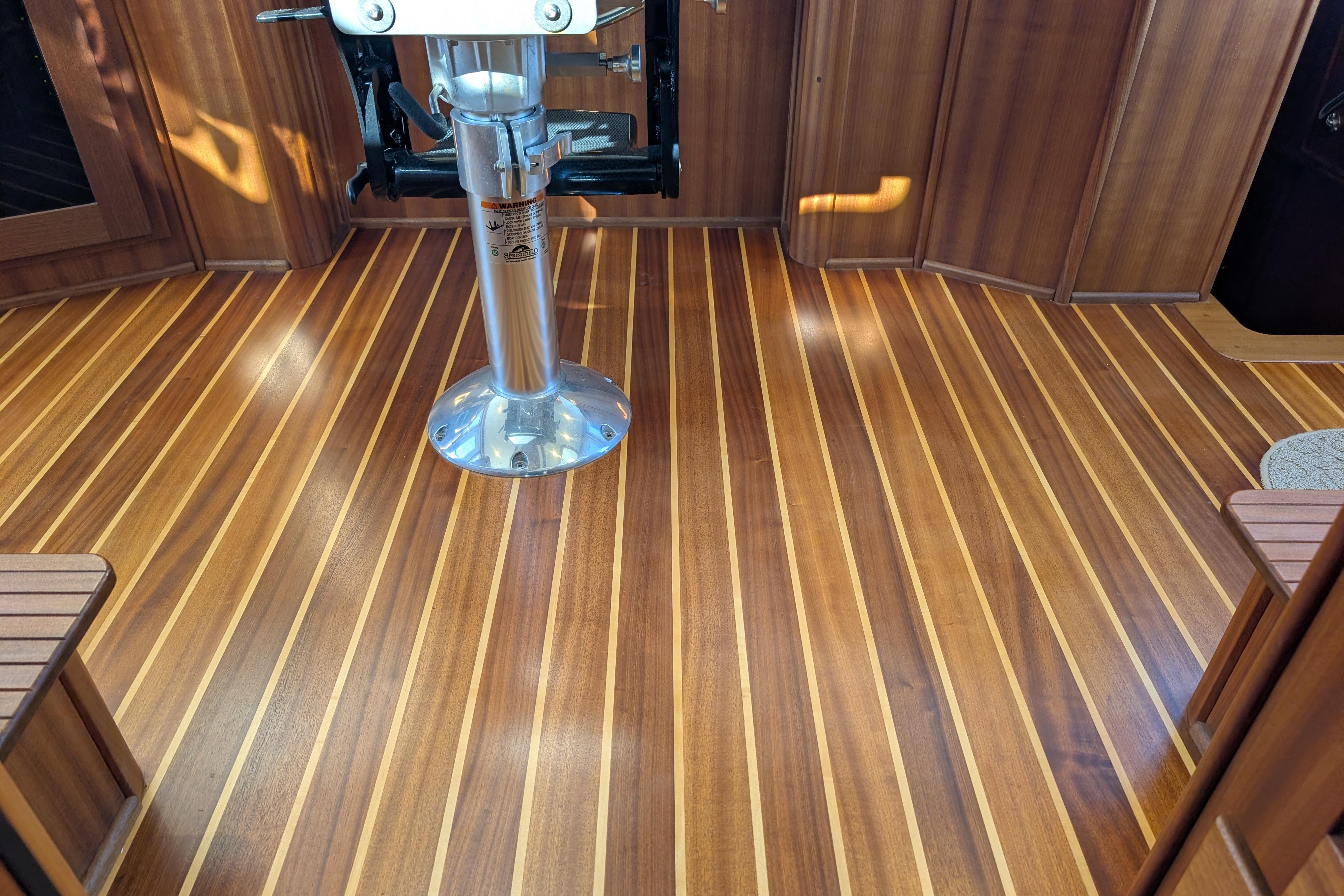

Sapele and maple sole

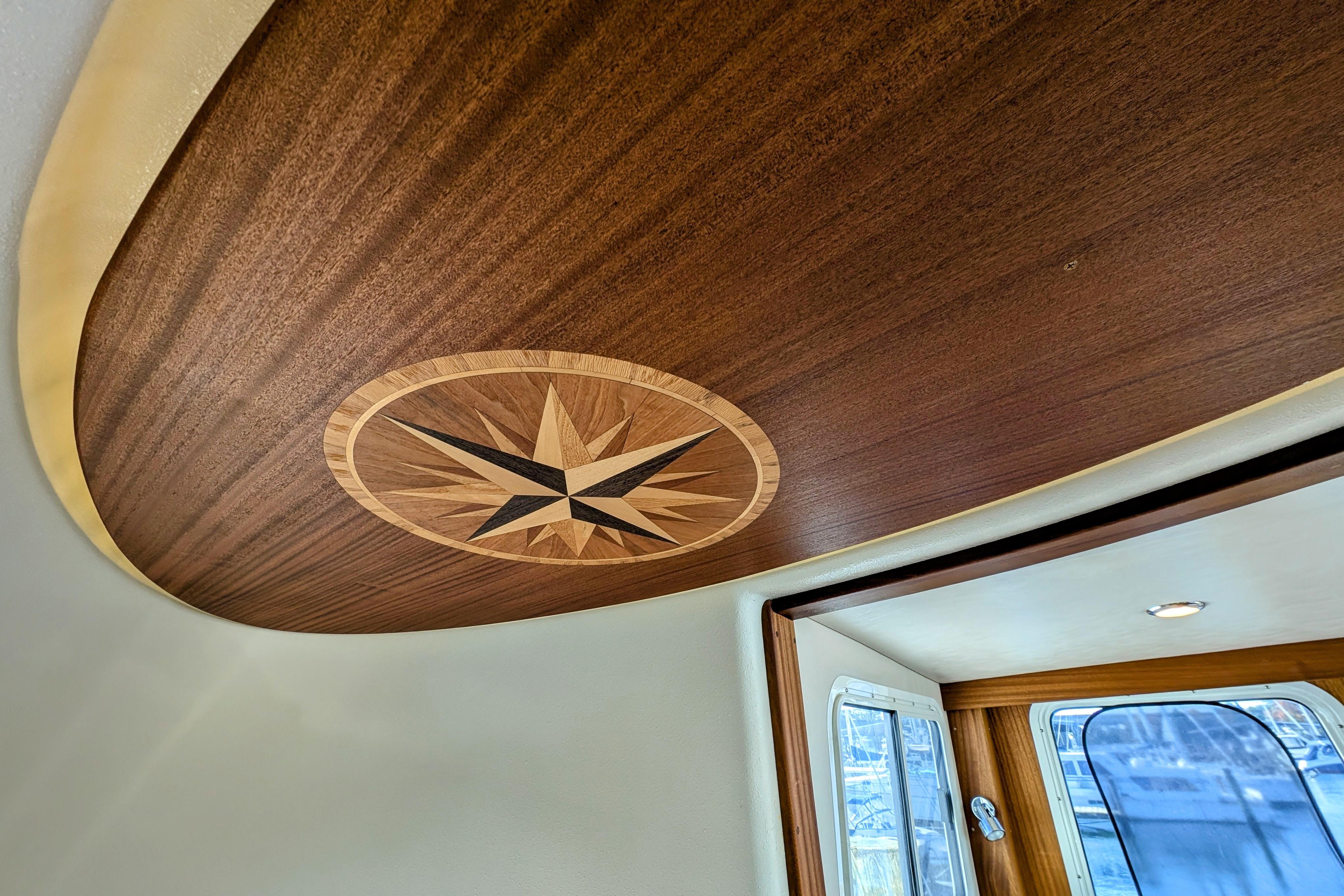

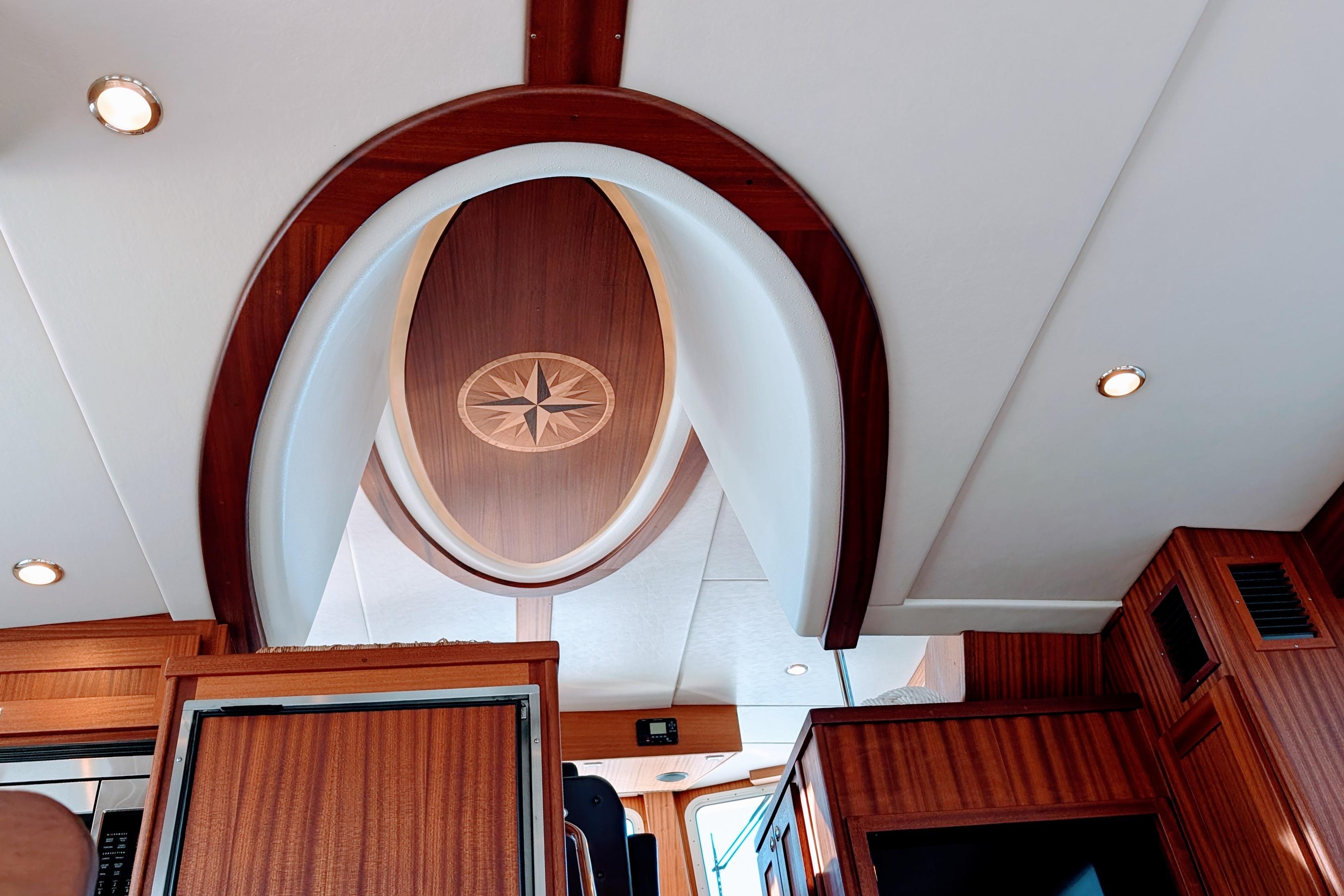

Compass Rose Inlay in the stack liner
Storage under seating
Chart storage compartment
Sapele and stainless hand holds throughout
Lighted compass
Xelogen stainless lights overhead
Red lights over helm station for night navigation
Intermittent windshield wipers with self park and washing system
12v and 110v outlets
Two stereo speakers
Six opening windows and screens
Icemaker
Storage locker w/shelves at end of pilothouse

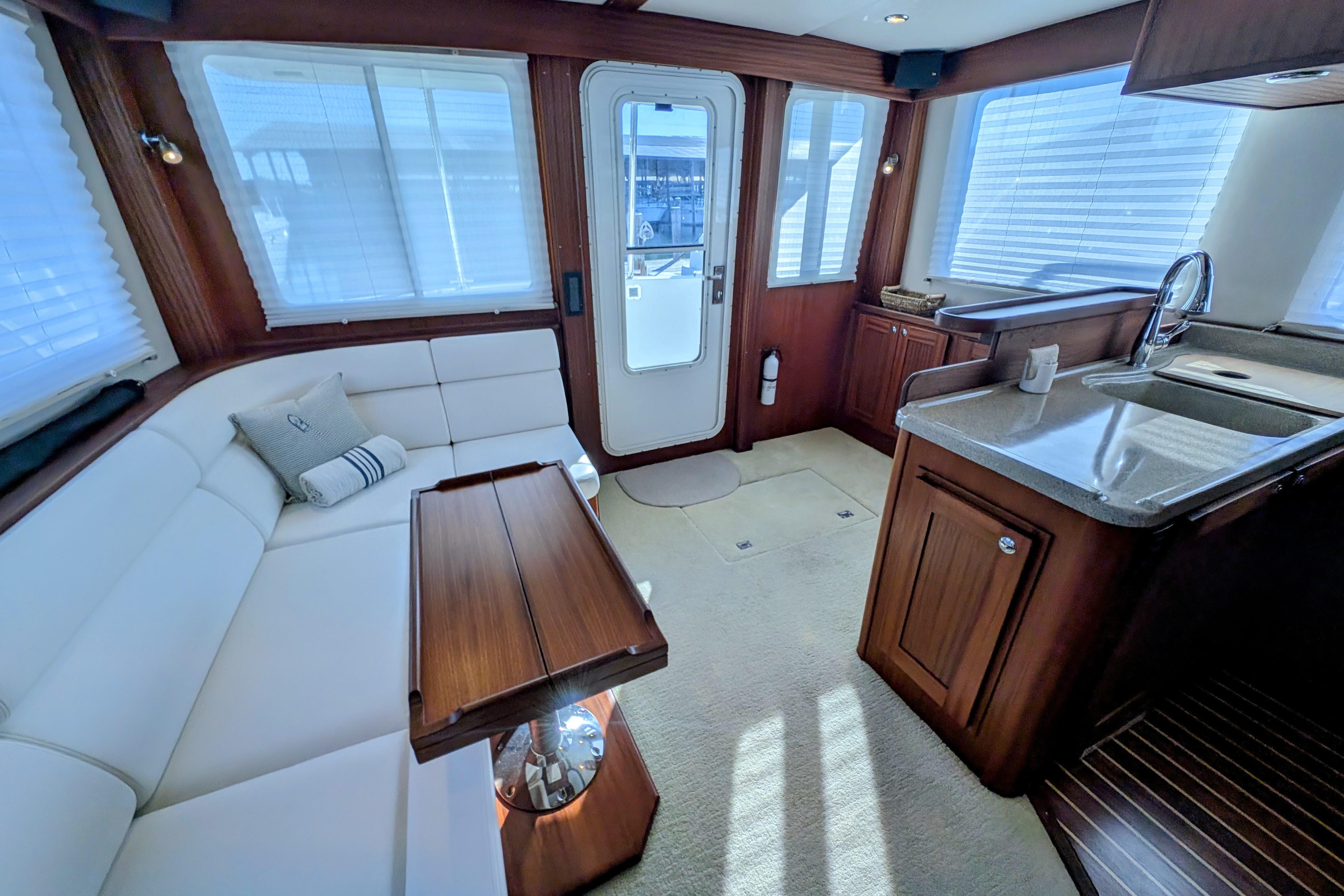

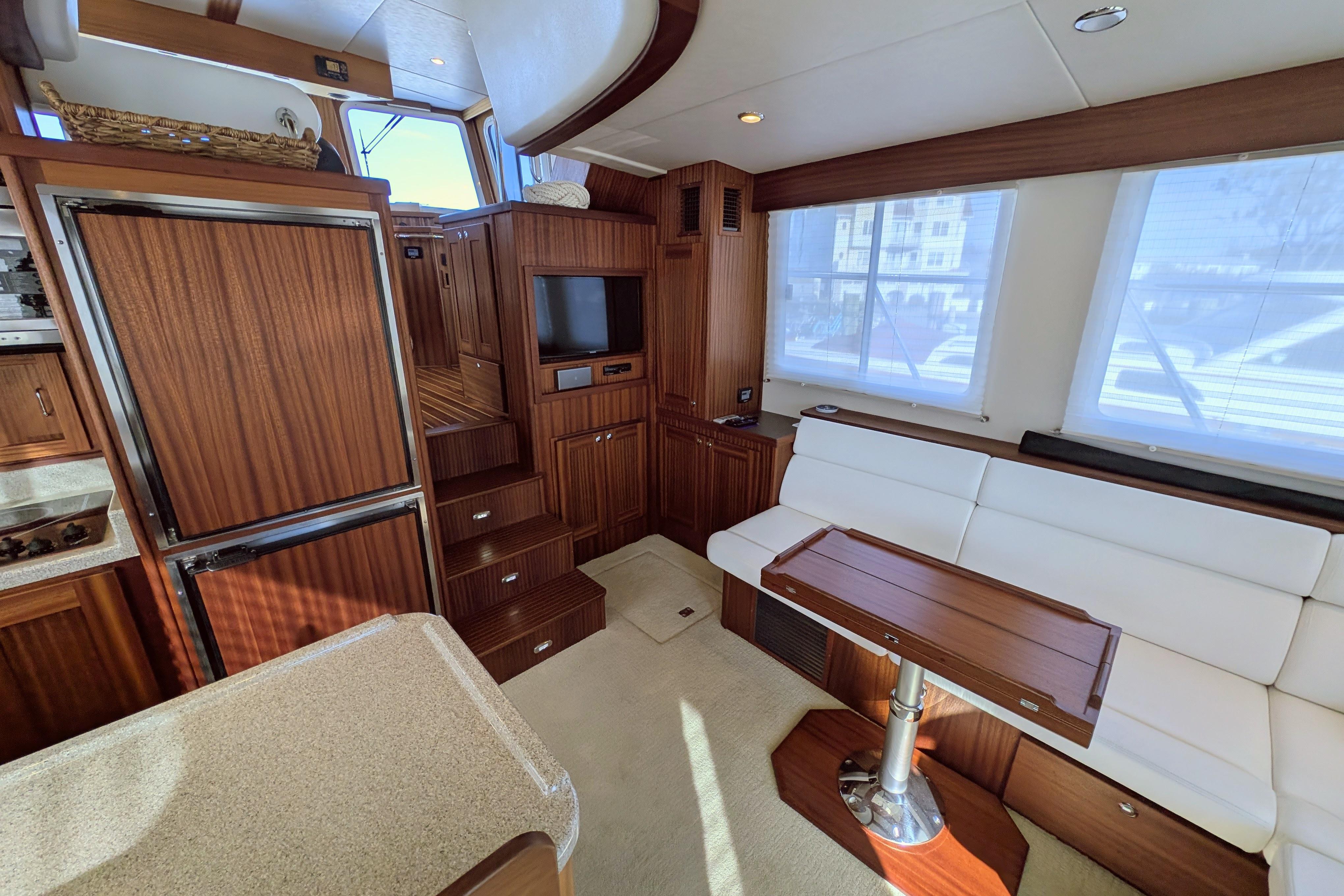

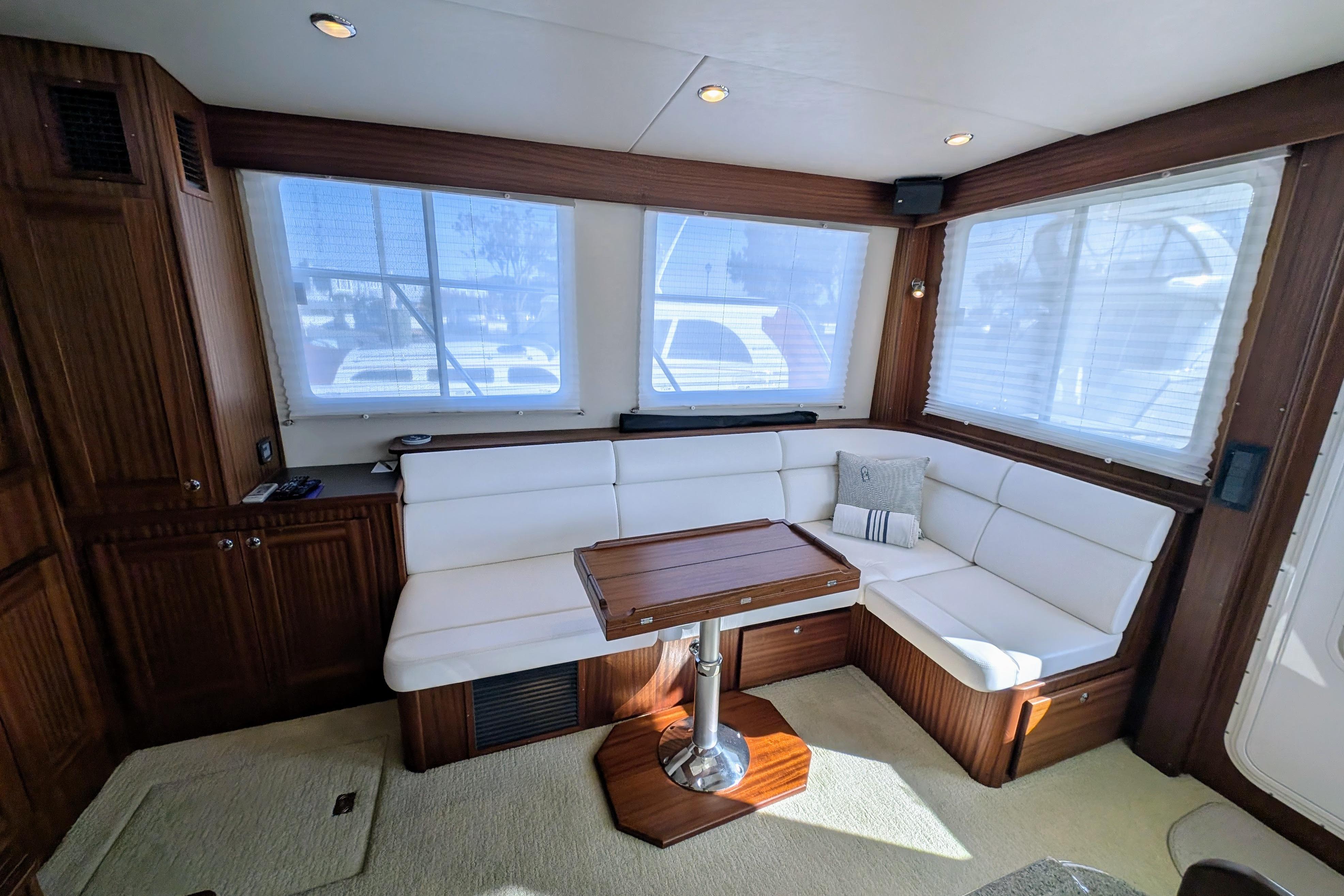

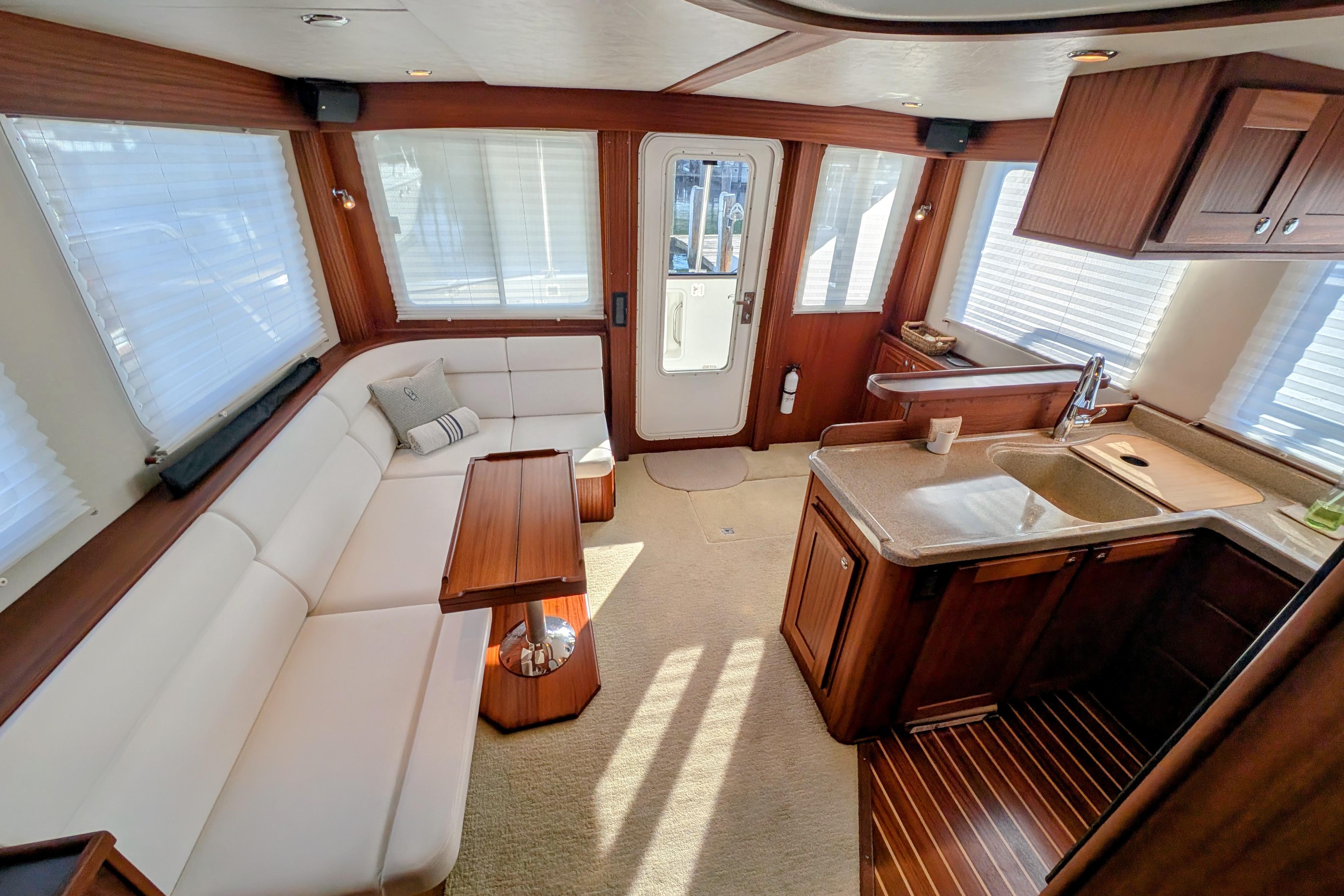

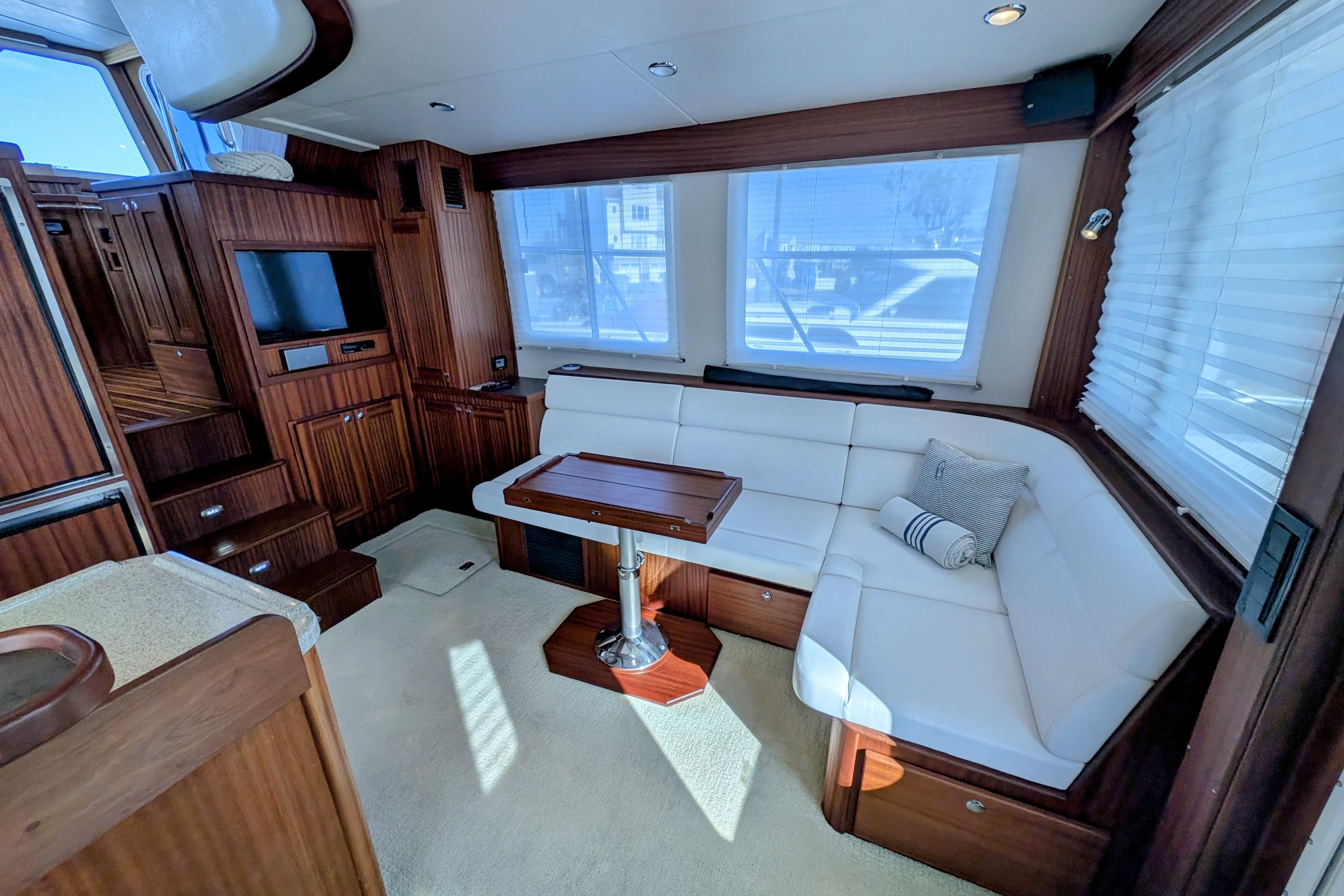

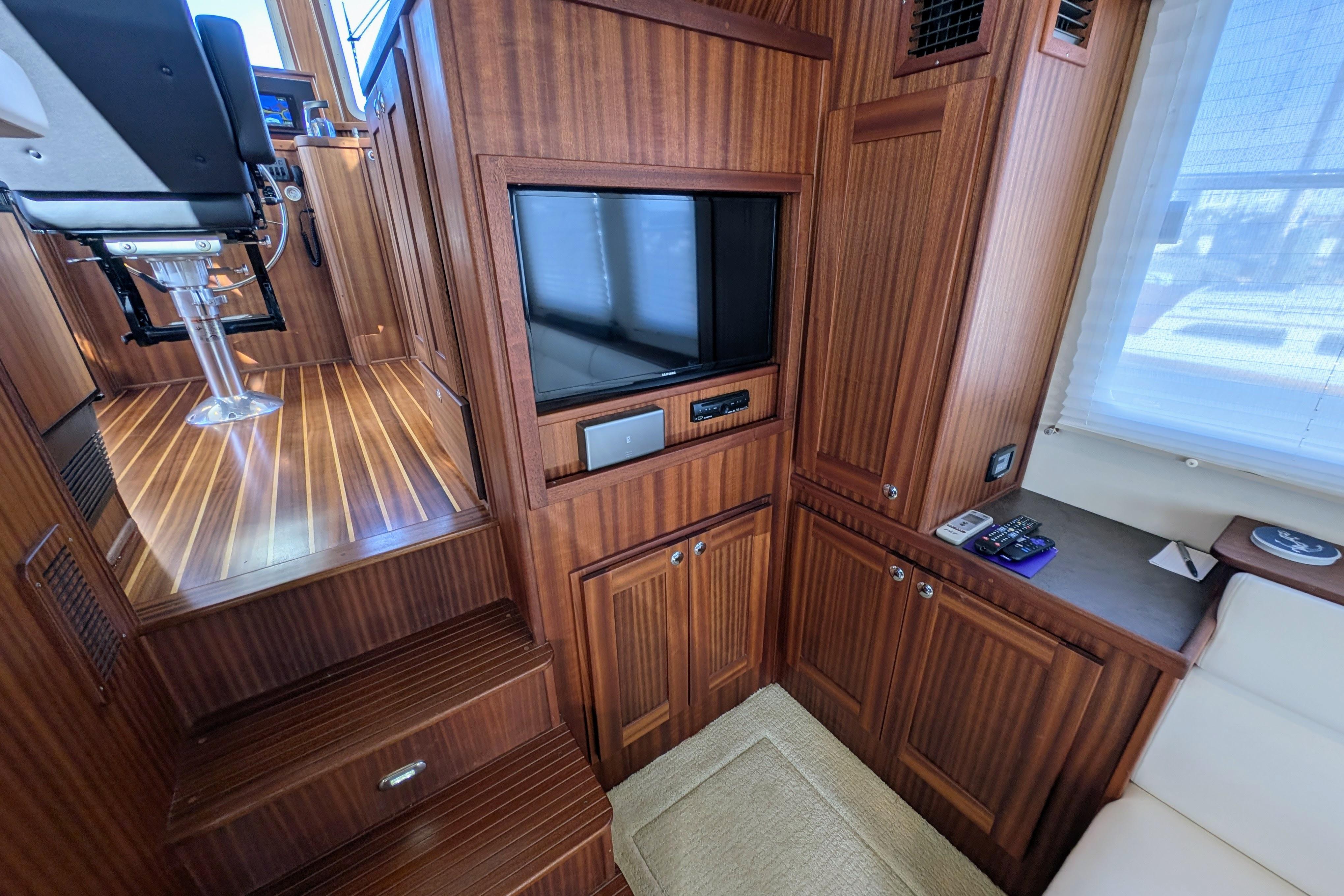

Salon
Custom Ultraleather settee
Solid hardwood table
Storage cabinets
Hatches allowing access to engine compartment
In-house vacuum system
Entertainment system with Sharp 26" flat screen TV/DVD player/AM/FM/CD
Two stereo speakers
Xelogen stainless lights for overhead lighting
Pleated day/night shades
110v outlets
Three opening windows with screens

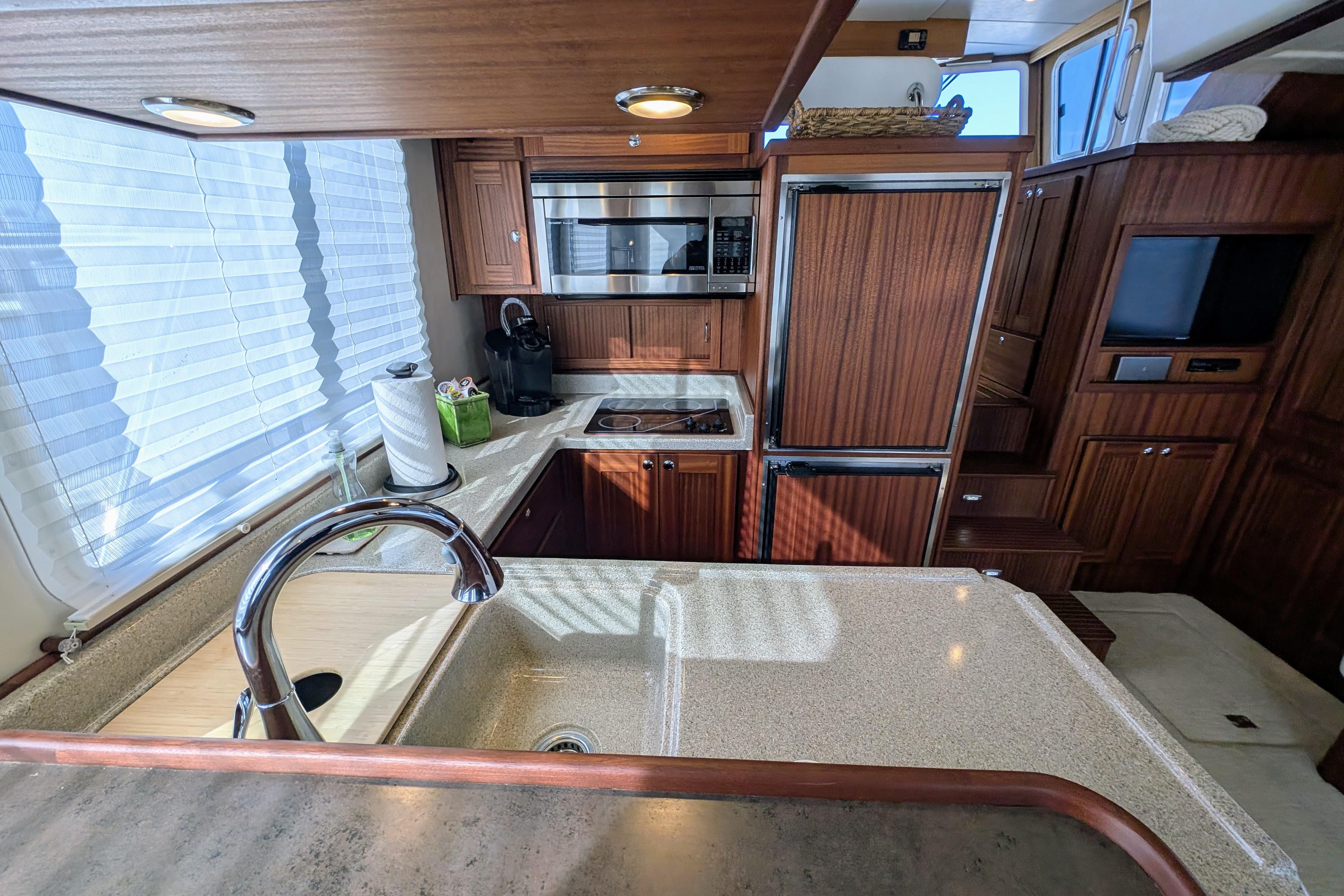

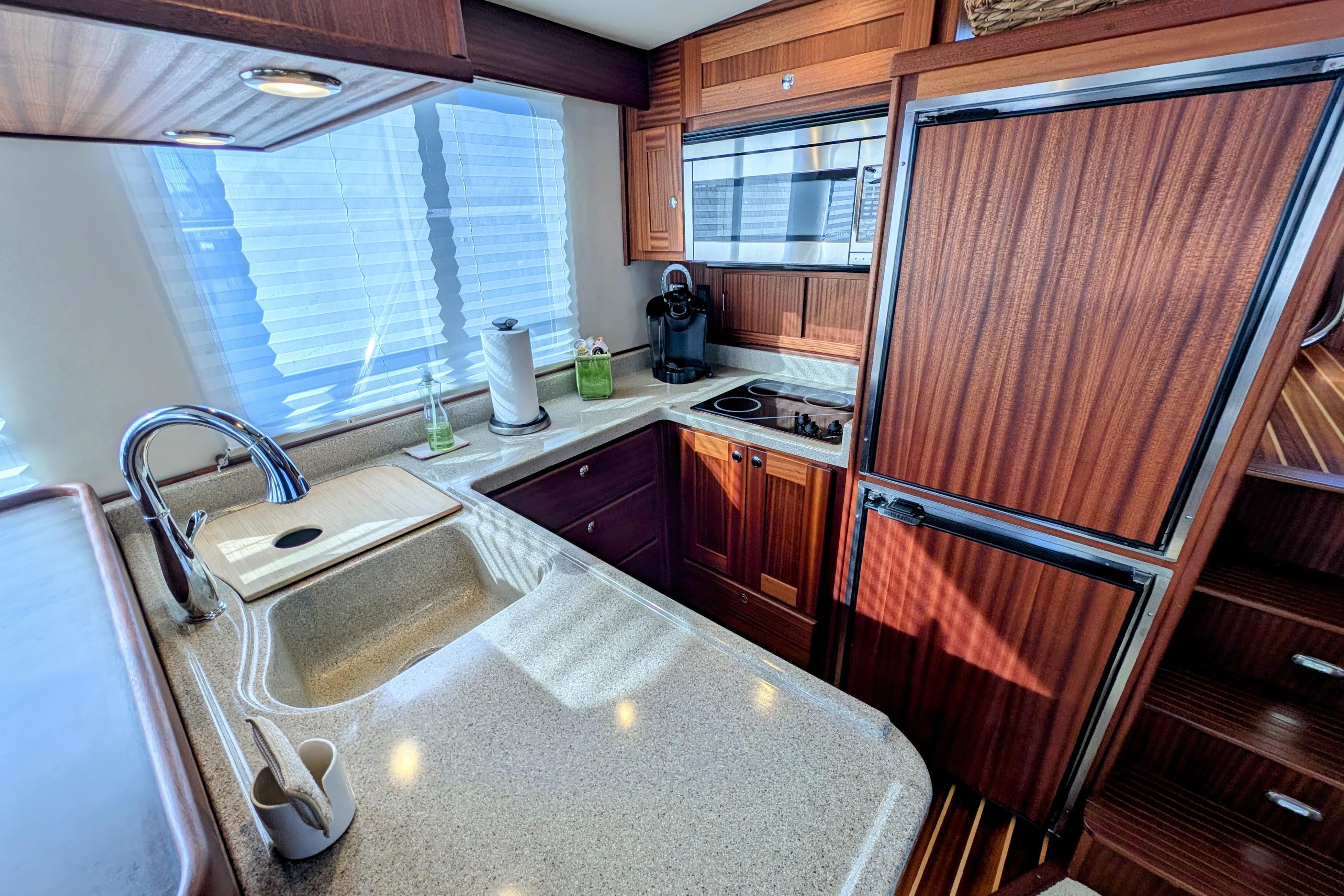

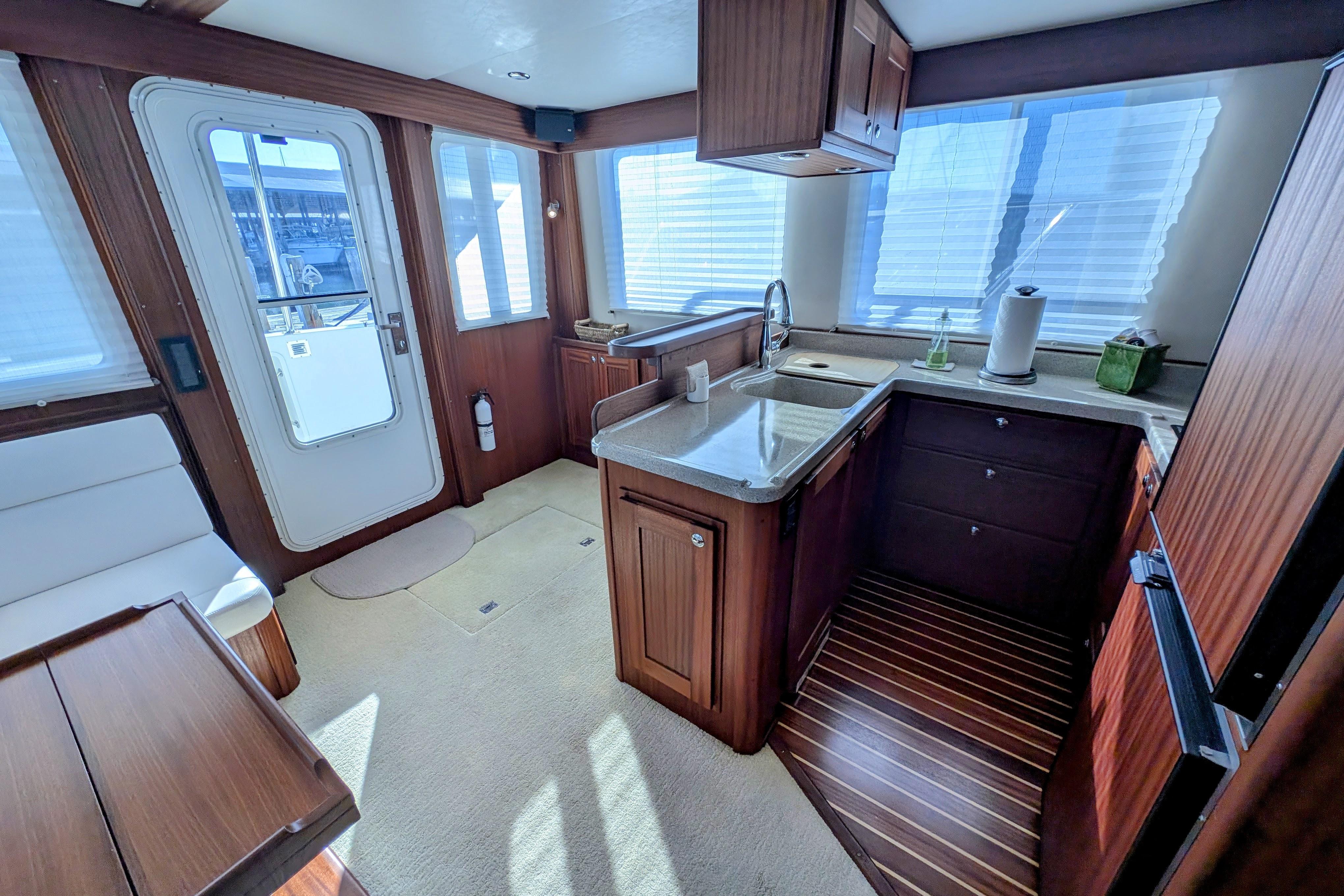

Galley

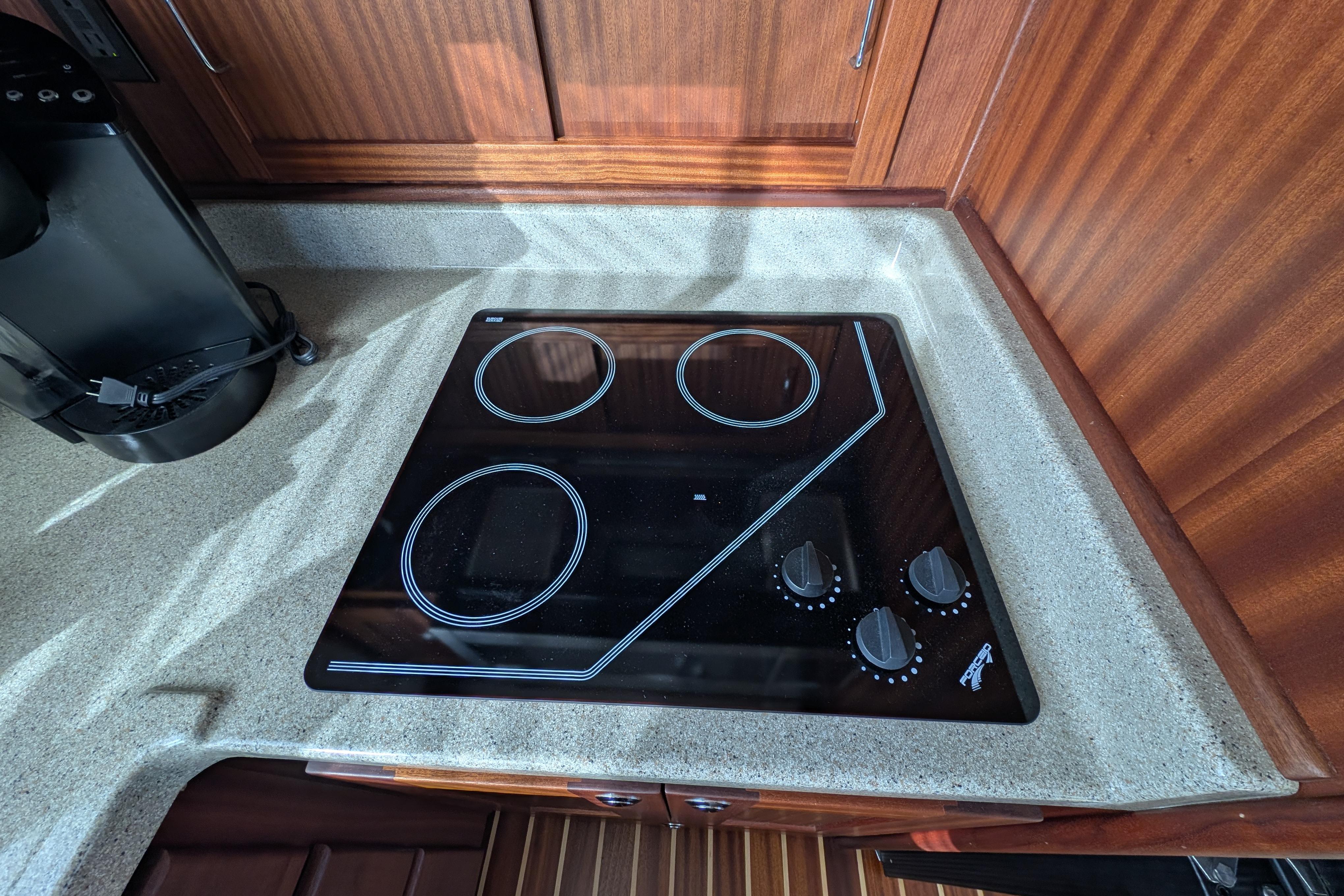

Marine 110v 3 burner Force 10 electric range

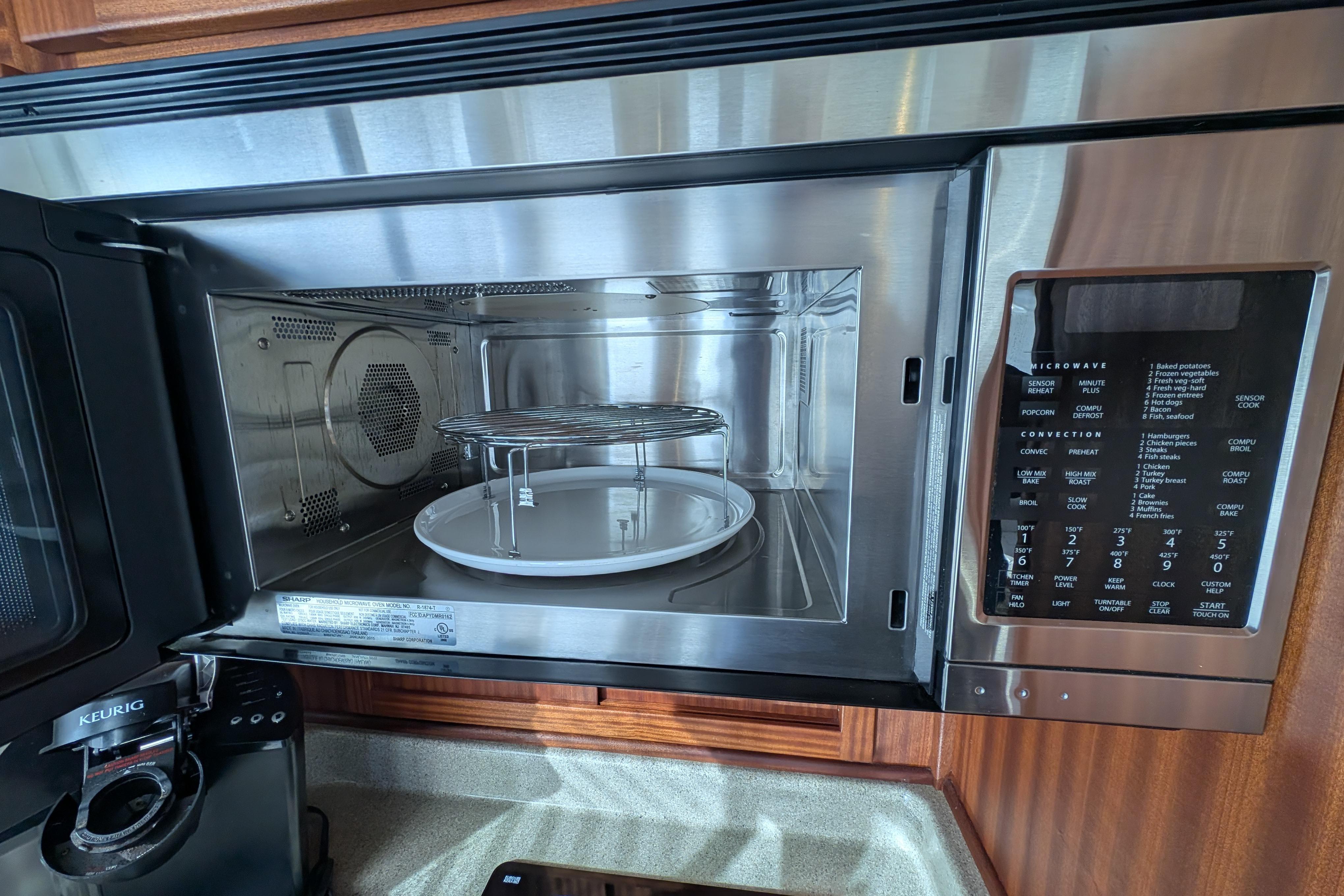

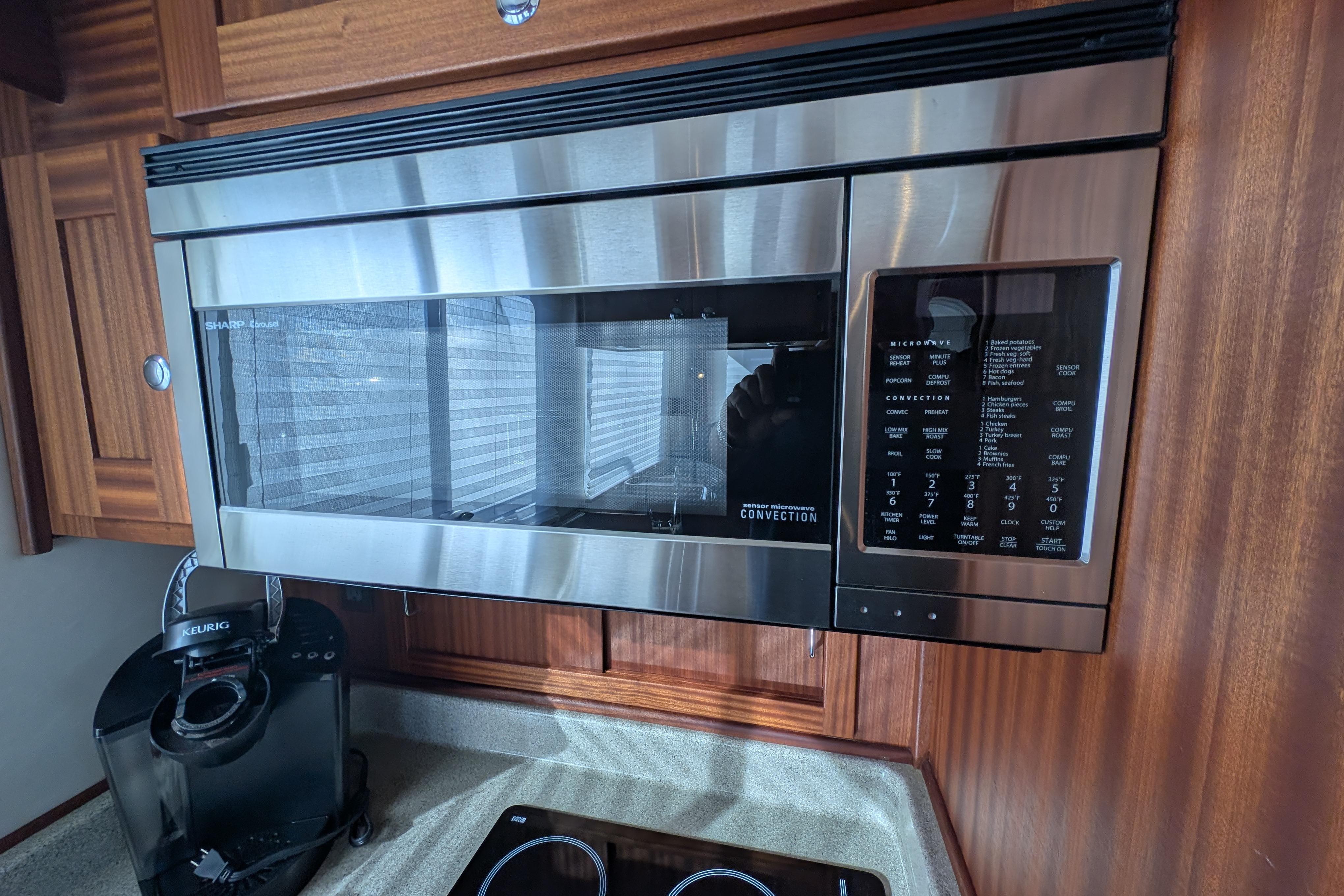

Sharp Microwave/Convection Oven

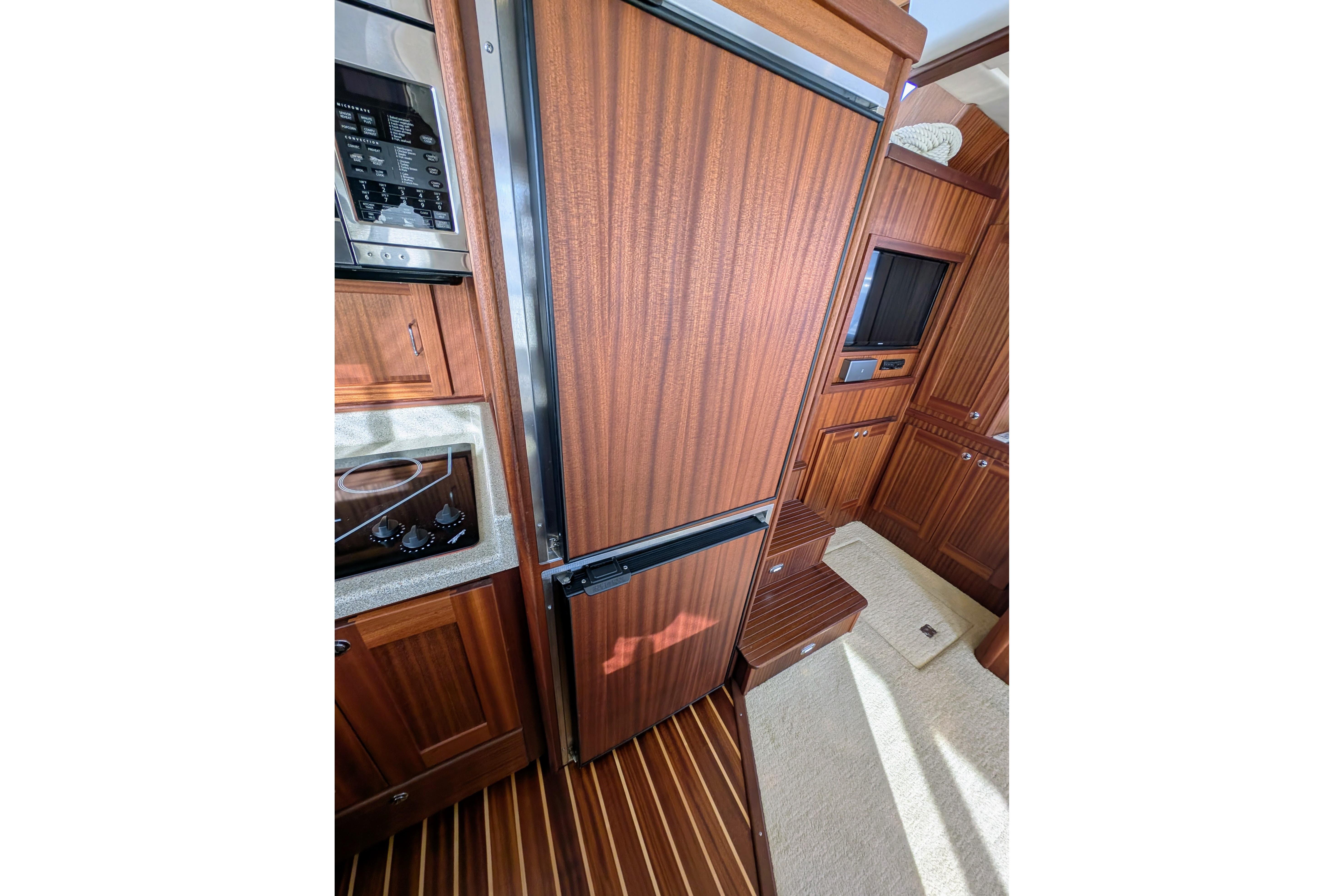

Upright NovaKool Refrigerator/Freezer (freezer on bottom, 9.1 cu.ft.)
Ventilation system for stove
Granicoat molded countertop with integral double sinks
Cabinets over stove
Four drawers
Light above stove
Multiple 110v outlets
Sapele and maple sole

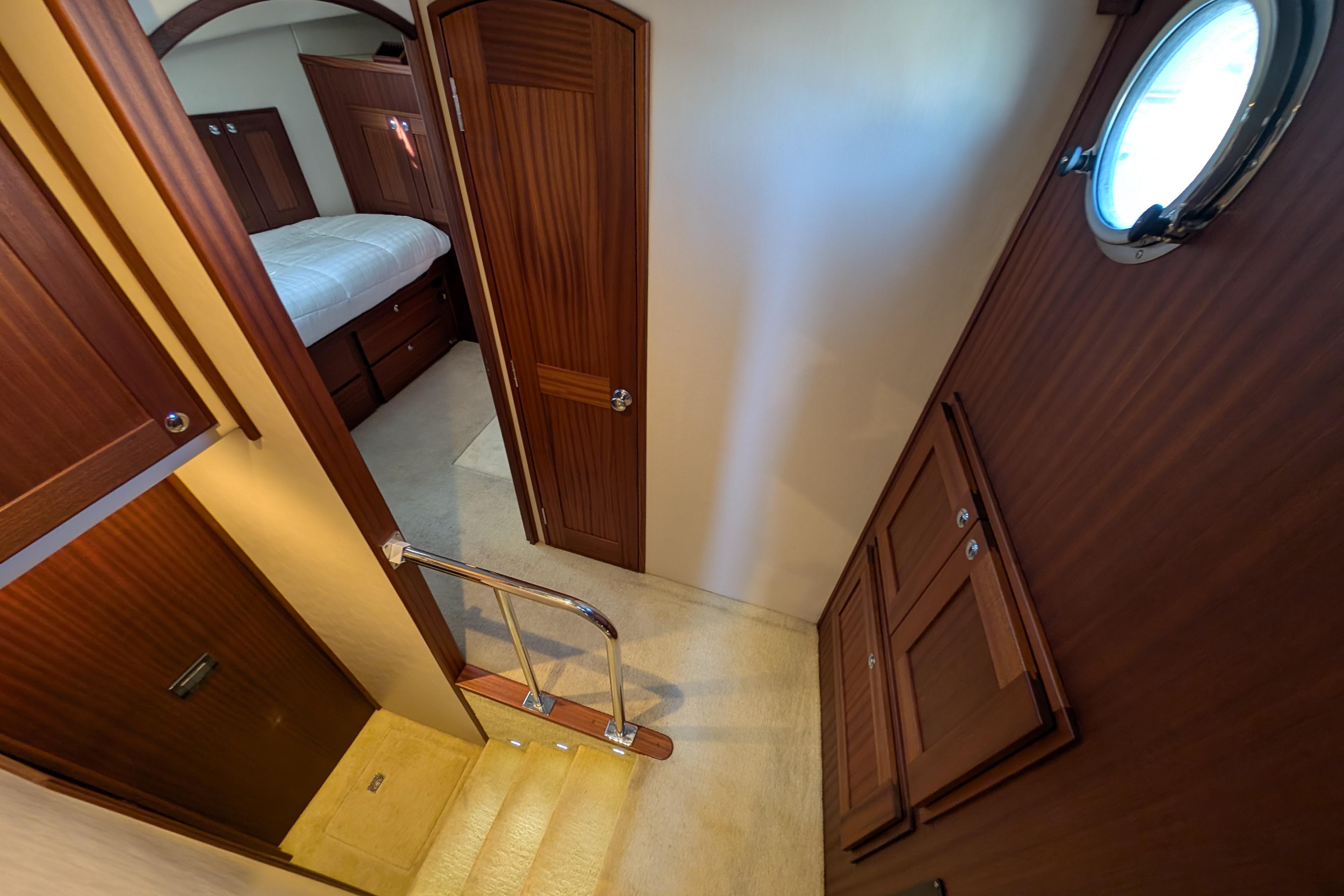

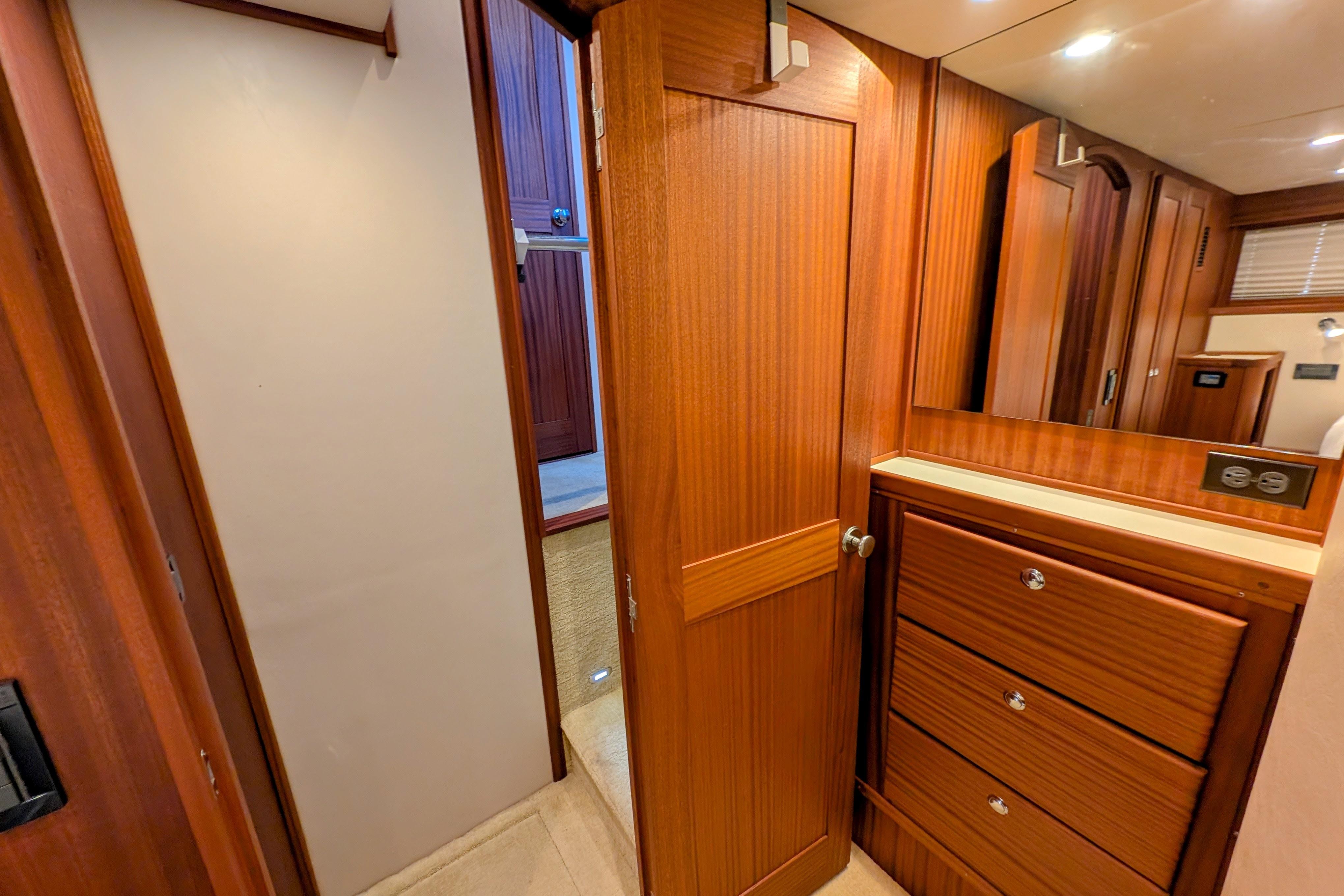

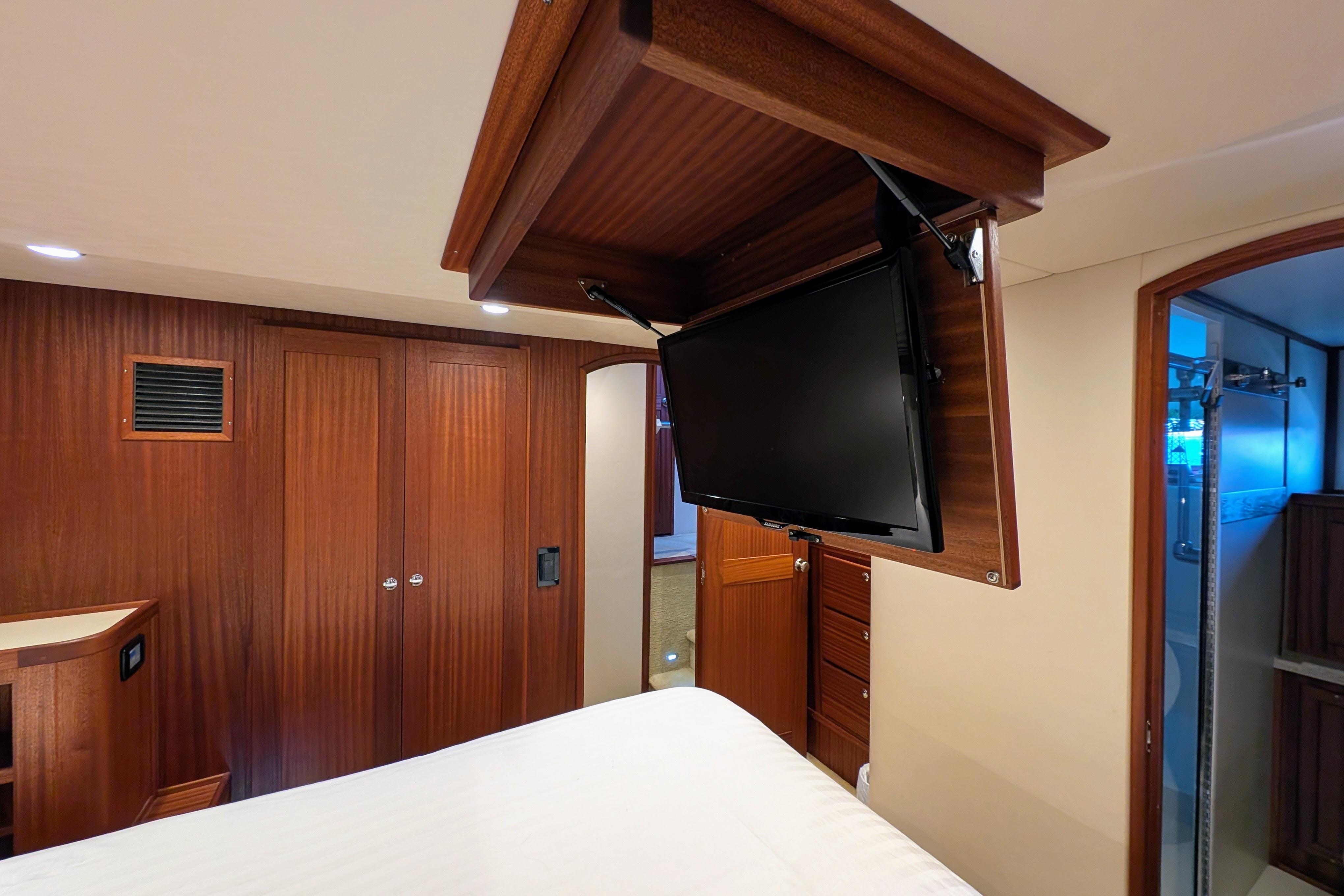

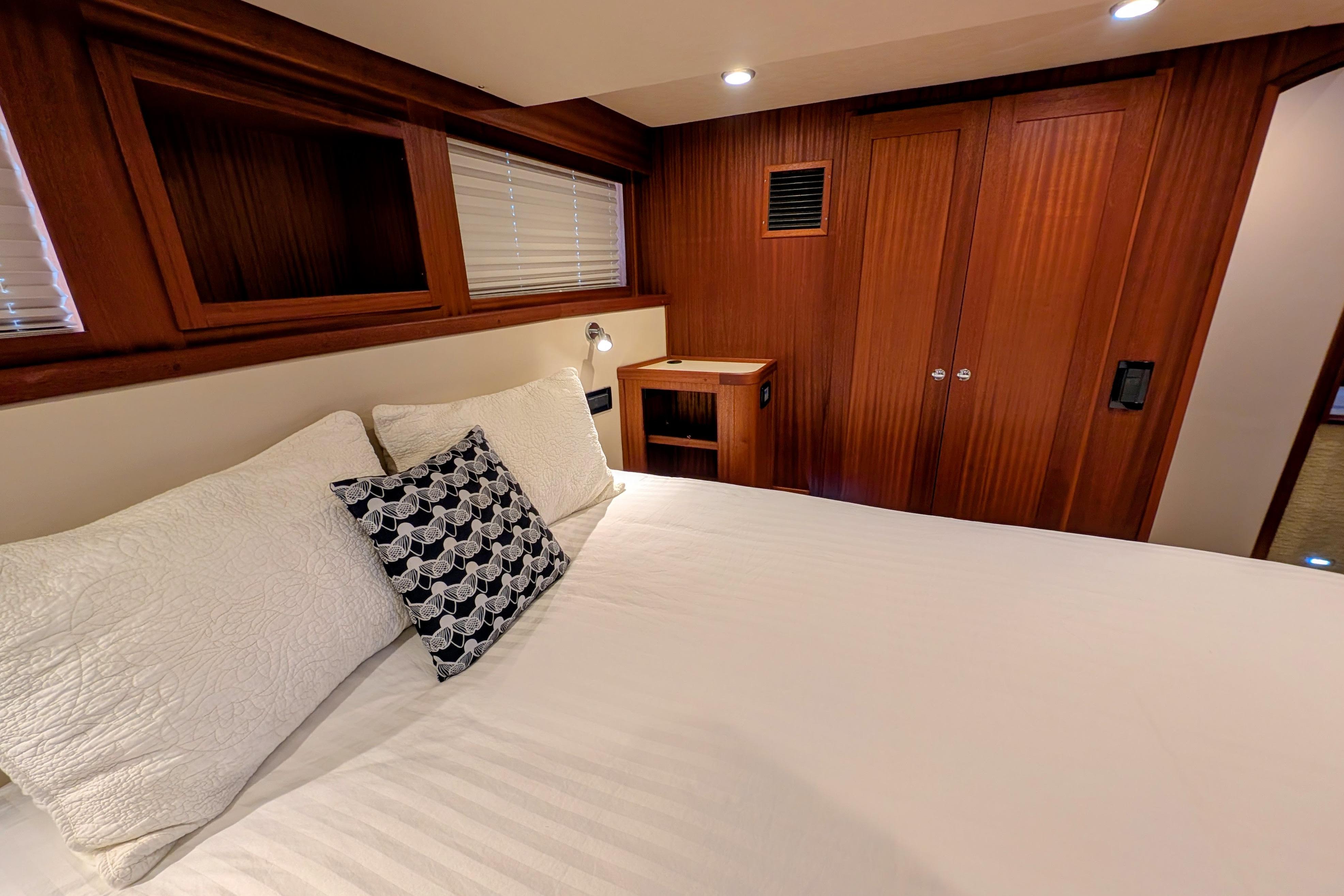

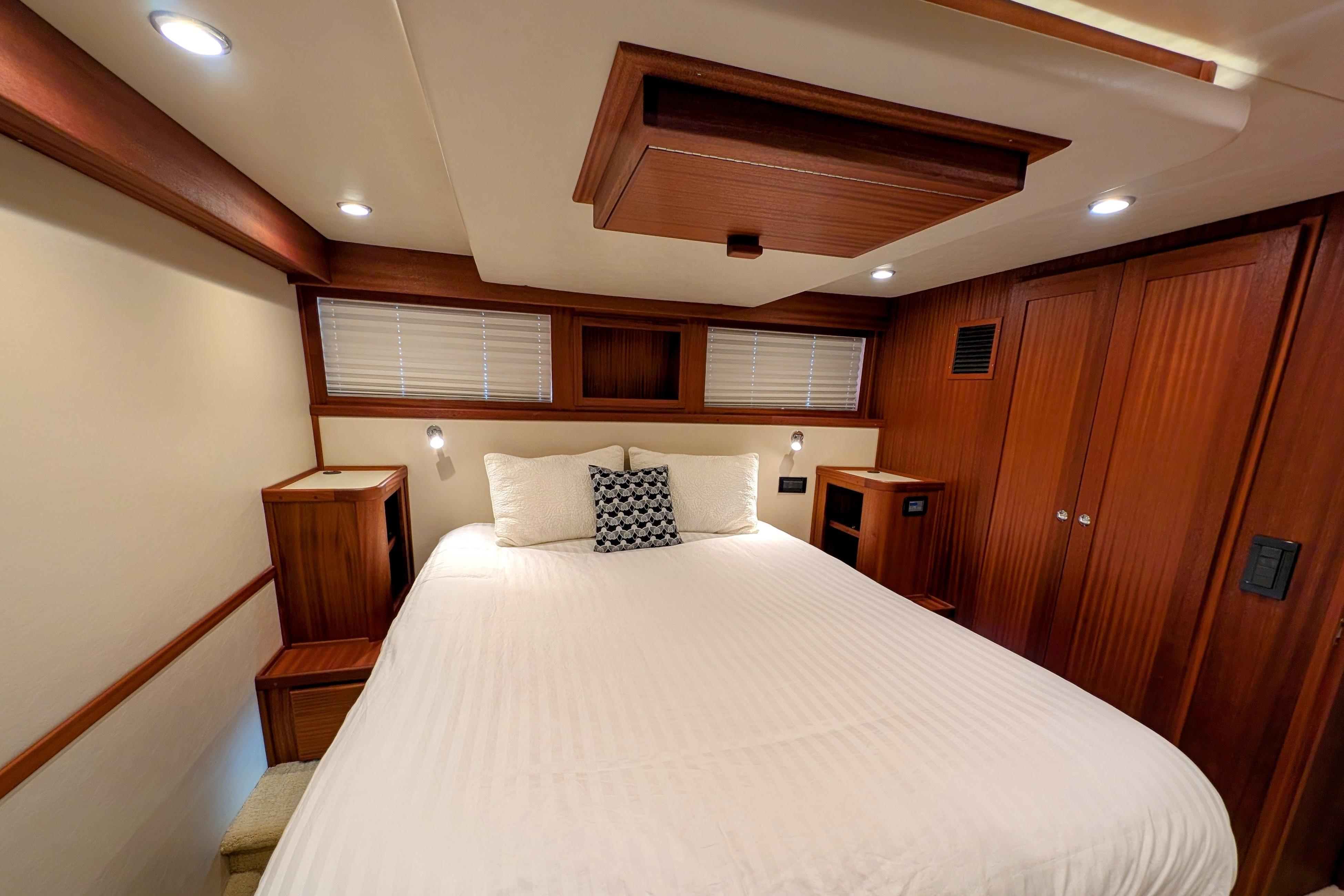

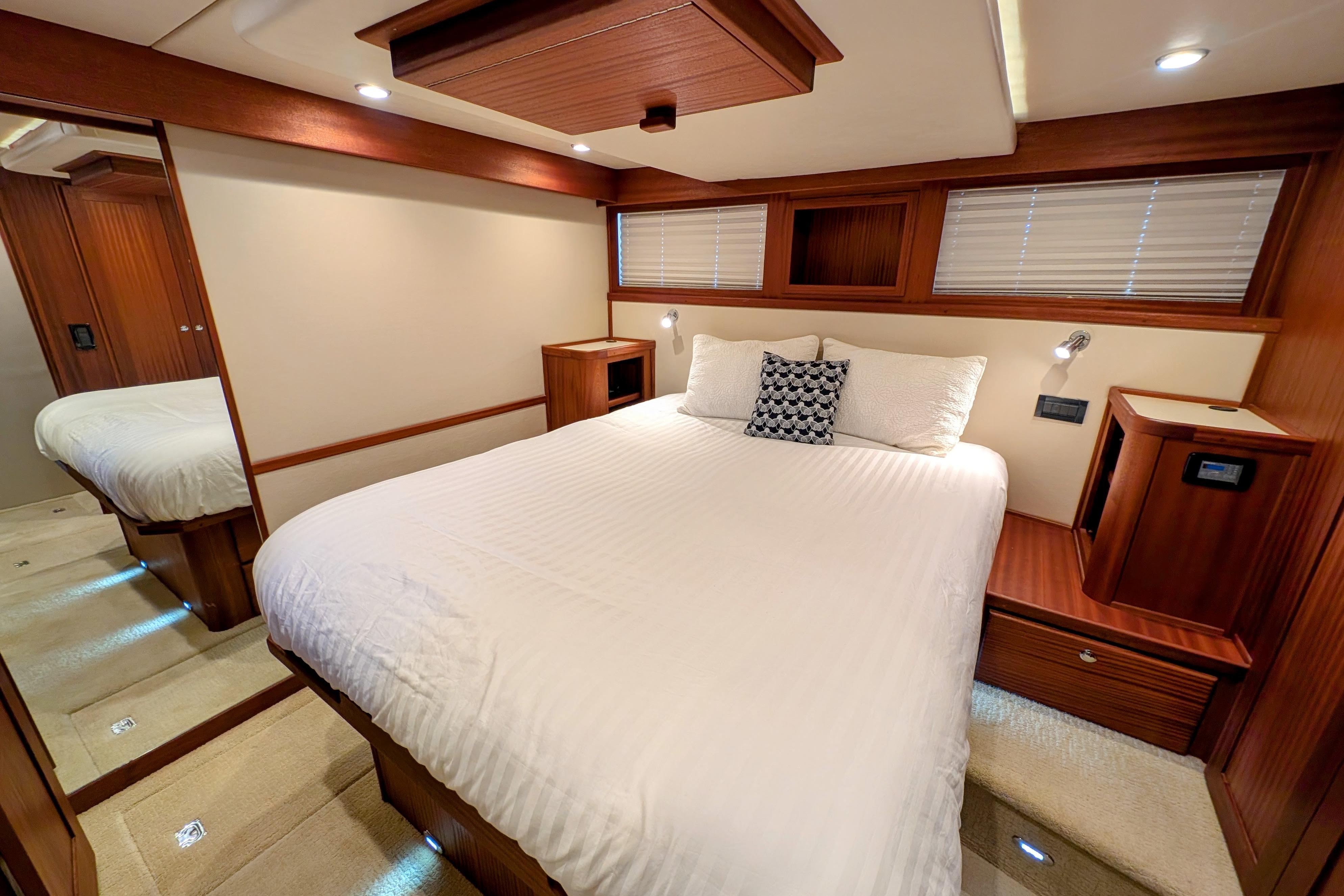

Master Stateroom
Center island queen berth with Sleep Number mattress
Ensuite head
Nightstand on each side of berth with drawers underneath
Custom Cabinet above Master berth with blinds
Reading lights over night stands
Three drawers with mirror above

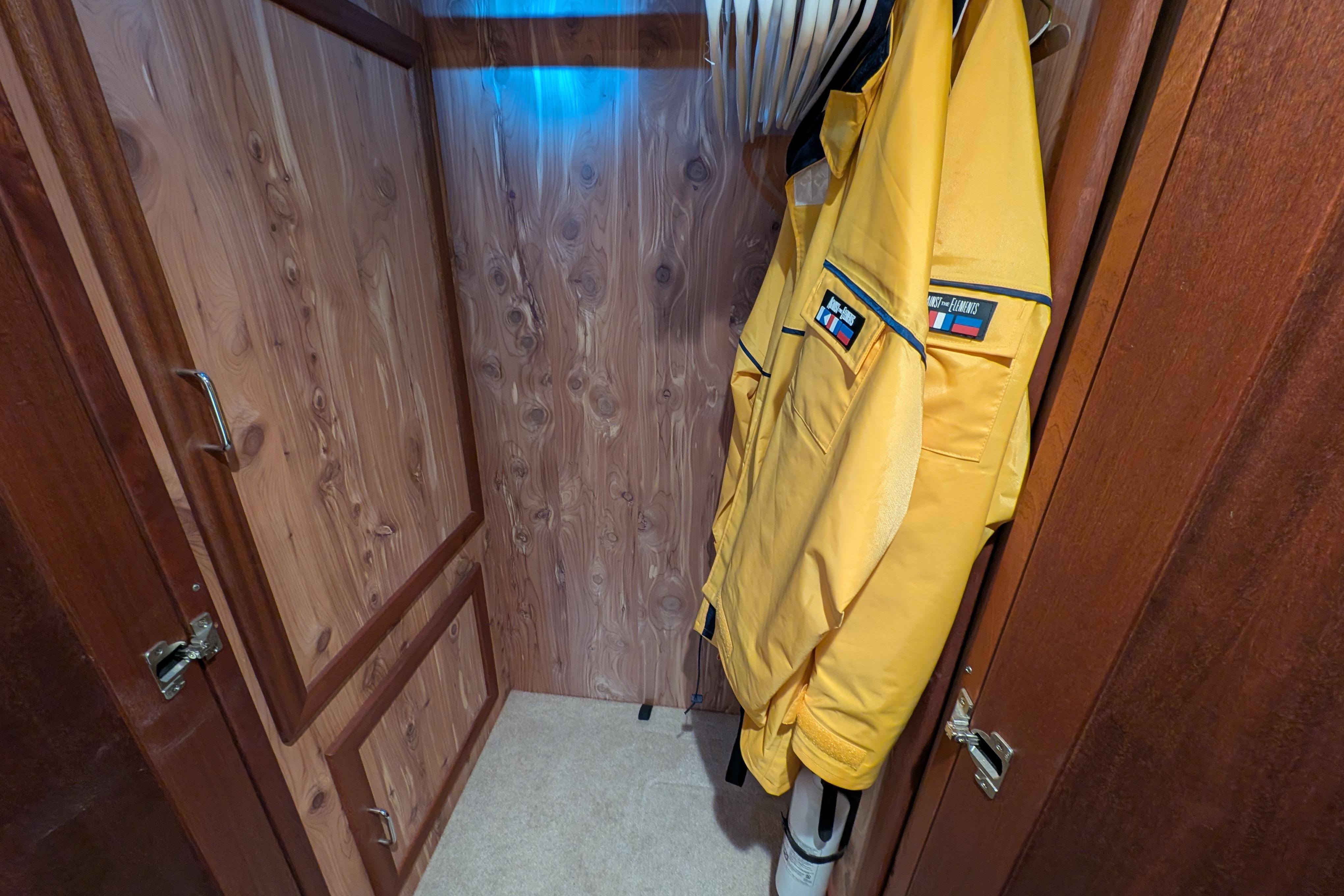

Large aromatic cedar lined hanging locker
Two round stainless steel ports with screens
Three 110v outlets

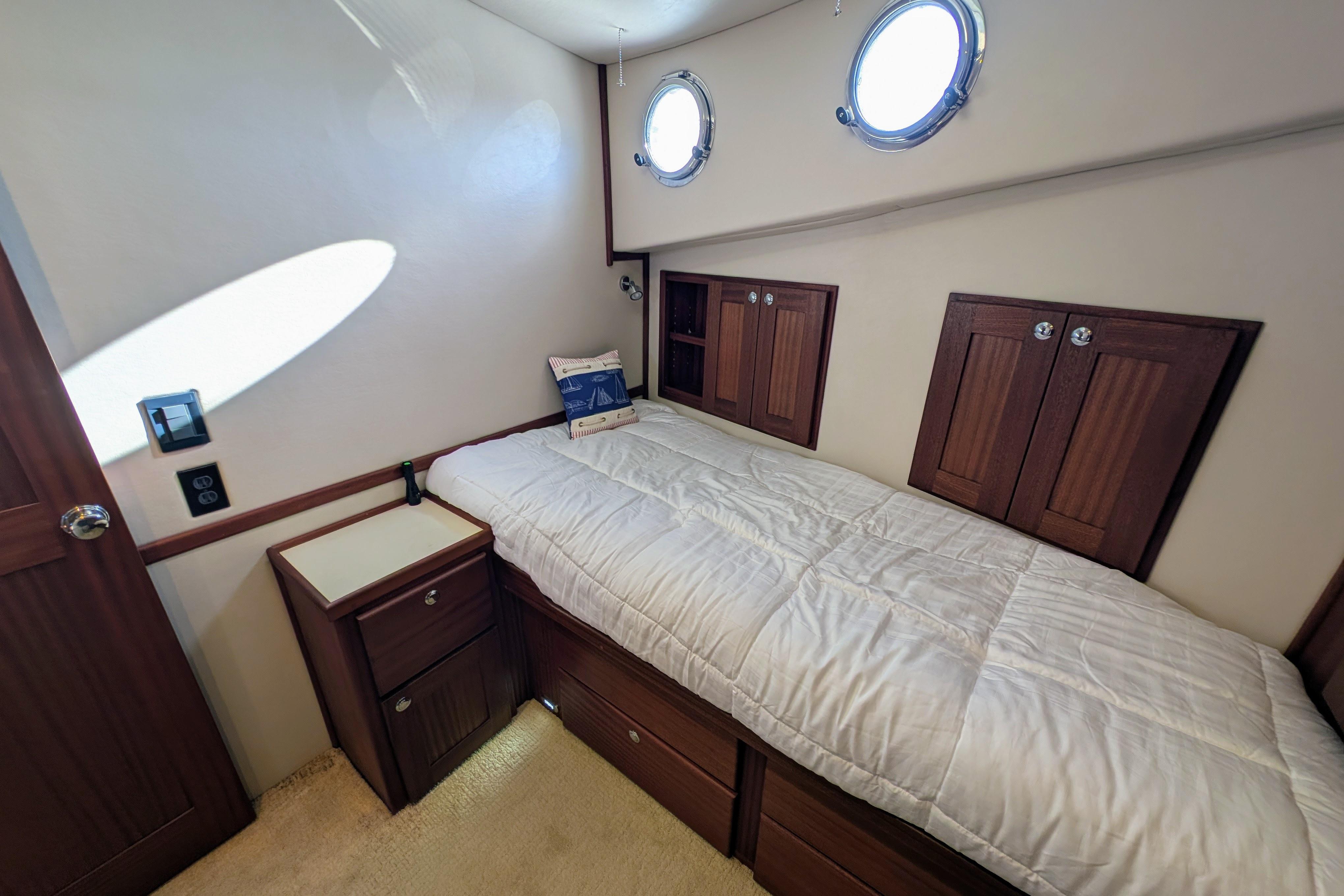

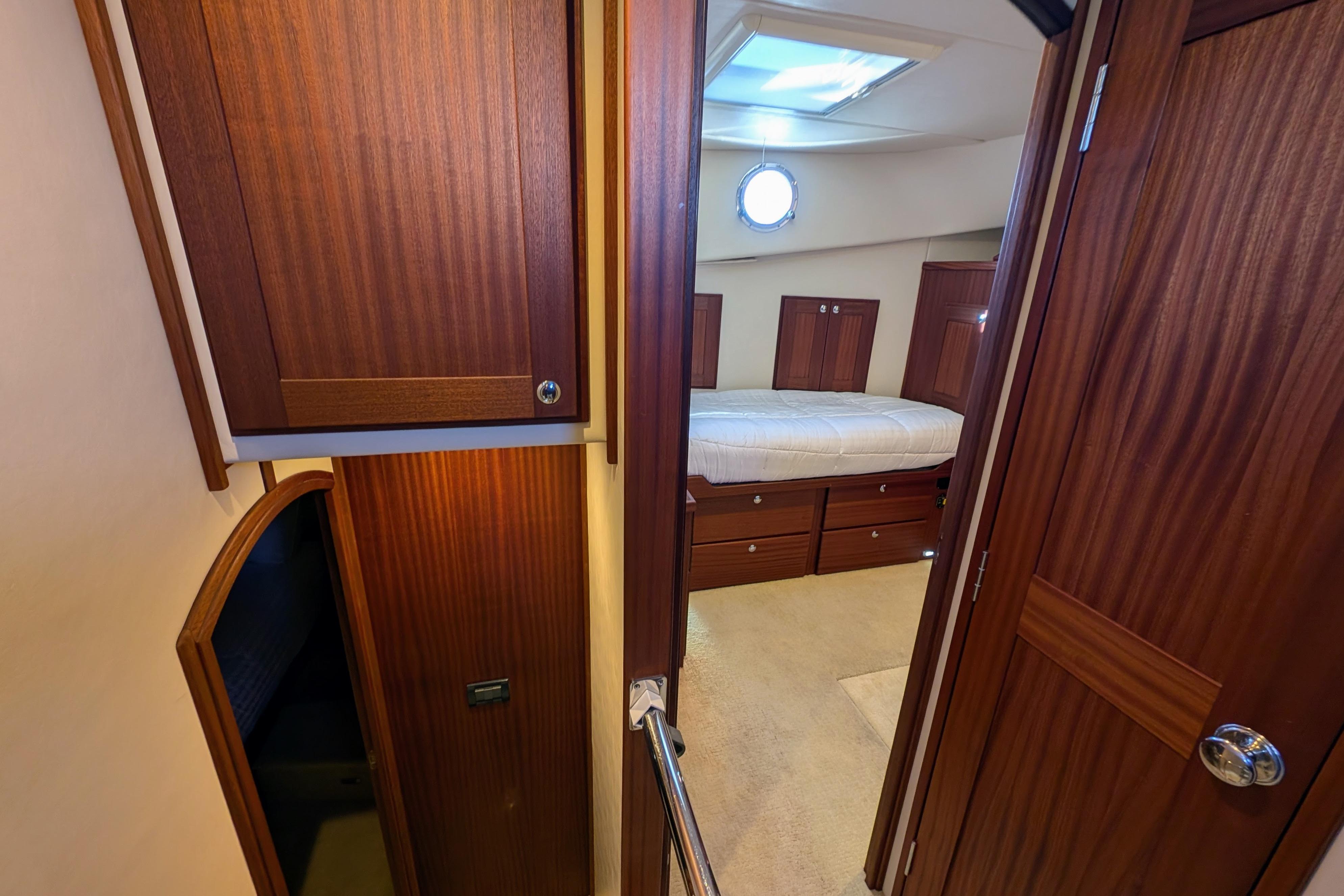

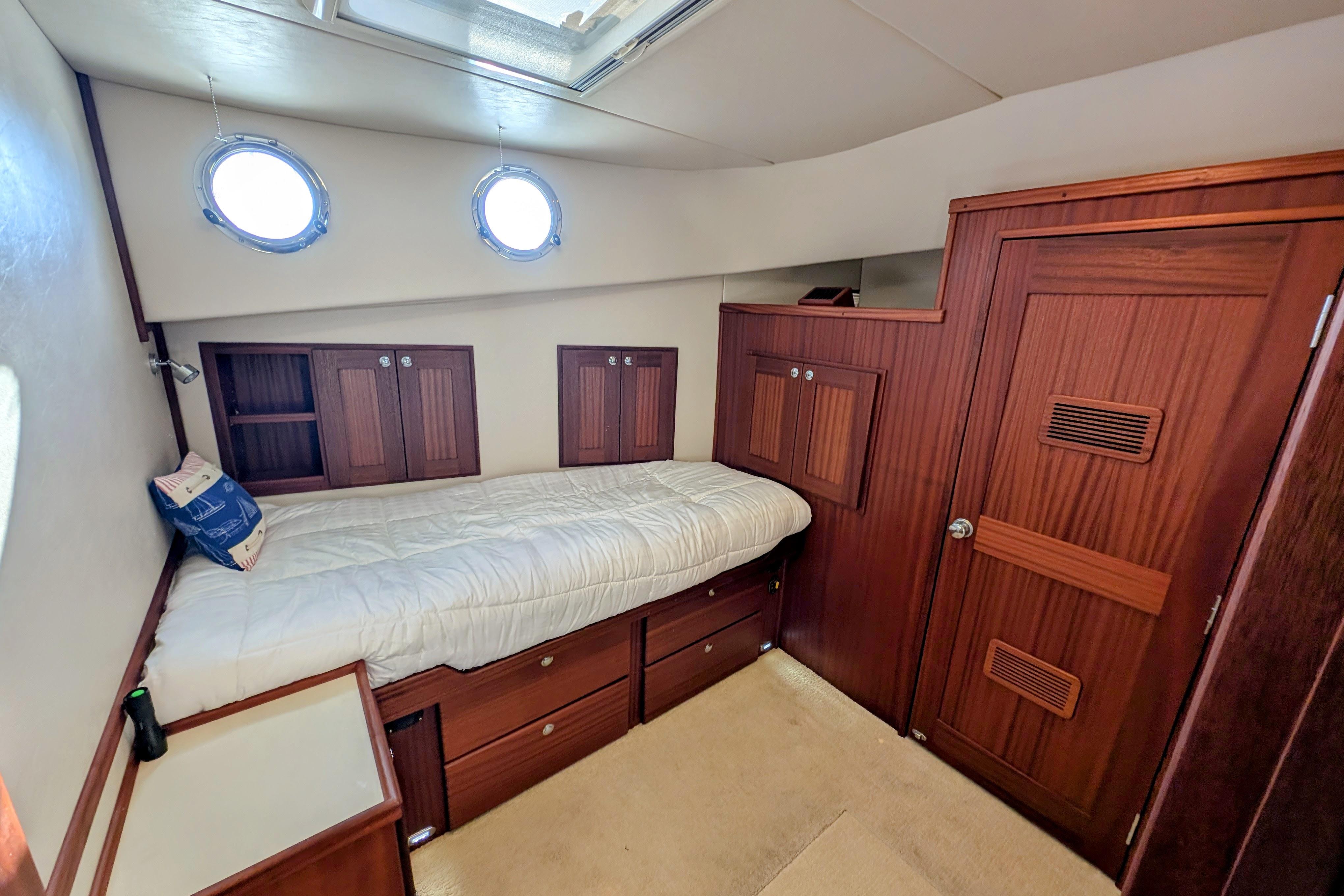

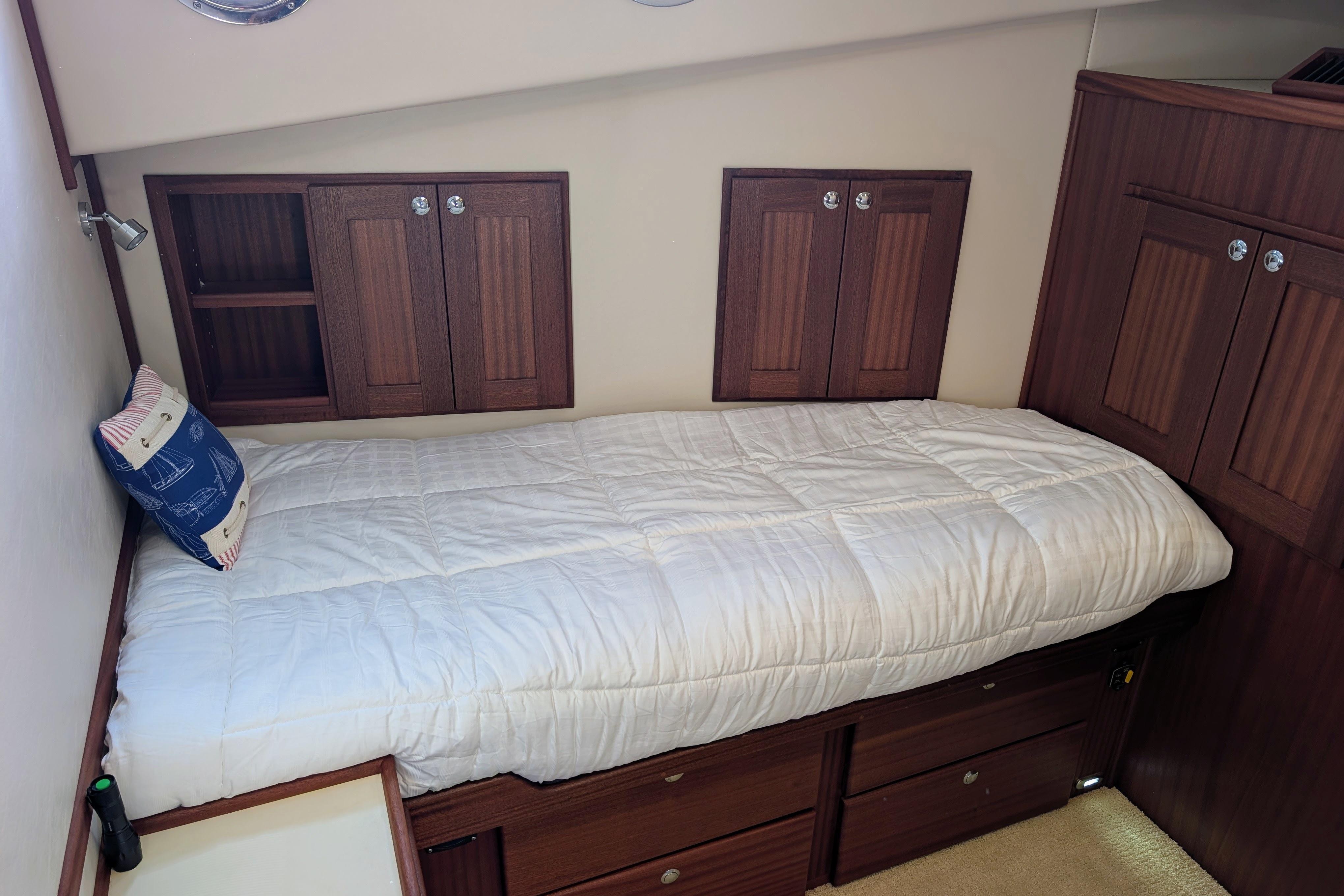

Guest Stateroom
Oversized single side berth (custom) with nightstand on aft bulkhead
Ensuite/Day head head
Hanging locker
Four large drawers under berth
Overhead opening screened hatch
Two stainless steel port lights with screens
Bosch Stacked 110v Washer/Dryer (vented model)
Ocean Air Sky Screen for Bomar hatch

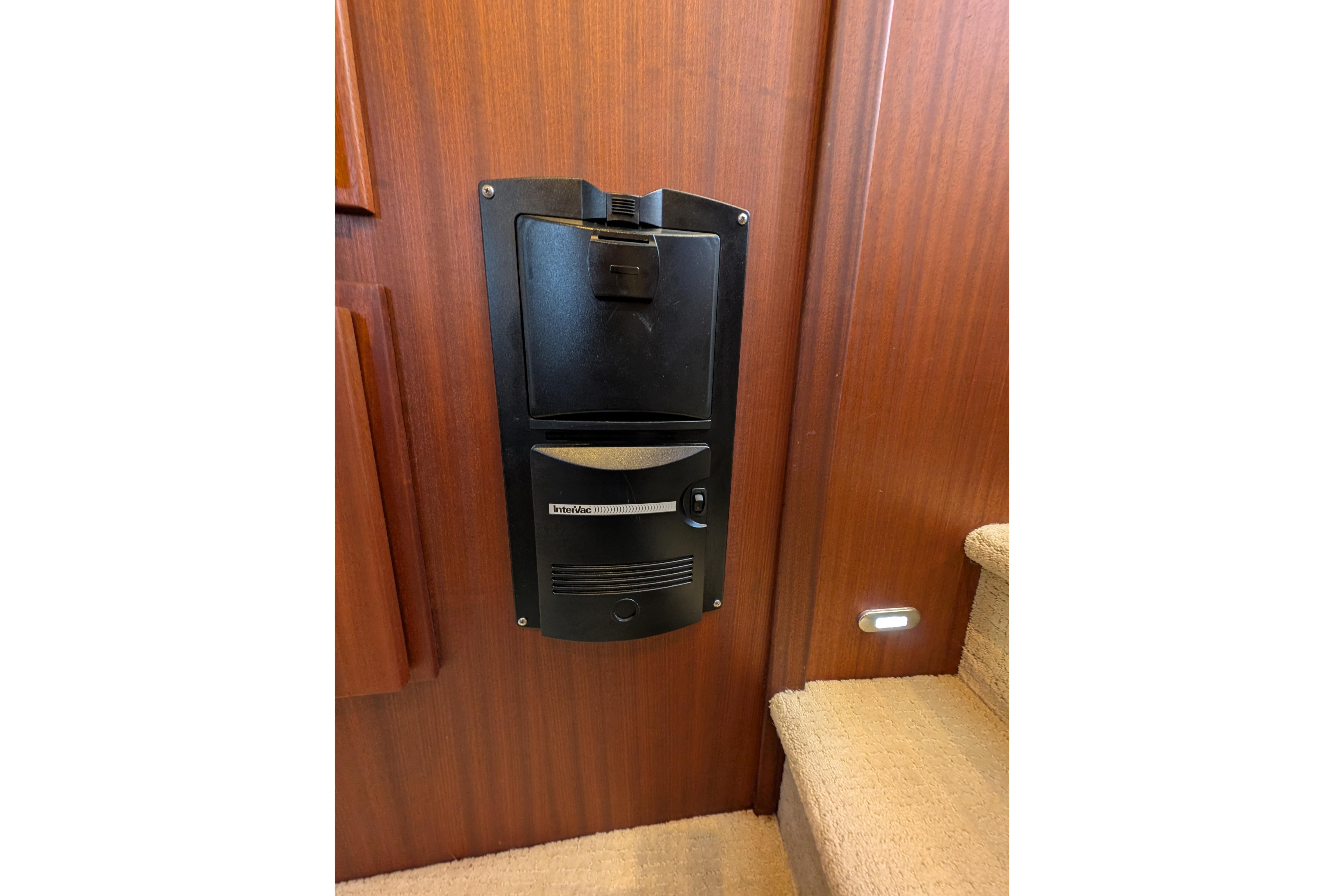

Central Vacuum system
Companionway with tilt out storage for vacuum components

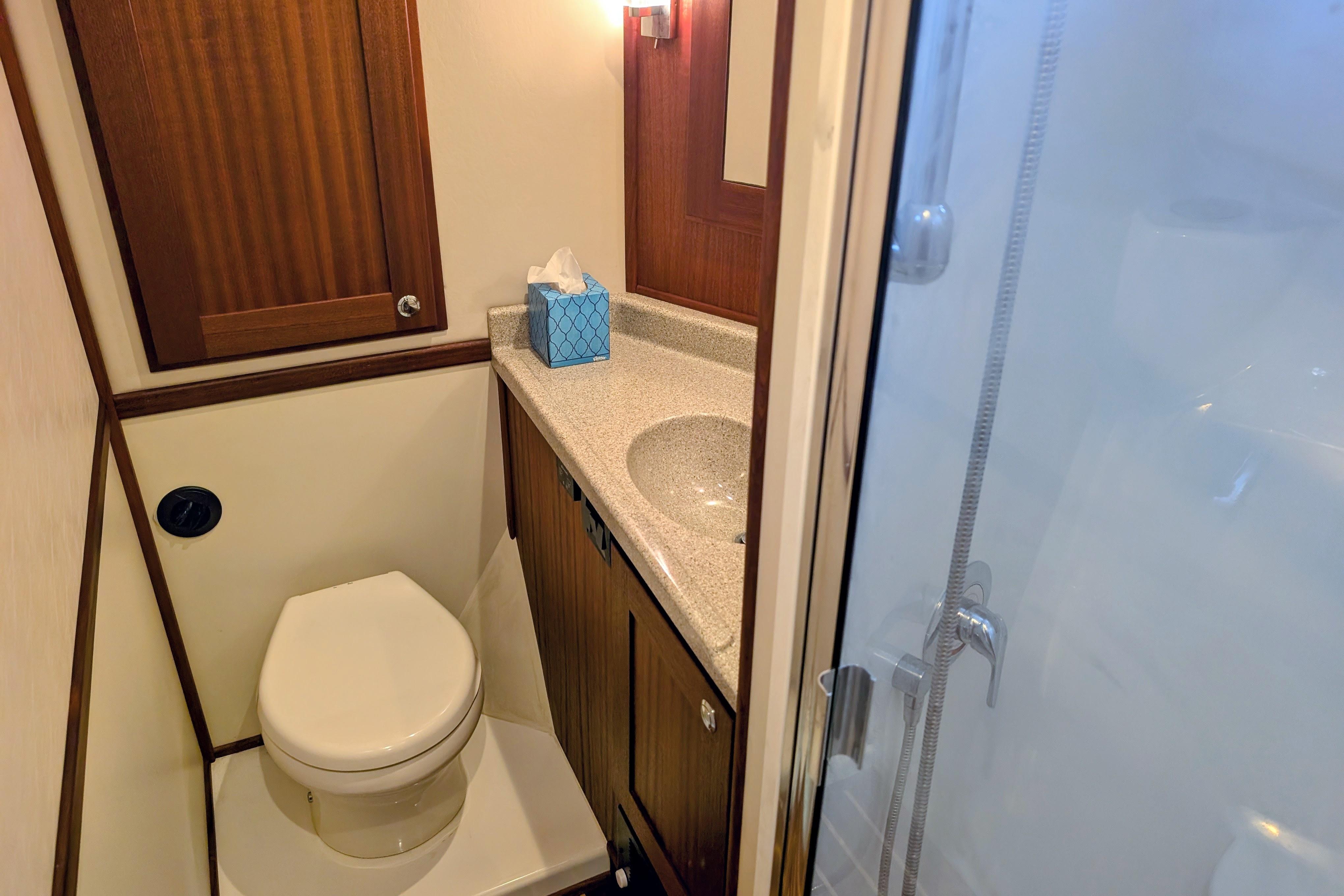

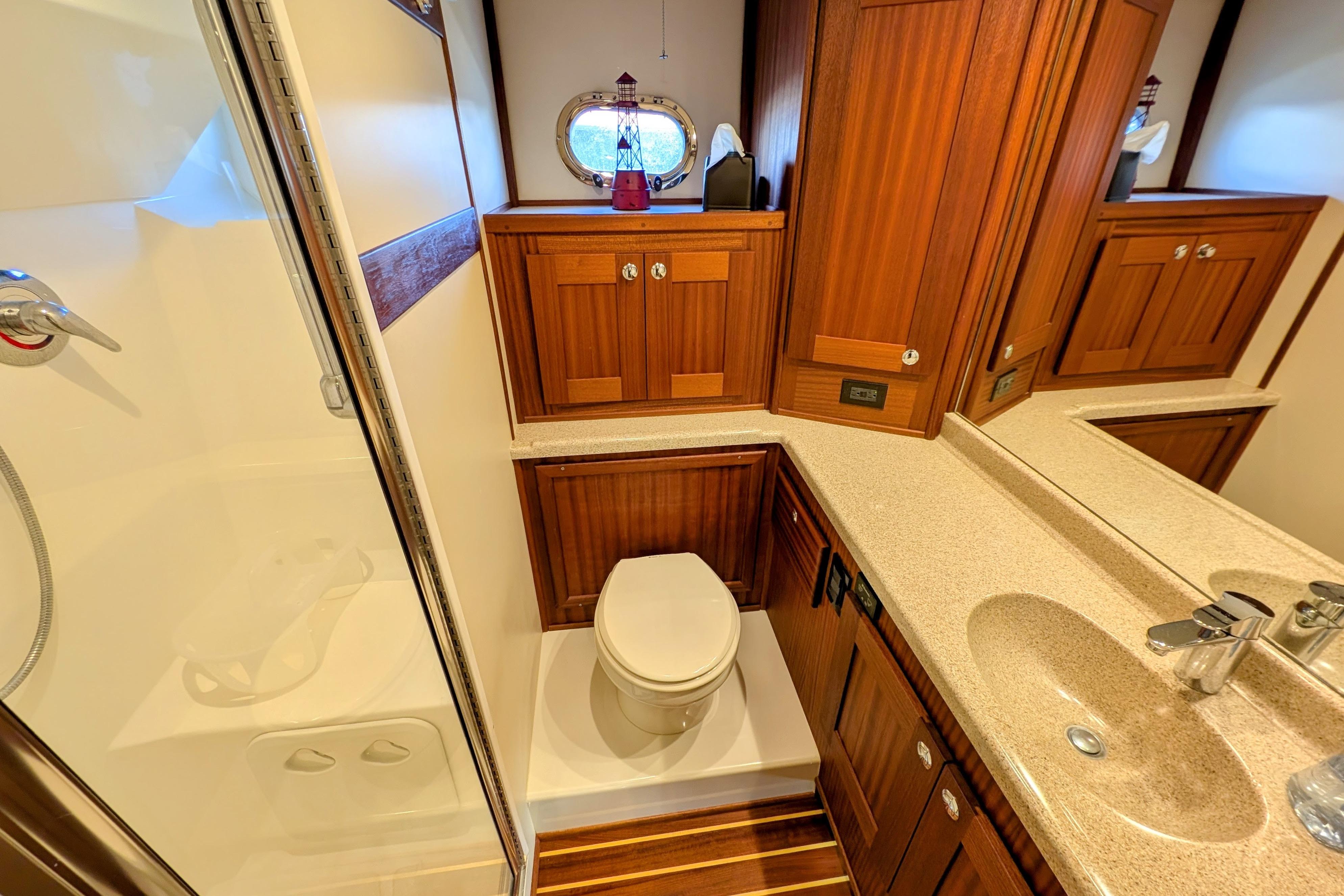

Heads
Masterflush fresh water 12v toilets
Vanity and mirror with overhead lighting
Vanity light in forward head
Built-in shower stalls with seat
Granicoat molded countertops with integral sink
Sapele and Maple sole
Stainless steel ports with screens
110v outlet(s)
Interior Finish/Trim
Cabinetry with sapele veneers, solid sapele trim and drawer fronts
Overhead and walls in marine grade vinyl with foam backing
High quality carpeting
Heat/Air Systems
Marine Air 4-unit 44,000 BTU FCF Air Conditioning/Heat system
750w 110v electrical heaters in master stateroom and forward heads (silent running)
Mechanical Systems
9kw Northern Lights genset with 469 hours and sound shield

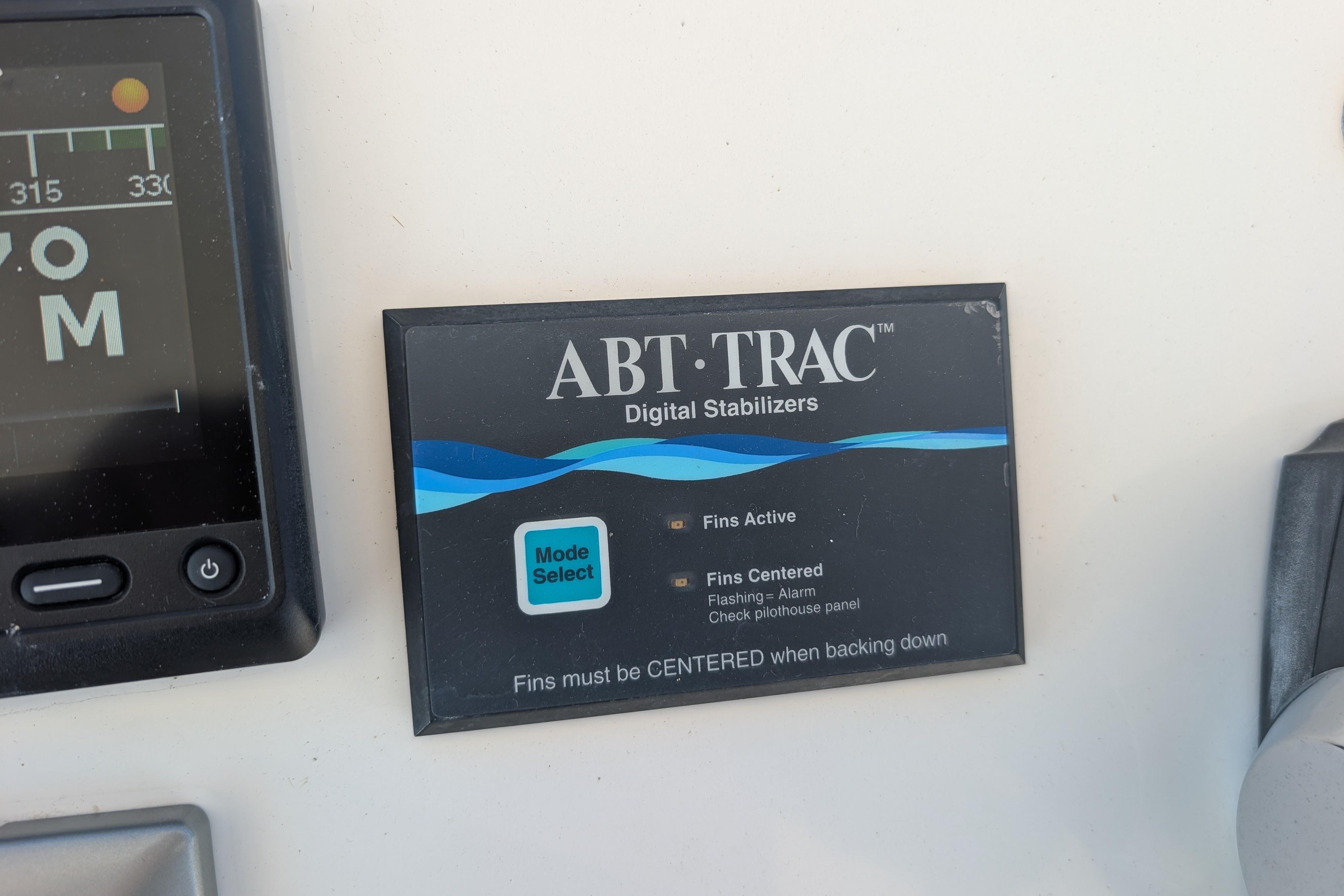

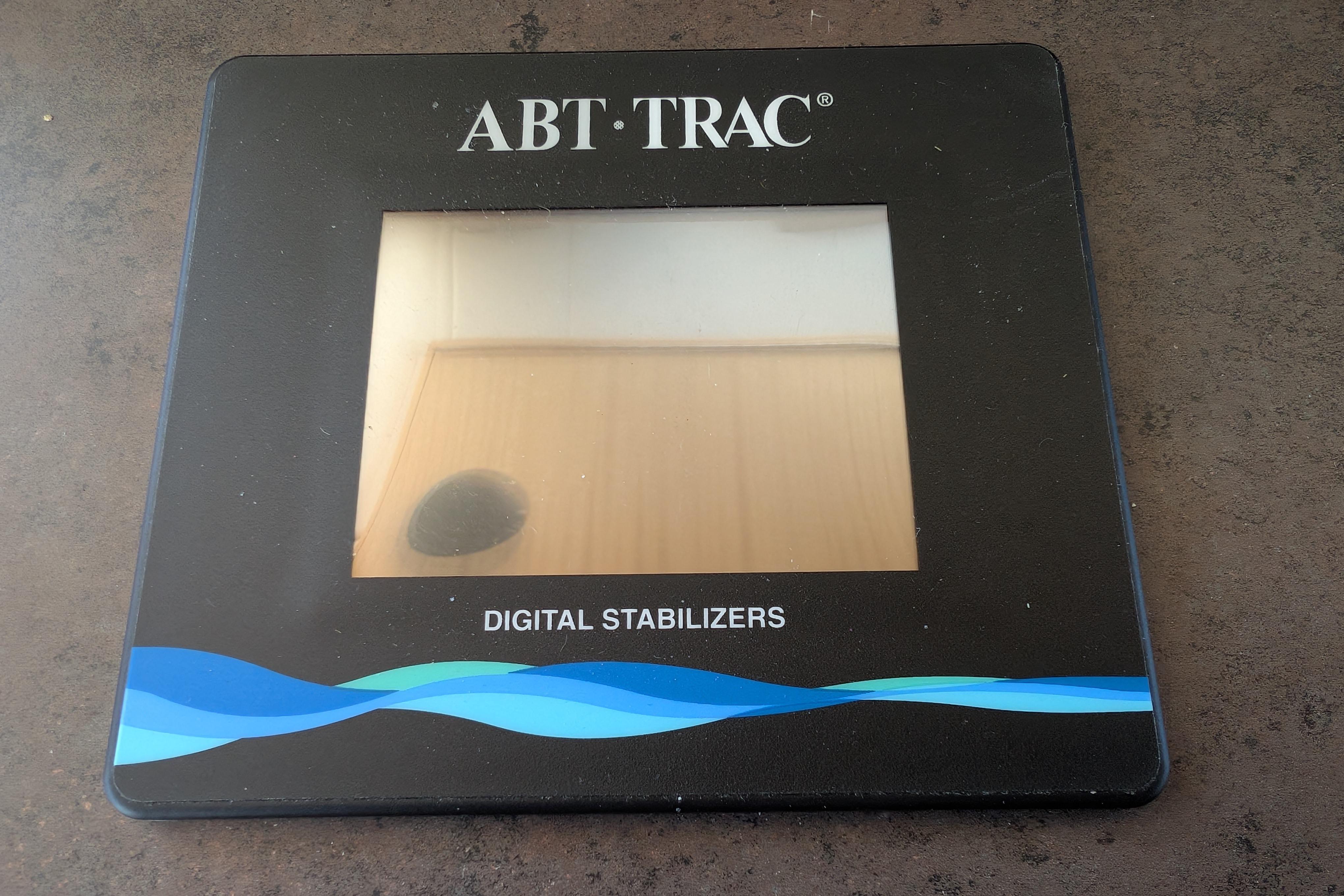

Trac Stabilizers with 6.5 SF fins ($50,000 upgrade)

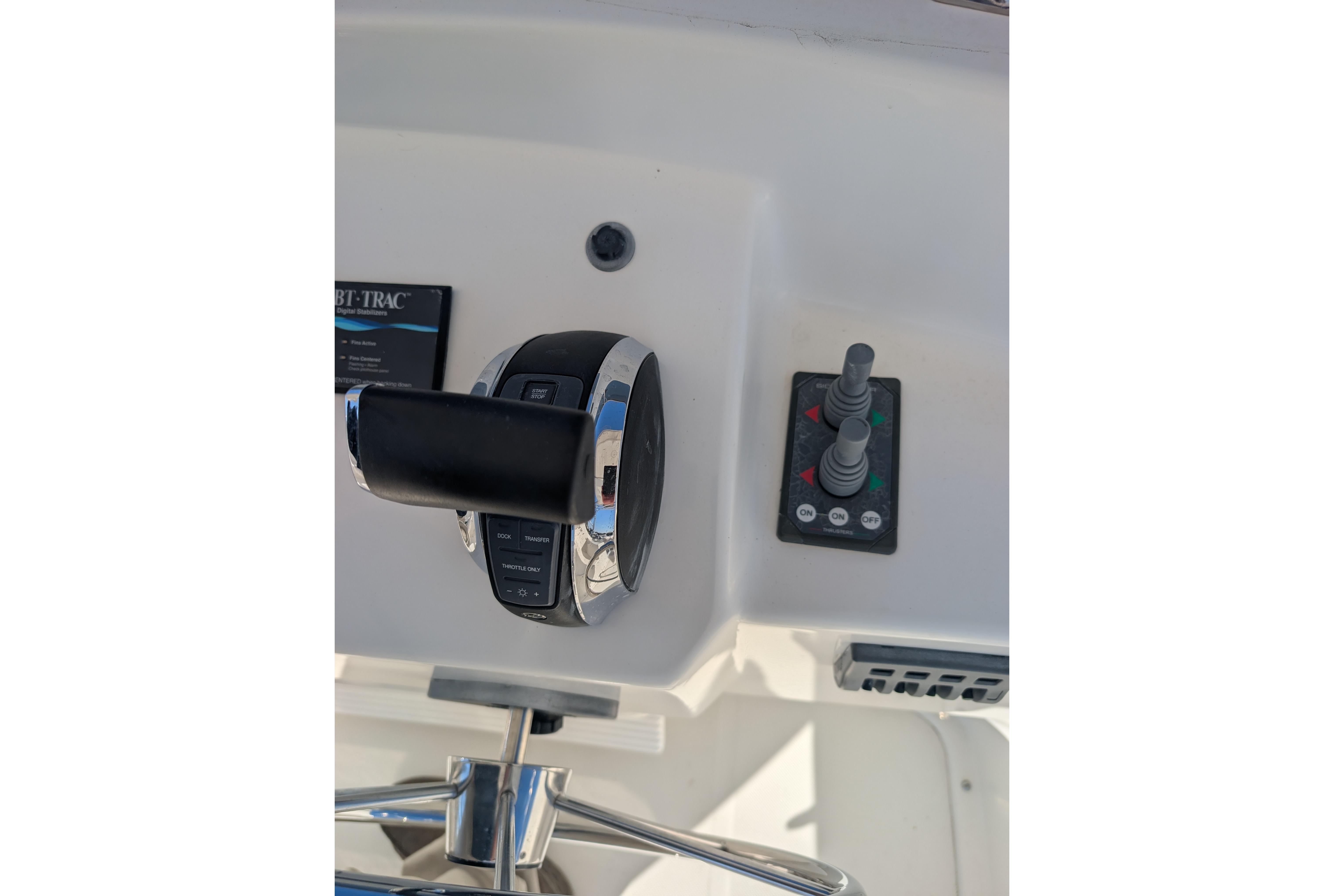

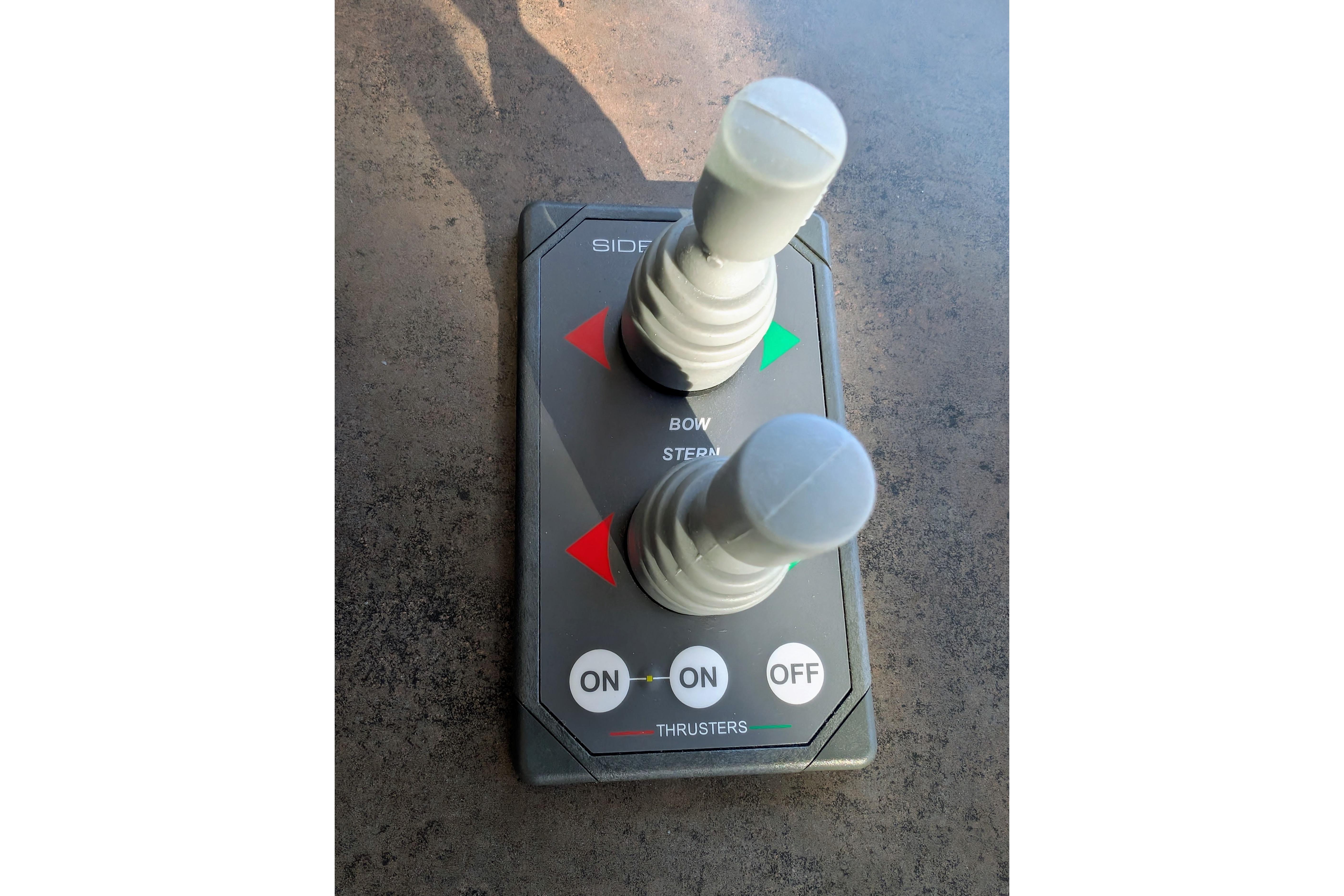

Side-power 8hp twin prop bow and stern thrusters with joystick and remote

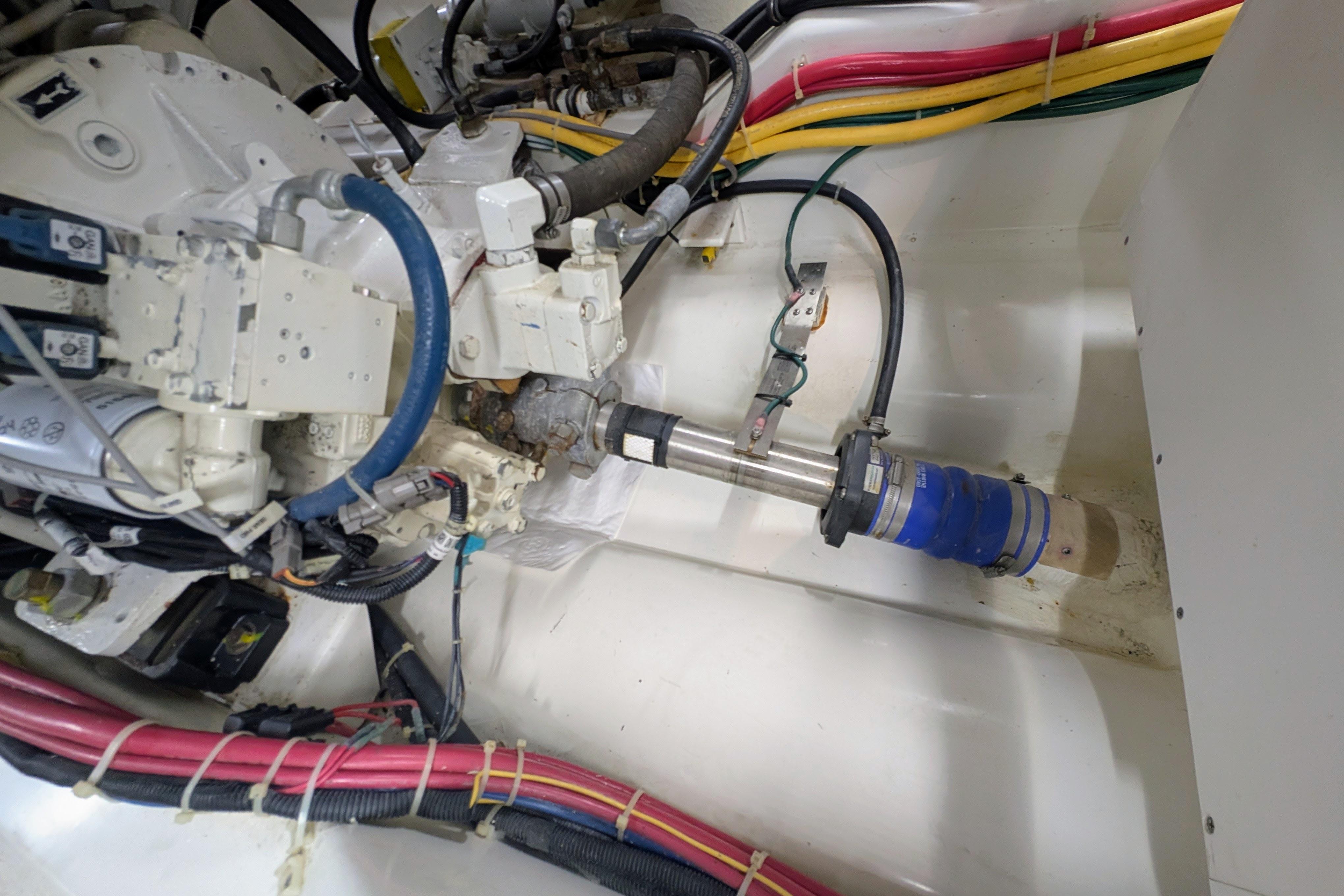

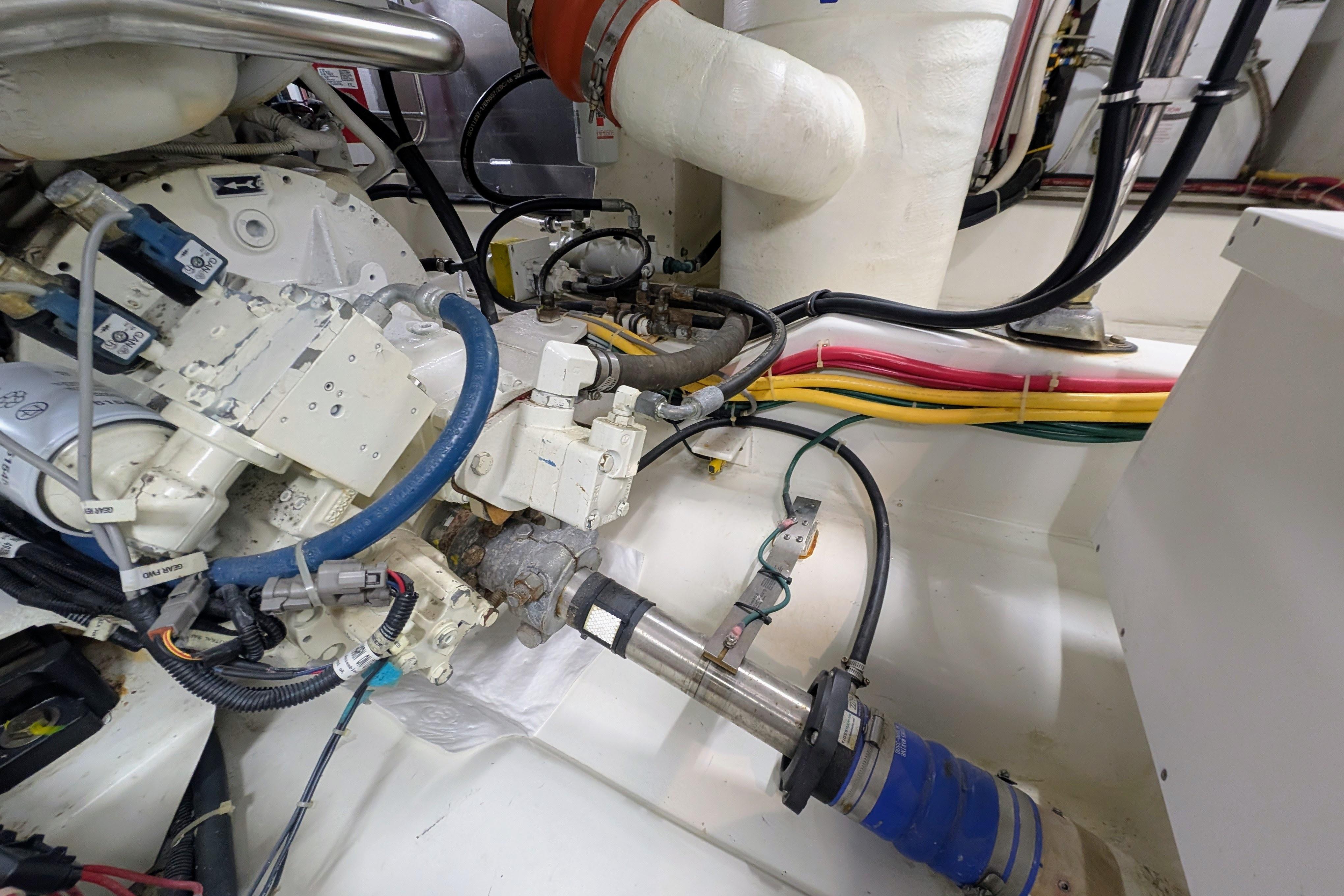

2-1/2" Stainless alloy shaft with dripless shaft seals on main shaft and rudder shaft
Razor Shaft Line Cutters
CNC machined Nibral, five- bladed propeller meets class "S" specifications
Composite rudder and skeg

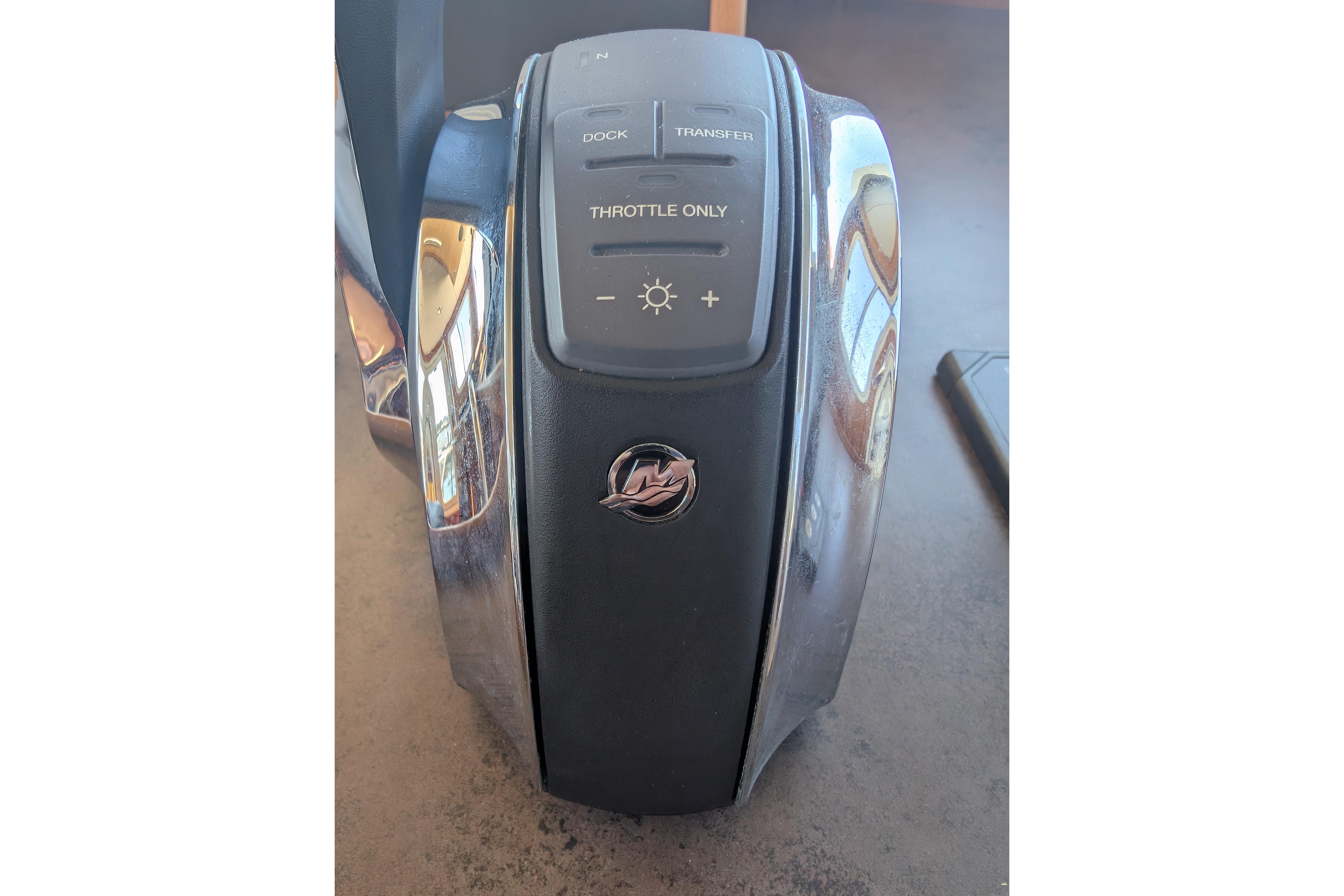

Electronic shift and throttle system
Reverso Oil changing system for main, gear and genset
Racor filter for genset
Dual Racor filters for main engine with gauge at the helm
Seawater strainers on engine, genset and air conditioning systems
Underwater exhaust system for main engine and generator
Heavy duty sound deadening throughout engine room
Three 2000 gph bilge pumps with automatic float switches
Waste discharge system with macerator
Bilge alarm system
Electronic shift and throttle system

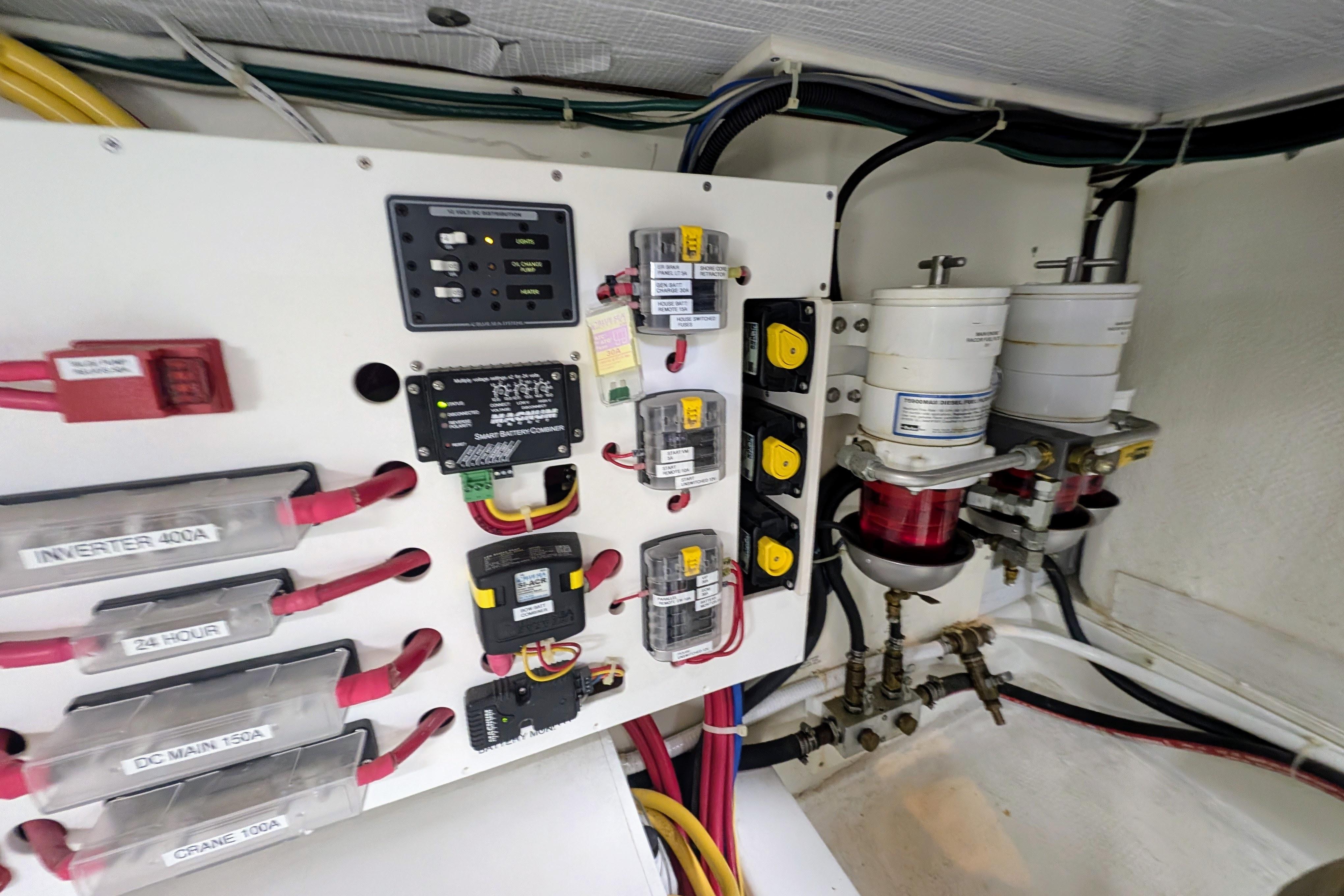

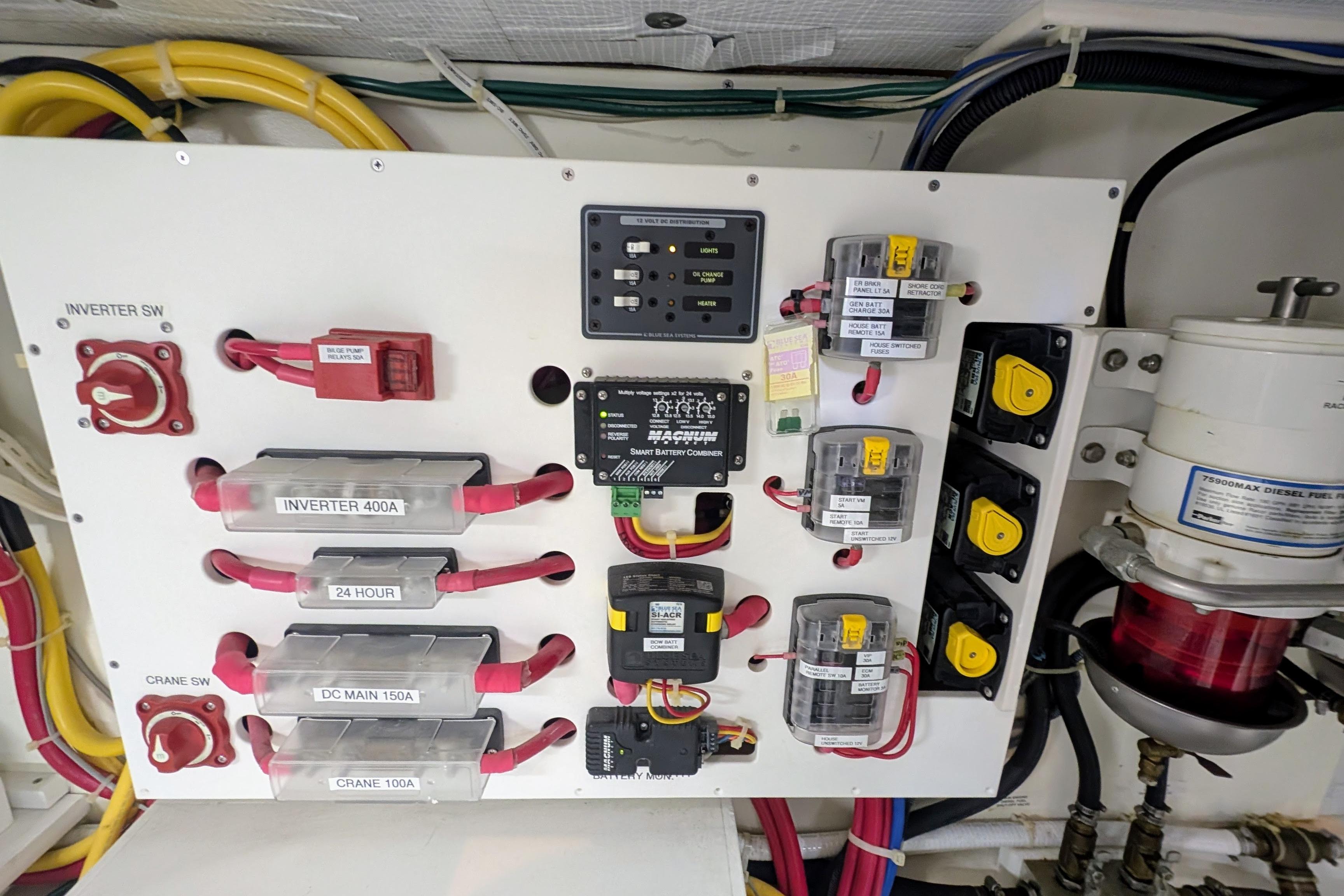

Electrical System
AC and DC distribution panels in pilothouse with digital meter
Battery selector switch system (remote controlled)
Battery combiner system for charging
Three 8-D AGM batteries for house (735 amp hours)
One 8-D AGM battery for main engine start
One 4-D AGM battery forward - bow thruster and windlass
One AGM battery for generator start

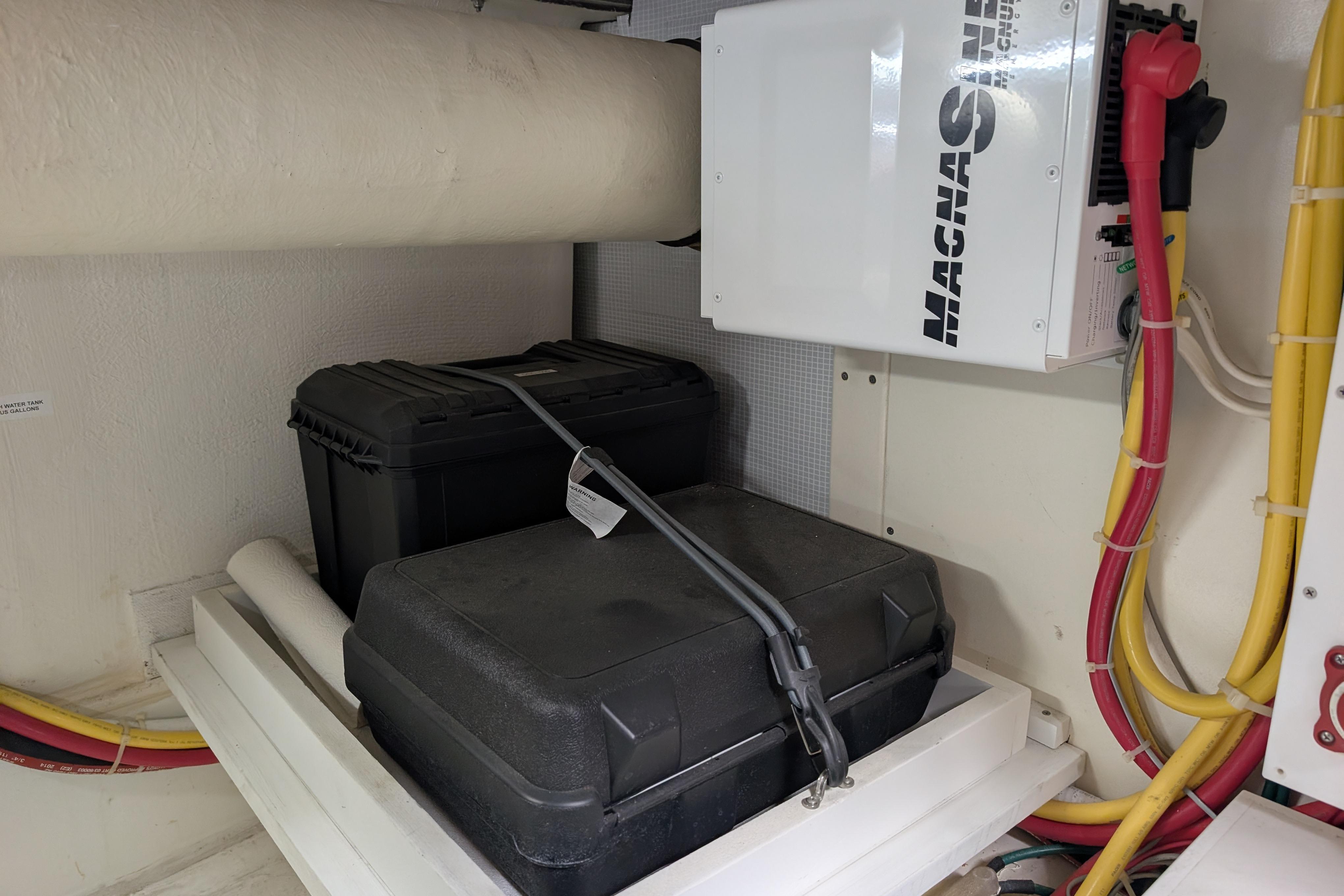

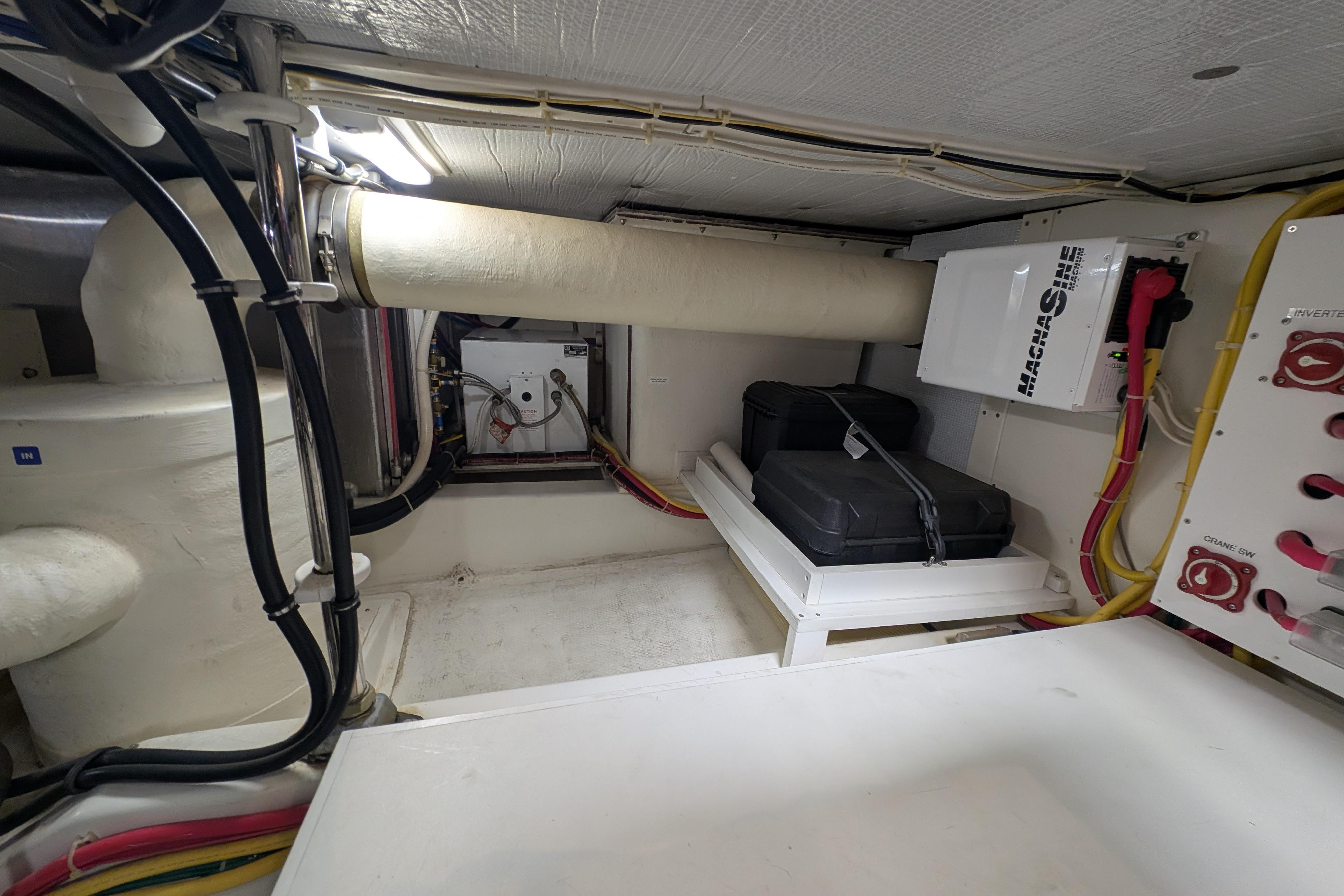

Magnum 2000w inverter/charger and battery monitor system
50a 240v shore cord with Glendinning Cablemaster
Defroster system windshield in pilothouse
Two nautical mile international LED navigation lights
Dual trumpet air horn
Shore power inlet (cablemaster) in cockpit
12v LED courtesy lights throughout boat
Steering System
Autopilot valve system installed
Bronze tiller arm
Stylized teak and stainless helm wheel
Hydraulic helm pump and cylinder
Integral rudder port with bearing and dripless seal
Tankage
Tank monitoring system for all tanks

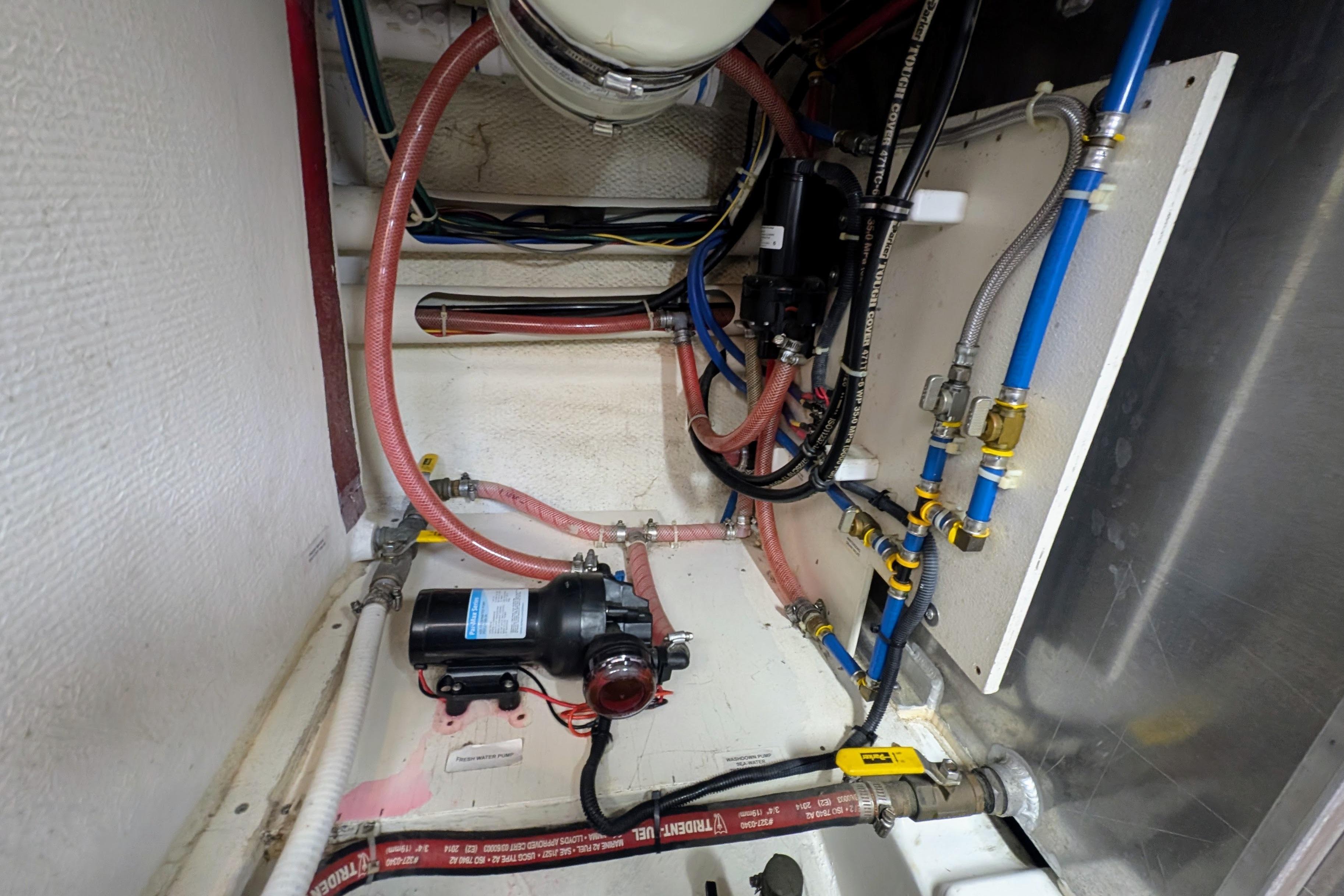

Fresh water pressure system with accumulator tank
Two water tanks (210 gallons total) with sight glass and valve
11 gallon water heater with heat exchanger and 110v heat
Taste/odor filter for galley fresh water
60 gallon waste tank
60 gallon greywater tank

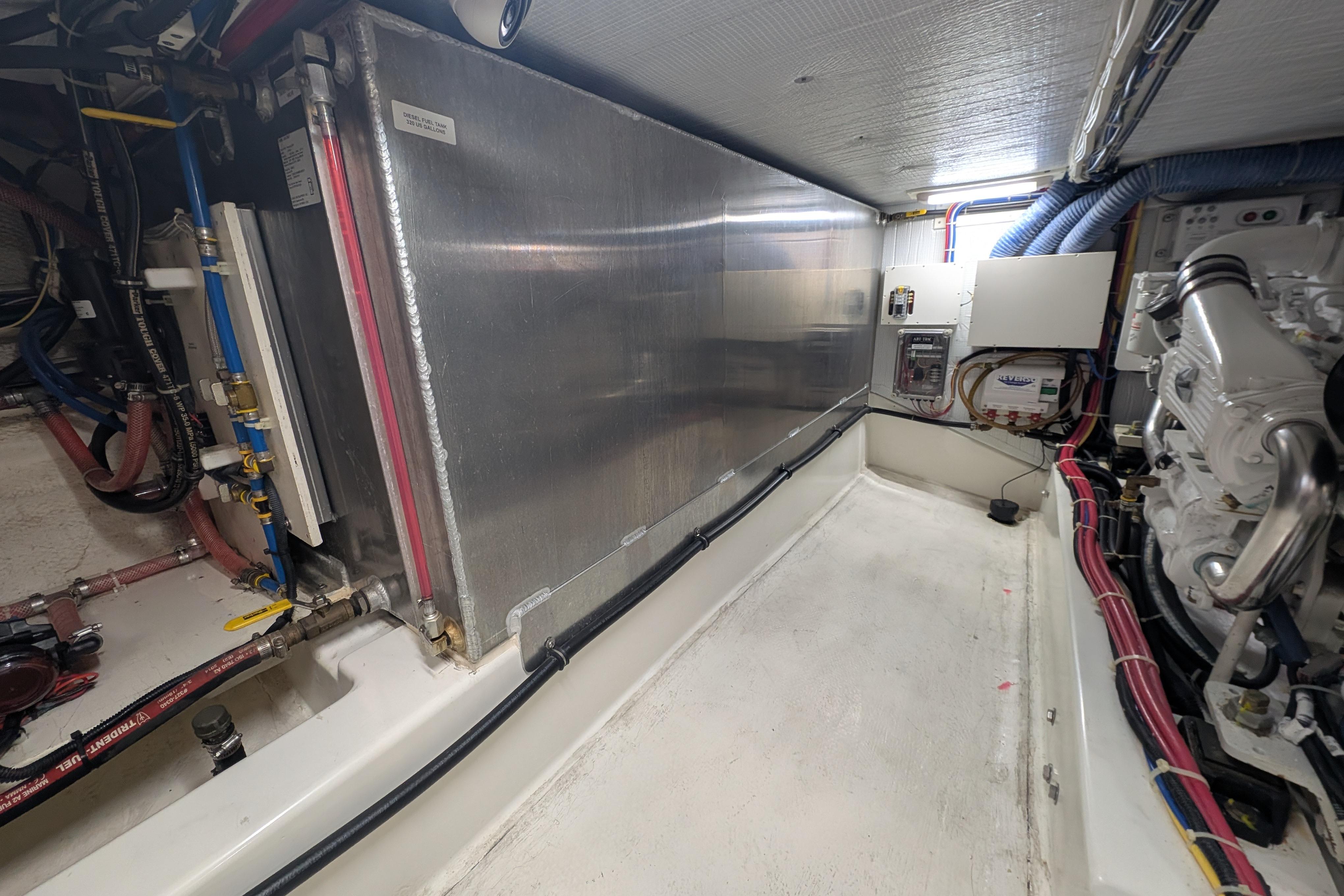

Two fuel tanks (640 gallons total) each with sight glass with valves

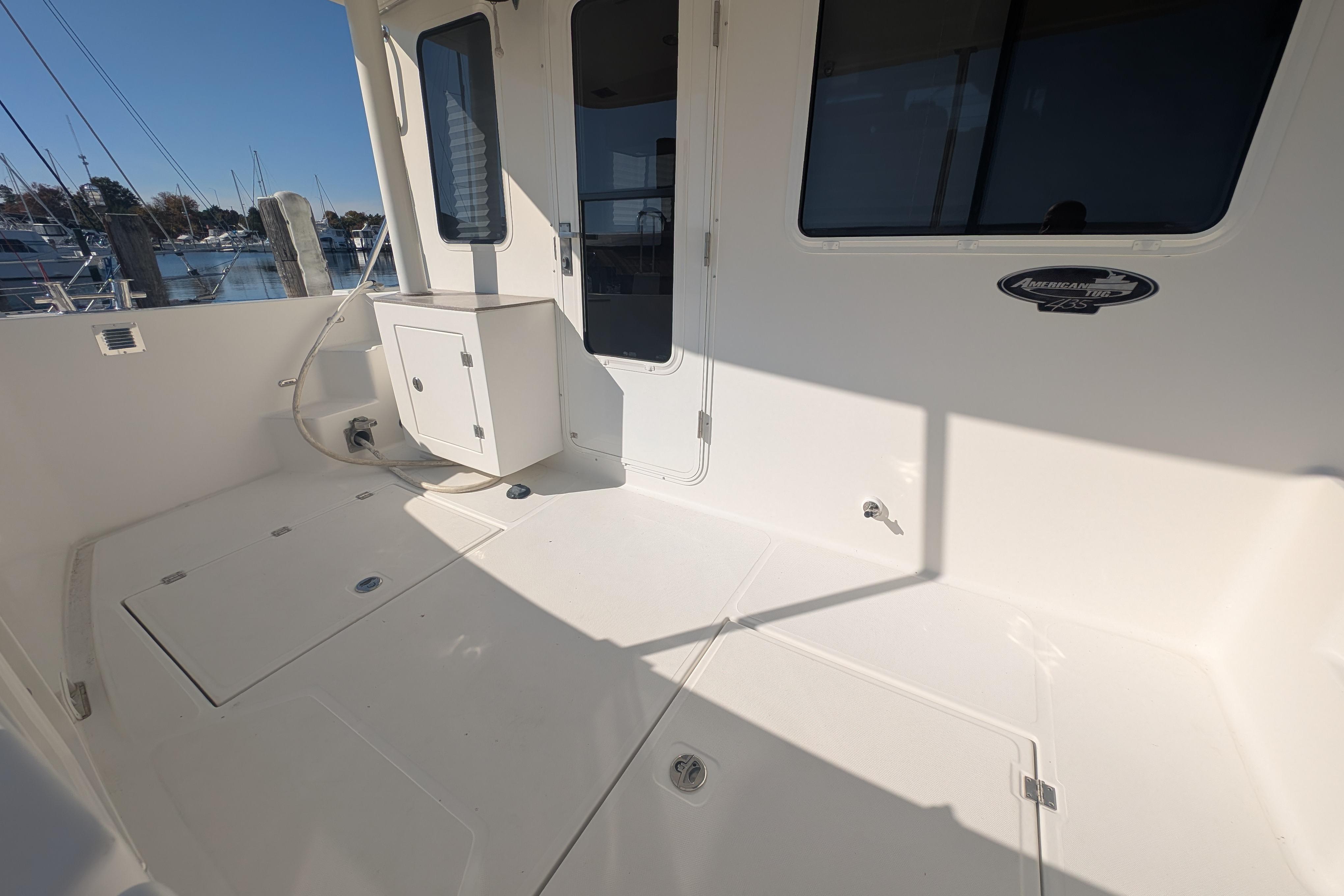

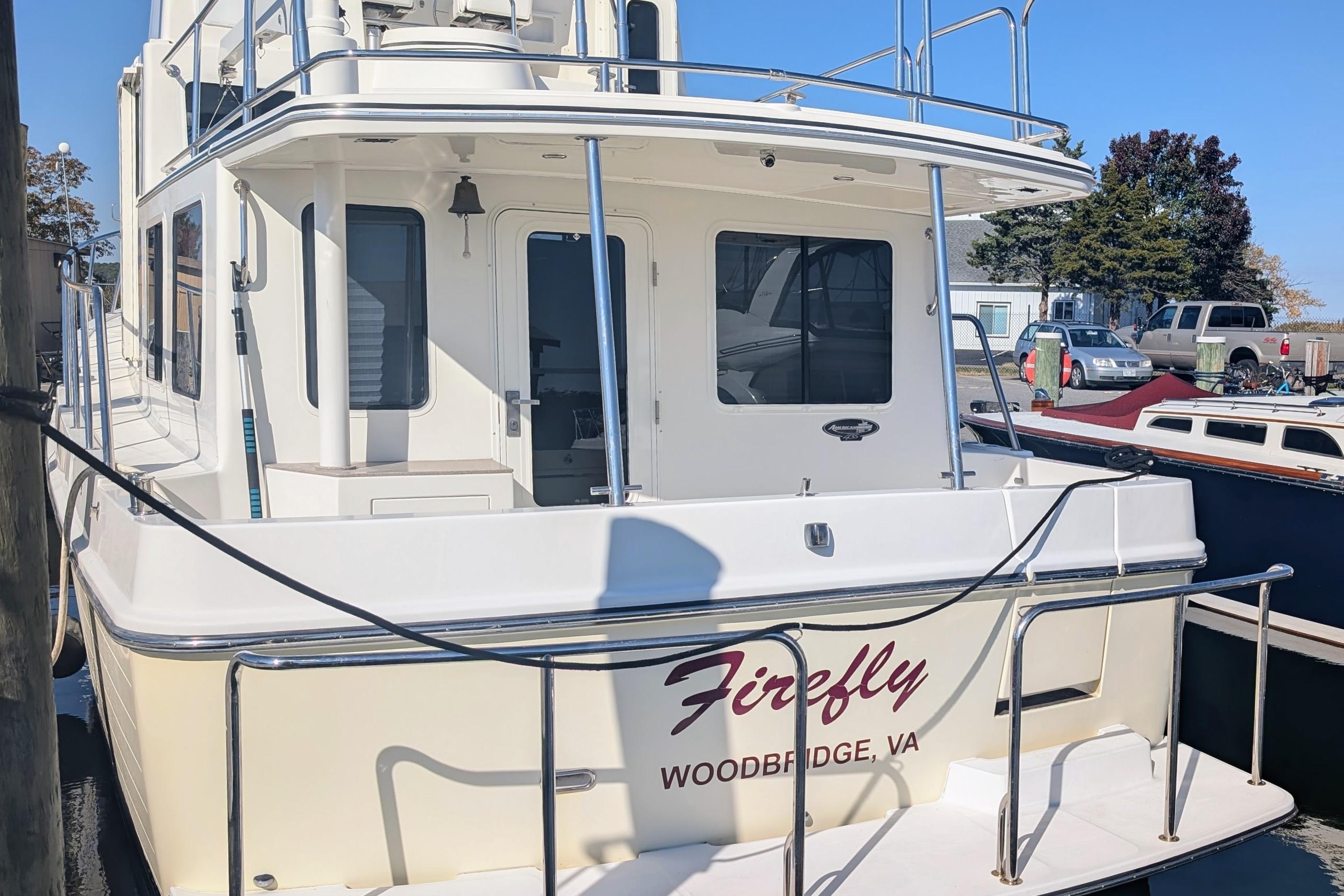

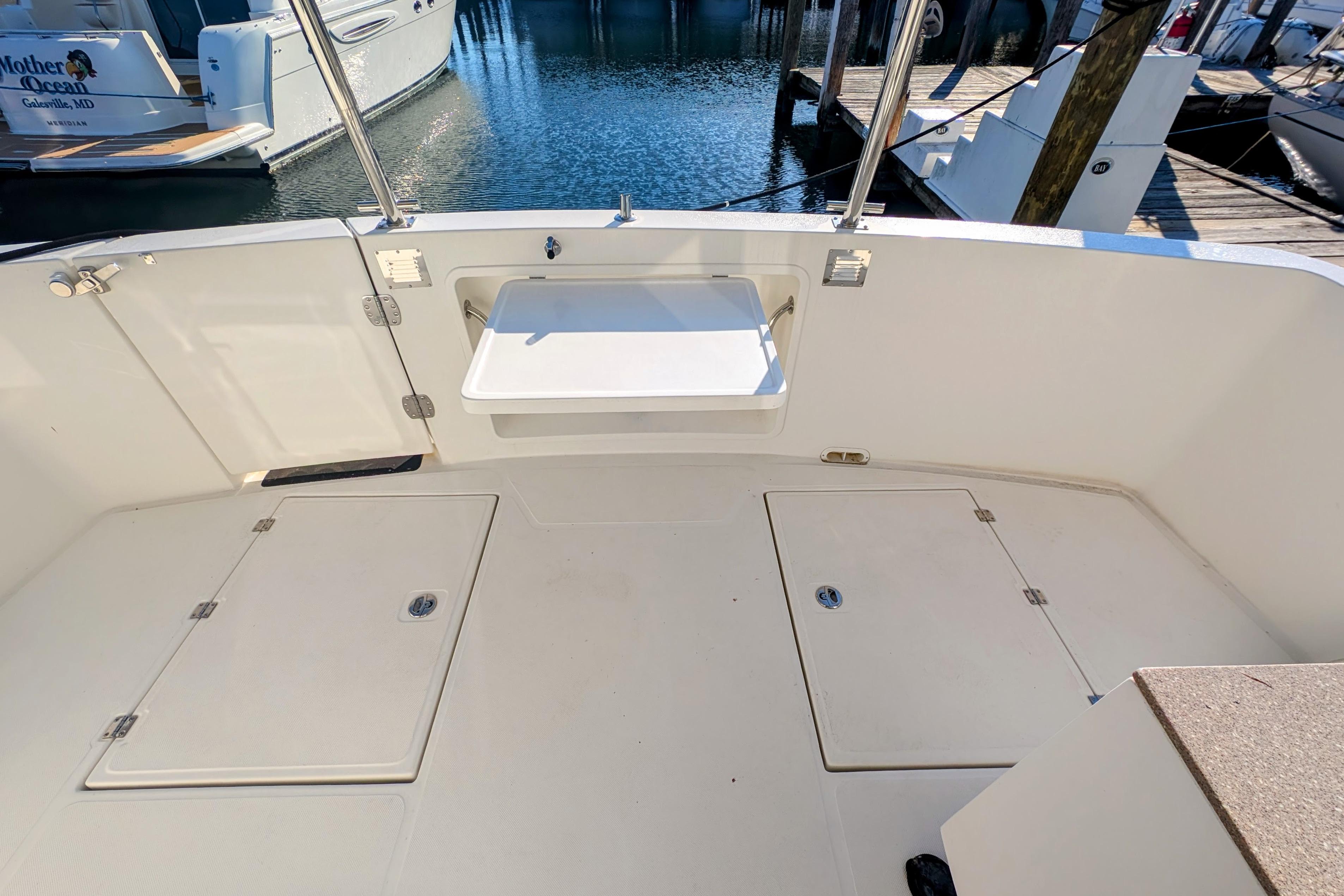

Deck
Molded non-skid walking surfaces
Three Bomar hatches in trunk cabin
Hinged transom door

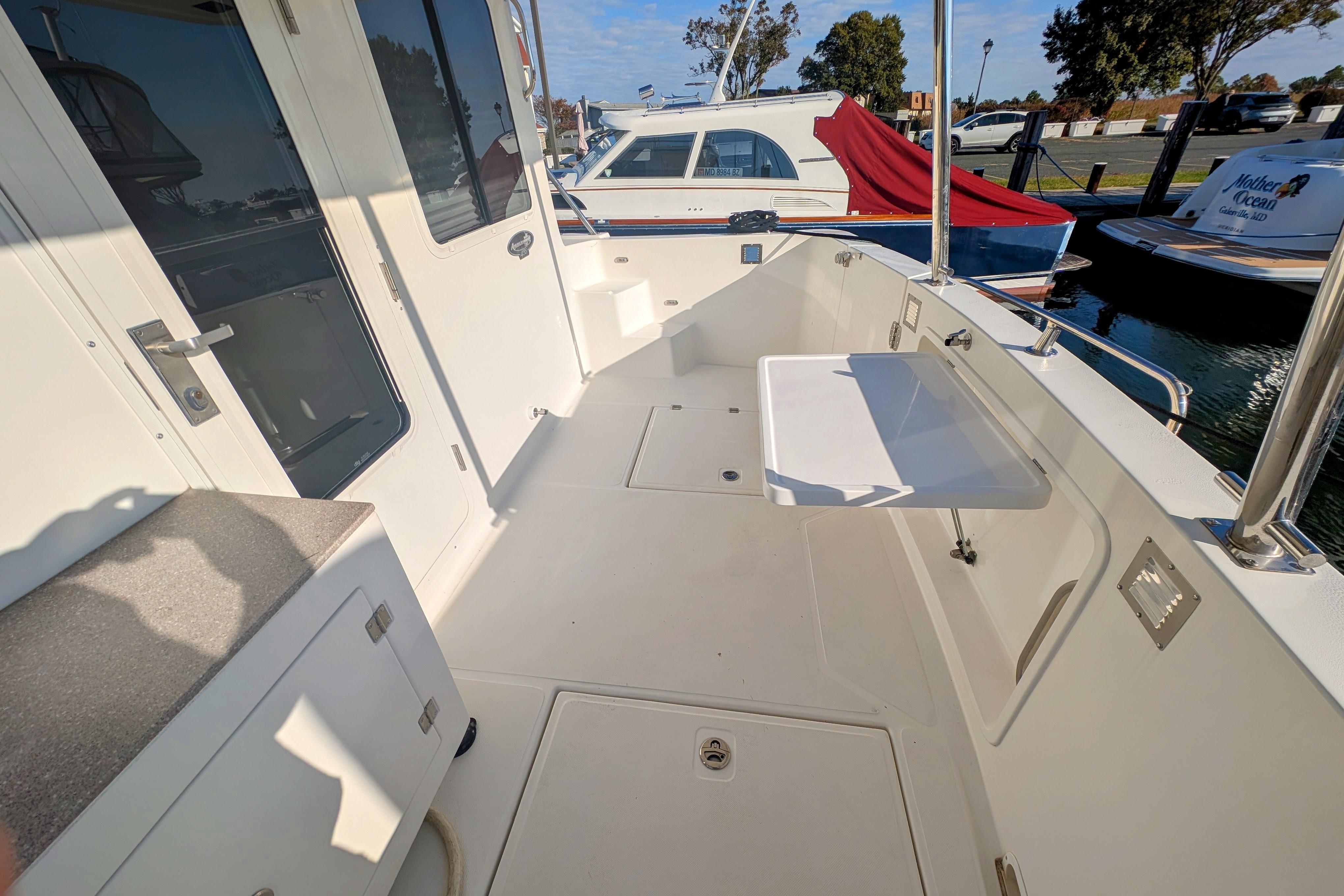

Custom folding table in cockpit
Swim platform with staple rails
Cockpit workstation/cabinet to Port
Seawater Washdown system in bow
2" fuel fills with pop-up lids
Two 1-1/2" water fill fittings
One 1-1/2" waste pump out fitting
316 stainless steel 1-1/2" bow and side deck rails
316 stainless steel 1-1/2" upper deck rails
316 stainless steel 1-1/2" ladder from cockpit to upper deck
316 Stainless steel bow roller
Color matched powder coated aluminum framed windows and sliding or hinged doors
Safety and Mooring

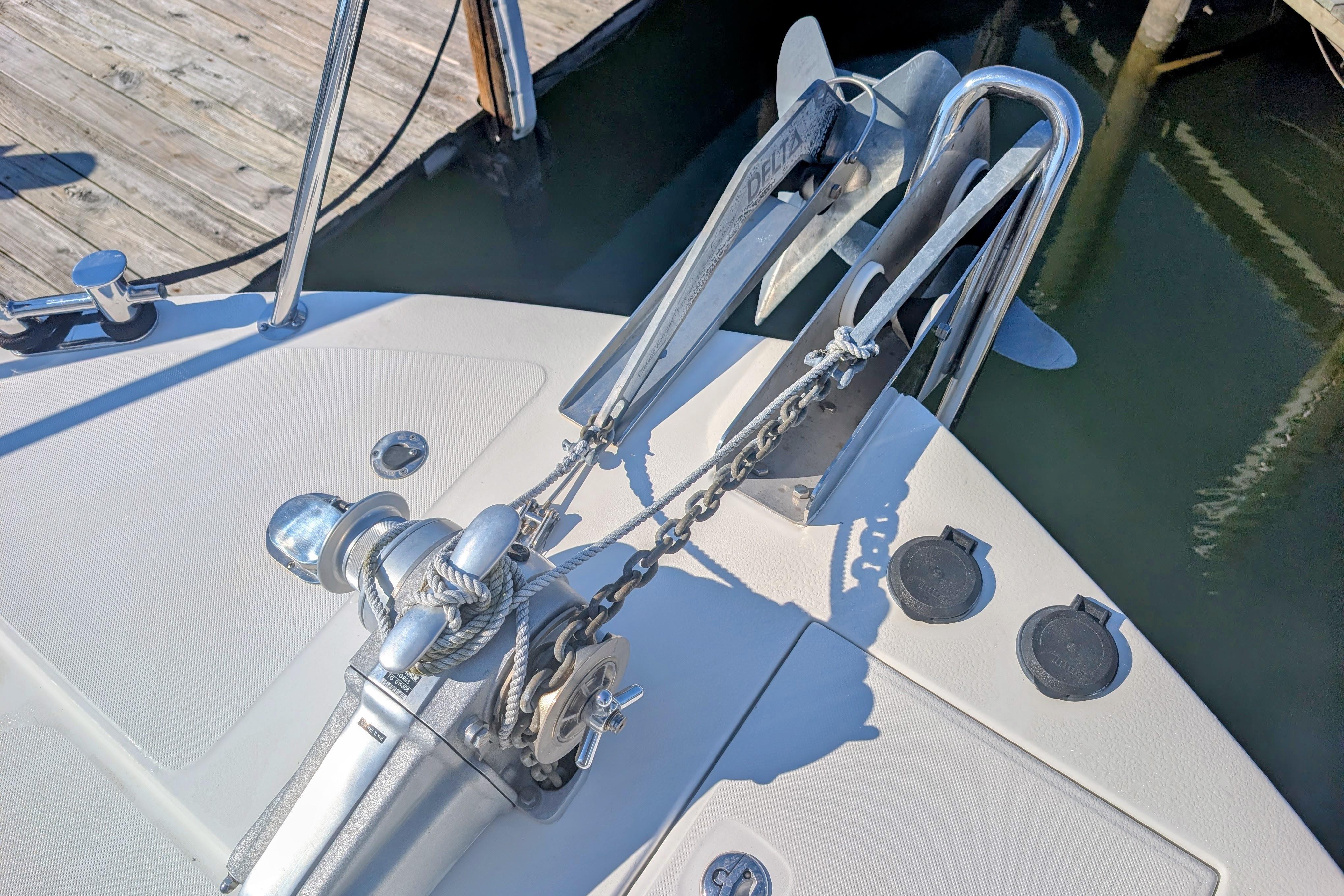

Lofrans Tigres anchor windlass 1200 w/ 12v with 275' of 5/16" H.T. galvanized chain
Three portable fire extinguishers
Four fenders and mooring lines
44lb claw anchor
Secondary bow roller
Six custom "h-bitt" mooring cleats (316 stainless steel)
Automatic fire extinguisher in engine room
Automatic engine shut down and bypass
Ships bell

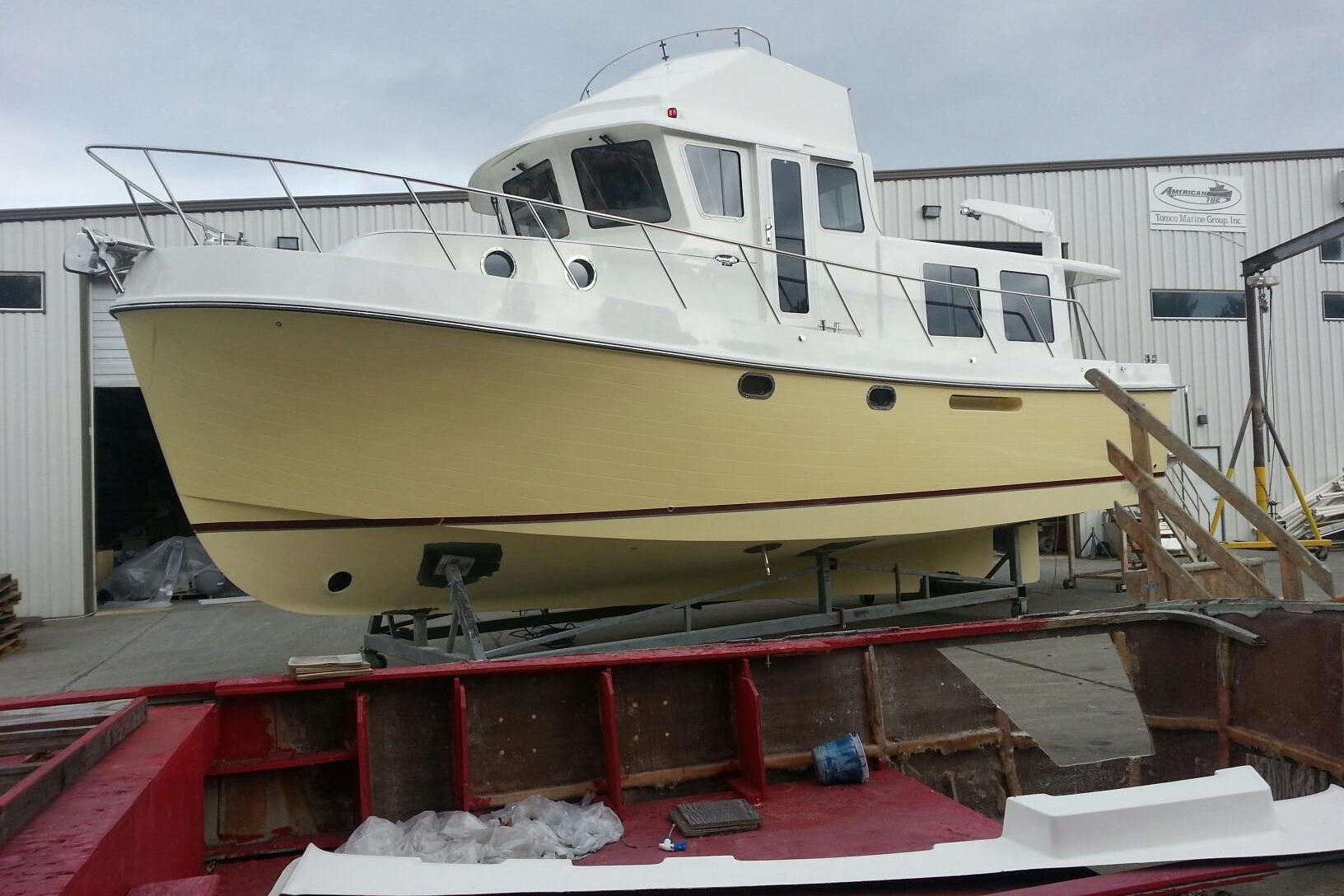

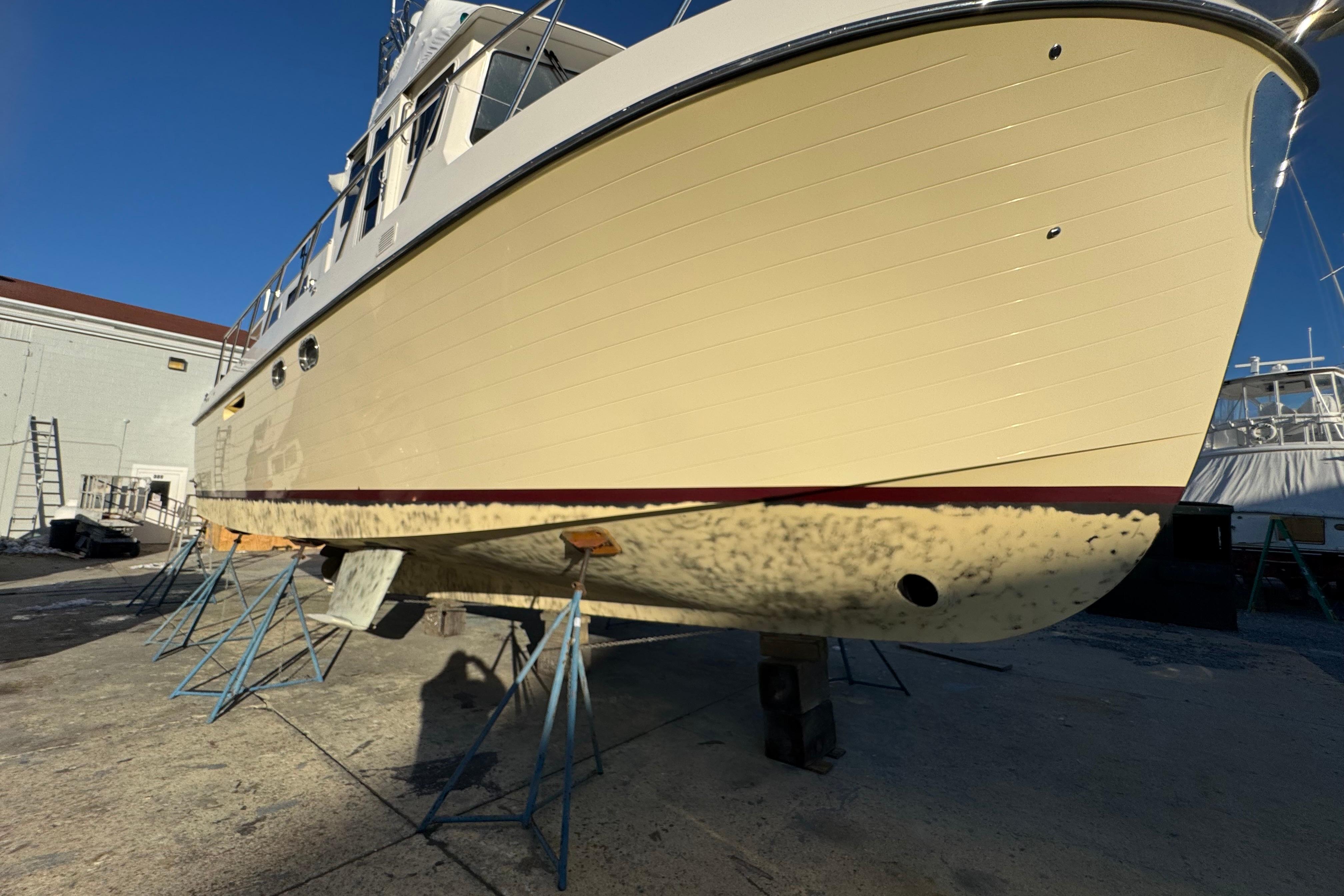

Hull
Solid bottom laminate
Cored hull side above waterline (adds strength, insulation and sound nullification)
Black hull-guard with 316 stainless steel insert
Black anti-fouling paint (two coats)
Light yellow hull color
Painted cabernet burgundy boot stripe
Molded composite skeg protects props and supports rudder
