HULL Composition: • Sandwich (Polyester resin - Glass fiber / Balsa core) • White gel coat • Structural hull counter moulding in monolithic laminate Profile: • Semi-floating hull

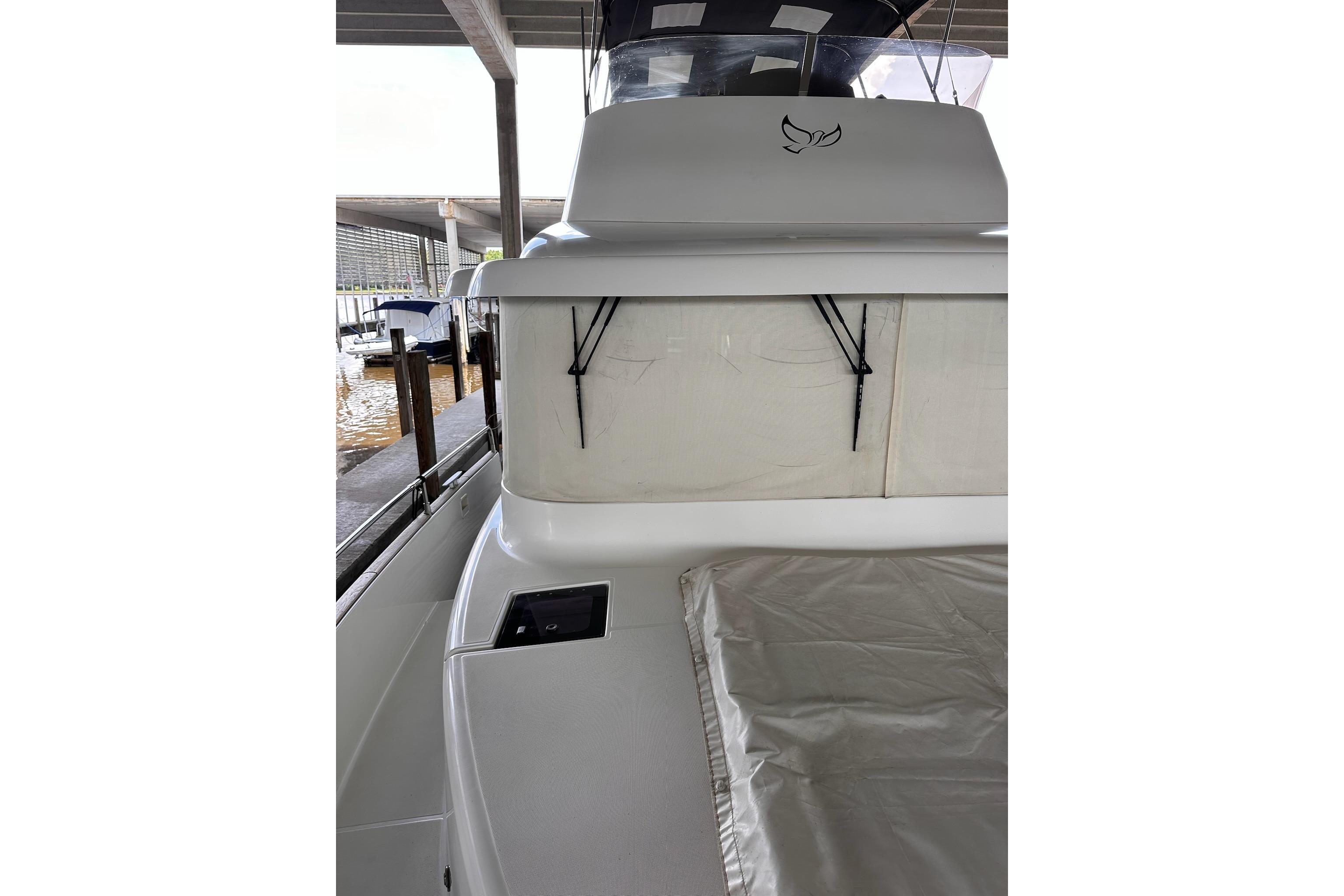

DECK Composition: • Sandwich (Polyester resin - Glass fiber / Balsa core) • White gel coat • Diamond tip type non-slip covering • Structural counter moulding in monolithic laminate
DECK EQUIPMENT • Teak bulwarks • Gangway door to starboard, Stainless steel handrail • Water filling drain plug in stainless steel • Fuel filler in stainless steel • Wastebin access hatch

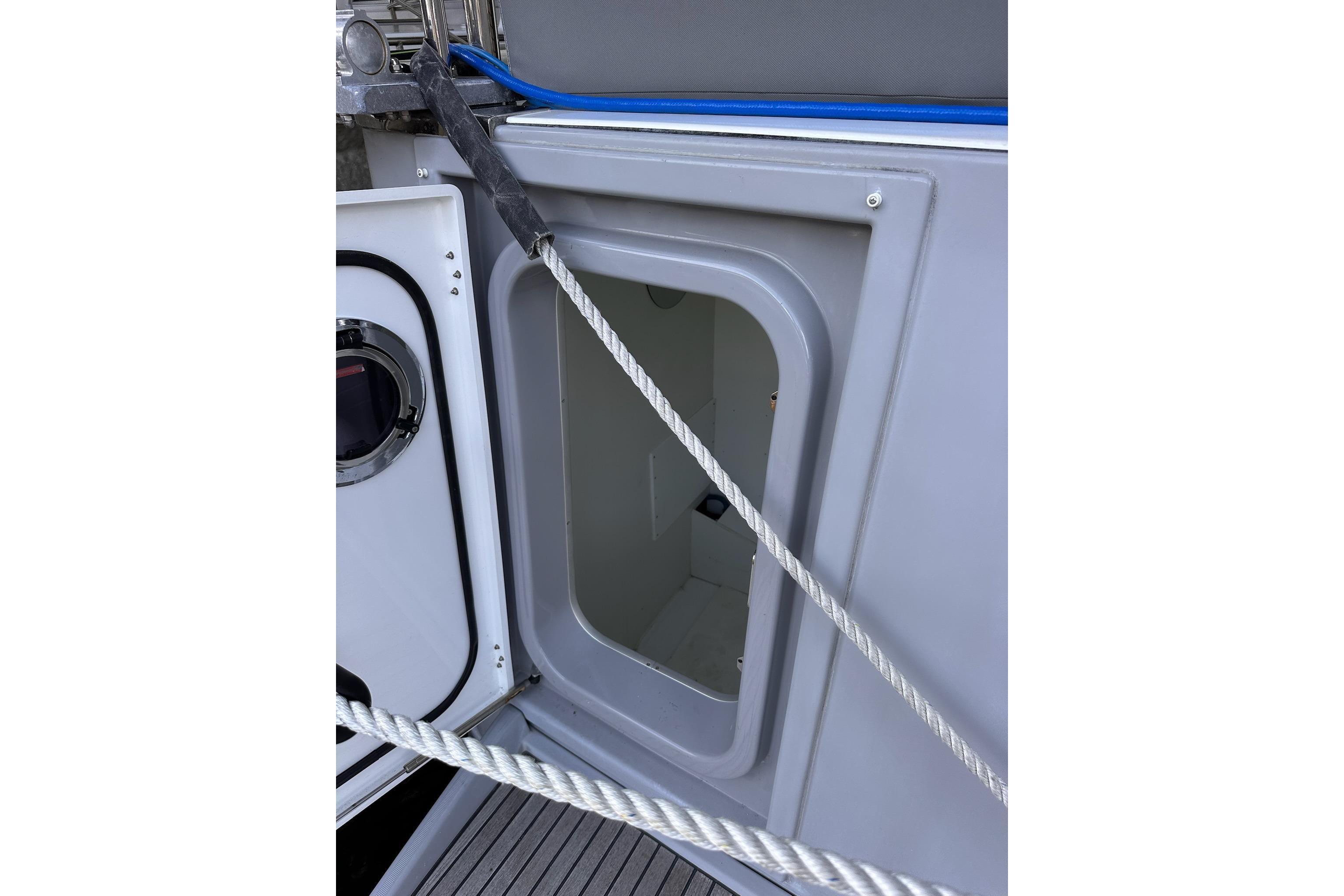

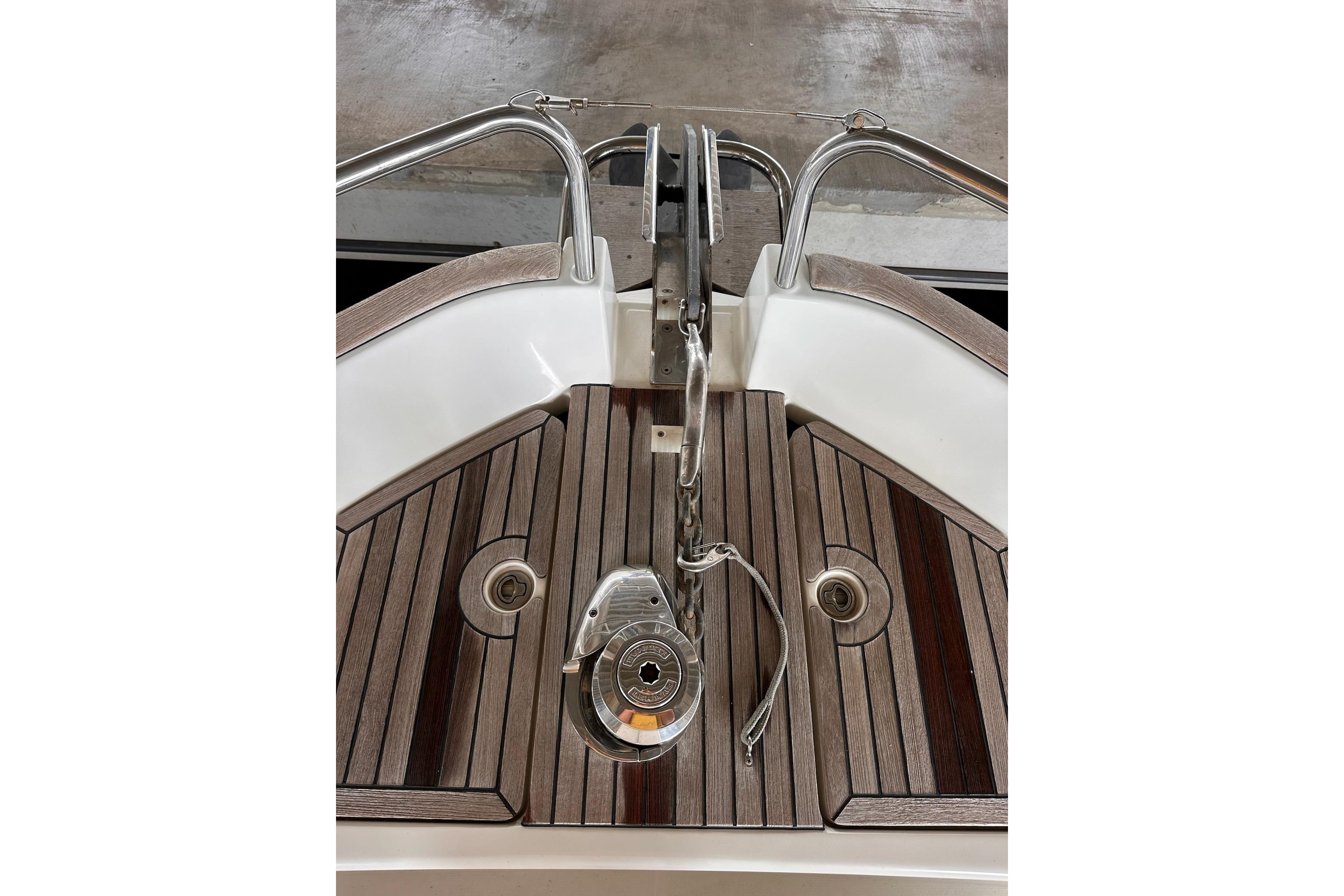

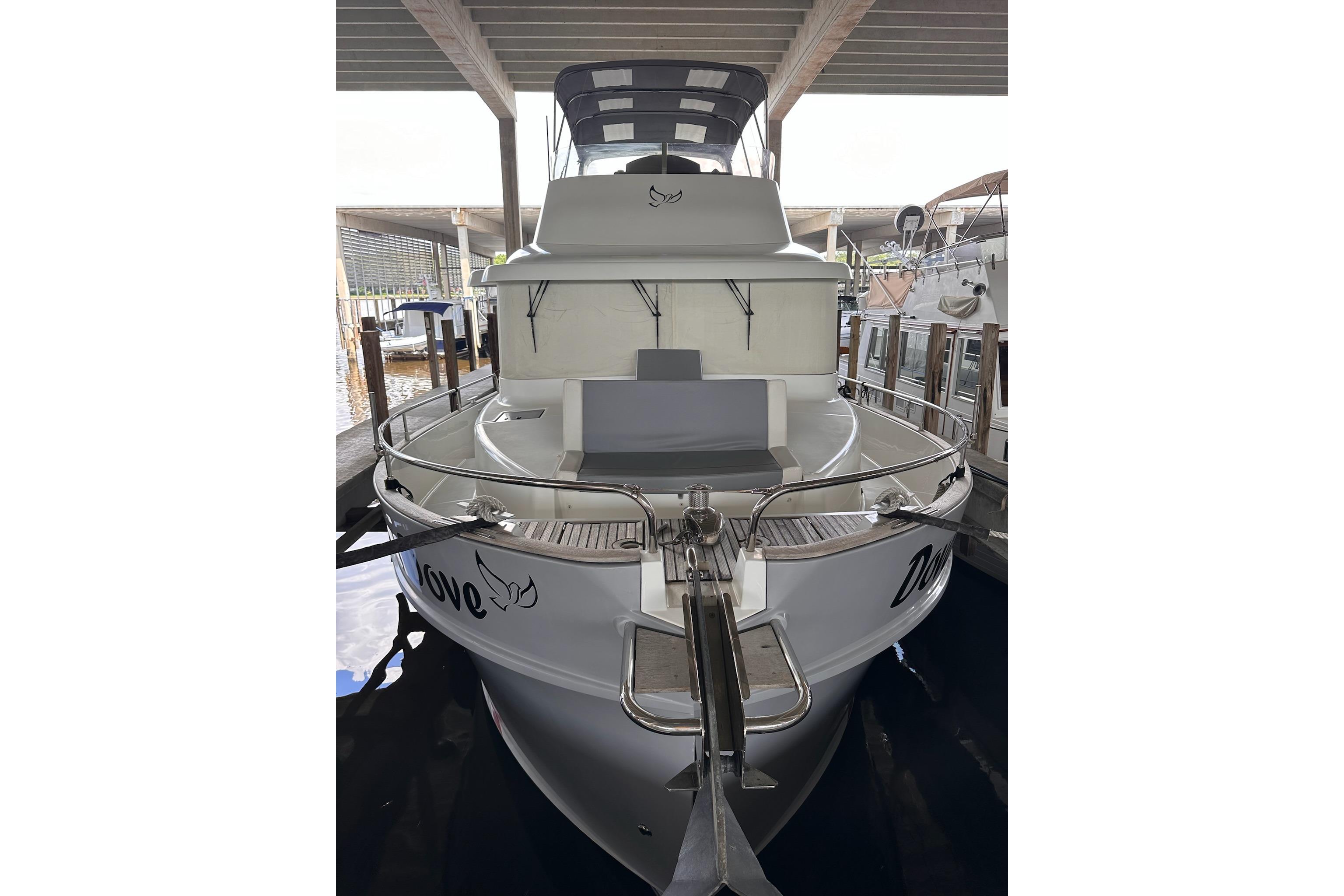

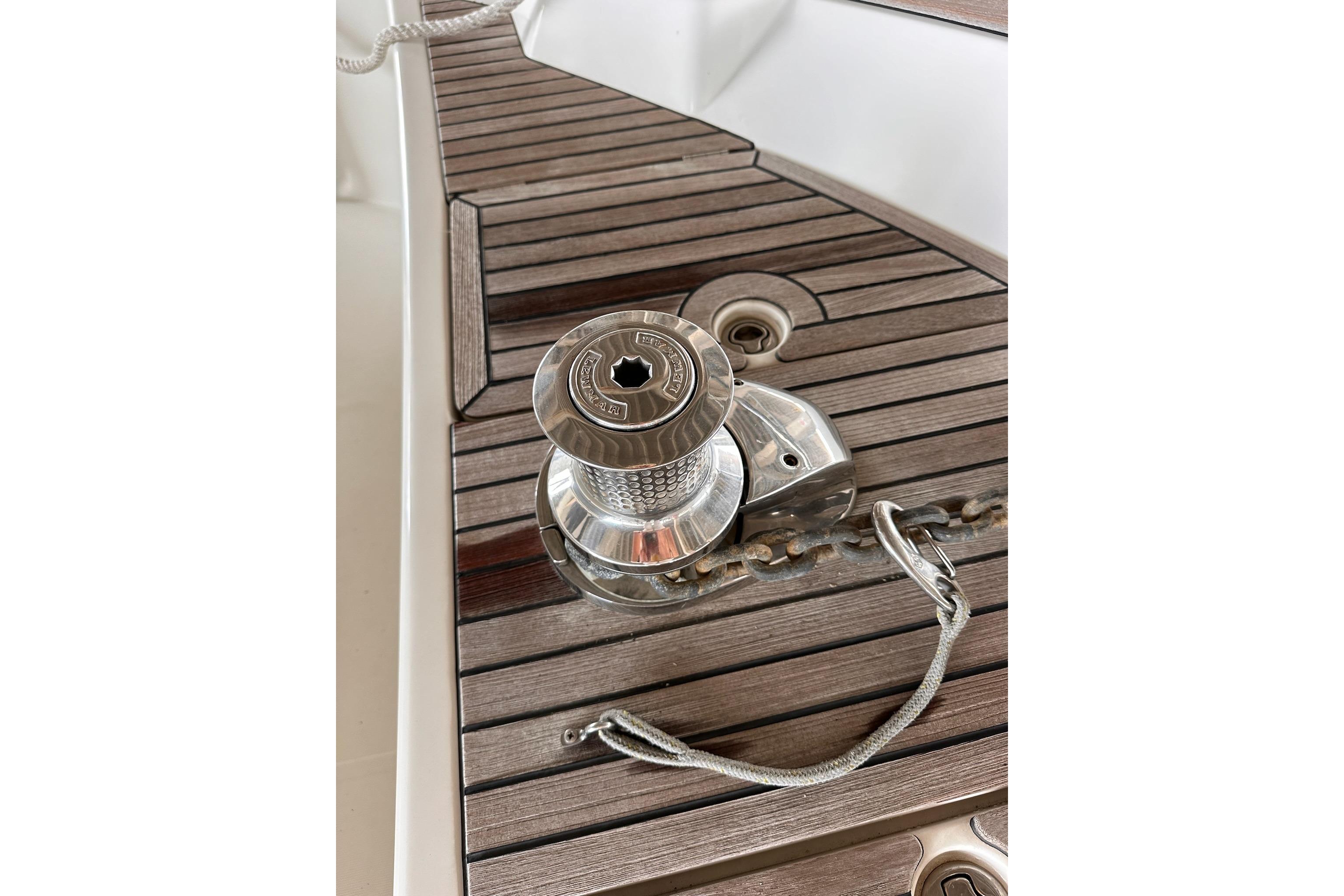

MOORING LINES- MOORING • Dolphin nose, stainless steel structure with teak plank • Swivel bow fitting in stainless steel • Electric windlass Lewmar 24V 2000W (chain grab for 12mm chain and gipsy head for buoy line) (Peel strength of windlass 1500kg) (speed 27m/min) • Remote control in mooring locker + windlass control from wheelhouse and flying bridge steering stations • 2Mooring lockers • 6Aluminium mooring cleats (400mm) (2 forward - 2 amidships - 2 aft), Stainless steel gunwale guards • 2 Stainless steel fairleads to aft of cockpit

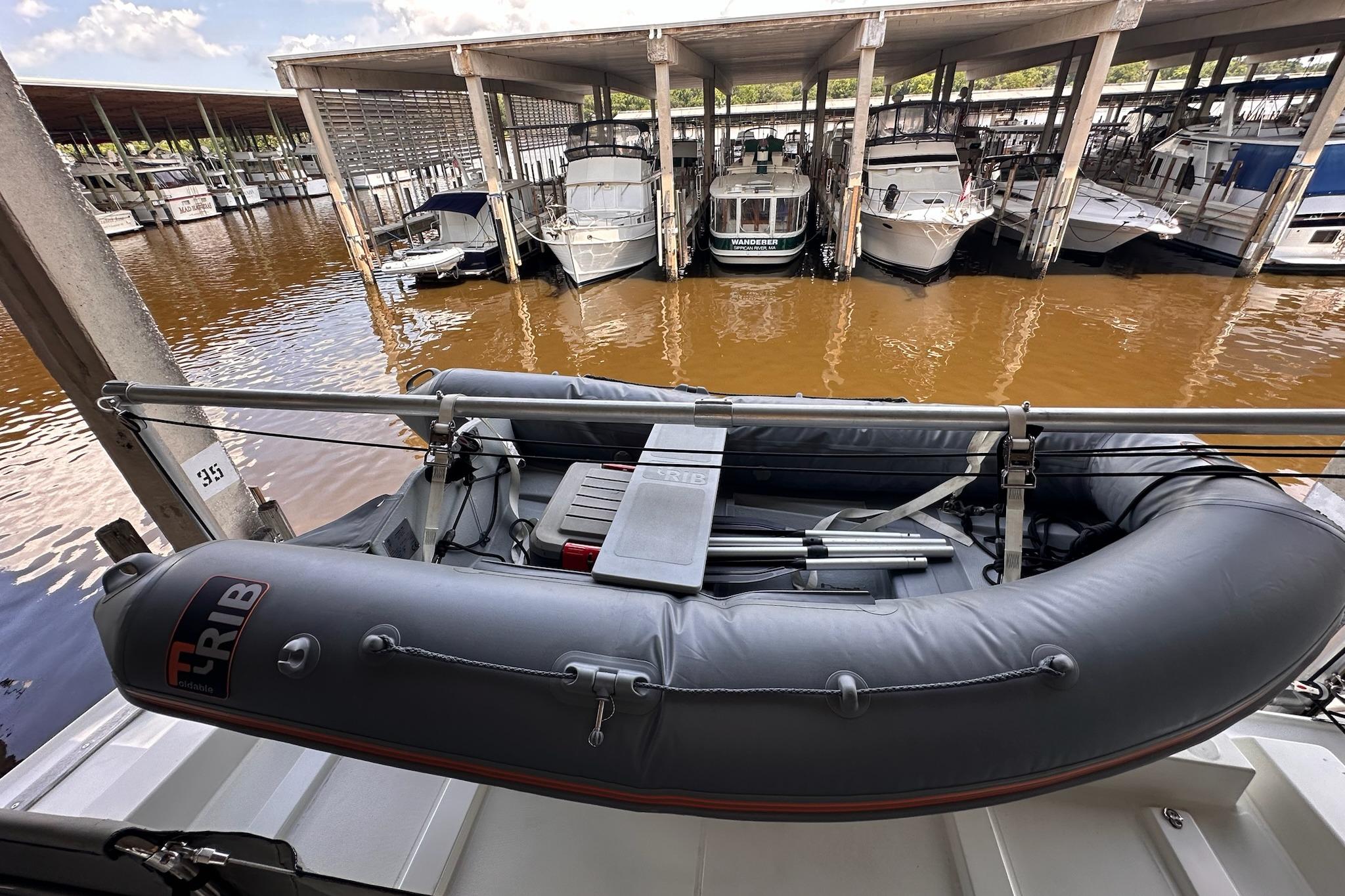

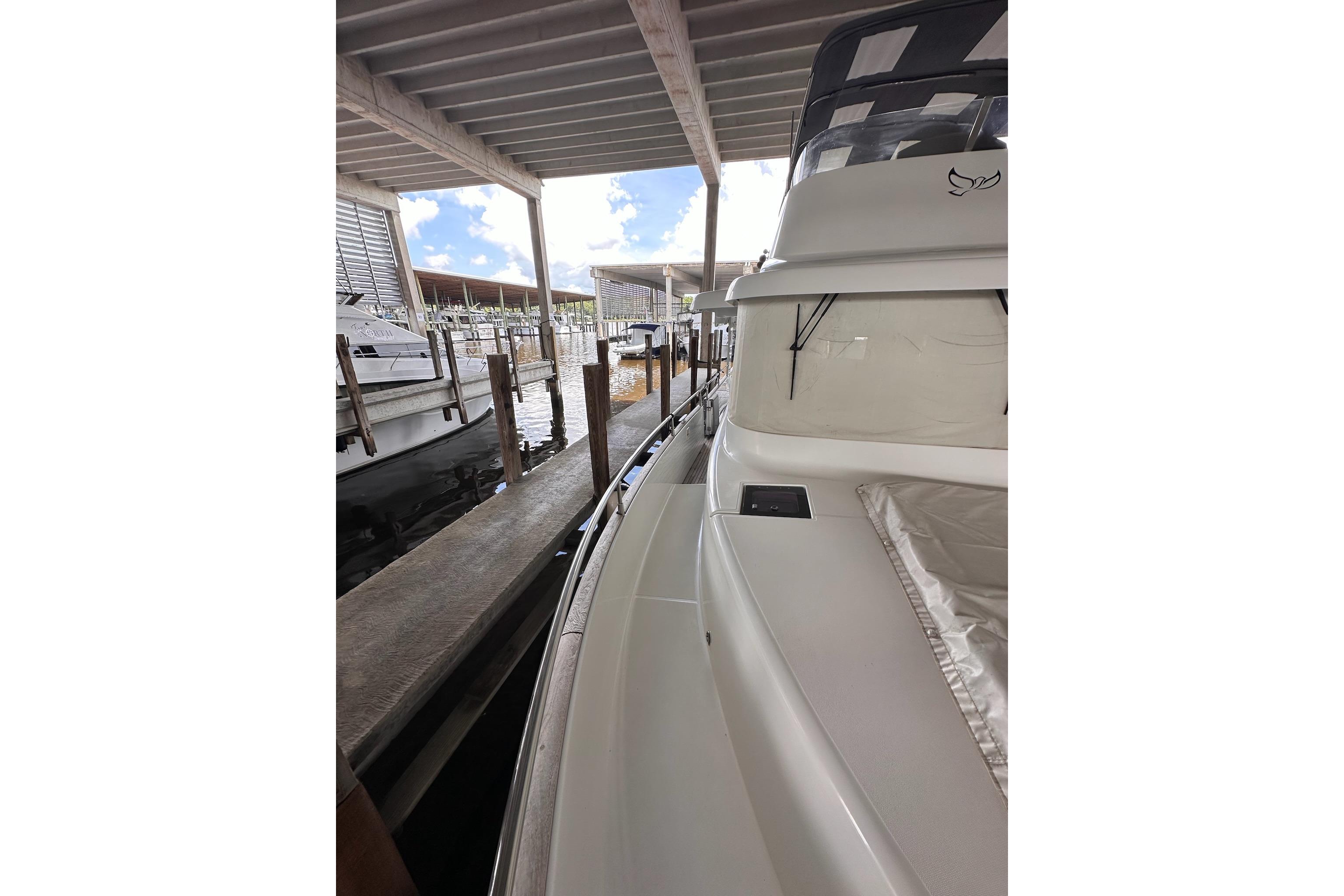

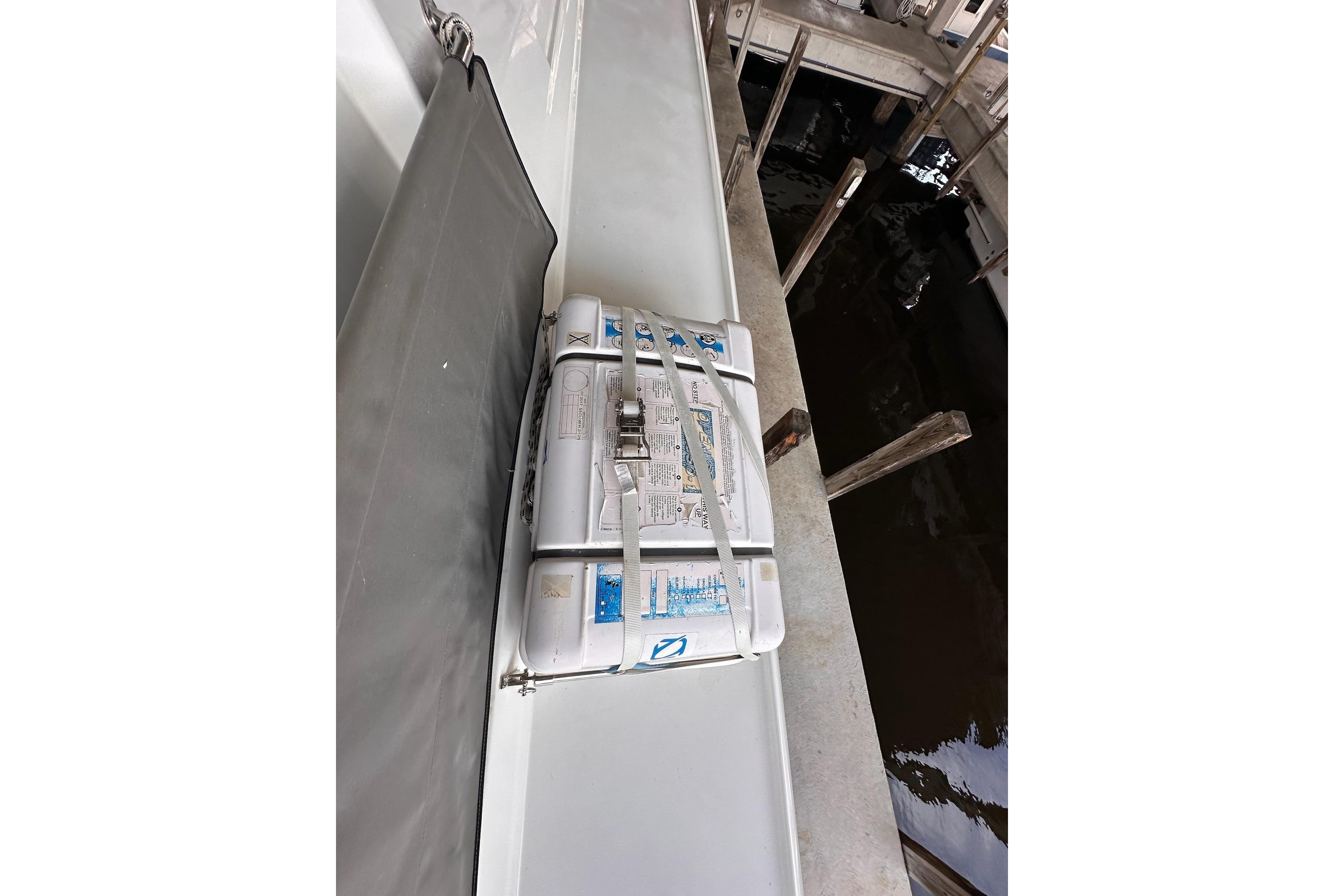

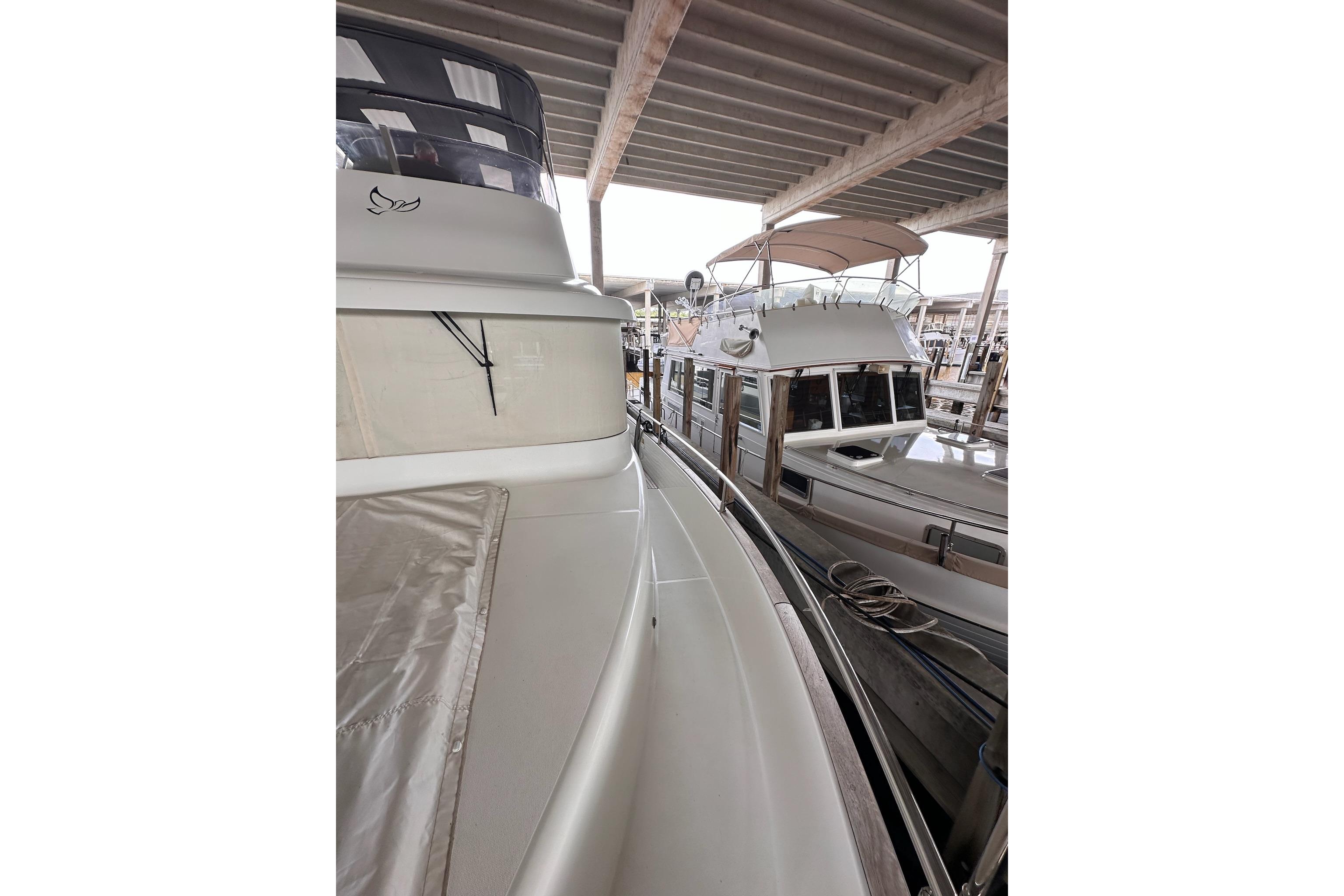

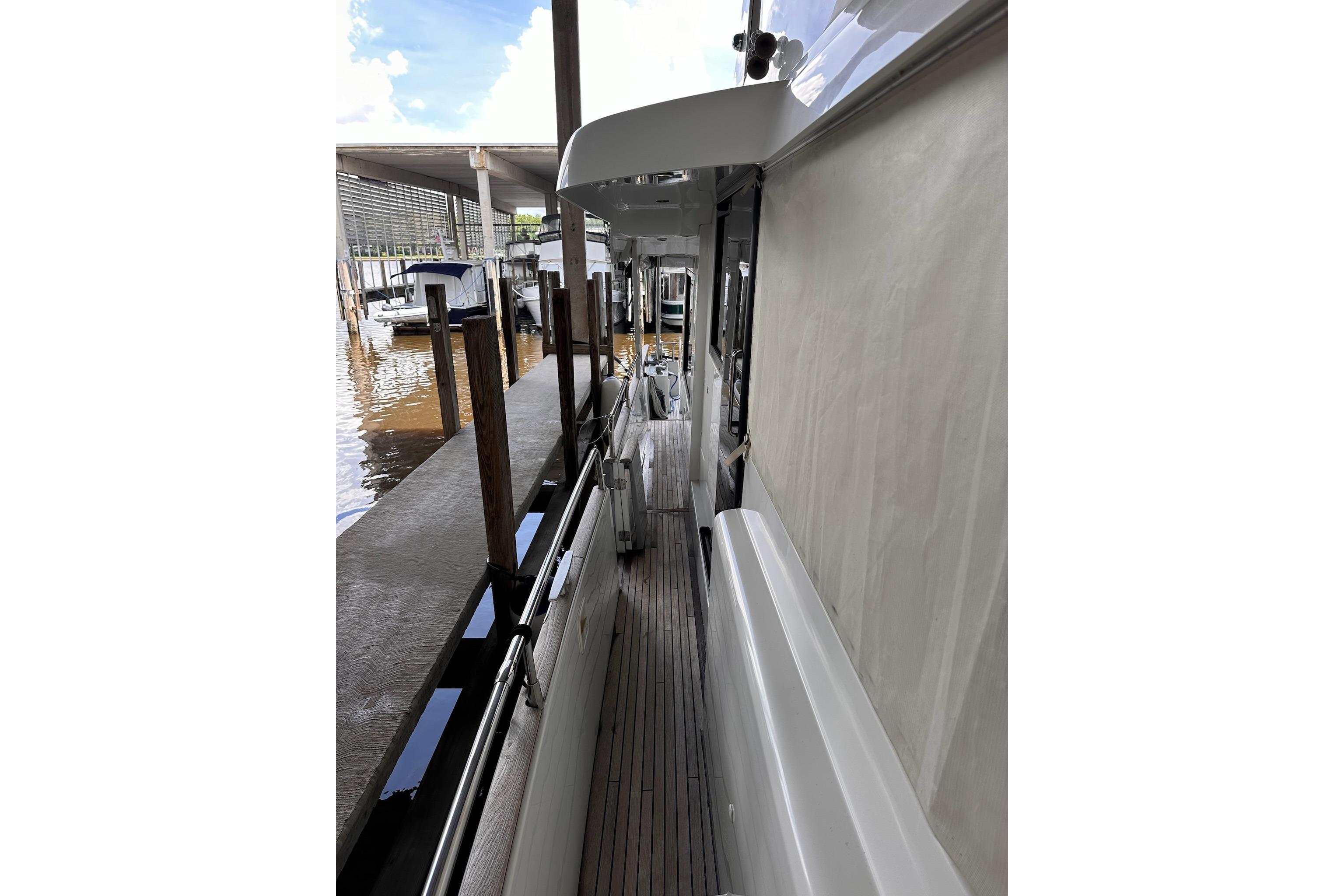

SAFETY ON DECK • High bulwarks (65 cm) ensuring protection right around the deck • Stainless steel pulpit • Stainless steel and teak cockpit surround • On flying bridge: Stainless steel pulpit completely surrounding aft of flying bridge with stainless steel guardrails on snap shackles to facilitate launching of dinghy and life raft

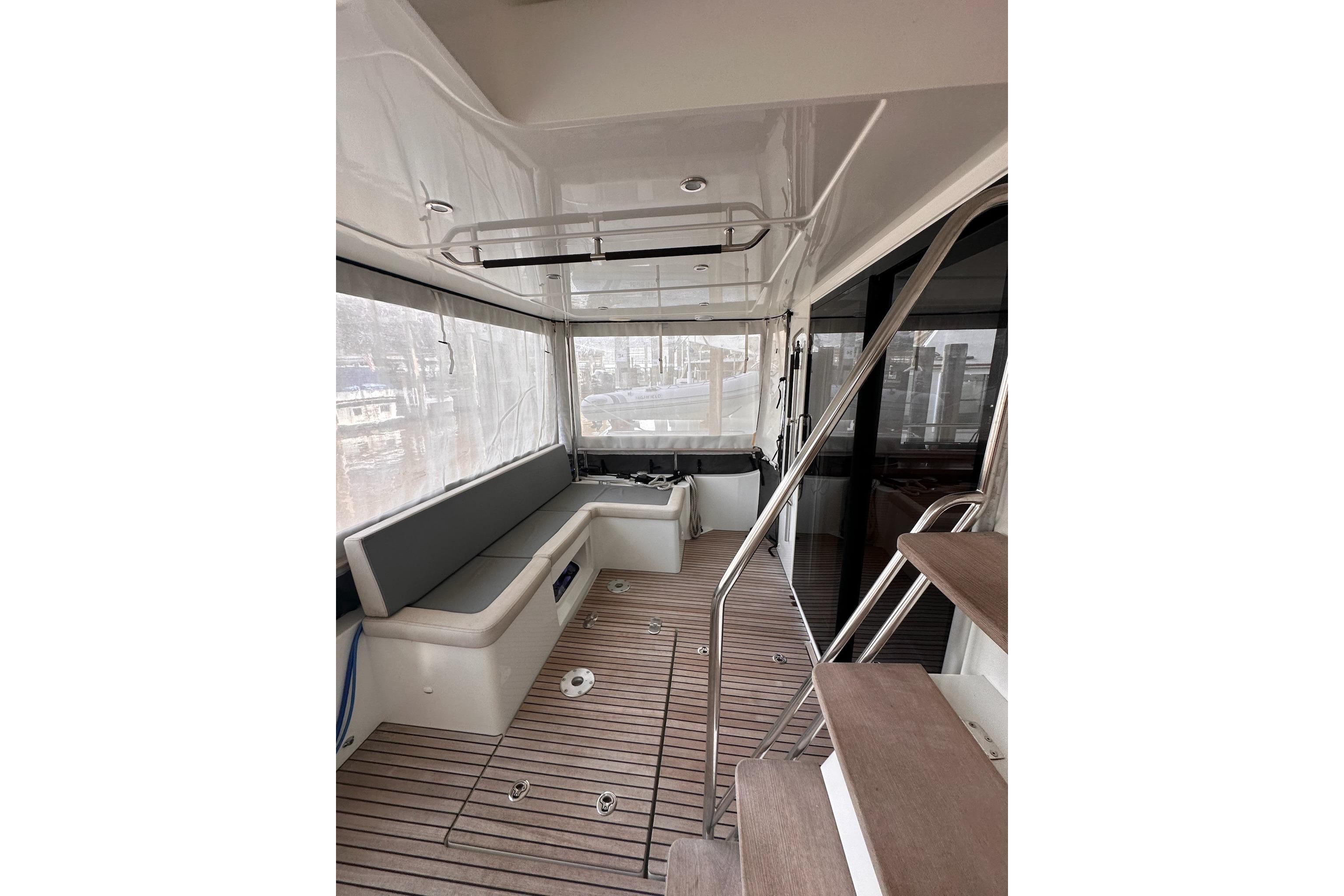

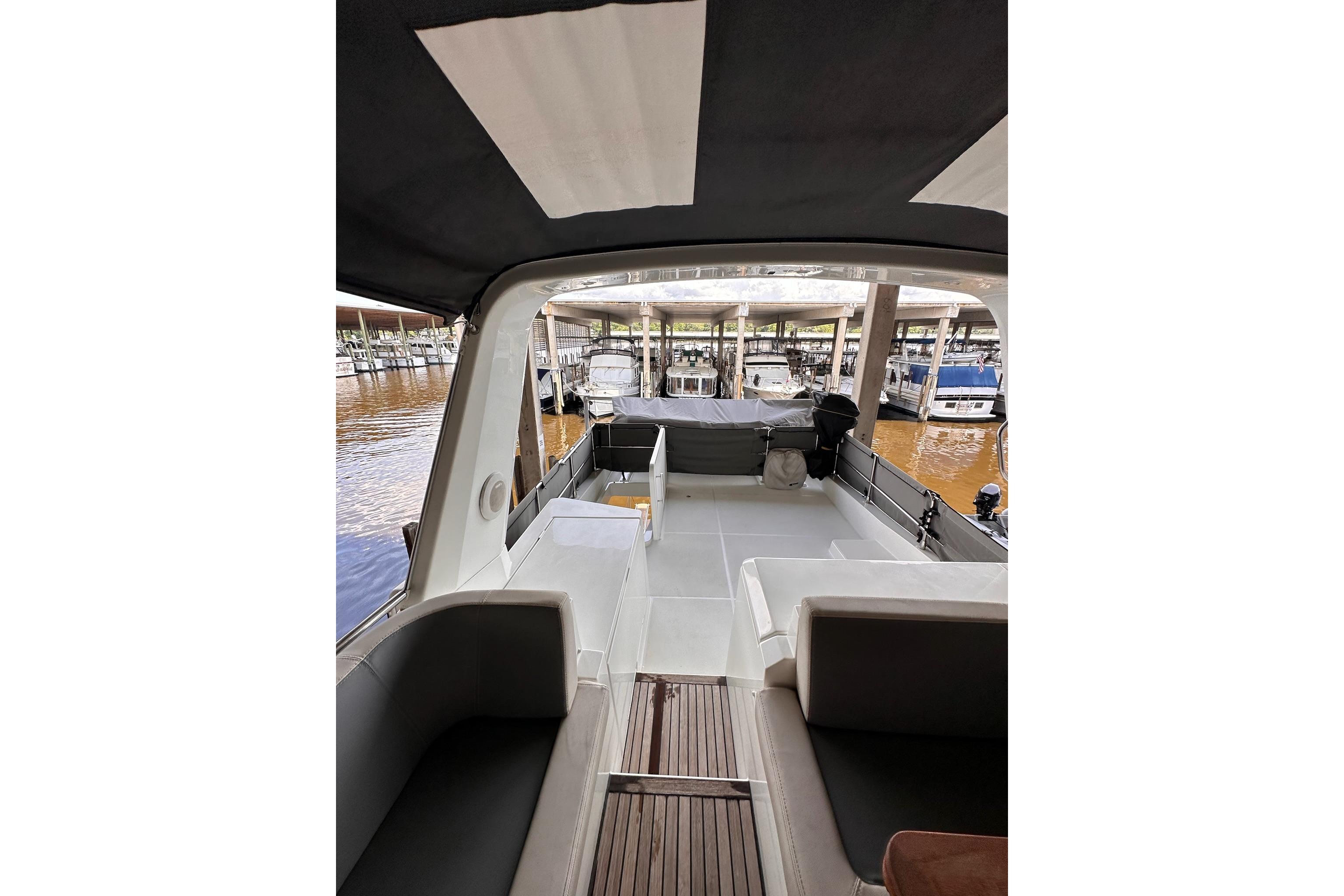

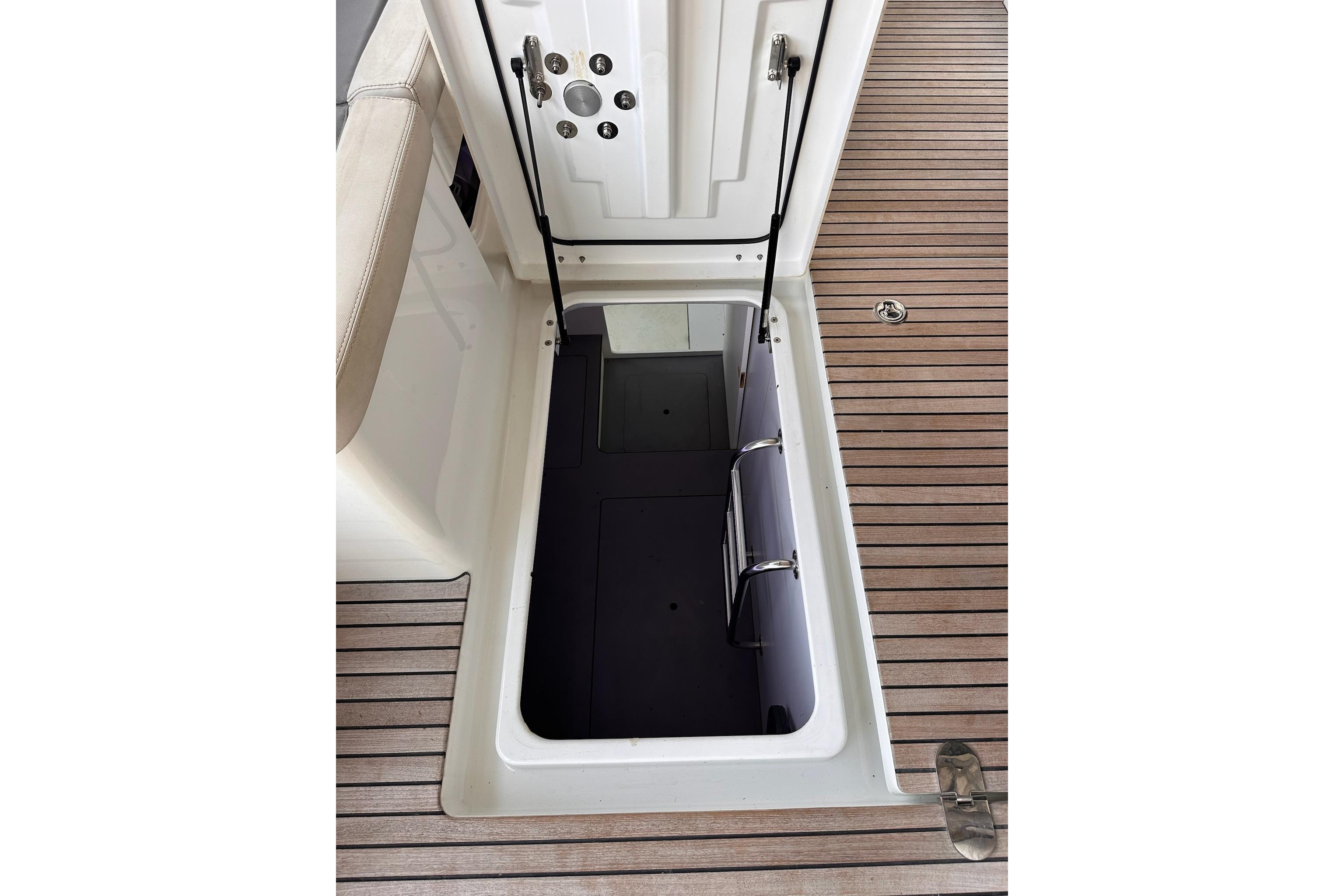

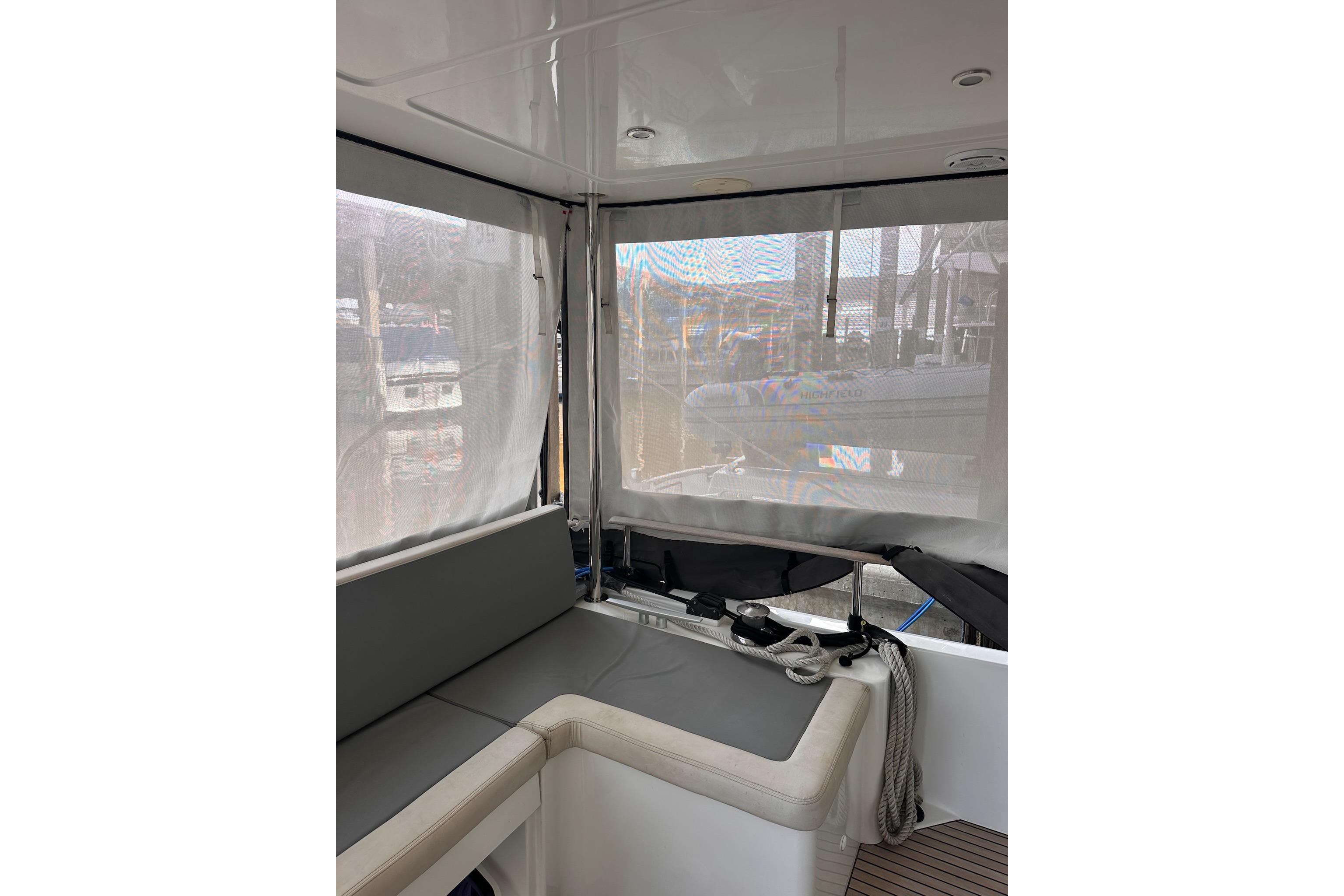

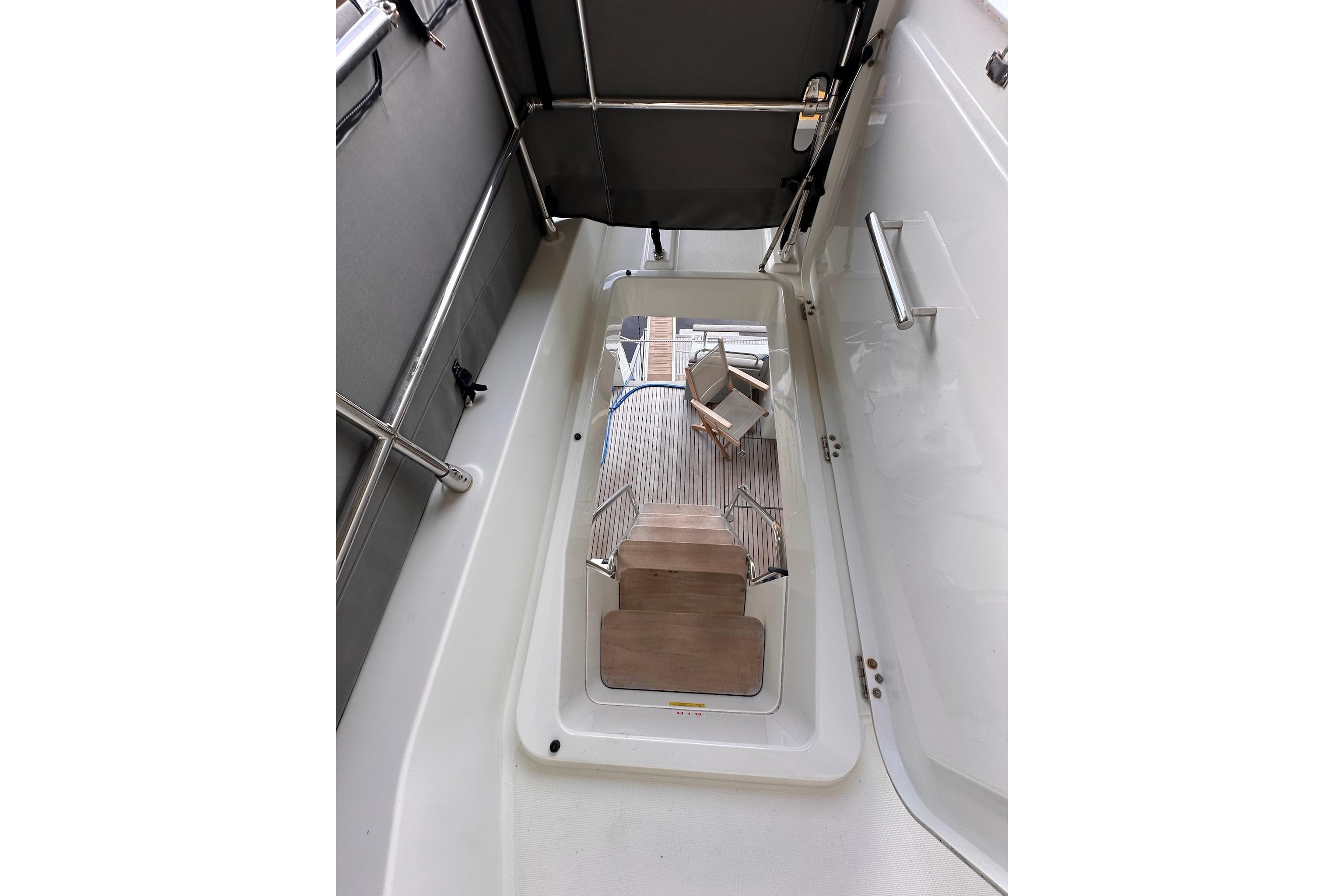

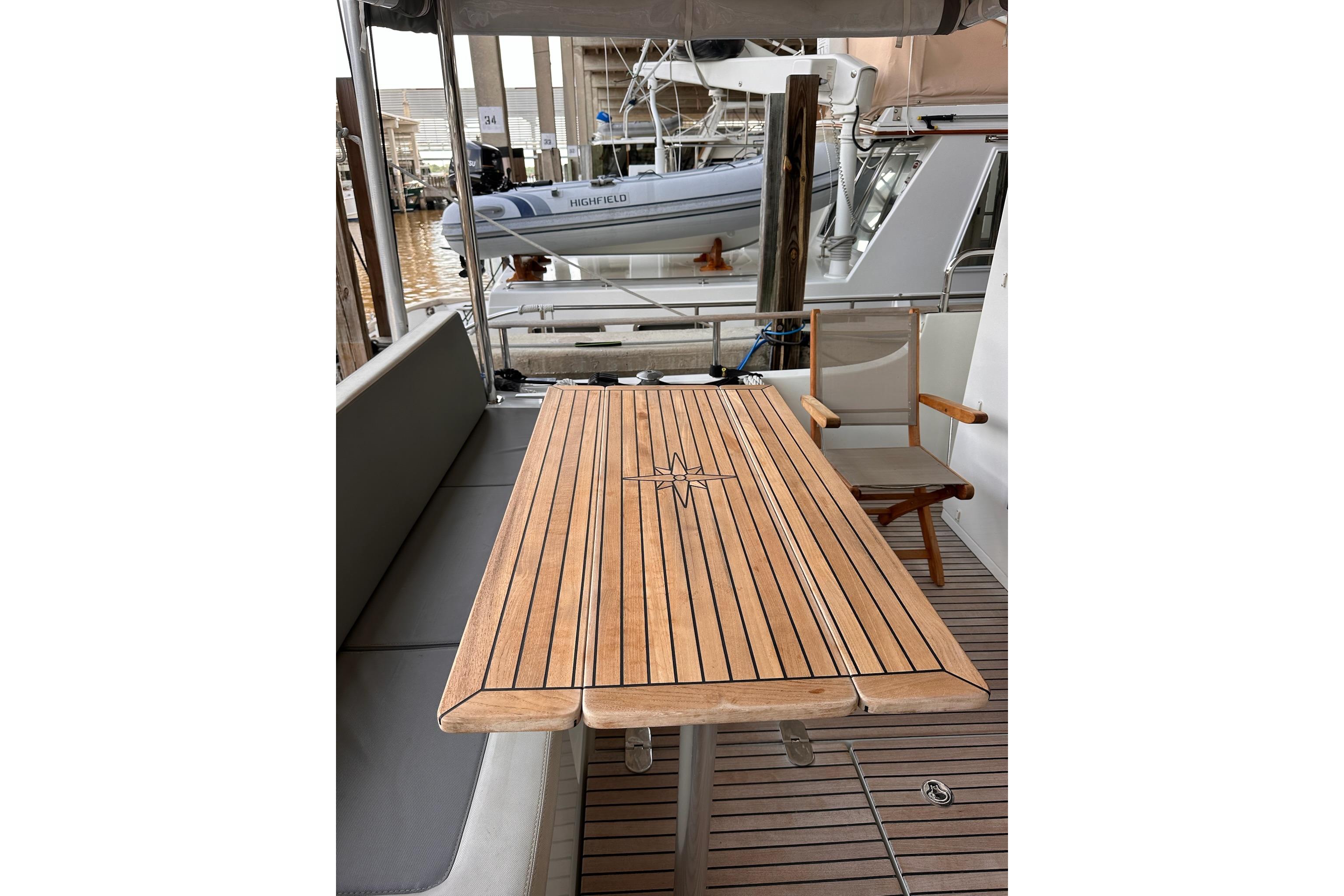

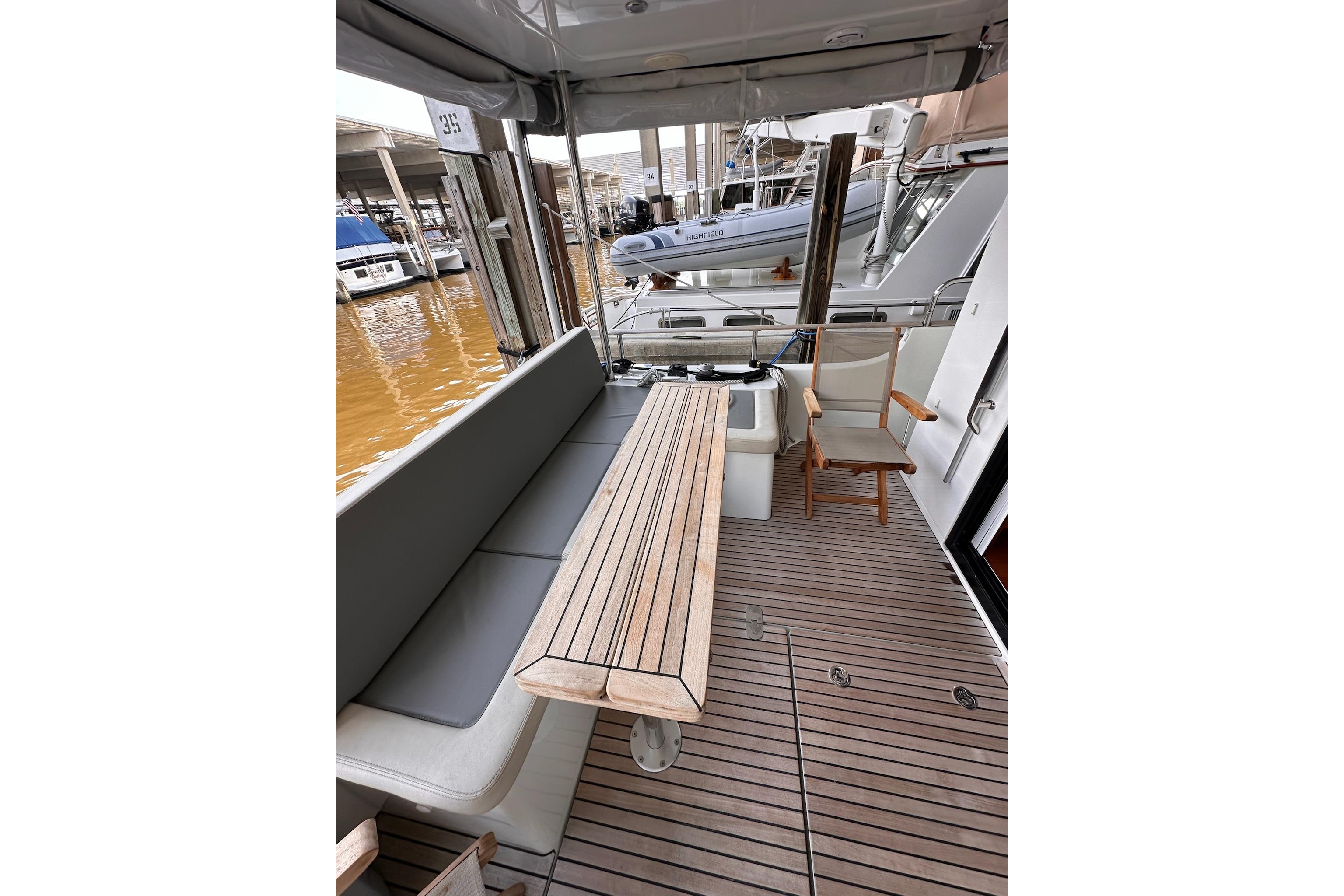

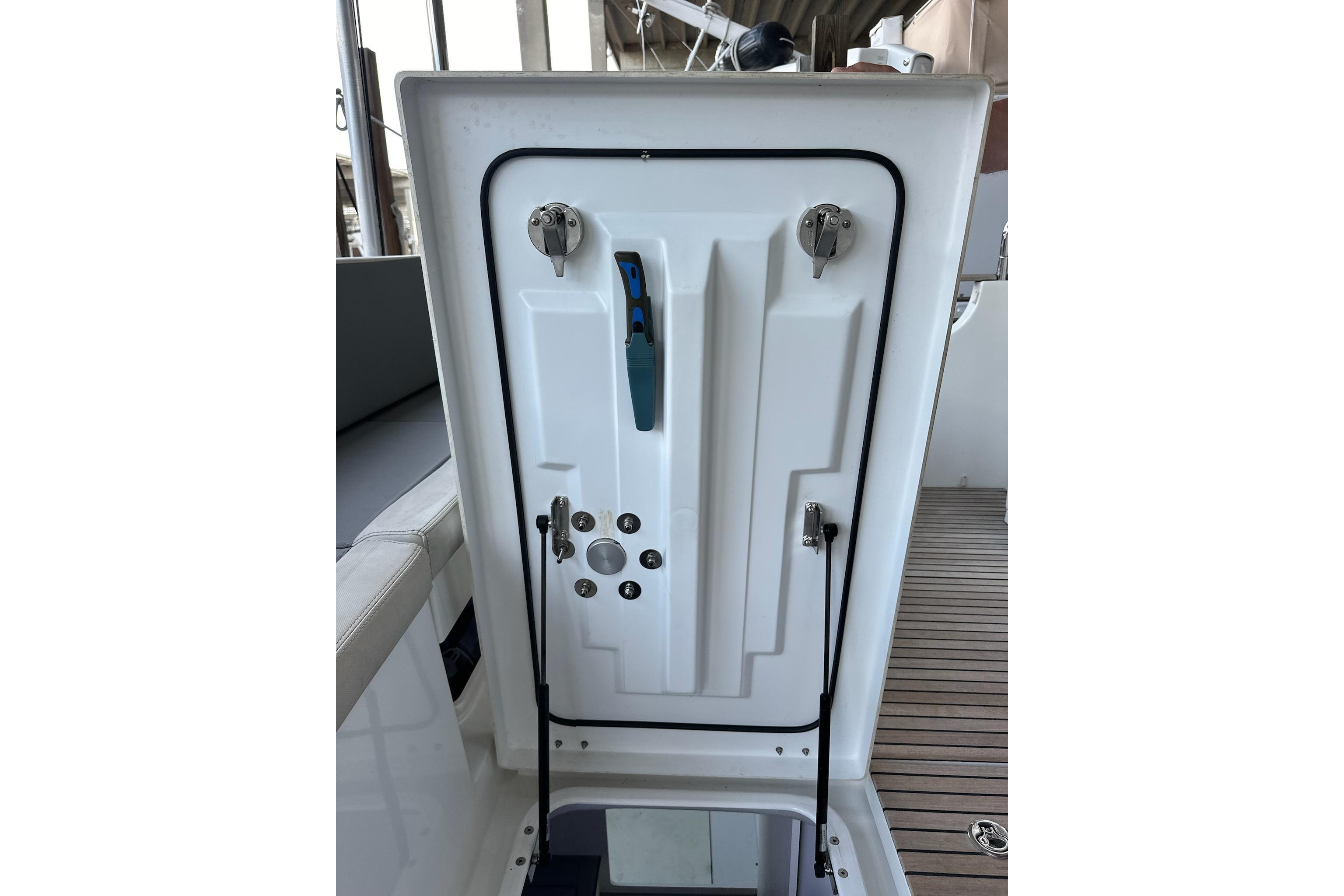

COCKPIT • Teak slatted self-draining cockpit • 1 Gangway door to protect cockpit against wind and spray • Stainless steel stanchion on flying bridge • Teak-slatted L-shaped cockpit bench seat • Access hatch to lazarette or crew cabin (according to the layout) • Access hatch to engine compartment • Access stairway to flybridge with gas bottle stowage position • Access door to aft swim deck • Sunbathing platform with solid wood slats and stainless steel protection • Retractable ladder in swimming platform with solid wood steps and stainless steel handrails

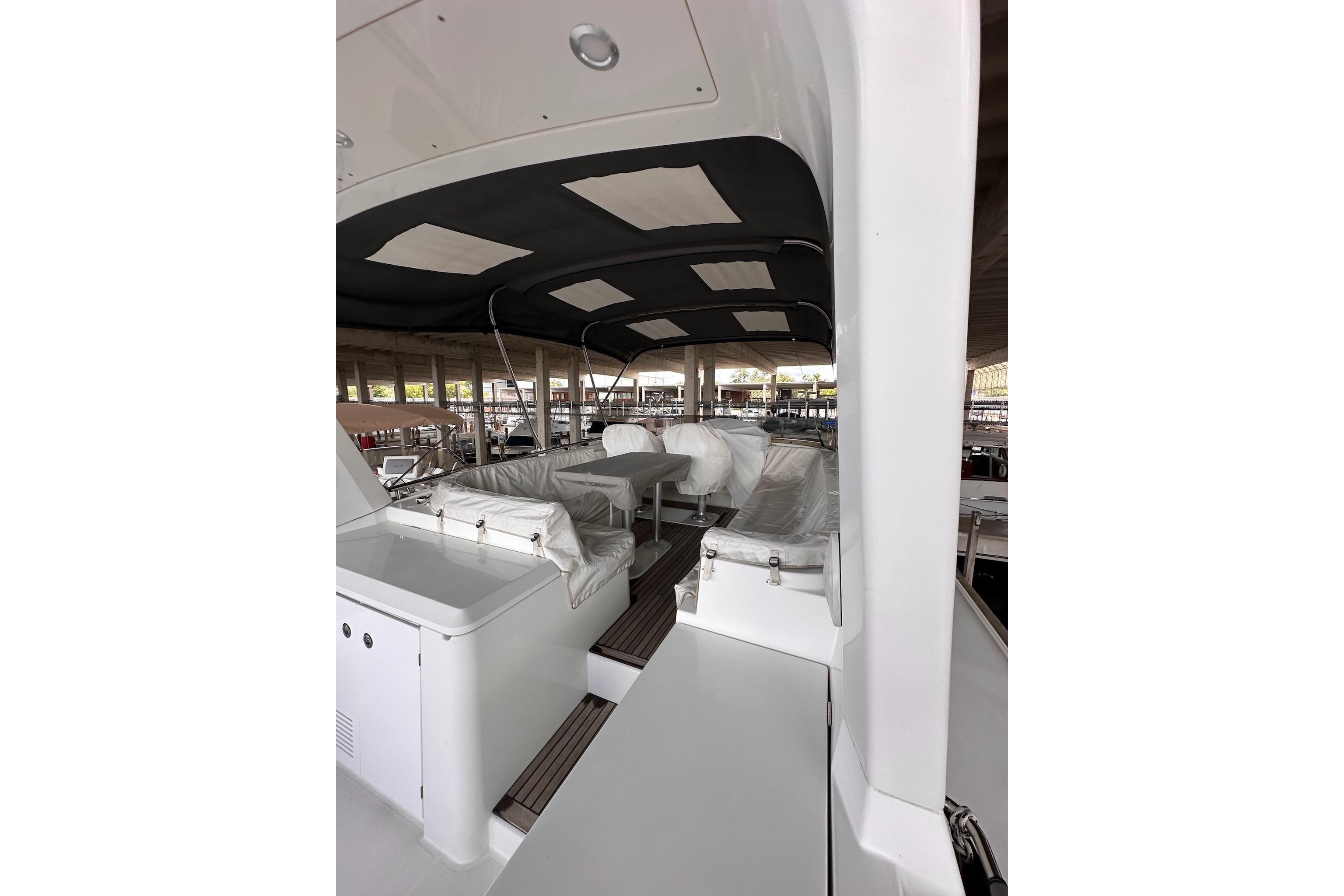

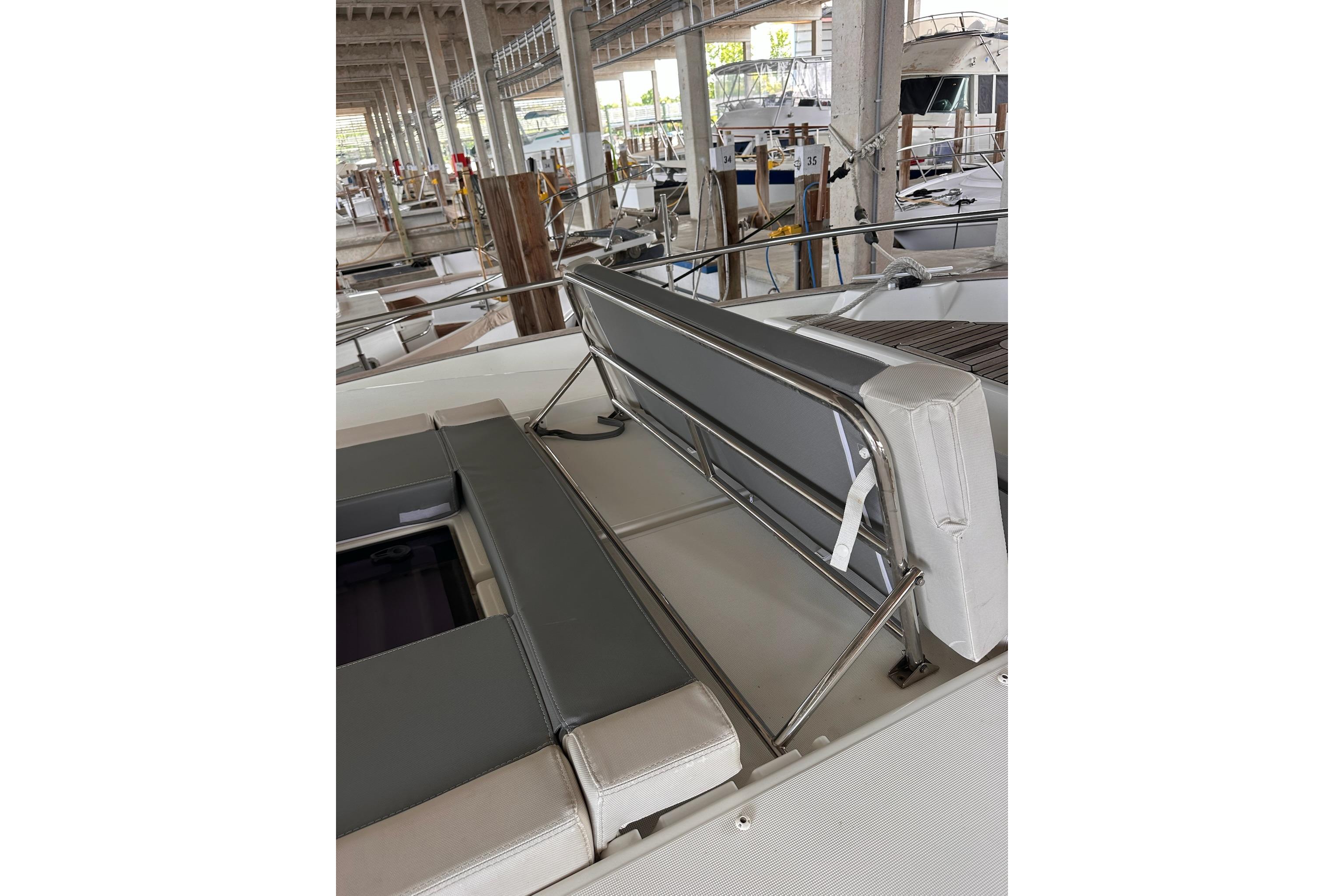

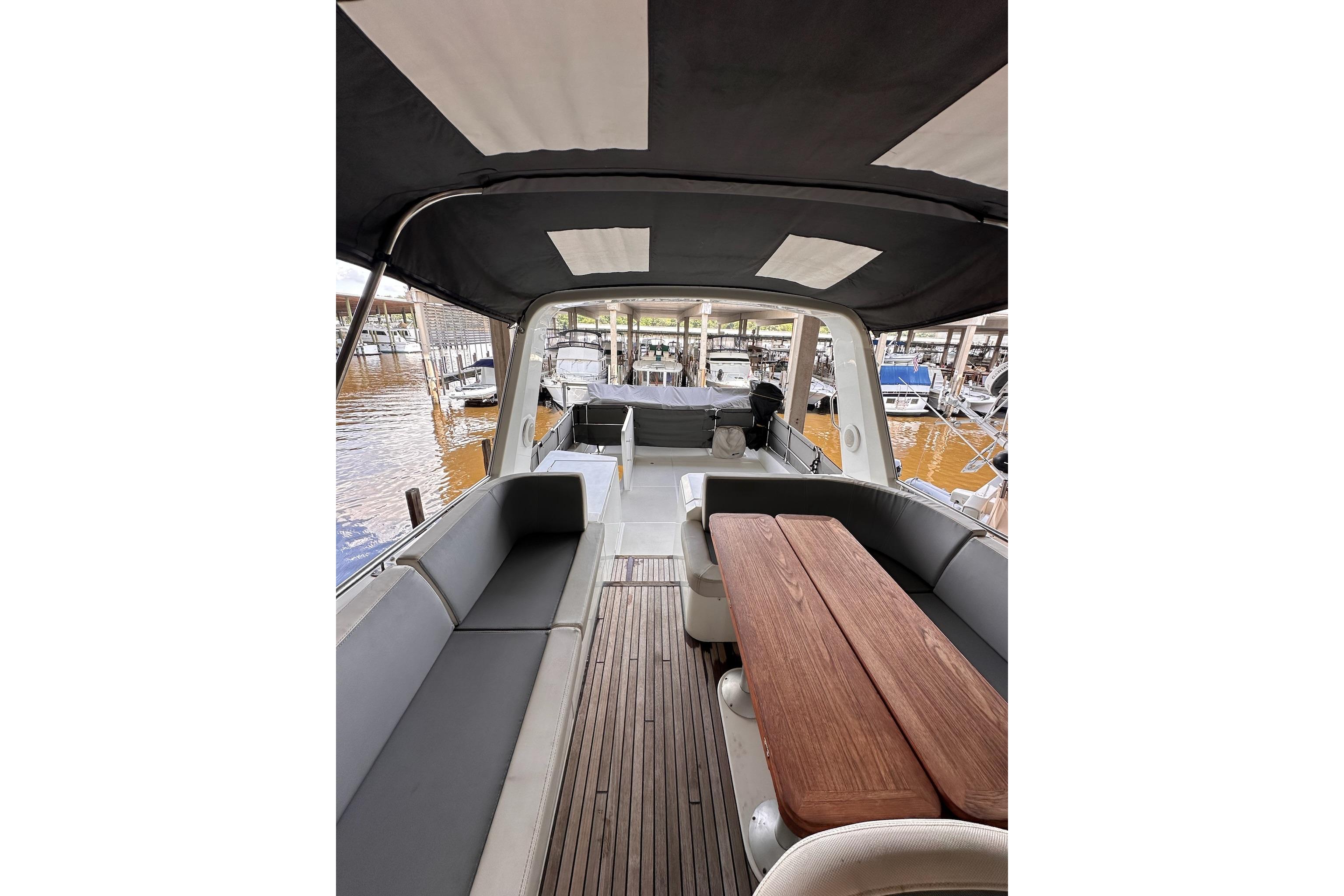

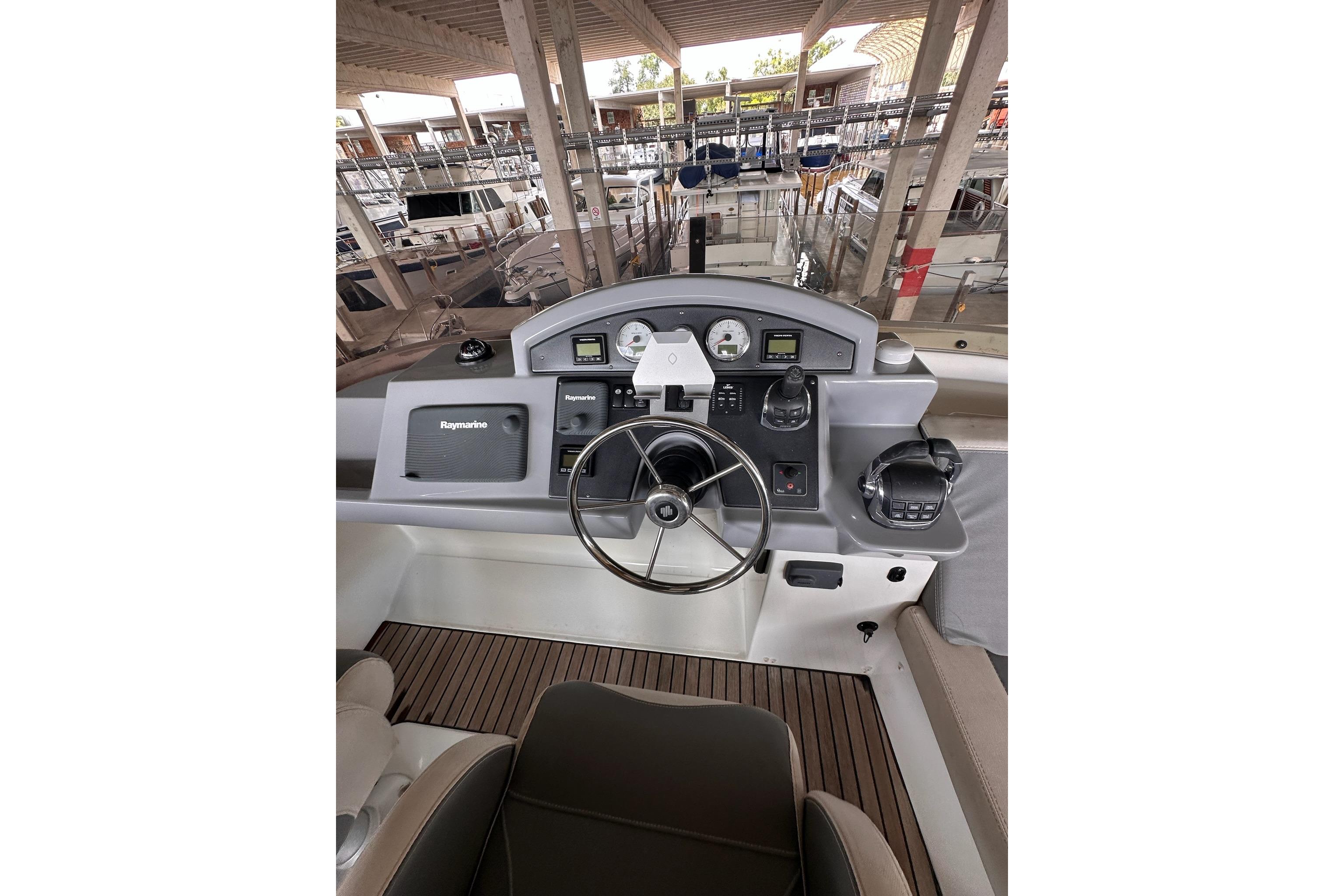

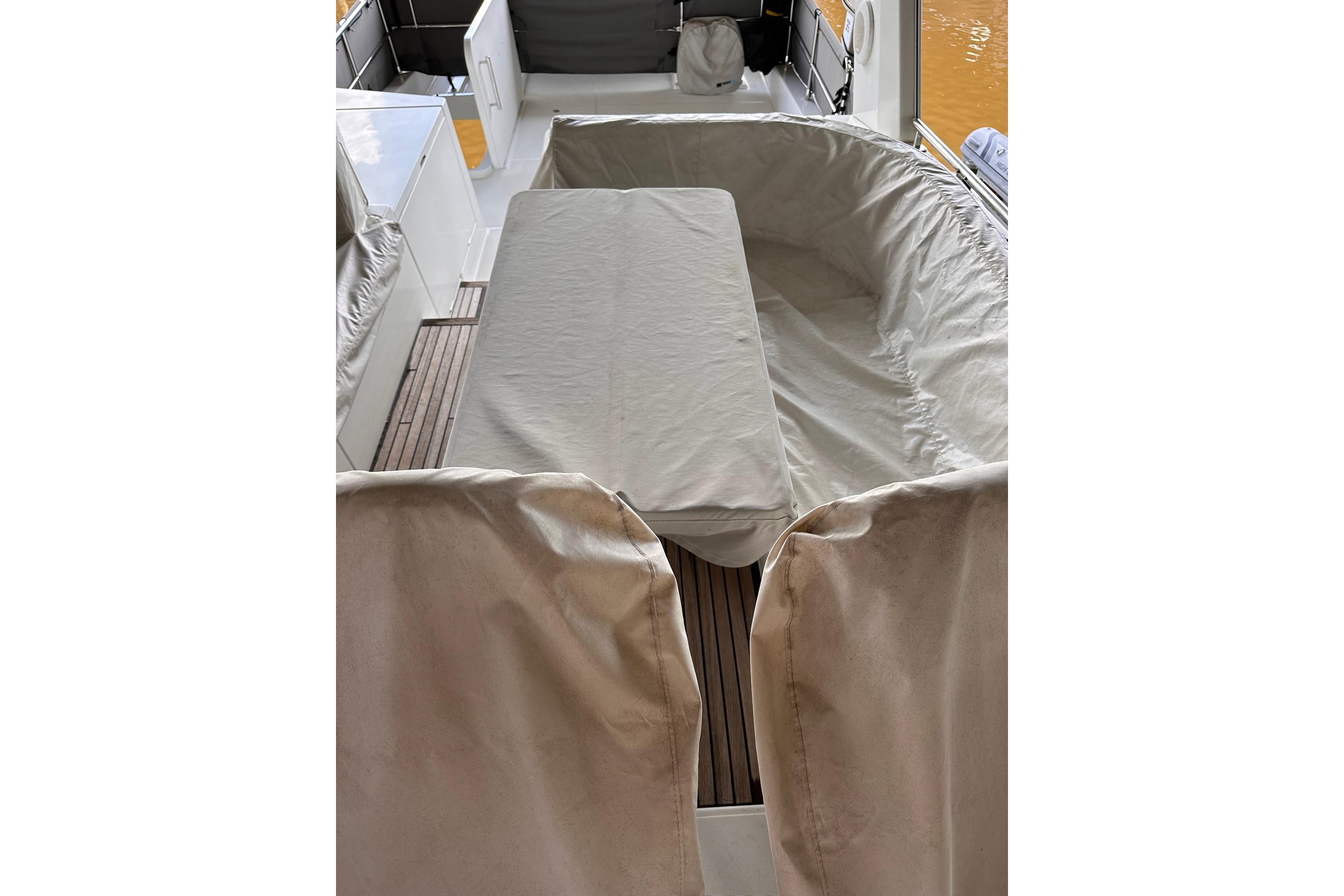

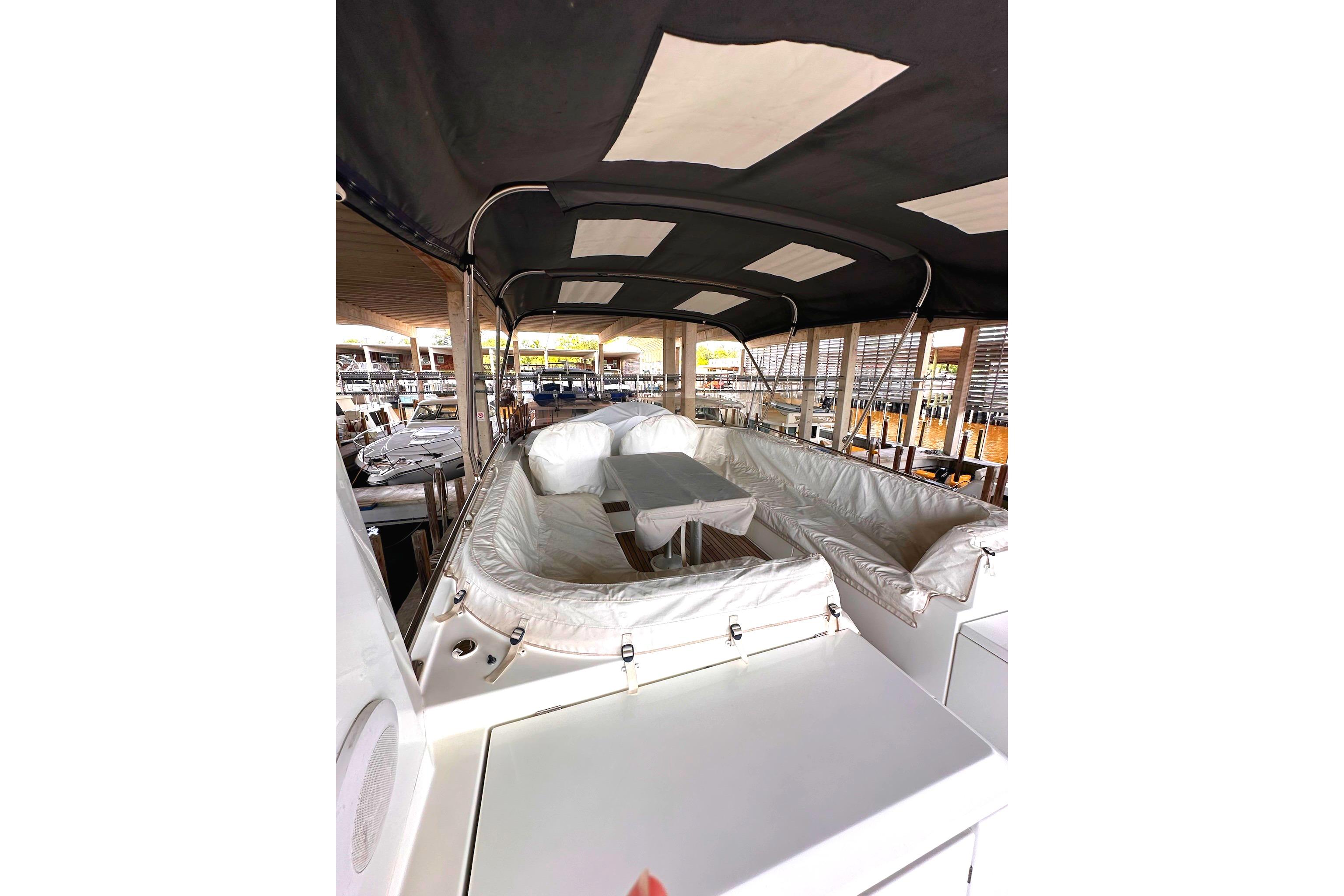

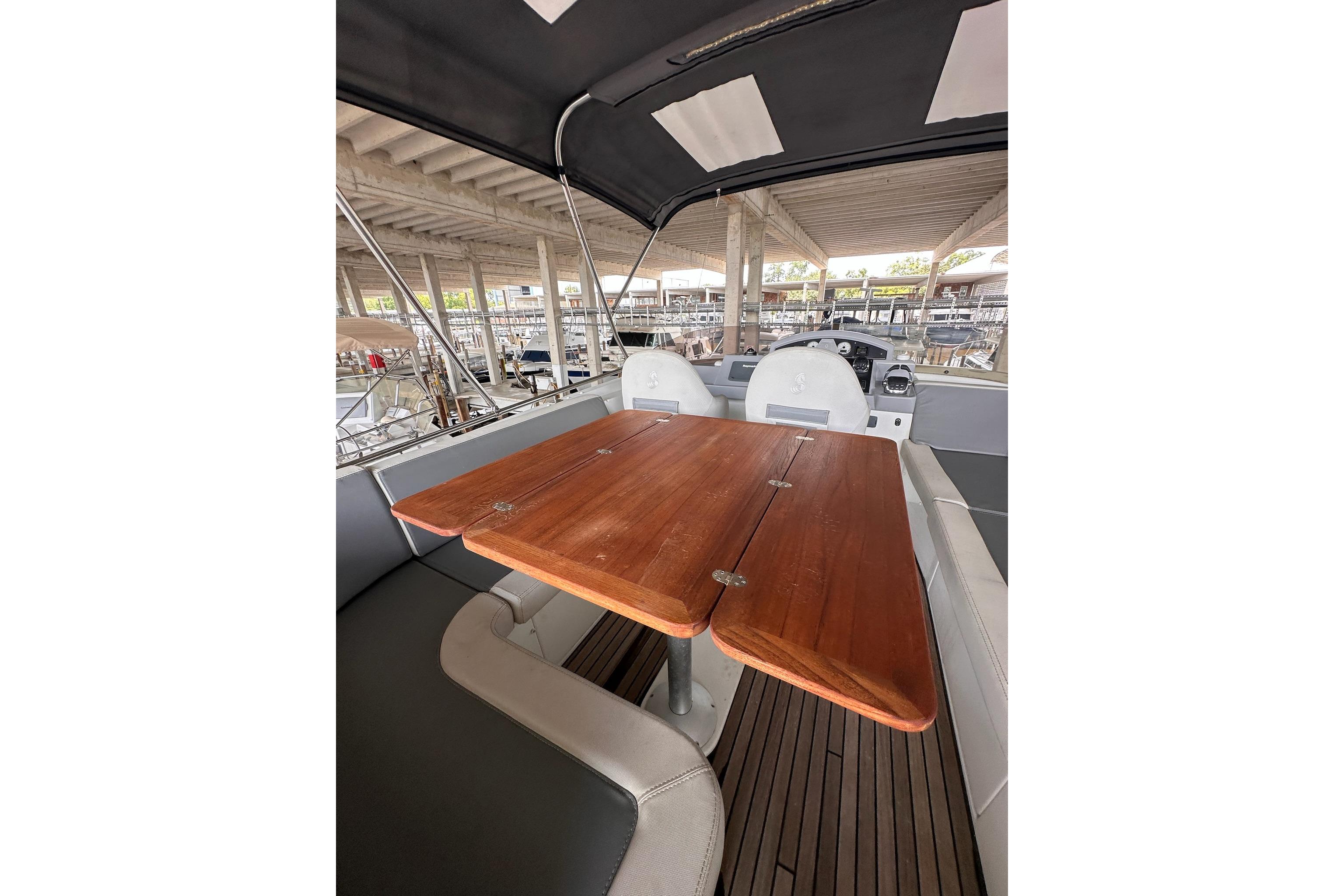

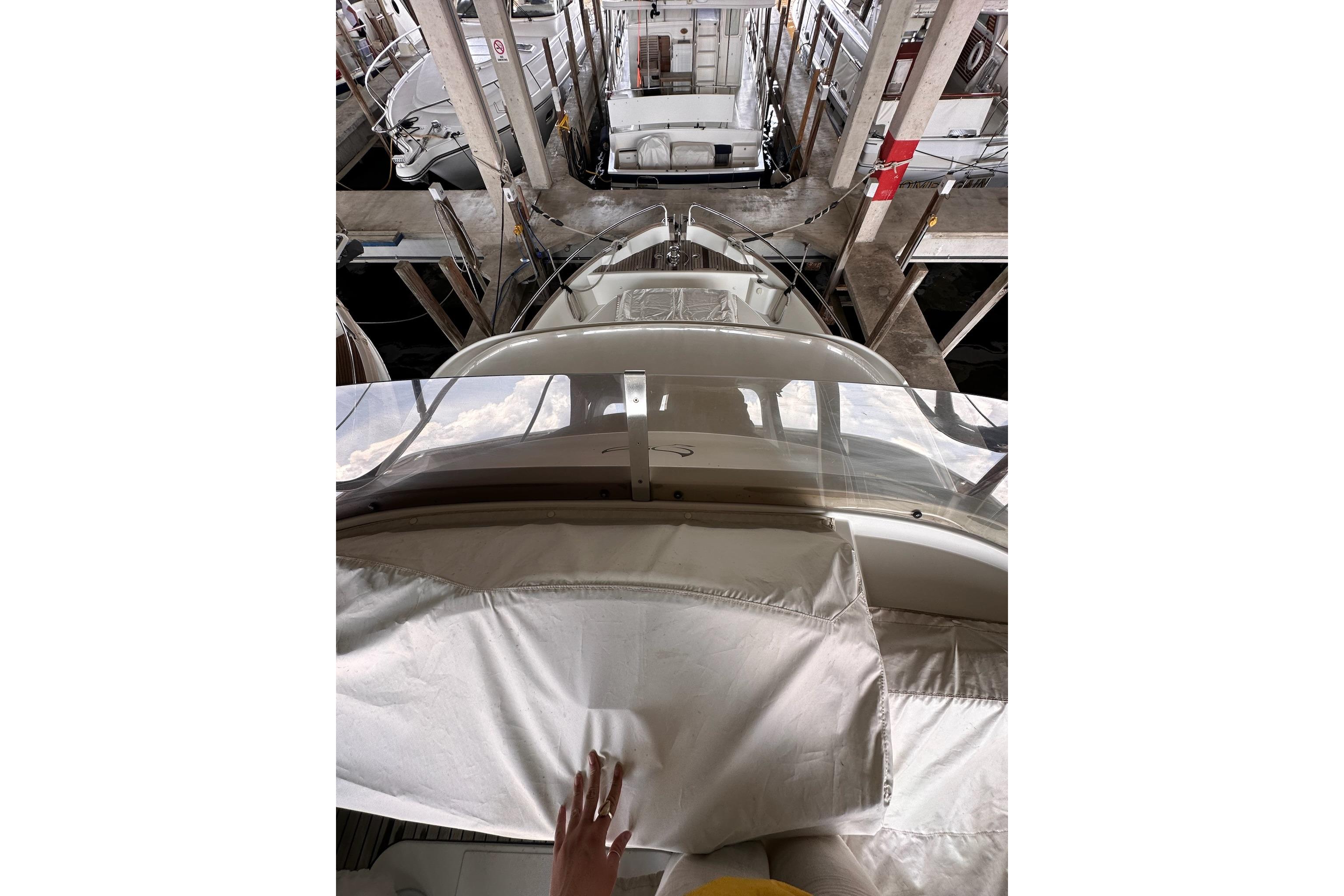

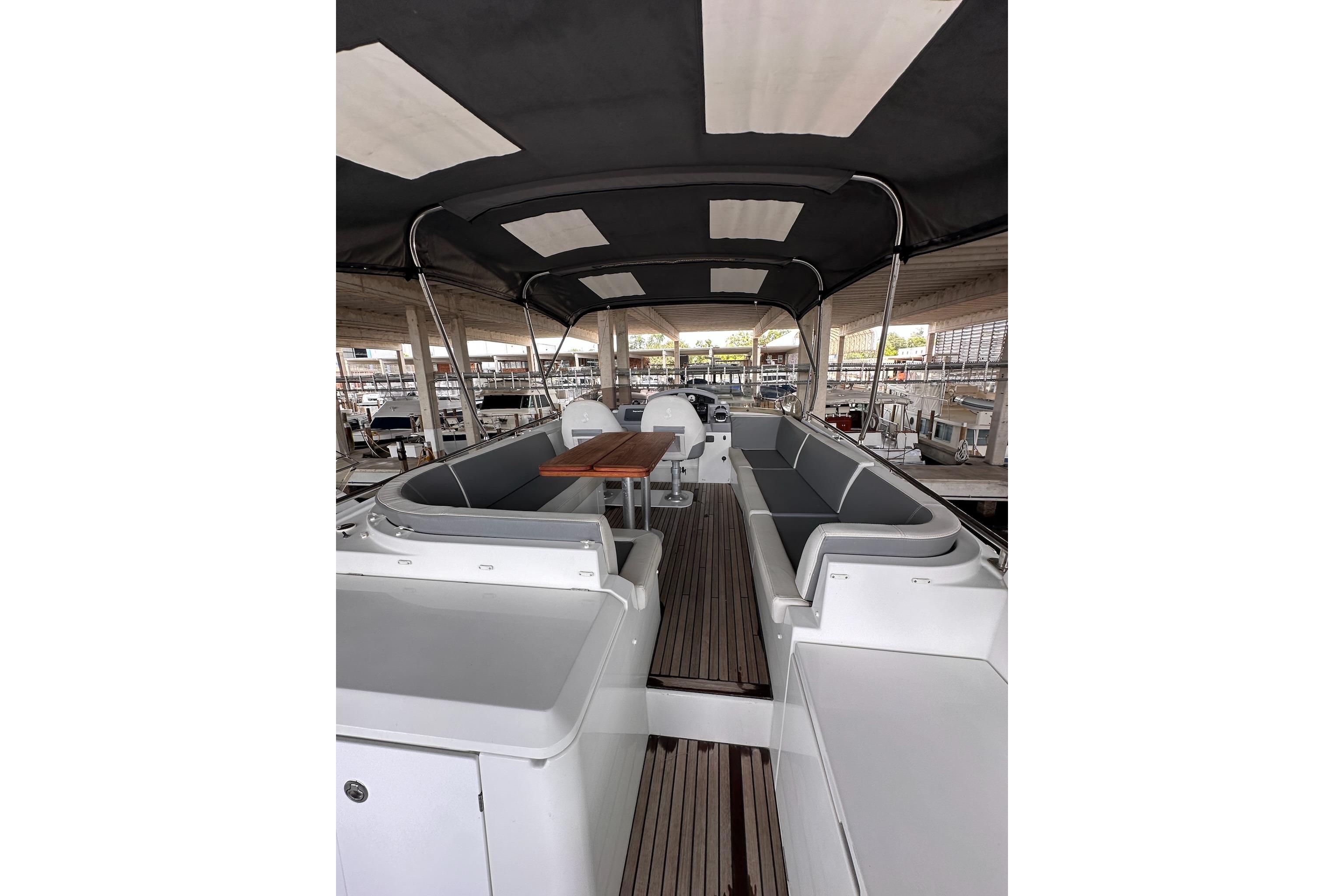

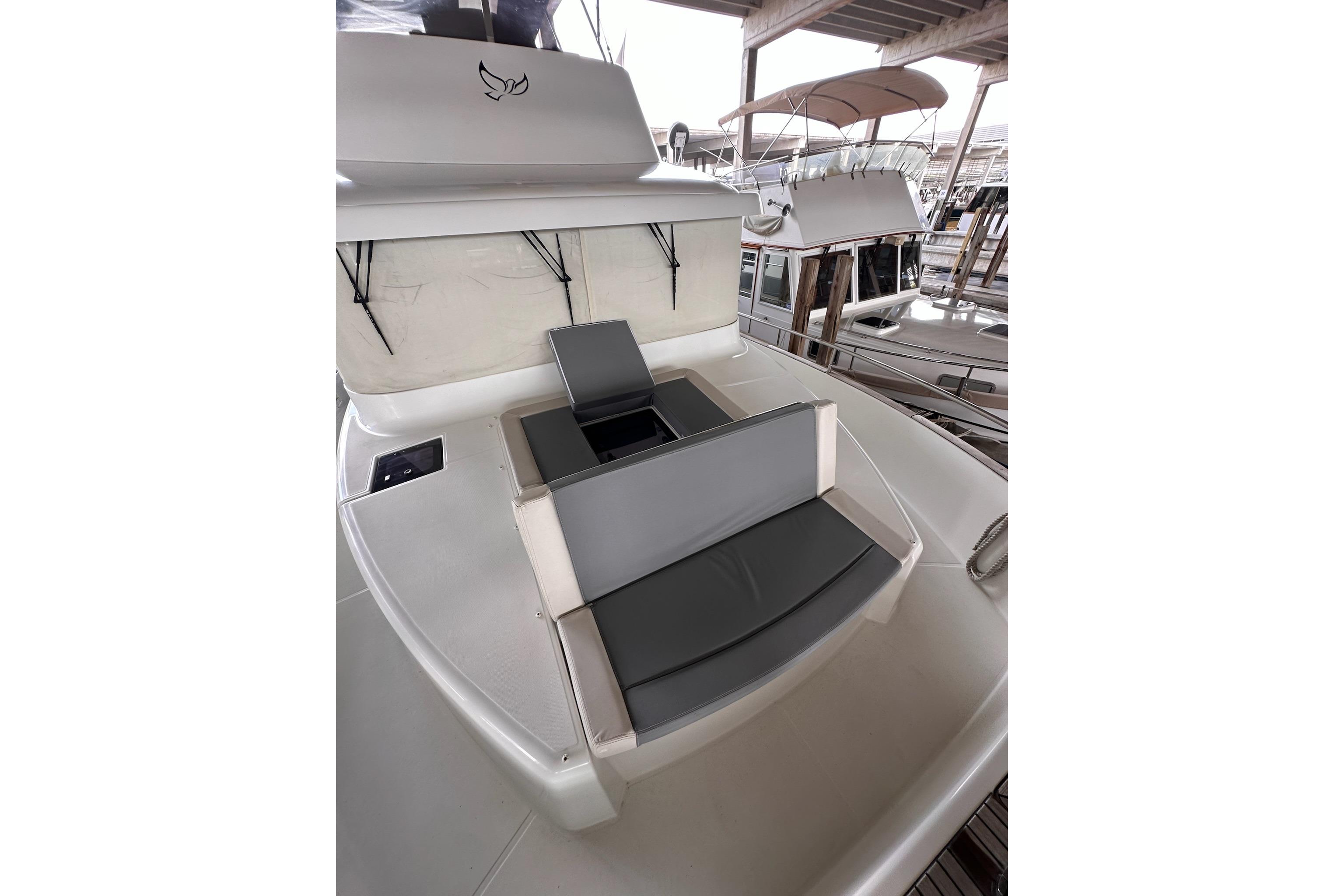

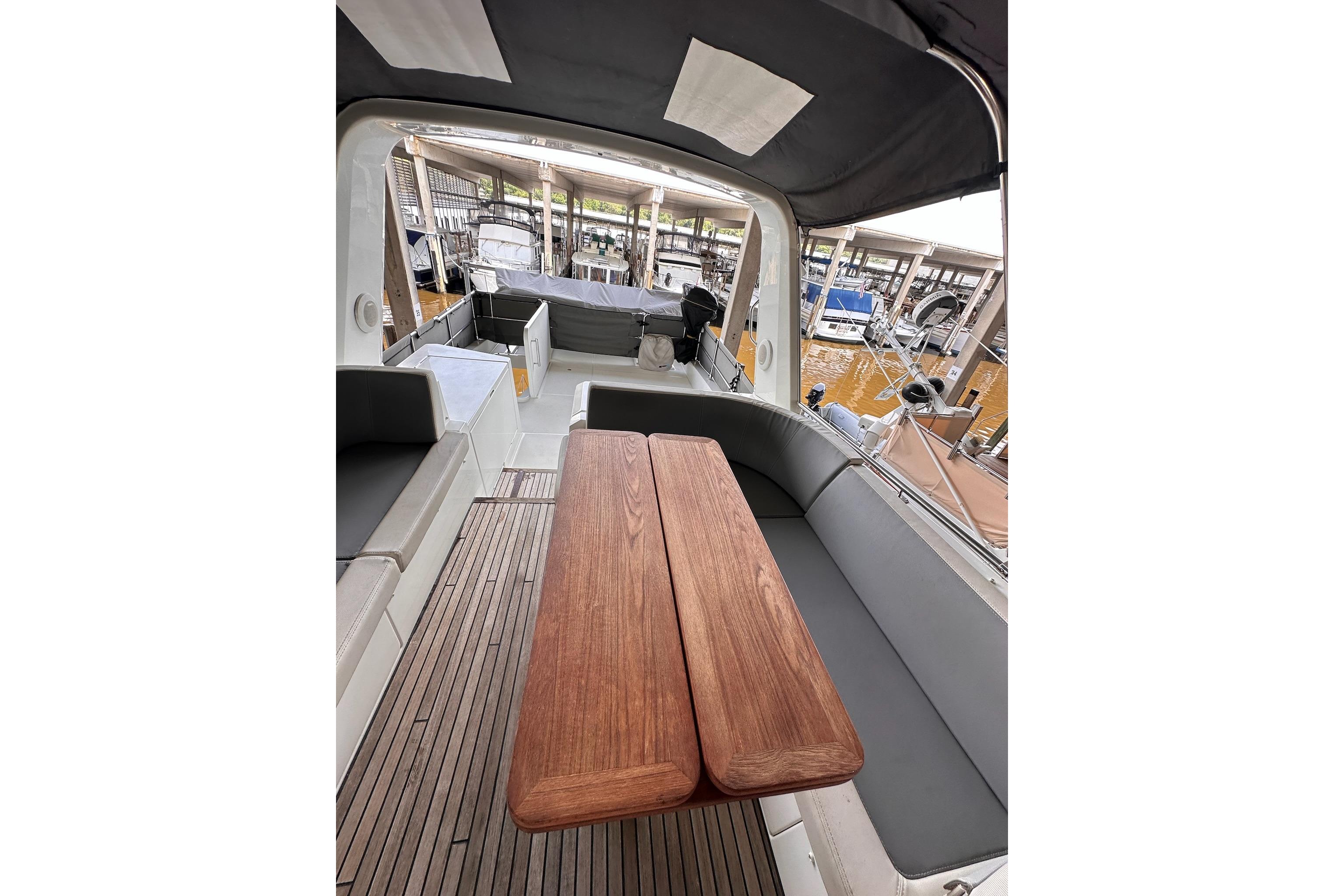

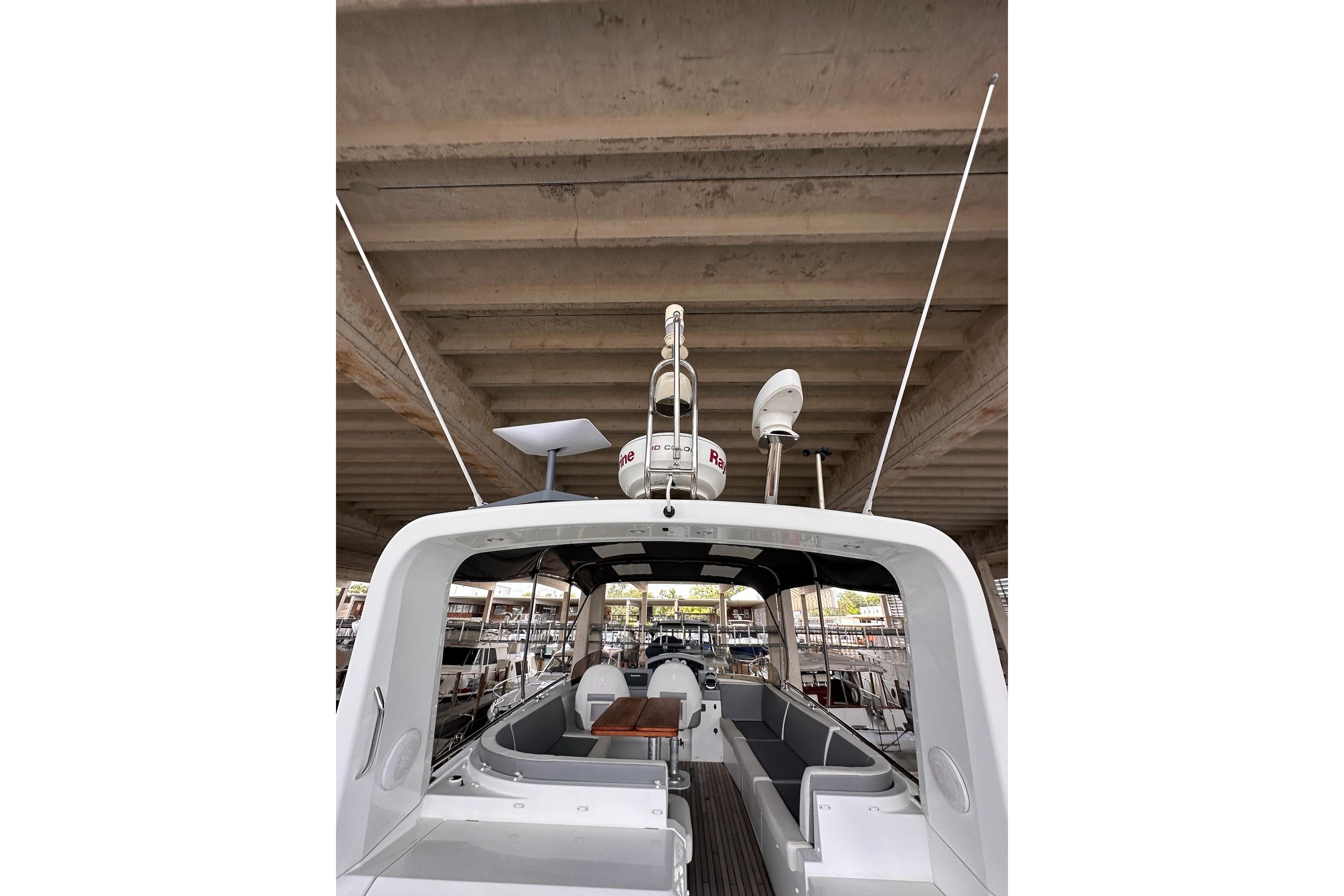

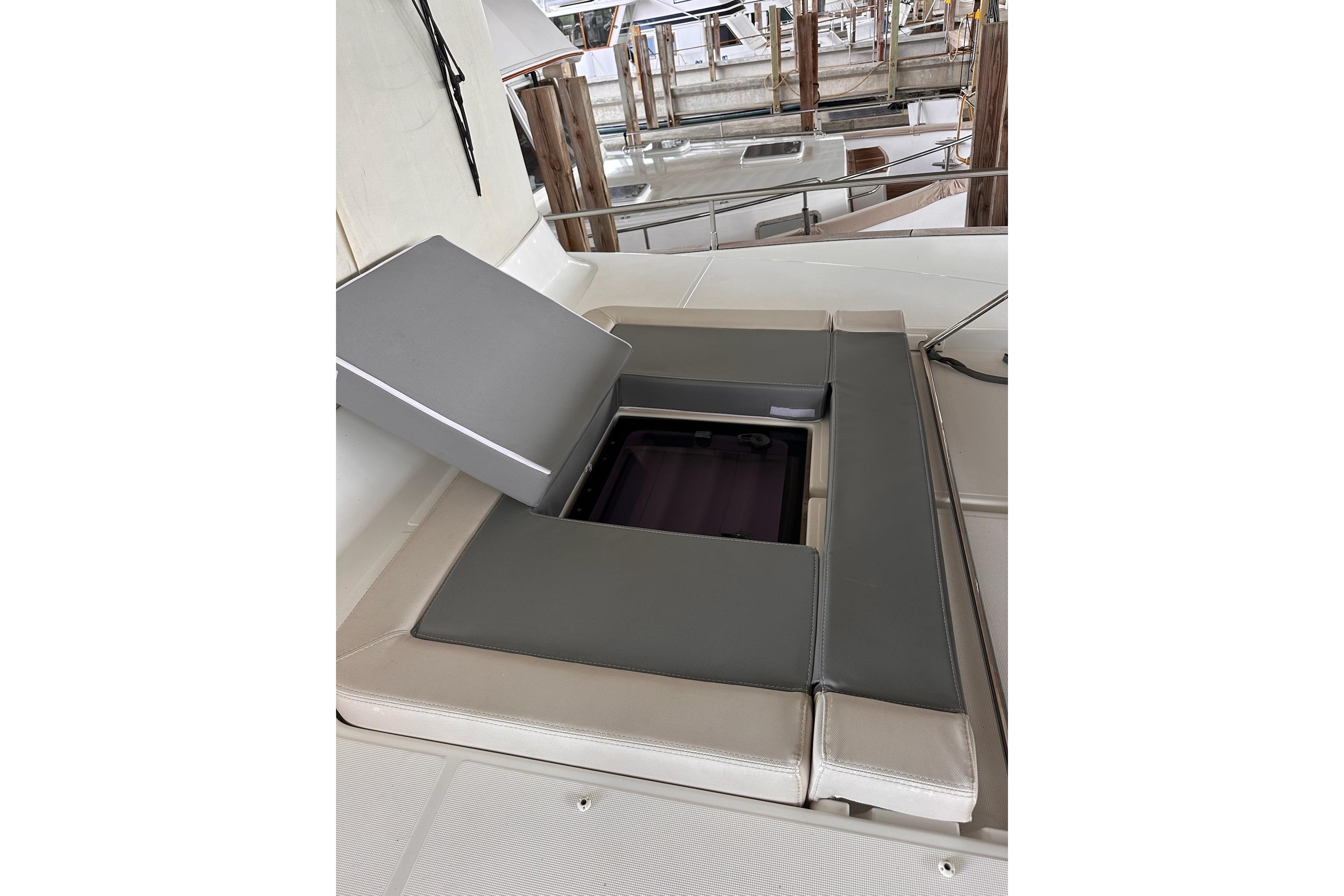

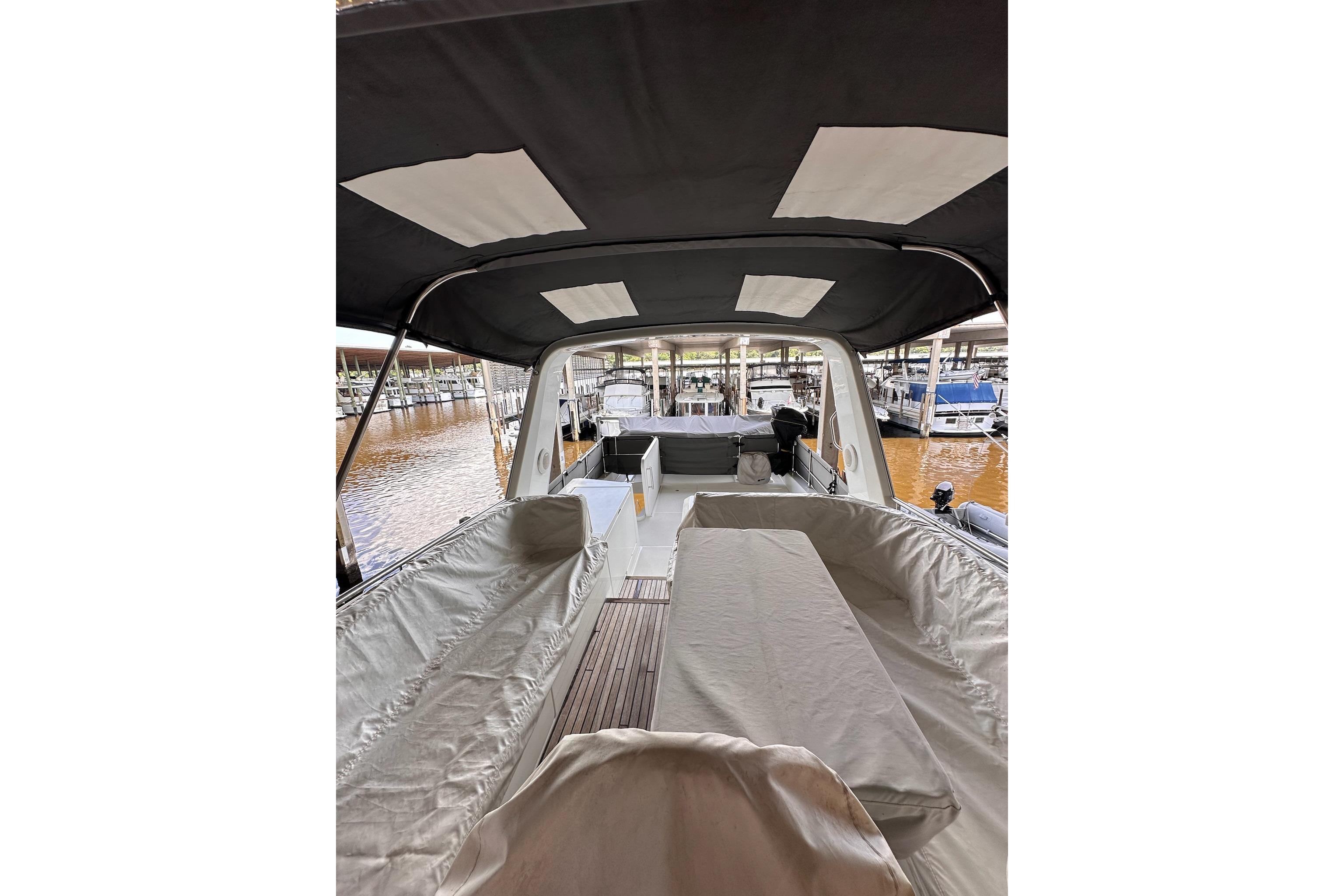

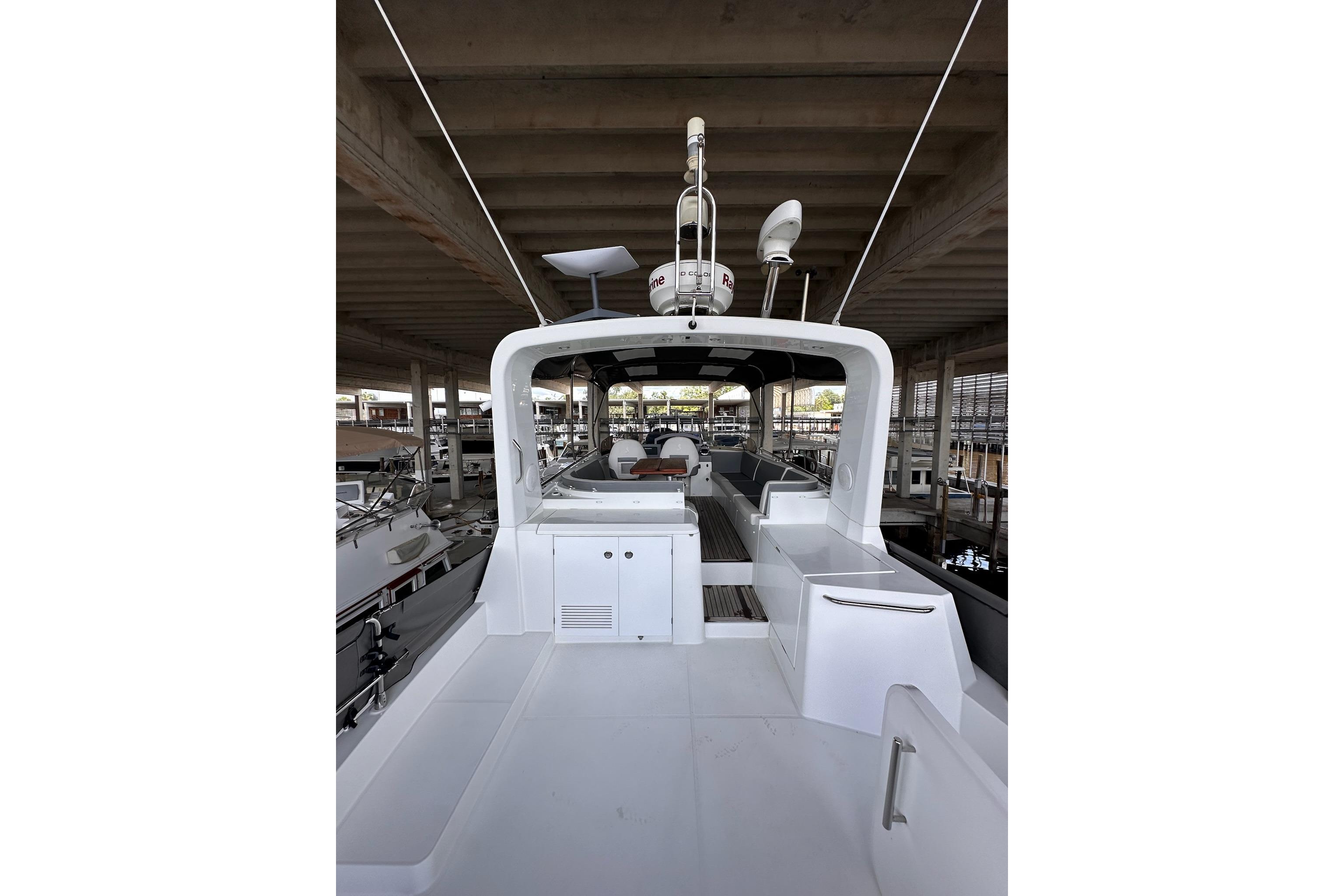

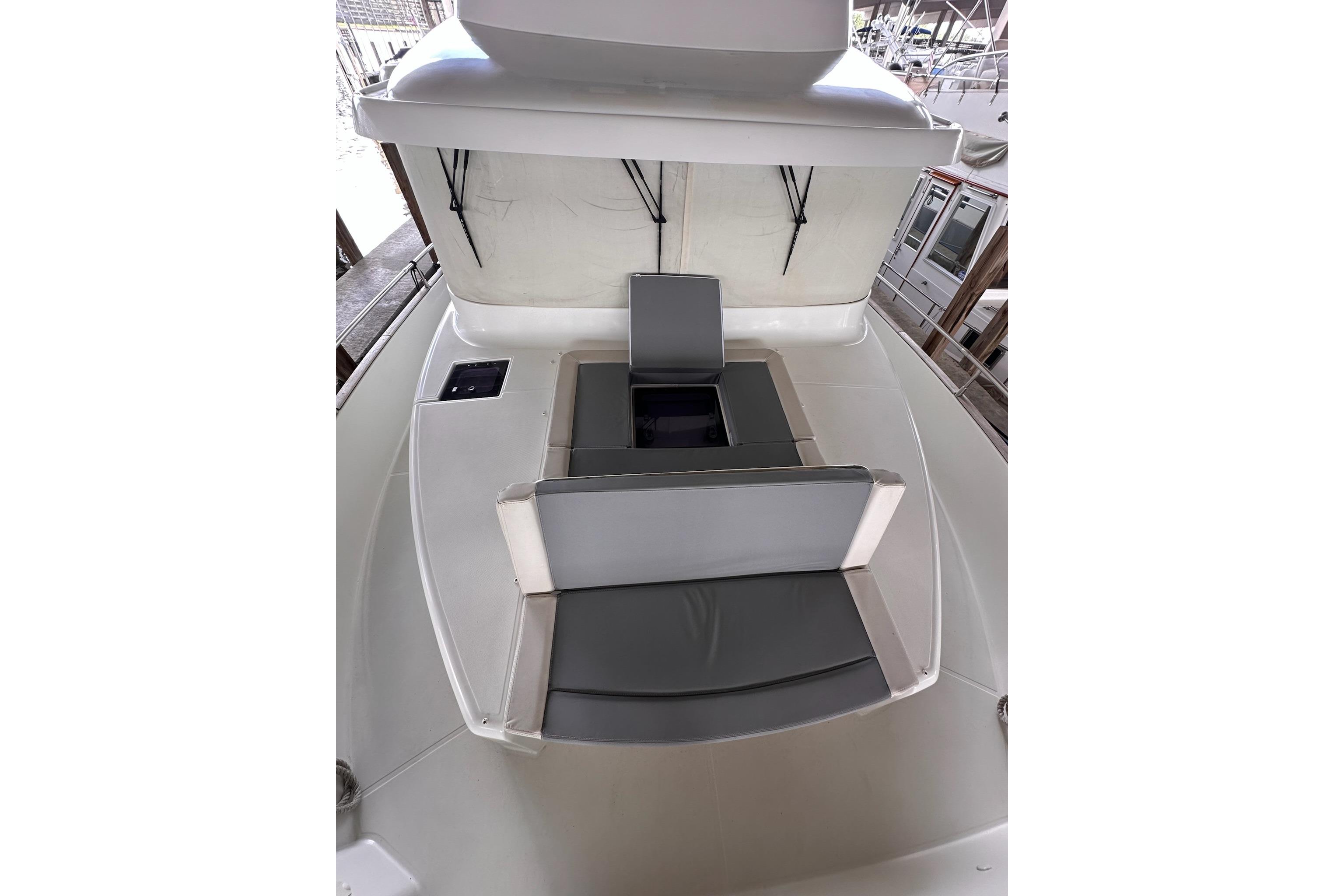

FLY BRIDGE • Grey tinted windscreen in PMMA • Steering console with: Steering compass - Steering wheel - Electrical engine controls, Tiller angle indicator - Rev counter - Fuel gauges - skyhook • Controls for bow and stern thruster, windlass, flaps, lighting, navigation lights and foghorn (depending on options) • Adjustable pilot seat, Adjustable co-driver's seat to port • Sliding flybridge saloon table with extensions • Bench seat on portside with access to built-in serving hatch • Starboard bench seat, Storage • PVC Diamante Storm & Snow upholstery on flybridge • Stainless steel handrail • Console cover Fly + Seat of Fly, to starboard • Galley unit with sink and hot and cold pressurized mixer tap, flybridge wastebin, Compartment for refrigerator (optional), Place for electric grill (optional) • Removable extra lighting • Storage unit to starboard • Polyester hoop bar with fitted spotlights and loudspeakers • Quarterdeck for storing dinghy or for use as terrace • Structurally reinforced position for installation of Bezenzoni electric crane offered as optional extra to lift dinghy (max load 200Kg / 441 lbs) • Space for life raft with stainless steel fixing bolt plates • Flag pole bracket on starboard aft pulpit • GRP door with retaining bar to close off access to stairway
INTERIOR • Woodwork Alpi Mahogany • Doors to units for improved fresh air circulation • Wengé Alpi cabinets base boards • Edges of steps in Wengé Alpi • Parquet type laminated floors • Taupe Cushions • Pilot bench seat in " PVC" • Ivoire Carpet, in Cabins • LED lighting

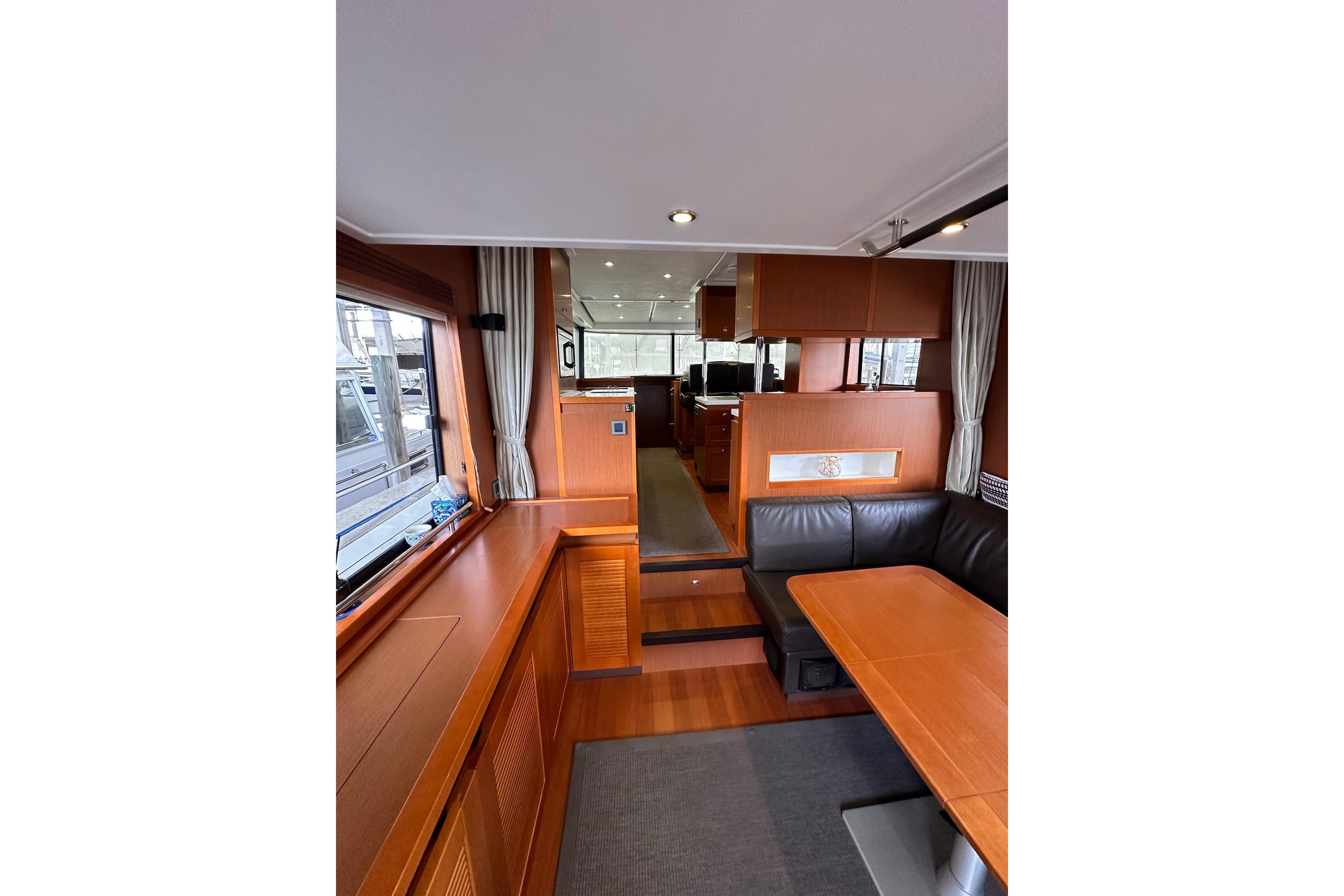

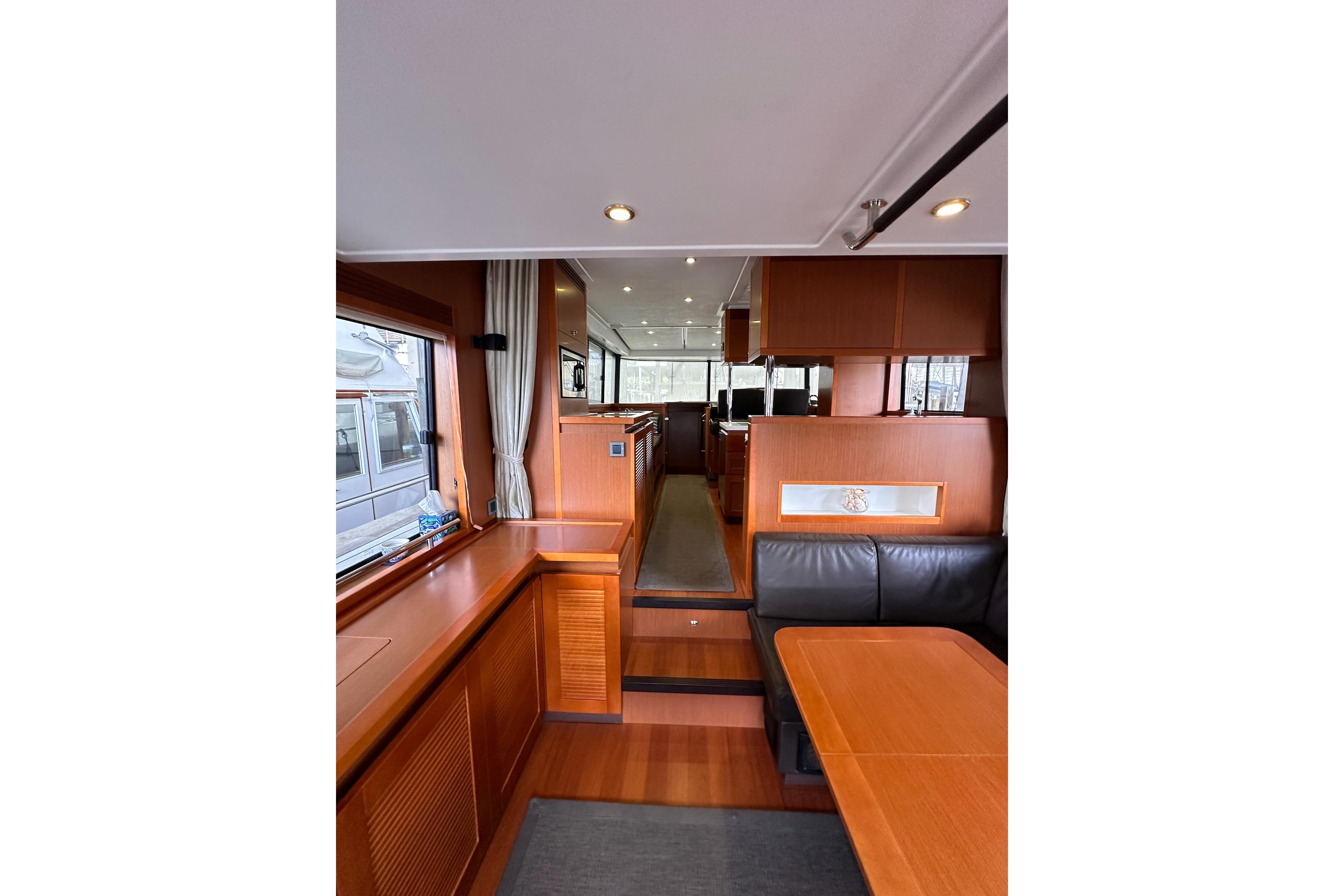

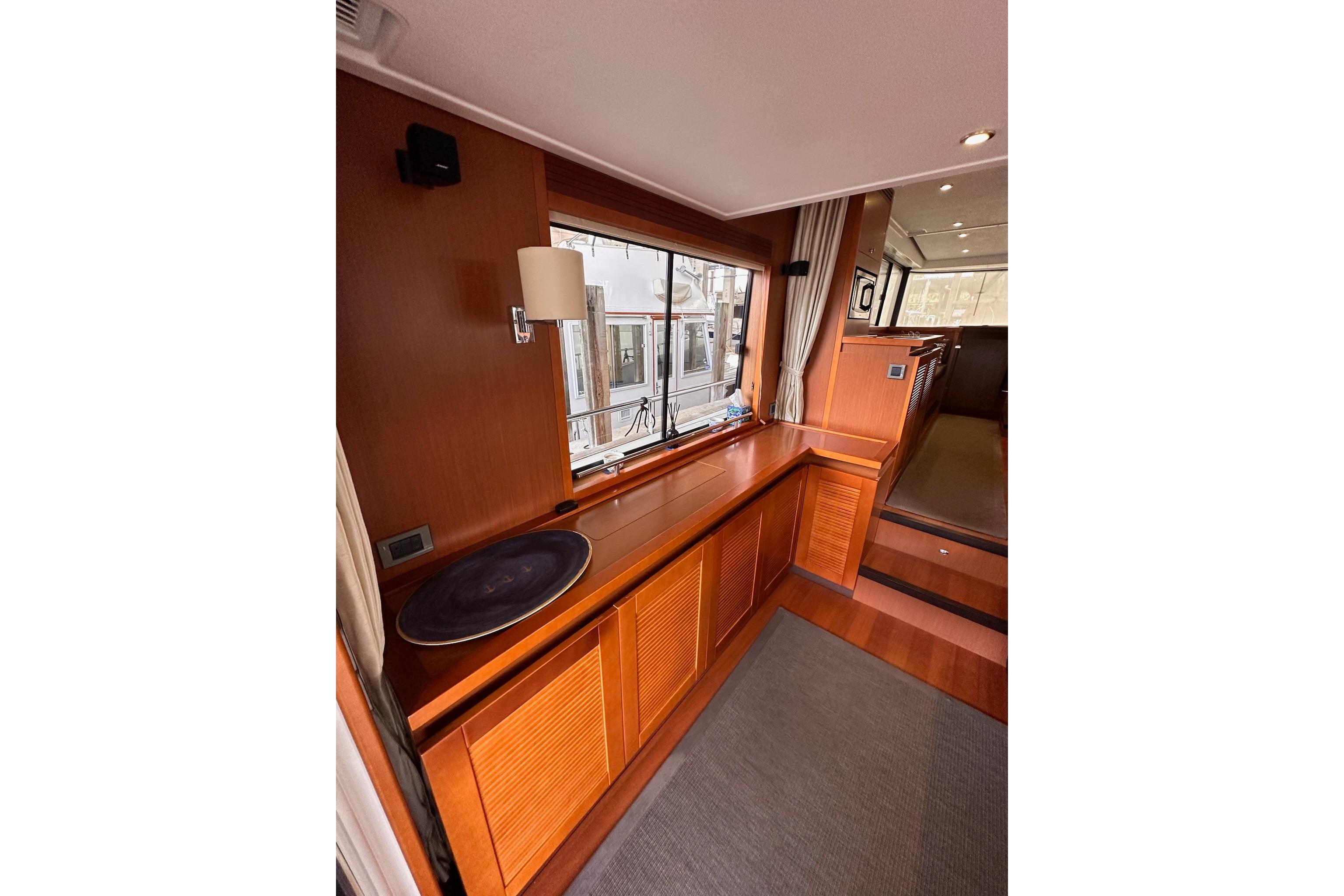

SALOON • 2 leaved aft window door with black lacquered aluminium frame, Tinted glass, Blackout curtain • Sliding, opening side windows in black aluminium and tinted glass, with blinds • Storage under bench seats • Saloon table in varnished wood, on removable foot, with extension. Tilting for better storage • 2Removable armchairs • Cabinet on portside: Bar with storage space and location provided for retractable 32 LED TV (option) as well as for the on-board glasswore (optional) • Illuminated storage recess • Storage unit with location for Radio/CD/DVD player • Leather covered stainless steel handrail on ceiling • Access step to wheelhouse, Courtesy lighting • Radio/CD/MP3 USB,AUX with 2 speakers in saloon and 4 exterior watertight speakers (2 in the cockpit - 2 in flying bridge)

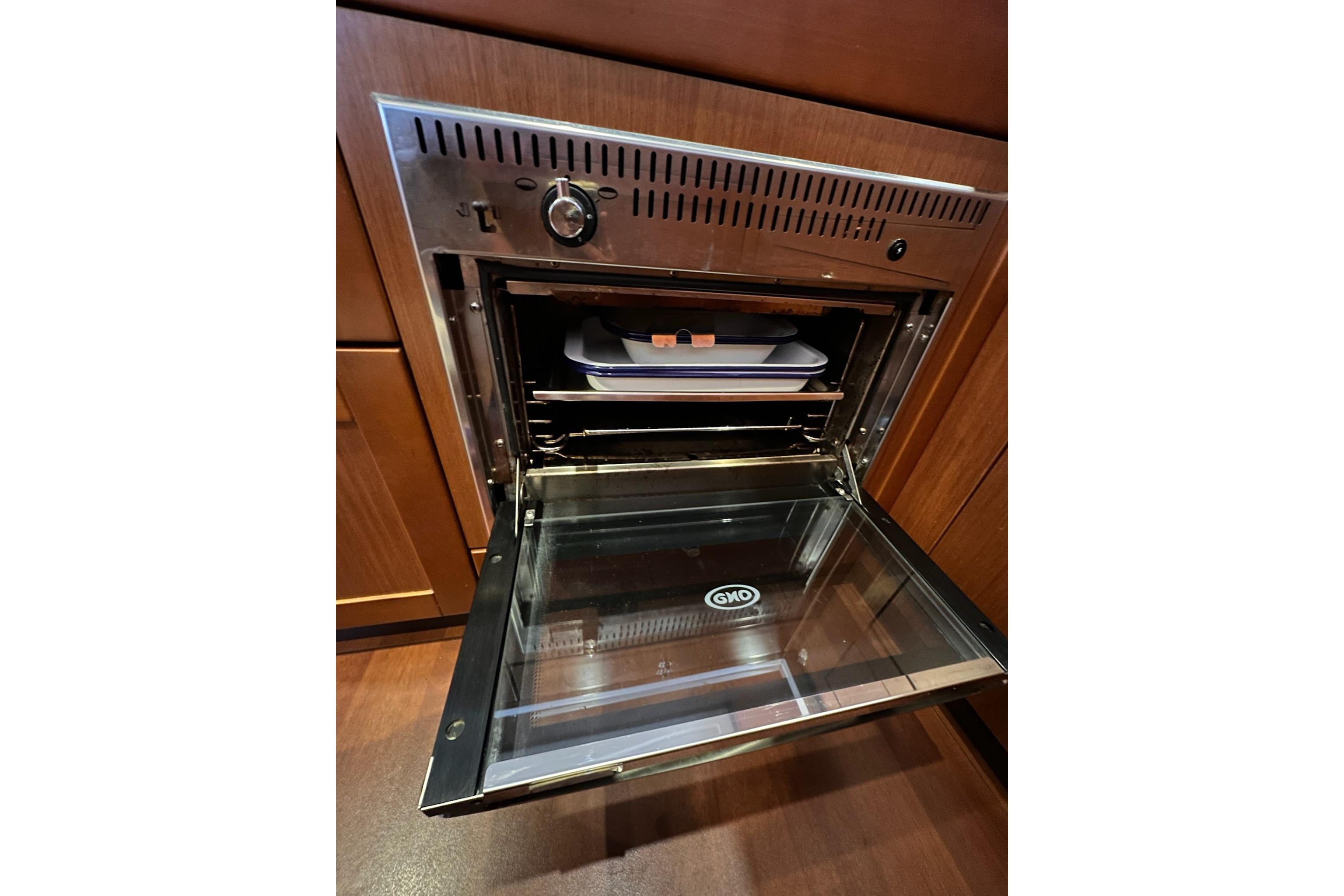

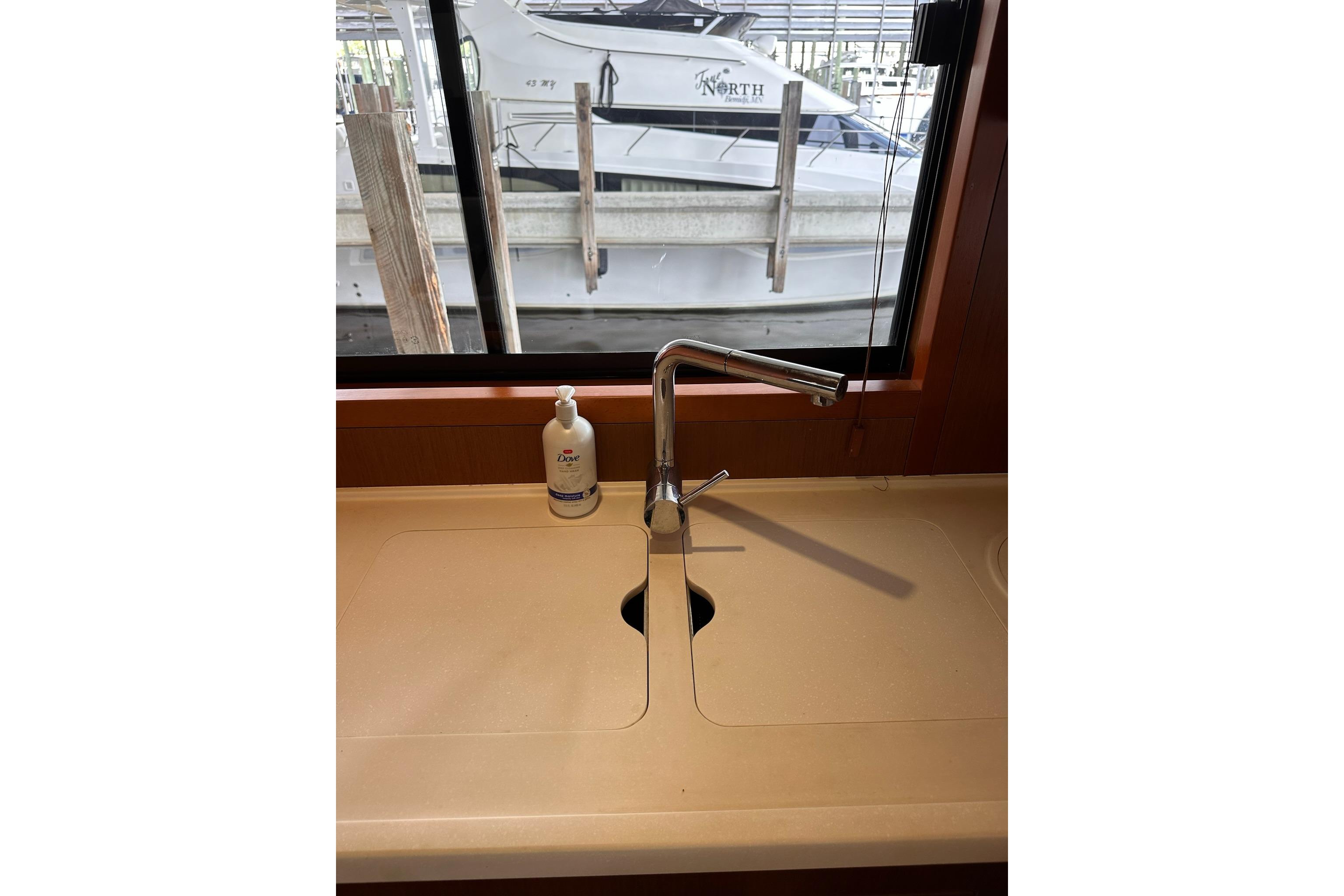

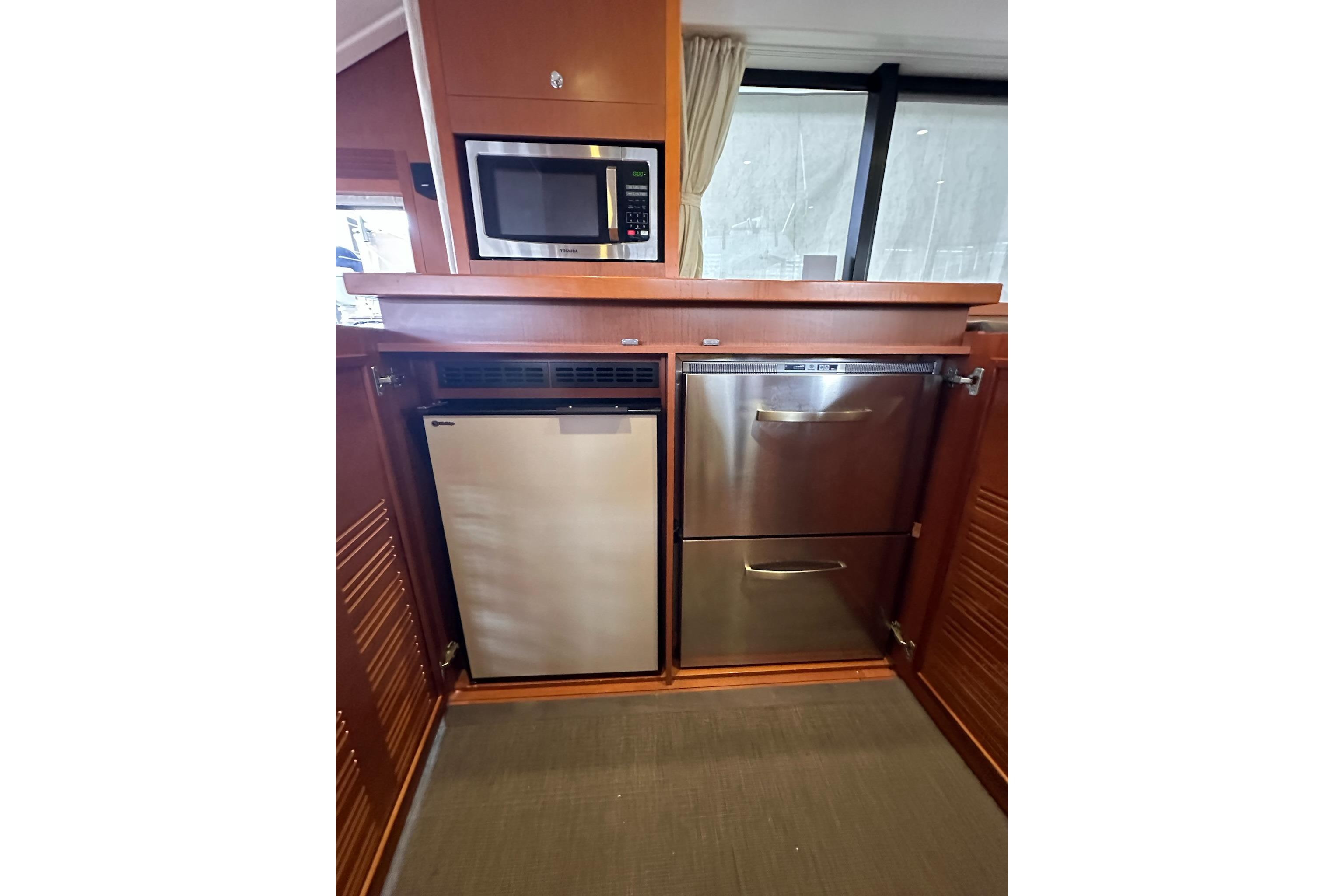

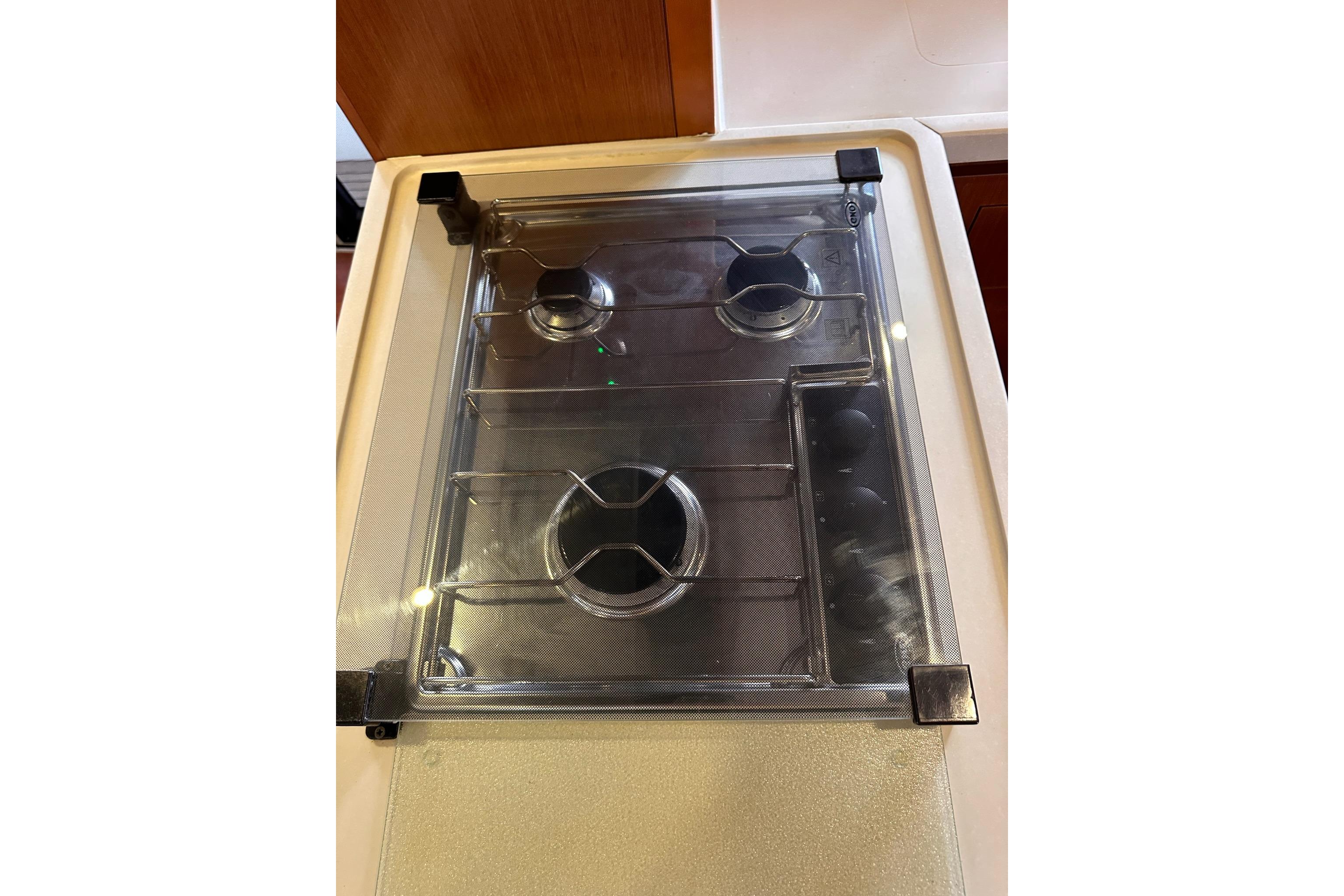

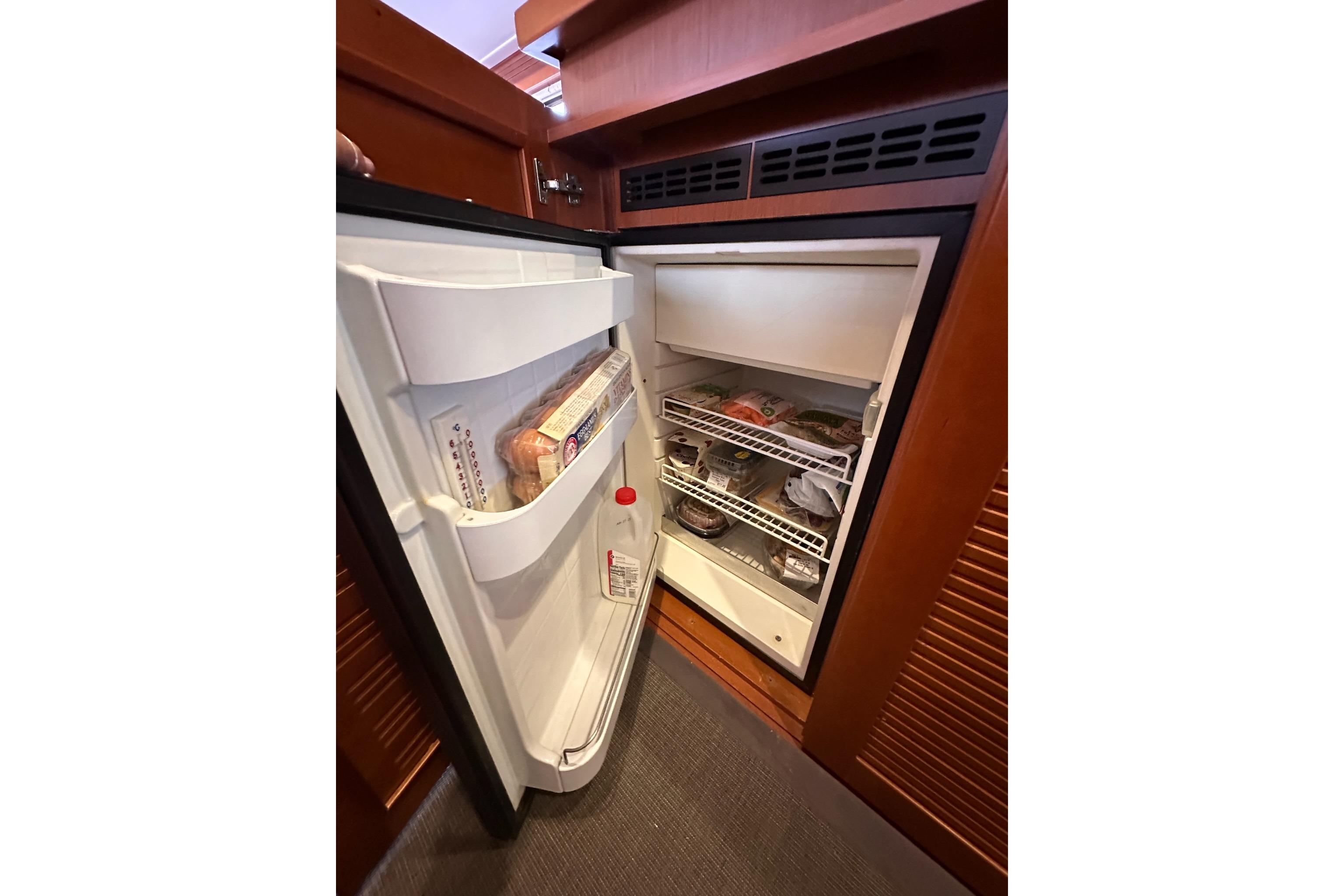

GALLEY (U-SHAPED ON STARBOARD) • Tinted glass sliding window in front of sink with wood strip blind • Resin worktop with stainless steel 2 basin sink, washing up drainer and bin access • Mixer tap with hot/cold water under pressure • 3 burner gas hob with pan holder • Gas oven • Rubbish locker accessed from alleyway • Extractor hood • Plentiful storage with cubbyholes and cutlery drawer • Hanging unit in PMMA with built-in lighting above work surface between galley and saloon • Serving hatch unit with "serving tray" • 2Built-in 130 L refrigerators in unit to port. (Possible to have one of the two replaced by a drawer refrigerator with 60 L fridge and 84 L freezer as an option), wood unit to starboard) • Spotlights LED, Sockets 220V • Stacking storage on fridge unit to store small electrical goods

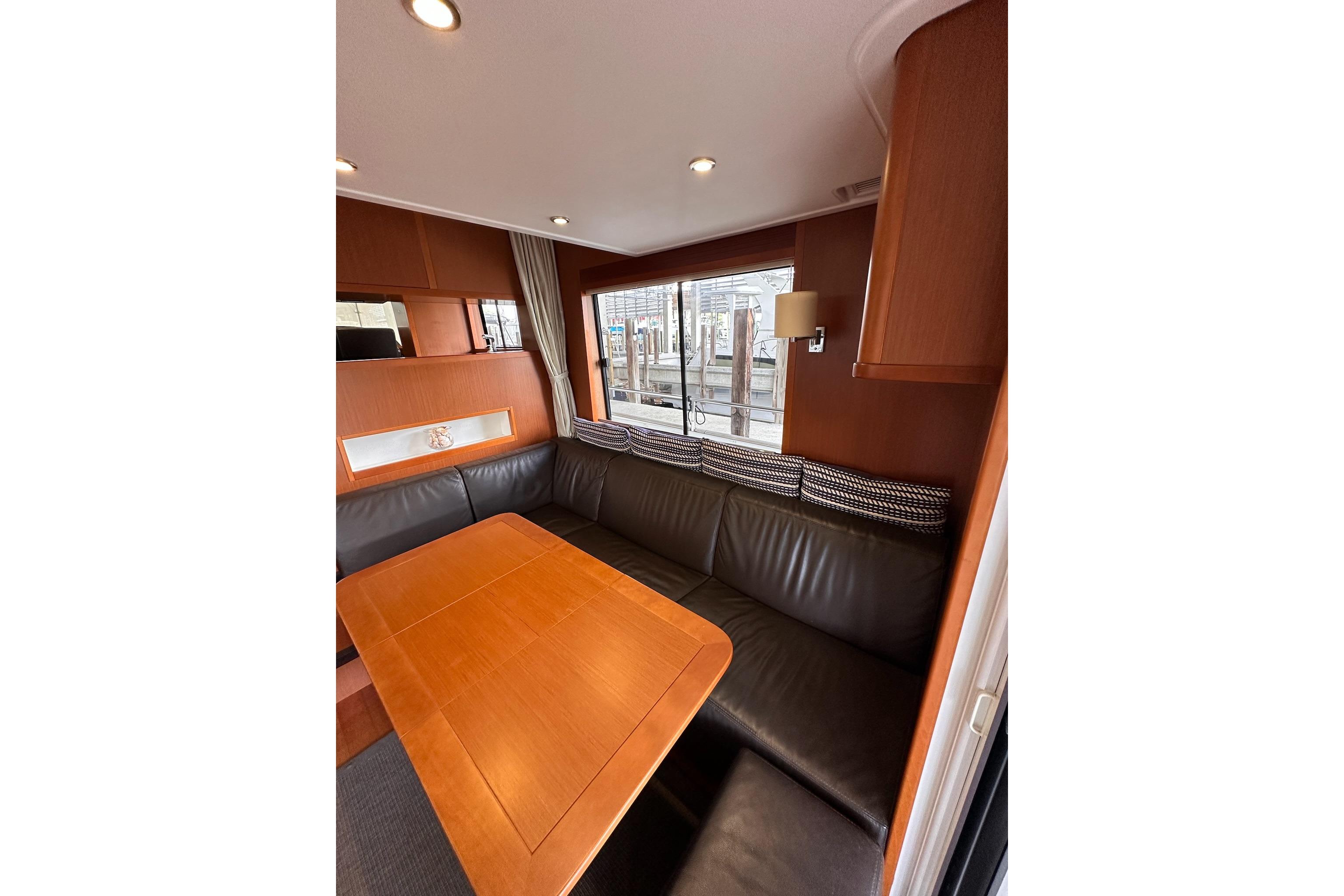

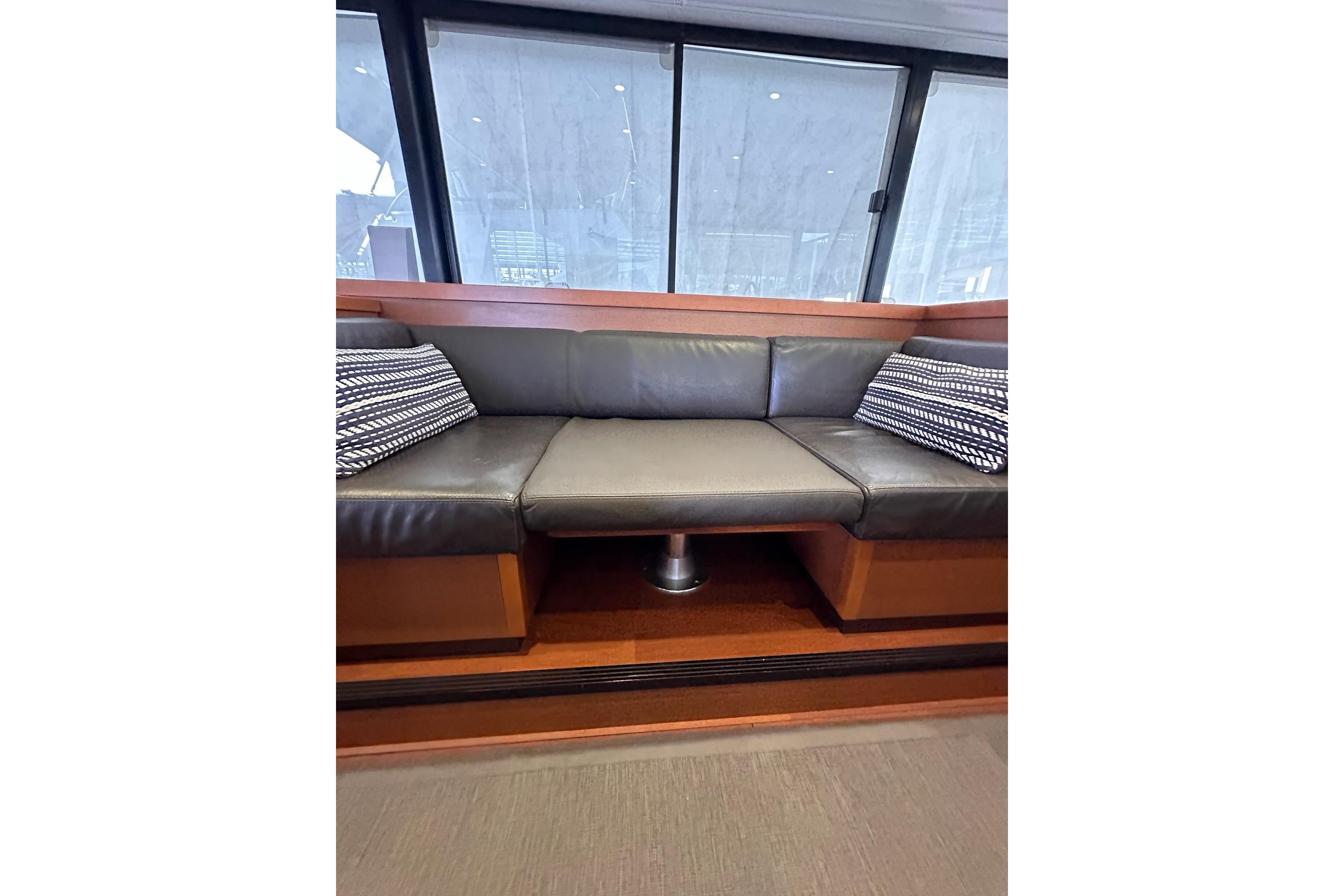

DINETTE / SEA BERTH • Alpi table with adjustable foot, convertible to bench seat/berth • Storage for extra seat • Storage for extra backrest • Sliding window in non-tinted glass • Storage under bench seats (depending on options)

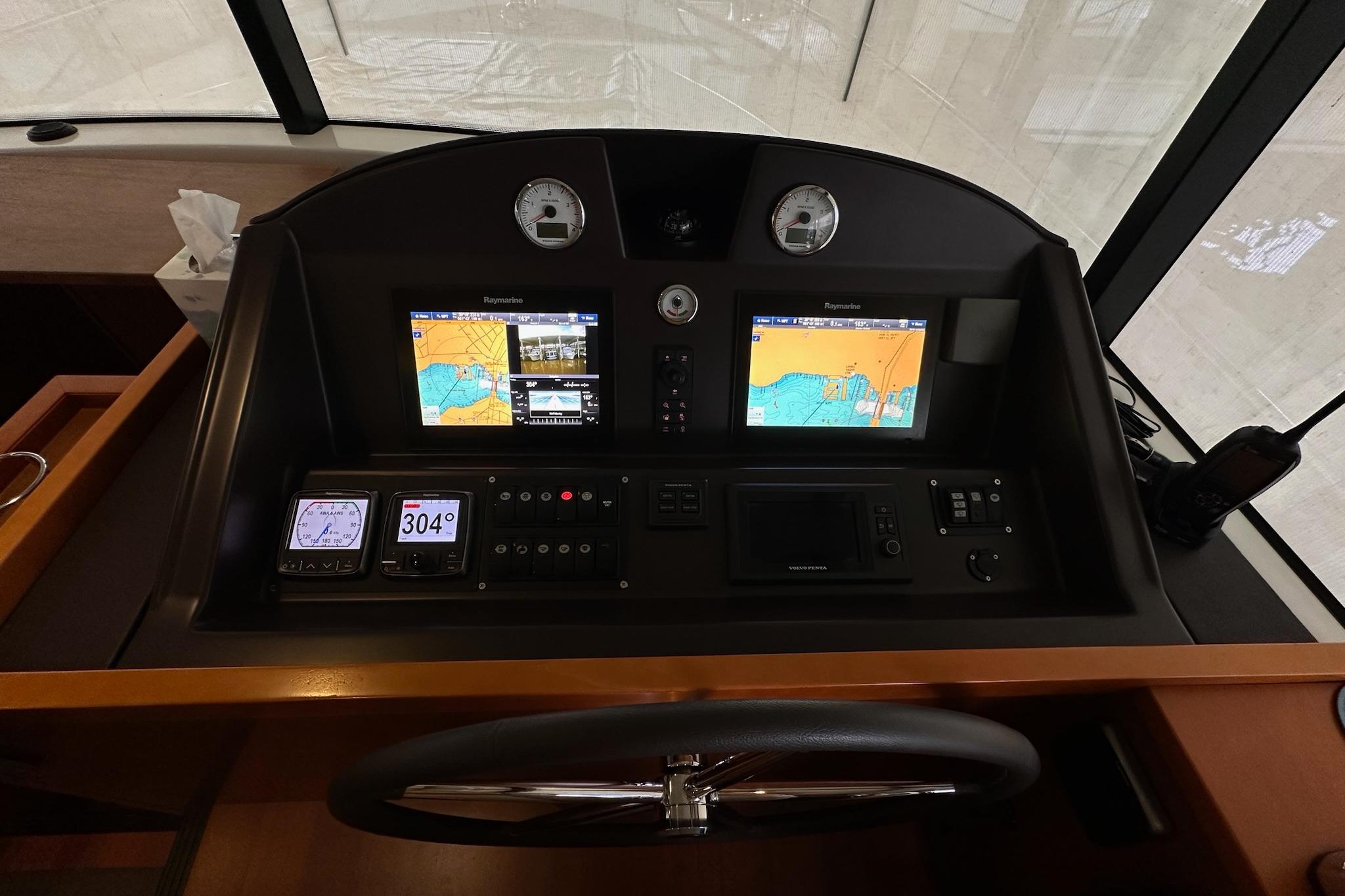

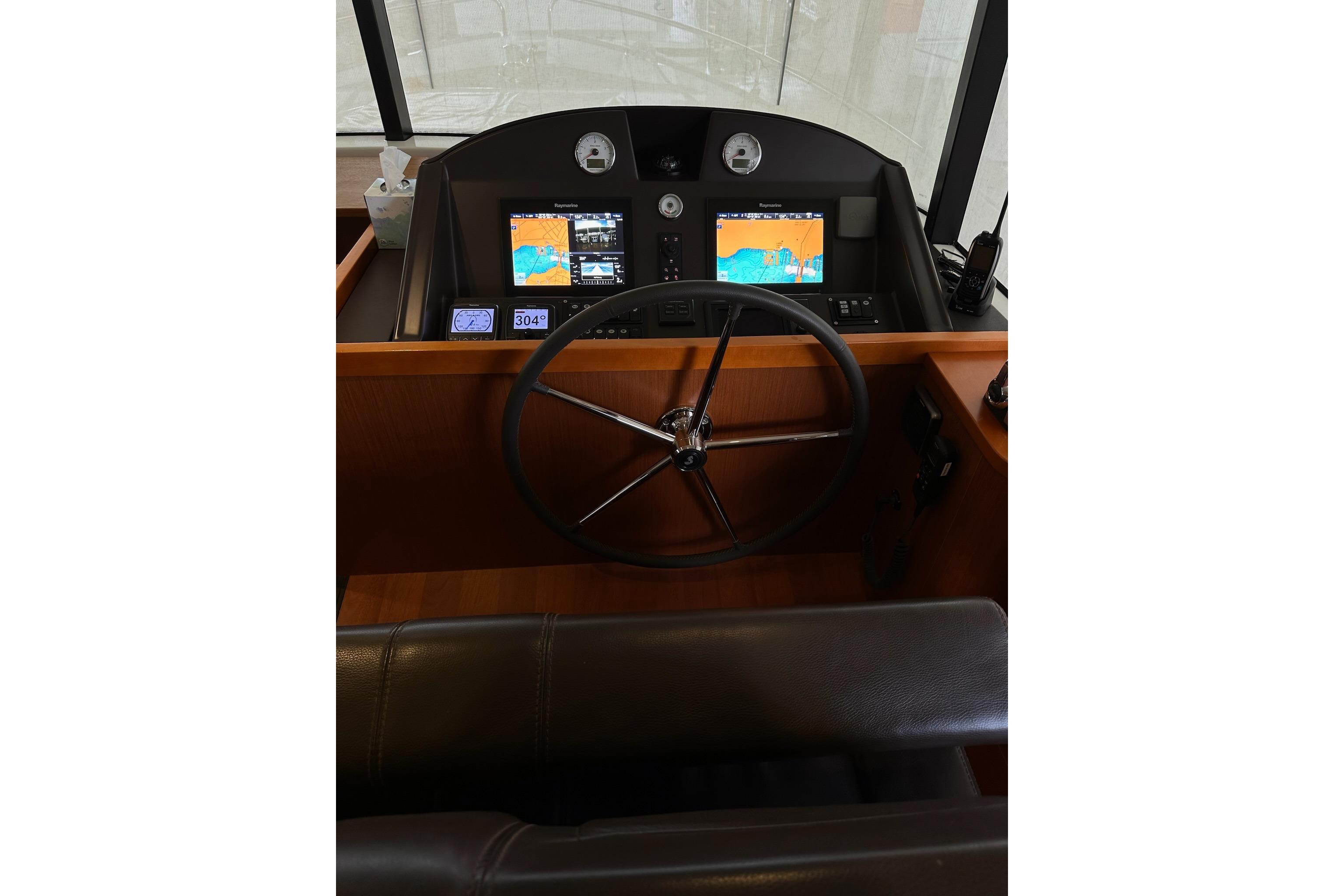

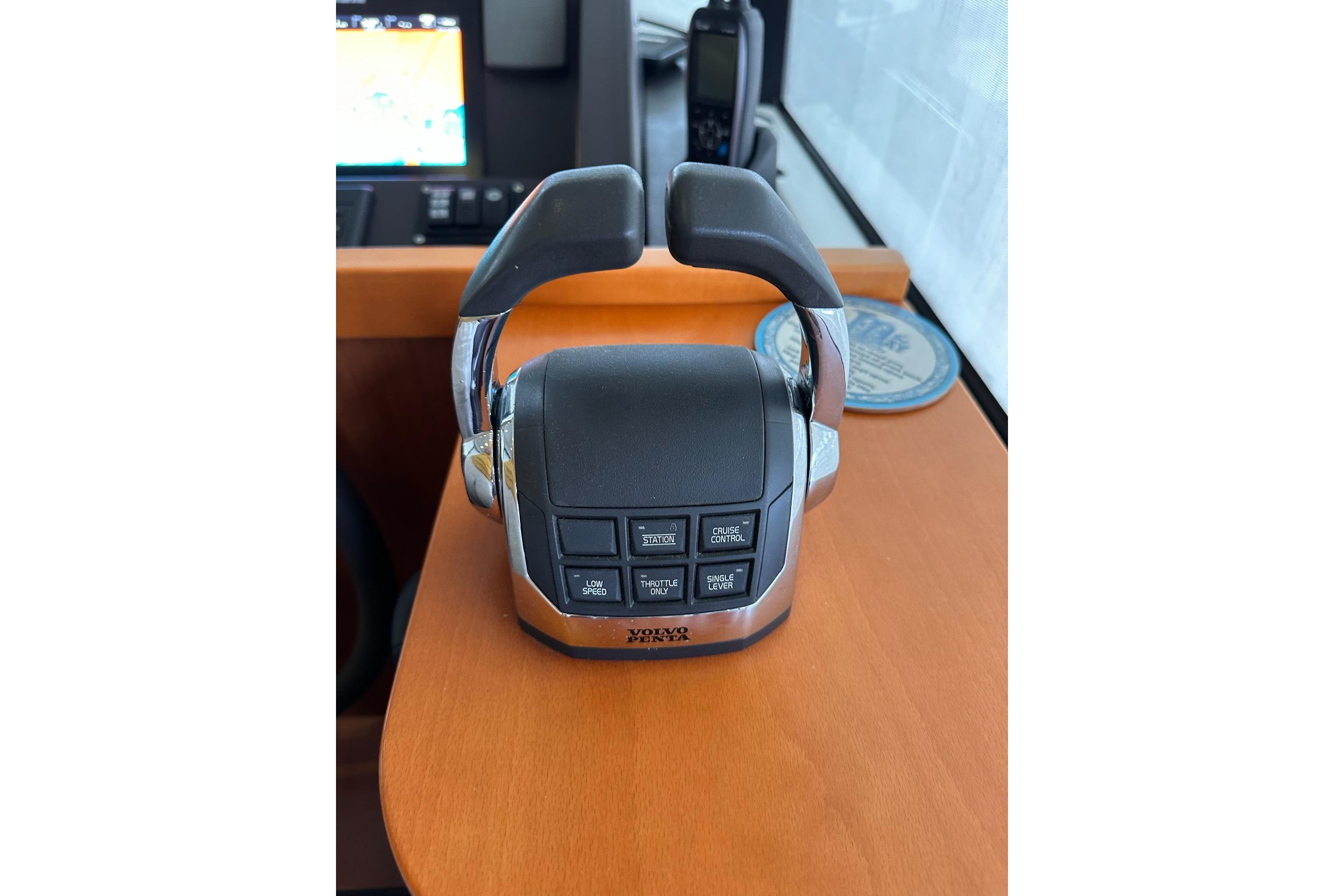

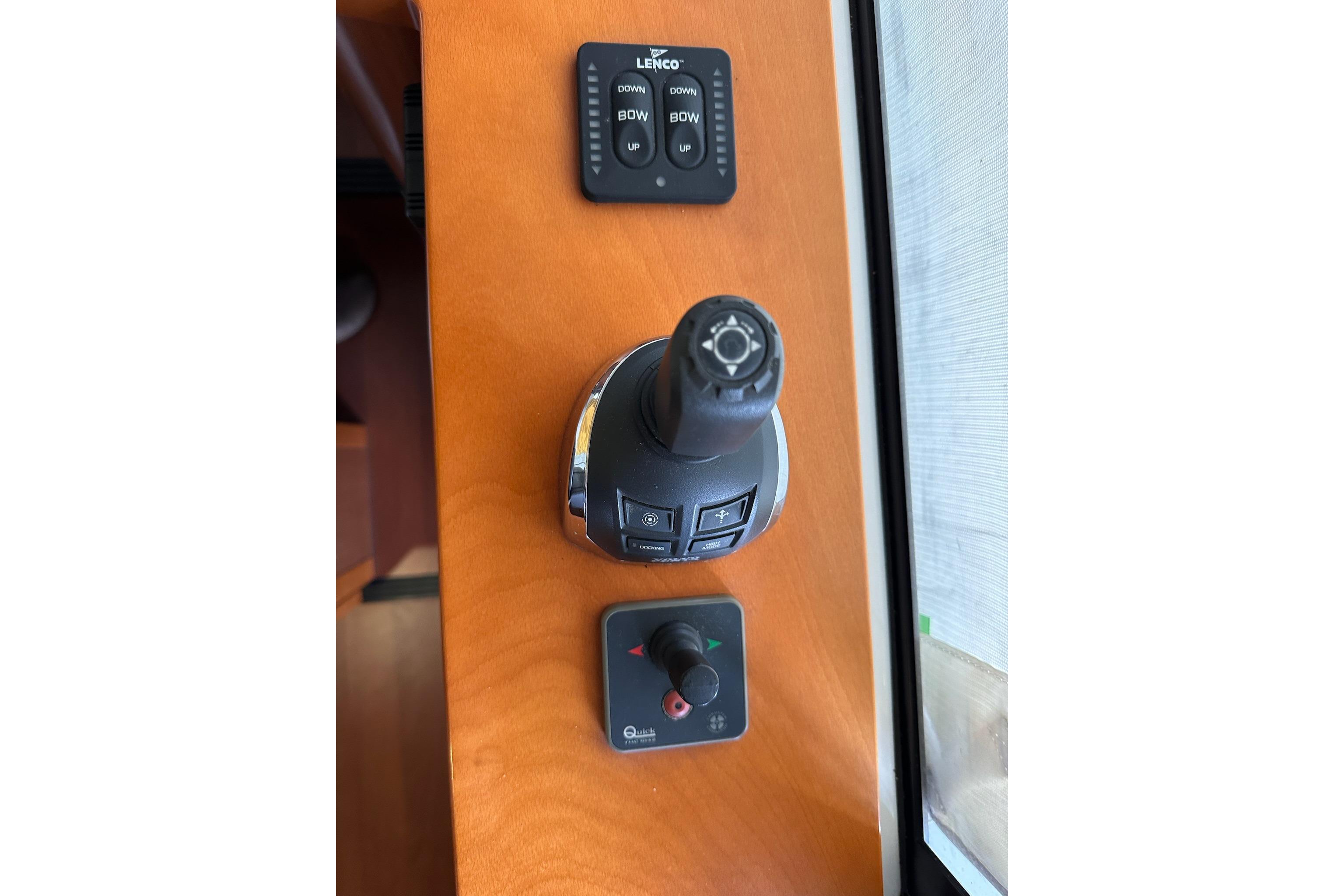

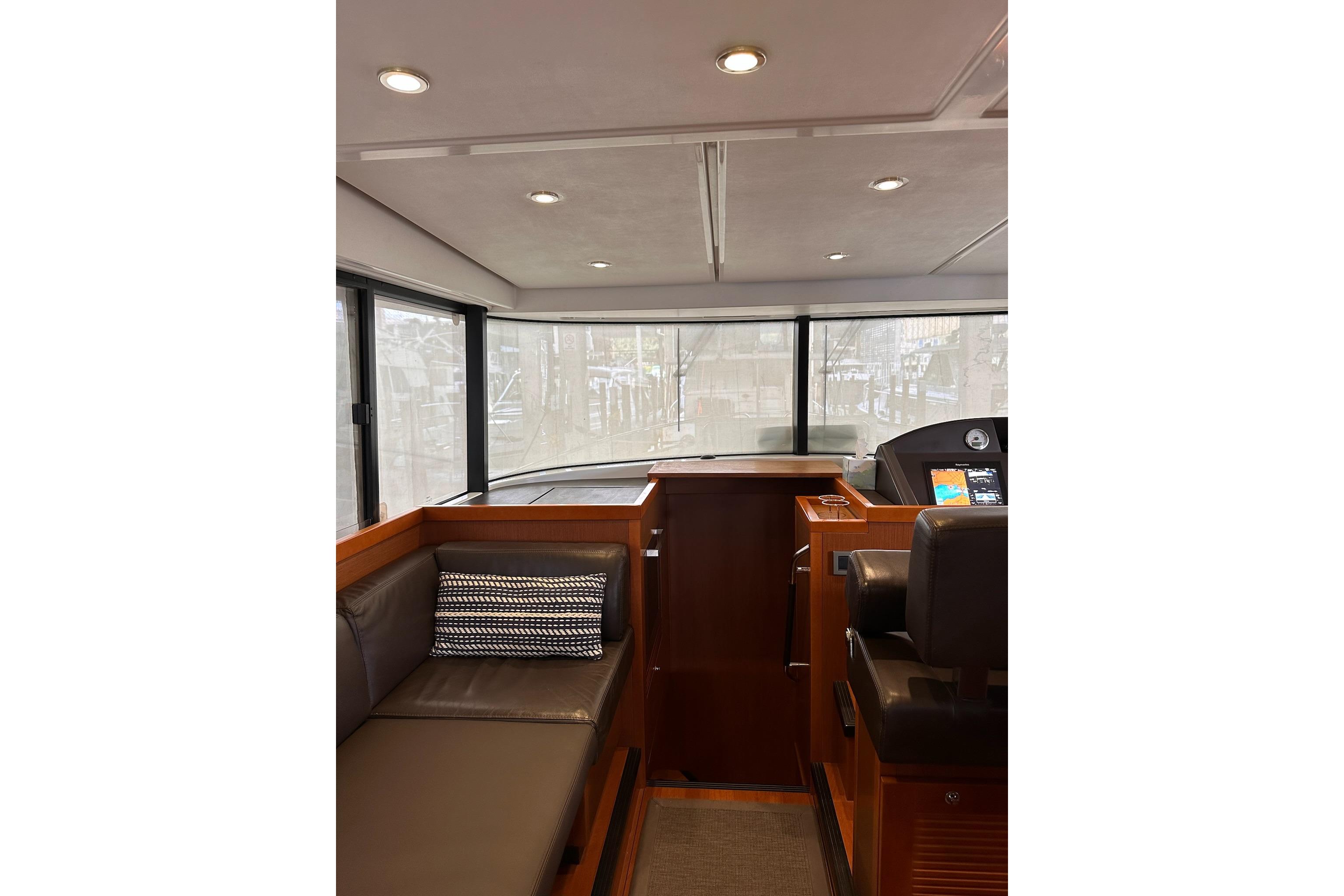

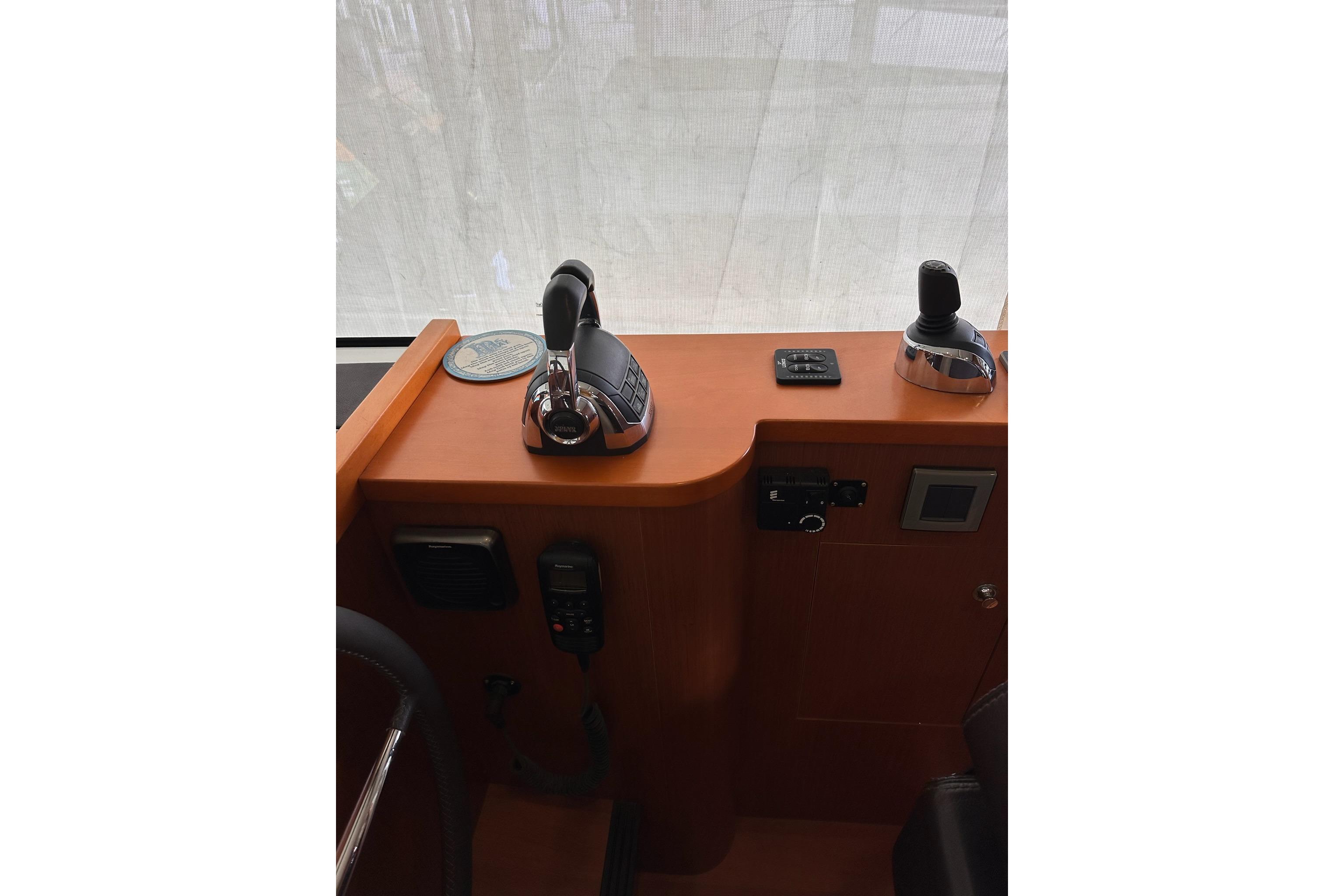

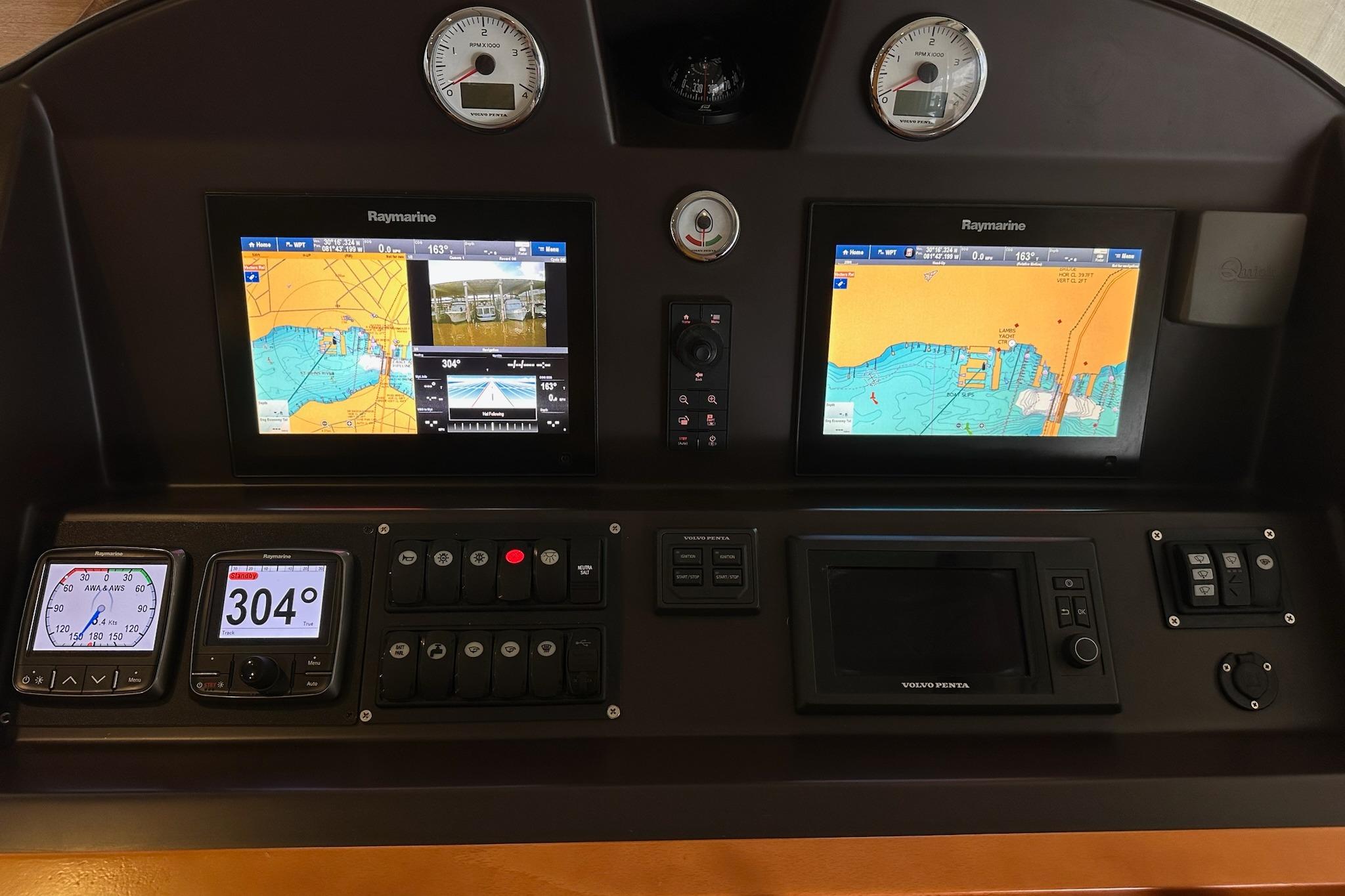

STEERING STATION • Raised steering station • Fresh air intake can be shut off manually from the helm station, electrical with controller on dash board • Glass holder (2) • Ergonomic helm console can be raised on gas struts for access to the connections / Space for navigation electronics (up to 2 Raymarine® GS12 navigation displays), Engine instrumentation • Lighting for night sailing • Windscreen in non-tinted glass with demister • 3Windscreen wipers with washer and synchronization system • Sliding door for access to main side deck with latching system to hold it partially open • 2Fixed windows on both sides of the wheelhouse, non-tinted • Cupboard for 12V, 24V, 110V and 220V electrical circuit management • Adjustable driver's seat on storage unit • Leather covered steering wheel in stainless steel, Diameter 70 cm • Electric steering • engine repeaters with rev counters, pressure and temperature indicators fuel gauges • Volvo EVC screen (with additional software as an option) • Tiller angle indicator • Flap indicators • Electric engine control levers • IPS control joystick • Steering compass • Functional controls: Wiper, Demister, Fog horn, Navigation lights, Windlass • Shelf for storage on portside with 3 x 110V or 220V sockets

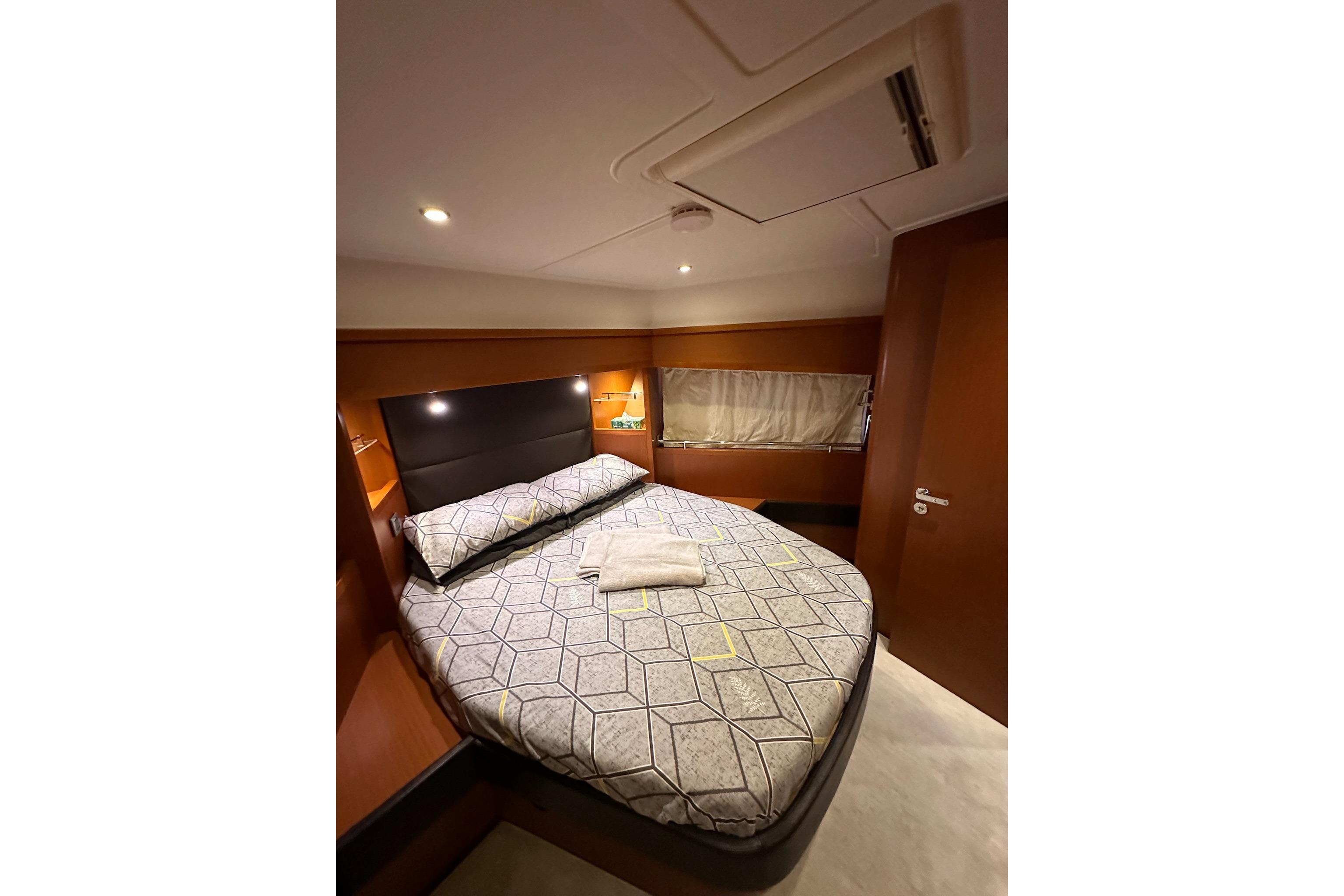

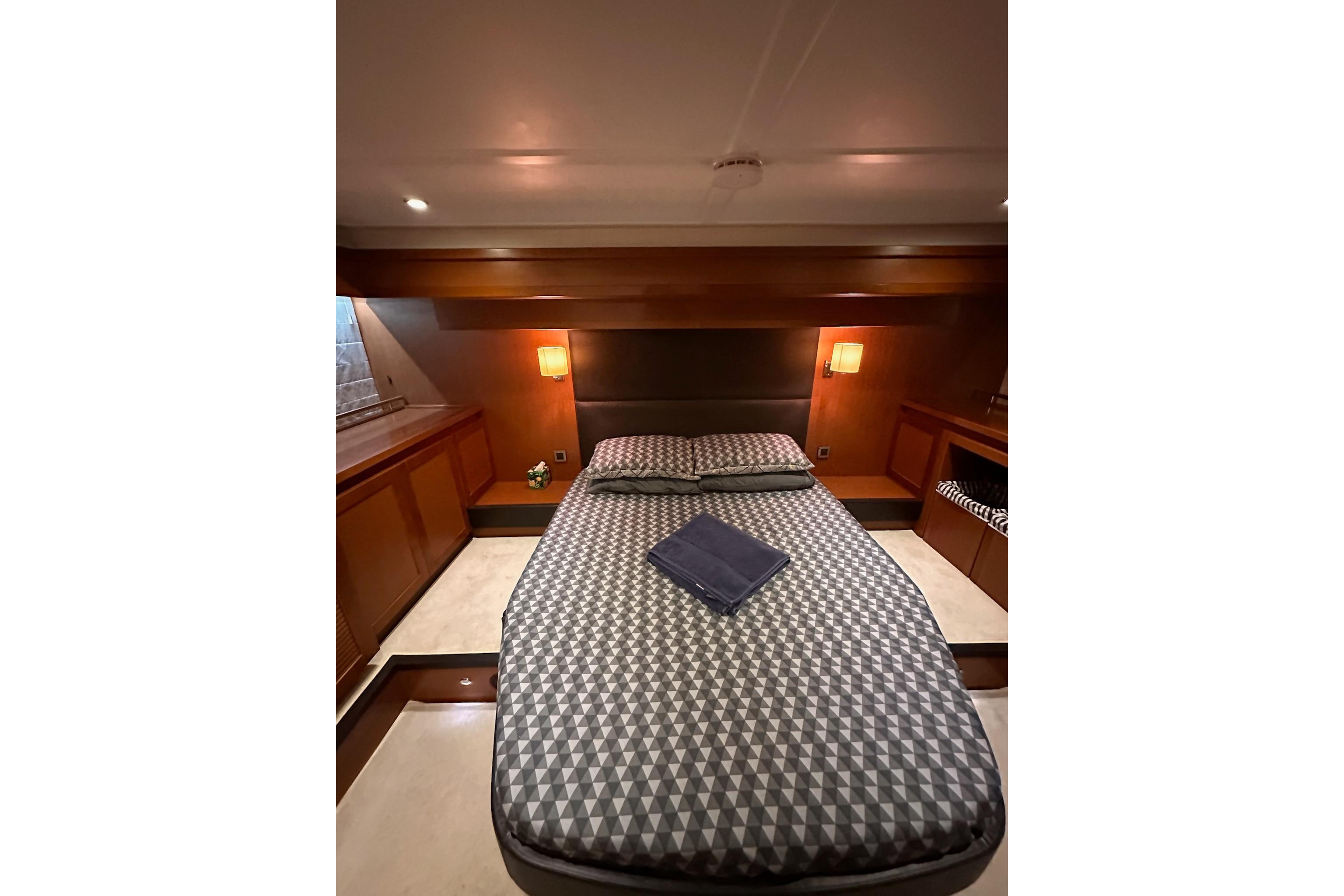

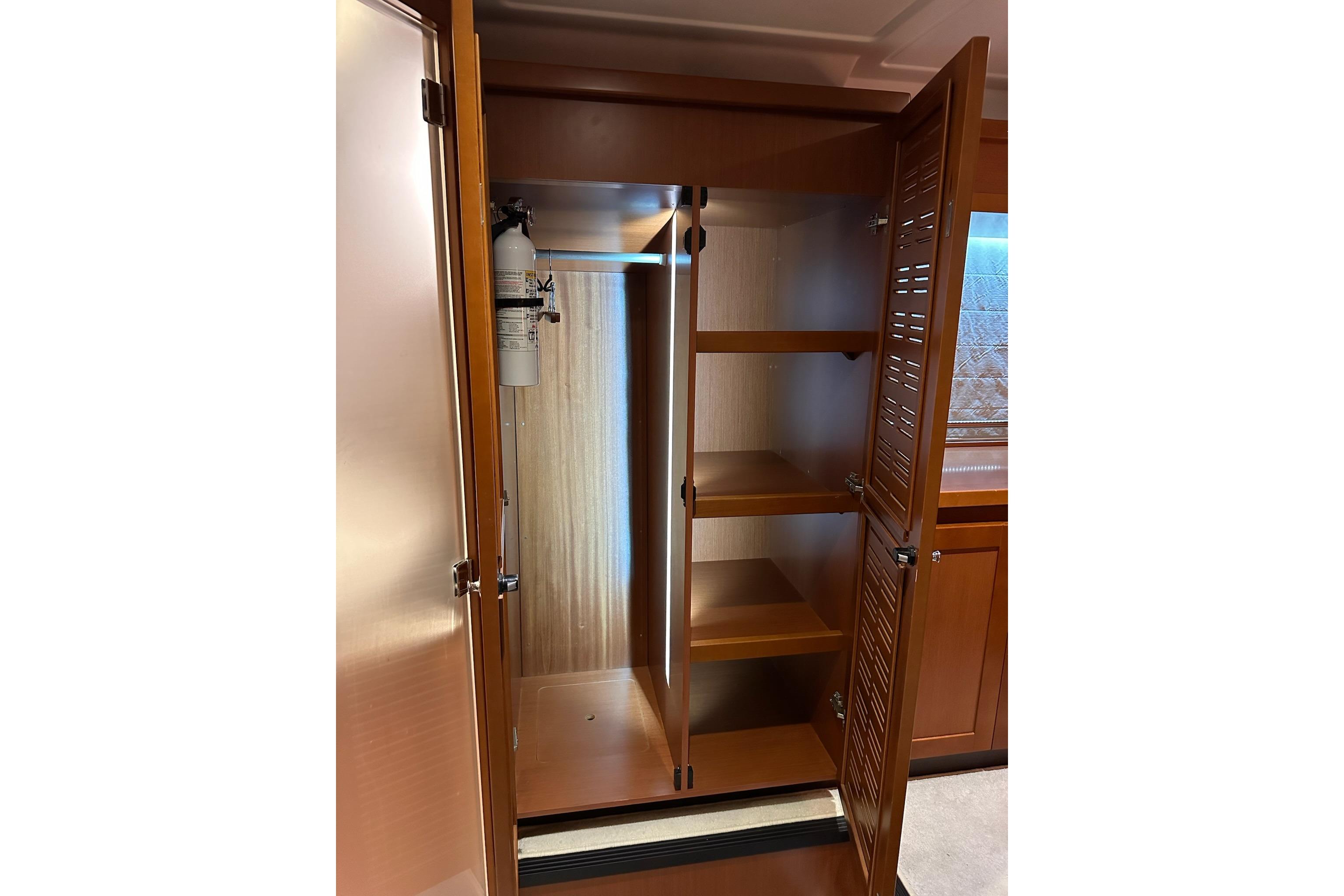

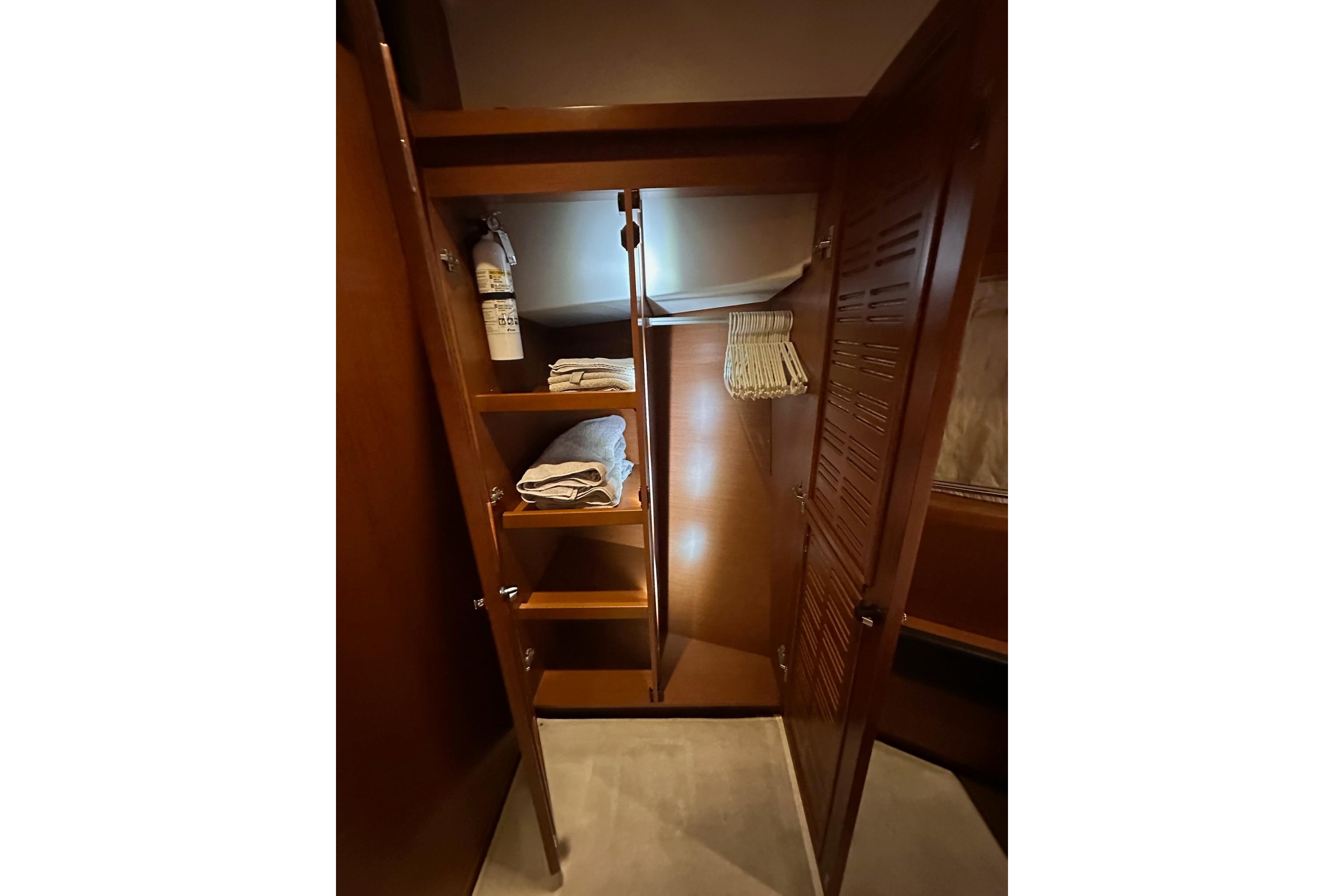

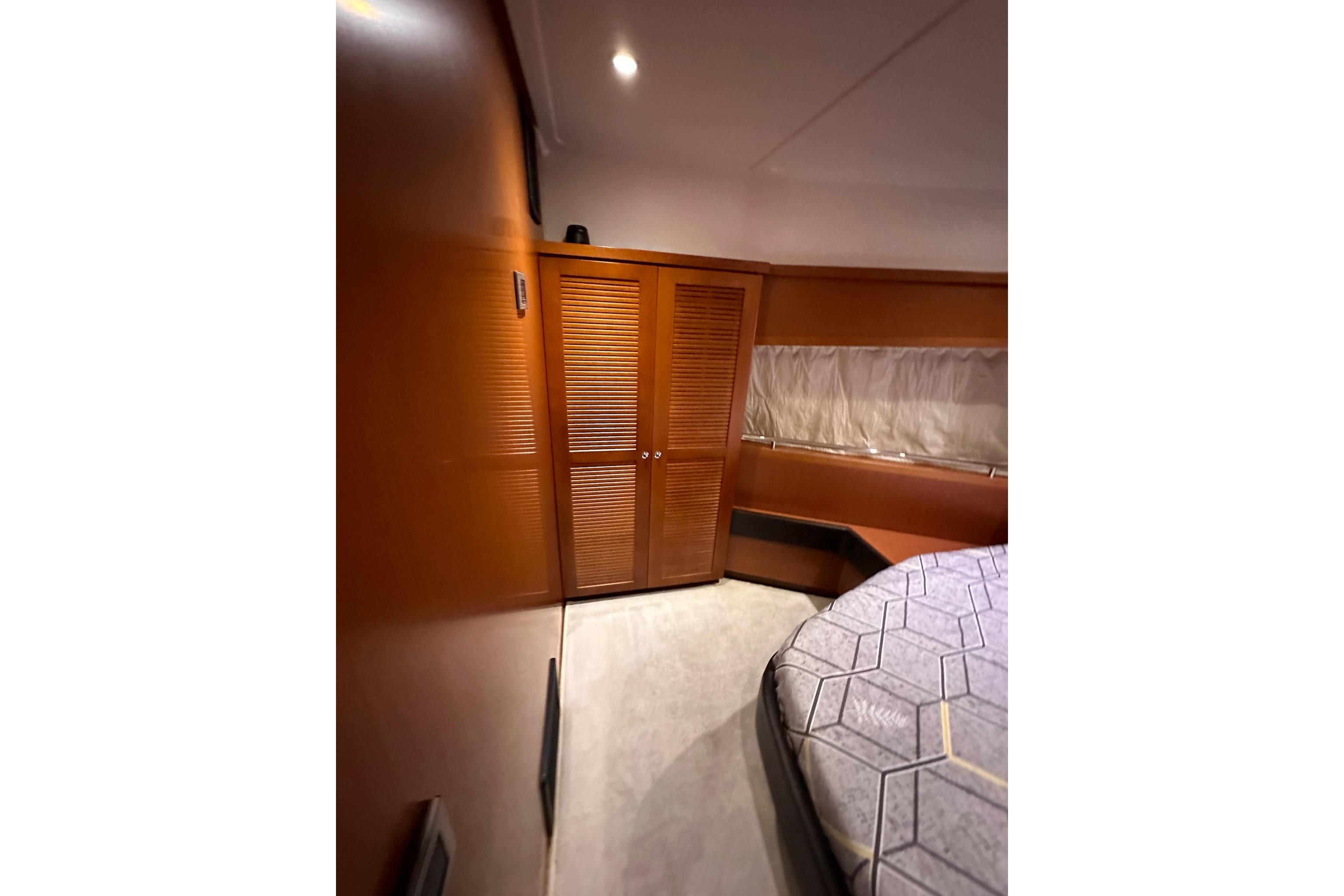

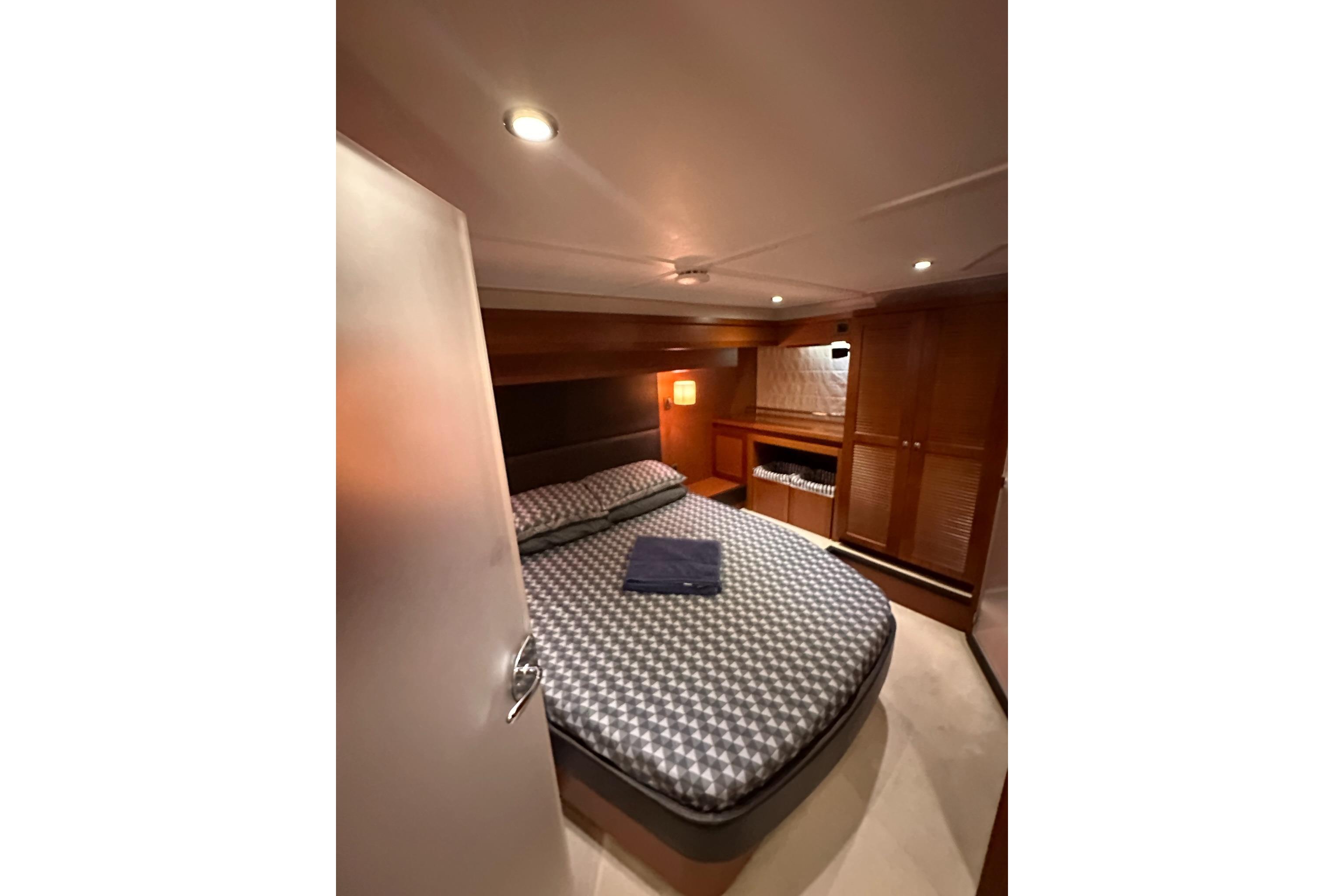

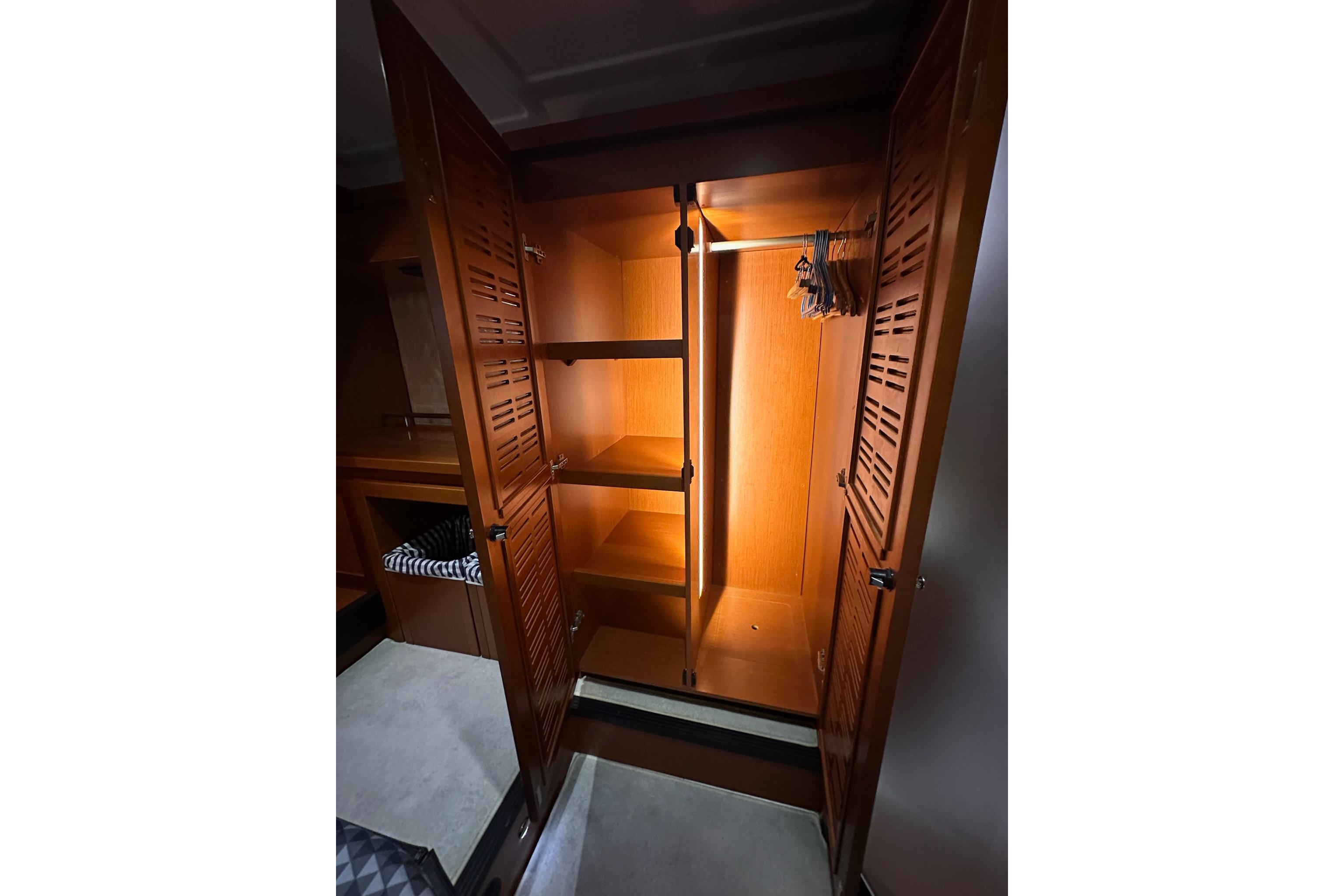

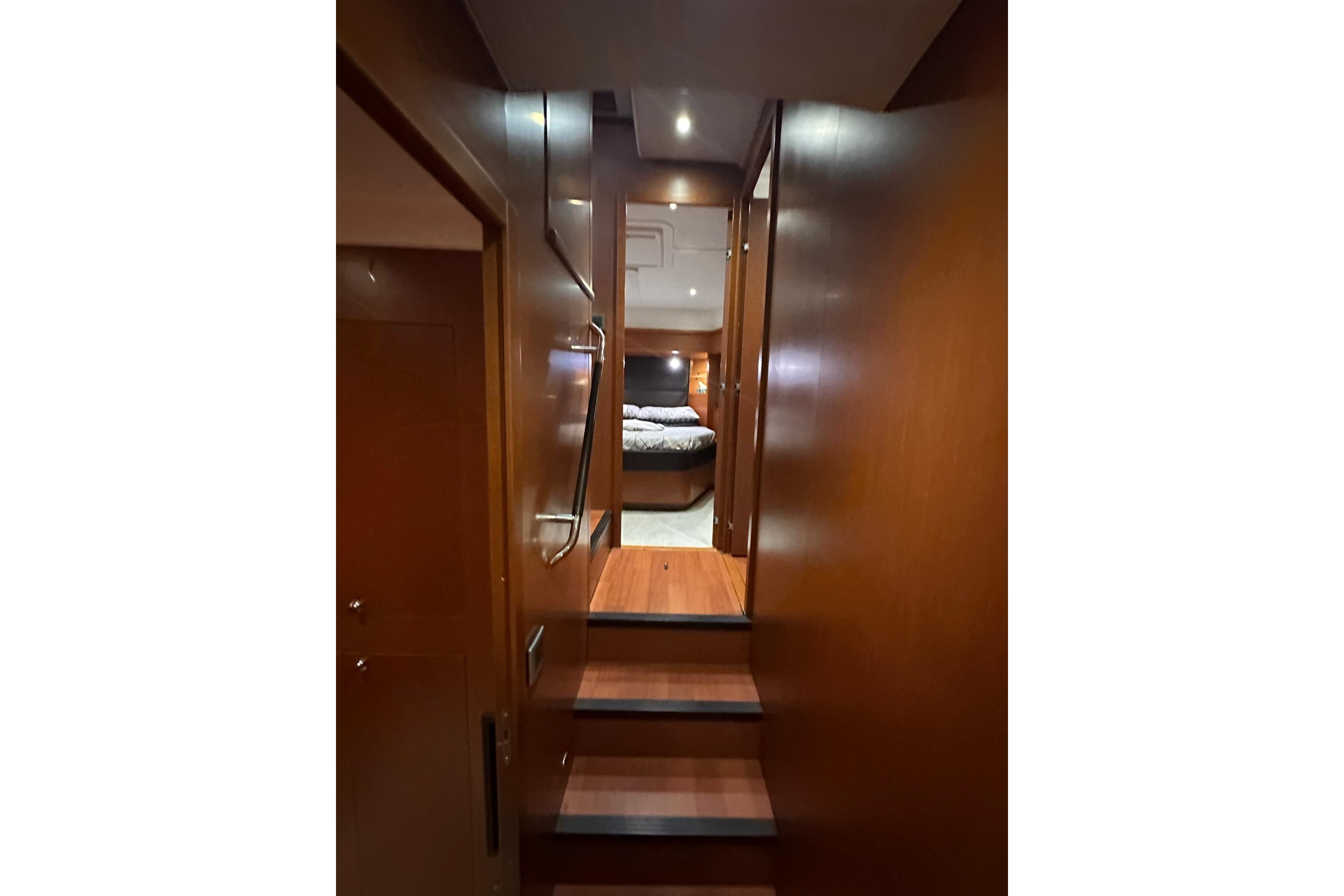

FULL WIDTH OWNER'S CABIN • 2Panoramic opening porthole-fitted portlights with blinds • Central double berth with slatted base and marine mattress, mounted on gas strut with storage • LED deckhead lights, indirect LED lighting, night lights to steps and bedside lights • Two large, illuminated wardrobes with hanging locker and shelving •Drawers • Full height mirror on door • Leather covered stainless steel handrail • Desk and seating to port with 110V or 220V socket • Access door to private bathroom • Access door to private toilets • 110V or 220V socket

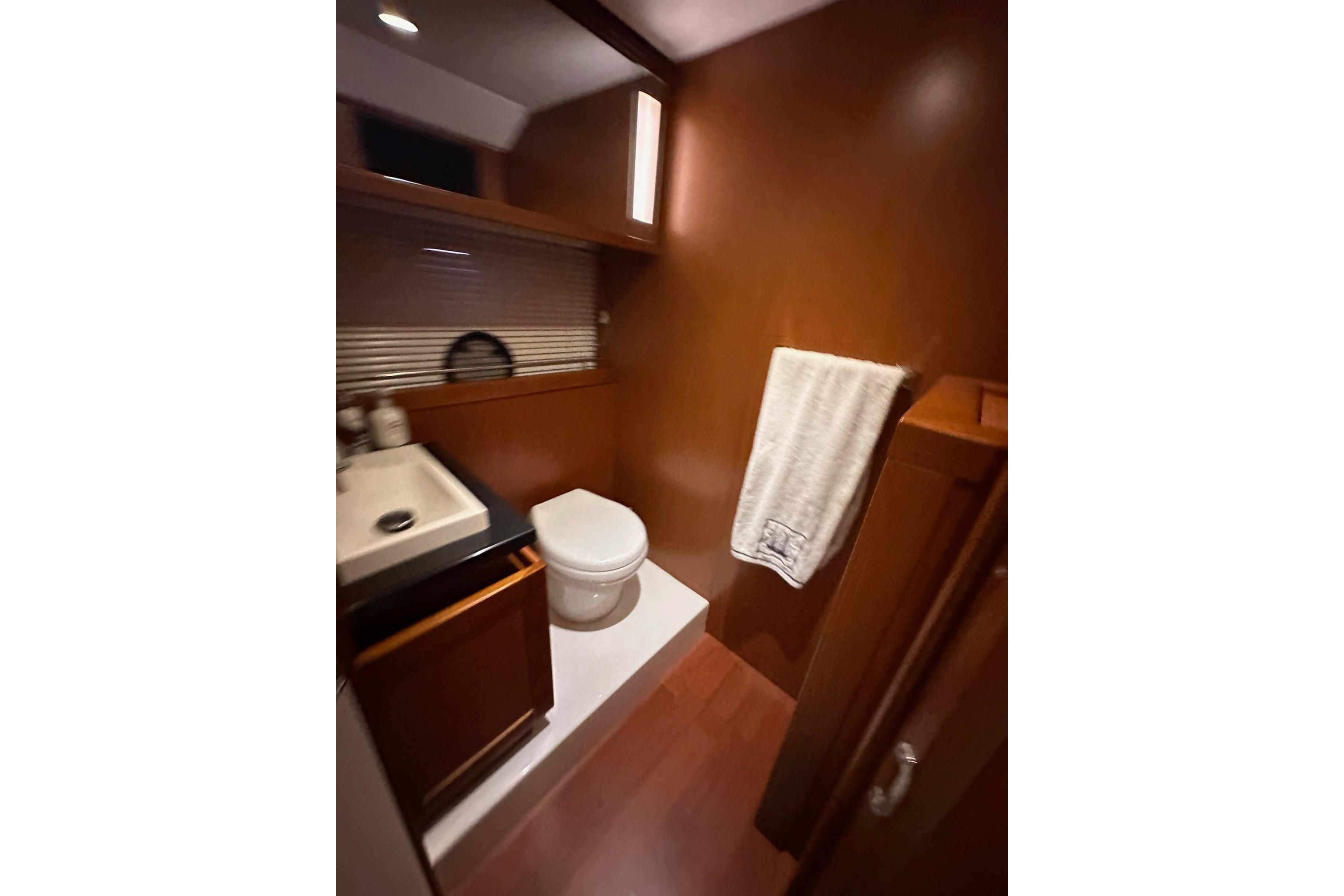

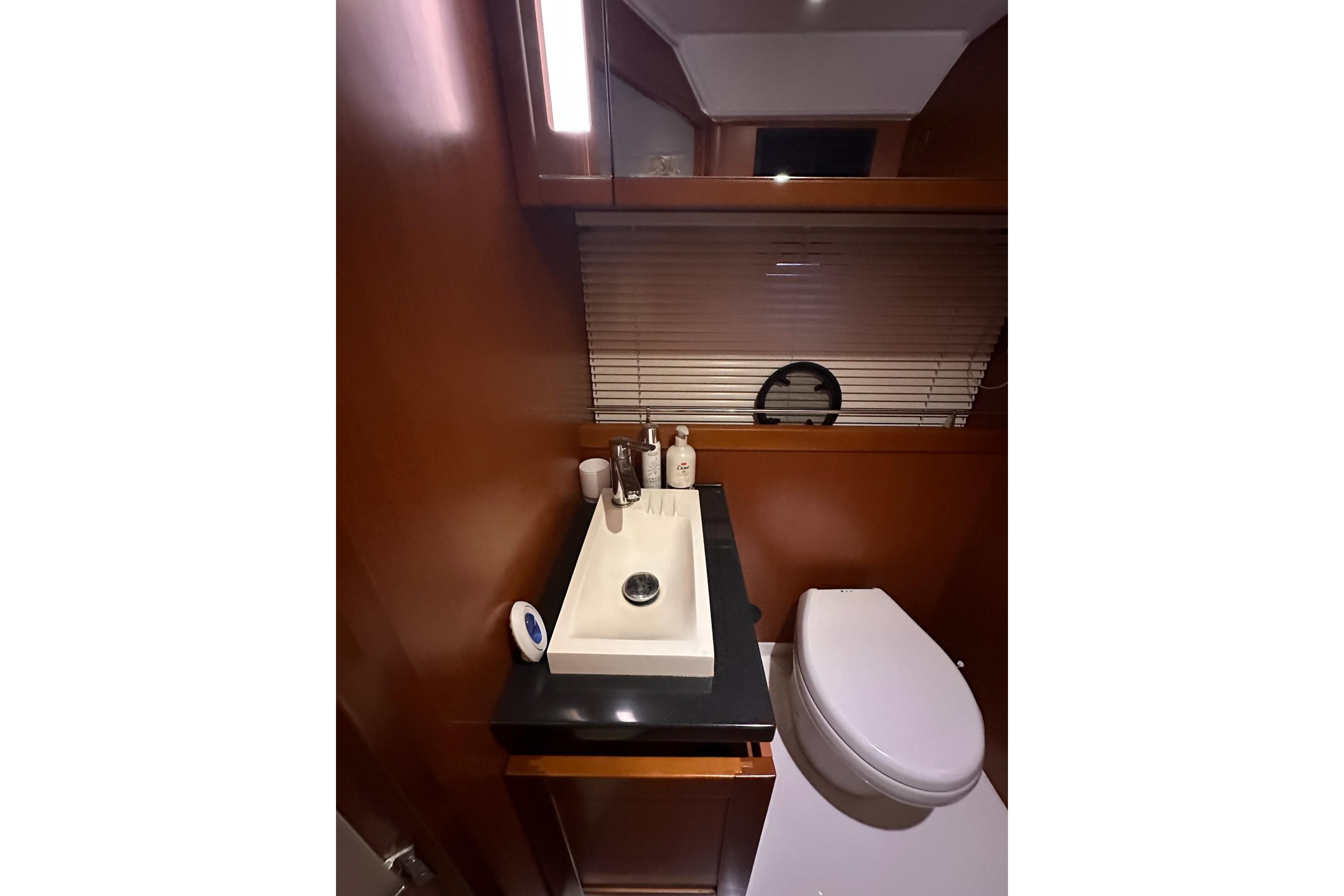

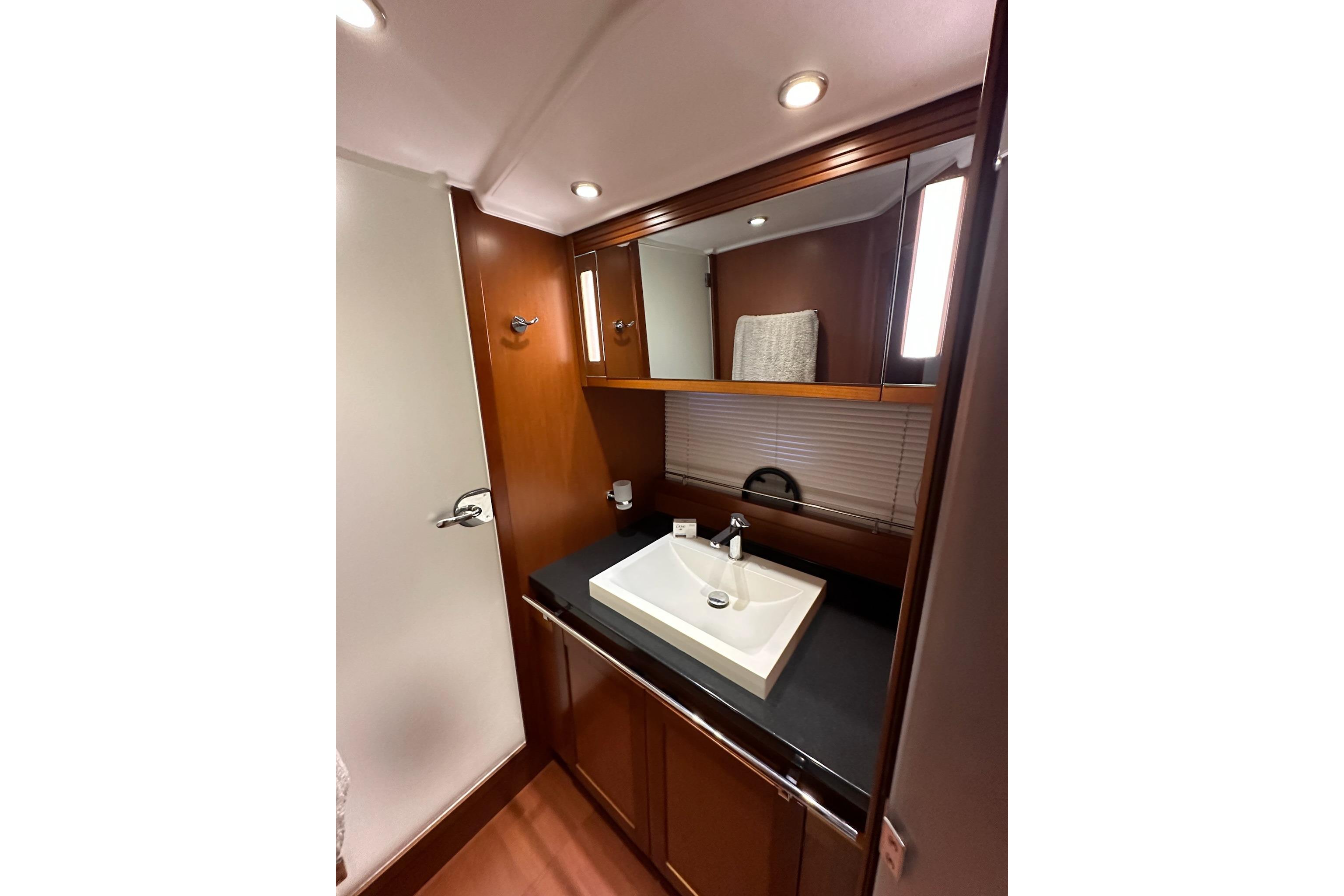

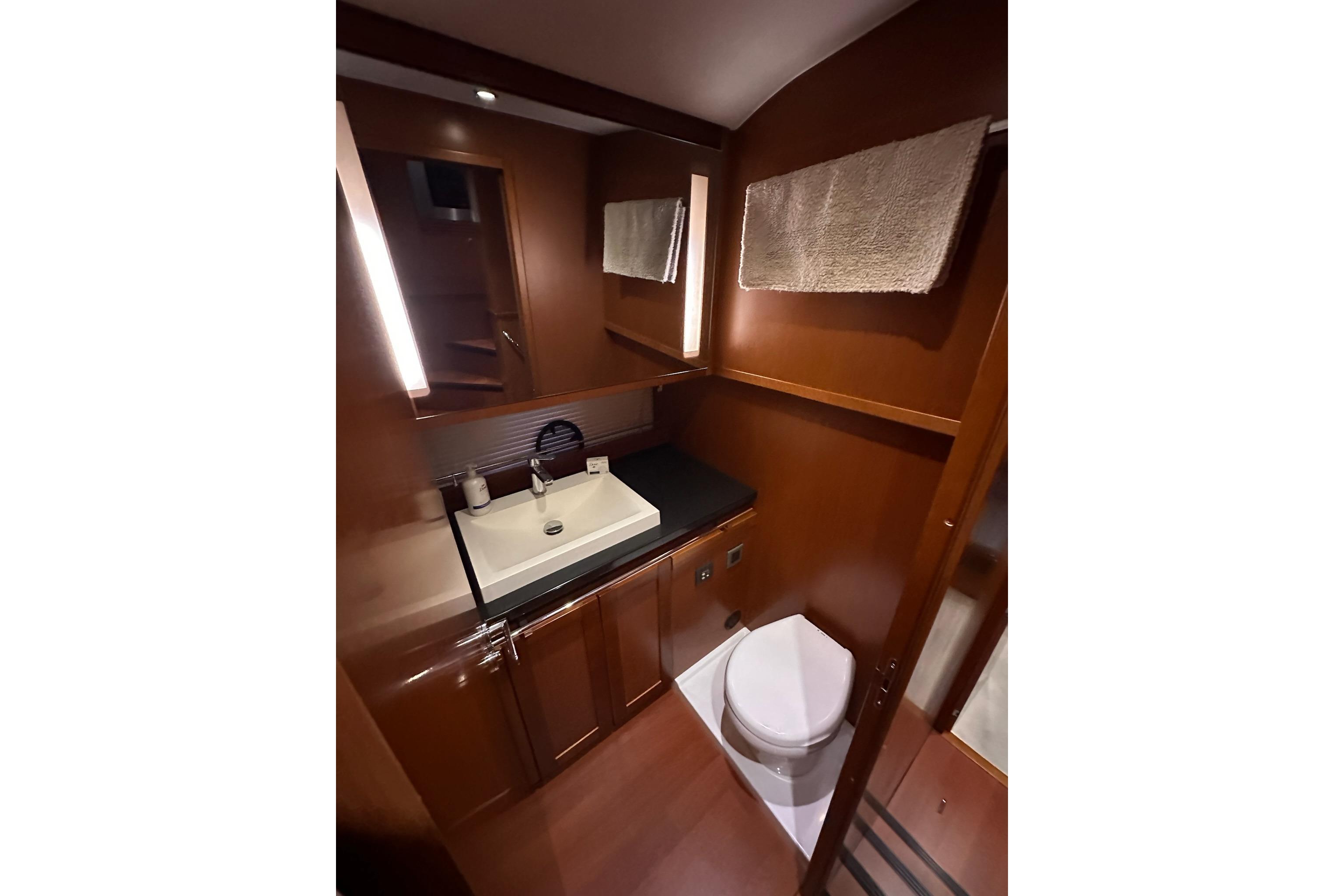

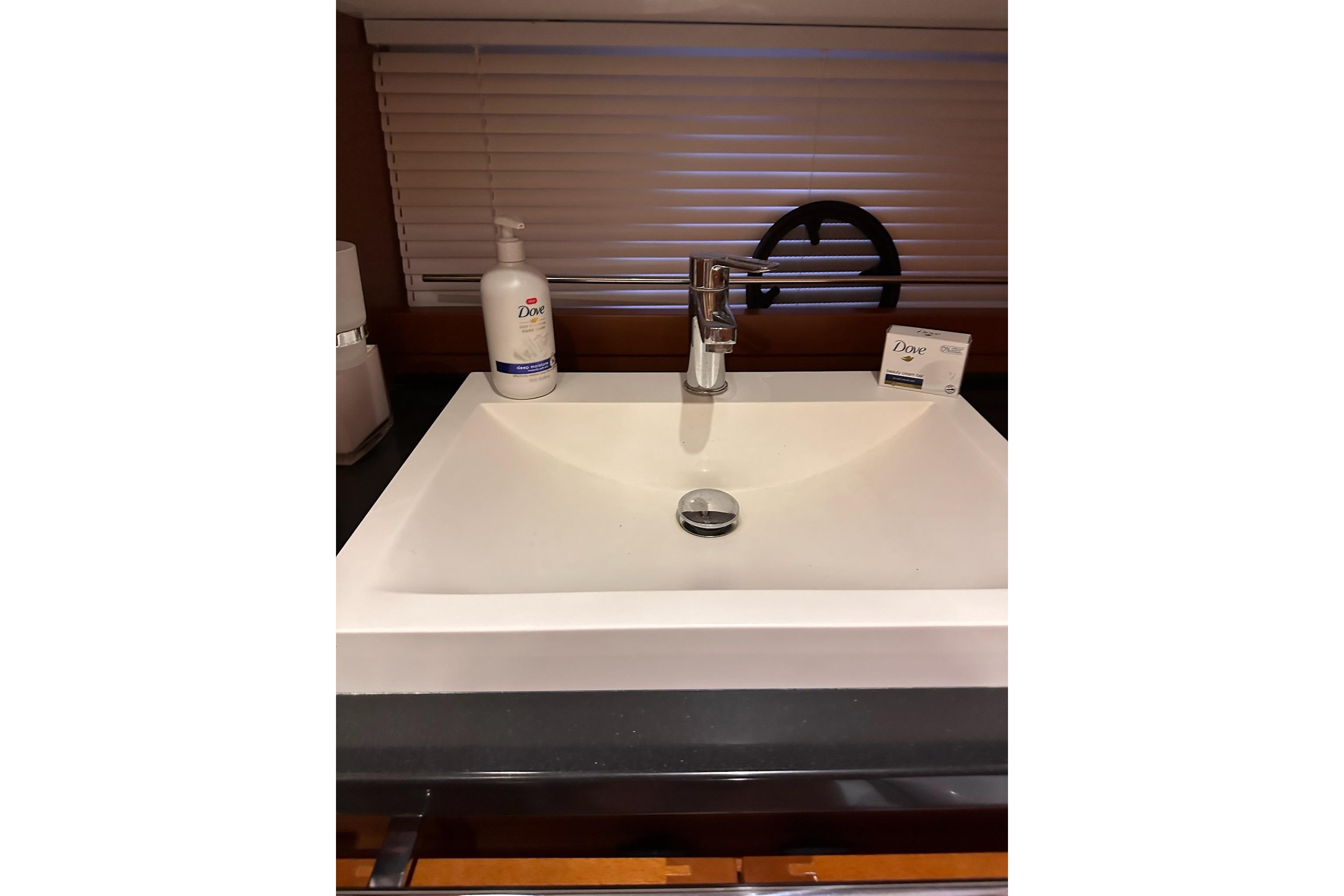

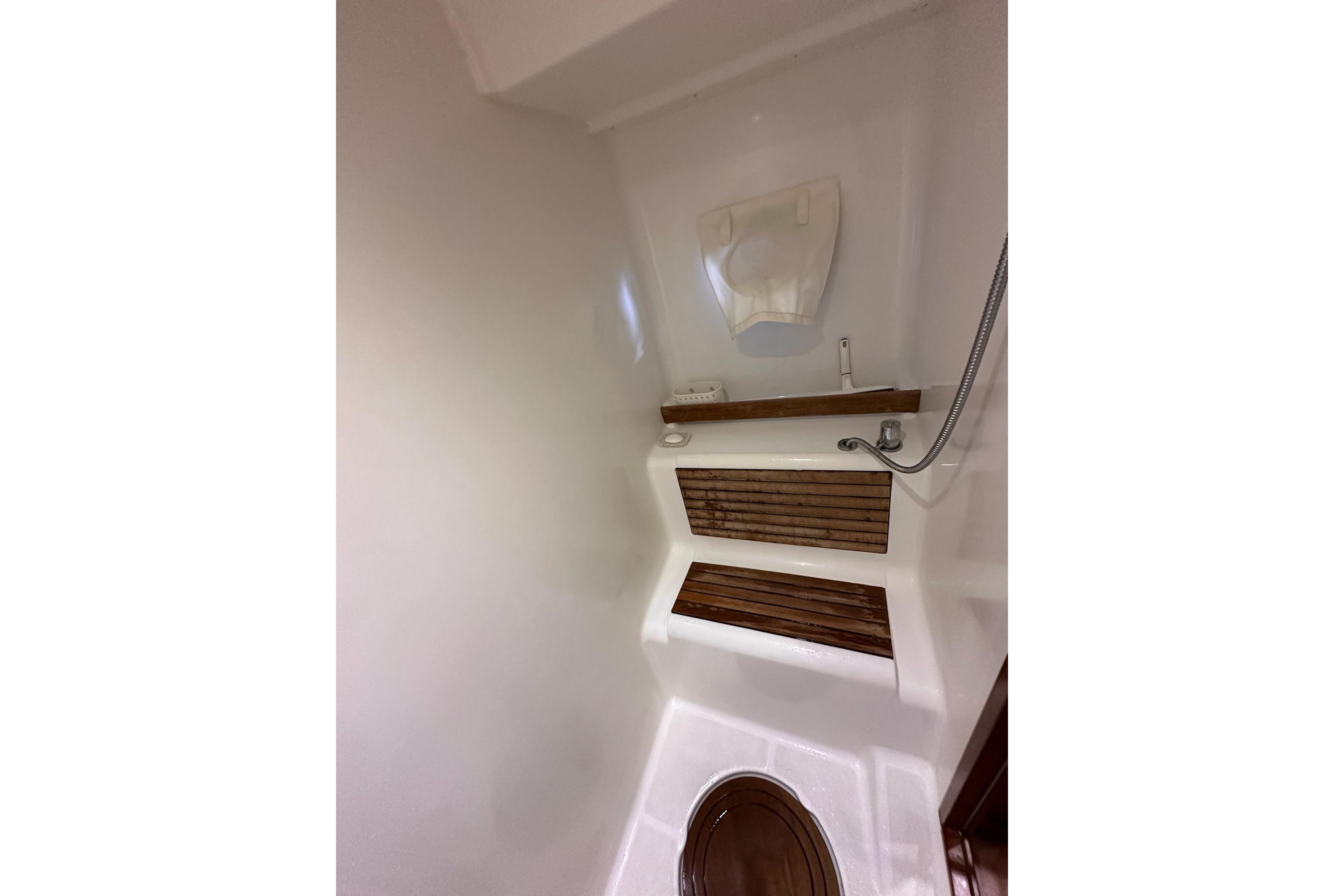

PRIMARY TOILET • Electric Vacu-flush toilet with sewage tank in cockpit • Hand basin • Magazine storage console, Towel rail • Shower compartment with full inner moulding • 80 L water heater / 21 Us Gal • Teak slatted, built-in seat • Sockets 110V or 220V • Aluminium strip blinds • Opening hull porthole • Waste water drained by gravity to buffer tank (50 l / 13 US Gal) • Electric Vacu-flush toilet with sewage tank in cockpit (Guests washroom) • Opening hull porthole • Thermostatic mixer tap with hot/cold pressurized water supply, in showers area • Mirror with back lighting • Toilet accessory rack • Hooks for towel/mitt • Towel rail (Aft washroom)

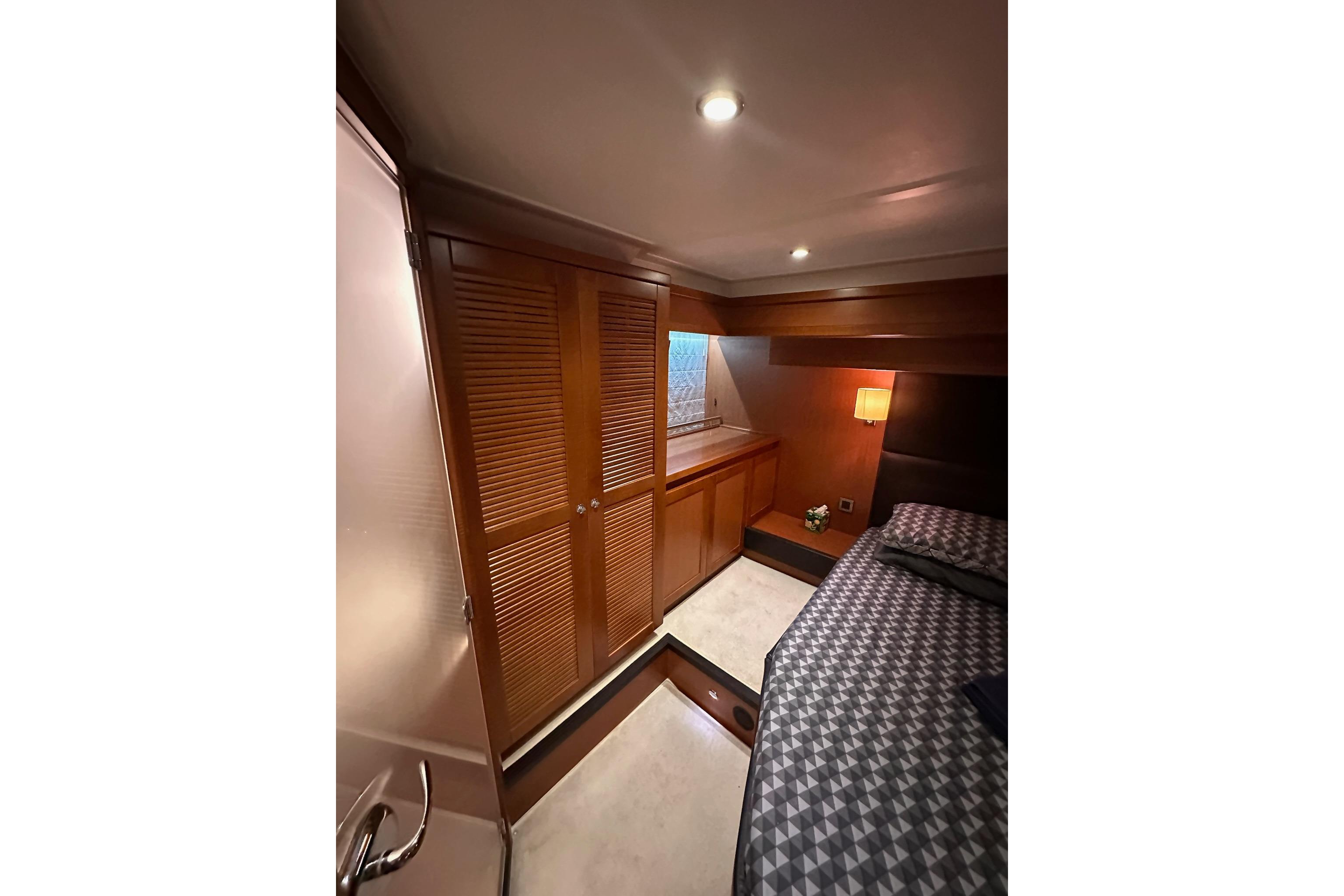

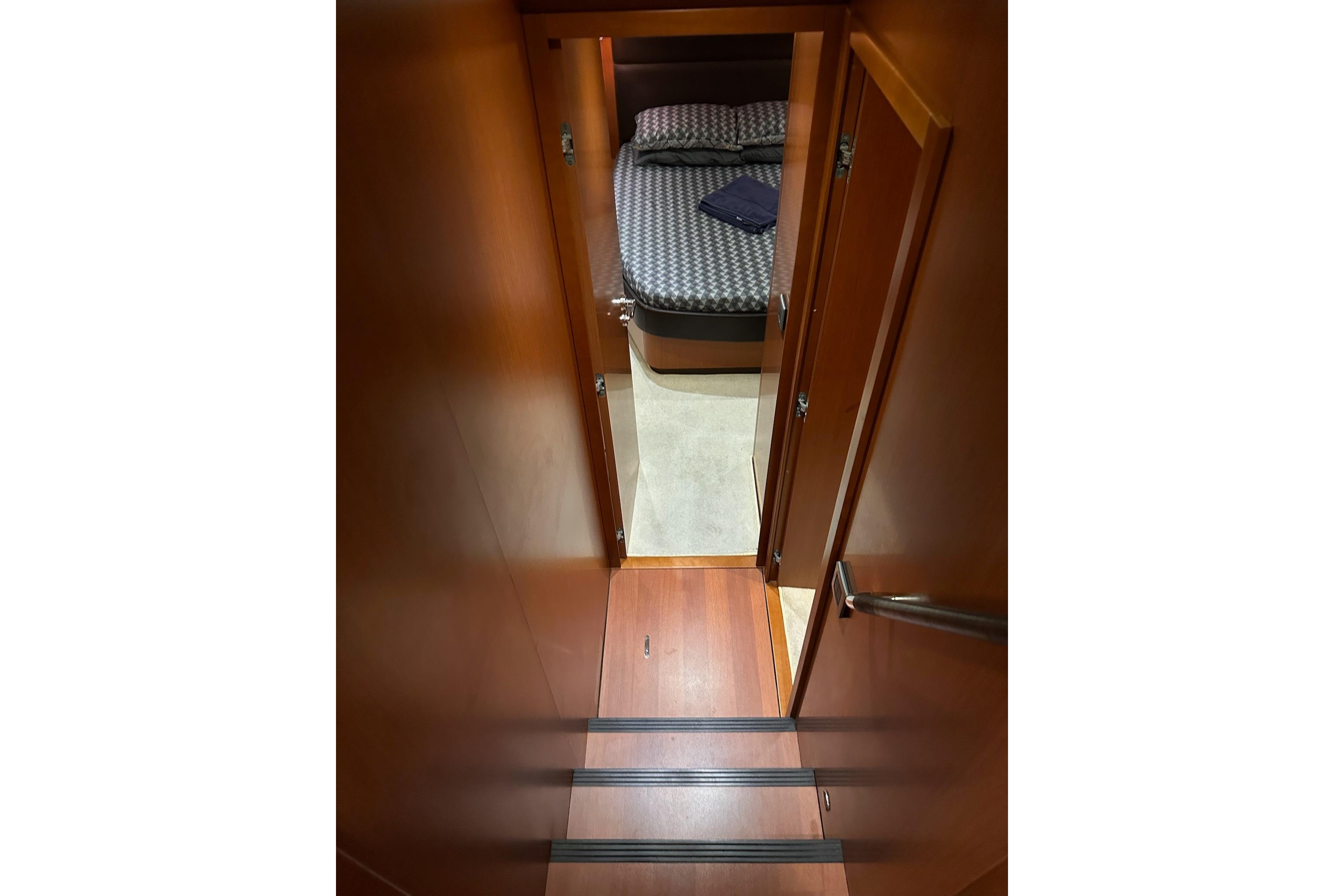

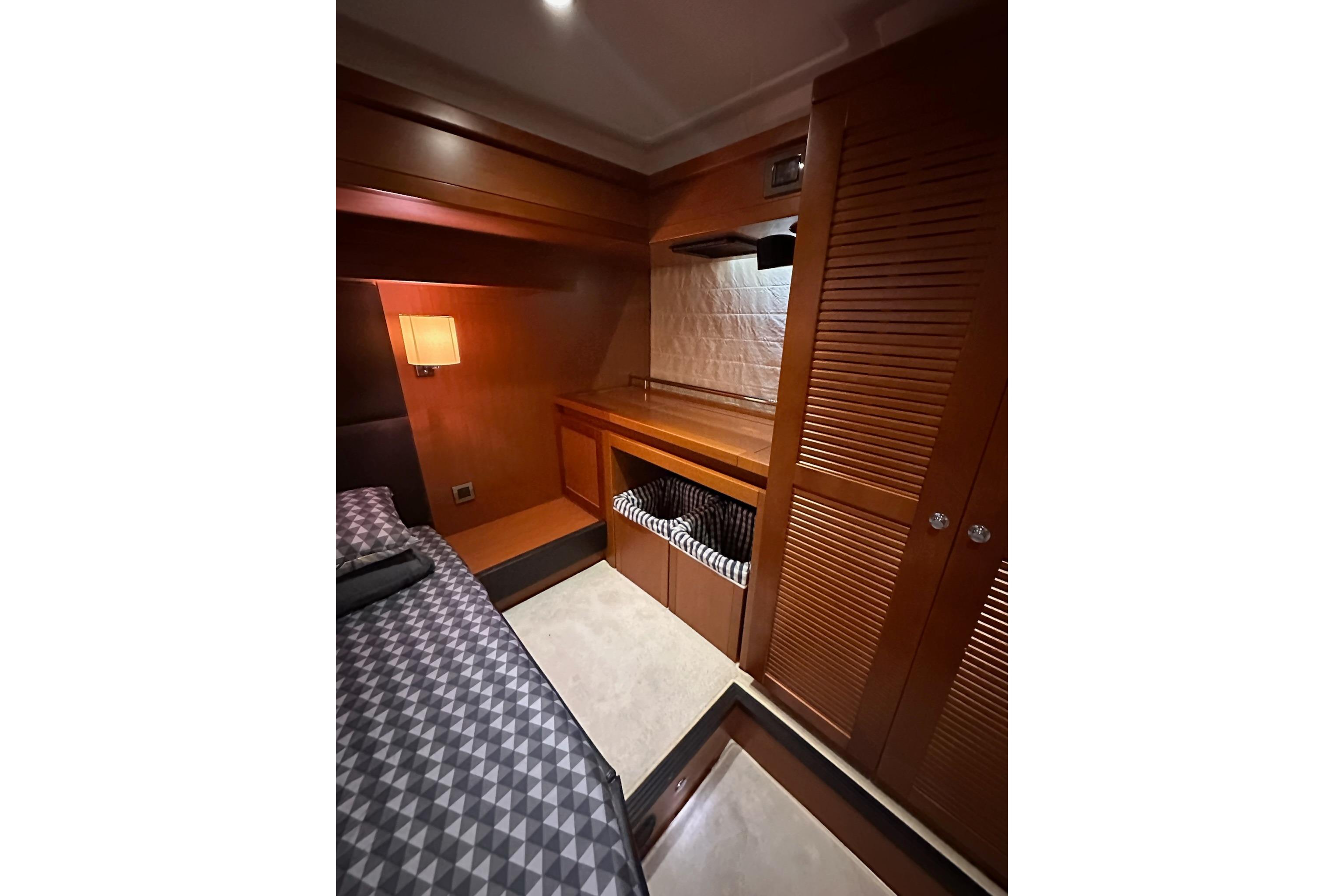

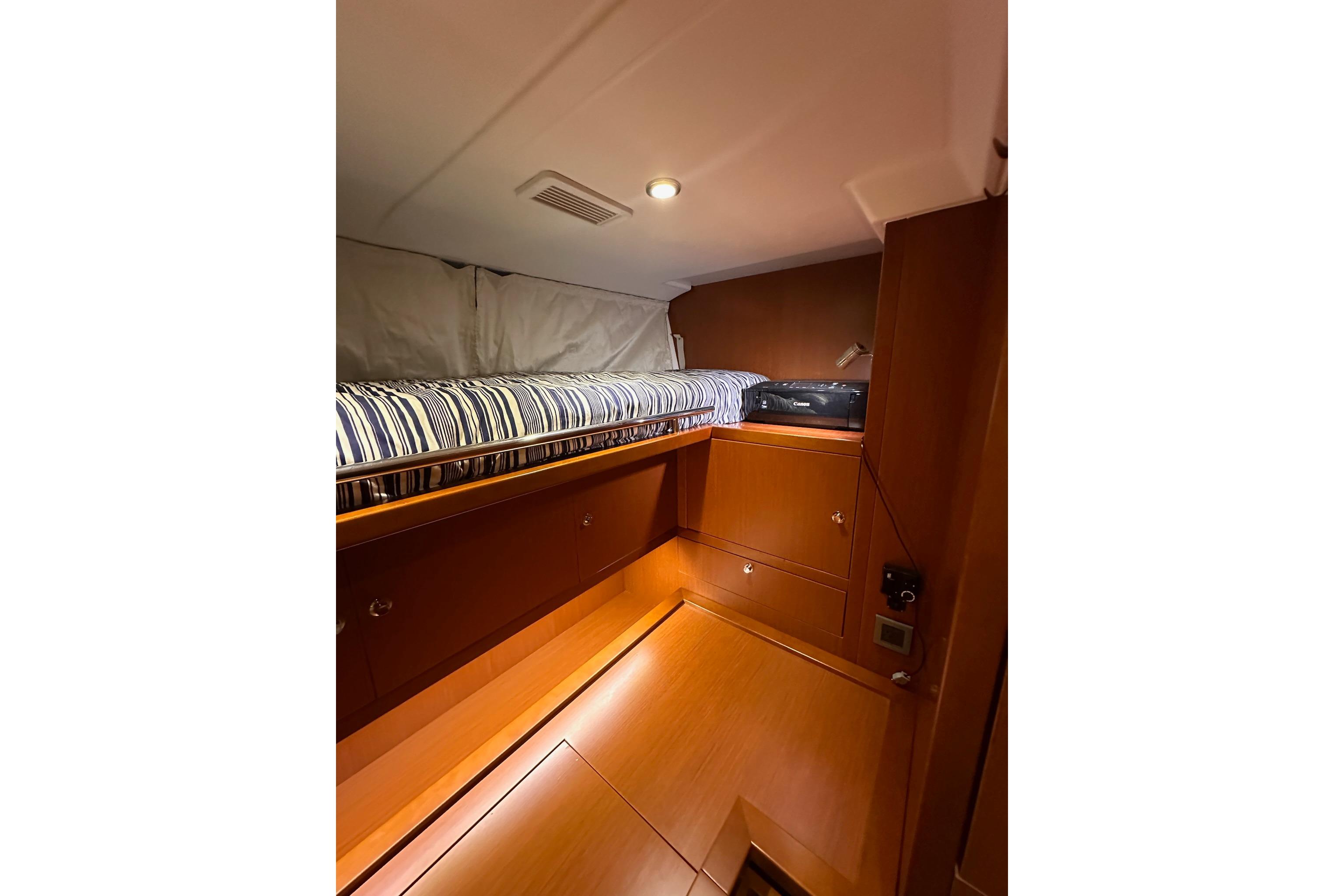

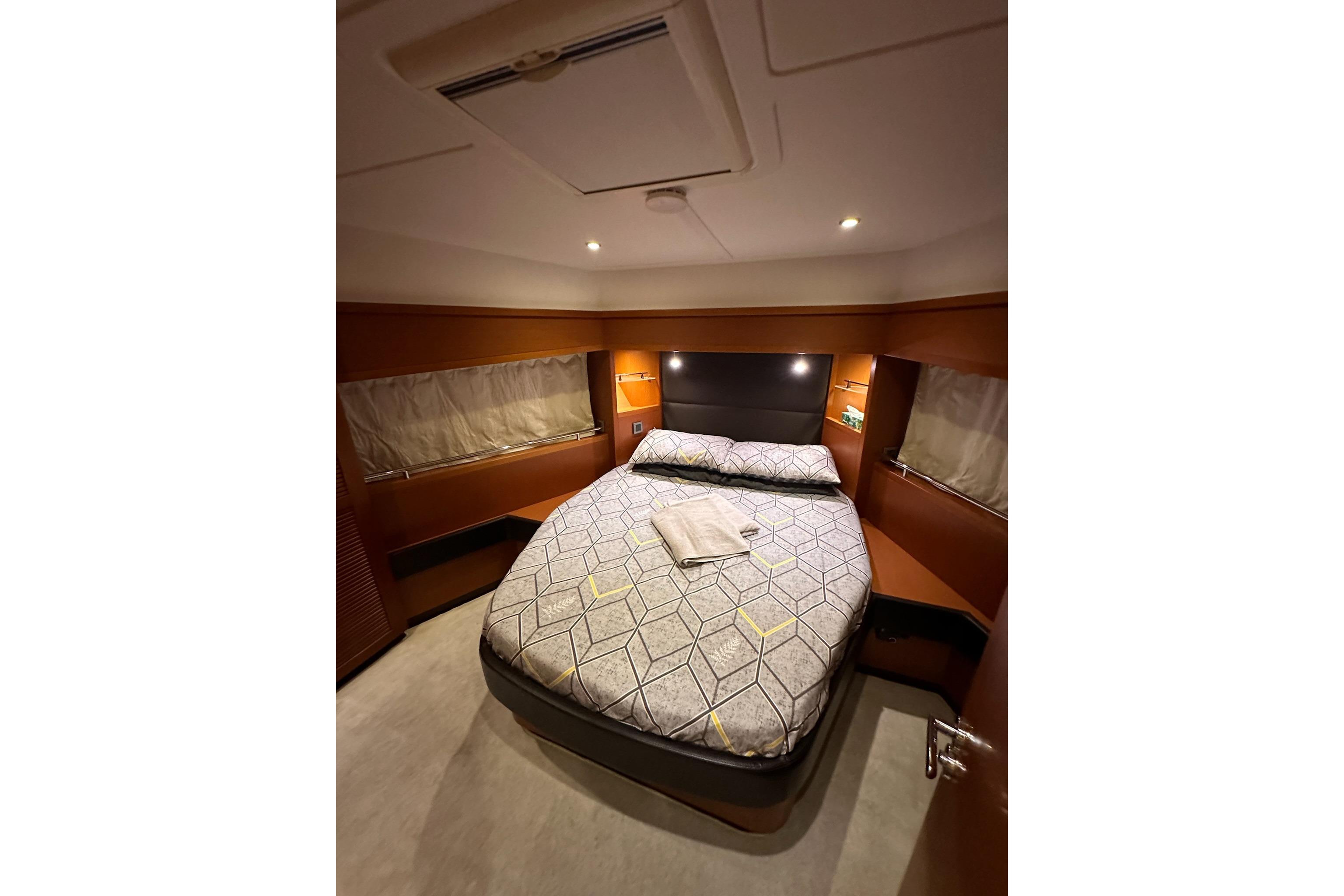

GUEST CABINS (FORWARD) • Central Island Bed berth mounted on strut for storage • Slatted bed base • Marine mattress • Storage, Hanging locker, Drawers • Lighting and reading spotlights • 1Opening hatch Lewmar® T44 - with blind - Mosquito net • 2Opening hull portholes with curtains • Full height mirror on door

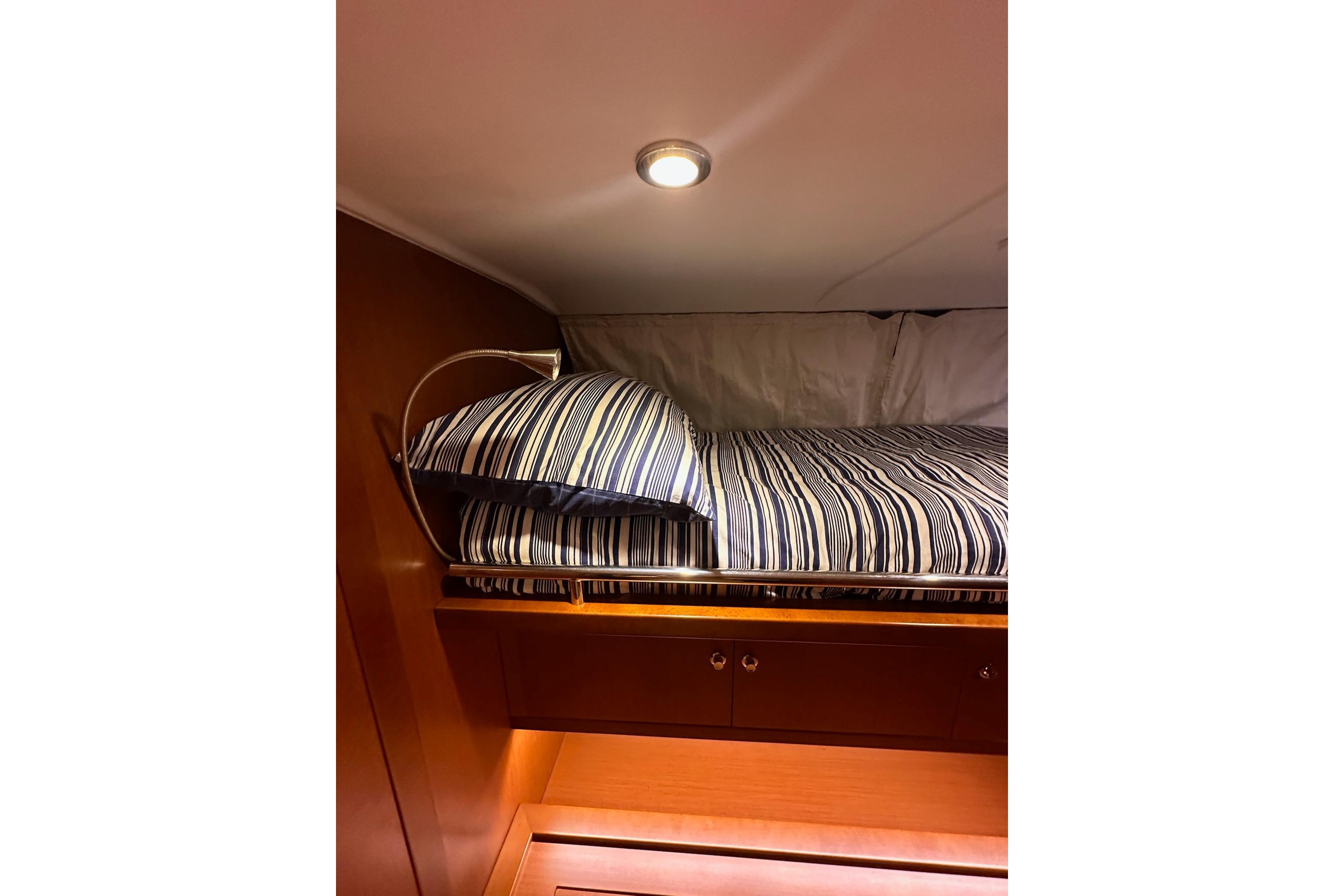

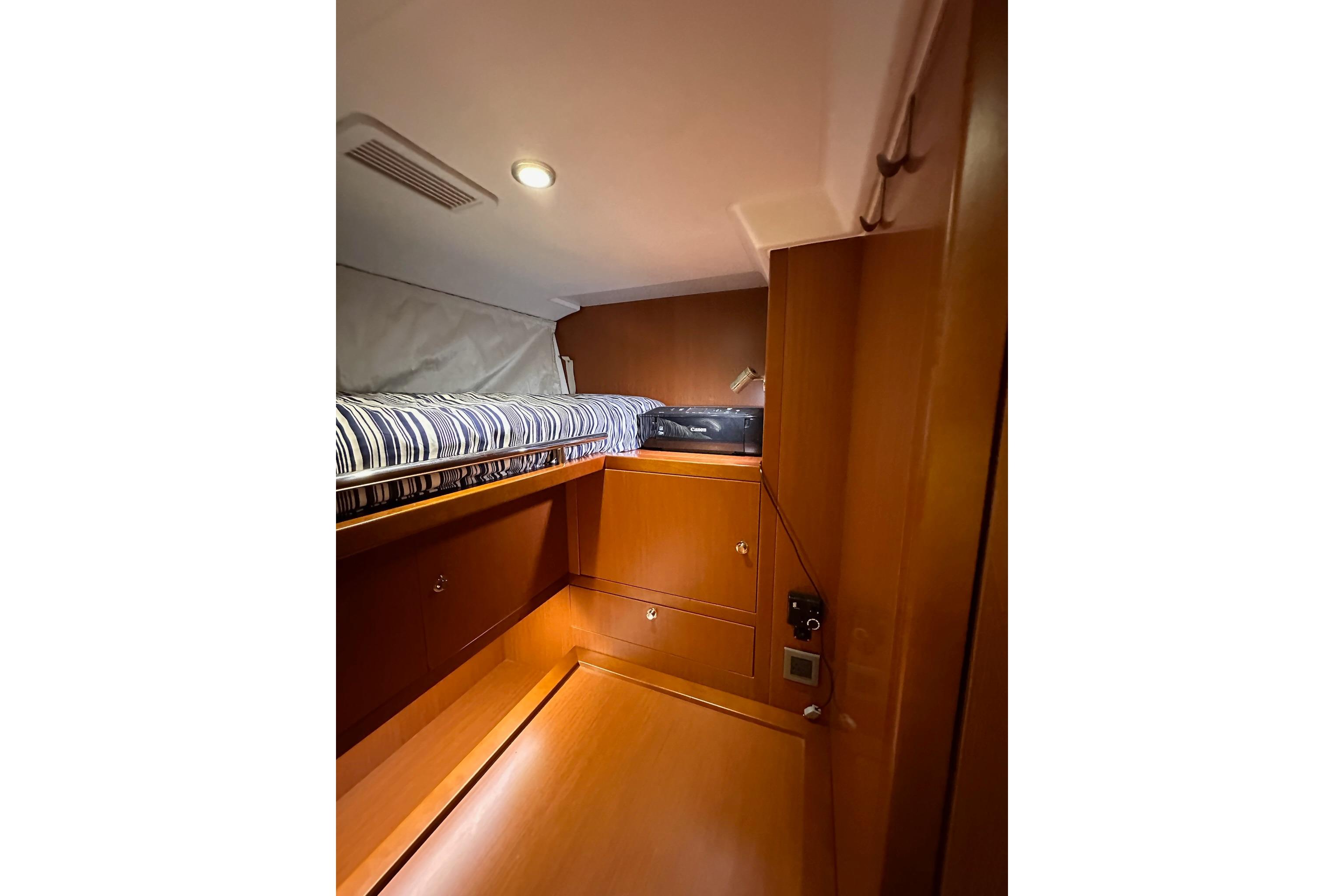

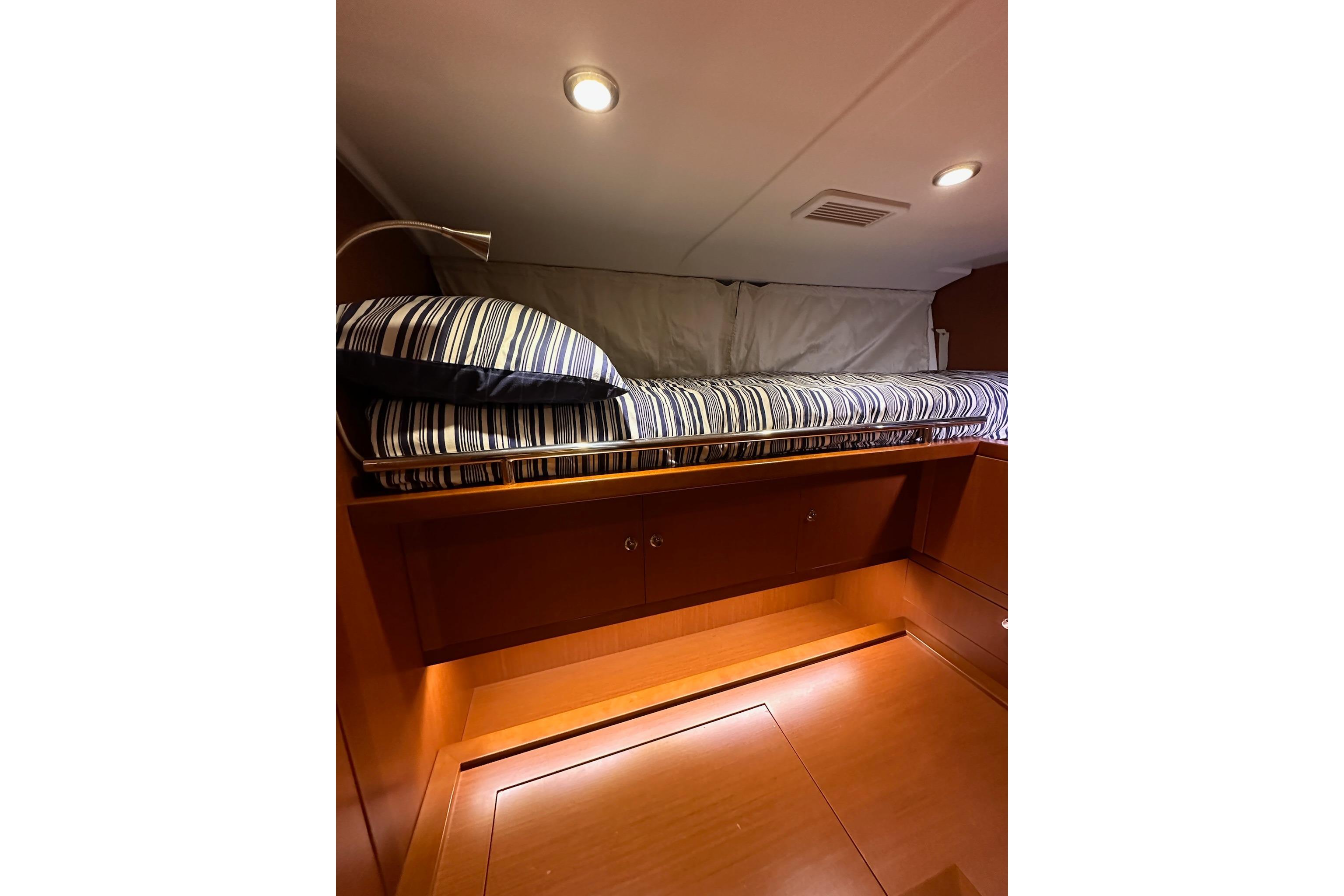

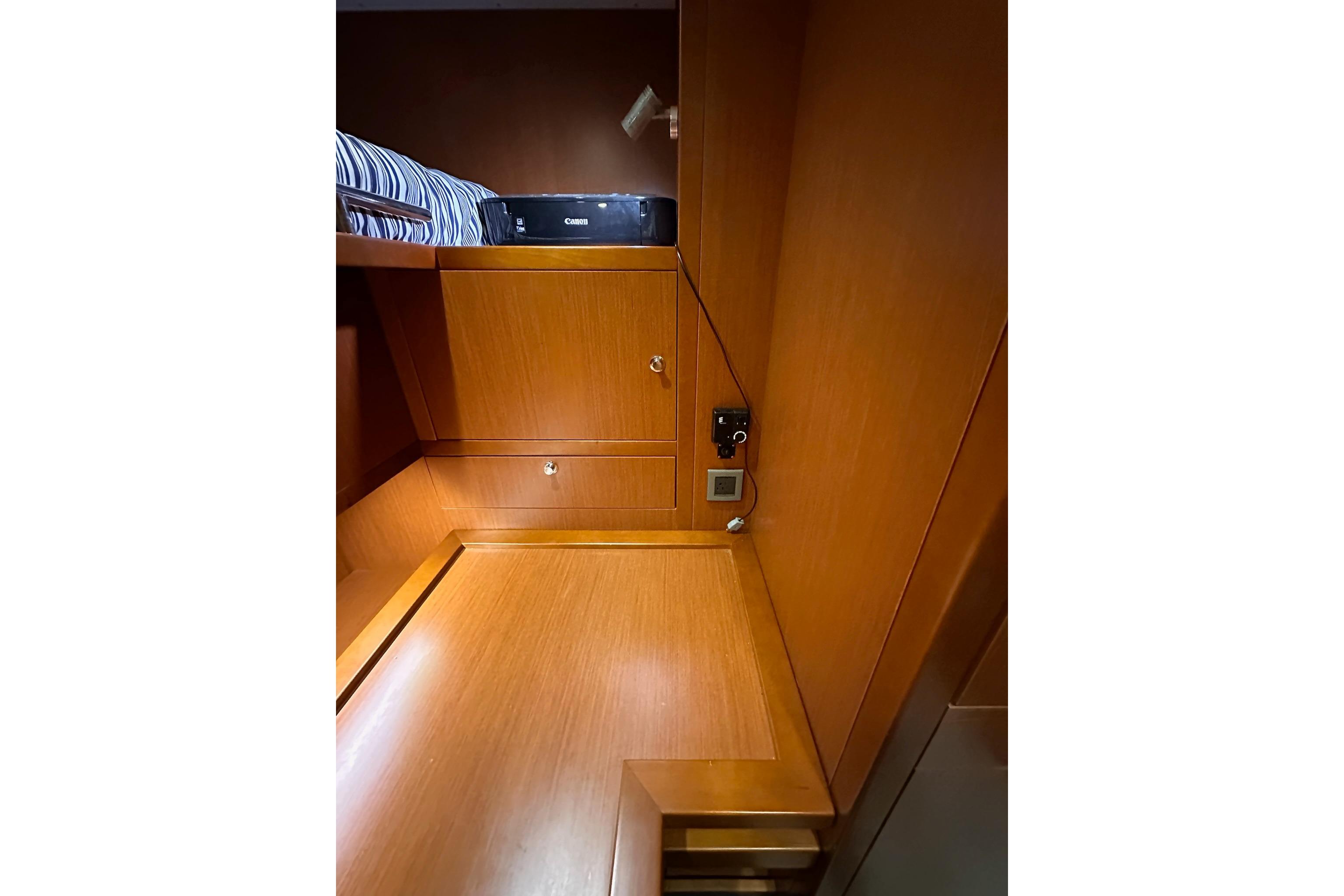

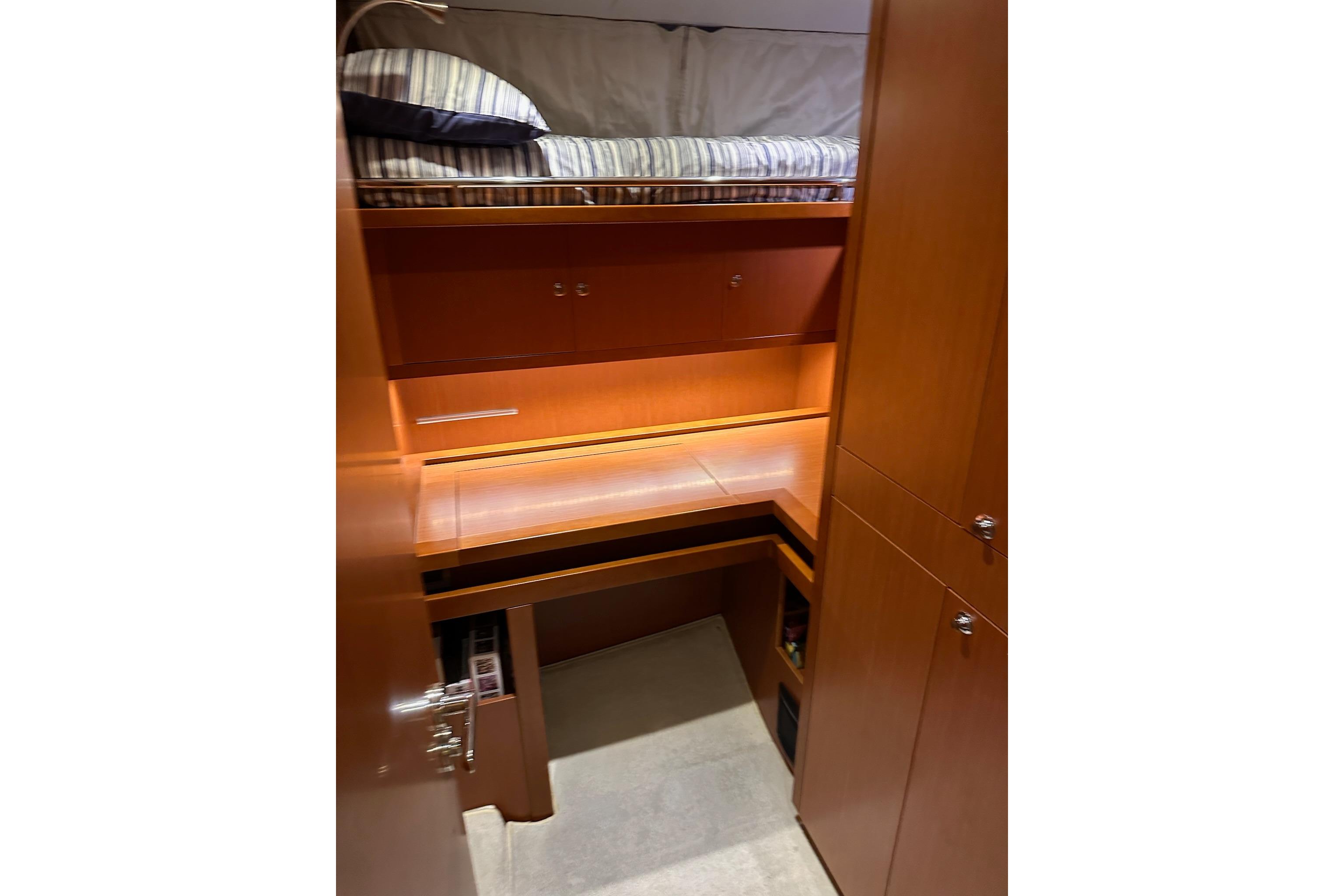

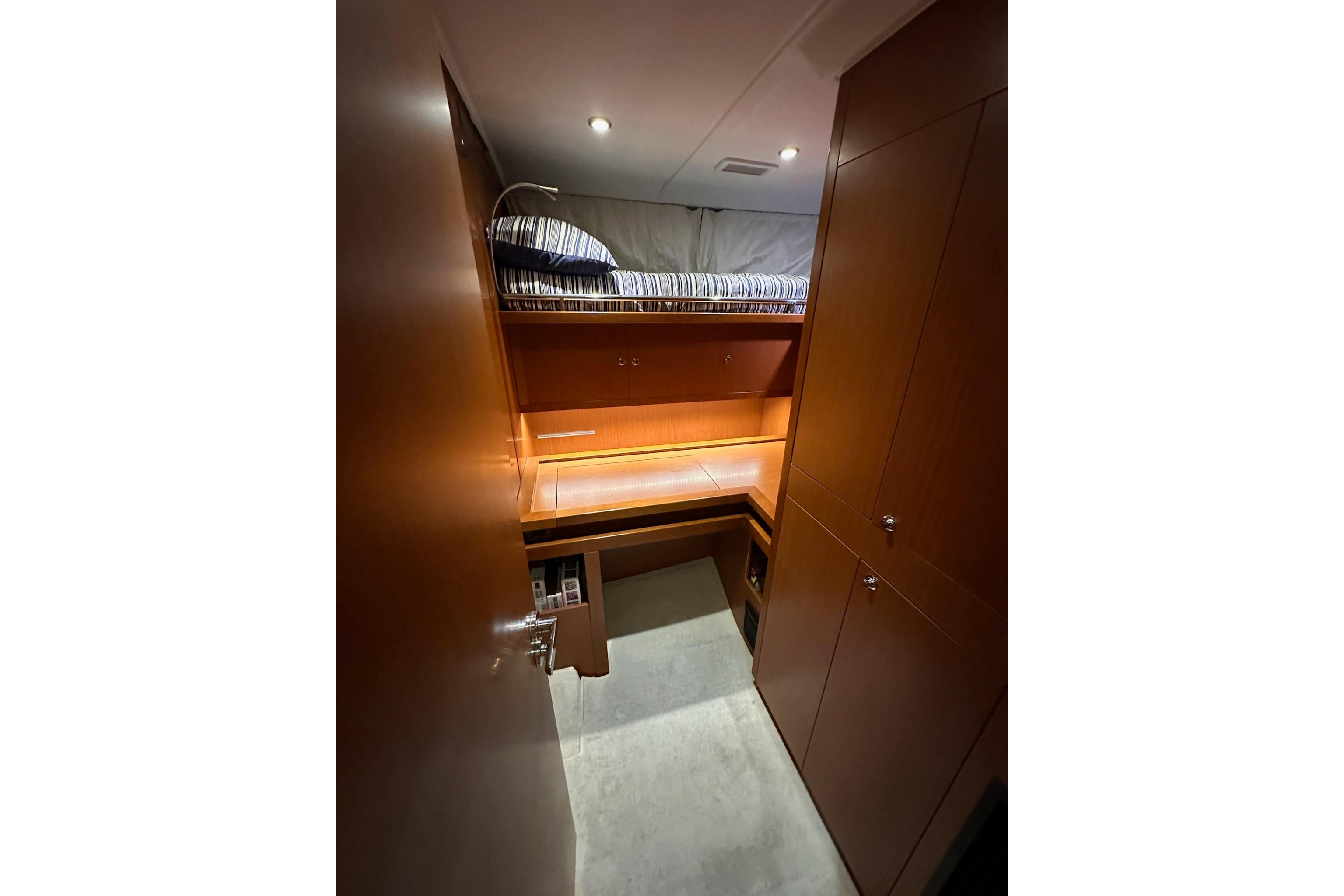

CABIN (PORT SIDE) OFFICE VERSION • Desk with plenty of storage space Possibility of a berth on the upper part: Marine mattress • 2 Opening portholes

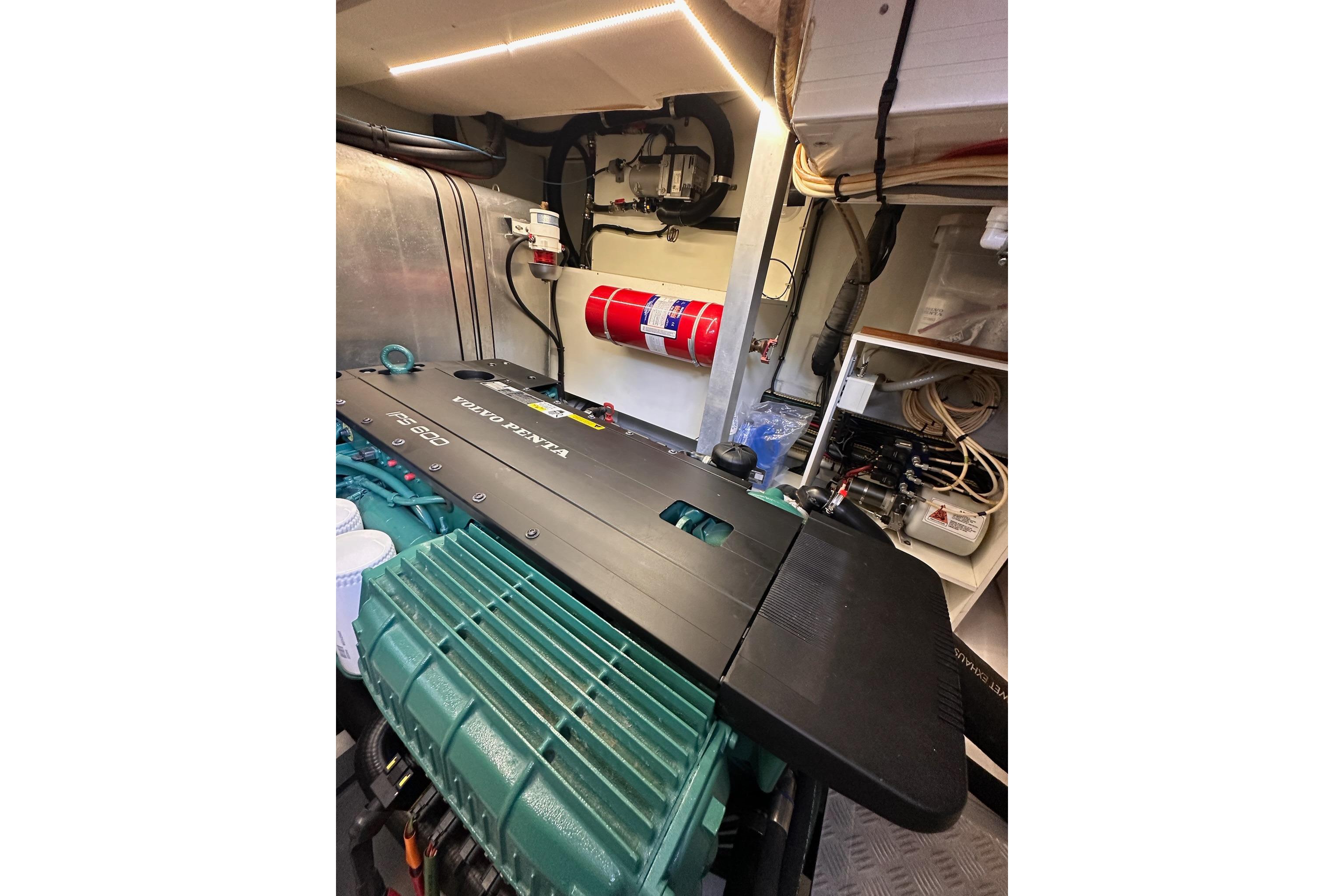

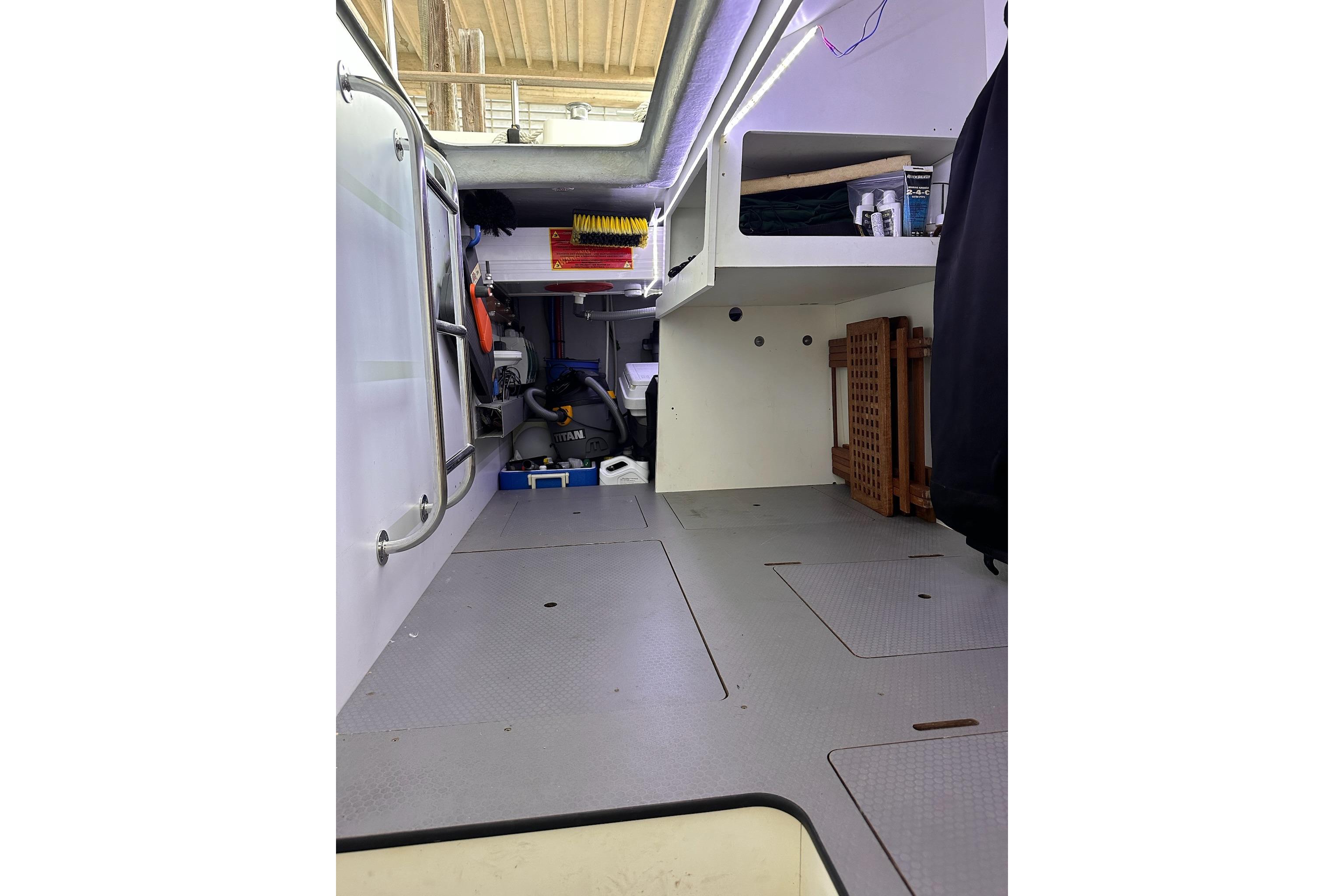

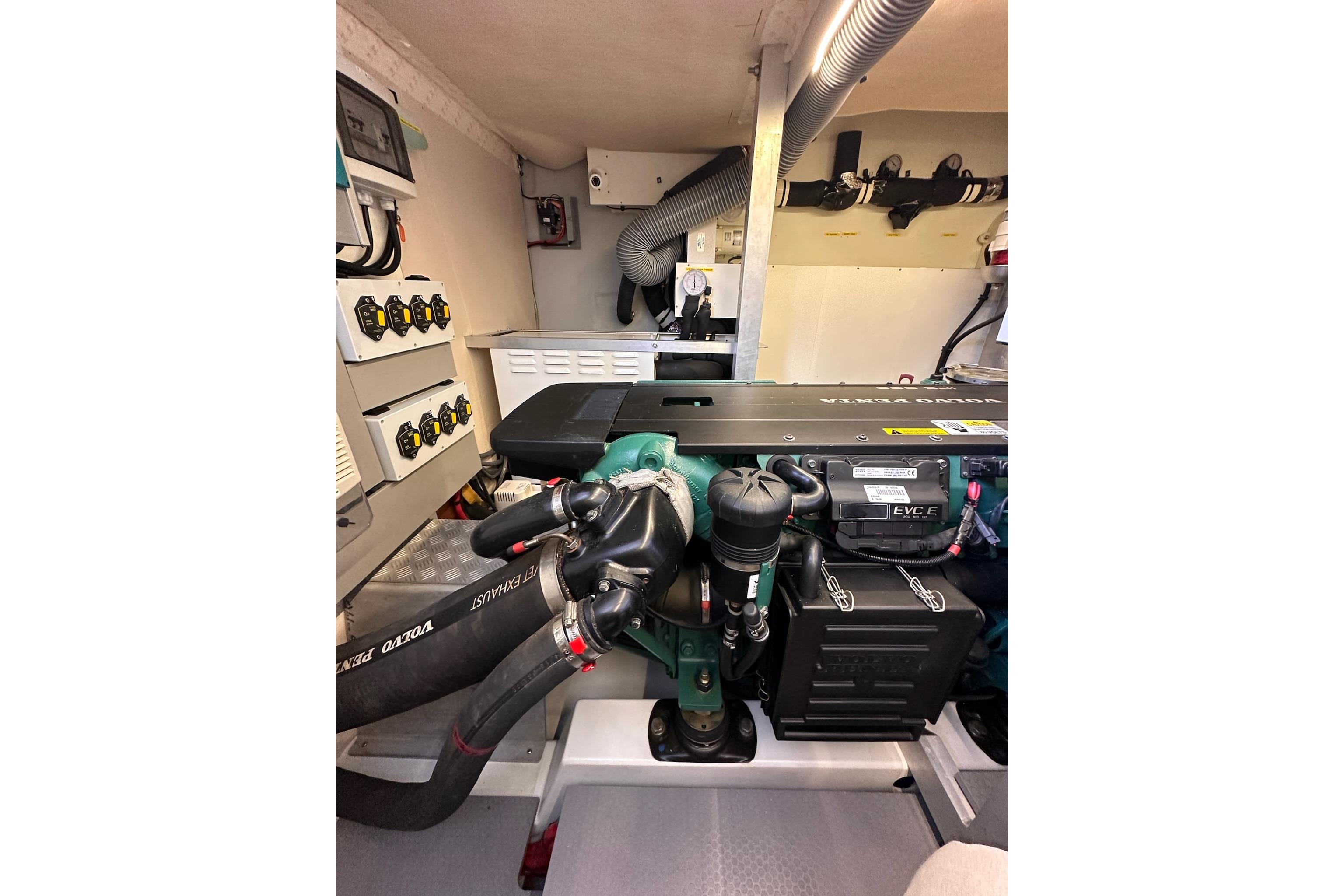

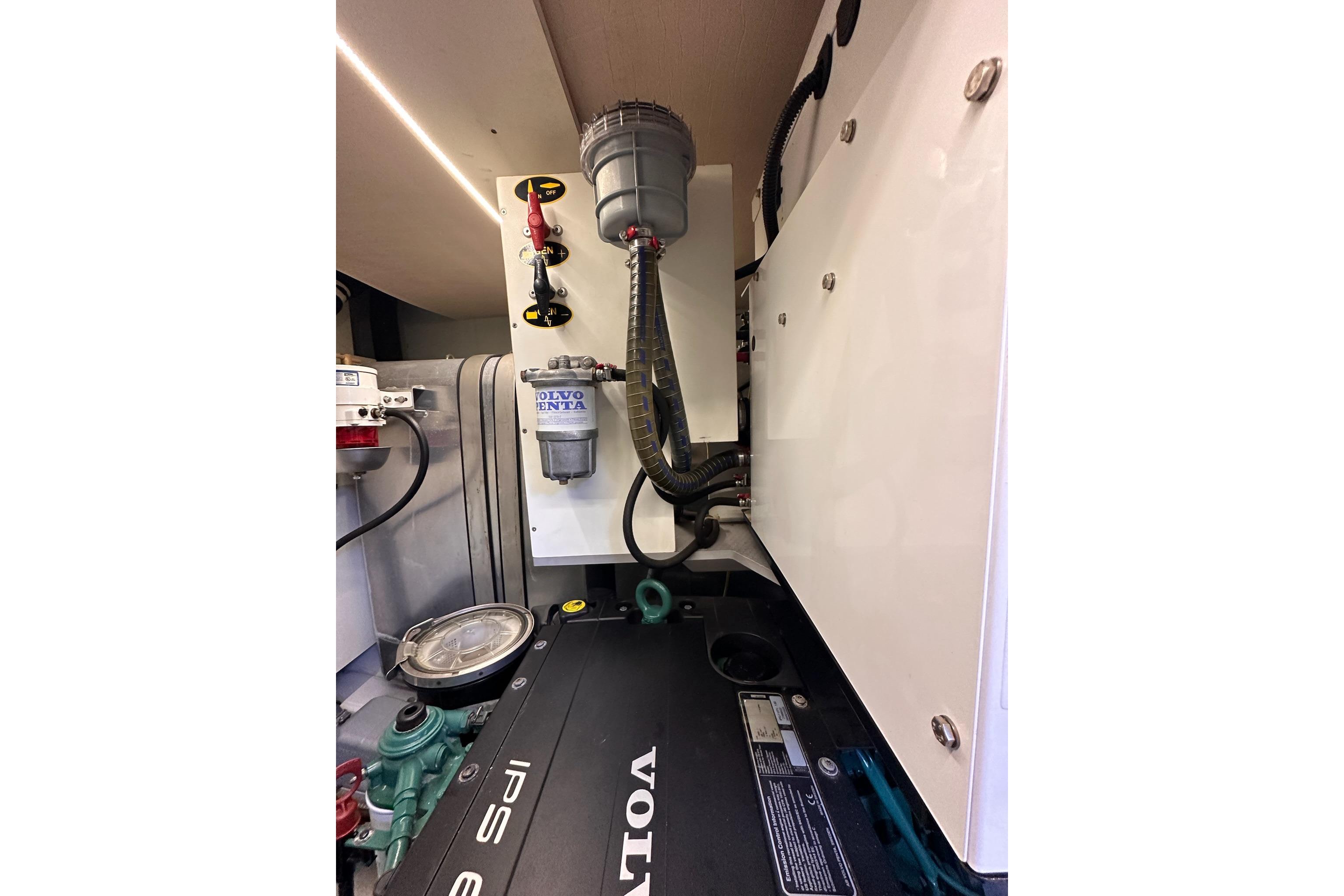

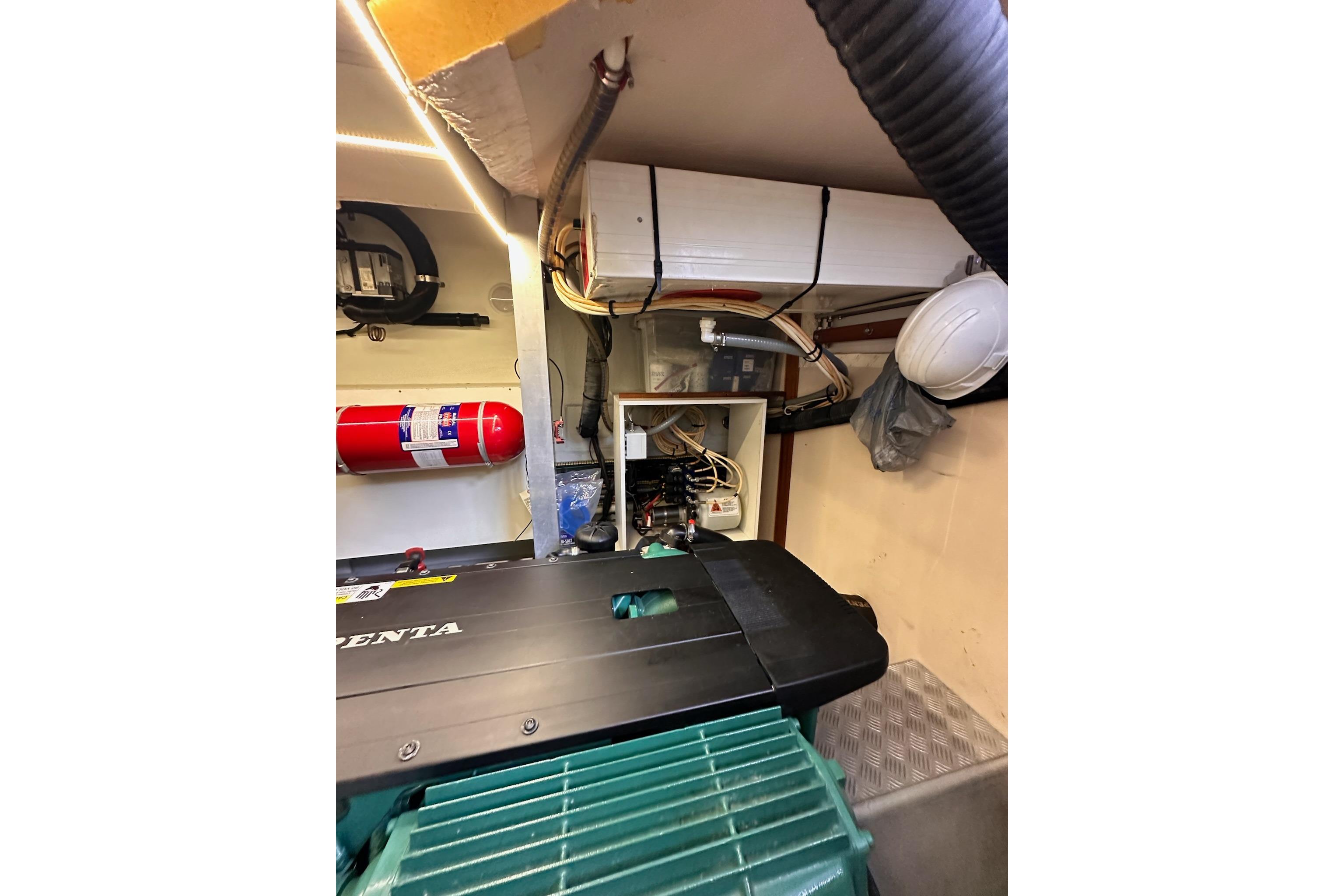

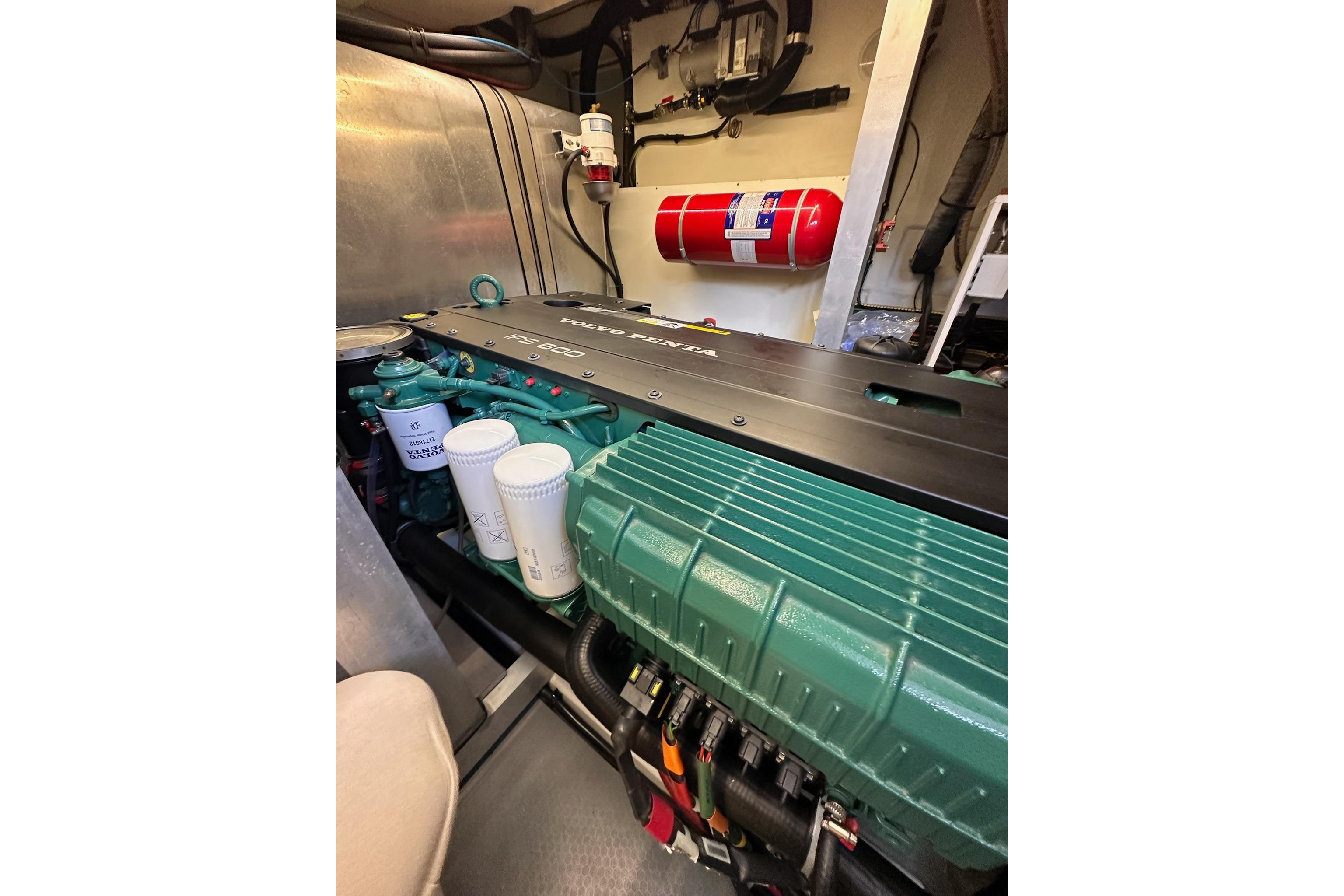

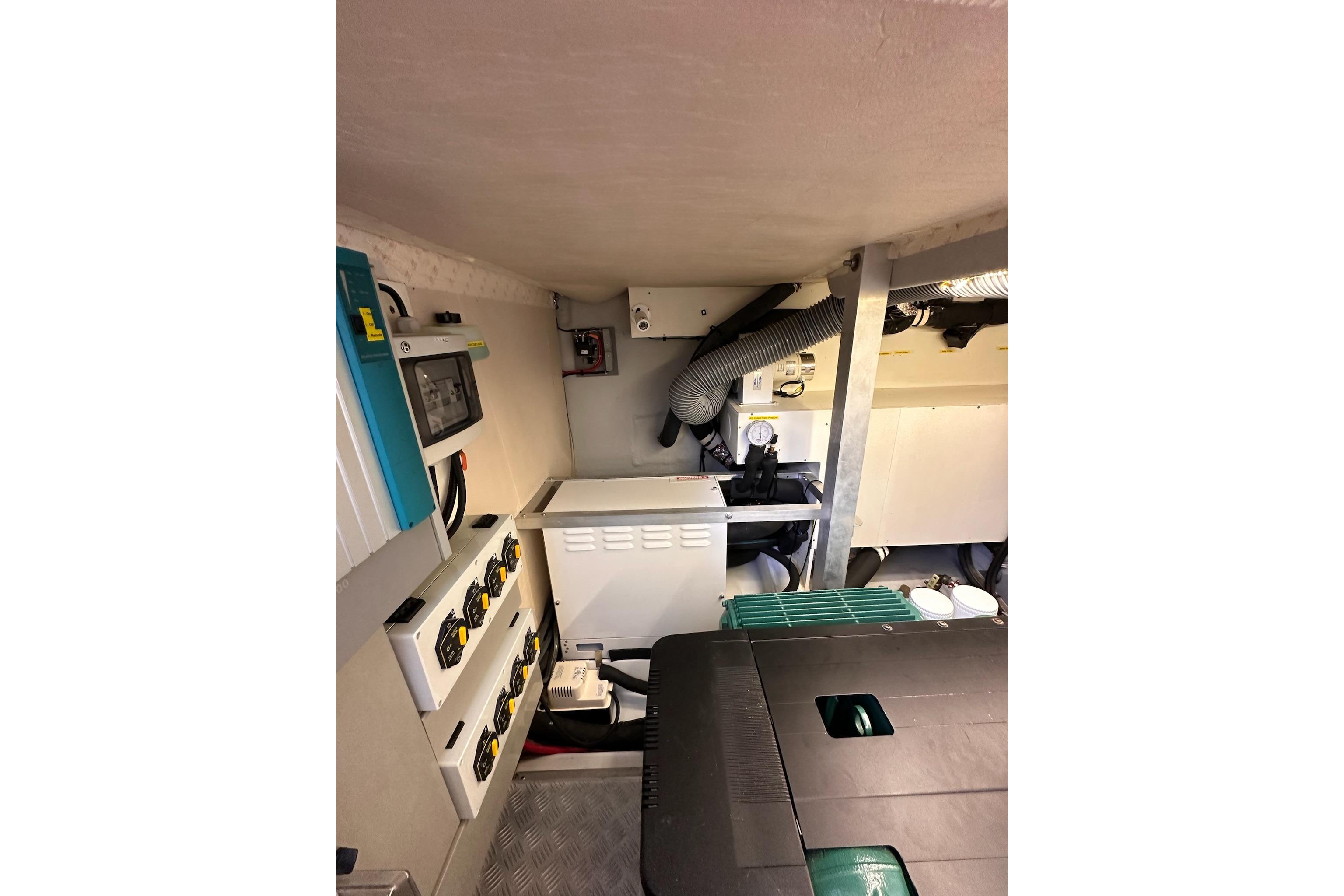

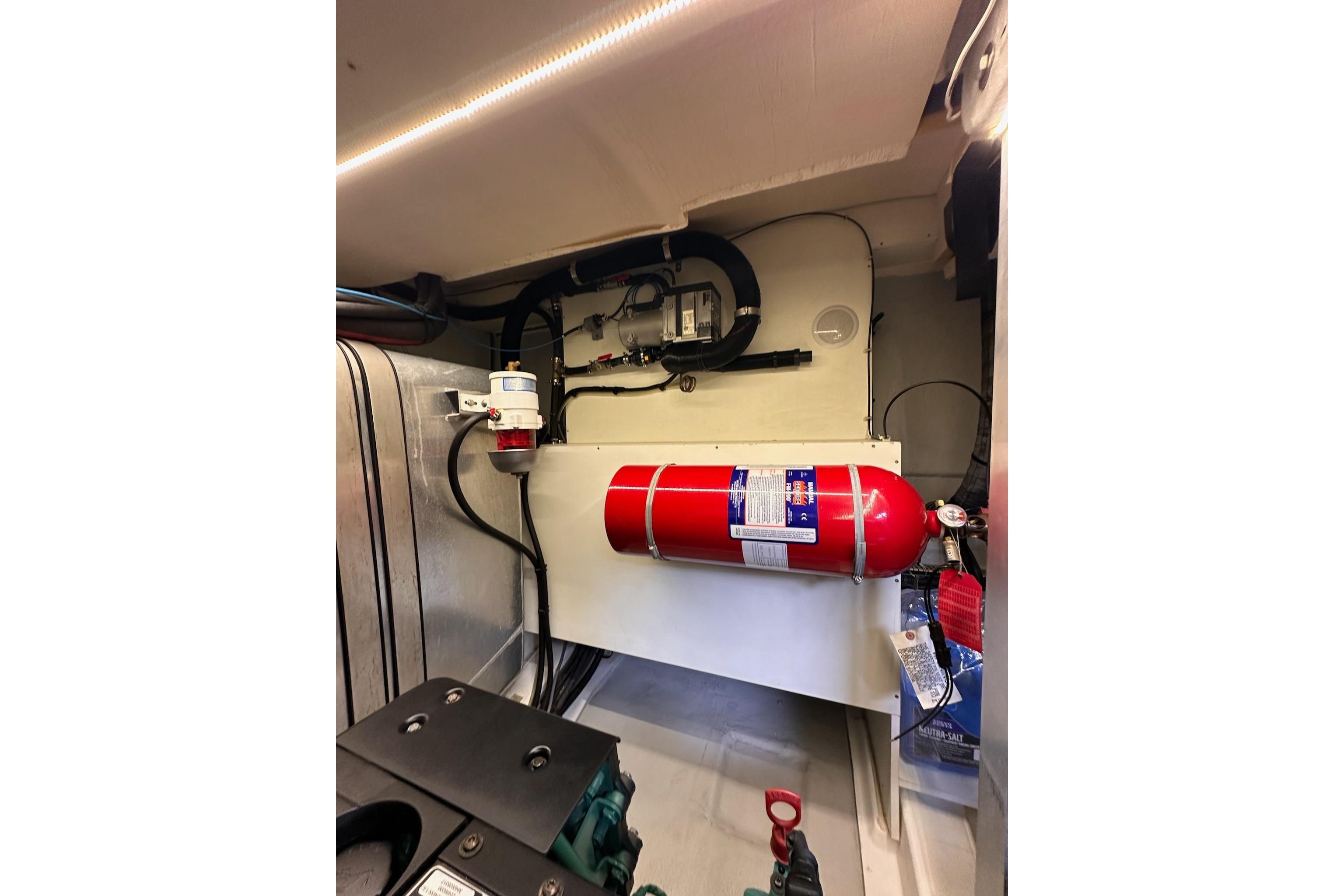

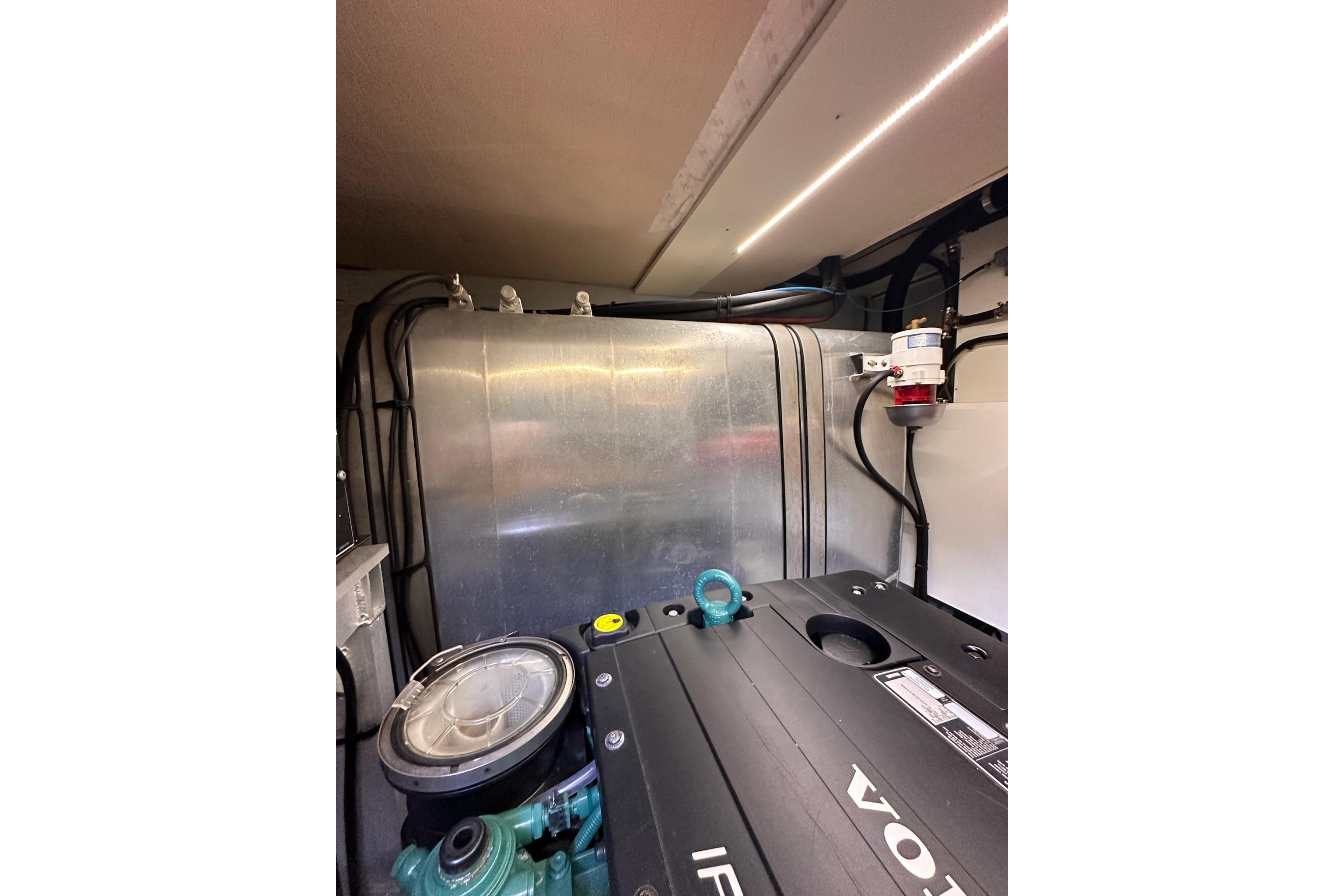

ENGINE • 2Engines 2 x D6 IPS 600 - 2 x 435 CV/HP Diesel (2 x 320 Kw) • Propellers jackshaft DP • Fuel tanks: 2 x 1 350 L / 2 x 357 US Gal, inter-connected and pre-fitted for FPS connection system (Fuel Polishing System) • Foam soundproofing in engine compartment • Side air intakes • 2Electric engine hold ventilators • Extinguishers in engine hold with remote controls • Inert gas system for engine protection • Batteries centred beneath slatted floor • Electrical boxes

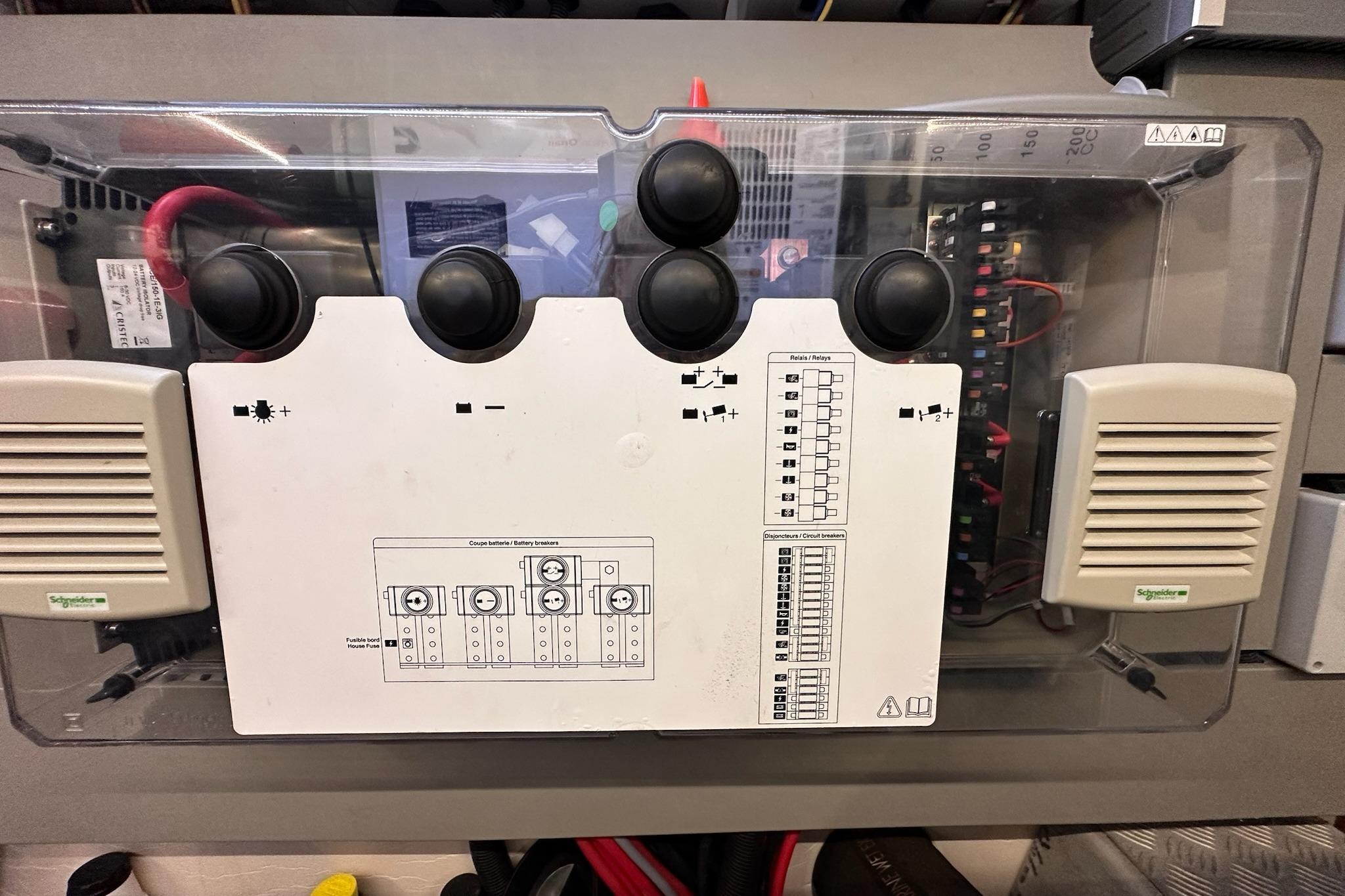

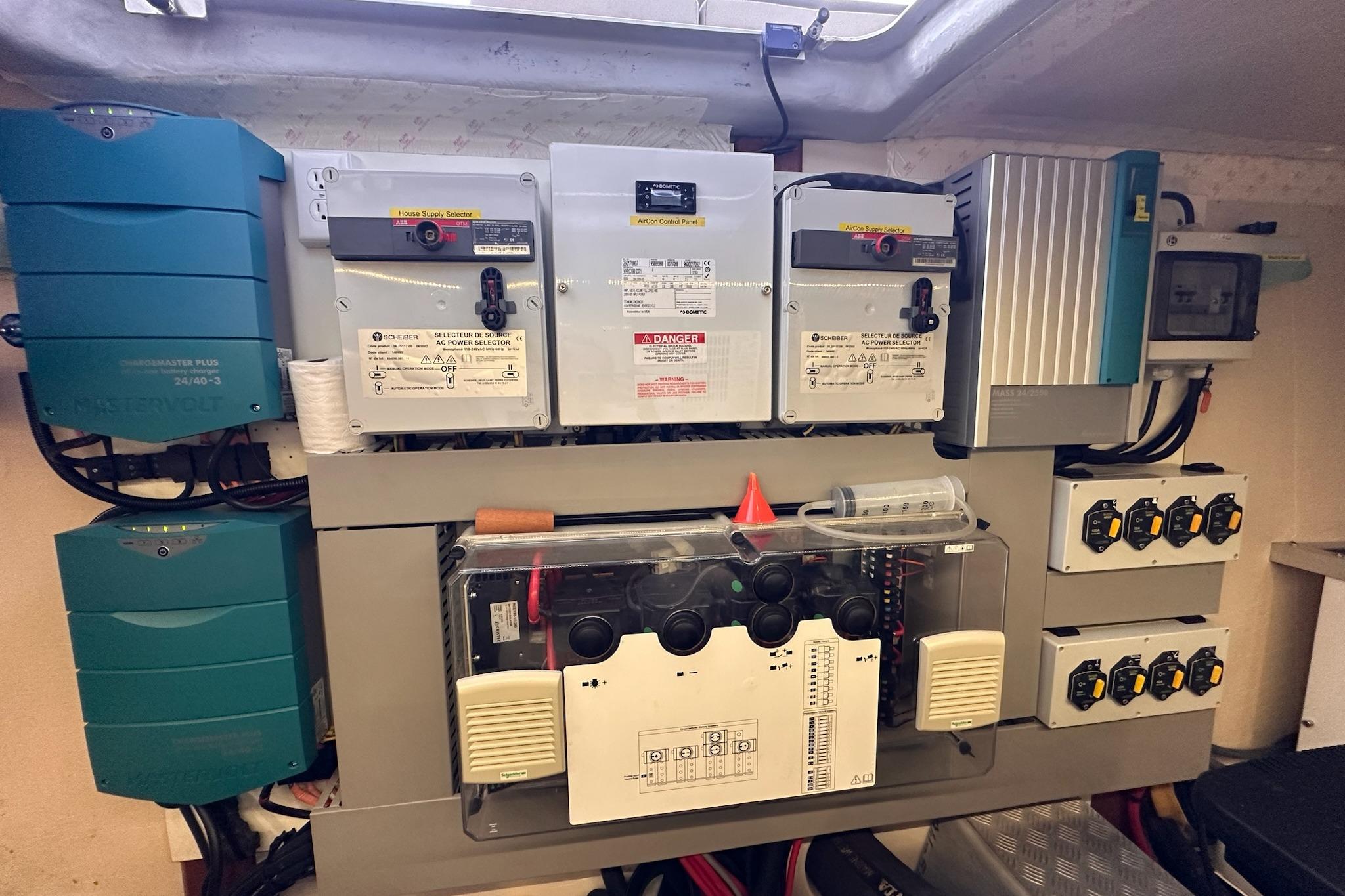

ELECTRICITY• 24/220 V Electrical panel or 24/110 V • Electrical battery switches • Radio-controlled wireless switches (without battery) • 2230 V - 50 Hz 63A shore supply with 15 m cable (or 2 x 220 V - 60 Hz 50A according to country) • 110V or 220V sockets in saloon, galley, wheelhouse and cabins • 2Battery chargers 40 Ah • Inverter 12 V / 24 V • Sockets 12V in wheelhouse • 4 X 140 Ah service batteries and 4 x 50 Ah starter batteries • Windlass • Electric trim tabs Lenco® • Stainless steel navigation lights • Mooring light • 3Electric windscreen wipers with synchronizing system • 2 Automatic electric bilge pumps • 2 Engine hold ventilators • Electric water heater on shore supply or on engine exchanger (80 l / 21 US Gal) • Inside lighting, cockpit, alleyways and flying bridge
BENETEAU LOUNGE TRIM LEVEL OPTIONS
Bow thruster Quick BTQ 250 140 24
Pump for deck washing (Fresh water - 1 forward exit)
Deck searchlight with remote control
Spare battery - 110A
24-220 V, 2 kVA converter or 24-110V 2 KVA
Multifonction screen Raymarine® e95 on flybridge
2 Multifunction Raymarine® Gs12 screens in wheelhouse
interface Raymarine - Volvo EVC
i70 RV2 autopilot in wheelhouse and repeater on flybridge

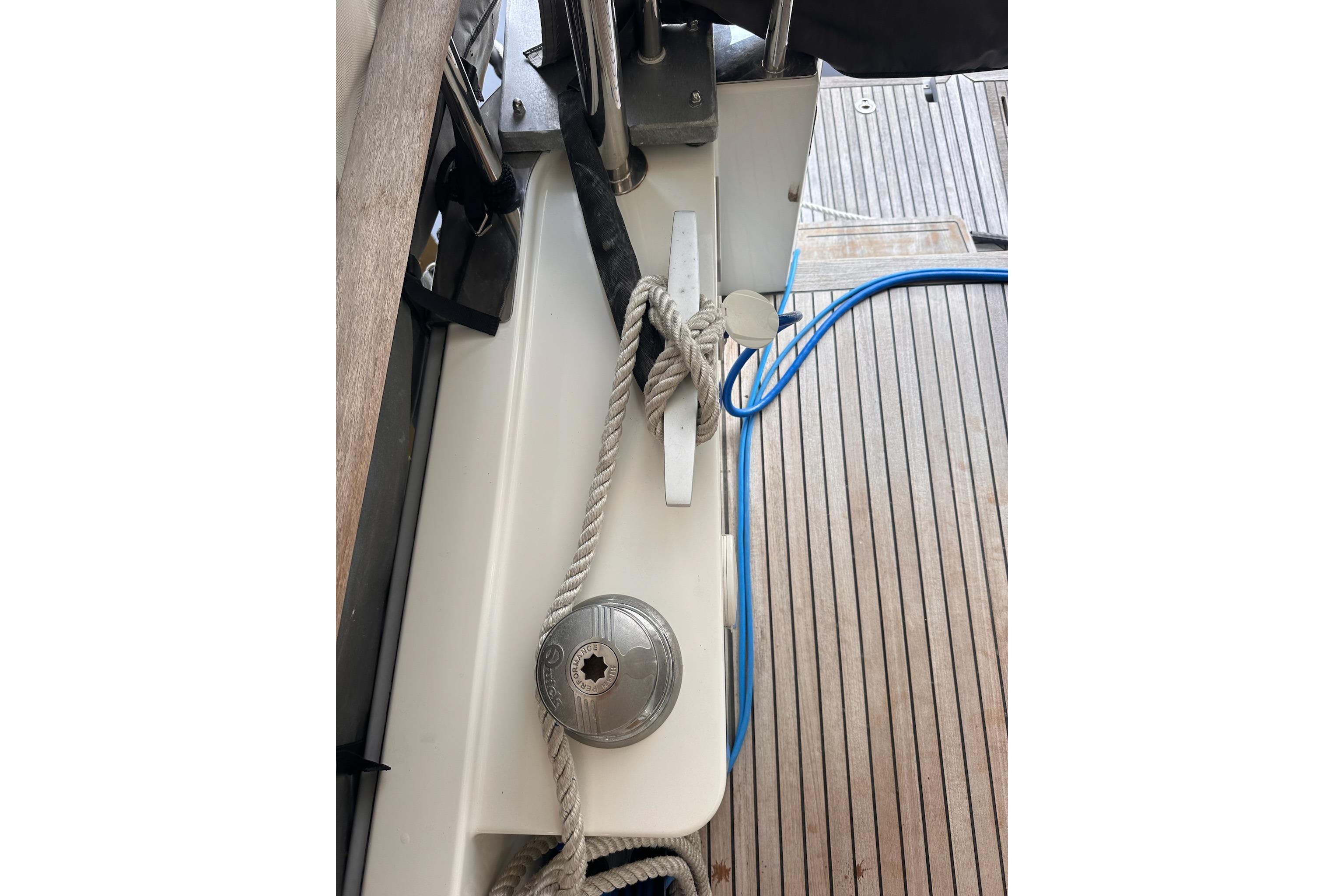

2 Electric capstans aft
Shore freshwater supply
Fridge (42 l / 1,4 Cu.f) on flying bridge

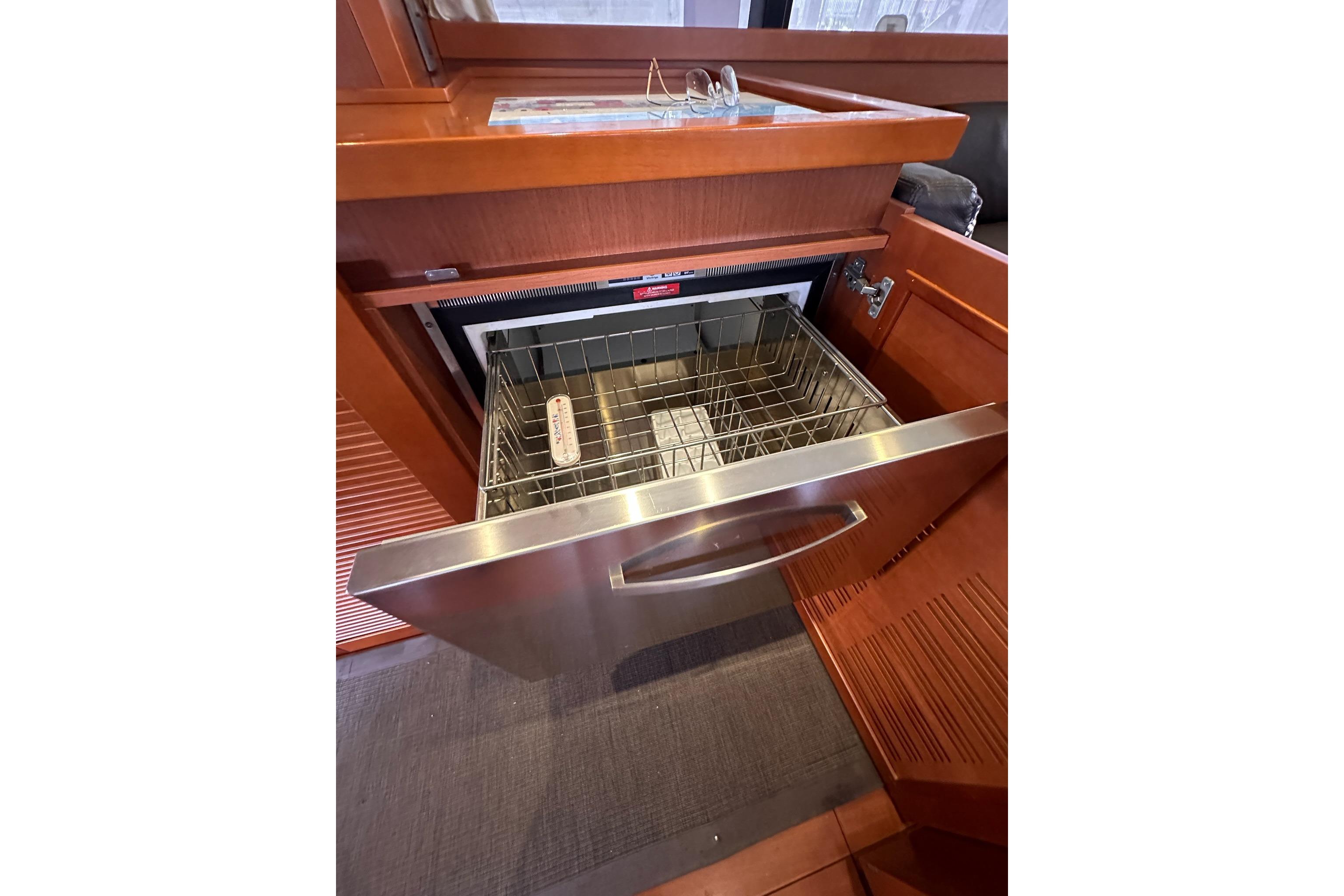

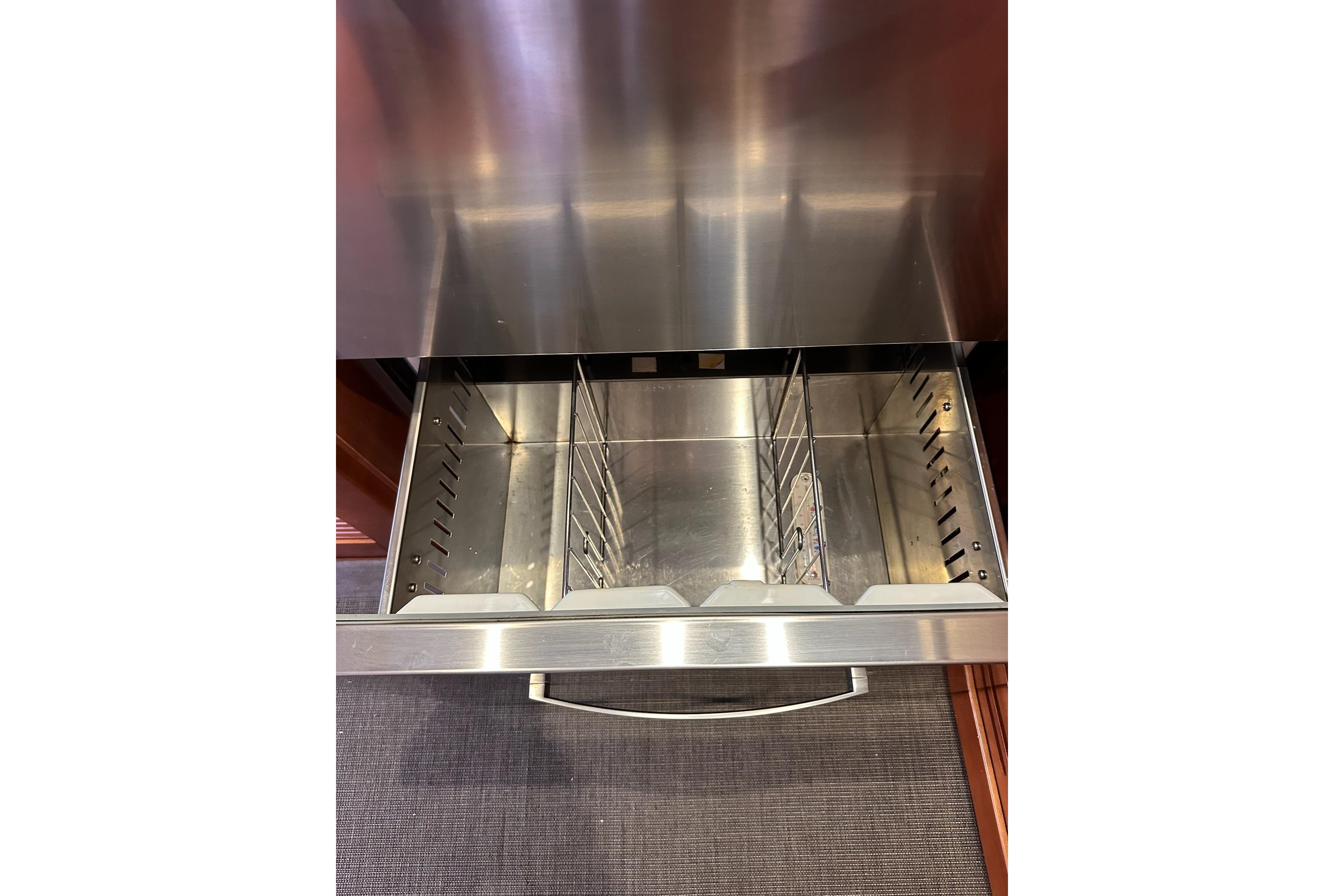

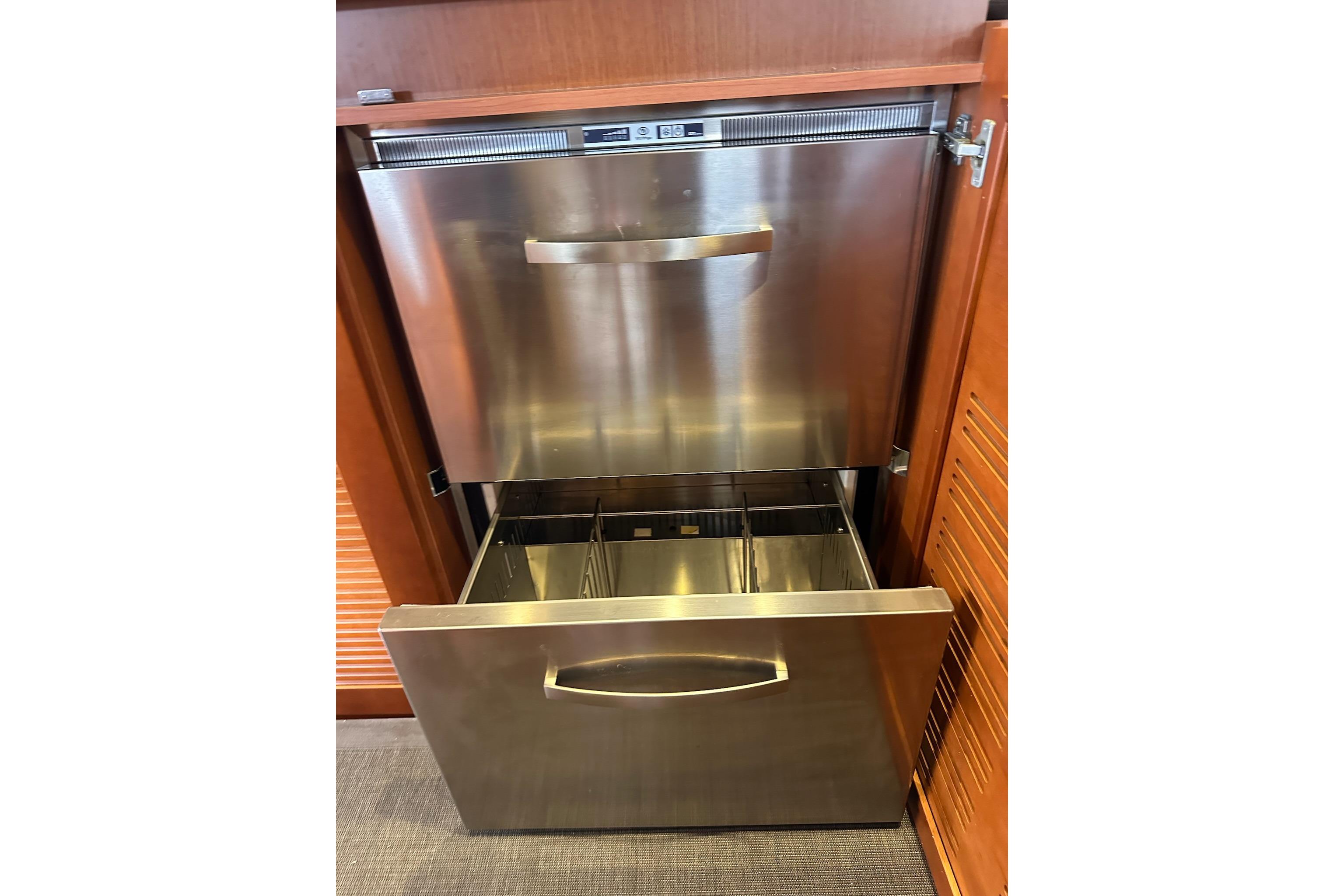

Drawer refrigerator (in place of one of the two 130 L refrigerators)
Electric flybridge grill TV 32" + Dvd Fusion® + Bose pack in saloon
ELECTRONICS
• HD Digital radar 4 Kw
• Rear camera
• Engine compartment camera
• Aft port camera
• Generator
• Air conditioning
• Loud speakers Bose on flying bridge
• Loud speakers Bose in master cabin
•Windlass control with chain counter
ADDITONAL FACTORY OPTIONS
• Complete mooring kit: Anchor CGR 32 kg + Chain 12 mm diameter (Length 85 m) + Cable 22 mm diameter (Length 4 m) + 4 Hawsers 18mm (Length 15 m) - 6 Fenders (290 mm diameter - Length 1,09 m)

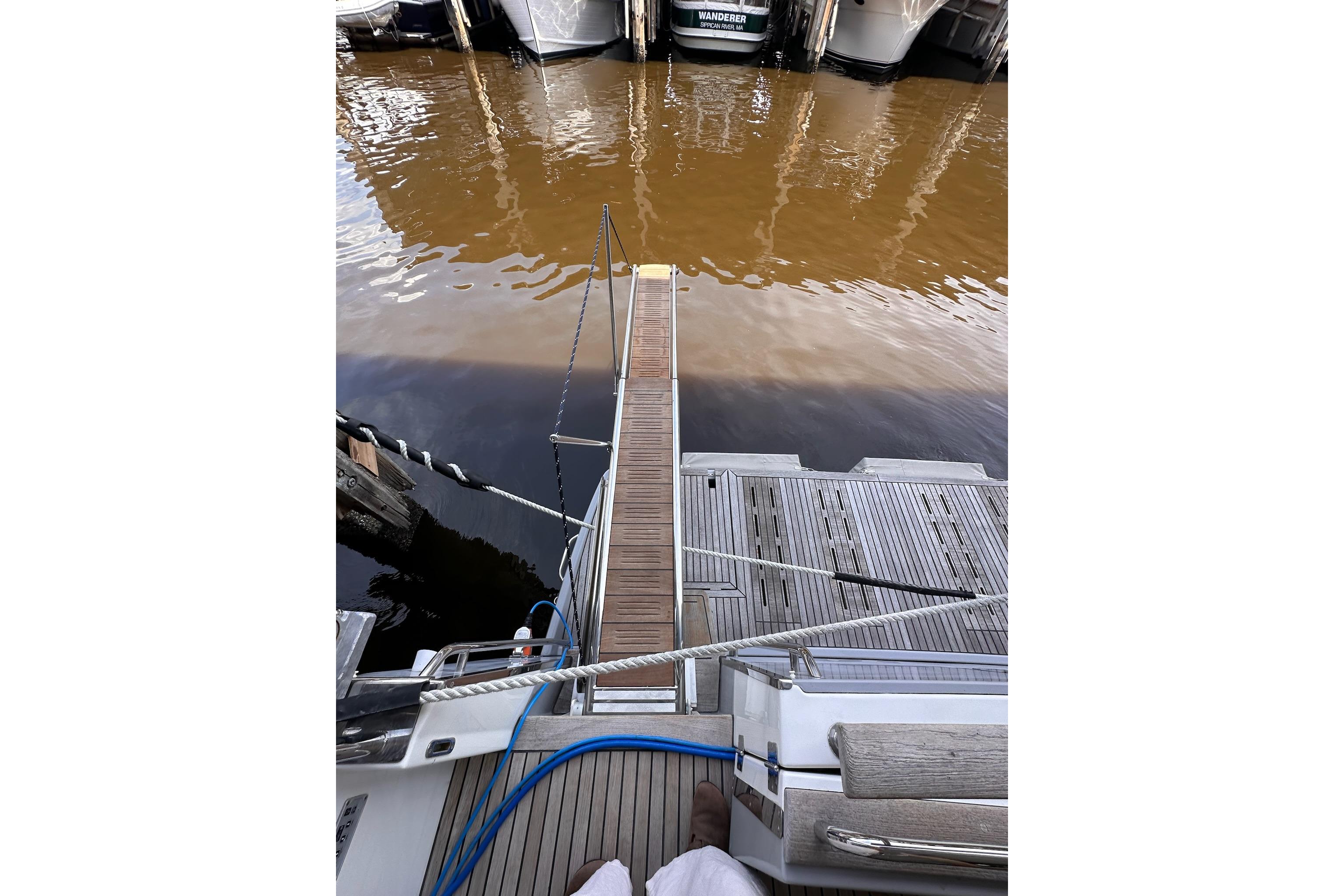

• Hydraulic gangway (Bezenzoni®, retractable under cockpit, Length 2,90 m / 9’6’’)
• Access door to lazarette (or crew cabin) from the platform, lockable with key
• 3rd Engine control and Thrusters, in the cockpit
• Thermal imaging camera
• Windvane anemometer
• Antifouling
• Electric grill on flybridge's galley unit
• Watertight Bose speakers on Flybridge (replacing the others)
• Console cover and white Flying bridge bench seat
• Grey "Perle" hull
• Teak slatted flybridge (forward part)
• Teak slatted deck (forward part)
• Flybridge bimini in Charcoal Grey
• Flybridge dodgers in Charcoal Grey
• Aft cockpit cover in Charcoal Grey, with white Bayline lining for privacy
• Cockpit seat cushions to match flybridge upholstery
• Outside wheelhouse curtains - Sunworker - White

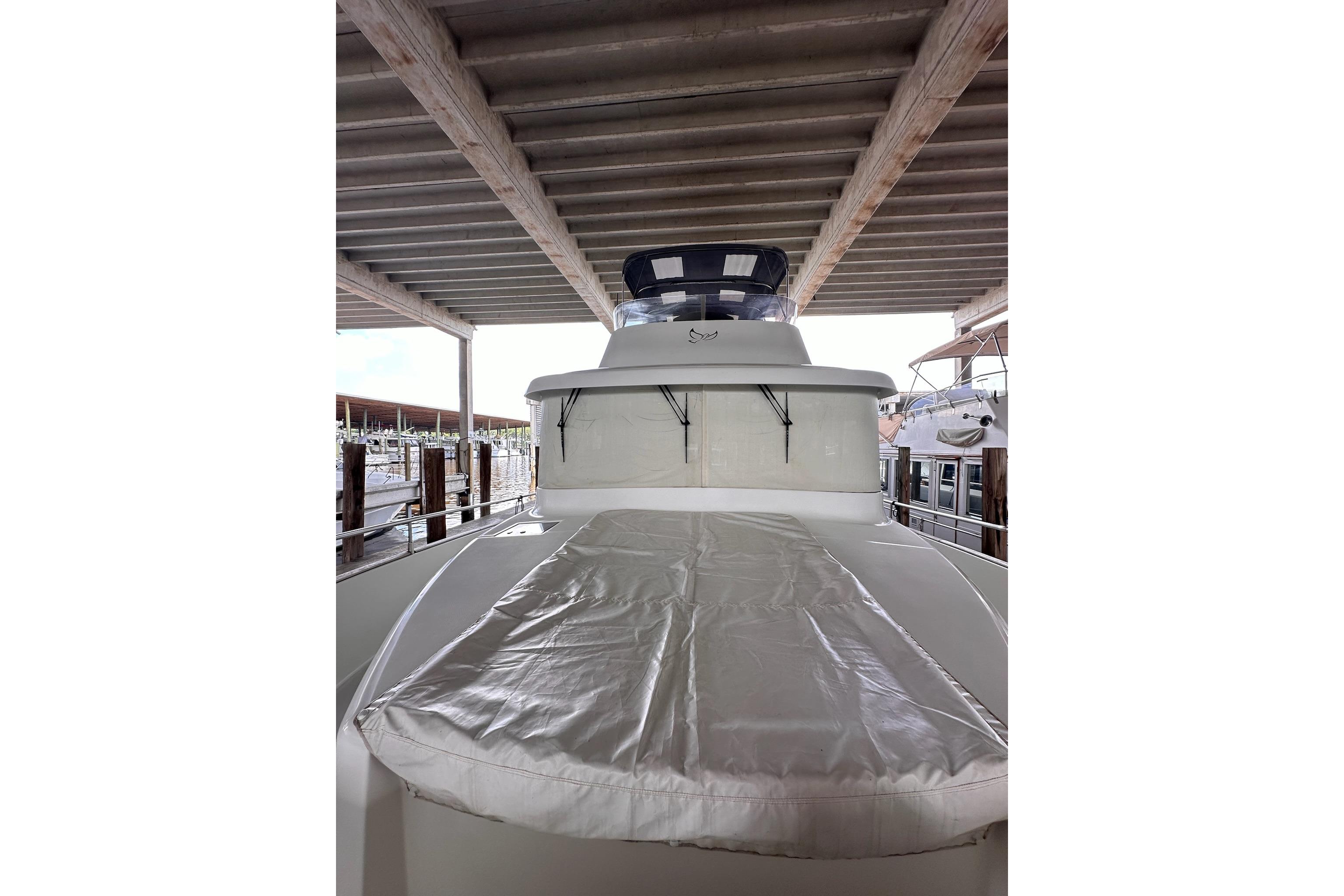

• Adjustable sunbed
• Fabric covering sunbed in Sunworker White
• Chilled water air conditioning, (with Ventilators Brushless or Offset compressor) 60kBTU (18kBTU in lounge, 18kBTU in wheelhouse, 12kBTU Owner cabin, 9kBTU Port forward cabin + Fore washroom, 4kBTU cabin or office on portside)

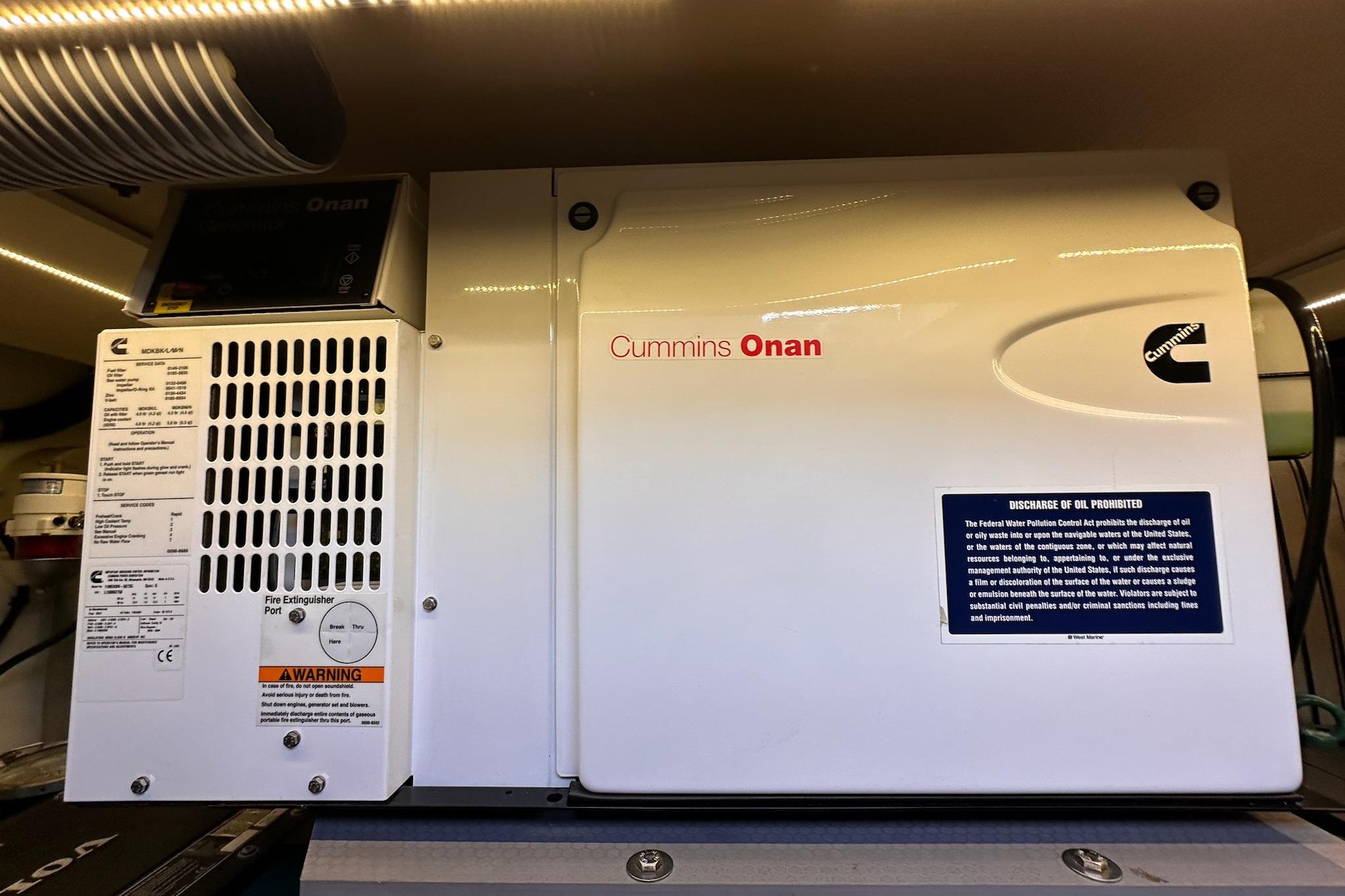

• 11 kVA 220 V / 50 Hz Generator + Cocoon
• Optional equipment Volvo: DPS ( virtual anchoring) + low speed

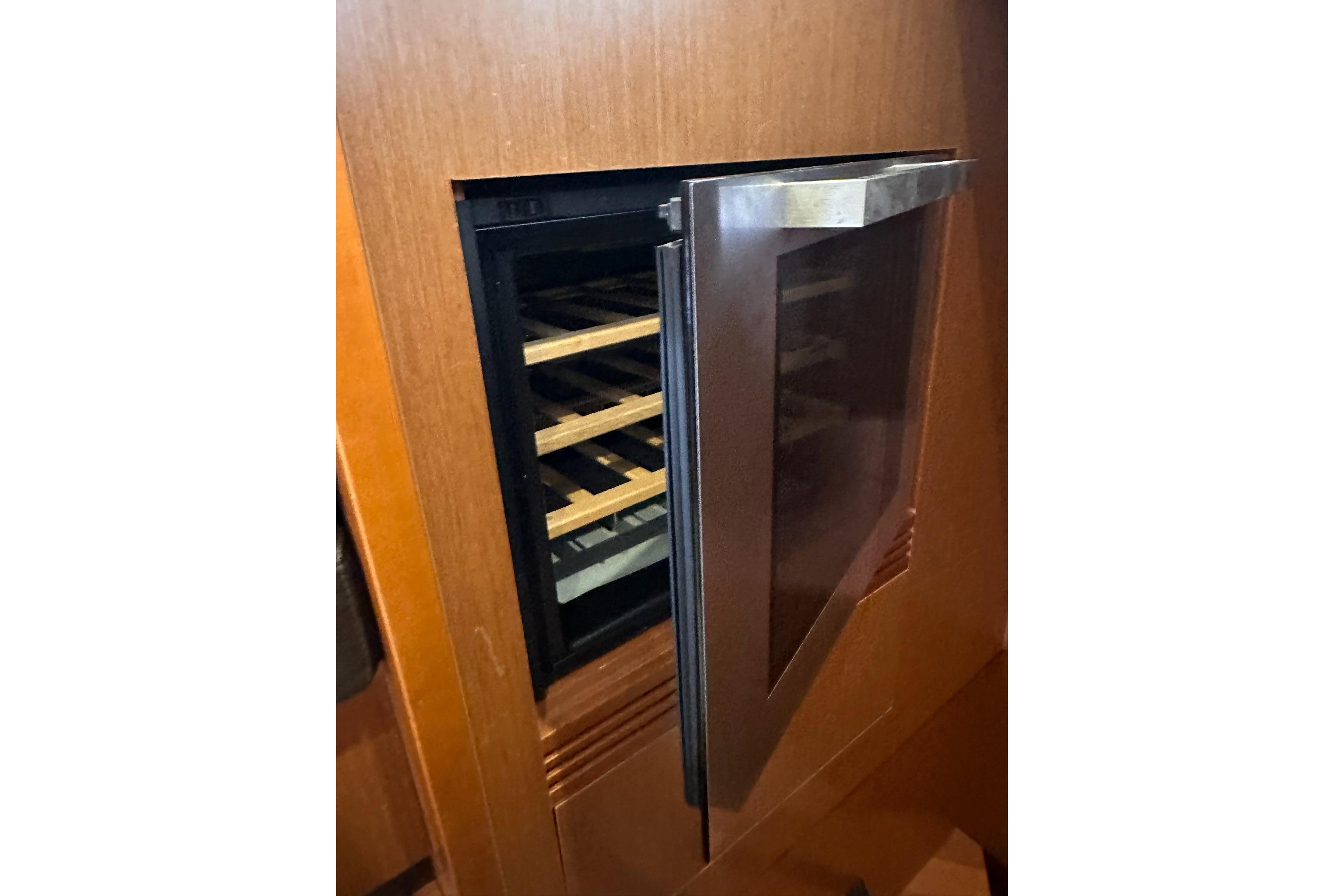

• Storage for 23 wine bottles in companionway

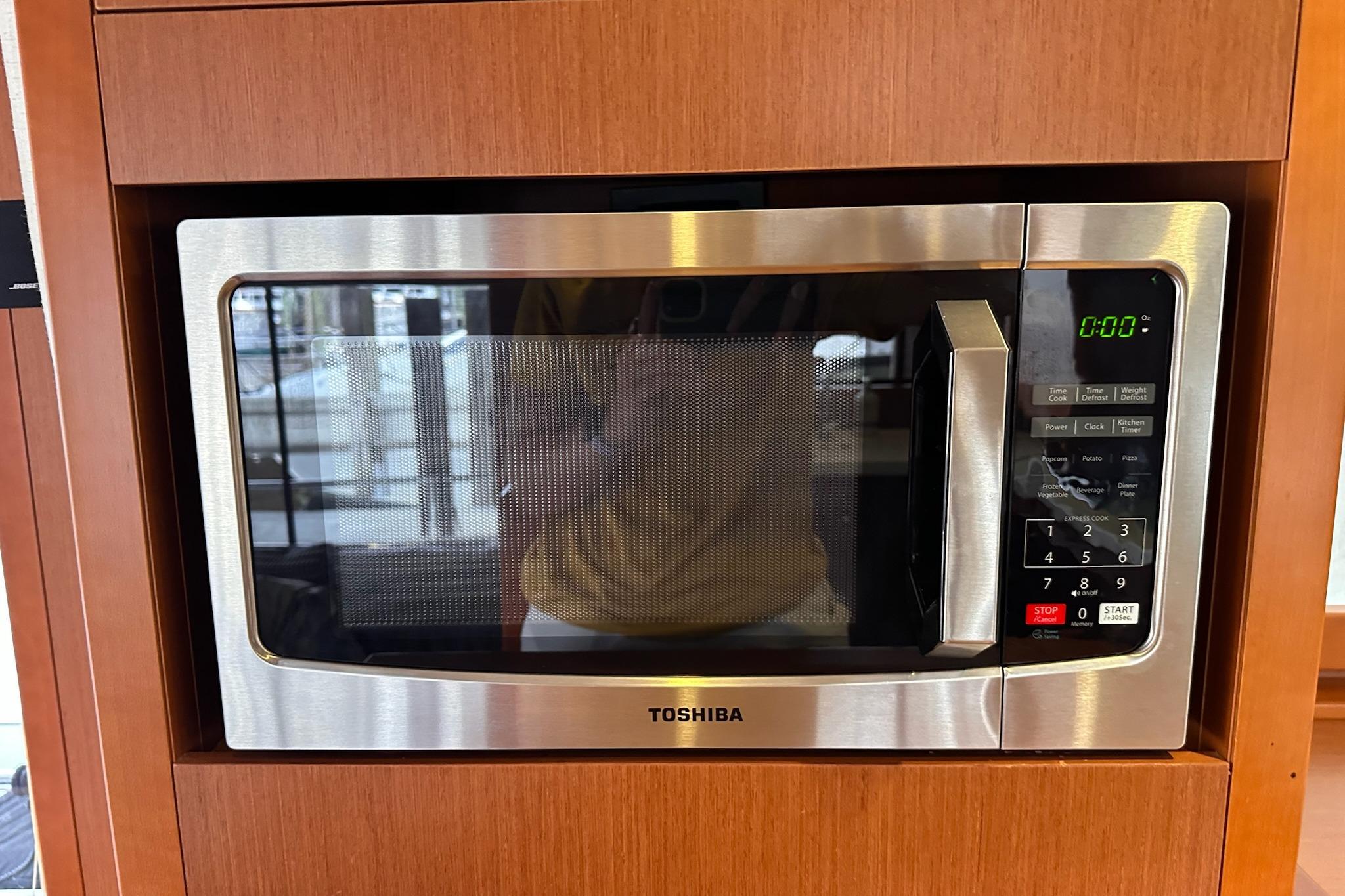

• Medium size medium size 110 V microwave-oven (1,4 cu ft) to install (galley unit on portside)

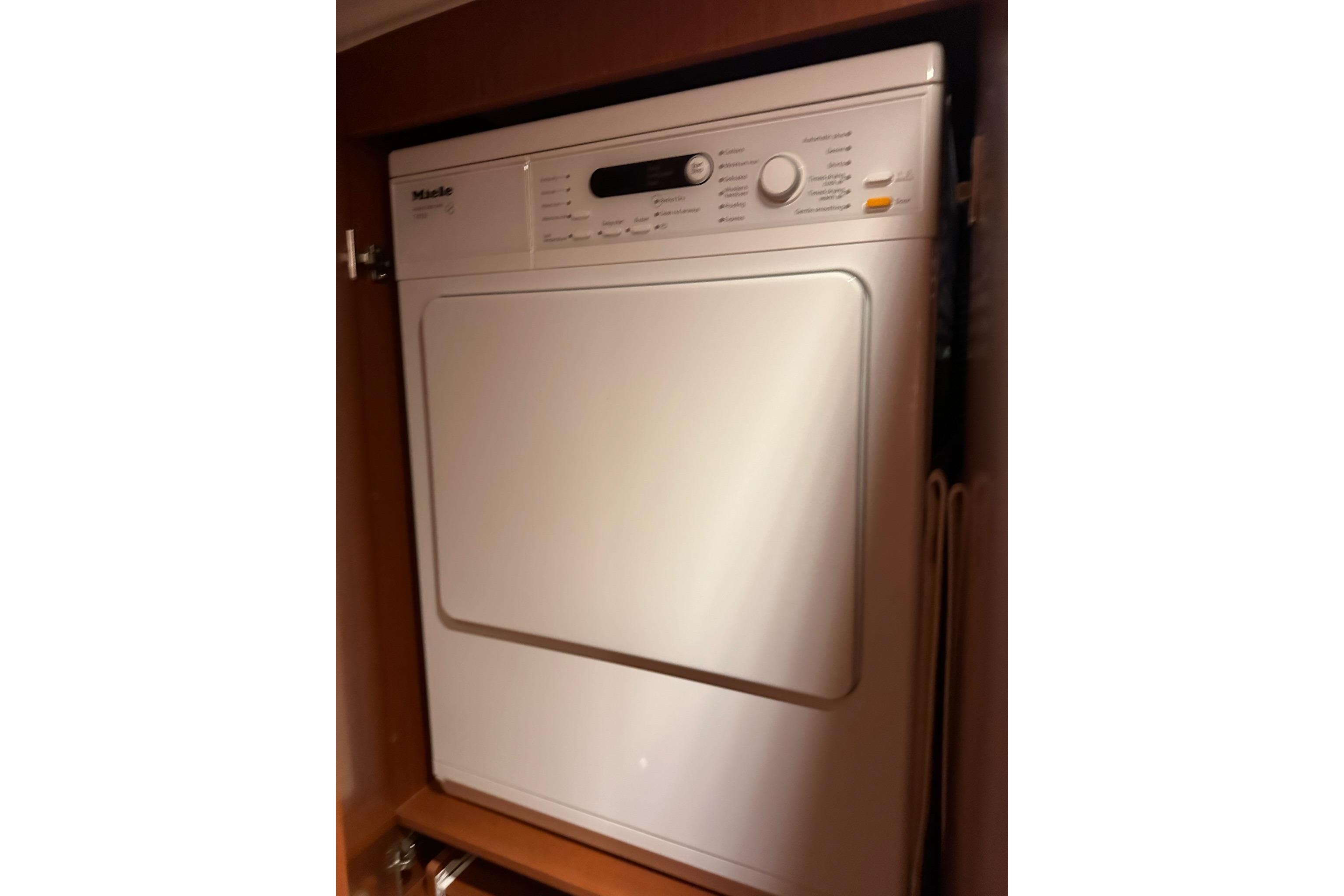

• Stacking washing machine + Miele marine® dryer with external venting (220 V)
• Saloon upholstery + Dinette + Leather pilot bench seat
• Carpet in saloon and wheelhouse• Headboard in forecabin and owner's cabin in devon Chocolate leather
• Mosquito screens to aft glazed picture window and sliding side door to wheelhouse
• Mosquito nets on round portholes
• Safe in master cabin
