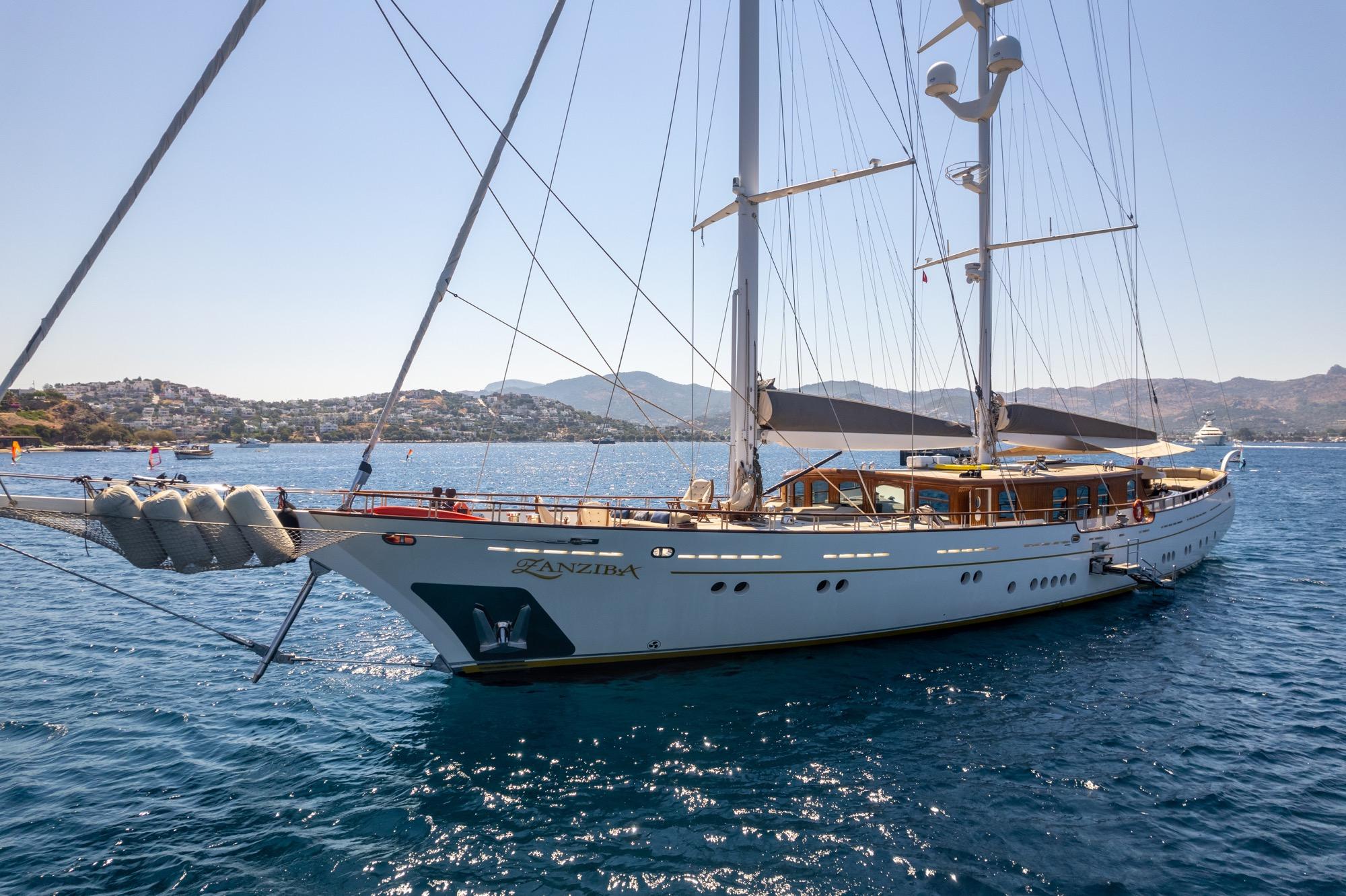

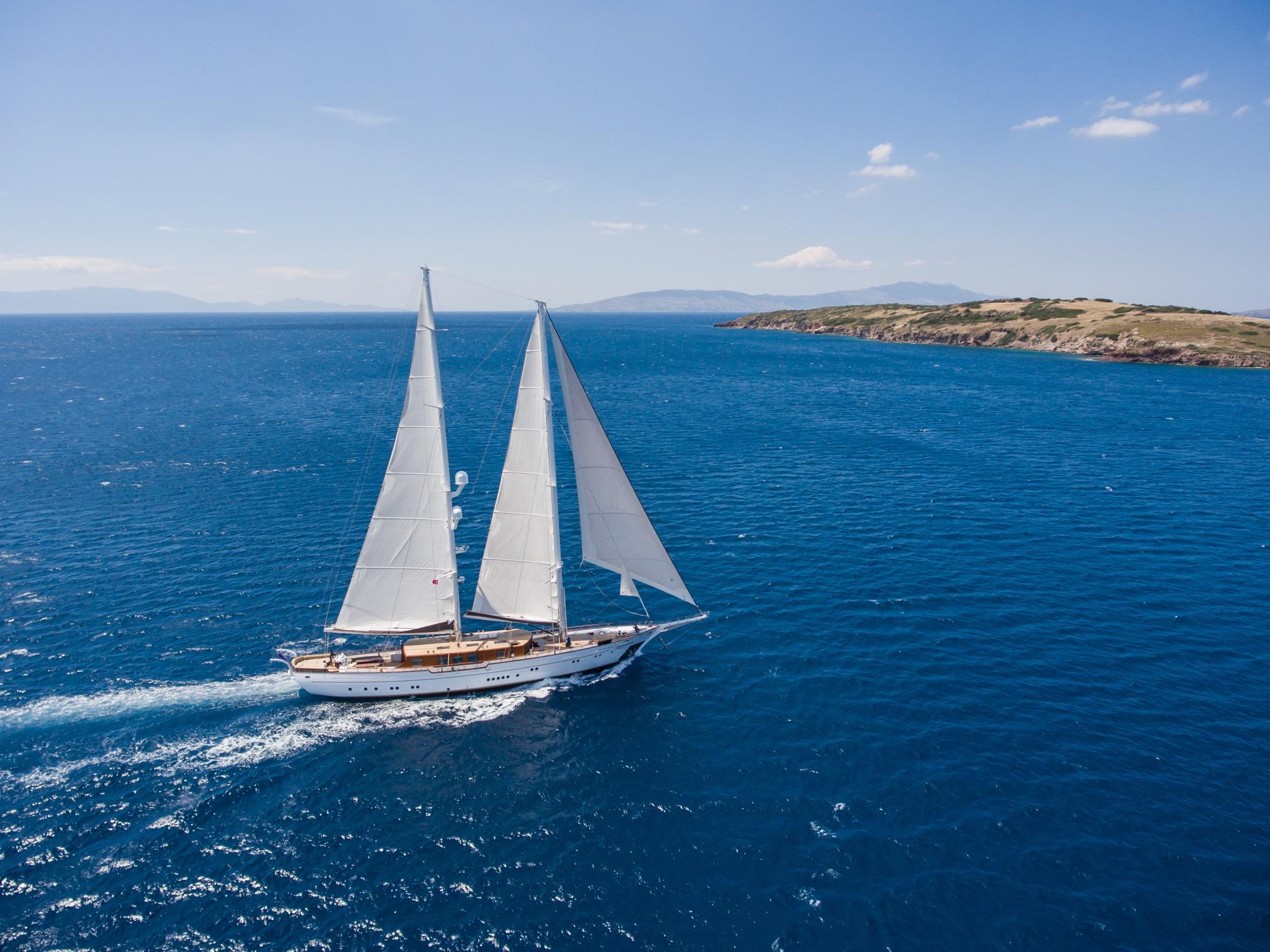

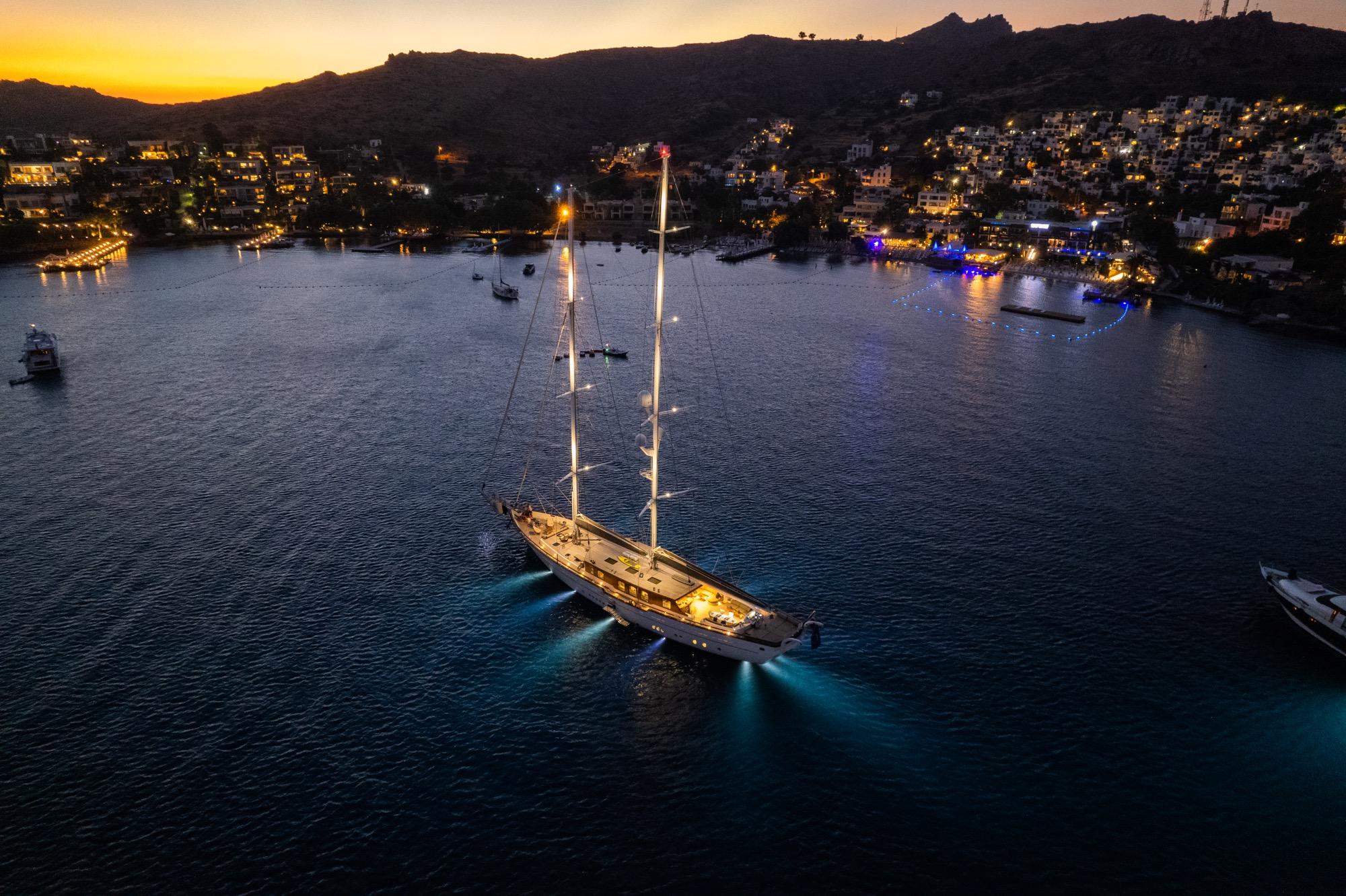

2015 Custom Zanziba for Sale – 131 ft – Milas, Turkey

Flag                                                                                       Cook Island

Port of registry                                                                       CISY – Arutanga

Official Number                                                                     2158

Call sign                                                                                E5U3056

Hull Mateerials                                                                       Wood

Length Overall                                                                      40.00 m

Length On Water Line                                                          32.55 m

Length On Deck                                                                    37.70 m

Length P to P                                                                         31.33 m

Beam                                                                                     9.06 m

Displacement (dry)                                                                259 tonnes

Gross Tonnage                                                                      248

Net Tonnage                                                                          74.00

Shaft Diameter                                                                      90 mm

Shaft length                                                                                       7.80 m

Propeller Diameter                                                                Varifold propeller 45’’X36’’

Maximum Design Speed                                                        13.1 Knot

Bow thruster Tunnel                                                             1

Rudder Shaft Diameter                                                         110 mm











Engine Information

Manufacturer                                                                         CATERPILLAR

Model                                                                                    2X C18

Brake horsepower                                                                  1800 RPM @ 454 BHP

Gear Information

Manufacturer                                                                         ZF

Model                                                                                    W 325 (0 degree)

Reduction Ratios                                                                   2.933:1

Generator Set (3x) Information

Note: All three generators were replaced in 2023.

Manufacturer                                                                         Onan

Model                                                                                    2x Onan 43 KW, 1x Onan 27 kW

Capacities

Fuel Oil Capacity                                                                  11 m3 / 11000 Liters /2906 Gallons

Fresh Water Capacity                                                            4.80 m3 / 4800 Liters / 1268 Gallons

Grey/Black Water Capacity                                                  2.45 m3 /2450 Liters / 647 Gallons





















SAFETY EQUIPMENTS

Life Raft Airmar SOLAS A                                                  10 persons x 2

Line Throwing device set                                                      1 pcs

Emergency escape device                                                     2 pcs

Parachute Rocket                                                                  6 pcs

Hand flare                                                                              6 pcs

Smoke signal                                                                         2 pcs

First aid kit                                                                            2 pcs

SOLAS Wheel life jacket                                                      20 pcs



CONSTRUCTION

Hull Construction                                                         COLD MOULDED WOODEN



Mechanical and Plumbing

MACHINERY

Each marine diesel engine drives a fixed pitch propeller via a shaft with flexible coupling and reverse / reduction gearbox with clutch. For the shaft arrangement both torsional and lateral (bending) vibration analyses are or have been performed to avoid resonance in the working speed range. All machinery is marine type and the installation is laid out for easy watch keeping, servicing and maintenance.Starting and stopping of the main engines is in the engine room and also from the bridge. For safety reasons a local switch(es) is fitted in the engine room, which will prevent the engines being started by remote control.







Main Engines

Engine Type:                                              (2) CAT – C18 1800 RPM @ 454 BHP each



CATERPILLAR MARINE ENGINES

C18 ACERT 454 BHP SPECIFICATIONS

I-6, 4-Stroke-Cycle-Diesel

Emissions                                                                  IMO/EPA Tier 2

Displacement                                                             18.1 L (1106 cu in)

Rated Engine Speed                                                  1800

Bore                                                                           145.0 mm (5.7 in)

Stroke                                                                        183.0 mm (7.2 in)

Aspiration                                                                  TA, TTA

Governor                                                                   Electronic

Cooling System                                                         Heat Exchanger or Keel Cooled

Weight, Net Dry (approx.)                                        1,091 kg (2,405 lb)

Refill Capacity

Cooling System                                                         45.8 L (12.1 Gal)

BKW                                                                         338,5 KW

Lube Oil System                                                        64 L (16.9 Gal)

Oil Change Interval                                                   500 hrs

Caterpillar Diesel Engine Oil                                                10W30 or 15W40

Rotation (from flywheel end)                                                Counterclockwise

Flywheel and Flywheel Housing                               SAE No. 1 or SAE No. 0

Flywheel Teeth

SAE No. 1                                                                 113

SAE No. 0                                                                 136

Maximum Exhaust Backpressure                              6.7 kPa (26.9 in. water)

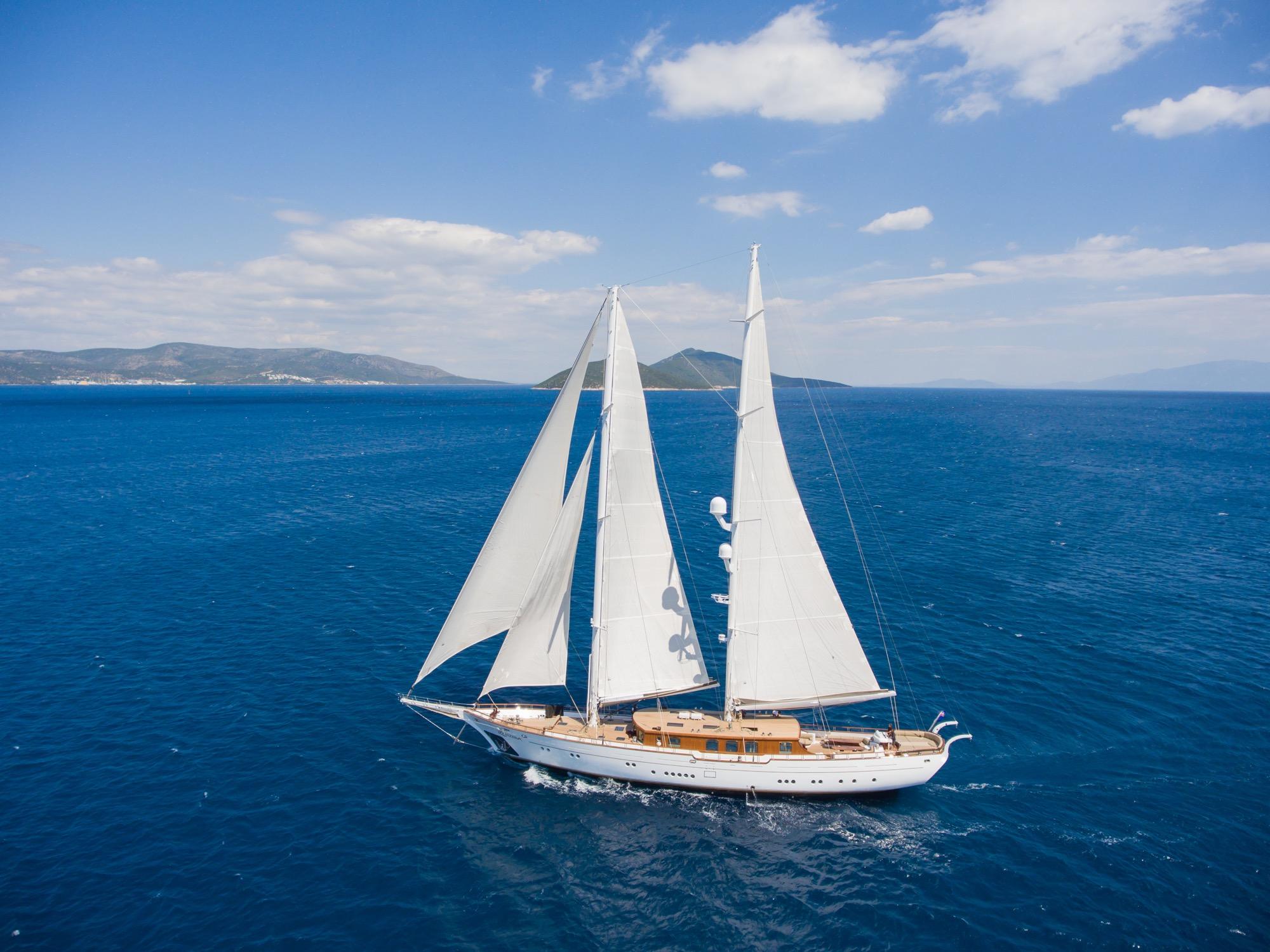

The yacht, Zanziba, carries some serious design pedigree. Her rig was designed and optimised by Gerry Dykstra, while the UK’s Fairlie Yachts contributed to the structural design. The interior, meanwhile, was put together by David Wright Design.



The 248GT yacht began life as the brainchild of a UK businessman, but he exited the Project when the boat was about one-third complete. Zanziba’s hull then languished in the boatyard until it  was picked up by a Turkish businessman who saw the yacht’s potential.

The cold-moulded mahogany boat has elegant deckhouse covers an interior designed to be warm, natural and relaxed, to reflect the way in which the yacht will be used.

The hull is being built using the cold moulding process, by which a laminate hull is built up using thin, resin infused wood planking. The result is a rigid structure with an excellent strength to weight ratio, an done that requires little maintenance being both impenetrable to marine parasites and proof from osmosis.

The palette of interior materials includes goatskins, buffalo leathers, woven rattans and soft chenille fabrics. The hardwood beams in the saloon are the actual exposed structural elements of the deckhouse.

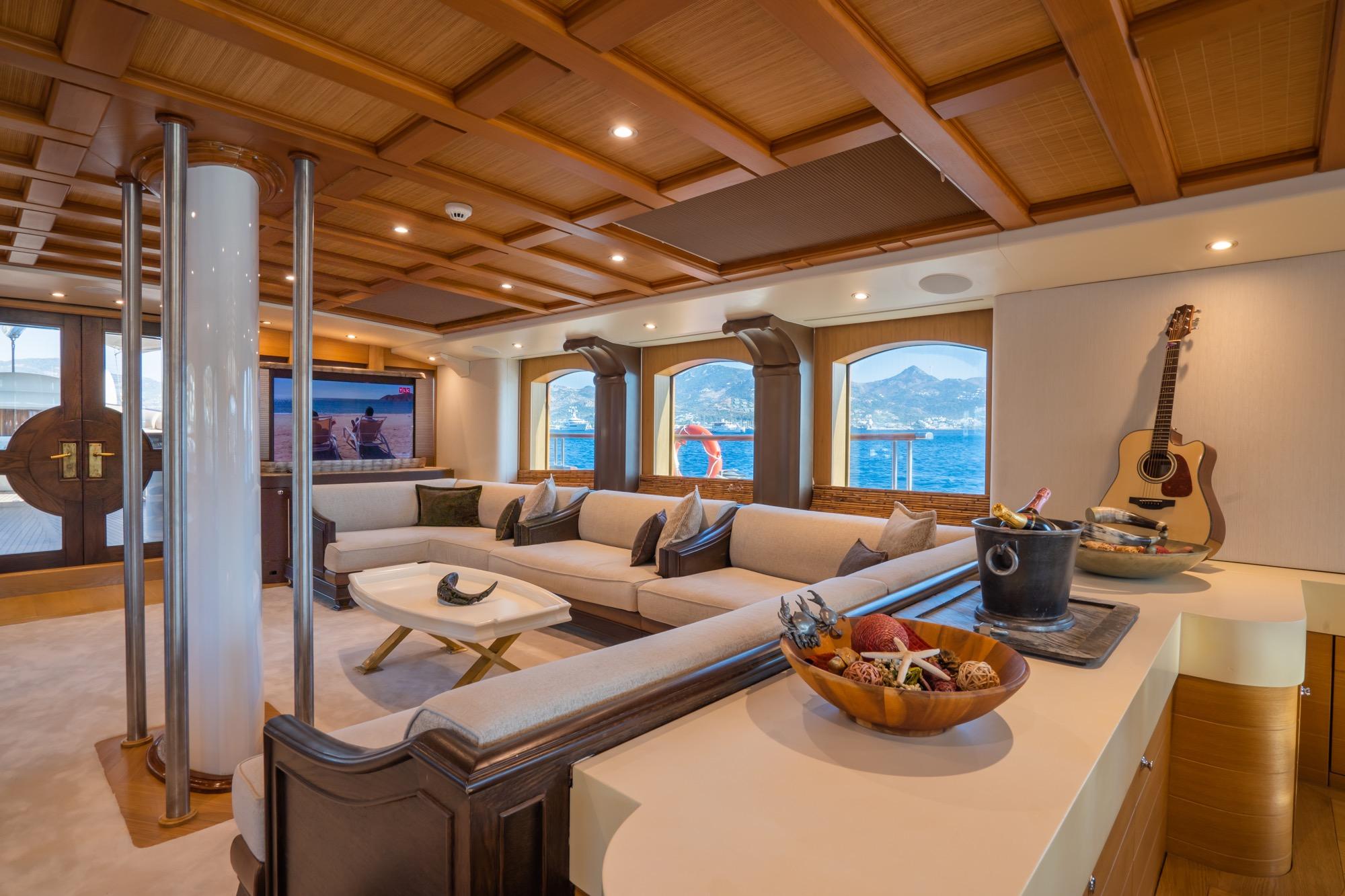

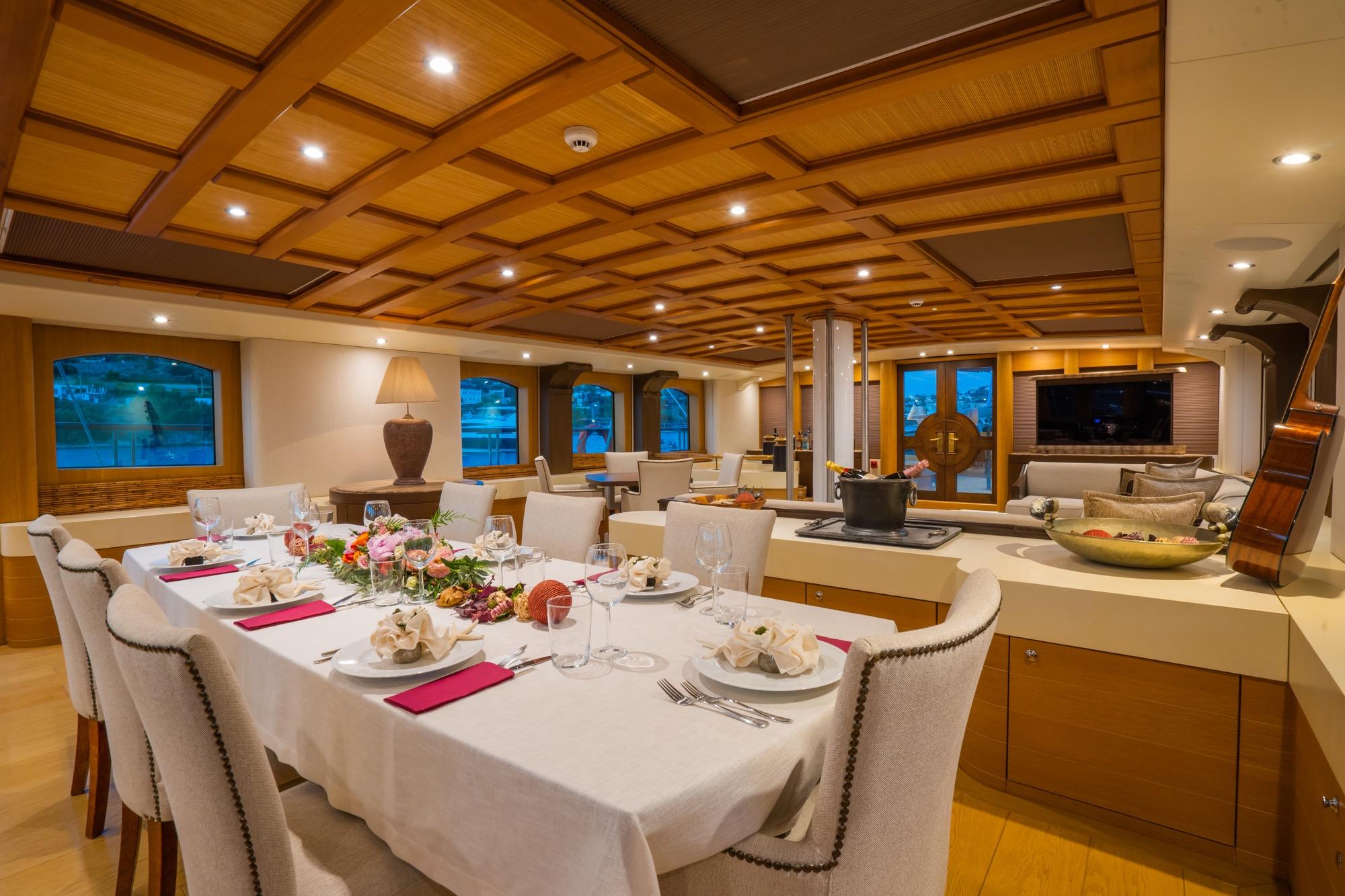

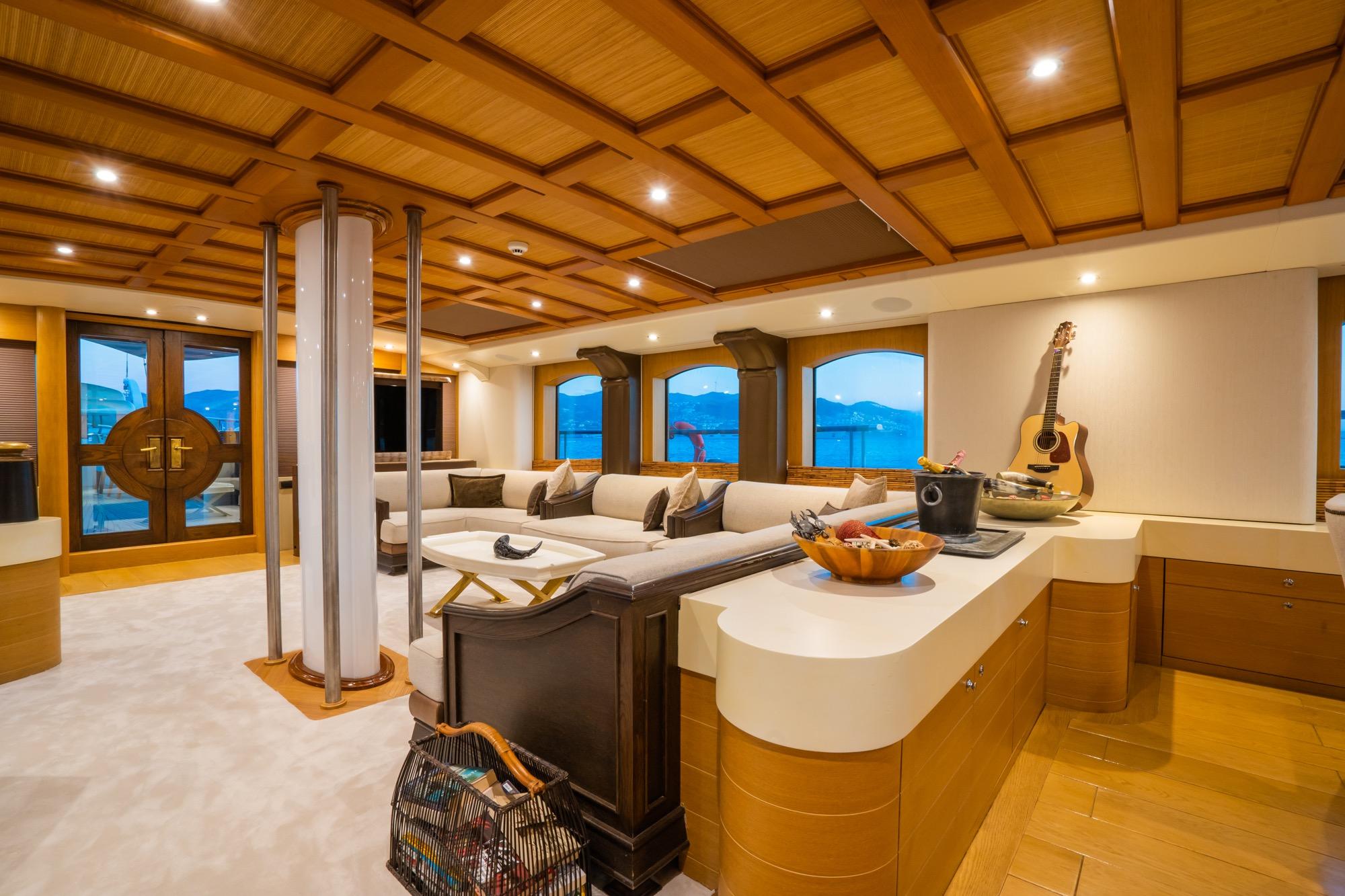

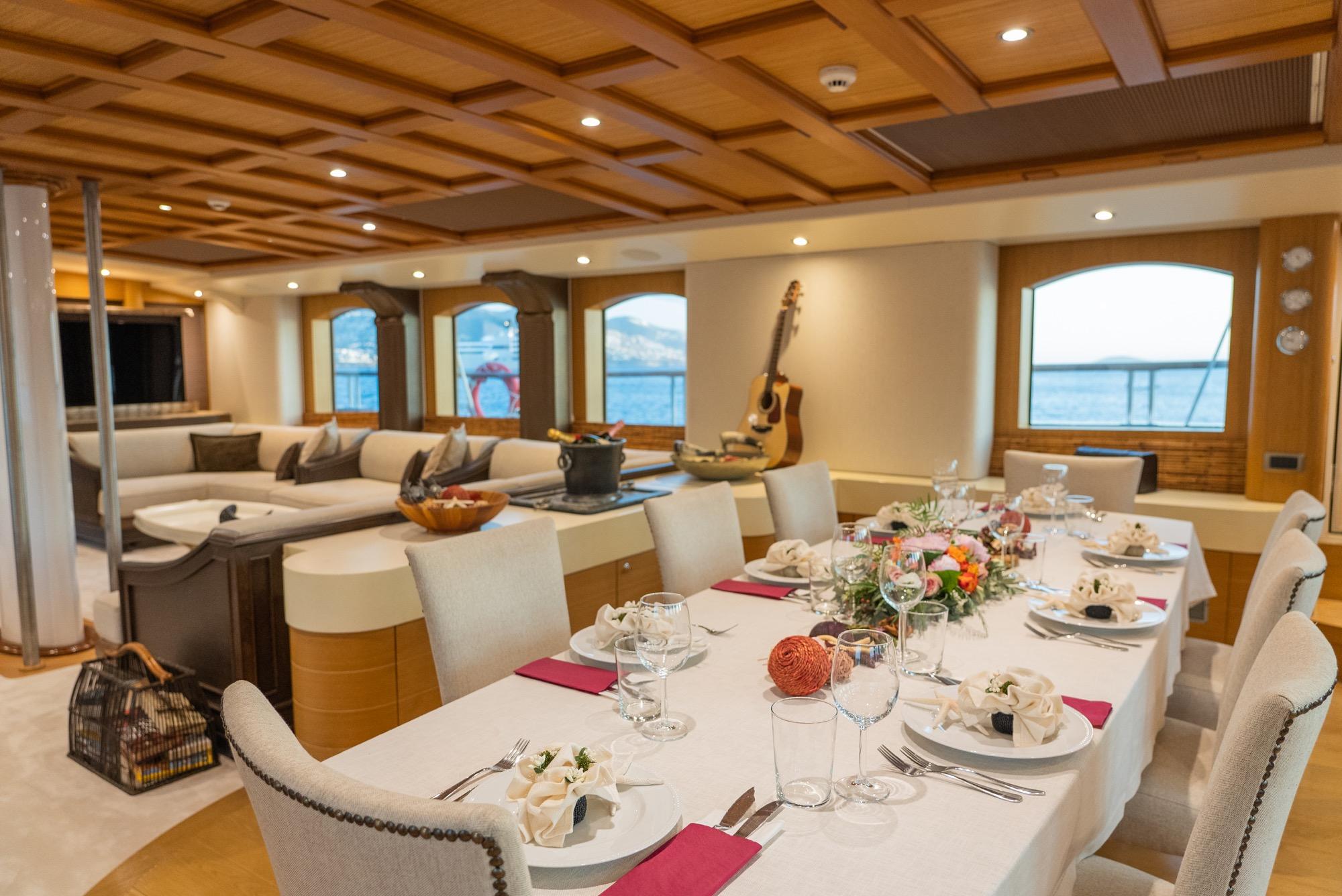

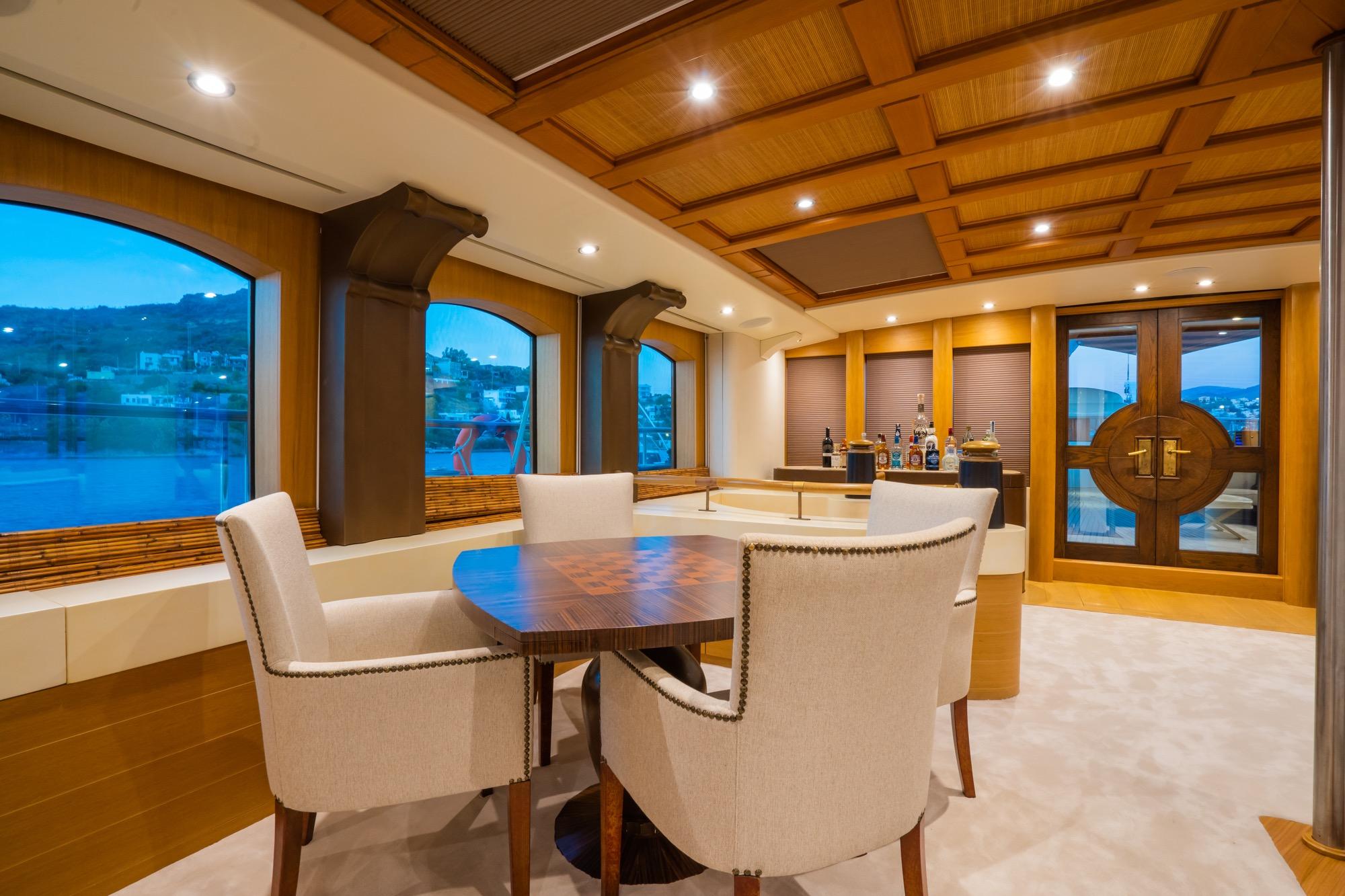

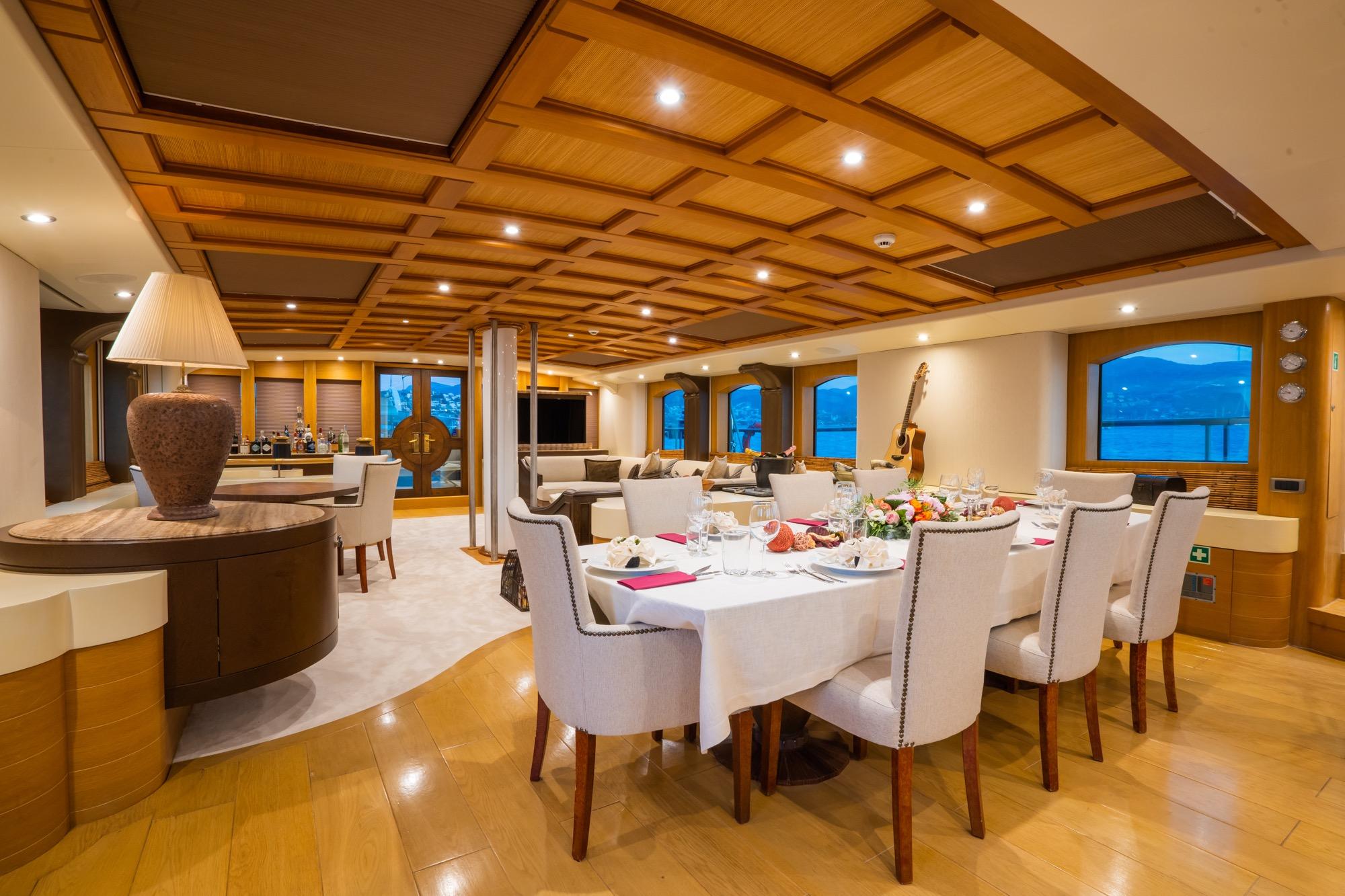

‘’For the most part, the backdrop of the interior is open grained oak panelling, with carved oak doors with a warm chocolate stain. The main saloon features a fulll length ceiling dome whose hardwood beams are the actual exposed structural elements of the deckhouse, with bamboo tatami panels in between the beams.’’

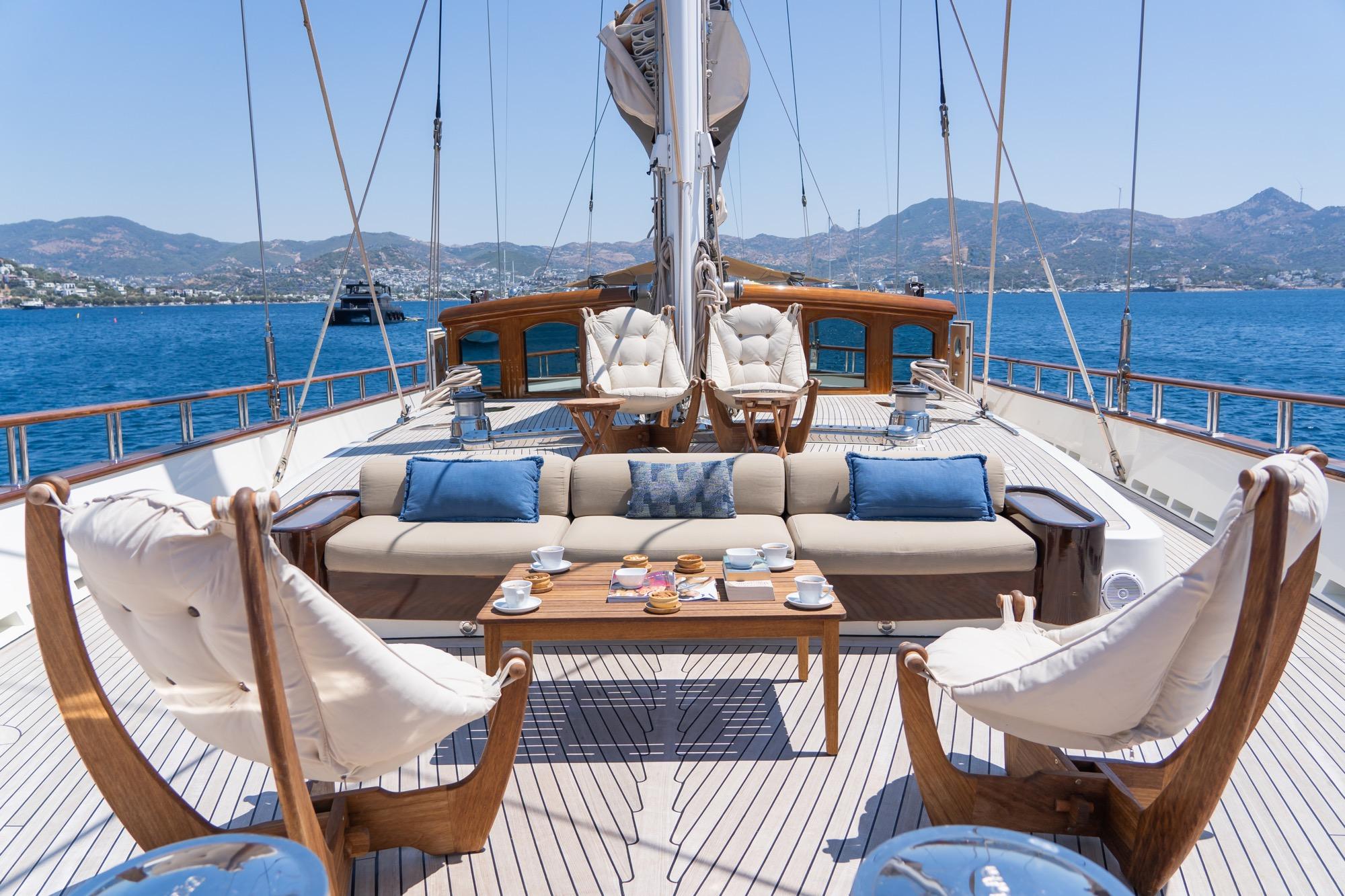

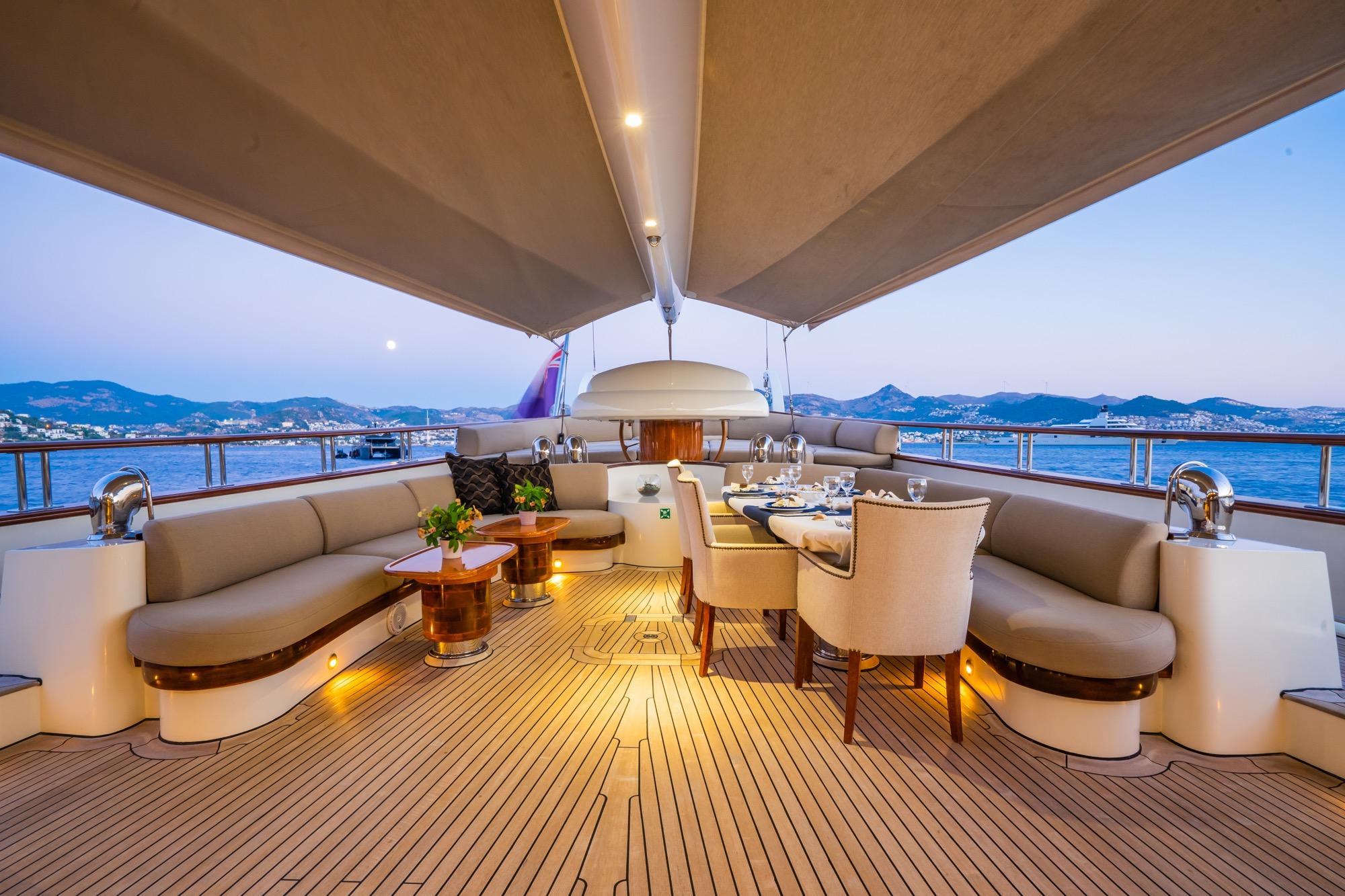

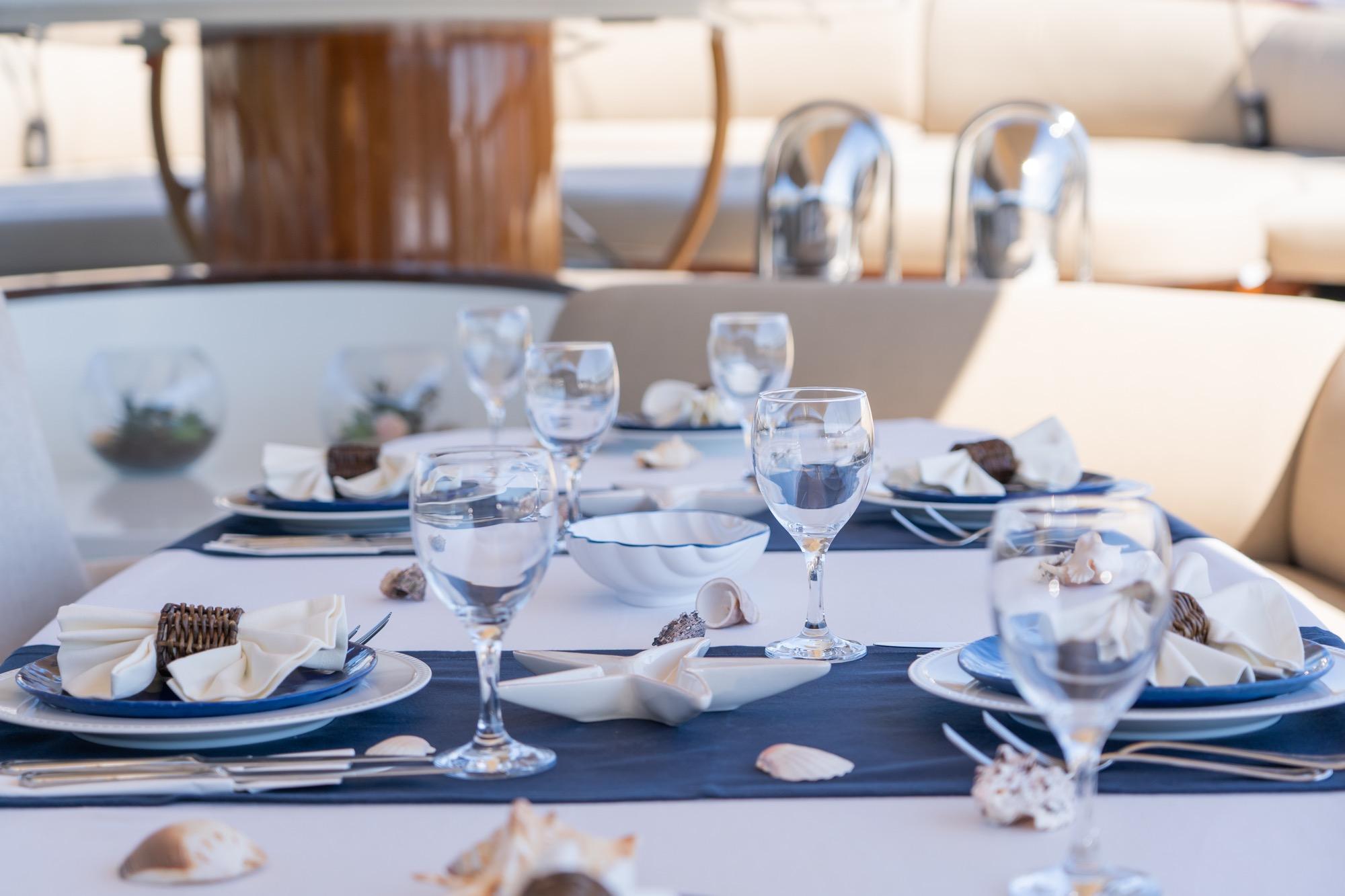

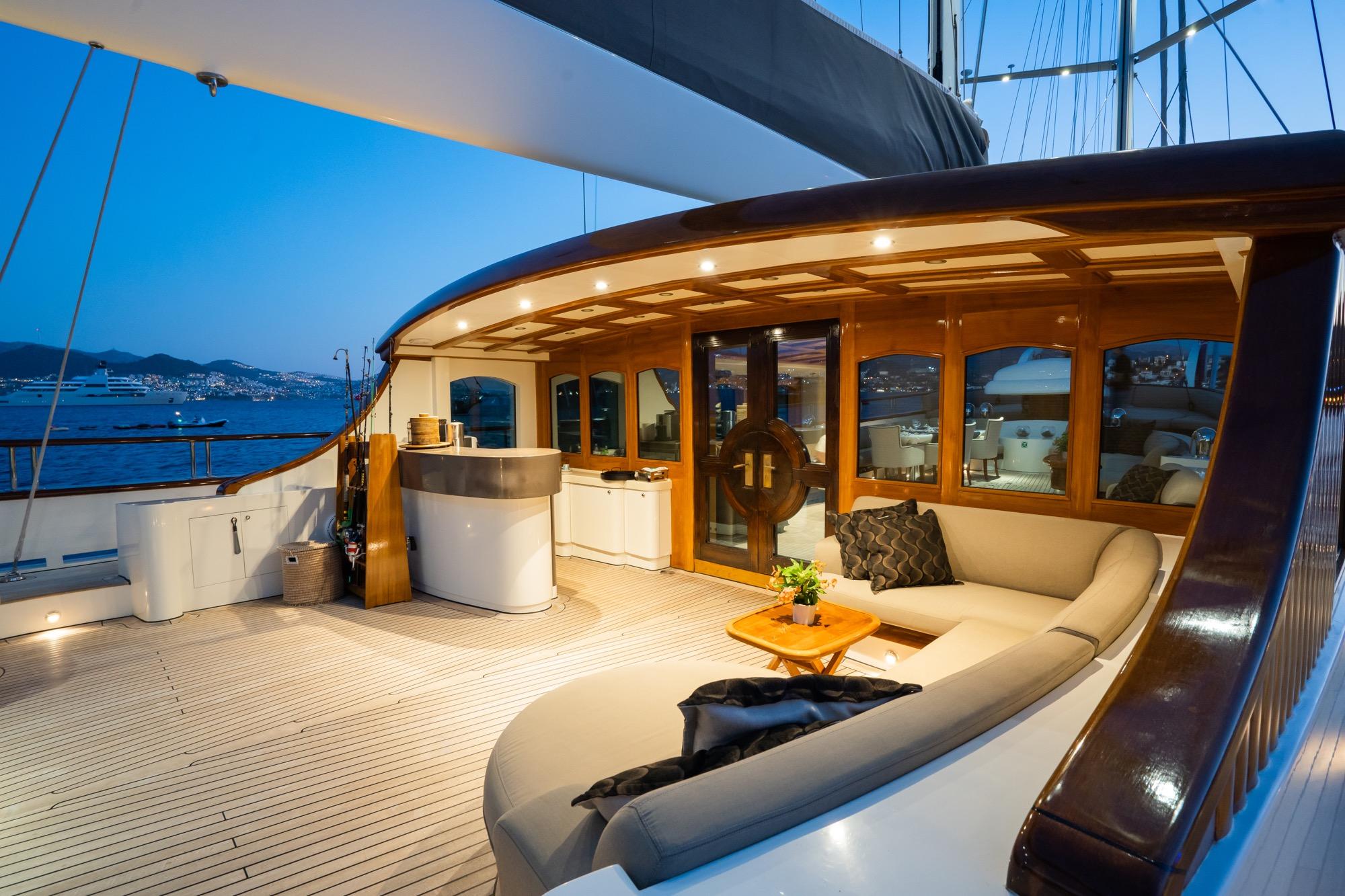

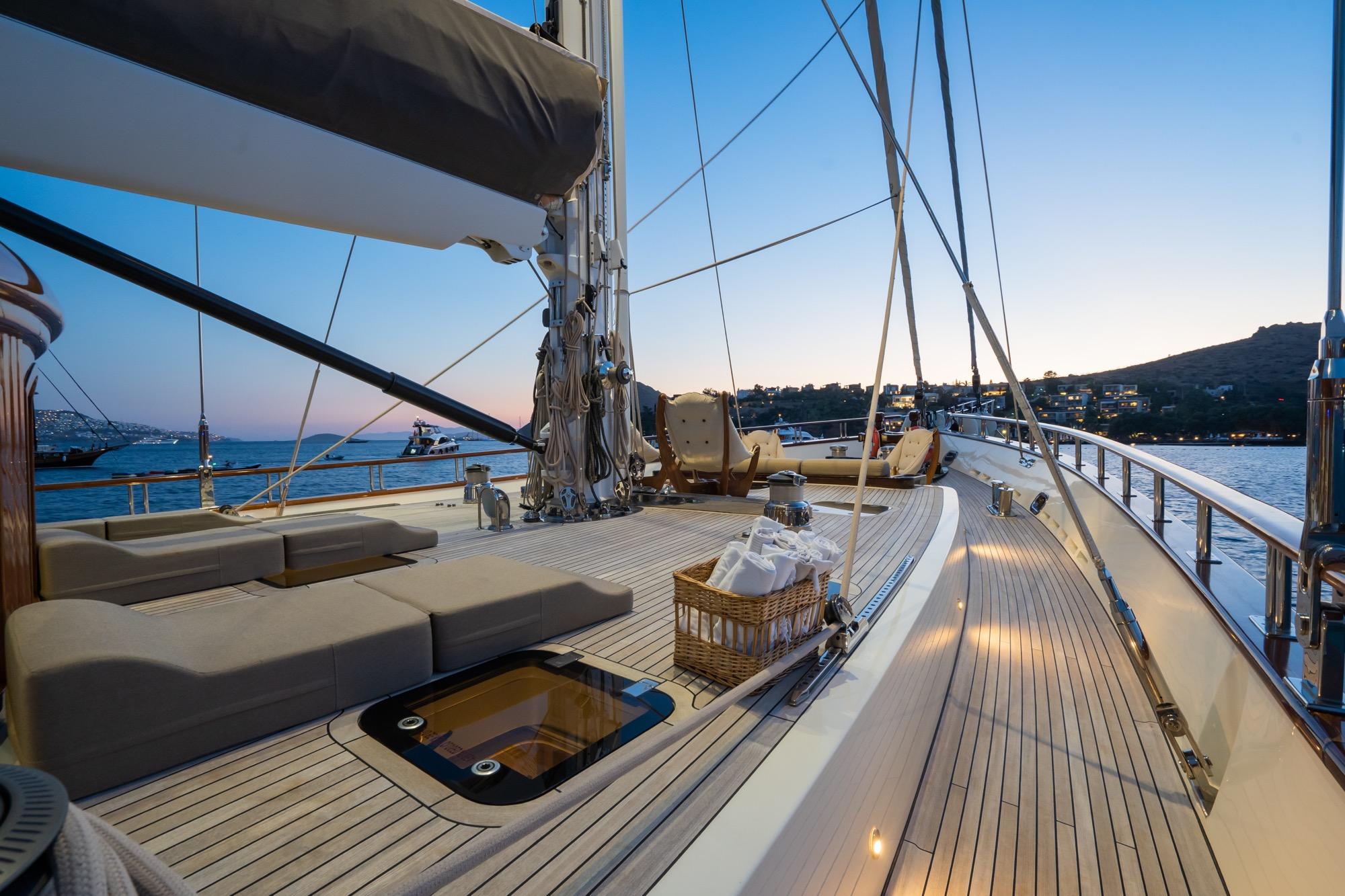

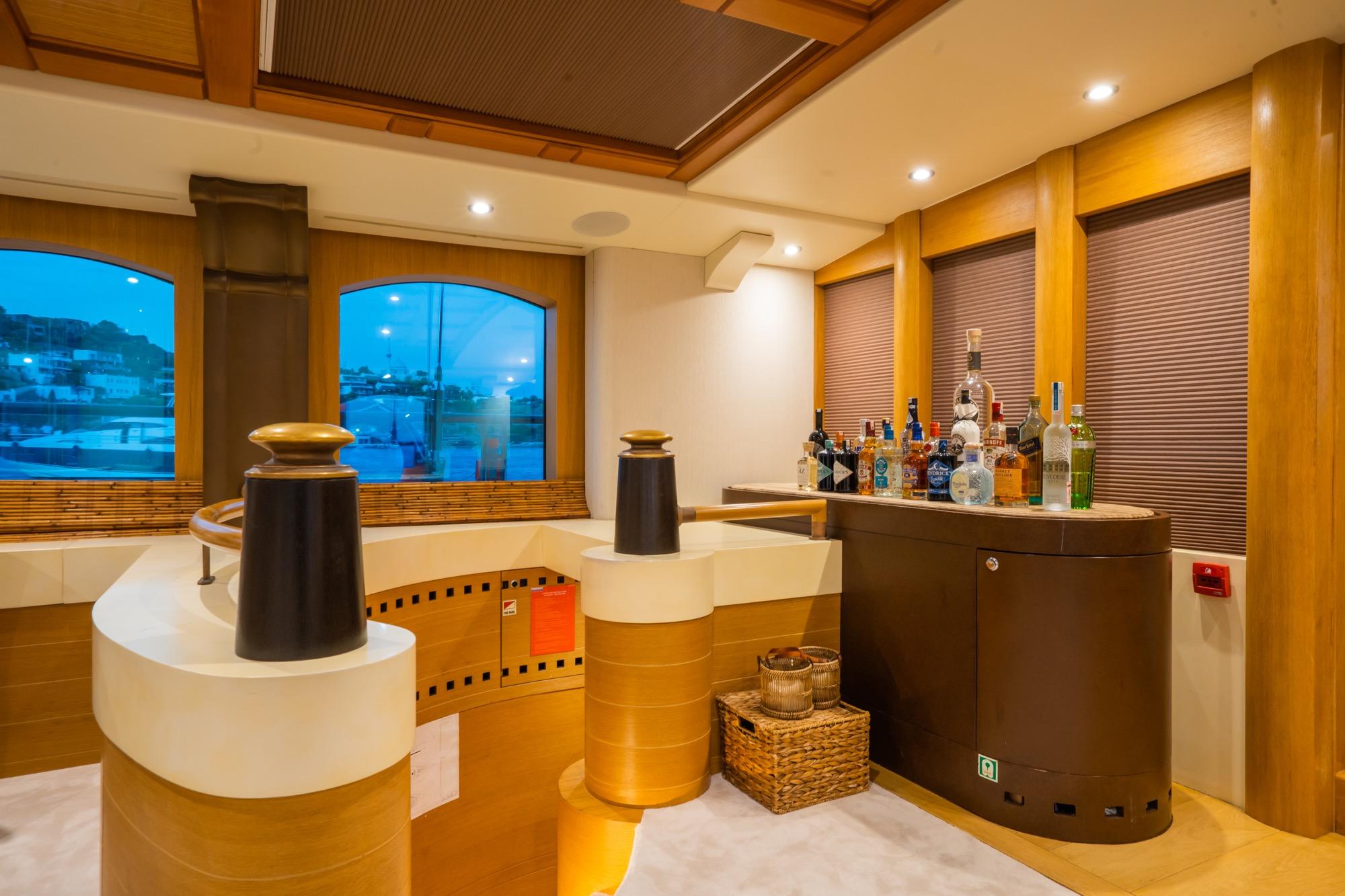

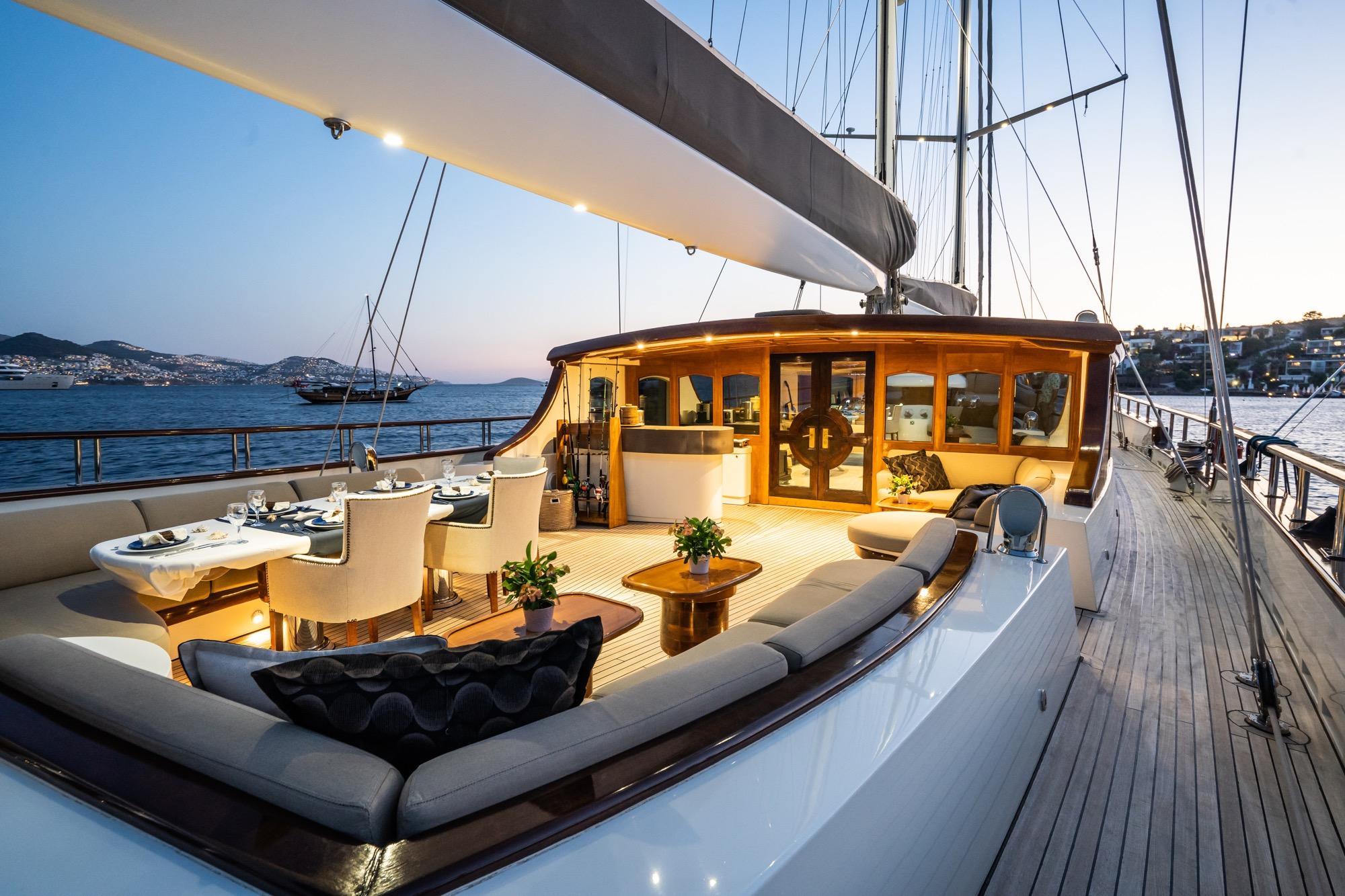

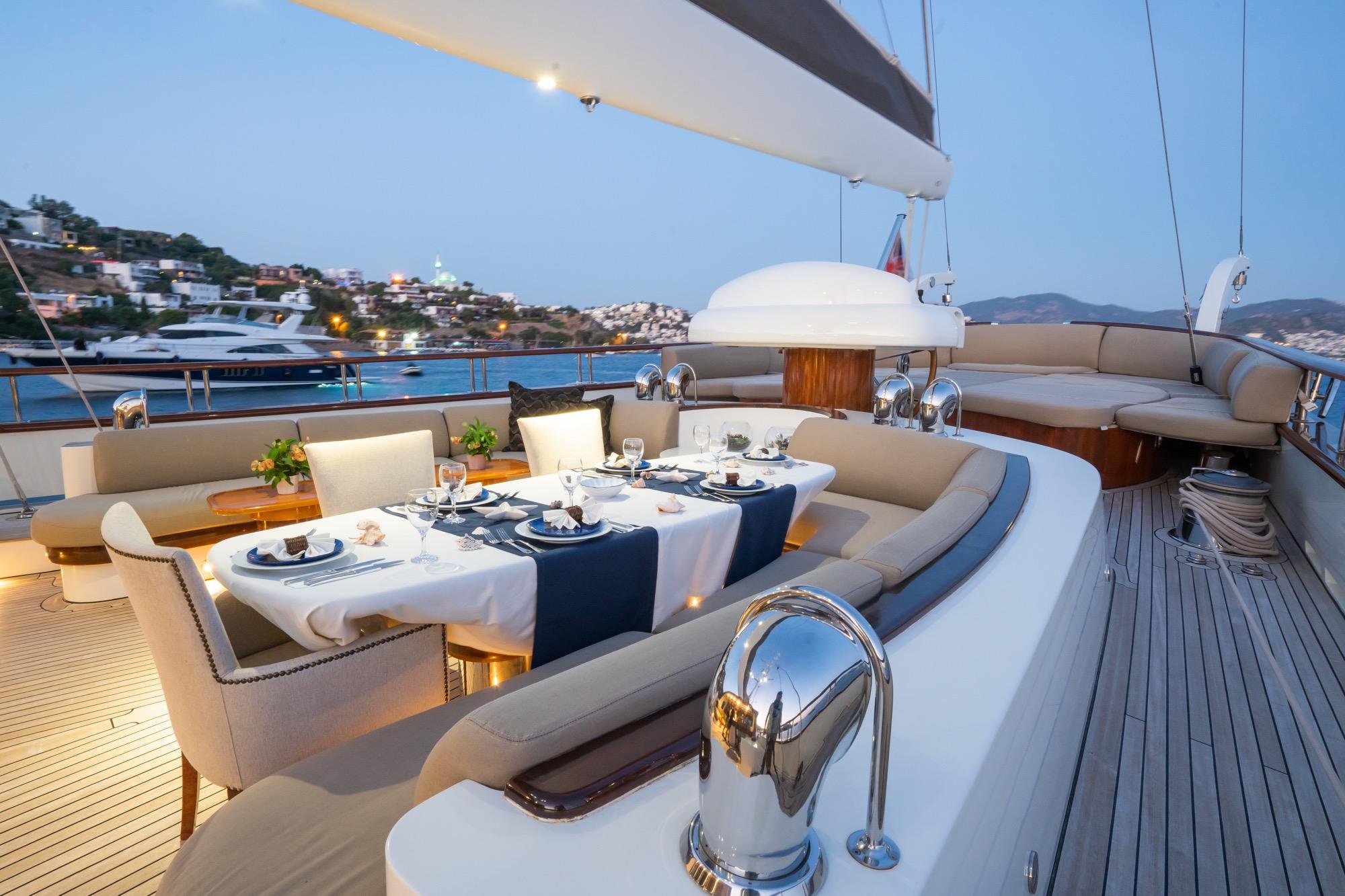

The main event on the deck is likely to be a carved, quartzite bar in the cockpit, which serves twin dining tables to the rear.

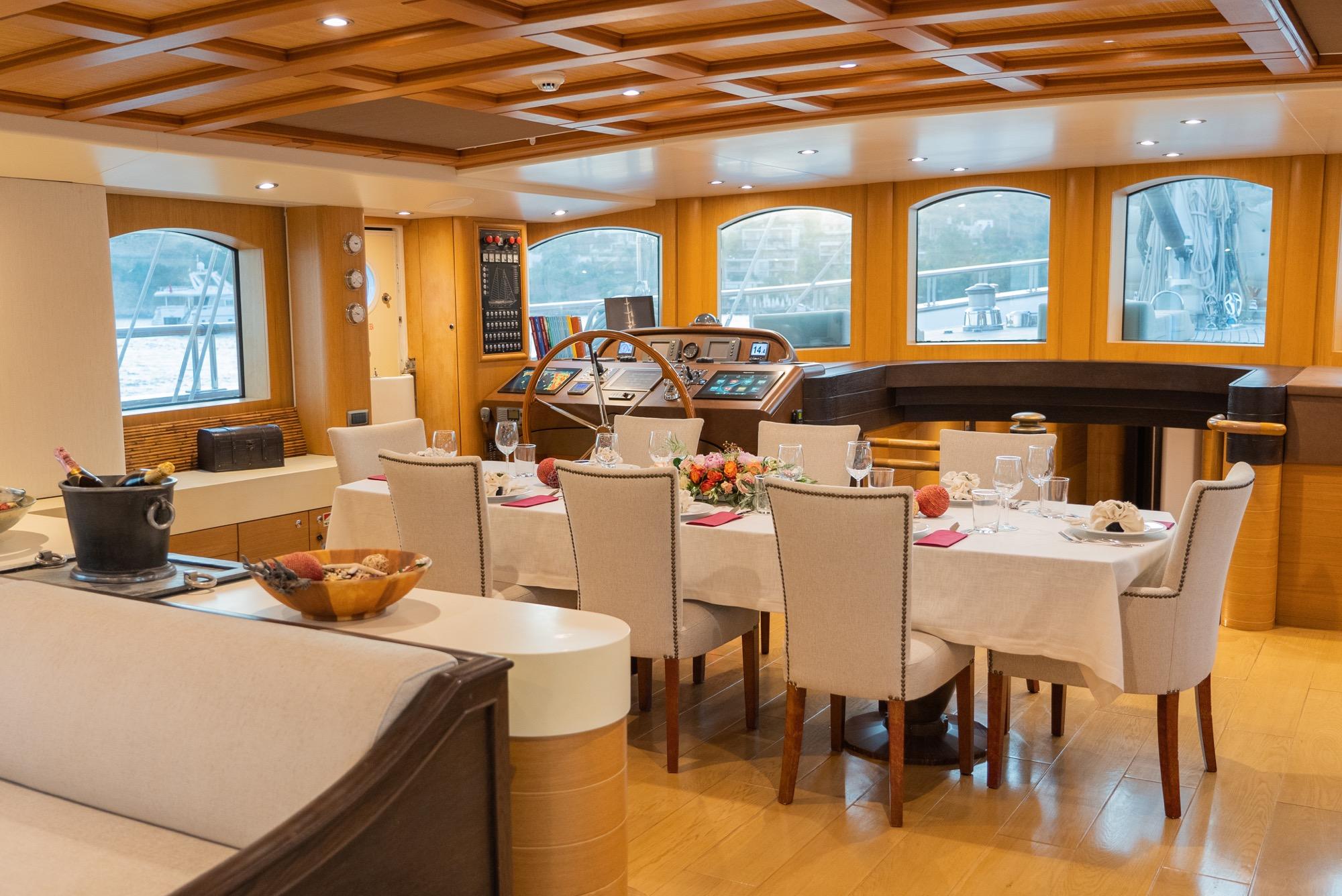

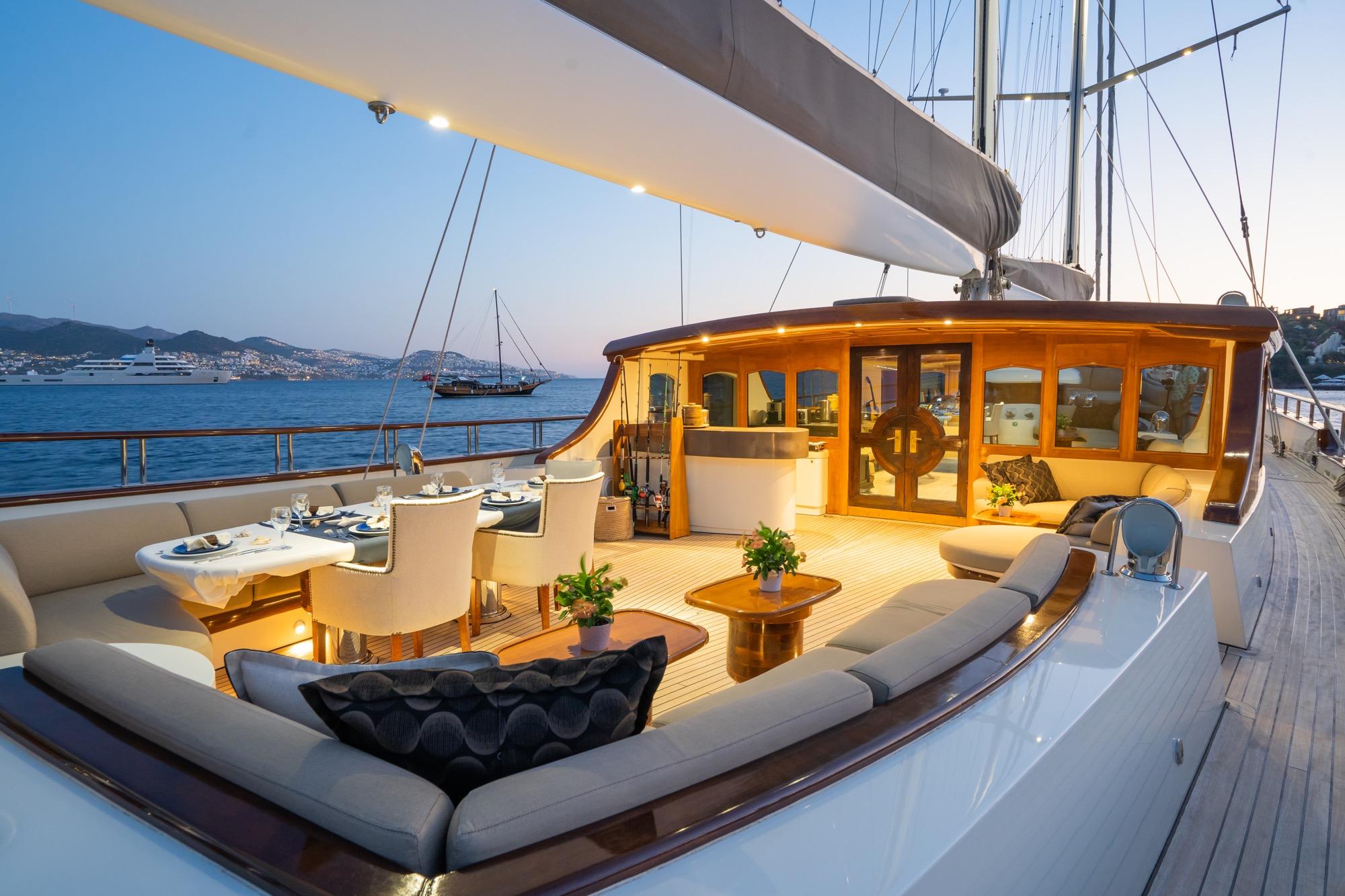

The accomodation is spread over two decks, with a spacious deckhouse containing the saloon and covered dining area offering spectacular views, and a lower deck with the guest cabins, crew quarters and service areas.

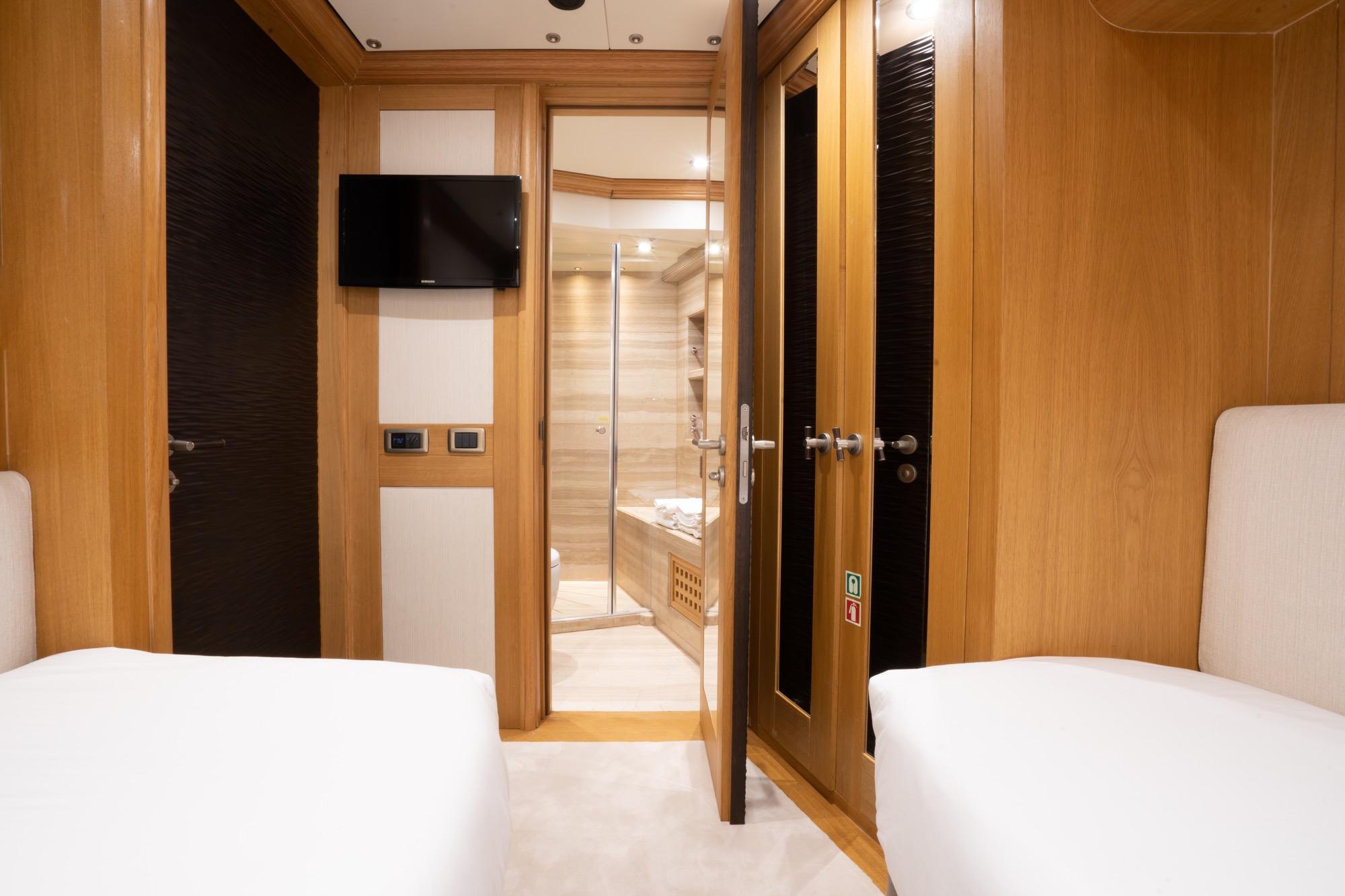

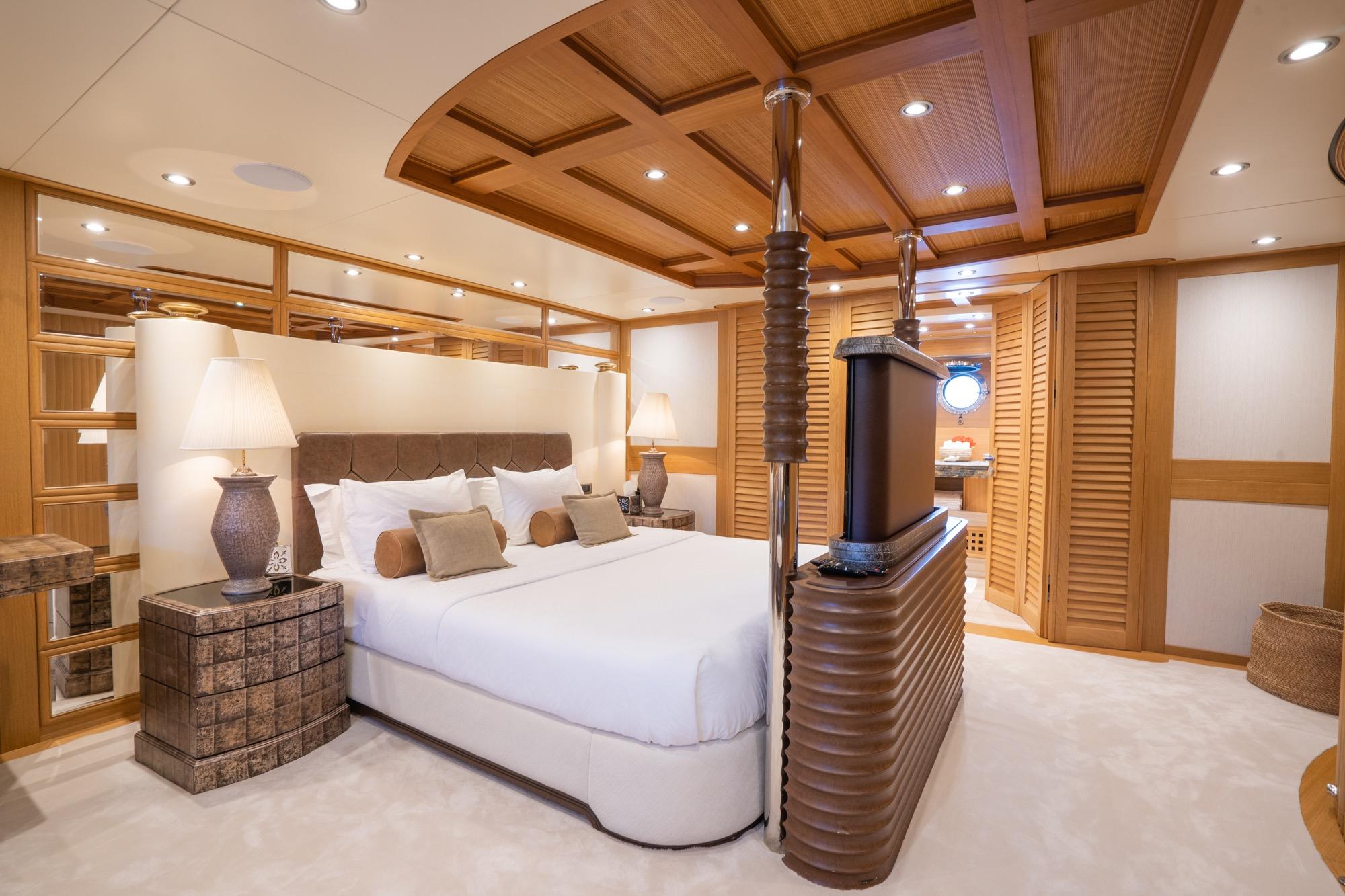

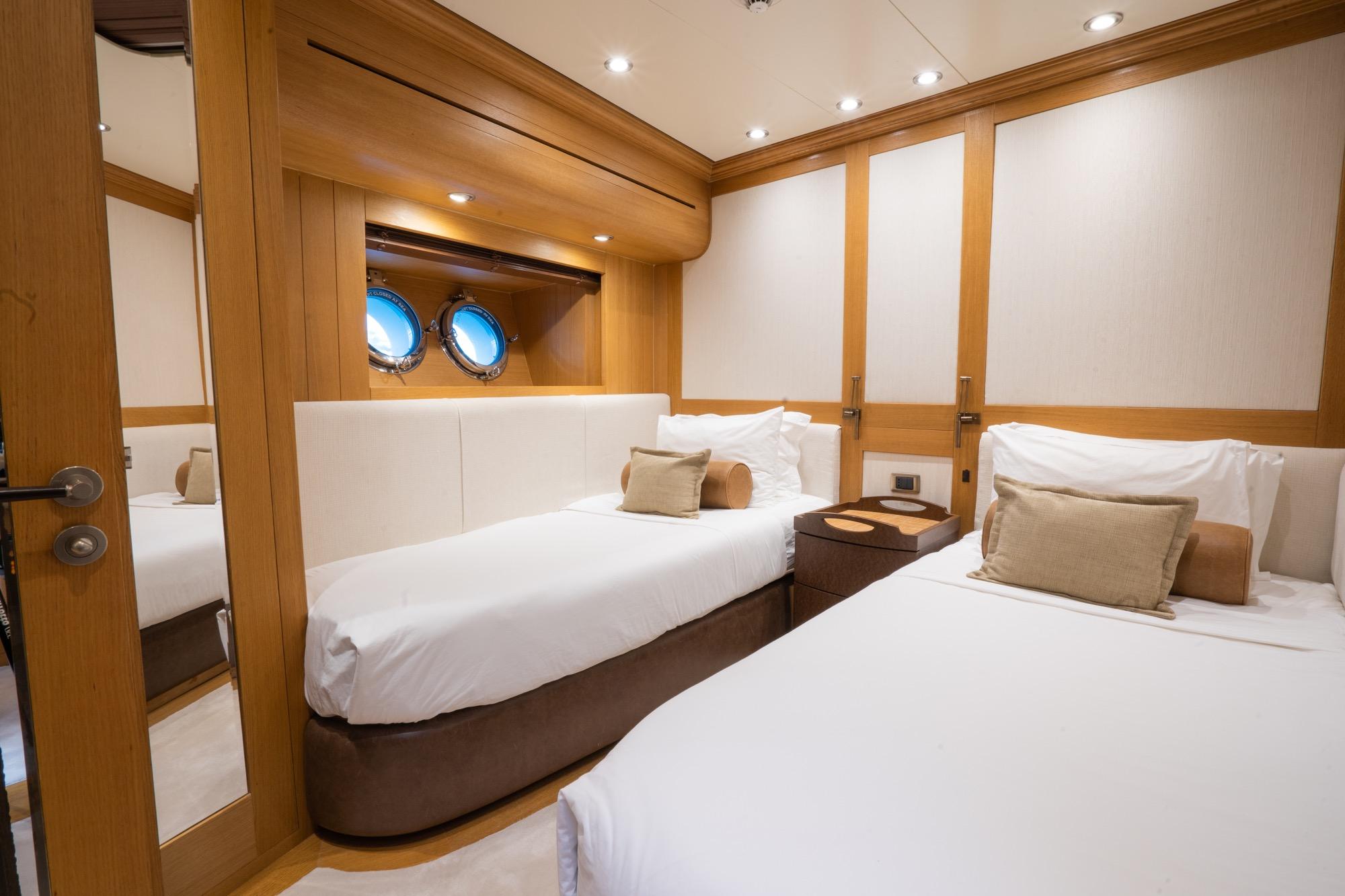

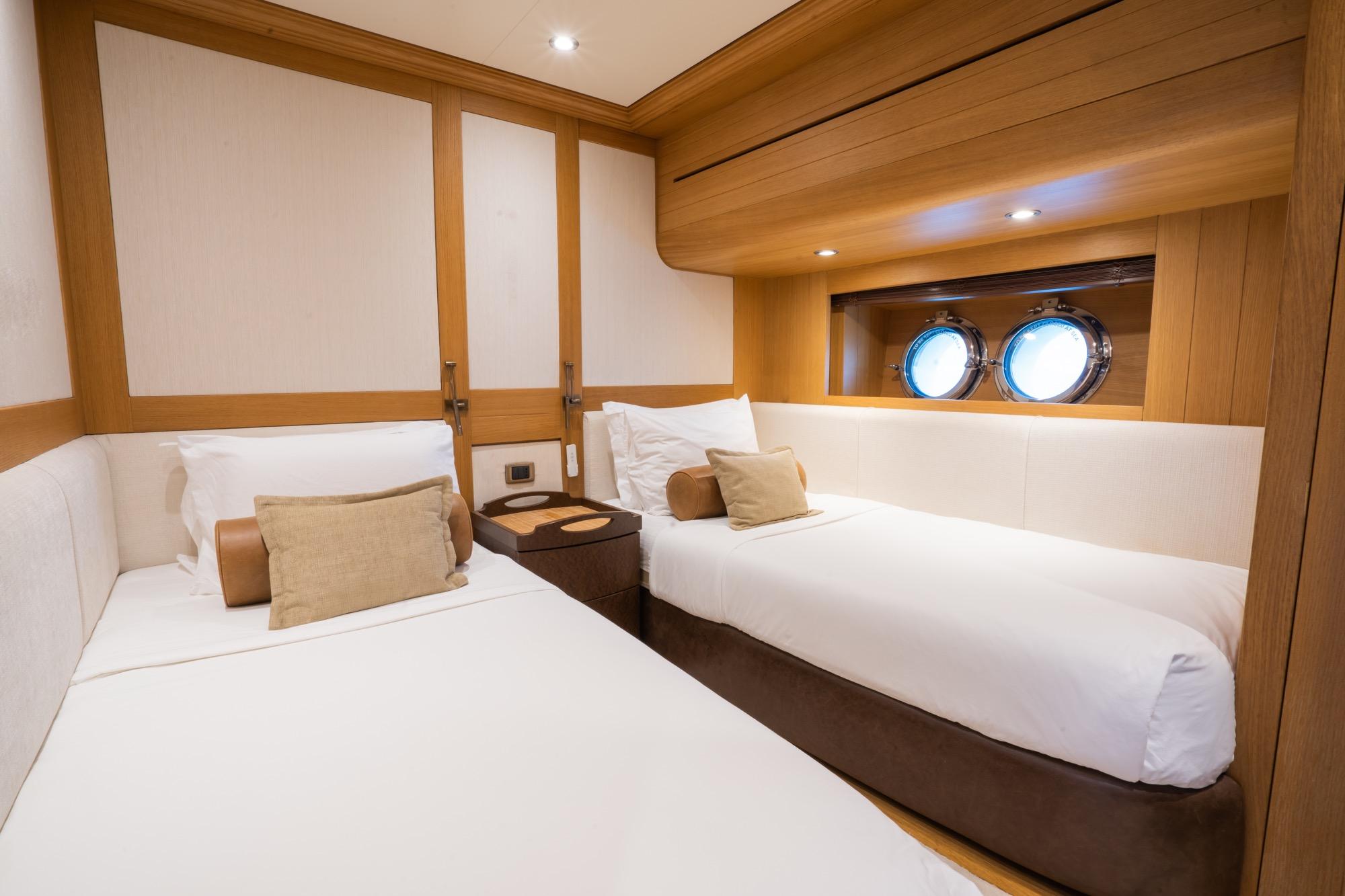

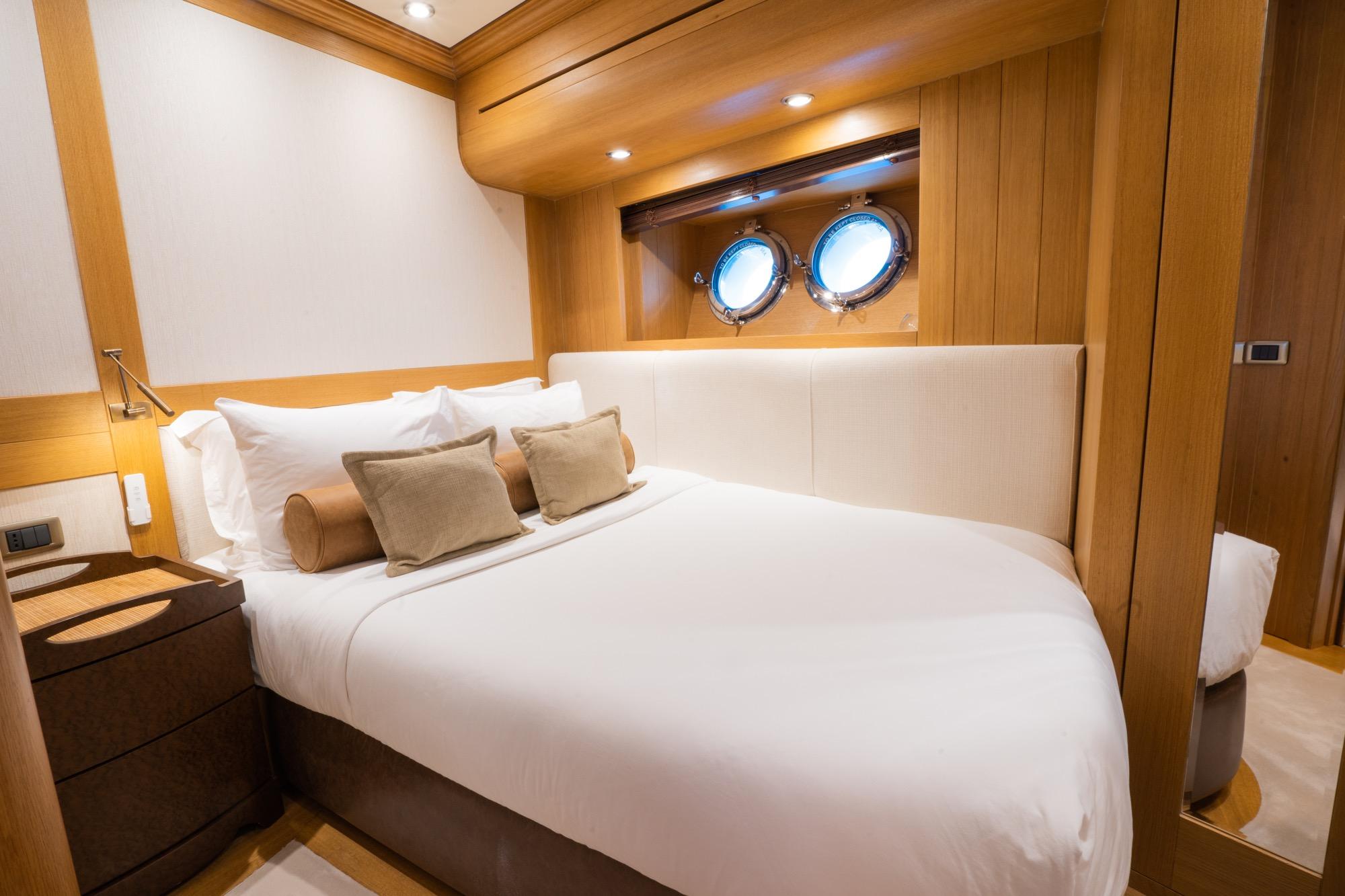

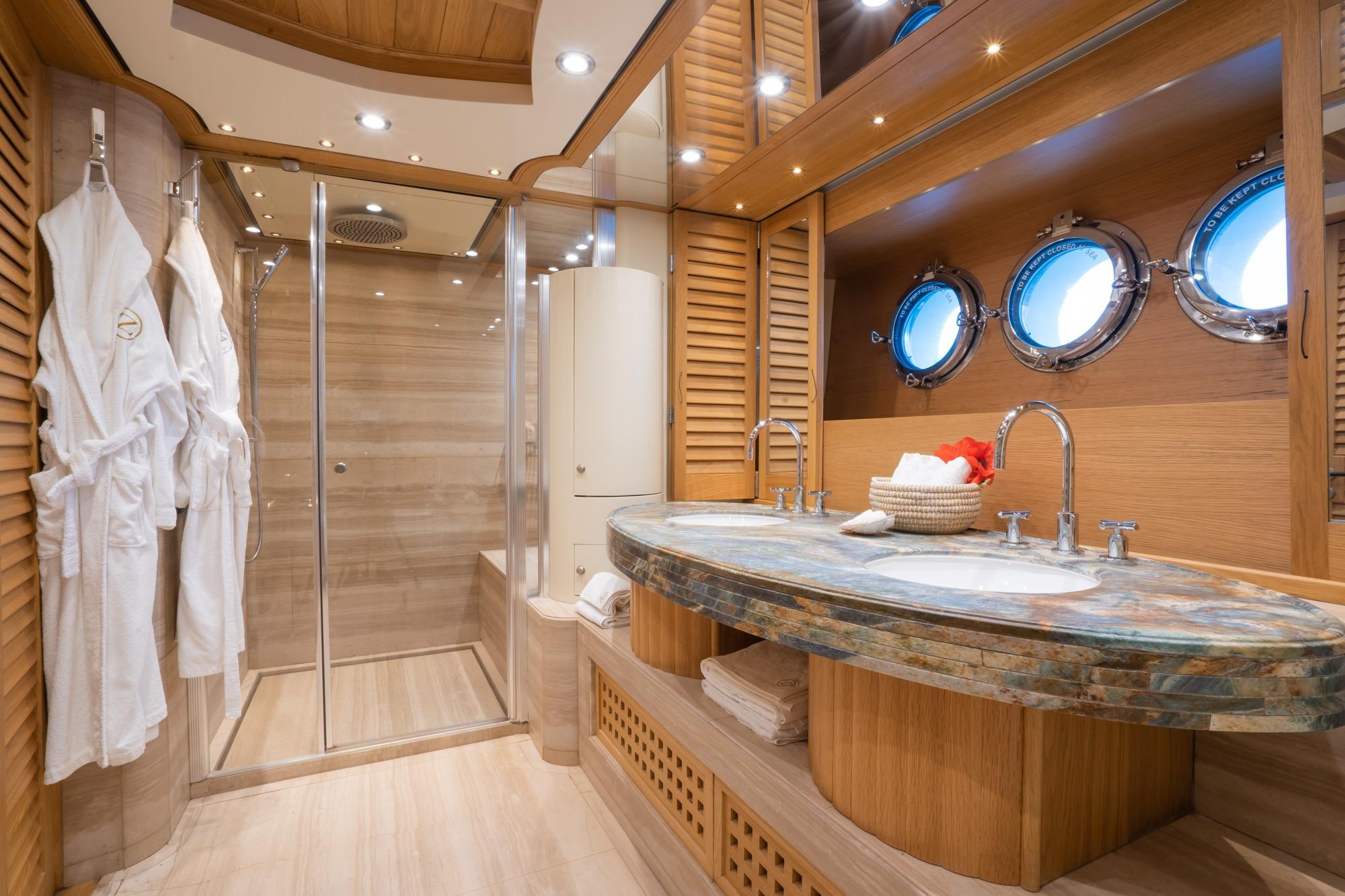

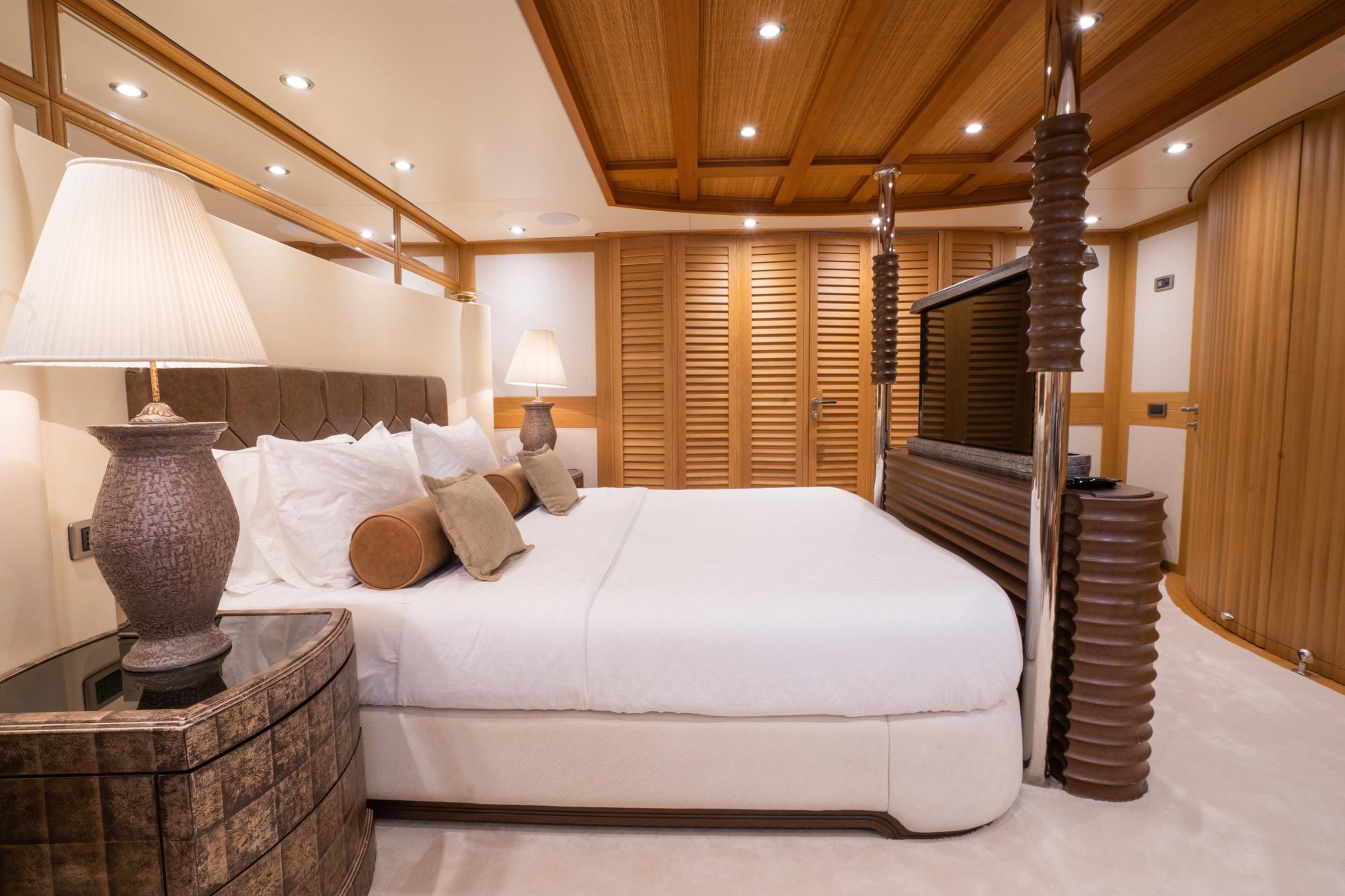

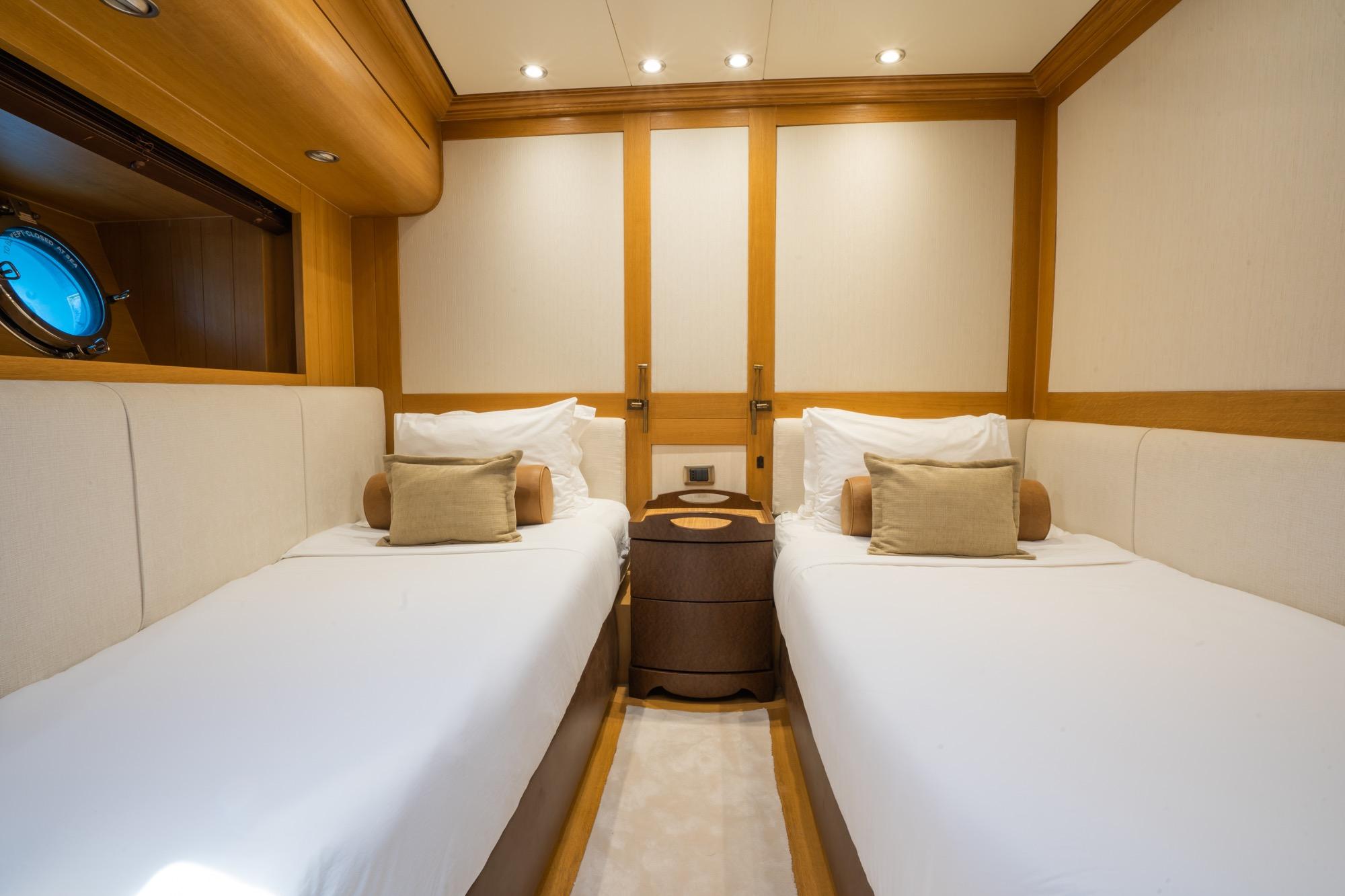

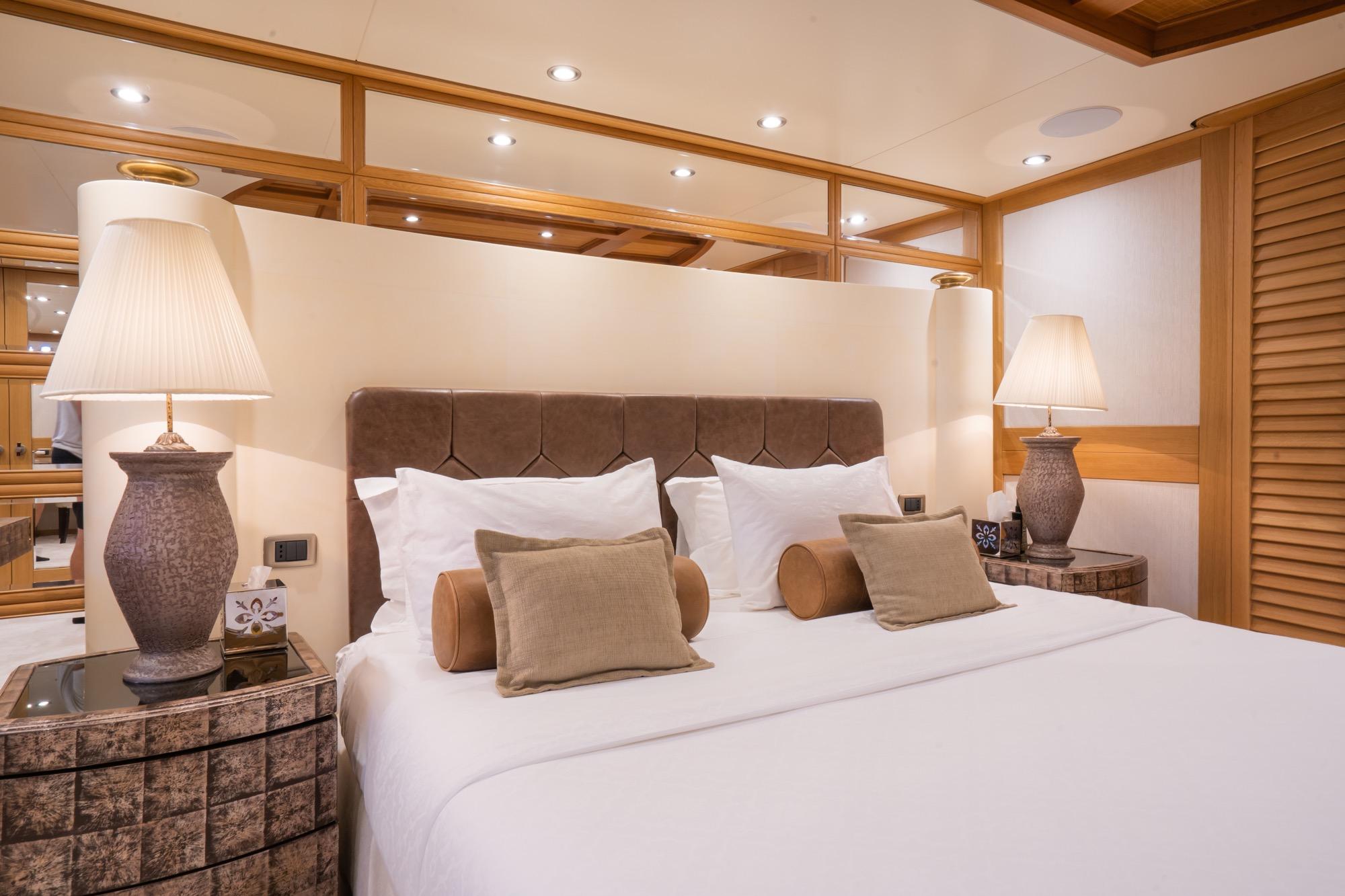

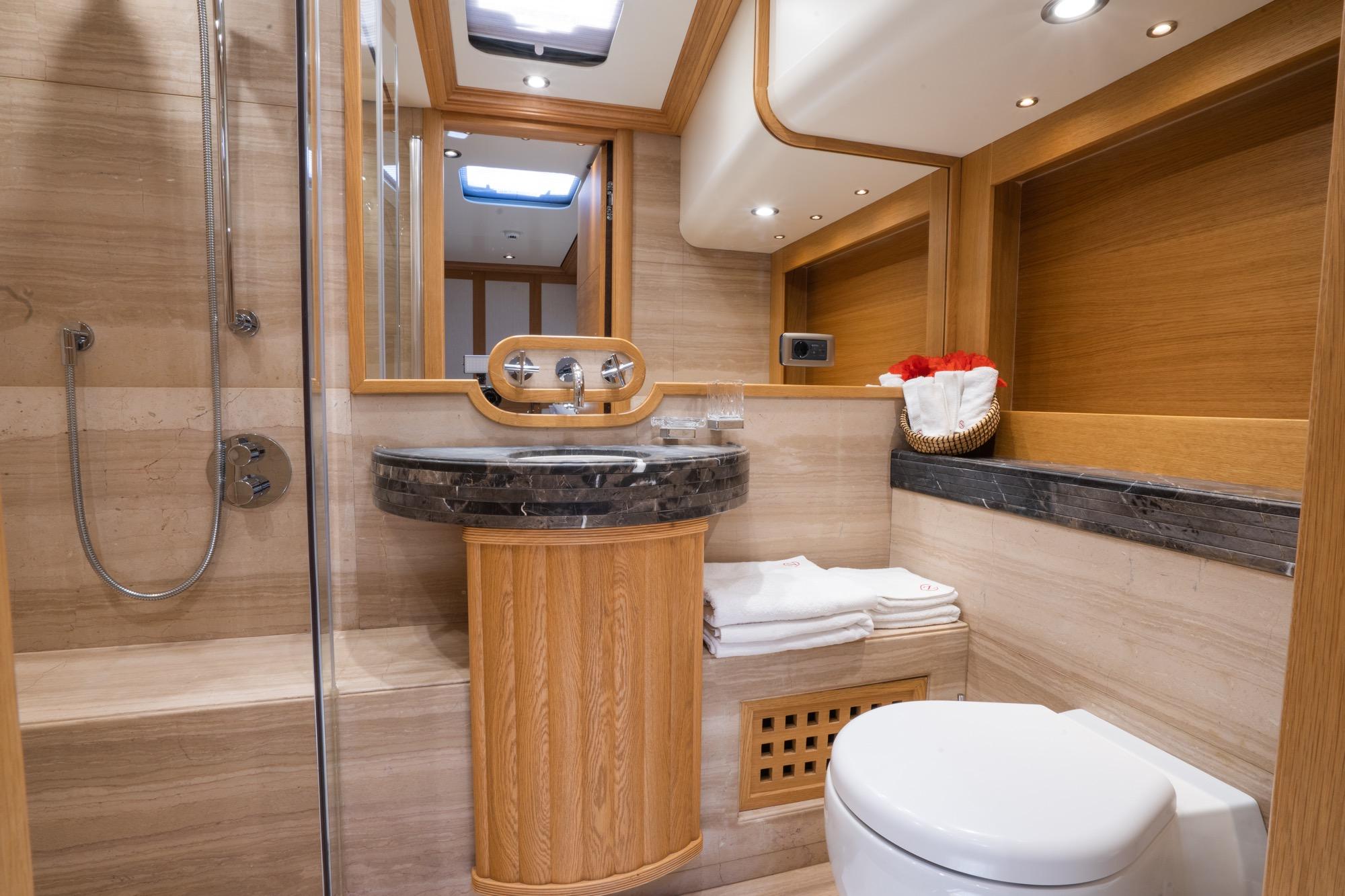

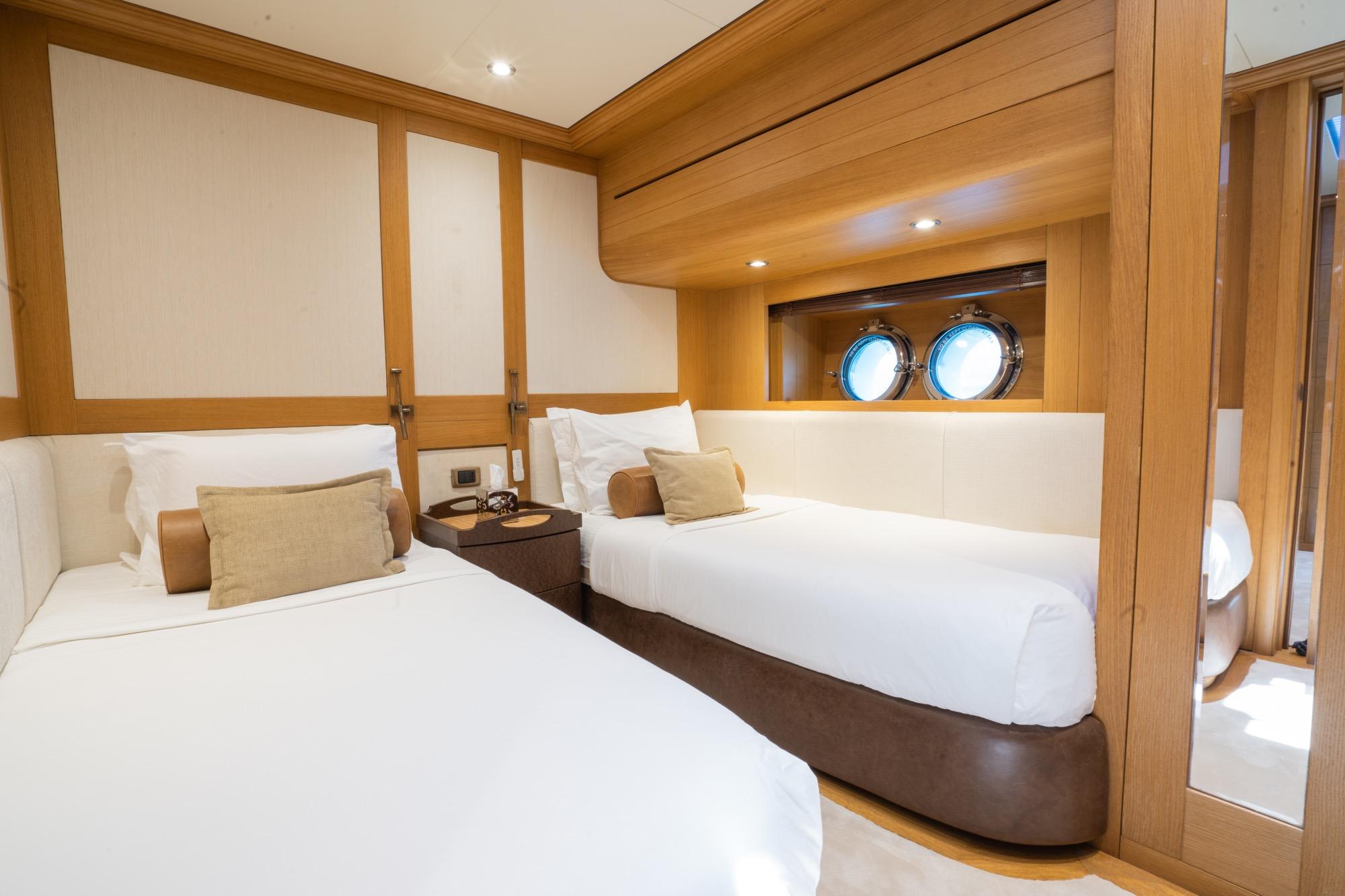

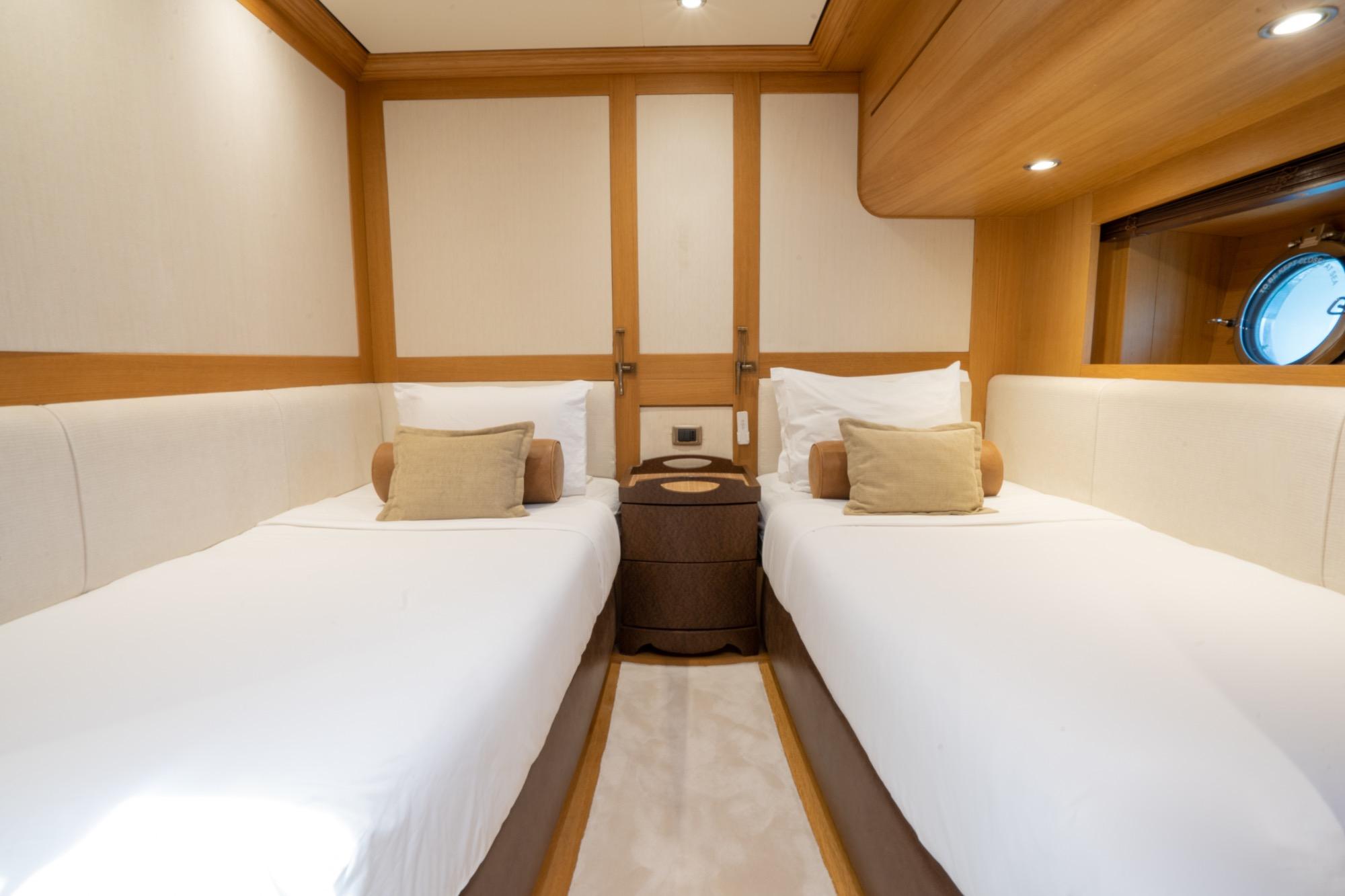

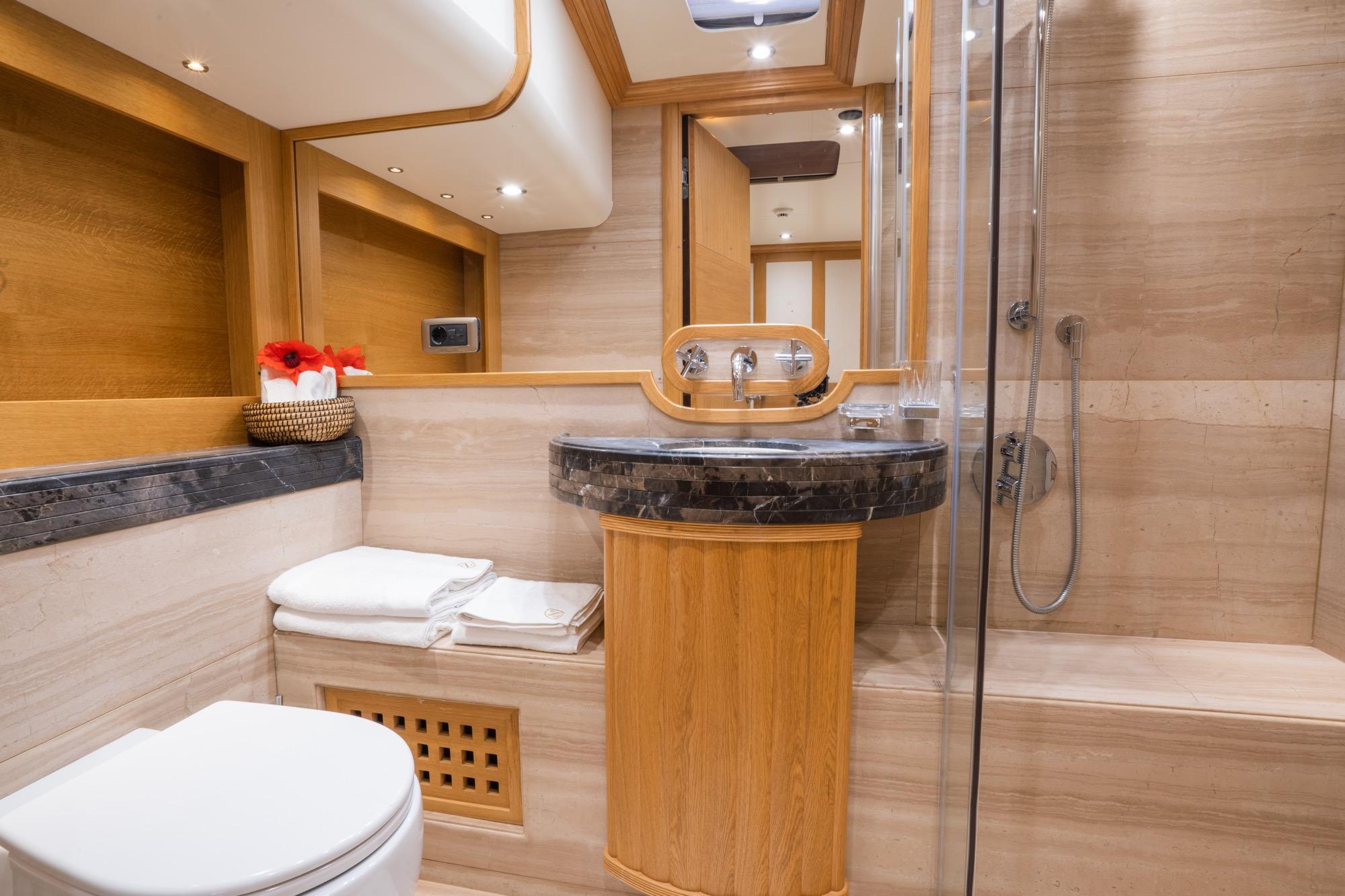

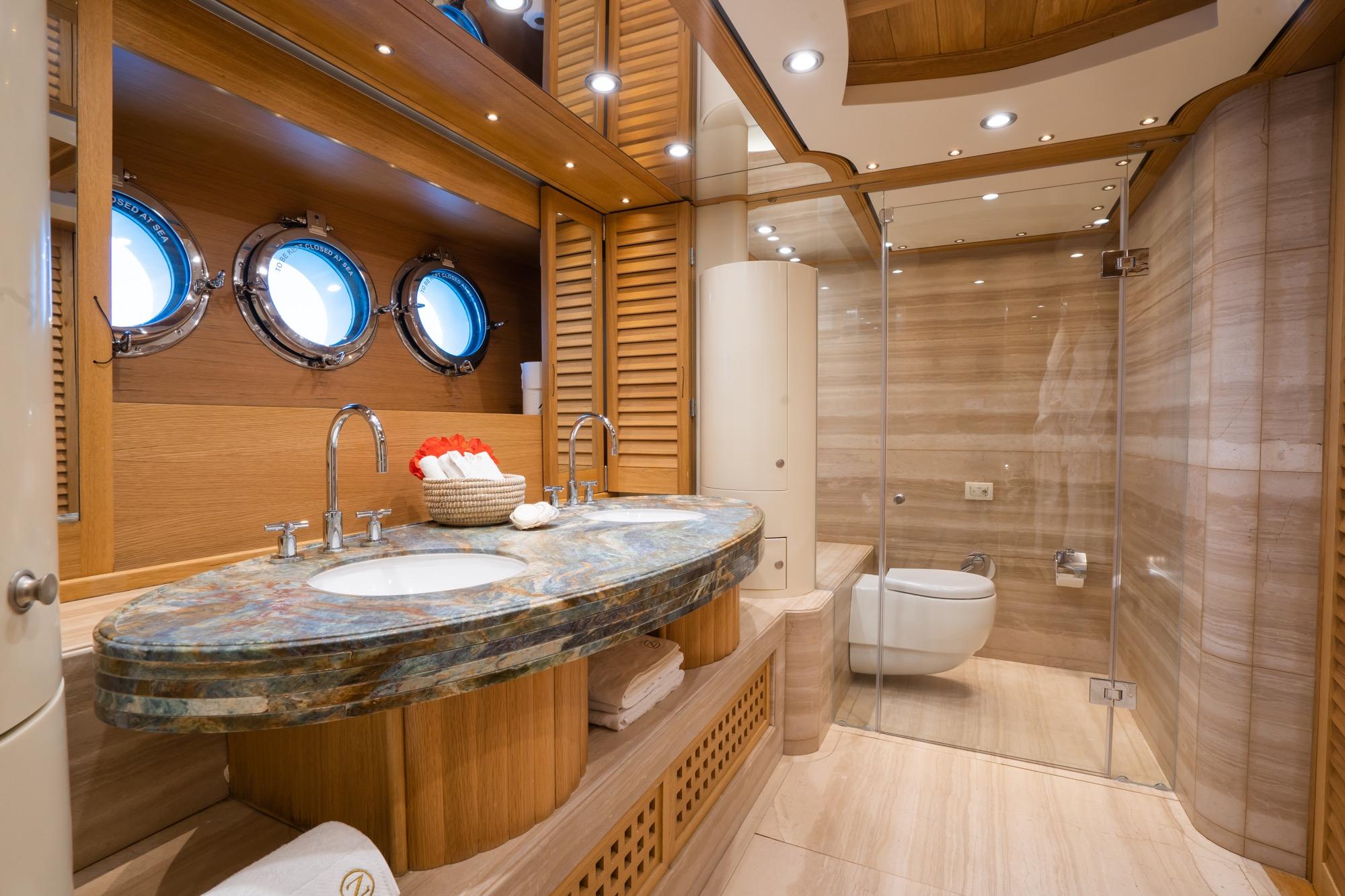

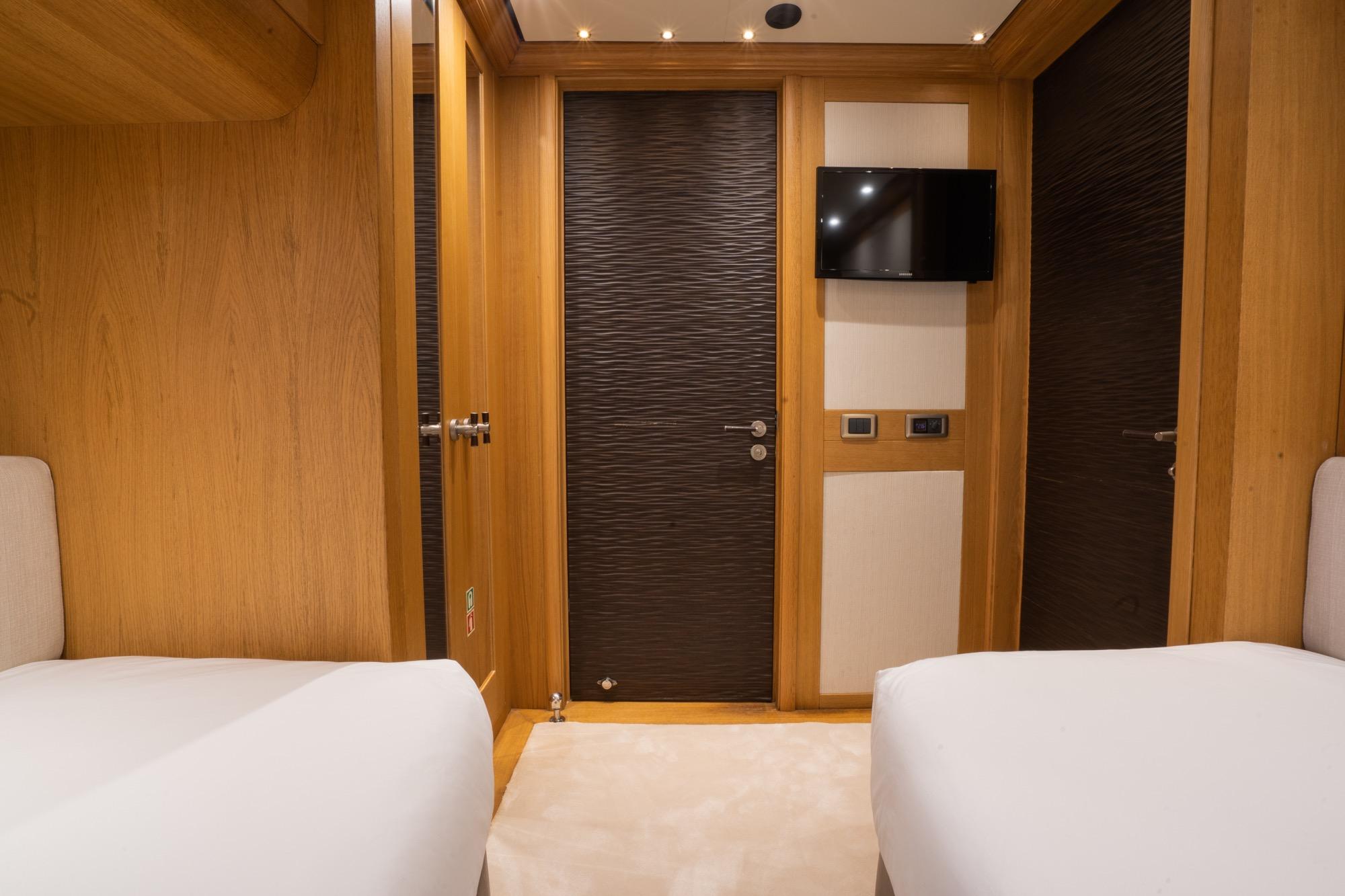

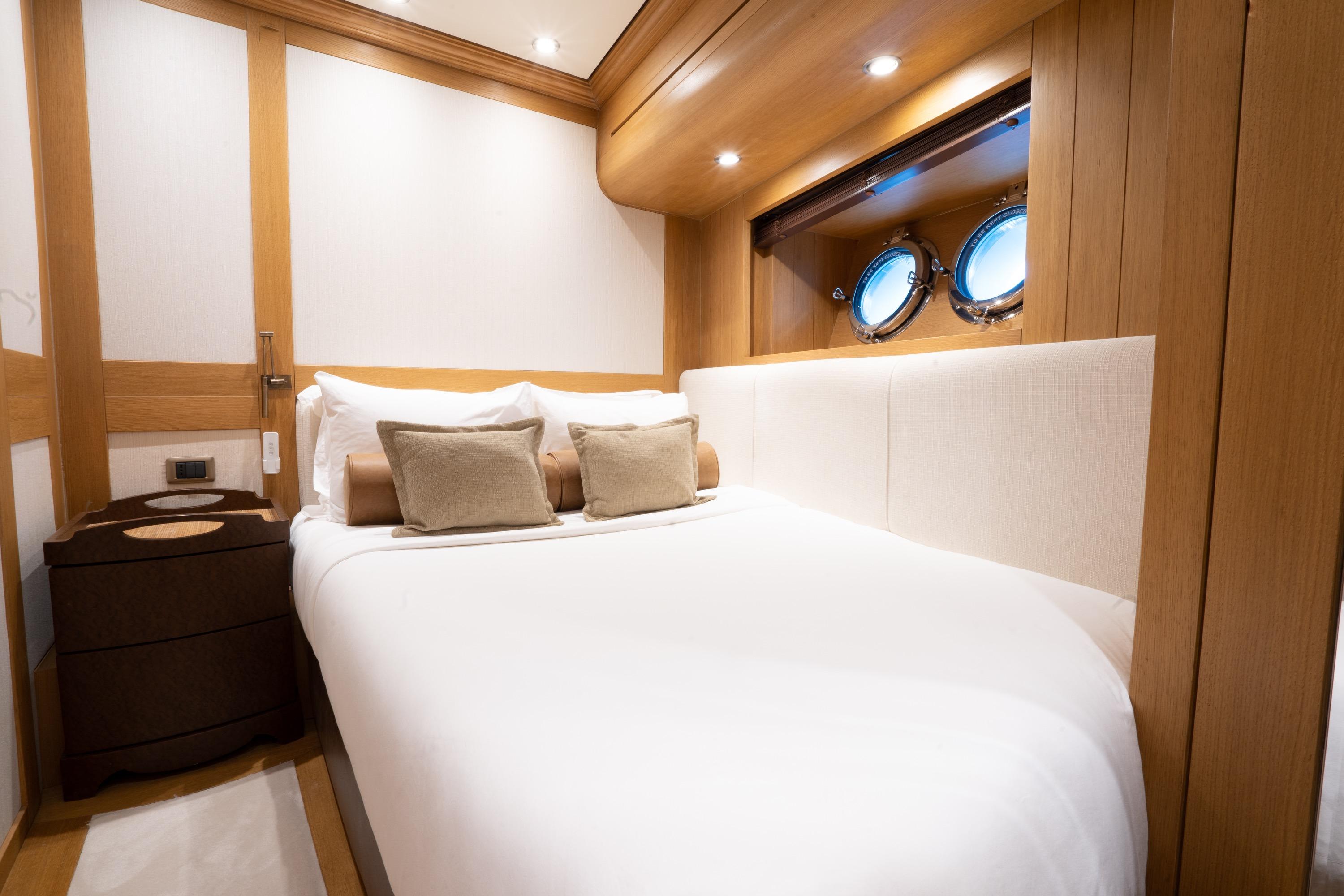

A generous beam of nine meters comfortably accomodates 5 cabins, 3 twin and 1 double guest cabins, an one immaculate full beam owners cabin all with ensuite facilities in the forward section of the yacht, plus four twins aft of the engine room for the crew.

The modern systems referred to include everything from air conditioning, CCTV, WiFi, and a full Lantic entertainment system to NavTec rod rigging, Stratis™ sails by Doyle, hydraulic winches by Lewmar and Harken and comprehensive navigation, electrical and hotel systems
