2016 Alia Yachts Alia Yachts 60M | 197ft

SAMURAI

West Palm Beach, FL, United States
$47,567,266USD
Co-brokerage
Broker Info
FGI Yacht Group
fg@fgiyachtgroup.com
954-530-5208

Boat Highlights:

Year of Vessel

2016

Fuel Type

DIESEL

Length

197 ft

Manufacturer

Alia Yachts

Condition

Pre-owned

Boat Type

Power

Loan Calculator

SUN DECK

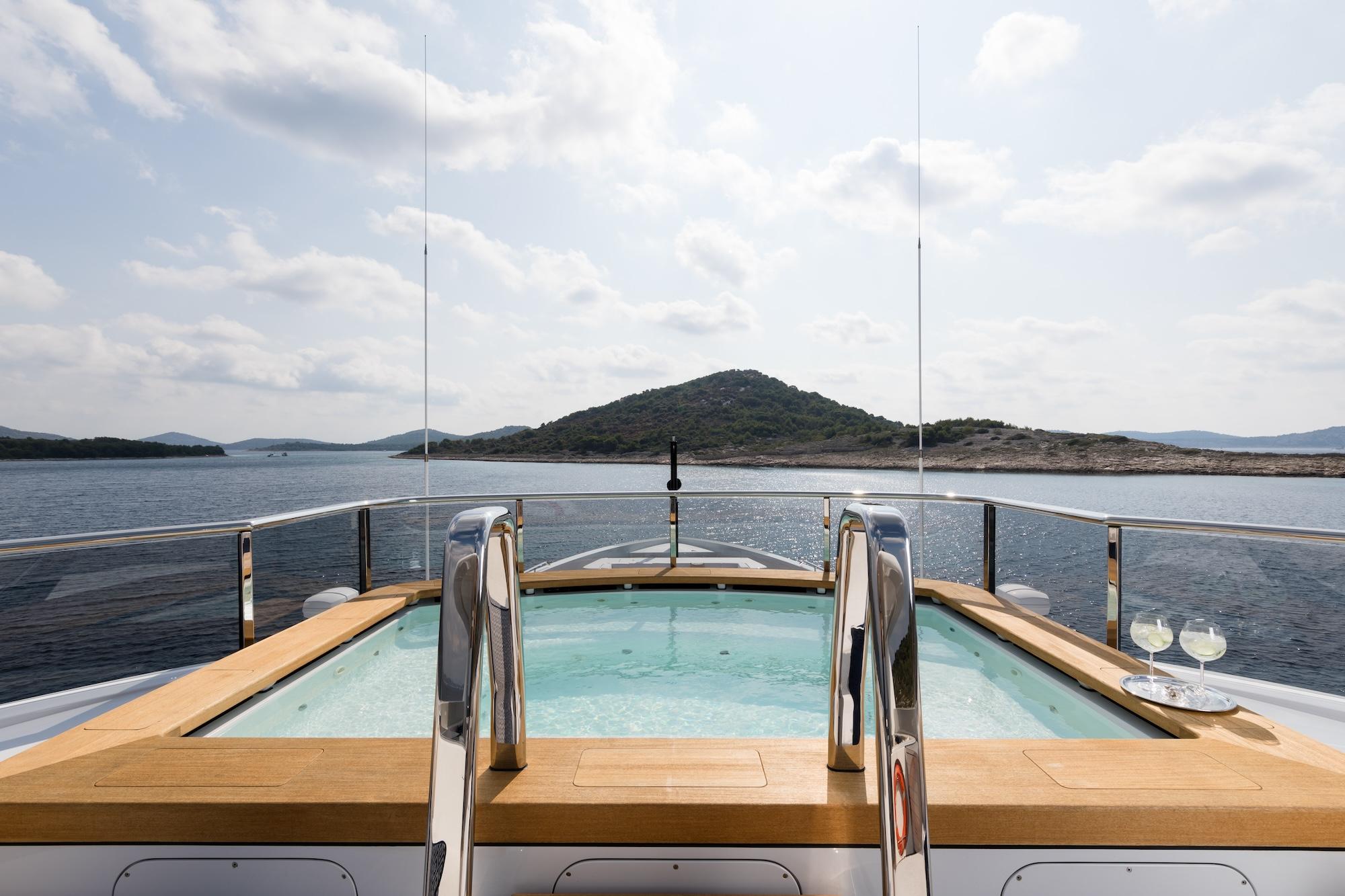

Beginning up top, Samurai’s vast sun deck features an elevated Jacuzzi from which guests can take in the panoramic views and water-jet massage. Large sunpads here offer lots of space for sunbathing, while a protected lounging area nearby offers respite from the sun. Guests are shielded from the wind by glass paneling that surrounds the deck and offers unobstructed views of the water.

WHEELHOUSE DECK

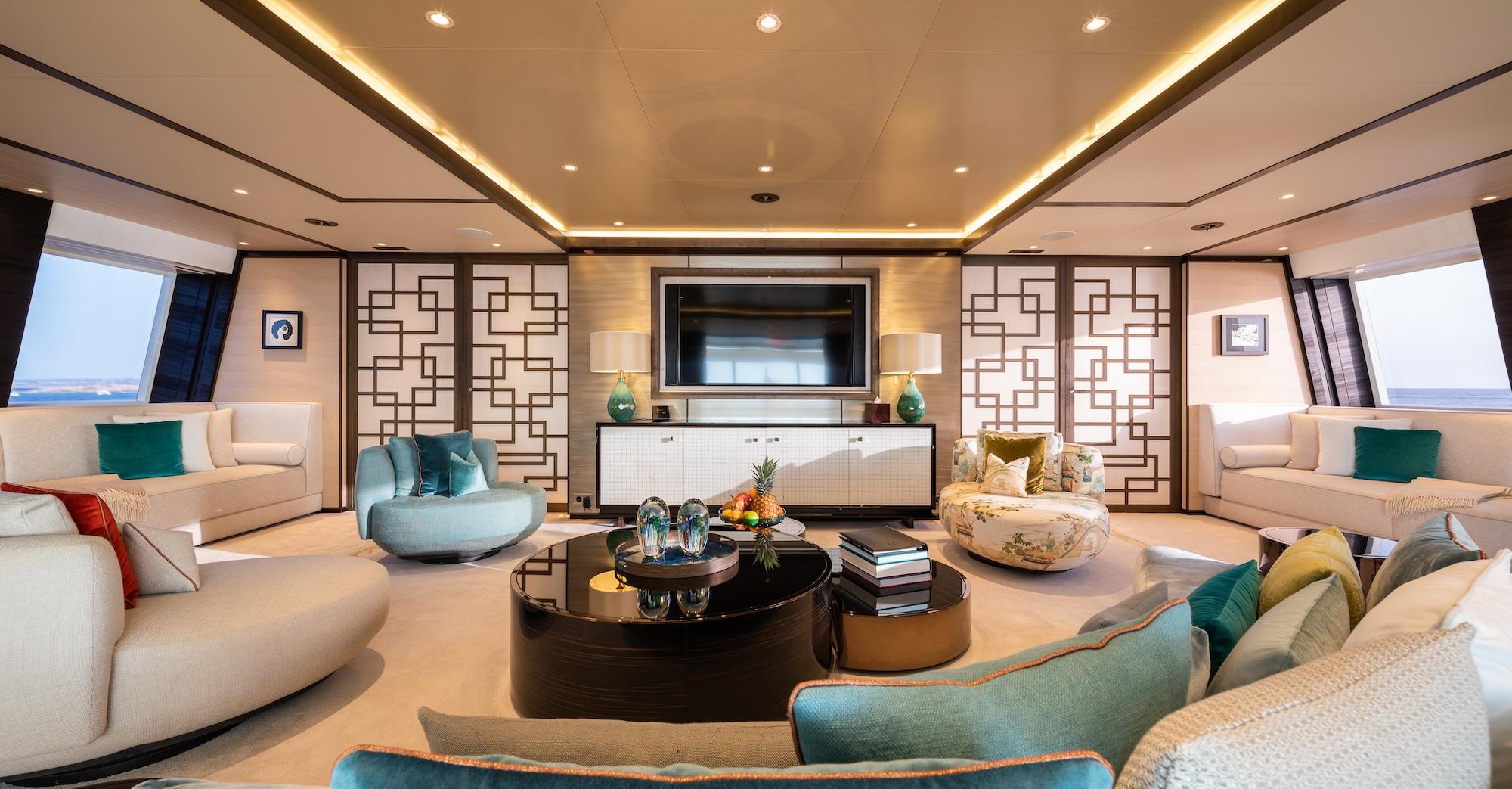

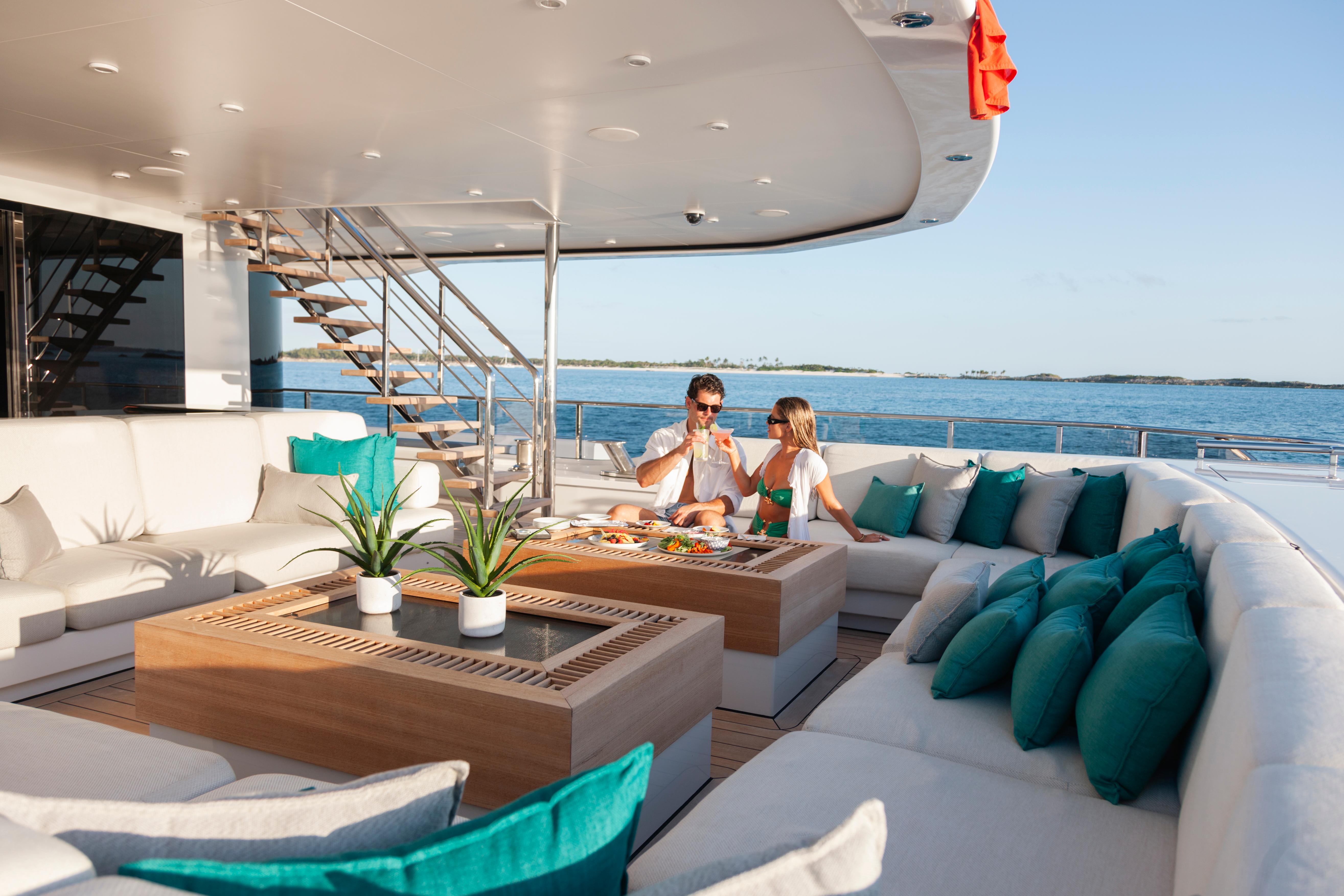

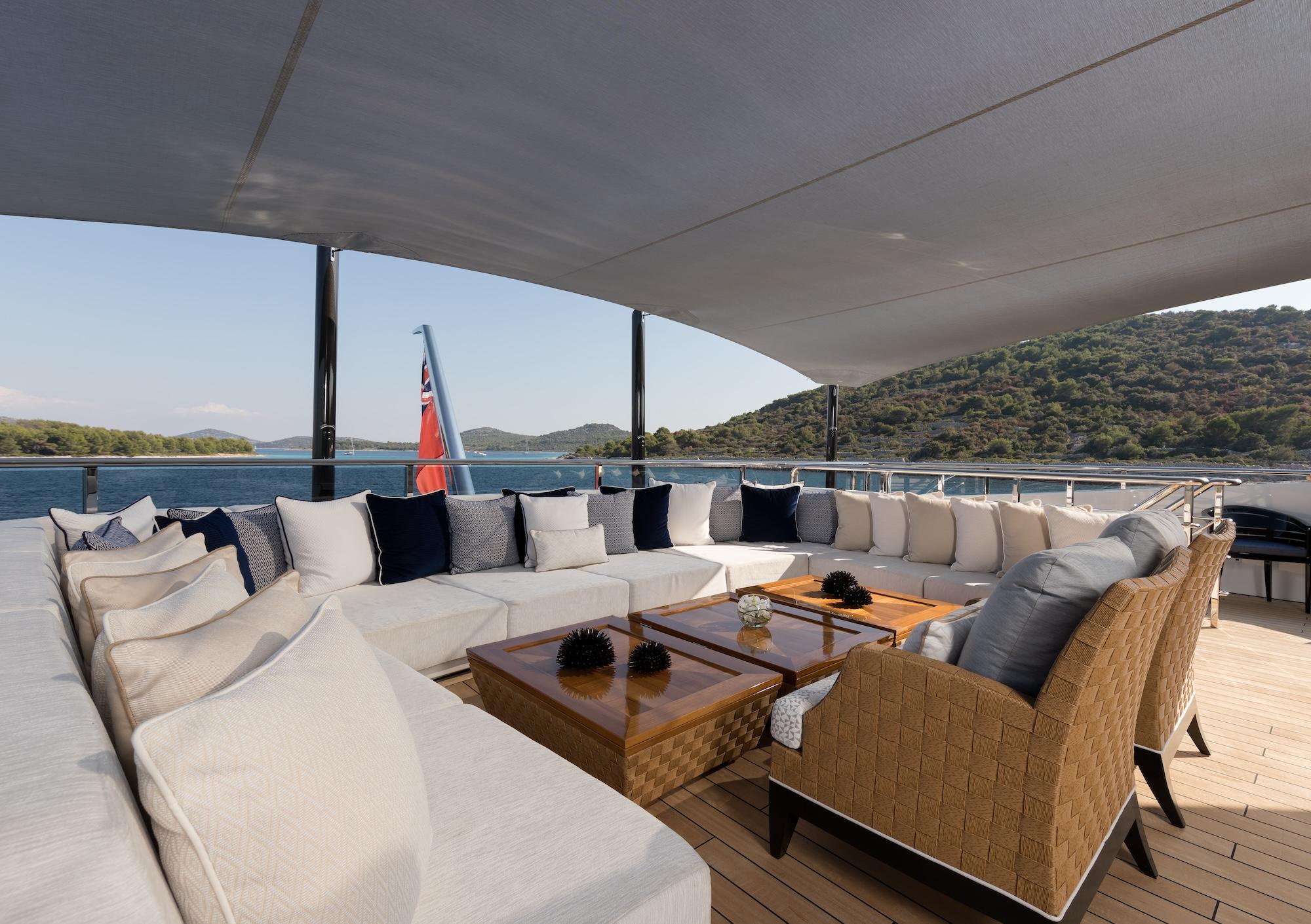

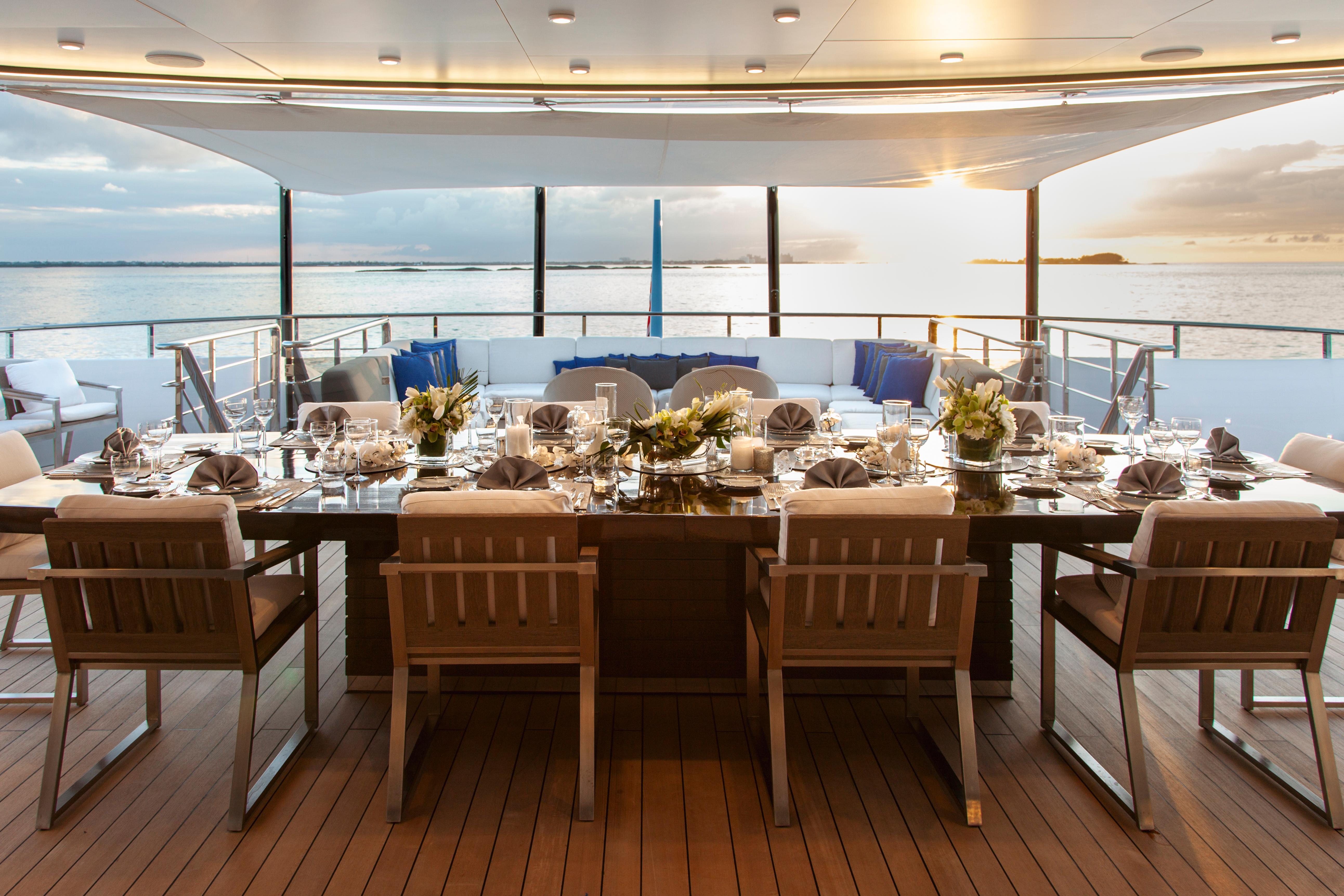

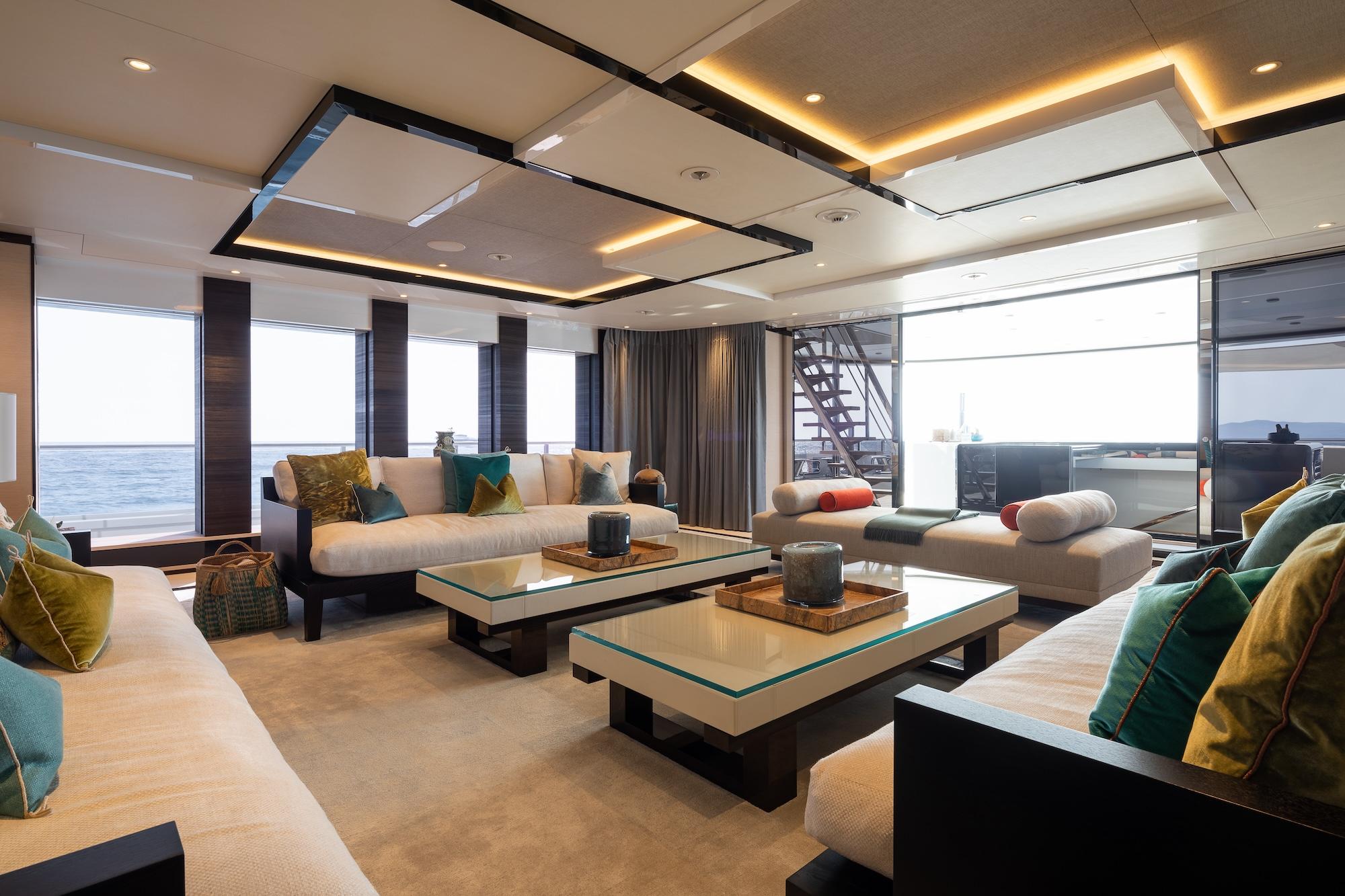

This spacious level of the yacht is reserved for outdoor dining on the aft deck, or indoor relaxation in the salon. An oversized outdoor table is ideal for meals prepared by the yacht chef or Sunday morning brunch served by the crew. Aft of the table is an outdoor living space edged with white sofa seating and centered by two large low tables. Moving indoors, the salon offers various conversation areas with sofas and loose armchairs, and is an excellent option for movie nights or social gatherings. All the way forward, a Portuguese bridge leads to a quiet spot laden with sunpads and optional shading to take in the views.

MAIN DECK

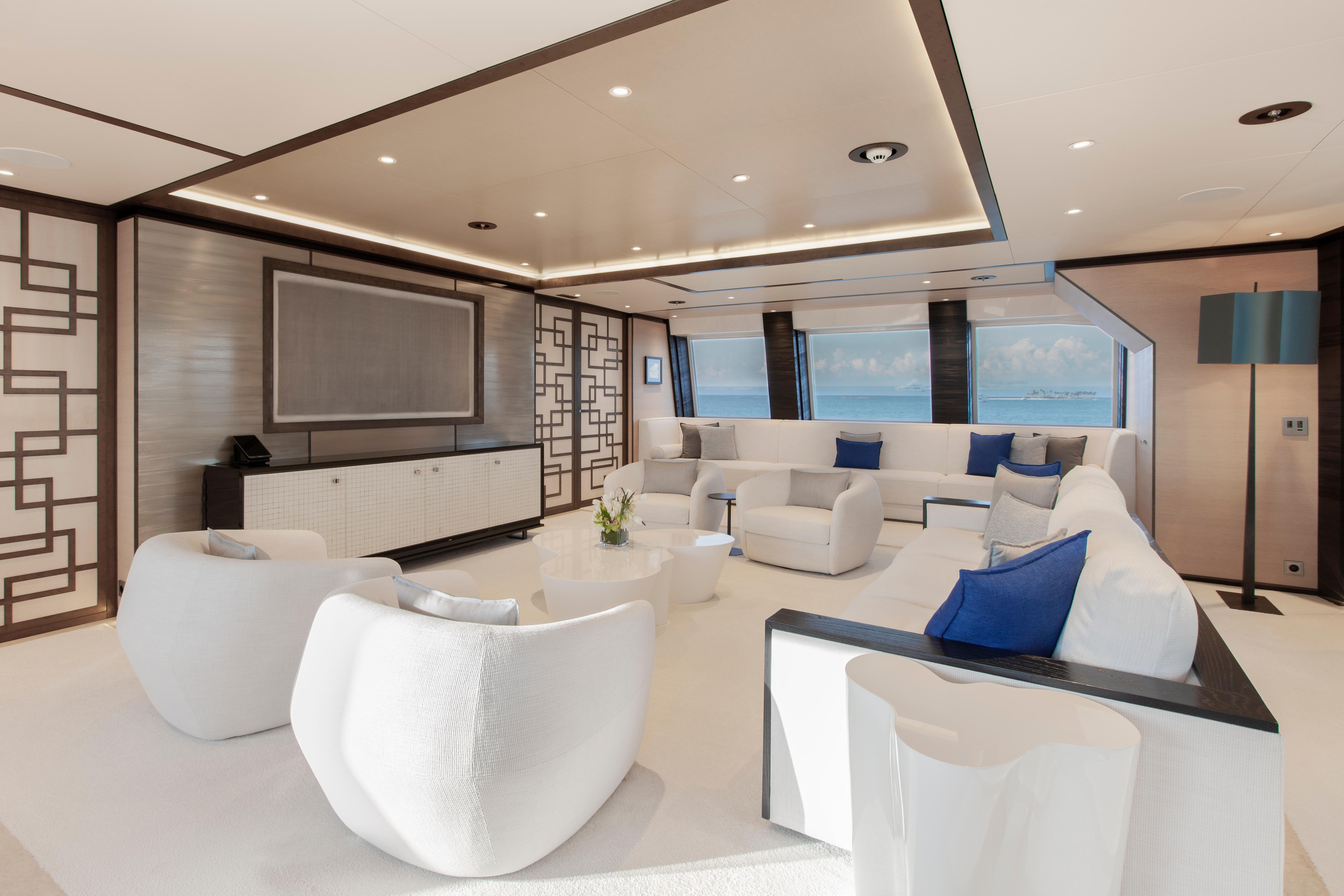

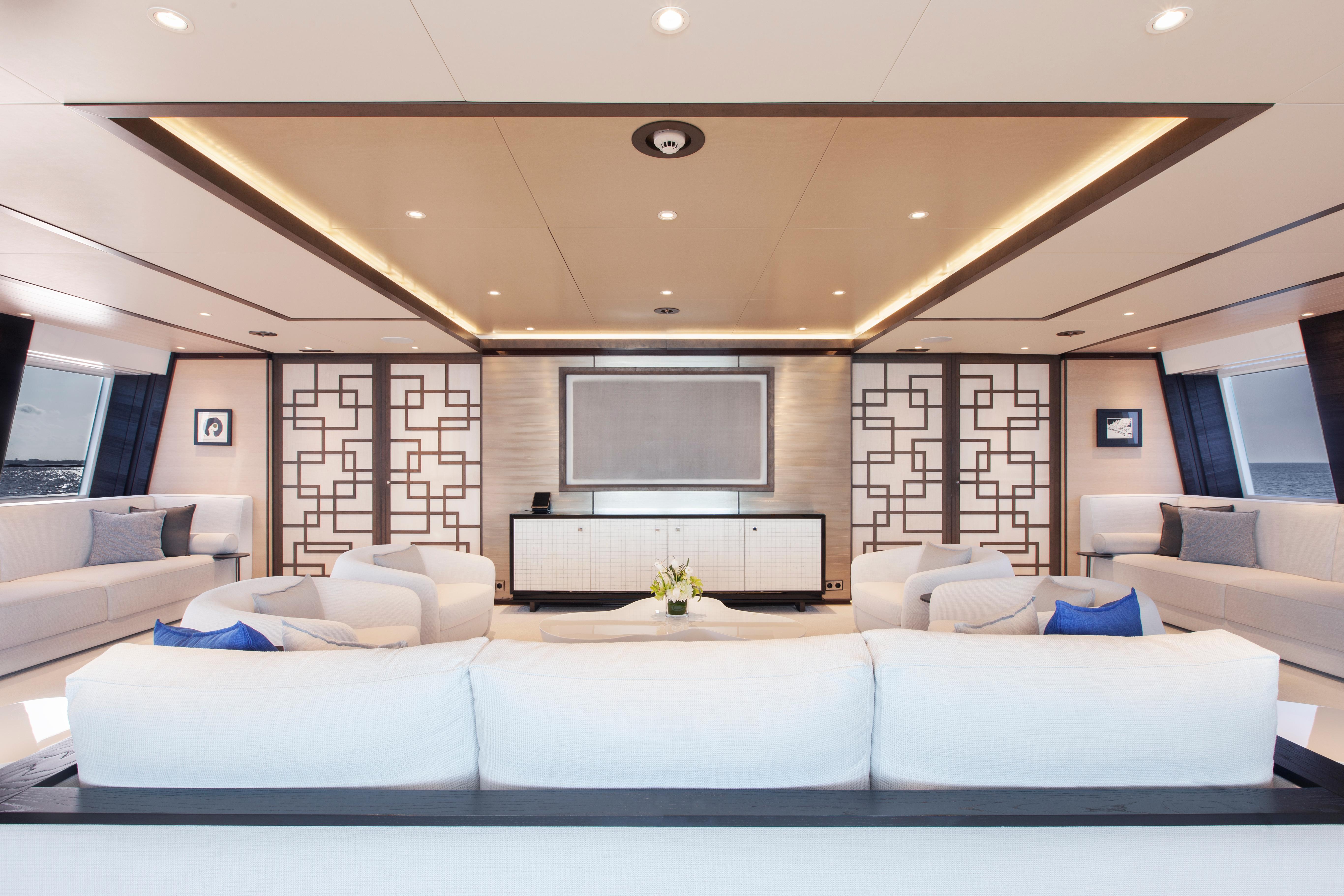

The main deck aft features an intimate seating area outdoors, ideal for a late-night cocktail. Once inside, a vast, full-beam main salon with Asian-inspired décor welcomes guests to a plush lounging space with plenty of seating and floor-to-ceiling windows that bring in the outdoors. Just forward, a formal dining space seats up to ten guests and boasts two recessed ceiling panels that are well lit and edged in black lacquer.

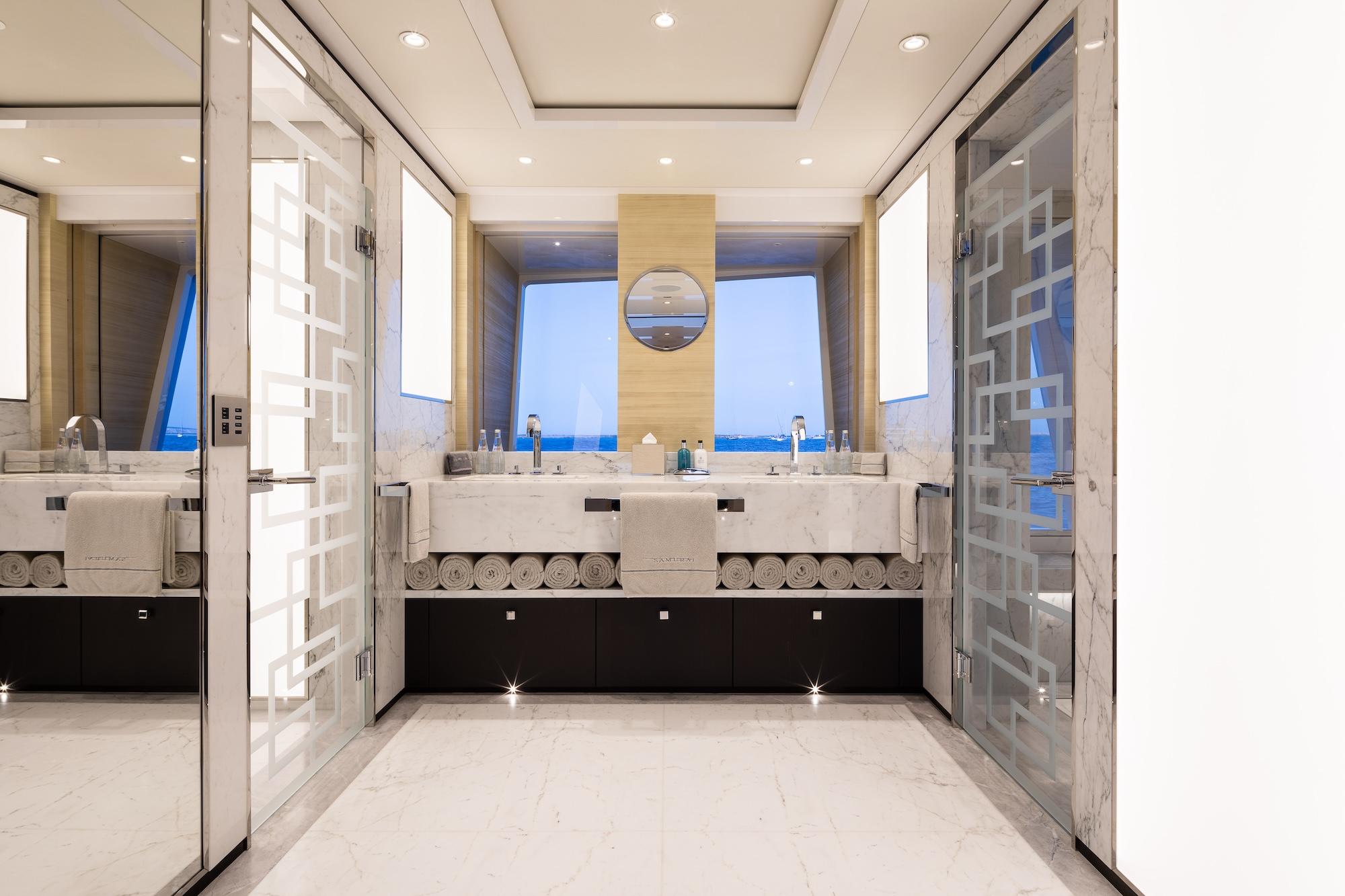

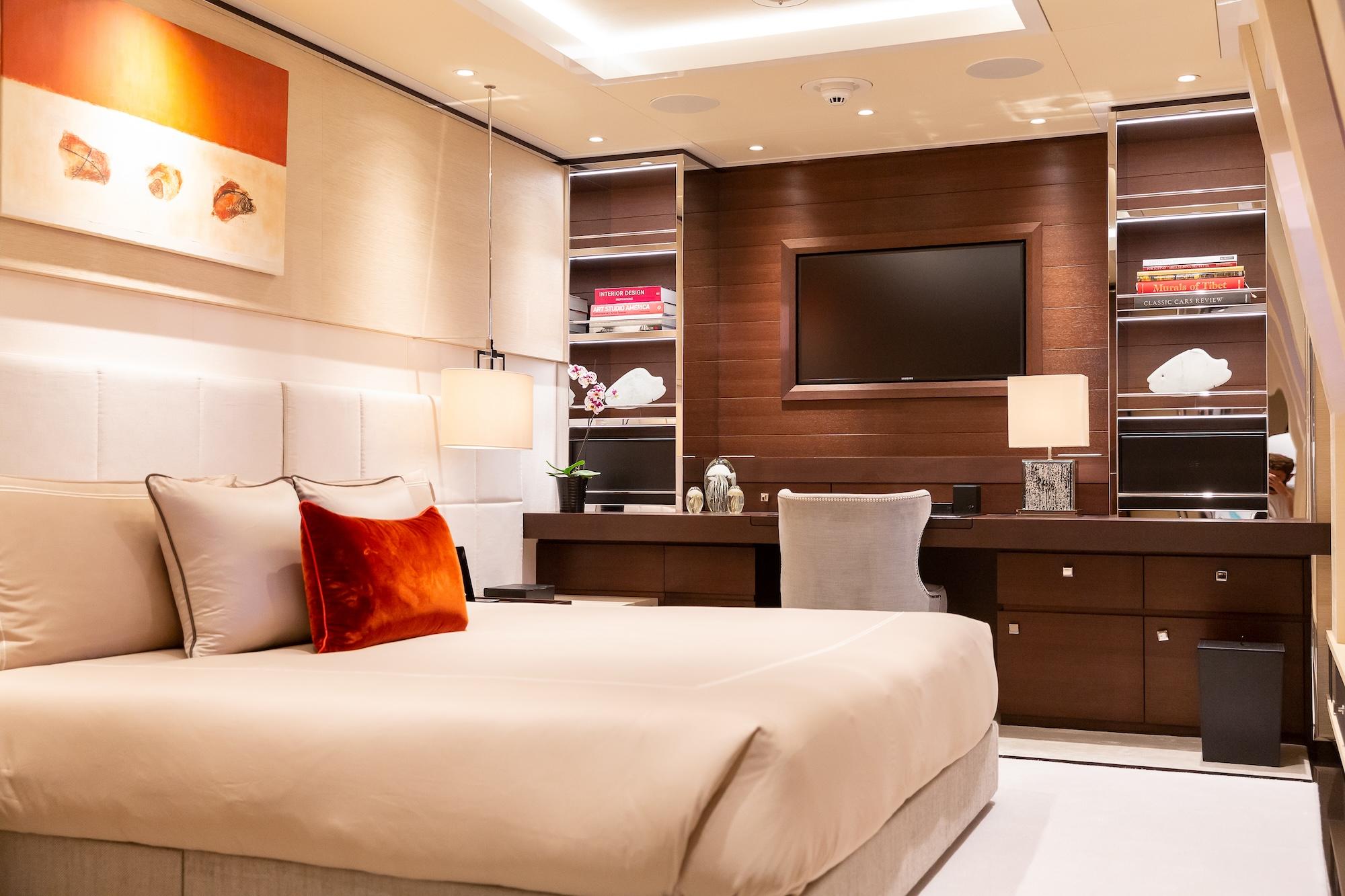

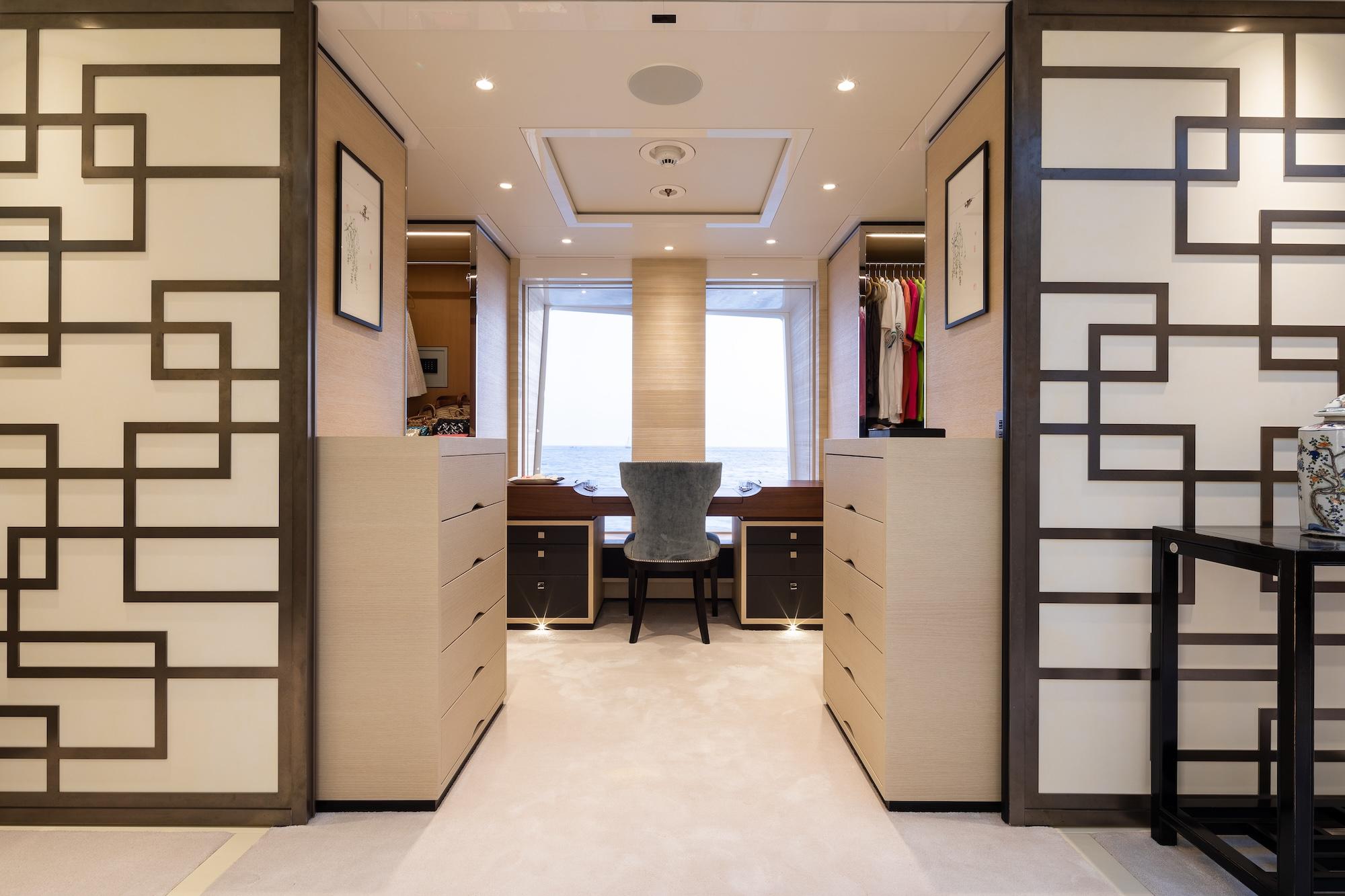

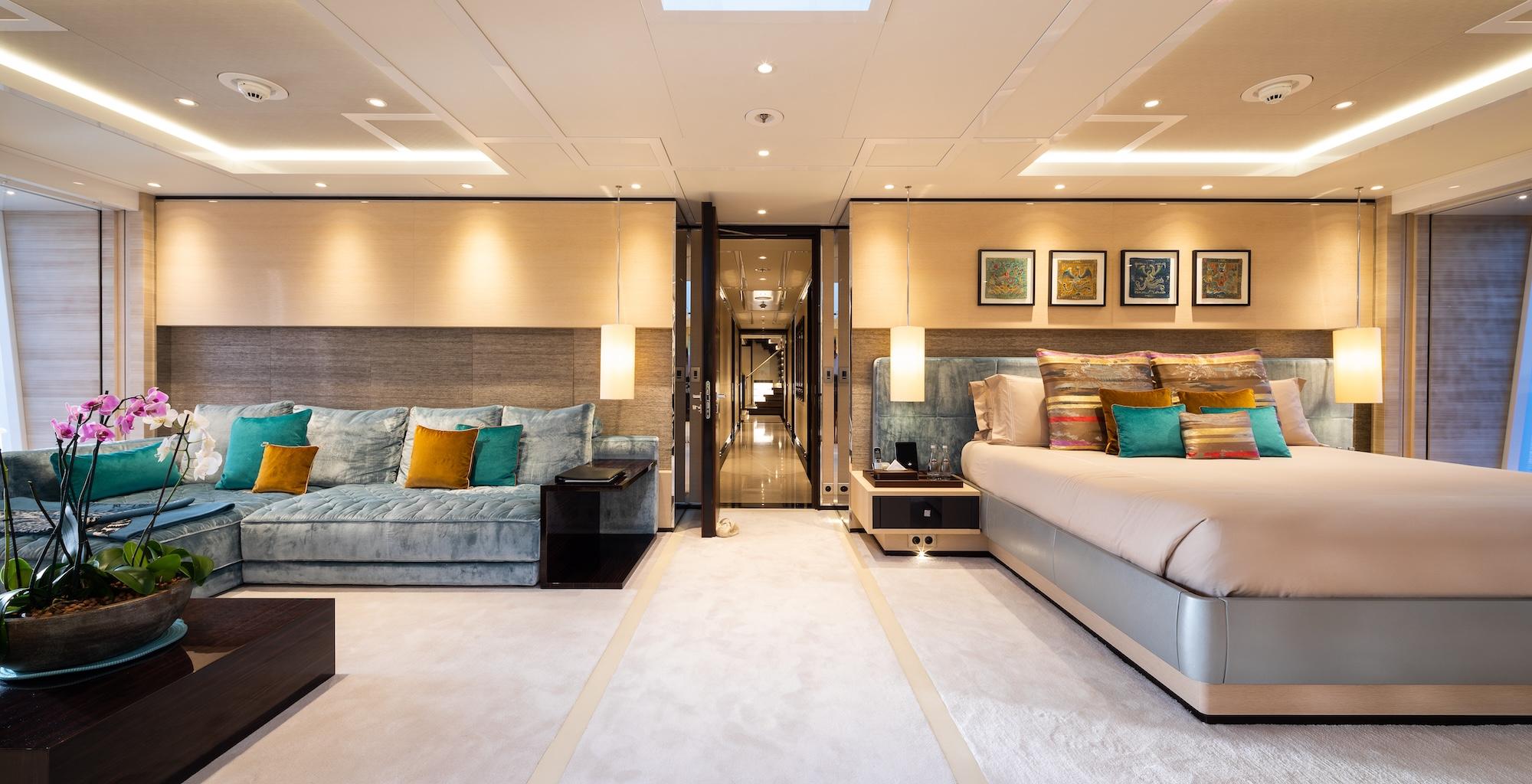

Moving forward on this deck, guest accommodations each feature a private en suite. The master suite is located all the way forward, and features a private lounging area, as well as an oversized dressing area.

ACCOMMODATION DECK

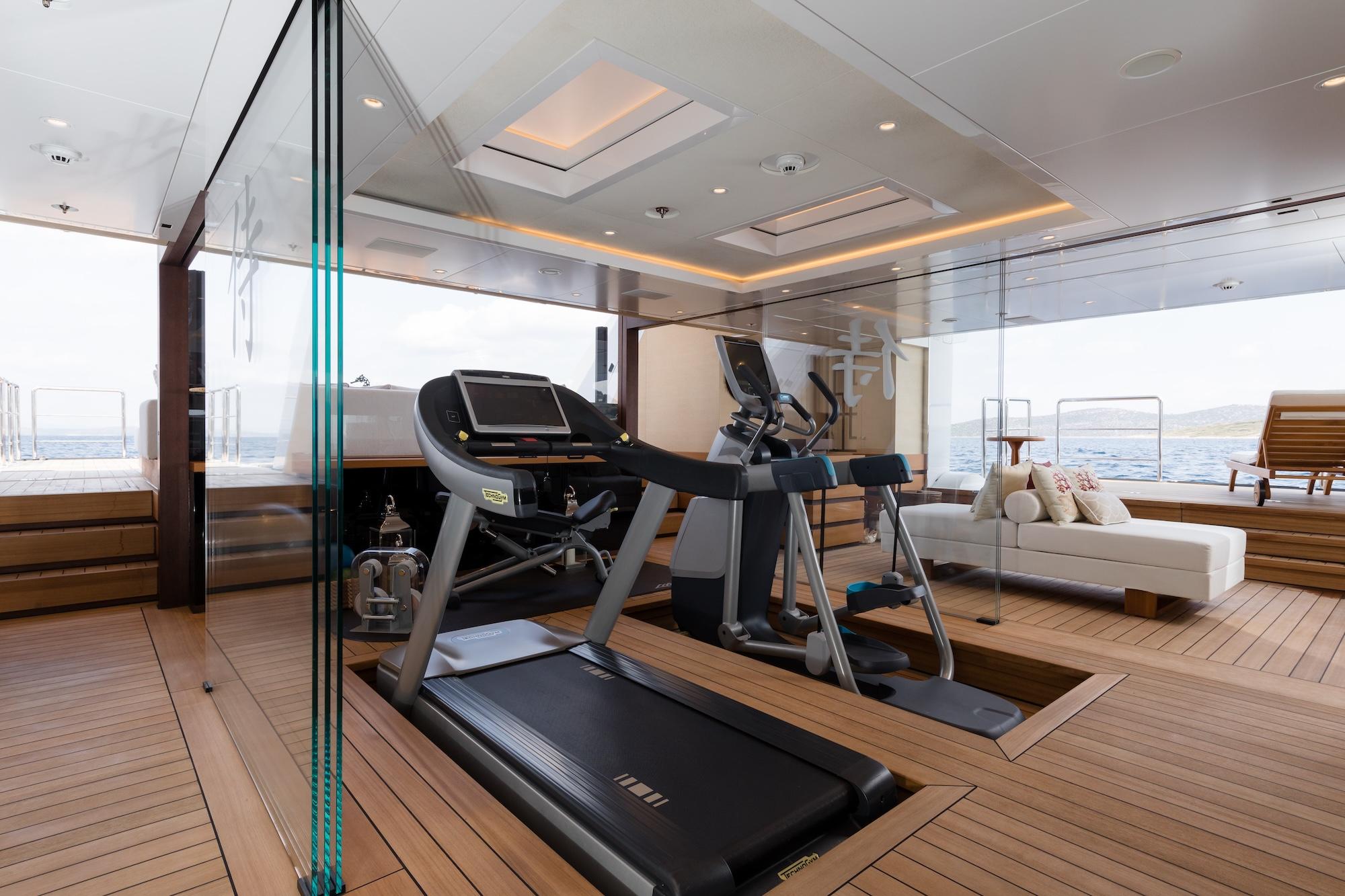

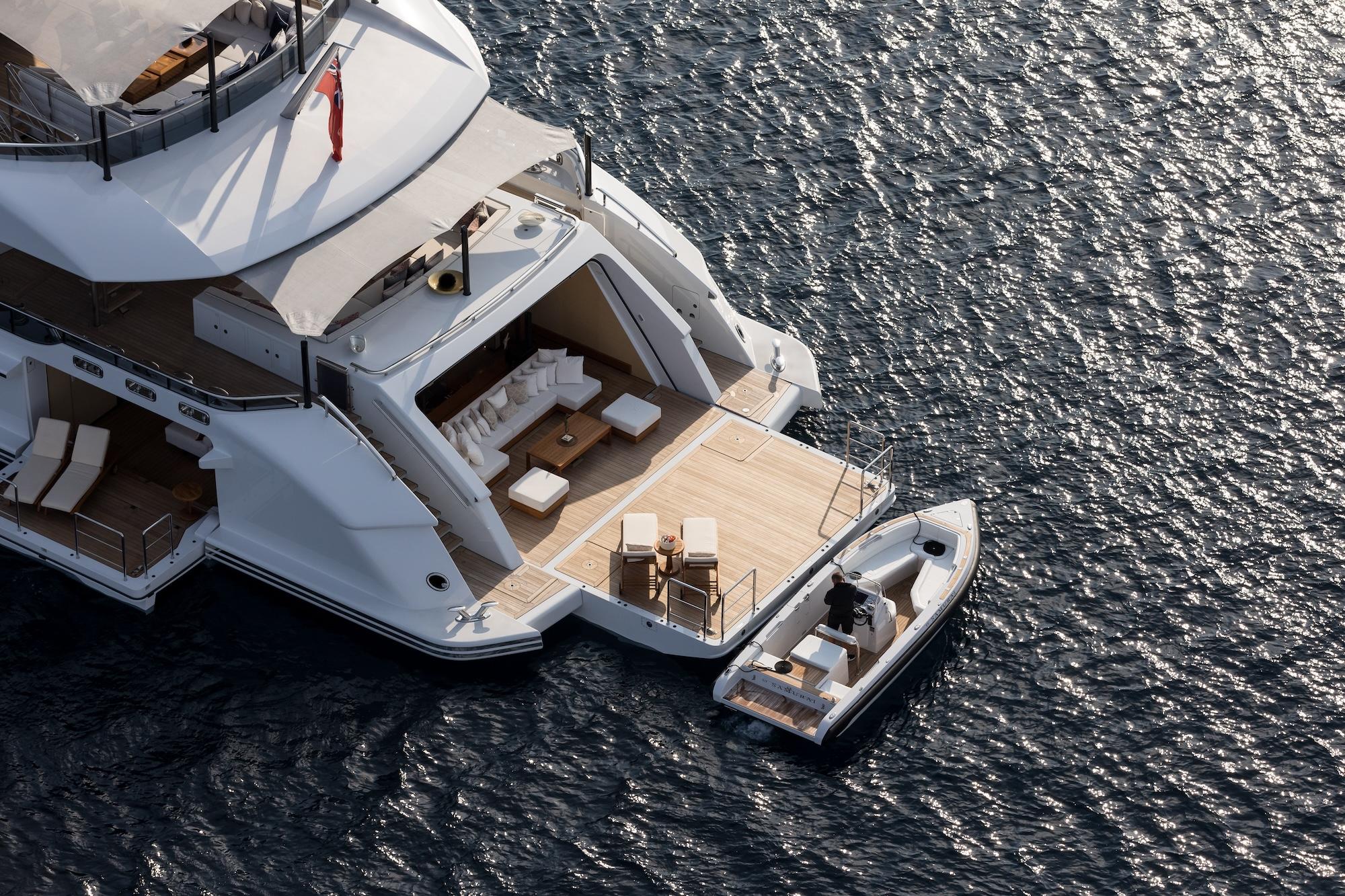

A true indoor/outdoor haven, this deck is host to a large beach club edged by a fold-down swim platform offering direct access to the water. On this level, a massage room, steam room and shower allow for a full-on wellness experience. Just aft of the beach club is a fitness area, where guests can enjoy a workout at water level within an enclosed air-conditioned space.

Main Engines

Engine Type: MTU 16V4000M73L

Gearboxes for Main Engines: ZF 9350

Drive + Propeller Type: Shaft, out turning

ME PT   9000 hr – QL3 - top end rebuild done dec 2024 at 9486 / current hrs 10252



ME STB 9000 hr – QL3 - top end rebuild done dec 2024 at 9607 / current hrs 10372

Speed (kts) Fuel Consumption (gal/hr) Range (RPM) 10.5 188 1000 12.5 334 1200 14.5 510 1400 20 1440 1950

Generators & Electricity

Output: 200KW

Generators: CAT C9 DITA X3 / CAT C4.4BITA

Gen PT 12000hr- complete rebuild done dec 2022 @ 12791 / current hrs 20085



Gen Cen - complete rebuild in March 2025 / current hrs 12510



Gen STB  12000hr- complete rebuild done dec 2022 @ 11535 / current hrs 19816

Generator Fuel Consumption (gal/hour): 25L/H

Shorepower: MAGNUS SP 200 250KVA

Batteries

Main Engine Starting: MASTERVOLT AGM 225AH X 12

Generator Starting: MASTERVOLT AGM 225AH X 12

Emergency: MASTERVOLT AGM 130AH X 4

Air Conditioning

Type: HIEN & HOPMAN - CHILLED WATER

Other Machinery

Watermakers: HEM H30 DUPLEX MINI X2

Stabilizers: Naiad Dynamics Model 820

Bow Thruster: ZF TT 2001 FP Thruster systems (tunnel thruster fixed pitch)

Steering system: JASTRAM Twin S2-21-1-35

Fuel Separator / Filtration: GEA Westfalia Separator OTC 2/OTC 3

Sewage System: HAMANN - HL-CONT PLUS 05

Fresh Water System: HEM FWS 3305

Bilge Water Filtration: RWO SKITS/S-DEB 0.5

Lube Oil Capacity: 1.62M3

Waste Oil Capacity: 3.36M3


SPECIFICATION

Vessel Name
SAMURAI
Length Overall
197 ft
Beam
37.5 ft
Manufacturer
Alia Yachts
Boat Type
power-motor
Fresh Water Tank
7978 gal
Boat Model
Alia Yachts 60M
Year Of Vessel
2016
Fuel Capacity
35954 gal
Fuel Type
Diesel
Engine Make
MTU
Engine Model
16V 4000 M73L
Engine Hours
Engine 1: 10252, Engine 2: 10372
No. of Fuel Tanks
1
No. of Engine
2
