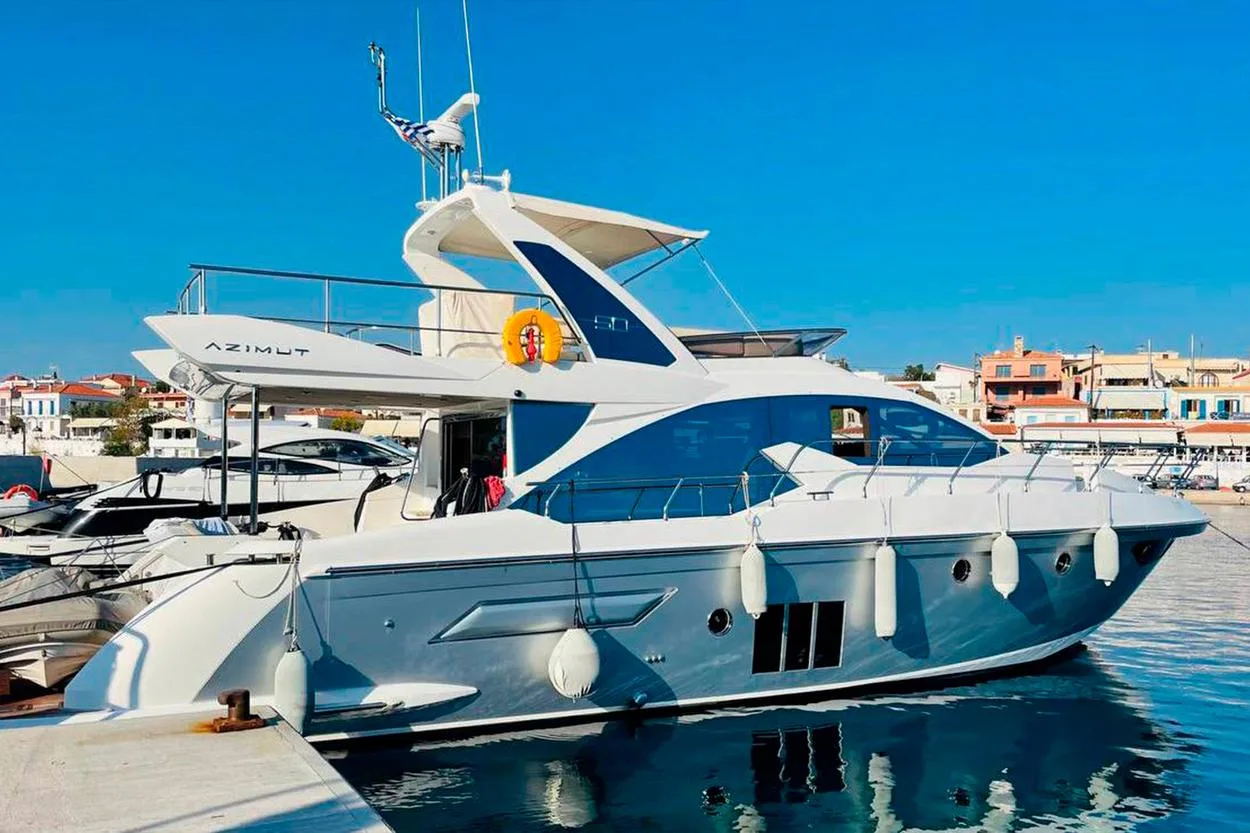

2016 Azimut Fly 50 | 52ft

General information

• Generator 13 kW
• Air Conditioning BTU 60,000
• Water maker Predisposition
• Dishwasher in galley
• Washer dryer combo unit
• Miele appliances with microwave combo and cooktop
• Hi-lo system with TV 42"

• Raymarine AIS 650
• Raymarine Gold Package (Fly: 2 x chart plotter Ray marine a125, RMK-9 remote control, i70, p70R autopilot, Raymarine Open array HD 4kW 48” Color, VHF 2nd station.

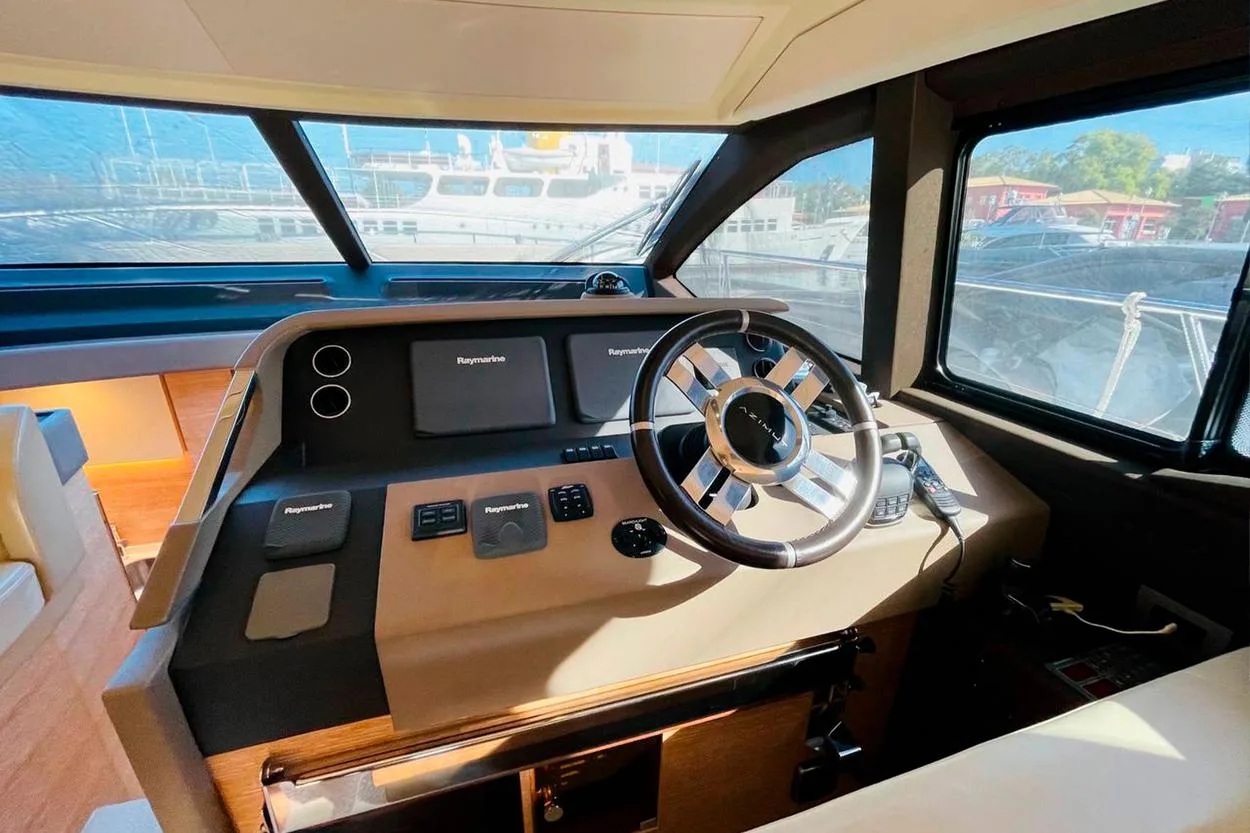

• Main helm: 2 x chart plotter Raymarine a125, RMK-9 remote control, i70, p70R autopilot, VHF Ray260, Ray marine VCM100 voltage converter module, SMART DST800 transducter in hull (depth / speed / temperature), HS- 5 network switch, EV-1 autopilot sensor core)
• Easy Docking maneuvering joystick for engines and trusters Xenta
• Electric mooring winches
• Painted hull color Miami Silver Met (MA048.17)
• Teak on cockpit and swimming platform
• Telescopic electro-hydraulic gangway
• Tender Williams 285 (2016 work hours 30)

Engines

• Manufacturer VOLVO Penta
• Model D11 - 670 mHp
• Type Diesel engine
• Max. power 2x 493 kW

Propellers

• Model 4 blades
• Building material NiBrAl
• Diameter 740 mm
• Pitch 1,400 mm
• Profile C-foil

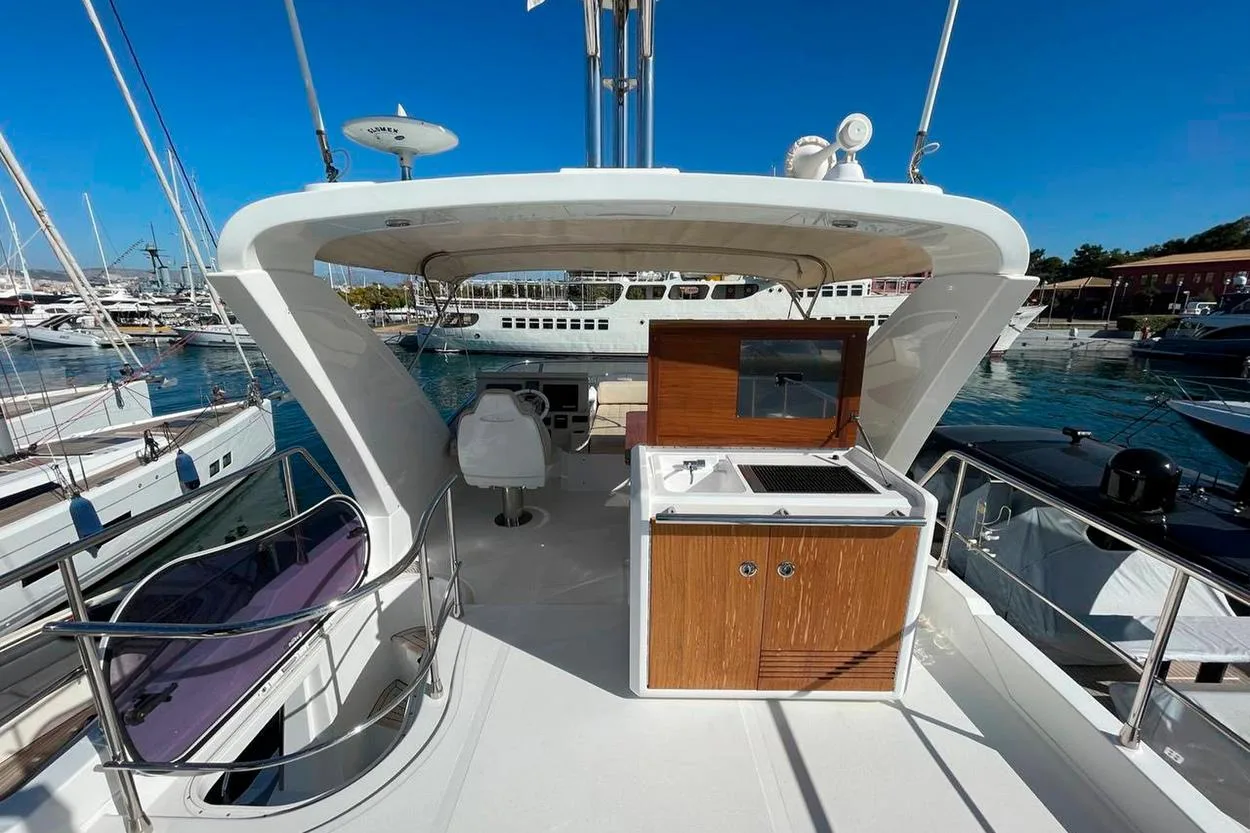

Flybridge

• Smoked plexiglas windbreak with stainless steel and aluminum frame
• Adjustable steering wheel (4-spoked steering wheel white painted)
• C-shaped sofa connected to sunbed area
• Teak table with central stainless steel leg

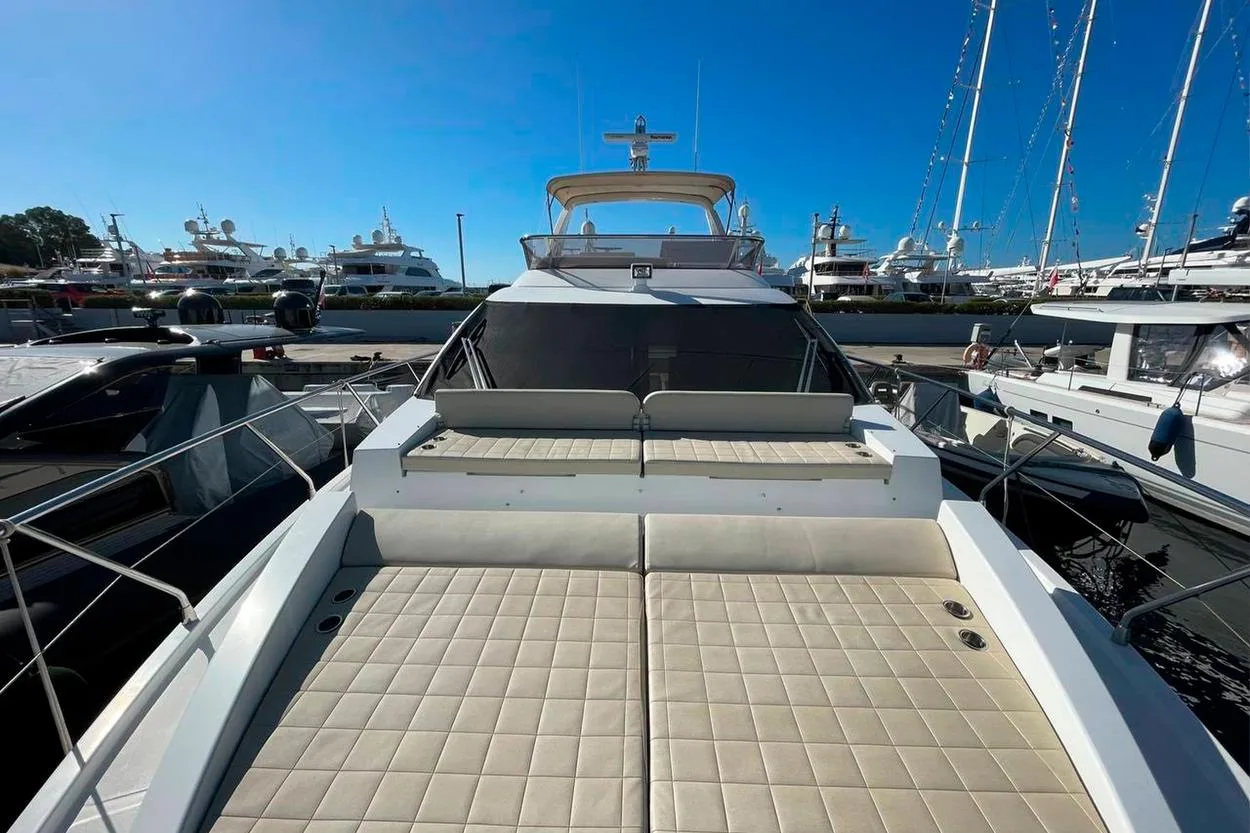

Bow

• DELTA 25kg galvanized steel anchor
• 75 m long high strength 10 mm gaged chain
• 2000W winch
• 2 stainless steel cleats L. 300 mm oval tube
• Chain washing pump

Platform

• Hydraulic platform
• Swimming ladder
• Installable tender

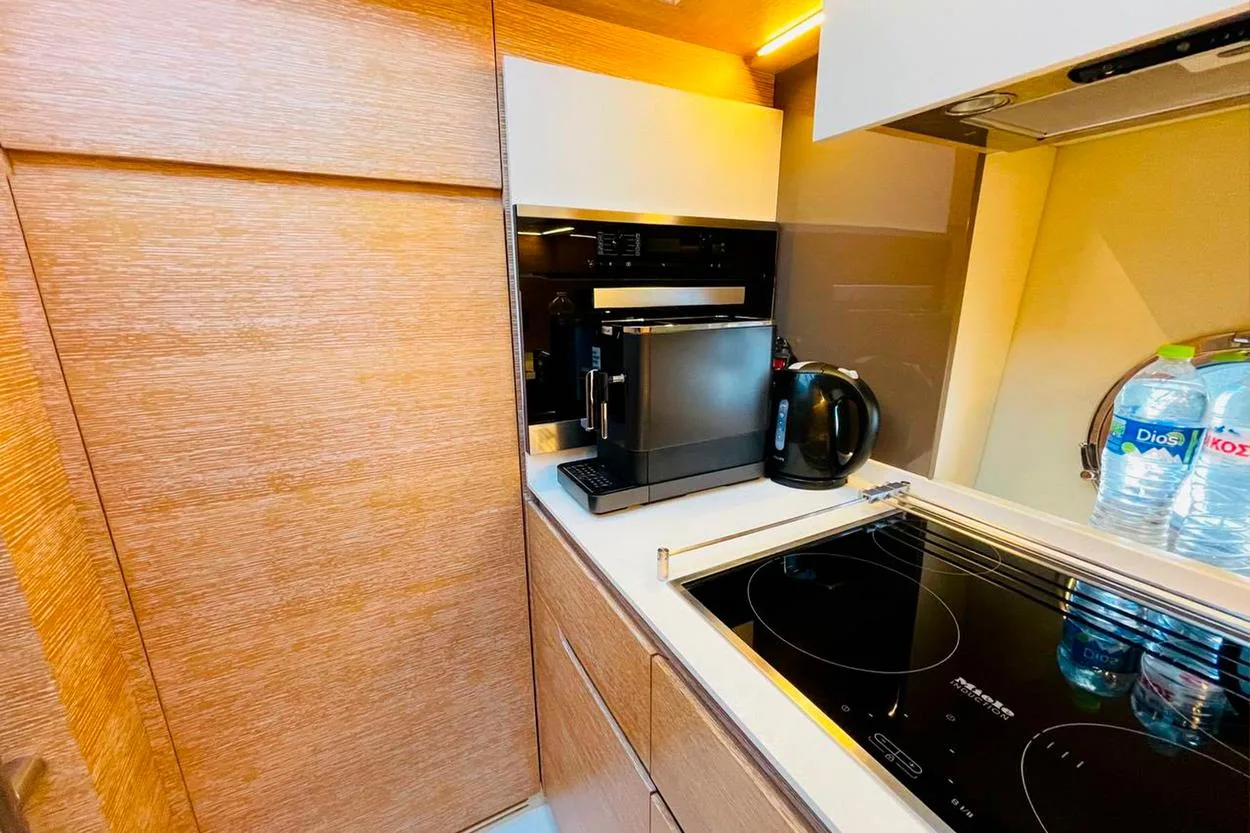

Galley

• Microwave oven + grill
• 1 stainless steel sink
• Refrigerator + 220-liter upright freezer
• Openable porthole

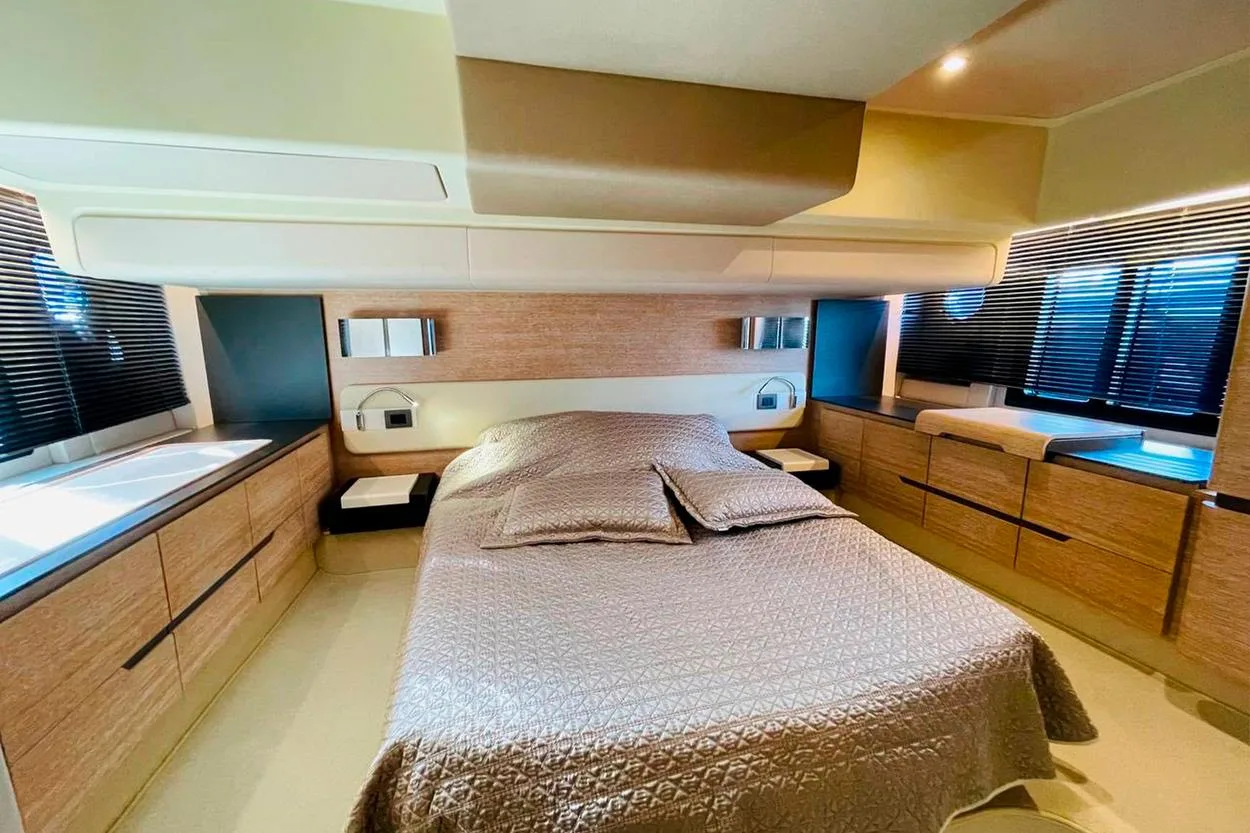

Owner’s cabin

• Double bed placed in the center astern with headboard
• 2 bedside tables
• Vanity unit with mirror
• Provision for TV system
• 220 V sockets
• Air conditioning system control panel (if A/C installed)

Starboard side guest cabin

• 2 fixed bunk beds
• Sockets
• Air conditioning system control panel (if A/C installed)

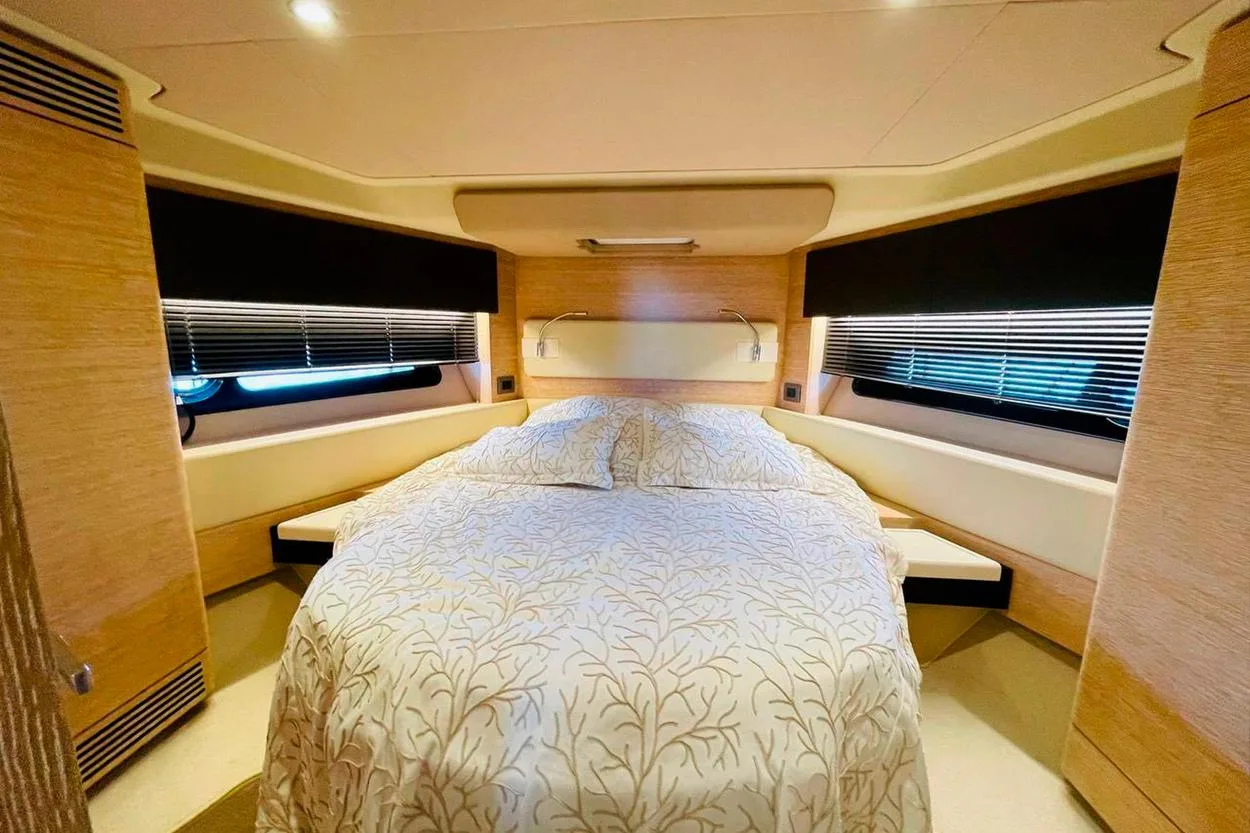

VIP cabin

• Air conditioning system control panel (if A/C installed)
• 220 V sockets

Electric system / Generator / Shore power sockets / Batteries

• Shore-powered power supply
• - 230V-50Hz AC
• - 24V DC from battery bank
• - 12V DC for VHF equipment and cigarette lighter socket

• 1 standard 3.5 kW 230V generator in engine room

• 1 50A socket astern
• 1 for air conditioning (OPT)

• Services: 6 AGM type batteries, 270 Ah 24V DC,
• Engines: 4 AGM type batteries, 180 Ah 24V DC,
• Generator: 1 AGM type batteries, 70 Ah 12V,
• 24 V battery charger: 24/60 3 Out- 60A-10A-10°
• 12V battery charger:12/15 2 Out- 15°

Fuel system

• 2 aluminum tanks in engine room with a capacity of 1100 l and a total capacity of 2200 l
• Electronic fuel level indicator on starboard tank
• Remote diesel shut-off (engine and generator) via 24V solenoid valve
• Pipe connecting the two tanks to adjust the fuel level
• Fuel drawing tap on starboard tank

Fresh water system

• 590 l polyethylene tank located under the bed in owner's cabin
• 1 water heater, 40 l

Seawater system

• Engine cooling system: includes 2 x 2" seawater intakes with filter and valve (1 per engine)
• Generator cooling system: includes 1x1" seawater intake with filter and valve
• Air conditioning cooling system: 1x1" seawater intake with filter and valve
• Chain wash pump: 1x 1/2 " seawater intake with filter and valve

Ventilation/extraction

• Head ventilation: forced extraction by way of 24V extractors
• Engine room:
• - Natural air intake through air duct with water separator (1 each side)
• - Forced ventilation: 2x24V extractors (1 each side)

Other systems

• Steering system: hydraulic power steering with 2 round profile rudders.
• Trim tab system: consisting of 2 AISI 316 blades, operated by a hydraulic cylinder, 24V electro-hydraulic control unit

Equipment

• 1 telescopic boat hook
• 5 anchor lines
• 18 m fender lines
• 1 anchor chain stopper
• 6 fenders
• 6 black fender covers
• 1 Owner's Manual
• 1 white book, 2014 edition, English
• 1 AZIMUT warranty service booklet
• 1 bottle of "MONSORDO MAGNUM"
• 3 float key-rings
• 1 bag (with logo) for storing the manuals
• 1 remote control holder (with logo)
• 1 routine maintenance kit for steels
• 1 pin wrench for locking stainless steel pins
