2017 Ocean Craft Marine 9.5 M | 32ft

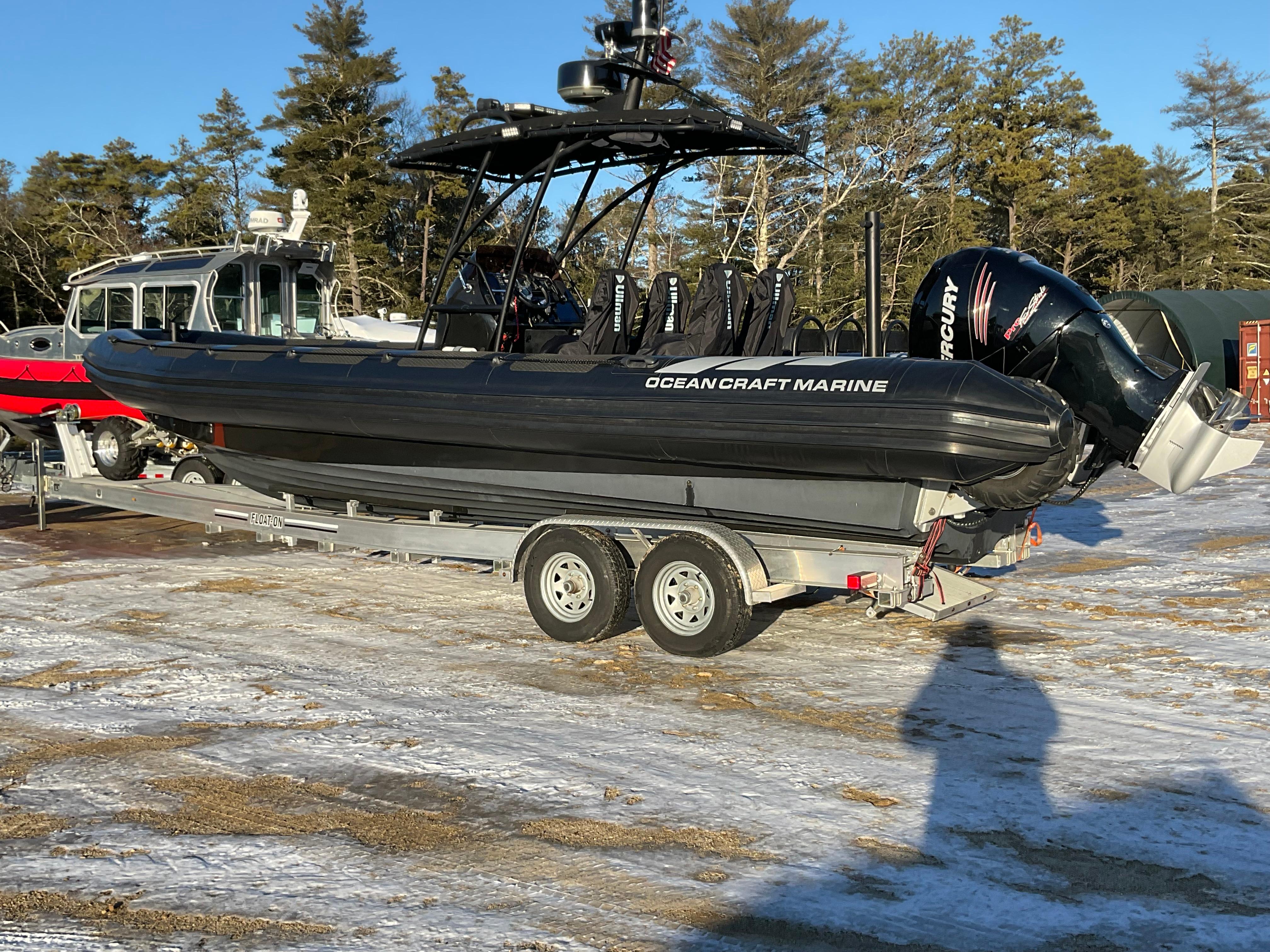

Ocean Craft Marine 9.5M Amphibious

LOA: 9.98M

o Beam: 3.17M

o Tube Diameter 0.56M

o Passengers 10 on water & 5 on land

o Classification Category “B,” Offshore

o Weight (Empty Boat) 1,740 kg 3,836 lbs.

o Weight (Full Average) 3,490 kg 7,695 lbs.

o Fuel Tankage: Twin 60 Gallon Tanks; 120 Gallon Total

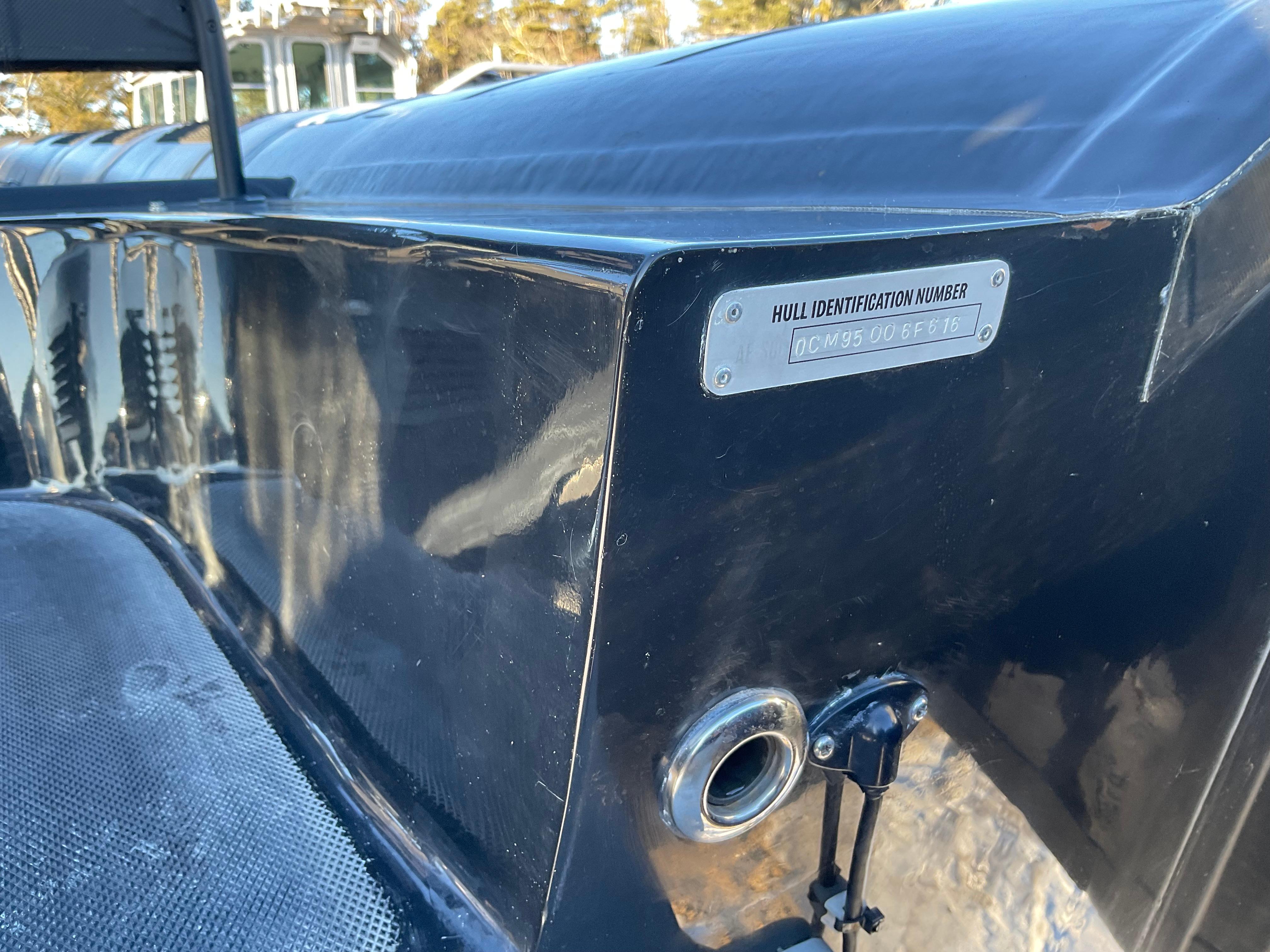

Vessel FRP Hull:

o OCM 9.5M RHIB Commercial Build "Turn-Key Ready"

“V” shaped Laminated Fiberglass Reverse Chine Hull

o Anchor locker Forward

o 3 U-bolts (1 on bow, 2 on transom)

o S.S Heavy Duty Lifting Points (2 Foredeck & 2 Aft deck)

Deck/Structure:

o S.S. Heavy Duty FWD Tow-Post/Bollard "Matt Black Finish"

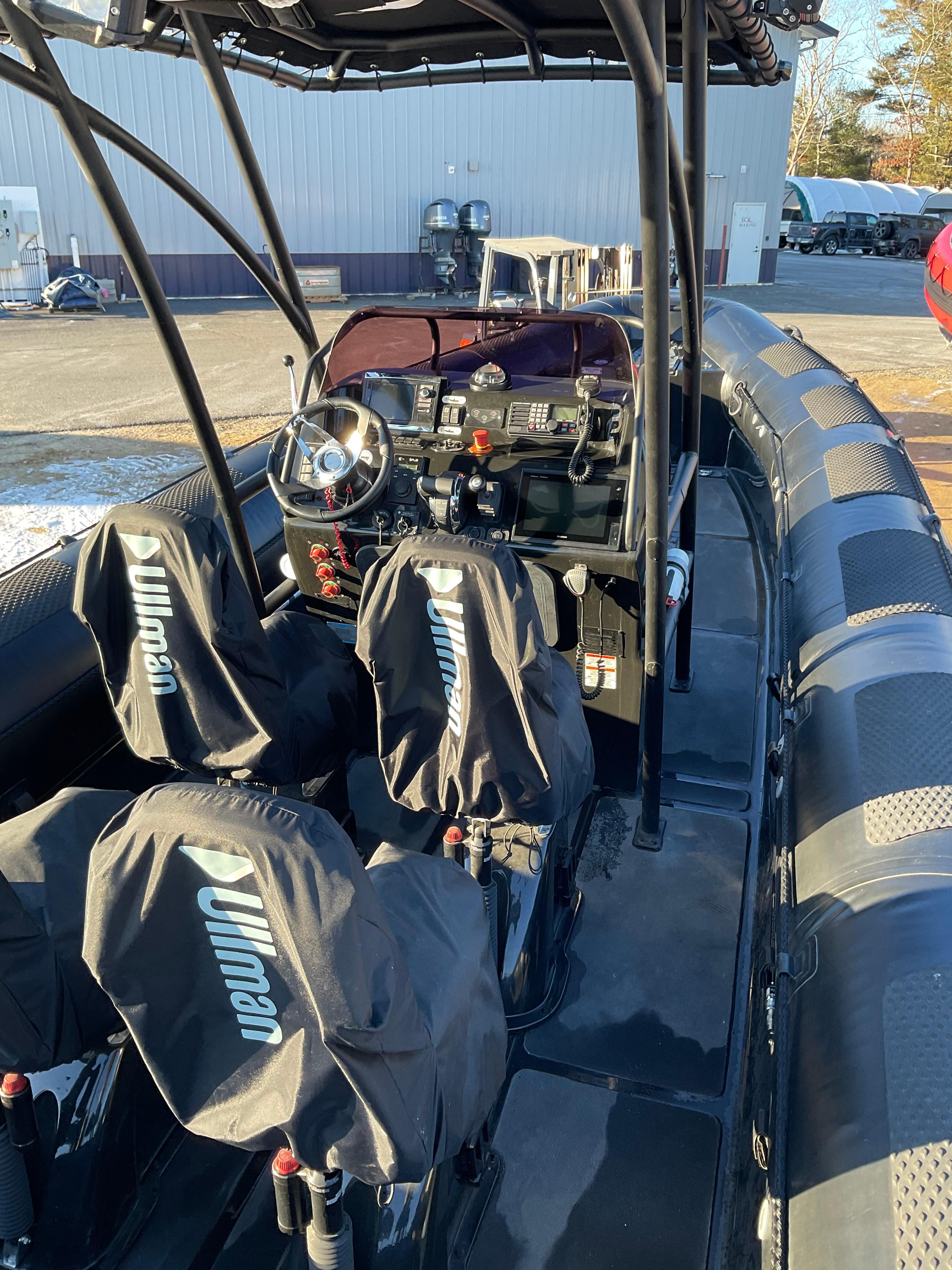

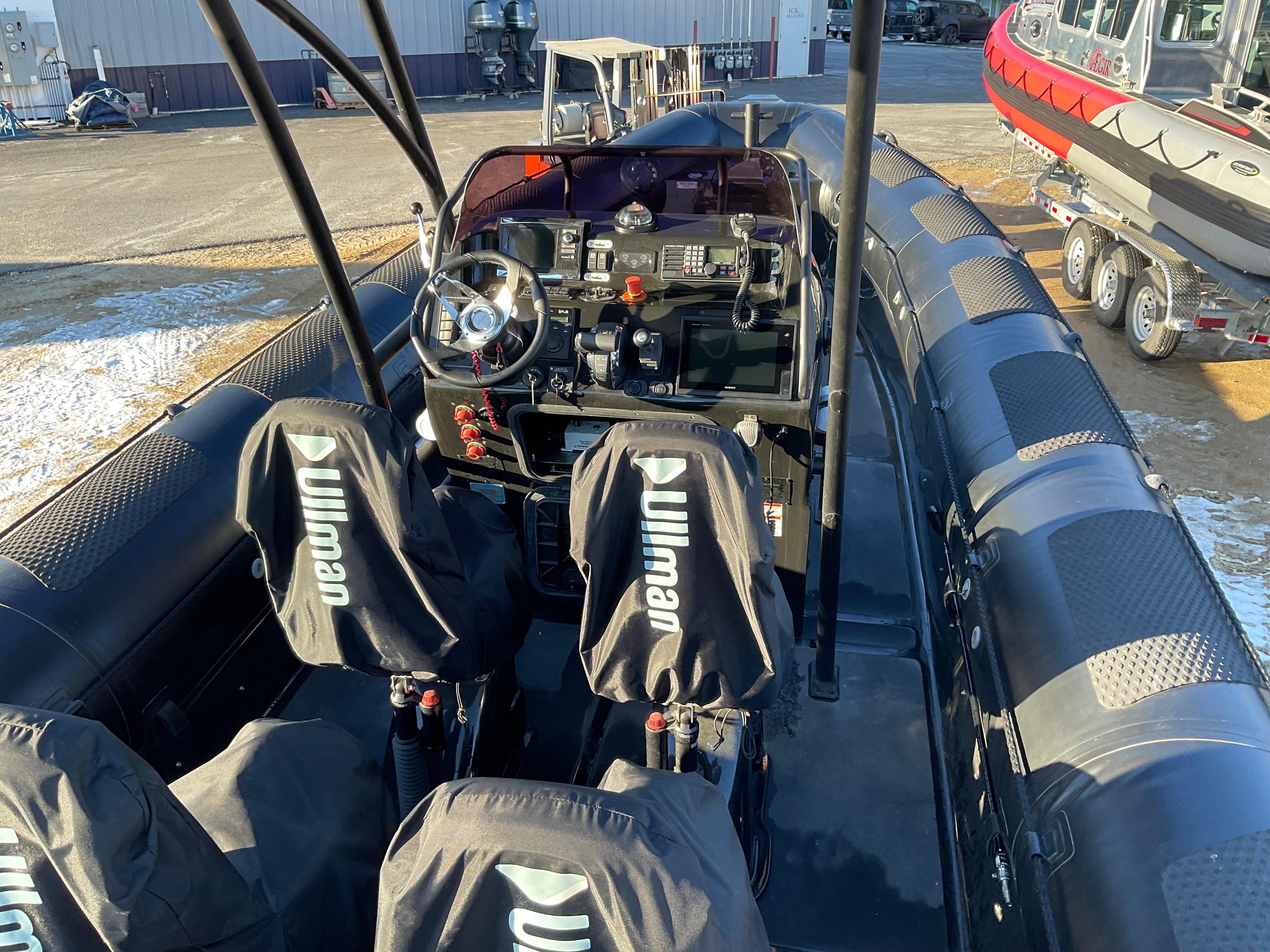

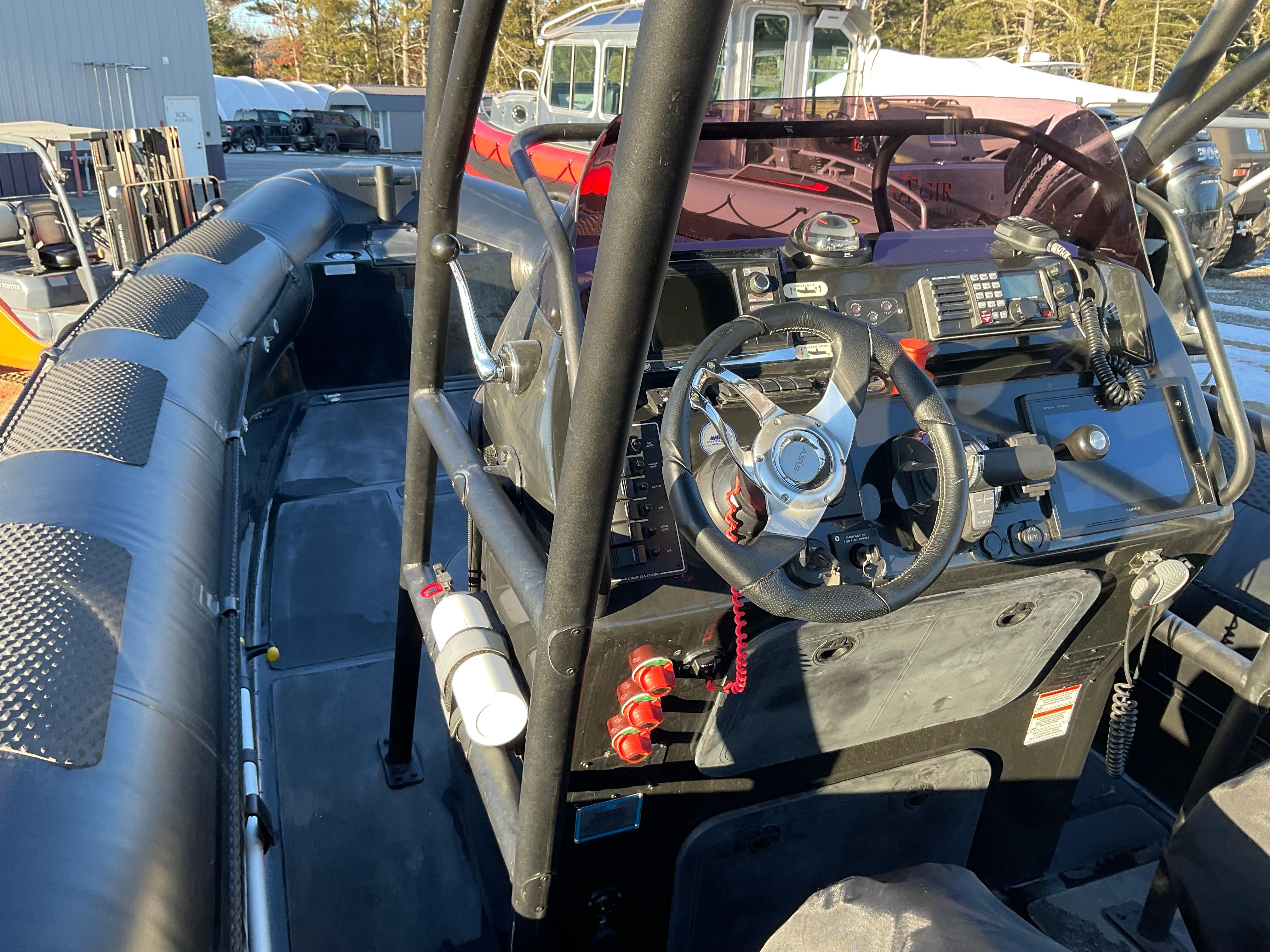

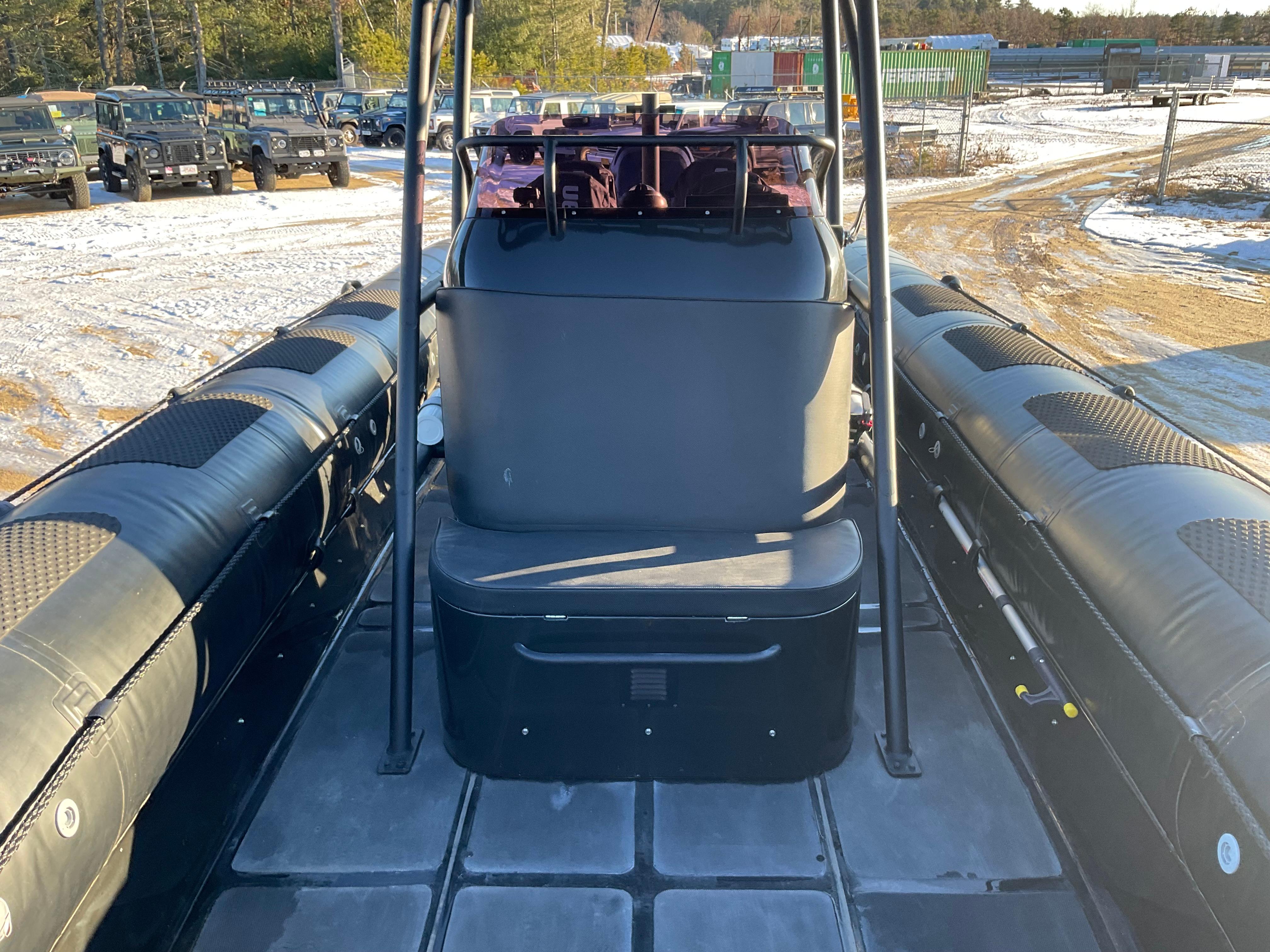

o Double Futura Center Console, with forward seat w/small-form-factor smoked

windscreen & grab-railing.

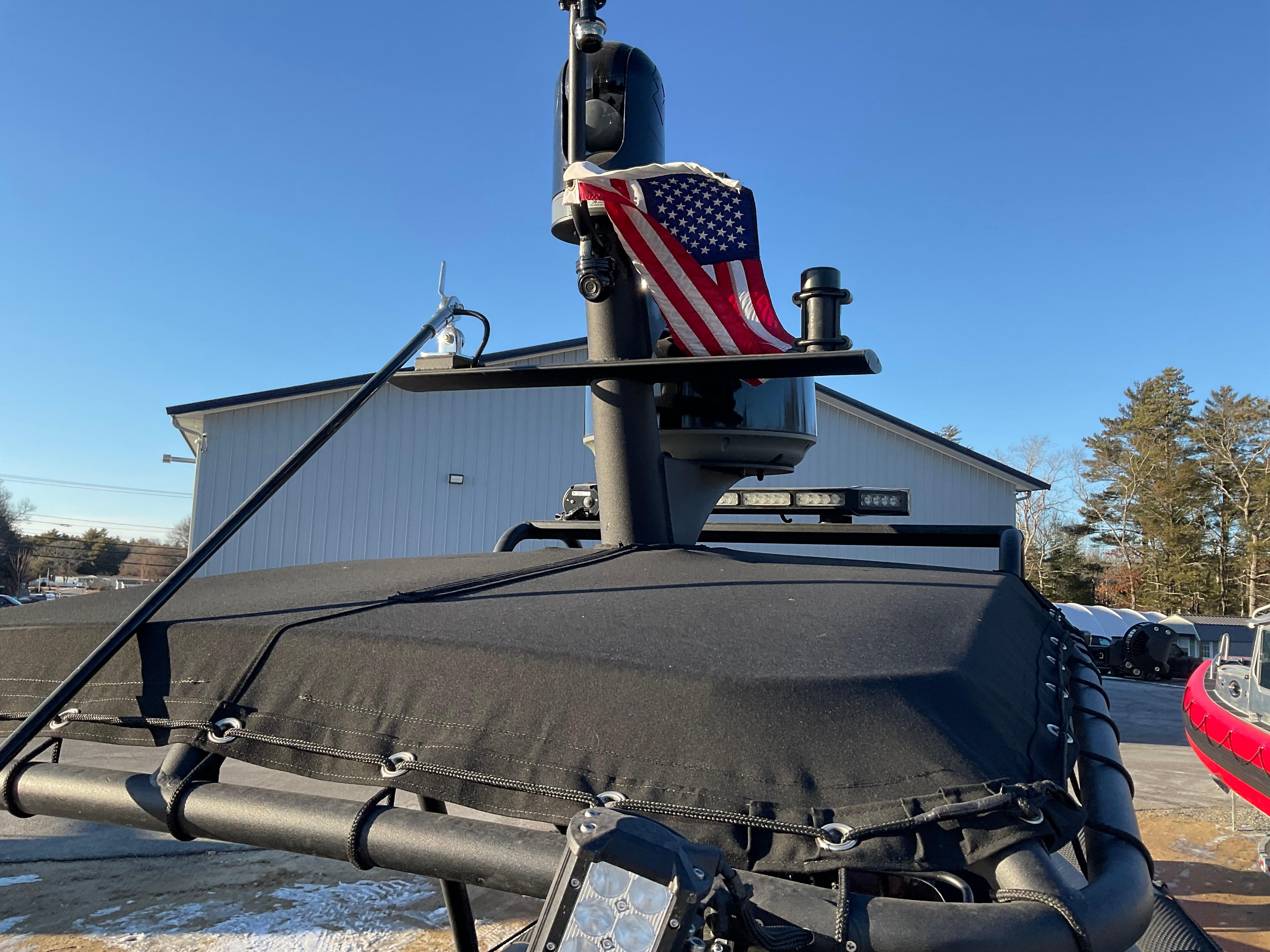

o HD T-Top "Gloss Black Finish," "Black" Fabric Color

o Aft A-Frame Arch ("Gloss Black Finish")

o Tube Affixed Diver/Swimmer Folding Boarding Ladder (starboard side)

Propulsion:

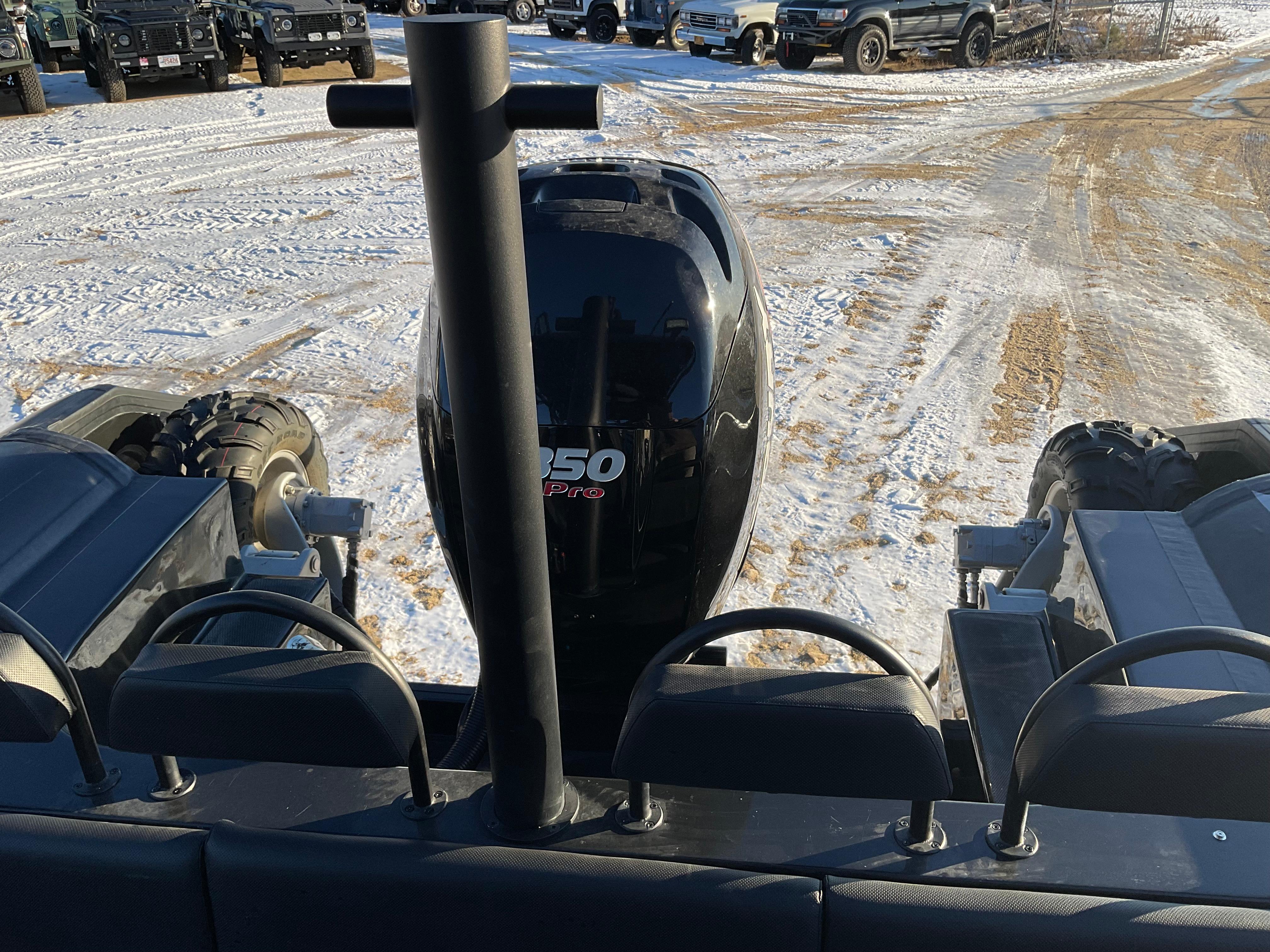

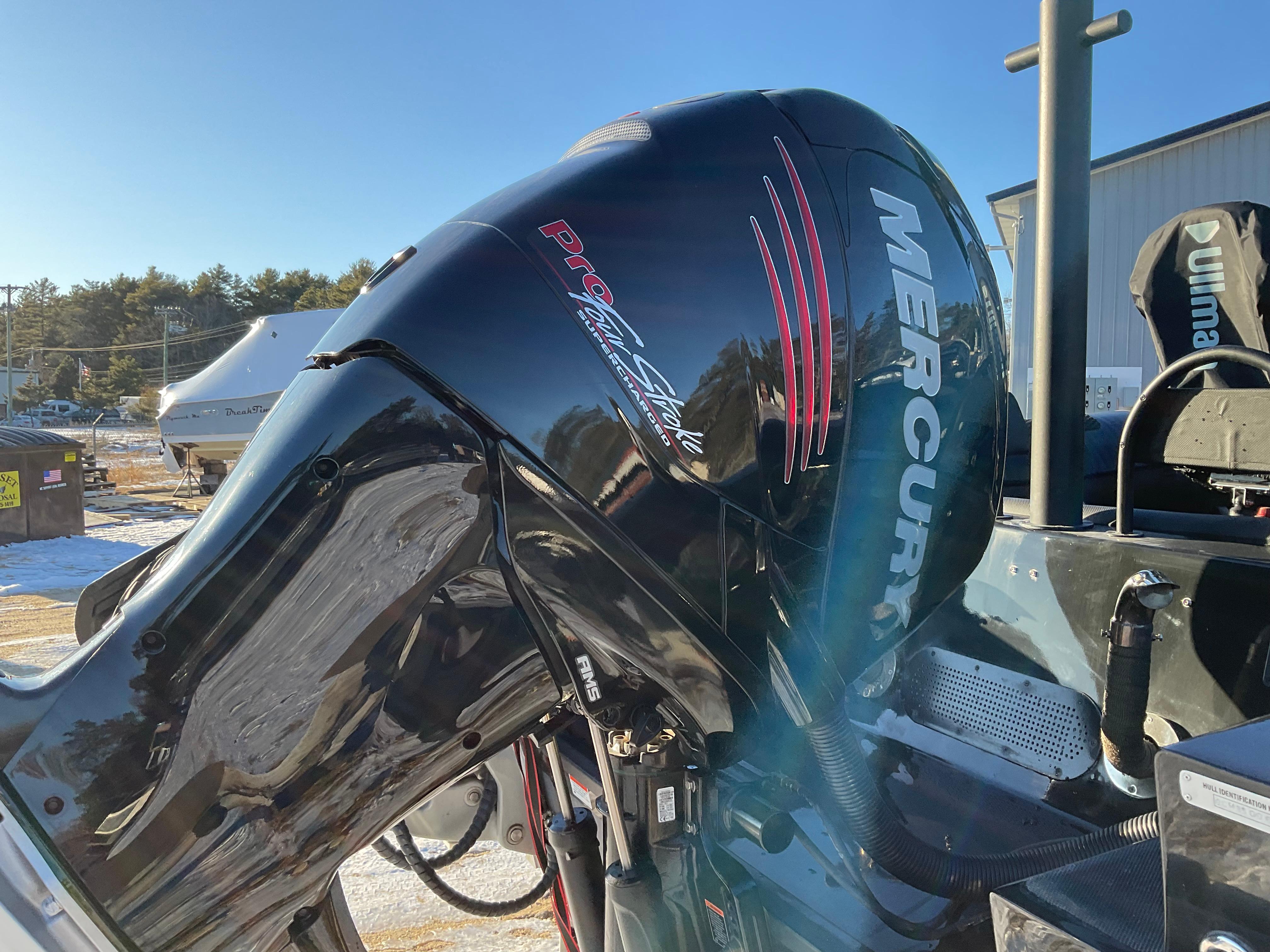

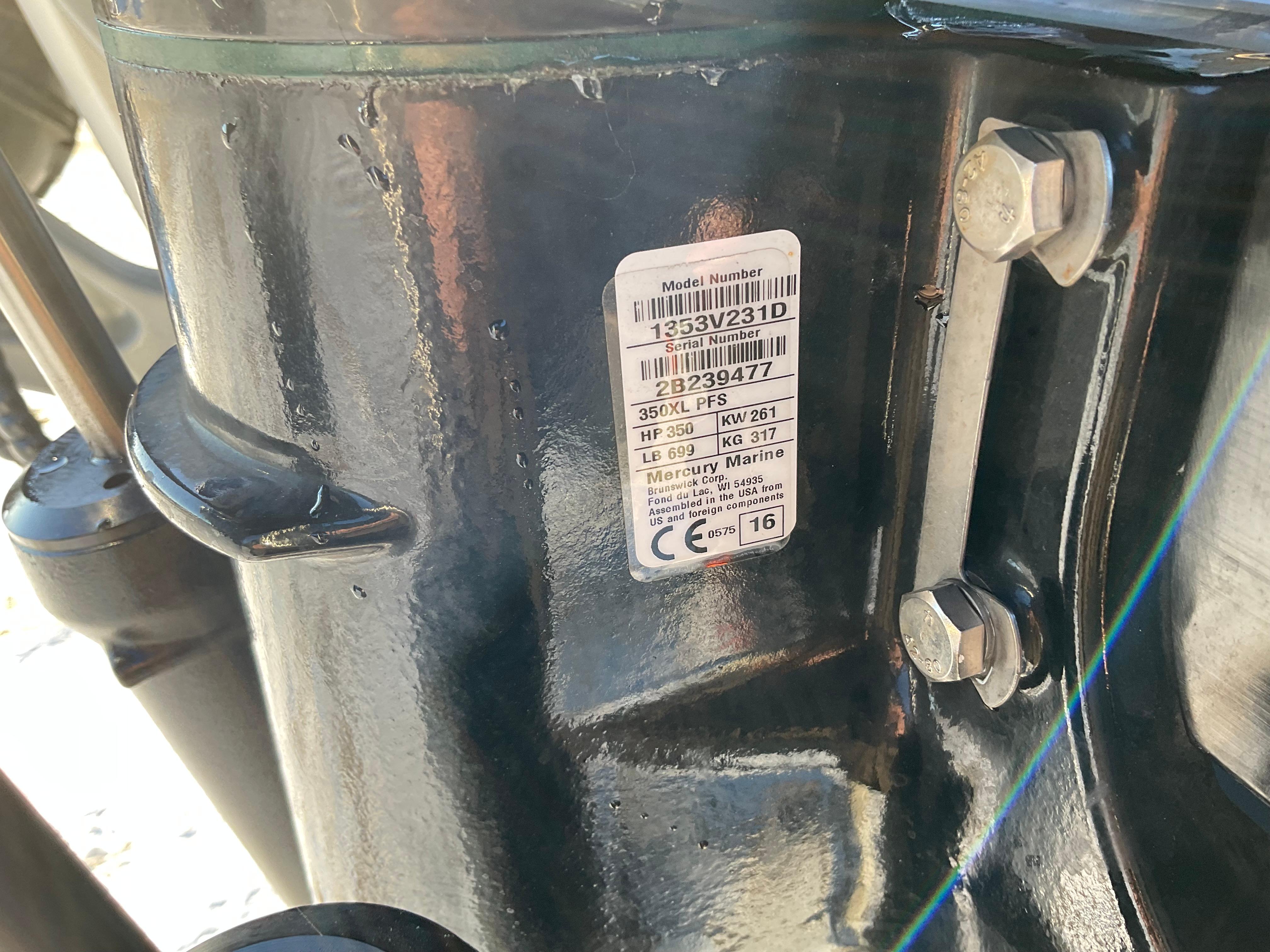

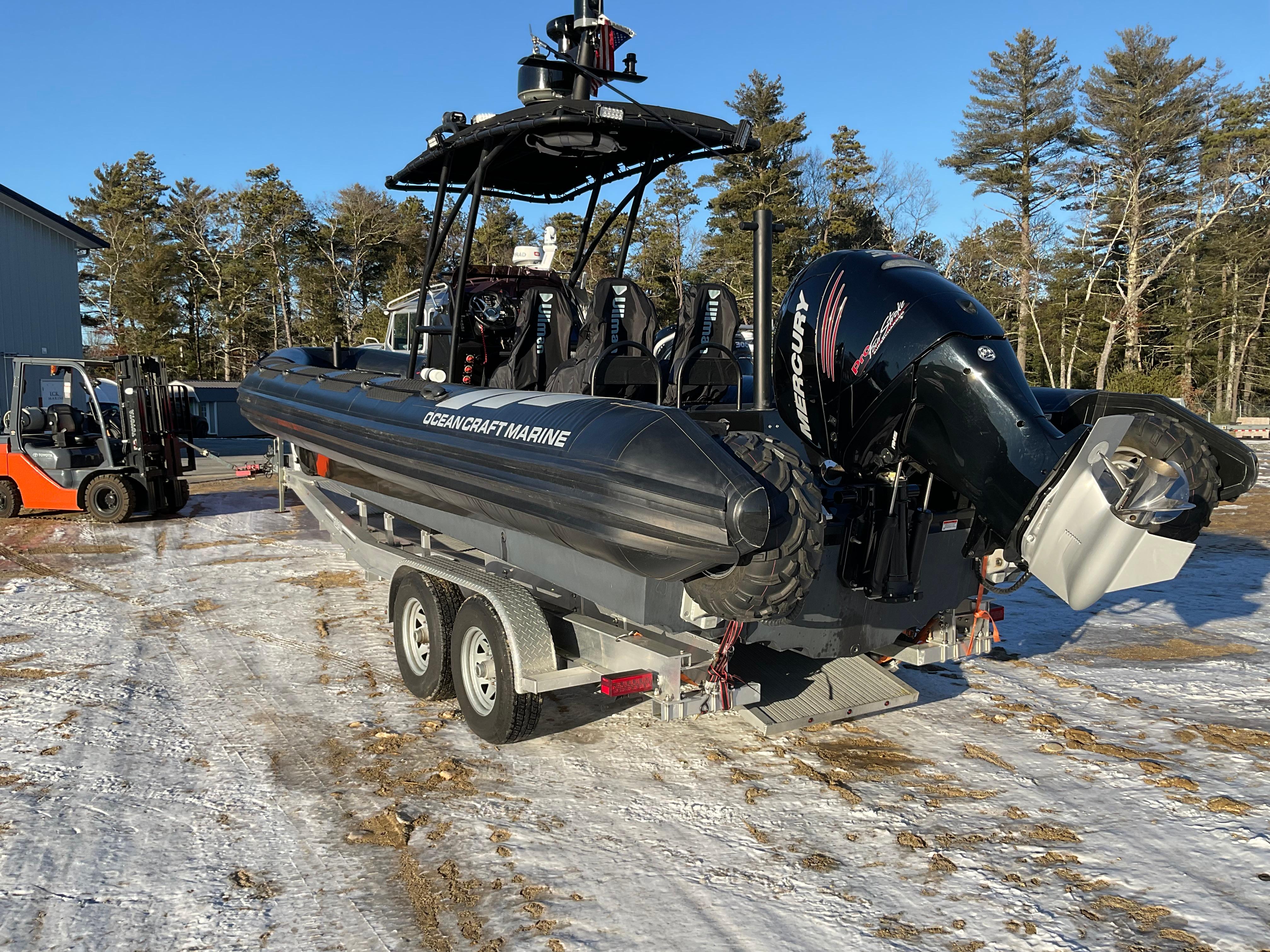

o Single Mercury® 350HP V-8, Pro XS, 4-Stroke, Outboard Engine, XL/CXL 25" Shaft,

with Electro-Hydraulic Power Steering Option, w/Black Color engine cowlings.

o Vessel View 7 " Display w/Engine & Vessel Telemetry Integrated with

Multifunction Displays, Fly-by-Wire DTS Control Binnacle, Tilt Helm wheel, and

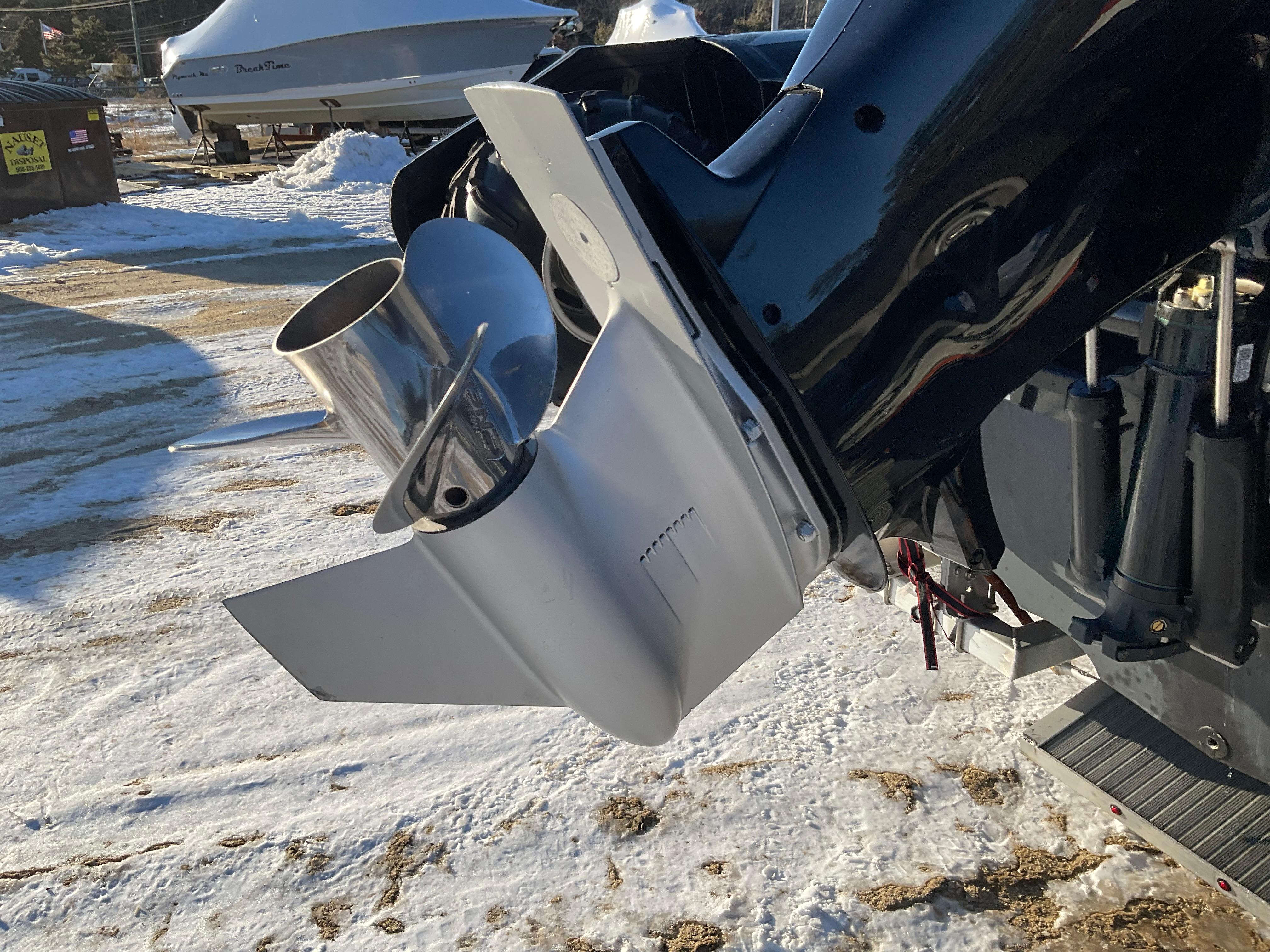

Installation, Stainless Steel Propellers 14" x 21" Mirage Plus 3-blade.

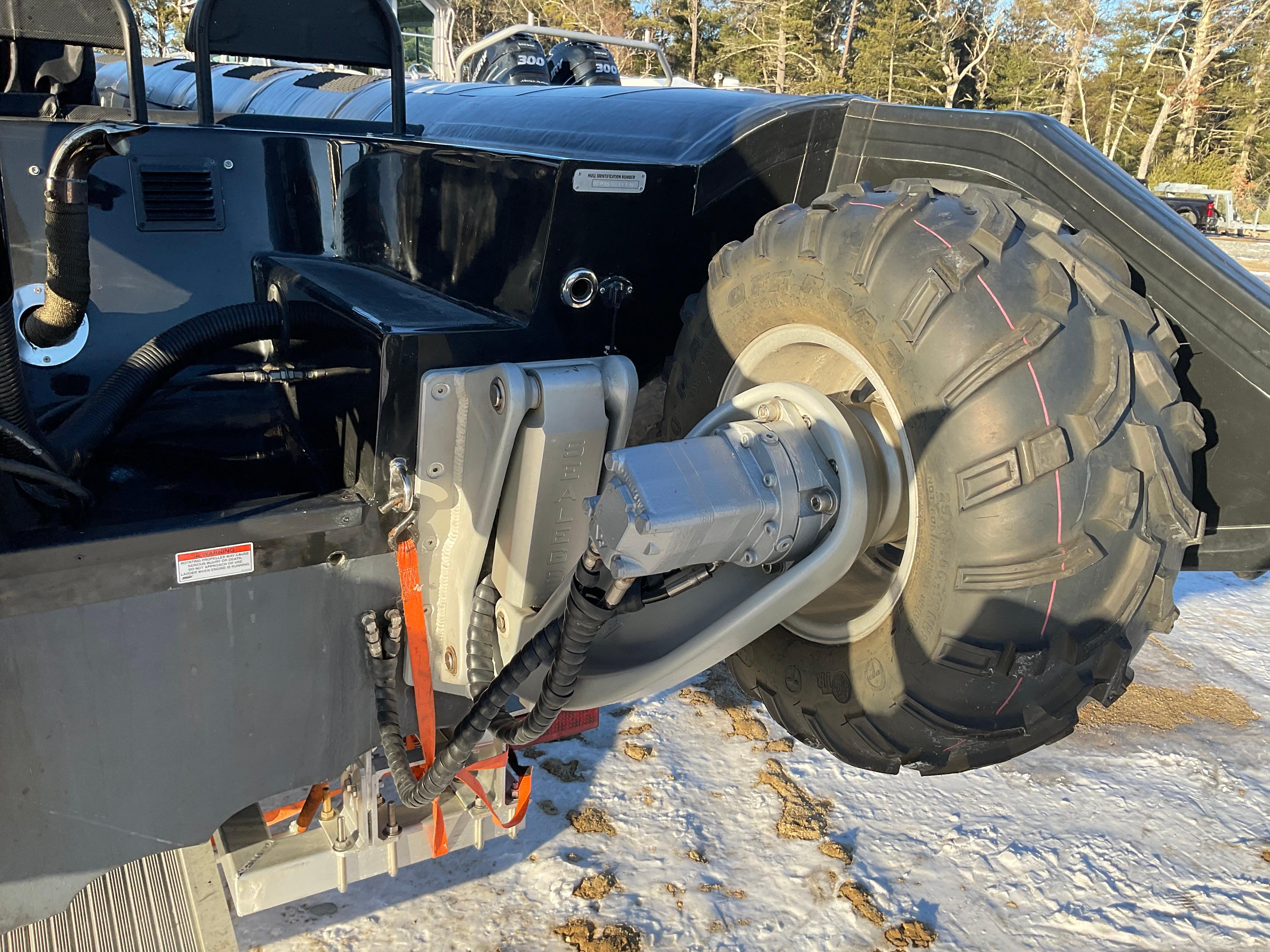

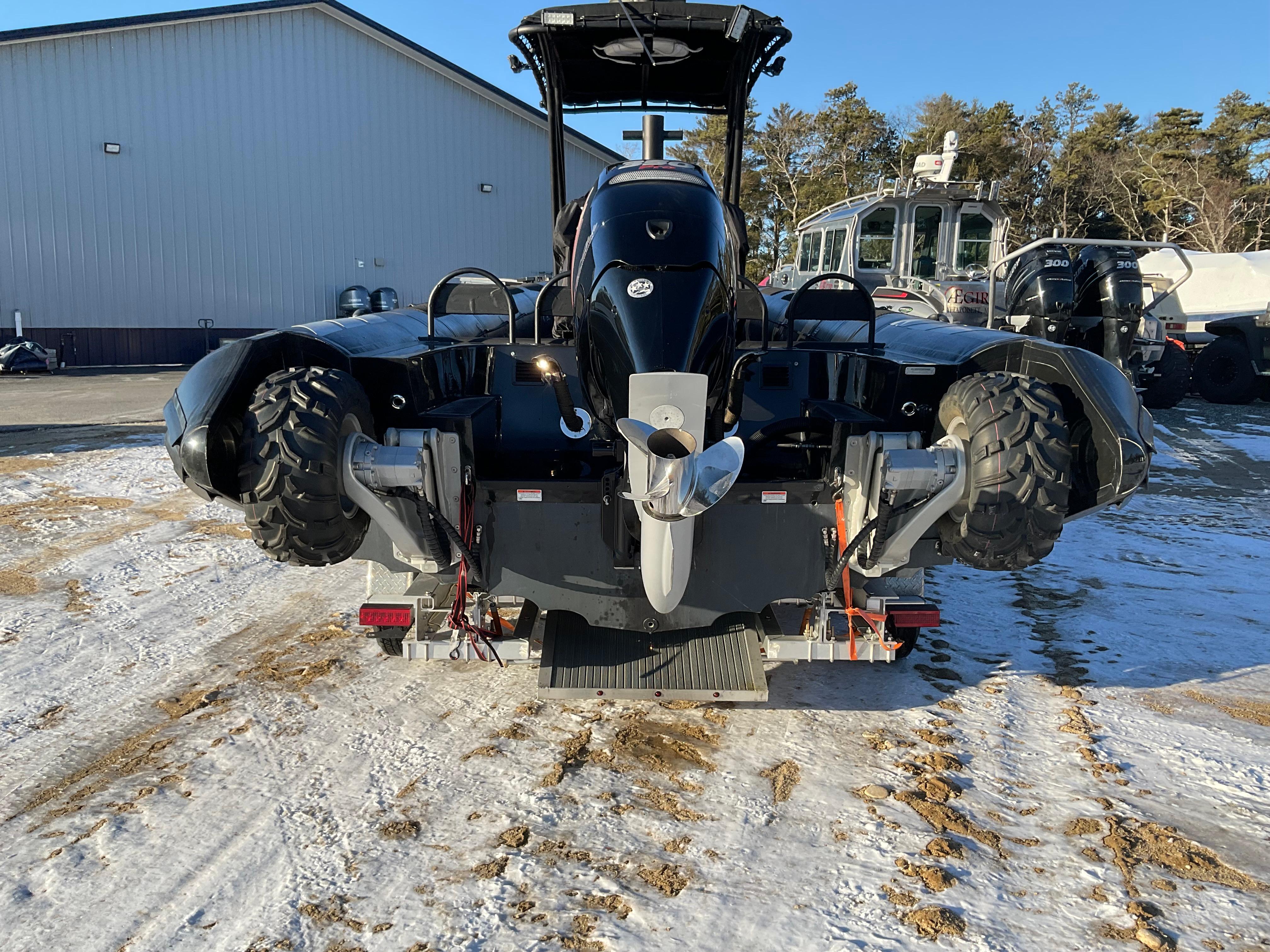

Land Mobility, OCM BAS 80-4 Amphibious, 3-Wheel Drive System

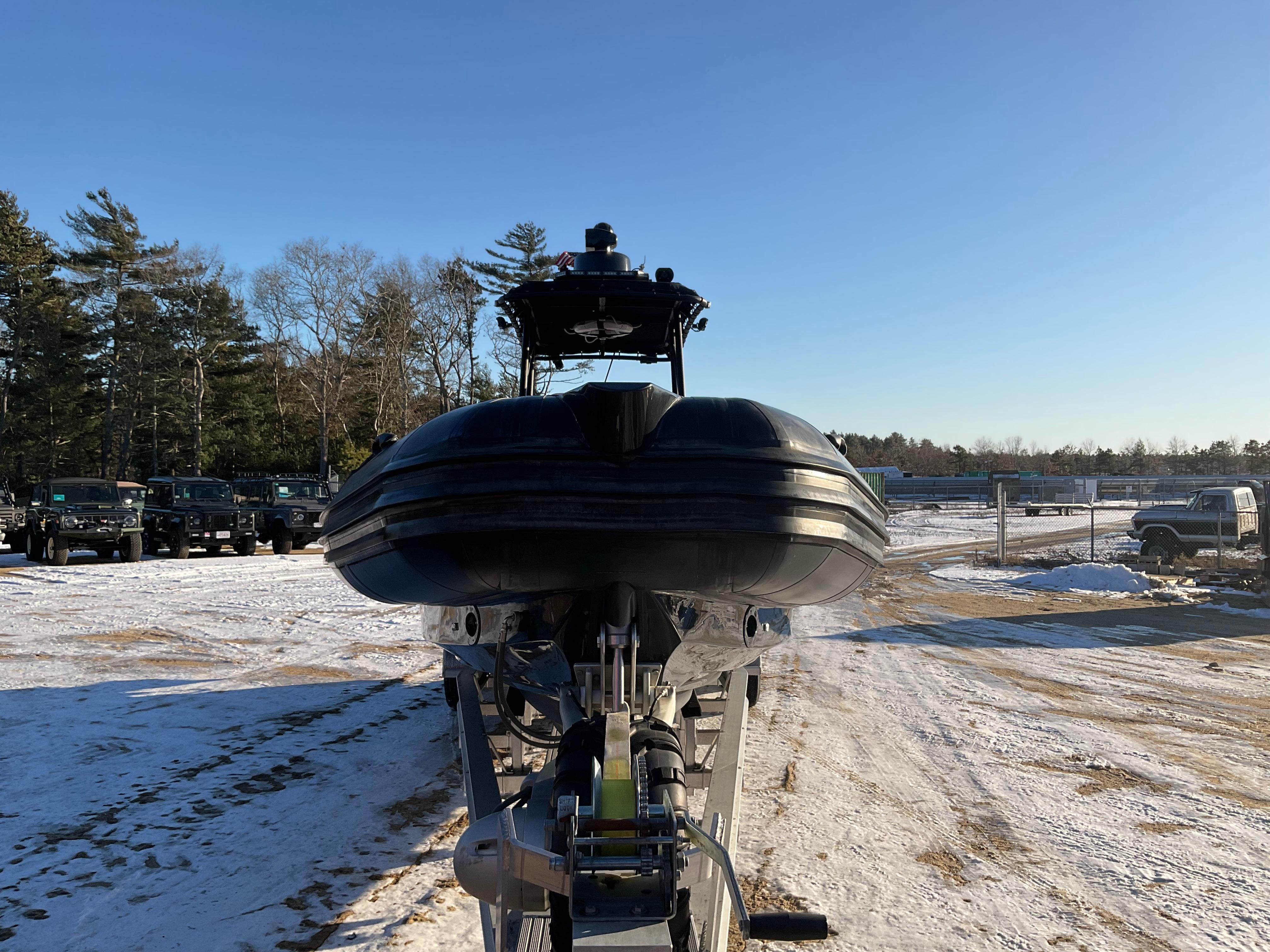

o 1 X Bow Wheel and 2 x Stern Wheels For Superior Traction & Less Ground
Pressure
Hydraulic Power Unit:
o Briggs and Stratton™ 30KW (40HP), EFI Engine Equipped with “Control By Wire”
(CBW)
o Equipped With Oxygen Sensor To Reduce Emission
o Engine RPM Monitoring For Stability Of Operation
o Consistent, Easy-Starting, Superior Fuel Economy
o On-Board Diagnostic Display & Fault Code Plate

Hydraulics:

o Hydraulic System Provides Maximum On Land Travel Speed Of 6 MPH (9.5kmh)
o Hydraulic Pump With Electro Proportional Servo Control System
o One-piece Custom Hydraulic Valve Block With Integrated Hydraulic Filter
o Pump & Hydraulic Valve Block Integrated As Part Of The Hydraulic Tank
o Full System Monitoring Transducer To Measures Oil, Pressures, Temp & Filter
Condition
o Synthetic Hydraulic Oil
o Corrosion Proof Hydraulic Hoses
o All Hydraulic Cylinders Have Built In Load Holding Valves, Diff-Lock

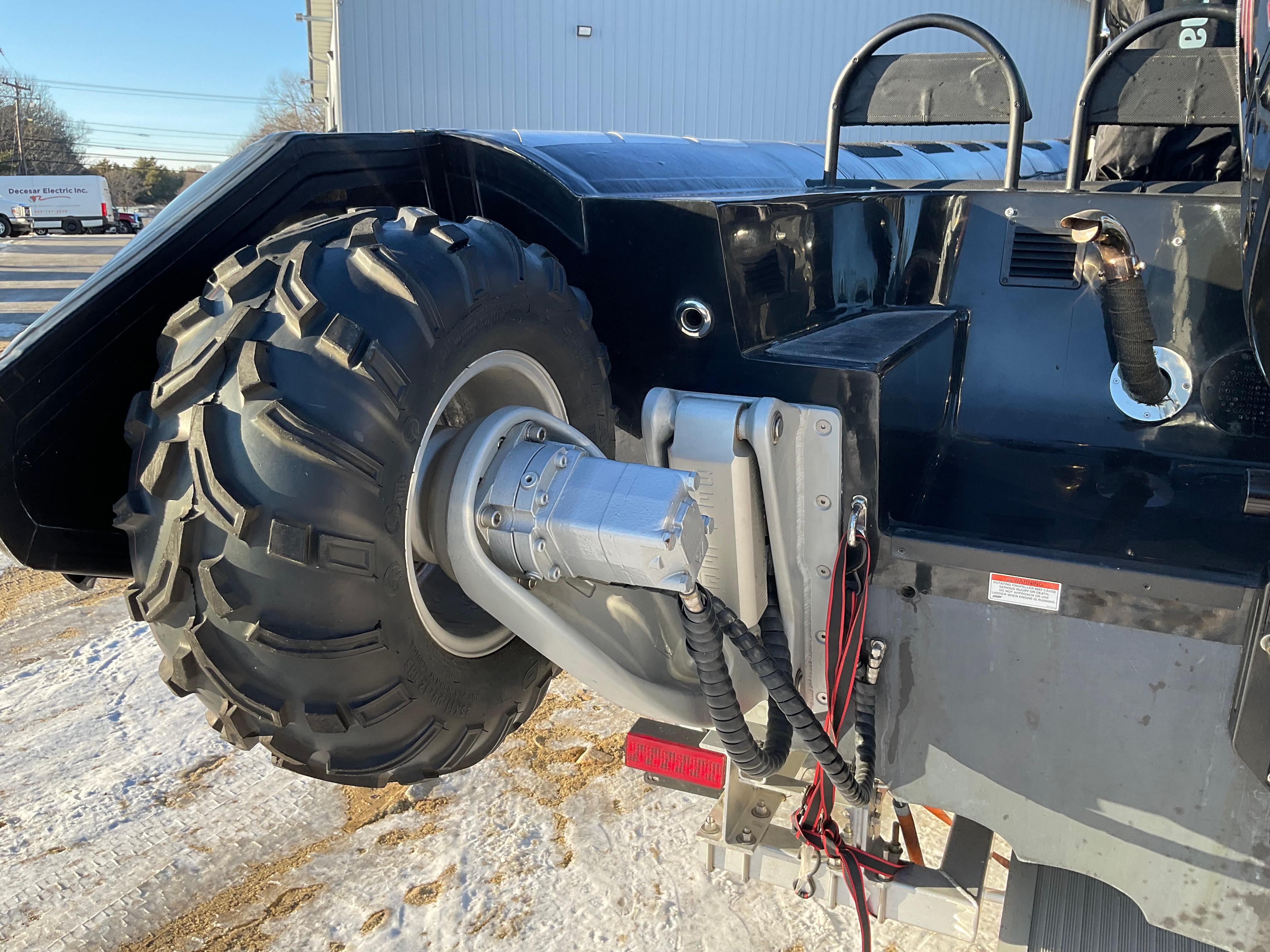

Wheels / Tires:

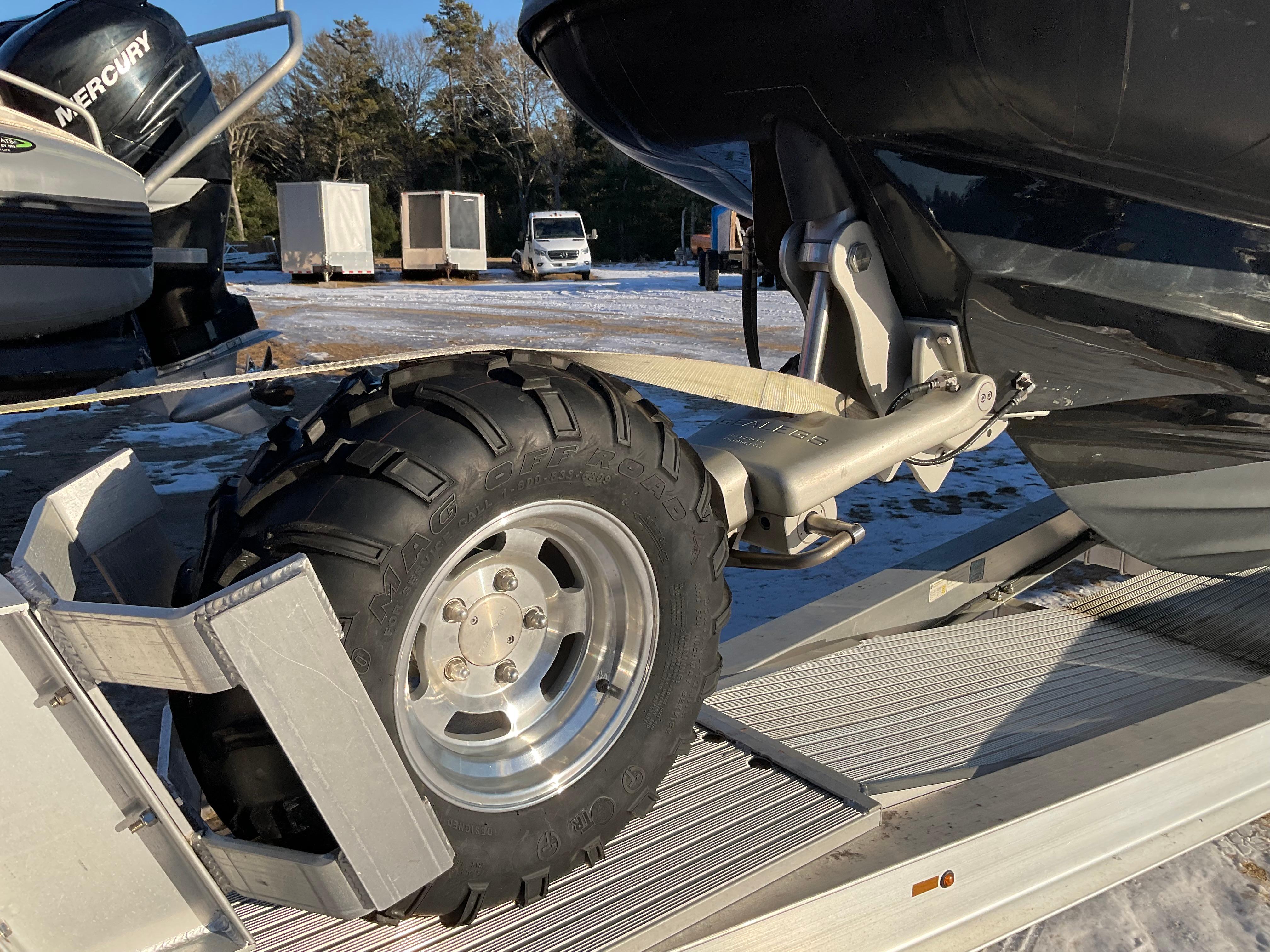

o Custom Marine Coated Wheels With Offset To Place Load In Optimum Position
Over Hydraulic Motor 26x12x12 Turf Tires
Programmable Logic Controller (PLC):
o Full System Monitoring & On-Board Diagnostic Capabilities
o Remote Monitoring Of System Performance & Service Support
o Self-Centering Of Steering Wheel Assembly
o Hydraulic Brakes With Auto On Feature If In Neutral & No Drive Signal Received
After 5 Seconds
o Auto Engine Speed Control For Wheel Retraction/Extension
o Manual RPM Adjustment Control
User Interface (UI):
o Joystick, Keypad & “System Fault” LED

Fuel System:

o Twin Aluminum Fuel Tanks 90 US Gallons (180 Gal. Total Onboard) with Dual
Pick-up tubes per tank
o Twin hull-affixed tank selection/fuel shutoff valves and with twin Fuel filter
water-separators.

Tube Set:

o Tube Spec. Neoprene-Hypalon, Military-Grade Thickness, 1670 Dtex. Inflatable
Tube-Set, Seven (7) Compartmentalized w/ inflation and Over-pressure Valves.
o Internal and External Grab Lifelines
o Neoprene Anti-Slip Step-Treads, All-Round
o Triple Fendering Rub-strake on tubes

Seating:

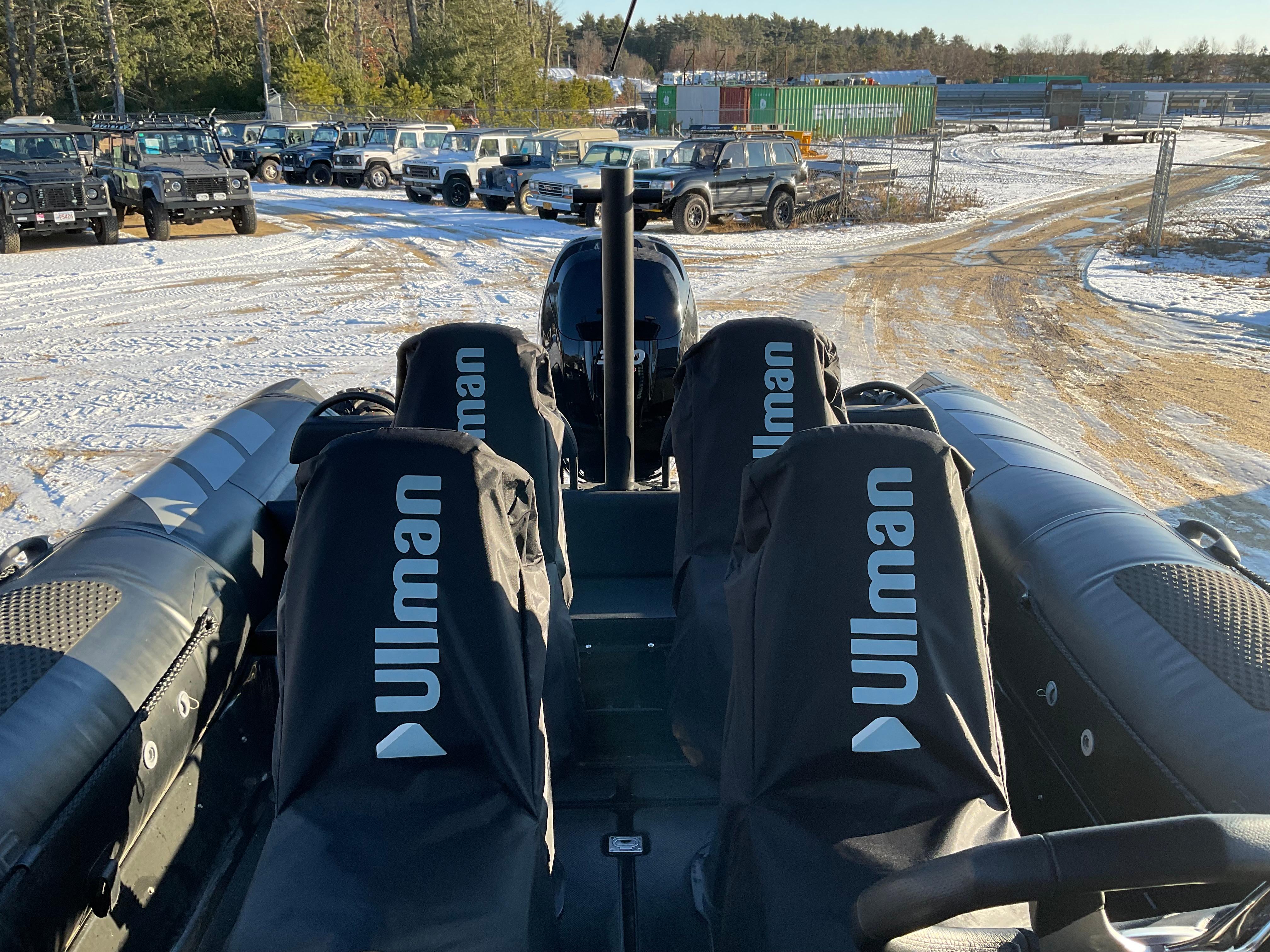

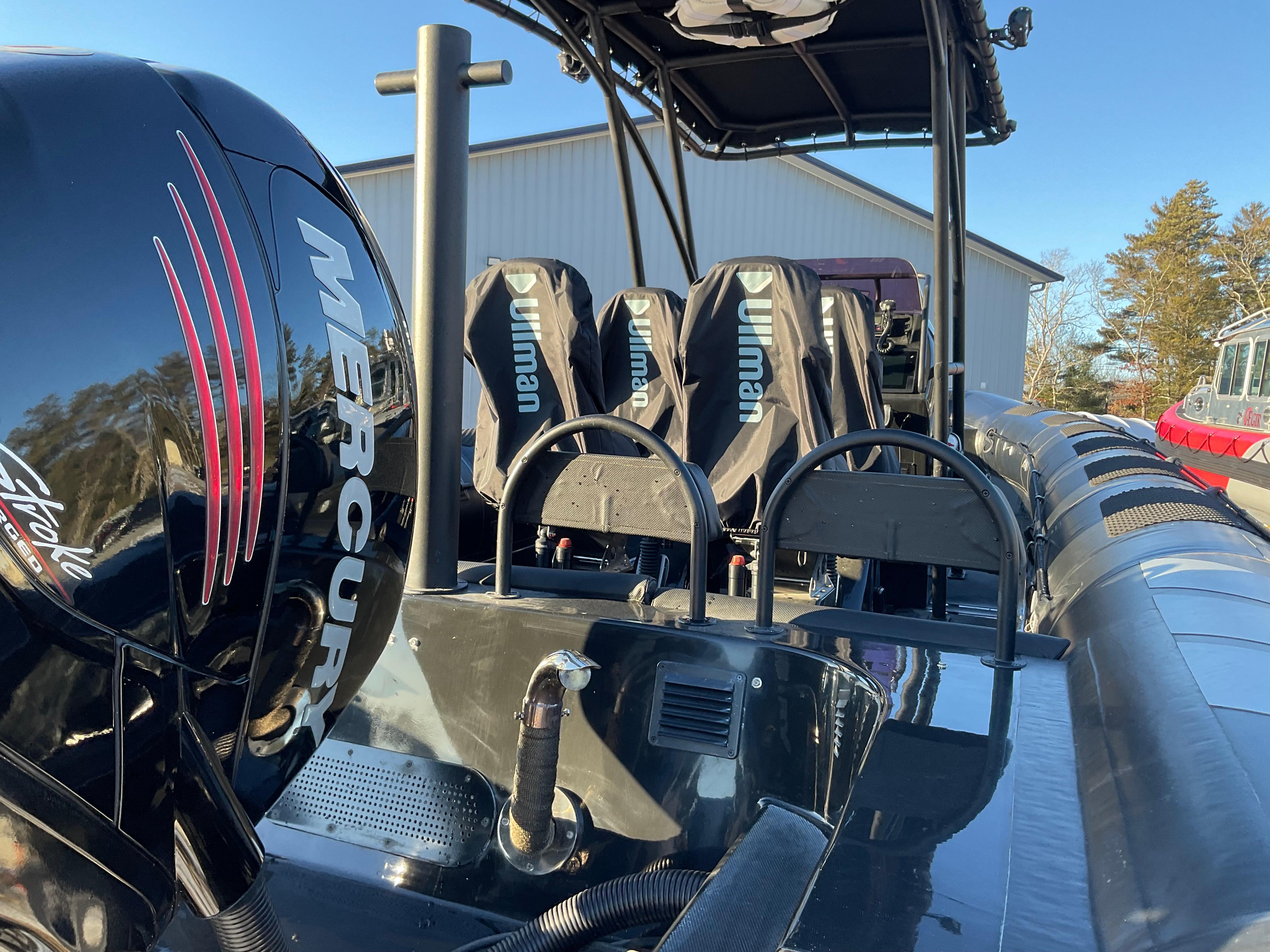

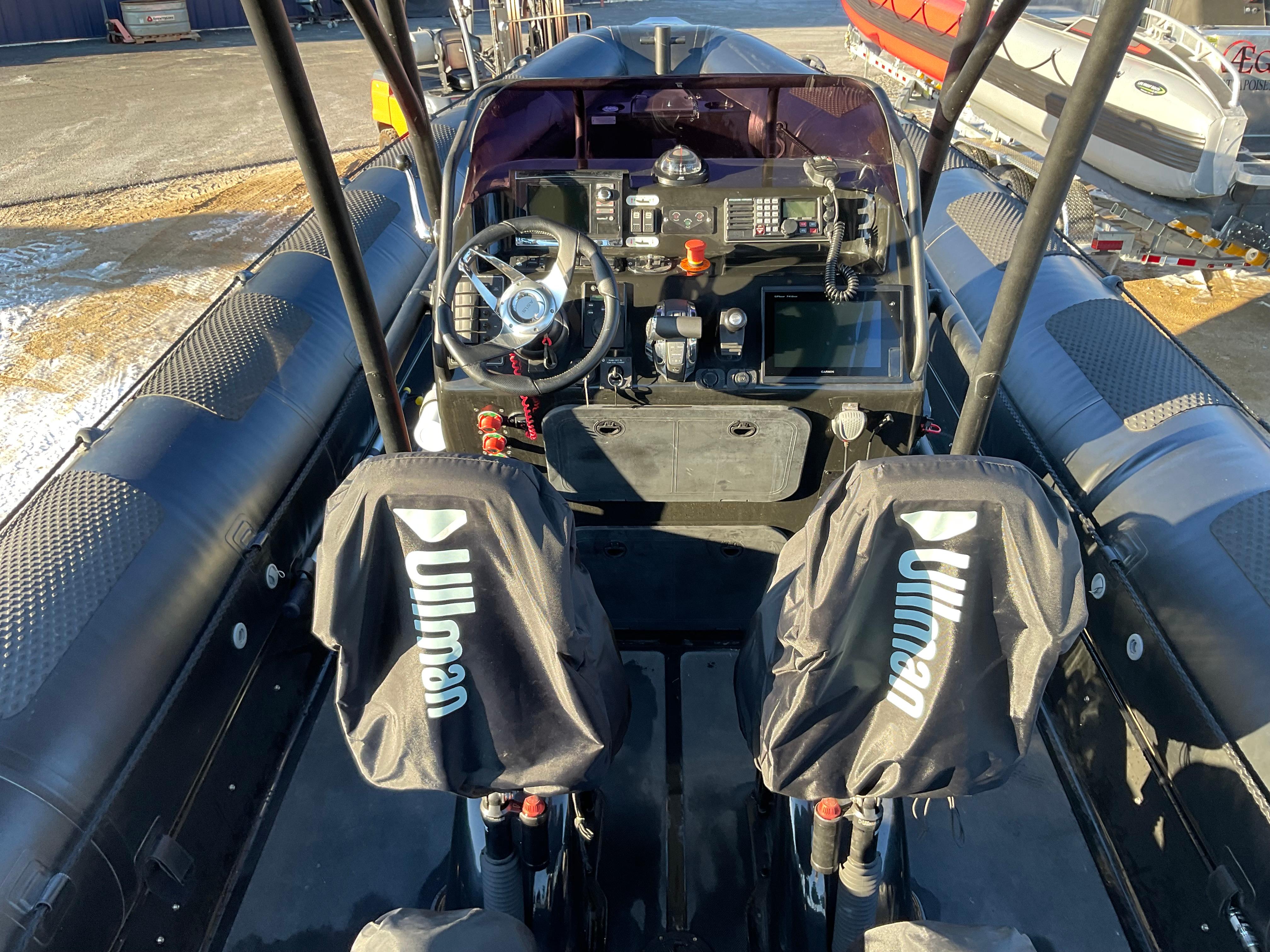

o Ullman Shock-Mitigating Jockey Suspension Seats
o Aft Athwartship Bench Seating with Back Rests
Life Safety/SAR:
o Offshore Compass Offshore, conical white card, Dash Mounted
o USCG Approved Fire Extinguishers
o 20" USCG Approved Throwable Ring Buoy

Electronics/Lighting:

o LED Vessel Navigation Lights IAW COLREGS
o Signal Horn 12VDC IAW COLREGS
o Deck LED Lumitec Tri-Color Lighting
o T-top Overhead LED Lumitec Tri-Color Lighting

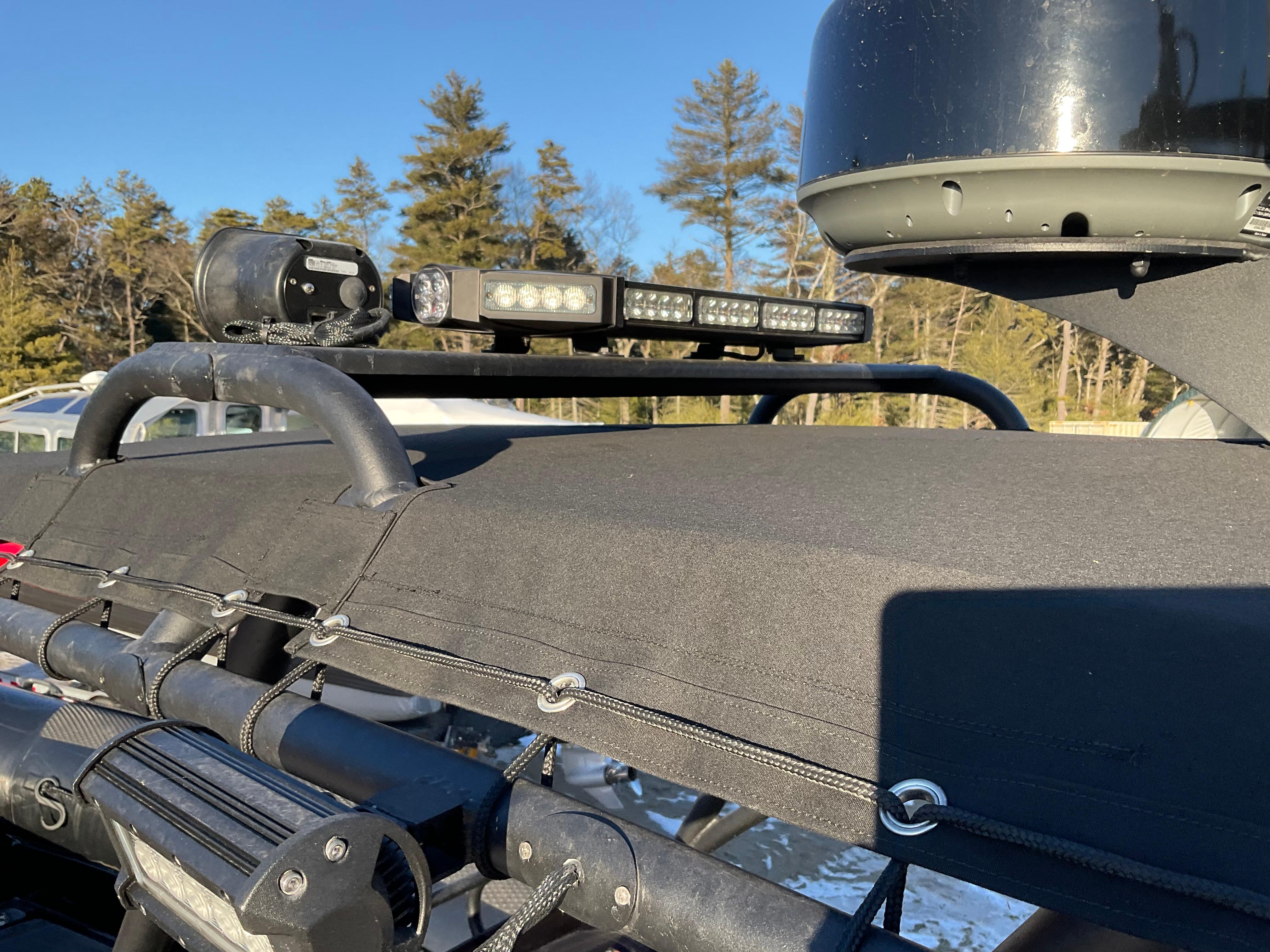

o LED Flood Lights for Deck and Scene Lighting T-top and Arch mounted inverted
and adjustable for windage and elevation
o Bow-mounted LED marine headlight (land use only)
o Automatic Electric Bilge Pumps (2) 300 GPH High Capacity, with Automatic Float
Switch.
o 12VDC Electric Distribution Bus/System with Breaker Panels & Battery Isolators
o Batteries, AGM - Optima Blue Top® Battery Banks, Trays, Boxes, Selector
Switches
o 12 VDC Air-Compressor for Tube Inflation System
o HD Onboard Battery Charger and Conditioner 20 Amp Quad-Bank w/Shore Tie
receptacle

Electronics/Navigation:

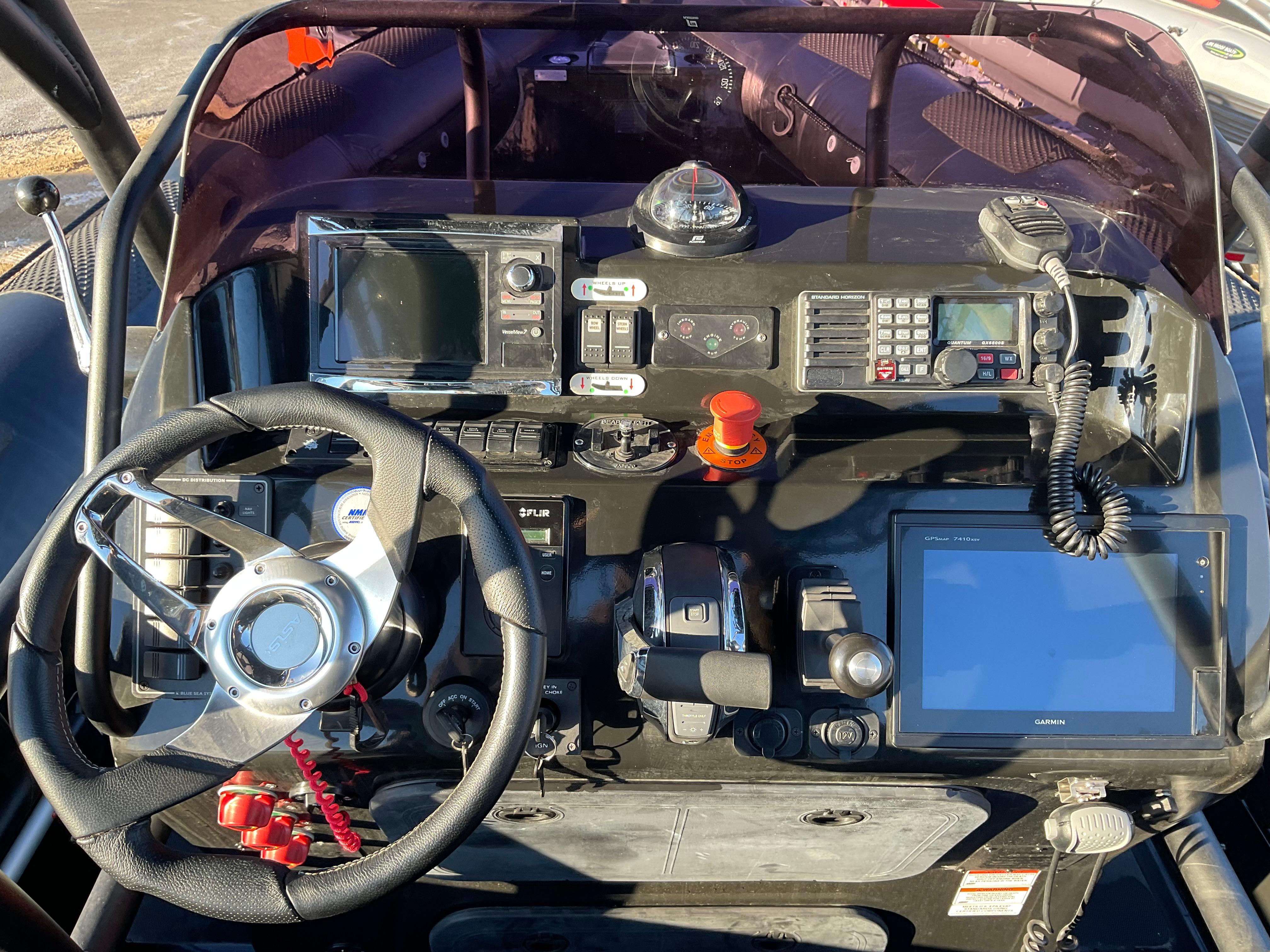

o Garmin® GPSMAP 8610XSV, 10" inch Display, Multifunction Display Chart Plotter

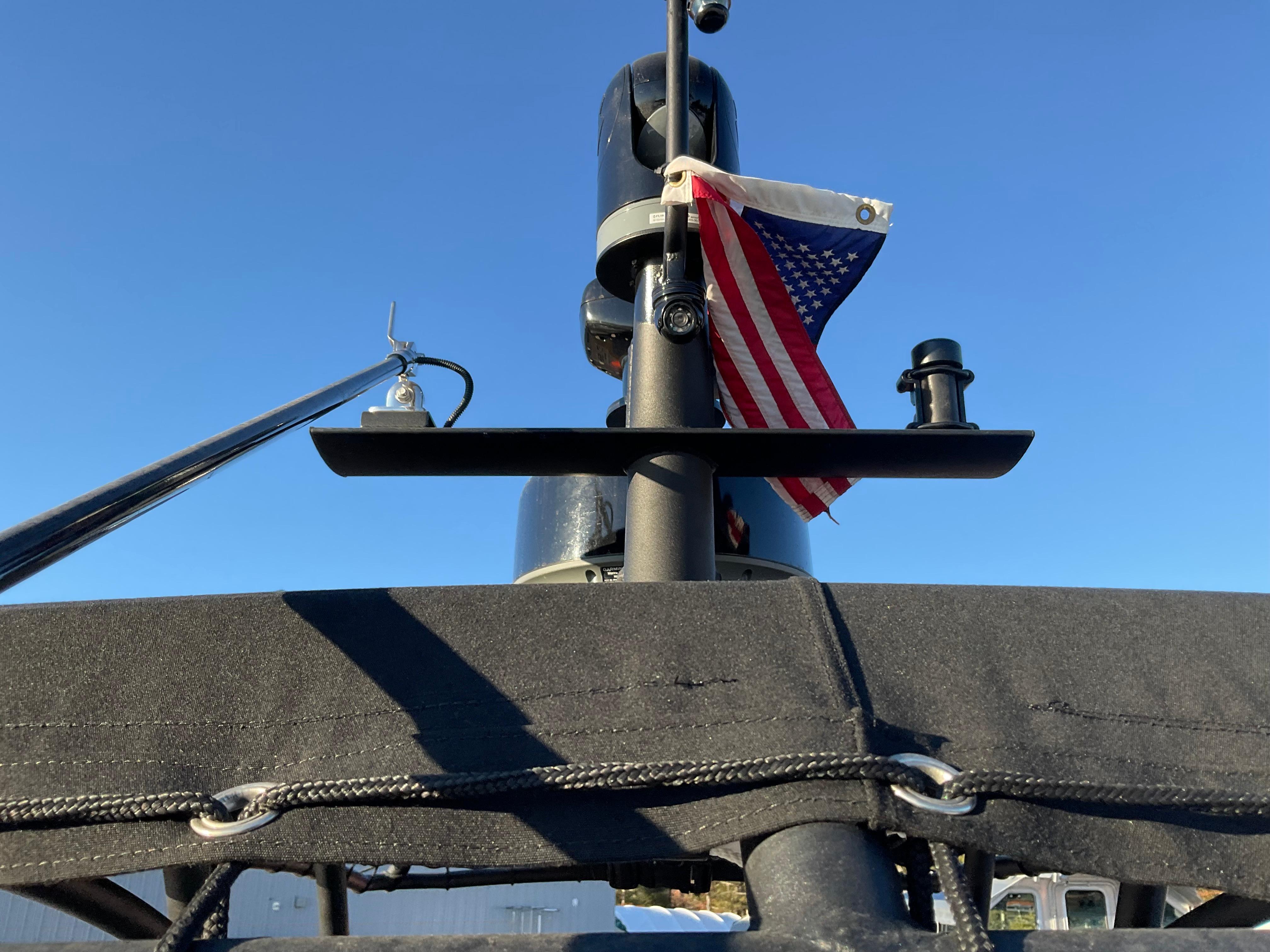

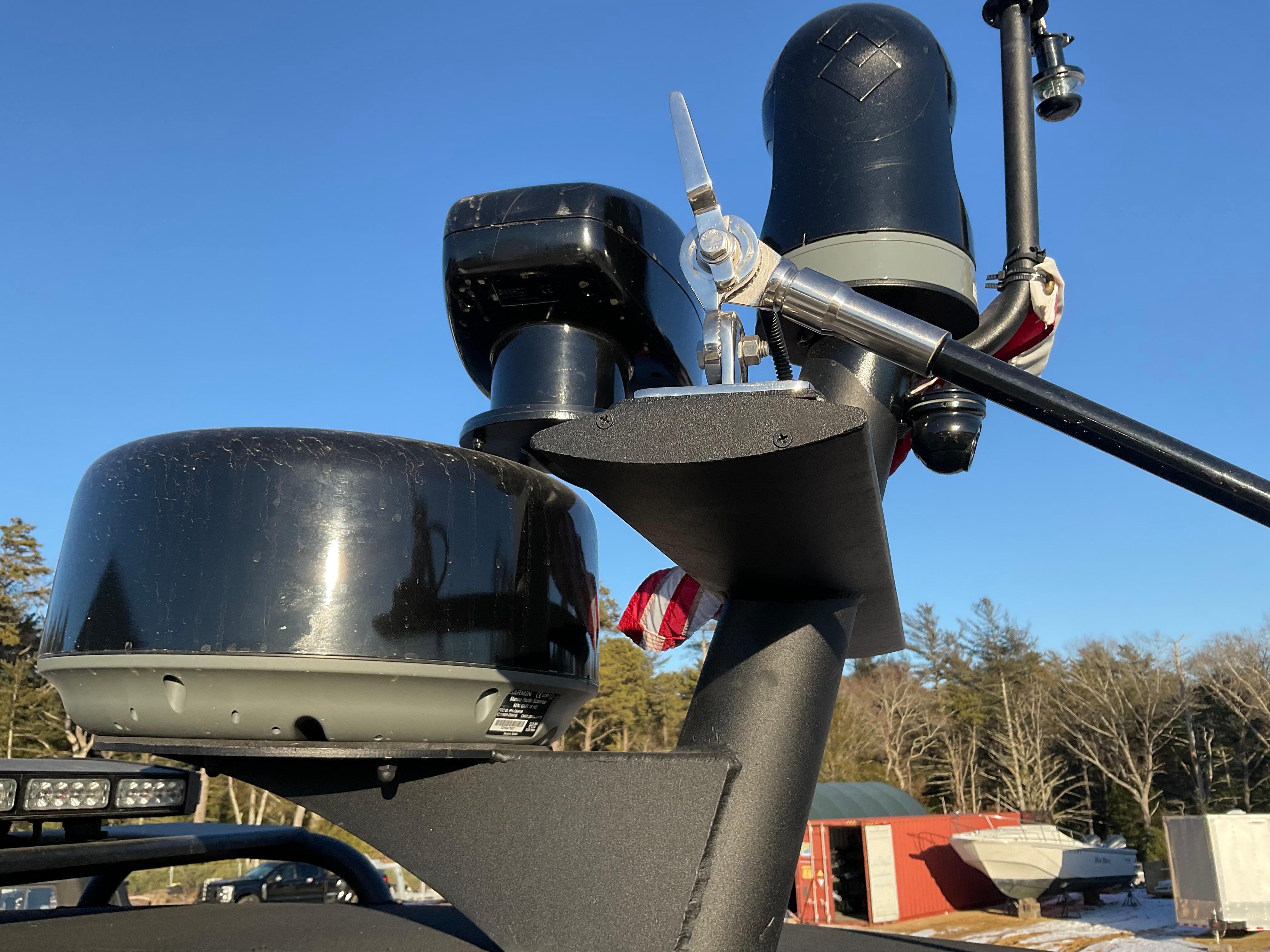

o Garmin® GMR18 xHD Digital Radar Radome "
o Garmin® Blue Chart SD Card g2 Vision Region TBD
o Garmin® 200i VHF Marine Radio w/ DSC & AIS Receive, Loud Hailer and Fog
Signal Functionality
o VHF Antenna and HD Mounting Base on aft A-Frame Arch
o 30W PA Loud Hailer/Horn/Fog Signal
o Garmin® Airmar® Transducer
o ACR® Remote Control Search Light
o LED Scene Lighting
o FUSION® MS-UD750 Marine Stereo System, 1 x FUSION 10" Marine Subwoofer, 4
x FUSION 6" Marine Loud Speakers and FUSION 5 Channel Marine Amplifier ; FM
Antenna mounted on Aft A-Frame Arch.
o Automotive Style Accessory Receptacle 1 x 12VDC, 1 x USB

Protection:

o Console Covers
o Seat Covers

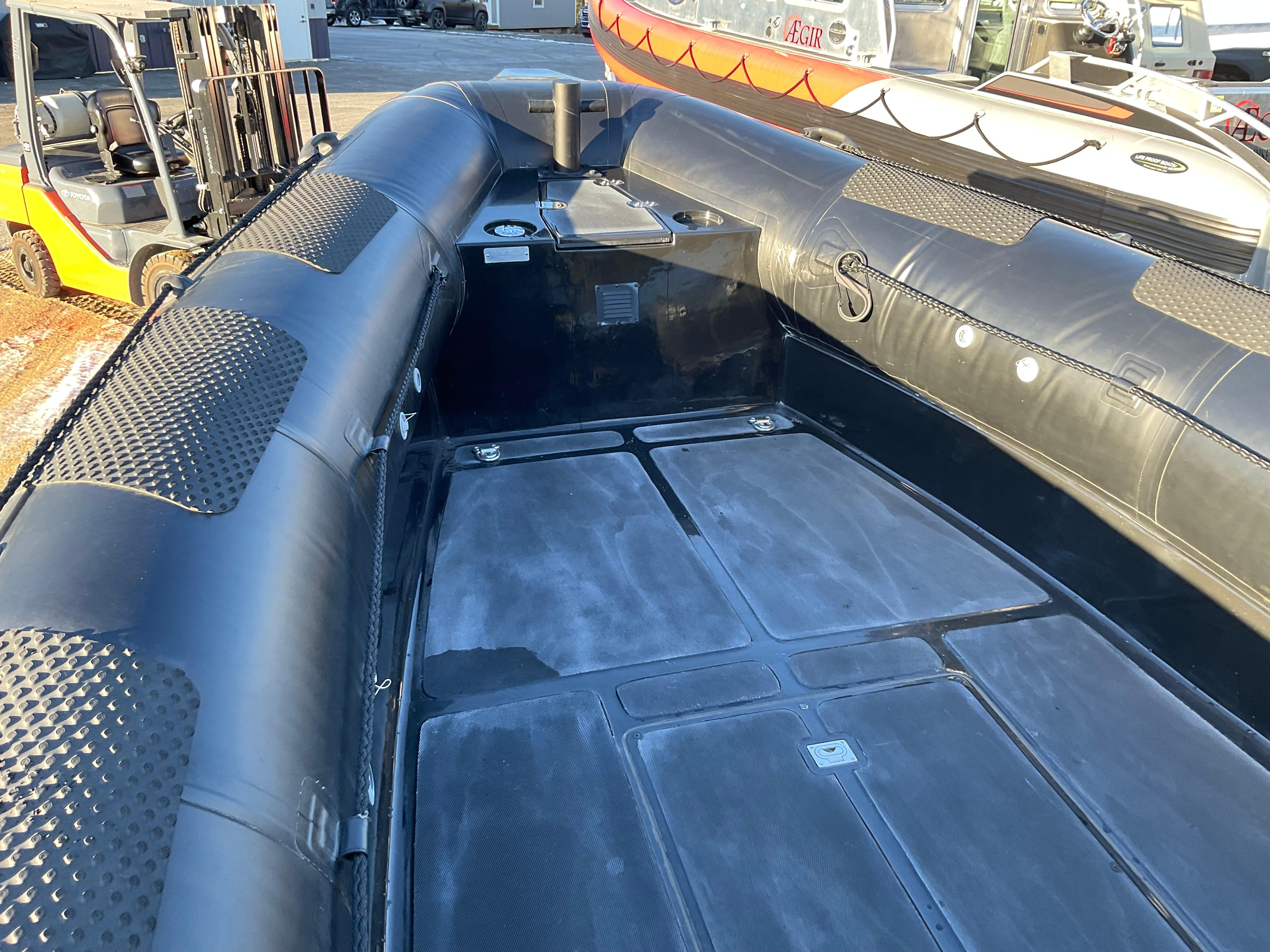

o Sea-Dek® Plastic Teak Decking (Camo Pattern)
o Anti-Fouling Hull Bottom-Paint with Barrier Coating Primer Factory Applied

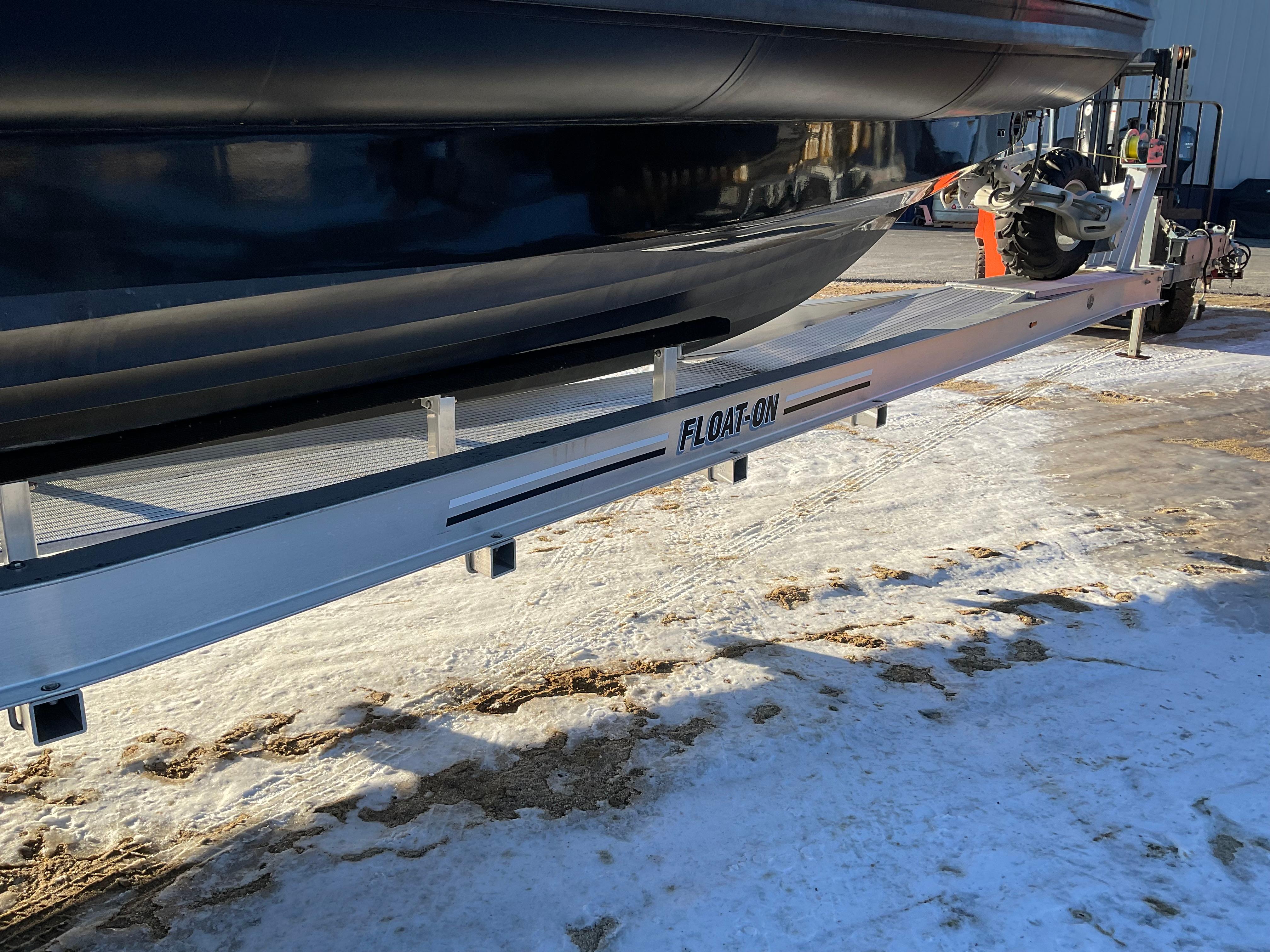

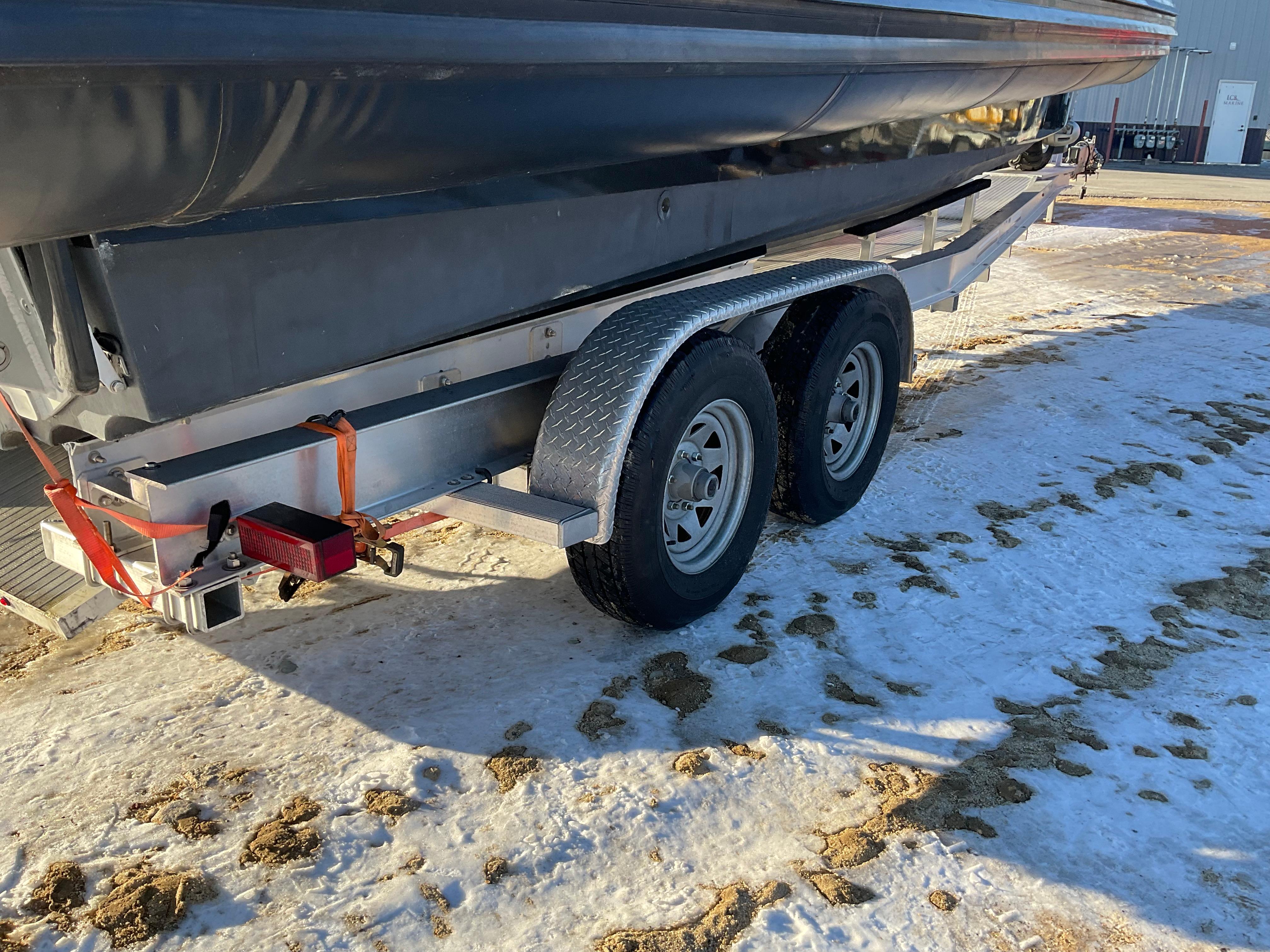

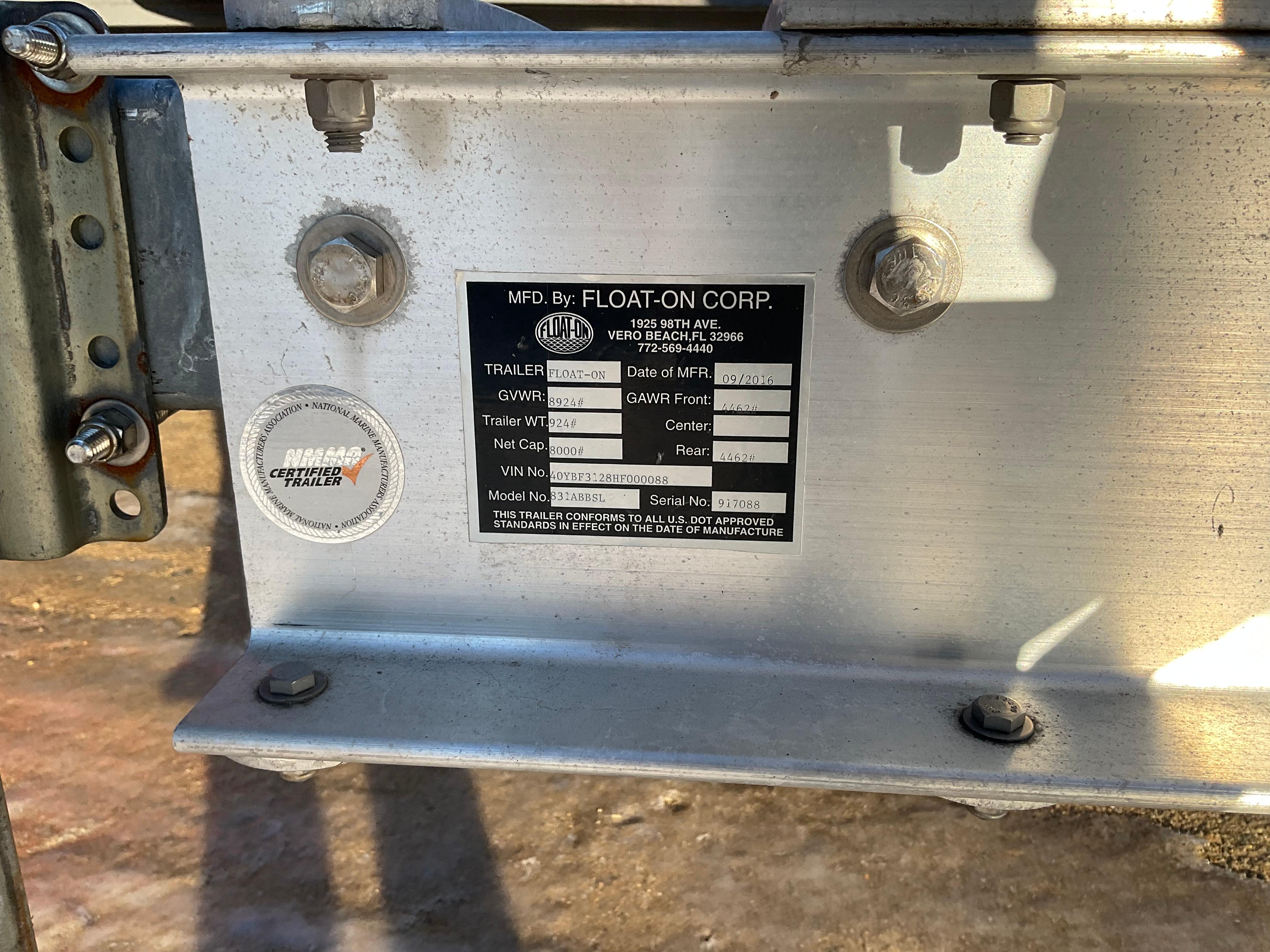

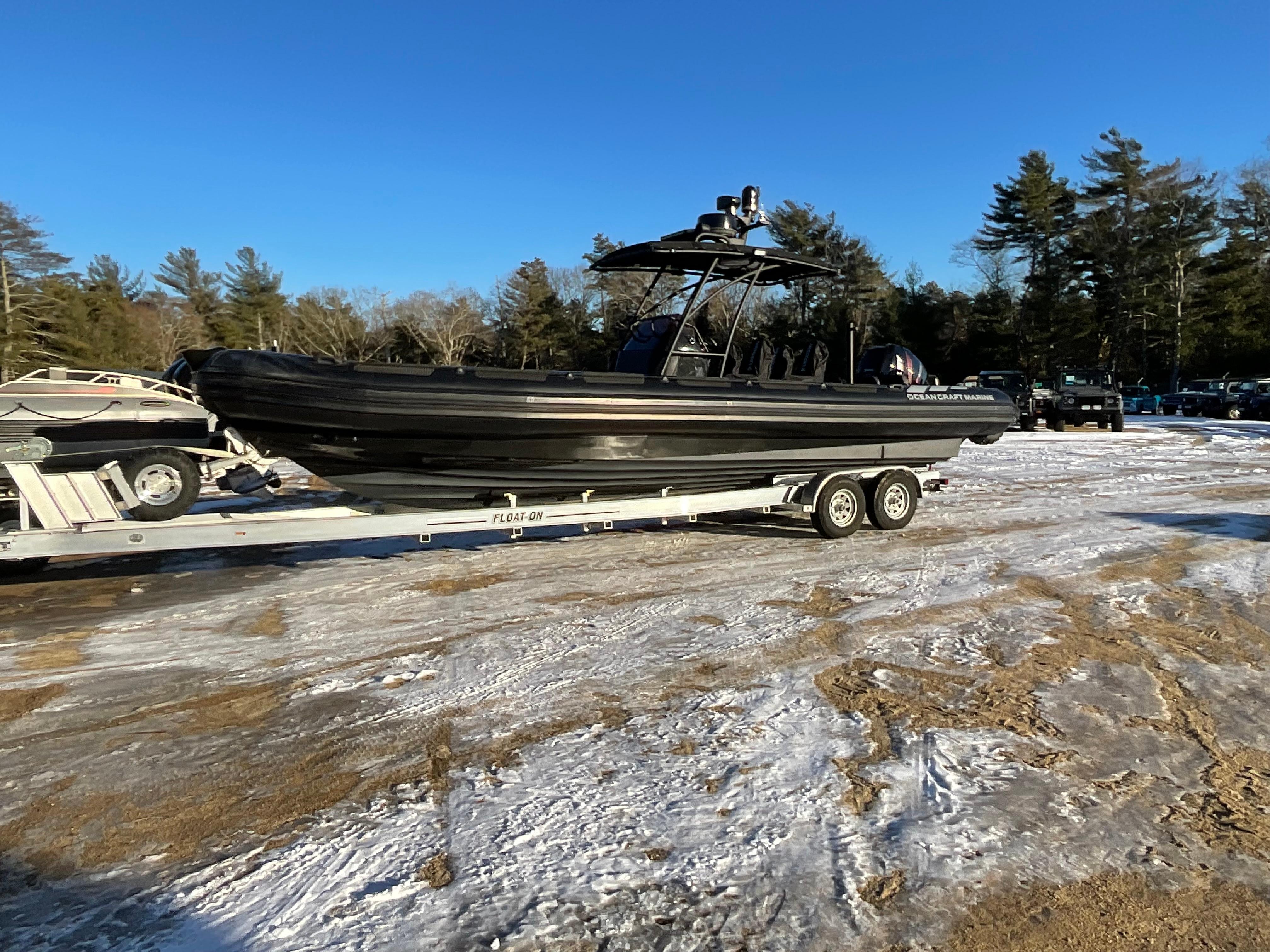

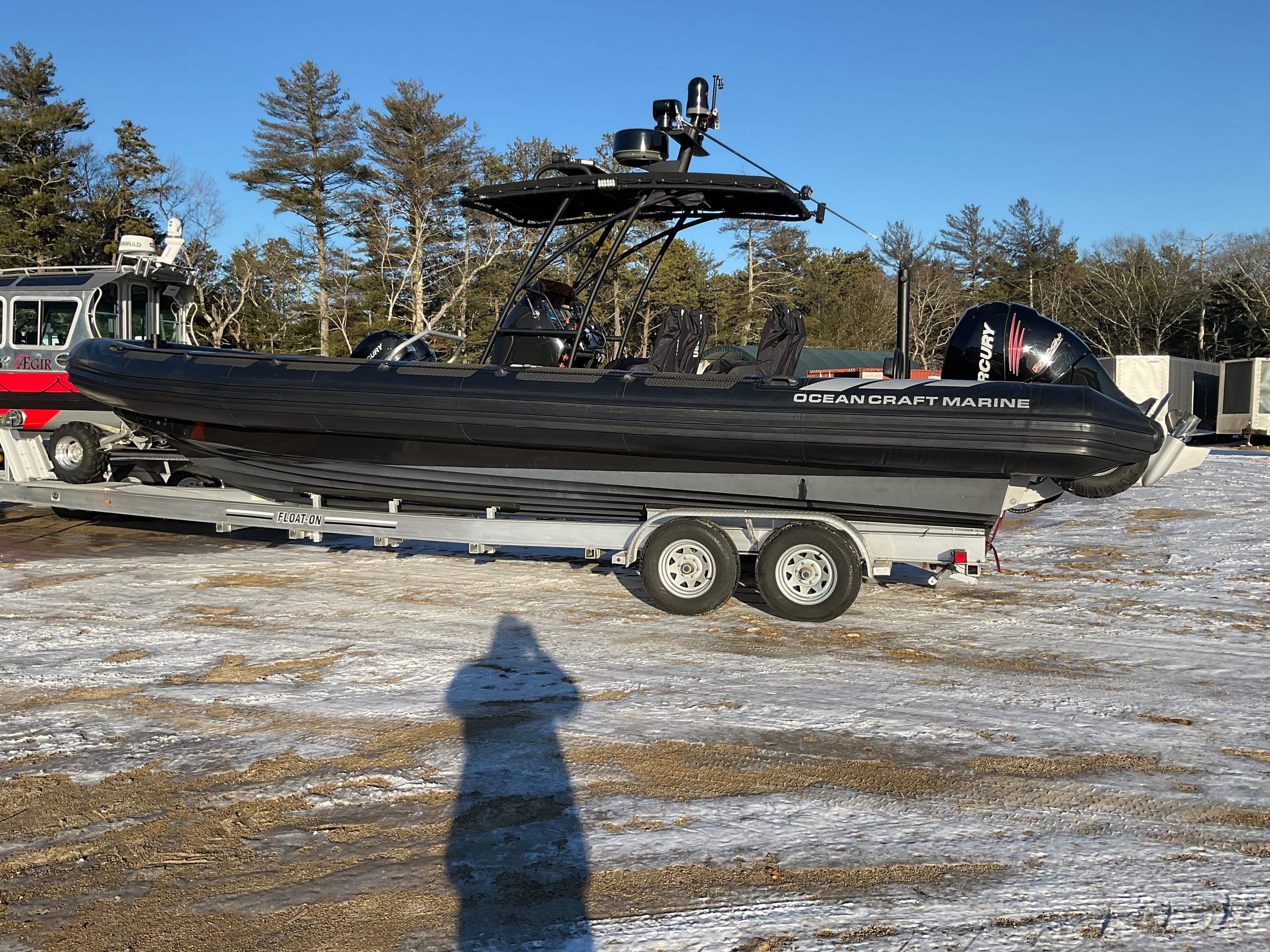

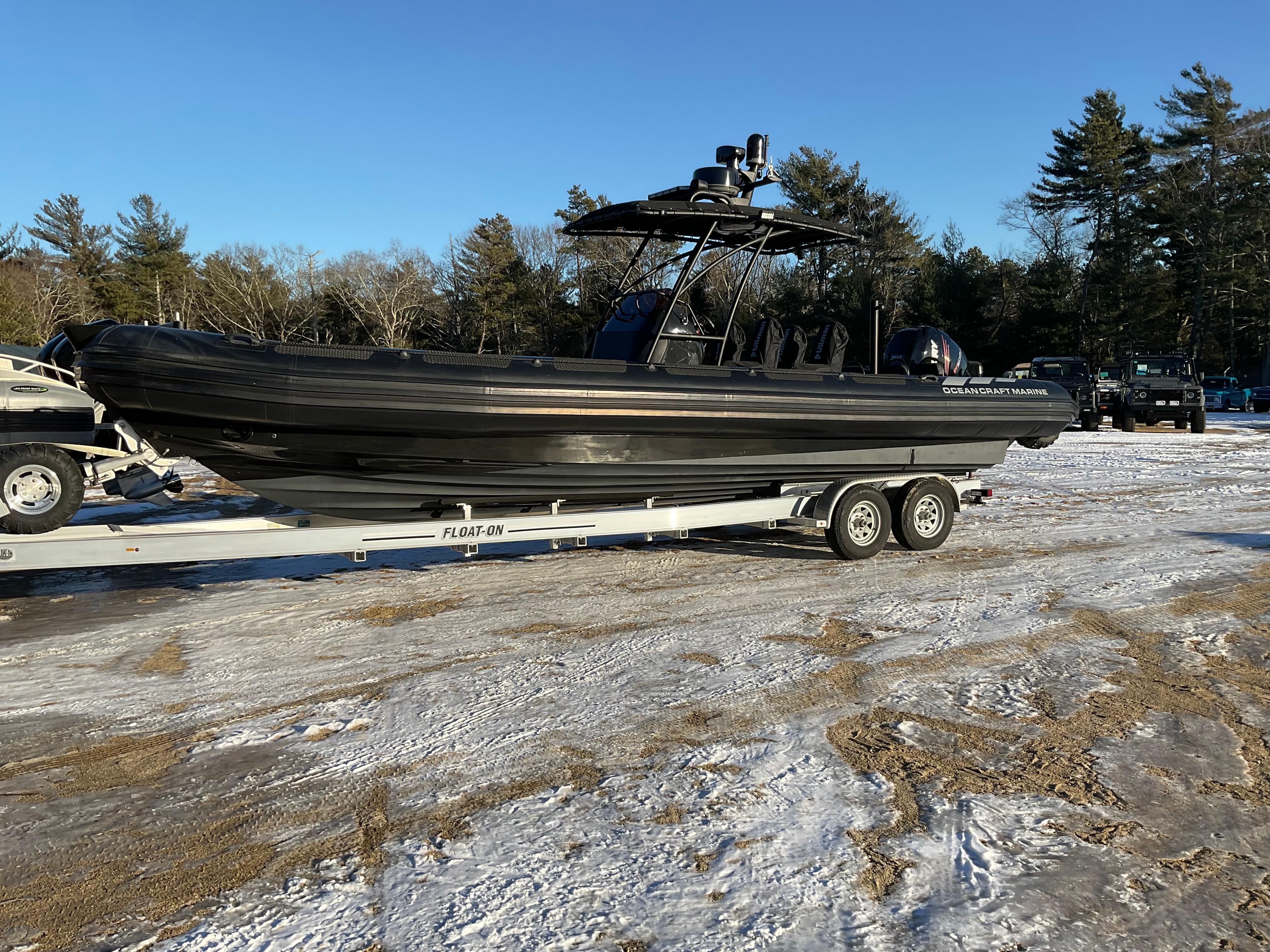

Amphibious Road Trailer:
o Float-on® custom drive-on/off DOT Approved, Bunk-Style, Amphibious Road Trailer;
Twin Axle, Aluminum I-Beam Construction with all Stainless-Steel Hardware.
