Manufacturer Provided Description

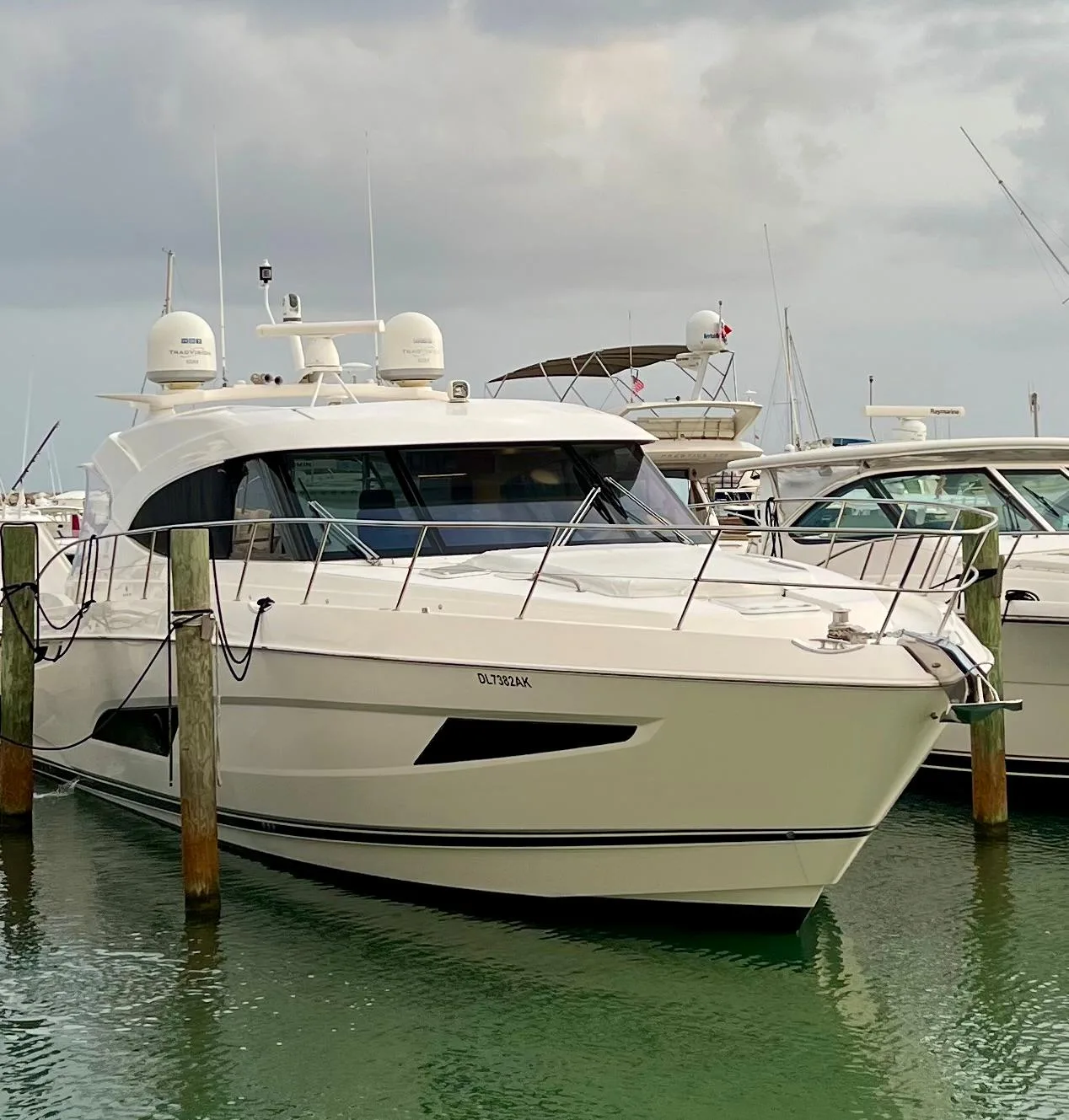

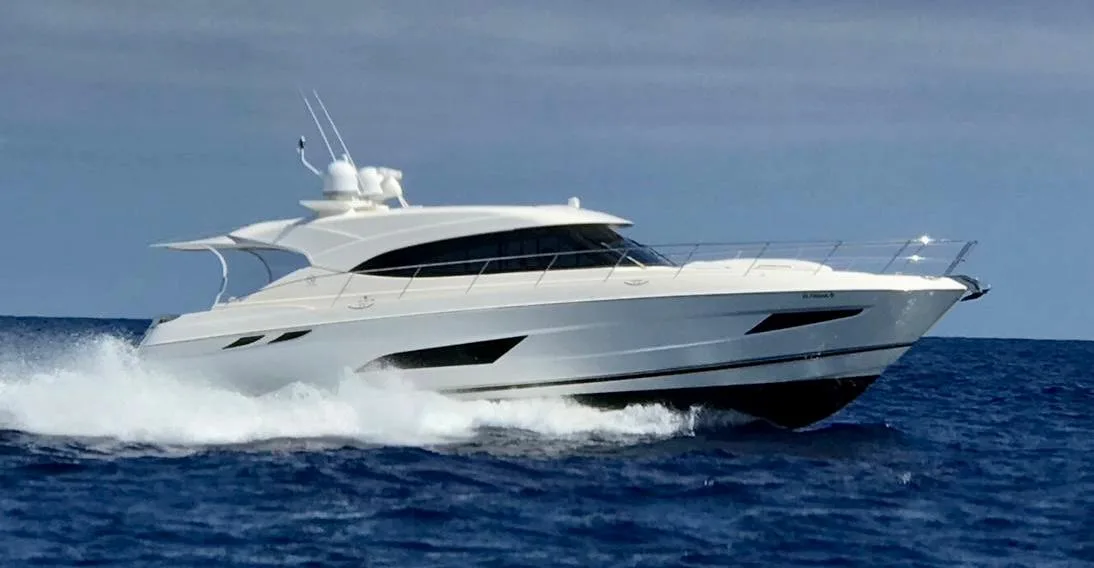

The Riviera 5400 Sport Yacht has a sleek profile, stylish hull windows and opening portholes that have been recessed for enhanced protection and striking aesthetic appeal. Perfectly proportioned, this distinctive design abounds with spacious luxury. The sheer magnitude of her internal volume greets you as soon you step aboard. This remarkable roominess extends from her massive entertainer’s cockpit to her highly functional forward deck, and continues all the way through her sumptuous saloon and into her luxurious accommodation deck, where a full-beam master stateroom serves as your private retreat.
Construction
Hand laid, moulded fibreglass hull, deck (with core),
cabin top & enclosed hardtop
Independent compartments throughout hull
Isophthalic gelcoat exterior (white)
Solid reinforced GRP keel, chines and hull bottom
Vinylester resin in first outer layer of hull
Watertight collision bulkhead forward
Appliances
Dishwasher
Washer/Dryer combination located in companionway
Dyson "Multi-Floor" cordless rechargeable vacuum cleaner with detachable long-reach wand, charging station and dedicated GPO
Drinking water purifier with outlet in galley
Deck

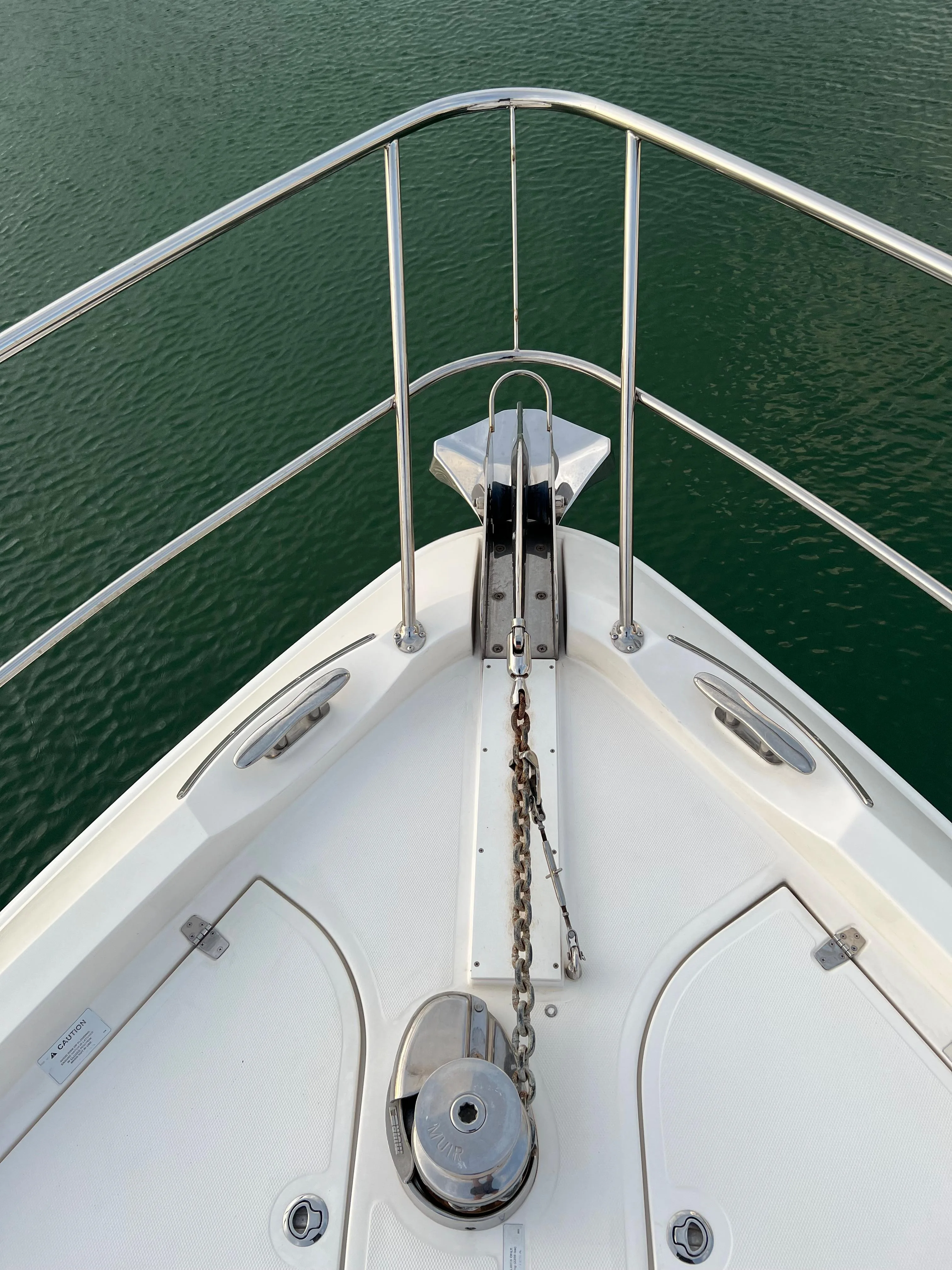

Anchor - stainless steel 35kg (77lbs) Ultra anchor,
70m (230ft) of 10mm (3/8'') galvanised chain
Anchor lockers- Access to anchor chain, storage, fresh
& salt water outlets
Anchor safety strap
Anchor winch vertical with overload protection, suits
rope and chain, up & down via plug in remote control &
mounted counter at helm.

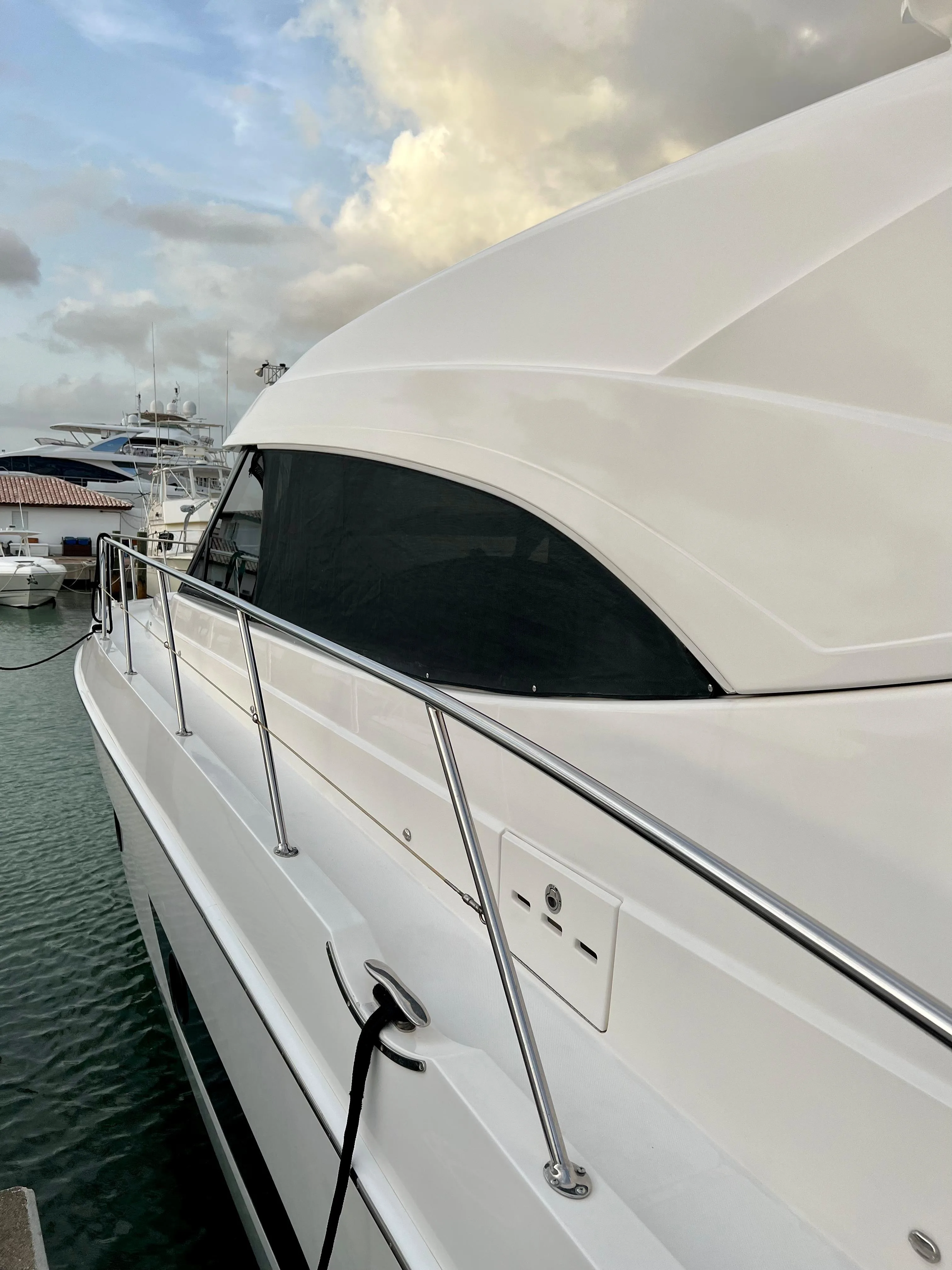

Bow rail welded stainless steel (316 marine grade,
highly polished) with mid safety wire including flag staff
and burgee (bow flag)
Bow roller stainless steel self-loading - through
bowsprit, heavy duty
Cleats - stainless steel, 11'' (x 8)
Rub rail - Impact and UV resistant PVC (white) with
stainless steel insert strip
Spotlight on hardtop, remote control at helm

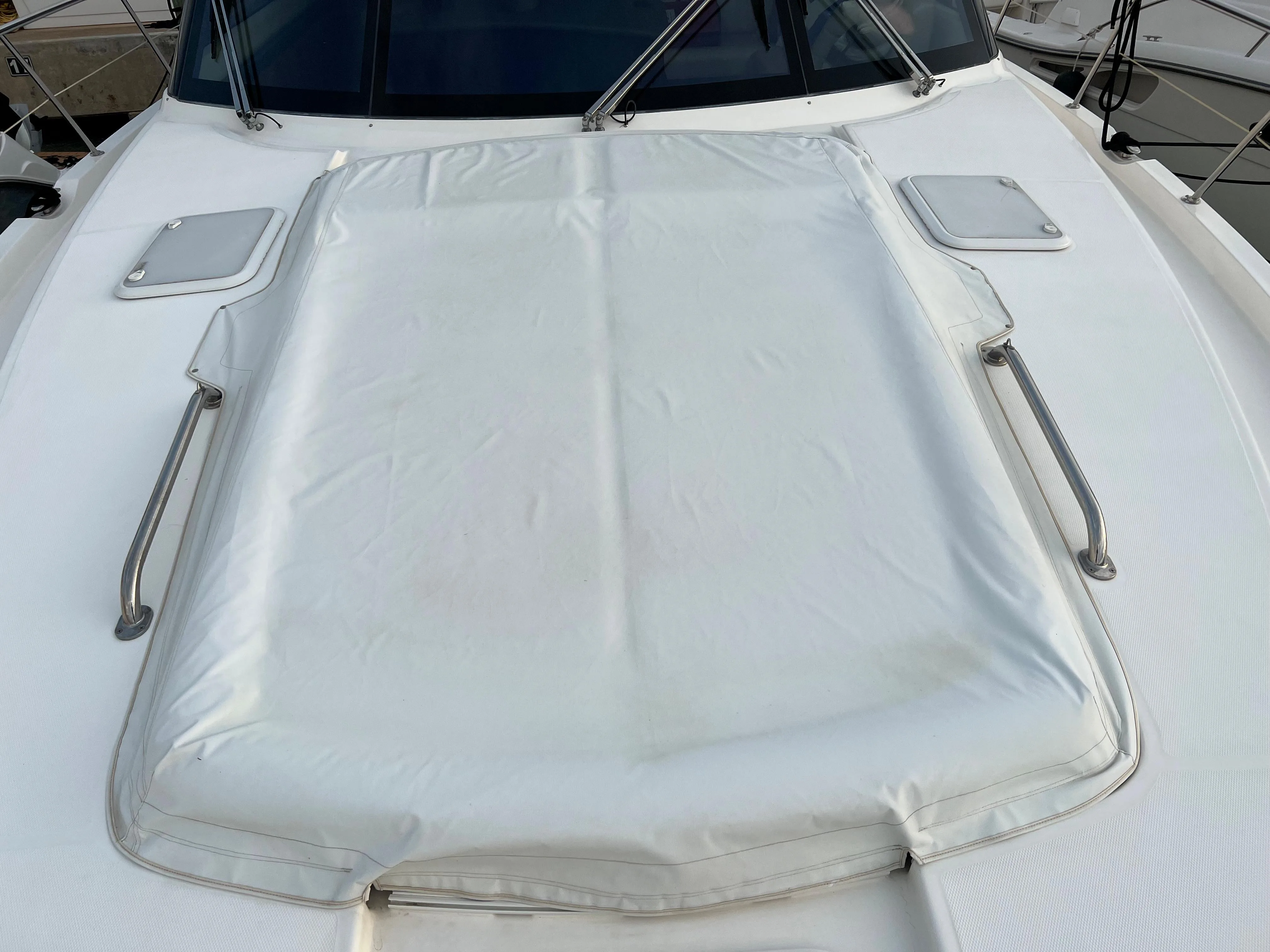

Sunpad area to have a small fold up Bimini (Colour to
match cockpit awning) also with cover (White Stamoid)
Swim platform, hydraulic operation (up/down 350kg
max), teak laid, including recessed stainless steel swim
ladder hatch
Windscreen cover, front (Black Breezeway)
Cockpit
Access hatch into tender garage
Access to engine room through 3 x hatches with
stainless steel lockdowns

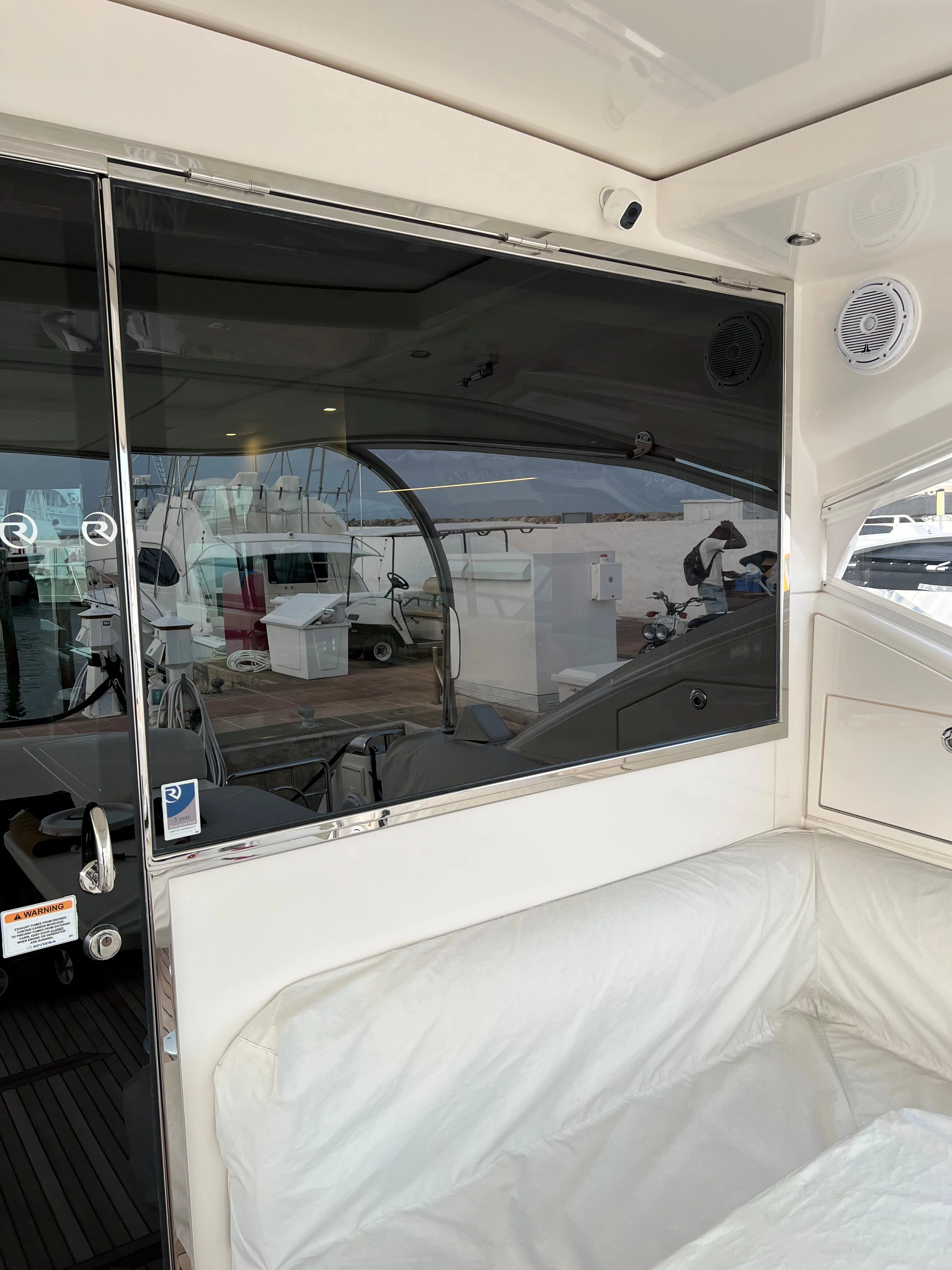

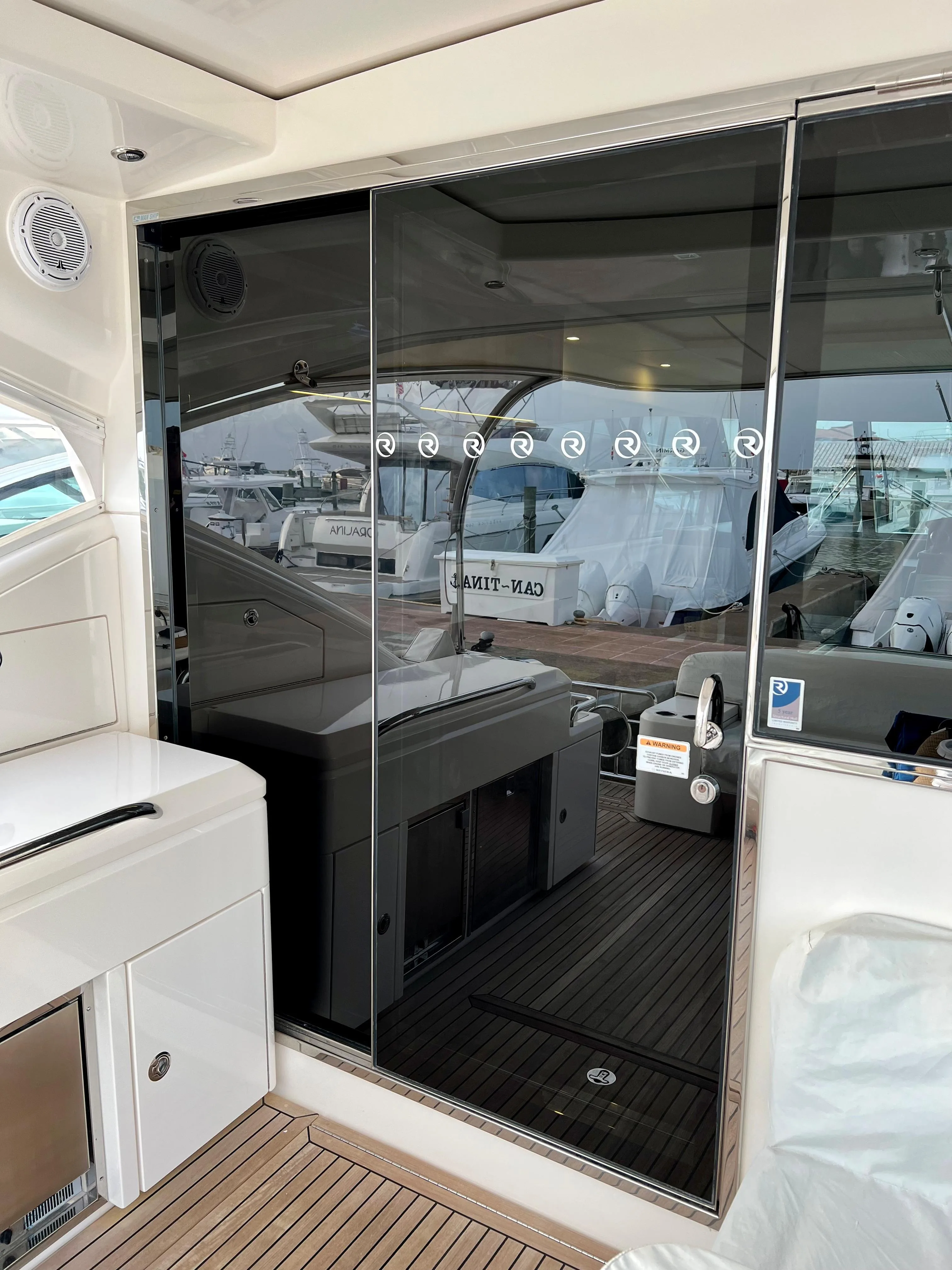

Bulkhead, sliding stainless steel door with awning style
opening up window, tinted tempered glass, with gas
strut, safety latch & lock
Cockpit floor, teak laid
Cockpit awning
Double action manual bilge pump for engine room
Garage for tender storage, opens with electric actuator,
includes electric winch
Garbage bin within wetbar
Grab rails to assist access to side decks
Hand held shower hot & cold (fresh water)
Lighting, overhead & courtesy (DC)
Lounge to transom, drink holders either side within arm
rest, upholstered in Vinyl (white) also includes fender
storage location and Stamoid Cover (white)
Lounge, L shaped in Vinyl (white) with storage beneath
including cover (white Stamoid)
Master battery isolator panel
Self draining cockpit to the stern
Steps to side decks port & starboard

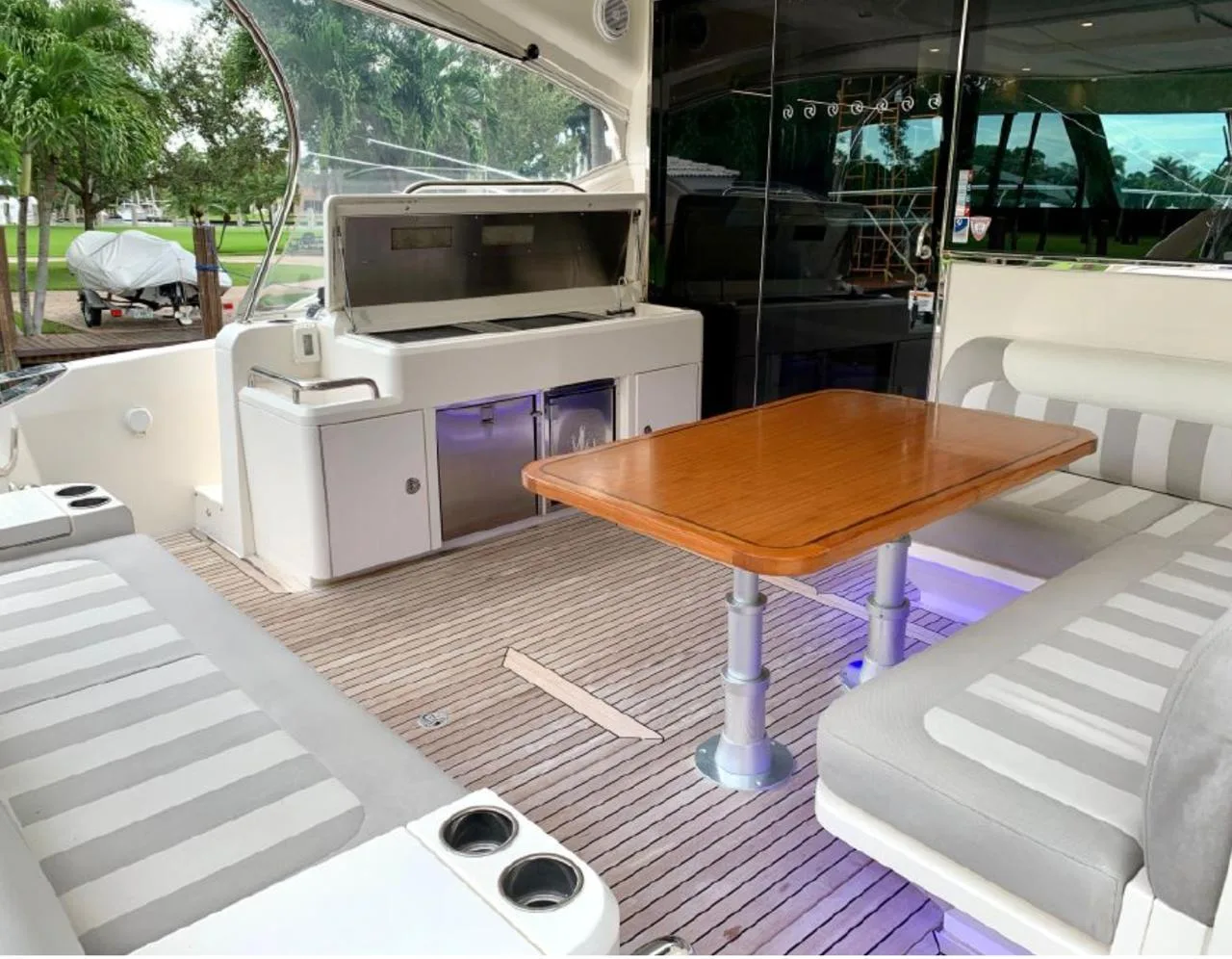

Table, teak to rear L-Shaped lounge mounted on Hi/Lo
pedestal with infill cushion for conversion into daybed
includes cover (white Stamoid)

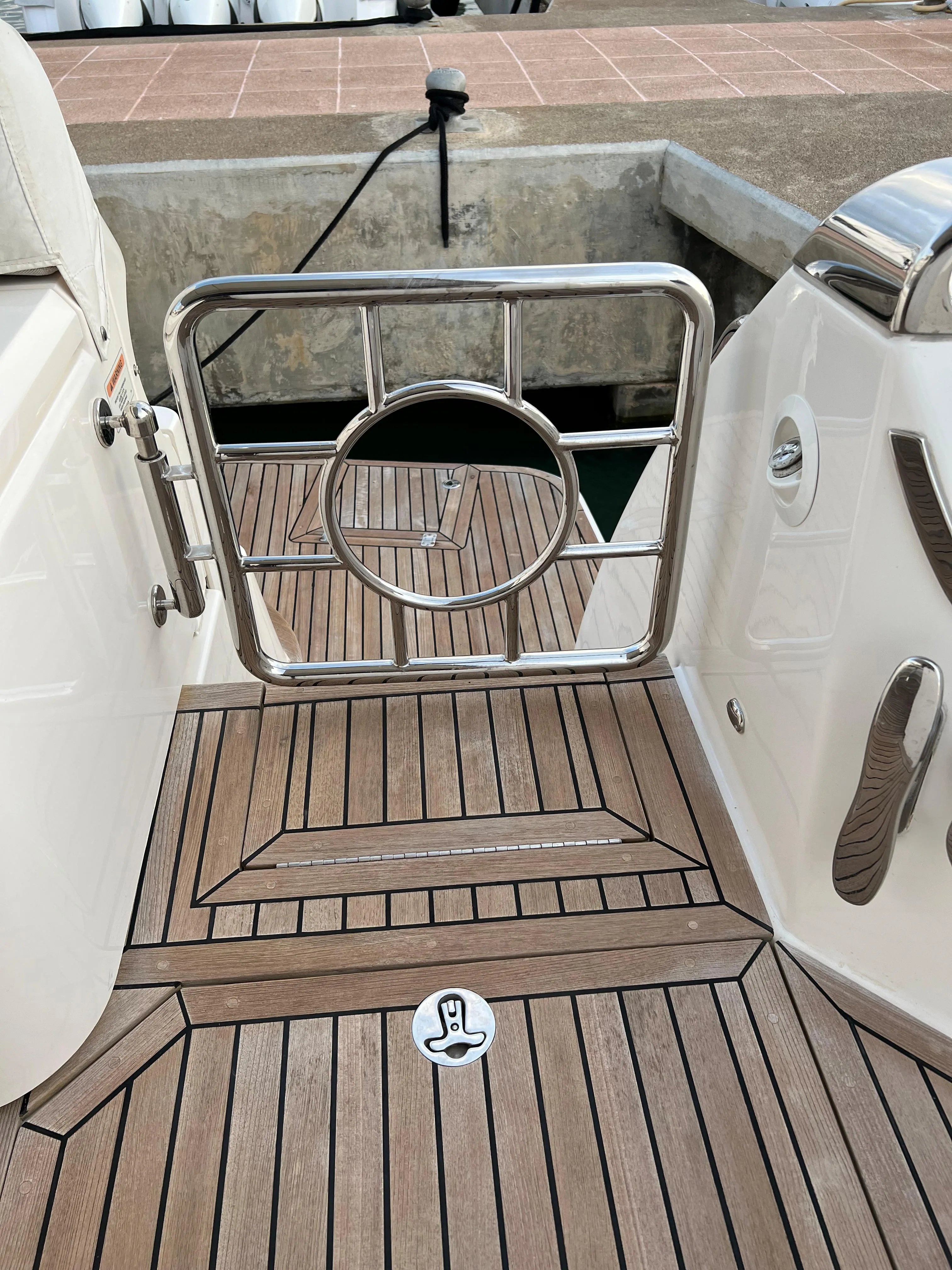

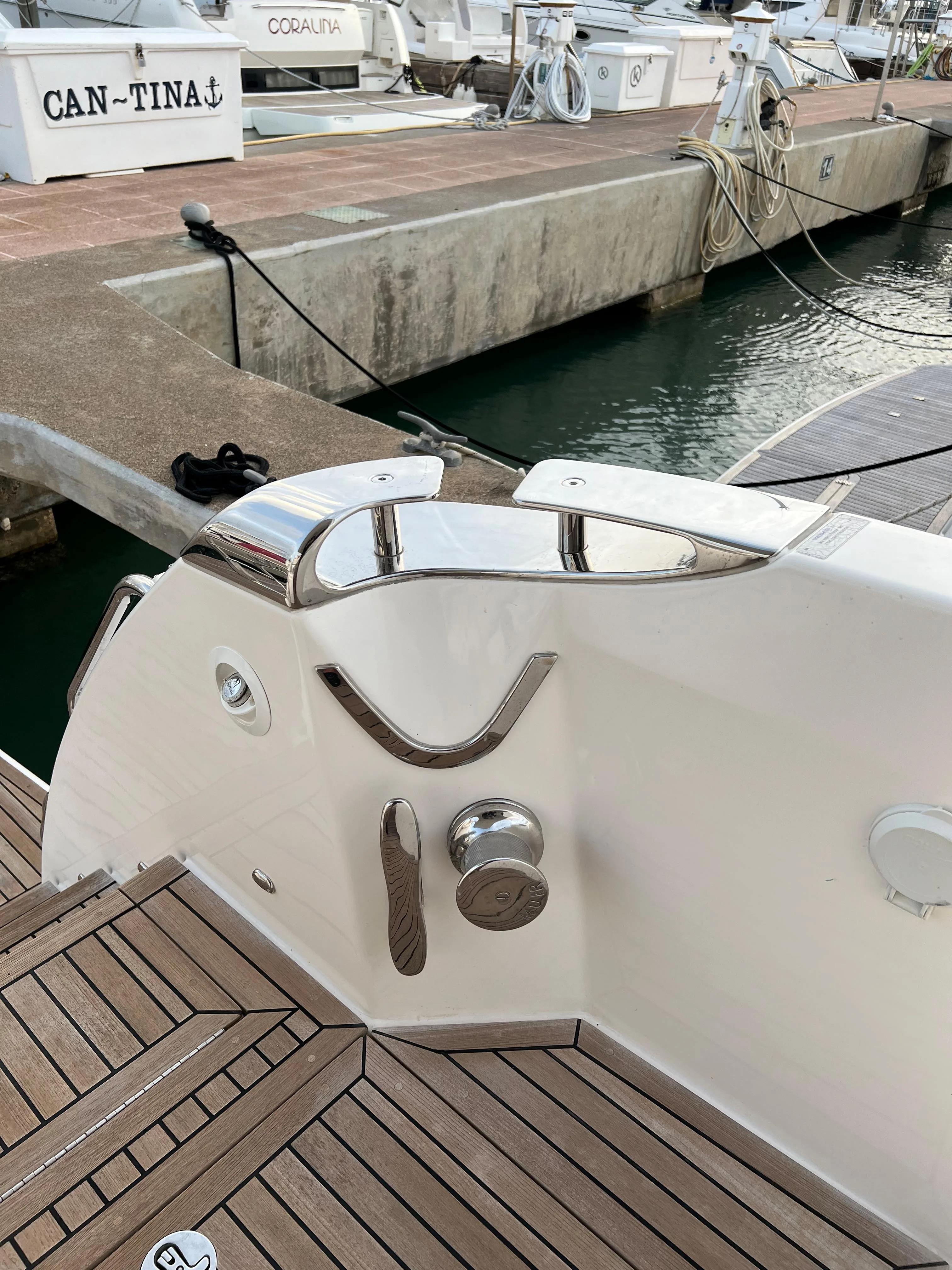

Transom stainless steel gates (x 2)
Wash down tap (fresh water)
Wash down tap (sea water)

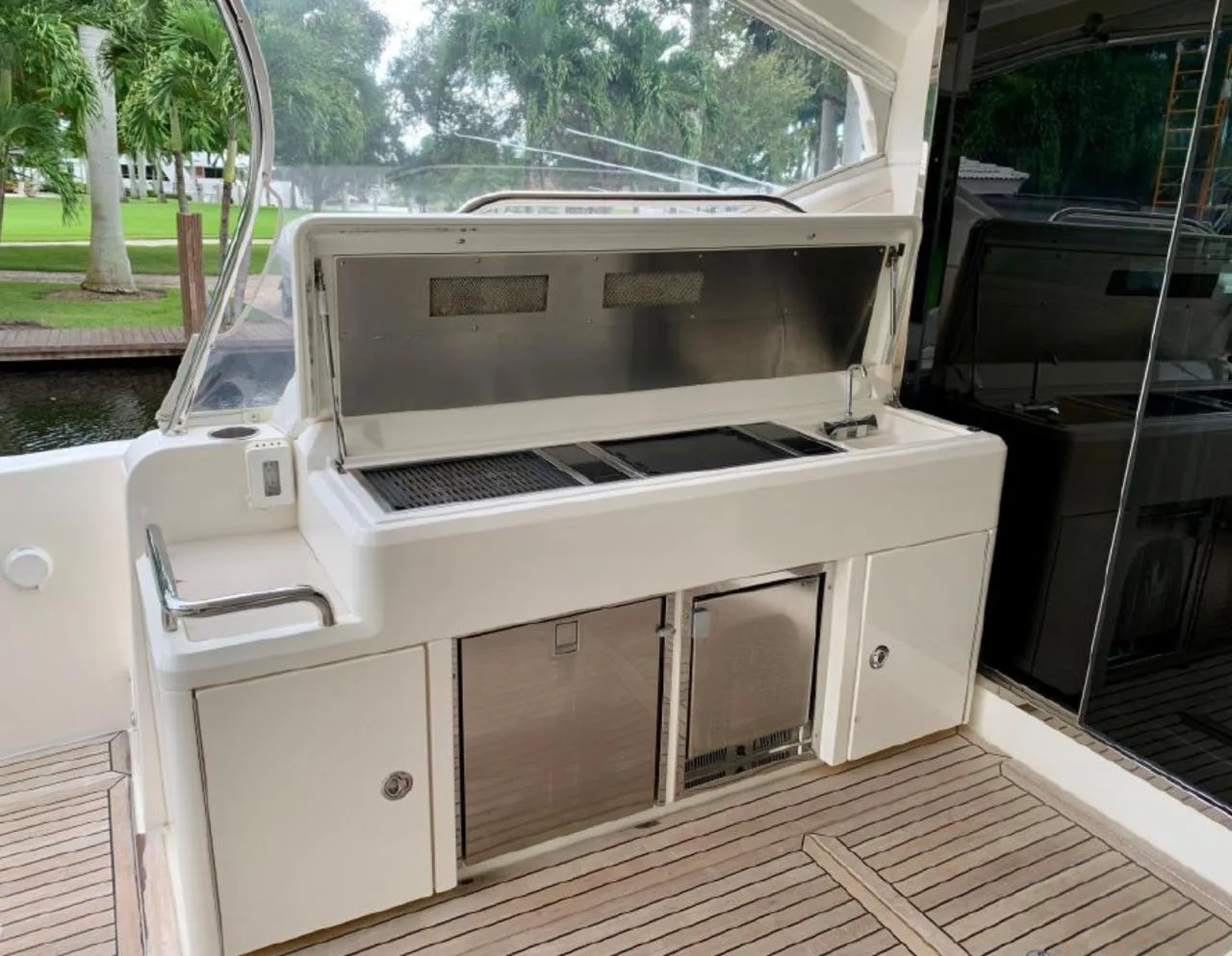

Wetbar including benchtop, refrigerator, icemaker, sink
with folding hot/cold faucet & 2 x electric BBQ,
extraction fans, & fold down lid with auto safety shutoff
Electrical - Audio Visual
Forward stateroom - 24'' LED TV & 12V
AM/FM/CD/DVD Player with Ipod interface and 2
speakers (TV powered off inverter)
Master stateroom - 32'' LED TV and 12V
AM/FM/CD/DVD Player with Ipod interface and 2
speakers (TV powered off inverter)

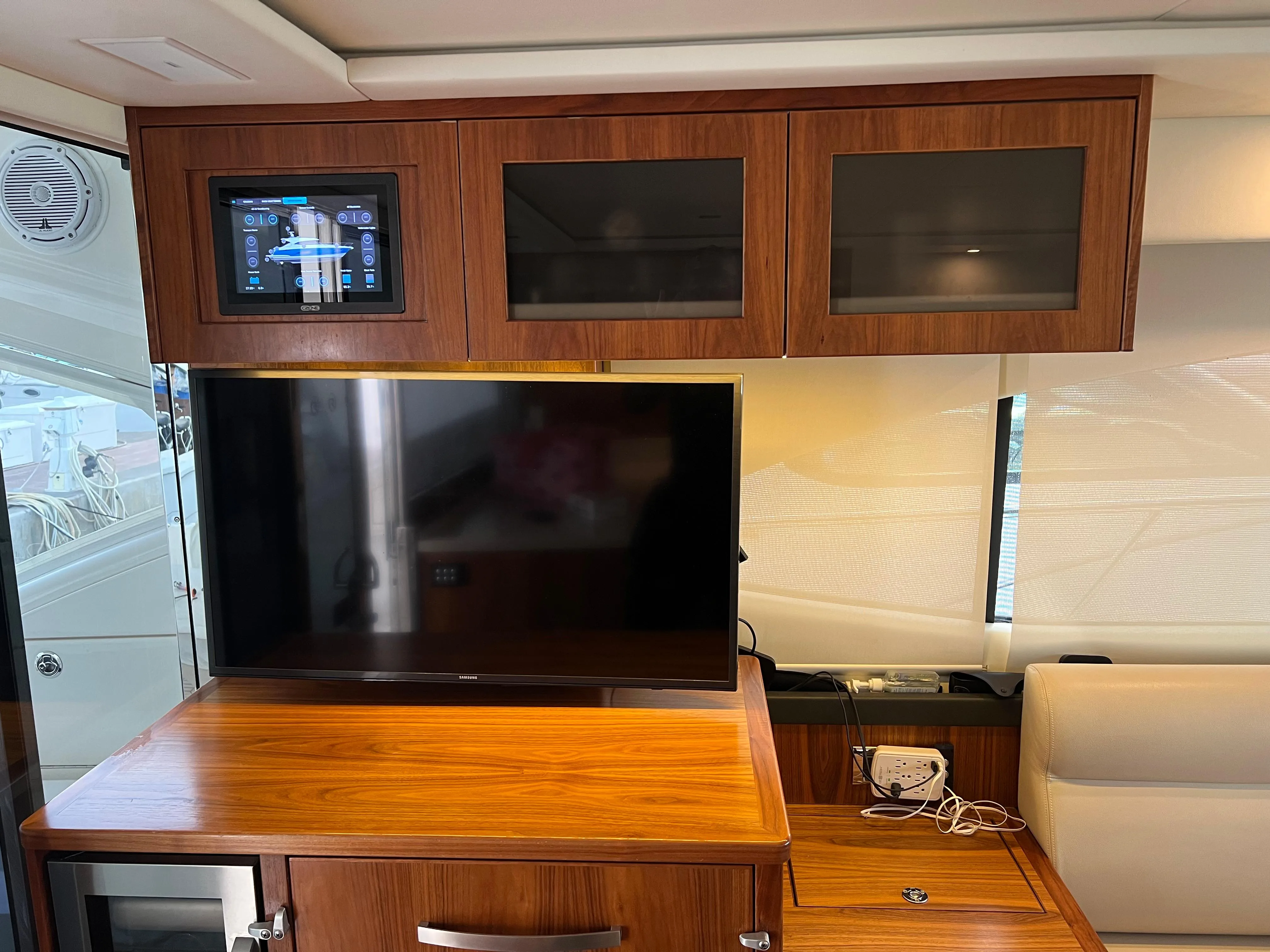

Saloon - Electric swing out 40'' LED TV

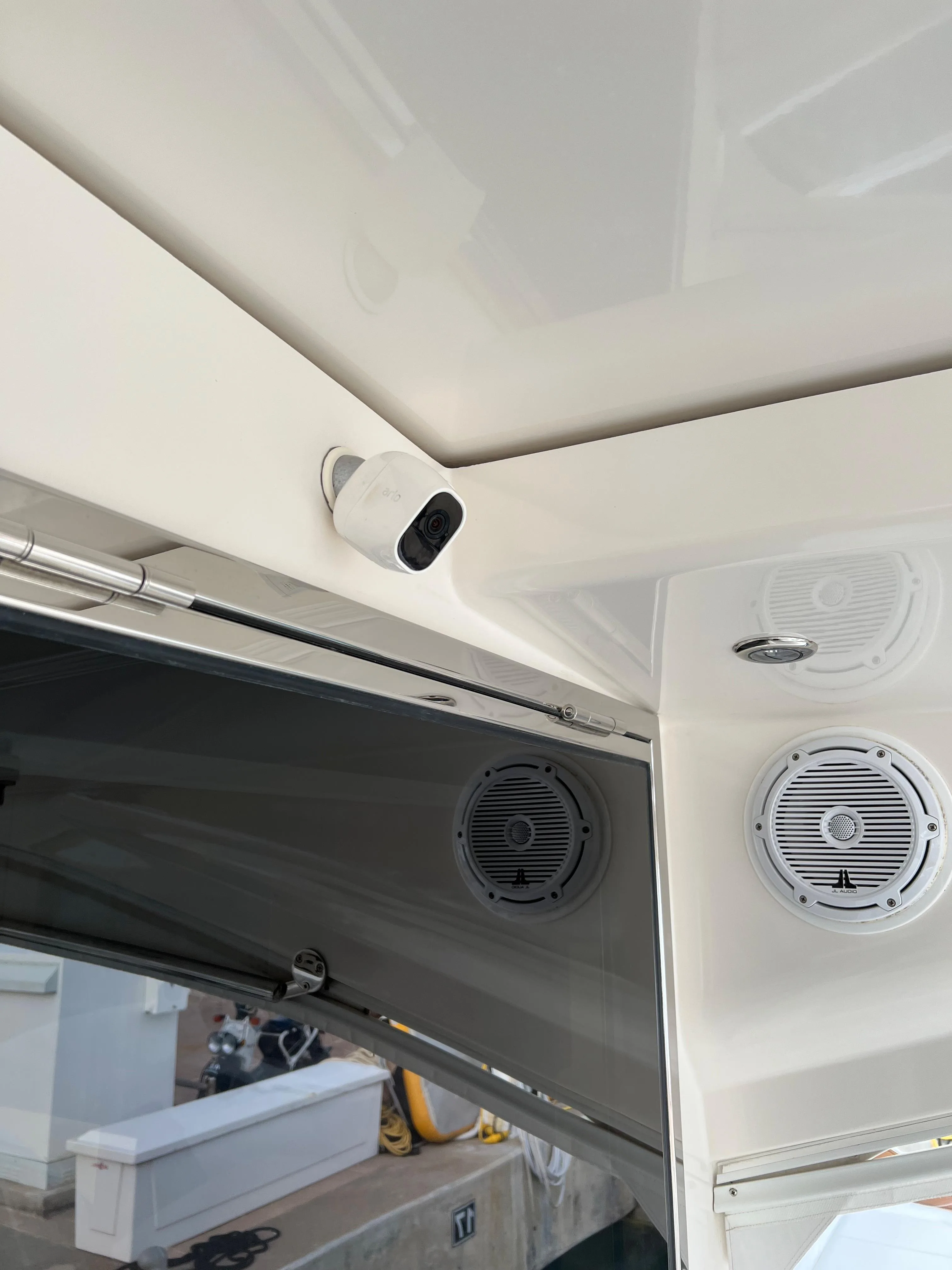

Saloon - Surround sound audio system & Blu-Ray
Player, including amplifier & Sub Woofer, Zone 1-5 x
speakers in saloon Zone 2- 2 x speakers in cockpit &
Zone 3- 2 x speakers to forward deck
Electrical - Navigation

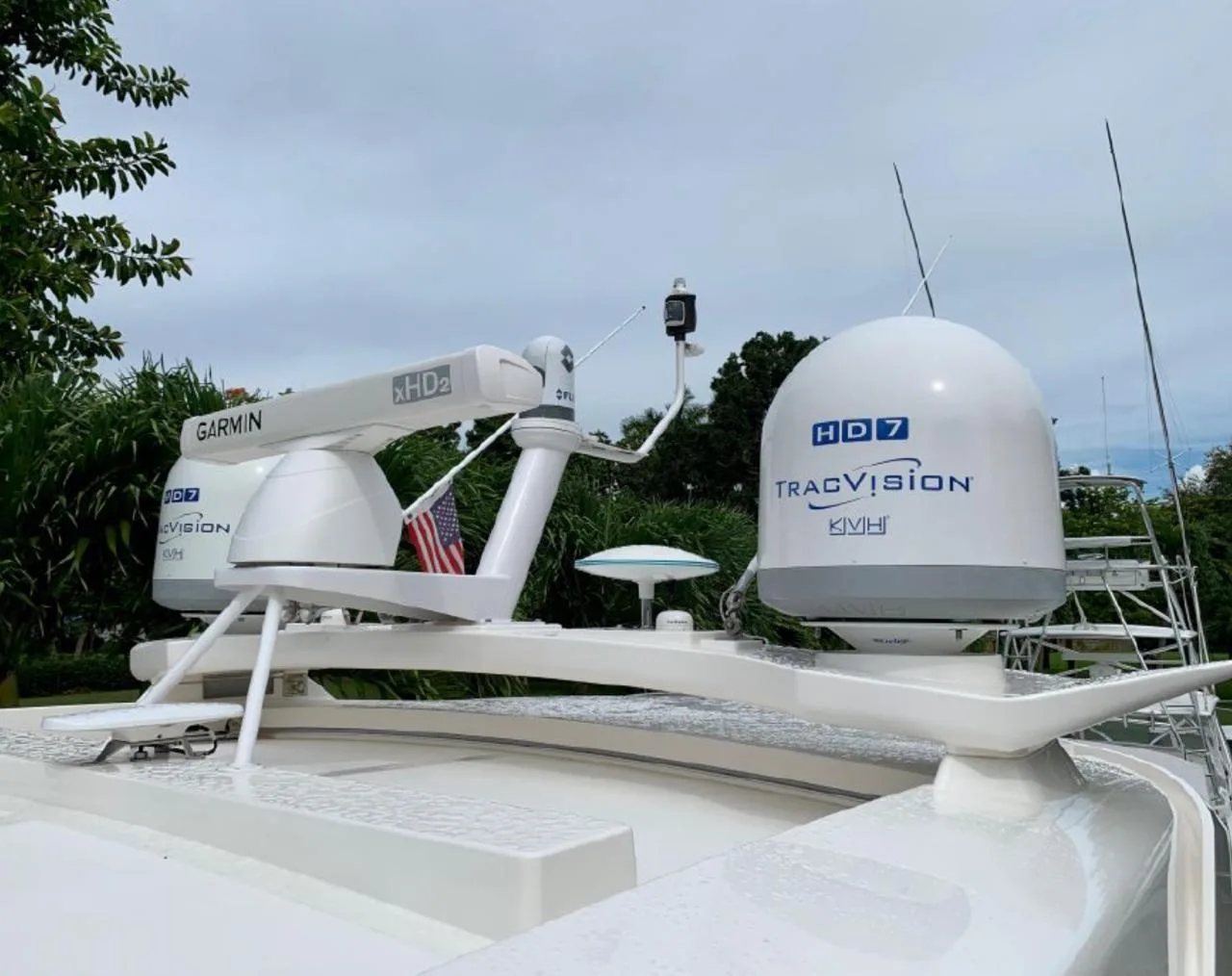

Best Garmin electronics package including 2 GPS/Chartplotter screens, auto pilot, GSD24 sounder with B258 transducer and GMR424XHD2 open array radar
Czone - Configuration for iPad connectivity. Includes programming and WiFi interface
Alternators - Independent start bank and independent
house bank (Total x 4)
Alternators - Port alternator charges port start bank.
Starboard alternator charges starboard start bank and
designated alternator for house bank
Batteries (maintenance free) - Independent port & starboard
start (total x 4), house (x 4) & auxiliary (x 2)
Battery banks individually isolated
Battery charger (24V/100A) for house bank
Battery charger (24V/30A) for start banks & auxiliary
Battery paralleling system for emergency engine
starting
Bonding system, to all metallic hull fittings under the
water line with zinc anode including galvanic isolator

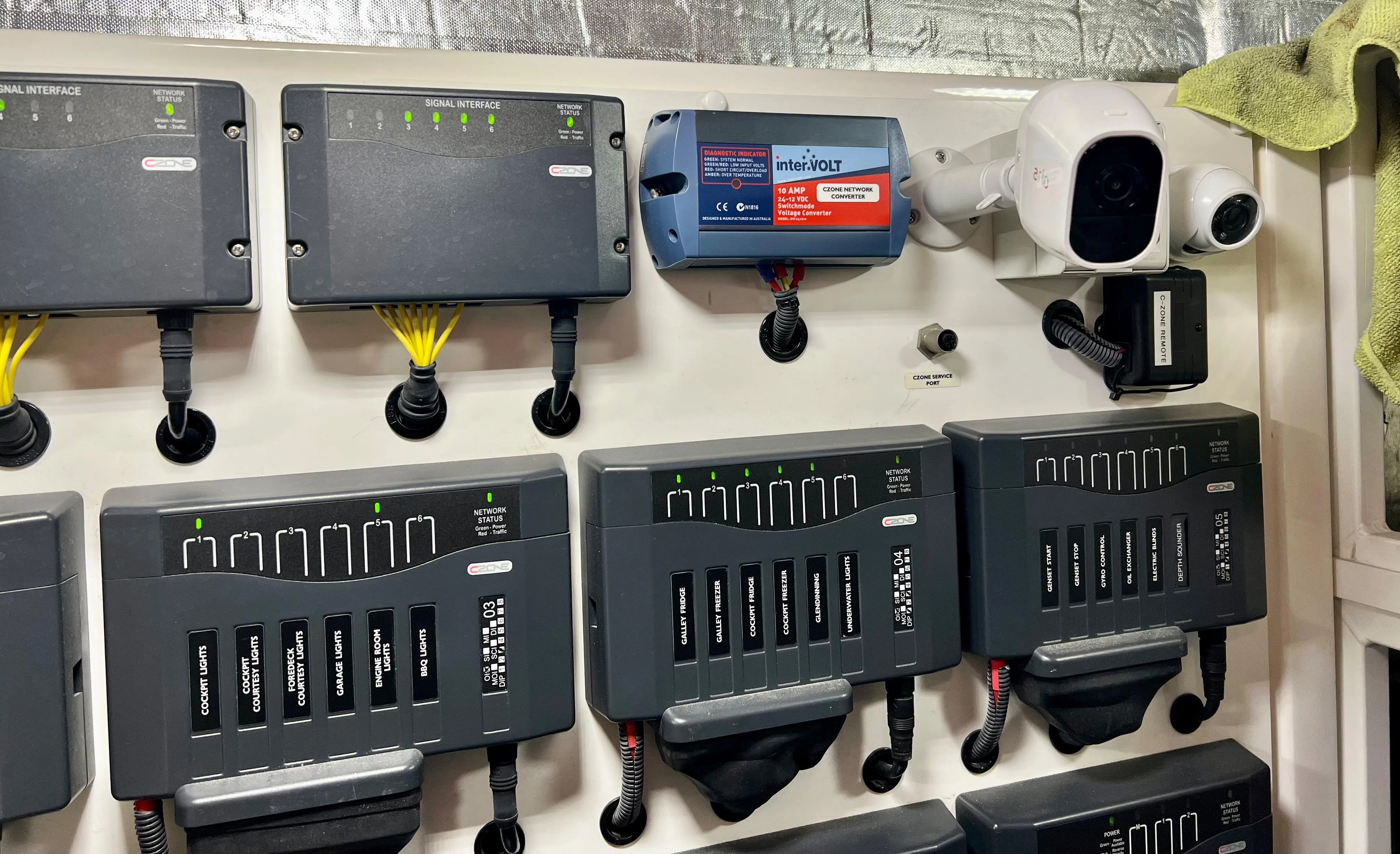

Digital DC circuit control and protection incorporating
intelligent operation with user programmable usage
modes, timer circuits, light dimming and circuit bypass,
operational via conventional switches, signal set points
as well as LCD display modules

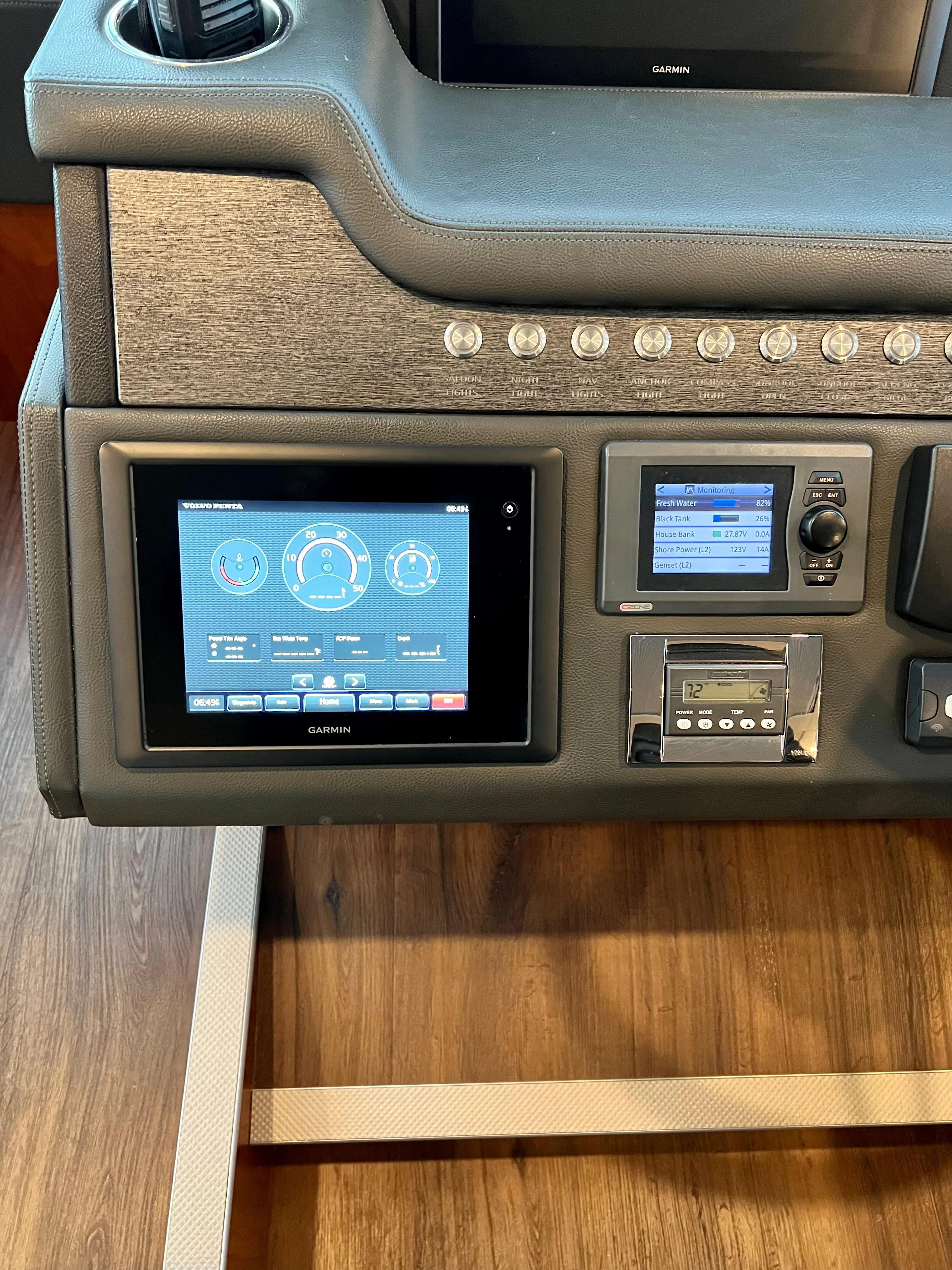

Digital monitoring system including AC and DC power
metering, fluid tank level monitoring and DC circuit status
via colour 8.4'' LCD touchscreen display at saloon entry
and 3.5'' LCD display to helm

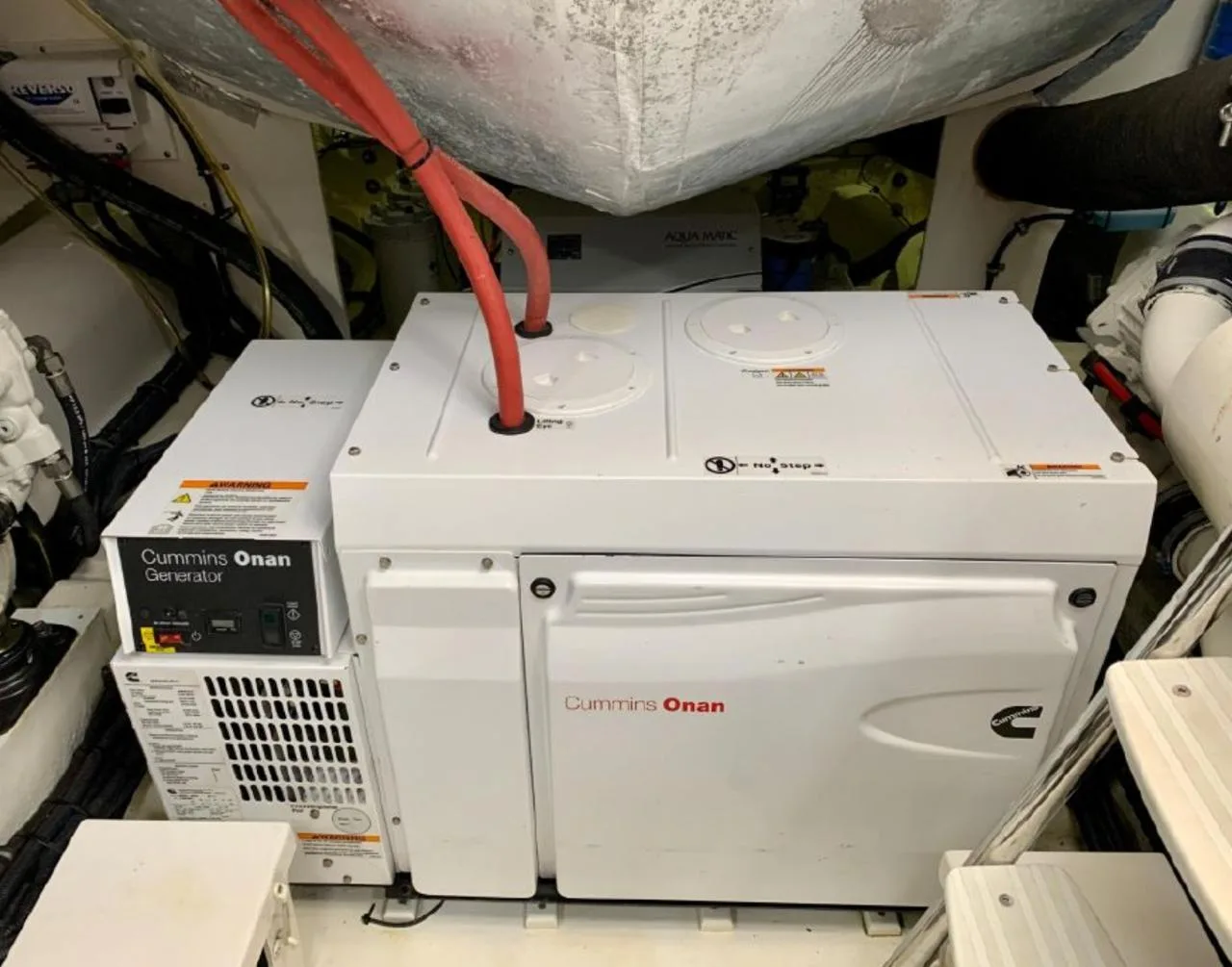

Generator - ONAN EQD 17.5 kW/50Hz (21.5 kW/60Hz)
with muffler, fresh water-cooled including sound shield,
remote stop/start electronic & hour meter
Inverter 2.5kW to operate entertainment, 1 x galley
GPO and ice machine in the absence of generator or
shore power
Navigation lights (International Standard)
Wiring coded, numbered & assembled in looms where
possible

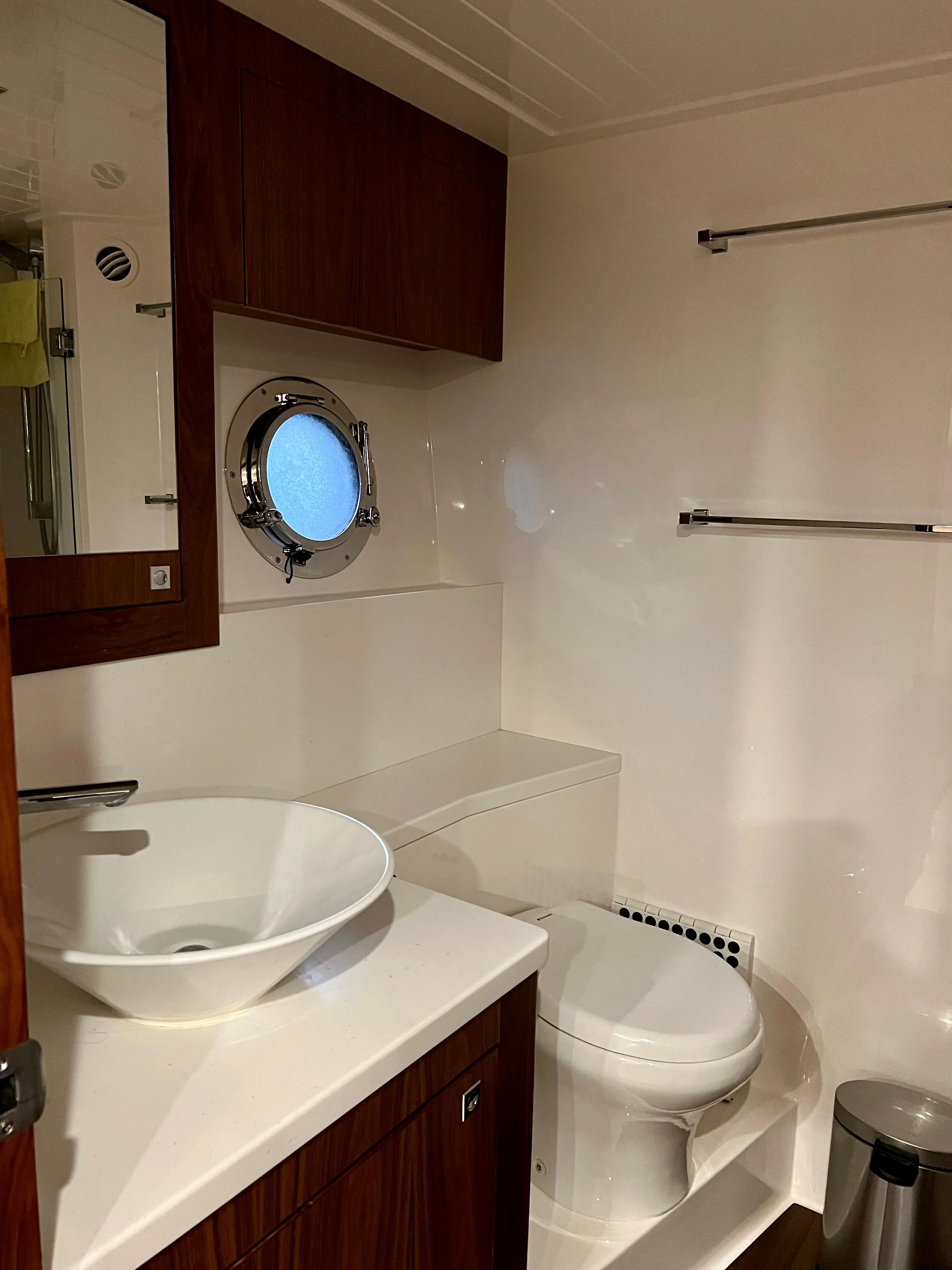

Head - Master
Contemporary design, solid surface benchtop with
above bench bowl sink and high quality mixer tap
Extraction fan
Flooring - Stall floor solid surface material (to match
vanity selection), main head floor commercial grade
Vinyl
Holding tank level indicator
Mirror
Overhead and vanity mirror lighting (DC)
Porthole, 1 x round opening porthole with screen
Private entrance door
Shower stall with glass partition, frameless glass door, automatic sump pump and shower head (on slide bar)
Storage locker with shelves under bathroom sink
Toilet roll holder, towel holder and accessories

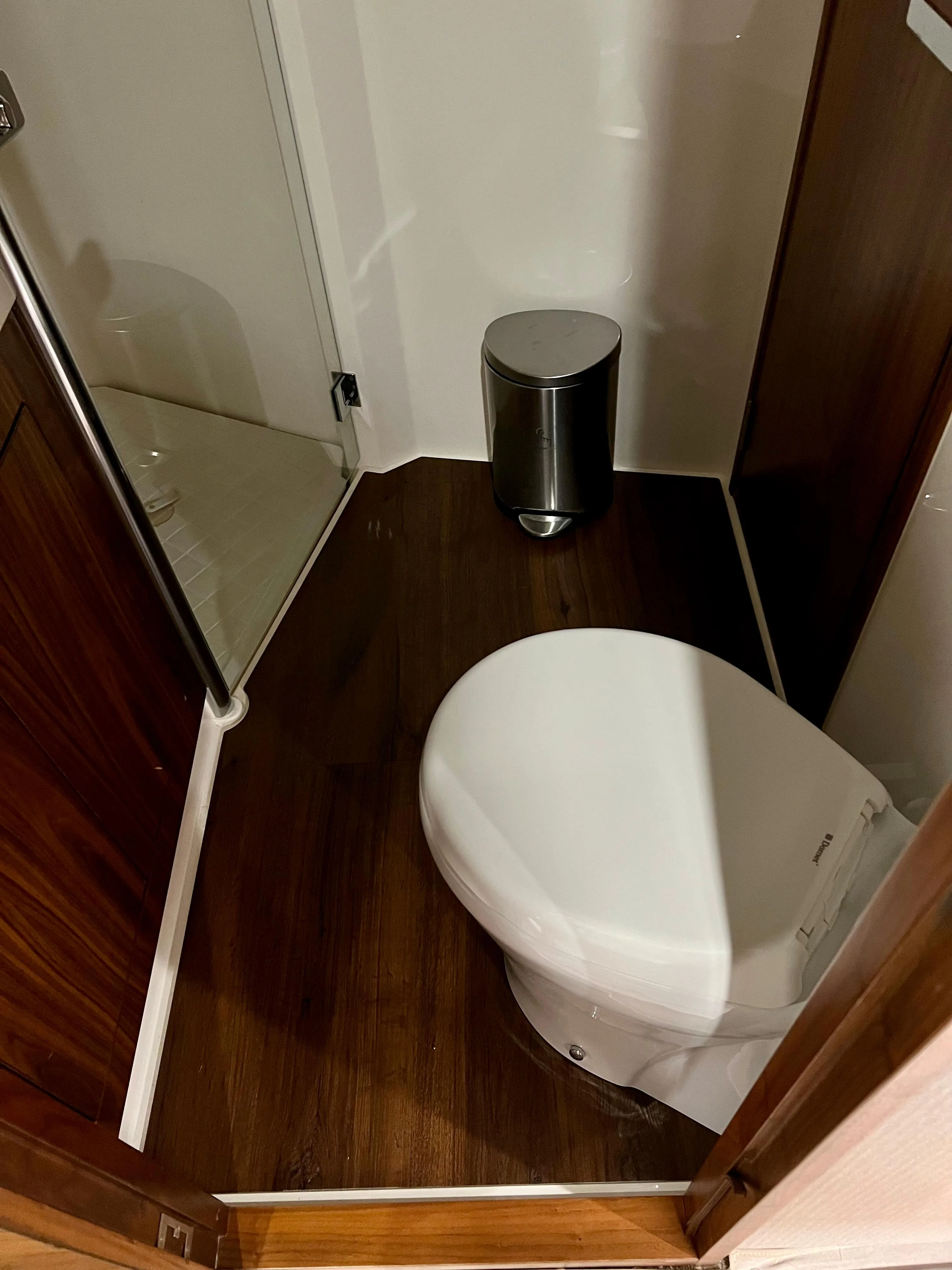

Toilet, fresh water flush
Vanity cabinet

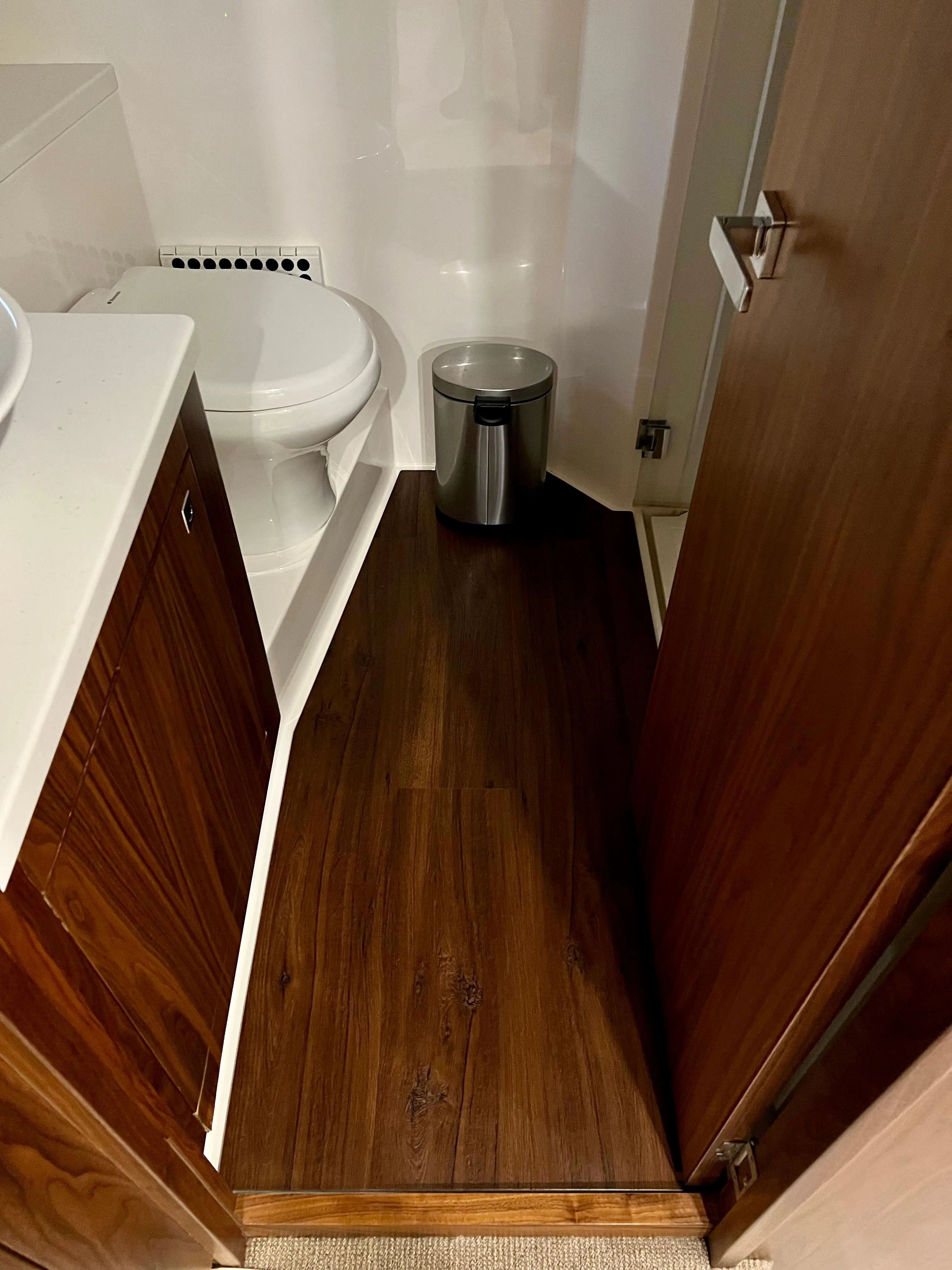

Head - Starboard
Contemporary design, solid surface benchtop with
above bench bowl sink and high quality mixer tap
Entrance to starboard head from companionway &
private ensuite from stateroom forward
Exhaust fan
Flooring - stall floor solid surface material (to match
vanity selection), main head floor commercial grade
Vinyl
Hatch - white with screen and blind
Mirror
Overhead and vanity mirror lighting (DC)

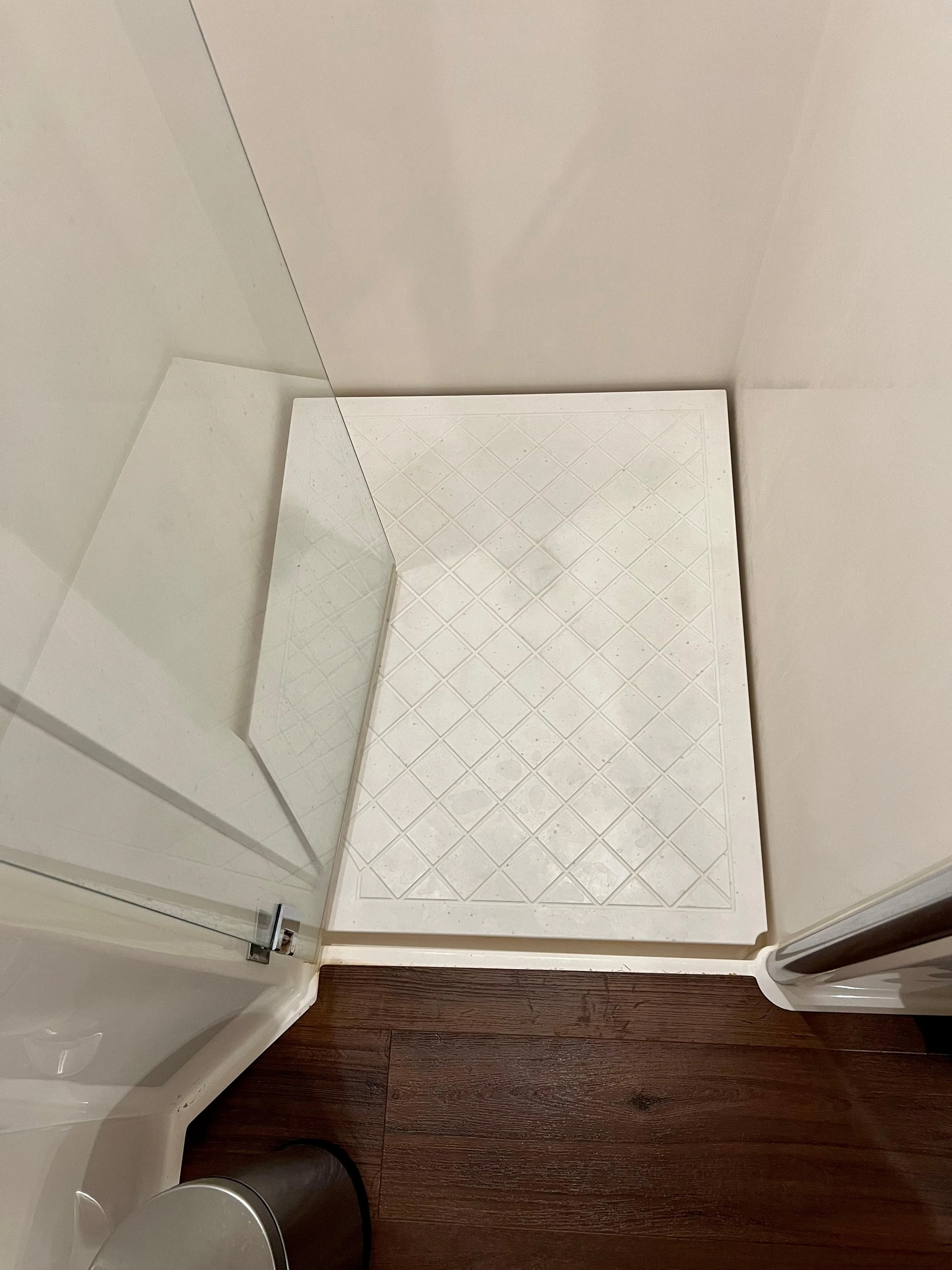

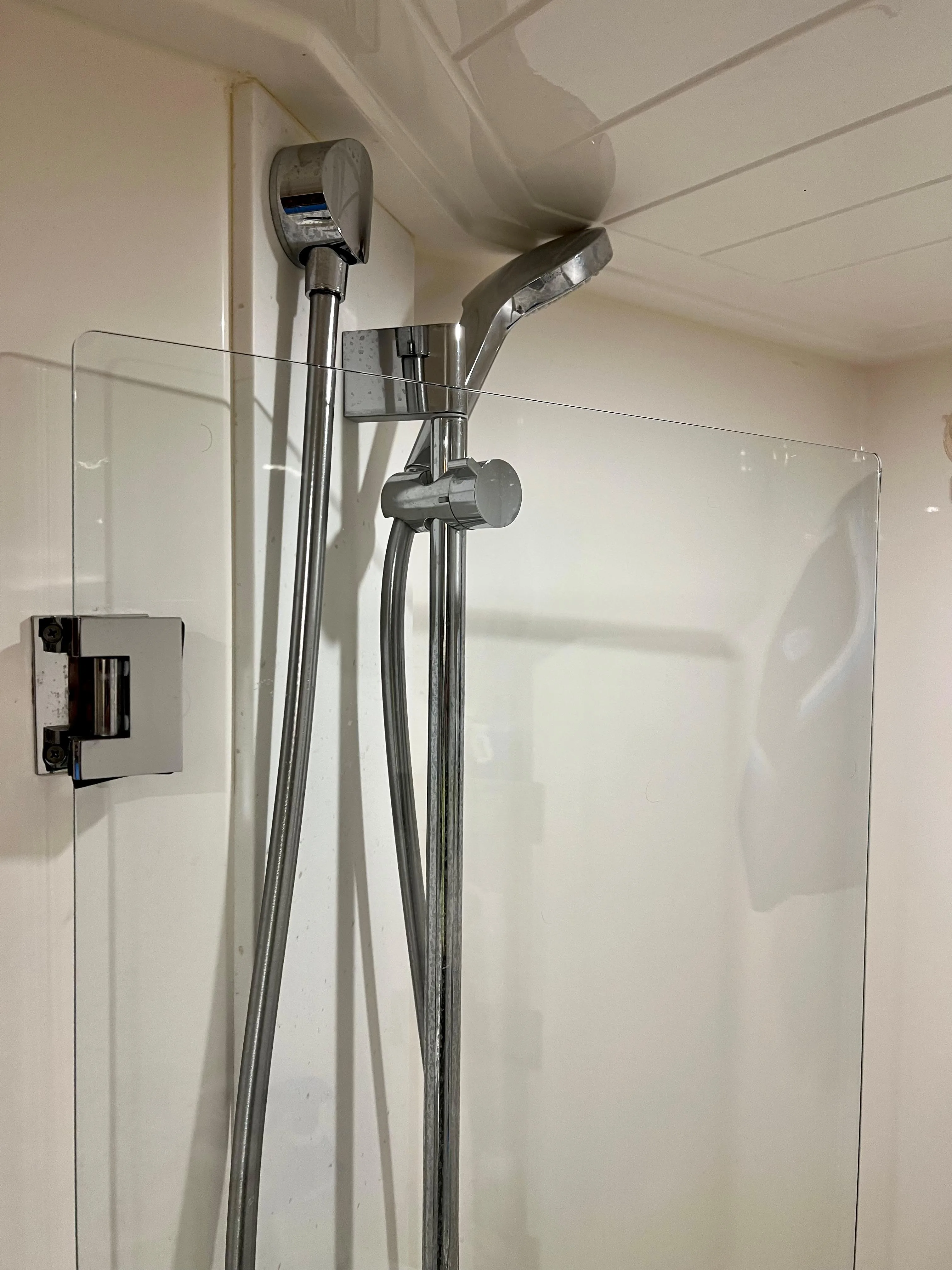

Shower stall with glass partition, frameless glass door,
automatic sump pump and shower head (on slide bar)
Storage locker with drawers under bathroom sink
Toilet roll holder, towel holder and accessories
Toilet, fresh water flush
Vanity cabinet

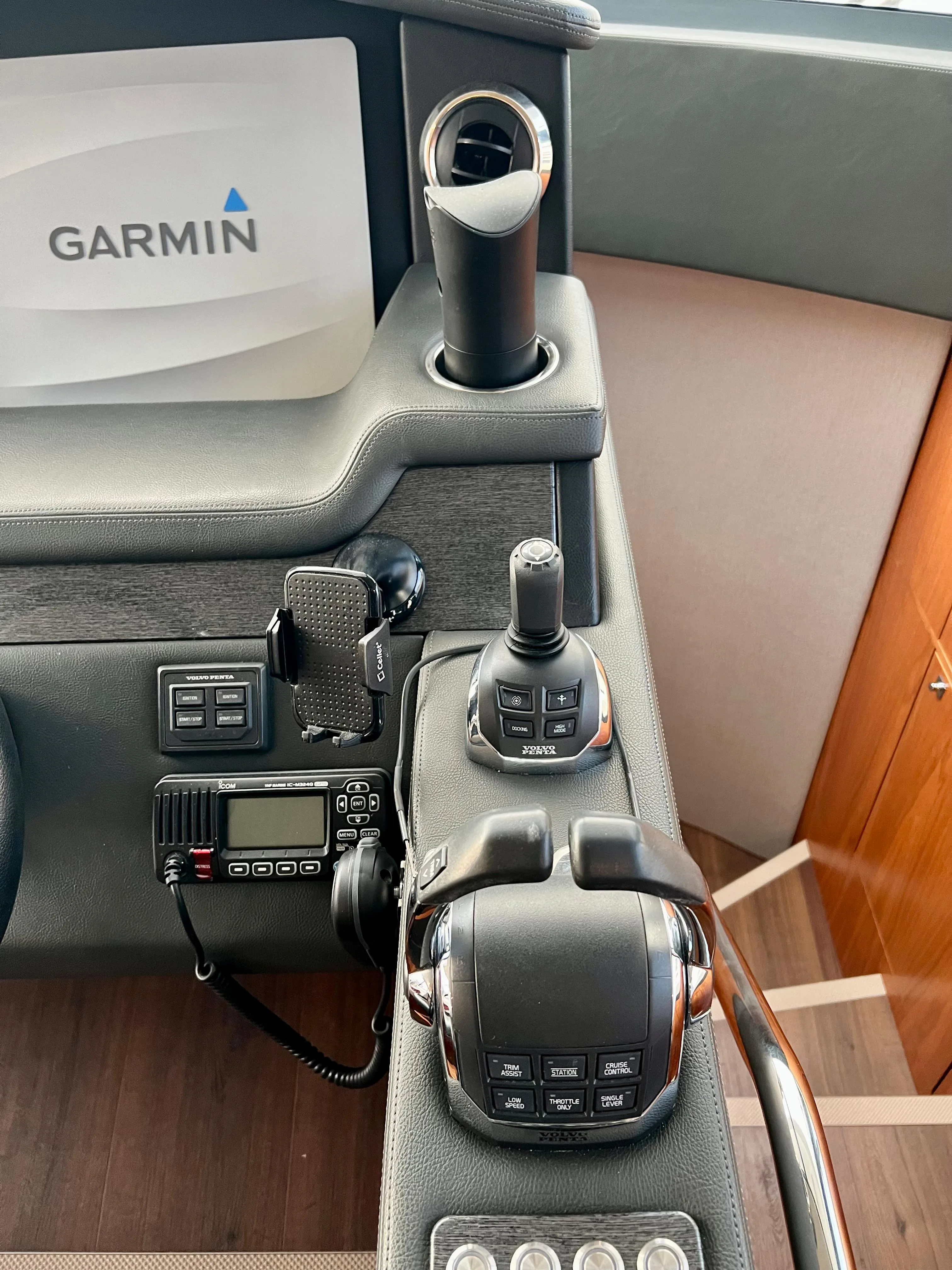

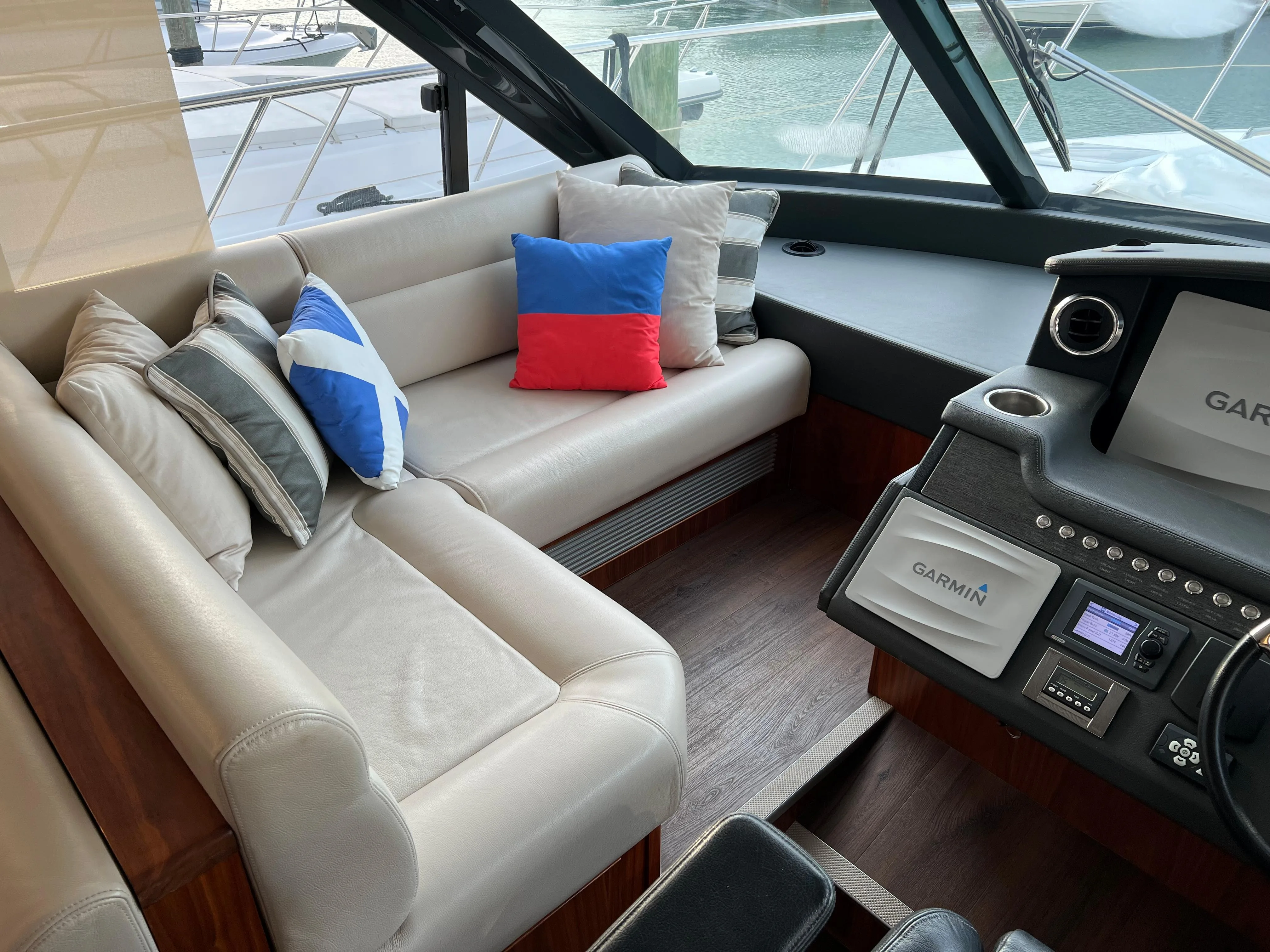

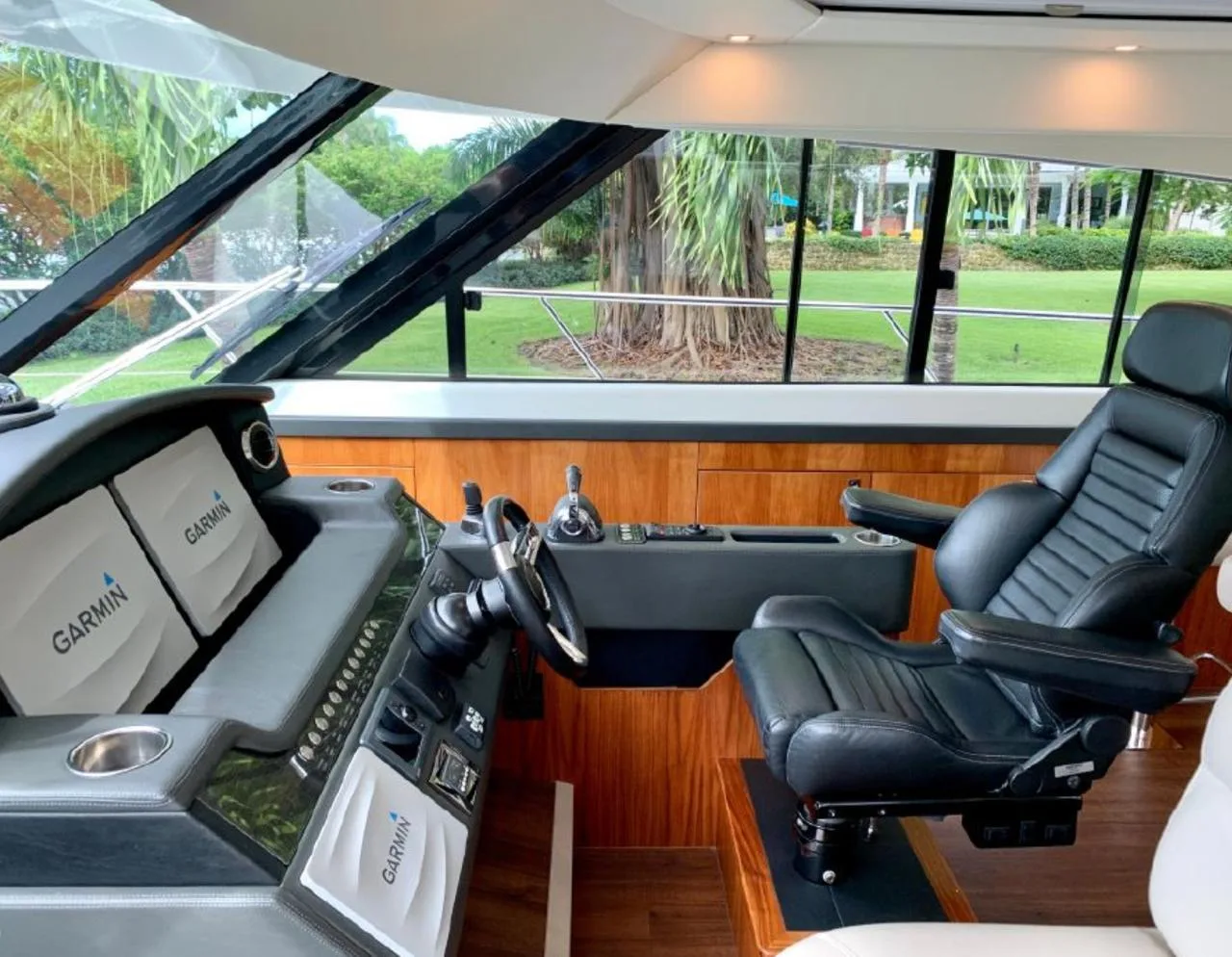

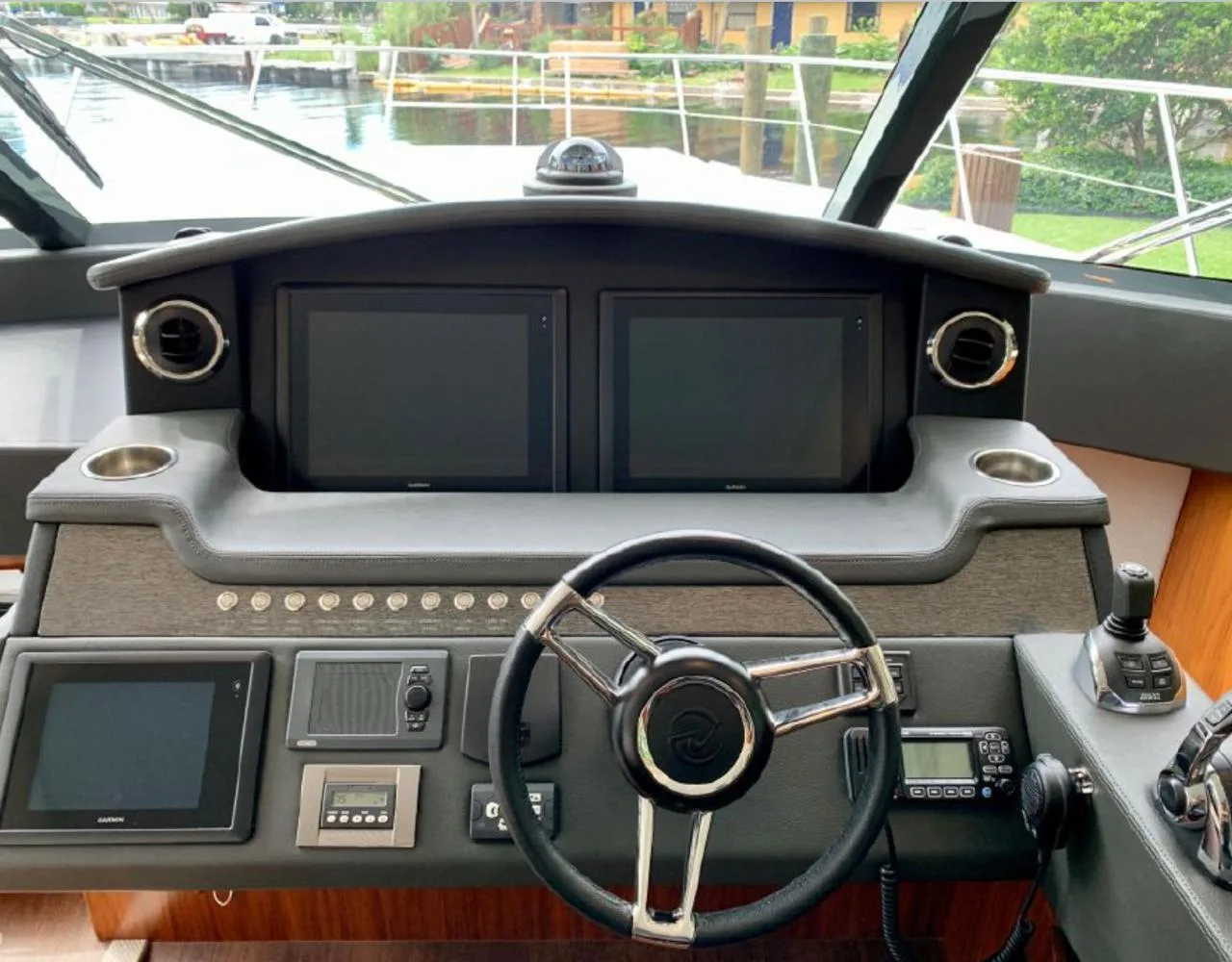

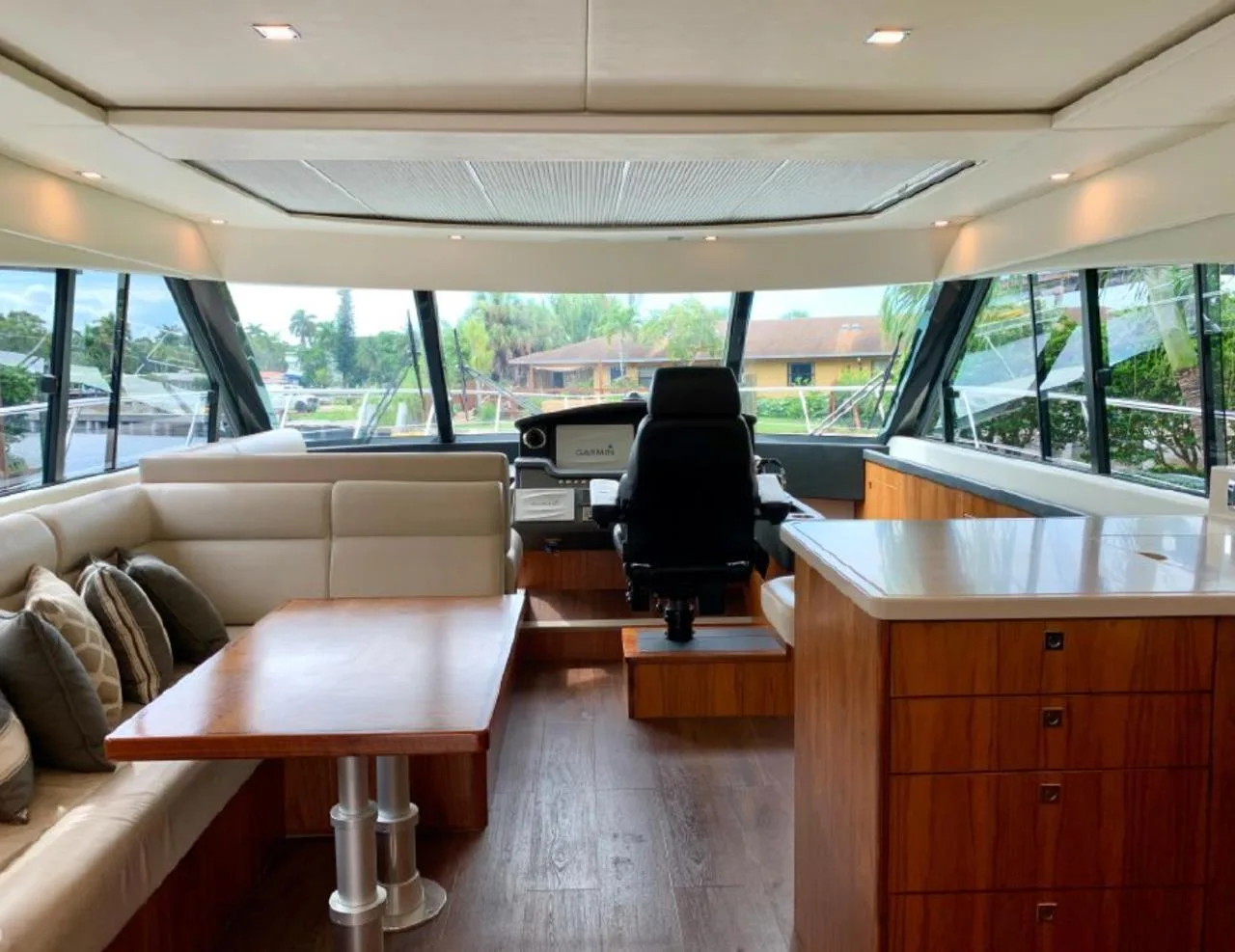

Helm - Saloon
Additional joystick station mounted to cockpit
Anchor chain counter
Companion seat shaped to port side
Compass, 4.75'' with light
Directional air conditioning outlets to helm and vent
outlets to windscreen
Ergonomically designed console with drink holders,
storage tray, electronic engine controls and joystick
docking control
Helm chair (x 1) (Premium Deluxe) Electric Recaro
(colour to compliment dash)
Steering wheel Leather Sports
VHF radio

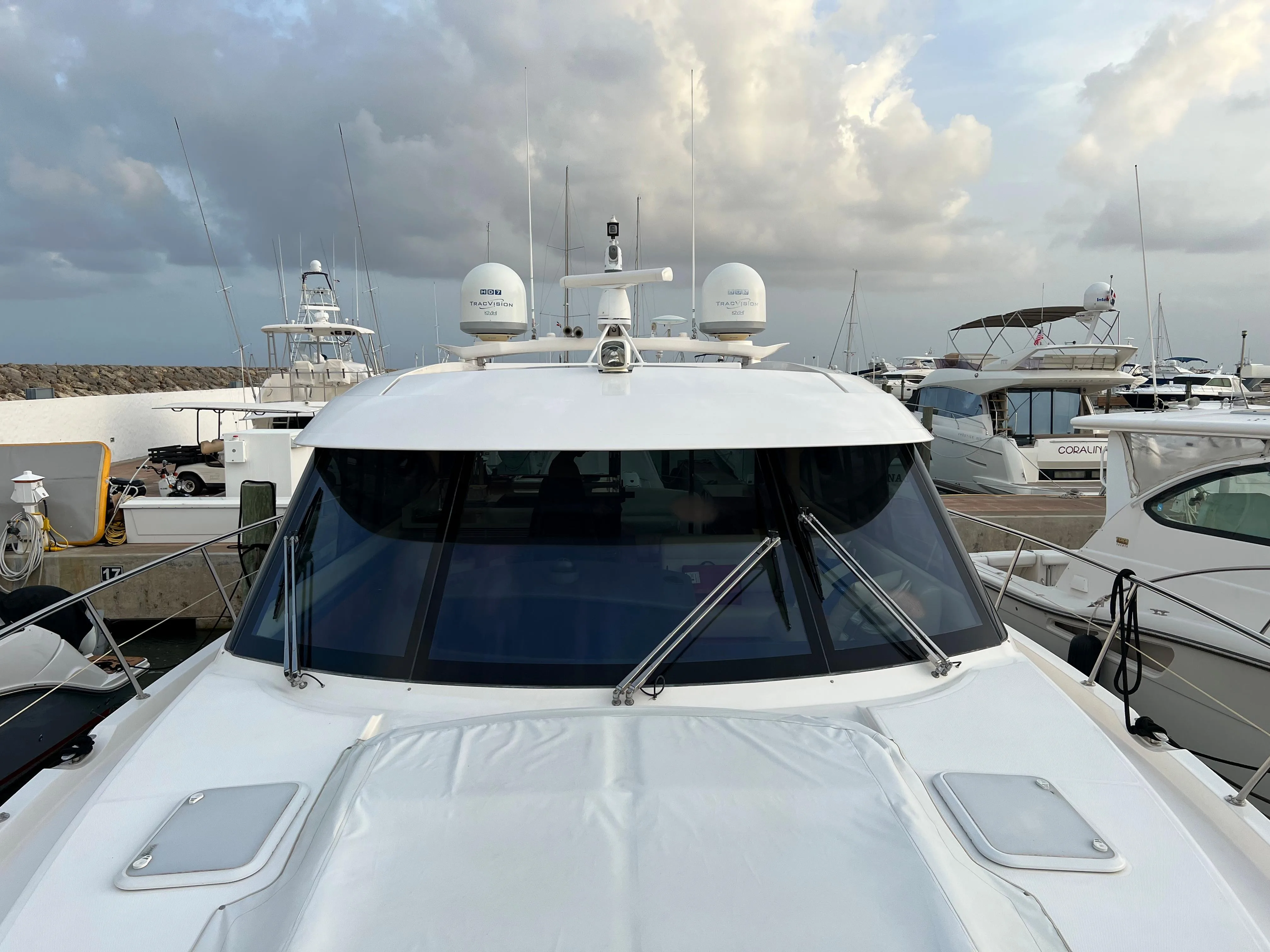

Windscreen, clear tempered glass with 3 Pantograph
wipers with washers plumbed off fresh water system

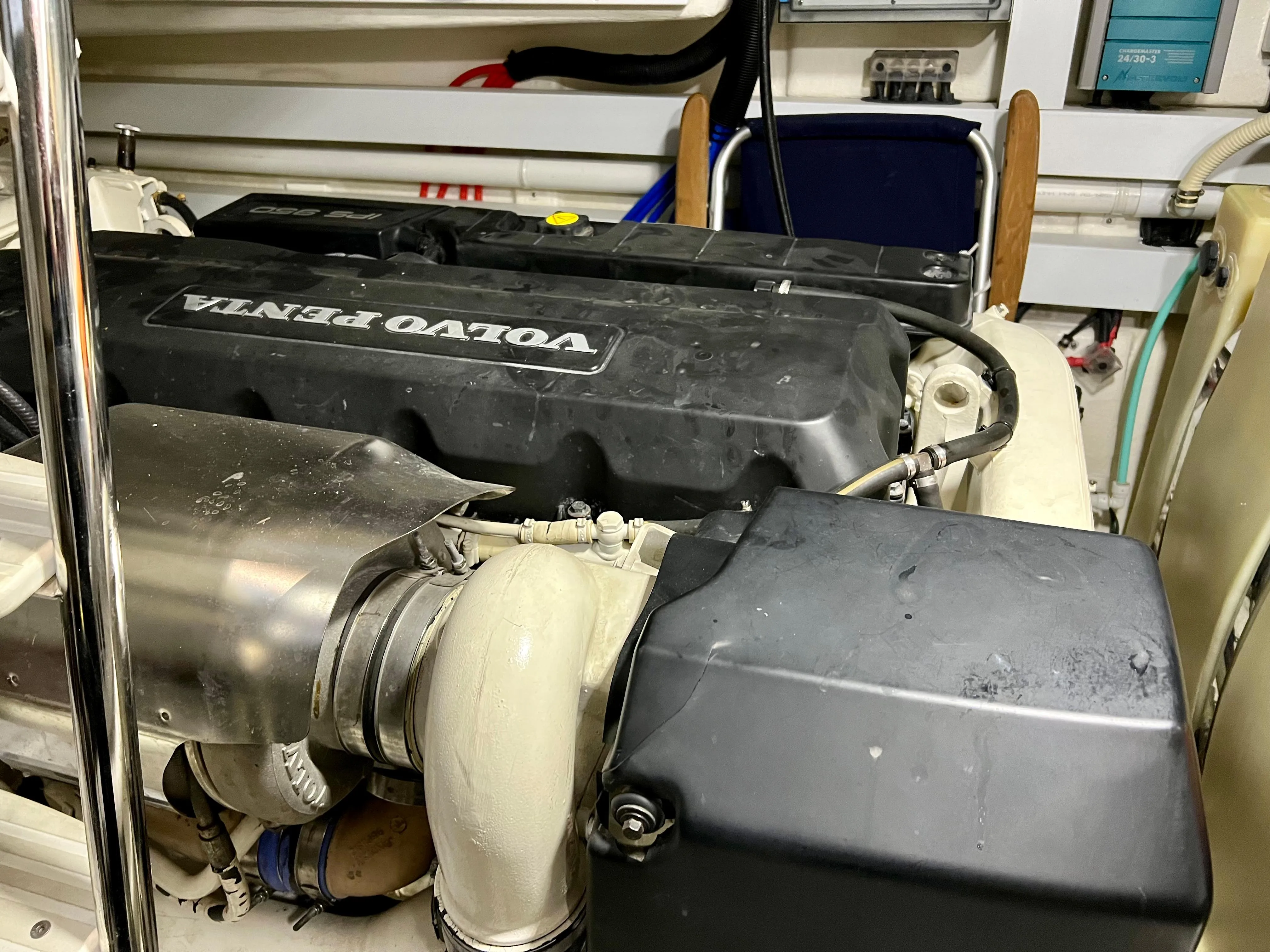

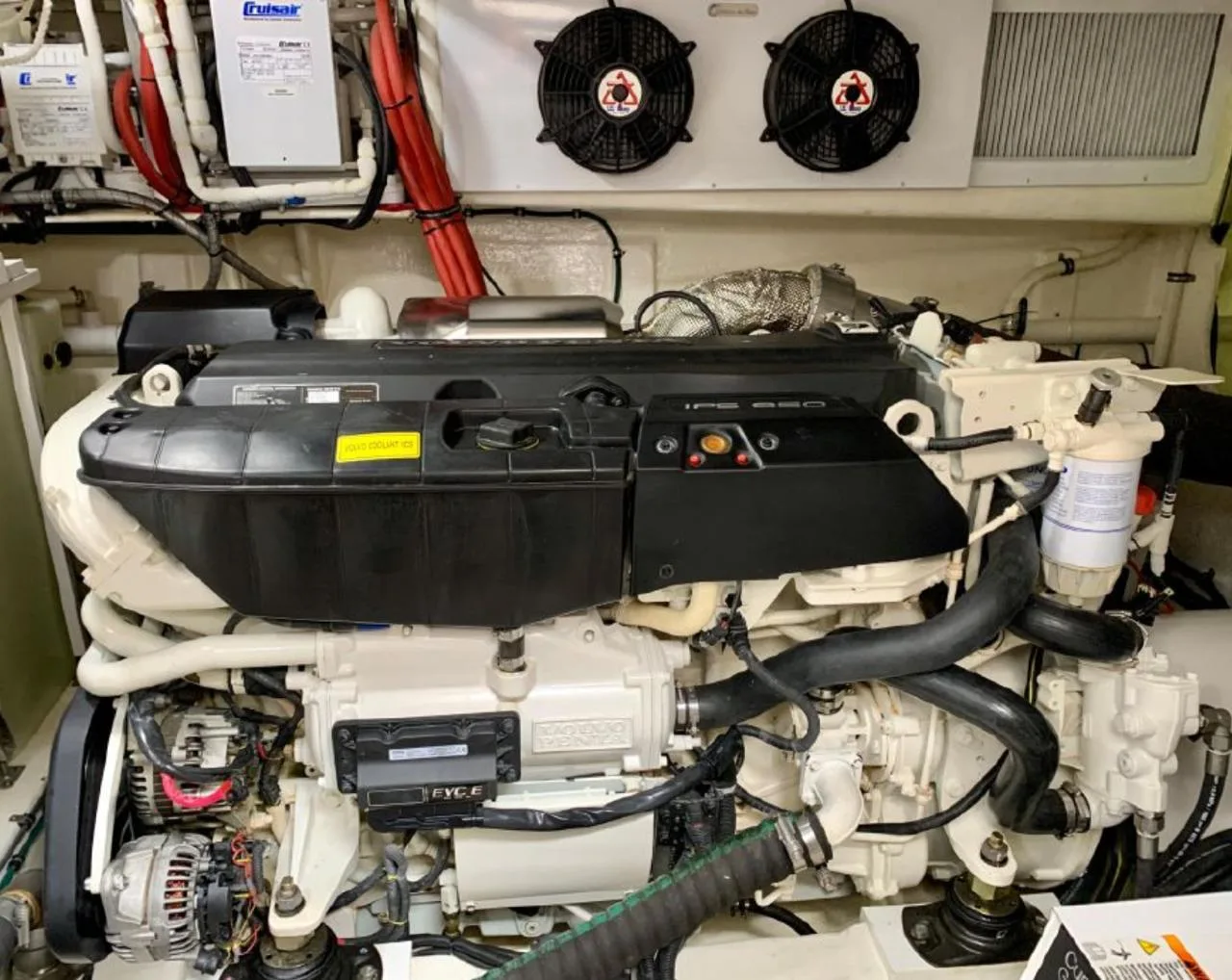

Mechanical
Acoustic & thermal insulation to engine room

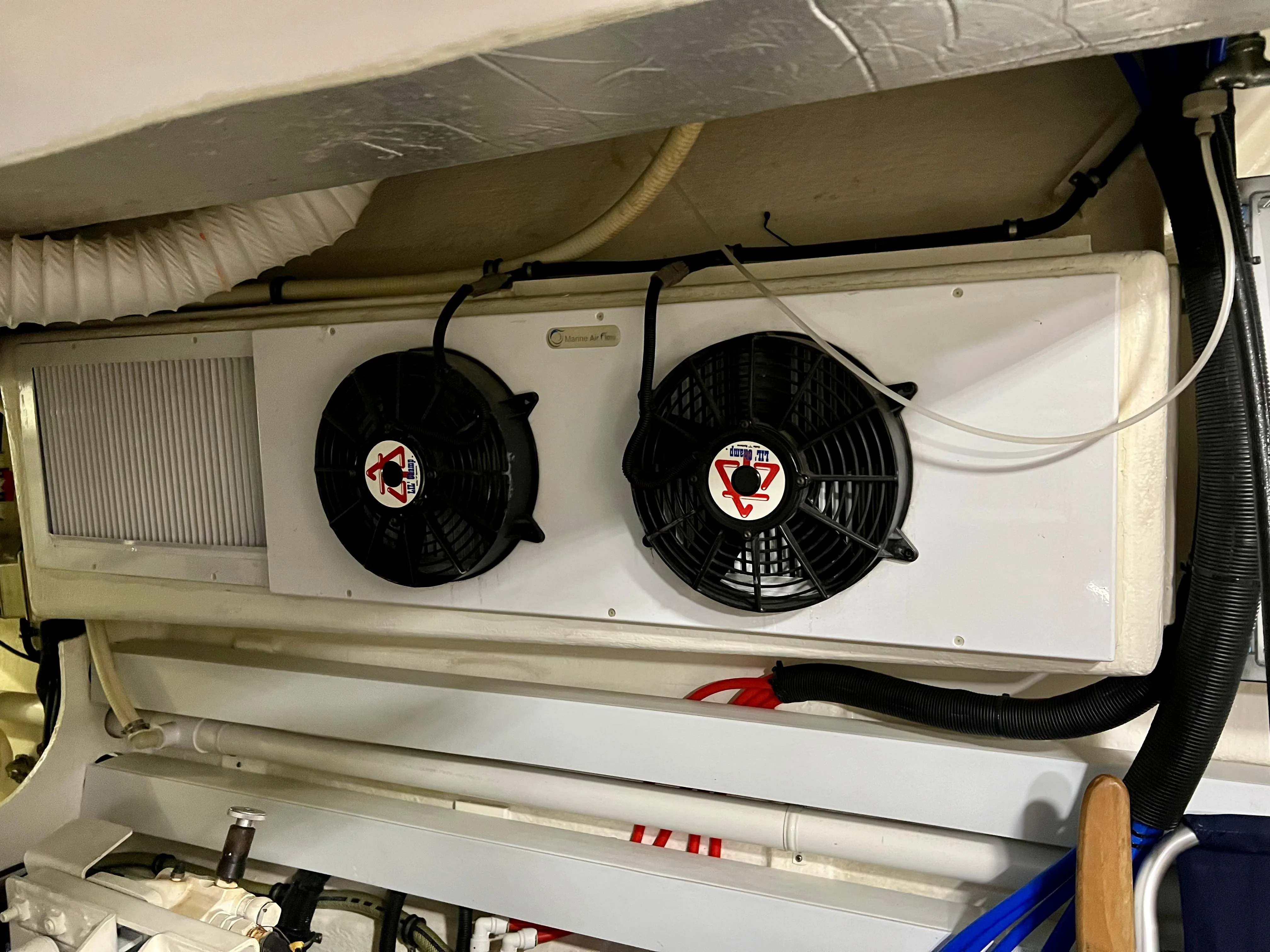

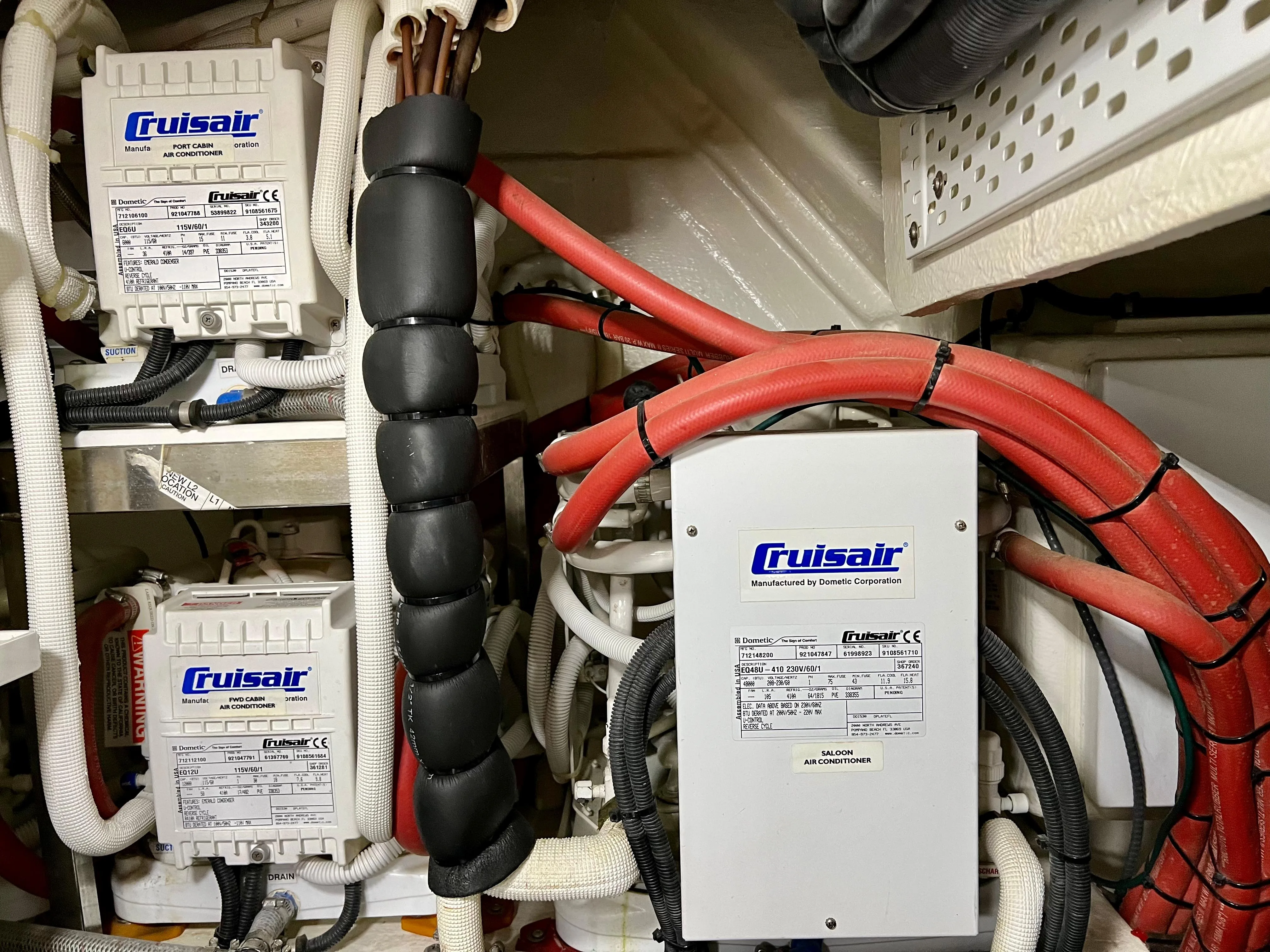

Four (4) air conditioning condenser units - (BTU's) 48,000,
16,000, 12,000 & 6,000
Tropical package air conditioning for saloon upgraded to 48,000 BTU also includes heat reflective film to windscreens (from and sides) along with sunroof glass
All thru-hull fittings on or below the water line fitted
with ball valves, all hoses double clamped
Bilge pumps, auto & manual override x 4
Hatches insulated & removable
Engine mounts - anti vibration
Engine room lighting, LED (DC)
External & internal seawater strainers for main water
intakes - engines, generator & air conditioning
Fire suppression system for engine room with
automatic/manual controls
Fresh water heater (AC)
High pressure water cleaner plumbed to outlets at bow and cockpit
Fresh water pump, secondary backup pump (switched
independently)
Fresh water system (pressurised) single tank, capacity
800 litres (211 US gallons-approx.) with gauge in
Czone
Fuel lines all swaged
Fuel shut-off valves
Fuel tank, GRP coated in fire retardant flow coat, 3000
litres (792 US gallons-approx.) with gauge at helm &
visual site gauge on tank
Fuel filters/Water separator for engines and generator. Dual to main engines
Holding tank capacity 400 litres (105 US gallons-approx.)

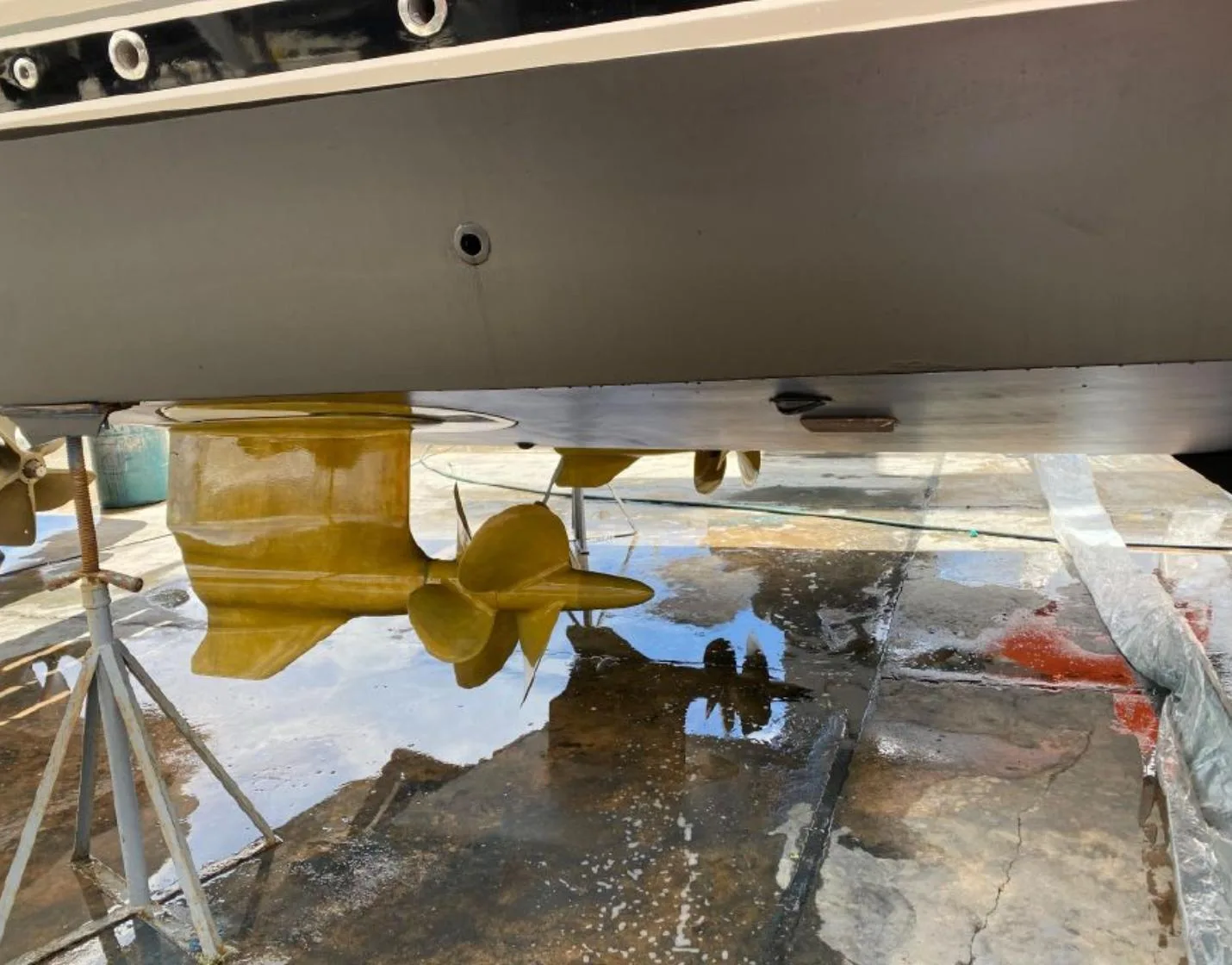

Propspeed coating to propellers
Sanitation system with overboard pump out switch &
deck fitting for dock side pump out
Tender winch, electric for tender retrieval
Trim tabs - Volvo Manual Trim System
Venting Dorade system for engine and air intakes &
fans (DC)

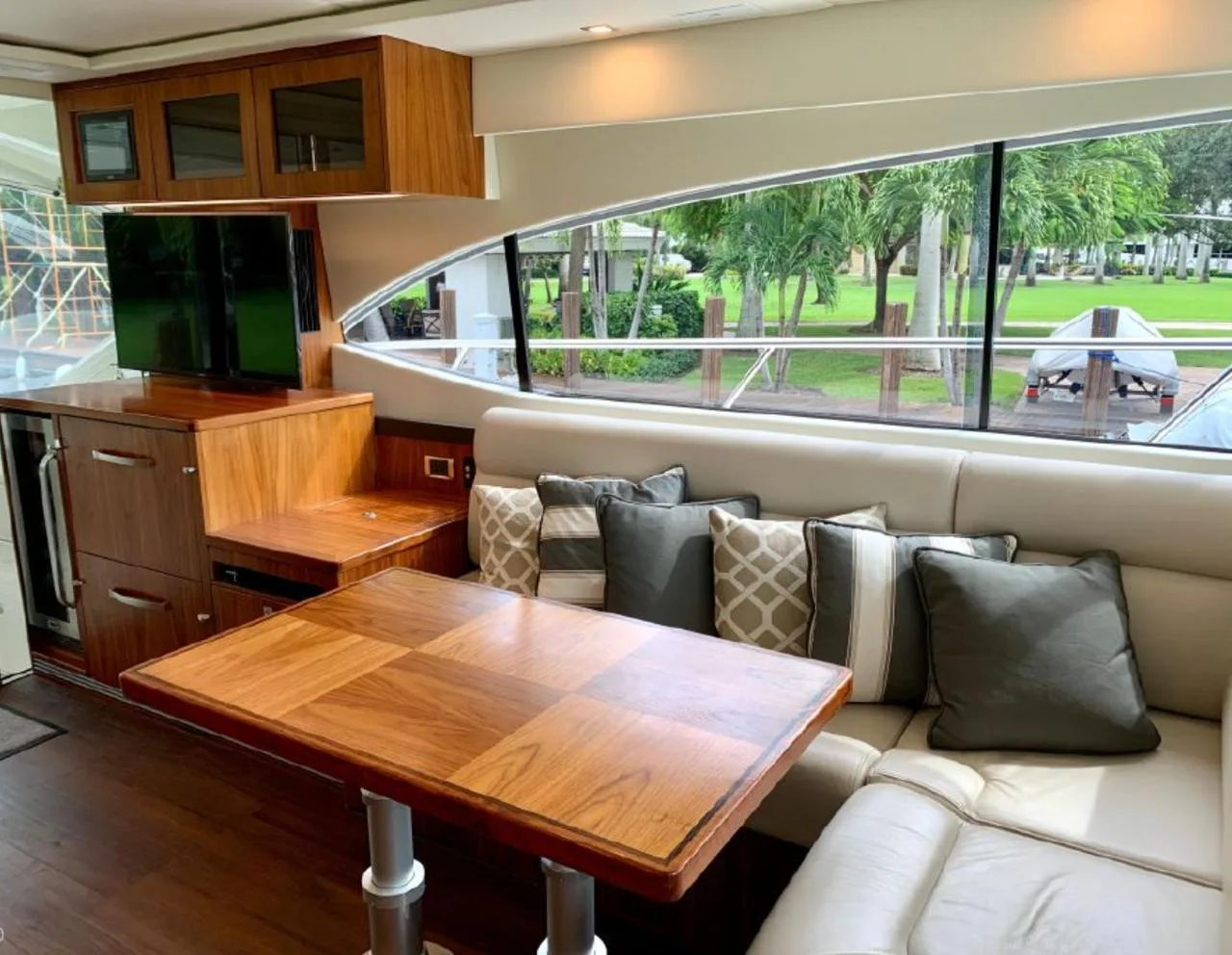

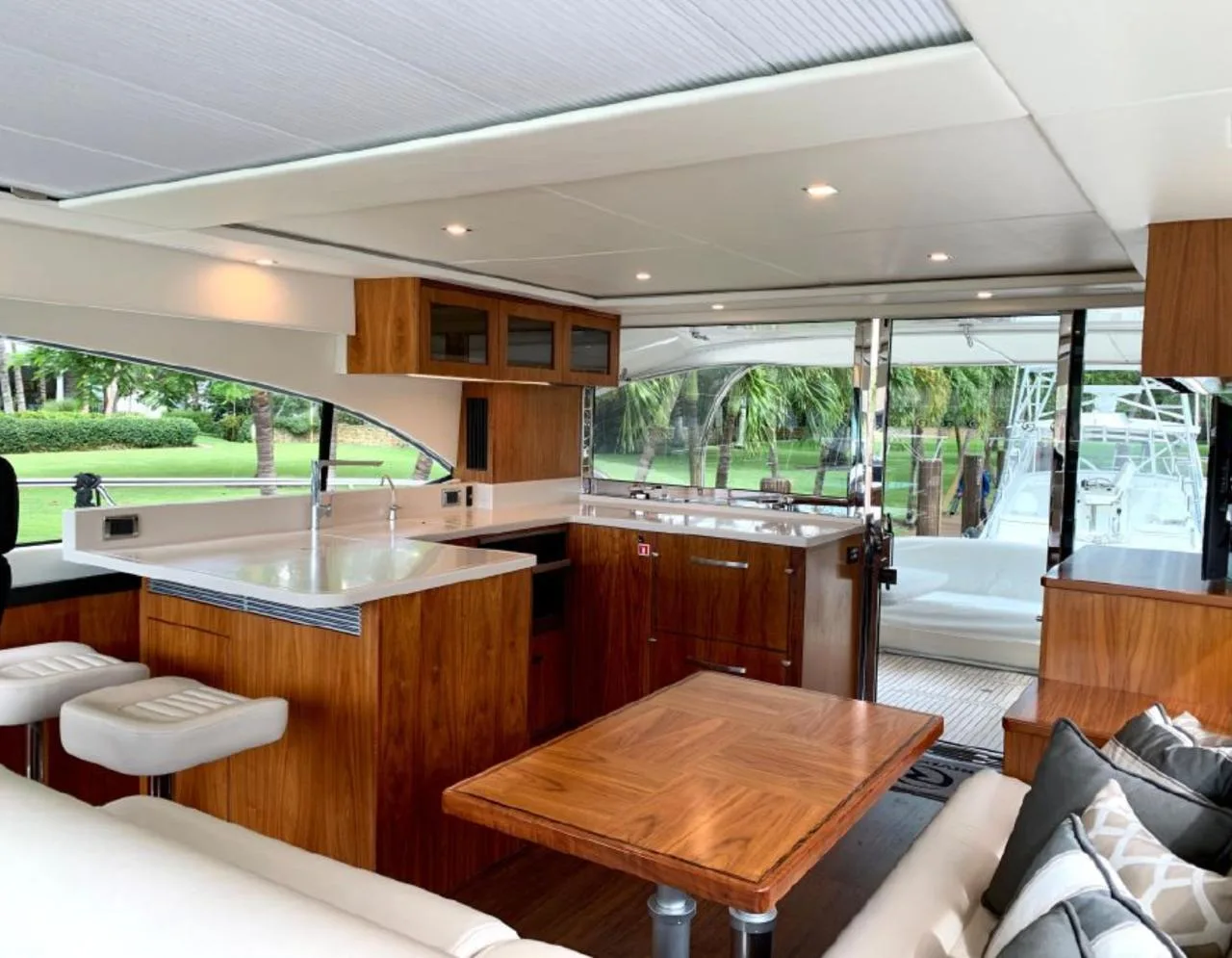

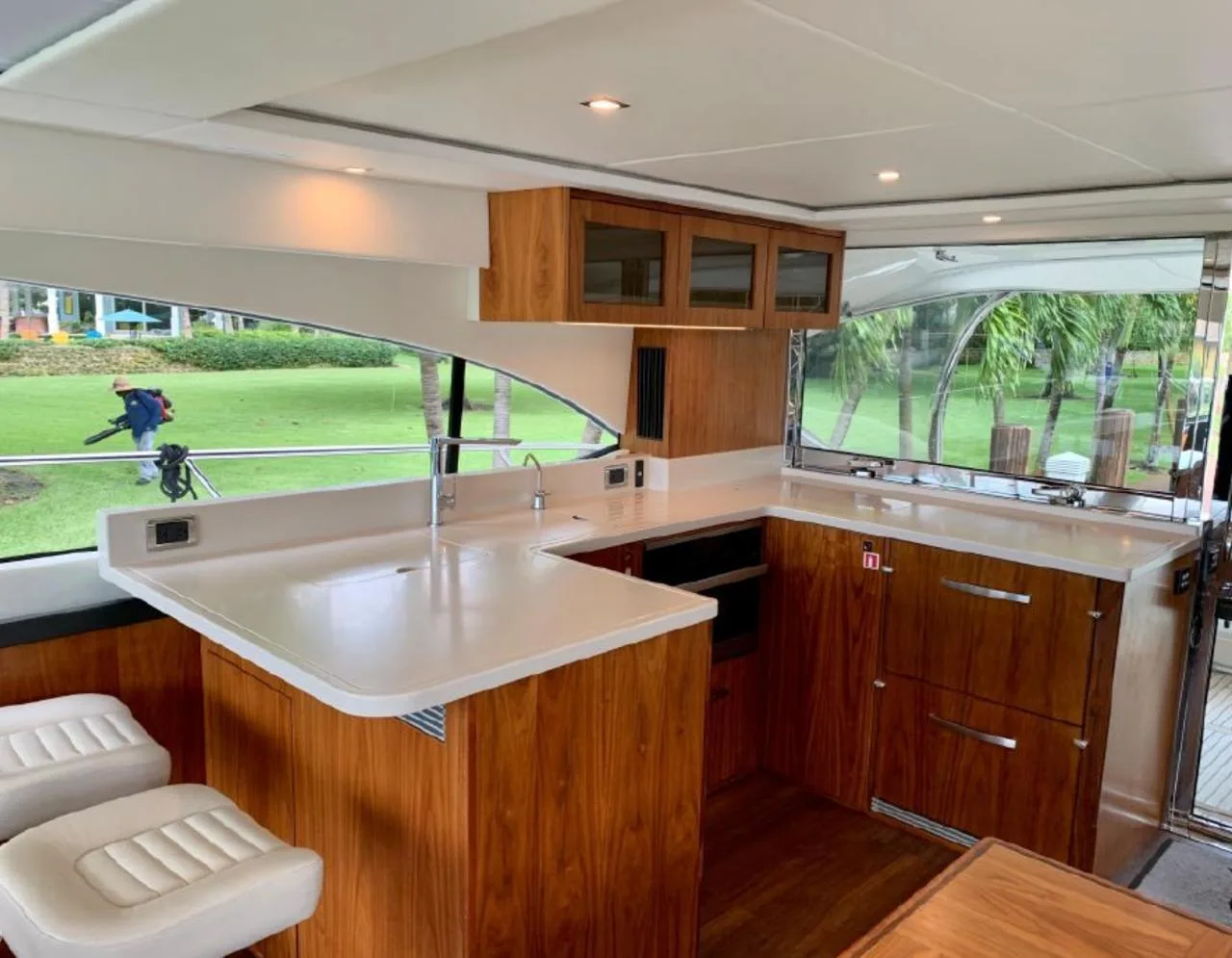

Saloon - Galley
Air conditioning, reverse cycle heat, to saloon/galley with helm outlets and windscreen outlets

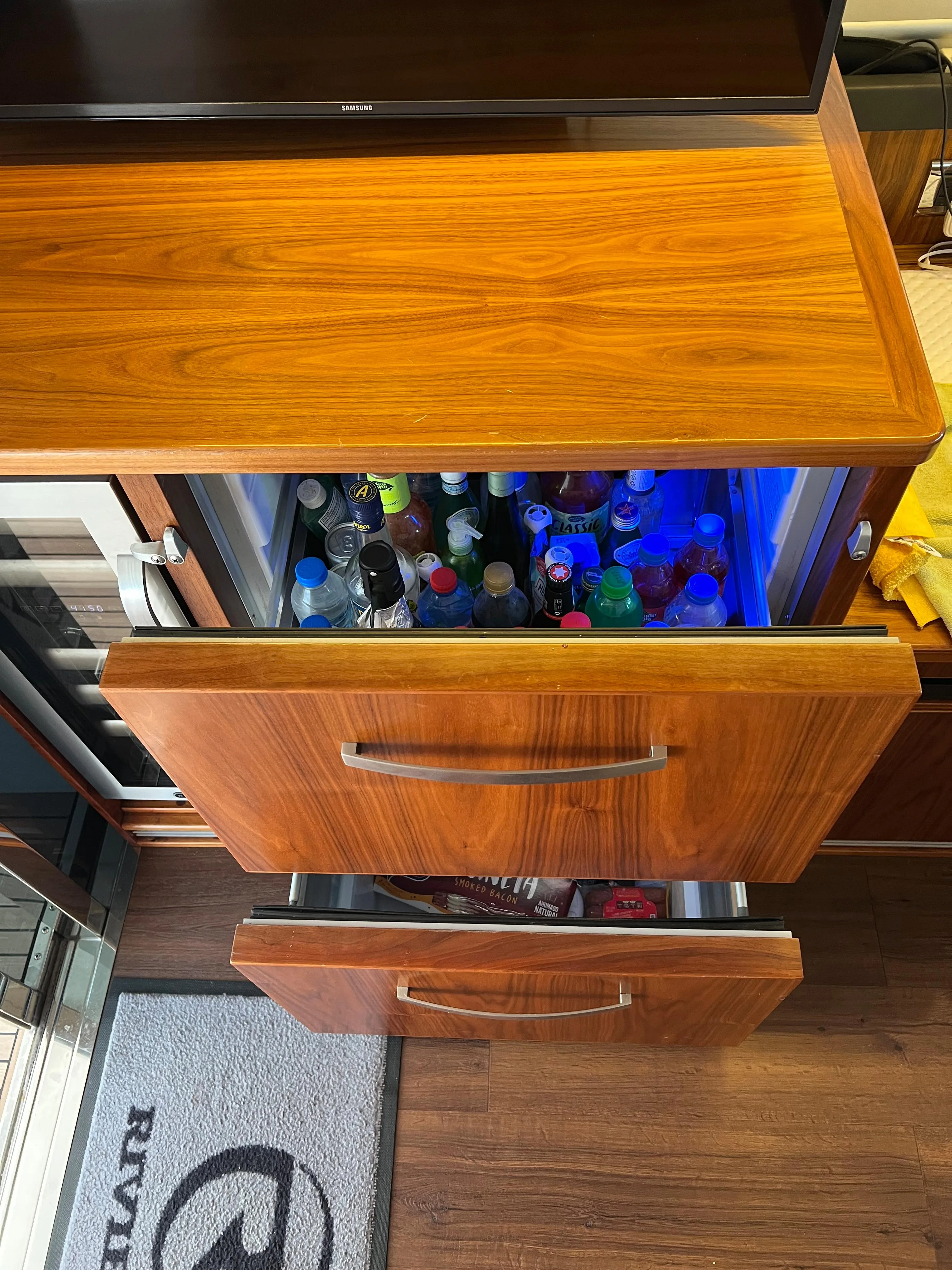

Cocktail cabinet with bottle storage, drawers for glass
storage, 1 x refrigerator drawer, 1 x freezer drawer & wine
cooler

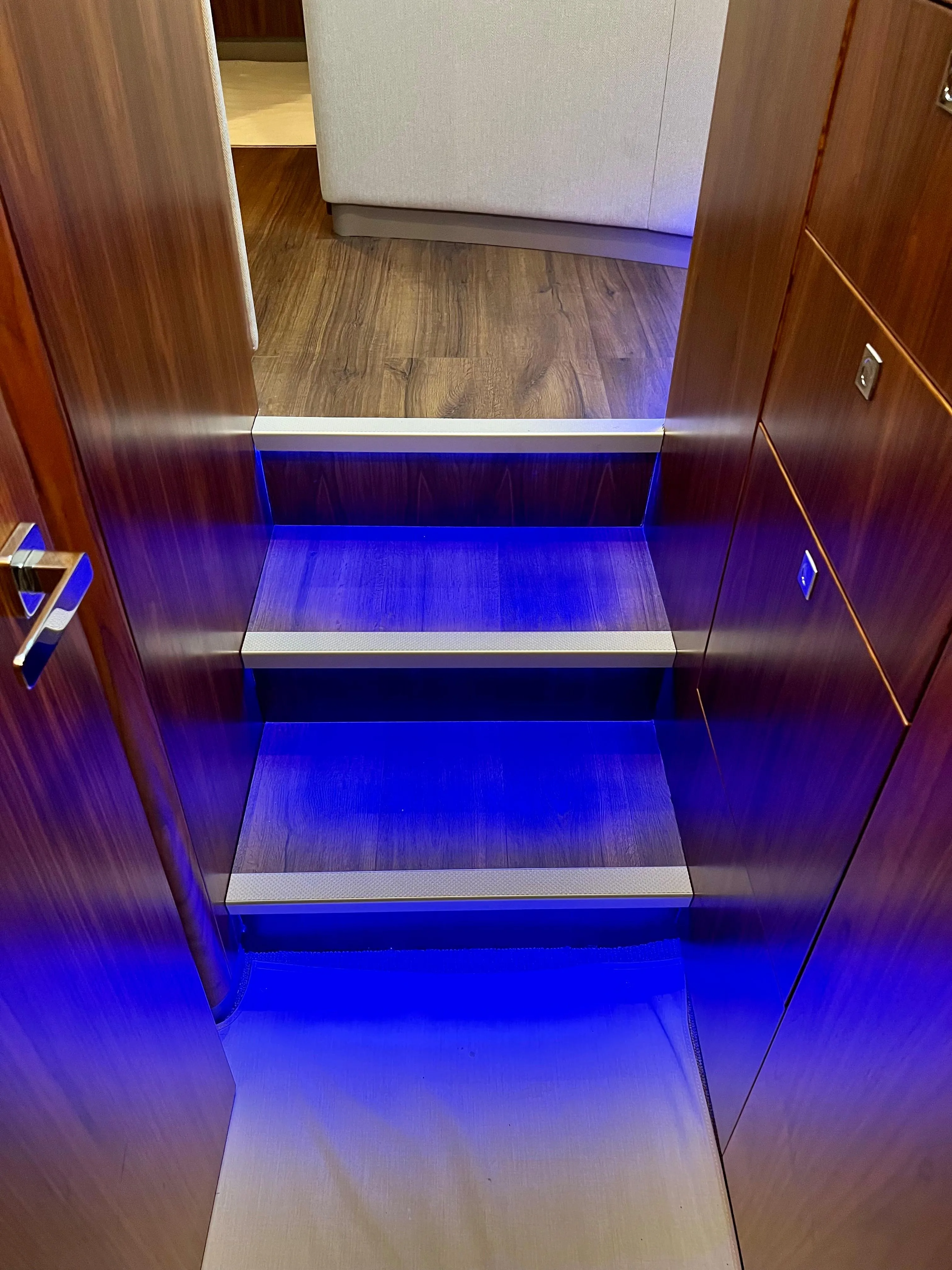

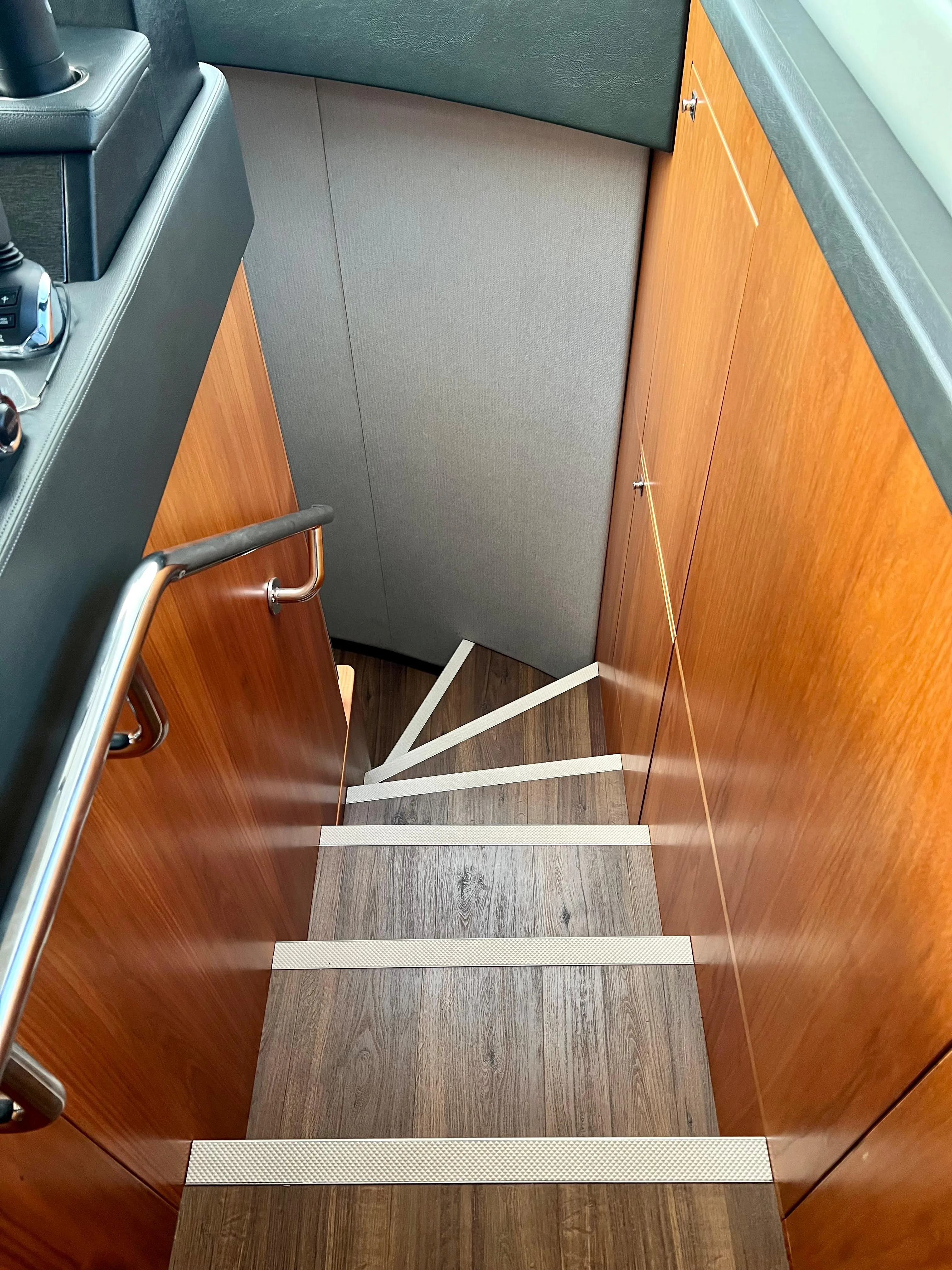

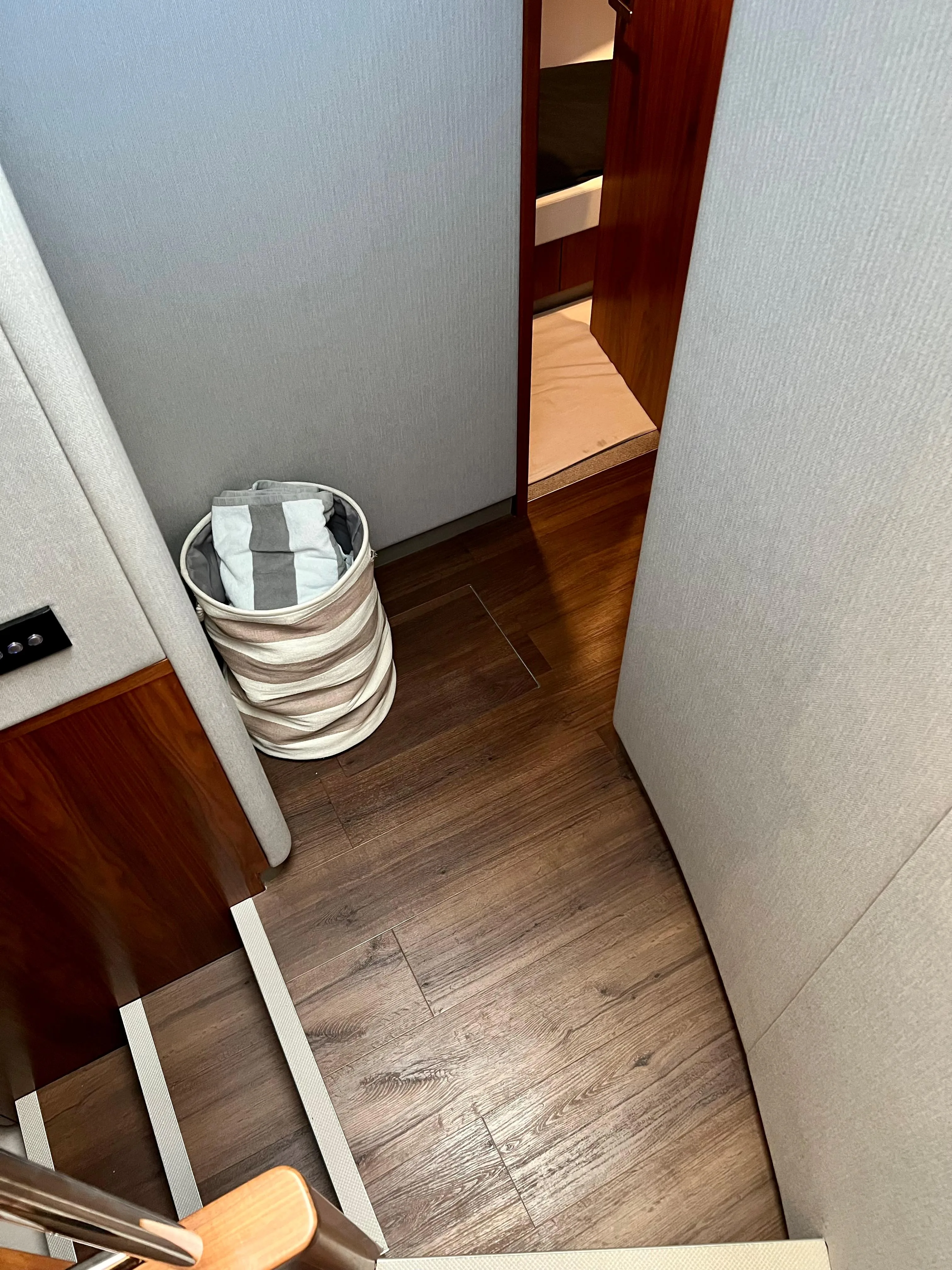

Courtesy lights in stairs to cabins
Flooring in high quality commercial grade vinyl
Galley - built in overhead storage lockers with positive
locking hardware
Galley - Exhaust fan
Galley - Microwave convection oven

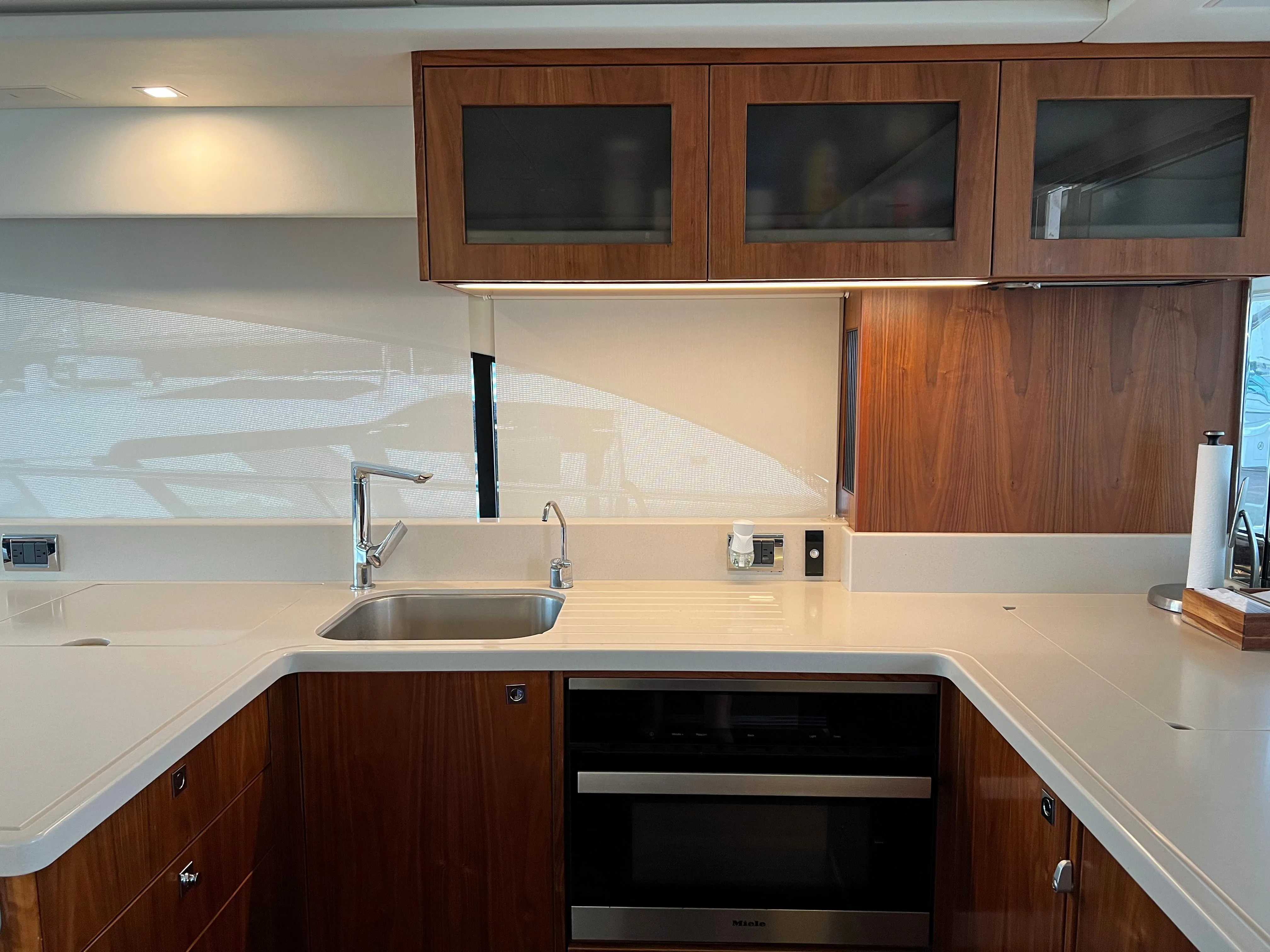

Galley benchtop in solid surface with sink (stainless
steel) and faucet, also incorporating electric dual element
cooktop & drop in bin with cover

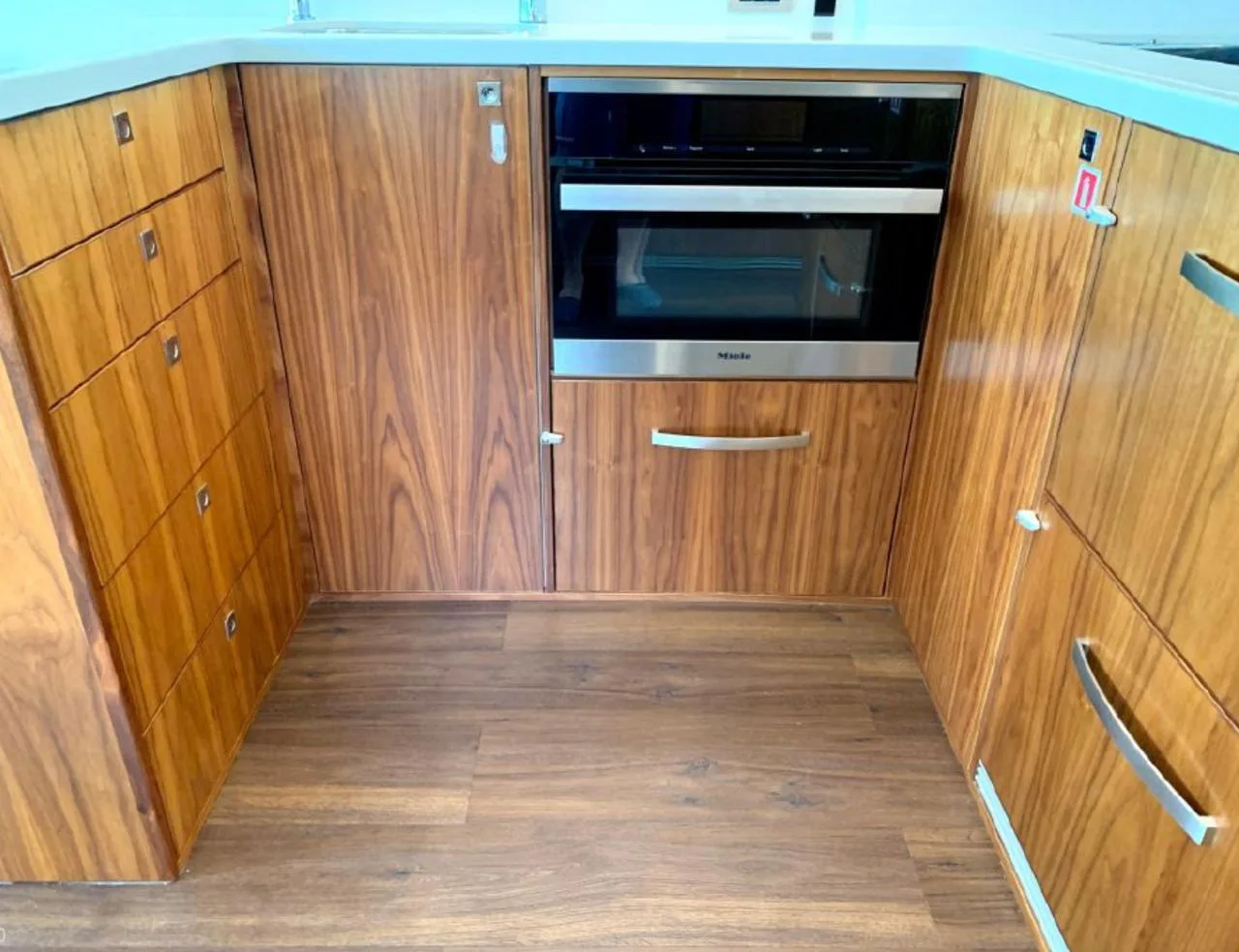

Galley storage cabinets & drawers
Lighting overhead & courtesy DC (LED)
Lounge, saloon L shaped companion lounge to port
side
Saloon dinette, premium leather, L-shaped
Saloon table upgrade to electric lift hi/lo table with infill cushions, allows conversion of dinette into daybed

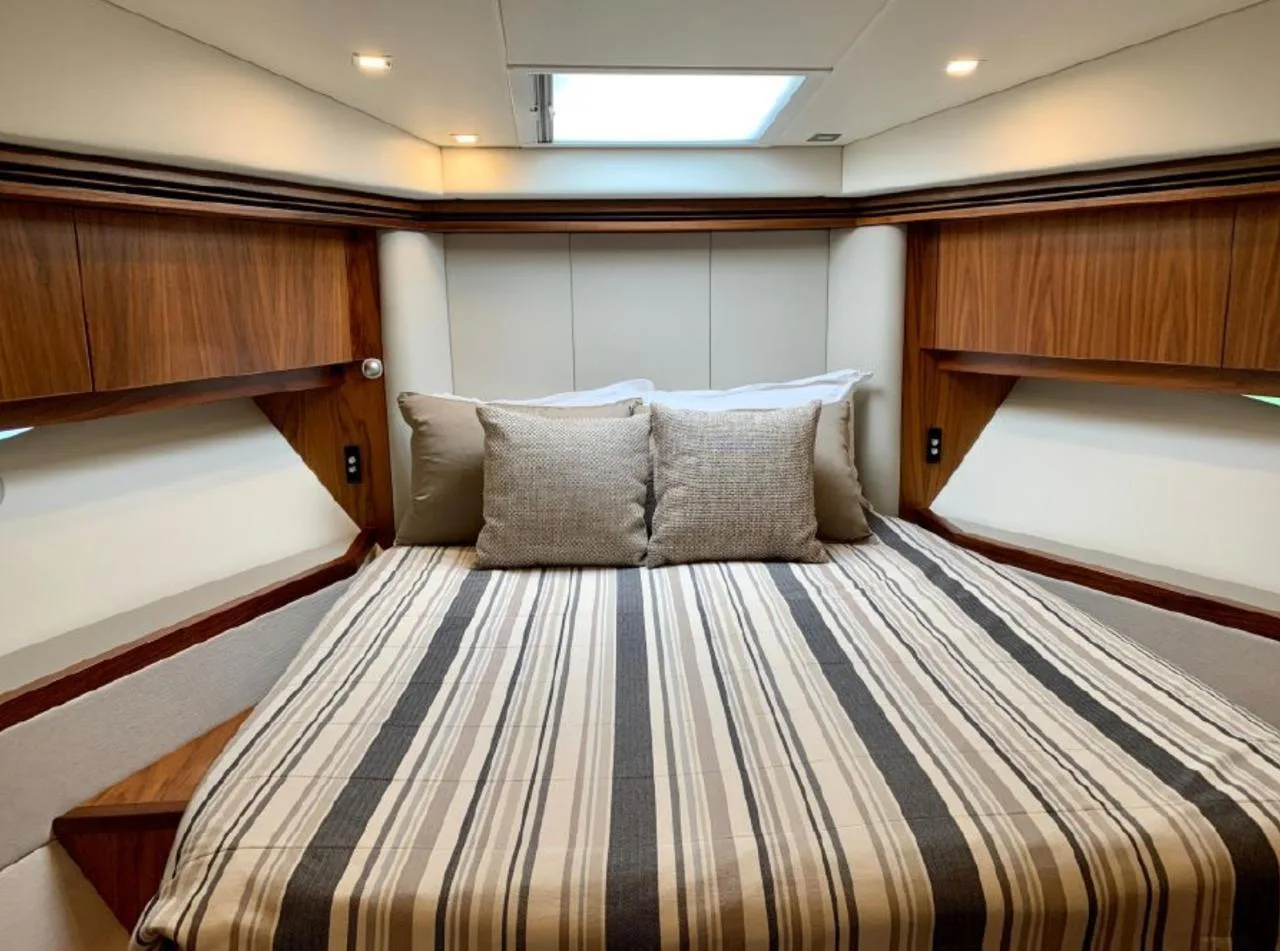

Stateroom - Forward VIP
Access to private ensuite with privacy lock
Air conditioning, with reverse cycle, heat
(split into head)
Carpet with underlay
Fixed hull windows fitted port and starboard in tinted
tempered glass including roller blinds matching saloon
selection
Hanging locker port with cedar lining & auto lighting
(DC), stbd storage locker cedar lined with shelve
Hatch - white with screen and blind
Headboard - upholstered
Hull and head linings, vinyl covered with padding
Private entrance doorQueen walk around berth with innerspring mattress &
storage under berth including drawers
Reading and overhead lighting (DC)
Storage cabinets outboard with positive locking
hardware

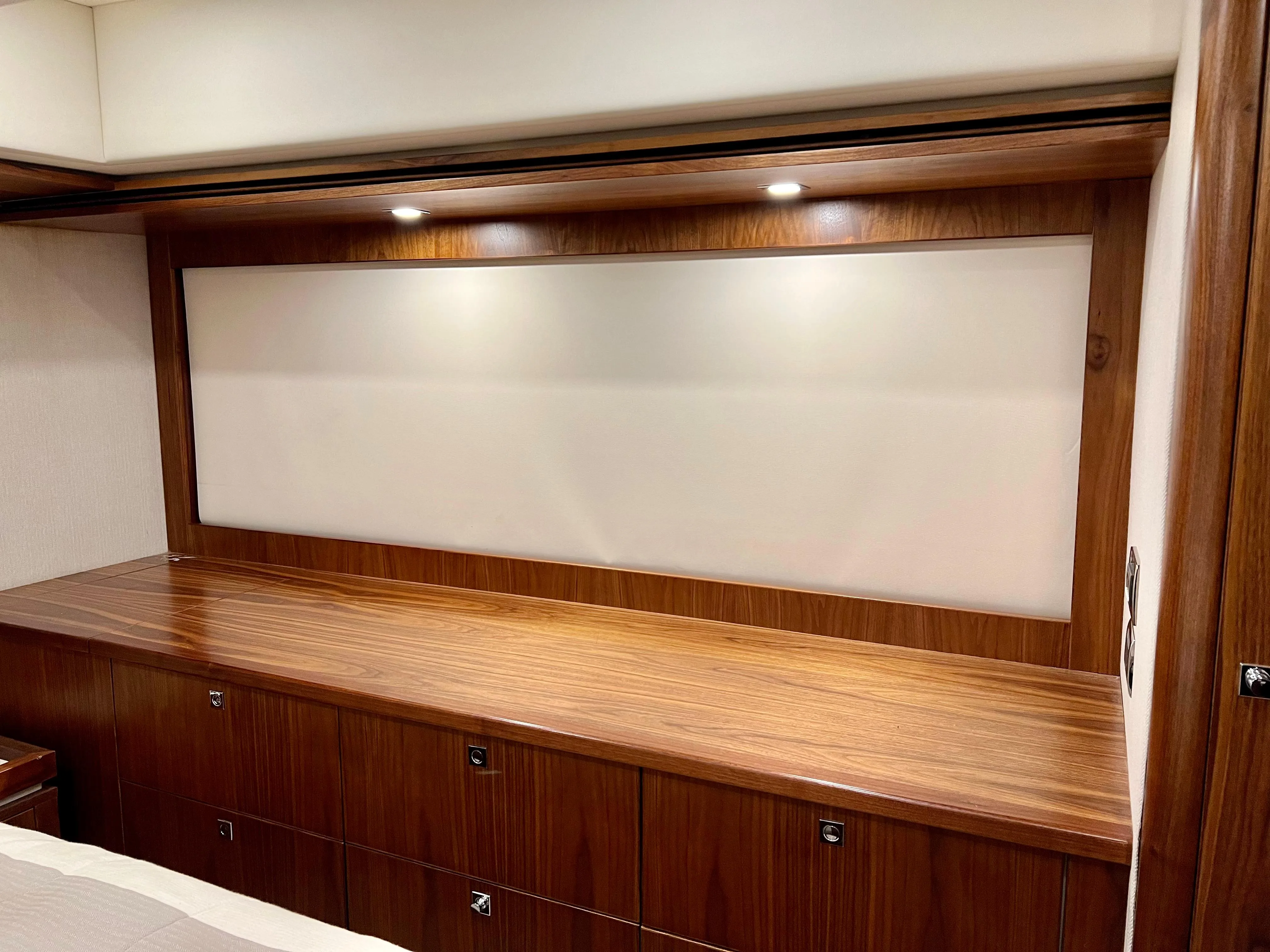

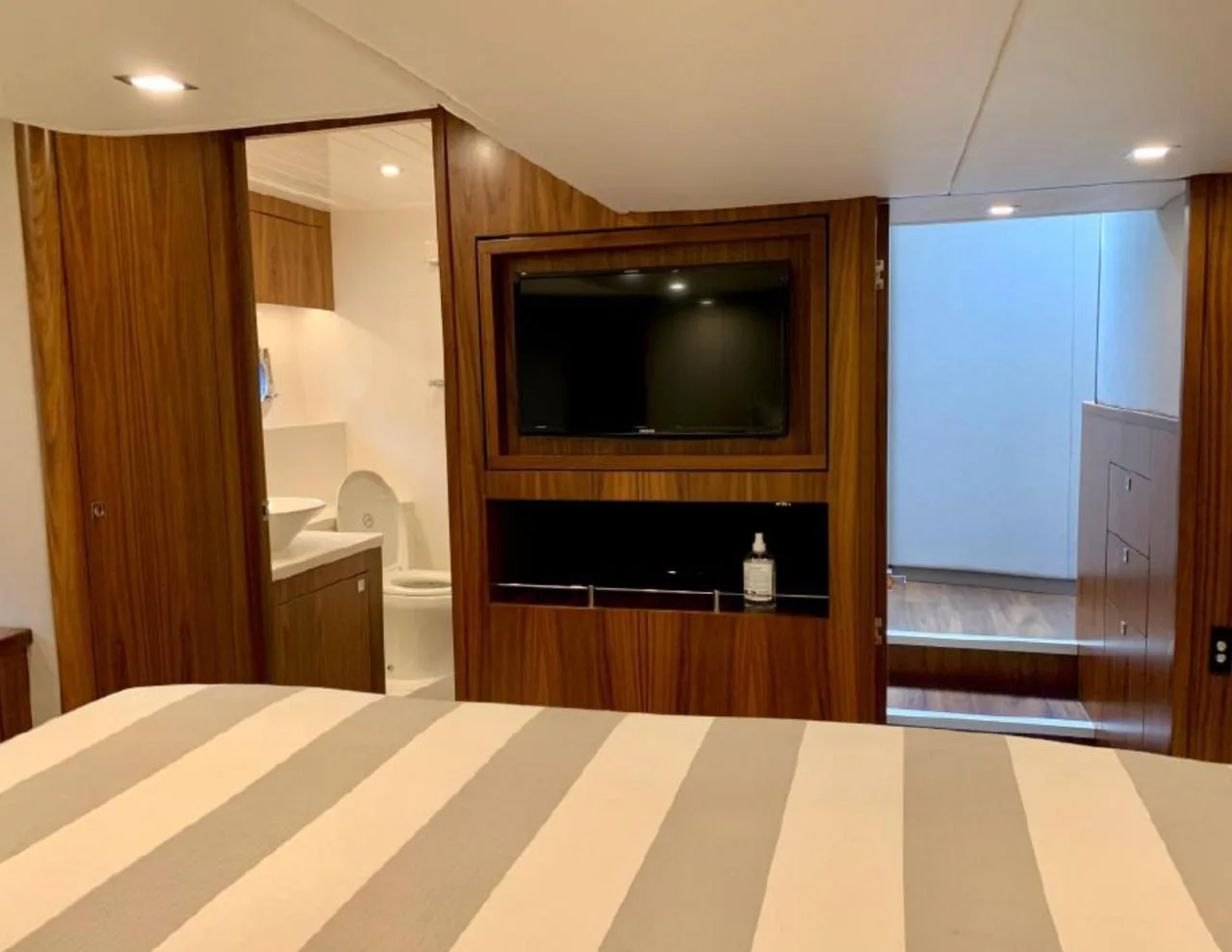

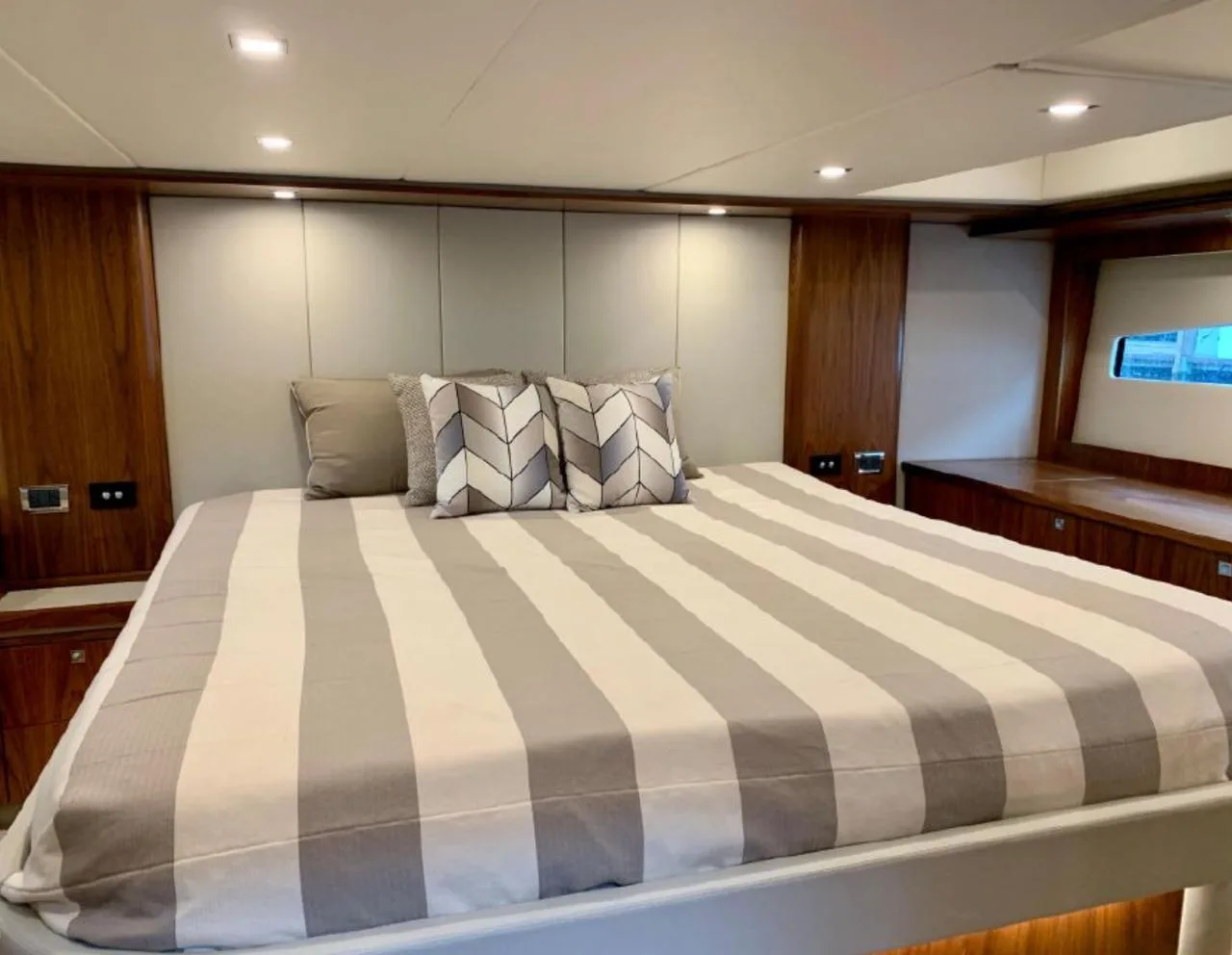

Stateroom Master - Aft
Air conditioning, with reverse cycle heat,
split to ensuite.
Berth, King size inner spring mattress
Safe (mounted into hanging locker)
Carpet with underlay
Drawers and storage to port side
Fixed hull windows fitted port and starboard in tinted
tempered glass including roller blinds matching saloon
selection
Hanging lockers (x2) cedar lined with auto lighting
Headboard - featured
Hull and head linings, vinyl covered with padding
Lounge, 2 seater to starboard
Portholes, 2 x round opening portholes and screens,
includes alarm to helm.
Private entrance door
Reading and overhead lighting (DC, LED)
Stateroom - Port
Air conditioning with reverse cycle heat, split from fwd
cabin
Berths, upper and lower (foam mattresses) with storage
under
Carpet with underlay
Hanging locker with cedar lining
Hatch - white with screen and blind
Hull and head linings, vinyl covered with padding
Private entrance door
Reading and overhead lighting (DC), LED
Superstructure
Enclosed hardtop - GRP double moulded, 4 sides
toughened glass, with sliding side windows, opening rear
bulkhead to connect indoor/outdoor areas
Sunroof, GRP electric open/close sliding over forward
cockpit
Sunroof, tinted glass electric open/close sliding over
helm/dinette area. Includes manual sliding screen & blind
Targa (GRP) on hardtop including light mast
Other Extras - Upgrades
Camera package - Include engine room (IR) camera, cockpit camera and anchor camera
Underwater lights. 3 x Aqualuma Gen 4 series 12 fitted to transom (blue)
Exclusions
Owner's personal belongings, including but not limited to personal toys, fishing and diving equipment.
Mechanical Disclaimer
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing.
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
