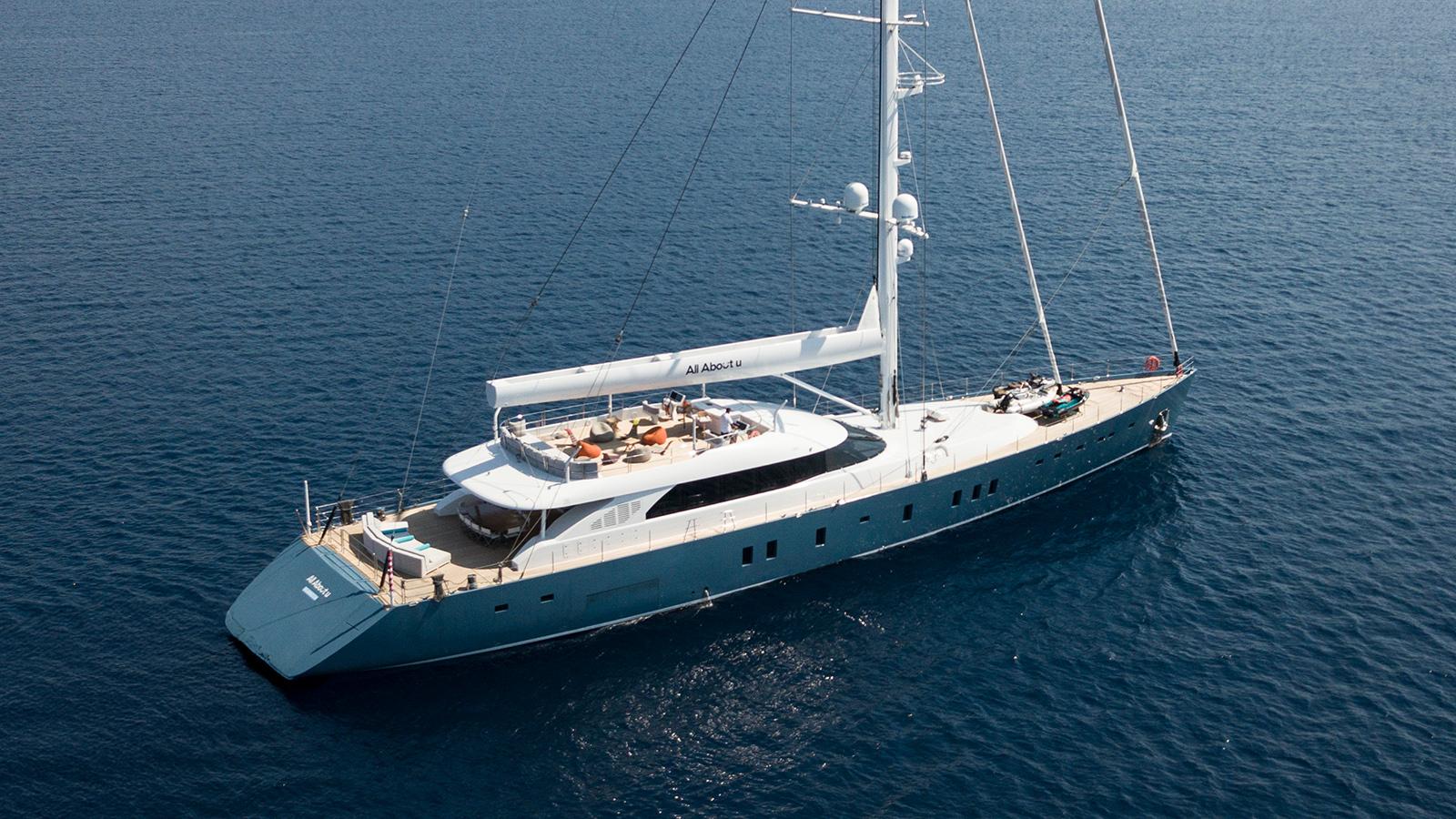

2018 Ada Yacht Sailing Yacht for Sale – 164 ft – Bodrum, Turkey

For further information please contact Leo Jordil at [email protected] or at +33 6 62 44 54 88



Accomodation

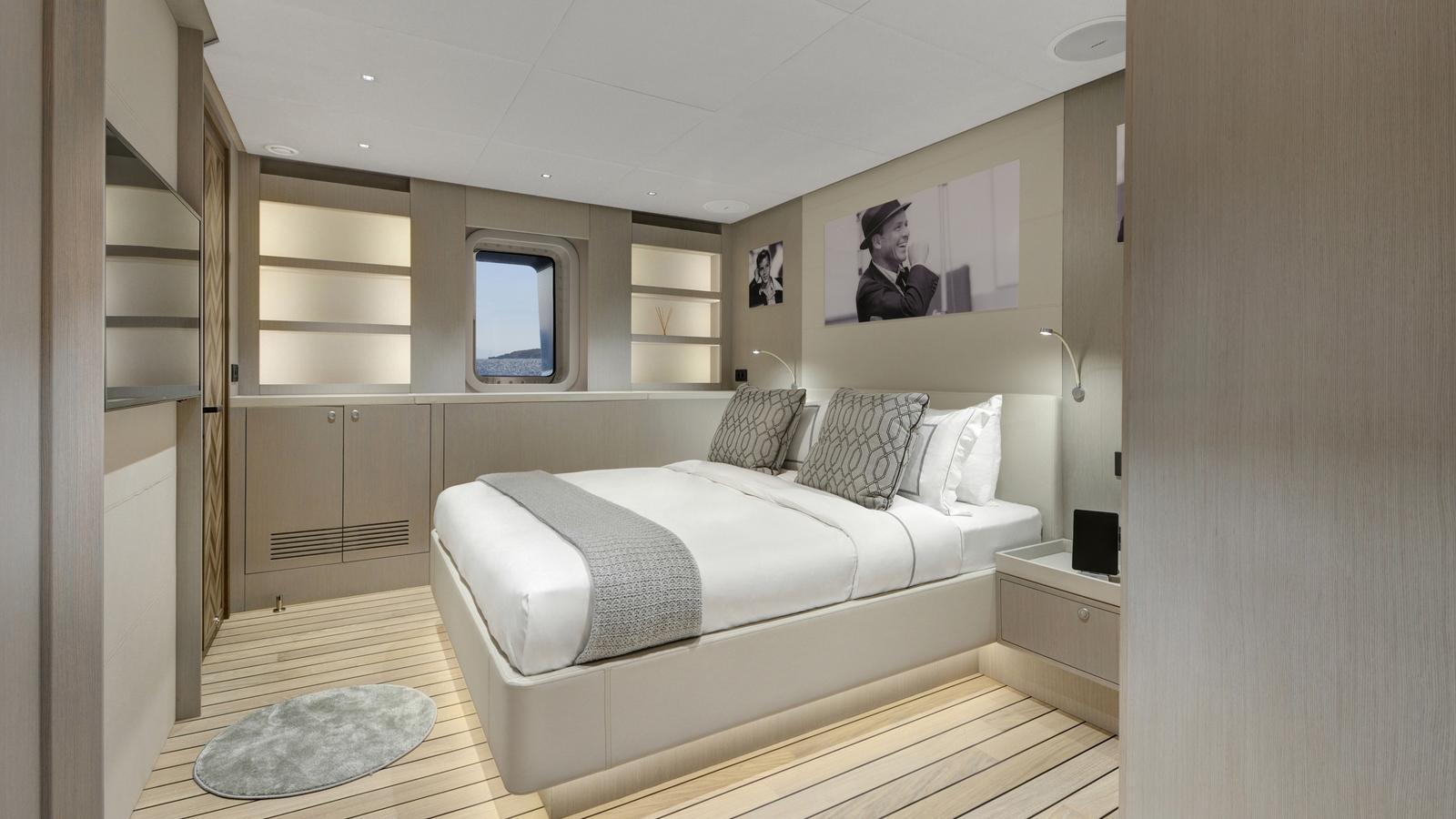

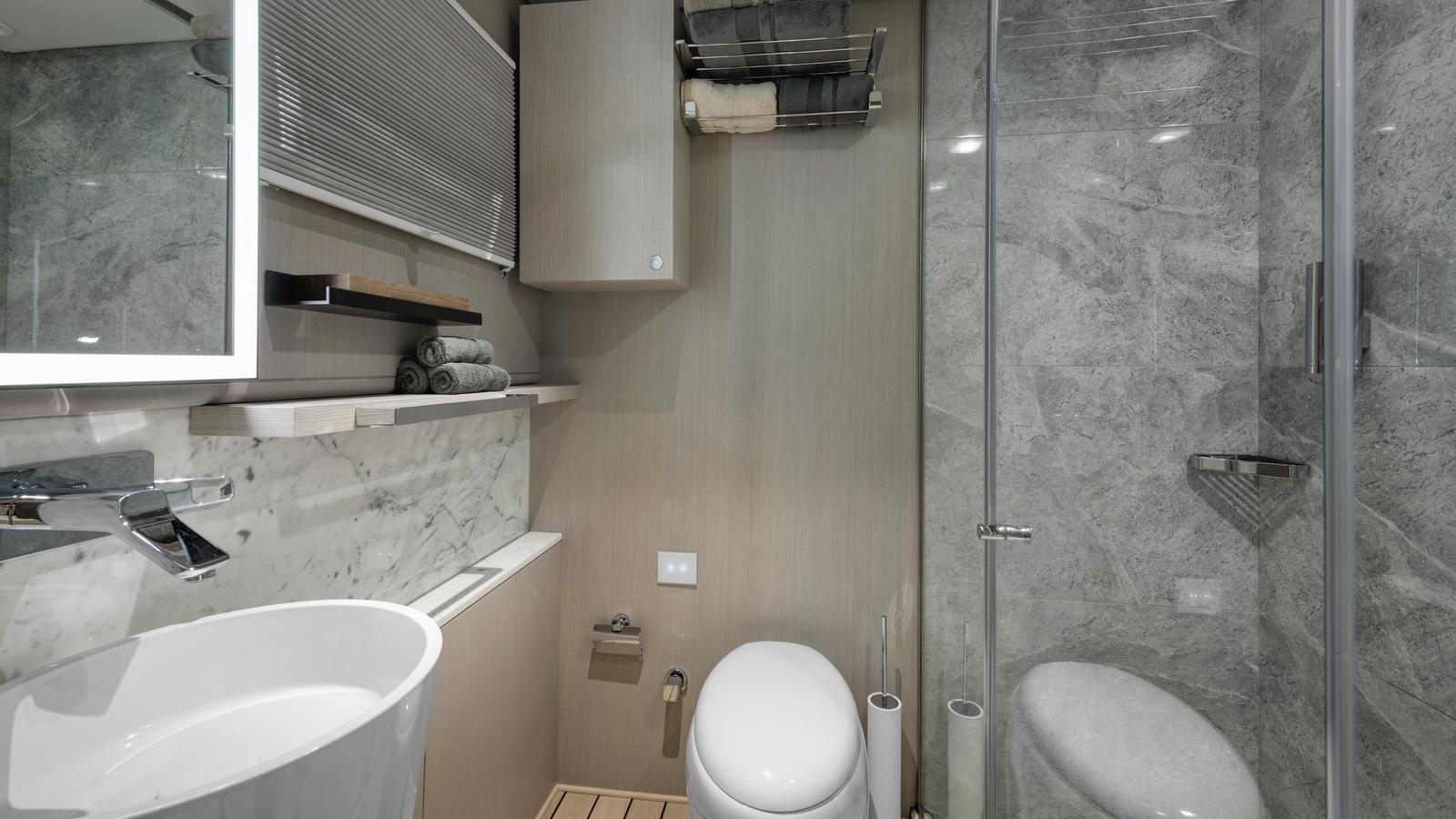

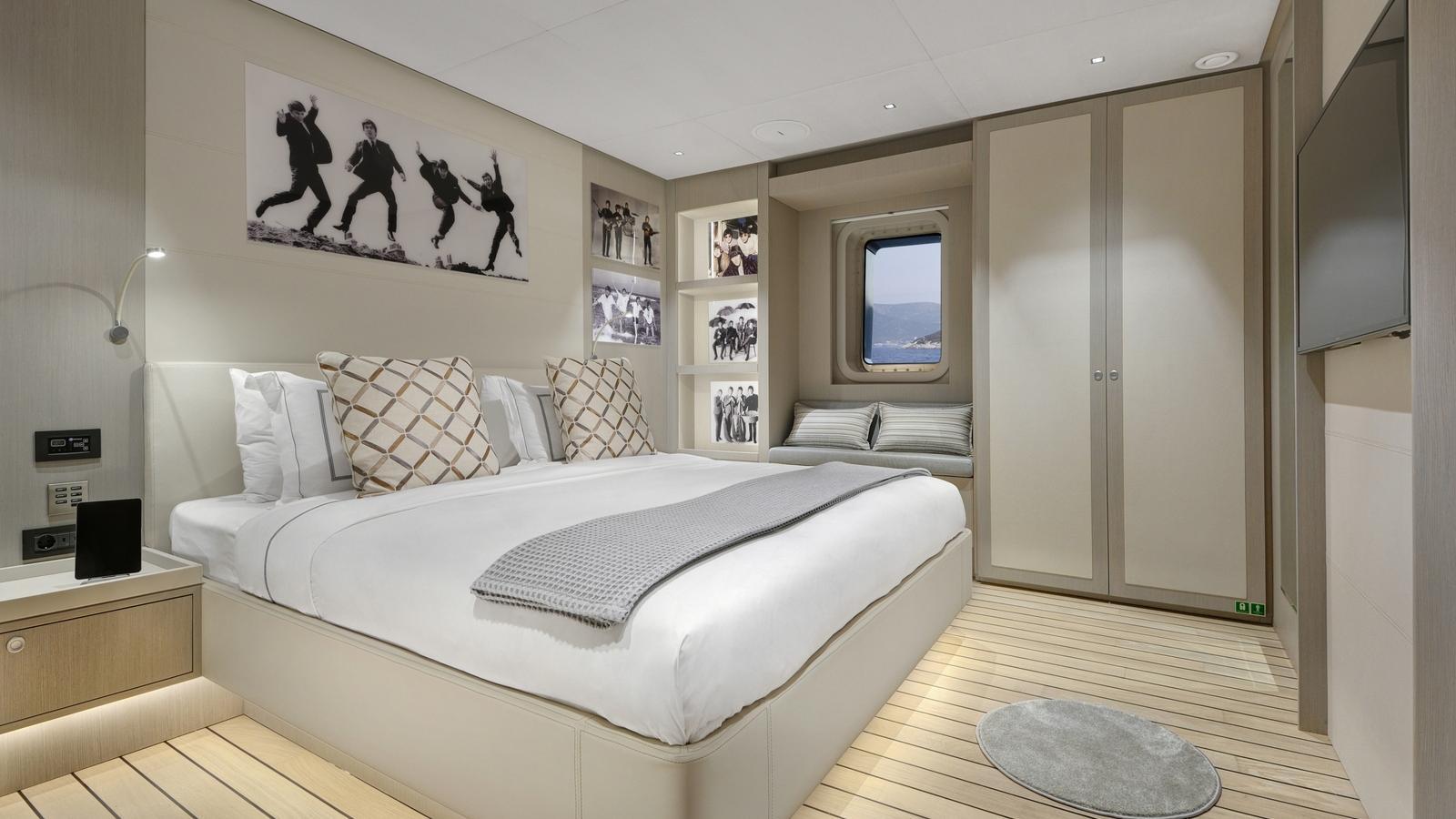

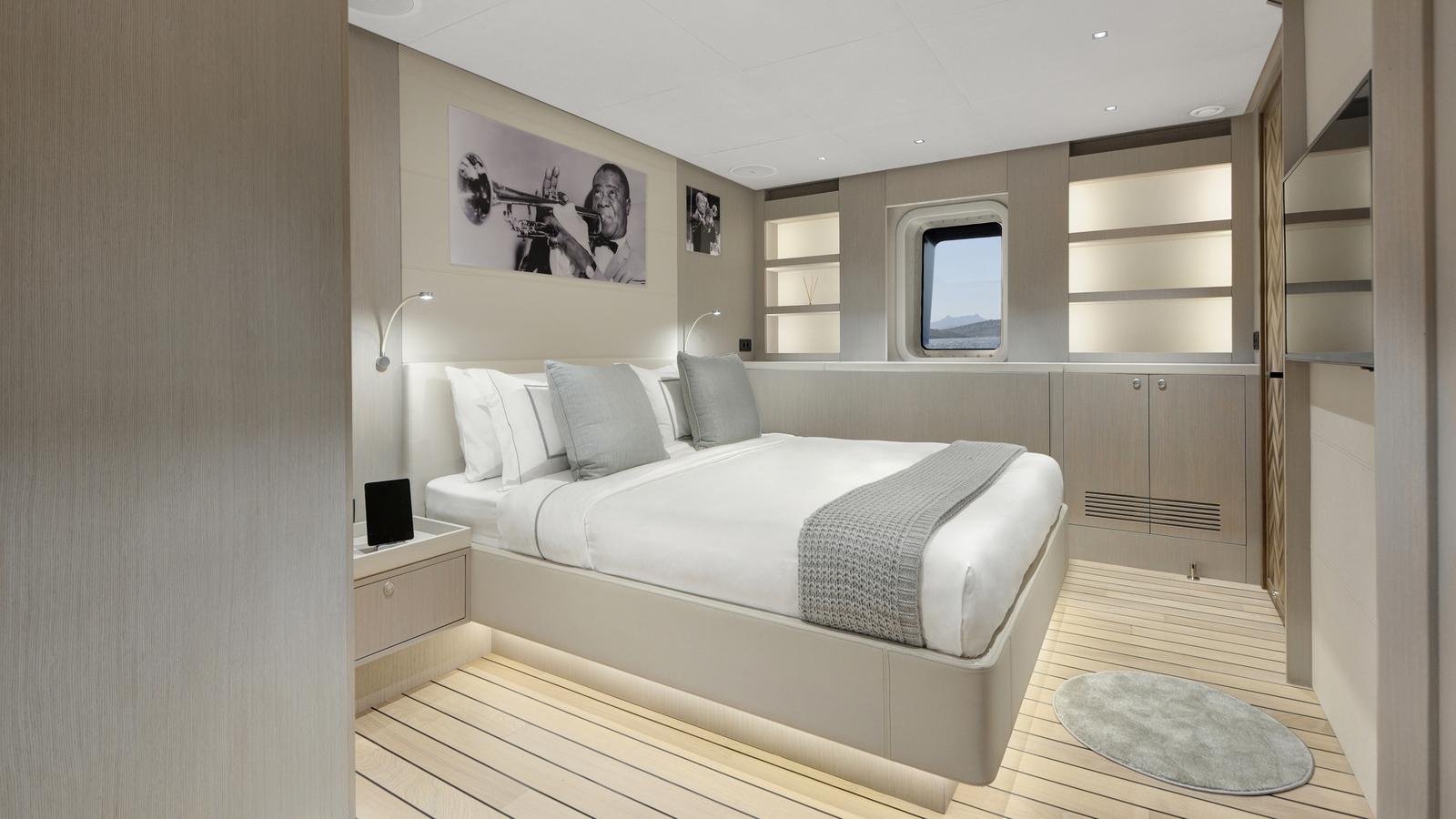

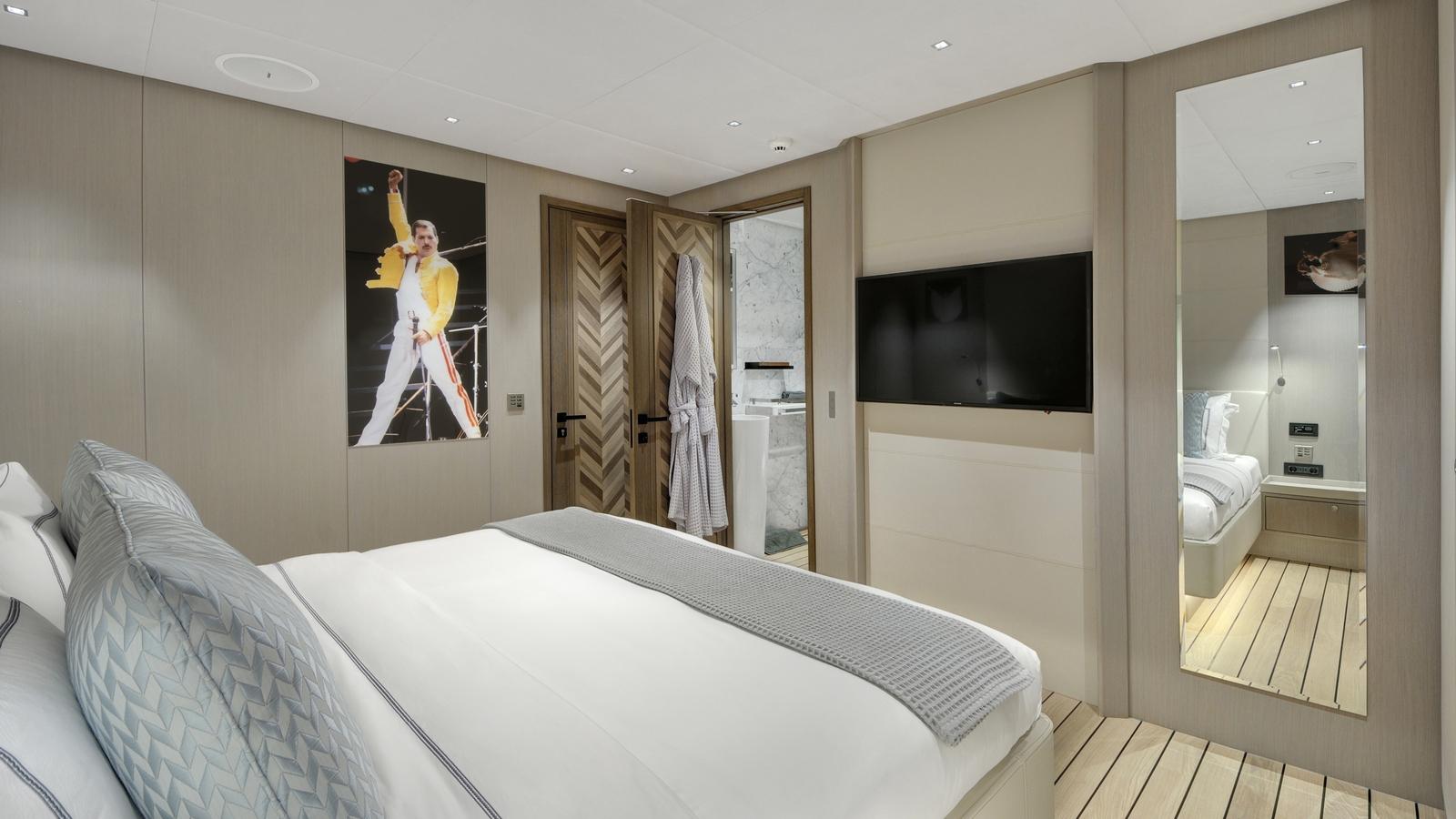

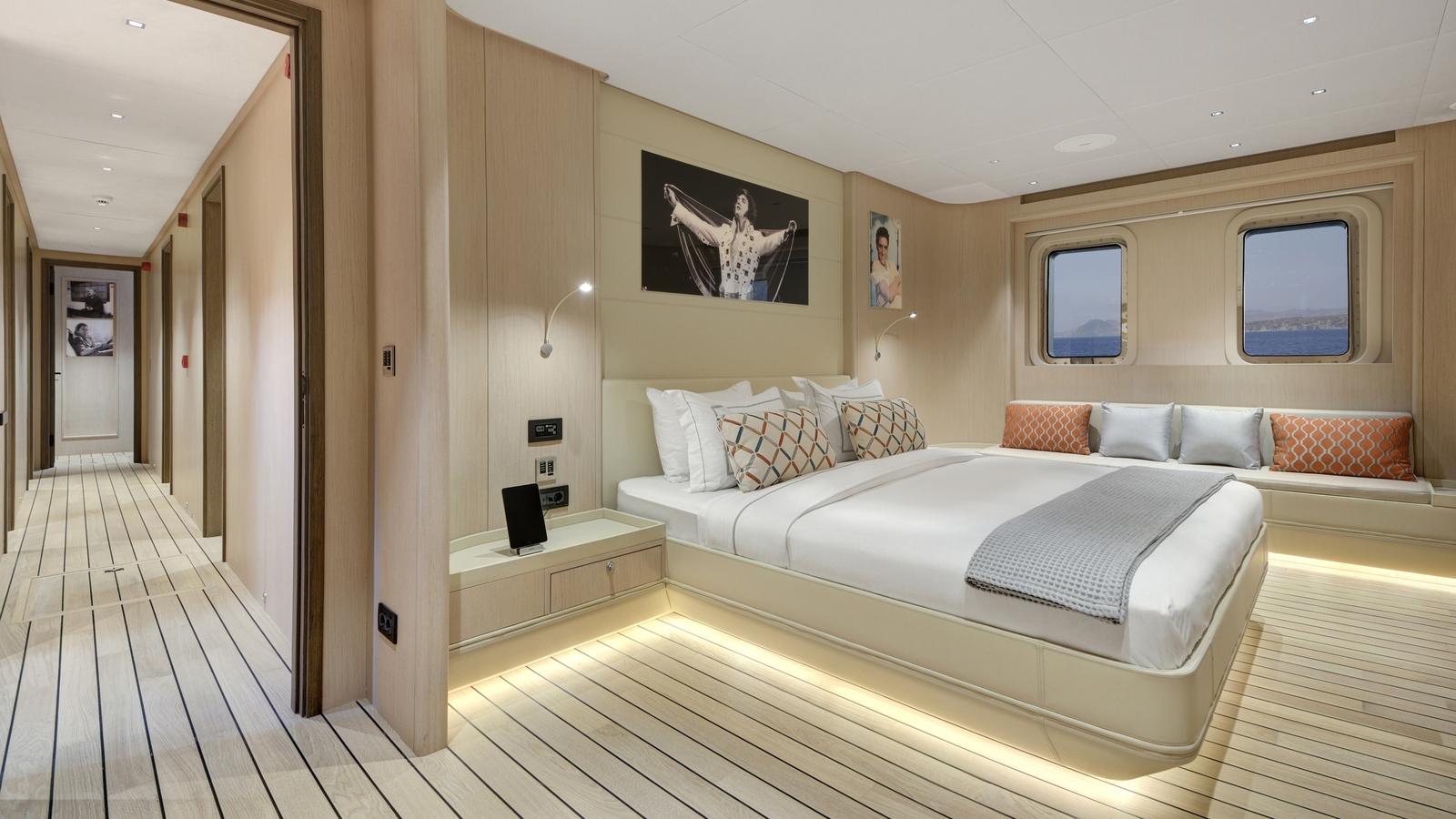

• Guest Cabins: There are 6 guest cabins on board. 1 master, 1 VIP and 4 cabins with double beds. Two of the double cabins are additionally equipped with a foldable bed. All cabins feature an en-suite bathroom, a wardrobe with hanging space, a bedside drawer and a TV. The VIP cabin is also equipped with a minibar.

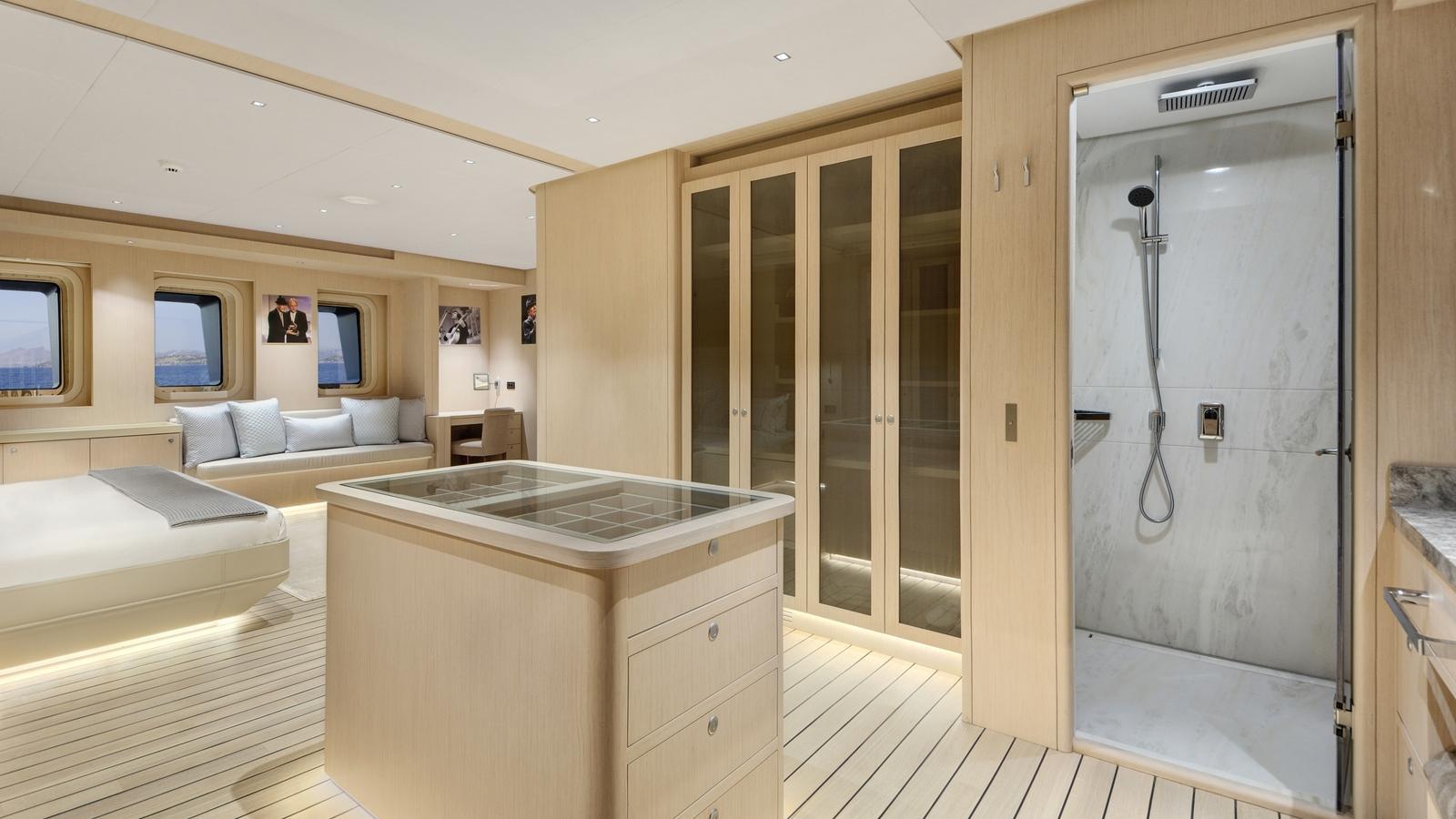

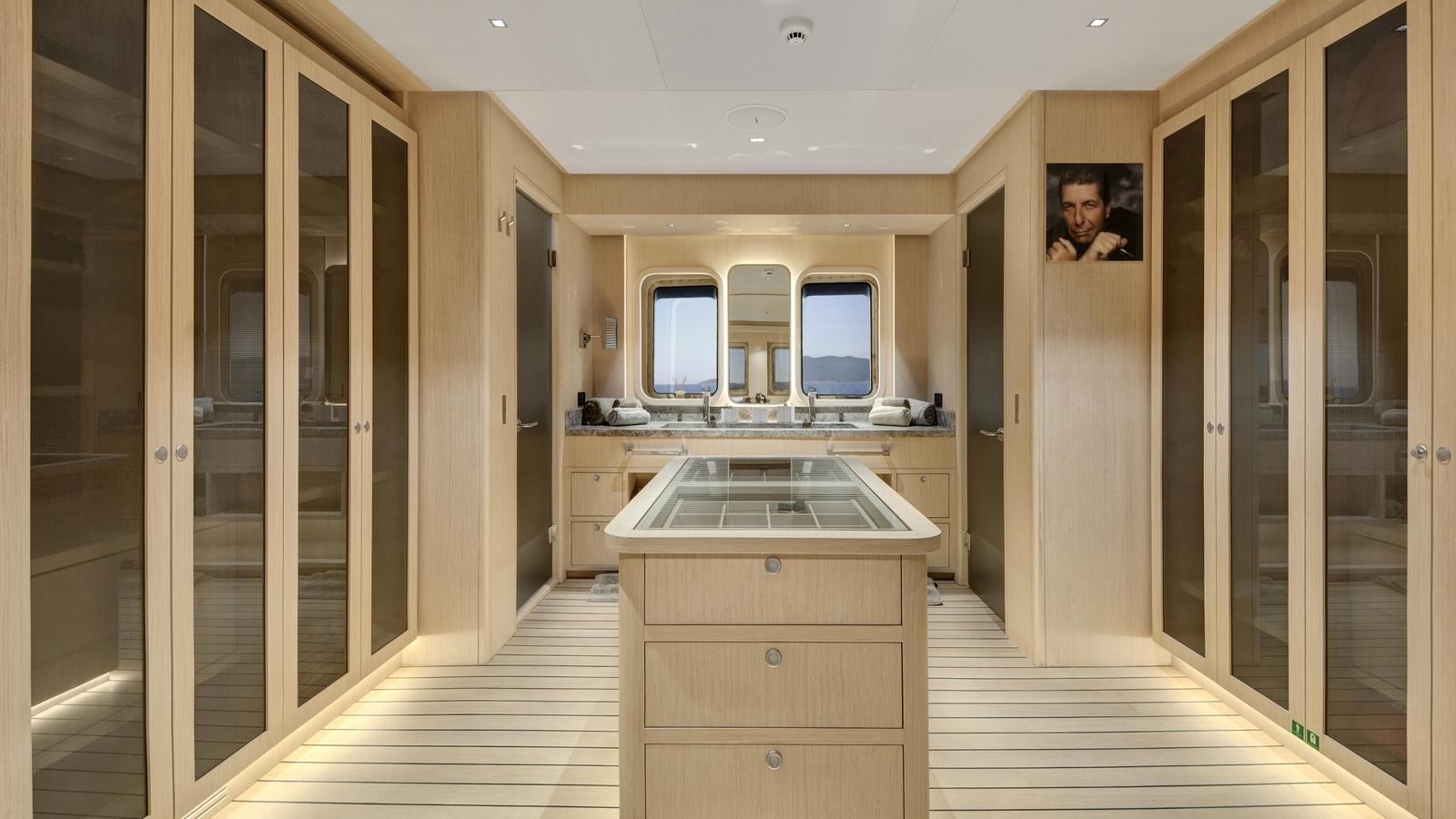

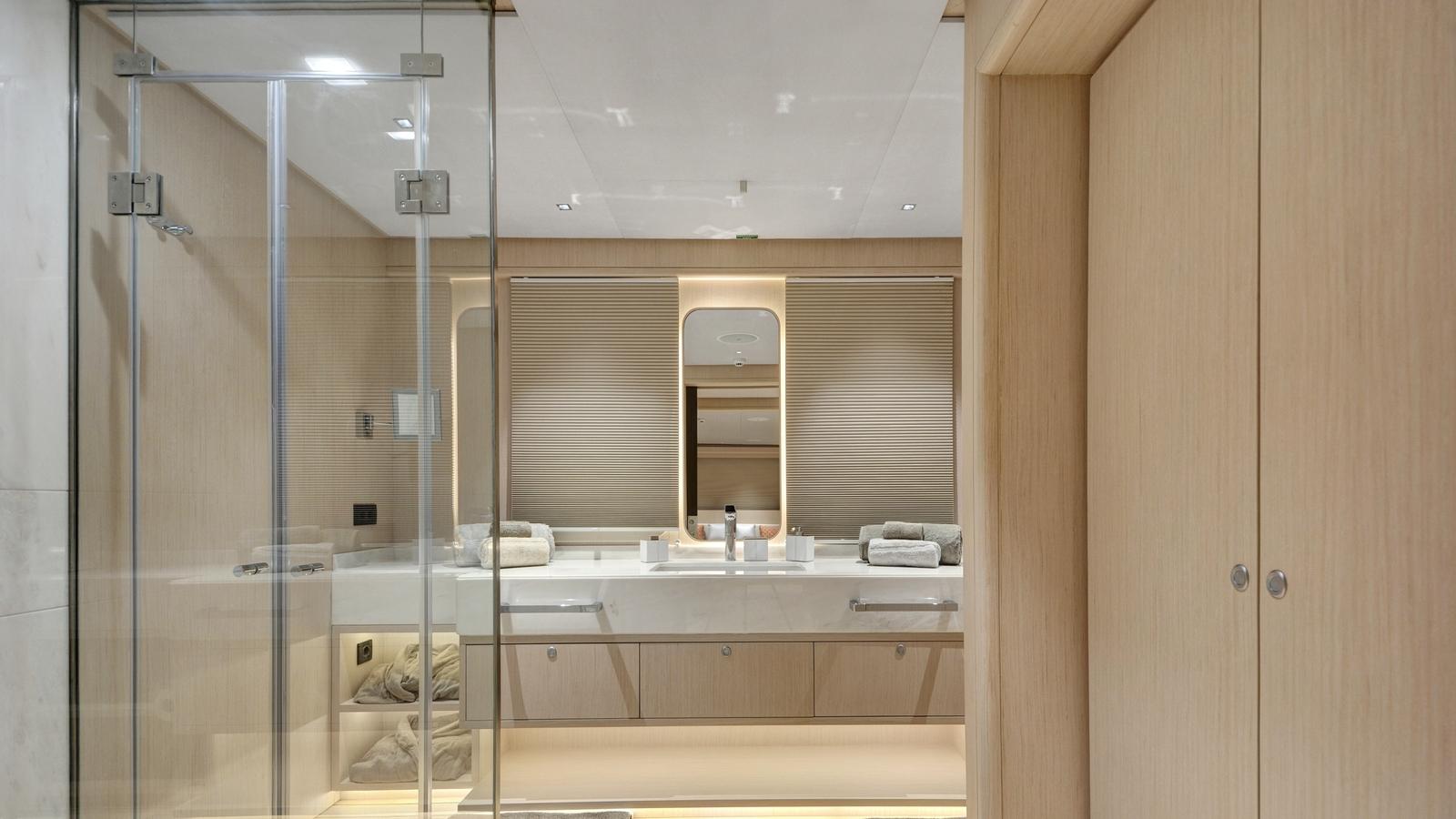

• Owner's Cabin: The master cabin stands as the most spacious and refined accommodation on board; designed for ultimate comfort and elegance. It includes a stylish vanity table, a dedicated dressing area with a built-in drawer unit and expansive wardrobe storage. The en-suite facilities are thoughtfully designed with a separate shower and toilet for enhanced privacy. A TV and minibar to complete the luxurious setting.
• Crew Cabins : There is 5 crew cabins on board to accomodate in total of 9 crew members. 4 of these crew cabins has bunk bed set up to accomodate 2 crew members each. 5th cabin furnished with a single bed for masters accommodation. All crew cabin are equipped with a bathroom and adequate storage for clothing. They are also equipped with A/C.

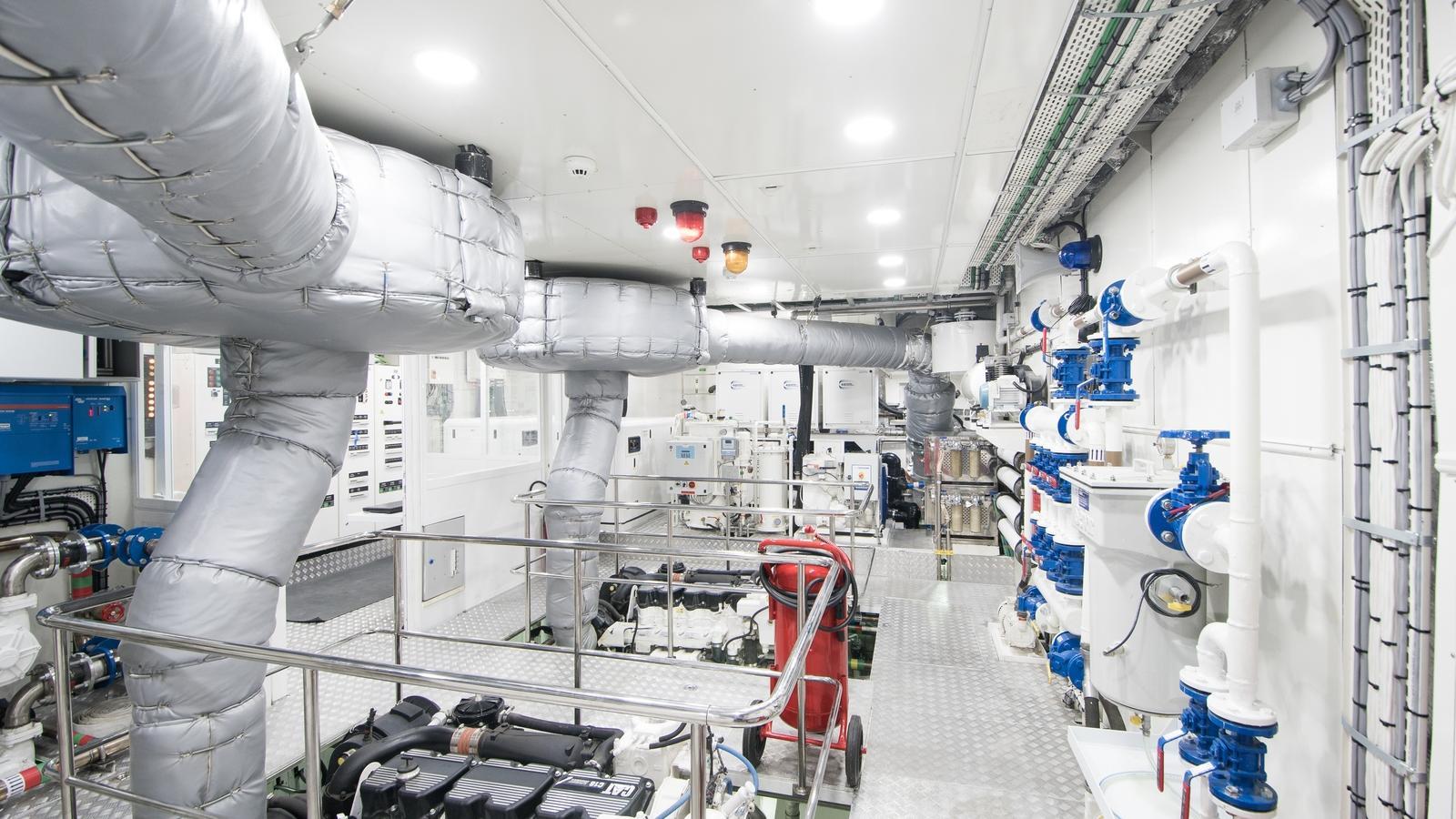

Engines

• 2 x CAT C18, 803 HP
• Fuel: Diesel
• Engine Hours (07/25): Port - 2227 hours, Starboard - 2227 hours
• Engines regularly serviced (MARCH 2025)

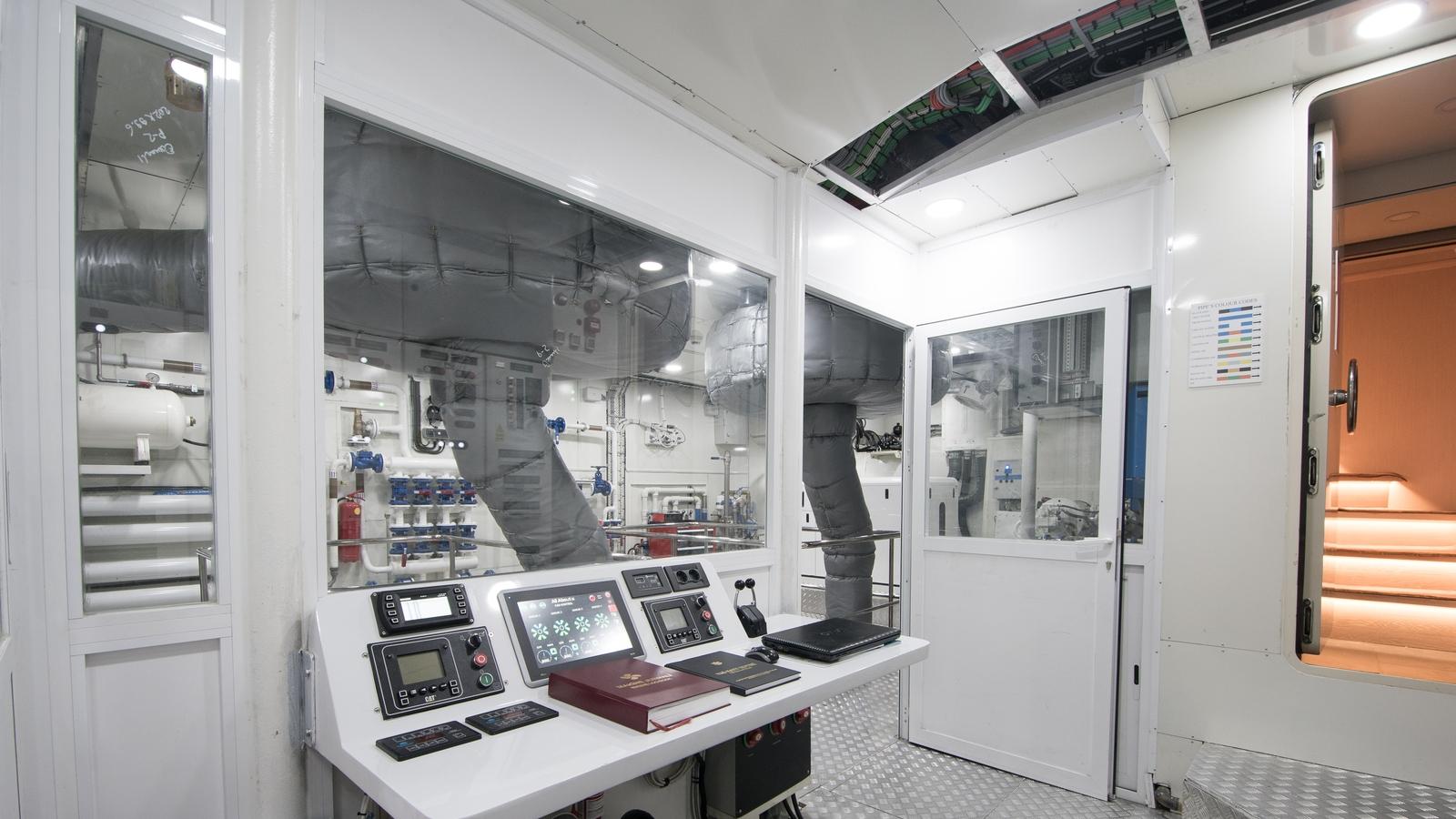

• Engine Controls:  CAT SCREEN + ZF THROTTLES
• Bow Thruster: LEWMAR Hydrolic 100HP - PTO
• Steering System: DATA DDM 2x2000
• Engine Ventilation: GIANNESCHI 4X Portside ELL/AP 318/3 A5, 4x Starboardside ELL/AP 318/3 B5

Generators

• Generators: 2x 80 KW Kohler
• Generator Hours (07/25)  - GEN1: 80 KW Starboard 9836h, GEN2: 80KW Port 9834, Gen3:45KW Port 9830h
• Batteries: Optima 8001-287 12 (6 pieces on total)
• Generators Fuel Consumption: 10 lt/h @ 30KW
• Hydraulic Power: LEWMAR Hydrolic Power Pack

Tank Capacities

• Fuel: 46000lt
• Fresh Water: 18000lt
• Grey Water,Black Water: 14900lt
• Bilge:730lt
• Dirty Lube Oil:1050lt
• Water Makers: 750 liters/hour, IDROMAR MC95 Duplex
• Sewage Treatment System: ECOMAR 45
• Black & Grey Water System:
• Toilet System: GUEST AREA; PLANUS, CREW AREA+DAY HEAD; TECMA
• Grey Water Transfer Pump: BONANI T2DCES40E2
• Sewage Treatment System: TECHNICOMAR ECOMAR 45(S)
• Fuel, Oil & Pumps:  Fuel Filters  Fuel Separator: SEPAR SWK-2000/130/M/P30/C01
• Fuel Transfer Pumps: 1x 24v DC 0,45KW, 1x 380v 1,8KW GIANNESCHI
• Oil/Water Separator: RWO OWS. COM 1.0
• Fire/Bilge Pump: FIRE; GIANNESCHI 9.2KW, BILGE; GIANNESCHI 9.2KW

Navigation Equipment

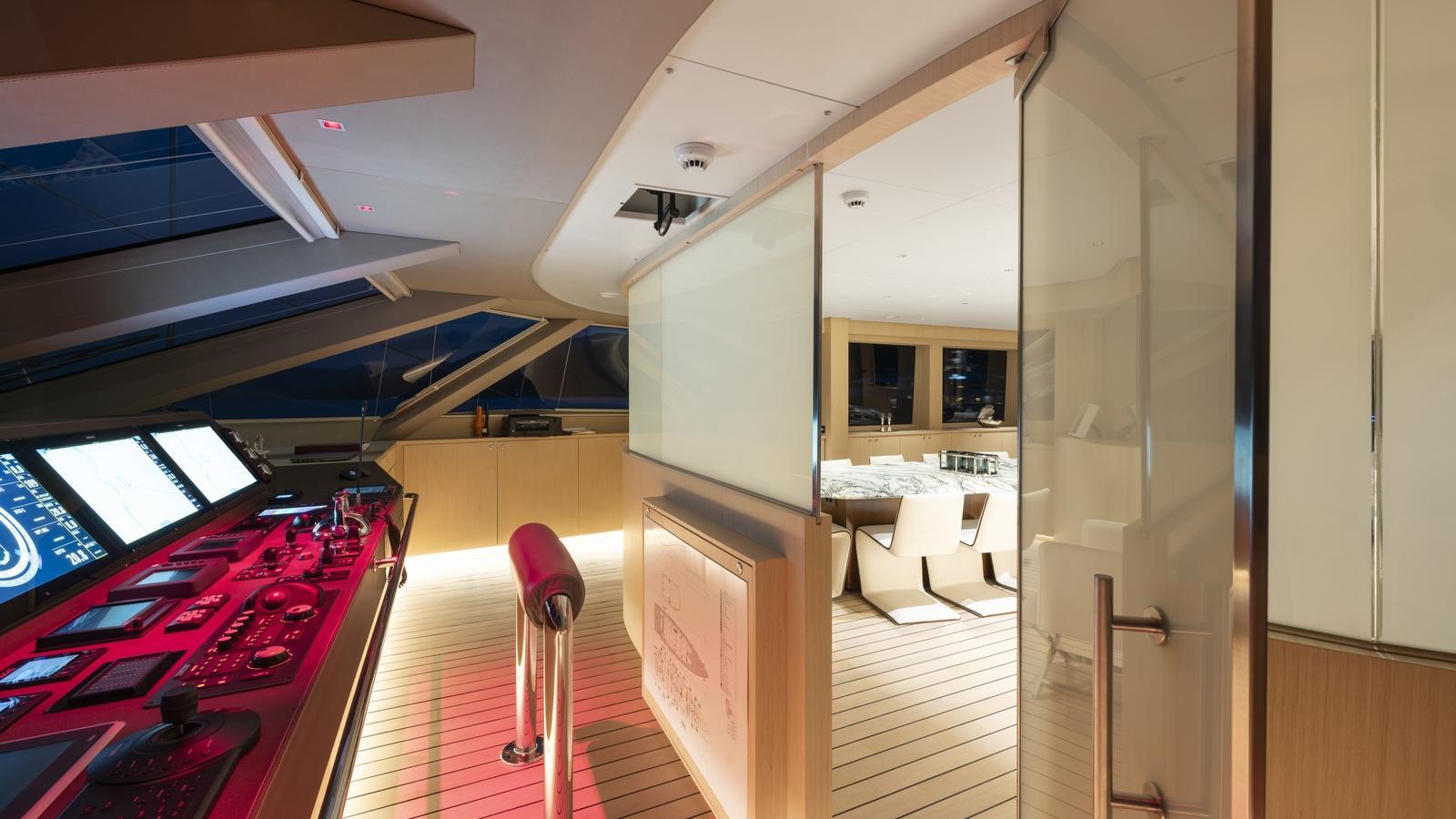

• Navigation System: Simrad, full commercial navigation package
• Radar: 1x SIMRAD S-Band Radar , 1x ARGUS X-Band Arpa Radar
• Magnetic Compass: Cassens&Plath
• Multiplexer: SIMRAD
• Autopilot: SIMRAD AP70 Autopilot
• Echosounder: SIMRAD S3009 Echosounder
• Cartography System
• GPS: SIMRAD GN70
• Displays: 4x SIMRAD 24’’ Bridge Displays 2x B&G 16’’ Zeus 3s Fly Bridge Displays
• Chart Plotter: NAVIONICS
• AIS: SIMRAD V5043 Class A AIS
• Navtex: SAILOR 6004
• Wind Instruments: B&G Weather Panels
• Weather Instruments: Analog Barometer, Thermometer, Hygrometer
• Rudder Angle Indicator: DATA

Communication Equipment

• VHF System: Sailor 6222 VHF DHC + 2x Portable VHF(ICOM IC – M87)
• SAT Com: Sailor 6018
• Intercom System: Phontech CIS3100 – 5 Zone Intercom System
• Internet: 2x Pepwave Routers , 8x Unifi Access Points

Audio and Visual Equipment

• SAVANT system with central server

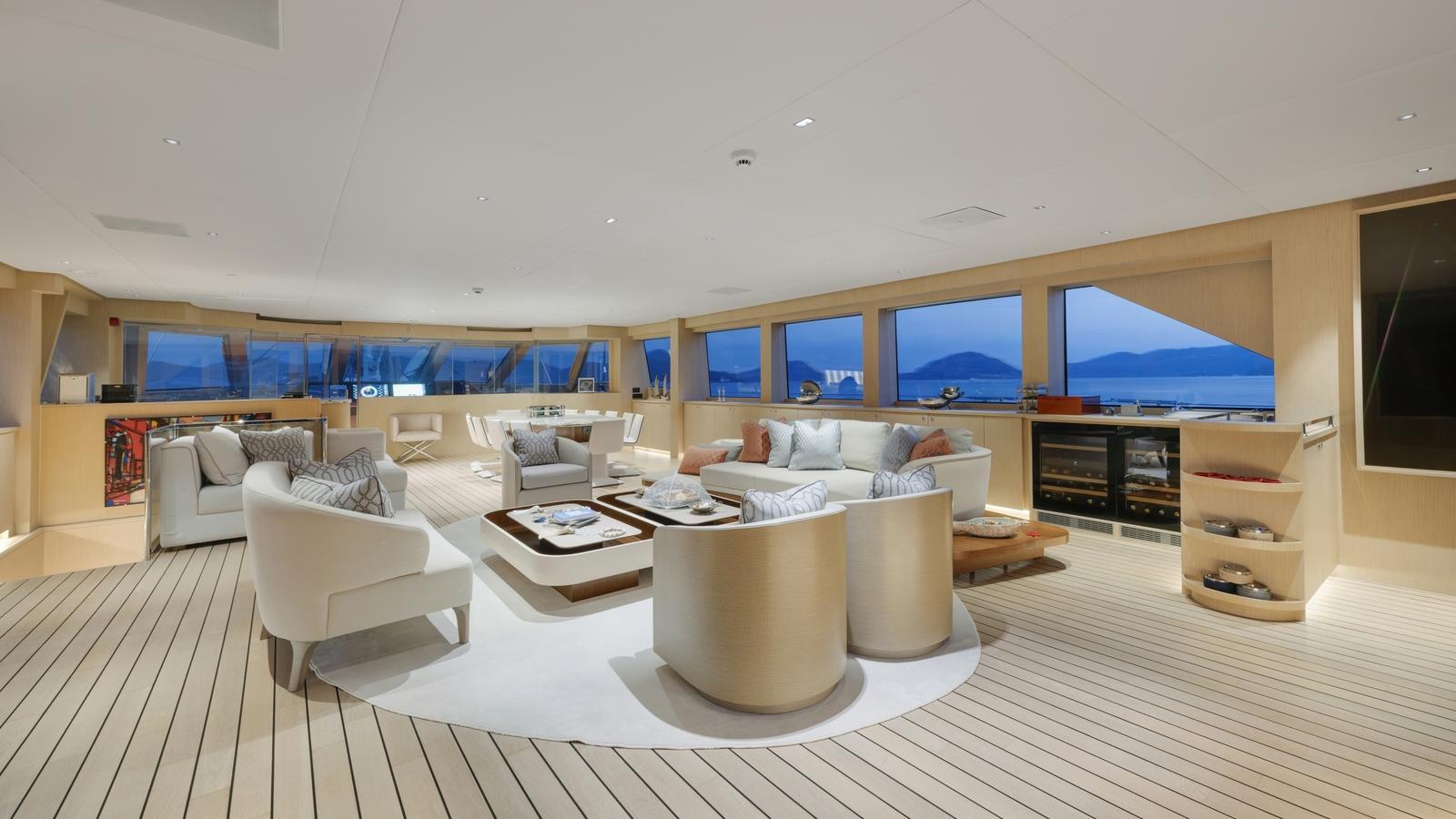

• Saloon Television: LG 60’’ SMART TV
• Sound system: Interior; BOSE Speakers, DALI subwoofer. Exterior; BOWERS&WILKINS speakers JL AUDIO Subwoofers.

Deck Equipment

• Anchor: 2x 260 KG Stainless Steel HHP Anchors
• Crane: 450 kg foredeck crane, 1OOO kg beam crane in the lazarette (custom)
• Gangway: Custom-built by ADA Yacht Works
• Side Boarding Ladder: Hydraulic, custom-made
• Windlasses: 2x Hydraulic Lewmar VIO
• Deck Winches: 4x Lewmar
• Furlers: 2x Admiral, Hydraulic

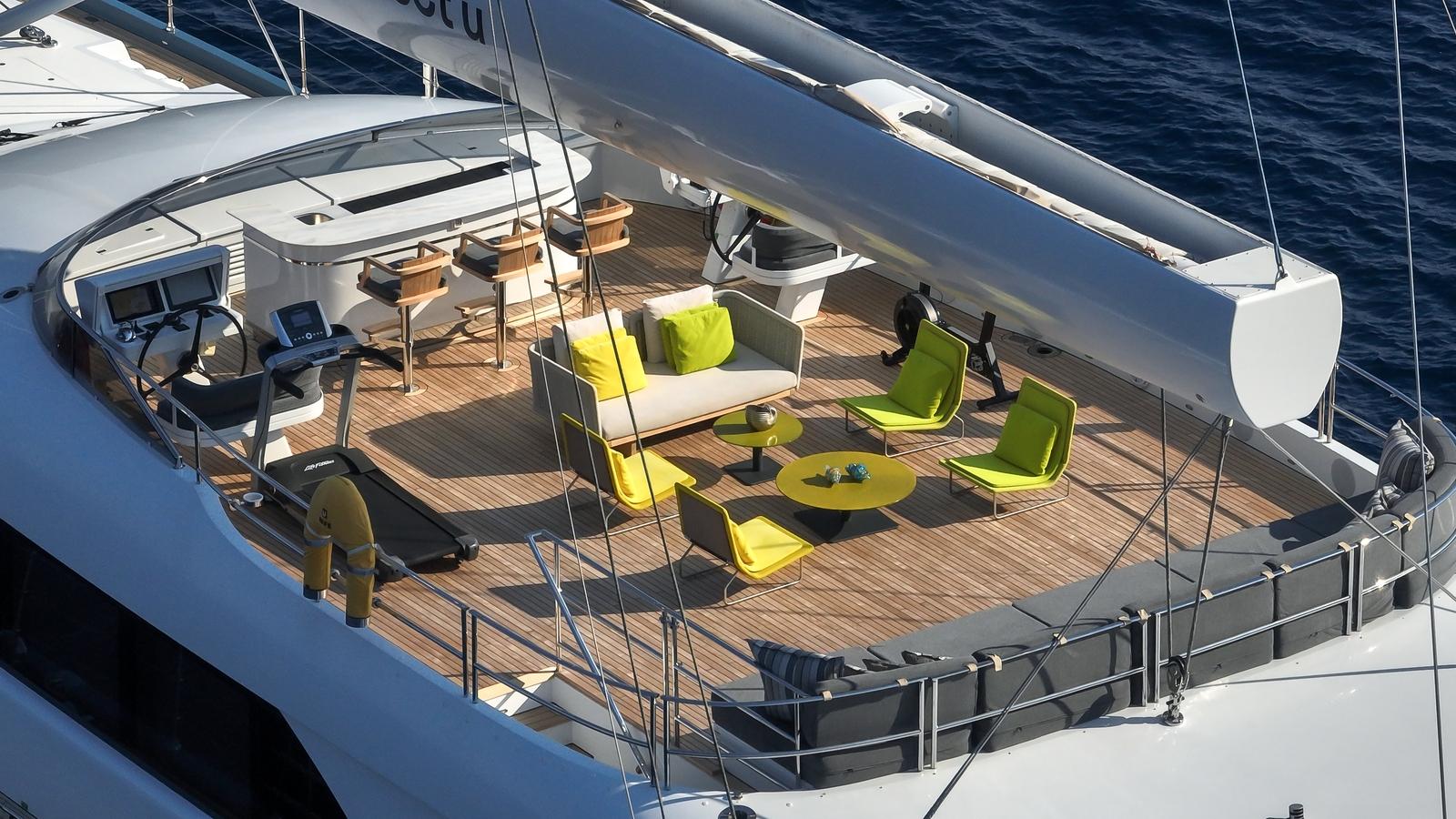

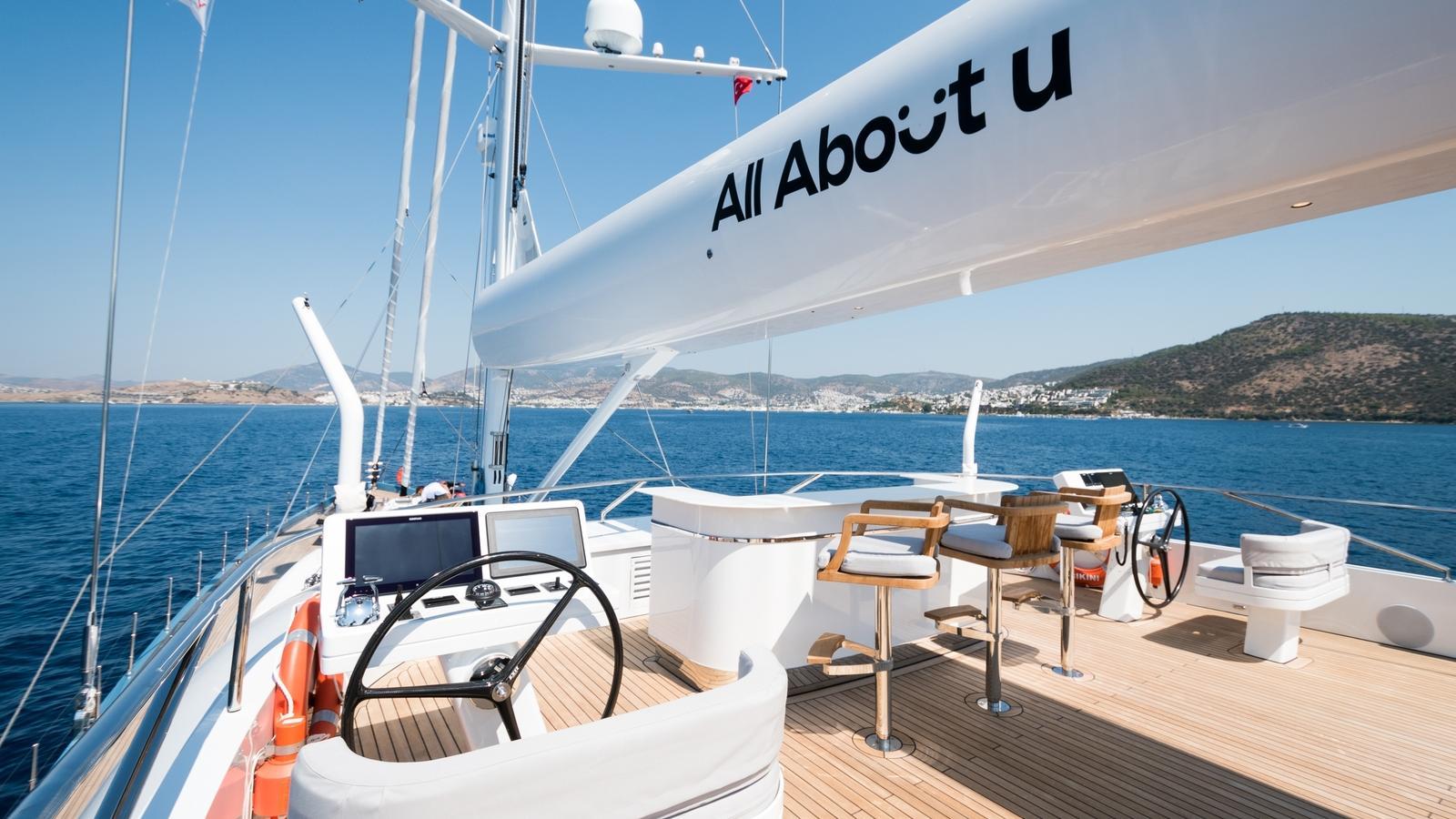

• Flybridge: Bar with fridge and ice maker, lounge area, duel steering pedestal

Ancillary Equipment

• Air Conditioning: FRIGOMAR 140 Series (3 Chiller Units)
• A/C Sea Water Pumps: 2x GIANNESCHI 01FCB40125A03
• Circulation Pumps: 2x GIANNESCHI 01FCG40123
• Ventilation: 2x AHU FRIGOMAR UTA1500
• Fresh Water System: GIANNESCHI 380v x 1,5KW AC + 24v 1,1KW DC
• Boilers: GUNSAN 380v 150LT x 2 pcs (300LT Total Capacity)
• Air Compressor: GIANNESCHI 220/400v 50 HZ 2,2KW 330lt/min@1200rpm
• Bow Thruster: 100 HP Lewmar
• Hydraulic Powerpack: Lewmar 15878
• Steering system: DATA
• Masts: Aluminum Doker
• Rigging System: BSI Rod Rigging
• In Boom Furler: Skaegen  Hydraulic Boom Vang & Rig Rams: Reckmann
• Captive Hydraulic Winches: Lewmar

Safety & Security

•  Lifesaving: Lifejackets: 31x Solas Approved Lifejackets
•  Liferafts: 3x 12 Person Viking Inflatable Liferafts
•  Spotlight: 2x MarinCo Spotlights
•  Fire fighting: Novec 1230 Fire Fighting System, 1x Emergency Fire Pump, 1x EMG Diesel Fire Pump, 4x Fire Hydrants + Nozzles and Hoses, 19x Fire Extinguishers, 2x E.E.B.D, 2x Fireproof Suits, 3x Fire Breathing apparatus.
• Fixed: Intellian FB500 Sat Phone
• Alarms: LycoMarine T1216C Fire Alarm System, 30x Detection Sensors, Bnwas Walker P7007, 5x Beijer Integrated Automation Unit Model: X2.
• Security System: Dahua Joystick Controlled CCTV System. 11x Solid Camera, 1x Movable Mast Camera.

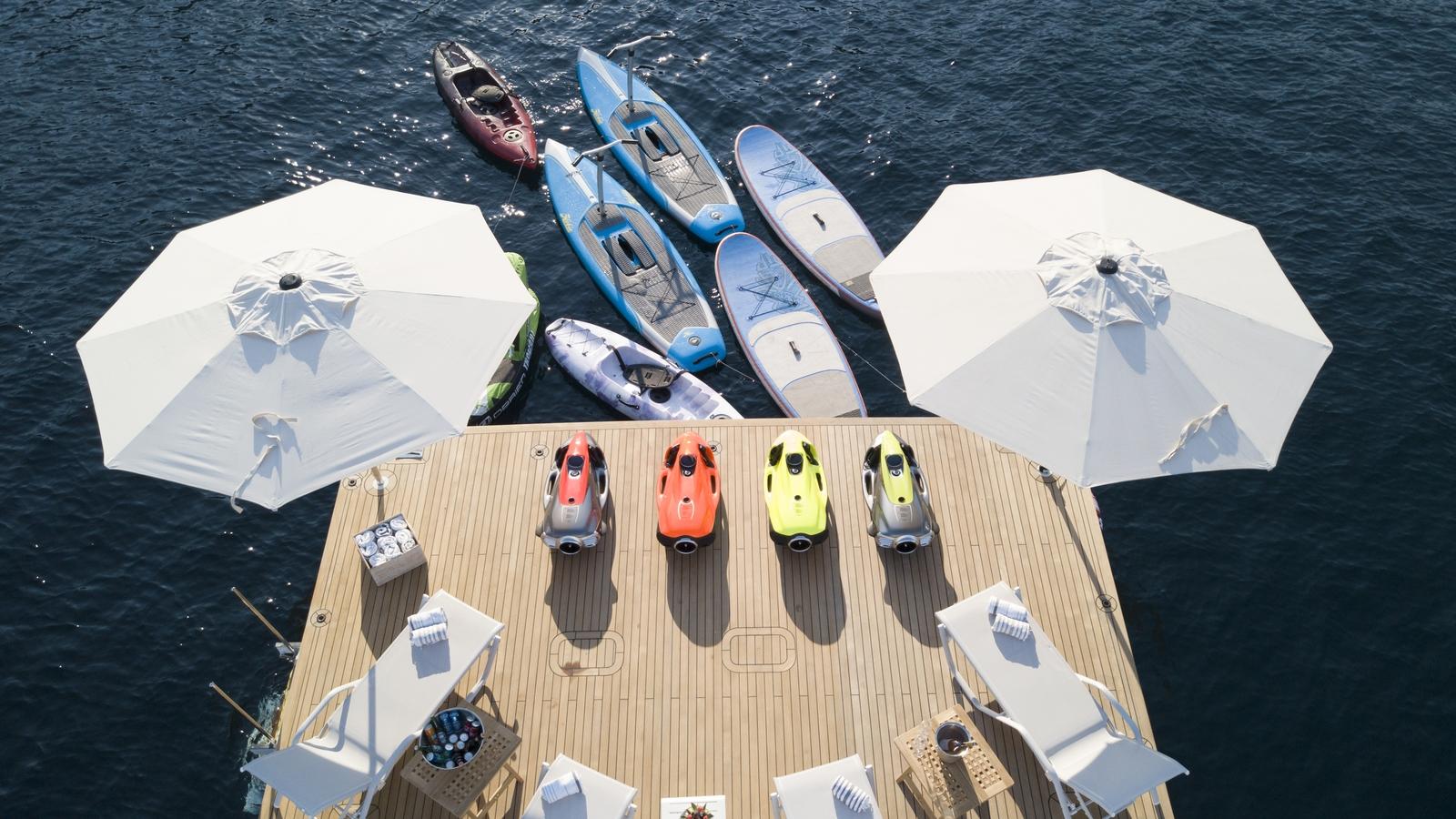

Tenders and Toys

• Main Dinghy - Williams 505 - YANMAR DIESEL
•  Crew Dinghy – WALKER BAY 340 – MERCURY 40HP Outboard
•  Seabobs: 2x SEABOB F5sr,2X SEABOB F5s.
•  E-Foil: 1x FLITEBOARD, 1x LYFT
•  Kayaks and SUPs: 2x O BRIEN Paddle boards, 2x HOBIE MIRAGE ACX PaddleBoard, 1x Two person kayak.
•  Jet Ski: SEADOO RXT 300hp ROTAX, SEADOO WAKE 230 ROTAX.
•  Ski Equipment: Wakeboard, Monoski.
•  Safety Gear: Watersports lifevests for all sizes.

Refit

Works Done 2023/2024

• Anchor winches maintenance
• Safety equipment annual maintenance
• GMDSS annual maintenance
• A/C system maintenance
• Sail hydraulic system leakage repair
• North Sails storage/service
• Winterizing by Avart Marine
• Winterizing by West Marine
• RINA class annual survey
• AIS and navigation screens support
• All toys – regular maintenance / winterising
• Williams jet skis (Walker) – regular maintenance / winterising
• Flag State annual survey
• Bow crane general maintenance
• Savant system
• Generators maintenance
• CAT main engines maintenance
• Swage treatment system maintenance
• Emergency generator maintenance
