Hull
● Modified ‘V’ planing hull w/ TrELiS Ⓓ
● Back Cove white iso-npg gelcoat w/ vinylester backup resin
● VIP Resin Infused Hull w/ PVC foam core bottom and topsides
● VIP Resin Infused foam core stringer system w/ integrated stabilizer
tapping plates
● Painted boot stripe
● Molded cove stripe depression w/ “gold or silver leaf” style stripe and
Back Cove Heron
Deck
● Back Cove white gelcoat w/ graystone anti-skid on walking surfaces
● VIP Resin infused balsa core sandwich structure
● Mooring cleats forward, aft and mid-ship (aft cleats are pull-up style)

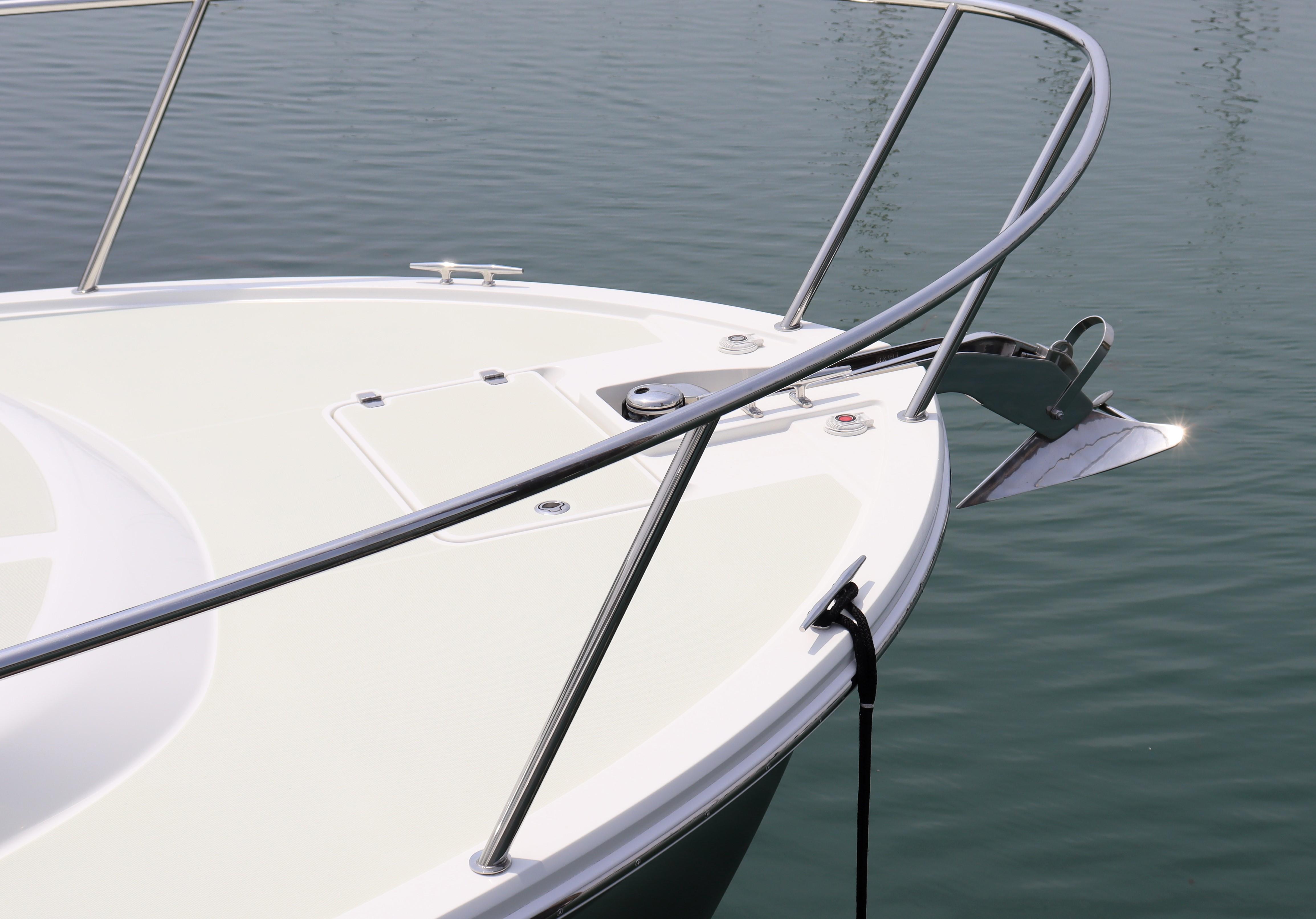

● Stainless steel bow roller, single anchor
● Anchor locker w/ ground tackle storage
● Stainless steel flagstaff receiver
● Removable burgee staff

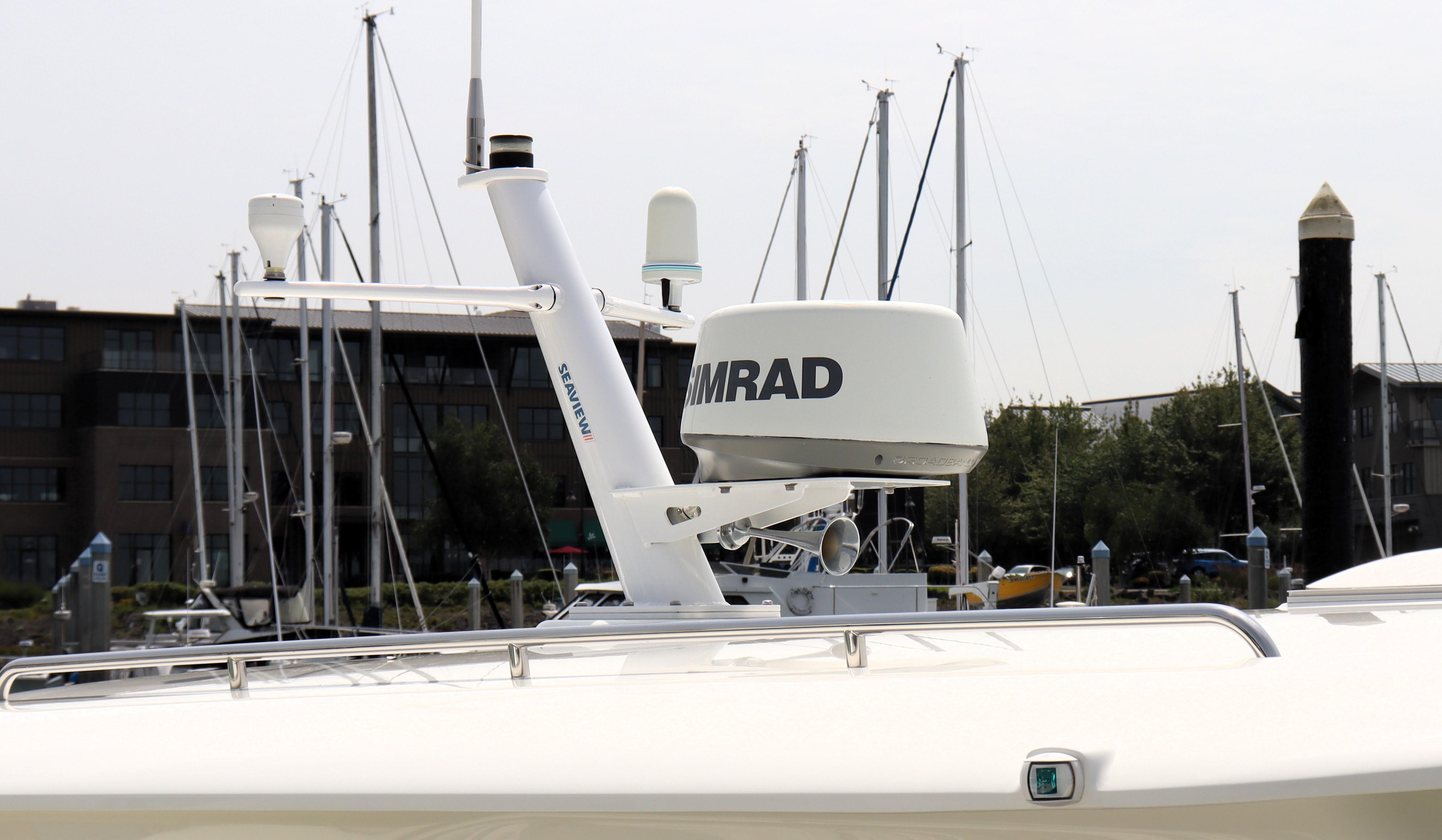

● LED hard top mounted running lights all-around anchor/ nav light
● Teak accent stripe on cabin side
● Custom 1-1/4’’ 316L stainless steel perimeter rail
● SS handrails on hard top, port and starboard
● Compressed air horn on hard top (mast optional)
● (4) opening port lights w/ insect screens and shades
● Port & starboard molded steps leading to side and fore deck

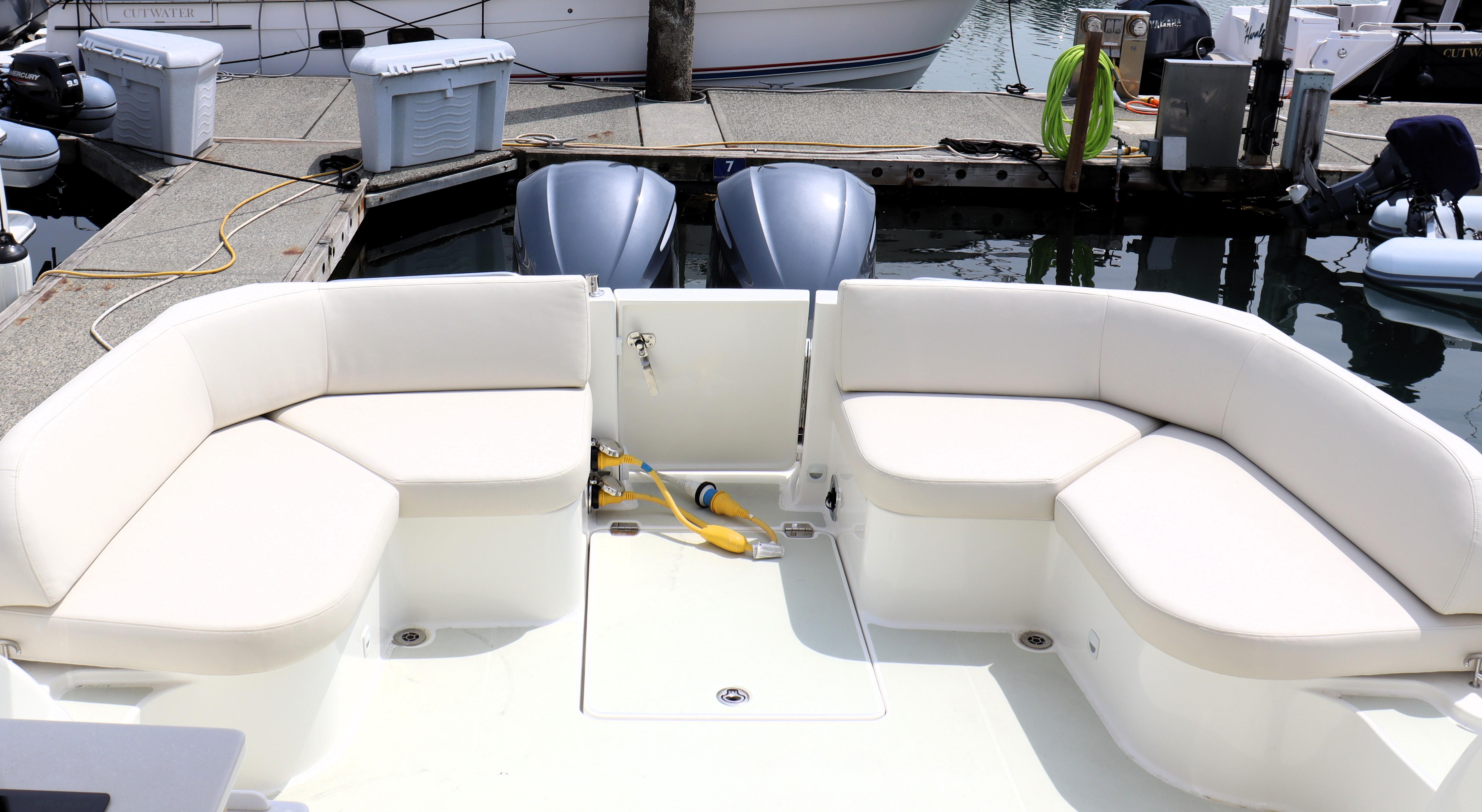

● Molded quarter seating in cockpit w/ storage, port, and starboard
● Transom door on centerline
● Cockpit hatch to lazarette
● P&S swim steps w/ SS under-mount swim ladder on starboard side
● Hot and cold cockpit shower
● Self-draining cockpit
● Acrylic, companionway sliding door with screen
● Stainless steel cockpit grab rails behind cockpit seats on coaming
● Swim step engine well w/drain and hinged hatch cover
● Transom mounted stainless steel grab rails at swim steps (P&S)
Fuel System
● 242 US gallon aluminum fuel tank w/ 1.5” deck fill to port; vented with
overfill protection
● Evaporative emission carbon canister
● 25 US gallon vented cross-linked polyethylene diesel tank w/ 1.5” keyed
deck fill on transom
● Racor fuel/water separator filter for generator
Mechanical Systems
● Electronic steering
● Electric actuated, Zipwake dynamic control system w/auto control
● Sleipner bow thruster w/ joystick control (SE50)
● Hot and cold pressurized water

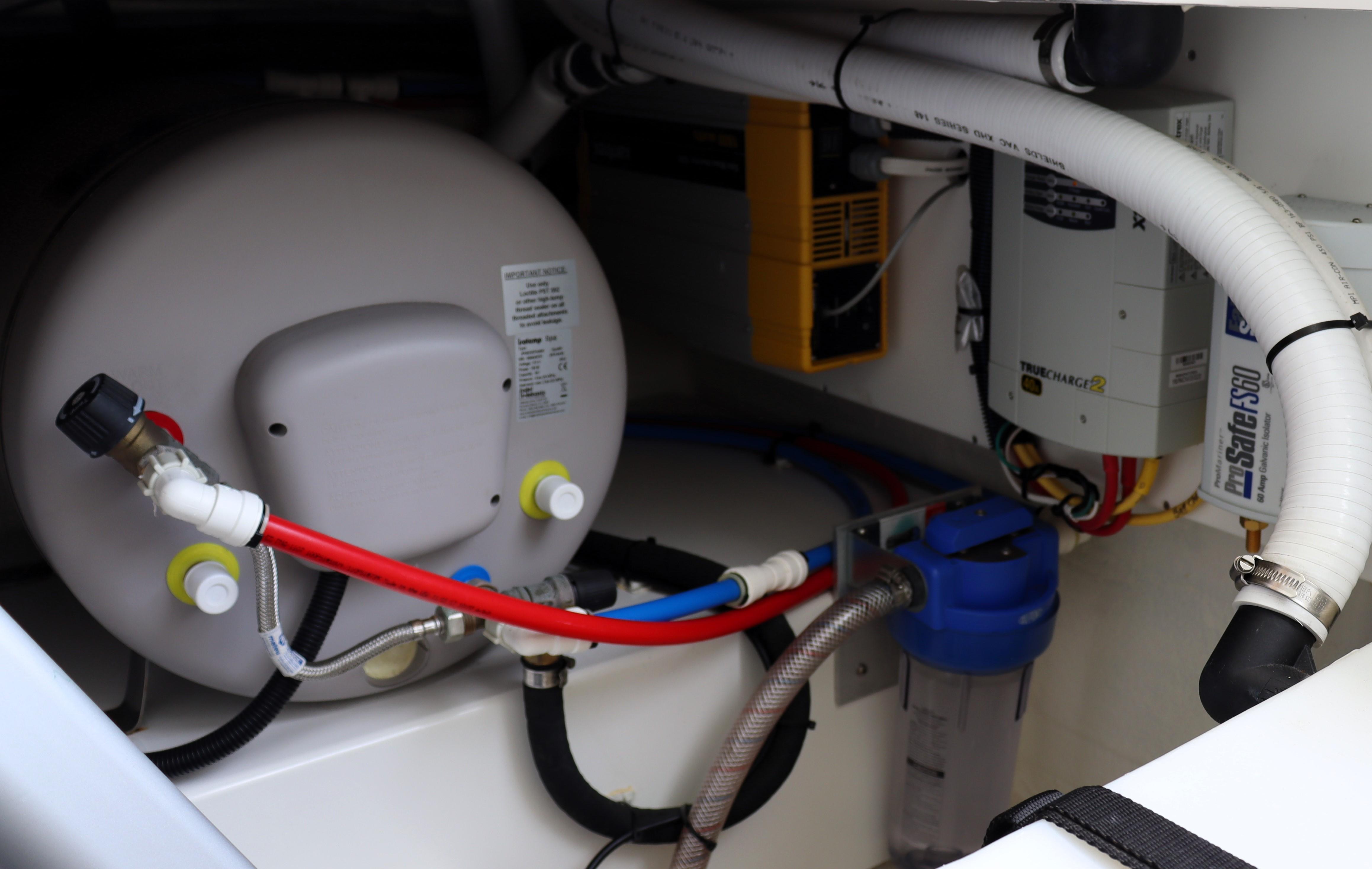

● 11 gallon water heater w/ pressure relief valve plumbed to thru-hull
● Marelon sea valves on underwater thru-hulls
● Below deck air conditioning w/ reverse cycle heat 8kBTU
● Xintex-Fireboy automatic, clean agent fire extinguishing system in
lazarette w/ manual backup
● Bronze raw water strainer on generator and AC intakes
● Portable fire extinguishers in all accommodation spaces
Electrical Systems
● Two engine alternators (one per engine)

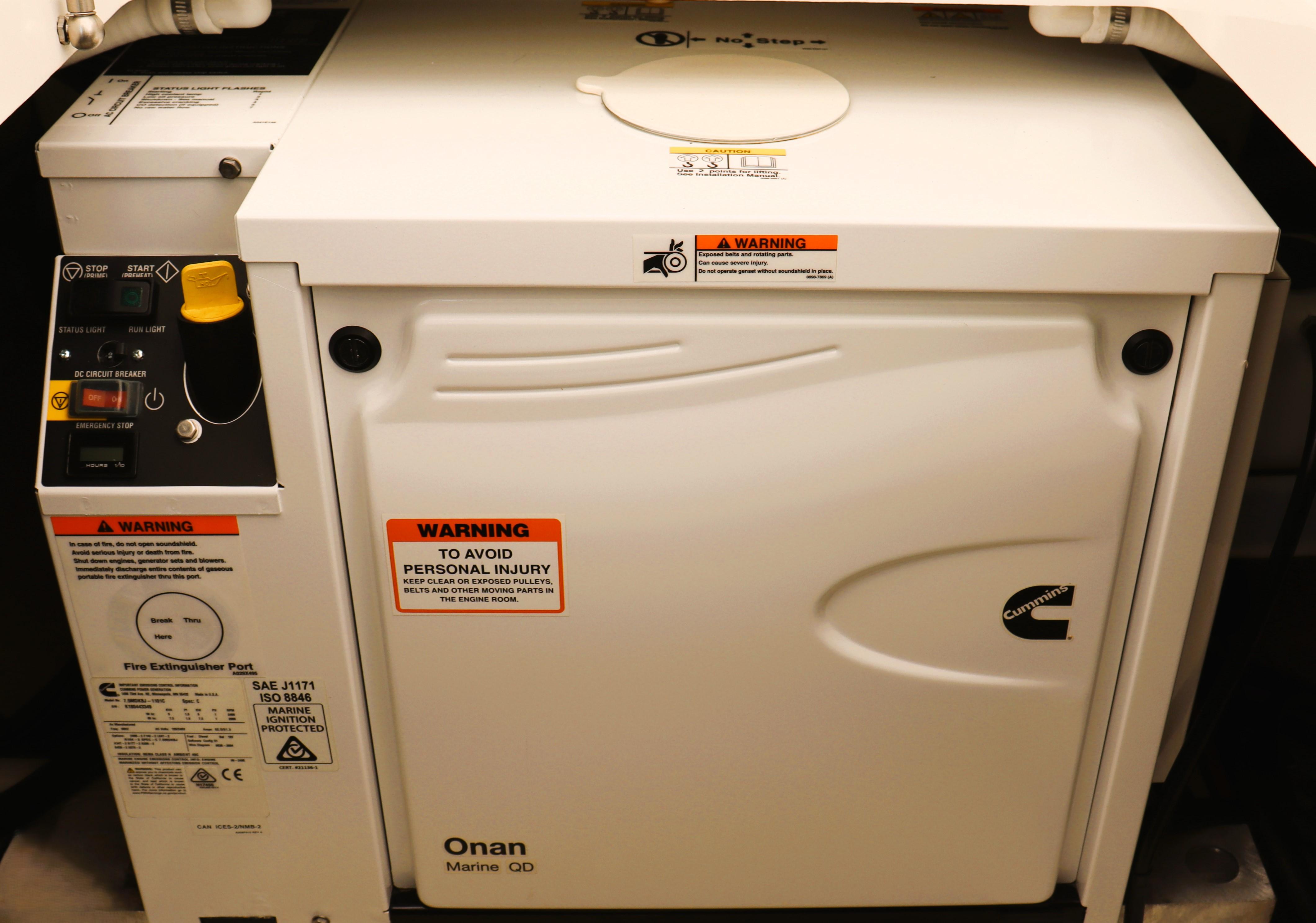

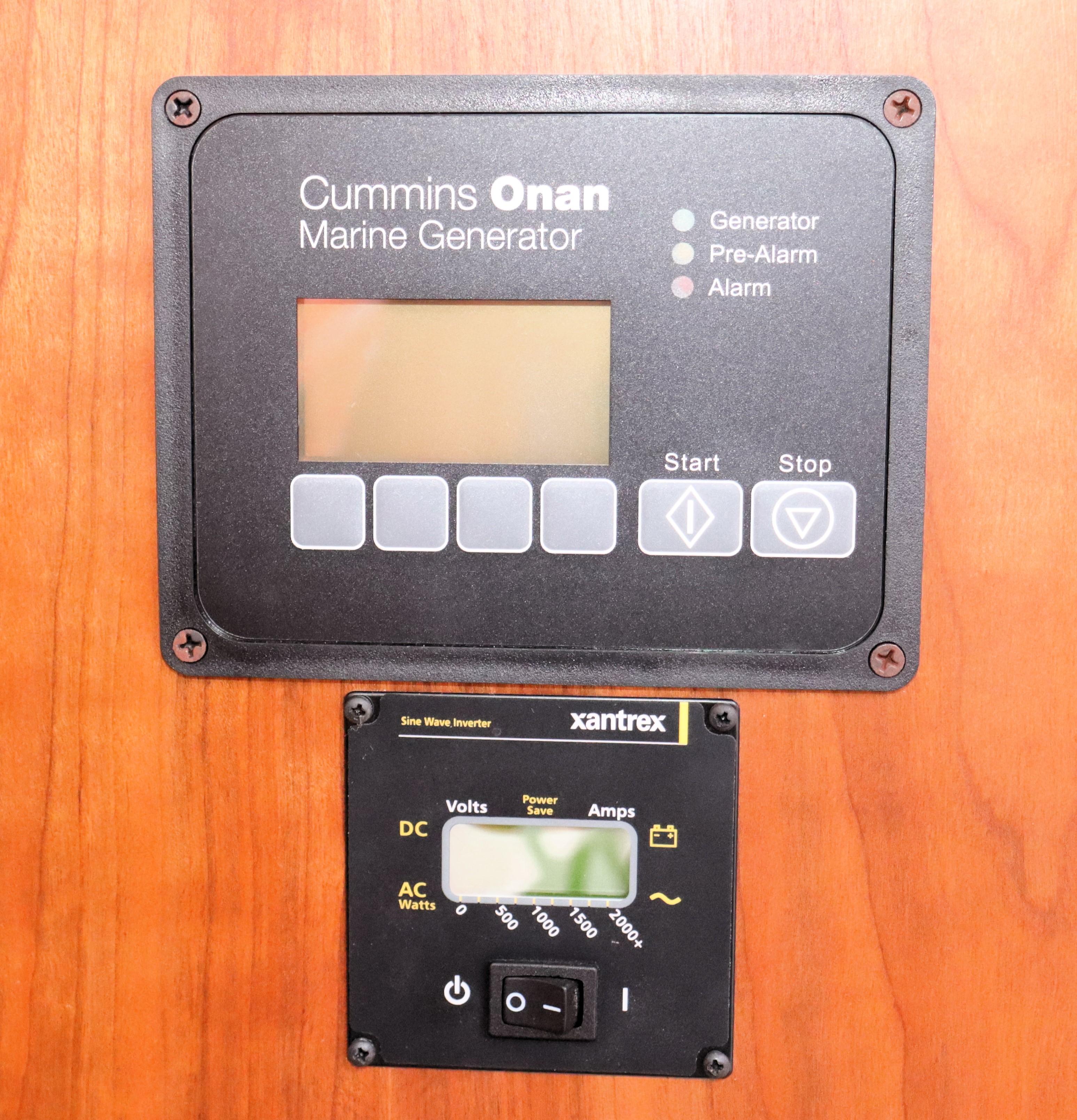

● 5 kW genset with sound shield and water/exhaust separator

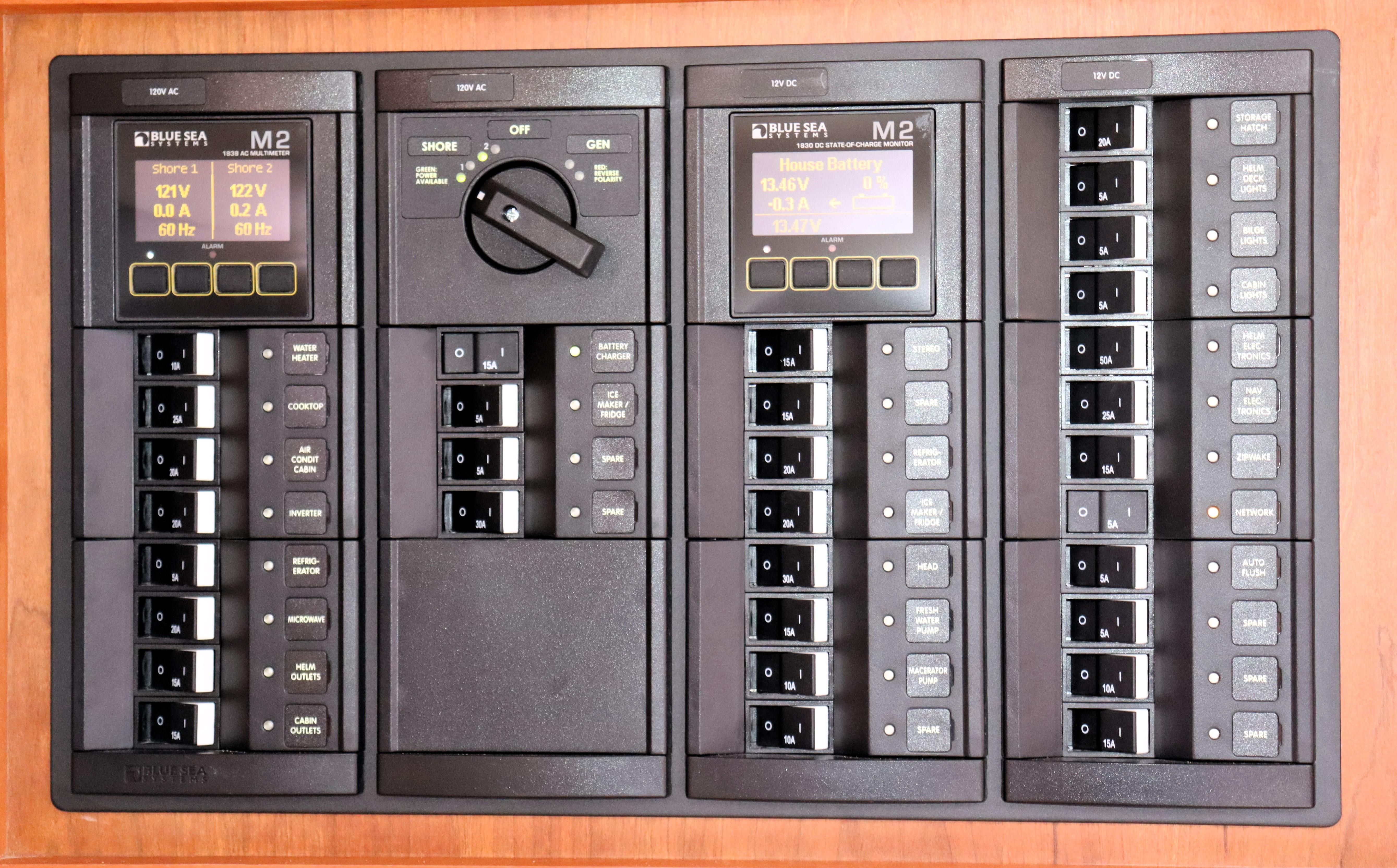

● AC/DC control panel with polarity indicator

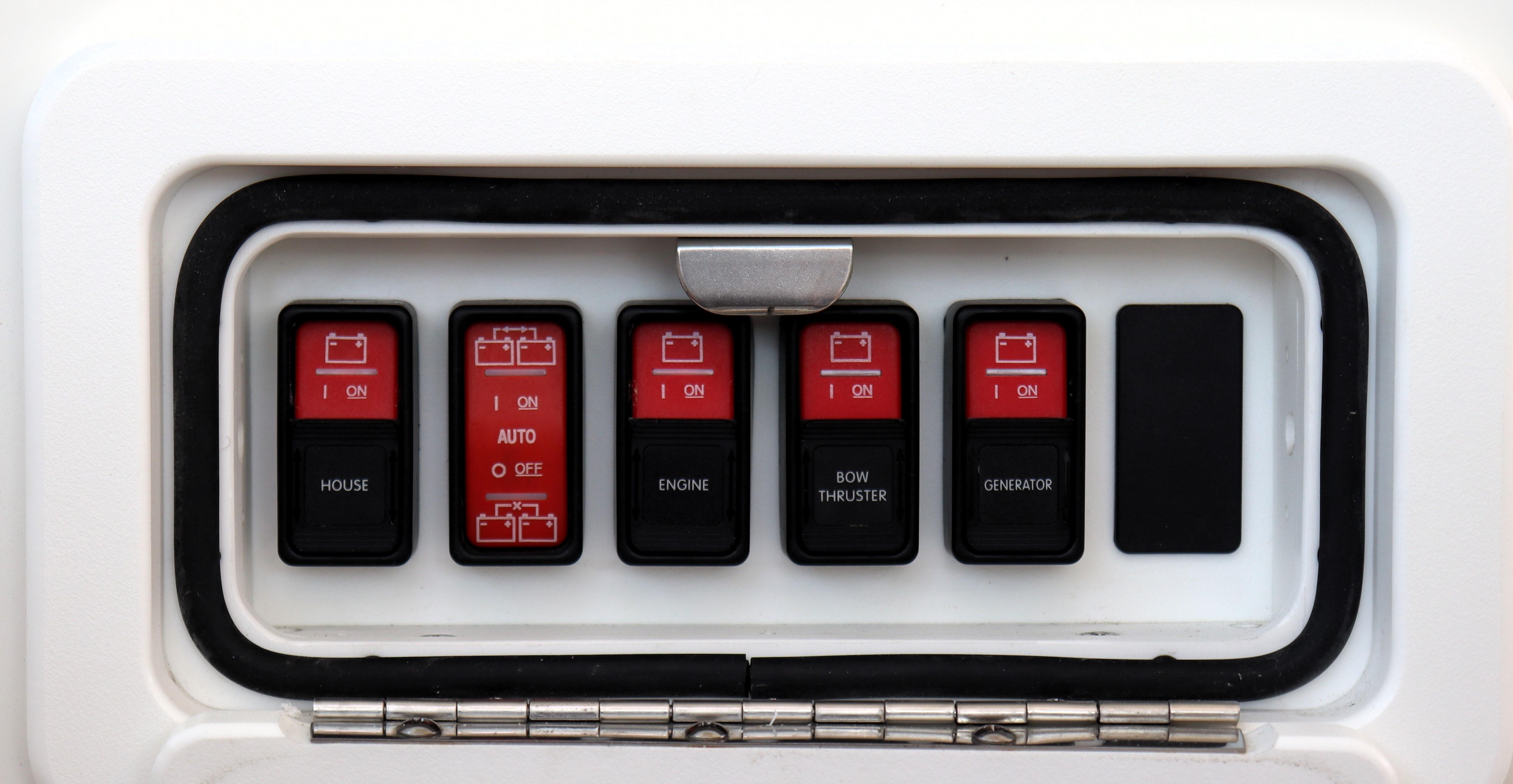

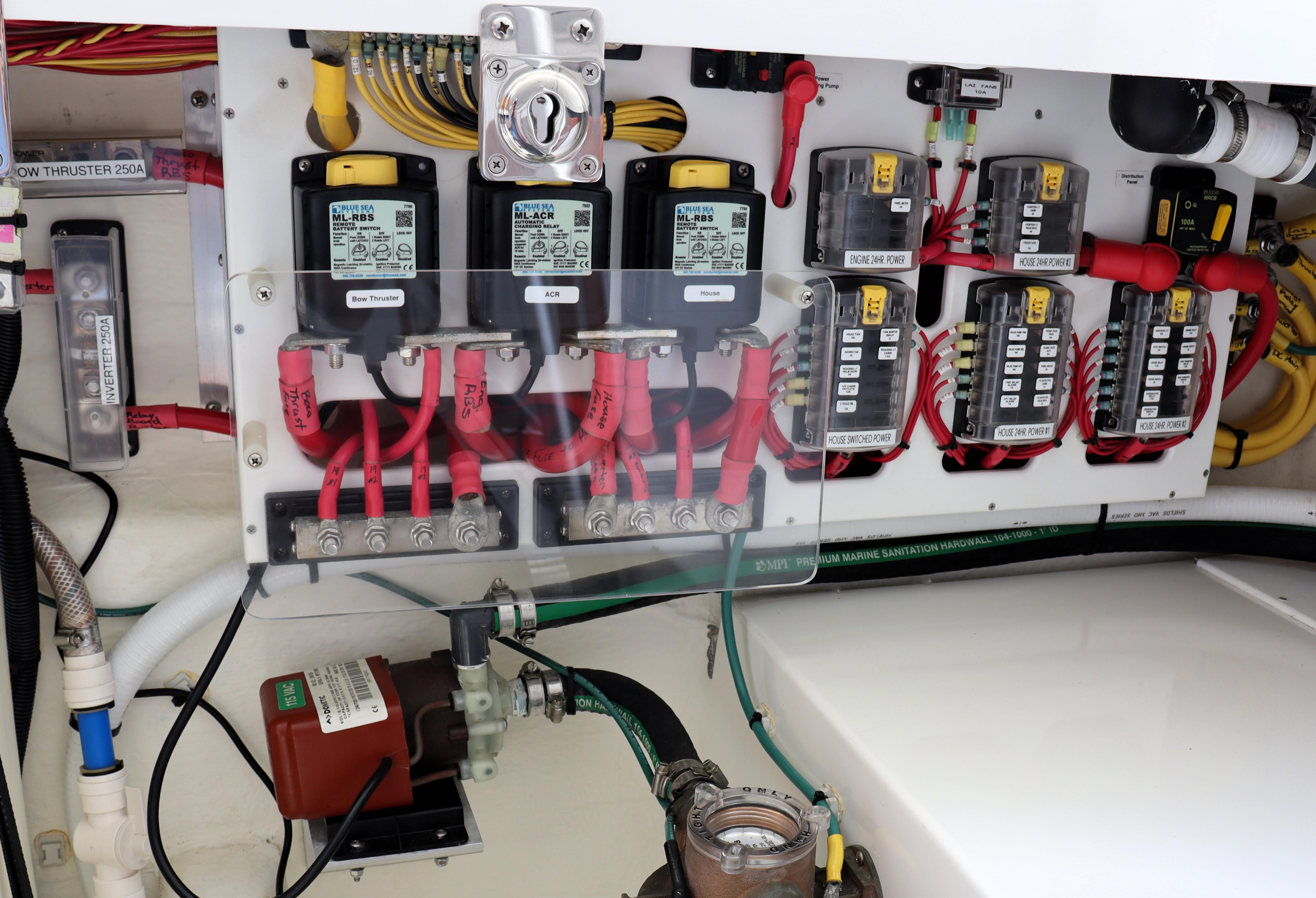

● 12Vdc system battery management switching
● 12Vdc breaker for electronics
● Emergency engine battery cross-over switch (manual)
● (2) 120Vac 30 amp shore power inlets w/ 50 foot cords
● 120Vac shore power system ELCI protected
● Galvanic isolator
● GFI protected 120Vac outlets

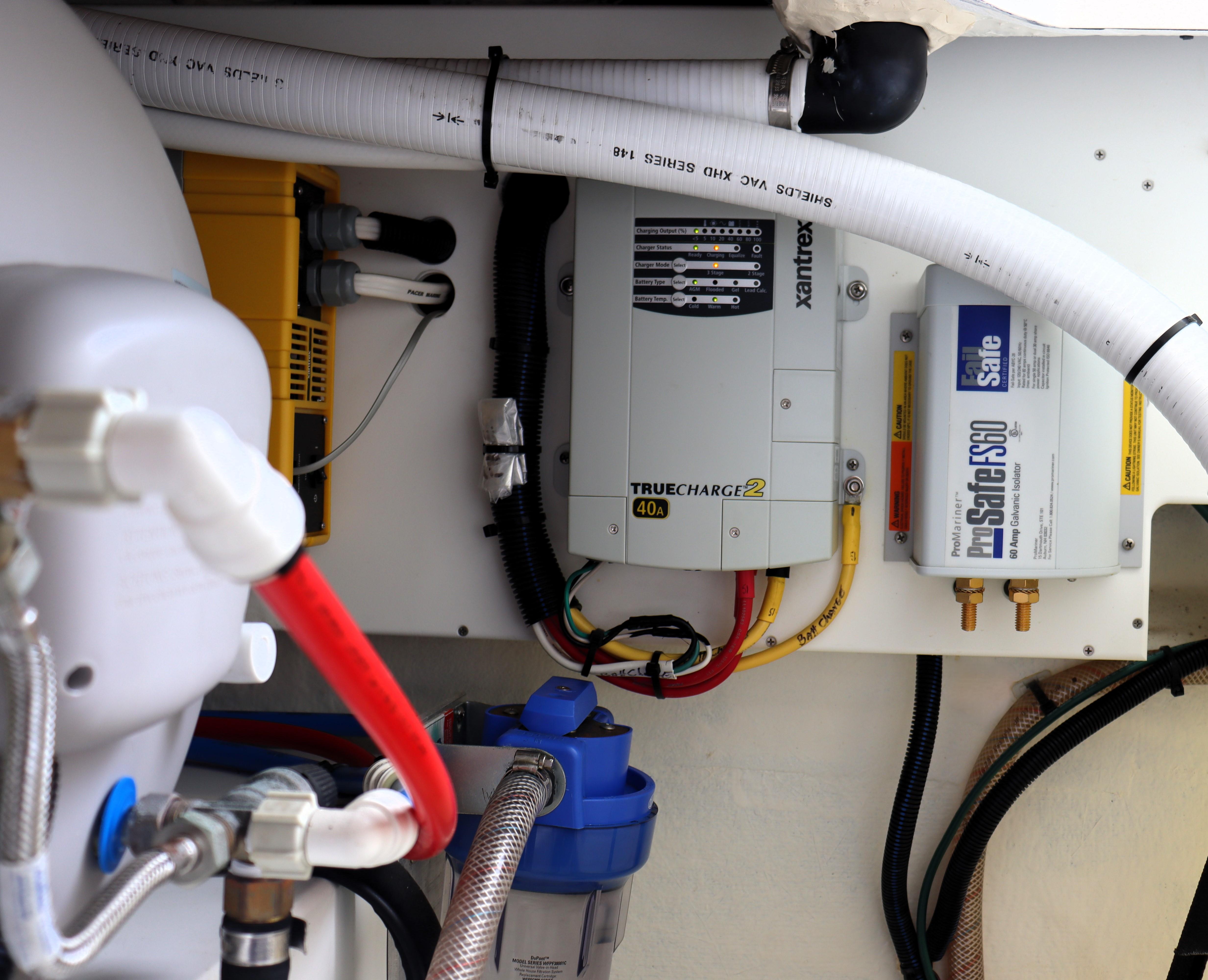

● Battery charger

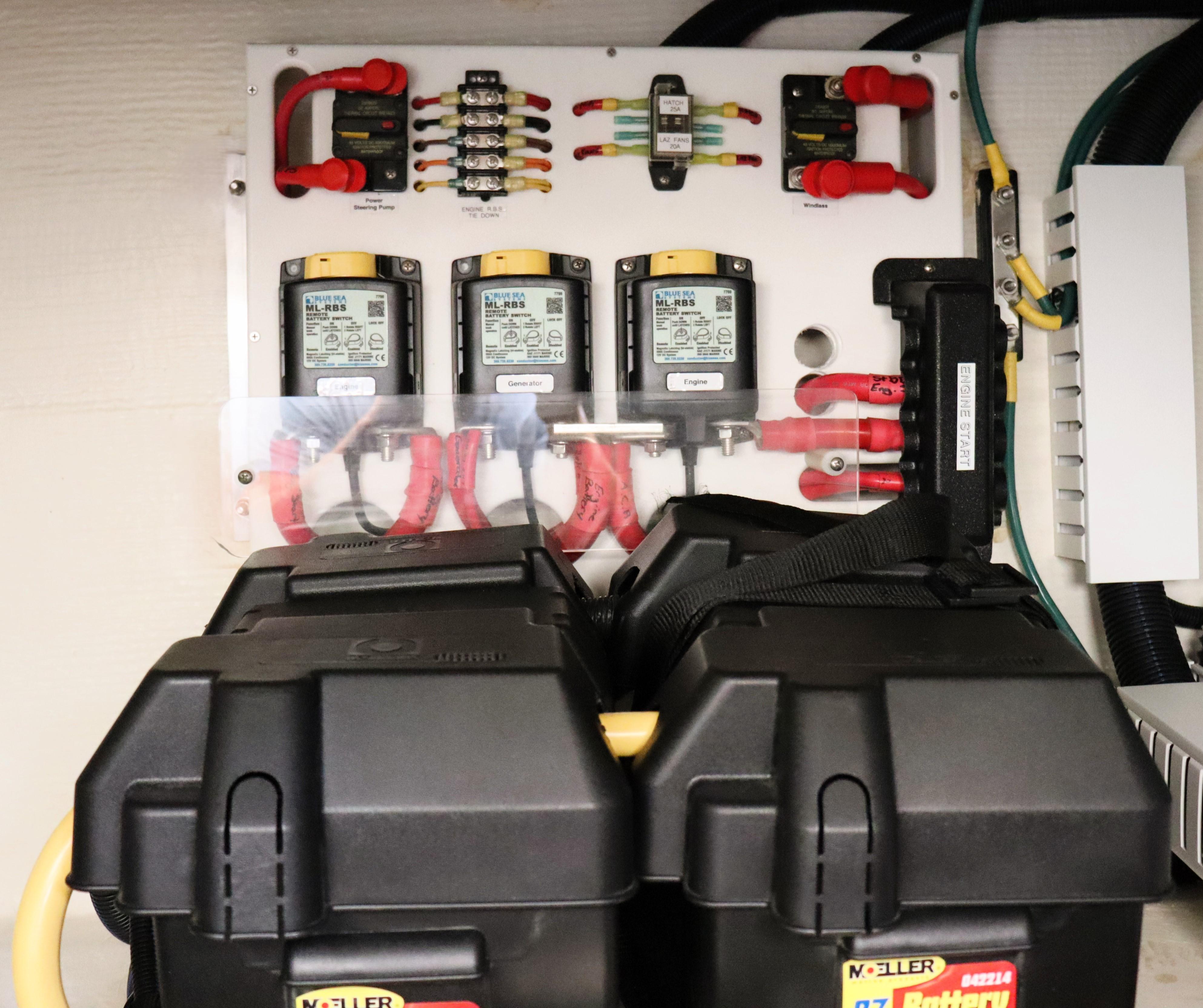

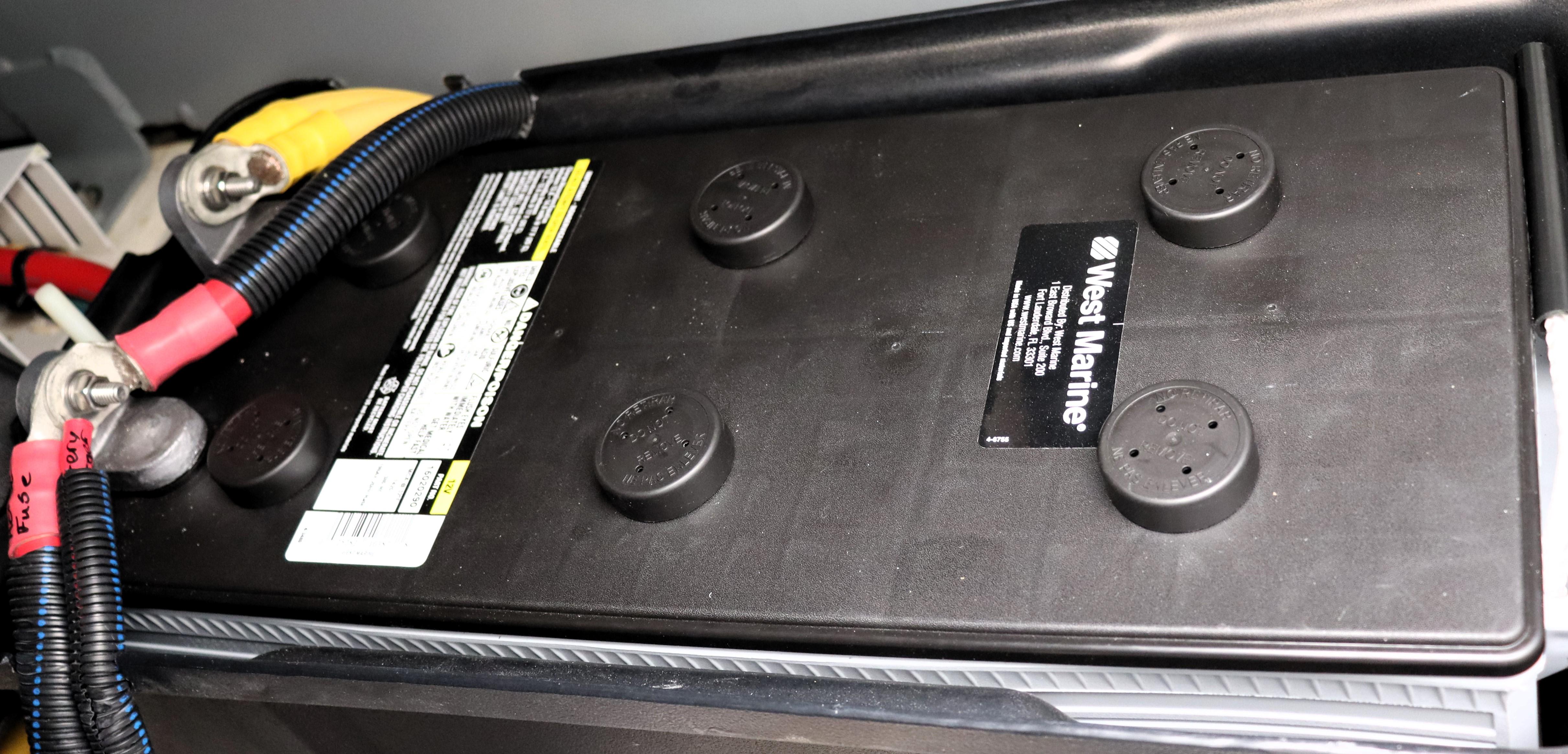

● (2) 4D AGM house battery wired parallel; (1) Group 27 AGM battery for
each engine; (1) battery for bow thruster/windlass
● Auto cross-over switch (ACR) for thruster/windlass and house bank
● (3) 12Vdc automatic bilge pumps and (2) bilge high water alarms
● Bonding system w/ zinc transom anode
● LED storage room and lazarette lighting
● Cockpit courtesy lights switched at transom door and helm
● Overhead LED cabin and salon lights (w/ dimmer control)
● Reading lights in salon and berth area
● Overhead bi-color LED helm deck light w/ switch
● 12Vdc outlet at helm and in cabin
● Battery powered salon and cabin smoke detectors
● Hard-wired CO detector in cabin and salon

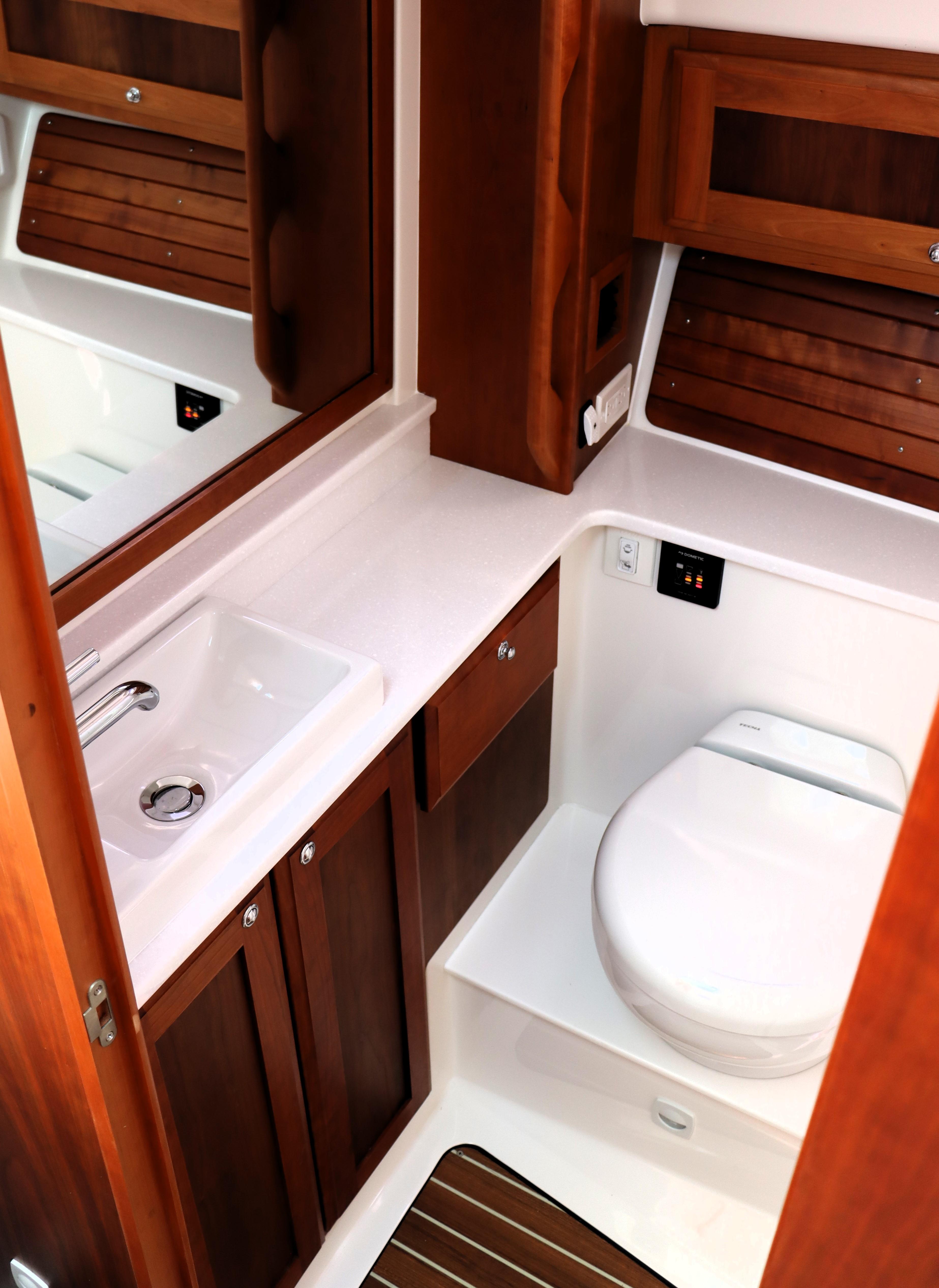

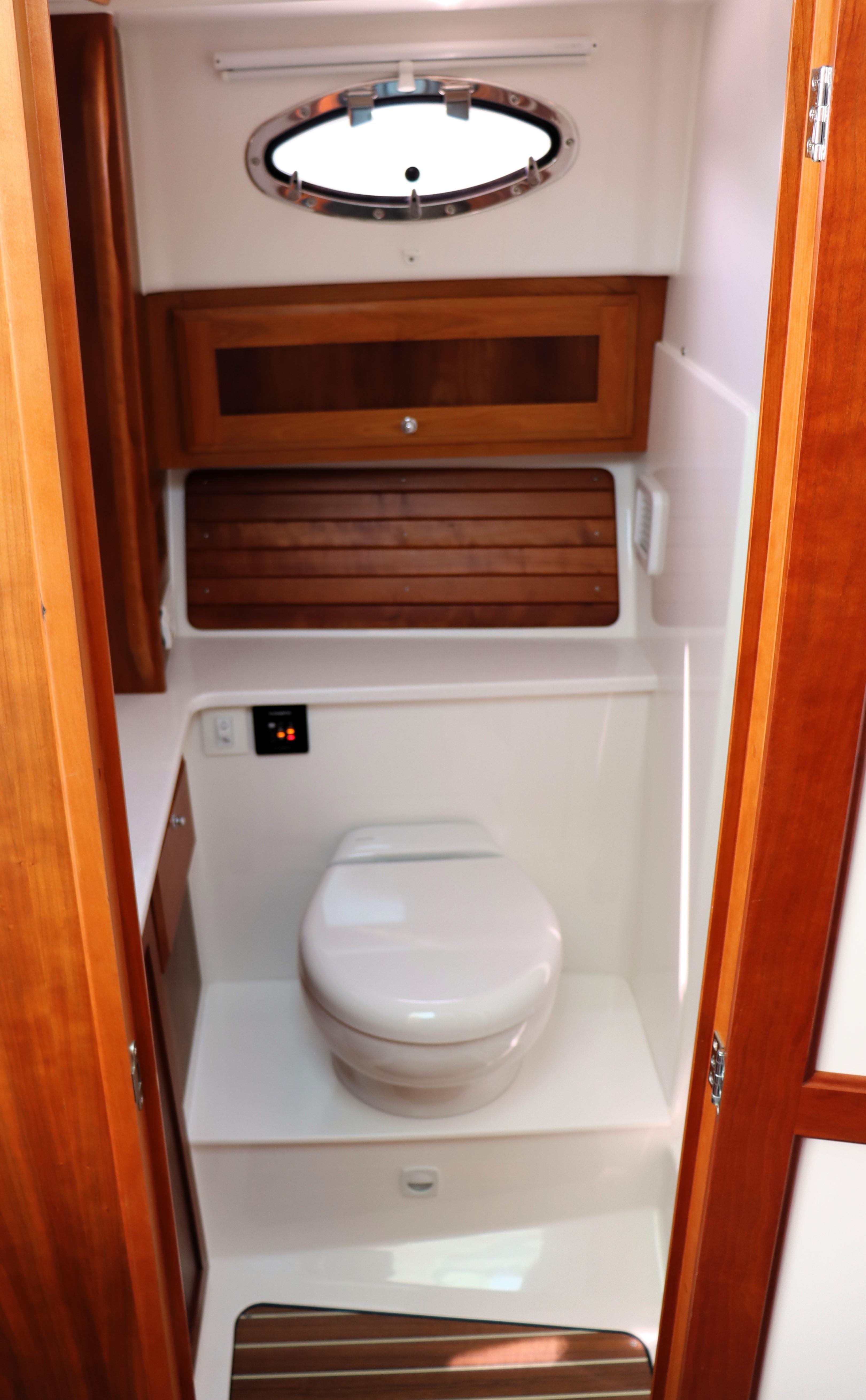

Head / Sanitary System

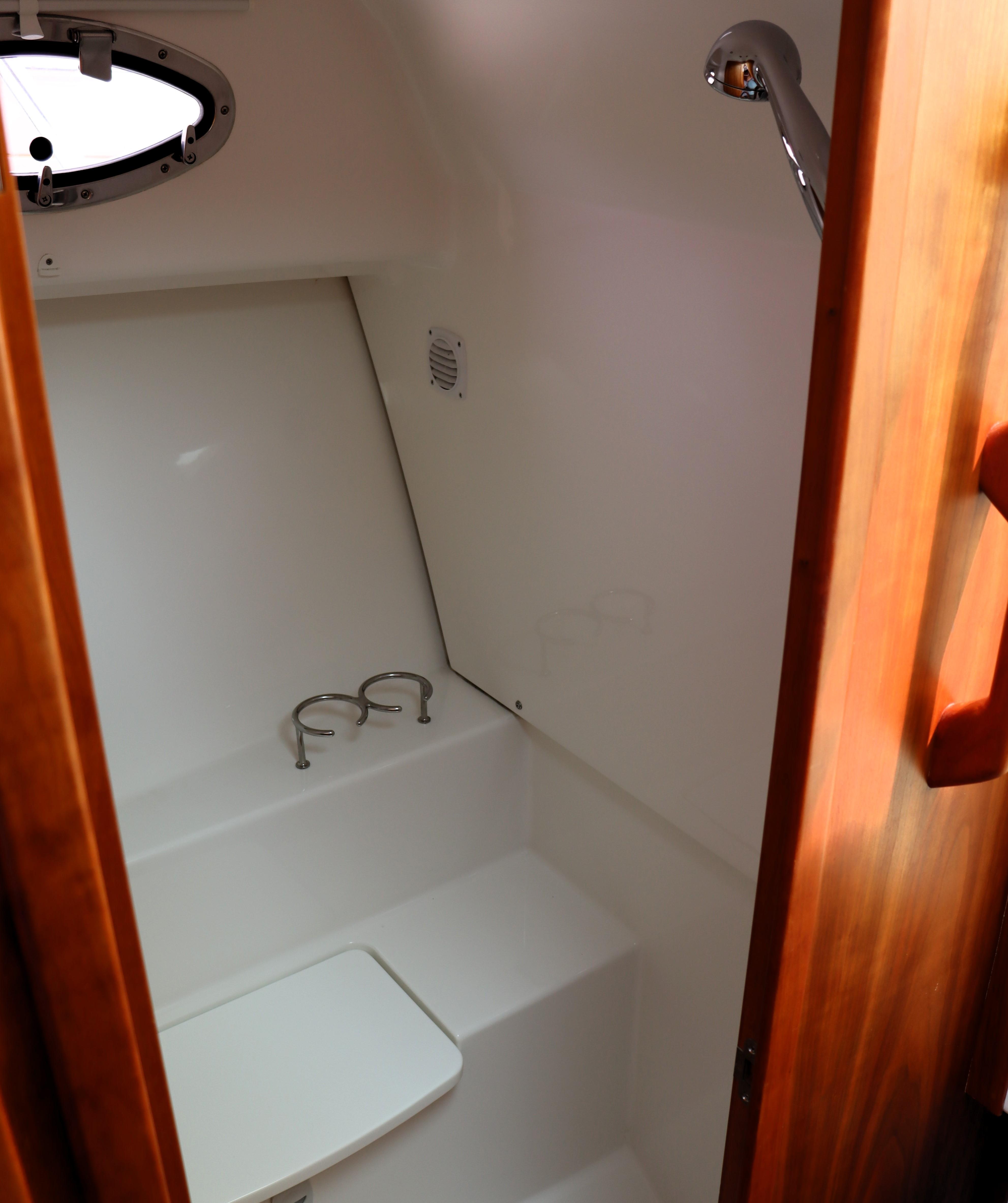

● Head to port w/ separate shower stall to starboard
● Molded seat in shower stall
● Built-in vanity w/ sink and storage
● Borrowed light in head with privacy glass
● Stainless steel opening ports w/ insect screen and shade
● Cherry framed mirror
● Solid surface countertop
● Single lever faucet
● Shower-drain sump pump system
● Fresh water electric MSD
● Macerator for holding tank overboard discharge (as permitted)
● Holding tank pump-out fitting on deck
● Sealed overhead LED lighting (w/ dimmer control)
● Powered exhaust fan in head and shower
● Waste and fresh water level gauge
● Removable woven floor mat

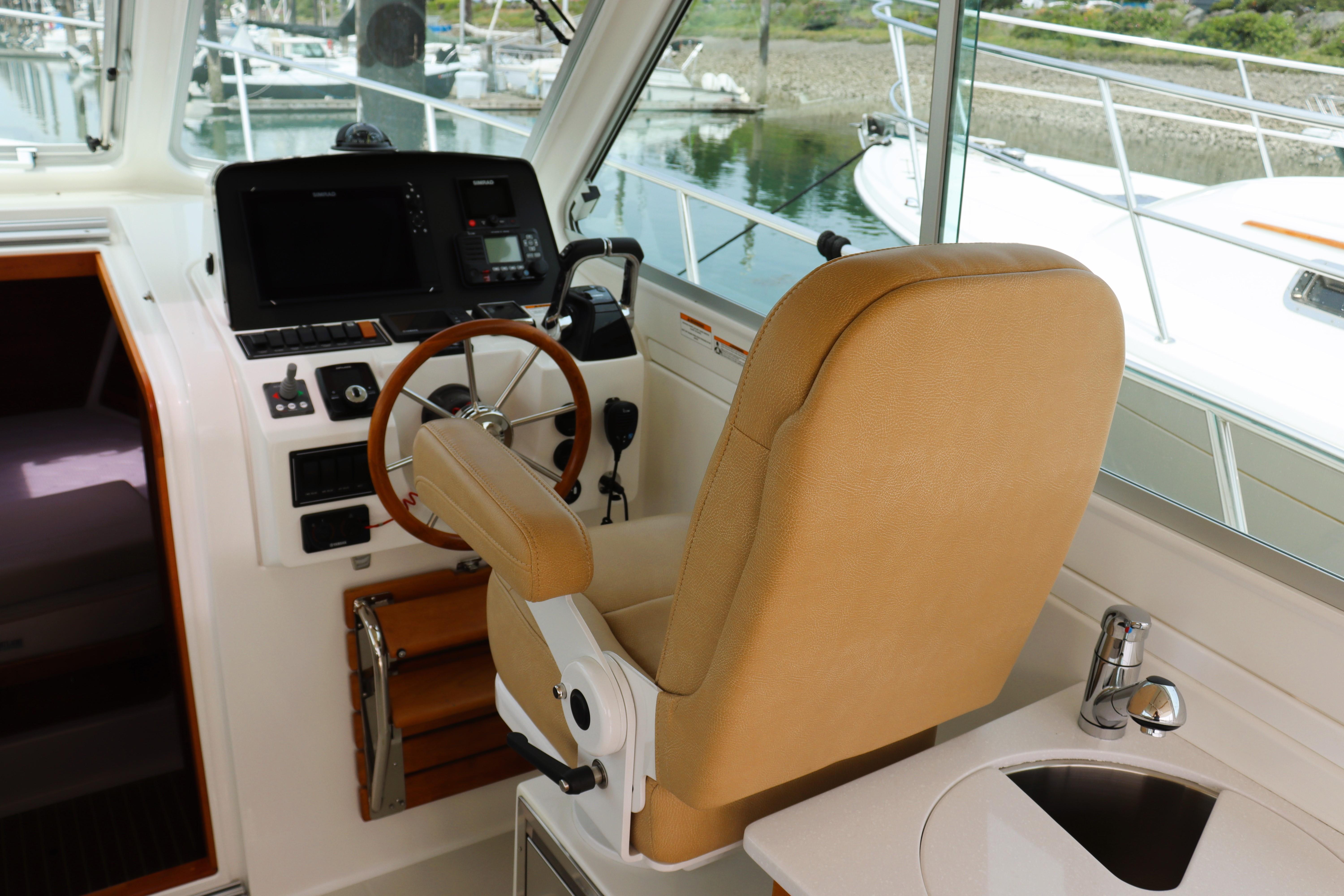

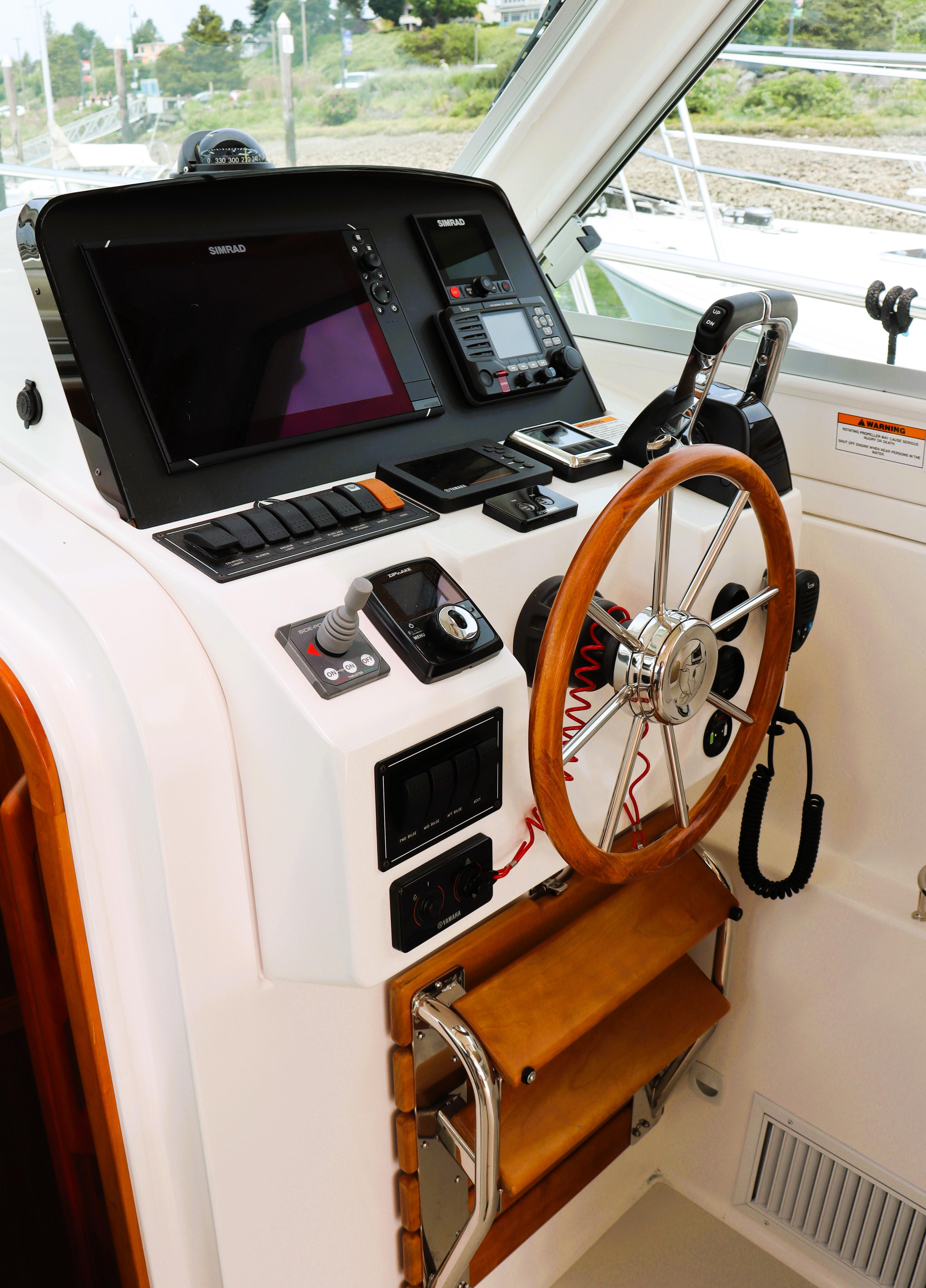

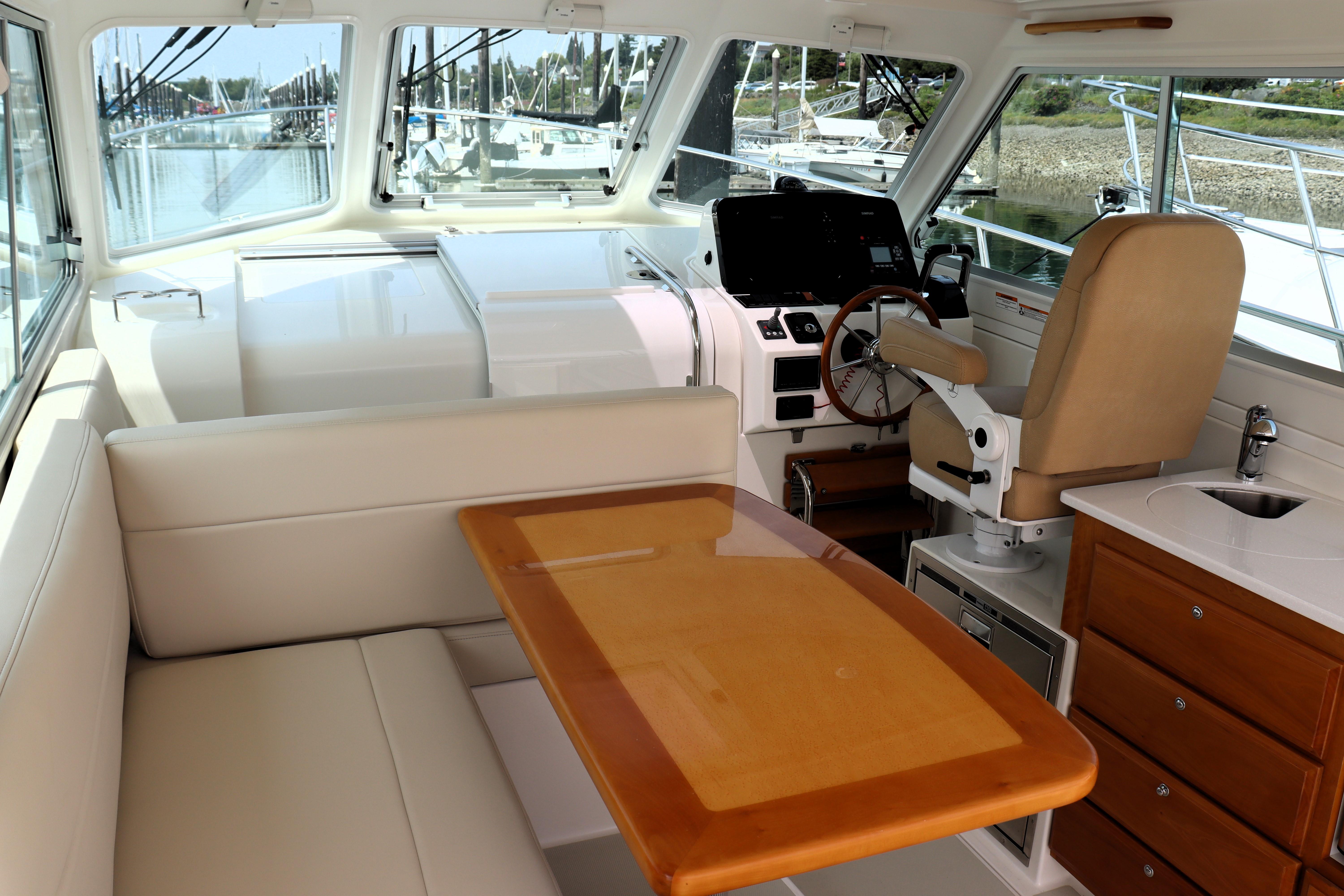

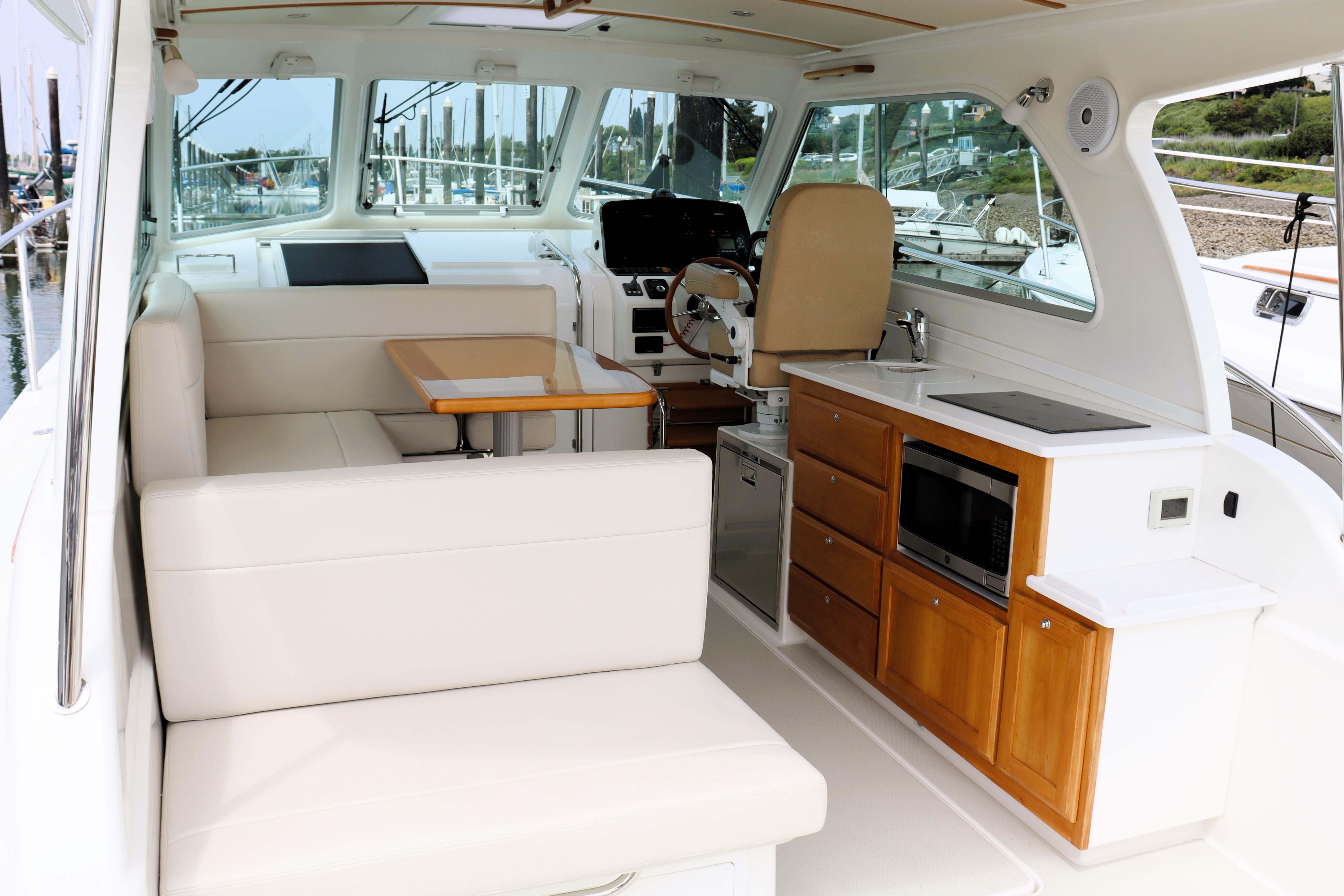

Helm Deck
● Frameless glass direct bond windows w/opening side windows
● Opening, framed center window
● (3) windshield wipers
● Compass, illuminated
● 16” wood grain steering wheel
● Ultra Leather helm seat
● Fixed, helm foot rest (folds down for helm step)

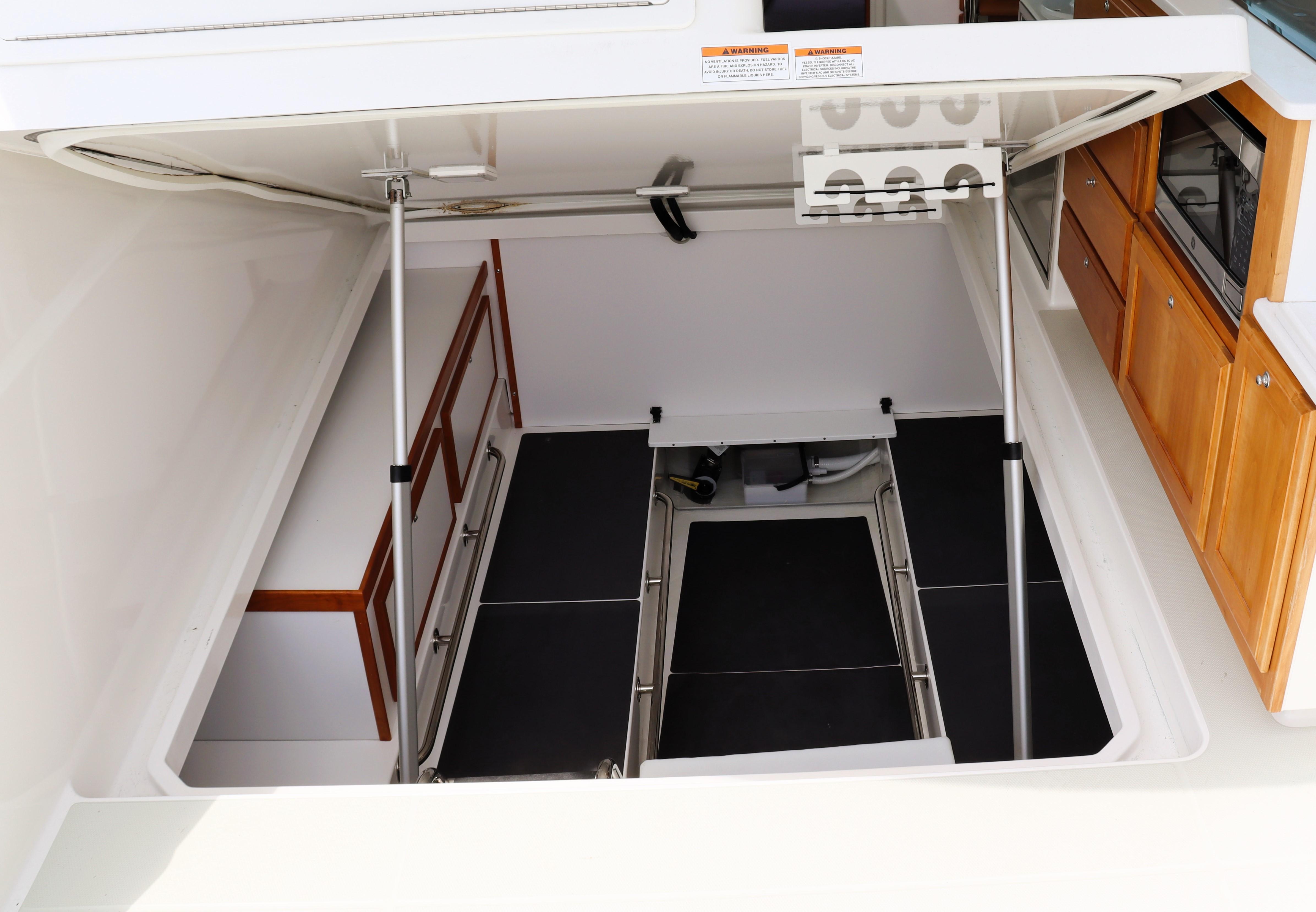

● Helm deck storage hatch opens by electrical linear actuators
● Stainless tie down rails in salon storage room
● 120 Vac outlet in salon storage room

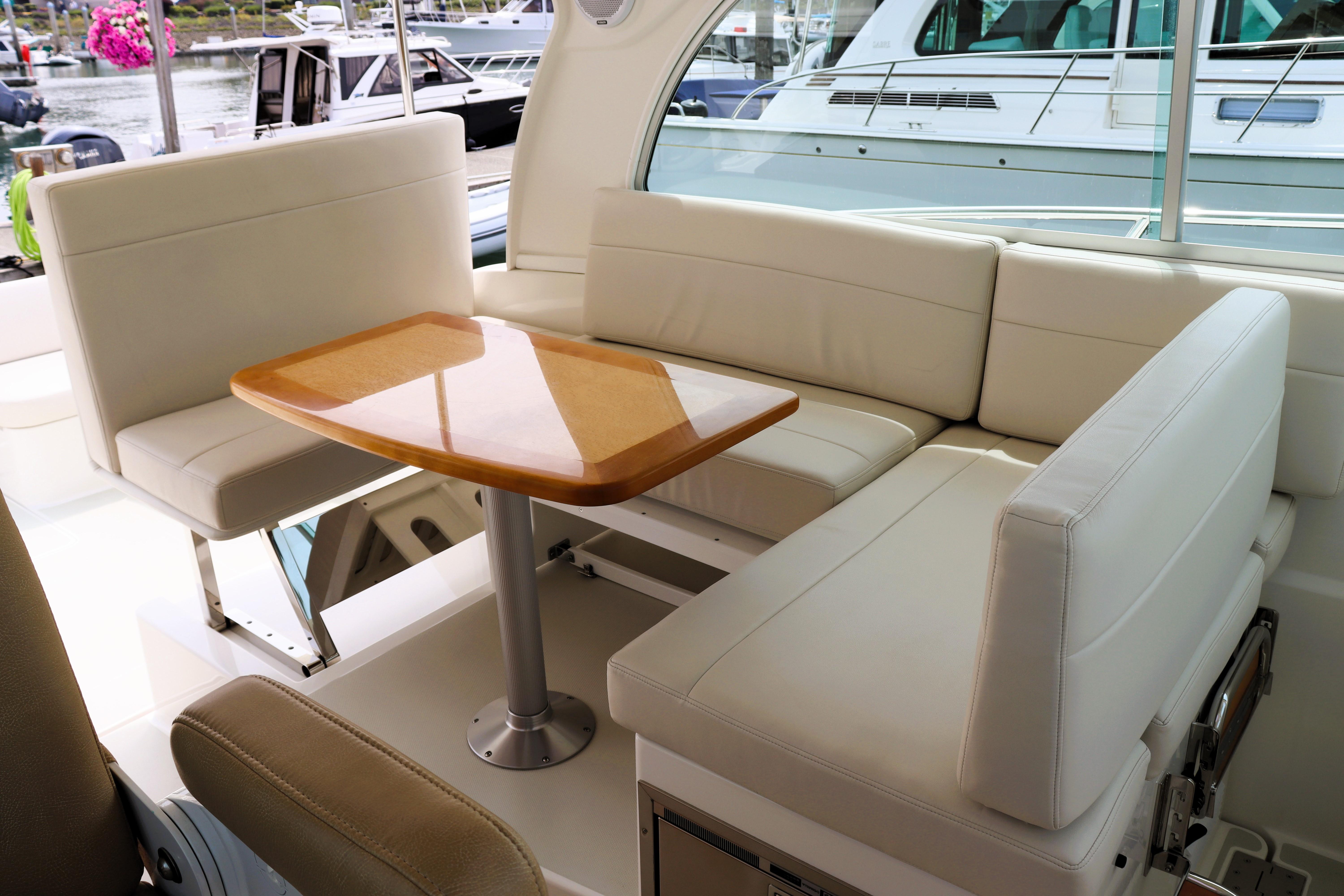

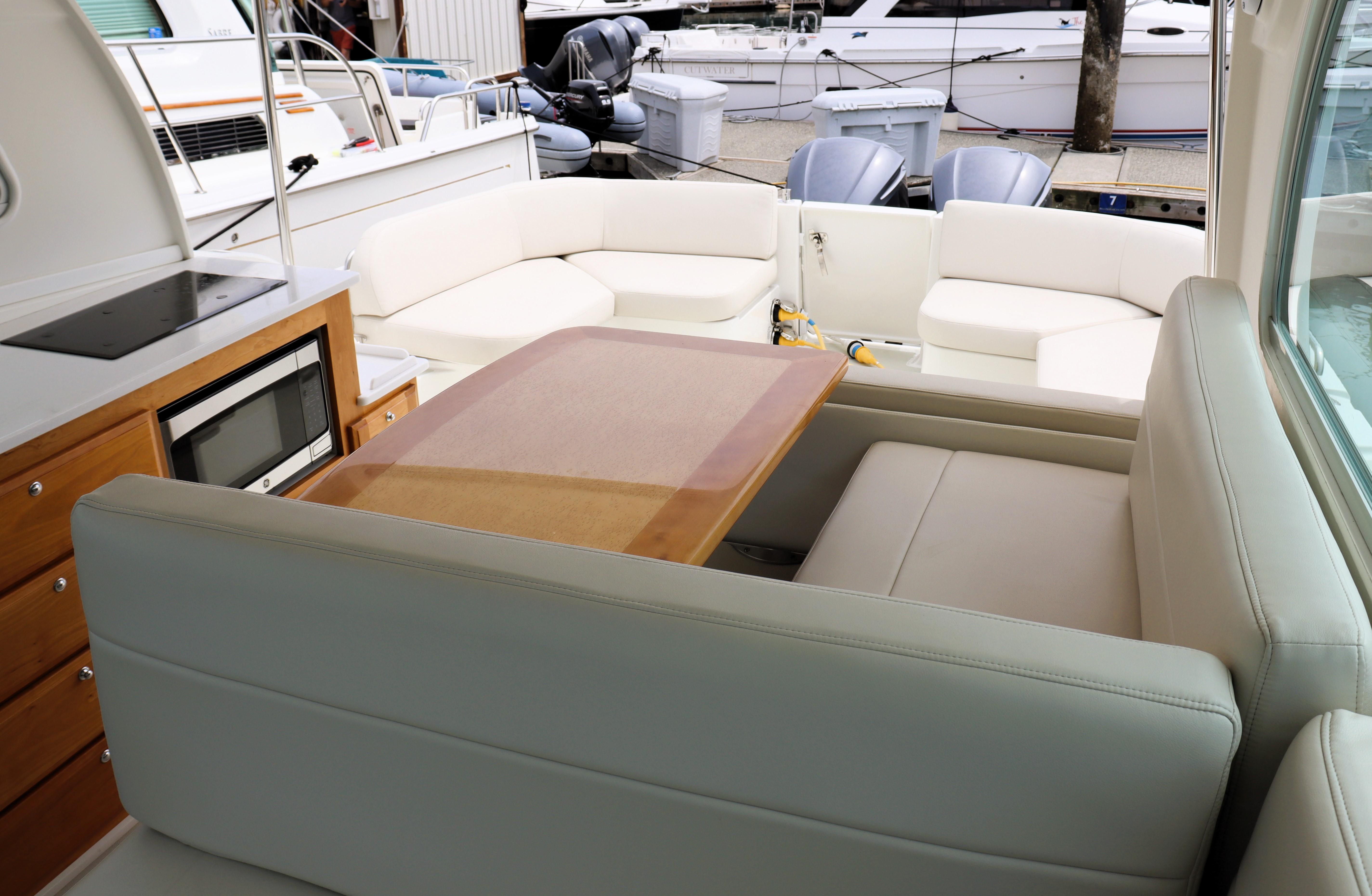

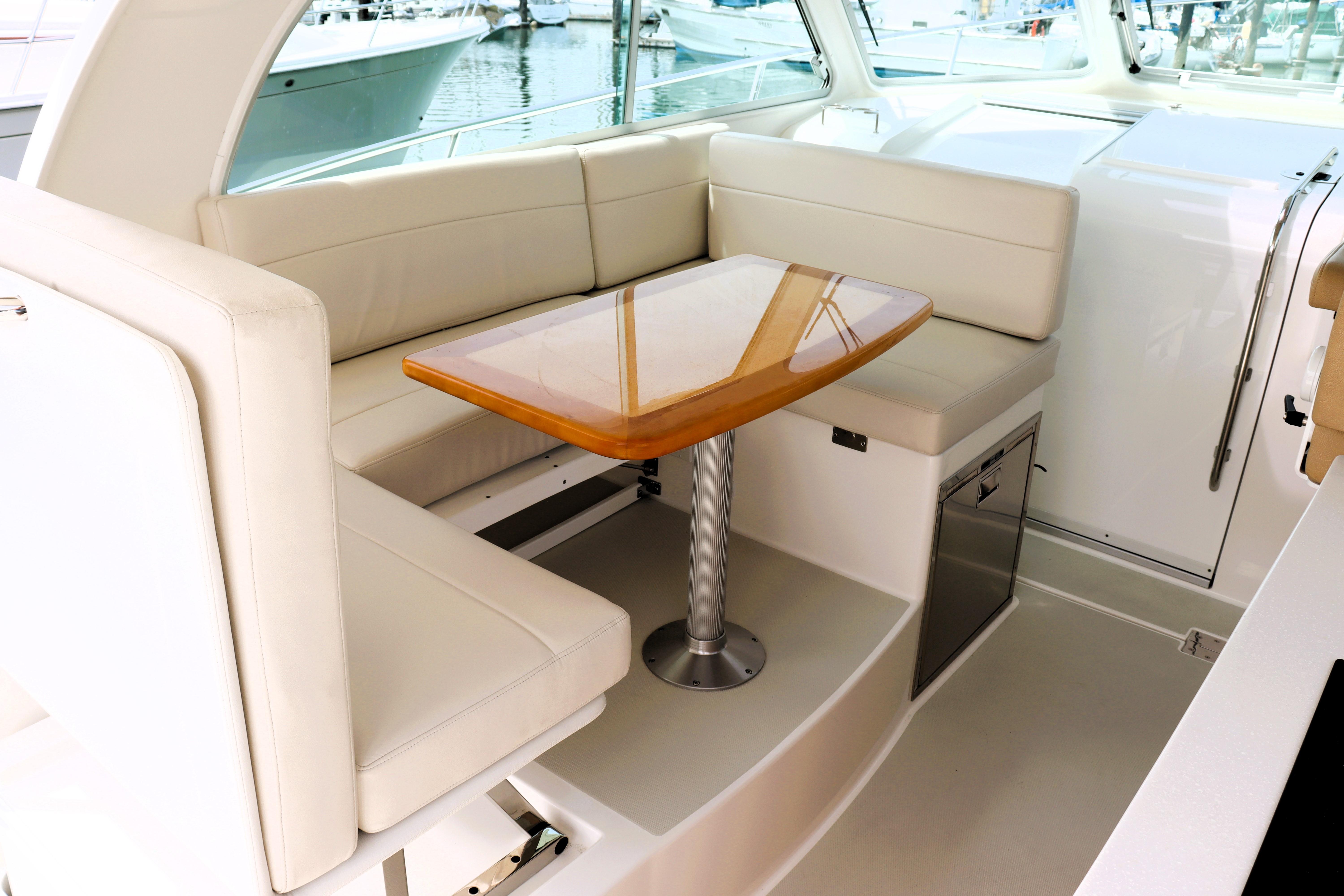

● Convertible dinette with Back Cove high gloss inlaid table
● Mates seat back converts for helm or settee positioning
● Aft dinette seat converts to face cockpit

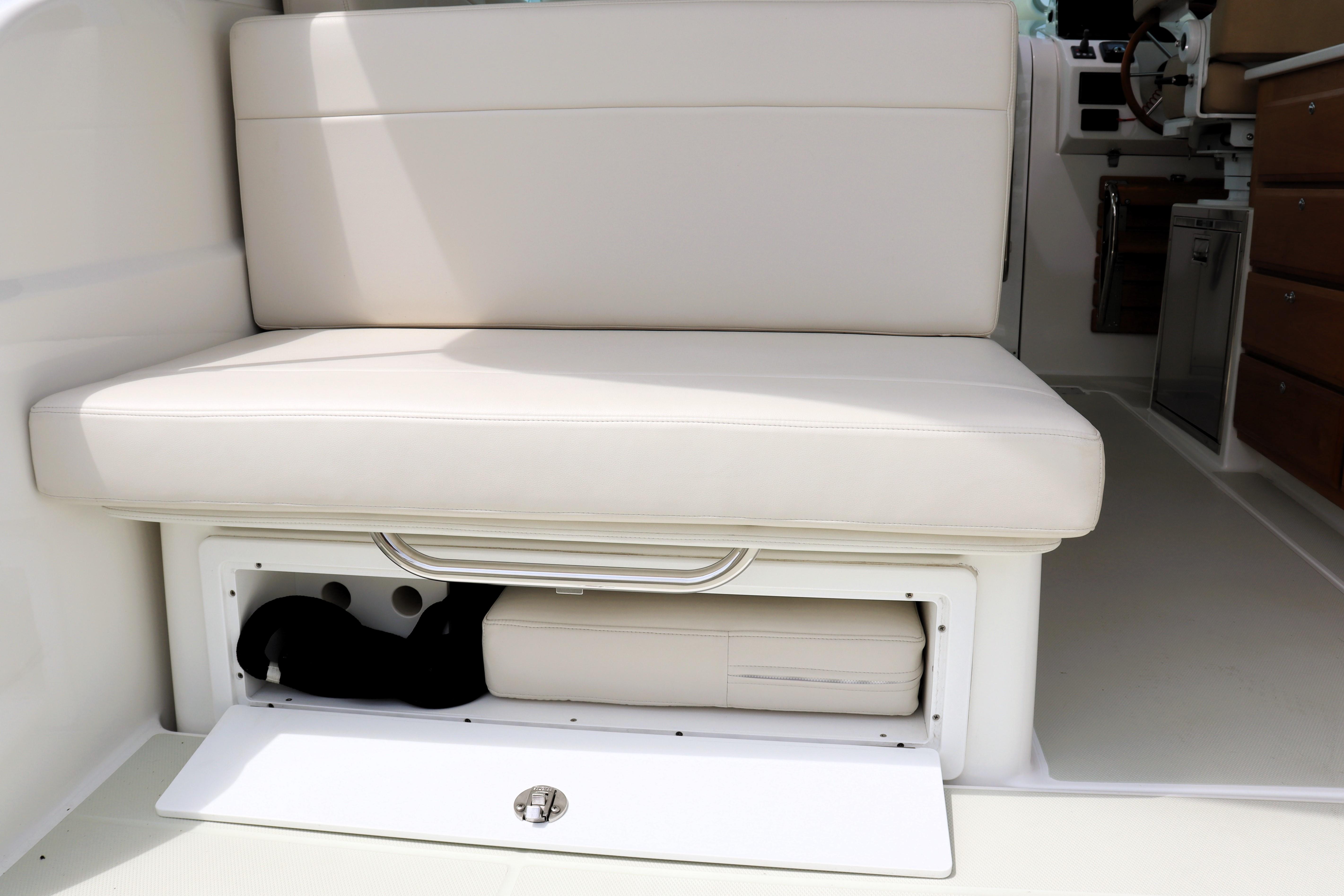

● Storage locker beneath dinette seating

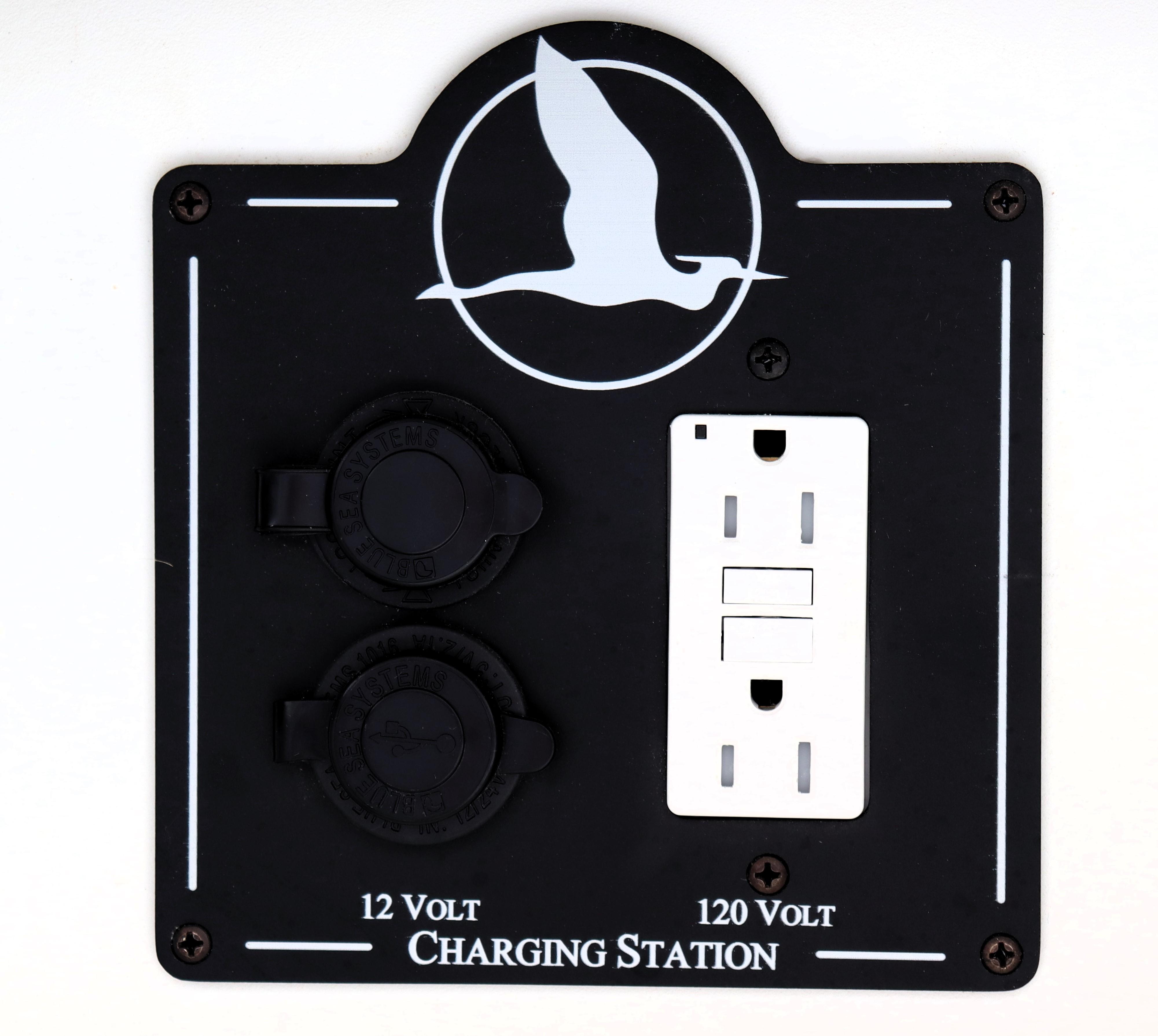

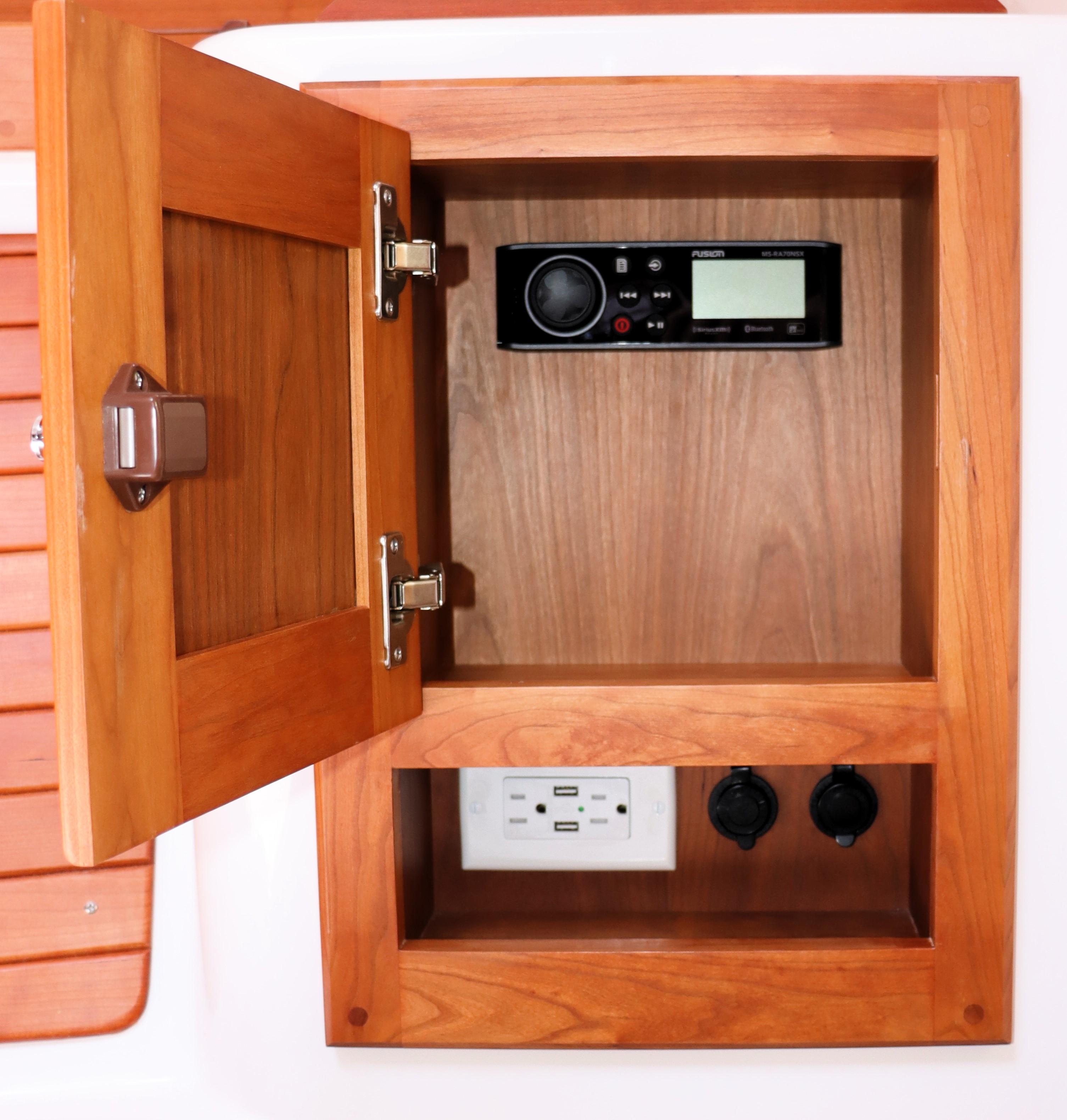

● Charging station (AC/DC/USB)
● 6.5 inch, 200 Watt Fusion speakers
