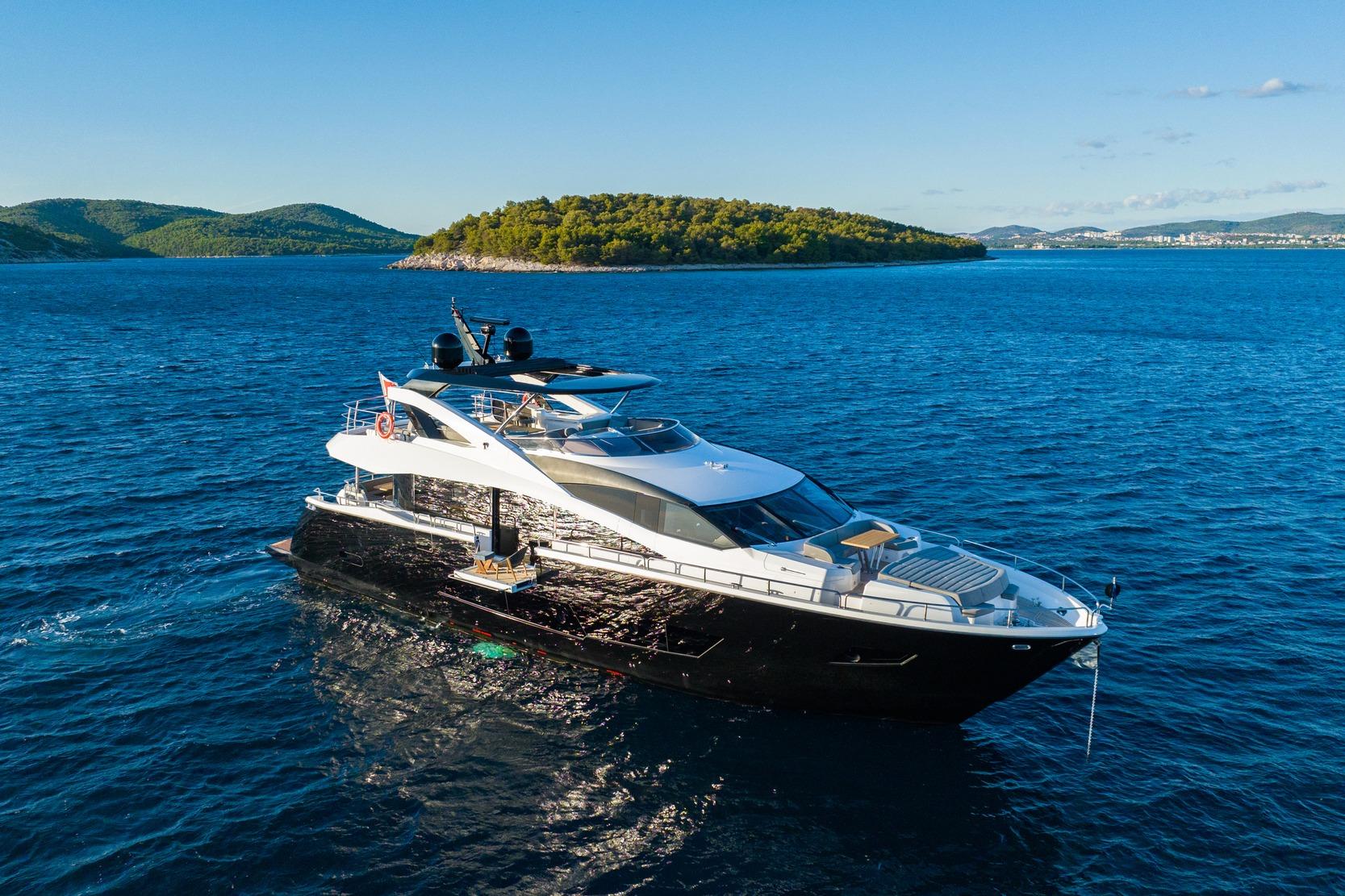

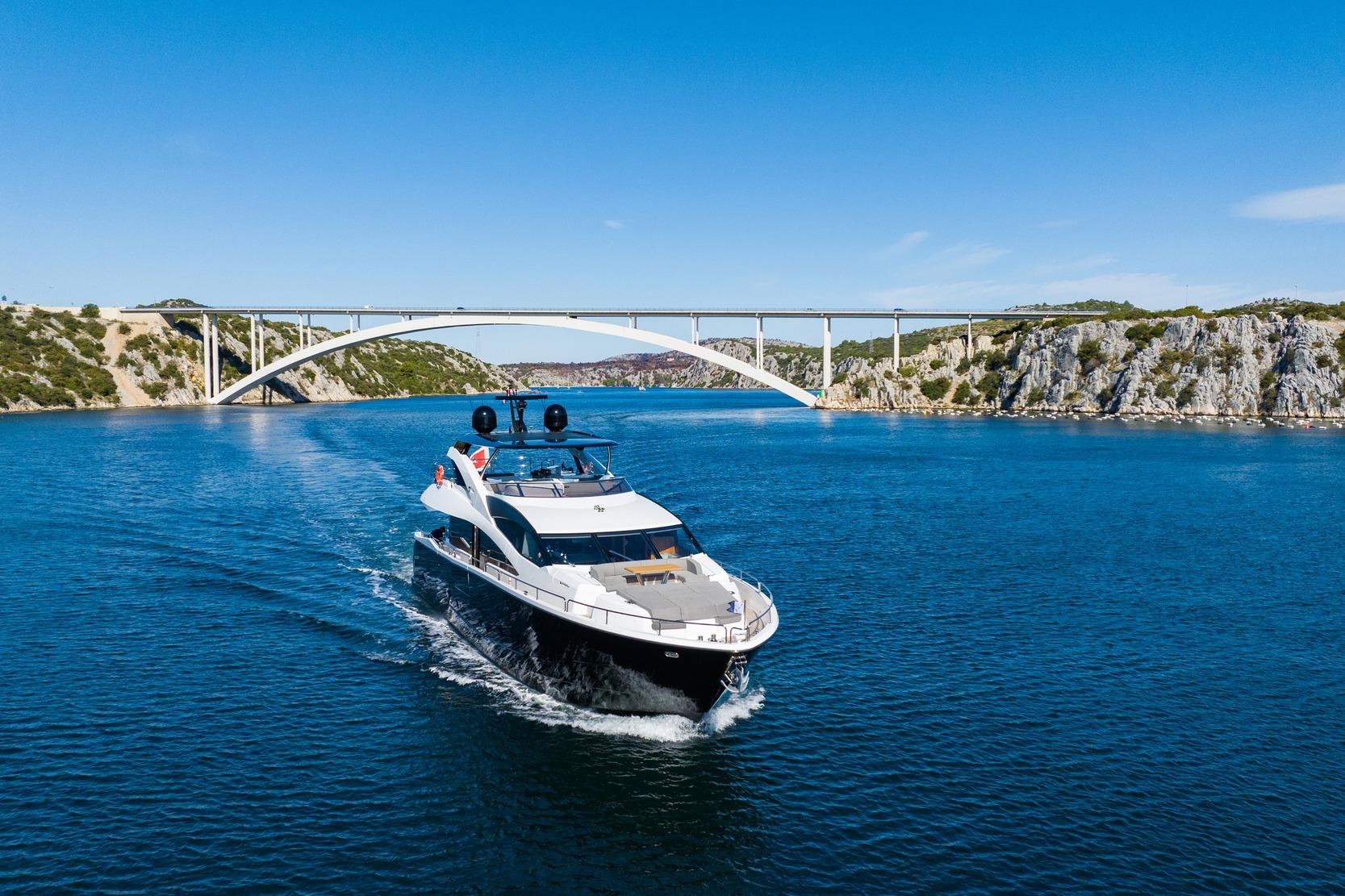

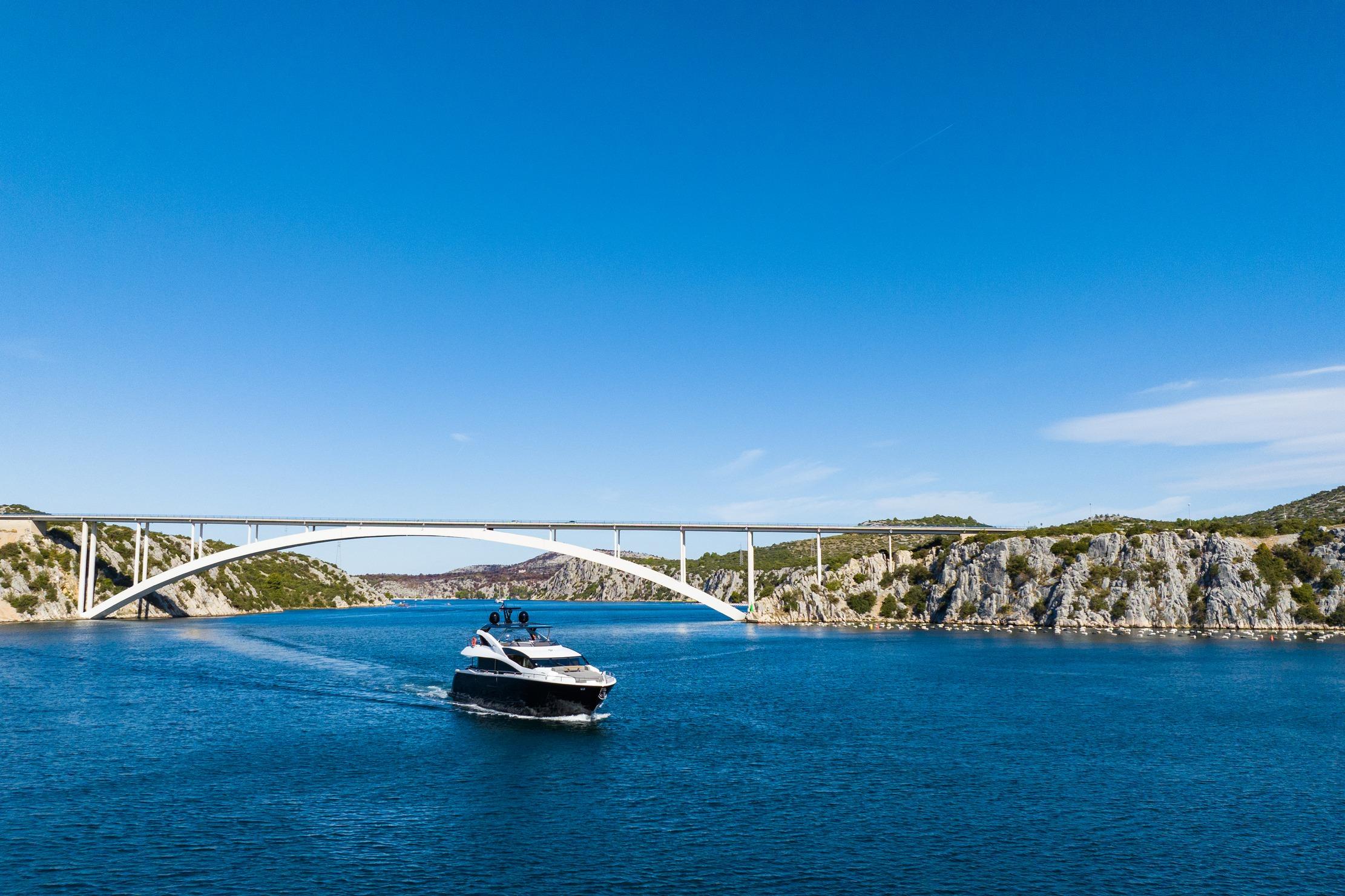

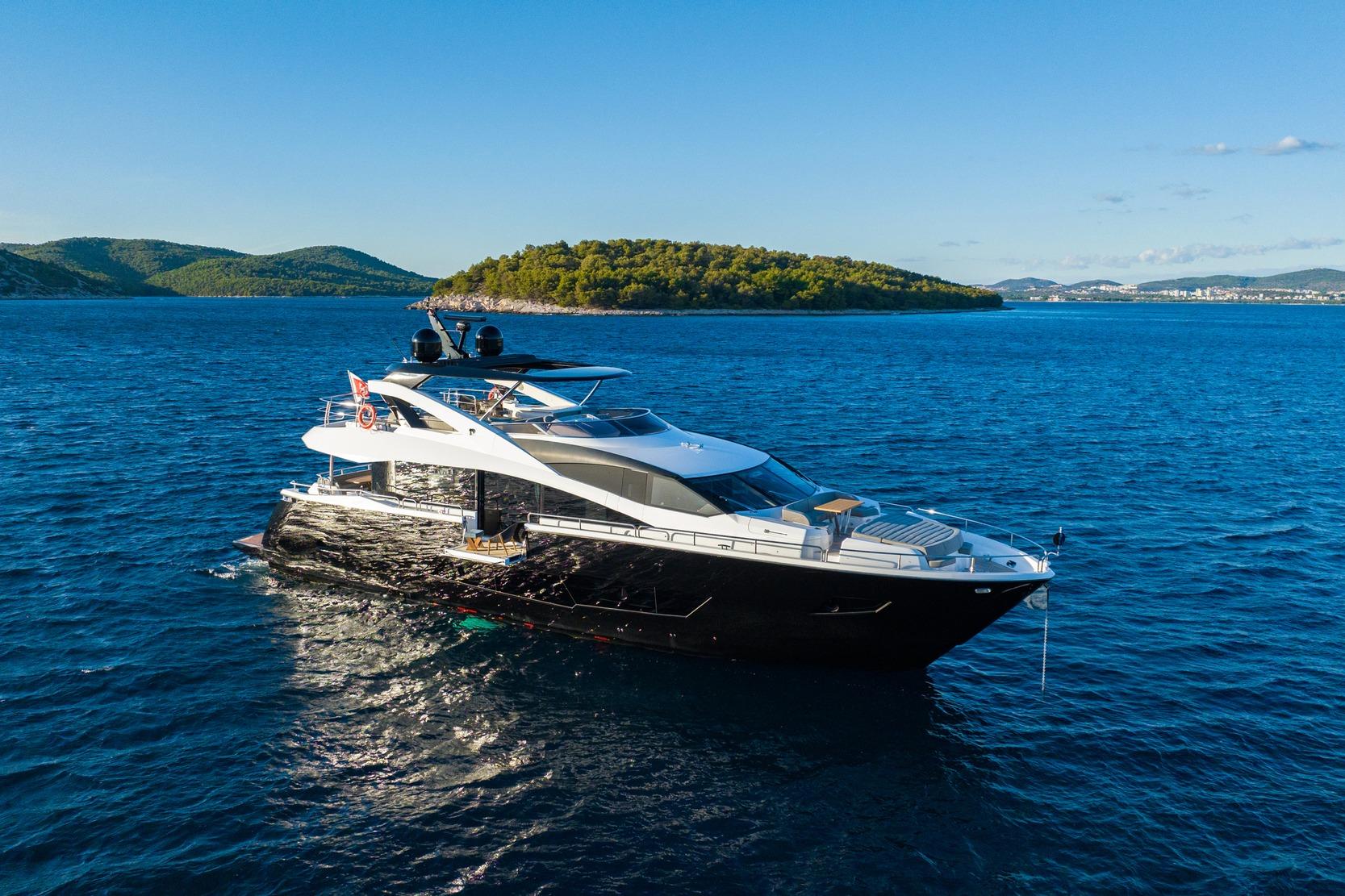

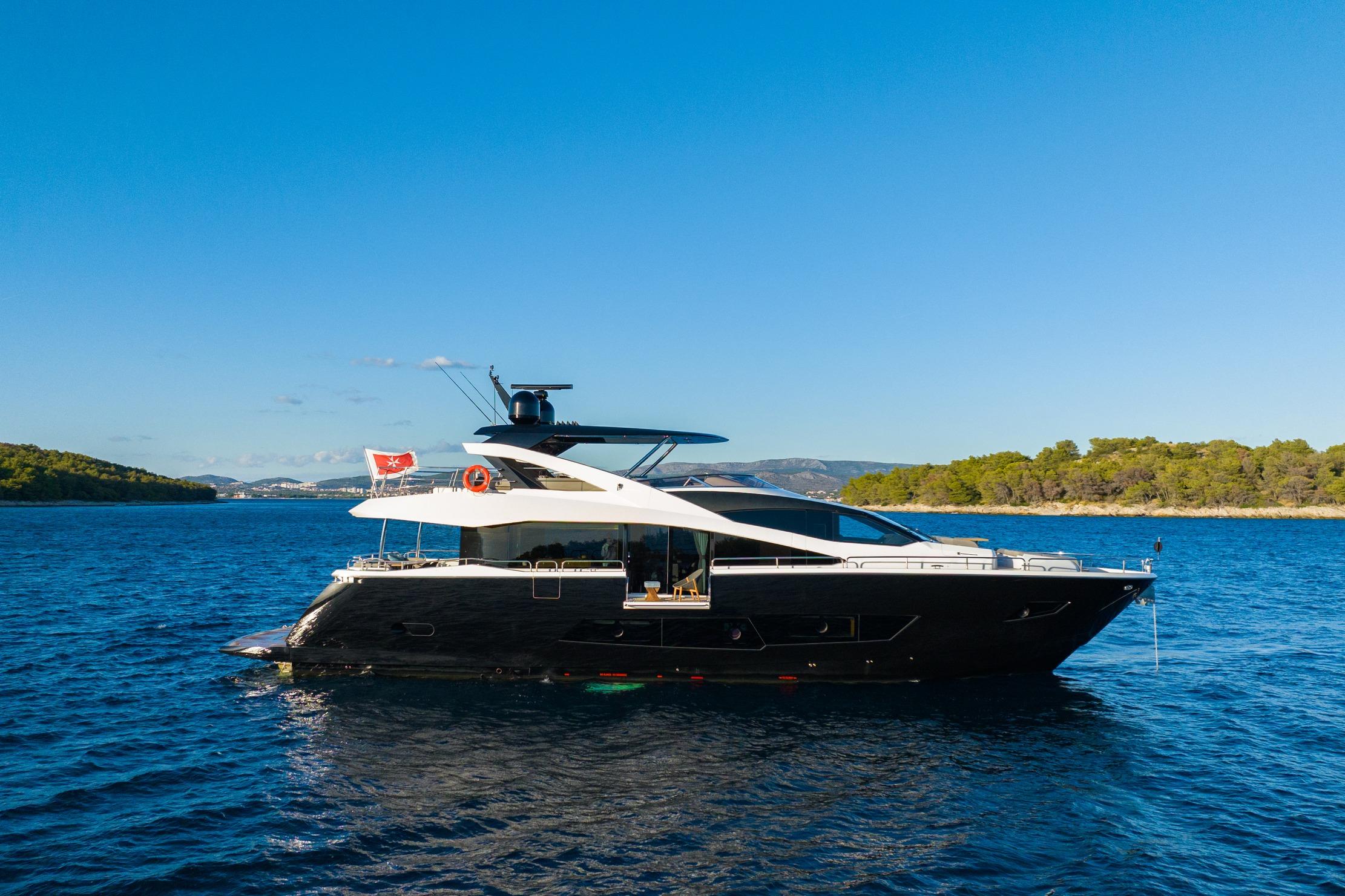

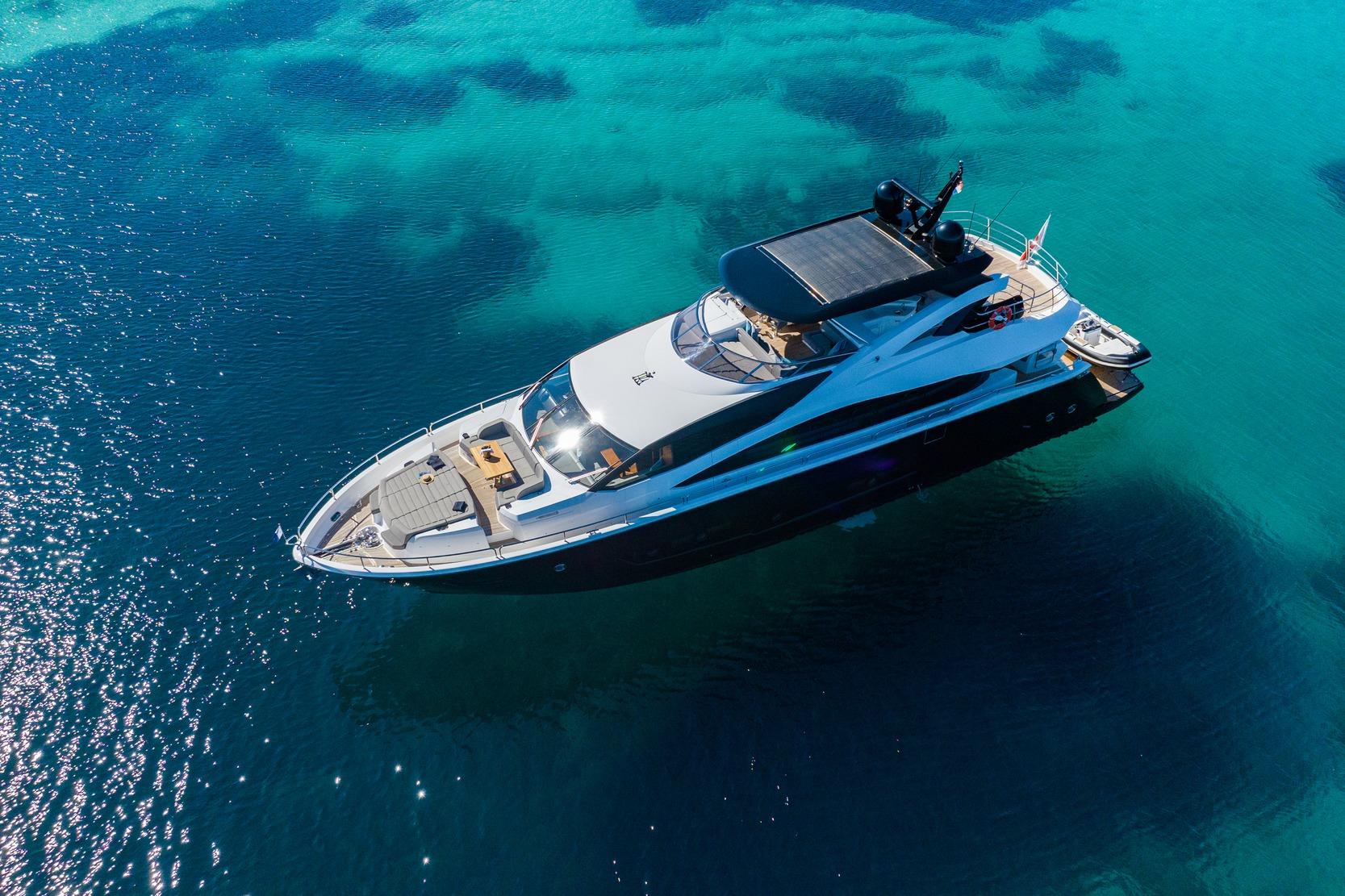

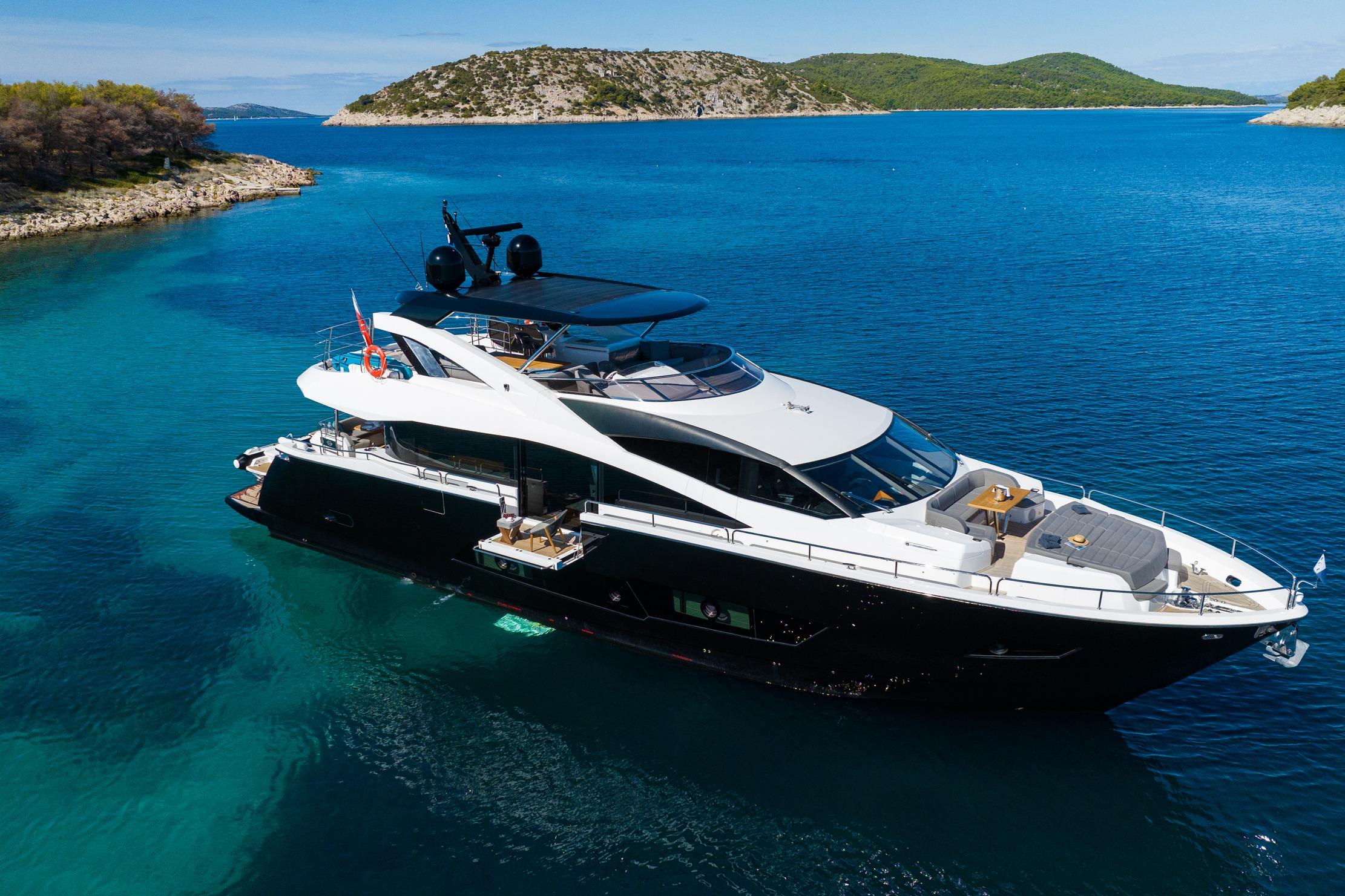

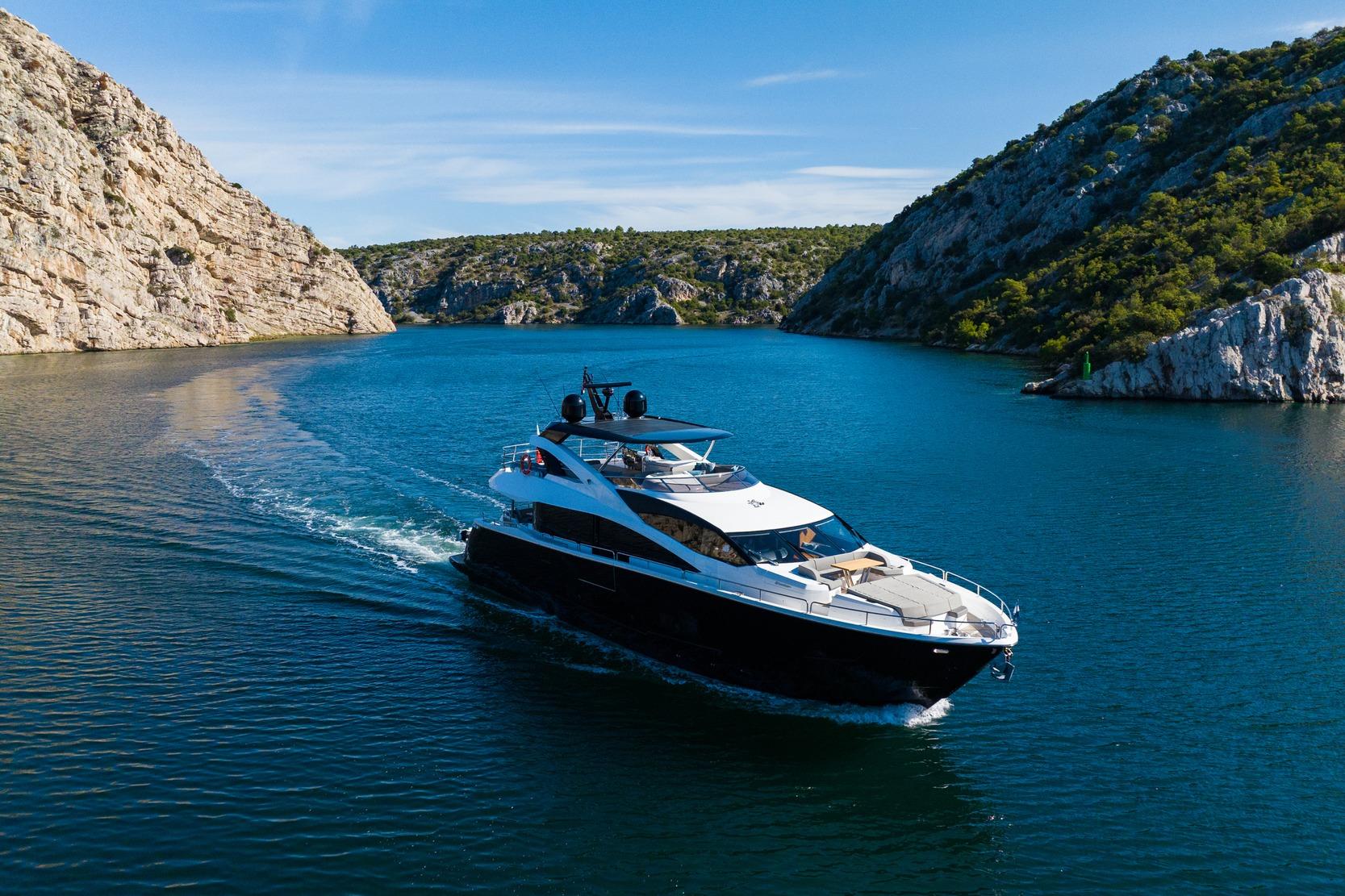

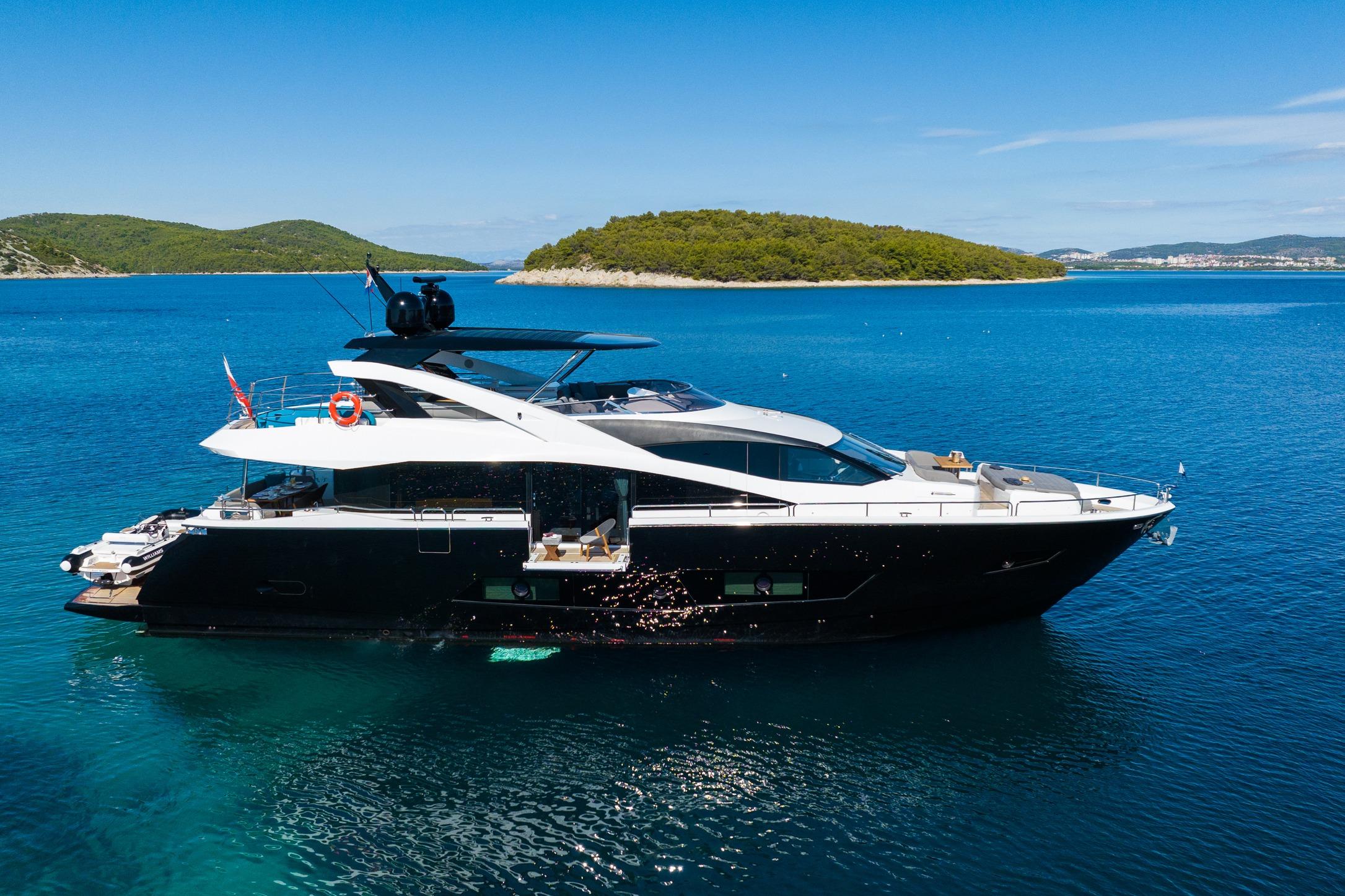

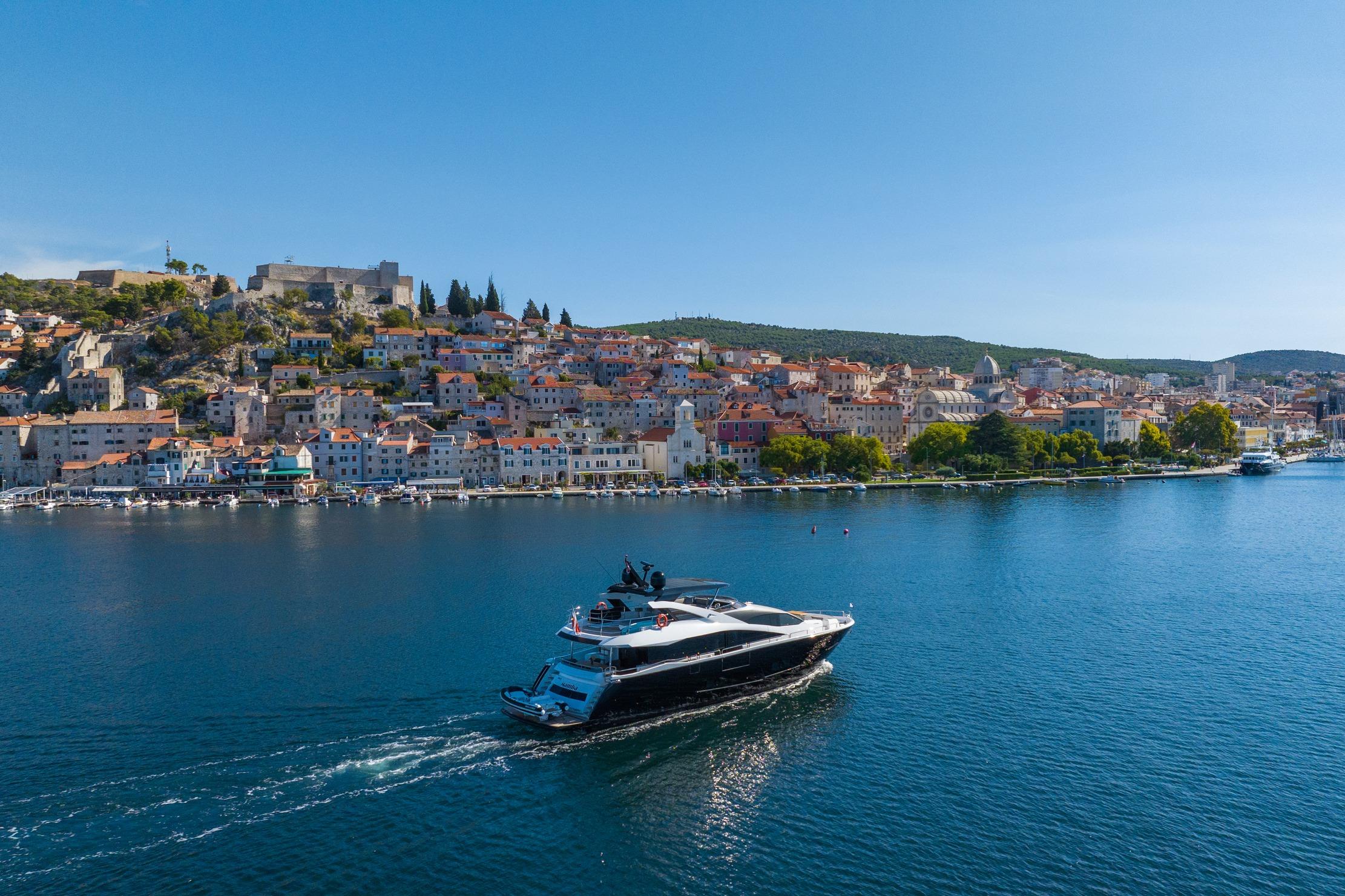

2020 Sunseeker 86 Yacht | 86ft

01. ACCOMMODATION OVERVIEW

• Cabins: 4

  • 1 x Master

  • 1 x VIP

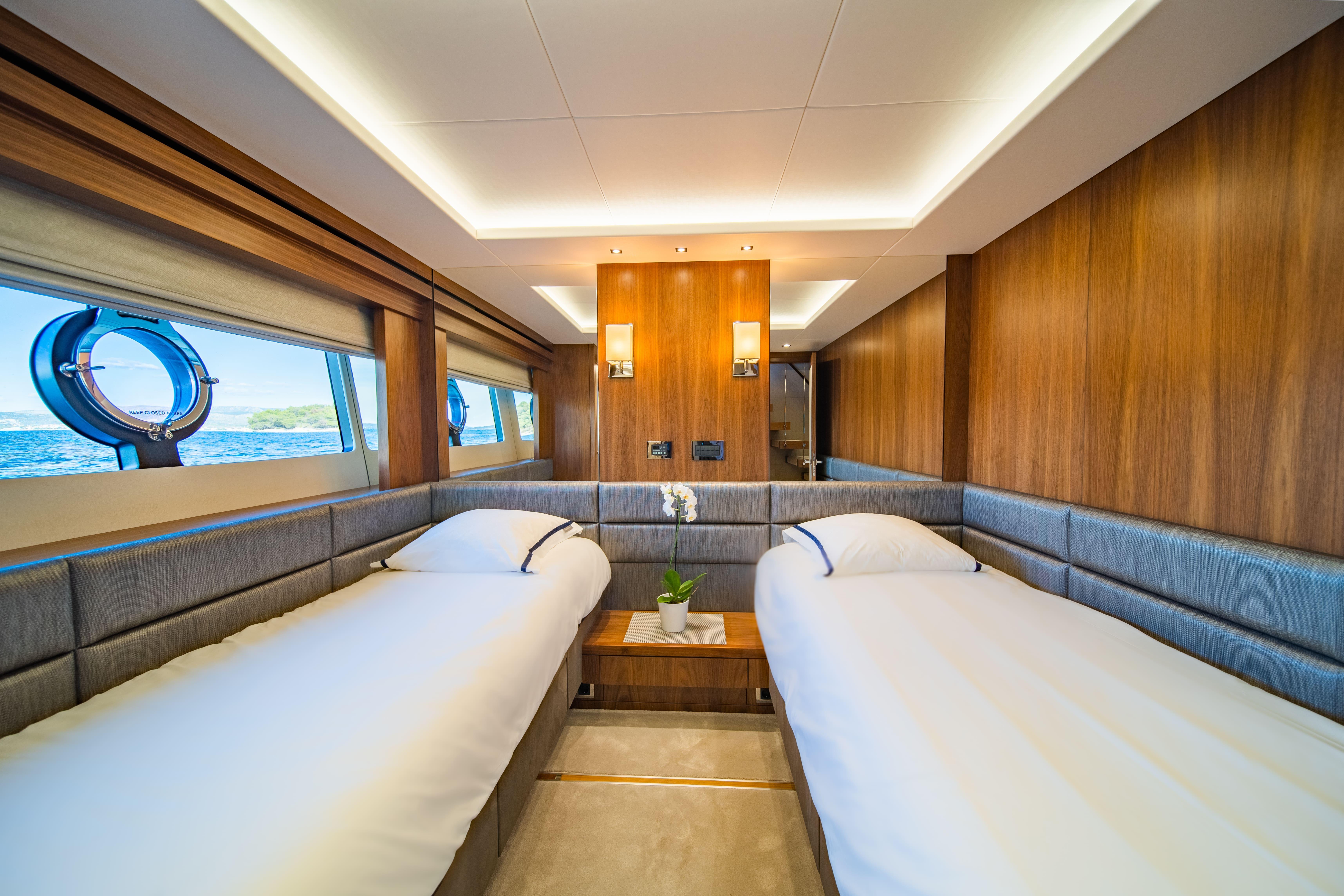

  • 2 x Twin (convertible)

• Crew:

  • 2 x twin crew cabins

02. TENDERS & WATERSPORT EQUIPMENT

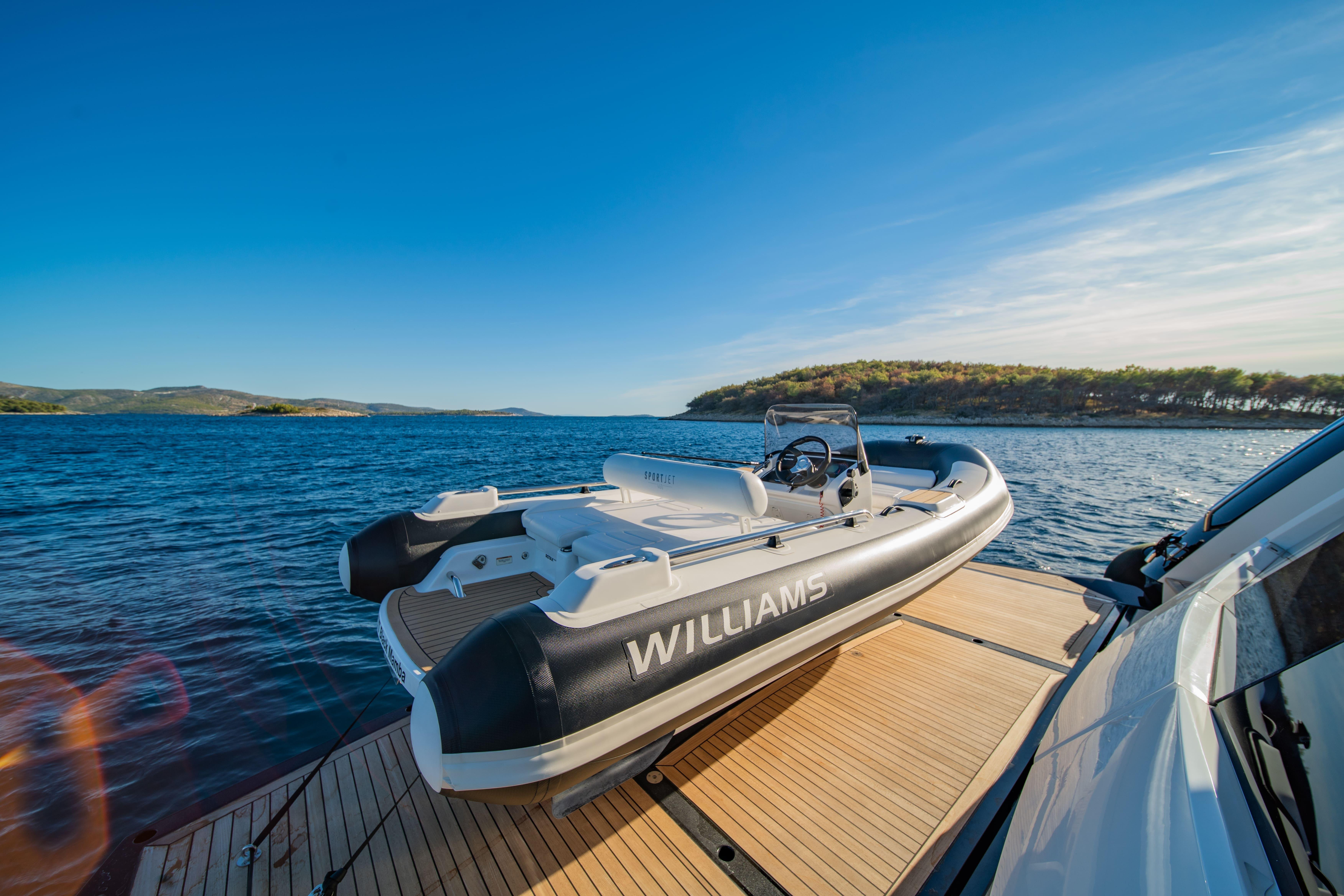

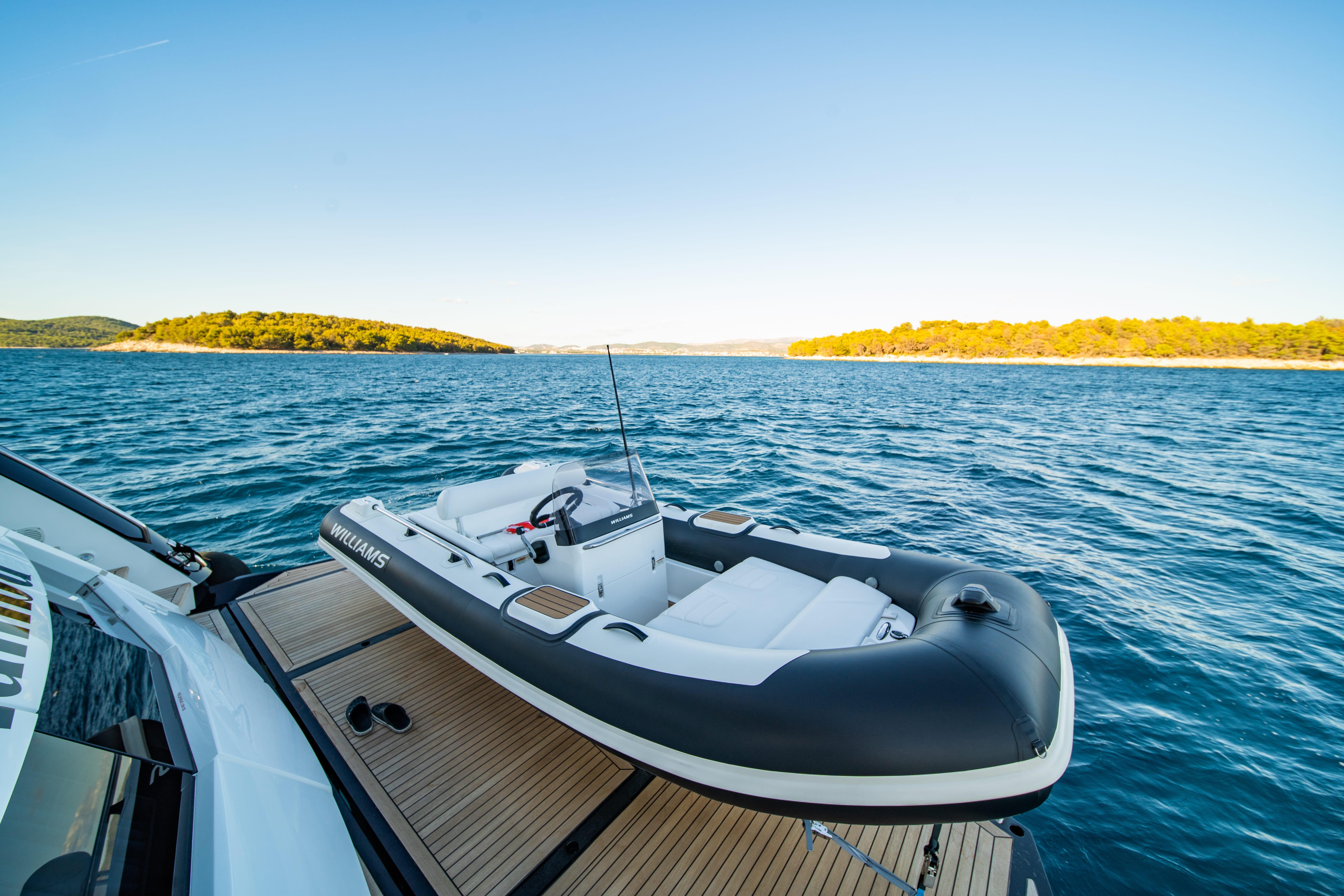

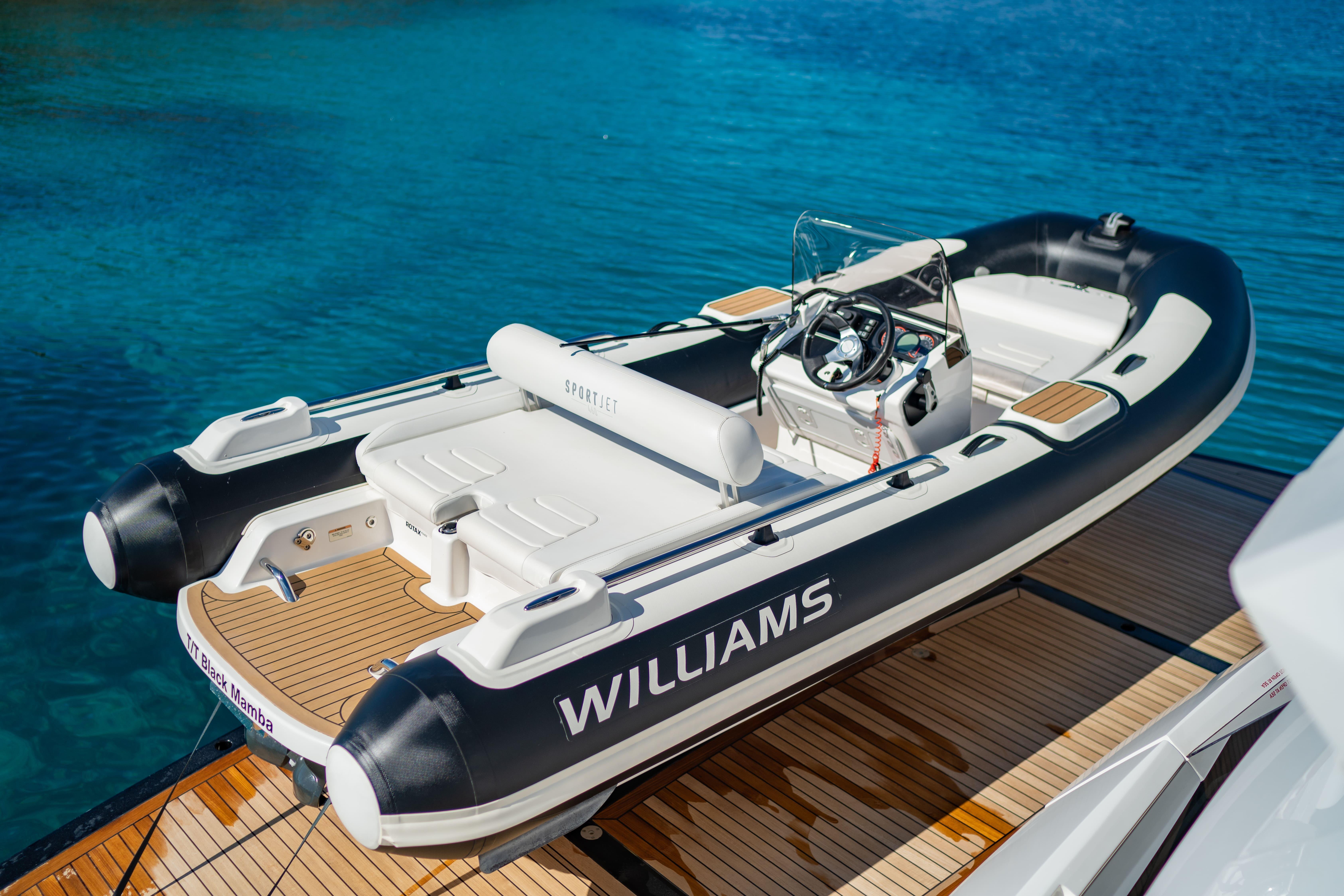

• Williams Jet Tender 460

03. AUDIO VISUAL EQUIPMENT

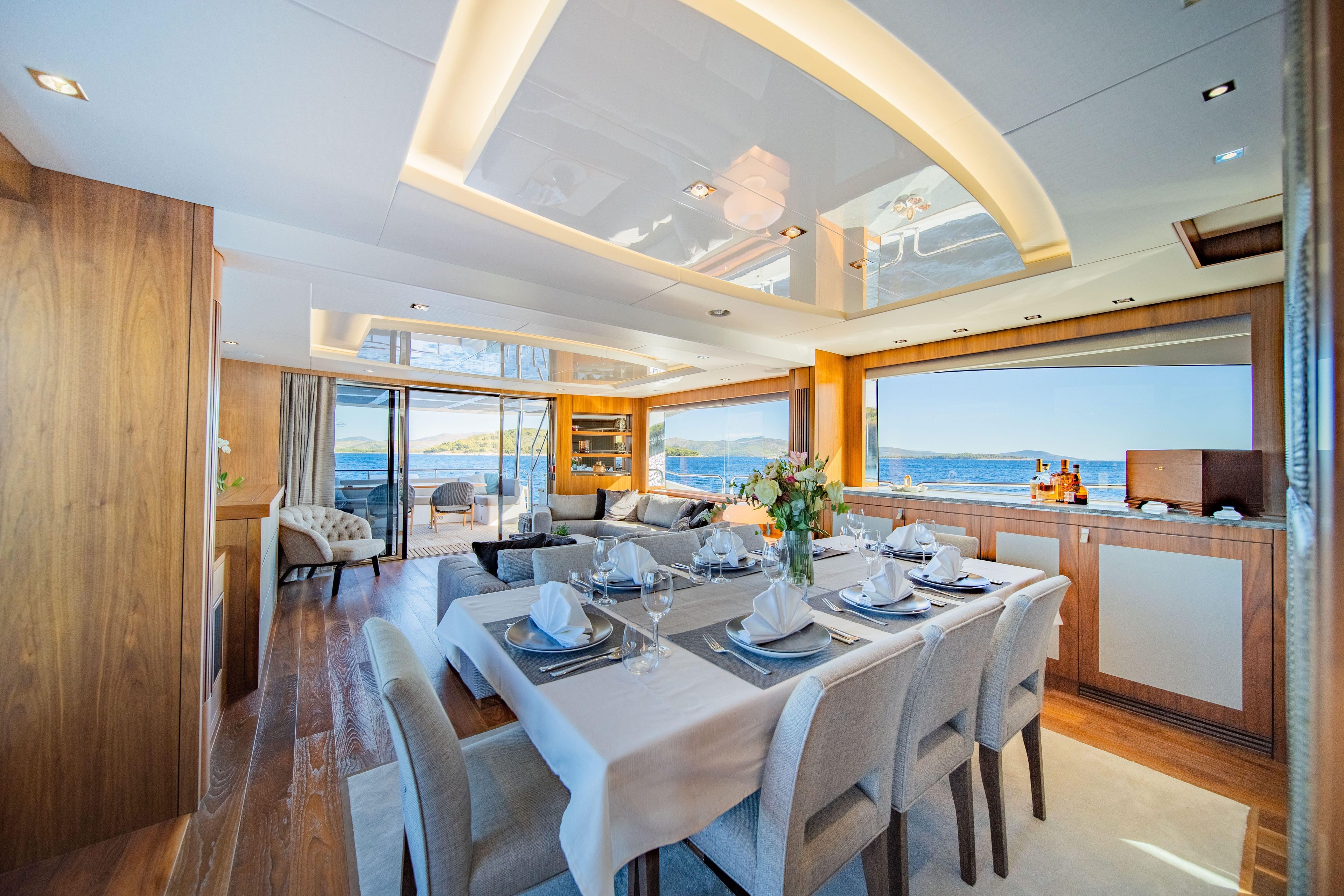

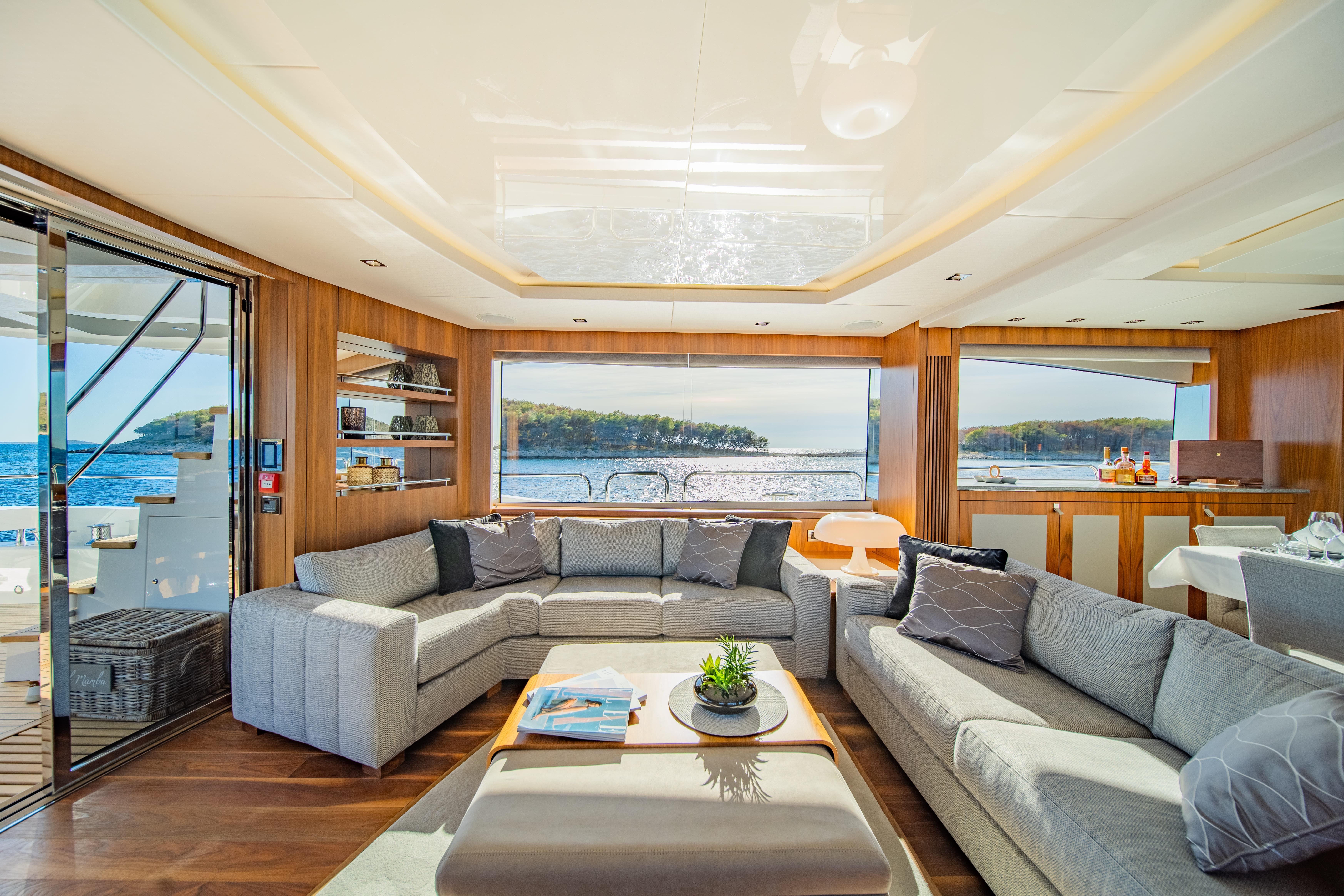

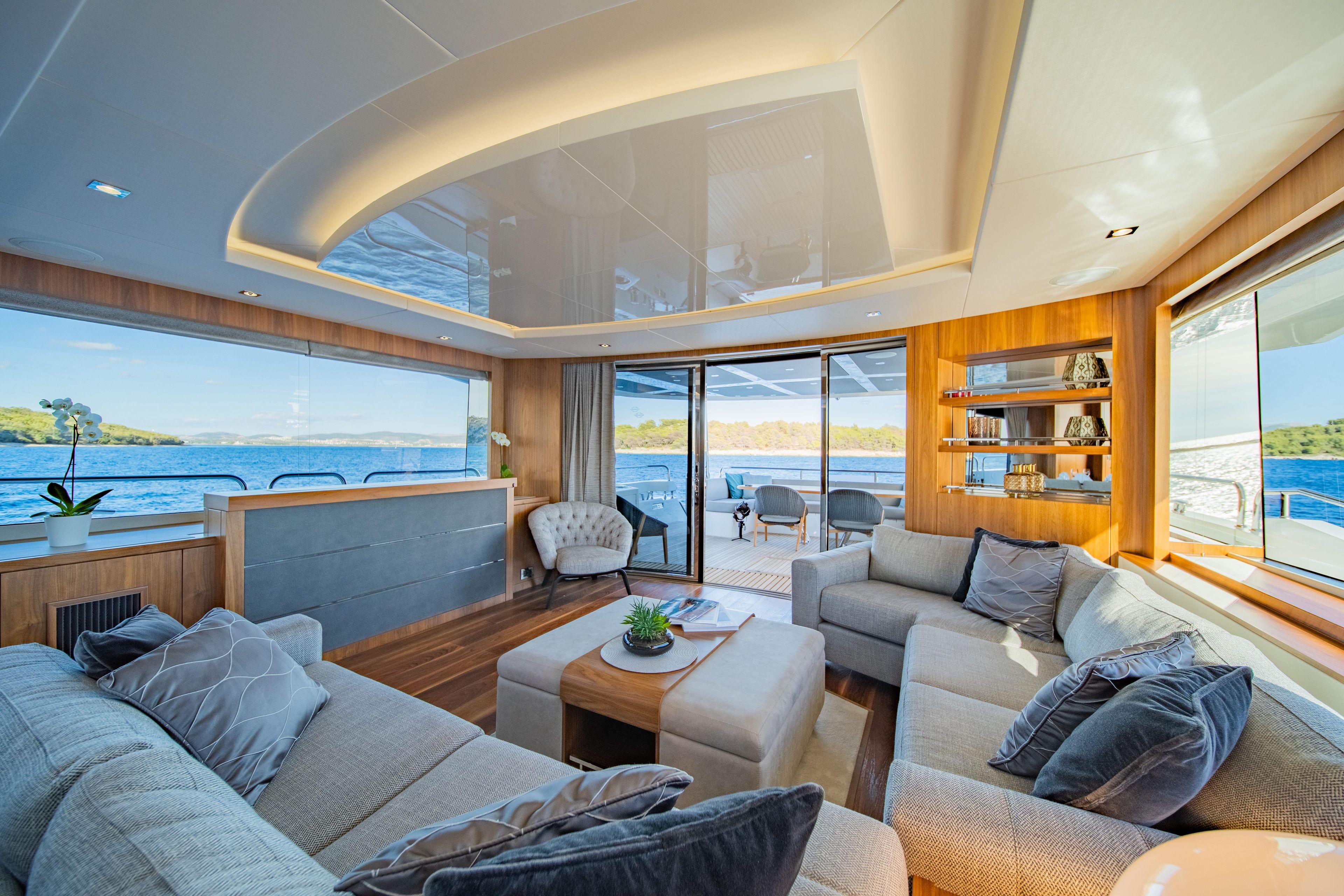

• Saloon:

  • Samsung 55” rise & fall TV

  • Blu-ray player

  • Sonos surround system with subwoofer

  • Apple TV

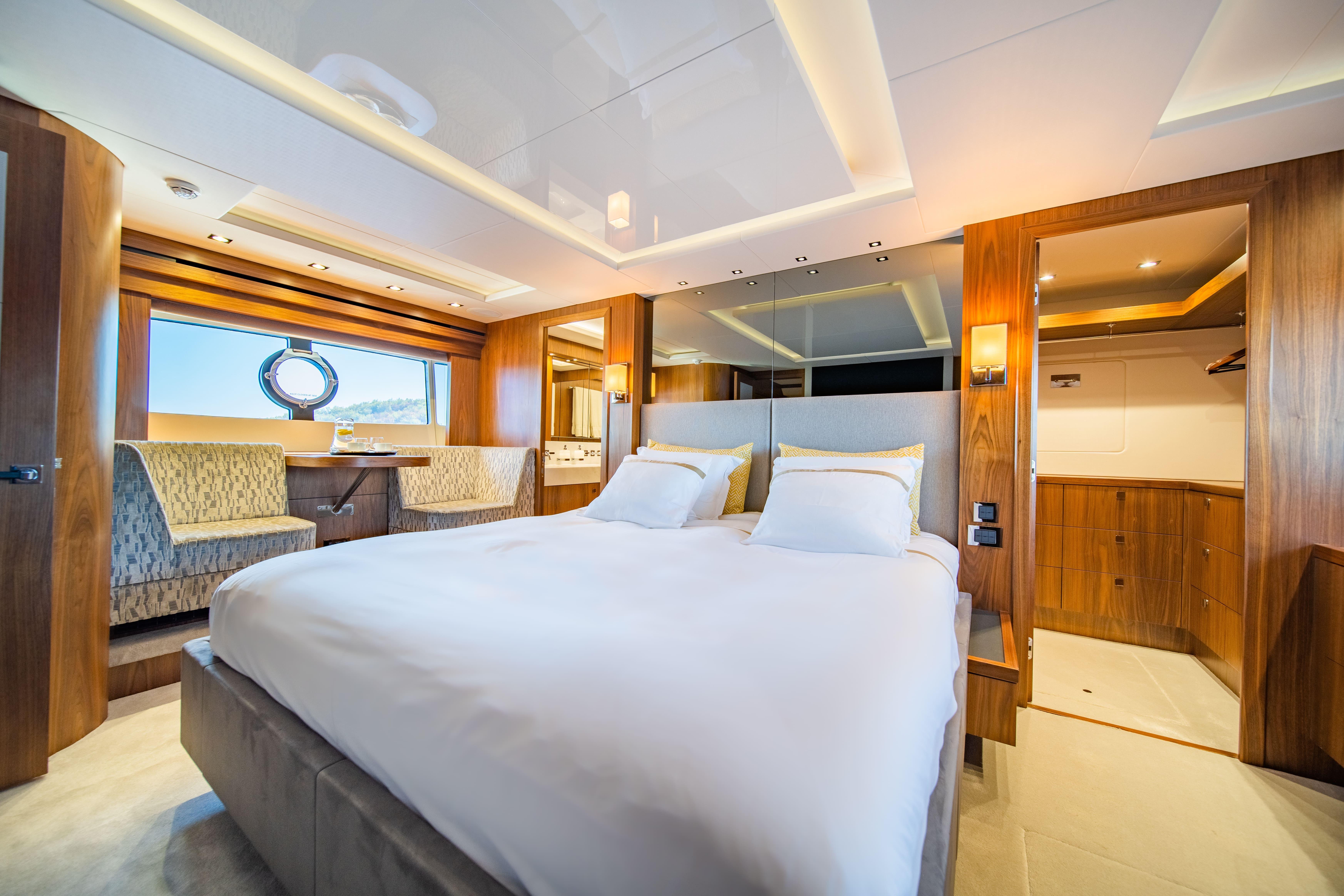

• Master cabin:

  • Samsung 55” TV

  • Blu-ray player

  • Sonos sound system

  • Apple TV

• VIP cabin:

  • Samsung 43” TV

  • Sonos Beam soundbar

  • Apple TV

• Guest cabins:

  • 24” TVs

  • Sonos Beam soundbars

  • Apple TV

• Crew cabin:

  • 24” TV with Fusion DVD/CD/Radio

  • Bluetooth connectivity

• Exterior audio zones:

  • Aft cockpit: Sonance Extreme speakers

  • Flybridge: Sonance Extreme speakers

  • Foredeck: Sonance Extreme speakers

04. MACHINERY

• Engines: Twin MTU 12V 2000 M96L (2 x 2638 HP)

• Engine hours: 1659 @ January 2026

• Maximum speed: approx. 30 knots

• Cruising speed: approx. 22 knots

05. GENERATORS & AUXILIARY SYSTEMS

• One Kohler 28 kW 50Hz generator

• One Kohler 32 kW 50Hz generator

• Line Voltage Regulator – Atlas AutoSHORE 30 kVA

• Seamless power transfer system for AV equipment when switching between shore power and generators, including changeover between generators via inverter-supported supply

06. Zero Speed stabilisers

• Bow & stern thrusters system SP550HYP

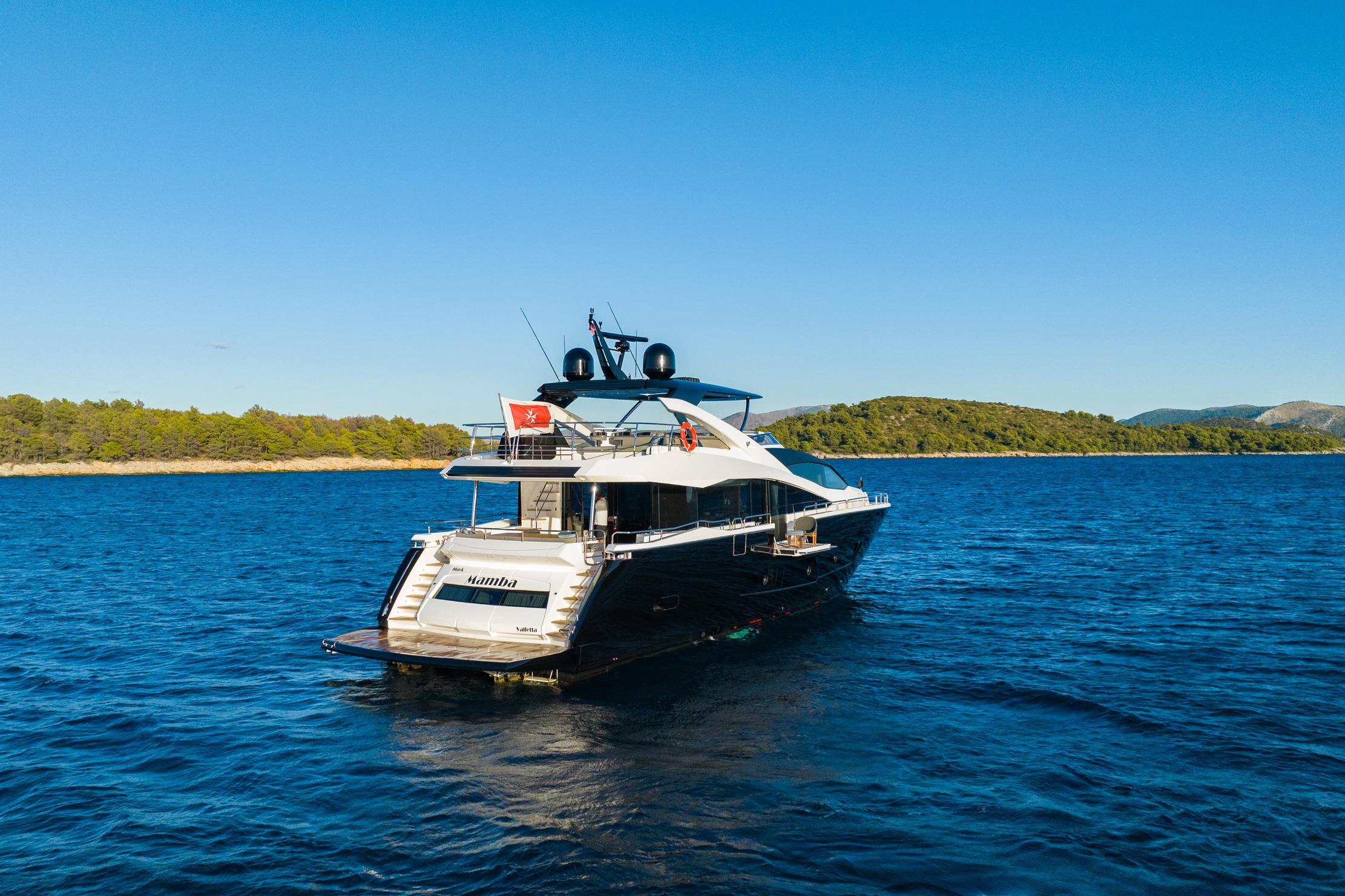

• Hydraulic bathing platform

• Shore power with isolation transformer

• Air conditioning upgraded to tropical specification – 228,000 BTU

• Air conditioning air handlers upgraded to quieter running WhisperCool DC fans

• Sleipner SPS92 hydraulic stabiliser units with Vector fins for underway and at anchor stabilisation

• Fuel polishing system Separ FPS-210

• Oil change system for engines, gearboxes and generators

• Standby fresh water pump fitted using separate pick-up and strainer from tank feeding separately into main water circuit

07. COMMUNICATION EQUIPMENT

• Simrad RS90 VHF with DSC – main helm

• Simrad RS90 VHF second station handset in crew mess

• AIS transponder

08. NAVIGATION EQUIPMENT

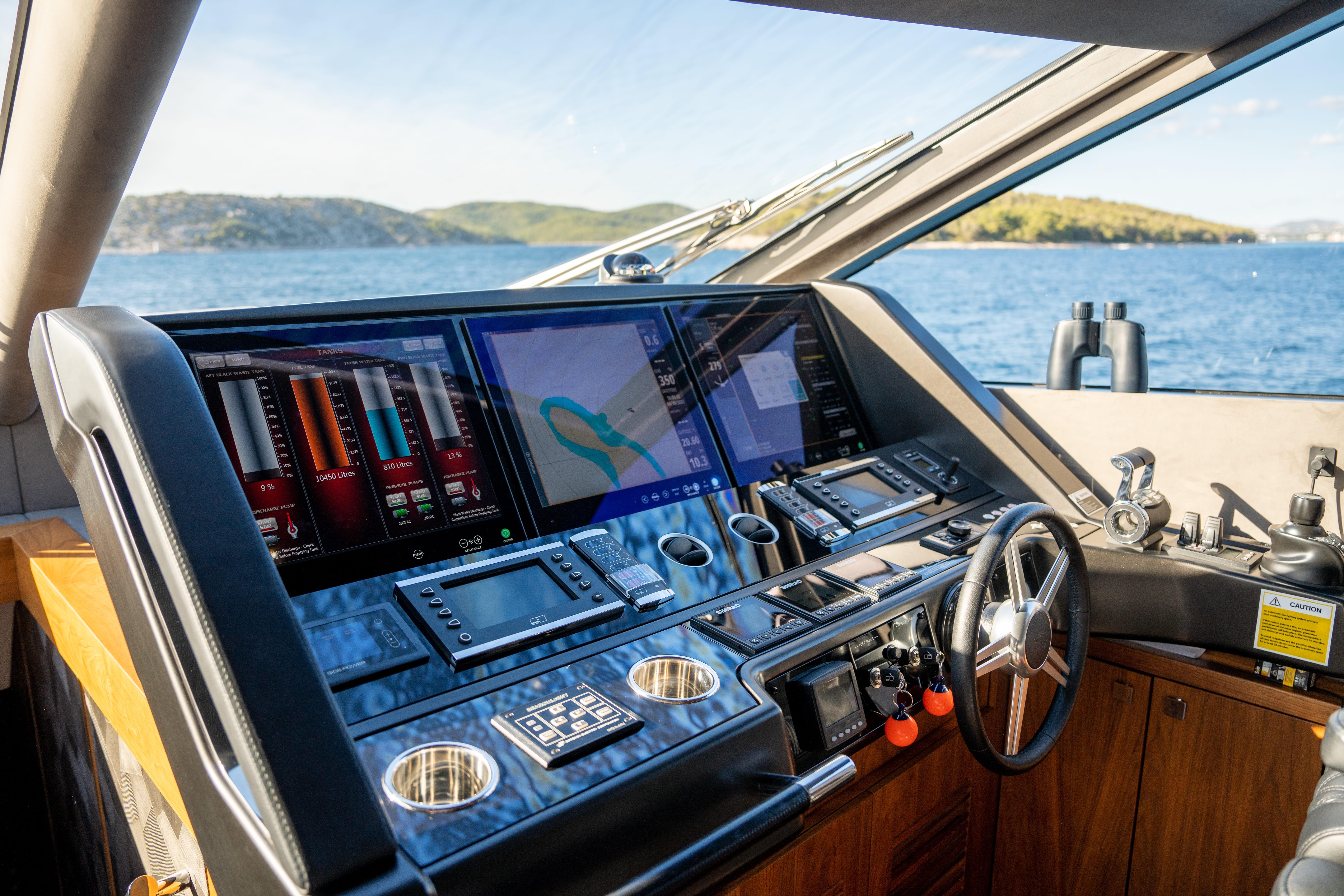

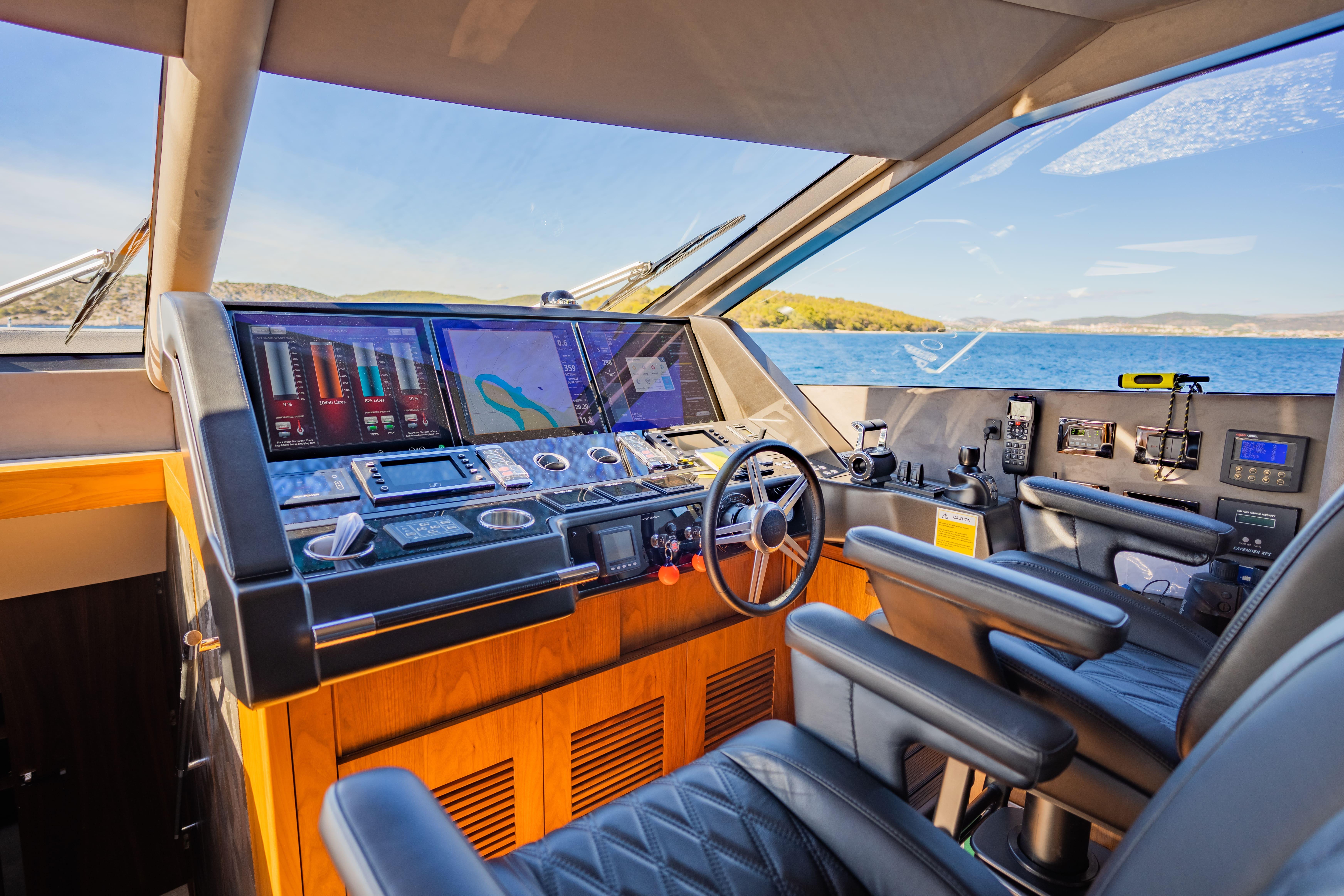

• Simrad Glass Bridge navigation system

• Three Hatteland 19” Glass Bridge displays at main helm

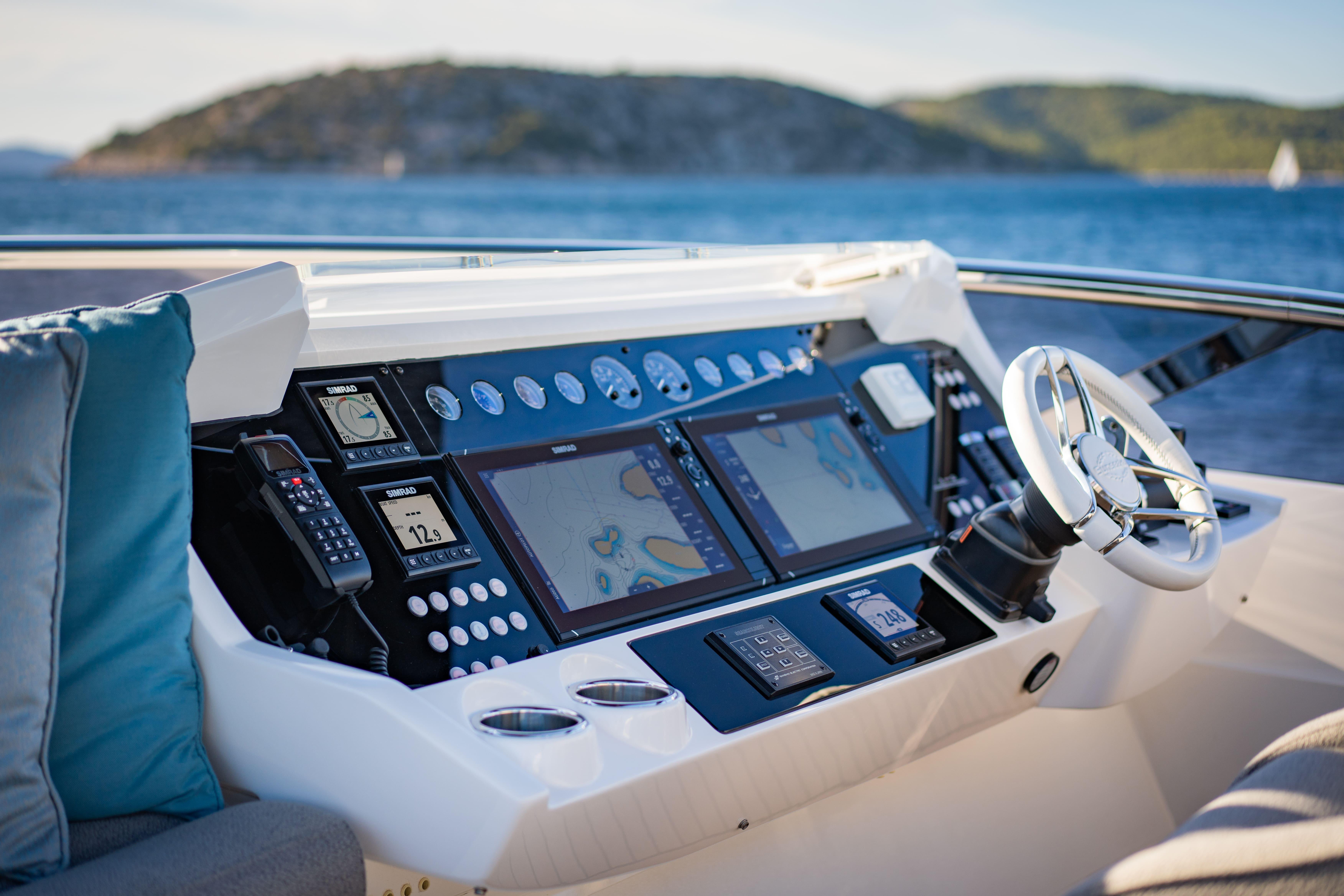

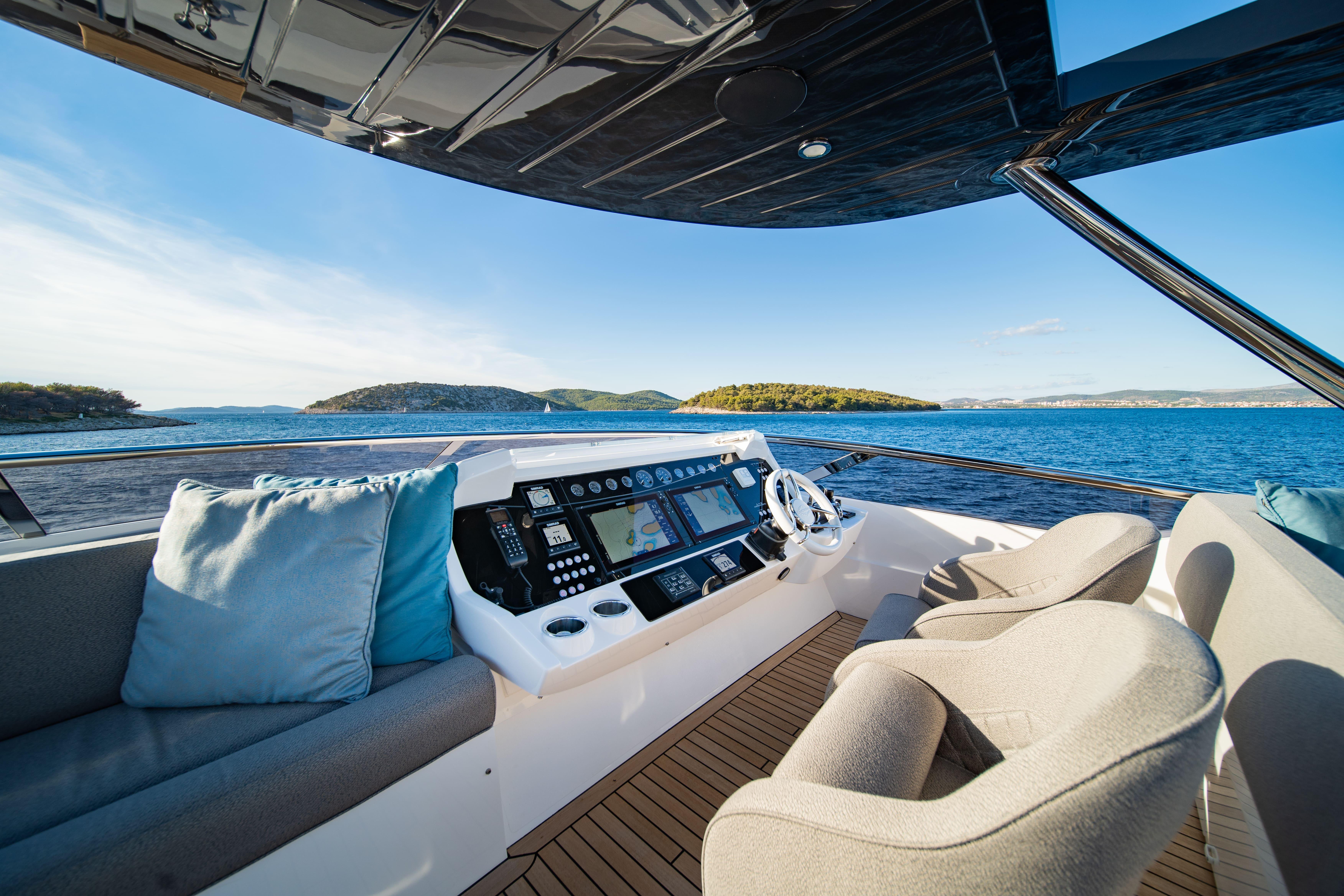

• Simrad NSS16 evo3 16” multifunction displays (upper helm)

• Simrad Halo 6 pulse compression open array radar (72 nm)

• Simrad autopilot system with OP50 control

• Simrad IS42 multifunction instruments (speed, depth and compass)

• Simrad StructureScan HD sonar imaging module

• Simrad B744V speed and depth transducer

• Simrad GS25 GPS antenna

• Simrad Sonic wind speed and weather station

• Magnetic compass with correction card

• Dynamic Positioning System (station keeping)

• Searchlight – Sanshin Twin Beam HR-1012-24V

• Xenta joystick control at main helm and upper helm

09. DECK EQUIPMENT

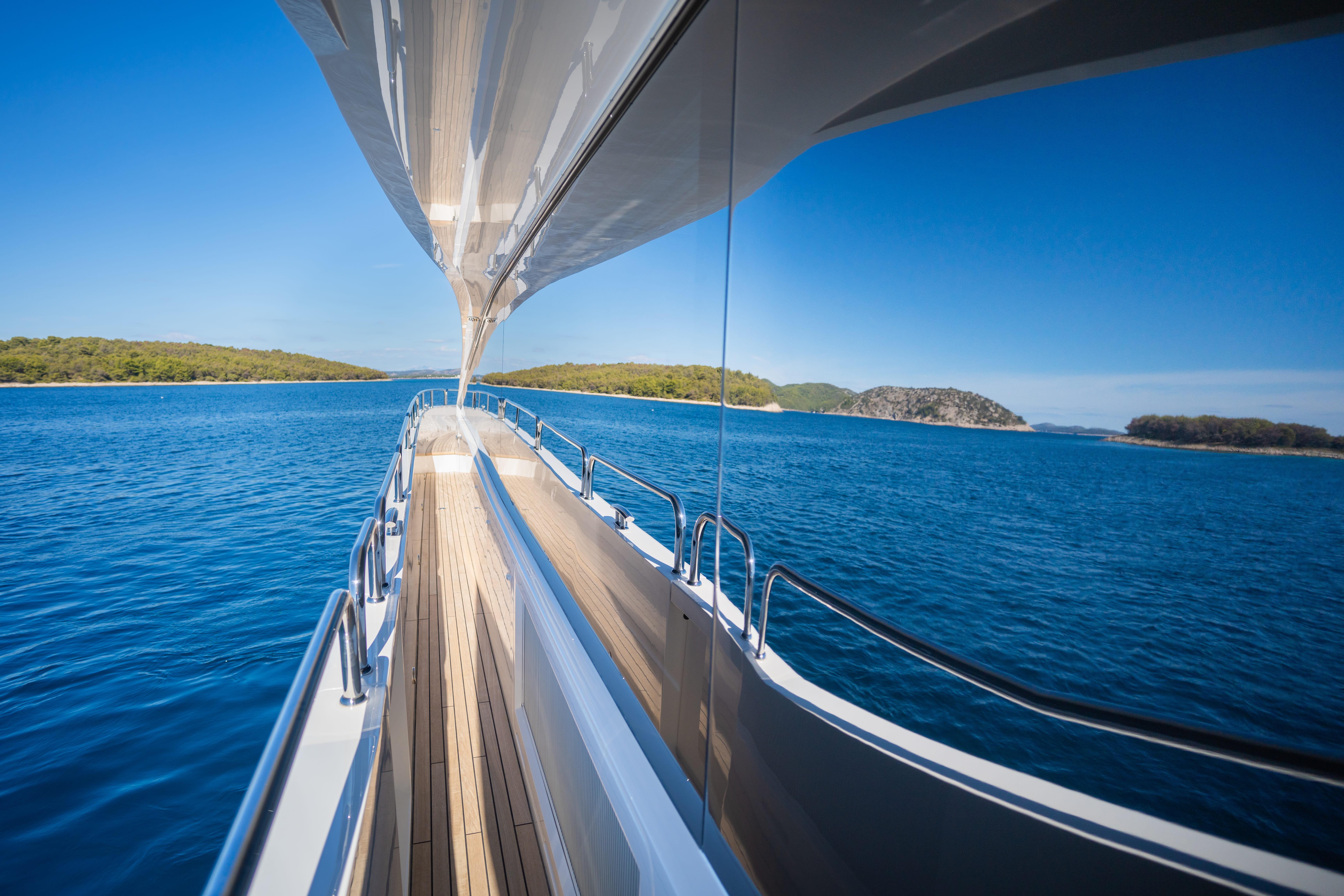

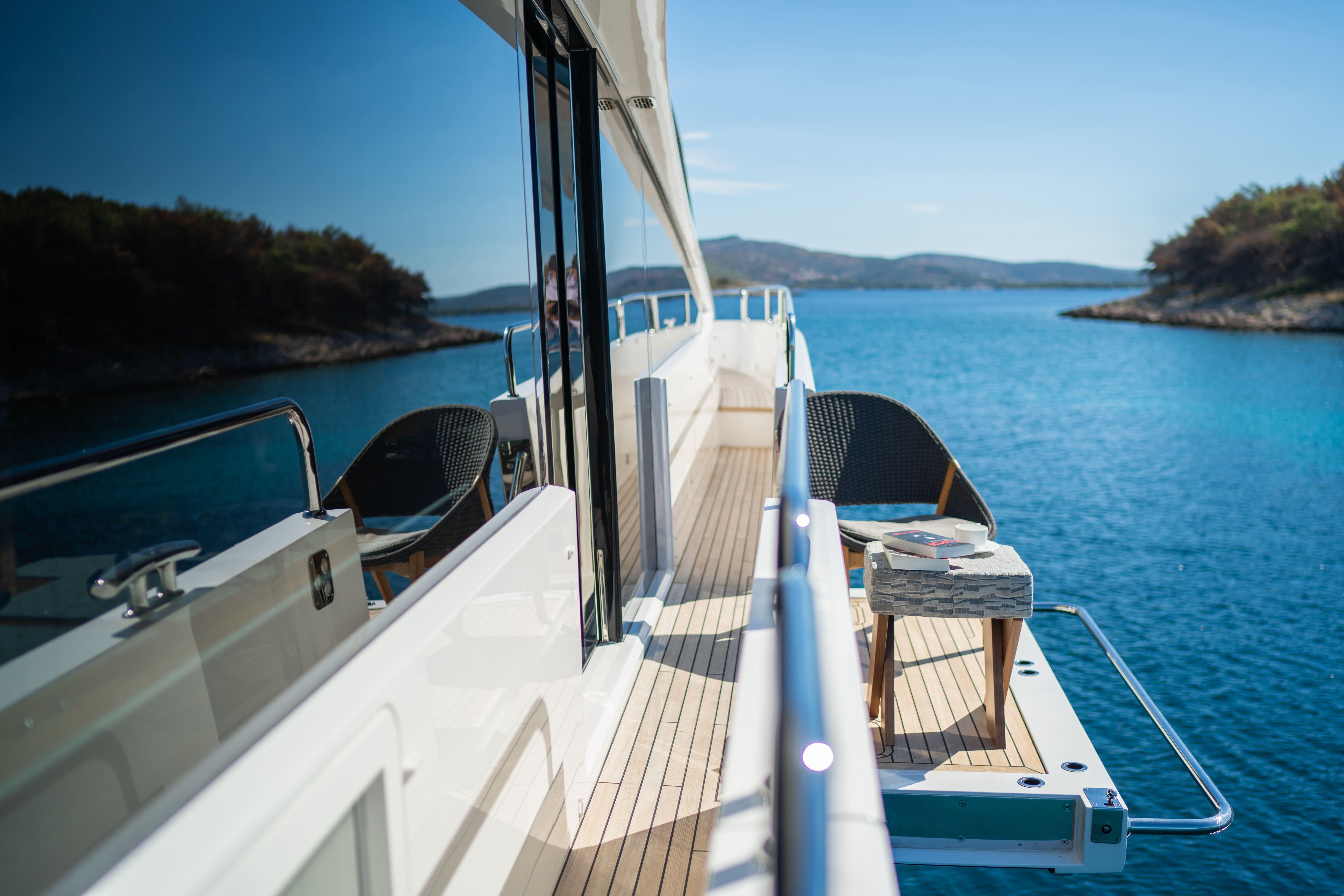

• Teak laid decks on foredeck, side decks, cockpit, transom and flybridge

• Hydraulic bathing platform with Phoenix “rise and fall” system (SWL 1,000 kg)

• Stainless steel telescopic bathing ladder concealed in platform

• Hydraulic passerelle

• Stainless steel transom steps port and starboard

• Stainless steel cockpit gates port and starboard

• Stainless steel guardrails on foredeck, side decks and flybridge

• Stainless steel handrails fitted externally

• Electric Lewmar V8 anchor windlasses with warping drums

• Remote anchor windlass controls

• Foot switch anchor controls on foredeck

• Primary anchor – 80 kg galvanised steel claw type

• Secondary anchor – 50 kg galvanised steel claw type

• Anchor chains – 12 mm galvanised steel

• Stainless steel stem head fitting with anchor rollers

• Devil’s claw anchor securing system

• Stainless steel mooring cleats fore and aft

• Electric Lewmar cockpit mooring winches

• Glendinning powered shore power cable system

• Retractable flybridge sun canopy

• Retractable aft flybridge awning

• Carbon fibre flybridge hardtop

• Cockpit all-weather enclosure with clear panels

• Exterior covers in grey vinyl

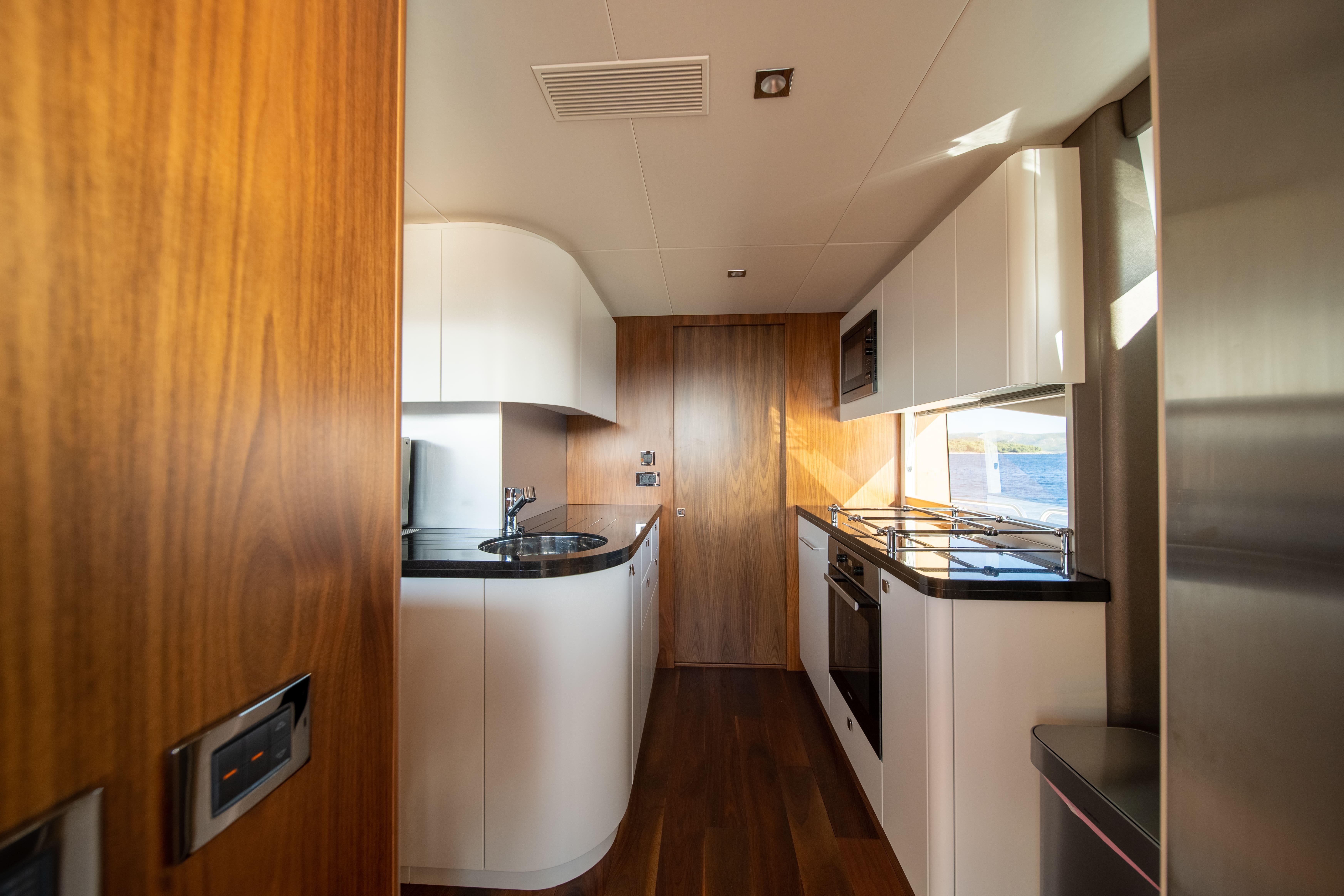

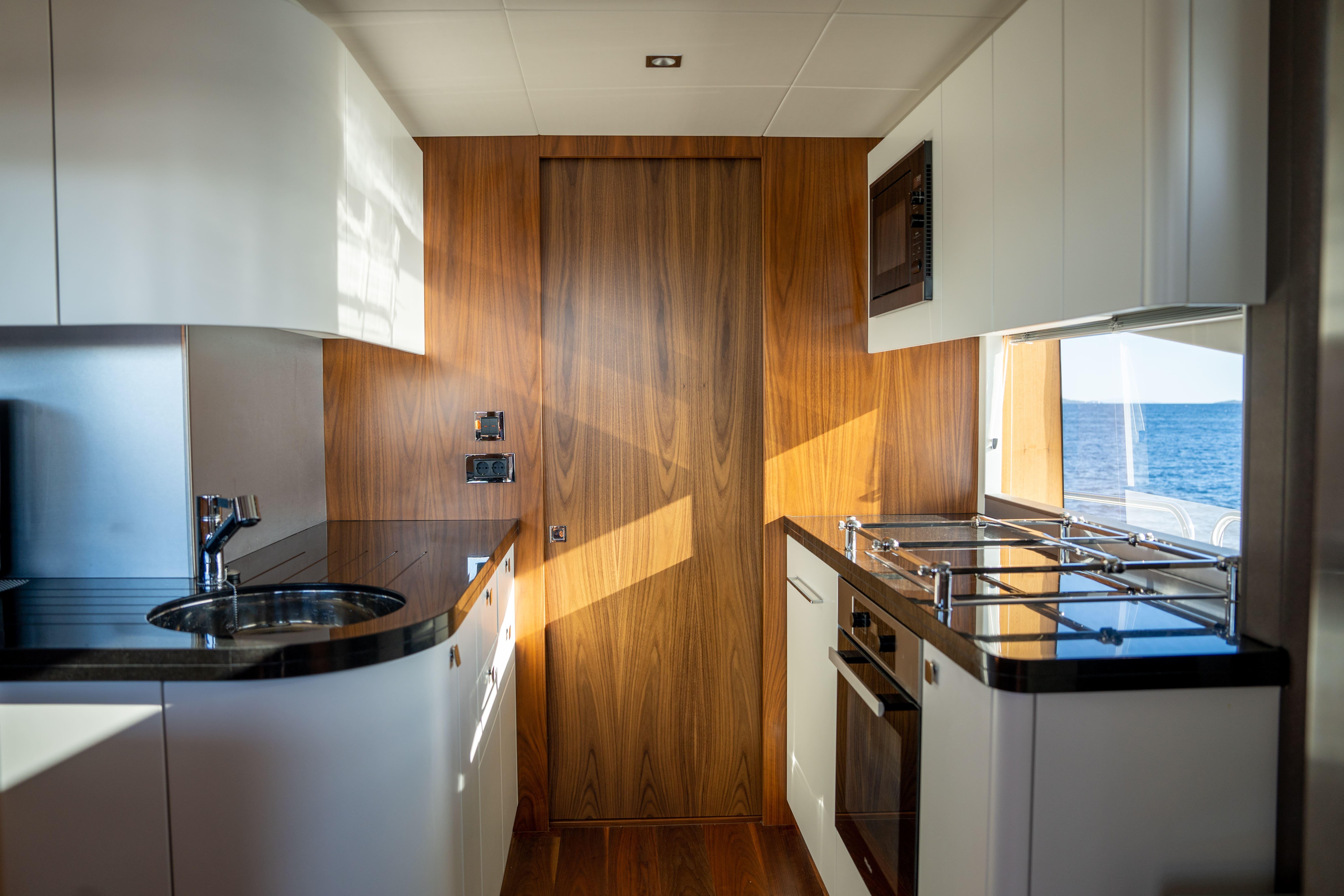

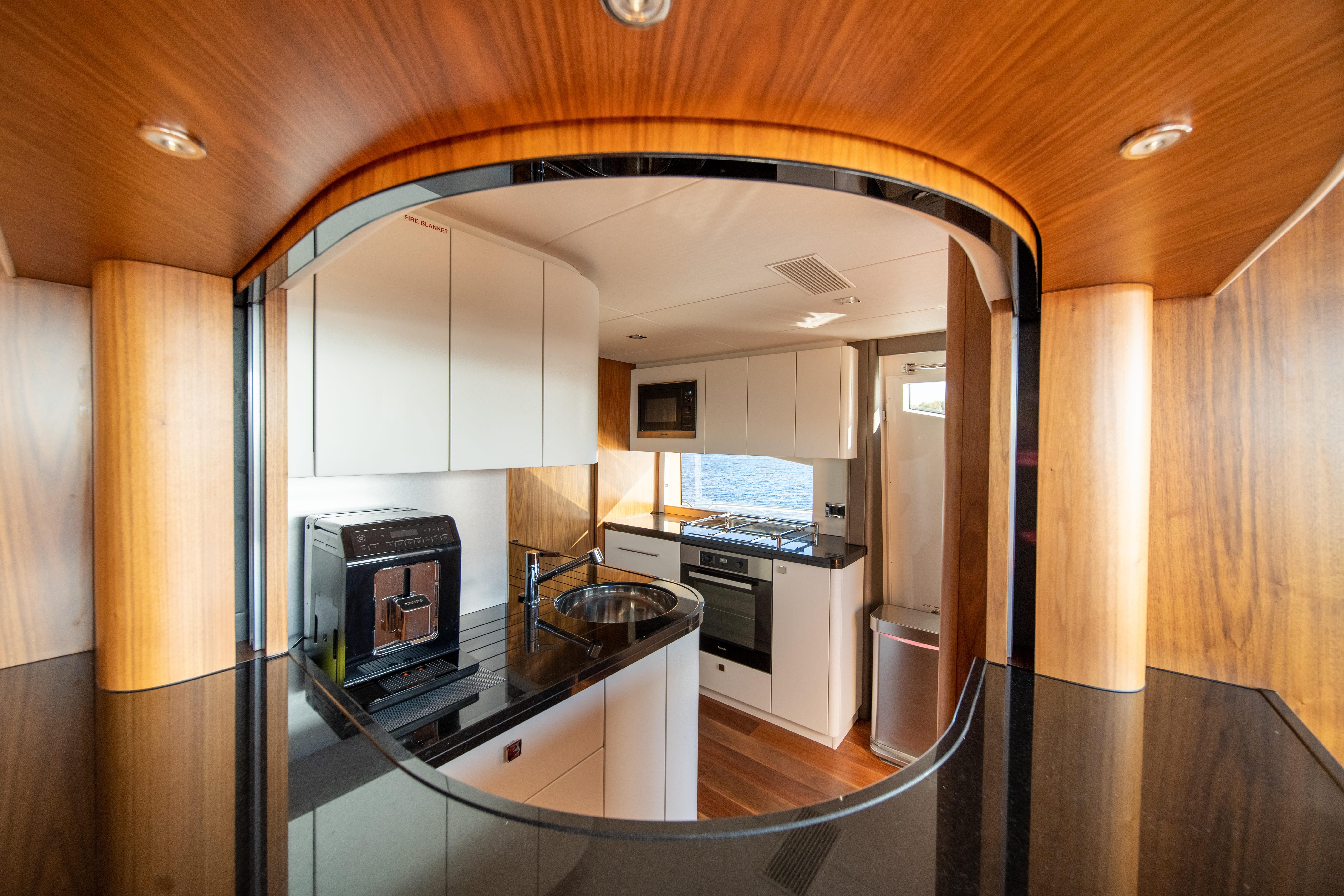

10. GALLEY & DOMESTIC EQUIPMENT

• Custom integrated galley refrigeration (Frigoboat)

• Miele 4-ring ceramic hob

• Miele electric oven

• Miele microwave

• Bosch extractor fan

• Miele full-size dishwasher

• Wine cooler (U-Line) – main deck

• Crew mess:

  • Miele washing machine

  • Miele tumble dryer

  • Sharp microwave

  • Waeco refrigerator

• Additional refrigerator (U-Line) – main deck

11. SAFETY & SECURITY EQUIPMENT

• Seafire H-120 fixed fire-fighting system in engine room

• Fireboy-Xintex fire detection system

• Smoke detectors fitted throughout the vessel

• Manual fire extinguishers installed throughout

• Fire blankets fitted in galley and flybridge wet bar locker

• Automatic and manual bilge pumping system

• Rule 2000 automatic bilge pumps

• Rule 3700 high-capacity bilge pumps

• Emergency bilge alarms connected to monitoring system

• Navigation lights in accordance with COLREG regulations

• Emergency lighting installed throughout

• Dolphin Marine security system

• Swipe card security access system

• Alarm panel at helm station

• Panic mode and night mode functionality

• CCTV surveillance system (engine room and aft cameras)

• Burglar alarm system with sensors at exterior access points

• EPIRB

• Life-saving equipment in accordance with flag requirements
