CONSTRUCTION
RCD Status:
• It is our understanding that the yacht conforms with the essential safety requirements of Directive 94/25EC (Recreational Craft Directive) and is categorised A — "Ocean".
Hull, Deck & Superstructure Construction:
• Balsa sandwich infusion hull
• Vacuum infused structural inner liner (Fabrics - resin) bonded to the hull
• Grey Blue topsides finish
• Deck in glass fibre/balsa wood sandwich infusion

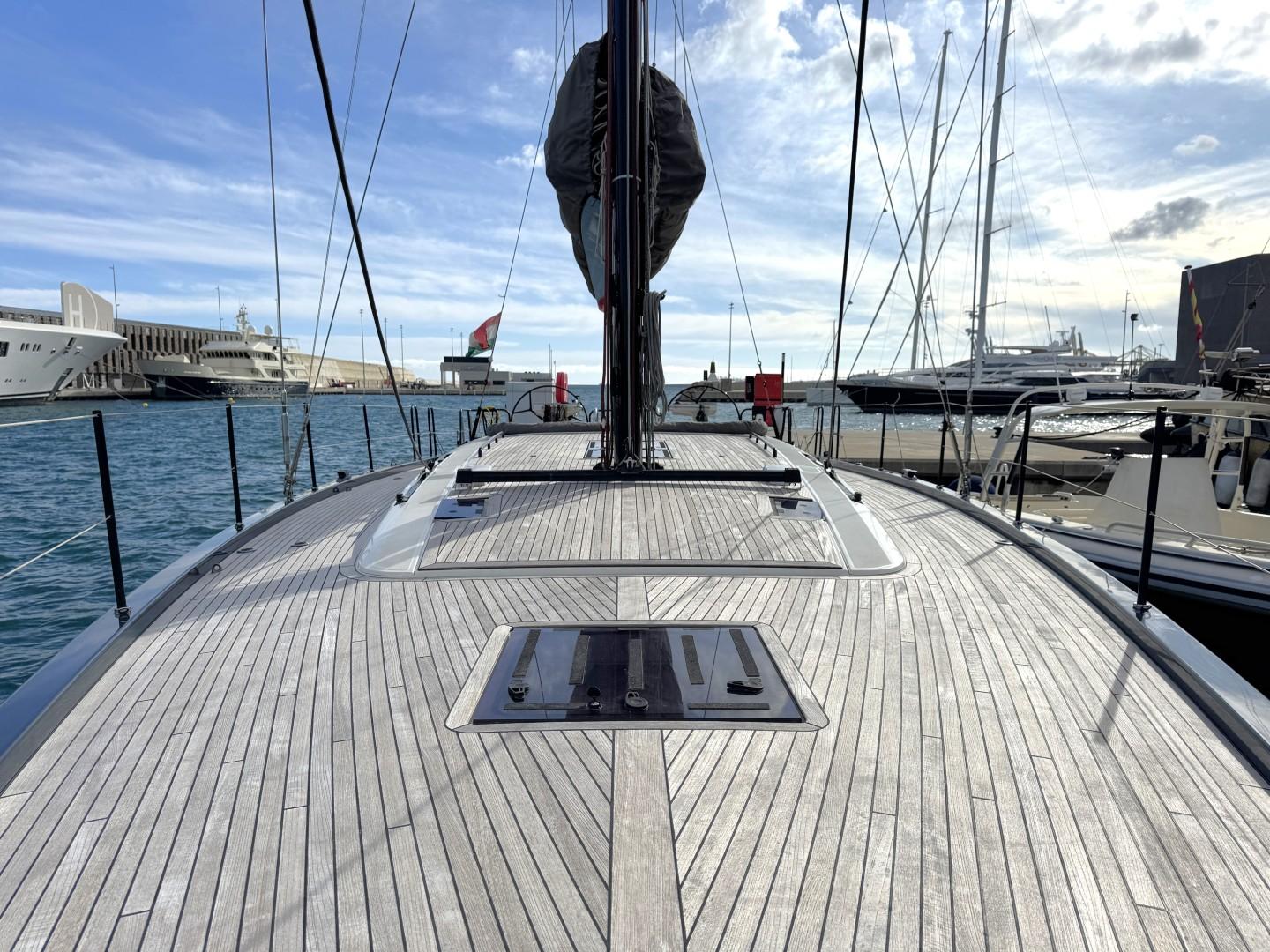

• Teak laid side decks, coachroof and cockpit
Keel & Rudder:
• 3.02m draft Performance T-keel with cast iron fin and lead bulb attached with bolts and bonded stainless steel backplate
• Twin rudders hung with stainless steel stock
MACHINERY
Engine & gearbox:

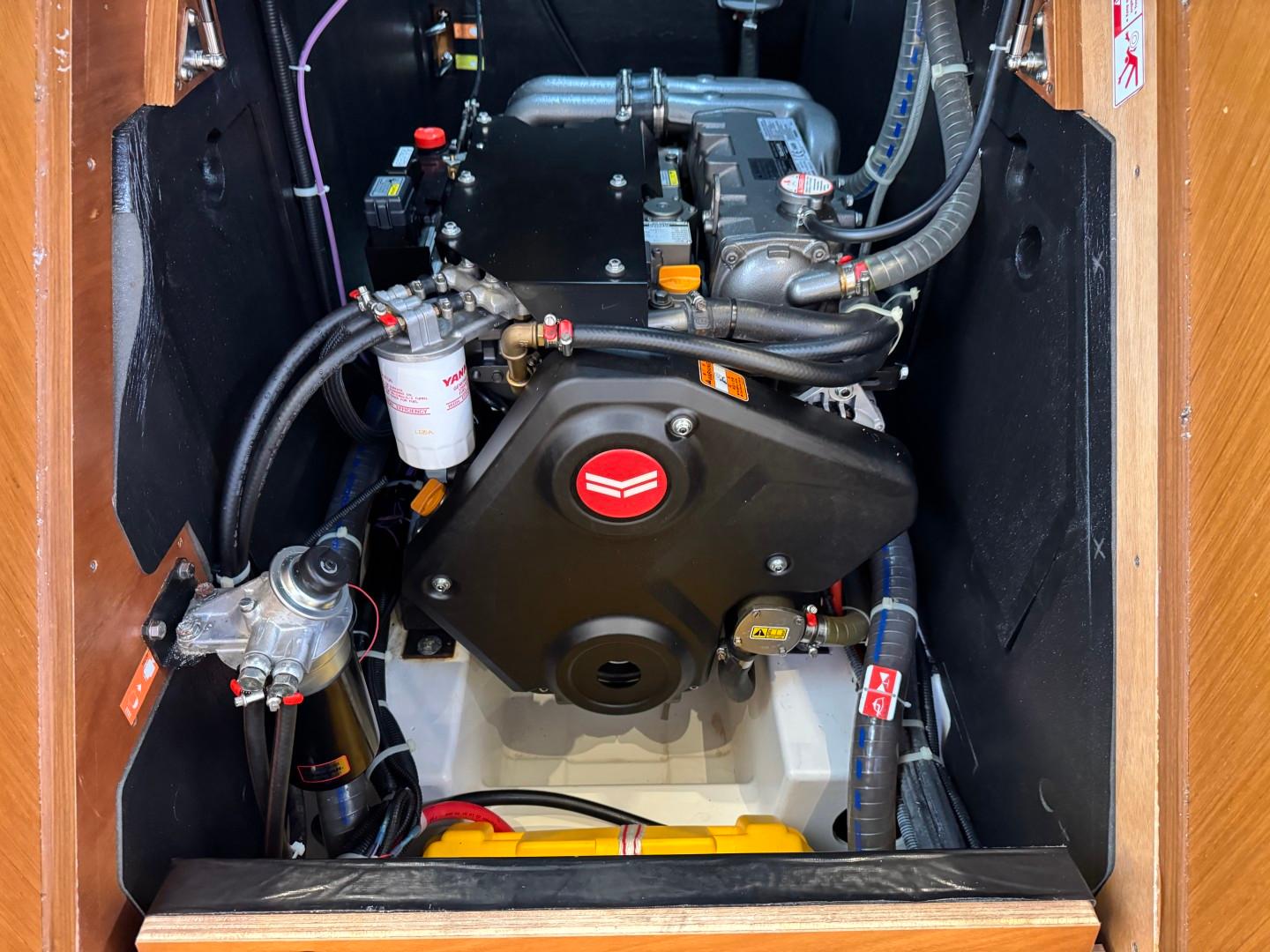

• Yanmar 4JH80 4-cylinder common rail diesel engine producing 80hp (59kw) @ 3,200 rpm
• Yanmar saildrive gearbox
• Fresh water engine cooling via raw water intake and heat exchanger
• Soundproof engine room
• Fuel/water separators
• Extraction fan
• Electronic gear/throttle control at the starboard helm station
• NMEA engine data to chart plotter screen
Maintenance & Performance:
• Engine hours: approximately 411 hours as of December 2025
• Engine serviced annually – last service as of February 2025
Propulsion & Steering:
• 3-bladed folding propeller
• Sleipner 24vDC retractable bowthruster
• Sleipner Retractable sternthruster

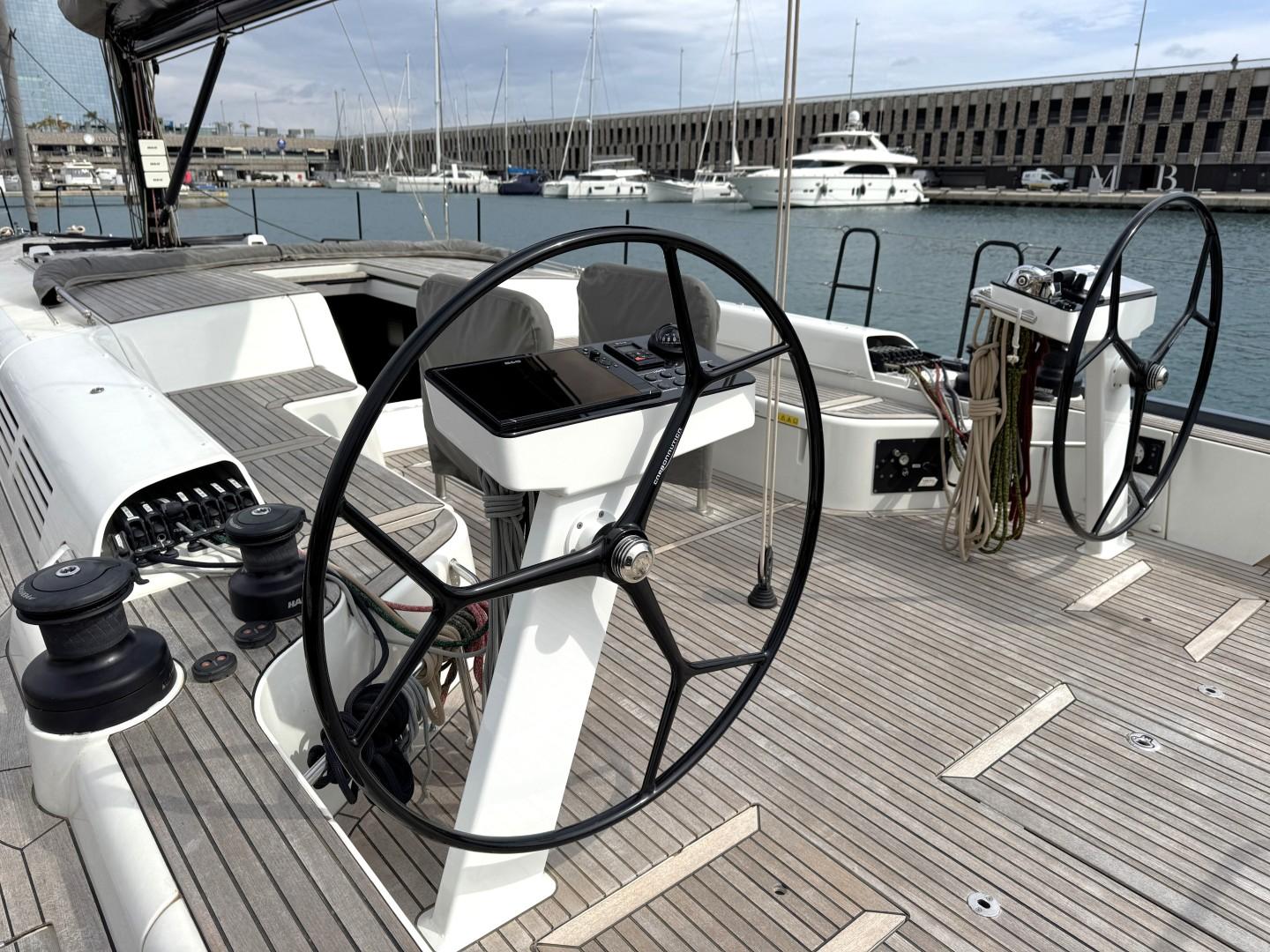

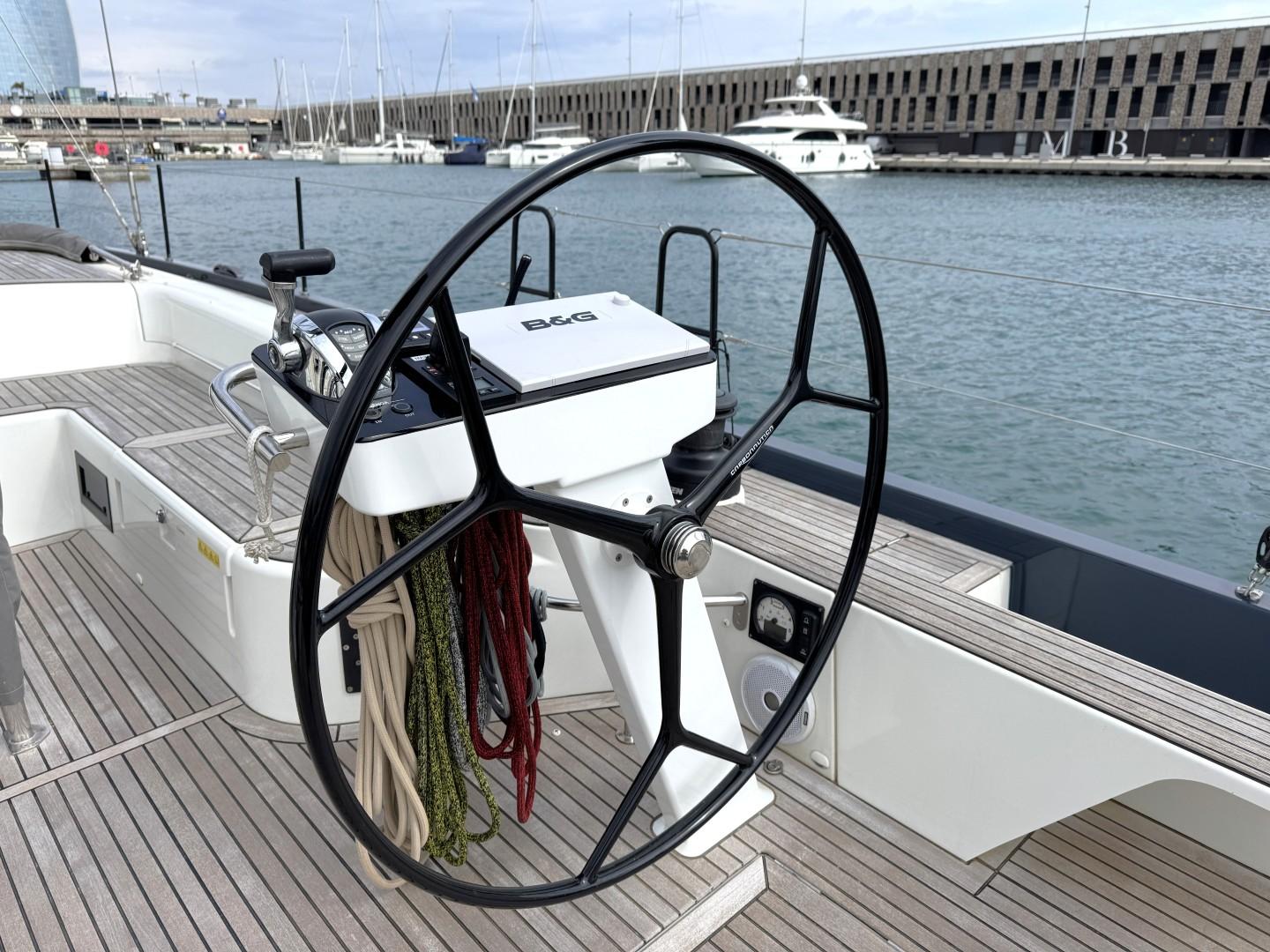

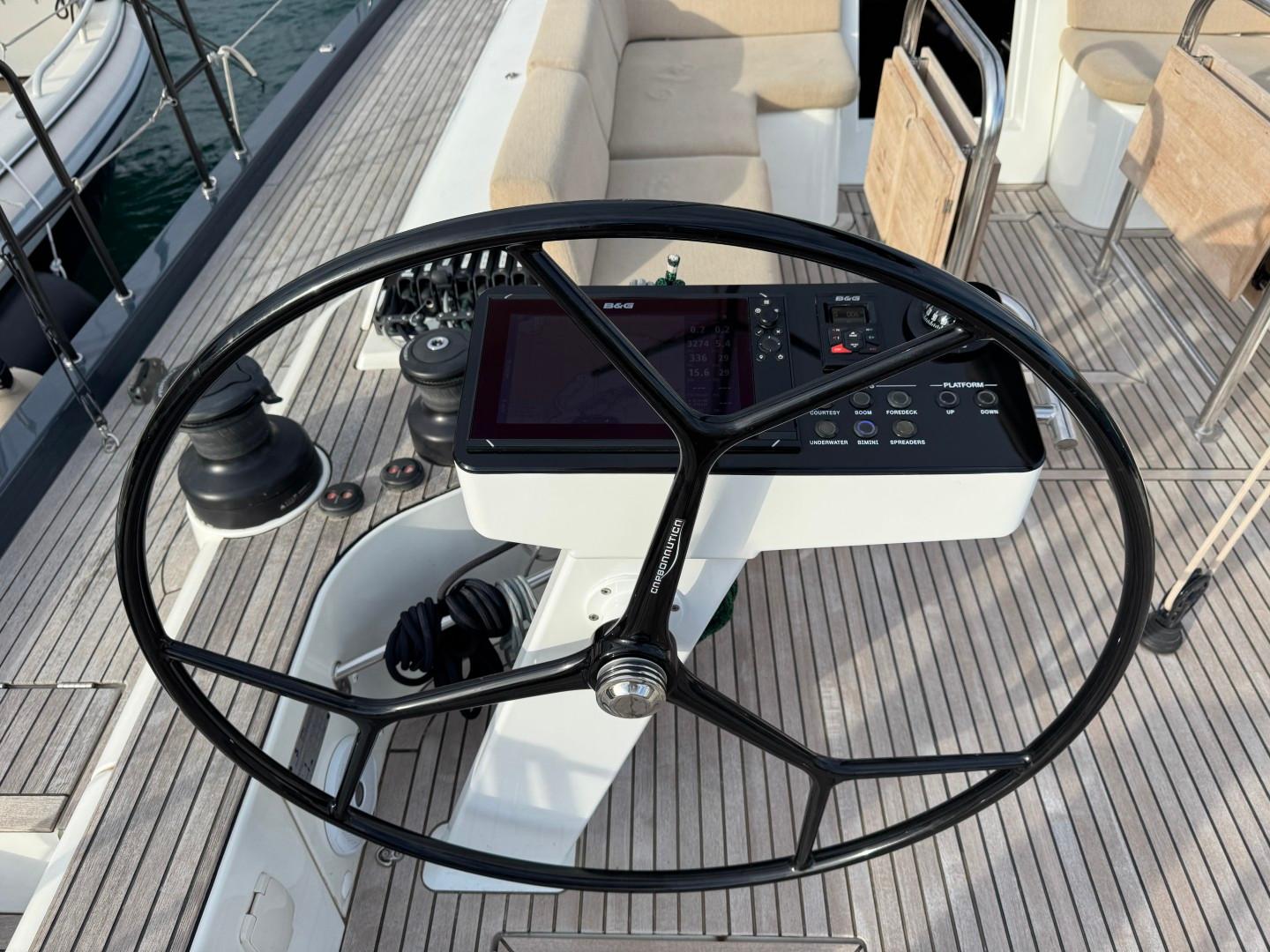

• 2x Carbonautica composite 1,100m diameter helm wheels with chain steering system
• Emergency steering gear
ELECTRICAL SYSTEMS
Voltage systems:
• 12vDC primary domestic system with 220vAC via generator, inverter or shorepower
Battery Banks:
• Lithium service battery bank with 5x 140Ah batteries providing approx. 700Ah @ 12vDC
• 100Ah engine start battery
• Dedicated bowthruster battery bank with 4x 50Ah batteries joined in parallel and series to supply 24vDC
• Electric battery switch (connected to the Ship Control, controls powering on or shut-off of batteries remotely)
Generator:
• Onan 8MDKBW-1100B 8kva 220vAC diesel generator
• Generator hours: approx. 86 as of December 2025
• Generator last service: February as of 2025
Battery Charger/Inverter:
• 60Ah automatic battery charger
• Cristec 25A automatic battery charger for bowthruster battery bank
• 2x Battery chargers
• 2x ABB OTM 63A 50-60Hz 63F3CMA 230V power selector
• Mastervolt pure sine wave 2000w 12/220v inverter
Alternator:
• 1x 125Ah 12vDC engine-mounted alternator
Shorepower:
• 220vAC 50Hz 32A shore power system
• Ring-main with 220vAC sockets throughout yacht
Other Electrical:
• 12vDC electrical panel (Breaker, Voltmeter, Water gauge, Fuel gauge, Battery warning, Fuel warning, Water warning) with dual USB port and Navicolor 3.5’’ screen
PLUMBING & GAS SYSTEMS
Fresh Water:
• 12vDC pressure system pump for fresh water supply
• Freshwater pressurised dock inlet
• Hot water supplied via engine cooling with calorifier or via 220vAC immersion heater element from shore power in well-insulated Nautic Boiler 40 litre 220vAC hot water tank
• Hot & cold pressurised water to galley, heads and shower in cockpit
Salt Water:
• 12vDC deckwash pump (switchable for salt or fresh water)
• 12vDC pressurised salt water supply to galley sink
Bilge Pumps:
• Bilge pump override switch at AC/DC panel
• 12vDC electric bilge pumps
• Manual bilge pump in cockpit
Black & Grey Water:
• Black water discharge directly to the sea or into a black water tanks
• Grey water discharges to sea
Gas System::

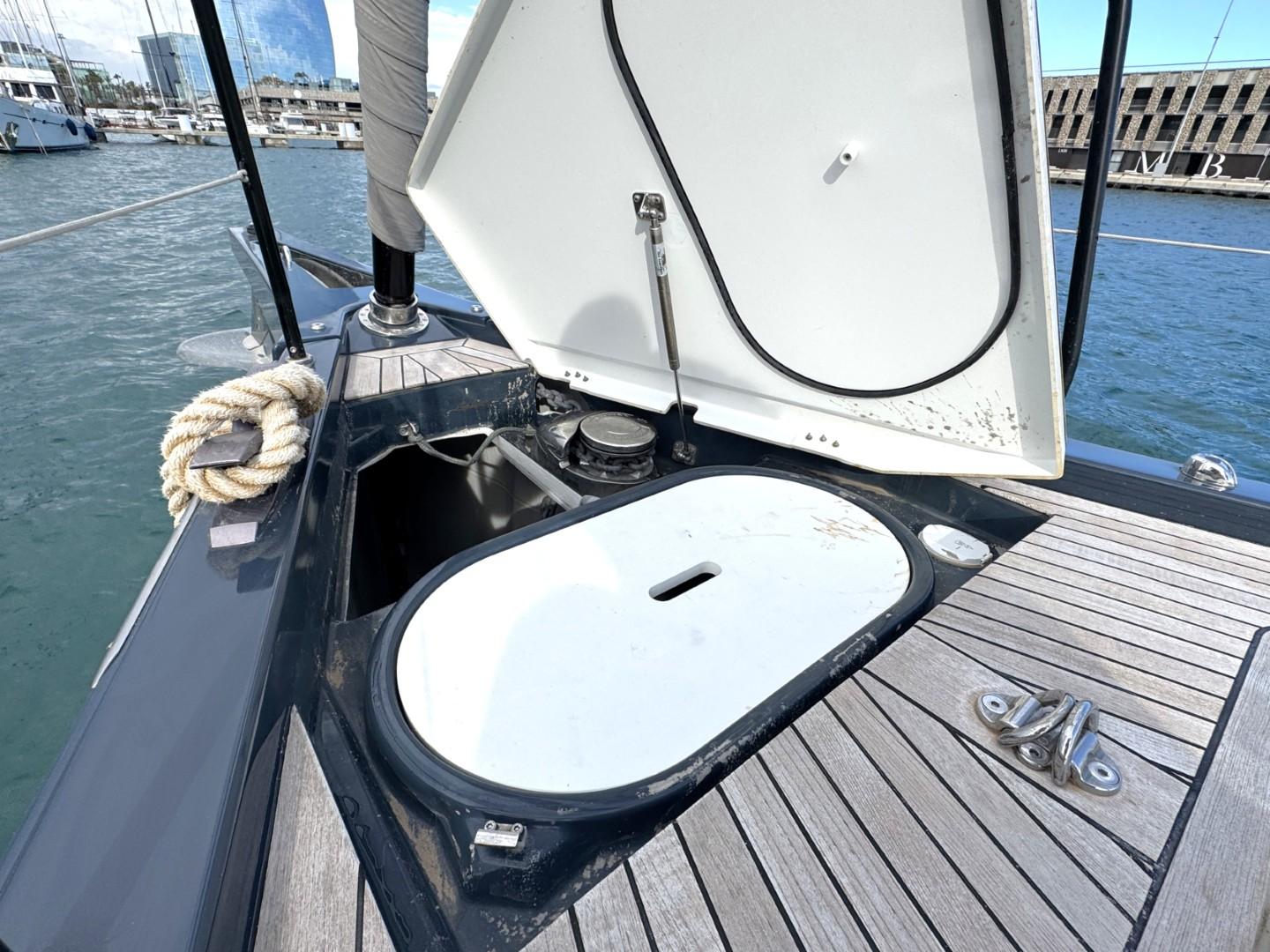

• Gas locker for 2x gas bottles in the anchor locker (Diameter: 0,28m / 11’’ x Height: 0,45m / 1’6’’)
• Regulator and safety tap
• Gas leak detector
TANKAGE
Fuel:
• 400 litres fuel capacity in 2x 200 litre rotomoulded diesel tanks located beneath port and starboard aft berths
• Electronic gauge
• Low level alarm
• Deck filler
Fresh Water:
• 680 litres freshwater capacity in 1x 380 litre rotomouled tank under owner’s cabin berth and 2x 150 litre rotomoulded tanks under saloon floor
• Electronic gauge
• Deck fillers
Holding tanks:
• 2x 80 litres black water holding tanks
NAVIGATION & COMMUNICATION EQUIPMENT
• 2x B&G 12’’ Zeus3S wide wireless multi-function touchscreen chart plotter displays
• PC interface
• B&H H5000 unit with wind, speed, log and temperature transducers
• Forward-looking echo-sounder
• 3x B&G 20/20 mast repeaters
• B&G H5000 autopilot with keyboard on port console
• WR10 Wireless autopilot remote control
• Nasa Marine Easy Navtex receiver and display
• Plastimo steering compasses
Communications Equipment:
• B&G V100-B VHF radio at chart table with Class-D DSC, GPS-500 receiver and NAIS 500 AIS transceiver
• B&G H60 VHF wireless handset
DOMESTIC EQUIPMENT:
Galley:
• ENO 3-burner gas hob with oven and grill
• Vitrifrigo front opening 174 litre fridge with integrated 16 litre freezer
• Additional 36 litre top-opening stainless steel refrigerated cool box
• Electrolux 220vAC dishwasher for 6 place settings
• Sink with pressurised hot & cold fresh water supplies
• Pressurised saltwater supply to galley sink
Heads:
• Tecma electric fresh/seawater flush heads in owner’s ensuite heads
• Quiet Flush electric fresh/seawater flush heads in starboard aft heads
• Manual marine heads port aft heads
• Hot & cold pressurised showers in all bathrooms with electric drain pumps
Heating & Ventilation:
• Dometic 220vAC reverse-cycle air-conditioning system with 44,000 BTU combined output
Entertainment
• Fusion RA70N entertainment system with speakers in saloon and cockpit
Lighting:
• LED interior lighting throughout including courtesy lighting
• LED navigation lights
ACCOMODATION
Summary of Accommodation:
• Three double guest cabins including master cabin forward
• Sleeps up to 7 guests in three double cabins and occasional settee berth in saloon
Accommodation Finish:
• Alpi teak woodwork and white lacquered wood on base units and bulkheads
• Alpikord teak flooring
• Lounge Mega Rabbit 160 fabric interior upholstery
• Sprung mattress in owner’s cabin
• Beige padded ceilings (and Macadamia in the central part of the saloon)
• Corian Glacier White galley work top with moulded teak beading
• Corian Glacier White heads counters
• Opening deckhead hatches with mosquito screens/blinds

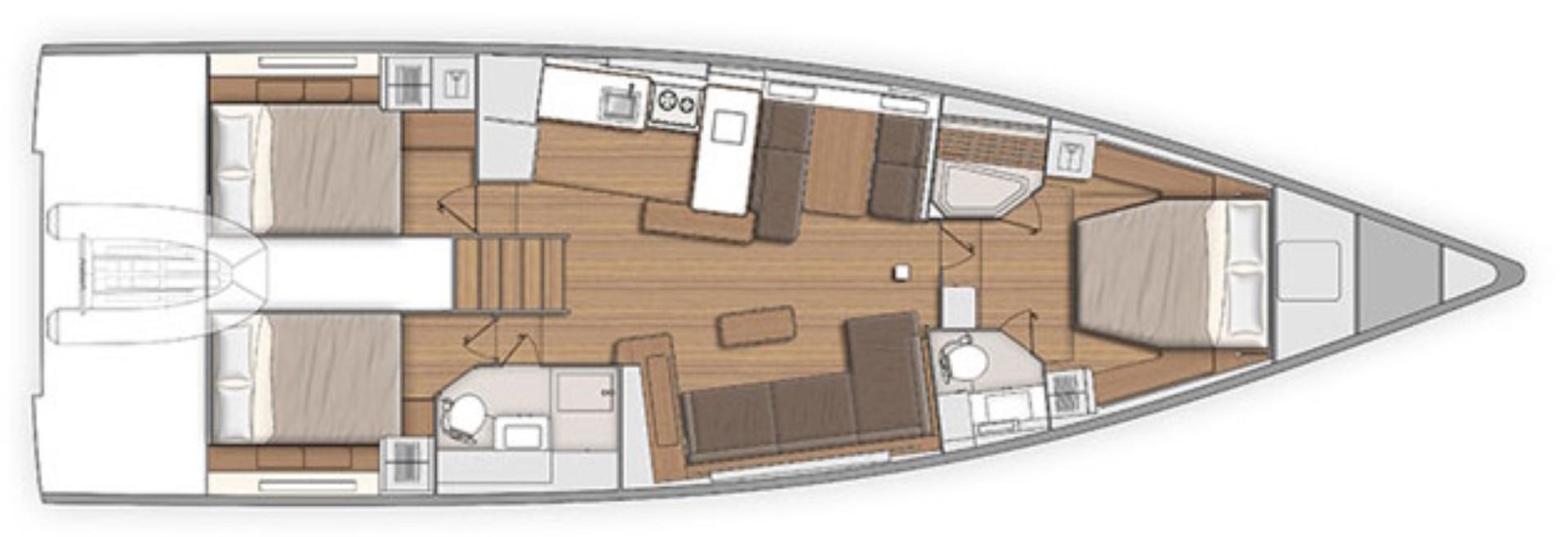

Accommodation Description from Forward:

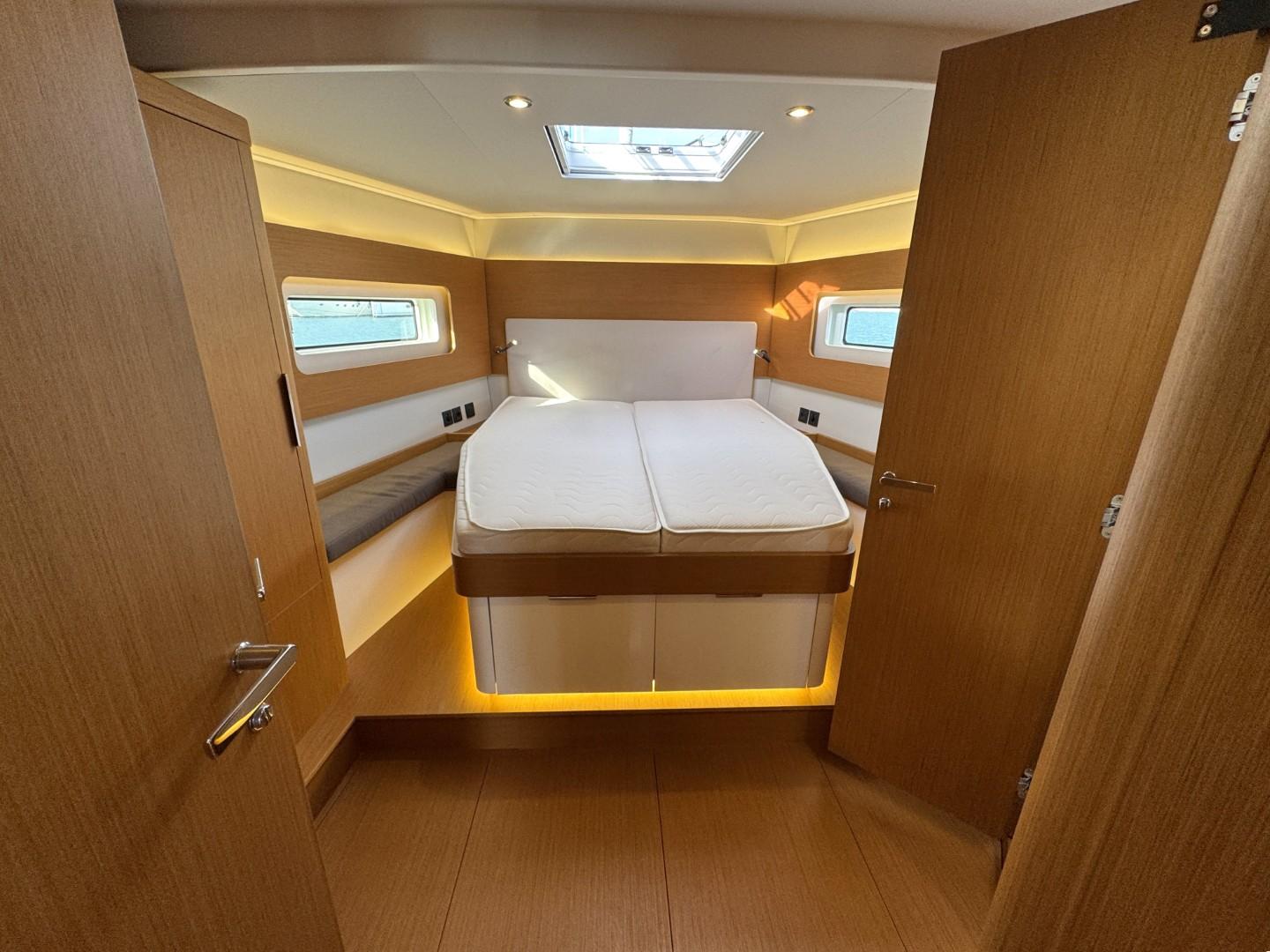

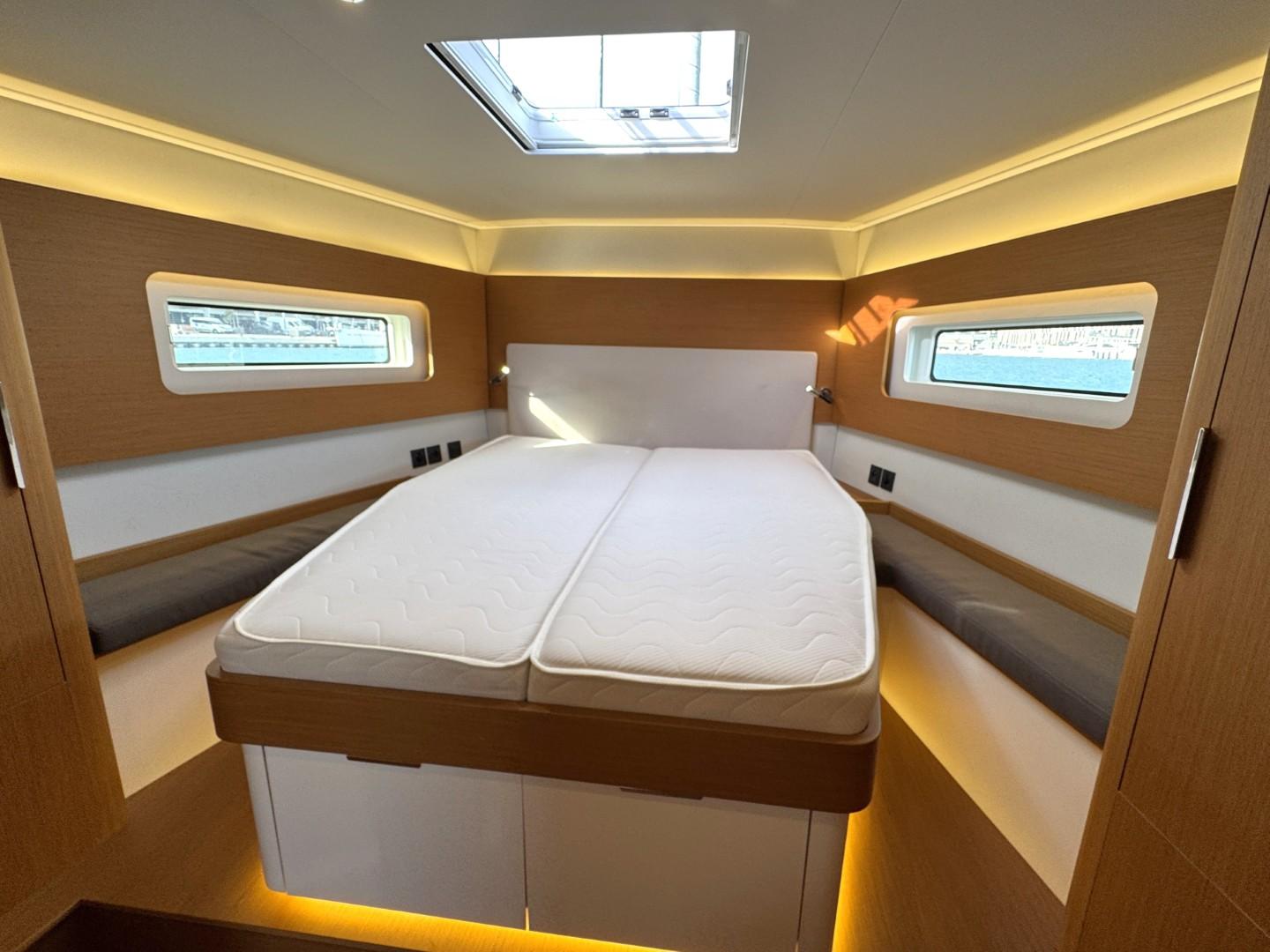

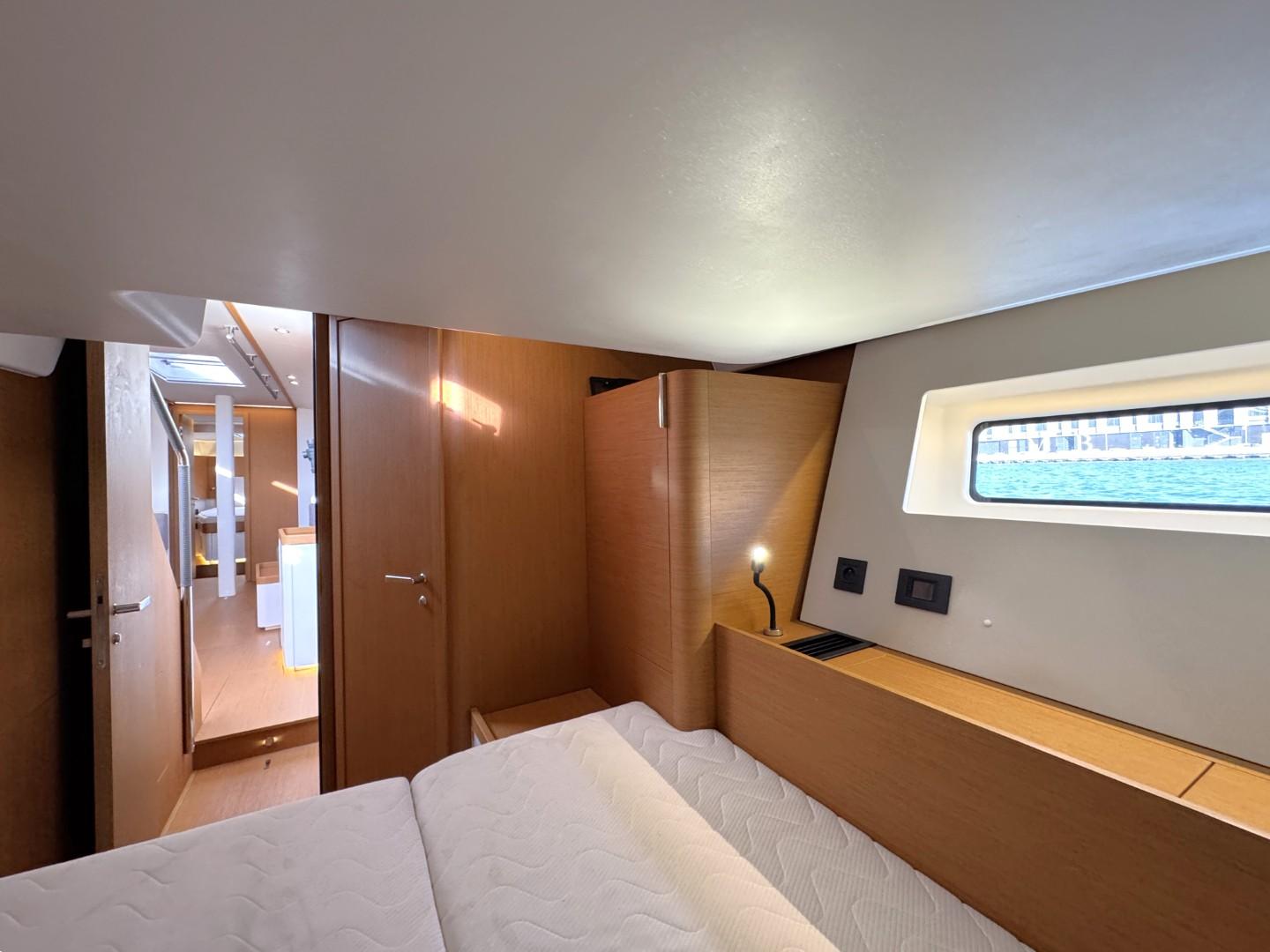

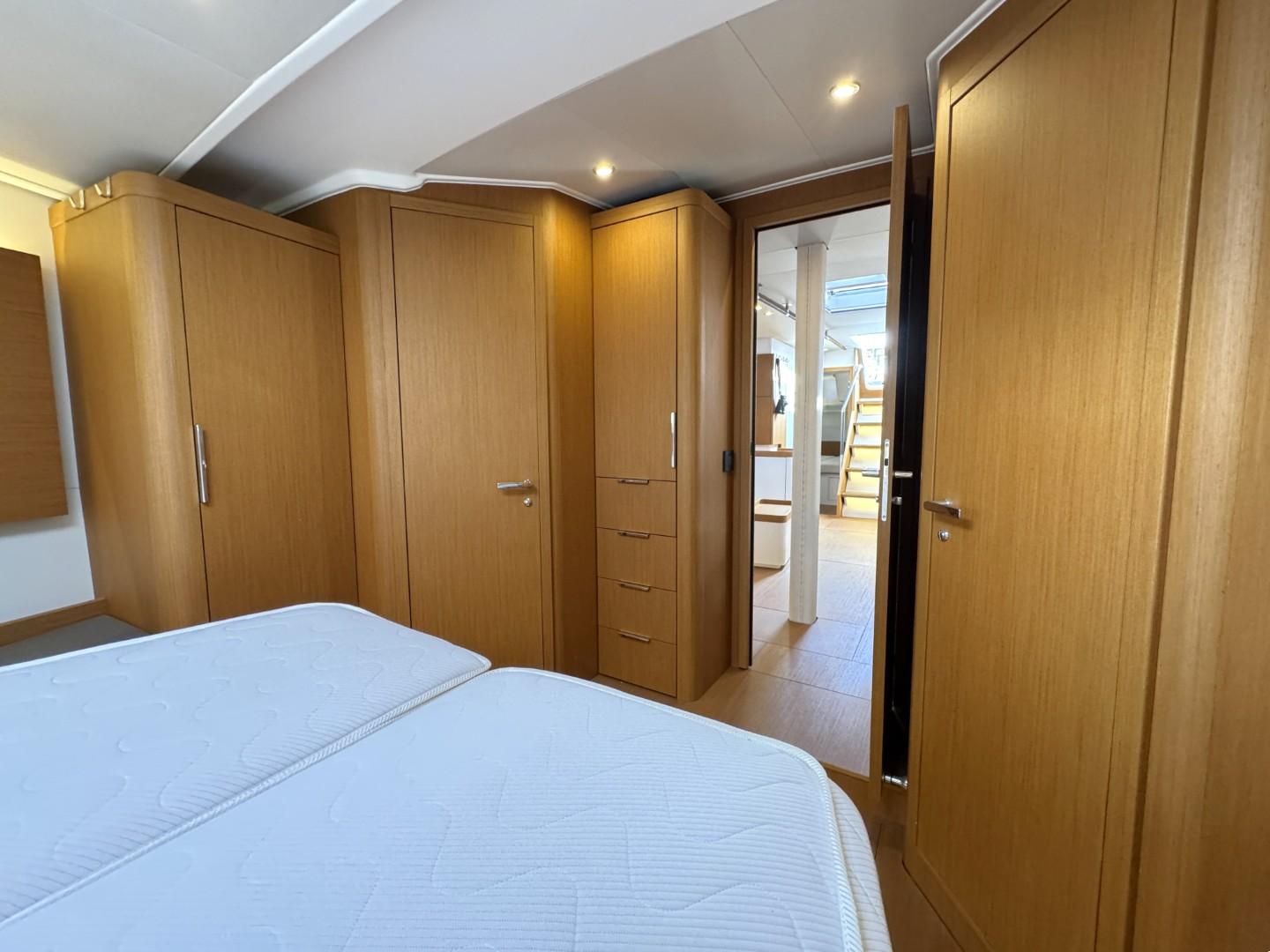

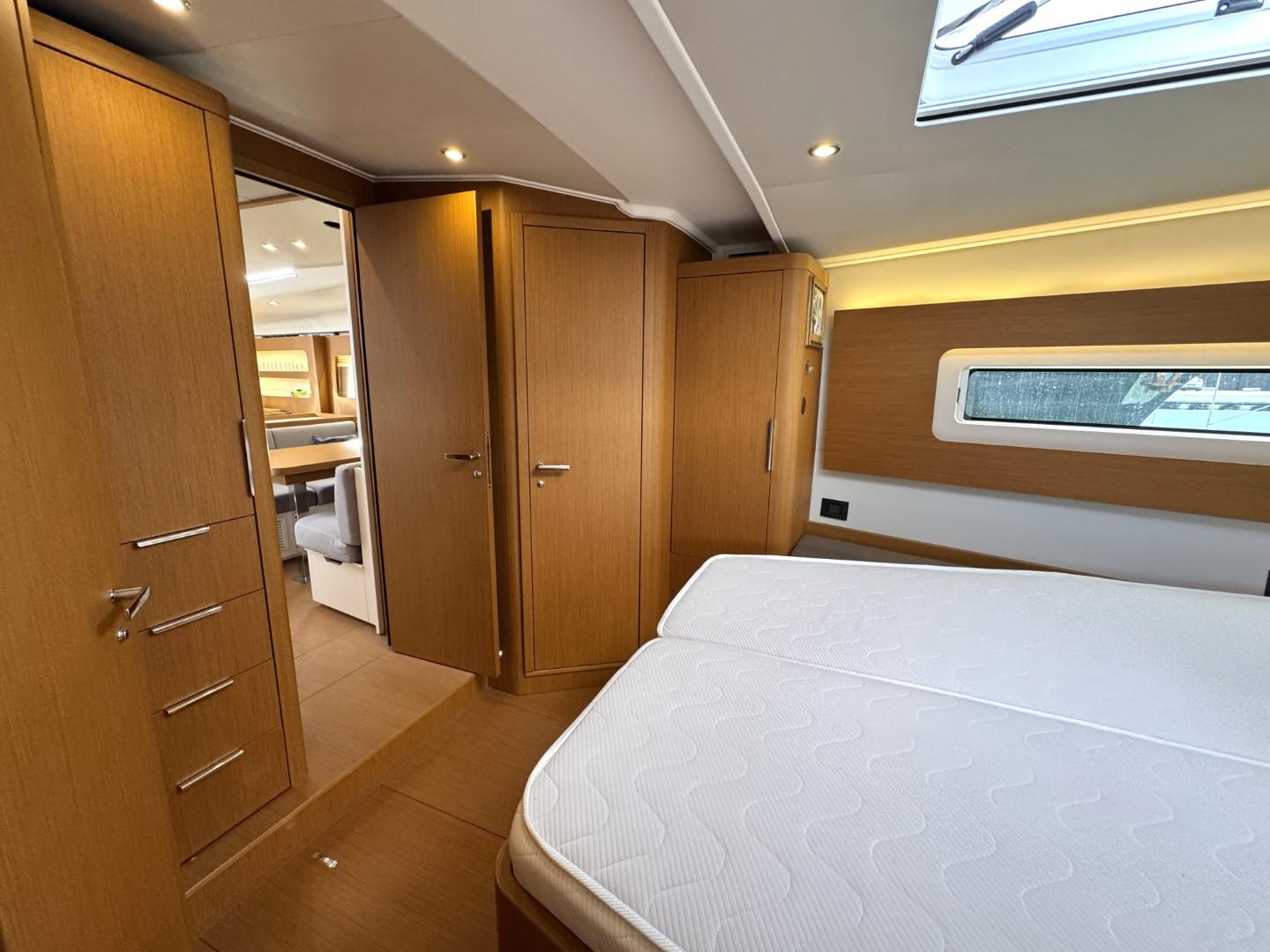

Owner’s cabin:
• Headroom: 2,01 - 1,96m / 6’7’’ - 6’5’’
• Central double bed (2,00m x 1,60m - 1,15m / 6’9’’ x 5’3’’ - 3’9’’) with fabric padded bedstead
• Bed access sideboard
• Chair on each side of bed
• Shoe stowage beneath the bed
• 2 Hanger closets, with incorporated LED lighting
• Central full-height unit with LED lighting: 4 drawers at the bottom, 1 door with 4 shelves, mirror inside the door
• 2x night tables

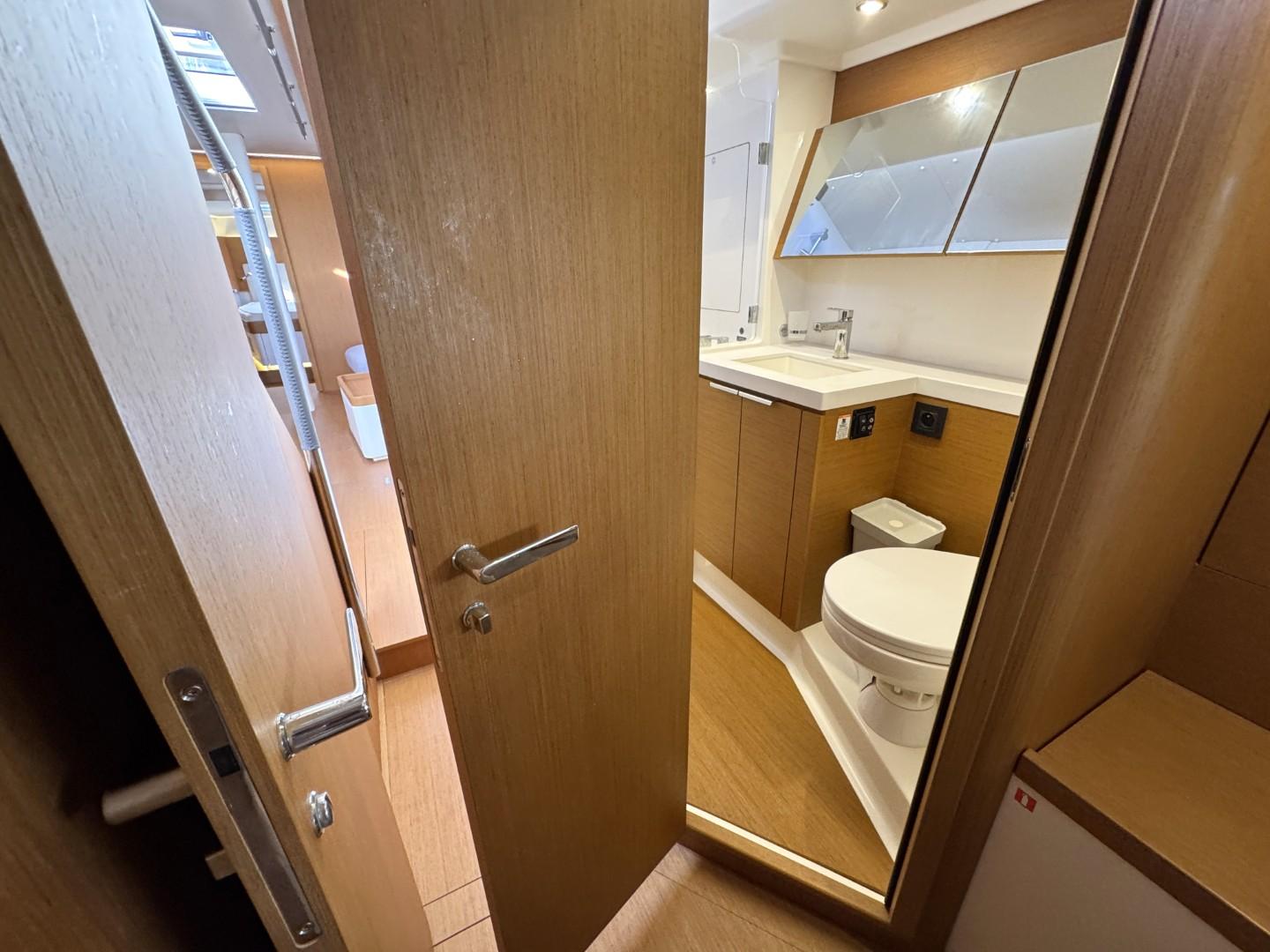

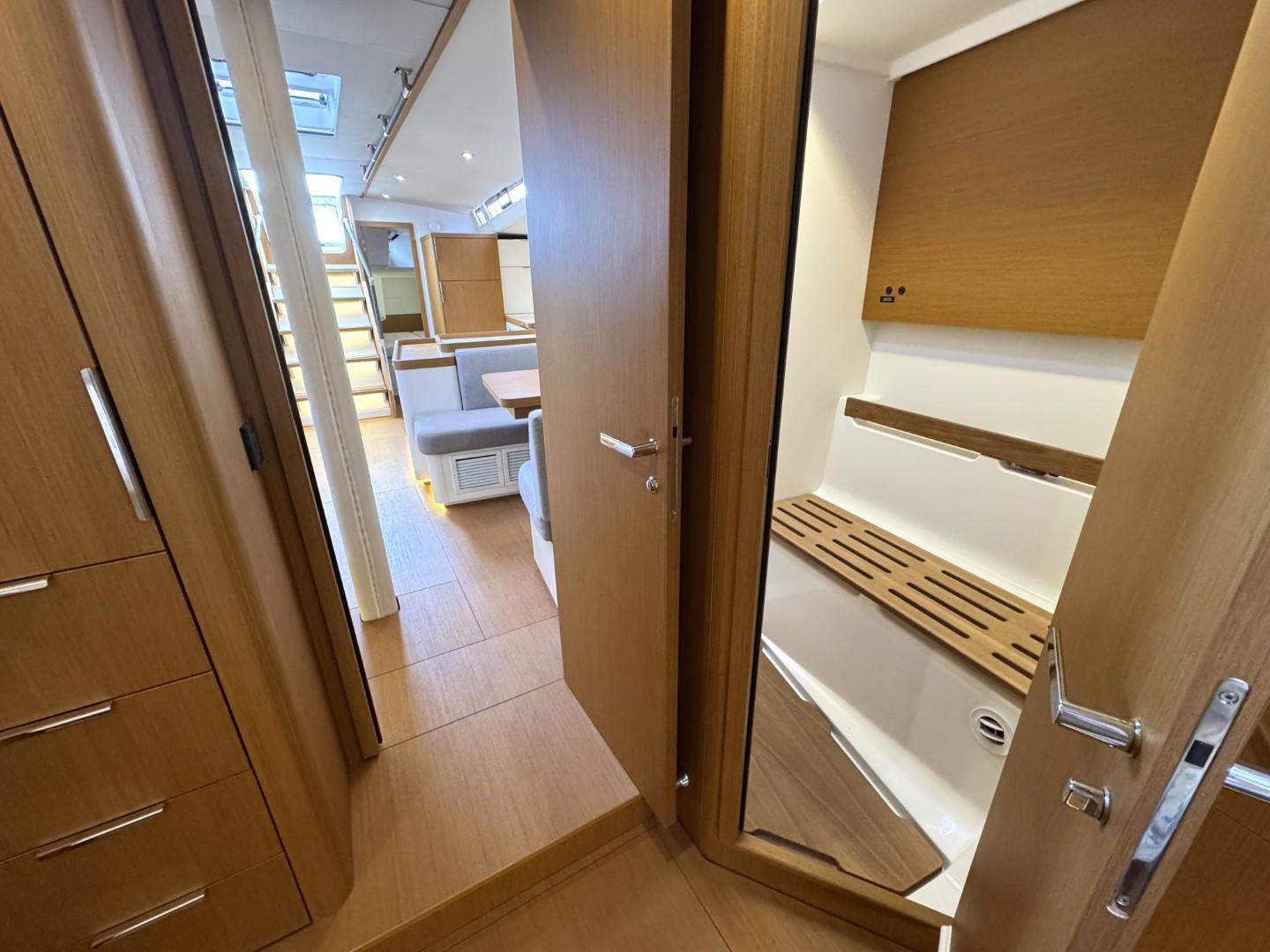

Owner’s Cabin Ensuite Heads:
• Toilet compartment to starboard with 1,92m / 6’4’’ headroom
• Electric flush toilet
• Counter with integrated polyester basin and mixer tap
• Cabinet with mirror front
• Toilet accessories

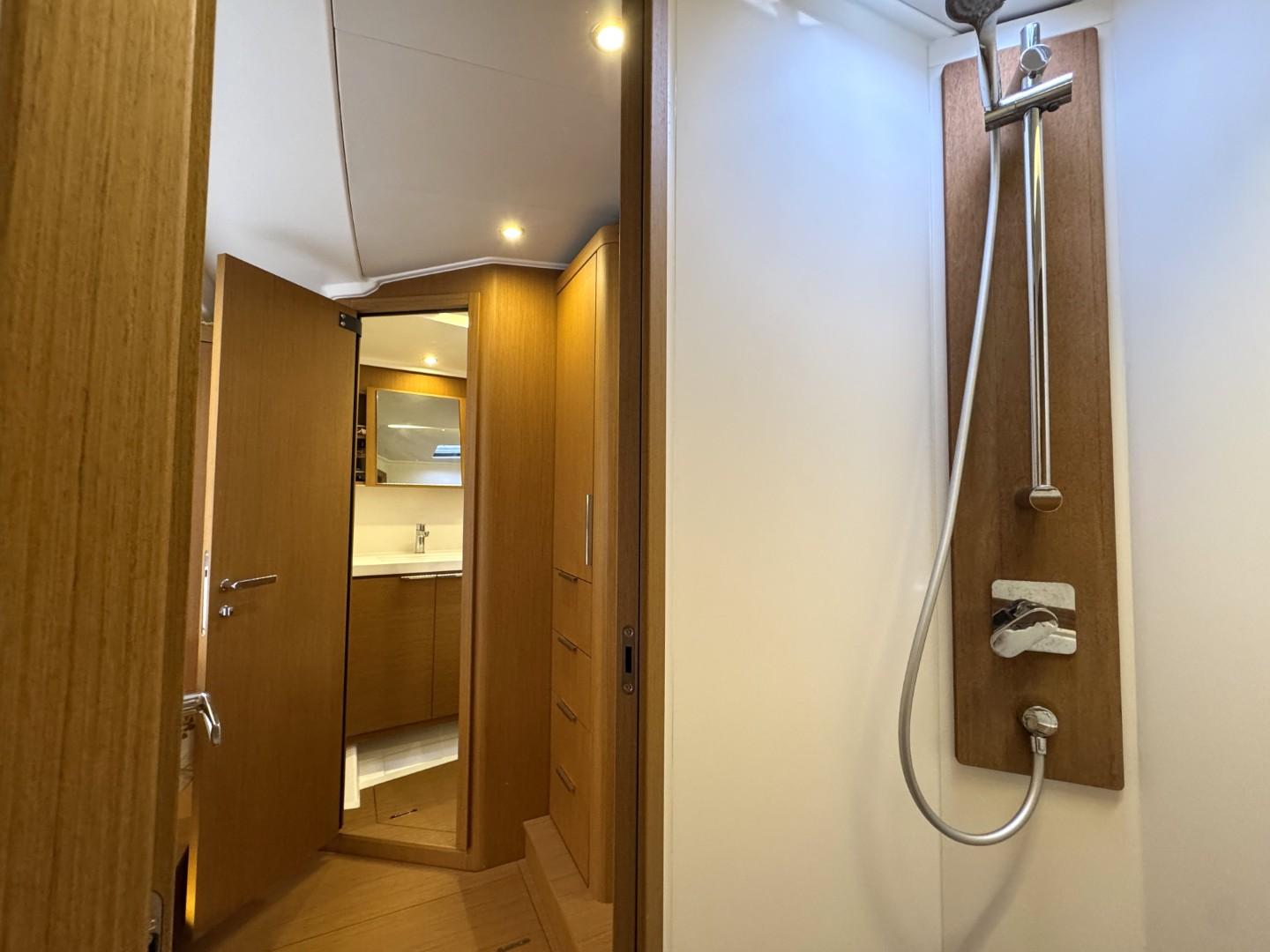

• Shower compartment to port with 1,97m / 6’6’’ headroom
• Shower with seat and wooden shower base
• Open stowage trays

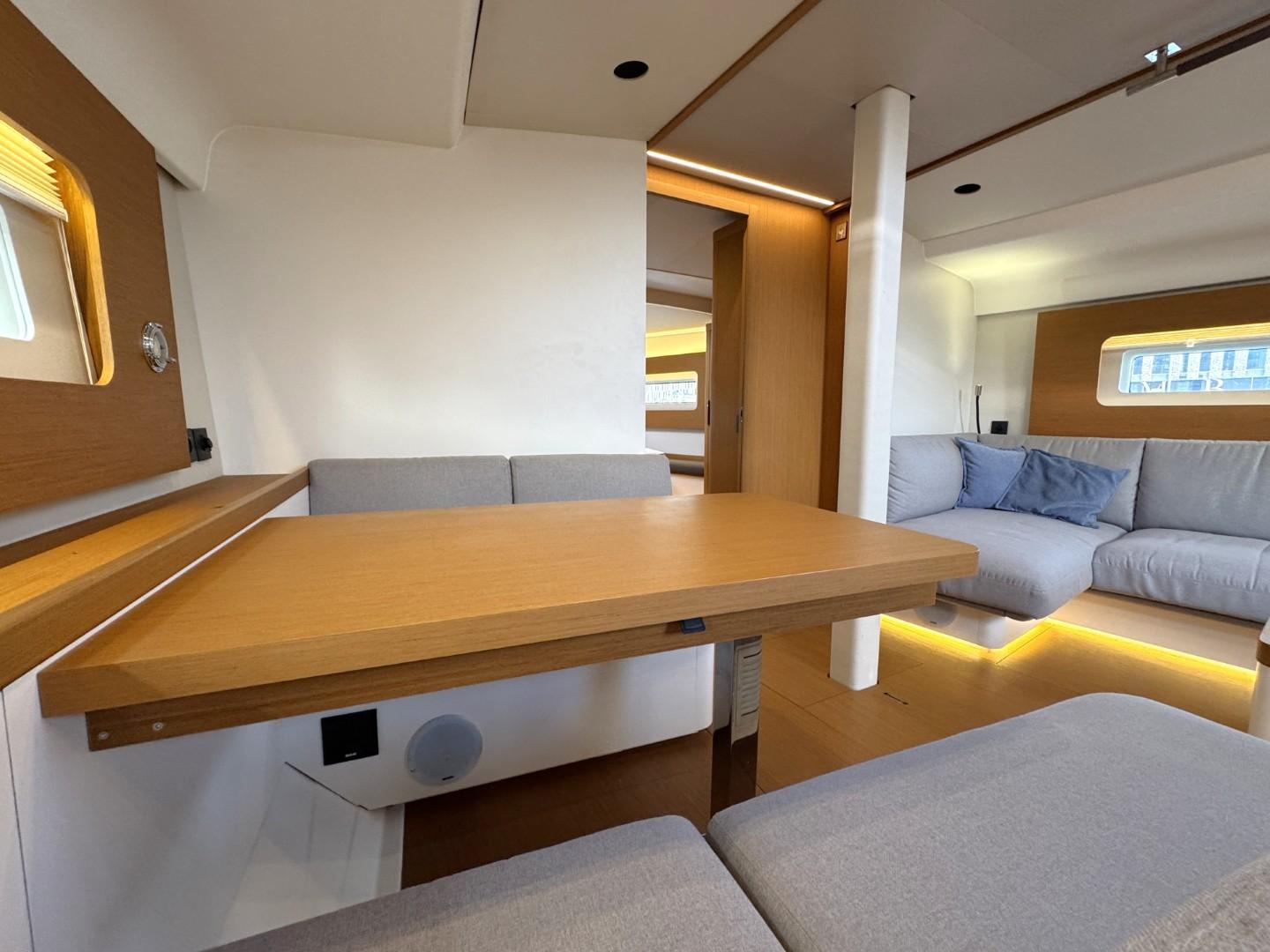

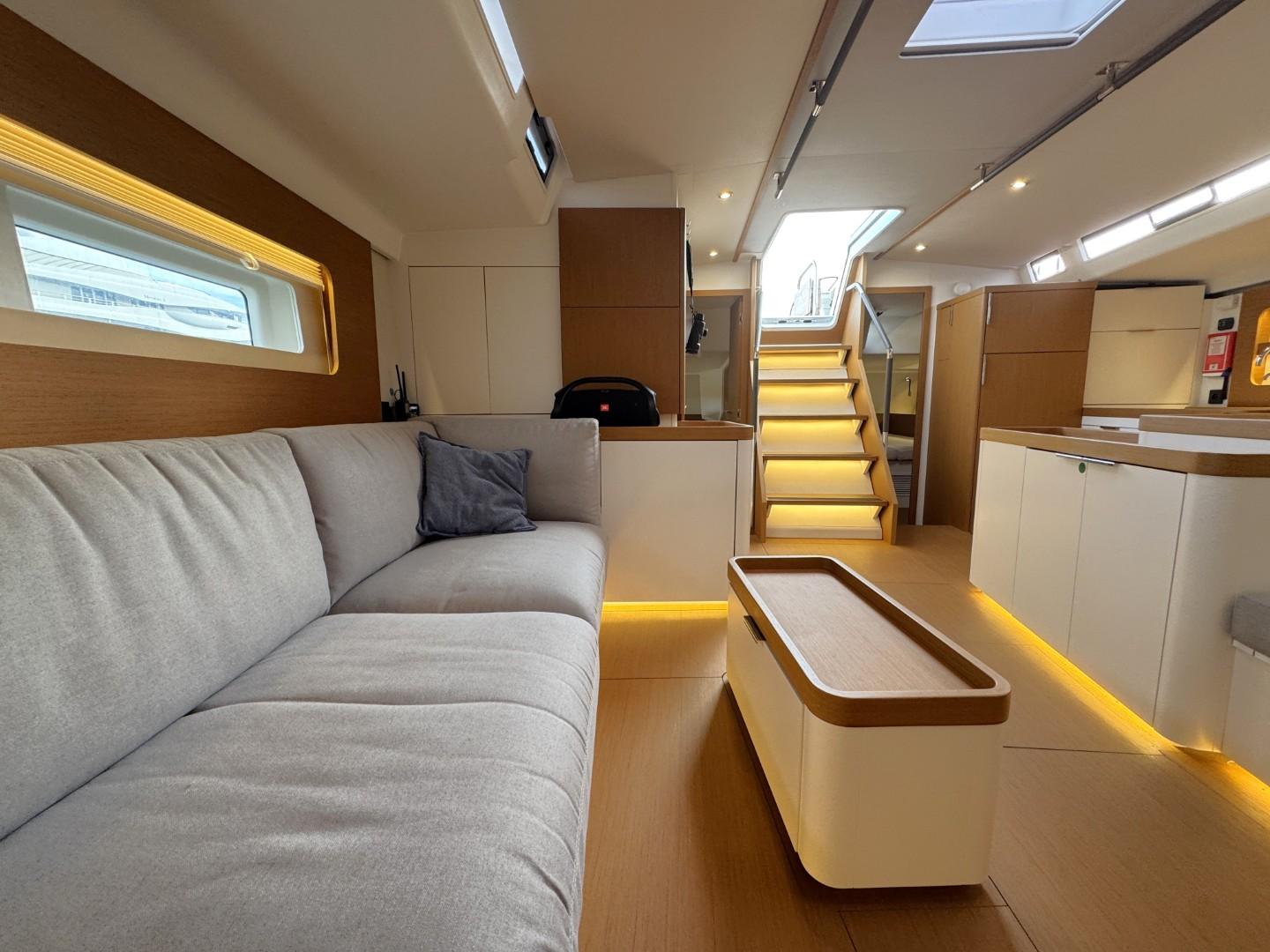

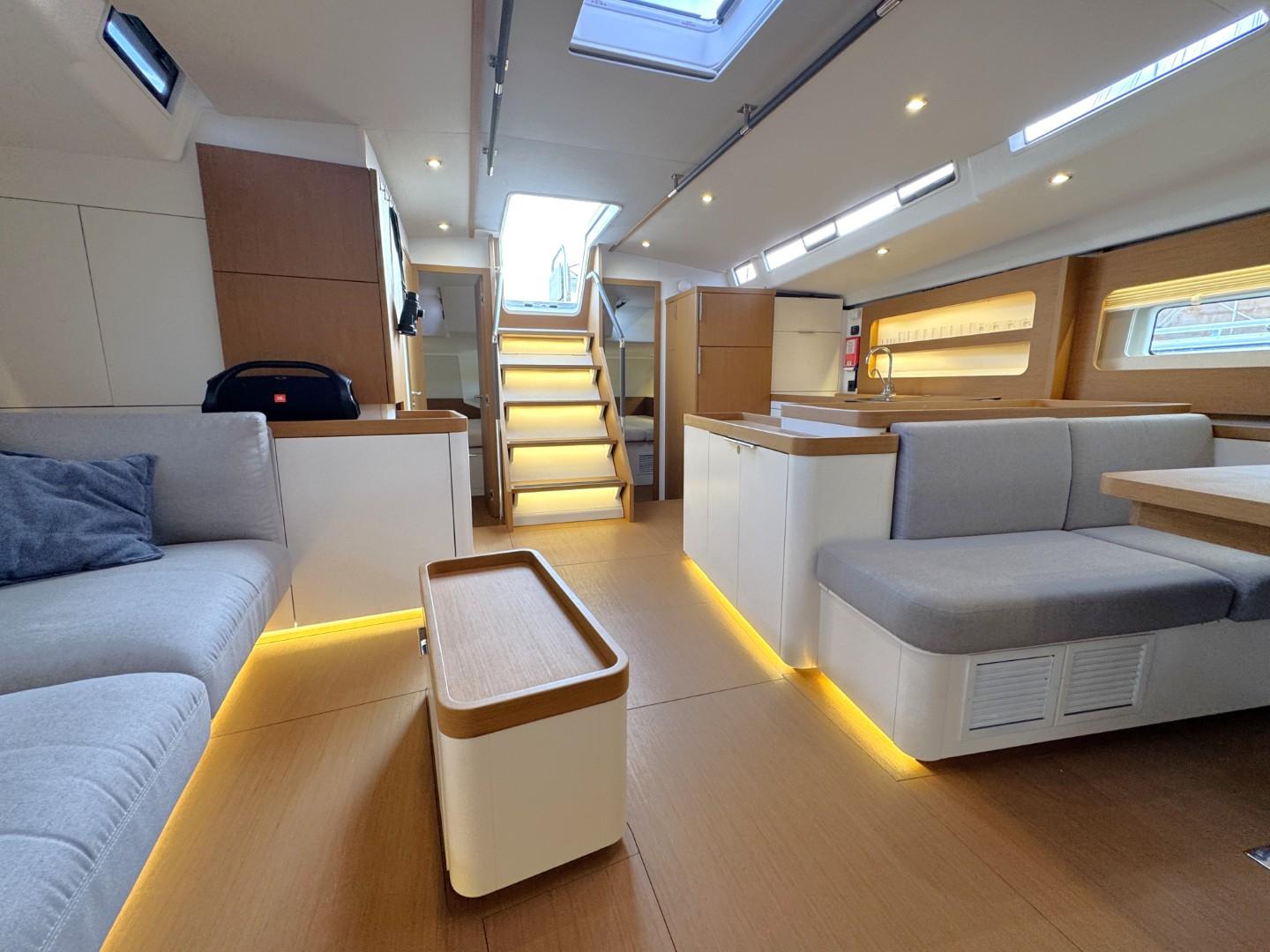

Saloon:
• Headroom: 2,00 - 1,97m / 6’7’’ / 6’6’’
• Lounge type L-shaped sofa to port
• Coffee table, wooden top with moulded beading, access to bottle rack opposite the seat
• Storage under bench seats

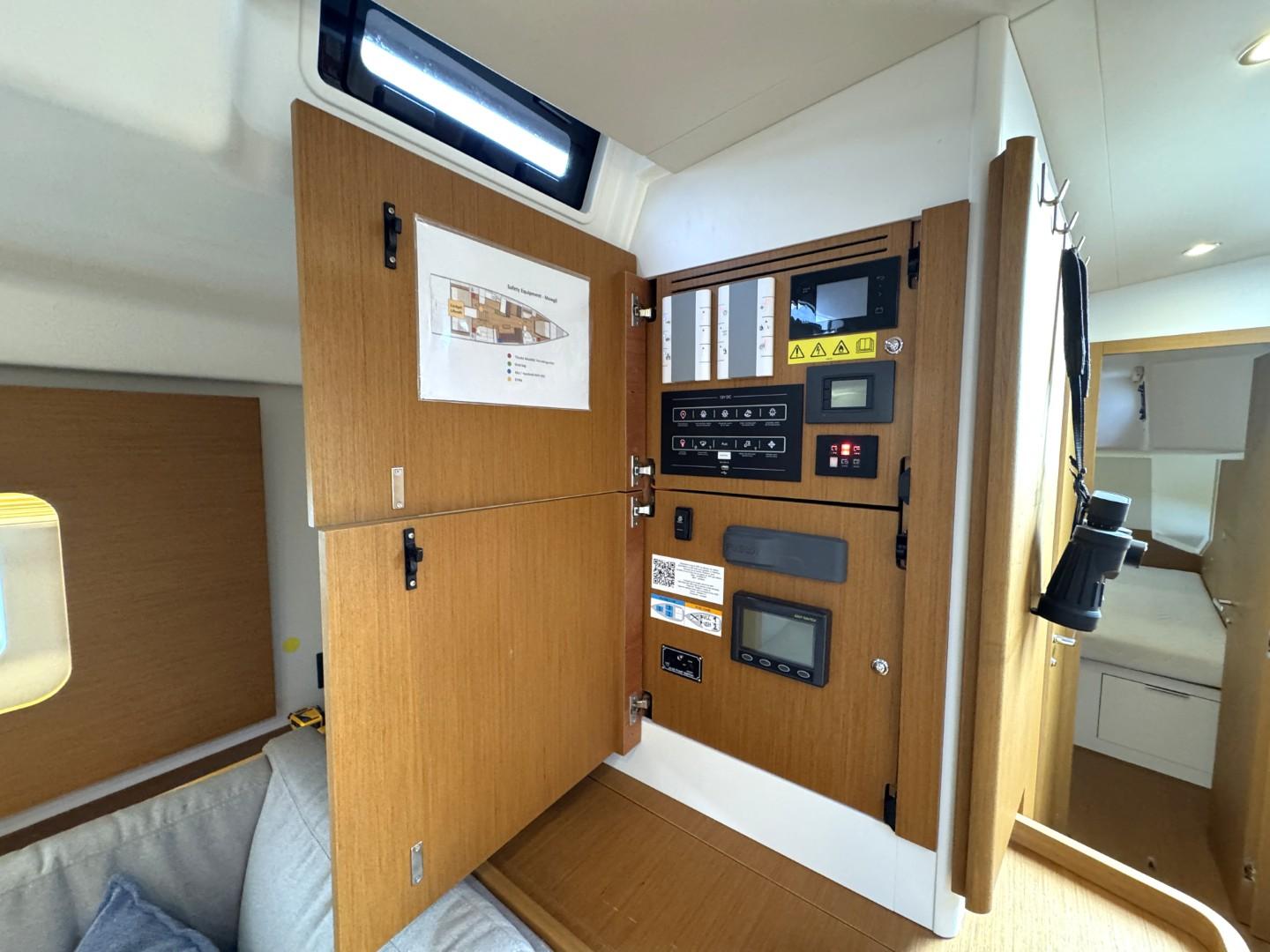

• Electrical panel to starboard incorporated into a piece of furniture for access to electrical connections

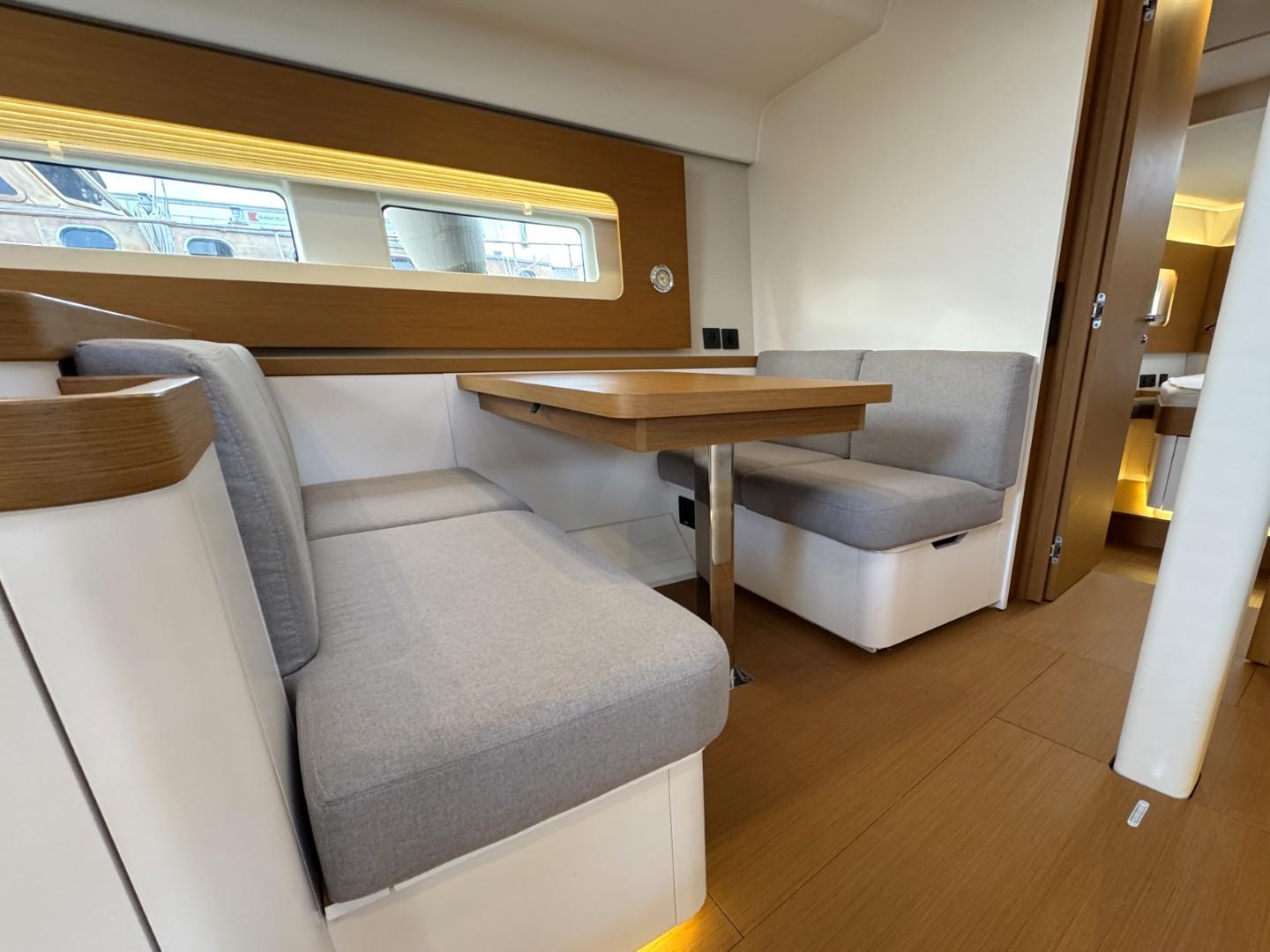

• To port is a wooden table with integrated sliding extension leaf
• Face-to-face bench seats with extension (can seat up to 6 diners)
• Storage under bench seats
• Deep storage unit against bulkhead

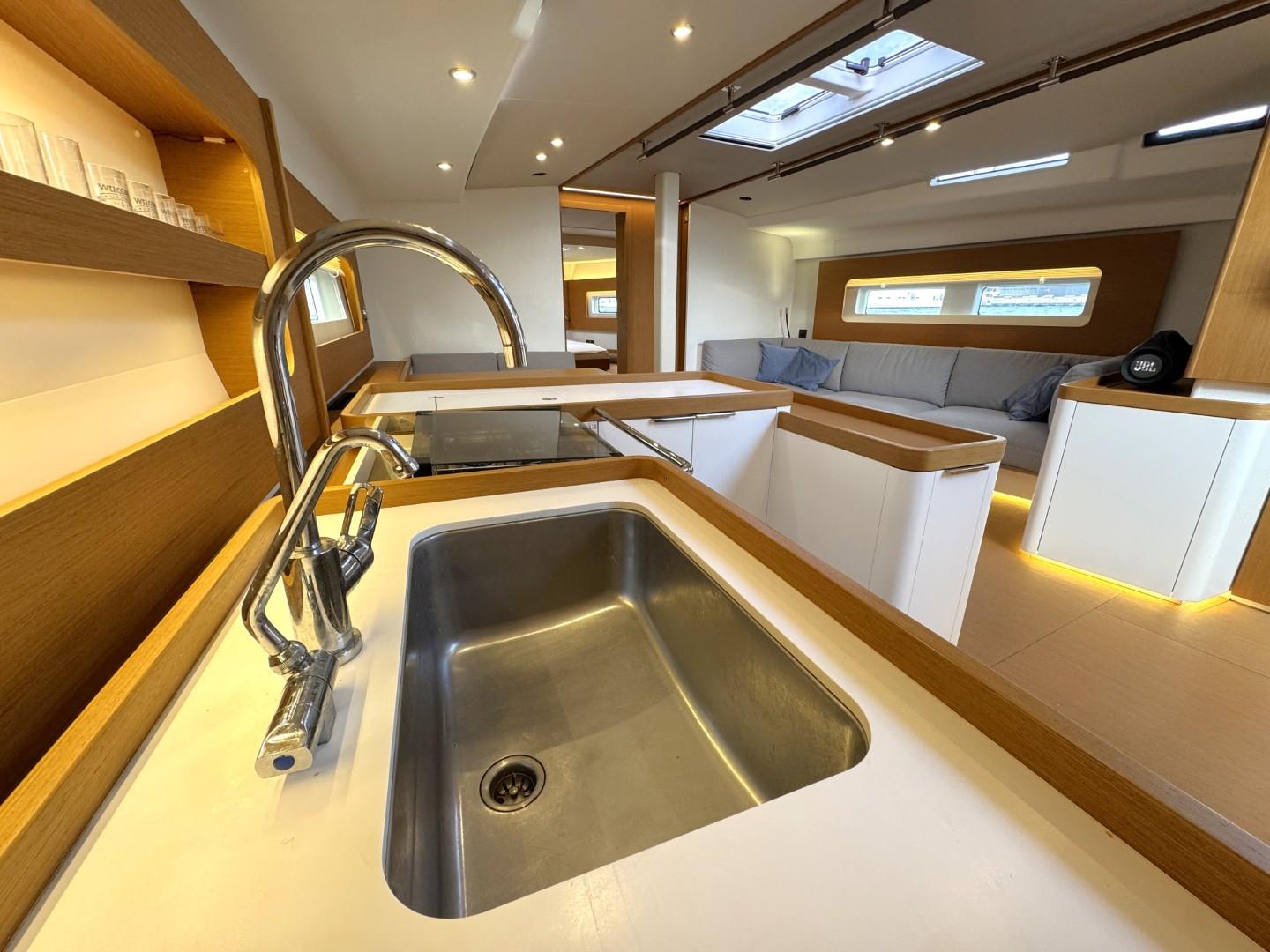

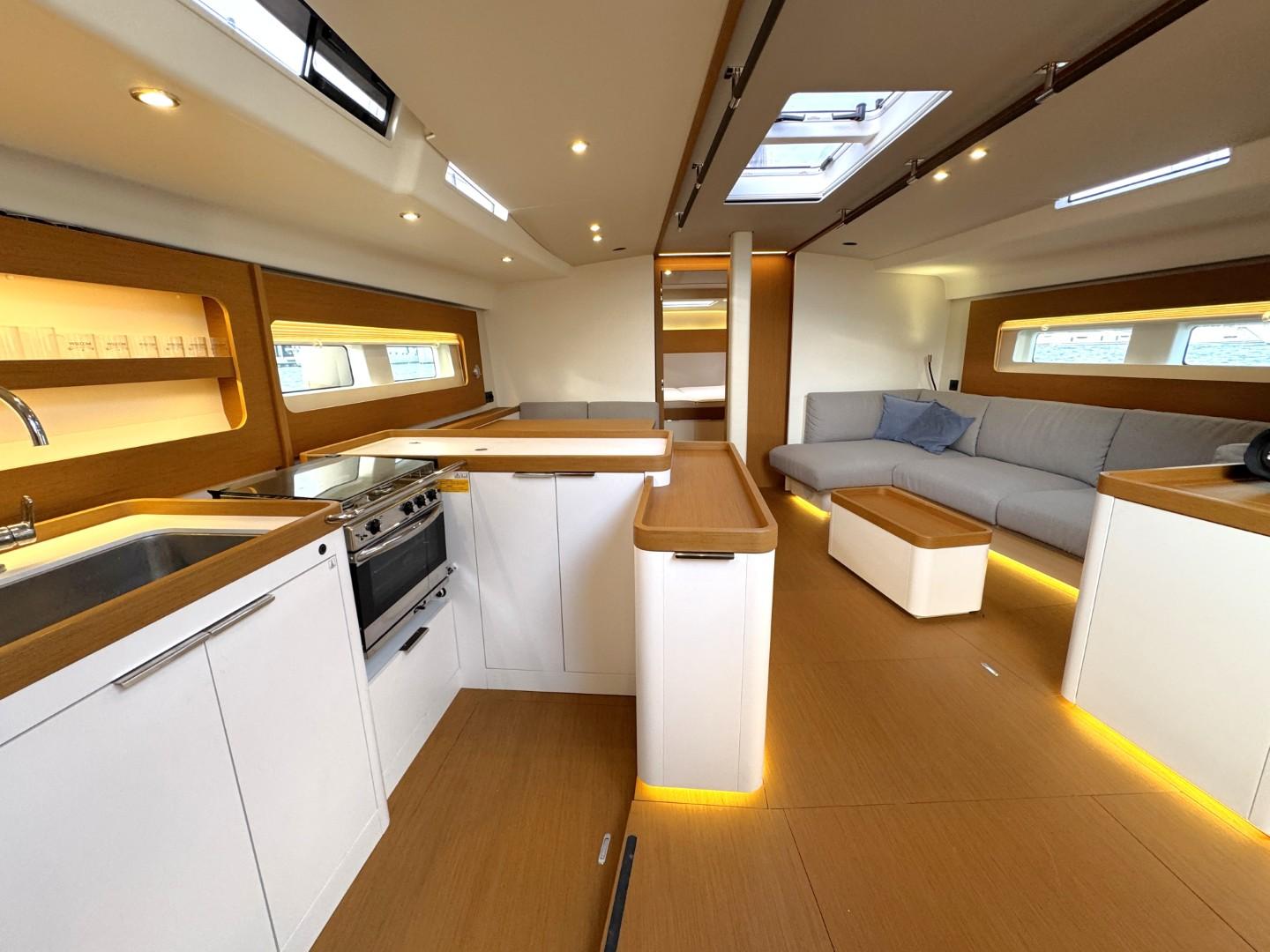

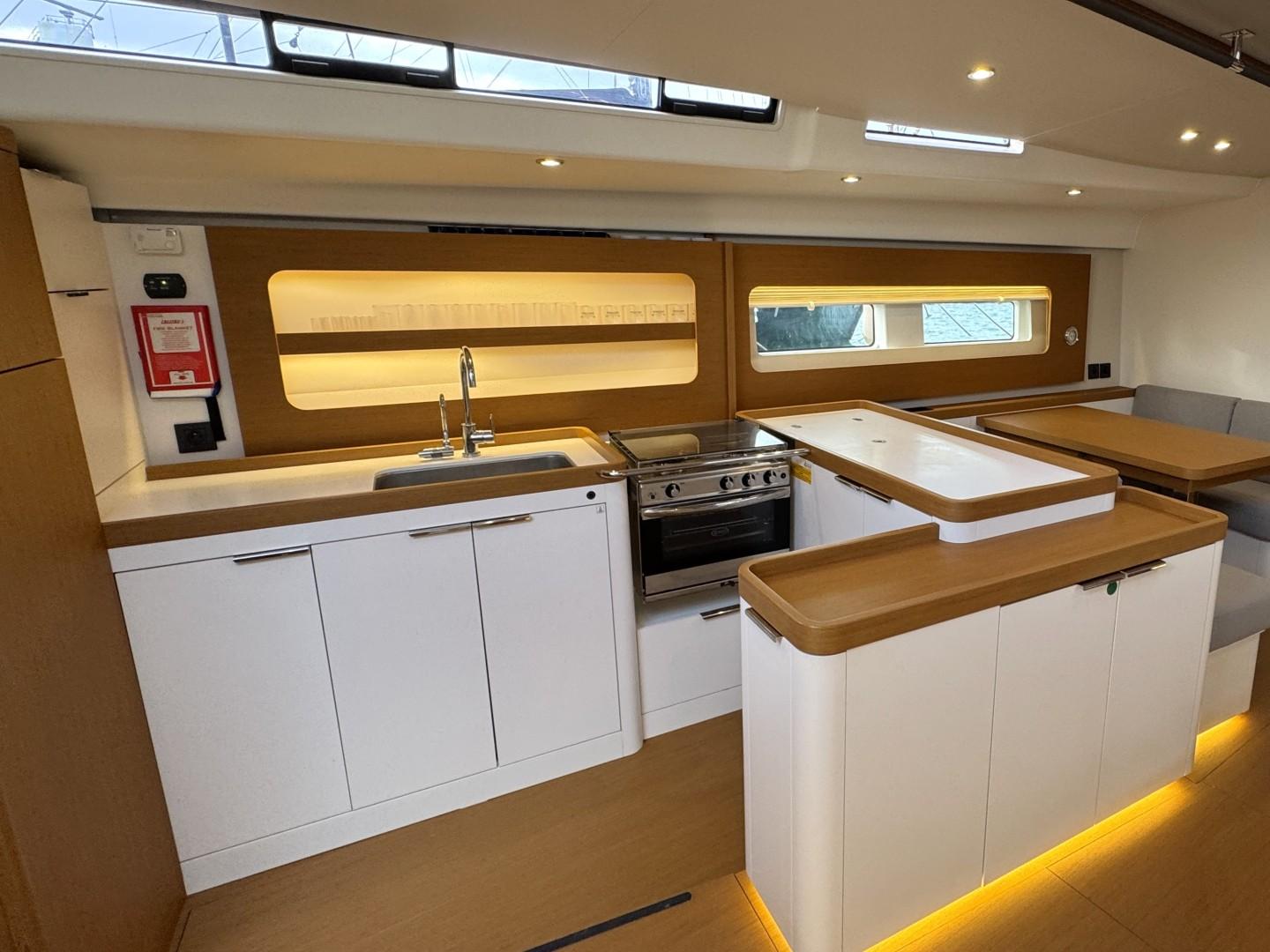

Galley:
• Headroom: 2,01m / 6’7’’
• L-shaped galley
• Rectangular stainless steel sink with mixer tap with hot/cold water under pressure
• Gas stove with stainless steel protection handrail
• Stowage below the oven with drop-down door
• Stowage on work top with top opening
• 3 drawer storage on the work top (Space for the dishwasher option)
• Fridge and freezer
• Fitted lockers and closed shelving
• Bin (20L)
• Base unit: 1 drawer on the side, 2 doors, 1 shelf

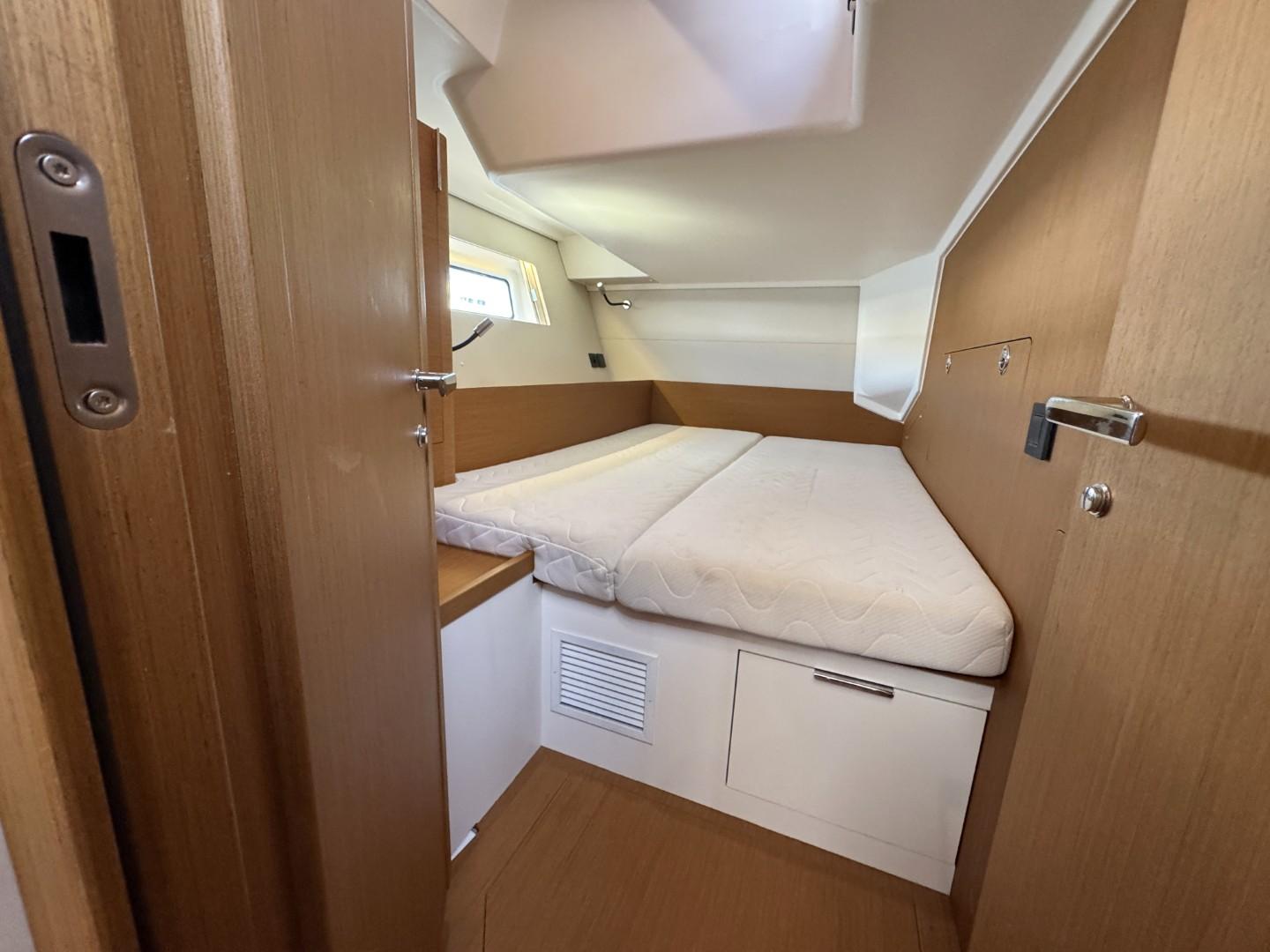

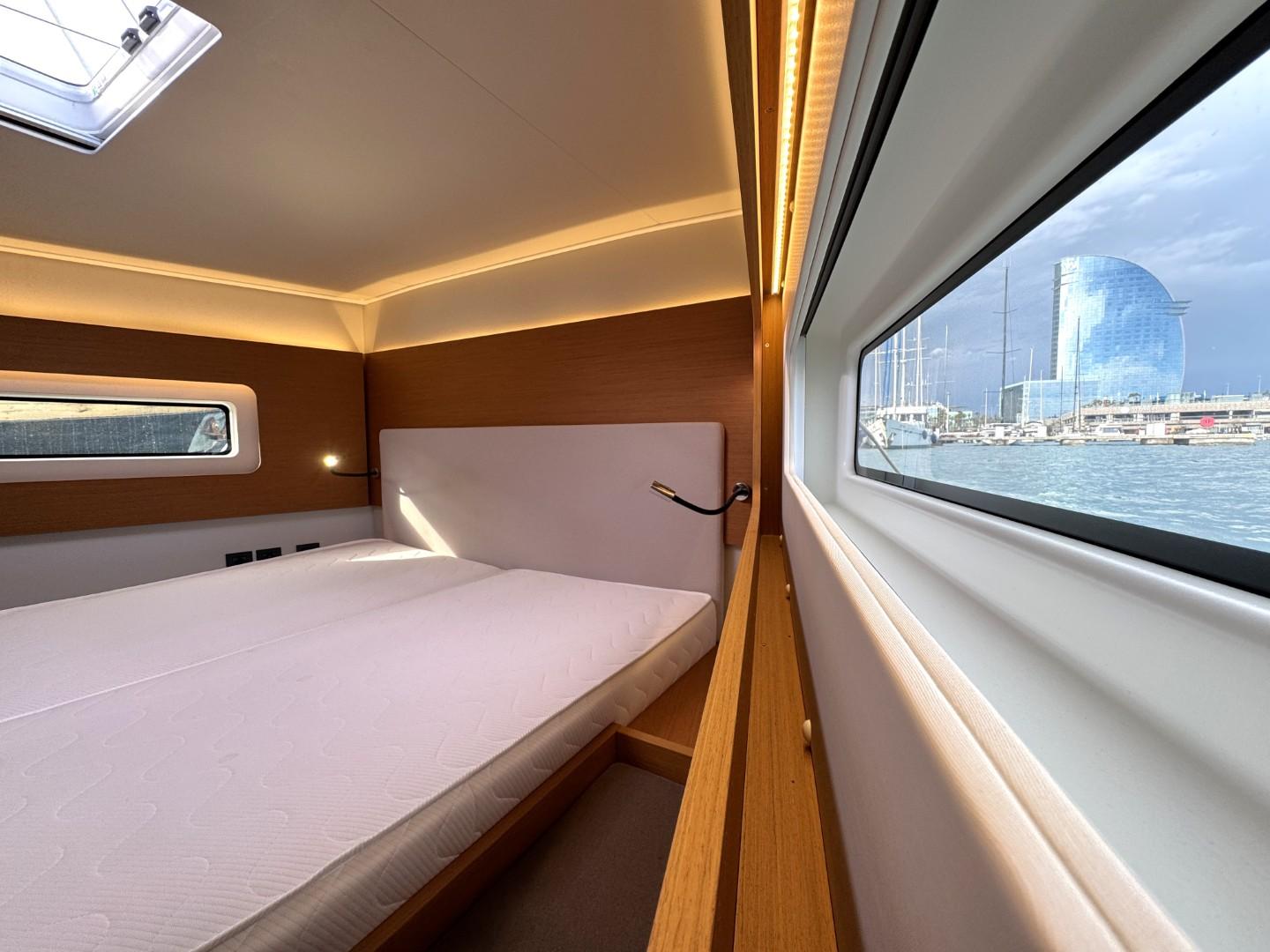

Port Aft Cabin:
• Headroom: 1,92m / 6’4’’
• Double bed (2,04m x 1,40m / 6’8’’ x 4’7’’)
• Hanging locker, 1 Cupboard with shelves, with incorporated LED lighting
• Lockers with top opening along the hull
• Bed access sideboard
• Drawer under the bed
• Large stowage under the bed, top opening (location for air conditioning option)

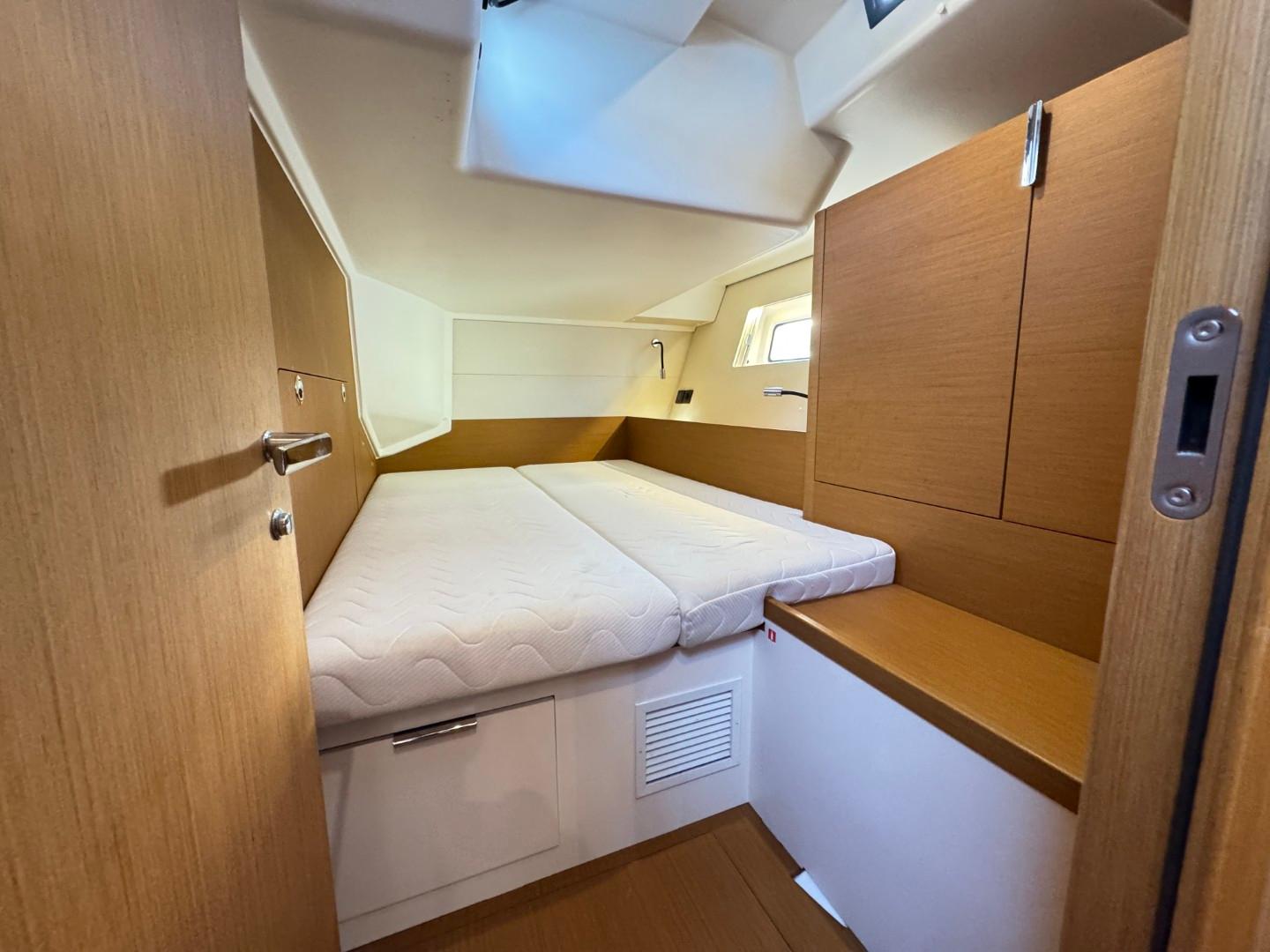

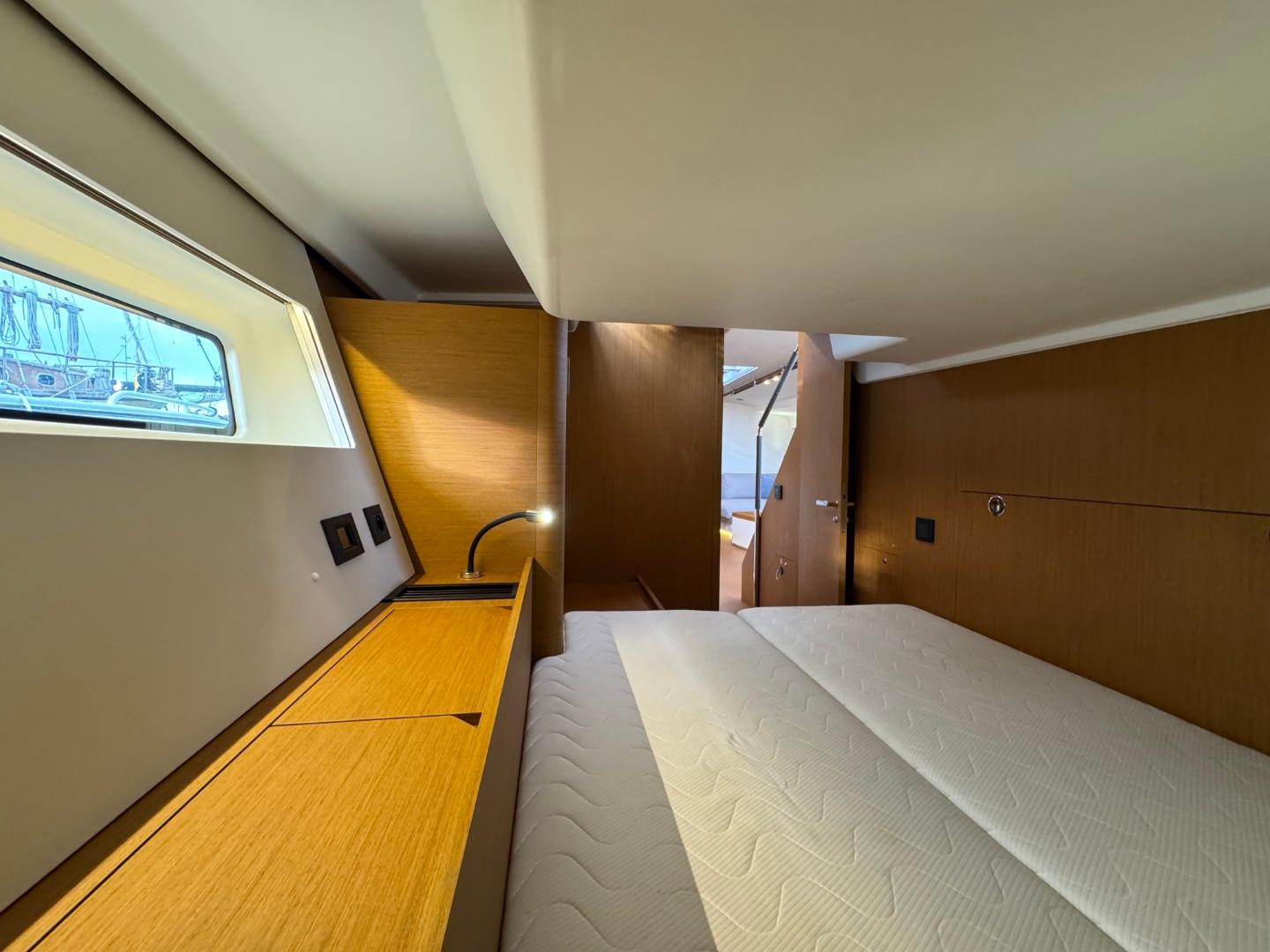

Starboard Aft Cabin:
• Headroom: 1,92m / 6’4’’
• Double bed (2,04m x 1,40m / 6’8’’ x 4’7’’)
• Hanging locker, 2 lockers with top opening along the hull
• Bed access sideboard
• Drawer under the bed
• Large stowage under the bed, top opening

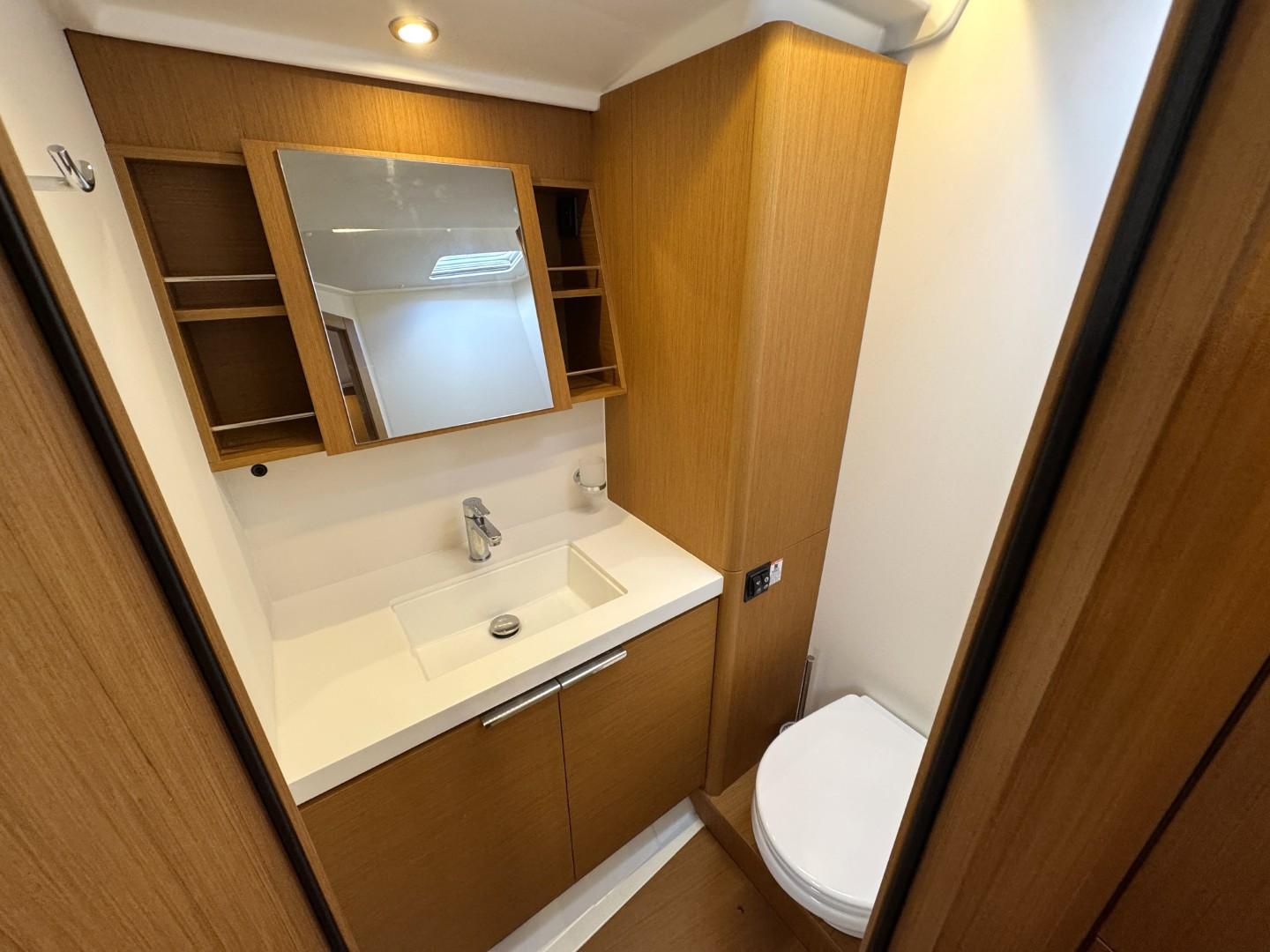

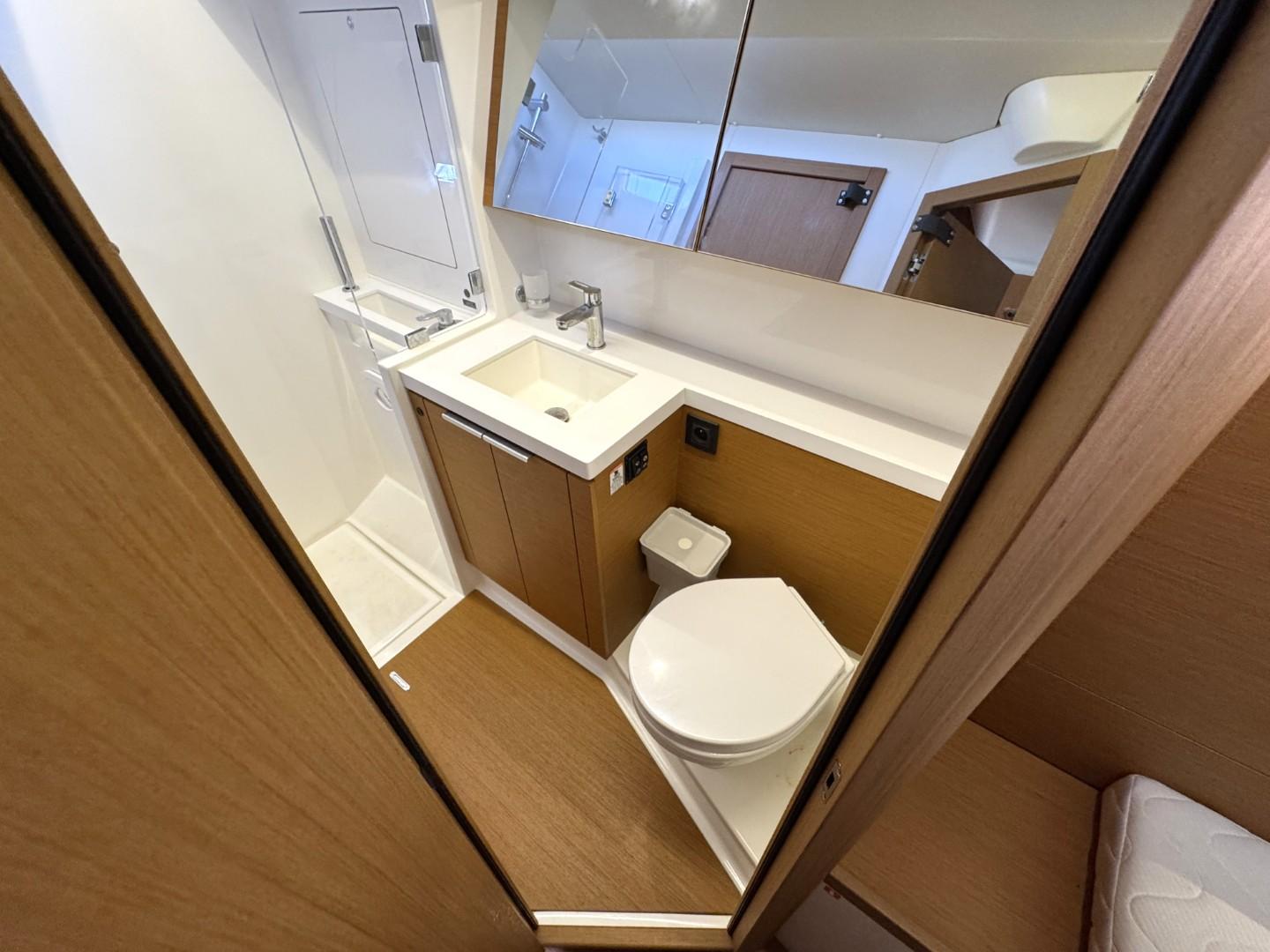

Starboard Aft Heads:
• Headroom: 1,95m / 6’5’’
• Access from the saloon or the starboard aft cabin
• Separate shower
• Electric flush heads
• Washbasin with mixer tap
• Cabinet + Storage space under the basin
• 2 Mirrors
• Toilet accessories
DECK EQUIPMENT

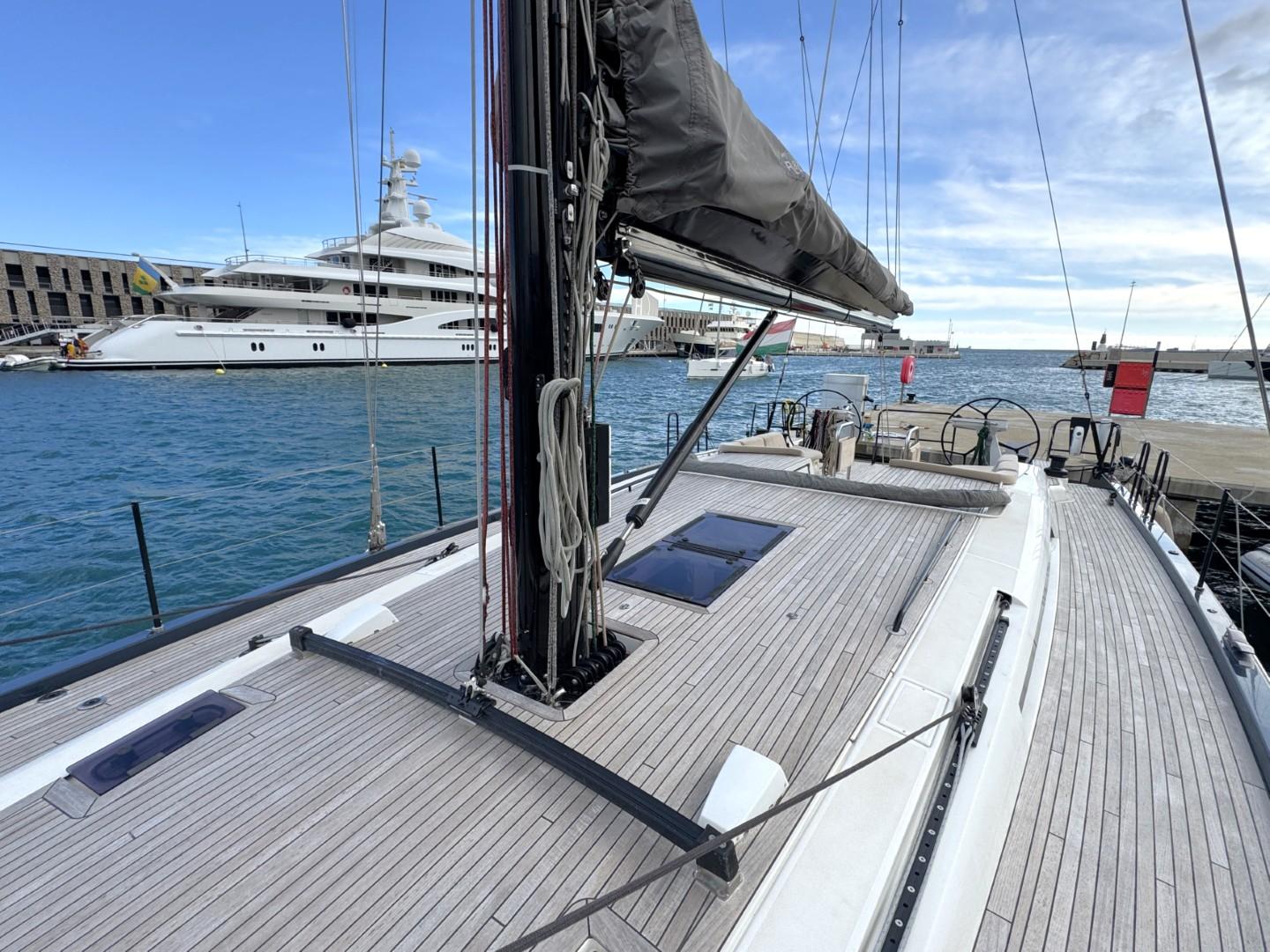

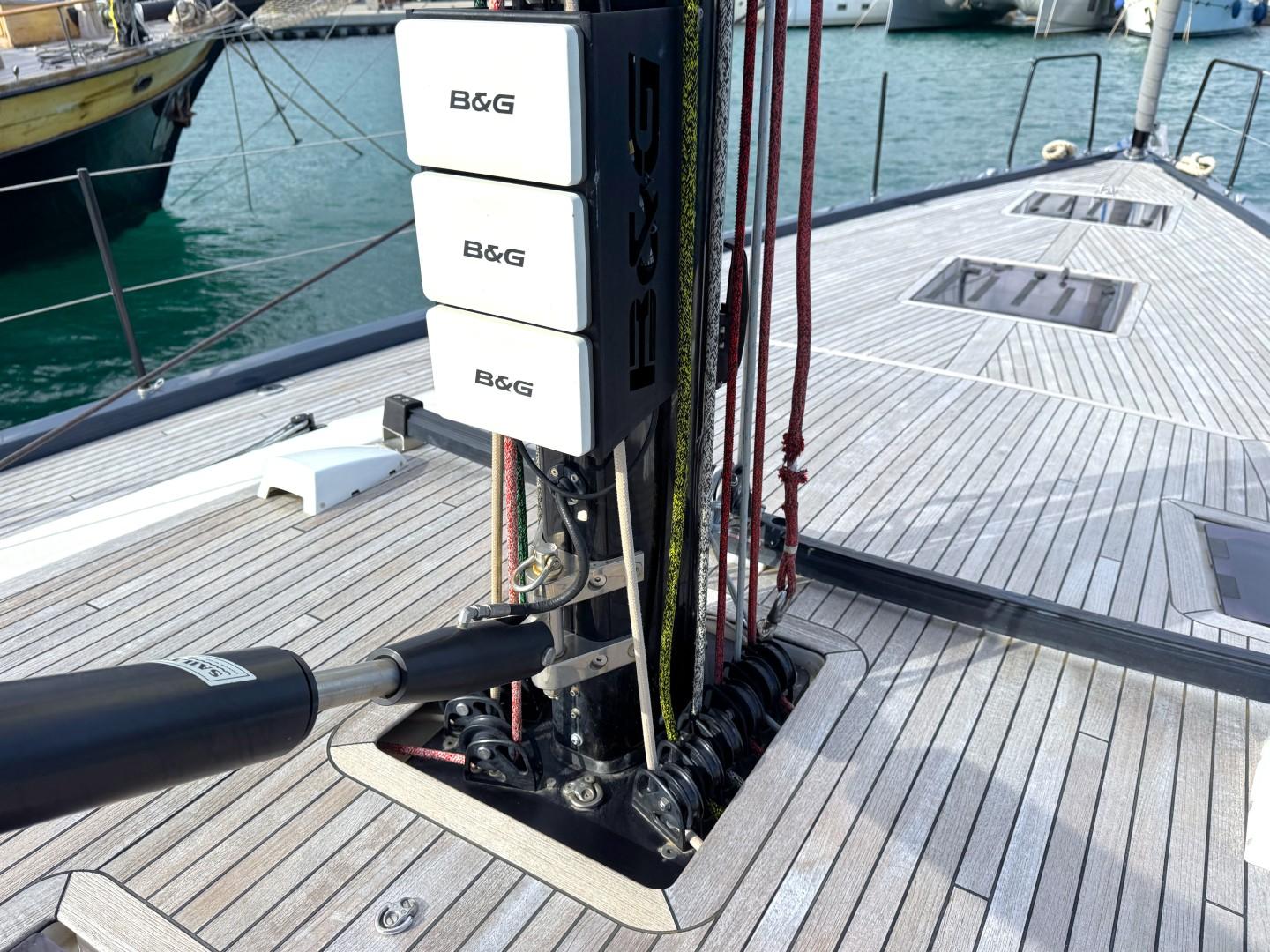

Rig:

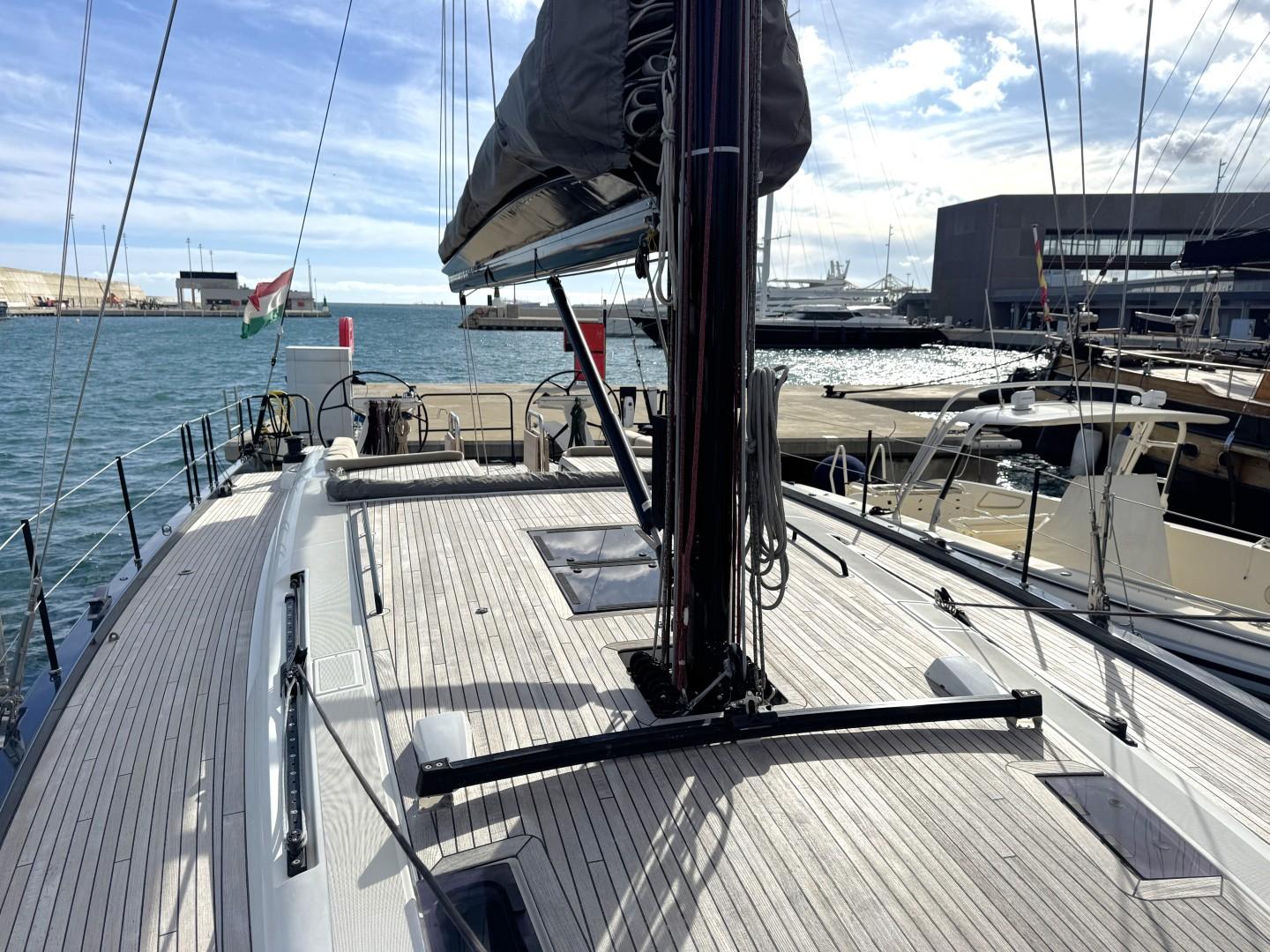

• Performance carbon classical mast tapered, deck-stepped (+ 1m / 3’3’’, Weight saving: 100kg / 220 lbs)
• 3 sets of aft swept spreaders

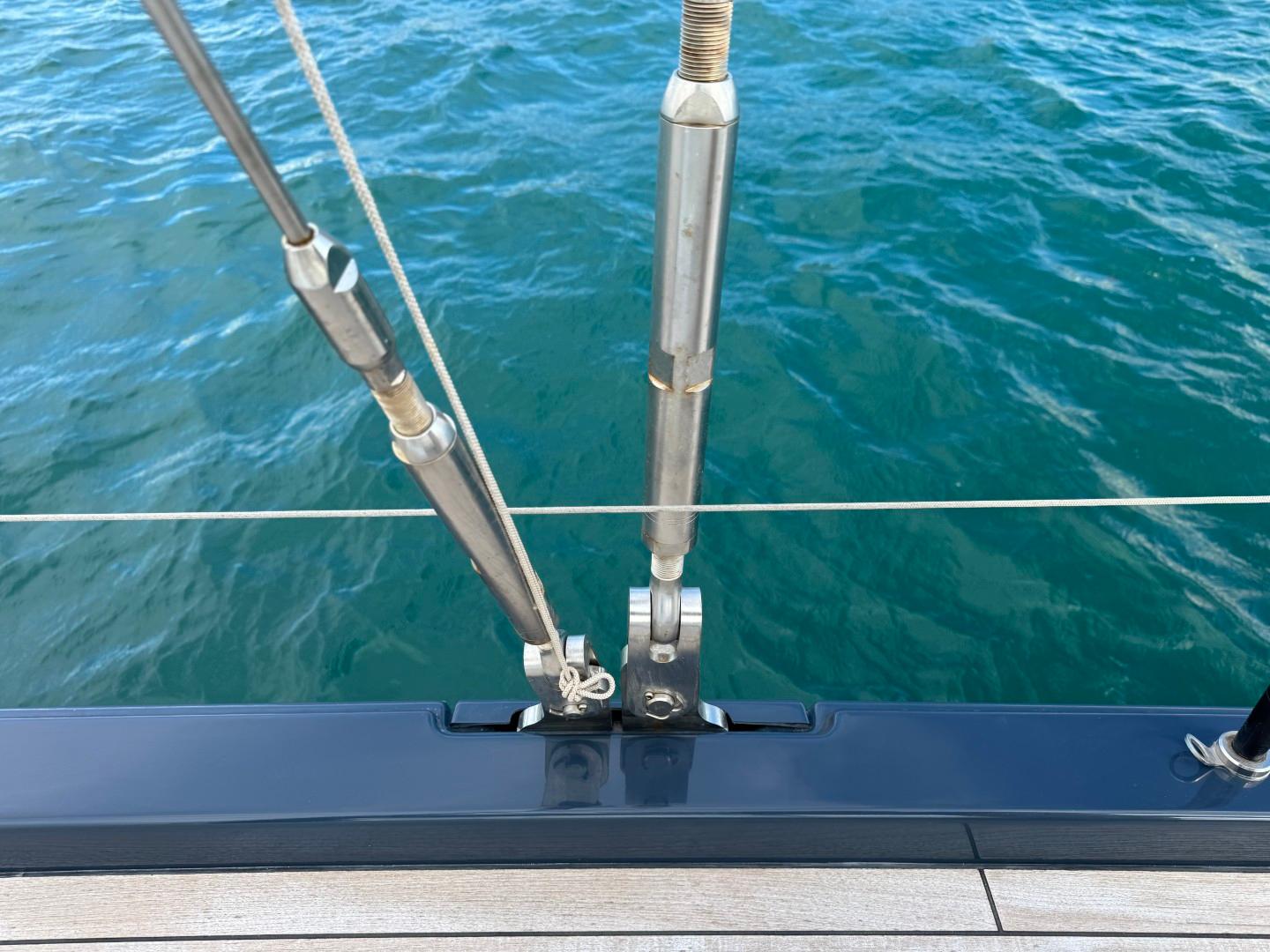

• Stainless steel rod standing rigging

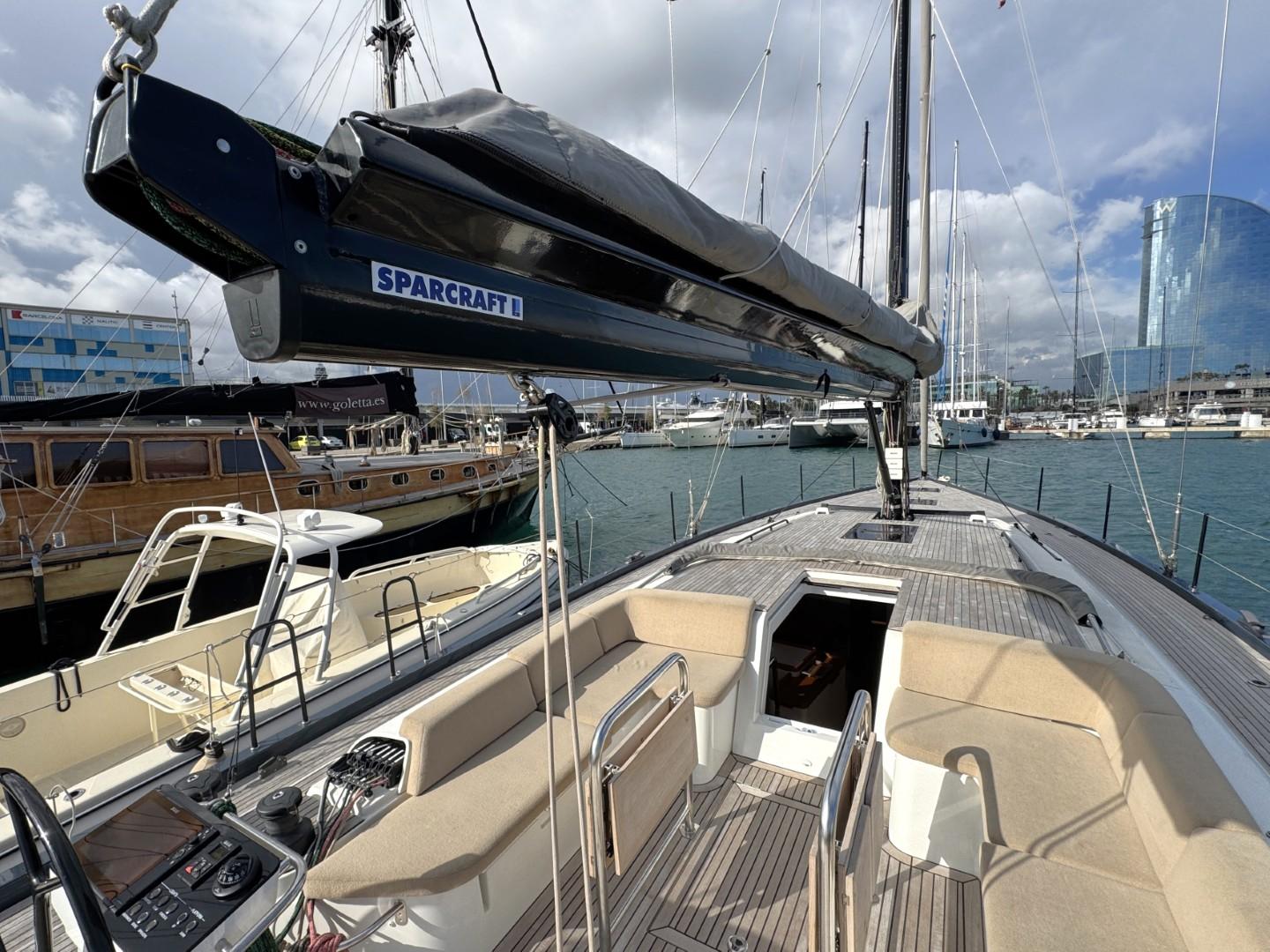

• Sparcraft aluminum black lacquered canoe boom with hydraulic piston and integrated LED lighting for the cockpit area
• Textile backstay crow's foot with hydraulic pistons
• Hydraulic vang

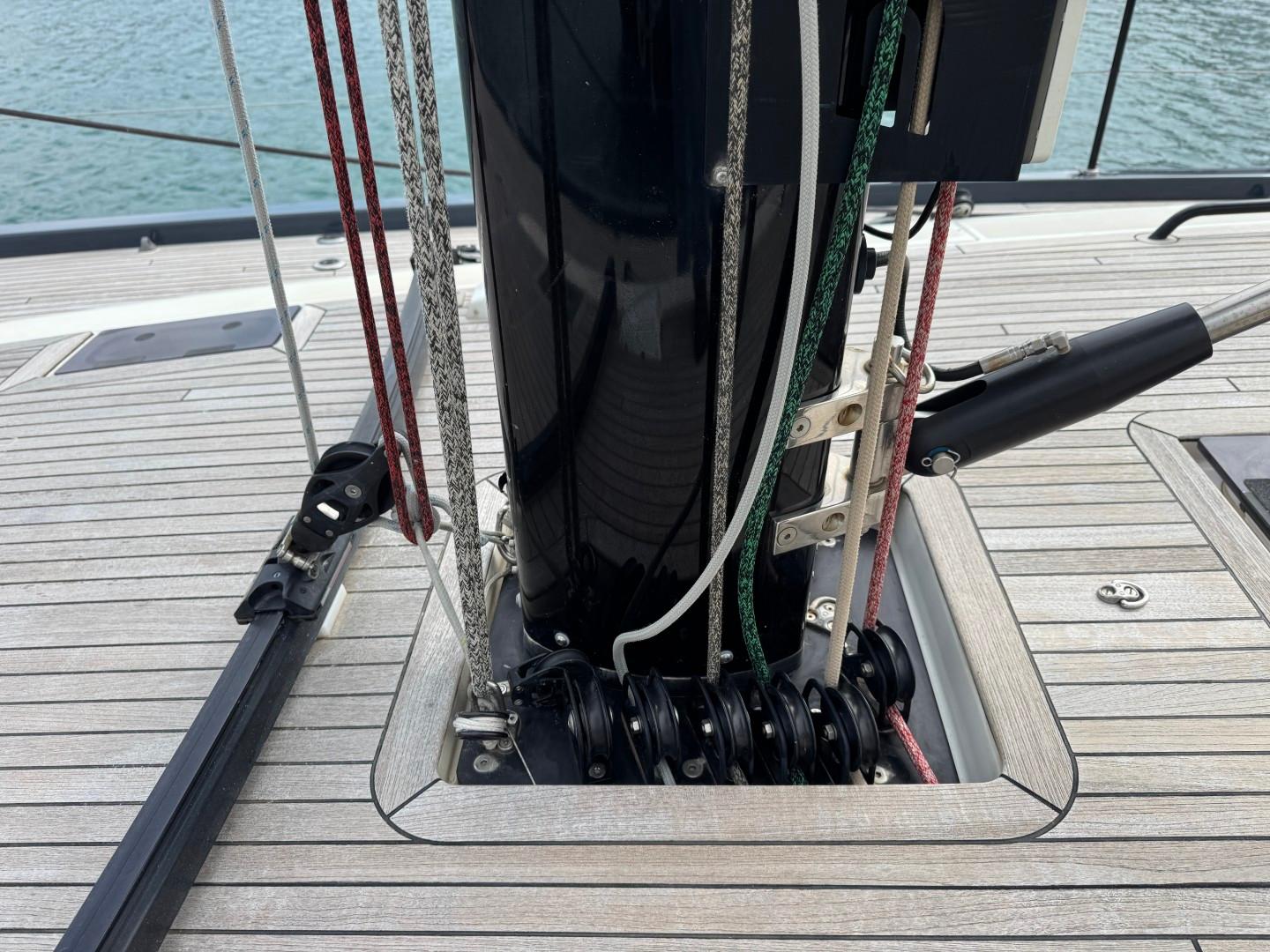

• Harken fixed blocks at foot of mast
• Harken Switch mainsail track
• Mainsail attachment point at bottom of cockpit with stand-up block
• German system (Two-way mainsheet at the helm station)
• All lines brought back to the helm stations
• Subdeck electric genoa furler
• Self-tacking staysail track with traveller
• Removable inner staysail with Wichard double chainplate on foredeck and Dyneema halyard
• Harken Black Magic blocks for spinnaker
• Dyneema spinnaker halyards
• Additional halyard clutches for spinnaker

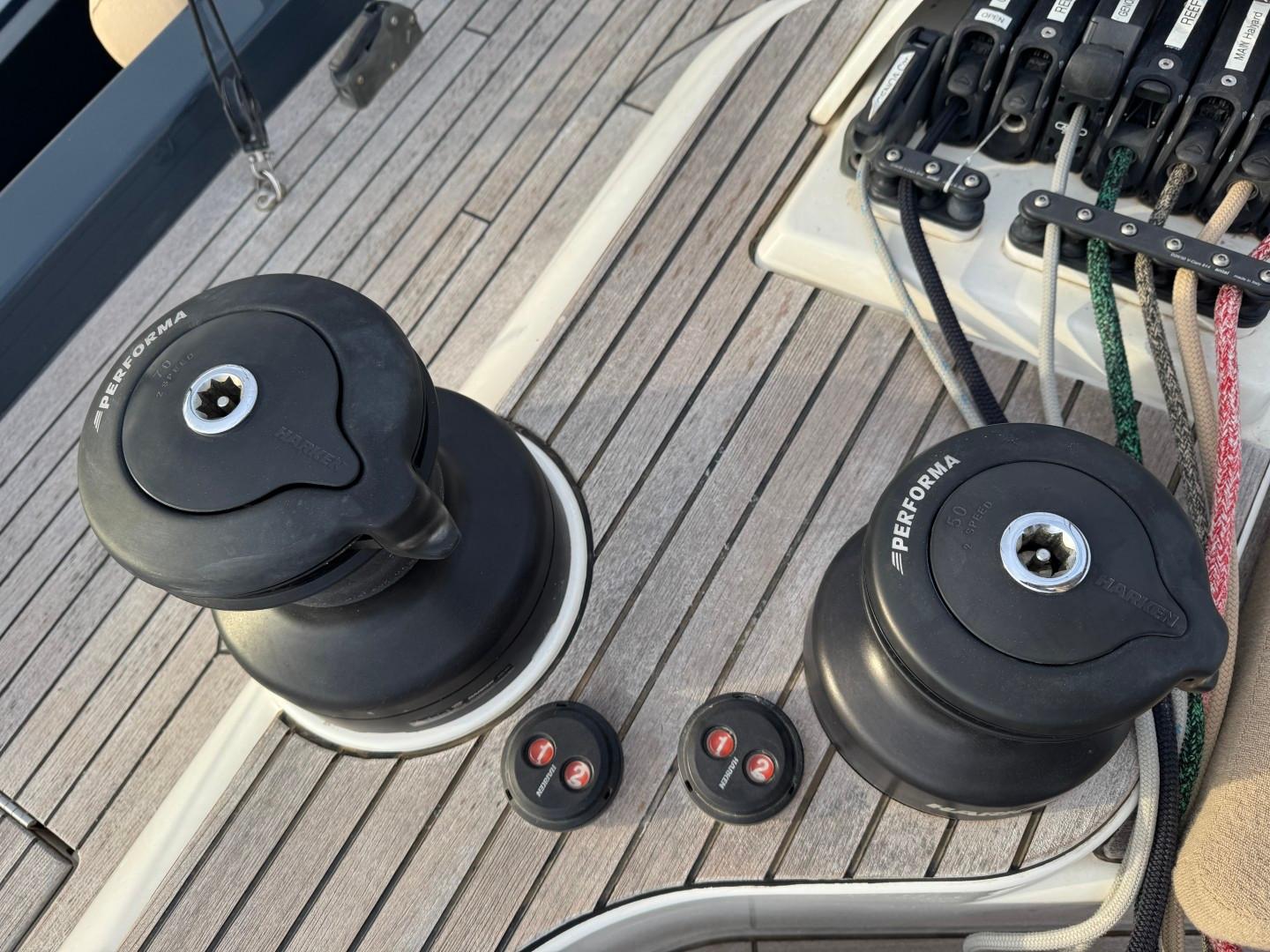

Winches:

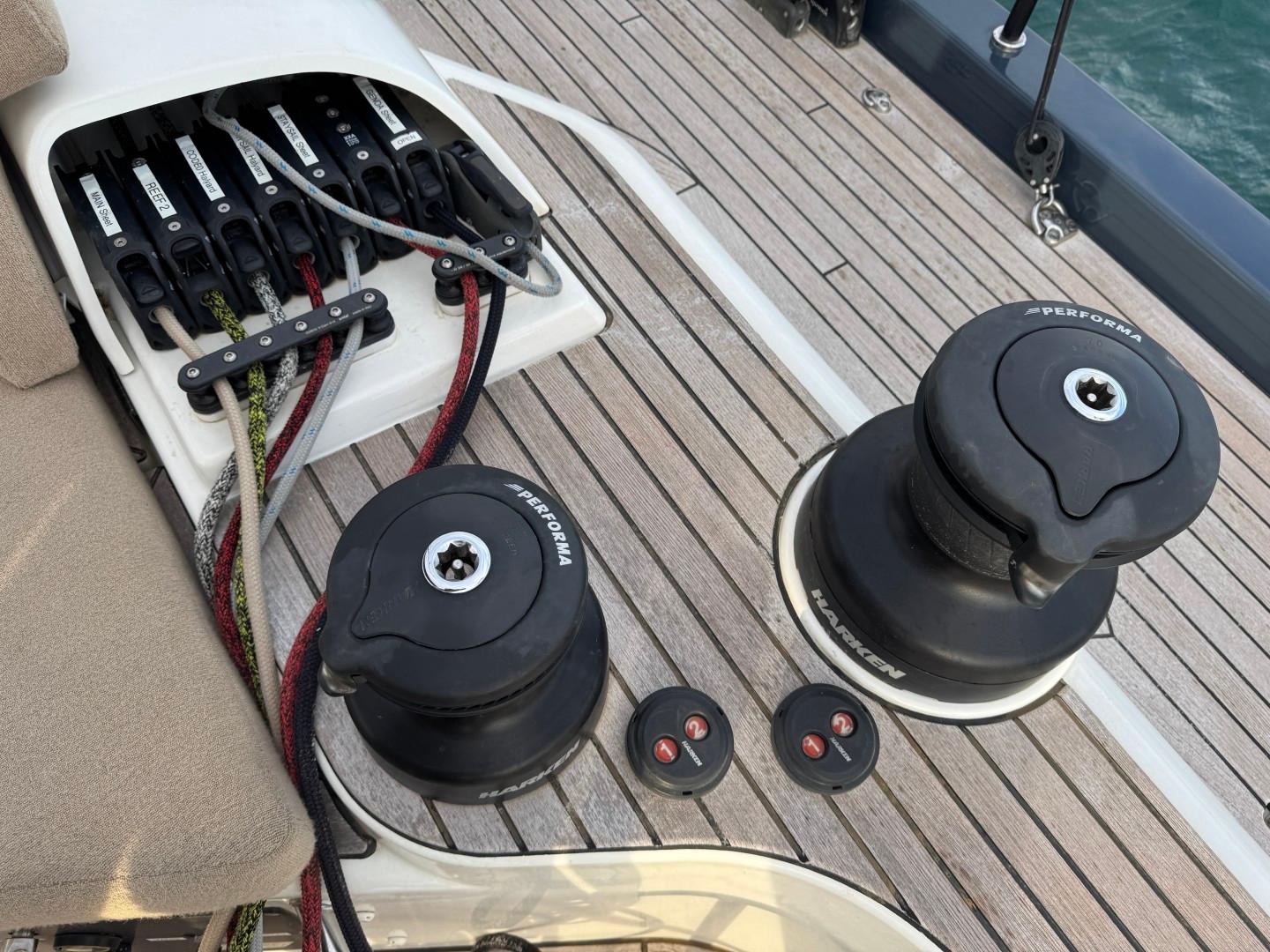

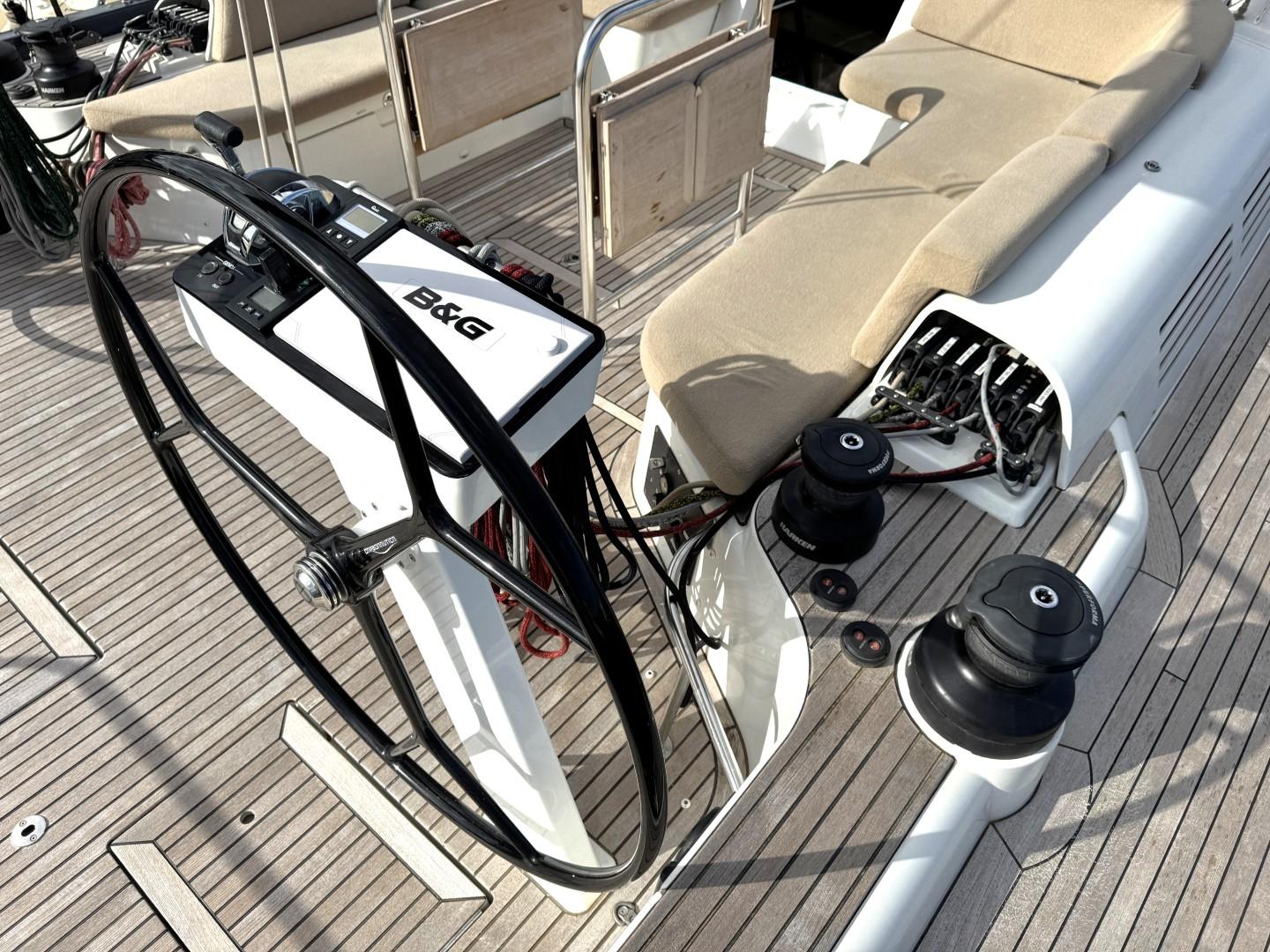

• 2x Harken 70.2 STPEH Performa electric 2-speed, self-tailing primary winches
• 2x Harken 50.2 STPEH Performa electric 2-speed, self-tailing control line winch to starboard
Sails:

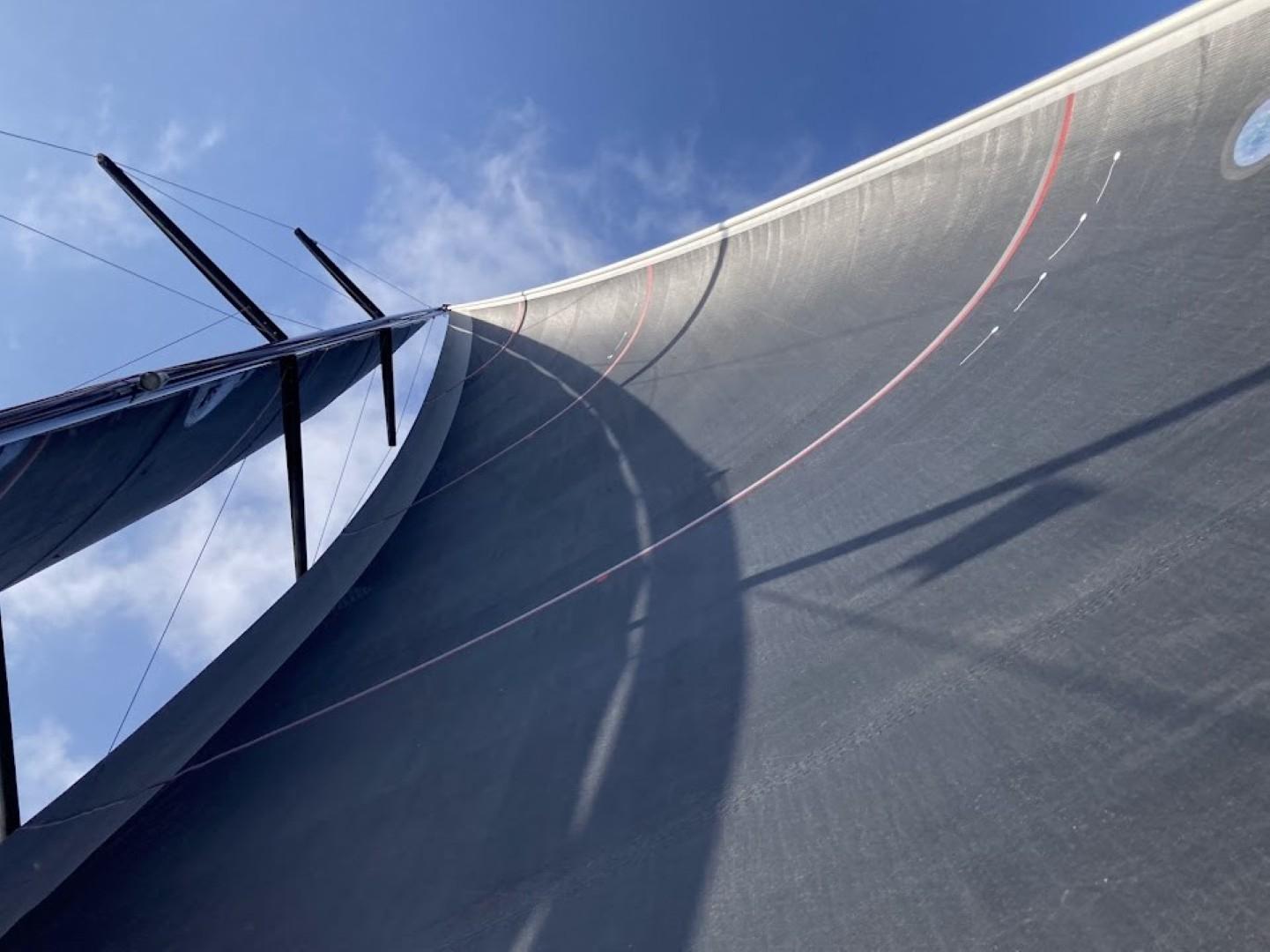

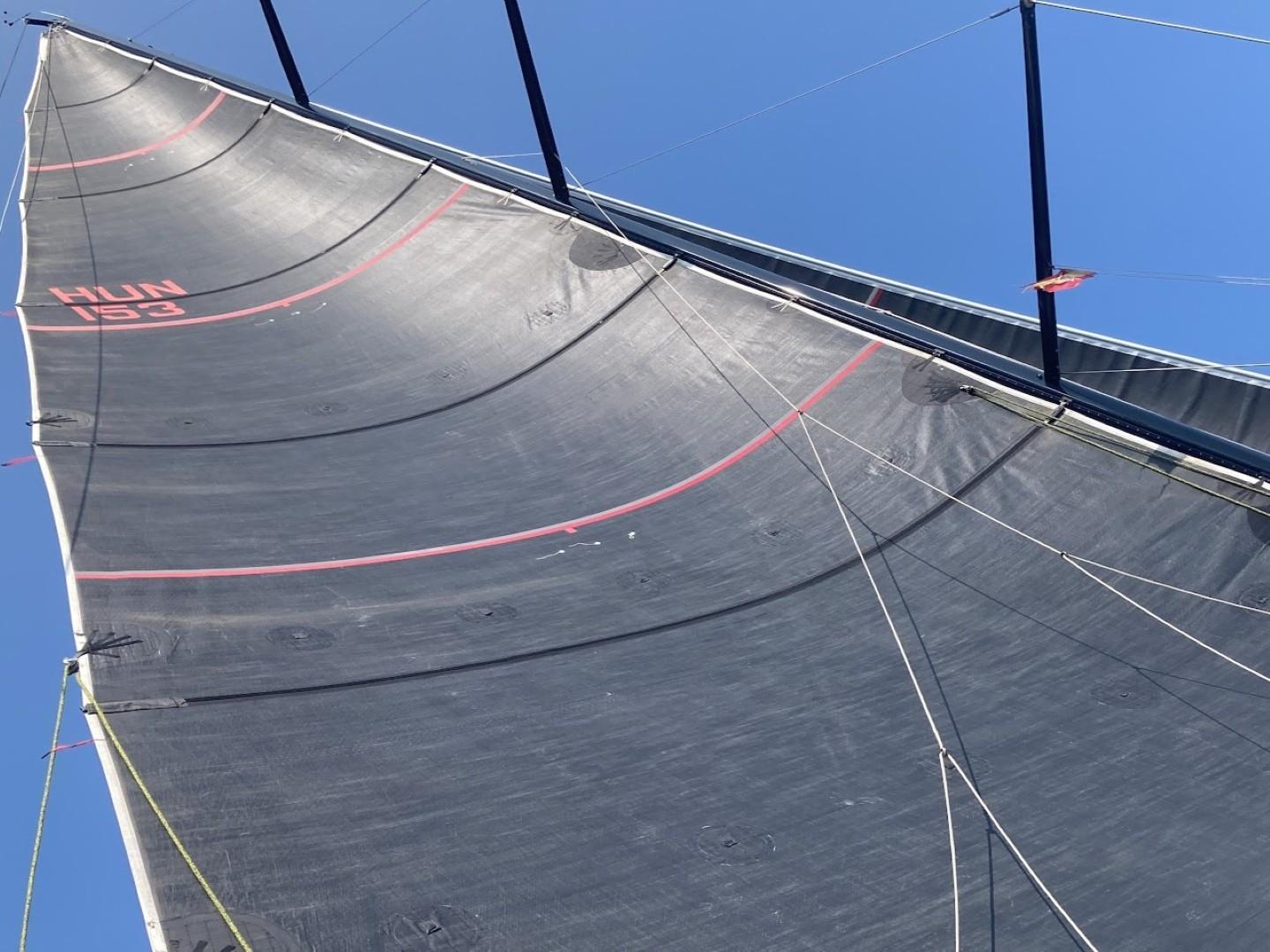

• Ratsey & Lapthorn Sails Carbon/Tecnora laminate fully-battened mainsail - 2021

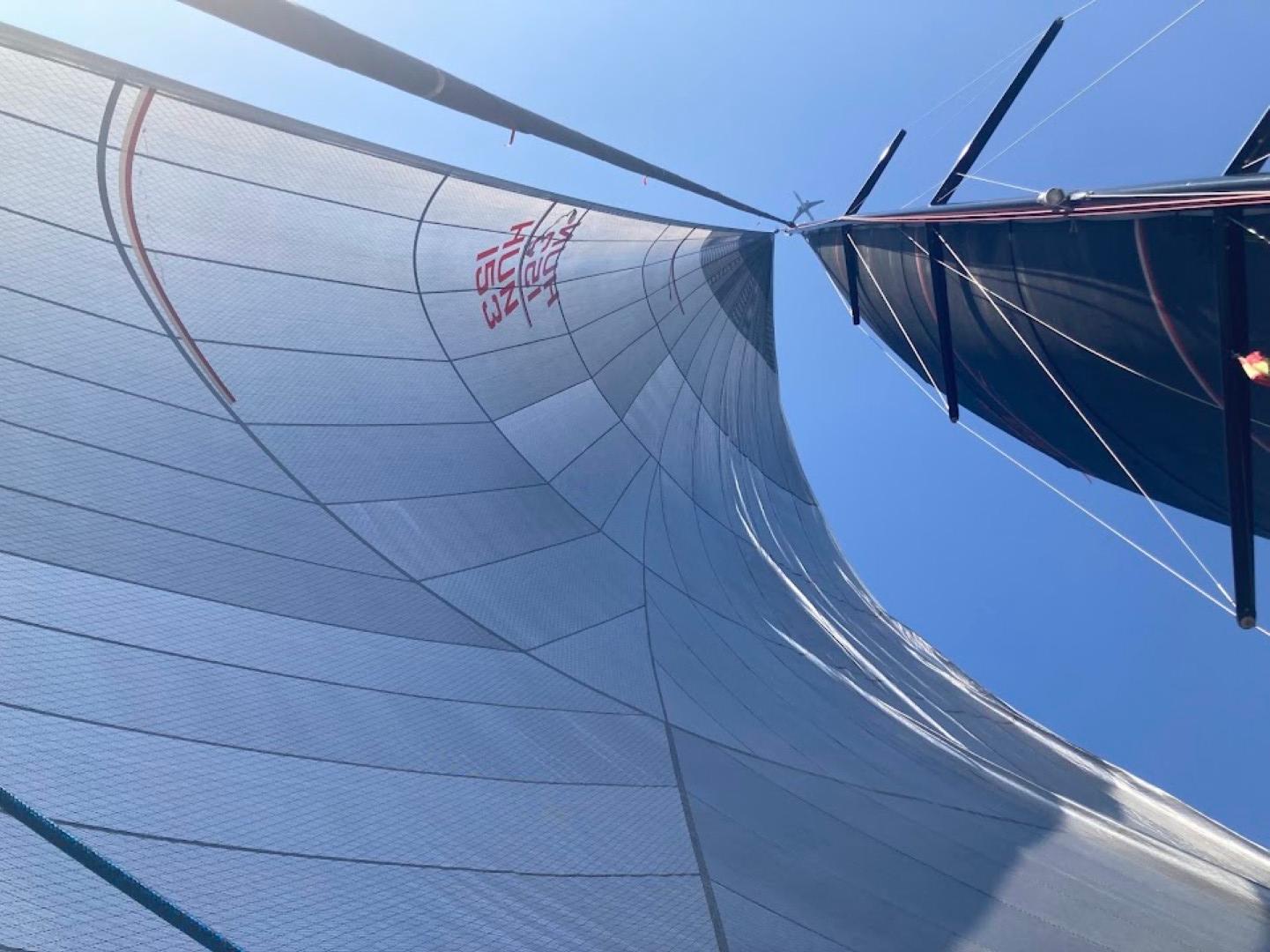

• Ratsey & Lapthorn Sails Carbon/Tecnora laminate furling Genoa - 2021
• Ratsey & Lapthorn Sails Kevlar laminate furling Code 0 - 2021
• Ratsey & Lapthorn Sails Kevlar staysail - 2021
• Ratsey & Lapthorn Sails Asymmetrical A2 with snuffer - 2021
General:
• Black lacquered stainless steel pushpit, pulpit and guardwire stanchions with twin textile lifelines
• Side boarding gates

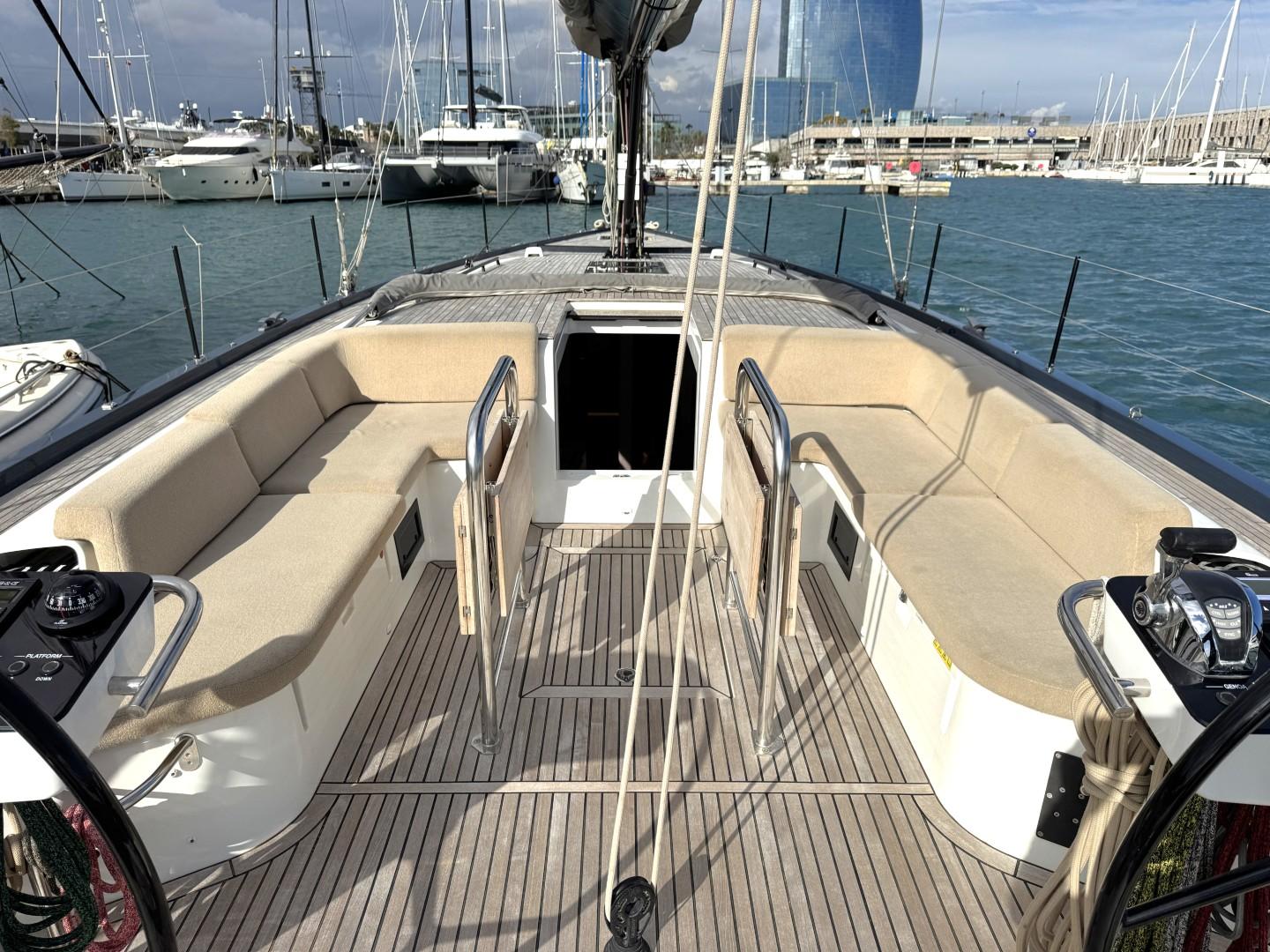

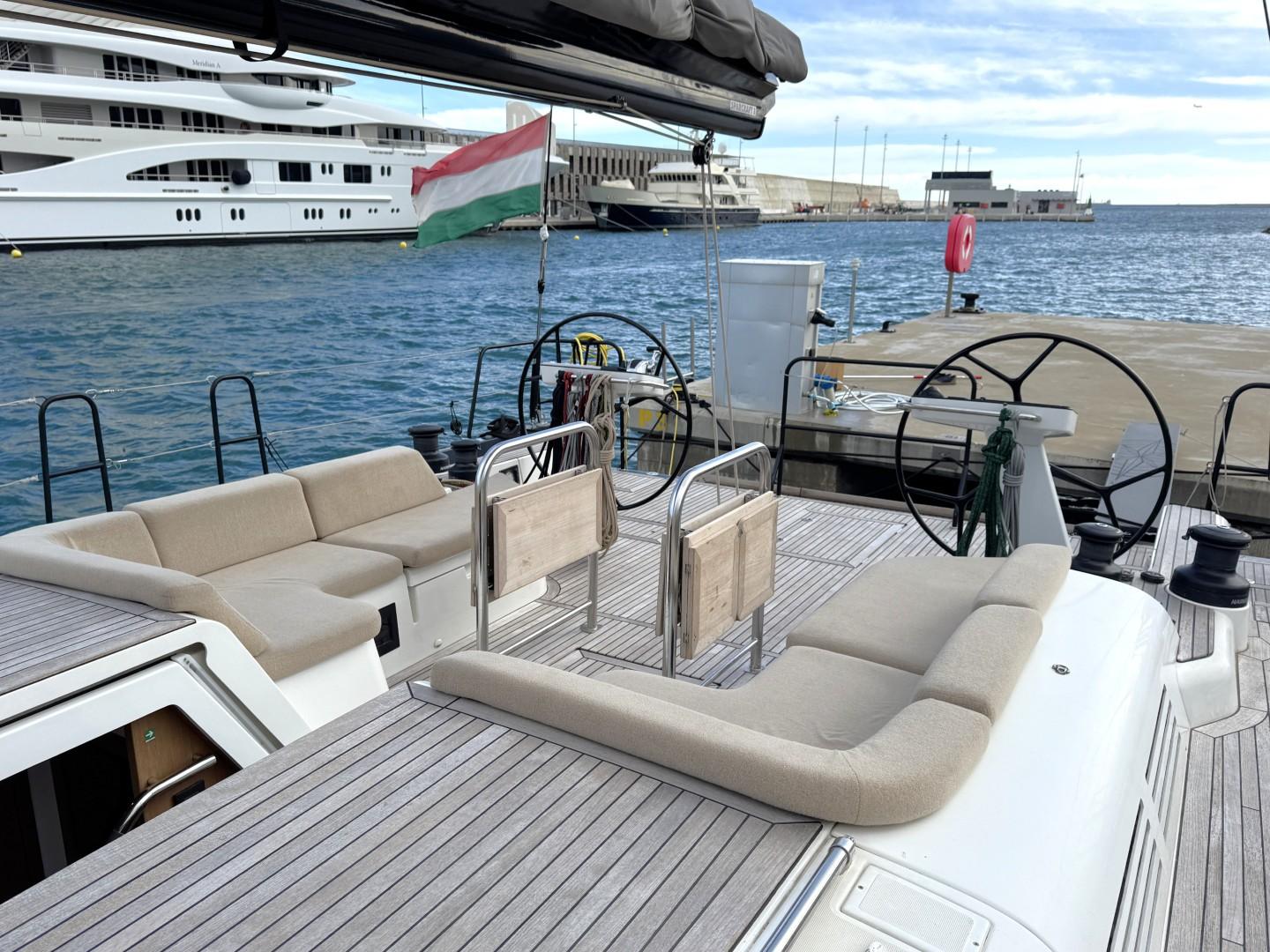

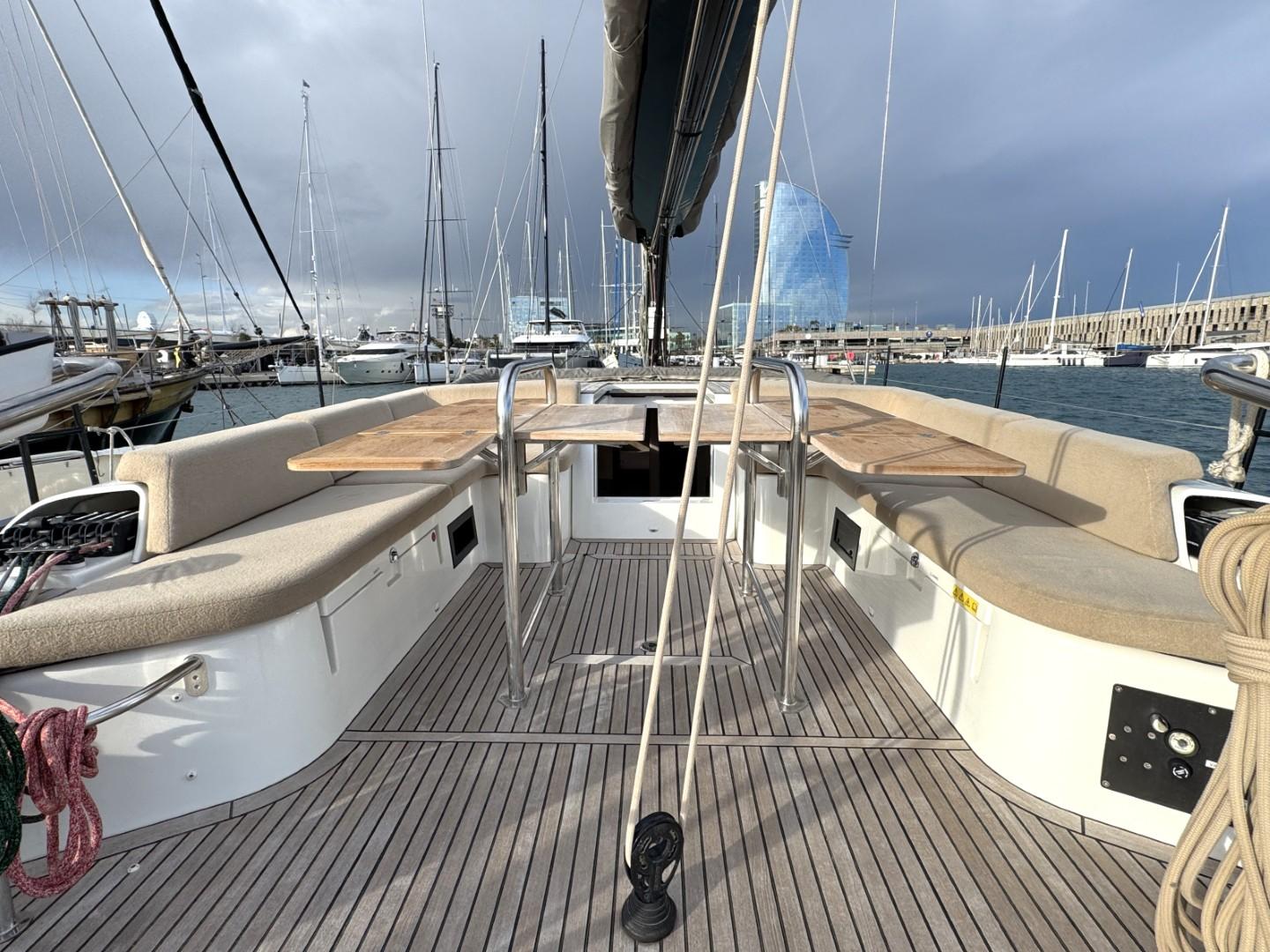

• Twin teak cockpit tables with extensions on stainless steel pedestals

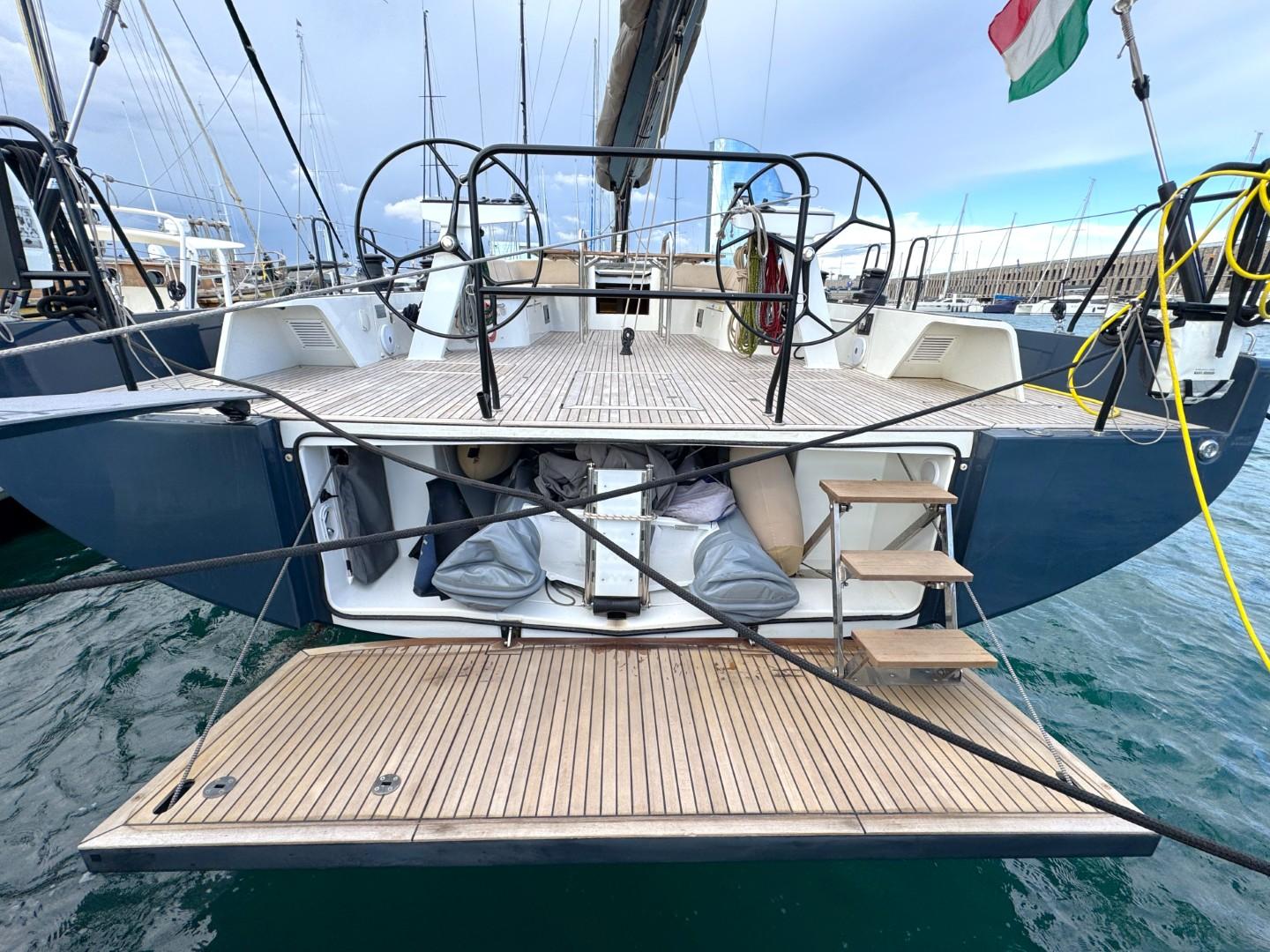

• 12vDC electric stern platform convertible to teak-laid bathing platform ((2,61m x 0,93m / 8’7’’ x 3’1’’) )with remote control

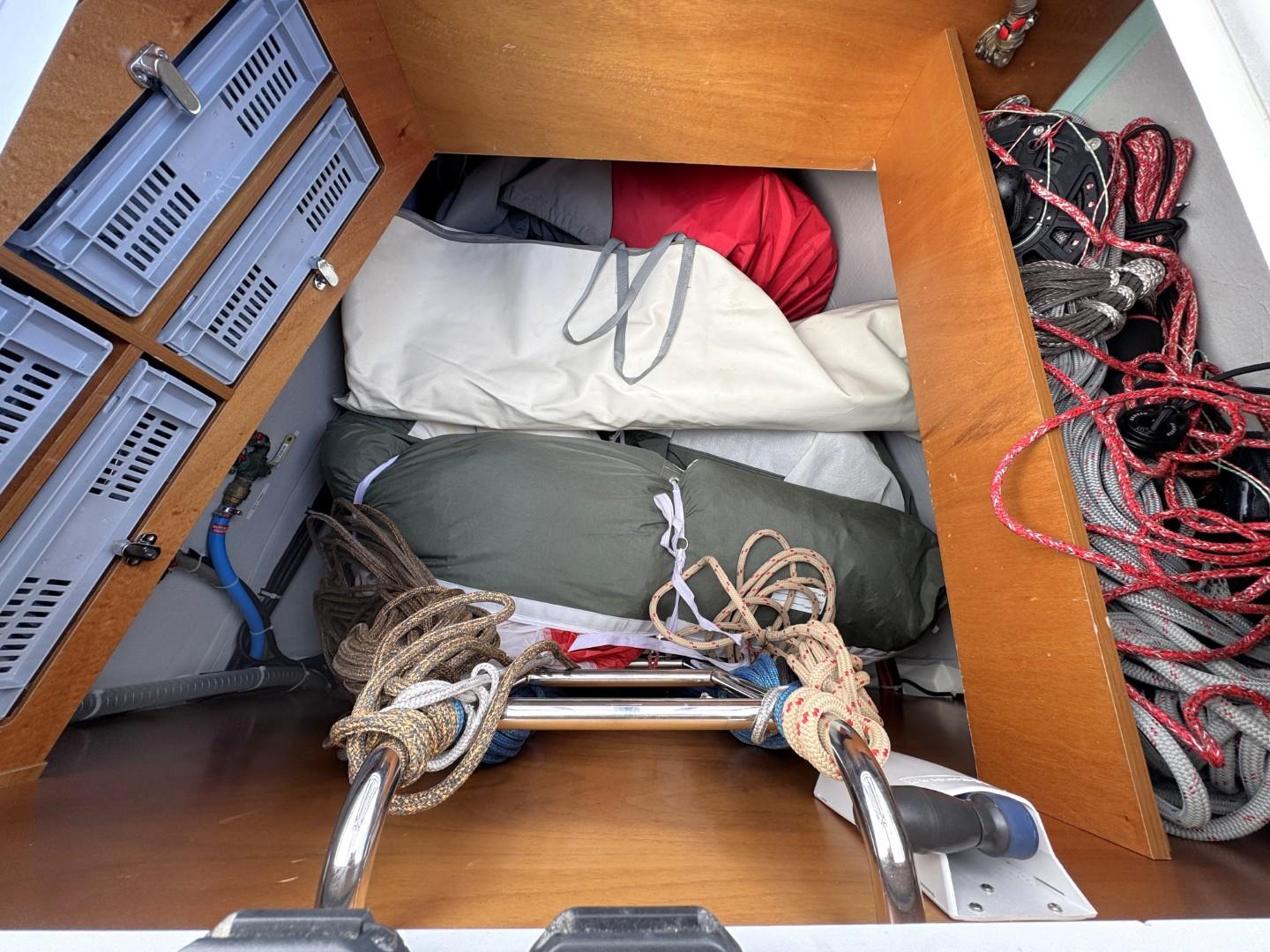

• Tender garage (2,48m x 1,69m x 0,80m / 8’2’’ x 5’7’’ x 2’7’’) accessible from stern platform and from cockpit with tender loading system
• 12vDC electric inflator/deflator for tender and fenders
• Stainless steel, removable bathing ladder with dedicated stowage in the cockpit
• Self-draining cockpit
• Deck shower
• Outboard engine bracket
• Carbon passarelle

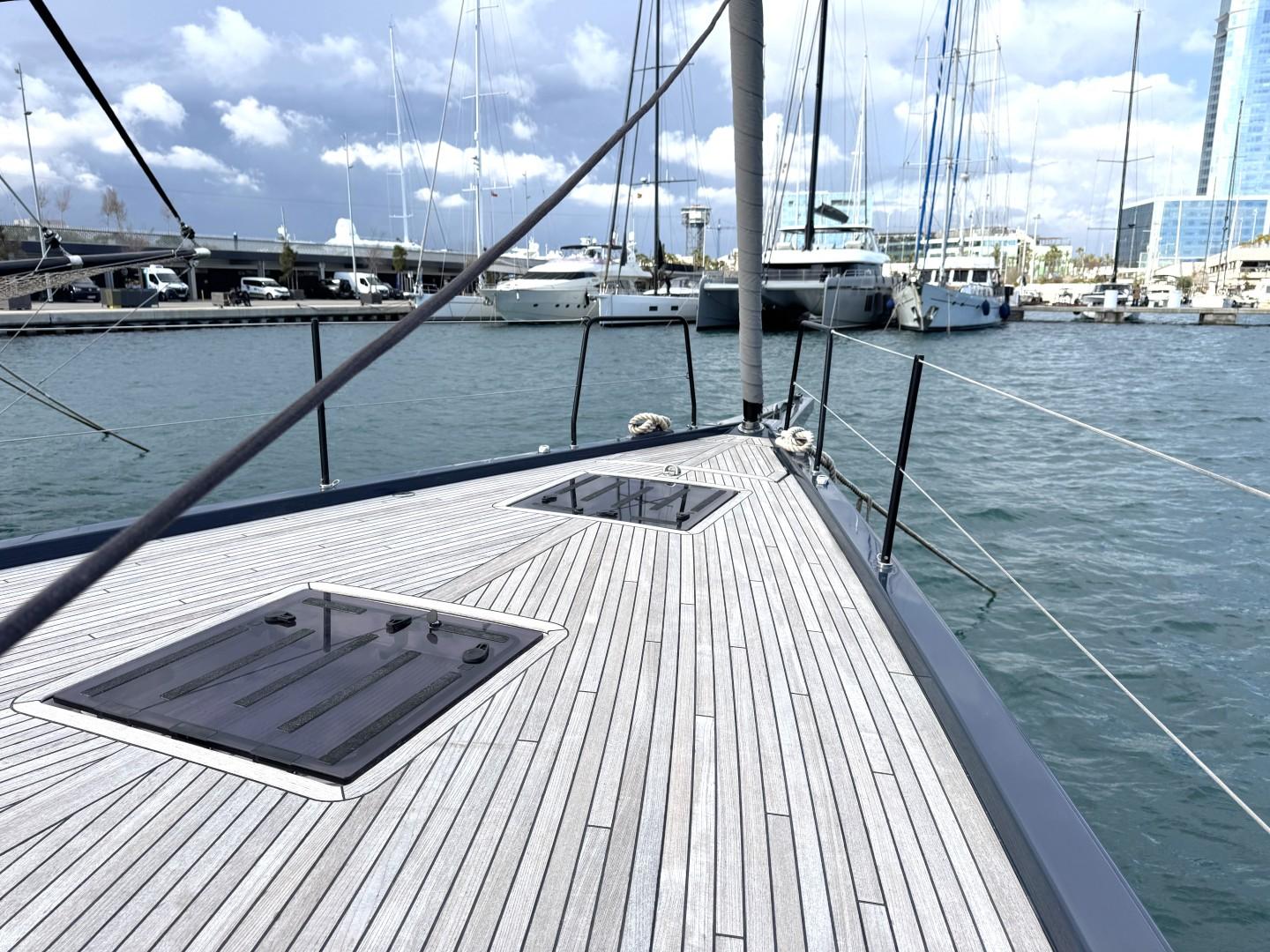

• Flush deckhead hatches
Covers, Cushions & Canvas:

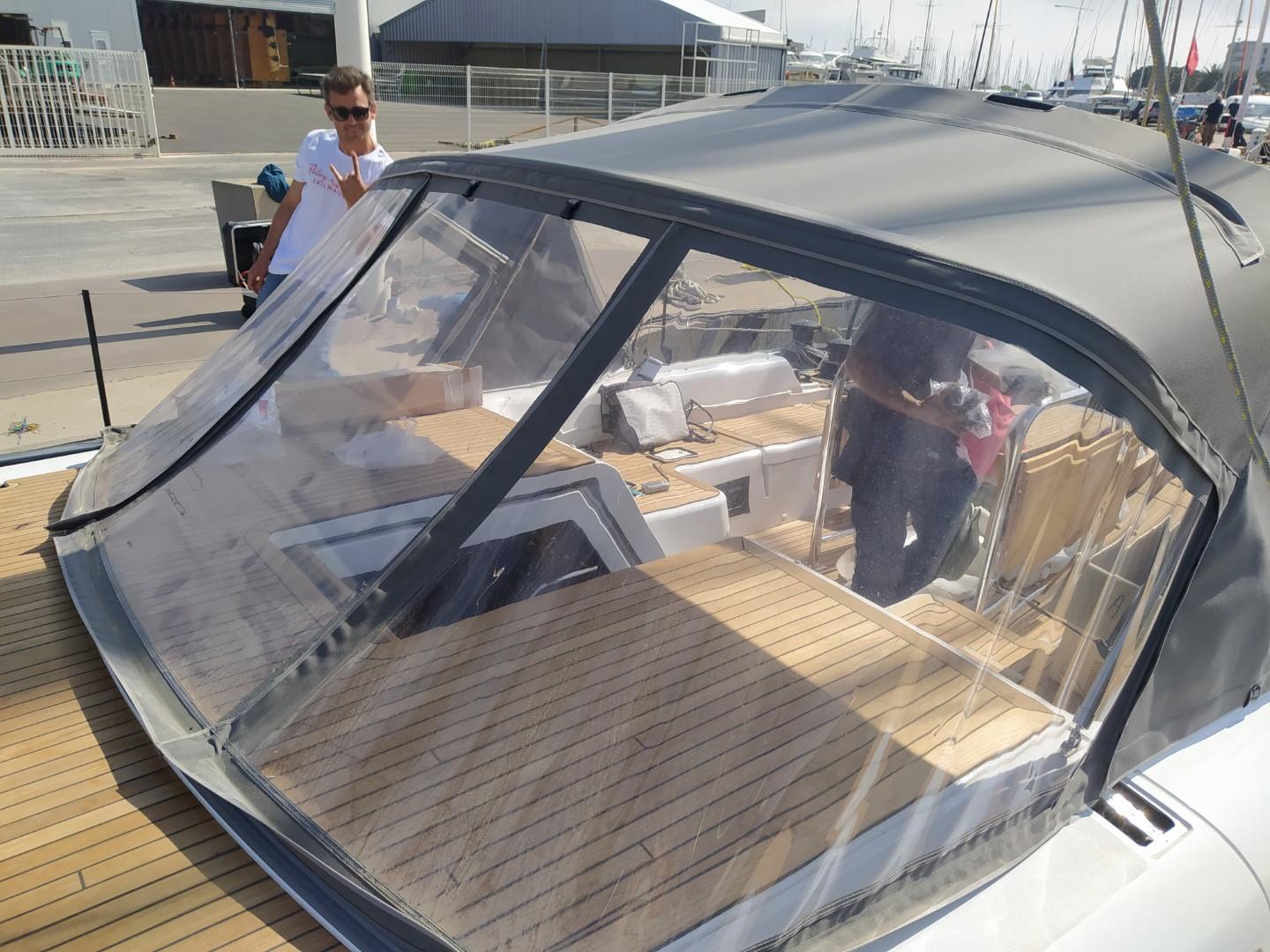

• Charcoal grey canvas sprayhood with stainless steel frame
• Charcoal grey canvas covers for cockpit tables and helm pedestals
• Sunbrella Terry beige cockpit cushions
• Charcoal grey canvas boom awning
• Charcoal grey stackpack with lazyjacks

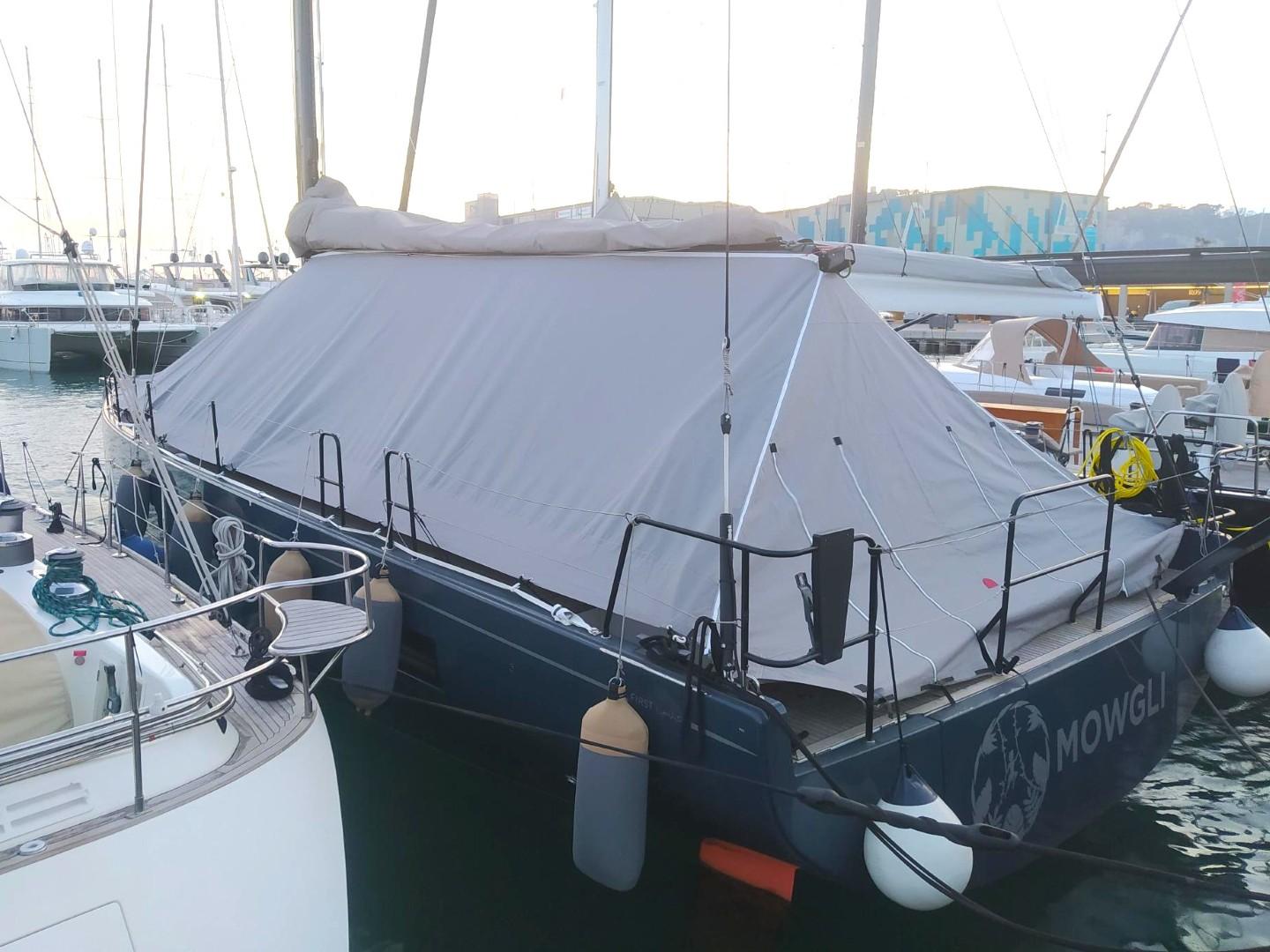

• Full winter boat cover

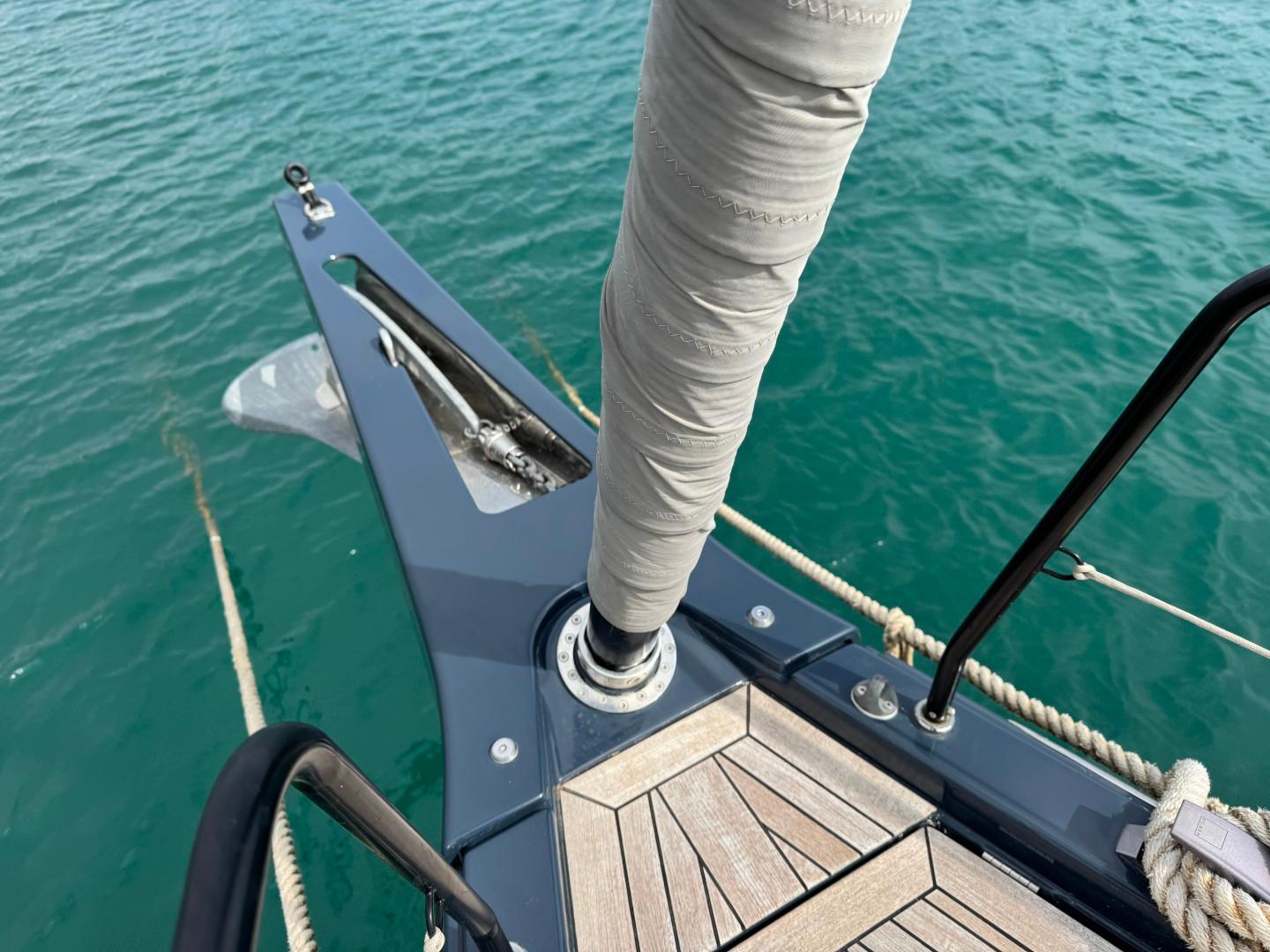

Anchoring & Mooring:
• Lewmar 12vDC 1,500w reversing vertical anchor windlass
• Quick remote control in the cockpit with chain counter
• 32kgs spade anchor with 60meteers of 12mm chain and warp

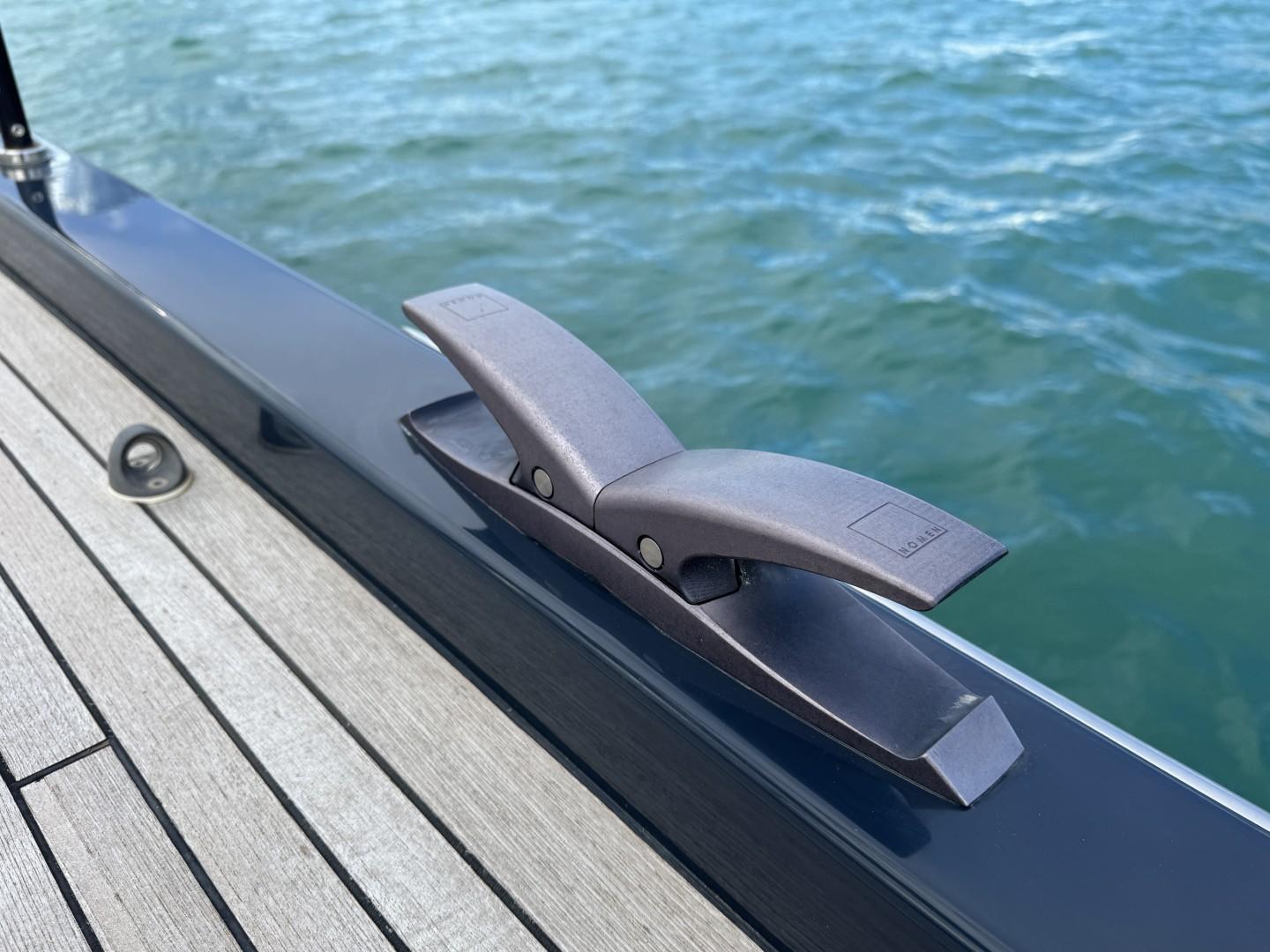

• Retractable Nomen black anodised mooring cleats
• Fore and aft mooring lines
• Warps and fenders
Tender & Outboard:
• AB Inflatables 9AL aluminium bottom 2.76m inflatable tender
• Electric outboard or 10hp 4-stroke Outboard engine
SAFETY EQUIPMENT:
General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.
