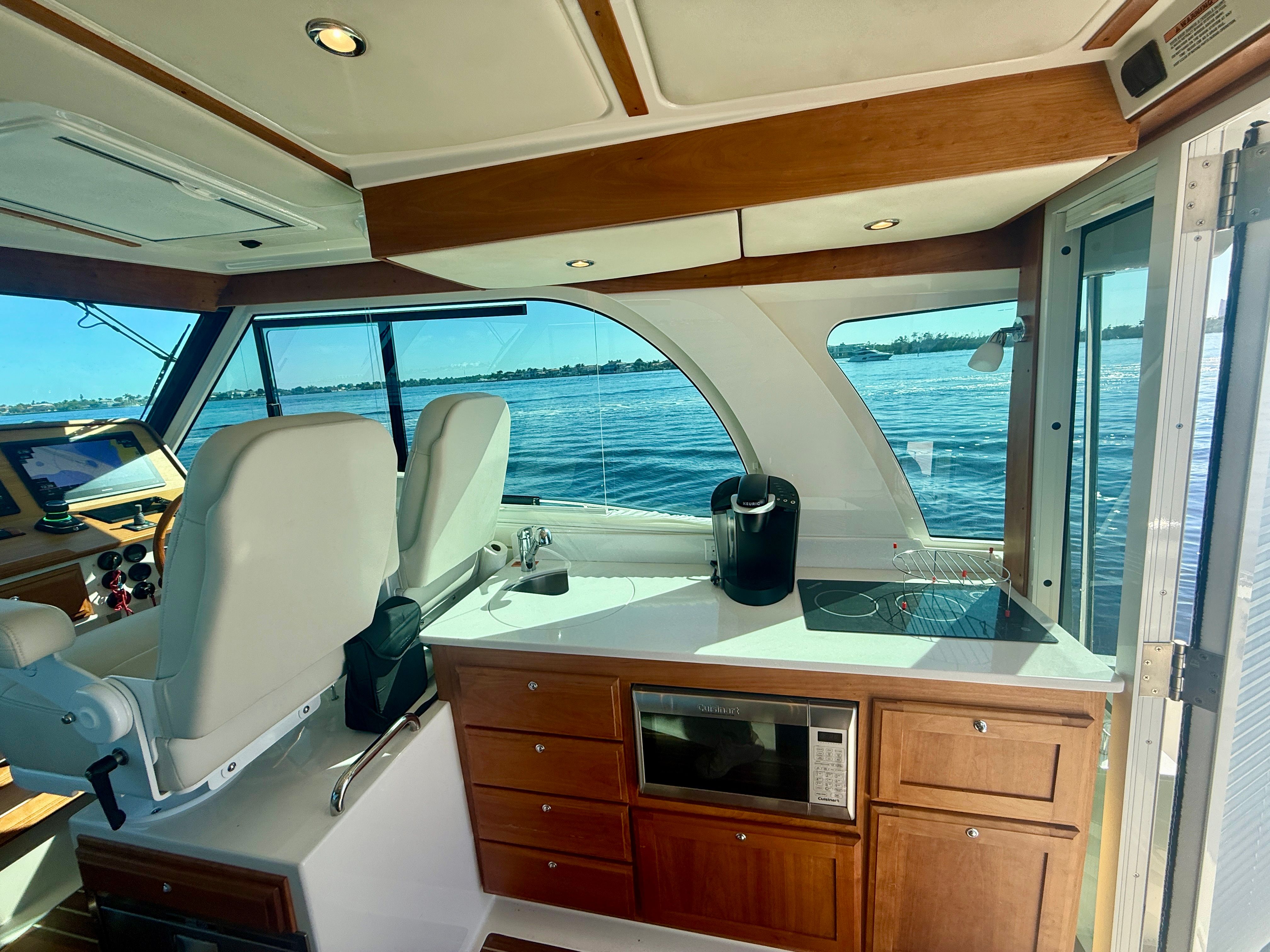

Galley
● Electric, induction two burner cook-top
● Drawer style AC/DC fridge below mate’s seat
● Drawer style AC/DC fridge below aft dinette seat
● Solid surface countertop
● Drawer and door storage below
● Garbage and recycling container pull out
● Silverware drawer pull out below stove
● Hafele tip-out tray at sink
● Large SS galley sink w/ single lever faucet & drop in cover
● Under-counter, convection microwave oven

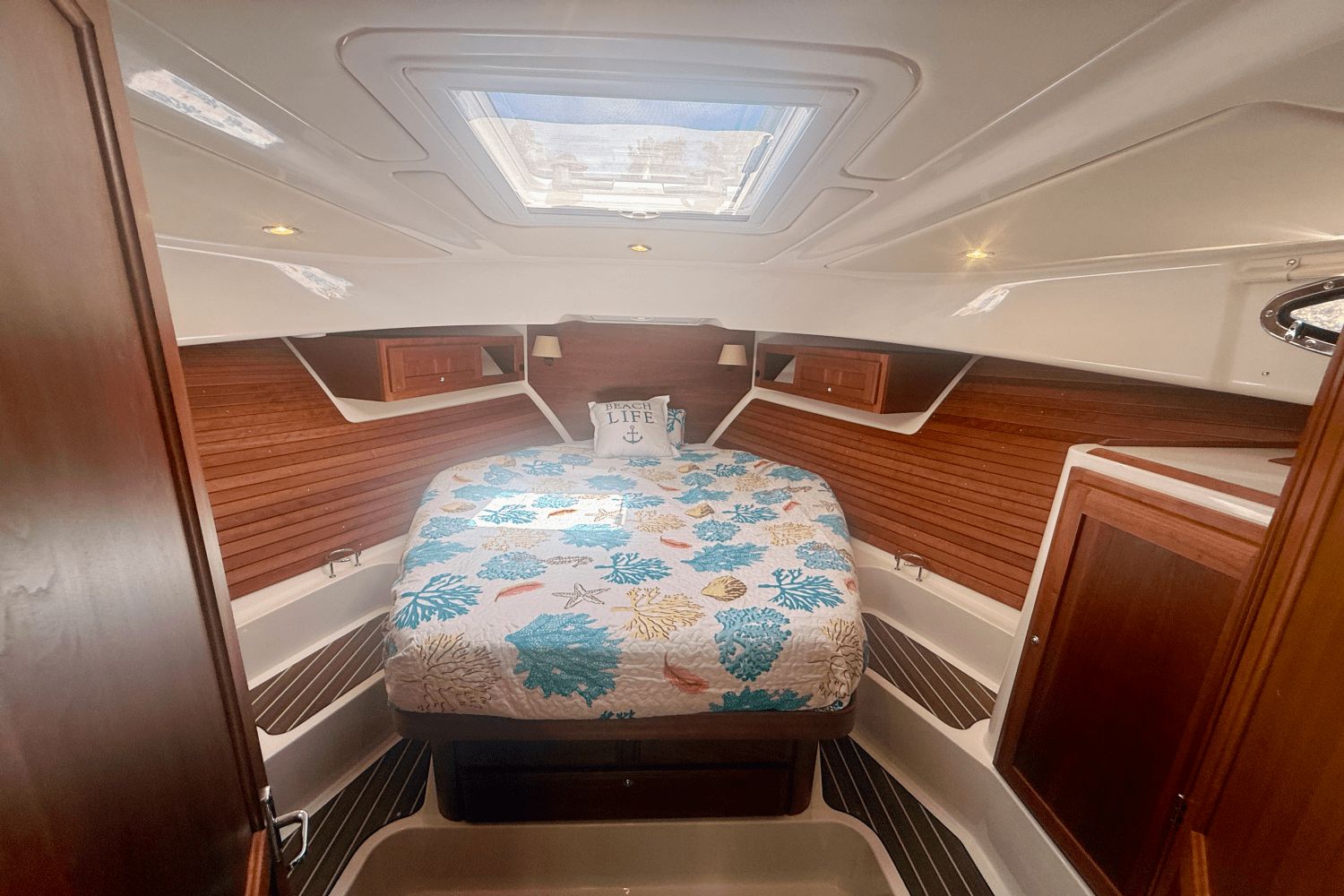

Master Stateroom
● Varnished cherry interior on molded composite hull liner
● (2) Lewmar hatch w/ Dometic OCEANair Skyscreen
● (2) stainless steel opening port lights with screens
● Island double berth w/ drawers and storage below
● Locker above berth (P&S) with storage cubbies forward of lockers
● Cedar lined hanging locker to port
● Multi-drawer bureau w/dovetail drawers to starboard
● Reading lights on berth headboard
● Fusion speakers (flush mount)
● Molded headliner with padded panel inserts

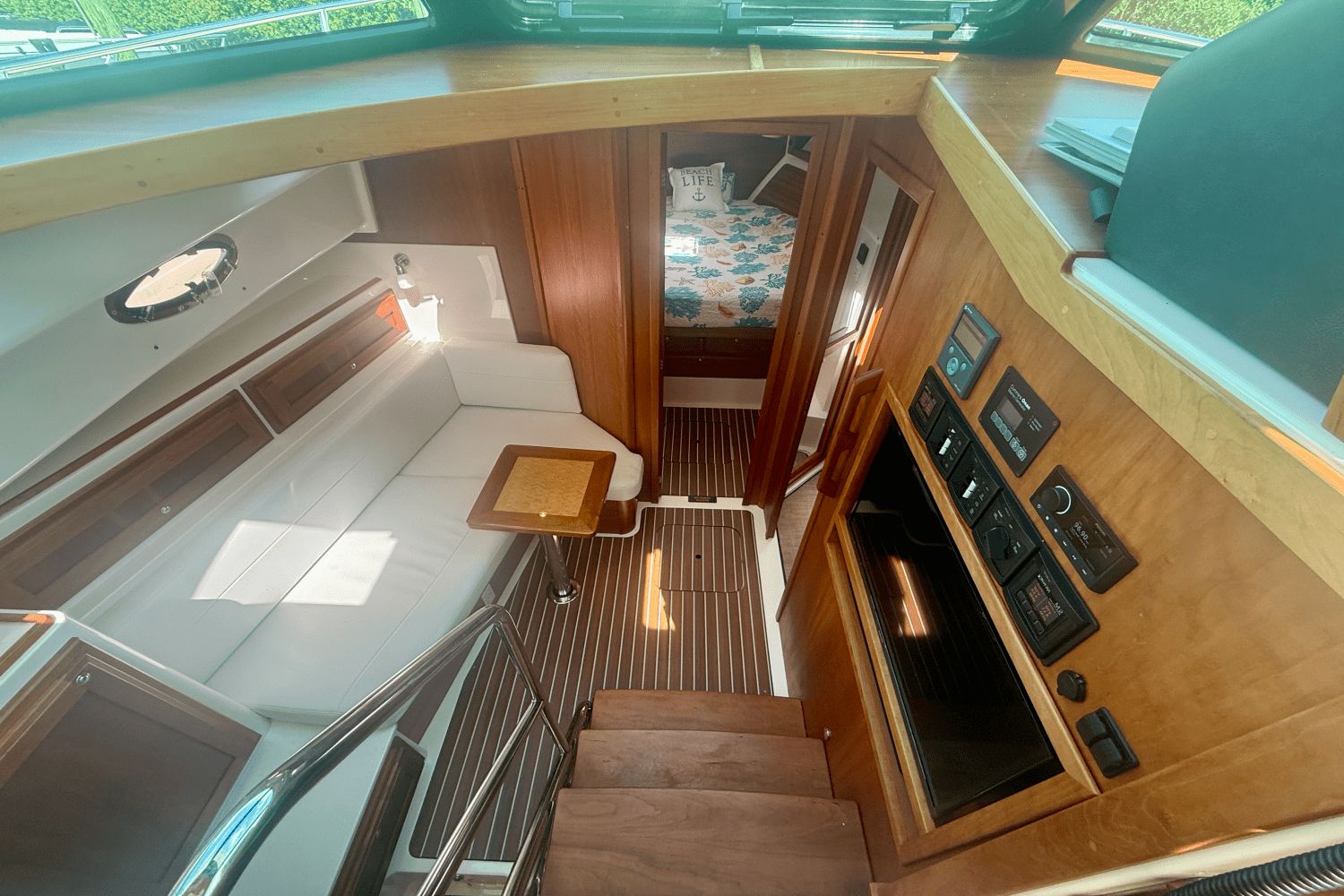

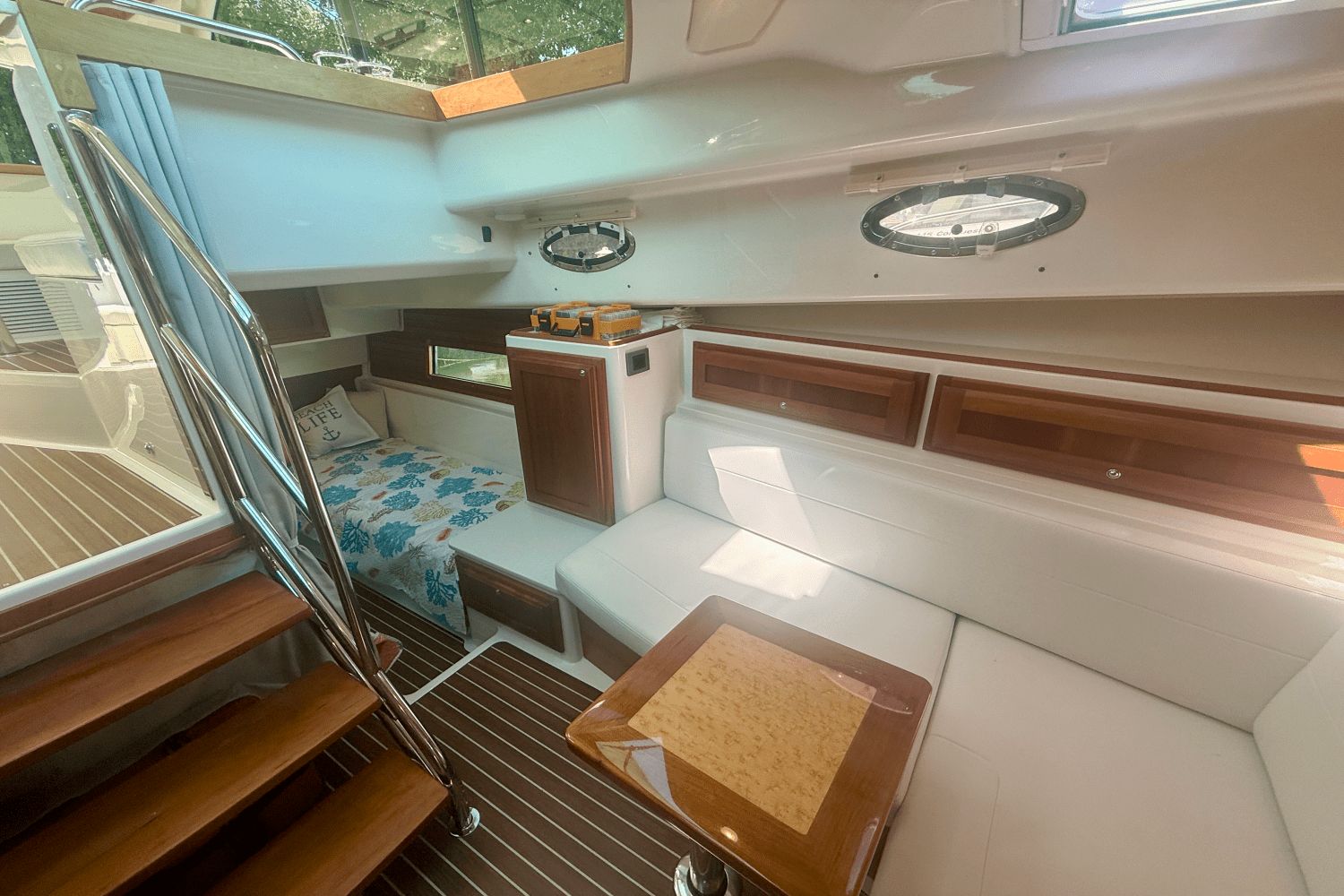

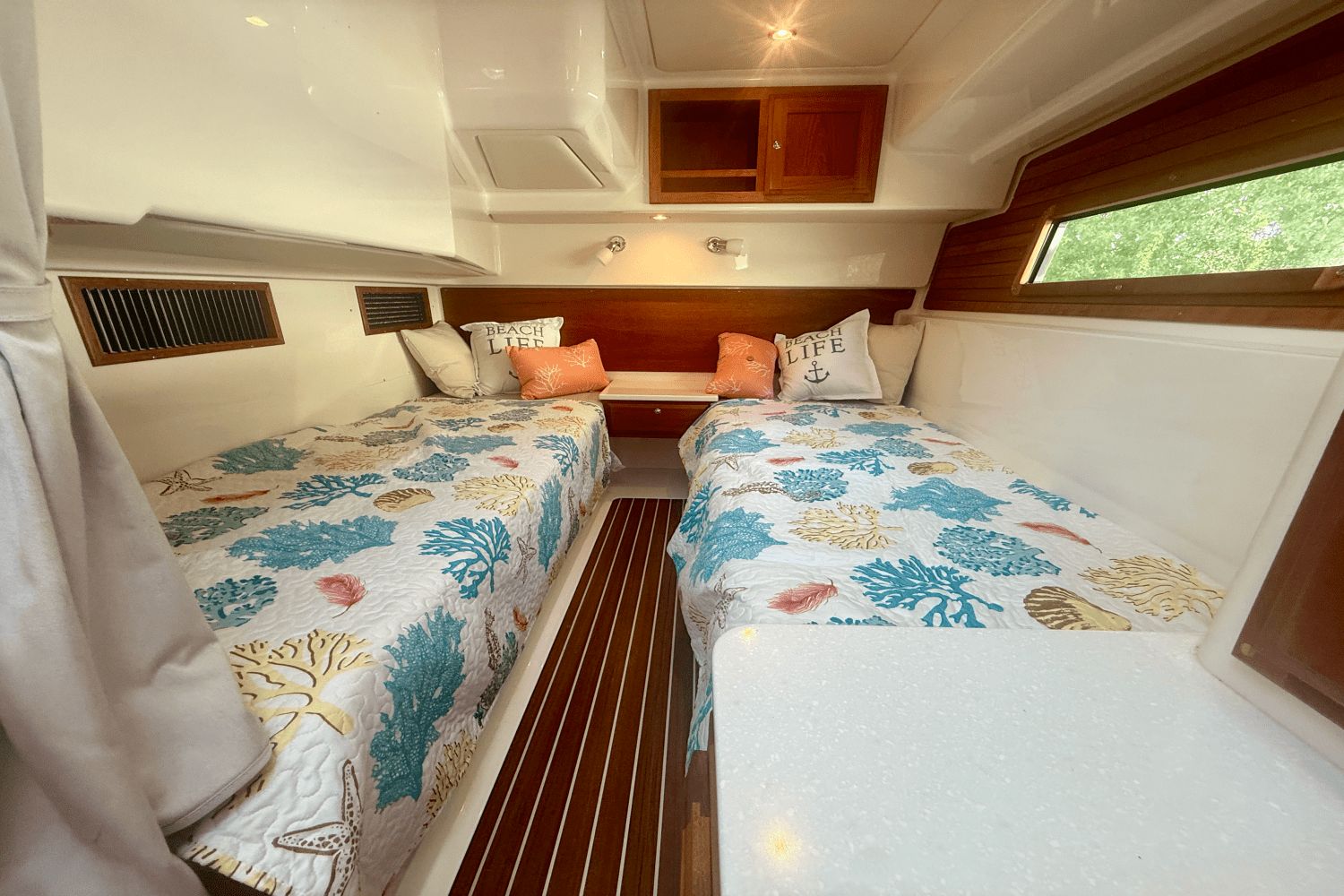

Cabin/Guest Stateroom
● 32” LED Smart TV with Bose sound bar on companionway bulkhead
● L-shaped settee to port with storage
● Cedar lined hanging locker to port with Himac counter below
● Pull-out drawer below hanging locker
● Storage locker in headliner above outboard berth
● Cherry hull ceilings and headboard
● Reading lights at guest berths and cabin settee
● Mattress platform bilge access hatches (under cushion)
● Lewmar hatch w/ Dometic OCEANair Skyscreen (1)
Hull
● Modified deep ‘V’ planning hull with patented hull flat aft
● Back Cove white iso-npg gelcoat w/ vinylester backup resin
● VIP Resin Infused Hull w/ PVC foam core bottom and topsides
● VIP Resin Infused foam core stringer system
● Awlgrip boot stripe
● Molded cove stripe depression w/gold or silver “leaf” style stripe and Back
Cove Hero

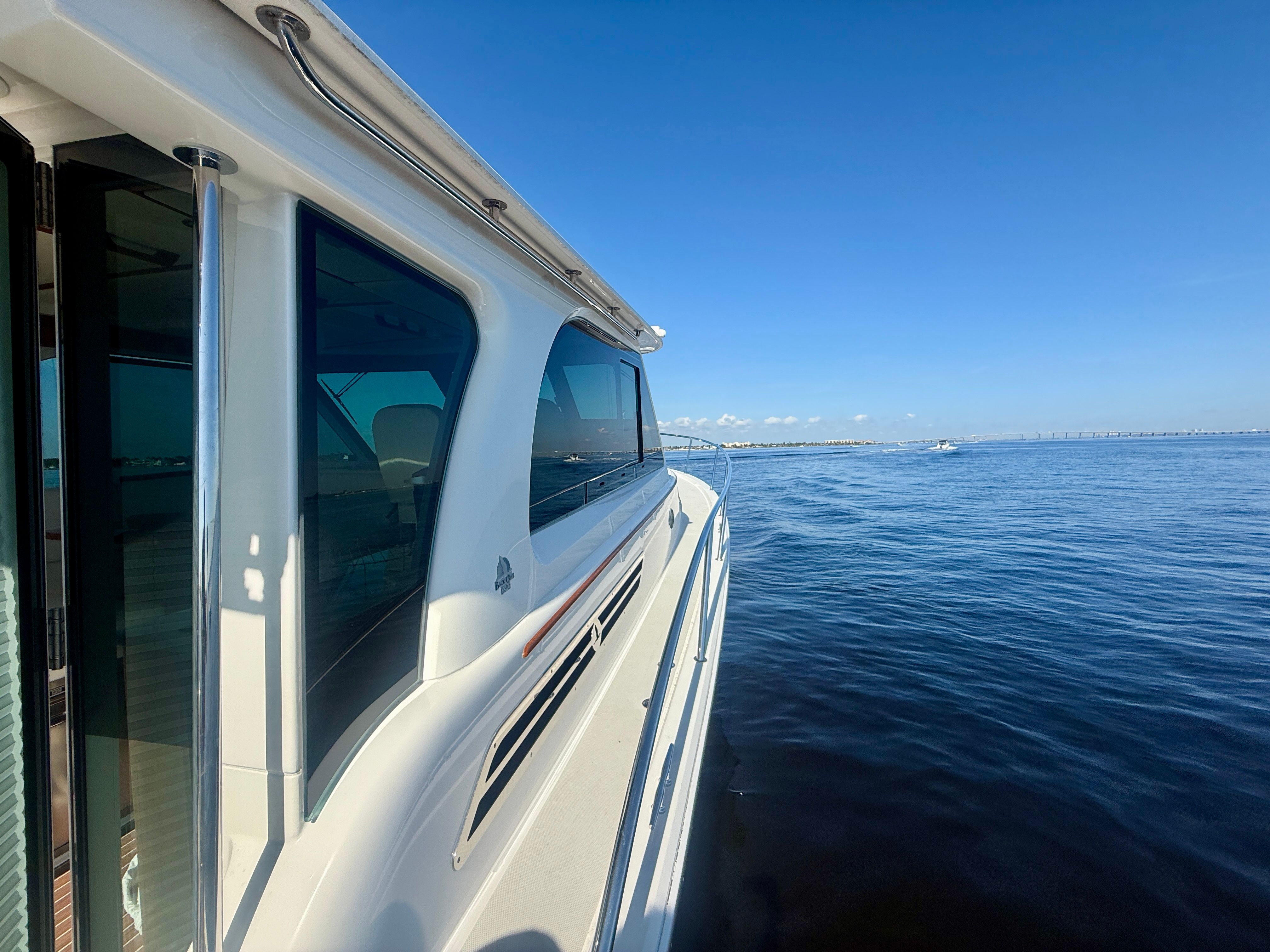

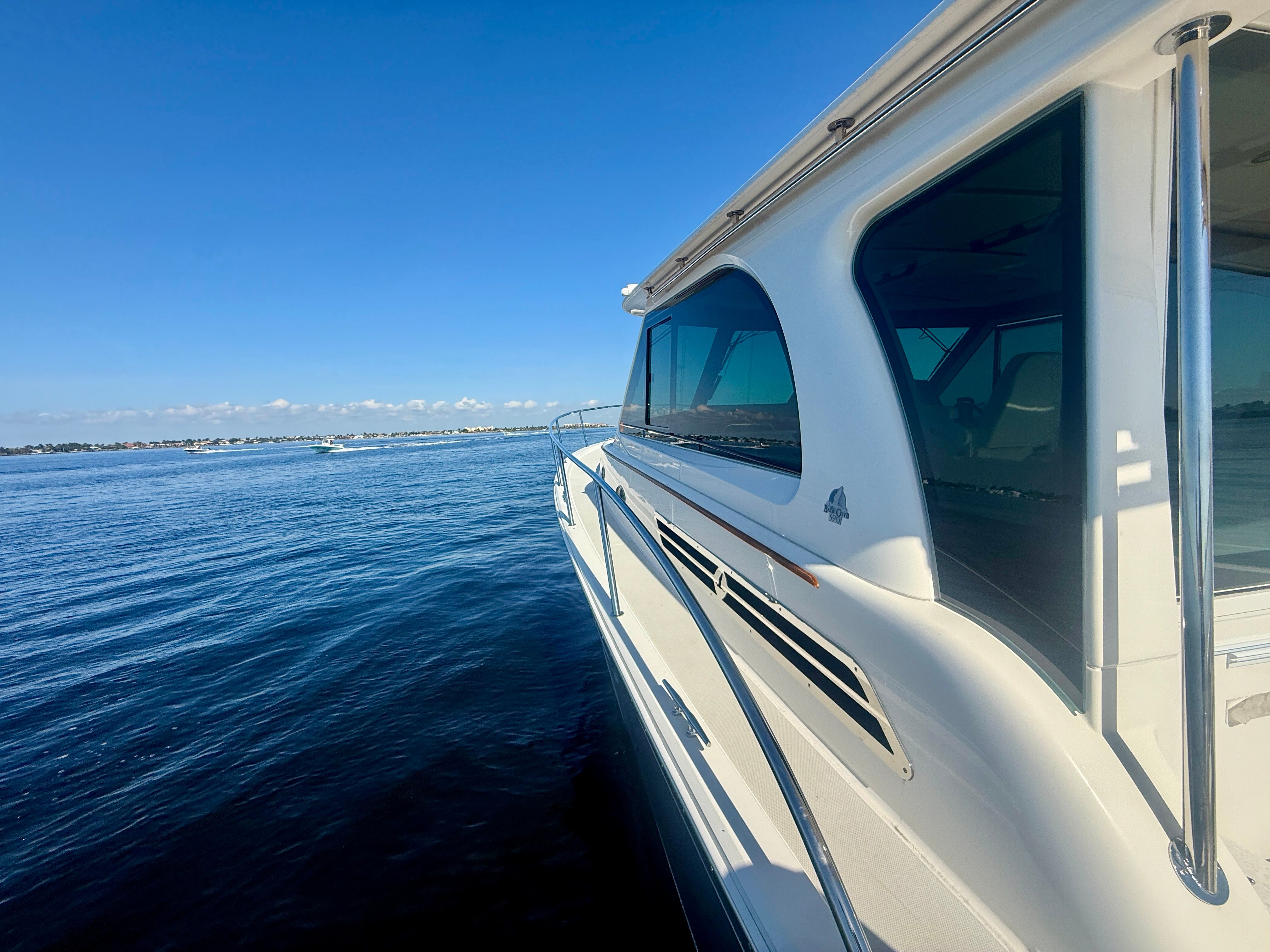

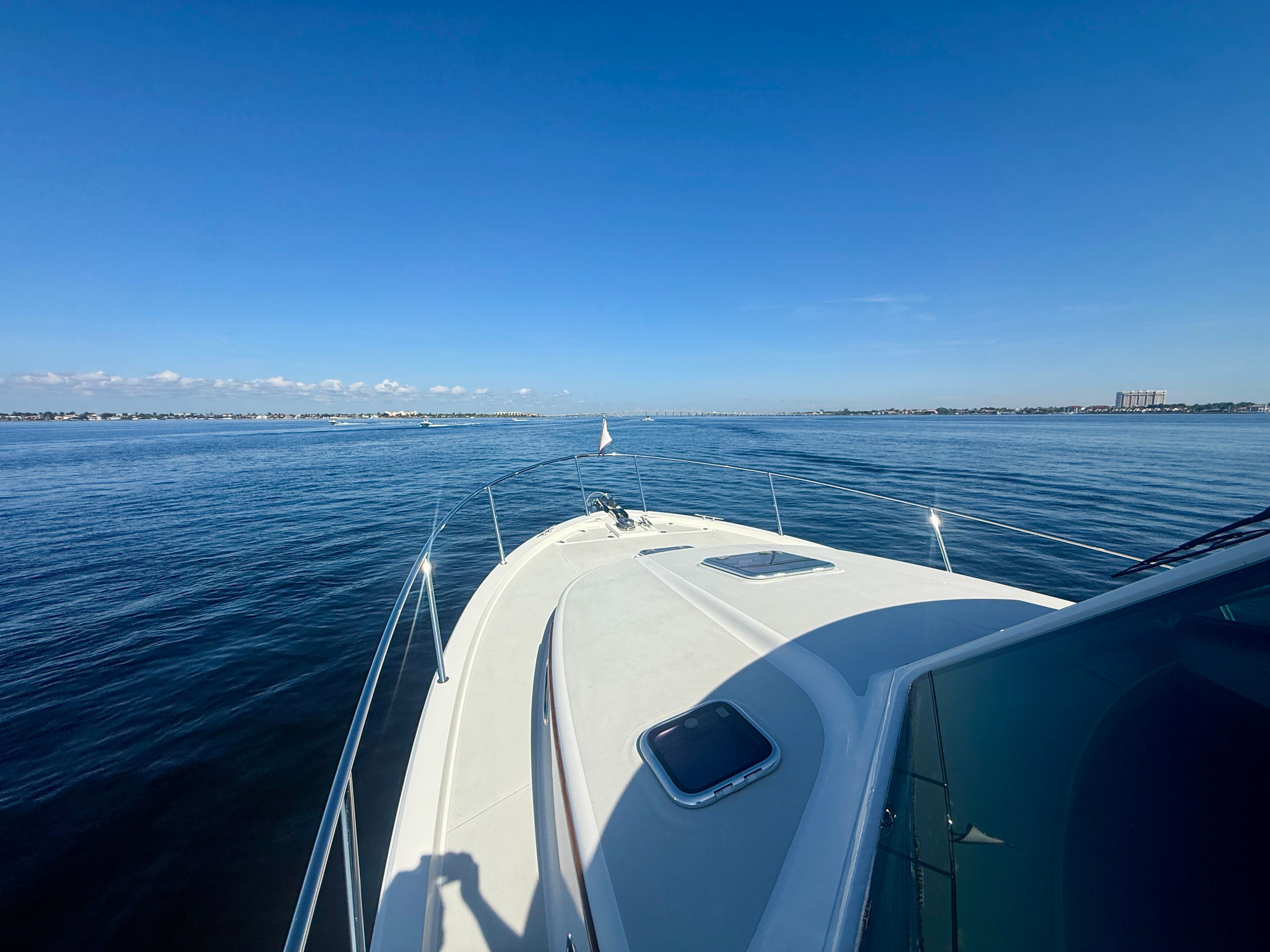

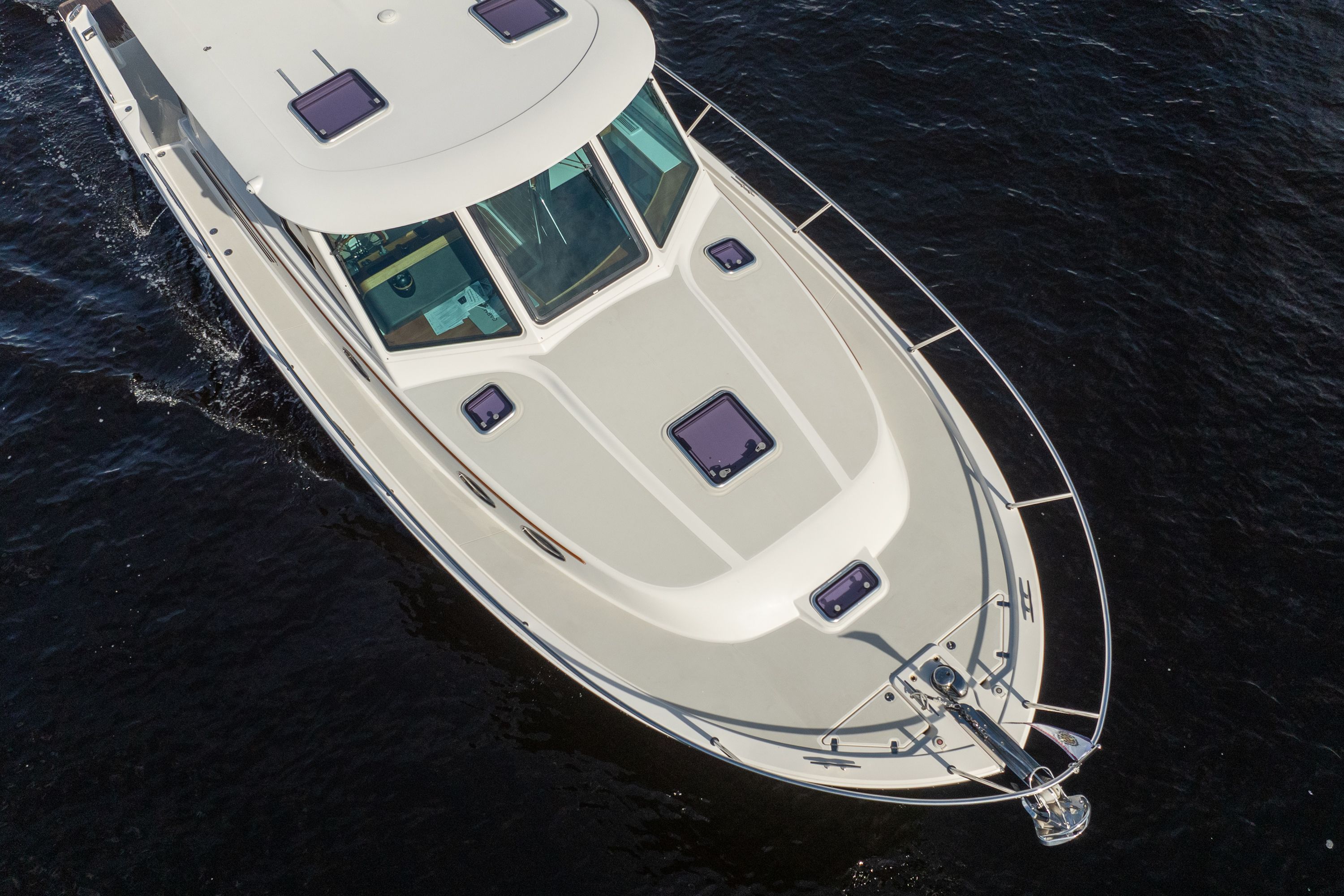

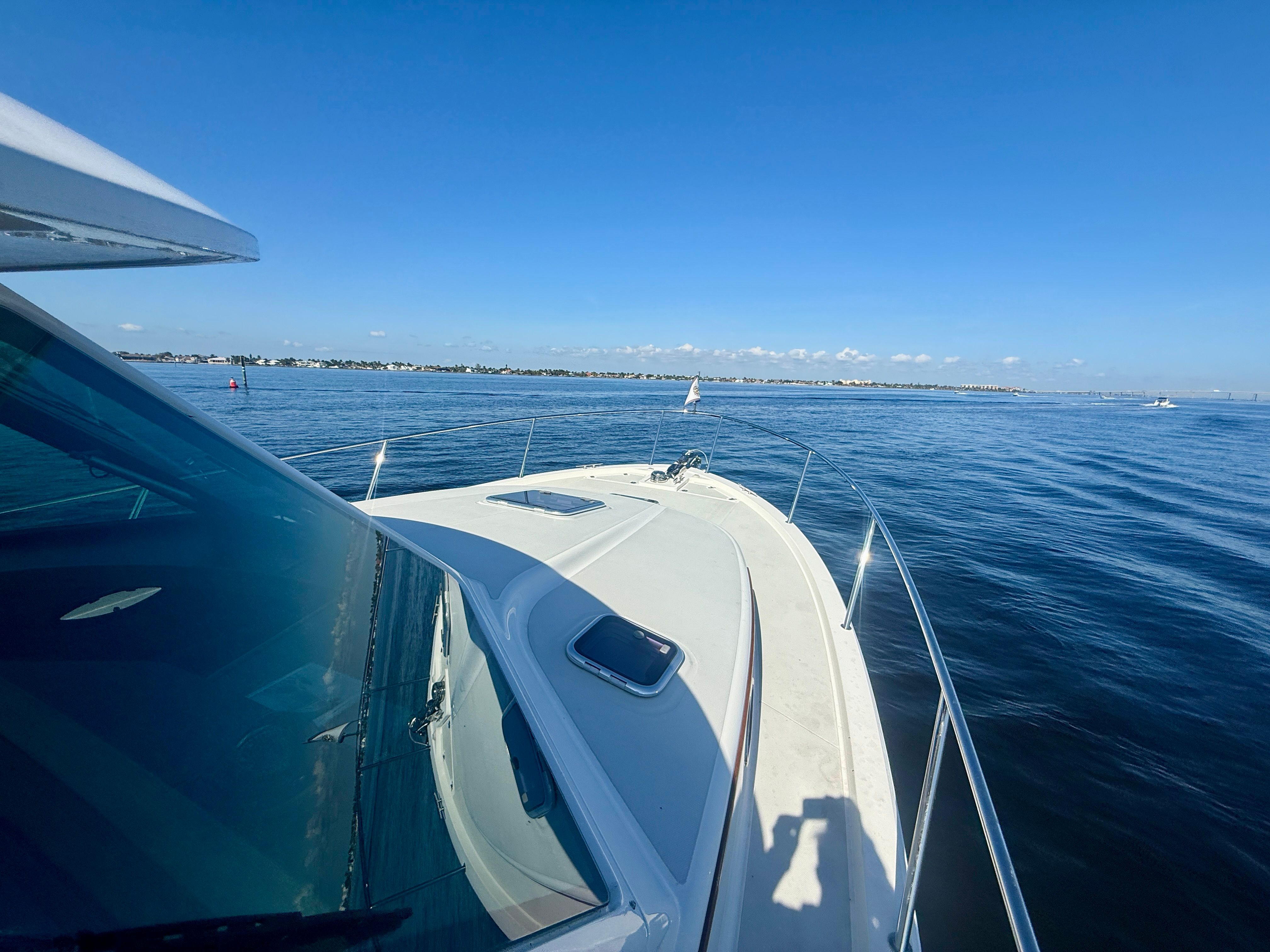

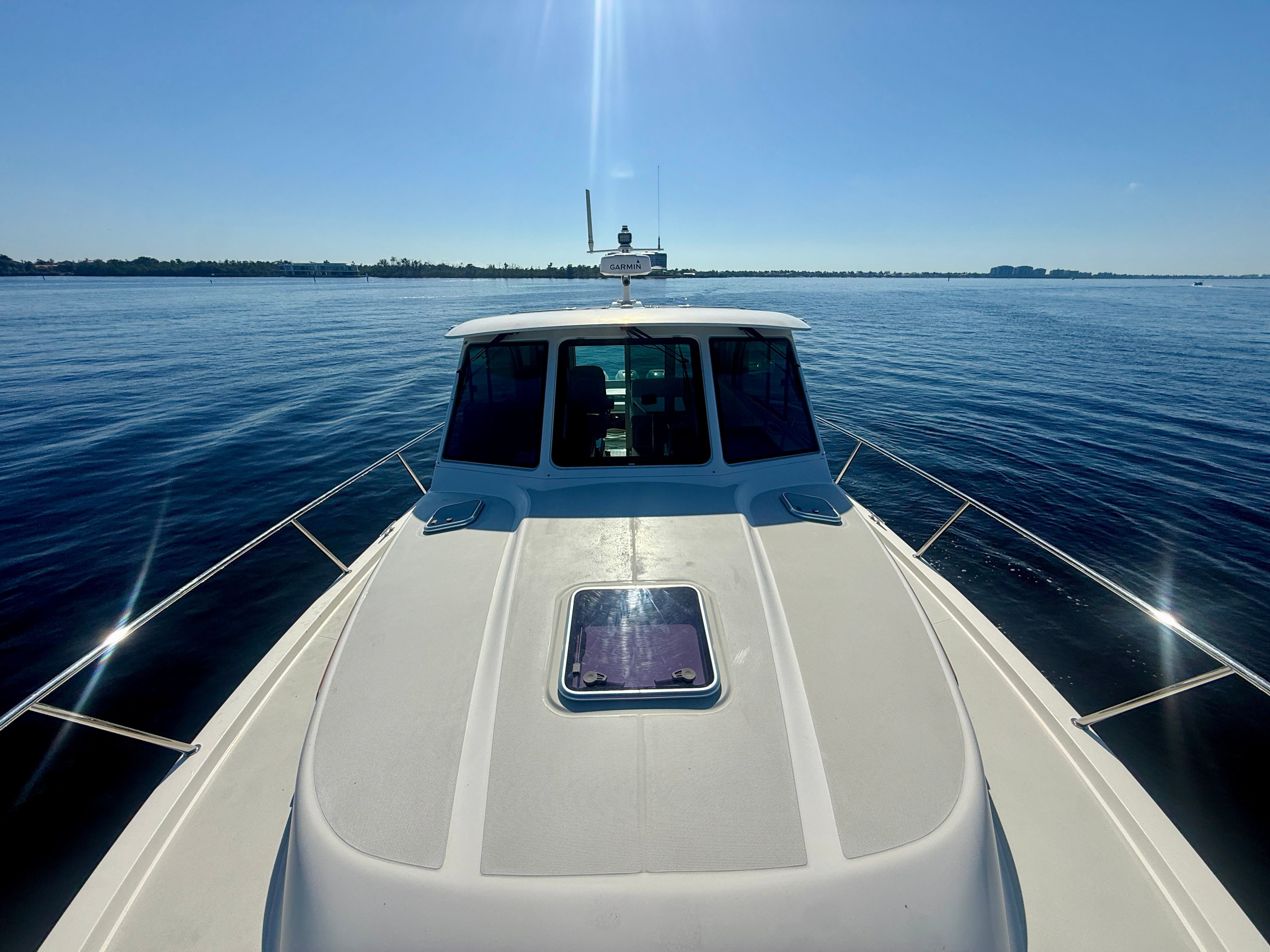

Deck
● Back Cove white gelcoat w/ graystone anti-skid on walking surfaces
● Mooring cleats forward, aft and midships
● Stainless steel anchor roller weldment
● Anchor locker w/ ground tackle storage
● Electric anchor windlass w/control at helm & foot switches on deck
● Ensign flagstaff aft
● Burgee staff on bow pulpit
● LED hard top mounted running lights (on edge of hardtop)
● LED hard top mounted stern light (on aft edge of hardtop)
● LED all-around anchor/nav light on hard top
● Port & starboard molded steps leading to side and fore deck

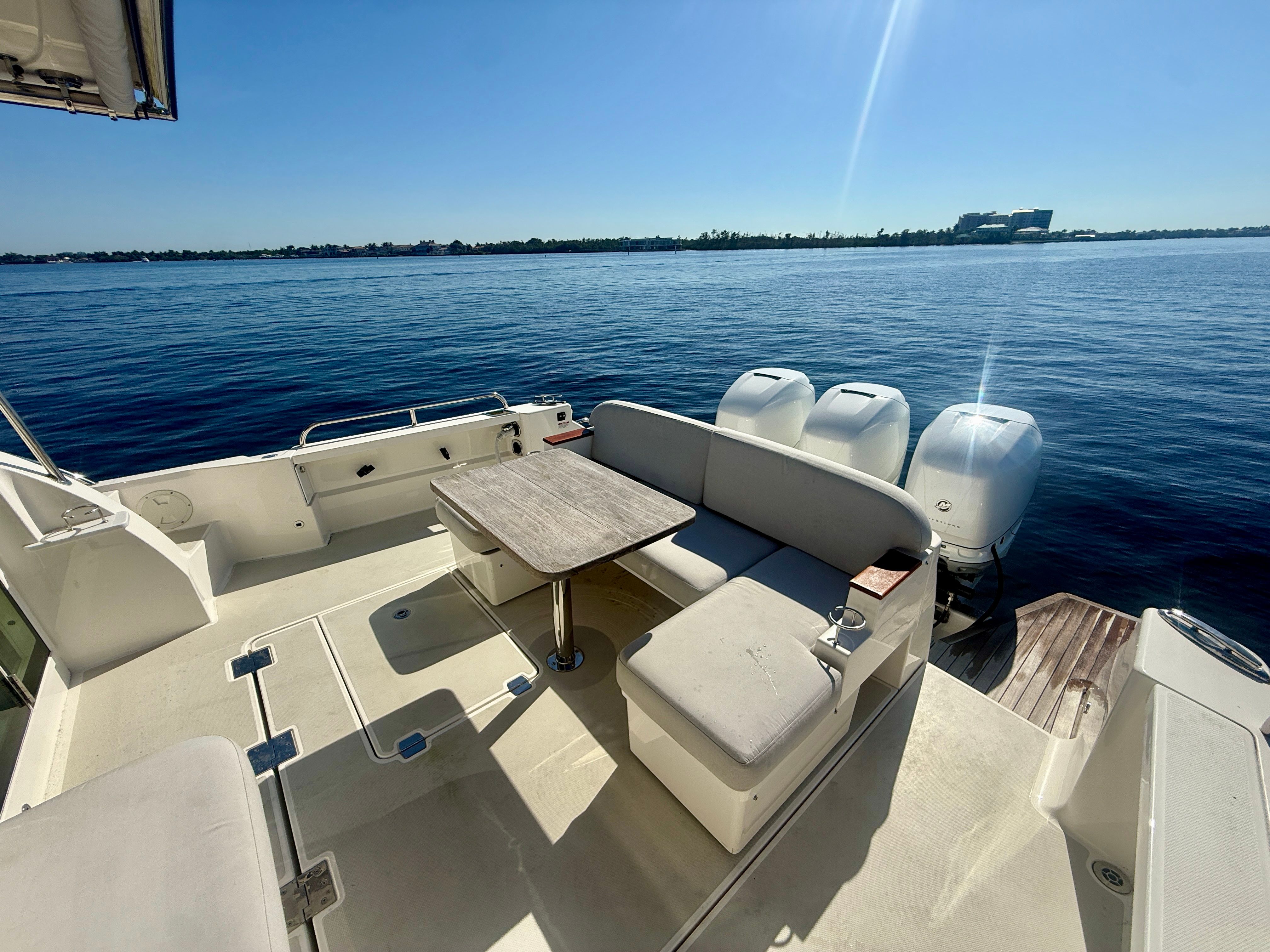

● Aft facing cockpit seat on port side
● Large power lazarette hatch w/molded seating
● Day hatch access to lazarette (at forward end of power lazarette hatch)

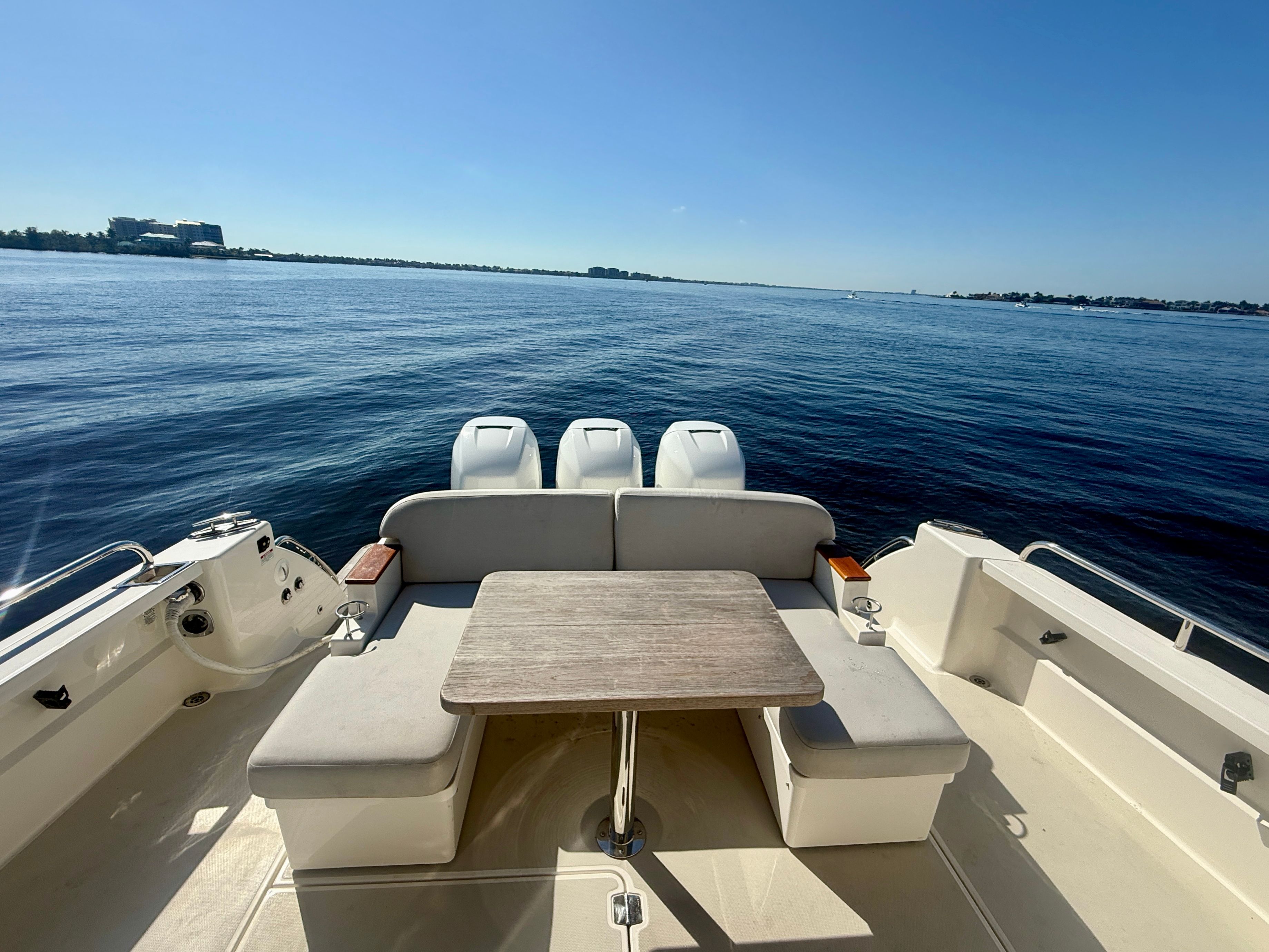

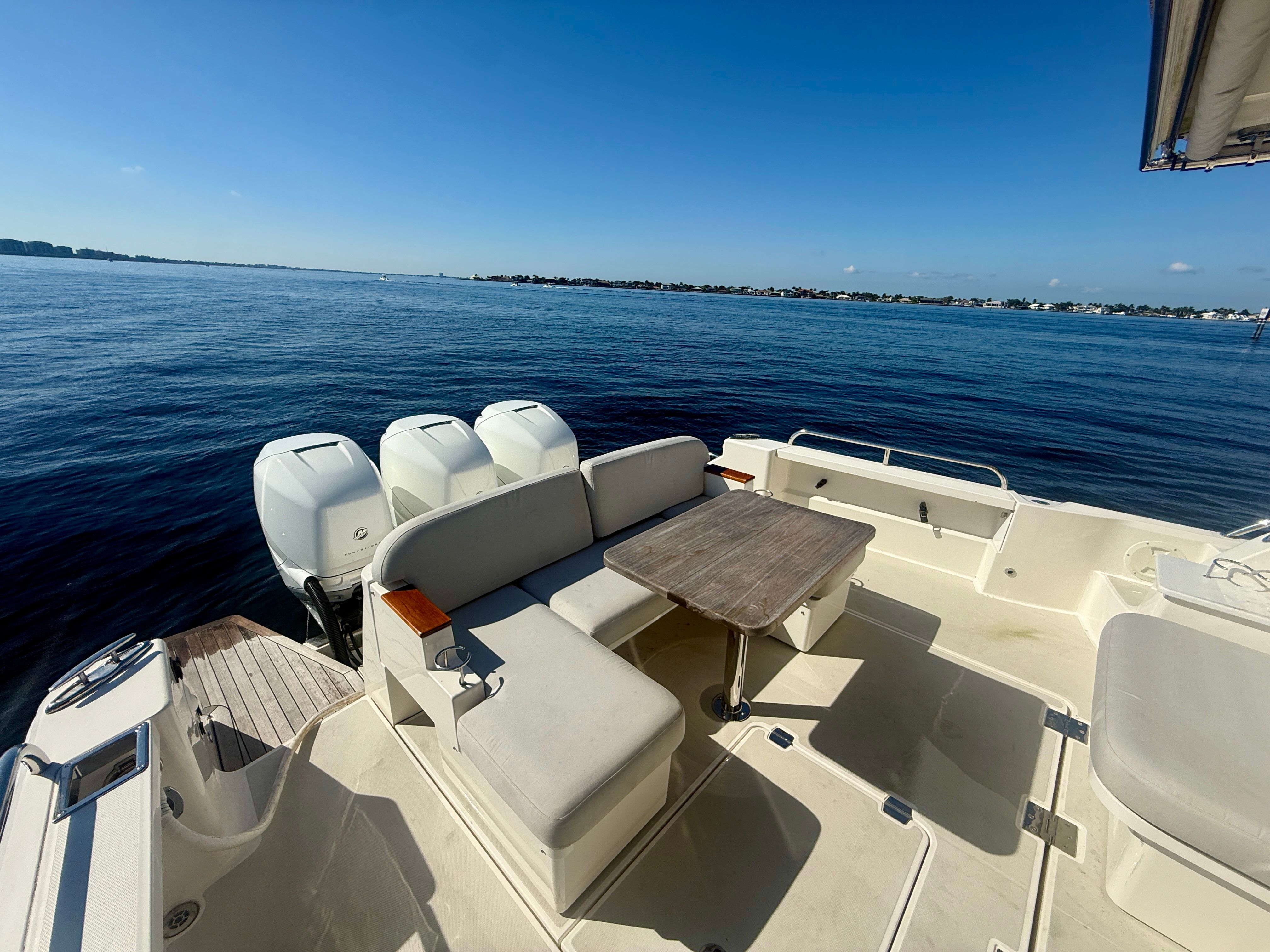

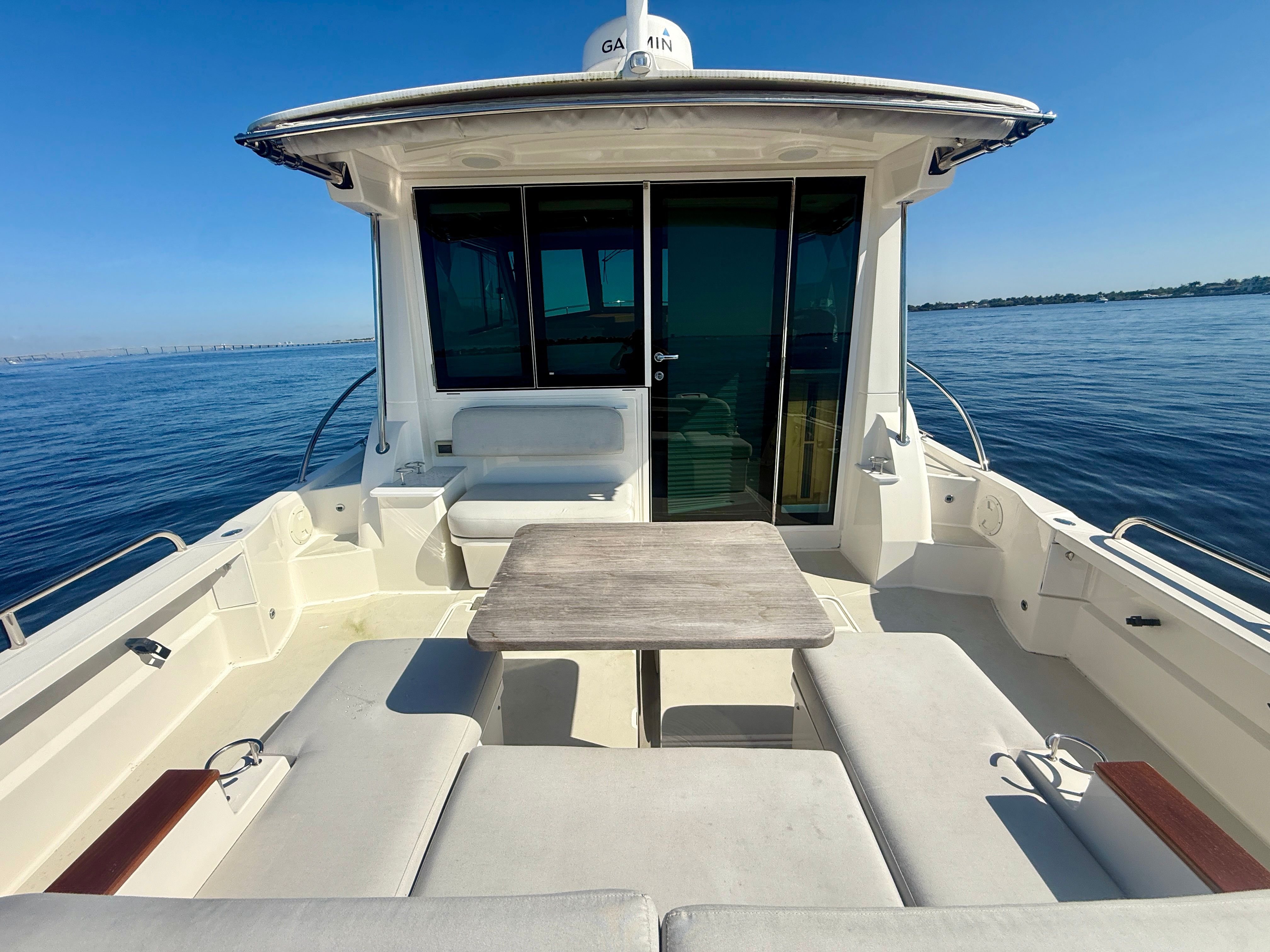

● Aft settee seating with hinged teak cockpit table (fixed mount)
● Stainless grab rail at cockpit seat back
● Swim step w/ SS under-mount swim ladder
● Self-draining cockpit
Fuel System
● 550 US gallon fuel tank
● 23 US gallon diesel tank
● Fuel/water separating filters
Mechanical Systems

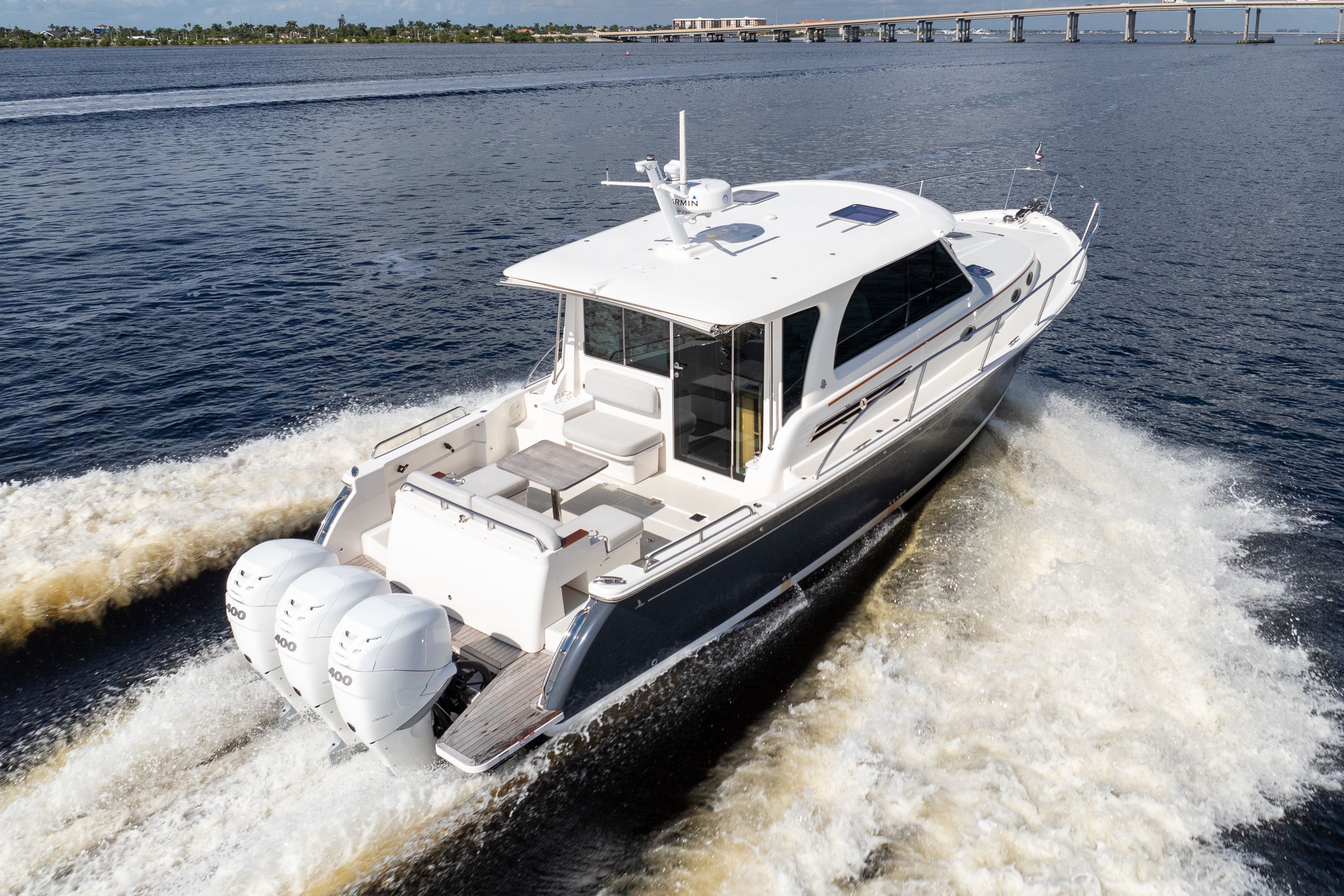

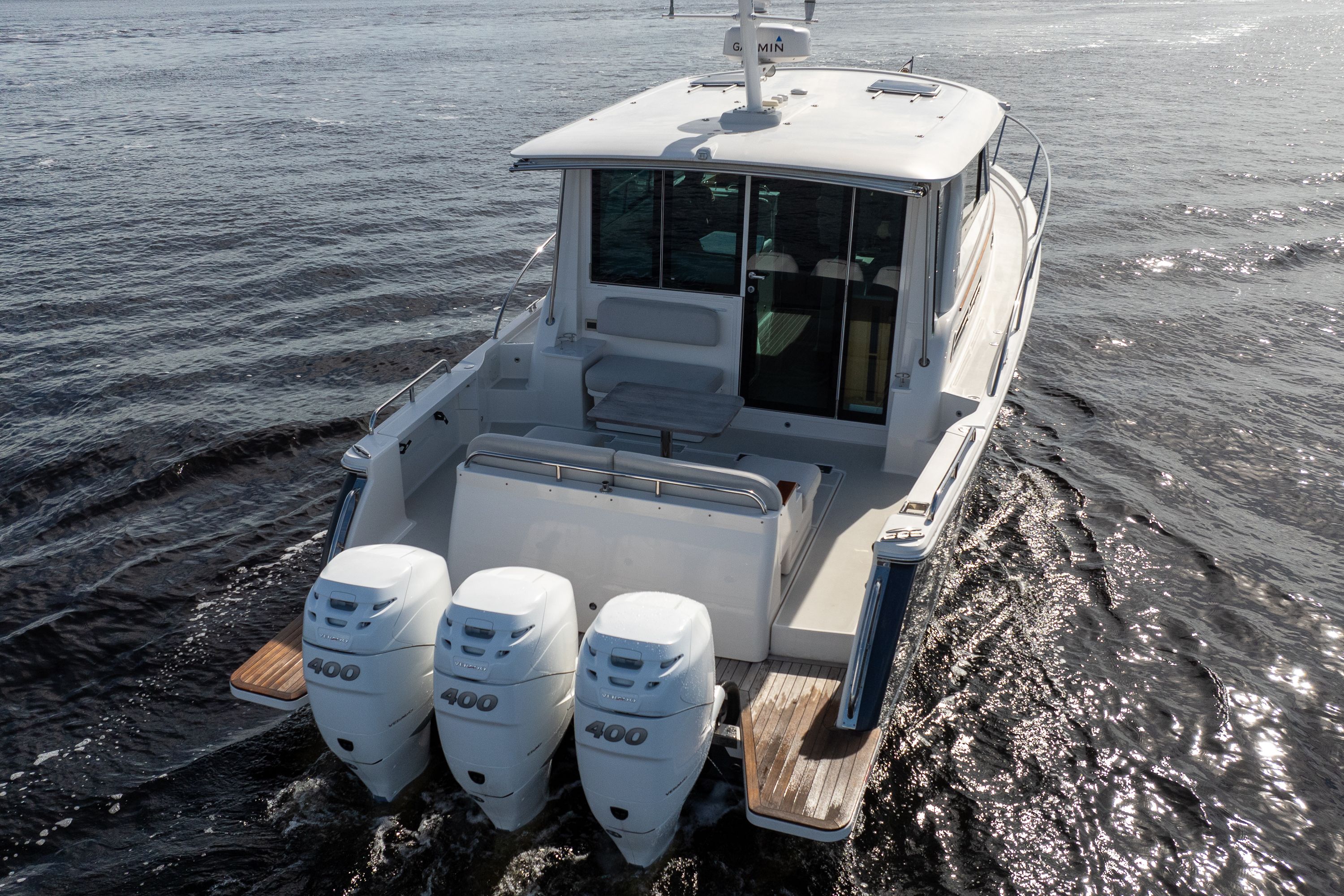

● Triple Mercury 400 outboard engines (white)
● 3 blade, rotating propellers
● Electronic power steering
● Sidepower bow thruster w/ joystick control
● Bronze raw water strainer on generator and AC intake
● Air conditioning w/ reverse cycle heat 40kBTU (combined salon and cabin)
● Xintex-Fireboy automatic, clean agent fire extinguishing system in
lazarette w/ manual backup
● Portable fire extinguishers in all accommodation spaces
Electrical Systems
● Three 54 amp engine alternators (one per engine)
● Onan 9 kW genset with sound shield and water/exhaust separator
● AC/DC panel with polarity indicator and digital battery voltage meter
● 12Vdc system battery management switching
● 12Vdc breakers for electronics
● 120Vac 50 amp shore power inlet w/ (2) 25’ foot cords
● 120Vac shore power system ELCI protected
● Galvanic isolator
● All 120 Vac outlets GFI protected
● (2) 4D AGM house battery; Group 31 AGM battery for each engine; Group
31 battery for bow thruster; Group 31 battery for windlass
● Auto cross-over switch (ACR) for bow/windlass bank
● Manual crossover battery switches for engine batteries
● 80 Amp battery charger (house bank and start batteries)
● 20 Amp battery charger (bow battery bank)
● (4) 12Vdc automatic bilge pumps and (3) bilge high water alarms
● Bonding system w/ zinc transom anode
● LED lighting in helm storage room and lazarette
● Cockpit courtesy lights switched at transom door and helm
● Overhead LED cabin and salon lights (w/ dimmer control)
● Overhead bi-color LED helm deck light w/ switch
● Salon and cabin courtesy lights
● 12Vdc USB outlets at Salon, helm and in cabin
● Battery powered salon and cabin smoke detectors
● Hard-wired CO detector in cabin and salon

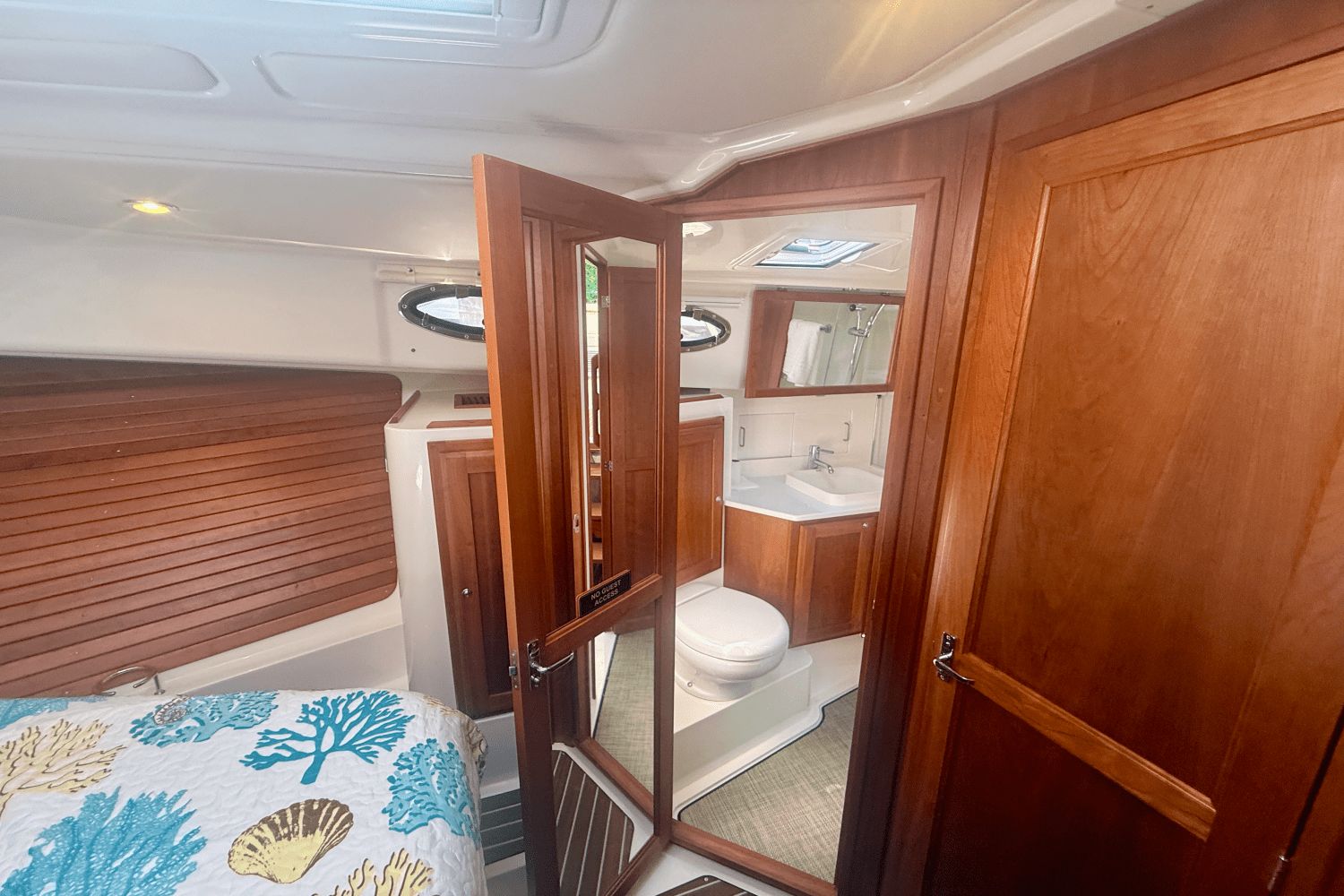

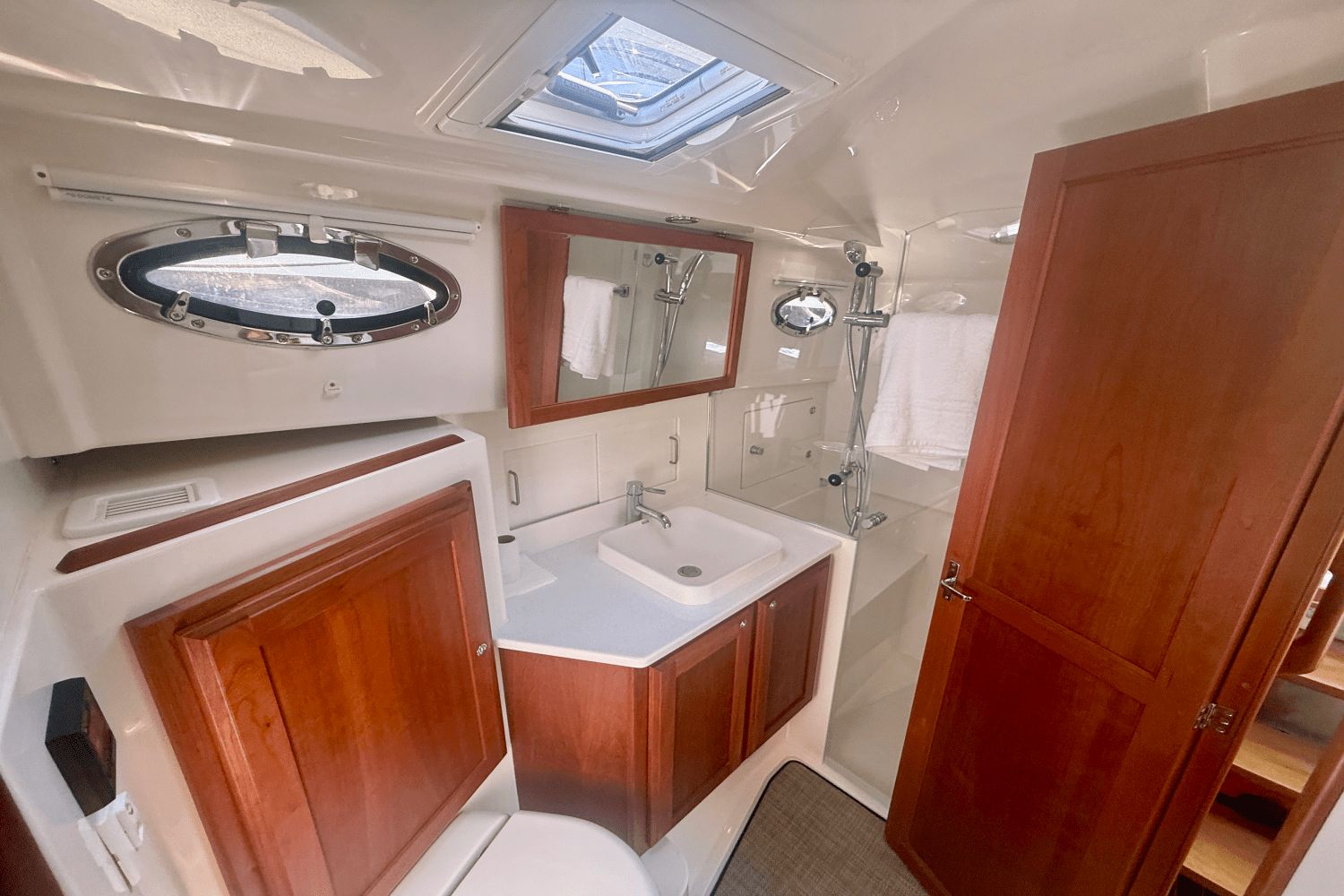

Head / Sanitary System
● Head to starboard w/ separate shower stall
● Molded seat in shower stall with storage cubbie above seat
● Built-in vanity w/ sink and storage in head
● (2) Stainless steel opening ports w/ insect screen and shade
● Cherry framed mirror in head
● Full length mirror on door to master SR
● Solid surface countertop
● Single lever faucet
● Shower-drain sump pump system
● Fresh water electric MSD w/ holding tank
● Macerator for holding tank overboard discharge
● Holding tank pump-out fitting on deck
● Sealed overhead LED lighting (w/ dimmer control)
● Powered exhaust fan in head
● Waste and fresh water level gauge (in head)
● Lewmar hatch w/ Dometic OCEANair Skyscreen

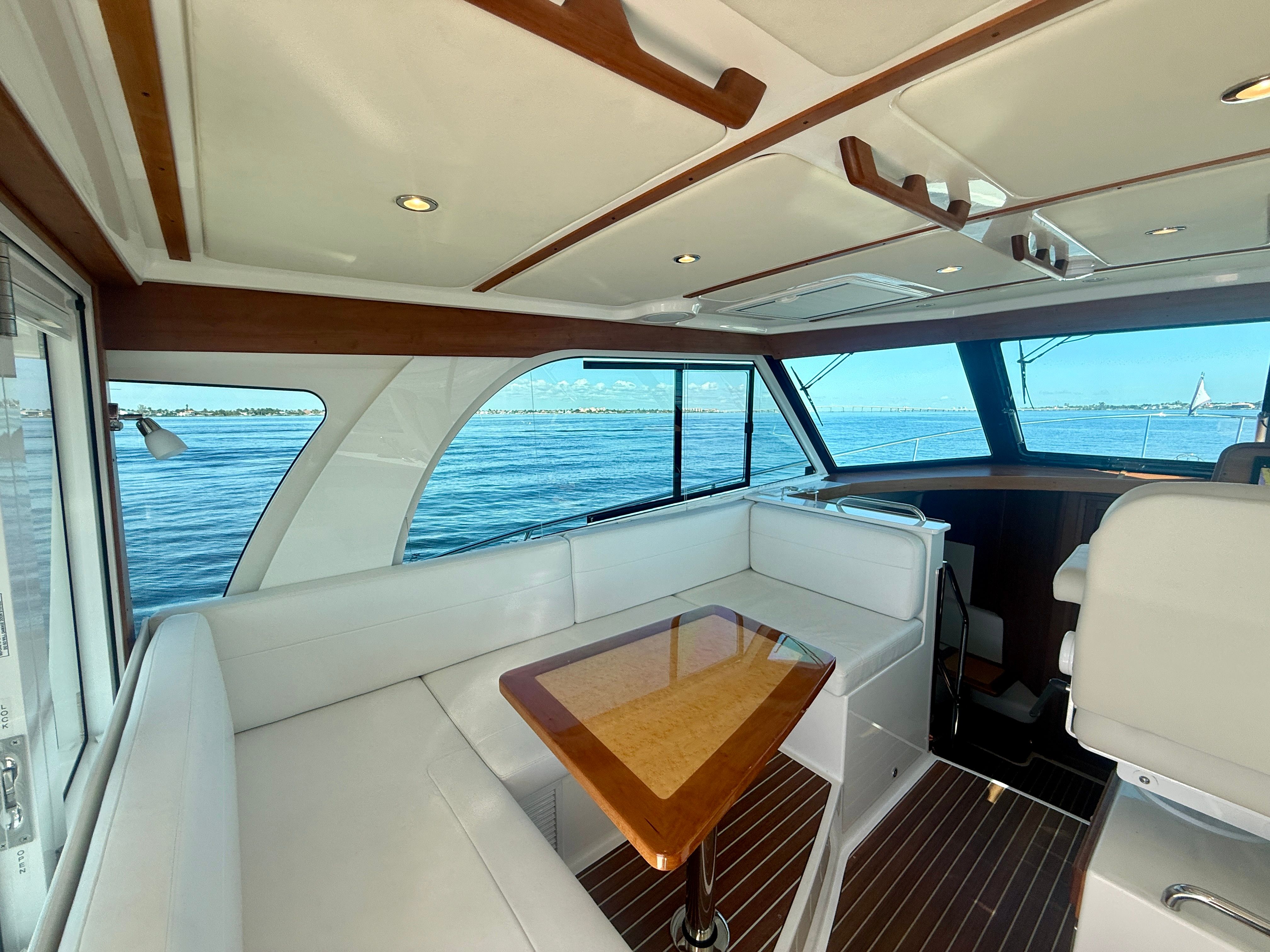

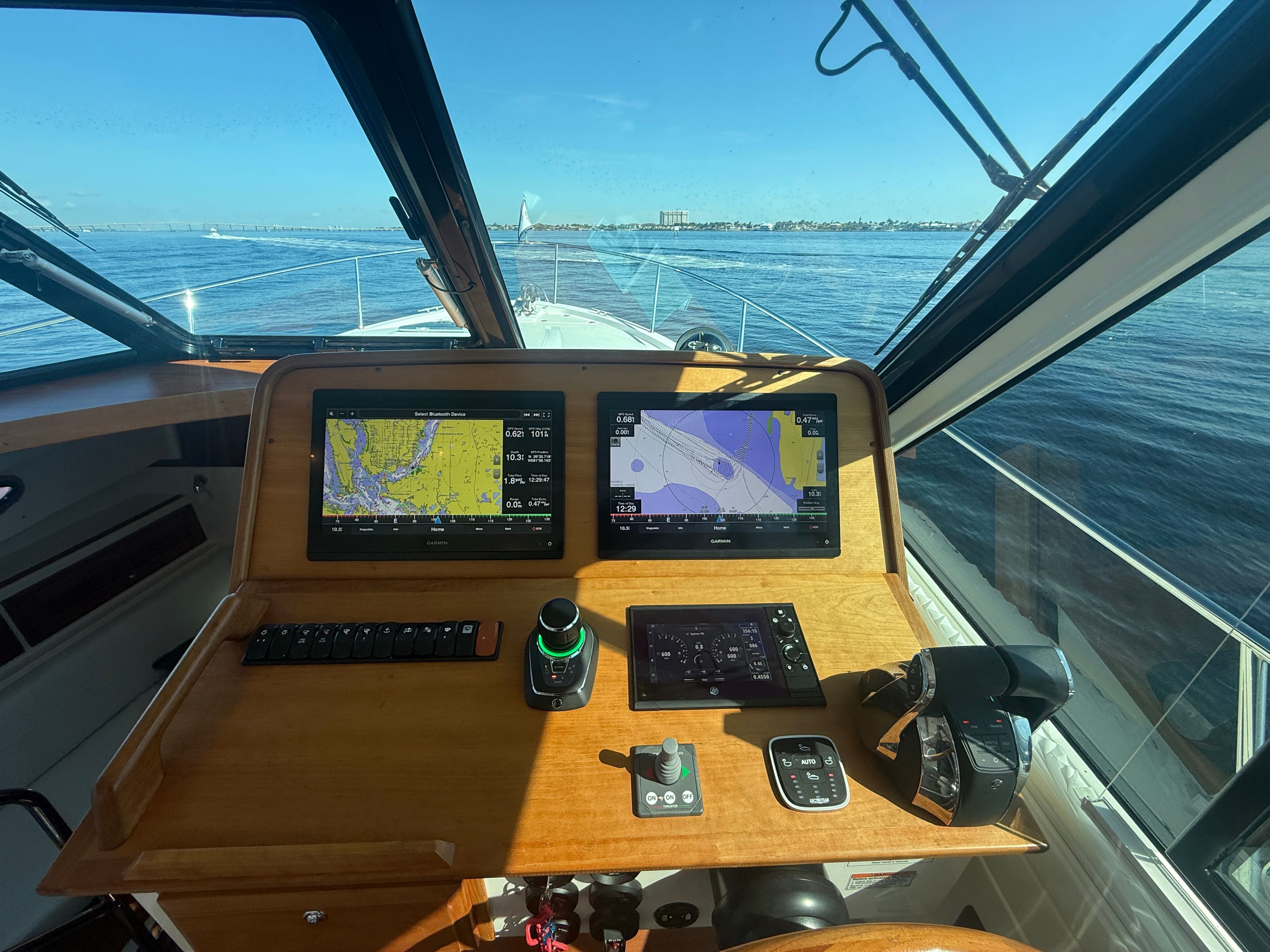

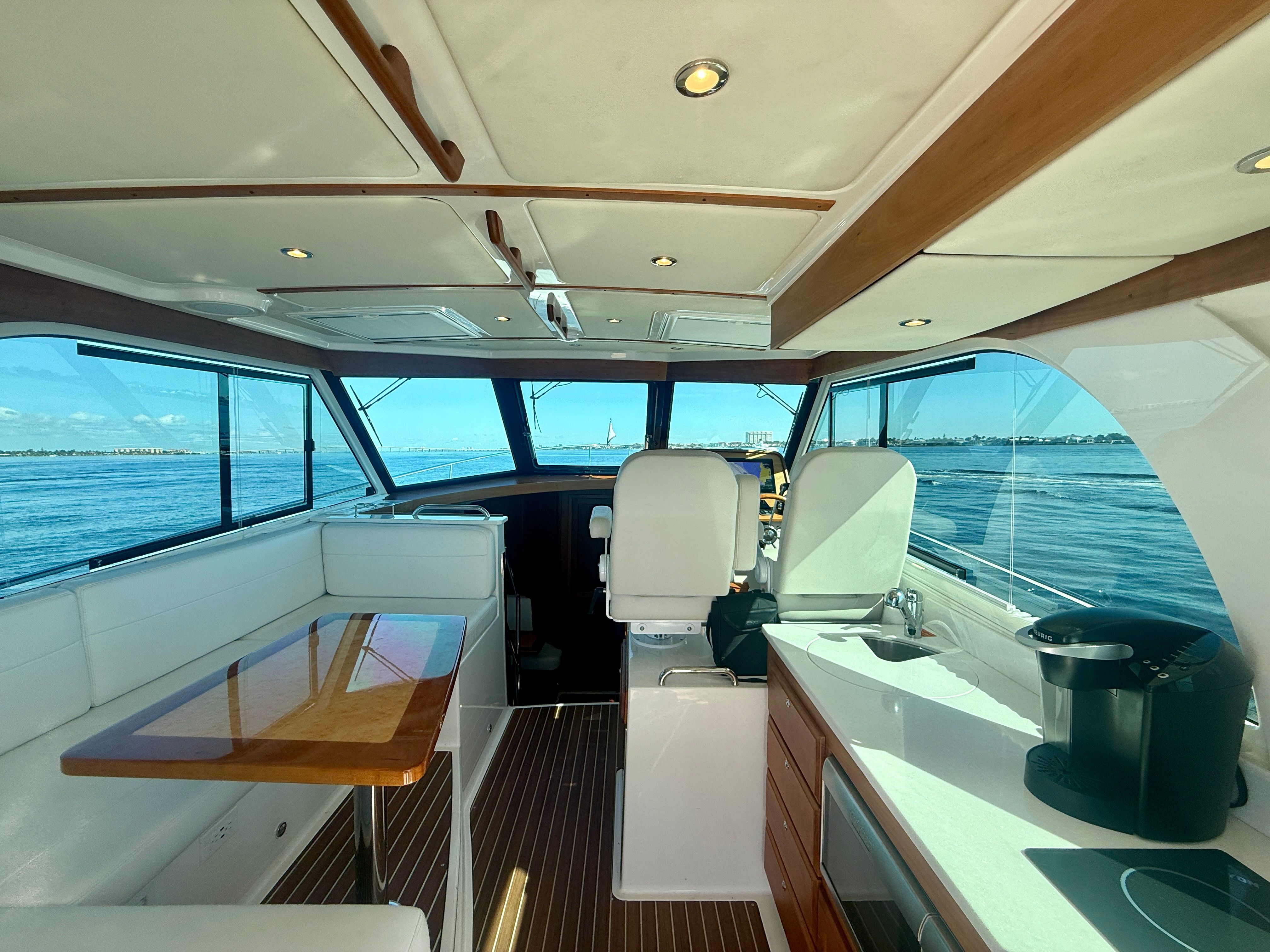

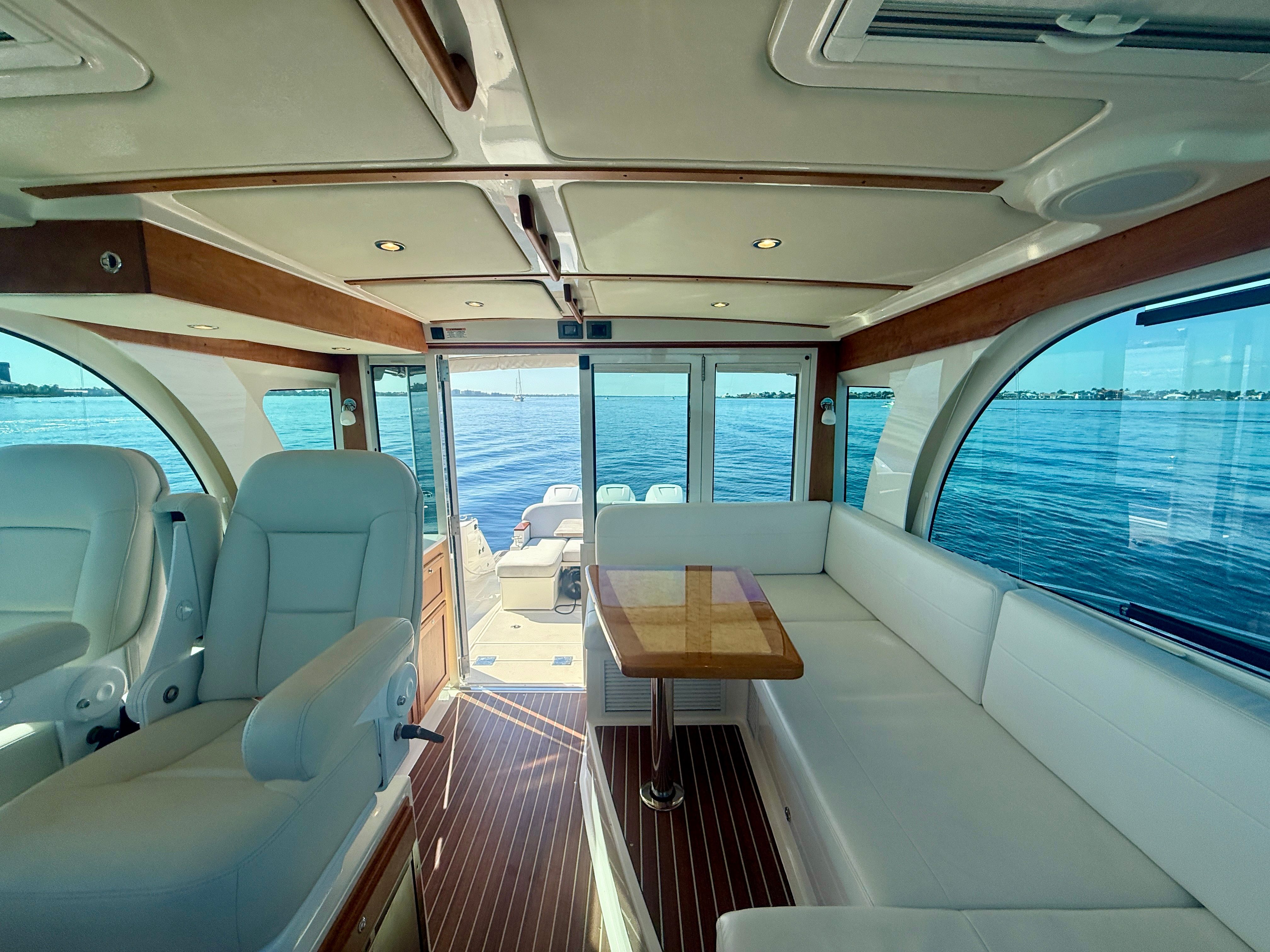

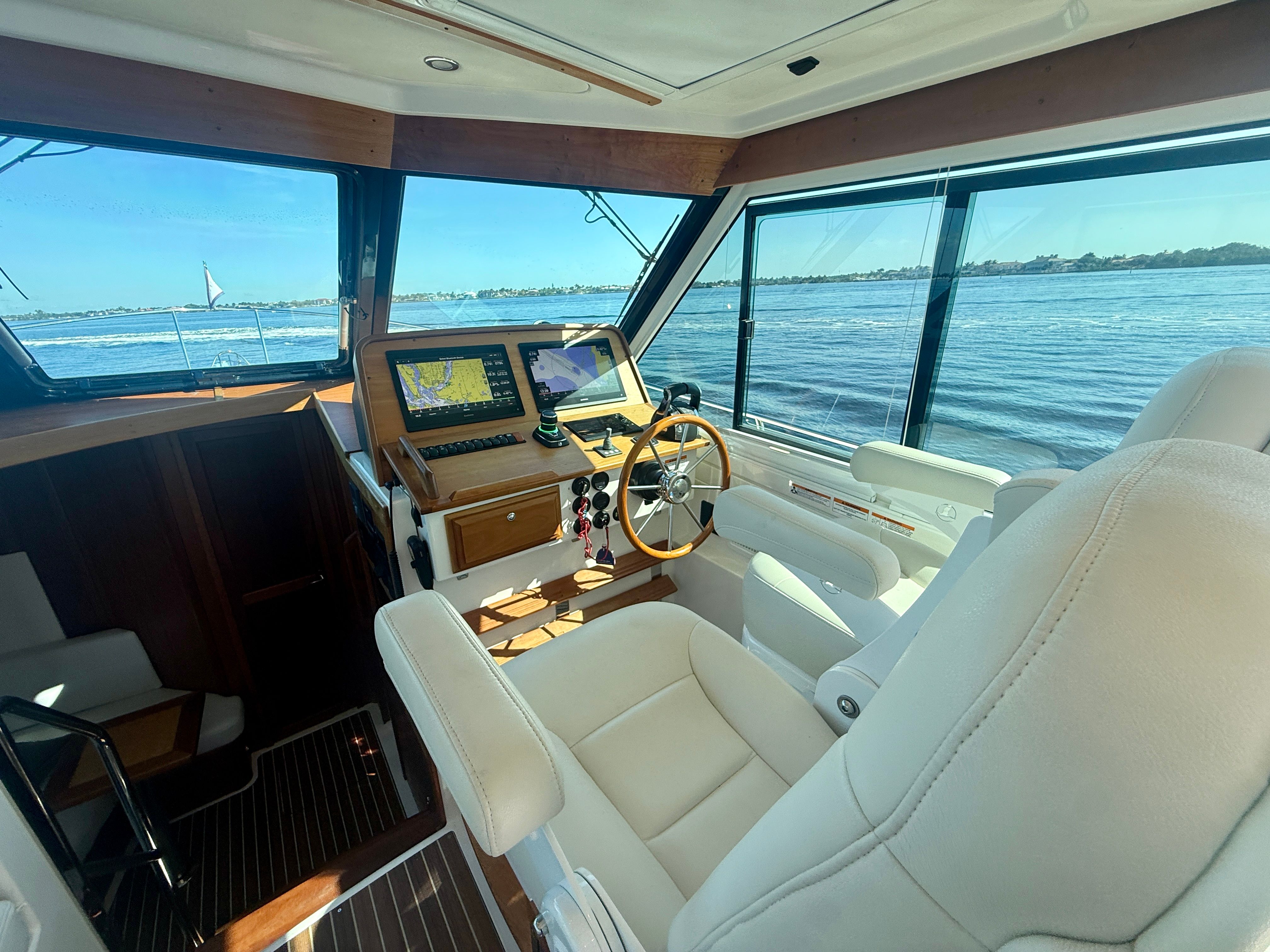

Helm Deck/Salon
● 4-panel, locking salon door
● Frameless glass direct bond windows
● (3) windshield wipers w/fresh water wash and intermittent control
● (2) Lewmar sliding hatches w/ Dometic OCEANair Skyscreen
● Compass, illuminated
● 18” Stazo wood grain steering wheel
● Llebroc helm and mate’s seat
● 3-step, fixed foot rest at helm seats
● “Teak and Holly” high pressure laminate sole w/ surface texture
● Large storage below helm sole, access by gas strut assisted hatch
● Dinette Back Cove high gloss inlaid table
● Flip-down 32” LED Smart TV in headliner cabinet
● Molded headliner with padded panel inserts
●Fusion Apollo stereo
Fusion speakers (flush mount)
