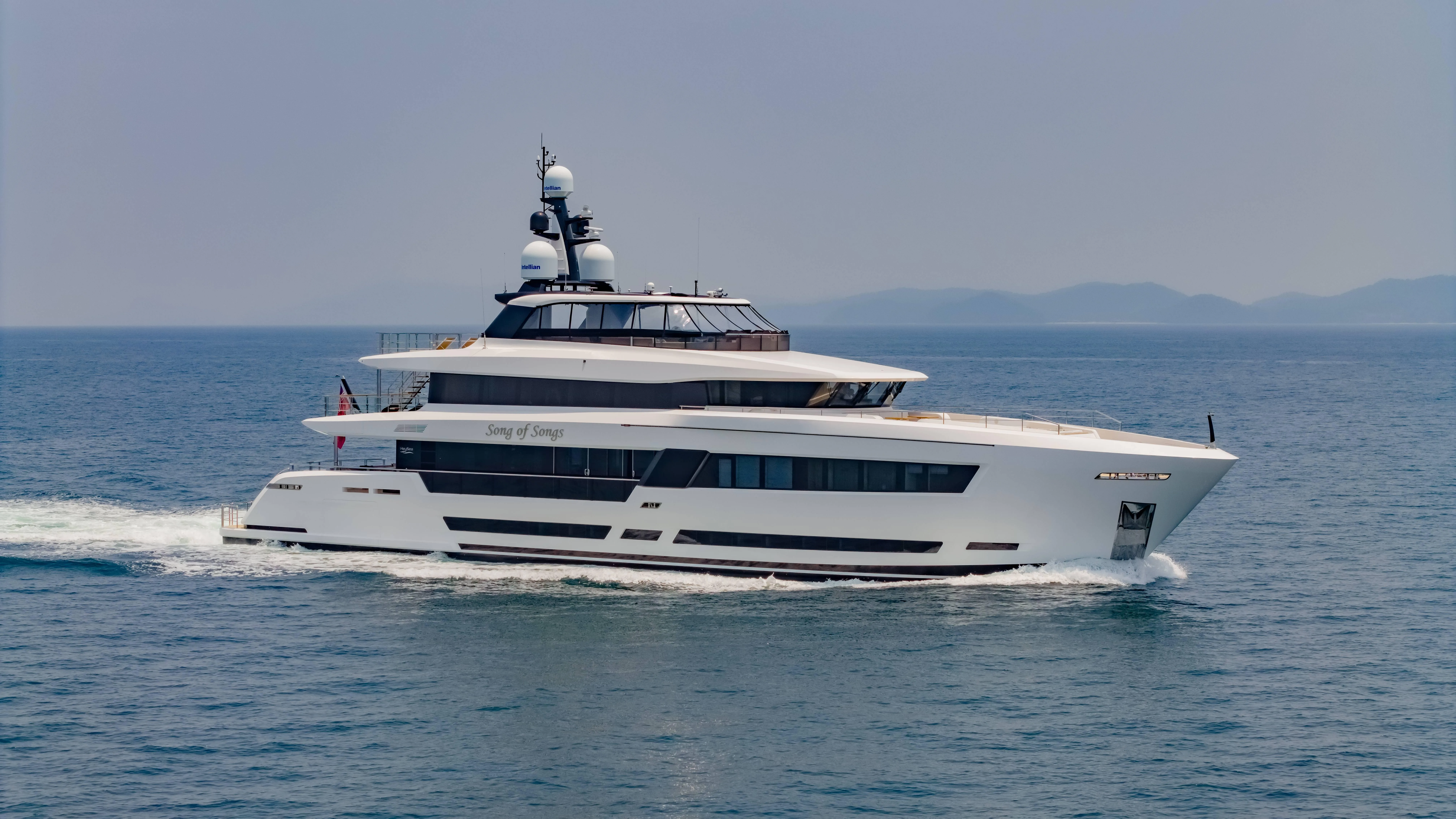

2022 Heysea Asteria 139 | 139ft

1.CONSTRUCTION
Hull: GRP, Superstructure:GRP, Deck:Teak

2.MAIN CHARACTERISTICS
Built by:HeySea
Year: 2022
Length: 42.27m (139′)
Beam: 8.50m (27′ 10″)
Draft: 1.90m (6′ 2″)
Classification: C HULL,MACH;Y
Flag: Malaysia
Hull colour: White
Gross tonnage: 431 t
Net tonnage:129 t
Displacement:245 t@half load
Designer:VYD Studio
Naval Architect: HeySea Interior Designer: VYD Studio

CAPACITIES
Speed:14/19 knots (approx)
Range:2000 nm @ 10 kn
Fuel capacity:26,300 Litres (6,948 US Gallons)

Water capacity:5,000 Litres (1,321 US Gallons)                                                                                     Black water capacity:1,500 Litres (396 US Gallons) Grey water capacity:1,500 Litres (396 US Gallons)

3.MACHINERY
Engines:2 Caterpillar 1200 HP
Engine model:Caterpillar C32 ACERT
Fuel: Diesel
Propulsion:Twin Screw
Stabilizers:At-Anchor Stabilizers
Generators:Two Kohler generators 80kw @ 50Hz.
Electricity: 24V DC
Shore power:One 63 KVA, from 170 to 520 V input, single or three phase, 40-70 Hz, output voltage 400V AC three phase +neutral 50Hz shore connection

OTHER MACHINERY
Dirty oil tank capacity 4,00 ltrs Clean oil tank capacity 350 ltrs
2x fuel oil transfer pumps (one electric, one manual); 1x lube oil transfer pump
1x fuel oil purifier
1x set of accumulators for yacht services 1x sewage treatment plant
1x working bench with drawers;
1x stainless steel wash basin, connected with the dirty oil tank.                                                                     2x fresh water pumps (one as spare)
Two fire dampers
Engine room ventilation inlet moisture eliminator device Two exhausts for engines
One escape ladder
Two propeller shafts                                                                                                                                   Two main sea chests
Two heat-smoke detectors                                                                                                                         Chiller with relative pumps
5-blade hi skewed propellers                                                                                                                       Fresh water cooling system
Fuel system with feeding pump and duplex filter                                                                                           Lube oil system with incorporated oil cooler
Exhaust integrated system                                                                                                                         Tecma black water system
Headhunter black water treatment
Alfa Laval MAB 103 centrifugal fuel oil purifier

4.ACCOMMODATION

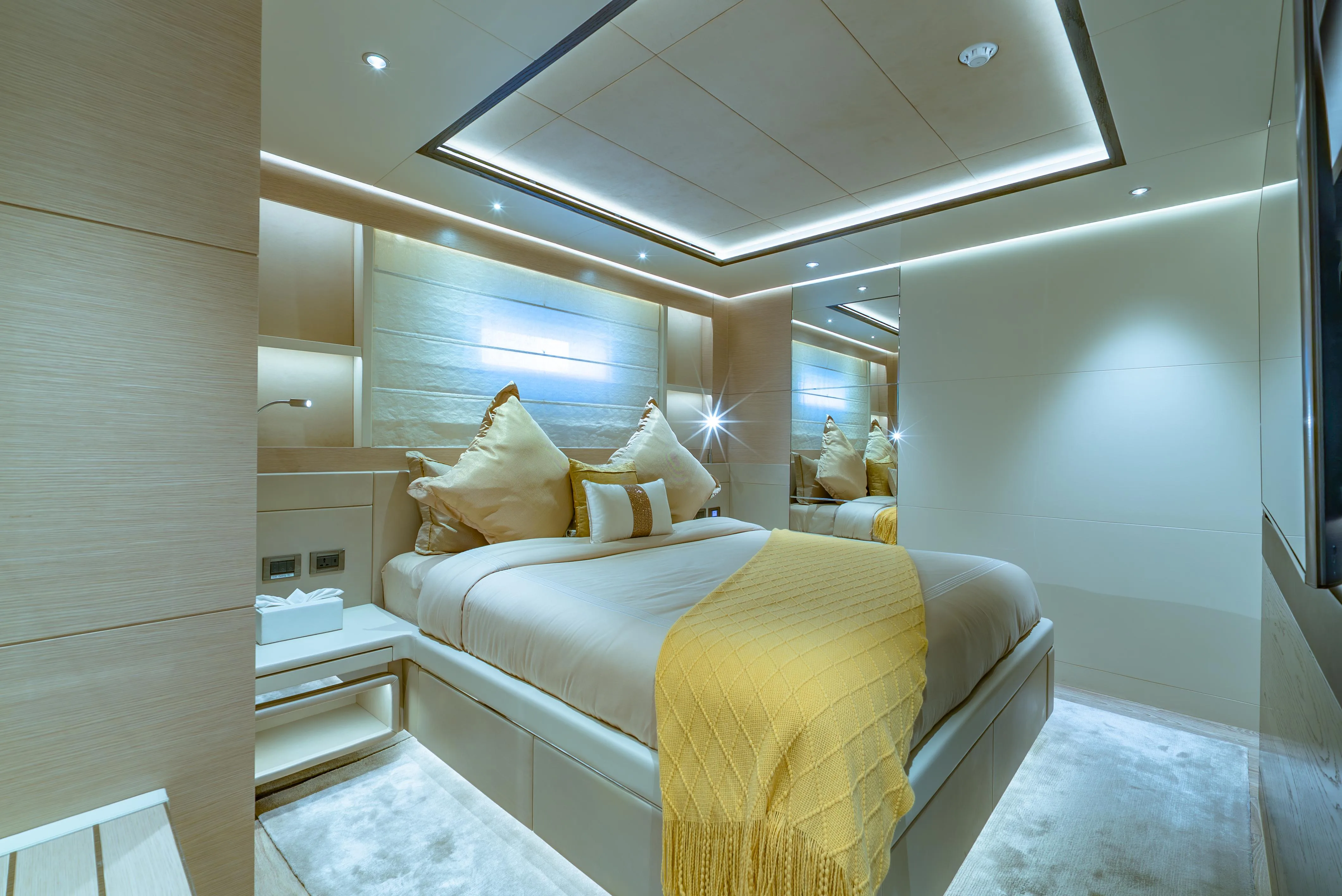

Accommodation for up to 12 guests in six cabins, including a Master cabin, VIP, and four en suite double cabins

5.GALLEY & LAUNDRY EQUIPMENT
Laundry
2 washing machines and 2 dryers for heavy duty.
1 steam professional ironing unit.
Corian work counter with stainless steel sink

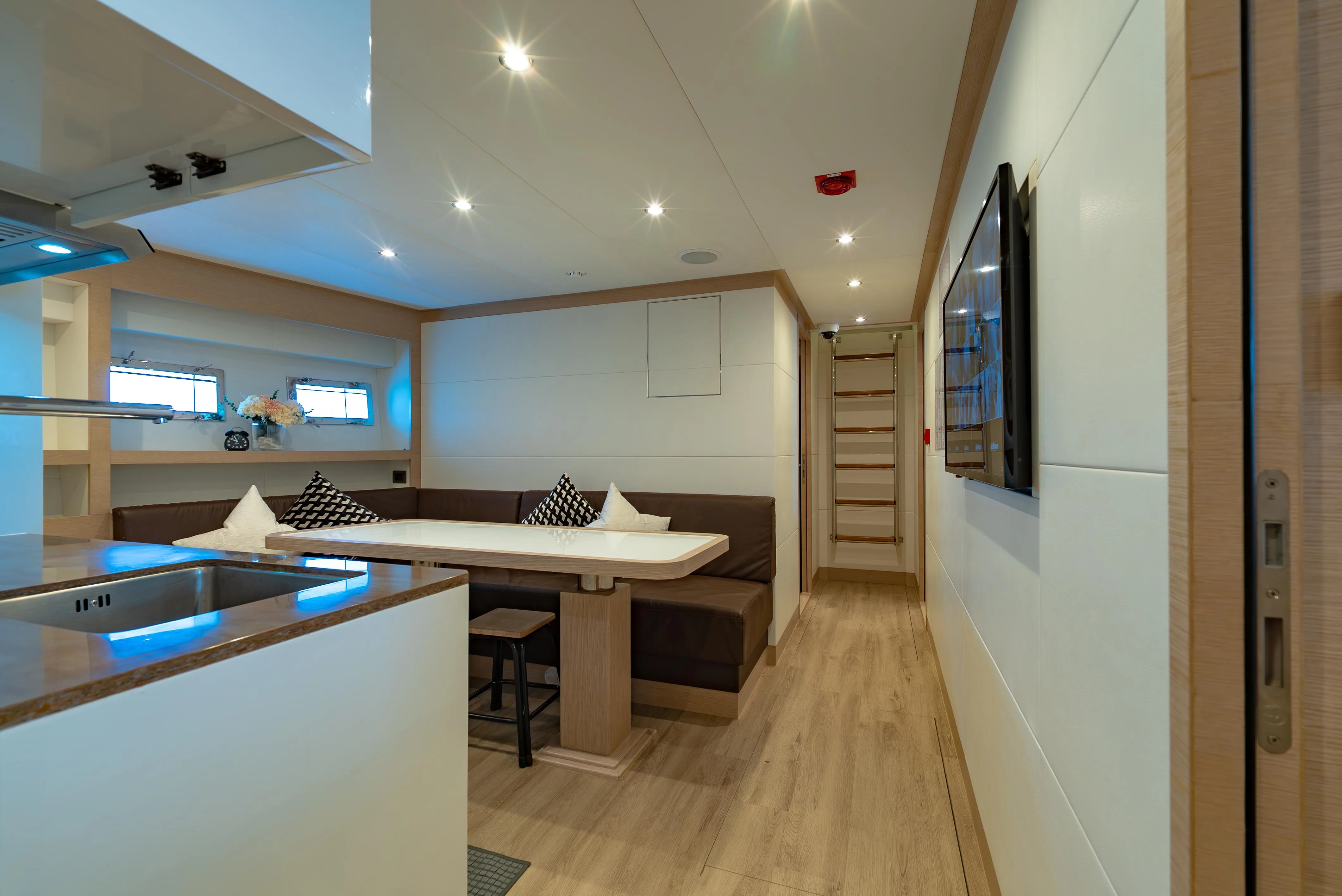

Galley
The counter top is light weight granite, under-mount stainless steel sink, Grohe quality fixtures
Spradling or Cherry headliner and PVC flooring
One stainless steel hood
One Dumbwaiter from galley to skylounge & sundeck.
Seven Refrigerators
One Cook top                                                                                                                                             One Cook hood                                                                                                                                         One Oven
One Microwave
One Dishwashers
One Trash compactor

6.COMMUNICATION EQUIPMENT
KVH TracPhone V7 system                                                                                                                         Wave Wi-Fi ECHP Wi-Fi amplifier router.
Two (2) 19” rack mount communication PC server.
Furuno FS1570 SSB radio.

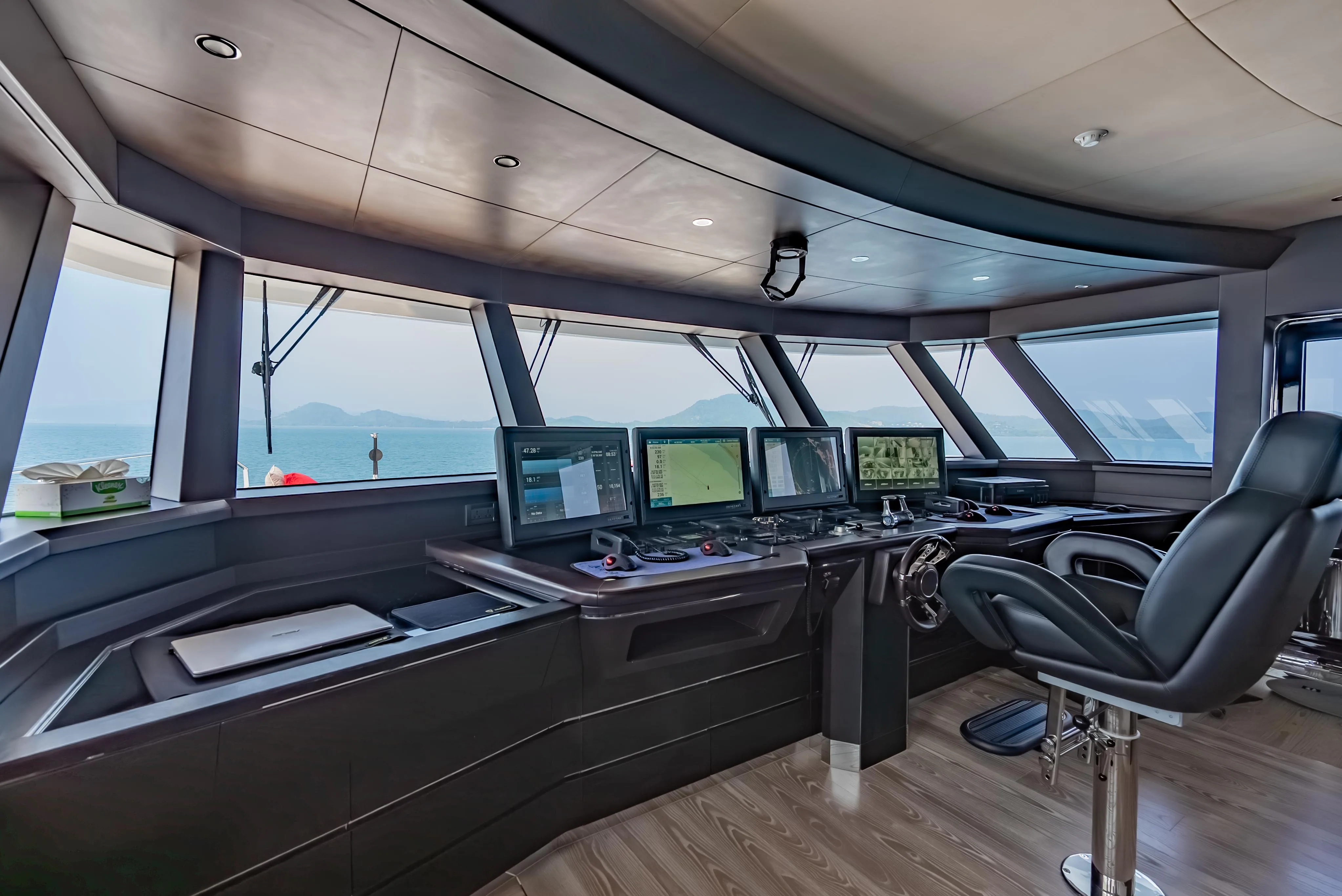

7. NAVIGATION EQUIPMENT

Simrad AP7001 autopilot control unit
Simrad AC70 autopilot computer
Furuno FA150 AIS system
Furuno FR2117 12KW radar
Furuno FR2137BB 30KW radar Furuno AN20AF/6.5 array
Furuno XN24A/8 array Four (4) Hatteland 19” display
Furuno Navnet hub101 Simrad GC85 compact gyro
Furuno FI501 wind instrument Furuno FI-503 display
Furuno FCV1200BB depth & fish finder
Two (2) 19” rack mounted navigational PC
Two (2) GMDSS Furuno FM8800S Navtex One Furuno NX700 Paperless
Navtex receiver
One Sailor SE 406-II Satellite EPIRB complete with automatic release wall mount bracket
S.A.R.T. One Sailor 9 Ghz Search and Rescue Transponder


8.ENTERTAINMENT EQUIPMENT
Crew area
Flat screen 26” TV with sat-receiver, DVD, iPod dock with hidden speakers

Crew lounge:
Flat screen 40” TV with sat-receiver, DVD,iPod dock with hidden speakers

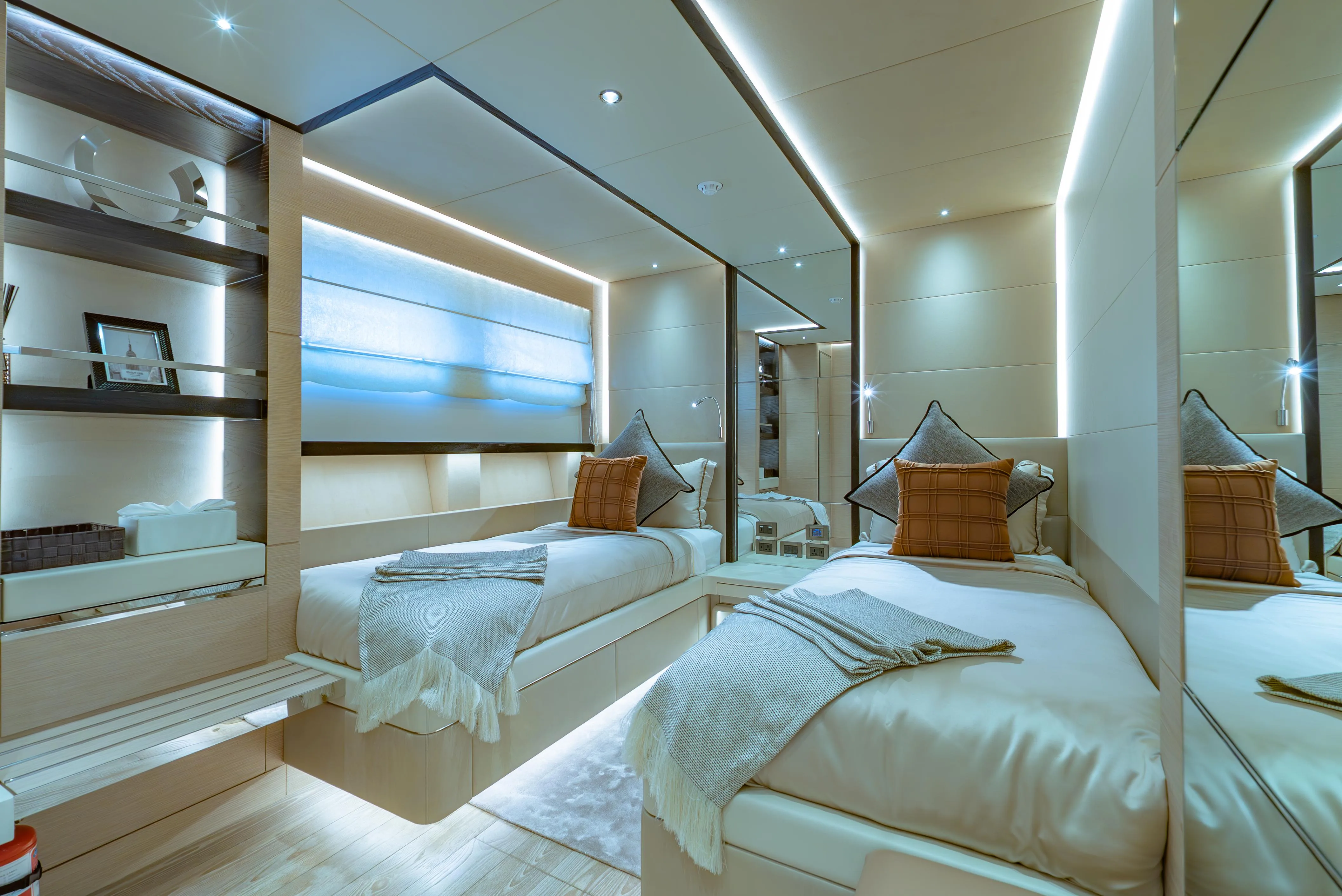

Guest Cabins
Flat screen 32” TV with sat-receiver, DVD,iPod dock with hidden speakers.

Lower deck VIPs
Flat screen 50” TV with sat-receiver, DVD,iPod dock with hidden speakers.

VIP cabin on main deck:
Flat screen 55” TV with sat-receiver, home cinema processor,
iPad with hidden surround sound speaker system.

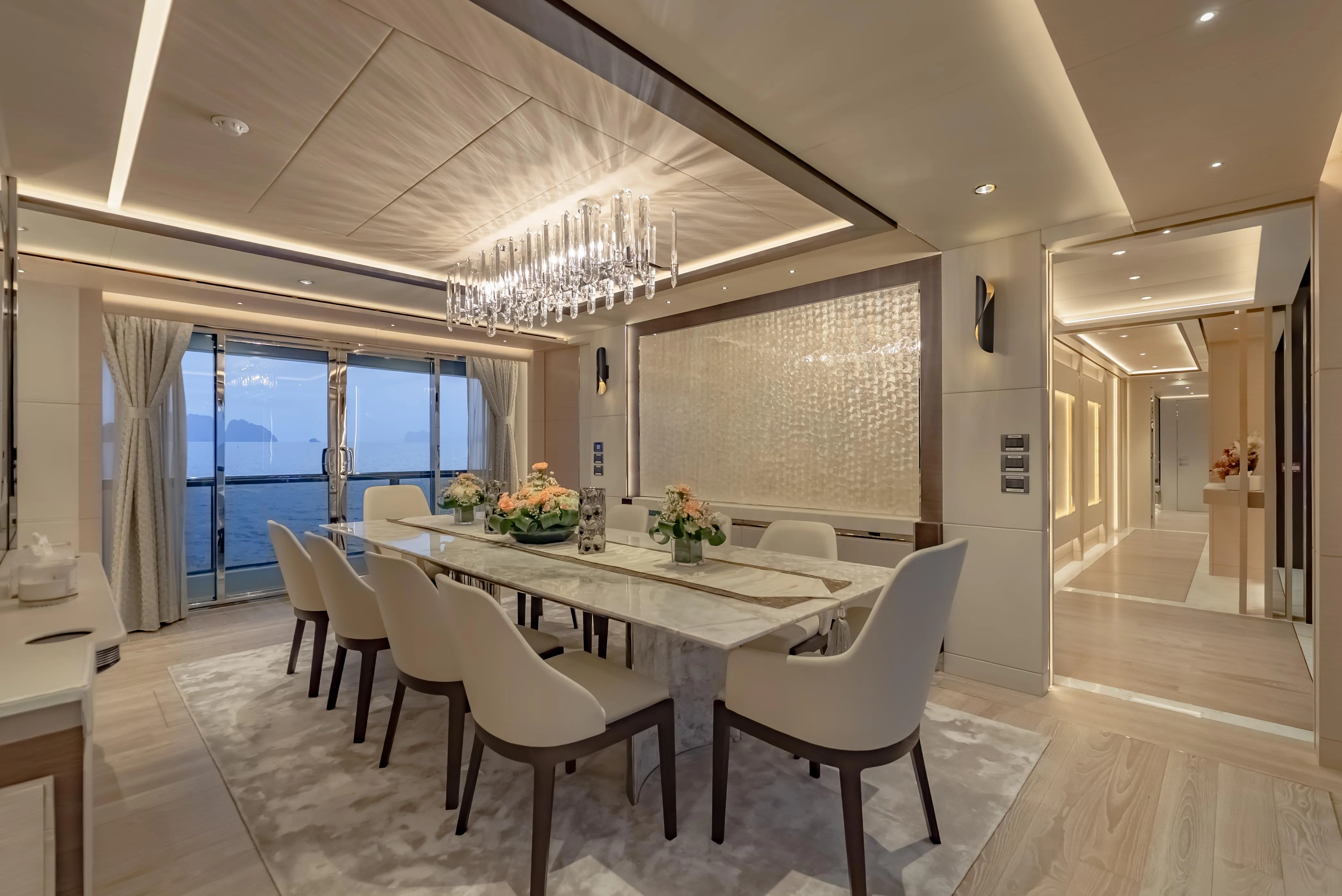

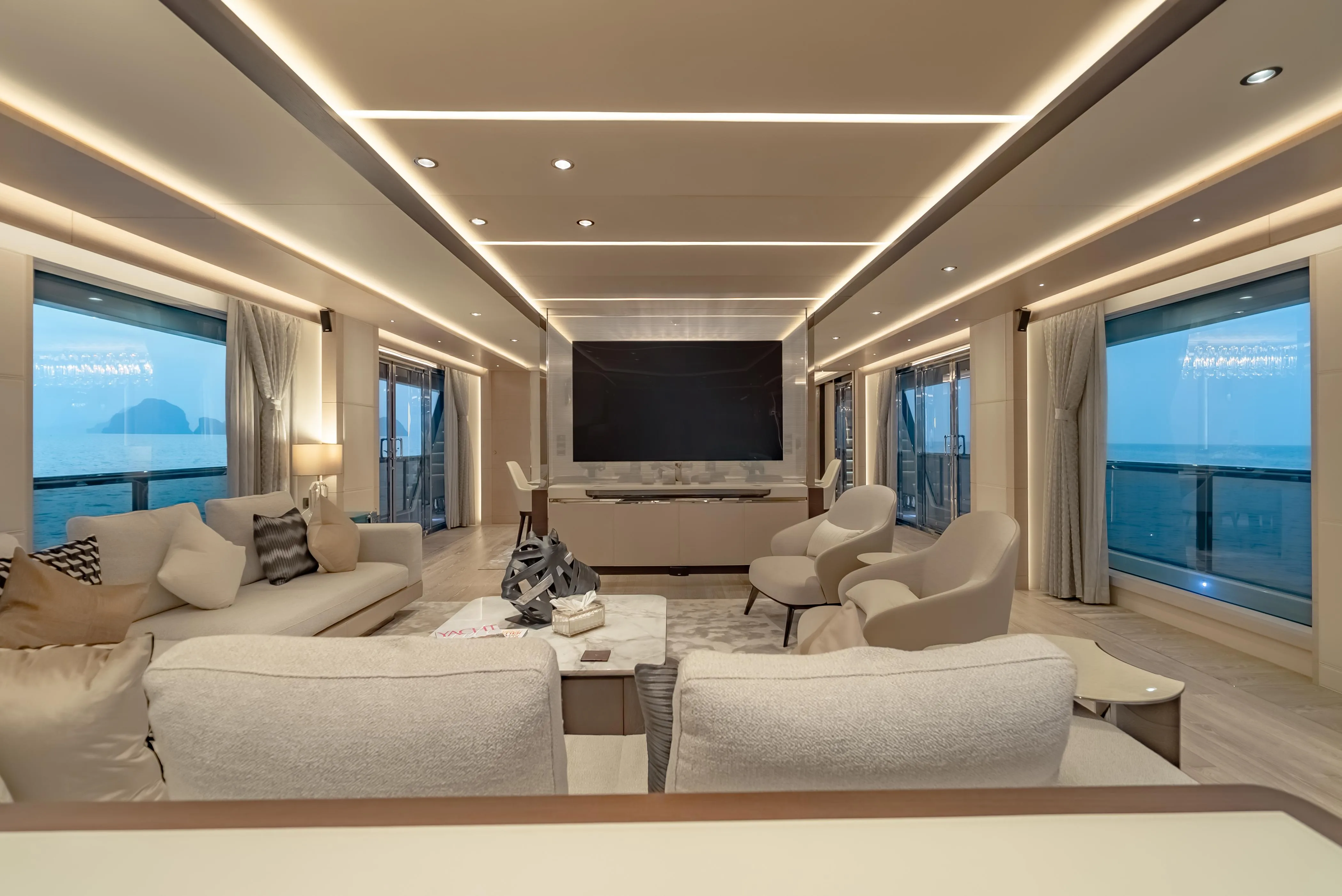

Main salon with dining room:
Blue Ray DVD player & Apple TV2,Flat screen 80” TV with sat-receiver,home cinema processor,
Blue Ray DVD player & Apple TV2,iPad with hidden surround sound speaker
system.
Hidden speakers with volume control in dining area.

Captain cabin:
Flat screen 32” TV with sat-receiver, DVD,iPod dock with hidden speakers.
Master state room on skylounge:
Pop-up flat screen 60” TV with sat-receiver, home cinema processor,
iPad with hidden surround sound speaker system.

Fly bridge:
Blue Ray DVD player & Apple TV2,
Four (4) marine outdoor speakers with volume control.

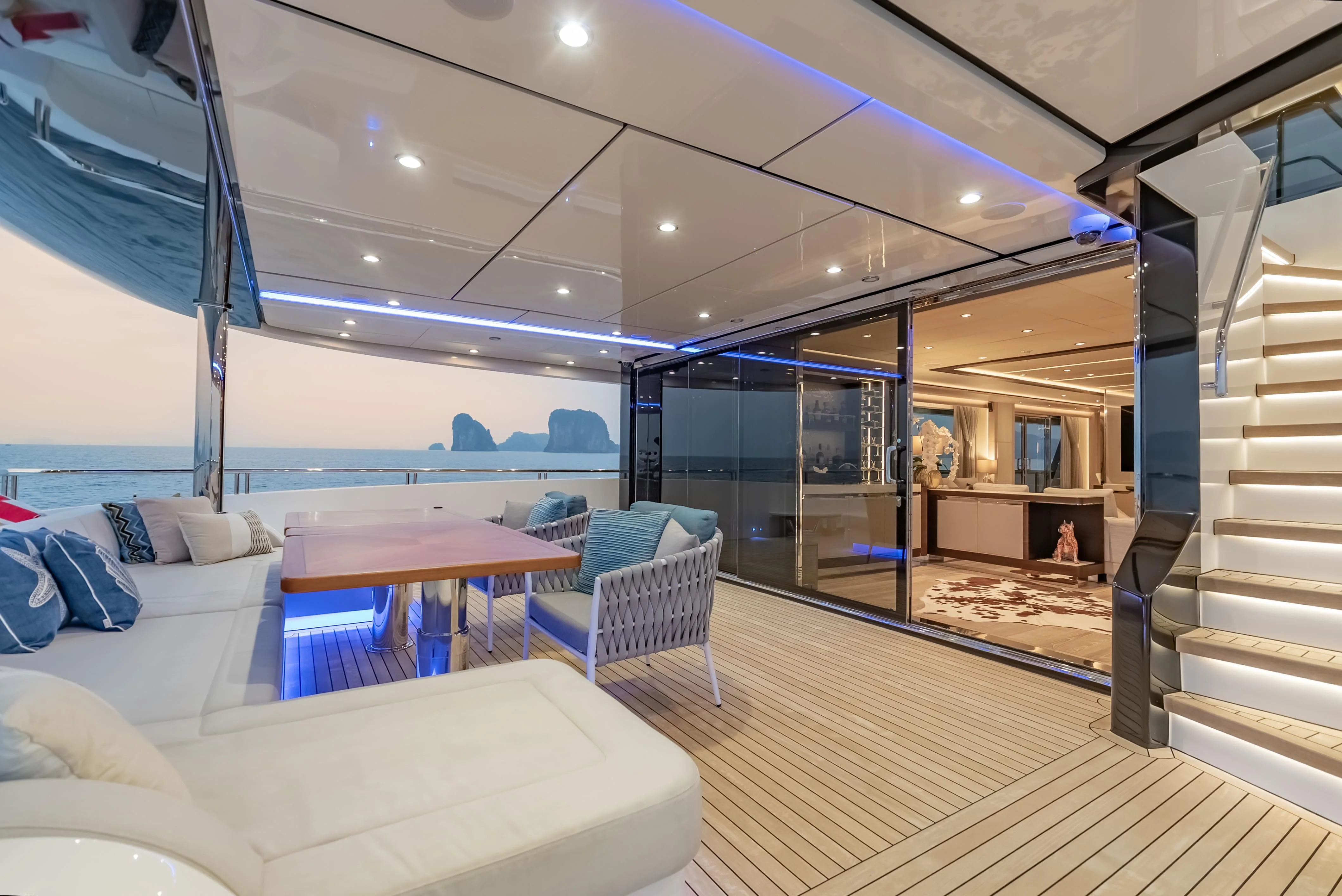

Aft skylounge deck:
Two (2) marine outdoor speakers with volume control

Fore-deck lounge:
Two (2) marine outdoor speakers with volume control

AFT main deck:
Two (2) marine outdoor speakers with volume control

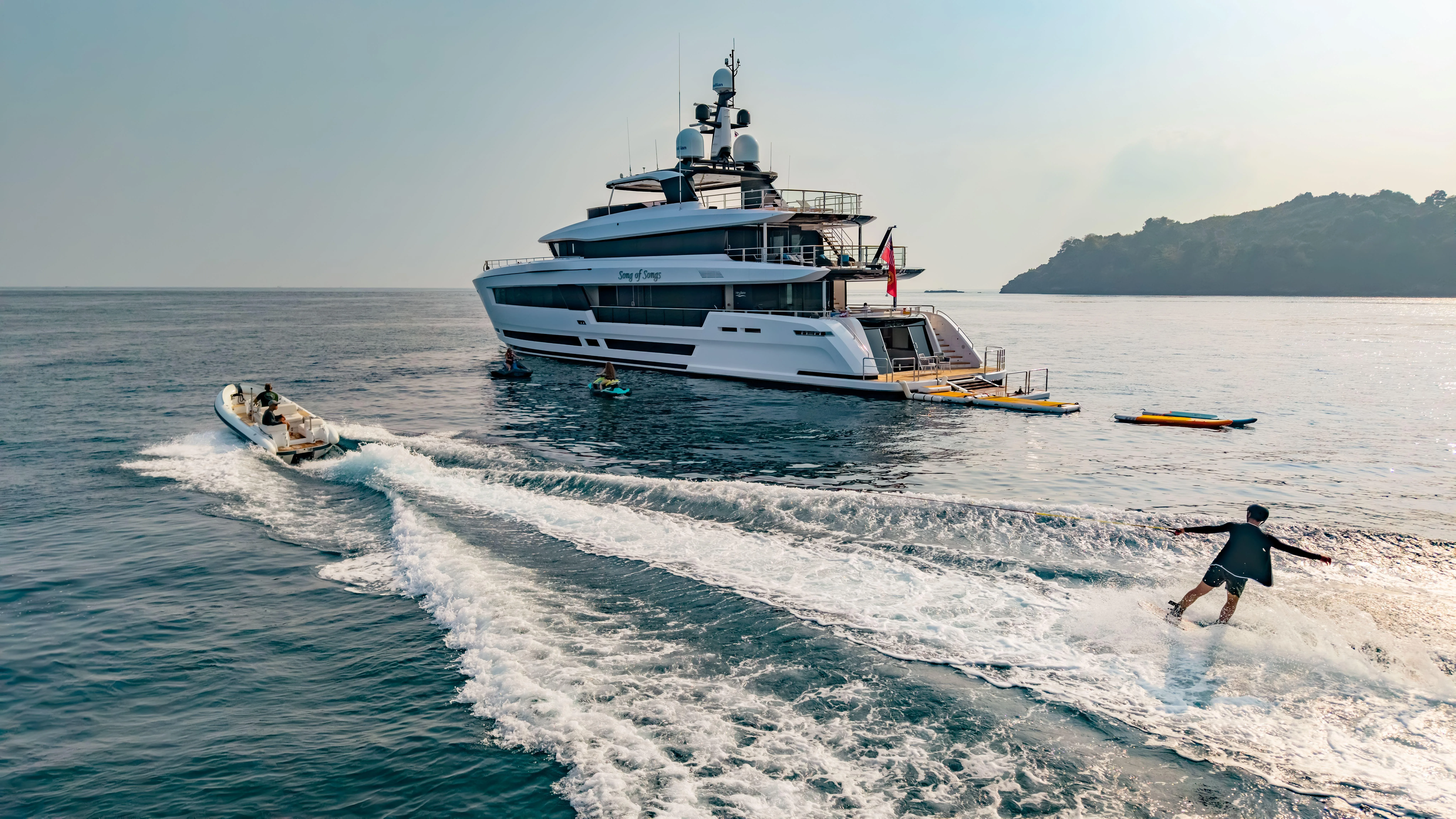

9. TENDERS & TOYS
10.7m (35ft) Chase boat twin 300hp mercury
4.9m (16ft) Castoli jet tender
2 x 90hp Seadoo sparks jetskis
2 x Stand-up Paddleboards
14 x Snorkeling equipment gears
Fishing equipment
Hydraulic platform for easy access to the sea (Transformer/Z lift)

10. DECK EQUIPMENT

Two vertical type anchor windlasses
Anchor hawse pipe and anchor pocket
Chain stopper
Bow maneuvering island
Chain locker
Two capstan drums (Maxwell , Muir or equivalent) 2200w
Polished stainless steel bollards
Two high holding power galvanized steel anchors
2 x 137m length galvanized chains 16 mm with stud, grade 2
Watertight hatches supply by Aritex
Watertight doors supply by Aritex
One portable aluminum or polished stainless steel side ladder
Manual polished stainless steel ladder
One hydraulic Z-lift with five steps

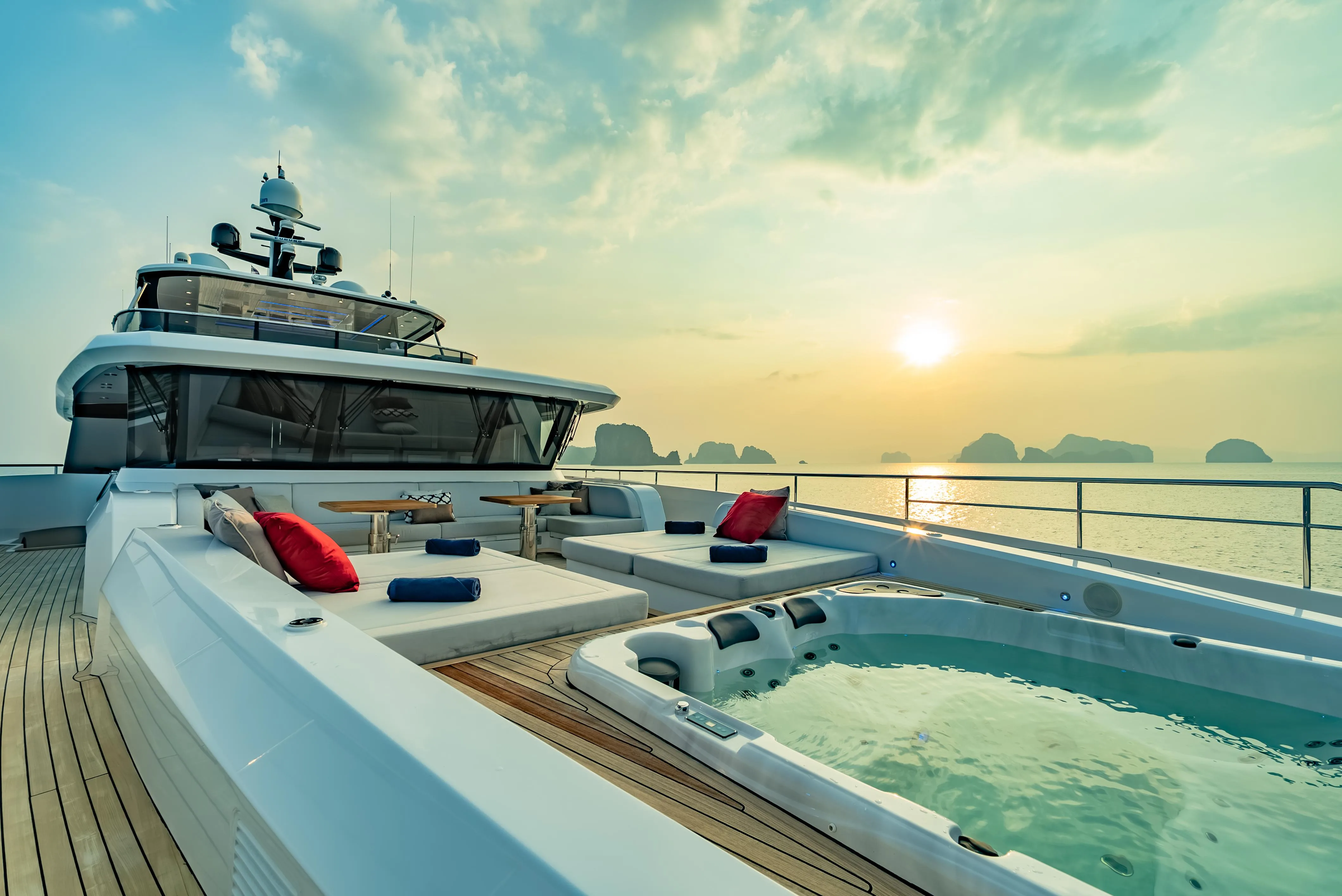

1x hydro massage tub suitable to contain six people

11. SAFETY & SECURITY EQUIPMENT
Fire-fighting accessories as required by Class and Flag Authority
2 fire suits
Four self inflatable life rafts, 4 x 8 persons                                                                                                                               Lifesaving appliance for 22 adult and for 4 children
1x bilge and fire pump
