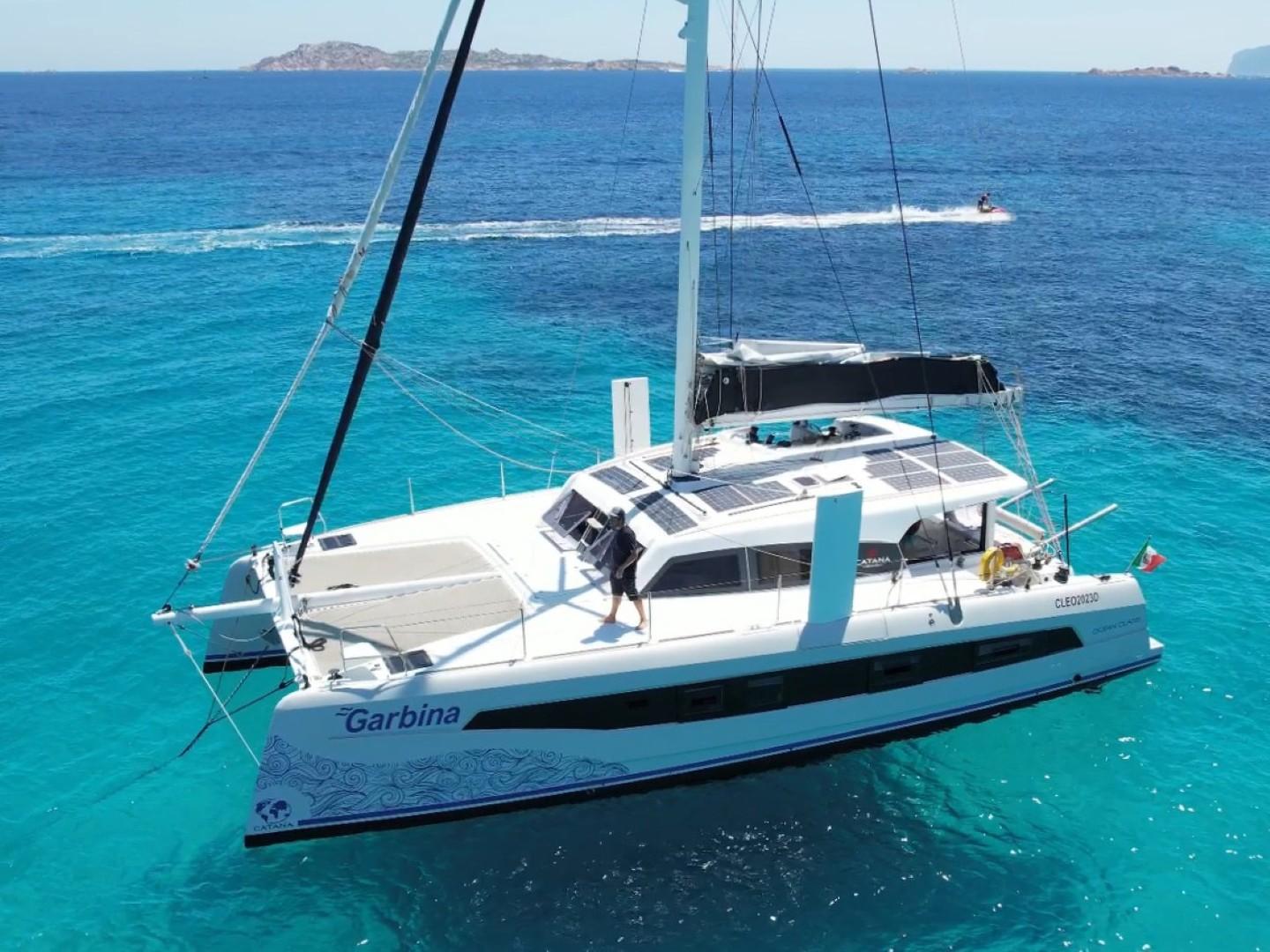

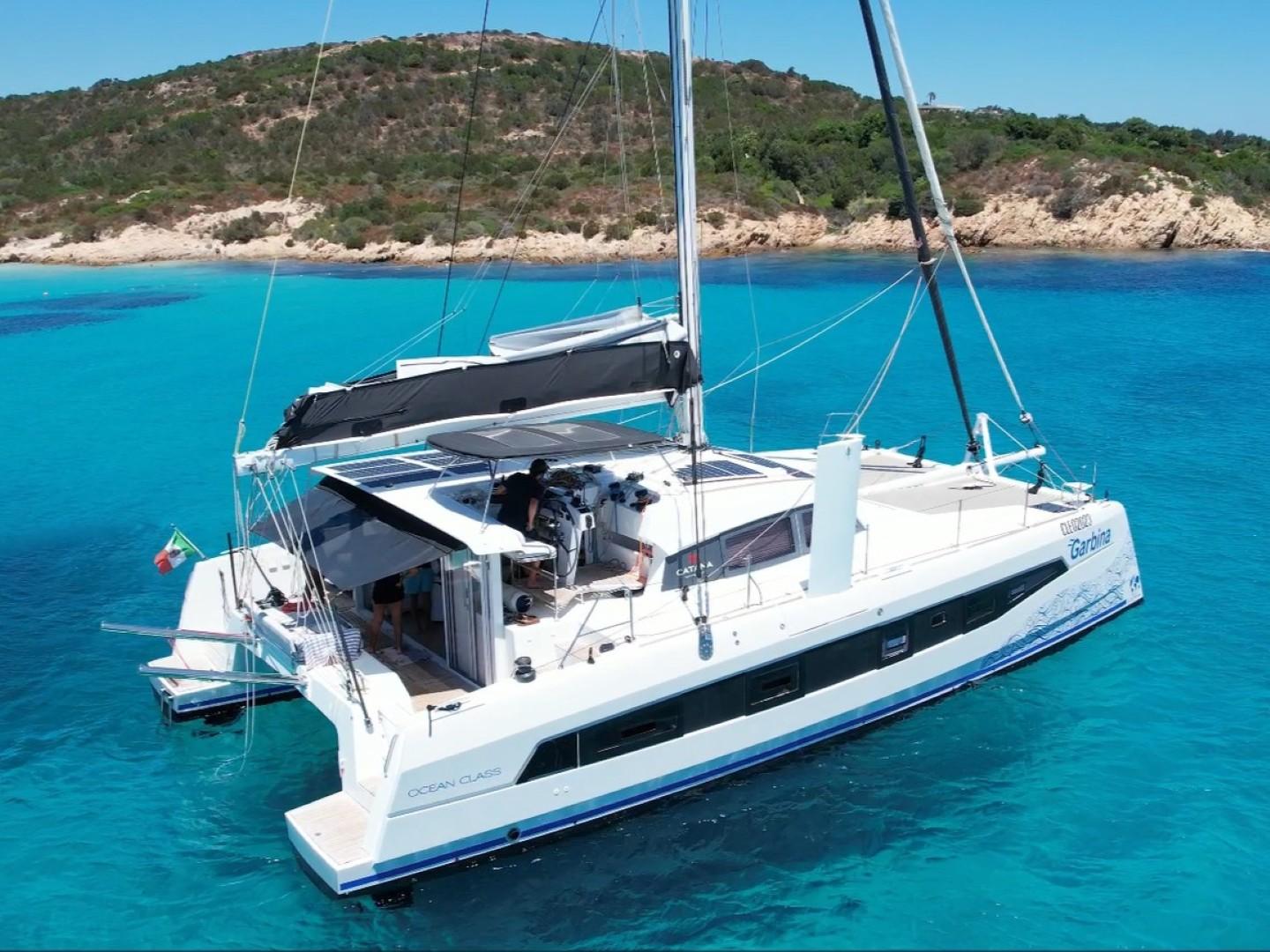

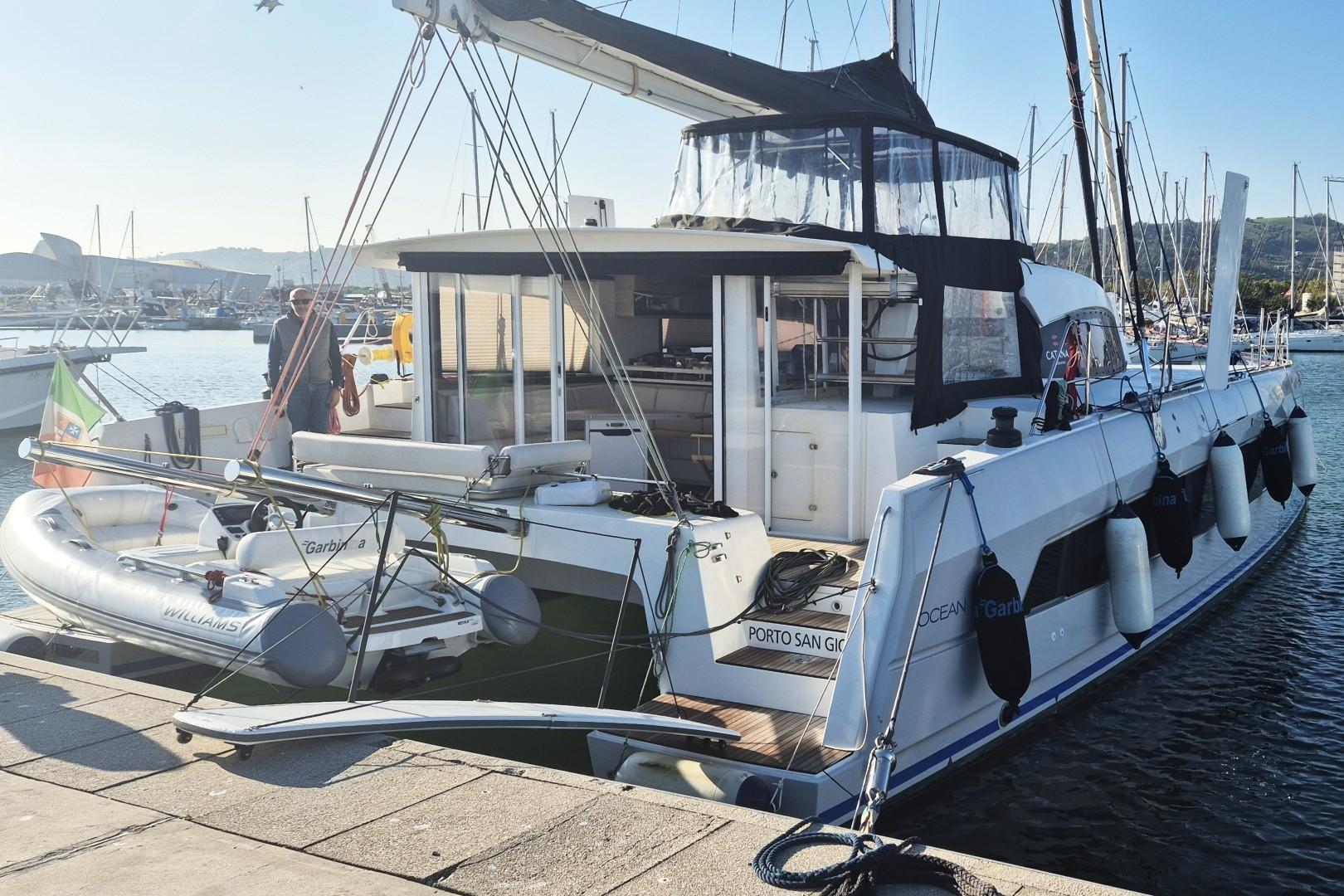

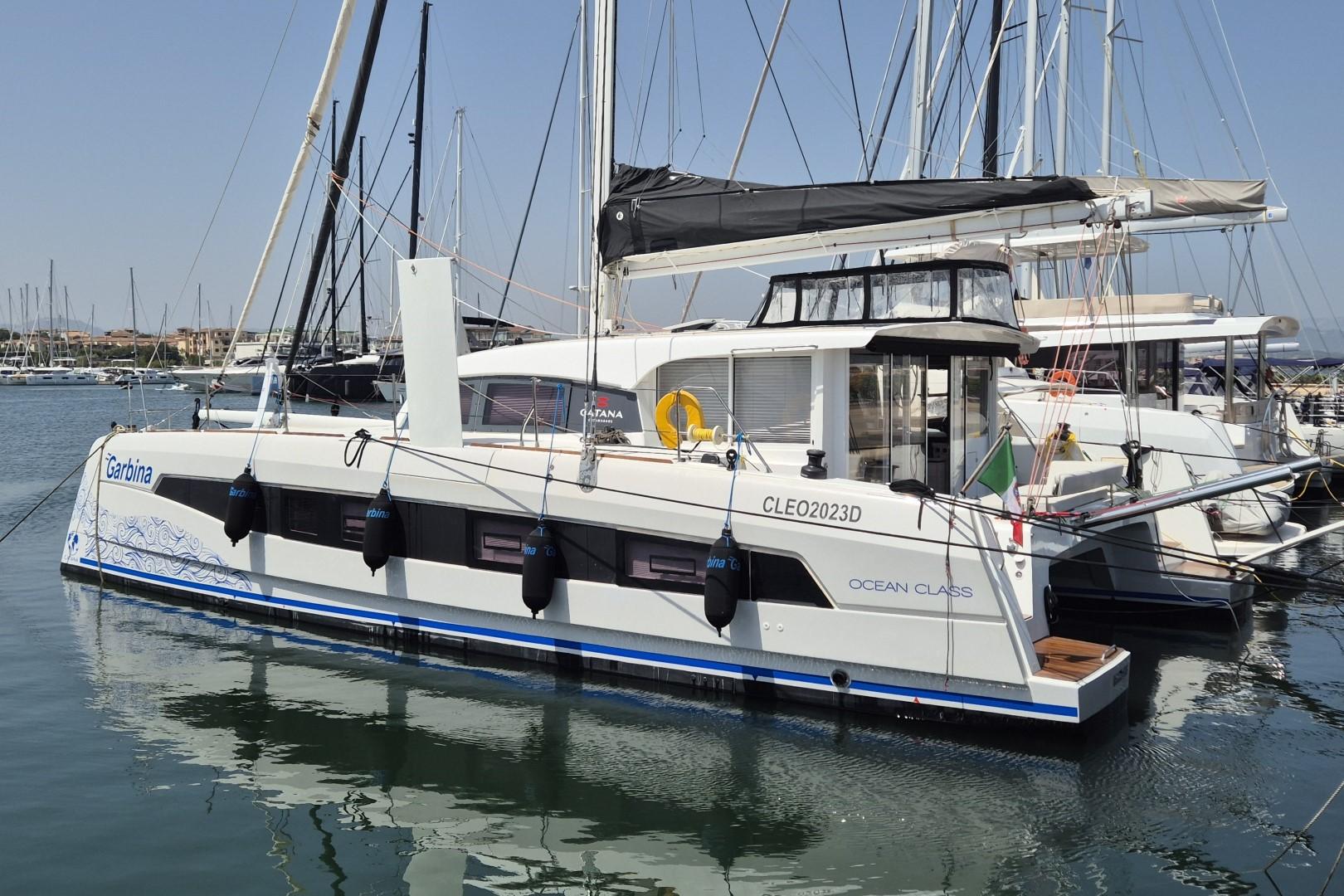

2023 Catana Ocean Class for Sale – 52 ft – Porto San Giorgio, FM, Italy

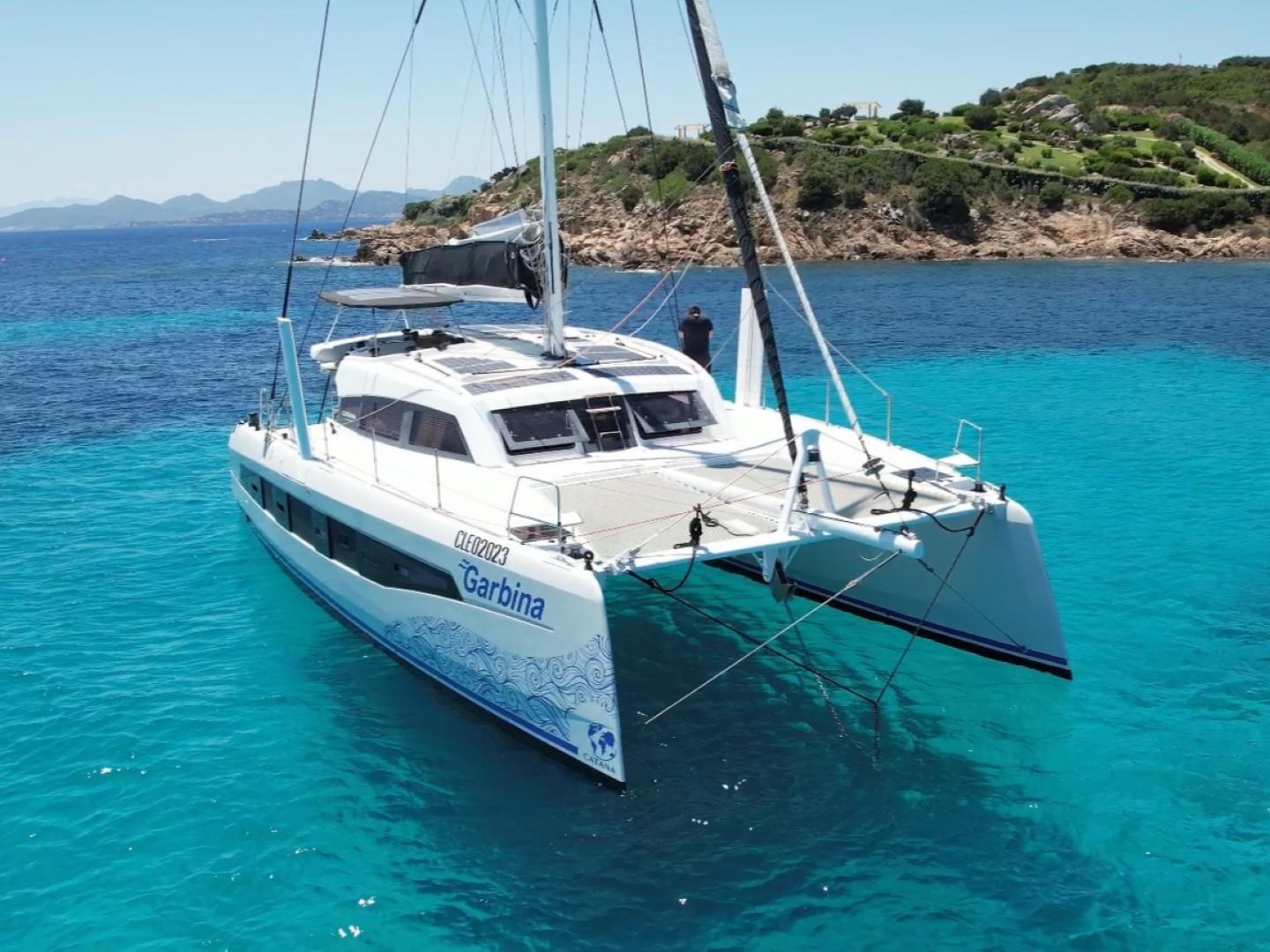

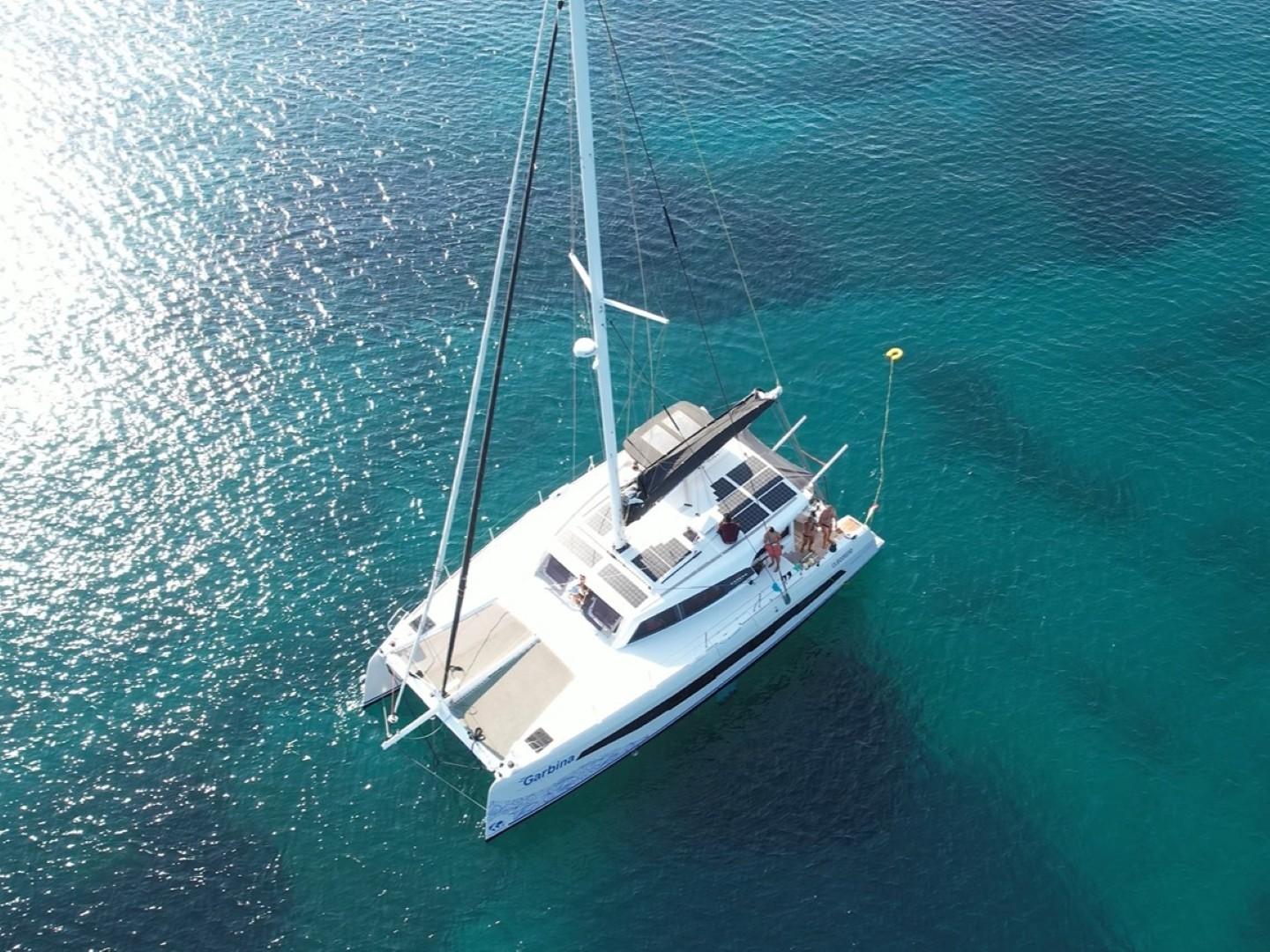

Truly spectacular Olivier Poncin designed performance bluewater cruising catamaran with huge cruising specification and ready to go anywhere.

FURTHER BROKER’S COMMENTS:

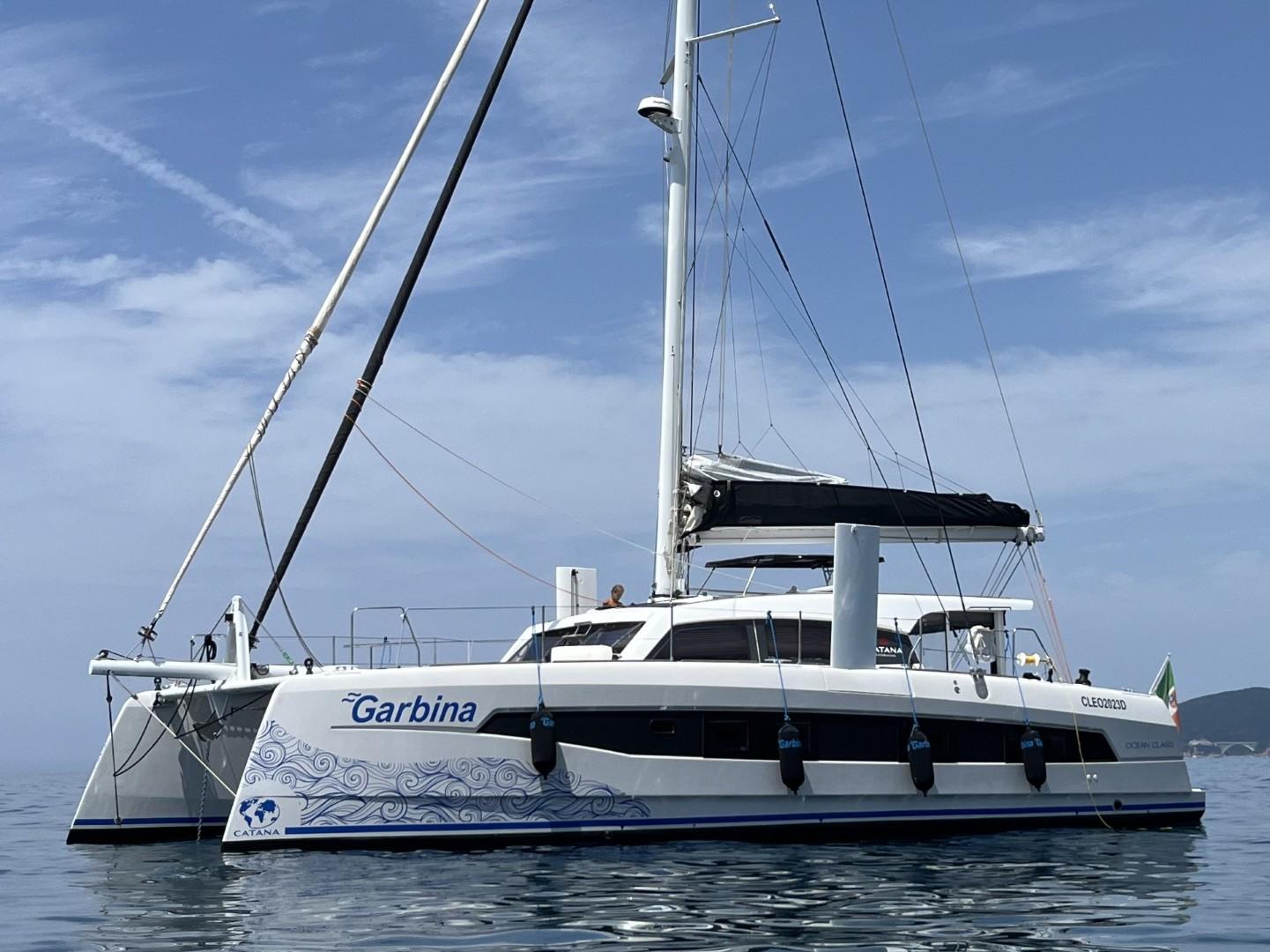

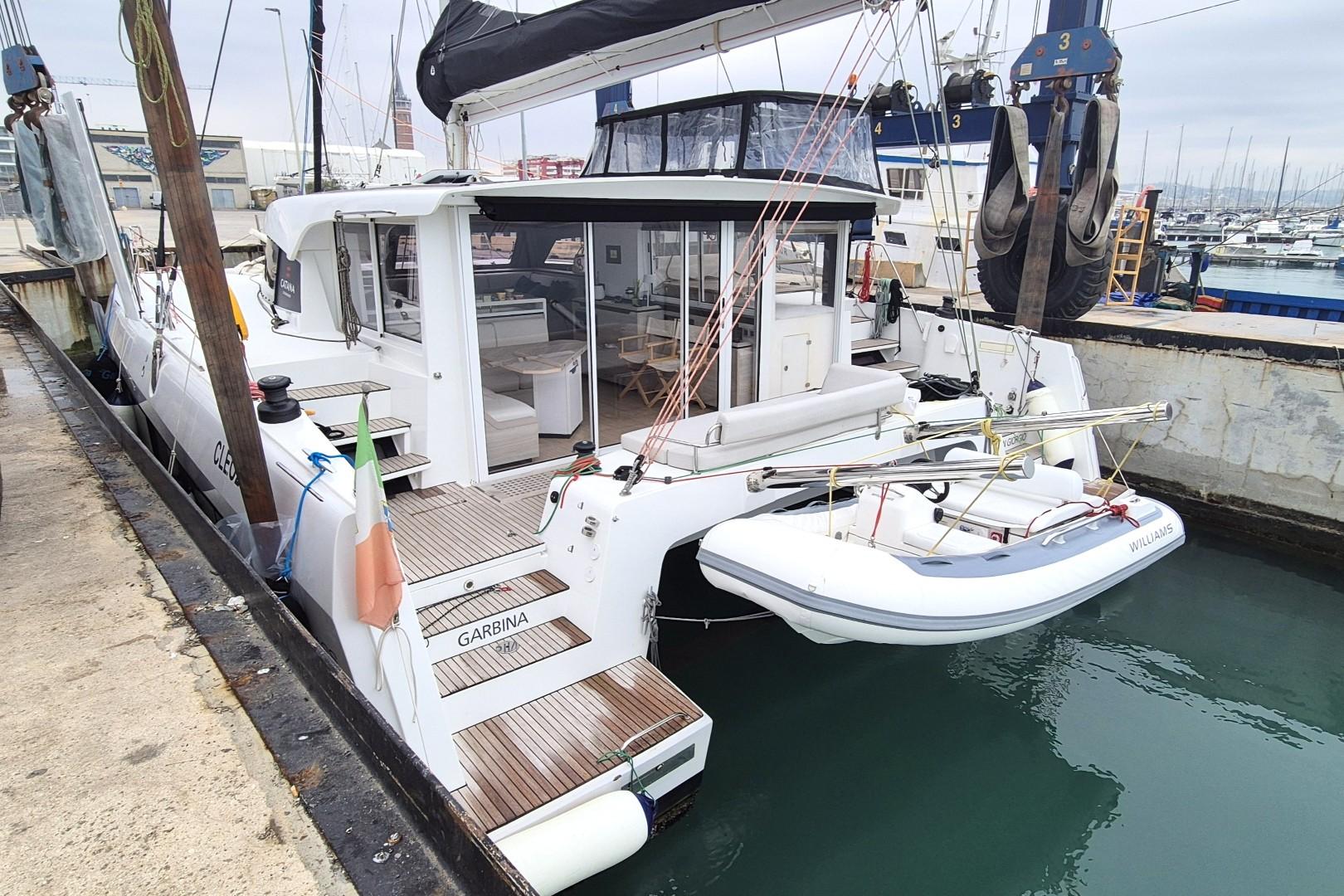

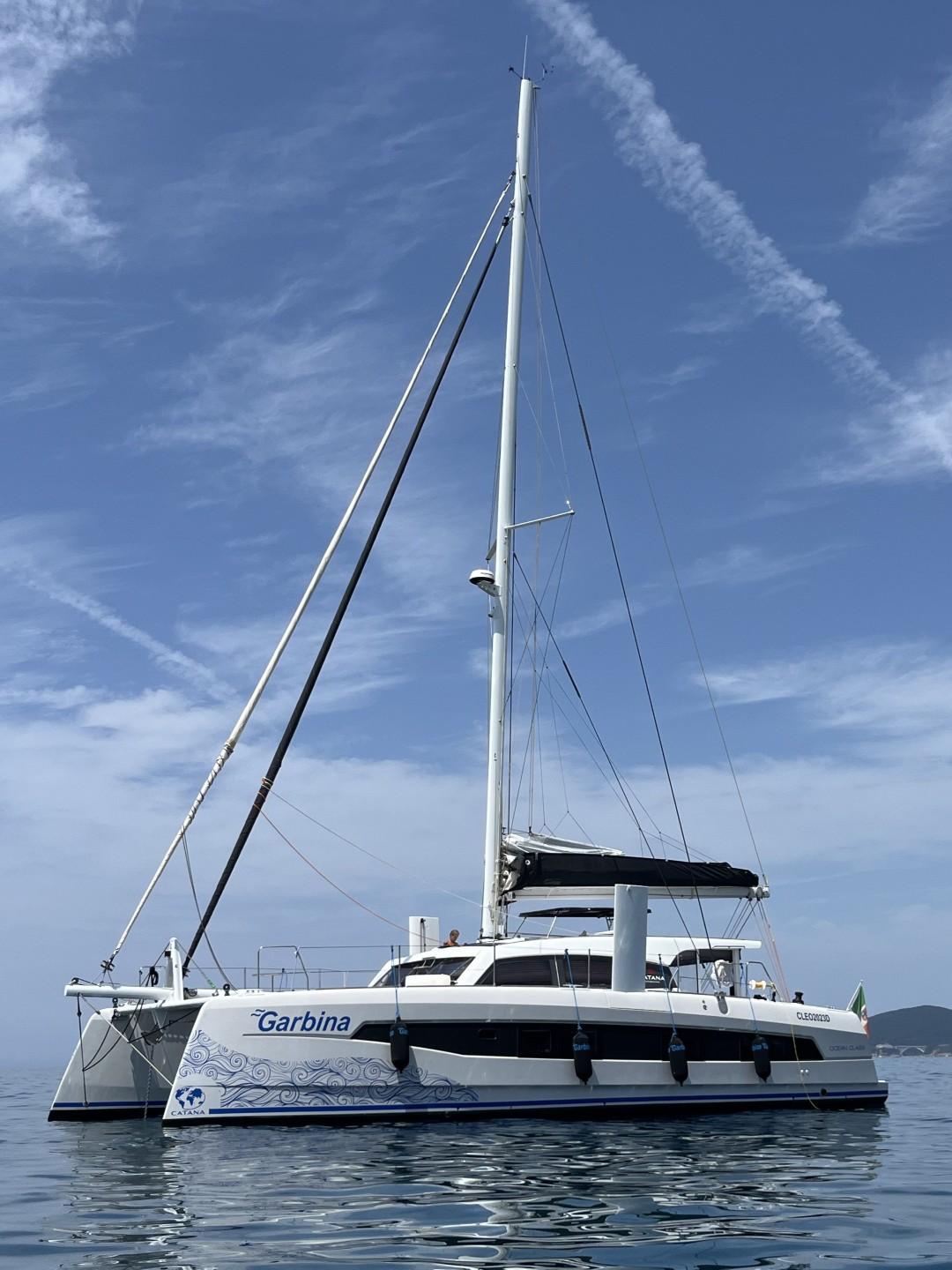

Launched toward the end of 2023, GARBINA is a one-owner example of the Olivier Poncin designed 14.99m Catana Ocean Class performance bluewater cruising catamaran. Benefitting from a huge specification with almost every possible option ticked, GARBINA is 100% ready to sail around the world.

Her specification highlights include:-
•    Carbon infused GRP construction
•    Composite daggerboards with 1.39m-2.52m draft and electric operation from helm
•    Yanmar 4JH80 engines (largest option available) with Saildrive gearboxes and MaxProp 4-bladed propellers
•    Sleipner 24vDC retractable 175kgs variable speed bowthruster
•    Axxon carbon mast

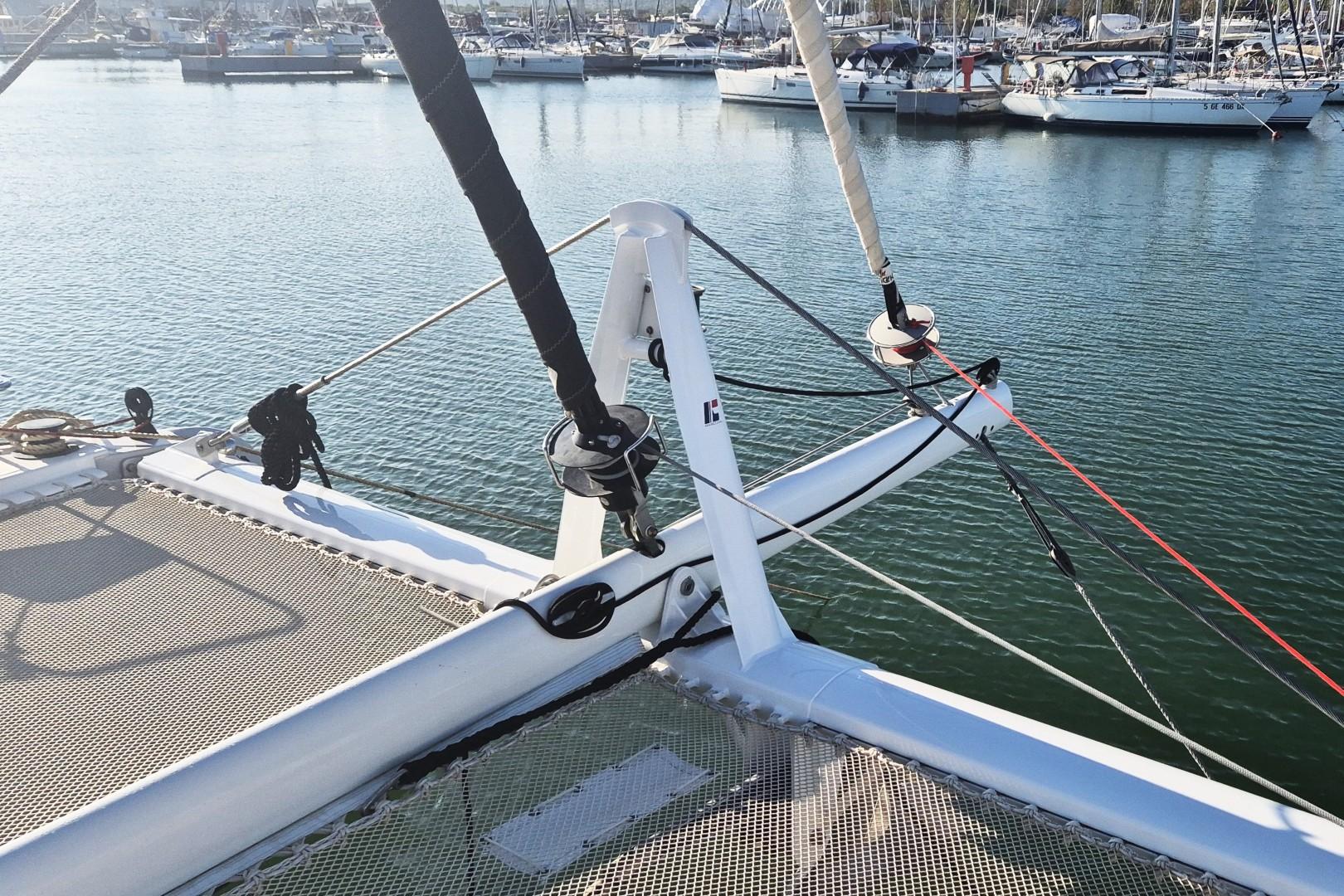

•    Carbon compression beam
•    Harken deck gear

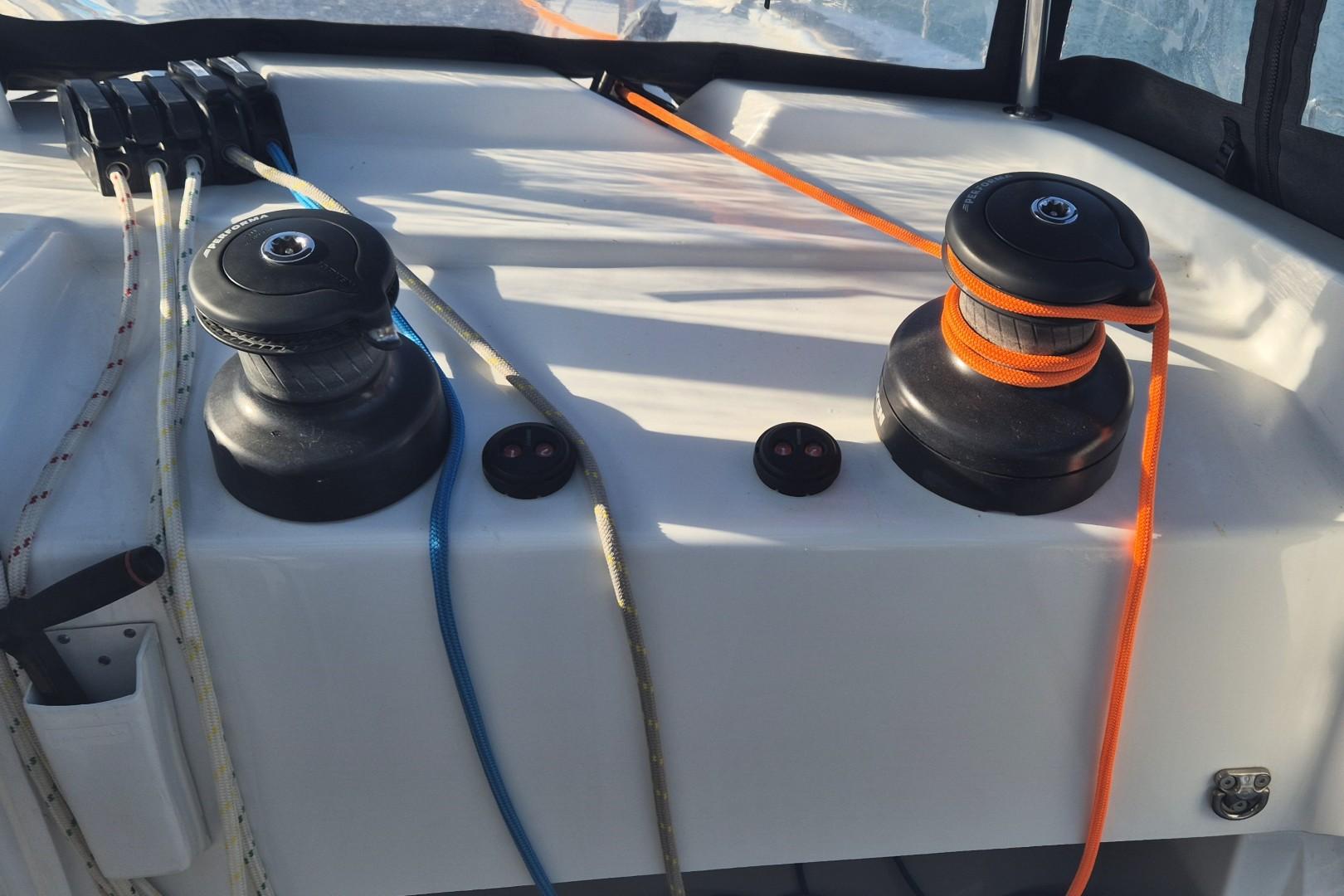

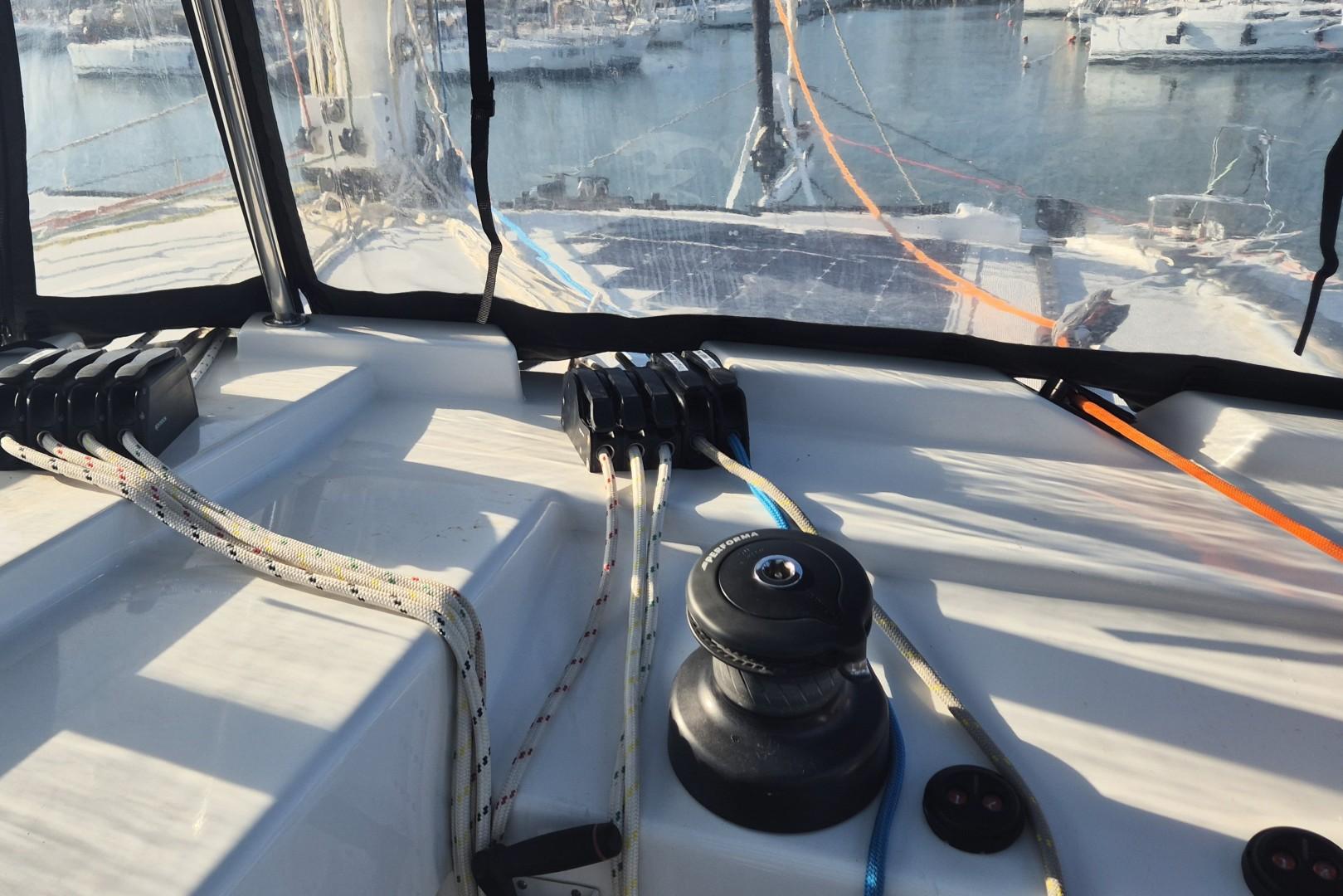

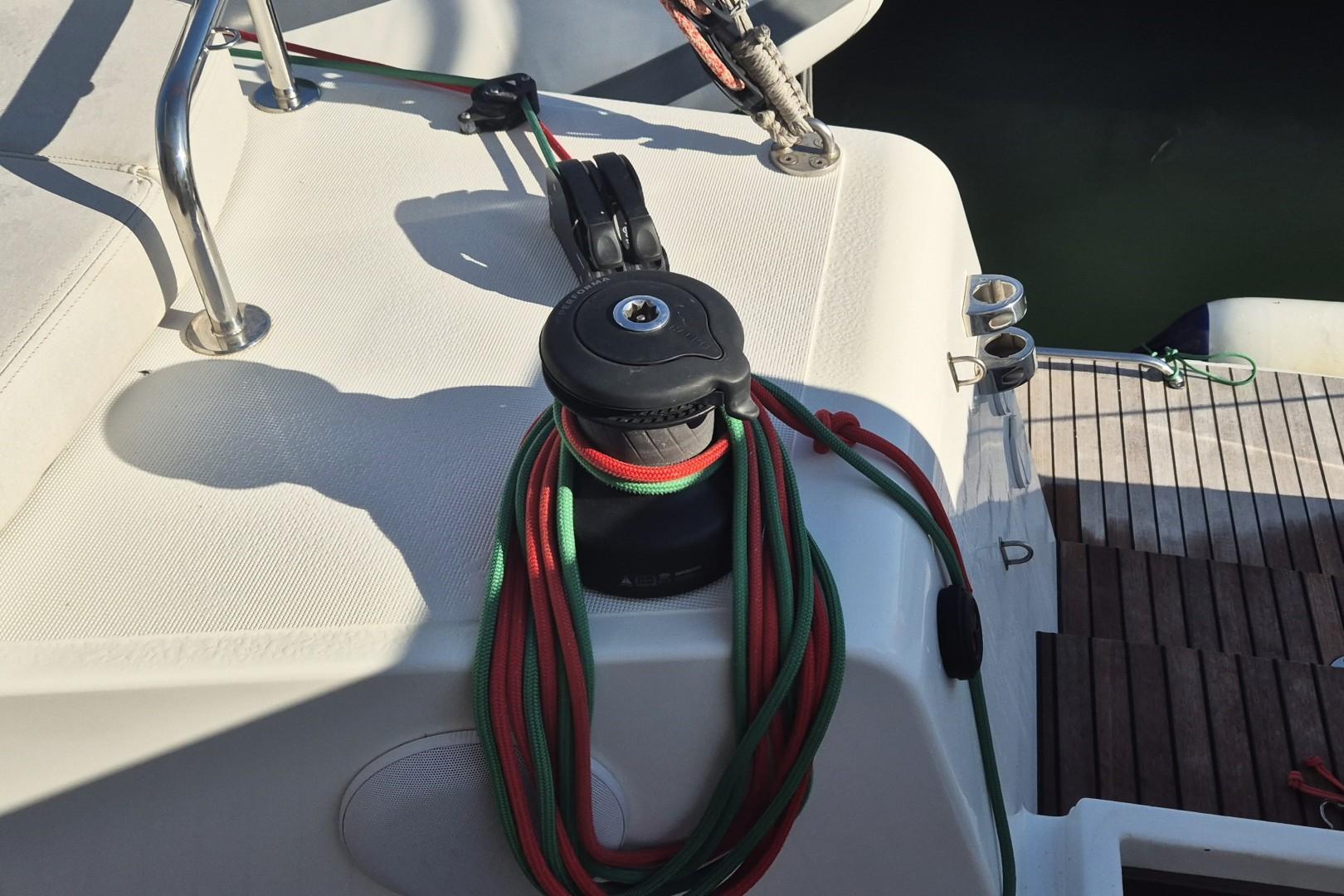

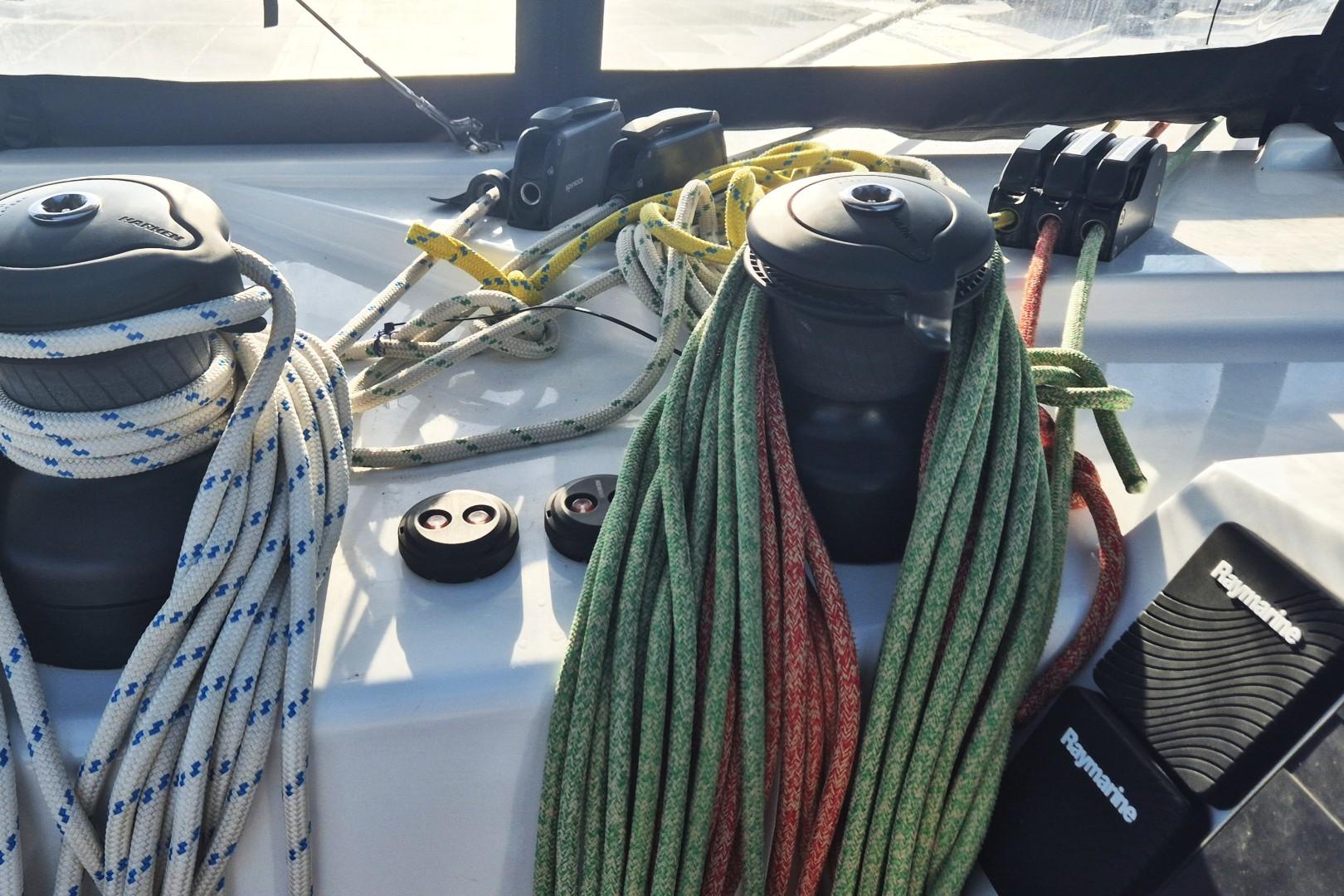

•    Harken Performa electric winch package with 6x powered sail handing winches
•    Elvstrom EPEX membrane square-top mainsail and genoa
•    Furling Code 0

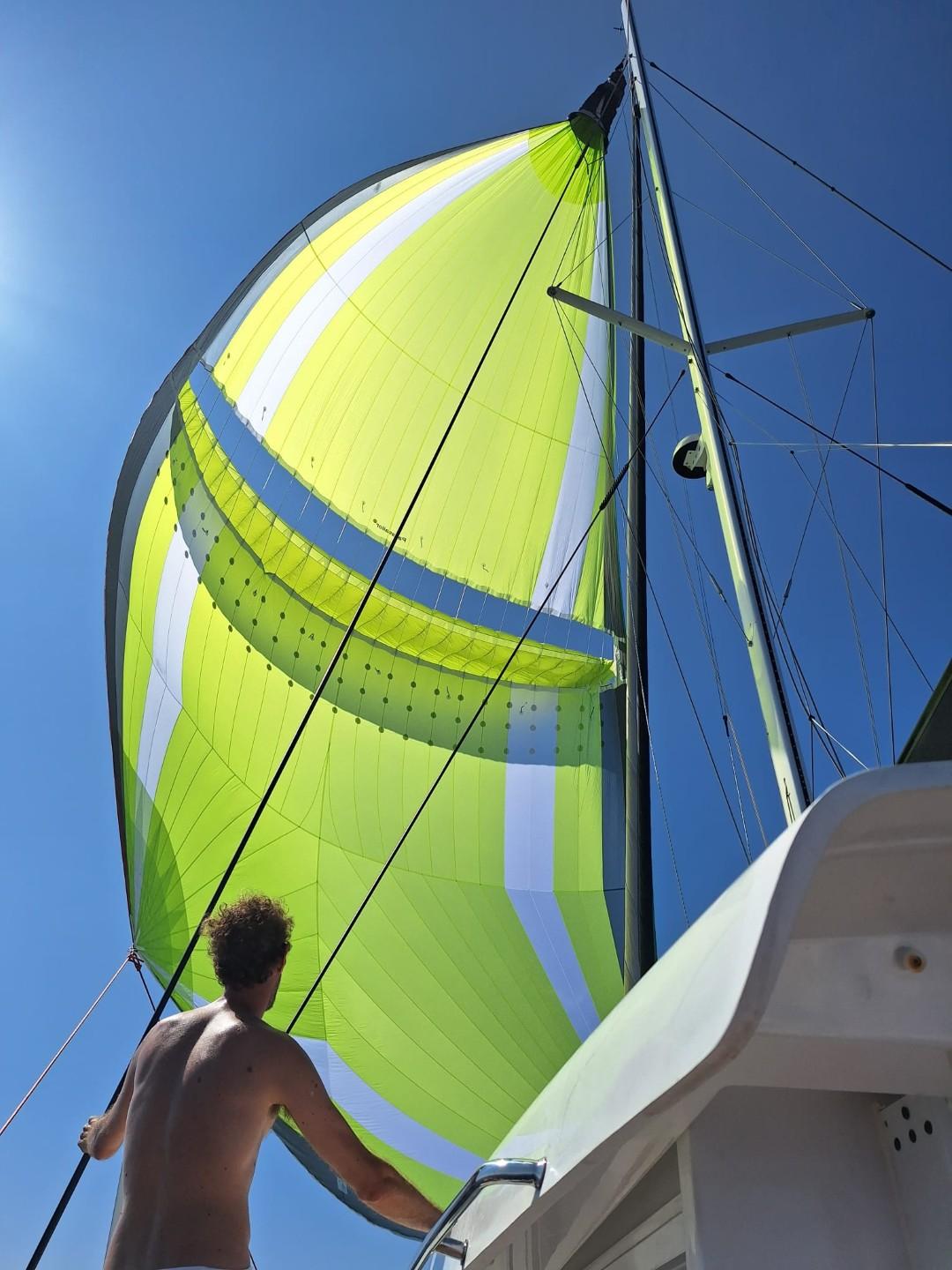

•    Parasailor
•    Storm jib

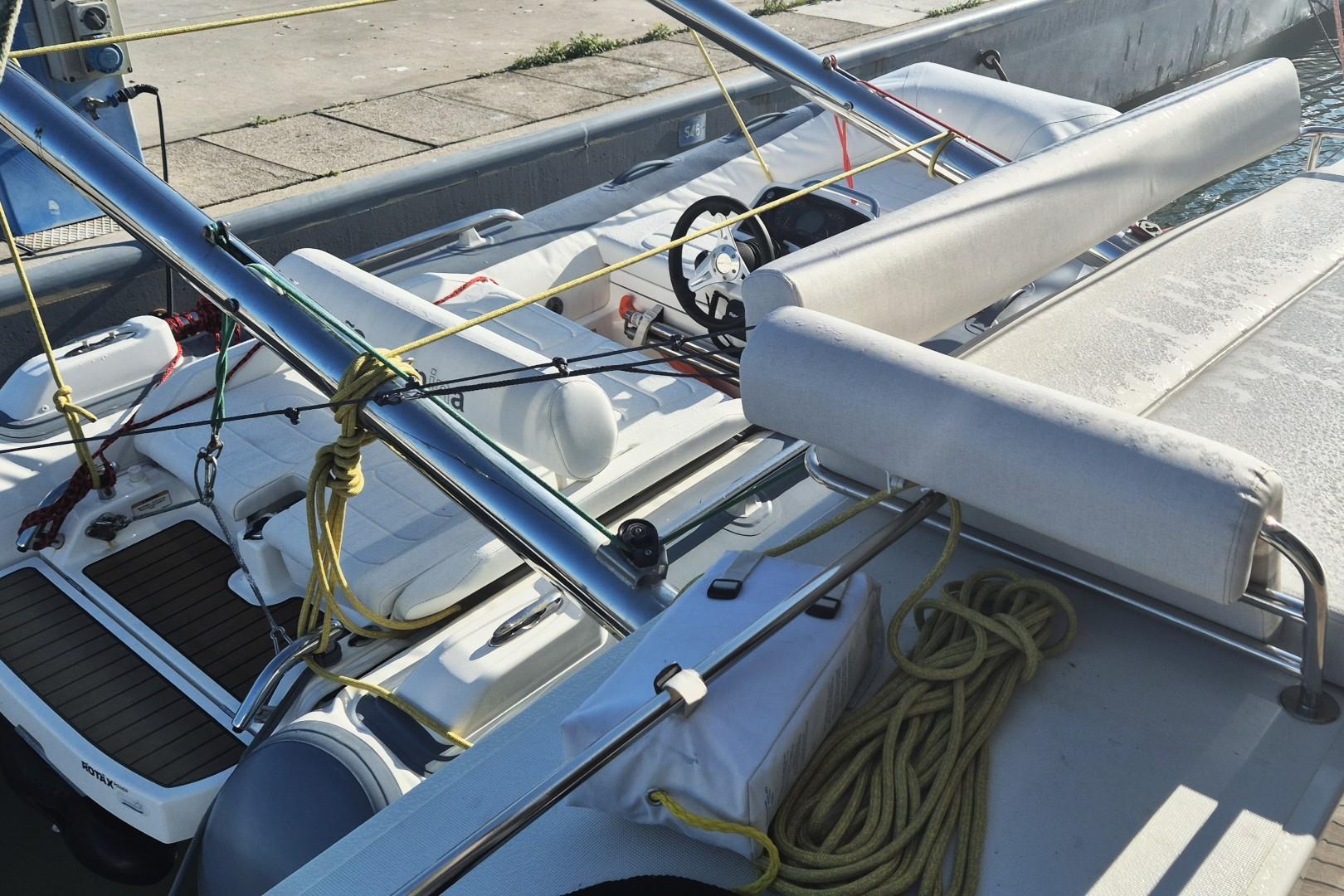

•    Davits with Harken Performa electric winch
•    Harken retractable electric mooring windlasses
•    Chain counter for anchor windlass

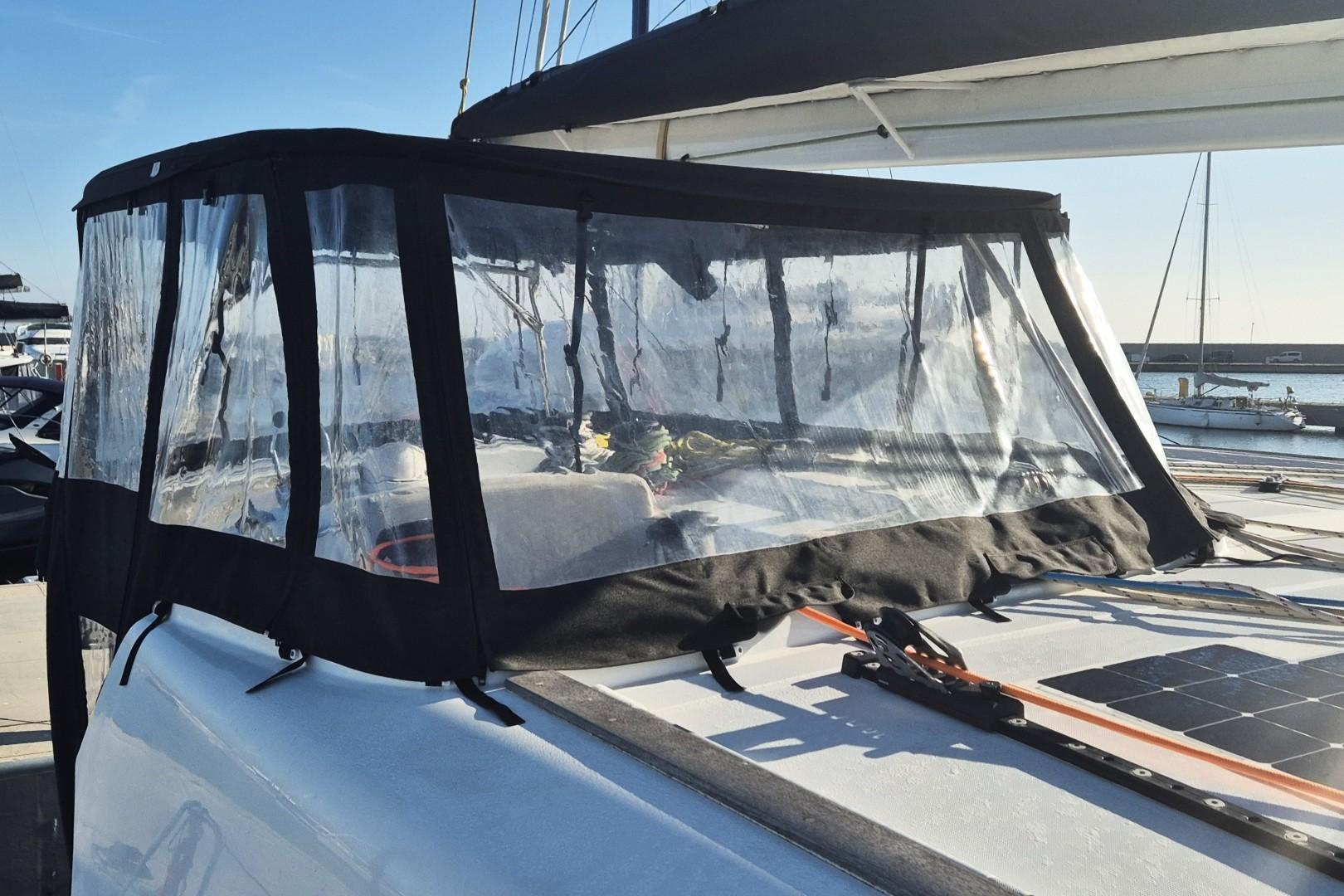

•    Bimini with helm area
•    Composite helm wheel

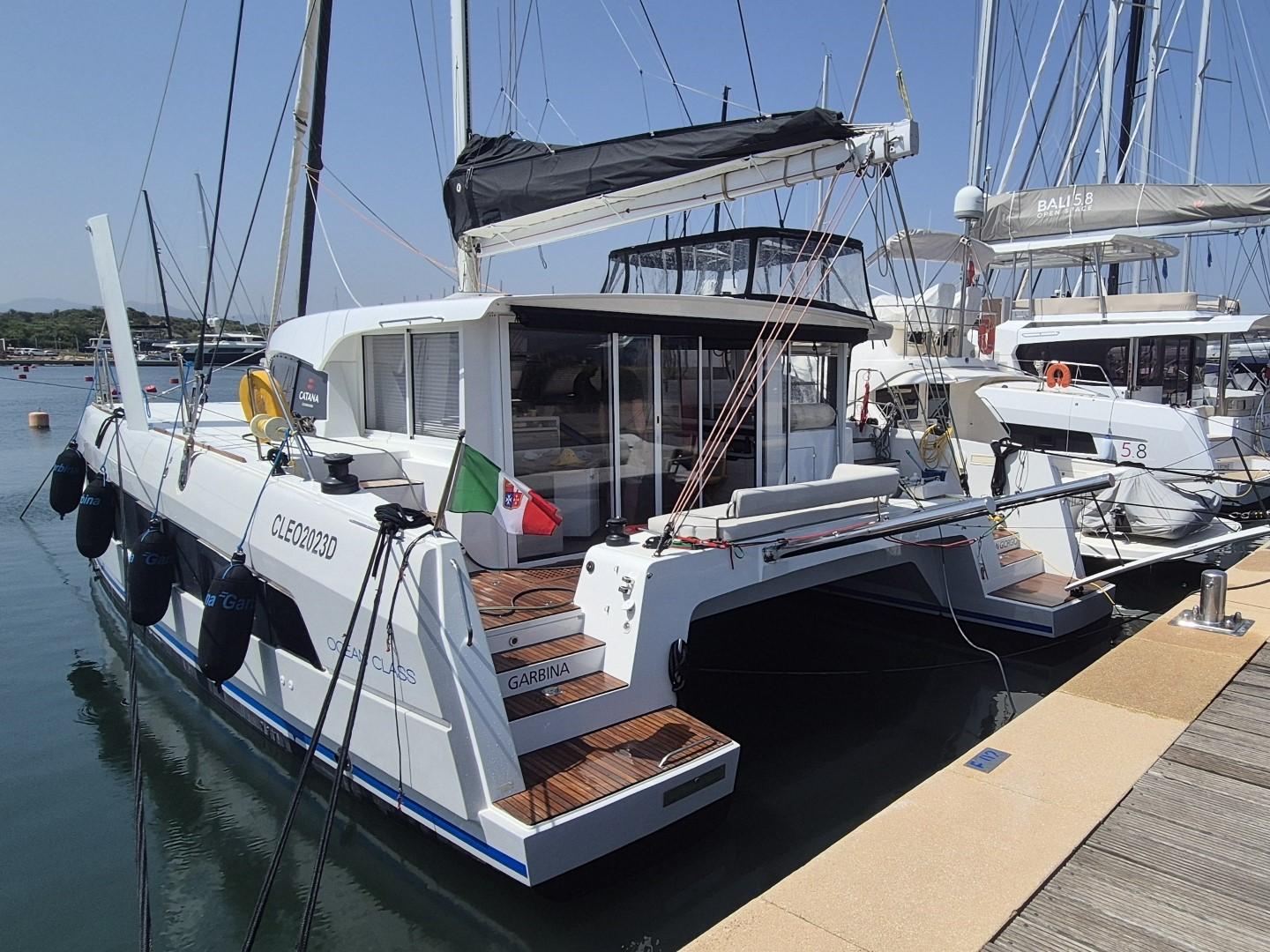

•    Teak laid aft cockpit and bathing platforms
•    Aft sunshade with carbon poles
•    Composite folding passerelle
•    Underwater LED lights
•    Seawater pump system
•    Raymarine instrument package with Axiom 19” and 12” displays, Quantum CHIRP solid-state radar scanner, autopilot, i70 multi-displays, AIS and VHF
•    GenSet GVI 12500 12.5kw 220vAC 50Hz variable speed diesel generator
•    Victron MultiPlus 3000/120  120amp automatic battery charger with integral 3,000w inverter
•    400Ah Lithium (LiFePo4) service battery bank

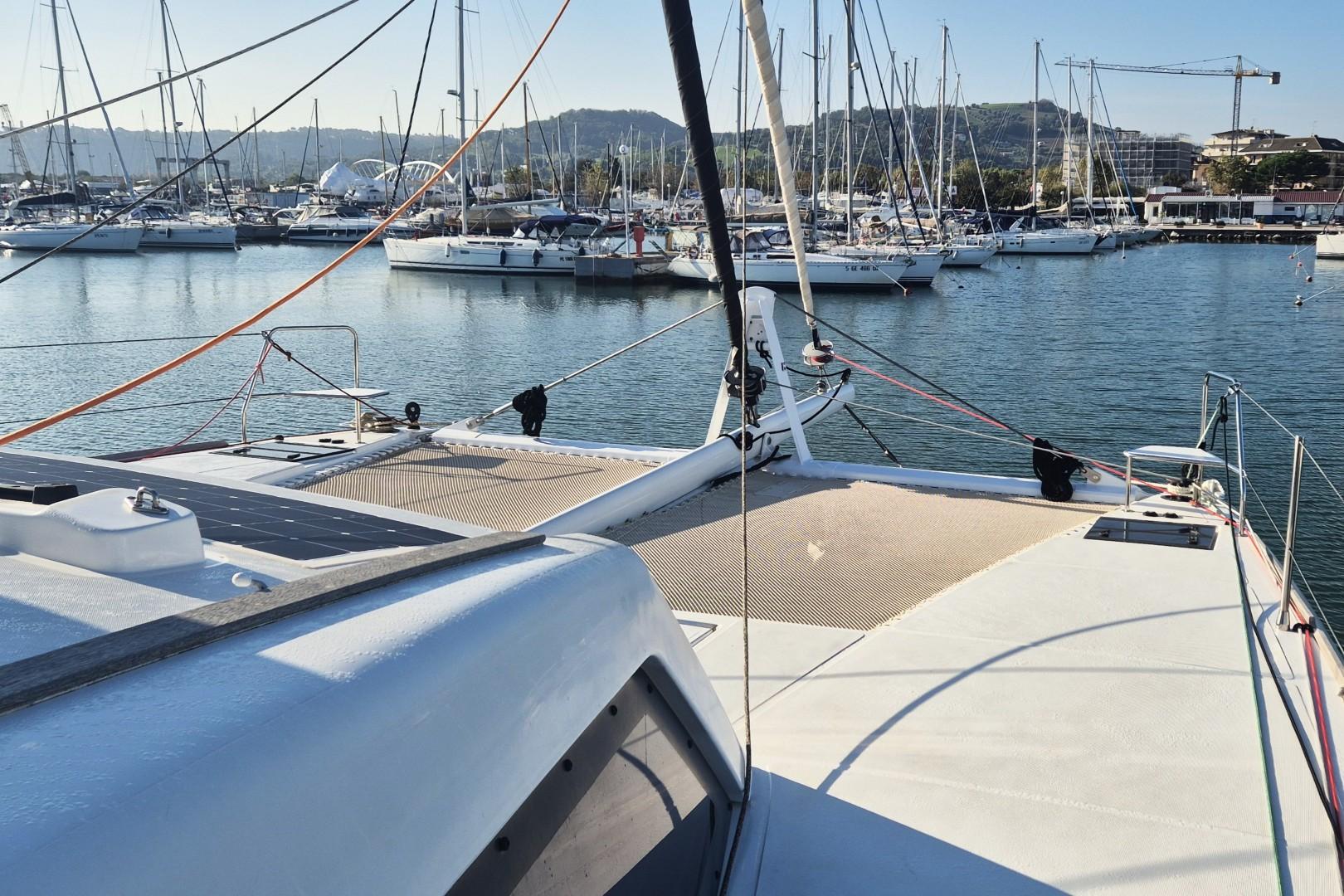

•    Solar panel installation on coachroof with 1,770w 12vDC output
•    100Amp DC-DC alternator boosters
•    Digital control panel at chart table monitoring tank levels, batteries and alarm management
•    Ecosistems Water-Pro S-90 modular 12vDC watermaker
•    3-cabin, 2-heads interior layout including owner’s hull to port with separate shower and heads compartments
•    Upgraded interior upholstery
•    Frigomar 220vAC reverse-cycle air-conditioning system with 32,000BTU output for saloon and 21,000BTU for accommodation cabins
•    Towel dryer in owner’s bathroom
•    Fusion Bluetooth stereo system
•    Starlink antenna
•    GN Espace electric galley with induction hob and oven/grill
•    Microwave oven
•    Fridge and freezer
•    Filtered fresh water supply
•    6kgs washer/dryer
•    Jabsco fresh-water flush electric heads
•    Black and grey water treatment plant

EU VAT paid, Italian flagged and privately owned, GARBINA is now offered for sale as her owner wishes to go larger.

MANUFACTURER’S COMMENTS:

The culmination of two years of research by our naval architects and design teams, the new CATANA OCEAN CLASS set standards for luxury and exception in Blue Water Cruising. She is as light as she is strong, thanks to the mastery of “CARBON INFUSION” technology, now used on all Catana boats. Her new hulls and daggerboards have been the subject of hydrodynamic studies and really puts into context the pleasure of sailing at wind-speed, in absolute comfort and total safety.

The use of the latest industrial technologies such as carbon infusion, the use of the latest generation of foams and the know-how of Catana’s R&D teams have enabled us to significantly reduce the weight of the boat in order to increase its payload capacity and its volume of life while maintaining its performance.

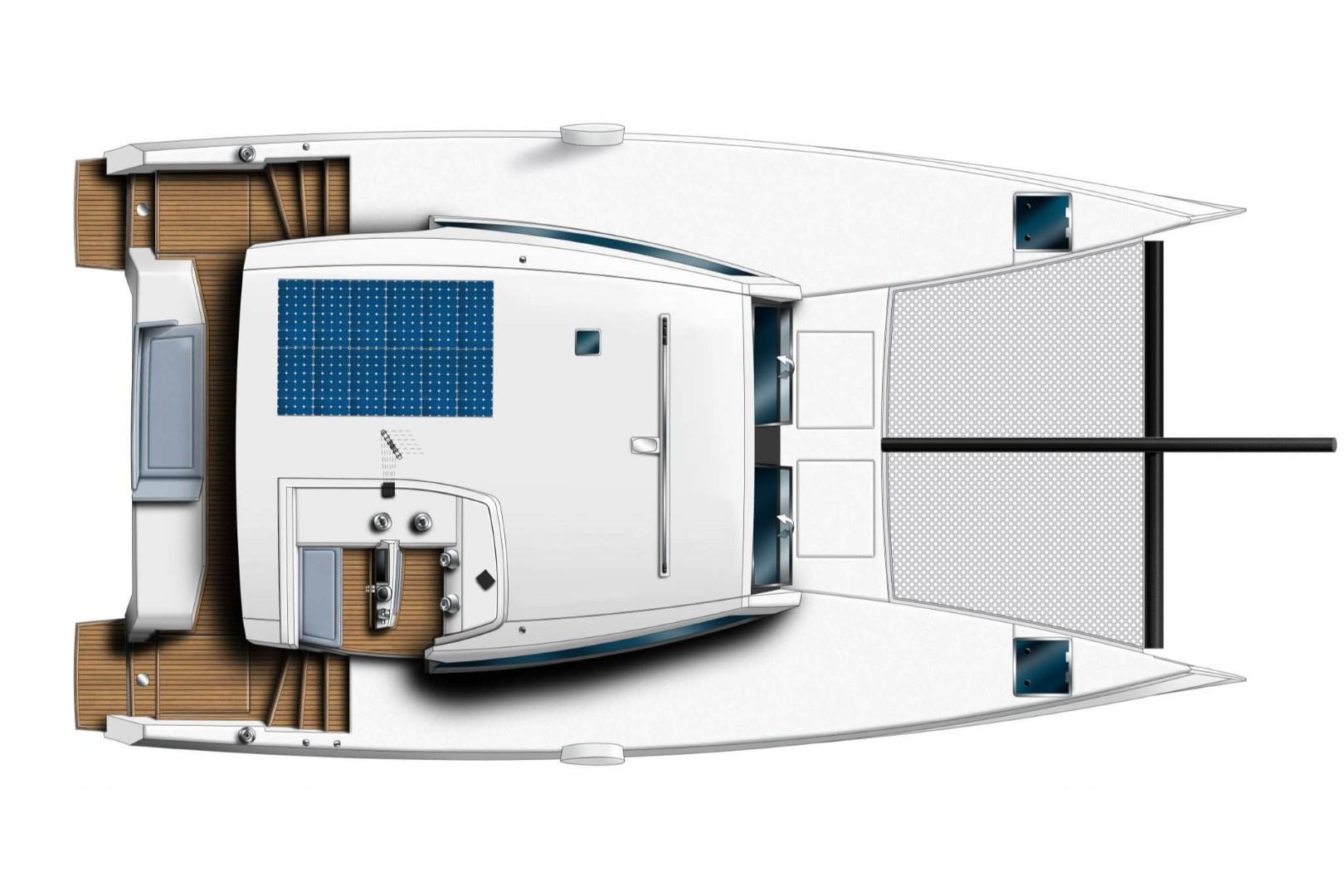

The new deck layout of the Ocean Class has been designed to meet the essential criteria for an ocean voyage: Safety, Simplicity & Conviviality.

It benefits from excellent visibility over both hulls and on the sugarscoops which makes manoeuvring easy and reassuring, while the compact ergonomics of the sailing hardware allow all adjustments to be made in one place, protected from the elements. This new living space can comfortably accommodate 5 people making it an ideal place to share good time together at sea.

CONSTRUCTION

RCD Status:
•    It is our understanding that the yacht conforms with the essential safety requirements of Directive 94/25EC (Recreational Craft Directive) and is categorised Cat. A (8 passengers)

Hull & deck Construction:
•    Hulls and deck in PVC/glass and carbon cloth sandwich infused by Vinylester resin with anti-osmotic qualities.
•    Coachroof, chainplate reinforcements and omega hull and deck reinforcements in carbon cloth impregnated with Vinylester resin.
•    Main structural bulkheads (PVC/carbon cloth sandwich) infused with Vinylester resin with monolithic UD carbon fabric angle.
•    Bilges painted in light grey.
•    Hull finish in grey gel coat
•    Matt finish under nacelle
•    Finish under nacelle leading edge and aft beam in gloss.
•    White gel coat deck with integrated non-slip
•    Natural teak laid cockpit and transom steps
•    Hull-deck joint by gluing with lamination at the stress zones (leading edge, chain plates, beam and compression beam cleats)
•    The entire hull/deck unit is a one-piece, non-deformable structure with exceptional stiffness and durability.
•    The hull/deck/main bulkhead joints are ensured by carbon fibre structural bonding and filleting.
•    Black antifouling with epoxy primer

Keel and Rudder:
•    Composite daggerboards sliding on PTFE bearings without wells
•    Daggerboards electrically operated from the helm station
•    Suspended balanced rudder blades, mounted on JP3 spherical self-aligning bearings

MACHINERY

Engine & gearbox:

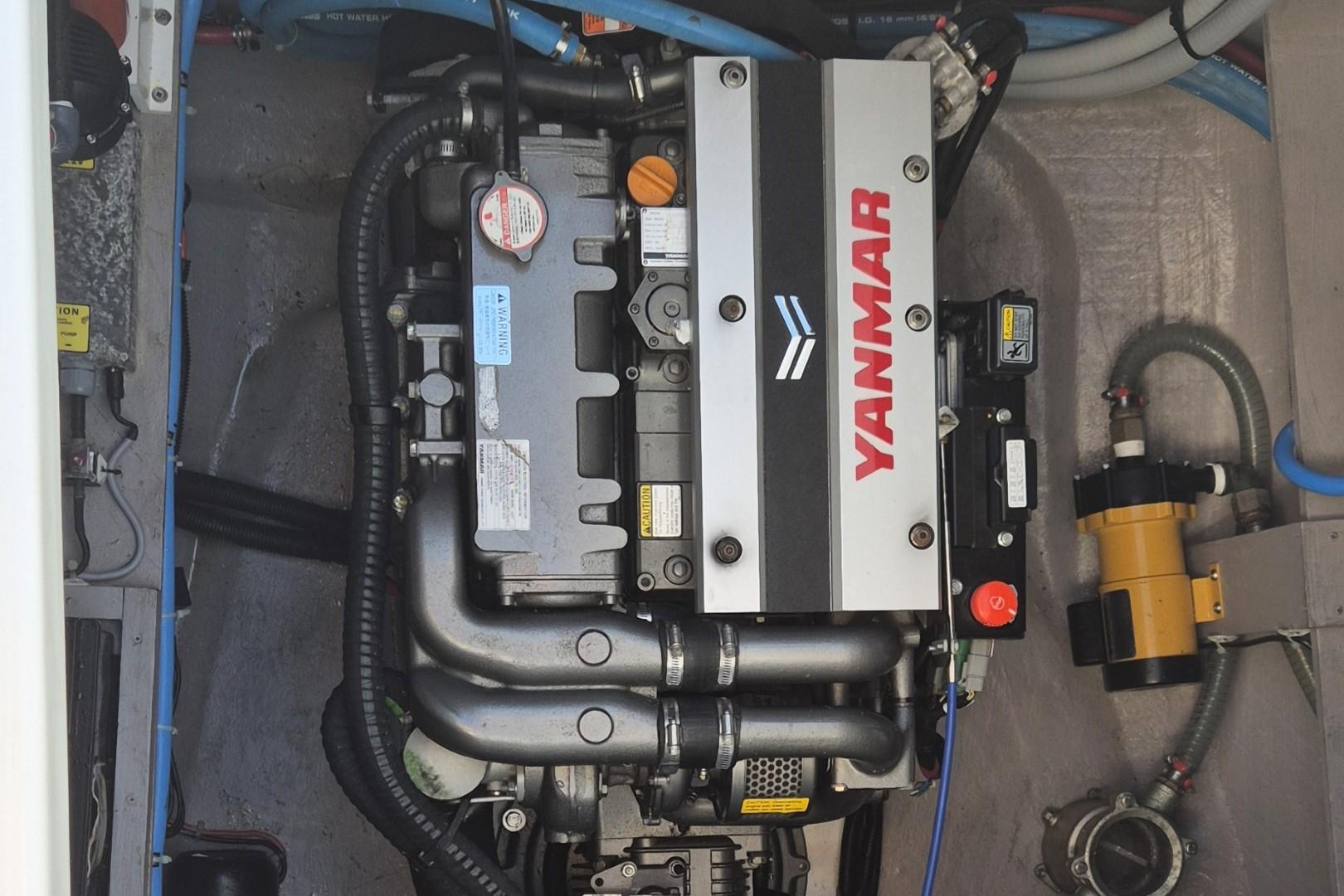

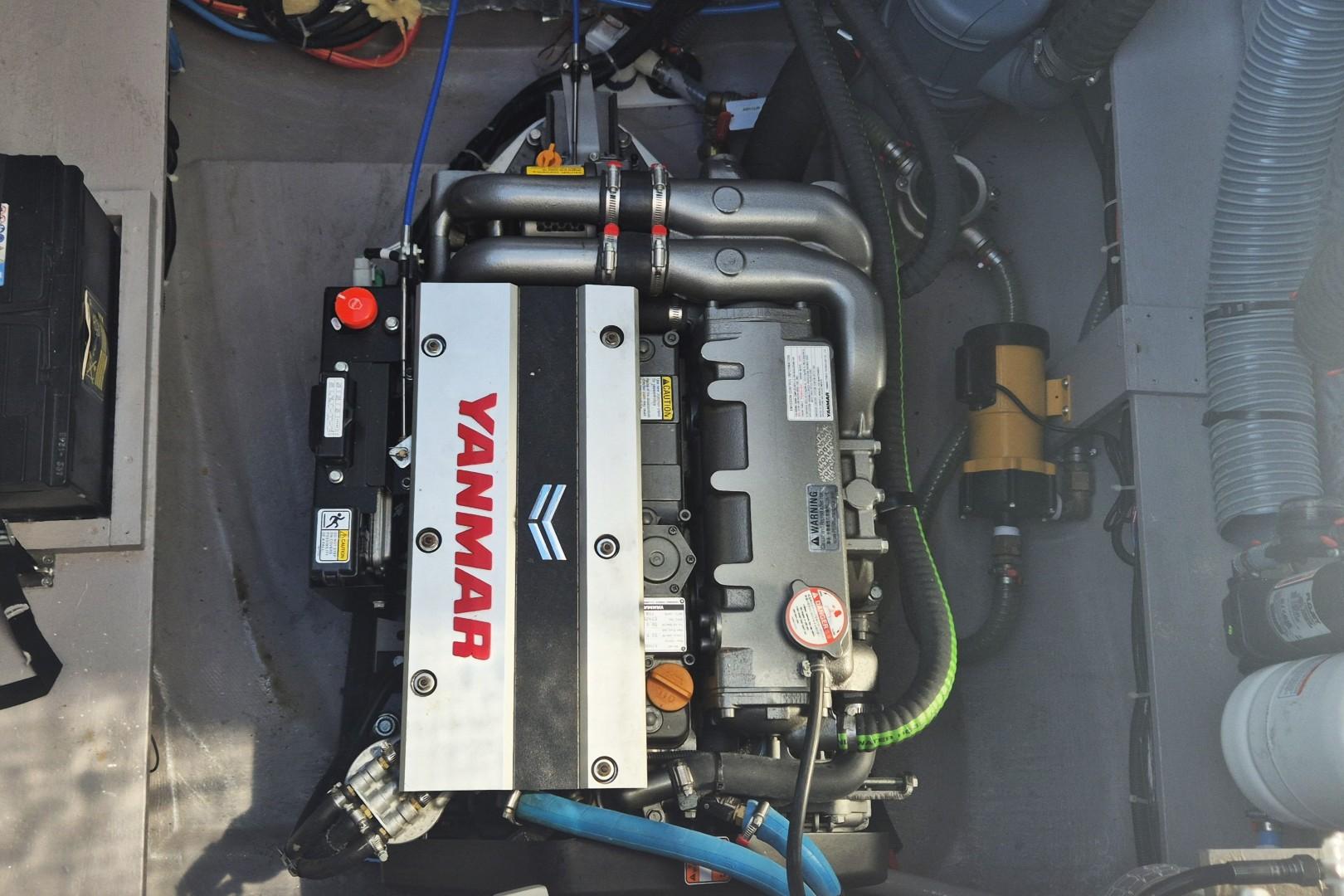

•    2x Yanmar 4JH80 direct Injection, Bosch Common Rail System, turbocharged & Intercooled diesel engines producing 80hp (58.8kw) @ 3,200 RPM
•    Fresh water engine cooling via raw water intakes and heat exchangers
•    Yanmar SD60 saildrive gearboxes
•    Ultraflex B302 engine controls at the helm station
•    Twin Yanmar digital engine displays at helm
•    Diesel filter / water separator per engine

Service & Maintenance:
•    Engine hours – approx. 400 as of 2025
•    Date of last engine service – summer 2024

Propulsion & Steering:
•    2x MaxProp 4-bladed feathering propellers
•    Sleipner 24vDC  ERV170 eVision 170kg variable speed retractable bowthruster with joystick control at helm
•    Carbonnautica composite 1000mm diameter helm wheel
•    Mechanical transmission steering system with Dyneema lines and ultra low friction ball bearings
•    Emergency steering gear

ELECTRIAL SYSTEMS

Voltage systems:
•    12vDC primary domestic system with 12vDC starting circuit, 24vDC supply for bowthruster and 220vAC via generator, inverter or shorepower.
•    Digital control panel at chart table monitoring tank levels, batteries and alarm management

Battery Banks:
•    12vDC 400Ah Lithium (LiFePo4) service battery bank
•    2x 12vDC engine start batteries
•    1x 12vDC generator start battery
•    24vDC Bowthruster battery bank

Charging / Inverter:

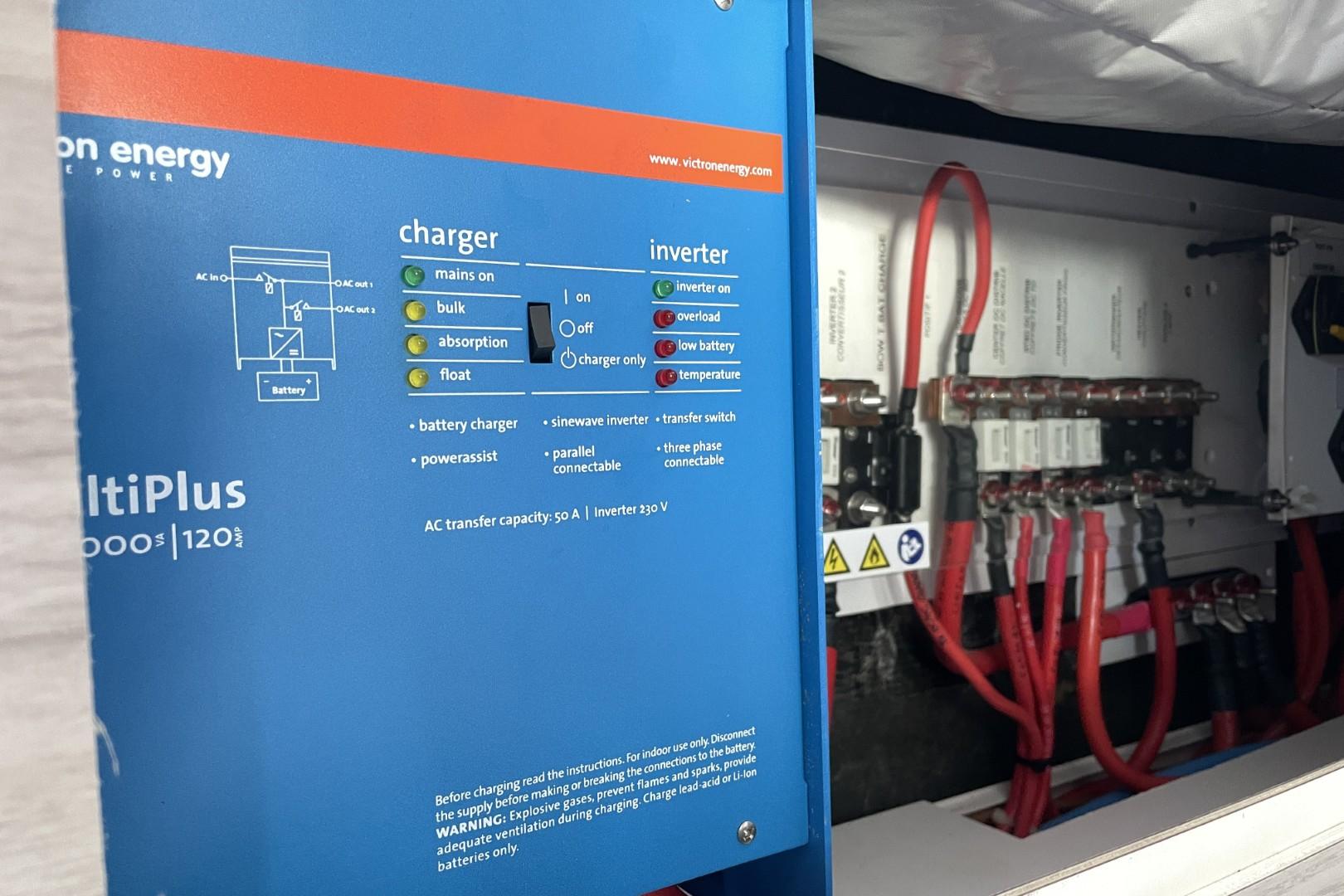

•    Victron MultiPlus 3000/120 12vDC 120amp automatic battery charger with integral 3,000w inverter with Multicontrol panel at chart table

Generator:

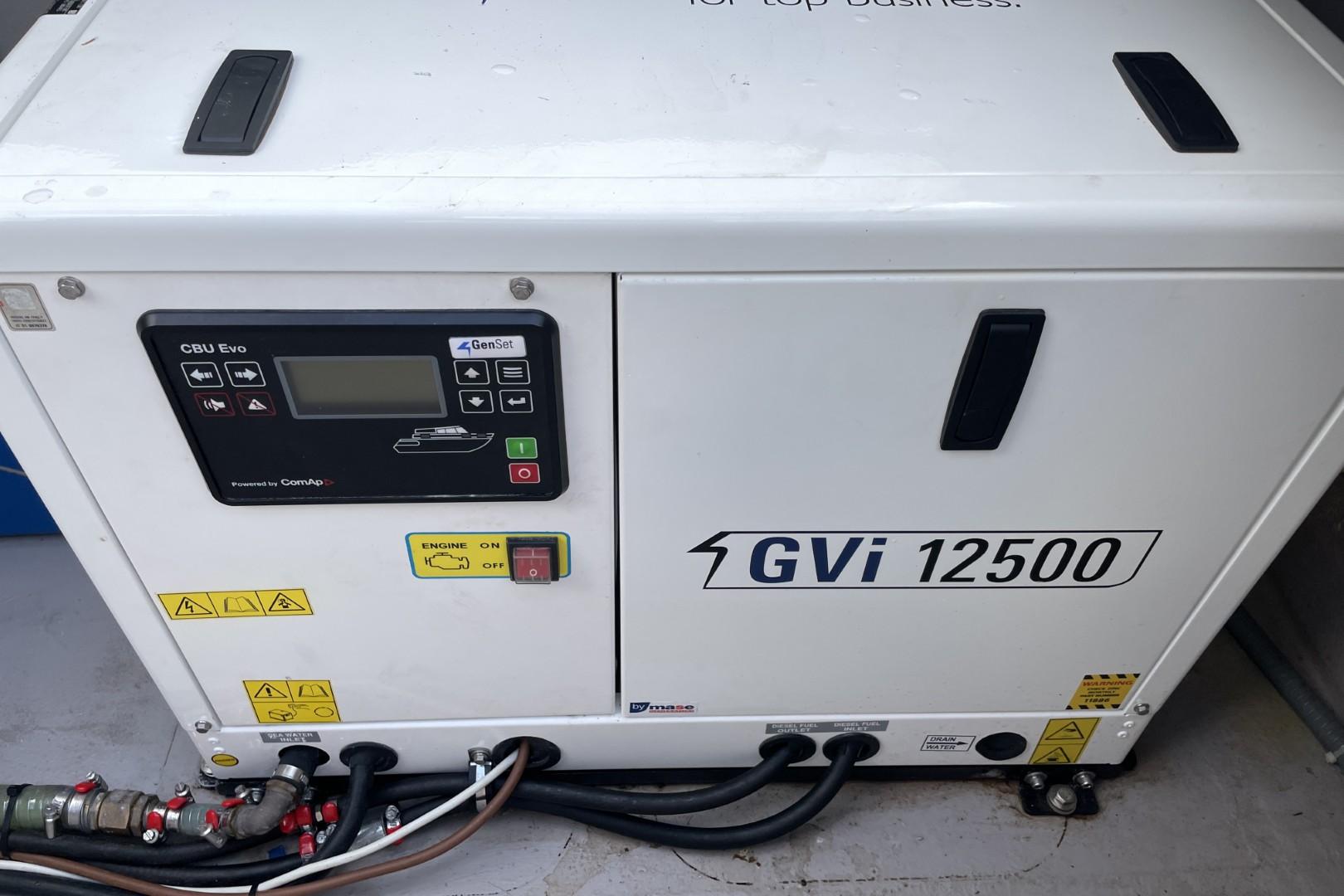

•    GenSet GVI 12500 12.5kw 220vAC 50Hz variable speed diesel generator with digital control panel at chart table
•    Generator hours –  tbc

Alternators:
•    2x 12vDC 125Amp engine-mounted alternators
•    2x 12vDC 100Amp DC-DC alternator boosters

Solar panels:

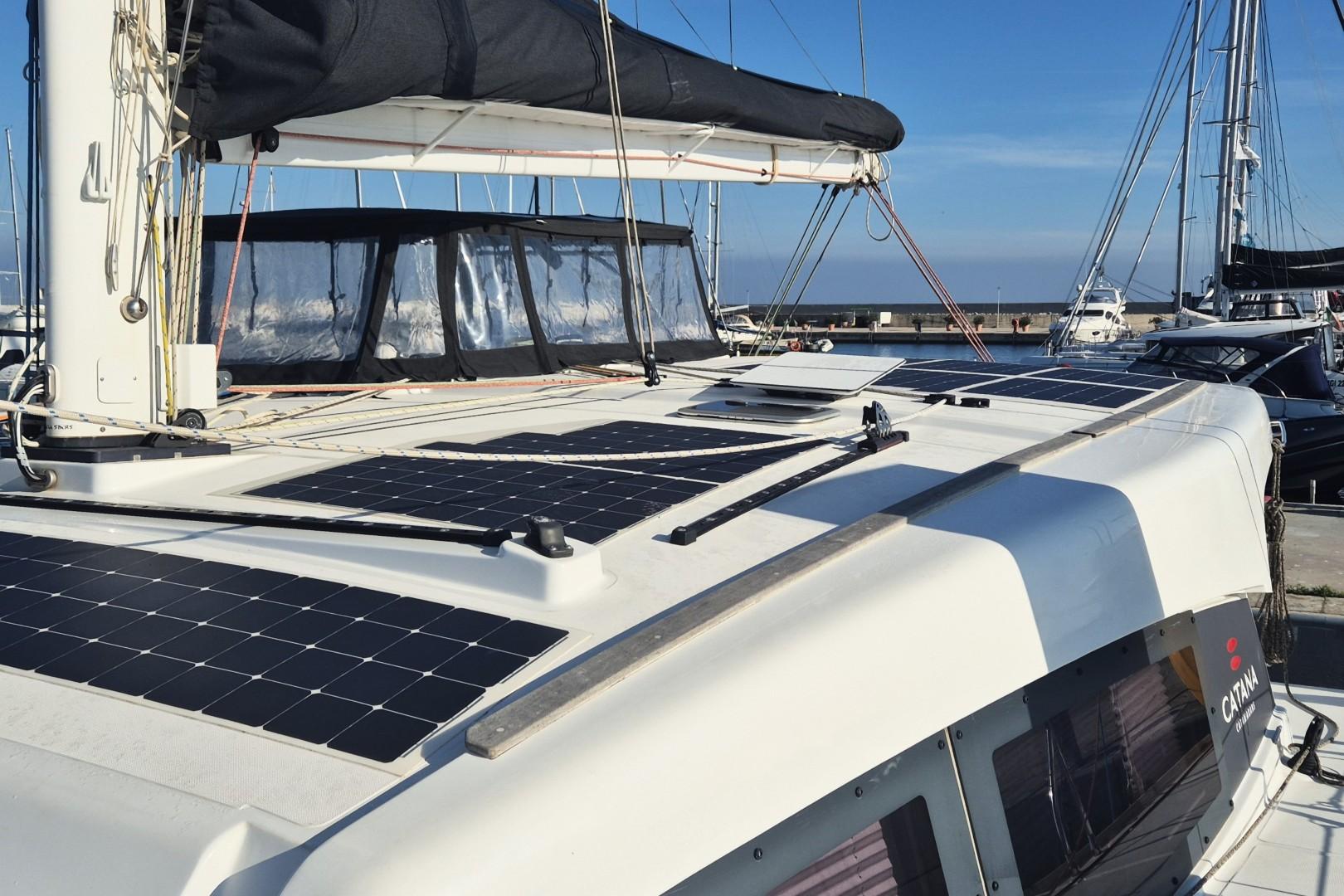

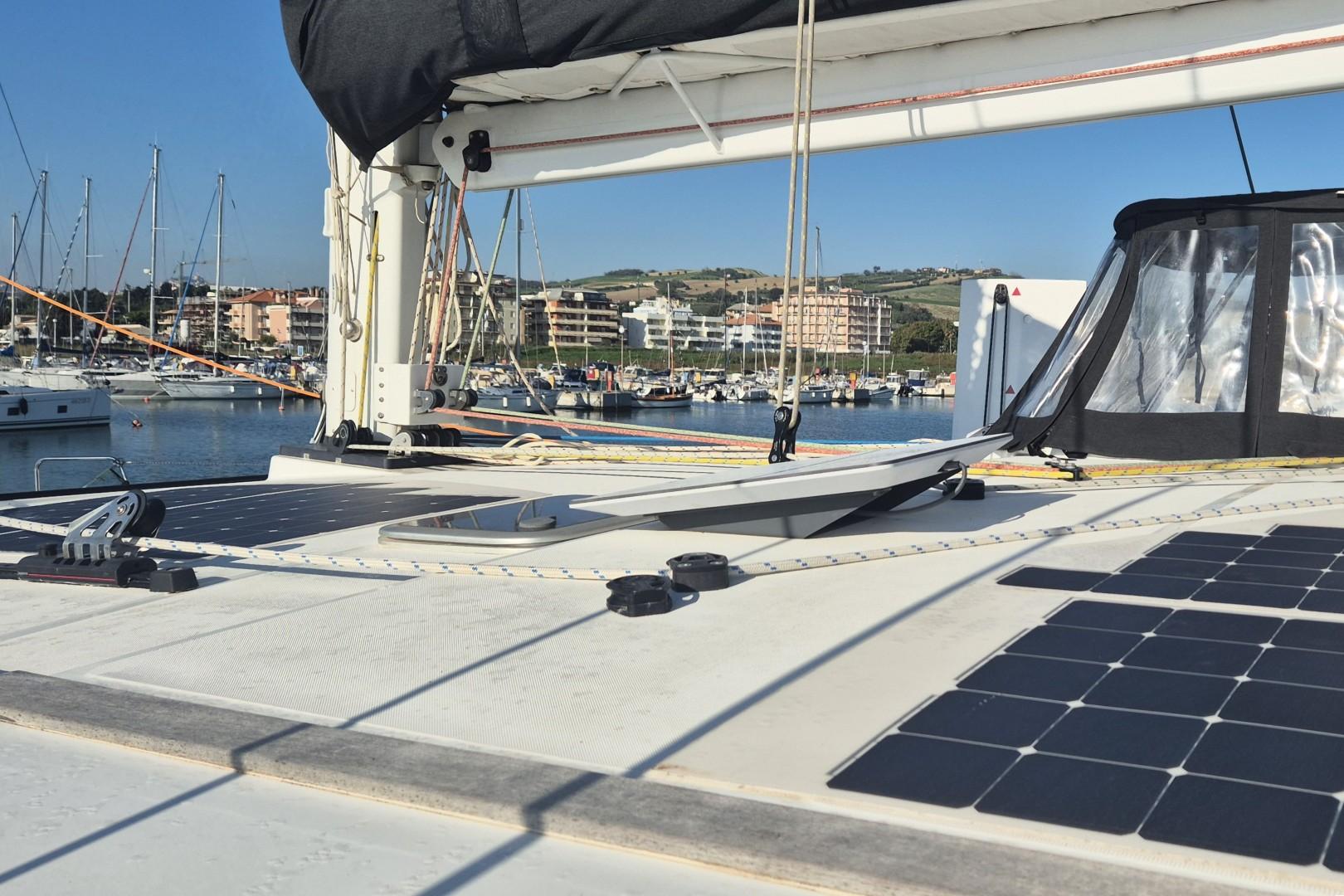

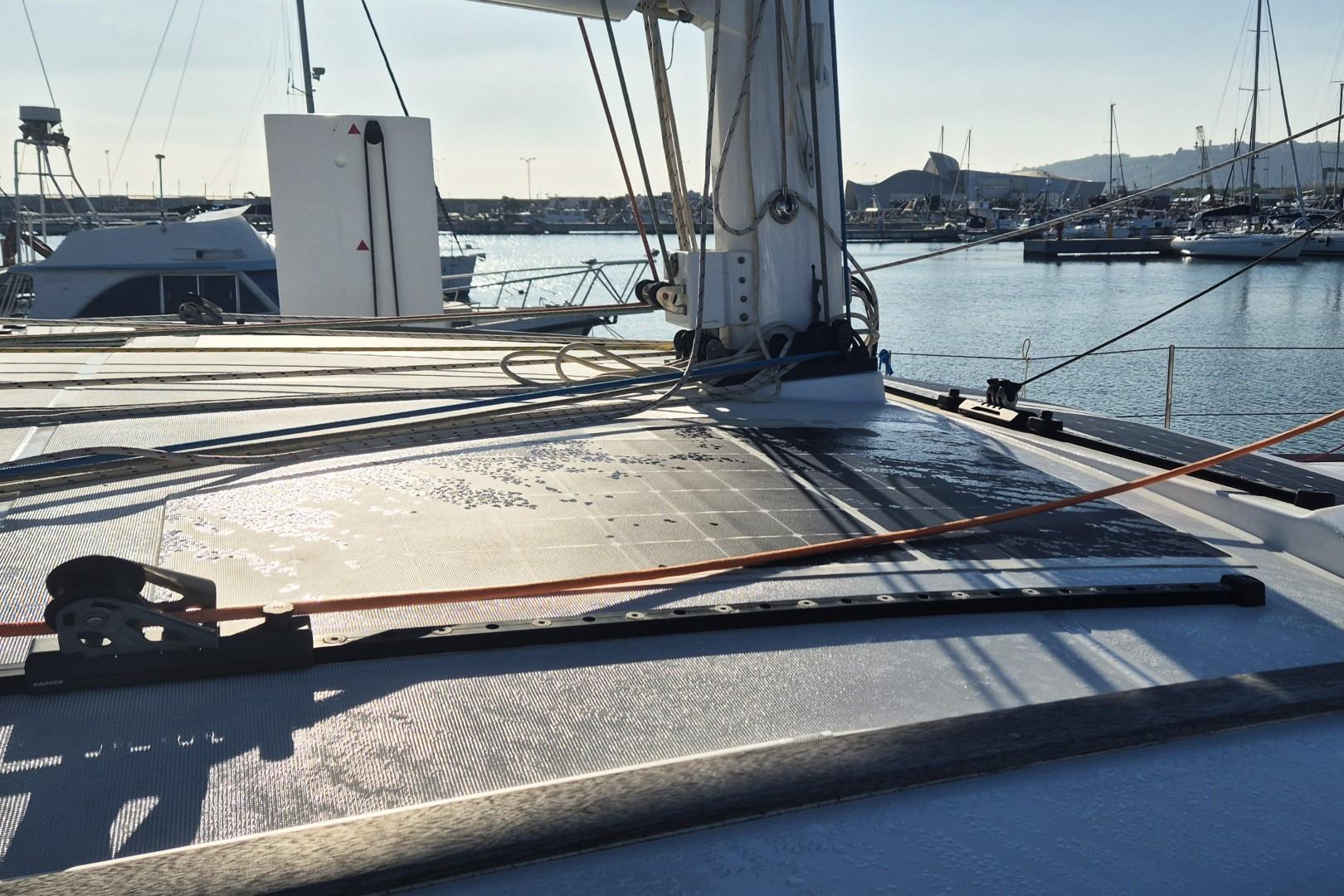

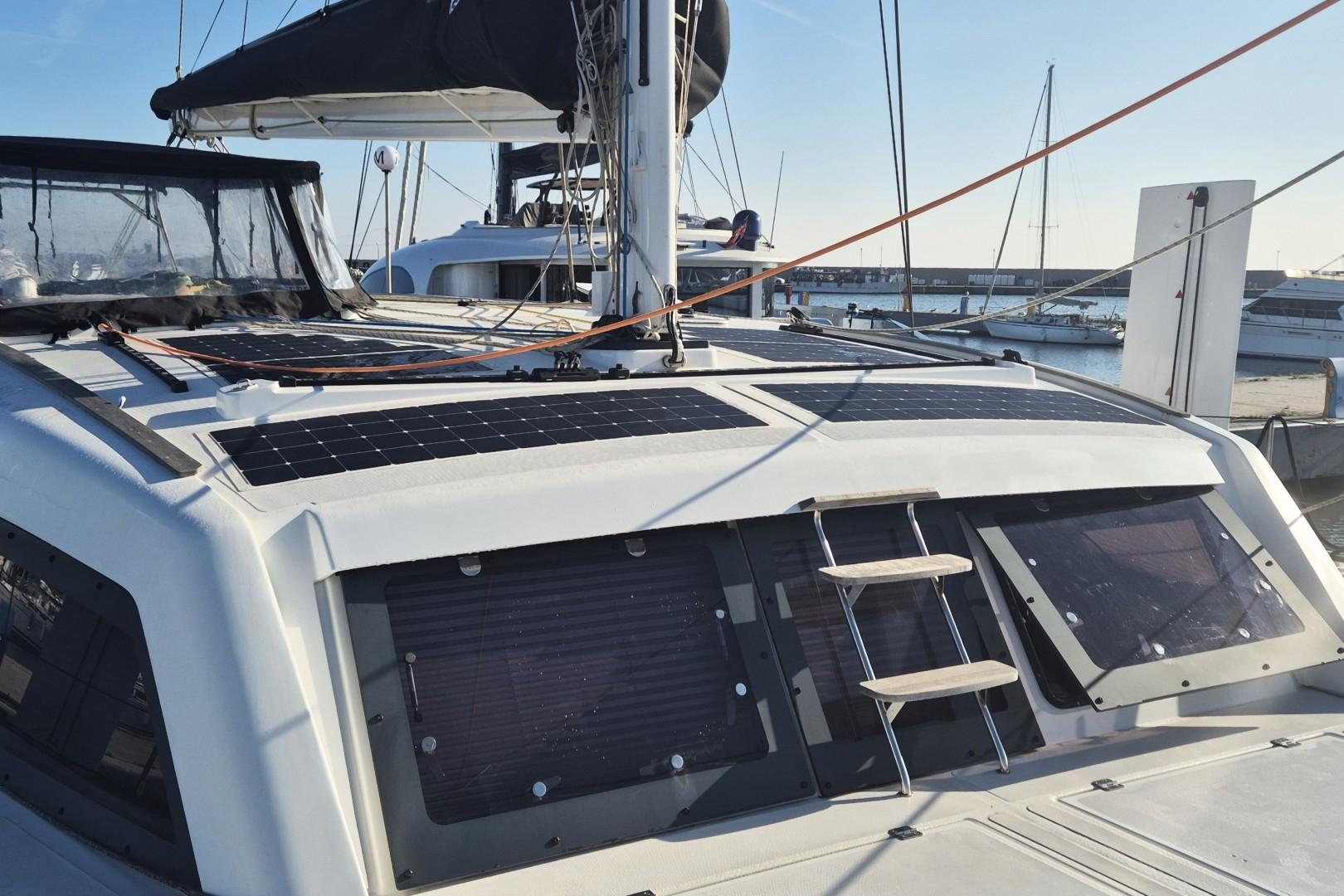

•    Solar panel installation on coachroof with 1,770w 12vDC output
•    MPPT chart controller

Shore Power
•    220vAC 50Hz shorepower supply with RCD and internal ring main

PLUMBING & GAS SYSTEMS

Fresh Water:
•    Pressurised fresh water supply via 12vDC high pressure pump system with accumulator tank and safety interconnection system
•    Hot water supply via engine-driven calorifiers or via 220vAC immersions heater elements in 2x well-insulated 60 litre tanks
•    Additional filtered fresh water supply to galley

Salt Water:
•    Seawater pump with outlets in cockpit and anchor locker

Watermaker:

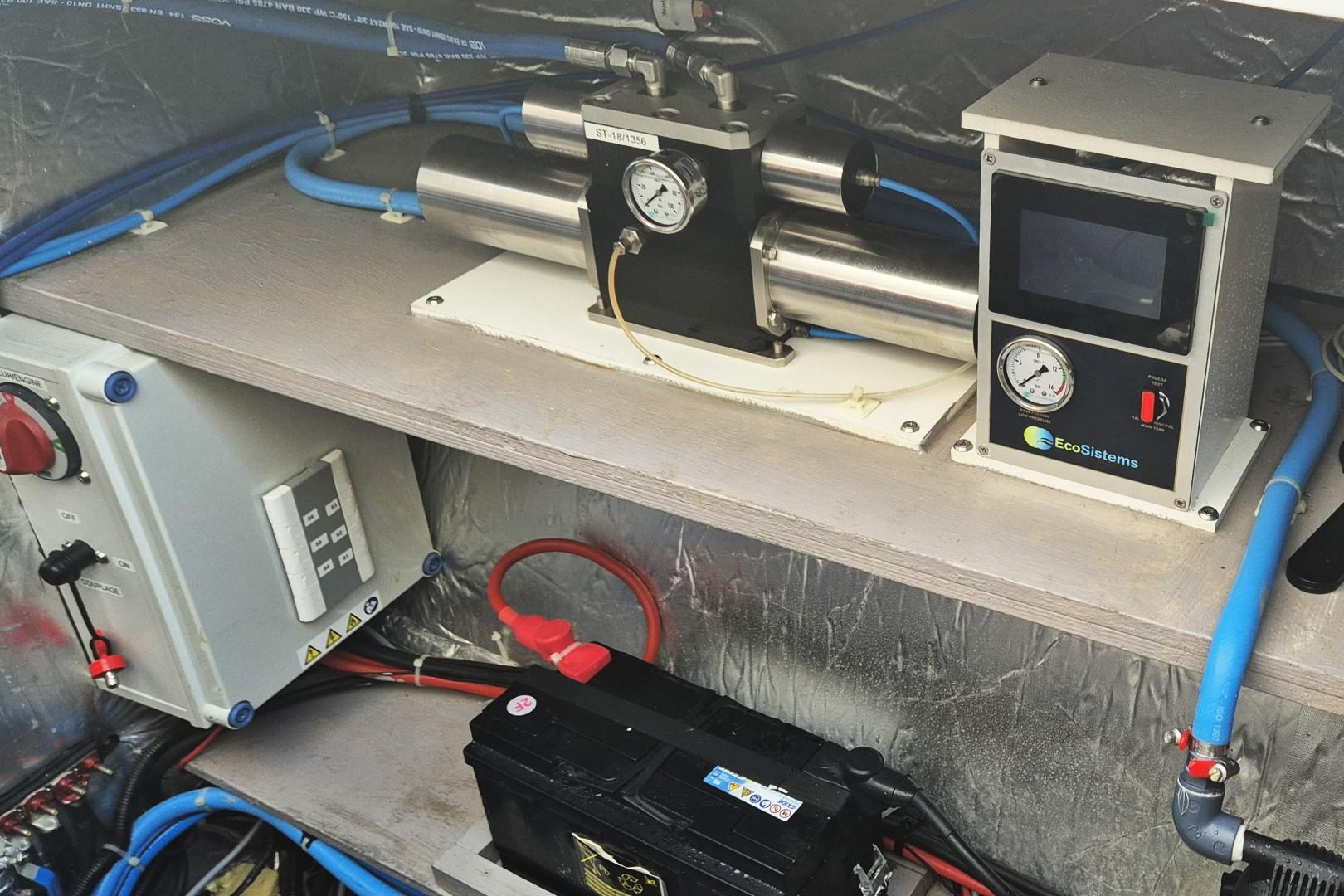

•    Ecosistems Water-Pro S-90 modular 12vDC watermaker producing approx. 90 litres per hour with remote control, automatic flushing and galley testing outlet

Bilge Pumps:
•    4x 12vDC automatic electric bilge pumps with visual alarm at chart table
•    4x manual bilge pumps

Black and Grey Water:
•    Fully automatic black and gray water treatment plant
•    Showers 12vDC automatic shower sump pumps

TANKAGE

Fuel:
•    800 litres fresh water capacity in 2x 400 litre tanks
•    Tank level monitoring via display at chart table

Fresh Water:
•    800 litres fresh water capacity in 2x 400 litre tanks
•    Tank level monitoring via display at chart table

Holding Tanks:
•    Black and grey water holding tanks incorporated to water treatment plant system

NAVIGATION & COMMUNICATION EQUIPMENT

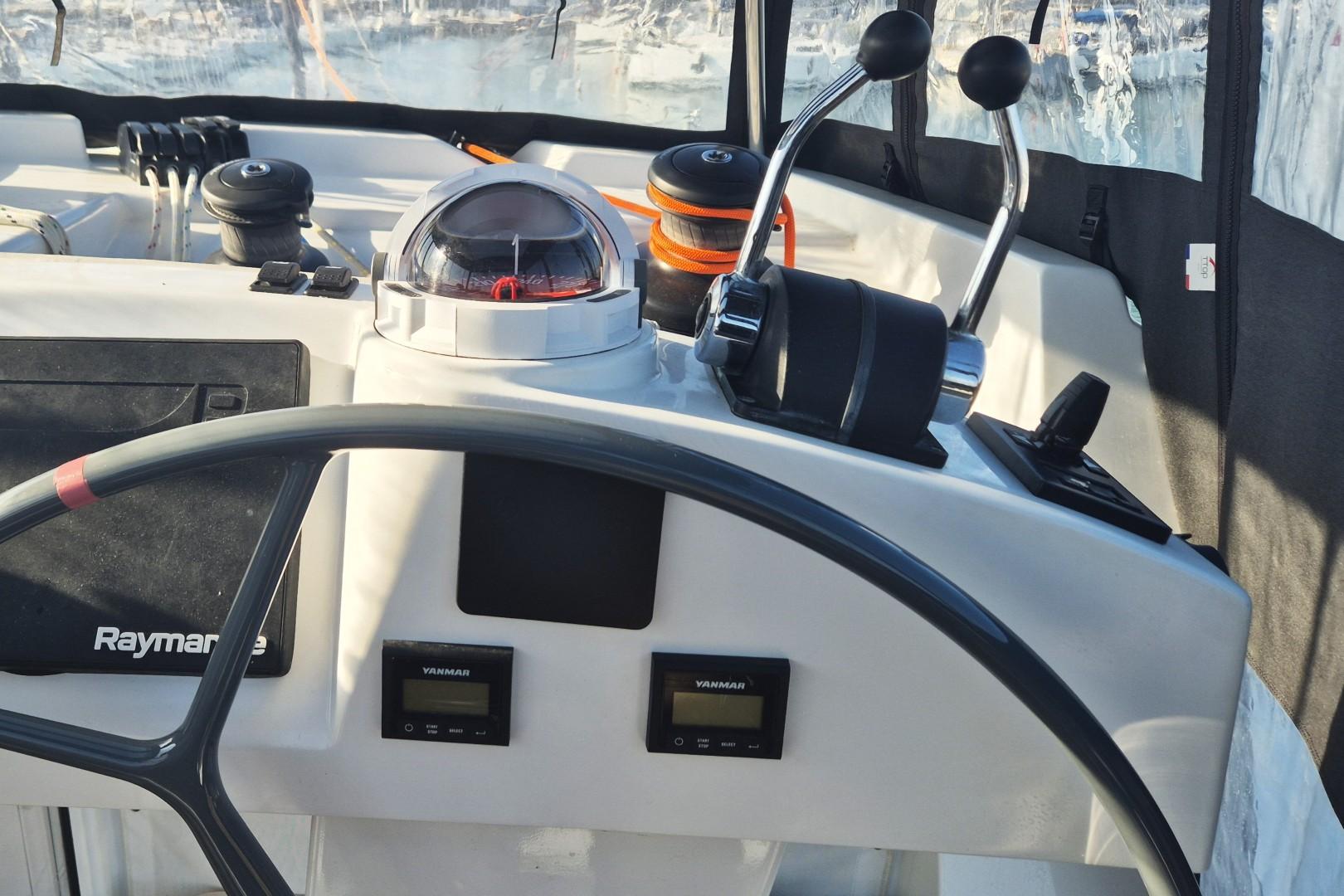

In Cockpit:

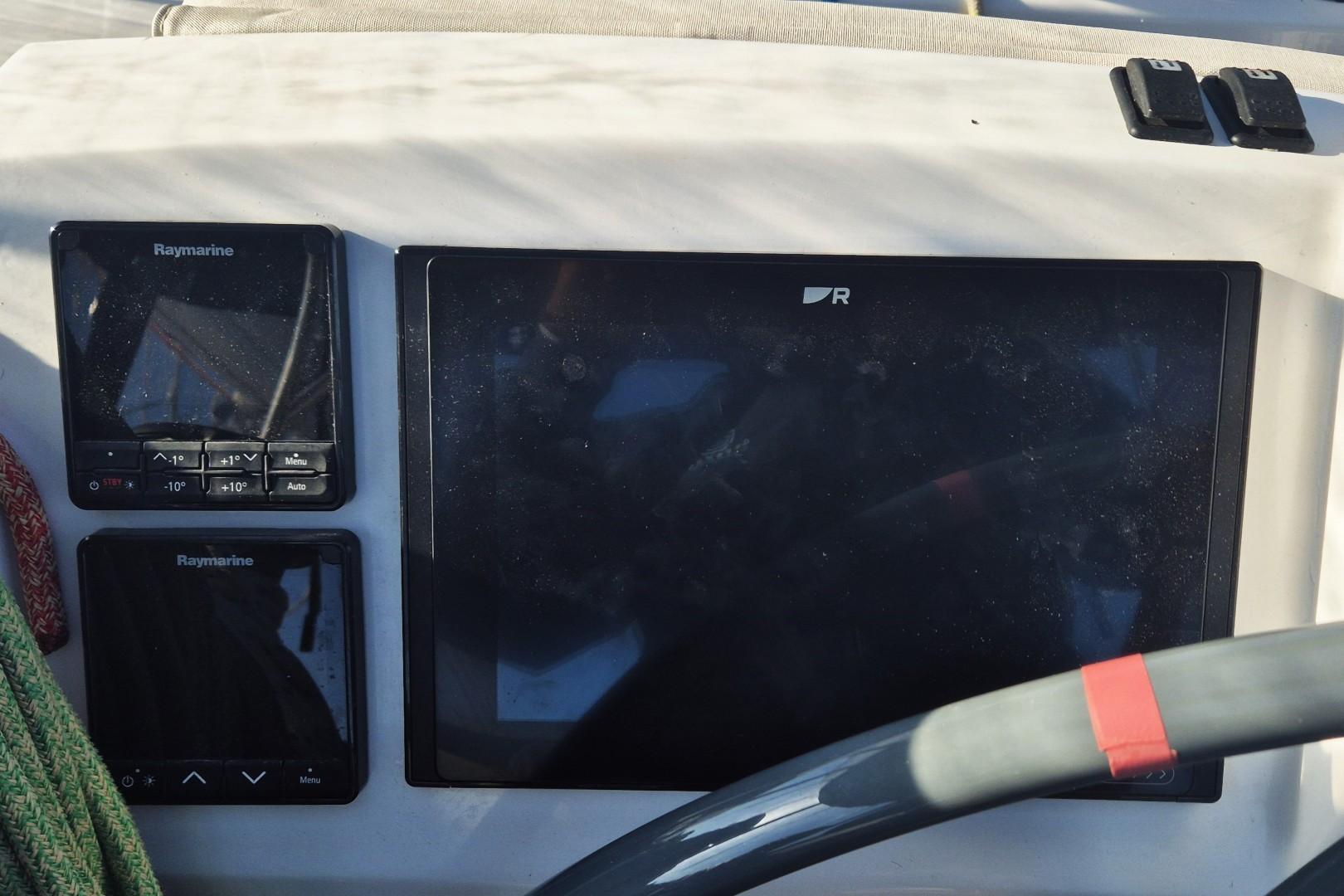

•    Raymarine Axiom+ 12” MFD chart plotter and radar display
•    Raymarine Quantum 18” solid state CHIRP closed-array radar scanner mounted to mast
•    Raymarine i70s multi-display with wind, speed and depth transducers
•    Raymarine P70s autopilot control
•    Raymarine AIS transceiver
•    Plastimo Olympic 135 steering compass

At Chart Table:
•    Raymarine Axion XL 19” MFD chart plotter and radar display
•    Raymarine i70s multi-display
•    Raymarine P70s autopilot control

Communications Equipment:
•    Raymarine Ray 63 VHF radio with DSC
•    Raymarine Ray 90 VHF radio remote station handset
•    Starlink antenna

DOMESTIC EQUIPMENT

Galley:
•    GN Espace 220vAC 3-zone built-in induction hot with sea-rails
•    GN Espace 220vAC electric oven and grill
•    Samsung 220vAC microwave oven
•    Combined front opening 267 litre fridge and 98 litre freezer
•    Inset 1.5 bowl stainless steel sinks with pressurised and filters fresh water supplies

Laundry:
•    220vAC 6kgs capacity washer/dryer

Heads:
•    Jabsco 12vDC electric fresh water flush toilets
•    Pressurised hot & cold fresh water supplies to sinks and showers

Heating & Ventilation:
•    Frigomar 220vAC reverse-cycle air-conditioning system with 32,000BTU output for saloon and 21,000BTU for accommodation cabins
•    500w towel dryer in owner’s cabin ensuite bathroom

Entertainment:
•    Fusion Bluetooth stereo system with saloon and cockpit speakers

Interior Lighting:
•    LED lighting throughout with dimmable recessed spotlights and reading lights

ACCOMMODATION




Summary of Accommodation:

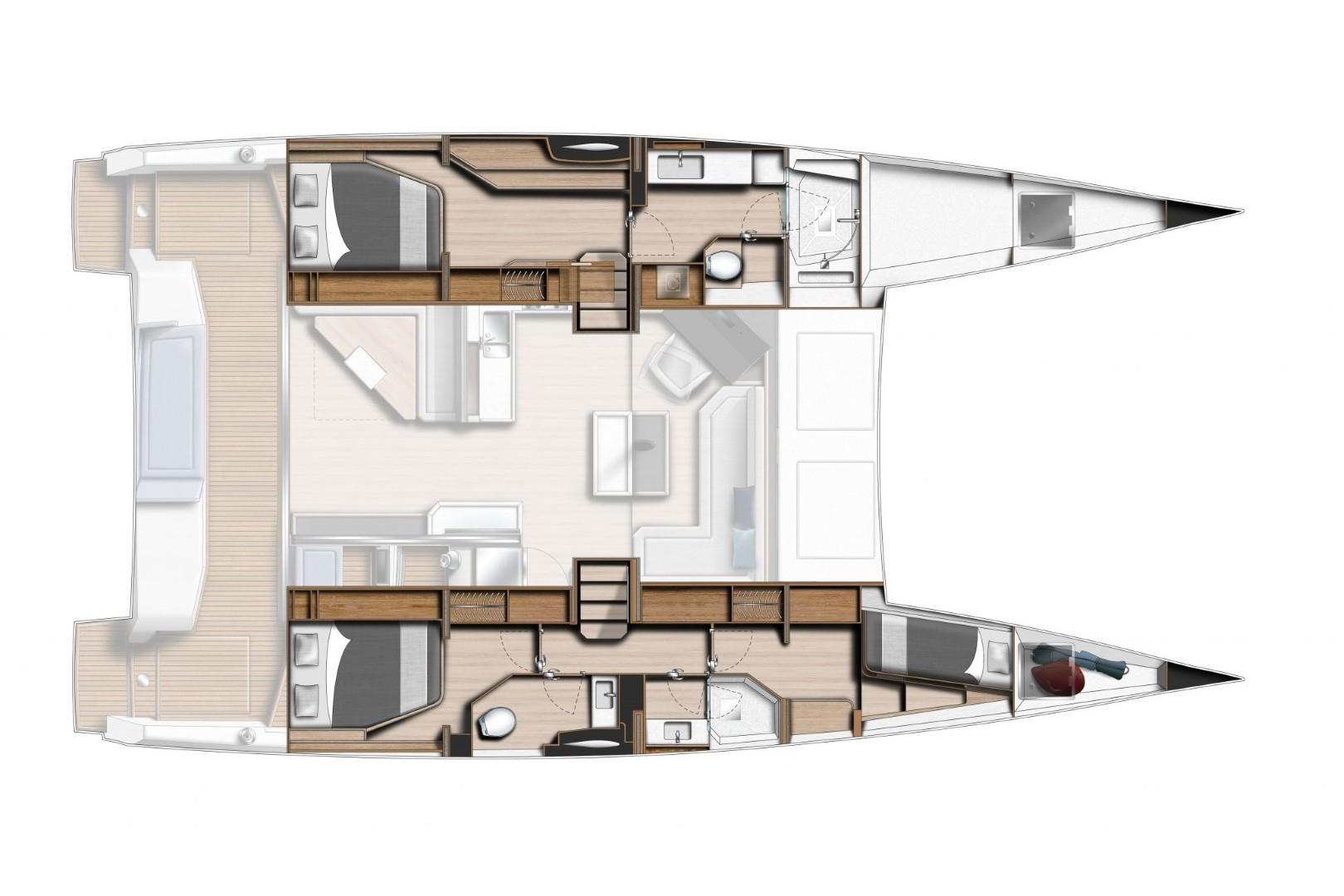

•    Owner’s Cabin layout with 3 double/twin cabins and 2 bathrooms
•    Port owner’s hull with starboard guest hull

Accommodation Finishes:
•    Fronts of the furniture : PVC foam sandwich, laminated décor
•    Laminated PVC foam sandwich floors in the hulls and PVC cladding on the nacelle
•    PVC ceiling and liner linings
•    Resin counters at galley and bathrooms
•    Blinds in hull sides and saloon (front, fixed side and sliding side windows at the rear)
•    Comfort interior upholstery : Curved profile, bi-material foam and saddle stitching - Linetex® fabrics : Bamboo LNT 3460

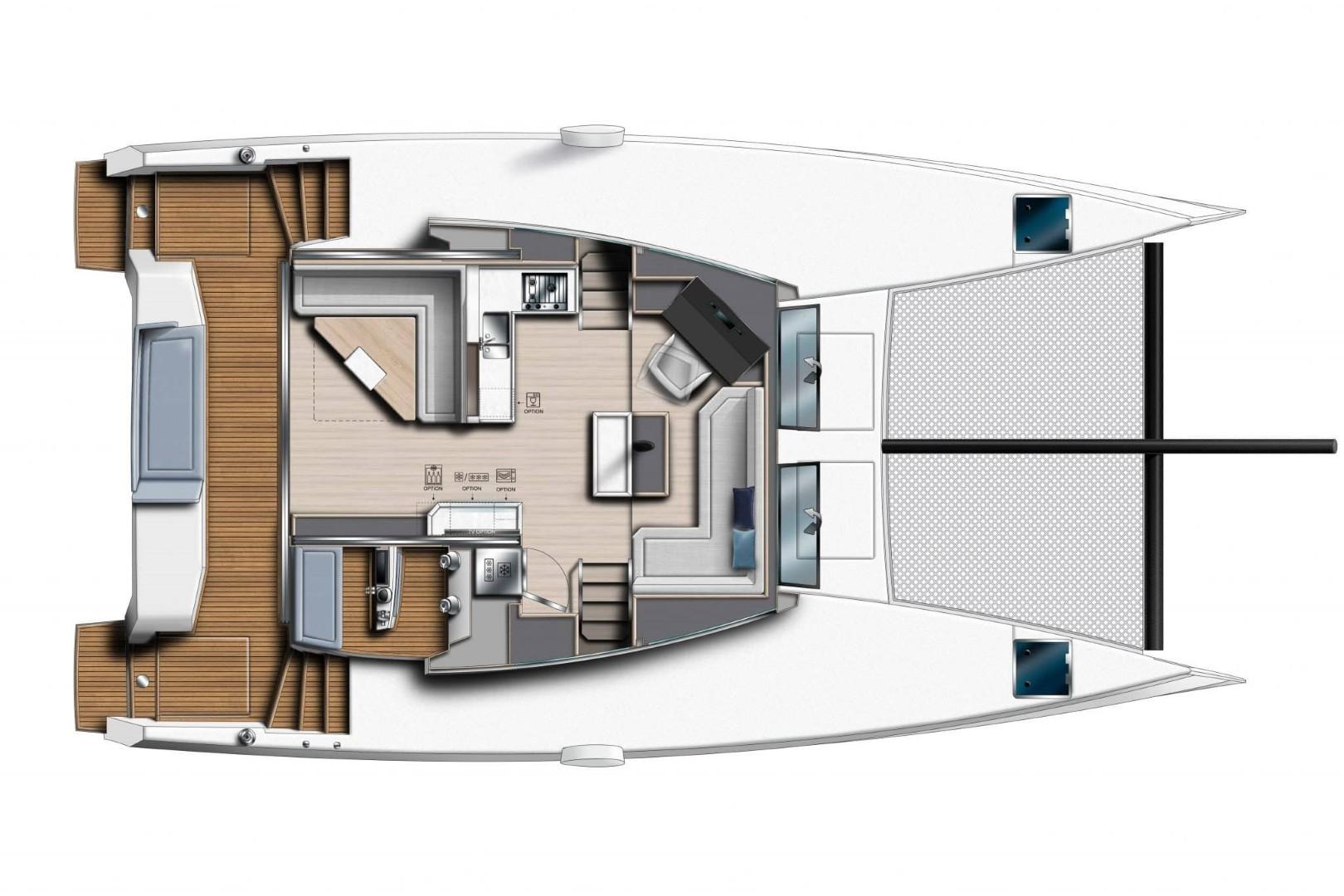

Accommodation layout:

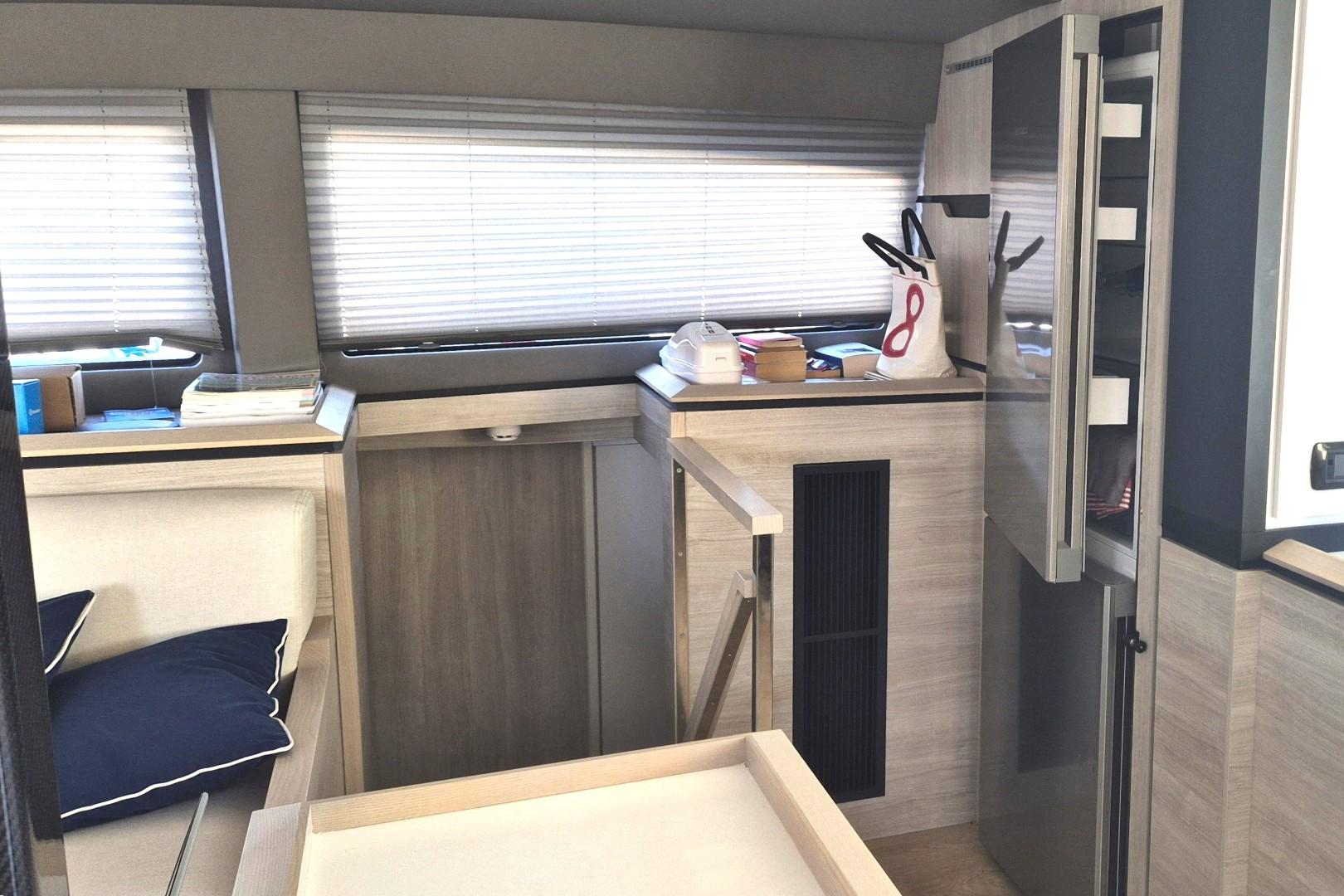

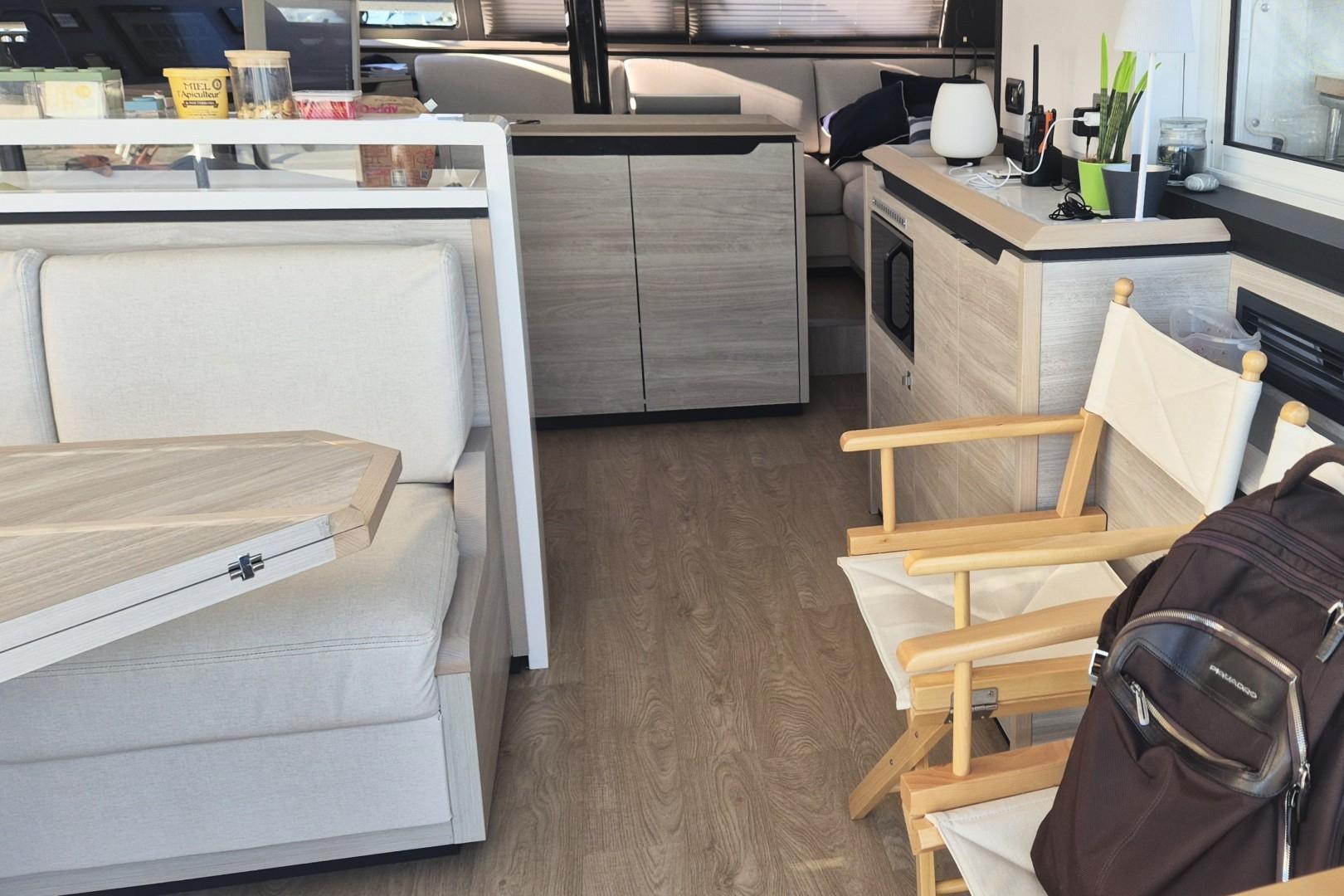

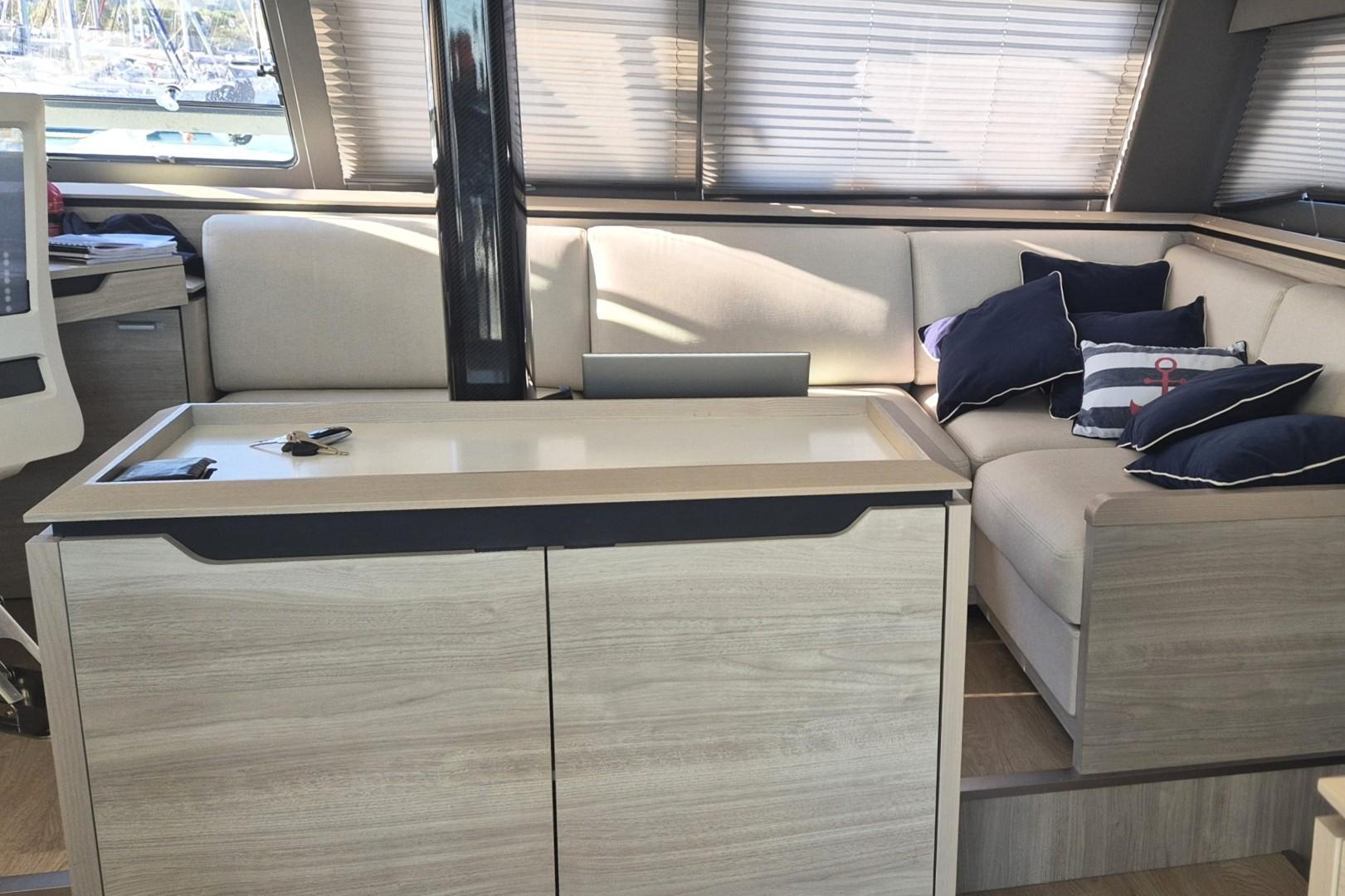

Saloon:

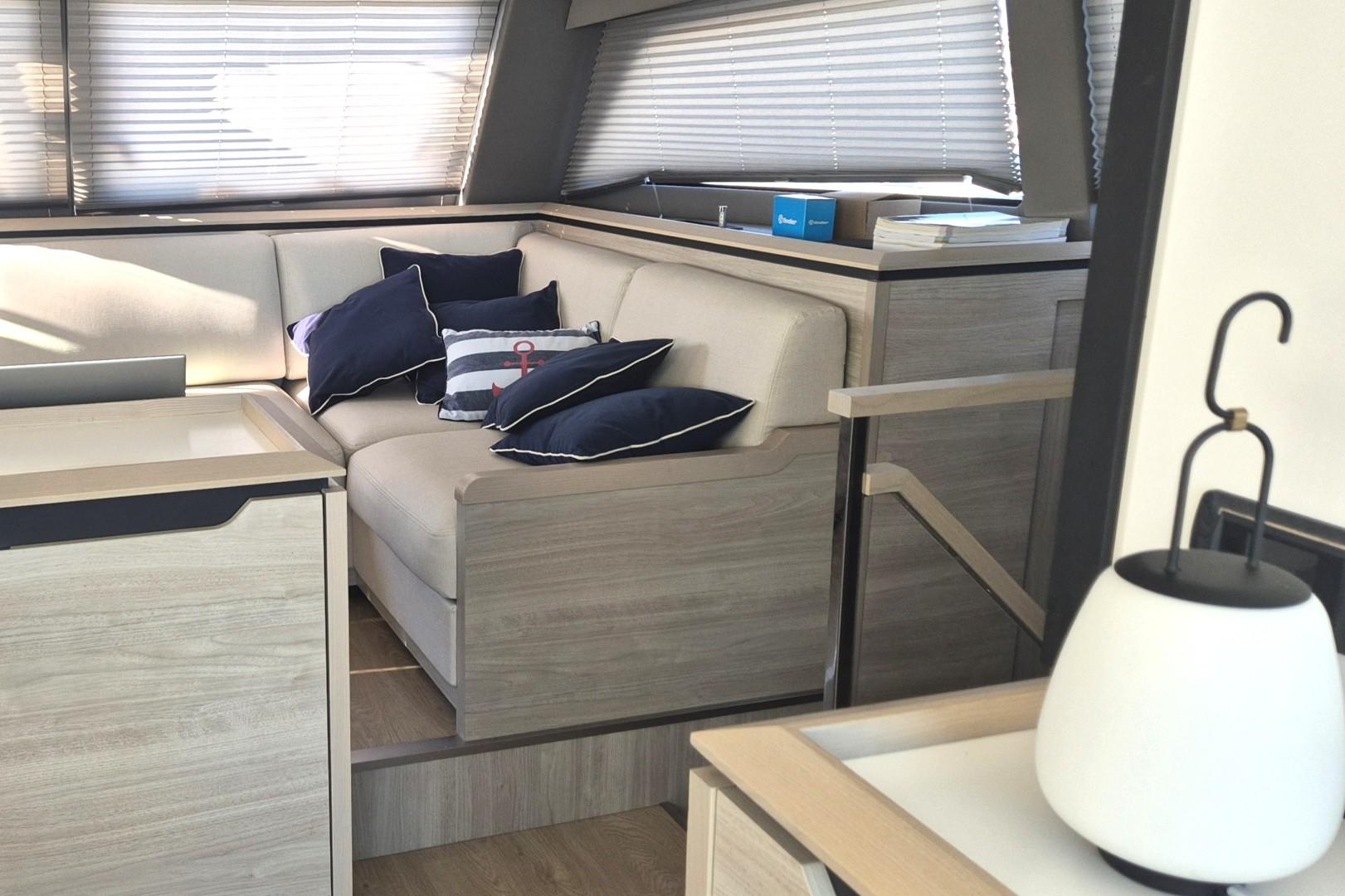

•    Deep L-shaped seat that can act as a watchkeeper’s berth

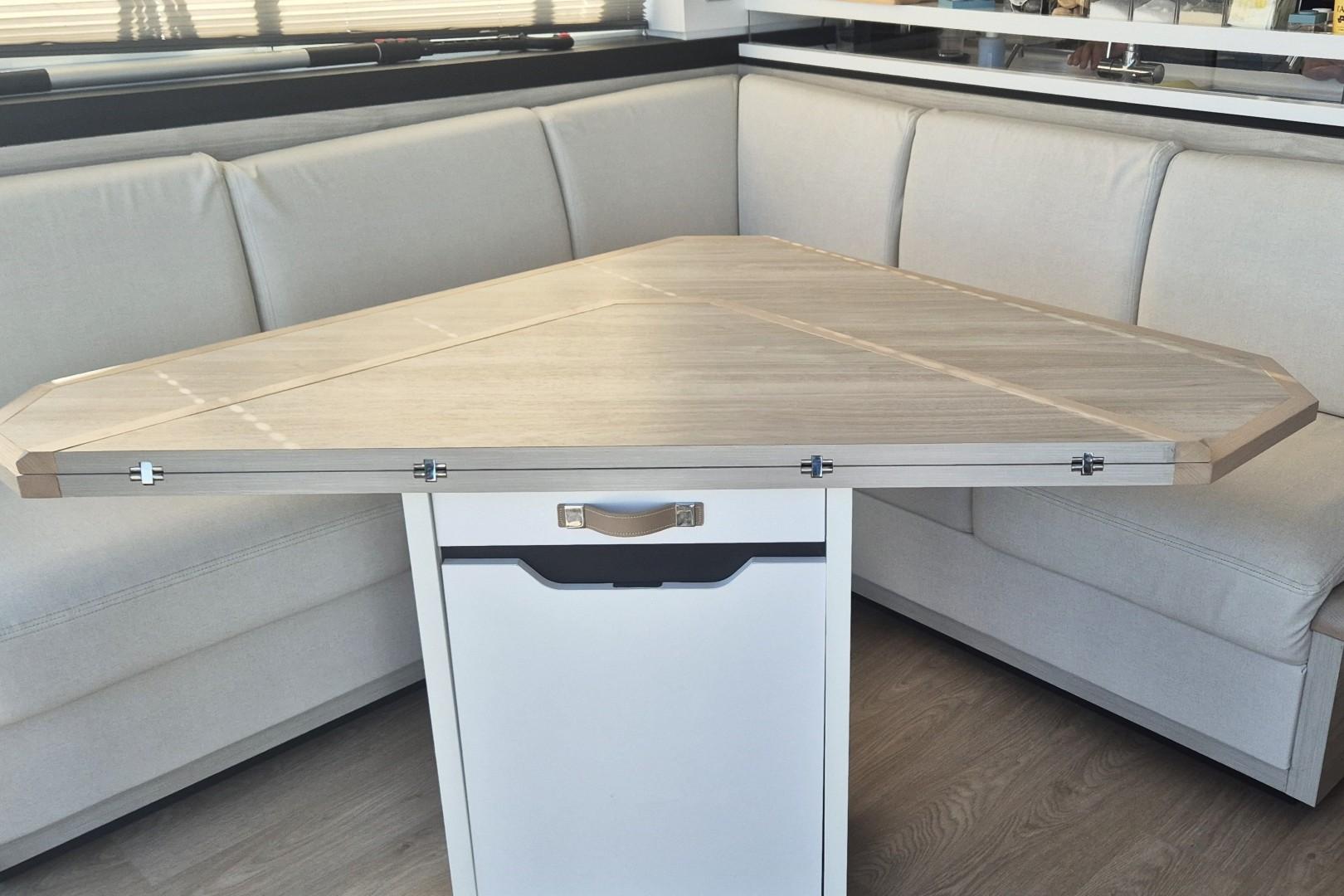

•    Coffee table
•    Under-seat storage & direct access for the electrical systems
•    Reading light + dedicated switch

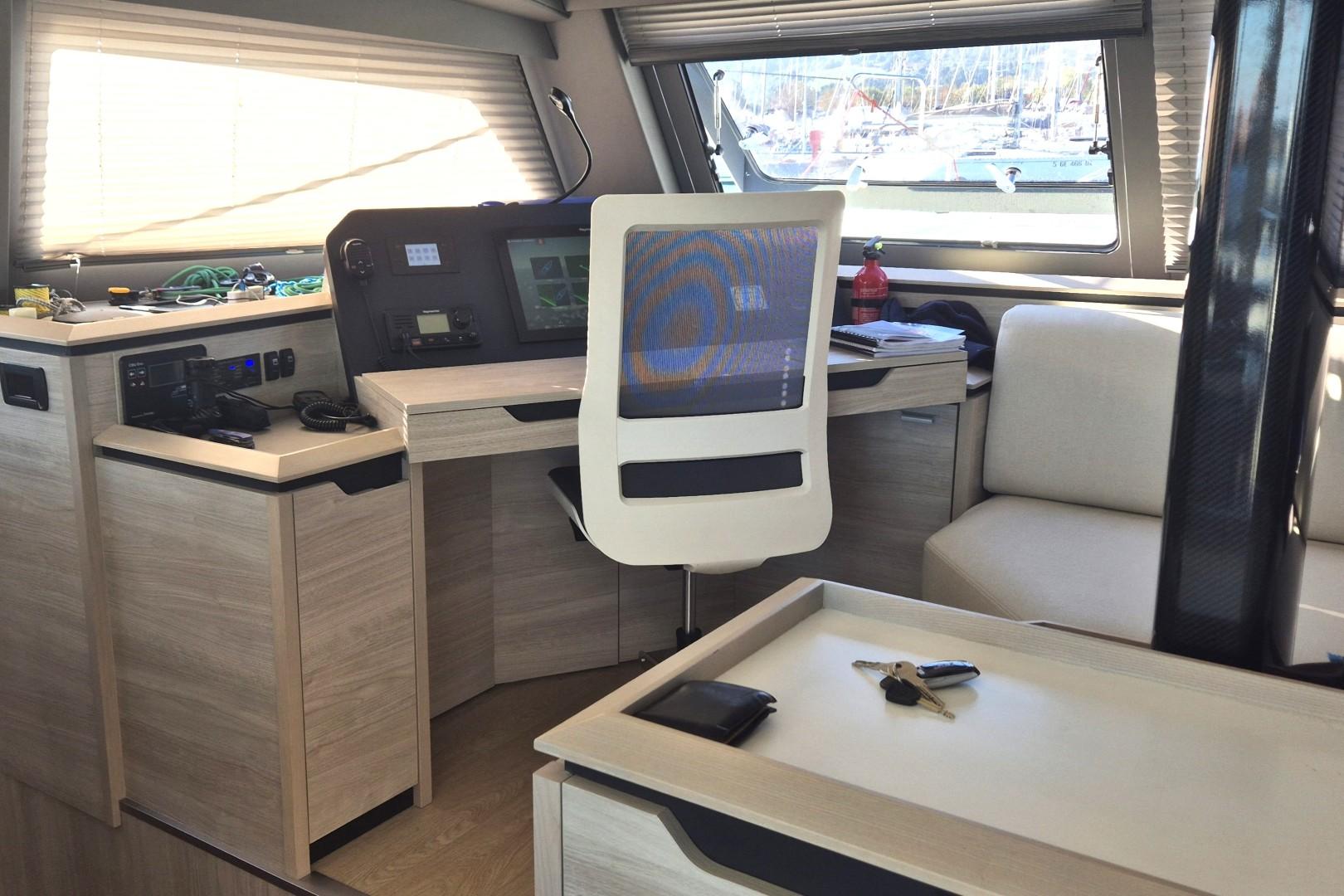

Chart Table Area:
•    Large chart table with instrument console
•    Console for electrical switch panel

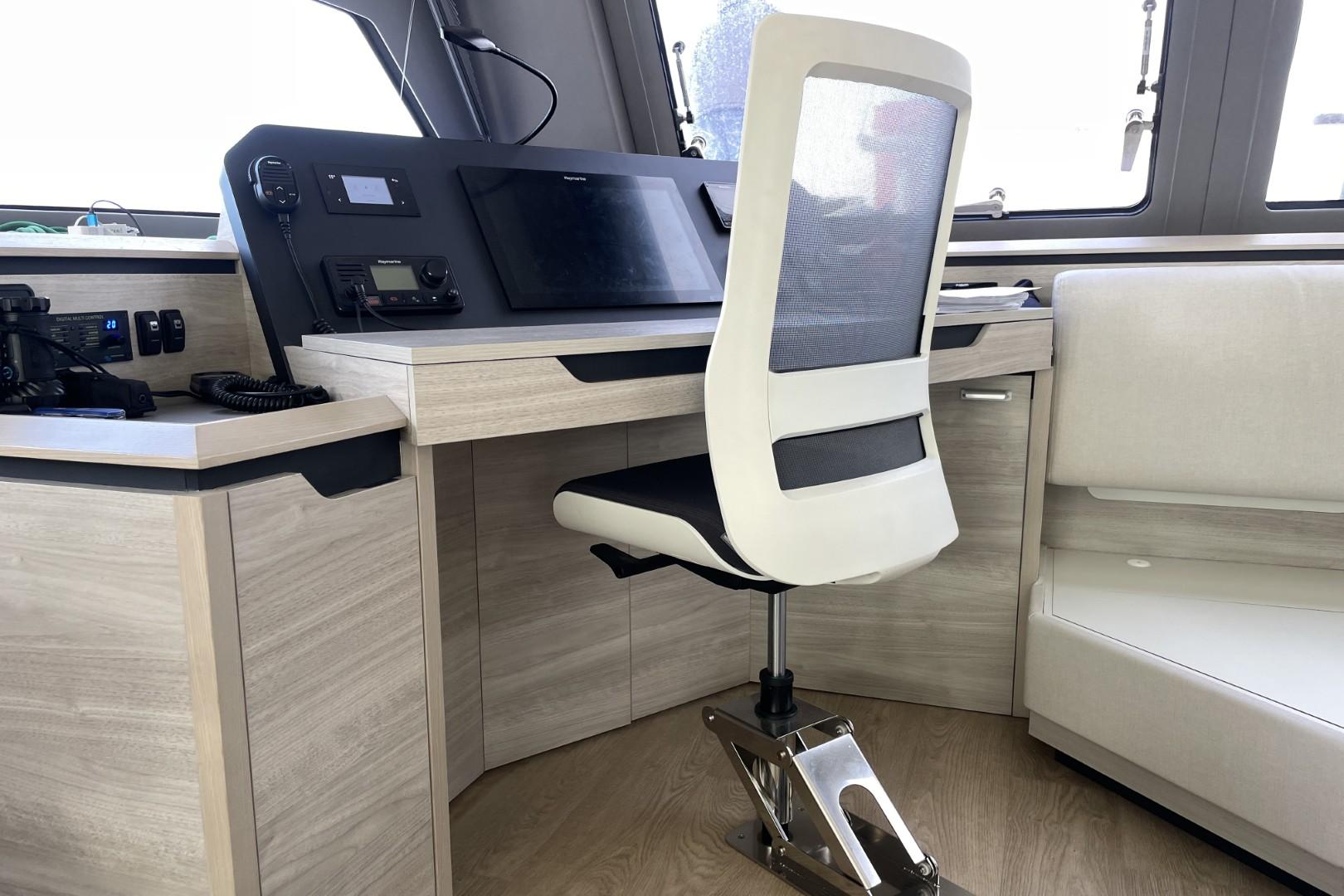

•    Chart table seat on swivel
•    Chart table reading light
•    Technical access under chart table
•    220vAC outlet
•    12vDC USB outlet

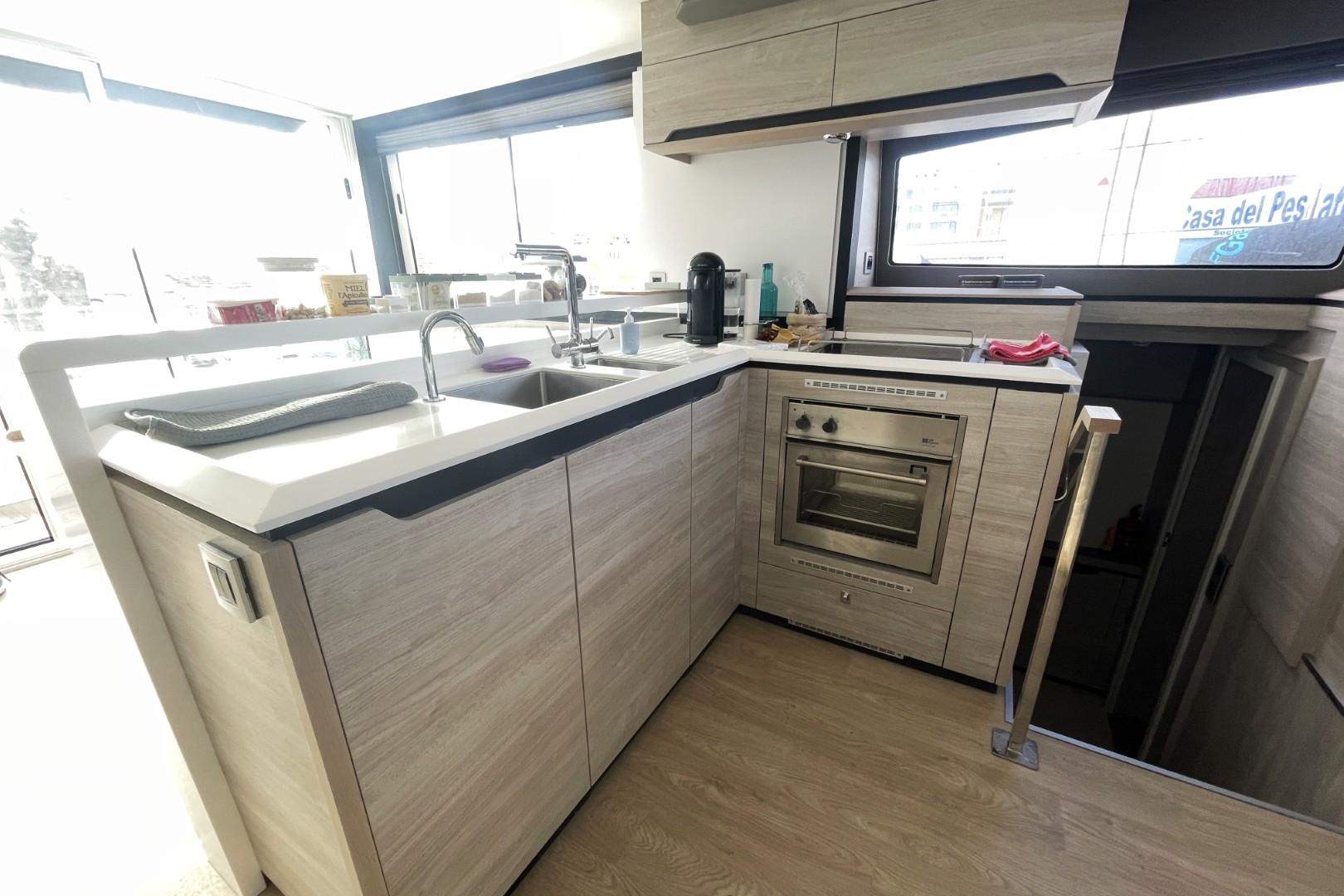

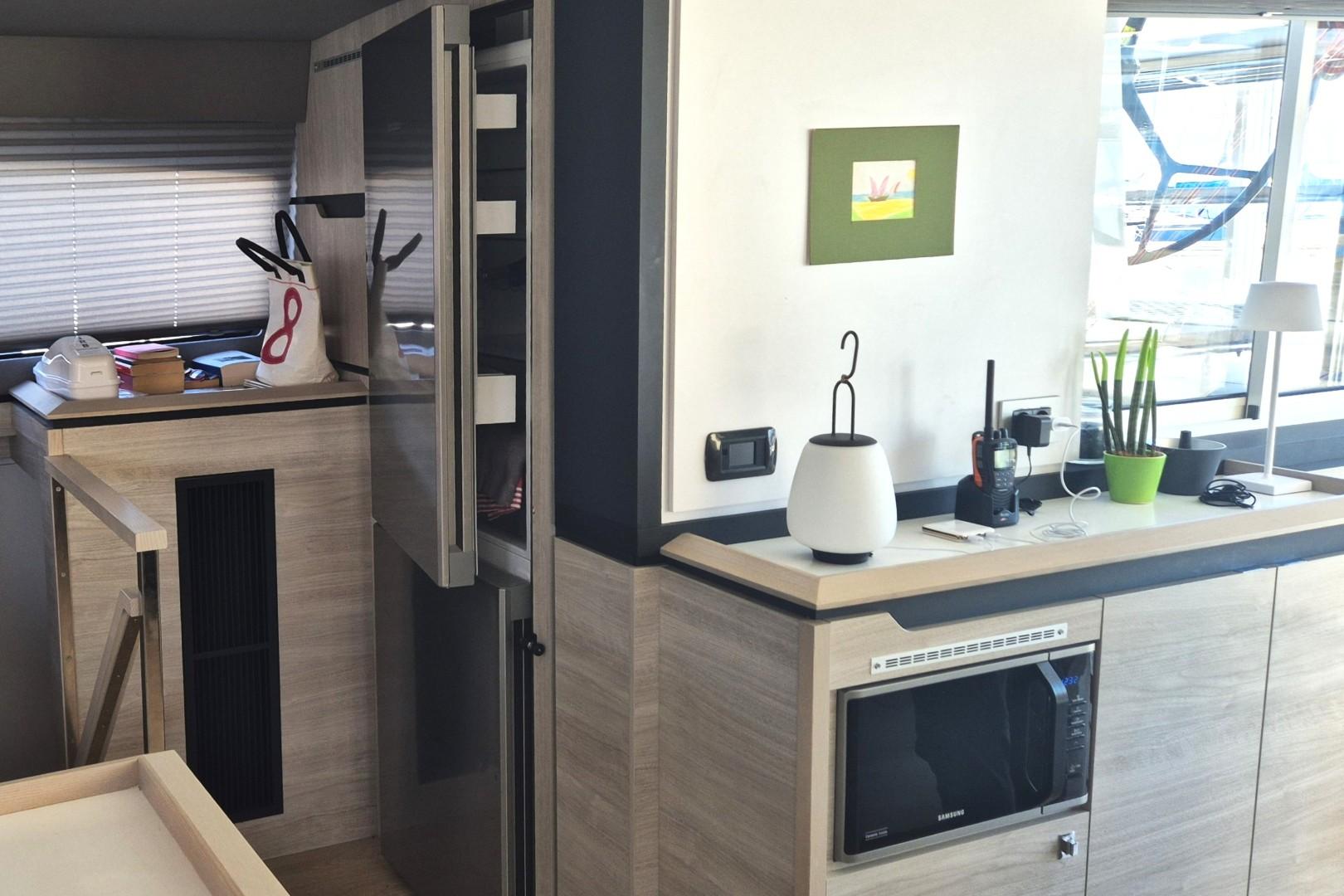

Galley:
•    Stainless steel sink 1.5 bowl with Two-way tap supplying potabilised water by microfiltration (carbon filter) on one side and fresh water from tanks on the other
•    Selective waste bin
•    4x 220vAC
•    Electric induction hot and oven/grill
•    Combined fridge and freezer
•    Inset microwave
•    Dimmable LED spotlights
•    Pot and pan drawers under the oven
•    Sliding grocery cupboard to the right of the oven
•    2x high cabinets above the cooker
•    Large corner storage box with access from the cockpit sofa
•    Cabinet with door under the sink
•    Large cupboard with 3 shelves and 2 large drawers for cutlery + cutlery tray

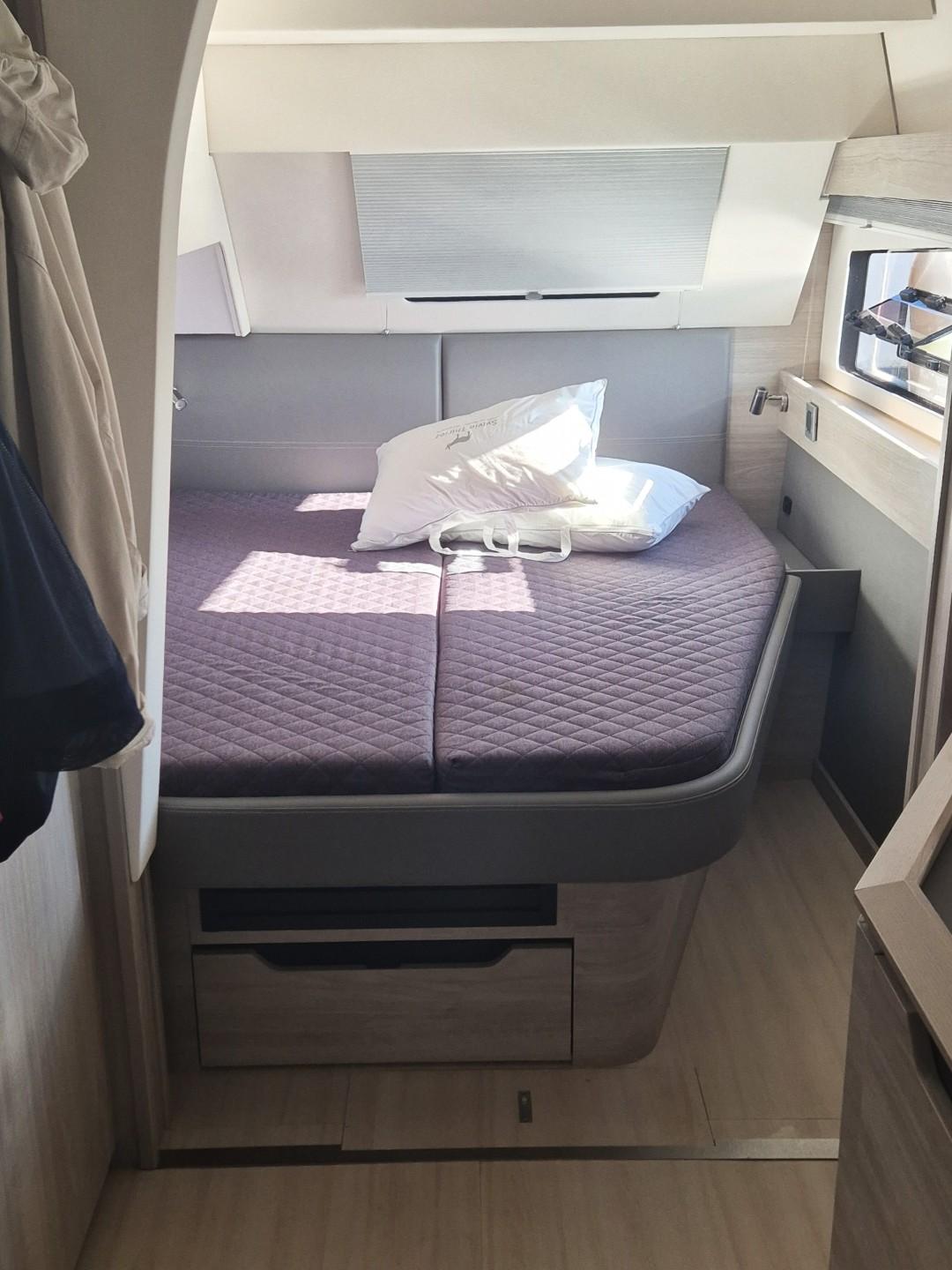

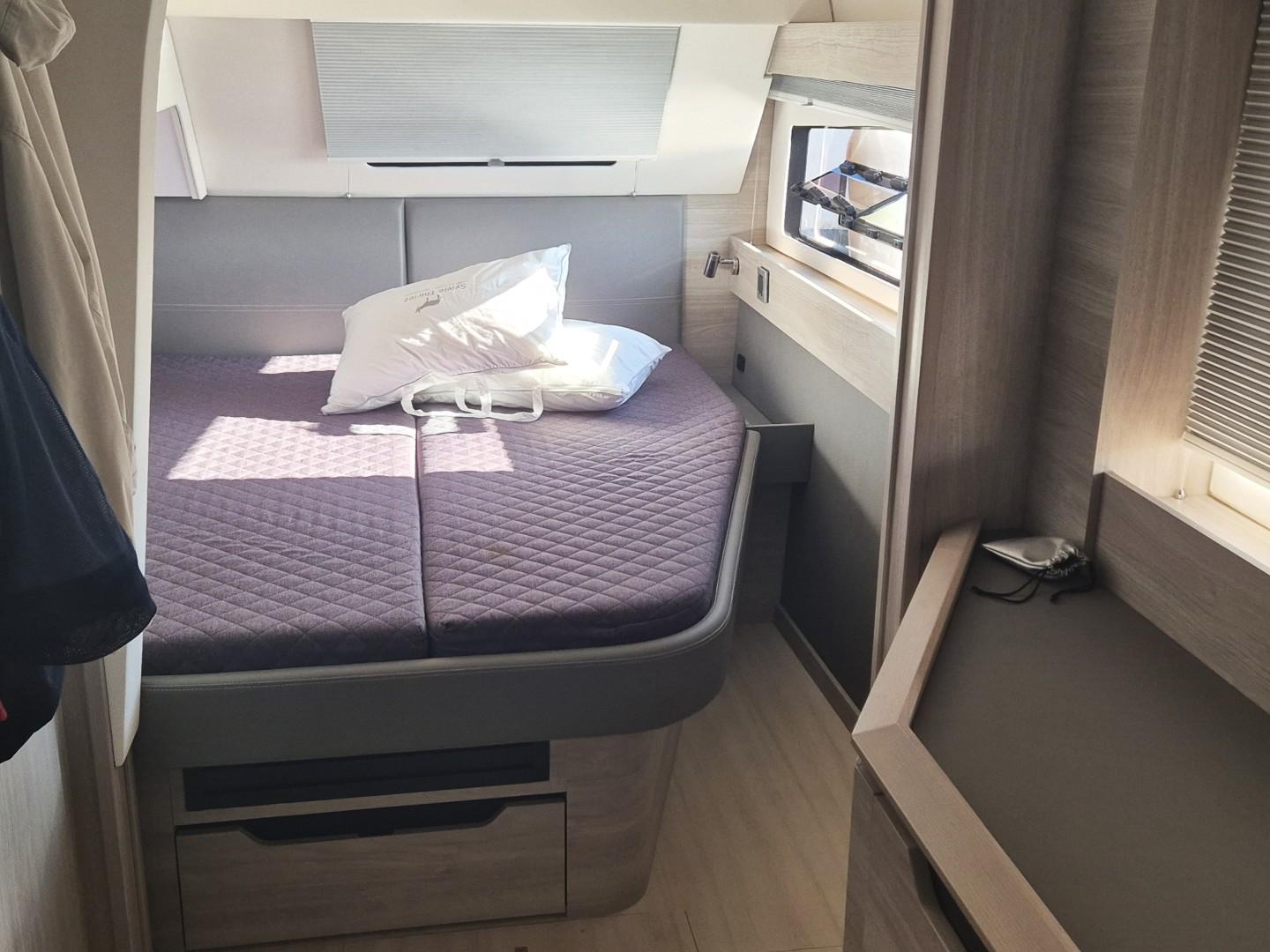

Owner’s Cabin (port hull):

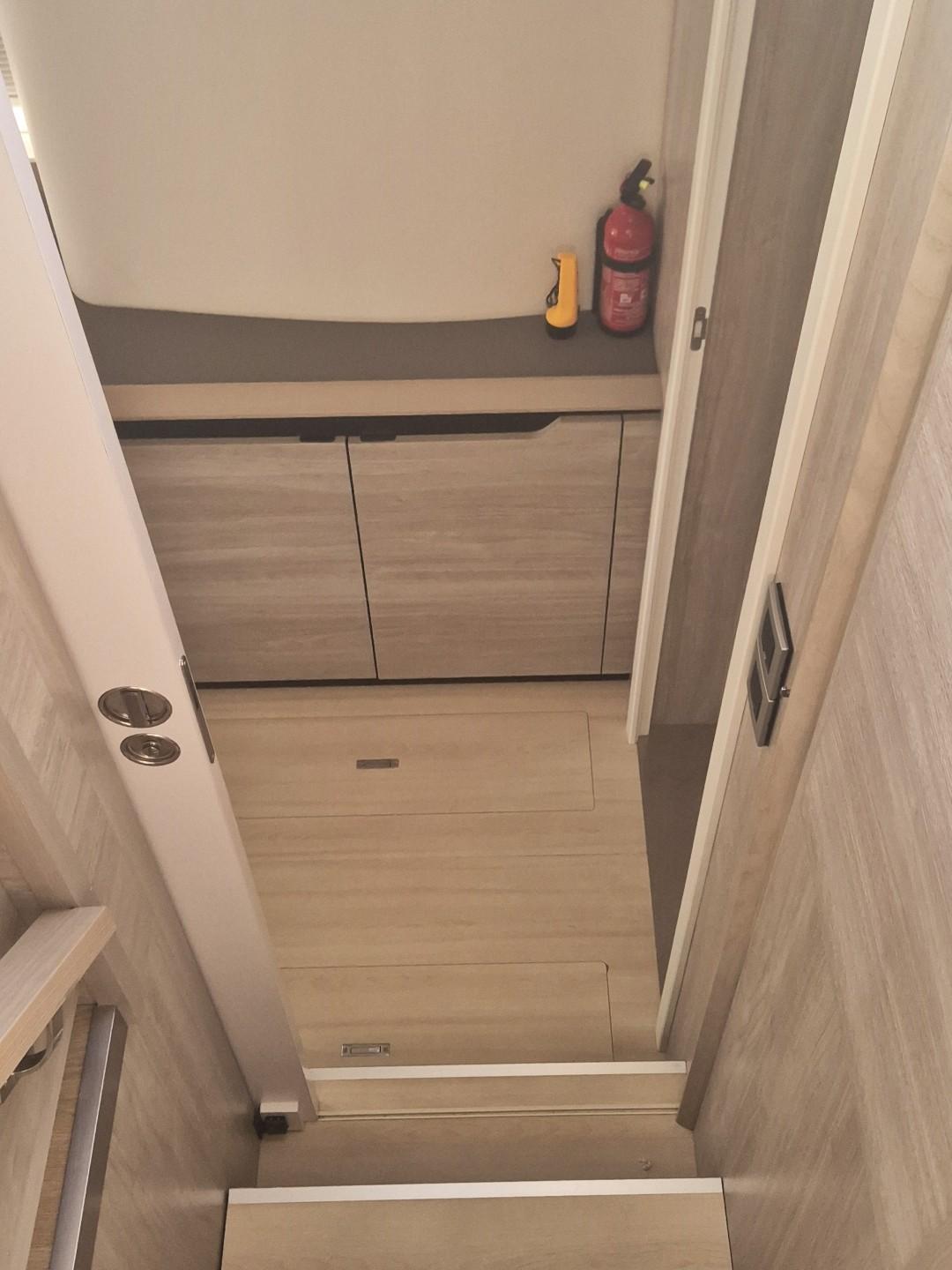

•    Access via wide companionway steps with the same floor covering as the hull.
•    Hull closure by lockable sliding door
•    Semi-Island bed (1,60m. x 1,90m.) with padded headboard
•    One-piece bed base + hydraulic cylinders with direct access to air-conditioning systems
•    Bedside table
•    Large shelf with storage space on the inboard side
•    Drawer and multiple storage under-bunk
•    Wardrobe plus 2 cupboards with shelves
•    Large chest of drawers with shelves with dressing table
•    Storage unit in the wall unit with flap
•    Mirror on sliding doors
•    Ventilation by hull portholes and 1 porthole in aft bay window, giving onto the deck
•    Large fixed window in outboard topsides
•    General lighting by LED spotlights in the ceiling with dimmer and 2 bedside reading lights.
•    220vAC outlet
•    Twin 12vDC USB port socket
•    Dimmable courtesy lighting under the bed

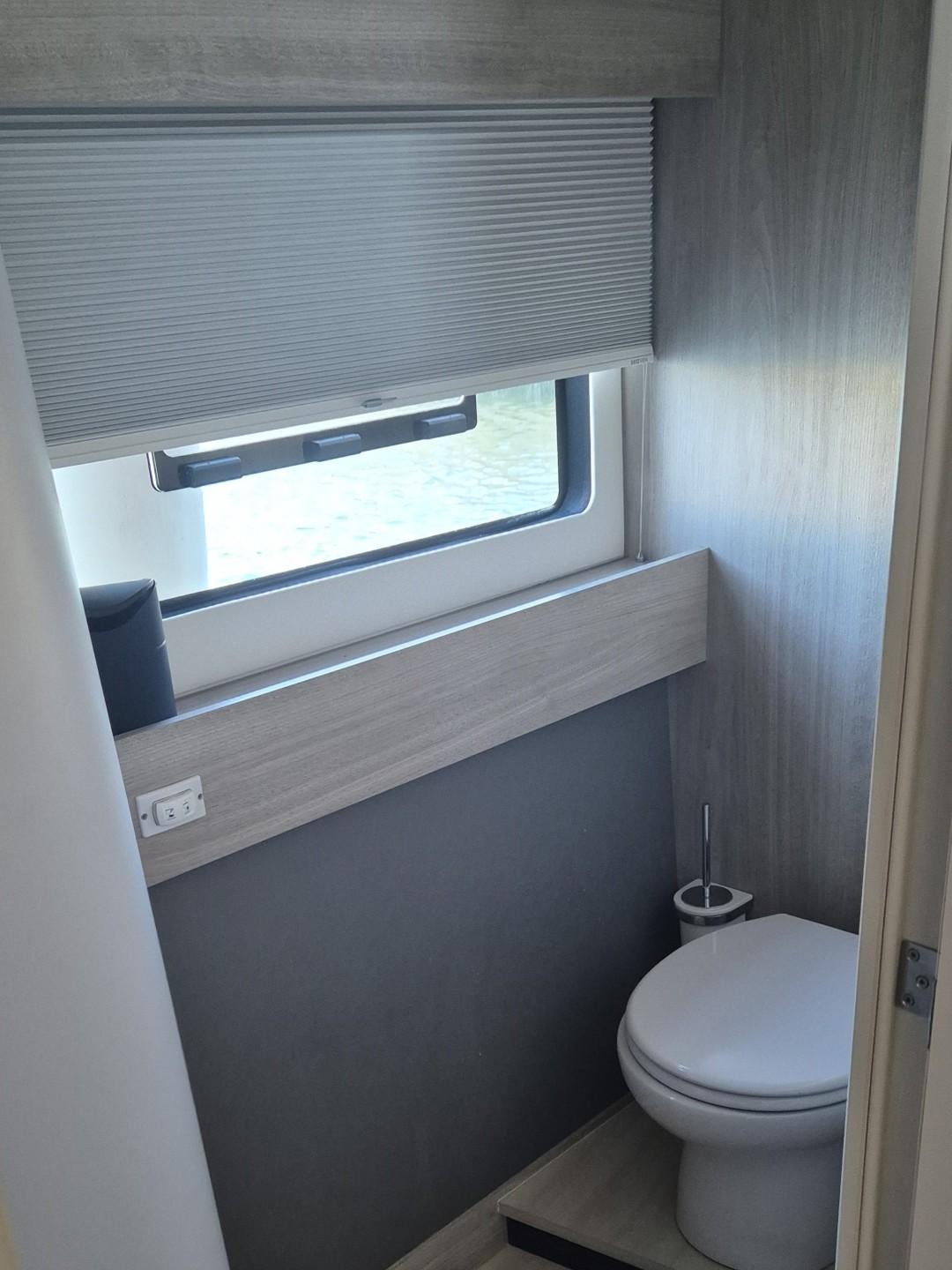

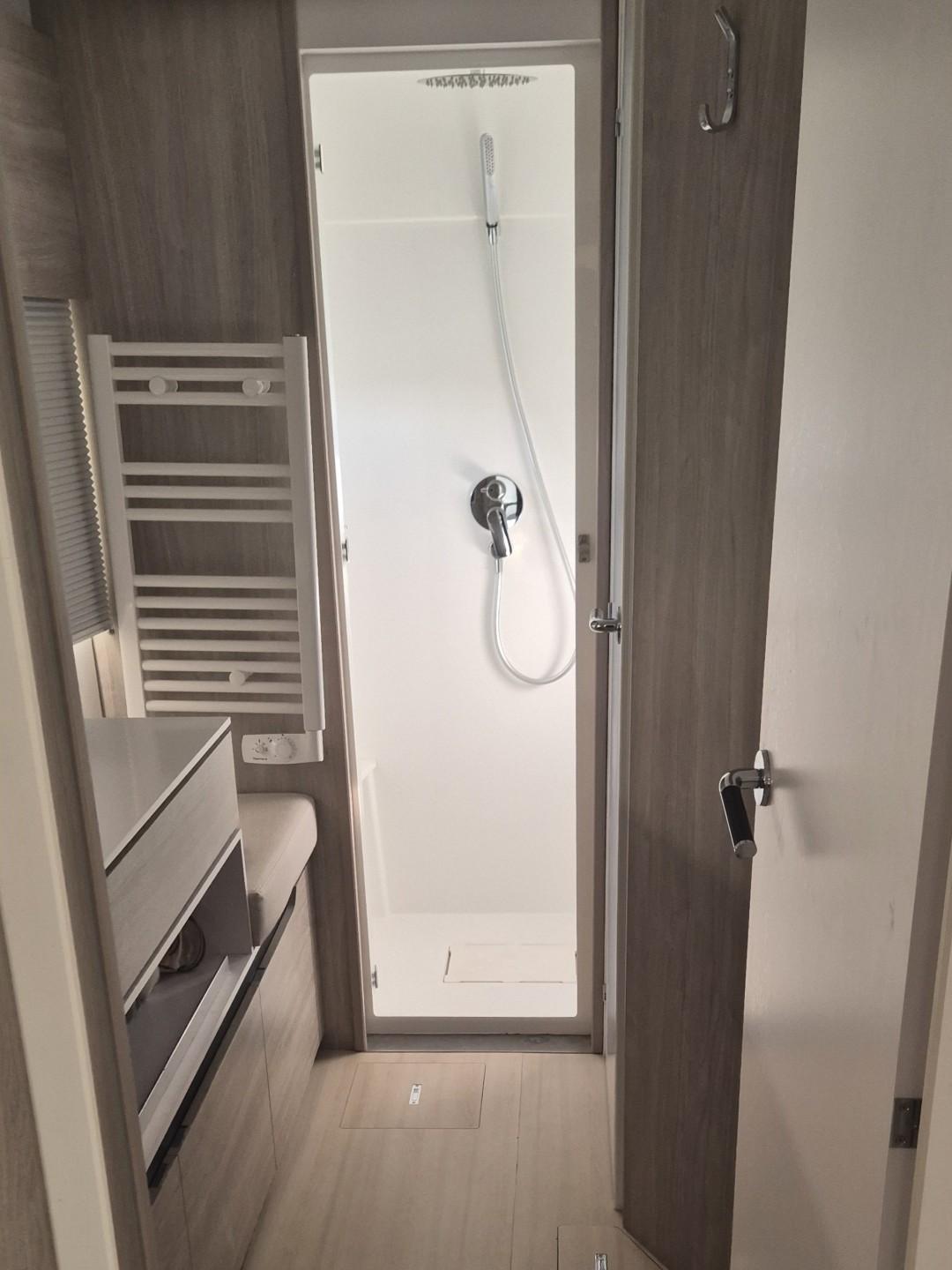

Owner’s Hull Ensuite Bathroom:
•    Private access from the cabin

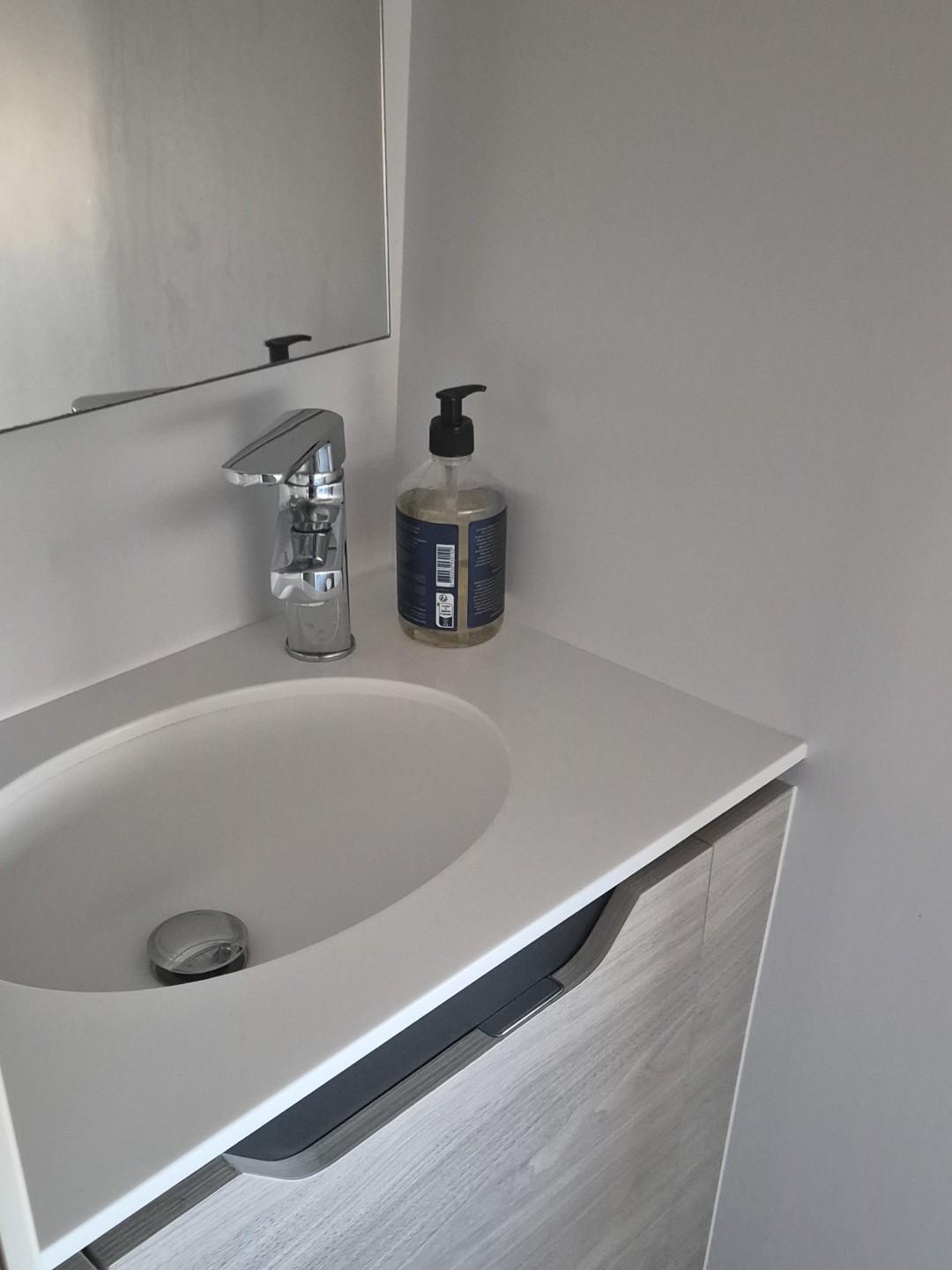

•    Built-in resin washbasin
•    Vanity unit high with mirror and lighting
•    3 base furniture with door
•    drawer under the basin

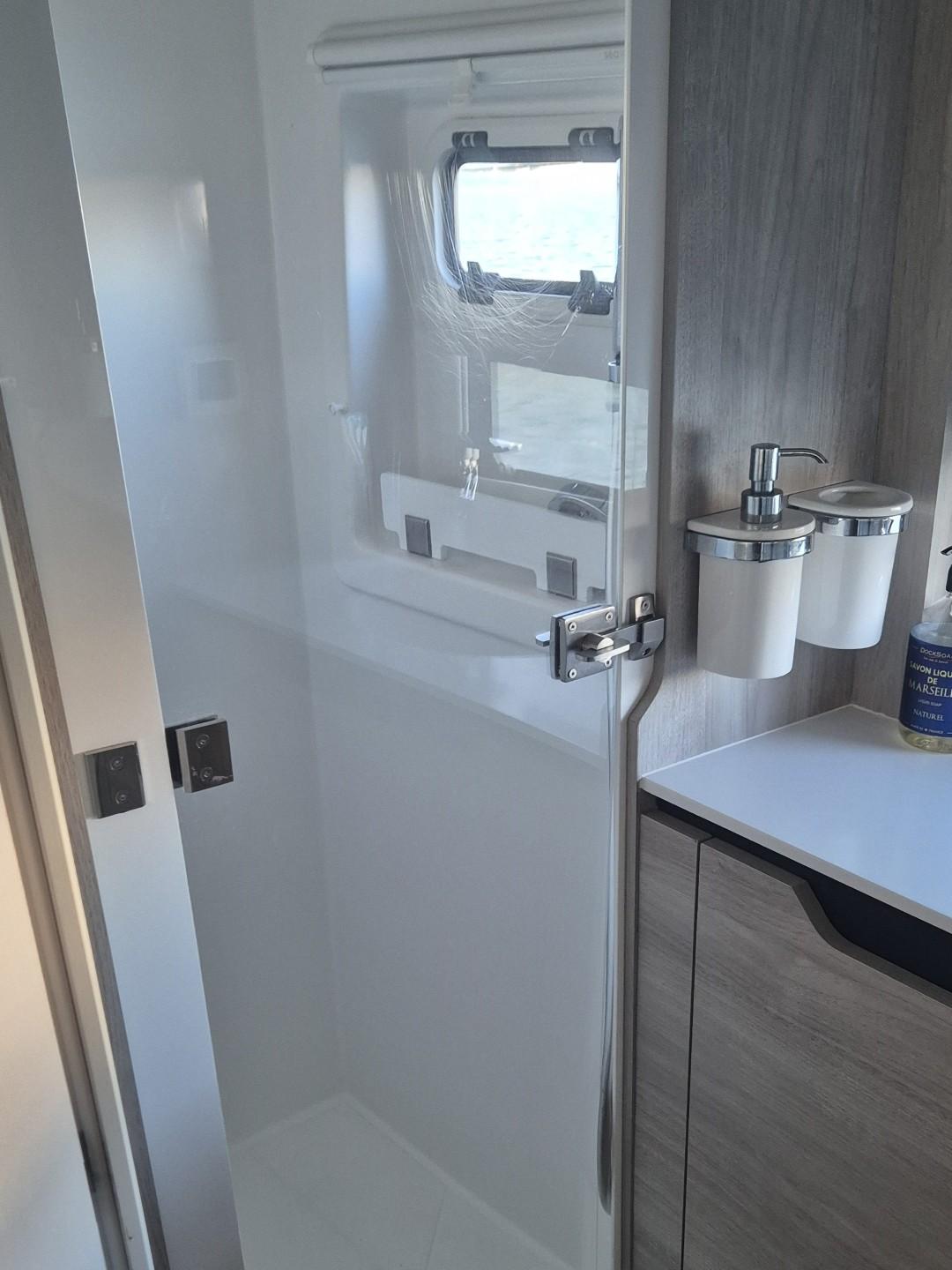

•    Separate shower cabin with glass panel and lock
•    Shower column with high head and hand shower
•    Storage for toiletries
•    Ventilation window with blackout curtain
•    White polywood duckboard and bench
•    Fresh-water electric W.C.
•    Ceiling LED spotlight
•    Porthole with blackout blind

VIP Guest Cabin (starboard hull):
•    Access by door from the passageway

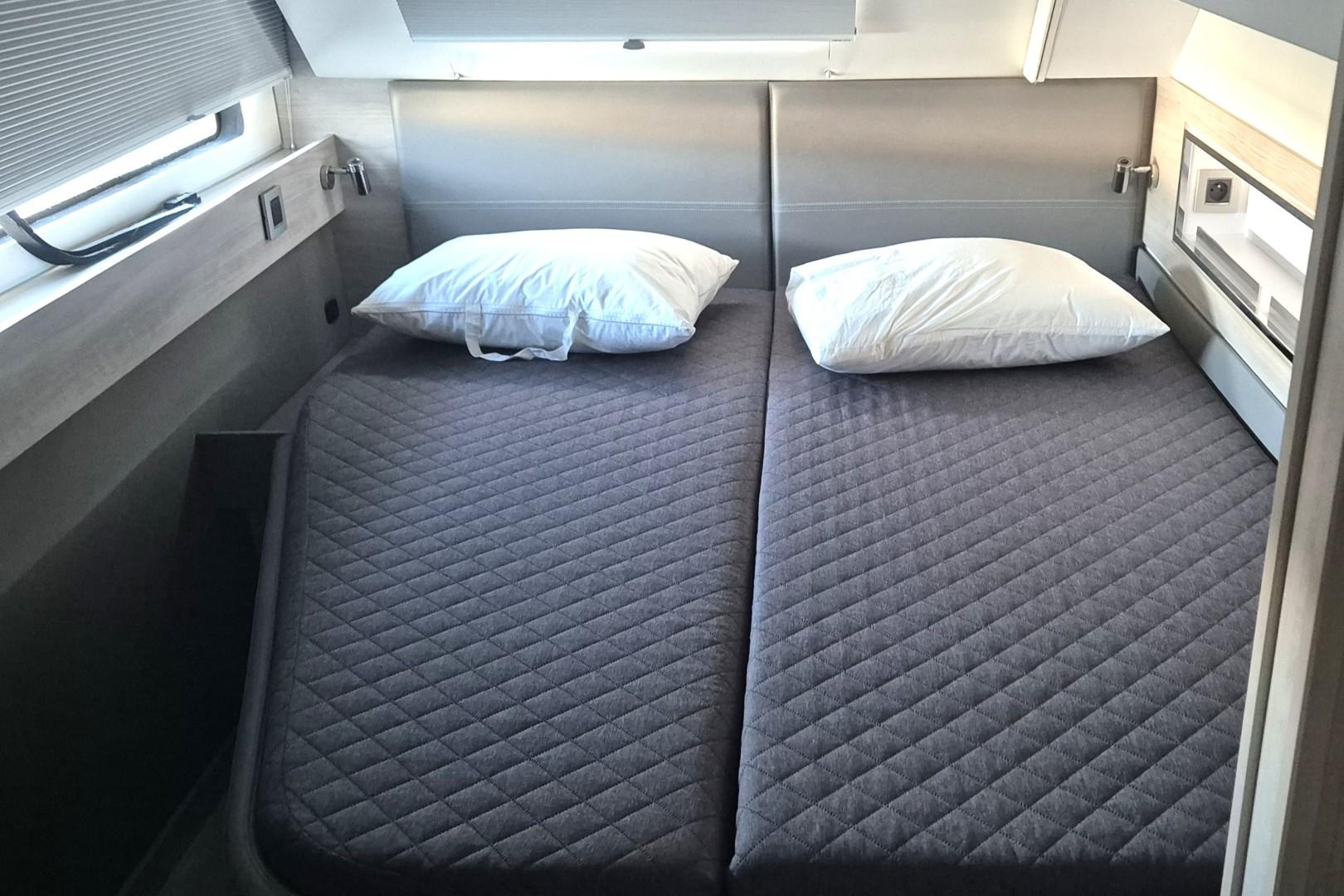

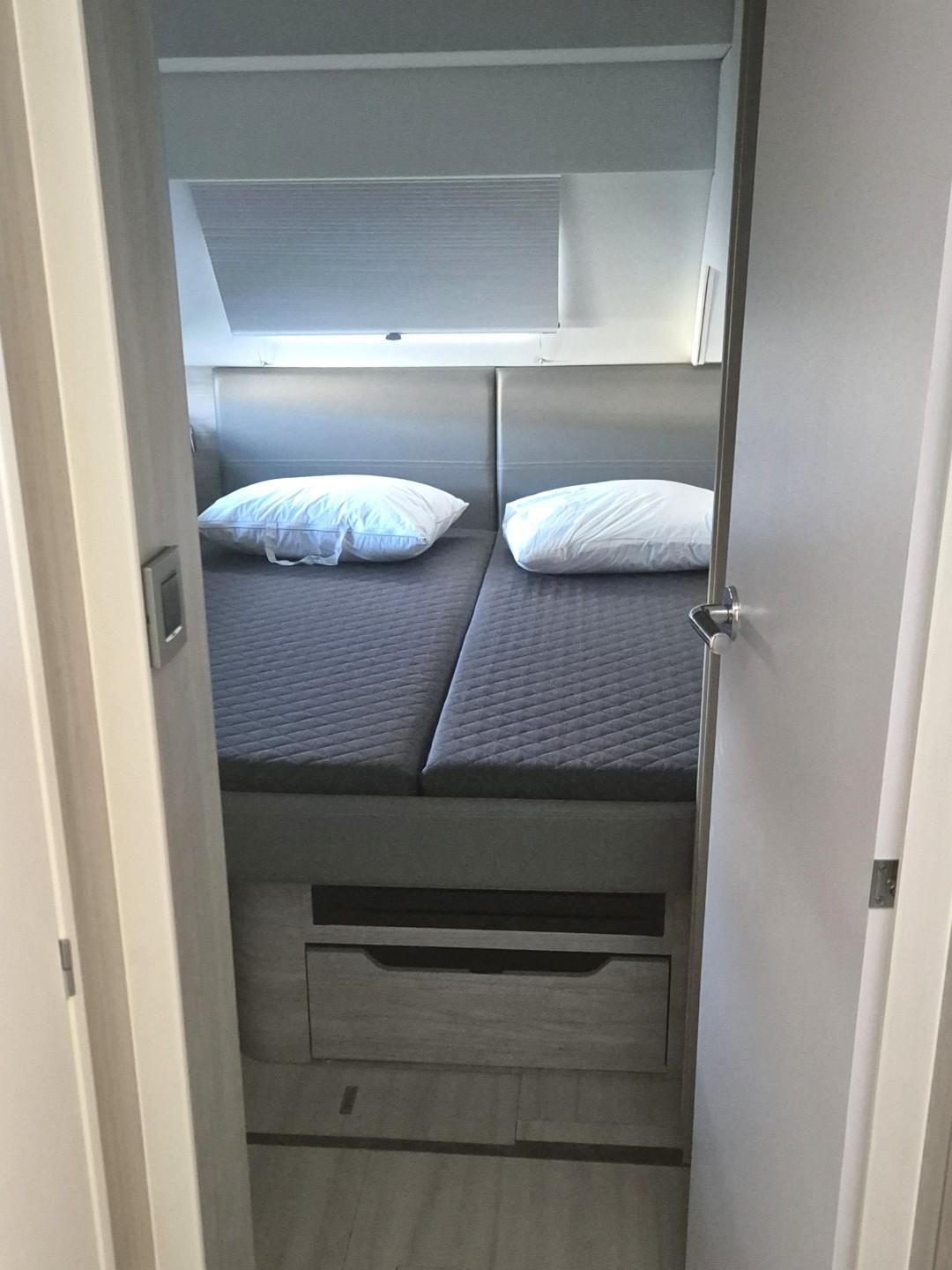

•    Semi-Island bed (1,60m. x 1,90m.) with padded headboard
•    One-piece bed base + hydraulic cylinders with direct access to the heater or aircond (options)
•    Large shelf with storage space on the inboard side
•    Storage cupboards and hanging locker
•    Ventilation by 2 hull portholes (in plexiglas window) + 1 porthole in fixed aft window giving onto deck
•    General lighting by LED spotlights on dimmer and 2 bedside reading lights
•    220vAC outlet
•    Twin 12vDC USB outlet
•    Dimmable courtesy lighting under the bed

Forward Guest Cabin (starboard hull):
•    Access by door from the passageway
•    2 bunk beds (0,80m. x 1,90m.) + (0,75m. x 1,80m.)
•    Foldable upper bunk
•    Extendable lower bunk with optional duckboard
•    Storage space under the low berth
•    Large shelf on inboard topsides
•    Storage cupboards and hanging locker
•    Big Storage box with upholstery for seats
•    Ventilation by hull window (on plexiglass)
•    General lighting by LED spotlights on dimmer and 2 bedside reading lights
•    220vAC outlet
•    12vDC USB oulet
•    Low-level courtesy lighting

Guest Bathroom (starboard hull):
•    Fresh water electric W.C.
•    Toilet accessories (brush and toilet paper holder)
•    Large separate shower with satin plexiglas screen and ventilation via hull porthole
•    Bathroom accessories (1 coat hook, toiletries storage)
•    LED Spotlights
•    Unit with built-in basin and storage
•    Wall cabinet with mirror and lighting
•    220vAC outlet in wall cabinet

DECK EQUIPMENT

Rig:
•    Axxon Spars white-painted carbon fibre mast
•    Frectional rig with single set of swept-back spreaders
•    White painted aluminium alloy boom
•    Stainless steel rod standing rigging
•    Mainsail luff track on ball bearing slides
•    Bridle mainsheet system
•    2:1 mainsheet halyard
•    White painted aluminium front beam and carbon fibre compression beam
•    Harken deck gear
•    Self-tacking track for Solent jib
•    Facnor furler for genoa
•    Port and starboard tracks for genoa
•    Facnor FXT furler for Code 0
•    Rigging for spinnaker with halyard, standup blocks stoppers and sheets

Winches:
•    2x Harken Performa 2-speed electric self-tailing headsail sheet winches
•    4x Harken Performa 2-speed electric self-tailing control line winches

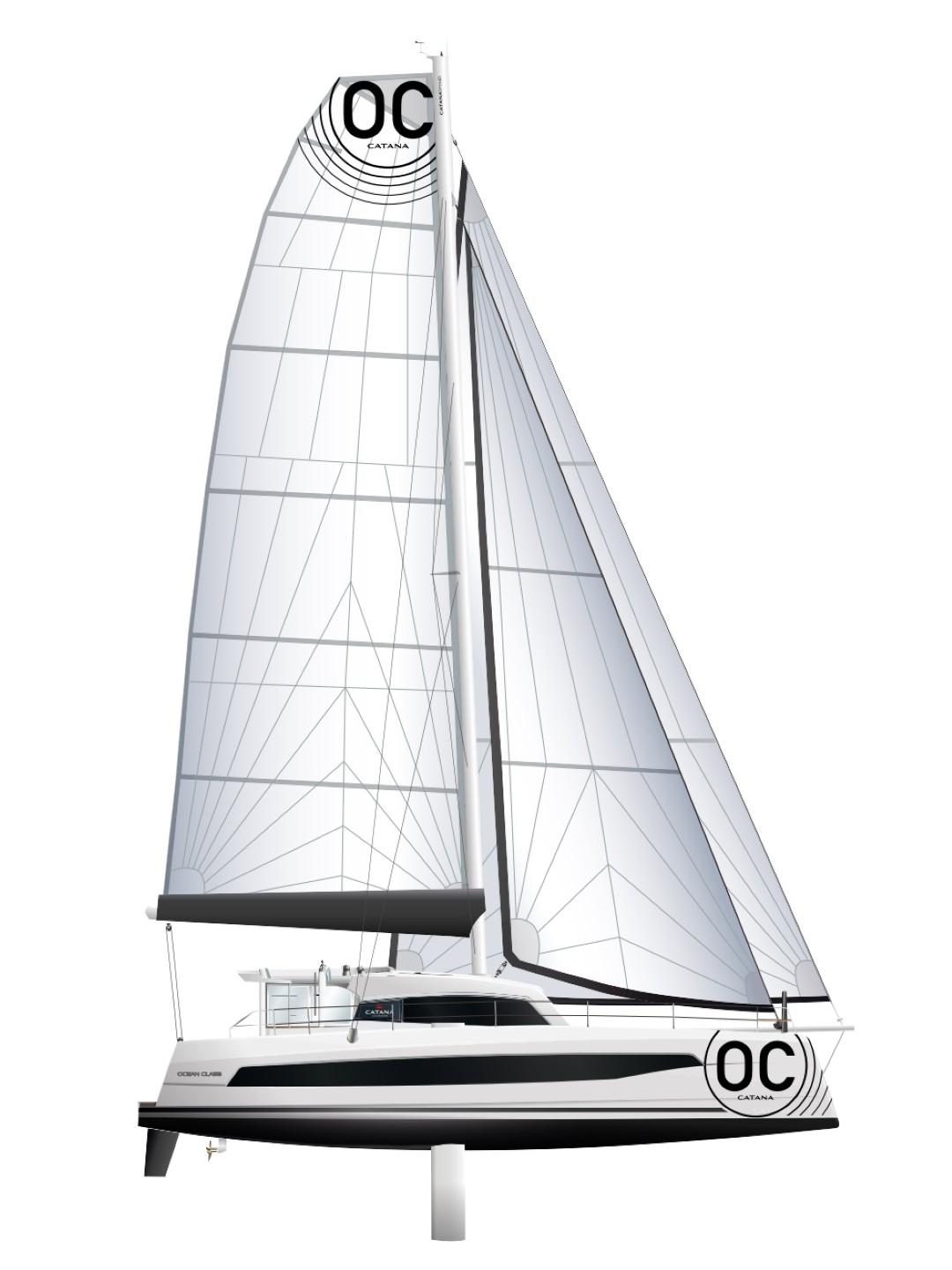

Sails:
•    Elvstrom EPEX vacuum-laminated membrane square top fully-battened 91sqm mainsail with 3x reefs
•    Elvstrom EPEX vacuum-laminated membrane square top fully-battened 68sqm furling genoa with UV strip
•    Elvstrom Codetec 135 furling 80sqm Code 0 with anti-torsion cable
•    ISTEC 170sqm parasailor
•    Elvstrom 10sqm storm jib

General:
•    Forward pulpits with inset seats
•    Aft railing with stainless steel tube
•    Guardwire stanchions with twin Dyneema reflective guardwires
•    Access to the deck via GRP steps anti-slip diamond type
•    Bench seat lounger in the aft beam large storage locker with RTM polyester on gaz struts
•    Built-in bathing ladder port transom with handrail on the top of the skirt –
•    Handheld shower (hot/cold water) –
•    Passerelle socket in starboard sugarscoop
•    Composite 2,80m folding passerelle with guardrail
•    4 Skirt step lights - courtesy LED
•    Helm seat with footrest and solid teak duckboard
•    Helm console integrated into the roof as a backrest for the maneuvering station
•    Sail locker with removable ladders fixed on the inside of the hulls and LED lighting
•    Large anchor locker with access by locker lid on ram
•    Foredeck space for life raft with automatic “CATANA” release system and swivel hatch under nacelle.
•    4x underwater led lights
•    3 LED exterior ceiling lights on dimmer
•    Sternlight LED

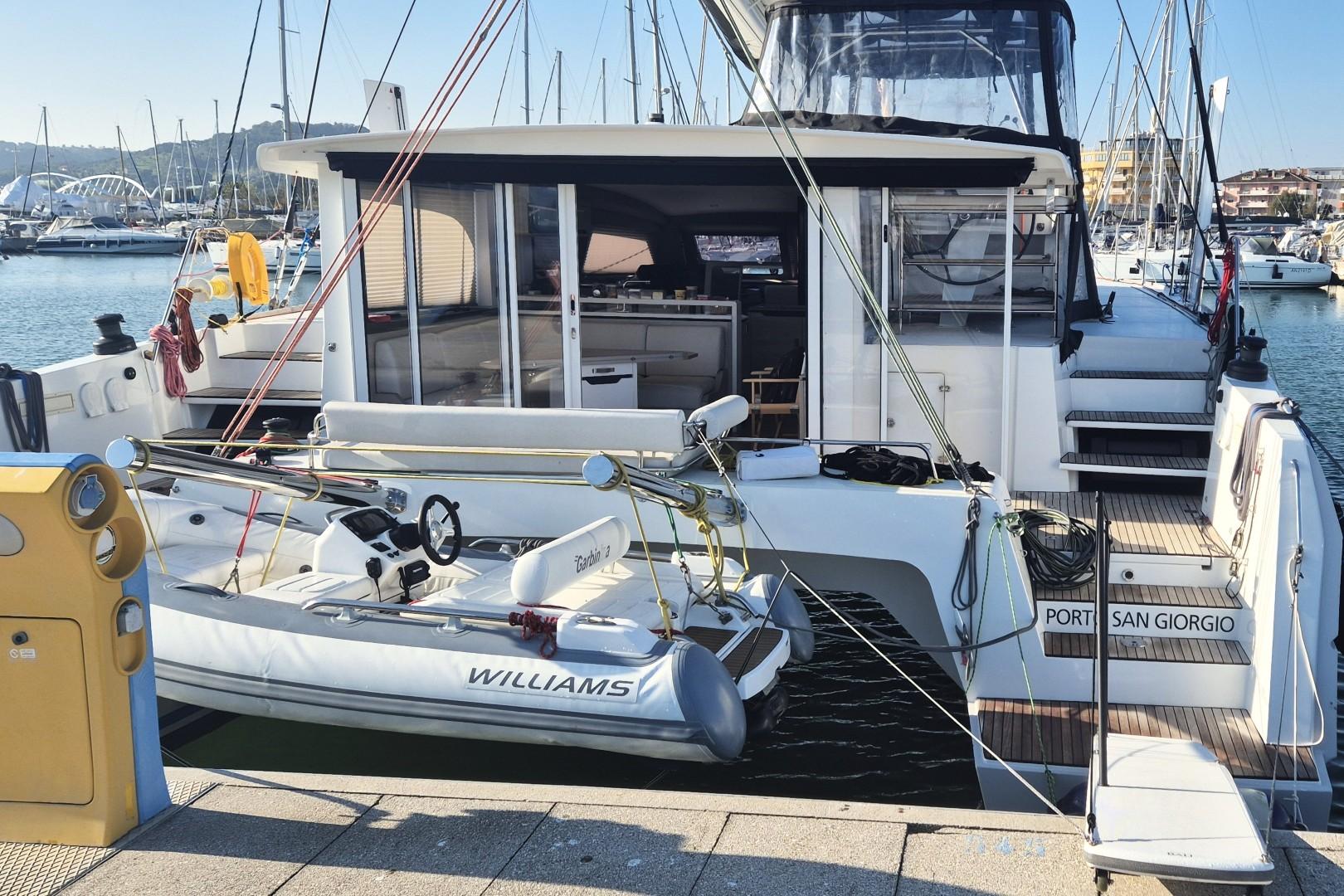

•    Stainless steel tender davits with Harken Performa 2-speed electric self-tailing winch for raising and lowering tender

Anchoring & Mooring:
•    Lofrans 12vDC 1,700w electric windlass with remote control and chain counter at helm
•    40kgs Delta anchor with 80m of 12m chain and bridle
•    Pivoting bow roller in stainless steel for main anchor
•    2x Harken retractable electric mooring windlasses (port and starboard bows)
•    6x aluminum mooring cleats plus 2 further mooring cleats on inboard side of sugarscoops
•    Fenders and warps

Covers, Cushions & Canvas:
•    Mainsail stackpack with lazyjacks

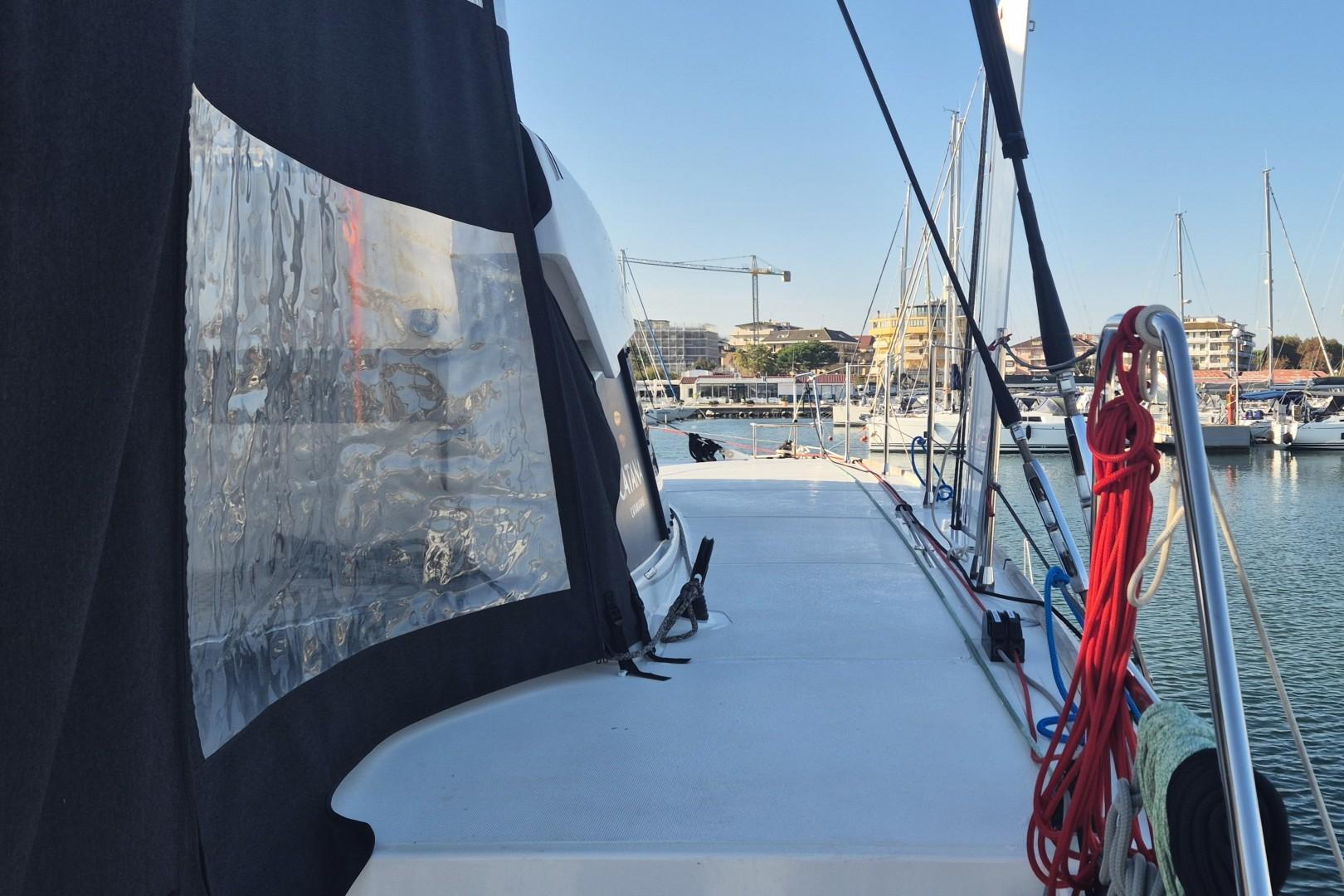

•    Bimini for helm position with stainless steel frame in graphite canvas with removable clear enclosure panels
•    Horizontal sun awning on carbon posts covering the rear sofa + vertical curtain for sun protection in black canvas
•    Set of outdoor cushions :Linetex® fabrics: Bamboo LNT 3460
•    Sun protections for deckhead hatches in Batyline black

SAFETY EQUIPMENT:

General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.

Life saving:
•    8-person liferaft
•    Catana safety equipment package
•    ACR Globalfix V6 Cat 2 GPS Epirb with RLS
