2023 Explorer Ice Class | 139ft
Broker Info
Boat Highlights:
Year of Vessel
2023
Fuel Type
DIESEL
Length
139 ft
Manufacturer
Explorer
Condition
New
Boat Type
Power

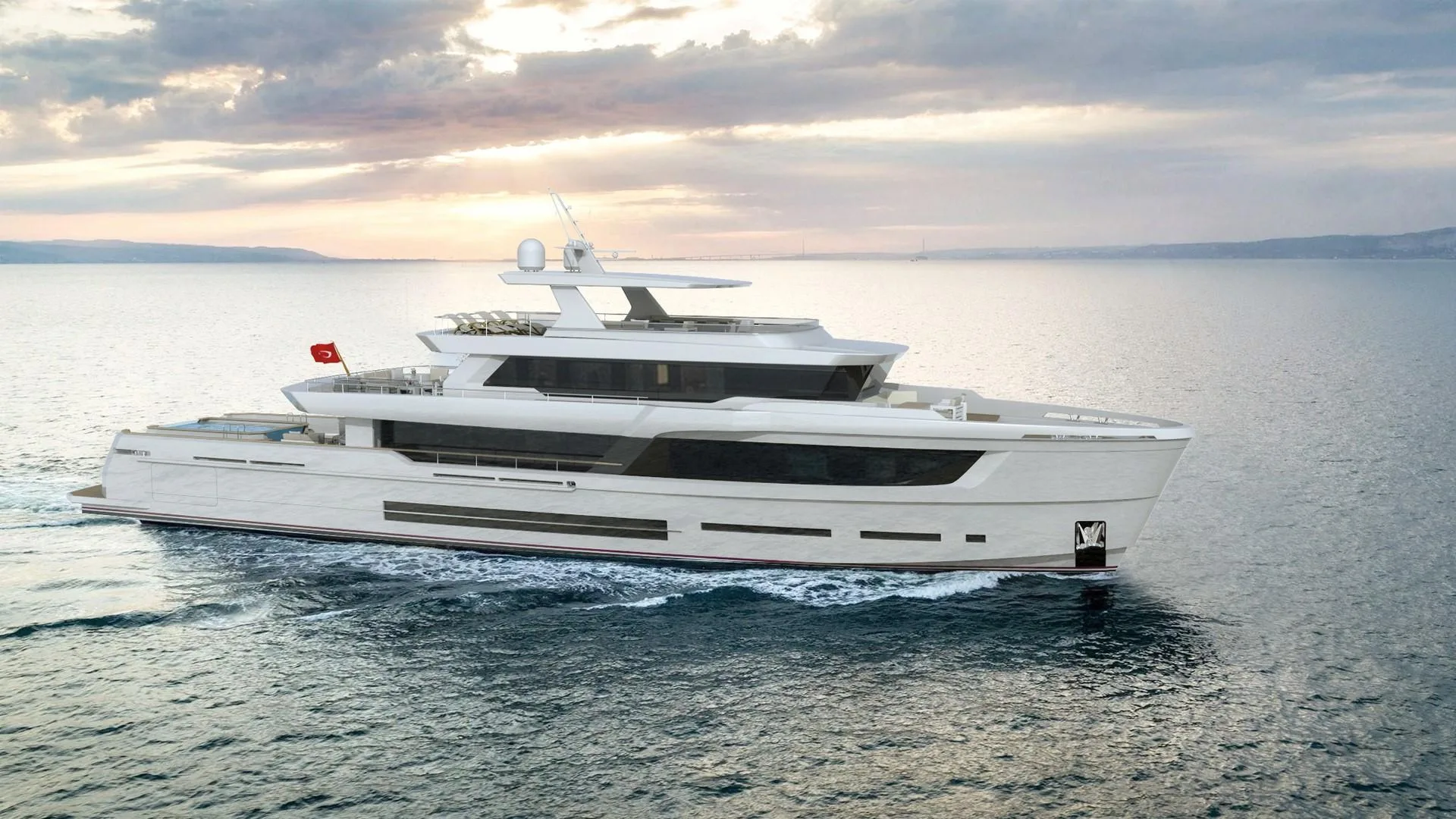

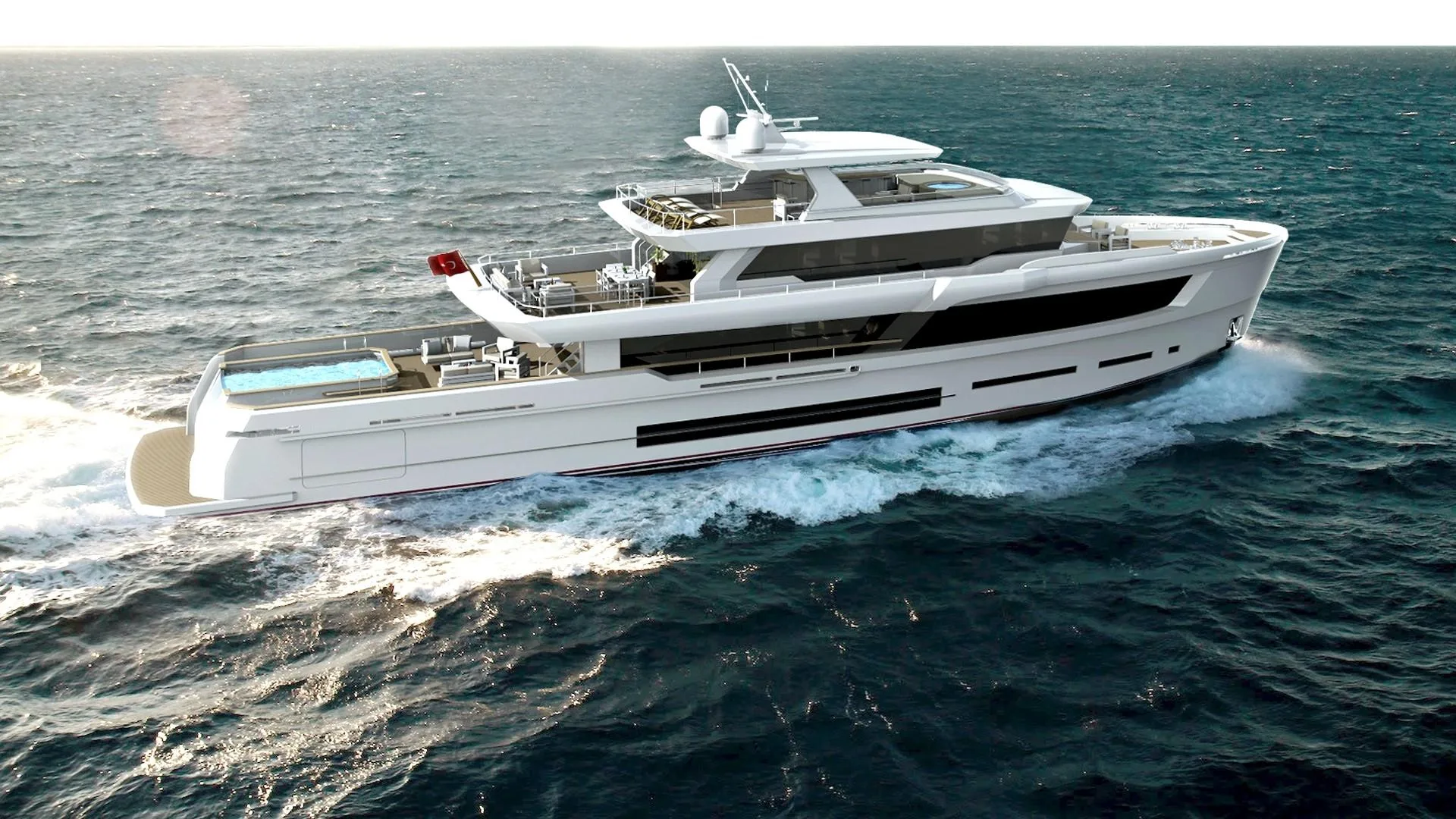

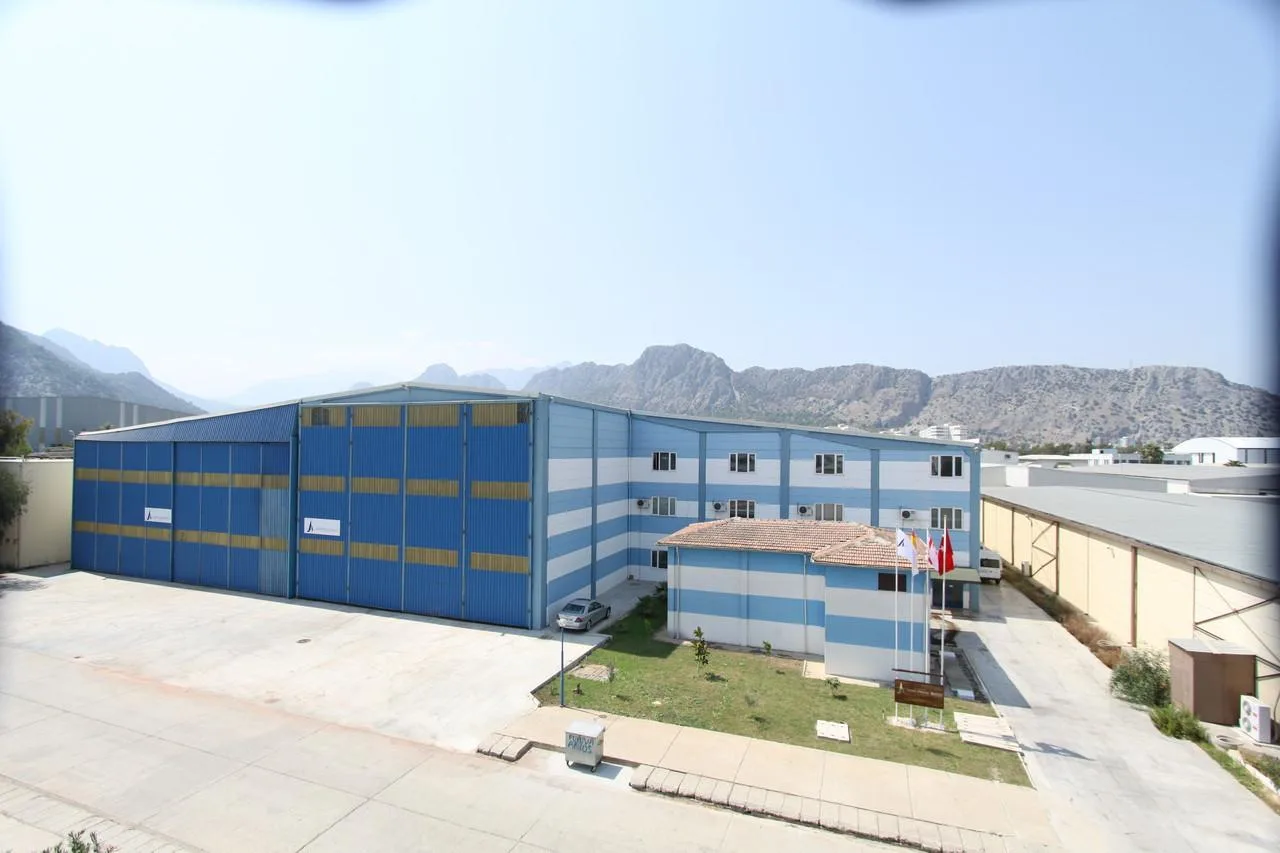

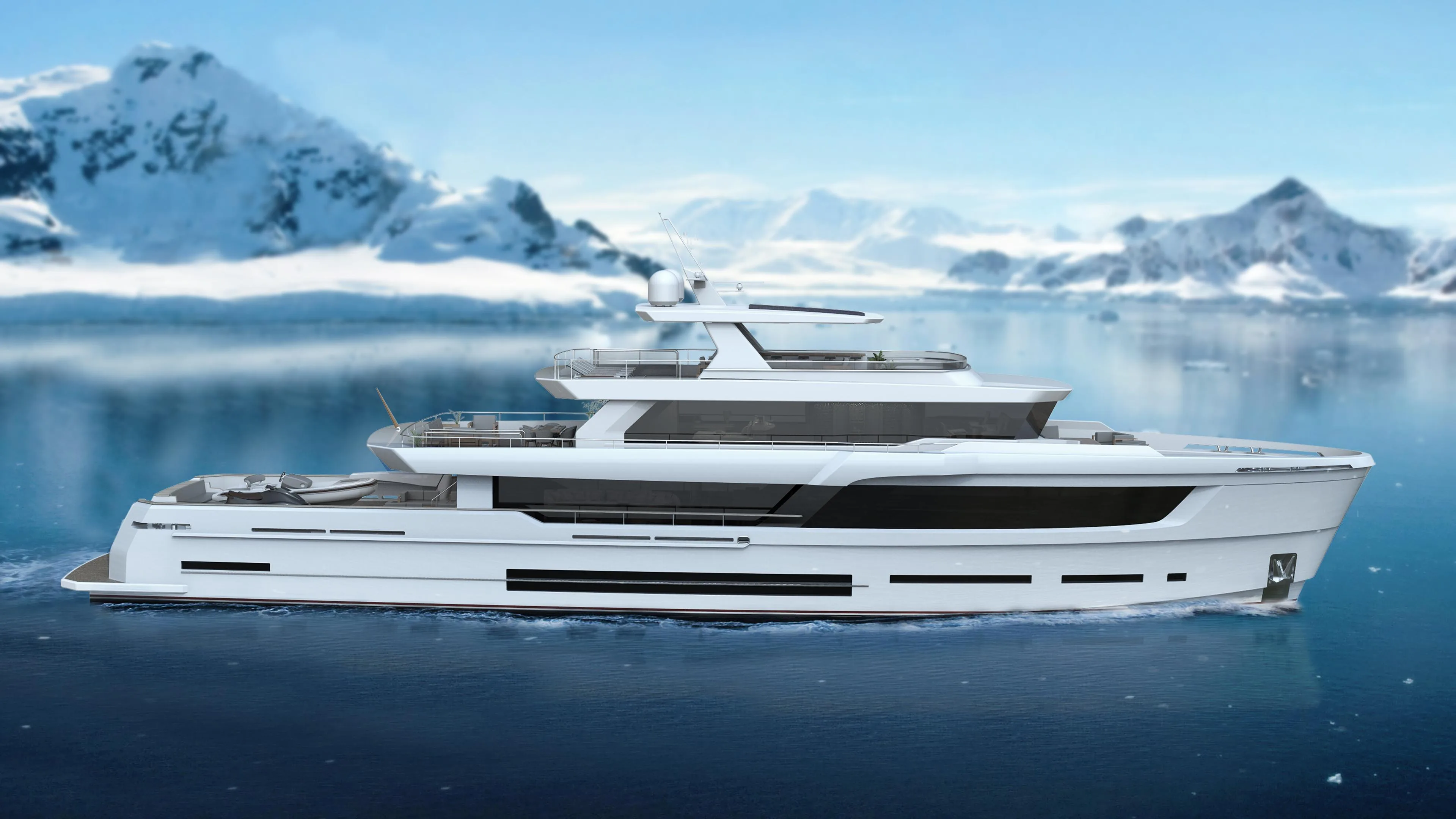

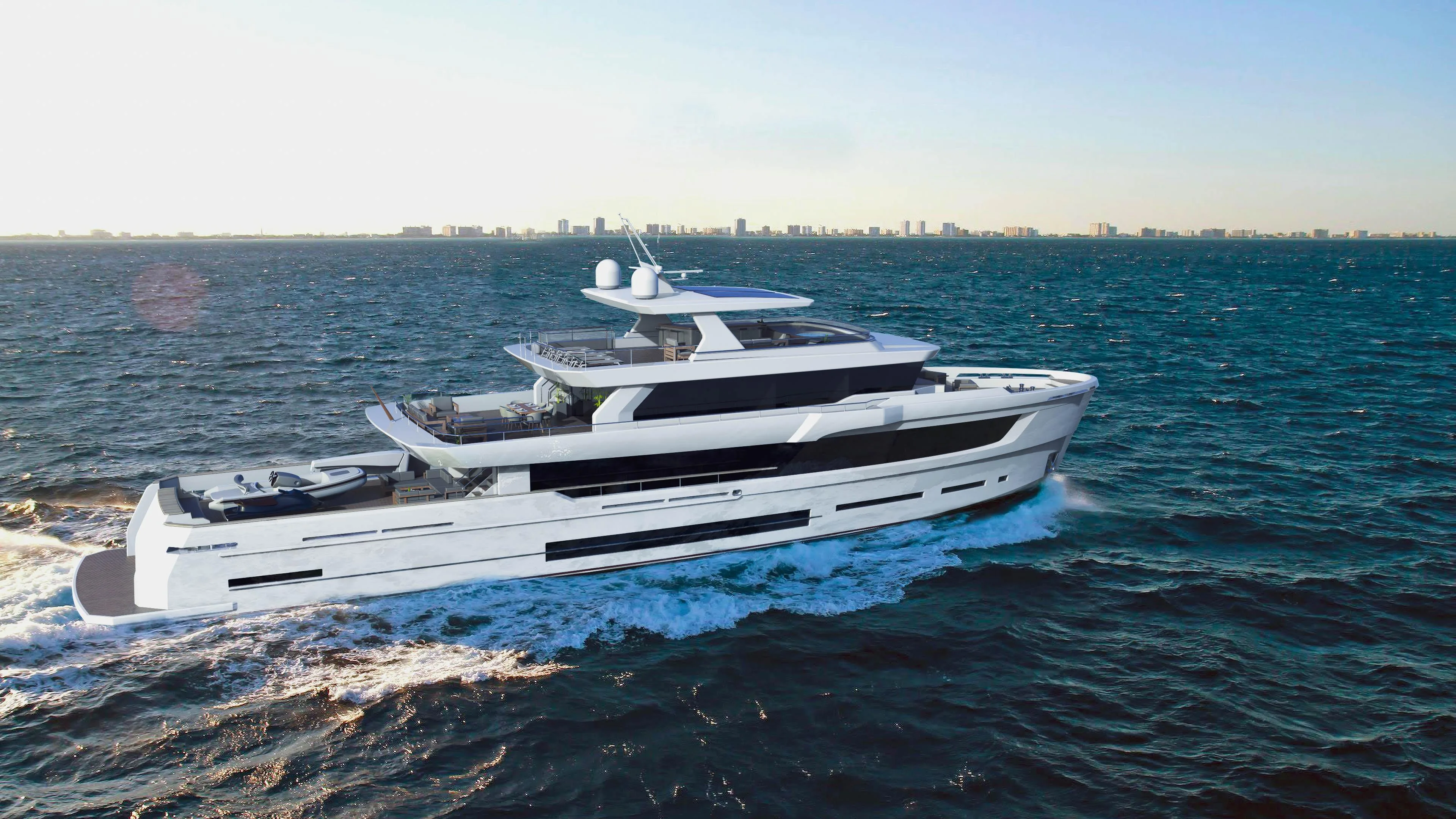

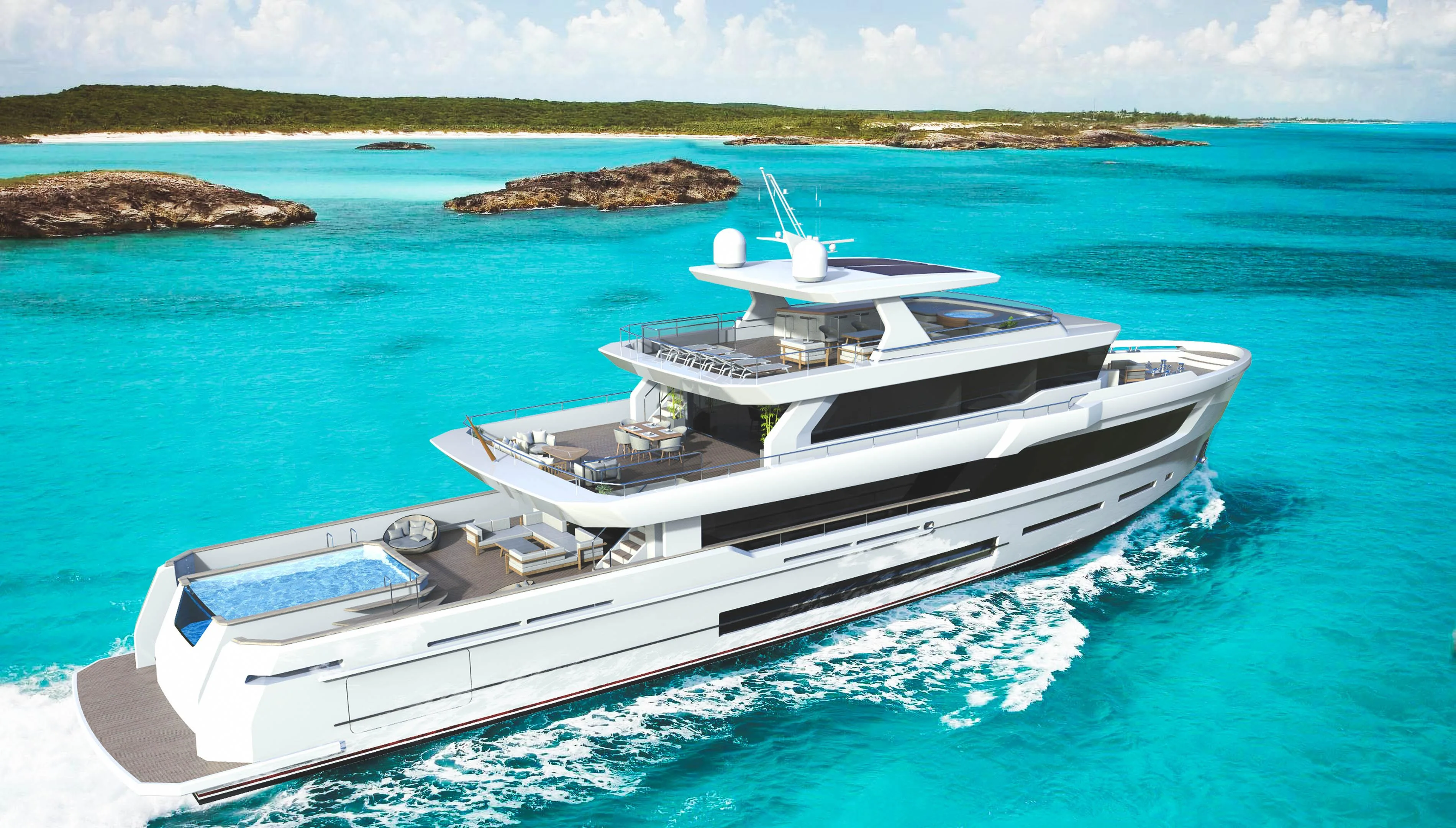

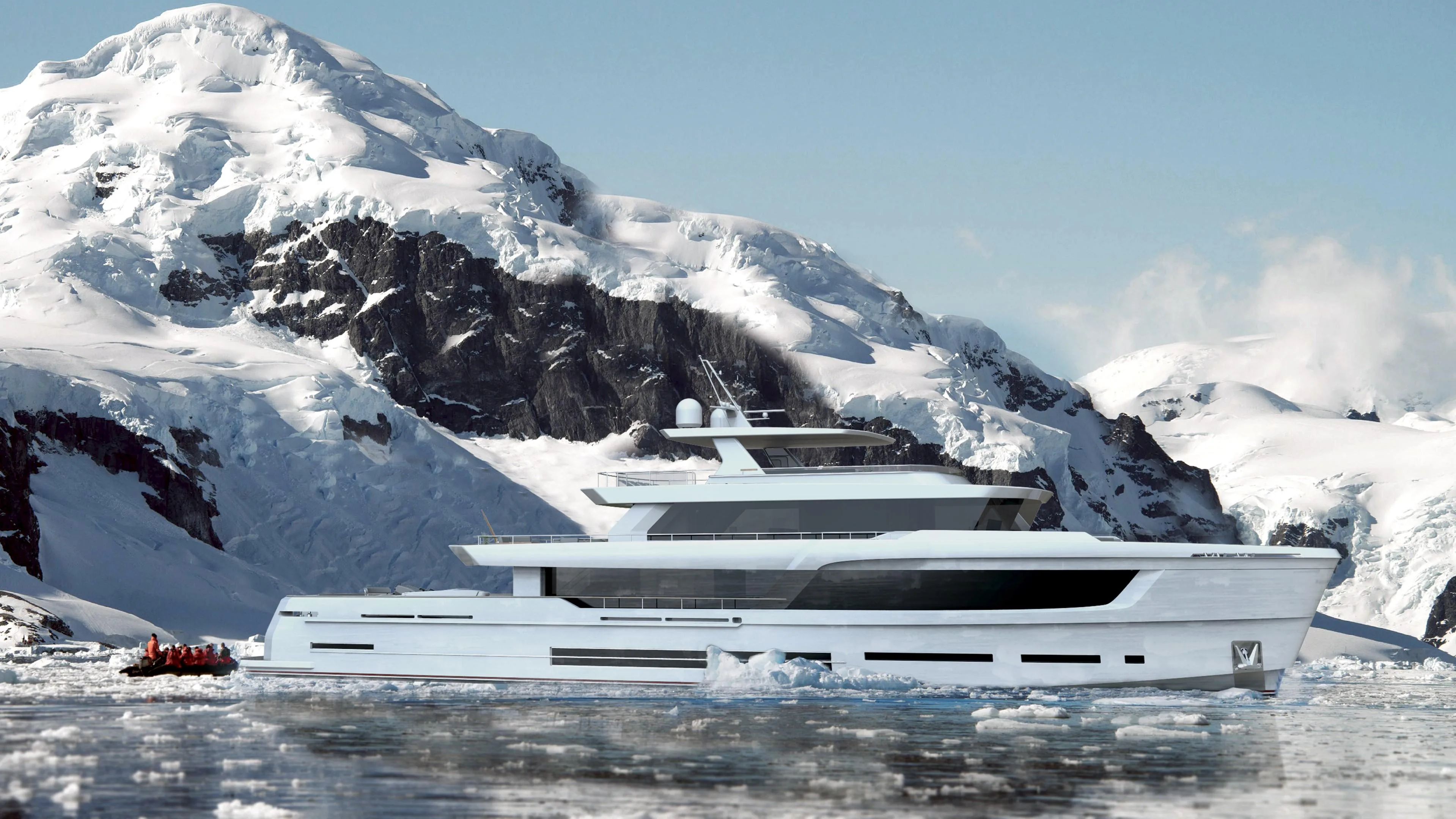

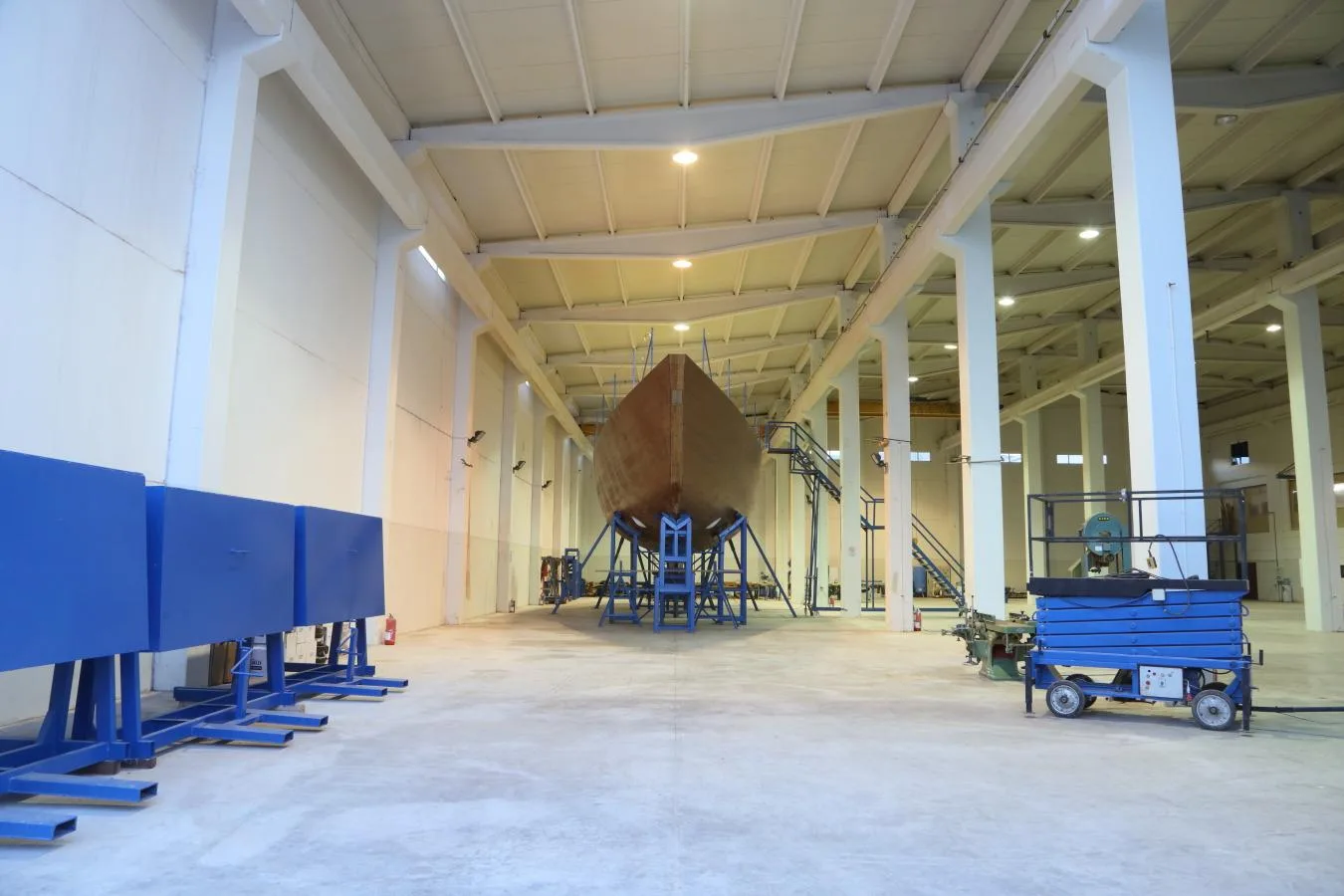

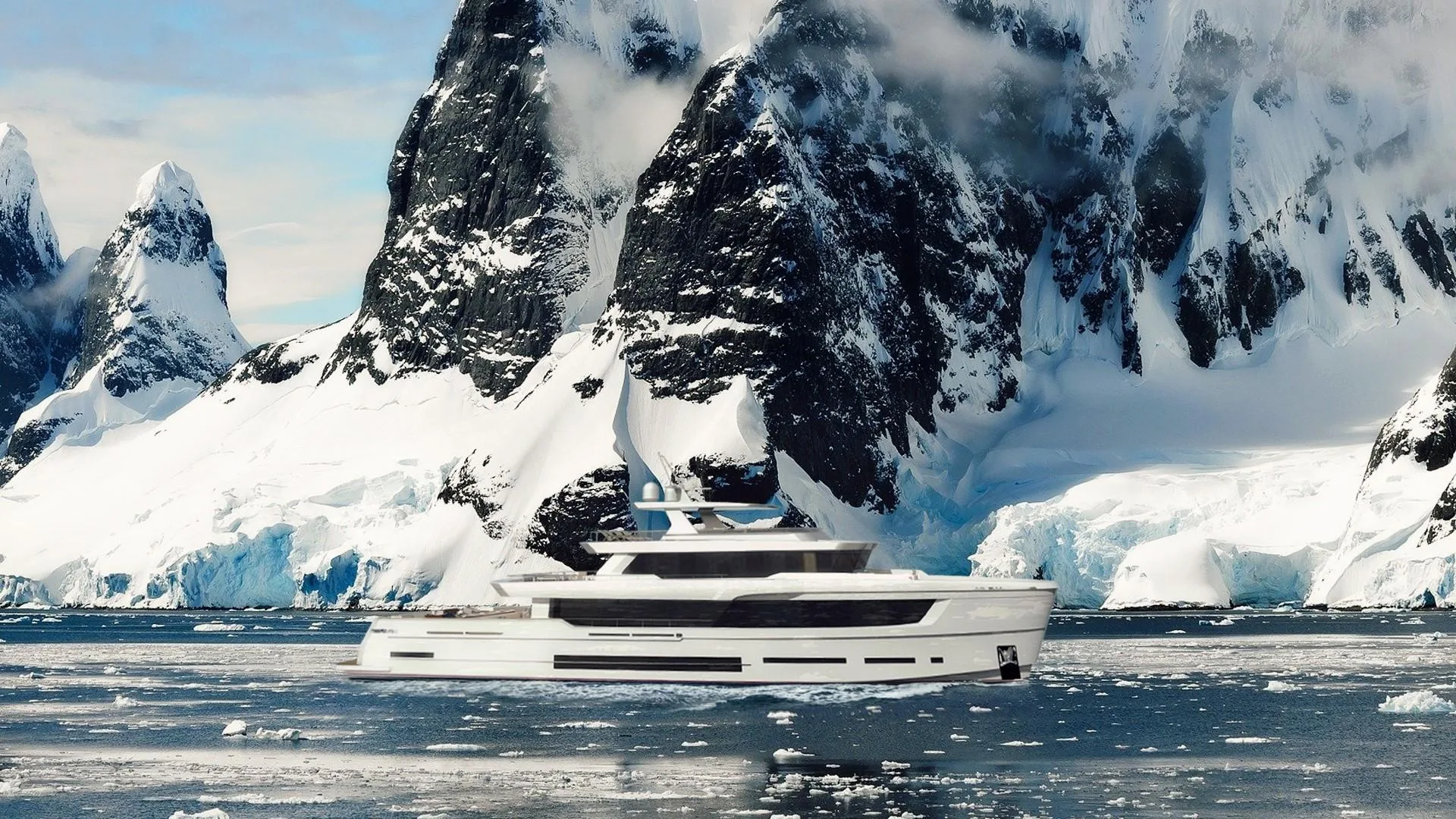

The 42.5m Explorer Ice Class is for build at AP Yachts,in Turkey.
The Explorer Ice Class is a brand-new yacht, to be built under the International Classification Rina, with a "unrestricted navigation - Ice class 1D".
Her steel hull an aluminum superstructure provide her the best safety and performance to cruise the most remote destinations on Earth.
With a modern design of expedition luxury yacht, a spacious and bright Italian interior, she is the best pedigree of the 21 st century luxury Explorer Yachts.
Built to meet the highest level of international yachting expectations, she carry all the features expected for a luxury yacht.
Designed by a 30 years experience Naval Architect office who was involved in the engineering of the Explorer XP line from Numarine, and to be built with Ap Yachts shipyard, part of a powerful financial organization, this first unit of the Explorer Ice Class is the perfect project for an owner willing to afford a quality and high-specification yacht for a very attractive budget.
Main Features:
- Unrestricted cruising area, Ice Class 4 Rina
- Trans-Oceanic range with up to 4,000NM
- At-anchor stabilizers, zero-speed fins
- Gym, beach-club, layout with up to 6 cabins

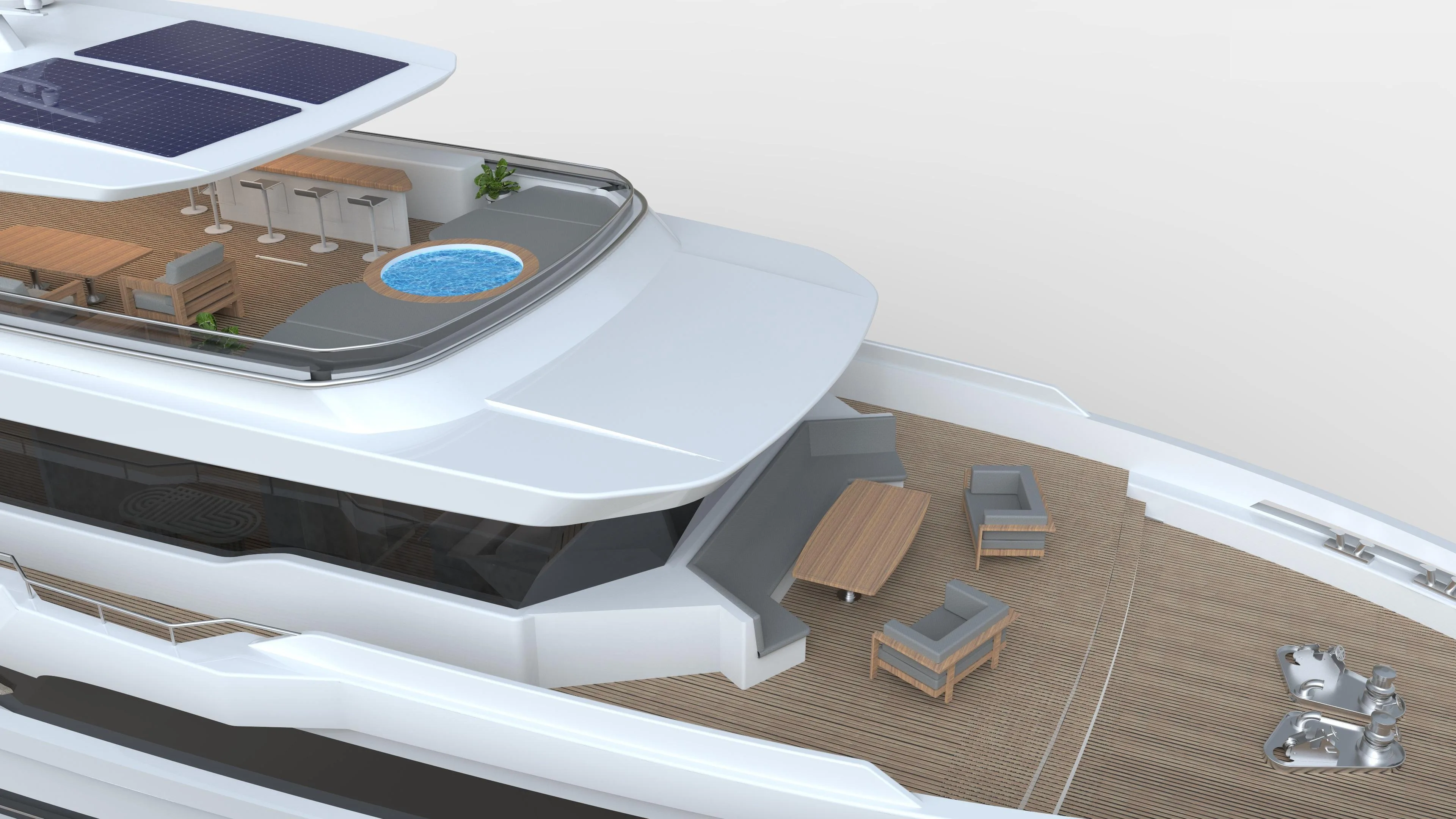

- Swimming pool option on main deck
- Crew accommodation for nine
Main Engine Two diesel inboard engine MAN D2862 LE427 662kW (900HP) @2100RPM WITH SCR, Tier III IMO 2021 NOx SOx compliance
Gearbox unit connected to main engines ZF 3000A Gearbox ratio 3:1, with PTO
Propeller Fixe pitch, 5 bladed, bronze alloy propellers Eliche Radice, France Helices Custom made Propeller diamater 110cm (TBC)
Steering System Electro hydraulic rudder system Data Hidrolik DDS 2x1000-ESC Double electric motors (380V + 24V)
Generators Two diesel generators, 55kW, 380V, 3 phase Kohler 55EFOZ-DJ With sound shield.
Main Engine Exhaust System Wet system exhaust with silencer With MAN SCR system
Generator Exhaust System With silencer and seperators Centek, Halyard, Vetus
Bow thruster Hydraulic bow thruster, 75HP ABT-Trac, Side Power With double propeller
Stabilizator Hydraulic 2 fin zero speed stabilizer system ABT-Trac, Side Power Two fins, non retractable
Air Condition Centralised chiller unit with fancoils Marincold Custom made 480.000 BTU with fresh air make up unit
Pasarella Hydraulic & telescobic operation Opacmare, Besenzoni, Ezberci Up&down fuction, 2m extends from aft
Deck Crane Hydraulic & telescobic Opacmare, Besenzoni, Ezberci 1,5 ton capacity, non rescue crane
Anchor Windlass Hydraulic stainless steel Data Hidrolik DZC 2200 With roller and chain stopper 18 Capstan Hydraulic stainless steel Data Hidrolik DHC 2200 Two located on aft deck
Paint High gloss marine topcoat on hull and superstructure Jotun, Boero Colour to be owner's choice, no metallic
Pumps Bilge, fire, fuel, water and other primary pumps Gianneschi, Liverani, CEM
Sewage Treatment Treatment system according to latest regulations Tecnicomar Ecomar 45/S Automatic operated system
Fuel Purifier Fuel-water seperator syste Alfa Laval MIB303
Watermaker Fresh water maker from sea water Idromar, Aqua Whisper Semi automatic operation
Batteries Marine type closed cell batteries Victron Energy, Whisper Power Gel type for generator use, AGM for starters
Battery Chargers Multifunction automatic battery chargers Victron Energy, Whisper Power
Inverts battery voltage to 220V Victron Energy, Whisper Power
Electric Panels Main and secondary distribution panels Custom made 380V, 220V, 24V custom made panels 30 Interior&Exterior Lights LED type ceiling and courtest lights Cantalupi, BCM or equivalent To be chosen with owner
Alarm Monitoring System Basic alarm and monitoring system Böning, Maretron or equivalent Custom made
Navigation Lights Navigation lights according to COLREG rules Lopolight or equivalent
Nav/Com Equipment Navigation and communication equipments Raymarine, Simrah, Garmin
Deck Hatches Watertight flush hatches on deck Bofor Covered with teak from outside
Superstructure side doors Pantograph and hinged doors Bofor Painted aluminium doors with stainless hinges
Garage Door Hydraulic operated uplift garage door Ezberci, Sahinler or equivalent Custom made Weathertight door with hydraulic locks
Engine Room Door Watertight hinged for access to engine room Bofor Certified class approved door
Superstructure Sliding Doors Stainless steel sliding doors Bofor Custom made Manual operated
