2024 Stealth 46M ARV | 151ft

STEALTH 46M ARV

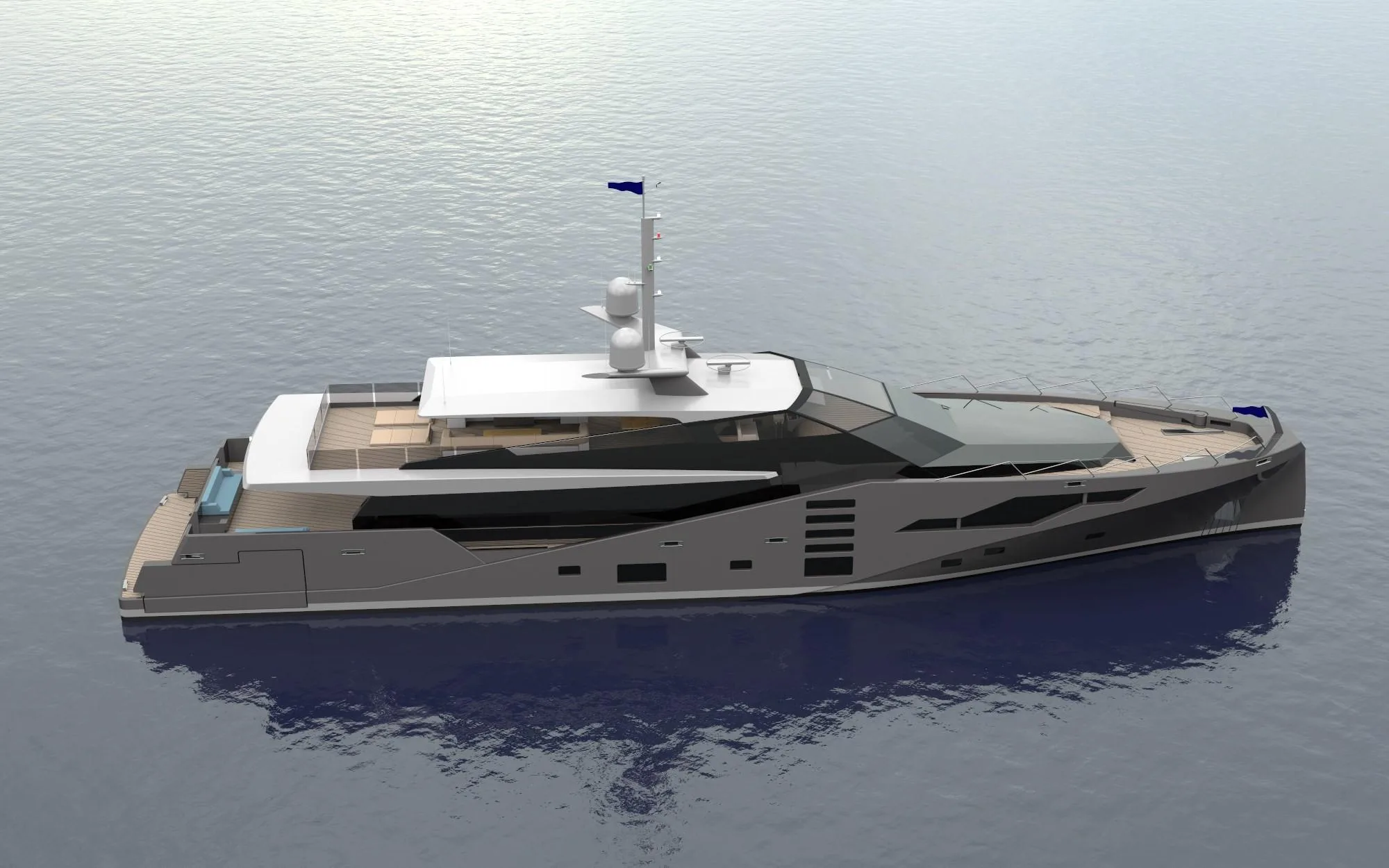

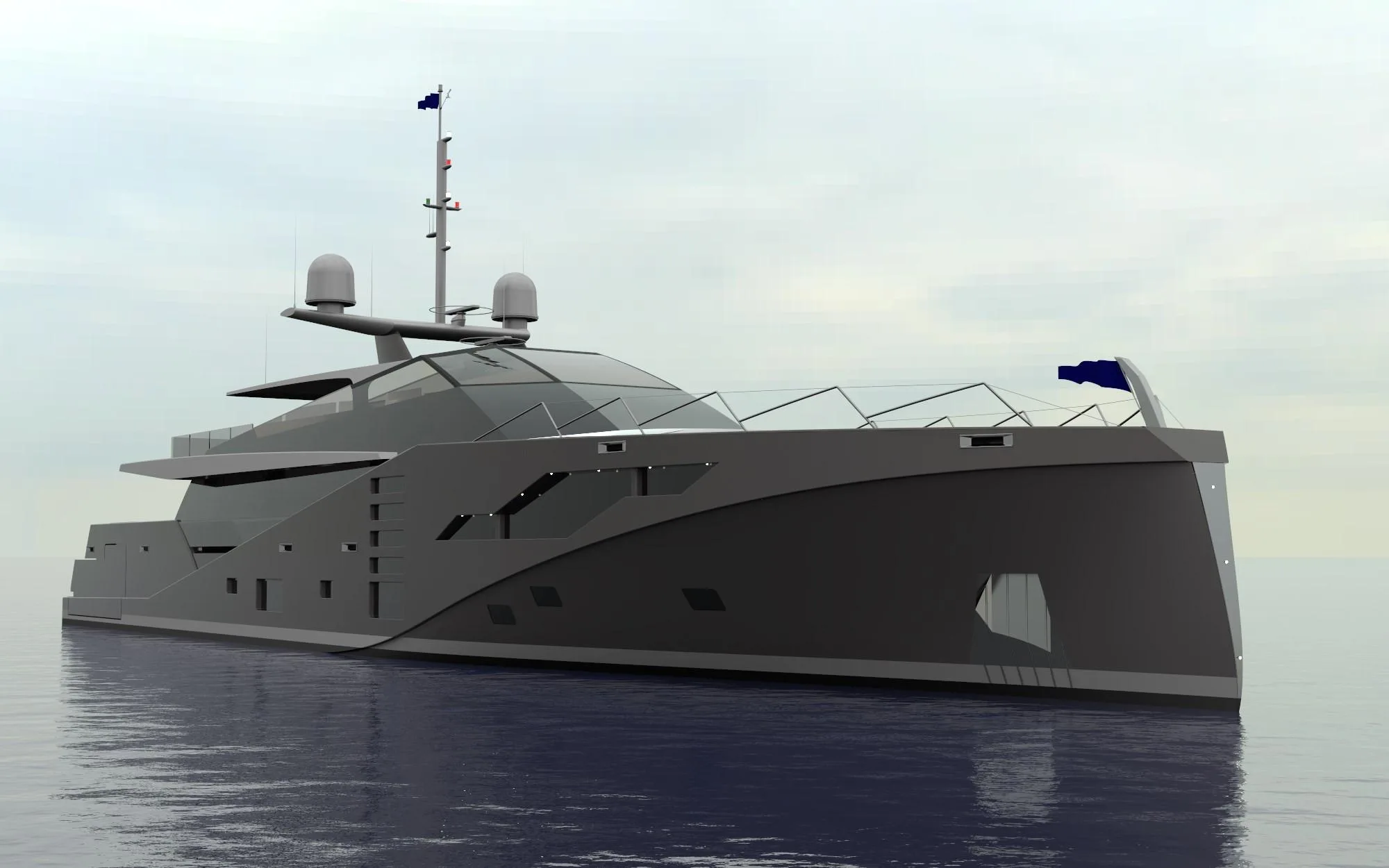

The STEALTH 46M anti radar vessel is a design that will appeal to a client looking for something very unique. The styling is bold and takes its cues from current naval requirements. The design also allows for class-beating interior volume.

At this stage this is a project from the board of world renowned Naval Architect Peter Bolke who over the years has been behind numerous large power and sailing yacht designs based with the hugely successful Dubois design house.

Principal Dimensions:

o Below 500GRT
o Aluminium or Medim Tech Composite construction (not steel)
o Semi-displacement form to be efficient at cruising speeds
o Restricted installed power for good hull speed efficiency range
o Maximised running length for efficiency
o Box Dimensions 46.0m x 8.9m x 2.3m

Hull features:
o Maximized parallel body for build efficiency
o Underwater – run aft inflected to horizontal F55 – allowing parallel transom platform extension.
o Hull bottom inflection maximised to allow low installed shaft angle
o Maximise running length for efficiency – full LOA
o Thruster openings – hydrodynamic fairing and detailing
o Options for zero speed stabilization
o Long keel extent for directional stability
o Moderate hull flair forward – small chine knuckle intersecting waterline
o Skin fittings – either above knuckle in vertical topside or below knuckle in hull bottom
o Flat stem

The design incorporates not only a unique styling concept but also attention to detail has been given to the hull form, power train and ancillary equipment to improve efficiency and space for a given size.

The designer and Ocean Team are available to discuss this project in more detail and also offers the new owner significant flexibility and customisation on the interior and options. The build could be achieved here in the UK or at various yards in Europe or Italy.

The interior could also be offered a blank canvas for your interior designer of choice to produce something both spectacular and of course totally unique to you.

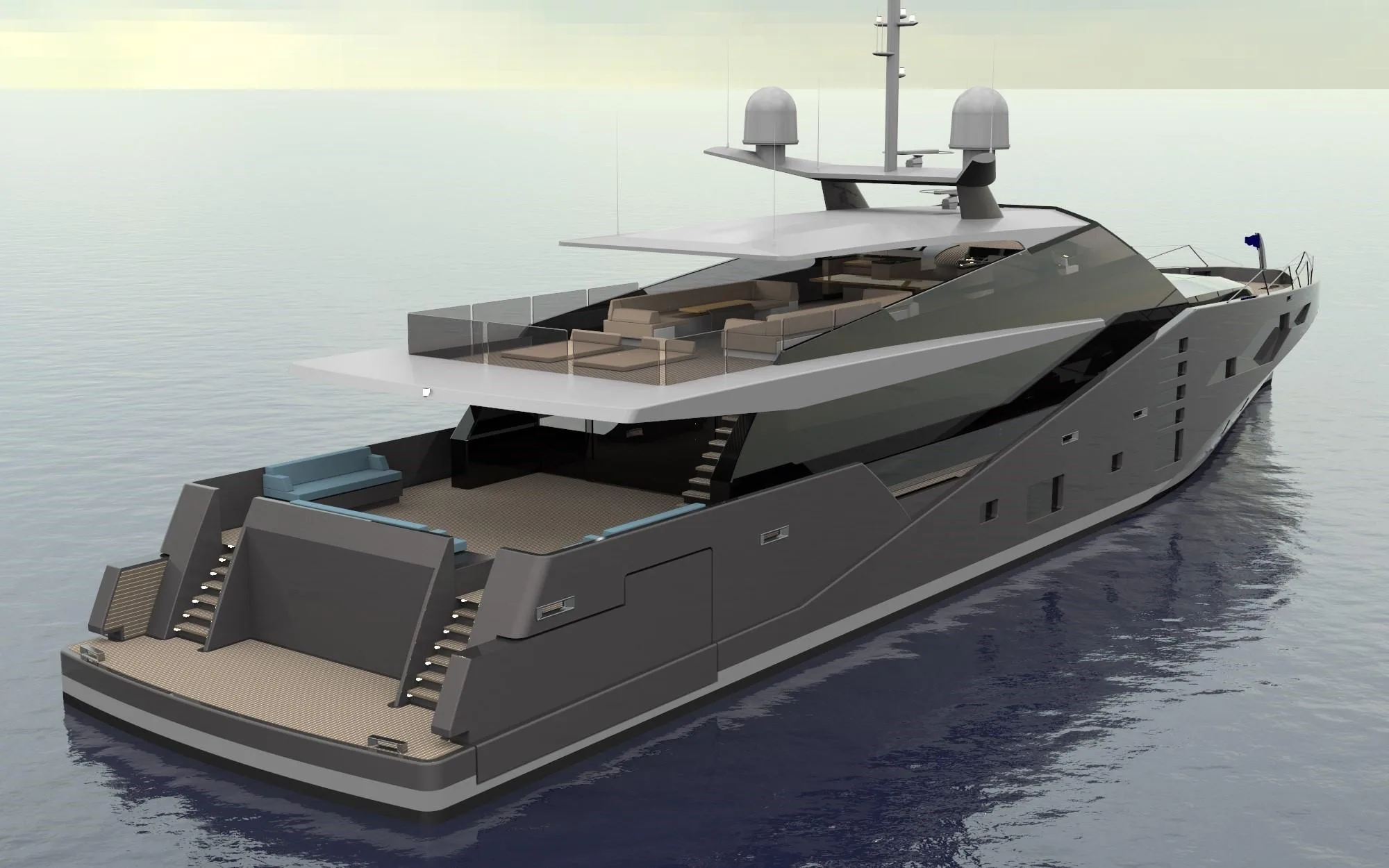

In way of lazarette – hull topside platform extends aft far enough to allow walking around the aft quatre buttress – so access to the stern steps.
No additional steps required.
o Platform is also useful to extend beach-club facility.
