FEATURES

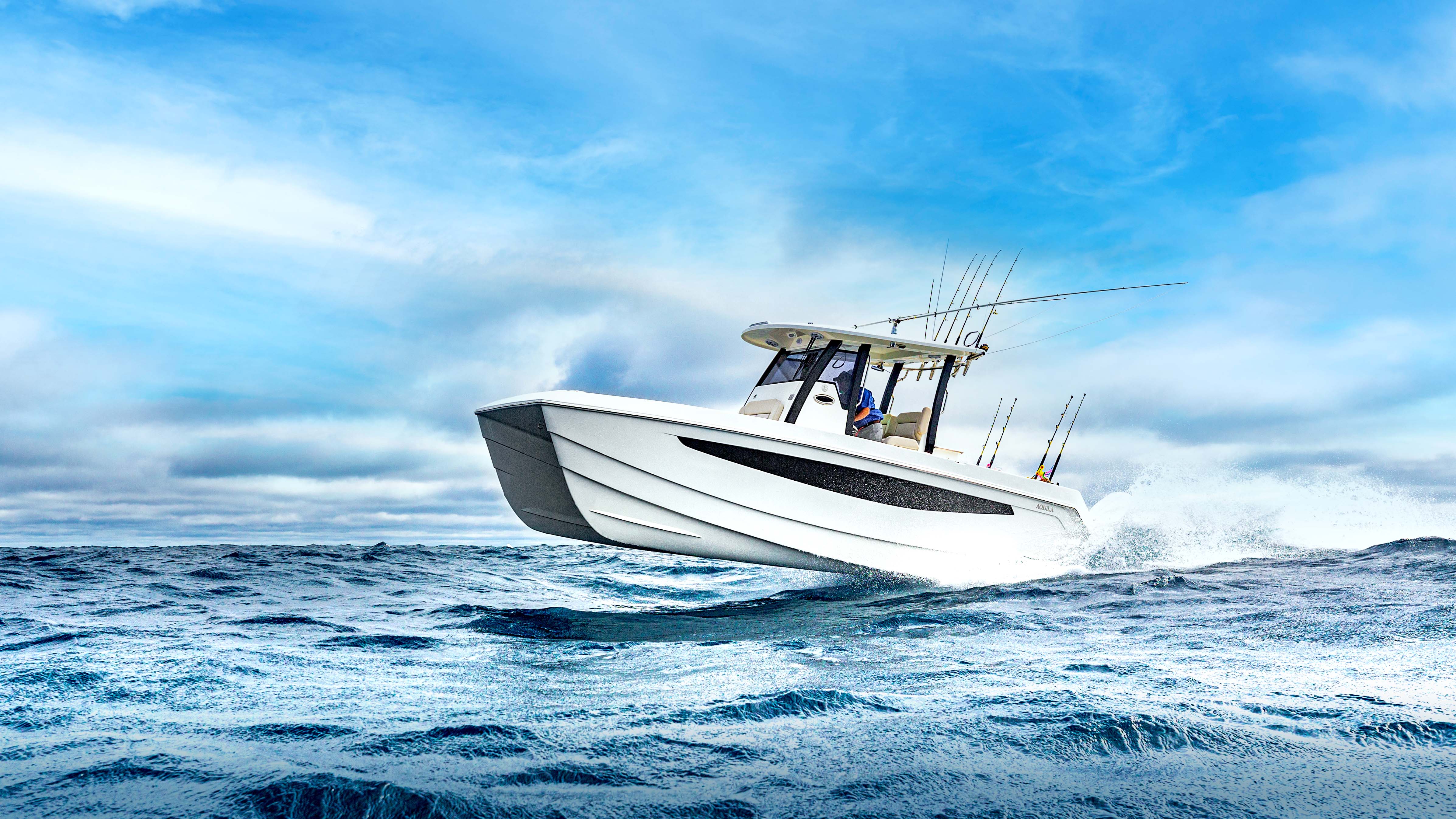

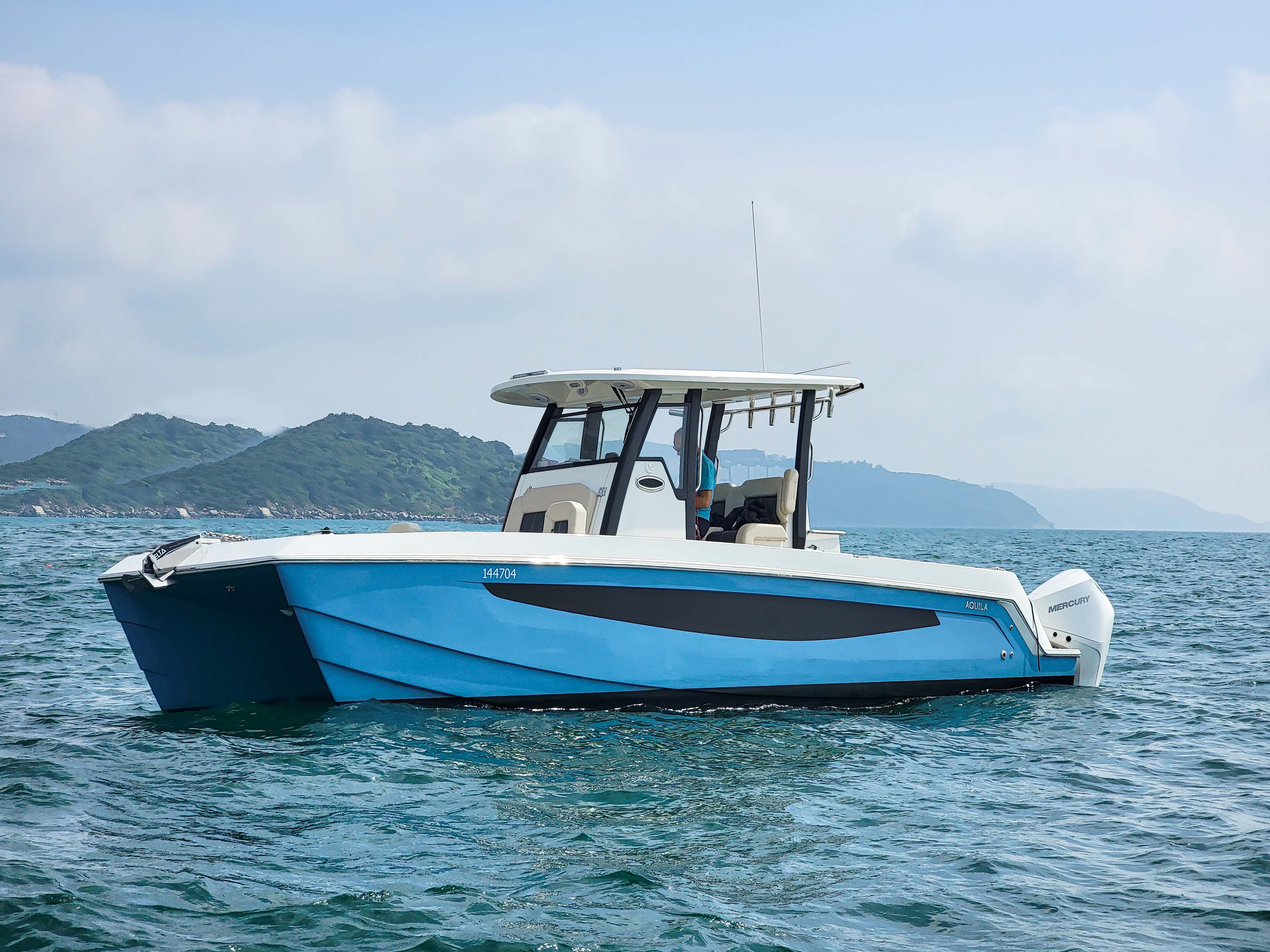

Proven and tested hull design from Hawaiian waters offering best in class offshore handling capabilities
Highest tunnel clearance in class offering better air cushion and reduced hull noise when fishing/trolling
Forward console hinged door opening for easy access to inside console and optional toilet with dockside pump out
Central walkthrough with removable door at transom offering direct access to stern; excellent for fishing, diving, and recreational water access
Class leading deck space for fishing and entertainment
Quality electric including AGM batteries as standard
HULL
Aquila Protection Plan: 5 Year hull/deck structural warranty
White gelcoat
Vinylester resin infused hull, deck, cockpit floor and bulkheads
Infused fiberglass structural grid
Bow eye 316L stainless steel
Four (4) separated compartments in each hull which can be individually drained or completely isolated
Integrated transom walkthrough between engines
Stainless steel drain plugs in each hull at transom
DECK
Rub rail with solid 316L stainless steel insert
Molded one piece deck and cockpit liner with non-skid pattern area

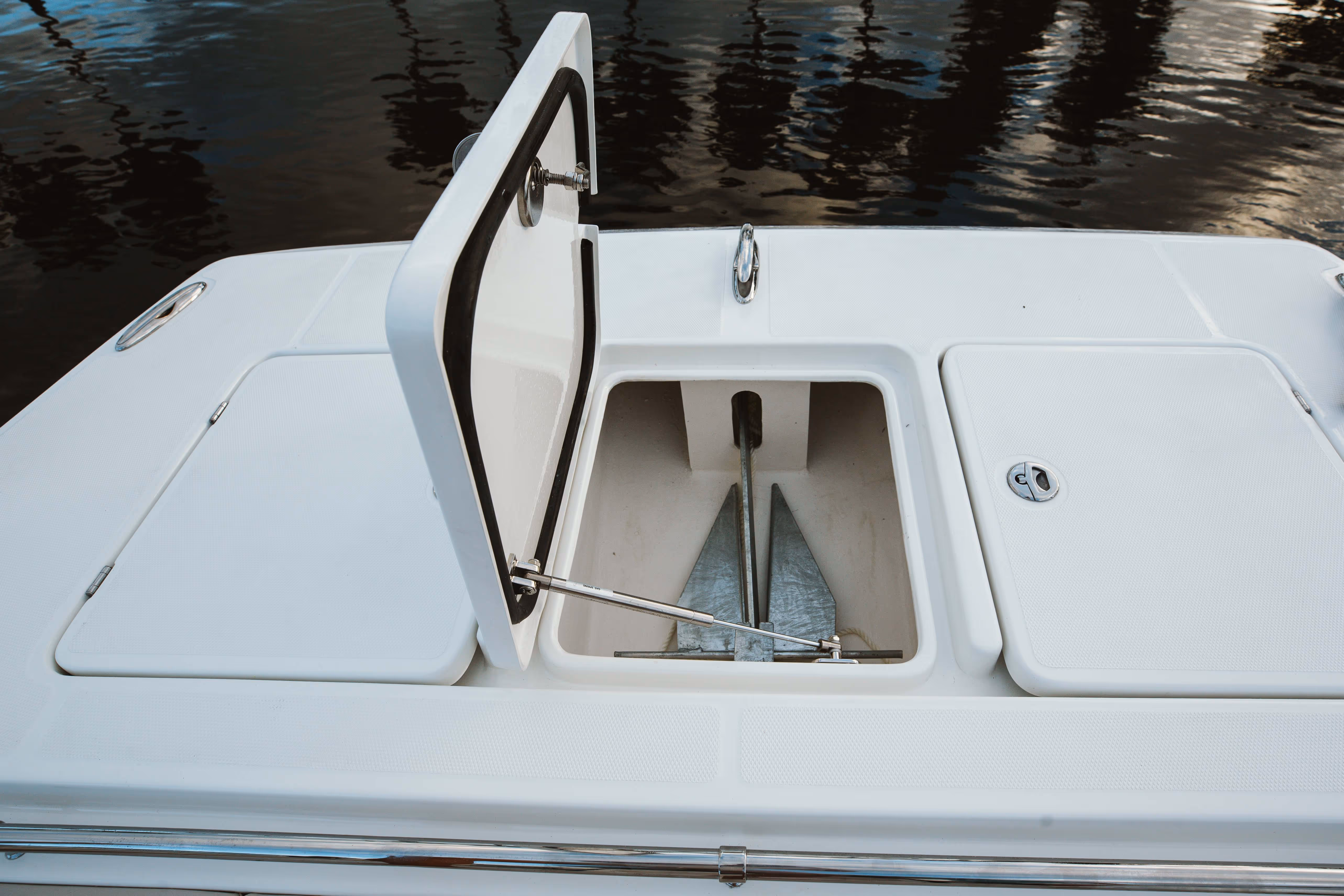

Flush mounted integral anchor locker with fiberglass lid
Flush mounted lockers on port and starboard side of anchor locker with fiberglass lid
Seven (7) through bolted 8" pop up cleats; stern (2), spring (2) and bow (3)

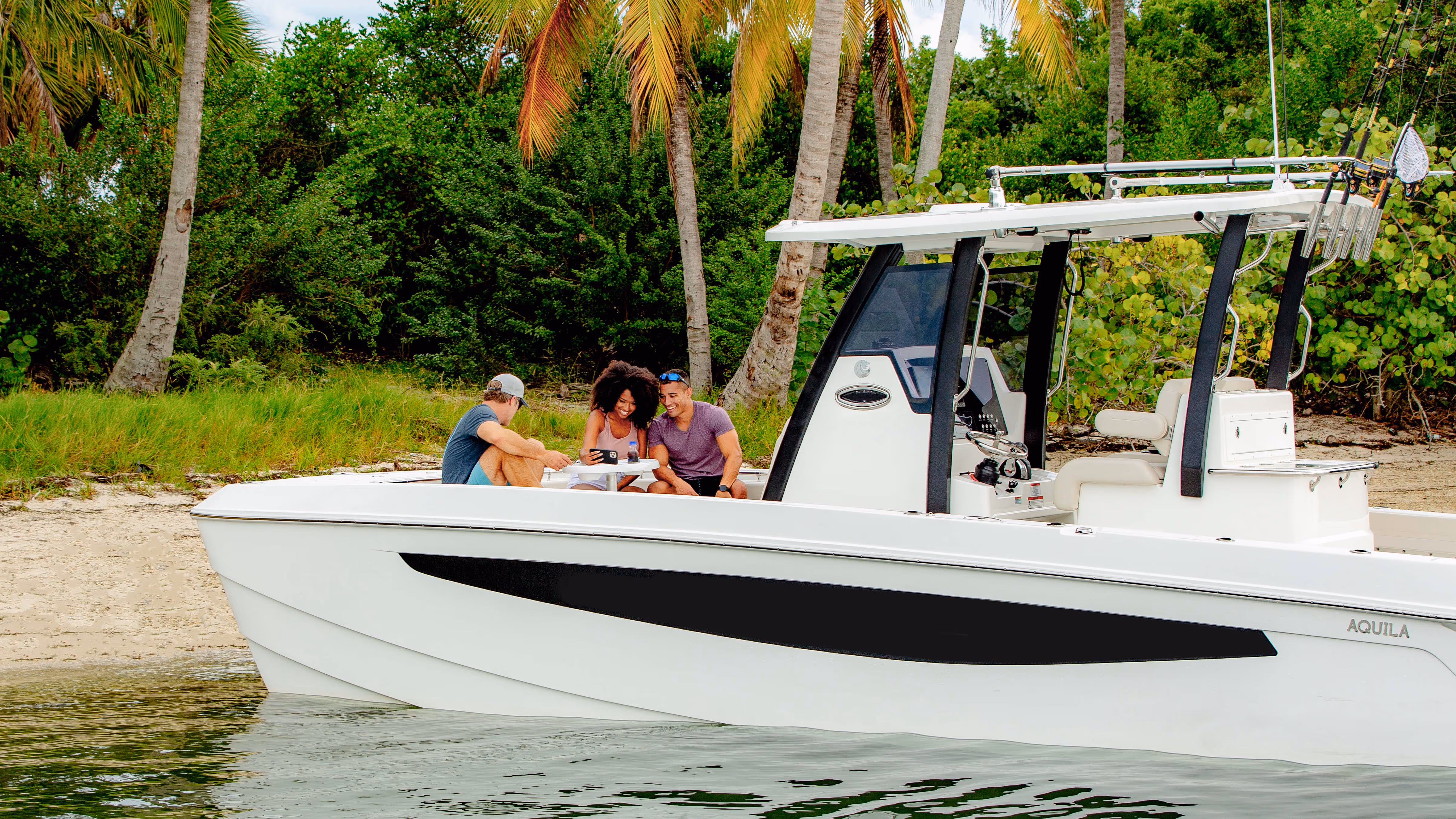

Molded split bow seating with cushions and storage below
Integrated deck level 316L stainless steel railing
Molded recessed hatches with gaskets and stainless steel latches
Transom stainless steel rails bolted to deck for ease of water access
Seating at forward bow with optional forward facing seats with backrests
Flush mounted central storage locker in bow seating
Bolster cushions installed on gunwale throughout boat

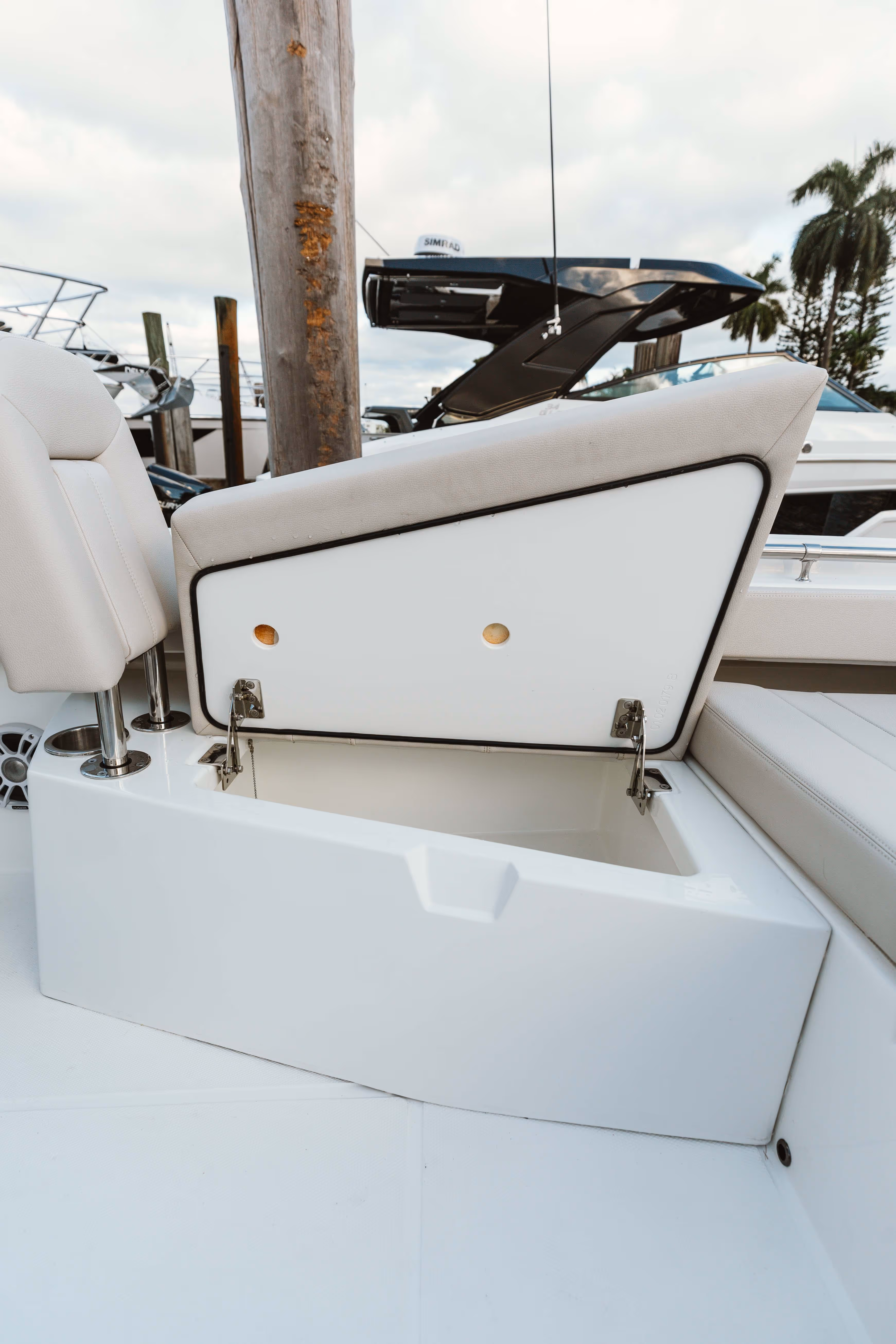

Deck access fiberglass storage locker on port and starboard side of helm console (103 gal each)
Designated fiberglass deck access lockers for easy access to aluminum fuel tanks
Port and starboard deck access insulated fish boxes each with designated macerator pump outs (94 gal each)
Port and starboard deck access mechanical area hatches

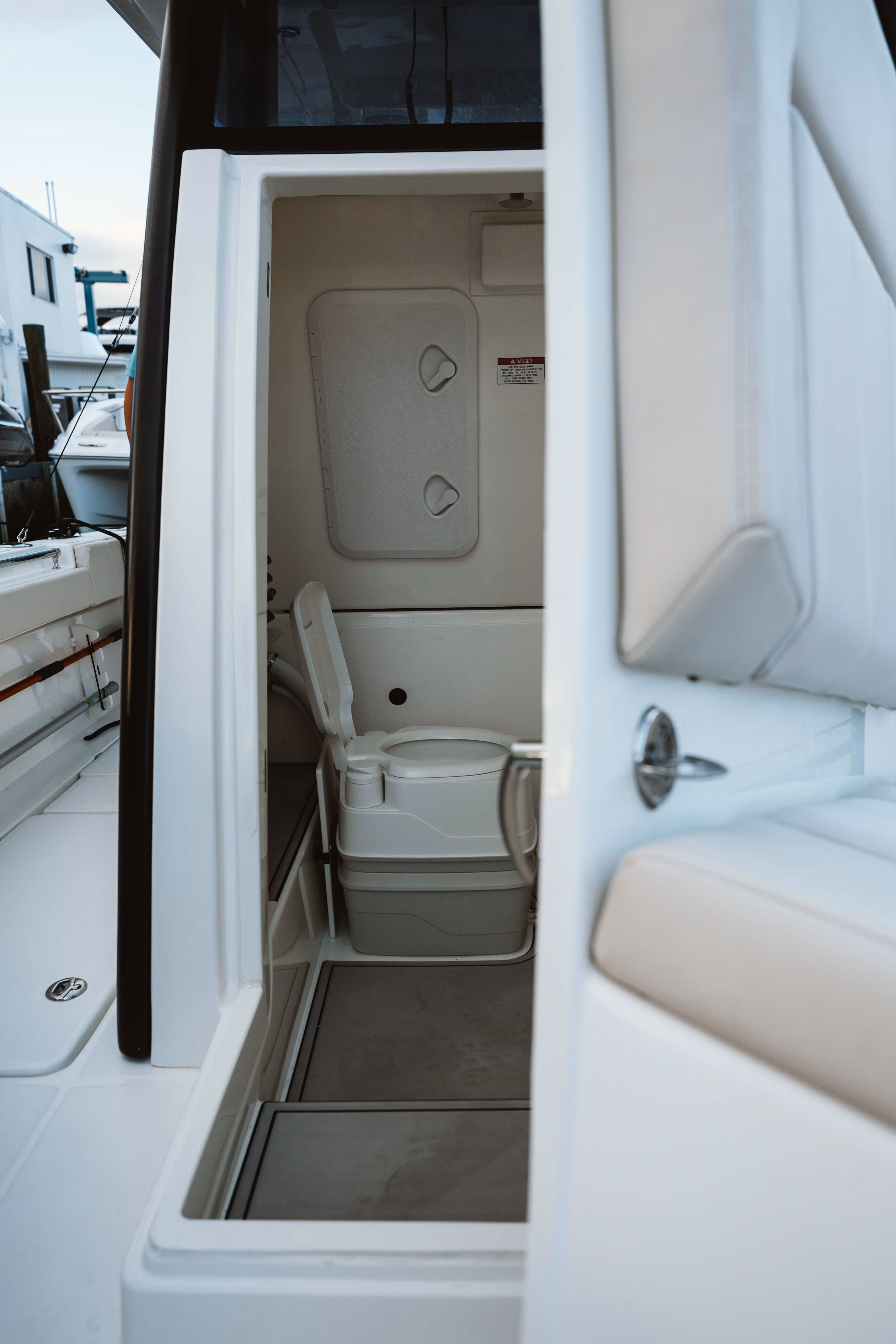

Large hinged door for easy access into console area with optional toilet

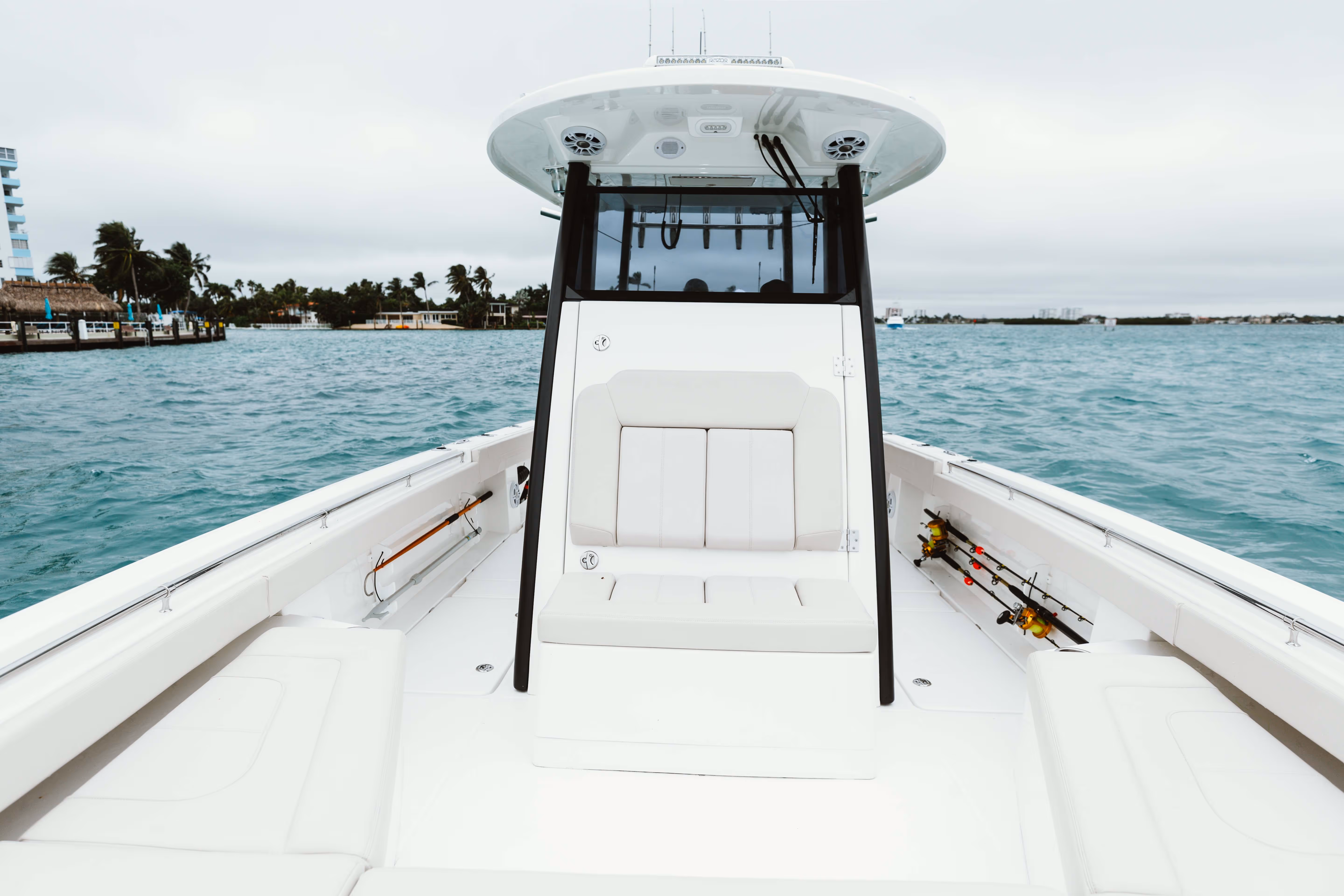

Forward facing seating for two (2) passengers in front of console with integrated cushions
HELM
Stainless steel steering wheel with control knob on tilt helm
12v switch panel with push button switches
Compass

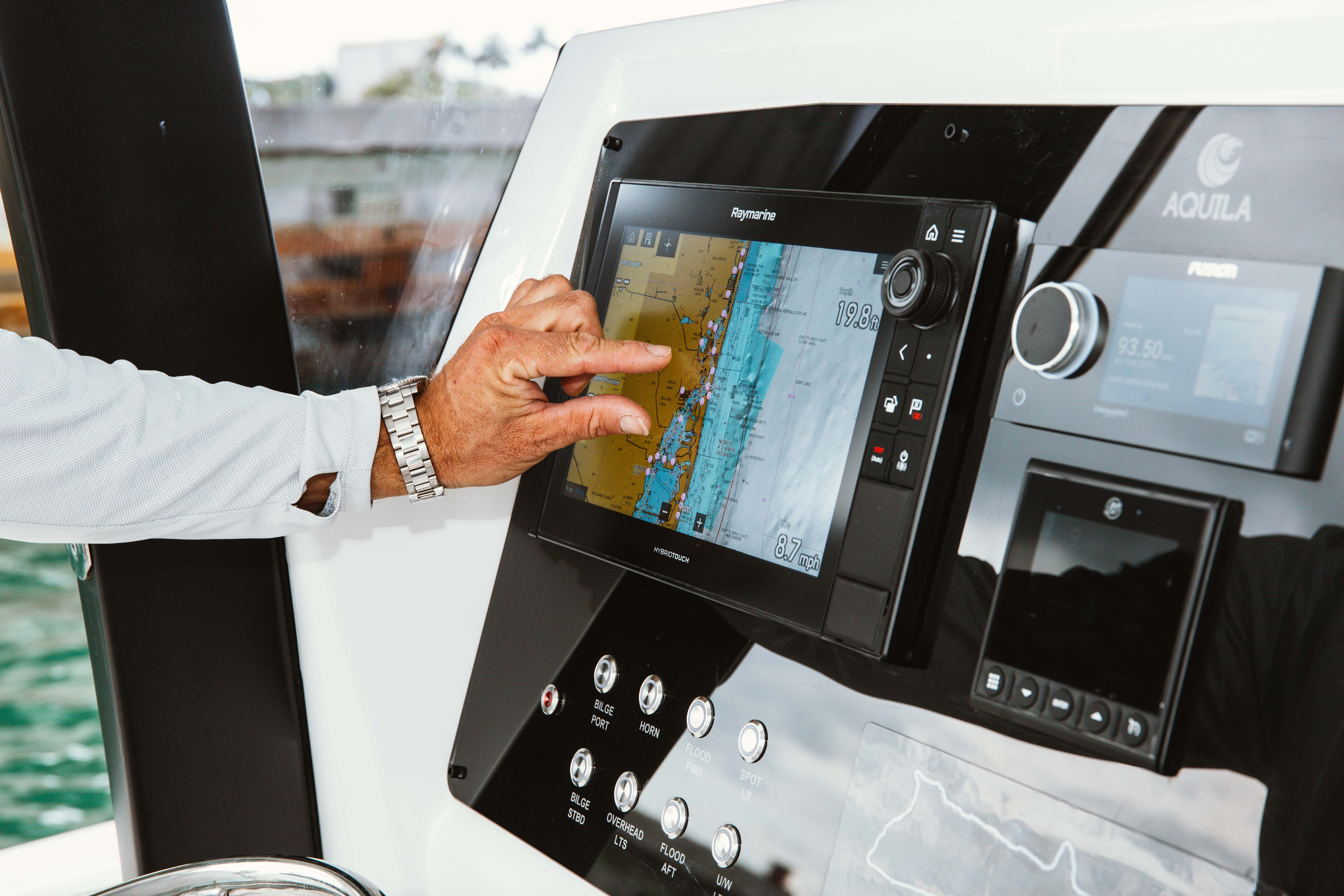

Waterproof Fusion full function display with Bluetooth capability (MS-RA55)
Windshield wiper system connected to fresh water supply with control at helm
Bilge pump red indicator light
Stainless steel grab rails
Integrated glove box with dual USB charger
Molded fiberglass footrests
EVA foam padding at helm, on top of console, and at molded fiberglass
footrests
Two (2) cup holders
Recessed area next to compass for loose items
Mercury digital SmartCraft gauges
COCKPIT FEATURES

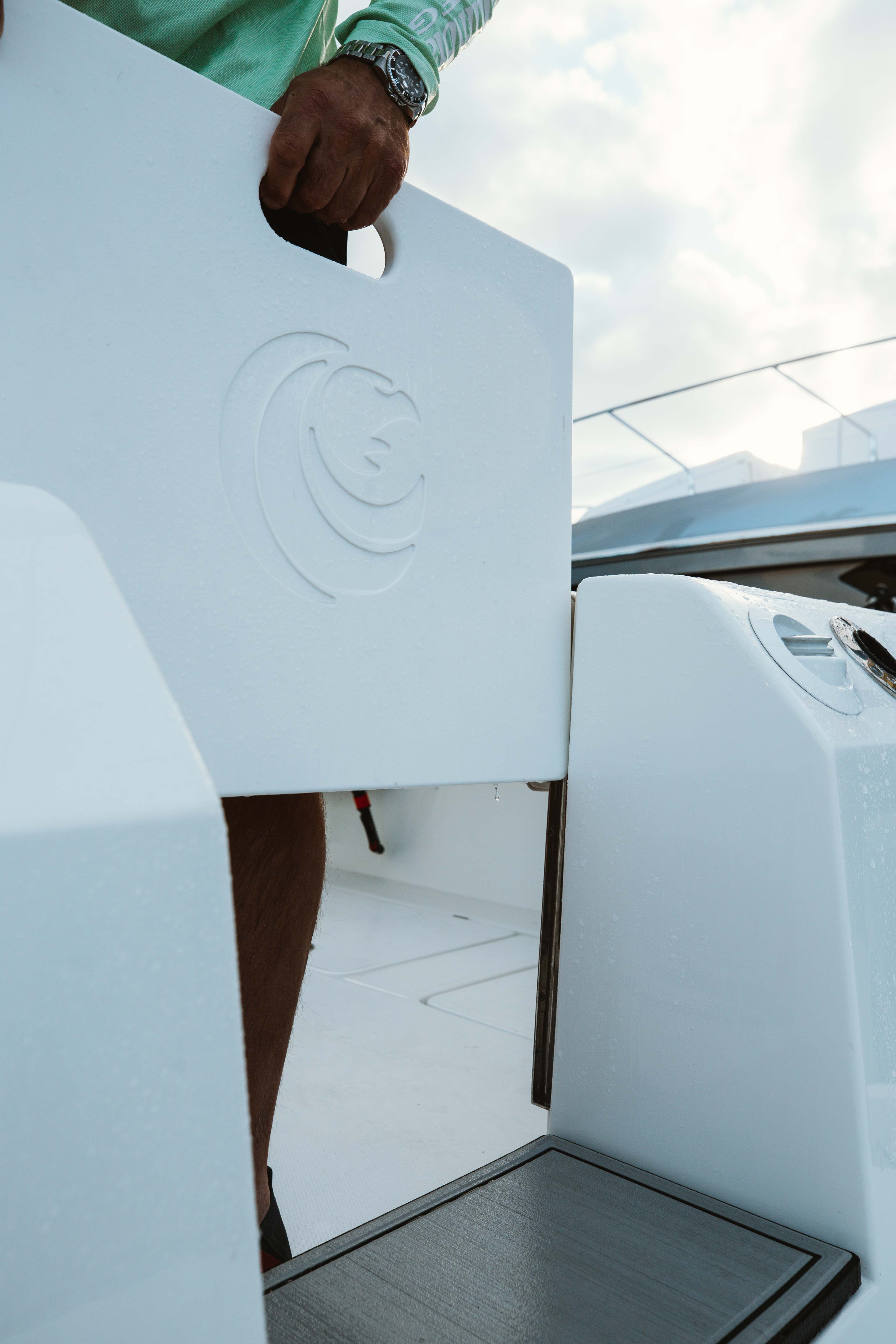

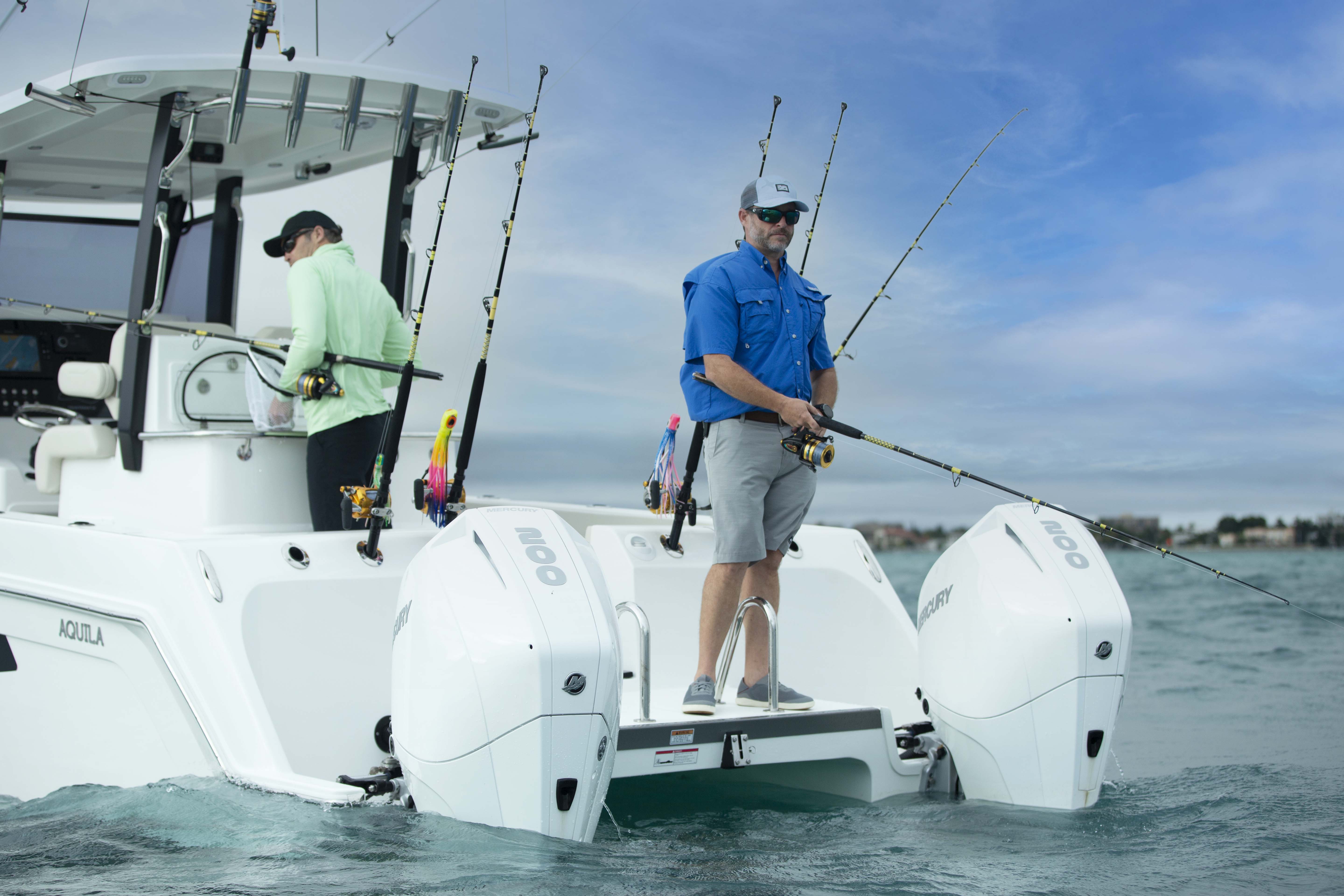

Centrally located aft removable door for easy access to transom and swim ladder
Fresh water pull out shower at transom (cold water only)
Four (4) drink holders located behind helm seats

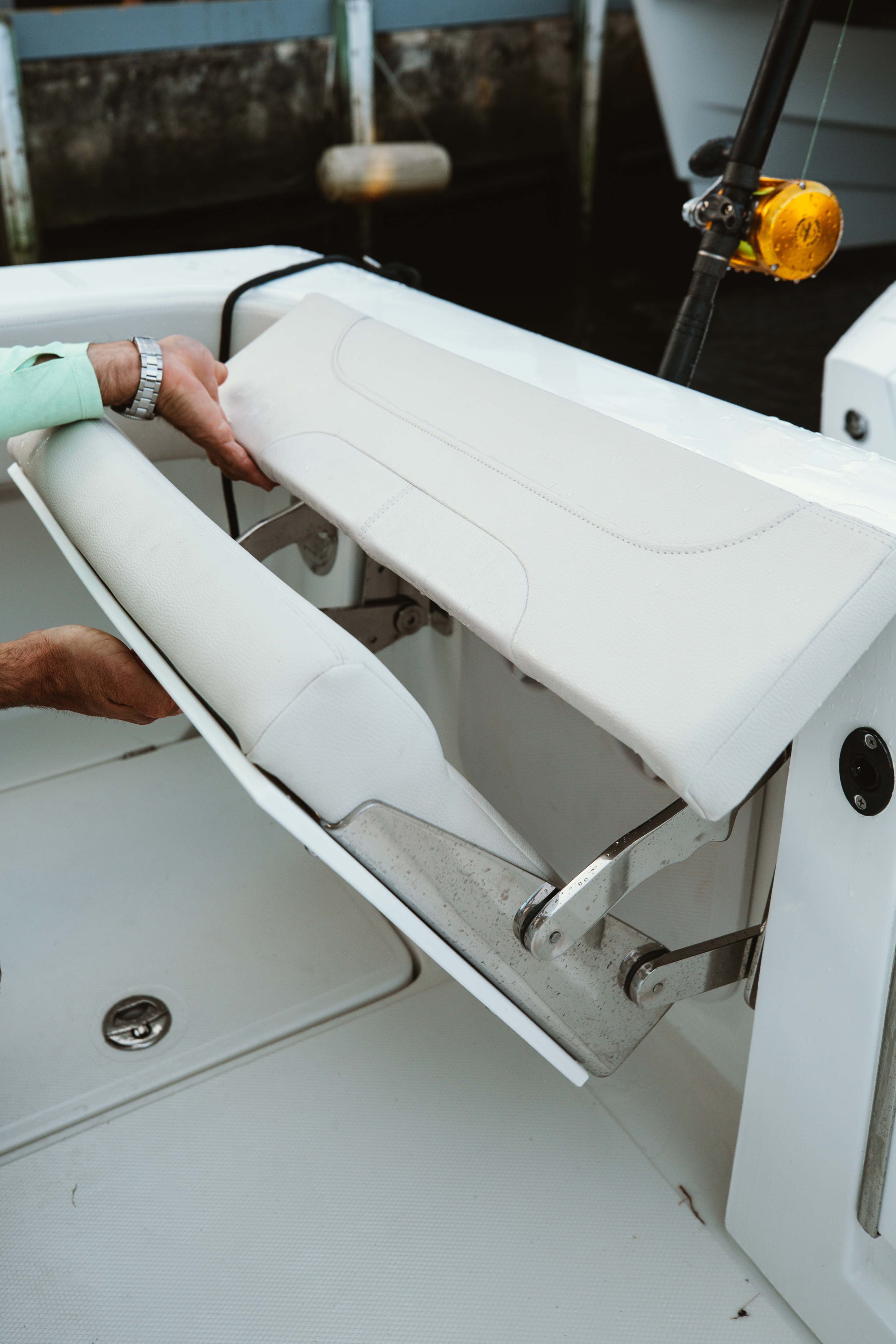

Aft cockpit recessed and forward facing fold out seating with cushions on port and starboard side
Two (2) large cockpit drains for fast overboard discharge

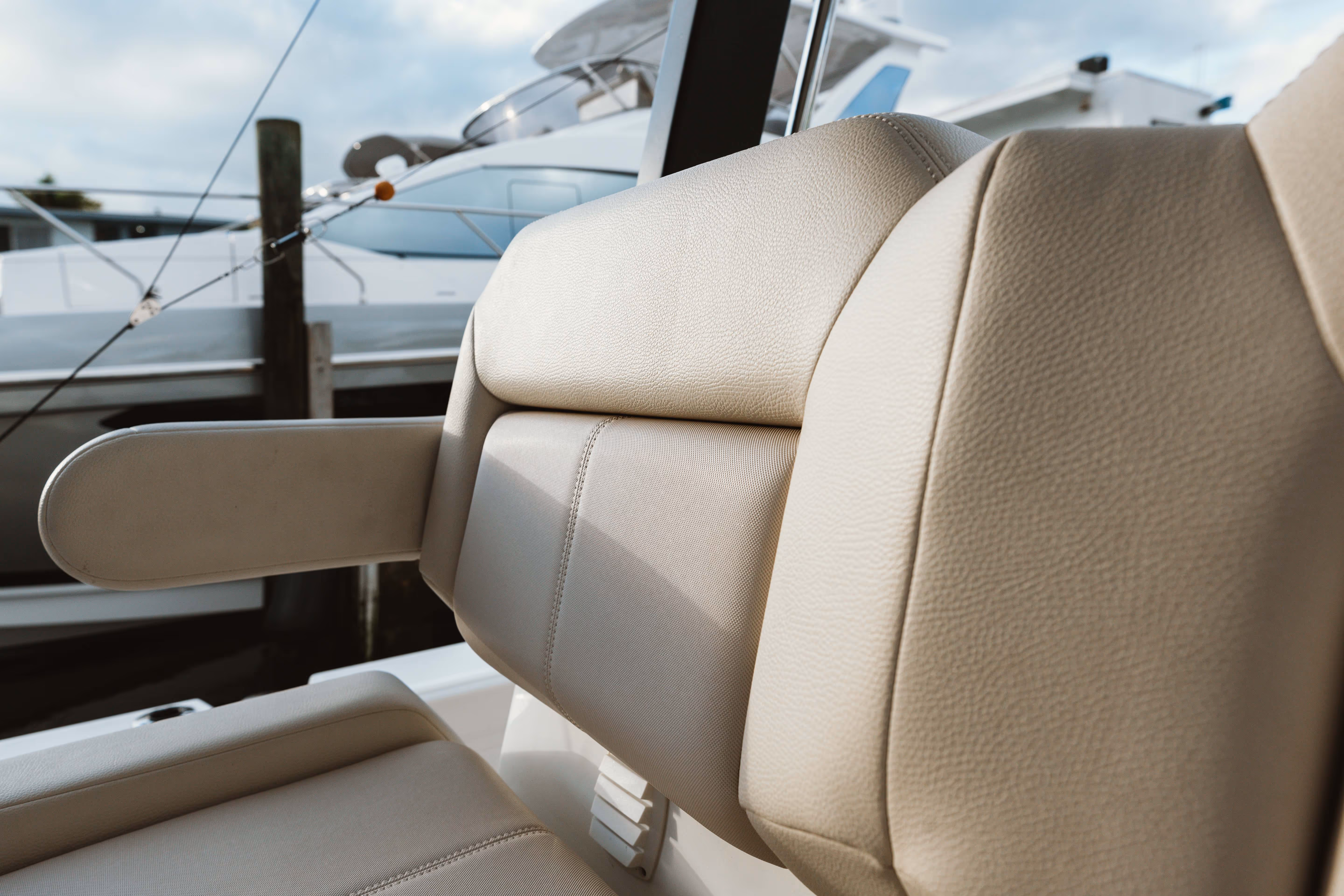

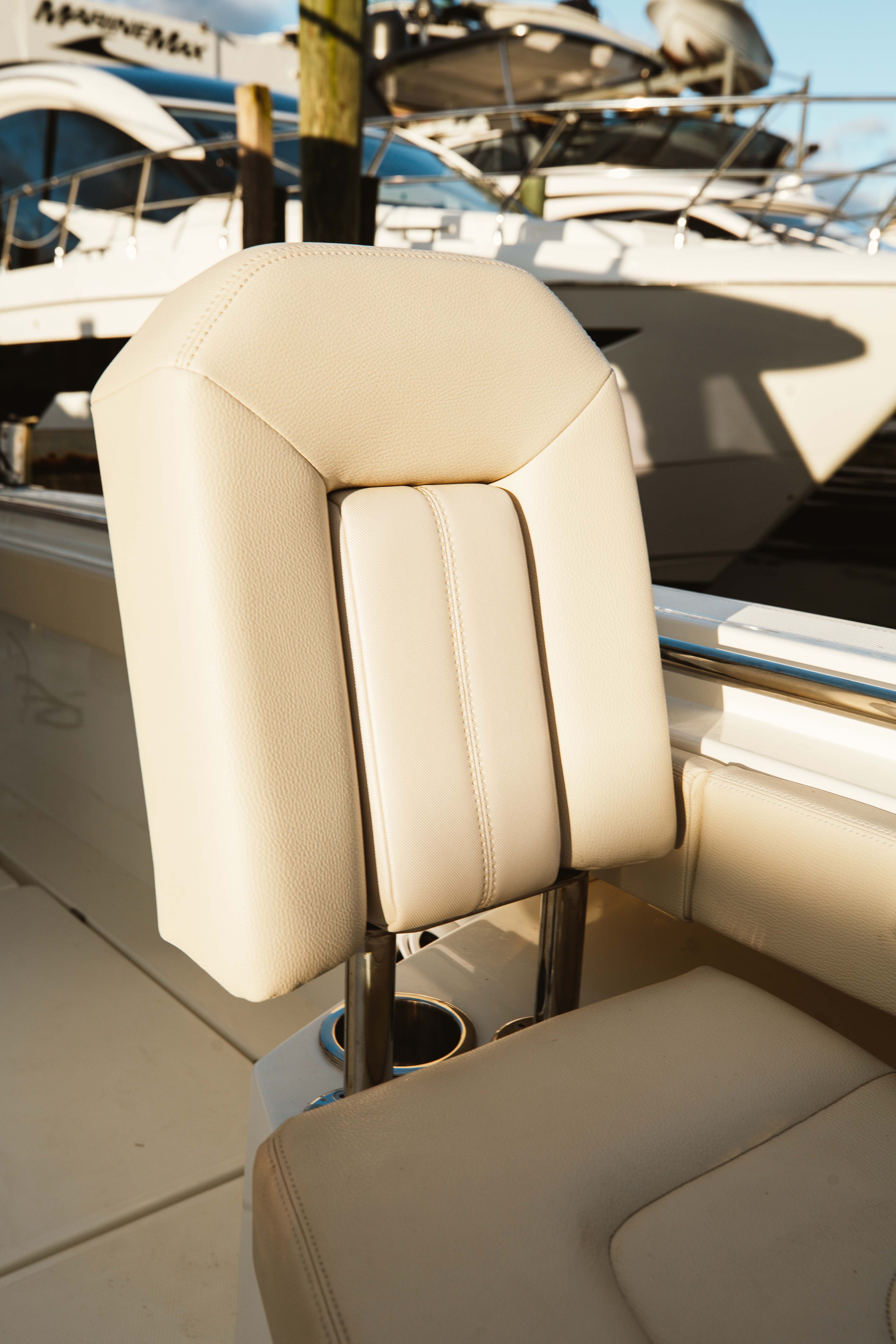

Two (2) custom designed helm seating

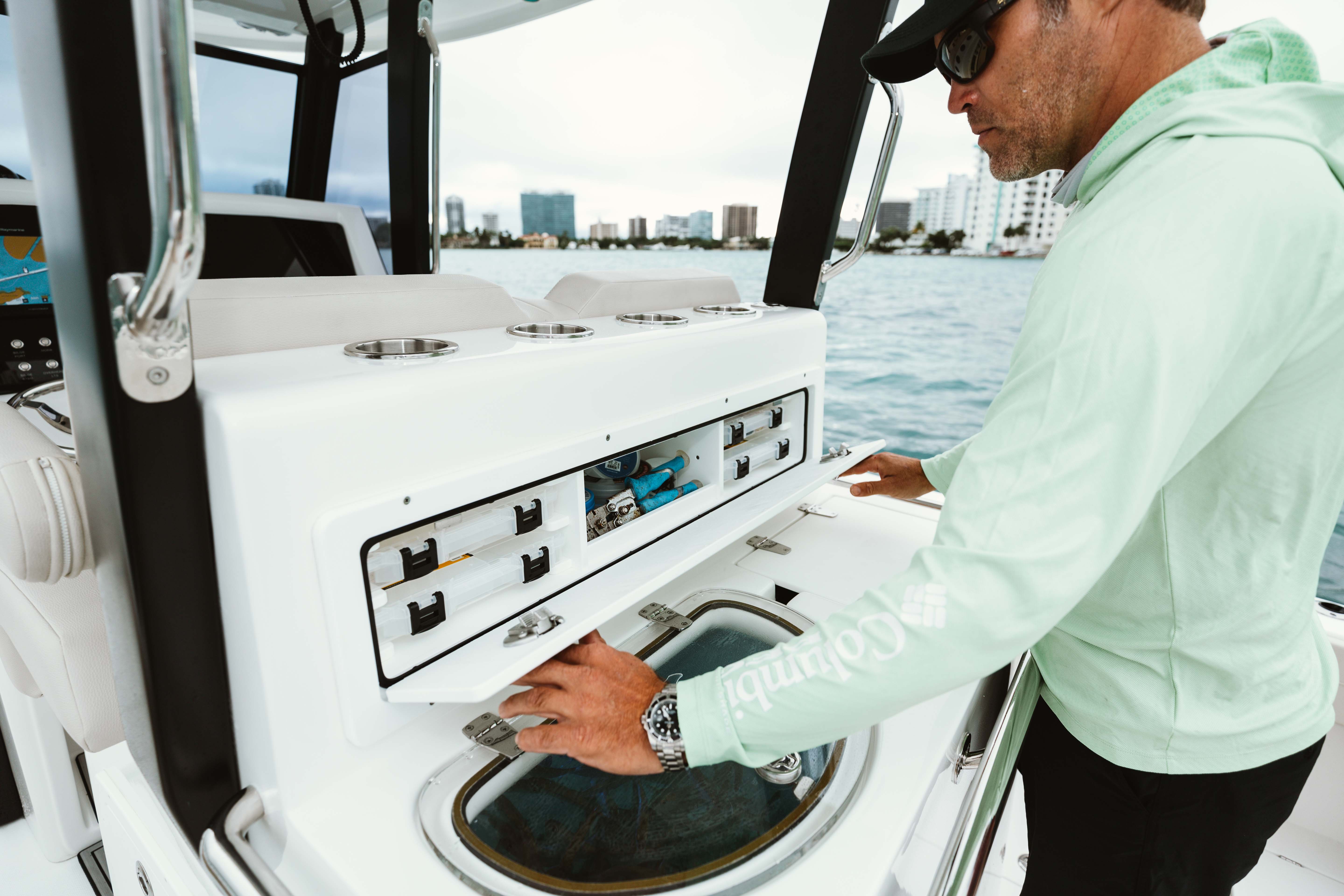

Molded helm seat console with four (4) drink holders, two (2) dedicated tackle storages with removable trays
Large tackle storage locker with removable trays and designated storage area located above sink and livewell
Integrated cutting board with sink and fold down faucet with fresh water supply
Livewell (30 gal) with integrated perspex lid and Integrated hatches allowing easy access to batteries, fresh water tank, and electrical connections
Fusion Marine Entertainment System: Bluetooth compatible system, MS-RA55 head unit with 4 x 6" speakers in hardtop
Aft cockpit machinery access hatches
Raw water outlet in cockpit with hose
LED cockpit courtesy accent light
FISHING

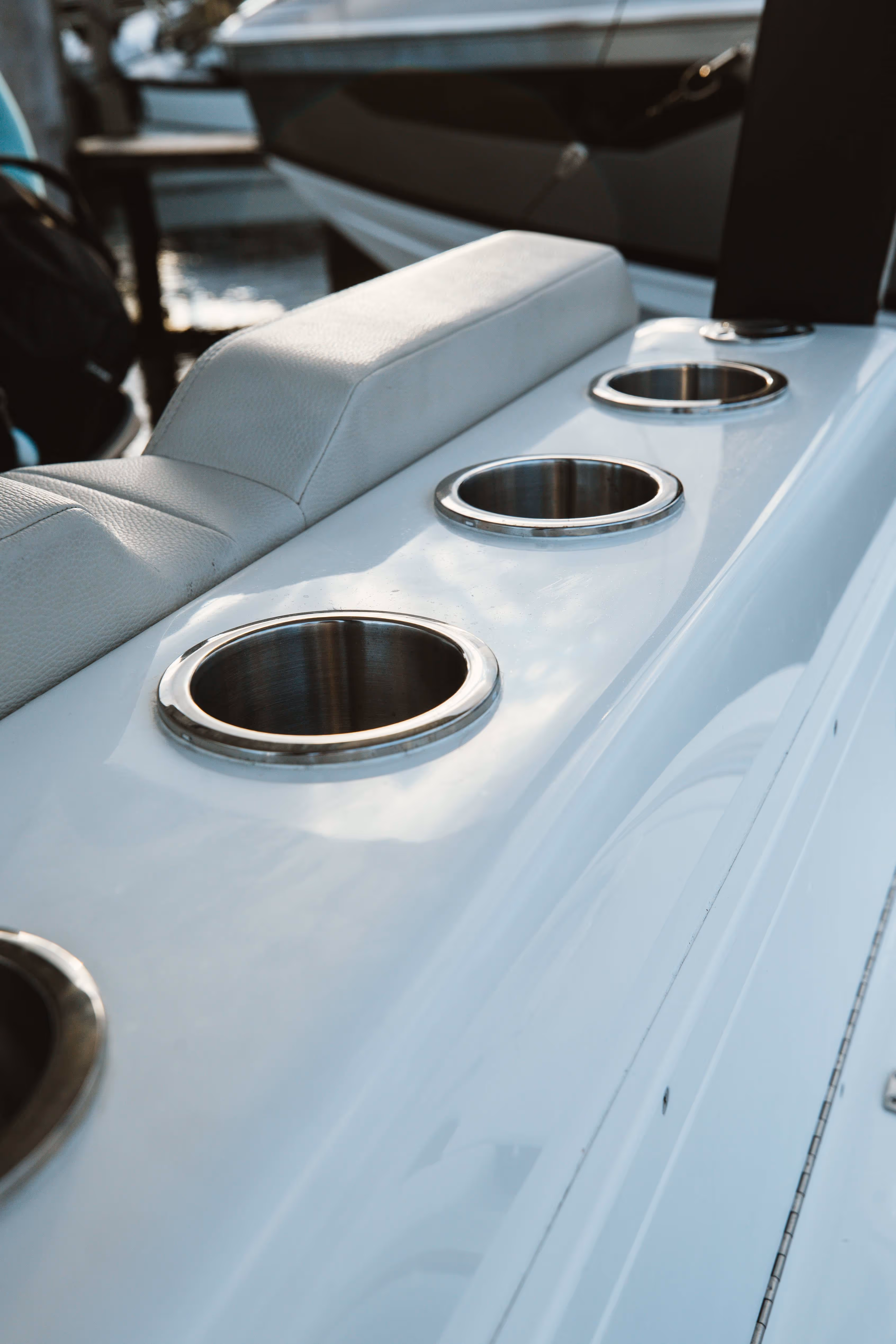

Four (4) stainless steel rod holders in gunwale
Lighted Caribbean blue 30 gal recirculating livewell with acrylic lid and flow control valve
Under gunwale rod storage (port and starboard)
Fish boxes (94 gal each) insulated and diaphragm pumps with overboard discharge (port and starboard)
Six (6) stainless steel rod holders in transom
Two (2) tilt out storage boxes on each side of helm seat area with removable trays
Large tackle storage locker with removable trays and designated storage area with USB charger located above sink and livewell
Removable cutting board with fresh water sink below

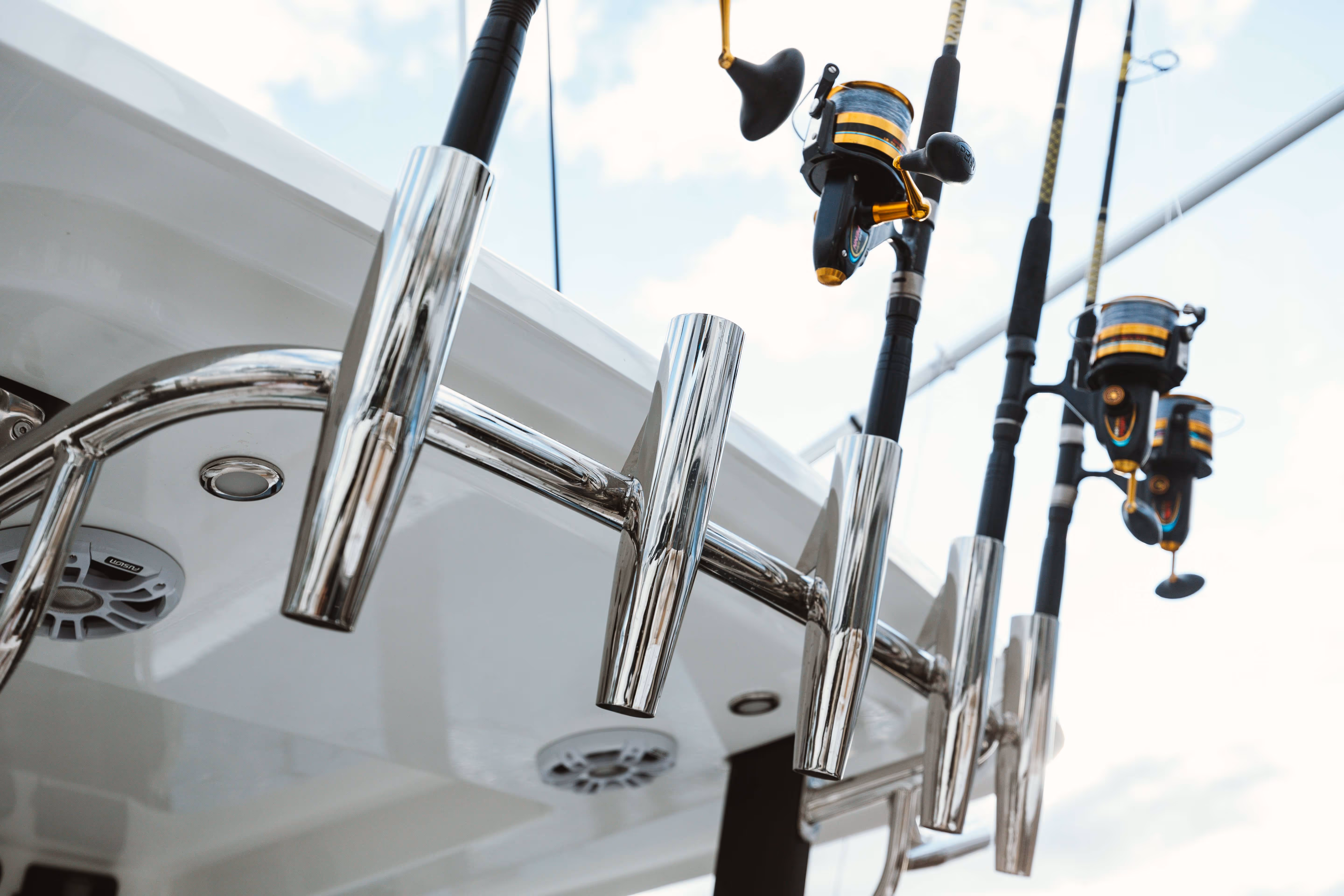

Five (5) hardtop mounted rod holders
HARDTOP AND WINDSHIELD
Fiberglass hardtop with dedicated radar, antenna and spotlight locations
Painted fiberglass structural hardtop supports
Fixed windshield with fresh water supply windshield wiper and control at helm
Tilt up LED anchor/running light
Port and starboard LED running lights flush mounted on hardtop
Electrical 12v horn recessed mounted
Three (3) forward and aft recessed mounted spreader lights to light up deck area
Five (5) rod holders
Two (2) Kingfish rod holders
CONSOLE
Console

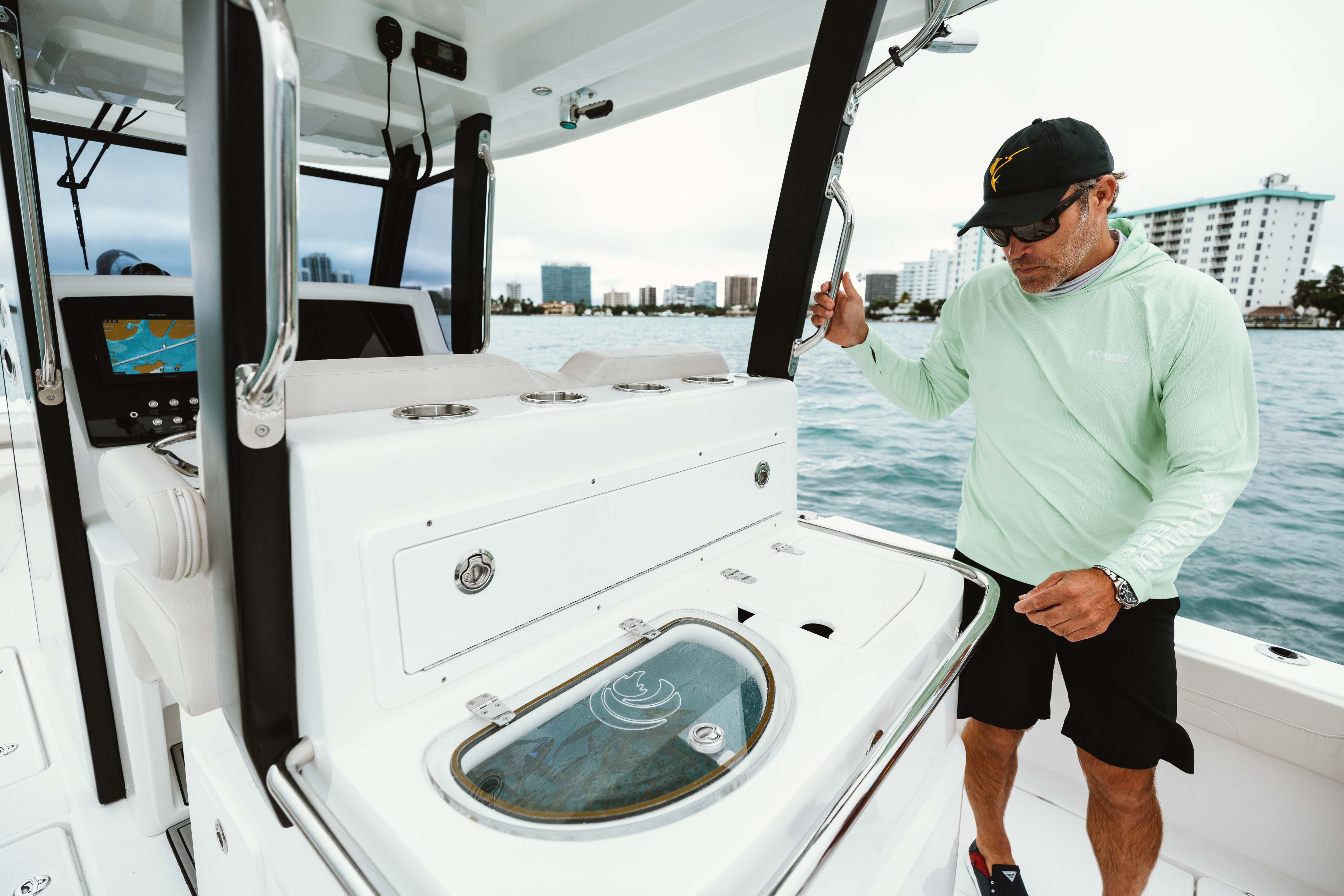

Forward hinged door for access inside console area for storage and optional toilet
Designated storage area for optional removable bow table
Opening port hatch
Easy access to electrical, throttle and steering controls for maintenance
Molded floor liner
Designated push button reset 12v fuse panel
MECHANICAL
Molded hatch with gasket for easy access
Each hull with 750 gph bilge pump with red indicator light at helm
Raw water washdown pump with filter and hose
Two (2) macerator pumps for fish boxes
Mercury power steering pump
Livewell pump with filter
Valve for draining each individual hull compartment
FUEL AND WATER SYSTEM
Two (2) molded hatchs on deck with compression latches for easy access to tank fittings
Two (2) EPA compliant custom aluminum 75 gal fuel tanks with engine pickups, shut off valves, digital level indicator and two (2) deck fuel plates
Two (2) Mercury water separating fuel filters
16 gal fresh water tank with fill plate
Fresh water pump
Concealed flip up faucet
Molded sink with drain and removable cutting board
Transom mounted fresh water shower (cold only)
ADD ONS
Engine upgrade from Twin 150 hp to 225 hp
Quartz, grey, or mocha upholstery
White, grey or blue gelcoat
Black, blue, yellow, red, and orange cuddy accents

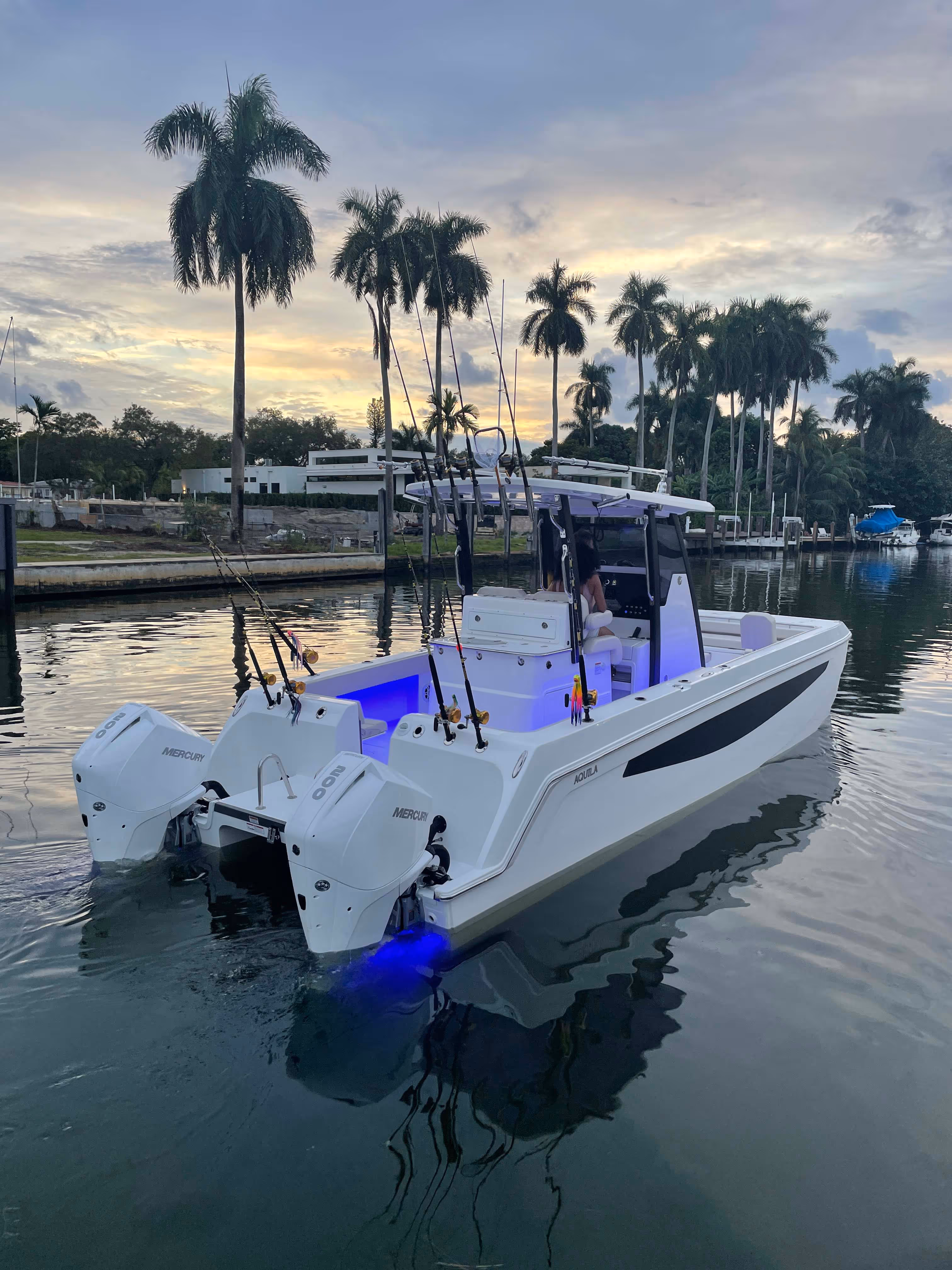

Two (2) LED underwater lights (2500 lumen)
LED strip lighting under gunwhale
Lumitec spot light on hard top
Thirty (30) gallon removable livewell
237 gallon central fishbox/storage box and seating
Electric windshield wipers with fresh water wash
Electric stainless steel anchor windlass
Add gunnel rod holders (4 per side)
Aft located port and starboard hinged seats with cushions
Offshore fishing and Raymarine navigation packages with chartplotter, radar, and transducer upgrades
Raymarine hydraulic autopilot system
Onboard battery charger with power plug
Fushion audio system with x4 speakers
Portable toilet
Watermans Sled
