2025 Custom 242' Multi-Role Patrol Support for Sale – 242 ft – Vigo, LU, Spain

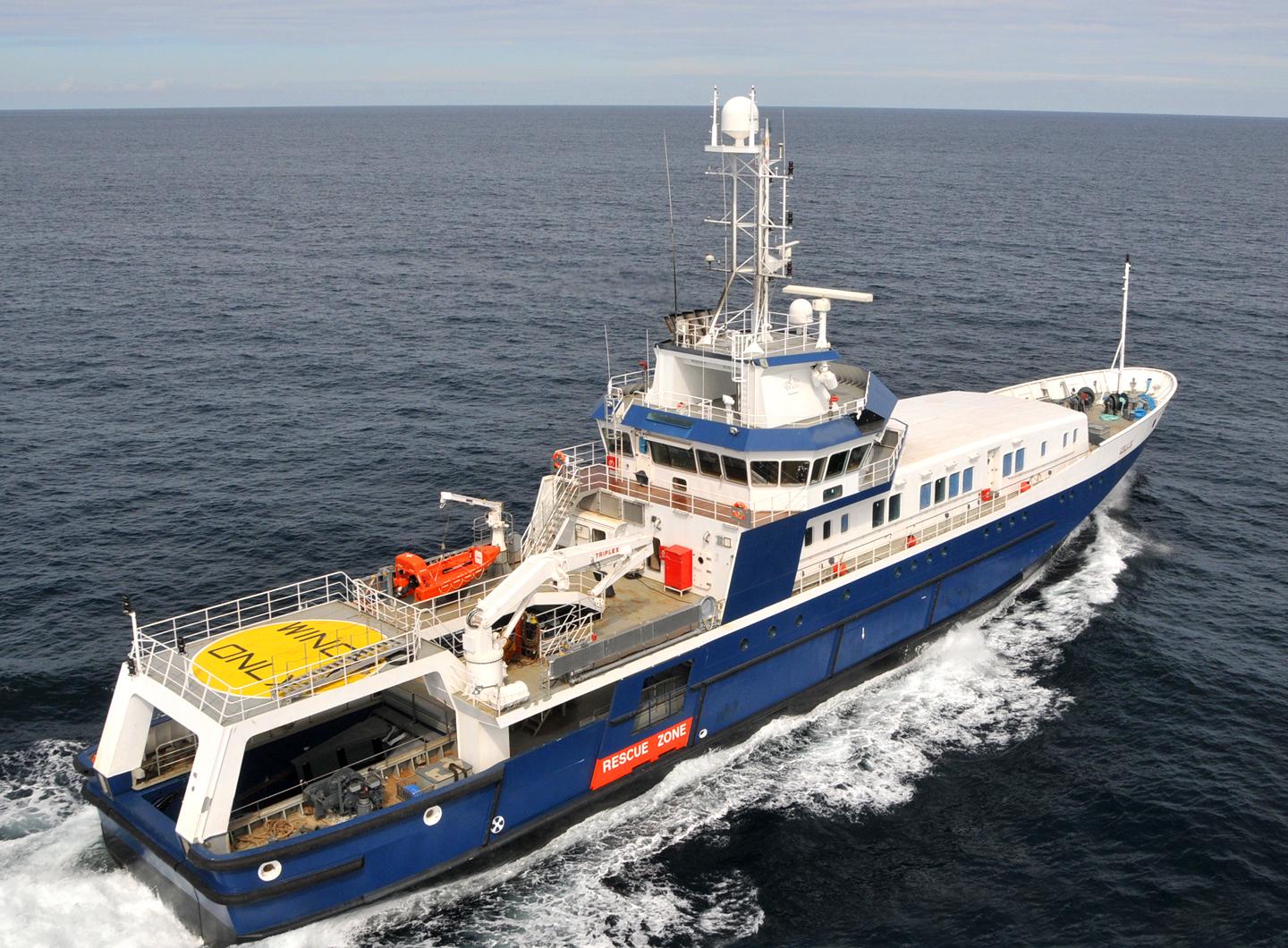

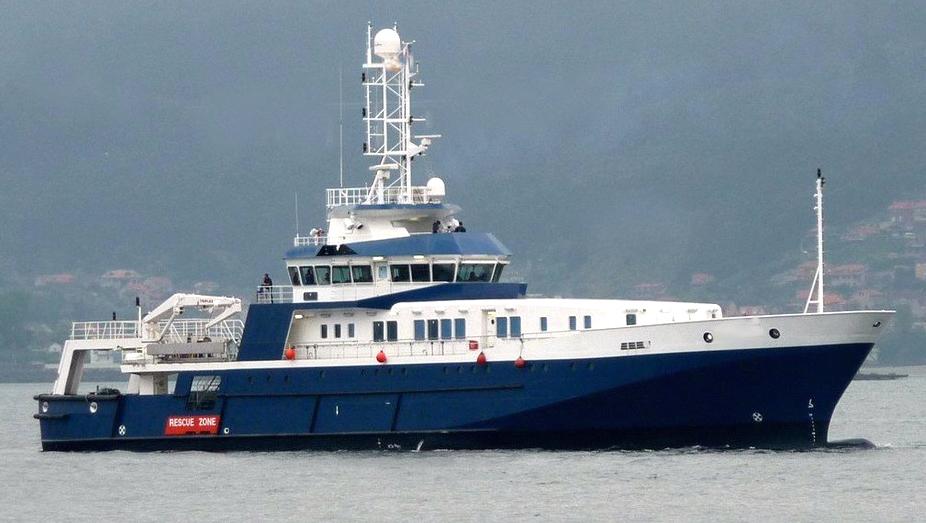

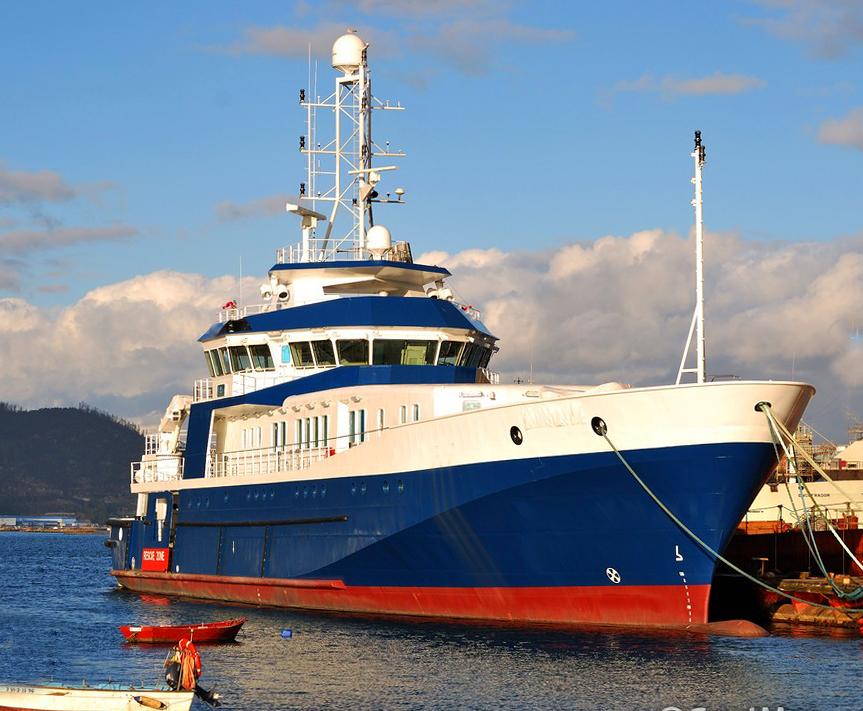

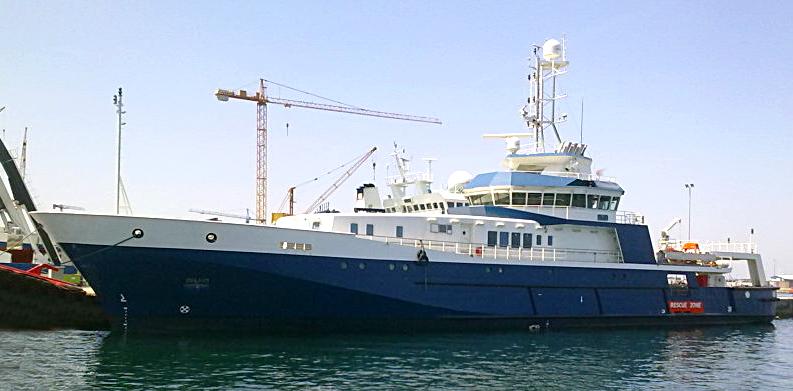

This is a new build 242’ Offshore Patrol Vessel.  It is a high-quality military grade vessel built to the highest specifications.  The Vessel is DNV Ice Class c.  Accommodations are for 12 but can be increased to about 30 plus. Machinery has been designed and installed for minimal vibration and noise.  The ship has extended rage and endurance and has multi-role capability including but not limited to patrol, offshore support, guard duty, research, expedition yacht and emergency response to name a few. It is well priced significantly below a current new build contract price.

 DESIGN:

Purpose built for: Patrol; Fishery Inspection & Rescue; Oil Containment; Assist for Fire Fighting.

Based on latest technical developments with emphasis on overall cost effectiveness in operation, low maintenance requirements and costs. Special focus on safety, sea keeping, comfort at sea for operations in very rough sea conditions and high wind. Set up for operations with 9 in crew plus 3 extras for four week period. Boarding boat launched from built-in stern recess for safe and reliable launching and recovery.

CLASSIFICATION:

Worldwide unrestricted sea-going service, Det Norske Veritas.

DNV 1A1, Inspection Vessel, Ice 1C, E0, COMF-V(1)

 DIMENSIONS:

LOA:    230’

LPP:    61.40 m

Beam: 11.20, moulded

Draft:   3.79 m

Lightweight:     1078.40 tons

Displacement: 1284.30 tons

Gross Tons:    1437

Net Tons:        432

Deadweight:    205 tons

 CAPACITIES:

Marine gas oil: 160.4 m3

Fresh water:    31.2 m3

Lube oil:           3.2 m3

Sewage:          11.4 m3

Ballast tanks:  73

Heeling tanks: 43.8

 PROPULSION:

2 x Rolls Royce Electric Drives rated 1,800 KW each

2 x Holeby Diesel Generators rated 1,320 KW each

1 x Hleby Diesel Generator rated at 1,760 KW

Speed:             18.4 knots

PROPELLERS

2 x 4 Blade Fixed Pitch Propellers

 STABILIZERS

2 x Brown Brothers Aquarius, folding fin stabilizers

90% roll reduction at 14 knots or above

 DECK GEAR

Towing drum/winch

2 x Hydena mooring winches

2 x Hydena aft vertical warping winches

1 x Vertical windlass

 FEATURES:

• Cargo hold
• Oil containment booms
• Deck crane 3 tons
• Bow & stern thrusters
• Life rafts
• Boarding boat
• MOB rescue boat
• Helicopter winching area
• Sick bay
• Gymnasium
• Workshop
• Central air conditioning & heating
• Highly technical systems management
• Very complete Electronic Navigation Equipment Package
• Very complete Electronic Communication Equipment Package
• Closed Circuit Surveillance Circuit with extensive camera system
