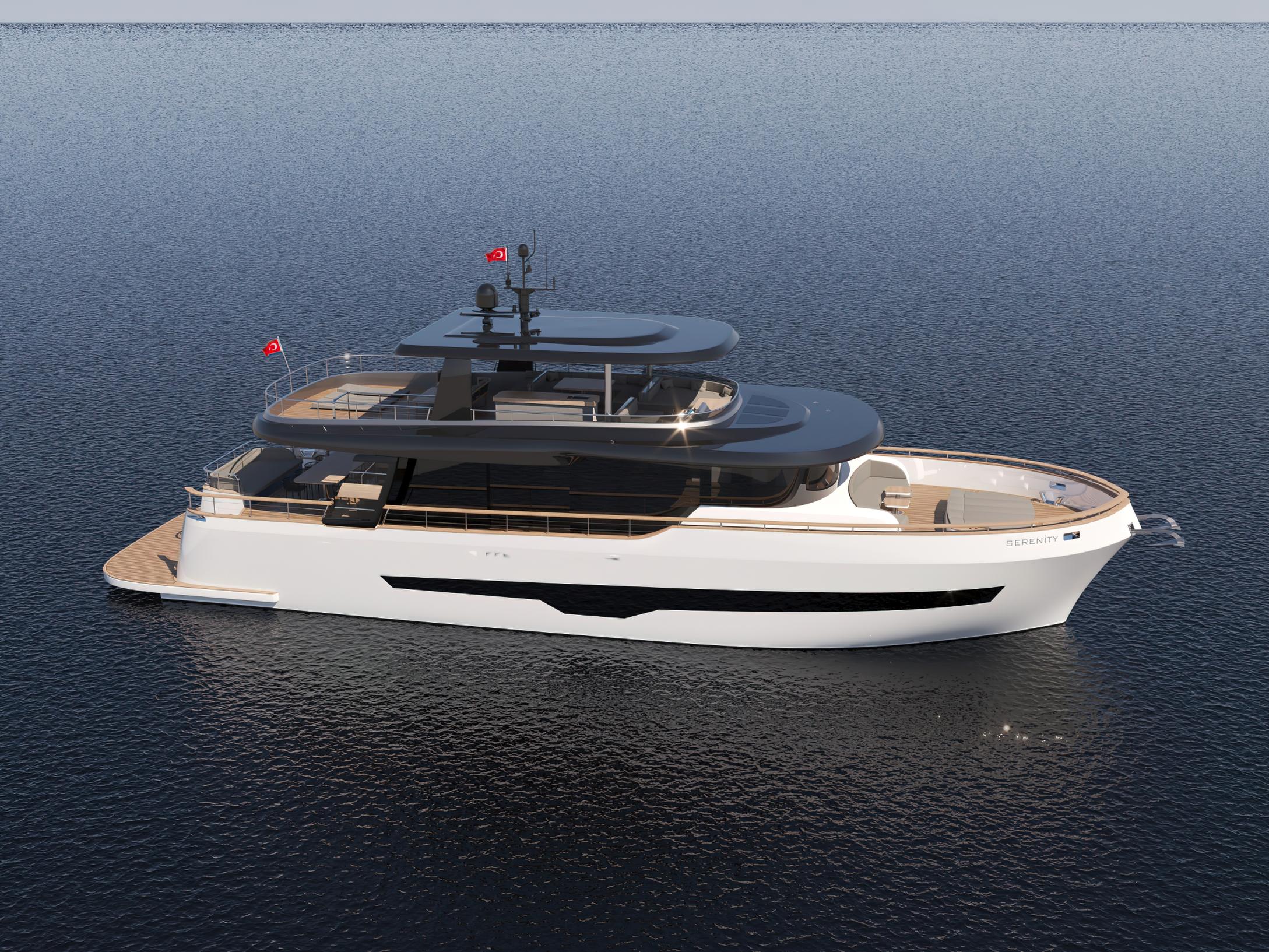

full length: 23.93m
width: 7.20m
draft: 2.43m
Displacement: 78.50 tons
maximum speed: 14 knot
cruising speed: 10 knot
Engines: 2x500 HP YANMAR 2100 rpm
Generators: 2 adet 25 KWA BAUDOIN jeneratör

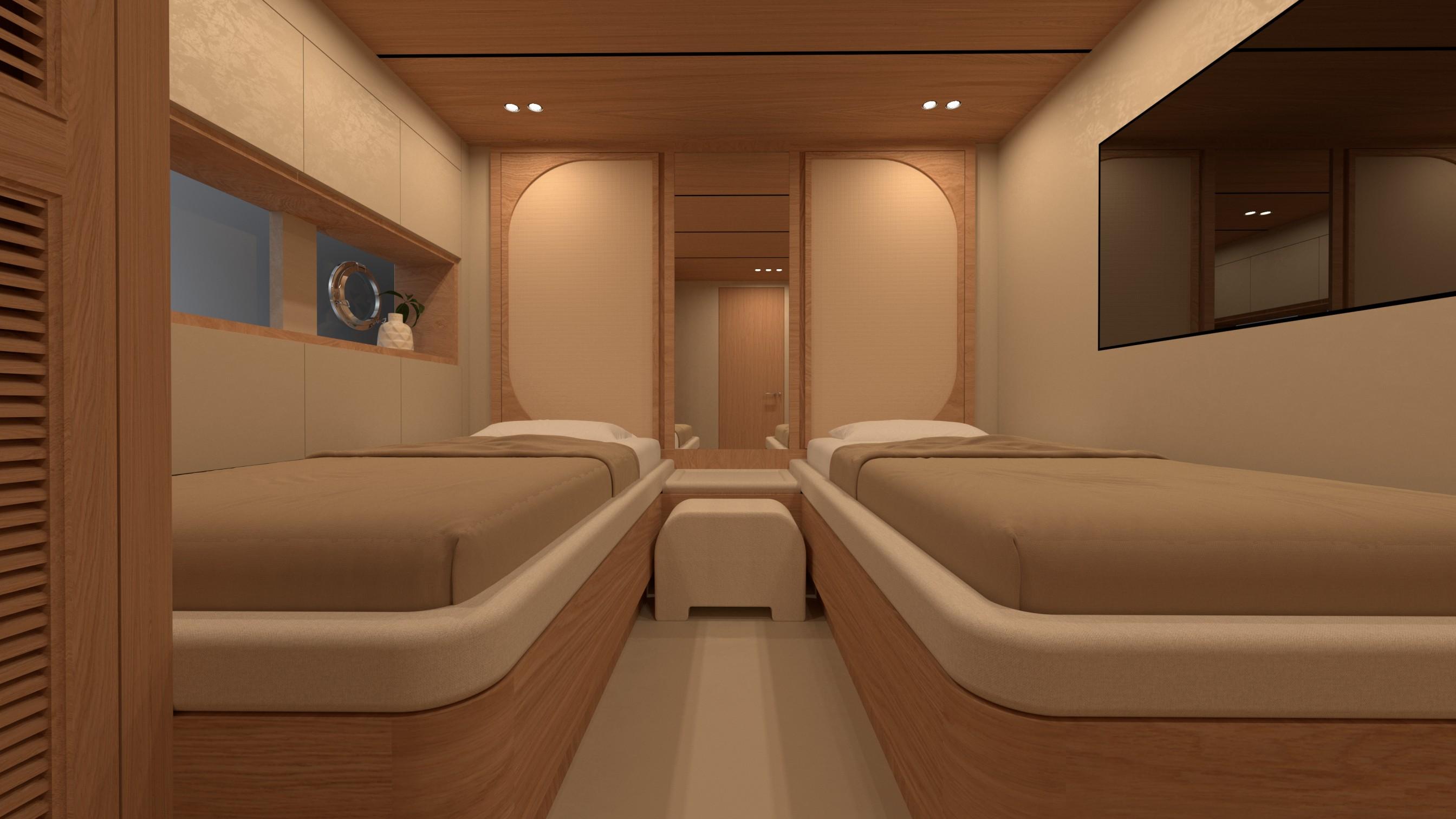

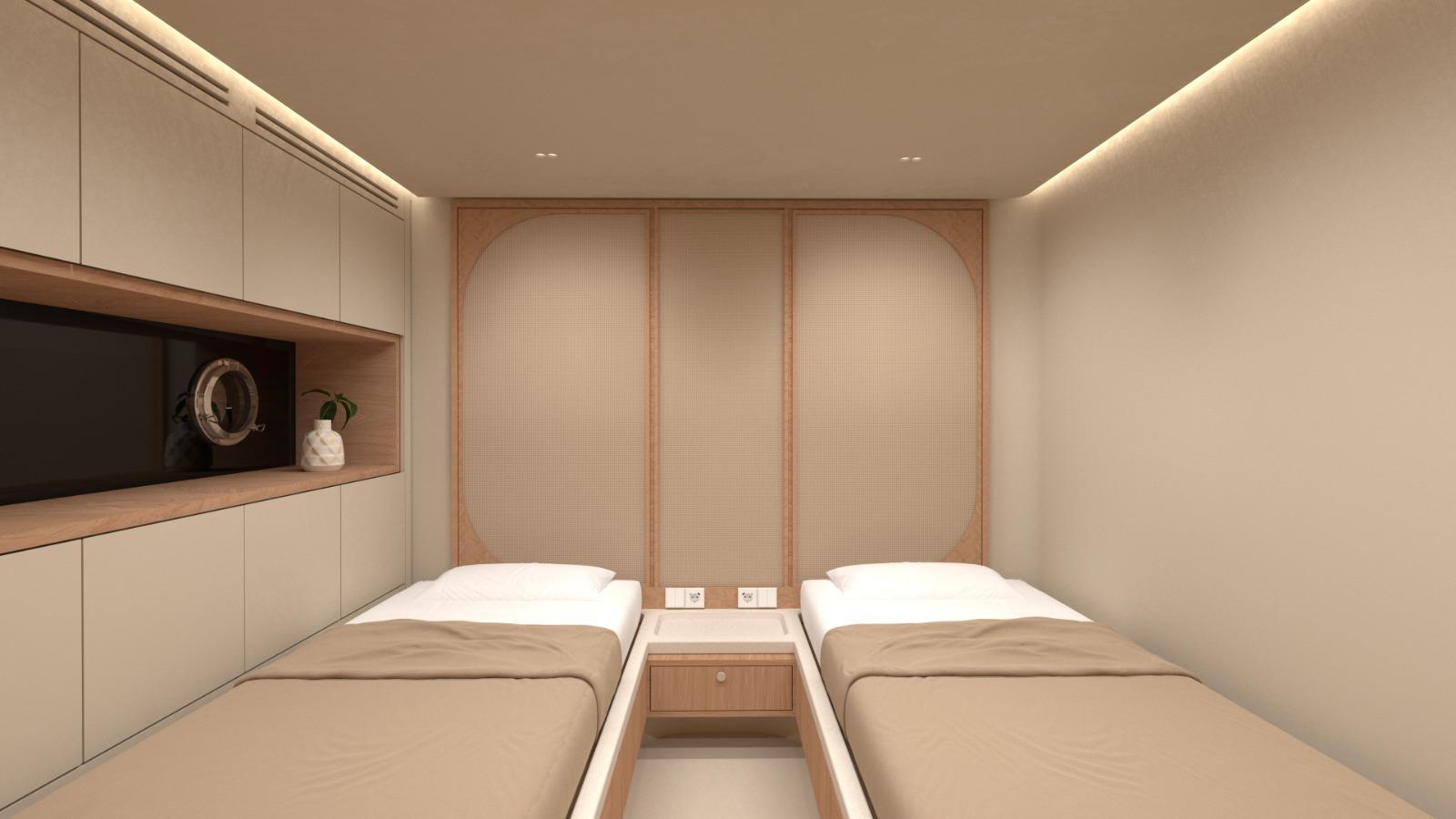

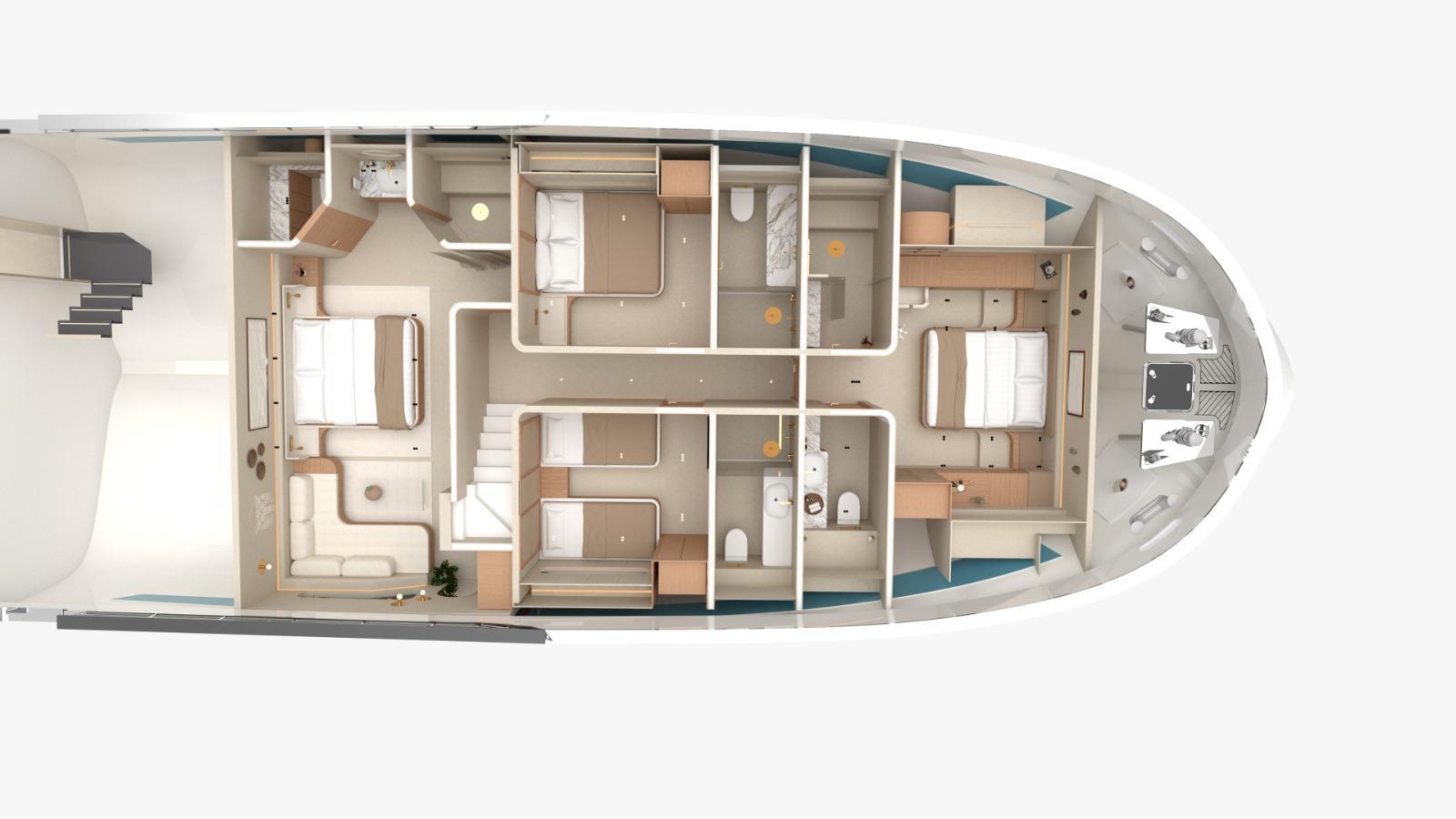

Cabins: 4x guest cabins 8 persons
Personnel Cabins: 2x personnel cabins 4 persons
There are a total of 6 cabins for 12 people.
3000 L of fuel capacity,
4000 L of clean water capacity,
3000 L of waste water capacity.
The boat is equipped with 1 SEAMAR water maker and has a water making capacity of 350 L per hour.
UYGAR UH model gearbox is used on the boat.
Main body construction made of sapele mahogany (mahogany wood group).
DURATEK product epoxy is used in main construction elements.
The hull wrap is made of cashew wood (mahogany wood group) with spoon wrap application. Two layers of 6mm marine plywood are covered on the winding and necessary fiber and putty applications are made.
Putty and fiber products of TEKNO MARİN company are used on the boat.
The plywoods used in the boat are produced by BAHAR company from oak wood.
Steering and hydraulics systems were purchased from DATA HYDRAULIC. There are 2 vertical windlasses on the boat.

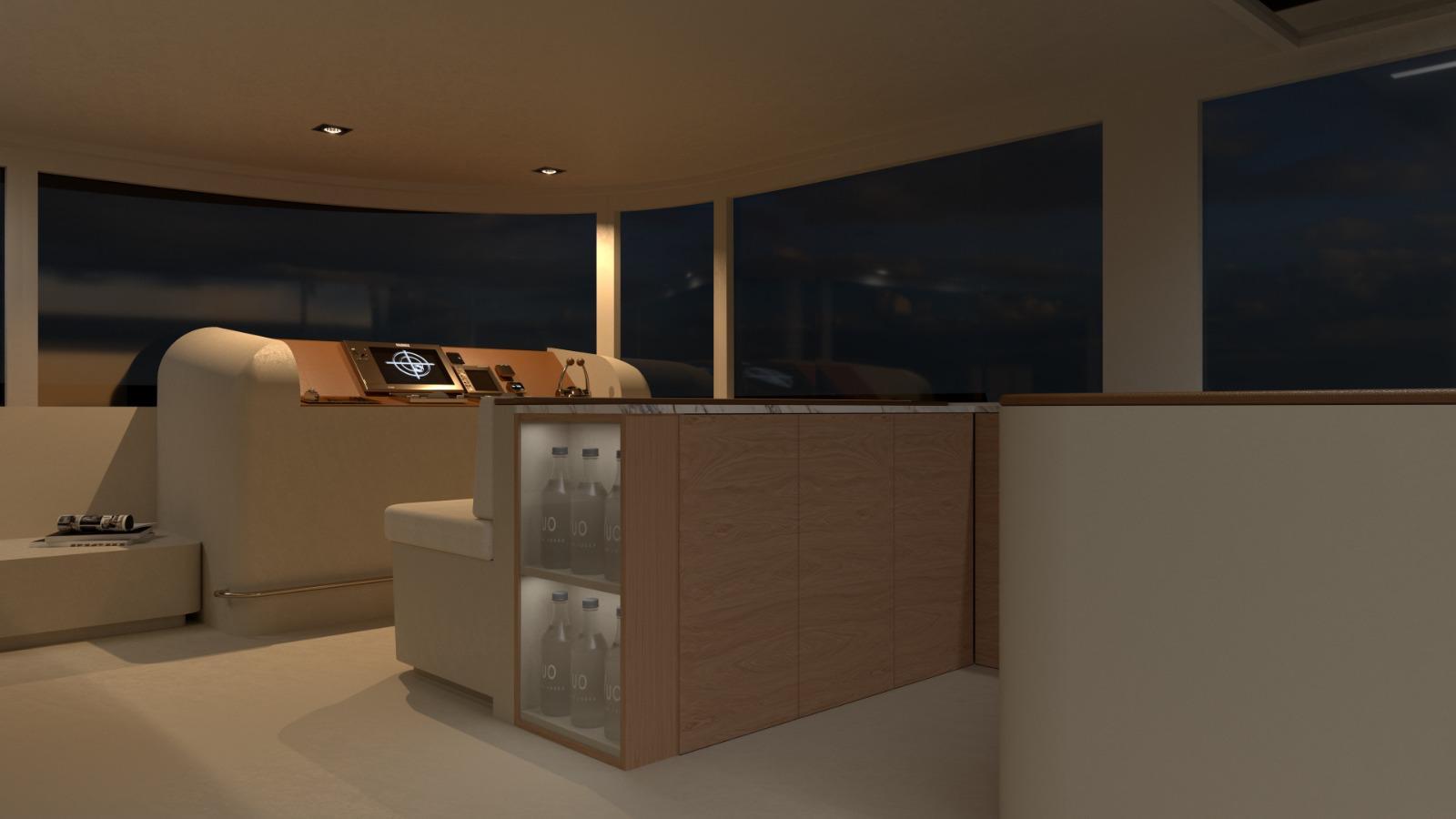

The boat's navigational equipment* was purchased from GARMIN.
* radio, radar, autopilot, satellite dish

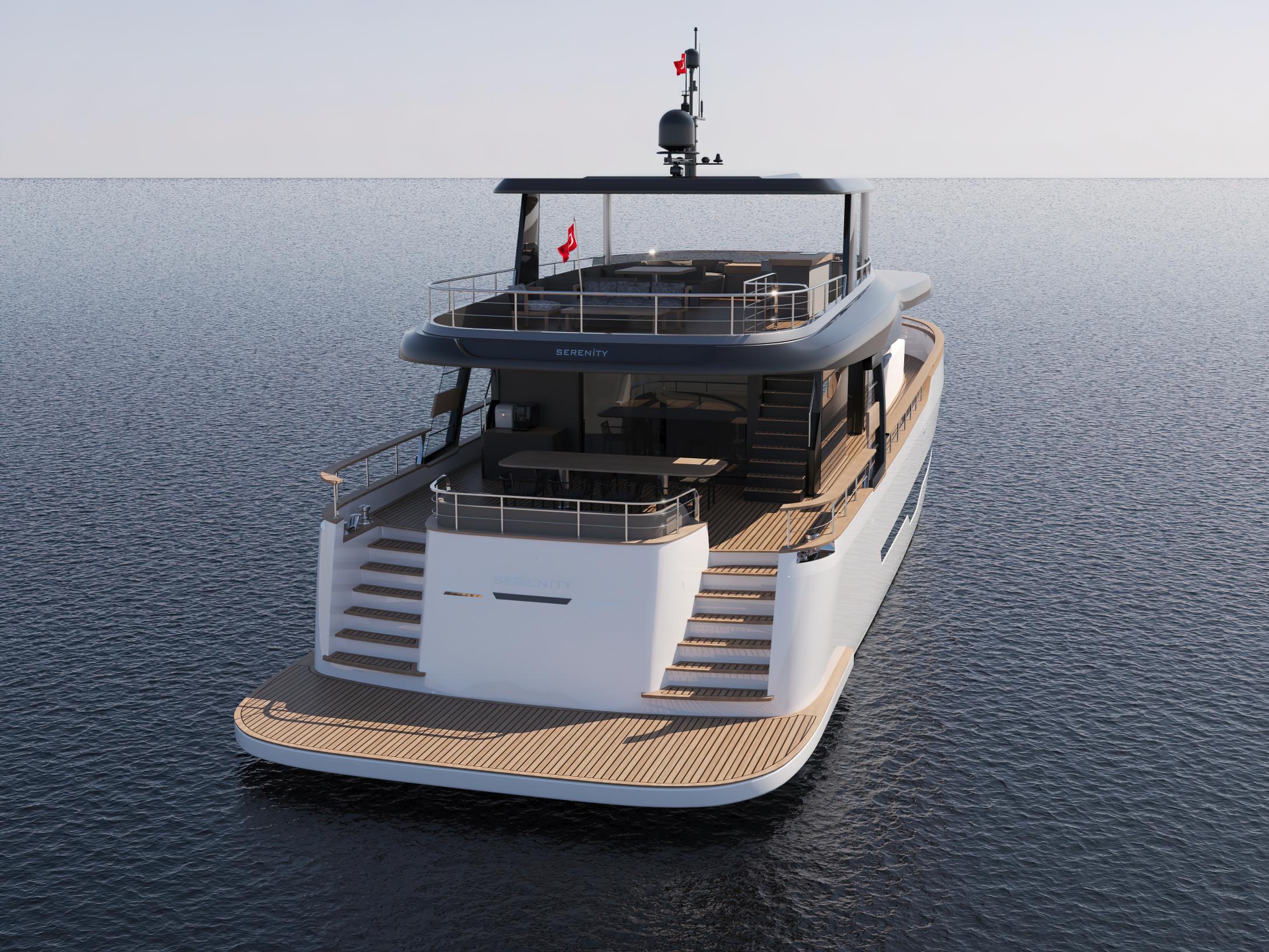

There is a hydraulic gangway on the stern platform of the boat. The gangway is used as launching ladder and landing ladder.
Exterior glass and door works of the boat will be done by EMA SHIPPING. The chrome to be used on the boat is 316 grade.
Central air conditioning system on the boat is made by MARINECOLD company.
