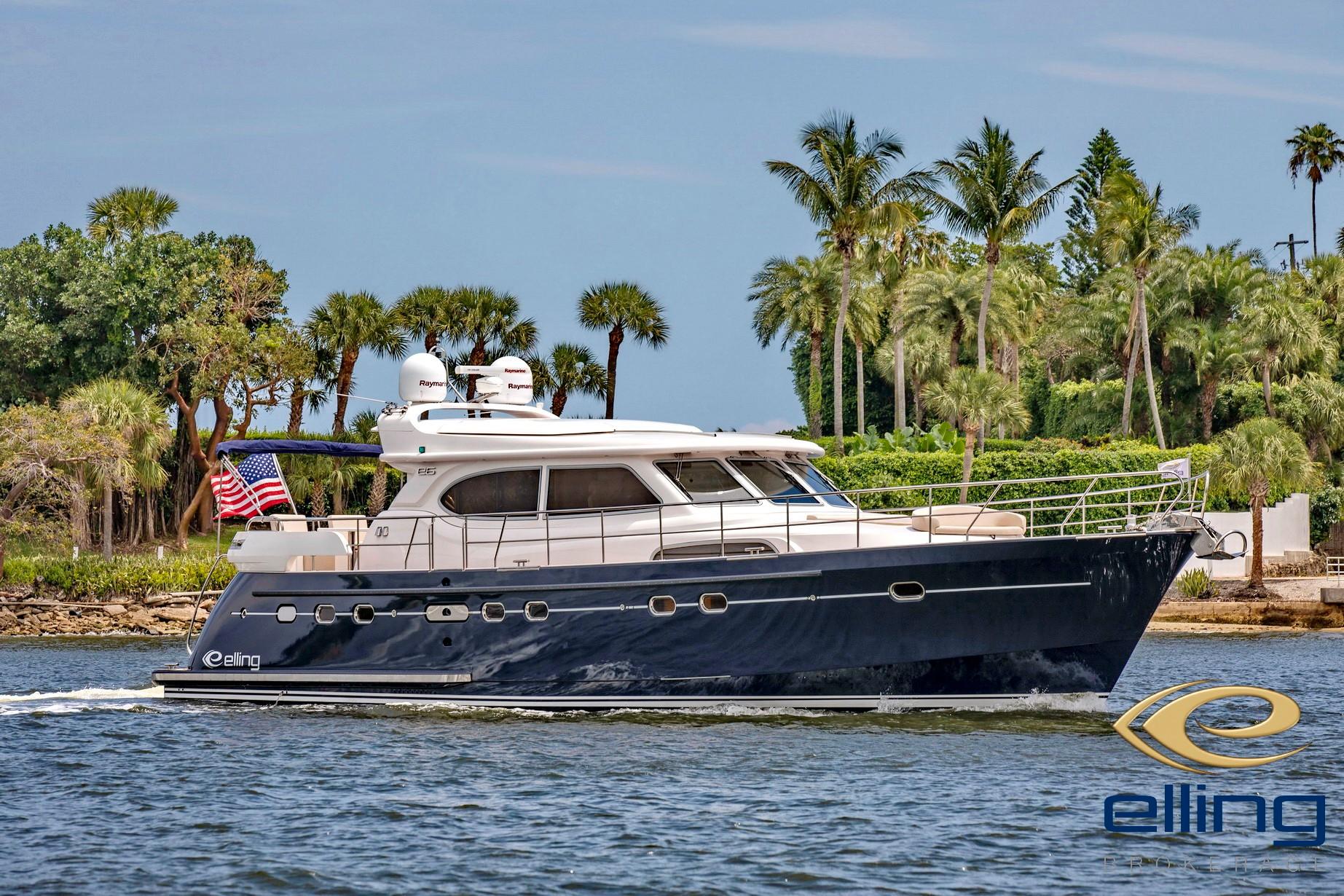

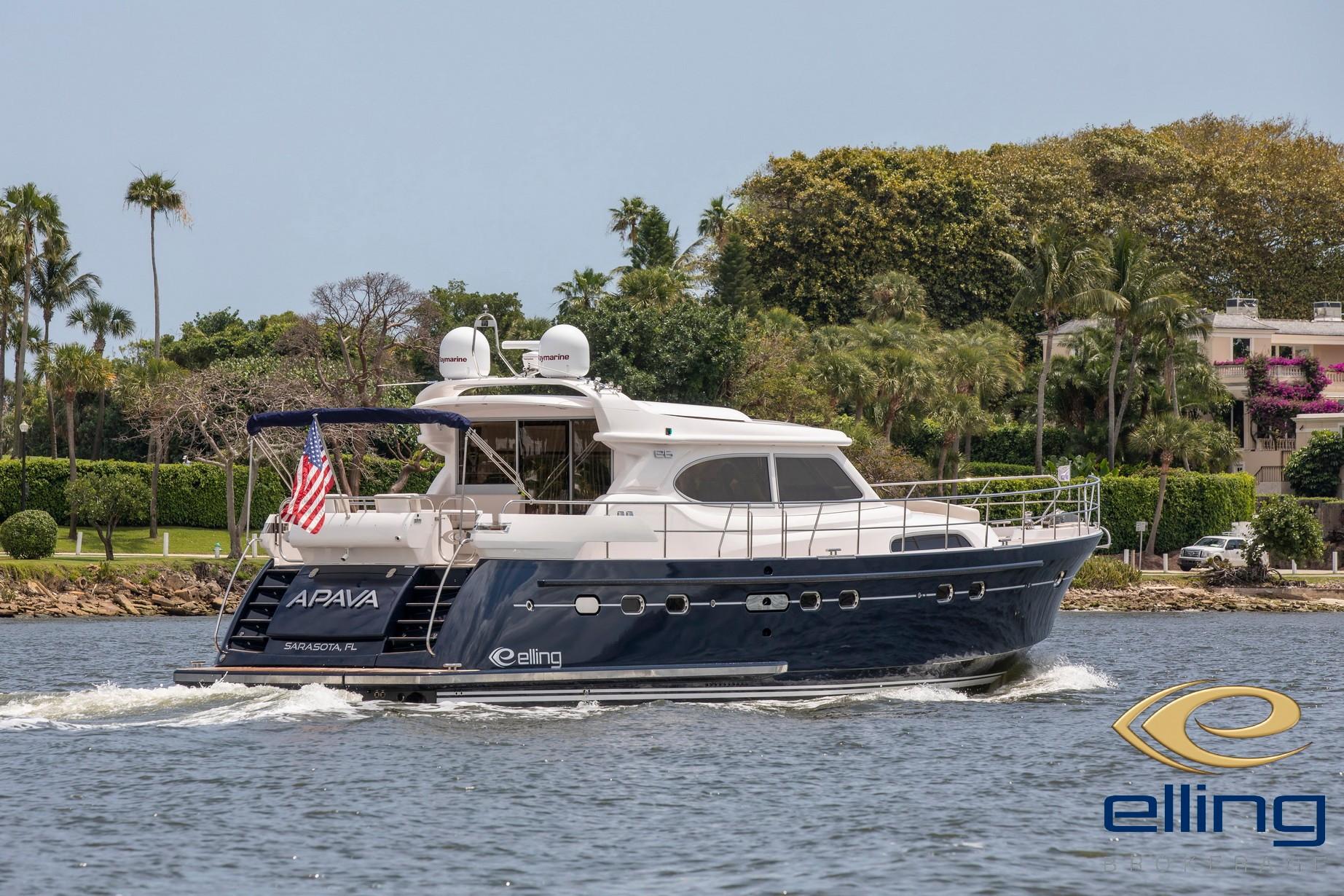

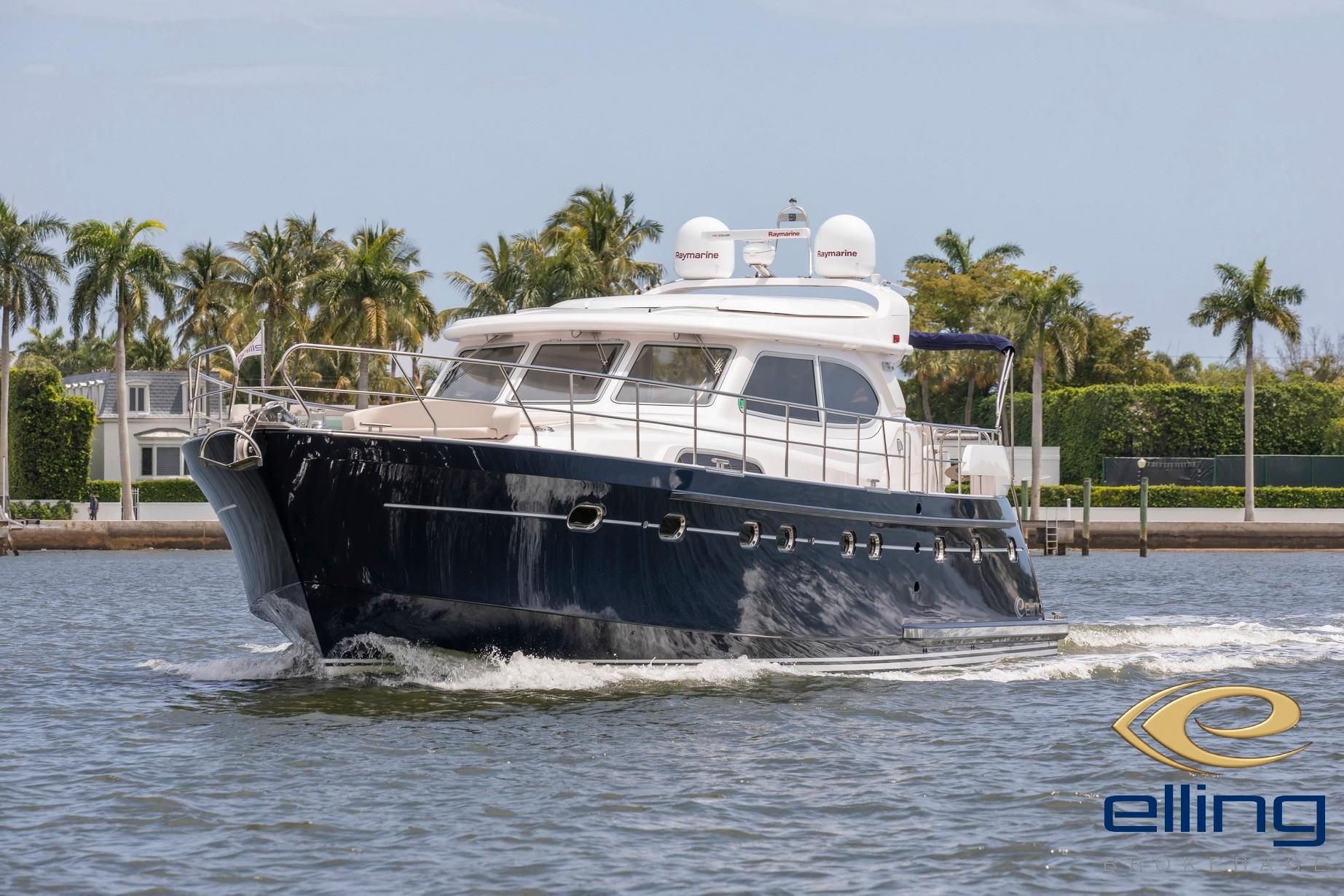

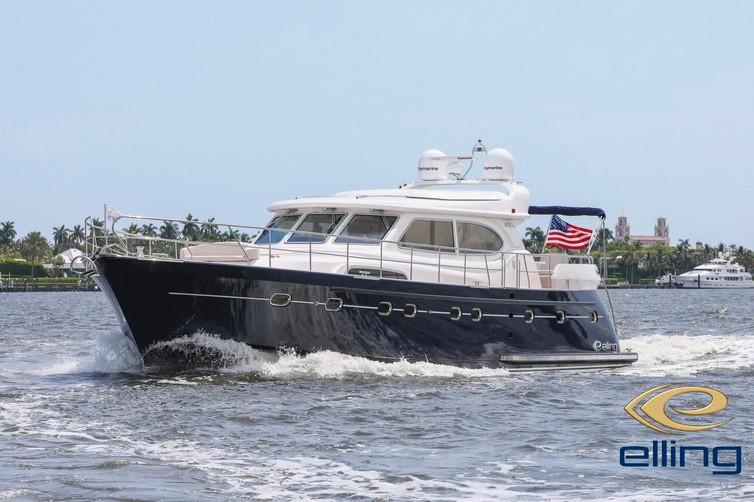

ELLING E6 HIGHLINE
NEW BUILT TO YOUR OWN SPECIFICATIONS :
LOA : 19.80 m
Width : 5.25 m
Clearance : 5.80
Depth : 1.25 m
Fuel : 5000 l (divided by 3 tanks, day tank 2500 l)
Water : 1200 liters
Special features:
14 kW LI-Ion battery Mastervolt system
Charger accepts 80 to 220 volts...which means...you can sail anywhere in the world without having issues with the power supply.
Li-Ion Batteries from Mastervolt with combi charger/inverter
Extra alternator (110Ah) on the engine.
Whisper Power touchscreen display
Full size Aircon! (in all cabins)
Full size Kabola KB40 combi system (water-filled radiators in each cabin) Supplies also hot water
Washing machine
Separate tumble dryer
Dishwasher
Miele fridge 151 l
Miele freezer 100 l
Electric operated window
Electric operated sliding roof with pneumatic seal
Safety
-CE Category A
-Self-righting
-Stainless Steel Railing, height 80 cm
Luxury and comfort
-Double glazed windows with insulated frames / Venetian Blinds in pilot house!
-Stainless flagpoles / Shower (h/c) on transom

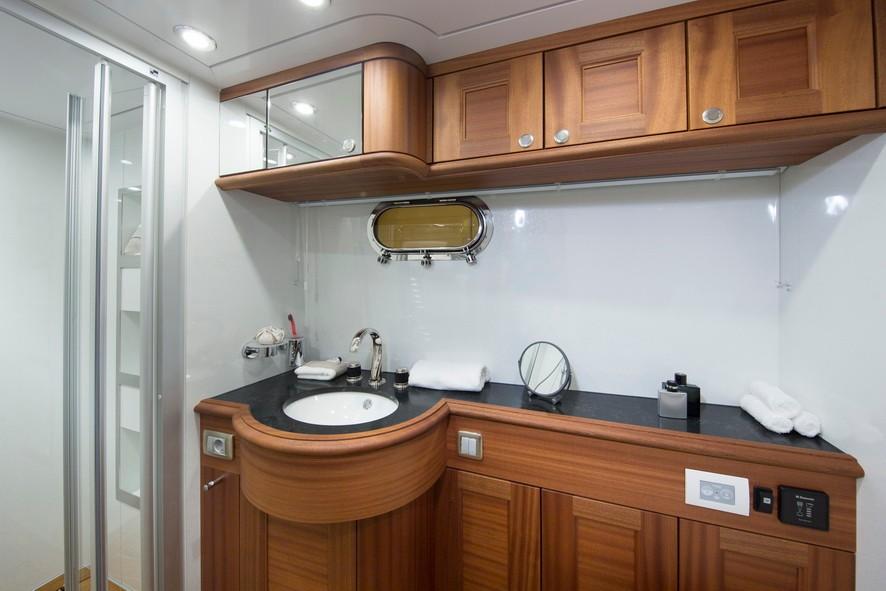

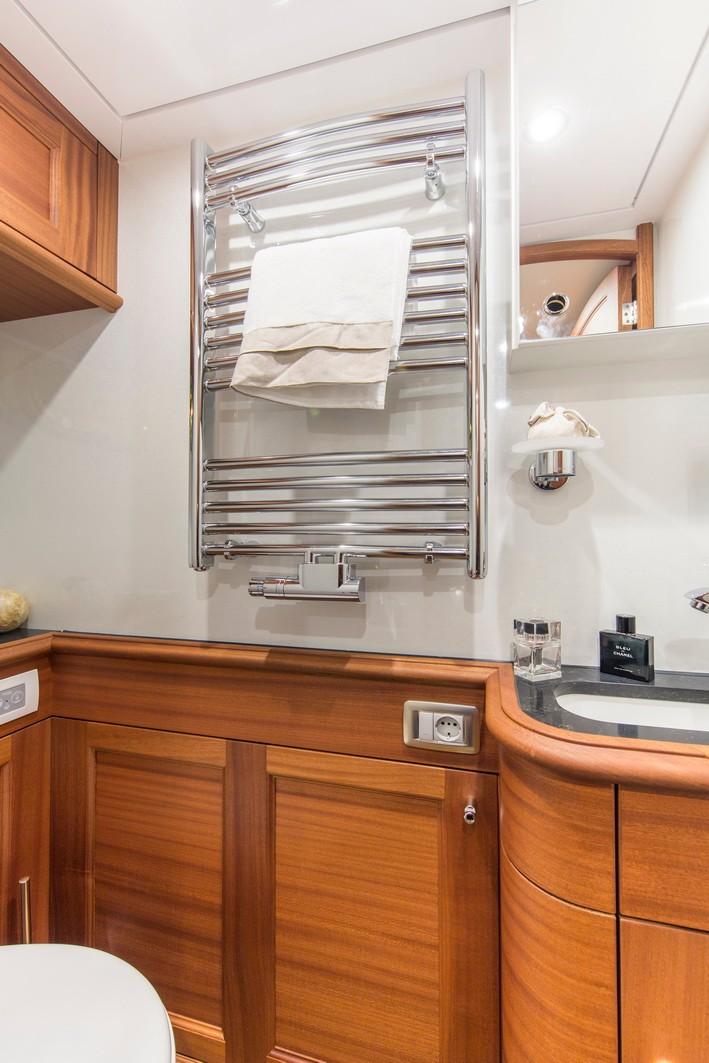

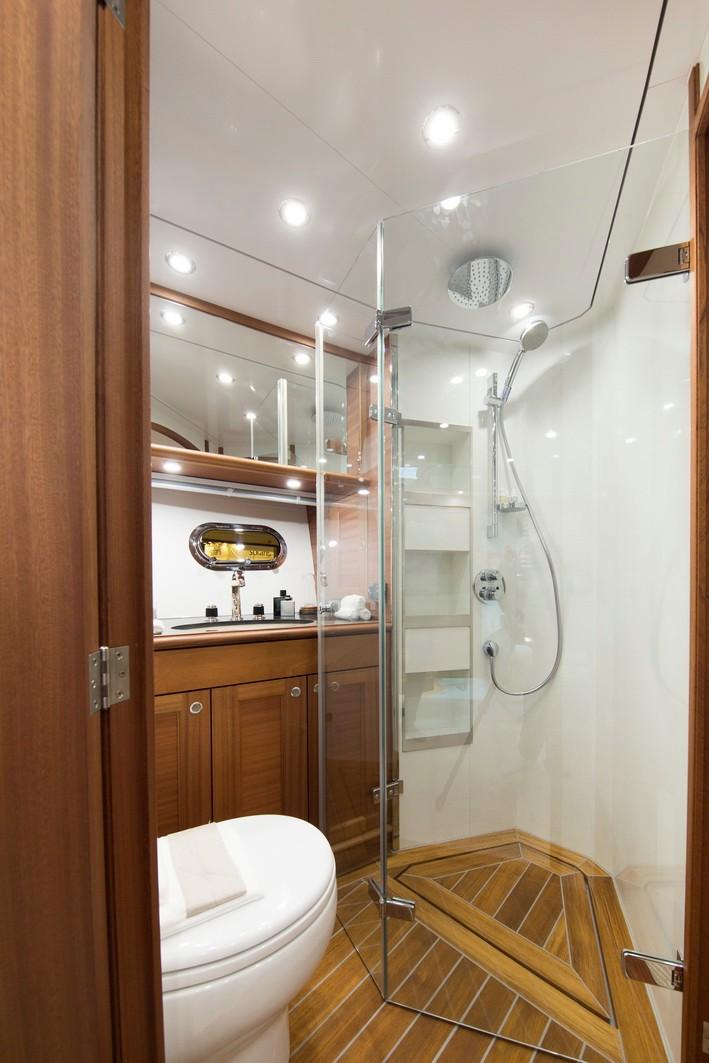

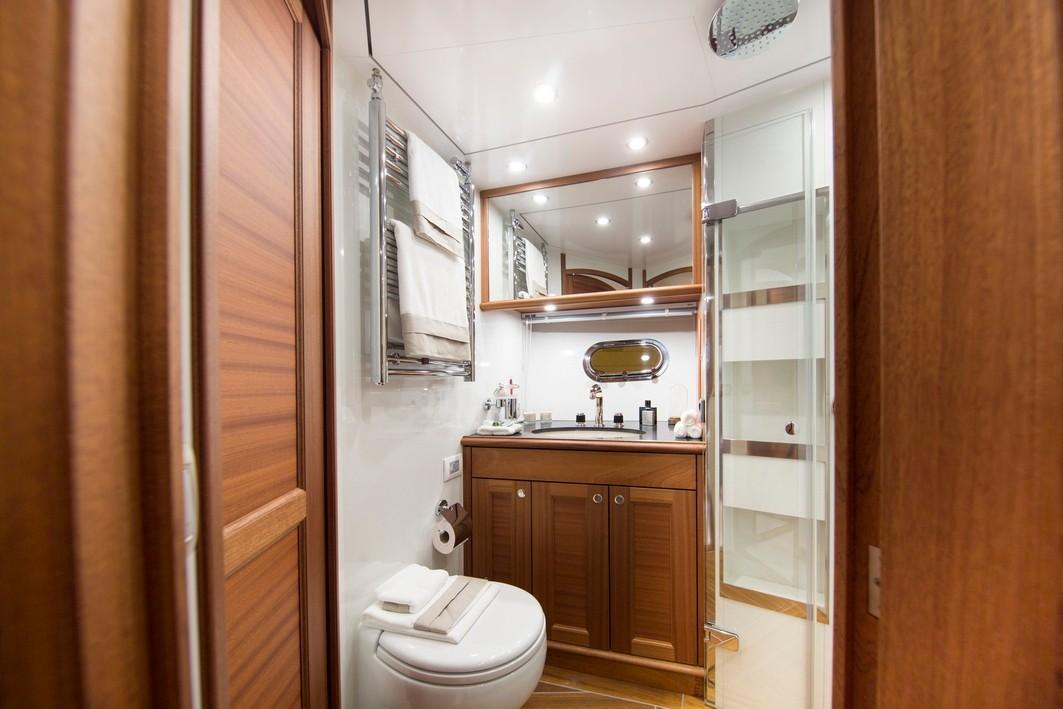

-Two bathrooms with separate Shower

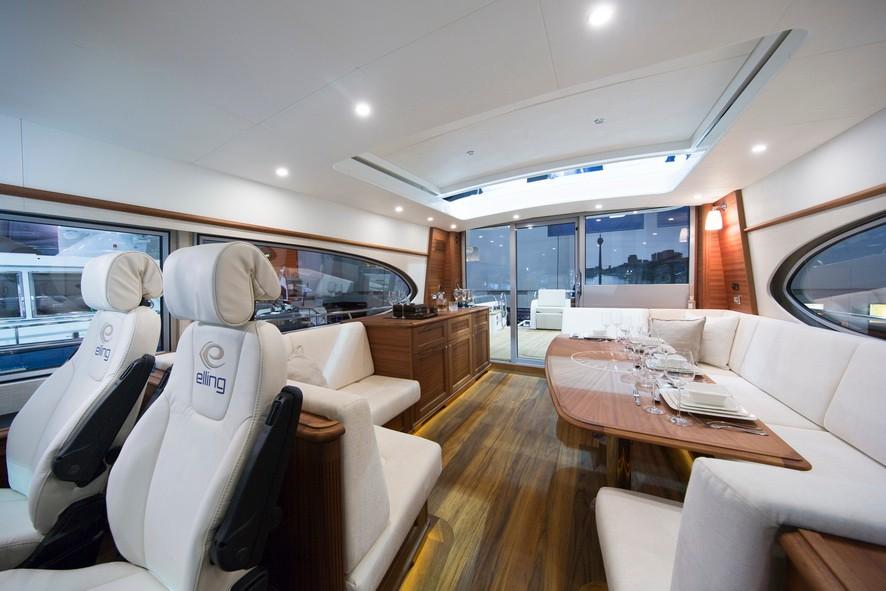

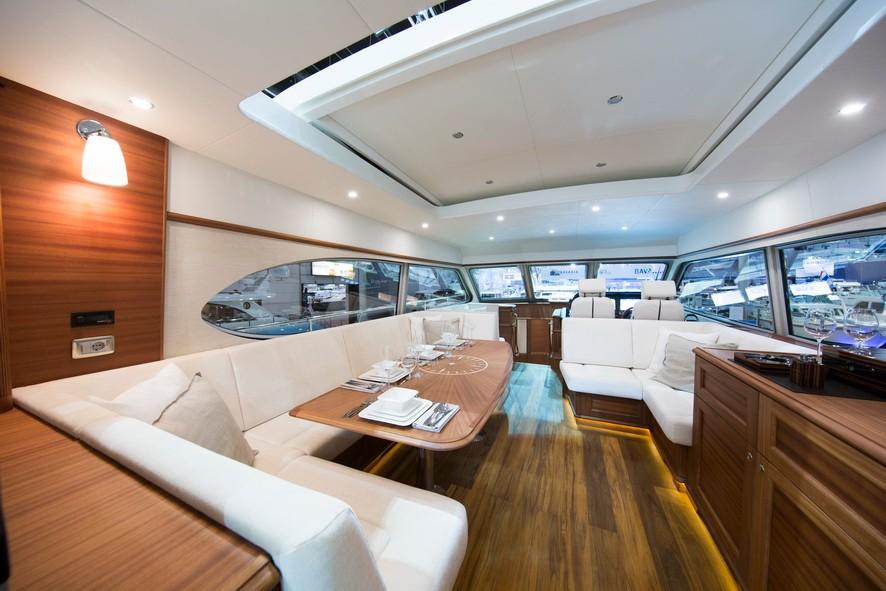

-Electric operated slider roof, pneumatically sealed
-Safe / Microwave oven / 4 Zone cooktop/ Wine cellar
-Luxury Cherry or Mahogany interior (Would you prefer another type? Let us know!
-"pop up" wide screen 43" TV with digital receiver / Stereo equipment with MP3
- 43" TV in Owners cabin
-Five blade propeller for less vibrations
Engine
900 hp Volvo Penta D13 diesel Engine (max 65 Db in deckhouse at full speed!)
Max Speed : 21 knots
Fuel consumption : 30 l @ 10 knots (cruise speed)
75 hp spare engine with shaft and foldable prop and separated fuel tank.
with separated start battery, fuel filter etc. max speed 6.5 knots.

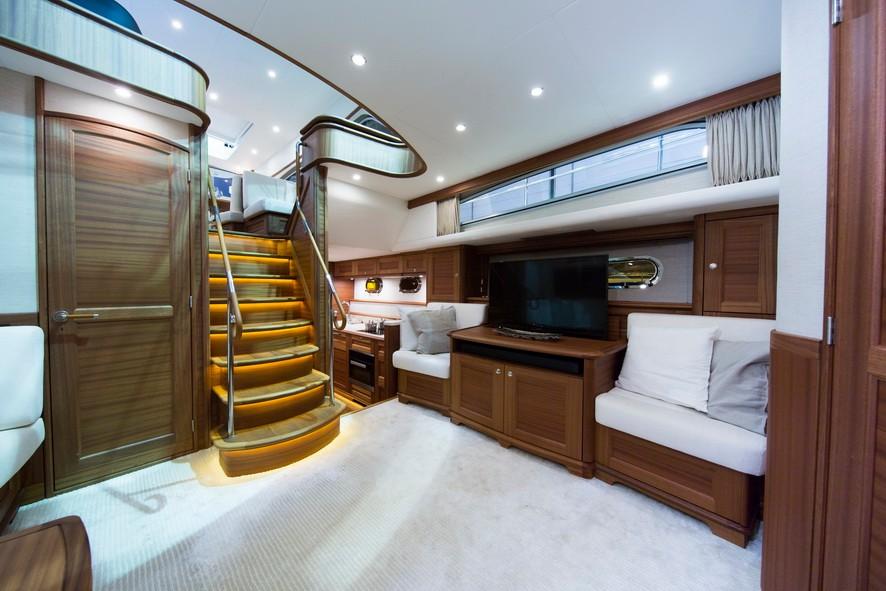

Interior layout

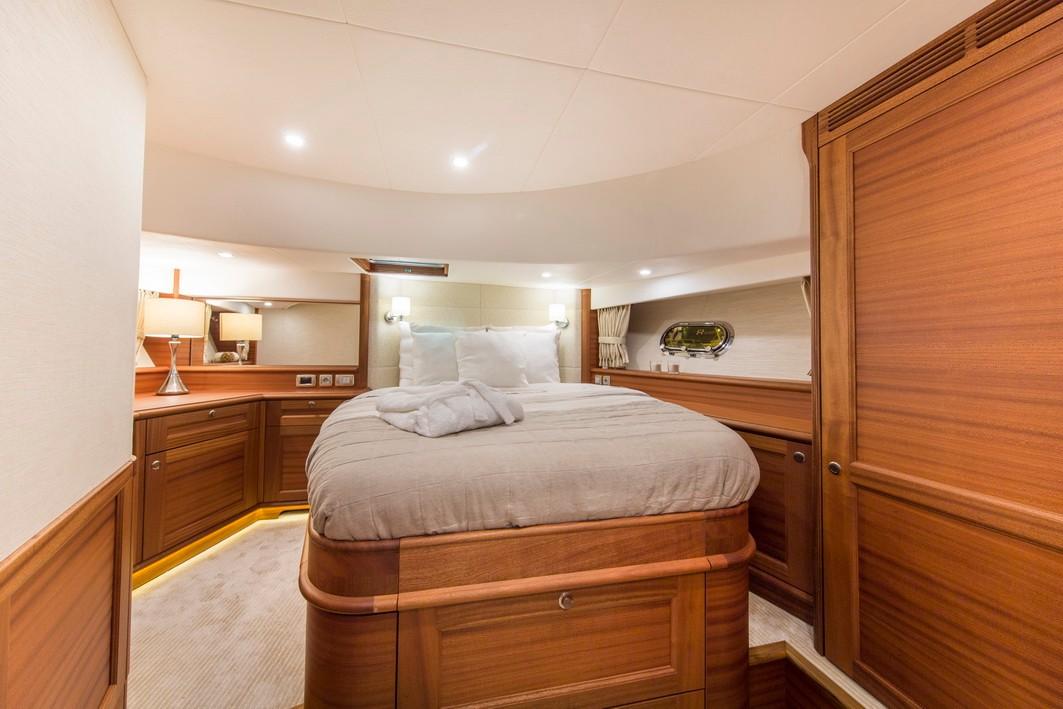

- front cabin with queen size bed (ensuite bathroom)

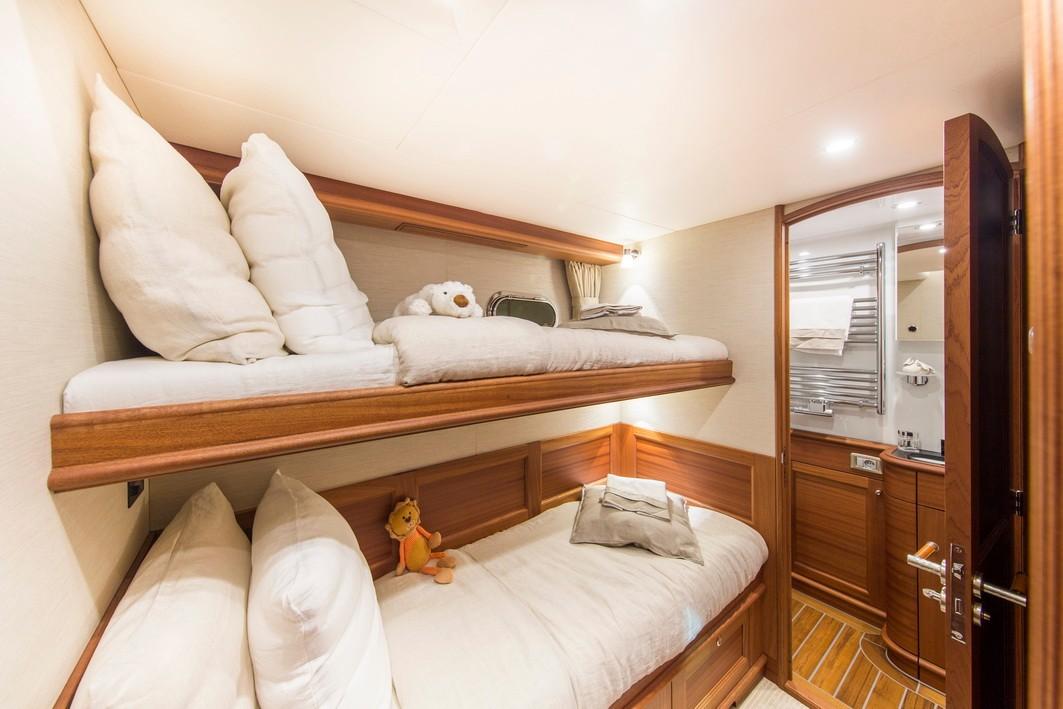

- side cabin with two single beds (with sink and toilet)

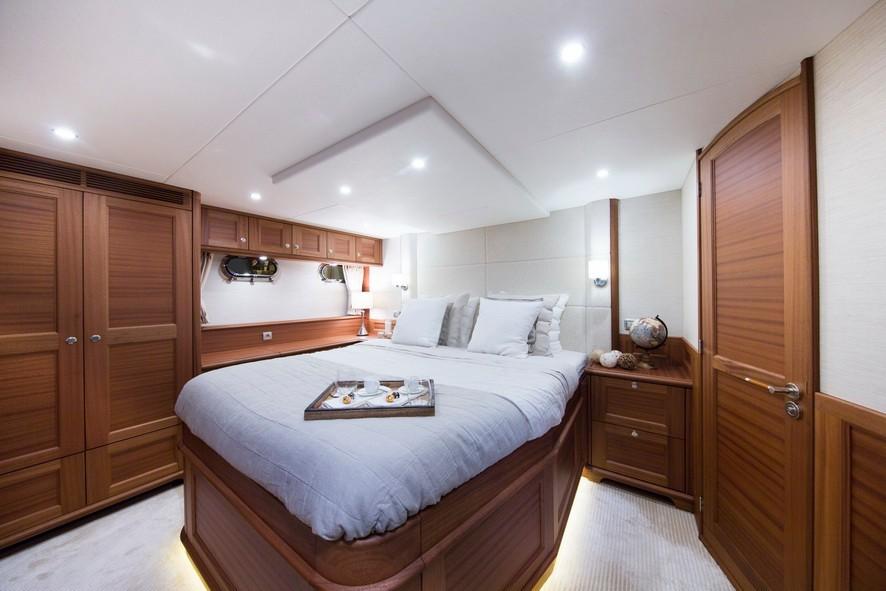

- master cabin with ensuite bathroom
- crew cabin with separate entrance, sink and toilet
Navigation – Raymarine
VHF Ray 260
2 x E165, 16” Plotter GPS System with 4 ft open scanner
2 x I70 instruments
AIS 700 active AIS
Raymarine autopilot with remote control

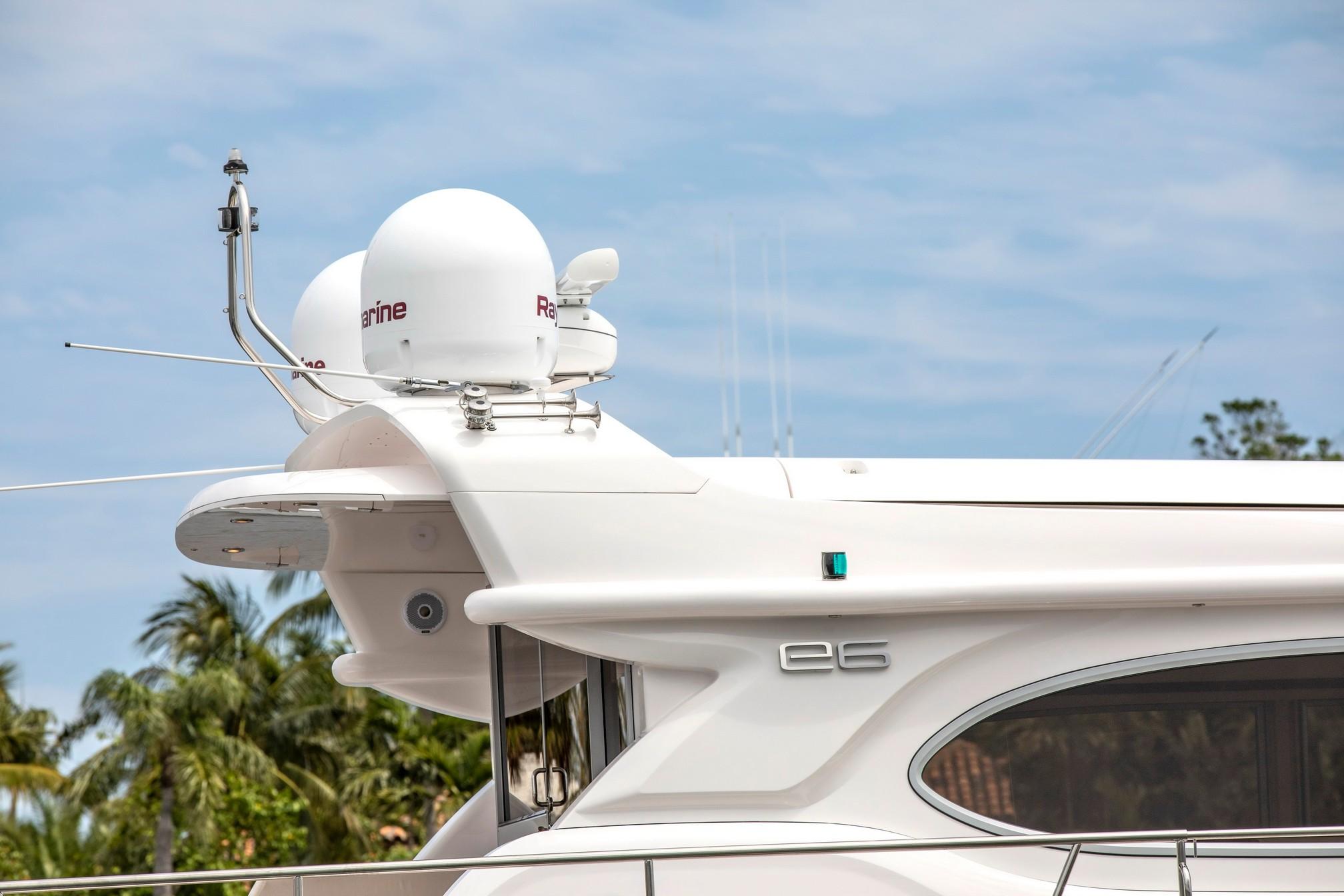

SAT Dome 60 STV antenna
Technical Specifications
Hydraulic bow thruster Side power Duo prop
Hydraulic stern thruster Side power Duo prop
Anchor winch hydraulic with 55kg anchor
Stabilizer system
Seakeeper 16 Gyro stabilizer system
Or DMS Magnus Master both do have 85% side roll reduction.
