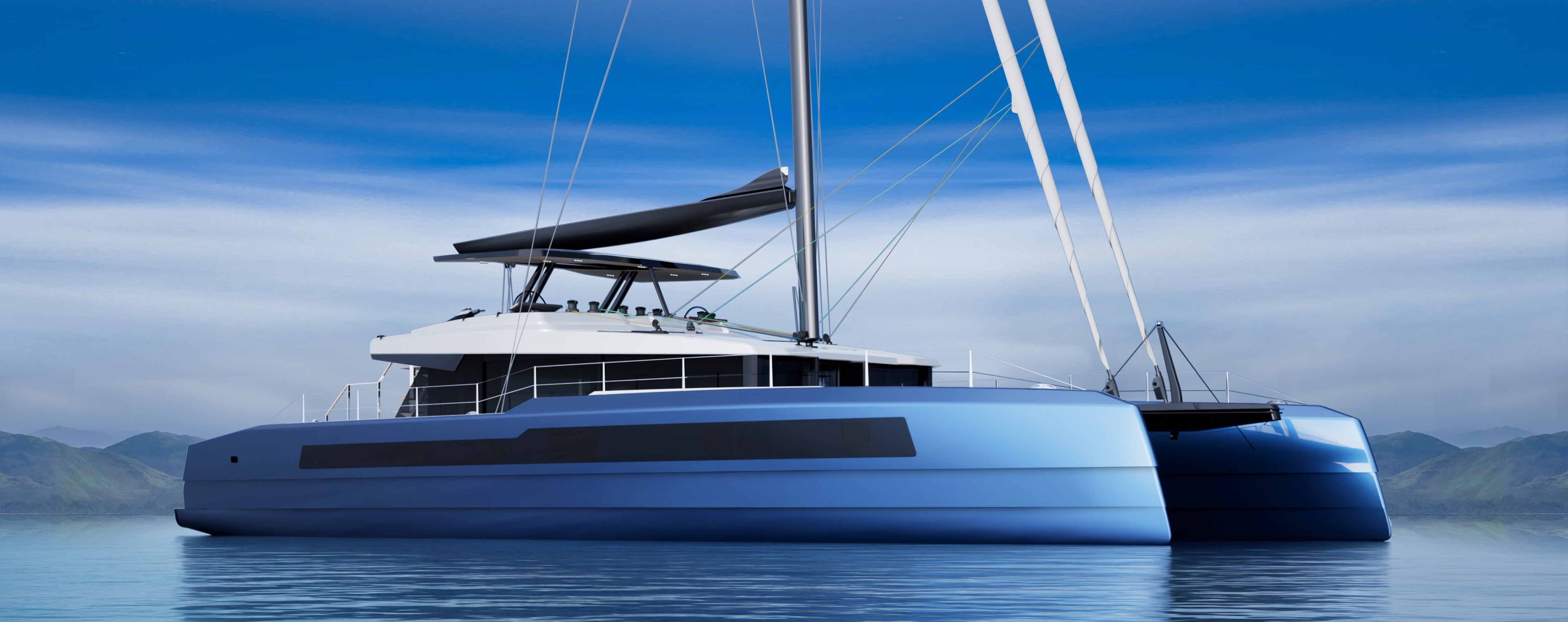

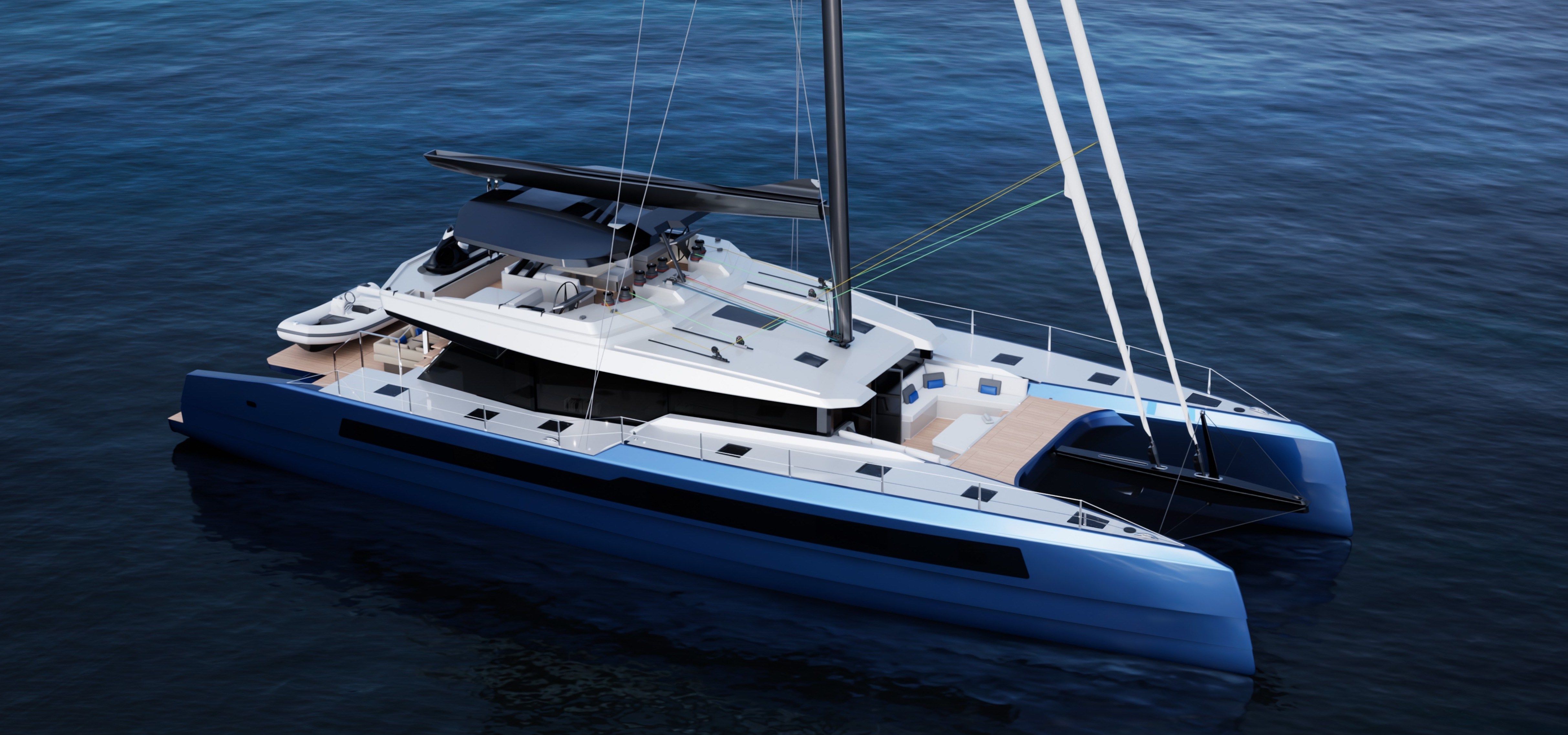

2025 McConaghy MC86 for Sale – 85 ft – Factory, HK

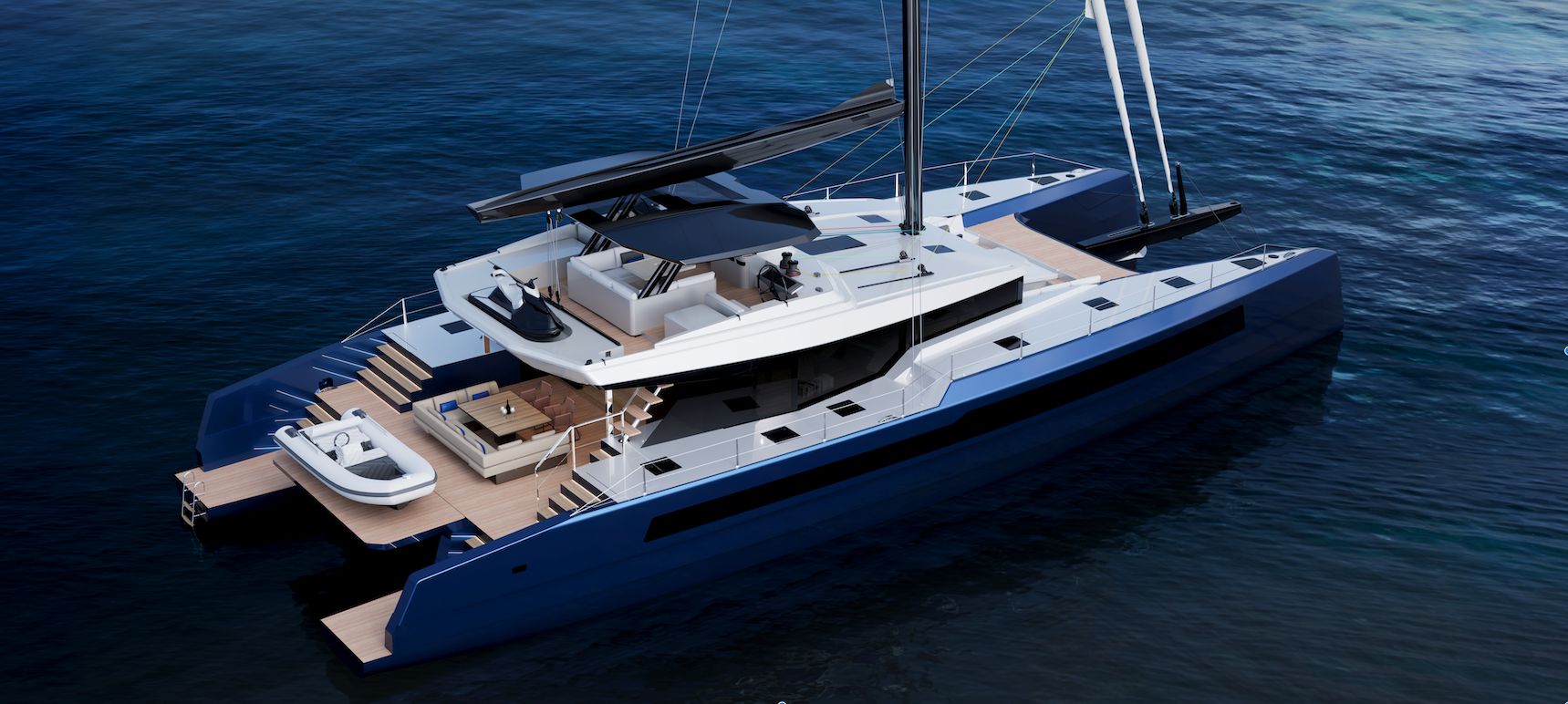

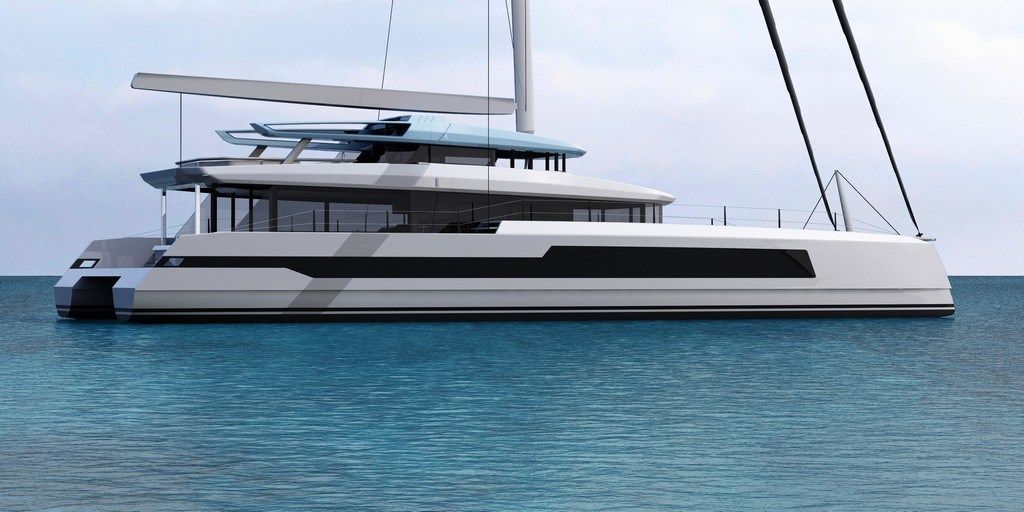

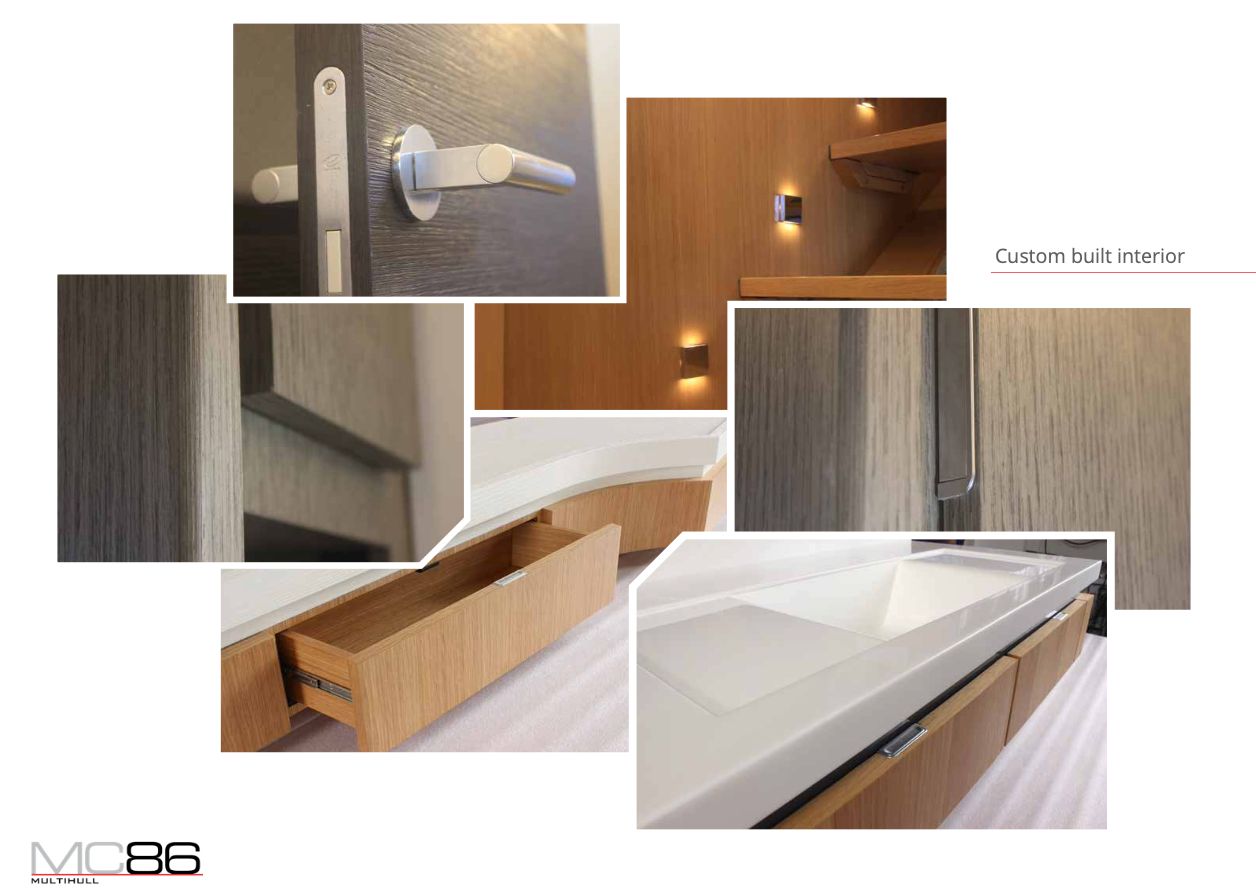

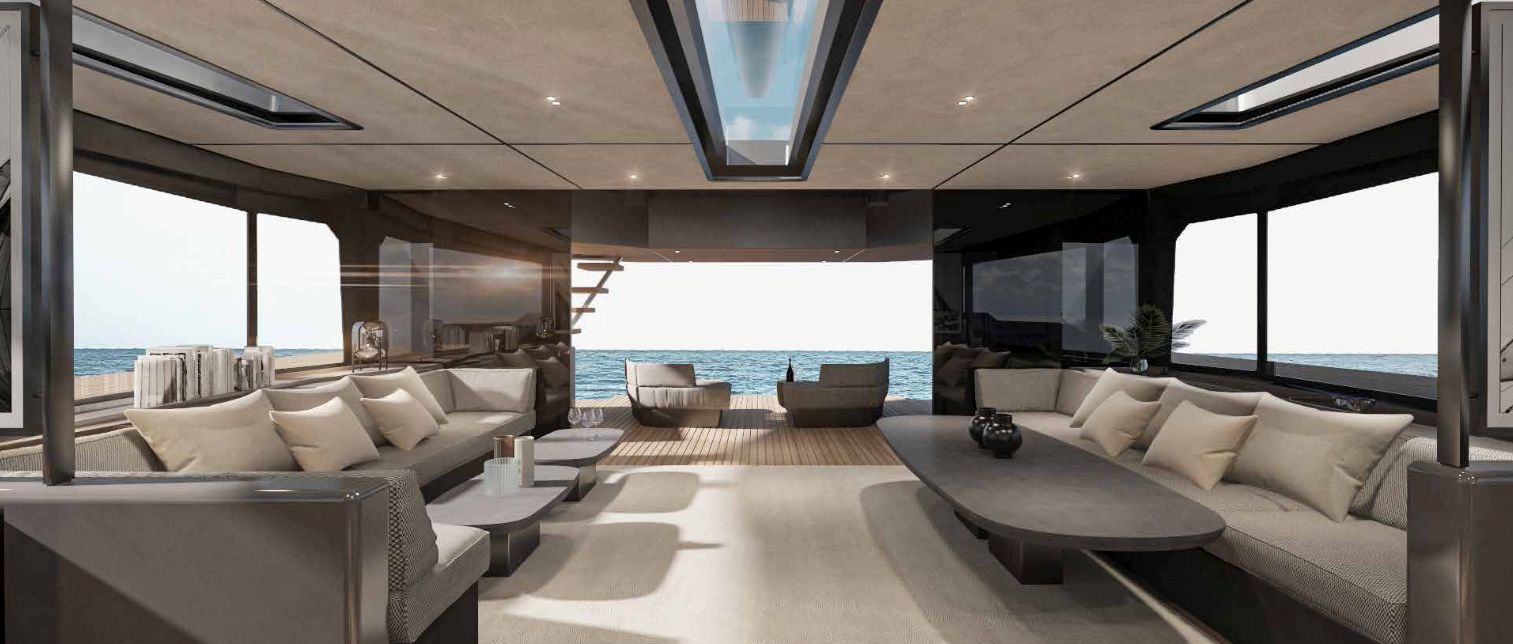

The MC86 whilst remaining true to McConaghy's identifiable exterior lines and key performance attributes, is a full-custom yacht in build philosophy. This allows owners to set out the interior’s general arrangement and equipment in a way that is unique to their own requirements, with multiple bespoke options. A true "wind speed" catamaran, the MC86 has an extensive range under power as well with up to 2,000 nm at economical revs. Her bespoke carbon centre boards allow her to point much higher than other cats, yet are safely housed below decks in their carbon watertight boxes. The MC86 benefits from many of the yards in house production, with extensive use of carbon and bespoke interiors from m2Atilier. A serious, capable offshore catamaran indeed.

As a custom shop, each yacht is made to specific specifications for each owner. To follow is an example inventory
Two (2) x 250hp Yanmar engines with V drives gearbox, propellers
Single electronic throttle control mounted to starboard helm
Insulation in Engine rooms
Delta-T ventilation
Day tank system includes fuel transfer pump, fuel polisher
Fresh water engine cooling system
Engine instrument panel at helm position
Two (2) Fuel tanks + day tanks in total approx. 3000 liters
Rope Cutters on propeller shafts
Racor500 fuel filters
Exhaust waterlocks
Water separator
Exhaust muffler
Two (2) Fuel Level Sensors
Two (2) Deck Fillers
Plumbing
Eight (8) Rule automatic bilge pumps
Two (2) Henderson MK 5 Universal Manual Bilge pump
Pressurised hot & cold water system
Two (2) Isotherm water heaters – 75 Liter tanks
Gianneschi Fresh water pump one DC and one AC
Sewage treatment plants
Fresh water & Salt water system
Black water tanks approx.500L
Grey water tanks approx. 500L
Fresh water tanks approx 2 x750L
Fresh Water Level Sensor
Holding tank sensor

24V DC
Two (2) 24/12V DC Batteries
Two (2) 24/12V DC Distribution
Ten (10) 24/12V DC Control (Czone combination output module)
One (1) 24/12V DC Charging
Twelve (12) 24V/12V DC Battery MLI Ultra 24/5500
Network Components
One (1) Czone & MasterBus Network
Solid State Computer
One (1) Solid State Computer for Czone
Navigation Supply
One (1) Custom Navigation Panel
One (1) MasterVolt Mac Plus DCDC Converter
Two (2) MasterVolt AGM 12/130Ah Battery
Engine / Generator Start Battery
Four (4) Engine MasterVolt AGM 12/130Ah Battery
One (1) Generator MasterVolt AGM 12/130Ah Battery
Three (3) Easy Charger
AC Control
One (1) Custom ACMI Main Switchboard
Four (4) Custom ACOI AC Subboard
One (1) Czone Touch 10" Display
Combi Inverters
MasterVolt Mass Combi Ultra 48/3500-50 inverter chargers
Autotransformer 120/240VAC-100A
Shore Power Input
Two (2) Shore Inlet Box & shore power cables.
One (1) Isolation Transformer

Network Components
One (1) Czone & MasterBus Network
Solid State Computer
One (1) Solid State Computer for Czone

Navigation Supply
One (1) Custom Navigation Panel
One (1) MasterVolt Mac Plus DCDC Converter
Two (2) MasterVolt AGM 12/130Ah Battery
Engine / Generator Start Battery
Four (4) Engine MasterVolt AGM 12/130Ah Battery
One (1) Generator MasterVolt AGM 12/130Ah Battery
Three (3) Easy Charger

AC Control
One (1) Custom ACMI Main Switchboard
Four (4) Custom ACOI AC Subboard
One (1) Czone Touch 10" Display
Combi Inverters
MasterVolt Mass Combi Ultra 48/3500-50 inverter chargers
Autotransformer 120/240VAC-100A
Shore Power Input
Two (2) Shore Inlet Box & shore power cables.
One (1) Isolation Transformer
Other electrical
CZone DC Digital Switching System including touch screen, ipad compatible, voltage, tank, bilge and fuse alarms, lighting (switches and dimmers), custom controls for centreboards and hydraulic lift platform.
Reading lights
Down lights
Cockpit lights
Courtesy lighting
One (1) red/white nav stn light (Hella 2XT 959 510 851)
One (1) all round white nav.light (Hella 2LT 980 960-001)
One (1) stern light (Hella 2LT 959 909-001)
One (1) port light (Hella 2LT 959 900-001)
One (1) stbd light (Hella 2LT 959-908-001)
One (1) masthead light (Hella 2LT 959 940-201)
One (1) tank Sensor Monitor

Fire Detection System
Fireboy ASM Addressable Fire Detection for interior and engines

Generators
Two (2) x Generators 22.5kW Onan

Air Conditioning
220k BTU Air conditioning (reverse cycle Heat/Cool)

Bow Thrusters
Two (2) x Lewmar Hydraulic Bow thruster 300VRTTH 30CC 450 Stroke

Swimming Platform
One (1) x Hydraulic swim platform / tenderlift with remote control, Seasmart cleats, safety locks, and folding padeyes (x4)

Hydraulic Passerelle
One (1) x McConaghy custom build hydraulic passerelle

Carbon swim ladder
One (1) x McConaghy custom build carbon swim ladder

Navigation
Furuno VHF Radio FM-8900S
Two (2) x GPS
X-Band 6KW,Radar SENSOR for 24DC operation
Three (3) x Multi-function display for 24VDC operation (interna wireless LAN antenna)
Furuno depth & temp/speed sensor : DFF1-UHD
Two (2) x FURUNO autopilot system
Two (2) x Satellite compass
Integrated Haeding Sensor
AIS
Four (4) DATA Organizer
Network Multi Beam Sonar
Five (5) x Display Units
SAT Phone

Two (2) 1800 GPD Watermaker, Commercial Prefilter, 220/1/50-60 VAC

Portable Emergency Diesel Pump
One (1) x Portable Yanmar emergency diesel pump

Underwater lights
Twelve (12) underwater lights

Dive Compressor
One (1) x Bauer PE 100-T dive compressor with 2 dive bottles

Docking and Anchoring Pack
Six (6) inflatable fenders with covers, portable electric pump and fender lines
Carbon fibre boat hook
Six (6) mooring lines, cored, spliced, looped and whipped
Anchor Bridle, 22mm with chain hook

Safety Equipment
An allowance of USD 15,000.00 has been made for safety equipment, 2 x lift rafts included.

Rudder and Steering
Balanced spade twin rudders
Self aligning bearings

Hydraulic Steering
Emergency tiller

Deck Equipment
Nine (9) x Harken Performa Electric Winches
Clutches: Sufficient for mainsail and jib
One (1) hydraulic forestay furler, One(1) hydraulic Code Zero furler & One (1) hydraulic staysail furler

Hydraulic System
Hydraulic Pump DC
Hydraulic Pump PTO
Valve block for centerboards
Valve block for windlass
Valve block for swimming platform
Valve block for bow thrusters
Valve block for passerelle
Valve block for headsail furler
Valve block for staysail furler
Valve block for A sail furler

Hatches
Lewmar flush deck hatches drained to waterline
Composite hatches
flybridge Hatches/Pigeon holes under centerline winches
Four (4) composite hatch at fwd deck

Anchoring & Mooring
Two Lewmar hydraulic windlass
Two Lewmar anchors, 100m chain (galvanised) and 30m warp
Ten (10) folding cleats

Misc Deck hardware

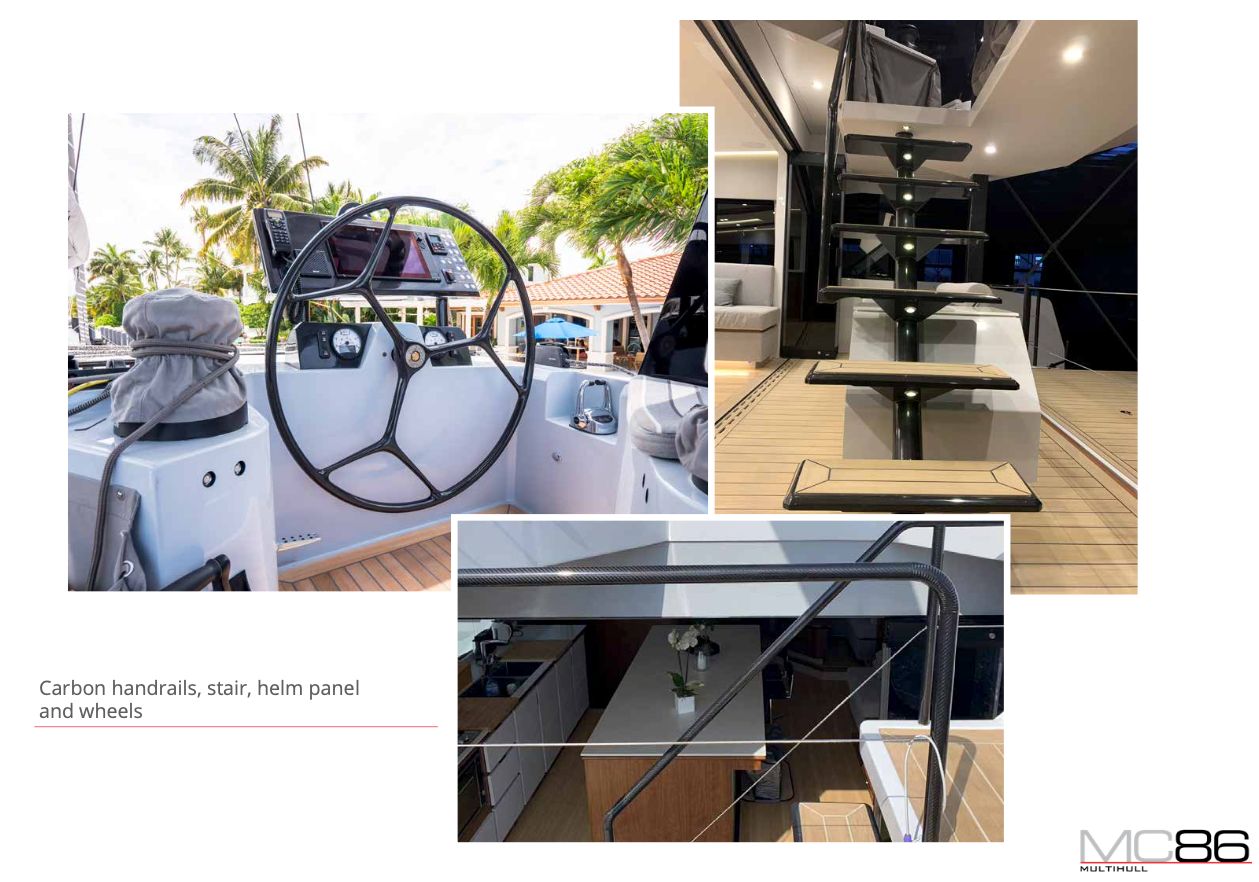

McConaghy clear carbon composite stanchions
Clear carbon recessed coachroof handrails port & starboard
Boarding side gates port & stbd
Two(2) carbon hanging steps for fwd end of cabin top
Stainless steel and dyneema life lines
Two (2) deck water fillers
Two (2) deck fuel fillers
Two (2) deck waste pump-out
Foredeck trampolines

Safety Systems
An allowance of USD 15,000.00 has been made for safety equipment, 2 x lift rafts included.
Rudder and Steering
Balanced spade twin rudders
Self aligning bearings
Hydraulic Steering
Emergency tiller

The above specification is based on the MC86 standard specifications. Please note the contract specification for the MC86 will incorporate slightly higher prices where surface areas increase or where equipment has to be upgraded. These will be confirmed with the Buyer after firm interest is expressed
