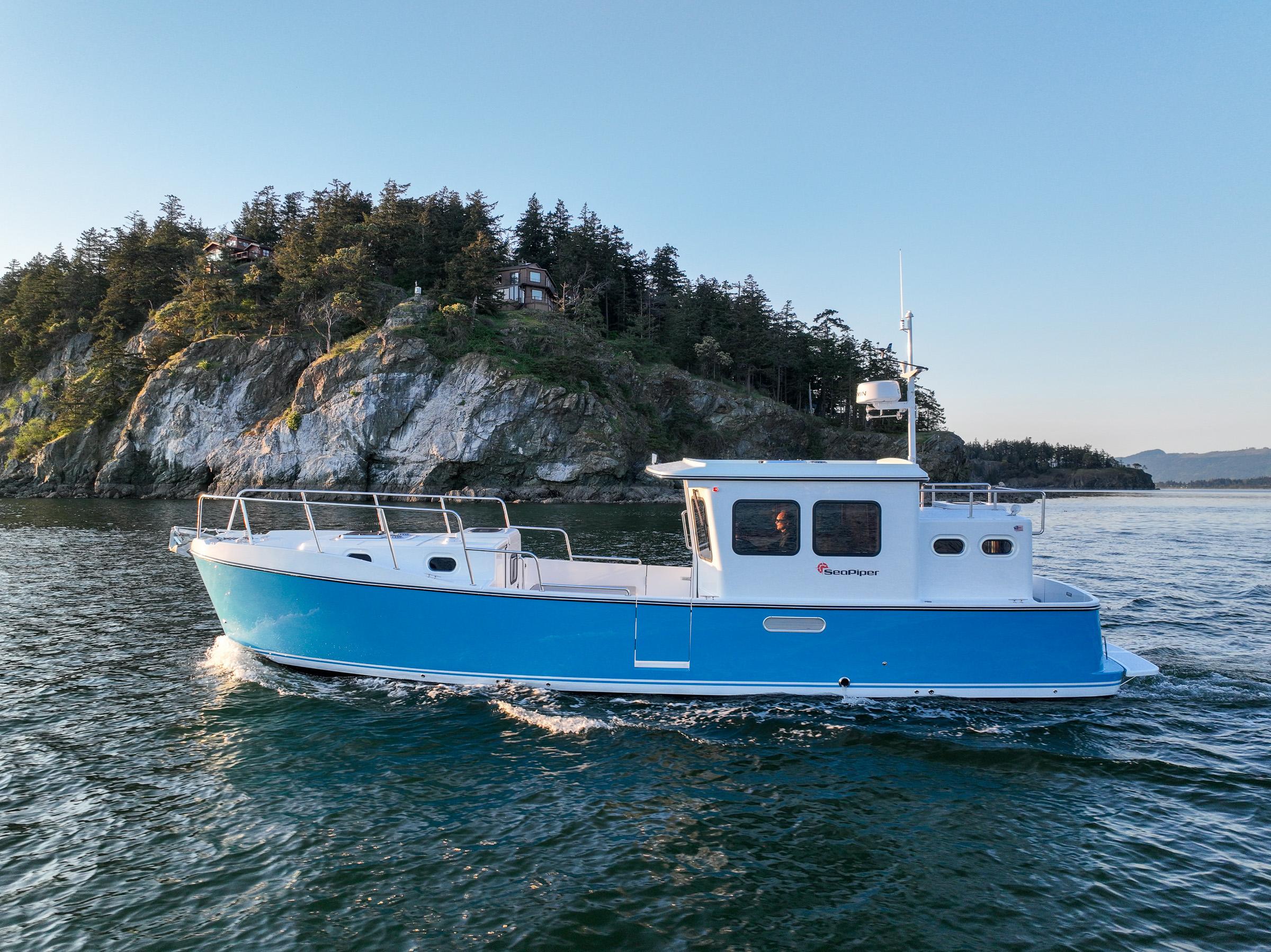

STRUCTURE
Sandwich structure is used for hullside above water line. Below the
water line solid FRP construction with vinylester resin for the outer
layers.
FRP sandwich for structural floors and superstructure.
Hull and deck / superstructure units joint sealed by 3M 5200 and
screwed and bolted where needed.
Recessed bow & stern thruster tunnel.
Integral full protected keel and rudder shoe
FINISH
Gelcoat semi-gloss finish on hull (gray)
Gelcoat semi-gloss finish on deck and superstructure (white)
Gelcoat semi-gloss finish on all interior fiberglass surfaces
Anti-fouling paint (black) on top of primer coat
PROPULSION
Betamarine BETA 85 Propulsion Engine –85 hp at 2,800rpm
Hydraulic transmission
TANKS
200 gal diesel total in 100 gal tanks port and starboard aluminum wing
tanks.
80 gal fresh water in two 40 gallon tanks port and starboard stainless
steel wing tanks.
22 gal waste tank
FUEL SYSTEM
Fuel filter / water separators, one on each tank
Tank selector valve
Deck Fills
Fuel vents
WATER SYSTEM
(2) wing tanks, approx. 80 USG tank capacity
(1) 1-1/2” water tank fill deck plate 5/8” vents on water tank water
tank level indication on gauge in pilothouse
(1) Pressure Water pump
(1) 6 USG 120VAC dual heating source hot water heater
Polyethylene water piping system
(1) washdown hose connector for freshwater wash down
BILGE SYSTEM
(4) Electric bilge pumps w/ electronic float switch
Bilge Pump Panel
Manual bilge pump in engine room compartment
Overboard thru hulls above WL for bilge pumps
SANITARY SYSTEM
(1) Electric marine head freshwater flush
22 USG Waste Tank
(1) wastewater level gauge in pilothouse
(1) vent line for waste tank
(1) 11⁄2” Deck Pump-out Plate
1 1⁄2” Seacock on overboard discharge.
Wastewater Pump for overboard drain.
STEERING
Hydraulic steering
18-inch steering wheel
Stainless steel rudder shaft
Rudder pintle bearing, gudgeon stainless steel skeg bar.
BOW & STERN THRUSTER
Standard bow and stern thruster
VENTILATION
(2) deck ventilators on fore cabin
(1) Solar powered ventilator in head
(1) deck ventilator on pilothouse/salon
(1) Solar powered ventilator on pilothouse/salon
12VDC SYSTEM
DC Breaker Panel
Battery Master Switches
(2) L16 size (6V/400Ah) House Batteries in enclosure
(1) 12V/50Ah Starter Battery in enclosure
High Power Beta 85 engine alternator 175A-12V
12V DC horn
Navigation lights white & NaviLED R/G Compact Switch Panel at helm
for multiple functions
120V
SmartPlug 120V/240V-30Amp shore power inlet
2,200W/100A-12V Battery Charger/Inverter
120V AC ELCI Breaker Panel
120V AC Breaker Panel
(5) 120VAC outlets (or 230V)
6 USG (30 ltr) Hot water heater: engine coolant coil + 120V AC heating
element
Typically (1-2) spare 120V breakers available in base configuration
ANCHORING
Stainless Bow Roller for self-launching anchor
(2) Bulwark mounted fairleads / Skene Chocks
(2) 10” Cleats Forward beside optional windlass
12V DC electric windlass with pilothouse controls
MOORING
(6) 8” Cleats on rail along side
(2) 10” Cleats on swim platform –Recessed

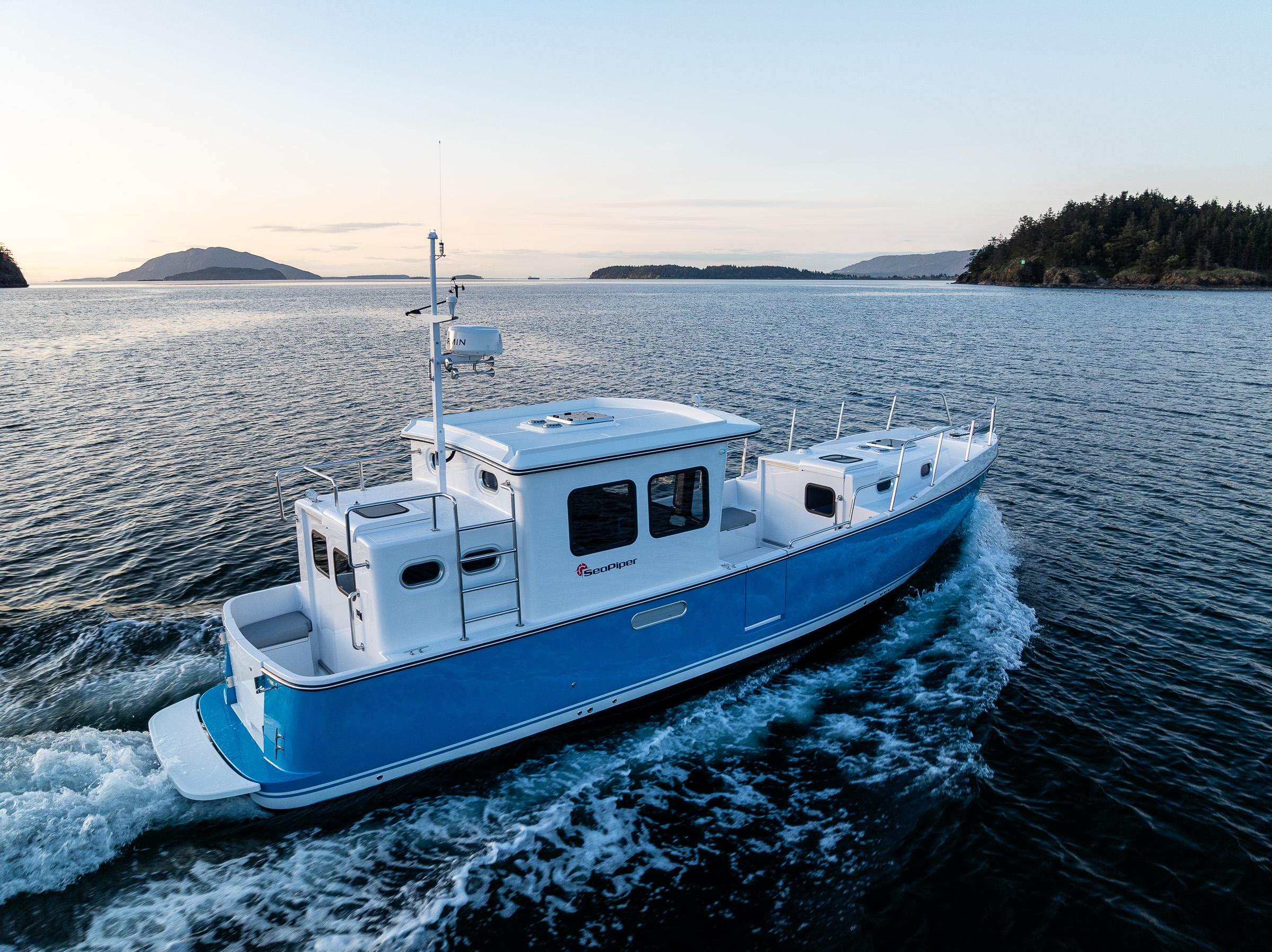

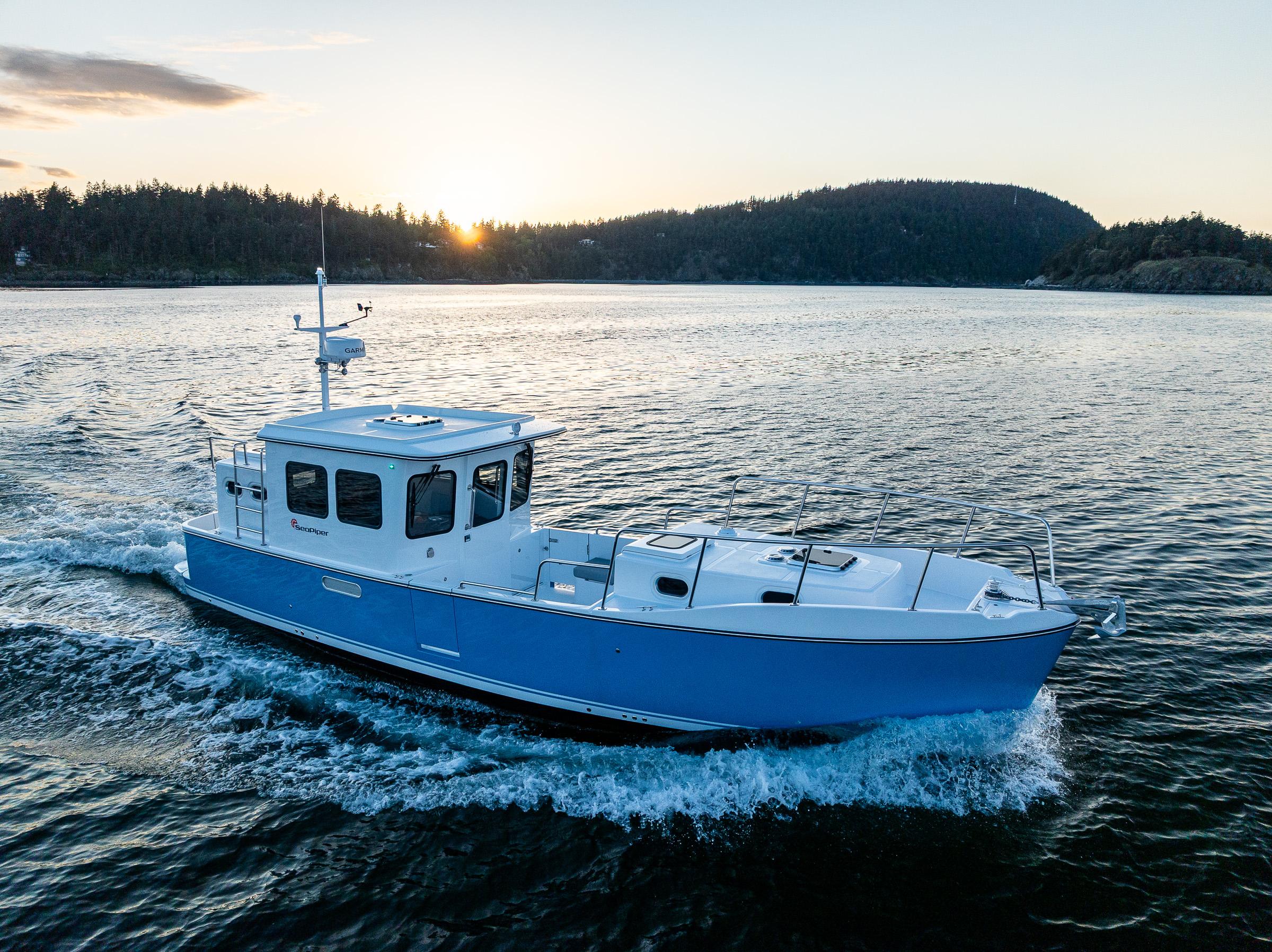

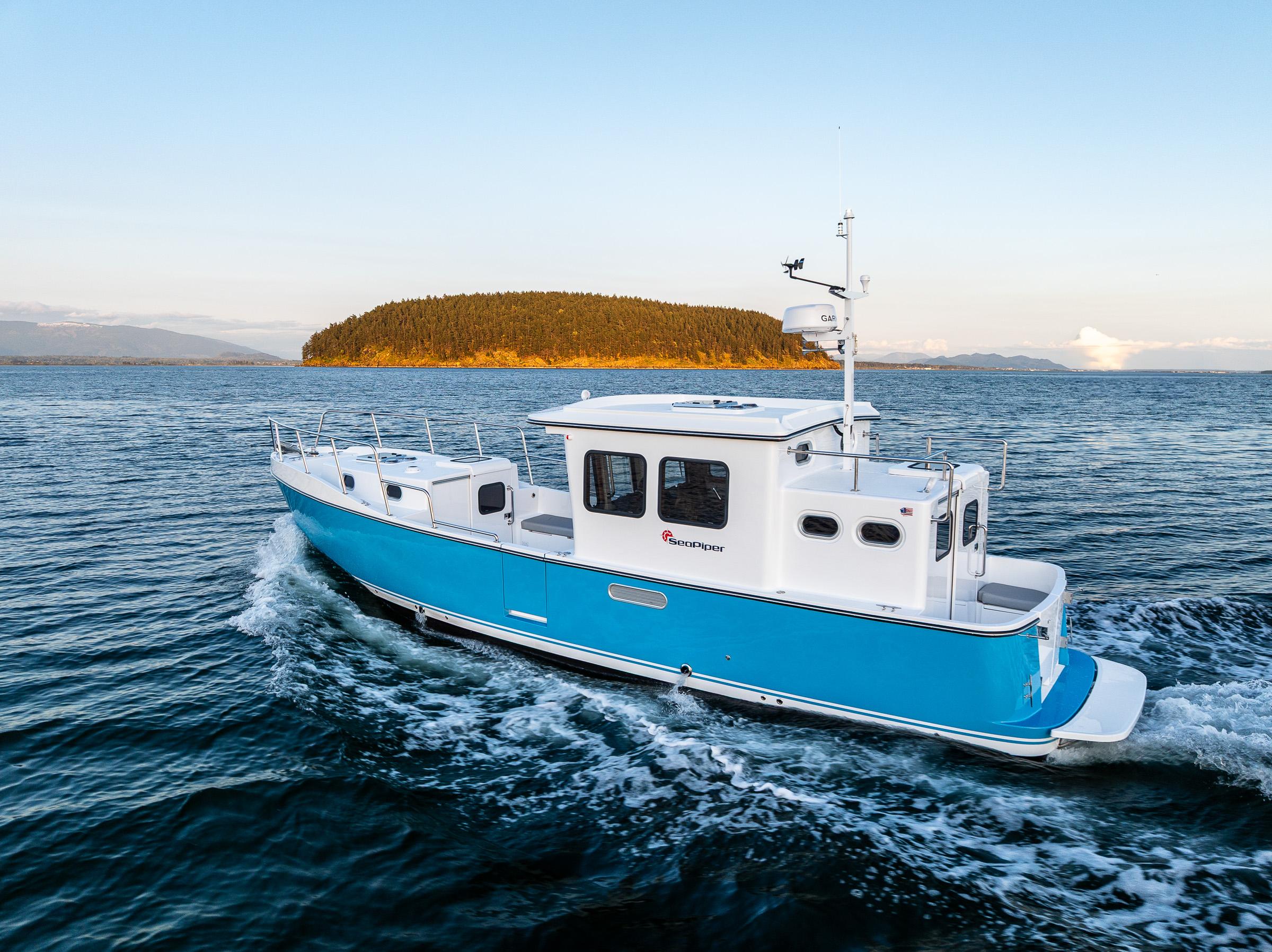

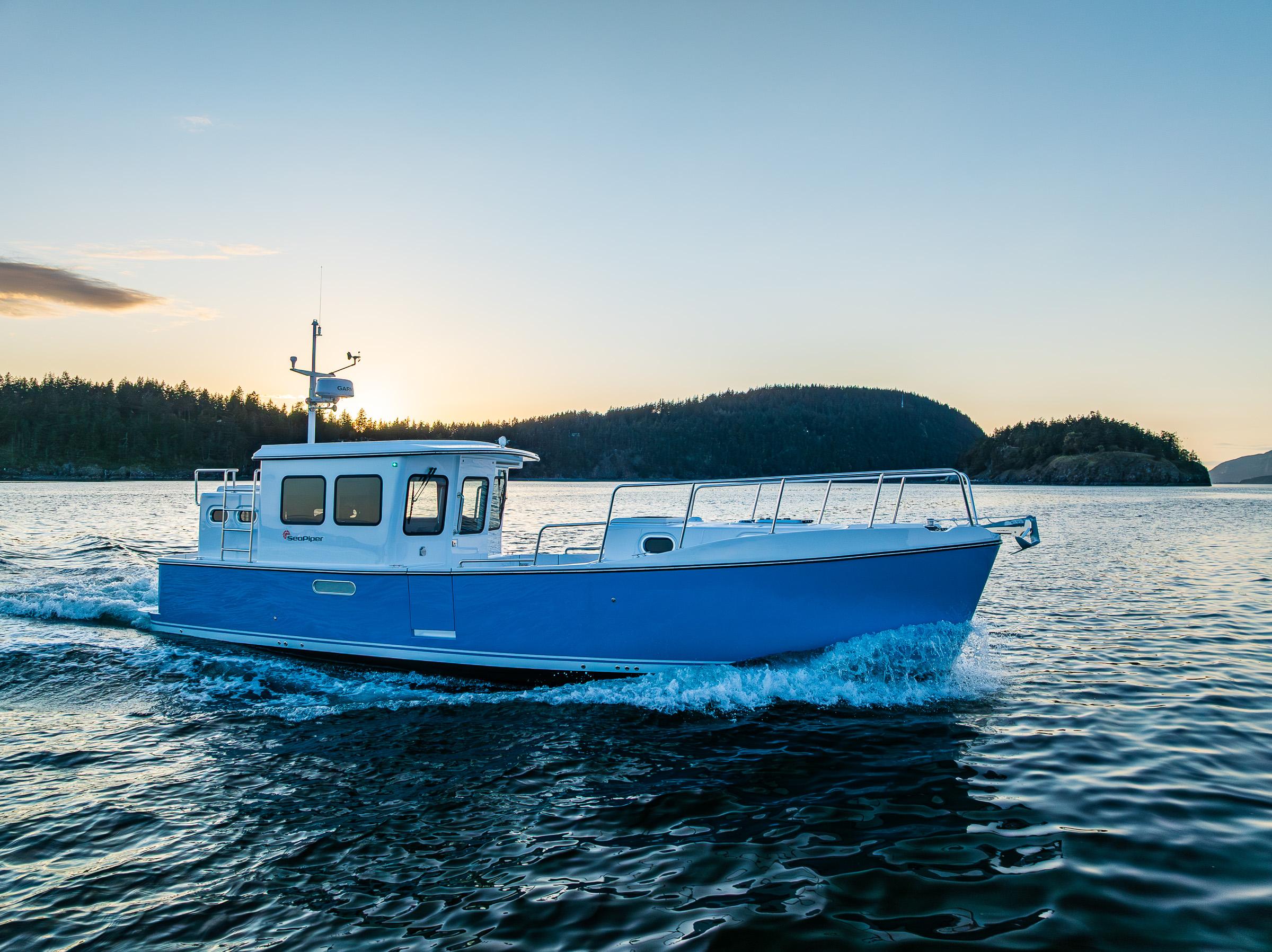

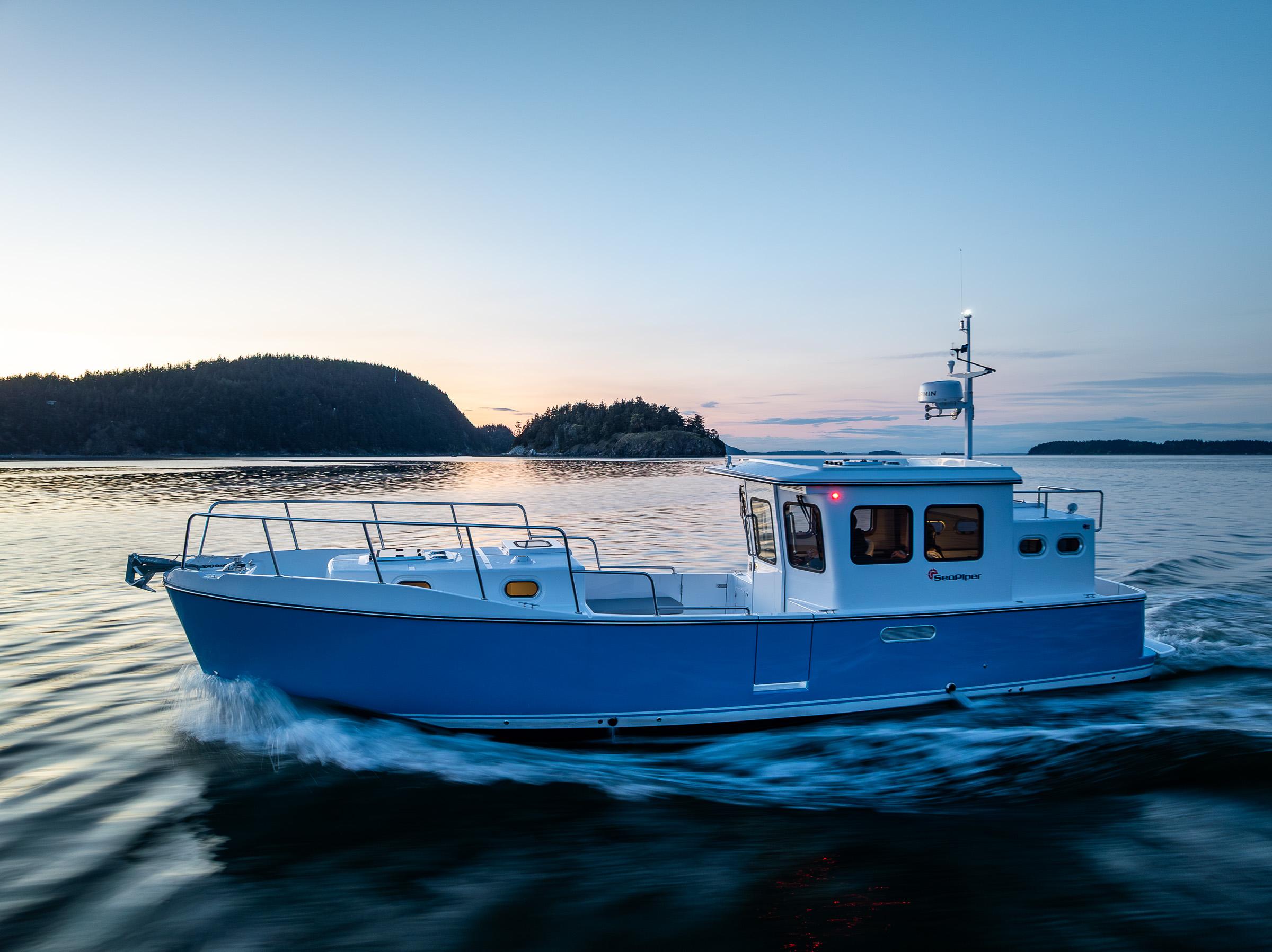

EXTERIOR

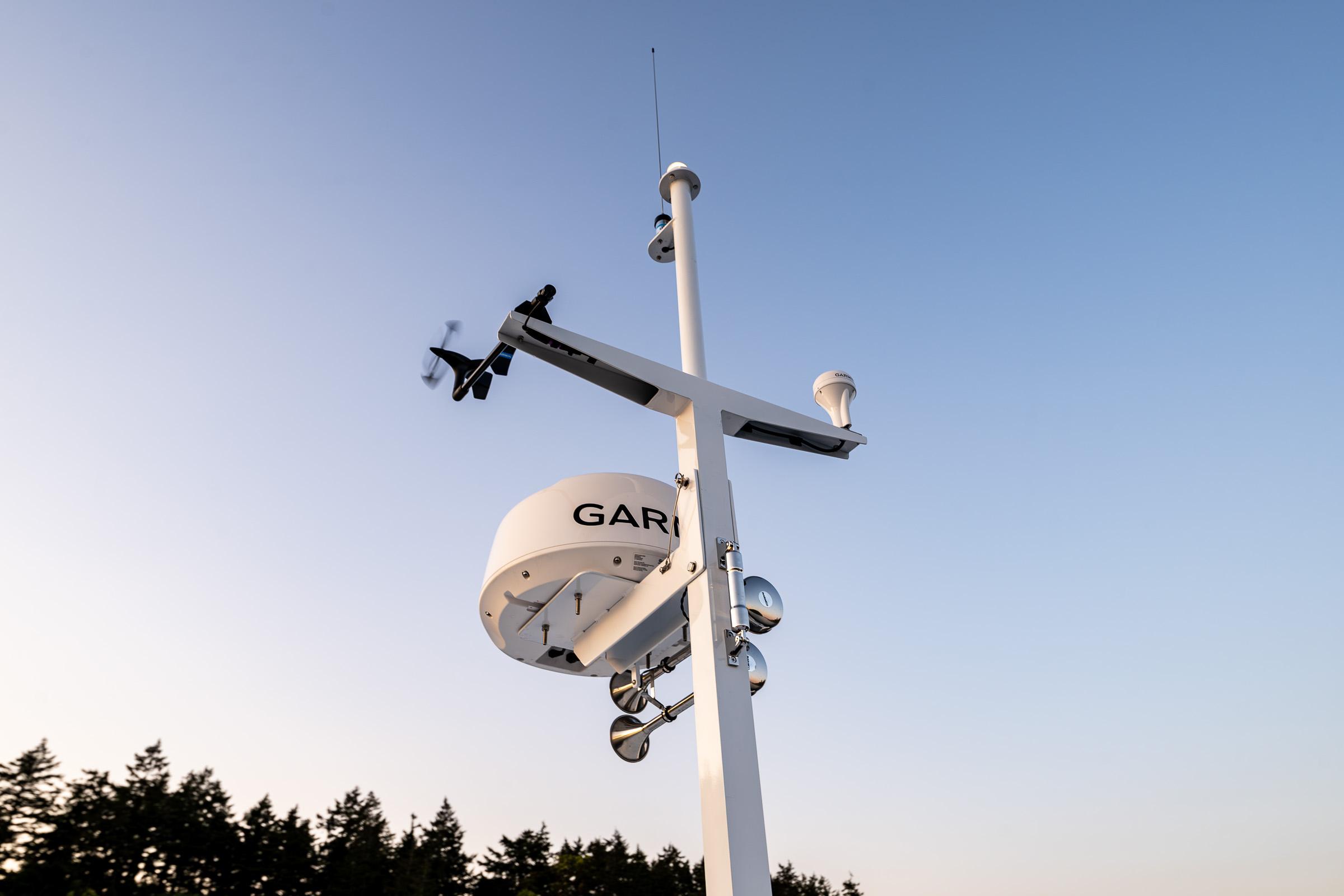

Tubular Mast structure on roof for Radar/Antenna
Hella NaviLED 360 all around white light on Mast top
Recessed and protected RED/GREEN lights

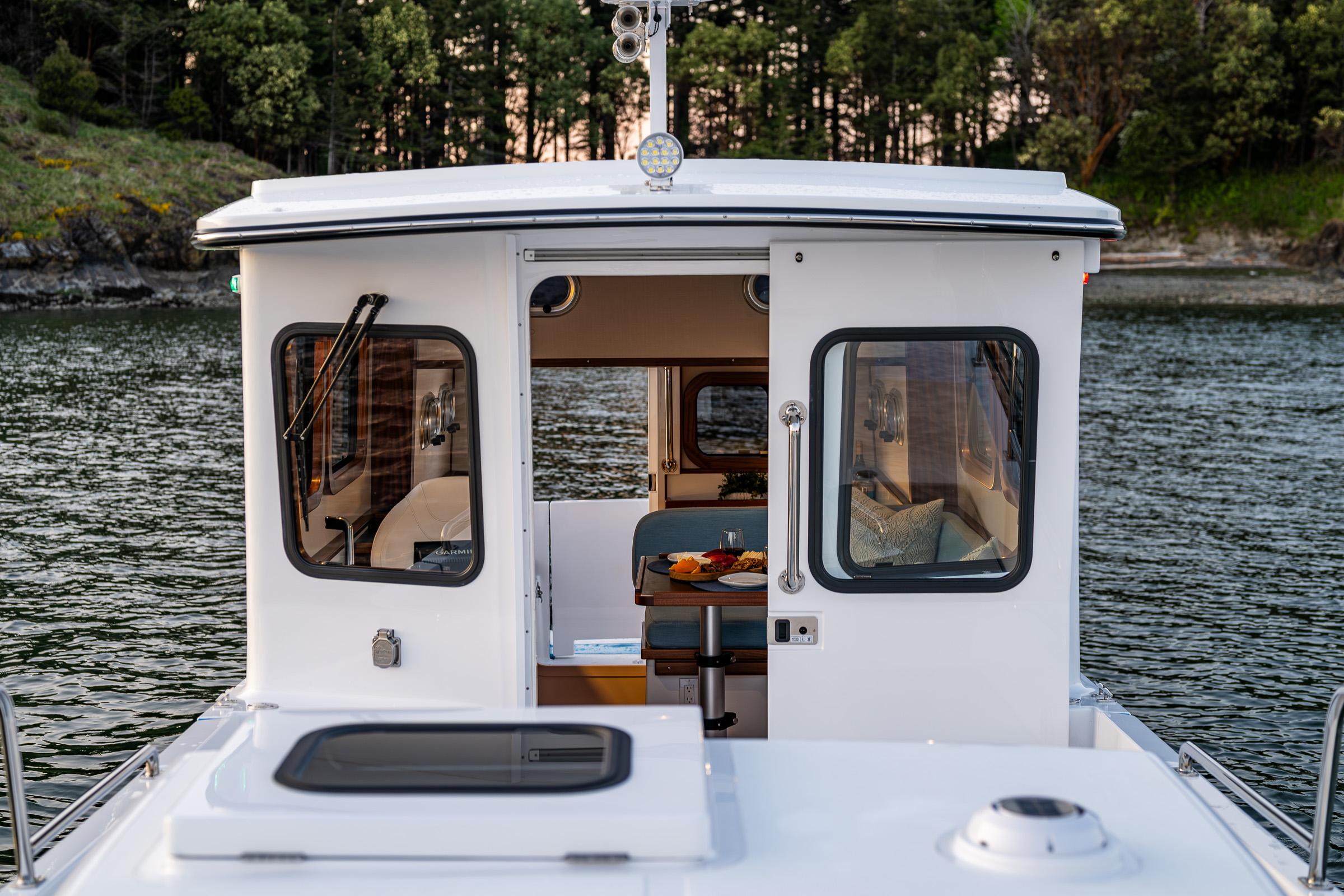

Locking latches on all exterior doors
Exterior doors sliding on durable 316 stainless steel rail system.
Gas assisted Springs on deck hatches.
Vinyl upper and lower dual fender rails
(10) CE Category A-III opening port lights
(2) CE Category A-III hatch 20x20in

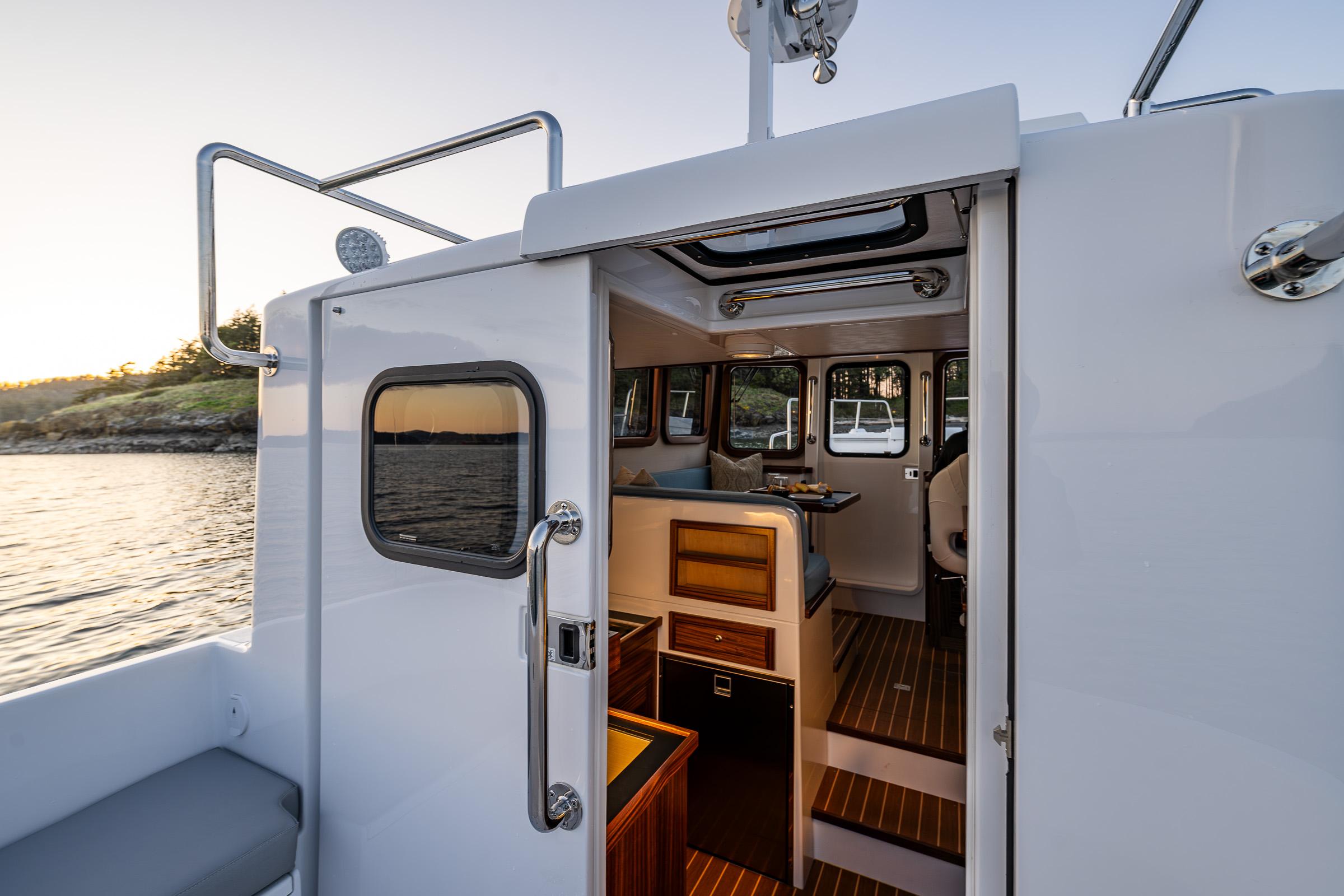

(3) Custom Sliding FRP sliding doors
(1) S/S ladder for roof access

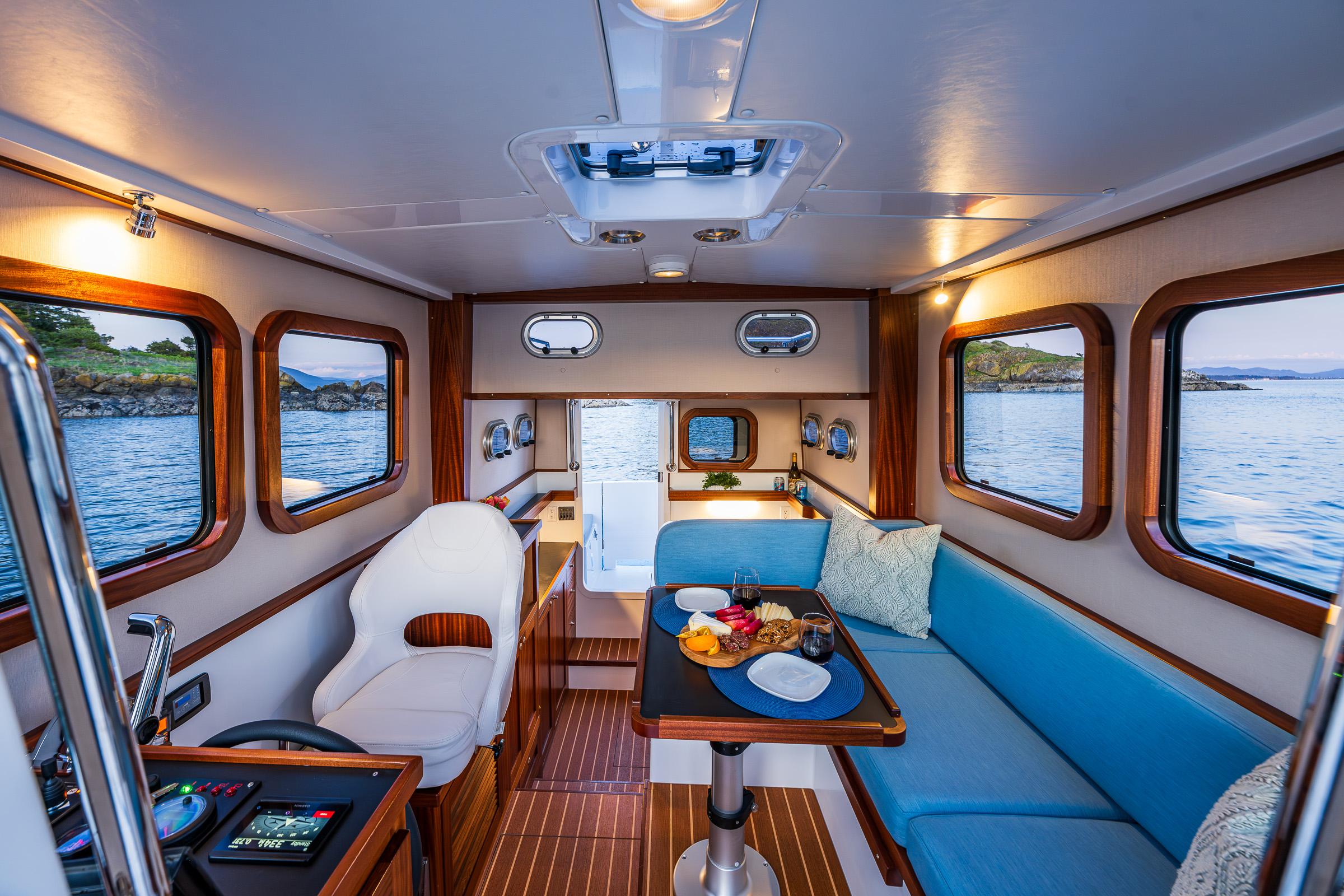

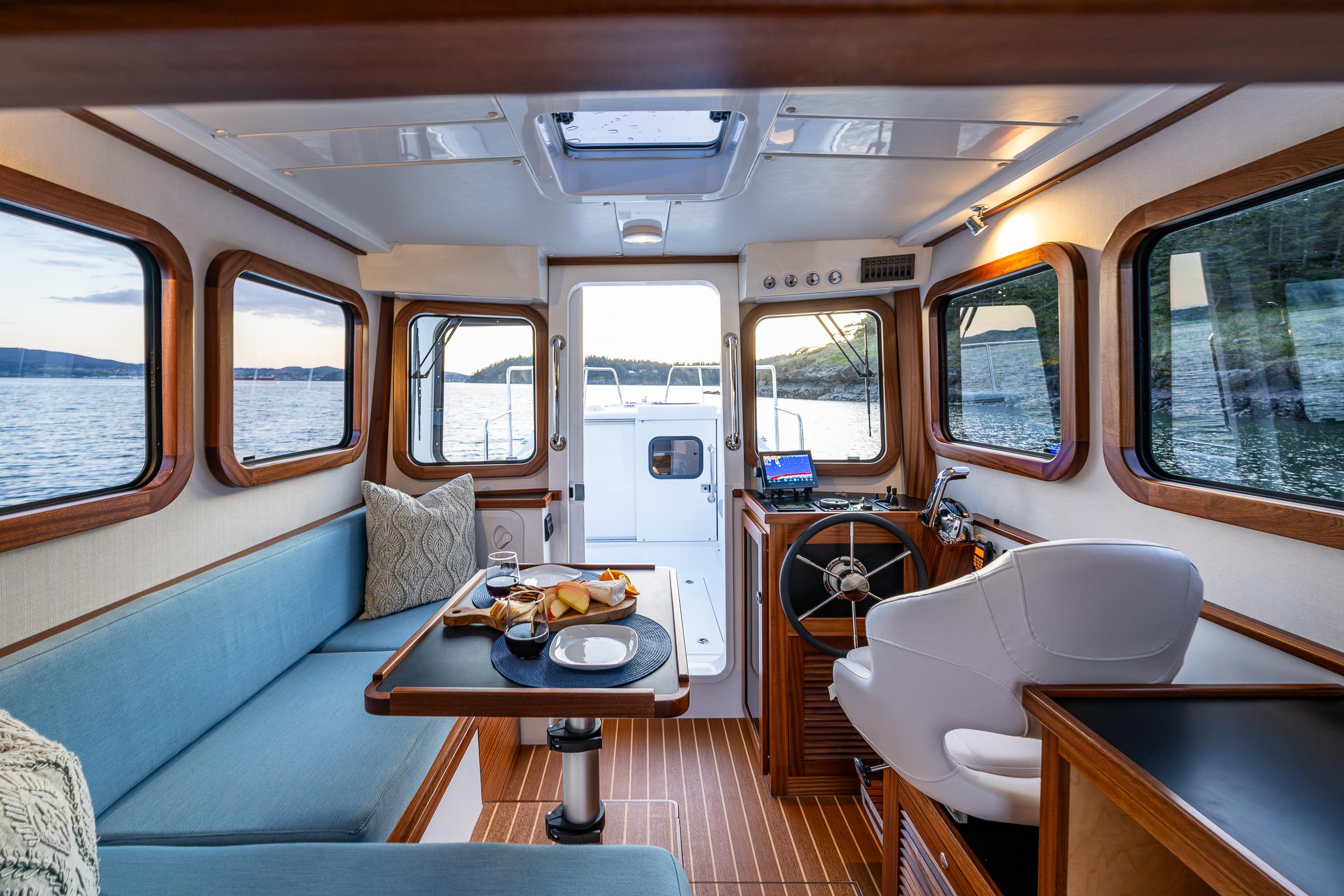

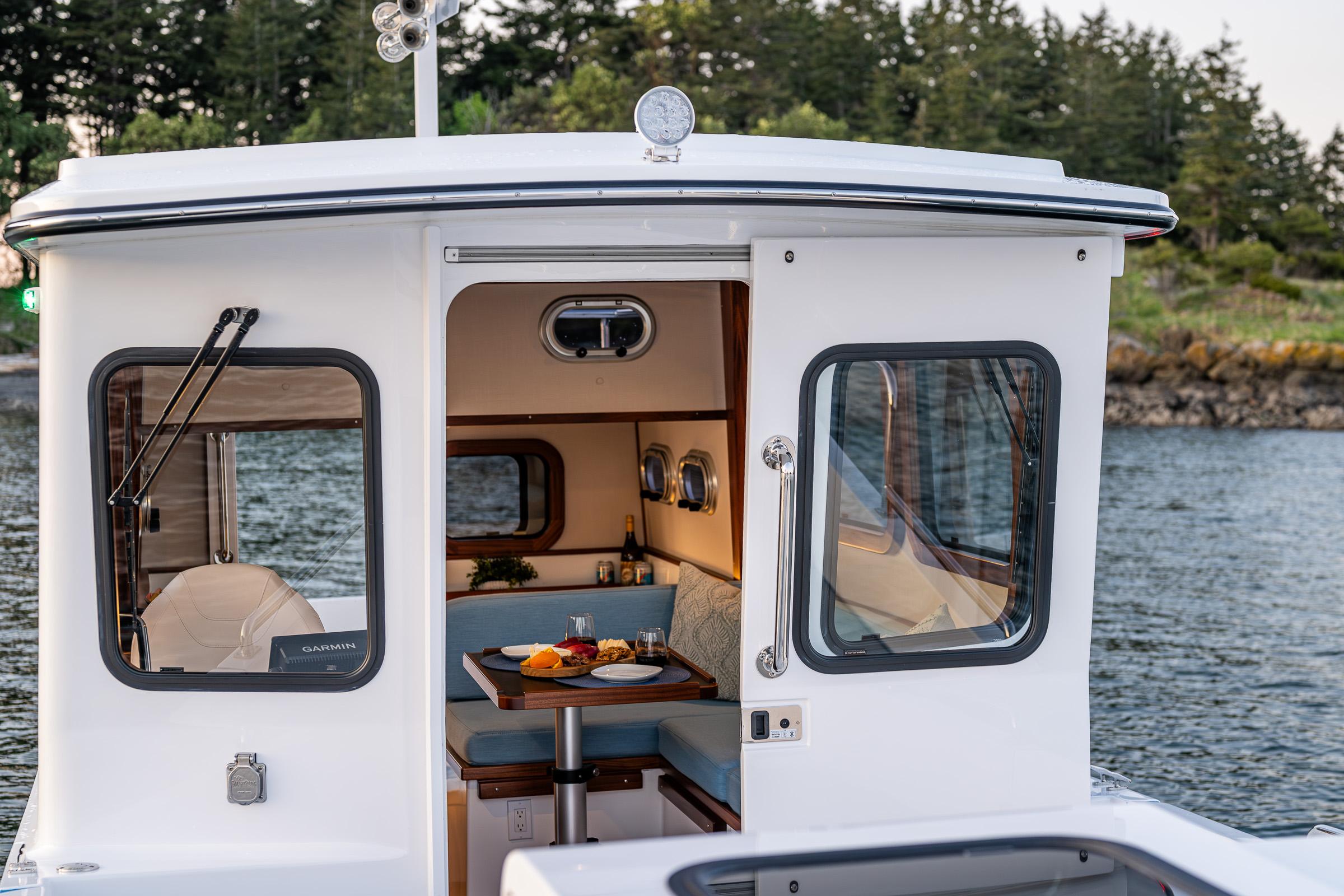

PILOTHOUSE
Helm station w/ instrument panels
Engine instrument panel
Single lever shift/throttle

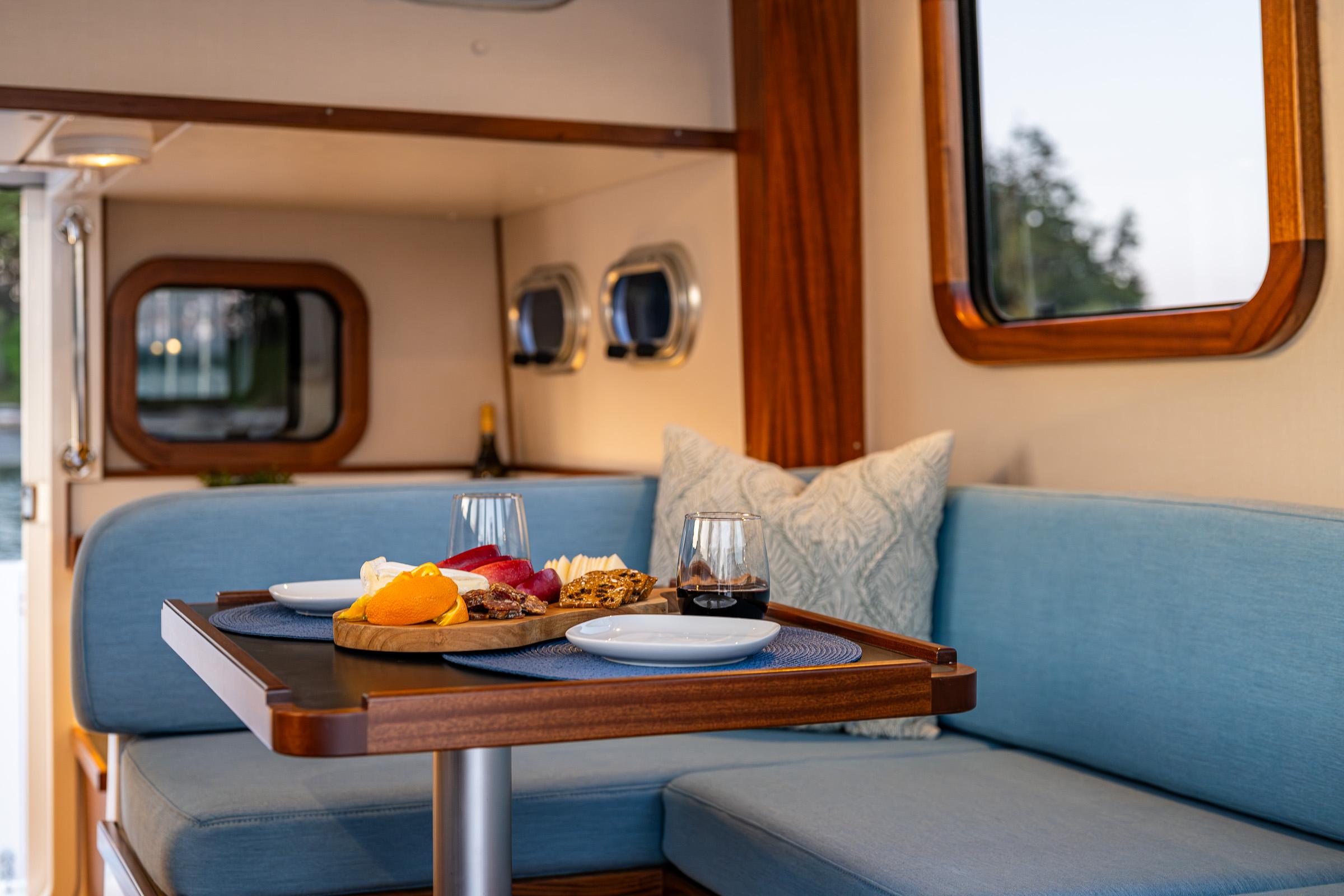

Table and Settee with storage underneath
Helm seat
Settee with fabrics and cushions
Teak and holly style vinyl interior sole
Soft panel head liner with FRP sections for overhead lights
(1) ventilators
(1) solar ventilator
(2) LED overhead light white/red

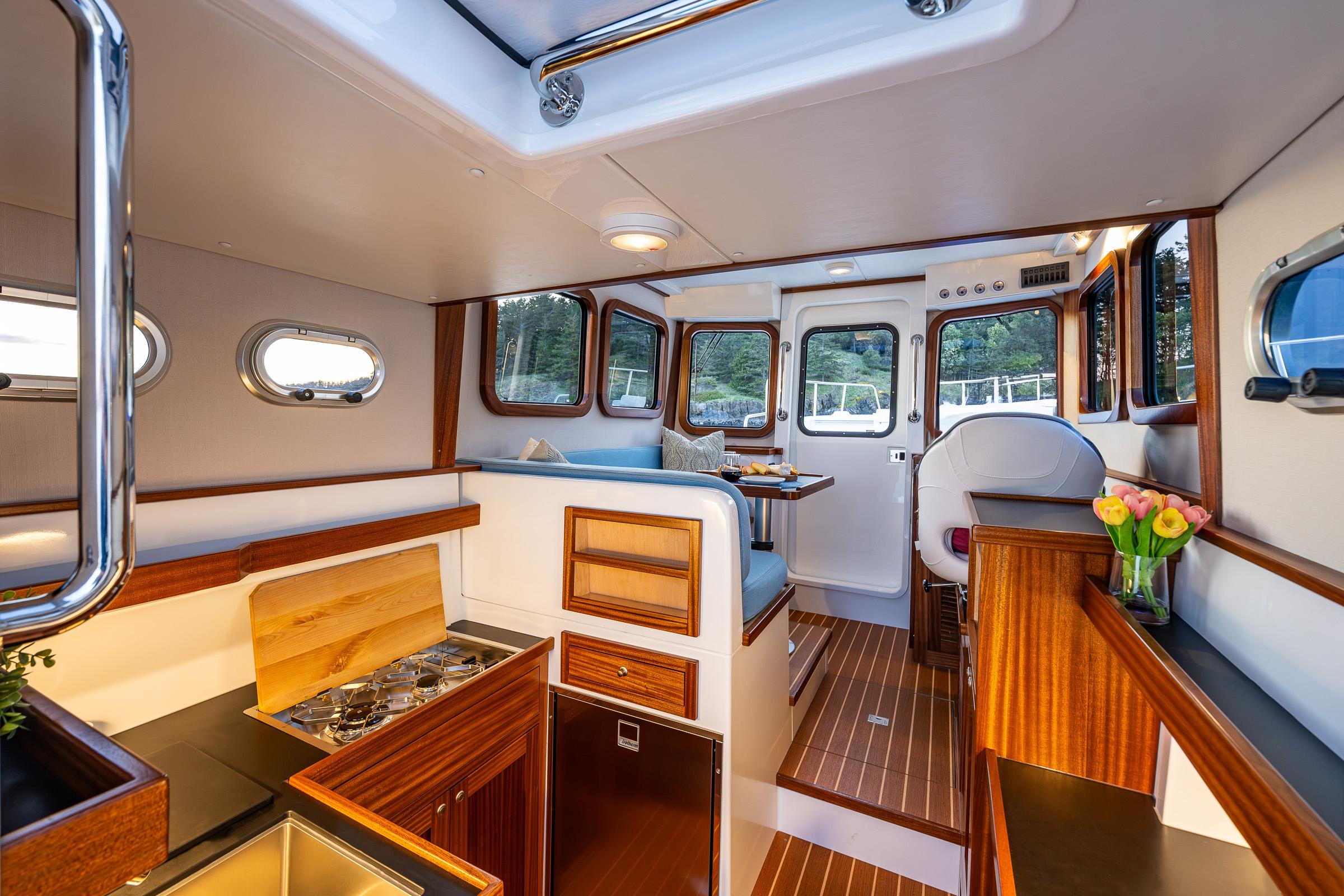

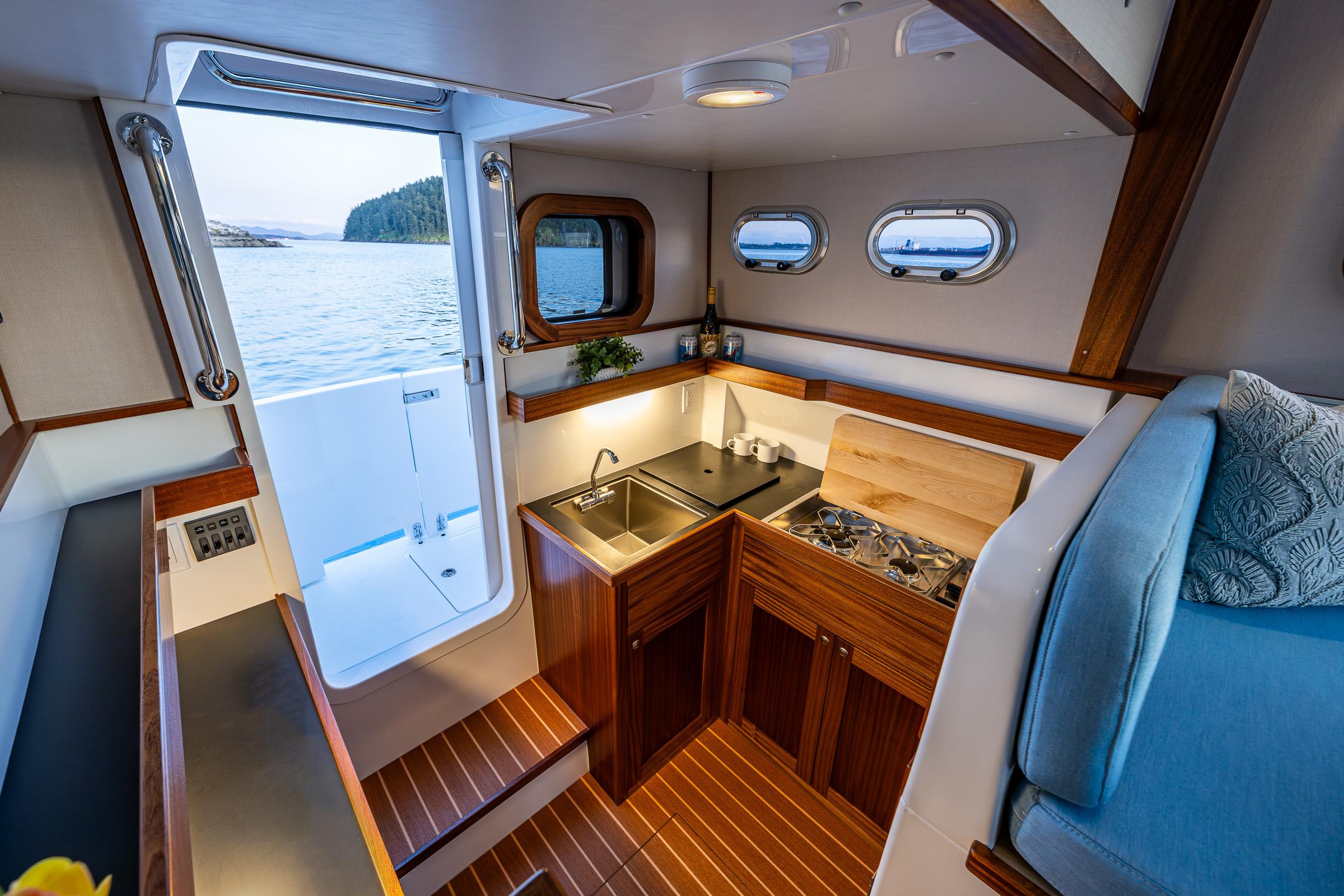

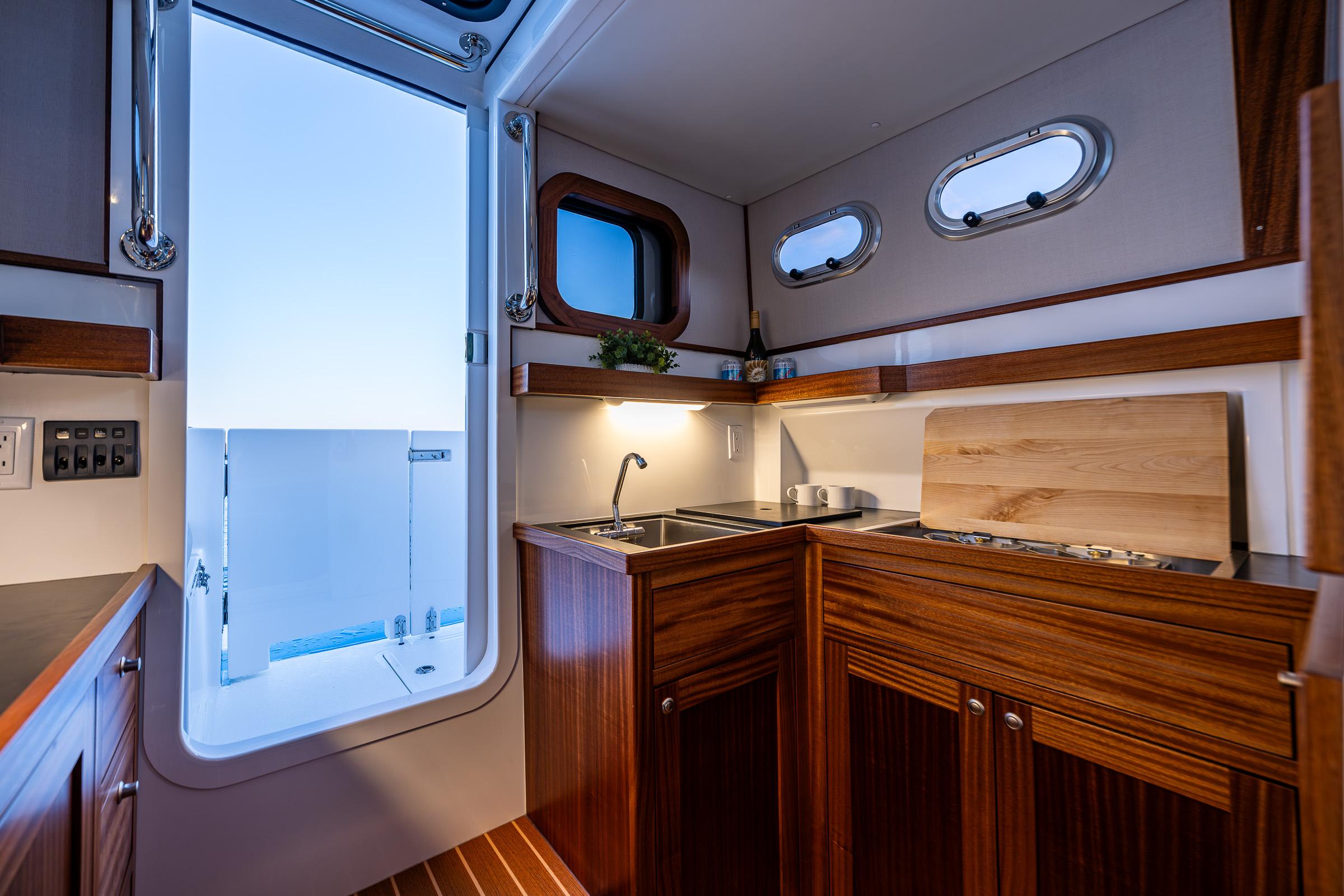

GALLEY
Drawers and cabinets w/ shelves under counter
Quartz material counter tops
Deep FRP backsplashes
Refrigerator approx. 4.6 cu ft / 12Vdc
2-burner LPG cook top
Stainless steel galley sink
Galley Faucet –bulkhead mounted.
Teak and holly style vinyl interior sole
(1) LED overhead light white/red
(3) LED strip lights over galley counters and sink

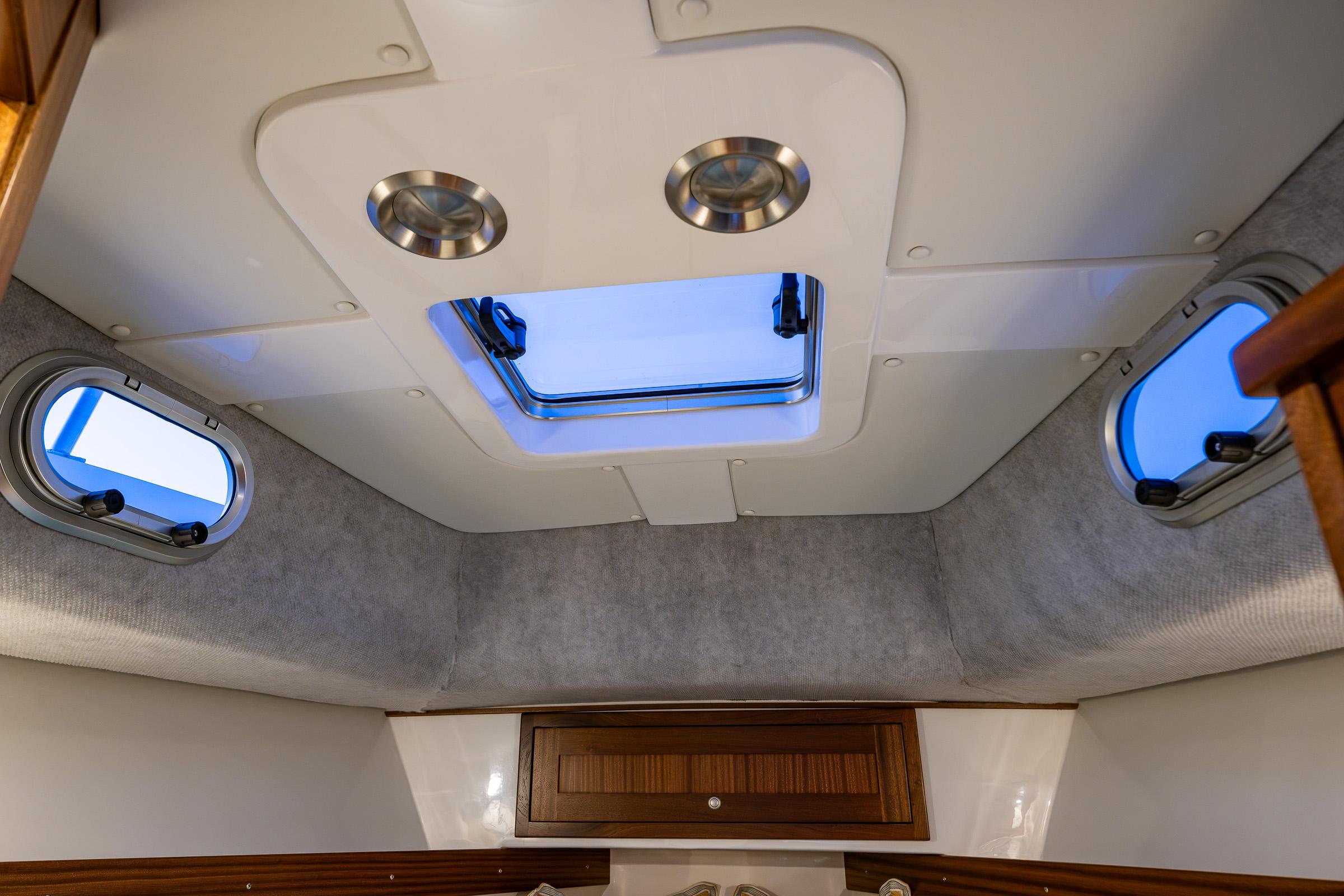

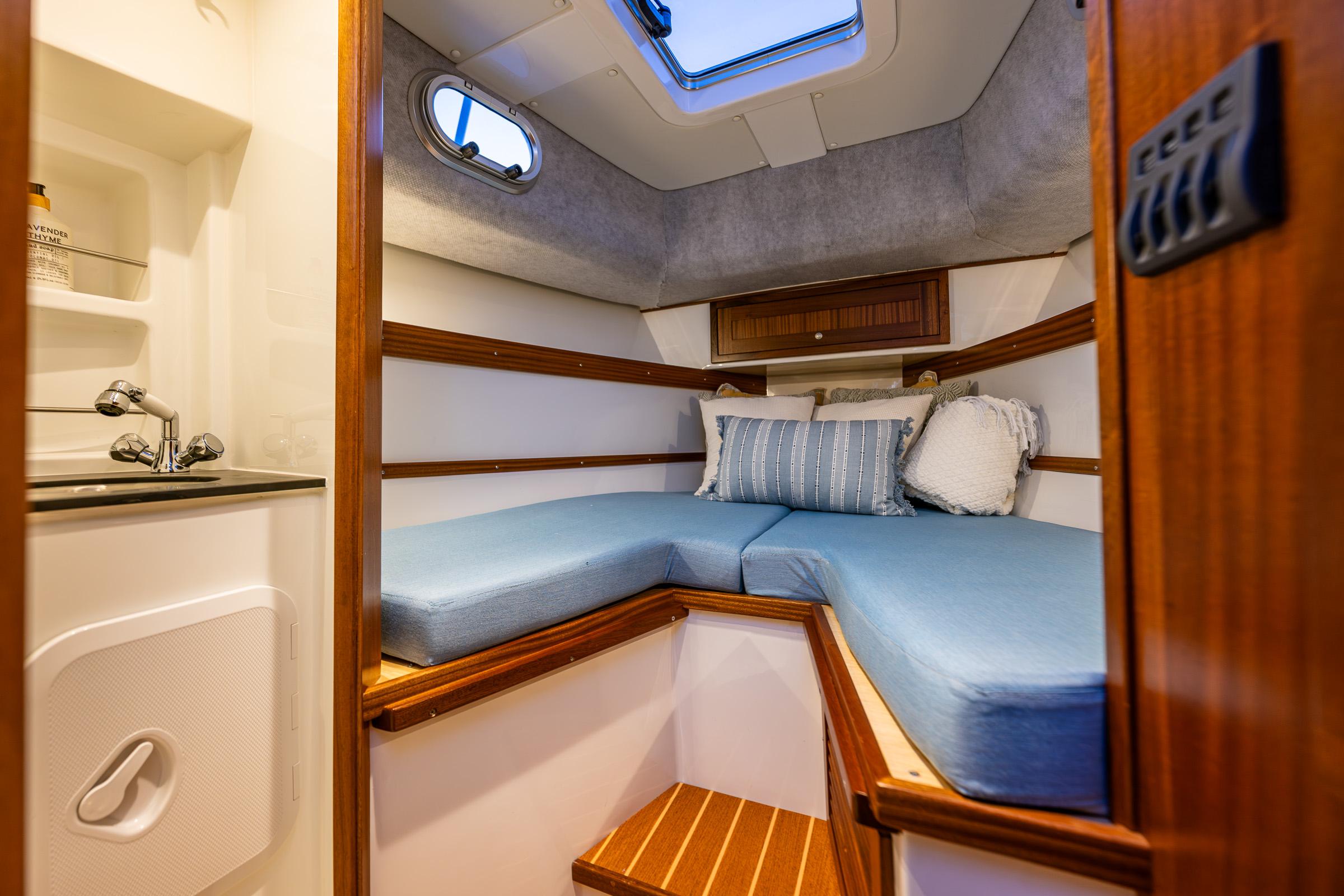

FORECABIN
Fill Panel with cushion for v-berth to double conversion
Fill Panel stores under foot in dedicated recess
V-berth mattress 4-inch, 80 inches long
Teak and holly style vinyl interior sole
Positive latching for all locker doors and drawers Hanging lockers.
Storage cabinets under v-berth
LED reading lights
LED overhead light
(2) ventilators

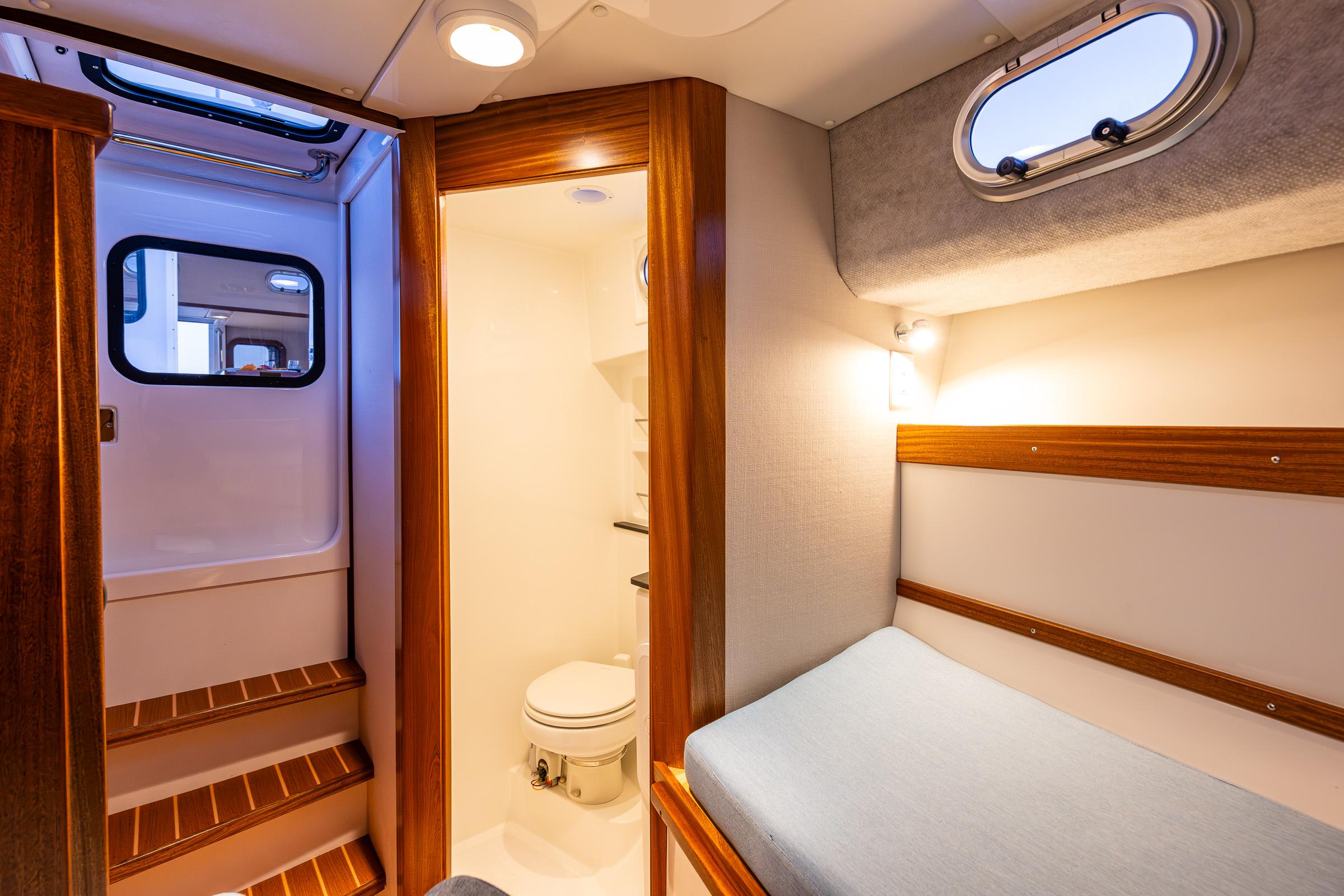

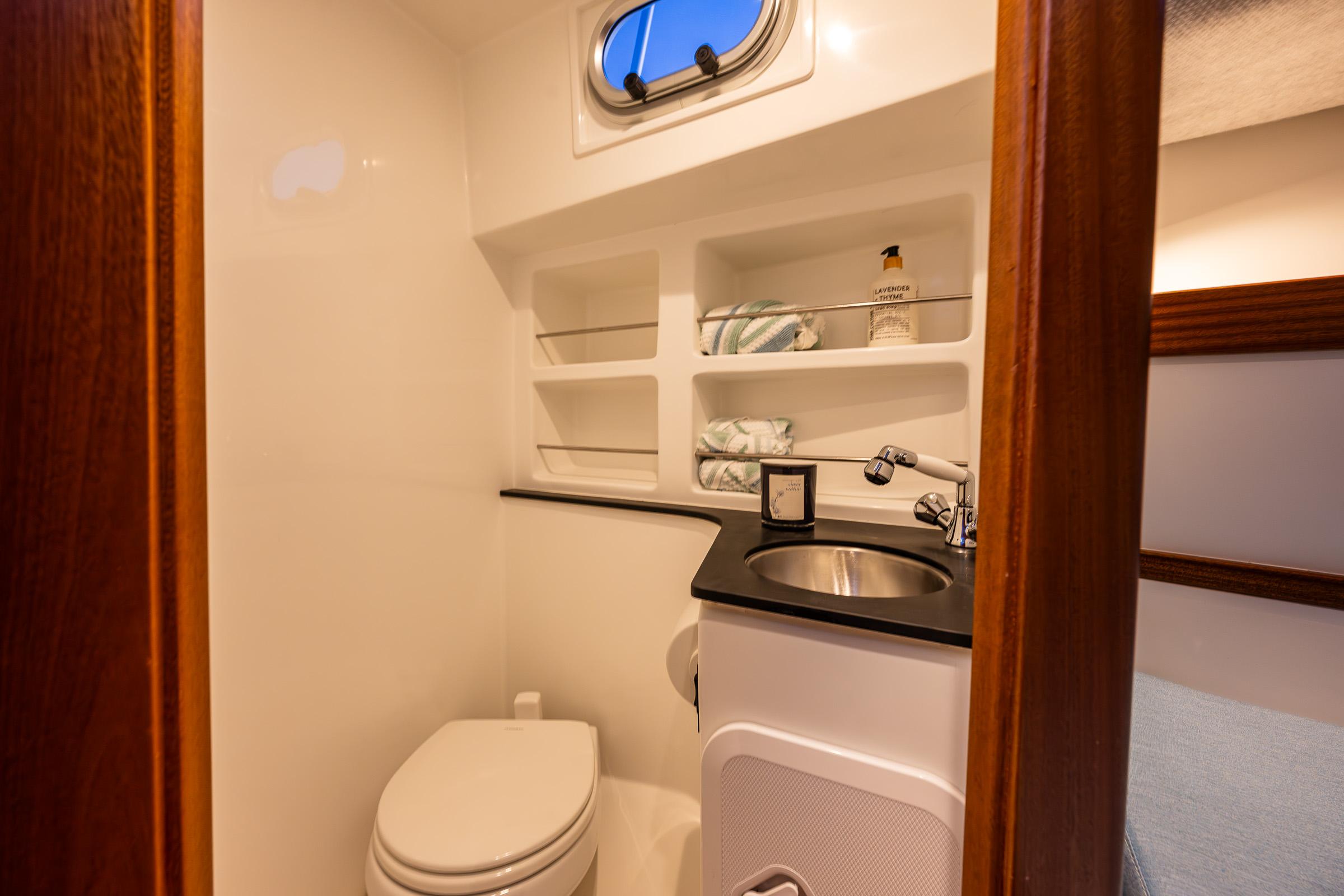

HEAD/SHOWER
(1) Electric marine head freshwater flush
(1) Sliding door into head compartment (1) Solar powered vent
LED overhead light
Head/shower faucet
Washbasin, round
Positive latching for all locker doors and drawers
Medicine cabinet
Tissue paper holder
MID COCKPIT
High-Capacity Scupper system with back flow protection: drains
cockpit volume in approx. 15 seconds
FRP hatch to engine room - gas spring assisted.

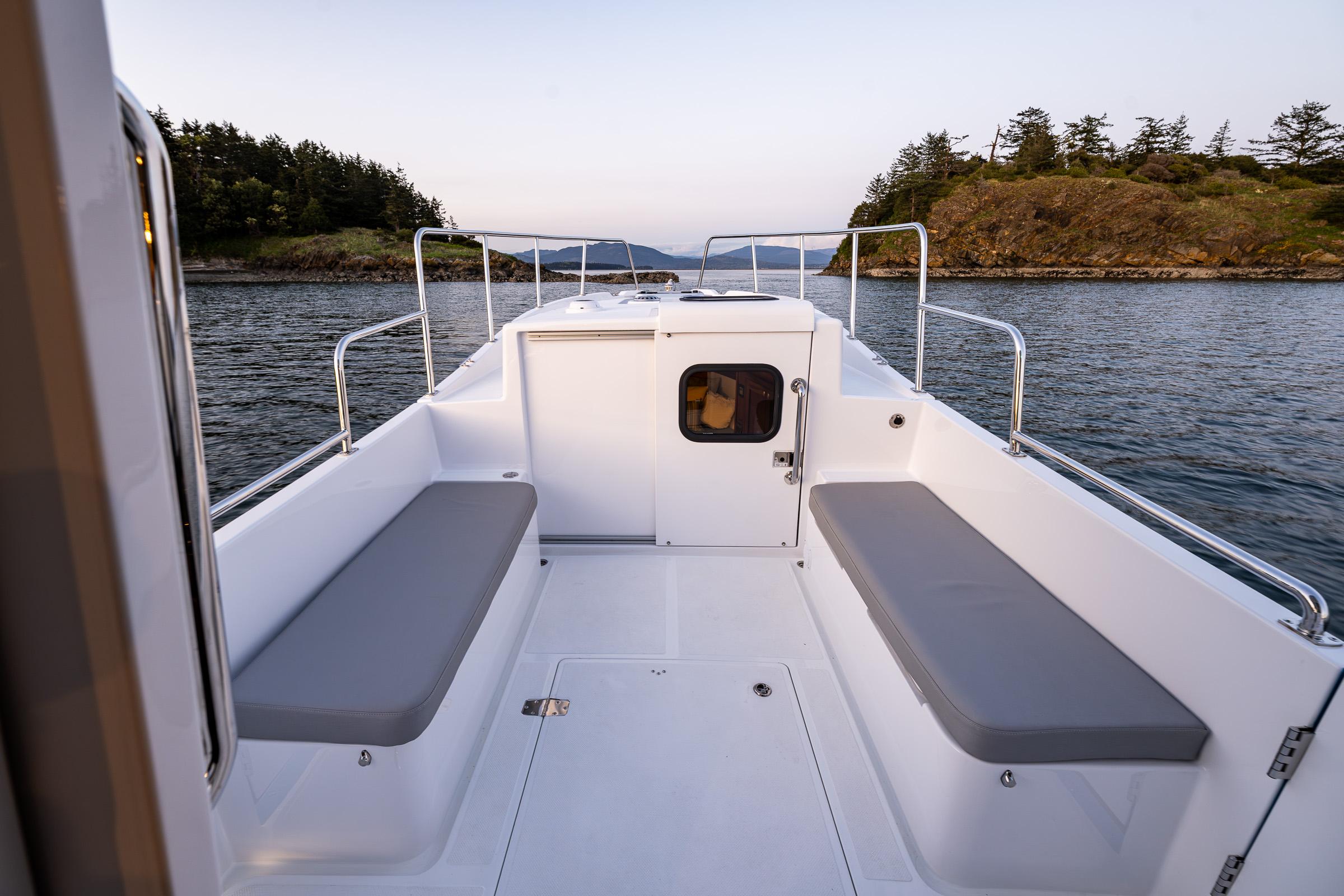

(2) seat benches each seating two Cushions for on deck seating
Boarding door latches
S/S #316 grab rail (1-1/4” diameter)
Molded inlay pattern non-skid to fore and side decks

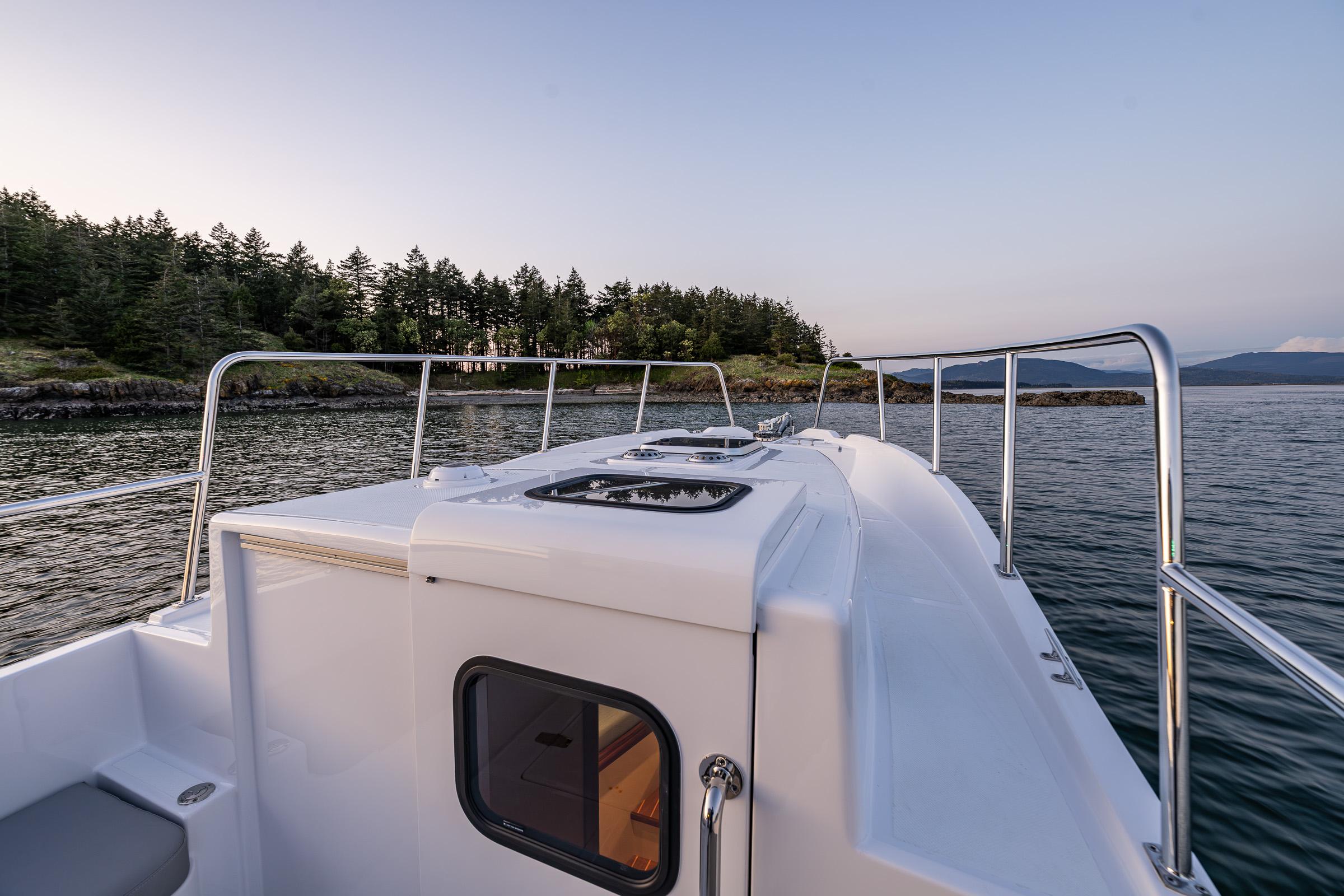

FOREDECK
Molded inlay pattern non-skid to fore and side decks
S/S #316 pulpit rails
ENGINE ROOM
Engine Room sound insulation
(2) Engine Room Intake vents
(1) Engine Room Blower Fan output
(6) LED engine room lights
AFT COCKPIT
Latches on hinged LPG locker hatches
Molded inlay pattern non-skid
GENERAL
Fire extinguishers per USCG regulations
