Deck Equipment
- Aluminium Hatches & portholes (9 in total)
- 4 x Forward Hatches 470mm x 470mm (Gebo)
- 2 x Mid cabin hatches 470mm x 470mm (Gebo)
- 1 x Port Bathroom window hatch 507mm x 377mm (Gebo)
- 1 x Galley window hatch 507mm x 377mm (Gebo)
- 2 x Aft Cabin window hatch (1 x Port, 1 x Starboard) 507mm x 377mm (Gebo)
- Cockpit storage hatches
- Cockpit Icebox & hatch
- 6 x Docking cleats. Each side : bow, stern & amidships
- 1 x Heavy duty mooring cleat on forward walkway
- Ventilation: 2 x forward cabin hatch vents
- Mast base turning blocks. All halyards & sail controls to cockpit
- 12 x Rope clutches – Spinlock brand

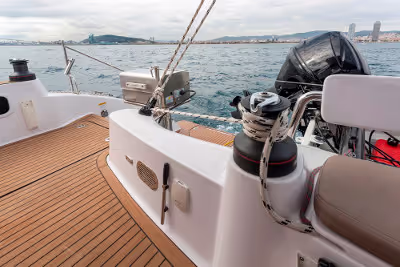

- Manual Sheet winches : 1 x Harken 46ST – 2 speed self tailing & 2 x Harken 40ST – 2 speed self tailing
- Electric Sheet winches: 1 x Harken46ST located at the Port Helm
- Stanchions/Rails: High quality stanchions, bow rails and stern rails with 3 life-lines. 700mm high to meet Australian survey requirements
- 2 x transom access gates with pelican hook releases
- 2 x side access gates with pelican hook releases
- Aft swim ladder : folding stainless aft swim ladder
Forward Beam, Catwalk, and Trampolines
- Forward beam section 125 x 3mm. Powder coated white. Adjustable pelican striker and cable
- 1 x Mooring rollers above foredeck
- 2 x Anchor roller under deck. Permanent stowage position for 45lb CQR anchor. (cheeks 75mm high)
- Catwalk in foam-sandwich fibreglass
- Plastic coated open weave trampolines
Aft Beam and Deck
- Moulded fibreglass Targa Bar with curved mainsheet track
- Stainless steel framed slatted seats behind aft beam. Fibreglass top table between seats
- Stainless steel BBQ
- Stainless steel dinghy davits shall be fitted
- Forward deck cushions and back rests (removable) shall be fitted
Rudder System
- Twin raised helm stations (dual) with hinging backrests Vinyl Upholstered: 2 X 32” stainless steel steering wheels
- Both wheels independently linked to steering system. – system offers back-up redundancy
- Helm seats with ice box under port side and storageunder starboard side
Interior Finish
- Choice of Polished beech & beech laminate or polished ash & ash laminate interior
- Sides and cabin top lined with vinyl or moulded gelcoat
- Floors : Common area soles simulated teak with holly inlay; Cabin soles carpeted
Saloon
- e polished timber dining table: Lowers to create coffee table or double bed
- Upholstered settee with day lounge
- Cocktail cabinet/storage under day lounge
- Polished timber chart table
- Forward opening windows in 10mm toughened glass in marine anodised aluminium frame. Side windows in 6mm toughened glass
- Simulated teak & holly flooring
- Saloon / cockpit doors: Moulded gelcoat tri-fold doors. Complete with folding mechanism for folding into Targa walkway
- Leather Upholstered saloon seats and backrests
Galley
- Spacious galley with co-ordinated Polystone countersurfaces, timber accents
- Three (3 ) burner LPG stove & oven. Stainless steel pot holders. Flame failure device to shut off LPG immediately in event of flame going out
- Double bowl stainless steel sink
- Pressure hot & cold fresh water system. Single lever mixing tap
- Refrigerator : Front opening upright “Vitrifrigo” fridge 130 litres
- Spacious freezer – large 60 litre draw loading, heavily insulated. 12volt Eutectic system by ICEER
- Under bench storage with polished timber door fronts & cutlery drawers
- Inboard side of galley: Over-bench cupboard with sliding door fronts
- Simulated teak & holly flooring
- LPG solenoid control in galley
Sleeping Cabins
- Polished timber solid doors on all private cabins
- Port & Starboard fwd cabins : Each queen sized bed
- Aft Starboard cabin : Double bed
- Cabins lined
- Recessed 12volt lighting
- Storage/Cupboards
- Carpeted floors
Port Head
- Polished timber solid lockable door
- Manual toilet. Discharge via holding tank
- Holding tanks built in. Discharge Pump out by shore station or directly overboard. Port 130L and Stb 110L
- Pipes, skin fittings and sea-cocks are easily accessible and to meet survey requirements
- Vanity basin with pressure hot & cold water
- Wall mounted shower head & mixer tap
- Electric shower bilge pump with direct overboard discharge
- Large quantity cupboards / shelves to very high quality
- Toilet roll holder, towel rack & mirror mounted
Starboard Head
- Polished timber solid lockable door
- Manual toilet. Discharge via holding tank
- Holding tank built in. Discharge Pump out by shore station or directly overboard
- Pipes, skin fittings and seacocks to be easily accessible and to meet survey requirements
- Vanity basin with pressure hot & cold water. Shower head and basin mixer tap with electric shower bilge pump
- Cupboard/shelves to very high quality
- Toilet roll holder, towel rack & mirror mounted
Electrical and Lighting System
- High quality DC electrical switch panel with circuit breakers, LED indicator lights and voltage display
- Marine grade tinned electrical wiring with extensive use of heat sealed connectors
- Batteries x 3 comprising: House System (400 amp hrs) : 2 x 200 amp hr AGM (Absorbed Glass Matt) deep cycle / heavy duty batteries. One engine cranking battery – 700 CCA AGM
- 230amp heavy duty isolation switch
- BEP Battery Monitor
- Battery Charger / Inverter – Mastervolt 100amp / 200W
- 12 V lighting : Numerous 12V LED interior lamps andcourtesy lights throughout including recessed lights in cockpit. Dome lights in cockpit. (All lights except fluros are LED)
- 4 x 12V Outlets
- Survey approved LED navigation lights. Port & Starboard mounted on bow rails
- Deck floodlight mounted on spreaders
- Mast head anchor / riding light
- Aqualuma Underwater transom lights shall be installed under each stern
Plumbing
- Pressure hot & cold water system. Hot water storagesystem ( 40 litre / 8.8 gallons) . Hot & cold water to galley and both bathrooms
- Galley fresh water tap is lever type ( Flickmaster or similar)
- Fresh water tank: 700 litres ( 156 gallons). Remotedeck filler
- Johnson fresh water pump with pressure accumulator
- Electric bilge pumps (2) with controls integral with master battery switch panel. Float Switches (2)
- Manual bilge pumps (2) in each hull
- Bronze through-hull fittings to Australian survey standard
- Manual toilets in each head
- Port bathroom with separate shower stall. Starboardbathroom with dual purpose faucet & shower
- Electric sump pump for shower drain
- 2 x LPG bottles – 4.5kg galvanised
- Fresh water tank gauge
- Watermaker – Spectra Cape Horn 54 Ltrs / hour
- Washing Machine – Lemair 2.2kg (240V or 110V)
Navigation
- Twin steering compasses
- Raymarine AIS Receiver
- Raymarine P70 Linear Drive Autopilot
- Raymarine E7 Multifunctional Display Chartplotter
- Raymarine i70 Multifunctional Displays x 2 located at Port & Starboard Helm stations
- Raymarine wind vane
- Icom DSC VHF radio
Anchoring/ Mooring
- Muir Cougar electric anchor winch with chain & gypsy. Located under locker to give clean deck. Primary anchor is 45 lb CQR type with 55 mtrs x 8mm short link galvanised chain
- Primary anchor is stored in a specially designed anchor roller under the forward beam
- Anchor winch has foot switch at the winch plus a remote up / down control at the helm station
- 3 x PVC Inflatable Fenders
- 4 x Mooring lines (each 15 metres x 14mm)
