Construction
Resin infused Vinylester throughout hull and deck build material
Resin infused Vinylester throughout bulkhead and reinforcing. No plywood instructural components or below waterline
PVC Core Materials vary in density dependent on loads
NPG gelcoat of hull
Water tight bulkheads fore and aft
Carbon fiber primary main foil (semi foiling)
Interior Layout
Single level deck plan with large cabins in each hull
Master cabin in port hull with VIP cabin in starboard hull - each with walk in shower, vanity area, and fresh water flush toilet
Salon area with L-shaped seating to port with fixed table that can convert to bed with fill in cushion
Large tempered glass windows offering full 360 degree views
Sliding aft salon door providing a connection between aft cockpit and interior when opened
Galley area to starboard providing microwave, sink, and storage cabinets throughout
Carbon fiber central electric actuated hatch/door providing access to forward bow seating
Comfortable helm seating for two with forward facing port side lounger adjacent to the helm seating
Hull and Deck Features
Double stepped hull design offering best in class offshore handling capabilities
Carbon fiber Aquila Hydro Glide semi-foiling system
Comfortable and protected bow seating that comfortably seats up to 4 people
Aft starboard fiberglass storage box including trash can and Corian surface with ability to add optional fridge
Aft convertible sun lounger providing ability to sit facing forward or convert to sun lounger with
storage below
Designated area for optional electric BBQ
Stainless steel railings and handholds in AIS316
Opening port lights installed in hull side windows
PVC rub rail with 316 stainless steel insert offering all round protection
Windscreen in tempered glass with variable speed windscreen wiper
Bow deck hatches allowing access to anchor chain area and windlass
Deck fill plates in 316 stainless steel - 1x water - 2x fuel - 2 x waste
Stainless steel mooring cleats thru bolted (10 Total)
Well placed ergonomic handrails in 316 stainless ensuring secure movement onboard
LED navigation lights, running lights and anchoring light
Custom stainless steel retractable swim ladder with teak steps at aft deck swim platform
Aft cockpit and bow area all self draining
Aft cockpit with three panel sliding door
Optional synthetic marine decking throughout all main level exterior and interior deck space
Mechanical room/diesel engine access through large deck hatches
LED courtesy lighting located throughout
Easy lift gas shocks for all large hatches
Aft Deck and Cockpit

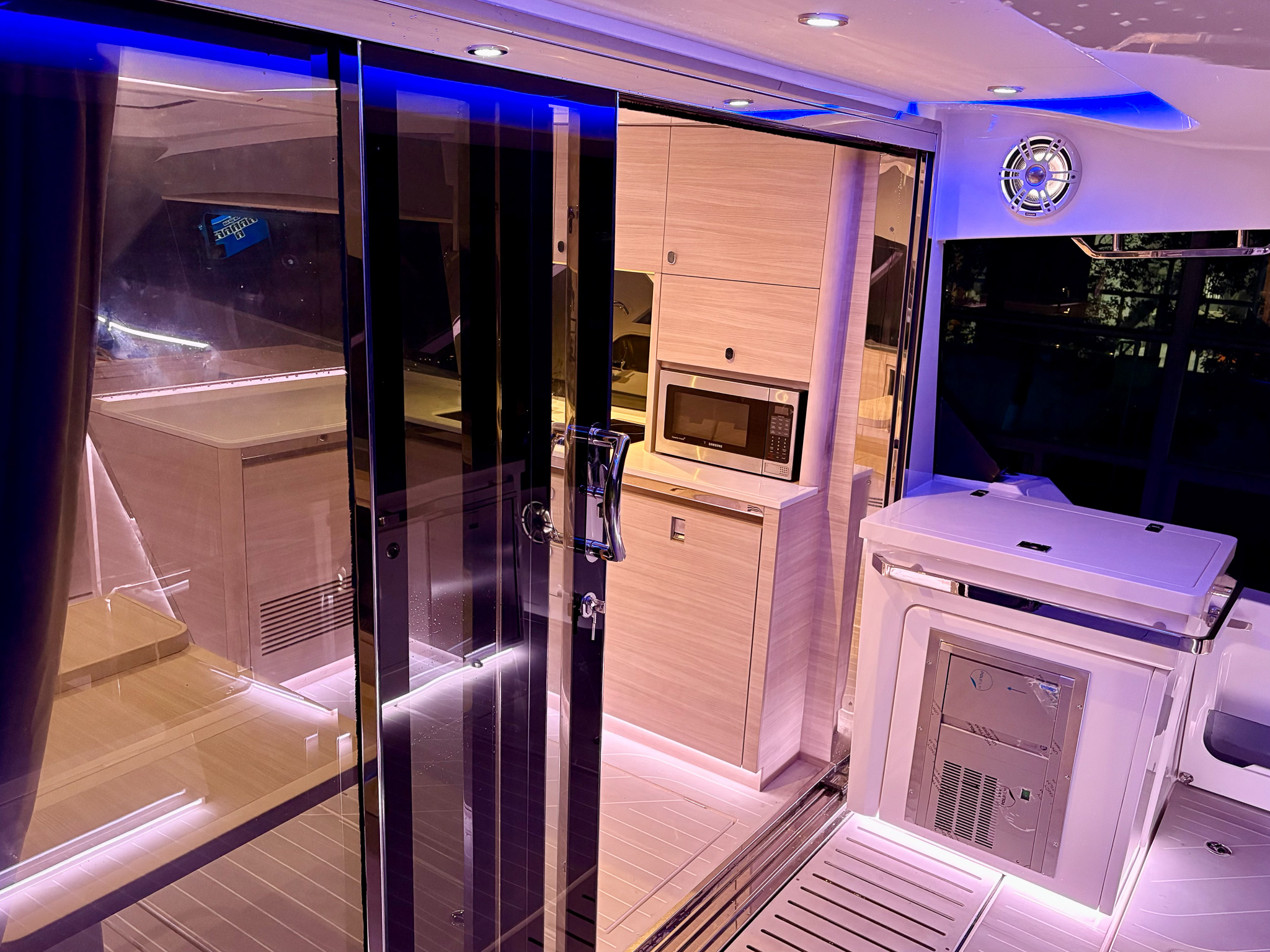

Multiple panel sliding door lockable from interior and exterior - entrance to salon

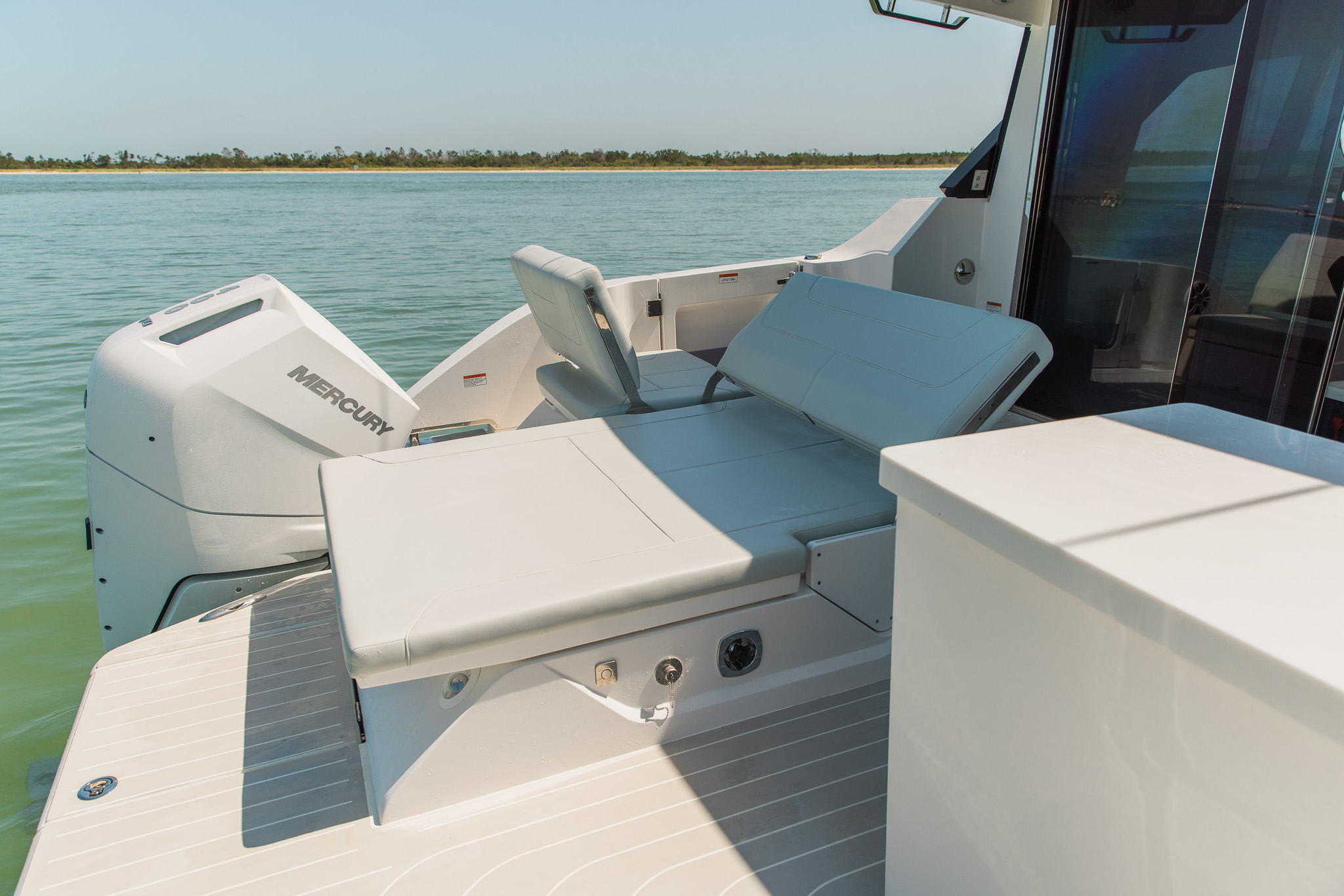

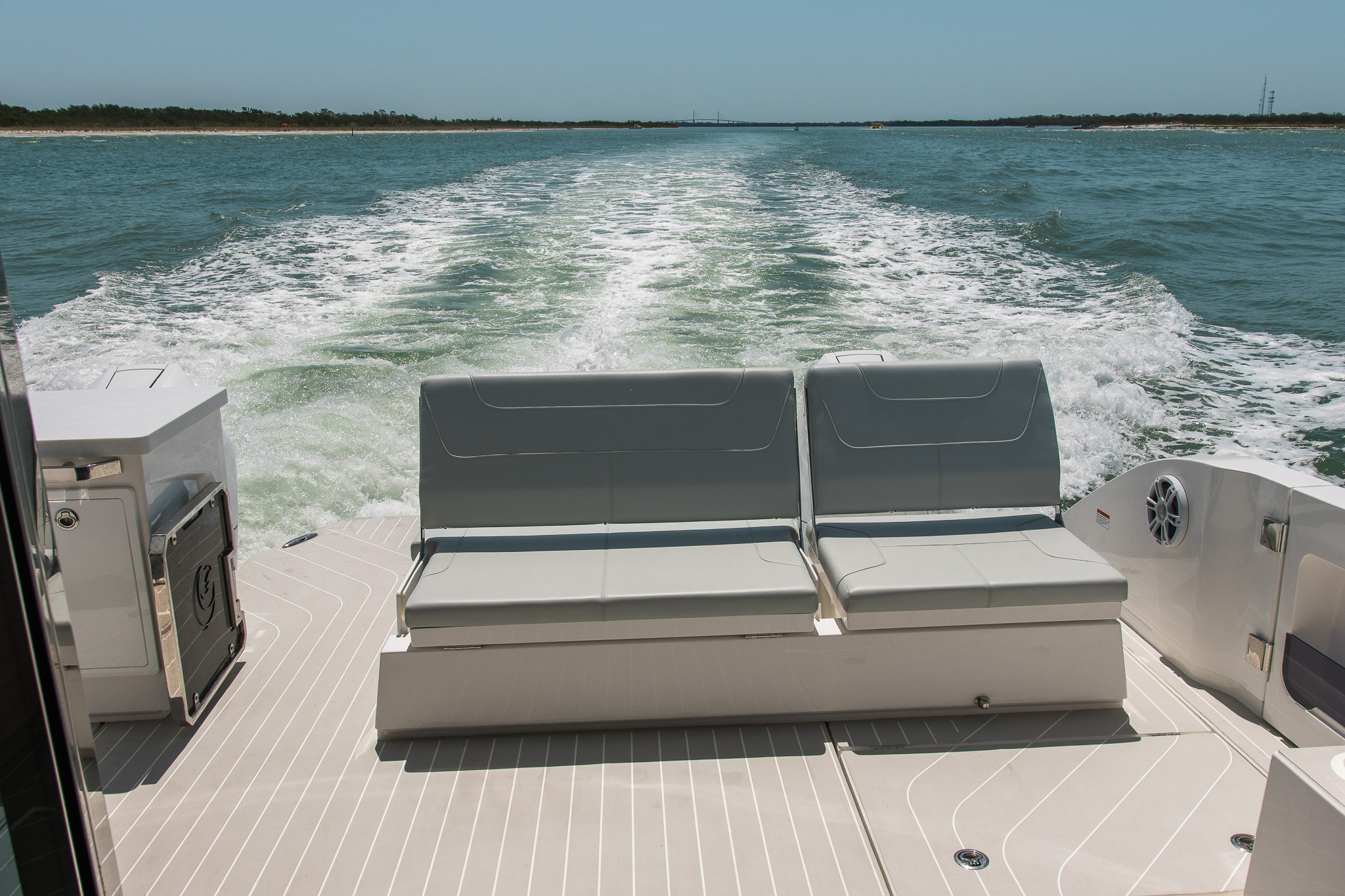

Sun lounger with convertible back rest and storage inside
Forward facing seating to port
Fiberglass aft storage to starboard with pull out trash can and optional fridge
Flip down/up fiberglass engine well covers
Mechanical/diesel engine room access from deck hatches
Marine waterproof 7.7” Fusion speakers (2)
Port and starboard side boarding gates with robust stainless steel hinge and fittings
LED courtesy lighting
Overhead LED lighting

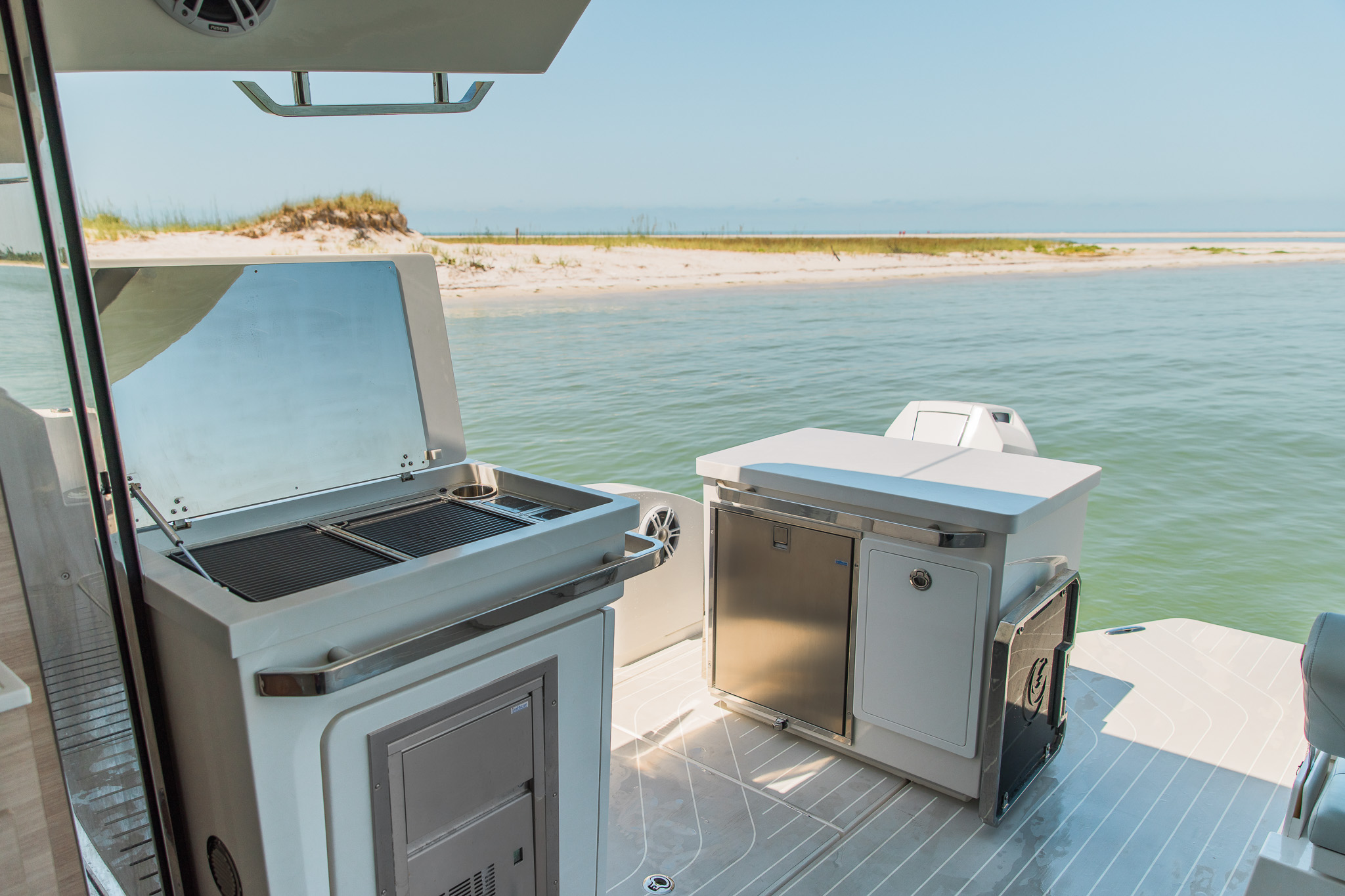

Starboard side storage aft of sliding door with optional BBQ and fridge/freezer
Integrated side deck steps providing easy access to raised side decks
Stainless steel gates (2) at center and starboard side
Optional retractable canvas sunshade system with canvas material
Self draining cockpit area
Shore power inlet supply outlets

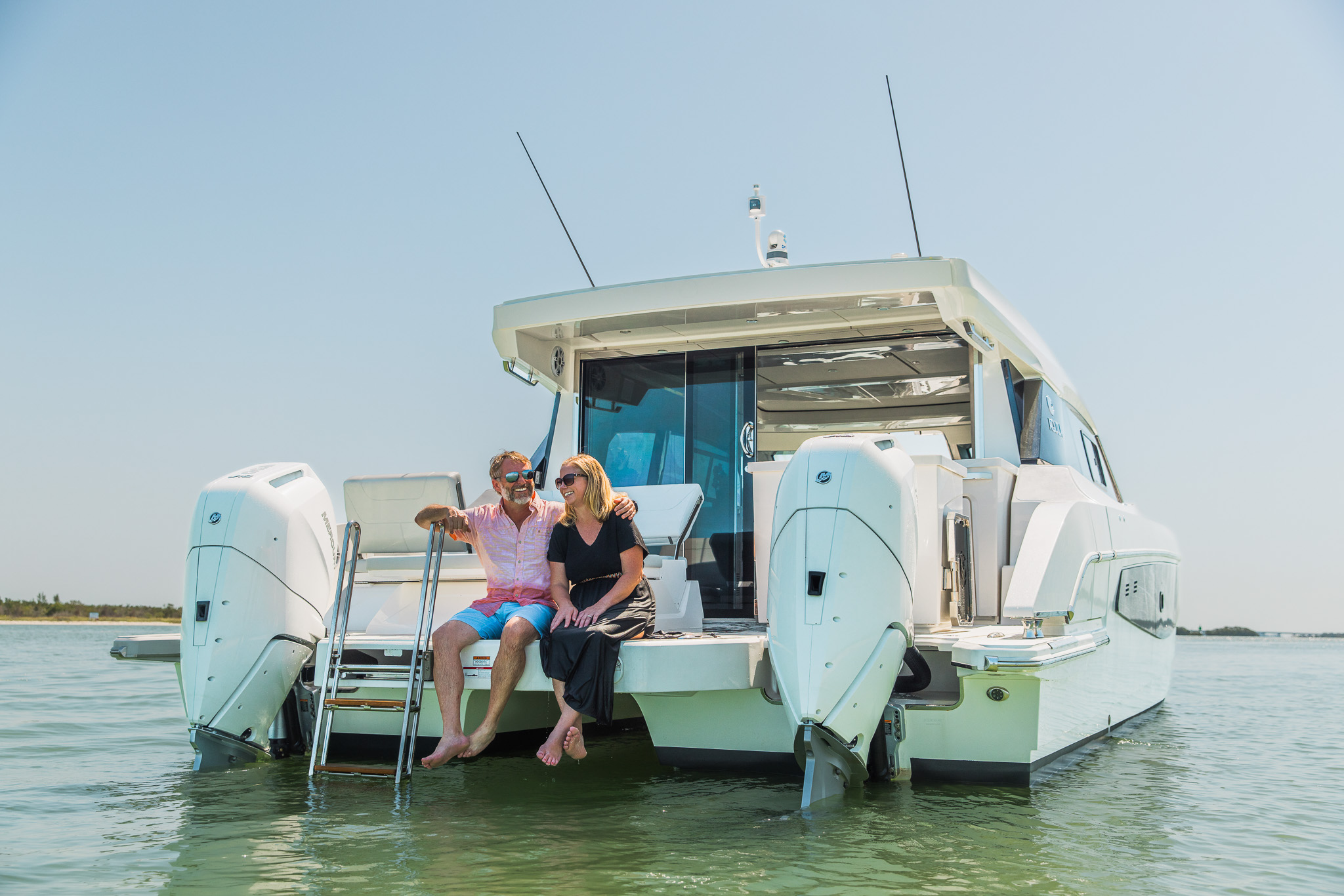

Slide out stainless steel swim ladder with teak steps
Fresh water pull out shower (hot/cold)

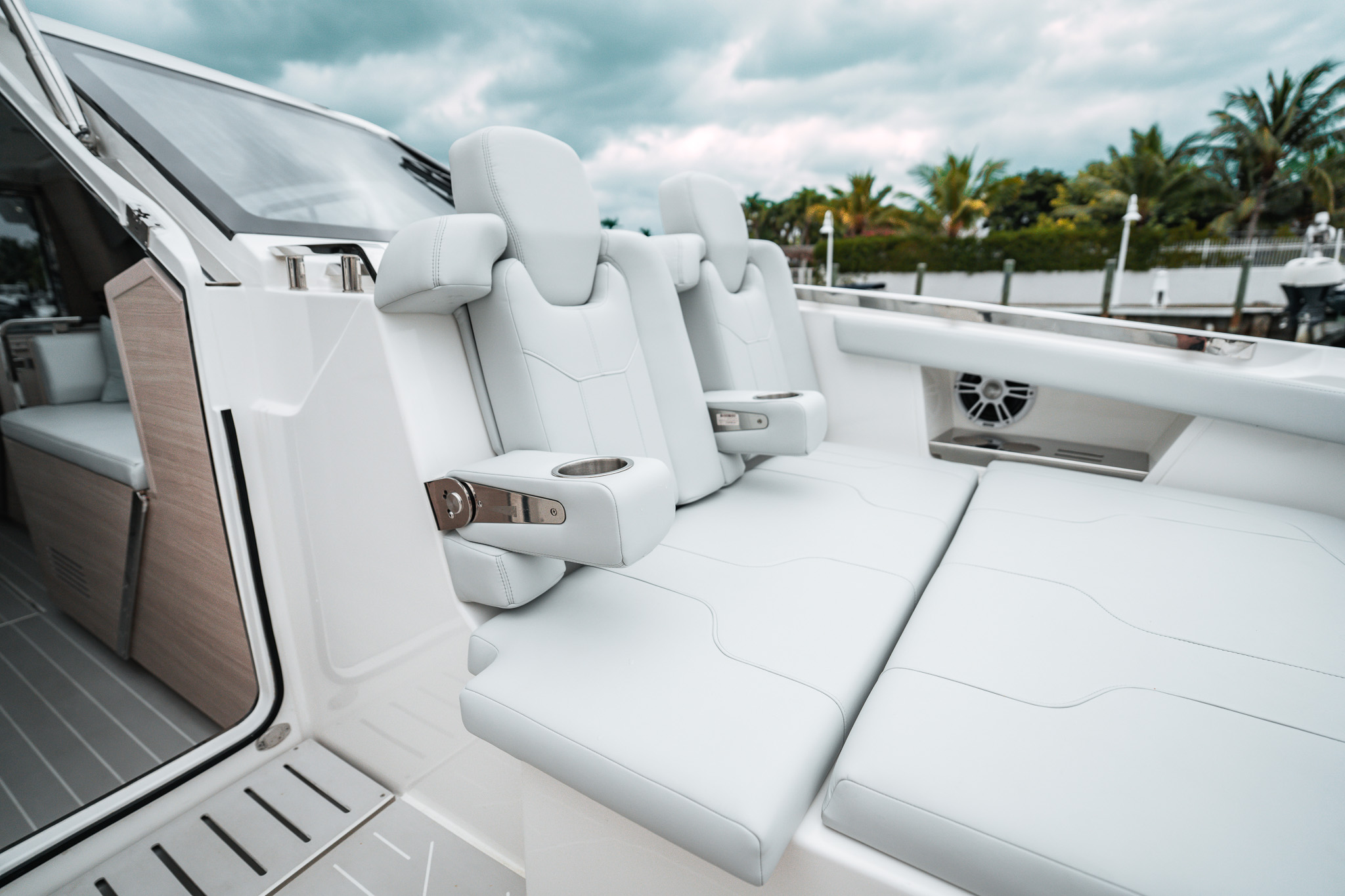

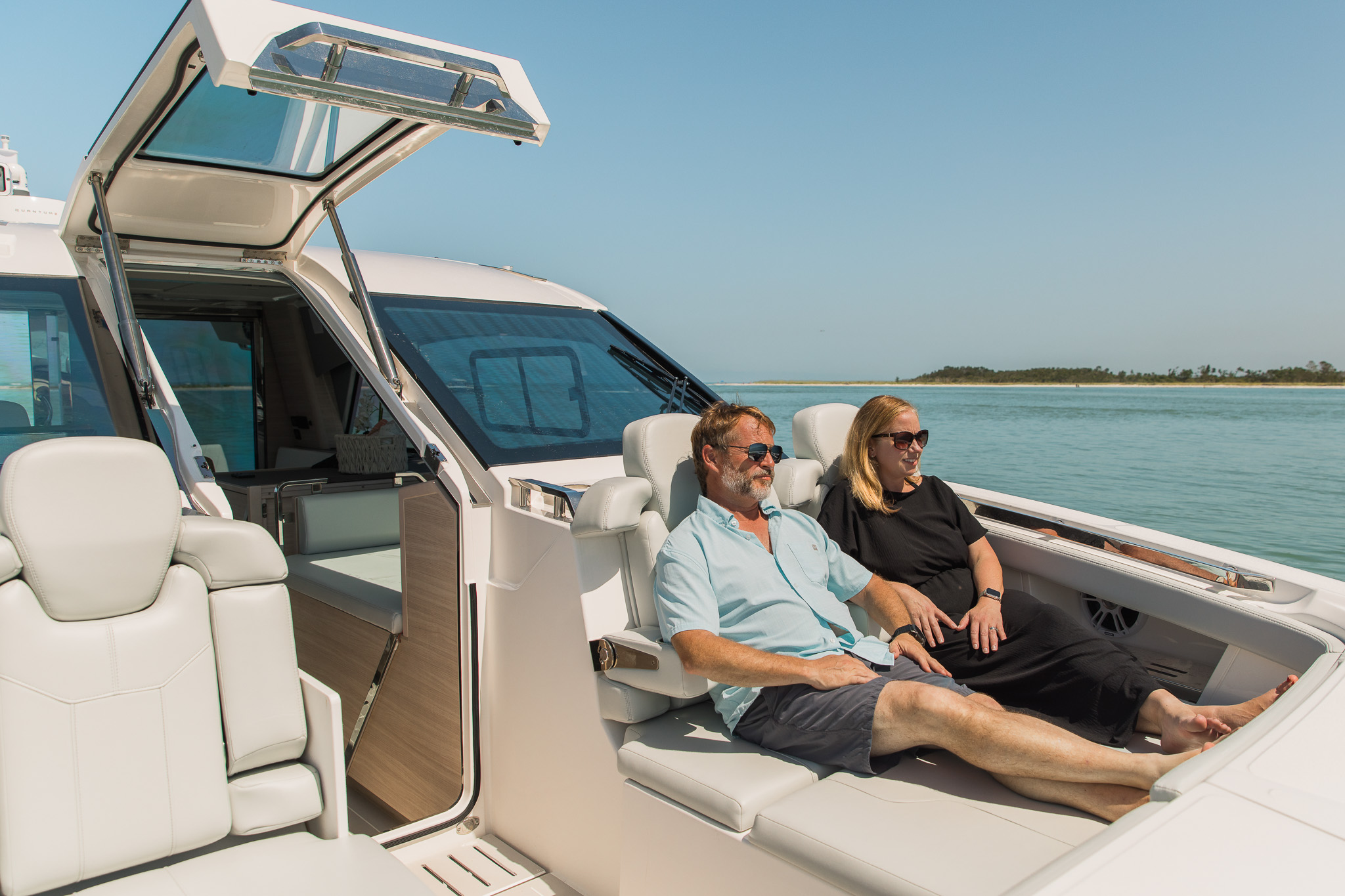

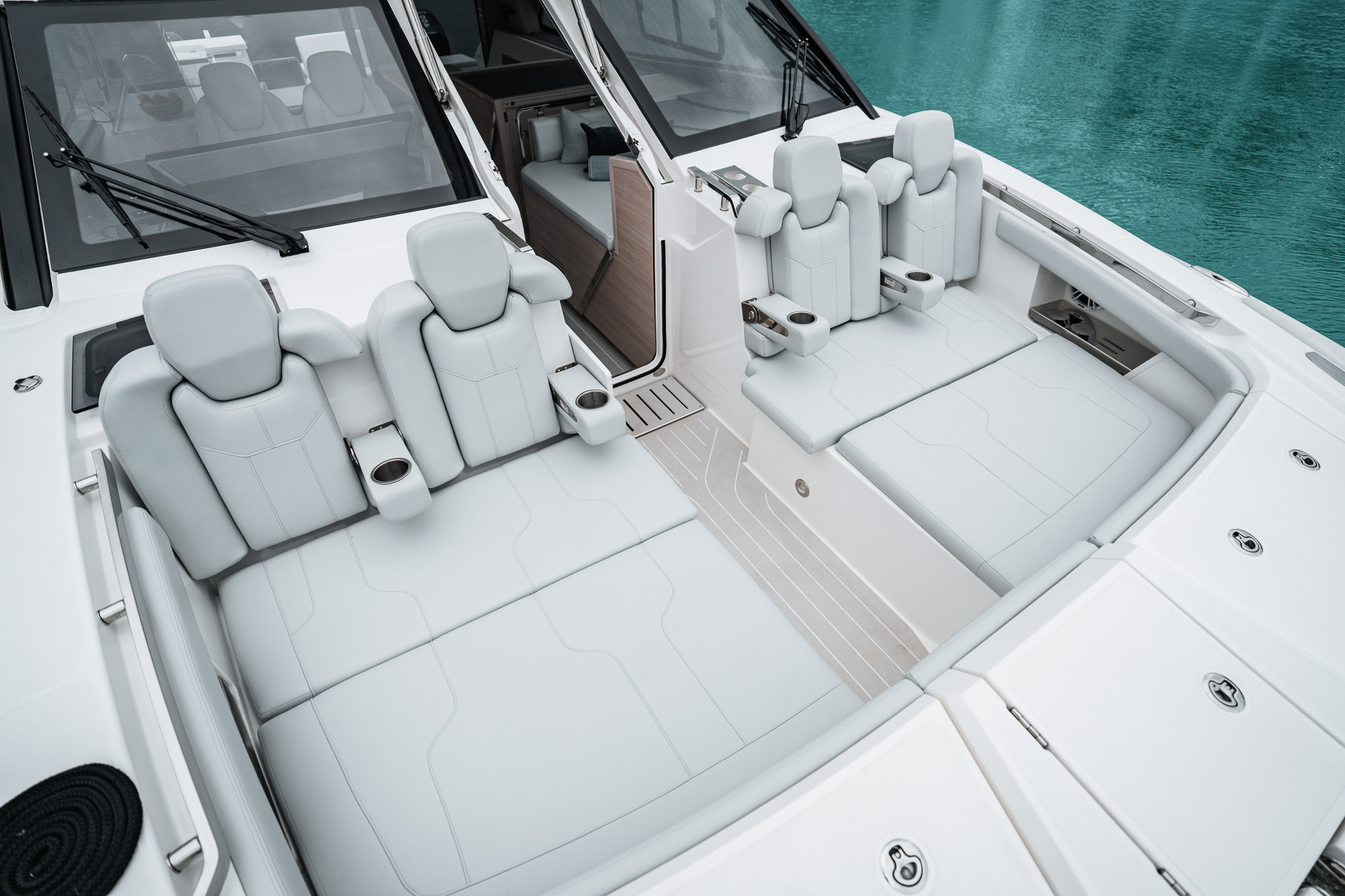

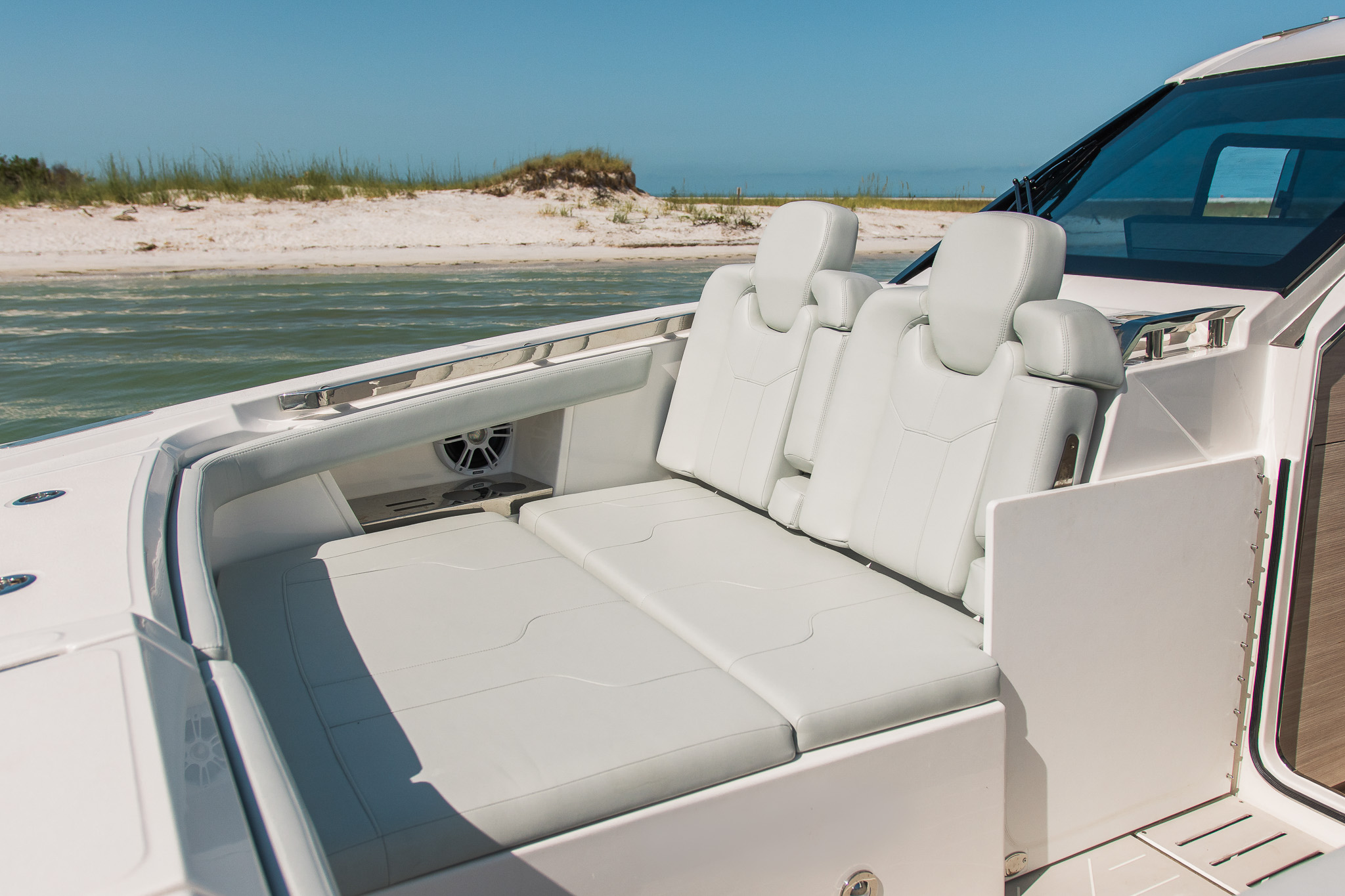

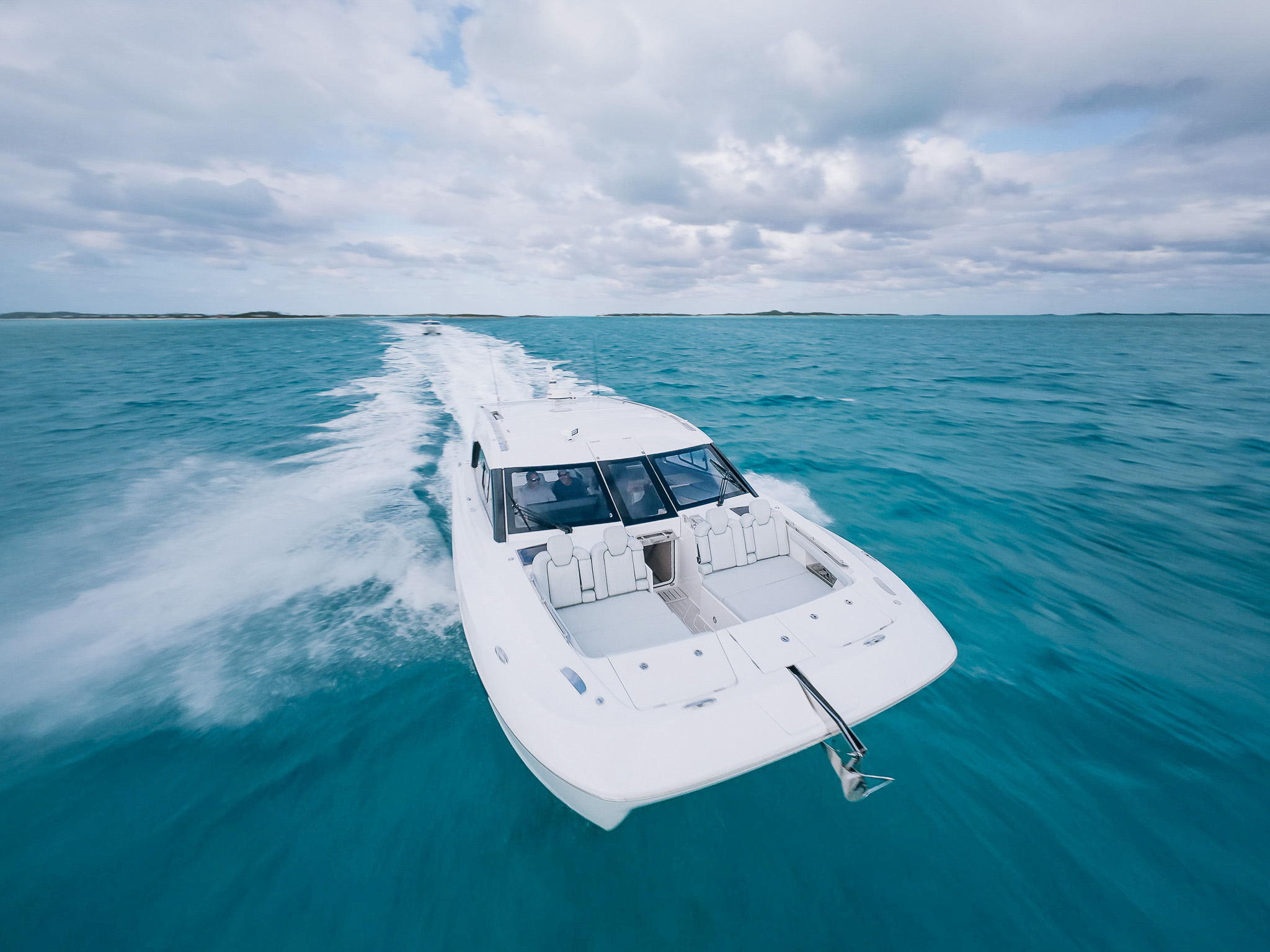

Forward Bow Seating
Central electric walkthrough opening hatch/door manufactured in carbon fiber materials to increase strength and reduce weight providing access to bow seating
Forward facing sun lounger seating with head rests and flip down arm rests
Cup holders (8)
Concealed storage areas to outboard sides for cell phone and cup holders
Integrated LED courtesy lighting
Storage under removable cushions at each sun lounger
Marine waterproof speakers 7.7” (2)
Stainless steel handrails
Optional synthetic marine decking
Central hatch for access to windlass/anchoring system
Port and starboard side wet locker storage for fenders and mooring lines

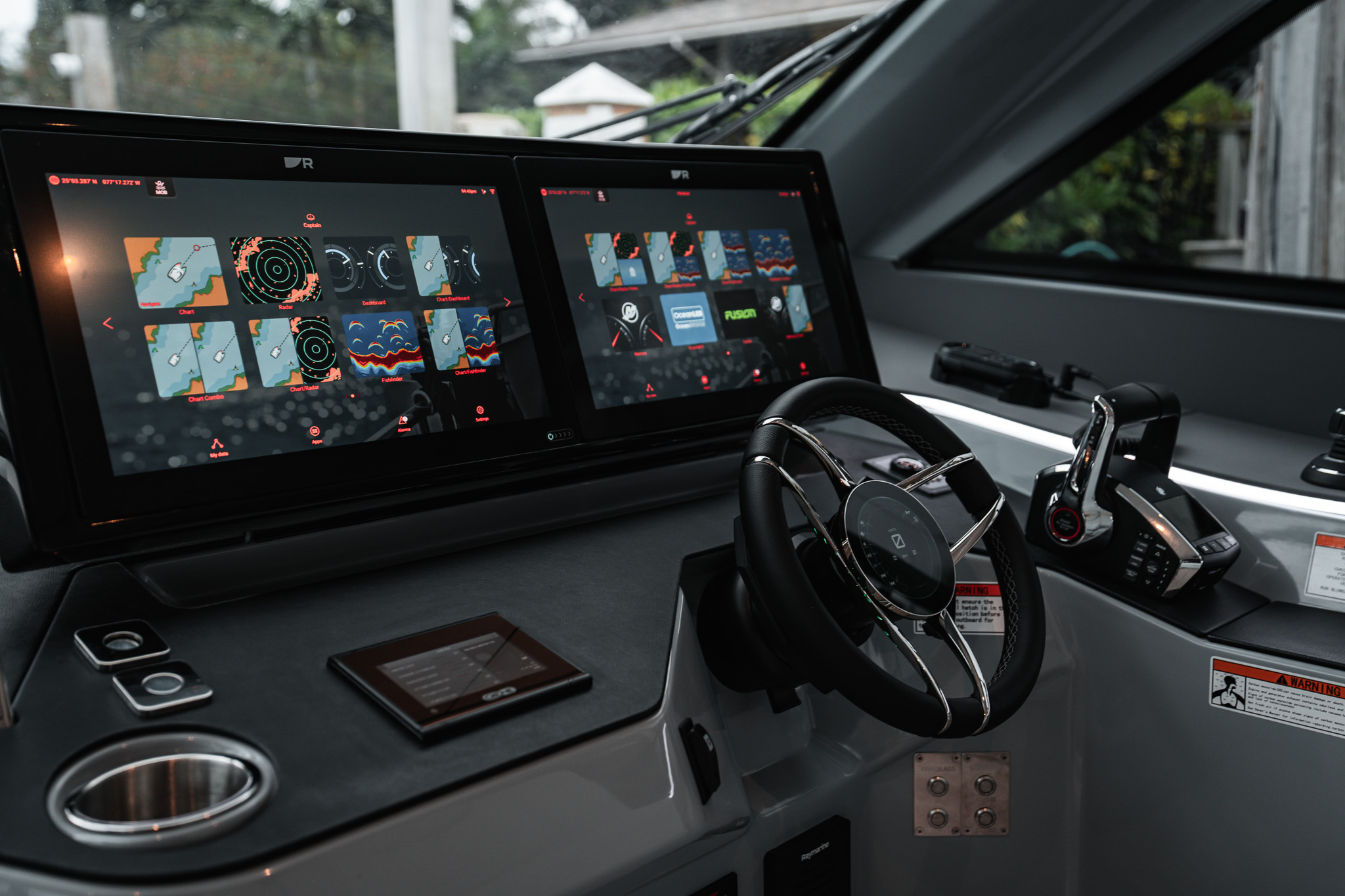

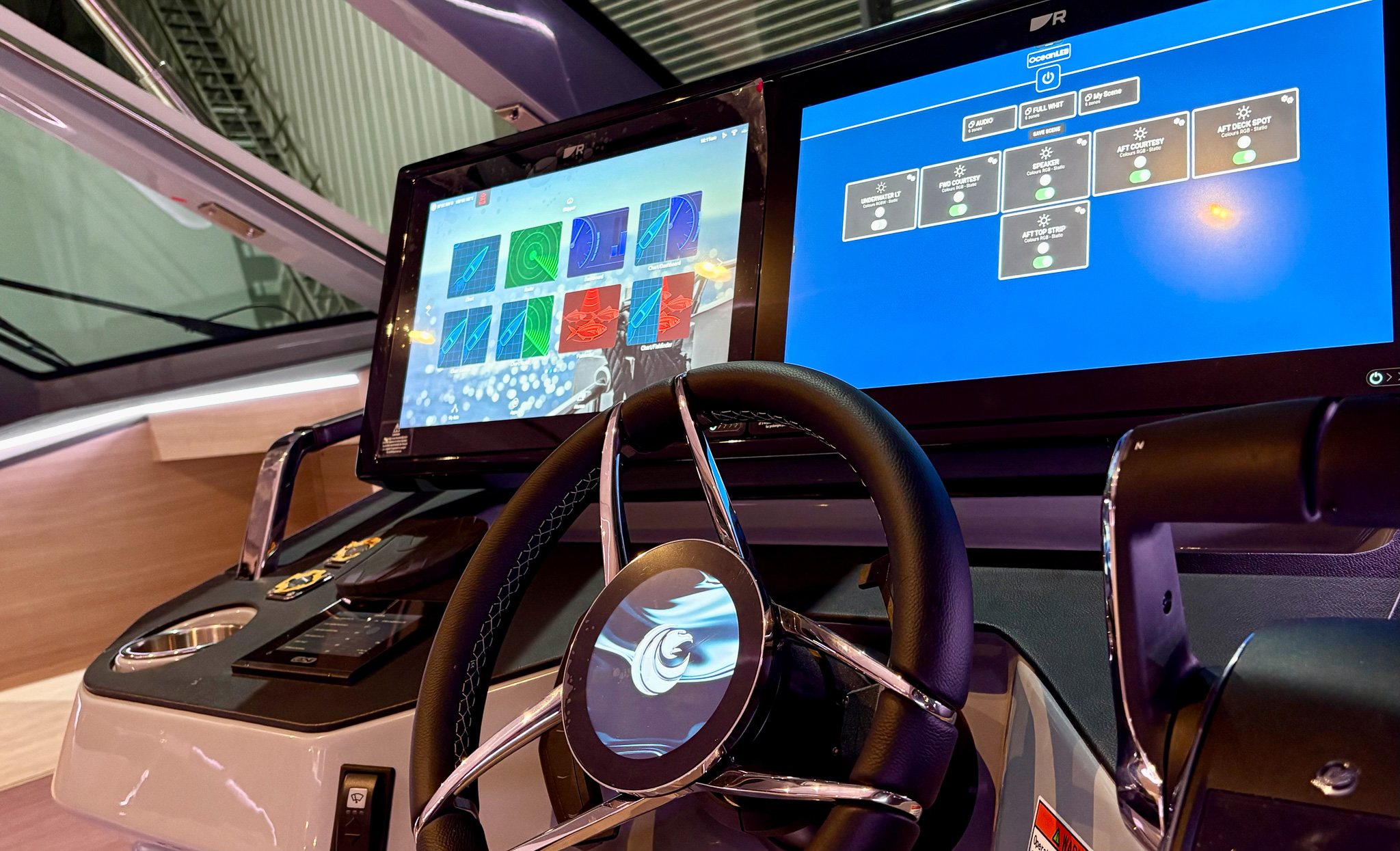

Interior Helm Console/ Seating
Comfortable carbon fiber helm seating including flip up bolsters and electric seat sliders
Cup holders (2)
AC vents for direct air flow (aircon optional)
Black acrylic helm panel with flush mount electronics installation
Wireless phone charger (1)
Stainless steel hand hold
Recessed foot rests
Manual slide opening window next to helm

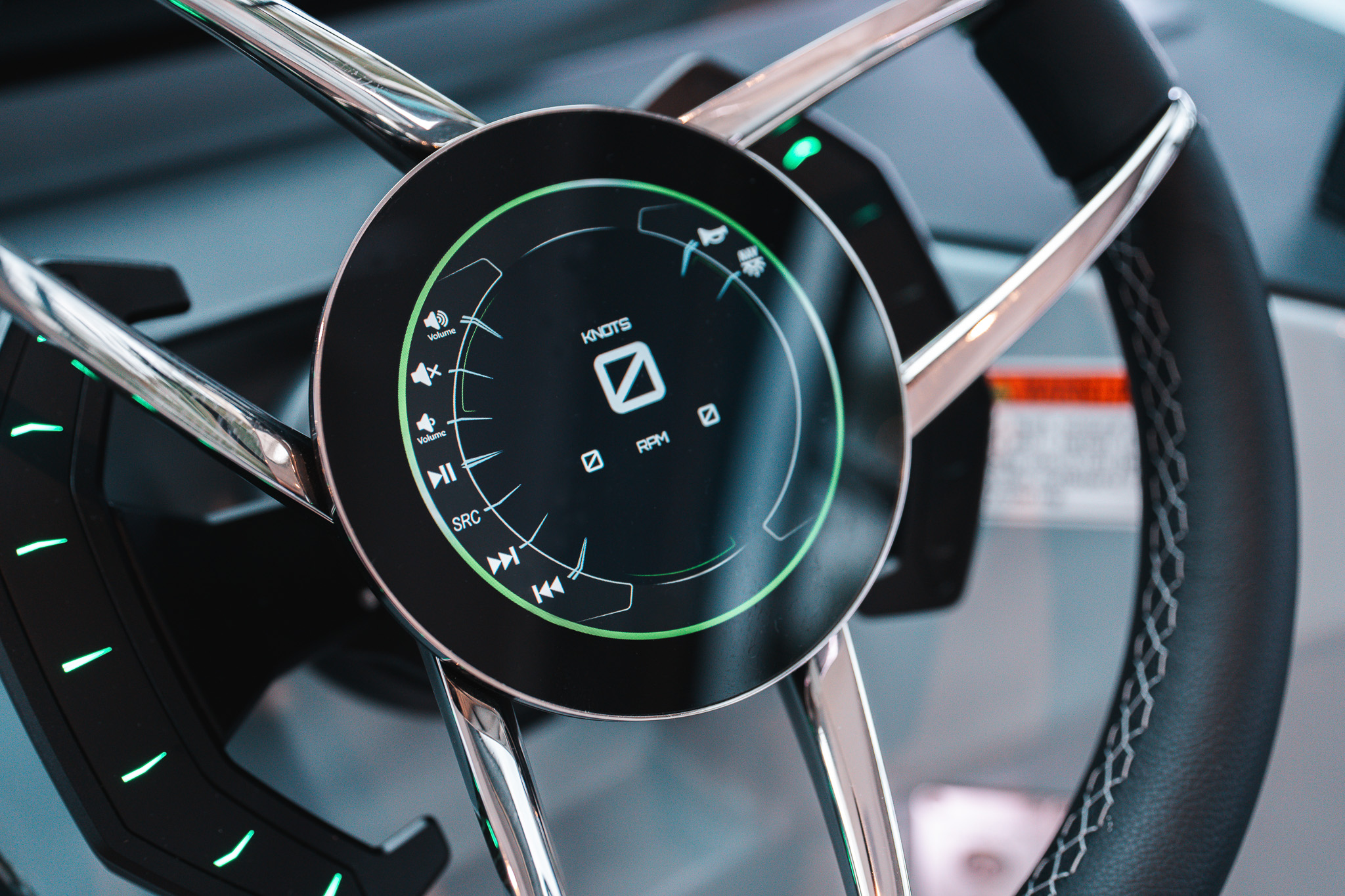

Variable position steering wheel offering multiple function use controls at your finger tips
Magnetic handheld compass
USB and USB-C outlets
Port side forward facing lounger seating adjacent to helm seating
Windshield wiper system connected to fresh water supply with control at helm

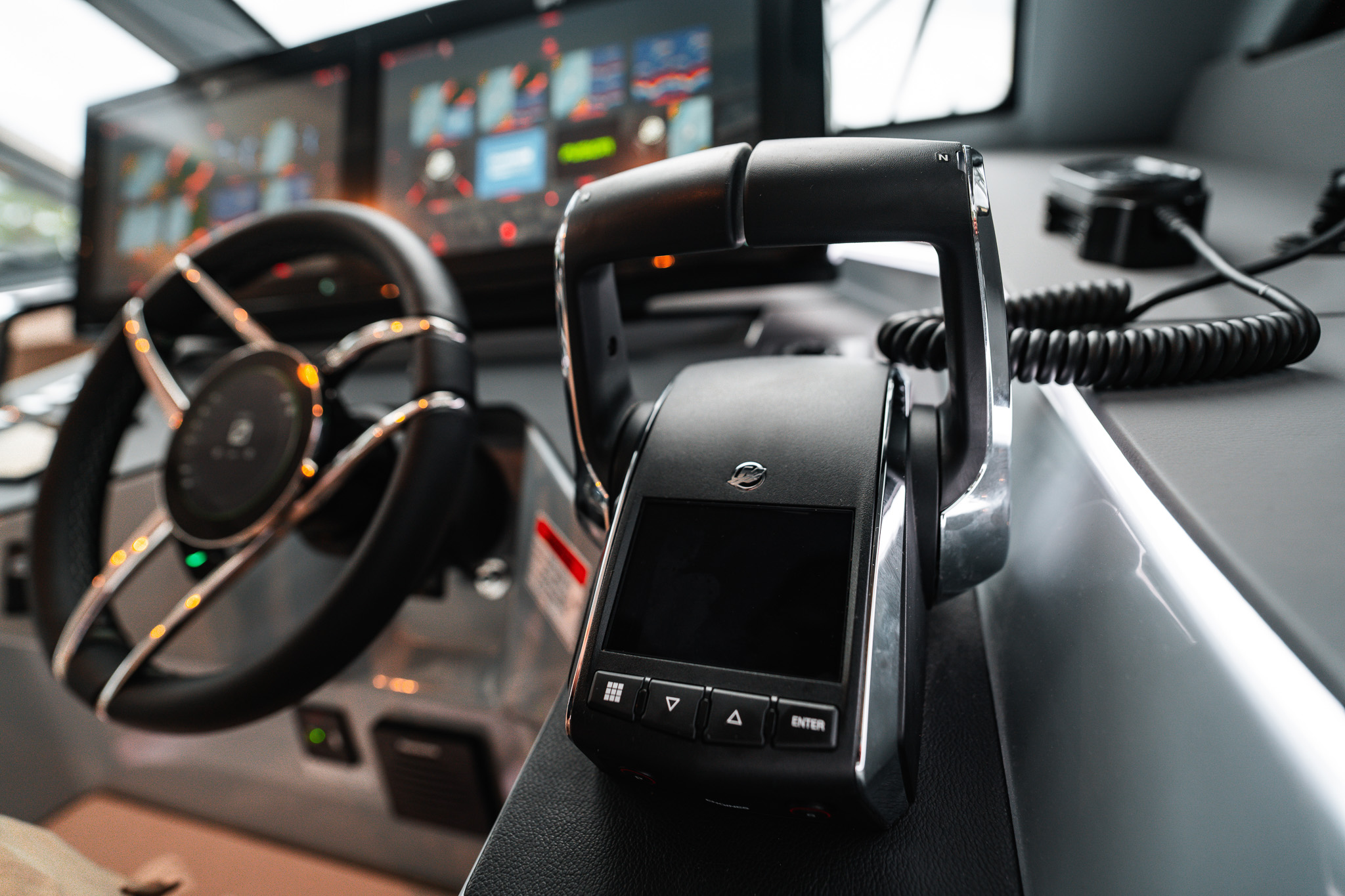

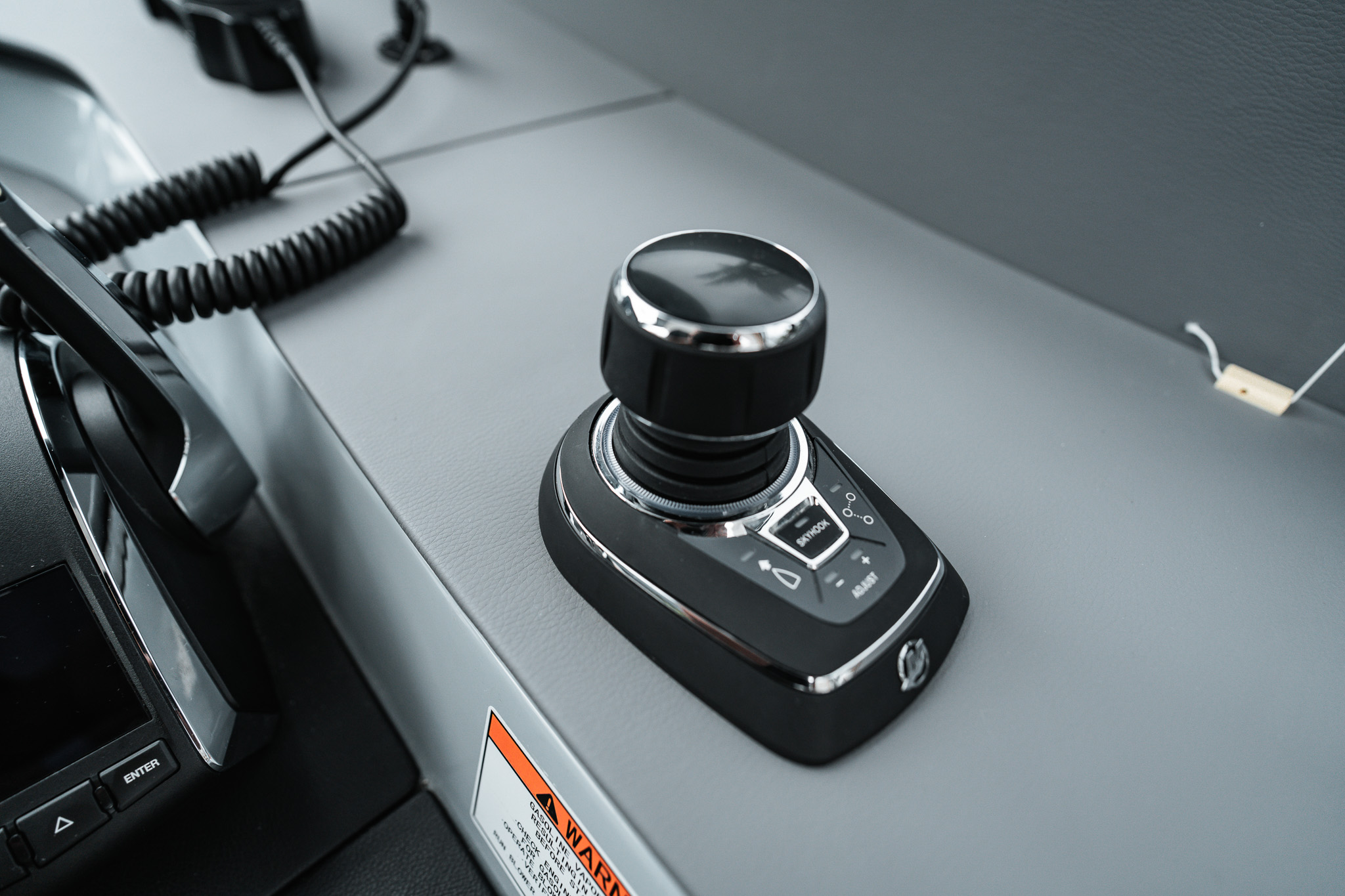

Ergonomically positioned throttle and joystick controls

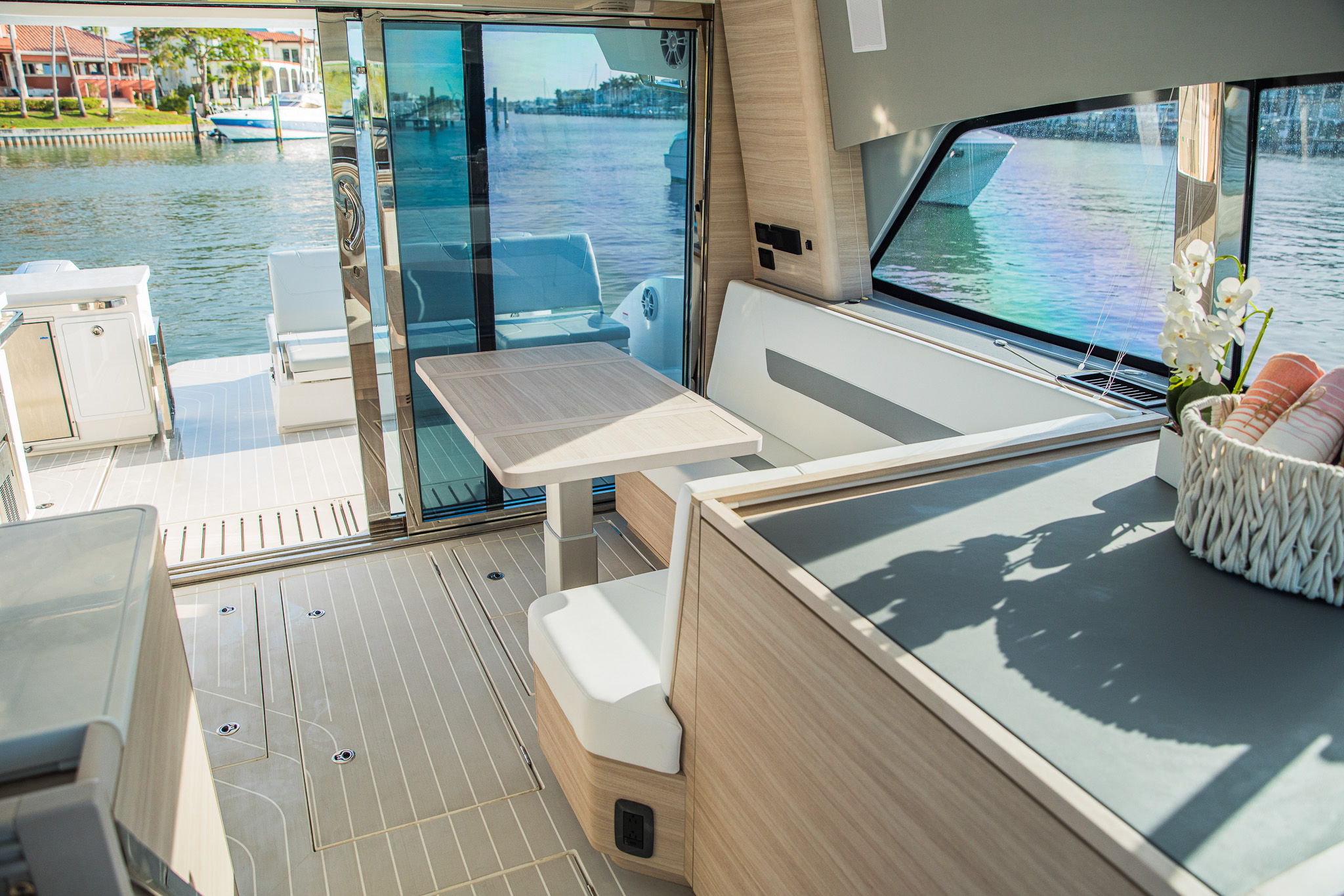

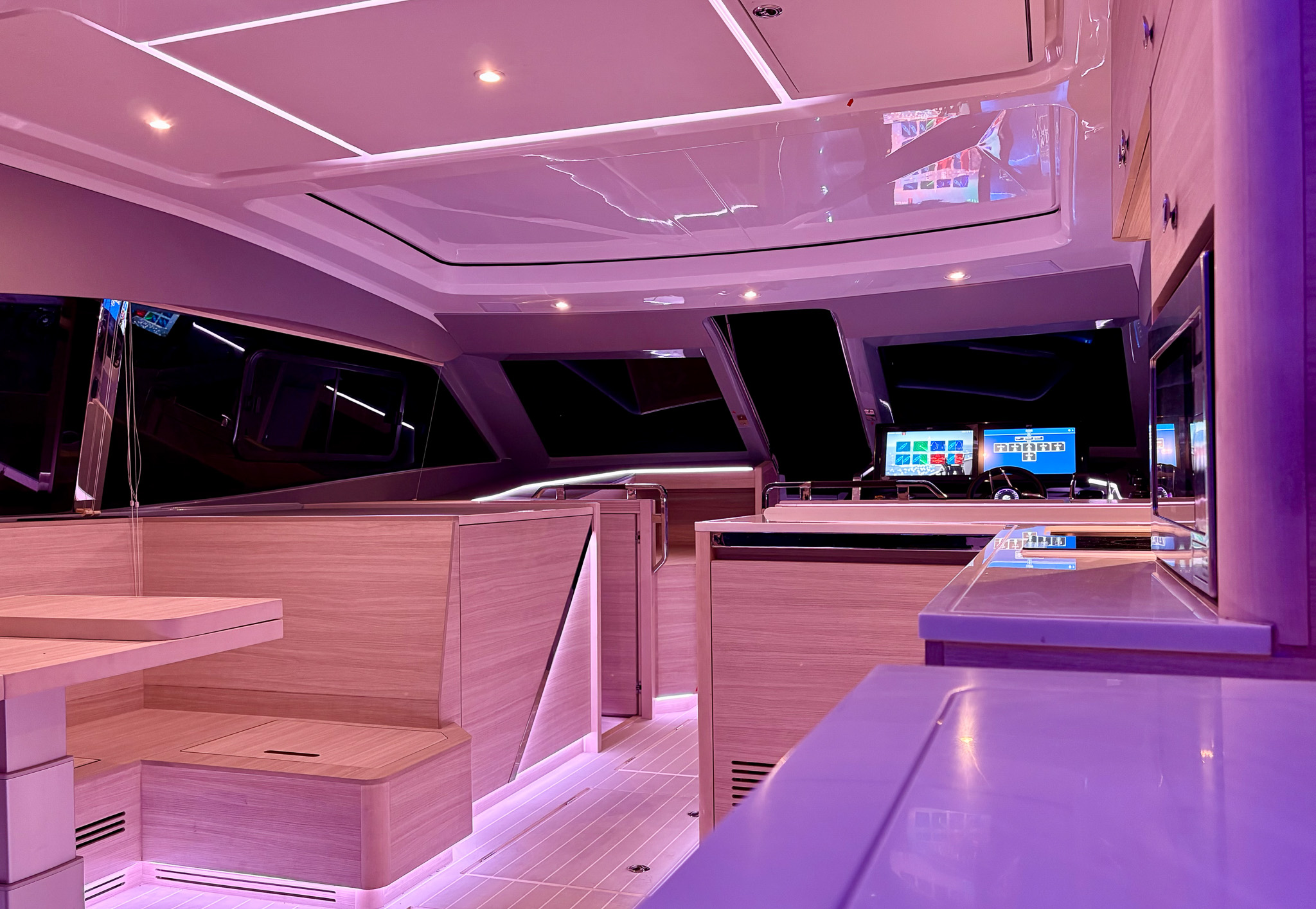

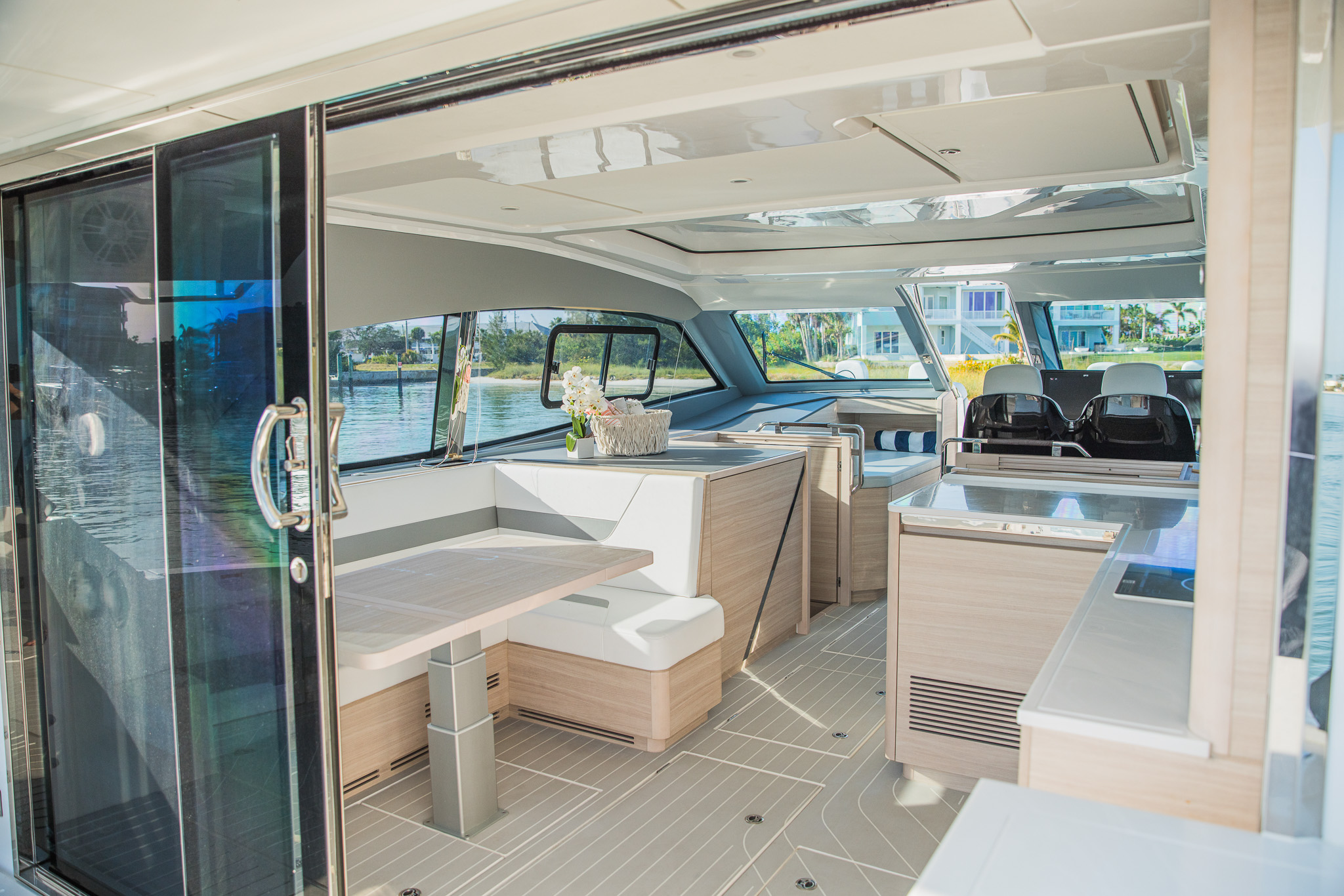

Salon/ Galley
Manual blinds for port and starboard side windows
Laminate finished cabinetry with solid wood capping throughout with accented wall and ceiling coverings

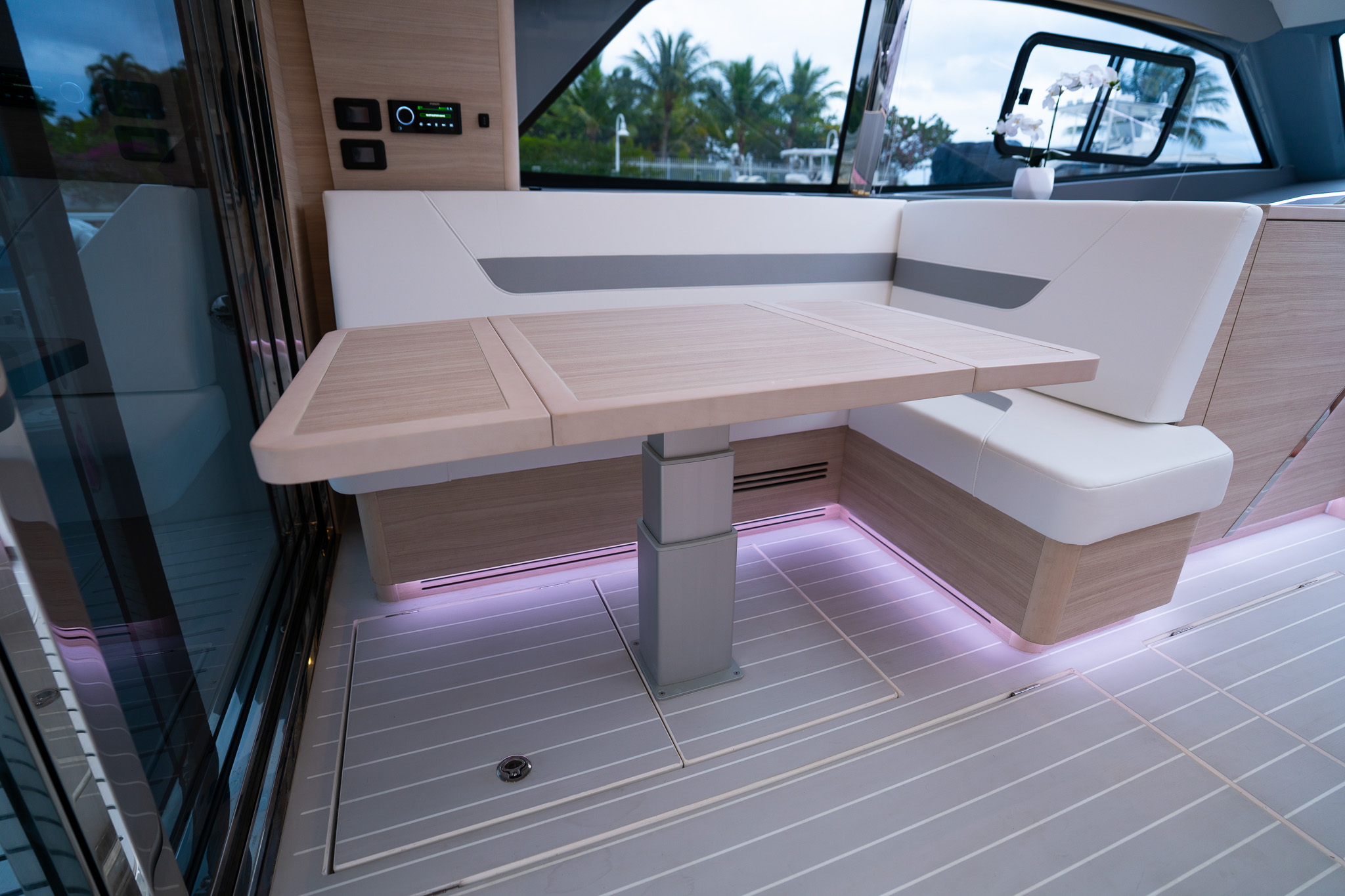

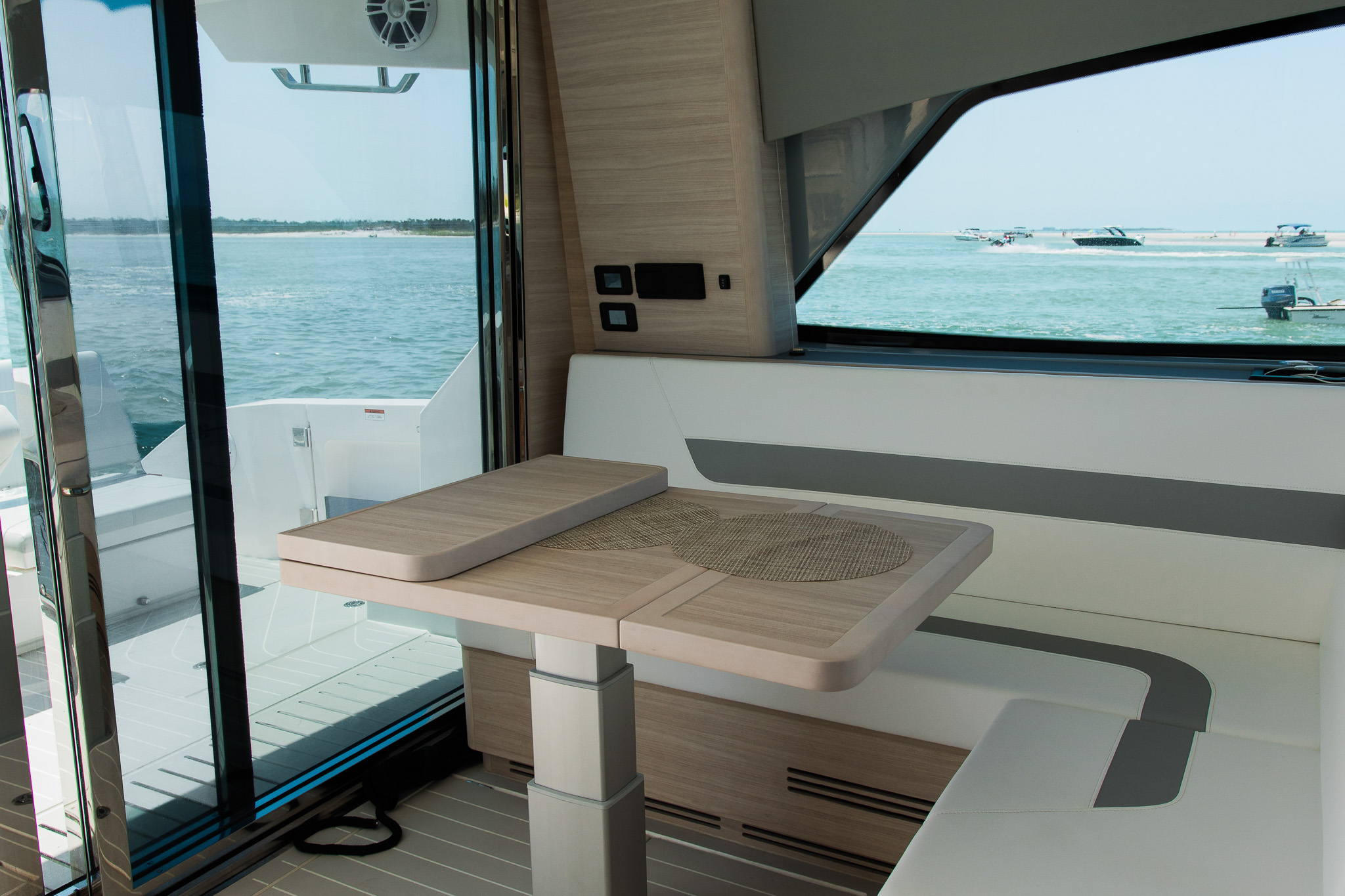

Manual hi/low table with fold out sections - can convert to sleeping area with fill in cushion
Multi-Zone sound system with Fusion head unit and 4 x flush mounted 7.7” speakers
Upholstered panel ceilings with decorative LED accent lighting
Comfortable L-shaped seating to port
Storage locker under floor in galley/salon area

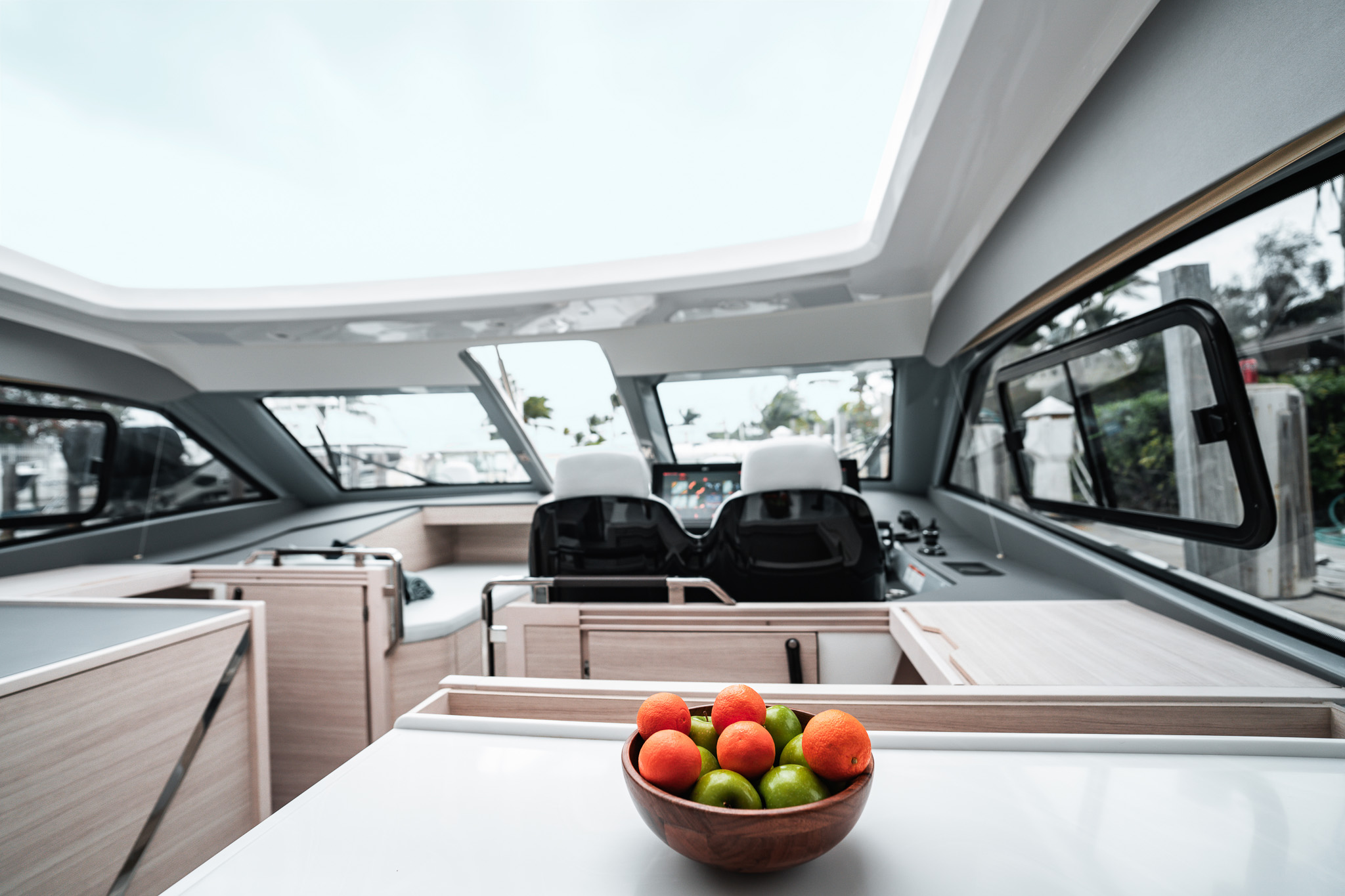

Optional expansive electric sunroof
Designated drop down TV system from ceiling (option)
Carbon monoxide alarm
AC power sockets under seating

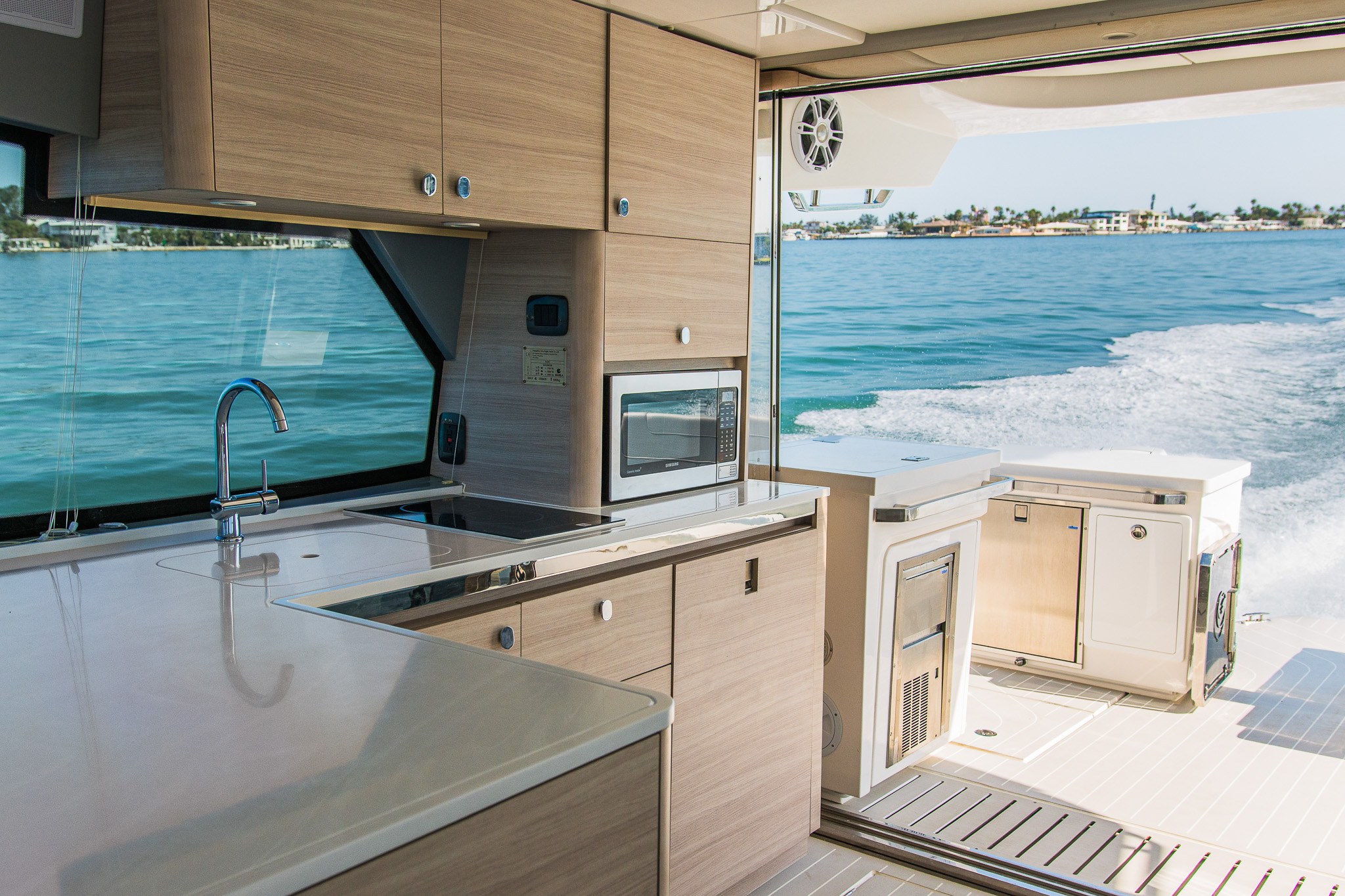

Galley area to port side including:
Corian work surface
130L/4.5 cu. ft. fridge/freezer
30L/1.1 cu. ft. microwave
Storage drawers and cabinets throughout
Wash basin with stainless steel faucet
AC power outlets
Integrated stainless steel handrails under Corian countertops
Optional synthetic marine decking

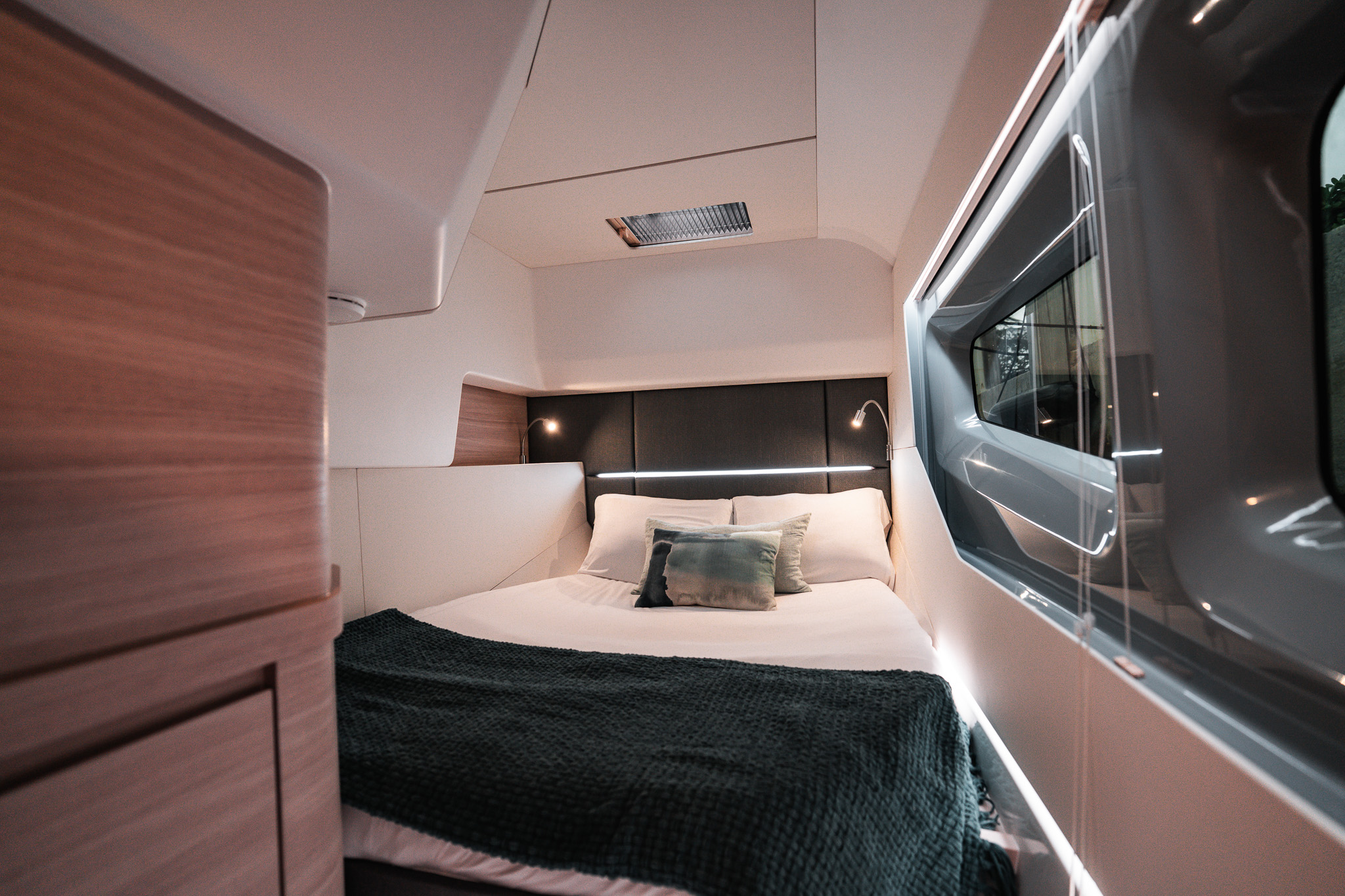

Owner and VIP Guest Cabin
Large hull side window providing natural light into cabin with manual operated blinds
Laminate finished cabinetry with solid wood capping throughout with accented wall and ceiling coverings
Private access door to each cabin for privacy
Aircon vents with aircon display/controller (option)
Opening ventilation hatch in ceiling with concealed manual blind
LED reading lights (2)
LED overhead ceiling lights
Storage shelves, lockers, and drawers with additional storage under cabin mattress
Memory foam mattress
Cabin mattress size: Master cabin: 76” x 60” (194cm x 153cm) VIP guest cabin: 76” x 60” (194cm x 153cm)
USB charging ports
Synthetic wear resistant flooring offering maintenance free natural look
Upholstered panel ceilings with decorative LED accent lighting
Carbon monoxide alarm in each cabin
AC power sockets (2)
Large hanging locker with storage

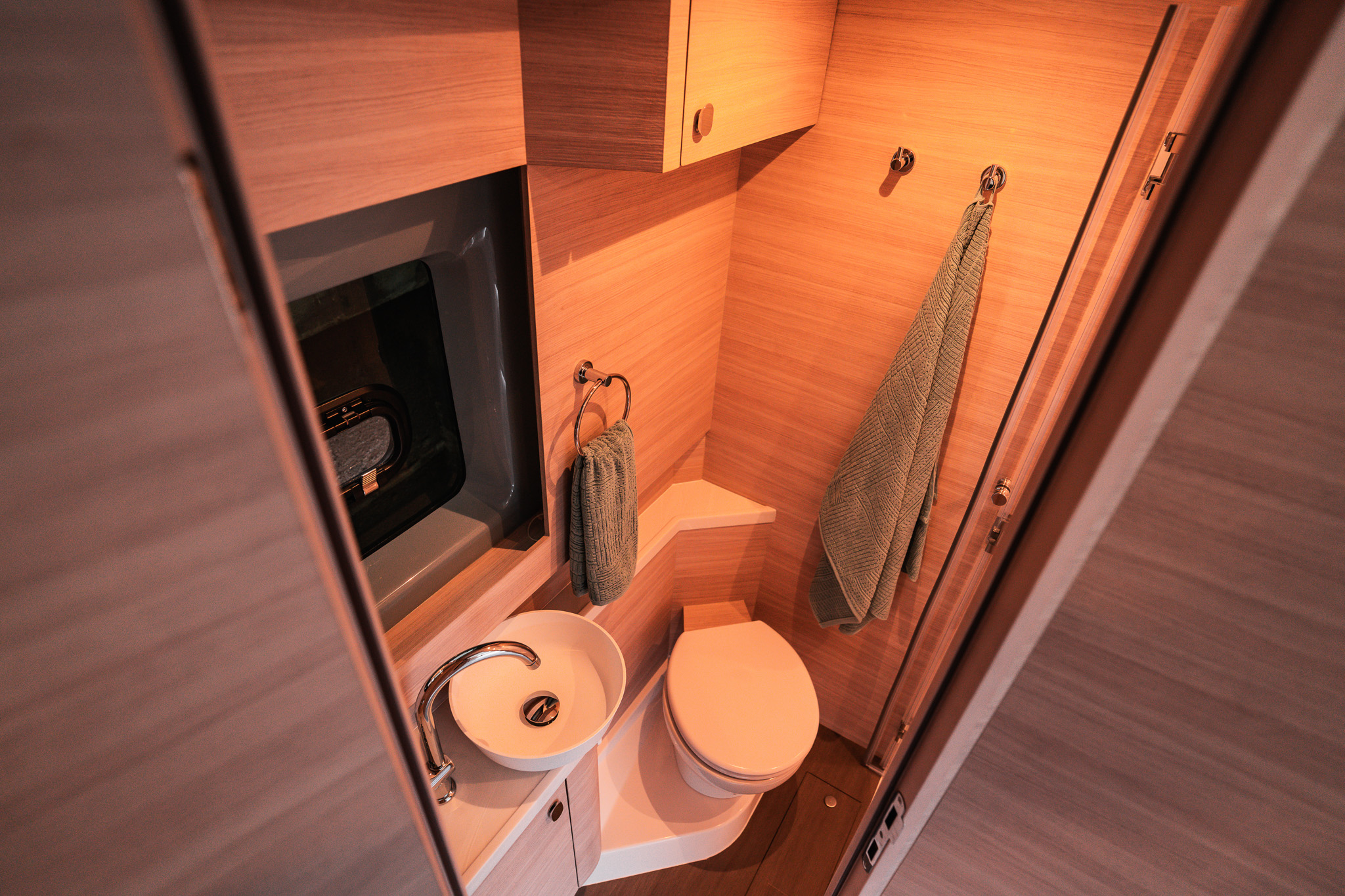

Separate bathroom/shower area including:
Hull side window with blind
Opening portlight window for ventilation
Bathroom vanity with sink and faucet
GFCI protected outlets
Toothbrush and towel holders
Corian countertop
Fresh water electric flushing toilet
Walk in shower with door and port light opening window
Mirror
Electrical System
C-Zone DC digital switching system
Inverter/battery charger Mastervolt 200A/3500W
Master control panel for 12v and shore power service
Dedicated engine battery chargers
Remote battery master switches at panel
Engine parallel control remote switch
Dedicated engine start batteries (2 x AGM)
House batteries = 2 x 200 A/h AGM
30A shore power supply inlets (2)
Galvanic Isolator protection system
