Standard Equipment List
Hull● Back Cove white iso-npg gelcoat● Back Cove white iso-npg gelcoat w/vinylester backup resin● VIP resin infused hull w/ PVC foam core hull bottom● VIP resin infused foam core stringer system● Advanced prop pocket hull design● Awlgrip boot stripe● Molded cove stripe depression w/ “gold or silver leaf” style stripe andBack Cove Heron

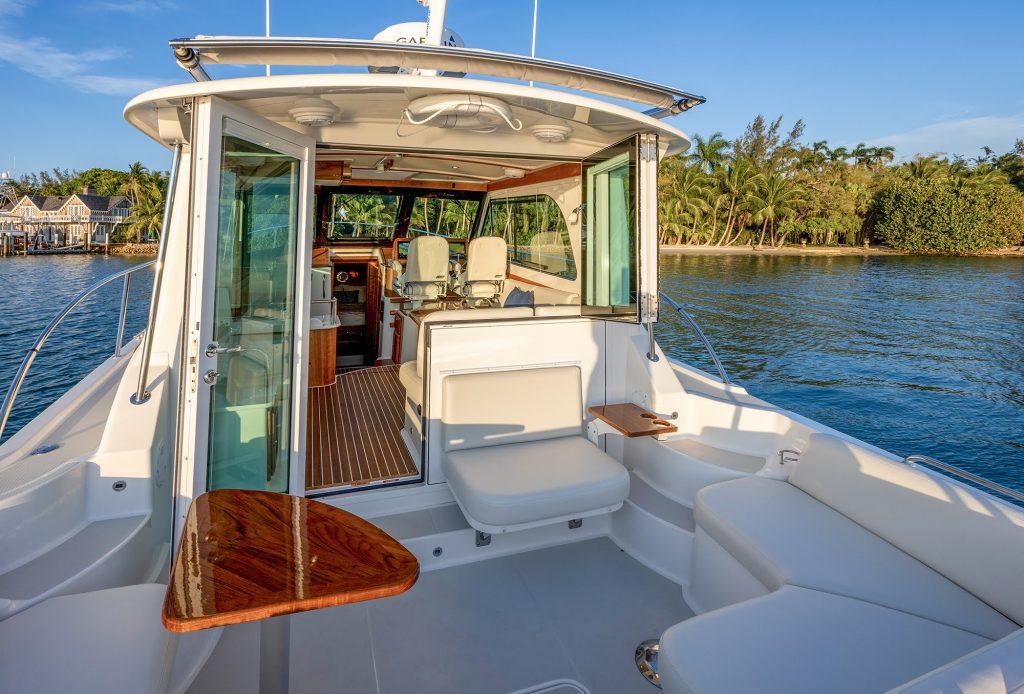

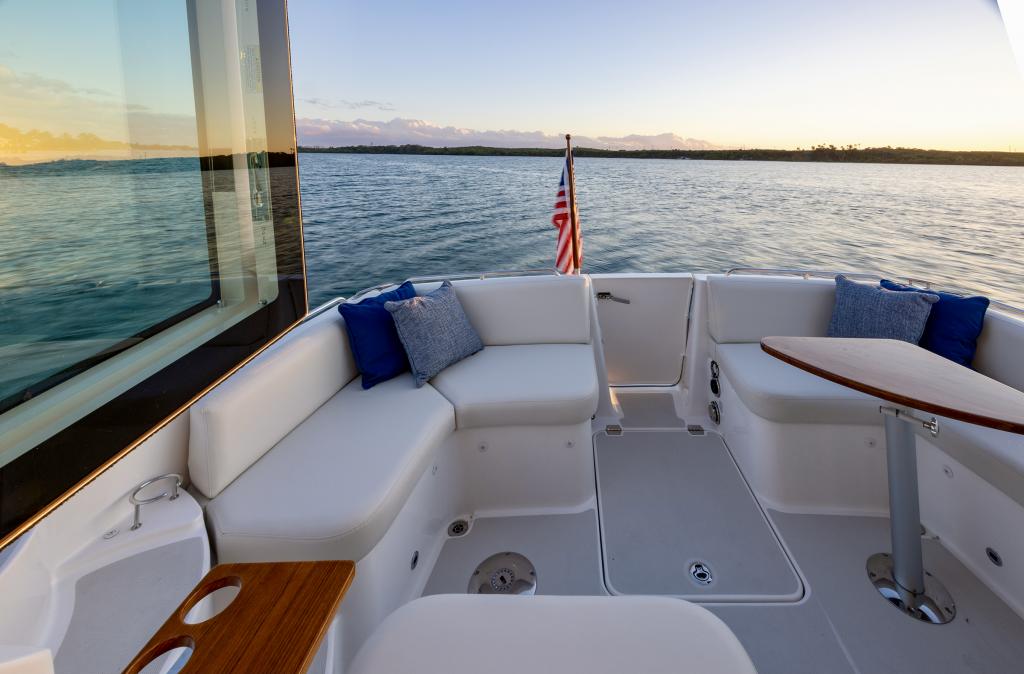

Deck● Back Cove white gelcoat w/graystone anti-skid on walking surfaces● VIP resin infused balsa core sandwich structure● Mooring cleats forward, aft and mid-ships (aft cleats are pull-up style)● Stainless steel anchor roller weldment● Anchor locker w/ ground tackle storage● 24V electric anchor windlass w/control at helm & foot switches on deck● Ensign flagstaff aft● Burgee staff on bow pulpit● LED deck mounted running lights● LED all-around anchor/ navigation light on hard top● Teak accent stripe on cabin side● Custom 1-1/4’’ 316L stainless steel perimeter rail● SS handrails concealed under hardtop, port, and starboard● Compressed air horn on hardtop (mast optional)● (5) opening port lights w/ insect screens and shades● Port & starboard molded steps leading to side and fore deck● Aft facing cockpit seat on starboard side● Molded quarter seating in cockpit w/ storage, port, and starboard● Transom door on centerline● Swim platform w/ SS under-mount swim ladder● Hot and cold cockpit shower● Self draining cockpit● Pop-up cleats on swim platform (for tender)● Cockpit grab rails behind cockpit seats on coaming (4)● 6 inch, 200 Watt Fusion speakers (aft of salon door)
Mechanical Systems● 300 US gallon fuel tank w/ 2” flip-tab deck fill● Vented cross-linked polyethylene fuel tank with shut off valves● Racor fuel/water separator● Cummins QSC8.3 600 mhp electronic controlled engine w/ ZF gear (Option to upgrade to Volvo D8)● 2.25’’ Aquamet shaft● 4 Blade NiBrAl propeller● PSS dripless shaft log● Binnacle mount electronic single lever engine control● Raymarine digital engine display● Bronze sea valve on engine intake● Marelon sea valves on underwater thru hulls● Bronze internal, in-line raw water strainer on engine, generator and airconditioner intake● Bronze external strainer on engine and air conditioner intake● Wet exhaust with 8” dual-stage horizontal muffler● Electric single actuator trim tabs w/ helm position indicator● SeaStar hydraulic steering w/ tilt helm pump● Sidepower bow thruster w/ joystick control (SE100)● Hot and cold pressurized water● 11 gallon water heater w/ engine heat exchanger, tempering valve andpressure relief valve plumbed to thru hull● Xintex-Fireboy automatic, clean agent fire extinguishing system in engineroom w/ manual backup● Air conditioning w/ reverse cycle heat 32kBTU (combined salon and cabin)
Electrical Systems● AC/DC control panel with polarity indicator● 24Vdc system battery management switching● 12Vdc fuse block for electronics● Emergency battery bank cross-over switch (ACR)● (2) 120Vac 30 amp shore power inlets w/50 foot cords● 120Vac shore power system ELCI protected● Galvanic isolator● 9.0 KW generator with sound shield and water/exhaust separator● GFI protected 120Vac circuits● 60 Amp battery charger● (2) 4D AGM house battery bank; (4) Group 31 AGM engine start batterybank● (3) 24Vdc automatic bilge pumps● Bonding system w/ zinc transom anode● Mechanical/utility space lighting● Cockpit courtesy lights switched at transom door and helm● Cabin courtesy lights switched at helm and master SR island berth● Overhead LED cabin, salon and cockpit lights (w/ dimmer control)● Overhead bi-color LED light at helm station w/switch● 12Vdc outlets throughout vessel● Battery powered salon and cabin smoke detectors● Hard-wired CO detector in cabin and salon

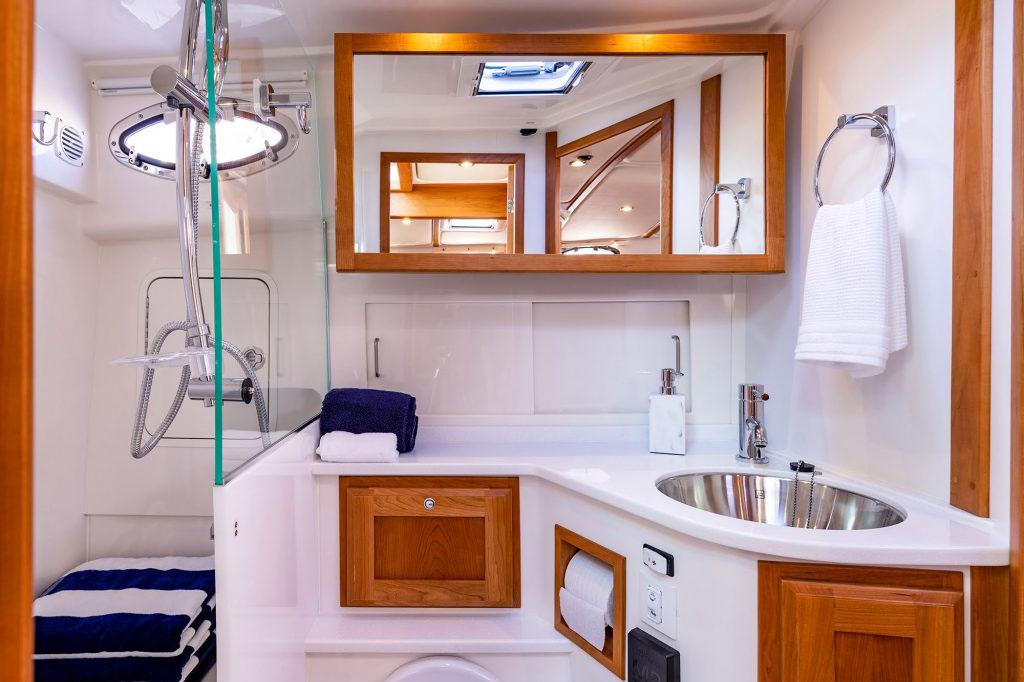

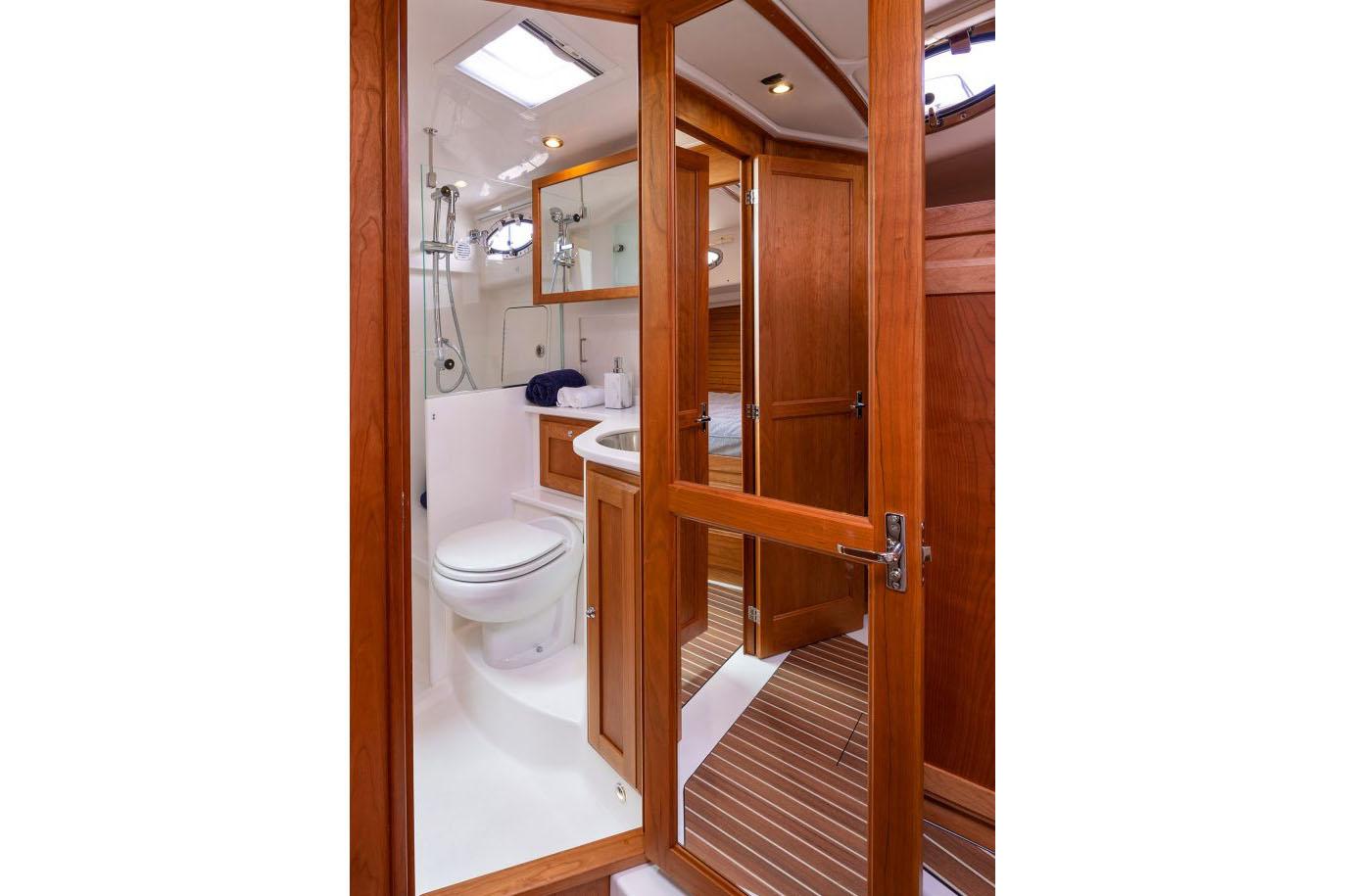

Head / Sanitary System● Head w/ separate shower stall● Molded seat in shower stall w/ storage cubbie above● Built-in vanity w/ sink and storage in head● Lewmar hatch w/ Dometic OCEANair Skyscreen● Stainless steel opening port w/ insect screen and shade● Cherry framed mirror● Full length mirror on door● Solid surface countertop● Single lever faucet● Shower-drain sump pump system● Fresh water electric MSD w/ holding tank● Waste and fresh water level gauge (in head)● Macerator for holding tank overboard discharge (as permitted)● Holding tank pump-out fitting on deck● Sealed overhead LED lighting (w/ dimmer control)● Powered exhaust fan

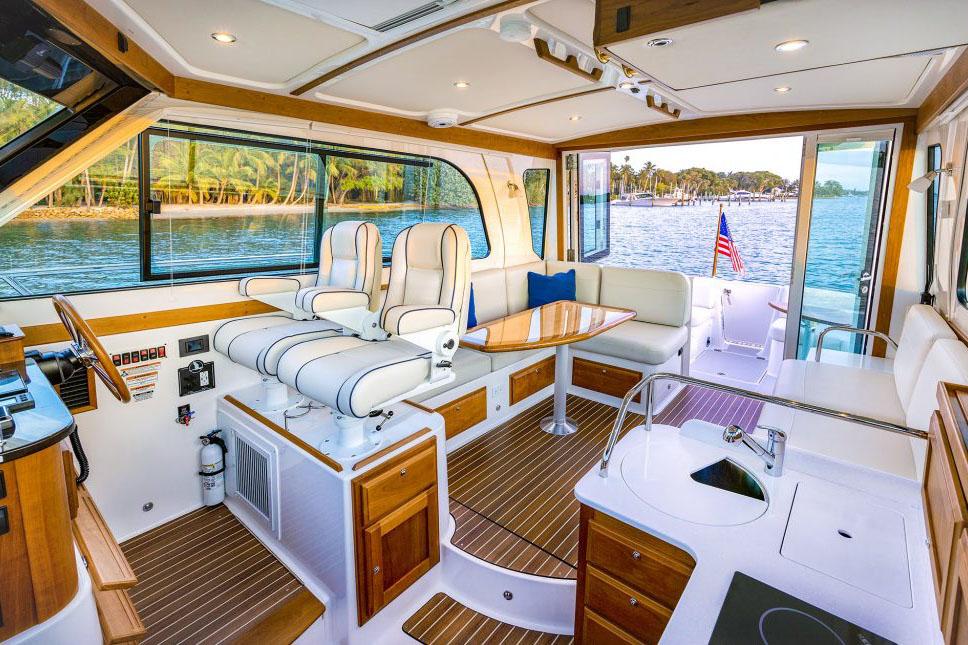

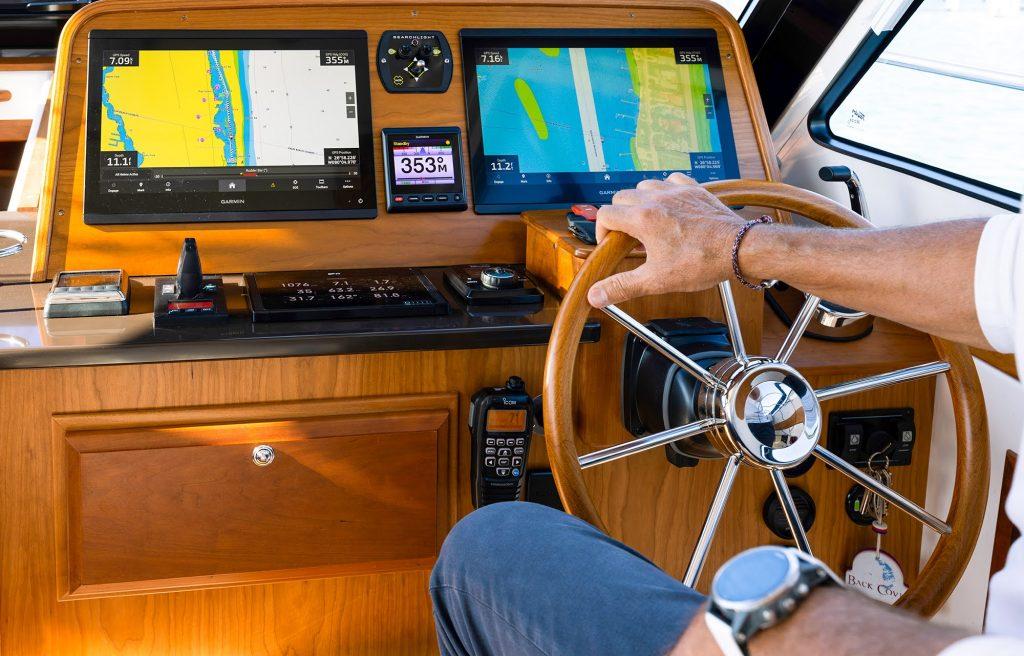

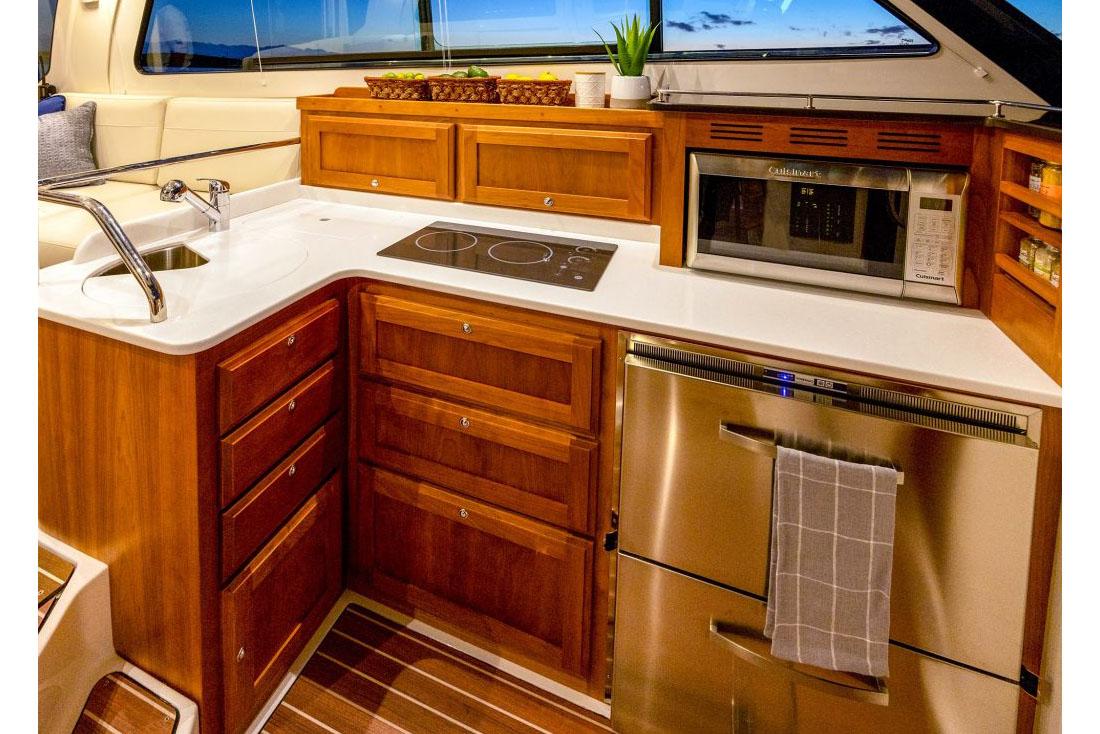

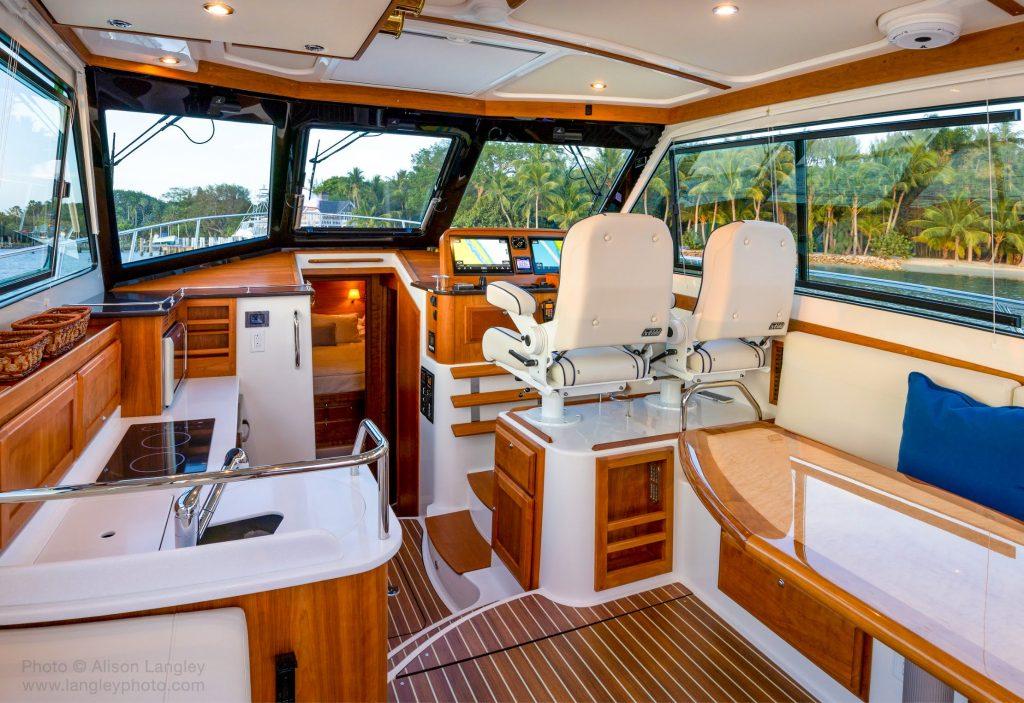

Helm Deck / Salon Area● Frameless glass direct bond windows w/opening side windows● Opening, framed spring assist center window● 4-panel, locking salon door (bifold and swingout main panel)● (3) windshield wipers w/fresh water wash and intermittent control● Lewmar sliding hatch w/ Dometic OCEANair Skyscreen● Compass, illuminated● 20” Stazo wood grain steering wheel● Llebroc helm and mate’s seats● 3-step, fixed foot rest at helm seats● Upholstered helm pod● Dinette Back Cove high gloss inlaid table● Cherry book rack at dinette● Storage drawers below dinette seats and port settee● Large bilge storage below helm sole, access by gas strut assisted hatch● Large engine room hatch opens by electric linear actuator● “Teak and Holly” high pressure laminate sole w/ surface texture● L-settee to starboard w/ hi-low table (converts to double berth)● Double settee opposite w/ molded end table● Flip-down 32” LED Smart TV in headliner cabinet● Molded headliner with padded panel inserts● SiriusXM ready Fusion Apollo stereo (w/ Bluetooth and NMEA2k)● 6 inch, 200 Watt Fusion speakers● (2) charging stations (AM/FM/USB)● CAT5E cables run from TV’s to space below helm seatMid Galley● Electric, induction two burner cook-top● AC/DC stainless steel, drawer-type fridge/freezer compartments● Large SS galley sink w/ single lever faucet & drop in cover● Solid surface countertop● Above counter , convection microwave oven● Drawer and doors storage below counter● Silverware drawer pull out below stove● Hafele tip-out tray at sink● Cherry “spice” rack● “Teak and Holly” high pressure laminate sole w/ surface texture

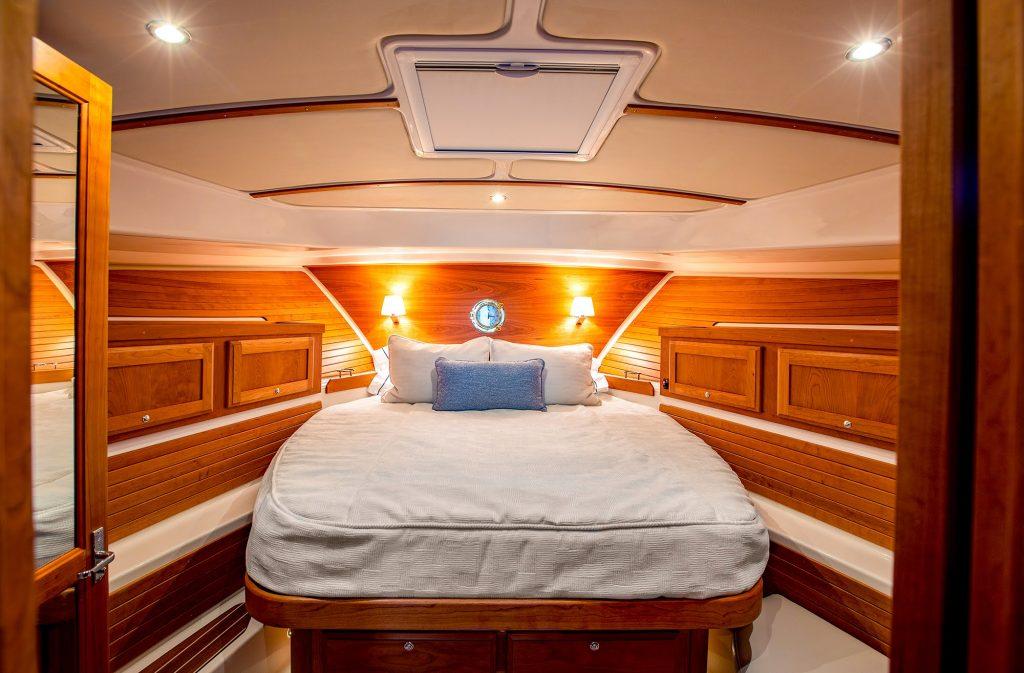

Master Stateroom● Varnished cherry interior joinery on molded composite hull liner● Lewmar hatch w/ Dometic OCEANair Skyscreen● “Teak and Holly” high pressure laminate cabin w/ surface texture● Molded headliner w/ padded panel inserts● Island queen berth w/ drawers and storage below● 8” polyurethane/latex mattress● Shelves outboard w/ cherry fiddles forward and lockers above● Cherry hull ceilings● Reading lights on berth headboard● Cedar lined hanging locker to port● Multi drawer dresser w/ dovetailed drawers to starboard● Charging station (AC/DC/USB)● 7.7 inch, 200 Watt Fusion speakers (flush mount)● 12Vdc USB outlets at forward berth shelves (P&S)
Guest Stateroom● Varnished Cherry interior joinery on molded composite hull liner● Lewmar hatch w/ Dometic OCEANair Skyscreen● “Teak and Holly” high pressure laminate sole w/ surface texture● Molded headliner with padded panel inserts● Berth with drawers under● 6” polyurethane/latex mattress● Charging station (AC/DC/USB)● Reading light● Side table with locker below
