CONSTRUCTION
• The entire boat structure is built in a vacuum-infused glass fibre sandwich with a PVC core
• The hull is infused with osmosis-resistant vinyl ester resin, reinforced with precisely engineered structural inner-liner
• Fully cored deck with inner liner infused with polyester resin
• Moulded non-slip deck walking surfaces
• Plywood bulkheads glued on the hull and deck structure
• White single-tone gelcoat, RAL 9003
• Aluminium mast support
• Cast iron keel with low drag fin and T-bulb draft 1,98 m / 6’ 6’’, weight 1070 kg / 2360 lbs (shallow keel option available)
• Twin vacuum-infused composited rudders with stainless steel stock
RIG & RUNNING RIGGING
• Z Spars deck-stepped tapered 9/10 aluminium mast with two sets of swept-back aluminium spreaders
• Z Spars aluminium boom
• Linked standing rigging with turnbuckles and 1x19 wire rope
• Backstay with Harken central block and tackle with cam cleat
• Windex 15
• Halyards: mainsail, boom top lift, jib, masthead gennaker, fractional gennaker
• Spinlock XTS halyard clutches on the coachroof
• Two Spinlock TWF 63 winchfeeders aft of the clutch to divert lines to the other side winch
• Harken blocks and deck equipment for mainsail, jib and gennaker controls
• Jib & mainsail & gennaker sheets, tackline, outhaul, two mainsail reefs, vang, cunningham, jib downhauler
• German sheet mainsail system controlled with two Harken 40 Self-Tailing Radial, two speeds
• Fixed spliced Dyneema mainsail bridle with cockpit attachments
• Jib sheet control on two coachroof winches Harken 35 SelfTailing Radial, two speeds; also used as gennaker sheet winches
• Adjustable jib downhauler
• Jib tack attachment behind the forestay chainplate
• Four Outils Océan bags with combined rope & winch handle slots - two under the mainsheet winch & two at the cabin entrance
• One Harken winch handle

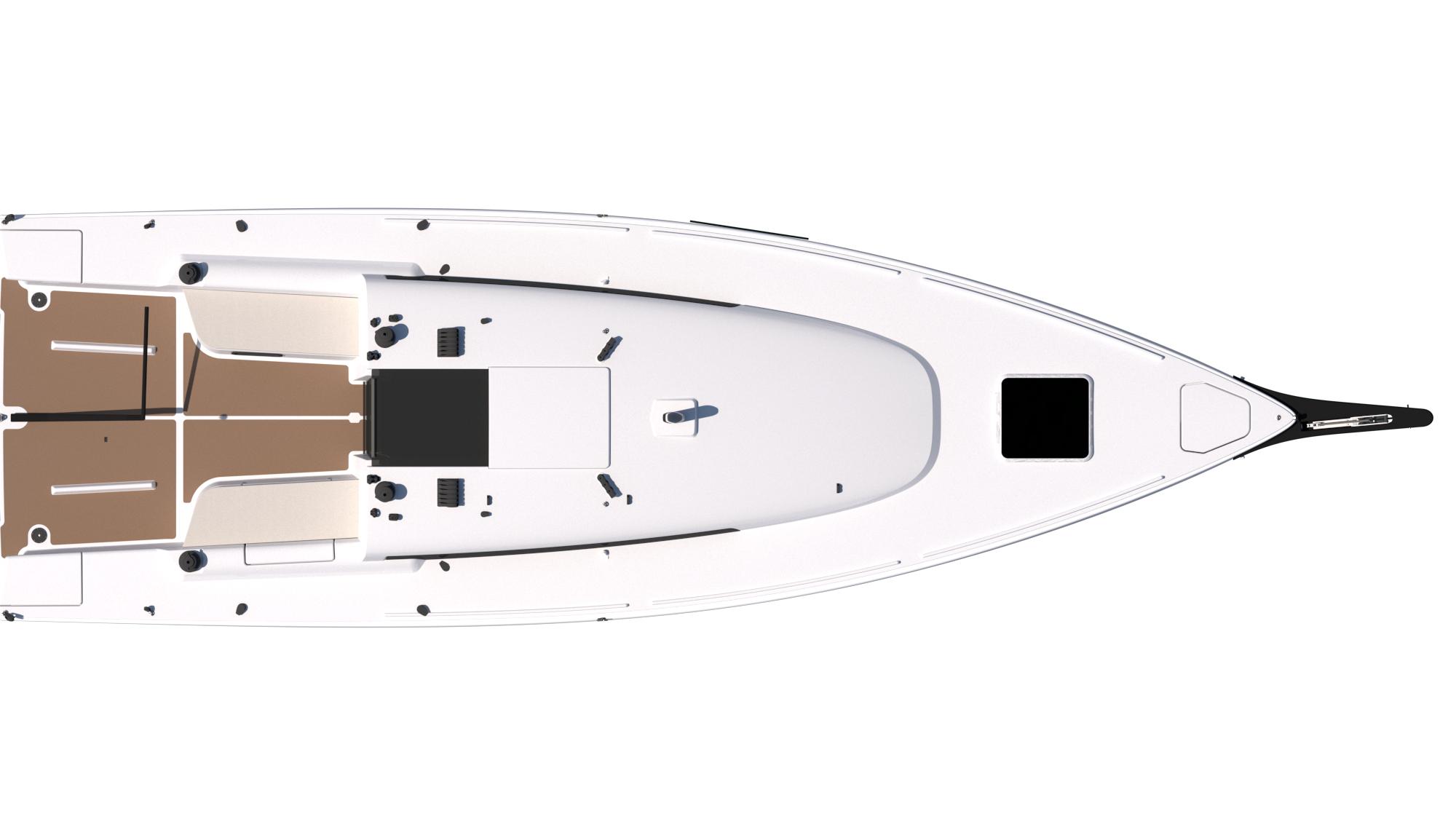

DECK
• Stainless steel stanchions (60 cm / 2’’ high) with double lifelines
• Aluminium mooring cleats, two on the bow and two on the stern
• GRP tiller with the Spinlock EA 1200 tiller extension
• Silva 102B/H compass at the companionway
• Moulded GRP toerails along the cockpit for helmsman and crew
• Spacious storage compartment accessible through the hatch in the starboard cockpit bench; also for life-raft stowage
• Storage compartments for one gas bottle under the port helmsman bench
• Storage compartment under the starboard helmsman bench with breathable storage bag
• Anchor locker with a hatch
• Stern recess for the optional foldable bathing platform
• Telescopic ladder, which also serves as a Reboard Emergency ladder

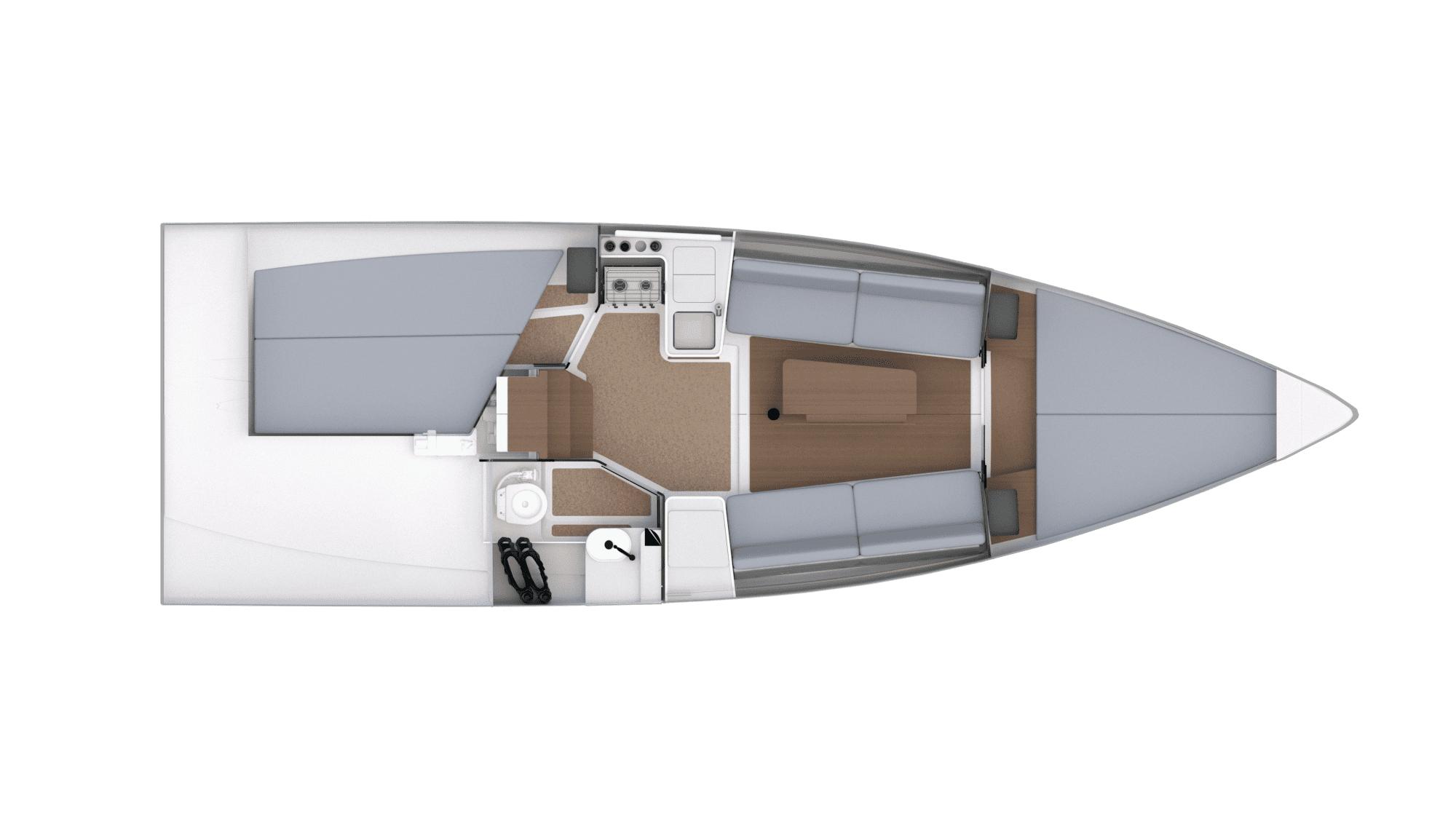

INTERIOR

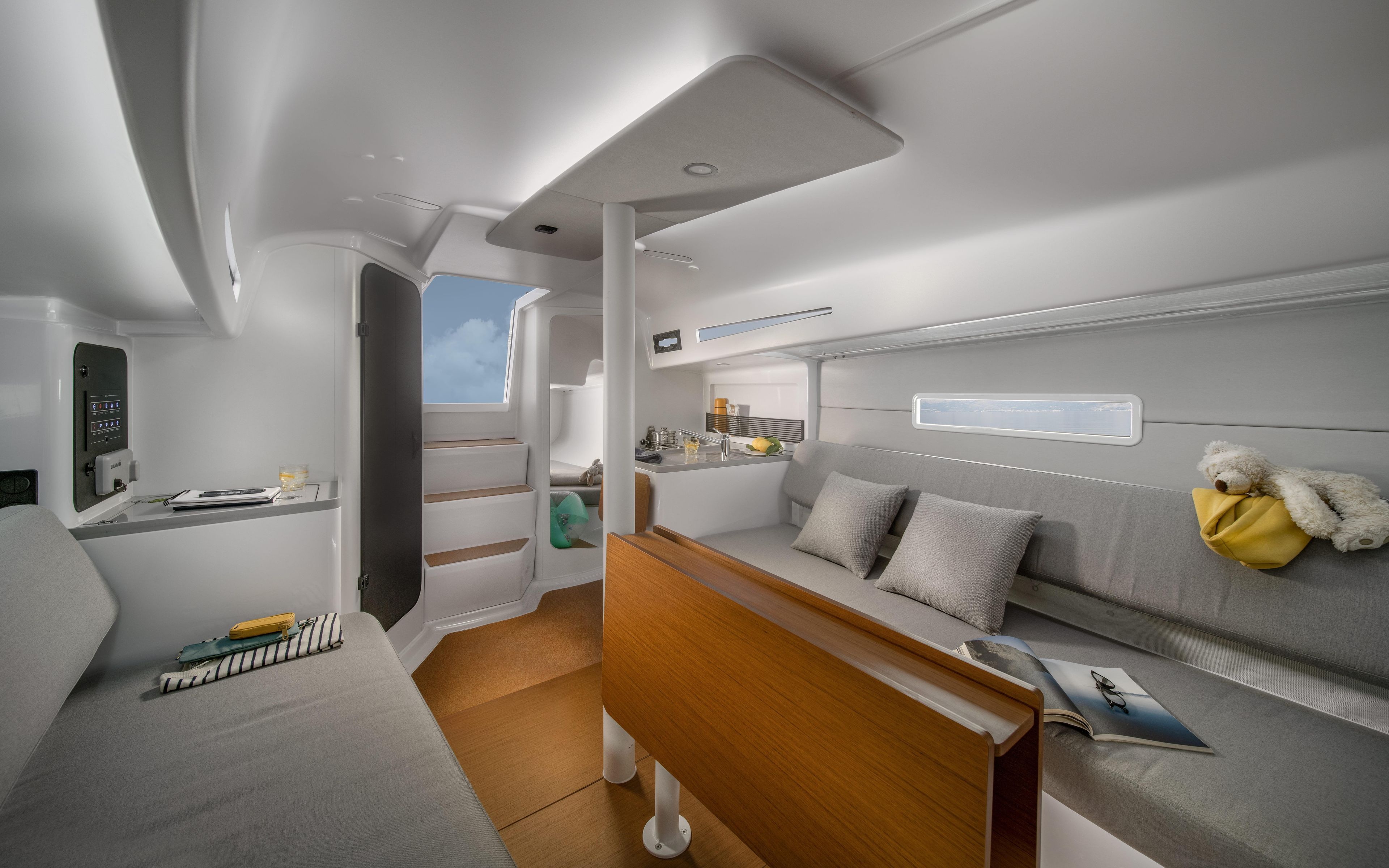

SALOON
• Lightweight vacuum-infused GRP interior modules (galley, icebox) with low-maintenance gelcoat finish
• Light structural deck liner (moulded GRP, mat finish), side hull walls painted to a white mat finish
• Saloon benches with cushions in light grey, also in function of auxiliary berths (length of 2 m), storage volume under the benches
• Padded backrests, with easy accessible storage behind the vertical backrest nets
• Saloon table with foldable table flaps (plywood, Alpi teak wood veneer)
• Smooth and low-maintenance cork floor covering in the entrance and galley area
• Plywood floorboards (durable teak imitation finish) in the saloon central seating area
• GRP companionway stairs with cork tops
• Laminated tempered glass windows on both sides of the hull and the sides of the coachroof, with integrated Lewmar hatches (one above the galley, one in the head)
• Indirect LED lights around the ceiling edge in warm white, bypassing the main switch for easy night access to the boat
• Indirect LED lights behind the deck liner in warm white and red for night sailing
• Companionway: horizontal sliding plexi panel with dial combination lock and vertical plexi panels (2 parts)
• Standing height at the central area with headroom: 1,83 m / 6’

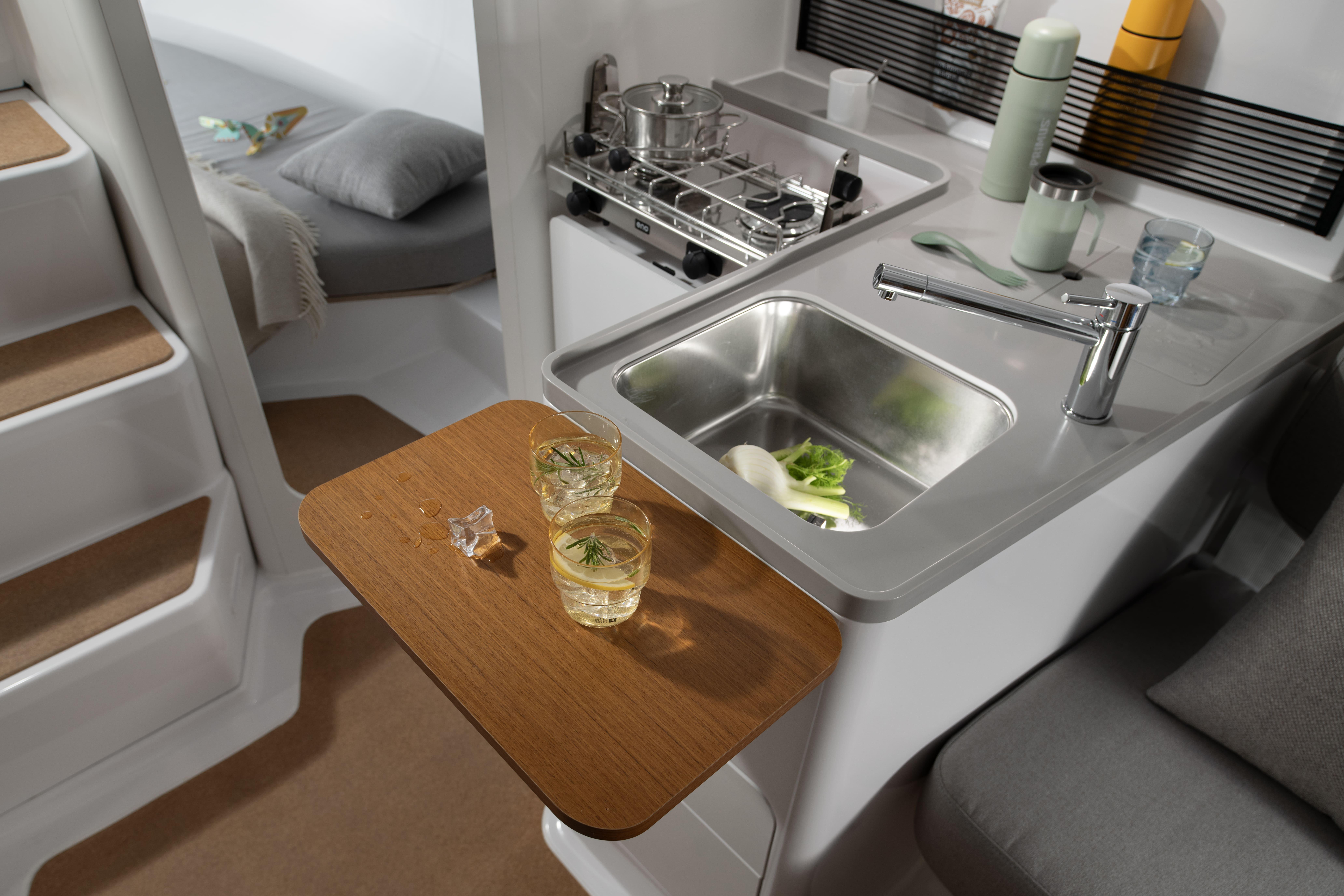

GALLEY
• L-galley on the port side of the saloon
• Eno gimbaled gas marine stove (2 burners) with propane installation
• Single rectangular stainless-steel sink with a freshwater tap & plumbing
• The galley working surface covered with Kerrock in grey
• Top-loading trash bins between stove and sink
• Cupboard with shelves & cutlery drawer under the sink and storage volume under the stove, plywood doors
• Smart storage compartment above the stove
• Two LED spot lights above the galley
• Smooth and low-maintenance cork floor covering
• Top-loading icebox on the starboard side, opposite the galley (50 L / 13,2 US Gal)

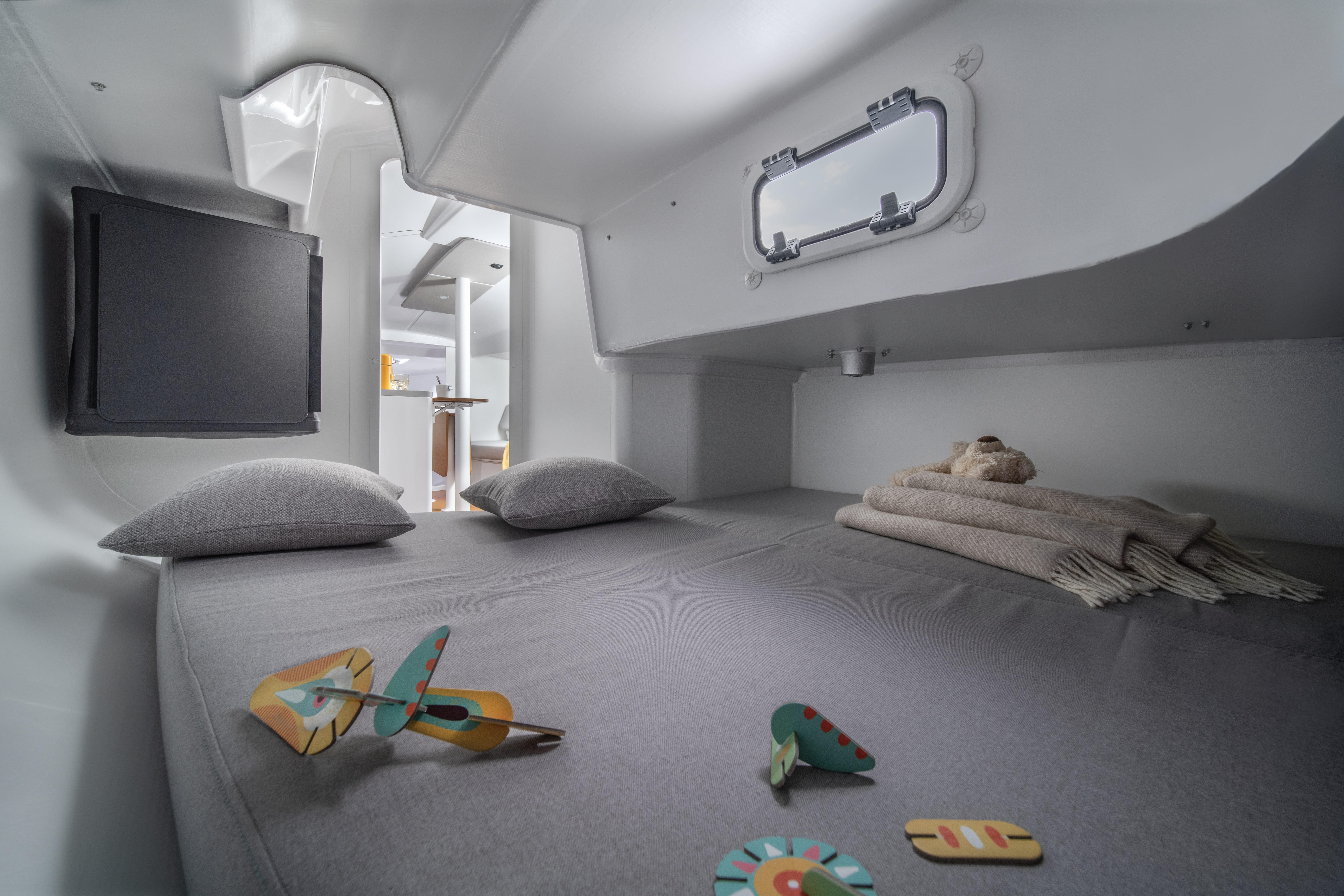

FRONT CABIN
• Double V berth (2,05 m x 1,90 m – 0,50 m / 6’ 9’’ x 6’ 3’’ - 1’ 8’’ with cushions in light grey
• Dedicated place for two optional Removable Textile Locker
• Lewmar Low Profile hatch (60 cm x 60 cm / 24 inches x 24 inches) above the berth
• Deck liner in the entrance area, walls painted to a white mat finish
• Two hangers • Smooth and low-maintenance cork floor covering at the entrance
• Storage compartments under V-berth and locker • Headroom at the entrance: 1,55 m / 5’ 1’’

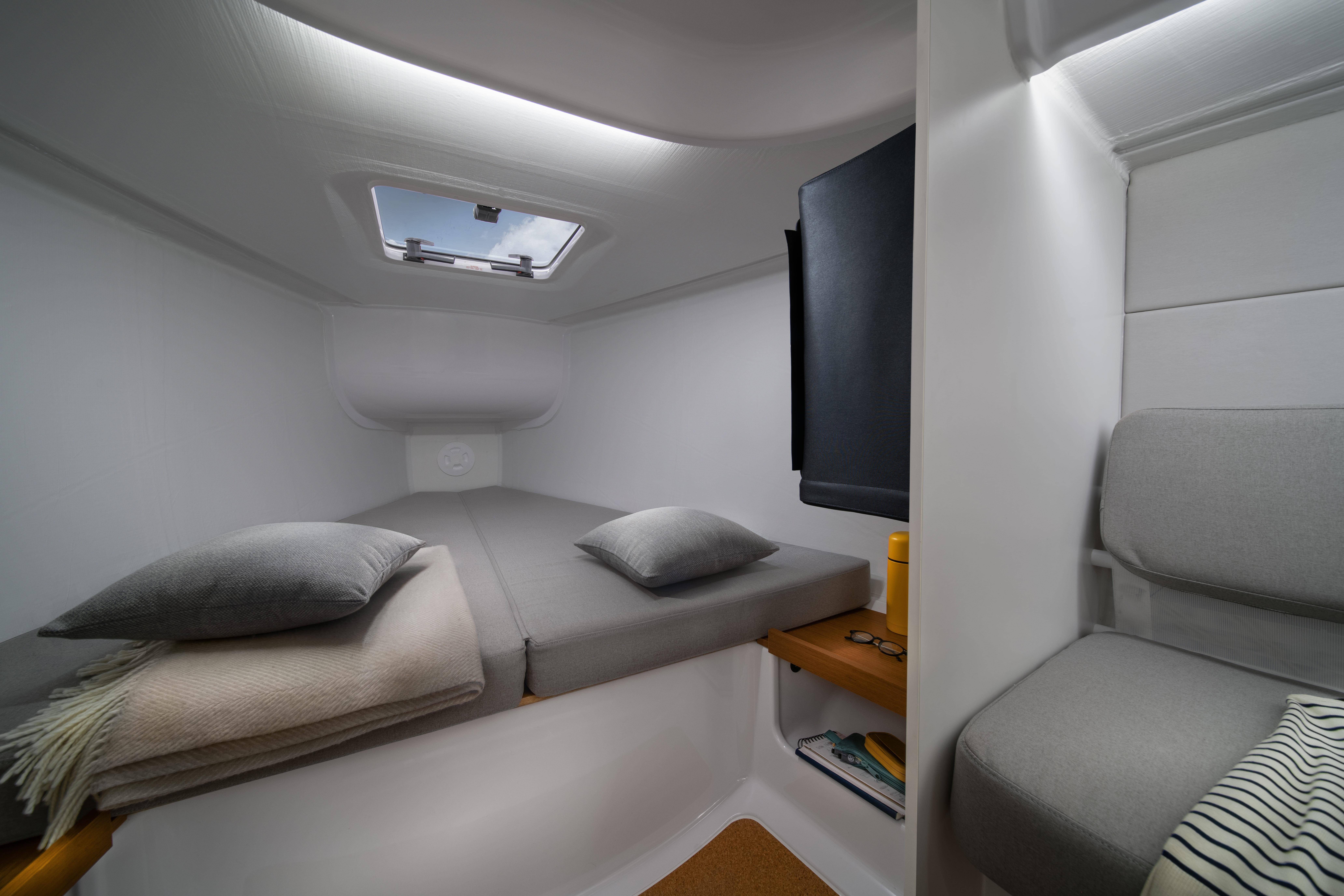

PORT AFT CABIN
• Spacious double berth (2,02 m x 1,35 m - 1,15 m / 6’ 7’’ x 4’ 5’’ - 3’ 9’’) with 10 cm cushion in light grey
• Dedicated place for one optional Removable Textile Locker
• Lewmar Portlight opening towards the cockpit for ventilation
• Deck liner in the entrance area, walls painted to a white mat finish
• Two hangers
• Leveled floor with smooth and low maintenance cork covering in the entrance area
• Openings to storage space underneath the berth • Headroom at the entrance: 1,61 m / 5’ 3’’

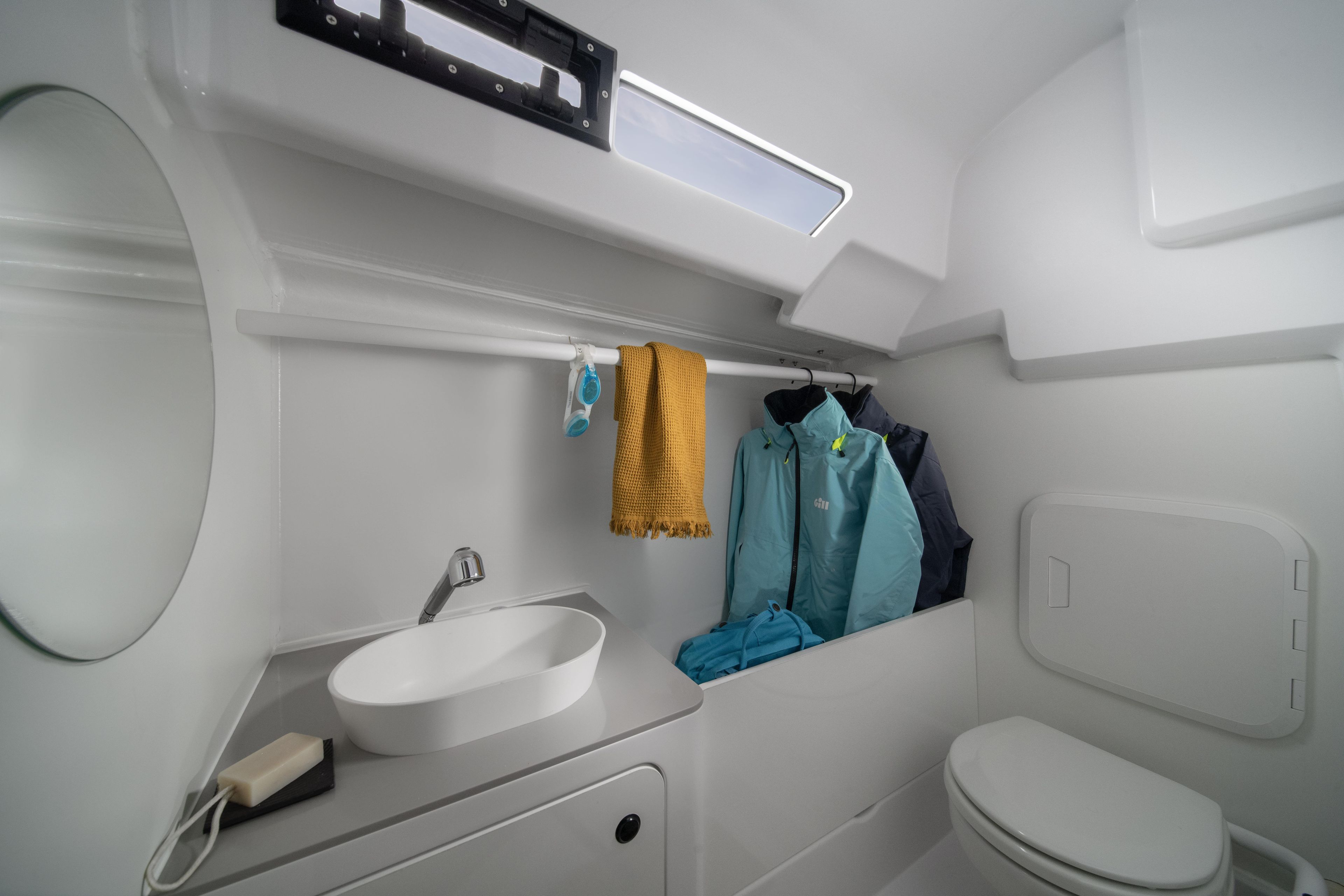

HEAD
• Lightweight vacuum-infused GRP head module with lowmaintenance gelcoat finish
• Leveled floor with smooth and low maintenance cork covering in the entrance area with a shower bilge pump
• Stainless-steel sink with a tap, which also functions as a shower handle
• Toiletry locker below the sink, mirror, hanger, LED light
• Ceramic toilet with manual pump, black water tank (50 L / 13,2 US Gal) & plumbing
• Innovative foldable magnetic door
• Dedicated wet locker compartment with clothes hanging rod
• Lewmar hatch integrated into the coachroof windows for ventilation
• Headroom at the entrance: 1,63 m / 5’ 4’’
PROPULSION
• Yanmar 2YM15 inboard diesel engine, 10 KW / 14 HP
• Shaft drive with Flex-o-fold 2-blade folding propeller
• Yanmar B-20 engine control panel with tachometer
• Fuel gauge on the electric panel in the saloon
• Fuel capacity: 40 L / 13,2 US Gal
• 12V 85 Ah AGM engine battery
• Alternator 12V 125A
PLUMBING
• 100 L / 26,4 US Gal freshwater tank under the front V-berth
• Plumbing with 12V pressurised fresh water system
• Corrosion-free Trudesign plastic thru-hulls and valves
• Electric & manual bilge pump
ELECTRICITY
• 12V electric circuit with prewiring for offered options
• 12V 105 Ah AGM service battery, installed under the aft berth
• Switchboard for 12V (and optional 230DC) systems installed above the icebox on the starboard side of the saloon
• Interior LED lights in the saloon and head, as specified for each room
• LED anchor, navigation, steaming and deck light
SEANAPPS
• Seanapps mobile application and GSM/GPS tracker for live control of your boat (position, trip logs, anchoring alarm) and real-time information (entrance sensor, batteries status, instruments data, ...), including a 1-year subscription
