Description & Overview:

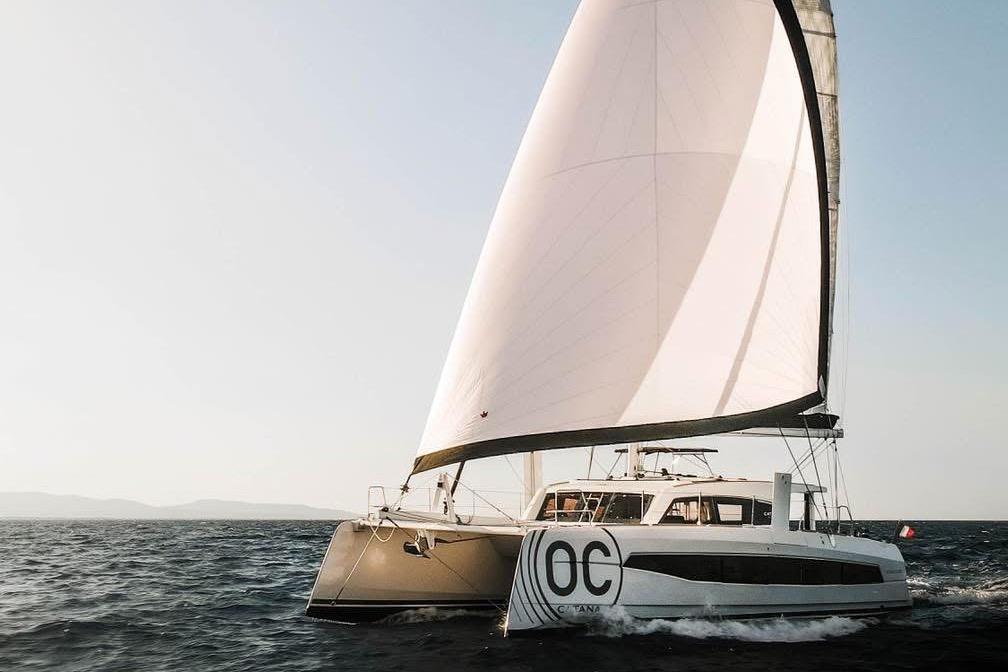

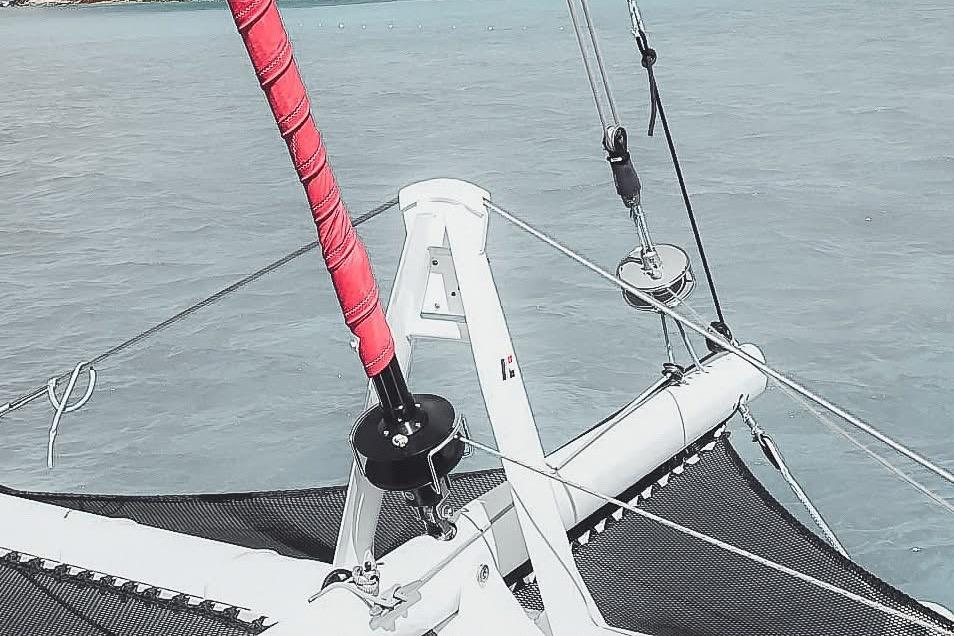

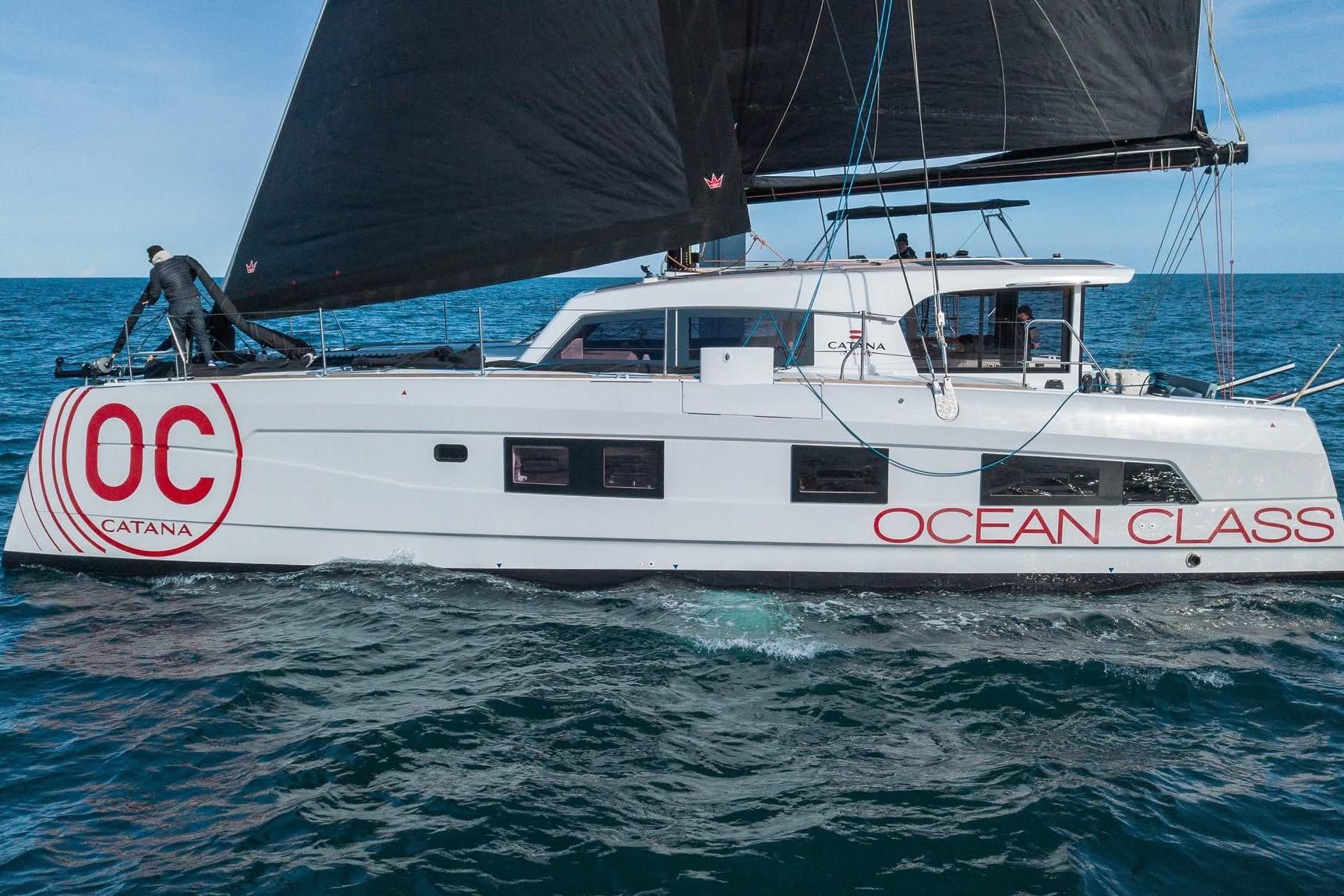

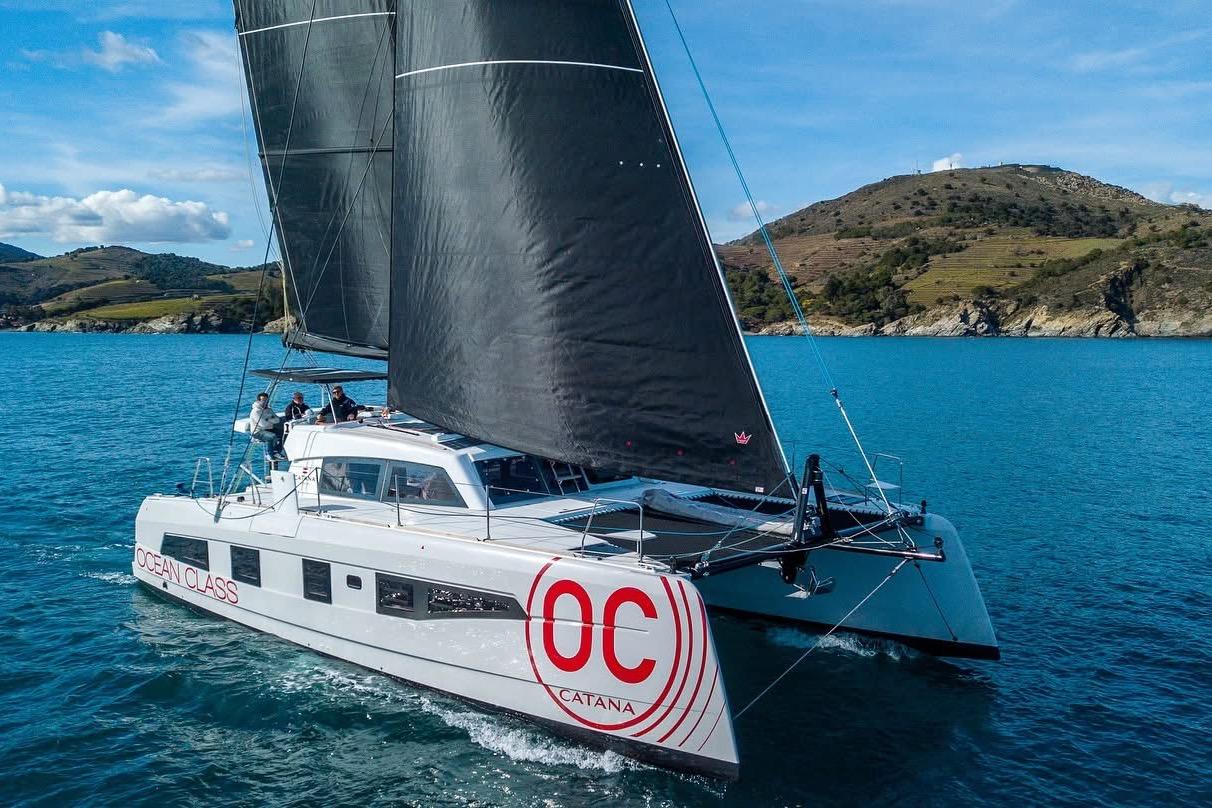

NEW CATANA OCEAN CLASS (on request). The new Catana Ocean Class No.2 launches after years of study and research to achieve this new range of catamarans with an unbeatable design. This new model offers more living space, a cockpit that allows the owner to have a 360 degree visibility during navigation and maneuvering. The weight of the catamaran has been improved thanks to its manufacturing process, vacuum carbon reinforced infusion layering. The boat has been specially designed to ensure excellent upwind performance like all other Catana catamarans. At the bow there are two large trampolines with modern aesthetics, and at the stern the platforms are wide, which allows more space and better maneuverability from the stern. The halyards and winches are centralized and close to the helm for more precise control during navigation and easy access to them.
The Catana OC recently won the ARC and the ARC plus Rally!
Layout:
3 cabin/2 head layout
Sails & Rigging:
Mast, boom in Aluminium : painted in White / Black (instead of anodized)
Bowsprit, Compression beam & articulated bow in aluminium : painted in White / Black
Black lacquered fittings instead of stainless steel
Lazy Bag in Sunbrella / spreader platform in Batyline : Black or White
Sails:
Genoa PRORADIAL - instead of Solent PRORADIAL Standard + Genoa rigging (tracks on roof + 1 Radial Manual Winch)
Headsails:
Code 0 CODETEC 135 - 80 M² + non-rotation cable
Genaker CODETEC 95 - 135 M² + non-rotation cable
Code 0 Rigging
Genaker / Blue water runner Rigging with furler
Asymmetrical Spinnaker Maxilite 150 - 200 M² + ATN snuffer
Rigging for Symm & Assym Spinnaker
2 ELECTRIC winches PERFORMA for headsails
Replacement of the 4 standard RADIAL winches by 4 PERFORMA winches
Engines:
2x 57 Yanmar
3 Blade GORI folding propellers

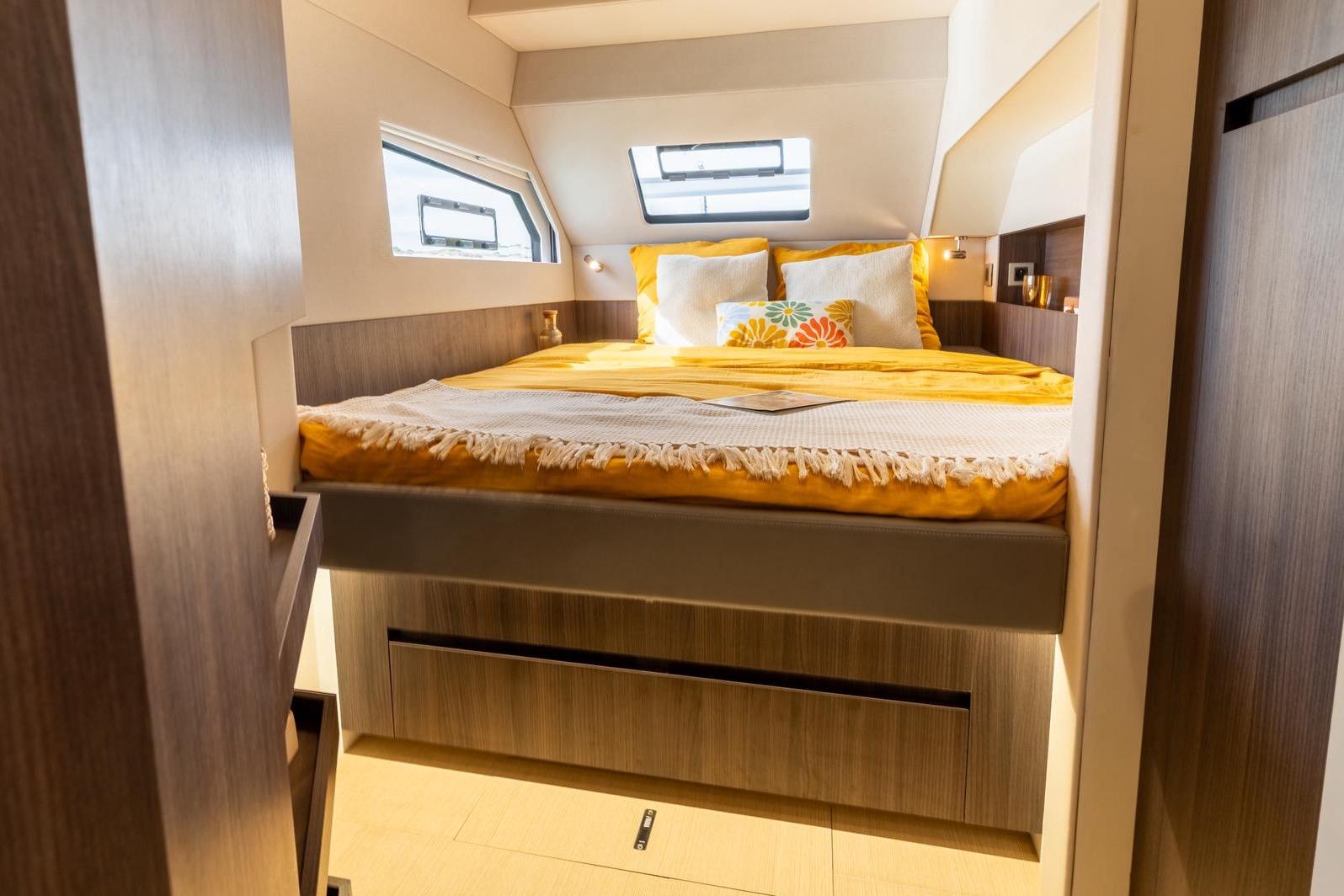

Cabins:

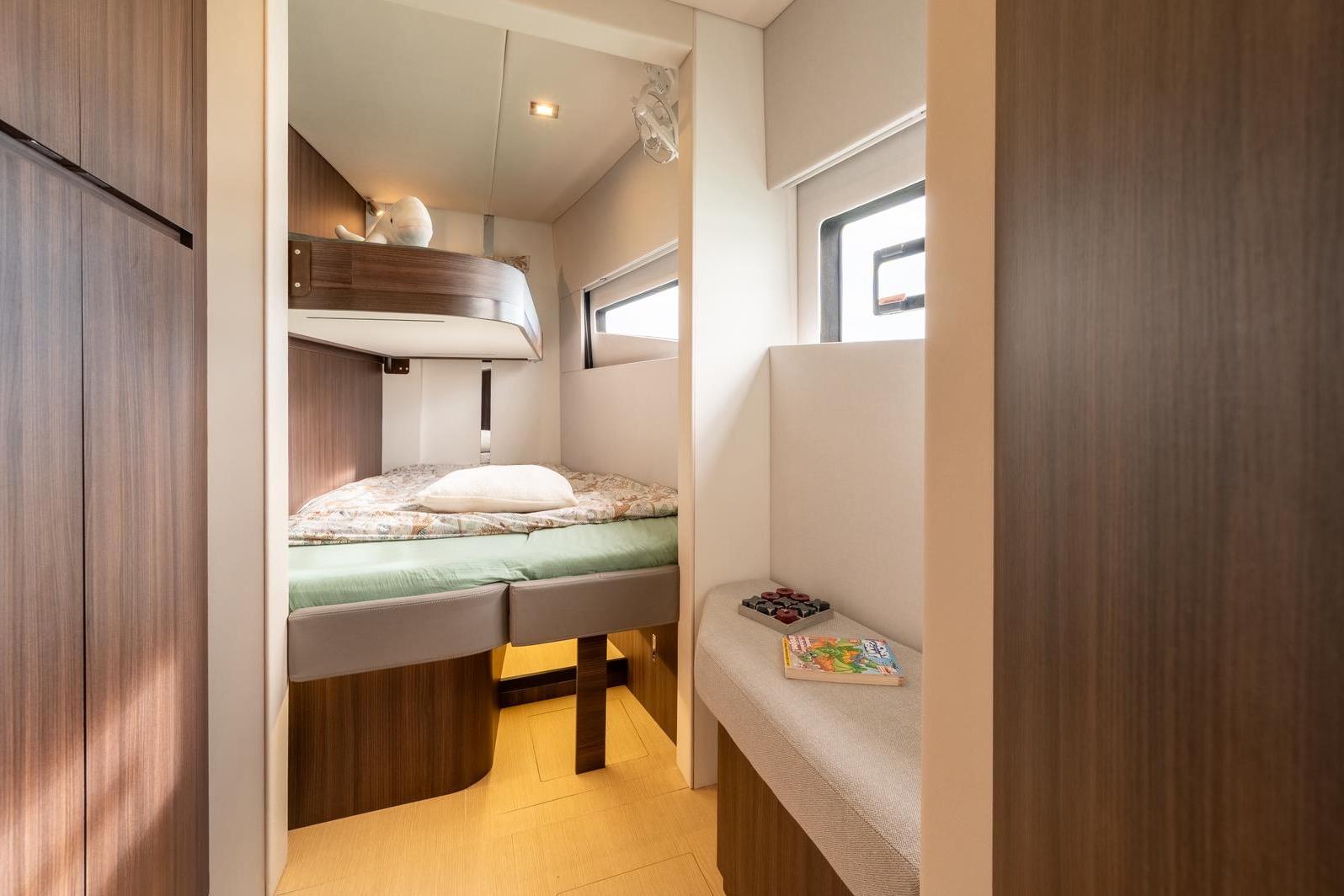

Bed Extension for front bunk convertible into double bed on starboard
Bed extension on port side
Bed extension on stbd side
Blinds in hulls & salon
Water:
Watermaker 12 V - 90 L/H with remote control + taster in galley and automatic flushing
Seawater pump with cockpit and anchor locker
Fresh water pump with an outlet in anchor locker
Comfort:
Aircond Frigomar in hulls 3 cabins : 21.000 BTU + towel dryer 500W for owners bathroom
Aircond Frigomar in salon : 32.000 BTU
4 fans / cabin & salon
Integrated plancha on the aft beam & white cover (on starboard)
Dishwasher 9 sets integrated in galley
Washer and dryer 6kg
Extra Freezer 2 drawers - 180L Stainlessteel + modification of the furniture
Deck layout:
Large deck hatch for access to port forepeak
Seadeck : Transom + Rear steps + Cockpit + Engine Hatches + Deck steps
Electric davits
4 underwater LED lights
Energy:
Charger/Inverter VICTRON 12V / 3000W / 120 A / 220V - 50hz
(US Version) Second Charger/Inverter VICTRON 12 V / 3000 W / 120 A / 115V - 60hz
Booster for Alternators 12V / 100A ( 2 Electronic boxes to optimise and reduce battery charging time)
Additional 400AH Lithium (LiFePo4) batteries (Upgrades lithium from 400 Ah standard to 800 Ah)

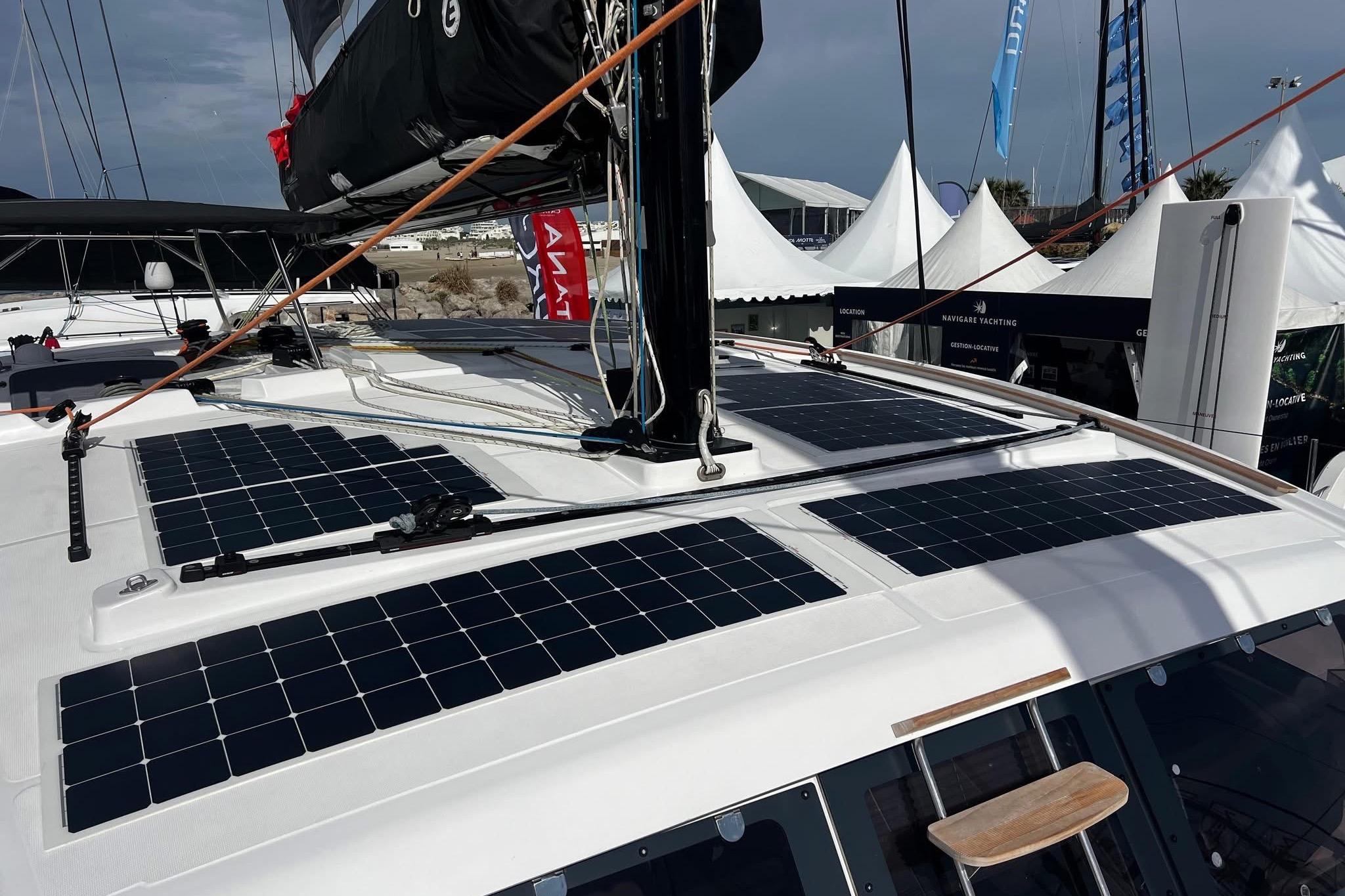

Solar panels on the rear of the roof on the port side and in the central area on the starboard side + 3 MPPT regulators → 1140 W
Additional solar panels on the roof covering the central port and bow area + 2 MPPT regulators → 630 W
Additional solar panels on the deck covering the area in front of the roof + 1 MPPT regulator → 580 W
Genset 13,5 kVA 60hz with insulation & remote control
Wiring in 110V (Boiler, charger, sockets, inverter)
Upholstery:
Sun protections for windows of the roof - Batyline : Black / White (this option is composed by 7 sun protections)
Sun protection for port side window - Batyline : Black / White
CONFORT interior upholstery : Curved profile, bi-material foam - Spradling Maglia® / Crevin Brisa® fabrics
Set of outdoor cushions : MAGLIA® fabrics: 4 colours (seats and backrests on the aft beam + helm station + backrest at the winching position)
Horizontal sun awning on carbon posts covering the rear sofa + vertical curtain for sun protection in Batyline : Black / White
Bimini for helm station (structure + canvas with glazing)
Bimini enclosure with clears
Electronics & Hifi:

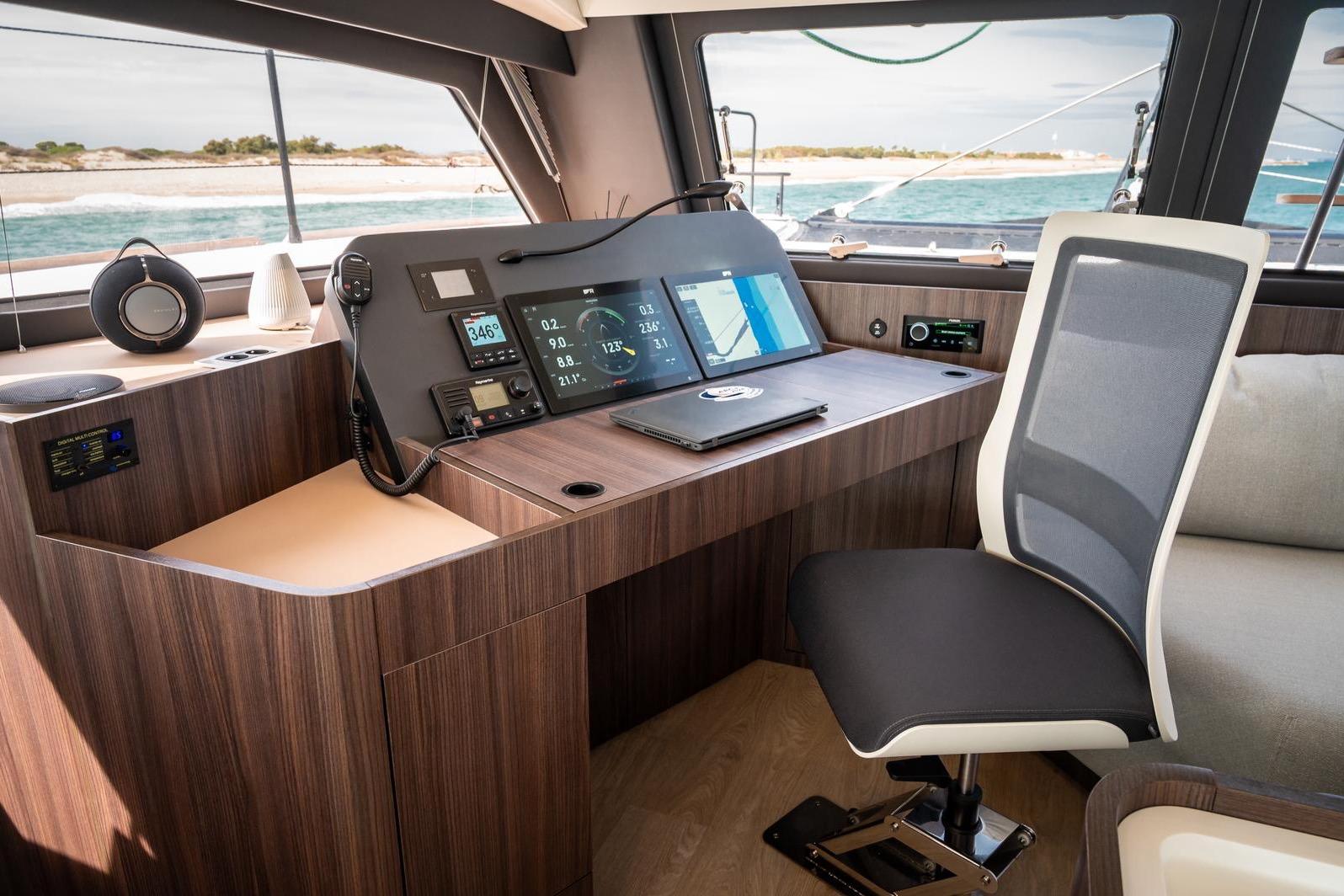

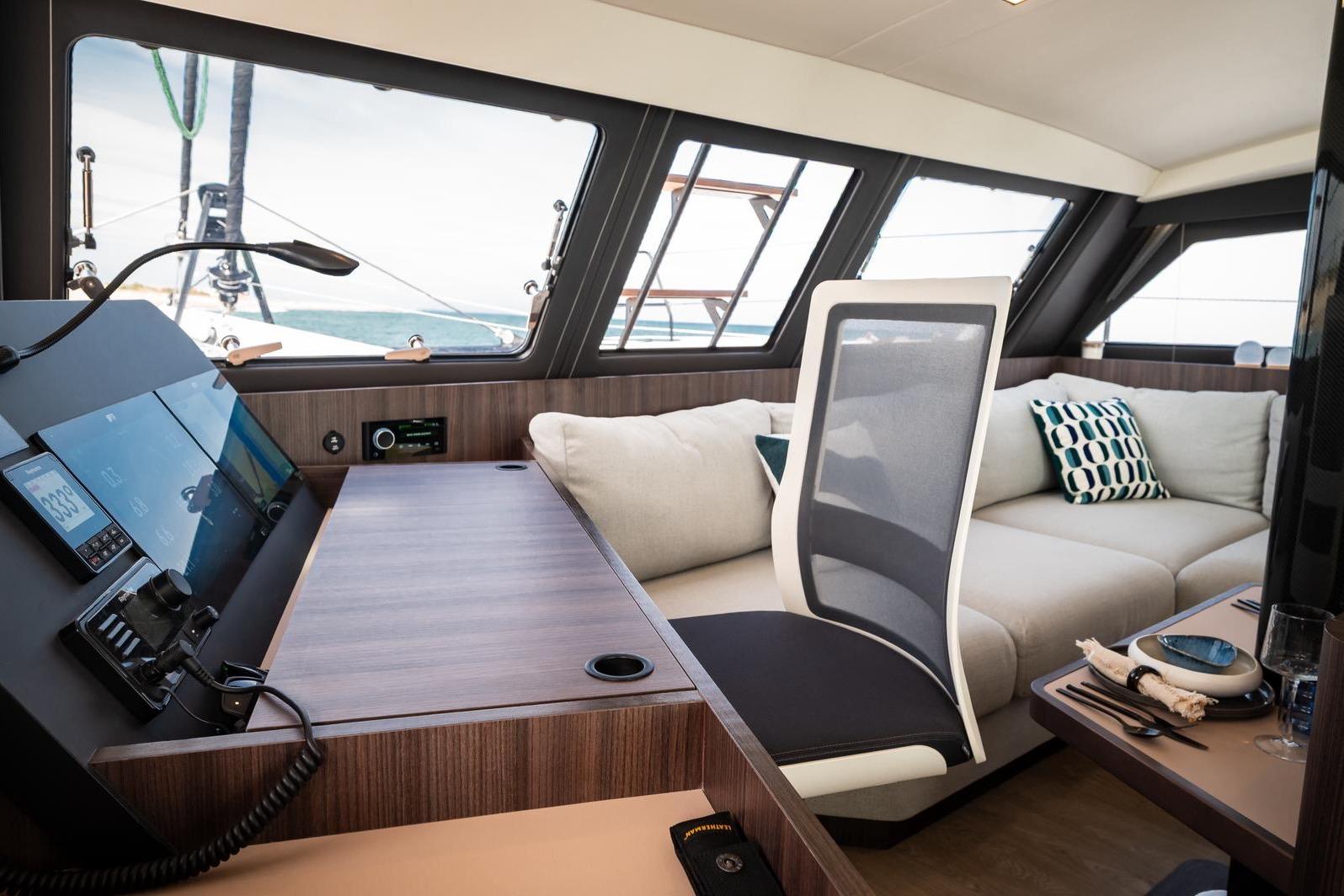

Electronics Pack 2 : 3 multifunctions screen : 2x16" at the chart table + 1x12" Helm Station + 2 Autopilot "LS" & 3 repeater + Radar + AIS + VHF + Chart
Chain counter at helm station
HIFI FUSION - 4 speakers (salon/cockpit)
TV 32"+ inhouse movable bulkhead set up
Safety & Extras:
Safety equipment for 8 persons with liferaft, Lifejackets with harness, 1M85 lanyard with 2 karabiners, 8-person raft, 10 green glow sticks, horseshoe buoy, reversing lights, buoy and light holder, 3 hand lights, 50ZA iris compass, logbook, flashlight, 10L bucket, first aid kit)
Mooring with DELTA anchor 40 kg + 80 m chain Ø 12mm + bridle
Fendertex pack : 8 x inflatable fenders + 8 socks + 8 ropes with splice + 1 Bag
3 black layers tropical antifouling with epoxy primer
Antifouling Propspeed on propellers & Sail drives
Extra information:
The above spec is the price for a fully kitted out, ready-to-go Catana OC2. All specs are able to be changed and discussed.
All prices are ex-factory.
