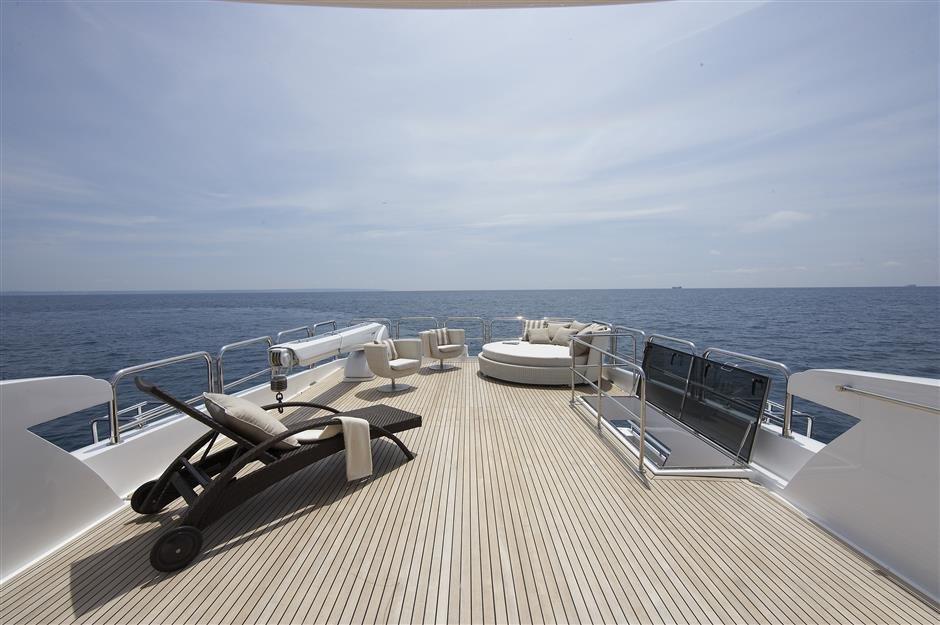

1. MAIN DECK-TEAK 14MM
2. HIGH BULWARK W/FLUSH MOUNTED LED DECK LIGHTS, TWO REAR BULWARK SIDE DOORS FOR BOARDING (ONE BOARDING GATE ON EACH SIDE)
3. STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR DUAL ANCHOR CHAIN

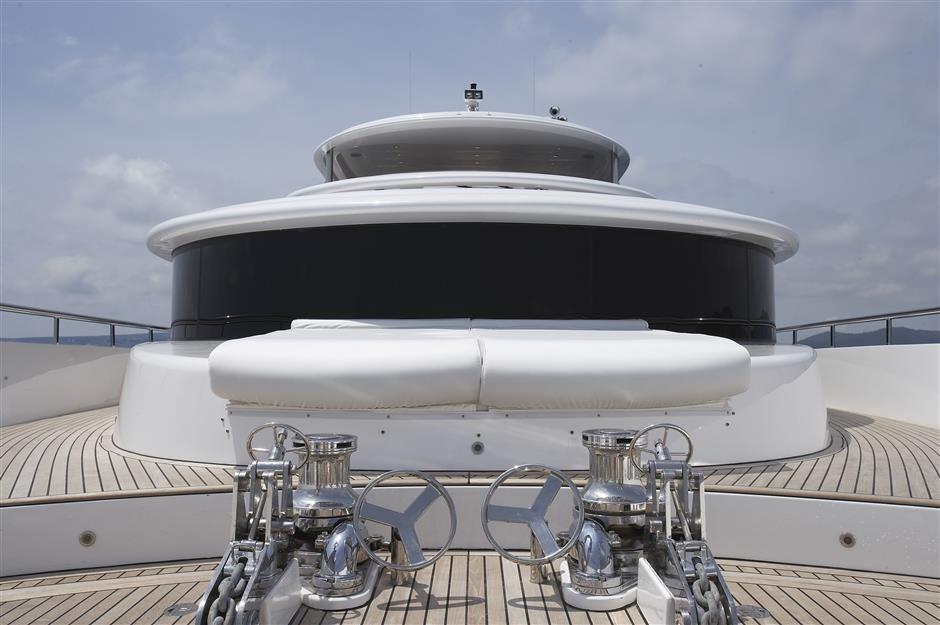

4. VERTICAL ELECTRIC ANCHOR WINCHES x 2
MAXWELL VWC6000C/HYD:
VERTICAL HYDRAULIC WINDLASS, DUAL DIRECTION, CHROMED, MATCHED PAIR, WITH CHAIN WHEEL C1=3182/016 (1/2”HT) AND PARTS:
2 x AA560 ROPE/CHAIN COUNTER/REMOTE CONTROL
1 x BAND BRAKE
1 x CHAIN ROLLER STOPPER TENSIONER
1 x HAND HELD REMOTE CONTROL
5. AFT DECK MOORING CAPSTAN x 2 SETS
MAXWELL VC2200W/D:
VERTICAL ELECTRIC CAPSTAN, WIDE DRUM SINGLE DIRECTION, 24VDC, CHROMED, AND PARTS:
1 x FOOT SWITCH W/COVER
1 X 80 AMP BREAKER PANEL
1 x REVERSING SOLENOID PACKS, 24VDC
6. STAINLESS STEEL 250 LB ANCHOR x 2
7. HIGH TENSILE GALVANIZED ANCHOR CHAIN x 2:
LEFT: 300 FEET (5/8”)
RIGHT: 300 FEET (5/8”)
8. FRESH WATER ANCHOR CHAIN WASH DOWN
9. HEAVY DUTY S/S 3” OVAL HANDRAIL WITH 1 1/2” STANCHIONS
10. S/S FLAGPOLE ON BOW RAIL
11. S/S FLAGPOLE ON BOW RAIL
12. HEAVY DUTY 316# STAINLESS STEEL TWIN CLEATS AND FAIRLEADS WITH ROLLERS
13. BLACK TEMPERED SAFETY GLASS (EXCEPT 5 WINDOWS IN FRONT OF PILOT HOUSE)
14. STAINLESS STEEL PNEUMATIC SALOON SLIDING DOOR WITH BUTTON AND SAFETY SENSOR DEVICE
15. TWO PANTOGRAPH SIDE DOORS (PORT SIDE & STARBOARD SIDE) IN DECK HOUSE

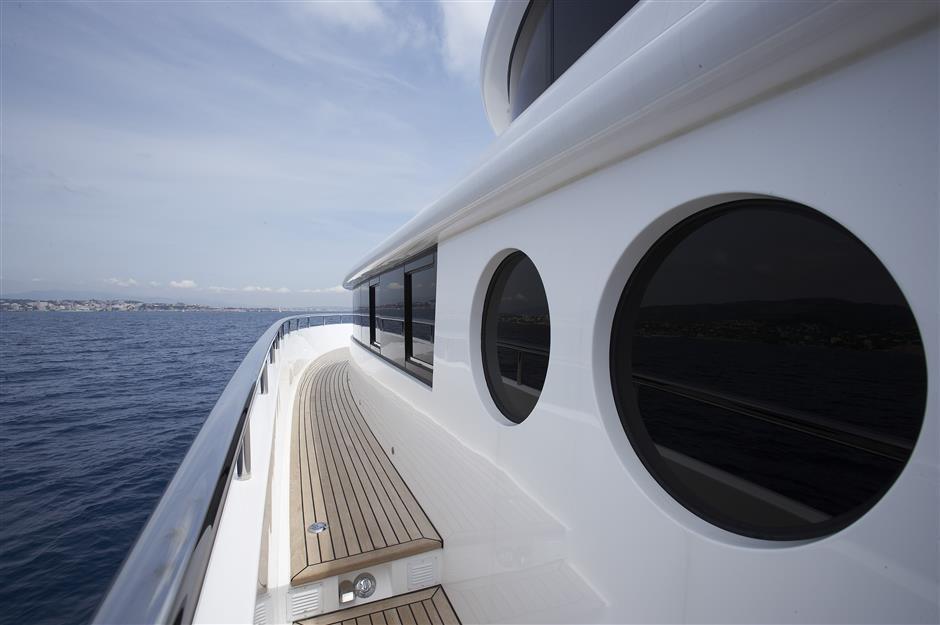

16. STAINLESS STEEL PORTHOLES ALL WITH BLACKOUT SHIELDS/ ROUND PORT LIGHTS ON DECK HOUSE
17. BUILT-IN HOT & COLD WATER SHOWER – SWIM PLATFORM:
SSI 48300000 STOWAWAY SHOWER UNIT WHITE x 1

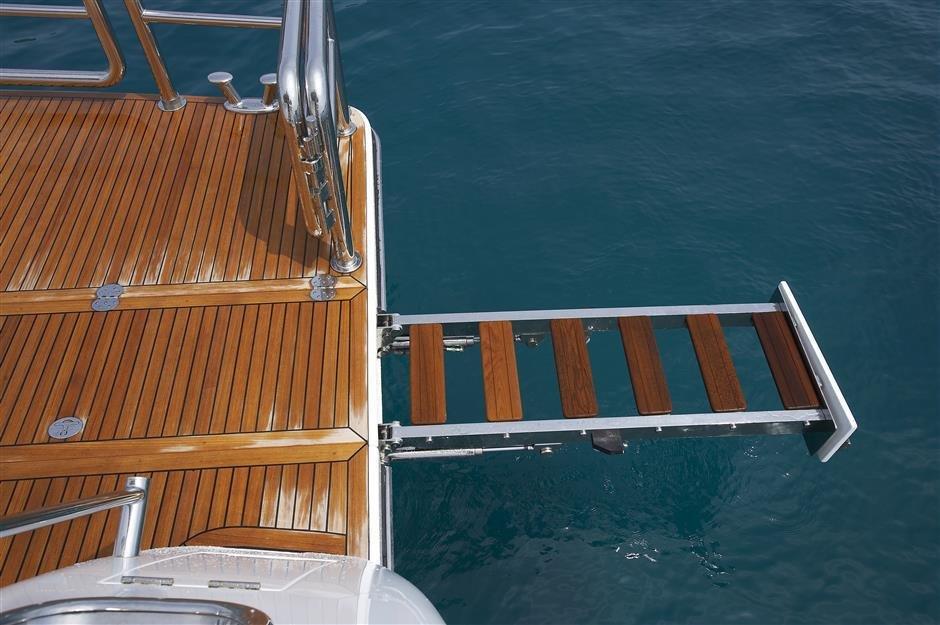

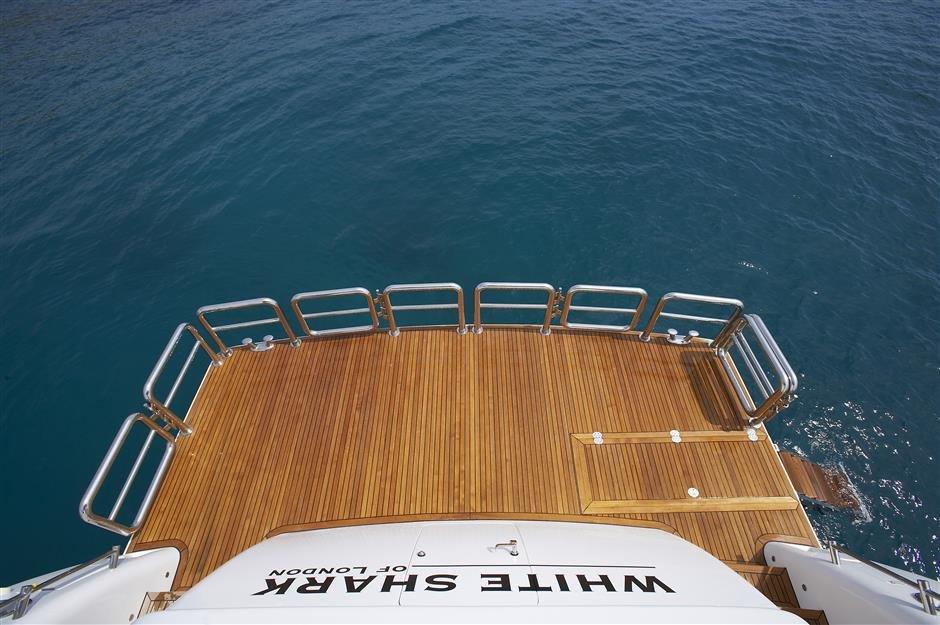

18. LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAYS TO AFT DECK

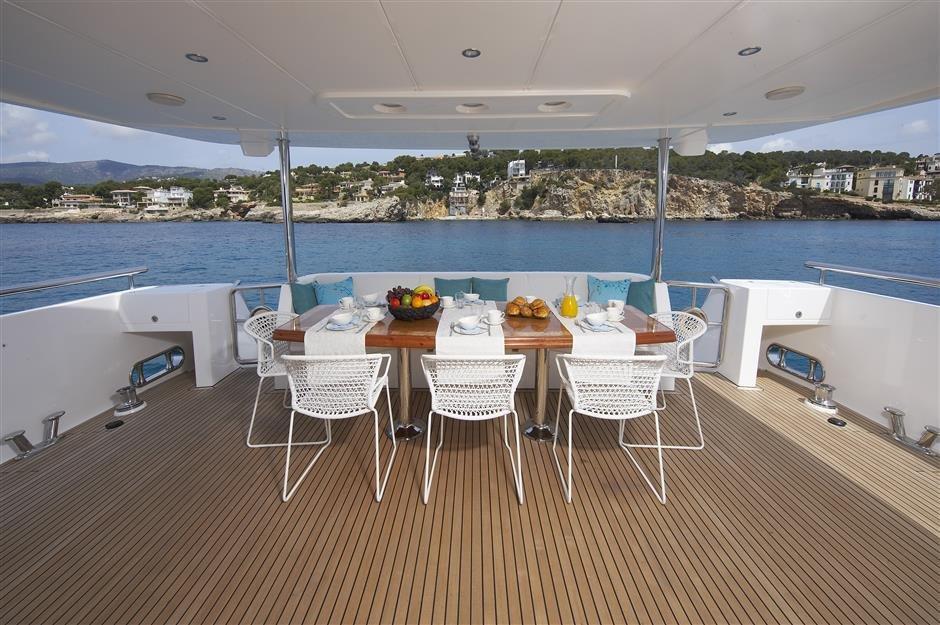

19. FRP “U” SHAPE SEATING ON AFT DECK WITH CUSHION AND COVERS
20. AFT DECK CUSTOM SLIDING HIGH-LOW TABLE WITH COMPASS INLAY x 2
21. FRP STORAGE CABINET ABOVE RUDDER IN THE LAZARETTE
22. ANTI-FOULING BOTTOM PAINT:
SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE
23. SINGLE BOOT STRIPE COLOR: BLACK
24. S/S HANDRAILS ON AFT DECK STAIRS WITH TWO INTERMEDIATE RA
25. LED FLOOD LIGHT ON THE END OF AFT DECK CEILING x 2
26. EXTERIOR STEP LIGHTS:
IMTRA KODIAK BLUE LED S/S 24V
27. RUB RAIL WITH S/S CAP ON LOWER AFT HULL SIDES
28. SOLID STAINLESS STEEL RUB RAIL AROUND HULL/DECK JOINT
29. ZINC ANODES ON TRANSOM, SHAFT AND BOW AND STERN THRUSTER
30. FRESH WATER WASH DOWN SPIGOTS ON THE BOW AND AFT DECK:
SCANDVIK 10187 S/S
31. AFT DECK REFRIGERATOR:
U-LINE WH95TP-20 110V/60HZ
32. DECK WASHDOWN, SALT WATER:
FLOJET 4325-343L WATER PUMP 24V W/NaOZZLE x 1
33. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS LIFTING CAPACITY
34. LADDER, SIDE RAILS + SUN PADS ON MASTER COACH ROOF
35. WATER FILL DECK FITTING X 1
36. DIESEL FILL DECK FITTING X 4
