Hull and Deck
• Tiara Yachts' transferable limited warranties: five years on hull and deck; two years on accessories
• Axalta® painted hull and bootline
• Fresh white gelcoat deck
• Two coats of black anti-fouling bottom paint
• Infused hull with gelcoat outer layer, structural foam cored hullsides and bottom, reinforced with carbon fiber, engineered fabrics and premium resin
• Infused deck with gelcoat outer layer, structural foam coring, engineered fabrics and premium resin
• Infused fiberglass structural grid system with molded finish and integrated bilge water maagement system
• Hull side engine air intake system
• Bronze seacocks on all underwater thru-hull fittings
• Stalon fittings on thru-hull fittings above waterline
• Sound and vibration dampening insulation
• Tiara custom diamond pattern non-skid deck and cockpit surfaces
• High density white PVC rubrail 316L SS cap
• Ten 13" stainless steel cleats for lines, including two 13" pop-up cleats on transom
• USCG approved LED navigation lights
• LED courtesy lights
• Underwater multi-color LED lights
Hardtop
• Molded fiberglass hardtop with integrated visor
• Custom framed windshield system with tempered curved windshield, tempered side glass and portside sliding window
• Windshield cover
• Two windshield wipers with spray nozzle wash system
• LED navigation/anchor lighting mast with rings for flag and burgee
• Webasto® electrically actuated sunroof
• Multicolor LED dramatic lighting with Shadow-Caster® control on Garmin® OneHelm
• Red/White LED lights
• TACO Marine® electric folding antenna mounts

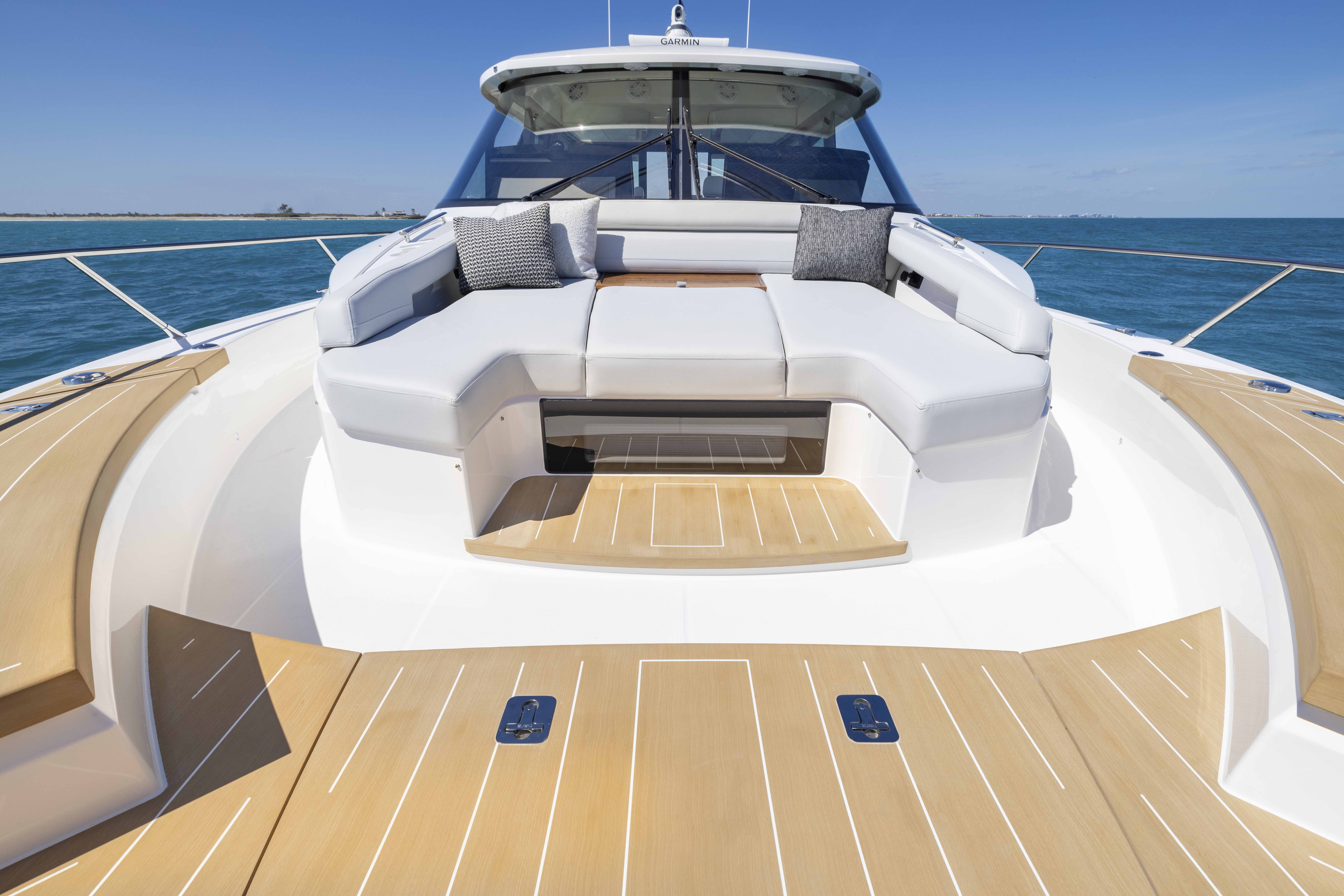

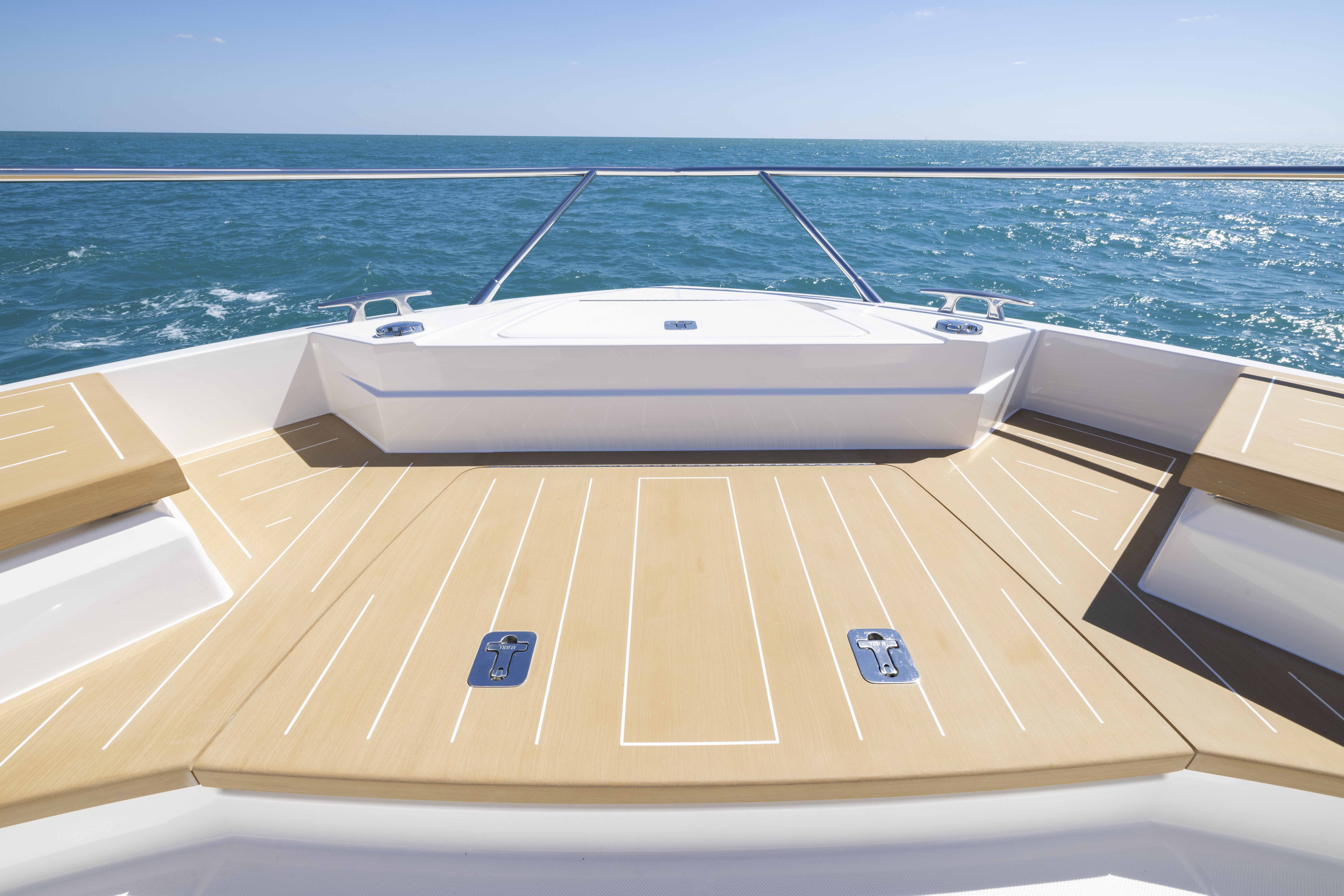

Foredeck
• 316L SS 1-1/4" low grab rail system
• Forward anchor locker with overboard drain and courtesy lighting
• High-gloss solid teak dinette table, converts to berth with interchangeable posts
• Webasto® BlueCool V-Series 30,000 BTU air conditioning system in galley/salon and 6,000 BTU at helm
• 43" TV mounted on hi-lo actuator in starboard galley, concealed when not in use; includes Bose® soundbar
• Starboard galley includes:
• Stainless steel under mount sink with hot/cold water faucet
• Microwave/convection oven
• Two-burner Kenyon® induction cooktop with cookware
• Dual drawer refrigeration/freezer unit
• Storage drawers below counter top
• Waste receptacle
• Quartz countertop
• Stainless steel grab rail
• Overhead LED indirect lighting
• Disappearing bulkhead; electrically actuated dropping glass to port and two panel centerline door that parks to starboard
• Manual duette blinds for aft bulkhead and powered blinds for port and starboard salon windows
• Herculan® synthetic teak flooring throughout salon, helm and galley
Interior Group
• Architectural teak interior and Chilewich® wall covering with Ultraleather® panels
• 120V outlets throughout
• 12V LED lighting throughout
Atrium
• Herculan® synthetic teak flooring and steps with solid teak risers
• Stainless steel handrail
• Indirect lighting

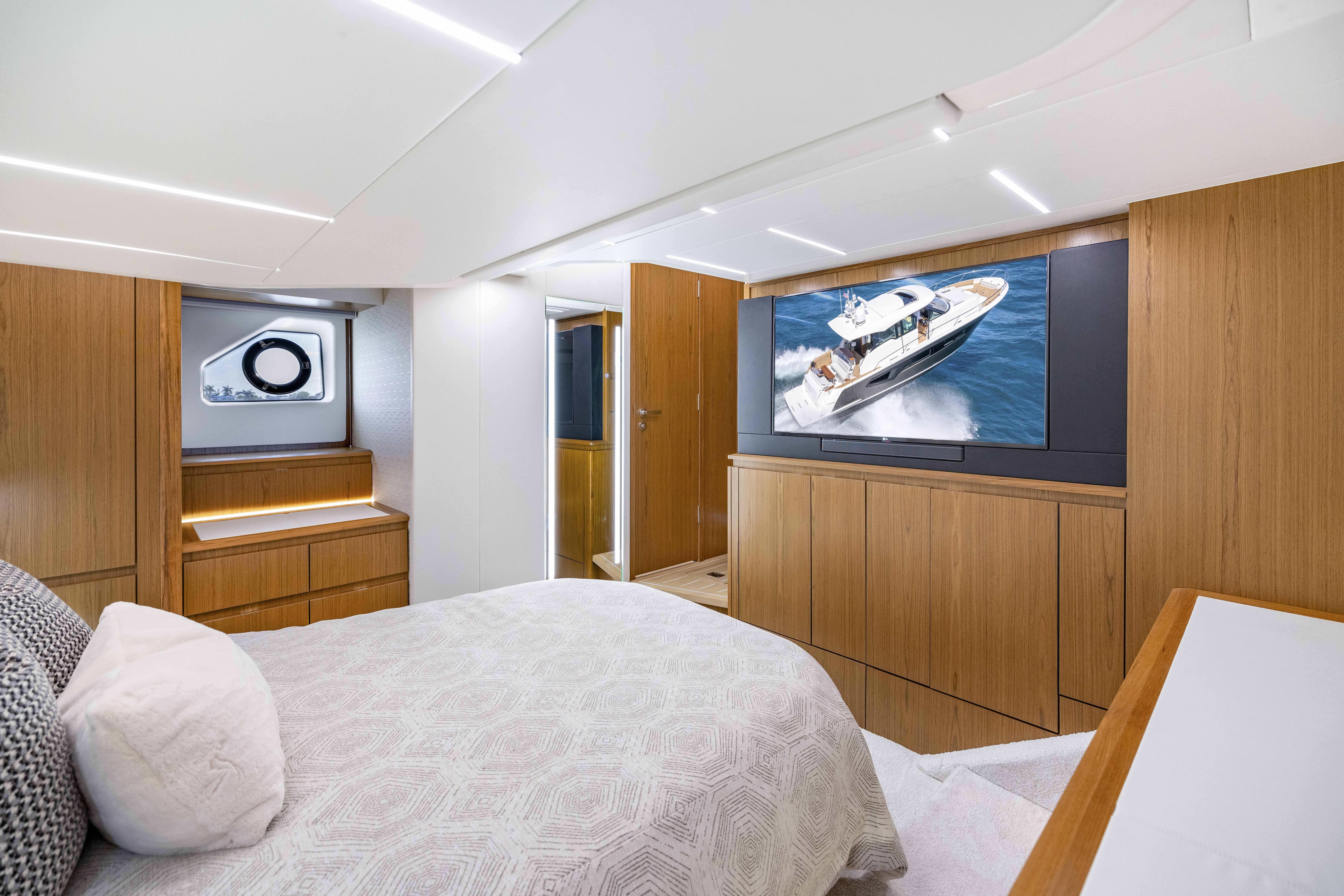

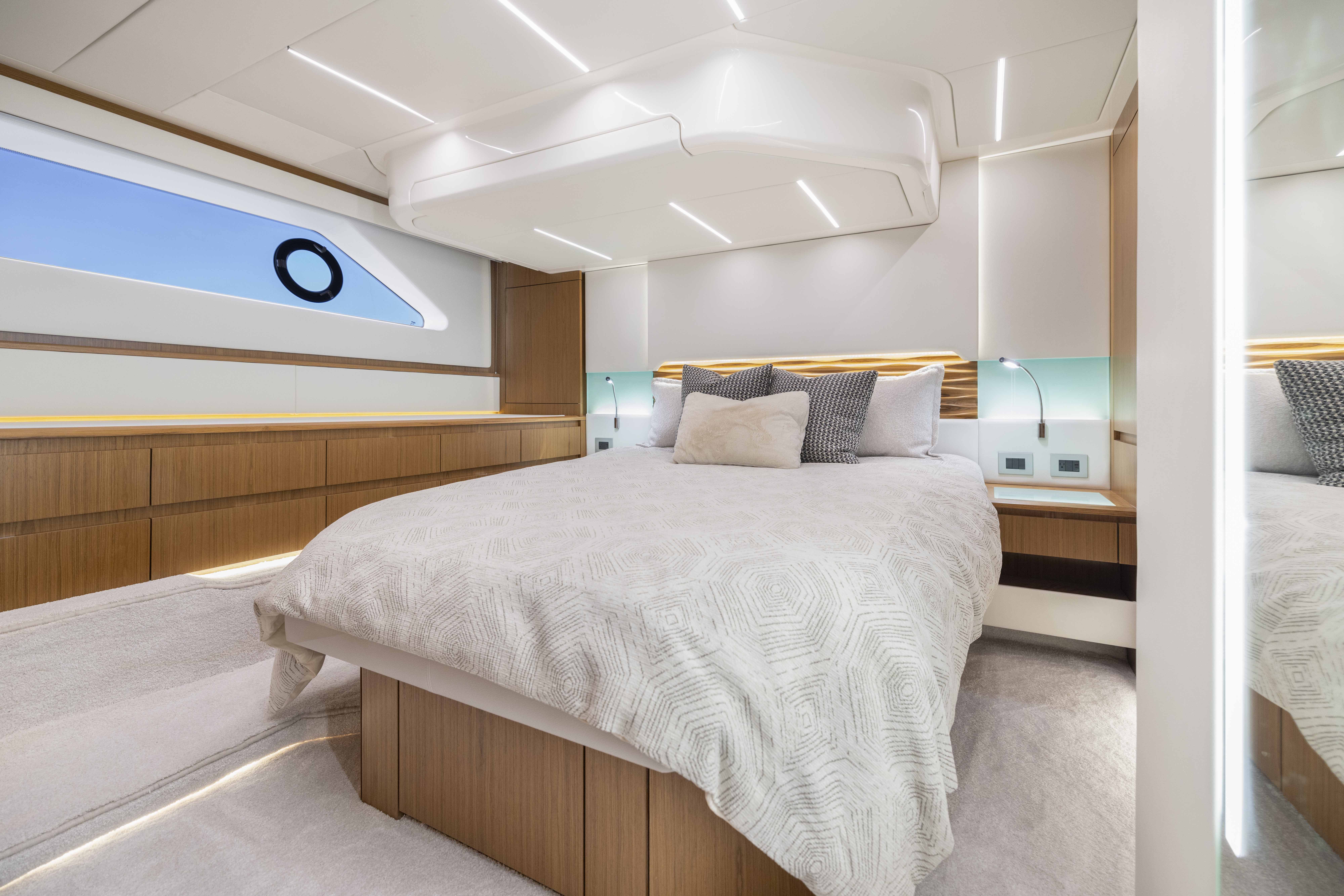

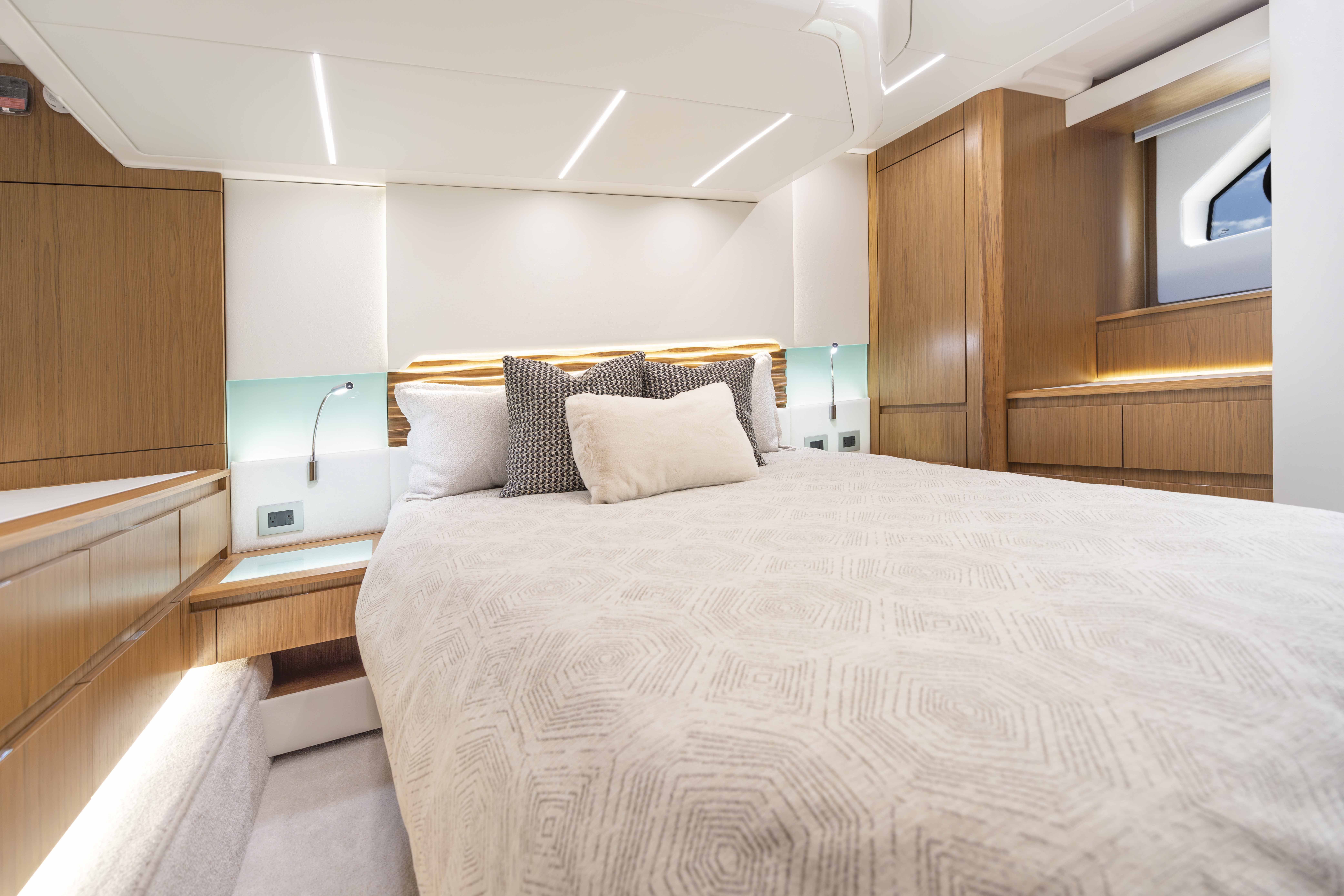

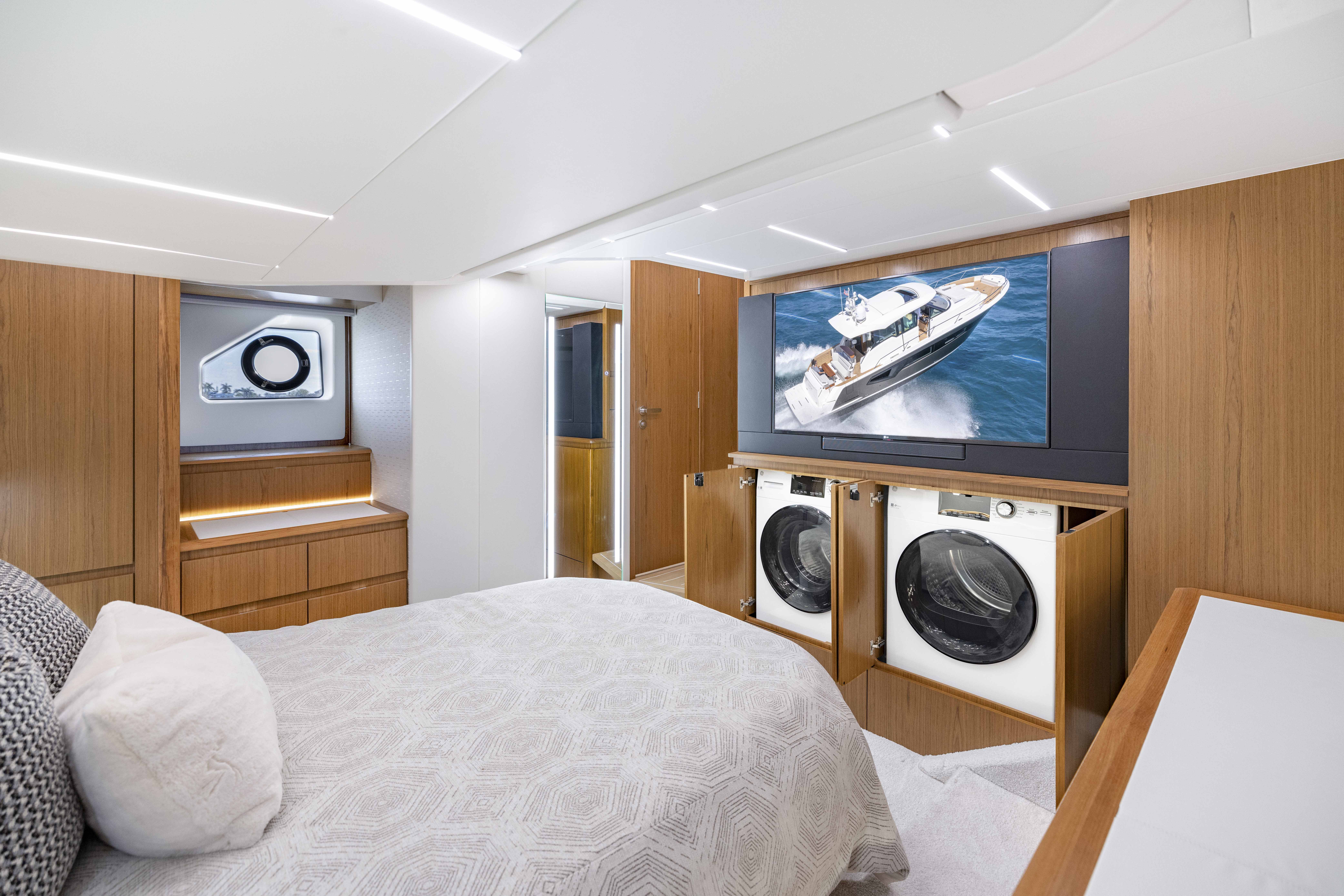

Owner's Stateroom
• Full-beam, mid-ship stateroom with private entrance, hullside windows with powered blinds and opening ports with screens for ventilation

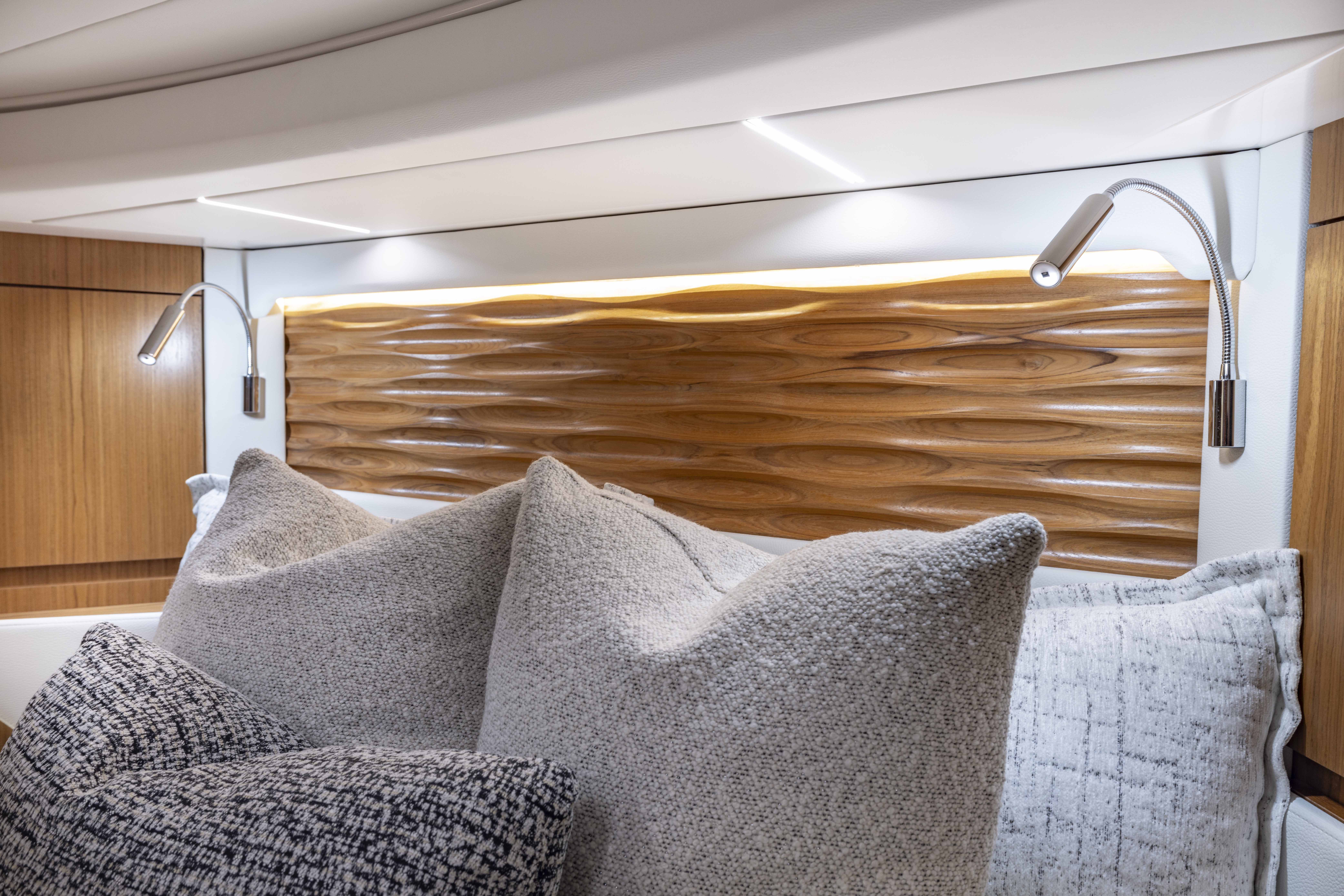

• Queen pedestal berth on centerline with lighted storage below; pillowtop innerspring mattress, carved teak and Ultraleather headboard, mattress pad and sheets
• Nightstands with glass top and inductive cellphone charger
• Two reading lights
• Starboard side settee and drawer storage unit
• Starboard side table with flip-up mirror, tray and storage drawer below; includes dedicated compartment for electronic cord management
• Port side cedar-backed hanging locker
• Port side dresser drawer storage
• Full-length, backlit mirror
• Centerline cedar-backed hanging locker and drawer storage
• Linear LED lighting in headliner with discrete indirect lighting
• Webasto® BlueCool V-Series 18,000 BTU air conditioning system with controls for owner's stateroom and both owner's and day heads
• 50" Smart HDTV with soundbar
• Fusion® stereo system with four 4" JL Audio® speakers
• Carpeted flooring surfaces
• Portable Dyson® vacuum with dedicated storage location
• Concealed Lewmar® V4 automatic rope/chain anchor windlass system with Lewmar's handheld tethered deluxe remote control and switch at helm; includes one 12" stainless steel foredeck cleat, 40' chain rode, 200' rope rode, 55 lb. Lewmar® DTX stainless steel anchor and Ultra Flip swivel

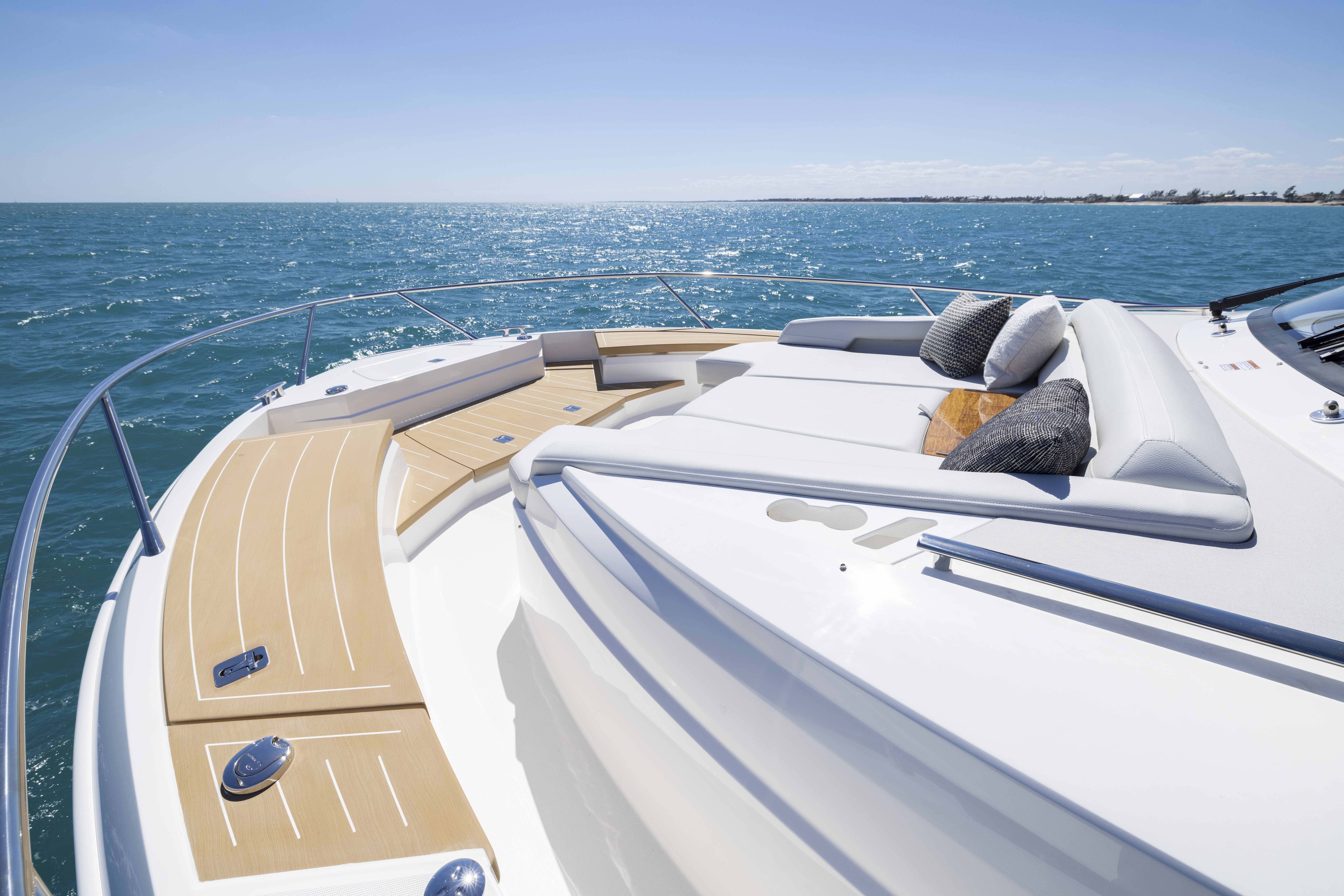

• Forward-facing chaise lounge with reversible pad/table with integrated drink holders, USB ports and weather cover
• Port and starboard bow gunnel smart storage for 10" fenders, lines, and boating equipment
• Four speakers and Fusion® remote
• Multicolor dramatic lighting
• Fresh and raw water washdowns in anchor locker

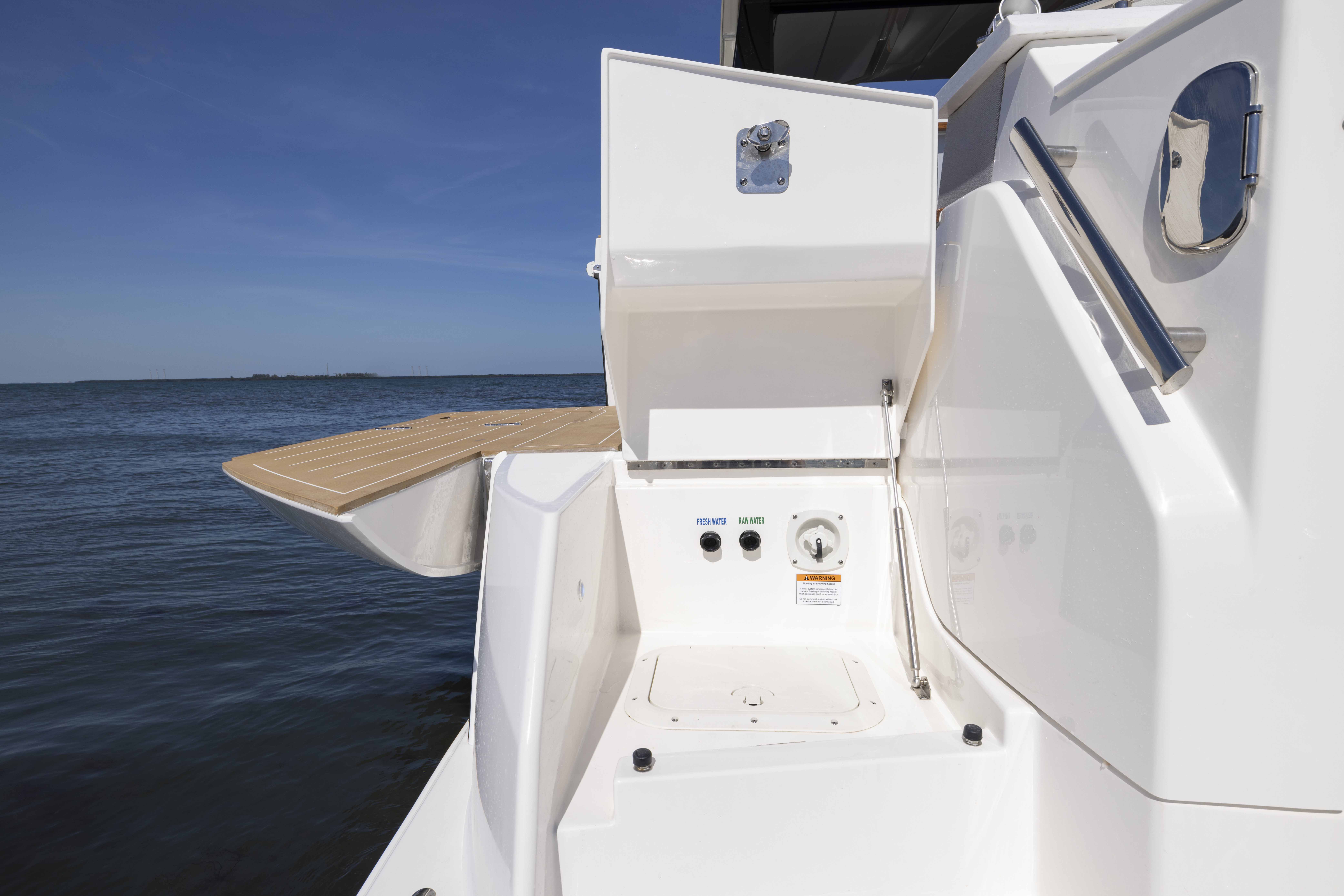

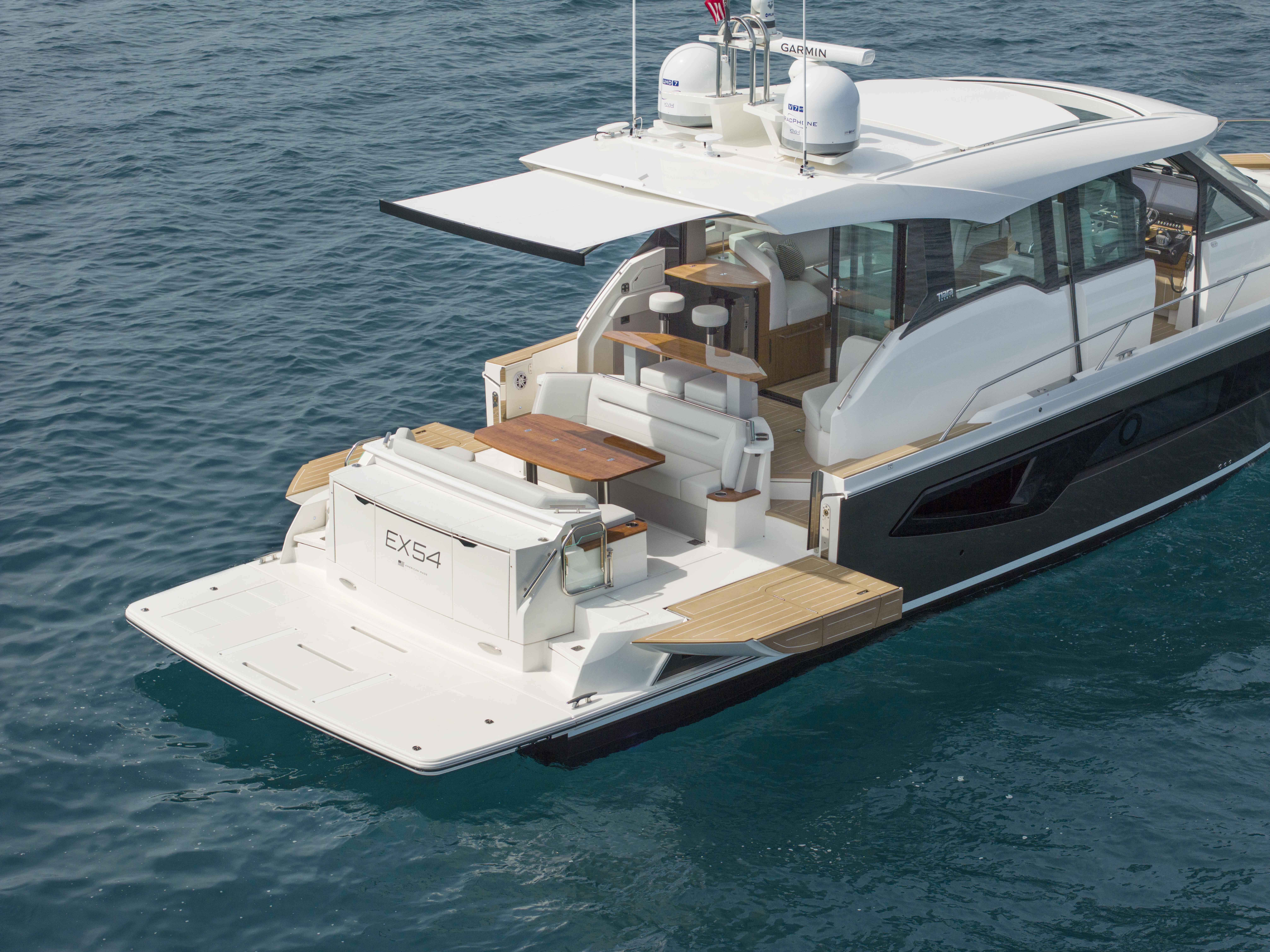

Transom Area
• Dual transom entry doors
• Stainless steel grab rails on transom
• 60" swim platform with telescoping stainless steel reboarding ladder and four pad eyes
• Trunk storage with electric actuation, accessible from platform or thru deck hatch in cockpit
• Recessed transom shower, hot and cold water
• Raw and fresh water washdown outlets with hoses

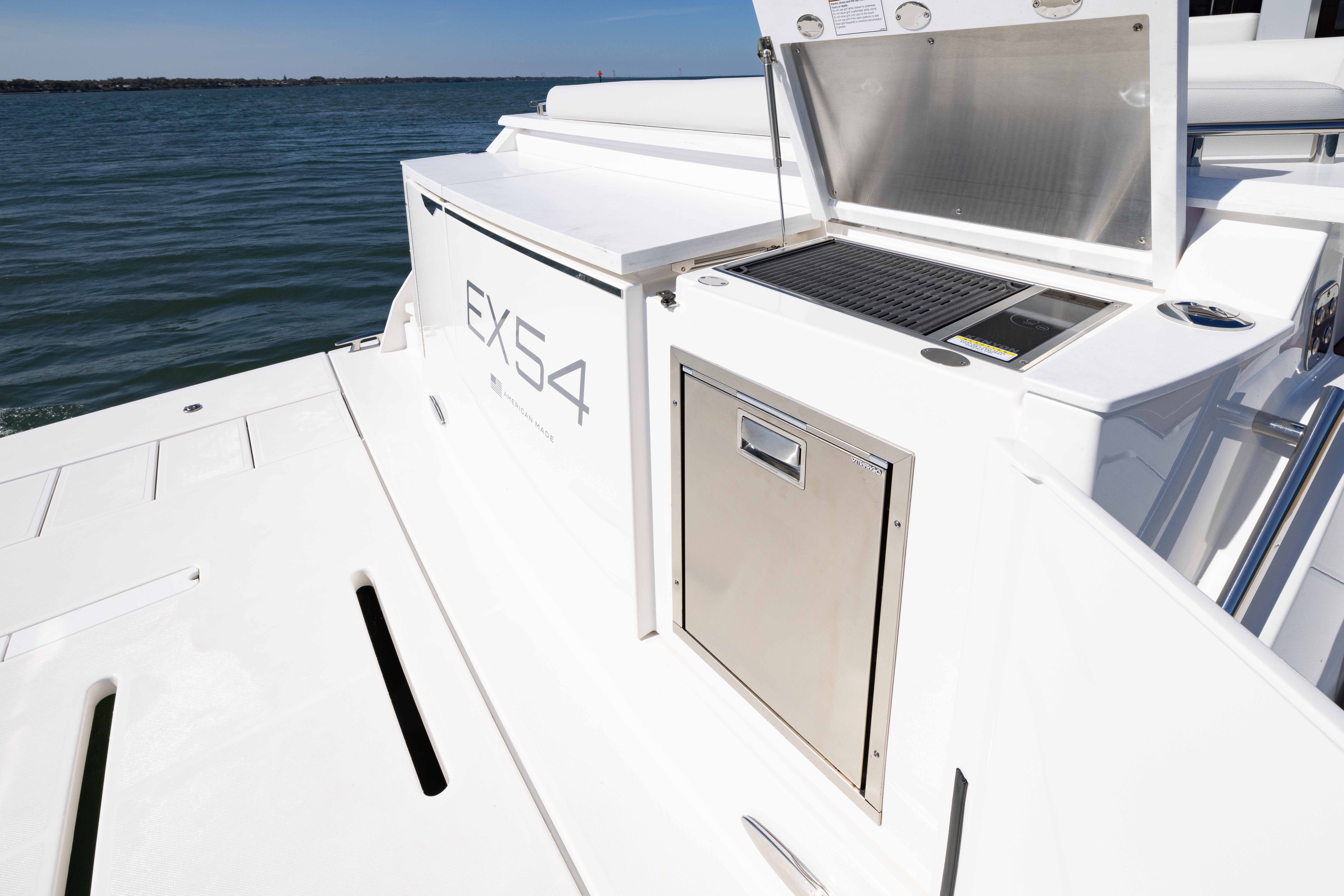

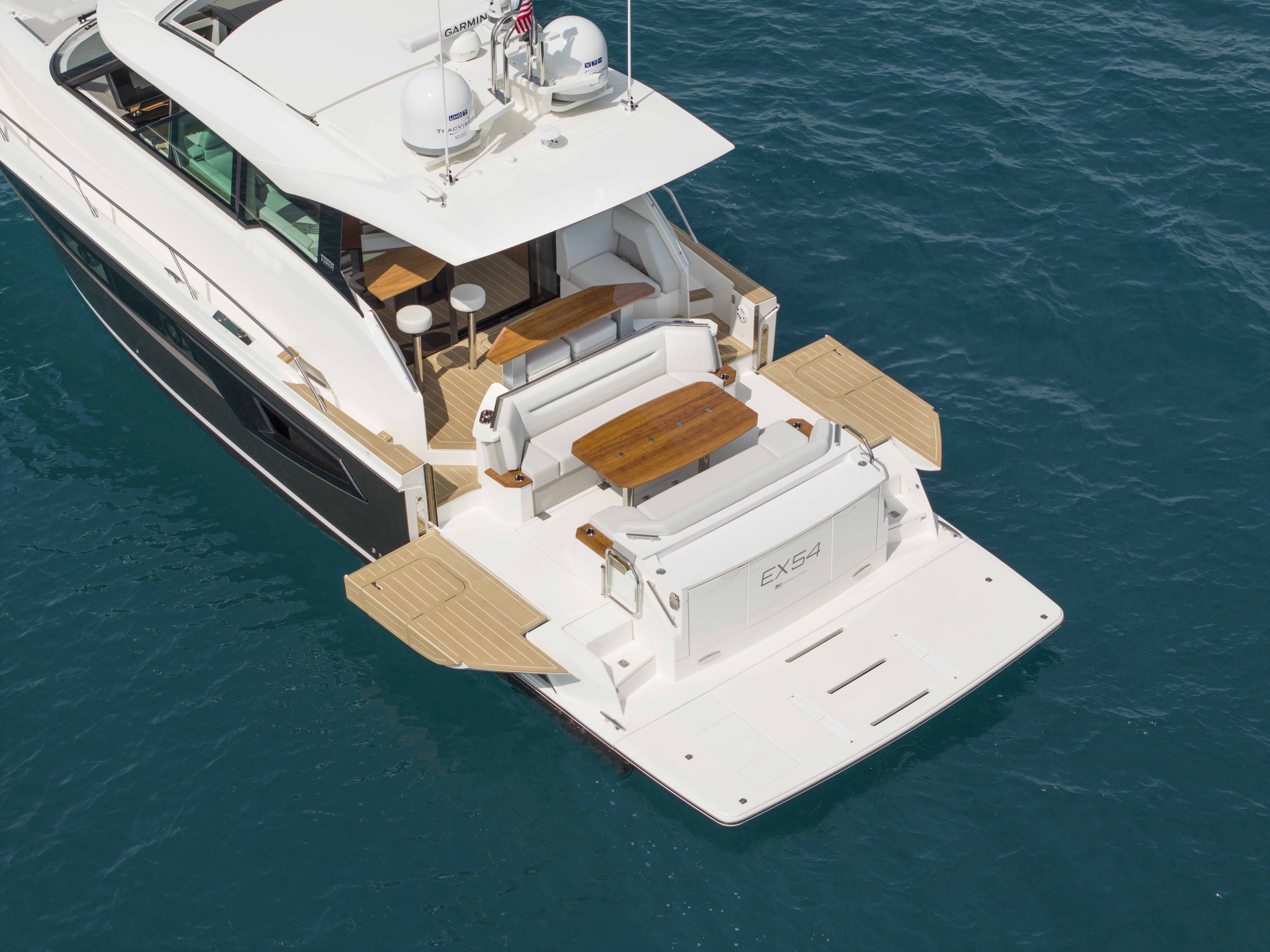

Aft Cockpit
• Your choice of Lounge, Adventure or Glass Patio Module; see Optional Equipment page for details
• Port and starboard hullside terraces with Herculan® synthetic teak flooring and integrated boarding doors
• Makefast Marine® powered sunshade
• Two JL Audio® 6.5" coaxial speakers
• Molded in steps up to port and starboard side recessed walkway, provides safe passage from aft cockpit to bow seating
• Weather covers for cockpit furniture
• Multicolor dramatic lighting

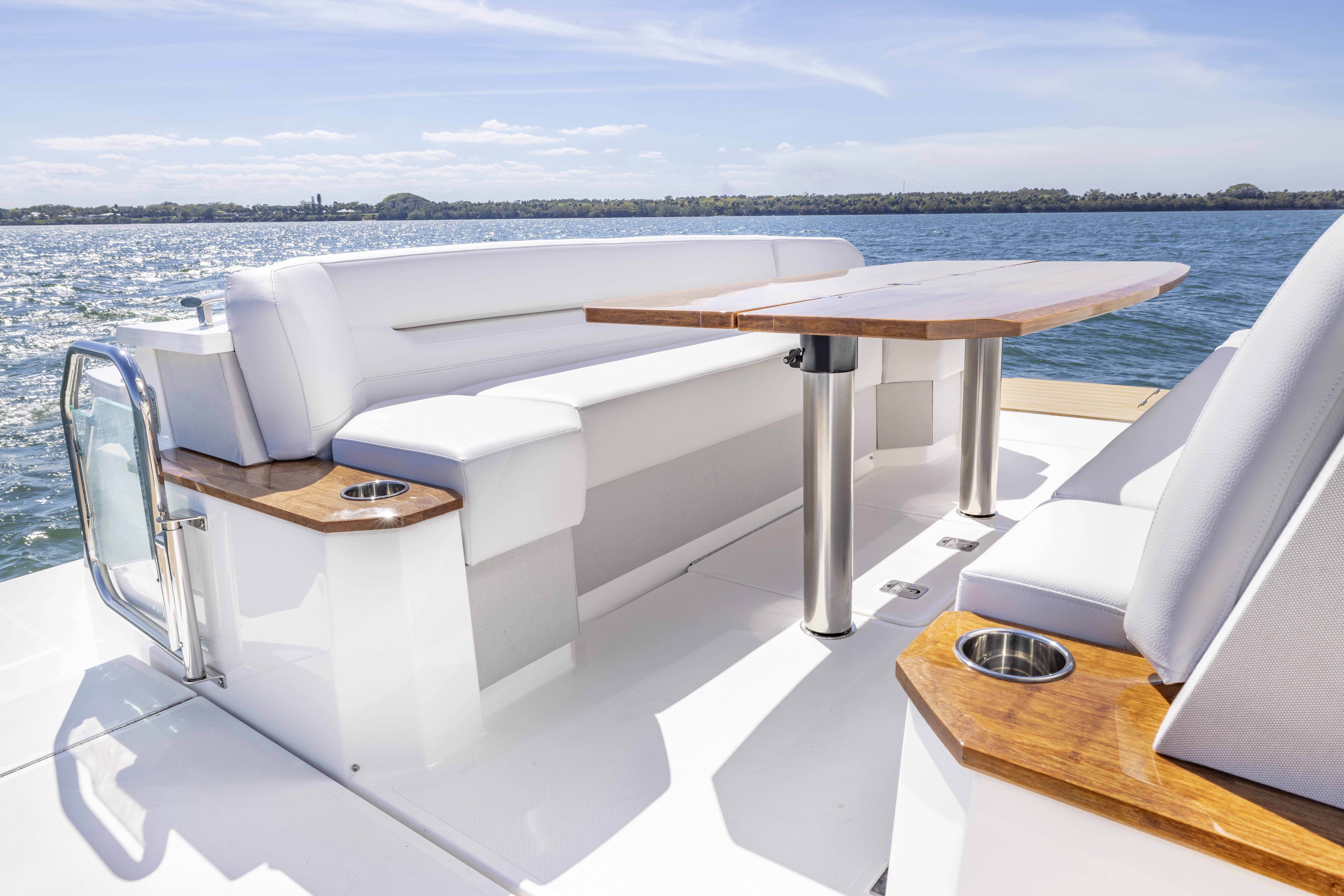

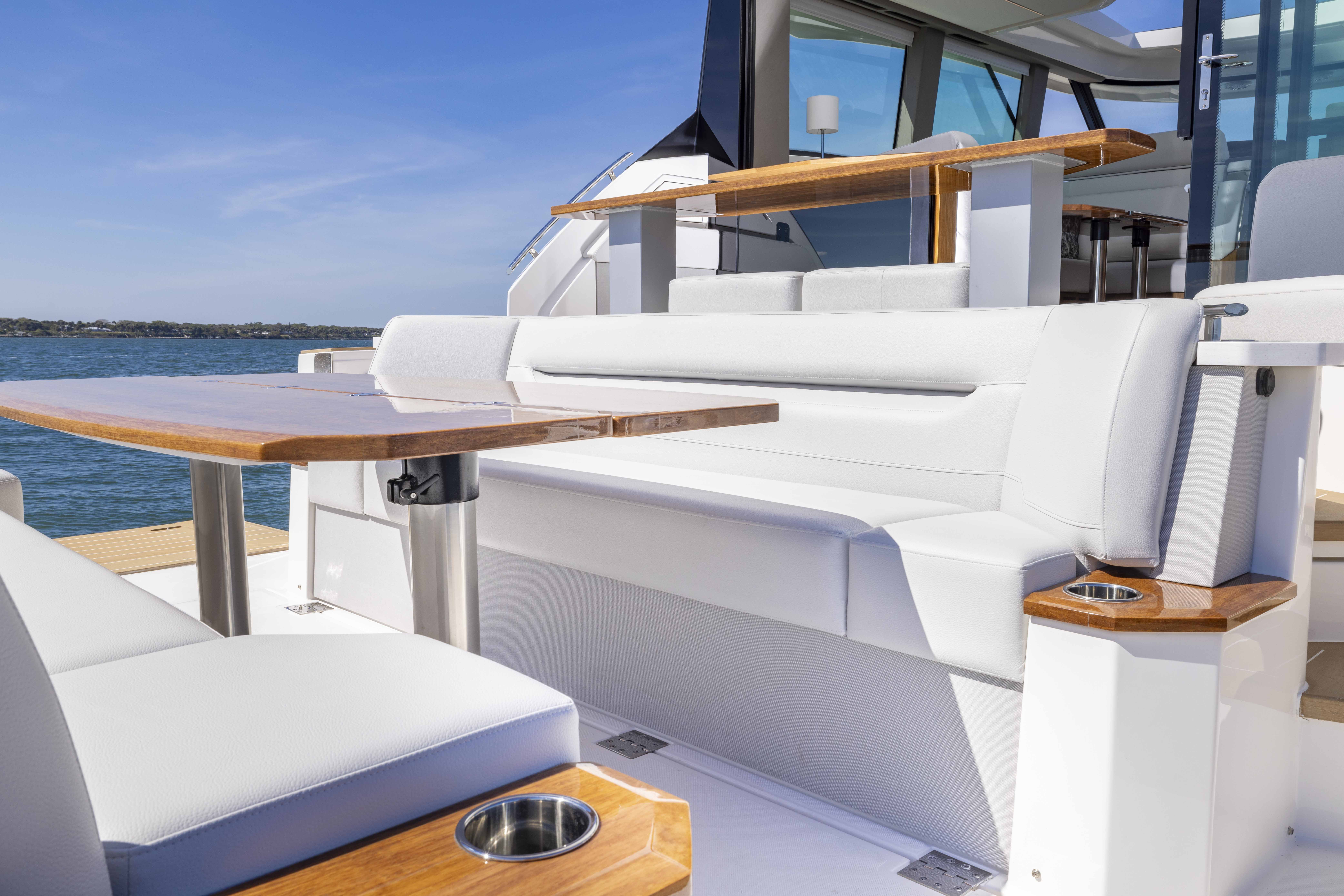

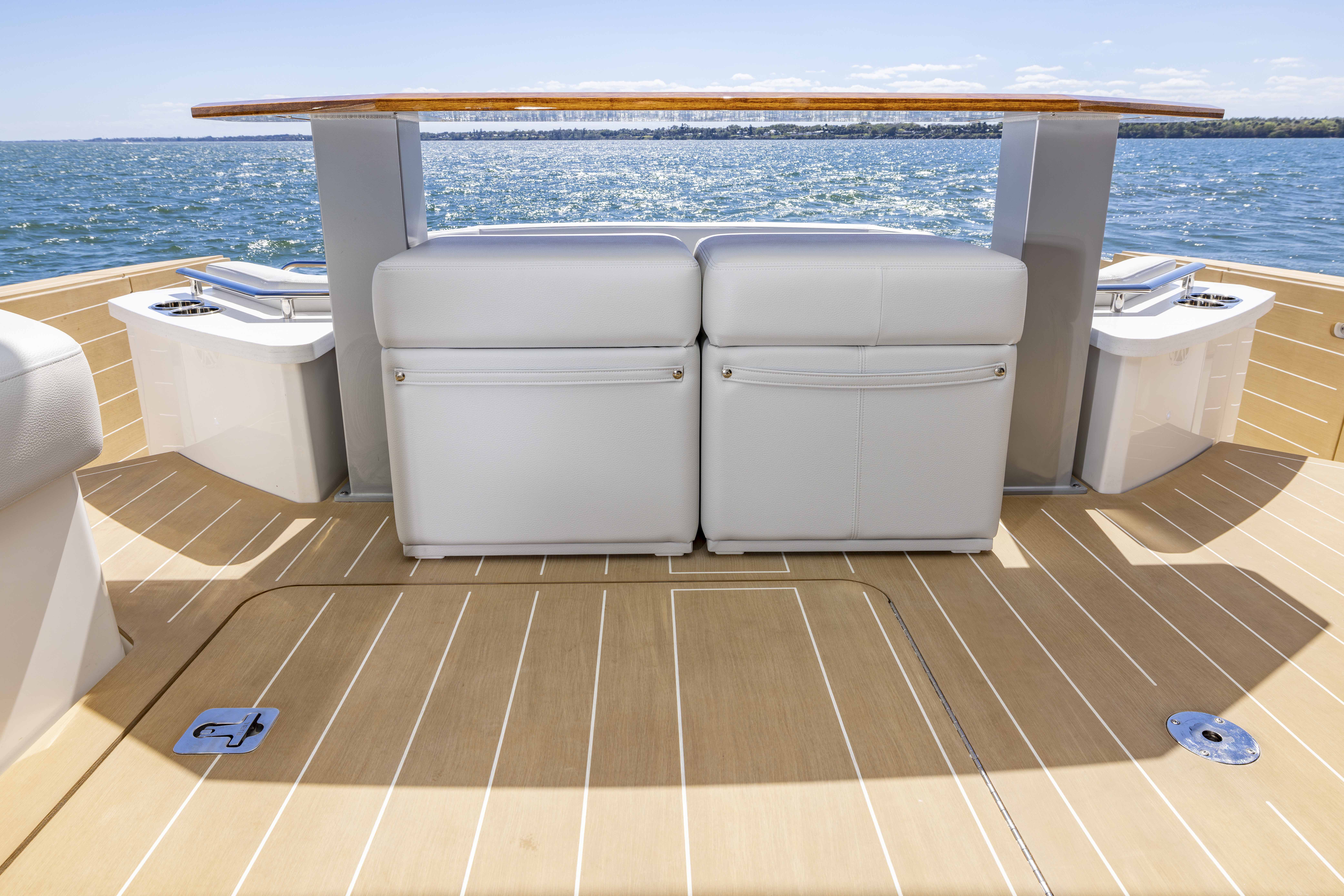

Cockpit Zone

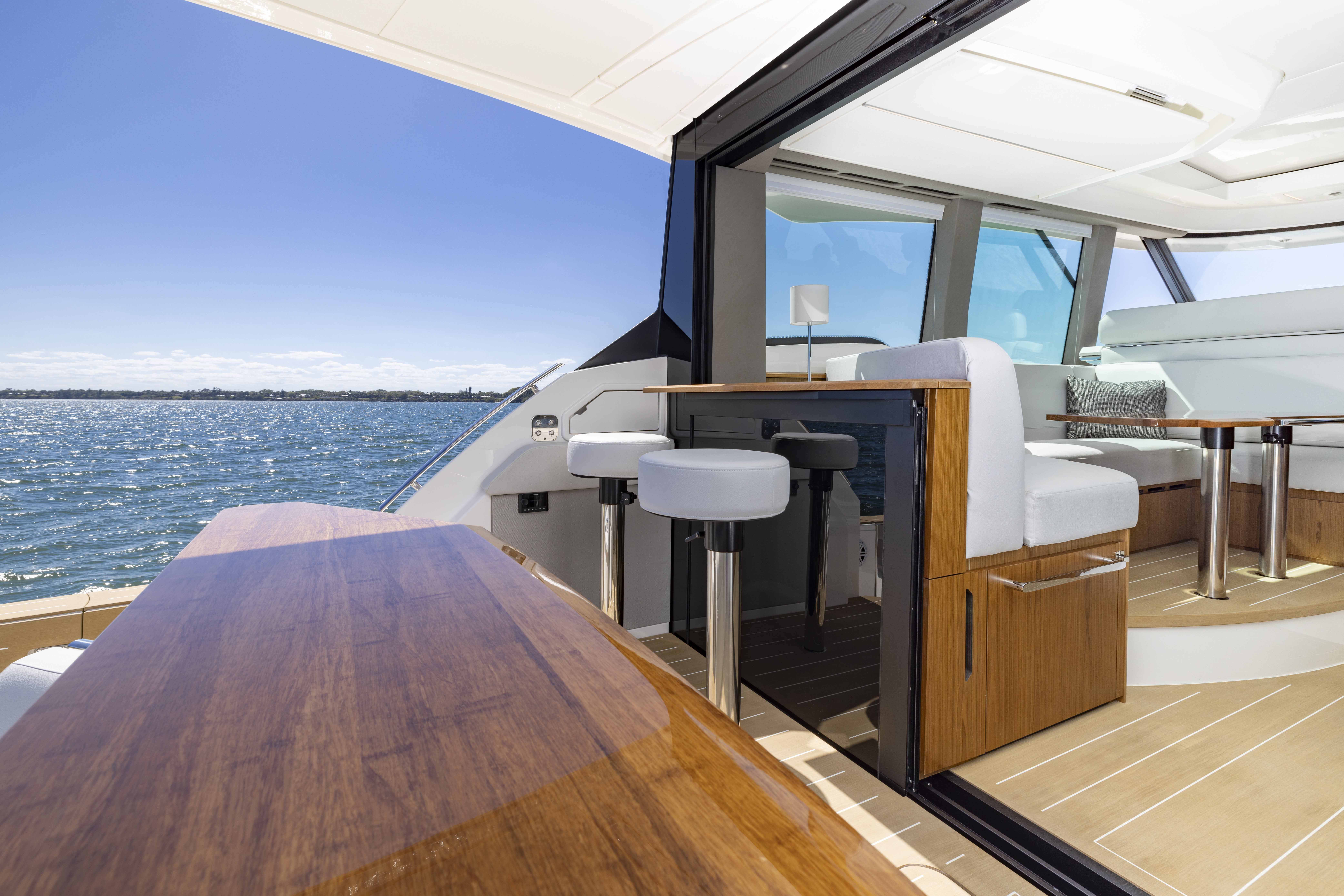

• Fixed breakfast bar with hi-gloss solid teak table
• Two ottomans with storage compartments
• Two removable stools portside, can also be used in salon and have dedicated storage under guest stateroom berth
• Port side lounge with insulated cooler box below
• Four JL Audio® 6.5" coaxial speakers with two 8" JL Audio® subwoofers in tuned enclosures and Fusion® remote
• Machinery access hatch
• Herculan® synthetic teak flooring

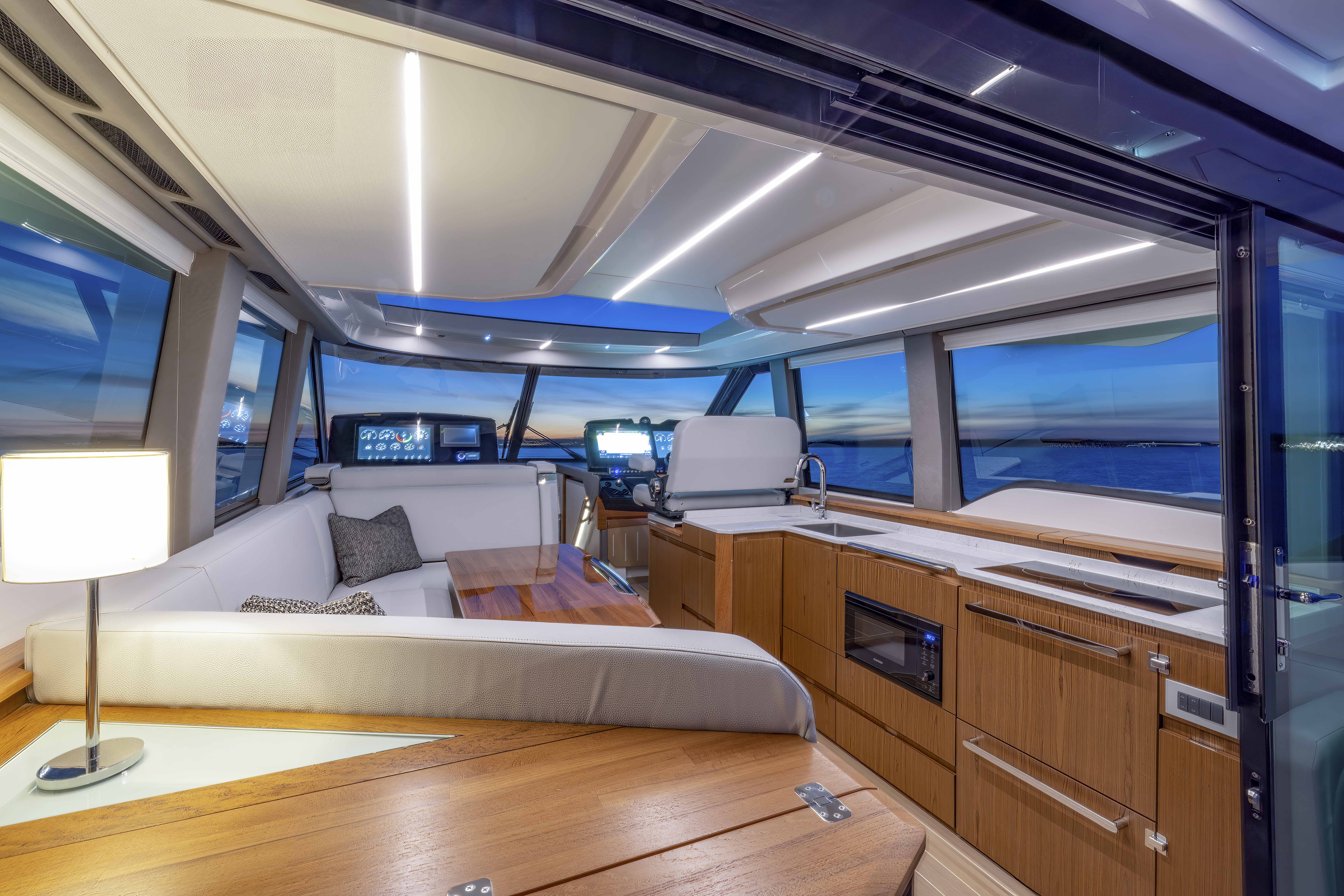

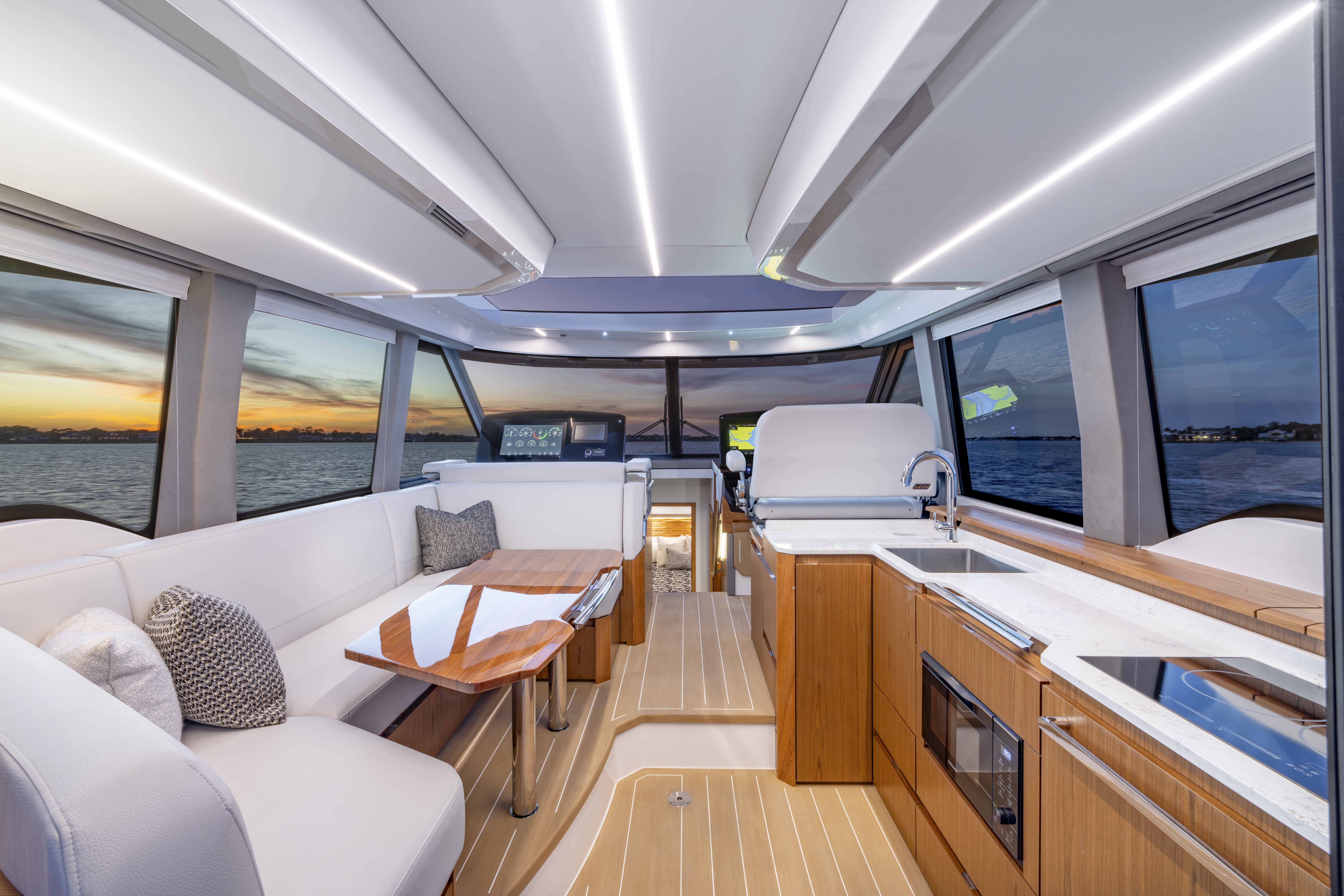

Salon and Helm Area

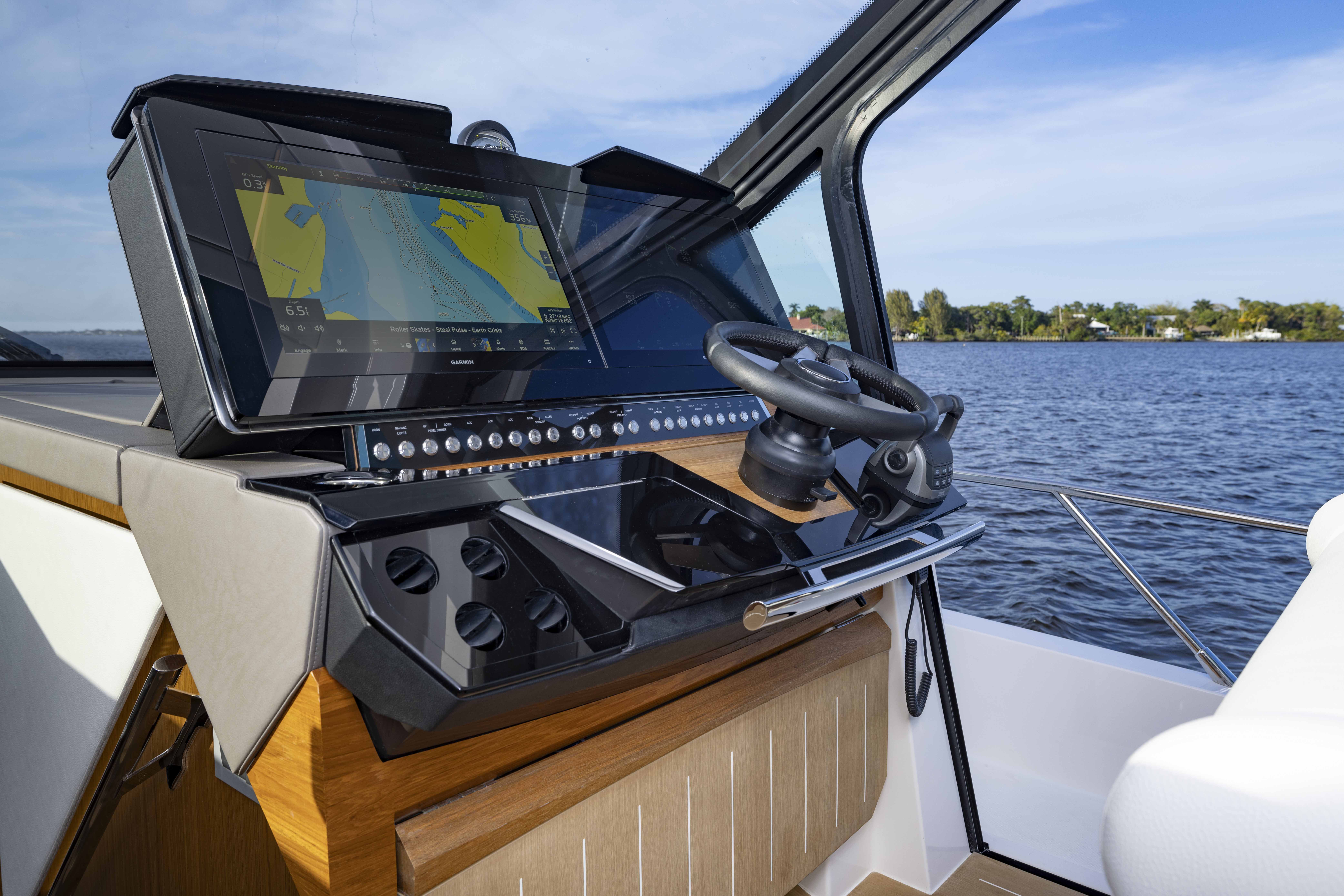

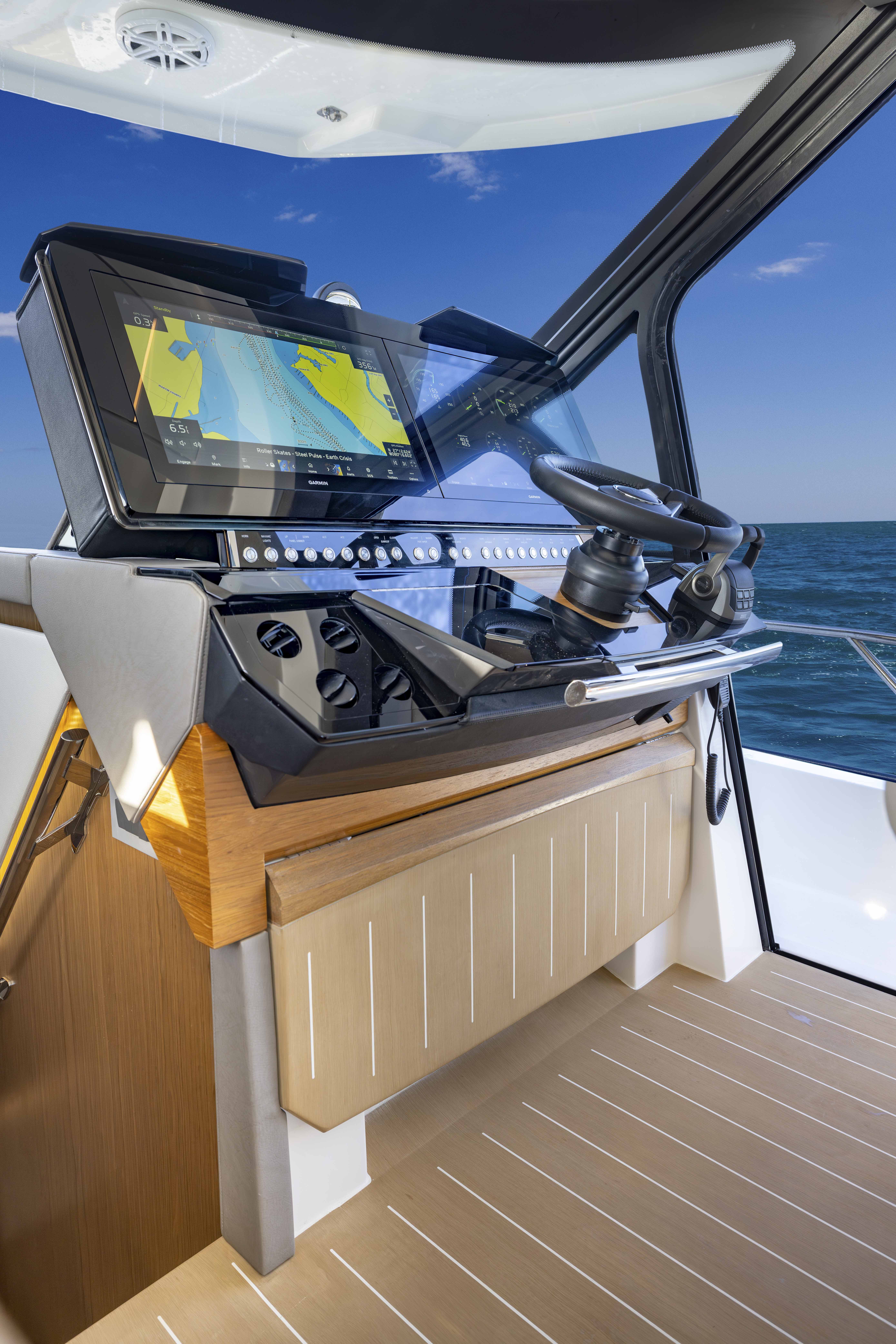

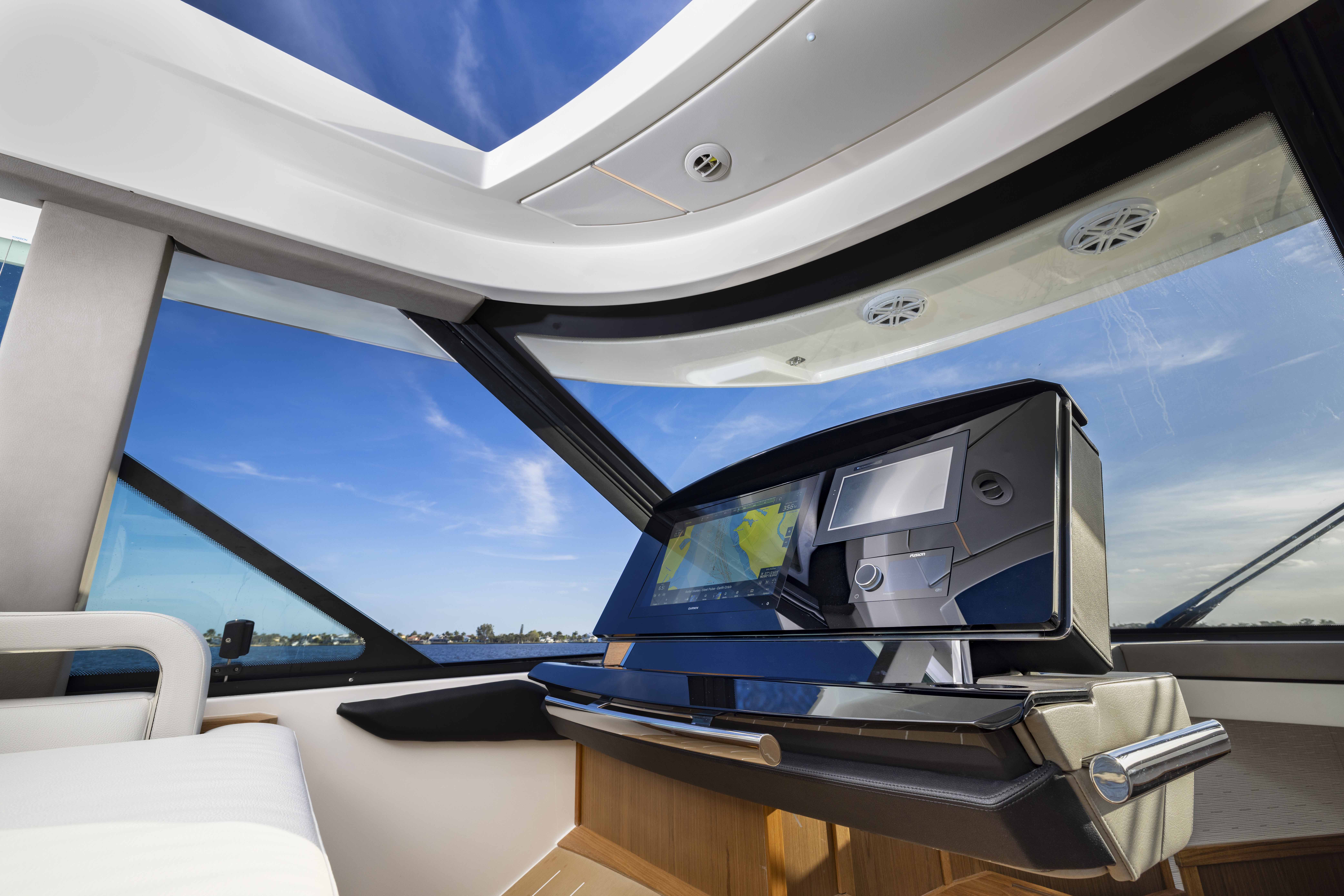

• Helm with Volvo® Glass Cockpit with two 22" Garmin® 8622 displays, drink holders, dual USB-A/USB-C charging outlet and steering wheel
• Stidd® 1200 captain's chair with electric fore and aft adjustment
• Sliding pilothouse door starboard of helm, electrically actuated; provides passive ventilation and access to recessed walkway
• Port side console includes Power-Up Panel and Apollo Head Unit
• Apollo multi-zone stereo system powered by JL Audio® digital amp with four JL Audio® speakers and one JL Audio® 8" subwoofer in tuned enclosure

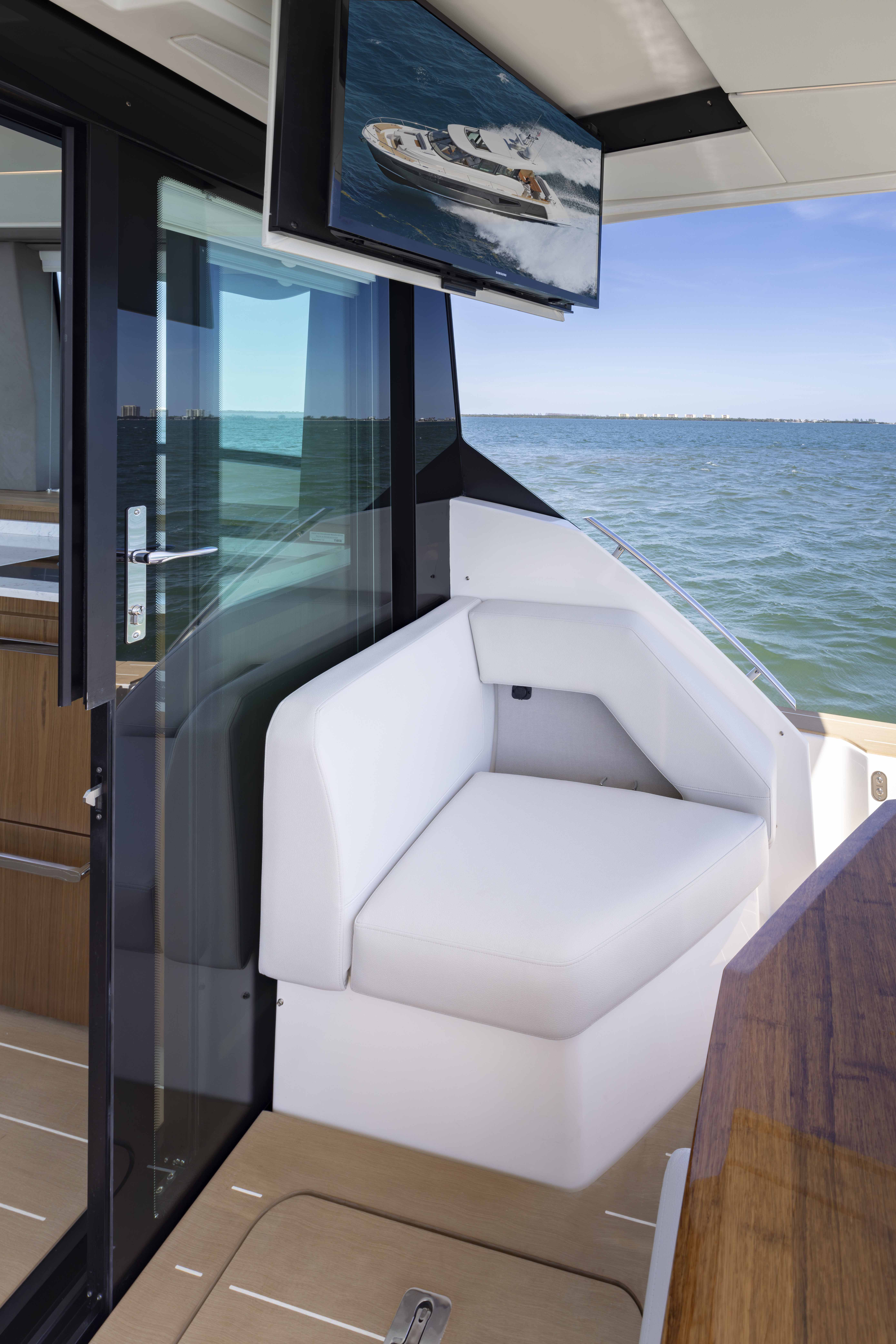

• Double wide companion seat that slides forward to reveal additional portside lounge seating
• Port side lounge with one drawer freezer unit, pantry storage below and glass end-table surface with fixed lamp

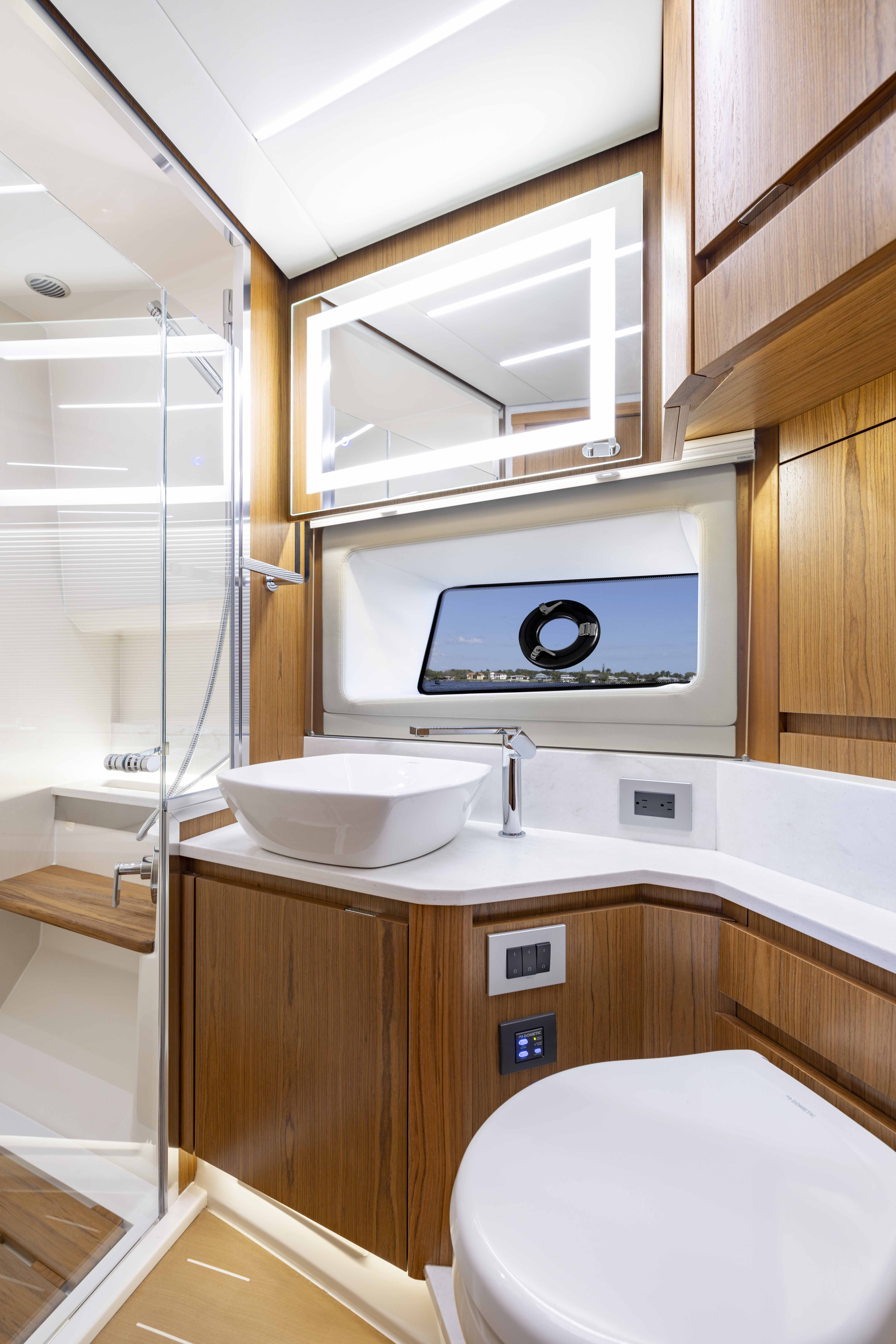

Owner's Head
• Full frame door with private owner's stateroom entry
• VacuFlush® toilet with electric flush operation
• Fiberglass stall shower with teak floor grate and glass shower door
• Solid surface countertop and accents, vessel sink, hot/cold water faucet
• Hullside window with opening port, screen and manual shade
• Backlit and defogging mirror and upper storage cabinet
• Lower vanity storage
• Indirect lighting
• Waste receptacle
• Exhaust fan
• Air conditioning vent with controls in owner's stateroom
• GFI protected outlet
• Herculan® teak deck flooring

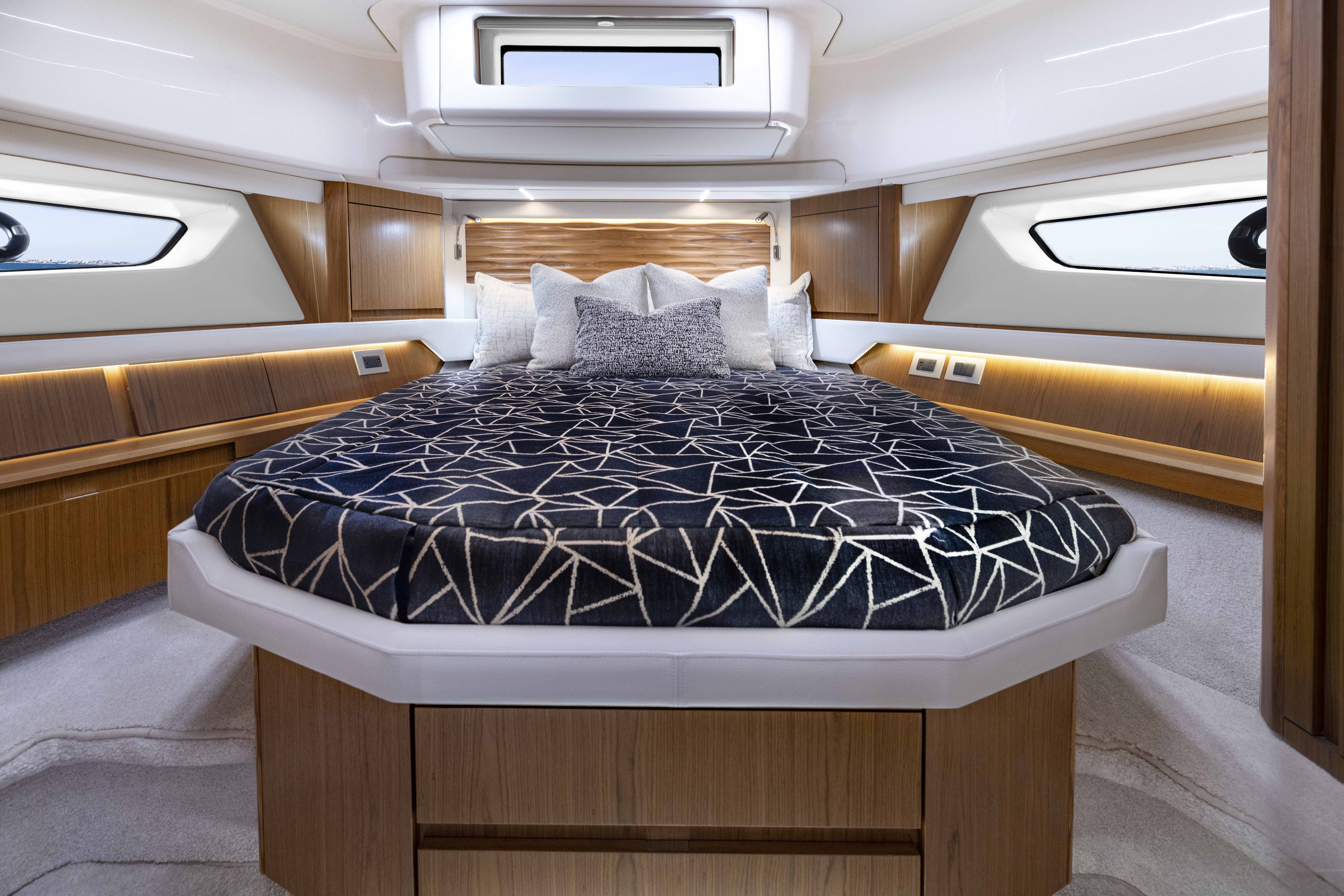

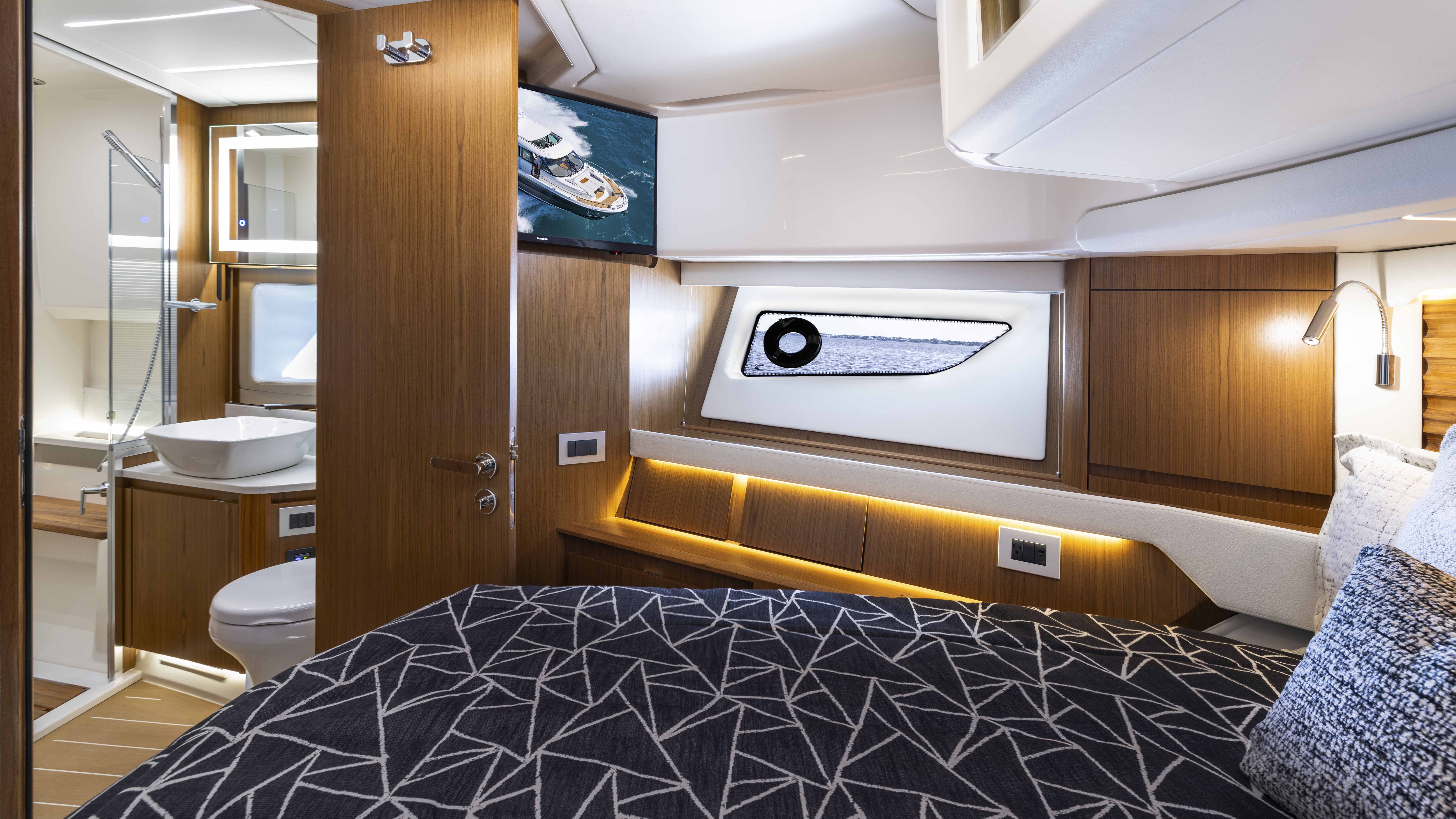

Guest Stateroom
• Island queen berth with innerspring mattress, carved teak at Ultraleather headboard, two reading lights, mattress pad and sheets
• Lighted storage compartment below berth
• Hanging locker with additional storage
• Fiberglass headliner system with wrapped panel inserts
• Skylight forward with shade
• Port and starboard hullside windows with manual shades and opening ports and screens for ventilation
• Overhead linear LED lighting with discrete indirect lighting
• Webasto® 12,000 BTU air conditioning system for guest cabin
• 32" Smart HDTV
• Built-in inductive cellphone chargers
• Fusion® stereo system with two 4" JL Audio® speakers
• Drawer storage
• Carpeted flooring
Guest/Day Head
• Full frame doors with entry from guest stateroom and atrium
• VacuFlush® toilet with electric flush operation
• Fiberglass stall shower with teak floor grate, glass shower door
• Solid surface countertop with sink, hot/cold water faucet
• Backlit and defogging mirror and upper storage cabinet
• Lower vanity storage
• Port hullside window with opening port, screen and manual shade
• Exhaust fan
• Air conditioning vent with controls in owner's stateroom
• Waste receptacle
• Herculan® synthetic teak flooring

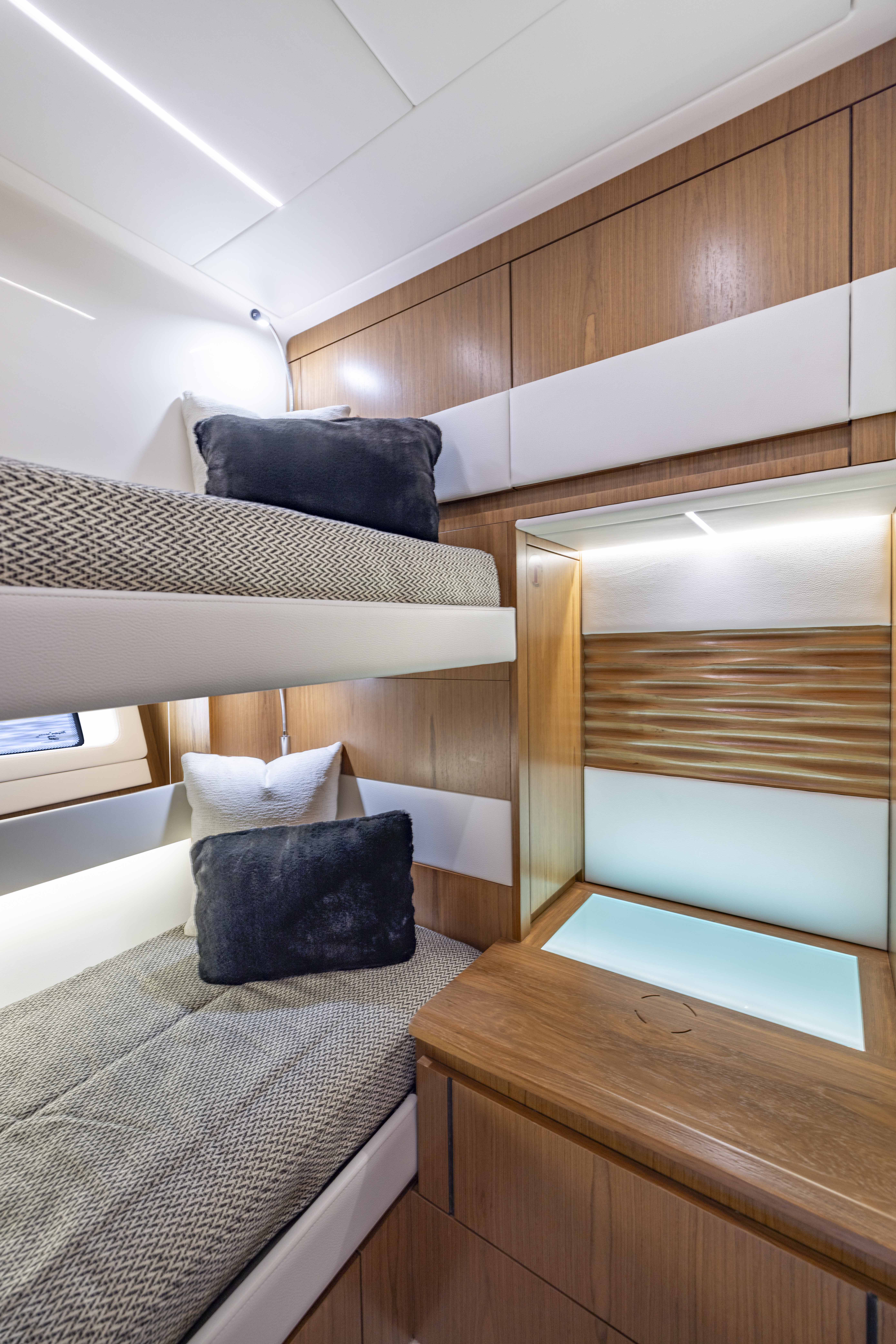

Third Stateroom
• Bunk berths with reading lights
• Storage compartment below lower berth
• Cedar-backed hanging locker with additional storage
• Fiberglass headliner system with wrapped panel inserts
• Overhead LED lighting
• Opening port for ventilation
• AC/DC electrical panel in overhead cabinet
• Nightstand with glass top and inductive cellphone charger
• 32" Smart HDTV
Instrumentation, Safety and Equipment
• Tiara custom 12V/24V DC and 240V AC electrical system with Tiara power-up/system monitoring panel
• One 240V AC 50 amp 65' dockside power cord with Glendinning® Cablemaster recoiler system
• TV and AM/FM radio antennas
• Onan® 13.5 kW diesel generator with sound shield
• 12V/24V multiple AGM bank battery system with AGM batteries and remote battery switches
• 120 amp battery charger with built-in 3,000 watt inverter
• Electrical bonding system
• Volvo® EEC electronic engine controls and steering system
• Volvo® Glass Cockpit integrated electronics package includes:
• Volvo® Joystick Plus with Joystick Driving, Dynamic Positioning System and Assisted Docking
• GPS antennas
• Two Volvo®/Garmin® 22" 9022 GPSMAP displays
• Volvo®/Garmin® GRID 20 remote
• Volvo®/Garmin® autopilot
• GPS antennas
• Garmin® 54 Fantom Array Radar
• Garmin® VHF215 radio
• Garmin® GSD24 sounder module
• 1 kW transducer
• Aft facing cockpit camera
• SiriusXM® radio and weather ready
• Pre-wiring for Starlink satellite internet
• High output alternators
• Propellers
• Volvo® Interceptor trim tabs with active trim, list and coordinated turn
• Engine room with lighting and acoustical insulation
• Racor® fuel filters/water separators for engines and generator
• Raw water intake strainers, engines, air conditioners, gyro and generator
• Vibration mounts for engines and generator
• Plate mounted, thru-bolted engine system
• Ritchie® Super Sport SS2000 compass
• Three automatic/manual electric bilge pumps with LED monitors at helm, 2,000 GPH each
• Aluminum fuel tank, total capacity 650 gallons, with in-line fuel vent filters and fuel shut-off valves on top of tank
• Dockside water inlet, aft deck
• Fresh water tank, total capacity 135 gallons
• Holding tank, 68 gallons with deck discharge and holding tank vent filter
• Fresh water tank/holding tank monitor
• Fresh water pressure system with 10 GPM pump
• One water heater, 20 gallons
• Kahlenberg® chrome dual trumpet air horn
• FE-227 agent automatic/manual fire extinguisher system for engine room
• Five handheld fire extinguishers
• Carbon monoxide and smoke alarms in staterooms
• Five port oil changing system for main engines and generator
• Propspeed® applied to drives and props
• Dedicated storage for dock lines and fenders
• Eight Tiara life vests (domestic boats only)
• Eight 5/8" x 30' black dock lines
• Two Taylor Made® Big B Fenders
• USCG safety and medical kit
• USCG/International LED navigation lighting
• NMMA certified using ABYC standards
• International certification options available
(European CE and others)
• Engines and boat systems are shipped winterized
