SPECIFICATIONS:
· LOA – 45’ - Including Tender
· LOD – 37’
· Beam – 12’ 2”
· Draft – 3’ 6”
· Displacement – 19,000lbs.
· Hull – Solid Fiberglass
· Decks – Fiberglass with Teak Overlay
o Emerald Marine - Replaced Decking on Rear Deck Step, Replaced the Sub-Decking, Sealed It, Replaced & Sealed the Teak Decking – 2020
o Emerald Marine – Examined Entire Teak Deck – Replacing Screws & Bungs as Needed. Checked Subdeck Surface Underneath Teak & Reported it is in Very Good Condition - 2023
· Super Structure – Molded Fiberglass
· Headroom – 6’ 4”
· Vintage 1982
· Builder – Hershine Marine, Kaohsiung Hsien, Taiwan, ROC
TANKAGE:
· FUEL – 330 Gallons in (2) Aluminum Tanks - NEWER
· WATER – 200 Gallons in (2) Stainless Steel Tanks
· HOTWATER – 6 Gallons in (1) Stainless Steel Tank
· WASTE – (2) Plastic Poly Tanks with NEW Macerator Holding Tank Pump - 2024
· PROPANE – 6 Gallons in (2) Painted Steel Tanks

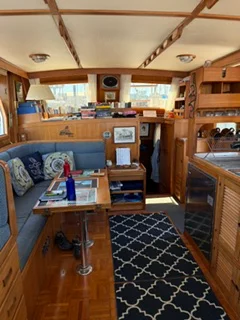

INTERIOR:
· Sleeps 6:
o (2) in Forward Guest V-Berth w/ Memory Foam Mattress inc. Plastic Spacer
o (2) on Convertible Dinette
o (2) in Aft Master Stateroom with Walk-Around Pedestal Bed, Memory Foam Mattress including Plastic Spacer & NEW Headboard in 2018
· Private Heads:
o (1) Forward Head with VacuFlush Toilet & Shower – NEWER Sink Faucet
o (1) Aft Master Head with Dometic Electric Toilet w/ Built-In Macerator (NEW 2022) & NEW Shower Head
· Hot & Cold Pressure Water System – Water System Plex Plastic Hoses - NEW 2026

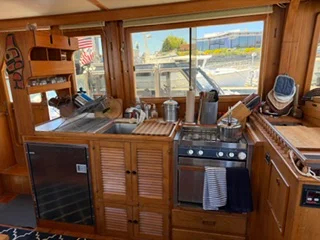

· Galley Sink - Large Stainless Steel with Nice Cutting Board Insert
· Galley Storage – Added Condiments Cabinet Aft of Port Salon Door – NEW 2015
o Added Dish Rack - NEW 2015
o Emerald Marine in Anacortes Built Both the Above
· Galley Storage – Added Cabinet Aft of Dinette Settee - 2015
· Galley Countertop - Owner will Replace the Countertop Non-Skid
· Galley Stove/Oven – Force 10 Propane 2-Burner
· Galley Refrigeration – Nor-Cold DE7040 Under Counter – NEW April 2016
· Galley Freezer – In Refrigerator
· Flybridge Freezer – Engel Portable 43 Quart – NEW 2019
· Galley Microwave Oven – GE Compact
· Galley Sink – Dual Stainless Steel
· Cabin Heating System – Wallas Nautic 40D
· Salon Forward Middle Opening Window – Refastened 2025
· Stereo – AM/FM/CD
· Storage – INCREASED Storage by 50% - 2014 / 2015
o Forward V-Berths – Large Cavity – Installed Floorboards
o Under Galley Sinks – Installed Sliding Shelves (Containers Stay with Boat)
o Aft Cabin Cabinets - Installed Mid-Level Shelves
o Aft Head – Enlarged Original Mirrored Cabinet
o Aft Head - 2nd Built and Installed
o Chart Box at Lower Helm – NEW 2015
MECHANICAL:

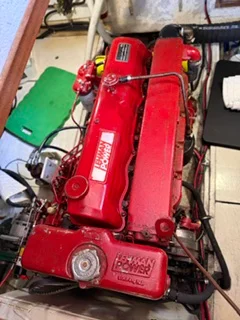

Single Ford Lehman, 2715E, 120hp, Freshwater Heat Exchanger, Direct-Drive, Inboard, Diesel Engine
Hours – 6500
· Engine – Serviced Annually in Fall – Sept 2026 – Oil Removed is Sent to Lab for
· Analysis Every Year – Each Analysis Reports Condition is Excellent.
· Engine Fuel Filtration:
o Primary – Racor
o Secondary – On Engine
· Engine Impeller – NEW Every 300 to 400 Hours
· Engine Valves – Valve Adjustment Sept 2026
· Transmission – Borg Warner 10-17-012 – Gear Reduction 2.5:1
· Engine Exhaust - Wet
· Engine Exhaust Elbow – NEW End of 2025 (Good for 6 to 7 Years)
· Engine Shaft Seal – (1) 1.5” Stainless Steel
· Shaft Bearing – (1) Bronze & Rubber
· Shaft Log – (1) Bronze & Flax
· Struts – (1) Bronze
· Propeller- (1) 4-Blade - 26 x 19 Bronze
· Steering System – Capilano Hydraulic / Wheel / Dual Station
· Control System – Cable System / Single Lever Throttle / Single Lever Shift / Dual Station
· Rudder – (1) 1.5” Stainless Steel
o Increased Rudder Size By About 50% to Increase Low Speed Maneuverability - 2021
· Rudder Logs – Bronze & Flax
· Stern Thruster - Dickenson

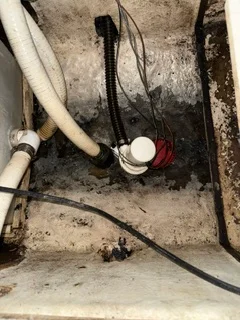

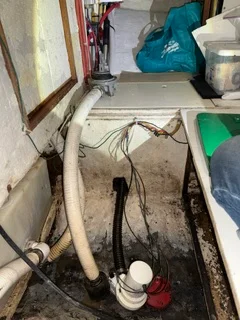

· Bilge Pumps:
o (1) Forward - 12Volt DC - Auto/Manual
o Engine Room - 12Volt DC – Auto/Manual
o Engine Room Whaler Gusher - Manual
ELECTRICAL:

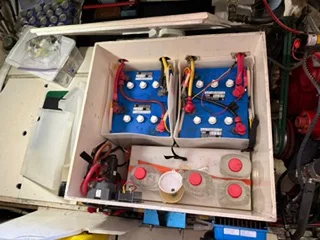

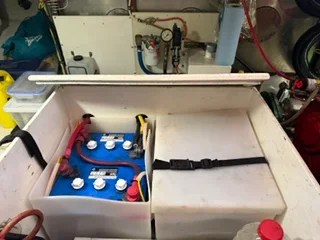

· Batteries:
o (1) Start – 4D – NEW June 2025
o (4) House – 6Volt DC – NEW June 2025
· Inverter /Charger -– 2000 Watt Magnum Energy Pure Sine Wave – NEW 2020
· Battery Charger – Tru-Charge 40Amp
· Battery Monitor – Balmar Smartgauge – NEW 2015
· Added Additional AC Outlets, DC Outlets & USB Charging Ports
· Shore Power – (1) 30Amp 120Volt AC

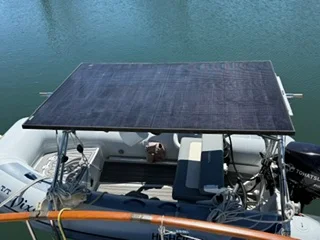

· Solar Panels – 400Watt Bifacial Solar Panel with Victron Controller – NEW 2025
NAVIGATION & COMMUNICATION:

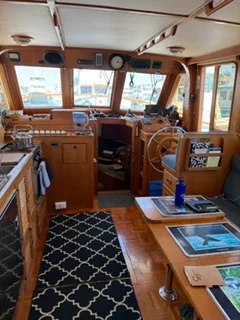

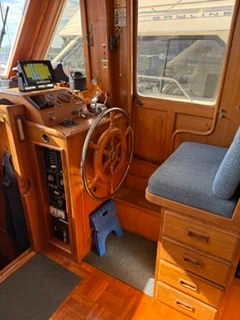

· Lower Helm:
o Compass – Ritchie – NEW 2017
o Radar – Furuno
o GPS – Garmin System – NEW 2023
o Garmin Thru-Hull Transducer – NEW 2023
o Depth Sounder – Standard Horizon
o Autopilot – Furuno &Fluxgate Compass – NEW 2017
o VHF – Icom 604 – NEW 2024
o VHF Morad Antenna – NEW 2021
o VHF System – NEW 2021
o SeaTemp – Model 23
o Stern Thruster Control

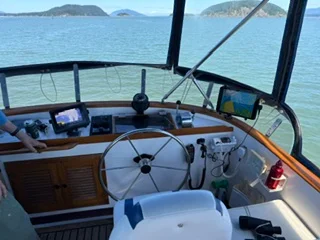

· Flybridge Helm:
o Compass – Autonautic – NEW 2015
o Depth Sounder – Standard Horizon
o GPS - Garmin System – NEW 2023
o Autopilot – Furuno & Fluxgate Compass – NEW 2017
o VHF – Icom 604 – NEW 2024
o VHF Morad Antenna – NEW 2021
o VHF System – NEW 2021
o Stern Thruster Control
SPAR & RIGGING:
· Mast Material – Painted Wood with Single Spreader
· Rigging Stainless Steel & Dacron
· Boom – Added Custom-Built Boom to the Mast
o Great for Hoisting Things OnBoard
o Mostly it Looks Great!!!
GROUND TACKLE:
· Windlass – Power Up on Bow Deck12Volt DC
· Bow Roller
· Anchor:
o CQR 35#
o Plow 25#
· Chain – Ample, All Chain
SAFETY:
· Navigation Lights
· Anchor Light
· PA/Hailing/Horn – Standard Horizon – NEW 2015
· Smoke Detector
· Propane Detector Alarm
· Search Light – (1) Portable
· Swim Platform
· Radar Reflector
· Windshield Wipers – (2) 12Volt DC at Lower Helm
· Defrost Fan – (1) 12Volt DC at Lower Helm
· Safety Railings:
o Stainless Steel on Flybridge
o Stainless Steel Stanchions with Teak Rail Caps – Full Deck
· Escape Hatches – (1) Forward, (1) Aft, Port & Starboard Sliding Doors
o (1) Forward Stateroom Hatch– Hatch Rebuilt 2021
o (1) Aft Stateroom Hatch – Hatch Rebuilt 2025
· Tethered Life Ring
· Emergency Flares
· Fire Extinguishers:
o (2) USCG Type ABC, Size 2 – Located in Forward Berth
o (2) USCG Type ABC, Size 2 – Located in Aft Berth
o (1) USCG Engine Room Halon 1301, 5lb, Class ABC
· PFDS:
o (2) USCG Type 4 – Located on Flybridge
o (4) USCG Type 2 – Located on Flybridge
MISCELLANEOUS:
· Bottom Paint – NEW 2022
· Zincs – NEW June 2026
· Tender:
o 10’ Highfield Hard Bottom Inflatable – NEW 2020
o Tohatsu15hp - w/Raise & Lower Controls & Auto-Start - NEW 2020
o Hours - 40
o Tohatsu Serviced Annually at end of Summer
o Center Console
o Helm Steering Wheel
o GPS Chart Plotter with fish Finder
o Portable Navigation Lights
· Tender Davit System – Kato Stainless Steel Fork Marine Davits – NEW 2018
· Canvas:
o Full Large Flybridge Bimini – NEW 2021
o Canvas & Isinglass Drop Curtains Enclosing Complete Flybidge
§ Various NEW Components from 2021 thru 2025
o Hatches – Canvas Covers for Both Forward & Aft Hatches
o Salon Front Windshield - See-Through Sunscreens – 2022
o Blue Sunbrella Solid Canvas Winter Covers
· BBQ – Dickenson Sea BBQ
· Down Rigger Blocks - Located in Cockpit
· Spare Parts
· Manuals
· Staging & Personal Items will be Removed at Time of Sale
